Model number suffix “EB” denotes UK model.

Basic Operating Instructions

Digital Camera/

Lens Kit/Body

Model No. DC-GH5L/DC-GH5M

DC-GH5

Please read these instructions carefully before using this product, and

save this manual for future use.

More detailed operating instructions are available in “Operating Instructions

for advanced features (PDF format)”. To read it, download it from the website.

(P122)

DVQX1064ZA

F0217HN0

until

2017/3/23

DC-GH5LMBodyEB-DVQX1064_eng.book 1 ページ２０１７年２月２日　木曜日　午後３時１５分

2DVQX1064 (ENG)

Dear Customer,

We would like to take this opportunity to thank you for purchasing this Panasonic Digital

Camera. Please read these Operating Instructions carefully and keep them handy for

future reference. Please note that the actual controls and components, menu items, etc. of

your Digital Camera may look somewhat different from those shown in the illustrations in

these Operating Instructions.

Carefully observe copyright laws.

• Recording of pre-recorded tapes or discs or other published or broadcast material for purposes

other than your own private use may infringe copyright laws. Even for the purpose of private

use, recording of certain material may be restricted.

Information for Your Safety

∫Product identification marking

WARNING:

To reduce the risk of fire, electric shock or product damage,

• Do not expose this unit to rain, moisture, dripping or splashing.

• Use only the recommended accessories.

• Do not remove covers.

• Do not repair this unit by yourself. Refer servicing to qualified service personnel.

The socket outlet shall be installed near the equipment and shall be easily accessible.

Product Location

Digital camera Bottom

Battery charger Bottom

DC-GH5LMBodyEB-DVQX1064_eng.book 2 ページ２０１７年２月２日　木曜日　午後３時１５分

(ENG) DVQX1064

∫About the battery pack

• Do not heat or expose to flame.

• Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with

doors and windows closed.

∫About the battery charger

• The battery charger is in the standby condition when the AC power supply cord is connected.

The primary circuit is always “live” as long as the power cord is connected to an electrical

outlet.

Declaration of Conformity (DoC)

Hereby, “Panasonic Corporation” declares that this product is in compliance with the

essential requirements and other relevant provisions of Directive 1999/5/EC.

Customers can download a copy of the original DoC to our R&TTE products from our

DoC server:

http://www.doc.panasonic.de

Contact to Authorized Representative:

Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 15,

22525 Hamburg, Germany

This product is intended to be used in the following countries.

Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,

France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg,

Netherlands, Poland, Portugal, Romania, Slovakia, Spain, Sweden, United Kingdom,

Norway, Switzerland, Turkey

CAUTION

• Danger of explosion if battery is incorrectly replaced. Replace only with the type

recommended by the manufacturer.

• When disposing of the batteries, please contact your local authorities or dealer and ask for

the correct method of disposal.

Warning

Risk of fire, explosion and burns. Do not disassemble, heat above 60 xC or incinerate.

CAUTION!

To reduce the risk of fire, electric shock or product damage,

• Do not install or place this unit in a bookcase, built-in cabinet or in another confined

space. Ensure this unit is well ventilated.

DC-GH5LMBodyEB-DVQX1064_eng.book 3 ページ２０１７年２月２日　木曜日　午後３時１５分

4DVQX1064 (ENG)

• Do not use any other USB connection cables except the supplied one.

• Use a “High Speed HDMI cable” with the HDMI logo.

Cables that do not comply with the HDMI standards will not work.

“High Speed HDMI cable” (Type A–Type A plug, up to 1.5 m (4.9 feet) long)

• Always use a genuine Panasonic shutter remote control (DMW-RSL1: optional).

• Do not use the headphone cables with the length of 3 m (9.8 feet) or more.

• Do not use the synchro cables with the length of 3 m (9.8 feet) or more.

Keep this unit as far away as possible from electromagnetic equipment (such as

microwave ovens, TVs, video games etc.).

• If you use this unit on top of or near a TV, the pictures and/or sound on this unit may be

disrupted by electromagnetic wave radiation.

• Do not use this unit near cell phones because doing so may result in noise adversely affecting

the pictures and/or sound.

• Recorded data may be damaged, or pictures may be distorted, by strong magnetic fields

created by speakers or large motors.

• Electromagnetic wave radiation may adversely affect this unit, disturbing the pictures and/or

sound.

• If this unit is adversely affected by electromagnetic equipment and stops functioning properly,

turn this unit off and remove the battery or disconnect AC adaptor (DMW-AC10E: optional).

Then reinsert the battery or reconnect AC adaptor and turn this unit on.

Cautions for Use

DC-GH5LMBodyEB-DVQX1064_eng.book 4 ページ２０１７年２月２日　木曜日　午後３時１５分

(ENG) DVQX1064

Do not use this unit near radio transmitters or high-voltage lines.

• If you record near radio transmitters or high-voltage lines, the recorded pictures and/or sound

may be adversely affected.

• Before cleaning the camera, remove the battery or the DC coupler (DMW-DCC12:

optional), or disconnect the power plug from the outlet.

• Do not press the monitor with excessive force.

• Do not press the lens with excessive force.

• Do not spray the camera with insecticides or volatile chemicals.

• Do not keep rubber or plastic products in contact with the camera for a long period of

time.

• Do not use solvents such as benzine, thinner, alcohol, kitchen detergents, etc., to clean

the camera, since it may deteriorate the external case or the coating may peel off.

• Do not leave the camera with the lens facing the sun, as rays of light from the sun may

cause it to malfunction.

• Always use the supplied cords and cables.

• Do not extend the cords or the cables.

• During access (image writing, reading and deleting, formatting etc.), do not turn this unit

off, remove the battery, card or disconnect the AC adaptor (DMW-AC10E: optional).

Furthermore, do not subject the camera to vibration, impact or static electricity.

• The data on the card may be damaged or lost due to electromagnetic waves, static electricity or

breakdown of the camera or the card. We recommend storing important data on a PC etc.

• Do not format the card on your PC or other equipment. Format it on the camera only to ensure

proper operation.

• The battery is not charged when the camera is shipped. Charge the battery before use.

• The battery is a rechargeable lithium ion battery. If the temperature is too high or too

low, the operating time of the battery will become shorter.

• The battery becomes warm after using and during and after charging. The camera also

becomes warm during use. This is not a malfunction.

• Do not leave any metal items (such as clips) near the contact areas of the power plug or

near the batteries.

• Store the battery in a cool and dry place with a relatively stable temperature: [Recommended

temperature: 15 oC to 25 oC (59 oF to 77 oF), Recommended humidity: 40%RH to 60%RH]

•Do not store the battery for a long time while fully charged. When storing the battery for a

long period of time, we recommend charging it once a year. Remove the battery from the

camera and store it again after it has completely discharged.

These symbols indicate separate collection of waste

electrical and electronic equipment or waste batteries.

More detailed information is contained in “Operating

Instructions for advanced features (PDF format)”.

DC-GH5LMBodyEB-DVQX1064_eng.book 5 ページ２０１７年２月２日　木曜日　午後３時１５分

6DVQX1064 (ENG)

Contents

Information for Your Safety .........................2

Preparation/Basic

Care of the camera ..................................... 7

Standard Accessories .................................8

About cards that can be used with

this unit........................................................9

About the Lens.......................................... 10

Quick Start Guide...................................... 11

Names and Functions of Components......17

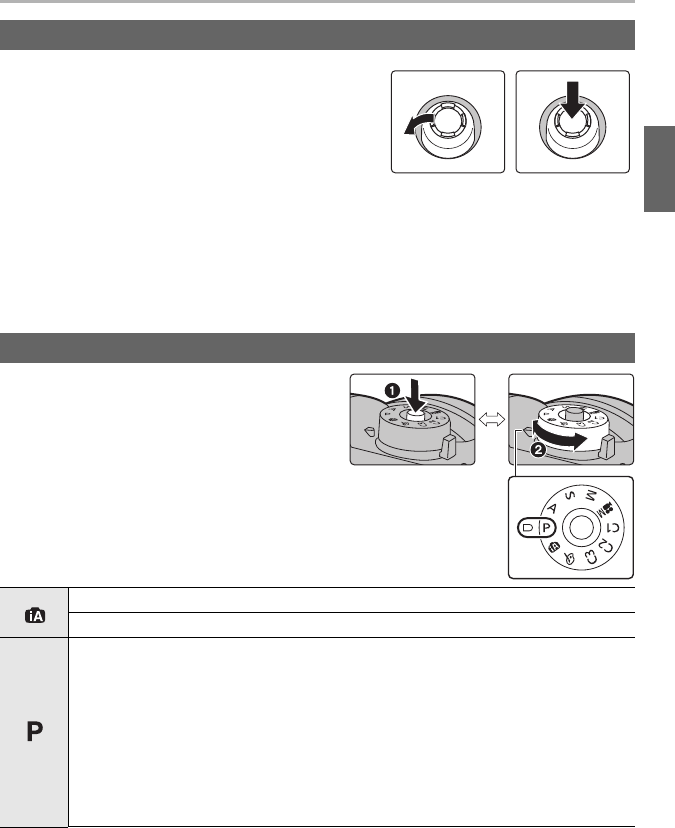

Basic Operations....................................... 20

Setting menu items ................................... 26

Calling frequently-used menus instantly

(Quick Menu) ............................................ 27

Assigning frequently used functions to

the buttons (function buttons) ................... 28

Recording

Taking Pictures using the Automatic

Function (Intelligent Auto Mode) ...............30

Setting the Focus Mode

(AFS/AFF/AFC)......................................... 32

Setting the Auto Focus Mode....................33

Specifying the AF area position ................34

Adjusting Focus Manually ......................... 36

Fixing the Focus and the Exposure

(AF/AE Lock)............................................. 37

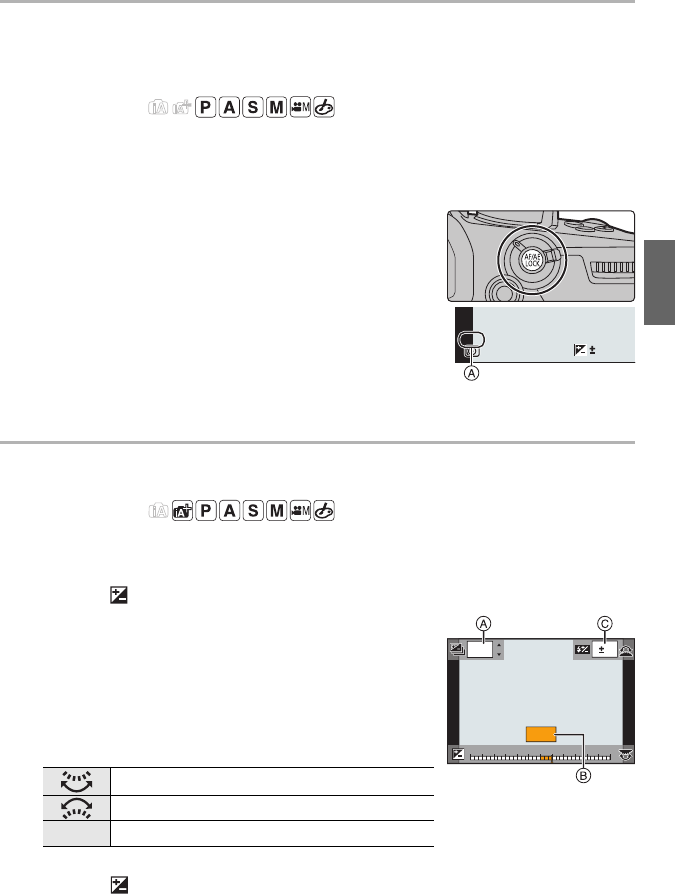

Compensating the Exposure..................... 37

Setting the Light Sensitivity.......................38

Adjusting the White Balance .....................39

Select a Drive Mode..................................40

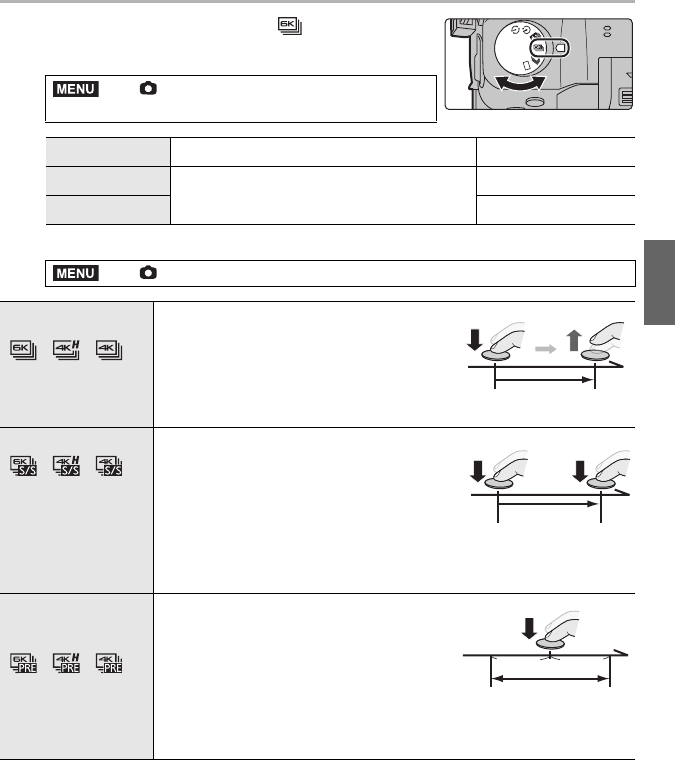

Recording 6K/4K Photos........................... 40

Controlling Focus After Recording

(Post Focus/Focus Stacking) ....................44

Taking Pictures with Time Lapse Shot/

Stop Motion Animation .............................. 46

Taking Pictures While Adjusting a Setting

Automatically (Bracket Recording)............48

Image Stabiliser ........................................51

Raising the telescopic effect ..................... 53

Taking Pictures with the External Flash

(Optional) .................................................. 54

Recording Motion Picture.......................... 55

Recording Motion Pictures in

Creative Video Mode................................ 60

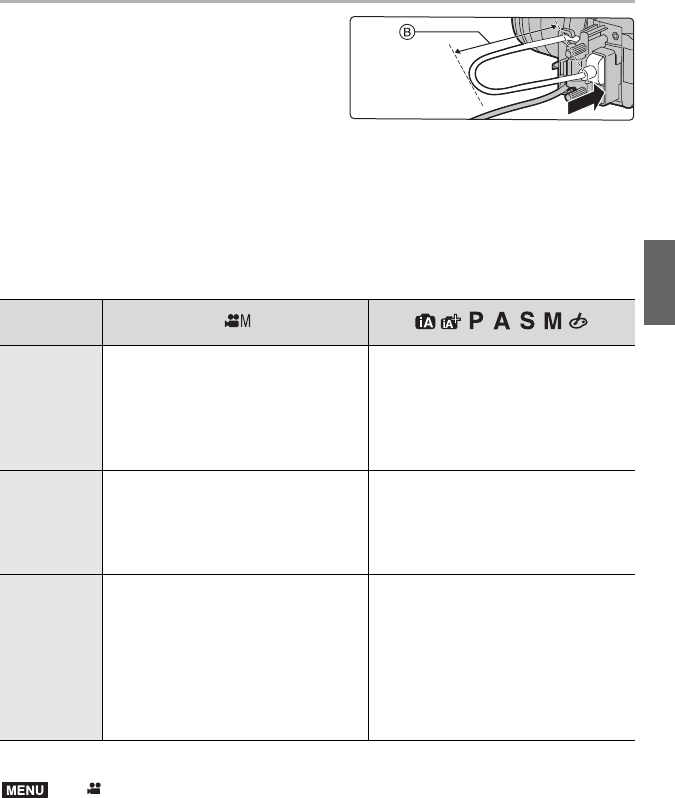

Recording Motion Pictures Using a

Connected External Device...................... 66

Playback

Playing Back Pictures............................... 71

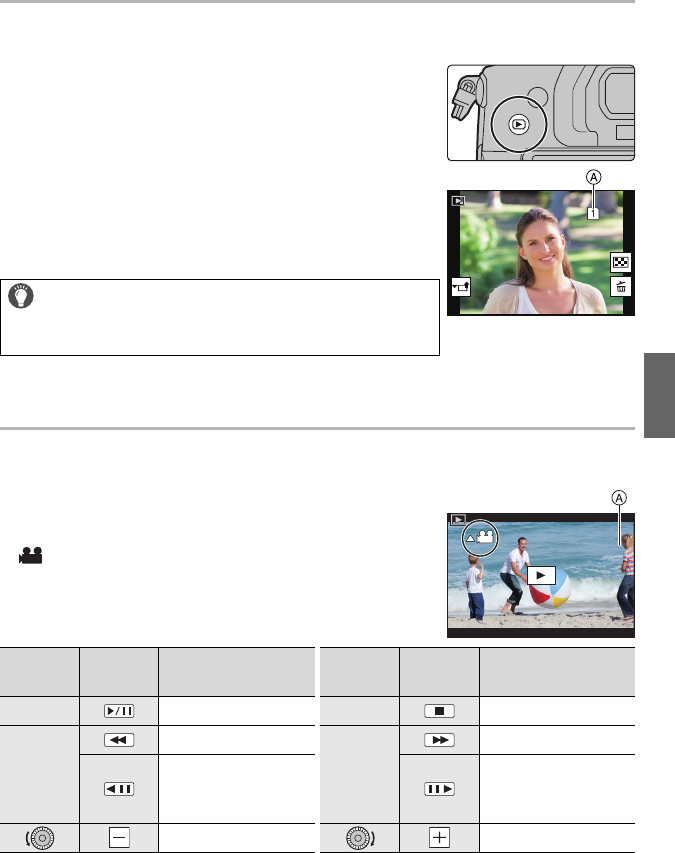

Playing Back Motion Pictures................... 71

Switching the Playback Method ............... 72

Playing Back Group Pictures.................... 73

Deleting Pictures ...................................... 74

Menu list................................................... 75

Wi-Fi/Bluetooth

What you can do with the Wi-Fi®/

Bluetooth® function ................................... 87

Connecting to a smartphone/tablet .......... 89

Controlling with a Smartphone/Tablet....... 93

Setting up a connection to a PC via a

wireless access point ............................. 101

Others

Playing Back Pictures on a TV Screen... 103

Downloading software ............................ 103

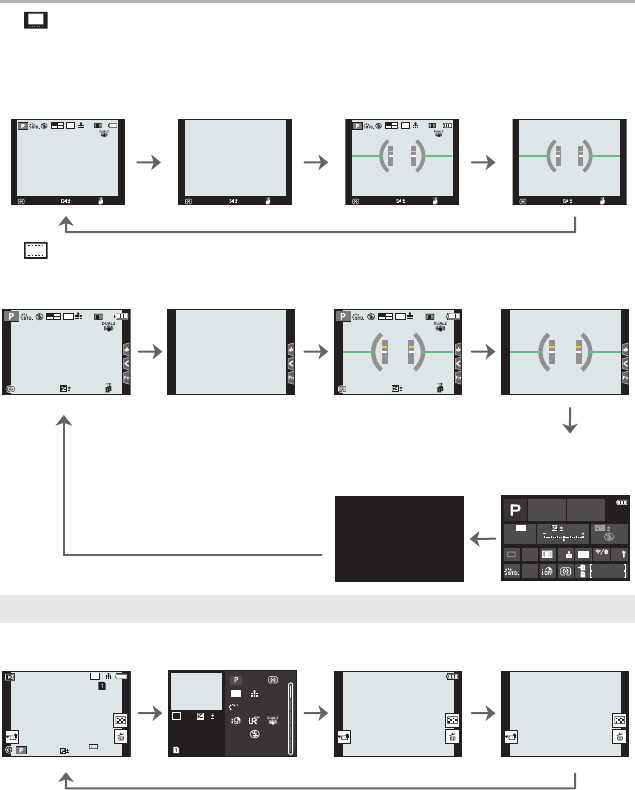

Monitor Display/Viewfinder Display ........ 106

Message Display.....................................110

Troubleshooting....................................... 111

Specifications ..........................................115

Digital Camera Accessory System ......... 121

Reading the Operating Instructions

(PDF format)........................................... 122

DC-GH5LMBodyEB-DVQX1064_eng.book 6 ページ２０１７年２月２日　木曜日　午後３時１５分

Preparation/Basic

(ENG) DVQX1064

Care of the camera

Do not subject to strong vibration, shock, or pressure.

• The lens, monitor, or external case may be damaged if used in the following conditions.

It may also malfunction or image may not be recorded if you:

– Drop or hit the camera.

– Press hard on the lens or the monitor.

∫Splash Proof

Splash Proof is a term used to describe an extra level of protection this camera offers

against exposure to a minimal amount of moisture, water or dust. Splash Proof does not

guarantee that damage will not occur if this camera is subjected to direct contact with

water.

In order to minimise the possibility of damage please be sure the following precautions are

taken:

– The Splash Proof feature works in conjunction with the lenses that were specifically designed

to support this feature.

– The camera is not designed to be Dust and Splash proof when the USB connection cable or

the cable holder is attached to it.

– Make sure that all doors, socket caps and terminal covers are securely closed.

– Make sure that you are in a dry and secure place when changing the battery, lens or memory

card. After changing, make sure their protective doors are securely closed.

– If this camera is exposed to water, sand or any other foreign material clean it as soon as

possible, taking the necessary precautions that the foreign substance does not get inside the

camera.

– Under no circumstances should you touch or place any foreign objects within the camera or

in close proximity of the camera’s image sensor.

When using the camera in cold environments with temperatures between s10 oC

and 0 oC (14 oF and 32 oF):

– Attach a Panasonic interchangeable lens with a minimum recommended operating

temperature of s10 oC (14 oF) before use.

If sand, dust, or liquids such as water droplets adhere to the monitor, wipe them off with a

dry soft cloth.

– Not doing so may cause the monitor to respond incorrectly to touch operations.

– If the monitor is closed when such liquids are present, malfunction may result.

∫About Condensation (When the lens, the viewfinder or monitor is fogged up)

• Condensation occurs when the ambient temperature or humidity changes. Be careful of

condensation since it causes lens, viewfinder and monitor stains, fungus and camera

malfunction.

• If condensation occurs, turn the camera off and leave it for about 2 hours. The fog will

disappear naturally when the temperature of the camera becomes close to the ambient

temperature.

If you shake the camera while it is turned off, its sensors may move or a rattling sound

may be heard. The sound is caused by the In-Body Image Stabiliser, and this is not a

malfunction.

DC-GH5LMBodyEB-DVQX1064_eng.book 7 ページ２０１７年２月２日　木曜日　午後３時１５分

Preparation/Basic

8DVQX1064 (ENG)

Standard Accessories

Check that all the accessories are supplied before using the camera.

Product numbers correct as of February 2017. These may be subject to

change.

Digital Camera Body

(This is referred to as camera body in these operating instructions.)

¢1 This is referred to as lens in these operating

instructions.

¢2 The interchangeable lenses (H-ES12060/

H-FS12060) included in DC-GH5L/DC-GH5M

are dust- and splash-proof.

¢3 This is attached to the interchangeable lens at

the time of purchase.

¢4 This is attached to the camera body at the time

of purchase.

1Interchangeable Lens¢1,2

2Lens Hood

3Lens Cap¢3

4Lens Rear Cap¢3

5Body Cap¢4

Battery Pack

(Indicated as battery pack or battery in the

text)

Charge the battery before use.

Battery Charger

(Indicated as battery charger or charger in

the text)

8AC mains Lead

9USB Connection Cable

10 Cable holder (P66)

11 Shoulder Strap

12 Hot shoe cover¢4 (P54)

13 Eye Cup¢4

14 Flash synchro socket cap¢4

15 Cover for the battery grip connector¢4

DC-GH5L DC-GH5M

VKF4971

DMW-BLF19E

1PP1A561Z

DMW-BTC10E

4YE1A561Z

VKF5108

VFC4605

H-ES12060

1ZE4Z260Z

SYF0083

DVPW1003Z

SKF0145K

VFC4605

H-FS12060

SYA0066

VYF3514

VYF3522

K2CT3YY00034

K1HY24YY0021

DC-GH5LMBodyEB-DVQX1064_eng.book 8 ページ２０１７年２月２日　木曜日　午後３時１５分

Preparation/Basic

(ENG) DVQX1064

• SD Memory Card, SDHC Memory Card and SDXC Memory Card are indicated as card in the

text.

• The card is optional.

• Description in these operating instructions is based on the interchangeable lens (H-ES12060).

• Consult the dealer or Panasonic if you lose the supplied accessories. (You can purchase the

accessories separately.)

About cards that can be used with this unit

∫Recording of motion pictures/6K photos/4K photos and speed class ratings

Use a card that meets the following ratings of the SD Speed Class or UHS Speed Class.

• SD Speed Class and UHS Speed Class are the speed standards regarding continuous writing.

To check the class, see the labelled side, etc. of the card.

• Please confirm the latest information on the following website.

http://panasonic.jp/support/global/cs/dsc/

(This Site is English only.)

• Keep the memory card out of reach of children to prevent swallowing.

SD Memory Card

(512 MB to 2 GB)

• This unit is compatible with UHS-I/UHS-II UHS Speed Class

3 standard SDHC/SDXC memory cards.

• Operation of the cards on the left has been confirmed with

Panasonic’s cards.

SDHC Memory Card

(4 GB to 32 GB)

SDXC Memory Card

(48 GB to 128 GB)

[Rec Format] [Rec Quality] Speed class Label example

[AVCHD] All Class 4 or higher

[MP4] FHD

UHS Speed Class 3

[MP4 (LPCM)] All

[MOV] All

6K/4K Photo

Post Focus function UHS Speed Class 3

DC-GH5LMBodyEB-DVQX1064_eng.book 9 ページ２０１７年２月２日　木曜日　午後３時１５分

Preparation/Basic

10 DVQX1064 (ENG)

About the Lens

This unit can use the dedicated lenses compatible with

the Micro Four ThirdsTM System lens mount

specification (Micro Four Thirds mount).

You can also use a lens of any of the following

standards by attaching a mount adaptor.

For smoother recording, we recommend updating the firmware of the interchangeable lens

to the latest version.

• To view the latest information on the firmware or to download the firmware, visit the

support site below:

http://panasonic.jp/support/global/cs/dsc/

(This Site is English only.)

• To check the firmware version of the interchangeable lens, attach it to the camera body and

select [Version Disp.] in the [Setup] menu.

Lens Mount adaptor

Four Thirds™ mount specification

lens

Mount Adaptor (DMW-MA1: optional)

Leica M Mount interchangeable lens M Mount Adaptor (DMW-MA2M: optional)

Leica R Mount interchangeable lens R Mount Adaptor (DMW-MA3R: optional)

About the firmware of your interchangeable lens

DC-GH5LMBodyEB-DVQX1064_eng.book 10 ページ２０１７年２月２日　木曜日　午後３時１５分

Preparation/Basic “Quick Start Guide”

(ENG) DVQX1064

Quick Start Guide

• Check that the camera is turned off.

• We recommend attaching the shoulder strap when using the camera to prevent it from

dropping.

• Perform steps 1 to 8 and then attach the other side of the shoulder strap.

• Use the shoulder strap around your shoulder.

– Do not wrap the strap around your neck.

It may result in injury or accident.

• Do not leave the shoulder strap where an infant can reach it.

– It may result in an accident by mistakenly wrapping around the neck.

The battery that can be used with this unit is DMW-BLF19E.

1Connect the AC mains Lead.

2Attach the battery paying attention to the direction of the battery.

• The [CHARGE] indicator A lights up and charging begins.

∫ About the [CHARGE] indicator

• When the [CHARGE] indicator flashes

– The battery temperature is too high or too low. It is recommended to charge the battery again

in an ambient temperature of between 10 oC and 30 oC (50 oF and 86 oF).

– The terminals of the charger or the battery are dirty. In this case, wipe them with a dry cloth.

1Attaching the Shoulder Strap

2Charging the Battery

On: Charging.

Off: Charging has completed.

(Disconnect the charger from the electrical socket and detach the

battery after charging is completed.)

DC-GH5LMBodyEB-DVQX1064_eng.book 11 ページ２０１７年２月２日　木曜日　午後３時１５分

Preparation/Basic “Quick Start Guide”

12 DVQX1064 (ENG)

∫Charging time

• The indicated charging time is for when the battery has been discharged completely.

The charging time may vary depending on how the battery has been used.

The charging time for the battery in hot/cold environments or a battery that has not been

used for a long time may be longer than normal.

• Always use genuine Panasonic batteries (DMW-BLF19E).

• If you use other batteries, we cannot guarantee the quality of this product.

• Being careful about the battery orientation, insert all the way until you hear a locking sound and

then check that it is locked by lever A.

When removing the battery, push the lever A toward the arrow and pull out the battery.

• Check that the access lamp has gone off.

• Push it securely all the way until you hear a “click” while being careful about the direction in

which you insert it.

To remove the card, push the card until it clicks, then pull the card out upright.

• To insert/remove the card into/from the card slot 1 A, push the top side of the card. To insert/

remove the card into/from the card slot 2 B, push the bottom side of the card.

Charging time Approx. 220 min

3Inserting the Battery

4Inserting the Card (Optional)

DC-GH5LMBodyEB-DVQX1064_eng.book 12 ページ２０１７年２月２日　木曜日　午後３時１５分

Preparation/Basic “Quick Start Guide”

(ENG) DVQX1064

Card access indicators

• During access (i.e., while the access lamp is lit up or [ ]/[ ] is displayed), do not turn

this unit off, remove the battery, card or disconnect the AC adaptor (optional).

Furthermore, do not subject the camera to vibration, impact or static electricity.

The card or the data on the card may be damaged, and this unit may no longer operate

normally.

If operation fails due to vibration, impact or static electricity, perform the operation

again.

• With [Double Slot Function] in the [Setup] menu, you can set the way recording to the two card

slots is performed. (P83)

• Change lenses where there is not a lot of dirt or dust.

• Do not press the lens release button A when you attach a lens.

∫Detaching the lens

1Attach the lens cap.

2While pressing on the lens release button B, rotate the

lens toward the arrow until it stops and then remove.

Access lamp

Lights up while the card is

being accessed (during

recording, deletion,

formatting, etc.).

Access indication

Lights up red while an

image is being recorded to

the card.

5Attaching/Removing the Lens

DC-GH5LMBodyEB-DVQX1064_eng.book 13 ページ２０１７年２月２日　木曜日　午後３時１５分

Preparation/Basic “Quick Start Guide”

14 DVQX1064 (ENG)

At the time when this camera is purchased, the monitor is stowed in the camera body.

Bring out the monitor as shown below.

1Open the monitor. (Maximum 180o)

2It can be rotated 180o forward.

3Return the monitor to its original position.

• When rotating the monitor, be careful not to apply too much force. Doing so may cause

damage.

• When not using the monitor it is recommended that you close it with the screen facing inward to

prevent dirt and scratches.

• The clock is not set when the camera is shipped.

1Turn the camera on.

• When the camera is turned on, the status indicator 1

lights up.

2Press [MENU/SET].

3Press 2/1 to select the items (year, month, day,

hour, minute), and press 3/4 to set.

4Press [MENU/SET] to set.

5When [The clock setting has been completed.] is

displayed, press [MENU/SET].

6When [Please set the home area] is displayed, press

[MENU/SET].

7Press 2/1 to select the home area, and then press

[MENU/SET].

6Opening the Monitor

7Setting Date/Time (Clock Set)

DC-GH5LMBodyEB-DVQX1064_eng.book 14 ページ２０１７年２月２日　木曜日　午後３時１５分

Preparation/Basic “Quick Start Guide”

(ENG) DVQX1064

Adjust the diopter to suit your vision so that you can see

the characters displayed in the viewfinder clearly.

Format the card before recording a picture with this unit.

Since data cannot be recovered after formatting, make sure to back up necessary

data in advance.

Set the mode dial to [¦].

• The dial is locked if the mode dial lock button is depressed. (A)

Each press locks/unlocks the dial.

• The settings of the main functions are adjusted automatically.

1Hold the camera gently with both

hands, keep your arms still at

your side and stand with your feet

slightly apart.

• Do not cover the AF Assist lamp

A, or microphone B with your

fingers or other objects.

• Make sure your footing is stable and

there is no danger of colliding with

another person or object in the vicinity while taking pictures.

8Diopter adjustment

9Formatting the card (initialisation)

> [Setup] > [Format] > [Slot 1]/[Slot 2]

10 Set the mode dial to [ ]

11 Taking pictures

DC-GH5LMBodyEB-DVQX1064_eng.book 15 ページ２０１７年２月２日　木曜日　午後３時１５分

Preparation/Basic “Quick Start Guide”

16 DVQX1064 (ENG)

2Press the shutter button halfway

to focus.

AAperture value

BShutter speed

CFocus indication

• Aperture value and shutter speed are

displayed.

(It will flash in red if the correct

exposure is not achieved, except

when set to flash.)

• Once the subject is in focus, the

focus indication is displayed. (When

the subject is not in focus, the indication flashes.)

3Press the shutter button fully (push it in further), and take the picture.

• Be careful not to move the camera when you press the shutter button.

• Pictures cannot be taken until focus is achieved when [Focus/Release Priority] is set to

[FOCUS].

∫Free angle shooting

The monitor can be rotated to suit your needs. This is convenient as it allows you to take

pictures from various angles by adjusting the monitor.

• To display the picture in Playback Mode, press [(].

Taking pictures at a high angle Taking pictures at a low angle

12 Check the picture you have taken

6060602.82.82.8

1/981/981/981/98

DC-GH5LMBodyEB-DVQX1064_eng.book 16 ページ２０１７年２月２日　木曜日　午後３時１５分

Preparation/Basic

(ENG) DVQX1064

Names and Functions of Components

∫Camera body

26 2529 2728

1615 17

1314

24 23

2 3

19 5 6

1WIRELESS connection lamp (P87)

2Status indicator (P14)

3Camera ON/OFF switch (P14)

4[ ] (Exposure Compensation) button (P37)

5[ ](ISO sensitivity) button (P38)

6[ ](White Balance) button (P39)

7Focus distance reference mark

8[Fn1] button (P28)

9Motion picture button (P55)

10 Front dial (P20)

11 Shutter button (P16)

12 Self-timer indicator/

AF Assist Lamp

13 Mode dial (P21)

14 Mode dial lock button (P21)

Stereo microphone

• Be careful not to cover the microphone with

your finger. Doing so may make sound difficult

to record.

Hot shoe (Hot shoe cover) (P54)

• Keep the hot shoe cover out of reach of

children to prevent swallowing.

17 Drive mode dial (P40)

18 Flash synchro socket

(Flash synchro socket cap)

19 Shoulder strap eyelet (P11)

20 [MIC] socket (P69)

Headphone socket (P70)

• Excessive sound pressure from earphones

and headphones can cause hearing loss.

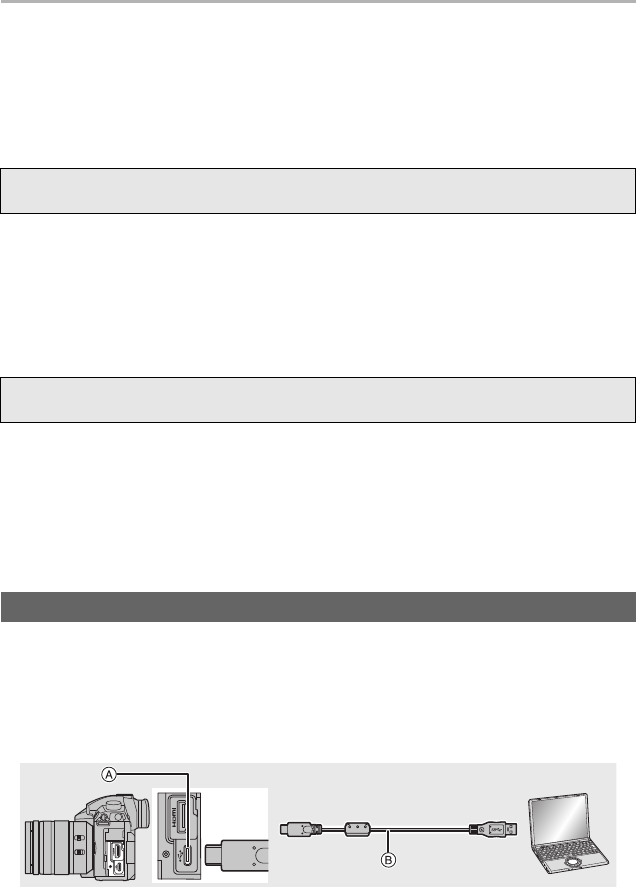

22 [HDMI] socket (P66, 103)

23 USB socket (P104)

24 Cable holder mount (P66)

25 Lens release button (P13)

26 Lens lock pin

27 Mount

28 Sensor

29 Lens fitting mark (P13)

30 Preview button/Function button (Fn6) (P28)

DC-GH5LMBodyEB-DVQX1064_eng.book 17 ページ２０１７年２月２日　木曜日　午後３時１５分

Preparation/Basic

18 DVQX1064 (ENG)

• Function buttons ([Fn7] to [Fn11]) (P28)

are touch icons.

Touch the [ ] tab on the recording screen to

display them.

35 36

60 5657

34 38 39

59 58

31 Touch screen (P25)/monitor (P106)

32 [(] (Playback) button (P71)

33 [LVF] button (P23)/[Fn5] button (P28)

34 Speaker

35 Eye sensor (P23)

36 Viewfinder (P23)

Eye cup

• Keep the eye cup out of reach of children to

prevent swallowing.

38 Diopter adjustment dial (P15)

Joystick (P21, 35)/Function button (P28)

Centre (Fn12)/3(Fn13)/1(Fn14)/4(Fn15)/

2(Fn16)

40 [Q.MENU] button (P27)/[Fn2] button (P28)

41 Rear dial (P20)

42 [DISP.] button (P23)

43 [AF/AE LOCK] button (P37)

44 Focus mode lever (P32, 36)

45 [REMOTE] socket

46 [ ] (Auto Focus Mode) button (P32)/

[Fn3] button (P28)

47 Cursor buttons (P20)/Function button (P28)

3(Fn17)/1(Fn18)/4(Fn19)/2(Fn20)

48 Control dial (P20)

49 [MENU/SET] button (P20, 26)

50 Card slot 1 (P12)

51 Access lamp (card 1) (P13)

52 Card slot 2 (P12)

53 Access lamp (card 2) (P13)

54 Card door (P12)

55 [ ] (Delete/Cancel) button (P74)/

[Fn4] button (P28)

56 Battery door (P12)

57 Release lever (P12)

DC coupler cover (P121)

• When using an AC adaptor, ensure that the

Panasonic DC coupler (DMW-DCC12:

optional) and AC adaptor (DMW-AC10E:

optional) are used.

• Always use a genuine Panasonic AC adaptor

(DMW-AC10E: optional).

• When using an AC adaptor, use the AC mains

Lead supplied with the AC adaptor.

Cover for the battery grip connector

• Keep the cover for the battery grip connector

out of reach of children to prevent swallowing.

Tripod mount

• It may not be possible to attach and securely

fasten a tripod with a screw length of 5.5 mm

(0.22 inch) or more to the camera. Doing so

may also damage the camera.

DC-GH5LMBodyEB-DVQX1064_eng.book 18 ページ２０１７年２月２日　木曜日　午後３時１５分

Preparation/Basic

(ENG) DVQX1064

∫Lens

H-ES12060

H-FS12060

134 8 10

6 7 92 5

3891041 25

1Lens surface

2Tele

3Focus ring (P36)

4Zoom ring

5Wide

6O.I.S. switch

[AF/MF] switch

• When either the [AF/MF] switch of the lens or

the setting of the camera is set to [MF],

Manual Focus (MF) is enabled.

8Contact point

9Lens mount rubber

10 Lens fitting mark (P13)

DC-GH5LMBodyEB-DVQX1064_eng.book 19 ページ２０１７年２月２日　木曜日　午後３時１５分

Preparation/Basic

20 DVQX1064 (ENG)

Basic Operations

Pressing the cursor button:

Selection of items or setting of values etc., is performed.

Pressing [MENU/SET]:

Confirmation of setting contents, etc., is performed.

• These operating instructions expresses the up, down, left, and

right of the cursor button as 3/4/2/1.

Rotating the control dial:

Selection of items or setting of values etc., is performed.

• The operation of rotating the control dial is illustrated as below in

these operating instructions.

Example: When rotating the control dial to the left or right:

Rotating:

Selection of items or setting of values is performed during the various settings.

• These operating instructions describe operations of the front dial/rear dial as follows:

Allows you to set the aperture, shutter speed, and other settings when in / / /

modes.

Cursor buttons/[MENU/SET] button

Control Dial

Front Dial/Rear Dial

e.g.: When

rotating the front

dial to the left or

right

e.g.: When

rotating the rear

dial to the left or

right

Mode dial Front dial Rear Dial

Programme Shift Programme Shift

Aperture value Aperture value

Shutter speed Shutter speed

Aperture value Shutter speed

DC-GH5LMBodyEB-DVQX1064_eng.book 20 ページ２０１７年２月２日　木曜日　午後３時１５分

Preparation/Basic

(ENG) DVQX1064

Press the mode dial lock button 1 to

release the lock.

• The dial is locked if the mode dial lock button is

depressed. Each press locks/unlocks the dial.

Rotate the mode dial 2 and adjust the

recording mode.

Joystick

The joystick can be operated in two ways: it can be

moved up, down, left or right, or it can be pressed.

The joystick provides the same functions as the cursor

buttons/[MENU/SET] button.

Moving:

Selection of items or setting of values etc., is

performed.

Pressing:

Confirmation of setting contents, etc., is

performed.

• In these operating instructions, the up, down, left and

right of the joystick are expressed as 3/4/2/1.

Moving Pressing

Mode dial (Selecting a Recording Mode)

Intelligent Auto Mode (P30)

Intelligent Auto Plus Mode (P30)

Programme AE Mode

Records at the aperture value and shutter speed set by the camera.

∫Programme Shift

1Press the shutter button halfway and display the aperture value and shutter

speed value on the screen.

2While the values are displayed (about 10 seconds), perform Programme

Shift by rotating the rear dial or front dial.

• To cancel Programme Shift, turn off this unit or rotate the front/rear dial until the

Programme Shift indication disappears.

DC-GH5LMBodyEB-DVQX1064_eng.book 21 ページ２０１７年２月２日　木曜日　午後３時１５分

Preparation/Basic

22 DVQX1064 (ENG)

∫Confirm the Effects of Aperture and Shutter Speed (Preview Mode)

Switch to confirmation screen by pressing the preview

button.

– Normal recording screen

– Aperture effect preview screen

– Shutter speed effect preview screen

• You can also use the button as a function button. (P28)

Aperture-Priority AE Mode

The shutter speed is automatically determined

by the aperture value you set.

/ : Aperture value (B)

• Rotate the front/rear dial to display

the Exposure Meter A. Unsuitable

areas of the range are displayed in

red.

(Example: In Manual Exposure

Mode)

Shutter-Priority AE Mode

The aperture value is automatically

determined by the shutter speed you set.

/ : Shutter speed (C)

Manual Exposure Mode

The exposure is adjusted by the aperture

value and the shutter speed which are

manually adjusted.

: Aperture value (B)

: Shutter speed (C)

Creative Video Mode (P60)

Custom Mode

Use this mode to take pictures with previously registered settings.

∫Registering Personal Menu Settings (Registering custom settings)

1Set in advance the Recording Mode you wish to save and select the desired

menu settings on the camera.

2Select the menu.

> [Setup] > [Cust.Set Mem.] > Custom set where you

want to register settings

• You can register up to three custom sets to of the mode dial.

∫To change a custom set in [ ] ([Custom Mode] menu)

1Set the mode dial to [ ].

2Select the menu.

> [Custom Mode]

3Press 3/4 to select the custom setting you want to use, and then press

[MENU/SET].

Creative Control Mode

This mode records with additional image effects.

30305.6

SSSSSS

8 15 30 60 125

5.64.02.8 8.0 11

DC-GH5LMBodyEB-DVQX1064_eng.book 22 ページ２０１７年２月２日　木曜日　午後３時１５分

Preparation/Basic

(ENG) DVQX1064

Press [LVF].

A[LVF] button

BEye sensor

• The monitor/viewfinder will switch as follows:

– Automatic viewfinder/monitor switching¢

– Viewfinder display¢

– Monitor display

¢If [Eye Sensor AF] in the [Custom] ([Focus / Release Shutter]) menu is set to [ON], the

camera automatically adjusts the focus as the eye sensor is activated. The camera does not

beep when focus is achieved with [Eye Sensor AF].

∫Notes on automatic viewfinder/monitor switching

Automatic viewfinder/monitor switching enables the eye sensor to switch the display to the

viewfinder automatically when you bring your eye or an object near it.

• If you enable the automatic viewfinder/monitor switching function and display the On-monitor

recording information screen on the monitor, [Power Save LVF Shooting] in [Economy] can be

used, allowing you to reduce the battery consumption.

Press [DISP.] to switch the information displayed on the

screen.

Switching the display method of the viewfinder/monitor

[LVF] button (Switching the Monitor/Viewfinder)

[DISP.] button (Switching the displayed information)

In Recording Mode

>[Custom] > [Monitor / Display] > [LVF/Monitor Disp. Set] >

[LVF Disp. Set]/[Monitor Disp. Set]

[] (viewfinder style) Scales down images slightly so that you can better review the

composition of the images.

[] (monitor style) Scales images to fill the entire screen so that you can see their

details.

ョㄏブ

ュリヴヱハ

DC-GH5LMBodyEB-DVQX1064_eng.book 23 ページ２０１７年２月２日　木曜日　午後３時１５分

Preparation/Basic

24 DVQX1064 (ENG)

∫[ ] Live View Finder style display layout (Example of viewfinder style display)

∫[ ] Monitor style display layout (Example of monitor style display)

¢1 Press 3/4 to switch between the following display modes:

– Detailed information display

– Histogram display

– Photo style, Highlight shadow display

– White balance display

– Lens information display

¢2 This is displayed if [Highlight] in the [Custom] ([Monitor / Display]) menu is set to [ON].

With information

(detailed

information)

With information

(detailed

information, tilt

sensor display)

With information (tilt

sensor display)

With information Without information With information (tilt

sensor display)

Without information

(tilt sensor display)

Turned off

On-monitor

recording

information

In Playback Mode

With information Detailed information

display¢1

Without information

(Highlight display)¢2Without information

AFSAFS

FHD

8bit

MOV

4:3

AFSAFS

FHD

8bit

MOV

4:3

FHD

8bit

MOV

AFS

4:3

FHD

8bit

MOV

AFS

4:3

AWB

ISO

AUTO

OFF

4:3

AFSAFS

60F3.5

AWB

1/98

4:3

sRGB

1/5

AFS

200

4:3

100-0001

AWB

STD.

ISO

F3.5

2017.12. 1 10:00

DC-GH5LMBodyEB-DVQX1064_eng.book 24 ページ２０１７年２月２日　木曜日　午後３時１５分

Preparation/Basic

(ENG) DVQX1064

Touch screen of this unit is capacitive. Touch the panel directly with your bare finger.

∫Touch

To touch and release the touch screen.

∫Drag

A movement without releasing the touch screen.

∫Pinch (enlarge/reduce)

Pinch the touch screen apart (enlarge) or together

(reduce) with two fingers.

∫Taking Pictures Using the Touch Function

1Touch [ ].

2Touch icon.

• To cancel the function, touch [ ] or [ ].

Touch screen (Touch operations)

Touch Shutter

Just by touching the subject you want as your point of focus, the camera

will focus on the subject and take the picture automatically.

Touch the subject you wish to focus on, and then take a picture.

Touch AE

You can easily optimise the brightness for a touched position.

1Touch the subject you want to optimise the brightness for.

2Touch [Set].

Fn11Fn11Fn11

Fn8Fn8Fn8

Fn7Fn7Fn7

Fn9Fn9Fn9

Fn10Fn10Fn10

OFFOFFOFF

AABBB

2.0X2.0X

2.0X

××

DC-GH5LMBodyEB-DVQX1064_eng.book 25 ページ２０１７年２月２日　木曜日　午後３時１５分

Preparation/Basic

26 DVQX1064 (ENG)

Setting menu items

1Press [MENU/SET].

/[Intelligent Auto] (P75) These menus let you set the functions available only for

their corresponding Recording Modes.

These menus are displayed only for their corresponding

Recording Modes.

[Creative Video] (P75)

[Custom Mode] (P22)

[Creative Control] (P75)

[Rec] (P75) This menu lets you set picture settings.

[Motion Picture] (P76) This menu lets you set motion picture settings.

[Custom] (P76)

Operation of the unit, such as displaying of the screen

and button operations, can be set up according to your

preferences.

[Setup] (P77)

This menu lets you perform the clock settings, select the

operating beep tone settings and set other settings which

make it easier for you to operate the camera.

You can also configure the settings of Wi-Fi/Bluetooth

related functions.

[My Menu] (P84) This menu lets you register frequently-used menus.

[Playback] (P77) This menu lets you set the playback and editing settings

for images.

2Press 3/4 of the cursor button to select the menu item and press

[MENU/SET].

3Press 3/4 of the cursor button to select

the setting and press [MENU/SET].

• Depending on the menu item, its setting may not

appear or it may be displayed in a different way.

DC-GH5LMBodyEB-DVQX1064_eng.book 26 ページ２０１７年２月２日　木曜日　午後３時１５分

Preparation/Basic

(ENG) DVQX1064

• Menu items that are not available are displayed in grey. When a

grey item is selected, if you press [MENU/SET], a message

indicating that the item cannot be set is displayed along with the

reason why it cannot be set under certain conditions.

Calling frequently-used menus instantly

(Quick Menu)

By using the Quick Menu, some of the menu settings can be easily found.

1Press [Q.MENU] to display the Quick Menu.

2Rotate the front dial to select the menu item.

3Rotate the rear dial to select the setting.

4Press [Q.MENU] to exit the menu once the setting is

complete.

∫Switching to other menus

1Press 2.

2Press 3/4 to select a menu selector icon, such as

[].

• You can also select the menu toggle icons by rotating the

front dial.

3Press [MENU/SET].

∫Close the menu

Press [ ] or press the shutter button halfway.

AFSAFS

603.5

AWB

FHD

8bit

MOV

4:3

DC-GH5LMBodyEB-DVQX1064_eng.book 27 ページ２０１７年２月２日　木曜日　午後３時１５分

Preparation/Basic

28 DVQX1064 (ENG)

Assigning frequently used functions to the

buttons (function buttons)

You can assign recording functions, etc. to specific buttons and icons.

• Some functions cannot be assigned depending on the function button.

1Select the menu. (P26)

2Press 3/4 to select the function button you want to

assign a function to and then press [MENU/SET].

• To select a button from [Fn12] to [Fn20] in [Setting in REC

mode], press [DISP.] to switch the screen.

3Press 3/4 to select the function you want to assign and then press [MENU/

SET].

• If you press and hold a function button (any of [Fn1] to [Fn6] or [Fn12] to [Fn20]) for 2 seconds,

you can display the button assignment screen displayed in step 3, allowing you to assign the

desired function quickly.

> [Custom] > [Operation] > [Fn Button Set] > [Setting in

REC mode]/[Setting in PLAY mode]

DC-GH5LMBodyEB-DVQX1064_eng.book 28 ページ２０１７年２月２日　木曜日　午後３時１５分

Preparation/Basic

(ENG) DVQX1064

∫Functions that can be assigned in [Setting in REC mode]

¢Function button settings at the time of purchase.

• By default, [Off] is assigned to the buttons [Fn10] to [Fn20].

[Rec] menu

– [Wi-Fi] (P87): [Fn7]¢

– [Q.MENU] (P27): [Fn2]¢

– [LVF/Monitor Switch] (P23): [Fn5]¢

– [LVF/Monitor Disp. Style] (P23)

– [AF/AE LOCK] (P37)

–[AF-ON]

– [Preview] (P22): [Fn6]¢

– [One Push AE]

– [Touch AE] (P25)

– [Level Gauge]: [Fn4]¢

– [Focus Area Set]

– [Zoom Control] (P53)

– [1 Shot RAW+JPG]

– [1 Shot Spot Metering]

– [Operation Lock]

– [Dial Operation Switch]: [Fn1]¢

– [Photo Style]

– [Filter Effect]

– [Aspect Ratio] (P77)

– [Picture Size] (P78)

– [Quality] (P78)

– [AFS/AFF] (P32)

– [Metering Mode] (P79)

– [Burst Rate]

– [6K/4K PHOTO] (P40): [Fn9]¢

– [Self Timer]

– [Bracket] (P48)

– [Highlight Shadow]

– [i.Dynamic]

– [i.Resolution]

– [Post Focus] (P44)

– [HDR]

– [Shutter Type] (P80)

– [Flash Mode] (P54)

– [Flash Adjust.]

– [Wireless Flash Setup]

– [Ex. Tele Conv.]

(still pictures/motion pictures) (P53)

– [Digital Zoom]

– [Stabilizer] (P51)

– [Silent Mode] (P79)

[Motion Picture] menu

– [4K Live Cropping] (P64)

– [Motion Pic. Rec Format] (P56)

– [Motion Pic. Rec Quality] (P56)

– [Variable Frame Rate] (P61)

– [Picture Mode in Rec.]

– [Synchro Scan] (P63)

– [Time Code Display] (P58)

– [Mic. Directivity Adjust]

– [Color Bars]

– [WFM/Vector Scope]

– [LUT Monitor Display]

– [LUT HDMI Display] (P68)

– [Focus Transition] (P63)

[Custom] menu

–[Peaking]

– [Histogram]: [Fn8]¢

– [Guide Line]

– [Zebra Pattern] (P81)

– [Monochrome Live View]

– [Rec Area]

– [Video-Priority Display]

– [Step Zoom]

– [Zoom Speed]

Recording functions

– [ON]/[OFF] of each item in [White Balance]

(P39)

– [ON]/[OFF] of each item in [Photo Style]

– [AF Mode/MF] (P33, 36): [Fn3]¢

– [Rec / Playback Switch]

–[Off]

– [Restore to Default]

DC-GH5LMBodyEB-DVQX1064_eng.book 29 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

30 DVQX1064 (ENG)

Taking Pictures using the Automatic Function

(Intelligent Auto Mode)

Recording Mode:

In this mode, the camera makes the optimal settings for the subject and scene.

1Set the mode dial to [¦].

• The camera will switch to either the most recently used

of Intelligent Auto Mode or Intelligent Auto Plus Mode.

At the time of purchase, the mode is set to Intelligent

Auto Plus Mode.

2Align the screen with the subject.

• When the camera identifies the optimum scene, the icon

of the scene concerned is displayed in blue for

2 seconds, after which its colour changes to the usual

red. (Automatic scene detection)

• When [iHandheld Night Shot] is set to [ON] and [ ] is detected while taking handheld night

shots, pictures of the night scenery will be taken at a high burst speed and composed into a

single picture.

• When [iHDR] is set to [ON] and there is, for example, strong contrast between the background

and the subject, multiple still pictures are recorded with differing exposures and combined to

create a single still picture rich in gradation.

∫Switching between Intelligent Auto Plus Mode and Intelligent Auto Mode

Intelligent Auto Plus Mode allows you to adjust some settings such as the brightness,

colour tone and defocus control while also using Intelligent Auto Mode for other settings.

1Select the menu. (P26)

2Press 3/4 to select [ ] or [ ] and then press [MENU/SET].

∫Auto Focus, Face/Eye Detection, and Face Recognition

The Auto Focus Mode is automatically set to [š]. If you touch the subject, the AF tracking

function will work. The AF tracking function will also work if you press [ ] and then press

the shutter button halfway.

• When [Face Recog.] is set to [ON], and the face similar to the registered face is detected, [R] is

displayed in the top right of [ ], [ ] and [ ].

∫About the flash

When recording with the flash, the camera automatically selects [ ], [ ] (AUTO/

Red-Eye Reduction), [ ] or [ ] according to the type and brightness of the subject.

> [Intelligent Auto] > [Intelligent Auto Mode]

FHD

8bit

MOV

DC-GH5LMBodyEB-DVQX1064_eng.book 30 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

(ENG) DVQX1064

Recording Mode:

∫Setting brightness

1Press [ ].

2Rotate the rear dial to adjust brightness.

• You can adjust the Exposure Bracket setting by pressing

3/4 while the brightness setting screen is displayed.

(P49)

• Press [ ] again to return to the recording screen.

∫Setting colour

1Press [ ].

2Rotate the rear dial to adjust colour.

• Press [ ] again to return to the recording screen.

• The colour setting will return to the default level (centre

point) when this unit is turned off or the camera is switched

to another Recording Mode.

∫Taking a picture with a blurred background (Defocus Control)

1Press [Fn4] to display the setting screen.

2Set the blurriness by rotating the rear dial.

• If you press [MENU/SET], you can return to the recording

screen.

• Pressing [Fn4] on the blurriness setting screen will cancel

the setting.

Taking pictures with customised colour, defocus control, and

brightness settings

+3+3+1+1 +2+2 +3+3

100+5+5+4+4

+1+1

OFFOFF

AABBB

SSSSSS

500 250 125 60 30

4.02.8 5.6 8.0

DC-GH5LMBodyEB-DVQX1064_eng.book 31 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

32 DVQX1064 (ENG)

Setting the Focus Mode (AFS/AFF/AFC)

Applicable modes:

The method for achieving focus when the shutter button is

pressed halfway is set.

Set the focus mode lever.

• When recording with [AFF] or [AFC], the camera predicts the motion of moving subjects to

bring them into focus. (Moving Object Prediction)

Applicable modes:

Customise the operation settings of Auto Focus to suit the movement of your subject.

• This item works only when the Focus Mode is set to [AFF] or [AFC].

Item Scene (recommended)

[AFS/

AFF]

[AFS]

(Auto

Focus

Single)

Subject is still

(Scenery,

anniversary

photograph, etc.)

“AFS” is an abbreviation of “Auto Focus Single”.

Focus is set automatically when the shutter button is

pressed halfway. It stays locked while the button is

pressed halfway, allowing you to record different

compositions.

[AFF]

(Auto

Focus

Flexible)

Movement cannot

be predicted

(Children, pets, etc.)

“AFF” is an abbreviation of “Auto Focus Flexible”.

In this mode, focusing is performed automatically

when the shutter button is pressed halfway.

If the subject moves while the shutter button is

pressed halfway, the focus is corrected to match the

movement automatically.

You can switch the setting with [AFS/AFF] in the [Rec]/[Motion Picture]

menu.

[AFC]

(Auto Focus

Continuous)

Subject is moving

(Sport, trains, etc.)

“AFC” is an abbreviation of “Auto Focus Continuous”.

In this mode, while the shutter button is pressed

halfway, focusing is constantly performed to match

the movement of the subject.

[MF] Set the focus manually. (P36)

Customising the operation settings of Auto Focus for picture taking

> [Rec] > [AF Custom Setting(Photo)]

[Set 1] Basic setting.

[Set 2] Settings when object move in only one direction and quickly.

[Set 3] Setting for slow random movement.

[Set 4] Settings for rapid and random movement.

DC-GH5LMBodyEB-DVQX1064_eng.book 32 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

(ENG) DVQX1064

∫Adjusting the AF Custom settings

1Press 2/1 to select the AF Custom setting.

2Press 3/4 to select the items, and then press 2/1 to adjust.

• Pressing [DISP.] will return the default setting.

3Press [MENU/SET].

Setting the Auto Focus Mode

Applicable modes:

This allows the focusing method that suits the positions and

number of the subjects to be selected.

Press [ ].

• You can also use the button as a function button. (P28)

[AF Sensitivity] Sets the sensitivity to be applied when adjusting the focus

according to the movement of the subject.

[AF Area Switching

Sensitivity]

Sets the sensitivity level at which the camera switches or moves

the AF area to suit the movement of the subject.

[Moving object

prediction]

Sets the level at which object motion detection is activated in

response to a change in the speed of the subject.

([Face/Eye

Detection])

The camera automatically detects the person’s face and eyes.

An eye closer to the camera will be in focus, while the exposure will be

optimised for the face.

(When [Metering Mode] is set to [ ])

• Up to 15 faces can be detected. Eyes that can be detected are only

those of the face that is in focus.

• You can change the eye to be in focus by touching

the eye in the yellow area.

• If you touch [ ] or press [MENU/SET], the eye

focus setting will be cancelled.

([Tracking])

The camera focuses on the subject you specify.

The exposure will be optimised for the subject.

(When [Metering Mode] is set to [ ])

Focus and exposure will keep on following the

subject even if it moves. (Dynamic tracking)

• Aim the AF tracking area over the subject to be tracked, and press the

shutter button halfway to lock the subject.

• Lock is cancelled when [MENU/SET] is pressed.

ョㄏピ

DC-GH5LMBodyEB-DVQX1064_eng.book 33 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

34 DVQX1064 (ENG)

Specifying the AF area position

• When [Focus Switching for Vert / Hor] in the [Custom] ([Focus / Release Shutter]) menu is set,

the last specified positions of the AF area (when [Ø] or [ ] is set) and the MF Assist display

are stored separately for the camera’s horizontal and vertical orientations (two vertical

orientations, left and right, are available).

Applicable modes:

∫When selecting [š], [ ], [Ø]

1Press [ ].

2Select [š], [ ] or [Ø] and press 4.

3Change the position and size of the AF area.

4Press [MENU/SET] to set.

• AF area with the same function as [Ø] is displayed in the touched position, when the [š]

is selected.

Setting of the AF area is cleared when [MENU/SET] is pressed or [ ] is touched.

([225-Area])

Up to 225 AF areas can be focused.

This is effective when a subject is not in the centre of the screen.

, etc.

([Custom Multi])

From among 225 AF areas, you can freely set the optimum shape of the

AF area for the subject.

([1-Area]) The camera focuses on the subject in the AF area on the screen.

([Pinpoint])

You can achieve a more precise focus on a point that is smaller than

[Ø].

If you press the shutter button halfway, the screen that lets you check

the focus will be enlarged.

Specifying the AF area position on the setting screen

Button

operation

Touch

operation Description of operation

3/4/2/1Touching Moves the position

// Pinching out/in Changes the size

[DISP.] [Reset]

First time: The position is

reset to the centre

Second time: The size is

reset to the default

DC-GH5LMBodyEB-DVQX1064_eng.book 34 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

(ENG) DVQX1064

∫When selecting [ ]

1Press [ ].

2Select [ ] and press 4.

3Press 3/4/2/1 to set the focus position and then press [MENU/SET].

4Move [+] to the position to be in focus.

5Press [MENU/SET] to set.

Applicable modes:

When using [š], [ ], [ ], [Ø] or [ ] of Auto Focus Mode, you can specify the

position of the AF area displayed on the recording screen with the joystick.

1Select the menu. (P26)

2Move the joystick3/4/2/1 to move the AF

area.

• You can change the size of the AF area by

rotating the front/rear dial.

• Press the joystick to switch between the default

AF area position and the position you have set.

The enlarged display will appear when [ ]

([Pinpoint]) is set.

3Press the shutter button halfway to set.

• Press the joystick while the recording screen is displayed to switch between the default

AF area position and the position you have set.

Button

operation Touch operation Description of operation

3/4/2/1Touching Moves [+].

/Pinching out/in Enlarges/reduces the screen.

Switches the enlarged display

(windowed/full screen).

[DISP.] [Reset] Returns you to the screen in step 3.

Specifying the AF area position with the joystick

> [Custom] > [Operation] > [Joystick Setting] > [D.FOCUS

Movement]

DC-GH5LMBodyEB-DVQX1064_eng.book 35 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

36 DVQX1064 (ENG)

Adjusting Focus Manually

Applicable modes:

Use this function when you want to fix the focus or when the distance between the lens

and the subject is determined and you do not want to activate Auto Focus.

1Set the focus mode lever to [MF].

2Press [ ].

3Press 3/4/2/1 to adjust the focus position,

and press [MENU/SET].

4Adjust the focus.

AMF Assist (enlarged screen)

BPeaking

CMF Guide

• The in-focus portions will be highlighted. (Peaking)

• You can check whether the point of focus is to the near

side or to the far side. (MF Guide)

You can perform the following operations:

5Press the shutter button halfway.

• You can also perform the same operation by pressing [MENU/SET].

When using an interchangeable lens (H-ES12060/

H-FS12060) with a focus ring

Rotate to A side:

Focuses on nearby subject

Rotate to B side:

Focuses on faraway subject

Button operation Touch operation Description of operation

3/4/2/1Dragging Moves the enlarged area

Pinching out/in Enlarges/reduces the screen in small steps.

sEnlarges/reduces the screen in large steps.

Switches the enlarged display (windowed/full

screen)

[DISP.] [Reset]

First time: The position of the enlarged area is

reset to the centre.

Second time: The magnification level of the

enlarged area is reset to the default.

DC-GH5LMBodyEB-DVQX1064_eng.book 36 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

(ENG) DVQX1064

Fixing the Focus and the Exposure (AF/AE

Lock)

Applicable modes:

This is useful when you want to take a picture of a subject outside the AF area or the

contrast is too strong and you cannot achieve appropriate exposure.

1Align the screen with the subject.

2Press and hold [AF/AE LOCK] to fix the focus

or exposure.

• If you release [AF/AE LOCK], AF/AE Lock is cancelled.

• Only the exposure is locked in the default setting.

3While pressing [AF/AE LOCK], move the

camera as you compose the picture and then

press shutter button fully.

AAE Lock indication

Compensating the Exposure

Applicable modes:

Use this function when you cannot achieve appropriate exposure due to the difference in

brightness between the subject and the background.

1Press [ ].

2Rotate the rear dial to compensate the

exposure.

AExposure Bracket

BExposure Compensation

C[Flash Adjust.]

• You can perform the operations below while the

exposure compensation screen is displayed.

• You can switch the functions between the rear dial and the front dial by pressing [DISP.].

3Press [ ] to set.

Compensates the exposure

Adjusts the flash output

3/4Sets the exposure bracket (P49)

2.8

AELAELAELAEL

+3+3+1+1 +2+2 +3+3

100+5+5+4+4

+1+1

OFFOFF

DC-GH5LMBodyEB-DVQX1064_eng.book 37 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

38 DVQX1064 (ENG)

Setting the Light Sensitivity

Applicable modes:

This allows the sensitivity to light (ISO sensitivity) to be set.

Setting to a higher figure enables pictures to be taken even in dark places without the

resulting pictures coming out dark.

1Press [ ].

2Select the ISO sensitivity by rotating the rear

dial.

• You can switch the functions between the rear dial and

the front dial by pressing [DISP.].

A[ISO Auto Upper Limit Setting]

BISO sensitivity

3Rotate the front dial to set the [ISO Auto

Upper Limit Setting].

• Set the [ISO Auto Upper Limit Setting] in [ISO Sensitivity

(photo)] (or in [ISO Sensitivity (video)] when using Creative Video Mode).

• It will work when the [Sensitivity] is set to [AUTO] or [ ].

4Press [ ] to set.

¢Only available when [Extended ISO] is set.

AUTO The ISO sensitivity is automatically adjusted according to the

brightness.

(Intelligent)

The camera detects movement of the subject and then

automatically sets the optimum ISO sensitivity and shutter

speed to suit the movement of the subject and brightness of

the scene to minimise the jitter of the subject.

L.100¢, from 200 to 25600 The ISO sensitivity is fixed to various settings.

AUTOAUTO

4040

ISO

ISOISOISOISOISOISOISOISOISOISOISO

AUTOAUTO

ISOISO

LIMITLIMIT

AUTOAUTO

DC-GH5LMBodyEB-DVQX1064_eng.book 38 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

(ENG) DVQX1064

Adjusting the White Balance

Applicable modes:

In sunlight, under incandescent lights or in other such conditions where the colour of white

takes on a reddish or bluish tinge, this item adjusts to the colour of white which is closest

to what is seen by the eye in accordance with the light source.

1Press [ ].

2Rotate the rear dial or front dial to select the

White Balance.

• Setting can also be performed by rotating the control

dial.

¢[AWB] is applied when you record motion picture or perform recording with the 6K/4K

Photo or Post Focus function.

3Press [ ] to set.

[AWB]/

[AWBc]

Adjusting the White Balance automatically

• Under lighting such as incandescent lighting where reddish tones may occur:

– With [AWB], reddish tones are maintained to reproduce the ambience of

the scene more accurately.

– With [AWBc], reddish tones are suppressed to reproduce the original

colours of the subject more accurately. The same tones as [AWB] may

be applied in a bright environment.

• [AWB] and [AWBc] apply the same tones under light sources where

reddish tones may not occur.

[V]When taking pictures outdoors under a clear sky

[Ð]When taking pictures outdoors under a cloudy sky

[î]When taking pictures outdoors in the shade

[Ñ]When taking pictures under incandescent lights

[]

¢When taking pictures with the flash only

[]/

[]

Set the White Balance value. Use to match the condition when taking

photographs.

1Press 3.

2Place a white object such as a piece of paper within the frame at

the centre of the screen, and press [MENU/SET].

• This will set the White Balance and return you to the recording screen.

[]/

[]

You can set the colour temperature manually for taking natural pictures

in different lighting conditions.

1Press 3.

Press

to select the colour temperature and then press [MENU/SET].

AWBc

WBWBWBWBWBWBWBWBWBWBWB

AWBAWB

DC-GH5LMBodyEB-DVQX1064_eng.book 39 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

40 DVQX1064 (ENG)

Select a Drive Mode

Applicable modes:

You can change what the camera will do when you press the

shutter button.

Rotating the drive mode dial.

Recording 6K/4K Photos

Applicable modes:

With 6K Photo, you can take a high-speed burst of pictures at 30 frames/second and save

the desired pictures, each made up of 18 million pixels (approx.), extracted from their burst

file. With 4K Photo, you can take a high-speed burst of pictures at 60 frames/second and

save the desired pictures, each made up of 8 million pixels (approx.).

• “6K PHOTO” is a high-speed burst recording function which allows you to save pictures

extracted from images recorded with an aspect ratio for still pictures, 4:3 or 3:2, and with an

effective picture size equivalent to a particular number of pixels (approx. 18 megapixels)

produced by images with a size of 6K (approx. 6,000 (horizontal)k3,000 (vertical)).

• Use a UHS Speed Class 3 card to record 6K/4K photos. (P9)

[Single] When the shutter button is pressed, only one picture is recorded.

[Burst]

Recordings are made in succession while the shutter button is

pressed.

1Set the drive mode dial to [ ].

2Focus on the subject and take a picture.

• Hold down the shutter button fully to activate the Burst Mode.

[6K/4K PHOTO] (P40) When the shutter button is pressed, a 6K/4K photo is recorded.

[Post Focus] (P44) When the shutter button is pressed, Post Focus recording is

performed.

[Self Timer]

When the shutter button is pressed, recording takes place after

the set time has elapsed.

1Set the drive mode dial to [ ].

2Press the shutter button halfway to focus and then press

it fully to take the picture.

• Focus and exposure will be set when the shutter button is

pressed halfway.

• After the self-timer indicator flashes, recording starts.

[Time Lapse/

Animation] (P46)

Pictures are recorded with Time Lapse Shot or Stop Motion

Animation.

DC-GH5LMBodyEB-DVQX1064_eng.book 40 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

(ENG) DVQX1064

1Set the drive mode dial to [ ].

2Select the picture size and burst speed. (P26)

3Select the recording method. (P26)

¢6K/4K burst file will be recorded and played back in separate files in the following cases.

(You can continue recording without interruption.)

– When using an SDHC memory card: If the file size exceeds 4 GB

– When using an SDXC memory card: If the continuous recording time exceeds 3 hours and

4 minutes or if the file size exceeds 96 GB

4Press the shutter button halfway to exit the menu.

5Press the shutter button to perform recording.

>[Rec] > [6K/4K PHOTO] >

[Picture size / Burst speed]

[6K 18M] [4:3]: (4992k3744) [3:2]: (5184k3456) 30 pictures/second

[4K H 8M] [4:3]: (3328k2496)

[16:9]: (3840k2160)

[3:2]: (3504k2336)

[1:1]: (2880k2880)

60 pictures/second

[4K 8M] 30 pictures/second

>[Rec] > [6K/4K PHOTO] > [Rec Method]

[]/[]/[]

[6K/4K Burst]¢

For capturing the best shot of a

fast-moving subject

Burst recording is performed while the

shutter button is pressed and held.

APress and hold

BRecording is performed

[]/[]/[]

[6K/4K Burst(S/S)]¢

“S/S” is an

abbreviation of “Start/

Stop”.

For capturing unpredictable photo

opportunities

Burst recording starts when the shutter

button is pressed and stops when

pressed again.

CStart (First)

DStop (Second)

ERecording is performed

[]/[]/[]

[6K/4K Pre-Burst]

For recording as needed whenever a

photo opportunity arises

Burst recording is performed for

approximately 1 second before and after

the moment that the shutter button is

pressed.

FApproximately 1 second

GRecording is performed















DC-GH5LMBodyEB-DVQX1064_eng.book 41 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

42 DVQX1064 (ENG)

• The camera will perform burst recording of a 6K/4K photo and saves it as a 6K/4K burst file with

a [Rec Format] setting of [MP4].

• When [Auto Review] is enabled, the picture selection screen will be displayed automatically.

• When [6K/4K Pre-Burst] or [Pre-Burst Recording] is set, the battery drains faster and the

camera temperature rises. Use these functions only when recording with them.

∫Adding markers to select and save pictures ([6K/4K Burst(S/S)])

You can add markers if you press [Fn2] during recording. (Up to 40 markers per recording)

When selecting and saving pictures from a 6K/4K burst file, you can skip to the positions

where you added markers.

∫Setting Pre-Burst Recording ([6K/4K Burst]/[6K/4K Burst(S/S)])

The camera starts recording approximately 1 second before the shutter button is pressed

fully, so you will not miss a photo opportunity.

• Auto Focus operation settings and menus that cannot be set while this function is in use are the

same as those during [6K/4K Pre-Burst] operation.

∫Setting Loop Recording ([6K/4K Burst(S/S)])

With [6K/4K Burst(S/S)], you can perform recording while deleting the oldest recorded

data, allowing you to keep on recording while waiting for a photo opportunity without

replacing the card.

• Once you start recording, the 6K/4K burst file will be recorded and divided approximately every

2 minutes.

Approximately the last 10 minutes (up to approximately 12 minutes) will be saved. The

preceding part will be deleted.

• [Loop Recording(4K PHOTO)] is not available for [6K 18M].

1Select an image with the [ ] or [ ] icon on the playback

screen, and press 3.

• If the image was recorded with [6K/4K Pre-Burst], proceed to step 3.

2Drag the slide bar to make a rough selection of

scenes.

>[Rec] > [6K/4K PHOTO] > [Pre-Burst Recording] > [ON]

>[Rec] > [6K/4K PHOTO] > [Loop Recording(4K PHOTO)] > [ON]

Selecting pictures from 6K/4K burst file and saving

Fn2

Fn1

DC-GH5LMBodyEB-DVQX1064_eng.book 42 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

(ENG) DVQX1064

3Drag the frames to select the frame you want to save

as a picture.

• Touch and hold [ ]/[ ] to continuously rewind/forward

frame-by-frame.

4Touch [ ] or [ ] to save the picture.

• A confirmation screen will be displayed.

• The picture will be saved in JPEG format.

∫Saving pictures taken with the 6K/4K Photo function at once ([6K/4K PHOTO Bulk

Saving])

You can save pictures of a 6K/4K burst file that were extracted from any 5 second period

at once.

1Select the menu. (P26)

2Press 2/1 to select the 6K/4K photo burst files and press [MENU/SET].

• If the burst time is 5 seconds or less, all frames will be saved as pictures.

3Select the first frame of the pictures to be saved at once.

• Select the frame in the same way as you select pictures from a 6K/4K burst file.

• Pictures will be saved as a group of Burst Mode pictures in JPEG format.

∫Correcting distortion in pictures ([Reduce Rolling Shutter])

The camera corrects distortion in pictures caused by the electronic shutter (rolling shutter

effect) when you save them.

1On the save confirmation screen in step 4 on P43, touch [Reduce Rolling

Shutter].

• Return to the confirmation screen if it cannot produce any correction result.

2Check the correction result, and touch [Save].

• You can check corrected/uncorrected versions of the picture by touching [Set/Cancel].

• The angle of view of the corrected picture may become narrower.

∫Reducing the noise produced by high sensitivity ([6K/4K PHOTO Noise

Reduction])

When saving pictures, reduce the noise produced during recording by high ISO sensitivity.

• This function is not applied to pictures saved with [6K/4K PHOTO Bulk Saving].

> [Playback] > [6K/4K PHOTO Bulk Saving]

Correcting 6K/4K Photos After Recording (Post-Recording Refinement)

> [Playback] > [6K/4K PHOTO Noise Reduction] > [AUTO]

DC-GH5LMBodyEB-DVQX1064_eng.book 43 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

44 DVQX1064 (ENG)

Controlling Focus After Recording

(Post Focus/Focus Stacking)

Applicable modes:

The camera can perform Burst recording in the same picture quality as 6K/4K photo

recording while automatically shifting the focus to different areas.

With Post Focus, after recording is finished, you can select the desired points on the

screen and save pictures in which the selected points are in focus.

With Focus Stacking, you can also merge multiple pictures with different focus points to

widen the focus range.

• We recommend that you use a tripod when recording images to be used for Focus Stacking.

• Use a UHS Speed Class 3 card. (P9)

1Set the drive mode dial to [ ].

2Select the picture size. (P26)

¢The display can be enlarged using [Ex. Tele Conv.].

3Press the shutter button halfway to exit the menu.

4Decide on the composition, and press the shutter

button halfway.

• Auto Focus will detect focus areas on the screen.

(Excluding the edges of the screen)

• If no areas on the screen can be brought into focus, the

focus display (A) will flash. Recording is not possible in this case.

5Press the shutter button fully to start recording.

• The focus point changes automatically while recording.

When the icon (B) disappears, recording automatically

ends.

• A motion picture will be recorded with [Rec Format] set to [MP4]. (Audio will not be

recorded.)

• When [Auto Review] is enabled, a screen that lets you select the desired focus area will

be displayed. (P45)

Recording with the Post Focus function

>[Rec] > [Post Focus]

[6K 18M] [4:3]: (4992k3744) [3:2]: (5184k3456)

[4K 8M]¢[4:3]: (3328k2496)

[16:9]: (3840k2160)

[3:2]: (3504k2336)

[1:1]: (2880k2880)

From the time you press the shutter button halfway until the end of recording:

• Maintain the same distance to the subject and the same composition.

• Do not operate the zoom.

4:3

DC-GH5LMBodyEB-DVQX1064_eng.book 44 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

(ENG) DVQX1064

1Select an image with the [ ] icon on the playback screen, and press 3.

2Touch the desired focus area.

• If a picture that is in focus is not available for the selected

area, a red frame will be displayed. You cannot save a

picture in this case.

• You cannot select the edges of the screen.

• Touching [ ] will enlarge the display. You can fine-adjust

the focus by dragging the slide bar during enlarged display.

(You can also perform the same operation by pressing 2/

1.)

3Touch [ ] to save the picture.

• The picture will be saved in JPEG format.

1Touch [ ] in step 2 of “Selecting the desired focus area and saving a picture”.

2Touch the merging method.

3(When [Range Merging] is selected)

Touch the desired focus area.

• Touch the focus area again to cancel the selection.

4Touch [ ] to merge the pictures and save the

resulting picture.

• The picture will be saved in JPEG format.

• The camera may automatically correct the misalignments of

pictures caused by camera shake. If they are corrected, the

angle of view becomes slightly narrower when pictures are merged.

Selecting the desired focus area and saving a picture

Merging multiple pictures to widen the focus range (Focus Stacking)

[Auto Merging]

Automatically selects pictures that are suited to be merged, and

merges them into a single picture.

• Priority will be given to pictures with closer focus.

• Pictures will be merged into a single picture and the resulting picture

will be saved when this item is selected.

[Range Merging] Merges pictures with specified focus areas into a single picture.

• Specify at least two areas.

• In-focus areas between the two areas will also be

selected, and the combined in-focus area will be indicated.

• Grey areas indicate areas that may, if selected, cause the

merged picture to look unnatural and areas that cannot be

selected.

Fn2

Fn1

Fn2

ュリヴヱハ

5HVHW

6HW&DQFHO

ュリヴヱハ

5HVHW

Fn2

6HW&DQFHO

DC-GH5LMBodyEB-DVQX1064_eng.book 45 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

46 DVQX1064 (ENG)

Taking Pictures with Time Lapse Shot/Stop

Motion Animation

Applicable modes:

You can take pictures with Time Lapse Shot or Stop Motion

Animation. In addition, the pictures taken can be combined

into a motion picture.

• Set the date and time settings in advance. (P14)

• Recorded pictures are displayed as group pictures.

The camera can automatically take pictures of subjects such as animals or plants as time

elapses and create a motion picture.

1Set the drive mode dial to [ ].

2Select the menu. (P26)

3Press 3/4 to select an item and set.

4Press the shutter button halfway to exit the menu.

5Press the shutter button fully.

• The recording starts automatically.

Taking Pictures Automatically at Set Intervals ([Time Lapse Shot])

> [Rec] > [Time Lapse/Animation] > [Mode] > [Time Lapse

Shot]

[Start Time]

[Now] Starts the recording by fully-pressing the shutter button.

[Start Time

Set]

2/1: Select the item (hour/minute)

3/4: Setting

[MENU/SET]: Set

[Shooting

Interval]/

[Image Count]

The recording interval and the number of pictures can be set.

2/1: Select the item (minute/second/number of pictures)

3/4: Setting

[MENU/SET]: Set

DC-GH5LMBodyEB-DVQX1064_eng.book 46 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

(ENG) DVQX1064

A stop motion picture is created by splicing pictures together.

1Set the drive mode dial to [ ].

2Select the menu. (P26)

3Press 3/4 to select an item and set.

4Press the shutter button halfway to exit the menu.

5Press the shutter button fully.

6Move the subject to decide on the composition.

• Repeat recording in the same way.

7Touch [ ] to end the recording.

• It can also be ended by selecting [Time Lapse/Animation]

from the [Rec] menu and then pressing [MENU/SET].

• When [Auto Shooting] is set to [ON], select [End] on the

confirmation screen.

(If [Pause] has been selected, press the shutter button

fully to resume the recording.)

To create motion pictures after taking pictures, follow the steps below.

1Select the methods for creating a motion picture.

• The recording format is set to [MP4].

2Press 3/4 to select [OK] and then press [MENU/SET].

Creating Stop Motion Pictures ([Stop Motion Animation])

> [Rec] > [Time Lapse/Animation] > [Mode] > [Stop Motion

Animation]

[Auto Shooting] [ON] Takes pictures automatically at a set recording interval.

[OFF] This is for taking pictures manually, frame by frame.

[Shooting Interval]

(Only when [Auto Shooting] is set to [ON])

2/1: Select the item (second)

3/4: Setting

[MENU/SET]: Set

Creating motion pictures from recorded pictures

[Rec Quality] Sets the quality of a motion picture.

[Frame Rate] Sets the number of frames per second.

The larger the number is, the smoother the motion picture will be.

[Sequence]

[NORMAL]:

Splices pictures together in recording order.

[REVERSE]:

Splices pictures together in reverse recording order.

DC-GH5LMBodyEB-DVQX1064_eng.book 47 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

48 DVQX1064 (ENG)

Taking Pictures While Adjusting a Setting

Automatically (Bracket Recording)

Applicable modes:

You can take multiple pictures while automatically adjusting a setting by pressing the

shutter button.

1Select the menu. (P26)

¢It cannot be selected in Intelligent Auto Plus Mode or Creative Control Mode or when

burst recording is enabled or [Quality] is set to [ ], [ ], or [ ].

2Press 3/4 to select [More settings] and then press [MENU/SET].

• For information on [More settings], refer to the page that describes each function.

• Press the shutter button halfway to exit the menu.

3Focus on the subject and take a picture.

∫To deactivate Bracket

Select [OFF] in step 1.

> [Rec] > [Bracket] > [Bracket Type]

Exposure Bracket

Press the shutter button to perform recording while

adjusting the exposure. (P49)

• This is disabled when recording using the flash.

Aperture Bracket

Press the shutter button to perform recording while

adjusting the aperture. (P49)

• Available in Aperture-Priority AE Mode or when

the ISO sensitivity is set to [AUTO] in Manual

Exposure Mode.

Focus Bracket Press the shutter button to perform recording while

adjusting the focus position. (P49)

¢White Balance Bracket

Press the shutter button once to take three pictures

with different white balance settings automatically.

(P50)

¢White Balance Bracket

(Colour Temperature)

Press the shutter button once to take three pictures

with different White Balance Colour Temperature

values automatically. (P50)

• Available when the White Balance is set to [ ],

[], [] or [].

DC-GH5LMBodyEB-DVQX1064_eng.book 48 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

(ENG) DVQX1064

∫About [More settings] (step 2 in P48)

¢Not available for burst recording. When using burst recording, if you press and hold the

shutter button, recording will be performed continuously until a specified number of pictures

are taken.

Recording Mode:

∫About [More settings] (step 2 in P48)

• When using burst recording, if you press and hold the shutter button, recording will be

performed until a specified number of pictures are taken.

• The available aperture values vary depending on the lens.

∫About [More settings] (step 2 in P48)

¢Not available for burst recording. When using burst recording, if you press and hold the

shutter button, recording will be performed continuously until a specified number of pictures

are taken.

• Pictures taken with Focus Bracket are displayed as a set of group pictures.

Exposure Bracket

[Step]

Sets the number of pictures to be taken and the exposure

compensation range.

[3•1/3] (Takes three pictures with an interval of 1/3 EV) to

[7•1] (Takes seven pictures with an interval of 1 EV)

[Sequence] Sets the order in which pictures are taken.

[Single Shot Setting]¢

[ ]: Takes one picture each time you press the shutter button.

[ ]: Takes all the pictures set to be taken when you press the

shutter button once.

Aperture Bracket

[Image Count]

[3], [5]: Takes a specified number of pictures with different

aperture values within the range based on the initial aperture

value.

[ALL]: Takes pictures using all aperture values.

Focus Bracket

[Step] Sets the interval between focus positions.

[Image Count]¢Sets the number of pictures to be taken.

[Sequence]

[0/s/r]: Alternately moves the focus position closer and farther

away within the range centred on the initial position as you take

pictures.

[0/r]: Moves the focus position farther away from the initial

position as you take pictures.

DC-GH5LMBodyEB-DVQX1064_eng.book 49 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

50 DVQX1064 (ENG)

∫About [More settings] (step 2 in P48)

Rotate the control dial to adjust the correction range,

and press [MENU/SET].

: Horizontal ([A] to [B])

: Vertical ([G] to [M])

• You can also set the correction range by touching [ ]/[ ]/

[ ]/[ ].

∫About [More settings] (step 2 in P48)

Rotate the control dial to adjust the correction range,

and press [MENU/SET].

• You can also set the correction range by touching [ ]/[ ].

White Balance Bracket

White Balance Bracket (Colour Temperature)

GGG

AAA

AAAB

BBB

MMM

±300K

5500K

DC-GH5LMBodyEB-DVQX1064_eng.book 50 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

(ENG) DVQX1064

Image Stabiliser

The camera can activate either the In-Lens Image Stabiliser or In-Body Image Stabiliser, or

it can activate both of them and reduce jitter even more effectively. (Dual I.S. Mode)

Dual I.S.2 ( , , ), which provides more effective correction, is also supported.

For motion picture recording, you can use the 5-Axis Hybrid Image Stabiliser, which makes

use of the In-Lens Image Stabiliser, In-Body Image Stabiliser, and Electronic Image

Stabiliser.

• The image stabilisers to be activated differ depending on your lens. The icon for the currently

activated image stabiliser is displayed on the recording screen.

¢When [E-Stabilization (Video)] is set to [ON]

When taking pictures When recording

motion pictures

Panasonic lenses compatible with Dual I.S.

Mode

(Based on the Micro Four Thirds System

standard)

• For the latest information on compatible

lenses, please refer to our website.

• If the [ ] or [ ] icon is not

displayed on the recording screen even when

a compatible lens is used, update the lens

firmware to the latest version. (P10)

Lens + Body

(Dual I.S.)

(///)

Lens + Body

(Dual I.S.) ( / ),

5-Axis Hybrid

(/)

Lenses compatible with the image

stabiliser function

(Based on the Micro Four Thirds System

standard/Four Thirds System standard)

Lens or Body

(/)

Lens or Body ( ),

5-Axis Hybrid

()

Lenses not compatible with the image

stabiliser function

(Based on the Micro Four Thirds System

standard/Four Thirds System standard) Body ( / )

Body ( ),

5-Axis Hybrid

()

When using a Leica lens mount adaptor

(optional) or mount adaptor made by

another manufacturer

DC-GH5LMBodyEB-DVQX1064_eng.book 51 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

52 DVQX1064 (ENG)

Applicable modes:

• When using an interchangeable lens with O.I.S. switch (such as H-ES12060), stabiliser

function is activated if the O.I.S. switch of the lens is set to [ON]. ([ ] is set at the time of

purchase)

Select the menu. (P26)

1Select the menu. (P26)

2Enter a focal length.

2/1: Select the item (digit); 3/4: Setting

3Press [MENU/SET].

> [Rec] > [Stabilizer]

[Operation

Mode]

[]

([Normal])

Camera shake is corrected for up/down, left/right, and

rotational movements.

[]

([Panning])

Camera shake is corrected for up/down movements.

This mode is ideal for panning (a method of taking pictures

which involves turning the camera to track the movements of a

subject which continues to move in a fixed direction).

[OFF]

[Stabilizer] does not work. ([ ])

• When using a lens with an O.I.S. switch, set the switch to

[OFF].

[E-Stabilization

(Video)]

Jitter during motion picture recording is corrected along the vertical,

horizontal, roll, pitch, and yaw axes by making use of the In-Lens Image

Stabiliser, In-Body Image Stabiliser, and Electronic Image Stabiliser. (5-Axis

Hybrid Image Stabiliser)

[ON]/[OFF]

• When [ON] is selected, the angle of view of recorded motion pictures may

become narrower.

[Focal Length

Set]

If the focal length is not set automatically, you can set it manually. (P52)

• When a manually selected focal length is set, a confirmation screen asking

you to change the focal length setting is displayed after you turn on the

camera.

Setting the focal length of a lens

> [Rec] > [Stabilizer] > [Focal Length Set]

DC-GH5LMBodyEB-DVQX1064_eng.book 52 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

(ENG) DVQX1064

Raising the telescopic effect

Applicable modes:

Extra Tele Conversion enables you to take pictures that are further enlarged without

deteriorating the picture quality.

• Set the picture size to [M]or [S] (picture sizes indicated with ), and set the quality to

[A] or [›].

∫Increasing the zoom magnification in steps

• This can be used only when recording pictures.

1Select the menu. (P26)

2Set a function button to [Zoom Control]. (P28)

3Press the function button.

4Press 2/1 or 3/4.

• The zoom operation is terminated when the function button is pressed again or a certain

amount of time passes.

∫Fixing the zoom magnification at the maximum level

Select the menu. (P26)

When taking

pictures

[Ex. Tele Conv.]

([Rec])

1.4k: [ M]

2.0k: [ S]

1.4k: When recording 6K/4K photos¢ ([16:9]/[1:1])

1.5k: When recording 6K/4K photos¢ ([3:2])

1.6k: When recording 6K/4K photos¢ ([4:3])

¢Only when [4K H 8M], [4K 8M] is set

When recording

motion pictures

[Ex. Tele Conv.]

([Motion Picture])

1.4k (motion pictures size is set to [4K] or [C4K] in

[Rec Quality])

2.7k (motion pictures size is set to [FHD] in [Rec

Quality])

> [Rec] > [Ex. Tele Conv.] > [ZOOM]

3/1:Tele (Enlarges distant subject)

4/2:Wide (Widens angle of view)

> [Rec] > [Ex. Tele Conv.] > [TELE CONV.]

> [Motion Picture] > [Ex. Tele Conv.] > [ON]

DC-GH5LMBodyEB-DVQX1064_eng.book 53 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

54 DVQX1064 (ENG)

Taking Pictures with the External Flash

(Optional)

Applicable modes:

You can attach a flash (DMW-FL580L/DMW-FL360L/DMW-FL200L: optional) and take

pictures with it.

• Read the operating instructions of the external flash for how to attach the external flash.

∫Removing the Hot Shoe Cover

The camera comes with a hot shoe cover attached to the hot

shoe.

Remove the hot shoe cover by pulling it in the direction

indicated by arrow 2 while pressing it in the direction

indicated by arrow 1.

Applicable modes:

Set the flash to match the recording.

Select the menu. (P26)

In the following cases, the flash is fixed to [Œ] (forced flash off).

• When recording motion pictures

• When recording 6K/4K photos

• When recording with the Post Focus function

• When using the electronic shutter

• When an image effect in [Filter Effect] of [Filter

Settings] is set

• When [Silent Mode] is set to [ON]

• When [HDR] is set to [ON]

Changing Flash Mode

>[Rec] > [Flash] > [Flash Mode]

‰

([Forced Flash

On])

([Forced On/

Red-Eye])

The flash is activated every time regardless of the recording

conditions.

• Use this when your subject is back-lit or under fluorescent

light.

([Slow Sync.])

([Slow Sync./

Red-Eye])

When taking pictures against a dark background landscape, this

feature will slow the shutter speed when the flash is activated. Dark

background landscape will appear brighter.

• Use this when you take pictures of people in front of a dark

background.

• Using a slower speed can cause motion blur. Using a tripod

can enhance your photos.

Œ([Forced Flash

Off])

The flash is not activated in any recording conditions.

• Use this when you take pictures in places where the use of

flash is not permitted.

DC-GH5LMBodyEB-DVQX1064_eng.book 54 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

(ENG) DVQX1064

Recording Motion Picture

Applicable modes:

The camera can record 4K motion pictures in MP4 or MOV format or full high definition

motion pictures that comply with the AVCHD standard. Audio is recorded in stereo.

1Start recording by pressing the motion

picture button.

A Elapsed recording time

B Available recording time

• Recording of motion picture appropriate for each mode

is possible.

• The recording state indicator (red) C will flash while

recording motion pictures.

• Release the motion picture button right after you press it.

• Before recording, the available recording time display

indicates the recordable time based on the amount of

free space on the card; during recording, it indicates the

remaining time for continuous recording.

• h: hour, m: minute, s: second

2Stop the recording by pressing the motion picture button again.

• Still picture recording is also possible during the motion picture recording by fully

pressing the shutter button. (Except for in Creative Video Mode)

• In Creative Video Mode, motion pictures are recorded at the selected ISO sensitivity; in

other modes, they are recorded using [AUTO] (for motion pictures).

• [AVCHD]:

You can continue recording without interruption even if the file size exceeds 4 GB, but the

motion picture file will be divided.

• [MP4] (with a [Rec Quality] size of [FHD]):

You can continue recording without interruption even if the continuous recording time exceeds

30 minutes or the file size exceeds 4 GB, but the motion picture file will be divided and

recorded/played back separately.

• [MP4] (with a [Rec Quality] size of [4K]), [MP4 (LPCM)] or [MOV]:

Motion picture file will be recorded and played back in separate files in the following cases.

(You can continue recording without interruption.)

– When using an SDHC memory card: If the file size exceeds 4 GB

– When using an SDXC memory card: If the continuous recording time exceeds 3 hours and

4 minutes or if the file size exceeds 96 GB

1m3737s1m37s

3s3s3s

DC-GH5LMBodyEB-DVQX1064_eng.book 55 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

56 DVQX1064 (ENG)

∫Setting the format, size and recording frame rate

> [Motion Picture] > [Rec Format]

> [Motion Picture] > [Rec Quality]

When [AVCHD] is selected

¢1 AVCHD Progressive

¢2 Sensor output: 29.97 frames/second

¢3 Sensor output: 25.00 frames/second

When [MP4] is selected

[AVCHD] This data format is suitable for when playing back on a high-definition TV, etc.

[MP4] This data format is suitable for when playing back on a PC, etc.

[MP4 (LPCM)] The MP4 data format for image editing.

[MOV] Data format for image editing.

Item System

frequency Size Frame rate Bit rate YUV/bit Image

compression

[FHD/28M/60p]¢1

59.94Hz

(NTSC)

1920k1080 59.94p 28 Mbps 4:2:0/8 bit Long GOP

[FHD/17M/60i] 1920k1080 59.94i 17 Mbps 4:2:0/8 bit Long GOP

[FHD/24M/30p] 1920k1080 59.94i¢224 Mbps 4:2:0/8 bit Long GOP

[FHD/24M/24p] 1920k1080 23.98p 24 Mbps 4:2:0/8 bit Long GOP

[FHD/28M/50p]¢1

50.00Hz

(PAL)

1920k1080 50.00p 28 Mbps 4:2:0/8 bit Long GOP

[FHD/17M/50i] 1920k1080 50.00i 17 Mbps 4:2:0/8 bit Long GOP

[FHD/24M/25p] 1920k1080 50.00i¢324 Mbps 4:2:0/8 bit Long GOP

Item System

frequency Size Frame rate Bit rate YUV/bit Image

compression

[4K/100M/30p]

59.94Hz

(NTSC)

3840k2160 29.97p 100 Mbps 4:2:0/8 bit Long GOP

[4K/100M/24p] 3840k2160 23.98p 100 Mbps 4:2:0/8 bit Long GOP

[FHD/28M/60p] 1920k1080 59.94p 28 Mbps 4:2:0/8 bit Long GOP

[FHD/20M/30p] 1920k1080 29.97p 20 Mbps 4:2:0/8 bit Long GOP

[FHD/24M/24p] 1920k1080 23.98p 24 Mbps 4:2:0/8 bit Long GOP

[4K/100M/25p]

50.00Hz

(PAL)

3840k2160 25.00p 100 Mbps 4:2:0/8 bit Long GOP

[FHD/28M/50p] 1920k1080 50.00p 28 Mbps 4:2:0/8 bit Long GOP

[FHD/20M/25p] 1920k1080 25.00p 20 Mbps 4:2:0/8 bit Long GOP

[FHD/24M/24p] 24.00Hz

(CINEMA) 1920k1080 24.00p 24 Mbps 4:2:0/8 bit Long GOP

DC-GH5LMBodyEB-DVQX1064_eng.book 56 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

(ENG) DVQX1064

When [MP4 (LPCM)], [MOV] is selected

• Motion pictures in 4:2:2/10 bit format are intended for editing on a computer used for video production.

As such, they are not supported by TVs, recorders, and players manufactured by Panasonic.

• When [MP4 (LPCM)] or [MOV] is set in Creative Video Mode, you can select the following

settings using [Anamorphic(4:3)].

Item System

frequency Size Frame rate Bit rate YUV/bit Image

compression

[C4K/10bit/150M/24p]

59.94Hz

(NTSC)

4096k2160 23.98p 150 Mbps 4:2:2/10 bit Long GOP

[C4K/8bit/100M/24p] 4096k2160 23.98p 100 Mbps 4:2:0/8 bit Long GOP

[4K/8bit/150M/60p] 3840k2160 59.94p 150 Mbps 4:2:0/8 bit Long GOP

[4K/10bit/150M/30p] 3840k2160 29.97p 150 Mbps 4:2:2/10 bit Long GOP

[4K/8bit/100M/30p] 3840k2160 29.97p 100 Mbps 4:2:0/8 bit Long GOP

[4K/10bit/150M/24p] 3840k2160 23.98p 150 Mbps 4:2:2/10 bit Long GOP

[4K/8bit/100M/24p] 3840k2160 23.98p 100 Mbps 4:2:0/8 bit Long GOP

[FHD/8bit/100M/60p] 1920k1080 59.94p 100 Mbps 4:2:0/8 bit Long GOP

[FHD/8bit/100M/30p] 1920k1080 29.97p 100 Mbps 4:2:0/8 bit Long GOP

[FHD/8bit/100M/24p] 1920k1080 23.98p 100 Mbps 4:2:0/8 bit Long GOP

[4K/8bit/150M/50p]

50.00Hz

(PAL)

3840k2160 50.00p 150 Mbps 4:2:0/8 bit Long GOP

[4K/10bit/150M/25p] 3840k2160 25.00p 150 Mbps 4:2:2/10 bit Long GOP

[4K/8bit/100M/25p] 3840k2160 25.00p 100 Mbps 4:2:0/8 bit Long GOP

[FHD/8bit/100M/50p] 1920k1080 50.00p 100 Mbps 4:2:0/8 bit Long GOP

[FHD/8bit/100M/25p] 1920k1080 25.00p 100 Mbps 4:2:0/8 bit Long GOP

[C4K/10bit/150M/24p]

24.00Hz

(CINEMA)

4096k2160 24.00p 150 Mbps 4:2:2/10 bit Long GOP

[C4K/8bit/100M/24p] 4096k2160 24.00p 100 Mbps 4:2:0/8 bit Long GOP

[4K/10bit/150M/24p] 3840k2160 24.00p 150 Mbps 4:2:2/10 bit Long GOP

[4K/8bit/100M/24p] 3840k2160 24.00p 100 Mbps 4:2:0/8 bit Long GOP

[FHD/8bit/100M/24p] 1920k1080 24.00p 100 Mbps 4:2:0/8 bit Long GOP

Item System

frequency Size Frame rate Bit rate YUV/bit Image

compression

[4K/A/150M/60p]

59.94Hz

(NTSC)

3328k2496 59.94p 150 Mbps 4:2:0/8 bit Long GOP

[4K/A/100M/30p] 3328k2496 29.97p 100 Mbps 4:2:0/8 bit Long GOP

[4K/A/100M/24p] 3328k2496 23.98p 100 Mbps 4:2:0/8 bit Long GOP

[4K/A/150M/50p] 50.00Hz

(PAL)

3328k2496 50.00p 150 Mbps 4:2:0/8 bit Long GOP

[4K/A/100M/25p] 3328k2496 25.00p 100 Mbps 4:2:0/8 bit Long GOP

[4K/A/100M/24p] 24.00Hz

(CINEMA) 3328k2496 24.00p 100 Mbps 4:2:0/8 bit Long GOP

DC-GH5LMBodyEB-DVQX1064_eng.book 57 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

58 DVQX1064 (ENG)

Applicable modes:

Focusing changes depending on the Focus Mode setting (P32) and the [Continuous AF]

setting in the [Motion Picture] menu.

Applicable modes:

This unit automatically records time code during motion

picture recording.

• Time codes are not recorded on motion pictures recorded when

the [Rec Format] is set to [MP4].

How to set focus when recording a motion picture ([Continuous AF])

Focus mode [Continuous AF] Description of settings

[AFS]/[AFF]/

[AFC]

[ON] The camera automatically keeps focusing on subjects

during recording.

[OFF] The camera maintains the focus position at the start of

recording.

[MF] [ON]/[OFF] You can focus manually. (P36)

Customising the operation settings of Auto Focus for motion picture

recording ([AF Custom Setting(Video)])

> [Motion Picture] > [AF Custom Setting(Video)]

[ON] Records motion pictures using the customised Auto Focus operation settings.

[OFF] Records motion pictures using the default Auto Focus operation settings.

[SET]

[AF Speed]

Sets the speed at which focus moves during Auto Focus.

[r] side: Focus moves at a faster speed.

[s] side: Focus moves at a slower speed.

[AF Sensitivity]

Sets the tracking sensitivity of Auto Focus.

[r] side: When the distance to the subject changes

significantly, the camera immediately readjusts the focus.

[s] side: When the distance to the subject changes

significantly, the camera waits for a little before readjusting the

focus.

Setting the recording method of time code

TC 00:01:30:00TC 00:01:30:00

DC-GH5LMBodyEB-DVQX1064_eng.book 58 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

(ENG) DVQX1064

∫Conditions for outputting a time code to HDMI output

A time code is output to video from the HDMI output only when all the following conditions

are satisfied.

> [Motion Picture] > [Time Code]

[Time Code

Display]

Set whether or not the time code is displayed on the recording screen/

playback screen.

[Count Up]

Sets the time code count method.

[REC RUN]:

Counts the time code only when recording motion pictures.

[FREE RUN]:

Counts the time code even when not recording (including when this unit is

turned off).

[Time Code

Value]

Sets the start point (starting time) for the time code.

[Reset]:

Sets to 00:00:00:00 (hour: minute: second: frame)

[Manual Input]:

Manually input hour, minute, second and frame.

[Current Time]:

Sets hour, minute and second to current time and sets frame to 00.

[Time Code

Mode]

Sets the time code recording method.

[DF] (Drop Frame):

The camera modifies the difference between recorded time and time code.

• Seconds and frames are separated by “.”. (Example: 00:00:00.00)

[NDF] (Non-Drop Frame):

Records the time code without drop frame.

• Seconds and frames are separated by “:”. (Example: 00:00:00:00)

[HDMI Time

Code Output]

Generates time code for images output through HDMI.

• [HDMI Time Code Output] can only be set in Creative Video Mode.

• When using the HDMI output and outputting videos that do not include time

codes (e.g., when [Rec Format] is set to [MP4]), a time code will not be

output.

• The device screen may go dark depending on the connected device.

In recording

• When [HDMI Time Code Output] is set to

[ON].

• In Creative Video Mode.

• When [Rec Format] is set to [AVCHD], [MP4

(LPCM)] or [MOV].

In playback

• When [HDMI Time Code Output] is set to

[ON].

• When playing back a motion picture recorded

with Creative Video Mode.

• When [HDMI Mode (Play)] in [TV Connection]

is set to [AUTO].

DC-GH5LMBodyEB-DVQX1064_eng.book 59 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

60 DVQX1064 (ENG)

Recording Motion Pictures in Creative Video

Mode

Recording Mode:

It is possible to manually change the aperture, shutter speed and ISO sensitivity and

record motion pictures.

1Set the mode dial to [ ].

2Select the menu. (P26)

• The operation for changing the aperture value or shutter speed is the same as the

operation for setting the mode dial to , , or .

3Press the motion picture button (or shutter button) to start recording.

• The operational sound of the zoom or button operation may be recorded when it is

operated during the recording of a motion picture.

Using touch icons allows silent operation while recording motion pictures.

4Press the motion picture button (or shutter button) again to stop

recording.

• With Creative Video Mode, you can set an ISO sensitivity value that falls in the range below.

– [AUTO], [200] to [12800] ([100] to [12800] if [Extended ISO] is set)

– Upper limit of the [AUTO] ISO sensitivity: [6400] (When the [ISO Auto Upper Limit Setting] in

[ISO Sensitivity (video)] is set to [AUTO])

> [Creative Video] > [Exposure Mode] > [P]/[A]/[S]/[M]

1Touch [ ].

2Touch icon.

: Zoom

: Aperture value

: Shutter speed

: Exposure Compensation

/ : ISO sensitivity/Gain (dB)

: Mic level adjustment

3Drag the slide bar to set.

[ ]/[ ]: Changes the setting

slowly

[ ]/[ ]: Changes the setting

quickly

ISO

GAIN

DC-GH5LMBodyEB-DVQX1064_eng.book 60 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

(ENG) DVQX1064

In Creative Video Mode, you can use [Like709] in [Photo Style], which compresses

overexposed portions to enable recording with minimum saturation.

1Set the mode dial to [ ].

2Select the menu. (P26)

3Press 2/1 to select [Like709] and then press [Fn2].

4Press 2/1 to select the Knee Mode setting, and press [MENU/SET].

Slow motion pictures (overcrank recording)

Set a frame rate that provides more frames than the frame rate in [Rec Quality] does.

Example: If you set [FHD/8bit/100M/24p] to [48fps] and record a motion picture, a slow

motion effect of 1/2 can be gained.

Fast motion pictures (undercrank recording)

Set a frame rate that provides less frames than the frame rate in [Rec Quality] does.

Example: If you set [FHD/8bit/100M/24p] to [12fps] and record a motion picture, a quick

motion effect of 2k can be gained.

1Set the mode dial to [ ].

2Select an item that supports [Variable Frame Rate].

• [MP4] does not support [Variable Frame Rate].

• Items available for recording with a [Variable Frame Rate] are indicated as [VFR available]

on the screen.

Recording with minimum white saturation by compressing

overexposed portions (Knee)

> [Motion Picture] > [Photo Style]

[AUTO] Adjusts the compression level of overexposed portions automatically.

[MANUAL]

Allows you to adjust the master knee point and master knee slope

manually.

Press 3/4 to select the items, and then press 2/1 to adjust.

[POINT] (master knee point), [SLOPE] (master knee slope)

• Rotate the front dial to adjust the master knee point, and rotate the rear

dial to adjust the master knee slope.

[Off] s

Recording in Slow or Fast Motion ([Variable Frame Rate])

> [Motion Picture] > [Rec Format]

> [Motion Picture] > [Rec Quality]

DC-GH5LMBodyEB-DVQX1064_eng.book 61 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

62 DVQX1064 (ENG)

3Select the menu. (P26)

4Press 2/1 to select the frame rate you will record

the item with.

5Press [MENU/SET].

• Auto Focus does not work.

• Audio is not recorded when the frame rate is different from that of [Rec Quality].

• When you play back a motion picture recorded with [Variable Frame Rate], the recording time

display for motion pictures on the top right of the screen will look different from the one that

appears during normal motion picture playback.

[ ]: Actual playback time

[ ]: Actual elapse of time during which you recorded the motion picture

• Only available when [Rec Format] is set to [MP4 (LPCM)] or [MOV] in Creative Video

Mode.

> [Creative Video] > [Loop Recording (video)]

Settings: [ON]/[OFF]

• While recording is in progress, the elapsed recording time is

indicated with [ ] (A) and the available recording time (B)

decreases.

• When recording uses up the card’s free space, the available

recording time display disappears and the camera continues the

recording while deleting the oldest segment of the recorded

data. A motion picture with a length equal to the available

recording time (the amount of time corresponding to the card's

free space) measured backwards from a point where the

recording ended will be saved.

> [Creative Video] > [Variable Frame Rate] > [ON]

Recording while deleting old data ([Loop Recording (video)])

1414m5757s14m57s

3s3s





DC-GH5LMBodyEB-DVQX1064_eng.book 62 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

(ENG) DVQX1064

• This function is available when [Exposure Mode] is set to either [S] or [M] in Creative

Video Mode.

1Select the menu. (P26)

2Select Shutter Speed with 2/1, and then press [MENU/SET].

• Adjust the shutter speed while looking at the screen so that flickering and horizontal

stripes will be minimised.

• If you press and hold 2/1, the shutter speed will be adjusted faster.

• You can also adjust the shutter speed setting on the recording screen in increments finer

than the normal adjustment method.

1Set the mode dial to [ ].

2Select the menu. (P26)

3Press [ ].

4Press 3/4/2/1 to select the focus position and then press [MENU/SET].

5Set the focus position.

• This is the same operation as Manual Focus operation. (P36)

6Press [MENU/SET].

• To register focus positions to other items, repeat steps 2 through 4.

• Set the items below as needed.

7Press 3/4 to select [Start] and then press [MENU/SET].

• If you press [DISP.], you can return to the setting screen.

Reducing flickering and horizontal stripes on images ([Synchro Scan])

> [Creative Video] > [Synchro Scan] > [ON]

Moving the focus position smoothly to a registered position ([Focus

Transition])

> [Creative Video] > [Focus Transition] > [Focus Pull Setting] >

[POS 1]/[POS 2]/[POS 3]

[Focus Transition Speed] Sets the moving speed of focus.

[Focus Transition Rec] Starts Focus Transition when recording starts.

[Focus Transition Wait] Sets the wait time before the start of Focus Transition.

DC-GH5LMBodyEB-DVQX1064_eng.book 63 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

64 DVQX1064 (ENG)

8Press the motion picture button (or shutter button) to

start recording.

• If you have enabled [Focus Transition Rec], Focus

Transition will start when you start recording a motion

picture.

9Touch [POS 1], [POS 2], or [POS 3] to start Focus

Transition.

• The same operation can be performed by pressing 2/1 to

select the position and pressing [MENU/SET].

• The MF Guide will display the current focus position A and the registered focus position

• Press [ ] to end Focus Transition.

10 Press the motion picture button (or shutter button) again to stop recording.

• Maintain the same distance to the subject after setting the focus position.

• The moving speed of focus varies depending on the lens being used.

By cropping your motion picture down from the 4K angle of view to Full High Definition,

you can record a motion picture that pans and zooms in/out while leaving the camera in a

fixed position.

• The motion picture size automatically changes to [FHD].

• Hold the camera firmly in place while recording.

1Set the mode dial to [ ].

2Select the menu. (P26)

• Any of the operations below will clear the focus position settings. To use them again, re-register

focus positions.

– Operating the camera on/off switch

– Zoom operation

– Switching the Focus Mode

– Switching the Recording Mode

– Replacing the lens

Recording Motion Pictures that Pan and Zoom While Maintaining a

Fixed Camera Position ([4K Live Cropping])

Pan Zoom in

> [Creative Video] > [4K Live Cropping] > [40SEC]/[20SEC]

POS 2 POS 3POS 1

POS 1

DC-GH5LMBodyEB-DVQX1064_eng.book 64 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

(ENG) DVQX1064

3Set the cropping start frame.

ACropping start frame

• When making settings for the first time, a cropping start

frame of size 1920k1080 is displayed. (After setting the

cropping start frame and end frame, the start frame and

end frame that you set immediately before will be

displayed.)

• The camera will remember the frame position and size

even when the camera is turned off.

4Repeat step 3, and then set the cropping end frame.

BCropping end frame

5Press the motion picture button (or shutter button)

to start recording.

• Immediately release the motion picture button (or the

shutter button) after pressing it.

• When the set operating time has elapsed, recording

automatically ends.

To end recording midway, press the motion picture button

(or the shutter button) again.

∫Changing the position and size of a crop frame

Press 2 while the recording screen is displayed, and perform steps 3 and 4.

∫[Rec Format] and [Rec Quality] settings available for recording

Button operation Touch operation Description of operation

3/4/2/1Touching Moves the frame.

Pinching out/in Enlarges/reduces the frame.

[DISP.] [Reset] Returns the position of the frame to the centre

and its size to the default setting.

[MENU/SET] [Set] Decides the position and size of the frame.

[Rec Format] [System Frequency] [Rec Quality]

[AVCHD] s

[MP4]

[59.94Hz (NTSC)] [FHD/28M/60p]/[FHD/20M/30p]

[50.00Hz (PAL)] [FHD/28M/50p]/[FHD/20M/25p]

[24.00Hz (CINEMA)] s

[MP4 (LPCM)]

[MOV]

[59.94Hz (NTSC)] [FHD/8bit/100M/60p]/[FHD/8bit/100M/30p]/

[FHD/8bit/100M/24p]

[50.00Hz (PAL)] [FHD/8bit/100M/50p]/[FHD/8bit/100M/25p]

[24.00Hz (CINEMA)] [FHD/8bit/100M/24p]

ュリヴヱハ

5HVHW 6HW

ュリヴヱハ

5HVHW 6HW

DC-GH5LMBodyEB-DVQX1064_eng.book 65 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

66 DVQX1064 (ENG)

Recording Motion Pictures Using a Connected

External Device

You can connect the camera’s [HDMI] socket and an external monitor or recorder with an

HDMI cable. HDMI output is controlled separately for recording and playback. This section

describes the HDMI output control for recording.

• Playback signals are output using the [HDMI Mode (Play)] setting in [TV Connection] of the

[Setup] menu.

• Use a “High Speed HDMI cable” with the HDMI logo.

Cables that do not comply with the HDMI standards will not work.

“High Speed HDMI cable” (Type A–Type A plug, up to 1.5 m (4.9 feet) long)

∫Attaching the cable holder

Attach the cable holder to prevent the HDMI cable or USB connection cable from getting

disconnected by accident or the [HDMI] or USB socket from being damaged.

• Example: Attaching to an HDMI cable

1While pushing A (1), slide the clamp

portion of the cable holder to remove it

(2).

2After placing the camera on a stable

surface, loosely mount the cable holder

to the mount on the camera (3), and

secure the cable holder by rotating the

screws in the direction of the arrows (4, 5).

3Attach the HDMI cable to the clamp

portion (6).

4Slide the clamp portion to attach it to

the cable holder (7).

External monitor/recorder (HDMI output during recording)

A[HDMI] socket (Type A)

BHDMI cable

CExternal recorder

DExternal monitor















DC-GH5LMBodyEB-DVQX1064_eng.book 66 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

(ENG) DVQX1064

5Connect the HDMI cable to the [HDMI]

socket (8).

BLeave some slack so that this section has

a length of at least 10 cm (0.33 feet).

• You can also connect the HDMI cable and

USB connection cable at the same time

when the cable holder is attached.

Removing the cable holder

To remove the cable holder, follow the steps for attaching it in the reverse order.

• We recommend using an HDMI cable with a maximum thickness diameter of 6 mm (0.24 inch).

• Keep the clamp portion of the cable holder out of reach of children to prevent swallowing.

∫Notes on images output via HDMI (sorted by Recording Mode)

∫Setting the output bit value for 4K/60p (4K/50p)

Settings: [4:2:2 10bit]/[4:2:0 8bit]

• Motion pictures cannot be recorded to the card at [4:2:2 10bit] during HDMI output.

• This item works only when [Rec Quality] is set to [4K/8bit/150M/60p] or [4K/8bit/150M/50p] in

Creative Video Mode.

Recording

Mode

Aspect ratio

The output setting is determined by the

[Rec Quality] setting in the [Motion

Picture] menu.

• When [Anamorphic(4:3)] is set, black

bars appear on both sides of output

images.

The output setting is determined by the

[Aspect Ratio] setting in the [Rec]

menu.

• Black bars appear on both sides of

images, except for those with an

aspect ratio of [16:9].

Size/frame

rate

The output setting is determined by the

[Rec Quality] setting and the [Down

Convert] setting for [HDMI Rec

Output], both located in the [Motion

Picture] menu.

The output setting is determined by the

connected device.

Output bit

value

The output setting is determined by the

[Rec Quality] setting in the [Motion

Picture] menu.

• If [10bit] is not supported by the

connected device, the setting

changes to 8 bit.

• You can set the output bit value when

using a 4K/60p (4K/50p) setting.

The output setting is determined by the

connected device.

> [Motion Picture] > [HDMI Rec Output] >

[4K/60p Bit Mode] ([4K/50p Bit Mode])



DC-GH5LMBodyEB-DVQX1064_eng.book 67 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

68 DVQX1064 (ENG)

∫Setting the picture quality (size/frame rate) for HDMI output

Down-convert the size/frame rate when the motion picture size is set to [4K] or [C4K] in

[Rec Quality].

∫Other HDMI output settings

> [Motion Picture] > [HDMI Rec Output] > [Down Convert]

[AUTO] Down-converts the size/frame rate setting of images to that of the connected

device to output them.

[4K/30p]

([4K/25p])

Down-converts the size/frame rate setting of images from [4K/60p]/[4K/50p] to

[4K/30p]/[4K/25p] to output them.

[1080p] Down-converts the size setting to [1080] and outputs images in progressive

format.

[1080i] Down-converts the size setting to [1080] and outputs images in interlace format.

[OFF] Outputs images at a size/frame rate set in [Rec Quality].

> [Motion Picture] > [HDMI Rec Output]

[Info Display] Shows or hides the displays of information.

• Waveforms in [WFM/Vector Scope] cannot be output to HDMI devices.

[HDMI Recording

Control]

Set whether or not to output control information for recording start/stop to

external devices connected to the HDMI socket.

• [HDMI Recording Control] can only be set when [HDMI Time Code

Output] (P59) is set to [ON] in Creative Video Mode.

• Control information can be output only when outputting a time code to

video from the HDMI output during recording.

• Control information is output when pressing the motion picture button or

shutter button, even if the motion picture cannot be recorded (such as

when there is no card inserted into this unit).

• Only compatible external devices can be controlled.

[LUT HDMI

Display]

Apply LUT (Look-Up Table) data to images that are output to an HDMI

device when [Photo Style] is set to [V-Log L].

• This function becomes available only after being activated in

[Activate] with an upgrade software key (DMW-SFU1: optional).

• This item is available only when [Photo Style] is set to [V-LogL] in

Creative Video Mode.

• You can set the LUT data to be applied in [V-LogL View Assist].

[Sound Down

Convert]

When an XLR microphone adaptor (DMW-XLR1: optional) is attached,

audio is down-converted to a format suitable for the connected HDMI

device before being output.

• This item is available only when using an XLR microphone adaptor.

DC-GH5LMBodyEB-DVQX1064_eng.book 68 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

(ENG) DVQX1064

Using a stereo shotgun microphone (DMW-MS2: optional) or stereo microphone

(VW-VMS10: optional), you can record sounds with quality superior to those recorded with

the built-in microphone.

Using the stereo shotgun microphone (DMW-MS2: optional), you can switch between the

gun (ultra-directional) recording and the wide range stereo recording.

Preparations:

• Turn this unit off.

• When attaching the stereo shotgun microphone to the camera, remove the hot shoe cover.

(P54)

∫Setting the range within which the stereo shotgun microphone (DMW-MS2:

optional) will record sounds

1Attach the dedicated stereo shotgun microphone to this unit, and then turn this

unit on.

2Select the menu. (P26)

• This item is available only when using a stereo shotgun microphone.

3(When [MANUAL] is selected)

Press 2/1 to select a range, and press [MENU/SET].

• When the external microphone is connected, [Mic Level Disp.] is automatically set to [ON], and

the mic level is displayed on the screen.

• When a stereo microphone (VW-VMS10: optional) is used, [Special Mic.] is fixed to [STEREO].

• When [Special Mic.] is set to [LENS AUTO], [S.SHOTGUN] or [MANUAL], [Sound Output] in

the [Motion Picture] menu is fixed to [REC SOUND].

• For details, refer to the operating instructions of the external microphone.

External Microphone (optional)

AHot shoe

B[MIC] socket

CStereo shotgun microphone (DMW-MS2: optional)

Stereo microphone (VW-VMS10: optional)

> [Motion Picture] > [Special Mic.]

[STEREO] Allows stereo recording of sound over a wide area.

[LENS AUTO] Allows recording within the range that is set automatically according

to the angle of view of the lens.

[SHOTGUN] Allows recording from one direction by shutting out background and

surrounding noise.

[S.SHOTGUN] Allows recording within the range even narrower than that of

[SHOTGUN].

[MANUAL] Allows recording within the range you set manually.

DC-GH5LMBodyEB-DVQX1064_eng.book 69 ページ２０１７年２月２日　木曜日　午後３時１５分

Recording

70 DVQX1064 (ENG)

By attaching an XLR microphone adaptor (DMW-XLR1: optional) to the camera, you can

use a commercially-available XLR microphone to enable the recording of superior-quality

high-res/stereo sound.

Preparations:

• Turn this unit off.

• Remove the hot shoe cover that is attached to the camera. (P54)

∫Setting the sampling frequency

1Attach the XLR microphone adaptor to the hot shoe of this unit, and then turn

this unit on.

2Select the menu. (P26)

• This item is available only when using an XLR microphone adaptor.

• The set sampling frequency is also applied to the sound output via HDMI. With [Sound

Down Convert] in [HDMI Rec Output], you can down-convert the sound output via HDMI.

(P68)

• For details, refer to the operating instructions of the XLR microphone adaptor.

You can record motion pictures while hearing the sounds that are being recorded by

connecting a commercially available headphones to this unit.

∫Adjusting the headphone volume

Connect headphones, and rotate the control dial while the recording screen is

displayed or a motion picture is being played back.

• You can also adjust the volume by touching [ ] or [ ] during playback.

XLR Microphone Adaptor (optional)

AHot shoe BXLR microphone adaptor (DMW-XLR1: optional)

CCommercially available XLR microphone

> [Motion Picture] > [XLR Mic Adaptor Setting]

[96kHz/24bit] Records high-res sound at

96 kHz/24bit. Only available when [Rec

Format] is set to [MOV].

[48kHz/24bit] Records high-quality sound at

48 kHz/24bit.

[48kHz/16bit] Records standard-quality sound at 48 kHz/16bit.

[OFF] Records sound using the built-in microphone.

Headphone

: Reduce volume level : Increase volume level

DC-GH5LMBodyEB-DVQX1064_eng.book 70 ページ２０１７年２月２日　木曜日　午後３時１５分

Playback

(ENG) DVQX1064

Playing Back Pictures

1Press [(].

2Press 2/1.

ACard slot

• If you press and hold 2/1, you can play back the

pictures in succession.

• You can switch the card selected for playback by

forwarding/rewinding pictures continuously.

∫To finish playback

Press [(] again or press the shutter button halfway.

Playing Back Motion Pictures

This unit was designed to play motion pictures using the

AVCHD, MP4 and MOV formats.

• Motion pictures are displayed with the motion picture icon

([ ]).

Press 3 to play back.

AMotion picture recording time

∫Operations during Motion Picture Playback

¢1 The fast forward/rewind speed increases if you press 1/2 again.

¢2 When a motion picture recorded with [AVCHD] is rewound frame-by-frame, its frames will be

shown in intervals of approximately 0.5 seconds.

2: Play back the previous picture

1: Play back the next picture

Switching the card selected for playback instantly

You can switch the card selected for playback instantly by

assigning [Slot Change] to a function button. (P28)

Button

operation

Touch

operation

Description of

operation

Button

operation

Touch

operation

Description of

operation

3Play/Pause 4Stop

Fast rewind¢1

Fast forward¢1

Frame-by-frame

rewind

(while pausing)¢2

Frame-by-frame

forward

(while pausing)

Reduce volume level Increase volume level

1/981/981/981/98

12s12s12s12s

DC-GH5LMBodyEB-DVQX1064_eng.book 71 ページ２０１７年２月２日　木曜日　午後３時１５分

Playback

72 DVQX1064 (ENG)

Switching the Playback Method

• Playback is performed separately by card slot. You cannot switch the card selected for

playback while the Calendar is displayed.

Using the Playback Zoom

Rotate the rear dial right.

1k2k4k8k16k

• If the rear dial is rotated to the left after the image is enlarged, the

magnification will be reduced.

• You can move the enlarged part by pressing 3/4/2/1 or

dragging the screen. (P25)

Displaying multiple screens (Multi Playback)

Rotate the rear dial left.

1 screen 12 screens 30 screens Calendar screen

display

ACard slot

• Playback is performed separately by card slot. You can switch the

card selected for playback by pressing [Fn3].

• If the rear dial is rotated to the right, the previous playback screen

will be displayed.

∫To return to Normal Playback

Press 3/4/2/1 to select a picture and then press [MENU/SET].

• If you select a motion picture, it will be played back automatically.

Displaying Pictures by Recording Date (Calendar Playback)

1Rotate the rear dial left to display the Calendar screen.

2Press 3/4/2/1 to select the recording date and

press [MENU/SET].

• Only the images recorded on that date will be displayed.

• Rotate the rear dial left to return to the Calendar screen

display.

3Press 3/4/2/1 to select a picture and then press

[MENU/SET].

2.0X2.0X2.0X2.0X

1/98

Fn3

9876543

16151413121110

23222120191817

30292827262524

SUN SATFRITHUWENTUEMON

2017

DC-GH5LMBodyEB-DVQX1064_eng.book 72 ページ２０１７年２月２日　木曜日　午後３時１５分

Playback

(ENG) DVQX1064

Playing Back Group Pictures

A picture group consists of multiple pictures. You can play back pictures in a group either

continuously or one by one.

• You can edit or delete all pictures in a group at once.

[]:

A picture group saved at once with [6K/4K PHOTO Bulk Saving]. (P43)

[]:

A picture group consisting of pictures taken with Focus Bracket. (P49)

[]:

A picture group consisting of pictures taken in a Time Lapse Shot. (P46)

[]:

A picture group consisting of pictures taken in the Stop Motion Animation. (P47)

Press 3.

1Press 4.

2Press 2/1 to flip through images.

• Pressing 4 again will return you to the normal playback screen.

• Each picture in a group can be treated same as normal pictures when they are played

back.

Continuously playing back Group Pictures

Playing back group pictures one by one

DC-GH5LMBodyEB-DVQX1064_eng.book 73 ページ２０１７年２月２日　木曜日　午後３時１５分

Playback

74 DVQX1064 (ENG)

Deleting Pictures

Once deleted, pictures cannot be recovered.

1In Playback Mode, select the picture to delete and

then press [ ].

• The same operation can be performed by touching [ ].

2Press 3 to select [Delete Single] and then press

[MENU/SET].

• Picture groups are treated as a single picture. (All the pictures in the selected picture group will

be deleted.)

• You can only delete images on one card at a time.

1In Playback Mode, press [ ].

2Press 3/4 to select [Delete Multi] or [Delete All] and then press [MENU/SET].

• If you select [Delete All], all the pictures on the card of the displayed icon will be deleted.

3(When [Delete Multi] is selected)

Press 3/4/2/1 to select the picture, and then press [MENU/SET] to set. (Repeat this

step.)

•[‚] appears on the selected pictures.

If [MENU/SET] is pressed again, the setting is cancelled.

• Pictures are displayed separately by card slot. You can switch the displayed card by

pressing [Fn3].

4(When [Delete Multi] is selected)

Press [DISP.] to execute.

To delete a single picture

To delete multiple pictures (up to 100) or all the pictures

ョㄏフ

DC-GH5LMBodyEB-DVQX1064_eng.book 74 ページ２０１７年２月２日　木曜日　午後３時１５分

(ENG) DVQX1064

Menu list

To display explanations of the menu items.

If you press [DISP.] while a menu item or setting is selected,

a description of the menu is displayed.

The following menus are displayed only for their corresponding Recording Modes:

You can change the settings registered to custom sets ( ). (P22)

Menus that are only available for particular Recording Modes

[Intelligent Auto]

[Intelligent Auto Mode] [iHandheld Night Shot] [iHDR]

[Creative Video]

[Exposure Mode] [Synchro Scan] [V-LogL View Assist]

[Variable Frame Rate] [Master Pedestal Level] [Focus Transition]

[Anamorphic(4:3)] [SS/Gain Operation] [4K Live Cropping]

[Loop Recording (video)] [WFM/Vector Scope]

[Custom Mode]

[Creative Control]

[Filter Effect] [Simultaneous record w/o filter]

[Rec]

[Aspect Ratio] [Flash] [Post Focus]

[Picture Size] [Red-Eye Removal] [Self Timer]

[Quality] [ISO Sensitivity (photo)] [Time Lapse/Animation]

[AFS/AFF] [Min. Shtr Speed] [Silent Mode]

[AF Custom Setting(Photo)] [Long Shtr NR] [Shutter Type]

[Photo Style] [Shading Comp.] [Shutter Delay]

[Filter Settings] [Diffraction Compensation] [Bracket]

[Color Space] [Stabilizer] [HDR]

[Metering Mode] [Ex. Tele Conv.] [Multi Exp.]

[Highlight Shadow] [Digital Zoom] [Time Stamp Rec]

[i.Dynamic] [Burst Rate]

[i.Resolution] [6K/4K PHOTO]

DC-GH5LMBodyEB-DVQX1064_eng.book 75 ページ２０１７年２月２日　木曜日　午後３時１５分

76 DVQX1064 (ENG)

[Motion Picture]

[Rec Format] [i.Dynamic] [Mic Level Disp.]

[Rec Quality] [i.Resolution] [Mic Level Adj.]

[Time Code] [ISO Sensitivity (video)] [Mic Level Limiter]

[AFS/AFF] [Shading Comp.] [Wind Noise Canceller]

[Continuous AF] [Diffraction Compensation] [Wind Cut]

[AF Custom Setting(Video)] [Stabilizer] [Lens Noise Cut]

[Photo Style] [Flkr Decrease] [Special Mic.]

[Filter Settings] [Ex. Tele Conv.] [Sound Output]

[Luminance Level] [Digital Zoom] [XLR Mic Adaptor Setting]

[Metering Mode] [Picture Mode in Rec.] [HDMI Rec Output]

[Highlight Shadow] [Time Stamp Rec] [Color Bars]

[Custom]

[Exposure] [MF Assist Display] [Center Marker]

[ISO Increments] [Highlight]

[Extended ISO] [Operation] [Zebra Pattern]

[Exposure Comp. Reset] [Fn Button Set] [Expo.Meter]

[Q.MENU] [MF Guide]

[Focus / Release Shutter] [Dial Set.] [LVF/Monitor Disp. Set]

[AF/AE Lock] [Joystick Setting] [Monitor Info. Disp.]

[AF/AE Lock Hold] [Operation Lock Setting] [Rec Area]

[Shutter AF] [Video Button] [Video-Priority Display]

[Half Press Release] [Touch Settings] [Menu Guide]

[Quick AF]

[Eye Sensor AF] [Monitor / Display] [Lens / Others]

[Pinpoint AF Setting] [Auto Review] [Lens Position Resume]

[AF Assist Lamp] [Monochrome Live View] [Power Zoom Lens]

[Focus/Release Priority] [Constant Preview] [Face Recog.]

[Focus Switching for Vert / Hor] [Peaking] [Profile Setup]

[AF+MF] [Histogram]

[MF Assist] [Guide Line]

DC-GH5LMBodyEB-DVQX1064_eng.book 76 ページ２０１７年２月２日　木曜日　午後３時１５分

(ENG) DVQX1064

Applicable modes:

This allows you to select the aspect ratio of the pictures to suit printing or the playback

method.

[Setup]

[Online Manual] [Monitor Display]/

[Viewfinder]

[Folder / File settings]

[Cust.Set Mem.] [Double Slot Function]

[Clock Set] [Monitor Luminance] [Save/Restore Camera Setting]

[World Time] [Eye Sensor] [No.Reset]

[Travel Date] [Battery Use Priority] [Reset]

[Wi-Fi] [USB Mode] [Reset Network Settings]

[Bluetooth] [TV Connection] [Pixel Refresh]

[Beep] [System Frequency] [Sensor Cleaning]

[Headphone Volume] [Language] [Level Gauge Adjust.]

[Economy] [Version Disp.] [Format]

[Live View Mode] [Activate]

[My Menu]

[My Menu Setting]

[Playback]

[Slide Show] [6K/4K PHOTO Bulk Saving] [Rotate]

[Playback Mode] [6K/4K PHOTO Noise Reduction] [Video Divide]

[Protect] [Light Composition] [Time Lapse Video]

[Rating] [Clear Retouch] [Stop Motion Video]

[Title Edit] [Text Stamp] [Rotate Disp.]

[Face Rec Edit] [Copy] [Picture Sort]

[Print Set] [Resize] [Delete Confirmation]

[RAW Processing] [Cropping]

[Aspect Ratio]

> [Rec] > [Aspect Ratio]

[4:3] [Aspect Ratio] of a 4:3 TV

[3:2] [Aspect Ratio] of a 35 mm film camera

[16:9] [Aspect Ratio] of a high-definition TV, etc.

[1:1] Square aspect ratio

DC-GH5LMBodyEB-DVQX1064_eng.book 77 ページ２０１７年２月２日　木曜日　午後３時１５分

78 DVQX1064 (ENG)

Applicable modes:

Set the number of pixels.

The higher the numbers of pixels, the finer the detail of the pictures will appear even when

they are printed onto large sheets.

Applicable modes:

Set the compression rate at which the pictures are to be stored.

• RAW images are always recorded in the [4:3] (5184k3888) aspect ratio.

• When you delete an image recorded with [ ] or [ ], both the RAW and JPEG images

will be deleted simultaneously.

• When you play back an image recorded with [ ], grey areas corresponding to the aspect

ratio at the time of recording are displayed.

• You can process RAW images in [RAW Processing] in the [Playback] menu. (P85)

• Use software (“SILKYPIX Developer Studio” (P104) by Ichikawa Soft Laboratory) to process

and edit RAW files on a PC.

[Picture Size]

> [Rec] > [Picture Size]

When the aspect ratio is [4:3]. When the aspect ratio is [3:2].

Settings Image size Settings Image size

[L] (20M) 5184k3888 [L] (17M) 5184k3456

[M] (10M) 3712k2784 [M] (9M) 3712k2480

[S] (5M) 2624k1968 [S] (4.5M) 2624k1752

When the aspect ratio is [16:9]. When the aspect ratio is [1:1].

Settings Image size Settings Image size

[L] (14.5M) 5184k2920 [L] (14.5M) 3888k3888

[M] (8M) 3840k2160 [M] (7.5M) 2784k2784

[S] (2M) 1920k1080 [S] (3.5M) 1968k1968

[Quality]

> [Rec] > [Quality]

Settings File format Description of settings

[A]

JPEG

A JPEG image in which image quality was given priority.

[›]

A standard image quality JPEG image.

This is useful for increasing the number of shots without

changing the number of pixels.

[]RAWiJPEG You can record a RAW image and a JPEG image ([A] or

[›]) simultaneously.

[]

[] RAW You can only record RAW images.

DC-GH5LMBodyEB-DVQX1064_eng.book 78 ページ２０１７年２月２日　木曜日　午後３時１５分

(ENG) DVQX1064

Applicable modes:

Type of optical measurement to measure brightness can be changed.

Applicable modes:

Disables operational sounds and output of light at once.

Settings: [ON]/[OFF]

• Sounds that are produced by the camera regardless of your operations, such as the lens

aperture sound, cannot be muted.

• Be sure to pay special attention to the privacy, the likeness rights, etc. of the subject

when you use this function. Use at your own risk.

[Metering Mode]

> [Rec] > [Metering Mode]

[]

(Multiple)

This is the method in which the camera measures the most suitable

exposure by judging the allocation of brightness on the whole screen

automatically.

Usually, we recommend using this method.

[]

(Centre weighted)

This is the method used to focus on the subject on the centre of the

screen and measure the whole screen evenly.

[]

(Spot)

This is the method to measure the subject in the spot metering target.

• If you set the spot metering target on the edge of the screen, the

metering may be affected by the brightness around the location.

[Silent Mode]

> [Rec] > [Silent Mode]

• Audio from the speaker will be muted and the flash and the AF Assist lamp will be disabled.

The following settings are fixed.

– [Flash Mode]: [Œ] (forced flash off)

– [Shutter Type]: [ESHTR]

– [AF Assist Lamp]: [OFF]

– [Beep Volume]: [s] (OFF)

– [E-Shutter Vol]: [ ] (OFF)

• Even when [ON] is set, the following functions light up/flash.

– Status indicator

– Self-timer indicator

– WIRELESS connection lamp

DC-GH5LMBodyEB-DVQX1064_eng.book 79 ページ２０１７年２月２日　木曜日　午後３時１５分

80 DVQX1064 (ENG)

Applicable modes:

Select the shutter to be used for taking pictures.

Settings: [AUTO]/[MSHTR]/[EFC]/[ESHTR]

¢1 This setting is available only in Manual Exposure Mode.

¢2 Up to an ISO sensitivity of [ISO3200]. When the setting is higher than [ISO3200], the shutter

speed will be faster than 1 second.

• Compared to Mechanical Shutter Mode, Electronic Front Curtain Mode produces less

shutter-induced shake, so it can minimise the influence of shutter vibration.

• Electronic Shutter Mode allows you to take pictures without causing shutter vibration.

Applicable modes:

Select the luminance range to match the use of video.

Settings: [0-255]/[16-235]/[16-255]

• If you set [Rec Quality] to a 10bit motion picture setting, the available options change to

[0-1023], [64-940], and [64-1023].

• This function works only for motion pictures. Still pictures (including those you take during

motion picture recording) will be taken with [0-255].

[Shutter Type]

> [Rec] > [Shutter Type]

Mechanical shutter Electronic Front

Curtain Electronic Shutter

Description

The camera starts and

ends an exposure with

the mechanical shutter.

The camera starts an

exposure electronically,

and ends it with the

mechanical shutter.

The camera starts and

ends an exposure

electronically.

Flash ±±—

Shutter Speed

(Sec.)

B (Bulb)¢1/

60 to 1/8000th

B (Bulb)¢1/

60 to 1/2000th 1¢2 to 1/16000th

Shutter sound Mechanical shutter

sound

Mechanical shutter

sound Electronic shutter sound

[Luminance Level]

> [Motion Picture] > [Luminance Level]

DC-GH5LMBodyEB-DVQX1064_eng.book 80 ページ２０１７年２月２日　木曜日　午後３時１５分

(ENG) DVQX1064

Indicates parts that may become white saturated through overexposure in a zebra pattern.

Select [SET] to set the brightness to be processed as a zebra pattern.

• You can select a brightness value between [50%] and [105%]. In [Zebra 2], you can select

[OFF]. If you select [100%] or [105%], only the areas that are already white saturated are

displayed in a zebra pattern. The smaller the value is, the wider the brightness range to be

processed as a zebra pattern will be.

• If there are any white saturated areas, we recommend compensating the exposure towards

negative (P37) referring to the histogram and then taking the picture.

• Displayed zebra patterns will not be recorded.

• Press the shutter button halfway or turn the camera off and on to cancel [Sleep Mode], [Sleep

Mode(Wi-Fi)] and [Power Save LVF Shooting].

• To turn the monitor/viewfinder on again, press any button.

[Zebra Pattern]

> [Custom] > [Monitor / Display] > [Zebra Pattern]

[ZEBRA1] [ZEBRA2]

[Economy]

>[Setup] > [Economy]

[Sleep Mode] The camera is automatically turned off if the camera has not been used for

the time selected on the setting.

[Sleep

Mode(Wi-Fi)]

The camera is automatically turned off if it is not connected to a Wi-Fi

network and has not been used for 15 minutes (approx.).

[Auto LVF/

Monitor Off]

The monitor/viewfinder is automatically turned off if the camera has not

been used for the time selected on the setting.

[Power Save LVF

Shooting]

If you enable the automatic viewfinder/monitor switching function (P23)

and display the On-monitor recording information screen (P24) on the

monitor, the camera is automatically turned off when the camera has not

been used for the time selected on the setting.

DC-GH5LMBodyEB-DVQX1064_eng.book 81 ページ２０１７年２月２日　木曜日　午後３時１５分

82 DVQX1064 (ENG)

You can change the system frequency of the motion pictures you record and play back.

• After changing the setting, turn the camera off and on.

• By default, the system frequency is set to the broadcasting system of your purchase region.

• When [System Frequency] is set to a broadcasting system different from that of your

region, images may not be played back correctly on the TV.

• If you are not familiar with broadcasting systems or will not be creating any motion

pictures for films, we recommend that you use the default setting.

• If you changed the setting but are not sure about the system frequency for the broadcasting

system of your region, perform [Reset] in the [Setup] menu.

∫Once you change the system frequency

After changing the [System Frequency] setting, motion pictures may not be recorded or

played back if you continue to use the card that was inserted in the camera. We

recommend that you replace the card with another one and format (P15) it on the camera.

• If you continue to use the card that was inserted in the camera before you changed the setting,

the camera will operate as follows:

Set the folder and file name patterns in which images are to be saved.

[System Frequency]

>[Setup] > [System Frequency]

[59.94Hz (NTSC)] For regions where the TV broadcasting system is NTSC

[50.00Hz (PAL)] For regions where the TV broadcasting system is PAL

[24.00Hz (CINEMA)] This system frequency is for creating films

[Rec Format] Recording Playback

[AVCHD] Recording is not possible You cannot play back motion

pictures recorded before you

changed the setting.

[MP4]/[MP4 (LPCM)]/

[MOV] Recording is possible

[Folder / File settings]

Folder name File name

1Folder number (3-digits, 100–999) 1Colour space ([P]: sRGB, [ _]: AdobeRGB)

25-digit user-defined segment 23-digit user-defined segment

3File number (4-digits, 0001–9999)

4File extension

100ABCDE

 


  

DC-GH5LMBodyEB-DVQX1064_eng.book 82 ページ２０１７年２月２日　木曜日　午後３時１５分

(ENG) DVQX1064

¢When [Double Slot Function] is set to [Allocation Rec], [Select Folder (SD1)] and [Select

Folder (SD2)] are displayed.

• Each folder can store up to 999 files. If the number exceeds 999 files, a new folder with an

incremented folder number will be created automatically.

Set the way recording to the card slots 1 and 2 is performed.

Notes on the Relay Rec. function

• In the following cases, recording cannot be relayed to the other card:

– When using [Loop Recording(4K PHOTO)] for [6K/4K Burst(S/S)] recording.

– When recording a motion picture in [AVCHD] format

– When using [Loop Recording (video)] for motion picture recording.

>[Setup] > [Folder / File settings]

[Select Folder]¢Specifies the folder to which images are to be saved.

• The folder name is indicated with the number of files that can be stored.

[Create a new

folder]

[OK] Creates a new folder with the same 5-digit user-defined

segment as the current folder name setting.

[Change] Allows you to redefine the 5-digit user-defined segment

before creating a new folder.

• A new folder with an incremented folder number is created.

[File Name

Setting]

[Folder Number

Link]

Uses the folder number of the folder name as the file

name’s 3-digit user-defined segment.

[User Setting] Allows you to define and set the 3-digit user-defined

segment of the file name.

[Double Slot Function]

>[Setup] > [Double Slot Function]

[Recording

Method]

([Relay Rec])

Relays recording to the other card slot even after the first card

runs out of free space during recording.

[Destination Slot]: [ ]/[ ]

• If you keep replacing the full card before the other card runs

out of free space during motion picture recording, you can

perform recording for a long period of time using 3 or more

cards. Replace the card when there is still sufficient free space

left on the card being used for recording.

([Backup Rec]) Records same images to the two cards.

([Allocation

Rec])

Allows you to specify the card slot to be used for recording for

different image formats.

[JPEG Destination]/[RAW Destination]/[6K/4K Photo

Destination]/[Video Destination]

DC-GH5LMBodyEB-DVQX1064_eng.book 83 ページ２０１７年２月２日　木曜日　午後３時１５分

84 DVQX1064 (ENG)

Notes on the Backup Rec. function

• We recommend using cards with the same Speed Class rating and capacity.

• When recording a motion picture in [AVCHD] format, backup recording of motion picture is not

possible. Data will be recorded only to the one card.

• When different types of cards (SDHC/SDXC) are inserted in any of the following situations,

recording cannot be performed to the cards:

– When recording motion pictures (Excluding [AVCHD])

– When recording 6K/4K photos

– When recording with the Post Focus function

Save the camera’s setup information to the card. Since saved setup information can be

imported to the camera, you can apply the same setup to more than one camera.

• Save/load setup information using the card inserted to the card slot 1.

• Only the setup information for this model can be loaded.

• You can save up to 10 sets of setup information to one card.

menus.

> [My Menu] > [My Menu Setting]

[Save/Restore Camera Setting]

>[Setup] > [Save/Restore Camera Setting]

[Save]

Saves the camera’s setup information to the card.

• To save new information, select [New File]; to overwrite an existing file,

select that file.

• When [New File] has been selected, the name of the file to be saved is

displayed on the screen.

[OK] Saves the file with an automatically created name

displayed on the screen.

[Change the

file name] Allows you to rename the file before saving it.

[Load] Loads the setup information on the card to the camera.

[Delete] Deletes the setup information on the card.

[My Menu Setting]

[Add] Specifies the menu to be displayed in My Menu to register it.

[Sorting] Rearranges the menus displayed in My Menu. Select the menu you want to

move and set the destination.

[Delete]

Deletes registered menus from the displayed menu list.

[Delete Item]: Deletes a selected menu from the displayed menu list.

[Delete All]: Deletes all of the displayed menus.

[Display from

My Menu]

Sets the type of the menu screen to be displayed.

[ON]: Displays My Menu.

[OFF]: Displays the last-used menu.

DC-GH5LMBodyEB-DVQX1064_eng.book 84 ページ２０１７年２月２日　木曜日　午後３時１５分

(ENG) DVQX1064

You can process the pictures taken in RAW format. The processed pictures will be saved

in JPEG format.

>[Playback] > [RAW Processing]

1Select RAW images with 2/1, and then press

[MENU/SET].

2Press 3/4 to select an item.

3Press [MENU/SET] and set.

4Press [MENU/SET].

• This operation returns you to the screen in step 2. To set other items, repeat steps 2

through 4.

5Select [Begin Processing] with 3/4, and then press [MENU/SET].

∫How to set each item

• When [Noise Reduction], [i.Resolution] or [Sharpness] is selected, the comparison screen

cannot be displayed.

• If you touch the picture twice, the picture will be enlarged. If you touch the picture twice when it

is enlarged, it will be reduced to the original size.

[RAW Processing]

[White Balance] [Highlight] [i.Resolution]

[Brightness correction] [Shadow] [Sharpness]

[Photo Style] [Saturation]/[Color Tone] [Setup]

[i.Dynamic] [Hue]/[Filter Effect]

[Contrast] [Noise Reduction]

Button

operation

Touch

operation Description of operation

2/1

/Dragging Selects a setting.

3[WB K

Set]

Displays the screen that lets you

set the colour temperature. (P39)

(only when [White Balance] is set

to [ ], [ ], [ ], [ ])

4[Adjust.]

Displays the screen that lets you

fine-adjust the White Balance.

(only when [White Balance] is set)

[DISP.] [DISP.] Displays the comparison screen.

[MENU/SET] [Set] Sets the adjusted level and returns

you to the item selection screen.

+1 +2

DISP.

AWBc

AWB

WBWBWBWBWBWBWBWBWBWBWB

AWBAWB

DC-GH5LMBodyEB-DVQX1064_eng.book 85 ページ２０１７年２月２日　木曜日　午後３時１５分

86 DVQX1064 (ENG)

On the comparison screen, you can use the following operations to make adjustments:

ACurrent setting

• If you touch the picture at the centre, it will be enlarged. If you touch [ ], the picture will be

reduced to the original size.

[Setup] setting

When you select an item, the screen that asks you to select [Reinstate Adjustments],

[Color Space], or [Picture Size] will be displayed.

1Press 3/4 to select an item, and press [MENU/SET].

• If you select [Reinstate Adjustments], a confirmation screen will be displayed. Selecting

[Yes] will execute the operation and return you to the item selection screen.

2Press 3/4 to select a setting, and press [MENU/SET].

Recorded motion picture and 6K/4K burst files can be divided in two. It is recommended

for when you want to divide a part you need with a part you do not need.

Dividing a file is permanent. Decide before you divide!

> [Playback] > [Video Divide]

1Press 2/1 to select the file to divide, and then press [MENU/SET].

2Press 3 at the location to divide.

• You can finely adjust the location for division by pressing 2/1 while the file is paused.

3Press 4.

• The file may be lost if the card or battery is removed while processing the dividing.

Button

operation

Touch

operation Description of operation

2/1

/Dragging Selects a setting.

[DISP.] [DISP.] Returns you to the setting screen.

[MENU/SET] [Set] Sets the adjusted level and returns

you to the item selection screen.

[Video Divide]

DISP.

DC-GH5LMBodyEB-DVQX1064_eng.book 86 ページ２０１７年２月２日　木曜日　午後３時１５分

Wi-Fi/Bluetooth

(ENG) DVQX1064

What you can do with the Wi-Fi®/Bluetooth®

function

• The camera cannot be used to connect to a public wireless LAN connection.

These operating instructions refer to both smartphones and tablets as “smartphones” from

this point on unless noted otherwise.

• For details, refer to the “Operating Instructions for advanced features (PDF format)”.

∫About the WIRELESS connection lamp

∫About the [Wi-Fi] button

In these operating instructions, a function button to which [Wi-Fi] is assigned is referred to

as the [Wi-Fi] button.

(By default, [Wi-Fi] is assigned to [Fn7] when the camera is in Recording Mode, while it is

assigned to [Fn1] when the camera is in Playback Mode.)

• For information about the function button, refer to P28.

Controlling with a Smartphone/Tablet (P93)

• Recording with a smartphone (P94)

• Playing back or saving images stored on the camera, or uploading them on social media sites

(P95)

Explore more enjoyment possibilities with Bluetooth®

You can connect to a smartphone that supports Bluetooth low energy any time.

Connect to a smartphone to use a full range of features.

• Connecting easily by pairing (P89)

• Turning on/off the camera by remote control (P93)

• Sending recorded images automatically (P98)

• Auto Cloud Backup (P96)

• Recording location information to the camera’s images (P99)

• Synchronising the camera’s clock (P100)

• Saving the camera’s setup information to a smartphone (P100)

Displaying pictures on a TV

Printing Wirelessly

Sending images to AV device

Sending images to PC

Using Web services

Lit blue

Wi-Fi When the Wi-Fi function is ON or

connected by Wi-Fi

Bluetooth When the Bluetooth function is ON or

connected by Bluetooth

Blinking blue When sending data

DC-GH5LMBodyEB-DVQX1064_eng.book 87 ページ２０１７年２月２日　木曜日　午後３時１５分

Wi-Fi/Bluetooth

88 DVQX1064 (ENG)

Steps for pressing [Wi-Fi] (in Recording Mode)

1Touch [ ].

2Touch [ ].

∫Use the camera as a wireless LAN device

When using equipment or computer systems that require more reliable security than

wireless LAN devices, ensure that the appropriate measures are taken for safety designs

and defects for the systems used. Panasonic will not take any responsibility for any

damage that arises when using the camera for any purpose other than as a wireless LAN

device.

∫Use of the Wi-Fi function of this camera is presumed to be in countries where this

camera is sold

There is the risk that the camera violates the radio wave regulations if used in countries

other than those where this camera is sold, and Panasonic takes no responsibility for any

violations.

∫There is the risk that data sent and received via radio waves may be intercepted

Please note that there is the risk that data sent and received via radio waves may be

intercepted by a third party.

∫Do not use the camera in areas with magnetic fields, static electricity or

interference

• Do not use the camera in areas with magnetic fields, static electricity or interference, such as

near microwave ovens. These may cause the interruption of the radio waves.

• Using the camera near devices such as microwave ovens or cordless telephones that use the

2.4 GHz radio wave band may cause a decrease in performance in both devices.

∫Do not connect to the wireless network you are not authorised to use

When the camera utilises its Wi-Fi function, wireless networks will be searched

automatically. When this happens, wireless networks that you are not authorised to use

(SSID¢) may be displayed, however do not attempt to connect to the network as it may be

considered as unauthorised access.

¢SSID refers to the name that is used to identify a network over a wireless LAN connection. If

the SSID matches for both devices, transmission is possible.

Fn11Fn11Fn11

Fn8Fn8Fn8

Fn7Fn7Fn7

Fn9Fn9Fn9

Fn10Fn10Fn10

OFFOFFOFF

Fn7

DC-GH5LMBodyEB-DVQX1064_eng.book 88 ページ２０１７年２月２日　木曜日　午後３時１５分

Wi-Fi/Bluetooth

(ENG) DVQX1064

Connecting to a smartphone/tablet

The “Panasonic Image App” (hereafter “Image App”) is an application provided by Panasonic.

•OS

• Use the latest version.

• Supported OSs are current as of February 2017 and are subject to change.

• Read the [Help] in the “Image App” menu for further details on how to operate.

• When you operate the “Image App” on the smartphone that is connected to the camera via

Wi-Fi, [Help] in the “Image App” may not be displayed depending on the smartphone. In this

case, after terminating the connection to the camera, reconnect the smartphone to a mobile

phone network such as the 3G or LTE network or to a Wi-Fi router, and then display [Help] in

the “Image App”.

• Some of the screens and information provided in these operating instructions may differ from

your device depending on the supported OS and “Image App” version.

• The service may not be able to be used properly depending on the type of smartphone being

used.

For information on the “Image App”, refer to the support site below.

http://panasonic.jp/support/global/cs/dsc/

(This Site is English only.)

• When downloading the app on a mobile network, high packet communication fees may be

incurred depending on the details of your contract.

Follow a simple connection setup procedure (pairing) to connect to a smartphone that

supports Bluetooth low energy. When pairing is set up, the camera also automatically

connects to the smartphone via Wi-Fi.

• Supported smartphones

Installing the smartphone/tablet app “Image App”

App for AndroidTM:Android 4.1 or higher

(Android 5.0 or higher is required to use the Bluetooth function)

App for iOS: iOS 8.0 or higher

(The Bluetooth function cannot be used with the iPad 2)

1Connect the smartphone to a network.

2(Android) Select “Google PlayTM Store”.

(iOS) Select “App Store”.

3Enter “Panasonic Image App” or “LUMIX” into the search box.

4Select “Panasonic Image App” and install it.

Using a smartphones that supports Bluetooth low energy

Android: Android 5.0 or higher equipped with Bluetooth 4.0 or higher (excluding

those that do not support Bluetooth low energy)

iOS: iOS 8.0 or higher (excluding the iPad 2)

DC-GH5LMBodyEB-DVQX1064_eng.book 89 ページ２０１７年２月２日　木曜日　午後３時１５分

Wi-Fi/Bluetooth

90 DVQX1064 (ENG)

Select the menu. (P26)

• The camera enters pairing standby mode and displays its device

name.

1Start “Image App”.

• If a message is displayed indicating that the smartphone is searching for cameras, close

the message.

2Select [Bluetooth].

3Turn on the Bluetooth.

4Select the device name displayed on the camera’s screen from the [Camera

enable to be registered] list.

• Bluetooth connection between the camera and the smartphone will be made.

(For Android devices) A Wi-Fi connection will be made by selecting [Connection].

5Turn on the Wi-Fi function in the smartphone’s setting menu.

6On the Wi-Fi setting screen, select the SSID (the device name

selected in step 4) displayed on the camera.

• If the SSID is not displayed, it may be displayed after the Wi-Fi

function is turned off and on.

7Press the home button, and select “Image App” to display

“Image App”.

• The paired smartphone will be registered as a paired device after connected via Wi-Fi.

• Pairing needs to be set up only for the first connection. For the second and subsequent

connections: (P91)

• [ ] is displayed on the recording screen during Bluetooth connection. If the Bluetooth function

is enabled, but there is not connection, [ ] flashes.

On the camera

> [Setup] > [Bluetooth] > [Bluetooth] >

[SET] > [Pairing]

On your smartphone

If you are using an Android device, follow the steps up to here to complete the setup.

Proceed to the steps below only if you are using an iOS device.

• If [Wi-Fi Password] is set to [OFF] on the camera, select [Wi-Fi Setup]. (At the time of

purchase, [Wi-Fi Password] is set to [OFF])

• If [Wi-Fi Password] is set to [ON] on the camera, you need to install the profile.

1Install the profile.

• If a pass code is set on the smartphone, you need to enter it.

2Press the home button to close the browser.

When connected via Bluetooth, the camera automatically makes a Wi-Fi connection.

• (iOS devices) If you need to change the connected device on the Wi-Fi setup screen, follow

the on-screen message to change the setting.

Wi-Fi

0123456789ABC

DC-GH5LMBodyEB-DVQX1064_eng.book 90 ページ２０１７年２月２日　木曜日　午後３時１５分

Wi-Fi/Bluetooth

(ENG) DVQX1064

∫Connecting to the paired smartphone (connecting for the second and subsequent

times)

Select the menu. (P26)

1Start “Image App”.

• If a message is displayed indicating that the smartphone is searching for cameras, close

the message.

2Select [Bluetooth].

3Turn on the Bluetooth.

4Select the camera (device name) you want to connect to from the [Camera

registered] list.

∫Terminating the Bluetooth connection to the smartphone and disabling the

Bluetooth function

Select the camera’s menu. (P26)

Connect to a smartphone via Wi-Fi.

• You can also connect via Wi-Fi to a smartphone that supports Bluetooth low energy by

following the same steps.

You can easily set up a direct connection to your smartphone without entering a password.

Select the menu. (P26)

ASSID

• When the camera is ready to be connected to the smartphone,

the SSID is displayed.

• You can also display the information by pressing [Wi-Fi] on the

camera.

On the camera

> [Setup] > [Bluetooth] > [Bluetooth] > [ON]

On your smartphone

If you set [Bluetooth] to [ON] on the camera in advance, you can make a connection just

by operating the smartphone.

> [Setup] > [Bluetooth] > [Bluetooth] > [OFF]

Using a smartphone that does not support Bluetooth low energy

Connecting without using the password

On the camera

> [Setup] > [Wi-Fi] > [Wi-Fi Function] >

[New Connection] > [Remote Shooting & View]

DC-GH5LMBodyEB-DVQX1064_eng.book 91 ページ２０１７年２月２日　木曜日　午後３時１５分

Wi-Fi/Bluetooth

92 DVQX1064 (ENG)

1Turn on the Wi-Fi function in the setting menu.

2On the Wi-Fi setting screen, select the SSID displayed on the

camera.

3Start “Image App”.

• When the connection confirmation screen is displayed on the camera,

select [Yes] to connect. (For first time connection only)

Preparations:

Set the [Wi-Fi Password] to [ON].

> [Setup] > [Wi-Fi] > [Wi-Fi Setup] > [Wi-Fi Password] > [ON]

Select the menu. (P26)

ASSID and password

BQR code

• When the camera is ready to be connected to the smartphone,

the QR code, SSID and password are displayed.

• You can also display the information by pressing [Wi-Fi] on the

camera.

1Turn on the Wi-Fi function in the setting menu.

2On the Wi-Fi setting screen, select the SSID displayed on the

camera.

3Enter the password displayed on the camera into the

smartphone. (For first time connection only)

• If you are using an Android device, marking the box for password

display will allow the device to display the password as you enter it.

4Start “Image App”.

On your smartphone

At the time of purchase, [Wi-Fi Password] is set to [OFF].

Before connecting to a Wi-Fi network, ensure that the device displayed on the

connection confirmation screen is the one you actually want to connect to. When a

wrong device is displayed, if you select [Yes], the camera will automatically connect to

that device.

We recommend that you set [Wi-Fi Password] to [ON] if, for example, there is another

Wi-Fi device nearby.

Using a password to set up a connection

On the camera

> [Setup] > [Wi-Fi] > [Wi-Fi Function] >

[New Connection] > [Remote Shooting & View]

On your smartphone

Wi-Fi

0123456789ABC

Wi-Fi

0123456789ABC

DC-GH5LMBodyEB-DVQX1064_eng.book 92 ページ２０１７年２月２日　木曜日　午後３時１５分

Wi-Fi/Bluetooth

(ENG) DVQX1064

1Set the camera to Recording Mode.

2Select the camera’s menu items to terminate the Wi-Fi connection.

• You can also terminate the connection by pressing [Wi-Fi] on the camera. (P87)

3On the smartphone, close “Image App”.

Controlling with a Smartphone/Tablet

∫Required wireless connectivity mode

The wireless connectivity mode required varies depending on the function to be used after

connecting to a smartphone.

You can turn on/off the camera with your smartphone by enabling the camera to keep its

Bluetooth connectivity active while it is turned off.

The function allows you to view images on the camera placed in your bag, or turn on the

camera left in a separate place only when you record images with it.

Terminating the Wi-Fi connection

> [Setup] > [Wi-Fi] > [Wi-Fi Function] > [Yes]

(If you are using an iOS device)

On the screen of “Image App”, press the home button to close the app.

(If you are using an Android device)

On the screen of “Image App”, press the return button twice to close the app.

Wireless connectivity

required Support for Bluetooth low energy

Indicates that the function can be used with smartphones that

support Bluetooth low energy.

Indicates that the function can be used with smartphones that do not

support Bluetooth low energy.

Indicates that the function can be used with smartphones that

support Bluetooth low energy.

• Indicates that the function requires you to connect to a smartphone

using both Bluetooth and Wi-Fi.

Turning on/off the camera with a smartphone

Wireless connectivity required:

Bluetooth

Wi-Fi

Wi-FiBluetooth

DC-GH5LMBodyEB-DVQX1064_eng.book 93 ページ２０１７年２月２日　木曜日　午後３時１５分

Wi-Fi/Bluetooth

94 DVQX1064 (ENG)

1Make a Bluetooth connection to the smartphone. (P89)

2Select the camera’s menu. (P26)

3Set the camera on/off switch to [OFF].

4On the smartphone, start up the “Image App”, and set the Bluetooth function to

a state in which a connection can be made (standby state).

5Operate the smartphone.

• The camera automatically turns on, allowing it to make a Wi-Fi connection automatically.

– (iOS devices) Depending on the connection status of the smartphone, you may need to

change the connected device on the Wi-Fi setup screen. Follow the on-screen message

on the smartphone to change the setting.

∫Turning off the camera with the smartphone

• When you turn on the camera with the smartphone, the status

indicator will flash.

• When [Remote Wakeup] is set to [ON], the Bluetooth function

continues to operate even after the camera is turned off, thus

causing the battery to drain.

1Connect to a smartphone. (P89)

2Operate the smartphone.

> [Setup] > [Bluetooth] > [Remote Wakeup] > [ON]

1Select [ ].

2Select [Remote operation].

1Select [ ].

2Select [ OFF].

Taking images via a smartphone/tablet (remote recording)

Wireless connectivity required:

1(When connected via Bluetooth) Select [ ].

2(When connected via Bluetooth) Select [Remote

operation].

• Make a Wi-Fi connection automatically. (iOS devices) If you need to change the

connected device on the Wi-Fi setup screen, follow the on-screen message to change

the setting.

3Select [ ].

4Record an image.

• The recorded images are saved in the camera.

• Some settings are not available.

Wi-Fi







DC-GH5LMBodyEB-DVQX1064_eng.book 94 ページ２０１７年２月２日　木曜日　午後３時１５分

Wi-Fi/Bluetooth

(ENG) DVQX1064

∫Changing the camera’s dial settings, etc. with your smartphone

1Connect to a smartphone. (P89)

2Operate the smartphone.

• When you play a motion picture, image quality differs from

that of the actual recorded motion picture. The image quality

may deteriorate or the sound may skip during motion picture or picture playback.

• You cannot save pictures in RAW format, motion pictures in [AVCHD], [MP4] (only those with a

size of [4K]), [MP4 (LPCM)] or [MOV] format, 6K/4K burst files, and images recorded with the

Post Focus function.

> [Setup] > [Wi-Fi] > [Wi-Fi Setup] > [Priority of Remote Device]

[Camera]

Allows you to perform operations with both the camera and the smartphone

during remote recording.

• The camera’s dial settings, etc. cannot be changed with the smartphone.

[Smartphone]

Allows you to perform operations only with the smartphone during remote

recording.

• The camera’s dial settings, etc. can be changed with the smartphone.

• To end remote recording, press any of the buttons on the camera to turn on

the screen, and select [End].

Playing back/saving images stored on the camera, or uploading them

on social media sites

Wireless connectivity required:

1(When connected via Bluetooth) Select [ ].

2(When connected via Bluetooth) Select [Remote

operation].

• Make a Wi-Fi connection automatically. (iOS

devices) If you need to change the connected device

on the Wi-Fi setup screen, follow the on-screen

message to change the setting.

3Select [ ].

• You can switch the images to be displayed by

selecting the icon (A) on the top left of the screen.

To display images stored in the camera, select

[LUMIX(SD1)] or [LUMIX(SD2)].

(To play back the image)

4Touch the image to enlarge it.

(To save the image or upload it on a social media site

or other web service)

5Touch and hold an image, and drag it to save it.

Wi-Fi







 



DC-GH5LMBodyEB-DVQX1064_eng.book 95 ページ２０１７年２月２日　木曜日　午後３時１５分

Wi-Fi/Bluetooth

96 DVQX1064 (ENG)

The camera detects the connection between the smartphone and wireless access point

and backs up images stored on the camera to a preset Cloud Storage.

• Check the “FAQ/Contact us” on the following site for compatible Cloud Storage.

http://lumixclub.panasonic.net/eng/c/lumix_faqs/

1The smartphone automatically connects to the wireless access point.

2Start up the “Image App” in foreground (a state in which the app can be operated).

3The camera automatically turns on.

4The camera automatically connects to the wireless access point connected in step 1.

5Images on the camera are automatically backed up to a Cloud Storage via "LUMIX

CLUB".

Once the setup procedure below is completed, you can back up data to a cloud

storage service just by performing step 2.

• Refer to the operating instructions of your smartphone for more information on how to set up a

connection automatically in step 1.

∫Registering the wireless access point you want to use to the camera (Setup 1)

• If you have connected the camera to the wireless access point you want to use before, the

procedure below is not required.

1Select the camera’s menu. (P26)

2Select [New connection].

3Connect to the wireless access point.

• To connect with [WPS (Push-Button)], refer to the procedure in “Select the connection

method.” on P102. For details about connection to a wireless access point, refer to the

“Operating Instructions for advanced features (PDF format)”.

• A wireless access point will be registered automatically after the camera connects to it via

Wi-Fi.

• You can register up to 17 wireless access points. If you try to register more than 17 devices, the

wireless access point with the oldest registration history will be replaced.

Backing up images to a Cloud Storage automatically (Auto Cloud

Backup)

Wireless connectivity required:

AWireless access point

BCloud Storage

Setting up Auto Cloud Backup

> [Setup] > [Bluetooth] > [Wi-Fi network settings]

Wi-FiBluetooth







Bluetooth

Wi-Fi

Wi-Fi LUMIX CLUB

DC-GH5LMBodyEB-DVQX1064_eng.book 96 ページ２０１７年２月２日　木曜日　午後３時１５分

Wi-Fi/Bluetooth

(ENG) DVQX1064

∫Setting up “LUMIX CLUB” (Setup 2)

Preparations:

• Create an account for the Cloud Storage you want to use, and have the login information

available.

• Register to “LUMIX CLUB”.

> [Setup] > [Wi-Fi] > [Wi-Fi Setup] > [LUMIX CLUB] > [Set/Add Account] >

[New account]

You can also use the login ID registered with your PC or smartphone for the camera.

For details, refer to the “Operating Instructions for advanced features (PDF format)”.

1Connect to the “LUMIX CLUB” site using a smartphone or computer.

http://lumixclub.panasonic.net/eng/c/

2Enter your “LUMIX CLUB” login ID and password and log in to the service.

• If you are required to register an email address, operate following the on-screen

instructions.

3Select and register the cloud storage service you want to use in “Cloud Storage

Link Settings” in “Web service link settings”.

• Operate following the on-screen instructions.

∫Setting up “Image App” (Setup 3)

1Make a Bluetooth connection to the smartphone. (P89)

2Operate the smartphone.

Preparations:

The following conditions are required to use Auto Cloud Backup:

• Set the camera to a state in which it can be turned on with the smartphone (standby state).

(P93)

– Camera: [Bluetooth] and [Remote Wakeup] are set to [ON].

– Camera: The Camera On/Off switch is set to [OFF].

• Camera: The card’s Write-Protect switch is not set to [LOCK].

1Select [ ].

2Select [Bluetooth].

3Select [ ] for the connected camera.

4Enable Automatic Backup, and set backup settings.

• Below are the required backup settings. In addition to these settings, configure other

settings as necessary.

– Connection information of wireless access point (SSID): Select the wireless access

point registered in “(Setup 1)”.

– Cloud setting: Enter the login ID and password for the “LUMIX CLUB” used in

“(Setup 2)”, and select the cloud storage service you want to use in “Upload

destination”.

• You can try a connection test. Turn on the camera to run it.

Running a backup

DC-GH5LMBodyEB-DVQX1064_eng.book 97 ページ２０１７年２月２日　木曜日　午後３時１５分

Wi-Fi/Bluetooth

98 DVQX1064 (ENG)

Start up the “Image App” in foreground (a state in which the app can be operated),

and run a backup.

• A backup will start if the smartphone is connected to the wireless access point set up in “(Setup

3)”.

• It may be possible to run a backup even if the app is running in background (a state in which it

cannot be operated).

• The first job backs up all images on the card. The second and subsequent jobs back up only

those that have not been backed up yet.

• If you change the backup destination, images that have already been backed up are not saved

to a new destination.

• A backup job will stop in the following cases:

– When you set the camera on/off switch to [ON]

– When you remove or insert the card

– When the battery runs out of power (The job will resume after the battery is recharged. With

the “Image App”, you can set the battery power at which backup jobs stop.)

• You cannot back up motion pictures, 6K/4K burst files, and images recorded with the Post

Focus function.

The camera automatically transfers recorded images to a Bluetooth-connected

smartphone via Wi-Fi.

1Make a Bluetooth connection to the smartphone. (P89)

2Select the camera’s menu. (P26)

• If a confirmation screen is displayed on the camera asking you to terminate the Wi-Fi

connection, select [Yes] to terminate it.

3On the smartphone, select [Yes] (Android devices) or [Wi-Fi Setup] (iOS

devices).

• The camera automatically makes a Wi-Fi connection.

– (iOS devices) Follow the on-screen message on the smartphone to change the

connected device on the Wi-Fi setup screen.

4Check the send settings on the camera, and select [Set].

• The camera will enter a mode where it can automatically transfer images and [ ] will be

displayed on the recording screen.

5Take pictures on the camera.

• While sending a file, [ ] is displayed on the recording screen.

Transferring recorded images to a smartphone automatically

Wireless connectivity required:

> [Setup] > [Bluetooth] > [Auto Transfer] > [ON]

Wi-FiBluetooth

DC-GH5LMBodyEB-DVQX1064_eng.book 98 ページ２０１７年２月２日　木曜日　午後３時１５分

Wi-Fi/Bluetooth

(ENG) DVQX1064

• When [Auto Transfer] is set to [ON], [Wi-Fi Function] in [Wi-Fi] in the [Setup] menu

cannot be used.

• If the [Bluetooth] and [Auto Transfer] settings of the camera are [ON], the camera automatically

connects to the smartphone via Bluetooth and Wi-Fi when you turn on the camera. Start up the

“Image App” to connect to the camera.

The camera will enter a mode where it can automatically transfer images and [ ] will be

displayed on the recording screen.

• If [ ] is flashing on the recording screen, images cannot be transferred automatically.

Check the status of the Wi-Fi connections to the smartphone.

• You cannot automatically transfer pictures in RAW format, motion pictures, 6K/4K burst files,

and images recorded with the Post Focus function.

∫To stop the automatic transfer of images

Set [Auto Transfer] to [OFF] on the camera.

• A confirmation screen is displayed, asking you to terminate the Wi-Fi connection.

• If you stop the automatic transfer of images before a transmission is completed, or in similar

situations, the unsent file will not be resent.

The smartphone sends its location information to the camera via Bluetooth, and the

camera performs recording while writing the acquired location information.

Preparations:

Enable the GPS function on the smartphone.

1Make a Bluetooth connection to the smartphone. (P89)

2Select the camera’s menu. (P26)

• The camera will enter a mode where location information can be recorded and [ ] will

be displayed on the recording screen.

3Take pictures on the camera.

• Location information will be written to the recorded pictures.

• To disable the recording of location information, set [Location Logging] to [OFF] on the camera.

• Images with location information are indicated with [ ].

• The smartphone drains its battery faster while acquiring location information.

• Location information is not written to motion pictures recorded in [AVCHD] format.

Recording location information to the camera’s images

Wireless connectivity required:

> [Setup] > [Bluetooth] > [Location Logging] > [ON]

When [ ] is flashing

Location information is not acquired, so data cannot be written. Positioning with the GPS on the

smartphone may not be possible if the smartphone is in a location such as a building or a bag.

Move the smartphone to a location where positioning performance can be optimised, such as

one that offers a wide view of the sky, to try positioning. In addition, refer to the operating

instructions of your smartphone.

Bluetooth

DC-GH5LMBodyEB-DVQX1064_eng.book 99 ページ２０１７年２月２日　木曜日　午後３時１５分

Wi-Fi/Bluetooth

100 DVQX1064 (ENG)

Synchronise the clock and the time zone setting of the camera with those of a

smartphone.

1Make a Bluetooth connection to the smartphone. (P89)

2Select the camera’s menu. (P26)

• The [Clock Set] setting and the [Home] or [Destination] setting in [World Time], which are

all located in the [Setup] menu, will be synchronised with the corresponding settings of the

smartphone.

• To disable the automatic synchronization of the clock, set [Auto Clock Set] to [OFF] on the

camera.

Save the camera’s setup information to a smartphone. Since saved setup information can

be imported to cameras, you can apply the same setup to more than one camera.

1Make a Bluetooth connection to the smartphone. (P89)

2Operate the smartphone.

Synchronising the camera’s clock with a smartphone

Wireless connectivity required:

> [Setup] > [Bluetooth] > [Auto Clock Set] > [ON]

Saving the camera’s setup information to a smartphone

Wireless connectivity required:

1Select [ ].

2Select [ ].

3Save or load setup information.

• Read the [Help] in the “Image App” menu for further details on how to operate.

When transferring setup information, the camera automatically makes a Wi-Fi

connection.

• (iOS devices) Depending on the connection status of the smartphone, you may need to

change the connected device on the Wi-Fi setup screen. Follow the on-screen message on

the smartphone to change the setting.

Bluetooth

Wi-FiBluetooth

DC-GH5LMBodyEB-DVQX1064_eng.book 100 ページ２０１７年２月２日　木曜日　午後３時１５分

101

Wi-Fi/Bluetooth

(ENG) DVQX1064

Setting up a connection to a PC via a wireless

access point

• Create a PC account name (up to 254 characters) and password (up to 32 characters)

consisting of alphanumeric characters. An attempt to create a receive folder may fail if the

account name includes non-alphanumeric characters.

∫When using “PHOTOfunSTUDIO” (For Windows)

1Install “PHOTOfunSTUDIO” to the PC. (P103)

2Create a folder that receives images with “PHOTOfunSTUDIO”.

• To create the folder automatically, select [Auto-create]. To specify a folder, create a new

folder, or set a password to the folder, select [Create manually].

• For details, refer to the operating instructions of “PHOTOfunSTUDIO” (PDF).

∫When not using “PHOTOfunSTUDIO” (For Mac)

Supported OS: OS X v10.5 to v10.12

Example: OS X v10.8

1Select a folder you intend to use for receiving, then click on the items in the

following order.

[File] > [Get Info]

2Enable sharing of the folder.

• For details, refer to the operating instructions of your PC or Help on the OS.

The connection methods described in this manual are examples. For details on other

connection methods, refer to “Operating Instructions for advanced features (PDF format)”.

1Select the menu. (P26)

2Select the connection method.

To create a folder that receives images

Sending images to the PC

Preparations:

• If the workgroup of the destination PC has been changed from the standard setting, change

the setting of this unit in [PC Connection].

> [Setup] > [Wi-Fi] > [Wi-Fi Function] > [New Connection]

Sending an image each time a recording is made

([Send Images While Recording])

Available file format: JPEG/RAW

Select and send the images ([Send Images Stored in the Camera])

Available file format: ALL format

DC-GH5LMBodyEB-DVQX1064_eng.book 101 ページ２０１７年２月２日　木曜日　午後３時１５分

Wi-Fi/Bluetooth

102 DVQX1064 (ENG)

3Select [PC].

4Select the connection method.

Example: Selecting [WPS (Push-Button)] to set up a connection

1Select [Via Network].

2Select [WPS (Push-Button)].

3Press the wireless access point WPS button until it switches

to WPS mode.

5On the camera, perform the operation that matches your

purpose.

• Folders sorted by the sent date are created in the specified folder, and pictures are saved in

those folders.

• If the screen for a user account and password entry appears, enter the one you set on your PC.

• When the computer name (NetBIOS name for Mac) contains a space (blank character), etc., it

may not be recognised.

In that case, we recommend changing the name to one consisting only of 15 or less

alphanumeric characters.

• When [Auto Transfer] in [Bluetooth] is set to [ON], [Wi-Fi Function] is not available.

Sending an image each time a recording is made

([Send Images While Recording])

1Select the PC you want to connect to and the destination folder.

2Check the send settings, and select [Set].

3Take a picture with the camera.

• To terminate the connection, follow the steps below:

> [Setup] > [Wi-Fi] > [Wi-Fi Function] > [Yes]

Select and send the images ([Send Images Stored in the Camera])

1Select the PC you want to connect to and the destination folder.

2Check the send settings, and select [Set].

3Select [Single Select] or [Multi Select], and then select the images you want to

send.

• To change the send setting, press [DISP.]. To terminate the connection, select [Exit].

DC-GH5LMBodyEB-DVQX1064_eng.book 102 ページ２０１７年２月２日　木曜日　午後３時１５分

103

Others

(ENG) DVQX1064

Playing Back Pictures on a TV Screen

Preparations: Turn this unit and the TV off.

1Connect the camera and a TV.

• Check the direction of the terminals and plug in/out straight holding onto the plug.

(It may result in malfunction by the deforming of the terminal if it is plugged in obliquely or

in wrong direction.)

Do not connect devices to incorrect terminals. Doing so may cause malfunction.

2Turn on the TV and select the input to match the connector in use.

3Turn the camera on and then press [(].

• When [System Frequency] is set to a broadcasting system different from that of your region,

images may not be played back correctly.

• Read the operating instructions for the TV.

• Use a “High Speed HDMI cable” with the HDMI logo.

Cables that do not comply with the HDMI standards will not work.

“High Speed HDMI cable” (Type A–Type A plug, up to 1.5 m (4.9 feet) long)

Downloading software

Download and install software to edit and play back images with a PC.

• To download the software, you need to connect the PC to the Internet.

• It may take some time to download the software depending on the communication

environment.

This software allows you to manage images. For example, you can send pictures and

motion pictures to a PC and sort them by recording date or model name. You can also

perform operations such as writing images to a DVD, processing and correcting images,

and editing motion pictures.

Check the site below to download and install the software.

Download the software while it is available for download.

http://panasonic.jp/support/global/cs/soft/download/d_pfs10xe.html

(This Site is English only.)

A[HDMI] socket (Type A)

BHDMI cable

CHDMI socket (on the TV)

PHOTOfunSTUDIO 10.0 XE

(Windows 7/Windows 8.1/Windows 10)

HDMI

DC-GH5LMBodyEB-DVQX1064_eng.book 103 ページ２０１７年２月２日　木曜日　午後３時１５分

Others

104 DVQX1064 (ENG)

• Download expiration: March 2022

• For 4K motion pictures and 6K/4K photos, a 64 bit OS version of Windows 7/Windows 8.1/

Windows 10 is required.

• For details about information such as the operating environment or operating method, refer to

the “Operating Instructions for advanced features (PDF format)” or the operating instructions

for the respective software programmes.

• “PHOTOfunSTUDIO” is not compatible with Mac.

This is software to edit RAW format images.

Edited images can be saved in a format (JPEG, TIFF, etc.) that can be displayed on a

personal computer.

Check the site below to download and install the software.

http://www.isl.co.jp/SILKYPIX/english/p/

• For details on how to use the SILKYPIX Developer Studio, refer to the “Help” or the Ichikawa

Soft Laboratory’s support website.

This software allows you to edit motion pictures with ease.

Check the site below to download and install the software.

http://loilo.tv/product/20

• Only the trial version will be installed.

• For more information on how to use LoiLoScope, read the LoiLoScope manual available for

download at the site.

• “LoiLoScope” is not compatible with Mac.

Preparations:

Install “PHOTOfunSTUDIO” to the PC. (P103)

1Connect the computer and camera with the USB connection cable (supplied).

• Please turn on this unit and your PC before connecting.

• Do not use any other USB connection cables except the supplied one.

(The USB connection cable supplied with DMC-GH3 or DMC-GH4 cannot be used.)

AUSB socket (Type C)

BUSB connection cable (supplied)

SILKYPIX Developer Studio SE

(Windows 7/Windows 8/Windows 8.1/Windows 10, Mac OS X v10.6 to v10.12)

LoiLoScope 30 day full trial version

(Windows 7/Windows 8/Windows 8.1/Windows 10)

Transferring images to a PC

DC-GH5LMBodyEB-DVQX1064_eng.book 104 ページ２０１７年２月２日　木曜日　午後３時１５分

105

Others

(ENG) DVQX1064

2Press 3/4 to select [PC], and then press [MENU/SET].

• If [USB Mode] is set to [PC] in the [Setup] menu in advance, the camera will be

automatically connected to the PC without displaying the [USB Mode] selection screen.

3Copy the images to a PC using “PHOTOfunSTUDIO”.

• Do not delete or move copied files or folders in Windows Explorer.

When viewing in “PHOTOfunSTUDIO”, you will not be able to play back or edit.

∫Copying to a PC without using “PHOTOfunSTUDIO” (For Mac)

Even if you are using a Mac, or in any situation where “PHOTOfunSTUDIO” cannot be

installed, you can still copy files and folders by connecting the camera to the computer and

then dragging and dropping them to it.

• The content (folder structure) on the card of this unit is as follows.

For Windows: A drive ([LUMIX]) is displayed in [Computer]

For Mac: A drive ([LUMIX]) is displayed on the desktop

•Card

CAMSET: The camera’s setup

information

DCIM: Images

1Folder number

2Colour space P: sRGB

_: AdobeRGB

3File number

4JPG: Still pictures

MP4: [MP4] Motion pictures

MOV: [MOV] Motion pictures

RW2: Pictures in RAW files

MISC: DPOF print

AVCHD: [AVCHD] Motion pictures

AVCHD

DCIM

100XXXXX

101XXXXX

999XXXXX



PRIVATE

MISC

CAMSET

AD_LUMIX

DC-GH5LMBodyEB-DVQX1064_eng.book 105 ページ２０１７年２月２日　木曜日　午後３時１５分

Others

106 DVQX1064 (ENG)

Monitor Display/Viewfinder Display

• The following images are examples of when the display screen is set to [ ] (monitor

style) in the monitor.

In recording

989898

0000

6060603.53.53.5

AFSAFSAFS

BKTBKTBKT

4:3

BKTBKTBKT

AELAELAEL

BKTBKTBKT

AWBAWBAWB

FHD

8bit

MOV

ラュンラュン

BKTBKTBKT

××

Fn11Fn11Fn11Fn11

Fn8Fn8Fn8Fn8

Fn7Fn7Fn7Fn7

Fn9Fn9Fn9Fn9

Fn10Fn10Fn10Fn10

OFFOFFOFFOFF

MINIMINIMINIMINI

ISOISO

SSSSSS













Recording Mode (P21)

Custom settings

Photo Style

‰Œ

Flash Mode (P54)

Flash

Extra Tele Conversion (when

recording motion pictures)

Recording format/Recording

quality (P56)

Recording format/Recording

quality (P56)/Variable Frame

Rate (P61)

Picture size/Aspect Ratio (P78)

Extra Tele Conversion (when

taking still pictures)

Image effect (filter) adjustment

display

Image effect (filter) setting

Card (displayed only during

recording)

EXPSEXPS

FHD

8bit

MOV

FHD

8bit

MOV

100

420/8

FHD

LongGOP

12/24.00

4:3

EXM

4:3

EXPS

No card

The card is full

Elapsed recording time¢1 (P55)

Simultaneous recording

indicator

Automatic viewfinder/monitor

switching (P23)

Peaking

Highlight Shadow

HDR/iHDR

Multi exposure

Digital Zoom

Electronic shutter (P80)

Variable Frame Rate (P61)

V-Log L View Assist

LUT HDMI display (P68)

Picture-taking during motion

picture recording (Photo

Priority)

ラュン

100%

MON

LUT

HDMI

V-Log L

DC-GH5LMBodyEB-DVQX1064_eng.book 106 ページ２０１７年２月２日　木曜日　午後３時１５分

107

Others

(ENG) DVQX1064

A›Quality (P78)

Focus Mode (P32, 36)

Focus Bracket (P49)

Post Focus (P44)

ØAF Mode (P33)

Face Recognition

AF Lock (P37)

Burst

6K/4K Photo (P40)

Self-timer

Battery indication

Battery Grip

Image Stabiliser (P51)

Jitter alert

Recording state (Flashes red.)/

Focus (Lights green.) (P16)

Focus (Under low illumination)

Focus (Starlight AF)

Connected to Wi-Fi

Connected to Bluetooth (P90)

Location Logging (P99)

Histogram

Name¢2

Number of days that have passed since the

departure date¢3

Age¢2

Location¢3

Current date and time/Travel destination setting¢3:

“

Exposure meter

Focal distance display

Step zoom

Time Stamp Recording

AFS

AFF

AFC

AFS

BKT

AFL

LOW

STAR

AF area (P34)

Spot metering target

Centre marker display

Self-timer

Mic level display

Mic Level Limiter (OFF)

TC 00:00:00:00 Time Code (P58)

XLR 96kHz/24bit XLR setting (P70)

Silent Mode (P79)

External Microphone (P69)

AE Lock (P37)

Metering Mode (P79)

Programme Shift (P21)

3.5 Aperture value (P16)

Aperture Bracket (P49)

60 Shutter speed (P16)

Exposure compensation value

(P37)

Exposure Bracket (P49)

Brightness (P31)

Manual Exposure Assistance

ISO sensitivity (P38)

OFF

3.5

BKT

DC-GH5LMBodyEB-DVQX1064_eng.book 107 ページ２０１７年２月２日　木曜日　午後３時１５分

Others

108 DVQX1064 (ENG)

¢1 h: hour, m: minute, s: second

¢2 This is displayed for about 5 seconds when the camera is turned on if the [Profile Setup]

setting is set.

¢3 This is displayed for about 5 seconds when the camera is turned on, after setting the clock

and after switching from Playback Mode to Recording Mode.

White Balance Bracket, White

Balance Bracket (Colour

Temperature) (P50)

White Balance Fine Adjustment

VÐî

ÑWhite Balance (P39)

Colour (P31)

98 Number of recordable pictures

r20 Maximum number of pictures

that can be taken continuously

Available recording time¢1

Relay recording (P83)

Backup recording (P83)

Allocation recording (P83)

BKT

AWB

AWBc

Touch tab

Touch zoom

Touch Shutter (P25)

Touch AE (P25)

Peaking

Function button (P28)

(P60)

Colour (P31)

Defocus control function

(P31)

Brightness (P31)

Type of defocus ([Miniature

Effect])

One point colour

Position of the light source

Image effect (filter)

adjustment

Image effect ON/OFF

Image effect (filter)

Aperture value (P16)

Shutter speed (P16)

ISO sensitivity (P38)

Microphone level adjustment

××

Fn7

MINIMINI

ISO

DC-GH5LMBodyEB-DVQX1064_eng.book 108 ページ２０１７年２月２日　木曜日　午後３時１５分

109

Others

(ENG) DVQX1064

On-monitor recording information

In recording

Recording Mode (P21)

F3.5 Aperture value (P16)

1/60 Shutter speed (P16)

Battery indication

Card (displayed only during

recording)

ISO sensitivity (P38)

Exposure compensation value

(P37)

Brightness (P31)

Manual Exposure Assistance

‰Œ

Flash Mode (P54)

Flash

F 3.5

AWB

1/60

0 0

ISO

AUTO

OFF

4:3

AFSAFS









EXPS

ISO

AUTO

Single

Burst

6K/4K Photo (P40)

Post Focus (P44)

Self-timer

Focus Mode (P32, 36)

ØAF Mode (P33)

A›Quality (P78)

Picture size/Aspect Ratio (P78)

Wi-Fi/Bluetooth (P87)

Function button setting (P28)

Photo Style

VÐ

îÑ White Balance (P39)

Intelligent Dynamic Range

Control

Metering Mode (P79)

Relay recording (P83)

Backup recording (P83)

Allocation recording (P83)

98 Number of recordable pictures

r20 Maximum number of pictures

that can be taken continuously

Available recording time

---- No card

AFS

AFF

AFC

4:3

AWB

WBc

DC-GH5LMBodyEB-DVQX1064_eng.book 109 ページ２０１７年２月２日　木曜日　午後３時１５分

Others

110 DVQX1064 (ENG)

Message Display

Confirmation messages or error messages will be displayed on the screen in some cases.

• Please also refer to the “Operating Instructions for advanced features (PDF format)”, which

describes more detailed information.

[Some pictures cannot be deleted]/[This picture cannot be deleted]

• This feature can only be used with pictures that comply with the DCF standard.

Perform formatting (P15) on this unit after saving necessary data on a PC, etc.

[Memory Card Error

Format this card?]

• It is a format that cannot be used with this unit.

– Insert a different card.

– Format the card again with the camera after saving necessary data on a PC etc. (P15) Data

will be deleted.

[The lens is not attached properly. Do not push lens release button while lens is

attached.]

• Detach the lens once, and then attach it again without pressing the lens release button. (P13)

Turn this unit on again, and if it is still displaying, contact the dealer.

[Memory Card Error]/[This memory card cannot be used]

• Use a card compatible with this unit. (P9)

[Insert SD card again]/[Try another card]

• An error has occurred accessing the card. Insert the card again.

• Insert a different card.

[Read Error/Write Error

Please check the card]

• It has failed to read or write data. Remove the card after turning this unit off. Insert the card

again, turn this unit on, and try to read or write the data again.

• The card may be broken.

• Insert a different card.

[This battery cannot be used]

• Use a genuine Panasonic battery. If this message is displayed even when a genuine Panasonic

battery is used, contact the dealer or Panasonic.

• If the battery terminal is dirty, clean it and remove any objects.

[Failed to connect wireless access point]/[Connection failed]/[No destination found]

• The wireless access point information set on this unit is wrong. Check the authentication type,

encryption type, and encryption key.

• Radio waves from other devices may block the connection to a wireless access point. Check

the status of other devices that are connected to the wireless access point as well as the status

of other wireless devices.

DC-GH5LMBodyEB-DVQX1064_eng.book 110 ページ２０１７年２月２日　木曜日　午後３時１５分

111

Others

(ENG) DVQX1064

Troubleshooting

First, try out the following procedures.

• Please also refer to the “Operating Instructions for advanced features (PDF format)”, which

describes more detailed information.

• The sound is caused by the In-Body Image Stabiliser. This is not a malfunction.

• The battery is exhausted.

>Charge the battery. (P11)

• When [6K/4K Pre-Burst] or [Pre-Burst Recording] is set, the battery drains faster.

>Use these functions only when recording with them.

• The subject is beyond the focus range of the camera.

• Is [Focus/Release Priority] in the [Custom] menu set to [RELEASE]?

• Is [Shutter AF] in the [Custom] menu set to [OFF]?

• Is the AF Lock applied incorrectly?

• The shutter speed will become slower and the Image Stabiliser function may not work properly

when taking pictures especially in dark places.

>We recommend using a tripod and the self-timer when taking pictures with a slow shutter

speed.

• If you record a moving subject when using the electronic shutter or recording motion picture or

a 6K/4K photo, the subject may appear distorted on the picture. This is characteristic of MOS

sensors which serve as the camera’s pickup sensors. This is not a malfunction.

If the problem is not resolved, it may be improved by selecting [Reset] on the

[Setup] menu.

When I shake the camera, I hear a rattling sound.

The camera cannot be operated even when it is turned on.

The camera turns off immediately after it is turned on.

The battery becomes flat too quickly.

The subject is not focused properly.

The recorded picture is blurred.

The Image Stabiliser is not effective.

The subject appears distorted on the picture.

DC-GH5LMBodyEB-DVQX1064_eng.book 111 ページ２０１７年２月２日　木曜日　午後３時１５分

Others

112 DVQX1064 (ENG)

• This is characteristic of MOS sensors which serve as the camera’s pickup sensors.

This is not a malfunction.

• When using the electronic shutter, lowering the shutter speed may reduce the effect of the

horizontal stripes.

• If noticeable flicker or striping is seen under lighting such as a fluorescent or LED lighting fixture

when recording motion pictures, you can reduce the flicker or striping by setting up [Flkr

Decrease] and fixing the shutter speed. It is possible to select a shutter speed from [1/50],

[1/60], [1/100], or [1/120]. You can set the shutter speed manually in the Creative Video Mode.

(P22)

• When recording under fluorescent or LED lighting fixture, etc., increasing the shutter speed

may introduce slight changes to brightness and colour. These are a result of the characteristics

of the light source and do not indicate a malfunction.

• When recording subjects in extremely bright locations or recording under fluorescent lighting,

LED lighting fixture, mercury lamp, sodium lighting, etc., the colours and screen brightness may

change or horizontal striping may appear on the screen.

• If you continue to use the same card after changing [System Frequency] (P82), motion pictures

may not be recorded. To record with the same card, reset [System Frequency] to the original

setting. To record motion pictures with the current setting, try the following:

– Perform formatting (P15) on this unit after saving necessary data on a PC, etc.

– Insert a different card.

• You may not be able to record for a short while after turning this unit on when using a large

capacity card.

• When the ambient temperature is high or motion picture is recorded continuously, the camera

may display [ ] and stop the recording to protect itself. Wait until the camera cools down.

• This phenomenon occurs when the camera is trying to record with highly accurate focus at a

reduced Auto Focus speed, and is not a malfunction.

• When the electronic shutter is used, the flash is not activated.

• When [Silent Mode] is set to [ON], the flash is not activated.

Striping or flicker may appear under lighting such as fluorescent lighting and

LED lighting fixture.

The brightness or the hue of the recorded picture is different from the actual

scene.

Recording motion pictures is not possible.

Motion picture recording stops in the middle.

Sometimes it is difficult to focus with Auto Focus when recording 4K motion

pictures.

The flash is not activated.

DC-GH5LMBodyEB-DVQX1064_eng.book 112 ページ２０１７年２月２日　木曜日　午後３時１５分

113

Others

(ENG) DVQX1064

• When [Sleep Mode], [Sleep Mode(Wi-Fi)], or [Power Save LVF Shooting] (P81) is activated, the

external flash may not enter sleep mode automatically. When the camera is turned off, the

external flash may not turn off automatically.

>In such cases, turn off the external flash manually.

• Is the card inserted?

• Is this a folder or picture which was processed in the PC?

If it is, it cannot be played back by this unit.

>It is recommended to use the software “PHOTOfunSTUDIO” (P103) to write pictures from

PC to card.

• Has [Playback Mode] been set for playback?

>Change to [Normal Play].

• Motion pictures recorded with a different [System Frequency] setting cannot be played back. (P82)

>Return the [System Frequency] setting to the one you used during the recording.

∫General tips for using a Wi-Fi connection

• Use within the communication range of the device to be connected.

• Is any device, such as microwave oven, cordless phone, etc., that uses 2.4 GHz frequency

operated nearby?

>Radio waves may get interrupted when used simultaneously. Use them sufficiently away

from the device.

• When the battery indicator is flashing red, the connection with other equipment may not start or

the connection may be disrupted.

(A message such as [Communication error] is displayed.)

• If you place the camera on a metal table or shelf, the radio waves may be adversely affected. In

such cases, you may not be able to establish a connection. Move the camera away from the

metal surface.

∫About a wireless access point

• Check if the wireless access point to connect is in operating state.

• Check the radio wave condition of the wireless access point.

>Move this unit closer to the wireless access point.

>Change the location and orientation of the wireless access point.

• It may not display even if the radio waves exist depending on the setting of the wireless access point.

>Turn off and on the wireless access point.

>Check the settings of the wireless access point.

>When the network SSID of the wireless access point is set not to broadcast, the wireless

access point may not be detected. Enter the network SSID to start the connection or enable

the SSID broadcast of the wireless access point.

Even when the camera is put in sleep mode, the external flash does not enter

sleep mode.

Even when the camera is turned off, the external flash does not turn off.

The picture is not played back.

There are no recorded pictures.

A Wi-Fi connection cannot be established.

Radio waves get disconnected.

Wireless access point is not displayed.

DC-GH5LMBodyEB-DVQX1064_eng.book 113 ページ２０１７年２月２日　木曜日　午後３時１５分

Others

114 DVQX1064 (ENG)

• Some OS versions, including Windows 8, use two types of accounts: a local account and a

Microsoft account.

>Be sure to use the user name and password for the local account.

• The default workgroup name is set to “WORKGROUP”. If you changed the workgroup name,

the PC will not be recognised.

In [PC Connection] of the [Wi-Fi Setup] menu, change the workgroup name to that of the PC

you are connecting to.

• Please confirm login name and password are correctly typed.

• When the system time of Mac computer or Windows PC connected to a camera differs severely

from that of the camera, the camera cannot be connected to the computer or PC in some OSs.

>Please confirm [Clock Set] and [World Time] of the camera matches with time, date and

time zone in Windows PC or Mac computer. When both settings do not match severely,

please match them.

• Is the size of the image too large?

>Reduce the image size at [Size], and then send.

>Transmit after dividing the motion picture with [Video Divide].

• It may take longer time to transmit when distance to the wireless access point is far.

>Transmit closer to the wireless access point.

• File format of the motion picture that can be sent differs depending on the destination.

• It is a sound of lens movement or aperture operation when this unit is turned on or off, and it is

not a malfunction.

• The sound, which is caused by the automatic adjustment of the aperture, is heard when the

brightness has changed due to, for example, zooming or the movement of the camera. This is

not a malfunction.

• The surface of the camera and the reverse side of the monitor may become warm during use.

This does not affect the performance or quality of the camera.

• If you do not use the camera for a long time, the clock may be reset.

>[Please set the clock] message will be displayed; please reset the clock. (P14)

When I try to set up a Wi-Fi connection with a Windows 8 PC, my user name and

password are not recognised, so I cannot connect to the PC.

The PC is not recognised when I use a Wi-Fi connection. The camera cannot be

connected to PC via Wi-Fi connection.

It takes time to transmit an image to the web service.

Transmission of the image fails midway. Some images cannot be transmitted.

There is a sound from lens unit.

The camera becomes warm.

The clock is reset.

DC-GH5LMBodyEB-DVQX1064_eng.book 114 ページ２０１７年２月２日　木曜日　午後３時１５分

115

Others

(ENG) DVQX1064

Specifications

Specifications are subject to change without notice.

Digital Camera Body (DC-GH5):

Information for your safety

Power Source: DC 8.4 V (8.4 V )

Power Consumption: 4.1 W (When recording with Monitor)

[When the Interchangeable lens (H-ES12060) is used]

4.0 W (When recording with Monitor)

[When the Interchangeable lens (H-FS12060) is used]

3.2 W (When playing back with Monitor)

[When the Interchangeable lens (H-ES12060) is used]

3.1 W (When playing back with Monitor)

[When the Interchangeable lens (H-FS12060) is used]

Camera effective pixels 20,330,000 pixels

Image sensor 4/3q Live MOS sensor, total pixel number 21,770,000 pixels,

Primary colour filter

Digital Zoom Max. 4k

Extra Tele Conversion When taking still pictures:

Max. 2k (When a picture size of [S] (5 M), aspect ratio of [4:3] is

selected.)

When recording motion pictures:

1.4k/2.7k

Focus Auto Focus/Manual Focus,

Face/Eye Detection/Tracking/225-area-focusing/Custom Multi/

1-area-focusing/Pinpoint

(Focus area selection is possible by touching or with the joystick)

Shutter type Focal-plane shutter

Burst recording

Burst speed 12 pictures/second (High speed, AFS/MF),

9 pictures/second (High speed, AFF/AFC),

7 pictures/second (Middle speed),

2 pictures/second (Low speed)

Number of recordable

pictures

When there are RAW files: 60 or higher pictures

When there are no RAW files: 600 or higher pictures

¢When recording is performed under the test conditions

specified by Panasonic

DC-GH5LMBodyEB-DVQX1064_eng.book 115 ページ２０１７年２月２日　木曜日　午後３時１５分

Others

116 DVQX1064 (ENG)

ISO sensitivity

(Standard Output

Sensitivity)

Still picture:

AUTO/ /100¢/200/400/800/1600/3200/6400/12800/25600

Creative Video Mode:

AUTO/100¢/200/400/800/1600/3200/6400/12800

¢Only available when [Extended ISO] is set.

(1/3 EV step change possible)

Minimum Illumination Approx. 3 lx [when i-Low light is used, the shutter speed is 1/30th

of a second (When [System Frequency] is set to [59.94Hz

(NTSC)]) or 1/25th (When [System Frequency] is set to [50.00Hz

(PAL)])]

[When the Interchangeable lens (H-ES12060) is used]

Approx. 5 lx [when i-Low light is used, the shutter speed is 1/30th

of a second (When [System Frequency] is set to [59.94Hz

(NTSC)]) or 1/25th (When [System Frequency] is set to [50.00Hz

(PAL)])]

[When the Interchangeable lens (H-FS12060) is used]

Shutter speed Still picture:

B (Bulb) (Max. approx. 30 minutes), 60 seconds to 1/8000th of a

second (Mechanical shutter),

B (Bulb) (Max. approx. 30 minutes), 60 seconds to 1/2000th of a

second (Electronic Front Curtain),

1 second to 1/16000th of a second (Electronic shutter)

Motion picture:

1/25th of a second to 1/16000th of a second

Metering range EV 0 to EV 18

White Balance AWB/AWBc/Daylight/Cloudy/Shade/Incandescent lights/Flash/

White set1, 2, 3, 4/White Balance K set1, 2, 3, 4

Exposure (AE) Programme AE (P)/Aperture-priority AE (A)/Shutter-priority AE

(S)/Manual exposure (M)/AUTO

Exposure Compensation (1/3 EV Step, j5 EV to i5EV)

Light metering system,

Light metering mode

1728-zone multi-pattern sensing system,

Multiple/Centre weighted/Spot

DC-GH5LMBodyEB-DVQX1064_eng.book 116 ページ２０１７年２月２日　木曜日　午後３時１５分

117

Others

(ENG) DVQX1064

Monitor 3.2q TFT LCD (3:2) (Approx. 1,620,000 dots)

(field of view ratio about 100%)

Touch screen

Viewfinder OLED Live Viewfinder (4:3) (Approx. 3,680,000 dots)

(field of view ratio about 100%)

[Magnification approx. 1.52k, 0.76k (35 mm film camera

equivalent), with 50 mm lens at infinity; j1.0 mj1]

(with diopter adjustment j4 to i3 diopter)

Flash Mode AUTO, AUTO/Red-Eye Reduction, Forced ON, Forced ON/

Red-Eye Reduction, Slow Sync., Slow Sync./Red-Eye Reduction,

Forced OFF

Flash synchronisation

speed

Equal to or smaller than 1/250th of a second

Microphone Stereo

Speaker Monaural

Recording media SD Memory Card/SDHC Memory Card¢/SDXC Memory Card¢

(¢Card slot 1/Card slot 2: UHS-I/UHS-II UHS Speed Class 3)

Double slot recording function is available

Picture size

Still picture When the aspect ratio setting is [4:3]

4992k3744 pixels (6K photo), 3328k2496 pixels (4K photo),

5184k3888 pixels ([L]), 3712k2784 pixels ([M]),

2624k1968 pixels ([S])

When the aspect ratio setting is [3:2]

5184k3456 pixels (6K photo), 3504k2336 pixels (4K photo),

5184k3456 pixels ([L]), 3712k2480 pixels ([M]),

2624k1752 pixels ([S])

When the aspect ratio setting is [16:9]

3840k2160 pixels (4K photo), 5184k2920 pixels ([L]),

3840k2160 pixels ([M]), 1920k1080 pixels ([S])

When the aspect ratio setting is [1:1]

2880k2880 pixels (4K photo), 3888k3888 pixels ([L]),

2784k2784 pixels ([M]), 1968k1968 pixels ([S])

Recording quality

Motion pictures [Rec Format]: [AVCHD]/[MP4]/[MP4 (LPCM)]/[MOV]

Refer to P56 of this document for details.

Quality RAW/RAWiFine/RAWiStandard/Fine/Standard

DC-GH5LMBodyEB-DVQX1064_eng.book 117 ページ２０１７年２月２日　木曜日　午後３時１５分

Others

118 DVQX1064 (ENG)

Recording file format

Still Picture RAW/JPEG (based on “Design rule for Camera File system”,

based on “Exif 2.31” standard, DPOF corresponding)

6K/4K photo

(burst file)

6K photo: MP4 (H.265/HEVC, AAC (2 ch))

4K photo: MP4 (H.264/MPEG-4 AVC, AAC (2 ch))

Motion pictures AVCHD Progressive/AVCHD/MP4/MOV

Audio compression AVCHD Dolby AudioTM (2 ch)

MP4 AAC (2 ch)

MP4 (LPCM) LPCM (2 ch, 48 kHz/16 bit)

MOV LPCM (2 ch, 48 kHz/16 bit)

When an XLR microphone adaptor

(DMW-XLR1: optional) is attached, LPCM (2 ch,

48 kHz/24 bit or 96 kHz/24 bit) is possible to

select

Interface

[REMOTE] ‰ 2.5 mm jack

[MIC] ‰ 3.5 mm jack

Headphone ‰ 3.5 mm jack

HDMI HDMI Type A

USB Super Speed USB 3.1 GEN1/USB 3.1 Type-C

¢Data from the PC can not be written to the camera using the

USB connection cable.

Flash synchro Available

Dimensions Approx. 138.5 mm (W)k98.1 mm (H)k87.4 mm (D)

[5.45q (W)k3.86q (H)k3.44q (D)]

(excluding the projecting parts)

Mass Approx. 725 g/1.60 lb

[with one card and the battery]

Approx. 645 g/1.42 lb (camera body)

Approx. 1045 g/2.30 lb

[with the Interchangeable lens (H-ES12060), one card and the

battery]

Approx. 935 g/2.06 lb

[with the Interchangeable lens (H-FS12060), one card and the

battery]

Operating temperature s10 oC¢ to 40 oC (14 oF¢ to 104 oF)

¢The performance of the battery (number of recordable

pictures/operating time) may decrease temporarily when

using in a temperature between s10 oC and 0 oC (14 oF and

32 oF) (cold places such as ski resorts or places at high

altitude).

DC-GH5LMBodyEB-DVQX1064_eng.book 118 ページ２０１７年２月２日　木曜日　午後３時１５分

119

Others

(ENG) DVQX1064

Wireless transmitter

Battery Charger (Panasonic DMW-BTC10E):

Information for your safety

Battery Pack (lithium-ion) (Panasonic DMW-BLF19E):

Information for your safety

The symbols on this product (including the accessories) represent the following:

Operating humidity 10%RH to 80%RH

Dust-proof and

splash-proof

Yes

Wireless LAN

Compliance standard IEEE 802.11a/b/g/n/ac (standard wireless LAN protocol)

Frequency range

used (central

frequency)

2412 MHz to 2472 MHz (1 to 13 ch)

5180 MHz to 5320 MHz (36/40/44/48/52/56/60/64 ch)¢

5500 MHz to 5700 MHz (100/104/108/112/116/120/124/128/132/

136/140 ch)

¢Requirements for Europe: 5150 to 5350 MHz, indoor use only

Encryption method Wi-Fi compliant WPATM/WPA2TM

Access method Infrastructure mode

Bluetooth function

Compliance standard Bluetooth Ver. 4.2 (Bluetooth low energy (BLE))

Frequency range

used (central

frequency)

2402 MHz to 2480 MHz

Input: AC 110 V–240 V 50/60 Hz 0.2 A

Output: DC 8.4 V 0.65 A

Operating temperature: 0oC to 40 oC (32 oF to 104 oF)

Voltage/capacity: 7.2 V/1860 mAh

Class II equipment (The construction of the product is double-insulated.)

DC-GH5LMBodyEB-DVQX1064_eng.book 119 ページ２０１７年２月２日　木曜日　午後３時１５分

Others

120 DVQX1064 (ENG)

• LEICA is a registered trademark of Leica Microsystems IR GmbH. ELMARIT is a registered

trademark of Leica Camera AG. The LEICA DG lenses are manufactured using measurement

instruments and quality assurance systems that have been certified by Leica Camera AG

based on the company’s quality standards.

Interchangeable Lens H-ES12060

“LEICA DG VARIO-ELMARIT

12–60 mm/F2.8–4.0 ASPH./

POWER O.I.S.”

H-FS12060

“LUMIX G VARIO 12–60 mm/

F3.5–5.6 ASPH./POWER

O.I.S.”

Focal length f=12 mm to 60 mm

(35 mm film camera equivalent:

24 mm to 120 mm)

f=12 mm to 60 mm

(35 mm film camera equivalent:

24 mm to 120 mm)

Aperture type 9 diaphragm blades/circular

aperture diaphragm

7 diaphragm blades/circular

aperture diaphragm

Maximum aperture F2.8 (Wide) to F4.0 (Tele) F3.5 (Wide) to F5.6 (Tele)

Minimum aperture value F22 F22

Lens construction 14 elements in 12 groups

(4 aspherical lenses, 2 ED

lenses)

11 elements in 9 groups

(3 aspherical lenses, 1 ED lens)

Nano surface coating Yes N one

In focus distance Wide: 0.2 m (0.66 feet) to ¶ /

Tele: 0.24 m (0.79 feet) to ¶

(from the focus distance

reference line)

Wide: 0.2 m (0.66 feet) to ¶ /

Tele: 0.25 m (0.82 feet) to ¶

(from the focus distance

reference line)

Maximum image

magnification

0.3k (35 mm film camera

equivalent: 0.6k)

0.27k (35 mm film camera

equivalent: 0.54k)

Optical Image Stabiliser Available Available

O.I.S. switch Available (Switching ON/OFF) None

(Setting of the [Stabilizer] is

done in [Rec] menu.)

[AF/MF] switch Available (Switching AF/MF) None

Mount “Micro Four Thirds Mount” “Micro Four Thirds Mount”

Angle of view 84x (Wide) to 20x (Tele) 84x (Wide) to 20x (Tele)

Filter diameter 62 mm 58 mm

Max. diameter Approx. 68.4 mm (2.7 inch) Approx. 66 mm (2.6 inch)

Overall length Approx. 86 mm (3.4 inch)

(from the tip of the lens to the

base side of the lens mount)

Approx. 71 mm (2.8 inch)

(from the tip of the lens to the

base side of the lens mount)

Mass Approx. 320 g/0.70 lb Approx. 210 g/0.46 lb

Operating temperature s10 oC to 40 oC (14 oF to

104 oF)

0oC to 40 oC (32 oF to 104 oF)

Dust-proof and

splash-proof

Yes Yes

DC-GH5LMBodyEB-DVQX1064_eng.book 120 ページ２０１７年２月２日　木曜日　午後３時１５分

121

Others

(ENG) DVQX1064

Digital Camera Accessory System

¢1 The AC Adaptor (optional) can only be used with the designated Panasonic DC Coupler

(optional). The AC adaptor (optional) cannot be used by itself.

¢2 Use if the attached lens is in contact with the tripod pedestal.

Product numbers correct as of February 2017. These may be subject to change.

• Some optional accessories may not be available in some countries.

• NOTE: Accessories and/or model numbers may vary between countries. Consult your local dealer.

• For lens-related optional accessories such as compatible lenses and filters, refer to catalogues/

Web pages, etc.

Sales and Support Information

Customer Communications Centre

• For customers within the UK: 0344 844 3899

• For customers within Ireland: 01 289 8333

• Monday – Friday 9:00 am – 5:00 pm (Excluding public holidays).

• For further support on your product, please visit our website:

www.panasonic.co.uk

Direct Sales at Panasonic UK

• Order accessory and consumable items for your product with ease and confidence by phoning our

Customer Communications Centre Monday – Friday 9:00 am – 5:00 pm (Excluding public holidays).

• Or go on line through our Internet Accessory ordering application at www.pas-europe.com.

• Most major credit and debit cards accepted.

• All enquiries transactions and distribution facilities are provided directly by Panasonic UK.

• It couldn’t be simpler!

• Also available through our Internet is direct shopping for a wide range of finished products.

Take a browse on our website for further details.

Description Accessory#

Battery Pack DMW-BLF19

Battery Charger DMW-BTC10

AC Adaptor¢1DMW-AC10

DC Coupler¢1DMW-DCC12

LED Video Light VW-LED1

Flash DMW-FL580L, DMW-FL360L, DMW-FL200L

Stereo Shotgun Microphone DMW-MS2

Stereo Microphone VW-VMS10

XLR Microphone Adaptor DMW-XLR1

Shutter Remote Control DMW-RSL1

Battery Grip DMW-BGGH5

Body Cap DMW-BDC1

Tripod Adaptor¢2DMW-TA1

Mount Adaptor DMW-MA1, DMW-MA2M, DMW-MA3R

Upgrade Software Key DMW-SFU1

DC-GH5LMBodyEB-DVQX1064_eng.book 121 ページ２０１７年２月２日　木曜日　午後３時１５分

Others

122 DVQX1064 (ENG)

Reading the Operating Instructions

(PDF format)

More detailed operating instructions are available in “Operating

Instructions for advanced features (PDF format)”. To read it,

download it from the website.

http://panasonic.jp/support/dsc/oi/

index.html?model=DC-GH5&dest=EB

• Click the desired language.

∫To check the URL and QR code on the camera

Select the menu. (P26)

• You will need Adobe Reader to browse or print the “Operating Instructions for advanced

features (PDF format)”.

You can download and install a version of Adobe Reader that you can use with your OS from

the following website. (As of February 2017)

http://www.adobe.com/products/acrobat/readstep2.html

This product incorporates the following software:

(1) the software developed independently by or for Panasonic Corporation,

(2) the software owned by third party and licensed to Panasonic Corporation,

(3) the software licensed under the GNU General Public License, Version 2.0 (GPL V2.0),

(4) the software licensed under the GNU LESSER General Public License, Version 2.1 (LGPL

V2.1), and/or

(5) open source software other than the software licensed under the GPL V2.0 and/or LGPL

V2.1.

The software categorized as (3) - (5) are distributed in the hope that it will be useful, but

WITHOUT ANY WARRANTY, without even the implied warranty of MERCHANTABILITY or

FITNESS FOR A PARTICULAR PURPOSE. Please refer to the detailed terms and conditions

thereof displayed by selecting [MENU/SET] > [Setup] > [Version Disp.] > [Software info].

At least three (3) years from delivery of this product, Panasonic will give to any third party who

contacts us at the contact information provided below, for a charge no more than our cost of

physically performing source code distribution, a complete machine-readable copy of the

corresponding source code covered under GPL V2.0 or LGPL V2.1, as well as the respective

Contact Information: oss-cd-request@gg.jp.panasonic.com

The source code and the copyright notice are also available for free in our website below.

http://panasonic.net/avc/oss/index.html

> [Setup] > [Online Manual]

[URL display] Displays the URL of the website on the camera’s monitor.

[QR Code display] Displays the QR code on the camera’s monitor.

DC-GH5LMBodyEB-DVQX1064_eng.book 122 ページ２０１７年２月２日　木曜日　午後３時１５分

123

Others

(ENG) DVQX1064

• G MICRO SYSTEM is a lens exchange type digital

camera system of LUMIX based on a Micro Four Thirds

System standard.

• Micro Four Thirds™ and Micro Four Thirds Logo marks

are trademarks or registered trademarks of Olympus

Imaging Corporation, in Japan, the United States, the

European Union and other countries.

• Four Thirds™ and Four Thirds Logo marks are

trademarks or registered trademarks of Olympus

Imaging Corporation, in Japan, the United States, the

European Union and other countries.

• SDXC Logo is a trademark of SD-3C, LLC.

• The terms HDMI and HDMI High-Definition Multimedia

Interface, and the HDMI Logo are trademarks or

registered trademarks of HDMI Licensing, LLC in the

United States and other countries.

• “AVCHD”, “AVCHD Progressive” and the

“AVCHD Progressive” logo are trademarks of

Panasonic Corporation and Sony Corporation.

• Dolby, Dolby Audio, and the double-D symbol are

trademarks of Dolby Laboratories.

• HDAVI Control™ is a trademark of Panasonic Corporation.

• Adobe is a trademark or registered trademark of Adobe Systems Incorporated in the United

States and/or other countries.

• Pentium is a trademark of Intel Corporation in the U.S. and/or other countries.

• Windows is a registered trademark or trademark of Microsoft Corporation in the United States

and/or other countries.

• iMovie, Mac and Mac OS are trademarks of Apple Inc., registered in the U.S. and other

countries.

• iPad, iPhone, iPod, and iPod touch are trademarks of Apple Inc., registered in the U.S. and

other countries.

• App Store is a service mark of Apple Inc.

• Android and Google Play are trademarks or registered trademarks of Google Inc.

• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.

and any use of such marks by Panasonic Corporation is under license. Other trademarks and

trade names are those of their respective owners.

DC-GH5LMBodyEB-DVQX1064_eng.book 123 ページ２０１７年２月２日　木曜日　午後３時１５分

• QuickTime and the QuickTime logo are trademarks or

registered trademarks of Apple Inc., used under license

therefrom.

• The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi

Alliance®.

• The Wi-Fi Protected Setup™ Identifier mark is a certification

mark of Wi-Fi Alliance®.

•“Wi-Fi

®” is a registered trademarks of Wi-Fi Alliance®.

• “Wi-Fi Protected Setup™”, “WPA™”, and “WPA2™” are

trademarks of Wi-Fi Alliance®.

• DLNA, the DLNA Logo and DLNA CERTIFIED are

trademarks, service marks, or certification marks of the Digital

Living Network Alliance.

• This product uses “DynaFont” from DynaComware

Corporation. DynaFont is a registered trademark of

DynaComware Taiwan Inc.

• QR Code is a registered trademark of DENSO WAVE

INCORPORATED.

• Other names of systems and products mentioned in these instructions are usually the

registered trademarks or trademarks of the manufacturers who developed the system or

product concerned.

This product is licensed under the AVC Patent Portfolio License for the personal use of a

consumer or other uses in which it does not receive remuneration to (i) encode video in

compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was

encoded by a consumer engaged in a personal activity and/or was obtained from a video

provider licensed to provide AVC Video. No license is granted or shall be implied for any other

use. Additional information may be obtained from MPEG LA, L.L.C.

See http://www.mpegla.com

Panasonic Corporation

Web Site: http://www.panasonic.com

 Panasonic Corporation 2017

Manufactured by: Panasonic Corporation

Kadoma, Osaka, Japan

Importer for Europe: Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germany

DC-GH5LMBodyEB-DVQX1064_eng.book 124 ページ２０１７年２月２日　木曜日　午後３時１５分

Panasonic E3b0c44298fc1c149afbf4c8996fb92427ae41e4649b934ca495991b7852b855 DC GH5 Basic Operating Instructions UGB EN

Navigation menu

Versions of this User Manual:

Views

Navigation
