Parallels® Plesk Panel

Contents

Preface 3

About This Guide ........................................................................................................................... 3

Typographical Conventions ........................................................................................................... 3

Feedback ....................................................................................................................................... 4

Plesk Backup and Restore Overview 5

Backup Objects: Hierarchy and Volume ....................................................................................... 7

Backup Logical Structure ............................................................................................................ 10

Specifying Location of Temporary Directory ............................................................................... 14

Performing Backup 15

Defining Data for Backup ............................................................................................................ 17

Examples ........................................................................................................................... 21

Defining Properties of Files That Compose Backup ................................................................... 24

Setting Up Backup Export ........................................................................................................... 26

Defining How the Backup Process is Performed ........................................................................ 28

Checking Free Disk Space Before Starting the Backup Process ............................................... 29

Performing Restore 30

Defining Objects for Restore ....................................................................................................... 31

Defining How the Restore Process is Performed ........................................................................ 34

Conflict Resolution Rules and Policies ........................................................................................ 35

Reference 38

pleskbackup Commands and Options Reference ....................................................................... 38

pleskrestore Commands and Options ......................................................................................... 42

Custom Conflict Resolutions ....................................................................................................... 44

Conflict Description Messages .......................................................................................... 44

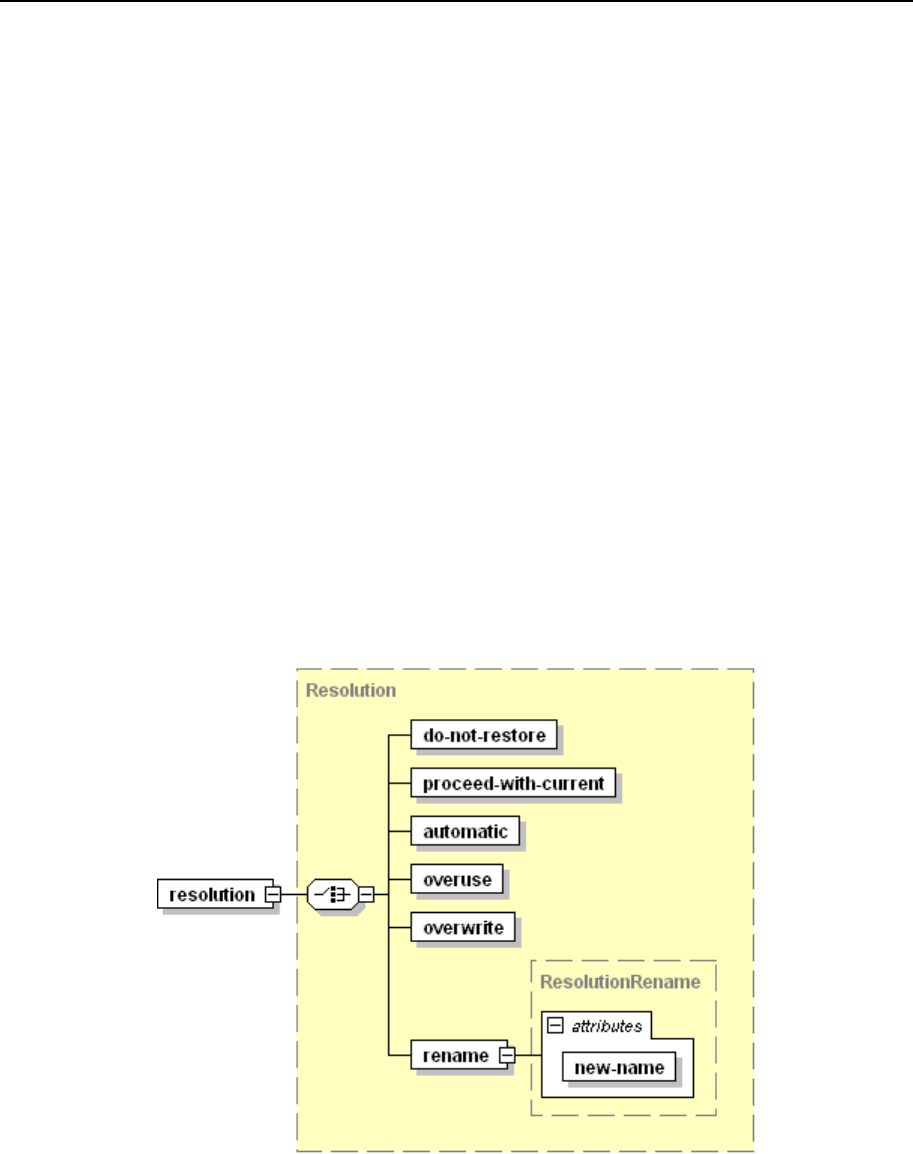

Resolutions Description Format ........................................................................................ 45

Samples of Policy Description........................................................................................... 54

Samples of Conflict Resolution With Rules ....................................................................... 55

Preface 3

In this section:

About This Guide ............................................................................................... 3

Typographical Conventions ............................................................................... 3

Feedback .......................................................................................................... 4

About This Guide

This guide is intended for administrators of servers with Parallels Plesk Panel who wish to

perform Plesk backup and restore operations via command line interface (using the

pleskbackup and pleskrestore utilities).

Typographical Conventions

Before you start using this guide, it is important to understand the documentation

conventions used in it.

The following kinds of formatting in the text identify special information.

Formatting convention

Type of Information

Example

Special Bold

Items you must select,

such as menu options,

command buttons, or

items in a list.

Go to the System tab.

Titles of chapters,

sections, and subsections.

Read the Basic Administration

chapter.

Italics

Used to emphasize the

importance of a point, to

introduce a term or to

designate a command line

placeholder, which is to be

replaced with a real name

or value.

The system supports the so

called wildcard character search.

Monospace

The names of commands,

files, and directories.

The license file is located in the

http://docs/common/licen

ses directory.

Preface

4 Preface

Formatting convention

Type of Information

Example

Preformatted

On-screen computer

output in your command-

line sessions; source code

in XML, C++, or other

programming languages.

# ls –al /files

total 14470

Preformatted Bold

What you type, contrasted

with on-screen computer

output.

# cd /root/rpms/php

CAPITALS

Names of keys on the

keyboard.

SHIFT, CTRL, ALT

KEY+KEY

Key combinations for

which the user must press

and hold down one key

and then press another.

CTRL+P, ALT+F4

Feedback

If you have found an error in this guide, or if you have suggestions or ideas on how to

improve this guide, please send your feedback using the online form at

http://www.parallels.com/en/support/usersdoc/. Please include in your report the guide’s title,

chapter and section titles, and the fragment of text in which you have found an error.

Backup and restoration are among the most critical processes of hosting environment

management. Parallels Plesk Panel provides graphical user interface (GUI) and

command line interface (CLI) solutions to perform backup and restore tasks.

The main features of the command-line backup/restore solution are the following

(marked with asterisk (*) present in GUI, too):

 Flexible backup and restore

Supported are not only full backups and restores, but also partial which allow to

choose the level of Plesk objects that should be backed up or restored (resellers,

clients, domains), and, moreover, to select almost any specific set of the objects.

 Even more flexible backup: only configuration*

Every backup object is understood as composed of configuration and content:

configuration is a set of all object properties and settings, and content is the object’s

binary data. It is possible to created “light-weight” backups which include only

configuration of the selected objects.

 Mail-oriented backups

One may create a backup which contains only content and configuration of mail

system owned by the selected objects.

 Web site oriented backups

One may create a backup which contains only content and configuration of Web

sites on domains owned by the selected objects.

 Various options of storing backups

Plesk provides a dedicated storage - Backup Repository*, in addition to this, a

backup can be exported as a single file directly to a specified FTP server or any

location on file system.

 Calculating domain backups in disk usage statistics*

Plesk disk space usage statistics can be set up so that the domain backup size is

count in overall domain disk usage and in overall disk usage of the domain owner,

irrelevant to where the backup is stored.

 Prudent restore*

Restore adds the data from backup to that existing in destination Plesk, not

replaces it.

 Advanced restore conflicts resolution

Plesk restore, when encounters conflicts between backup data and data in Plesk

that cannot be automatically resolved, returns highly-detailed description of such

conflicts. Which allows admin to accurately perform restoration with applying

comprehensive set of conflict resolutions

CH A P T E R 1

Plesk Backup and Restore Overview

6 Plesk Backup and Restore Overview

In this chapter:

Backup Objects: Hierarchy and Volume ............................................................ 7

Backup Logical Structure................................................................................... 10

Specifying Location of Temporary Directory ...................................................... 14

Plesk Backup and Restore Overview 7

Backup Objects: Hierarchy and Volume

Plesk provides opportunities for backing up and restoring nearly all hosting data, which

includes its major objects: Administrator account, reseller accounts, client accounts,

domain accounts, mail accounts, databases, Web sites, and subdomains. These

backup objects are organized into a strict hierarchy where parent object is always an

owner of its children. The hierarchy is as follows:

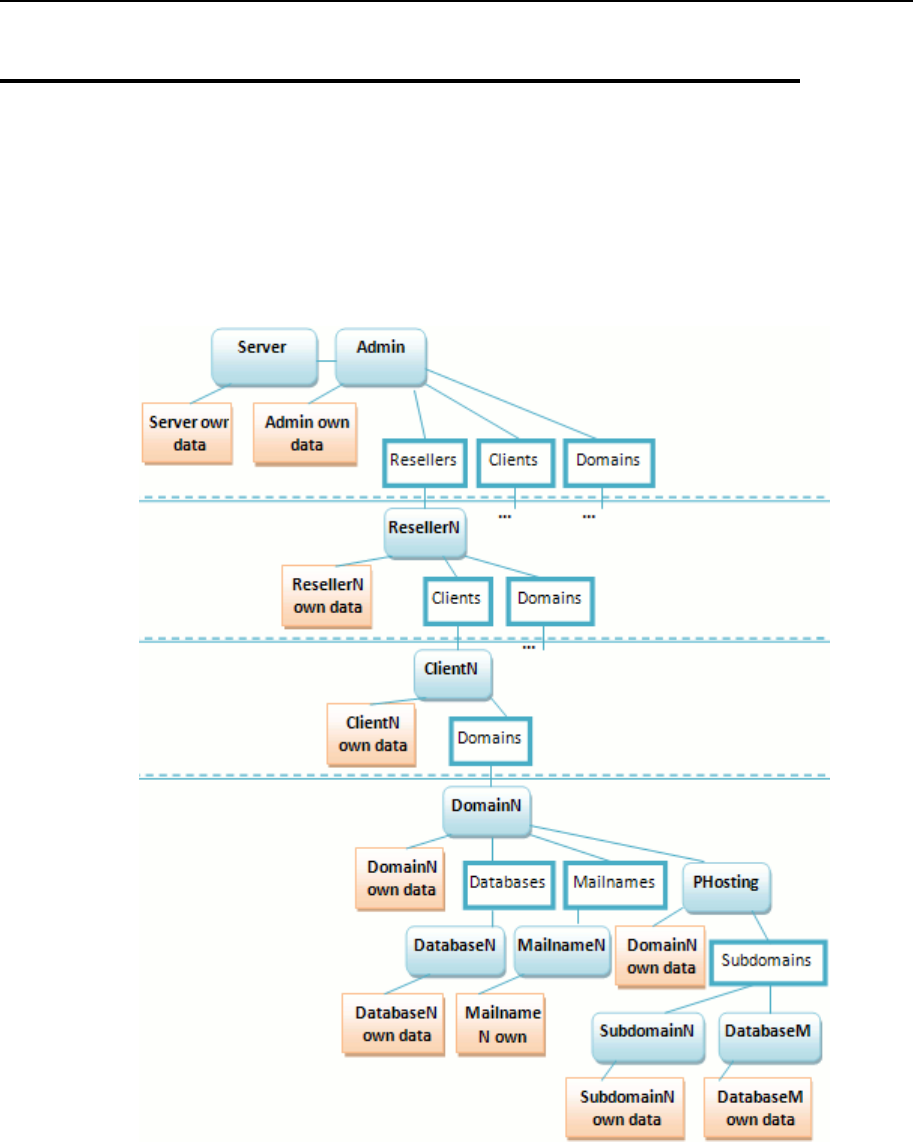

Figure 1: Backup objects hierarchy

As you can see on the diagram, Plesk backup objects are levelled into 4 levels: server,

resellers, clients and domains levels. The levels are such that a higher level includes

objects on the lower levels but a lower level is completely separated from the higher

objects.

8 Plesk Backup and Restore Overview

You can create either full or partial backup. Full backup is the highest-level backup, it

includes all Plesk data: server, admin and all descendant backup objects. Partial

backup includes only backup objects you need, of any of the levels. For information on

available options when creating partial backup, refer to the Defining Data for Backup

section (on page 17).

Note: Full backups do not include Plesk modules data.

Restoring a backup, in turn, can also be either full or partial. Full restore revives all data

contained in a backup, and partial revives a part. For information on available options

when restoring data from backup, refer to the Defining Objects for Restore section (on

page 31).

As mentioned, each backup object has own data. These data consist of backup object

configuration and content:

 Configuration defines properties of the backup object and its descendants.

 Content contains binary data related only to the backup object (database backups,

mail attachments, etc).

This means that, for instance, client configuration includes configuration of the domain

he/she owns, but their content is completely independent.

This table shows what data (configuration and content) is related to each backup

object.

Backup Object

Type

Own Configuration

Own Content

server

Settings of server-level services (mail and

database servers, SSO, application vault,

spam filters and antivirus), server preferences,

Sitebuilder configuration, Plesk account

templates, license keys, certificates, interface

preferences, Plesk billing settings.

License keys, custom

button icons, Plesk skins,

Plesk locales, Web

application packages.

admin

Personal Plesk Administrator information.

reseller

Personal reseller information, limits and

permissions on resources, IP pool and Web

application pool configuration, personal

domain and client templates settings, custom

buttons settings.

Virtual host templates,

custom button icons.

client

Personal client information, limits and

permissions on resources, IP pool and site

application pool configuration, personal

domain and client templates settings, custom

buttons settings.

Virtual host templates,

custom button icons.

Plesk Backup and Restore Overview 9

Backup Object

Type

Own Configuration

Own Content

domain

Resource usage limits, permissions, domain-

level service settings (IP address, mail

system, mailing lists, DNS, tomcat

applications, traffic statistics), custom button

and domain alias settings, domain

administrator personal information, SSL

certificates, hosting type settings.

Mailing lists, tomcat

applications, custom

button icons.

mailuser

Personal mail user information, permissions,

mailbox settings, mail aliases, forwarding

settings, mailgroup settings (only for mailgroup

accounts), autoresponders configuration,

addressbook (horde turba),

SpamAssassin/drweb settings, custom buttons

settings.

Mail box content,

autoresponder

attachments,

SpamAssassin files,

custom button icons.

database

Database server settings and database user

settings.

Database dump.

phosting

System user account settings, scripting

settings, Web applications settings, Frontpage

user credentials, log rotation settings,

anonymous FTP settings, list of web-protected

site locations, list of domain web users,

subdomain settings, web statistics settings,

hotlinking protection settings, performance

and shared SSL settings.

Virtual host content,

content of installed Web

applications, virtual

directories content, web

user home directories

content.

subdomain

System user account information, scripting

options, Web applications list, hotlink

protection settings, protected directory

settings, and shared SSL settings.

Content of virtual “sub-

host”, content of installed

Web applications,

custom button icons.

10 Plesk Backup and Restore Overview

Backup Logical Structure

By default, all Plesk backups are created in Plesk backup repository located on Plesk

server:

 in Plesk for Linux/Unix, repository location is specified by the DUMP_D variable

defined in the /etc/psa/psa.conf configuration file

 in Plesk for Windows, repository is located in the %plesk_dir%\Backup\ folder,

where %plesk_dir% is environment variable specifying directory where Plesk is

installed (if installed to default locations, it is “C:\Program

Files\Parallels\Plesk\”)

The repository is structured as follows, starting with the content of repository root folder

(we omit auxiliary files and folders which are irrelevant for backing up/restoring Plesk

data using pleskbackup/pleskrestore utilities):

<info>.xml

Metadata files of full and server-level

backups, one per backup, describe

configuration and content of server,

admin, and all their descendants.

<content>.<zip|tar|tgz>

Archives with content of server and

admin.

clients/

Directory containing the following

backup data:

 clients owned by admin or having

no owner

 objects owned by the clients

Organization of the directory is the

same as that of

<repository>/resellers/<resel

ler ID>/clients/.

domains/

Directory containing the following

backup data:

 domains owned by admin or having

no owner

 objects owned by the domains

Organization of the directory is the

same as that of

<repository>/resellers/<resel

ler ID>/clients/<client

ID>/domains.

resellers/

Directory containing the following

backup data:

 resellers

 objects owned by the resellers

Plesk Backup and Restore Overview 11

<reseller ID>/

Directories containing backup data of

particular resellers, one reseller per

directory, and the objects owned by

them.

The reseller ID stands for the

reseller login name.

<info>.xml

Metadata files of the reseller backups,

one file per backup, describe

configuration and content of the reseller

and the objects she owns.

<content>.<zip|tar|tgz>

Archives with the reseller content.

domains/

Directory containing the following

backup data:

 domains owned by the reseller

 objects owned by the domains

Organization of the directory is the

same as that of

<repository>/resellers/<resel

ler ID>/clients/<client

ID>/domains/.

clients/

Directory containing the following

backup data:

 clients owned by the reseller

 objects owned by the clients

<client ID>/

Directories containing backup data of

particular clients, one client per

directory, and the objects owned by

them.

The client ID stands for the client

login name.

<info>.xml

Metadata files of the client backups, one

file per backup, describe configuration

and content of the client and the objects

he owns.

<content>.<zip|tar|t

gz>

Archives with the client content.

domains/

Directory containing the following

backup data:

 domains owned by the client

 objects owned by the domains

<internationa

l domain

name> <domain

ID>/

Directories containing backup data of

particular domains, one domain per

directory, and the objects owned by

them.

The domain ID is omitted if the domain

IDN is less than 47 symbols.

12 Plesk Backup and Restore Overview

<info>.xml

Metadata files of the domain backups,

one file per backup, describe

configuration and content of the domain

and the objects it owns.

<content>

Other files and folders which contain

domain contents, and its children

contents and configurations.

Plesk Backup and Restore Overview 13

Files of each backup are placed in the repository folders according to the described

structure.

If a partial backup is created, its files will be places according to the place the backup

objects have in the hierarchy. For example, if backing up domain example.com owned

by reseller JaneDoe, its files will be located in the <repository root

directory>/resellers/JaneDoe/domains/example.com/ folder. If backing up

reseller JohnDoe who owns a domain joe.info and has one client DukeNukem who

owns domain sample.org, the backup files will be located in the following folders:

1. <repository root directory>/resellers/JohnDoe/

2. <repository root

directory>/resellers/JohnDoe/domains/joe.info/

3. <repository root

directory>/resellers/JohnDoe/clients/DukeNukem/

4. <repository root

directory>/resellers/JohnDoe/clients/DukeNukem/domains/sample

.org/

To distinguish files belonging to different backups of the same object, specific prefix

and suffix are added to the file names:

 prefix backup is added by default, and, if you like, you can change it to your own

on a per-backup basis (details (on page 24))

 suffix designating the backup creation date is always added to each backup file, the

date format is <yymmddhhmm>. For example, files of backup created on March 8,

2009, 1:30 am will have suffix 0903080130.

Plesk is capable of exporting backup as a single file (.tgz in Linux/Unix and .zip in

Windows). Each archive has the same structure as the repository, the only difference is

that there is only one <info>.xml file on each level.

In case a partial backup is exported, the resulting file structure is reduced from the top

so that the highest level corresponds to the level of the highest backup object. For

example, if a single client (called, say, SandyLee) backup is exported, the resulting file

will have the following structure:

zip {

 <sandy lee info>.xml

 n*<content>.zip

 domains/

 domain1/

 ...

 domainN/

 ...

}

14 Plesk Backup and Restore Overview

Specifying Location of Temporary

Directory

By default, the following directories on the server are used for storing temporary files

during Plesk hosting data backup and restoration:

 /tmp on Linux and FreeBSD systems.

 <operating_system_installation_directory>\PrivateTemp on

Windows systems.

If you have large amounts of data to back up and restore and are not sure that there is

enough free disk space in the default temporary directory location, then you can specify

another location for storing temporary files.

This is done by setting environment variables in the operating system of the server.

 To set a new location of the temporary directory on Linux or FreeBSD

servers:

1. Connect to the server over SSH.

2. Open for editing the file /etc/psa/psa.conf.

3. Locate the variable DUMP_TMP_D and replace the /tmp value with a

path to the new location of the temporary directory.

The new directory must be present in the file system and writing to this directory

must be allowed for all users.

4. Save the file.

 To set a new location of the temporary directory on Windows servers:

1. Connect to the server as administrator.

2. Click Start, and then click Run.

3. In the Run dialog box, type regedit, and then click OK. This will start

Registry Editor.

4. Locate the HKEY_LOCAL_MACHINE\SOFTWARE\PLESK\PSA

Config\Config\ and specify the new location of temporary directory

in the DumpTempDir variable.

The default value of the DumpTempDir variable is %plesk_dir%\PrivateTemp\.

5. Quit Registry Editor.

To perform backup of Plesk hosting data, you need to execute the pleskbackup utility

command composed so that it does the following:

1. defines Plesk data which is going to be backed up

2. defines the way of how the backup process will be performed

3. defines properties of the files that will be contained in backup

4. defines options for exporting backup as a single file

Note: Only first component is obligatory, others are optional.

The following sub-sections explain each component meaning and implementation in

detail.

The pleskbackup utility location is:

 in Plesk for Linux/Unix: /usr/local/psa/bin/pleskbackup

 in Plesk for Windows: %plesk_dir%\bin\pleskbackup

where %plesk_dir% is environment variable for Plesk installation directory. By

default, it is “C:\Program Files\Parallels\Plesk”

To see a complete list of the pleskbackup commands and options, refer to the

pleskbackup Reference (on page 38).

If the command execution succeeds, backup is created in the default server backups

location or exported to a file in case exporting options were specified. (For details, refer

to the Setting Up Backup Export section (on page 26).) If the command execution fails,

backup is not created.

In case domain backup files are set to be included in the statistics on disk space usage

(in Plesk GUI: Server Settings > System Preferences) and backups are stored in Plesk

backup repository, Plesk works as follows:

 Disk space occupied by a domain backup files is count in the overall domain disk

space usage.

 Overall reseller’s/client’s disk space usage includes disk space occupied by

backups of all domains that the reseller/client possesses, stored in the Plesk

backup repository.

CH A P T E R 2

Performing Backup

16 Performing Backup

In this chapter:

Defining Data for Backup................................................................................... 17

Defining Properties of Files That Compose Backup........................................... 24

Setting Up Backup Export ................................................................................. 26

Defining How the Backup Process is Performed ............................................... 28

Checking Free Disk Space Before Starting the Backup Process ....................... 29

Performing Backup 17

Defining Data for Backup

Defining data that should be backed up includes the following:

1. Defining backup level and, unless it is server level, optionally, selecting which

resellers|clients|domains should be backed up.

2. (optional) Defining which resellers|clients|domains should be excluded from the

backup.

3. (optional) Restricting backup to either only mail or only physical hosting, and only to

configuration.

4. (optional) Defining that log files are excluded from backup.

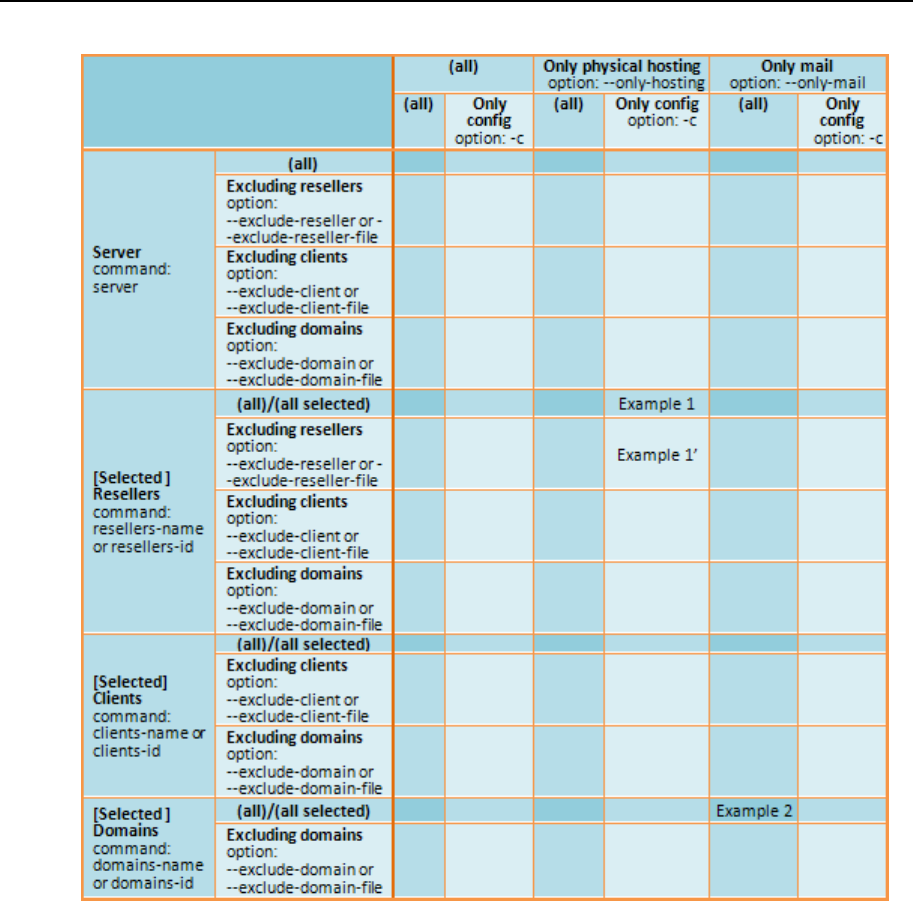

Generally speaking, the data that can be backed up with one call of the pleskbackup

utility is represented by any single cell of the following table.

18 Performing Backup

Performing Backup 19

Example 1: With one call of pleskbackup, you can backup hosting data for several

resellers (row 5 or 6 in the table, depending on what’s more convenient: to list resellers

that should be included or those excluded) and restricting the backup data to

configuration of physical hosting on domains owned by the resellers or their clients

(column 4 in the table).

Example 2: With one call of pleskbackup, you can backup mail configuration and

content (column 5) for all domains existing on the server (row 12).

The rest of this section explains each option in detail. Possible command syntax and

examples of commands are in the Examples sub-section (on page 21).

Defining backup level and selecting objects

To define backup level and select backup objects, the commands of pleskbackup

utility are used.

If performing a selective backup, resellers, clients or domains selected for the backup

should be specified by their identifiers which are either logins/names or IDs. The

specification can be done in one of the following two ways:

 Command line specification. The backup command takes objects identifiers as

arguments separated with spaces.

 File specification. The backup command takes the—from-file option which

specifies the file where the identifiers of objects are listed. The file must be in plain

text format, and object identifiers are separated by line breaks (i.e., one identifier

per line).

Note: If a command contains both specifications, file specification is used and the

command line specification is ignored.

Command syntax and samples (on page 21).

Defining which objects should be excluded

Objects that should be excluded from backup are specified by their logins (reseller,

client accounts) or names (domain accounts). The specification can be done as

follows:

 Command line specification. The backup command takes objects identifiers as

values of the—exclude-<reseller|client|domain> option separated by

commas.

 File specification. The backup command takes the objects identifiers from the file

specified by the—exclude-<reseller|client|domain>-file option. The file

must be in plain text format, and object identifiers are separated by line breaks (i.e.,

one identifier per line).

Note: It is acceptable to use both specifications in one command. In such case, all

specified objects are excluded from backup.

Command syntax and samples (on page 22).

20 Performing Backup

Restricting backup to only mail or only physical hosting, and to only

configuration

The amount of backup data can be further narrowed to backing up either mail or

physical hosting content and configuration by using the—only-mail or—only-

hosting options, respectively.

Specifying the—only-hosting option results in backing up only Web-site-specific

data which includes the following, for each domain with physical hosting:

 Web site content (including protected directories, Web users, MIME types)

 Web hosting configuration (including settings of anonymous FTP, log rotation,

hotlink protection, shared SSL, web users)

 installed site applications

 databases

 subdomains

Specifying the—only-mail option results in backing up only mail-specific data which

includes the following:

 if used for the partial backup, for each domain included in backup:

 configuration of domain-level mail system (including domain keys)

 mail accounts

 mailing lists

 if used for the full backup, in addition to previous:

 SPF spam protection configuration

 RBL protection settings

 ACL white and black list configurations

The amount of backup data can also be narrowed in another way: by specifying that

only configurations of the selected objects should be backed up. The specification is

done by using the—only-configuration option.

Such backups are useful when the objects content is backed up by a third-party

system.

Command syntax and samples (on page 23).

Excluding log files from back up

In case Plesk log files related to the hosted objects are not required to be backed up,

they can be excluded from the backup by using the—skip-logs option.

Command syntax and samples (on page 23).

Performing Backup 21

In this section:

Examples .......................................................................................................... 21

Examples

Defining backup level and selecting objects

 To back up the whole Plesk server data:

pleskbackup—server

To back up all reseller|client|domain accounts: pleskbackup --

<resellers|clients|domains>-<name|id>

For example, to back up all client accounts:

pleskbackup—clients-name

or

pleskbackup—clients-id

 To back up several reseller|client|domain accounts defined in command

line:

pleskbackup --<resellers|clients|domains>-<name|id> [

<identifier1> [

<identifier2> ... [<identifier n>]]

For example, to back up three resellers defined in the command line:

pleskbackup—resellers-name johndoe janedoe josephine

if under Linux/Unix, and

pleskbackup—resellers-name ―johndoe janedoe josephine‖

if under Windows

To back up several reseller|client|domain accounts listed in file: pleskbackup --

<resellers|clients|domains>-<name|id> --from-file=<file>

For example,

pleskbackup—resellers-name—from-file=/usr/local/backup-lists/j.txt

if under Linux/Unix, and

pleskbackup—resellers-name—from-file=‖E:\backup lists\j.txt‖

if under Windows

22 Performing Backup

Defining which objects should be excluded

 To back up all reseller accounts except for several selected resellers:

pleskbackup—resellers-name—exclude-reseller=<login1>,<login2>[,<login n>]

or

pleskbackup—resellers-name—exclude-reseller-file=<file>

For example,

pleskbackup—resellers-name—exclude-reseller=johndoe,janedoe

or

pleskbackup—resellers-name—exclude-reseller-file=/usr/local/backup-

lists/j.txt

if under Linux/Unix, and

pleskbackup—resellers-name—exclude-reseller-file=‖E:\backup

lists\j.txt‖

if under Windows

 To back up a selected reseller without several domains belonging to him

or her, or his or her clients:

pleskbackup resellers-name <login> --exclude-domain=<name1>,<name2>,<name n>

or

pleskbackup resellers-name <login> --exclude-domain-file=<file>

For example,

pleskbackup—resellers-name johndoe—exclude-

domain=example.com,example.net,example.org

or

pleskbackup—resellers-name johndoe—exclude-domain-

file=/usr/local/backup-lists/excl-example-domains.txt

if under Linux/Unix, and

pleskbackup—resellers-name johndoe—exclude-domain-file=‖D:\backup-

lists\excl-example-domains.txt‖

if under Windows

Performing Backup 23

Narrowing backup data to only hosting, mail, configuration,

skipping log files

 To back up the whole Plesk server configuration without log files:

pleskbackup—server -c—skip-logs

To back up mail configuration on domains belonging to a client: pleskbackup—clients-

<name|id> <name|id> --only-mail—configuration

For example,

pleskbackup—clients-id 42 --only-mail—configuration

 To back up web sites content and web hosting configuration on domains

belonging to all resellers:

pleskbackup—resellers-id—only-hosting

24 Performing Backup

Defining Properties of Files That

Compose Backup

Defining properties of the files that will be contained in backup includes the following:

1. Defining that archives with backup object contents should not be compressed.

2. Defining that a prefix should be added to names of the backup files.

3. Defining that backup files should be split into parts of the specified size.

Defining that archives with backup object contents should not be

compressed

By default, Plesk backup archives the backup objects content to compressed archives

(.tar, .tgz or .zip) in order to save disk space when the backup is stored.

However, restoring backups that contain compressed archives requires almost two

times more disk space than restoring those with uncompressed files. In case when disk

space while the restoring procedure is more critical to you, you may want to create your

backups without compression. To do so, use the -z|--no-gzip option in your backup

command.

Defining that a prefix should be added to names of the backup files

In order to better distinguish files that were created during one backup session from

another, pleskbackup adds a prefix to backup file name. By default, it is backup, so

every backup file name looks like backup_<file-name>.<ext>. The prefix in

names of the files that compose a particular backup can be customized by using the—

prefix option. The option’s value will be added as a prefix to names of files of the

created backup.

For example, to create a backup of the server mail configuration so that all files in

backup have prefix mail-friday:

pleskbackup—server—only-mail—configuration—prefix=‖friday‖

Defining that backup files should be split into parts of the specified

size

The pleskbackup utility is capable of splitting backup files into parts of a particular

size, which is vitally useful in cases when the file size is critical. Such cases can be, for

example, the following:

 if backups are burnt to DVDs, file size should not exceed approximately 4 Gbytes

 if backups are stored on the FAT32 file system, file size should not exceed

approximately 4 Gbytes

Performing Backup 25

 if backups are stored on FTP, FTP server may have its own restrictions on the size

of a single file transferred to the server

To make pleskbackup split the backup files to parts of a particular size, use the -s|--

split option and specify the required size as the option value. For details on the

format of size specification, refer to the pleskbackup reference (on page 38). The

default value used by pleskbackup if no custom size is specified is 2 Gbytes. The

utility numbers file parts created as a result of split by adding numerical suffixes to the

file names starting from .1.

For example, to back up Web hosting on a domain splitting backup files into parts of no

more than 700 Mbytes:

pleskbackup—domains-name example.com—only-hosting—split=700M

26 Performing Backup

Setting Up Backup Export

By default, pleskbackup stores backups in Plesk backup repository located on the

Plesk server (/var/lib/psa/dumps/ folder in Plesk for Linux/Unix and

%plesk_dir%\Backup\ in Plesk for Windows).

Plesk is capable of exporting the created backup as a single file (.tar on Unix and

.zip on Windows) in one of the following ways:

 to stdout

 to local file system

 to FTP server

To export backup as a single file, use the—output-file option. Particular export

mode requires specific option values.

Important: After a backup is exported, pleskbackup removes it from the Plesk

backup repository.

The exported file can also be created not compressed and/or split in parts of a

particular size, just as the files composing backup in repository (details (on page 24)).

Exporting to stdout

To export a backup as file to stdout, use the—output-file option with a minus

sign as its value.

For example, to create backup of a domain with ID 1 and export it to stdout:

pleskbackup—domains-id 1 --output-file -

Exporting to local file system

To export a backup as a file to local file system, use the—output-file option with a

<full-path-to-file>/<file-name> value.

For example, to create backup of a domain with ID 1 and export it to the file domain1.tgz

located at /usr/local/irregular-backups/ folder:

pleskbackup—domains-id 1 --output-file=/usr/local/irregular-

backups/domain1.tgz

Exporting to FTP server

To export a backup as a file to a FTP server, use either of the following options:

 --output-file=ftp://<login>:<password>@<server>/<filepath>

 --output-file=ftp://<server>/<filepath> --ftp-login=<ftp

login> --ftp-password=<ftp password>

Performing Backup 27

You may want to use passive mode FTP connection in case a firewall prevents the

export. For this, use the—ftp-passive-mode option.

For example, to create backup of a domain with ID 1 and export it to FTP server

example.com to the storage/backups/ directory, using johndoe as login and jjFh6gsm as

password:

pleskbackup—domains-id 1 --output-

file=ftp://johndoe:jjFh6gsm@example.com/storage/backups

or

pleskbackup—domains-id 1 --output-

file=ftp://example.com/storage/backups—ftp-login=johndoe—ftp-

password=jjFh6gsm

28 Performing Backup

Defining How the Backup Process is

Performed

Define the way how the backup process will be performed includes the following:

1. Defining backup verbosity

2. Suspending the domains being backed up

Defining level of backup verbosity

Verbose mode of backup process is defined by the -v option. The option behavior

differs on Linux/Unix and Windows systems.

On Linux/Unix, the level of backup process verbosity is defined by a number of the -v

options used in the backup command. Depending on the number of used -v options,

we distinguish the following three levels:

1. 0 to 2 -v used. The minimum level, only general errors are displayed, like, for

example, syntax errors (no or wrong command specified, invalid input parameters),

runtime errors and unhandled exceptions, low disk space for backup and so on.

2. 3 -v used. Normal verbosity level, includes general errors (see above) and

information on backup stages (e.g., 09:18:40 INFO Create backup task

description).

3. 4 to 5 -v used. The maximum verbosity level, in addition to the previous, includes

debug information and response/request messages to the internal backup utility.

Note: pleskbackup outputs information on its execution to stdout only. If you want

to have the backup log saved, redirect the utility output to a file with standard command

line means.

 To run a task on creating a complete server backup with maximum level of

verbosity:

pleskbackup—server -vvvvv

On Windows, only two verbosity levels are supported, depending on whether the -v

option is used in the backup command or not:

1. No -v option used. The minimum level, only general errors are displayed, like, for

example, syntax errors (no or wrong command specified, invalid input parameters),

runtime errors and unhandled exceptions, low disk space for backup and so on.

2. The -v option used. Sets up verbosity level equal to 4: in addition to the previous,

includes debug information and response/request messages to the internal backup

utility.

Performing Backup 29

Suspending domains

In case your backup is going to include domains, it is recommended to use the—

suspend option to suspend the domains during the backup process. Doing this

ensures from errors in backup files that may be caused by changes done to the domain

configuration and/or content during the backup.

The suspension is made up to be as short as possible: each domain is suspended only

for the time it is being backed up, the domain is started automatically as soon as the

domain data is processed.

Checking Free Disk Space Before Starting

the Backup Process

It is recommended that you make sure there is enough free disk space before starting

the backup process. By default, the amount of free disk space is not checked. If the

backup task is started and there is not enough disk space, the task is stalled in the GUI

and processes.

To enable the free disk space checking, open for editing the pmmcli configuration file

located on Parallels Plesk Panel server at

%PLESK_DIR%/admin/share/pmmcli/pmmcli-rc and set the

CHECK_BACKUP_DISK_SPACE option value to 1:

CHECK_BACKUP_DISK_SPACE 1

When this option is turned on, free disk space is checked prior to starting the backup

process. The free disk space is checked only for the local repository on Plesk server,

repository location is specified by the DUMP_D variable defined in the

/etc/psa/psa.conf configuration file. If there is not enough disk space, the backup

process is not started and the following error message is displayed:

Not enough free disk space to backup selected objects. At least <estimated-backup-size> free disk

space is required.

Note: The free disc space will be checked only before starting the backup process.

Thus, this option will not be effective, if the free disc space is occupied during the

backup process by other processes, such as a simultaneous upload.

Note: The backup size estimation does not consider possible content compression.

Actual size of a backup is usually less than its estimated size.

To perform a restore of Plesk hosting data, you should execute the pleskrestore

utility command composed so that it does the following:

1. defining Plesk objects to be restored

2. defining the way of how the restore process will be performed

3. defining conflict resolution rules and policies

The following sub-sections explains each component in detail.

The pleskrestore utility location:

 in Plesk for Linux/Unix: /usr/local/psa/bin/pleskrestore

 in Plesk for Windows: %plesk_dir%\bin\pleskrestore

where %plesk_dir% is environment variable for Plesk installation directory. By

default, it is “C:\Program Files\Parallels\Plesk\”.

To see a list of the pleskrestore commands and options, refer to the pleskrestore

Reference (on page 42).

In this chapter:

Defining Objects for Restore ............................................................................. 31

Defining How the Restore Process is Performed ............................................... 34

Conflict Resolution Rules and Policies .............................................................. 35

CH A P T E R 3

Performing Restore

Performing Restore 31

Defining Objects for Restore

Defining objects for restore includes the following:

1. Defining target backup file

2. Defining the level of restored objects

3. Applying filter on the specified level

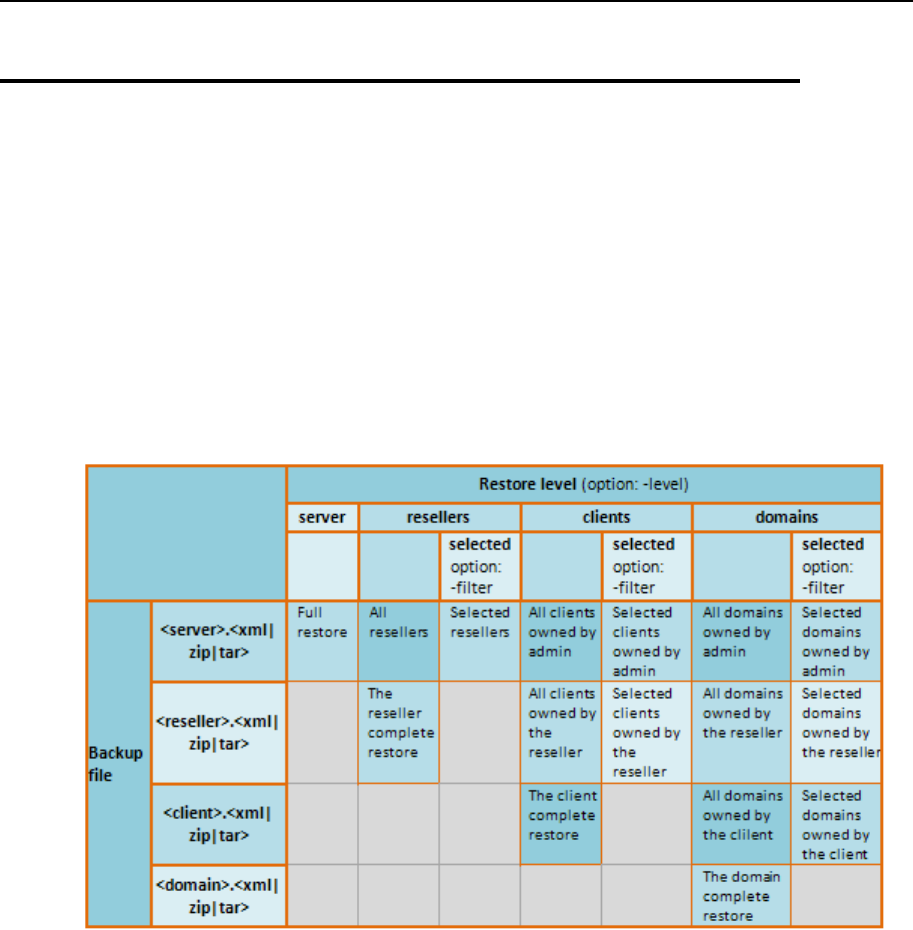

Generally speaking, the data that can be restored with one call of the pleskrestore

utility is represented by any blue cell of the following table.

32 Performing Restore

Defining Target Backup File

Target backup file defined for restoration can be of one of the following types:

 <info>.xml - backup metadata file, in case of restoring from backup located in

Plesk repository

 <backup>.<zip|tar> - archived backup file, in case of restoring from exported

backup

For example, to restore the whole server backup, you choose a <backup

repository root>/<server>.xml file, or an exported server backup file. To

restore a client belonging to a reseller, you choose a <backup repository

root>/resellers/<reseller ID>/clients/<client ID>/<client>.xml

file.

Defining level of restored objects

Defining level of restored objects allows you to narrow the amount of restored data

according to your needs. For example, you may want to restore only domains which

belong to a client or a reseller, skipping the client’s/reseller’s own data and objects

belonging to him different from domains.

To define the level of restored objects, use the -level option with appropriate value.

The option is required, so in cases when you don’t need any narrowing but just

restoring all data from a backup, define the level equal to the level of file.

 To restore entire server:

pleskrestore restore <backup repository root>/<server>.xml -level

server

Note: When the whole server backup is restored, license keys are not restored by

default. To restore license keys along with other server content, use the -license

option in your restore command.

 To restore entire server with license keys:

pleskrestore—restore <backup repository root>/<server>.xml -level

server -license

 To restore all domains belonging to a reseller:

pleskrestore—restore <backup repository root>/resellers/<reseller

ID>/<reseller>.xml -level domains

 To restore all reseller accounts:

pleskrestore—restore <backup repository root>/<server>.xml -level

resellers

Applying filter on the specified level

Performing Restore 33

To perform a more selective restore, use a filter (the -filter option) which selects for

restore particular objects of the specified level (resellers, clients, domains). The objects

are specified by their names, which are domain names, and logins for resellers and

clients. The specification can be done as follows:

 Command line specification. The restore command takes objects identifiers as

values of the -filter option defined in the following string:

list:<item1>,<item2>,...,<itemN>.

 File specification. The restore command takes the objects identifiers from the file

specified as argument of the -filter option. The file must be in plain text format,

and object identifiers are separated by line breaks (i.e., one identifier per line).

 To restore two resellers from a server backup:

pleskrestore—restore <backup repository root>/<server>.xml -level

resellers -filter list:JohnDoe,JaneDoe

or

pleskrestore—restore <Upload directory>/<server backup name>.tar -

level resellers -filter list:JohnDoe,JaneDoe

 To restore two domains owned by Plesk admin:

pleskrestore—restore <backup repository root>/<server>.xml -level

domains -filter list:example.com,sample.org

 To restore client’s several domains defined in a file:

pleskrestore—restore <backup repository

root>/resellers/SandyLee/clients/JaneDow/<client>.xml -level domains -

filter <path to the file>/restore-domains.txt

34 Performing Restore

Defining How the Restore Process is

Performed

Define the way how the restore process will be performed includes the following:

1. Defining restore verbosity

2. Suspending the domains being backed up

Defining level of restore verbosity

pleskrestore works in one of the following verbosity modes:

1. Non-verbose mode. Default mode. The minimum level, only general errors are

displayed, like, for example, syntax errors (no or wrong command specified, invalid

input parameters), runtime errors and unhandled exceptions, and so on.

2. Verbose mode. Restore runs with verbosity level 3, which includes, in addition to

the previous level, deployer errors, information about conflicts (read about restore

conflicts in the Conflict Resolution Rules and Policies section (on page 35)), and so on.

Enabled by adding the -verbose option to the pleskrestore command.

3. Debug mode. Restore runs with verbosity level 4, the highest possible, includes the

most extensive information on the restore process. Enabled by adding the -debug

option to the pleskrestore command.

Suspending domains

In case you are going to restore domains, it is recommended to use the -suspend

option to suspend the domains during the restore process. Doing this ensures from

errors in the restored domains that may be caused by changes done to the domain

configuration and/or content during the restoration.

The suspension is made up to be as short as possible: each domain is suspended only

for the time it is being backed up, the domain is started automatically as soon as the

domain data is processed.

Performing Restore 35

Conflict Resolution Rules and Policies

Conflict is a situation when settings in a backup and settings in a destination Plesk are

such that restoring backup objects leads to an error, or unpredictable Plesk behavior,

including misbehavior.

Types of Conflicts

The restoration process can encounter several types of conflicts, which are the

following:

 Timing conflicts. An object being restored might exist in the system and its last

modification date might be more recent than the date of backup. Or an object could

be deleted from the system later than the backup was created.

 Resource usage conflicts. There are two groups of resource usage conflicts:

 Common resource usage conflict: The total amount of measurable resources

after restoration might appear to be over the limits for this particular user (e.g.,

disk space limit).

 Unique resource usage conflict: An object being restored requires a unique

resource which is already used by another object in the system or does not exist

(e.g., domain).

 Configuration conflicts. It might happen that configuration being restored is not

enabled on the destination server. Two types of cases can happen here:

 Configuration options are not enabled for the domain.

 Required configuration options are not available (e.g., site applications are not

available for the client, database server is not configured on the host, IP

address is not in the client’s IP pool, etc.)

Conflict Resolutions

The following types of conflicts resolutions are possible:

 Overwrite. Means that all objects will be restored from the backup files regardless

of their current presence in the system. Overwrite works as follows:

 If an object/setting from backup does not exist in Plesk, it is created.

 If an object/setting from backup exists in Plesk, it replaces the existing.

 If an object/setting exists in Plesk but is missed in backup, the existing remains.

 Proceed with current. Means that objects which currently present in the system

won’t be affected by the restoration process. The restoration process will move to

the objects belonging to that one, not touching the object itself.

 Do not restore. Means that the objects which currently present in the system or

were deleted after the backup won’t be restored together with the lower level

objects belonging to it.

36 Performing Restore

 Automatic. Means that configuration option that should be enabled for domain is

enabled automatically.

 Overuse. Means that objects are restored with the resources overuse. Can be

applied only to objects that belong to a reseller who works in the oversell mode.

 Rename. Means that unique resources for the restored domain are reassigned with

the specified, existing in the system (mapping).

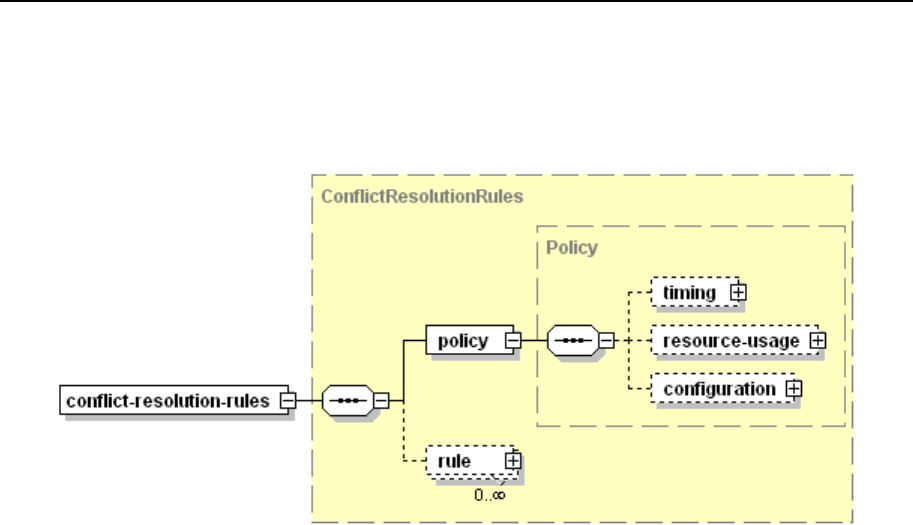

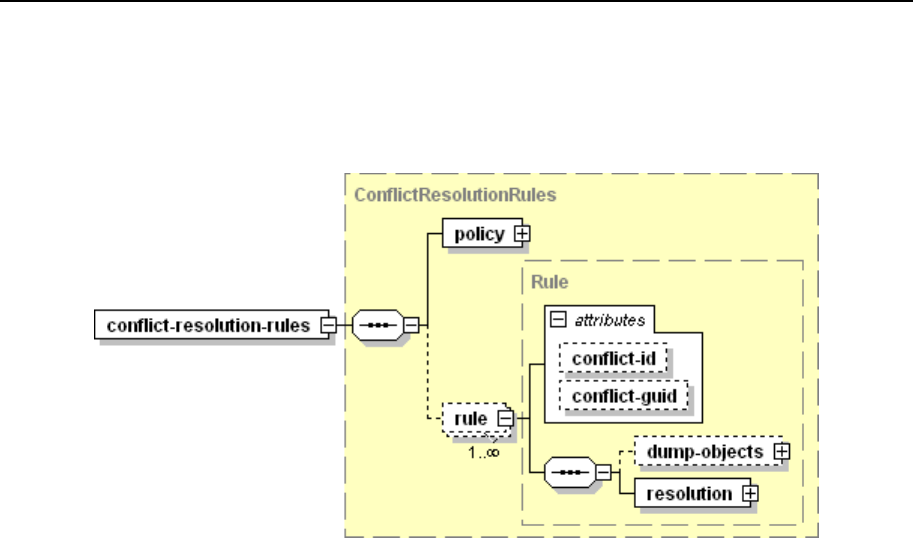

Conflict Resolution Policies and Rules

Depending on the scope of a conflict resolution, we distinguish conflict resolution rules

and policies:

 Rule defines the way of how a specific single conflict should be resolved.

 Policy defines the way of how all conflicts of a particular type should be resolved.

Conflicts Resolving Mechanism: Default Policies, Custom Policies,

and Rules

Plesk restore brings a set of default, hard-coded conflict resolution policies, which are

as follows:

 for timing conflicts - Overwrite

 for common resource usage conflicts - Overuse

 for unique resource usage conflicts - Do Not Restore

 for configuration conflicts - Automatic

The default policies are always applied during restore and cannot be changed or

overridden.

Applying default policies may resolve not all the conflicts occurred. In such cases,

those who perform restore should additionally define custom rules and/or policies that

resolve the remaining conflicts. Custom rules and policies are defined in an XML format

as described in the Resolutions Description Format section (on page 45).

Simplified presentation of the conflicts resolving during restore is as follows:

1. Administrator runs pleskrestore with specific parameters.

2. pleskrestore detects the conflicts occurred and resolves them with the default

policies.

3. pleskrestore checks if any conflicts remain unresolved.

In case all conflicts are resolved, the restoration continues.

4. pleskrestore stops the restoration and, if run in debug or verbose mode,

returns detailed description (in XML format) of each remaining conflict.

Performing Restore 37

5. Basing on the returned description of the conflicts, administrator creates a file that

defines a resolution for each conflict (with rules) and/or in bulk (with custom

policies).

6. Administrator runs the pleskrestore utility with the—conflicts-resolution

option and the file created at the previous step as its argument.

7. pleskrestore detects the conflicts occurred and resolves them with the default

policies.

8. pleskrestore gets to the remaining conflicts:

a pleskrestore applies resolution rules from the file.

b pleskrestore applies resolution policies from the file to the rest of the

conflicts.

9. pleskrestore checks if any conflicts remain unresolved.

 In case all conflicts are resolved, the restoration continues.

 In case any conflicts remain unresolved, pleskrestore stops the restoration

and, if run in debug or verbose mode, returns detailed description (in XML

format) of each remaining conflict.

To have such dump restored, admin should add resolution rules for each

remaining conflict to the conflict resolution file and repeat the restoration task.

This chapter contains reference materials on pleskbackup and pleskrestore

utilities.

In this chapter:

pleskbackup Commands and Options Reference .............................................. 38

pleskrestore Commands and Options................................................................ 42

Custom Conflict Resolutions ............................................................................. 44

pleskbackup Commands and Options

Reference

Location

 Plesk for Linux/Unix: /usr/local/psa/bin/pleskbackup

 Plesk for Windows: %plesk_dir%\bin\pleskbackup

where %plesk_dir% is environment variable for Plesk installation directory. By

default, it is “C:\Program Files\Parallels\Plesk”.

Usage

pleskbackup <command> [<arguments>] [<options>]

Commands

Command

Argument

Description

--server

Backs up whole Plesk server.

CH A P T E R 4

Reference

Reference 39

Command

Argument

Description

--

resellers-

name

[<login-1> <login-

2> <...> <login-

n>]

Backs up all data for the resellers specified by logins.

Logins should be separated by spaces, and, if on

Windows, enclosed in quotes.

Can be used with the—from-file option. In such case,

resellers specified in the file are backed up and resellers

specified as command arguments are ignored.

If no logins are specified and the -f option is not used,

all resellers are backed up.

--

resellers-

id

[<ID1> <ID2> <...>

<IDn>]

Backs up all data for the resellers specified by IDs.

IDs should be separated by spaces, and, if on Windows,

enclosed in quotes.

Can be used with the—from-file option. In such case,

resellers specified in the file are backed up and resellers

specified as command arguments are ignored.

If no IDs are specified and the -f option is not used, all

resellers are backed up.

--clients-

name

[<login-1> <login-

2> <...> <login-

n>]

Backs up all data for the clients specified by logins.

Logins should be separated by spaces, and, if on

Windows, enclosed in quotes.

Can be used with the—from-file option. In such case,

clients specified in the file are backed up and clients

specified as command arguments are ignored.

If no logins are specified and the -f option is not used,

all clients are backed up.

--clients-

id

[<ID1> <ID2> <...>

<IDn>]

Backs up all data for the clients specified by IDs.

IDs should be separated by spaces, and, if on Windows,

enclosed in quotes.

Can be used with the—from-file option. In such case,

clients specified in the file are backed up and clients

specified as command arguments are ignored.

If no IDs are specified and the -f option is not used, all

clients are backed up.

--domains-

name

[<name-1> <name-2>

<...> <name-n>]

Backs up all data for the domains specified by names.

Names should be separated by spaces, and, if on

Windows, enclosed in quotes.

Can be used with the—from-file option. In such case,

domains specified in the file are backed up and domains

specified as command arguments are ignored.

If no names are specified and the -f option is not used,

all domains are backed up.

40 Reference

Command

Argument

Description

--domains-

id

[<ID1> <ID2> <...>

<IDn>]

Backs up all data for the domains specified by IDs.

IDs should be separated by spaces, and, if on Windows,

enclosed in quotes.

Can be used with the—from-file option. In such case,

domains specified in the file are backed up and domains

specified as command arguments are ignored.

If no IDs are specified and the -f option is not used, all

domains are backed up.

--help

Displays help on the utility usage.

Exclude Options

Option

Description

--exclude-

reseller[=<login1>,<login2>,.

..]

Skips resellers with the specified logins during backup.

--exclude-reseller-

file[=<file>]

Skips resellers listed in the specified file during backup.

--exclude-

client=[<login1>,<login2>,...

]

Skips clients with the specified logins during backup.

--exclude-client-file=<file>

Skips clients listed in the specified file during backup.

--exclude-

domain[=<name1>,<name2>,...]

Skips domain with the specified names during backup.

--exclude-domain-file=<file>

Skips domains listed in the specified file during backup.

General Options

Option

Description

-v|--verbose

Shows more information about backup process. Multiple -v options

increase verbosity, for the maximum verbosity level, define 5 options.

-c|--configuration

Backs up only configurations of Plesk objects, excluding their content.

-s|--

split[=<integer>[K|M|

G]]

Splits the backup files into parts of the specified size. The parts are

numbered by appending numerical suffixes starting with .1.

Size is specified in Kbytes, Mbytes or Gbytes. If none is defined, then

interpreted as being in bytes.

If no argument is specified, default value of 2 Gbytes is used.

-z|--no-gzip

Sets that objects content is archived without compressing.

Reference 41

Option

Description

--only-mail

Backs up only mail configuration and content.

When used with the resellers|clients|domains-login|id

commands, backs up configuration of domain-level mail system, and

content and configuration of mail accounts.

When used with the server command, backs up also server-wide

mail configuration.

Cannot be used together with the—only-hosting option.

--only-hosting

Backs up only physical hosting configuration and Web site content,

including site applications, databases and subdomains.

Cannot be used together with the—only-mail option.

--suspend

Suspends domains during backup operation.

-f| --from-file=<file>

Backs up resellers|clients|domains listed in the specified file, ignoring

those specified in the command line as arguments.

The file should be in plain text format and should contain a list of

resellers|clients|domains, one per line.

Used only with the resellers-name, resellers-id, clients-

name, clients-id, domains-name, domains-id commands.

Depending on the command, resellers|clients|domains are listed in

the file by either logins or IDs.

--skip-logs

Sets that log files are not saved to backup.

--prefix=<string>

Adds specified prefix to the backup files names.

Used to customize backup file name which is created with the backup

prefix by default.

FTP Options

Option

Description

--ftp-

login=<ftp_login>

Specifies FTP login that will be used for uploading backup file to the

FTP server.

--ftp-

password=<ftp_password

>

Specifies password that will be used for uploading backup file to the

FTP server.

--ftp-passive-mode

Specifies that a passive mode FTP connection should be used.

Output File Option

Option

Description

--output-file

Exports backup as a single file to stdout and removes

backup from Plesk repository.

42 Reference

Option

Description

--output-

file=<fullpath/filename>

Exports backup as a single file with the specified name to

a local file system and removes backup from Plesk

repository.

--output-

file=<ftp://[<login>[:<passwor

d>]@]<server>/<filepath>>

Exports backup as a single file to the specified FTP

server and removes backup from Plesk repository.

The FTP_PASSWORD environment variable can be used

for setting password.

The—ftp-login and—ftp-password FTP options

can be used for setting login and password.

pleskrestore Commands and Options

Location

 Plesk for Linux/Unix: /usr/local/psa/bin/pleskrestore

 Plesk for Windows: %plesk_dir%\bin\pleskrestore

where %plesk_dir% is environment variable for Plesk installation directory. By

default, it is “C:\Program Files\Parallels\Plesk\”.

Usage

pleskrestore <command> [<arguments>] [<options>]

Commands

Command

Argument

Description

--restore

<backup_file>

Restores data from the specified backup.

Requires the -level option.

--check-

backup

<backup_file>

Checks integrity of the specified backup file, which is:

 backup digital sign match

 backup file format

 content files integrity

-i|--info

<backup_file>

Shows the backup file description.

-h|--help

Displays help on the utility usage.

Reference 43

Options

Option

Argument

Description

-level

clients|resellers

|domains|server

Specifies restoring level.

Required with the—restore command.

-filter

<file>|<list:<ite

m1_name>[,<item2_

name>[,...]]>

Specifies list of domain, client or reseller names for

restore. The object names are listed either in a specified

file, one per line, or as the option argument, separated

by commas.

-license

Restores Plesk license key from the backup.

-verbose

Enables verbose restore mode.

-debug

Enables debugging restore mode.

-conflicts-

resolution

<file>

Specifies file which describes conflict resolution policies

and rules.

-suspend

Suspends the domains being restored.

44 Reference

Custom Conflict Resolutions

This Reference section is devoted to implementing custom conflict resolutions during restore.

In this section:

Conflict Description Messages .......................................................................... 44

Resolutions Description Format ......................................................................... 45

Samples of Policy Description ........................................................................... 54

Samples of Conflict Resolution With Rules ........................................................ 55

Conflict Description Messages

Conflict descriptions returned by pleskrestore utility contain message elements included

for the GUI generation purposes. Despite of the self-explaining character of XML conflict

descriptions, values of the message elements may be confusing, so this section references

the meanings of these messages as they are displayed in Plesk GUI.

Value of message element

Message displayed in Plesk GUI

backup__restore__object_vhost

Virtual host

backup__restore__object_plesk_admi

n

Plesk server administrator

backup__restore__conflict_object_n

ame

<object name>

backup__restore__conflict_object_c

omplex_name

<object name> of <group name>

backup__restore__conflict_object_m

ailname

<mail name>@<domain name>

backup__restore__object_ftpuser

FTP account

backup__restore__object_frontpageu

ser

Frontpage account

backup__restore__object_webuser

web user

backup__restore__object_domain

domain

backup__restore__object_subdomain

subdomain

backup__restore__object_domainalia

s

domain alias

backup__restore__object_client

client

backup__restore__object_reseller

reseller

backup__restore__object_autorespon

der

autoresponder

backup__restore__object_mailalias

mail alias

Reference 45

Value of message element

Message displayed in Plesk GUI

backup__restore__object_database

database

backup__restore__object_mailname

mail account

backup__restore__conflict_timing_r

eason_owner_absent

Cannot restore object: object owner is not specified

backup__restore__conflict_timing_r

eason_wrong_owner

Cannot restore object: object owner does not exist in

Plesk

backup__restore__conflict_timing_r

eason_object_already_exists

Cannot restore <object name>: <object name> <object

type> already exists in Plesk

backup__restore__conflict_configur

ation_reason_ip

Cannot restore object: required IP address <IP> not

found in owner’s IP pool

backup__restore__conflict_configur

ation_reason_db

Cannot restore database: required database server

<host> is not registered in Plesk

backup__restore__conflict_configur

ation_reason_site_app

Cannot restore web application: required web

application <application name> not found in owner’s

web application pool

backup__restore__conflict_unique_r

eason_name_already_used

Cannot restore <object>: name <unique resource

name> is already used in Plesk by another <object>

backup__restore__conflict_resource

_usage_reason

Cannot restore object: resource limit <limit name> will

be exceeded (required: <value>, available: <value>)

Resolutions Description Format

In this section:

Policies .............................................................................................................. 46

Rules ................................................................................................................. 49

46 Reference

Policies

The file should be structure as follows.

Reference 47

 conflict-resolution-rules

Required, document root element.

 policy

 Required, contains the policies descriptions. Children, if present, must be placed in order

shown on the scheme.

 timing

Optional, contains description of policy on resolving timing conflicts. See the structure

below.

Must present in the document if a timing policy should be used during the restore.

May not present in the document if no policy required for timing conflicts.

 resource-usage

Optional, contains description of policy on resolving resource usage conflicts. See the

structure below.

Must present in the document if a resource usage policy should be used during the

restore.

May not present in the document if no policy required for resource usage conflicts.

 configuration

Optional, contains description of policy on resolving configuration conflicts. See the

structure below.

Must present in the document if a configuration policy should be used during the

restore.

May not present in the document if no policy required for configuration conflicts.

 rule

Optional, contains the rule descriptions. For details on the node structure, refer to the

Resolutions Description Format: Rules section (see page 49).

The policy elements have the same structure:

 resolution

Required, contains a definition of conflict resolution. Structured as follows:

48 Reference

The resolution element must not be empty, it is required that it contains one, and only

one of its children elements:

 do-not-restore

Sets the Do Not Restore resolution, empty value.

 proceed-with-current

Sets the Proceed With Current resolution, empty value.

 automatic

Sets the Automatic resolution, empty value.

 overuse

Sets the Overuse resolution, empty value.

 overwrite

Sets the Overwrite resolution, empty value.

 rename

Sets the Rename resolution, empty value.

 new-name

Required, makes sense only if defined for configuration conflicts. Specifies a name of

new configuration that should be assigned to all conflict objects. Value must be a

string.

Reference 49

Rules

The file should be structure as follows.

50 Reference

 conflict-resolution-rules

Required, document root element.

 policy

Required, contains the policies descriptions. For details on the node format, refer to

the Resolutions Description Format: Policies section (on page 46).

The element content must reflect the conditions under which the conflicts were

detected.

 rule

Optional, contains a rule description.

Must present in the document when defining conflict resolution rules. Should present

as many times as the number of unresolved conflicts.

At least one of the attributes (conflict-id, conflict-guid) MUST present.

 conflict-id

Optional, defines ID of the conflict being resolved. Value is integer.

The ID should be obtained from the conflict description returned by

pleskrestore (the “/conflicts-description/conflict[@id]” attribute

value)

 conflict-guid

Optional, defines global ID of the conflict being resolved. Value is string.

The GUID should be obtained from the conflict description returned by

pleskrestore (the “/conflicts-description/conflict[@guid]”

attribute value).

If omitted, the conflict for resolution is identified by ID.

 dump-objects

Optional, holds a collection of descriptions of backup objects involved into the

conflict and taking the same conflict resolution

Must present in the document in case when different objects involved in the same

conflict should be resolved in different ways.

May not present in the document in case when all objects involved in the conflict

should be resolved the same way.

See the structure below.

 resolution

Required, contains definition of resolution for the conflict, see the structure below.

dump-objects structure:

Reference 51

 node

Required, contains a description of backup object involved in the conflict.

The element contents must be taken from the conflict description returned by

pleskrestore (the “/conflicts-description/conflict/conflicting-

objects/node” element).

Structured as follows:

52 Reference

 name

Required, specifies the object type, value must be a string.

 context

Optional, holds a collection of data specifying the object position in backup.

 path

Required if the context element is present in the document, specifies the location of

object definition in the backup metadata. Value must be a string conforming to the

XPath notation.

 attributes

Required, holds a collection of the object properties.

 attribute

Required, specifies a particular property of the object (e.g., login, ID, GUID, etc.),

empty value.

 name

Required, specifies the property name, value must be a string.

 value

Required, specifies the property value, value must be a string.

resolution structure:

Reference 53

The resolution element must not be empty, it is required that it contains one, and only

one of its children elements:

 do-not-restore

Sets the Do Not Restore resolution for the conflict, empty value.

 proceed-with-current

Sets the Proceed With Current resolution for the conflict, empty value.

 automatic

Sets the Automatic resolution for the conflict, empty value.

 overuse

Sets the Overuse resolution for the conflict, empty value.

 overwrite

Sets the Overwrite resolution for the conflict, empty value.

 rename

Sets the Rename resolution for the conflict, empty value.

 new-name

Required, specifies a name of unique resource that should be assigned to the conflict

object(s), value must be a string.

Makes sense only for unique resource usage conflicts (mapping of IP, database

server, object owner).

54 Reference

Samples of Policy Description

Default Plesk conflict resolution policies are described in the following XML:

<?xml version=”1.0” encoding=”UTF-8”?>

<conflict-resolution-rules>

<policy>

<timing>

<resolution>

<proceed-with-current />

</resolution>

</timing>

<resource-usage>

<resolution>

<do-not-restore />

</resolution>

</resource-usage>

<configuration>

<resolution>

<automatic />

</resolution>

</configuration>

</policy>

</conflict-resolution-rules>

The following conflict resolution file resolves all configuration conflicts with database

mapping. This can be done in case all configuration conflicts beyond default policies appear

because a database server defined in the backup is missed on the target Plesk.

<?xml version=”1.0” encoding=”UTF-8”?>

<conflict-resolution-rules>

<policy>

<configuration>

<resolution>

<rename new-name=”host:192.0.2.12:port:3306”/>

</resolution>

</configuration>

</policy>

</conflict-resolution-rules>

Reference 55

Samples of Conflict Resolution With Rules

This reference section contains format specification of conflict resolution rules description,

and several examples of conflicts that may appear and their possible resolutions.

In this section:

Sample 1: Configuration Conflict With Missing IP Address ................................ 55

Sample 2: Configuration Conflict With Missing Database Server ....................... 59

Sample 1: Configuration Conflict With Missing IP Address

This sample represents descriptions of a conflict which appeared unresolved upon using

default policies, and its resolution.

The conflict appears because of the following mismatch in backup data and destination Plesk

configuration:

Backup

Destination Plesk

Domain example.com owned by the client with ID

30 has a physical hosting configured on shared IP

192.0.2.200.

Client with ID 30 does not have

shared IP 192.0.2.200 in his/her IP

pool.

The conflict is resolved with IP mapping suggesting that the restored domain will be hosted

on shared IP 192.0.2.34 which is in the owner’s IP pool.

Note that the conflict resolution XML contains no conflict resolution policies.

In this section:

Conflicts Description .......................................................................................... 56

Conflicts Resolution ........................................................................................... 58

56 Reference

Conflicts Description

<conflicts-description>

<conflict id=”0”>

<type>

<configuration>

<reason-description>

<required-resource-description>

<ip type=”shared” value=”192.0.2.200”></ip>

</required-resource-description>

<plesk-object-identifier>

<!-- beginning of definition of Plesk object that conflicts with an

object in the backup -->

<!-- In resource usage conflicts, the plesk-object-identifier

element specifies Plesk object which is an owner of the conflicting

resource. In this example, the conflicting resource is IP, and its

owner is a described client with ID 30. -->

<type>client</type>

<database-id>30</database-id>

<guid>93dbe1b1-cff5-430f-8466-5b810099772f</guid>

</plesk-object-identifier>

<!-- end of definition of Plesk object that conflicts with an

object in the backup -->

</reason-description>

<resolve-options>

<option name=”do-not-restore”></option>

<option name=”rename”></option>

<option name=”automatic”></option>

</resolve-options>

<!-- resolve-options element lists all resolutions that are

possible for this particular conflict. When composing the conflict

resolution rule, you should choose one of these resolutions. -->

</configuration>

</type>

<conflicting-objects>

<!-- beginning of definition of backup objects that conflict with

destination Plesk objects. Here, it is a domain example.com -->

<node children-processing-type=”” name=”domain”>

<attributes>

<attribute name=”id” value=”25”></attribute>

<attribute name=”guid” value=”0822c175-a10d-459e-bd3a-

e5cbc497e1f0”></attribute>

Reference 57

<attribute name=”owner-guid” value=”93dbe1b1-cff5-430f-8466-

5b810099772f”></attribute>

<attribute name=”name” value=”example.com”></attribute>

</attributes>

</node>

</conflicting-objects>

<!-- end of definition of backup objects that conflict with

destination Plesk objects -->

<overview>

<!-- beginning of more detailed conflict overview. Here, the

conflict appears because the required IP 192.0.2.200 is not in the

owner s IP pool -->

<object>

<message>backup__restore__conflict_object_name</message>

<name>example.com</name>

<type>domain</type>

<reasons>

<reason>

<message>backup__restore__conflict_configuration_reason_ip</message>

<param name=”ip-address” value=”192.0.2.200”></param>

<param name=”ip-type” value=”shared”></param>

<param name=”type” value=”client”></param>

</reason>

</reasons>

</object>

</overview>

<!-- end of detailed conflict overview -->

</conflict>

</conflicts-description>

58 Reference

Conflicts Resolution

<?xml version=”1.0” encoding=”UTF-8”?>

<resolve-conflicts-task-description>

<conflict-resolution-rules>

<policy />

<rule conflict-id=”0”>

<dump-objects>

<node name=”domain”>

<attributes>

<attribute name=”id” value=”25”></attribute>

<attribute name=”guid” value=”0822c175-a10d-459e-bd3a-

e5cbc497e1f0”></attribute>

<attribute name=”owner-guid” value=”93dbe1b1-cff5-430f-8466-

5b810099772f”></attribute>

<attribute name=”name” value=”example.com”></attribute>

</attributes>

</node>

</dump-objects>

<resolution>

<!-- beginning of the conflict resolution definition: IP mapping:

upon restore, the conflicting domain example.com should have hosting

configured on IP 192.0.2.34 -->

<rename new-name=”ip-type:shared:ip-address:192.0.2.34”/>

</resolution>

<!-- end of the conflict resolution definition -->

</rule>

</conflict-resolution-rules>

</resolve-conflicts-task-description>

Reference 59

Sample 2: Configuration Conflict With Missing Database Server

This sample represents description and resolution of configuration conflicts which appeared

unresolved due to the lack of the required database server on the destination PPP.

The conflicts appear because of the following mismatches in backup data and destination

Plesk configuration:

Backup

Destination Plesk

Domain sample.net has database

mysql_db2_7469 on the MySQL database server

with host name 192.0.2.15 listening on port 3306.

No MySQL servers configured on

host 192.0.2.15.

Domain 69.sample.net has database

mysql_db1_6319 on the MySQL database server

with host name 192.0.2.15 listening on port 3306.

These conflicts are resolved with database mapping (Rename resolution) suggesting that the

first databases will be restored on the MySQL server with host name 192.0.2.12, and the

second to the local MySQL database server.

In this section:

Conflicts Description .......................................................................................... 60

Conflicts Resolution ........................................................................................... 64

60 Reference

Conflicts Description

<conflicts-description>

<conflict id=”0”>

<type>

<configuration>

<reason-description>

<required-resource-description>

<db-server host=”192.0.2.15” type=”mysql” port=”3306”></db-server>

</required-resource-description>

<plesk-object-identifier>

<!-- beginning of definition of Plesk object that conflicts with an

object in the backup. In resource usage conflicts it is owner of the

conflicting resource. Here, it is Plesk administrator who is the

owner of all database servers -->

<type>admin</type>

<database-id>1</database-id>

<guid>00000000-0000-0000-0000-000000000000</guid>

</plesk-object-identifier>

<!-- end of definition of Plesk object that conflicts with an

object in the backup -->

</reason-description>

<resolve-options>

<option name=”do-not-restore”></option>

<option name=”rename”></option>

<option name=”automatic”></option>

</resolve-options>

</configuration>

</type>

<conflicting-objects>

<!-- beginning of definition of backup objects that conflict with

destination Plesk objects. Here, it is database mysql_db2_7469 -->

<node children-processing-type=”” name=”database”>

<attributes>

<attribute name=”guid” value=”86124f4a-5935-48c4-80df-

6d3e9c645378_db_20”></attribute>

<attribute name=”owner-guid” value=”86124f4a-5935-48c4-80df-

6d3e9c645378”></attribute>

<attribute name=”name” value=”mysql_db2_7469”></attribute>

</attributes>

Reference 61

</node>

</conflicting-objects>

<!-- end of definition of backup objects that conflict with

destination Plesk objects -->

<overview>

<!-- beginning of detailed overview of the conflict. This conflict

appears because database mysql_db2_7469 requires MySQL database

server with host name 192.0.2.15 listening on port 3306, which is

not configured on the destination Plesk. -->

<object>

<message>backup__restore__conflict_object_complex_name</message>

<name>mysql_db2_7469</name>

<type>database</type>

<owner-name>sample.net</owner-name>

<reasons>

<reason>

<message>backup__restore__conflict_configuration_reason_db</message>

<param name=”db-type” value=”mysql”></param>

<param name=”db-host” value=”192.0.2.15”></param>

<param name=”db-port” value=”3306”></param>

<param name=”type” value=”admin”></param>

<param name=”name”

value=”backup__restore__object_plesk_admin”></param>

</reason>

</reasons>

</object>

</overview>

<!-- end of detailed overview of the conflict -->

</conflict>

<!-- =============== begin new conflict description ===============

-->

<conflict id=”1”>

<type>

<configuration>

<reason-description>

<required-resource-description>

<db-server host=”192.0.2.15” type=”mysql” port=”3306”>

</db-server>

</required-resource-description>

<plesk-object-identifier>

62 Reference

<!-- beginning of definition of Plesk object that conflicts with an

object in the backup In resource usage conflicts it is owner of the

conflicting resource. Here, it is Plesk administrator who is the

owner of all database servers -->

<type>admin</type>

<database-id>1</database-id>

<guid>00000000-0000-0000-0000-000000000000</guid>

</plesk-object-identifier>

<!-- end of definition of Plesk object that conflicts with an

object in the backup -->

</reason-description>

<resolve-options>

<option name=”do-not-restore”></option>

<option name=”rename”></option>

<option name=”automatic”></option>

</resolve-options>

</configuration>

</type>

<conflicting-objects>

<!-- beginning of definition of backup objects that conflict with

destination Plesk objects. Here, it is database mysql_db1_6319 -->

<node children-processing-type=”” name=”database”>

<attributes>

<attribute name=”guid” value=”e1fbb4b2-538b-4542-9220-

56808741a3d3_db_19”></attribute>

<attribute name=”owner-guid” value=”e1fbb4b2-538b-4542-9220-

56808741a3d3”></attribute>

<attribute name=”name” value=”mysql_db1_6319”></attribute>

</attributes>

</node>

</conflicting-objects>

<!-- end of definition of backup objects that conflict with

destination Plesk objects -->

<overview>

<!-- beginning of detailed overview of the conflict. This conflict

appears because database mysql_db1_6319 requires MySQL database

server with host name 192.0.2.15 listening on port 3306, which is

not configured on the destination Plesk. -->

<object>

<message>backup__restore__conflict_object_complex_name</message>

<name>mysql_db1_6319</name>

<type>database</type>

Reference 63

<owner-name>69.sample.net</owner-name>

<reasons>

<reason>

<message>backup__restore__conflict_configuration_reason_db</message>

<param name=”db-type” value=”mysql”></param>

<param name=”db-host” value=”192.0.2.15”></param>

<param name=”db-port” value=”3306”></param>

<param name=”type” value=”admin”></param>

<param name=”name”

value=”backup__restore__object_plesk_admin”></param>

</reason>

</reasons>

</object>

</overview>

<!-- end of detailed overview of the conflict -->

</conflict>

</conflicts-description>

64 Reference

Conflicts Resolution

<?xml version=”1.0” encoding=”UTF-8”?>

<resolve-conflicts-task-description>

<conflict-resolution-rules>

<policy />

<rule conflict-id=”0”>

<!-- beginning of the first conflict resolution rule: restore the

database described in the node element on local MySQL server

listening on the port 3306 -->

<dump-objects>

<node name=”database”>

<attributes>

<attribute name=”name” value=”mysql_db2_7469”/>

</attributes>

</node>

</dump-objects>

<resolution>

<rename new-name=”host:192.0.2.12:port:3306”/>

</resolution>

</rule>

<!-- end of the first conflict resolution rule -->

<rule conflict-id=”1”>

<!-- beginning of the second conflict resolution rule: restore the

database described in the node element on local MySQL server

listening on the port 3306 -->

<dump-objects>

<node name=”database”>

<attributes>

<attribute name=”name” value=”mysql_db1_6319”/>

</attributes>

</node>

</dump-objects>

<resolution>

<rename new-name=”host:localhost:port:3306”/>

</resolution>

</rule>

<!-- end of the second conflict resolution rule -->

Reference 65

</conflict-resolution-rules>

</resolve-conflicts-task-description>
