user operating instructions for rf remote control and rf2ir dongle
Pairing of rf2ir dongle and remote control
(1) rf2ir dongle
Press “play/pause” and “ok” keys simultaneously for 5 seconds –
green LED will flash.
Plug in the rf2ir dongle to an available USB port of your Set Top Box
within 30 seconds.
Once paired the green LED will flash twice quickly and then stop. The
remote control and the dongle are paired.
The correct function can be verified by pressing any key – green STB
LED will flash once.
In case pairing failed no LED will flash when pressing a key. In this
case the above procedure should be repeated.

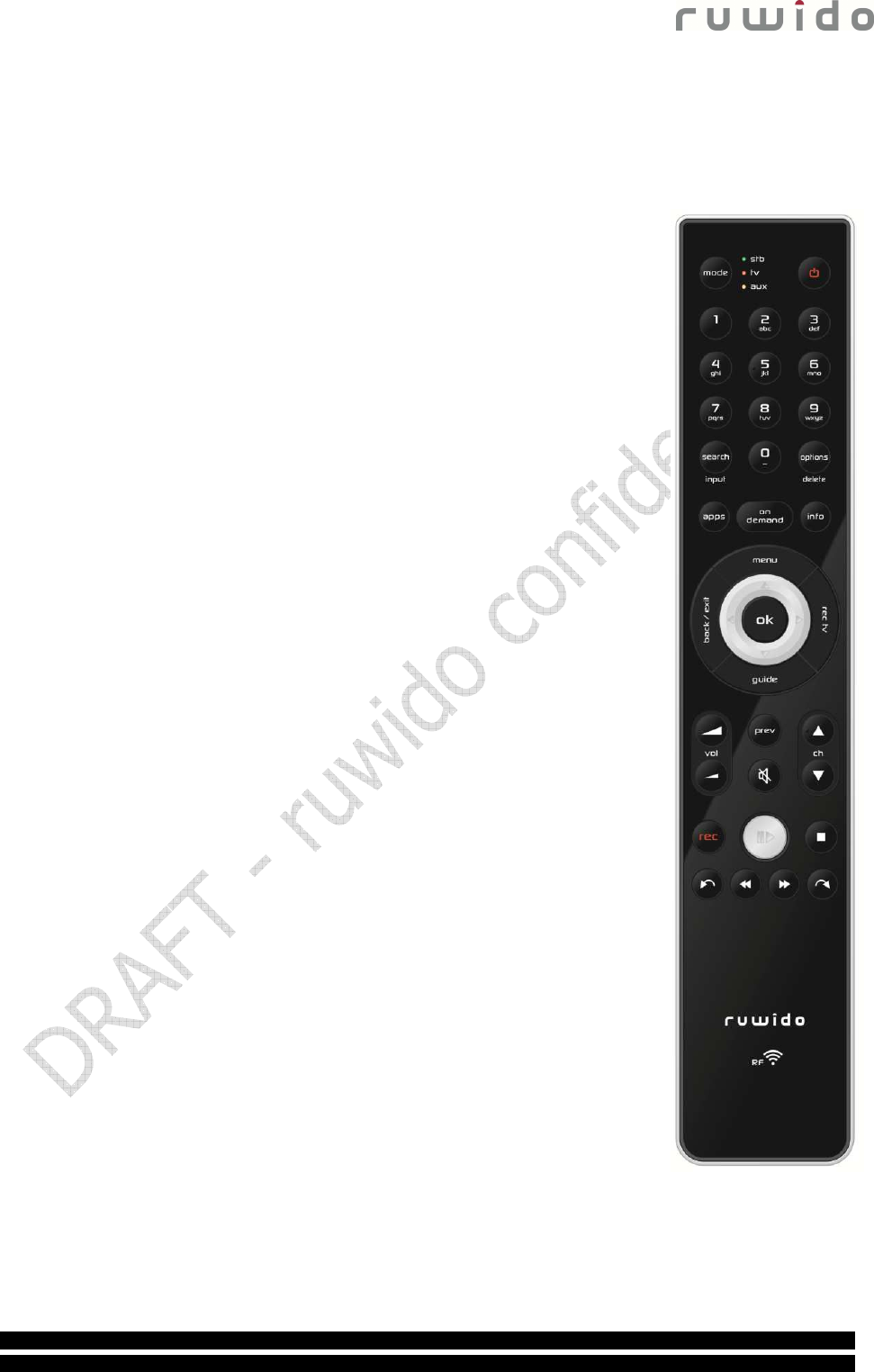

(2) rf remote control
ruwido austria gmbh ruwido_r107_rf_quick_user_guide_v0.1-DRAFT Page 3 of 6
This document is intellectual property of ruwido austria gmbh and contains confidential information. Reproduction, modification,.
communication to third parties and any other use is strictly prohibited without prior written accordance of ruwido austria. © 2013
Programming your TV
Before you start to program your remote control, make sure your TV is switched on.
Preparation:
To speed up your programming process, the most used TV brands have
short numbers that will be used in the programming process.
Vizio
-
10
Funai/Emerson - 11
Sanyo - 12
Panasonic - 13
Sharp – 14
LG – 15
Toshiba - 16
Sony
-
17
Samsung – 18
Philips – 19
RCA – 20
Insignia - 21
Others - 29
Step 1:
Controlling the TV with the STB remote control is only possible when the
remote control is in the TV mode.
To access TV mode, press the MODE key, until the red TV light flashes.
Step 2:
Press and hold the MODE button for 3 seconds, until the red TV light on
the remote control flashes twice.
Enter the 2-digit code for the brand of your TV (found above) – the red
TV light will flash twice.
Now, press and hold the POWER Button until your TV switches off.
As soon as your TV switches off, remove your finger from the POWER
Button and press OK to confirm – the red TV light will flash twice.
Now press the POWER button again to switch your TV back on.
Finally, press the mode button until the green light is illuminated. Now
you can turn your TV and your digital box on and off simultaneously by
pressing the POWER button.
ruwido austria gmbh ruwido_r107_rf_quick_user_guide_v0.1-DRAFT Page 4 of 6
This document is intellectual property of ruwido austria gmbh and contains confidential information. Reproduction, modification,.
communication to third parties and any other use is strictly prohibited without prior written accordance of ruwido austria. © 2013
Power Control STB, TV and AUX
If the key is pressed when the remote is in STB mode, both, the TV and STB will be
switched on/off.
If the key is pressed when the remote is in TV mode, the TV will be switched on/off.
If the key is pressed when the remote is in AUX mode, the AUX device will be switched
on/off.
Notes:
o programming of AUX works same way as for TV
o programming is only possible in TV and AUX mode
o for programming TV mode you need to be in TV mode (red LED),
o for programming AUX mode you need to be in AUX mode (yellow LED)
o in case of low battery (<2V) all three LEDs flashes for 1.5s after sending a command
ruwido austria gmbh ruwido_r107_rf_quick_user_guide_v0.1-DRAFT Page 5 of 6
This document is intellectual property of ruwido austria gmbh and contains confidential information. Reproduction, modification,.
communication to third parties and any other use is strictly prohibited without prior written accordance of ruwido austria. © 2013
BRAND LIST
Note code search for “Others” may take up to 20 minutes
TV BRANDS
Vizio
-
10
Funai / Emerson- 11
Sanyo - 12
Panasonic - 13
Sharp – 14
LG – 15
Toshiba - 16
Sony
-
17
Samsung – 18
Philips – 19
RCA – 20
Insignia - 21
Others - 29
XBOX BRANDS
XBOX
-
99
DVD/BLUERAY BRANDS
Vizio
-
30
Funai – 31
Sanyo - 32
Hitachi - 33
Onkyo – 34
Sharp – 35
Kenwood – 36
LG – 37
JVC
–
38
Toshiba – 39
Pioneer – 40
Panasonic - 41
Sony - 42
Samsung – 43
Others - 44
AMPLIFIER BRANDS
Sony 60
Yamaha – 61
Harman/ Kardon – 62
Denon – 63
Samsung – 64
LG – 65
Onkyo – 66
Bose - 67
Pioneer
–
6
8
Philips – 69
Aiwa – 70
Hitachi – 71
Sharp – 72
Sanyo - 73
Panasonic - 74
Others - 79
