ruwido austria 2761 RF Remote Control User Manual ruwido r97 rf quick user guide v0 1 08june13 DRAFT
ruwido austria GmbH RF Remote Control ruwido r97 rf quick user guide v0 1 08june13 DRAFT
User manual
ruwido austria gmbh . Köstendorfer Str. 8 . Austria . t +43 6216 4571-0 . www.ruwido.com Page 1 of 5
This document is intellectual property of ruwido austria gmbh and contains confidential information. Reproduction, modification,.
communication to third parties and any other use is strictly prohibited without prior written accordance of ruwido austria. © 2013.
Revision Status
Version Creation Date Author Remarks
V0.1 08 June 2013 Ralph Leblhuber
rf ruwido remote control and
rf2ir dongle user guide
DRAFT
ruwido austria gmbh ruwido_r97_rf_quick_user_guide_v0.1-08june13-DRAFT Page 2 of 5
This document is intellectual property of ruwido austria gmbh and contains confidential information. Reproduction, modification,.
communication to third parties and any other use is strictly prohibited without prior written accordance of ruwido austria. © 2013
user operating instructions for rf remote control and rf2ir dongle
1. Pairing of rf2ir dongle and remote control
(1) rf2ir dongle
Press “play/pause” and “ok” keys simultaneously for 5 seconds – red STB
LED will flash.
Plug in the rf2ir dongle (1) to an available USB port of your Set Top Box (2)
within 30 seconds.
Once paired the red LED will flash twice quickly and then stop. The remote
control and the dongle are paired.
The correct function can be verified by pressing any key – red STB LED will
flash once.
In case pairing failed no LED will flash when pressing a key. In this case
the above procedure should be repeated.
(2) rf remote
control
ruwido austria gmbh ruwido_r97_rf_quick_user_guide_v0.1-08june13-DRAFT Page 3 of 5
This document is intellectual property of ruwido austria gmbh and contains confidential information. Reproduction, modification,.
communication to third parties and any other use is strictly prohibited without prior written accordance of ruwido austria. © 2013

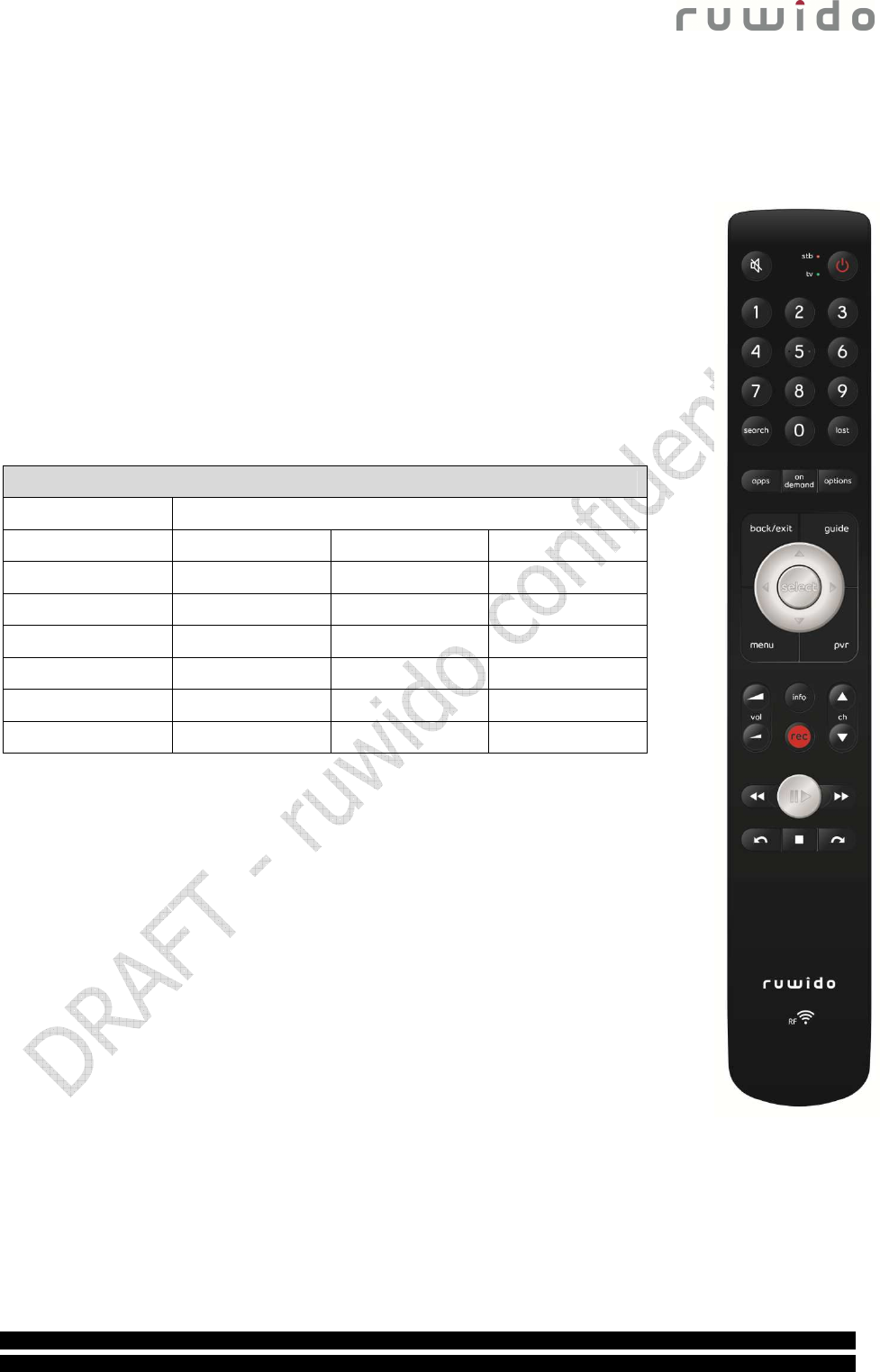

2. Programming your TV
Before you start to program your remote control, make sure your TV and set top box are
switched on.
Preparation:
To speed up your programming process, the most used TV brands have 4-
digit code that will be used in the programming process.
Search for the 4-digit code of your TV brand.
In case your TV brand is not listed please use code 0 0 0 1 to search for all
brands. Please note that the search can take up to 15 minutes in that case.
TV
Brand List
0001
s
earch for all brands
0010
Insignia
0017
LG
0011
Vizio
0018
Toshiba
0012
RCA
0019
Sony
0013
Sanyo
0020
Samsung
0014
Panasonic
0021
Philips
0015
Funai/Emerson
0022
Fluid
0016
Sharp
Brand Search
Press and hold options key for 3 seconds, until the green LED flashes twice.
Enter the 4-digit code for the brand of your TV (see table above) within 10
seconds – the green LED flashes twice.
Now, press and hold the power key until your TV switches off.
As soon as your TV switches off, remove your finger from the power key and
press select key to confirm – the green LED will flash twice.
Now press the power key again to switch your TV back on.
Now you can turn your TV and your set top box on/off simultaneously by
pressing the power key; volume (vol+, vol-) and mute function will be controlled via the TV.
After first set up make sure that the set top box and TV are both powered on.
In case an invalid code has been entered the green LED will light up for 2 seconds.
If no key code is being entered within 10 seconds the remote will time out and the
programming procedure needs to be started again.
ruwido austria gmbh ruwido_r97_rf_quick_user_guide_v0.1-08june13-DRAFT Page 4 of 5
This document is intellectual property of ruwido austria gmbh and contains confidential information. Reproduction, modification,.
communication to third parties and any other use is strictly prohibited without prior written accordance of ruwido austria. © 2013
Notes:
factory default setting: no TV is programmed
once TV is programmed, volume (vol+, vol- and mute) will be controlled via the TV
for STB commands the LED will flash red, for TV commands LED will flash green (only if
TV set has been programmed)
TV programming will remain if batteries are being removed / changed
ruwido austria gmbh ruwido_r97_rf_quick_user_guide_v0.1-08june13-DRAFT Page 5 of 5
This document is intellectual property of ruwido austria gmbh and contains confidential information. Reproduction, modification,.
communication to third parties and any other use is strictly prohibited without prior written accordance of ruwido austria. © 2013
DECLARATION
User Information FCC 15.2:
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
Part 15 Statement. FCC 15.19/RSS Gen Issue 3 Sect. 7.1.3
This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
Statement Class B Digital Device FCC 15.105:
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
o Reorient or relocate the receiving antenna.
o Increase the separation between the equipment and receiver.
o Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
o Consult the dealer or an experienced radio/ TV technician for help.
