User guide

SmartBand Talk

SWR30

Contents

Basics.............................................................................................3

Introduction........................................................................................3

Hardware overview............................................................................3

Understanding the display.................................................................4

Interacting with the SmartBand Talk.................................................4

Charging your SmartBand Talk..........................................................4

Assembly...........................................................................................5

Turning on and off..............................................................................6

Still mode...........................................................................................6

Setting up your SmartBand Talk....................................................7

Preparing to use your SmartBand Talk..............................................7

Reconnecting your SmartBand Talk..................................................8

Resetting your SmartBand Talk.........................................................8

Settings for your SmartBand Talk..................................................9

Using the SmartBand Talk application..............................................9

Controlling applications with your SmartBand Talk...........................9

SmartBand Talk alarm.....................................................................10

Notifications.....................................................................................11

Handling calls...................................................................................13

Do not disturb..................................................................................13

Power management.........................................................................14

Wearing style...................................................................................14

Display colour..................................................................................15

Sleep tracking..................................................................................15

Google Fit........................................................................................15

Voice search....................................................................................16

Locating your SmartBand Talk........................................................16

Selecting a watch face for your SmartBand Talk............................16

Logging your activities using the Lifelog application...................18

Using the Lifelog application...........................................................18

Setting goals....................................................................................20

Logging sleep with your SmartBand Talk........................................20

Creating life bookmarks...................................................................20

Synchronising data with the Lifelog application..............................21

Important information...................................................................22

Using your SmartBand Talk in wet and dusty conditions................22

Legal information.............................................................................23

This is an Internet version of this publication. © Print only for private use.

Basics

Introduction

The SmartBand Talk is both a standalone device as well as a companion product that

connects wirelessly via Bluetooth® with Android™ smartphones and tablets. Worn

on your dominant wrist, it can monitor your body movements and interact with your

Android™ device to generate data about your daily life and habits. For example, the

SmartBand Talk counts your steps and records data about your physical state while

you sleep, walk or run. Together with the Lifelog application, you can set personal

goals and then track your progress in a comprehensive and easily viewable format.

The accessory also helps you to stay organised and manage common day-to-day

tasks. For example, you can use it to handle alarms, phone calls and text messages,

and to record voice notes. And with dozens of applications available for your

SmartBand Talk on Google Play™, you can add new features regularly.

Before you can get started using your SmartBand Talk, you must download the

SmartBand Talk application and set up the accessory to work with your phone or

tablet. Refer to the relevant setup information for more details. Also, remember that

your Android™ device must run the Android™ software version 4.4 or higher and

support the Bluetooth® version 3.0 profile.

Hardware overview

1 Screen

2 Wristband strap 1

3 Volume key

4 NFC detection area

5 Power key/Function key

6 Wristband strap 2

7 Microphone

8 Micro USB port

9 Core unit

10 Speakers

11 Attachment clips

This is an Internet version of this publication. © Print only for private use.

Understanding the display

Your SmartBand Talk features an E Ink® display that uses electronic ink technology

to reproduce the appearance of ordinary ink on paper. In an E Ink® display, no

backlight is used. Instead, ambient light from the environment is reflected from the

surface of the display, making it more comfortable to read. The image on your E Ink®

screen is retained even when power to the screen is turned off. Also note that when

the content displayed on the screen changes, there is a brief transition time. This is

normal E Ink® display behavior.

Interacting with the SmartBand Talk

You can control applications by firmly tapping the SmartBand Talk and you can

navigate from screen to screen by pressing the function key. If the screen is idle for

30 seconds, the idle mode screen becomes active.

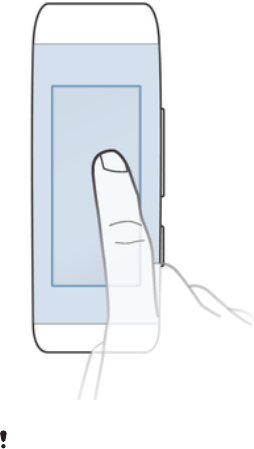

Tapping

•Handle installed applications, for example, add bookmarks.

The display of the SmartBand Talk is not touch sensitive. Remember to firmly tap the

SmartBand Talk in order for the device to register a command. Also note that the screen does

not recognise swiping movements.

Function key

You can use the function key to navigate between different screens and applications.

To navigate from one screen to another

•Short press the function key.

To exit an application

•Long press the function key. After the application closes, the idle mode screen

becomes active.

Charging your SmartBand Talk

Before using your SmartBand Talk for the first time, you need to charge it for

approximately 30 minutes. Sony chargers are recommended.

If your SmartBand Talk is not used during charging, it takes 45 to 70 minutes to fully

charge it depending on the type of charger used.

This is an Internet version of this publication. © Print only for private use.

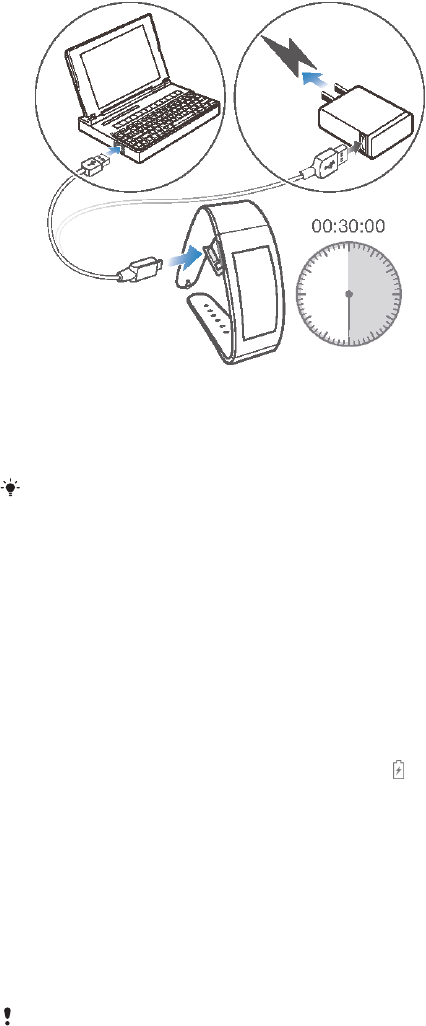

To charge your SmartBand Talk

1Plug one end of the USB cable into the charger or into the USB port of a

computer.

2Plug the other end of the cable into the Micro USB port of your SmartBand

Talk.

If you are charging the device for the first time, make sure you charge it for at least 30

minutes.

To check the battery level of your SmartBand Talk

•From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > STATUS.

Low battery level notification

When your SmartBand Talk is on and the battery level goes below 15 percent, it

emits one short vibration and a warning notification appears on the screen to indicate

that the battery is low. The warning gets repeated when the battery reaches charge

levels of 10 and 5 percent, respectively. displays permanently on your SmartBand

Talk when the battery runs out of power, indicating that you need to charge it.

To dismiss a battery warning notification

•Short press the function key.

Assembly

To personalise your SmartBand Talk, you can replace the wristband with bands of

different colour and length, which can be purchased separately.

When you change the wristband, you may also have to replace the attachment clips with clips

of a suitable size or type.

This is an Internet version of this publication. © Print only for private use.

To remove the wristband

1Insert a fingernail, or a similar object, into the gap near each attachment clip,

then drag out and fully remove the clips.

2Remove the wristband straps from the core unit of the accessory.

Turning on and off

To turn on your SmartBand Talk

•Press and hold down the power key until the device vibrates.

To turn off your SmartBand Talk

•Press and hold down the power key until your SmartBand Talk vibrates and the

screen goes blank.

Still mode

Your SmartBand Talk has a feature called Still mode. When your SmartBand Talk is

absolutely still and does not receive any notifications or calls for 20 minutes, it enters

Still mode and the screen goes blank. As soon as your SmartBand Talk is moved or

receives an incoming call or notification, it exits Still mode automatically.

Still mode is enabled on your SmartBand Talk by default and cannot be set or turned off.

This is an Internet version of this publication. © Print only for private use.

Setting up your SmartBand Talk

Preparing to use your SmartBand Talk

For your SmartBand Talk to work properly, you must install the latest version of the

SmartBand Talk application on the Android™ device, and then pair and connect it

with your Android™ device. You also need to install the Lifelog application, which

adds extra features and functions that allow you to, for example, see more detailed

information about your daily activities.

You can set up your SmartBand Talk using NFC, which launches the pairing,

connection and setup procedures automatically, or you can use the manual

Bluetooth® option which requires some extra steps, for example, to download and

install some necessary applications.

A setup wizard in the SmartBand Talk application guides you through the process of

setting up your SmartBand Talk for the first time.

All applications required for the SmartBand Talk to work are available on Google Play™.

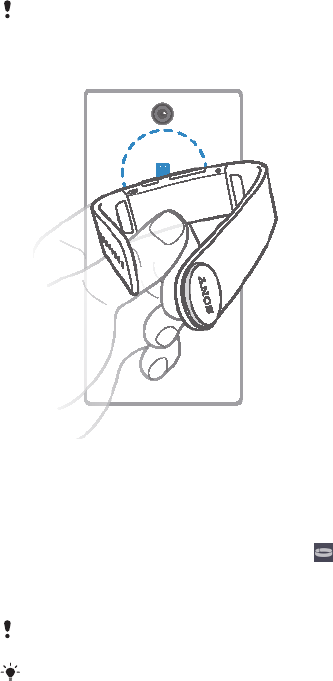

To set up your SmartBand Talk using NFC

1Make sure that your SmartBand Talk has been charged for at least 30 minutes.

2Android™ device: Make sure that the NFC function is turned on and that the

screen is active and unlocked.

3Place the Android™ device over your SmartBand Talk so that the NFC area of

each device touches the other. appears briefly in the status bar and

permanently in the Notification panel when a connection with the SmartBand

Talk is active.

You can set up your SmartBand Talk using NFC even when the SmartBand Talk is turned off.

You can drag down the status bar to open the Notification panel and get quick access to the

SmartBand application and the Lifelog application.

This is an Internet version of this publication. © Print only for private use.

To set up your SmartBand Talk using Bluetooth®

1Make sure that your SmartBand Talk has been charged for at least 30 minutes.

2Android™ device: Make sure that you have installed or updated the SmartBand

Talk application to the latest version.

3Turn on your SmartBand Talk.

4Android™ device: Turn on the Bluetooth® function, then scan for Bluetooth®

devices and select SWR30 in the list of available devices.

5Android™ device: Follow the instructions that appear on the screen. appears

briefly in the status bar and permanently in the Notification panel when a

connection with the SmartBand Talk is active.

You can drag down the status bar to open the Notification panel and get quick access to the

SmartBand application and the Lifelog application.

To install the SmartBand Talk application

1From the main application screen of your Android™ device, find and tap Play

Store to open the Google Play™ application.

2Tap the search icon, then search for “SmartBand Talk”.

3After the search results appear, tap SmartBand™ Talk, then follow the relevant

instructions to download and install the application.

You can only install the SmartBand™ Talk application on an Android™ device, for example, an

Android™ smartphone or tablet.

Reconnecting your SmartBand Talk

In cases where a connection gets lost, for example, when the connected Android™

device goes out of range, your SmartBand Talk automatically performs a series of

reconnection attempts. When this happens, you can use the function key to force the

accessory to try reconnecting, or you can use NFC to reconnect the two devices.

To force the SmartBand Talk to try reconnecting

•Press the function key.

To reconnect your SmartBand Talk using NFC

1Android™ device: Make sure that the NFC function is turned on and that the

screen is active and unlocked.

2Place the Android™ device over your SmartBand Talk so that the NFC

detection area of each device touches the other.

Resetting your SmartBand Talk

Reset your SmartBand Talk if it behaves unexpectedly or if you want to connect it to

a new device.

To perform a factory data reset

1Turn off your SmartBand Talk.

2Press and hold down the power key, volume up and down keys simultaneously

until you feel three short vibrations followed by one longer vibration, then

release the keys.

You need to pair the SmartBand Talk with your Android™ device again.

To force your SmartBand Talk to shut down

•Long press the power key.

This is an Internet version of this publication. © Print only for private use.

Settings for your SmartBand Talk

Using the SmartBand Talk application

You can view and change settings for your SmartBand Talk by using the SmartBand

Talk application on your Android™ device.

1 Turn smart wake up alarms on or off as well as add, edit or delete them.

2 Turn the notifications function on or off.

Select which notifications to forward to your SmartBand Talk.

3 Select whether you want to handle incoming calls using your SmartBand Talk.

4 Turn the “do not disturb” function on or off, or change the interval time.

5 Turn STAMINA mode on or off.

6 Enable Xperia™ phone alarm notifications.

7 Select to get notified when you leave your device behind.

8 Set the text orientation.

9 Select the display background colour.

10 Select the sleep tracking type.

11 Synchronise your SmartBand Talk with the Google Fit application.

12 Open the Android™ voice input settings to change the language and other options.

You can tap or drag the relevant slider to the on or off position depending on whether you

want to receive notifications and incoming calls or activate the “do not disturb” and other

functions. You can also tap on the name of each function to view more information about how

to adjust related settings.

Controlling applications with your SmartBand Talk

You can add up to nine applications at a time for use with your SmartBand Talk. You

can then use your SmartBand Talk to control how the selected applications function

on the connected Android™ device. For example, if you add the relevant media

This is an Internet version of this publication. © Print only for private use.

player application, you can use the SmartBand Talk to control the playback of media

files on the connected Android™ device. For each added application, you can edit

the settings at any time.

To select an application for use with your SmartBand Talk

1From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > MY APPS > ADD APPS.

2Touch and hold the application that you want to select, then drag it to position

under “Add apps” and follow the on-screen instructions.

3To download more applications, tap GET MORE APPS, then follow the

download instructions.

To rearrange the list of selected applications

1From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > MY APPS.

2Touch and hold the application that you want to move, then drag it to the

desired position.

To edit settings for a selected application

1From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > MY APPS.

2Select an application, then edit the settings as desired.

To remove a selected application

1From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > MY APPS.

2Touch and hold the application that you want to delete, then drag it to .

SmartBand Talk alarm

Your SmartBand Talk has two different alarm functions. One is the Xperia™ phone

alarm function, which only works when your SmartBand Talk is connected to an

Xperia™ device. The other is the smart wake up function, which wakes you up within

a selected time frame after you have reached a state of light sleep so that you wake

up feeling refreshed. The smart wake up function works whether an Android™ device

is connected or not.

Alarm notifications from an Xperia™ device

Your SmartBand Talk vibrates when pre-set alarms go off on a connected Xperia™

device.

To enable alarm notifications from an Xperia™ device

1From the main application screen of your Xperia™ device, find and tap

SmartBand™ Talk > SETTINGS.

2Drag the slider beside Xperia™ phone alarm to the right.

3Tap Xperia™ phone alarm > Alarm sound and vibration and select an option.

To snooze an alarm on your Xperia™ device when your SmartBand Talk vibrates

•Short press the function key.

To turn off an alarm when your SmartBand Talk vibrates

•Long press the function key.

Smart wake up alarms

You can set one or several smart wake up alarms in the SmartBand Talk SWR30

application. The smart wake up alarm wakes you up at the best time based on your

sleep cycle. The alarm notifies you with a continuous vibration. After you set a time

frame for when you would like to be awoken by the alarm, your SmartBand Talk

This is an Internet version of this publication. © Print only for private use.

registers when you have reached a state of light sleep (after a period of deep sleep)

and then wakes you up.

For example, if you set a smart wake up alarm for between 06:30 and 07:00 AM, the

alarm wakes you up sometime between 06:30 and 07:00 AM when you reach a state

of light sleep. If you do not reach a state of light sleep during this period, the smart

wake up alarm wakes you up at 07:00 AM.

If you want to add, remove or change a smart wake up alarm, your SmartBand Talk must be

connected to the Android™ device.

To add a smart wake up alarm

1From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > SETTINGS.

2Tap Smart wake up alarm, then tap .

3Tap Time, then scroll up or down to adjust the time and tap Set.

4Tap Repeat, then mark the days on which you want the alarm to recur and tap

OK.

5Tap Alarm window and select an option.

6Mark the Alarm sound checkbox if you want a sound alert.

7When you’re finished, tap Done.

If the Alarm sound checkbox is checked, the volume of the alarm sound on your SmartBand

Talk starts low and then increases gradually.

To edit an existing smart wake up alarm

1From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > SETTINGS.

2Tap Smart wake up alarm, then tap the alarm that you want to edit.

3Edit the options as desired.

4When you’re finished, tap Done.

To delete a smart wake up alarm

1From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > SETTINGS.

2Tap Smart wake up alarm, then touch and hold the alarm that you want to

delete.

3Tap , then tap Yes.

To turn on a smart wake up alarm

1From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > SETTINGS.

2Tap Smart wake up alarm.

3Scroll to the alarm that you want to turn on, then drag the relevant slider switch

to the right.

Notifications

All notifications that appear in the status bar on a connected Android™ device can be

forwarded to your SmartBand Talk. You can use the SmartBand Talk application to

select which notifications to forward.

Depending on the message type, you can read a message preview or the full

message by firmly tapping your SmartBand Talk. You can also perform actions such

as “Open in phone”, “Mark as read”, “Block”, “Dismiss” and so on.

This is an Internet version of this publication. © Print only for private use.

To turn on the notification function

1From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > SETTINGS.

2Drag the slider beside Notifications to the right.

3If you are turning on the notifications function for the first time, follow the

instructions that appear on the screen to give the SmartBand Talk application

access to your notifications.

To select which notifications to forward to your SmartBand Talk

1From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > SETTINGS > Notifications.

2Tap Get notification from.

3In the list that appears, mark or unmark the desired options.

To hide sender’s name from notification message on your SmartBand Talk

1From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > SETTINGS > Notifications.

2Mark the Privacy checkbox.

To select the notification text size on your SmartBand Talk

1From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > SETTINGS > Notifications.

2Tap Notification text size, then select an option.

To read a notification displayed on the screen of your SmartBand Talk

1Firmly tap the notification or short press the volume down key to open it.

2Short press the volume up or down key to scroll through the notification.

To read a notification from the Notification extension of your SmartBand Talk

1Short press the function key to navigate to the Notification extension.

2Short press the volume up or down key to highlight the notification that you

want to read.

3Firmly tap the highlighted notification to open it.

4Short press the volume up or down key to scroll through the notification.

To close or exit a notification on your SmartBand Talk

•Short press the function key.

To dismiss all notifications from the Notification extension

1Short press the function key to navigate to the Notification extension.

2Short press the volume down key to highlight the item “Dismiss all

notifications”.

3Firmly tap the highlighted “Dismiss all notifications”.

Notification actions on your SmartBand Talk

You can perform specific actions after receiving notifications forwarded to your

SmartBand Talk. The actions available after receiving a notification depends on the

type of application that sends the notification. The following lists the most common

actions that you can perform:

•Mark as read: Mark a notification as read in the notifying application, and then

remove it from the notification list in your SmartBand Talk and the status bar in the

connected Android™ device.

•Reply: Reply to a message with a short voice to text reply (about 5 seconds) or with

the pre-defined quick replies using your SmartBand Talk.

•Open in phone: Open a notification and the related application in the connected

Android™ device.

•Block: Block the related application from forwarding the notifications to your

SmartBand Talk.

This is an Internet version of this publication. © Print only for private use.

•Dismiss: Clear a notification from the notification list in your SmartBand Talk and the

status bar in the connected Android™ device.

To perform an action to an open notification using your SmartBand Talk

1Short press the volume up or down key to highlight the action that you want to

perform.

2Firmly tap the highlighted action, and follow the on-screen instructions if there

are any.

Handling calls

Your SmartBand Talk notifies you with continuous vibrations when a call comes in.

You can choose to answer the call on your Android™ device or to answer and handle

it directly on your SmartBand Talk by speaking into the microphone of the device.

You can also use your SmartBand Talk to reject an incoming call and hang up on an

ongoing call. To handle calls and receive call notifications directly on your SmartBand

Talk, you must first enable the relevant settings in the SmartBand Talk application.

To enable your SmartBand Talk to receive incoming call

1From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > SETTINGS.

2Drag the slider beside Incoming calls to the right.

To answer an incoming call using your SmartBand Talk

1When the call comes in, short press the function key. The voice of the caller

can be heard through the speakers on your SmartBand Talk.

2To talk to the caller, hold the accessory with a 20 cm range of your mouth and

speak into the microphone.

If you want to answer the incoming call using your handset, you can select the option on the

ongoing call screen of your Android™ device, then the call is in the device you chose to

answer with.

To reject an incoming call using your SmartBand Talk

•Long press the function key.

To silence an incoming call using your SmartBand Talk

•Long press the volume key up or down.

To hang up on an ongoing call using your SmartBand Talk

•Short press the function key.

To mute or unmute an ongoing call using your SmartBand Talk

•During the call, long press the function key.

Do not disturb

You can turn off the notifications and events sounds or vibrations by turning on the

“do not disturb” function. But when this function is on, the alerting functions, such as

the smart wake up alarm, the Xperia™ phone alarm and locating SmartBand Talk

function, remain activated.

To turn on the “do not disturb” function

1From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > SETTINGS.

2Drag the slider beside Do not disturb to the right.

This is an Internet version of this publication. © Print only for private use.

To set the “do not disturb” interval

1From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > SETTINGS >Do not disturb.

2Drag the slider beside Do not disturb to the right.

3Tap Repeat.

4Tap the start time, then scroll up or down to edit accordingly and tap Set.

5Tap the end time, then scroll up or down to edit accordingly and tap Set.

6Tap Done.

Power management

To extend the battery life of your SmartBand Talk, you can activate STAMINA mode

from the settings. When this mode is activated, diagonal lines overlap the screen and

the STAMINA mode icon appears in the top right corner of your SmartBand Talk. In

STAMINA mode, several functions are disabled and you can't perform the following:

•Receive calls on your SmartBand Talk.

•Forward notifications to your SmartBand Talk.

•Get notified when your SmartBand Talk and your Android™ device are out of the

connection range.

However, the activity logging and the smart wake up functions still work as normal.

To activate STAMINA mode

1From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > SETTINGS.

2Tap Power management.

3Drag the slider beside STAMINA mode to the right.

To deactive STAMINA mode

1From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > SETTINGS.

2Tap Power management.

3Drag the slider beside STAMINA mode to the left.

4Short press the function key of your SmartBand Talk.

To temporarily deactive STAMINA mode

•Short press the function key.

When you temporarily disable STAMINA mode on your SmartBand Talk, all functions are

available as normal. If no activity is performed on your SmartBand Talk for 20 seconds, it

reverts to an idle screen and returns to STAMINA mode.

To activate low battery mode

1From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > SETTINGS.

2Tap Power management.

3Drag the slider beside Low battery mode to the right.

When low battery mode is on, your SmartBand Talk enters STAMINA mode automatically

when its battery is low.

Wearing style

You can set the display orientation of your SmartBand Talk according to which arm

you wear it on.

This is an Internet version of this publication. © Print only for private use.

To select the display orientation

1From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > SETTINGS.

2Tap Wearing style, then select an option.

3Tap OK.

Display colour

You can change the display colour for your SmartBand Talk from black to white, or

vice versa.

To change the display colour

1From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > SETTINGS.

2Tap Display colour, then select an option.

3Tap OK.

Sleep tracking

Your SmartBand Talk tracks your sleep status based on a certain type of inactivity.

To improve the sleep tracking accuracy, you can choose the sleep tracking type, in

case that your SmartBand Talk mistakenly records all your inactivity status as sleep

period. For example, if you keep still when you watch TV or read books before going

to sleep.

To activate the automatic sleep tracking

1From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > SETTINGS.

2Tap Sleep tracking > Automatic sleep tracking.

Automatic sleep tracking is the default mode of the sleep tracking function.

To customise the sleep tracking period

1From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > SETTINGS.

2Tap Sleep tracking > Custom sleep tracking > Only track sleep between.

3Tap the start time, then scroll up or down to edit accordingly and tap Set.

4Tap the end time, then scroll up or down to edit accordingly and tap Set.

5Tap Done.

Google Fit

Google Fit is a health-tracking platform developed by Google. By synchronising your

SmartBand Talk with Google Fit, you can easily integrate data about your fitness

activities from various sources to help you better understand your progress.

When you activate Google Fit on your SmartBand Talk, the data logged by your

SmartBand Talk can be viewed in the Google Fit application, which can be

downloaded from Google Play™.

Your SmartBand Talk is optimised for use with the Lifelog application so that both interfaces

display the same data about your fitness activities. However, due to different programming

and different synchronisation intervals, the data displayed in the Google Fit application may

differ from the data shown on your SmartBand Talk and in the Lifelog application. It's

recommended to use the application that best suits your needs.

To synchronise your SmartBand Talk with the Google Fit application

1From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > SETTINGS > Google Fit.

2Drag the slider beside Connect to Google Fit to the right.

This is an Internet version of this publication. © Print only for private use.

Voice search

You can use voice commands to reply to a message, determine your location, check

the weather report, confirm your schedule and so on. Voice search forwards the

search commands to the default voice search application of the connected Android™

device. Voice search availability and its supported languages depend on the voice

search application installed on the connected Android™ device. To use the voice

search function in your SmartBand Talk, you must install a voice search application,

such as Google Now, on your Android™ device first.

To set the voice input options

1From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > SETTINGS > Voice search.

2Tap Settings, and follow the on-screen instructions and options.

You should restart your Android™ device if the voice search language is changed.

To trigger voice search

1Navigate to the home screen.

2Hold and press the volume up key for about 2 seconds until the speaker image

appears on the screen.

3Speak a command after you hear the “beep” sound.

Your SmartBand Talk reverts to the home screen after the voice command has been accepted

or when an error occurs.

Locating your SmartBand Talk

In case you forget where you left it, you can locate your SmartBand Talk by activating

the ringer remotely.

To use the remote ring function

1From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > STATUS.

2Tap LOCATE SMARTBAND™. Your SmartBand Talk starts to ring loudly.

3To stop the ringing, press any key on your SmartBand Talk or tap Stop sound

alert on your Android™ device.

Selecting a watch face for your SmartBand Talk

You can select from several different types of watch faces for your SmartBand Talk

and customise them. You can select what types of information are displayed for each

watch face you set. You can choose information such as the date, temperature or

weather. In addition, you can select the background image of the watch face from the

album of the Android™ device connected to your SmartBand Talk.

To select a watch face for your SmartBand Talk

1From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > MY APPS.

2Tap SELECT WATCH FACE, then select a watch face.

3If you want to change the display format for the watch face, tap and select

an option.

This is an Internet version of this publication. © Print only for private use.

To select an image for the watch face

1From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > MY APPS.

2Tap SELECT WATCH FACE > Custom image > .

3Tap SELECT IMAGE, and then select an image.

4Adjust the position and the size of the marquee to crop the image, and then

tap Crop.

The SmartBand Talk application uses the default image picker installed in your Android™

device to crop images, so the user interface for editing or selecting an image may differ

between devices.

This is an Internet version of this publication. © Print only for private use.

Logging your activities using the Lifelog

application

Using the Lifelog application

The Lifelog application records your physical, social and entertainment activities. For

example, you can see if you’ve been walking or running and how you communicate

with your friends. You can also see what pictures you took and what music you

listened to. To start using the Lifelog application, you need to download it from

Google Play™ and then set up an account.

The statistics that the Lifelog application generates from your physical activities, for example,

walking distance and calorie count, are based on the height and weight data you provide.

Results may vary from user to user. Also, remember that you need an active Internet

connection to synchronise data to the Lifelog application on your Android™ device.

1 Show all logged activities and life bookmarks

2 View detailed information about a life bookmark

3 View information about application usage

4 View all logged activities since the start of the day

5 Add a life bookmark

6 View menu options

7 Physical activities log

8 View all logged activities for the selected day

9 Switch between dashboard and map view

10 Activities dashboard

To set up an account for the Lifelog application

1From the Home screen of your Android™ device, tap , then find and tap

Lifelog.

2Follow the instructions that appear on the screen and accept the terms and

conditions.

3Create a new account or select to use an existing one. Sony PlayStation®

Network accounts can also be used.

4Follow the instructions that appear on the screen to create a Lifelog account.

To log in to the Lifelog application

1From the Home screen of your Android™ device, tap , then find and tap

Lifelog.

2Follow the instructions that appear on the screen and accept the terms and

conditions.

Adjusting the stride length for walking and running

The Lifelog application uses the number of steps you have taken and your stride

length to calculate the distance you have walked or run. The automatic stride length

used by default is based on your gender and height. If you feel that the distances

measured by the Lifelog application are not accurate enough, you can adjust your

stride length.

To adjust the stride length for walking

1From the Home screen of your Android™ device, tap , then find and tap

Lifelog.

2Tap > Settings > Profile.

3Find and tap Stride length.

4Unmark the Automatic checkbox if it is marked, then scroll up or down to

adjust the setting and tap Set.

To adjust the stride length for running

1From the Home screen of your Android™ device, tap , then find and tap

Lifelog.

2Tap > Settings > Profile.

3Find and tap Running stride length.

4Unmark the Automatic checkbox if it is marked, then scroll up or down to

adjust the setting and tap Set.

Activity box overview

1 View all logged life bookmarks

2 View your sleep hours and check the quality of your sleep based on the information collected

3 View the amount of active calories that you have burned while exercising and the passive calories

that you have burned while not exercising

4 View the time you have spent using communication applications from Google Play™ and some

other applications such as the Phone and the Messaging applications from Sony

5 View the number of steps you have taken and logged in the Lifelog application

6 View how many photos you have taken

7 View the total time you have spent walking for longer than just a few steps

8 View the time you have spent listening to music using applications from Google Play™ and some

other applications such as the "WALKMAN" application

9 View the total time you have spent running with a high steps-per-minute ratio for longer than just a

few steps

10 View your total time spent watching movies, TV shows and other video content using applications

from Google Play™ and some other applications

11 View your total time spent browsing while using applications from Google Play™ and some other

web browsers

12 View your total time spent reading books or comics using applications from Google Play™ and

some other applications

13 View your total time spent playing games using applications from Google Play™ and PlayStation®

Store

Activity overview

1 Show data in a day, week, month or year view

2 Show your current goal status

3 Show the current activity in different units

4 Show the amount of activity using the chosen unit type

5 Details about your activity

Setting goals

Set goals for activities in your daily life, for example, the number of steps to take, the

distance you want to walk, or the amount of calories you want to burn.

To set a goal

1In the Lifelog application, tap the activity that you want to set a goal for.

2Tap Day, then tap the goal dashboard.

3Scroll up or down to adjust the value for your goal, then tap Set.

Logging sleep with your SmartBand Talk

Your SmartBand Talk can log the hours you sleep, as well as the status for light

sleep, deep sleep and your awake time during sleep hours, to help you understand

your sleep quality. The data that your SmartBand Talk tracks is logged in the Lifelog

application.

To view your sleep data

•In the Lifelog application, tap Sleep from the Activities dashboard.

Creating life bookmarks

Use your SmartBand Talk to create life bookmarks. Life bookmarks save information

about time, location and audio notes, and help you remember special occasions. For

location data to be gathered, you must have an active Internet connection.

To use the audio note feature, you must select the Life bookmark application for use

with your accessory.

To create a life bookmark on an Android™ device using the Lifelog application

1Android™ device: In the Lifelog application, tap .

2Follow the on-screen instructions.

3If necessary, add text notes, then tap OK.

To select the Life bookmark application for use with your SmartBand Talk

1From the main application screen of your Android™ device, find and tap

SmartBand™ Talk > MY APPS.

2Tap ADD APPS and select Life Bookmark.

To create a life bookmark using your SmartBand Talk

1Make sure that your SmartBand Talk is turned on and the Life bookmark

application is enabled in the SmartBand Talk application on your Android™

device.

2Using the function key, navigate to the Life bookmark screen.

3To log the place and time, and to record an audio note, firmly tap on the

SmartBand Talk and speak into the SmartBand Talk. You can record 10

seconds of audio.

Synchronising data with the Lifelog application

When your SmartBand Talk is connected to your Android™ device, data gets

synchronised automatically to the Lifelog application. When the SmartBand Talk gets

disconnected from the Android™ device, it can continue to collect data until the

memory becomes full. It’s therefore recommended to synchronise data between the

two devices regularly to free up memory on your SmartBand Talk.

Important information

Using your SmartBand Talk in wet and dusty conditions

Your SmartBand Talk is waterproof and dust tight in compliance with the Ingress

Protection (IP) ratings IP65 and IP68, as explained in the table below.

These specific IP ratings mean that your SmartBand Talk is dust resistant and is

protected against low pressure water stream as well as against the effects of

immersion for 30 minutes in fresh (non-saline) water up to 1.5 metres deep.

You can use your SmartBand Talk:

•in dusty environments, for example, on a windy beach.

•when your fingers are wet.

•in some extreme weather conditions, for example, when it’s snowing or raining.

•in fresh (non-saline) water depths of 1.5 metres or less, for example, in a fresh water

lake or river.

•in a chlorinated swimming pool.

The unit should be rinsed with fresh water after use in chlorinated water.

After exposure to water, the acoustic performance of the device may be reduced until

the sound output ports have dried out.

Even if your SmartBand Talk is resistant to dust and water, you should avoid

exposing it unnecessarily to environments with excessive dust, sand and mud or to

moist environments with extreme high or low temperatures. The waterproof ability of

the micro USB port cannot be guaranteed in all environments or conditions.

Never immerse your SmartBand Talk in salt water or let the micro USB port come in

contact with salt water. For example, if you’re at the beach, remember to keep your

SmartBand Talk away from the sea water. Also, never expose the SmartBand Talk to

any liquid chemicals. For example, if you’re washing dishes by hand using liquid

detergent, avoid bringing your SmartBand Talk in contact with the detergent. After

exposure to non-fresh water, rinse your SmartBand Talk using fresh water.

Normal wear and tear along with damage to your SmartBand Talk can reduce its

ability to resist dust or moisture. After using the SmartBand Talk in water, dry off the

areas around the micro USB port.

All compatible accessories, including batteries, chargers and micro USB cables, are

not waterproof and dust resistant on their own.

Your warranty does not cover damage or defects caused by abuse or improper use

of your SmartBand Talk (including use in environments where the relevant IP rating

limitations are exceeded). If you have any further questions about the use of your

accessory, refer to our Customer support service for help. To view more specific

information about water resistance, go to

support.sonymobile.com

Ingress Protection Rating

Your SmartBand Talk has an IP rating, which means it has undergone certified tests

to measure its resistance levels to both dust and water. The first digit in the two-digit

IP rating indicates the level of protection against solid objects, including dust. The

second digit indicates how resistant the device is to water.

Resistance to solid objects and dust Resistance to water

IP0X: No special protection IPX0. No special protection

IP1X. Protected against solid objects

> 50 mm in diameter IPX1. Protected against dripping water

IP2X. Protected against solid objects >

12.5 mm in diameter IPX2. Protected against dripping water when tilted up to 15

degrees from normal position

IP3X. Protected against solid objects >

2.5 mm in diameter IPX3. Protected against spraying water

IP4X. Protected against solid objects > 1

mm in diameter IPX4. Protected against splashing water

IP5X. Protected against dust; limited

ingress (no harmful deposit) IPX5. Protected against water jet spray for at least 3 minutes

IP6X. Dust tight IPX6. Protected against heavy jet spray for at least 3 minutes

IPX7. Protected against the effects of immersion in up to 1

metre of water for 30 minutes

IPX8. Protected against the effects of continued immersion in

water depths greater than 1 metre. The exact conditions are

specified for each device by the manufacturer.

Legal information

Sony SWR30

Prior to use, please read the

Important information

leaflet separately provided.

This User guide is published by Sony Mobile Communications Inc. or its local affiliated company, without any

warranty. Improvements and changes to this User guide necessitated by typographical errors, inaccuracies of

current information, or improvements to programs and/or equipment, may be made by Sony Mobile

Communications Inc. at any time and without notice. Such changes will, however, be incorporated into new

editions of this User guide.

Interoperability and compatibility among Bluetooth® devices varies. Device generally supports products

utilizing Bluetooth spec. 1.2 or higher, and Headset or Handsfree profile.

Sony is the trademark or registered trademark of Sony Corporation. Bluetooth is the trademark of the

Bluetooth (SIG) Inc. and is used under license. All other marks are the property of their respective owners. All

rights reserved.

All product and company names mentioned herein are the trademarks or registered trademarks of their

respective owners. Any rights not expressly granted herein are reserved. All other trademarks are property of

their respective owners.

Visit

www.sonymobile.com

for more information.

All illustrations are for illustration only and may not accurately depict the actual accessory.

Declaration of Conformity

We, Sony Mobile Communications AB of

Nya Vattentornet

SE-221 88 Lund, Sweden

declare under our sole responsibility that our product

Sony type RD-0140

and in combination with our accessories, to which this declaration relates is in

conformity with the appropriate standards EN 300 328:V1.8.1, EN 301 489-17:V2.2.1,

EN 301 489-3:V1.6.1 and EN 60 950-1:2006 +A11:2009

+A1:2010+A12:2011+A12:2011 following the provisions of, Radio Equipment and

Telecommunication Terminal Equipment directive 1999/5/EC.

Lund, July 2014

Pär Thuresson,

Quality Officer, SVP, Quality & Customer Services

FCC Statement

This device complies with Part 15 of the FCC rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) This device must

accept any interference received, including interference that may cause undesired operation.

Any change or modification not expressly approved by Sony may void the user's authority to operate the

equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in a particular

installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of

the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

AVISO IMPORTANTE PARA MÉXICO

La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o

dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier

interferencia, incluyendo la que pueda causar su operación no deseada.

Para consultar la información relacionada al número del certificado, refiérase a la etiqueta del empaque y/o del

producto.

Alimentación: 5,0 Vcc

Industry Canada Statement

This device complies with RSS-210 of Industry Canada.

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this

device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Avis d’industrie Canada

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de

licence.

L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et,

and (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est

susceptible d'en compromettre le fonctionnement.

Sony Mobile Communications AB Smart Band Talk User Guide EN SWR30

Navigation menu

Versions of this User Manual:

Views

Navigation
