OPERATING
Safety Instructions
Page 4

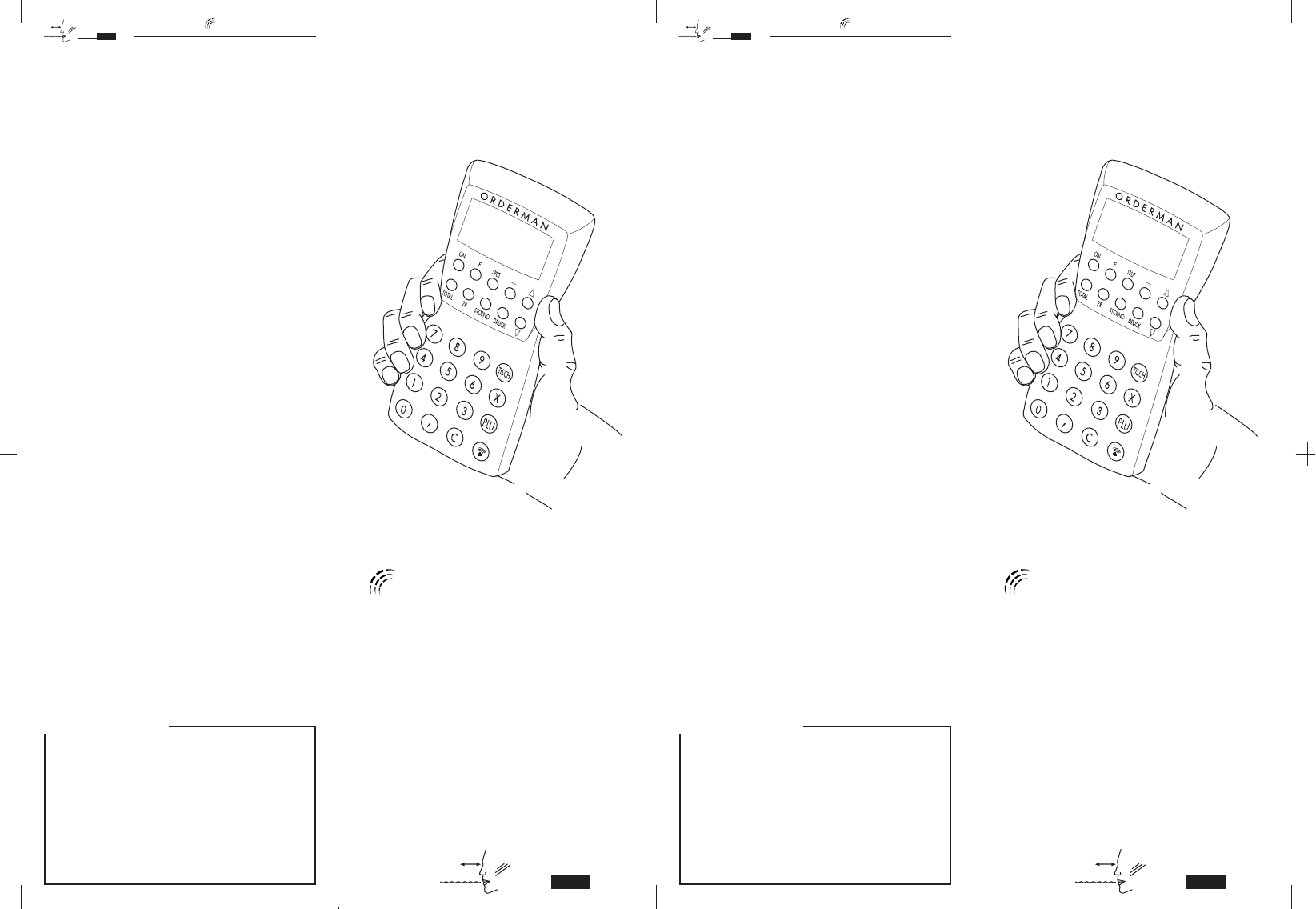

Never hold the Orderman in the area of the integrated
antenna. This could lead to range impairments.
Placement on a Tray
Always place the Orderman with the storage battery
side on the tray. The Orderman is waterproof up to a
height of 10 mm.
Free Fall
Experiments with free falling from a height of approx.
1 - 1.2 meters merely left damage to the surface
(cracks) of the housing.
The Orderman remains functional.
Maintenance
Page 15 Safety Instructions
Page 4
Maintenance
Page 15
SAFETY INSTRUCTIONS
Carefully read through this operating manual before
setting the Orderman into operation.
The Orderman is only to be run with the supplied
storage battery and power pack.
The Orderman complies with CE-guidelines and has
the approval of the Federal Bureau for Approval in
Telecommunication.
Warning
The Orderman should never be exposed to rain, hale
or snow fall.
The Orderman is not to be disassembled. There are
no parts inside the Orderman which can be serviced
by a non-specialist. Contact Customer Service for
repairs.
OPERATING
Never hold the Orderman in the area of the integrated
antenna. This could lead to range impairments.
Placement on a Tray
Always place the Orderman with the storage battery
side on the tray. The Orderman is waterproof up to a
height of 10 mm.
Free Fall
Experiments with free falling from a height of approx.
1 - 1.2 meters merely left damage to the surface
(cracks) of the housing.
The Orderman remains functional.
SAFETY INSTRUCTIONS
Carefully read through this operating manual before
setting the Orderman into operation.
The Orderman is only to be run with the supplied
storage battery and power pack.
The Orderman complies with CE-guidelines and has
the approval of the Federal Bureau for Approval in
Telecommunication.
Warning
The Orderman should never be exposed to rain, hale
or snow fall.
The Orderman is not to be disassembled. There are
no parts inside the Orderman which can be serviced
by a non-specialist. Contact Customer Service for
repairs.
®
ORDERMAN
think dig
High Tech Solutions
think dig
High Tech Solutions
®
ORDERMAN
®
ORDERMAN
think dig
High Tech Solutions
think dig
High Tech Solutions
®
ORDERMAN
Never touch the contacts on the Orderman - risk of
breakage !
Permanent service life
- with backlight ............... approx. 2 hours, 40 min
- without backlight ...................... approx. 12 hours

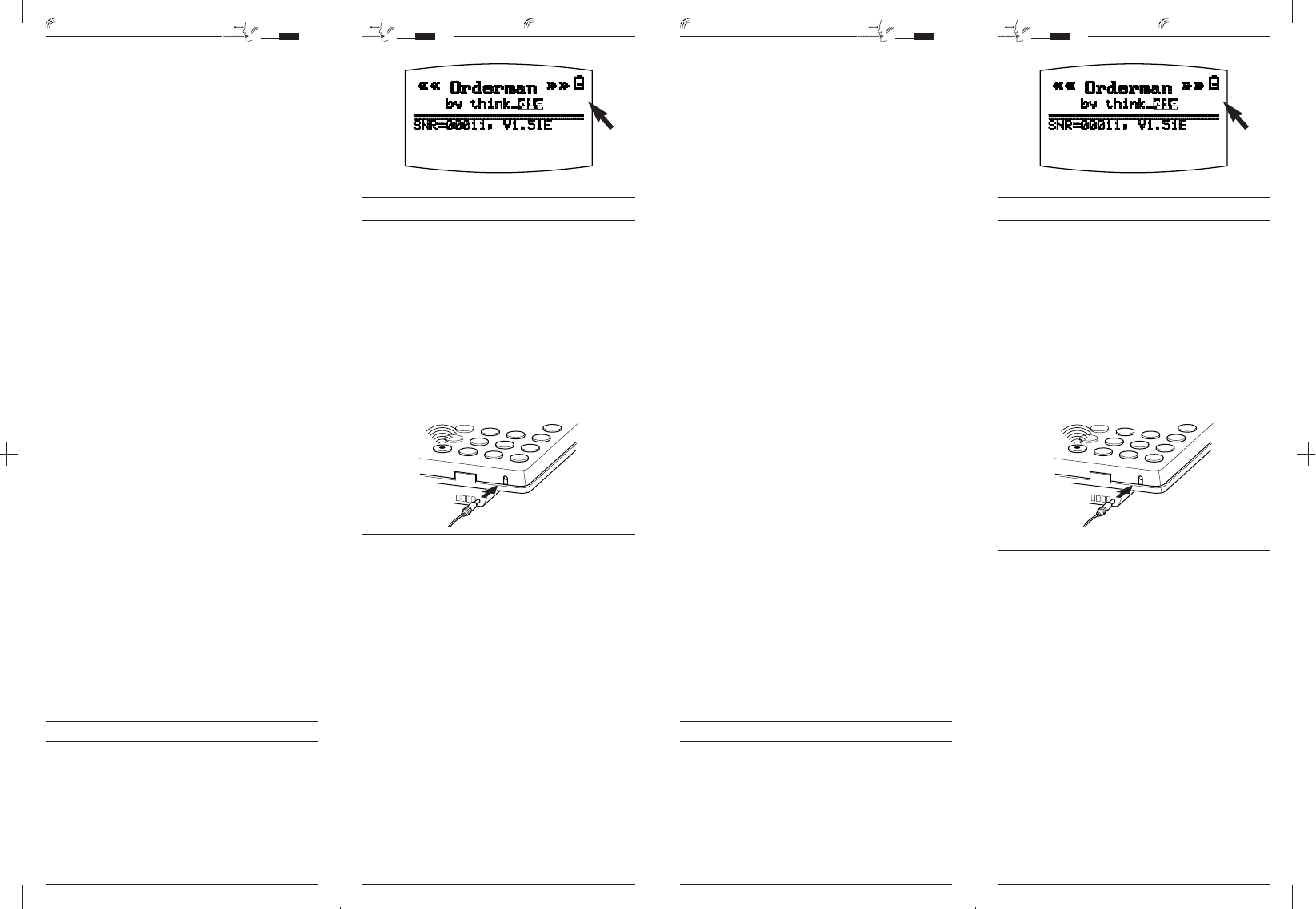

Before the storage battery is completely discharged,
the storage battery's warning symbol on the display
begins to blink. This serves as notification that the
storage battery is to be recharged or replaced.
POWER SUPPLY
The power supply takes place by means of a storage
battery.
Inserting the storage battery
Keyboard
Page 6

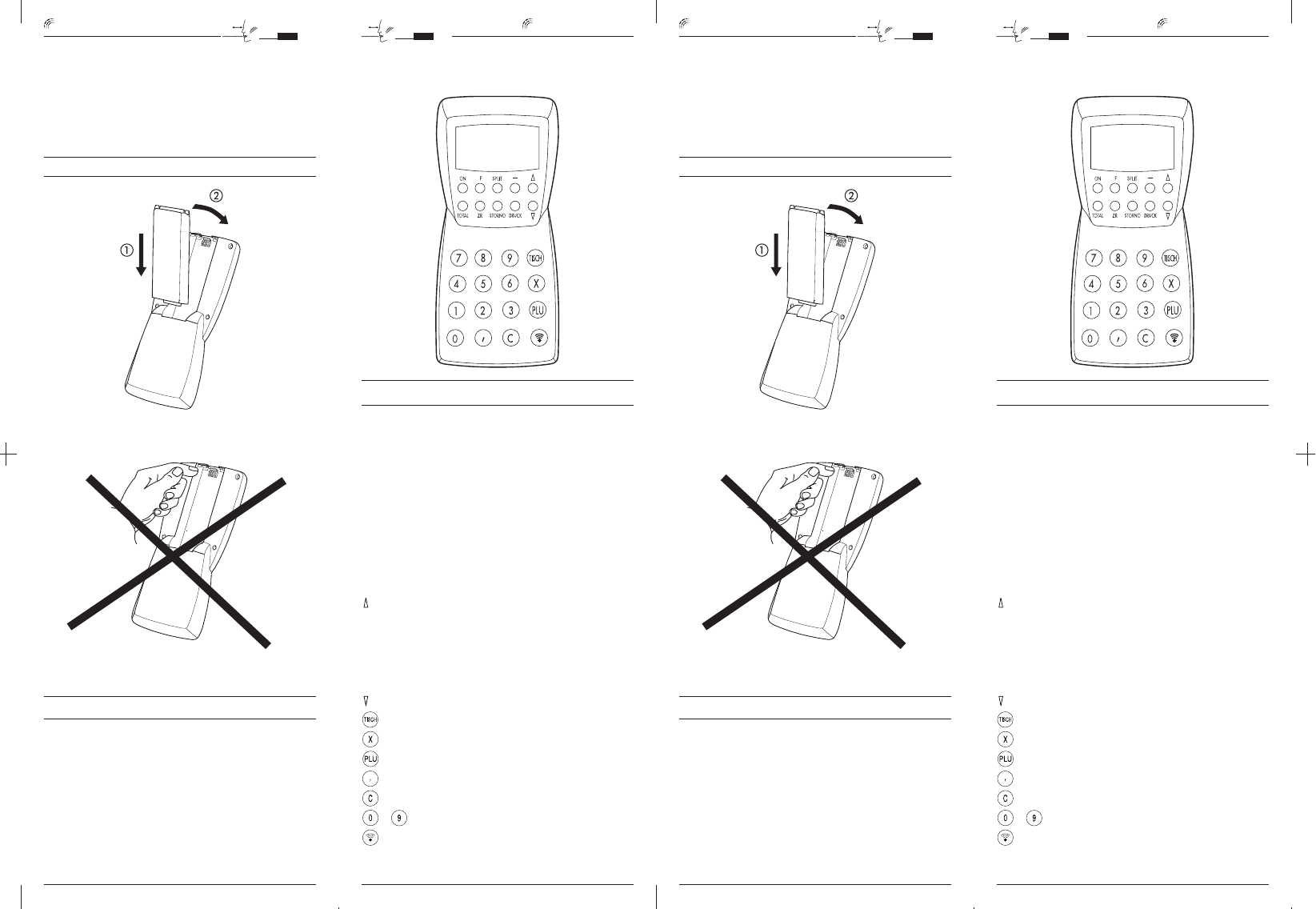

Insert the storage battery without force.
POWER SUPPLY
The power supply takes place by means of a storage
battery.
Inserting the storage battery
Insert the storage battery without force.
Never touch the contacts on the Orderman - risk of
breakage !
Permanent service life
- with backlight ............... approx. 2 hours, 40 min
- without backlight ...................... approx. 12 hours
Before the storage battery is completely discharged,
the storage battery's warning symbol on the display
begins to blink. This serves as notification that the
storage battery is to be recharged or replaced.
Power Supply
Page 13 Keyboard
Page 6
Power Supply
Page 13
KEYBOARD
Description of the Keyboard
The keyboard can be randomly configurated from the
application program. For the exact function and
usage of the individual keys, refer to the description
of the application program.
ON .......................................................... ON/OFF key
Key name and definition:
F ............................................................. function key
SPLIT ............................................................ splitting
- ....................................................................... minus
.................................................................. upwards
TOTAL ................................................................. total
ST .................................................................. subtotal
CANCEL ........................................................... cancel
PRINT ................................................................. print
............................................................. downwards
...................................................... choice of table
........................................................ multiplication
........................................................ price look up
................................................................. comma
..................................................................... clear
- ................................................ digit keysten
....................................................... enter, confirm
KEYBOARD
Description of the Keyboard
The keyboard can be randomly configurated from the
application program. For the exact function and
usage of the individual keys, refer to the description
of the application program.
ON .......................................................... ON/OFF key
Key name and definition:
F ............................................................. function key
SPLIT ............................................................ splitting
- ....................................................................... minus
.................................................................. upwards
TOTAL ................................................................. total
ST .................................................................. subtotal
CANCEL ........................................................... cancel
PRINT ................................................................. print
............................................................. downwards
...................................................... choice of table
........................................................ multiplication
........................................................ price look up
................................................................. comma
..................................................................... clear
- ................................................ digit keysten
....................................................... enter, confirm
®
ORDERMAN
think dig
High Tech Solutions
®
ORDERMAN
think dig
High Tech Solutions
think dig
High Tech Solutions
®
ORDERMAN
think dig
High Tech Solutions
®
ORDERMAN
Setup
Page 8
With the key, the display of both arrows can be
switched on/off. If the arrows are displayed, the time
for the automatic switch-off can be modified through
the keys Intervals of 1 to 7 minutes can be
set. „-“ means that the switch-off function is
deactivated.
Exit
After having made the required changes, move the
pointer to the „exit“ field and confirm with .
The question „save“ appears:
1 for yes ............. changes are permanently stored
0 for no ...........changes are not permanently
stored, but remain active until
switch-off.
The Orderman now starts normal operation.
Setup
Page 11

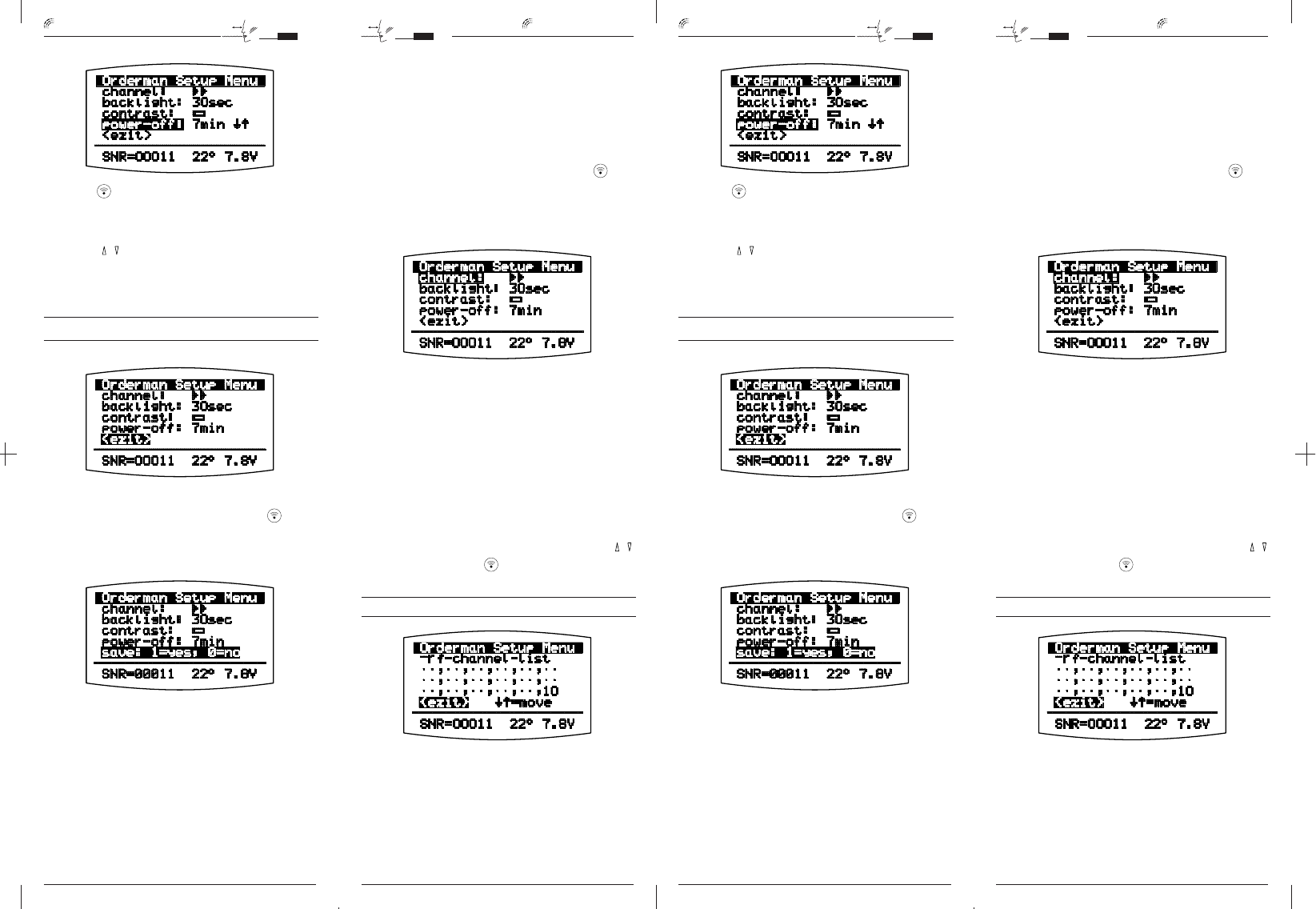

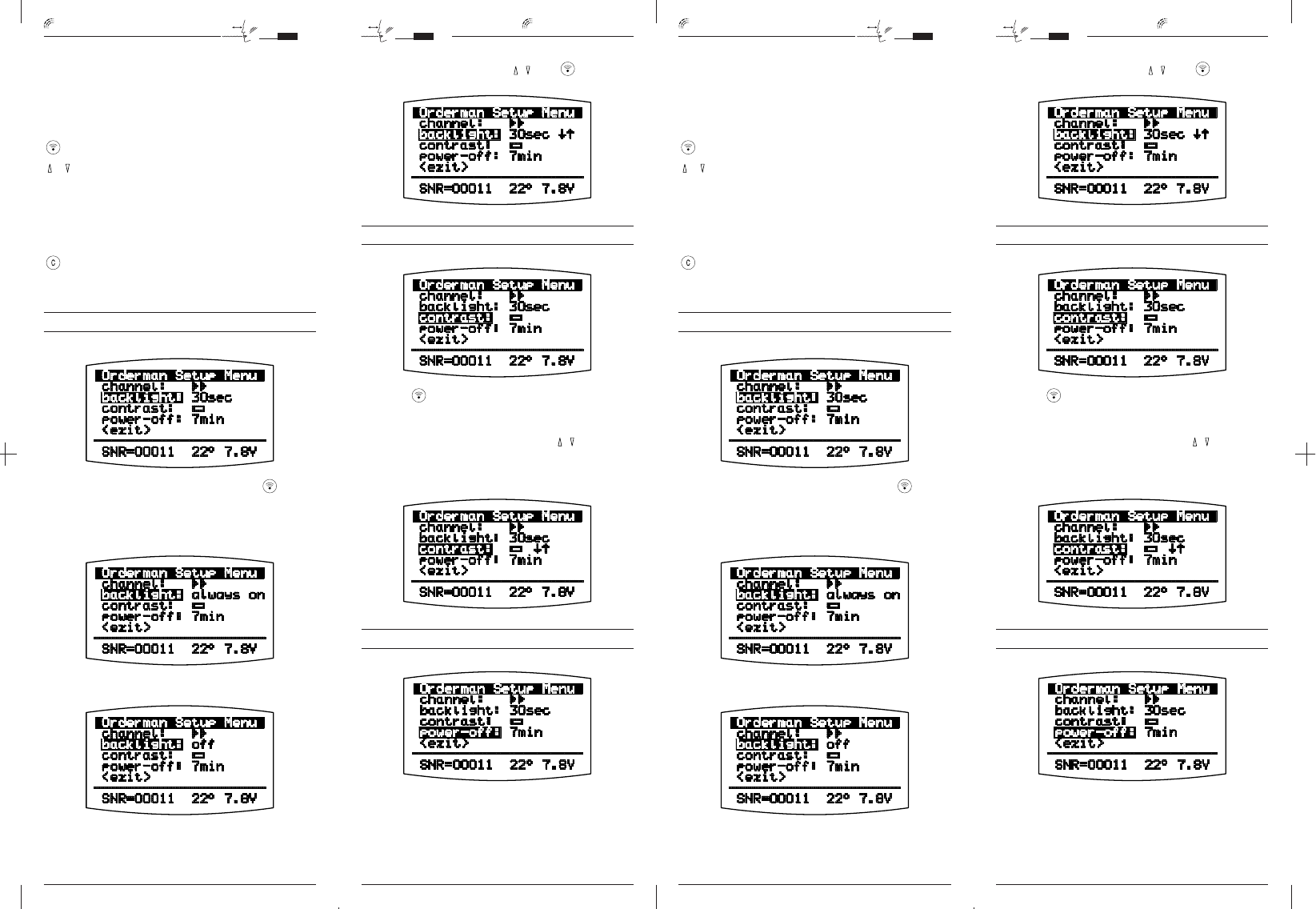

SETUP MENU
The setup menu serves to set the background
lighting, contrast, automatic switch-off and the radio
channels.
The setup menu is accessed by pressing the key
during which the ON key is slightly pressed, turning
on the Orderman.
The following image appears:
SNR................................... Orderman's serial number
22° ............................................ internal temperature
7.8V .............................. voltage of the storage battery
channel...................................... transmission channel
backlight...................................... background lighting
contrast.......................................... contrast light/dark
power-off.................................... automatic switch-off
exit .............................................................. terminate
The individual points can be selected by the
keys and confirmed by .
Setting the Channels
Attention: The channels are determined during
installation and may not be changed, as otherwise the
radio connection is interfered with !
The radio channels of all radio frequency basis
stations to be found in the system must be entered in
the channel list (but no others). Setup
Page 8
With the key, the display of both arrows can be
switched on/off. If the arrows are displayed, the time
for the automatic switch-off can be modified through
the keys Intervals of 1 to 7 minutes can be
set. „-“ means that the switch-off function is
deactivated.
Exit
After having made the required changes, move the
pointer to the „exit“ field and confirm with .
The question „save“ appears:
1 for yes ............. changes are permanently stored
0 for no ...........changes are not permanently
stored, but remain active until
switch-off.
The Orderman now starts normal operation.
Setup
Page 11
SETUP MENU
The setup menu serves to set the background
lighting, contrast, automatic switch-off and the radio
channels.
The setup menu is accessed by pressing the key
during which the ON key is slightly pressed, turning
on the Orderman.
The following image appears:
SNR................................... Orderman's serial number
22° ............................................ internal temperature
7.8V .............................. voltage of the storage battery
channel...................................... transmission channel
backlight...................................... background lighting
contrast.......................................... contrast light/dark
power-off.................................... automatic switch-off
exit .............................................................. terminate
The individual points can be selected by the
keys and confirmed by .
Setting the Channels
Attention: The channels are determined during
installation and may not be changed, as otherwise the
radio connection is interfered with !
The radio channels of all radio frequency basis
stations to be found in the system must be entered in
the channel list (but no others).
®
ORDERMAN
think dig
High Tech Solutions
think dig
High Tech Solutions
®
ORDERMAN
®
ORDERMAN
think dig
High Tech Solutions
think dig
High Tech Solutions
®
ORDERMAN
Page 1
Copyright by think dig High Tech Solutions Gmbh
All rights reserved
It is illegal to reproduce, copy, distribute or translate
this text or any parts of it without the permission of
think dig High Tech Solution Gmbh.
We reserve the right to make any technical
modifications.
Page 1
Copyright by think dig High Tech Solutions Gmbh
All rights reserved
It is illegal to reproduce, copy, distribute or translate
this text or any parts of it without the permission of
think dig High Tech Solution Gmbh.
We reserve the right to make any technical
modifications.
®
ORDERMAN
think dig
High Tech Solutions
®
ORDERMAN
think dig
High Tech Solutions
Authorization for Usage in ...
Page 18
AUTHORIZATION FOR USAGE IN
Austria GZ412120-ZB/94
GZ358967-ZB/95
Germany G117521F
Switzerland BAKOM 95.0394.K.P.
Denmark ALR 9539 TELESTYRELSEN
Greece GREECE EK 394
GREECE EK 395
Belgium RTT/D/X1219
The Netherlands NL95092270
NL95092271
think dig
High Tech Solutions
®
ORDERMAN
Authorization for Usage in ...
Page 18
AUTHORIZATION FOR USAGE IN
Austria GZ412120-ZB/94
GZ358967-ZB/95
Germany G117521F
Switzerland BAKOM 95.0394.K.P.
Denmark ALR 9539 TELESTYRELSEN
Greece GREECE EK 394
GREECE EK 395
Belgium RTT/D/X1219
The Netherlands NL95092270
NL95092271
think dig
High Tech Solutions
®
ORDERMAN

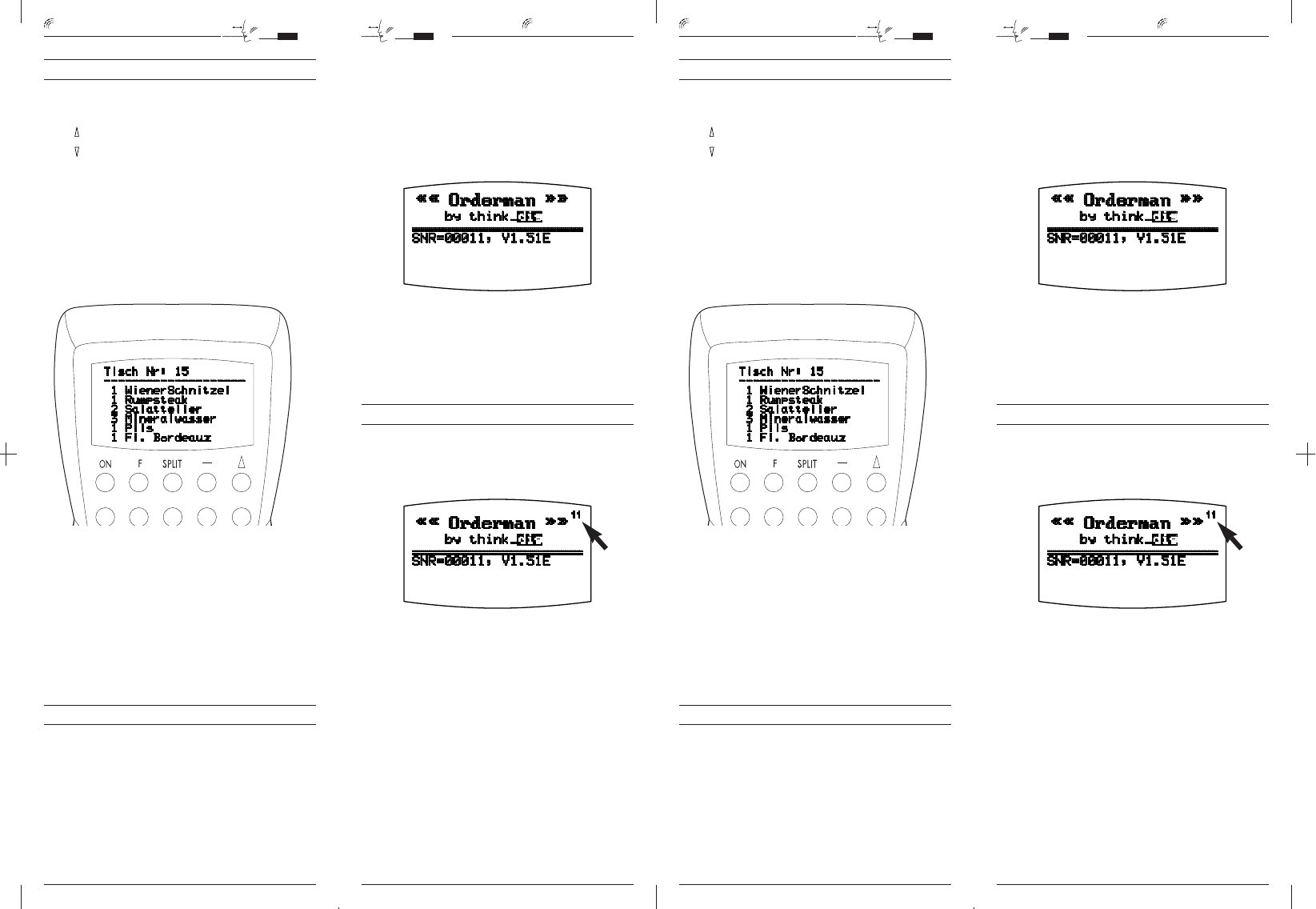

GENERAL INFORMATION
The Orderman has been specially designed for the
food & beverage industry. It is an electronic radio
ordering pad component of an ordering system.
An ordering system, at a minimum, consists of an
Orderman, a radio frequency basis station and a host
computer with an application program.
The application program on the host computer
controls the entire dialog to the Orderman.
Only the standard unit is described in this manual. If
the manufacturer of the utilized application program
had his requirements adapted to the unit, refer to this
in the description of the application program.
Maintenance
Page 16
MAINTENANCE
High Temperatures
Do not expose the Orderman to extremely warm
irradiation (i.e., direct sun light, heaters).
Repairs
Never attempt to disassemble the Orderman. There
are no parts in the interior which can be serviced by a
non-expert.
Contacts
Never touch the contacts on the Orderman - danger
of breakage.
Cleaning
Wipe off the Ordermann with a clean, soft cloth.
Never use any cleaning agents, chemicals or
compressed air to remove dust.
Liquids
The Orderman is splashproof (IP 54) and liquid-
resistant up to the seam.
If any liquid penetrates into the Orderman, it can
become damaged in this way. Should liquid have
penetrated into the unit, it must be examined by our
Customer Service for any possible damages.
General Information
Page 3 Maintenance
Page 16
General Information
Page 3
GENERAL INFORMATION
The Orderman has been specially designed for the
food & beverage industry. It is an electronic radio
ordering pad component of an ordering system.
An ordering system, at a minimum, consists of an
Orderman, a radio frequency basis station and a host
computer with an application program.
The application program on the host computer
controls the entire dialog to the Orderman.
Only the standard unit is described in this manual. If
the manufacturer of the utilized application program
had his requirements adapted to the unit, refer to this
in the description of the application program.
MAINTENANCE
High Temperatures
Do not expose the Orderman to extremely warm
irradiation (i.e., direct sun light, heaters).
Repairs
Never attempt to disassemble the Orderman. There
are no parts in the interior which can be serviced by a
non-expert.
Contacts
Never touch the contacts on the Orderman - danger
of breakage.
Cleaning
Wipe off the Ordermann with a clean, soft cloth.
Never use any cleaning agents, chemicals or
compressed air to remove dust.
Liquids
The Orderman is splashproof (IP 54) and liquid-
resistant up to the seam.
If any liquid penetrates into the Orderman, it can
become damaged in this way. Should liquid have
penetrated into the unit, it must be examined by our
Customer Service for any possible damages.
®
