think dig High Tech Solutions OMTTUSA 125KHz Transponder System User Manual V1 0

think dig High Tech Solutions GmbH 125KHz Transponder System V1 0

USer Manual

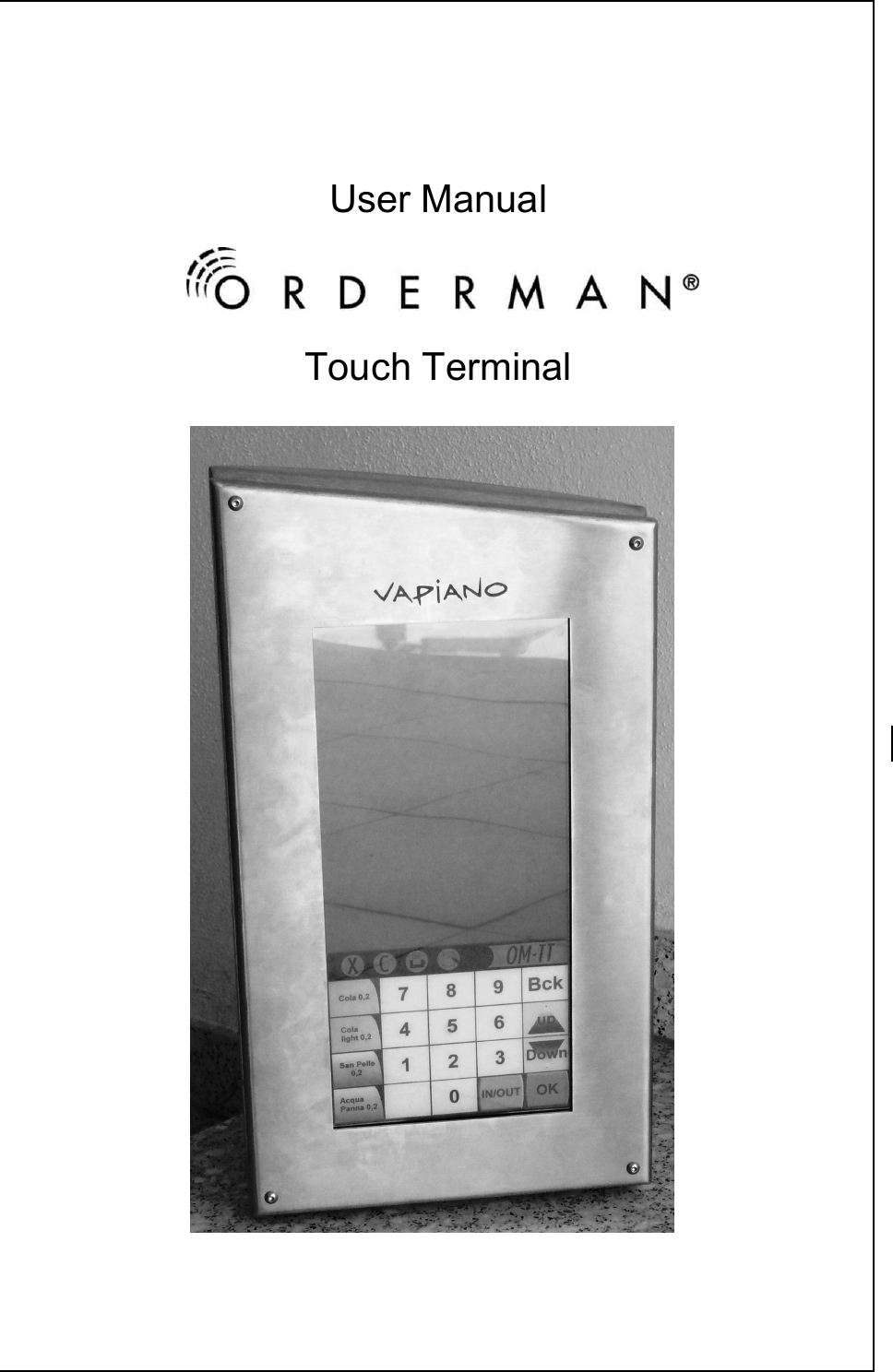

User Manual Touch Terminal

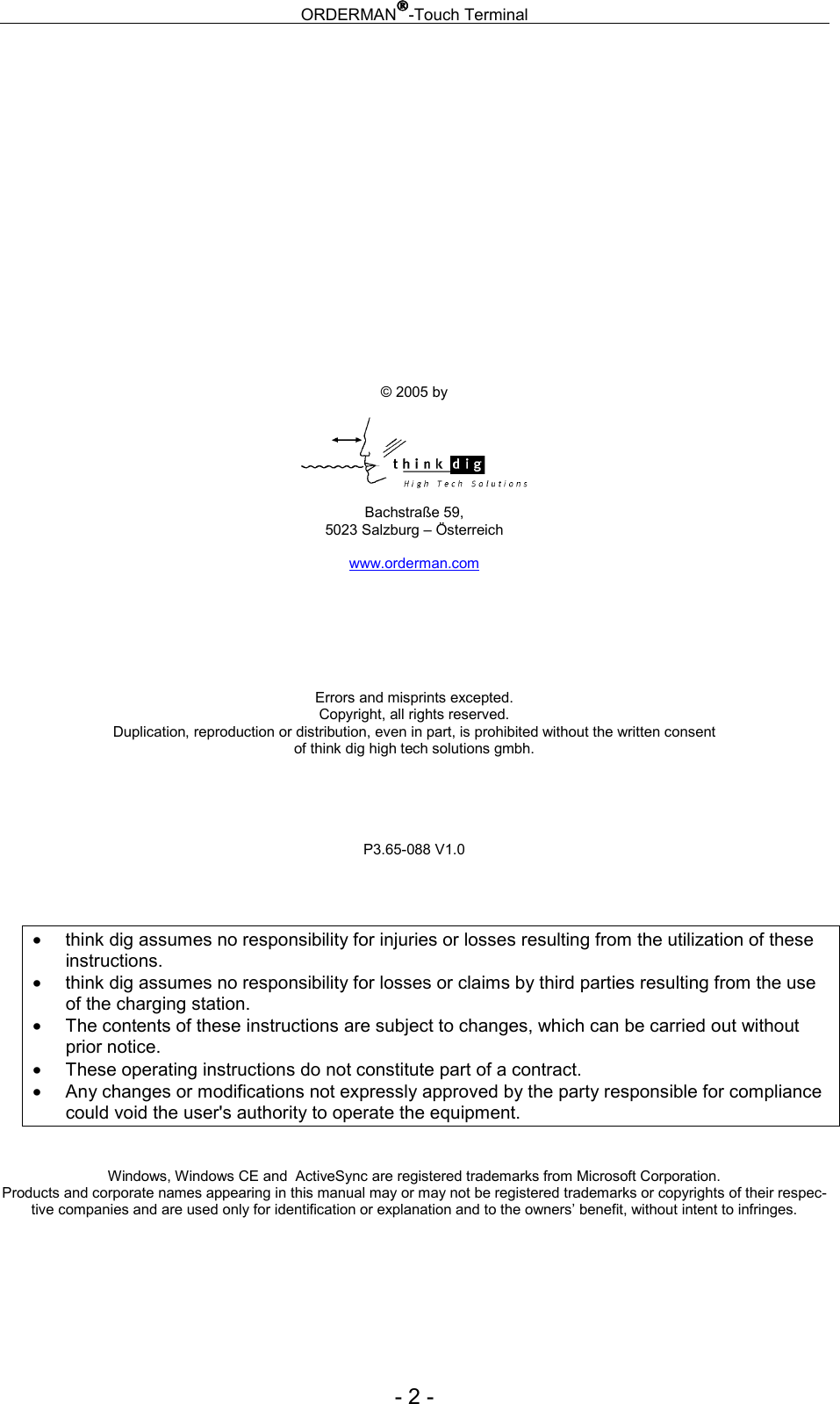

ORDERMAN-Touch Terminal - 2 - © 2005 by Bachstraße 59, 5023 Salzburg – Österreich www.orderman.com Errors and misprints excepted. Copyright, all rights reserved. Duplication, reproduction or distribution, even in part, is prohibited without the written consent of think dig high tech solutions gmbh. P3.65-088 V1.0 • think dig assumes no responsibility for injuries or losses resulting from the utilization of these instructions. • think dig assumes no responsibility for losses or claims by third parties resulting from the use of the charging station. • The contents of these instructions are subject to changes, which can be carried out without prior notice. • These operating instructions do not constitute part of a contract. • Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Windows, Windows CE and ActiveSync are registered trademarks from Microsoft Corporation. Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respec-tive companies and are used only for identification or explanation and to the owners’ benefit, without intent to infringes.

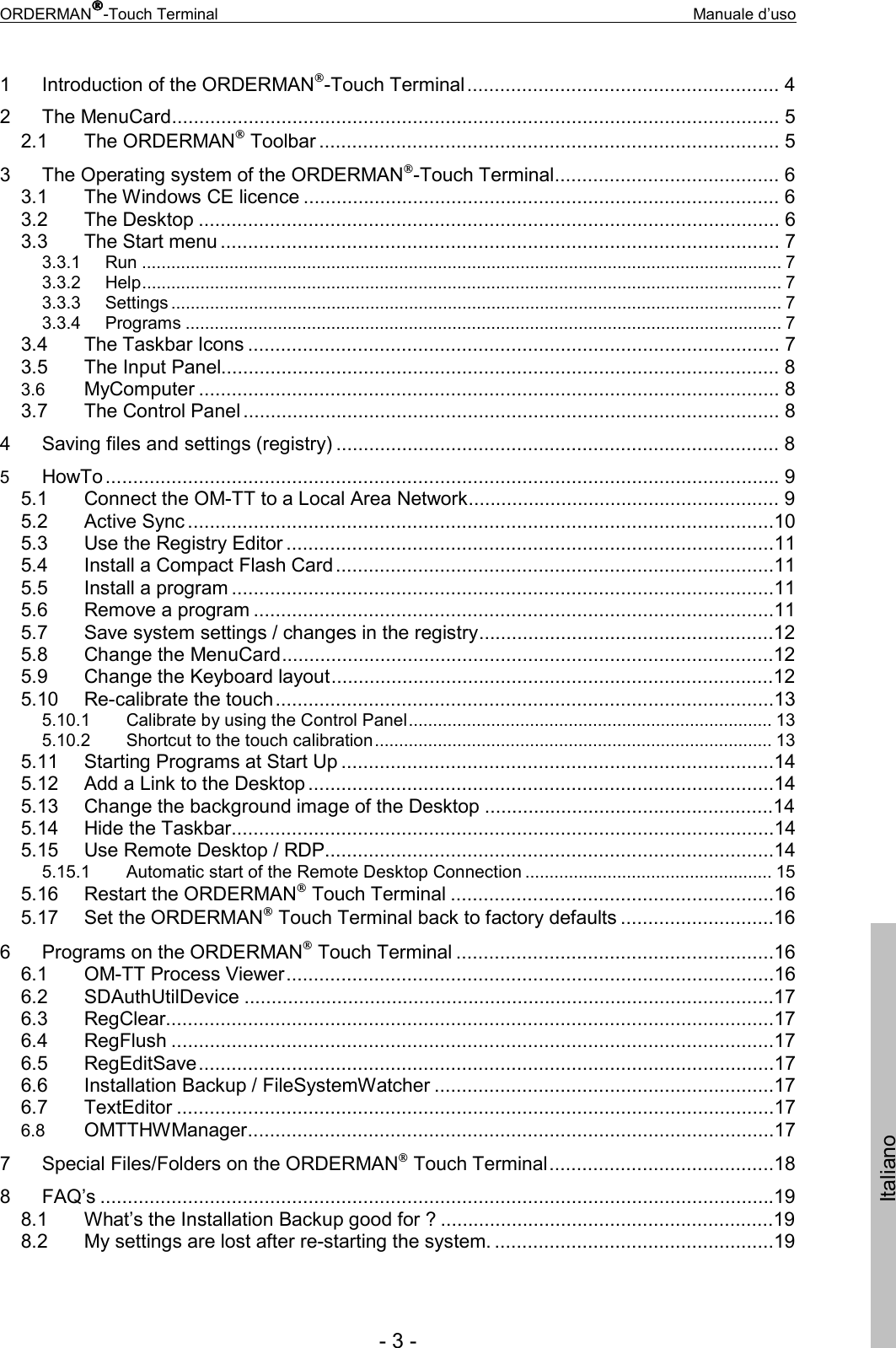

ORDERMAN-Touch Terminal Manuale d’uso - 3 - Italiano 1 Introduction of the ORDERMAN-Touch Terminal......................................................... 4 2 The MenuCard............................................................................................................... 5 2.1 The ORDERMAN Toolbar .................................................................................... 5 3 The Operating system of the ORDERMAN-Touch Terminal......................................... 6 3.1 The Windows CE licence ....................................................................................... 6 3.2 The Desktop .......................................................................................................... 6 3.3 The Start menu...................................................................................................... 7 3.3.1 Run .................................................................................................................................... 7 3.3.2 Help.................................................................................................................................... 7 3.3.3 Settings .............................................................................................................................. 7 3.3.4 Programs ........................................................................................................................... 7 3.4 The Taskbar Icons ................................................................................................. 7 3.5 The Input Panel...................................................................................................... 8 3.6 MyComputer .......................................................................................................... 8 3.7 The Control Panel.................................................................................................. 8 4 Saving files and settings (registry) ................................................................................. 8 5 HowTo...........................................................................................................................9 5.1 Connect the OM-TT to a Local Area Network......................................................... 9 5.2 Active Sync...........................................................................................................10 5.3 Use the Registry Editor .........................................................................................11 5.4 Install a Compact Flash Card................................................................................11 5.5 Install a program ...................................................................................................11 5.6 Remove a program ...............................................................................................11 5.7 Save system settings / changes in the registry......................................................12 5.8 Change the MenuCard..........................................................................................12 5.9 Change the Keyboard layout.................................................................................12 5.10 Re-calibrate the touch...........................................................................................13 5.10.1 Calibrate by using the Control Panel........................................................................... 13 5.10.2 Shortcut to the touch calibration.................................................................................. 13 5.11 Starting Programs at Start Up ...............................................................................14 5.12 Add a Link to the Desktop.....................................................................................14 5.13 Change the background image of the Desktop .....................................................14 5.14 Hide the Taskbar...................................................................................................14 5.15 Use Remote Desktop / RDP..................................................................................14 5.15.1 Automatic start of the Remote Desktop Connection ................................................... 15 5.16 Restart the ORDERMAN Touch Terminal ...........................................................16 5.17 Set the ORDERMAN Touch Terminal back to factory defaults ............................16 6 Programs on the ORDERMAN Touch Terminal ..........................................................16 6.1 OM-TT Process Viewer.........................................................................................16 6.2 SDAuthUtilDevice .................................................................................................17 6.3 RegClear...............................................................................................................17 6.4 RegFlush ..............................................................................................................17 6.5 RegEditSave.........................................................................................................17 6.6 Installation Backup / FileSystemWatcher ..............................................................17 6.7 TextEditor .............................................................................................................17 6.8 OMTTHWManager................................................................................................17 7 Special Files/Folders on the ORDERMAN Touch Terminal.........................................18 8 FAQ’s ...........................................................................................................................19 8.1 What’s the Installation Backup good for ? .............................................................19 8.2 My settings are lost after re-starting the system. ...................................................19

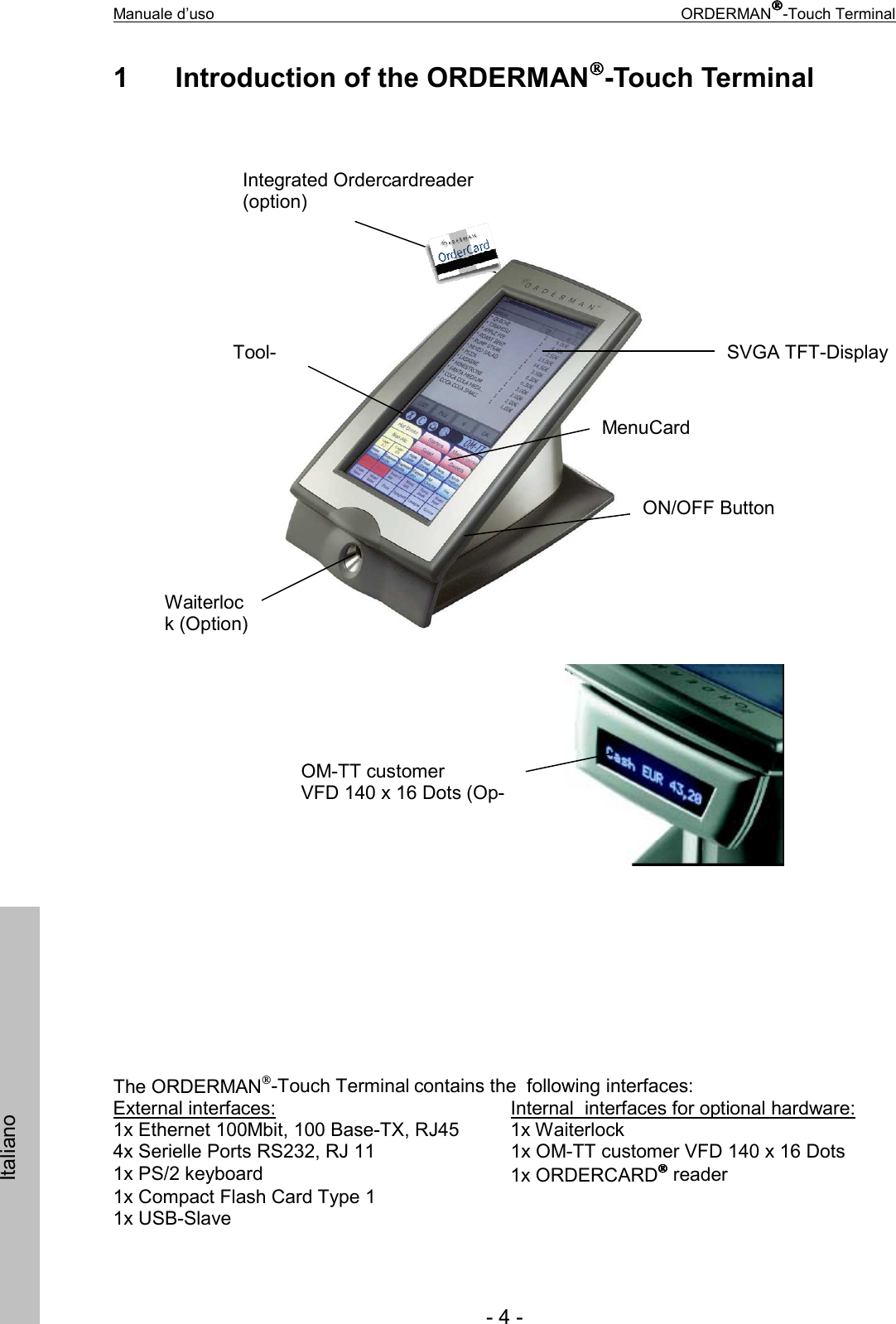

Manuale d’uso ORDERMAN-Touch Terminal - 4 - Italiano OM-TT customer VFD 140 x 16 Dots (Op- Integrated Ordercardreader (option) SVGA TFT-Display Waiterlock (Option) Tool-MenuCardON/OFF Button 1 Introduction of the ORDERMAN-Touch Terminal The ORDERMAN-Touch Terminal contains the following interfaces: External interfaces: Internal interfaces for optional hardware: 1x Ethernet 100Mbit, 100 Base-TX, RJ45 1x Waiterlock 4x Serielle Ports RS232, RJ 11 1x OM-TT customer VFD 140 x 16 Dots 1x PS/2 keyboard 1x ORDERCARD reader 1x Compact Flash Card Type 1 1x USB-Slave

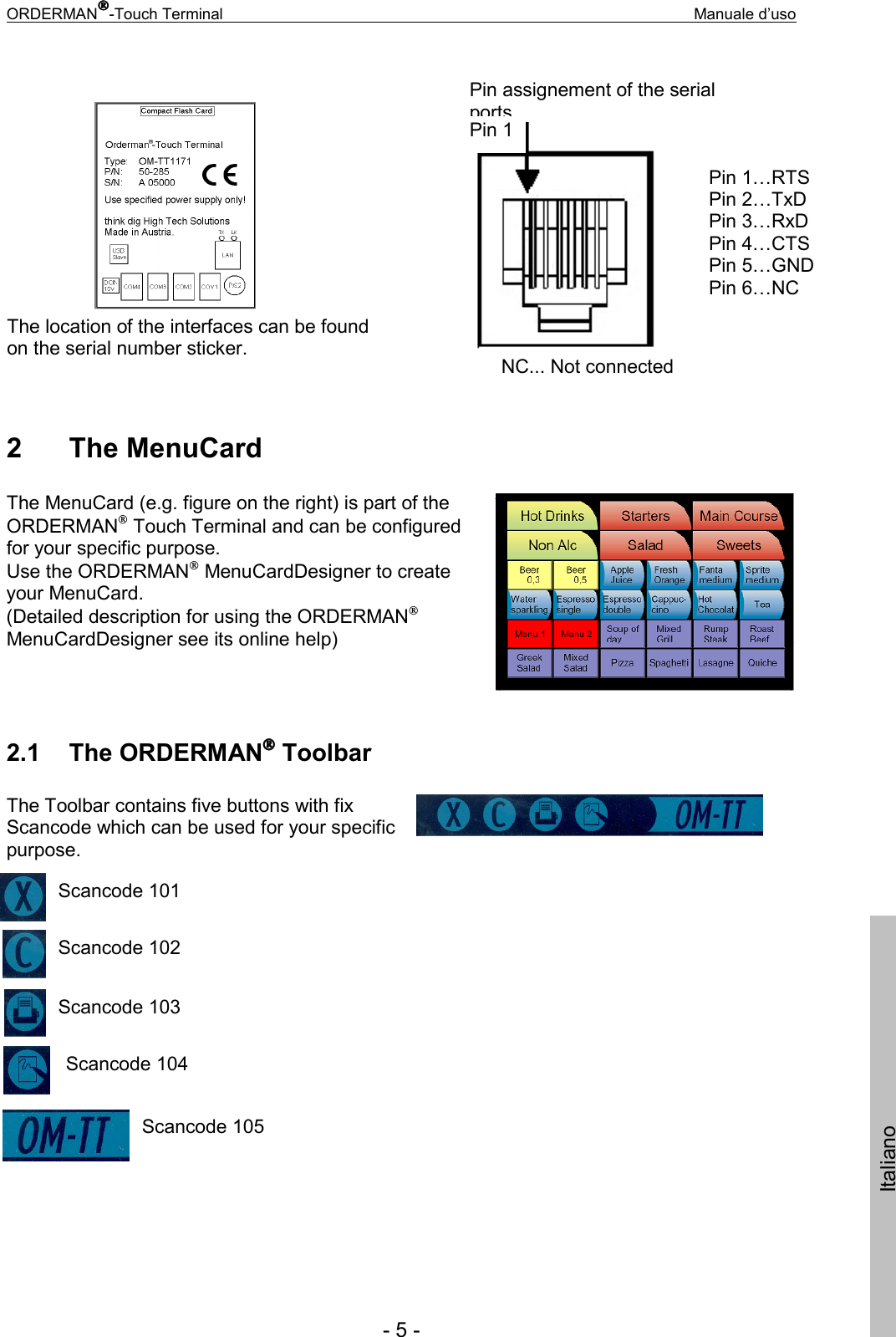

ORDERMAN-Touch Terminal Manuale d’uso - 5 - Italiano Pin 1…RTS Pin 2…TxD Pin 3…RxD Pin 4…CTS Pin 5…GND Pin 6…NC NC... Not connected Pin 1Pin assignement of the serial portsThe location of the interfaces can be found on the serial number sticker. Scancode 101 Scancode 102 Scancode 103 Scancode 104Scancode 105 2 The MenuCard The MenuCard (e.g. figure on the right) is part of the ORDERMAN Touch Terminal and can be configured for your specific purpose. Use the ORDERMAN MenuCardDesigner to create your MenuCard. (Detailed description for using the ORDERMAN MenuCardDesigner see its online help) 2.1 The ORDERMAN Toolbar The Toolbar contains five buttons with fix Scancode which can be used for your specific purpose.

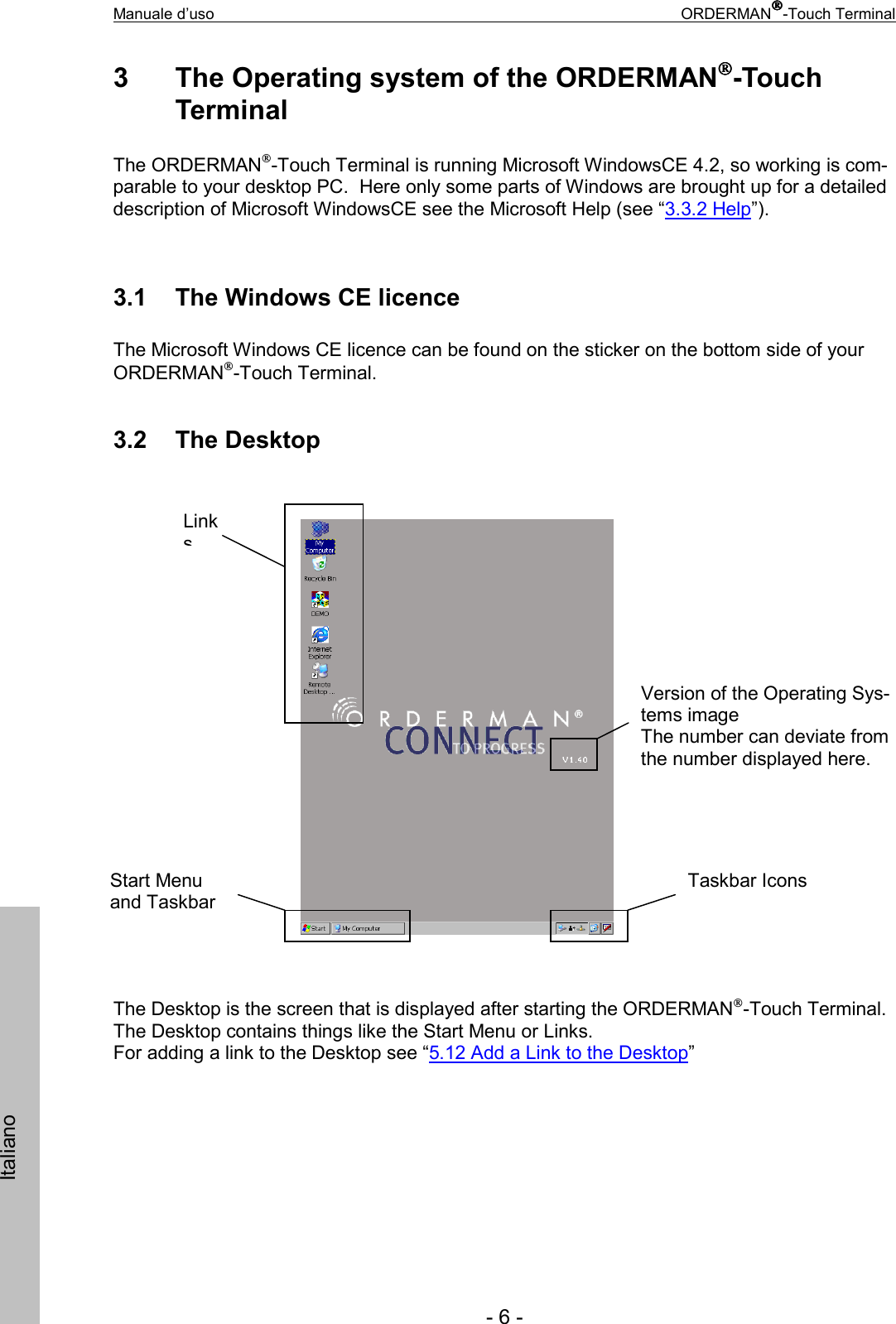

Manuale d’uso ORDERMAN-Touch Terminal - 6 - Italiano 3 The Operating system of the ORDERMAN-Touch Terminal The ORDERMAN-Touch Terminal is running Microsoft WindowsCE 4.2, so working is com-parable to your desktop PC. Here only some parts of Windows are brought up for a detailed description of Microsoft WindowsCE see the Microsoft Help (see “3.3.2 Help”). 3.1 The Windows CE licence The Microsoft Windows CE licence can be found on the sticker on the bottom side of your ORDERMAN-Touch Terminal. 3.2 The Desktop The Desktop is the screen that is displayed after starting the ORDERMAN-Touch Terminal. The Desktop contains things like the Start Menu or Links. For adding a link to the Desktop see “5.12 Add a Link to the Desktop” Start Menu and Taskbar Taskbar Icons Version of the Operating Sys-tems image The number can deviate from the number displayed here. Links

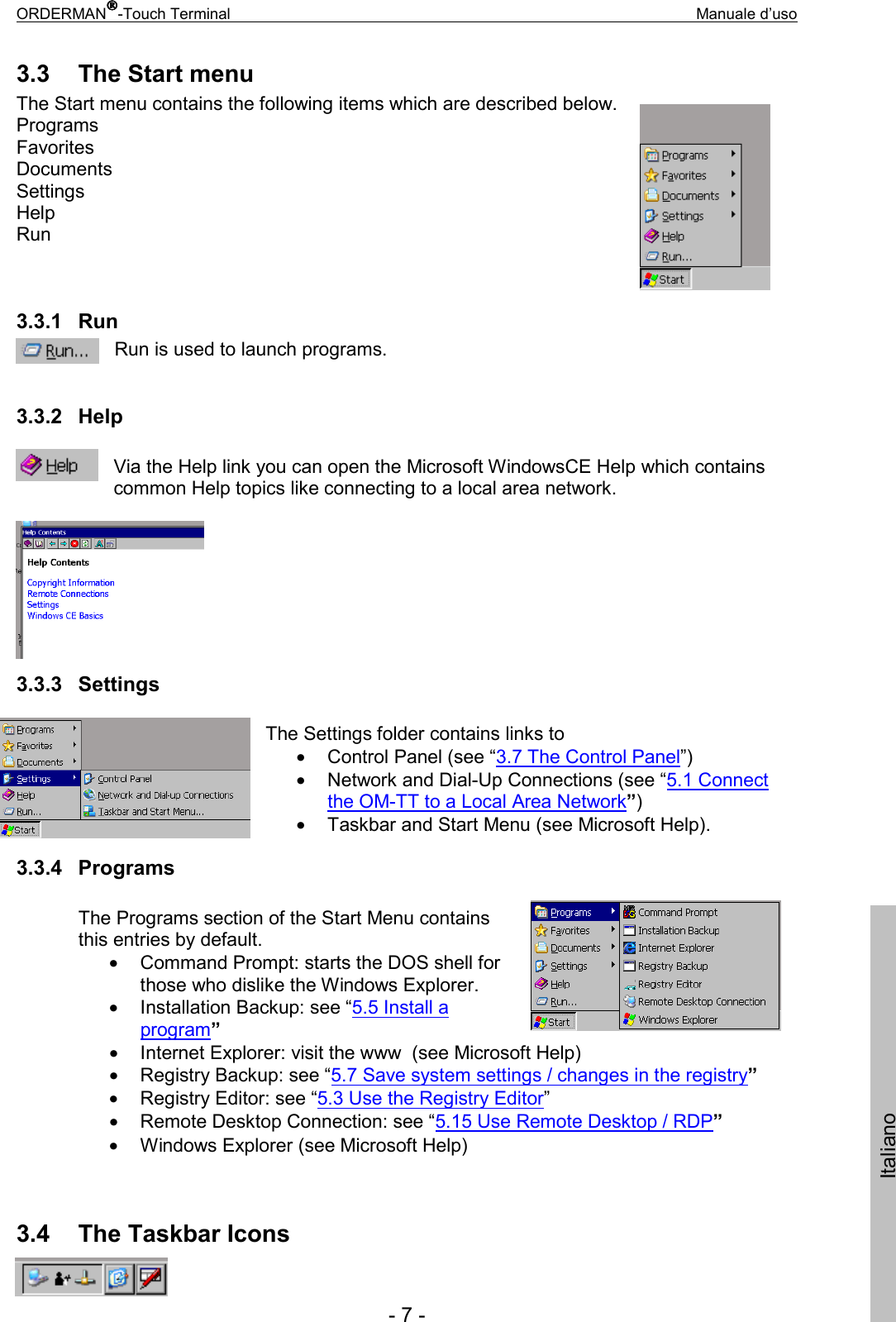

ORDERMAN-Touch Terminal Manuale d’uso - 7 - Italiano 3.3 The Start menu The Start menu contains the following items which are described below. Programs Favorites Documents Settings Help Run 3.3.1 Run Run is used to launch programs. 3.3.2 Help Via the Help link you can open the Microsoft WindowsCE Help which contains common Help topics like connecting to a local area network. 3.3.3 Settings The Settings folder contains links to • Control Panel (see “3.7 The Control Panel”) • Network and Dial-Up Connections (see “5.1 Connect the OM-TT to a Local Area Network”) • Taskbar and Start Menu (see Microsoft Help). 3.3.4 Programs The Programs section of the Start Menu contains this entries by default. • Command Prompt: starts the DOS shell for those who dislike the Windows Explorer. • Installation Backup: see “5.5 Install a program” • Internet Explorer: visit the www (see Microsoft Help) • Registry Backup: see “5.7 Save system settings / changes in the registry” • Registry Editor: see “5.3 Use the Registry Editor” • Remote Desktop Connection: see “5.15 Use Remote Desktop / RDP” • Windows Explorer (see Microsoft Help) 3.4 The Taskbar Icons

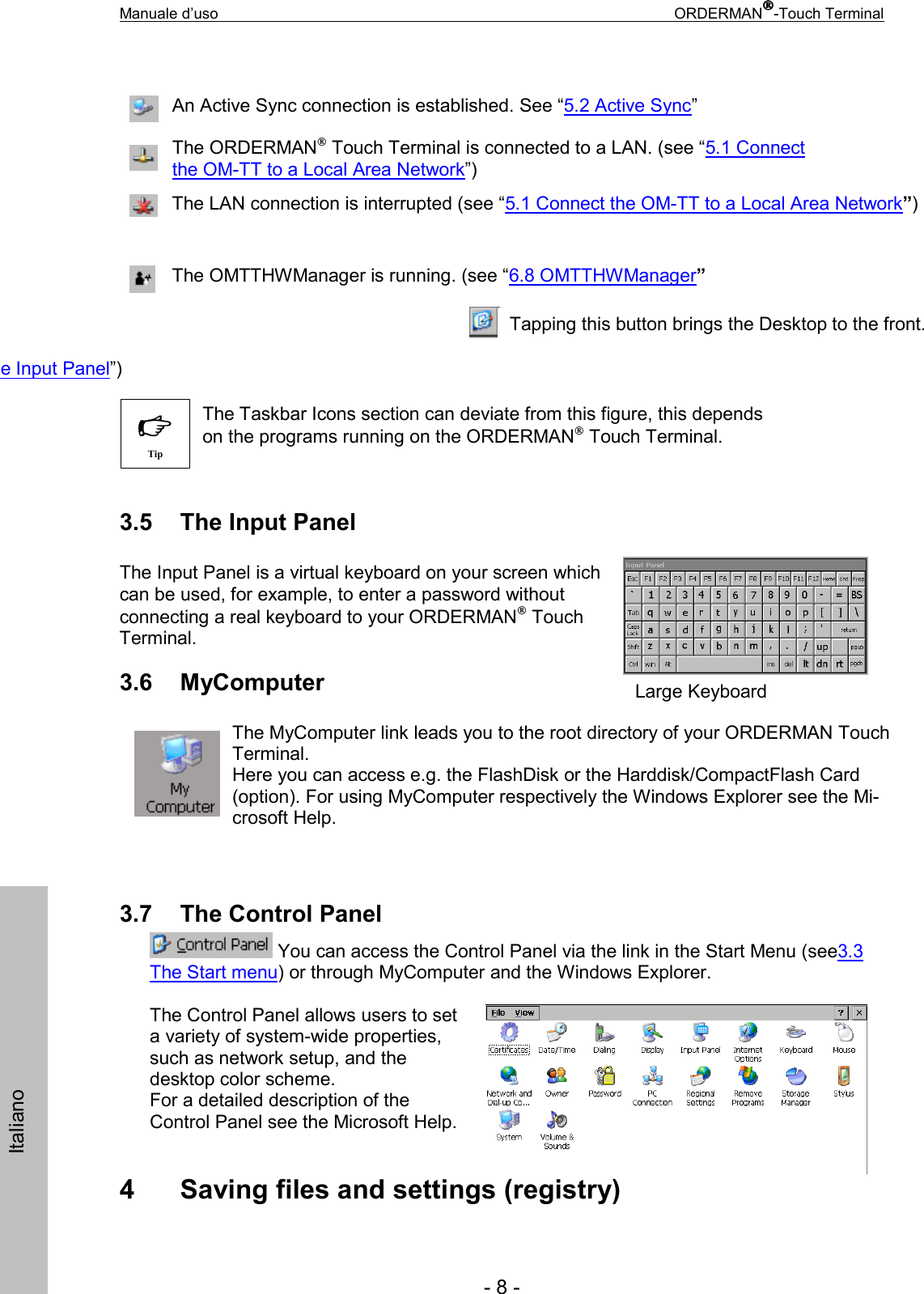

Manuale d’uso ORDERMAN-Touch Terminal - 8 - Italiano The ORDERMAN Touch Terminal is connected to a LAN. (see “5.1 Connect the OM-TT to a Local Area Network”) The LAN connection is interrupted (see “5.1 Connect the OM-TT to a Local Area Network”)The OMTTHWManager is running. (see “6.8 OMTTHWManager” Tapping this button brings the Desktop to the front. The MyComputer link leads you to the root directory of your ORDERMAN Touch Terminal. Here you can access e.g. the FlashDisk or the Harddisk/CompactFlash Card (option). For using MyComputer respectively the Windows Explorer see the Mi-crosoft Help. Large Keyboard 3.5 The Input Panel The Input Panel is a virtual keyboard on your screen which can be used, for example, to enter a password without connecting a real keyboard to your ORDERMAN Touch Terminal. 3.6 MyComputer 3.7 The Control Panel You can access the Control Panel via the link in the Start Menu (see3.3 The Start menu) or through MyComputer and the Windows Explorer. The Control Panel allows users to set a variety of system-wide properties, such as network setup, and the desktop color scheme. For a detailed description of the Control Panel see the Microsoft Help. 4 Saving files and settings (registry) An Active Sync connection is established. See “5.2 Active Sync” e Input Panel”) The Taskbar Icons section can deviate from this figure, this depends on the programs running on the ORDERMAN Touch Terminal. Tip

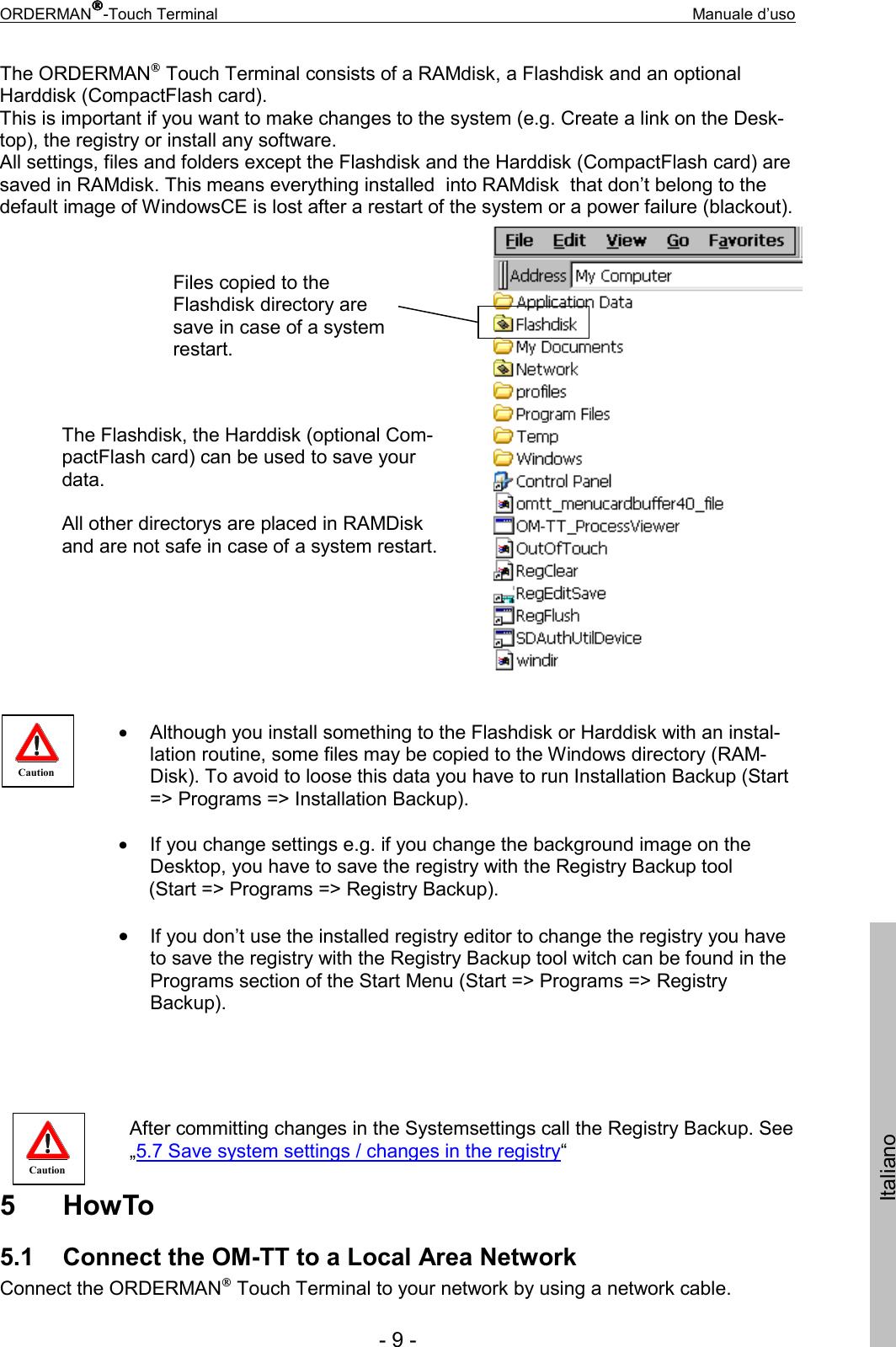

ORDERMAN-Touch Terminal Manuale d’uso - 9 - Italiano Files copied to the Flashdisk directory are save in case of a system restart. The Flashdisk, the Harddisk (optional Com-pactFlash card) can be used to save your data. All other directorys are placed in RAMDisk and are not safe in case of a system restart. Caution After committing changes in the Systemsettings call the Registry Backup. See „5.7 Save system settings / changes in the registry“ The ORDERMAN Touch Terminal consists of a RAMdisk, a Flashdisk and an optional Harddisk (CompactFlash card). This is important if you want to make changes to the system (e.g. Create a link on the Desk-top), the registry or install any software. All settings, files and folders except the Flashdisk and the Harddisk (CompactFlash card) are saved in RAMdisk. This means everything installed into RAMdisk that don’t belong to the default image of WindowsCE is lost after a restart of the system or a power failure (blackout). 5 HowTo 5.1 Connect the OM-TT to a Local Area Network Connect the ORDERMAN Touch Terminal to your network by using a network cable. Caution • Although you install something to the Flashdisk or Harddisk with an instal-lation routine, some files may be copied to the Windows directory (RAM-Disk). To avoid to loose this data you have to run Installation Backup (Start => Programs => Installation Backup). • If you change settings e.g. if you change the background image on the Desktop, you have to save the registry with the Registry Backup tool (Start => Programs => Registry Backup). • If you don’t use the installed registry editor to change the registry you have to save the registry with the Registry Backup tool witch can be found in the Programs section of the Start Menu (Start => Programs => Registry Backup).

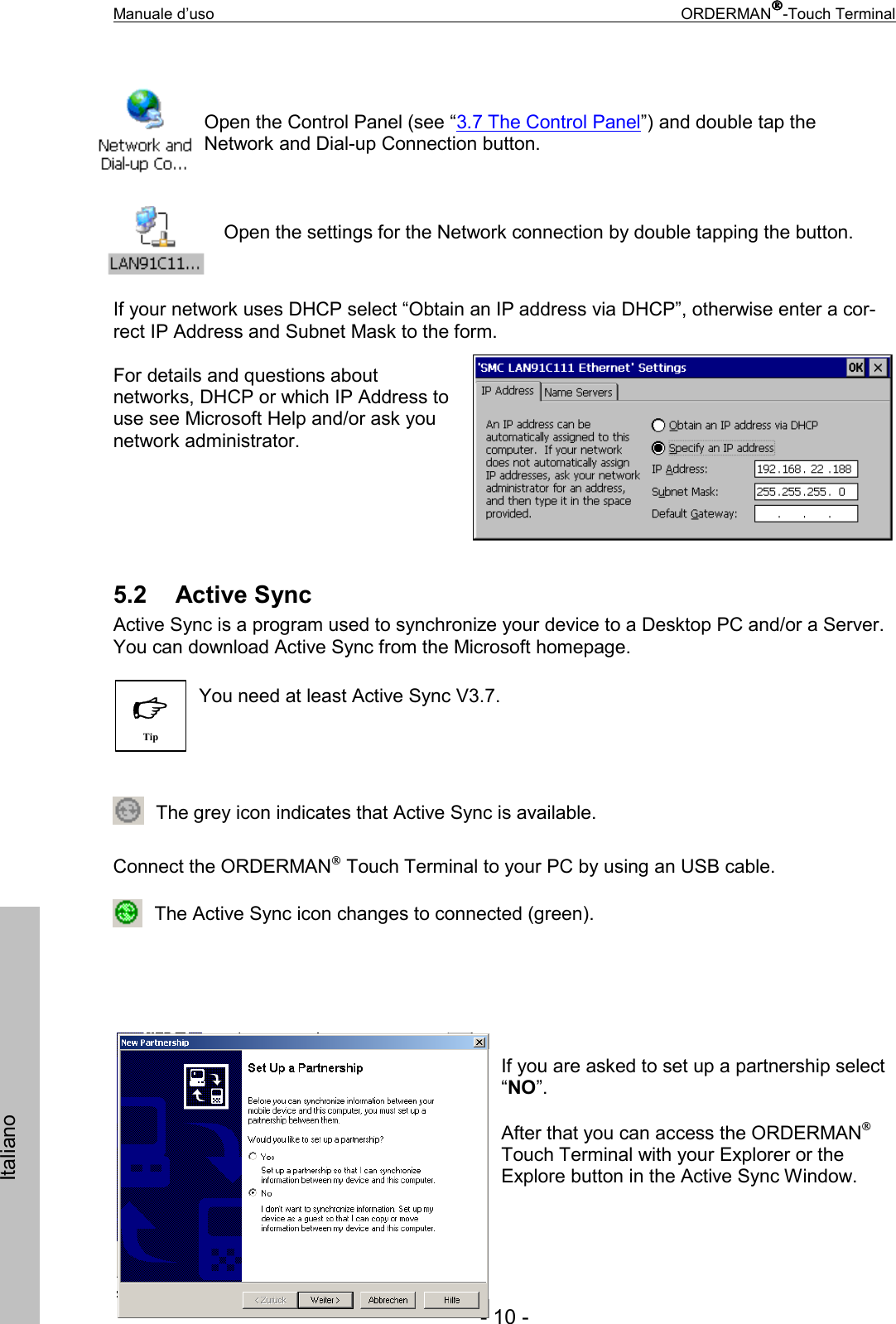

Manuale d’uso ORDERMAN-Touch Terminal - 10 - Italiano Open the Control Panel (see “3.7 The Control Panel”) and double tap the Network and Dial-up Connection button. Open the settings for the Network connection by double tapping the button. The grey icon indicates that Active Sync is available. The Active Sync icon changes to connected (green).If you are asked to set up a partnership select “NO”. After that you can access the ORDERMAN Touch Terminal with your Explorer or the Explore button in the Active Sync Window. You need at least Active Sync V3.7. Tip If your network uses DHCP select “Obtain an IP address via DHCP”, otherwise enter a cor-rect IP Address and Subnet Mask to the form. For details and questions about networks, DHCP or which IP Address to use see Microsoft Help and/or ask you network administrator. 5.2 Active Sync Active Sync is a program used to synchronize your device to a Desktop PC and/or a Server. You can download Active Sync from the Microsoft homepage. Connect the ORDERMAN Touch Terminal to your PC by using an USB cable.

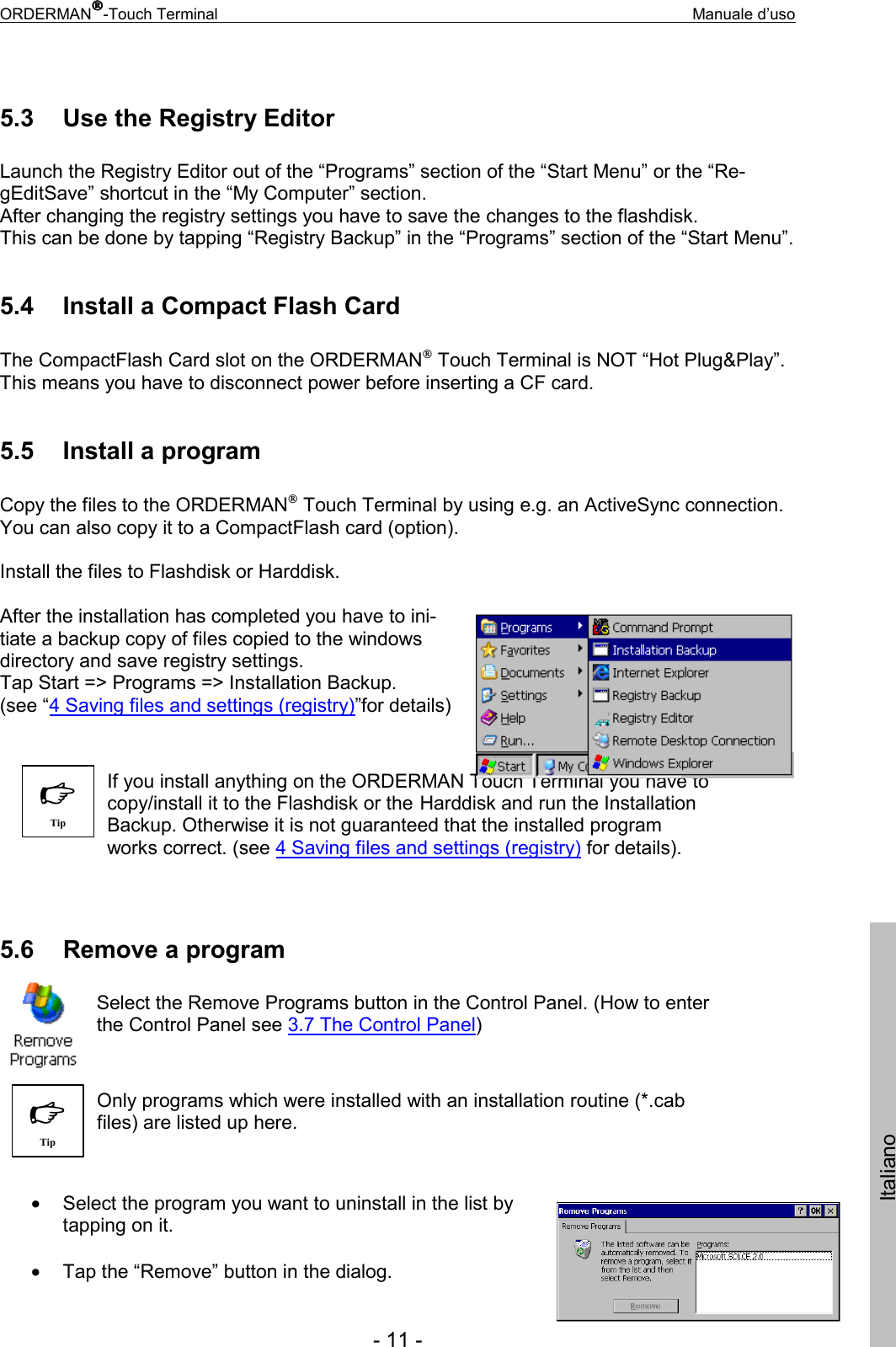

ORDERMAN-Touch Terminal Manuale d’uso - 11 - Italiano If you install anything on the ORDERMAN Touch Terminal you have to copy/install it to the Flashdisk or the Harddisk and run the Installation Backup. Otherwise it is not guaranteed that the installed program works correct. (see 4 Saving files and settings (registry) for details). Tip 5.3 Use the Registry Editor Launch the Registry Editor out of the “Programs” section of the “Start Menu” or the “Re-gEditSave” shortcut in the “My Computer” section. After changing the registry settings you have to save the changes to the flashdisk. This can be done by tapping “Registry Backup” in the “Programs” section of the “Start Menu”. 5.4 Install a Compact Flash Card The CompactFlash Card slot on the ORDERMAN Touch Terminal is NOT “Hot Plug&Play”. This means you have to disconnect power before inserting a CF card. 5.5 Install a program Copy the files to the ORDERMAN Touch Terminal by using e.g. an ActiveSync connection. You can also copy it to a CompactFlash card (option). Install the files to Flashdisk or Harddisk. After the installation has completed you have to ini-tiate a backup copy of files copied to the windows directory and save registry settings. Tap Start => Programs => Installation Backup. (see “4 Saving files and settings (registry)”for details) 5.6 Remove a program • Select the program you want to uninstall in the list by tapping on it. • Tap the “Remove” button in the dialog. Select the Remove Programs button in the Control Panel. (How to enter the Control Panel see 3.7 The Control Panel) Only programs which were installed with an installation routine (*.cab files) are listed up here. Tip

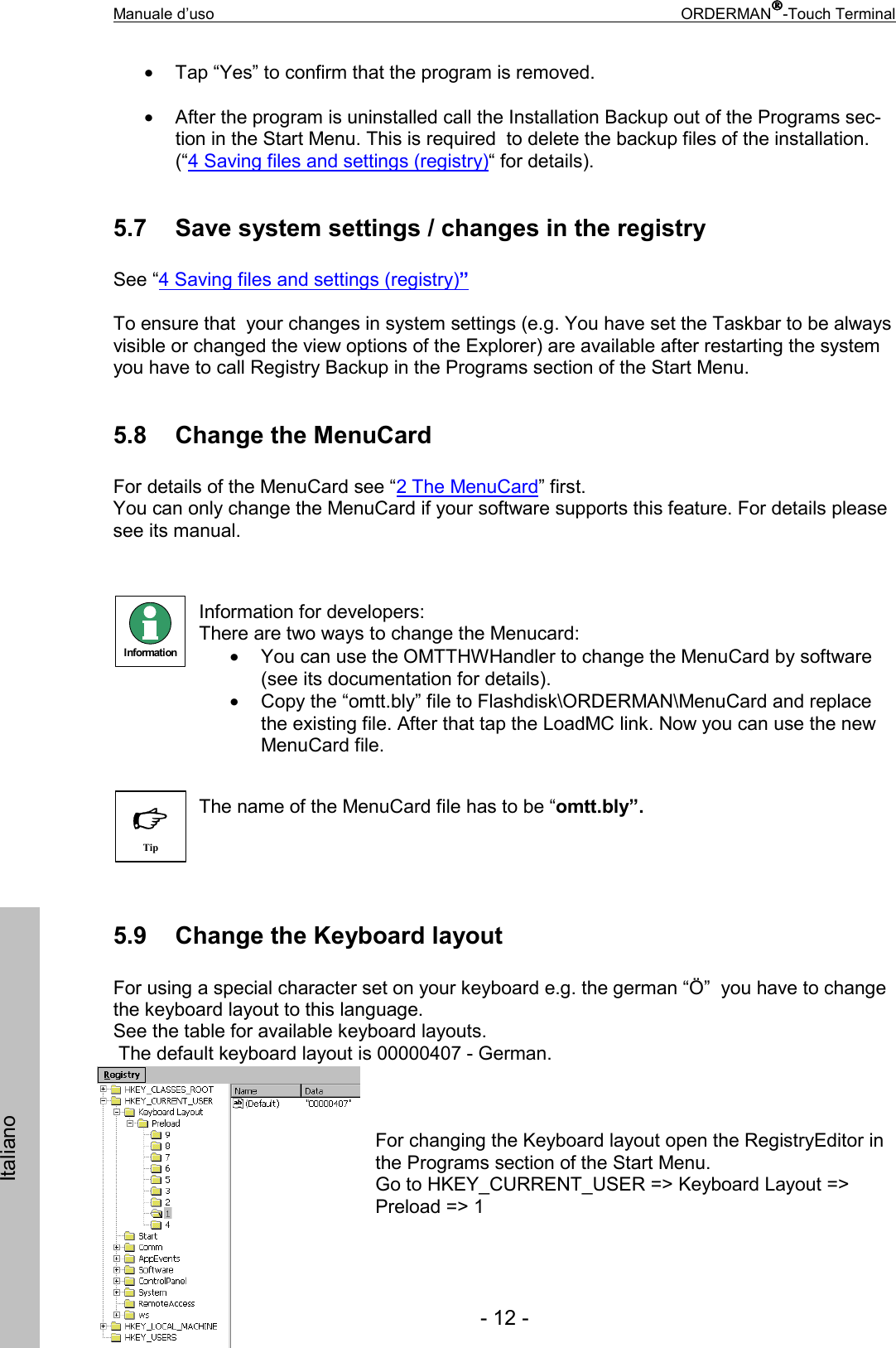

Manuale d’uso ORDERMAN-Touch Terminal - 12 - Italiano Information for developers: There are two ways to change the Menucard: • You can use the OMTTHWHandler to change the MenuCard by software (see its documentation for details). • Copy the “omtt.bly” file to Flashdisk\ORDERMAN\MenuCard and replace the existing file. After that tap the LoadMC link. Now you can use the new MenuCard file. InformationThe name of the MenuCard file has to be “omtt.bly”. Tip • Tap “Yes” to confirm that the program is removed. • After the program is uninstalled call the Installation Backup out of the Programs sec-tion in the Start Menu. This is required to delete the backup files of the installation. (“4 Saving files and settings (registry)“ for details). 5.7 Save system settings / changes in the registry See “4 Saving files and settings (registry)” To ensure that your changes in system settings (e.g. You have set the Taskbar to be always visible or changed the view options of the Explorer) are available after restarting the system you have to call Registry Backup in the Programs section of the Start Menu. 5.8 Change the MenuCard For details of the MenuCard see “2 The MenuCard” first. You can only change the MenuCard if your software supports this feature. For details please see its manual. 5.9 Change the Keyboard layout For using a special character set on your keyboard e.g. the german “Ö” you have to change the keyboard layout to this language. See the table for available keyboard layouts. The default keyboard layout is 00000407 - German. For changing the Keyboard layout open the RegistryEditor in the Programs section of the Start Menu. Go to HKEY_CURRENT_USER => Keyboard Layout => Preload => 1

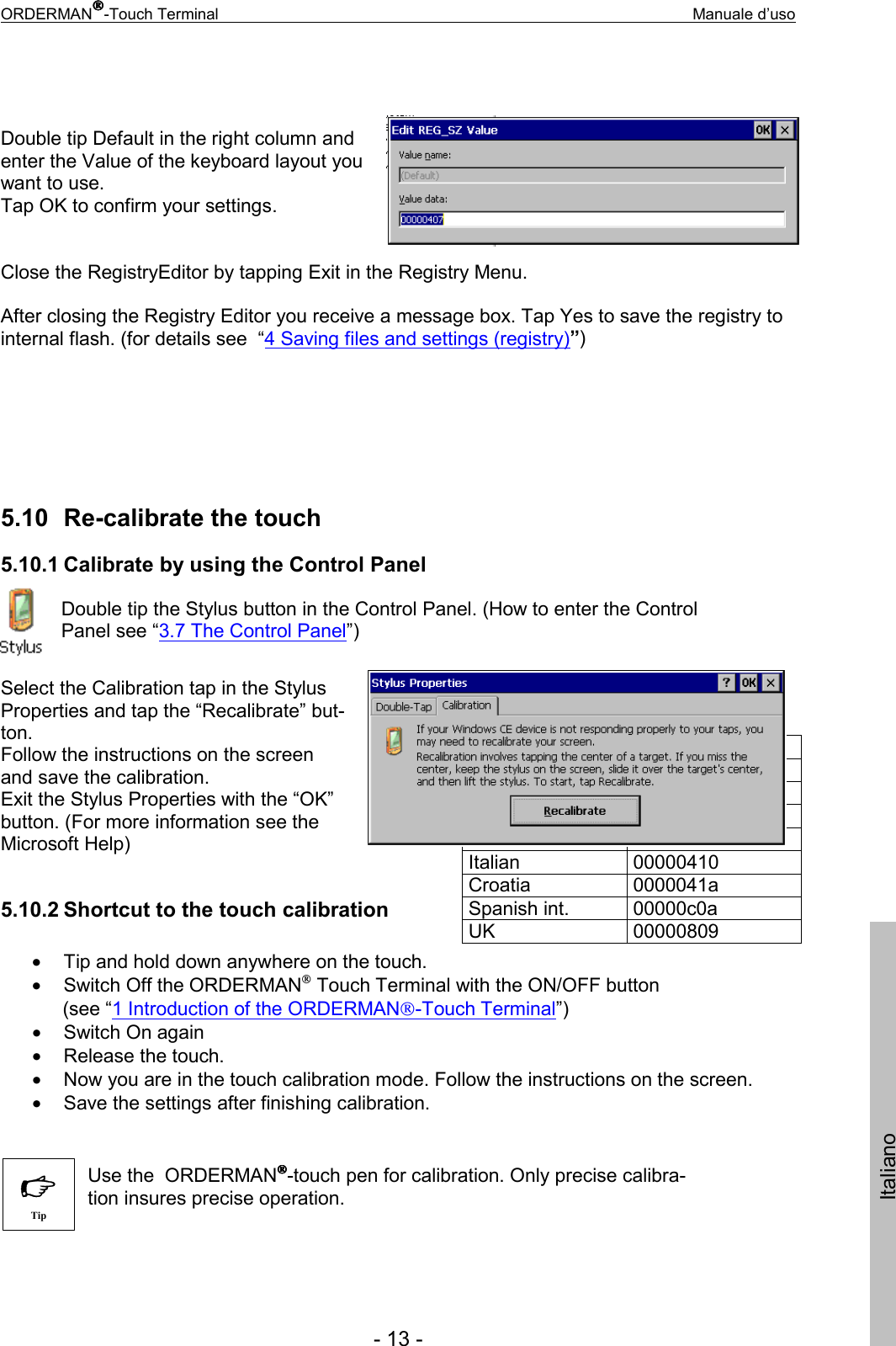

ORDERMAN-Touch Terminal Manuale d’uso - 13 - Italiano Double tip Default in the right column and enter the Value of the keyboard layout you want to use. Tap OK to confirm your settings. Close the RegistryEditor by tapping Exit in the Registry Menu. After closing the Registry Editor you receive a message box. Tap Yes to save the registry to internal flash. (for details see “4 Saving files and settings (registry)”) 5.10 Re-calibrate the touch 5.10.1 Calibrate by using the Control Panel Select the Calibration tap in the Stylus Properties and tap the “Recalibrate” but-ton. Follow the instructions on the screen and save the calibration. Exit the Stylus Properties with the “OK” button. (For more information see the Microsoft Help) 5.10.2 Shortcut to the touch calibration • Tip and hold down anywhere on the touch. • Switch Off the ORDERMAN Touch Terminal with the ON/OFF button (see “1 Introduction of the ORDERMAN-Touch Terminal”) • Switch On again • Release the touch. • Now you are in the touch calibration mode. Follow the instructions on the screen. • Save the settings after finishing calibration. Layout Value US 00000409 German 00000407 Spanish 0000040a French 0000040c Italian 00000410 Croatia 0000041a Spanish int. 00000c0a UK 00000809 Double tip the Stylus button in the Control Panel. (How to enter the Control Panel see “3.7 The Control Panel”) Use the ORDERMAN-touch pen for calibration. Only precise calibra-tion insures precise operation. Tip

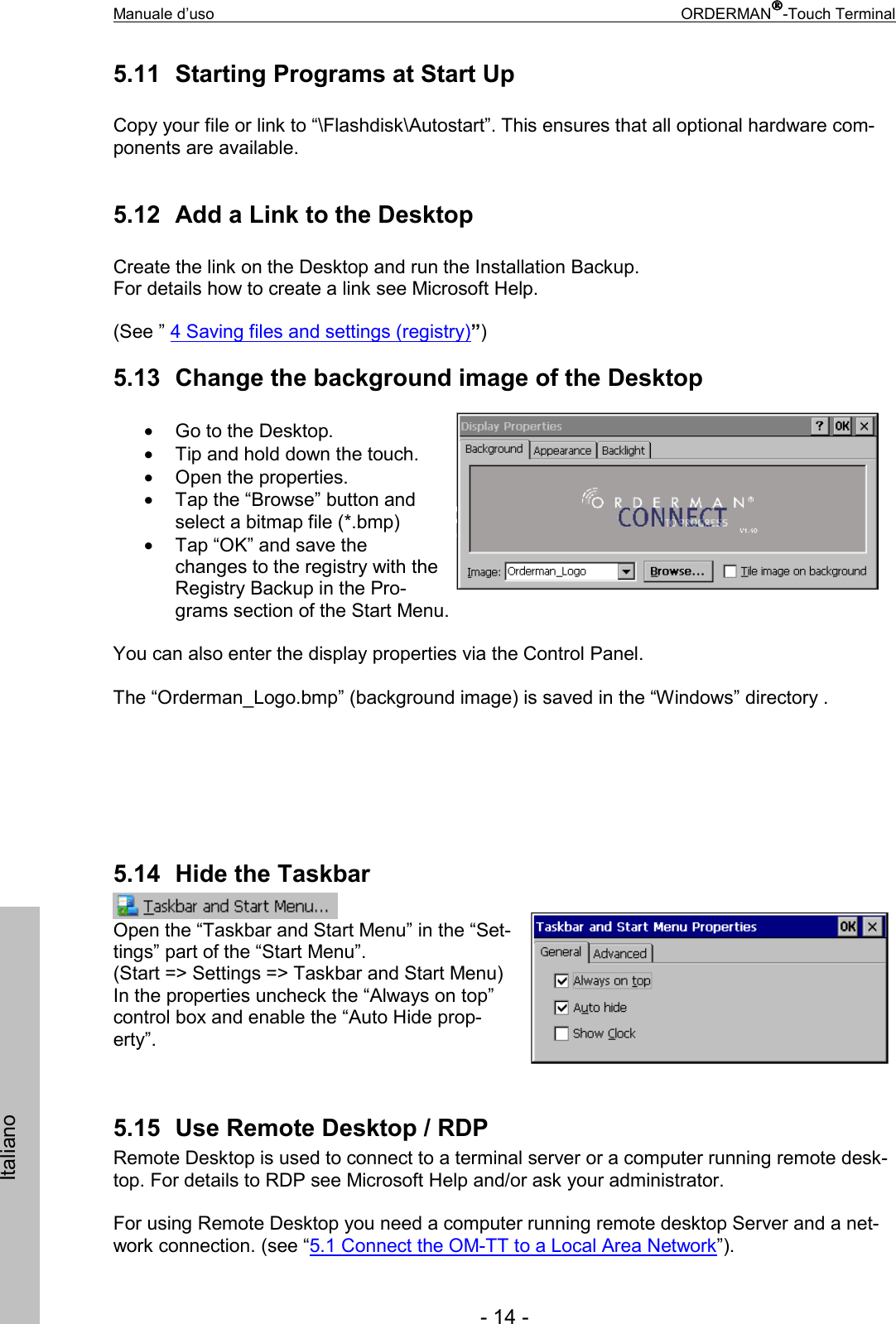

Manuale d’uso ORDERMAN-Touch Terminal - 14 - Italiano 5.11 Starting Programs at Start Up Copy your file or link to “\Flashdisk\Autostart”. This ensures that all optional hardware com-ponents are available. 5.12 Add a Link to the Desktop Create the link on the Desktop and run the Installation Backup. For details how to create a link see Microsoft Help. (See ” 4 Saving files and settings (registry)”) 5.13 Change the background image of the Desktop • Go to the Desktop. • Tip and hold down the touch. • Open the properties. • Tap the “Browse” button and select a bitmap file (*.bmp) • Tap “OK” and save the changes to the registry with the Registry Backup in the Pro-grams section of the Start Menu. You can also enter the display properties via the Control Panel. The “Orderman_Logo.bmp” (background image) is saved in the “Windows” directory . 5.14 Hide the Taskbar Open the “Taskbar and Start Menu” in the “Set-tings” part of the “Start Menu”. (Start => Settings => Taskbar and Start Menu) In the properties uncheck the “Always on top” control box and enable the “Auto Hide prop-erty”. 5.15 Use Remote Desktop / RDP Remote Desktop is used to connect to a terminal server or a computer running remote desk-top. For details to RDP see Microsoft Help and/or ask your administrator. For using Remote Desktop you need a computer running remote desktop Server and a net-work connection. (see “5.1 Connect the OM-TT to a Local Area Network”).

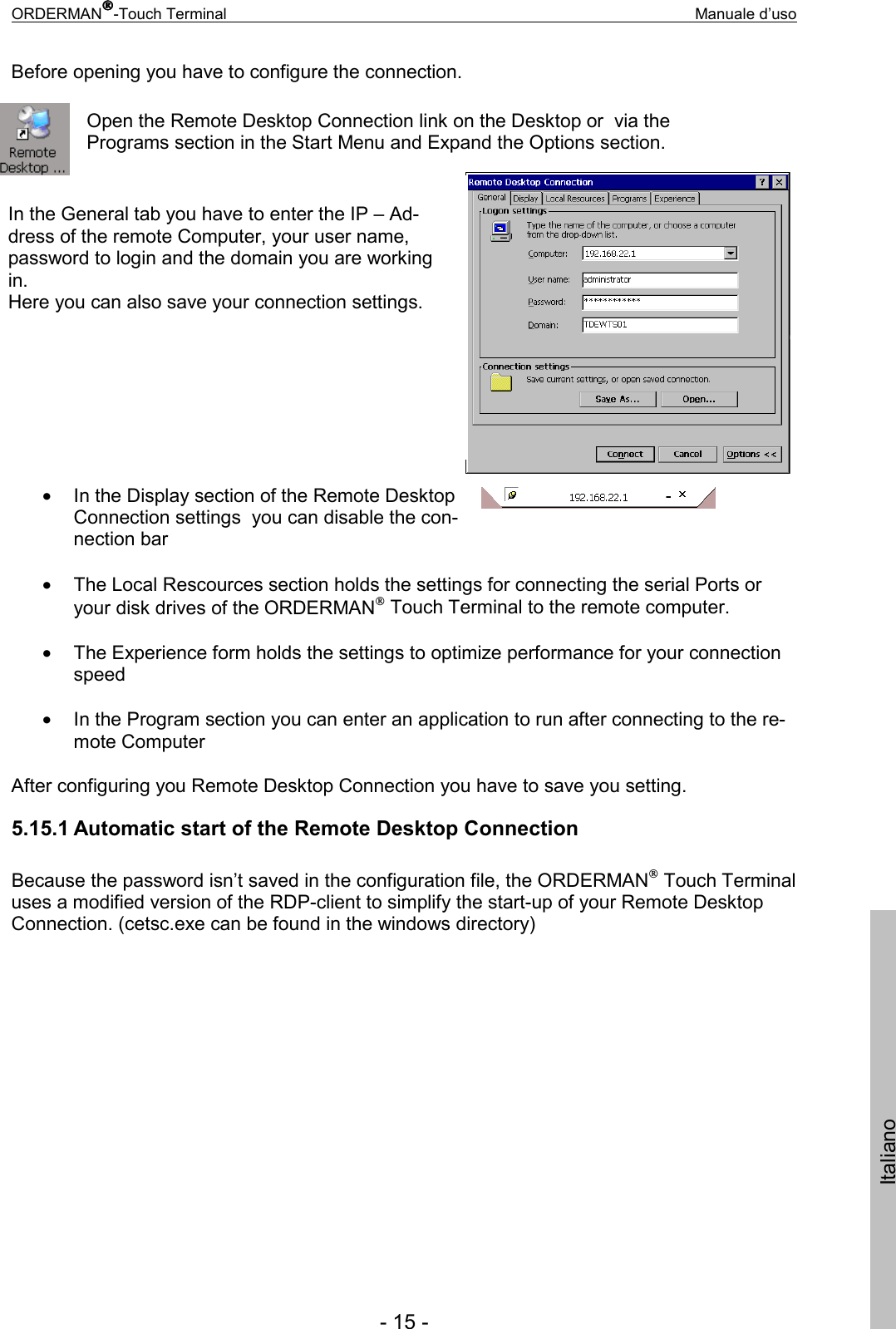

ORDERMAN-Touch Terminal Manuale d’uso - 15 - Italiano Open the Remote Desktop Connection link on the Desktop or via the Programs section in the Start Menu and Expand the Options section. In the General tab you have to enter the IP – Ad-dress of the remote Computer, your user name, password to login and the domain you are working in. Here you can also save your connection settings. Before opening you have to configure the connection. • In the Display section of the Remote Desktop Connection settings you can disable the con-nection bar • The Local Rescources section holds the settings for connecting the serial Ports or your disk drives of the ORDERMAN Touch Terminal to the remote computer. • The Experience form holds the settings to optimize performance for your connection speed • In the Program section you can enter an application to run after connecting to the re-mote Computer After configuring you Remote Desktop Connection you have to save you setting. 5.15.1 Automatic start of the Remote Desktop Connection Because the password isn’t saved in the configuration file, the ORDERMAN Touch Terminal uses a modified version of the RDP-client to simplify the start-up of your Remote Desktop Connection. (cetsc.exe can be found in the windows directory)

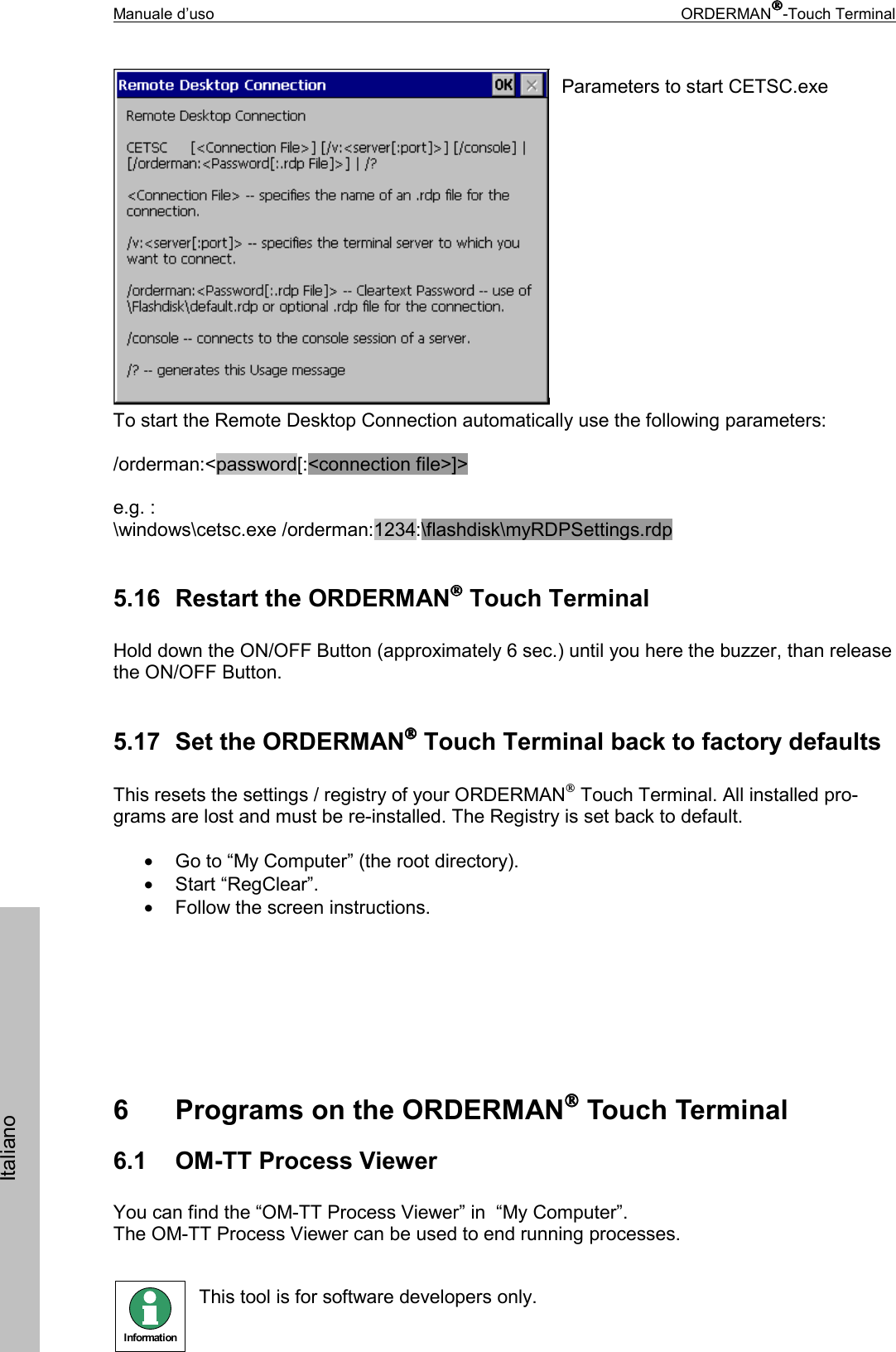

Manuale d’uso ORDERMAN-Touch Terminal - 16 - Italiano Parameters to start CETSC.exe To start the Remote Desktop Connection automatically use the following parameters: /orderman:<password[:<connection file>]> e.g. : \windows\cetsc.exe /orderman:1234:\flashdisk\myRDPSettings.rdp 5.16 Restart the ORDERMAN Touch Terminal Hold down the ON/OFF Button (approximately 6 sec.) until you here the buzzer, than release the ON/OFF Button. 5.17 Set the ORDERMAN Touch Terminal back to factory defaults This resets the settings / registry of your ORDERMAN Touch Terminal. All installed pro-grams are lost and must be re-installed. The Registry is set back to default. • Go to “My Computer” (the root directory). • Start “RegClear”. • Follow the screen instructions. 6 Programs on the ORDERMAN Touch Terminal 6.1 OM-TT Process Viewer You can find the “OM-TT Process Viewer” in “My Computer”. The OM-TT Process Viewer can be used to end running processes. This tool is for software developers only. Information

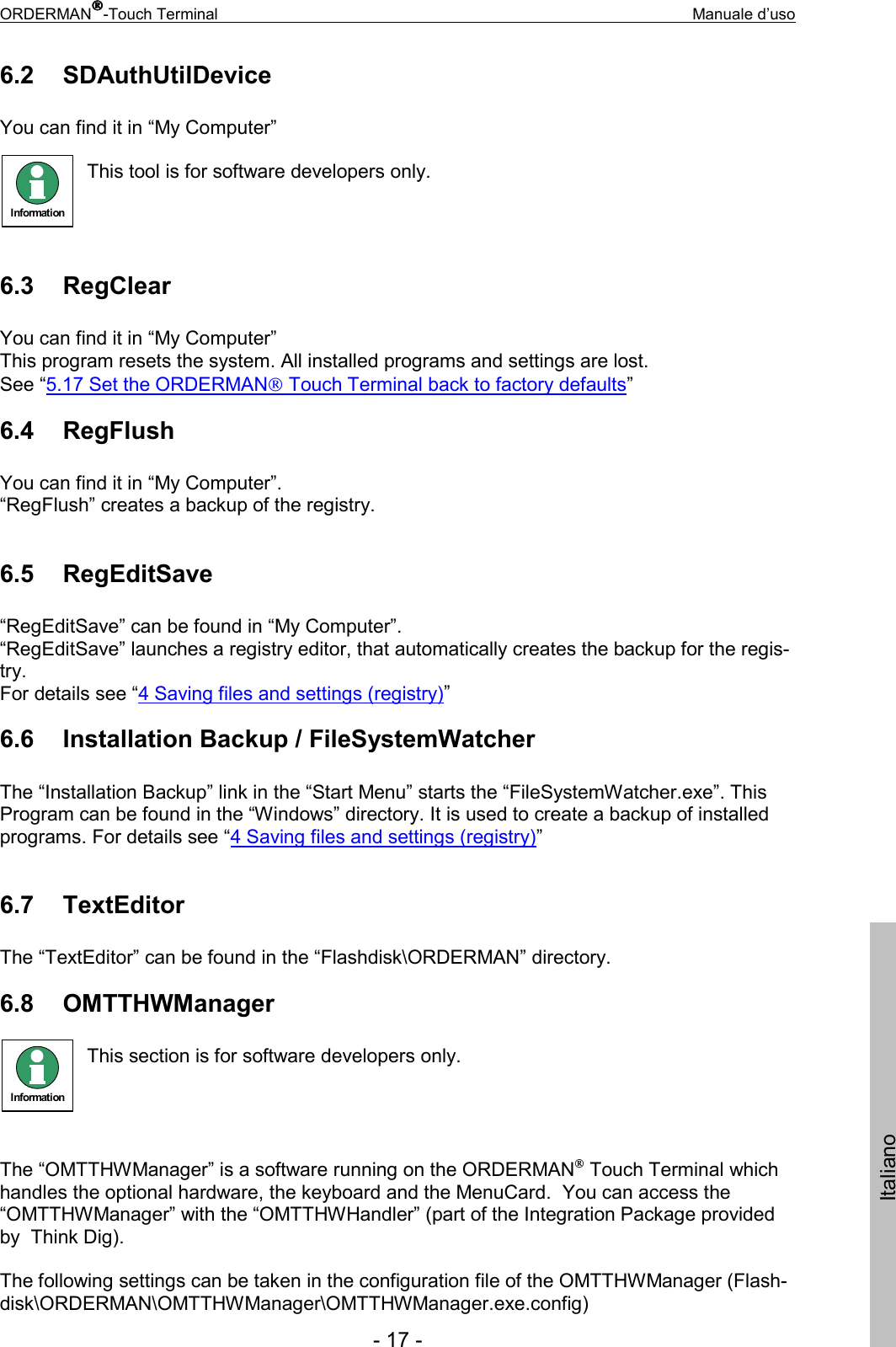

ORDERMAN-Touch Terminal Manuale d’uso - 17 - Italiano 6.2 SDAuthUtilDevice You can find it in “My Computer” 6.3 RegClear You can find it in “My Computer” This program resets the system. All installed programs and settings are lost. See “5.17 Set the ORDERMAN Touch Terminal back to factory defaults” 6.4 RegFlush You can find it in “My Computer”. “RegFlush” creates a backup of the registry. 6.5 RegEditSave “RegEditSave” can be found in “My Computer”. “RegEditSave” launches a registry editor, that automatically creates the backup for the regis-try. For details see “4 Saving files and settings (registry)” 6.6 Installation Backup / FileSystemWatcher The “Installation Backup” link in the “Start Menu” starts the “FileSystemWatcher.exe”. This Program can be found in the “Windows” directory. It is used to create a backup of installed programs. For details see “4 Saving files and settings (registry)” 6.7 TextEditor The “TextEditor” can be found in the “Flashdisk\ORDERMAN” directory. 6.8 OMTTHWManager The “OMTTHWManager” is a software running on the ORDERMAN Touch Terminal which handles the optional hardware, the keyboard and the MenuCard. You can access the “OMTTHWManager” with the “OMTTHWHandler” (part of the Integration Package provided by Think Dig). The following settings can be taken in the configuration file of the OMTTHWManager (Flash-disk\ORDERMAN\OMTTHWManager\OMTTHWManager.exe.config) This section is for software developers only. InformationThis tool is for software developers only. Information

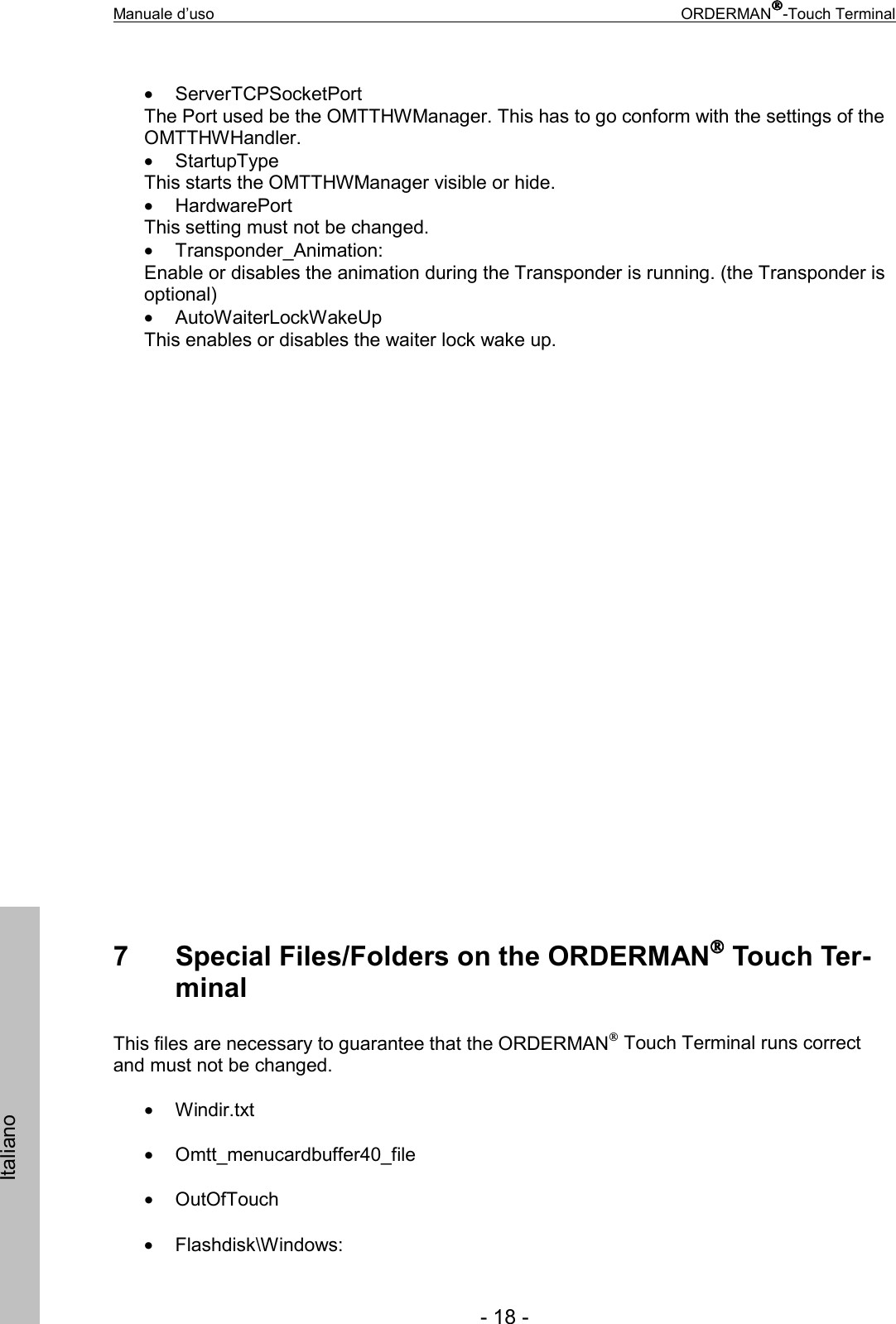

Manuale d’uso ORDERMAN-Touch Terminal - 18 - Italiano • ServerTCPSocketPort The Port used be the OMTTHWManager. This has to go conform with the settings of the OMTTHWHandler. • StartupType This starts the OMTTHWManager visible or hide. • HardwarePort This setting must not be changed. • Transponder_Animation: Enable or disables the animation during the Transponder is running. (the Transponder is optional) • AutoWaiterLockWakeUp This enables or disables the waiter lock wake up. 7 Special Files/Folders on the ORDERMAN Touch Ter-minal This files are necessary to guarantee that the ORDERMAN Touch Terminal runs correct and must not be changed. • Windir.txt • Omtt_menucardbuffer40_file • OutOfTouch • Flashdisk\Windows:

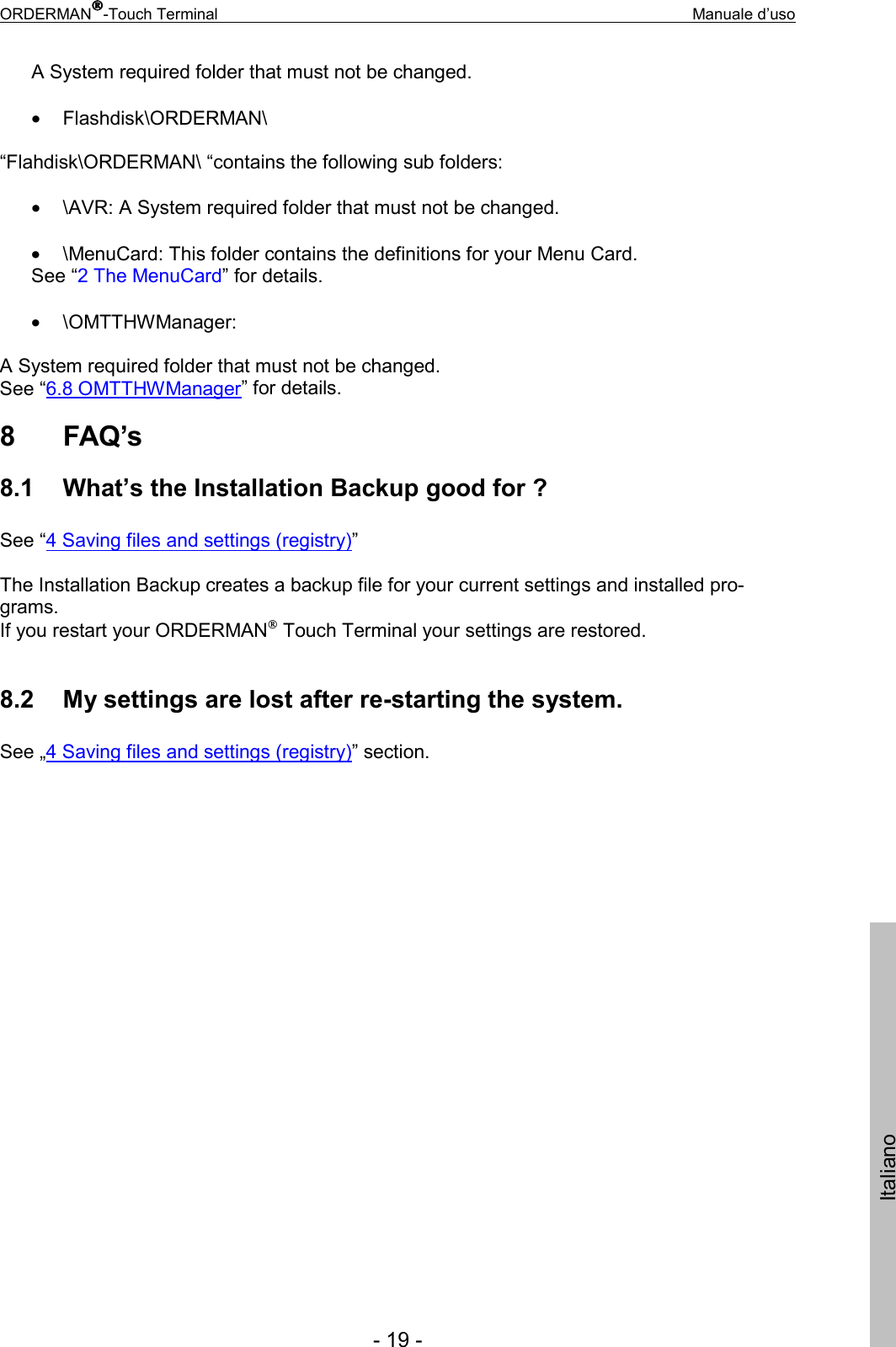

ORDERMAN-Touch Terminal Manuale d’uso - 19 - Italiano A System required folder that must not be changed. • Flashdisk\ORDERMAN\ “Flahdisk\ORDERMAN\ “contains the following sub folders: • \AVR: A System required folder that must not be changed. • \MenuCard: This folder contains the definitions for your Menu Card. See “2 The MenuCard” for details. • \OMTTHWManager: A System required folder that must not be changed. See “6.8 OMTTHWManager” for details. 8 FAQ’s 8.1 What’s the Installation Backup good for ? See “4 Saving files and settings (registry)” The Installation Backup creates a backup file for your current settings and installed pro-grams. If you restart your ORDERMAN Touch Terminal your settings are restored. 8.2 My settings are lost after re-starting the system. See „4 Saving files and settings (registry)” section.
