Users manual
TOBY-R2 series
LTE Cat 1 / HSPA / EGPRS modules
Data Sheet
Abstract
Technical data sheet describing TOBY-R2 series multi-mode cellular
modules. The modules are a cost efficient and performance
optimized LTE Cat 1 / 3G / 2G multi-mode solution covering up to
five LTE bands, up to four 3G UMTS/HSPA bands, and up to four 2G
GSM/EDGE bands in the compact TOBY form factor.
www.u-blox.com
UBX-16005785 - R06
TOBY-R2 series - Data Sheet
UBX-16005785 - R06
Page 2 of 41
Document Information
Title
TOBY-R2 series
Subtitle
LTE Cat 1 / HSPA / EGPRS modules
Document type
Data Sheet
Document number
UBX-16005785
Revision and date
R06
22-Dec-2016
Disclosure restriction
Product Status
Corresponding content status
Functional Sample
Draft
For functional testing. Revised and supplementary data will be published later.
In Development /
Prototype
Objective Specification
Target values. Revised and supplementary data will be published later.
Engineering Sample
Advance Information
Data based on early testing. Revised and supplementary data will be published later.
Initial Production
Early Prod. Information
Data from product verification. Revised and supplementary data may be published later.
Mass Production /
End of Life
Production Information
Final product specification.
This document applies to the following products:
Name
Type number
Modem version
Application version
PCN reference
Product status
TOBY-R200
TOBY-R200-02B-00
30.24
A01.02
UBX-16030126
Engineering Sample
TOBY-R202
TOBY-R202-02B-00
30.24
A01.02
UBX-16030126
Engineering Sample
u-blox reserves all rights to this document and the information contained herein. Products, names, logos and designs described herein
may in whole or in part be subject to intellectual property rights. Reproduction, use, modification or disclosure to third parties of this
document or any part thereof without the express permission of u-blox is strictly prohibited.
The information contained herein is provided “as is” and u-blox assumes no liability for the use of the information. No warranty, either
express or implied, is given, including but not limited, with respect to the accuracy, correctness, reliability and fitness for a particular
purpose of the information. This document may be revised by u-blox at any time. For most recent documents, please visit
www.u-blox.com. Copyright © 2017, u-blox AG.
u-blox® is a registered trademark of u-blox Holding AG in the EU and other countries.
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Contents
Page 3 of 41
Contents
Contents .............................................................................................................................. 3
1 Functional description .................................................................................................. 5
1.1 Overview .............................................................................................................................................. 5
1.2 Product features ................................................................................................................................... 5
1.3 Block diagram ....................................................................................................................................... 6
1.4 Product description ............................................................................................................................... 7
1.5 AT command support ........................................................................................................................... 8
1.6 Supported features ............................................................................................................................... 8
2 Interfaces .................................................................................................................... 10
2.1 Power management ........................................................................................................................... 10

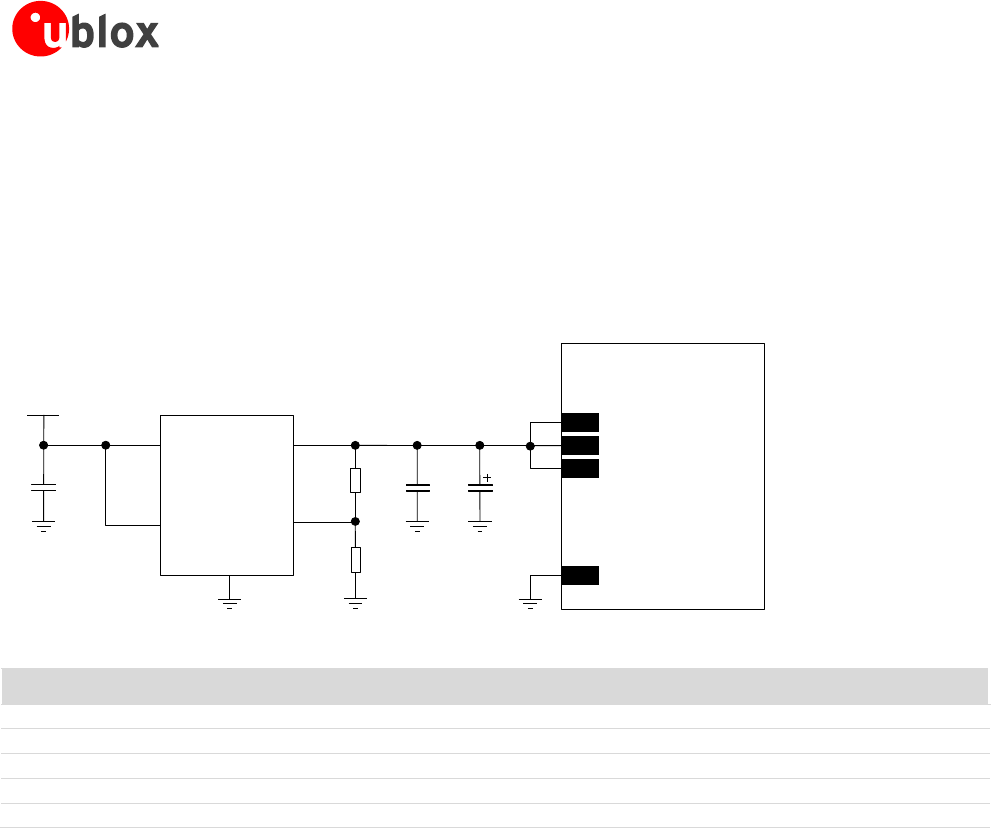

2.1.1 Module supply input (VCC) ......................................................................................................... 10
2.1.2 RTC supply input / output (V_BCKP) ............................................................................................ 10
2.1.3 Generic digital interfaces supply output (V_INT) ........................................................................... 10
2.2 Antenna interfaces ............................................................................................................................. 10
2.2.1 Antenna RF interfaces ................................................................................................................. 10
2.2.2 Antenna detection ...................................................................................................................... 10
2.3 System functions ................................................................................................................................ 11
2.3.1 Module power-on ....................................................................................................................... 11
2.3.2 Module power-off ....................................................................................................................... 11
2.3.3 Module reset ............................................................................................................................... 12
2.3.4 Module / host configuration selection ......................................................................................... 12
2.4 SIM ..................................................................................................................................................... 12
2.4.1 SIM interface ............................................................................................................................... 12
2.4.2 SIM detection .............................................................................................................................. 12
2.5 Serial communication ......................................................................................................................... 13
2.5.1 UART interface ............................................................................................................................ 13
2.5.2 USB interface............................................................................................................................... 14
2.5.3 DDC (I2C) interface ...................................................................................................................... 15
2.5.4 SDIO interface ............................................................................................................................. 15
2.6 Audio ................................................................................................................................................. 15
2.7 Clock output ...................................................................................................................................... 15
2.8 GPIO ................................................................................................................................................... 16
3 Pin definition .............................................................................................................. 17
3.1 Pin assignment ................................................................................................................................... 17
4 Electrical specifications .............................................................................................. 22
4.1 Absolute maximum rating .................................................................................................................. 22
4.1.1 Maximum ESD ............................................................................................................................. 22
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Contents
Page 4 of 41
4.2 Operating conditions .......................................................................................................................... 23
4.2.1 Operating temperature range ...................................................................................................... 23
4.2.2 Supply/power pins ....................................................................................................................... 23
4.2.3 Current consumption .................................................................................................................. 24
4.2.4 LTE RF characteristics ................................................................................................................... 25
4.2.5 3G RF characteristics ................................................................................................................... 26
4.2.6 2G RF characteristics ................................................................................................................... 27
4.2.7 ANT_DET pin ............................................................................................................................... 27
4.2.8 PWR_ON pin ............................................................................................................................... 28
4.2.9 RESET_N pin ................................................................................................................................ 28
4.2.10 SIM pins ...................................................................................................................................... 28
4.2.11 USB pins ...................................................................................................................................... 29
4.2.12 DDC (I2C) pins.............................................................................................................................. 29
4.2.13 Generic Digital Interfaces pins ..................................................................................................... 30

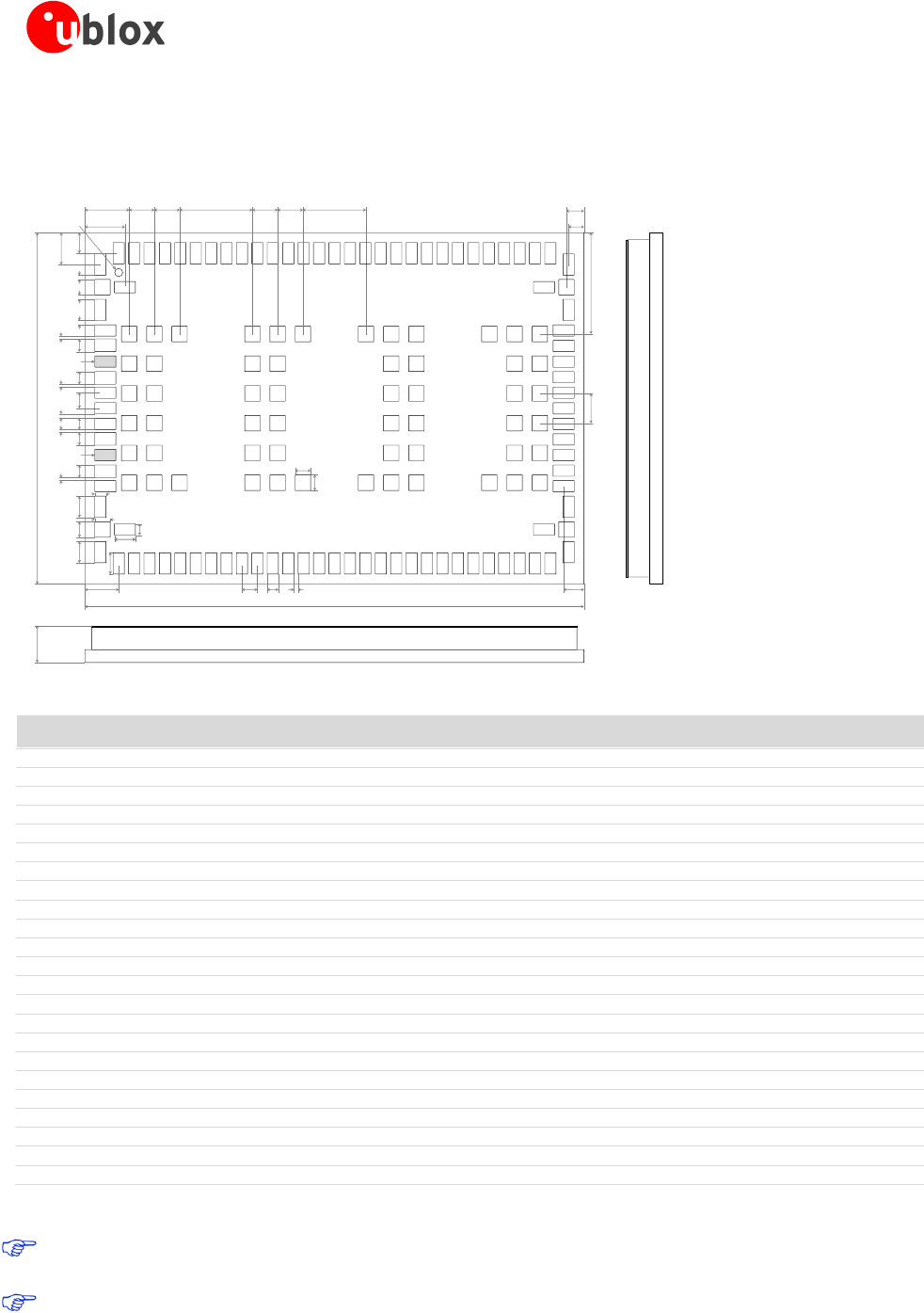

5 Mechanical specifications .......................................................................................... 31
6 Qualification and approvals ...................................................................................... 32
6.1 Reliability tests .................................................................................................................................... 32
6.2 Approvals ........................................................................................................................................... 32
7 Product handling & soldering .................................................................................... 33
7.1 Packaging ........................................................................................................................................... 33

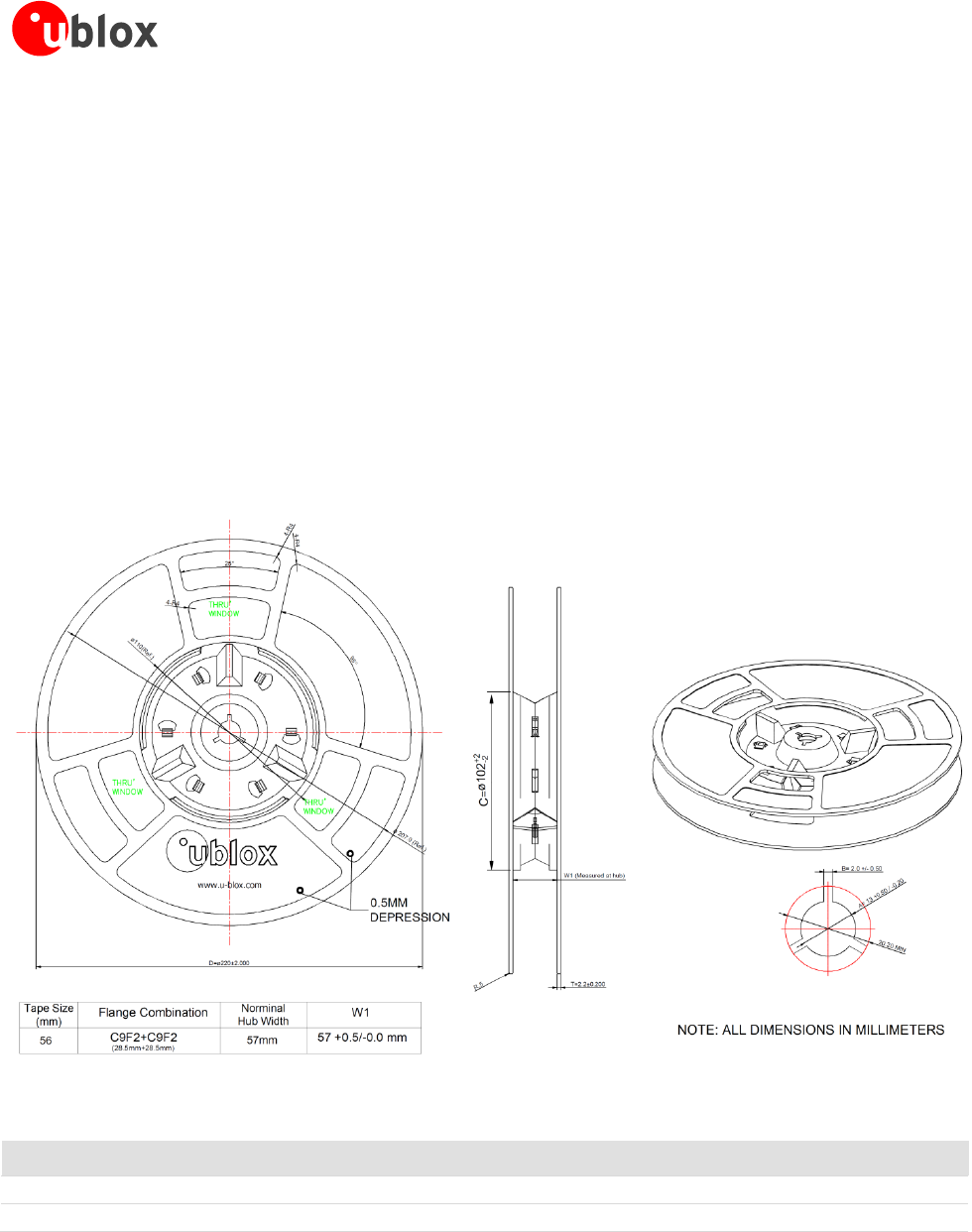

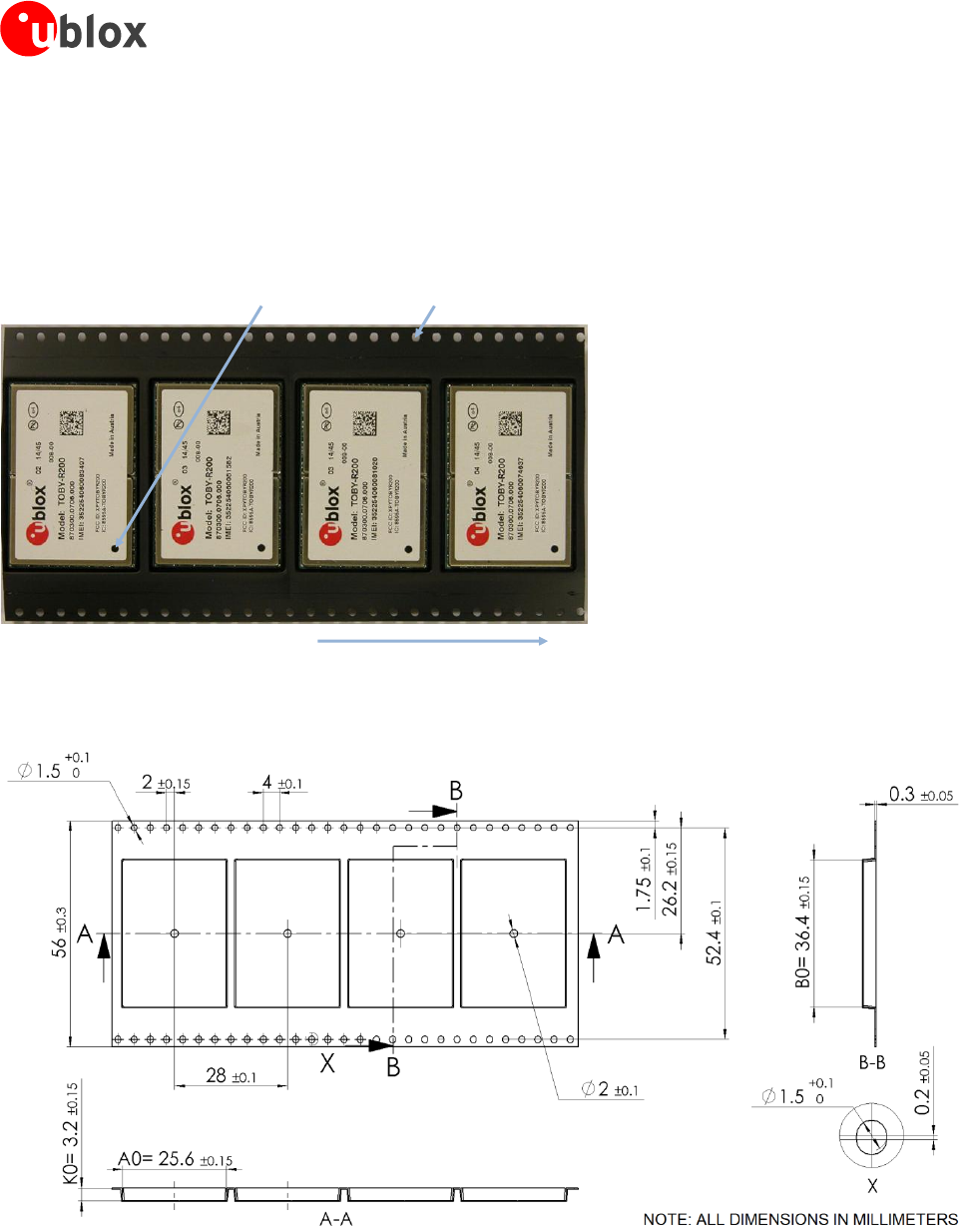

7.1.1 Reels ........................................................................................................................................... 33
7.1.2 Tapes .......................................................................................................................................... 34
7.2 Moisture Sensitivity Levels ................................................................................................................... 35

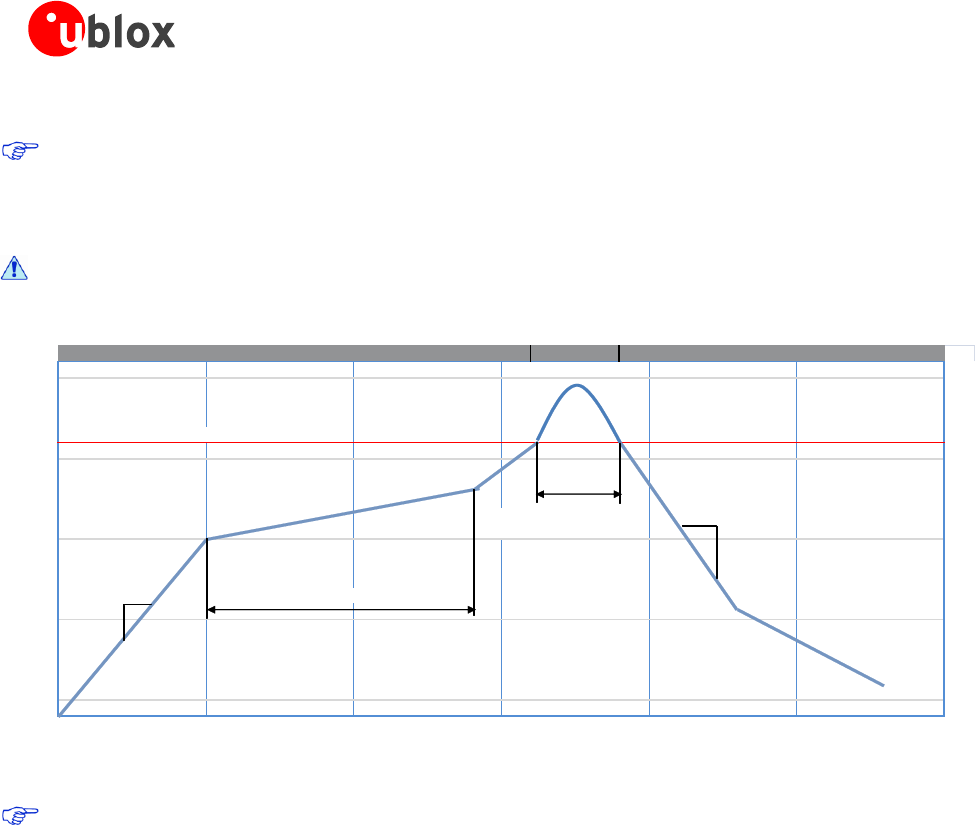

7.3 Reflow soldering ................................................................................................................................. 35
7.4 ESD precautions .................................................................................................................................. 35
8 Default settings .......................................................................................................... 36
9 Labeling and ordering information ........................................................................... 37
9.1 Product labeling .................................................................................................................................. 37
9.2 Explanation of codes........................................................................................................................... 37
9.3 Ordering information .......................................................................................................................... 38
Appendix .......................................................................................................................... 39
A Glossary ...................................................................................................................... 39
Related documents........................................................................................................... 40
Revision history ................................................................................................................ 40
Contact .............................................................................................................................. 41
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Functional description
Page 5 of 41
1 Functional description
1.1 Overview
The TOBY-R2 series comprises LTE Cat 1 / 3G / 2G multi-mode modules in the small TOBY LGA form-factor
(35.6 x 24.8 mm) that are easy to integrate in compact designs.
TOBY-R2 series modules support up to five LTE bands, up to four 3G UMTS/HSPA bands and up to four 2G
GSM/(E)GPRS bands for voice and/or data transmission.
TOBY-R2 series modules are form-factor compatible with u-blox SARA, LISA and LARA cellular module families
and are pin-to-pin compatible with u-blox TOBY-L cellular module families: this facilitates easy migration from
the u-blox GSM/GPRS, CDMA, UMTS/HSPA, and LTE high data rate modules, maximizes the investments of
customers, simplifies logistics, and enables very short time-to-market.
The modules are ideal for applications that are transitioning to LTE from 2G and 3G, due to the long term
availability and scalability of LTE networks.
With a range of interface options and an integrated IP stack, the modules are designed to support a wide range
of data-centric applications. The unique combination of performance and flexibility make these modules ideally
suited for medium speed M2M applications, such as smart energy gateways, remote access video cameras,
digital signage, telehealth and telematics.
TOBY-R2 series modules support Voice over LTE (VoLTE) and voice service over 3G (CSFB) for applications that
require voice, such as security and surveillance systems.
1.2 Product features
Model
Region
Radio Access Technology
Positioning
Interfaces
Audio
Features
Grade
LTE Bands1
UMTS Bands
GSM Bands
GNSS via modem
AssistNow Software
CellLocate®
UART
USB 2.0
SDIO *
DDC (I2C)
GPIOs
Analog audio
Digital audio
Network indication
VoLTE
Antenna supervisor
Rx Diversity
Jamming detection
Embedded TCP/UDP stack
Embedded HTTP,FTP,SSL
FOTA
Dual stack IPv4/IPv6
Standard
Professional
Automotive
TOBY-R200
North
America
2,4,
5,12
850,900,
1900,2100
Quad
□
□
□
1
1
1
1
9
●
●
●
●
●
□
●
●
●
●
TOBY-R202
North
America
2,4,
5,12
850,1900
□
□
□
1
1
1
1
9
●
●
●
●
●
□
●
●
●
●
□ = Available in future firmware
* = HW ready
Table 1: TOBY-R2 series main features summary
1 LTE band 12 is a superset that includes band 17
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Functional description
Page 6 of 41

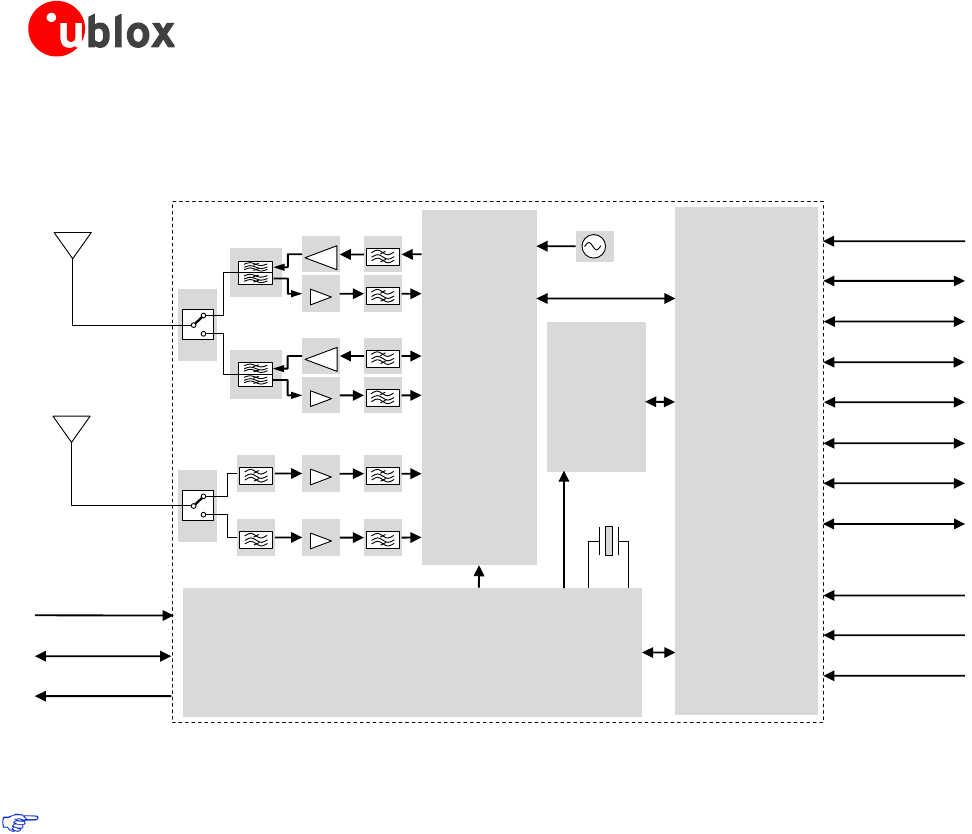

1.3 Block diagram
Cellular
Base-band
processor
Memory
Power Management Unit
26 MHz
32.768 kHz
ANT1
RF
transceiver
ANT2
V_INT (I/O)
V_BCKP (RTC)
VCC (Supply)
SIM
USB
GPIO
Power On
External Reset
PAs
LNAs Filters
Filters
Duplexer
Filters
PAs
LNAs Filters
Filters
Duplexer
Filters
LNAs FiltersFilters
LNAs FiltersFilters
Switch
Switch
DDC(I2C)
SDIO
UART
Digital audio (I2S)
ANT_DET
Host Select
Figure 1: TOBY-R2 series block diagram
TOBY-R200-02B and TOBY-R202-02B modules, i.e. the “02” product versions, do not support the
following interfaces, which can be left unconnected and should not be driven by external devices:
o SDIO interface
o HOST_SELECTx pins
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Functional description
Page 7 of 41
1.4 Product description
TOBY-R2 modules provide 4G LTE Cat 1, 3G UMTS/DC-HSPA+, 2G GSM/(EGPRS) multi-mode technology:
TOBY-R200 is designed for worldwide operation, and primarily in North America (on AT&T network)
TOBY-R202 is designed primarily for operation in North America (on AT&T network)
4G LTE
3G UMTS/HSDPA/HSUPA
2G GSM/GPRS/EDGE
3GPP Release 9
Long Term Evolution (LTE)
Evolved Uni.Terrestrial Radio Access (E-UTRA)
Frequency Division Duplex (FDD)
DL Rx Diversity
3GPP Release 9
High Speed Packet Access (HSPA)
UMTS Terrestrial Radio Access (UTRA)
Frequency Division Duplex (FDD)
DL Enhanced Rx Performance
3GPP Release 9
Enhanced Data rate GSM Evolution (EDGE)
GSM EGPRS Radio Access (GERA)
Time Division Multiple Access (TDMA)
DL Advanced Rx Performance
Band support2:
TOBY-R200:
Band 12 (700 MHz)3
Band 5 (850 MHz)
Band 4 (1700 MHz)
Band 2 (1900 MHz)
TOBY-R202:
Band 12 (700 MHz)3
Band 5 (850 MHz)
Band 4 (1700 MHz)
Band 2 (1900 MHz)
Band support:
TOBY-R200:
Band 5 (850 MHz)
Band 8 (900 MHz)
Band 2 (1900 MHz)
Band 1 (2100 MHz)
TOBY-R202:
Band 5 (850 MHz)
Band 2 (1900 MHz)
Band support:
TOBY-R200:
GSM 850 MHz
E-GSM 900 MHz
DCS 1800 MHz
PCS 1900 MHz
LTE Power Class
Class 3 (23 dBm)
UMTS/HSDPA/HSUPA Power Class
Class 3 (24 dBm)
GSM/GPRS (GMSK) Power Class
Class 4 (33 dBm) for GSM/E-GSM band
Class 1 (30 dBm) for DCS/PCS band
EDGE (8-PSK) Power Class
Class E2 (27 dBm) for GSM/E-GSM band
Class E2 (26 dBm) for DCS/PCS band
Data rate
LTE category 1:
up to 10.3 Mb/s DL, 5.2 Mb/s UL
Data rate
HSDPA category 8:
up to 7.2 Mb/s DL
HSUPA category 6:
up to 5.76 Mb/s UL
Data rate4
GPRS multi-slot class 125, CS1-CS4,
up to 85.6 kb/s DL/UL
EDGE multi-slot class 125, MCS1-MCS9,
up to 236.8 kb/s DL/UL
Table 2: TOBY-R2 series LTE and 3G characteristics
TOBY-R2 modules provide Voice over LTE (VoLTE) as well as Circuit-Switched-Fall-Back (CSFB) audio capability.
2 TOBY-R2 series modules support all the E-UTRA channel bandwidths for each operating band according to 3GPP TS 36.521-1 [11]:
Band 12: 1.4 MHz, 3 MHz, 5 MHz, 10 MHz
Band 5: 1.4 MHz, 3 MHz, 5 MHz, 10 MHz
Band 4: 1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 15 MHz, 20 MHz
Band 2: 1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 15 MHz, 20 MHz
3 LTE band 12 is a superset that includes band 17
4 GPRS/EDGE multi-slot class determines the number of timeslots available for upload and download and thus the speed at which data can
be transmitted and received, with higher classes typically allowing faster data transfer rates.
5 GPRS/EDGE multi-slot class 12 implies a maximum of 4 slots in DL (reception) and 4 slots in UL (transmission) with 5 slots in total.
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Functional description
Page 8 of 41
1.5 AT command support
The TOBY-R2 series modules support AT commands according to 3GPP standards TS 27.007 [8], TS 27.005 [9]
and the u-blox AT command extension.
For the complete list of all supported AT commands and their syntax, see the u-blox AT Commands
Manual [1].
RIL (Radio Interface Layer) software for Android and Embedded Windows is available for TOBY-R2 series modules
free of charge; see the Android RIL Production delivery [3] and Windows Embedded RIL Production delivery [4]
application notes for the supported software deliveries and more information.
1.6 Supported features
Table 3 lists some of the main features supported by TOBY-R2 modules. For more details see TOBY-R2 series
System Integration Manual [2] and u-blox AT Commands Manual [1].
Feature
Description

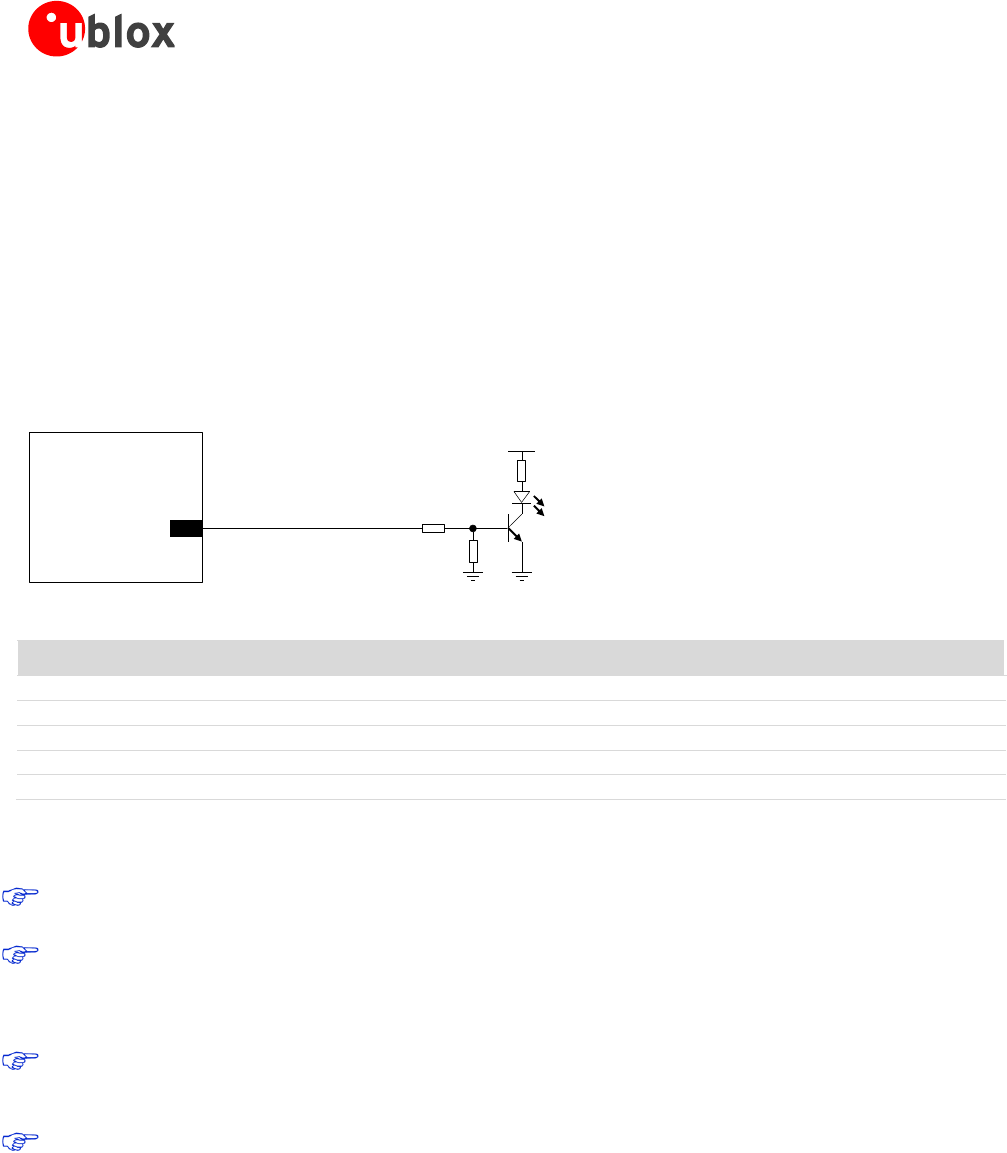

Network Indication
GPIO configured to indicate the network status: registered home network, registered roaming, voice or data call
enabled, no service. The feature can be enabled through the +UGPIOC AT command.
Antenna Detection
The ANT_DET pin provides antenna presence detection capability, evaluating the resistance from ANT1 and ANT2
pins to GND by means of an external antenna detection circuit implemented on the application board.
The antenna detection feature can be enabled through the +UANTR AT command.
Jamming detection6
Detects “artificial” interference that obscures the operator’s carriers entitled to give access to the radio service and
reports the start and stop of such conditions to the application processor that can react accordingly.
Embedded TCP and UDP
stack
Embedded TCP/IP and UDP/IP stack including direct link mode for TCP and UDP sockets.
Sockets can be set in Direct Link mode to establish a transparent end to end communication with an already
connected TCP or UDP socket via serial interface.
FTP, FTPS
File Transfer Protocol as well as Secure File Transfer Protocol (SSL encryption of FTP control channel) functionalities
are supported via AT commands.
HTTP, HTTPS
Hyper-Text Transfer Protocol as well as Secure Hyper-Text Transfer Protocol (SSL encryption) functionalities are
supported via AT commands. HEAD, GET, POST, DELETE and PUT operations are available.
Embedded TLS 1.2
With the support of X.509 certificates, Embedded TLS 1.2 provides server and client authentication, data
encryption, data signature and enables TCP/IP applications like HTTPS and FTPS to communicate over a secured and
trusted connection.
The feature can be configured and enabled by +USECMNG and +USECPRF AT commands.
DNS
Support for DNS functionality.
IPv4/IPv6 dual-stack
Capability to move between IPv4 and dual stack network infrastructures. IPv4 and IPv6 addresses can be used.
BIP
Bearer Independent Protocol for Over-the-Air SIM provisioning. The data transfer to/from the SIM uses either an
already active PDP context or a new PDP context established with the APN provided by the SIM card.
Multiple PDP contexts
Up to 8 PDP contexts can be activated, and multi secondary PDP contexts be associated to a primary PDP context
VoLTE and CSFB
Voice over LTE (VoLTE) feature allows voice service over LTE bearer, via embedded IP Multimedia Subsystem (IMS)
Circuit Switched Fall-Back (CSFB) feature allows voice service over circuit switched infrastructure (3G/2G)
Firmware update Over
AT commands (FOAT)
Firmware module update Over AT command interfaces.
The feature can be enabled and configured through the +UFWUPD AT command.
Firmware update Over
The Air (FOTA)
Embedded FOTA client to enable the Firmware module update over the cellular air interface.
The feature can be enabled and configured through the +UFWINSTALL AT command.
6 Not supported by “02” product versions.
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Functional description
Page 9 of 41
Feature
Description
LTE Rx Diversity
Improved cellular link quality and reliability on all operating bands, by means of 2 receiving antenna inputs.
GNSS via modem7
Full access to u-blox positioning chips and modules is available through a dedicated DDC (I2C) interface. This means
that from any host processor a single serial port can control the cellular module and the positioning chip or module.
For more details see the GNSS Implementation Application Note [5].
Embedded AssistNow
Software7
Embedded AssistNow Online and AssistNow Offline clients are available to provide better GNSS performance and
faster Time-to-First-Fix. An AT command can enable / disable the clients.

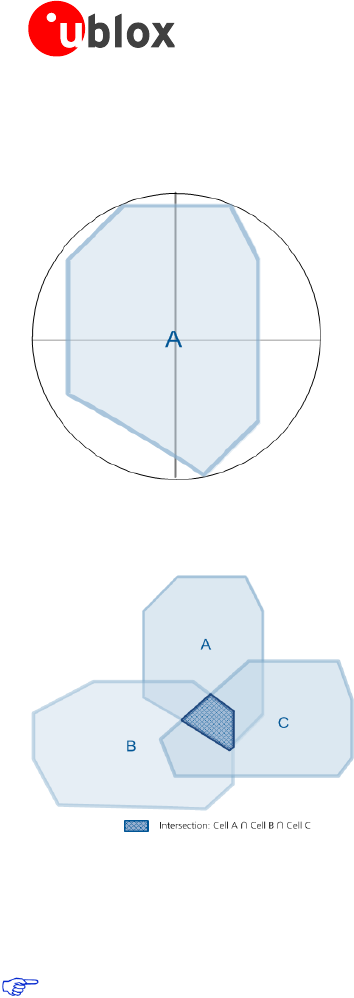

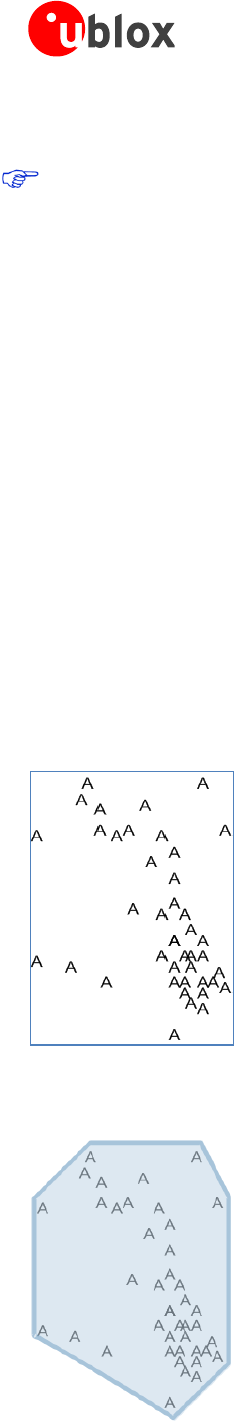

CellLocate®7
Enables the estimation of device position based on the parameters of the mobile network cells visible to the specific
device based on the CellLocate® database:
Normal scan: only the parameters of the visible home network cells are sent
Deep scan: the parameters of all surrounding cells of all mobile operators are sent
CellLocate® is available via a set of AT commands for CellLocate® service configuration and position request.
Hybrid Positioning7
The current module position is provided by a u-blox positioning chip or module or the estimated position from
CellLocate® depending on which method provides the best and fastest solution according to the user configuration.
Hybrid positioning is available via a set of AT commands that allow the configuration and the position request.
Wi-Fi via modem7
Full access to Wi-Fi modules is available through a dedicated SDIO interface. This means that from any host
processor a single serial port can control the cellular module and the short range communication module.
Smart Temperature
Supervisor
Constant monitoring of the module board temperature:
Warning notification when the temperature approaches an upper or lower predefined threshold
Shutdown notified and forced when the temperature value is outside the specified range (shutdown
suspended in case of an emergency call in progress)
The Smart Temperature Supervisor feature can be enabled and configured through the +USTS AT command.
The sensor measures board temperature, which can differ from ambient temperature.
Power saving
The power saving configuration is by default disabled, but it can be enabled and configured using the +UPSV AT
command. When the power saving is enabled, the module automatically enters the low power idle-mode whenever
possible, reducing current consumption.
During idle-mode, the module processor core runs with the RTC 32 kHz reference clock, which is generated by the
internal 32 kHz oscillator.
Fast Dormancy
The Fast Dormancy feature, defined in 3GPP Rel.8, allows reduction of current consumption and network utilization
during periods of data inactivity. It can be activated and configured by +UFDAC and +UDCONF=61 AT commands.
LTE cDRX
Both the Long DRX Cycle and the Short DRX cycle are supported for LTE Connected Discontinuous Reception,
allowing reduction of current consumption and LTE network utilization during periods of data inactivity
Power Saving Mode
(PSM) as specified in
3GPP Release 127
The Power Saving Mode (PSM) feature, defined in 3GPP Rel.12, allows further reduction of the module current
consumption by decreasing the signaling load between the module and the network on non-access stratum level
during periods of data inactivity. It can be activated and configured by dedicated AT commands.
Table 3: Some of the main features supported by TOBY-R2 series modules
u-blox is extremely mindful of user privacy. When a position is sent to the CellLocate® server u-blox is
unable to track the SIM used or the specific device.
7 Not supported by “02” product versions.
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Interfaces
Page 10 of 41
2 Interfaces
2.1 Power management

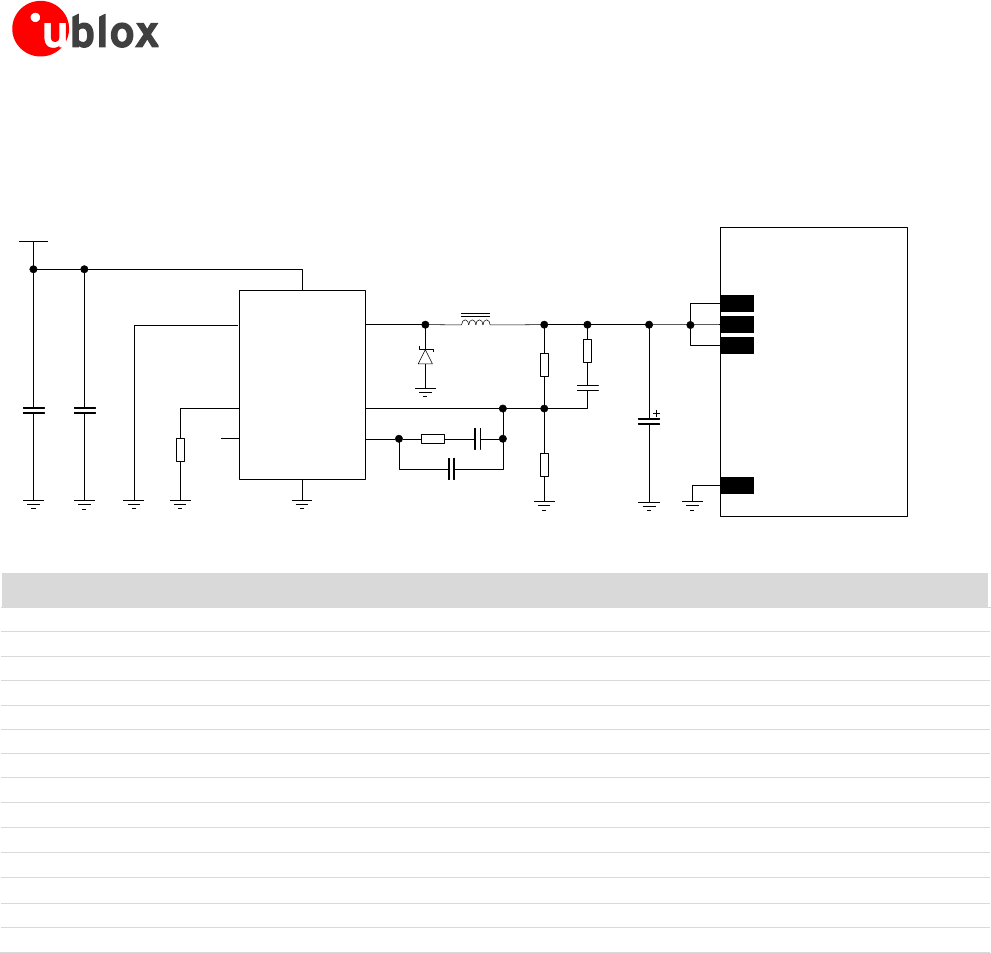

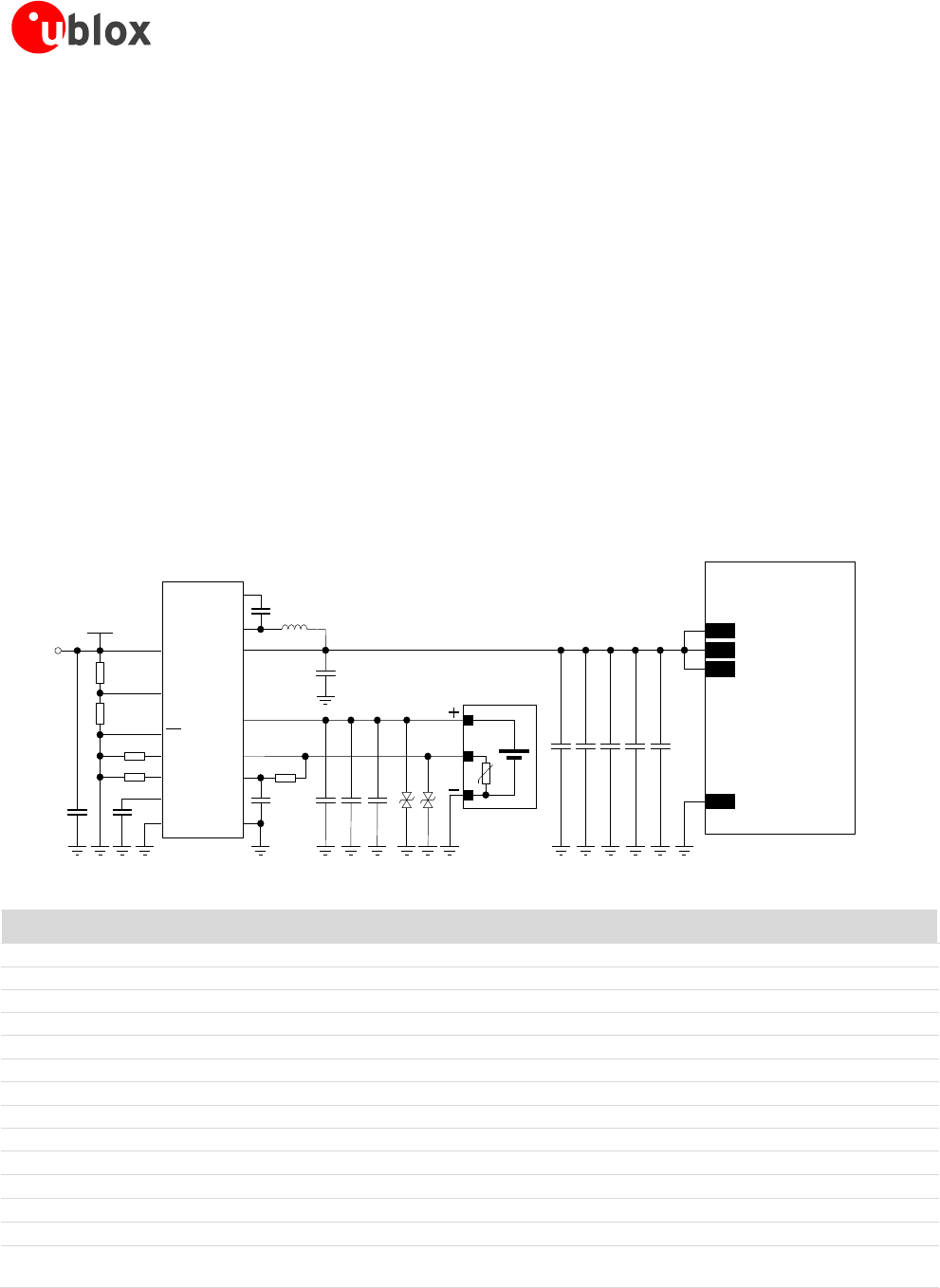

2.1.1 Module supply input (VCC)

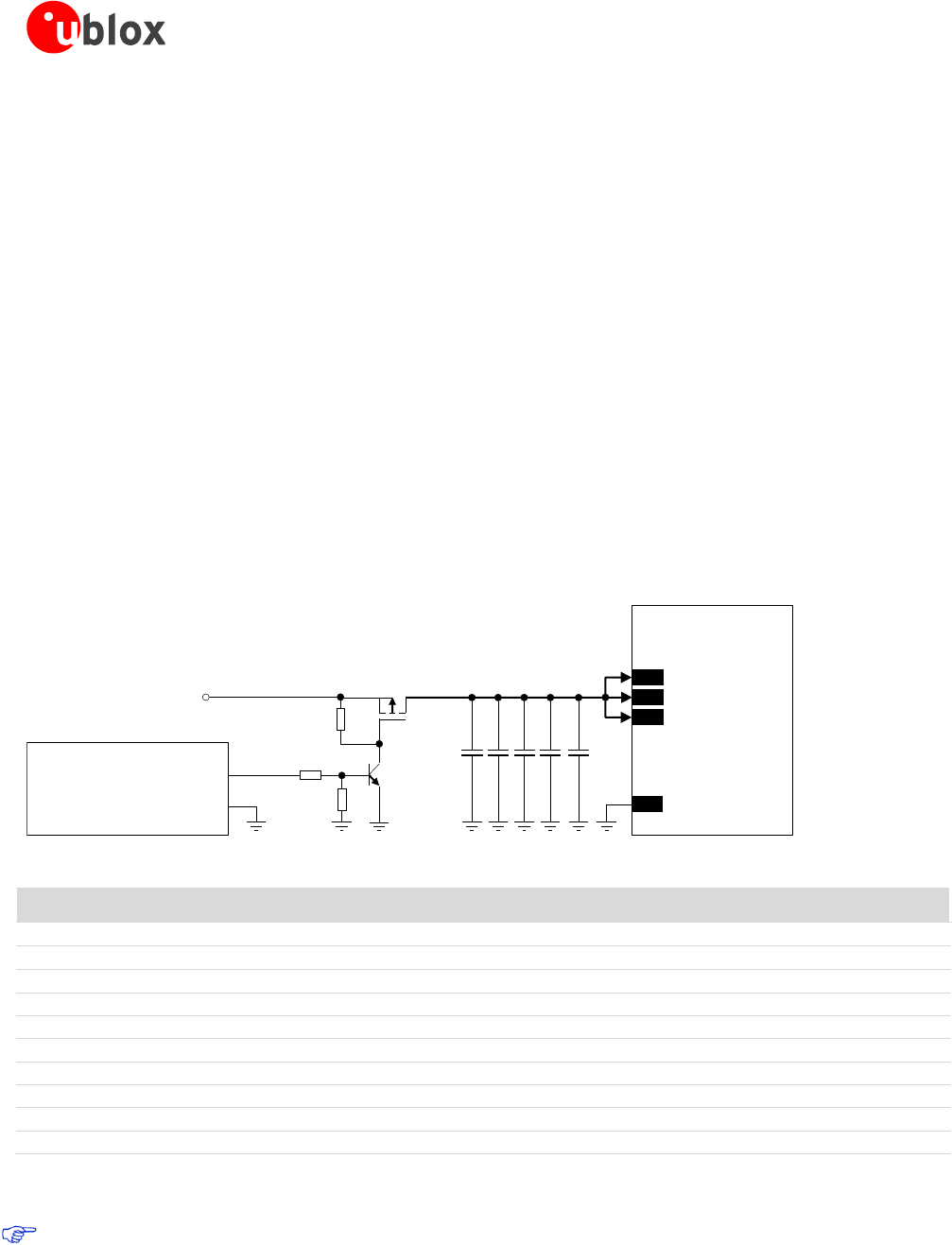

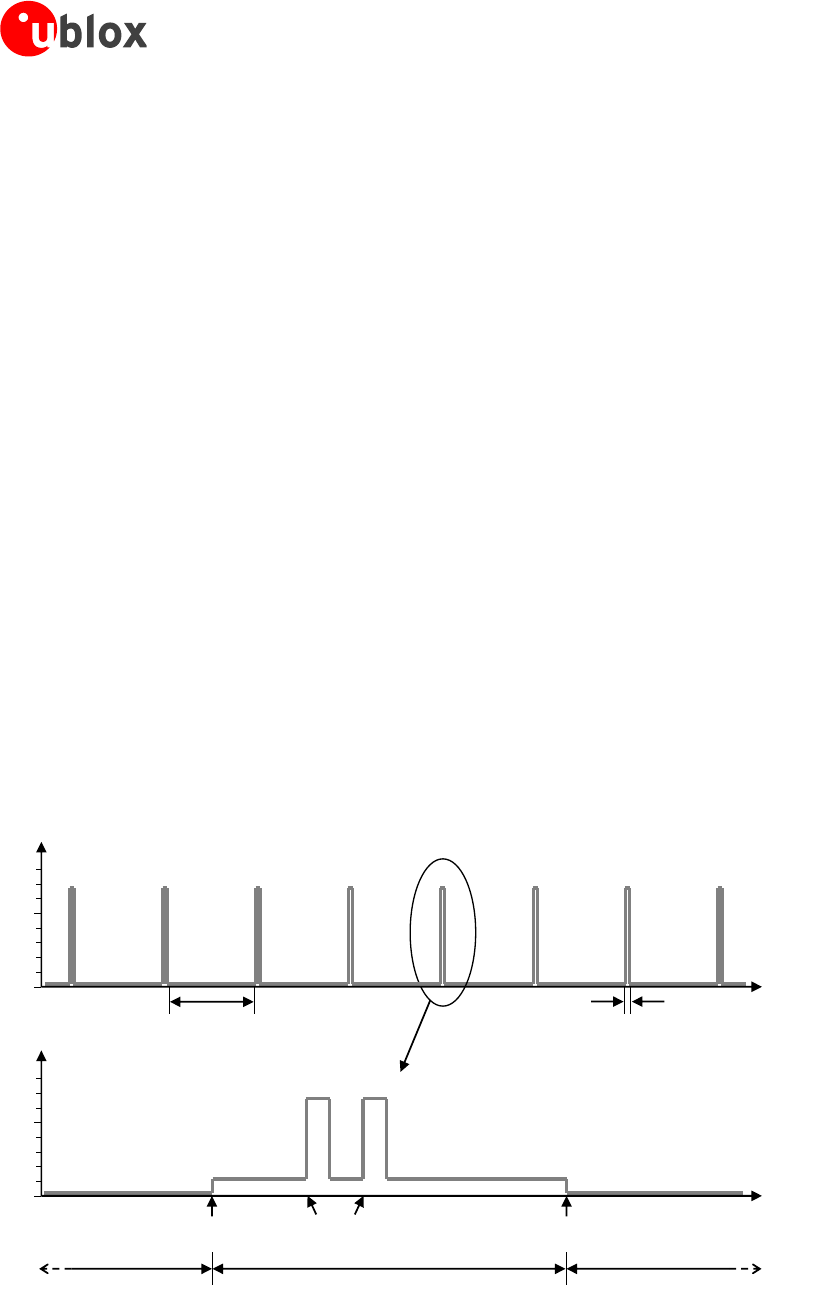

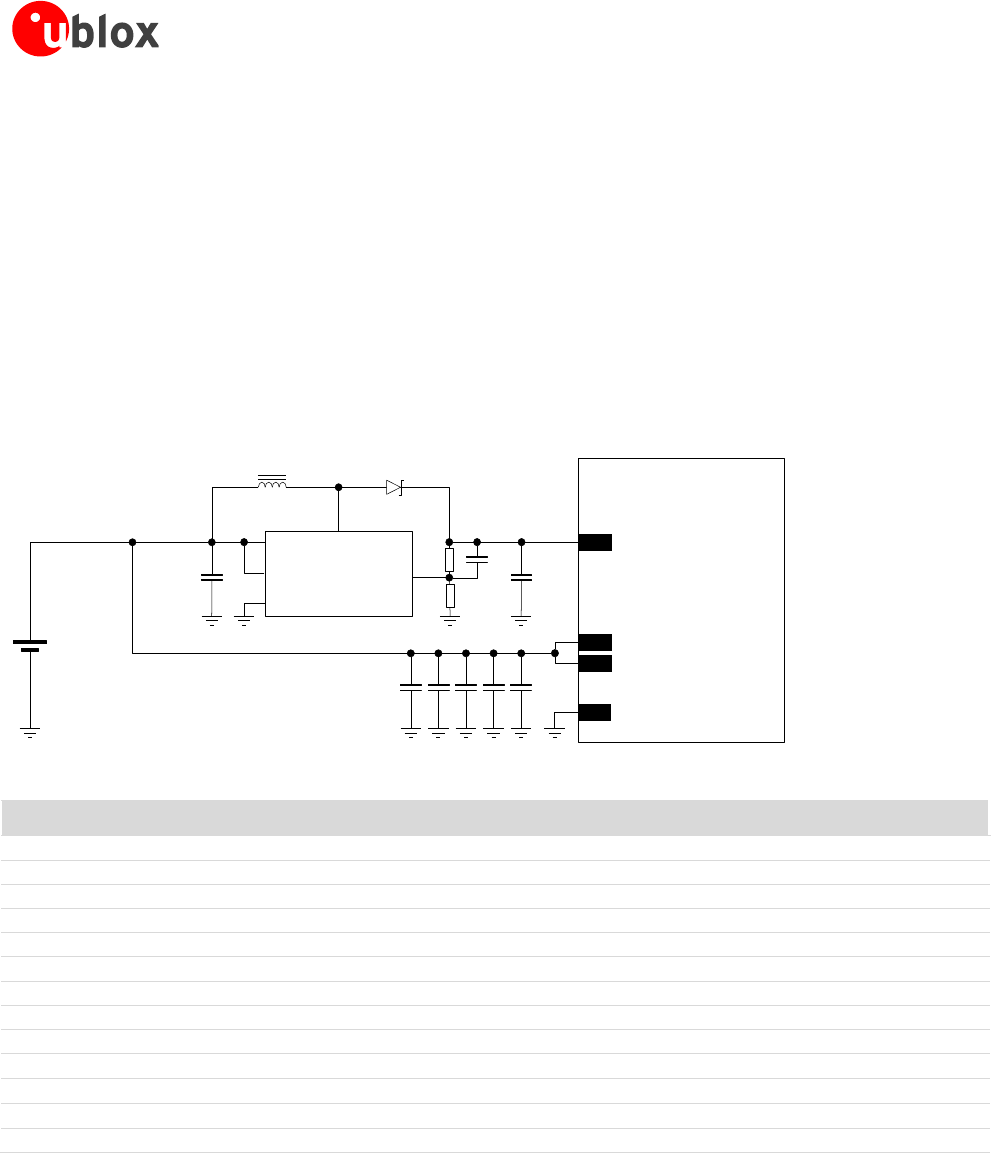

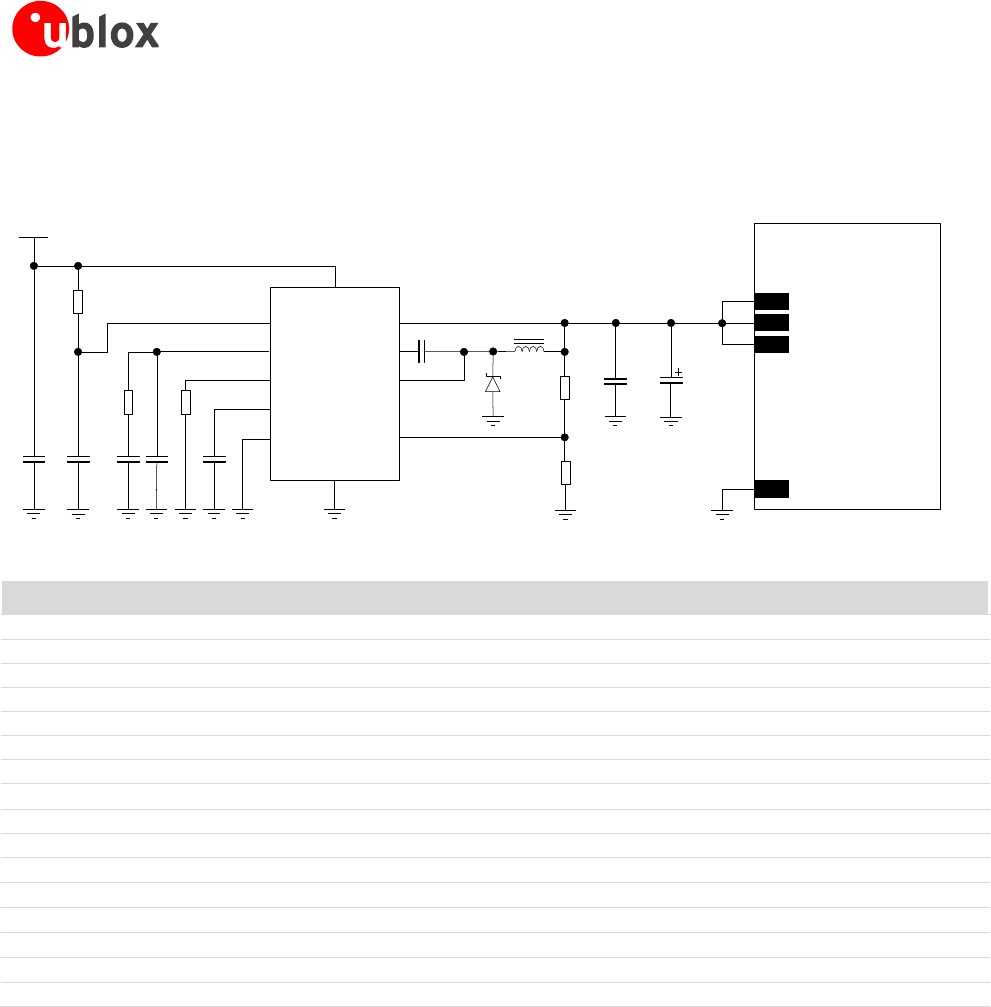

TOBY-R2 series modules must be supplied through the three VCC pins by a DC power supply. Voltage must be

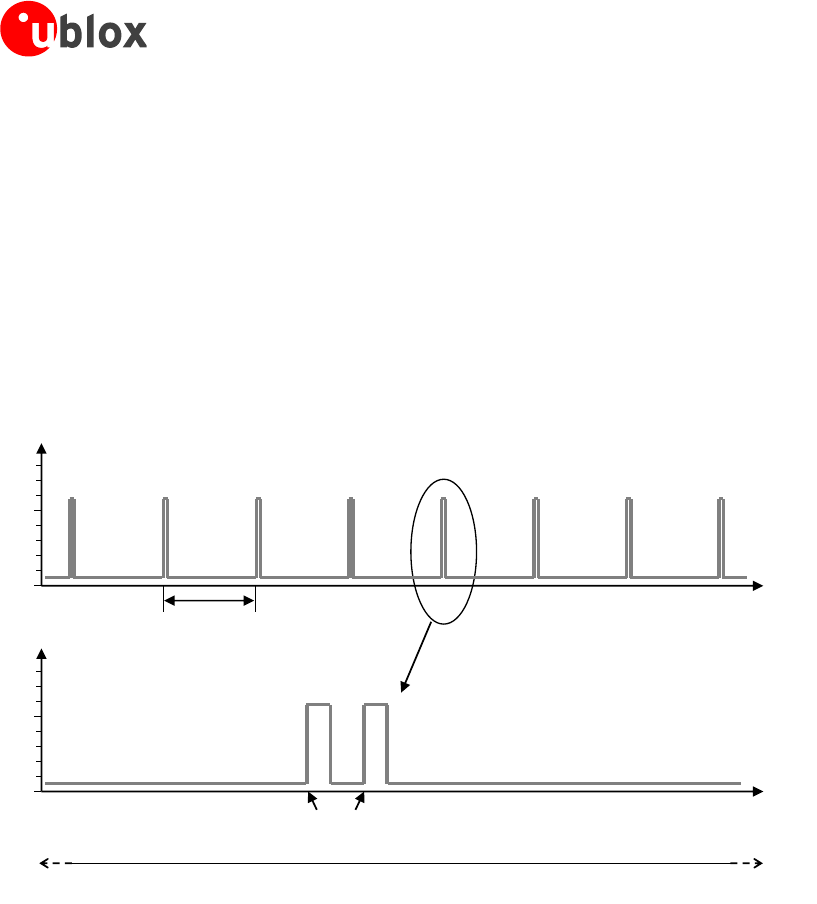

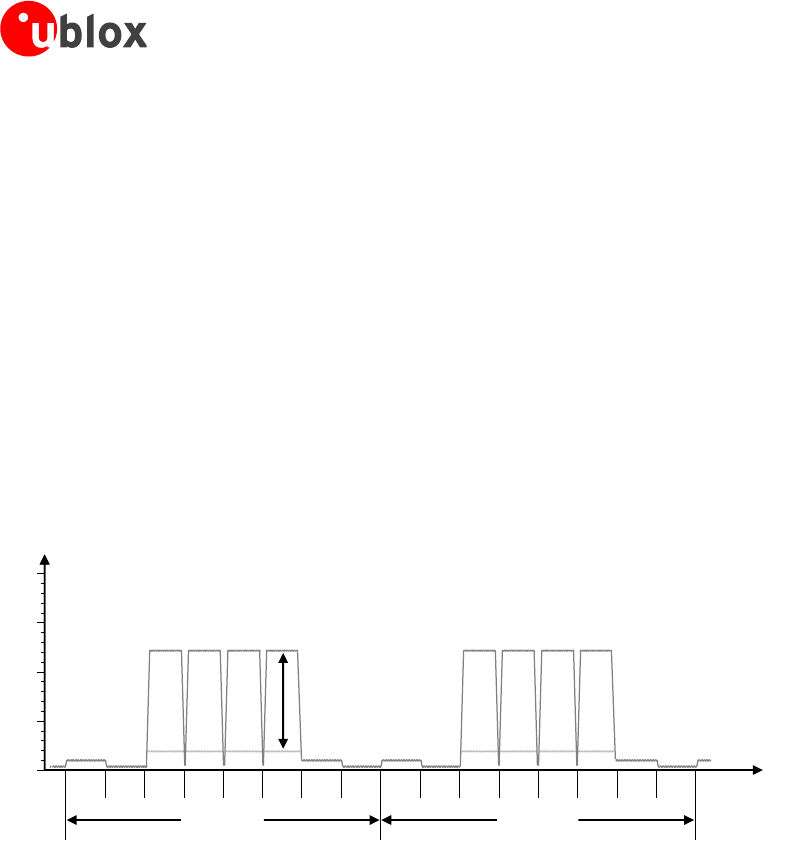

stable, because during operation the current drawn from VCC can vary by some order of magnitude, especially
due to the surging consumption profile of the GSM system (described in the TOBY-R2 series System Integration
Manual [2]). It is important that the system power supply circuit is able to support peak power.
TOBY-R200 modules provide separate supply inputs over the three VCC pins:
VCC pins #71 and #72 represent the supply input for the internal RF power amplifier, demanding most of
the total current drawn by the module when RF transmission is enabled during a voice/data call
VCC pin #70 represents the supply input for the internal baseband Power Management Unit and the internal
transceiver, demanding minor part of the total current drawn by the module when RF transmission is
enabled during a voice/data call

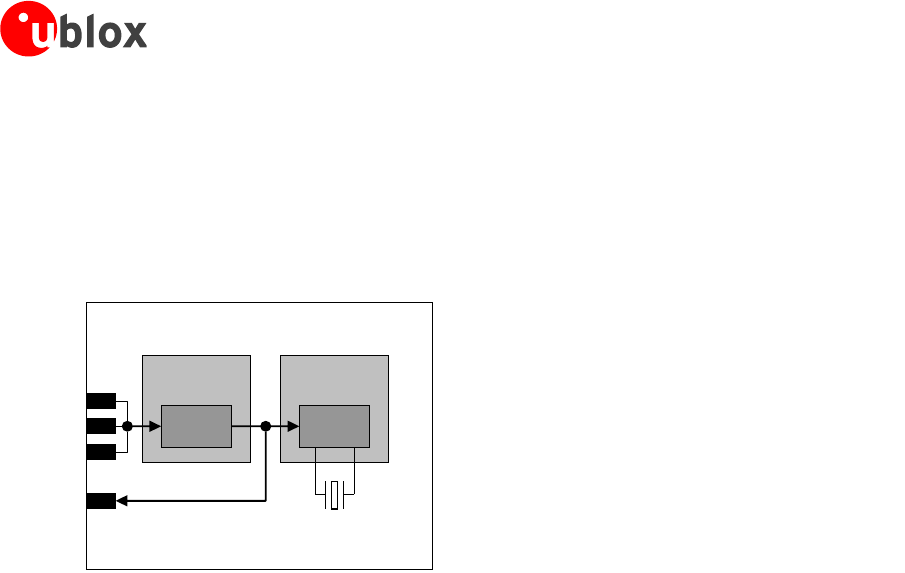

2.1.2 RTC supply input / output (V_BCKP)
When VCC voltage is within the valid operating range, the internal Power Management Unit (PMU) supplies the
Real Time Clock (RTC) and the same supply voltage is available on the V_BCKP pin. If the VCC voltage is under
the minimum operating limit (e.g. during not powered mode), the V_BCKP pin can externally supply the RTC.
2.1.3 Generic digital interfaces supply output (V_INT)
TOBY-R2 series modules provide a 1.8 V supply rail output on the V_INT pin, which is internally generated when
the module is switched on. The same voltage domain is used internally to supply the generic digital interfaces of
the modules. The V_INT supply output can be used in place of an external discrete regulator.
2.2 Antenna interfaces

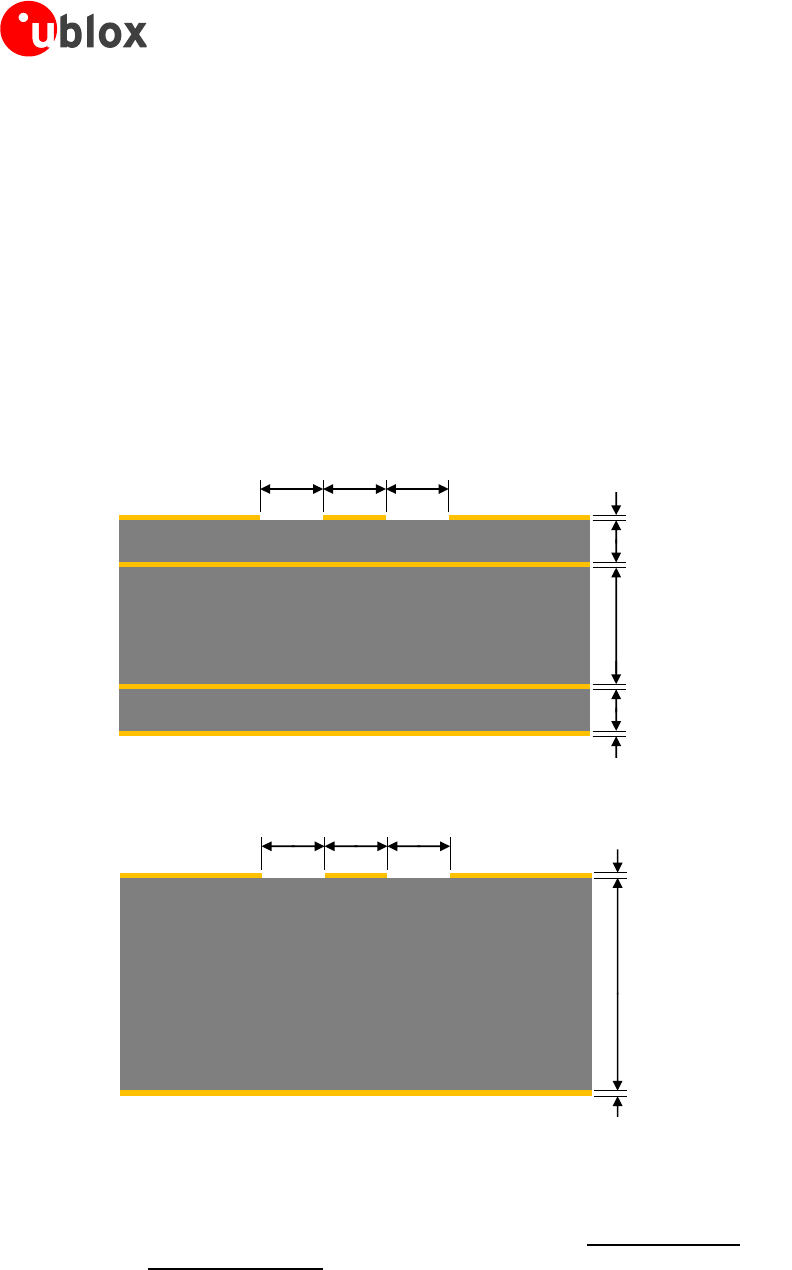

2.2.1 Antenna RF interfaces

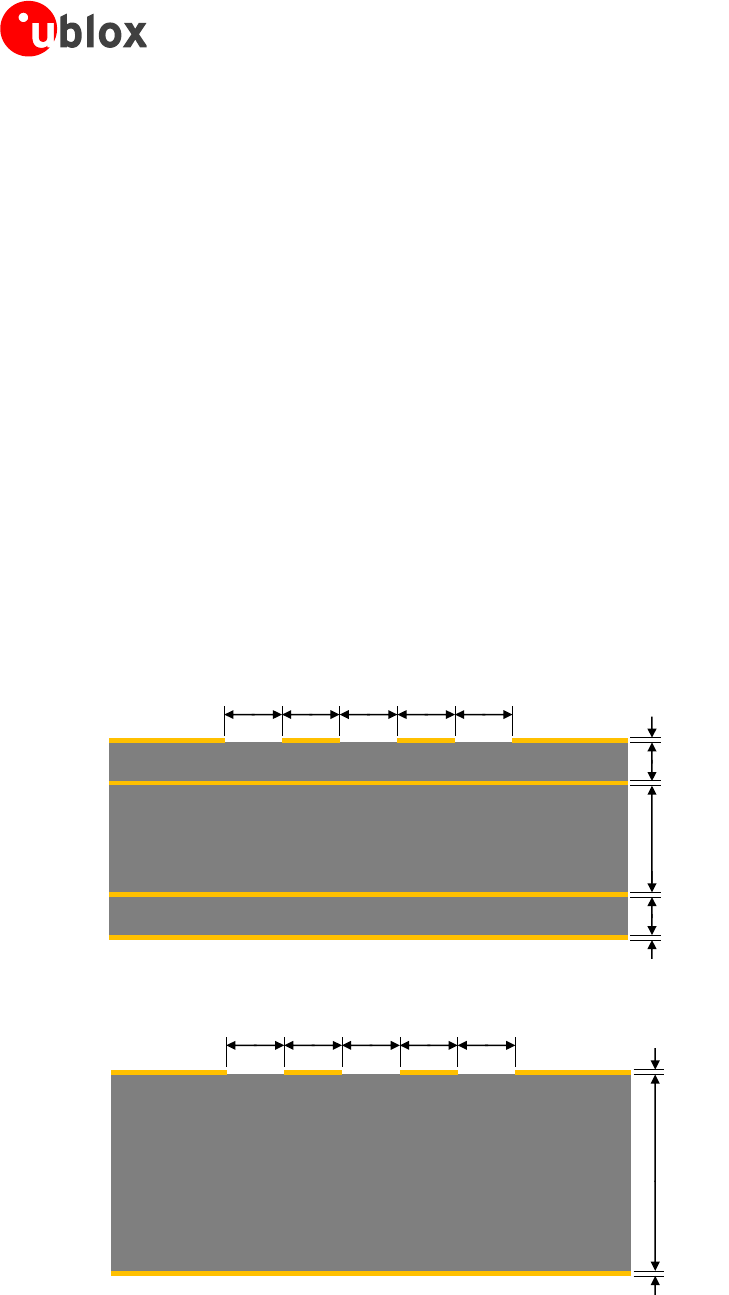

The modules have two RF pins with a characteristic impedance of 50 . The primary antenna pin (ANT1)
supports both Tx and Rx, providing the main antenna interface, while the secondary antenna pin (ANT2)
supports Rx only for the LTE Rx diversity configuration.

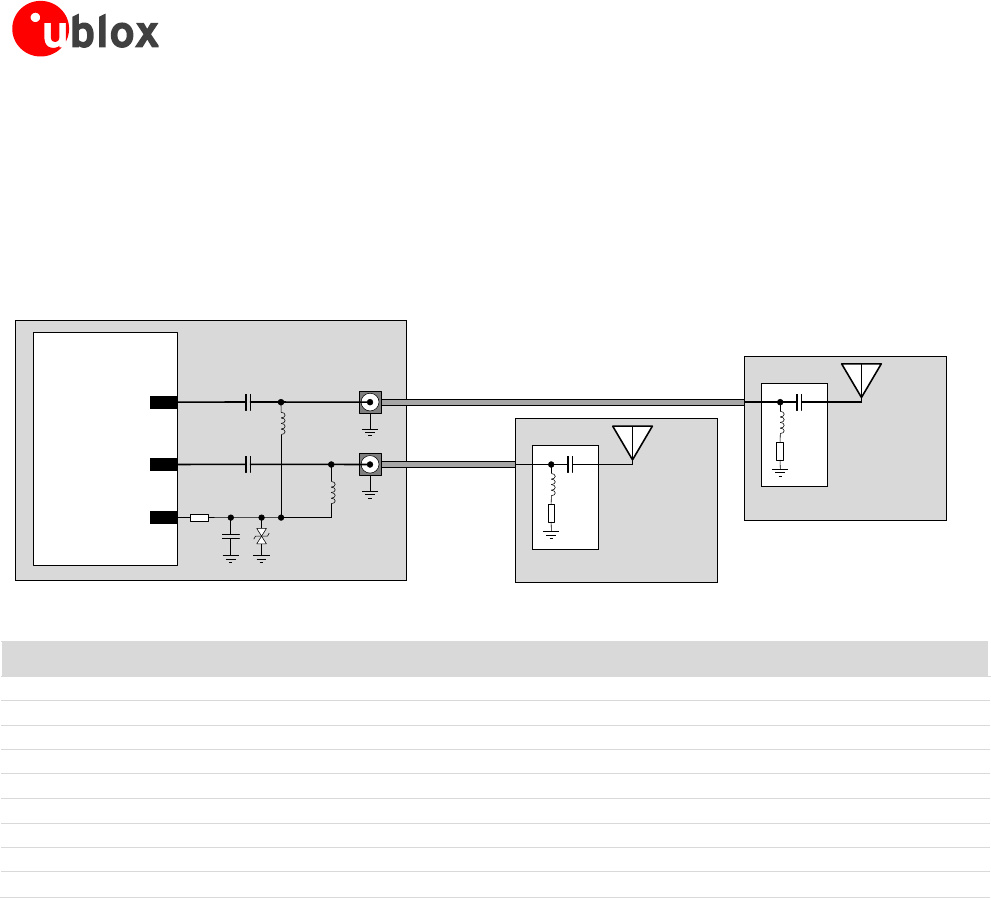

2.2.2 Antenna detection

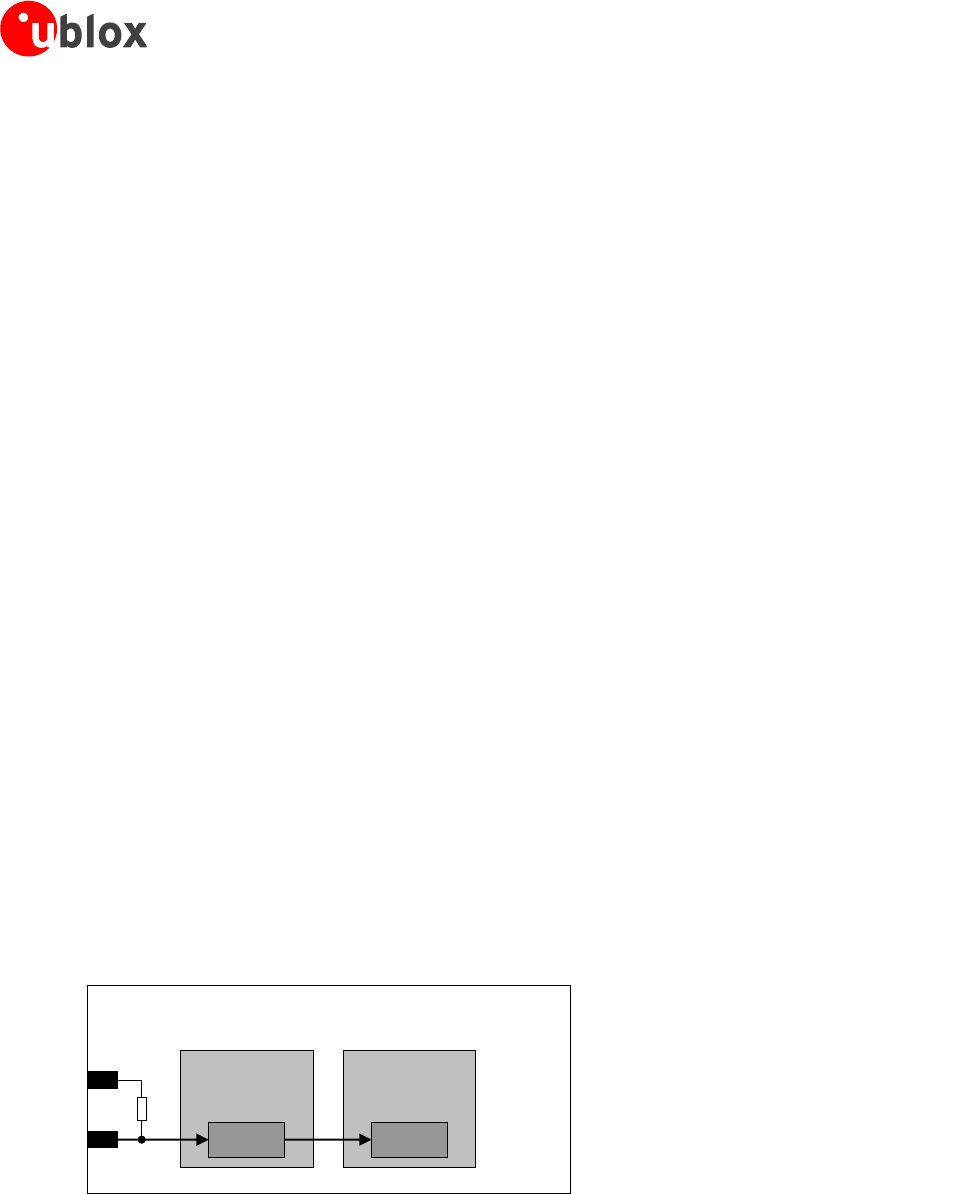

The ANT_DET pin is an Analog to Digital Converter (ADC) input with a current source provided by TOBY-R2
modules to sense the antenna presence (as an optional feature). It evaluates the resistance from ANT1 and
ANT2 pins to GND by means of an external antenna detection circuit implemented on the application board.
(For more details, see TOBY-R2 series System Integration Manual [2] and u-blox AT Commands Manual [1].)
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Interfaces
Page 11 of 41
2.3 System functions

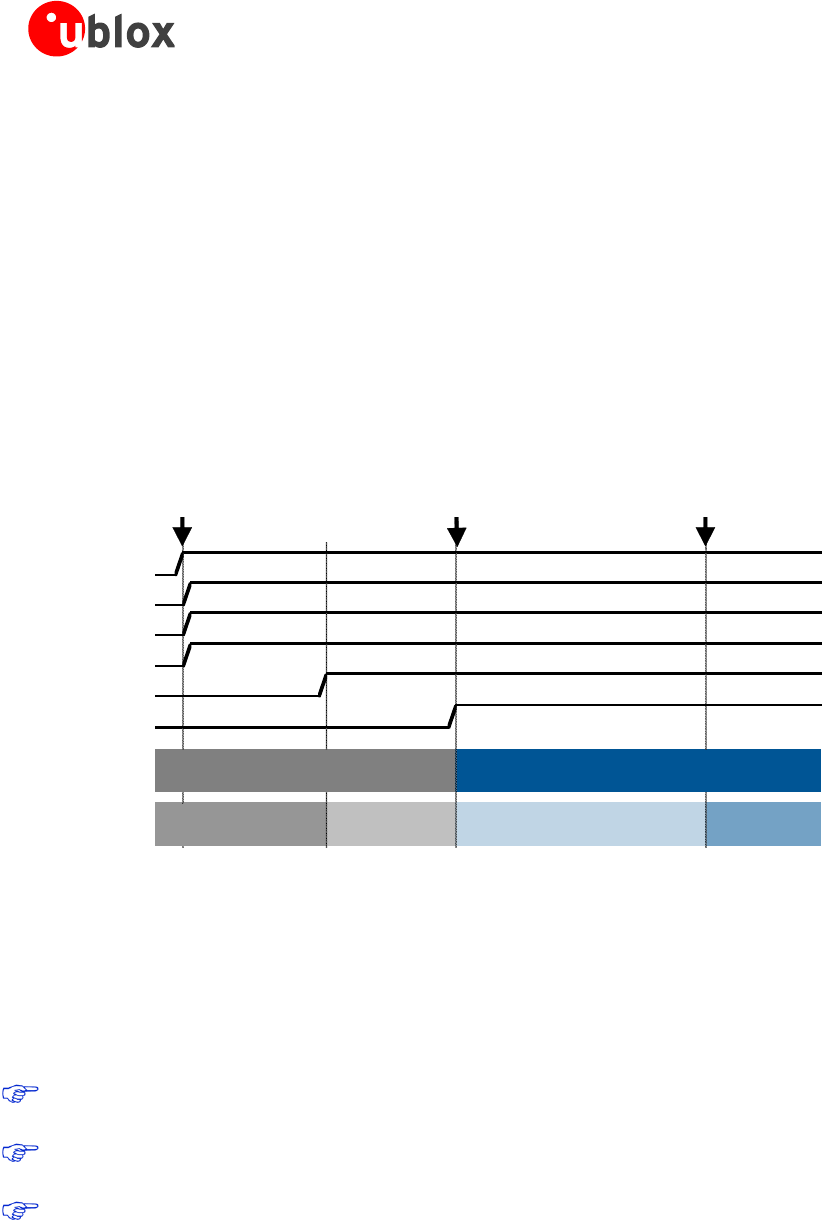

2.3.1 Module power-on
TOBY-R2 series can be switched on in one of the following ways:
Rising edge on the VCC pins to a valid voltage for module supply, i.e. applying module supply: the modules
switch on if the VCC supply is applied, starting from a voltage value of less than 2.1 V, with a rise time from
2.3 V to 2.8 V of less than 4 ms, reaching a proper nominal voltage value within VCC operating range.
Alternately, in case for example the fast rise time on VCC rising edge cannot be guaranteed by the application,
TOBY-R2 series modules can be switched on from not-powered mode as following:
RESET_N input pin is held low by the external application during the VCC rising edge, so that the modules
will switch on when the external application releases the RESET_N input pin from the low logic level after
the VCC supply voltage stabilizes at its proper nominal value within the operating range
PWR_ON input pin is held low by the external application during the VCC rising edge, so that the modules
will switch on when the external application releases the PWR_ON input pin from the low logic level after
the VCC supply voltage stabilizes at its proper nominal value within the operating range
When the TOBY-R2 series modules are in the power-off mode (i.e. properly switched off as described in section
2.3.2, with valid VCC module supply applied), they can be switched on as follows:
Low pulse on the PWR_ON pin, which is normally set high by an internal pull-up, for a valid time period (see
section 4.2.8). The PWR_ON line should be driven by open drain, open collector or contact switch.
Rising edge on the RESET_N pin, i.e. releasing the pin from the low level, normally set high by an internal
pull-up. The RESET_N line should be driven by open drain, open collector or contact switch.
RTC alarm, i.e. pre-programmed scheduled time by AT+CALA command.

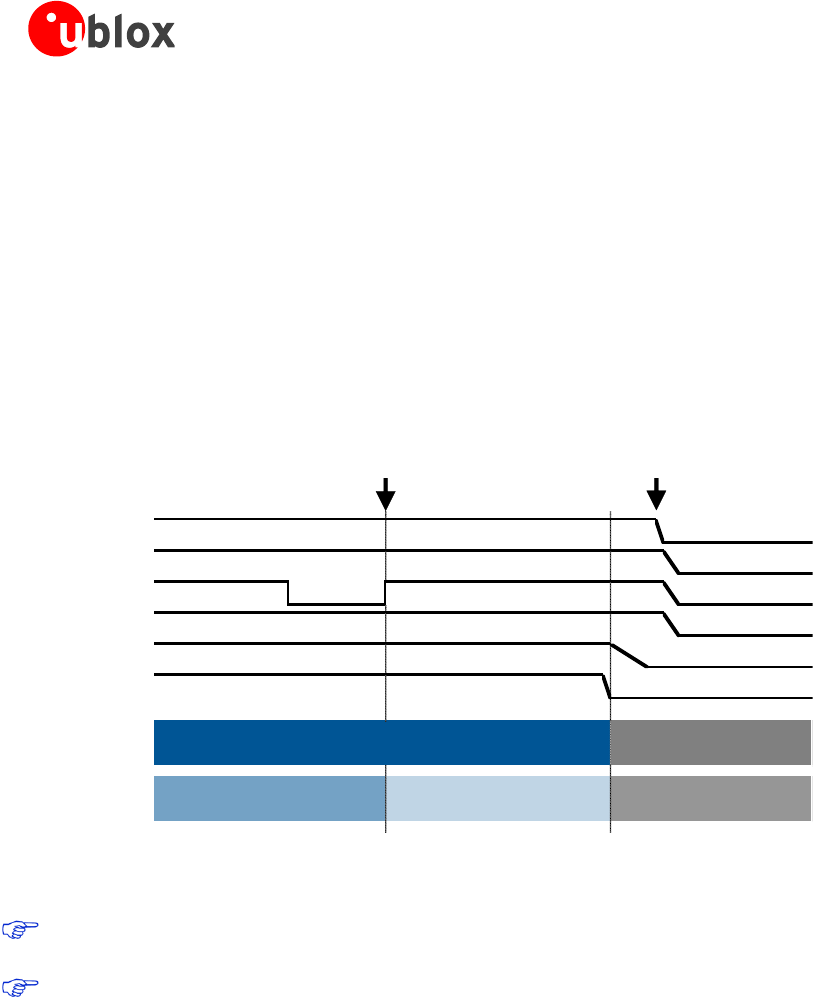

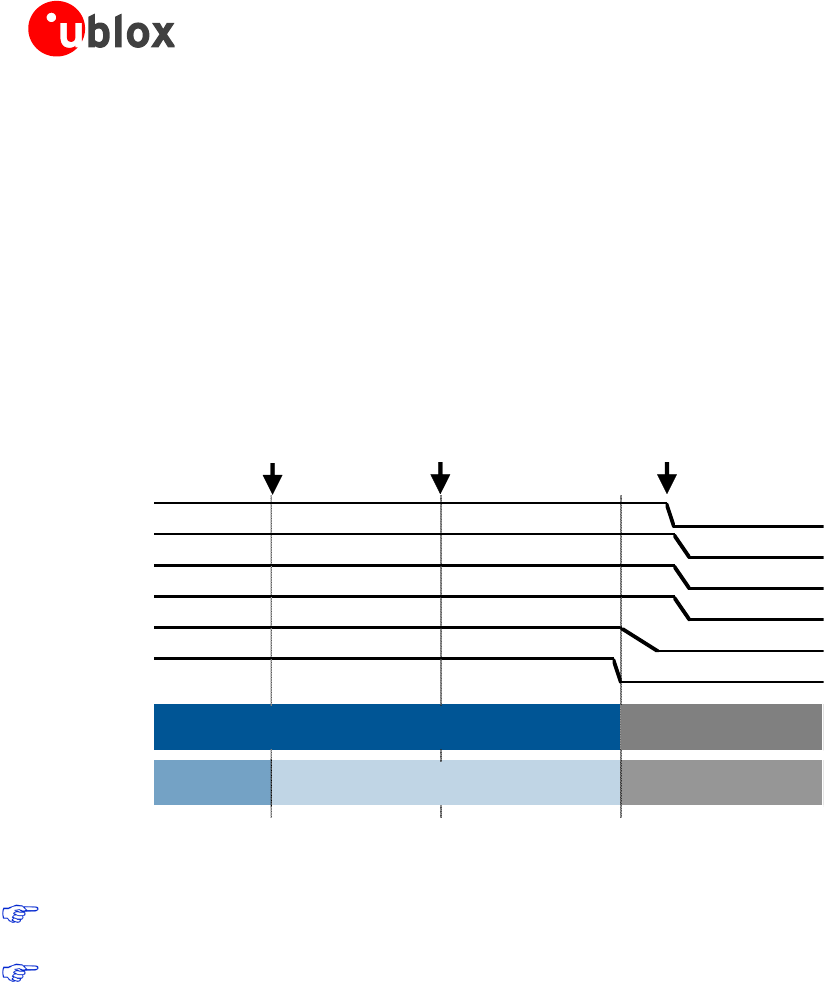

2.3.2 Module power-off
TOBY-R2 series can be properly switched off, saving current parameter settings in the module’s non-volatile
memory and performing a proper network detach, by:
AT+CPWROFF command (see the u-blox AT Commands Manual [1]).
Low pulse on the PWR_ON pin, which is normally set high by an internal pull-up, for a valid time period (see
section 4.2.8). The PWR_ON line should be driven by open drain, open collector or contact switch.
An abrupt under-voltage shutdown occurs on TOBY-R2 series modules when the VCC supply is removed. If this
occurs, it is not possible to store the current parameter settings in the module’s non-volatile memory and to
perform the proper network detach.
An abrupt shutdown occurs on TOBY-R2 series modules when a low level is applied on the RESET_N pin, which
is normally set high by an internal pull-up. If this occurs, it is not possible to store the current parameter settings
in the module’s non-volatile memory and to perform the proper network detach.
An over-temperature or an under-temperature shutdown occurs on TOBY-R2 modules when the temperature
measured within the cellular module reaches the dangerous area, if the optional Smart Temperature Supervisor
feature is enabled and configured by the dedicated AT command. For more details see the TOBY-R2 series
System Integration Manual [2] and the u-blox AT Commands Manual [1], +USTS AT command.
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Interfaces
Page 12 of 41
2.3.3 Module reset
TOBY-R2 series modules can be reset (rebooted) by:
AT+CFUN command (see the u-blox AT Commands Manual [1]). This causes an “internal” or “software”
reset of the module. The current parameter settings are saved in the module’s non-volatile memory and a
proper network detach is performed.

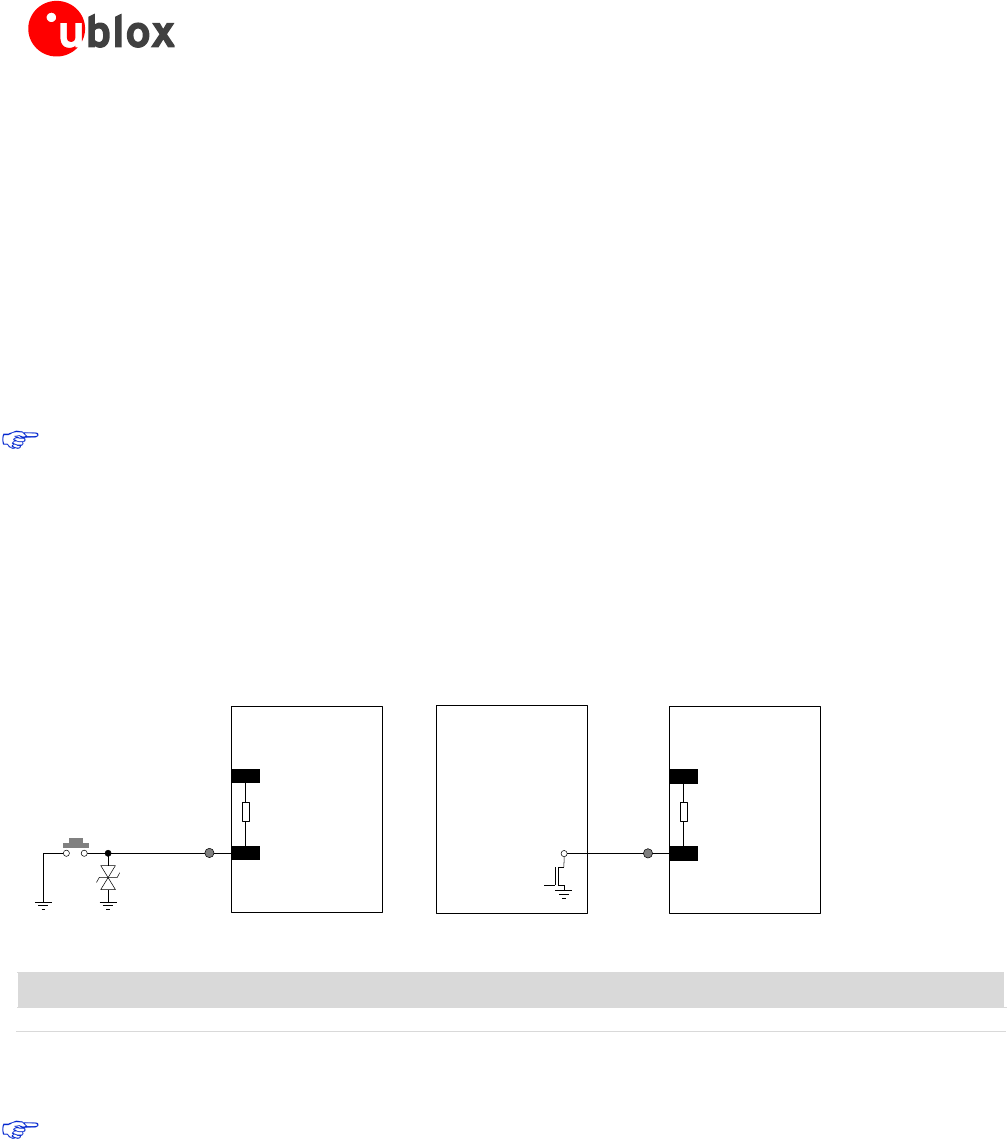

An abrupt “external” or “hardware” reset occurs when a low level is applied to the RESET_N pin, which is
normally set high by an internal pull-up, for a valid time period (see the section 4.2.9). This causes an “external”
or “hardware” reset of the entire module, including the integrated power management unit, except for the RTC
internal block: the V_INT generic digital interfaces supply is switched off and all the digital pins are tri-stated,
but the V_BCKP supply and the RTC block are enabled. The current parameter settings are not saved in the
module’s non-volatile memory and a proper network detach is not performed. The RESET_N line should be
driven by open drain, open collector or contact switch.
2.3.4 Module / host configuration selection
Selection of module / host configuration over HOST_SELECT0 and HOST_SELECT1 pins is not supported.
TOBY-R2 series modules include two pins (HOST_SELECT0, HOST_SELECT1) for the selection of the module /
host application processor configuration.
2.4 SIM

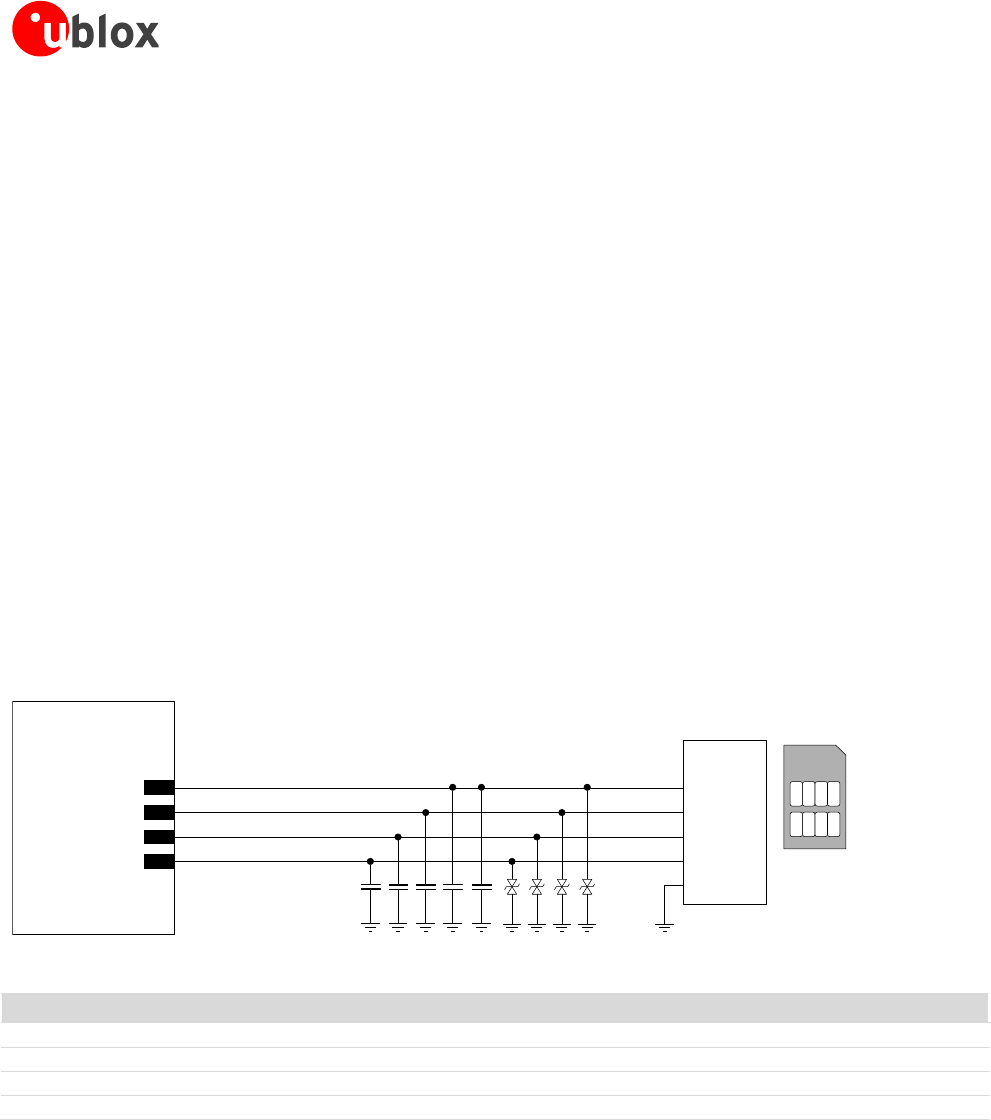

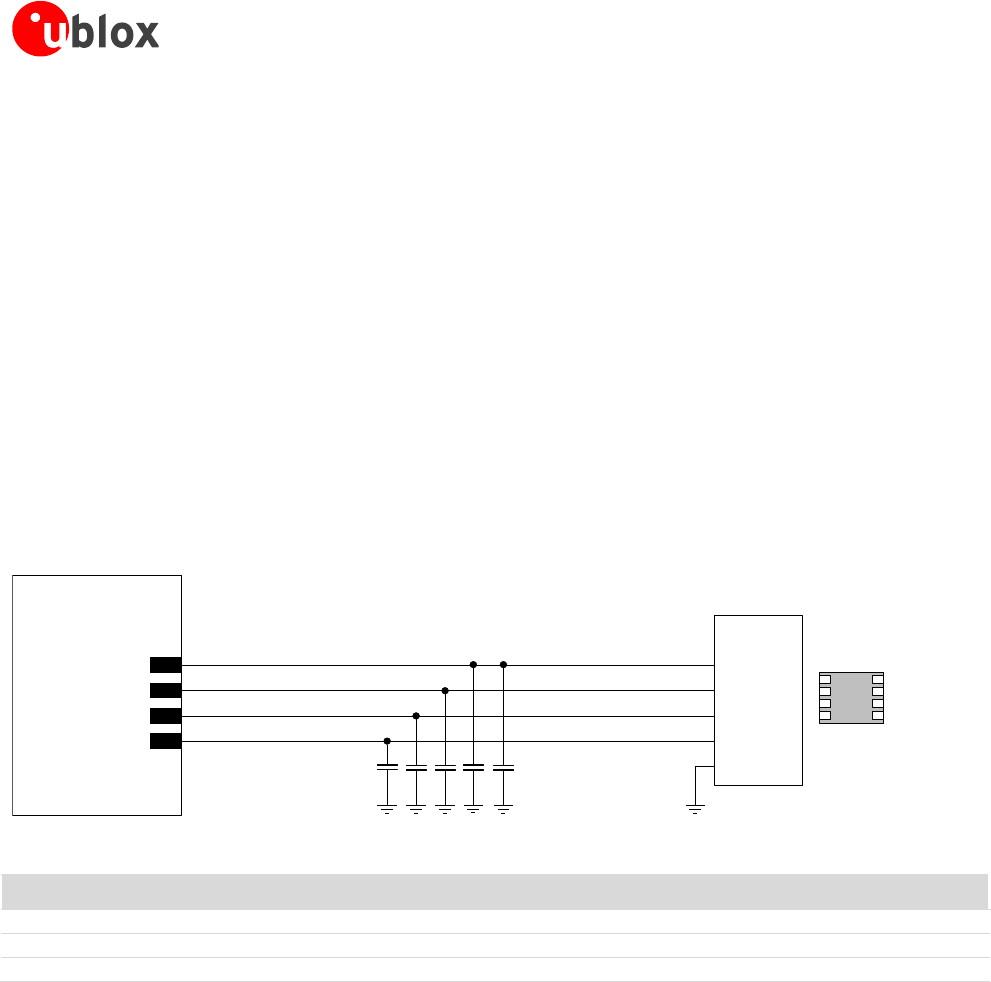

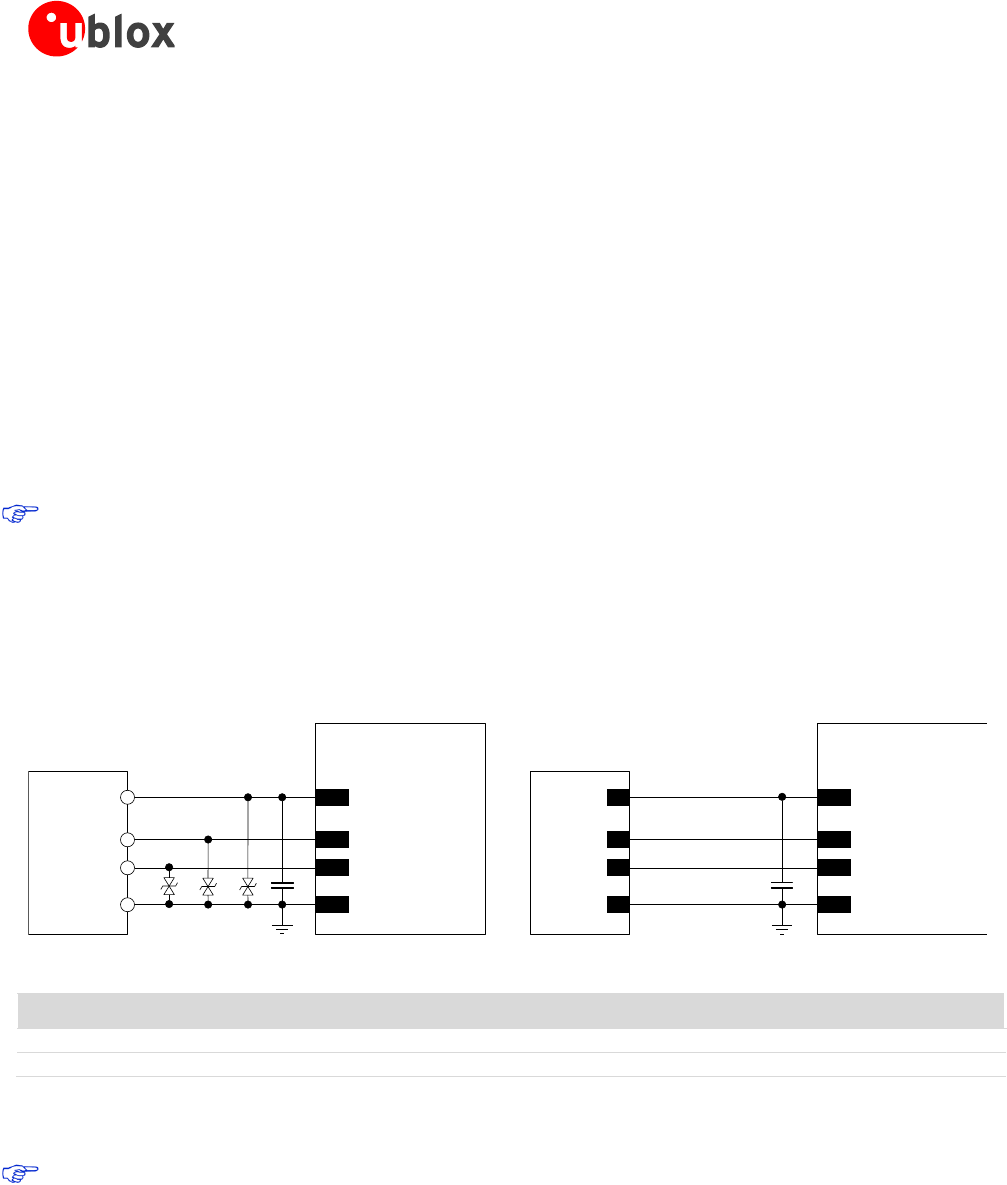

2.4.1 SIM interface

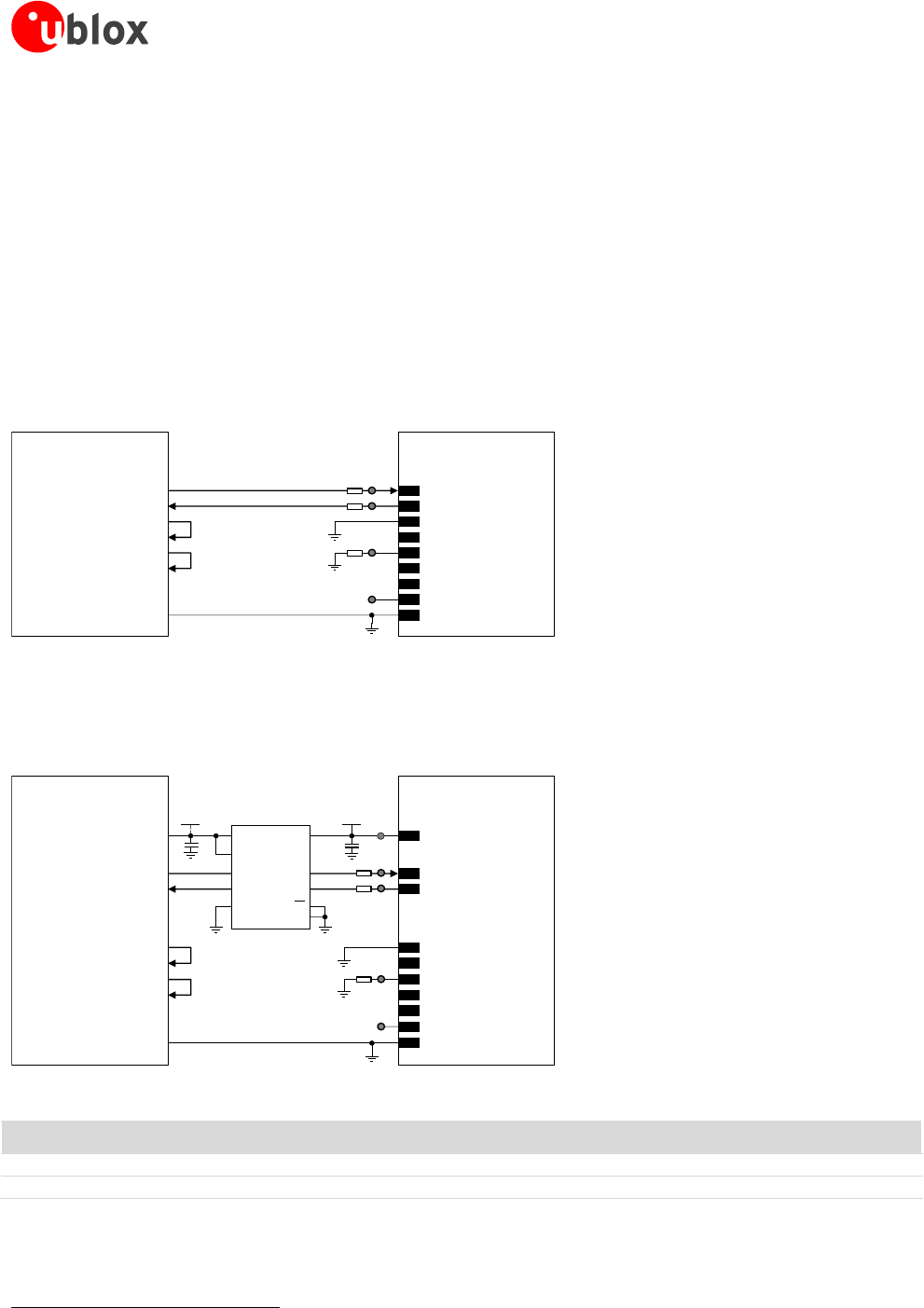

A SIM card interface is provided on the VSIM, SIM_IO, SIM_CLK, SIM_RST pins: the high-speed SIM/ME
interface is implemented as well as the automatic detection of the required SIM supporting voltage.
Both 1.8 V and 3 V SIM types are supported (1.8 V and 3 V ME). Activation and deactivation with automatic
voltage switch from 1.8 V to 3 V is implemented, according to ISO-IEC 7816-3 specifications. The SIM driver
supports the PPS procedure for baud-rate selection, according to the values proposed by the SIM card/chip.
2.4.2 SIM detection
TOBY-R2 series modules provide the SIM detection function over the GPIO5 pin to sense the SIM card physical
presence (as an optional feature) when the pin of the module is properly connected to the mechanical switch of
the SIM car holder (for more details see the TOBY-R2 series System Integration Manual [2]).
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Interfaces
Page 13 of 41
2.5 Serial communication
TOBY-R2 series provides the following serial communication interfaces:
UART interface: Universal Asynchronous Receiver/Transmitter serial interface available for the communication
with a host application processor (AT commands, data communication, FW update by means of FOAT), for
FW update by means of the u-blox EasyFlash tool and for diagnostic.
USB interface: Universal Serial Bus 2.0 compliant interface available for the communication with a host
application processor (AT commands, data communication, FW update by means of the FOAT feature), for
FW update by means of the u-blox EasyFlash tool and for diagnostic.
DDC interface: I2C bus compatible interface available for the communication with u-blox GNSS positioning
chips/modules and with external I2C devices as an audio codec.
SDIO interface: Secure Digital Input Output interface available for the communication with compatible
u-blox short range radio communication Wi-Fi modules.

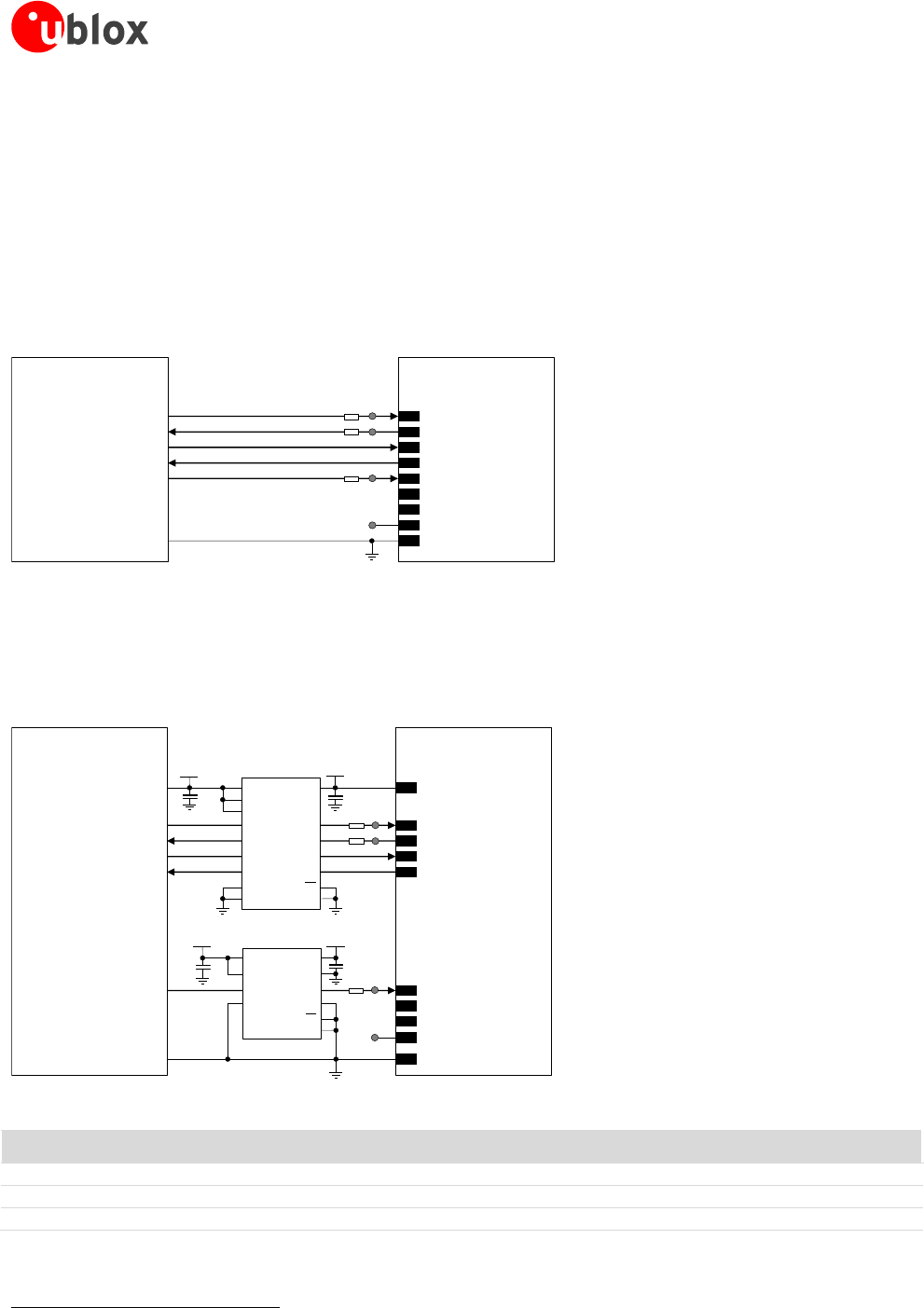

2.5.1 UART interface
TOBY-R2 series modules include a 9-wire unbalanced Universal Asynchronous Receiver/Transmitter serial
interface (UART) for communication with an application host processor (AT commands, data communication, FW
update by means of the FOAT feature), for FW update by means of the u-blox EasyFlash tool and for diagnostic.
UART features are:
Complete serial port with RS-232 functionality conforming to the ITU-T V.24 Recommendation [14], with
CMOS compatible signal levels (0 V for low data bit or ON state and 1.8 V for high data bit or OFF state)
Data lines (RXD as output, TXD as input), hardware flow control lines (CTS as output, RTS as input), modem
status and control lines (DTR as input, DSR as output, DCD as output, RI as output) are provided
Hardware flow control (default value), software flow control, or none flow control are supported
Power saving indication available on the hardware flow control output (CTS line): the line is driven to the
OFF state when the module is not prepared to accept data by the UART interface
Power saving control over the RTS input or the DTR input can be enabled via AT+UPSV command (for more
details see u-blox AT Commands Manual [1] and TOBY-R2 series System Integration Manual [2])
The following baud rates are supported: 9600, 19200, 38400, 57600, 115200 (default baud rate when
autobauding is disabled), 230400, 460800, 921600, 3000000, 3250000, 6000000 and 6500000 b/s
One-shot autobauding is supported and it is by default enabled: automatic baud rate detection is performed
only once, at module start up. After the detection, the module works at the fixed baud rate (the detected
one) and the baud rate can only be changed via AT command (see u-blox AT Commands Manual [1], +IPR).
The following frame format are supported: 8N2, 8N1 (default format when automatic frame recognition is
disabled), 8E1, 8O1, 7E1 and 7O1
One-shot automatic frame recognition is supported and it is by default enabled in conjunction with
automatic baud rate detection (autobauding): the detection is performed only once, at module start up.
After the detection, the module works at the detected frame format and it can only be changed via AT
command (see u-blox AT Commands Manual [1], +ICF).
UART serial interface can be conveniently configured through AT commands: see the u-blox AT Commands
Manual [1] (+IPR, +ICF, +IFC, &K, \Q, +UPSV AT commands) and TOBY-R2 series System Integration Manual [2].
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Interfaces
Page 14 of 41
2.5.1.1 Multiplexer protocol
TOBY-R2 series modules include multiplexer functionality as per 3GPP TS 27.010 [10] on the UART physical link.
This is a data link protocol which uses HDLC-like framing and operates between the module (DCE) and the
application processor (DTE), allowing a number of simultaneous sessions over the physical link (UART): the user
can concurrently use AT interface on one MUX channel and data communication on another MUX channel.
The following virtual channels are available (for more details, see the Mux Implementation Application Note [6]):
Channel 0: Multiplexer control
Channel 1 – 5: AT commands / data connection
Channel 6: GNSS data tunneling
The GNSS data tunnelling channel is not supported by “02” product versions.
2.5.2 USB interface
TOBY-R2 series modules include a USB High-Speed 2.0 compliant interface with maximum 480 Mb/s data rate
according to the Universal Serial Bus Specification Revision 2.0 [15]. The module itself acts as a USB device and
can be connected to any compatible USB host.
The USB interface is available for the communication with a host application processor (AT commands, data
communication, FW update by means of the FOAT feature), for FW update by means of the u-blox EasyFlash
tool and for diagnostics.
The USB_D+ / USB_D- lines carry the USB data and signaling. The USB interface is automatically enabled by an
external valid USB VBUS supply voltage (5.0 V typical) applied on the VUSB_DET pin.
The USB interface of TOBY-R2 series modules makes available different USB functions with various capabilities
and purposes, such as:
CDC-ACM for AT commands and data communication
CDC-ACM for GNSS tunneling
CDC-ACM for SAP (SIM Access Profile)
CDC-ACM for Diagnostic log
CDC-NCM for Ethernet-over-USB
CDC-ACM for GNSS tunneling, CDC-ACM for SAP, and CDC-NCM for Ethernet-over-USB are not
supported by “02” product versions.
The USB interface provides the following set of USB functions:
6 CDC-ACM modem COM ports enumerated as follows:
o USB1: AT and data
o USB2: AT and data
o USB3: AT and data
o USB4: GNSS tunneling
o USB5: SAP (SIM Access Profile)
o USB6: Primary Log (diagnostic purpose)
The user can concurrently use the AT command interface on one CDC, and Packet-Switched / Circuit-Switched
Data communication on another CDC.
For more details regarding USB capabilities, see the TOBY-R2 series System Integration Manual [2].
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Interfaces
Page 15 of 41
USB drivers are available for the following Windows and Windows Embedded operating system platforms:
Windows 7
Windows 8
Windows 8.1
Windows 10
Windows Embedded CE 6.0
Windows Embedded Compact 7
Windows Embedded Compact 2013
TOBY-R2 series modules are compatible with standard Linux/Android USB kernel drivers.

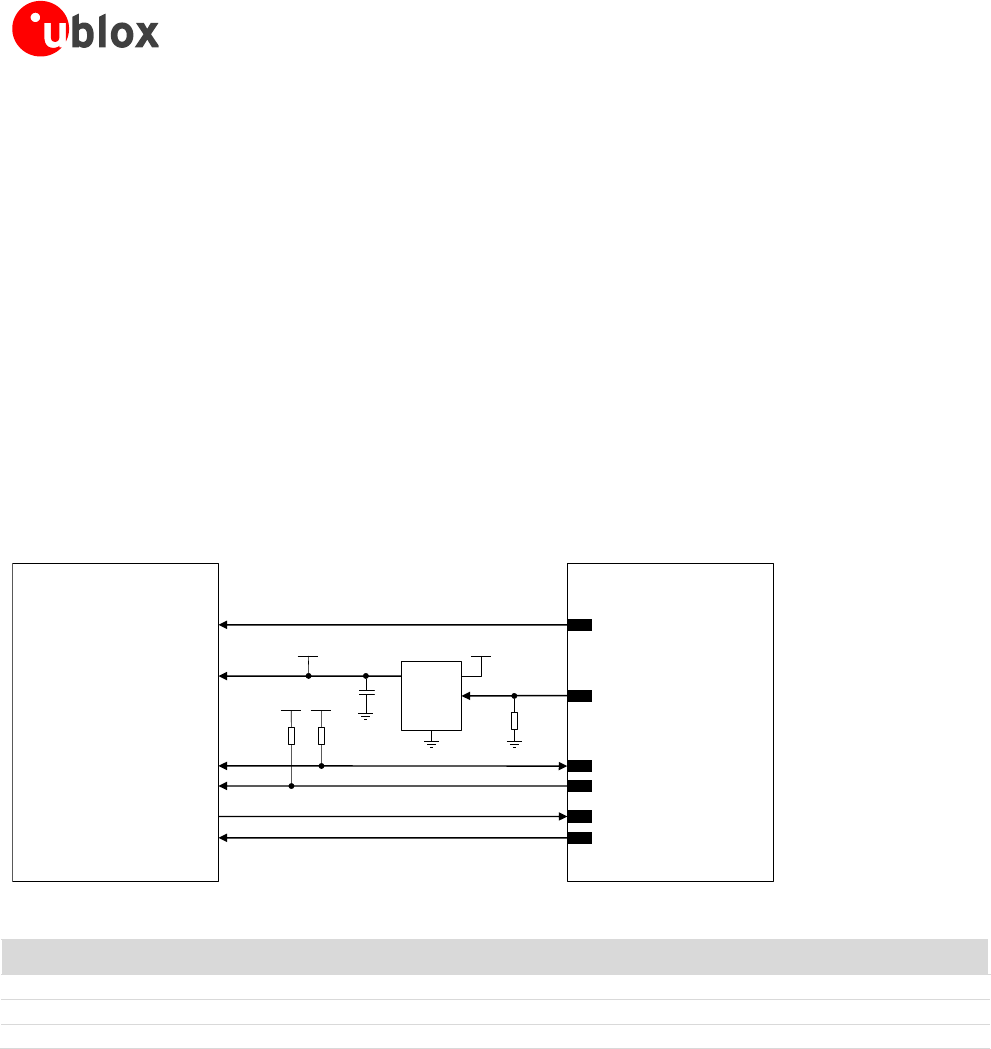

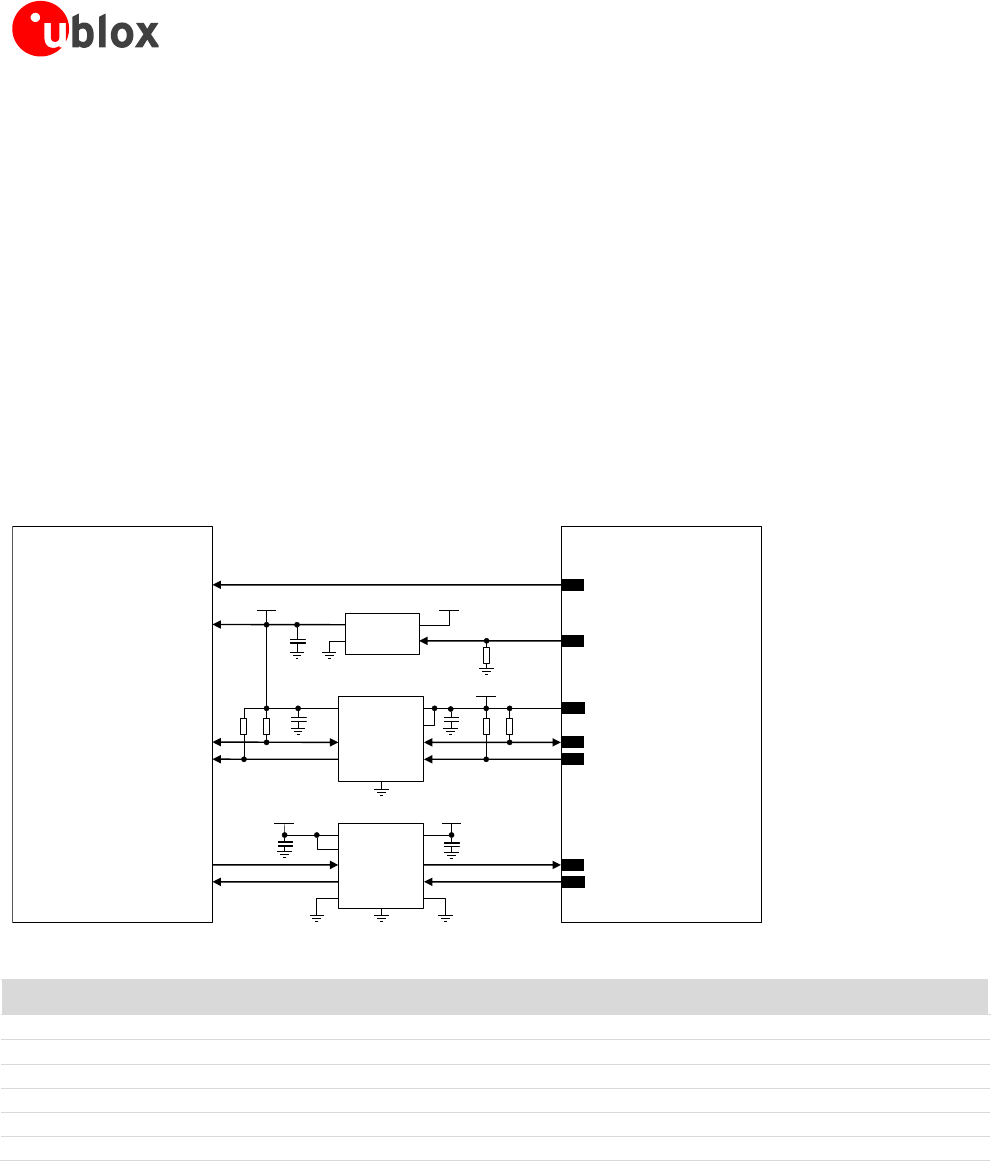

2.5.3 DDC (I2C) interface
Communication with u-blox GNSS receivers over DDC (I2C) is not supported by “02” product versions.
TOBY-R2 series modules include an I2C-bus compatible DDC interface (SDA, SCL) available to communicate with
a u-blox GNSS receiver and with external I2C devices as an audio codec: the TOBY-R2 module acts as an I2C
master which can communicate with I2C slaves in accordance with the I2C bus specifications [16].
For more details regarding the DDC (I2C) interface usage and the integration with a u-blox GNSS receiver see the
TOBY-R2 series System Integration Manual [2], the GNSS Implementation Application Note [5], and the I2C and
GNSS AT commands description in the u-blox AT Commands Manual [1].
2.5.4 SDIO interface
The SDIO interface is not supported by “02” modules product versions.
TOBY-R2 series modules include a 4-bit Secure Digital Input Output interface (SDIO_D0, SDIO_D1, SDIO_D2,
SDIO_D3, SDIO_CLK, SDIO_CMD) designed to communicate with external compatible u-blox short range radio
communication Wi-Fi modules.
2.6 Audio
TOBY-R2 series modules support Voice over LTE (VoLTE) as well as Circuit-Switched Fall-Back (CSFB) from LTE to
3G or 2G radio bearer for providing audio services.
TOBY-R2 series modules include a 4-wire I2S digital audio interface (I2S_TXD, I2S_RXD, I2S_CLK, I2S_WA) that
can be configured by AT command in PCM mode (short synchronization signal) or in normal I2S mode (long
synchronization signal) to transfer digital audio data to/from an external device as an audio codec.
For more details regarding internal audio processing system capabilities, I2S digital audio interface possible
configurations, usage and guideline for the integration with an external digital audio device as an audio codec
see TOBY-R2 series System Integration Manual [2] and the audio sections in u-blox AT Commands Manual [1].
2.7 Clock output
TOBY-R2 series modules provide a master digital clock output function on the GPIO6 pin, which can be
configured to provide a 13 MHz or 26 MHz square wave. This is mainly designed to feed the master clock input
of an external audio codec, as the clock output can be configured in “Audio dependent” mode (generating the
square wave only when the audio path is active), or in “Continuous” mode.
For more details see the u-blox AT Commands Manual [1], +UMCLK AT command.
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Interfaces
Page 16 of 41
2.8 GPIO
TOBY-R2 series modules include 9 pins (GPIO1-GPIO5, I2S_TXD, I2S_RXD, I2S_CLK, I2S_WA) that can be
configured as general purpose input/output or to provide custom functions as summarized in Table 4 (for further
details see TOBY-R2 series System Integration Manual [2] and GPIO section in u-blox AT Commands Manual [1]).
Function
Description
Default GPIO
Configurable GPIOs
Network status
indication
Network status: registered home network, registered
roaming, data transmission, no service
--
GPIO1-GPIO4
GNSS supply enable8
Enable/disable the supply of u-blox GNSS receiver
connected to the cellular module
--
GPIO1-GPIO4
GNSS data ready8
Sense when u-blox GNSS receiver connected to the module
is ready for sending data by the DDC (I2C)
--
GPIO3
GNSS RTC sharing8
RTC synchronization signal to the u-blox GNSS receiver
connected to the cellular module
--
GPIO4
SIM card detection
External SIM card physical presence detection
GPIO5
GPIO5
SIM card hot
insertion/removal
Enable / disable SIM interface upon detection of external
SIM card physical insertion / removal
--
GPIO5
I2S digital audio interface
I2S digital audio interface
I2S_RXD, I2S_TXD,
I2S_CLK, I2S_WA
I2S_RXD, I2S_TXD,
I2S_CLK, I2S_WA
Wi-Fi control8
Control of an external Wi-Fi chip or module
--
--
General purpose input
Input to sense high or low digital level
--
All
General purpose output
Output to set the high or the low digital level
GPIO4
All
Pin disabled
Tri-state with an internal active pull-down enabled
GPIO1-GPIO3
All
Table 4: GPIO custom functions configuration
8 Not supported by “02” product versions.
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Pin definition
Page 17 of 41

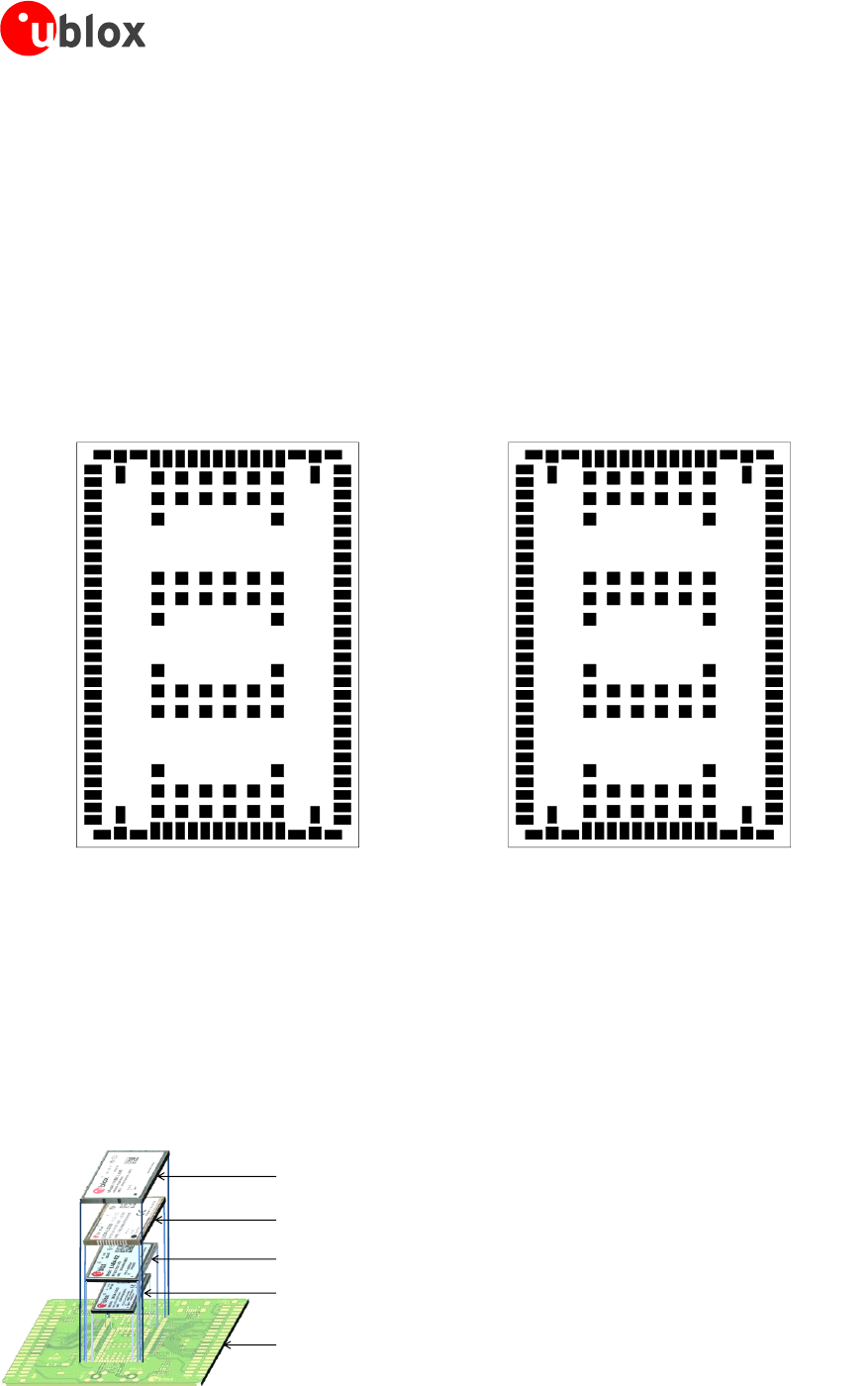

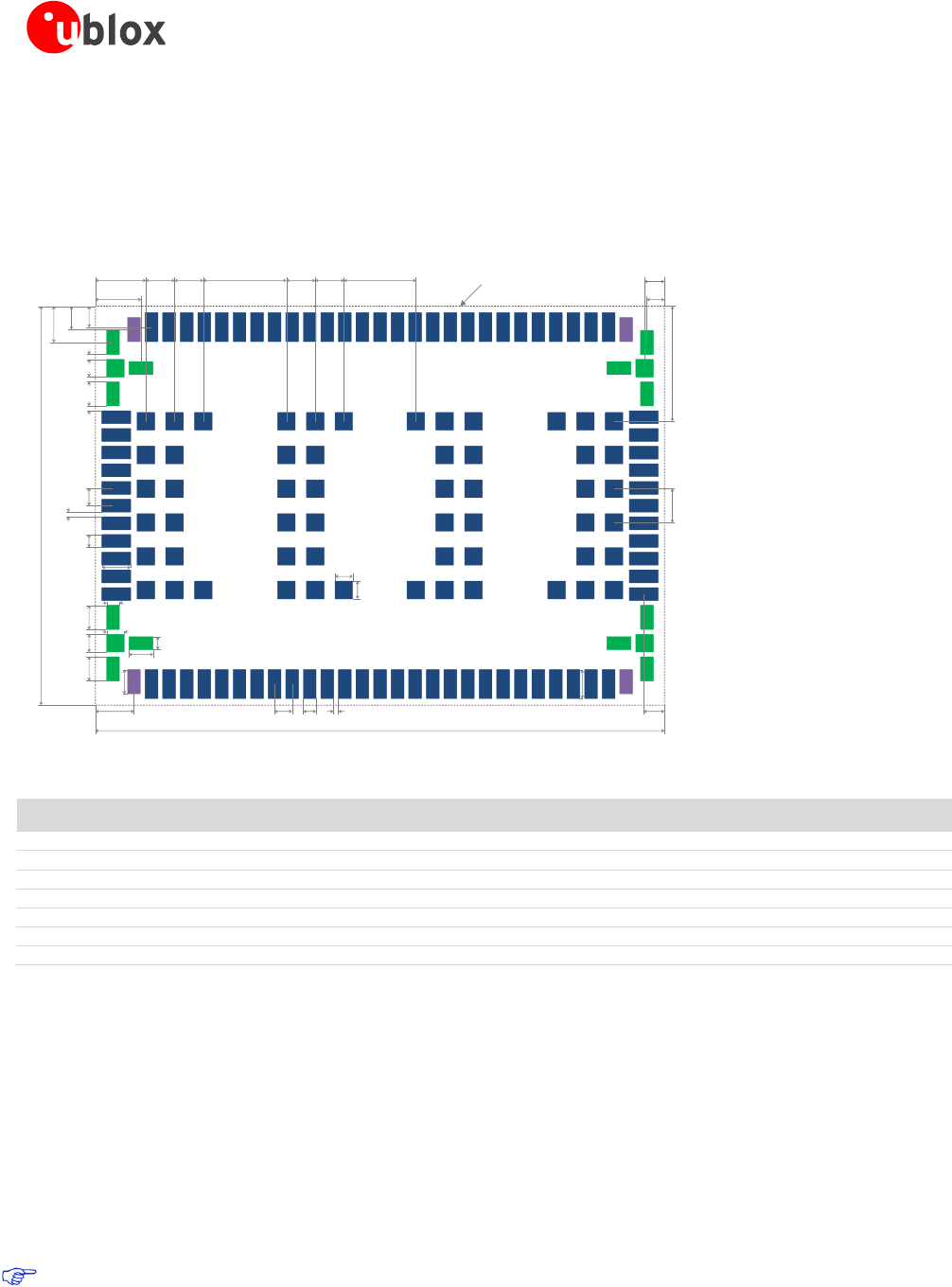

3 Pin definition

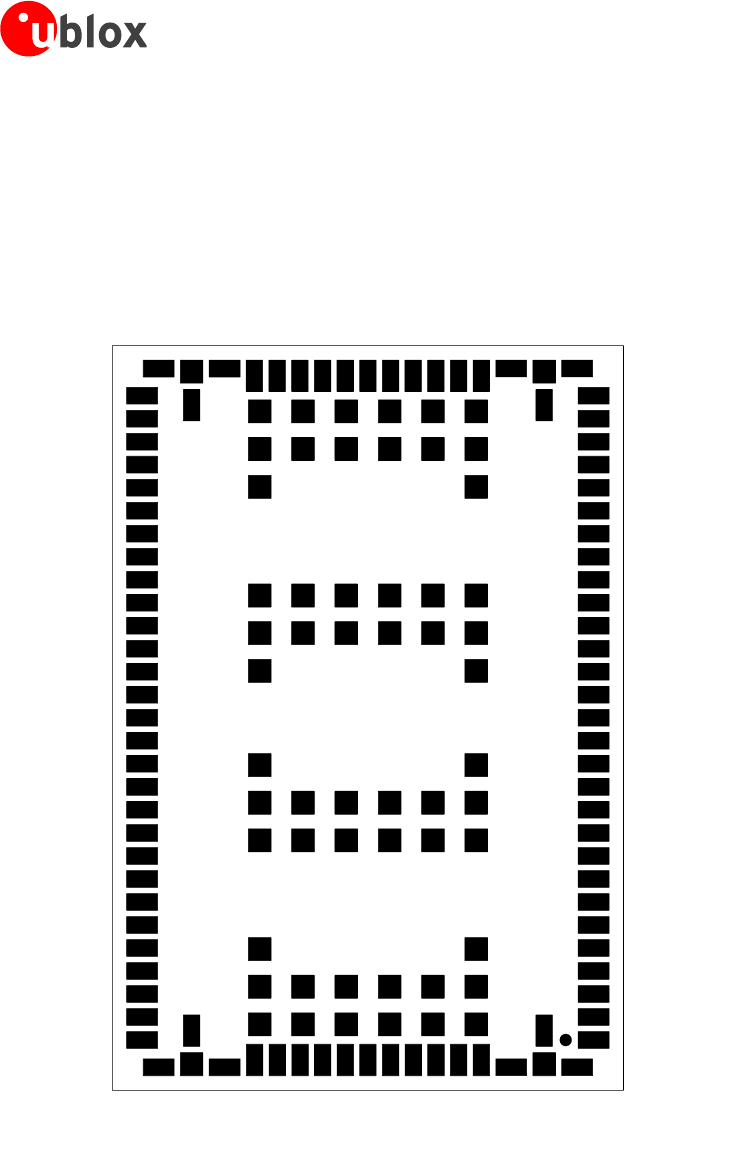

3.1 Pin assignment
11
10
7
5
4
2
1
21
19
18
16
15
13
12
29
27
26
24
23
8
6
3
22
20
17
14
28
25
9
65
66
69
71
72
74
75
55
57
58
60
61
63
64
47
49
50
52
53
68
70
73
54
56
59
62
48
51
67
SDIO_CMD
SDIO_D0
GND
VCC
VCC
GND
ANT_DET
SDA
SIM_IO
SIM_RST
GPIO5
GPIO6
SDIO_D2
SDIO_CLK
RSVD
RSVD
I2S_WA
I2S_CLK
I2S_RXD
SDIO_D1
VCC
GND
SCL
SIM_CLK
VSIM
HOST_SELECT1
RSVD
I2S_TXD
SDIO_D3
V_INT
VUSB_DET
GND
RSVD
GPIO1
RSVD
RSVD
TXD
RSVD
USB_D-
HOST_SELECT0
GPIO3
RESET_N
V_BCKP
GPIO2
PWR_ON
RXD
USB_D+
GPIO4
90 91 9278
77
76
93100
79 80 83 85 86 88 8982 84 8781
GND
RSVD
GND
GND
RSVD
GND
GND
GND
GND
GND
GND
GND
GND
GND
RSVD
ANT2
ANT1
32 31 30
44
45
46
145152
43 42 39 37 36 34 3340 38 3541
GND
RSVD
GND
GND
RSVD
GND
99 98 97 96 95 94
106 105 104 103 102 101
108 107
124 123
130 129 128 127 126 125
136 135 134 133 132 131
138 137
144 143 142 141 140 139
151 150 149 148 147 146
114 113 112 111 110 109
120 119 118 117 116 115
122 121
Pin 93-152: GND
TOBY-R2
Top view
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RSVD
RI
DSR
RSVD
CTS
DTR
DCD
RSVD
RSVD
RTS
RSVD
Figure 2: TOBY-R2 series pin assignment (top view)
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Pin definition
Page 18 of 41
No
Name
Power
domain
I/O
Description
Remarks
1
RSVD
-
N/A
RESERVED pin
Leave unconnected.
2
GND
GND
N/A
Ground
All GND pins must be connected to ground.
3
V_BCKP
-
I/O
RTC supply Input/ Output
1.8 V (typical) generated by the module when VCC
supply voltage is within valid operating range.
See section 4.2.2 for detailed electrical specs.
4
VUSB_DET
VBUS
I
VBUS USB detect input
VBUS (5 V typical) USB supply generated by the host
must be connected to this input pin to enable the USB.
See section 4.2.11 for detailed electrical specs.
5
V_INT
GDI
O
Generic Digital Interfaces
supply output
1.8 V (typical) generated by the module when it is
switched-on and with the RESET_N is not forced low.
See section 4.2.2 for detailed electrical specs.
6
RSVD
-
N/A
RESERVED pin
This pin has special function: it must be connected to
GND to allow module to work properly.
7
RSVD
-
N/A
RESERVED pin
Leave unconnected.
8
RSVD
-
N/A
RESERVED pin
Leave unconnected.
9
RSVD
-
N/A
RESERVED pin
Leave unconnected.
10
DSR
GDI
O /
I/O
UART data set ready /
GPIO
Circuit 107 (DSR) in ITU-T V.24.
Output driver class A. PU/PD class a.
Value at internal reset: T/PU.
See section 4.2.13 for detailed electrical specs.
11
RI
GDI
O /
I/O
UART ring indicator /
GPIO
Circuit 125 (RI) in ITU-T V.24.
Output driver class A. PU/PD class a.
Value at internal reset: T/PD.
See section 4.2.13 for detailed electrical specs.
12
DCD
GDI
O /
I/O
UART data carrier detect /
GPIO
Circuit 109 (DCD) in ITU-T V.24.
Output driver class A. PU/PD class a.
Value at internal reset: T/PD.
See section 4.2.13 for detailed electrical specs.
13
DTR
GDI
I /
I/O
UART data terminal ready
/ GPIO
Circuit 108/2 (DTR) in ITU-T V.24.
Internal active pull-up to V_INT enabled. PU/PD class a
Value at internal reset: T/PU.
See section 4.2.13 for detailed electrical specs.
14
RTS
GDI
I
UART ready to send
Circuit 105 (RTS) in ITU-T V.24.
Internal active pull-up to V_INT. PU/PD class a.
Value at internal reset: T/PU.
See section 4.2.13 for detailed electrical specs.
15
CTS
GDI
O
UART clear to send
Circuit 106 (CTS) in ITU-T V.24.
Output driver class A. PU/PD class a.
Value at internal reset: T/PU.
See section 4.2.13 for detailed electrical specs.
16
TXD
GDI
I
UART data input
Circuit 103 (TxD) in ITU-T V.24.
Internal active pull-up to V_INT. PU/PD class a.
Value at internal reset: T/PD.
See section 4.2.13 for detailed electrical specs.
17
RXD
GDI
O
UART data output
Circuit 104 (RxD) in ITU-T V.24.
Output driver class A. PU/PD class a.
Value at internal reset: T/PU.
See section 4.2.13 for detailed electrical specs.
18
RSVD
-
N/A
RESERVED pin
Leave unconnected.
Test-Point for diagnostic access is recommended.
19
RSVD
-
N/A
RESERVED pin
Leave unconnected.
Test-Point for diagnostic access is recommended.
20
PWR_ON
POS
I
Power-on input
Internal 10 k pull-up resistor to V_BCKP.
See section 4.2.8 for detailed electrical specs.
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Pin definition
Page 19 of 41
No
Name
Power
domain
I/O
Description
Remarks
21
GPIO1
GDI
I/O
GPIO
GPIO configurable as described in section 2.8.
Output driver class A. PU/PD class b.
Value at internal reset: T/PD.
See section 4.2.13 for detailed electrical specs.
22
GPIO2
GDI
I/O
GPIO
GPIO configurable as described in section 2.8.
Output driver class A. PU/PD class a.
Value at internal reset: T/PD.
See section 4.2.13 for detailed electrical specs.
23
RESET_N
ERS
I
External reset input
Internal 10 k pull-up resistor to V_BCKP.
See section 4.2.9 for detailed electrical specs.
24
GPIO3
GDI
I/O
GPIO
GPIO configurable as described in section 2.8.
Output driver class A. PU/PD class a.
Value at internal reset: T/PD.
See section 4.2.13 for detailed electrical specs.
25
GPIO4
GDI
I/O
GPIO
GPIO configurable as described in section 2.8.
Output driver class A. PU/PD class a.
Value at internal reset: T/PD.
See section 4.2.13 for detailed electrical specs.
26
HOST_SELECT0
GDI
I/O
Selection of module / host
processor configuration
Not supported by “02” product versions.
See section 4.2.13 for detailed electrical specs.
27
USB_D-
USB
I/O
USB Data Line D-
90 nominal differential characteristic impedance.
Pull-up, pull-down and series resistors as required by
the USB Revision 2.0 specification [15] are part of the
USB pin driver and need not be provided externally.
See section 4.2.11 for detailed electrical specs.
28
USB_D+
USB
I/O
USB Data Line D+
90 nominal differential characteristic impedance.
Pull-up, pull-down and series resistors as required by
the USB Revision 2.0 specification [15] are part of the
USB pin driver and need not be provided externally.
See section 4.2.11 for detailed electrical specs.
29
RSVD
-
N/A
RESERVED pin
Leave unconnected.
30
GND
GND
N/A
Ground
All GND pins must be connected to ground.
31
RSVD
-
N/A
RESERVED pin
Leave unconnected.
32
GND
GND
N/A
Ground
All GND pins must be connected to ground.
33
RSVD
-
N/A
RESERVED pin
Leave unconnected.
34
RSVD
-
N/A
RESERVED pin
Leave unconnected.
35
RSVD
-
N/A
RESERVED pin
Leave unconnected.
36
RSVD
-
N/A
RESERVED pin
Leave unconnected.
37
RSVD
-
N/A
RESERVED pin
Leave unconnected.
38
RSVD
-
N/A
RESERVED pin
Leave unconnected.
39
RSVD
-
N/A
RESERVED pin
Leave unconnected.
40
RSVD
-
N/A
RESERVED pin
Leave unconnected.
41
RSVD
-
N/A
RESERVED pin
Leave unconnected.
42
RSVD
-
N/A
RESERVED pin
Leave unconnected.
43
RSVD
-
N/A
RESERVED pin
Leave unconnected.
44
GND
GND
N/A
Ground
All GND pins must be connected to ground.
45
RSVD
-
N/A
RESERVED pin
Leave unconnected.
46
GND
GND
N/A
Ground
All GND pins must be connected to ground.
47
RSVD
-
N/A
RESERVED pin
Leave unconnected.
48
RSVD
-
N/A
RESERVED pin
Leave unconnected.
49
RSVD
-
N/A
RESERVED pin
Leave unconnected.
50
I2S_WA
GDI
I/O /
I/O
I2S word alignment /
GPIO
Configurable as I2S word alignment, or GPIO (see 2.8)
Output driver class A. PU/PD class a.
Value at internal reset: T/PD.
See section 4.2.13 for detailed electrical specs.
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Pin definition
Page 20 of 41
No
Name
Power
domain
I/O
Description
Remarks
51
I2S_TXD
GDI
O /
I/O
I2S transmit data /
GPIO
Configurable as I2S transmit data out, or GPIO (see 2.8)
Output driver class A. PU/PD class a.
Value at internal reset: T/PD.
See section 4.2.13 for detailed electrical specs.
52
I2S_CLK
GDI
I/O /
I/O
I2S clock /
GPIO
Configurable as I2S clock, or as GPIO (see section 2.8).
Output driver class A. PU/PD class a.
Value at internal reset: T/PD.
See section 4.2.13 for detailed electrical specs.
53
I2S_RXD
GDI
I /
I/O
I2S receive data /
GPIO
Configurable as I2S receive data input, or GPIO (see 2.8)
Output driver class A. PU/PD class a.
Value at internal reset: T/PD.
See section 4.2.13 for detailed electrical specs
54
SCL
DDC
O
I2C bus clock line
Fixed open drain.
See section 4.2.12 for detailed electrical specs.
55
SDA
DDC
I/O
I2C bus data line
Fixed open drain.
See section 4.2.12 for detailed electrical specs.
56
SIM_CLK
SIM
O
SIM clock
See section 4.2.10 for detailed electrical specs.
57
SIM_IO
SIM
I/O
SIM data
Internal 4.7 k pull-up resistor to VSIM.
See section 4.2.10 for detailed electrical specs.
58
SIM_RST
SIM
O
SIM reset
See section 4.2.10 for detailed electrical specs.
59
VSIM
-
O
SIM supply output
VSIM = 1.8 V typical or 2.9 V typical generated by the
module according to the SIM card/chip voltage type.
See section 4.2.2 for detailed electrical specs.
60
GPIO5
GDI
I/O
GPIO
Configurable for SIM card detection, or GPIO (see 2.8)
Output driver class A. PU/PD class a.
Value at internal reset: T/PD.
See section 4.2.13 for detailed electrical specs.
61
GPIO6
GDI
O
Clock output
Configurable clock output (see section 2.7)
Output driver class A. PU/PD class a.
Value at internal reset: T/PD.
See section 4.2.13 for detailed electrical specs.
62
HOST_SELECT1
GDI
I/O
Selection of module / host
processor configuration
Not supported by “02” product versions.
See section 4.2.13 for detailed electrical specs.
63
SDIO_D2
GDI
I/O
SDIO serial data [2]
SDIO not supported by “02” product versions.
Output driver class A. PU/PD class a.
Value at internal reset: T/PD.
See section 4.2.13 for detailed electrical specs.
64
SDIO_CLK
GDI
O
SDIO serial clock
SDIO not supported by “02” product versions.
Output driver class A. PU/PD class a.
Value at internal reset: T/PD.
See section 4.2.13 for detailed electrical specs.
65
SDIO_CMD
GDI
I/O
SDIO command
SDIO not supported by “02” product versions.
Output driver class A. PU/PD class a.
Value at internal reset: T/PD.
See section 4.2.13 for detailed electrical specs.
66
SDIO_D0
GDI
I/O
SDIO serial data [0]
SDIO not supported by “02” product versions.
Output driver class A. PU/PD class a.
Value at internal reset: T/PD.
See section 4.2.13 for detailed electrical specs.
67
SDIO_D3
GDI
I/O
SDIO serial data [3]
SDIO not supported by “02” product versions.
Output driver class A. PU/PD class a.
Value at internal reset: T/PD.
See section 4.2.13 for detailed electrical specs.
68
SDIO_D1
GDI
I/O
SDIO serial data [1]
SDIO not supported by “02” product versions.
Output driver class A. PU/PD class a.
Value at internal reset: T/PD.
See section 4.2.13 for detailed electrical specs.
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Pin definition
Page 21 of 41
No
Name
Power
domain
I/O
Description
Remarks
69
GND
GND
N/A
Ground
All GND pins must be connected to ground.
70
VCC
VCC
I
Module supply input
Supply for BB part on TOBY-R200.
Supply for BB part and PA on TOBY-R202.
All VCC pins must be connected to external supply.
See sections 4.2.2 / 4.2.3 for detailed electrical specs.
71
VCC
VCC
I
Module supply input
Supply for PA on TOBY-R200.
Supply for BB part and PA on TOBY-R202.
All VCC pins must be connected to external supply.
See sections 4.2.2 / 4.2.3 for detailed electrical specs.
72
VCC
VCC
I
Module supply input
Supply for PA on TOBY-R200.
Supply for BB part and PA on TOBY-R202.
All VCC pins must be connected to external supply.
See sections 4.2.2 / 4.2.3 for detailed electrical specs.
73
GND
GND
N/A
Ground
All GND pins must be connected to ground.
74
GND
GND
N/A
Ground
All GND pins must be connected to ground.
75
ANT_DET
ADC
I
Antenna detection
Antenna presence detection function.
See section 4.2.7 for detailed electrical specs.
76
GND
GND
N/A
Ground
All GND pins must be connected to ground.
77
RSVD
-
N/A
RESERVED pin
Leave unconnected.
78
GND
GND
N/A
Ground
All GND pins must be connected to ground.
79
GND
GND
N/A
Ground
All GND pins must be connected to ground.
80
GND
GND
N/A
Ground
All GND pins must be connected to ground.
81
ANT1
ANT
I/O
Primary antenna
50 nominal characteristic impedance.
Main Tx / Rx antenna interface.
See sections 4.2.4 / 4.2.5 / 4.2.6 for details.
82
GND
GND
N/A
Ground
All GND pins must be connected to ground.
83
GND
GND
N/A
Ground
All GND pins must be connected to ground.
84
RSVD
-
N/A
RESERVED pin
Leave unconnected.
85
GND
GND
N/A
Ground
All GND pins must be connected to ground.
86
GND
GND
N/A
Ground
All GND pins must be connected to ground.
87
ANT2
ANT
I
Secondary antenna
50 nominal characteristic impedance
Rx only for Down-Link Rx diversity.
See section 4.2.4 for details.
88
GND
GND
N/A
Ground
All GND pins must be connected to ground.
89
GND
GND
N/A
Ground
All GND pins must be connected to ground.
90
GND
GND
N/A
Ground
All GND pins must be connected to ground.
91
RSVD
-
N/A
RESERVED pin
Leave unconnected.
92
GND
GND
N/A
Ground
All GND pins must be connected to ground.
93-152
GND
GND
N/A
Ground
All GND pins must be connected to ground.
Table 5: TOBY-R2 series pin-out
For more information about the pin-out, see the TOBY-R2 series System Integration Manual [2].
See Appendix A for an explanation of abbreviations and terms used.
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Electrical specifications
Page 22 of 41
4 Electrical specifications
Stressing the device above one or more of the ratings listed in the Absolute Maximum Rating
section may cause permanent damage. These are stress ratings only. Operating the module at
these or at any conditions other than those specified in the Operating Conditions sections
(section 4.2) of the specification should be avoided. Exposure to Absolute Maximum Rating
conditions for extended periods may affect device reliability.
Operating condition ranges define those limits within which the functionality of the device is guaranteed.
Where application information is given, it is advisory only and does not form part of the specification.
4.1 Absolute maximum rating
Limiting values given below are in accordance with the Absolute Maximum Rating System (IEC 134).
Symbol
Description
Condition
Min.
Max.
Unit
VCC
Module supply voltage
Input DC voltage at VCC pin
–0.30
5.00
V
V_BCKP
RTC supply voltage
Input DC voltage at V_BCKP pin
–0.15
2.00
V
VUSB_DET
USB detection pin
Input DC voltage at VUSB_DET pin
–0.15
5.50
V
USB
USB D+/D- pins
Input DC voltage at USB_D+ and USB_D- pins
–1.00
5.50
V
GDI
Generic digital interfaces
Input DC voltage at Generic digital interfaces pins
–0.30
3.60
V
HSIC
HSIC interface
Input DC voltage at HSIC interface pins
–0.30
3.60
V
DDC
DDC interface
Input DC voltage at DDC interface pins
–0.30
3.60
V
SIM
SIM interface
Input DC voltage at SIM interface pins
–0.30
3.60
V
ERS
External reset signal
Input DC voltage at RESET_N pin
–0.30
2.10
V
POS
Power-on input
Input DC voltage at PWR_ON pin
–0.30
2.10
V
Tstg
Storage Temperature
–40
85
°C
Table 6: Absolute maximum ratings
The product is not protected against overvoltage or reversed voltages. If necessary, voltage
spikes exceeding the power supply voltage specification, given in table above, must be limited
to values within the specified boundaries by using appropriate protection devices.
4.1.1 Maximum ESD
Parameter
Min
Typical
Max
Unit
Remarks
ESD sensitivity for all pins
except ANT1 / ANT2 pins
1000
V
Human Body Model according to JESD22-A114
ESD sensitivity for ANT1 / ANT2 pins
1000
V
Human Body Model according to JESD22-A114
Table 7: Maximum ESD ratings
u-blox cellular modules are Electrostatic Sensitive Devices and require special precautions when
handling. See section 7.4 for ESD handling instructions.
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Electrical specifications
Page 23 of 41
4.2 Operating conditions
Unless otherwise indicated, all operating condition specifications are at an ambient temperature of 25°C.
Operation beyond the operating conditions is not recommended and extended exposure
beyond them may affect device reliability.
4.2.1 Operating temperature range
Parameter
Min.
Typical
Max.
Unit
Remarks
Normal operating temperature
–20
+25
+65
°C
Normal operating temperature range
(fully functional and meet 3GPP specifications)
Extended operating temperature
–40
+85
°C
Extended operating temperature range
(RF performance may be affected outside normal
operating range, though module is fully functional)
Table 8: Environmental conditions
4.2.2 Supply/power pins
Symbol
Parameter
Min.
Typical
Max.
Unit
VCC
Module supply normal operating input voltage9
3.30
3.80
4.40
V
Module supply extended operating input voltage10
3.00
3.80
4.50
V
V_BCKP
Real Time Clock supply input voltage
1.00
1.80
1.90
V
I_BCKP
Real Time Clock supply average current consumption,
at V_BCKP = 1.8 V
2.00
µA
Table 9: Input characteristics of Supply/Power pins
Symbol
Parameter
Min.
Typical
Max.
Unit
VSIM
SIM supply output voltage
1.80
V
2.90
V
V_BCKP
Real Time Clock supply output voltage
1.80
V
I_BCKP
Real Time Clock supply output current capability
3
mA
V_INT
Generic Digital Interfaces supply output voltage
1.80
V
I_INT
Generic Digital Interfaces supply output current capability
70
mA
Table 10: Output characteristics of Supply/Power pins
9 RF performance may be affected when the input voltage at VCC is outside the herein stated normal operating range limits, though module
is still fully functional when the input voltage at VCC is inside the extended operating range limits.
10 Input voltage at VCC must be above the herein stated extended operating range minimum limit to switch-on the module. The cellular
module may switch-off when the VCC voltage value drops below the herein stated extended operating range minimum limit.
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Electrical specifications
Page 24 of 41
4.2.3 Current consumption
Mode
Condition
Tx power
Min
Typ11
Max12
Unit
Idle-Mode
(Power Saving enabled by AT+UPSV,
module in low power idle-mode,
equivalent to airplane mode)
Averaged current value over a 100-ms period,
USB not connected
0.9
mA
Averaged current value over a 100-ms period,
USB connected and suspended
1.1
mA
Cyclic Idle/Active-Mode
(Power Saving enabled by AT+UPSV,
Module registered with network)
Averaged current value over a 10-minute period,
USB not connected
1.4
mA
Averaged current value over a 10-minute period,
USB connected and suspended
1.6
mA
Active-Mode
(Power Saving disabled by AT+UPSV,
Module registered with network)
Averaged current value over a 10-minute period,
USB not connected
11.1
mA
Averaged current value over a 10-minute period,
USB connected and not suspended
29.5
mA
2G Connected Mode
(Tx / Rx call enabled)
Pulse current during a 1-slot GMSK Tx burst,
850/900 MHz bands
Maximum
1.5
1.9
A
Averaged current value over a 10-second period,
2G GMSK call, 1 Tx + 1 Rx slot, 850/900 MHz
Minimum
50
mA
Maximum
220
mA
Averaged current value over a 10-second period,
2G GMSK call, 1 Tx + 1 Rx slot, 1800/1900 MHz
Minimum
50
mA
Maximum
180
mA
3G Connected Mode
(Tx / Rx call enabled)
Averaged current value over a 10-second period
Minimum
120
mA
0 dBm
130
mA
12 dBm
175
mA
18 dBm
270
mA
Maximum
490
mA
LTE Connected Mode
(Tx / Rx call enabled)
Averaged current value over a 10-second period
Minimum
185
mA
0 dBm
200
mA
12 dBm
245
mA
18 dBm
365
mA
Maximum
540
mA
Table 11: Module VCC current consumption
11 Typical values with a matched antenna
12 Maximum values with a mismatched antenna
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Electrical specifications
Page 25 of 41
4.2.4 LTE RF characteristics
The LTE bands supported by each TOBY-R2 series module are defined in Table 2, while the following Table 12
describes the Transmitting and Receiving frequencies for each LTE band according to 3GPP TS 36.521-1 [11].
Parameter
Min.
Max.
Unit
Remarks
Frequency range
Band 12 (700 MHz)13
Uplink
699.7
715.3
MHz
Module transmit
Downlink
729.7
745.3
MHz
Module receive
Frequency range
Band 5 (850 MHz)
Uplink
824.7
848.3
MHz
Module transmit
Downlink
869.7
893.3
MHz
Module receive
Frequency range
Band 4 (1700 MHz)
Uplink
1710.7
1754.3
MHz
Module transmit
Downlink
2110.7
2154.3
MHz
Module receive
Frequency range
Band 2 (1900 MHz)
Uplink
1850.7
1909.3
MHz
Module transmit
Downlink
1930.7
1989.3
MHz
Module receive
Table 12: LTE operating RF frequency bands
TOBY-R2 series modules include a UE Power Class 3 LTE transmitter (see Table 2), with output power and
characteristics according to 3GPP TS 36.521-1 [11].
TOBY-R2 series modules LTE receiver characteristics are compliant to 3GPP TS 36.521-1 [11], with LTE conducted
receiver sensitivity performance described in Table 13.
Parameter
Min.
Typical
Max.
Unit
Remarks
Receiver input sensitivity
Band 12 (700 MHz)
–110.5
dBm
Channel bandwidth = 1.4 MHz
–107.5
dBm
Channel bandwidth = 3 MHz
–105.0
dBm
Channel bandwidth = 5 MHz
–102.5
dBm
Channel bandwidth = 10 MHz
Receiver input sensitivity
Band 5 (850 MHz)
–110.0
dBm
Channel bandwidth = 1.4 MHz
–107.5
dBm
Channel bandwidth = 3 MHz
–105.0
dBm
Channel bandwidth = 5 MHz
–102.5
dBm
Channel bandwidth = 10 MHz
Receiver input sensitivity
Band 4 (1700 MHz)
–110.0
dBm
Channel bandwidth = 1.4 MHz
–107.0
dBm
Channel bandwidth = 3 MHz
–104.5
dBm
Channel bandwidth = 5 MHz
–102.0
dBm
Channel bandwidth = 10 MHz
–100.0
dBm
Channel bandwidth = 15 MHz
–99.0
dBm
Channel bandwidth = 20 MHz
Receiver input sensitivity
Band 2 (1900 MHz)
–109.5
dBm
Channel bandwidth = 1.4 MHz
–107.0
dBm
Channel bandwidth = 3 MHz
–104.5
dBm
Channel bandwidth = 5 MHz
–102.0
dBm
Channel bandwidth = 10 MHz
–100.0
dBm
Channel bandwidth = 15 MHz
–99.0
dBm
Channel bandwidth = 20 MHz
Condition: 50 source, Throughput > 95%, dual receiver, QPSK modulation, Other settings as per 3GPP TS 36.521-1 [11]
Table 13: LTE receiver sensitivity performance
13 LTE band 12 is a superset that includes band 17
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Electrical specifications
Page 26 of 41
4.2.5 3G RF characteristics
The 3G bands supported by each TOBY-R2 series module are defined in Table 2, while the following Table 14
describes the Transmitting and Receiving frequencies for each 3G band according to 3GPP TS 34.121-1 [12].
Parameter
Min.
Max.
Unit
Remarks
Frequency range
Band 5 (850 MHz)
Uplink
826.4
846.6
MHz
Module transmit
Downlink
871.4
891.6
MHz
Module receive
Frequency range
Band 8 (900 MHz)
Uplink
882.4
912.6
MHz
Module transmit
Downlink
927.4
957.6
MHz
Module receive
Frequency range
Band 2 (1900 MHz)
Uplink
1852.4
1907.6
MHz
Module transmit
Downlink
1932.4
1987.6
MHz
Module receive
Frequency range
Band 1 (2100 MHz)
Uplink
1922.4
1977.6
MHz
Module transmit
Downlink
2112.4
2167.6
MHz
Module receive
Table 14: 3G operating RF frequency bands
TOBY-R2 series modules include a UE Power Class 3 3G transmitter (see Table 2), with output power and
characteristics according to 3GPP TS 34.121-1 [12].
TOBY-R2 series modules 3G receiver characteristics are compliant to 3GPP TS 34.121-1 [12], with 3G conducted
receiver sensitivity performance described in Table 15.
Parameter
Min.
Typical
Max.
Unit
Remarks
Receiver input sensitivity
Band 5 (850 MHz)
–112.0
dBm
Downlink RF level for RMC @ BER < 0.1 %
Receiver input sensitivity
Band 8 (900 MHz)
–112.0
dBm
Downlink RF level for RMC @ BER < 0.1 %
Receiver input sensitivity
Band 2 (1900 MHz)
–111.0
dBm
Downlink RF level for RMC @ BER < 0.1 %
Receiver input sensitivity
Band 1 (2100 MHz)
–111.0
dBm
Downlink RF level for RMC @ BER < 0.1 %
Condition: 50 source, other settings as per 3GPP TS 34.121-1 [12]
Table 15: 3G receiver sensitivity performance
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Electrical specifications
Page 27 of 41
4.2.6 2G RF characteristics
The 2G bands supported by each TOBY-R2 series module are defined in Table 2, while Table 16 (below)
describes the Transmitting and Receiving frequencies for each 2G band according to 3GPP TS 51.010-1 [13].
Parameter
Min.
Max.
Unit
Remarks
Frequency range
GSM 850
Uplink
824.2
848.8
MHz
Module transmit
Downlink
869.2
893.8
MHz
Module receive
Frequency range
E-GSM 900
Uplink
880.2
914.8
MHz
Module transmit
Downlink
925.2
959.8
MHz
Module receive
Frequency range
DCS 1800
Uplink
1710.2
1784.8
MHz
Module transmit
Downlink
1805.2
1879.8
MHz
Module receive
Frequency range
PCS 1900
Uplink
1850.2
1909.8
MHz
Module transmit
Downlink
1930.2
1989.8
MHz
Module receive
Table 16: 2G operating RF frequency bands
TOBY-R2 series modules include a GMSK Power Class 4 transmitter for GSM 850 and E-GSM 900 bands, a
GMSK Power Class 1 transmitter for DCS 1800 and PCS 1900 bands, a 8-PSK Power Class E2 transmitter for all
2G bands (see Table 2), with output power and characteristics according to 3GPP TS 51.010-1 [13].
TOBY-R2 series modules 2G receiver characteristics are compliant to 3GPP TS 51.010-1 [13], with conducted
receiver sensitivity performance described in Table 17.
Parameter
Min.
Typical
Max.
Unit
Remarks
Receiver input sensitivity
GSM 850
–110.0
dBm
Downlink RF level @ BER Class II < 2.4 %
Receiver input sensitivity
E-GSM 900
–110.0
dBm
Downlink RF level @ BER Class II < 2.4 %
Receiver input sensitivity
DCS 1800
–109.0
dBm
Downlink RF level @ BER Class II < 2.4 %
Receiver input sensitivity
PCS 1900
–109.0
dBm
Downlink RF level @ BER Class II < 2.4 %
Condition: 50 source, other settings as per 3GPP TS 51.010-1 [13]
Table 17: 2G receiver sensitivity performance
4.2.7 ANT_DET pin
Pin Name
Parameter
Min.
Typical
Max.
Unit
Remarks
ANT_DET
Output DC current
pulse value
9
µA
Generated by means of the AT+UANTR
command
Output DC current
pulse time length
330
µs
Generated by means of the AT+UANTR
command
Table 18: ANT_DET pin characteristics
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Electrical specifications
Page 28 of 41
4.2.8 PWR_ON pin
Pin Name
Parameter
Min.
Typical
Max.
Unit
Remarks
PWR_ON
Internal supply for
Power-On Input Signal
1.80
V
RTC supply (V_BCKP)
Low-level input
–0.30
0.54
V
High-level input
1.26
2.10
V
Pull-up resistance
10
k
Internal active pull-up to V_BCKP
Low-level input current
–180
µA
Low pulse time
50
µs
Low pulse time to switch-on the module
Low pulse time
1
s
Low pulse time to switch-off the module
Table 19: PWR_ON pin characteristics
4.2.9 RESET_N pin
Pin Name
Parameter
Min.
Typical
Max.
Unit
Remarks
RESET_N
Internal supply for
External Reset Input Signal
1.80
V
RTC supply (V_BCKP)
Low-level input
–0.30
0.54
V
High-level input
1.26
2.10
V
Pull-up resistance
10
k
Internal active pull-up to V_BCKP
Low-level input current
–180
µA
Low pulse time
50
ms
Low pulse time to reset the module
Table 20: RESET_N pin characteristics
4.2.10 SIM pins
The SIM pins are a dedicated interface to the external SIM card/chip. The electrical characteristics fulfill regulatory
specification requirements. The values in Table 21 are for information only.
Parameter
Min.
Typical
Max.
Unit
Remarks
Low-level input
0.00
0.35
V
VSIM = 1.80 V
0.00
0.57
V
VSIM = 2.90 V
High-level input
1.29
3.30
V
VSIM = 1.80 V
2.07
3.30
V
VSIM = 2.90 V
Low-level output
0.00
0.35
V
VSIM = 1.80 V, Max value at IOL = +1.0 mA
0.00
0.35
V
VSIM = 2.90 V, Max value at IOL = +1.0 mA
High-level output
1.26
1.80
V
VSIM = 1.80 V, Min value at IOH = –1.0 mA
2.03
2.90
V
VSIM = 2.90 V, Min value at IOH = –1.0 mA
Input / Output leakage current
0.7
µA
0.2V < VIN < 3.3V
Clock frequency on SIM_CLK
3.25
MHz
Internal pull-up resistor on SIM_IO
4.7
k
Internal pull-up to VSIM supply
Table 21: SIM pins characteristics
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Electrical specifications
Page 29 of 41
4.2.11 USB pins
USB data lines (USB_D+ / USB_D–) are compliant to the USB 2.0 high-speed specification. See the Universal
Serial Bus Specification Revision 2.0 [15] for detailed electrical characteristics. The values in Table 22 related to
USB 2.0 high-speed physical layer specifications are for information only.
Parameter
Min.
Typical
Max.
Unit
Remarks
VUSB_DET pin, High-level input
4.40
5.00
5.25
V
High-speed squelch detection threshold
(input differential signal amplitude)
100
150
mV
High speed disconnect detection threshold
(input differential signal amplitude)
525
625
mV
High-speed data signaling input
common mode voltage range
–50
500
mV
High-speed idle output level
–10
10
mV
High-speed data signaling output high level
360
440
mV
High-speed data signaling output low level
–10
10
mV
Chirp J level (output differential voltage)
700
1100
mV
Chirp K level (output differential voltage)
–900
–500
mV
Table 22: USB pins characteristics
4.2.12 DDC (I2C) pins
DDC (I2C) lines (SCL and SDA) are compliant to the I2C-bus standard mode specification. See the I2C-Bus
Specification [16] for detailed electrical characteristics. The values in Table 23 related to I2C-bus standard mode
specifications are for information only.
Parameter
Min
Typical
Max
Unit
Remarks
Internal supply for GDI domain
1.80
V
Digital I/O Interfaces supply (V_INT)
Low-level input
–0.20
0.36
V
High-level input
1.26
2.00
V
Low-level output
0.00
0.35
V
Max value at IOL = +1.0 mA
Clock frequency on SCL
100
kHz
Table 23: DDC (I2C) pins characteristics
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Electrical specifications
Page 30 of 41
4.2.13 Generic Digital Interfaces pins
Parameter
Min
Typical
Max
Unit
Remarks
Internal supply for GDI domain
1.80
V
Digital I/O Interfaces supply (V_INT)
Low-level input
–0.20
0.36
V
High-level input
1.26
2.00
V
Low-level output
0.00
0.35
V
Max value at IOL = +6.0 mA for driver class A
High-level output
1.45
1.80
V
Min value at IOH = –6.0 mA for driver class A
Internal pull-up input current
–240
µA
PU class a
–110
µA
PU class b
Internal pull-down input current
240
µA
PD class a
100
µA
PD class b
Input/output leakage current
0.7
µA
0.2V < VIN < 2.0V
Table 24: GDI pin characteristics
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Mechanical specifications
Page 31 of 41
5 Mechanical specifications
C
I
A
GH1 J1D F
KM1 M1 M2 P2
BG
H1
J1
H2
J2
J2 H2
ANT1 pin
O
O
L
N
H2
J2
J2 H2
ANT2 pin
M1 M1 M3
I
I
I
OH1
J1
J1
J1
E
P3
F
P1
H1
I
O
Pin 1
Indicator
Figure 3: TOBY-R2 series dimensions (bottom and sides views)
Parameter
Description
Typical
Tolerance
A
Module Height [mm]
35.6
(1401.6 mil)
+0.20/–0.20
(+7.9/–7.9 mil)
B
Module Width [mm]
24.8
(976.4 mil)
+0.20/–0.20
(+7.9/–7.9 mil)
C
Module Thickness [mm]
2.6
(102.4 mil)
+0.27/–0.17
(+10.6/–6.7 mil)
D
Horizontal Edge to Lateral Pin Pitch [mm]
2.4
(94.5 mil)
+0.20/–0.20
(+7.9/–7.9 mil)
E
Vertical Edge to Lateral Pin Pitch [mm]
2.25
(88.6 mil)
+0.20/–0.20
(+7.9/–7.9 mil)
F
Edge to Lateral Pin Pitch [mm]
1.45
(57.1 mil)
+0.20/–0.20
(+7.9/–7.9 mil)
G
Lateral Pin to Pin Pitch [mm]
1.1
(43.3 mil)
+0.02/–0.02
(+0.8/–0.8 mil)
H1
Lateral Pin Height [mm]
0.8
(31.5 mil)
+0.02/–0.02
(+0.8/–0.8 mil)
H2
Lateral Pin close to ANT1 and ANT2 Height [mm]
0.9
(35.4 mil)
+0.02/–0.02
(+0.8/–0.8 mil)
I
Lateral Pin Width [mm]
1.5
(59.1 mil)
+0.02/–0.02
(+0.8/–0.8 mil)
J1
Lateral Pin to Pin Distance [mm]
0.3
(11.8 mil)
+0.02/–0.02
(+0.8/–0.8 mil)
J2
Lateral Pin to Pin close to ANT Distance [mm]
0.2
(7.9 mil)
+0.02/–0.02
(+0.8/–0.8 mil)
K
Horizontal Edge to Central Pin Pitch [mm]
3.15
(124.0 mil)
+0.20/–0.20
(+7.9/–7.9 mil)
L
Vertical Edge to Central Pin Pitch [mm]
7.15
(281.5 mil)
+0.20/–0.20
(+7.9/–7.9 mil)
M1
Central Pin to Pin Horizontal Pitch [mm]
1.8
(70.9 mil)
+0.02/–0.02
(+0.8/–0.8 mil)
M2
Central Pin to Pin Horizontal Pitch [mm]
5.2
(204.7 mil)
+0.02/–0.02
(+0.8/–0.8 mil)
M3
Central Pin to Pin Horizontal Pitch [mm]
4.5
(177.2 mil)
+0.02/–0.02
(+0.8/–0.8 mil)
N
Central Pin to Pin Vertical Pitch [mm]
2.1
(82.7 mil)
+0.02/–0.02
(+0.8/–0.8 mil)
O
Central Pin Height and Width [mm]
1.1
(43.3 mil)
+0.02/–0.02
(+0.8/–0.8 mil)
P1
Horizontal Edge to Corner Pin Pitch [mm]
1.1
(43.3 mil)
+0.20/–0.20
(+7.9/–7.9 mil)
P2
Horizontal Edge to Corner Pin Pitch [mm]
1.25
(49.2 mil)
+0.20/–0.20
(+7.9/–7.9 mil)
P3
Horizontal Edge to Corner Pin Pitch [mm]
2.85
(112.2 mil)
+0.20/–0.20
(+7.9/–7.9 mil)
Weight
Module Weight [g]
4.8
Table 25: TOBY-R2 series dimensions
Module Height tolerance +/–0.20 mm may be exceeded close to the corners of the PCB due to cutting
process: in worst case the Height could be +0.40 mm longer than the typical value.
For information regarding Footprint and Paste Mask recommended for the application board integrating
the cellular module, see TOBY-R2 series System Integration Manual [2].
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Qualification and approvals
Page 32 of 41
6 Qualification and approvals
6.1 Reliability tests
Tests for product family qualifications according to ISO 16750 “Road vehicles - Environmental conditions and
testing for electrical and electronic equipment“, and appropriate standards.
6.2 Approvals
Products marked with this lead-free symbol on the product label comply with the
"Directive 2002/95/EC of the European Parliament and the Council on the Restriction of
Use of certain Hazardous Substances in Electrical and Electronic Equipment" (RoHS).
TOBY-R2 series modules are RoHS compliant.
No natural rubbers, hygroscopic materials, or materials containing asbestos are employed.
Table 26 summarizes the main approvals for TOBY-R2 series modules.
Certification Scheme
TOBY-R200
TOBY-R202
PTCRB (PCS Type Certification Review Board)
•
•
GCF (Global Certification Forum)
R&TTE (Radio & Telecommunications Terminal Equipment EU Directive)
Notified Body number
•
1588
CE (Conformité Européenne)
Notified Body number
•
1588
FCC (United States Federal Communications Commission)
FCC identification number
•
XPY1EHM44NN
•
XPY1EHQ24NN
ISED (Innovation, Science and Economic Development Canada)14
IC certification number
•
8595A-1EHM44NN
•
8595A-1EHQ24NN
AT&T (US network operator)
•
•
Verizon (US network operator)
Table 26: TOBY-R2 series main certification approvals summary
For the complete list of approvals and for specific details on all country and network operators’ certifications, see
our website www.u-blox.com or please contact the u-blox office or sales representative nearest you.
14 Formerly known as IC (Industry Canada)
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Product handling & soldering
Page 33 of 41
7 Product handling & soldering
7.1 Packaging
TOBY-R2 series modules are delivered as hermetically sealed, reeled tapes to enable efficient production,
production lot set-up and tear-down. For more information about packaging, see the u-blox Package
Information User Guide [7].
7.1.1 Reels
TOBY-R2 series modules are deliverable in quantities of 150 pieces on a reel. The modules are delivered using
the reel Type B3 described in the Figure 4 and in the u-blox Package Information Guide [7].
Figure 4: TOBY-R2 series modules reel
Parameter
Specification
Reel Type
B3
Delivery Quantity
150
Table 27: Reel information for TOBY-R2 series modules
Quantities of less than 150 pieces are also available. Contact u-blox for more information.
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Product handling & soldering
Page 34 of 41
7.1.2 Tapes
Figure 5 shows the position and the orientation of TOBY-R2 modules as they are delivered on the tape, while the
Figure 6 specifies the tape dimensions.
Feed direction
Pin 1 Sprocket hole
Figure 5: Orientation for TOBY-R2 modules on tape
Figure 6: TOBY-R2 series modules tape
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Product handling & soldering
Page 35 of 41
7.2 Moisture Sensitivity Levels
TOBY-R2 series modules are Moisture Sensitive Devices (MSD) in accordance to the IPC/JEDEC
specification.
The Moisture Sensitivity Level (MSL) relates to the packaging and handling precautions required. TOBY-R2 series
modules are rated at MSL level 4. For more information regarding moisture sensitivity levels, labeling, storage
and drying see the u-blox Package Information Guide [7].
For MSL standard see IPC/JEDEC J-STD-020 (can be downloaded from www.jedec.org).
7.3 Reflow soldering
Reflow profiles are to be selected according to u-blox recommendations (see TOBY-R2 series System Integration
Manual [2]).
Failure to observe these recommendations can result in severe damage to the device!
7.4 ESD precautions
TOBY-R2 series modules contain highly sensitive electronic circuitry and are Electrostatic
Sensitive Devices (ESD). Handling TOBY-R2 series modules without proper ESD protection may
destroy or damage them permanently.
TOBY-R2 series modules are Electrostatic Sensitive Devices (ESD) and require special ESD precautions typically
applied to ESD sensitive components.
Table 7 reports the maximum ESD ratings of the TOBY-R2 series modules.
Proper ESD handling and packaging procedures must be applied throughout the processing, handling and
operation of any application that incorporates TOBY-R2 series module.
ESD precautions should be implemented on the application board where the module is mounted, as described in
the TOBY-R2 series System Integration Manual [2].
Failure to observe these recommendations can result in severe damage to the device!
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Default settings
Page 36 of 41
8 Default settings
Interface
AT settings
Comments
UART interface
AT interface enabled
AT command mode is enabled by default on the UART physical interface
AT+IPR=0
One-shot automatic baud rate detection enabled
AT+ICF=3,1
Frame format: 8 bits, no parity, 1 stop bit
Since AT+IPR=0 is the default value (one-shot automatic baud rate detection
enabled), the AT+ICF value in the profile is not applied (AT+IPR=0 overrules
the AT+ICF setting) and the one-shot automatic frame detection is active.
AT&K3
HW flow control enabled
AT&S1
DSR line set ON in data mode and set OFF in command mode
AT&D1
Upon an ON-to-OFF transition of DTR, the module enters online command state and
issues an OK result code
AT&C1
Circuit 109 changes in accordance with the Carrier detect status; ON if the Carrier is
detected, OFF otherwise
MUX disabled
Multiplexing mode can be enabled by AT+CMUX command providing following channels:
Channel 0: Multiplexer control
Channel 1 – 5: AT commands / data connection
Channel 6: GNSS data tunneling
USB interface
Enabled
6 USB CDCs (Communications Device Class) by default available:
USB1: AT and data
USB2: AT and data
USB3: AT and data
USB4: GNSS tunneling
USB5: SAP (SIM Access Profile)
USB6: Primary Log (diagnostic purpose)
AT&K3
HW flow control enabled
AT&S1
DSR line set ON in data mode and set OFF in command mode
AT&D1
Upon an ON-to-OFF transition of DTR, the module enters online command state and
issues an OK result code
AT&C1
Circuit 109 changes in accordance with the Carrier detect status; ON if the Carrier is
detected, OFF otherwise
Power saving
AT+UPSV=0
Disabled
Network registration
AT+COPS=0
Self network registration
Table 28: TOBY-R2 series default settings
See the u-blox AT Commands Manual [1] and the TOBY-R2 series System Integration Manual [2] for information
about further settings and factory-programmed values.
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Labeling and ordering information
Page 37 of 41
9 Labeling and ordering information
9.1 Product labeling
The labels of TOBY-R2 series series modules include important product information as described in this section.
Figure 7 illustrates the label of all the TOBY-R2 series modules, and includes: u-blox logo, production lot, Pb-free
marking, product type number, IMEI number, certification numbers, and production country.
1588
xxB-00

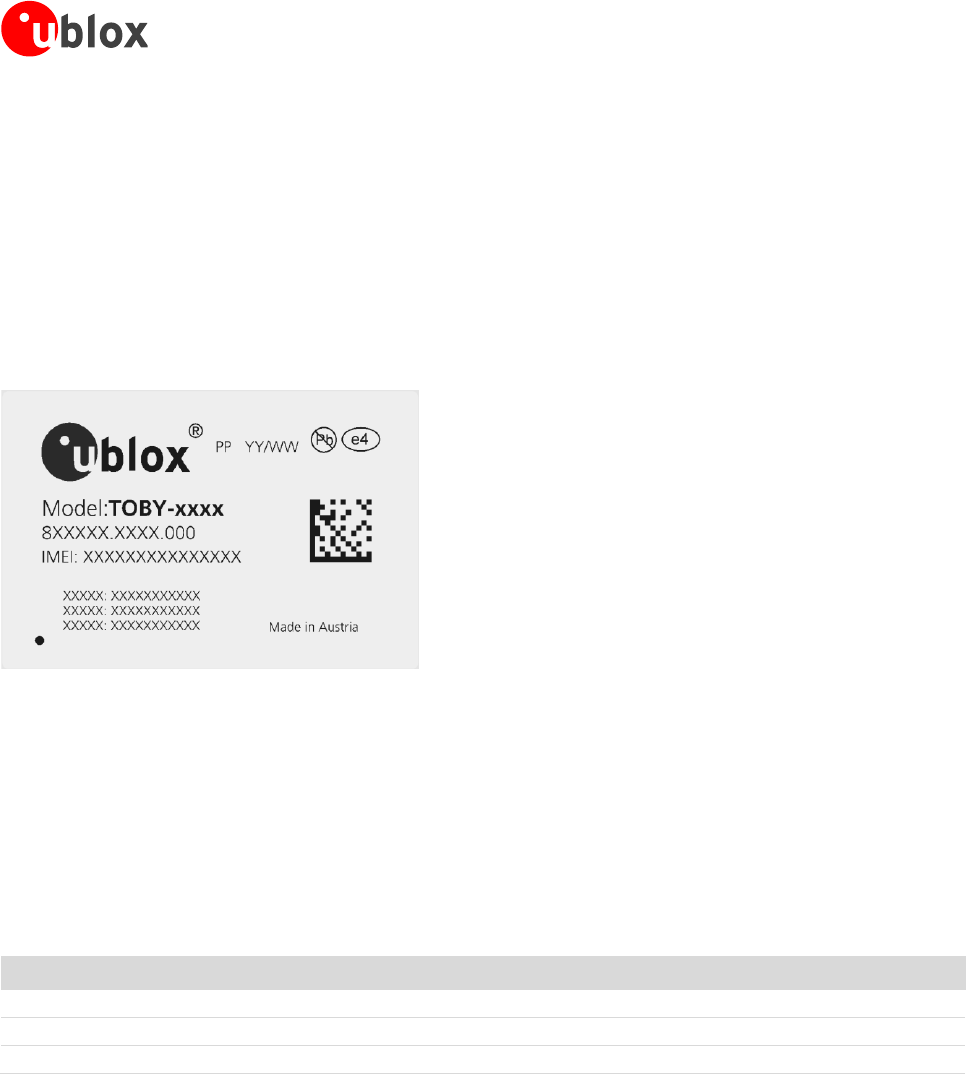

Figure 7: TOBY-R2 series module label
9.2 Explanation of codes
Three different product code formats are used. The Product Name is used in documentation such as this data
sheet and identifies all the u-blox products, independent of packaging and quality grade. The Ordering Code
includes options and quality, while the Type Number includes the hardware and firmware versions. Table 29
details these 3 different formats:
Format
Structure
Product Name
PPPP-TGVV
Ordering Code
PPPP-TGVV-MMQ
Type Number
PPPP-TGVV-MMQ-XX
Table 29: Product Code Formats
Table 30 explains the parts of the product code.
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Labeling and ordering information
Page 38 of 41
Code
Meaning
Example
PPPP
Form factor
TOBY
TG
Platform (Technology and Generation)
Dominant technology: G: GSM; U: HSUPA; C: CDMA 1xRTT; N: NB-IoT;
R: LTE low data rate (Cat 1 and below); L: LTE high data rate (Cat 3 and above)
Generation: 1…9
R2
VV
Variant function set based on the same platform [00…99]
00
MM
Major product version [00…99]
02
Q
Product grade
B = professional
A = automotive
B
XX
Minor product version (not relevant for certification)
Default value is 00
Table 30: Part identification code
9.3 Ordering information
Ordering No.
Product
TOBY-R200-02B
Module supporting LTE Cat 1 bands 2 / 4 / 5 / 12, DC-HSPA+ bands 1 / 2 / 5 / 8, (E)GPRS quad-band.
Mainly designed for operation in America (on AT&T network) and other countries.
35.6 x 24.8 x 2.6 mm, 150 pcs/reel
TOBY-R202-02B
Module supporting LTE Cat 1 bands 2 / 4 / 5 / 12, DC-HSPA+ bands 2 / 5.
Mainly designed for operation in America (on AT&T network).
35.6 x 24.8 x 2.6 mm, 150 pcs/reel
Table 31: Product ordering codes
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Appendix
Page 39 of 41
Appendix
A Glossary
Name
Definition
8-PSK
8 Phase-Shift Keying modulation
ADC
Analog to Digital Converter
CSFB
Circuit Switched Fall-Back
DDC
Display Data Channel (I2C compatible) Interface
DL
Down-link (Reception)
DNS
Domain Name System
ERS
External Reset Input Signal
ESD
Electrostatic Discharge
FOAT
Firmware update Over AT commands
FOTA
Firmware update Over The Air
FW
Firmware
GDI
Generic Digital Interfaces (power domain)
GMSK
Gaussian Minimum-Shift Keying modulation
GND
Ground
GNSS
Global Navigation Satellite System
GPIO
General Purpose Input Output
GPS
Global Positioning System
H
High
HSDPA
High Speed Downlink Packet Access
HSUPA
High Speed Uplink Packet Access
I
Input (means that this is an input port of the module)
I2C
Inter-Integrated Circuit Interface
I2S
Inter-IC Sound Interface
IMEI
International Mobile Equipment Identity
IMS
IP Multimedia Subsystem
L
Low
LGA
Land Grid Array
LTE
Long Term Evolution
N/A
Not Applicable
O
Output (means that this is an output port of the module)
OD
Open Drain
PCN / IN
Product Change Notification / Information Note
PD
Pull-Down
POS
Power-On Input Signal
PU
Pull-Up
RMC
Reference Measurement Channel
SDIO
Secure Digital Input Output
T
Tristate
TBD
To Be Defined
UL
Up-link (Transmission)
UMTS
Universal Mobile Telecommunications System
VoLTE
Voice over LTE
Table 32: Explanation of abbreviations and terms used
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Related documents
Page 40 of 41
Related documents
[1] u-blox AT Commands Manual, Docu No UBX-13002752
[2] u-blox TOBY-R2 series System Integration Manual, Docu No UBX-16010572
[3] u-blox Android RIL Production delivery Application note, Docu No UBX-13002041
[4] u-blox Windows Embedded RIL Production delivery Application note, Docu No UBX-13002043
[5] u-blox GNSS Implementation Application Note, Docu No UBX-13001849
[6] u-blox Mux Implementation Application Note, Docu No UBX-13001887
[7] u-blox Package Information User Guide, Docu No UBX-14001652
[8] 3GPP TS 27.007 - AT command set for User Equipment (UE)
[9] 3GPP TS 27.005 - Use of Data Terminal Equipment - Data Circuit terminating Equipment (DTE - DCE)
interface for Short Message Service (SMS) and Cell Broadcast Service (CBS)
[10] 3GPP TS 27.010 - Terminal Equipment to User Equipment (TE-UE) multiplexer protocol
[11] 3GPP TS 36.521-1 - Evolved Universal Terrestrial Radio Access; User Equipment conformance specification;
Radio transmission and reception; Part 1: Conformance Testing
[12] 3GPP TS 34.121-1 - User Equipment conformance specification; Radio transmission and reception (FDD);
Part 1: Conformance specification
[13] 3GPP TS 51.010-1 - Mobile Station conformance specification; Part 1: Conformance specification
[14] ITU-T Recommendation V24, 02-2000. List of definitions for interchange circuits between Data Terminal
Equipment (DTE) and Data Connection Equipment (DCE)
[15] Universal Serial Bus Revision 2.0 specification, http://www.usb.org/developers/docs/usb20_docs/
[16] I2C-bus specification and user manual - Rev. 5 - 9 October 2012 - NXP Semiconductors,
http://www.nxp.com/documents/user_manual/UM10204.pdf
For regular updates to u-blox documentation and to receive product change notifications please register
on our homepage (www.u-blox.com).
Revision history
Revision
Date
Name
Comments
R01
03-Mar-2016
sses
Initial release
R02
31-May-2016
sses
Improved description of VCC, Power-on, Reset, Host select, UART, USB, GPIO pins
R03
11-Jul-2016
sses
Added current consumption and RF performance figures
Remarked HSDPA Category 8
Updated description of Power-on, Reset, Host select, UART, USB pins
R04
22-Sep-2016
sses
Updated status to Advance Information
Updated PWR_ON, ANT_DET, GPIO and Clock Output description.
Added 2G current consumption figures.
R05
10-Oct-2016
lpah
Document reverted to Objective Specification
TOBY-R200-02B prototypes information. Added remark in mechanical specifications.
R06
22-Dec-2016
sses
Document applicability updated to TOBY-R200 and TOBY-R202
Updated Power-on and Power-off sections.
TOBY-R2 series - Data Sheet
UBX-16005785 - R06 Contact
Page 41 of 41
Contact
For complete contact information visit us at www.u-blox.com
u-blox Offices
North, Central and South America
u-blox America, Inc.
Phone: +1 703 483 3180
E-mail: info_us@u-blox.com
Regional Office West Coast:
Phone: +1 408 573 3640
E-mail: info_us@u-blox.com
Technical Support:
Phone: +1 703 483 3185
E-mail: support_us@u-blox.com
Headquarters
Europe, Middle East, Africa
u-blox AG
Phone: +41 44 722 74 44
E-mail: info@u-blox.com
Support: support@u-blox.com
Asia, Australia, Pacific
u-blox Singapore Pte. Ltd.
Phone: +65 6734 3811
E-mail: info_ap@u-blox.com
Support: support_ap@u-blox.com
Regional Office Australia:
Phone: +61 2 8448 2016
E-mail: info_anz@u-blox.com
Support: support_ap@u-blox.com
Regional Office China (Beijing):
Phone: +86 10 68 133 545
E-mail: info_cn@u-blox.com
Support: support_cn@u-blox.com
Regional Office China (Chongqing):
Phone: +86 23 6815 1588
E-mail: info_cn@u-blox.com
Support: support_cn@u-blox.com
Regional Office China (Shanghai):
Phone: +86 21 6090 4832
E-mail: info_cn@u-blox.com
Support: support_cn@u-blox.com
Regional Office China (Shenzhen):
Phone: +86 755 8627 1083
E-mail: info_cn@u-blox.com
Support: support_cn@u-blox.com
Regional Office India:
Phone: +91 80 4050 9200
E-mail: info_in@u-blox.com
Support: support_in@u-blox.com
Regional Office Japan (Osaka):
Phone: +81 6 6941 3660
E-mail: info_jp@u-blox.com
Support: support_jp@u-blox.com
Regional Office Japan (Tokyo):
Phone: +81 3 5775 3850
E-mail: info_jp@u-blox.com
Support: support_jp@u-blox.com
Regional Office Korea:
Phone: +82 2 542 0861
E-mail: info_kr@u-blox.com
Support: support_kr@u-blox.com
Regional Office Taiwan:
Phone: +886 2 2657 1090
E-mail: info_tw@u-blox.com
Support: support_tw@u-blox.com
