Administrator Guide
VMware vCenter Server Heartbeat 6.4 Update 1
This document supports the version of each product listed and
supports all subsequent versions until the document is replaced
by a new edition. To check for more recent editions of this
document, see http://www.vmware.com/support/pubs.
EN-000728-00
VMware, Inc.
3401 Hillview Ave.
Palo Alto, CA 94304
www.vmware.com
2VMware, Inc.
Administrator Guide
You can find the most up-to-date technical documentation on the VMware Web site at:
http://www.vmware.com/support/
The VMware Web site also provides the latest product updates.
If you have comments about this documentation, submit your feedback to:
docfeedback@vmware.com
Copyright © 2009-2012 VMware, Inc. All rights reserved. This product is protected by U.S. and international copyright and
intellectual property laws. VMware products are covered by one or more patents listed at
http://www.vmware.com/go/patents.
VMware is a registered trademark or trademark of VMware, Inc. in the United States and/or other jurisdictions. All other marks
and names mentioned herein may be trademarks of their respective companies.
VMware, Inc. 3
Contents
About This Book 7
Getting Started
1Introduction 11
vCenter Server Heartbeat Concepts 11
Architecture Overview 11
vCenter Server Heartbeat Protection Levels 12
vCenter Server Heartbeat Communications 15
vCenter Server Heartbeat Switchover and Failover Processes 16
2Configuring vCenter Server Heartbeat 19
Server Configuration Wizard 19
Configuring the Machine 20
Configuring the Channel 20
Configuring Public IP Addressing 22
Configuring Principal (Public) IP Addressing 22
Managing vCenter Server Heartbeat License Keys 23
Configuring the Logs 23
System Administration and Management
3Server Protection 27
Server Protection Overview 27
Checking the Server Pair Status 27
Monitoring the Status of Servers 29
Configuring Heartbeat Settings 29
Configure Pings 29
Configure Failover 29
Configuring Response Times 30
Configuring Split-Brain Avoidance 30
Common Administrative Tasks in vCenter Server Heartbeat 31
Forcing a Switchover 31
Recovering From a Failover 32
Applying Patches with vCenter Server Heartbeat Installed 33
4Network Protection 37
Communication Status 37
Reviewing the VMware Channel Status 37
Configuring Public Network Connection Checks 37
Setting Max Server Time Difference 38
5Application Protection 39
Application Protection Overview 39
Reference Guide
4VMware, Inc.
Applications: Applications Tab 39
Reset the Application Health Status 39
View Application Status 40
Setting the Application Timeout Exception 40
Remove an Application 40
Manually Start and Stop Applications 40
Configuring Applications 41
Application Maintenance Mode 41
Reviewing the State of an Application 41
Reviewing the Applications Log 41
Filtering Application Log Entries 41
Applications: Services Tab 42
Adding a Service 42
Editing a Service 42
Checking the Status of Services 42
Unprotecting User Defined Services and Stopping Monitoring 42
Change the Order of Services 43
Removing a Service 43
Applications: Tasks Tab 44
Adding a Task 44
Editing a Task 44
Remove a Task 44
Change the Order of Tasks 45
Starting a Task Manually 45
View, Add, and Remove User Accounts 45
Applications: Plug-ins Tab 45
Install a Plug-In 45
Editing a Plug-in 46
Uninstalling a Plug-in 46
6Status and Control 47
vCenter Server Heartbeat Console 47
About vCenter Server Heartbeat Console 47
Navigate vCenter Server Heartbeat Console 48
Change the Font for vCenter Server Heartbeat Console 48
Work with Groups and Pairs 48
Add or Remove a vCenter Server Group 48
Remove a vCenter Server Heartbeat Group 49
Add, Edit, Move, and Remove Pairs in VCenter Server Heartbeat Groups 49
Add a New Connection 49
Edit a Connection 50
Move a Connection 50
Remove a Connection 50
Edit Username and Password Settings 50
Review the Status of vCenter Server Heartbeat Groups and Pairs 50
Exit vCenter Server Heartbeat Console 51
Shut Down Windows Without Stopping vCenter Server Heartbeat 51
Controlled Shutdown 51
vSphere Client Plug-in 52
Launching the Heartbeat Plug-in for vSphere Client 52
Uninstall vCenter Server Heartbeat 53
7Performance Protection 57
Applications: Rules Tab 57
Rules 57
VMware, Inc. 5
Contents
Checking a Rule Condition 57
Edit a Rule 57
Rules Installed by vCenter Server Heartbeat Plug-Ins 57
8Data Protection 59
Data Protection Overview 59
Replication 60
Registry and File Synchronization Status 60
Initiate a Full Registry Check 60
Initiate a Full System Check 60
Configure Fast Check 60
Initiate File Synchronization Manually 61
Initiate Verify and Synchronize Manually 61
Orphaned Files Check 62
File Filters 63
Determine Effective Filters 64
Add a User-Defined Exclusion Filter 64
Edit User Defined Inclusion/Exclusion Filters 64
Remove User-Defined Filters 64
Automatic Filter Discovery 65
9Alerts and Events 67
Configure Alerts 67
Configure Alert Reporting 67
Test Alert Reporting 68
Configure Event Log Files 68
Configure Log File Email Recipients 68
Review Event Logs 69
Event Log Filters 69
10 Troubleshooting 71
Troubleshooting Unexpected Behaviors 71
Two Active Servers 71
Symptoms 71
Causes 72
Resolution 72
Two Passive Servers 73
Symptom 73
Causes 73
Resolution 73
Synchronization Failures 74
Services Running on the Passive Server 74
VMware Channel Incorrectly Configured 74
Incorrect or Mismatched Disk Configuration 75
Passive Server Has Less Available Space than Active Server 75
Registry Status is Out of Sync 76
Resource Issues 76
Registry Security Issues 76
Channel Drops 76
Performance Issues 76
Passive Server Does Not Meet Minimum Hardware Requirements 77
Hardware or Driver Issues on VMware Channel NICs 77
Firewall Connection 78
Incorrect VMware Channel Configuration 78
VMware vCenter Server Heartbeat Packet Filter Is Enabled on the Channel NIC(s) 79
Reference Guide
6VMware, Inc.
Subnet or Routing Issues 80
LAN Deployment 80
WAN Deployment 80
MaxDiskUsage Errors 80
Send Queue 81
Receive Queue 81
MaxDiskUsage Error Messages 81
[L9]Exceeded the Maximum Disk Usage (VCChannelExceededMaxDiskUsageException) 81
[L9]Exceeded the Maximum Disk Usage on the ACTIVE Server 82
[L9]Exceeded the Maximum Disk Usage on the PASSIVE Server 82
[L20]Out of Disk Space (VCChannelOutOfDiskSpaceException) 83
Application Slowdown 84
Poor Application Performance 84
Both Servers Can Accommodate the Initial Load but the Load Has Increased 84
One Server Can Provide Adequate Resource Support, but the Other Cannot 84
Scheduled Resource Intensive Tasks 85
Glossary 87
VMware, Inc. 7
The Administrator Guide provides information about configuring VMware vCenter Server Heartbeat network
protection, application protection, data protection, Split-brain Avoidance, and more. To help you protect your
VMware vCenter Server, this book provides an overview of the protection offered by vCenter Server
Heartbeat and the actions that vCenter Server Heartbeat can take in the event of a network, hardware, or
application failure.
Intended Audience
This guide assumes the reader has a working knowledge of networks including the configuration of TCP/IP
protocols and domain administration on the Windows™ 2003 and 2008 platforms, notably in Active Directory
and DNS.
VMware Technical Publications Glossary
VMware Technical Publications provides a glossary of terms that might be unfamiliar to you. For definitions
of terms as they are used in VMware technical documentation go to http://www.vmware.com/support/pubs.
Overview of Content
This guide is designed to give guidance on the configuration and administration of vCenter Server Heartbeat,
and is organized into the following sections:
Preface — About This Book (this chapter) provides an overview of this guide and the conventions used
throughout.
Chapter 1 — Introduction presents an overview of vCenter Server Heartbeat concepts including the
Switchover and Failover processes.
Chapter 2 — Configuring vCenter Server Heartbeat shows you how to use the Server Configuration Wizard
to configure your new installation of vCenter Server Heartbeat.
Chapter 3 — Server Protection gives an overview of how vCenter Server Heartbeat provides protection
against server system crash or server hardware failure, shows you how to check the server pair status, and
explains how to configure settings, shutdown options, and Split-Brain Avoidance.
Chapter 4 — Network Protection describes how vCenter Server Heartbeat protects against network failure
and provides a way to monitor communication status. It also explains how to configure public network
connection checks and maximum server time difference.
Chapter 5 — Application Protection discusses how vCenter Server Heartbeat maintains the protected
application environment ensuring that applications and services stay alive on the network.
Chapter 6 — Status and Control introduces you to the vCenter Server Heartbeat Console and shows you
how to configure its look and feel.
About This Book
Administrator Guide
8VMware, Inc.
Chapter 7 — Performance Protection describes how vCenter Server Heartbeat monitors system and
application attributes to prevent an unexpected system or application failure.
Chapter 8 — Data Protection discusses how vCenter Server Heartbeat intercepts all data written by users
and protected applications and maintains a copy of this data for use in case of failure.
Chapter 9 — Alerts and Events discusses additional tasks for the administrator to configure system logging
and alerting functions.
Chapter 10 — Troubleshooting provides techniques to troubleshoot common issues and unexpected
behaviors.
Document Feedback
VMware welcomes your suggestions for improving our documentation and invites you to send your feedback
to docfeedback@vmware.com.
Abbreviations Used in Figures
The figures in this book use the abbreviations listed in Table 1.
Technical Support and Education Resources
The following sections describe the technical support resources available to you. To access the current version
of this book and other books, go to www.vmware.com/support/pubs.
Online and Telephone Support
Go to www.vmware.com/support to use online support to submit technical support requests, view your
product and contract information, and register your products.
Go to www.vmware.com/support/phone_support.html to find out how to use telephone support for the
fastest response on priority 1 issues (applies to customers with appropriate support contracts).
Support Offerings
Go to www.vmware.com/support/services to find out how VMware support offerings can help meet your
business needs.
VMware Professional Services
Go to www.vmware.com/services to access information about education classes, certification programs, and
consulting services. VMware Education Services courses offer extensive hands-on labs, case study examples,
and course materials designed for use as on-the-job reference tools. Courses are available onsite, in the
classroom, and live online. For onsite pilot programs and implementation best practices, VMware Consulting
Services provides offerings to help you assess, plan, build, and manage your virtual environment.
Table 1. Abbreviations
Abbreviation Description
Channel VMware Channel
NIC Network Interface Card
P2P Physical to Physical
P2V Physical to Virtual
V2V Virtual to Virtual
VMware, Inc. 9
Getting Started
Reference Guide
10 VMware, Inc.
VMware, Inc. 11
1
This chapter includes the following topics:
“vCenter Server Heartbeat Concepts” on page 11
“vCenter Server Heartbeat Protection Levels” on page 12
“vCenter Server Heartbeat Communications” on page 15
“vCenter Server Heartbeat Switchover and Failover Processes” on page 16
vCenter Server Heartbeat Concepts
vCenter Server Heartbeat is a Windows based service specifically designed to provide high availability
protection for vCenter Server configurations without requiring any specialized hardware.
Architecture Overview
vCenter Server Heartbeat uses an active / passive architecture which enables it to provide High Availability in
a Local Area Network (LAN) or Disaster Recovery in a Wide Area Network (WAN) for vCenter Server, View
Composer and SQL Server. The vCenter Server Heartbeat software is installed on an existing production
server known as the Primary server running the protected applications (vCenter Server, View and SQL
Server). An additional server, known as the Secondary server, operates as a ready standby server to provide
service in the event of an application, system, or hardware failure, or when the Administrator needs to perform
system maintenance. The terms Primary and Secondary refer to the identity of each server instance, and
normally these identities do not change.
Active / Passive Roles
The applications protected by vCenter Server Heartbeat will run on the active server. Only one server can be
active at any one time and the active server will host the Principal (Public) IP address which is used by clients
to access the application. The passive server is only accessible on the network via its assigned management IP
address. Active and passive refer to the role that the server is performing. The role can be changed by a failover
or when the administrator performs a switchover. To ensure the servers can provide a seamless switchover /
failover experience for clients, the servers need to be symmetrical. To ensure that the Secondary server has all
the programs and components installed in the same location, the install process includes a cloning procedure.
Clients will continue to connect to vCenter Server or SQL Server using the original and unique fully qualified
domain name that was used previously by clients. During installation, a service name is configured in vCenter
Server Heartbeat which will continue to resolve in DNS to the Public (Principal) IP address.
Introduction 1
Installation Guide
12 VMware, Inc.
Managing the Primary and Secondary Servers
To allow management of vCenter Server Heartbeat server pairs using standard network, domain policy, and
domain management procedures, vCenter Server Heartbeat is deployed so that Primary and Secondary
servers use unique domain names. Each domain name must differ from the fully qualified domain name used
by the original vCenter or SQL Servers. A management IP address on each server ensures that the
Administrator can access the server even when it is passive. This allows monitoring with 3rd party monitoring
tools and maintenance operations such as updating anti-virus definition files, operating system hot-fixes and
updates.
Switchover/Failover in a LAN
When deployed in a LAN environment, the Principal (Public) IP address is moved between the Primary and
Secondary servers as the roles change from active to passive so that vCenter Server or SQL Server are available
to clients only when the server assumes the active role. vCenter Server Heartbeat does not require updates to
DNS during the switchover / failover, however the DNS server must be preconfigured with the management
IP addresses. Adjacent IP addresses should be reserved and used for the Principal (Public) IP address and the
Management IP addresses for the Primary and Secondary Servers when installing vCenter Server Heartbeat
on servers running Windows 2008. When vCenter Server Heartbeat is started, the Principal (Public) IP address
is added to the active server. When a switchover is requested the Principal (Public) IP address is removed from
the active server as it becomes passive and then added to the passive server which is being made active.
Switchover/ Failover in a WAN
vCenter Server Heartbeat can be deployed in a WAN using the same subnet in production and the disaster
recovery site, and like deployments in a LAN requires that each server uses the same Principal (Public) IP
address when active. This means that vCenter Server Heartbeat can be deployed without any changes to DNS
during a switchover or failover.
vCenter Server Heartbeat Protection Levels
vCenter Server Heartbeat provides the following protection levels:
Server Protection – vCenter Server Heartbeat provides continuous availability to end users through a
hardware failure scenario or operating system crash. Additionally, vCenter Server Heartbeat ensures
users are provided with a replica server should the production server fail.
Network Protection – vCenter Server Heartbeat proactively monitors the network by polling up to three
predefined nodes to ensure that the active server is visible on the network.
Application Protection – vCenter Server Heartbeat maintains the application environment ensuring that
applications and services stay alive and available on the network.
Performance Protection – vCenter Server Heartbeat proactively monitors system performance attributes
to ensure the system administrator is notified of problems. Additionally, it can be configured to take
pre-emptive action to prevent an outage.
Data Protection – vCenter Server Heartbeat intercepts all data written by users and applications, and
maintains a copy of the data on the passive server that can be used in the event of a failure.
vCenter Server Heartbeat provides all five protection levels continuously, ensuring all facets of the user
environment are maintained at all times, and that vCenter Server continues to operate through as many failure
scenarios as possible.
Server Protection
vCenter Server Heartbeat provides continuous availability to end users through a hardware failure scenario
or operating system crash and ensures users are provided with a replica server and its IP address on the failure
of the production server.
VMware, Inc. 13
Chapter 1 Introduction
Two instances of vCenter Server Heartbeat regularly send “I’m alive” messages and message
acknowledgments to one another over a dedicated network connection referred to as the VMware Channel to
detect interruptions in responsiveness. If the passive server detects that this monitoring process (referred to as
the heartbeat) has failed, it initiates a failover as illustrated in Figure 1-1.

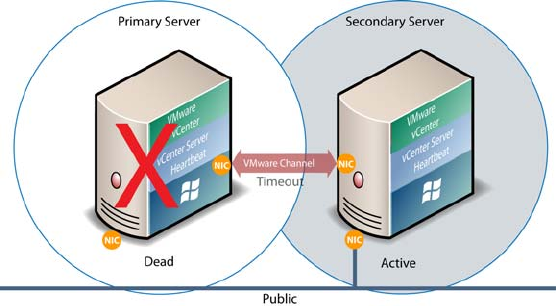

Figure 1-1. Failover
A failover occurs when the passive server detects that the active server is no longer responding. This can occur
when the active server hardware fails, loses its network connections, or otherwise becomes unavailable. Rather
than the active server gracefully closing, the passive server determines that the active server has failed and
requires no further operations. In a failover, the passive server immediately assumes the active server role. The
failover process is discussed in detail later in this guide.
Network Protection
vCenter Server Heartbeat proactively monitors the network by polling up to three predefined nodes to ensure
that the active server is visible on the network. vCenter Server Heartbeat polls by default the primary DNS
server, the default gateway, and the global catalog server at regular intervals. If all three nodes fail to respond,
for example in the case of a network card or local switch failure, vCenter Server Heartbeat can initiate a
switchover, allowing the Secondary server to assume the active role and service clients.
Application Protection
vCenter Server Heartbeat running on the active server locally monitors vCenter Server and its services
(through the use of plug-ins) to verify that vCenter Server is operational and not in an unresponsive or stopped
state. This level of monitoring is fundamental in ensuring that vCenter Server remains available to users.
If vCenter Server should fail, vCenter Server Heartbeat first tries to restart the application on the active server
(1) in Figure 1-2.
If the application does not successfully restart, vCenter Server Heartbeat initiates a switchover (2) in
Figure 1-2. Refer to “vCenter Server Heartbeat Switchover and Failover Processes” on page 16 for further
information about the switchover process.
Installation Guide
14 VMware, Inc.

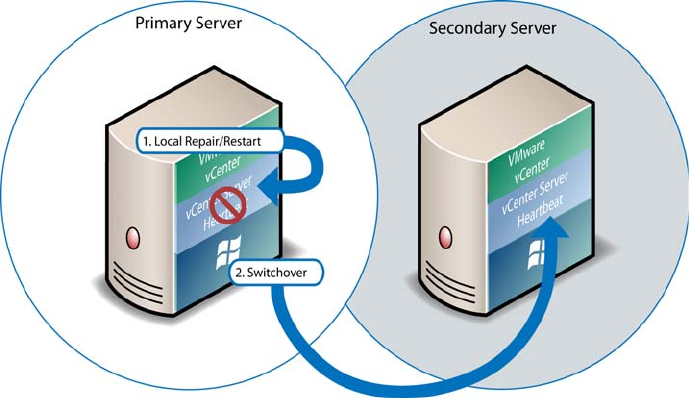

Figure 1-2. Switchover
A switchover gracefully closes vCenter Server running on the active server and restarts it on the passive server,
including the component or service that caused the failure. For example, if the Primary server is active and the
Secondary server is passive, the Primary server is demoted to a passive role and is hidden from the network
when the Secondary server is promoted to an active role and is made visible to the network. The mechanics of
switchovers are discussed in more detail later in this guide.
Performance Protection
Ensuring that vCenter Server is operational and providing service at an adequate level of performance to meet
user demands is important. The vCenter Server Heartbeat plug-in provides these monitoring and pre-emptive
repair capabilities.
vCenter Server Heartbeat proactively monitors system performance attributes and can notify the system
administrator in the event of a problem. Additionally, it can be configured to take pre-emptive action to
prevent an outage.
In addition to monitoring vCenter Server services, vCenter Server Heartbeat can monitor specific attributes to
ensure that they remain within normal operating ranges. Similar to application monitoring, various rules can
be configured to trigger specific corrective actions whenever these attributes fall outside of their respective
ranges.
vCenter Server Heartbeat provides the same level of flexibility to define and perform multiple corrective
actions in the event of problems on a service by service or even attribute by attribute basis.
Data Protection
You can configure vCenter Server Heartbeat to protect the application environment. All data files that users or
the vCenter Server requires in the application environment are made available should a failure occur. After
installation, vCenter Server Heartbeat configures itself to protect files, folders, and registry settings for
vCenter Server on the active server by mirroring them in real time to the passive server. If a failover occurs, all
files protected on the failed server are available to users after the failover, hosted on the Secondary server.
vCenter Server Heartbeat intercepts all file system I/O operations on the active server. If the intercepted write
and update operations are within the protected set, these are placed in a queue on the active server referred to
as the active server’s send queue, pending transmission to the passive server. Each request is numbered to
maintain its order in the queue.
With the request in the active server’s send queue, vCenter Server Heartbeat allows the disk I/O to continue
with the requested disk operation.
VMware, Inc. 15
Chapter 1 Introduction
If the channel is connected, the active server’s send queue is transferred to the passive server, which places all
the requests in the passive server’s receive queue. The passive server confirms the changes were logged by
sending the active server an acknowledgement. The active server clears the data from its queue.

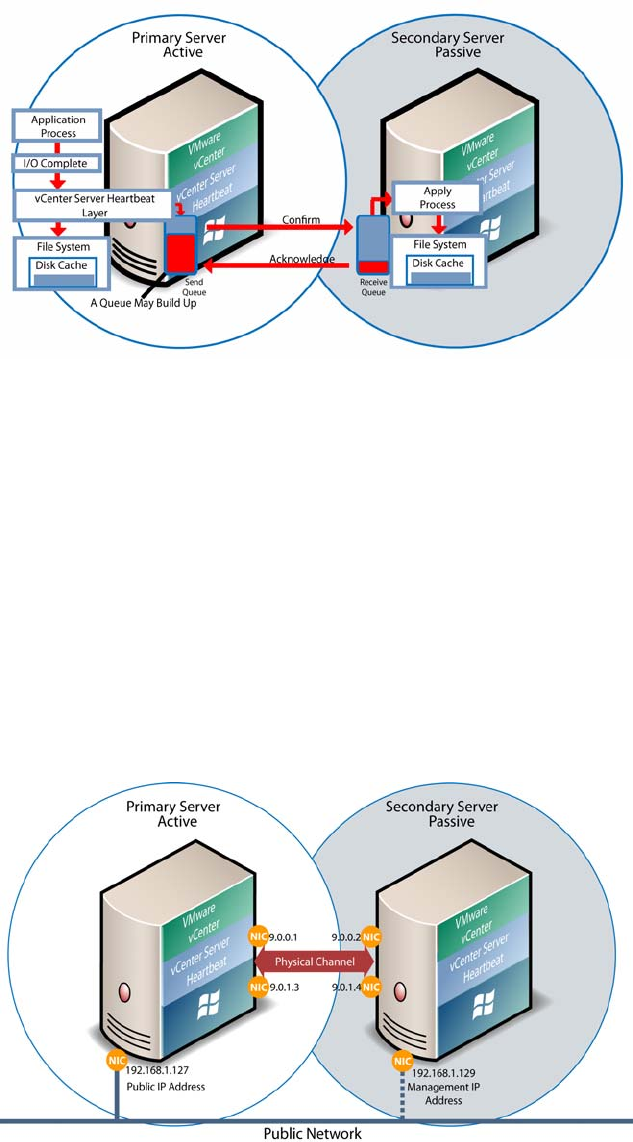

Figure 1-3. Apply Process
The apply process running on the passive server’s receive queue applies all updates in strict sequence,
duplicating an identical set of file operations on the passive server as illustrated in Figure 1-3.
vCenter Server Heartbeat Communications
The VMware Channel is a crucial component of the setup and can be configured in a number of ways.
Both the Primary and Secondary servers must have two or more network interface connections (NICs). The
Principal (Public) network requires one NIC and the VMware Channel uses a separate NIC for the private
connection between the servers used for control and data transfer between the servers in the pair.
A second pair of NICs can be used to provide a degree of redundancy for the VMware Channel. In this
configuration, the VMware Channel has a dual channel if more than one dedicated NIC is provided for the
VMware Channel on each server. To provide added resilience, the communications for the second channel
must be completely independent from the first channel. They must not share any switches, virtual switches,
routers or the same WAN connection.
Figure 1-4. Communication Between Primary and Secondary Servers
The IP address a client uses to connect to the active server (the Principal (Public) IP address) must be
configured as a static IP address, that is, not DHCP (Dynamic Host Configuration Protocol) enabled. In the
figure above, the IP address is configured as 192.168.1.127.
Installation Guide
16 VMware, Inc.
When deployed in a LAN, the Principal (Public) NIC on the passive server is configured to use its unique
permanently assigned management IP address. When a switchover or failover occurs, the Principal (Public)
IP address assigned to the previously active server is removed from the active server and reassigned to the
previously passive server. Once the previously passive server becomes active, users connect to the new active
server. The previously active server becomes passive and is assigned its unique management IP address.
The NICs on the active and passive servers used for the VMware Channel are configured so that their IP
addresses are outside of the subnet range of the Principal (Public) network. These addresses are referred to as
VMware Channel addresses.
During installation, setup will switch off NetBIOS for the VMware Channel(s) on the active and passive
servers as this connection remains live and both the passive and active machines have the same NetBIOS name.
Following vCenter Server Heartbeat installation (runtime), NetBIOS is disabled across the channel(s).
The NICs that support connectivity across the VMware Channel can be standard 100BaseT Ethernet cards
providing a throughput of 100 Mbits per second across standard Cat-5 cabling. In its most basic form, a
dedicated channel requires no hubs or routers, but the direct connection requires crossover cabling.
When configured for a WAN deployment, configure the VMware Channel to use static routes over switches
and routers to maintain continuous communications independent from corporate or public traffic.
vCenter Server Heartbeat Switchover and Failover Processes
vCenter Server Heartbeat uses four different procedures — managed switchover, automatic switchover,
automatic failover, and managed failover — to change the role of the active and passive servers depending on
the status of the active server.
Managed Switchover
You can click Make Active on the vCenter Server Heartbeat Console Server: Summary page to manually
initiate a managed switchover. When a managed switchover is triggered, the running of protected applications
is transferred from the active machine to the passive machine in the server pair. The server roles are reversed.

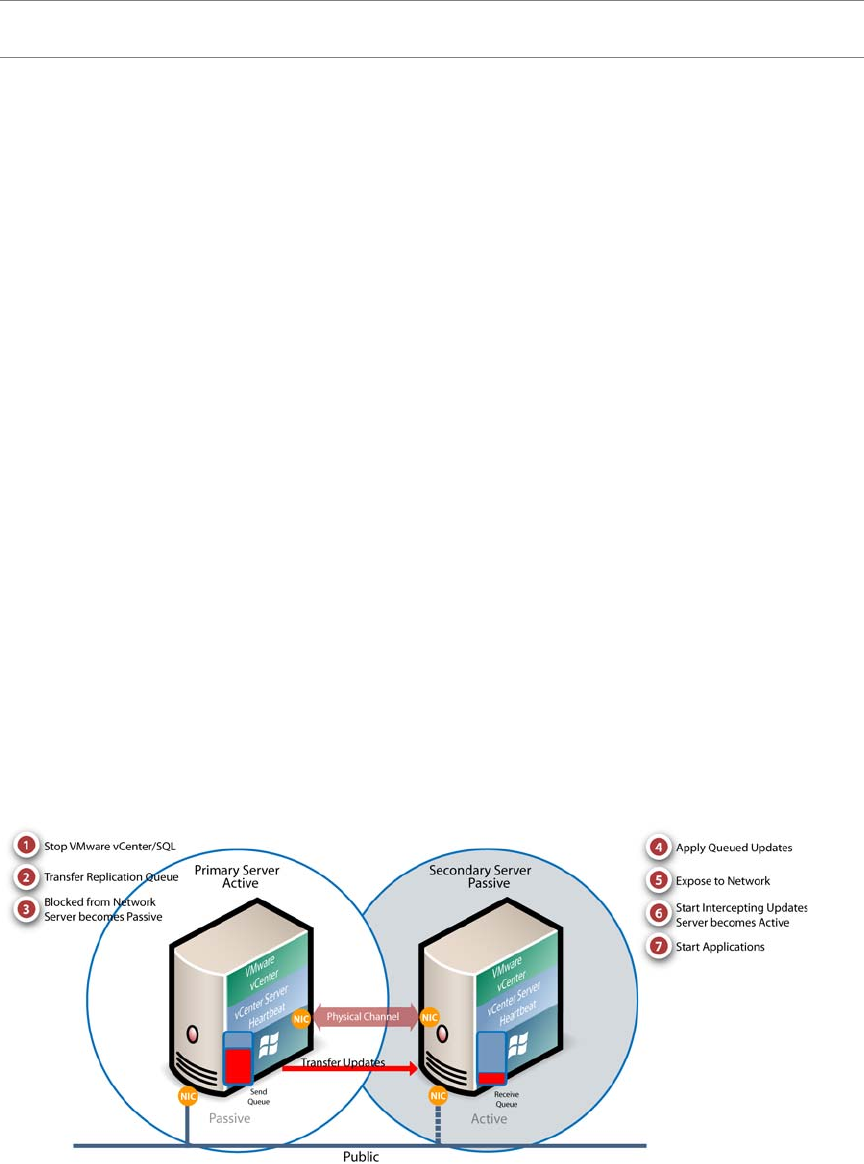

Figure 1-5. Switchover
A managed switchover performs the following steps:
1 Stop the protected applications on the active server. After the protected applications stop, no more disk
updates are generated.
2 Send all updates that are still queued on the active server to the passive server. After this step, all updates
are available on the passive server.
3 Re-designate the Secondary server as the new active server. After this step, vCenter Server Heartbeat:
NOTE Obtain the IP address: type ipconfig at the prompt in a DOS shell. For additional information about
the IP configuration, add the switch /All to the ipconfig command.
VMware, Inc. 17
Chapter 1 Introduction
Reassigns the Principal (Public) IP address to the Secondary server and assigns the Primary its
unique management IP address.
Makes the newly active server visible on the network. The newly active server begins to intercept and
queue disk I/O operations for the newly passive server.
4 vCenter Server Heartbeat causes the newly passive server to begin accepting updates from the active
server.
5 vCenter Server Heartbeat starts the same protected applications on the new active server. The protected
applications become accessible to users. The managed switchover is complete
Automatic Switchover
Automatic switchover (auto-switchover) is similar to failover (discussed in the next section) but is triggered
automatically when system monitoring detects failure of a protected application.
Like managed switchover, auto-switchover changes the server roles but then stops vCenter Server Heartbeat
on the previously active server to allow the administrator to investigate the cause of the auto-switchover and
verify the integrity of the data.
After the cause for the auto-switchover is determined and problems are corrected, the administrator can use
vCenter Server Heartbeat Console to return the server roles to their original state.
Automatic Failover
Automatic failover is similar to automatic switchover (discussed above) but is triggered when the passive
server detects that the active server is no longer running properly and assumes the role of the active server.
Figure 1-6. Failover
During the automatic failover, the passive server performs the following steps:
1 Apply any intercepted updates currently in the passive server’s receive queue as identified by the log of
update records that are saved on the passive server but not yet applied to the replicated files.
The amount of data in the passive server’s receive queue affects the time required to complete the failover
process. If the passive server’s receive queue is long, the system must wait for all updates to the passive
server to complete before the rest of the process can take place. An update record can be applied only if
all earlier update records are applied, and the completion status for the update is in the passive server’s
receive queue. When no more update records can be applied, any update records that cannot be applied
are discarded.
2 Switch mode of operation from passive to active.
This enables the public identity of the server. The unique management IP address is removed from the
passive server and the shared Principal (Public) IP address is assigned. The passive server becomes active
and available to clients that were connected to the previously active server before the automatic failover
and clients are able to reconnect.
Installation Guide
18 VMware, Inc.
3 Start intercepting updates to protected data. Any updates to the protected data are saved in the send
queue on the local server.
4 Start all protected applications. The applications use the replicated application data to recover, and then
accept re-connections from any clients. Any updates that the applications make to the protected data are
intercepted and logged.
At this point, the originally active server is offline and the originally passive server is filling the active role
and running the protected applications. Any updates that completed before the failover are retained.
Application clients can reconnect to the application and continue running as before.
Managed Failover
Managed failover is similar to automatic failover in that the passive server automatically determines that the
active server has failed and can warn the system administrator about the failure; but no failover actually occurs
until the system administrator manually triggers this operation.
Automatic Switchover and Failover in a WAN Environment
Automatic switchover and failover in a WAN environment differ from an automatic switchover and failover
in a LAN environment due to the nature of the WAN connection. In a WAN environment, automatic
switchover and failover are disabled by default in the event that the WAN connection is lost.
Should a condition arise that would normally trigger an automatic switchover or failover, the administrator
will receive vCenter Server Heartbeat alerts. The administrator must manually click the Make Active button
on the Server: Summary page of the vCenter Server Heartbeat Console or vSphere Client to allow the roles of
the servers to switch over the WAN.
VMware, Inc. 19
2
This chapter includes the following topics:
“Server Configuration Wizard” on page 19
“Configuring the Machine” on page 20
“Configuring the Channel” on page 20
“Configuring Public IP Addressing” on page 22
“Managing vCenter Server Heartbeat License Keys” on page 23
“Configuring the Logs” on page 23
Server Configuration Wizard

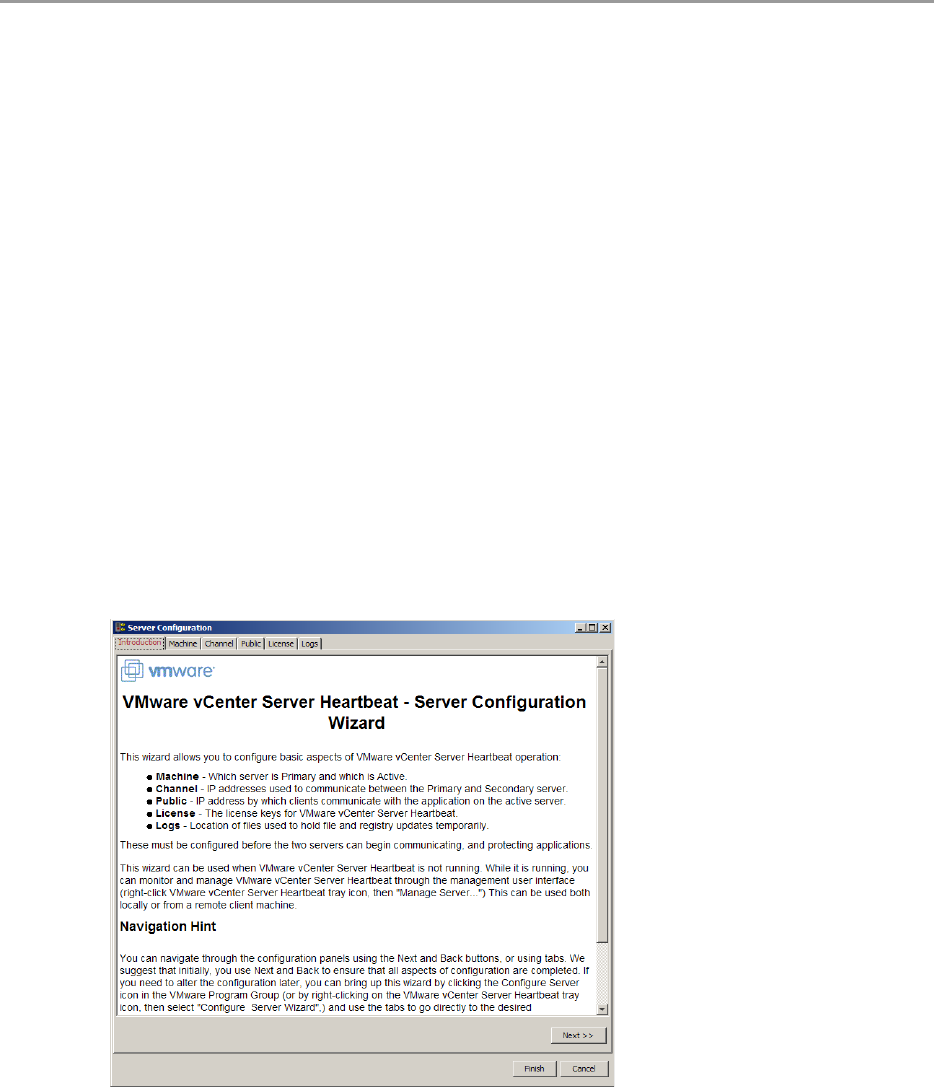

The VMware vCenter Server Heartbeat – Server Configuration Wizard (Configure Server wizard) sets up
and maintains communications between the vCenter Server Heartbeat servers. After the system is set up and
is functioning correctly, you do not normally need to reconfigure the system. The Configure Server wizard
becomes redundant during daily operations of the software.
1 Before launching the Configure Server wizard, you must stop vCenter Server Heartbeat.
2 Click the Configure Server icon on the desktop or Start > All Programs > VMware > VMware vCenter
Server Heartbeat > Configure Server to launch the Configure Server wizard.
Configuring vCenter Server Heartbeat 2
Reference Guide
20 VMware, Inc.
Configuring the Machine

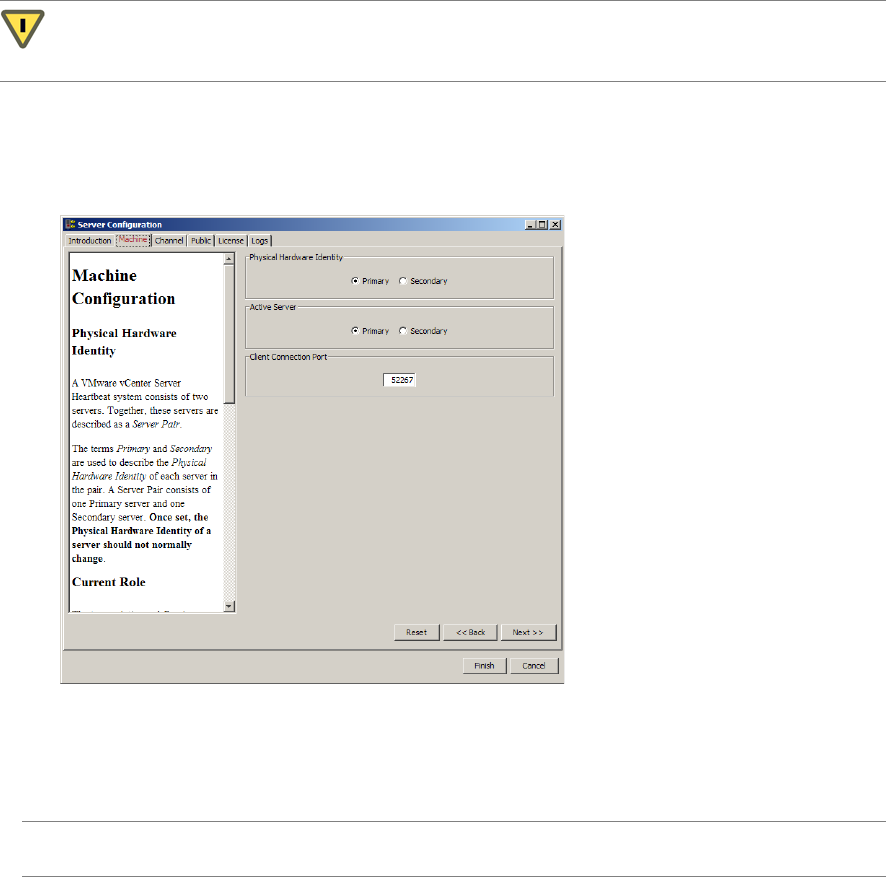

The Machine tab is used to set the server Physical Hardware Identity, Active Server, and Client Connection
Port.
The Machine Identity
The machine identity is either Primary or Secondary and once assigned does not normally change during the
life of the server.
To change the machine identity
1Click the Machine tab and select a Physical Hardware Identity for the local machine.
2Click Next or Finish.
Configuring the Server Role
To change the server role, click the Machine tab, select the Current Role of the local machine, and click Next
or Finish.
Configuring the Client Connection Port
Clients such as the vCenter Server Heartbeat Console use the Client Connection Port to connect to vCenter
Server Heartbeat. Do not change this port unless another application is using it. To change the Client
Connection Port, click the Machine tab, edit the default entry (52267) and click Next or Finish.
Configuring the Channel
The Channel tab is used to configure the Channel Routing, Default Channel Port, and Low Bandwidth
Optimization.
CAUTION The machine Identity should only be changed when directed to do so by VMware Support or
when instructed to by a knowledge base article. vCenter Server Heartbeat is designed not to allow two
passive or two active servers to connect.
NOTE Before changing the role of the local server, verify that the other (remote) server in the pair is not already
performing the same role.
VMware, Inc. 21
Chapter 2 Configuring vCenter Server Heartbeat

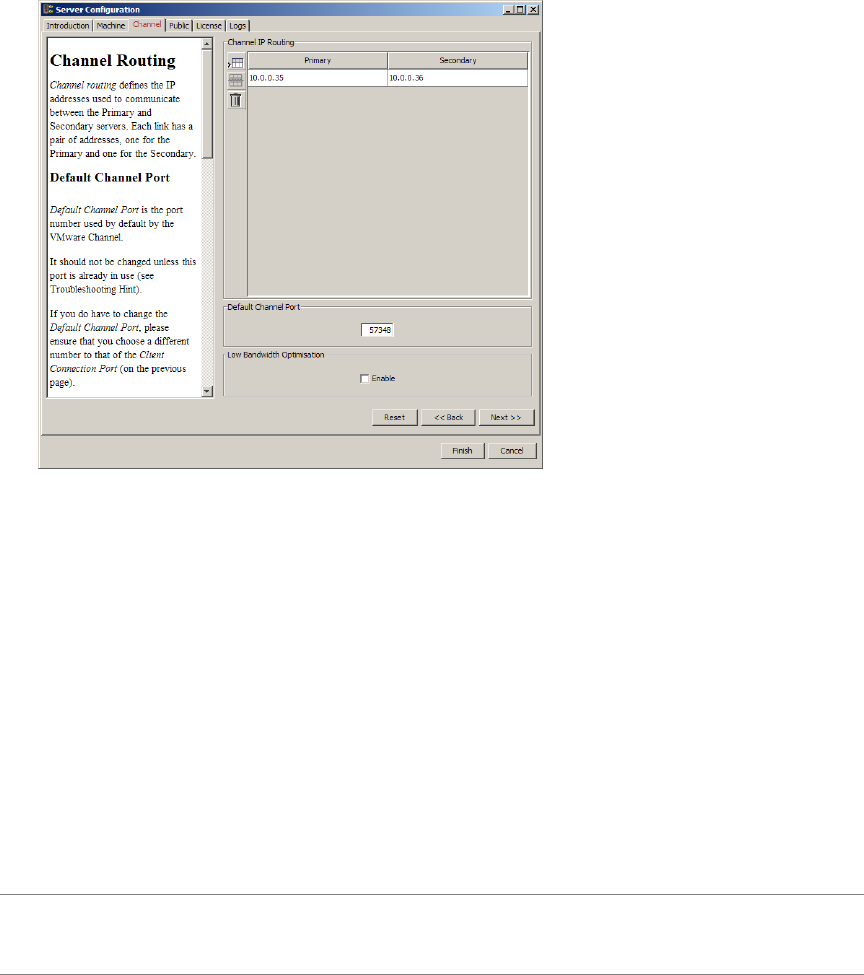

Configuring Channel Routing
Channel IP routing defines the IP addresses used to communicate between the Primary and Secondary
servers. Each link has a pair of addresses, one for the Primary, and one for the Secondary.
To add an additional VMware Channel after installing the NICs and configuring them
1Click the Channel tab. Click Add Row to add the new IP addresses for both the Primary and Secondary
server to the VMware Channel IP Routing table.
2 Use the drop-down menu to view a list of available IP addresses on the local server.
3 Type the remote server IP address.
4 To change the VMware Channel IP addresses, select and edit the entry in the table.
5Click Next or Finish.
Configuring the Default Channel Port
VMware Channel uses the Default Channel Port to communicate between the Primary and Secondary server.
Do not change this port unless another application is using it. To change the Default Channel Port, click the
Channel tab, edit the default entry (57348), and click Next or Finish.
Configuring Low Bandwidth Module
This feature is automatically enabled during installation when configured for a WAN. To disable this feature,
click the Channel tab and clear the Low Bandwidth Optimization check box. When enabled, the VMware
Channel optimizes communications for low bandwidth connections. Low Bandwidth Optimization (LBO)
stores data on disk rather than in memory and is essential for WAN installations or when bandwidth is limited.
This setting should not be changed unless directed to do so by VMware Support.
NOTE This feature is designed for implementations where the available throughput on the VMware Channel
is slower than 10 Mbit/s. Do not enable the Low Bandwidth Module in a LAN, this feature is not designed to
work in a LAN where the throughput is much faster.
Reference Guide
22 VMware, Inc.
Configuring Public IP Addressing
vCenter Server Heartbeat servers are configured with one or more Principal (Public) IP addresses. These are
the addresses used by clients to connect to the protected application. Typically, there is one shared Principal
(Public) IP address.
You must configure all of the Principal (Public) IP addresses on the server to be active initially. On the passive
server, you must configure a unique management IP address by which you can access the passive server while
the active server continues to service clients. When the server roles switch, the passive server’s management
IP address is removed and replaced with the Principal (Public) IP address which was removed from the
previously active server. The previously active server is then provided its unique management IP address by
which the server can be accessed while passive.

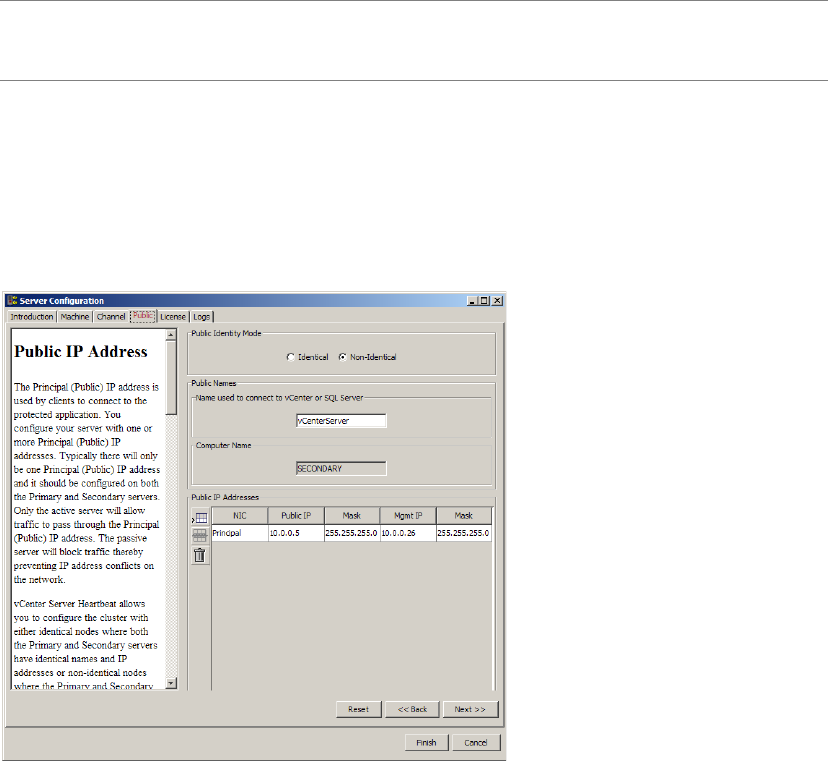

Configuring Principal (Public) IP Addressing
While this is normally performed as a post-installation task when installing vCenter Server Heartbeat, in the
event of an upgrade you may be required to reconfigure your servers for non-identical nodes.
To configure for Non-Identical Nodes
1 Select the Public tab of the Configure Server wizard and verify that Non-Identical is selected in the Public
Identity Mode pane.
2 Enter the vCenter Server or SQL Server name in the Name used to connect to vCenter or SQL Server field.
3In the NIC field, select the Principal (Public) network connection in the drop-down.
4 Enter the Principal (Public) IP address in the Public IP field.
5 Enter the Principal (Public) IP address Subnet Mask in the first Mask field.
6 Enter the reserved Management IP address in the Mgmt IP field.
7 Enter the reserved Management IP address Subnet Mask in the second Mask field.
8Click Next or Finish.
NOTE Adjacent IP addresses should be reserved and used for the Principal (Public) IP address and the
management IP addresses for the Primary and Secondary Servers when installing vCenter Server
Heartbeat on servers running Windows 2008.
VMware, Inc. 23
Chapter 2 Configuring vCenter Server Heartbeat
Managing vCenter Server Heartbeat License Keys

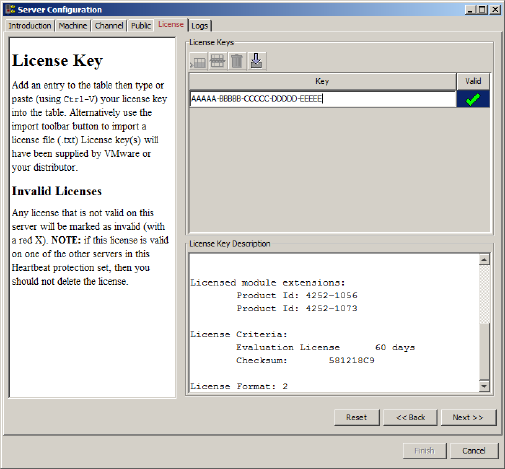

To manage vCenter Server Heartbeat license keys, select the License tab of the Configure Server
wizard.
To add an entry to the License Keys table
1Click the Add Row icon and enter your VMware vCenter Server Heartbeat serial number.
2 Manually type or paste (using Ctrl-V) your license key into the table.
3Click Next or Finish.
Configuring the Logs
vCenter Server Heartbeat allows you to change the default location for the logs used for storing data in the
queue.

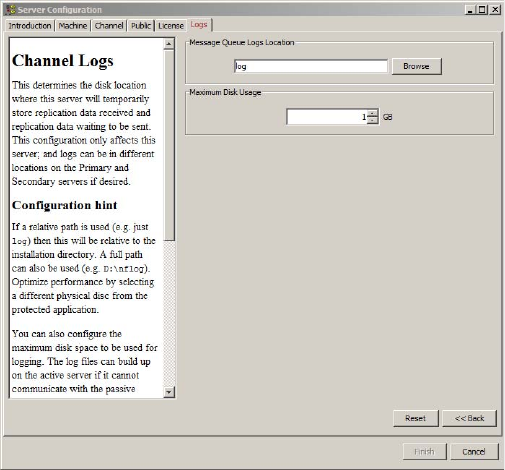

Configuring the Message Queue Logs
The server temporarily stores replication data received in the passive server’s receive queue and the replication
data waiting in the active server’s send queue in message queue logs.
This configuration only affects the local server. Logs can be in different locations on the Primary and
Secondary servers.
To configure the location of the message queue logs
1Click the Logs tab.
2Click Browse to navigate to the folder to store the message queue logs.
Reference Guide
24 VMware, Inc.
3 Select the folder and click Next or Finish.
Configuring the Maximum Disk Usage
You can configure the maximum disk space allocated for logging. Log files increase in size on the active server
under the following conditions:
If the active server cannot communicate with the passive server
Certain operations on the passive server
If the server is under heavy load
When the disk reaches quota, replication stops and the system is no longer protected.
If using a dedicated disk for log files, consider disabling the quota. To do this, set the quota to zero. If vCenter
Server Heartbeat runs out of physical disk space, it must be shut down before it can resume replication. Set the
quota with sufficient overflow space so vCenter Server Heartbeat can stop replicating gracefully.
To configure Maximum Disk Usage, click the Logs tab, type the maximum dedicated disk space allocated for
message queue log files, and click Finish.
VMware, Inc. 25
System Administration and Management
Reference Guide
26 VMware, Inc.
VMware, Inc. 27
3
This chapter includes the following topics:
“Server Protection Overview” on page 27
“Checking the Server Pair Status” on page 27
“Monitoring the Status of Servers” on page 29
“Configuring Heartbeat Settings” on page 29
“Configure Pings” on page 29
“Configure Failover” on page 29
“Configuring Response Times” on page 30
“Configuring Split-Brain Avoidance” on page 30
“Forcing a Switchover” on page 31
“Recovering From a Failover” on page 32
“Applying Patches with vCenter Server Heartbeat Installed” on page 33
“Configuring Split-Brain Avoidance” on page 30
Server Protection Overview
Protection against operating system or hardware failure affecting the active server is facilitated by two
instances of the vCenter Server Heartbeat that monitor one another by sending “I’m alive” messages and
reciprocating with acknowledgments over the VMware Channel. If the passive server detects that this process
(the heartbeat) has failed, an automatic switchover is initiated.
Additionally, vCenter Server Heartbeat proactively monitors the capability of the active server to
communicate with the rest of the network by polling defined nodes around the network, including by default,
the primary DNS server, default gateway, and the Global Catalog server at regular intervals. If all three nodes
fail to respond, for example, due to a network card or local switch failure, vCenter Server Heartbeat can initiate
an automatic switchover, allowing the passive server to assume the role of the active server.
Checking the Server Pair Status
The Server: Summary page is the default page that opens when administering a pair of servers. The Server:
Summary page allows you to view the roles that the servers are performing (active or passive), the actions that
the servers are currently performing, and summary information on the status of communications and data
replication between servers. The lower pane displays status information for each server in the pair.
Server Protection 3
NOTE To change the currently displayed server, click the server graphical representation in the upper pane,
or select the server Identity tab (Primary or Secondary Server) in the bottom pane.
Reference Guide
28 VMware, Inc.
The following table lists the possible system statuses and their meanings.
When viewing the status of the passive server, the status of the file system and registry are displayed
graphically. The following tables list possible synchronization statuses and their meanings.
Table 3-1. System Status
Status Icon Description
Heartbeat service
shutdown
The Heartbeat service is shut down
Initializing
Replicating (Normal status.) File and registry changes on the active server are
intercepted and replicated to the passive server. The protected applications
are monitored.
Not replicating File and registry replication is in the process of stopping and all protected
applications may be closing down.
Switching active
server
The system is in the process of performing a switchover.
Connecting to peer
server
VMware Channel connections have been established between the two
servers.
Disconnecting from
peer server
VMware Channel connections have been lost between the two servers.
Stopping replication File replication is in the process of being stopped and, optionally, all
protected applications may be closing down.
Starting replication The replication process is starting and protected applications are optionally
starting.
Starting as active
server
The Heartbeat service is initializing on the active server and starting
protected applications.
Heartbeat service
shutting down
The Heartbeat service is stopping. The Heartbeat service is shutting down,
and will no longer participate in replication. Optionally, protected
applications may be stopped.
Lost active server The passive server has lost connection to the active server. If this condition
persists for the failover timeout, and failover is permitted between the pair
of servers, then a failover will occur.
Active following
failover
Not participating
Server not
responding
The Heartbeat service cannot be contacted on the server.
Table 3-2. File Synchronization Status
Status Icon Description
Synchronized Fully synchronized
Unchecked There are files that are currently unchecked. A full system check did not
complete
Out of Sync Not synchronized
Uninitialized
VMware, Inc. 29
Chapter 3 Server Protection
When the vCenter Server Heartbeat pair establishes a connection, it triggers a file synchronization and
verification process to ensure all protected files on both server are identical. The process checks each 64K block
of each protected file and performs a checksum to determine whether the blocks differ. If the blocks are the
same, the block is marked as synchronized. If the blocks differ, then the block is replicated to the passive server
and then marked as synchronized. The file verification and synchronization process is finished after all blocks
of all stipulated files are marked as synchronized.
Monitoring the Status of Servers
The Server: Monitoring page provides additional information about the status of communications between
the servers within the pair. The graphical representation provides an overview of the status of
communications between the servers. A green channel icon indicates that the channel is connected and healthy
while a yellow dashed channel icon indicates that communications are not operational between the indicated
servers. In addition to the heartbeat sent between the servers, vCenter Server Heartbeat also sends a ping to
ensure that the servers remain visible to one another.
Configuring Heartbeat Settings
The Server: Monitoring page provides three configuration features: Configure Pings, Configure Failover,
and Configure Response Times.
Configure Pings
IP addresses of all NICs used for the VMware Channel are automatically added during installation. vCenter
Server Heartbeat, by default, added those IP addresses to the Server: Monitoring Ping Configuration dialog.
You can add additional targets to the list for each server’s channel connection in the event of redundant NICs.
The settings in the Server: Monitoring Ping Configuration dialog allow vCenter Server Heartbeat to send
pings across the VMware Channel in addition to the heartbeat (“I’m alive” messages) to confirm that the server
is still operational and providing service.
To configure pings
1Click Configure Pings to open the Server Monitoring: Ping Configuration dialog.
2Click on the Ping Settings tab to configure the Ping Interval.
3Click on the Ping Routing tab to add additional IP address for redundant NICs.
Configure Failover
The Failover timeout dictates how long vCenter Server Heartbeat waits for a missed heartbeat before it takes
a pre-configured action. This value is set to 60 seconds by default.
Table 3-3. Registry Synchronization Status
Status Icon Description
Checking The registry is currently in the process of synchronization.
Synchronized Fully synchronized
Error Not synchronized
Uninitialized
Reference Guide
30 VMware, Inc.
To configure failover
1Click Configure Failover to open the Server Monitoring: Failover Configuration dialog.
2 Type a new numeric value (seconds) in the Failover timeout text box or use the arrow buttons to set a new
value.
3 Mark or clear the check boxes to select the actions to take if the specified Failover timeout is exceeded.
4Click OK.
Configuring Response Times
vCenter Server Heartbeat also allows you to configure the following timeouts:
Time to wait following channel connection before starting replication
Time to wait following channel disconnection before stopping replication
To configure response times
1Click Configure Response Times to open the Server Monitoring: Response Times dialog.
2 Type new numeric values (seconds) into the text boxes or use the arrow buttons to select new values.
3Click OK.
Configuring Split-Brain Avoidance
Split-brain Avoidance ensures that only one server becomes active if the VMware Channel connection is lost,
but both servers remain connected to the Principal (Public) network. Split-brain Avoidance works by pinging
from the passive server to the active server across the Principal (Public) network. If the active server responds,
the passive server does not failover, even if the VMware Channel connection is lost. WAN installations require
different IP addresses on the Principal (Public) network for the local and remote servers.
To enable Split-brain Avoidance, open the Server: Monitoring page in the vCenter Server Heartbeat Console,
click Configure Failover, and select Prevent failover if channel heartbeat is lost but Active server is still
visible to other servers (recommended).
You must configure Management IP addresses on the Principal (Public) network cards of each server to allow
the passive server to send a ping. Management IP addresses are additional IP addresses assigned to the
network card connected to the Principal (Public) network. They are used to allow the passive server to
communicate, because unlike the Principal (Public) IP address, they are not filtered. This allows the passive
server to send pings, and is also required to allow the passive server to send email alerts. To configure a
Management IP address on the Principal (Public) network card, follow the procedure below.
To configure a Management IP address:
1 Open the network properties for the Principal (Public) network connection.
2 Double-click TCP/IP to display the properties.
3Click Advanced.
4 Enter an additional (currently unused) IP address in the table.
5 Reposition the IP addresses in the list so that the additional (Management) IP address appears first, and
the Principal (Public) network address (by which clients connect to the server) appears second.
6Click OK on all three dialogs to accept the configuration changes to the network connection.
7 After completing all of the steps click Next or Finish.
The active server must respond within the time period value specified in the Failover timeout to prevent a
failover from occurring. If the active server responds in a timely manner, the failover process ceases. If the
active server does not respond, the failover proceeds.
VMware, Inc. 31
Chapter 3 Server Protection
Common Administrative Tasks in vCenter Server Heartbeat
The Server: Summary page provides the following buttons that allow you to quickly perform common
administrative tasks:
Make Active — Prompts to verify that you want to make the passive server in the pair active. Click Yes.
Shutdown — Prompts you to select the server(s) to shut down. If you select the active server, additional
options to stop or not stop protected applications appear in the dialog. Click OK.
Start Replication — Opens the Start Replication Options dialog. Select to start or not start the protected
applications and click OK. By default, all protection modes start when vCenter Server Heartbeat starts
and a manual start is not required unless the system stopped in response to an automated stop.
Stop Replication — Opens the Stop Replication Options dialog. Use this method to stop replication,
such as to contain a virus infection or to upgrade a protected application. Select whether to stop or not
stop protected applications and click OK. Replication of data files stops and, if selected, protected
applications also stop.
Start Applications — Click to start the protected applications on the active server.
Stop Applications — Click to stop the protected applications on the active server.
Configure — Click to open the Configure dialog. Select the radio button corresponding to whether you
want to stop or leave the protected applications running when vCenter Server Heartbeat is shut down.
You can select whether to leave protected applications running upon shutdown when a net stop
command is issued, and to start protected applications upon startup when a net start command is
issued. Type a number (seconds) or use the arrow buttons to select an alert threshold value for time
difference between servers, which is checked at handshake following startup. Click OK.
Forcing a Switchover
After configuring vCenter Server Heartbeat to protect all the required applications and data, the Secondary
server can take over from the Primary server in a managed and seamless manner called a managed switchover.
This is particularly useful when maintenance work performed on the Primary server requires rebooting the
server.
Since a managed switchover cannot be performed during synchronization, it is important to review the queue
information prior to attempting a managed switchover. If the queues are large, file operations on the active
server are high and for this reason it may be prudent to delay a managed switchover due to the length of time
required to completely clear the queue. Queue lengths can be viewed in the Data: Traffic/Queues page of the
vCenter Server Heartbeat Console.
Prior to performing work on the Primary server, a managed switchover can be triggered by selecting the
Secondary server and clicking Make Active on the Server: Summary page. This changes the server roles such
that the active server becomes passive and the passive server becomes active. This means users are able to
work continuously while the Primary server is off line.
When the Primary server is back up and running, the managed switchover can be triggered again so that the
Primary server becomes active and the previously active server becomes passive.
NOTE The VMware vCenter Server Heartbeat service continues to run on the servers, providing
heartbeats and protecting the system and network facets of the active server.
IMPORTANT The managed switchover process may be performed at any time as long as the systems are fully
synchronized with respect to data files and registry replication. Switchovers cannot be performed if either server is
in an unsynchronized or unknown state.
Reference Guide
32 VMware, Inc.
Recovering From a Failover
A failover differs from a switchover. A switchover is a controlled switch (initiated manually from the vCenter
Server Heartbeat Console, or initiated by vCenter Server Heartbeat when preconfigured) between the active
and passive servers. A failover happens when any of the following fail on the active server: power, hardware,
or VMware Channel communications. The passive server waits a preconfigured time after the first missed
heartbeat before initiating a failover. When this period expires, the passive server automatically assumes the
active role and starts the protected applications.
The following recovery scenario is based on vCenter Server Heartbeat configuration with the Primary server
as active and the Secondary server as passive.
A failover has occurred and the Secondary server is now running as the active server.
1 Review event logs on both servers to determine the cause of the failover. For assistance, use the Log
Collector tool to collect information and send the output to VMware Support.
2 If any of the following issues exist on the Primary server, performing a switchback to the Primary server
may not be possible until other important actions are carried out. Do not restart vCenter Server Heartbeat
until the following issues have been resolved:
Hard Disk Failure – Replace the defective hard disk.
Power Failure – Restore power to the Primary server.
Virus – Clean the server of all viruses.
Communications – Replace or repair the physical network hardware.
Blue Screen – Determine cause and resolve. As required, submit the dump file to VMware Support
(www.vmware.com/support) for analysis.
3 Run the Configure Server wizard and verify the server identity is set to Primary and the Active Server is
set to Secondary. Click Finish to accept the changes.
4 Disconnect the VMware Channel network cables or disable the network card.
5 Resolve the list of possible failures.
6 Restart this server and reconnect or enable the network card again.
7 After restart, check that the Taskbar icon now reflects the changes by showing P / – (Primary and passive).
8 On the Secondary active server or from a remote client, launch vCenter Server Heartbeat Console and
confirm that the Secondary server is reporting as active.
If the Secondary server is not displaying as active, perform the following steps:
1 If the vCenter Server Heartbeat Console is unable to connect remotely, try running it locally. If you are still
unable to connect locally, use the Service Control Manager to verify that the service is running. If the
service is not running, review the event logs for a cause.
2 Run the Configure Server wizard and confirm that the server identity is set to Secondary and the Active
Server is set to Secondary.
3 Verify that the protected application is accessible from clients. If accessible, start vCenter Server Heartbeat
on the Secondary server. If the application is not accessible, review the application logs to determine why
the application is not running.
NOTE When failover conditions, such as a power failure, cause failures in both active and passive servers, a
condition may result that causes both servers to restart in passive mode. In this situation, manual intervention
is required. See Appendix 10, “Two Passive Servers,” on page 73.
NOTE If vCenter Server Heartbeat is running, you can run the Configure Server wizard but any changes
made will not be saved.
VMware, Inc. 33
Chapter 3 Server Protection
4 Start vCenter Server Heartbeat on the Secondary active server.
5 Start vCenter Server Heartbeat on the Secondary active server and check that the Taskbar icon now
reflects the correct status by showing S / A (Secondary and active).
Applying Patches with vCenter Server Heartbeat Installed
To apply patches to vCenter Server with vCenter Server Heartbeat installed:
1 Using the vCenter Server Heartbeat Console, select the Secondary server and click Make Active. Wait for
Secondary server to become active.
2 Shutdown the vCenter Server Heartbeat Group, leaving the protected applications running on the
Secondary (active) server.
3 Using the Service Control Manager, configure VMware vCenter Server Heartbeat service Startup Type to
Manual on both Primary and Secondary servers.
On the Secondary Server
1 Start VMware vCenter Installer for the version you want to upgrade to and select vCenter Server from the
list.
2 When asked, select Do not overwrite, leave the existing database in place.
3 Continue with vCenter Server installation and record all configuration settings used.
4 Once the vCenter Server upgrade process successfully completes, upgrade the existing extensions on the
server. Details for each component upgrade can be found below.
5 If asked, do not reboot the server.
6 Verify that vCenter Server and all upgraded extensions are operational.
7 If the upgrade on the Secondary server fails:
a Research the cause of the upgrade failure.
b If the issue can be resolved then it is safe to proceed with upgrade procedure. Otherwise, revert to a
previous version.
c To revert to a previous version:
i Uninstall the upgraded components.
ii On the Secondary server, launch the vCenter Server Heartbeat Configure Server Wizard and
click the Machine tab. In the Active server section select Primary.
iii Reboot the server. vCenter Server Heartbeat starts and vCenter Server is stopped.
NOTE At this point, the data on the Secondary (active) server should be the most up to date and this
server should also be the live server on your network. When vCenter Server Heartbeat starts, it overwrites
all the protected data (configured in the File Filter list) on the Primary passive server. If you are not sure
that the data on the active server is the most current and up to date, contact VMware Support
(www.vmware.com/support). Go on to the next step only if you are sure that you want to overwrite the
protected data on the passive server.
NOTE If the Secondary server is the active server, skip step 1.
IMPORTANT Before proceeding with the database upgrade, perform a backup of the database.
NOTE On the VMware vCenter Server service account information page, VMware recommends
providing the same credentials used for the current service (open the Service Control Manager and check
the Logon As Account for VMware VirtualCenter Server service).
Reference Guide
34 VMware, Inc.
iv On the Primary server, launch the vCenter Server Heartbeat Configure Server wizard and click
the Machine tab. In the Active server section select Primary.
v Restart vCenter Server Heartbeat on the Primary Server and allow the system to synchronize.
vi Start the vCenter Server Heartbeat Console and verify that the system completes the Full System
Check.
8 Change the Role of the server to Secondary/passive:
a Launch the vCenter Server Heartbeat Configure Server Wizard and click the Machine tab. In the
Active server section select Primary.
b Reboot Secondary server.
On the Primary Server
1 Change the Role of the server to Primary/active:
a Launch the vCenter Server Heartbeat Configure Server Wizard and click the Machine tab. In the
Active server section select Primary.
b Using the Service Control Manager, start the VMware vCenter Server Heartbeat service.
c Wait until all protected services are started.
d Using the Service Control Manager, stop the VMware vCenter Server Heartbeat service.
2 Start VMware vCenter Installer for the version you want to upgrade to and select vCenter Server from the
list.
3 On the Database re-initialization warning page, select Do not overwrite, leave my existing database in place
option and proceed with the installation process.
4 Continue with vCenter Server installation, using the same configuration settings used for installation on
the Secondary server.
5 Once the vCenter Server upgrade process successfully completes, upgrade the existing extensions on the
server. Details for each component upgrade can be found below.
6 Verify that vCenter Server and all upgraded extensions are operational on Primary Server.
7 Using the Service Control Manager, configure VMware vCenter Server Heartbeat service Startup Type to
Automatic on both Primary and Secondary servers.
8 Start vCenter Server Heartbeat on both servers.
9 Launch the vCenter Server Heartbeat Console and connect to the server pair.
10 Verify that the Full System Check has completed and that the system replicating.
If vCenter Server fails to start on the Secondary Server following a switchover (selecting the Secondary
server icon and clicking Make Active):
1 Shutdown vCenter Server Heartbeat.
2 Launch the Configure Server wizard and set the Secondary server Role to passive.
3 Start vCenter Server Heartbeat on the Secondary server.
4 Start the Configure Server wizard on the Primary server and set the server Role to active.
5 Start vCenter Server Heartbeat on the Primary server.
6 Launch the vCenter Server Heartbeat Console and verify that the system completes the Full System
Check.
NOTE Continuation of the upgrade process assumes the upgrade of the Secondary server completed
successfully.
VMware, Inc. 35
Chapter 3 Server Protection
7 Investigate the cause of the vCenter Server failure on the Secondary server.
Reference Guide
36 VMware, Inc.
VMware, Inc. 37
4
This chapter includes the following topics:
“Communication Status” on page 37
“Reviewing the VMware Channel Status” on page 37
“Configuring Public Network Connection Checks” on page 37
“Setting Max Server Time Difference” on page 38
Communication Status
Use the Data: Traffic/Queues page to check the status of the VMware Channel, the active server’s send, and
passive server’s receive queues.
Reviewing the VMware Channel Status
The Data: Traffic/Queues page displays the VMware Channel status as connected (Green solid icon) or not
connected (red broken icon), the statistics of the connection with regards to the data sent by either server, and
the size and age of the oldest entry in the active server’s send queue and passive server’s receive queue. The
Channel Connection tab in the lower pane displays the IP addresses used by the VMware Channel for the
Primary to Secondary connections and the port that the communications are using.
Configuring Public Network Connection Checks
The Network Monitoring page allows you to view the status of the network and make adjustments to the IP
addresses used to ping multiple servers within the network.
The Principal (Public) network monitoring feature, previously discussed, is enabled by default during the
installation of VMware vCenter Server Heartbeat. This feature integrates the polling of designated waypoints
around the network through the active server’s Principal (Public) connection to ensure connectivity with the
Principal (Public) network is operational. By default, the IP addresses of the default gateway, the primary DNS
server, and the Global Catalog server are all selected. When one or more of the automatically discovered
waypoints are co-located on a physical machine (leading to duplication of IP addresses), the ability to specify
additional waypoints manually becomes an advantage. To specify a manual target for Principal (Public)
network checking, click Configure Pings to invoke the Ping Configuration dialog. Select the Ping Routing
tab to add to or modify the existing target IP addresses for each server to ping.
In a WAN environment, the target addresses for Principal (Public) network monitoring on the Secondary
server may be different to those automatically selected on the Primary server. Again, the ability to override
automatically discovered selections is provided by manually specifying the target address.
Principal (Public) Network Monitoring is carried out by the active server effectively pinging the target
addresses at regular time intervals. The time interval is set by default to every 10 seconds but the frequency
may be increased or decreased as required.
Network Protection 4
Reference Guide
38 VMware, Inc.
Each target is allowed 5 seconds (default) to respond. On slower networks where latency and network
collisions are high, increase this interval by changing the Ping echo timeout value.
The failure of all three targets to respond is allowed up to the Auto-switchover if client network is lost for
threshold value. If the failure count of all three targets exceeds this value, vCenter Server Heartbeat initiates
an auto-switchover.
To enable Automatic Switchover in a WAN
1 In the vCenter Server Heartbeat Console, click the Network tab to display the Network Monitoring page.
2Click Configure Auto-switchover.
3 Select the Auto-switchover if client network connectivity lost for check box.
4 Configure the number of pings to wait before performing the auto-switchover.
5Click OK.
Setting Max Server Time Difference
vCenter Server Heartbeat generates a warning if the Primary and Secondary server system clocks are not
synchronized.
To override the warning
1Open the Server: Summary Configure dialog by clicking the Configure button.
2 Type a number (seconds) or use the arrow buttons to select an alert threshold value for time difference
between servers, which is checked at handshake following startup.
3Click OK.
VMware, Inc. 39
5
This chapter includes the following topics:
“Application Protection Overview” on page 39
“Applications: Applications Tab” on page 39
“Applications: Services Tab” on page 42
“Applications: Tasks Tab” on page 44
“Applications: Plug-ins Tab” on page 45
Application Protection Overview
vCenter Server Heartbeat incorporates an Application Management Framework (AMFx) to manage vCenter
Server Heartbeat plug-ins.
The AMFx provides additional functions while maintaining the traditional stability of VMware software. Use
the AMFx to install and remove plug-ins on the fly while vCenter Server Heartbeat continues to provide
protection to currently installed applications.
The AMFx also employs sponsorship for protected application files and services. With sponsorship, multiple
plug-ins can share files or services. When removing a plug-in, sponsorship prevents removal of a shared file
or service that is still required by a remaining plug-in.
vCenter Server Heartbeat uses the System plug-in to monitor the server performance. With the System
plug-in, you can configure a variety of counters and assign actions when associated rules are exceeded.
Applications: Applications Tab
The Applications: Summary page displays the identity of the active server, the application state and health,
details of application types and their corresponding running status and health. From this page, you can start,
stop, and configure all protected applications. The lower portion of the pane provides an Applications Log that
allows viewing of application events as they occur. This page also provides controls to edit, remove, start, and
stop applications, and to configure and edit the configuration of all protected applications.
Reset the Application Health Status
To Clear (reset) the Application Health status, click Clear in the Application Health pane of the Applications:
Summary page.
If a problem occurs (for example, a failed service or rule), the Application Health status becomes Degraded.
Even if vCenter Server Heartbeat corrects the problem (for example, restarts the failed service) or the user
corrects the problem, the Degraded status remains until manually cleared. In this state, the Service Discovery
Task will not run.
Application Protection 5
Reference Guide
40 VMware, Inc.
After acknowledging the problem and solving it, click Clear to reset the Application Health status. The status
updates to provide the actual current Application Health status.
View Application Status
After an application starts and is running, you can view its status in the Applications pane of the Applications:
Summary page.
Setting the Application Timeout Exception
vCenter Server Heartbeat can alert the Administrator if the time taken to start or stop the entire application
exceeds the expected time during the following operations:
vCenter Heartbeat startup
Shutdown with protected applications
Switchover
Failover
When the Administrator selects Start Application
When the Administrator selects Stop Application
Configure timeout settings
1 Right-click on the application and select Edit from the menu or select the application and click Edit at the
top of the pane to invoke the Edit Application dialog.
2 Enter new values into the Stop Timeout and Start Timeout text boxes or use the arrow buttons to adjust
the values (seconds). Click OK.
Remove an Application
To remove an application, select the application (in the Applications pane) and do one of the following:
Right-click on the application and select Remove from the menu.
Alternatively, click Remove at the top of the pane.
Manually Start and Stop Applications
To stop all protected applications, click Stop Applications (at the top of the Applications: Summary page).
The protected applications set stops. You can view the progress of the stopping in the Applications Log pane.
To start the stopped applications, click Start Applications (at the top of the Applications: Summary page). The
applications start. You can view the progress of the starting in the Applications Log pane.
NOTE vCenter Server Heartbeat does not issue the timeout warning when it is performing the service
restart recovery action provided by the periodic service monitoring. If there are multiple applications
installed, vCenter Server Heartbeat will total the individual timeouts set for each application and issue a
single Application Timeout Exception alert.
NOTE The Start Timeout value should be configured according to vCenter inventory size and the Stop
Timeout values according to inventory size and operational load. For example, if the inventory is large (more
than 500 hosts and 15K Virtual machines, the Start time can be 20-30 minutes. Use the Start Timeout
experienced as a guide to assist in determining the Stop Timeout value.
VMware, Inc. 41
Chapter 5 Application Protection
Configuring Applications
Use the Applications page to configure protected applications, enable and disable protection and monitoring.
You can maintain applications without stopping vCenter Server Heartbeat or taking the full server offline.
During installation, vCenter Server Heartbeat sets default settings for application configurations but accepts
modifications to the configurations settings.
To configure applications
1Click Configure on the Applications page.
You can protect services and start monitoring applications or unprotect services and stop monitoring
applications. You can also enable Verbose Plugin logging, Discover protected data at startup, Discover
protected services at startup, and set the rule trigger count.
2 After making modifications to the configuration, click OK.
Application Maintenance Mode
Use the Applications page to disable application protection, service monitoring, and recover for maintenance
purposes.
To perform manual maintenance
1On the Applications page, select the Summary tab.
2Click Configure.
3 Select Unprotect services and stop monitoring all applications (for manual application maintenance).
4 Perform the required maintenance.
5 When maintenance is complete, from the Applications page of vCenter Server Heartbeat Console, select
the Summary tab.
6Click Configure.
7 Select Protect services and monitor all applications (recommended).
Reviewing the State of an Application
After an application successfully starts and is running, you can view the application state in the Applications:
Summary page. If an application fails, right-click the event in the Applications Log and click on Properties to
invoke the Event Properties dialog and investigate the failure.
Reviewing the Applications Log
The Applications Log helps troubleshoot the protected application environment. The Applications Log
provides information about the behavior of all protected applications and includes events such as task status
changes, rule triggering, task outputs, and application warnings. Use this log to troubleshoot application
errors. The order that entries are displayed can be sorted either ascending or descending by clicking the
column title.
Filtering Application Log Entries
vCenter Server Heartbeat can filter Applications Log files to limit the events displayed. By default, all events
display in the Applications Log file.
To filter the events to display
1 Right-click an event in the Applications Log and click Filter in the Applications Log pane on the
Applications page.
2 In the upper section, clear the event types you do not want to view.
Reference Guide
42 VMware, Inc.
3 To limit the date and time range, select Only show events from and edit the date or time range.
4Click OK.
Applications: Services Tab
The Applications: Services page displays both services that you or plug-ins specify and the services related
to them by dependency (either as dependents or depends-on). The target states of protected services for the
Primary and Secondary server can be specified and are typically Running on the active and Stopped on the
passive. Services are protected if they are Running or Automatic, and are otherwise logged as unprotected.
vCenter Server Heartbeat manages services that depend on protected services (started and stopped) but not
monitored (not restarted if stopped by some external agency). vCenter Server Heartbeat monitors protected
services (restarted if stopped) but not managed (not stopped if protected applications are stopped).
Adding a Service
To protect a service
1 Right-click on a service and select Add from the menu or click Add on Applications: Services page to
invoke the Add Service dialog. The Name drop-down list contains a list of all currently running services.
2 Select the service and set the values for Target State on Active and Target State on Passive. Normally the
Target State on Active is set to Running and the Target State on Passive is set to Stopped.
3 If vCenter Server Heartbeat is to manage the start and stop of the service, select Manage Starting and
Stopping. If vCenter Server Heartbeat is to monitor the state of the service, select Monitor State.
vCenter Server Heartbeat also assigns three sequential tasks to perform in the event of failure. Task
options include Recover Service, Application Restart, Log Warning, Switchover, and any additional
user-defined tasks previously created.
4 Assign a task to each of the three failure options and click OK.
Editing a Service
To change the options of a protected service
1 Select the service and click Edit.
The Edit Service dialog opens to provide a subset of same options available when adding a new service.
2 Make the modifications and click OK.
Checking the Status of Services
The Applications: Services page displays the status of all protected services. The status shows both the target
and actual state for both the Primary and Secondary servers and the Failure Counts for both servers.
Unprotecting User Defined Services and Stopping Monitoring
To unprotect and stop monitoring user defined services
1Click Applications: Services, select the user defined service, and click Edit.
2 Clear Manage Starting and Stopping and Monitor State. Click OK.
NOTE Setting the target state for both the active and passive server to Running can cause the service to
place a lock on some files preventing synchronization from completing.
NOTE If an application with the failure option set to Application Restart fails, only the services that have
failed are restarted. Dependent services do not stop and restart as a result of the failure.
VMware, Inc. 43
Chapter 5 Application Protection
Change the Order of Services
The order of services can be modified using Up and Down arrows. The exact order in which services start and
stop is influenced by a number of key factors:
The order of applications specified by plug-ins determines which services are started first.
Services can have dependencies, and these must be respected. For example, if service B is listed after
service A under the User-Defined group, and service A depends on Service B, Service B starts first.
Multiple applications can use the same service (the same service can appear under more than one
sponsor). The service starts when the first application to reference it starts.
The order of stopping services is the reverse for starting services.
Removing a Service
To remove a service
1 Select the service in the Applications: Services page.
2Click Remove.
The service is removed from the protected list.
Reference Guide
44 VMware, Inc.
Applications: Tasks Tab
Tasks are a generalization and extension of start, stop, and monitor scripts. Task types are determined by when
the tasks run, and include the following:
Network Configuration – This is the first type of task that runs when applications start and is intended
to launch dnscmd or DNSUpdate. The task can launch a batch script containing multiple dnscmd
commands. Network Configuration tasks are the only types of task that can vary between Primary and
Secondary servers.
Periodic – These tasks are run a specific configurable intervals.
Pre/Post Start – These tasks run before and after services start on the active server.
Pre/Post Stop – These tasks run before and after services stop on the active server.
Pre/Post Shadow – These tasks run before and after Data Rollback Module creates a shadow copy on the
active server (Not available in this release).
Rule Action – Configure these tasks to run in response to a triggered rule or when a service fails its check.
You can define and implement tasks at the command line, such as launching a batch-script. Examples of
built-in tasks include monitoring a protected service state on the active and passive servers.
vCenter Server Heartbeat can use plug-ins to define and implement tasks. An example of a plug-in-defined
task is the discovery of protected data and services for a particular application.
Click Applications: Tasks to open the Tasks page.
Adding a Task
To add a task
1Click Add to invoke the Add Task dialog. Assign a name to the task.
2 Select the task type from the drop-down list.
3 Select the identity of the server the task runs on (Primary or Secondary).
4In the Command text box, type in the path or browse to the script, .bat file, or command for the task to
perform.
5Click OK.
Editing a Task
You can edit the interval of a task or disable a task.
To edit a task
1 Right-click on an existing task and select Edit from the menu or select the task and click Edit at the top of
the pane to invoke the Edit Task dialog.
2 Edit the parameters of the task.
3Click OK.
Remove a Task
To remove a task, select the task in the Applications: Task page and click Remove.
NOTE When the Command entry requires specific user credentials, you must select that user from the Run
As drop-down list. To add a user account, click User Accounts (near the top of the pane). See “View, Add, and
Remove User Accounts” on page 45.
VMware, Inc. 45
Chapter 5 Application Protection
Change the Order of Tasks
To change the order of tasks, use the Up and Down arrows (near the top of the pane) or on the right-click menu
to change the order in which the tasks appear in the tasks list.
Starting a Task Manually
vCenter Server Heartbeat provides options to launch a task immediately, or to launch a task after a designated
time period elapses, or following the occurrence of a specified event.
To launch the task immediately
1 Select the task from the task list.
2 Right-click on the existing task and select Run Now from the menu or click Run Now at the top of the
pane.
vCenter Server Heartbeat immediately launches the task.
View, Add, and Remove User Accounts
vCenter Server Heartbeat Console allows you to view, add, and remove user accounts used to run tasks.
Add a User Account
To add a user account, click User Accounts to invoke the User Accounts dialog.
1Click Add to invoke the Add User dialog.
2 Type the name of the User, the associated Domain, and a Password into the corresponding text boxes.
3Click OK.
Remove a User Account
1 To remove a user, select the user account from the list in the User Accounts dialog and click Remove. A
confirmation message appears.
2Click Yes.
Applications: Plug-ins Tab
Plug-ins support specific applications and contain all of the components to protect the designated application.
Plug-ins start and stop the application, monitor the application, and provide all rules necessary to ensure that
application is available in the event of a failure by initiating a auto-switchover when configured.
Install a Plug-In
vCenter Server Heartbeat allows you to install and upgrade plug-ins as needed to support applications.
To install a new plug-in
1Click Applications: Plugin to open the Plugins page.
2 Right-click an existing plug-in and select Install from the menu or click Install at the top of the pane to
invoke the Install Plugins dialog.
3 Type a path to the plug-in location or click Browse to navigate to the plug-in location. The path statement
is case-sensitive.
4Click OK.
IMPORTANT Plug-ins should be installed only on the active server. Installation of a plug-in on a passive server
may cause an Exception to occur.
Reference Guide
46 VMware, Inc.
Editing a Plug-in
vCenter Server Heartbeat allows you to edit the configuration of user installed plug-ins.
To edit the plug-in configuration
1 Right-click on an existing plug-in from the Plugins list and select Edit from the menu or select the plug-in
and click Edit at the top of the pane to invoke the Edit Plugin dialog.
2 Review the configuration options before making modifications as they are specific to each plug-in.
3Click OK.
Uninstalling a Plug-in
You can uninstall a plug-in when you upgrade or remove the application the plug-in protects, or when
directed by VMware Support.
To uninstall a plug-in
1Right-click an existing plug-in and select Uninstall or select the plug-in and click Uninstall at the top of
the pane.
2Click Yes.
VMware, Inc. 47
6
This chapter includes the following topics:
“vCenter Server Heartbeat Console” on page 47
“About vCenter Server Heartbeat Console” on page 47
“Navigate vCenter Server Heartbeat Console” on page 48
“Change the Font for vCenter Server Heartbeat Console” on page 48
“Work with Groups and Pairs” on page 48
“Add or Remove a vCenter Server Group” on page 48
“Add, Edit, Move, and Remove Pairs in VCenter Server Heartbeat Groups” on page 49
“Controlled Shutdown” on page 51
“vSphere Client Plug-in” on page 52
“Uninstall vCenter Server Heartbeat” on page 53
vCenter Server Heartbeat Console
vCenter Server Heartbeat operates over a Pair of vCenter Server Heartbeat servers and is administered in these
Pairs.
The vCenter Server Heartbeat Console is used to carry out the day-to-day administration of one or more Pairs
of servers.
The vCenter Server Heartbeat Console runs from either of the two servers in the Pair or remotely from another
machine in the same subnet that has vCenter Server Heartbeat or the vCenter Server Heartbeat Client Tools
installed.
About vCenter Server Heartbeat Console
You can start vCenter Server Heartbeat Console from any server in the vCenter Server Heartbeat Pair.
To start vCenter Server Heartbeat Console
1 Right-click the VMware vCenter Server Heartbeat interactive status icon on the Windows too tray (located
on the right side of the Windows tool bar). The vCenter Server Heartbeat quick access menu opens.
2 Select Manage Server The vCenter Server Heartbeat Console opens in a window and shows the Heartbeat
Servers (overview) pane.
Status and Control 6
NOTE You can install vCenter Server Heartbeat on a Windows XP and Windows Vista SP1 or later workstation
to act as a client to the server Pair or Windows Server 2003. Run setup.exe from the setup CD folder on the
workstation and select Install Client Tools under the installation set.
Reference Guide
48 VMware, Inc.
Alternatively you can start vCenter Server Heartbeat Console from the VMware program group on the
Windows Start menu. This is the only method supported if vCenter Server Heartbeat Console has been
installed on a workstation that is not part of the Pair.
Navigate vCenter Server Heartbeat Console
After vCenter Server Heartbeat Console is running, use the navigation panel on the left of the vCenter Server
Heartbeat Console window to view and select Groups and Pair connections you can manage with vCenter
Server Heartbeat Console.
See “Add or Remove a vCenter Server Group” on page 48 and “Add, Edit, Move, and Remove Pairs in VCenter
Server Heartbeat Groups” on page 49 for information on how to add Groups and Pair Connections to vCenter
Server Heartbeat Console.
The selection of Group or Pair you make in the navigation panel “points” the vCenter Server Heartbeat
Console to that Group or Pair and vCenter Server Heartbeat Console provides information related to only the
selected Group or Pair. To avoid confusion, pay particular attention to the selection in the navigation panel
when you are managing more than one Group or Pair.
Select a Pair in the navigation panel of vCenter Server Heartbeat to show a set of tabs and sub-tabs that offer
detailed status and control of the associated vCenter Server Heartbeat server in the Pair.
Change the Font for vCenter Server Heartbeat Console
You can change the font used in the vCenter Server Heartbeat Console interface.
To change the font of the interface
1 Select Font Selection from the Preferences menu. The Font Selection dialog opens.
2In the Style pane, scroll to and click to select a font.
3In the Size: text box, type a new numeric (point) size or use the arrow buttons to change the font size.
4Click OK. A confirmation message appears.
5Click Yes to confirm the changes and restart vCenter Server Heartbeat to apply the new font settings. Click
No to restart later; the changes will be applied the next time vCenter Server Heartbeat Console is started.
Work with Groups and Pairs
This section describes how to use vCenter Server Heartbeat Console to work with Groups (add or remove) and
Pairs (add, edit, move, or remove), and to manage the Username and Password settings on the servers in a
vCenter Server Heartbeat Pair.
Add or Remove a vCenter Server Group
The Add Group feature in vCenter Server Heartbeat Console allows you to add new vCenter Server Heartbeat
Groups to manage.
NOTE A Group is an arbitrary collection of vCenter Server Heartbeat Pairs used for organization.
A Connection, or Pair Connection allows vCenter Server Heartbeat Console to communicate with a vCenter
Server Heartbeat Pair either on the same machine or remotely.
NOTE Groups and Pairs are not automatically detected by vCenter Server Heartbeat Console. Each Group or
Pair you want to manage must be added to vCenter Server Heartbeat Console before you can use it to view
status or change settings for that Group or Pair Connection.
VMware, Inc. 49
Chapter 6 Status and Control
To add a vCenter Server Heartbeat Group
1 Open vCenter Server Heartbeat Console and click Add Group in the tool bar, select Add Group from the
File menu, or right-click an existing group in the navigation panel and select Add Group form the menu.
2 Type the name for the new group into the text box and click OK. The newly created group appears in the
navigation panel on the left of the vCenter Server Center Heartbeat window.
Remove a vCenter Server Heartbeat Group
The Remove Group feature in vCenter Server Heartbeat allows you to remove existing vCenter Server
Heartbeat Groups from management.
To remove a vCenter Server Heartbeat Group
1 Select the Group to be removed in the navigation panel of vCenter Server Heartbeat Console. Click
Remove Group in the tool bar or select Remove Group from the File menu.
2 A confirmation message appears. Click Yes.
Add, Edit, Move, and Remove Pairs in VCenter Server Heartbeat Groups
When you created a vCenter Server Heartbeat Group using the instructions in “A d d o r R e m o ve a v C e n t e r
Server Group” on page 48, you created an empty container. Next you must add the connections to the Pair or
Pairs that make up your new vCenter Server Heartbeat Group.
Add a New Connection
The Add Connection feature in the vCenter Server Heartbeat Console allows you to add a new Pair Connection
to an existing vCenter Server Heartbeat Group.
To Add a new connection
1 In the navigation panel, select the vCenter Server Heartbeat Group to receive the new connection. Click
Add Connection in the tool bar, select Add Connection from the File menu, or right-click an existing
group in the navigation panel and select Add Connection to invoke the Add Connection dialog.
2 Type the Host Name or IP address for the new connection into the text box, select the Port Number (if
different from the default value of 52267), and select a group from the Add to Group drop-down list (to
add the connection to a Group other than the one currently selected).
3Click OK. The newly created connection appears in the navigation panel on the left of the vCenter Server
Heartbeat Console window and vCenter Server Heartbeat Console attempts to connect to the server. You
may be prompted to accept a secure connection certificate from the server. This allows the
communications between vCenter Server Heartbeat Console and the server to be encrypted. The Server:
Summary page updates to represent any existing network relationships of the added server.
Once you have connected to a particular server and have a valid secure connection certificate, the next
time you use vCenter Server Heartbeat Console on this client system is will automatically connect to the
server. If the certificate expires or becomes invalid, the connection may be removed from vCenter Server
Heartbeat Console and you will have to reconnect and accept the new certificate.
NOTE If the Heartbeat vSphere Plug-in is being used during a switchover or failover the user will be
asked to accept a new Security Certificate each time the server roles change.
NOTE You may be prompted to login. If so, login using a valid administrator-level Username and
Password for the server for which you are adding a connection, and click OK.
NOTE If the IP address of the client system changes, you may have to re-enter the username and
password credentials.
Reference Guide
50 VMware, Inc.
4 Enter the remaining connections necessary to define the new vCenter Server Heartbeat Group.
Edit a Connection
The Edit Connection feature in the vCenter Server Heartbeat Console allows you to change the Port Number
for existing connections.
To edit a connection
1 In the navigation panel, select the connection you want to change and select Edit Connection from the
File menu, or right-click an existing connection in the navigation panel and select Edit Connection from
the menu to display the Edit Connection dialog.
2 Type the new value for the Port Number into the text box, or use the Up or Down arrow controls to the
right of the text box to select a new value. Click OK.
Move a Connection
The Move Connection feature in vCenter Server Heartbeat Console allows you to reassign an existing Pair to
a different Group.
To move a connection
1 Select the Pair in the navigation panel and click Move Connection in the tool bar, select Move Connection
from the File menu, or right-click on the Connection in the navigation panel and select Move Connection
from the menu to display the Move Connection dialog.
2 Select the destination Group to receive the Connection from the drop-down list and click OK.
Remove a Connection
The Remove Connection feature in vCenter Server Heartbeat allows you to remove an existing Connection.
To remove a connection
1 Select the Connection in the navigation panel and click Remove Connection in the tool bar, select Remove
Connection from the File menu, or right-click on the connection in the navigation panel and select
Remove Connection from the menu to.
2 A confirmation dialog appears. Click Yes.
Edit Username and Password Settings
The Edit Username and Password feature in vCenter Server Heartbeat Console allows you to change the
Username and Password settings used to connect to a given Pair.
To edit Username and Password
1 Select a connection in the navigation panel and select Edit UserName and Password from the File menu
or right-click on the Connection in the navigation panel and select Edit User Name and Password from
the menu to display the Edit User Name and Password dialog.
2 Type new values for User Name and Password into the corresponding text boxes and click OK.
Review the Status of vCenter Server Heartbeat Groups and Pairs
Click on the top level of vCenter Server Heartbeat Console > Heartbeat Servers to view a list of all managed
Pairs and a quick status of the protected applications, network, files system, and registry settings for each
Group.
NOTE When a configured connection is not found, an error message may be displayed. Click Edit
Connection to reconfigure the connection.
VMware, Inc. 51
Chapter 6 Status and Control
The status hyperlinks in this overview window links to pages that provide more specific related information
and management controls.
Click:
The Server connection name to view the Server: Summary page
The Applications status to view the Applications: Summary page
The Network status to view the Network Monitoring page
The File System or Registry status to view the Data: Replication page
Exit vCenter Server Heartbeat Console
1Click Exit on the File menu. The Confirm Exit message appears.
2Click Yes.
Shut Down Windows Without Stopping vCenter Server Heartbeat
Always stop vCenter Server Heartbeat before attempting to shut down Microsoft Windows. If an attempt is
made to shut down Windows without stopping vCenter Server Heartbeat, a confirmation message is
displayed. When the confirmation message is displayed, click Cancel and stop vCenter Server Heartbeat
before attempting Windows shut down again.
Controlled Shutdown
A Controlled Shutdown is the process where the VMware vCenter Server Heartbeat service is able to delay a
system shutdown for a sufficient period to perform all of the necessary steps required to stop the applications
and replication in a synchronized state. The Controlled Shutdown is intended for situations where an
unattended planned shutdown of the server is necessary. When configured in the vCenter Server Heartbeat
Console Data: Replication page, this feature allows vCenter Server Heartbeat to gracefully shutdown in the
absence of the administrator.
To configure Controlled Shutdown:
1 Navigate to the Data > Replication page of the vCenter Server Heartbeat Console.
2Click the Configure button.

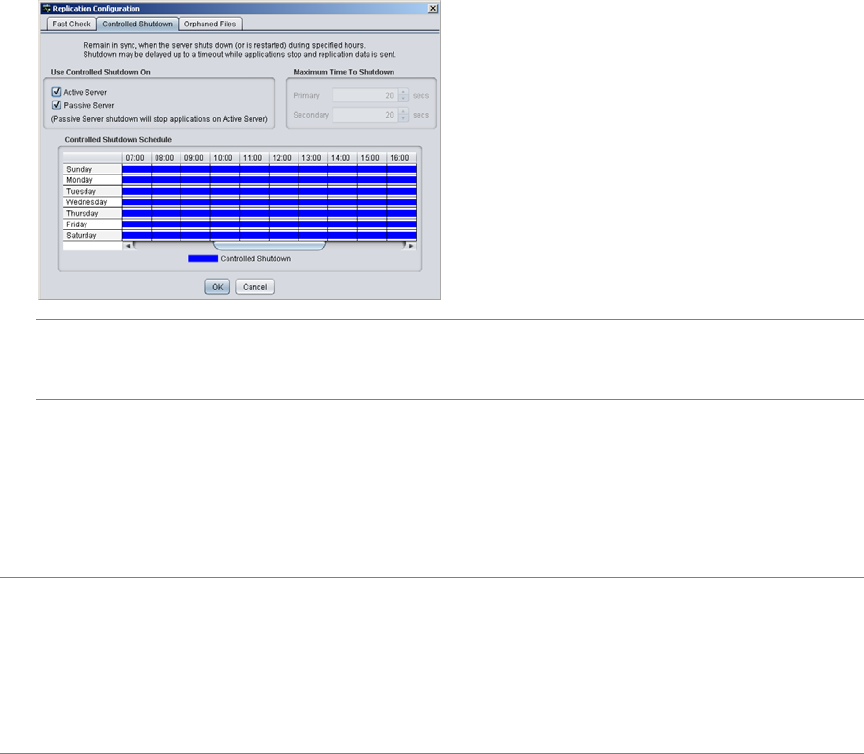

3 Select the Controlled Shutdown tab of the Replication Configuration dialog.
4 Select the servers on which to enable Controlled Shutdown.
5 Select the days and hours parameters under which the server(s) will perform Controlled Shutdown.
6 Configure the length of time for the server(s) to wait for the Controlled Shutdown.
NOTE The ability to configure the length of time for the server(s) to wait for the Controlled Shutdown is
configurable on Windows Server 2008 but is not configurable on Windows Server 2003.
Reference Guide
52 VMware, Inc.
7Click OK.
vSphere Client Plug-in
During installation of vCenter Server Heartbeat, Setup installs a plug-in for vSphere Client that allows you to
manage vCenter Server Heartbeat from the integrated vSphere Client. The vCenter Server Heartbeat tab of the
vSphere Client provides the status of vCenter Server Heartbeat and the ability to perform basic vCenter Server
Heartbeat management functions such as perform a switchover or stop and start replication.
Launching the Heartbeat Plug-in for vSphere Client
The Heartbeat Plug-in is integrated with vSphere Client and allows you to administer your server cluster.
To launch the integrated Heartbeat Plug-in
1 Login to vSphere Client.
2 A security certificate is presented. Select the check box to install the security certificate.
3 Click on the Heartbeat tab of vSphere Client.
4 When prompted to acknowledge the Security Alert, click Yes to proceed.
NOTE When the Fast Check process is enabled in addition to the Controlled Shutdown process, vCenter
Server Heartbeat can be scheduled to perform unattended restarts of the system while maintaining
synchronization of data. For more information about Fast Check, see “Configure Fast Check” on page 60.
NOTE Use of vCenter Server Heartbeat Plug-in for vSphere Client requires that Adobe Flash Player 10.0 is
installed. If Adobe Flash Player 10.0 is not installed prior to installation of vCenter Server Heartbeat, selecting
the Heartbeat tab in vSphere Client for the first time will provide an opportunity to download Adobe Flash
Player 10.0 from the internet and install it.
When using the Heartbeat Plug-in for the first time (clicking on the Heartbeat tab), you must be connected to
the internet.
VMware, Inc. 53
Chapter 6 Status and Control

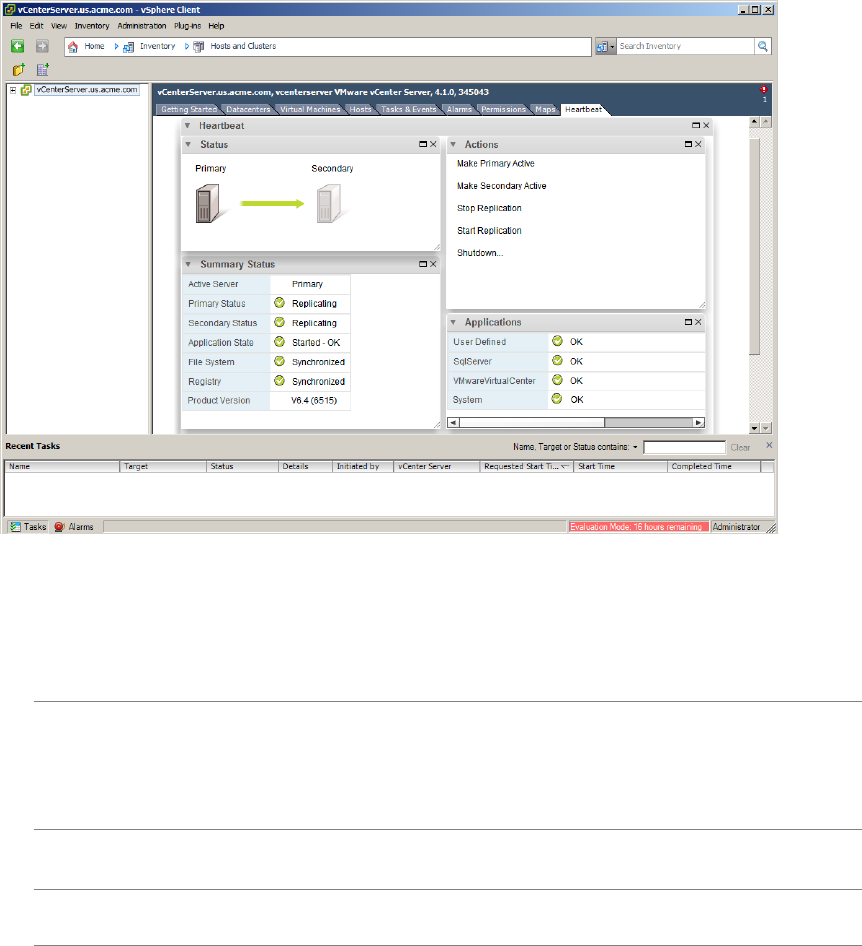

5 The Heartbeat Plug-in is displayed.
Performing a switchover using vSphere Client
1 Select the Heartbeat tab of vSphere Client.
2 Click either Make Primary Active or Make Secondary Active as appropriate.
3 When prompted accept the security certificate to complete the operation.
Stop or start replication
1 Select the Heartbeat tab of vSphere Client.
2 Click either Stop Replication or Start Replication as appropriate.
Uninstall vCenter Server Heartbeat
Under normal conditions it is not necessary to uninstall vCenter Server Heartbeat. Should the need arise,
vCenter Server Heartbeat can be uninstalled easily allowing you to retain current log information.
NOTE Each time you perform a Make Active opearation from the vSphere Client you must accept the
security certificate.
After performing a Make Active operation, the Heartbeat tab may fail to display properly. To update the
Heartbeat tab, restart vSphere Client.
NOTE After a switchover or failover, should vSphere Client fail to authenticate when it attemps to
connect, select the use Windows Credentials checkbox.
Reference Guide
54 VMware, Inc.
Uninstalling vCenter Server Heartbeat
1From the Windows Start menu, navigate to the VMware vCenter Server Heartbeat program group and
select Uninstall or Modify. The Setup wizard starts and detects the presence of installed components and
provides a means for their removal.
2 Select the Uninstall option and click Next.
3 Follow the instructions provided in the Setup wizard to stop vCenter Server Heartbeat. You can shut
down vCenter Server Heartbeat from the system tray icon or from its console.
4 After the application is stopped, click Next.
5 Verify that all programs associated with VMware vCenter Server Heartbeat are closed. Click Next.
6 The Setup wizard prompts you to select whether to leave the current server on the network. In a typical
uninstall process, the active server remains on the network to continue providing application services to
end users, and the passive server is removed from the network.
7 Select whether to leave the server on the network or to remove it from the network following completion
of the uninstall process.
If you select Leave this server on the network after uninstall and click Next to proceed to the next step,
the uninstall process starts and the vCenter Server Heartbeat components are removed.
If you select Leave this server off the network after uninstall, the Rename server to text box becomes active
and you can specify the new computer name for the server that will be renamed. Click Next starts the
uninstall process.
After the uninstall process completes, you will be notified of any files that could not be removed and
advised to delete them manually.
8Click Next. The Setup wizard notifies you that VMware vCenter Server Heartbeat and its associated
components have been uninstalled from the system.
9Click Finish. A restart is required to finish removing certain components and to apply new settings. When
you are prompted to perform this restart, click Yes.
10 After the server has restarted, launch a web browser and navigate to http://<vCenter server name
or IP>/mob
11 Click on Content.
12 Click on ExtensionManager.
13 In the Properties pane, identify the values extensionlist[“com.vmware.heartbeat”] and
extensionlist[“com.neverfail.heartbeat”]
14 In the Methods pane, click the UnregisterExtension option and a new window will appear.
15 In the Value field, type com.vmware.heartbeat and click Invoke Method to remove the plug-in.
16 In the Value field, type com.neverfail.heartbeat and click Invoke Method to remove the plug-in.
17 Close the pop-up window.
NOTE You should leave only the currently active server on the network. If the passive server is a virtual
machine, the image can be deleted and the uninstall procedure applied only to the active server.
NOTE The SupportLogs directory is also left behind. This is intentional and should not be deleted in the
event you need to submit a support report.
NOTE After performing a Make Active operation, the Heartbeat tab may fail to display properly. To
update the Heartbeat tab, restart vSphere Client.
VMware, Inc. 55
Chapter 6 Status and Control
18 Refresh the Managed Object Type: ManagedObjectReference:ExtensionManager window and the plug-in
should be removed from the list.
19 Repeat the entire uninstall procedure on the other server in the pair to uninstall vCenter Server Heartbeat.
Reference Guide
56 VMware, Inc.
VMware, Inc. 57
7
This chapter provides detailed information about the topic “Applications: Rules Tab” on page 57.
Applications: Rules Tab
Rules are implemented by plug-ins (there are no user-defined rules). Configure rule actions to trigger the rule
that performs specific tasks. Rules have two trigger properties:
Timed – They must evaluate as true continuously for the specified duration to trigger.
Latched – They trigger as soon as they evaluate to true.
Rules
The Applications: Rules page provides a list of rules with their current status and two ways to edit and check
rules.
Checking a Rule Condition
vCenter Server Heartbeat allows you to check the rule conditions of the current configuration against the
attributes of the system or application.
To check a rule condition
Right-click on the rule and select Check Now from the menu or click Check Now at the top of the pane. The
rule condition is displayed in the pane.
Edit a Rule
Rules are implemented by plug-ins and cannot be created by users. Each plug-in contains a default set of rules
with options that may be modified by the user.
To edit a rule
1 Right-click on the rule and select Edit from the menu or click Edit at the top of the pane.
2 Edit the parameters of the rule and click OK.
Rules Installed by vCenter Server Heartbeat Plug-Ins
The following plug-ins implement the rules listed.
vCenter Server Plug-In
Check health of Tomcat server
Check vCenter License
Check Connection to vCenter
Performance Protection 7
Reference Guide
58 VMware, Inc.
vCenter SQL Server Plug-In
Default Instance Buffer Cache Hit Ratio
Default Free Pages
Default Instance Free Pages
Named Instance Working Set
Named Instance Buffer Cache Hit Ratio
Named Instance Free Pages
Named Instance Total Server Memory
vCenter Server Heartbeat System Plug-In
DiskAvgSecsPerRead
DiskAvgSecsPerWrite
DiskIO
DiskQueueLength
DiskReadsPerSec
DiskWritesPerSec
DiskWriteable
FreeDiskSpace
FreeDiskSpaceOnDrive
MemoryCommittedBytes
MemoryCommittedBytesPercent
MemoryFreePTEs
MemoryPageReadsPerSec
MemoryPageWritesPerSec
MemoryPagesPerSec
MemoryPagingFileUseage
PageFaultsPerSec
ProcessorIntsPerSec
ProcessorLoad
ProcessorQueueLength
RedirectorBytesTotalPerSec
RedirectorNetworkErrorsPerSec
ServerBytesTotalPerSec
ServerWorkItemShortages >= 3 (if the rule for server work item shortages is triggered, consult Microsoft
documentation on setting the registry values for InitWorkItems or MaxWorkItems accordingly).
ServerWorkQueueLength
SystemContextSwitches
VMware, Inc. 59
8
This chapter includes the following topics:
“Data Protection Overview” on page 59
“Replication” on page 60
“Registry and File Synchronization Status” on page 60
“Initiate a Full Registry Check” on page 60
“Initiate a Full System Check” on page 60
“Configure Fast Check” on page 60
“Initiate File Synchronization Manually” on page 61
“Initiate Verify and Synchronize Manually” on page 61
“Orphaned Files Check” on page 62
“File Filters” on page 63
“Determine Effective Filters” on page 64
“Add a User-Defined Exclusion Filter” on page 64
“Edit User Defined Inclusion/Exclusion Filters” on page 64
“Remove User-Defined Filters” on page 64
“Automatic Filter Discovery” on page 65
Data Protection Overview
vCenter Server Heartbeat can protect many permutations or combinations of file structures on the active
server by the use of custom inclusion and exclusion filters configured by the administrator. See “File Filters”
on page 63 for more information.
The filter driver identifies files to protect and disk I/O operations to intercept and replicate to the passive
server. Use this driver to filter files for inclusion in or exclusion from the replication process. By default,
vCenter Server Heartbeat protects a folder called Protected on the system partition.
The VMware application folder contains the active server ‘s send and passive server’s receive queues on the
active and passive servers. This folder must be explicitly excluded from file protection.
Data Protection 8
NOTE vCenter Server Heartbeat forbids replicating certain files and folders by using a veto. If an inclusion
filter includes any of those files or folders, the entire filter is vetoed, even if an exclusion filter is used to prevent
replication of those files and folders. Examples of folders are the vCenter Server Heartbeat installation
directory or the system32 folder.
Reference Guide
60 VMware, Inc.
Replication
You can view replication status and manage data replication using the Data: Replication page.
Registry and File Synchronization Status
Two panes near the top of the Replication page in vCenter Server Heartbeat Console, File System
Synchronization Status and Registry Synchronization Status, provide graphical status information.
The synchronization status for each file or folder can read three different values depending on the verification
and synchronization states as described in Table 8-1.
Initiate a Full Registry Check
The registry check re-scans and synchronizes all registry keys specified in the built-in registry filters between
the servers and the results are displayed in the Registry Synchronization Status pane.
To initiate a full registry check
Click Full Registry Check in the Registry Synchronization pane.
Initiate a Full System Check
You can verify and synchronize the entire protected file set with a Full System Check. A Full System Check
performs the same block level check of all the files set by the file filters in the initial startup synchronization
and verification.
When you click Full System Check, a dialog asks you to confirm the request and warns you that depending
on the amount of data under protection, this task can take a long time to complete (for example, a number of
hours). Click Yes to perform the check.
Switchover cannot occur until the full system check completes and the File System Status is Synchronized.
The File System Status is Unchecked when you cancel the task. Depending on the amount of data,
resynchronization can take substantial time to complete.
Configure Fast Check
The Fast Check process is used by vCenter Server Heartbeat to rapidly verify files between servers prior to
starting applications. Fast Check compares file time stamps and attributes rather than the check sums of the
data thereby accelerating the startup and synchronization process. If the time stamp or attribute check fails,
than the normal verification and synchronization process will initiate. Additionally, you can configure the
length of time to wait for Fast Check to complete before starting applications.
Fast Check is beneficial after a graceful shutdown where the severs were synchronized before shutdown. Fast
Check allows the server to check the file synchronization rapidly and start to service clients. If Fast Check
detects files that are out-of-sync, it initiates the full verify and synchronization process to resynchronize your
data.
When combined with Controlled Shutdown, Fast Check provides the ability to perform scheduled unattended
restarts of the servers.
Table 8-1. Synchronization Status
Icon Description
The file is verified and successfully synchronized.
The file is not synchronized on the active and passive servers. This state often follows a failover and
requires manual synchronization and verification.
The file or folder has not been checked because a full system check has not been performed or the system
check has not yet reached the file or folder.
VMware, Inc. 61
Chapter 8 Data Protection
To enable Fast Check
1 Navigate to Data > Replication.
2Click the Configure button.

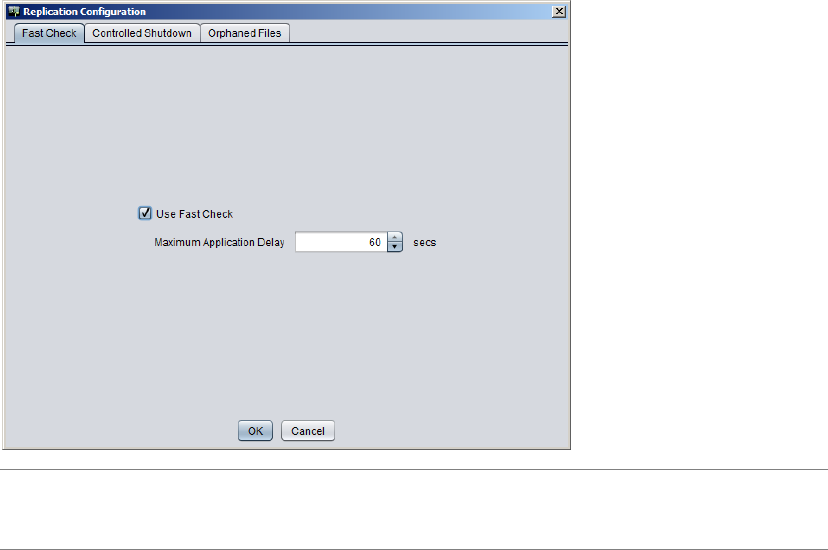

3 Select the Fast Check tab.
4 Select the Use Fast Check check box.
5Configure Maximum Application Delay. This is the length of time vCenter Server Heartbeat will delay the
startup of the application while it attempts to establish replication between active and all passive nodes.
6Click OK.
Initiate File Synchronization Manually
The Data: Replication File Hierarchy pane displays files that were detected as out of synchronization.
To initiate file synchronization manually
To manually synchronize the specified files, click Synchronize.
You can resynchronize files at any time. Select multiple files with the Shift or Ctrl keys and click
Synchronize.
Select a folder and select Including Subdirectories to synchronize files within folders.
A progress graphic displays the status of the verification or synchronization operation. When complete, the
status displays a green Synchronized icon.
Initiate Verify and Synchronize Manually
A manual or scheduled synchronization and verification request is defined as a task that is queued for
processing after the running task completes. Tasks display in the Pending Tasks pane. You can cancel
individual tasks. If you cancel a scheduled task, you risk an unchecked system. Possible consequences of
canceling tasks display in a warning message.
NOTE When Fast Check is configured in addition to Controlled Shutdown, vCenter Server Heartbeat can
be configured to perform an unattended restart. For more information about Controlled Shutdown, see
“Controlled Shutdown” on page 51.
Reference Guide
62 VMware, Inc.
To verify and synchronize folders
1Use Verify & Synchronize and select Include Subdirectories to ensure all underlying files and subfolders
are included in the verification and synchronization operation.
2 Right-click a folder to access a popup menu to perform quick synchronization and verification of folders
and subfolders.
Orphaned Files Check
vCenter Server Heartbeat provides the opportunity to check the system for orphaned files and either notify
the administrator or to delete the orphaned files. Orphaned files are those files in a protected set that exist on
the passive server but do not exist in the protected set on the active server in a pair.
Orphaned File Check can either delete or log files on the passive server that exist within the protected set; they
were “orphaned” because vCenter Server Heartbeat was not running when content changes were made on the
active server.
Special Cases
Folder root filters
Orphaned File Check will manage the entire contents of that folder (for example, D:\folder\**). This deletes
all passive files within the folder that do not exist on the active server, and includes content created only on
the passive server.
Exclusion file filters
Orphaned File Check will not delete any files excluded from the protected set by exclusion filters. This rule
safeguards users and applications.
Filters for files, file types, or other wildcards
Orphaned File Check is not managing the contents of the folder (for example, D:\database\*.log), only the
selected files.
The golden rule applies; Orphaned File Check will only process files that match the filter and will not delete
files with any other extension within the folder D:\database.
Orphaned files are those files in a protected set that exist on the passive server but do not exist in the protected
set on the active server in a pair.
Prior to initiating an orphaned files check, you must configure the options for actions to take in the event
orphaned files are found. By default, Orphaned Files Check is configured to delete orphaned files. Should you
want to log the files presence, follow the steps below.
To Configure Orphaned Files Check options
1 Navigate to the Data: Replication page and click on the Configure button.
2 Select the Orphaned Files tab.
NOTE Golden Rule: Orphaned File Check does not delete files on the passive server if there is no file filter to
include the content as this would be unsafe.
VMware, Inc. 63
Chapter 8 Data Protection

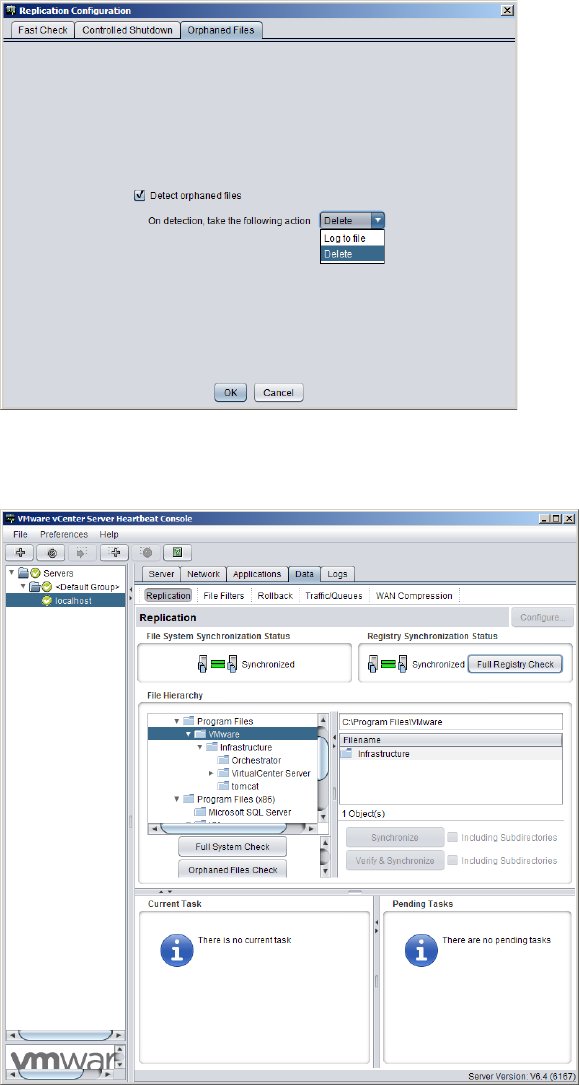

3 Select the Detect orphaned files check box and in the On detection, take the following action drop-down to
automatically delete the orphaned files or Log to file to add the files list to the log file.
4 After selecting the options, click OK to close the dialog.
5Click the Orphaned Files Check button.
File Filters
File filters dictate which files are protected and the disk I/O operations to intercept and replicate to the passive
server. File filters also allow you to customize the inclusion and exclusion of files from the replication process.
The File Filters pane of the Data page allows you to set up and manage inclusion and exclusion filters.
The File Filters pane contains three columns: Filter, State, and Detail.
Reference Guide
64 VMware, Inc.
The Filter column lists the pattern for protecting files and folders on the active server.
The State of the filter identifies the filter as Effective, Subset (contained within another filter), or Not
Effective (not contained within another filter). An Effective filter is properly configured and functions to
protect (replicate) the stipulated files to the passive server.
The Detail describes the file filter details based upon the state of the file filter.
Determine Effective Filters
An Effective Filter is the result of the remainder of the files and folders stipulated in the Inclusion Filter after
removing the files and folders in the Exclusion Filter.
Filters are compared with each other, and if one filter is a superset of another, the superset filter is used. You
can configure a single, general filter to replace file servers with 1000s of individual shares requested by a
plug-in. Add a User-Defined Inclusion Filter
Inclusion Filters create a subset of files to specify items to include for protection.
To define filters that include files and folders for protection and replication
1In the Data: File Filters pane, click Add Inclusion Filter to open the Add Inclusion Filter dialog.
2 Type the complete path and pattern, specify a pattern containing wildcards, or use Browse to locate the
file or folder.
3Click OK.
The two forms of wildcards available are *, which matches all files in the folder, and **, which matches all
files, subfolders and the files in the subfolders of the folder.
After defining the filter, you can add additional Inclusion Filters.
Add a User-Defined Exclusion Filter
Exclusion Filters create a subset of an Inclusion Filter to specify items to exclude from protection.
To define filters that exclude files and folders from protection and replication
1In the Data: File Filters pane, click Add Exclusion Filter to open the Add Exclusion Filter dialog.
2 Type the complete path and pattern, specify a pattern containing wildcards, or use Browse to locate the
file or folder.
3Click OK.
The two forms of wildcards available are *, which matches all files in the folder, and **, which matches all
files, subfolders and the files in the subfolders of the folder.
Edit User Defined Inclusion/Exclusion Filters
Inclusion and exclusion filters can be edited by selecting the filter and clicking Edit at the top of the File Filters
pane or right-clicking the filter and selecting Edit from the menu. Edit the value in the Pattern: text box by
typing over the current file filter definition.
Remove User-Defined Filters
When necessary, user defined inclusion and exclusion filters can be removed.
To remove an Inclusion or Exclusion Filter
1 Select the filter in the File Filters list and click Remove, or right-click on the filter in the File Filters list and
select Remove from the menu.
2 A confirmation message appears. Click Yes.
VMware, Inc. 65
Chapter 8 Data Protection
Automatic Filter Discovery
When Administrators make changes to the configuration, vCenter Server Heartbeat adjusts file filter
protection for protected locations. Additionally, the SQL Server plug-in provides database protection
including changes or additions to the database and log files.
Reference Guide
66 VMware, Inc.
VMware, Inc. 67
9
This chapter includes the following topics:
“Configure Alerts” on page 67
“Configure Alert Reporting” on page 67
“Test Alert Reporting” on page 68
“Configure Event Log Files” on page 68
“Review Event Logs” on page 69
Configure Alerts
vCenter Server Heartbeat can send predefined alerts to remote administrators by email using Logs >
Configure Alerts.
You can configure alerts in by clicking Configure Alerts on the Logs page
You can configure three alert states: Red alerts are critical, yellow alerts are not as serious, and green alerts are
informational. These alerts are preconfigured with the recommended alerting levels.
To reconfigure each event to trigger red, yellow, green, or no alert, select the appropriate tab, select the check
boxes, and click OK.
Configure Alert Reporting
vCenter Server Heartbeat can alert the administrators or other personnel and route logs by email when an
Alert condition exists.
To configure email alerts
1Click Logs: Mail Settings to open the Mail Settings dialog.
2 Type the outgoing SMTP server of both the Primary server (when active) and the Secondary server (when
active) in the appropriate fields.
3 Type the FQDN of the mail server. Type an email address that is authorized to send mail through the
SMTP server.
4 If the SMTP servers require authentication to accept and forward SMTP messages, select Mail Server
requires authentication and specify the credentials for an appropriate authenticated user account.
5Click OK.
You can configure email recipients in the On Red Alert, On Yellow Alert, and On Green Alert tabs of the
Configure Alerts dialog after configuring the trigger levels and the email server.
Alerts and Events 9
Reference Guide
68 VMware, Inc.
Red, Yellow, or Green alert triggers email to the same or different recipients. The process to add recipients is
the same for all trigger levels.
1Click the On Red Alert, On Yellow Alert, or On Green Alert tab and select Send mail.
2 Select the frequency for the email to be sent.
3Click Add and type a fully qualified email address for each recipient for the respective trigger level alert.
4 To delete a recipient, select the recipient’s email address in the Mail Recipients pane and click Remove.
Use the preconfigured subject and content of the alert emails for Red, Yellow, or Green alerts. You can add
content as required. VMware recommends leaving the preconfigured subject and content and if necessary, add
additional information.
Another method to send an alert notification is:
1 Select Run Command under the pertinent alert state.
2Browse to the script to run or use a command line argument to run on the alert trigger.
The preconfigured WScript command creates an event in the Application Event Log and can be
customized to include vCenter Server Heartbeat specific informational variables as detailed in Table 9-1.
The following command line argument creates an event in the Application Event Log listing the machine
that caused the alert, the time the alert occurred, the name, and details of the alert:
WScript //T:10 $(installdir)\bin\alert.vbs "VMware vCenter Server Heartbeat alert on
$EventHost at $EventTime because $EventName ($EventDetail). Event Id is $EventId"
3Click OK.
Test Alert Reporting
Click Test Alert Reporting to run a test alert email. This way you can avoid triggering an actual alert during
the operation of the active server.
Configure Event Log Files
vCenter Server Heartbeat allows you to configure Event Log files to direct where the log file is stored and the
number of events to be recorded.
To configure default settings for log files
1Click Logs: Configure and select the General tab to define the filename and path of the exported
comma-separated variable (CSV) file.
2 Type a path and filename or use Browse and navigate the file.
3 Adjust the length of the event list to meet your needs by increasing or decreasing the value (the default is
to record 300 events) in the Record at most field.
4Click OK.
Configure Log File Email Recipients
Use vCenter Server Heartbeat to email the log to specified personnel at predetermined intervals.
Table 9-1. Script Variables
Variable Value
$EventId Id of event as listed above
$EventName Human-readable name of event
$EventDetail Detail message for event
$EventTime Time at which event occurred
VMware, Inc. 69
Chapter 9 Alerts and Events
To configure email log notifications
1 To configure vCenter Server Heartbeat to email a copy of the log file, click on the Mail Log File tab, select
Mail Every, and configure the day and time to send the log file.
2 Specify the recipients. Click Add on the top left of the email recipient field and type the email address in
the Add Mail Address dialog.
3 To remove a recipient, select the recipient’s email address in the Mail Log File pane and click Remove.
4Click OK.
Review Event Logs
The Logs: Event Log pane lists events logged chronologically by default.
The Event log shows the time the event happened, the type, the source, its importance, and its detail. The
display order for events can be sorted either descending or ascending by clicking on the column heading. Since
the detail in the data grid is truncated, it may be necessary to review the log in more detail.
To review the details
1 Double-click the entry in the data grid.
Event Properties displays the full detail and trace of the log that caused the event and the source of the
error to aid in troubleshooting.
2Use the Up and Down arrows in this window to review other logs. This feature is useful where many
events have occurred simultaneously and helps to identify the source of the problem.
3Click Close to close the Event Properties.
Event Log Filters
The list of logs that vCenter Server Heartbeat displays may be filtered to hide less important logs.
To filter log events by importance
1 Click Filters to invoke the Event Log Filters dialog.
2 Select Events of at Least.
3 Select the Show events of at least check box in the Importance group.
4 Select the importance level from the drop-down list and click OK.
Only logs equal to or above the select severity are displayed.
To filter log events by date and time range
1 Select the Only show events from check box and adjust the start date, end date, and time.
2Click OK.
Table 9-2. Log Events
Icon Description
Errors within the underlying operation of vCenter Server Heartbeat and can be considered critical to the
operation of the system.
Warnings generated for discrepancies within the vCenter Server Heartbeat operational environment that are
not deemed critical to the operation of the system.
System logs are generated following normal vCenter Server Heartbeat operations. You can use these logs to
verify the success of processes such as file synchronization.
Information on operations within the graphical user interface rather than operations on VMware vCenter
Server Heartbeat service, such as Test Alert Reporting.
Reference Guide
70 VMware, Inc.
.
Table 9-3. Event Log Buttons
Icon Purpose
To export the list to a comma-separated variable file, click Export event log at the top left of the Log Details
data grid. You can configure the filename and path to export the data in the Configuration tab.
To immediately email the list, click E-mail.
To clear the list, click Remove all Entries at the top left of the Log Details data grid.
VMware, Inc. 71
10
This chapter includes the following topics:
“Troubleshooting Unexpected Behaviors” on page 71
“Two Active Servers” on page 71
“Two Passive Servers” on page 73
“Synchronization Failures” on page 74
“Registry Status is Out of Sync” on page 76
“Channel Drops” on page 76
“Subnet or Routing Issues ” on page 80
“MaxDiskUsage Errors” on page 80
“MaxDiskUsage Error Messages” on page 81
Troubleshooting Unexpected Behaviors
The following unexpected behaviors illustrate symptoms, causes and resolution for a given scenario.
Two Active Servers
When two identical active servers are live on the same network, vCenter Server Heartbeat refers to the
condition as Split-brain syndrome. Two active servers do not occur by design and when detected, must be
resolved immediately.
Symptoms
Split-brain syndrome is identified by the following symptoms:
Both servers in the pair are running and in an active state. The task bar icons display P / A (Primary and
active) and S / A (Secondary and active).
An IP address conflict occurs on a server pair running vCenter Server Heartbeat on the Principal (Public)
IP address.
A name conflict occurs on a server pair running vCenter Server Heartbeat. In a WAN environment the
Primary and Secondary servers connect to the network using different IP addresses. However, if the
servers are running with the same name and are visible to each other across the WAN, a name conflict
occurs.
Clients (for example, VI Client, ESX, etc.) cannot connect to the server running vCenter Server Heartbeat.
Troubleshooting 10
Reference Guide
72 VMware, Inc.
Causes
The most common causes of two active servers (Split-brain syndrome) are as follows:
Loss of the VMware Channel connection (most common in a WAN environment)
The active server is too busy to respond to heartbeats
Incorrect configuration of the vCenter Server Heartbeat software
You must determine the cause of the Split-brain syndrome and resolve the issue to prevent this condition from
recurring.
Resolution
To resolve Split-brain syndrome, identify the server with the most up-to-date data. If you identify the wrong
server you risk losing data. You must reinstate the correct server.
To identify the server with the most up-to-date data
1 Check the date and time of files on both servers. Make the most up-to-date server the active server.
2 From a client PC on a LAN, run nbtstat -A 192.168.1.1 where the IP address is the Principal (Public)
IP address of the server. This can help identify the MAC address of the server currently visible to client
machines.
To resolve two active servers (Split-brain syndrome)
1 Identify the server with the most up-to-date data or the server to make active.
2 Shut down vCenter Server Heartbeat on both servers (if running).
3 On the server to make passive, right-click the Task bar icon, and select the Server Configuration wizard.
4Click the Machine tab and set the server role to passive. Do not change the identity of the server (Primary
or Secondary).
5Click Finish.
6 Restart this server.
7 Start vCenter Server Heartbeat, if required, and check that the Task bar icon now reflects the changes by
showing P / - (Primary and Passive) or S / - (Secondary and Passive).
8 On the active server, right-click the Task bar icon and select the Server Configuration wizard.
9Click the Machine tab and verify that the server role is set to active. Do not change the identity of the
server (Primary or Secondary).
10 Click Finish.
11 Restart this server. As the server restarts, it connects to the passive server and starts replication. The active
server overwrites data on the passive server.
12 Start vCenter Server Heartbeat, if required, and check that the Task bar icon now reflects the changes by
showing P / A (Primary and active) or S / A (Secondary and active).
13 Start vCenter Server Heartbeat Console.
14 Check that the servers have connected and replication has started.
NOTE If both active servers were servicing clients, perhaps at different WAN locations, you can make
only one server active. Both servers contain recent data that cannot be merged using vCenter Server
Heartbeat. To restart replication, make one server active and one server passive. When replication restarts,
the active server overwrites all data on the passive server. You can manually extract the up-to-date data
from the passive server prior to restarting replication. Consult the Microsoft knowledge base for
information on various tools for this purpose. For further information, contact your VMware support
representative.
VMware, Inc. 73
Chapter 10 Troubleshooting
Two Passive Servers
Primary and Secondary servers are both passive at the same time. This situation is serious and must be
resolved immediately.
Symptom
You are unable to connect to protected applications, and if you configured alerts, you receive notification that
replication is not functioning properly.
Causes
The condition of two passive servers results from a sudden failure on the active server. Examples:
An unexpected termination of the VMware vCenter Server Heartbeat service
A transient power failure
A server reset triggered from the Power or Reset button
An unclean shutdown. Following an unclean shutdown, an active server assumes the passive role to
isolate itself from the network until the failure is investigated.
The active server fails before the handshake that establishes the VMware Channel connection. The passive
server cannot detect that the active server is not responding when the failure occurs and cannot determine
the condition of the active server. The active server suffers a transient failure and the passive server cannot
respond by failing over into the active role, leaving both servers in the passive role.
Both Primary and Secondary servers experience a power outage simultaneously, for example, they use the
same power source and neither is attached to a UPS. A failover cannot occur and when the servers are
restarted, each displays the following error message:
Cannot start replication because previous run did not shutdown properly. Check configuration.
Resolution
Two passive servers prevent users from accessing the protected application and should be resolved
immediately.
To resolve two passive servers
1 Determine the active server.
2 Shut down vCenter Server Heartbeat on both servers. Leave any protected applications running on the
server to make active.
3 On the server to make active, start the Server Configuration wizard, and select the active role. Do not
change the identity (Primary or Secondary).
4 On the server to make passive, start the Server Configuration wizard, and confirm the passive server. Do
not change the identity (Primary or Secondary).
5 Restart the passive server. All protected application services stop.
6 Start vCenter Server Heartbeat on both servers.
NOTE If you attempt to start vCenter Server Heartbeat without reconfiguring one server in the pair as active,
vCenter Server Heartbeat responds with the following warning:
[U16] Serious configuration mismatch between the two servers. Please reconfigure so there is one
and only one Primary, and one and only one Active.
Reference Guide
74 VMware, Inc.
Synchronization Failures
When you start vCenter Server Heartbeat, a full system check occurs to verify the following:
All protected registry keys and values from the active server are present on the passive server.
All protected file and folder structures from the active server are present on the passive server.
After the full system check completes, the File System Status and the Registry Status display as Synchronized.
However, the File System Status or the Registry Status can also display as Out of sync or Synchronized and
busy processing. Some typical scenarios are described with possible causes and workarounds.
Services Running on the Passive Server
Services running on a passive server is not normal behavior and can prevent synchronization.
Symptom
File System Status is Out of sync or Synchronized and busy processing.
Cause
A service running on the passive server opens a protected file for exclusive access. If vCenter Server Heartbeat
attempts to update this opened file, the Apply component logs the following error message:
[N29]The passive VMware vCenter Server Heartbeat server attempted to access the file: {filename}.
This failed because the file was in use by another application. Please ensure that there are no
applications which access protected files running on the passive.
Services that keep files locked on the passive server are:
Protected application services
File level antivirus tool services
Resolution
Until the file is closed on the passive server, vCenter Server Heartbeat reports the file status and the File System
Status as Out of sync.
To resolve the Out of sync status
1 Set Protected Application services to Manual on both servers and verify that they are not running on the
passive server.
2 Set Recovery Actions to Take No Action. You can set this from the Service Control Manager (SCM) for the
Protected Application services. Otherwise, the SCM restarts the Protected Application services.
3 Verify that file level antivirus is not part of the protected set as the file level antivirus and the
corresponding services are running on both machines.
VMware Channel Incorrectly Configured
If the VMware Channel is not properly configured, it cannot initiate the handshake to establish
communications through the VMware Channel connection.
Symptom
Failure to establish the VMware Channel connection prevents a full system check, thereby leaving the File
System Status and Registry Status as Out of sync.
NOTE This occurs if the vSphere Client is left running on the passive server.
NOTE vCenter Server Heartbeat periodically checks for and stops any services running on the passive server.
VMware, Inc. 75
Chapter 10 Troubleshooting
Causes
The most common VMware Channel configuration errors are as follows:
VMware vCenter Server Heartbeat Packet Filter is enabled on one or more VMware Channel NICs
VMware Channel IP addresses are configured in different subnets
In a WAN implementation, no static routes exist between the VMware Channel NICs
Resolution
The VMware Channel configuration should be reviewed to verify proper configuration.
To resolve a VMware Channel configuration error
1 Disable the VMware vCenter Server Heartbeat Packet Filter on VMware Channel NICs.
2 Configure the VMware Channel IP addresses properly.
3 In a WAN implementation, configure static routes between VMware Channel NICs properly.
4 Disable NetBIOS on the VMware Channel NICs.
Incorrect or Mismatched Disk Configuration
When vCenter Server Heartbeat starts, it checks the complete set of file filters for consistency.
Symptom
If any of the entries points to a non-existent drive letter or to a non-NTFS partition, the list of file filters resets
to the default value of C:\Protected\**. This is a safety measure as vCenter Server Heartbeat requires the
same drive letter configuration on the Primary and the Secondary servers, and only supports protection of
NTFS partitions.
Cause
Different partition structures on Primary and Secondary servers, such that one or more file filters point to
drives that cannot be protected on both servers. For example:
The Primary server has drive G, a valid NTFS partition, but no corresponding drive exists on the
Secondary server.
The Primary server has drive G, a valid NTFS partition. The equivalent drive on the Secondary server is
a CD or DVD drive, or a FAT or FAT32 partition that cannot be protected.
In either scenario, if you configure a file filter to protect a directory on drive G, the entire filter set is rejected
and the filters are reset to the default value of <Windows drive>\Protected\**.
Resolution
Follow the steps documented in knowledge base article 1008458 (vCSHB-Ref-500) Troubleshooting a set of File
Filters that is reset to C:\Protected\**.
Passive Server Has Less Available Space than Active Server
Inadequate available disk space on the passive server can cause replication to cease.
Symptom
Replication stops with the following error:
[N27]Failed to write information for the file: {filename} to the disk. Either the disk is full or
the quota (for the SYSTEM account) was exceeded.
Reference Guide
76 VMware, Inc.
Cause
The passive server has less available disk space than the active server, preventing updates from being
replicated to the passive server. The quantity of updates from the active server exceeds the passive server's
available disk space.
Resolution
Free up some additional disk space on the passive server. Do not delete data from the protected set to prevent
data loss in the event of a switchover. You could update the disk subsystem on the passive server. After
allocating space, start replication.
Registry Status is Out of Sync
The Registry can be reported as Out of sync when one or more Registry keys fail to synchronize.
Resource Issues
Inadequate resources can cause poor performance and prevent the registry from synchronizing.
Symptom
vCenter Server Heartbeat logs the following error message:
Call to RegOpenKeyEx failed: on <Reg_Key>: Insufficient system resources exist to complete the
requested service.
Cause
One or both of the servers are running low on virtual memory.
Resolution
Restart the server to free up virtual memory.
Registry Security Issues
Inability to access the registry prevents replication of the registry.
Symptom
vCenter Server Heartbeat is unable to read, sync, or replicate the registry.
Cause
If a protected registry key has permissions that deny Write access to the System account, this can prevent
vCenter Server Heartbeat from synchronizing or replicating it.
Resolution
Change the permissions on the affected registry key to grant the System account Full Control.
Channel Drops
When the VMware Channel loses connection between the servers, the following scenarios can occur.
Performance Issues
Poor performance can be experienced as a result of a channel loss.
VMware, Inc. 77
Chapter 10 Troubleshooting
Symptom
The message java.io.IOException: An existing connection was forcibly closed by the remote
host appears in the active server's NFLog.txt file, and the VMware Channel connection between the servers
is lost.
Causes
This unusual condition points to an application or Windows experiencing a fault on the passive server. A
sudden restart of the passive server can occur due to the following causes:
The server is configured for automatic software update management and some updates force the server
to restart
A software or Operating System issue that occasionally fails and requires a system restart
The VMware vCenter Server Heartbeat service experiences problems, does not respond, or terminates
unexpectedly
Resolution
To resolve the issue, make the following checks.
Determine the likely source by examining the Windows event logs.
If the server does not display evidence of a system restart or unresponsive application, one or both of the
VMware Channel NICs could be forcing a channel disconnection. See “Hardware or Driver Issues on
VMware Channel NICs” on page 77 for more information on this topic.
Passive Server Does Not Meet Minimum Hardware Requirements
Inadequate hardware can cause channel drops and result in poor performance.
Symptom
The data rate between the servers is very fast during a Full System Check and the VMware Channel drops.
Cause
The passive server does not meet the recommended hardware requirements for vCenter Server Heartbeat or
it meets the requirements, but is much less powerful than the active server. The underpowered server cannot
apply the received replication data from the active server at the rate that the data is sent to the passive server.
Resolution
To avoid reinstalling vCenter Server Heartbeat, upgrade the hardware, such as memory or CPU, on the passive
server. Establish the identity (Primary or Secondary) of the affected server before you perform the upgrade.
Hardware or Driver Issues on VMware Channel NICs
NIC malfunctions and old or incorrect drivers can cause channel drops resulting in poor performance.
Symptom
The VMware Channel intermittently drops or disconnects and reconnects.
Causes
The following are common causes of NIC problems.
Old or incorrect VMware Channel NIC drivers
Hardware failure of the hub or Ethernet switch used for the VMware Channel connection
Defective Ethernet patch or crossover cables
Reference Guide
78 VMware, Inc.
Improper configuration of the NICs used for the VMware Channel connection
ISP problems in a WAN environment
Resolution
When a NIC problem is encountered, the following should be checked.
Verify that VMware Channel NIC drivers are the correct and latest versions. Known issues are identified
with HP/Compaq ProLiant NC67xx/NC77xx Gigabit Ethernet NICs. Check other NIC types. See
knowledge base article 1008383 (vCSHB-Ref-116) – VMware vCenter Server Heartbeat and Gigabit Ethernet
NIC drivers. (NC77XX).
Verify hubs and Ethernet switches are operating properly. Identify and replace any defective components.
Test for defective Ethernet patch or crossover cables and replace if defective.
Correctly configure the NICs used for the VMware Channel connection.
Check the physical link for ISP problems.
Firewall Connection
In a LAN or WAN deployment, the VMware Channel can be connected through one or more Internet firewalls.
Because firewalls block unauthorized network traffic, configure firewalls on the route of the VMware Channel
to allow channel traffic.
Symptoms
The VMware Channel cannot connect, or continuously connects and disconnects.
Causes
In a WAN deployment, port 57348 or any other port configured for the VMware Channel is closed on one or
more firewalls on the route between the VMware Channel NIC on the Primary server and its counterpart on
the Secondary server.
Resolution
Open port 57348 and any other port configured for the VMware Channel on all firewalls on the route between
the VMware Channel NIC on the Primary server and its counterpart on the Secondary server.
Incorrect VMware Channel Configuration
An incorrectly configured channel connection can prevent proper communication and replication.
Symptoms
The following problems are experienced:
IP conflicts occur on one of the VMware Channel IP addresses
The VMware Channel does not connect, or connects and disconnects
Causes
The list below provides the most common misconfigurations.
Identical IP addresses at each end of the VMware Channel
IP addresses in different subnets without static routing at each end of the VMware Channel
VMware Channel NIC configured for DHCP when a DHCP server is not available
VMware, Inc. 79
Chapter 10 Troubleshooting
During installation, vCenter Server Heartbeat configures the VMware Channel NICs with user-provided
information. Incorrect information or incorrectly modifying the VMware Channel NIC configuration after
installation causes the VMware Channel to fail communicating.
On rare occasions, if the Primary and Secondary servers have NICs of the same type in a different order, both
the name and IP address of a VMware Channel NIC on the Primary server can transfer to the Principal (Public)
NIC on the Secondary or the name and IP address of the Principal (Public) NIC can transfer to a VMware
Channel NIC. Similarly, the names of the VMware Channel NICs can reverse on the Secondary server. You
must reconcile the names of the NICs with their physical identities and assign the correct IP address to each
NIC on the Secondary server.
Resolutions
The installation process manually assigns the correct IP addresses to each NIC on the Secondary server. If no
VMware Channel connection occurs between the servers, verify the configuration of the IP addresses on the
Secondary server's channel NICs. Check the settings for the Principal (Public) NIC. The configuration error can
remain unrecognized until you perform a switchover or a failover occurs.
To capture the identities of all of the NICs on the Secondary server prior to installing vCenter Server Heartbeat,
open a Windows Command Prompt on that server and execute the following command:
ipconfig /all > ipconfig.txt
The output of this command saves the name, TCP/IP configuration, and MAC address of each NIC on the
Secondary server to a file called ipconfig.txt, which is present on that server after the PnP phase of the vCenter
Server Heartbeat install completes. Compare the pre-install and post-install state of each NIC by running
ipconfig /all from a Windows command prompt and compare the output of this command with the
content of ipconfig.txt.
The MAC address of each NIC is connected to the physical identity of each card and never changes. You can
identify each NIC by its MAC address and determine its original name and network configuration, even if this
was updated by the PnP process.
VMware vCenter Server Heartbeat Packet Filter Is Enabled on the Channel
NIC(s)
Proper configuration requires that the packet filter be disabled on the VMware Channel NIC. When the packet
filter is enabled on the channel NICs, the following symptoms are encountered.
Symptom
Interference with network traffic across the VMware Channel results in an intermittent channel connection or
no channel connection at all.
Cause
During installation, the VMware vCenter Server Heartbeat Packet Filter is installed and enabled on all NICs
on both the Primary and Secondary servers. The Packet Filter on the VMware Channel NICs on each server is
disabled later in the installation of vCenter Server Heartbeat. If the vCenter Server Heartbeat Packet Filter is
left enabled on one or more channel NICs after installation completes, it can interfere with network traffic
across the VMware Channel.
Resolution
Click the Properties tab for each Channel NIC on both servers and verify that the check box for vCenter Server
Heartbeat Packet Filter is cleared, so that the Packet Filter is disabled on that NIC.
Reference Guide
80 VMware, Inc.
Subnet or Routing Issues
In a LAN or WAN deployment, the following connection problems can occur.
LAN Deployment
Incorrectly configured subnets or routing can cause channel problems resulting in poor performance or failure
to connect.
Symptom
The Channel disconnects or fails to connect in a LAN deployment.
Causes
The Channel disconnects or fails to connect due to the Principal (Public) NIC and/or one or more channels
sharing the same subnet.
Resolution
If vCenter Server Heartbeat is deployed in a LAN environment, the Principal (Public) IP address and the
VMware Channel IP address on a server must be in separate subnets. When multiple redundant channels are
present, each must have its own subnet. Check the network configuration for each NIC on both servers in the
pair and correct any issues.
WAN Deployment
Incorrect routing can prevent the active and passive servers from connecting in a WAN environment.
Symptom
The VMware Channel disconnects or fails to connect in a WAN deployment.
Cause
When the VMware Channel disconnects or fails to connect in a WAN deployment, the static route might not
be configured or might be configured incorrectly.
When vCenter Server Heartbeat is deployed in a WAN, the Principal (Public) IP address and the VMware
Channel IP addresses cannot be in different subnets, because there usually is a single network path between
the two servers. Configure a static route between the endpoints to route traffic in the VMware Channel.
Resolution
Refer to knowledge base article 1008451 (vCSHB-Ref-466) - Creating a static route for the VMware Channel
Connection in a WAN Environment for a detailed discussion about WAN channel routing issues, and for
instructions on configuring a static route for the VMware Channel.
MaxDiskUsage Errors
vCenter Server Heartbeat uses queues to buffer the flow of replication data from the active server to the
passive server. This configuration provides resilience in the event of user activity spikes, VMware Channel
bandwidth restrictions, or VMware Channel drops across a WAN deployment. Some types of file write activity
also require buffering as they can cause a sharp increase in the amount of channel traffic. The queues are called
the send queue (on the active server) or the receive queue (on the passive server).
VMware, Inc. 81
Chapter 10 Troubleshooting
Send Queue
vCenter Server Heartbeat considers the active server’s send queue as unsafe because the data in this queue has
not yet been replicated across the VMware Channel to the passive server and therefore could be lost in the
event of a failover. As a result of failover, some data loss is inevitable, with the exact amount depending on the
relationship between available VMware Channel bandwidth and the required data transmission rate. If the
required data transmission rate exceeds available VMware Channel bandwidth, the send queue fills. If the
available VMware Channel bandwidth exceeds the required data transmission rate, the send queue empties.
This situation is most commonly seen in a WAN environment, where VMware Channel bandwidth is
restricted. In a LAN that normally has high bandwidth on a dedicated channel, the size of the send queue is
zero or near zero most of the time. On a server not protected with vCenter Server Heartbeat, all data is
technically unsafe and subject to loss if the server fails.
Receive Queue
The passive server’s receive queue is considered safe because the data in this queue already was transmitted
across the VMware Channel from the active server, and is not lost in the event of a failover, which applies all
updates to the passive server as part of the process.
Both send and receive queues are stored on disk by default in the <VMware vCenter Server Heartbeat
Install Directory>\R2\log directory, with a quota configured for the maximum permitted queue size
(by default, 1GB on each server). You can configure both the queue location and the quota.
Two methods to set the queue size:
Using vCenter Server Heartbeat Console
a Start vCenter Server Heartbeat
bOpen the vCenter Server Heartbeat Console, and select Data: Traffic Queues.
cClick Configure.
dSet the Allow a maximum value and click OK.
e Shut down and restart vCenter Server Heartbeat for the change to take effect. You are not required to
stop protected applications.
Using the Server Configuration wizard
a Shut down vCenter Server Heartbeat.
bOpen the Server Configuration wizard and click the Logs tab.
cSet the Maximum Disk Usage value and click Finish.
d Start vCenter Server Heartbeat.
MaxDiskUsage Error Messages
The following error messages display when available disk space on the servers is exceeded.
[L9]Exceeded the Maximum Disk Usage
(VCChannelExceededMaxDiskUsageException)
This message indicates that you have exceeded the amount of allocated disk space reserved for the queue.
Symptom
vCenter Server Heartbeat exceeds its preconfigured queue size.
NOTE vCenter Server Heartbeat is a symmetrical system and can operate with either server in the active role.
For this reason, the queue size is always set to the same value for both servers.
Reference Guide
82 VMware, Inc.
Causes
On the active server, the size of the active server queue has exceeded the disk quota allocated for it. On the
passive server, the size of the passive server queue has exceeded the disk quota allocated for it.
Resolution
While neither condition is critical, determine the sequence of events that led to the condition.
[L9]Exceeded the Maximum Disk Usage on the ACTIVE Server
This message indicates that you have exceeded the amount of allocated disk space reserved for the active
server’s send queue.
Symptom
Replication stops and the vCenter Server Heartbeat Event Log displays the error message originating from the
active server.
Causes
A temporary interruption in the VMware Channel, or insufficient VMware Channel bandwidth to support the
volume of replication traffic starts filling the active server queue. The size of the queue eventually exceeds the
configured disk quota.
Resolution
Assuming no other channel connection issues exist (see knowledge base article 1008551 (vCSHB-Ref-992) -
Troubleshooting VMware vCenter Server Channel Drops), you can increase the amount of disk space allotted to the
queues. The default setting is 1GB, which can be insufficient on servers with a large volume of replication
traffic and limited VMware Channel bandwidth. If you have sufficient disk space, set the queue size to zero
(unlimited) so vCenter Server Heartbeat can use any free disk space to store the queues.
[L9]Exceeded the Maximum Disk Usage on the PASSIVE Server
This message indicates that you have exceeded the amount of allocated disk space reserved for the passive
server’s receive queue.
Symptom
Replication stops and the vCenter Server Heartbeat Event Log displays the error message originating from the
passive server.
Causes
Two of the most common causes are shown below:
The bottleneck lies between the VMware Channel NIC and the disk subsystem on the passive server.
Replication traffic passes across the VMware Channel faster than it can be written to disk on the passive
server. The excess is buffered temporarily in the passive server’s receive queue. The size of the queue can
eventually exceed the allotted disk quota.
If the passive server is much less powerful than the active server in terms of processor speed, RAM, or
disk performance, it can lag behind the active server during periods of high replication activity. Monitor
one or more Windows performance counters to determine the component experiencing sustained high
activity. Intensive page file use or persistently large disk queue length can indicate a problem. Upgrade
one or more physical components of the server.
Either server can be active or passive. If the Secondary server is more powerful than the Primary server,
hardware-related issues can only occur while the Secondary server is in the active role.
VMware, Inc. 83
Chapter 10 Troubleshooting
Resolution
To resolve this issue:
If you have multiple physical disks on each server, locate the vCenter Server Heartbeat send and receive
queues on a separate physical disk, away from the Windows directory, the Windows page file, and any
protected files help to alleviate disk performance issues:
a Shut down vCenter Server Heartbeat.
bOpen the Server Configuration wizard and click the Logs tab.
c Set the path for Message Queue Logs Location and click Finish.
d Start vCenter Server Heartbeat on both servers.
The selected path is applied to all vCenter Server Heartbeat queues on both servers.
Increase the amount of disk space allotted to the queues. However, if a hardware issue is the root of the
problem, correct that problem at the source.
The size of the passive server’s receive queue can increase sharply in response to certain types of file write
activity on the active server, such as when vCenter Server Heartbeat is replicating a large number of very
small updates of a few bytes each. The volume of update traffic can be far greater than the physical size
of the files on the disk, and the receive queue can become disproportionately large. You can see this
pattern of disk activity during the population of Full-Text Catalogs in Microsoft SQL Server. Increase the
amount of disk space available for the queues. Move the queues to their own physical disk, upgrade the
memory or the disk subsystem.
vCenter Server Heartbeat requires a certain amount of system resource for its own basic operations and
requires some additional resources for processing replication traffic. This is in addition to the resources
used by Windows and other applications running on the server, including critical applications protected
by Heartbeat. Allocate sufficient resources for all the applications and services running on such a server
to provide maximum performance, stability, and resilience for changing client, server, and network
activity.
[L20]Out of Disk Space (VCChannelOutOfDiskSpaceException)
This message indicates that one of the servers in the pair has run out of disk space without reaching its preset
quota.
Symptom
Replication stops and the vCenter Server Heartbeat Event Log displays the error message originating from
either server in the pair.
Cause
One of the queues has exceeded the amount of physical disk space available for it without reaching its quota
limit. For example, if the maximum queue size is set to 5GB, but only 3GB of physical disk space remains, this
error message is reported if one of the queues exceeds 3GB in size.
Resolution
Free up more disk space or move the queues to a disk with sufficient free space to accommodate queue sizes
up to the limit configured for Maximum Disk Usage.
Reference Guide
84 VMware, Inc.
Application Slowdown
Operations performed by the application can take longer to complete, and in turn, can affect the time required
to log in to a remote client, or to open or save a file. This is true for both servers running vCenter Server
Heartbeat and for servers running any other application. vCenter Server Heartbeat can monitor system
performance counters and display warnings when predefined thresholds are exceeded, but it does not actively
manage system resources for other applications. Like any other application, it also requires a finite amount of
resources for its own operations in addition to the resources used by the operating system and the protected
application.
The machines hosting vCenter Server Heartbeat must meet recommended hardware requirements and must
be powerful enough to support the load, the protected applications, and any other critical applications
running on the same server pair.
Poor Application Performance
When applications are competing for resources, one or more applications can perform poorly.
Symptom
Neither server in the pair can accommodate the load placed upon it during normal operation.
Cause
The Primary server's resource usage in one or more areas reached close to the maximum before vCenter Server
Heartbeat was installed.
Resolution
Heartbeat Diagnostics can report these conditions and issues warnings if CPU usage or memory usage exceed
a certain percentage of the available resource. Information provided by Heartbeat Diagnostics can minimize
the risk of application slowdown by identifying needed hardware upgrades on the Primary server.
Both Servers Can Accommodate the Initial Load but the Load Has Increased
Any software installed on a server or workstation consumes a finite amount of system resources when it runs
and it must share the resources it uses with any other applications running at the same time. Increased demand
caused by additional user activity can have an impact on the server performance.
Symptom
Increased user activity slows application response time.
Causes
The server pair operates normally when vCenter Server Heartbeat is first installed, but performance decreases
due to increased user activity. For example, users on the SQL Server system increase or the typical usage
pattern becomes more intense. This can be a gradual and sustained increase over time, or transient if a specific
event triggers a temporary surge in user activity.
Resolution
If the situation is sporadic, it can correct itself when the load decreases. If the increase is sustained and
permanent, upgrade the server hardware.
One Server Can Provide Adequate Resource Support, but the Other Cannot
If the total resource requirements of the applications exceed the available physical resources, the operating
system attempts to provide resources, but leaves some applications under resourced. When this situation
occurs, an application cannot obtain enough memory to operate normally, or a process must wait before
accessing the hard disk
VMware, Inc. 85
Chapter 10 Troubleshooting
Symptom
Applications operate normally when the Primary server is active but operate slowly when the Secondary
server is active (or the reverse).
Cause
A large discrepancy occurs in the processing power between the Primary and Secondary servers. One server
can handle the operational load while the other cannot. The load on a server is greater while in the active role
when the protected application starts. Applications on the server pair run successfully when the Primary
server is active, but experience performance issues when the Secondary is active (or the reverse). Problems can
arise even when the more powerful server is active.
Resolution
Both servers must have approximately equivalent processing power, RAM and disk performance. Upgrade
the hardware on one server in the pair so that the two servers have roughly the same performance.
Scheduled Resource Intensive Tasks
Scheduling multiple resource intensive tasks at the same time can adversely impact server performance and
affect application performance.
Symptom
Resource-intense scheduled tasks impact performance at certain times.
Cause
Two or more resource-intense processes run simultaneously or one process performs actions that increase the
load on vCenter Server Heartbeat by triggering additional and sometimes unnecessary replication traffic.
Examples: processes such as backups, database maintenance tasks, disk defragmentation, or scheduled virus
scans.
Resolution
Schedule operations so that they do not overlap and schedule them outside regular working hours, when
fewer users are accessing the protected application and consequently less load on the server.
Reference Guide
86 VMware, Inc.
VMware, Inc. 87
AActive
The functional state or role of a server visible through the network by clients running protected
applications and servicing client requests.
Alert
A notification sent to a user or entered into the system log indicating an exceeded threshold.
Active Directory (AD)
Presents applications with a single, simplified set of interfaces so users can locate and use directory
resources from a variety of networks while bypassing differences among proprietary services. vCenter
Server Heartbeat switchovers and failovers require no changes to AD, resulting in switchover and failover
times measured in seconds.
Active – Passive
The coupling of two servers: one server visible to clients on a network and providing application service,
the other server not visible and not providing application service.
Active Server Queue
The staging area of the active server used to store intercepted data changes before being transported
across the VMware Channel to the passive server.
Advanced Configuration and Power Interface (ACPI)
A specification that dictates how the operating system can interact with hardware using power saving
schemes. Primary and Secondary servers must have the same ACPI compliance.
Asynchronous
A process whereby replicated data is applied (written) to the passive server independently of the active
server.
BBasic Input/Output System (BIOS)
The program a personal computer's microprocessor uses to start the computer system after you turn it on.
It also manages data flow between the computer's operating system and attached devices such as the hard
disk, video adapter, keyboard, mouse, and printer.
CCached Credentials
Locally stored security access credentials used to log in to a computer system when a Domain Controller
is not available.
Channel Drop
An event in which the dedicated communications link between the Primary and Secondary server fails,
often resulting in the passive server becoming active and consequently creating a split-brain syndrome.
Glossary
Reference Guide
88 VMware, Inc.
Channel NIC (Network Interface Card)
A dedicated subnet used by the VMware Channel.
Cloned Servers
Two servers in a pair with the same configuration settings, names, applications, Security Identifiers (SIDs)
and IP addresses, following the installation of vCenter Server Heartbeat.
Cloning Process
The vCenter Server Heartbeat process whereby all installed applications, configuration settings, the
machine name, security identifier (SID), and IP address are copied to a second server.
Crossover Cable
A network cable that crosses transmit and receive lines.
DData Replication
The transmission of protected data changes (files and registry) from the active to the passive server
through the VMware Channel.
Device Drivers
A program that controls a hardware device, linking it to the operating system.
Disaster Recovery (DR)
A term indicating how you maintain and recover data in light of a disaster such as a hurricane or fire.
vCenter Server Heartbeat achieves DR protection by placing the Secondary server at on offsite facility and
replicating the data through a WAN link.
DNS (Domain Name System) Server
Responsible for providing a centralized resource for clients to resolve NetBIOS names to IP addresses.
Domain
A logical group of client server based machines where the administration rights across the network are
maintained in a centralized resource called a domain controller.
Domain Controller (DC)
The server responsible for maintaining privileges to domain resources, sometimes called AD controller in
Windows 2000 and above domains.
FFailover
The process by which the passive server assumes the active role when it no longer detects that the active
server is alive as a result of a critical unexpected outage or server crash.
Full System Check (FSC)
The internal process programmatically started at the initial connection of a server pair or manually
triggered through the vCenter Server Heartbeat Console. The FSC verifies the files and registry keys, and
synchronizes the differences.
Fully Qualified Domain Name (FQDN)
Also known as an absolute domain name, a FQDN specifies its exact location in the tree hierarchy of the
Domain Name System (DNS). It specifies all domain levels, including the top-level domain, relative to the
root domain. Example: somehost.example.com., where the trailing dot indicates the root domain.
GGraceful (Clean) Shutdown
vCenter Server Heartbeat shuts down with no data loss after completing replication using the vCenter
Server Heartbeat Console.
VMware, Inc. 89
Glossary
HHardware Agnostic
A key vCenter Server Heartbeat feature enabling the use of servers from different manufacturers, models,
and processing power in a single vCenter Server Heartbeat server pair.
Heartbeat
The packet of information issued by the passive server across the VMware Channel, which the active
server responds to, indicating its presence.
Heartbeat Diagnostics
The umbrella name for the VMware process and tools used to check the production server health and
applicability to the implementation of the vCenter Server Heartbeat solution.
High Availability (HA)
Keeping users seamlessly connected to their applications, regardless of the nature of a failure. LAN
environments are ideally suited for HA.
Hotfix
A single, cumulative package that includes one or more files used to address a problem in a product.
IIdentical Nodes
The use of two servers identical in name, IP address, and security identifier (SID).
Identity
The reference of a server’s position in the server pair based upon hardware, either the Primary server or
the Secondary server.
LLow Bandwidth Module (LBM)
A vCenter Server Heartbeat Module that compresses and optimizes data replicated between a Primary
and Secondary server, thereby delivering maximum data throughput and improving application
response time on congested WAN links.
MMachine Name
The Windows or NETBIOS name of a computer.
Management IP Address
An additionally assigned unfiltered IP address used for server management purposes only.
Many-to-One
One physical Secondary server (hosting more than one virtual server) can provide protection to multiple
physical Primary servers.
NNetwork Monitoring
Monitoring the active server’s capability to communicate with the rest of the network by polling defined
nodes around the network at regular intervals.
Non-Identical Nodes
Two servers in a cluster using differing names and Management IP addresses.
PPassive
The functional state or role of a server that is not delivering service to clients and is hidden from the rest
of the network.
Passive Server Queue
The staging area on the passive server used to store changes received from the active server before they
are applied to the passive server’s disk or registry.
Reference Guide
90 VMware, Inc.
Pathping
A route-tracing tool that sends packets to each router on the way to a final destination and displays the
results of each hop.
Plug and Play (PnP)
A standard for peripheral expansion on a PC. When starting the computer, Plug and Play (PnP) configures
the necessary IRQ, DMA and I/O address settings for the attached peripheral devices.
Plug-in
An optional module that can be installed into a vCenter Server Heartbeat server to provide additional
protection for a specific application.
Pre-Installation Checks
A list of system and environmental checks performed before the installation of vCenter Server Heartbeat.
Principal IP address
An IP address used by clients to contact the server through drive mappings, UNC paths, DNS resolved
paths, to access the server's services and resources.
Principal NIC
The network card that hosts the Principal IP address.
Protected Application
An application protected by vCenter Server Heartbeat.
QQuality of Service (QoS)
An effort to provide different prioritization levels for different types of traffic over a network. For
example, vCenter Server Heartbeat data replication can have a greater priority than ICMP traffic, as the
consequences of interrupting data replication are more obvious than slowing down ICMP traffic.
RRemote Desktop Protocol (RDP)
This multi-channel protocol connects to a computer running Microsoft Terminal Services.
Replication
The generic term given to the process of intercepting changes to data files and registry keys, transporting
the changed data across the VMware Channel, and applying them to the passive server so both servers
are maintained in a synchronized state.
Role
The functional state of the server in the pair that can be either active or passive.
Rule
A set of actions vCenter Server Heartbeat to perform when defined conditions are met.
SSecurity Identifier (SID)
A unique alphanumeric character string that identifies each operating system and each user in a network
of Windows NT, Windows Server 2000, Windows Server 2003, and Windows Server 2008 systems.
Server Monitoring
Monitoring the active server by the passive server, using a heartbeat message, to ensure that the active
server is functional.
Server Pair
The generic term used to describe the coupling of the Primary and Secondary server in vCenter Server
Heartbeat.
VMware, Inc. 91
Glossary
Shared Nothing
A key vCenter Server Heartbeat feature whereby hardware is not shared between the Primary and
Secondary servers, thus preventing a single point of failure.
SMTP
A TCP/IP protocol used in sending and receiving e-mail between or among servers.
Split-brain Avoidance
A unique feature of vCenter Server Heartbeat that uses various checks to overcome a scenario where both
Primary and Secondary servers attempt to become active at the same time, leading to an active-active
rather than an active-passive model.
Split-brain Syndrome
A situation where both the Primary and Secondary servers in a vCenter Server Heartbeat server pair are
operating in the active mode and attempting to service clients, causing different data updates to be
applied independently to each server.
SSL
(Secure Sockets Layer) establishes a secure session by electronically authenticating each end of an
encrypted transmission.
Subnet
A division of a network into an interconnected but independent segment or domain, to improve
performance and security.
Storage Area Network (SAN)
A high-speed special-purpose network or (sub-network) that interconnects different kinds of data storage
devices with associated data servers on behalf of a larger network of users.
Switchover
The graceful transfer of control and application service to the passive server.
Synchronize
The internal process of transporting 64KB blocks of changed files or registry key data, through the
VMware Channel from the active server to the passive server. The data on the passive server is a mirror
image of the protected data on the active server, a required condition for data replication on a vCenter
Server Heartbeat server pair.
System State
Data that comprises the registry, COM+ Class Registration database, files under Windows File Protection,
and system boot file. Other data can be included in the system state data.
TTask
An action performed by vCenter Server Heartbeat when defined conditions are met.
Time-To-Live (TTL)
The length of time that a locally cached DNS resolution is valid. The DNS server must be re-queried after
the TTL expires.
Traceroute
A utility that records the route through the Internet between the computer and a specified destination
computer.
UUngraceful (Unclean) Shutdown
A shutdown of vCenter Server Heartbeat resulting from a critical failure or by shutting down Windows
without first performing a proper shutdown of vCenter Server Heartbeat, resulting in possible data loss.
Reference Guide
92 VMware, Inc.
Unprotected Application
An application that is not monitored or its data replicated by vCenter Server Heartbeat.
VVMware Channel
The IP communications link used by vCenter Server Heartbeat for heartbeat and replication traffic.
VMware vCenter Server Heartbeat
The core replication and system monitoring component.
VMware vCenter Server Heartbeat Packet Filter
The network component installed on both servers that controls network visibility.
VMware vCenter Server Heartbeat Switchover and Failover Process
A vCenter Server Heartbeat unique process whereby the passive server gracefully (Switchover) or
unexpectedly (Failover) assumes the role of the active server providing application services to connected
clients.
Virtual Private Network (VPN)
A private data network that uses the public telecommunication infrastructure, maintaining privacy
through the use of a tunneling protocol and security procedures.
VMware Web Site
The VMware web site dedicated to support partners and customers providing technical information,
software updates, and license key generation.
WWindows Management Instrumentation (WMI)
A management technology using scripts to monitor and control managed resources throughout the
network. Resources include hard drives, file systems, operating system settings, processes, services,
shares, registry settings, networking components, event logs, users, and groups.

Navigation menu
