User manual

Vodafone Smart III

Some services and apps may not be available in all countries.

Please ask instore for details.

Facebook is a trademark of Facebook, Inc.

Google, Android, YouTube and other marks are trademarks of Google, Inc.

of Vodafone Group. Any product or company names mentioned herein

may be the trade marks of their respective owners.

English - CJA26P0VDAAA

Notice

Your phone is made exclusively for Vodafone by TCT.

No part of this manual may be reproduced or transmitted in any form or by any

means without prior written consent of TCT.

Trademarks

VODAFONE, the Vodafone logos are trade marks of the Vodafone Group. Other

product and company names mentioned herein may be trade marks of their

respective owners.

TCT is a trademark of TCT.

The Bluetooth® word mark and logos are owned by Bluetooth® SIG, Inc.

Bluetooth® QDID (Qualified Design ID): B020261

microSD™ is a trade mark of SD Card Association.

Licences

microSD Logo is a trademark.

The Bluetooth word mark and logos are owned by the

Bluetooth SIG, Inc. and any use of such marks by TCT Mobile

Limited and its affiliates is under license. Other trademarks

and trade names are those of their respective owners.

Vodafone 975/975N Bluetooth QD ID

B020261

The Wi-Fi Logo is a certification mark of the Wi-Fi Alliance.

Android, Google and YouTube and other marks are trademarks of Google Inc.

The Android robot is reproduced or modified from work created and shared

by Google and used according to terms described in the Creative Commons

3.0 Attribution License.

You have purchased a product which uses the open source (http://opensource.

org/) programs mtd, msdosfs, netfilter/iptables and initrd in object code and

other open source programs licensed under the GNU General Public License

and Apache License.

We will provide you with a complete copy of the corresponding source codes

upon request within a period of three years from the distribution of the product

by TCT.

You may download the source codes from http://sourceforge.net/projects/

alcatel/files/. The provision of the source code is free of charge from internet.

Notice

The information in this manual is subject to change without notice. Every

effort has been made in the preparation of this manual to ensure accuracy of

the contents, but all statements, information, and recommendations in this

manual do not constitute a warranty of any kind, expressed or implied. Read

the safety precautions and safety information carefully to ensure that you use

this wireless device in a correct and safe manner.

TCT Mobile Limited Address:

Room 1910-12A, Tower 3, China HK City, 33 Canton Road, Tsimshatsui,

Kowloon, Hong Kong

Website: http://www.vodafone.com/smart3

Table of Contents

1 Your mobile ..................................................................................................6

1.1 Keys and connectors ..................................................................................................6

1.2 Getting started ..............................................................................................................8

1.3 Home screen ...............................................................................................................13

2 Text input ................................................................................................... 22

2.1 Using the onscreen keyboard ..............................................................................22

2.2 Text editing ..................................................................................................................23

3 Phone call, Call log and Contacts ..................................................... 24

3.1 Phone call ....................................................................................................................24

3.2 Consulting your call memory ..............................................................................29

3.3 People ............................................................................................................................30

4 Google Messaging, Gmail/Email, Google Talk ............................. 35

4.1 Google Messaging ....................................................................................................35

4.2 Gmail/Email ................................................................................................................41

4.3 Google Talk ..................................................................................................................46

5 Google Calendar & Alarm clock & Calculator ............................... 49

5.1 Google Calendar ........................................................................................................49

5.2 Clock ...............................................................................................................................51

5.3 Calculator .....................................................................................................................52

6 Getting connected .................................................................................. 54

6.1 Connecting to the Internet ...................................................................................54

6.2 Browser ..........................................................................................................................57

6.3 Connecting to Bluetooth devices .....................................................................63

6.4 Connecting to a computer via USB ...................................................................64

6.5 Sharing your phone's mobile data connection ............................................66

6.6 Connecting to virtual private networks ...........................................................67

7 Multimedia applications ...................................................................... 69

7.1 Camera...........................................................................................................................69

7.2 Gallery ............................................................................................................................72

7.3 YouTube .........................................................................................................................75

7.4 Music ..............................................................................................................................76

8 Google Maps ............................................................................................. 79

8.1 Get My Location .........................................................................................................79

8.2 Search for a location ................................................................................................80

8.3 Star a location .............................................................................................................81

8.4 Get driving, public transport or walking directions .....................................82

8.5 Arrangement of Layers ...........................................................................................84

8.6 Join Latitude to see your friends' locations and share

yours with them .........................................................................................................85

9 Others ......................................................................................................... 88

9.1 File Manager ................................................................................................................88

9.2 Notes ..............................................................................................................................89

9.3 Video Player .................................................................................................................89

9.4 Voice Search ................................................................................................................89

9.5 SyncMLClient ..............................................................................................................89

9.6 Radio ...............................................................................................................................90

9.7 LED Torch ......................................................................................................................92

9.8 Other applications ...................................................................................................92

10 Settings ...................................................................................................... 93

10.1 Wireless & networks .................................................................................................93

10.2 Sound .............................................................................................................................97

10.3 Display ...........................................................................................................................98

Your mobile 1

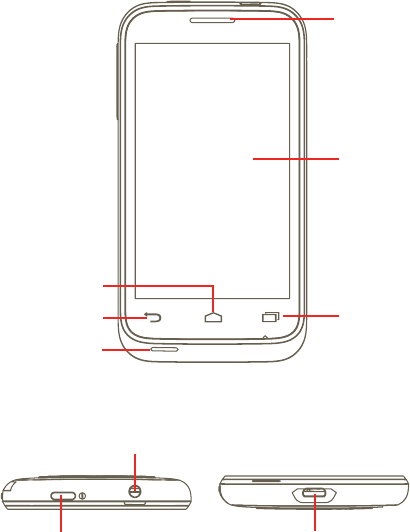

Keys and connectors1.1

Power key Micro-USB connector

Headset connector

Touchscreen

Receiver

Multitask key

LED light

Back key

Home key

10.4 Storage ..........................................................................................................................98

10.5 Battery ...........................................................................................................................99

10.6 Applications .................................................................................................................99

10.7 Location services .................................................................................................... 100

10.8 Security ......................................................................................................................101

10.9 Language & input................................................................................................... 102

10.10 Backup and reset .................................................................................................... 106

10.11 Accounts .................................................................................................................... 107

10.12 Date & time ............................................................................................................... 108

10.13 Accessibility ............................................................................................................. 109

10.14 Development ........................................................................................................... 109

10.15 About phone ............................................................................................................ 110

11 Making the most of your phone.......................................................111

11.1 Android Manager .................................................................................................... 111

11.2 FOTA Upgrade .......................................................................................................... 112

12 Product Safety Information ...............................................................113

13 Telephone warranty .............................................................................123

14 Accessories ............................................................................................125

15 Specifications .........................................................................................126

Flash

Camera

Loudspeaker

Volume key

Back key

Go back to the previous menu or screen.•

Multitask key

On the Home screen, press quickly to show all running tasks.•

Quick menu: pressing and holding the Multitask key can bring up •

a quick menu for settings and managing apps. To enable this, go

to Settings > Display > Menu appearance and select

Home key

Return to the Home screen or back to the central Home screen •

if it is extended.

Long press the Home key to access "Google Now" and "Voice •

Search".

Power key

Short press: Lock the screen •

Light up the screen

Long press: When phone is off, power on the phone. •

When phone is on, enter Phone options: Power off,

Restart, Airplane mode.

Volume key

Press to adjust the Volume (in call/media playing mode)•

Press to adjust the ring tone volume in general mode.•

Getting started1.2

Set-up1.2.1

Removing or installing the back cover

If you have Vodafone 975, you can insert one of the supplied graphic sheet (1)

under the translucent cover before closing it. You can also use the template

provided to make your own graphics.

Graphic sheet Battery cover

Inserting or removing the SIM card (2)

You must insert your SIM card to make phone calls. Please power off your

phone and remove the battery before inserting or removing the SIM card.

(1) not available for Vodafone 975N.

(2) Check with your network operator to make sure that your SIM card is 3V or 1.8V

compatible. The old 5 volt cards can no longer be used.

Place the SIM card with the chip facing downwards and slide it into its housing.

Make sure that it is correctly inserted. To remove the card, press and slide it

out.

Installing or removing the battery

Insert and click the battery into place, then close the phone cover.•

Unclip the cover, then remove the battery.•

Installing and removing the microSD card

To release the microSD card holder, slide it in the direction of the arrow and

lift it. Then insert the microSD card with the golden contact downward. Finally,

fold down the microSD holder and slide it in the opposite direction to lock it.

Charging the battery

Connect the battery charger to your phone and mains socket respectively.

The phone will be switched on when charging the battery.•

Be careful not to force the plug into the socket.•

Make sure the battery is correctly inserted before connecting the charger.•

The mains socket must be near to the phone and easily accessible (avoid •

electric extension cables).

When using your telephone for the first time, charge the battery fully •

(approximately 4 hours).

You are advised to fully charge the battery ( ). Charging status is indicated

by the depth of water on the lock screen. The depth increases as the phone

is charged.

To reduce power consumption and energy waste, when the battery is

fully charged: disconnect your charger from the plug; switch off Wi-Fi,

GPS, Bluetooth or background-running applications when not in use;

reduce the backlight time, etc.

Sleep mode1.2.4

Press Application tab in home screen and set via Settings > Display >

Sleep, choose the time you want to. After a set time, your phone will go into

a sleep mode to save power. You can also press the Power key once to send

the phone to sleep mode. To wake your phone from sleep mode, just press

the Power key.

Quick boot1.2.5

Enable this feature, you may quick start your phone by Settings > Quick boot,

mark the checkbox to enable it.

Power on your phone1.2.2

Hold down the Power key until the phone powers on, type in your PIN code if

necessary and then confirm. The Home screen is displayed.

If you do not know your PIN code or if you have forgotten it, contact your

network operator. Do not leave your PIN code with your telephone. Store this

information in a safe place when not in use.

Set up your phone for the first time

The first time you power on the phone, you are asked to touch the "Location

content" to begin. And then do below settings: Language, Mobile data, Set up

Google account and Data & time (1).

You can skip Google Setup screen in initial set up, and enable via

Settings > Add account.

If you don't have a SIM card inserted you can still connect to a Wi-Fi network

from the Power on screen, which will let you sign on to your Google account

and use some features.

Power off your phone1.2.3

Hold down the Power key until the phone options appear. Tap Power off, then

tap OK.

(1) Application availability depends on country and operator.

Home screen1.3

You can bring all the items (applications, shortcuts, folders and widgets) you

love or use most frequently to your Home screen for quick access. Press the

Home key to switch to the Home screen.

Status bar

Status/Notification indicators •

Touch and Drag down to open the •

Notification panel.

Application tab

Touch to open applications list.

Touch to access People

Touch to access Messaging

Touch to access Browser

Touch to access Call log if you have missed calls. Touch to access

dial screen.

Search bar

Touch a to enter Search options: All, Web,

Apps, Contacts, etc.

Touch b to enter voice search screen.

Touch an icon to open an application,

folder, etc.

The Home screen extends on either side of the screen to allow more space for

adding applications, shortcuts etc. Slide the Home screen horizontally left and

right to get a complete view of the Home screen.

Using the touchscreen1.3.1

Touch

To access an application, touch it with your finger.

Touch and Hold

Touch and hold your finger on the screen for 2 or more seconds. You can touch

and hold an application, a widget or a blank area to drag the item or display the

corresponding option menus.

Drag

Place your finger on the screen to drag an object to another location.

Slide/Swipe

Slide the screen to scroll up and down the applications, images, web pages…

You could slide the screen horizontally too.

Flick

Similar to swiping, but flicking makes it move quicker.

Pinch/Spread

Place your fingers of one hand on the screen surface and draw them apart or

together to scale an element on the screen.

Rotate

Automatically change the screen orientation from portrait to landscape by

turning the phone sideways.

Status bar1.3.2

From the Status bar, you can view both phone status (to the right side) and

notification information (to the left side).

Status icons (1)

GPRS connected GPS is on

GPRS in use Receiving location data from GPS

EDGE connected Roaming

EDGE in use No signal

3G connected No SIM card installed

3G in use Vibrate mode

HSPA (3G+) connected Ringer is silenced

HSPA (3G+) in use Phone microphone is muted

Connected to a Wi-Fi network Battery is very low

Bluetooth is on Battery is low

Connected to a Bluetooth device Battery is partially drained

Airplane mode Battery is full

Alarm is set Battery is charging

Signal strength Headset connected

NFC is on (1)

(1) Vodafone 975N only.

Notification icons

New Gmail TM message Both USB tethering and

portable hotspot are on

New text or multimedia

message Call in progress

Problem with text or

multimedia message delivery

Call in progress using

Bluetooth headset

New Google Talk TM message Missed call

New voicemail Call on hold

Upcoming event Call forwarding is on

Data is synchronising Uploading data

Problem with sign-in or

synchronisation

Downloading data

microSD card is full Download finished

No microSD card installed An open Wi-Fi network is

available

Connected to VPN Phone is connected via USB

cable

Disconnected from VPN Radio is on

Song is playing System update available

USB tethering is on Portable Wi-Fi hotspot is on

Notification panel

Touch and drag down the Status bar to open the Notification panel. Touch and

drag up to close it. From the Notification panel, you can open items and other

reminders indicated by notification icons or view wireless service information.

Widget bar: swipe left to see more widgets.

Touch an icon to change its function.

Settings

Touch to clear all event–based notifications (other ongoing notifications

will remain).

Search bar1.3.3

The phone provides a Search bar on the main Home screen which can be used

to locate information within applications, the phone or the web.

a Touch or press the keypads to

searce by text

b Touch to search by voice

c Touch to enter the suggested

text for quick search

d Touch to search the web

Search by text

a Touch Search bar from the Home screen or press the icon from other

applications screen.

b Enter the text/phrase you want to search for.

c Touch the text you put.

Search by voice

a Touch from Search bar to display a dialog screen.

b Speak the word/phrase you want to search for. A list of search results will

display for you to select from.

Lock/Unlock your screen1.3.4

To protect your phone and privacy, you can lock the phone screen by creating

a variety of patterns, PIN or password etc.

To create a screen unlock pattern (refer to section 10.8.1 for detailed

settings)

a Press the icon from the home screen, touch Settings, then touch

Security > Set up screen lock > Pattern.

Draw your unlock pattern

Touch to confirm by drawing

pattern again

To create a screen unlock PIN/Password

a Press the icon from the home screen, touch Settings, then touch

Security > Set up screen lock > PIN or Password.

b Set your PIN or password.

To lock phone screen

Press the Power key once to lock the screen.

To unlock phone screen

Draw the unlock pattern you have created or enter PIN or password to wake up

the screen. If you did not set the unlock screen, touch and slide the to the

right to unlock it.

Touch to access

"Google search"

Touch to access

"Camera"

Personalize your home screen1.3.5

Add

You can add shortcuts, widgets or folders to the Home screen by pressing the

key. Touch and hold the item you want to add and then release it. You will

see it in current home screen.

Reposition

Touch and hold the item to be repositioned to activate the Move mode: drag

the item to desired position, then release. Hold the icon on the left or right

edge of the screen to drag the item to another Home screen page.

Remove

Touch and hold the item to be removed to activate the Move mode: drag the

item to the top of , which will then turn red, and release.

Wallpaper customization

Touch and hold an empty area on the Home screen or press and hold the

Multitask key in the Home screen, then select System settings > Display

> Wallpaper to customise wallpaper.

Application tab1.3.6

Touch from the Home screen to enter applications list.

To return to the Home screen, press the Home key.

View Default/Most used/Recently installed applications

To view your Default/Most used/Recently installed applications, press the

option icon at the top of the applications list and choose your option.

Volume adjustment1.3.7

Using volume key

Press the Volume up/down key to adjust the volume. While in the lowest

volume level (Silent mode (1)), press the Volume up key once, your phone will

now be switched to Vibrate mode. Press the Volume down key once in Vibrate

mode and it will change to silent mode.

Using Settings menu

Press the from the Home screen, then touch Settings > Sound, or drag

down your notification panel and touch can set ringer, media and phone

ringtone volume to your preference.

(1) The phone setting will vary depending on the changes made to the default settings

in Settings > Sound > Silent mode.

Text input 2

Using the onscreen keyboard2.1

An onscreen keyboard will display automatically when a program requires you

to enter text or numbers.

Onscreen keyboard settings

Press and hold the Multitask key in the Home screen, then select System

settings > Language & input > Google voice typing (or Android keyboard)

to see the various keyboard settings. To enable this, go to Settings > Display >

Menu appearance and select . Scroll to select the keyboard style you want

to change keyboard style.

Adjust the onscreen keyboard orientation

Turn the phone sideways or upright to adjust the onscreen keyboard

orientation. You can also adjust it by settings (press the Application tab key in

the Home screen, then Settings > Display).

Android keyboard2.1.1

Touch to lock in capital letter input mode.

Touch to switch to symbol and numeric keyboard.

Touch to enter Voice input.

Long press to enter an accent of the letter.

Touch to enter text or numbers.

Text editing2.2

You can edit the text you have entered.

Touch and hold text you have entered. •

For large group words, you may touch and hold the beginning word and

move the end points to the place which you want.

An options list pops up.•

Select the operation you need (• Paste, Replace, Cut, etc.)

Phone call, Call log 3

and Contacts

Phone call 3.1

Placing a call3.1.1

You can easily launch a call using Phone. Enter this menu using one of the

following two ways:

Touch • from the Home screen.

Touch the Application tab from the Home screen and select • Phone.

Touch and hold to

access Voicemail

Search contacts

Call log

Options

Contacts

Enter the desired number from the keyboard directly or select a contact from

Contacts, Call log by touching tabs, then touch to place the call. The

number you entered can be saved to Contacts by pressing the key and

touching Add to Contacts.

If you make a mistake, you can delete the incorrect digits by touching .

To hang up a call, press .

International call

To dial an international call, touch and hold to enter “+”, then enter the

international country prefix followed by the full phone number and finally

touch .

Emergency call

If your phone has network coverage, dial emergency number and touch

to make an emergency call. This works even without a SIM card and without

typing the PIN code.

Answering or rejecting a call3.1.2

When you receive an incoming call, slide the green phone icon to answer.

Hang up the call by pressing icon.

When you receive an incoming call, but don’t want to answer, you may decline

it by dragging up and select a message. The caller is sent directly to your

voicemail box to leave a message.

Calling your voicemail 3.1.3

Your voicemail is provided by your network to avoid missing calls. It works like

an answering machine that you can consult at any time.

To access your voicemail, touch and hold on Phone screen.

To set your voicemail number, press enter Settings > Call settings > Voice

call > Voicemail.

If you receive a voicemail, a voicemail icon appears on the Status bar. Open

the Notification panel, touch New voicemail.

During a call3.1.4

When a call is in progress, press the Menu key to open the call options. Touch

Bluetooth to switch between headset and phone. To adjust the volume during

a call, press the Volume up/down key.

Touch to display Dialpad.

Touch to hold the current call. Touch this icon again to retrieve the call.

Touch to mute the current call. Touch this icon again to unmute the call.

Touch to activate the speaker during the current call. Touch this icon

again to deactivate the speaker.

Touch to add a call

Touch to access dial panel.

Touch to end the current call.

To avoid misoperation on touchscreen during call, screen will be locked

automatically when user put the phone close to ear, and it will be

unlocked when put the phone away.

Managing multiple calls3.1.5

With this phone you can handle multiple calls at the same time.

Swap calls

When you accept two calls, press the to open options list, and touch icon

. You can now switch between two lines. The current call is put on hold and you

have joined in the other call. Touch to hang up the call on hold.

Conference calls (1)

You can set up a conference call.

a Place a call to the first participant of the conference call.

b Press the Menu key to display options list, touch icon .

c Enter the phone number of the person you want to add to conference and

touch icon . You can also add participants from Contacts, Call log or

Favourites.

d Press the Menu key again, then touch icon and choose Merge calls to start

conference call.

e During a conference call, touch Manage to drop a participant or to talk

privately to one of the participants. Touch to drop the participant from

the conference, touch to talk privately to the participant and hold on

other participants.

f Touch or press the Power key to end the conference call and

disconnect all callers.

(1) Depending on your network operator.

Call settings3.1.6

Press in Call log screen, access to Settings.

Use Call settings to configure normal phone call settings and other special

features offered by your carrier. You can also use Call settings to configure

the phone so that it can place outgoing calls only to a fixed set of phone

numbers.

Voice call

Voicemail service

Opens a dialog where you can select your carrier’s voicemail service or another

service.

Voicemail settings

If you are using your carrier’s voicemail service, this opens a dialog where

you can enter the phone number to use for listening to and managing your

voicemail. You can enter a comma (,) to insert a pause into the number — for

example, to add a password after the phone number.

Other settings

Fixed Dialing Numbers

Fixed Dialing Number (FDN) is a service mode of SIM, where outgoing calls are

restricted to a set of phone numbers. These numbers are added to the FDN list.

The most common practical application of FDN is for parents to restrict the

phone numbers to which their children can dial.

For security reasons, you’ll be prompted to enable FDN by entering SIM PIN2

which is usually acquired from your service provider or SIM maker.

Quick responses

Touch • Settings > Call settings > Other settings > Quick response.

Edit the text in the template.•

If you do not want to receive the incoming call, you may drag up the icon

and choose the text in template to send it.

TTY mode

TTY mode can be used by people who are deaf, have bad hearing or speech

impairments.

After connecting the cell phone and TTY machine it connects to a relay

service, which converts incoming speech to text for the person using the TTY

and converts outgoing text from the TTY machine to a spoken voice for the

person on the other end of the conversation.

Consulting your call memory3.2

You can access your call memory by touching the from the Home screen

and touching to view call history in categories of Missed calls, Outgoing

calls, and Incoming calls.

Missed calls

Outgoing calls

Incoming calls

Touch or touch & hold a contact or number to view information or further

operations.

You can view detailed information of a call, launch a new call or send message

to a contact or number, or add number to Contacts (only available for phone

numbers), etc.

To clear the entire call memory, press the then touch .

People 3.3

People enables quick and easy access to the people you want to reach.

You can view and create contacts on your phone and synchronise these with

your Gmail contacts or other applications on the web or on your phone.

Consult your Contacts3.3.1

To access the People, touch the Application tab on the Home screen, then

select People.

Touch to view the contact’s detailed

information.

Touch icon to open Quick Contact panel.

Touch to access options.

You can also press the to display contacts list option menu.

Following actions are enabled:

Delete contact• Selected and delete unwanted contacts.

Contacts to display• Choose contacts to display, for example only

contacts with phones, other application contacts

if any, etc.

Import/Export• Import or export contacts among SIM card, Phone,

Internal storage, SD card.

Accounts• Manage the synchronisation settings for different

accounts.

Settings• Set Display options, choose "Sort list by" or "View

contact names as"

Share visible •

contacts

Choose the contacts and share to others

applications.

Adding a contact3.3.2

Touch the Application tab on the Home screen, select People. You may select

Groups and Favourites to manage your contacts. Press to add a contact.

Touch to select a picture for the contact.

Touch to unfold the other predefined labels of this category.

Touch to choose the item you like

When finished, touch Done to save.

Add to/remove from Favourites

You can also touch a contact to view details then touch to add the contact

to favourites (the star will turn white in color).

To remove a contact from favourites, select Delete on the contact’s option

menu.

Editing your contacts3.3.3

To edit contact information, touch and hold the contact whose information is

to be edited, then touch and press "Edit". When finished, touch Done.

Delete a contact

To delete a contact, press the and touch Delete from contact details screen

or directly press and touch Delete contact in Contact list screen, choose the

contacts which you want delete. Touch to confirm.

The contact you have deleted will also be removed from other

applications on phone or web the next time you synchronise your

phone.

Communicating with your contacts3.3.4

From the contacts list, you can communicate with your contacts by making a

call or exchanging messages.

To launch a call to a contact, touch to make a call.

To send a message to a contact, touch icon to create a message.

Importing , exporting and sharing contacts3.3.5

From the Contacts screen, press the icon to open the contacts list option

menu, touch Import/Export, then select SIM card, Phone, Phone storage,

SD card.

To import/export a single contact from/to the SIM card, touch the contact •

you want to import/export, then press to confirm.

To import/export all contacts from/to the SIM card, press • and touch to

confirm.

You can share a single contact or contacts with others by sending the contact's

vCard to them via Bluetooth, MMS, Email, etc.

Touch a contact you want to share, press the Menu key and touch Share from

the contact details screen, then select the application to perform this action.

You can share a single contact or contacts with others by sending the contact's

vCard to them via Bluetooth, MMS, Email, etc.

Touch a contact you want to share, press and touch Share from the contact

details screen, then select the application to perform this action.

Displaying contacts3.3.6

You can configure which contacts you want to display in the Contacts list.

Press the from contacts list screen, touch Contacts to display, then activate

or deactivate All cotacts/SIM/Phone/Customize by touching it.

Accounts3.3.7

Contacts, data or other information can be synchronised from multiple

accounts, depending on the applications installed on your phone.

To add an account, press the from Contacts list, touch Scyn, then touch

Auto-sync app data tab; or access it by pressing the icon from the Home

screen, touch Settings, then selecting Add account tab.

You are required to select the kind of accounts to add, like Google, Facebook,

etc.

As with other account set-ups, you need to enter detailed information, like

username, password, etc.

You can remove an account to delete it and all associated information from

the phone.

Drag down the notification panel, touch , access Accounts. Open the

Account settings screen, touch the account you want to delete, then touch

Remove account and confirm.

Useful icons:

Indicates that the account is configured to synchronise

automatically with your phone.

Indicates that the account is not configured to synchronise

automatically with your phone.

Sync manually

You can synchronise an account manually on Sync screen, and you must

touch an account in the list on this screen, press the Menu key and touch

Sync now.

4 Google Messaging, Gmail/

Email, Google Talk

Google Messaging 4.1

You can create, edit and receive SMS and MMS messages with this mobile

phone.

To access this feature, touch the Application tab from the Home screen, then

select Messaging.

All messages you receive or send out can only be saved in phone

memory. To view messages stored on the SIM card, press the in

the Messaging screen, then touch Settings > Manage SIM card

messages.

Write a message4.1.1

On the message list screen, touch to write text/multimedia messages.

Touch to create a new message

Touch to view the whole message thread

Sending a text message

Enter the mobile number of the recipient on the To bar or touch to add

recipients, touch Type message bar to enter the text of the message. When

finished, touch to send the text message.

An SMS message of more than 160 characters will be charged as several

SMS messages. When the total number of characters you have entered is

approaching the 160-character limit, a counter will appear on the lower right

corner above Send option of the text box to remind you how many characters

are allowed to be entered in one message.

Specific letters (like accents) will increase the size of the SMS, so this

may cause multiple SMS messages to be sent to your recipient.

Sending a multimedia message

MMS enables you to send video clips, images, photos, animations, slides and

sounds to other compatible mobiles and e-mail addresses.

An SMS will be converted to MMS automatically when media files (image,

video, audio, slides, etc.) are attached or Subject or email addresses added.

To send a multimedia message, enter the recipient's phone number in the To

bar, touch Type to compose bar to enter the text of the message. Press the

to open the option menu, touch Add subject to insert a subject, and touch

Attach to attach picture, video, audio or slide. When finished, touch to

send the multimedia message.

Attach options:

Pictures• Access Gallery application or File manager to select

a picture as attachment.

Capture picture• Access Camera to capture a new picture for

attaching.

Videos• Access Gallery application or File manager to select

a video as attachment.

Capture video• Access Camcorder to record a new video for attaching.

Audio• Access to select an audio file as attachment.

Record audio • Enter voice message recorder to record a voice

message for attaching.

Slideshow• Enter Edit slide show screen, touch Add slide to

create a new slide, and touch currently existing slide

to edit it (see following picture). Press the Menu key

to get more actions, like setting the slide duration,

adding music, etc.

Contact• Access Contacts to attach a vCard of a contact.

Calendar• Access Calendar to attach an appointment.

Adding a slideshow

Touch to go to previous or next slide.

Touch to preview the current slide.

Touch to edit the title of this slide.

Manage messages4.1.2

When receiving a message, an icon will appear on the Status bar as

notification. Drag down the Status bar to open the Notification panel, touch

the new message to open and read it. You can also access the Messaging

application and touch the message to open.

Messages are displayed in conversational order.

To reply to a message, touch the current message to enter message-

composing screen, enter the text, then touch .

To return to the message list from a text message thread, press .

Adjust message settings4.1.3

You can adjust a set of message settings. From Messaging application screen,

press the and touch Settings.

Storage settings

Delete old messages• Select to delete old messages when the maximum

number of stored messages is reached.

Text message limit• Touch to set number of text messages to save.

Multimedia message •

limit

Touch to set number of multimedia messages to

save.

Text message (SMS) settings

Delivery reports• Select to request a delivery report for each text

message you send.

Manage SIM •

messages

Touch to manage text messages stored on your

SIM card.

Edit quick text• Touch to edit quick text.

SMS service center• Touch to view service center number.

SMS storage location• Touch to choose SMS storage location.

Multimedia message (MMS) settings

Delivery reports• Select to request a delivery report for each

multimedia message you send.

Read reports• Select to request a report on whether each recipient

has or has not read a multimedia message sent by

you.

Send read report• Select to send read report if requested by MMS sender.

Auto-retrieve • Select to download the full MMS message (including

message body and attachment) automatically to

your phone. Otherwise, download only the MMS

message header.

Roaming auto- •

retrieve

Select to download the full MMS message (including

message body and attachment) automatically

when roaming. Otherwise, download only the MMS

message header to avoid extra charges.

Creation mode• Touch to set MMS creation mode when composing

message.

Maximum message •

size

Touch to set maximum message size.

Cell broadcast settings

Cell broadcast• Enable or disable for cell broadcast service and

choose language and channel for it.

Notification settings

Notifications• Select to display message notifications in the Status

bar.

Select ringtone• Touch to select a ringtone as a new message

notification tone.

Vibrate• Select to have phone vibrate as a notification when

receiving a new message.

Gmail/Email4.2

The first time you set up your phone, you can select to use an existing Gmail

or to create a new Email account.

Gmail 4.2.1

As Google's web-based email service, Gmail is configured when you first set

up your phone. Gmail on your phone can be automatically synchronised

with your Gmail account on the web. Unlike other kinds of email account,

each message and its replies in Gmail are grouped in your inbox as a single

conversation; all emails are organized by labels but not by folders.

To access Gmail

From the Home screen, touch to enter the applications list, then touch

Gmail.

Gmail displays messages and conversations from one single Gmail account

at a time, if you own more than one account, you can switch to another by

pressing from Inbox screen, touching Settings, then touching the account

your want to view.

To create and send emails

a Press from Inbox screen.

b Enter recipient(s)’s email address in To field, and if necessary, press the

Menu key and touch Add Cc/Bcc to include a copy or a blind copy to the

message.

c Enter the subject and content of the message.

d Press the Menu key, touch Attach file to send an attachment to the

receiver.

e Finally, touch .

f If you do not want to send the mail out right away, you can touch and Save

draft to save copy. To view the draft, press in Inbox screen and select

Drafts.

If you do not want to send or save the mail, you can touch Discard.

To add a signature to emails, press the from inbox screen, and touch

Settings, choose your account then select Signature.

To receive and read your emails

When a new email arrives, you will be notified by a ringtone or vibration, and an

icon will appear on the Status bar.

Touch and drag down the Status bar to display the Notification panel, touch

the new email to view it. Or you can also access the Gmail Inbox label and

touch the new mail to read it.

If you want to go back to the Inbox label while reading a new message, you can

press the Back key or press the at the left top corner.

The Google Talk online status is shown next to the name of the sender of

each email. Touch this contact image to open Quick Contact.

You can search for an email by sender, by subject, by label, etc.

from inbox screen, touch • .

enter the keyword you want to search for in the searching box and touch •

search icon.

To reply or forward emails

When viewing an email, you will see three icons offering further options at the

bottom of the conversation.

Reply/ •

Reply all

Touch to enter text-inputting mode, enter the

message you want to reply, then touch to send

this message to one single recipient or all people

in a mail loop.

Forward• Touch to forward the message to another person.

You are required to enter the new recipient’s email

address and then touch to Send.

Managing Gmails by Label

To conveniently manage conversations and messages, you can organize them

using a Label.

To label a conversation when reading a conversation’s messages, press the

and select the label to assign to the conversation.

To view conversations by label when viewing your inbox or another conversation

list, press the . Touch a label to view a list of conversations with that label.

Touch and hold an email to produce the following options:

Archive• To archive the email message. To display the

archived messages, you can press the Menu key in

inbox screen and touch View labels, then All mail.

Mute• To mute the entire conversation. When muted,

new mails related to this conversation will not be

displayed in Inbox, but archived.

Mark read/Mark •

unread

To mark an email message as read or unread.

Delete• To delete the email message.

Add star/Remove •

star

To assign a star or remove the star from the

conversation.

Report spam• To report the email message/conversation as spam.

Change labels• To add or change the label of the email message or

conversation.

Gmail settings

To manage Gmail settings, press the Menu key in Inbox screen and touch

Settings.

Signature• To add a signature text to the end of each mail you

send.

Confirm actions• Select to activate a query when deleting a message

or conversation, for double confirmation.

Clear search history• Touch to remove the search history.

Manage labels• Touch to open the Label screen, where you can

manage conversation synchronisation.

Notification• Select to activate notification when a new email

arrives.

Sound• Touch to select a ringtone as notification tone when

a new email arrives.

Vibrate• Select to activate vibration as notification method

when a new email arrives.

Email 4.2.2

Besides your Gmail account, you can also set-up external POP3 or IMAP email

accounts in your phone.

To access this function, touch the Application tab from the Home screen, then

select Email.

An email wizard will guide you through the steps to set-up an email account.

a Enter the email address and password of the account you want to set-up.

b Touch Next. If the account you entered is not provided by your service

provider in the phone, you will be prompted to go to the email account

settings screen to enter settings manually. Or you can touch Manual setup

to directly enter the incoming and outgoing settings for the email account

you are setting up.

c Enter the account name and display name in outgoing emails.

d Touch Done.

e To add another email account, you can touch and press "Settings", touch

Add account.

To create and send emails

a Press in the Inbox screen.

b Enter recipient(s)’s email address in To field, and if necessary, press the

Menu key and touch Add Cc/Bcc to include a copy or a blind copy to the

message.

c Enter the subject and content of the message.

d Press the Menu key, touch Attach file to send an attachment to the

receiver.

e Finally, touch to Send.

f If you do not want to send the mail right away, you can touch and Save

draft or press the Back key to save a copy.

Google Talk 4.3

Google's instant messaging service, Google Talk, lets you communicate with

your friends whenever they are connected to this service.

To access this feature and sign in, touch the Application tab from the Home

screen, then touch Talk. All friends added by using Google Talk from the web

or phone will be displayed in your friends list.

Touch to set your online status.

Available

Busy

Away

Signed out

Invisible

Touch your online status icon and then enter your status message in text

filed.

To sign out, press the Menu key from Friends list to display options, touch

Sign out.

Chatting with your friends4.3.1

To start a chat, touch the name of a friend in your Friends list, then enter your

message and finally touch Send.

You can invite other friends to join in a group chat by pressing the Menu key,

touching Add to chat and then select the friend you want to add.

When chatting with more than one friend, you can switch screens by pressing

flicking your finger on the screen Left/Right side.

To return to Friends list screen, press the Back key.

To add a new friend4.3.2

From Friends list, press the Menu key to open options list and touch Add

Friend to add a new friend. Enter the Google Talk ID or Gmail address of the

friend you want to add, and then touch Done.

A notification with this invitation will be received by the friend. By touching the

invitation, the friend can select Accept, Block or Decline in response.

You can also check all invitations you have sent or received by going to the

Friends list and checking Chat invitations.

To close a chat4.3.3

When you want to end a chat, the following two ways are available:

From Friends list screen, touch Menu key and choose • End all chats.

Press the Menu key from chatting screen directly, and then touch • End

chat.

To manage your friends4.3.4

Besides adding new friends to your friends list, the following actions are

available for your choice:

To view all friends/ •

most popular friends

By default, only friends that you frequently

communicate with are displayed in Friends list. To

view all friends, press the Menu key and Display

options, then touch Name. To return to displaying

most popular friends screen, press the Menu key

and Display options again, then touch Availability

or Recency.

To block a friend• To block a friend from exchanging messages and

remove them from your friends list, go to chat screen

of this friend, touch Menu key and Friend info, then

touch Block. All blocked friends can be viewed by

pressing the Menu key and settings, select your google

account, touching Blocked friends, touch the name of

this friend and touch OK when prompted.

Settings4.3.5

A series of settings are available for your selection by pressing the Menu key

from Friends list screen, and touch Settings.

IM notifications• Select to activate notification function on the Status

bar when a new message arrives. You can also set a

notification ringtone by touching Select ringtone

or select Vibrate to activate vibration alert for this

service.

Mobile indicator• Select to display an indicator icon along with your

name in other people’s Friends list.

Automatic when •

screen off

Select to set status as Away when the screen is

turned off.

Clear search history• Touch to clear previous chat searches history from

showing up in the Search box.

5 Google Calendar &

Alarm clock & Calculator

Google Calendar 5.1

Use Google Calendar to keep track of important meetings, appointments, etc.

To access this function, touch the Application tab from the Home screen, then

touch Calendar.

Multimode view5.1.1

You can display the Calendar in daily, weekly, monthly, or agenda view.

To change your Calendar view, press the Menu key, then touch Day, Week,

Month or Agenda.

Agenda view

Day view

Week view

In Agenda, Day or Week view

touch an event to view its detalls.

Touch a day in Month view to

open that day's events.

Month view

Week 31

To create new events5.1.2

You can add new events from any Calendar view.

a Press the from Calendar screen, and touch New event to access new event

edit screen.

b Fill in all required information for this new event. If it is a whole-day event,

you can select All day.

c When finished, touch Done from the end of the screen.

To quickly create an event from Day, Week or Month view screen, touch and hold

an empty spot or an event to open Option menu, then touch New event to enter

the event details screen of the time you have previously selected.

To delete or edit event5.1.3

To delete or edit an event, touch the event to enter details screen, touch .

Event reminder5.1.4

If a reminder is set for an event, the upcoming event icon appears on the

Status bar as a notification when the reminder time arrives.

Touch and drag down the Status bar to open the Notification panel, touch

event name to view Calendar notification list.

Press the Back key to keep the reminders pending in the Status bar and the

Notification panel.

Important options by pressing the from Calendar main screen:

New event To add a new event

Settings To set a series of Calendar settings

Clock 5.2

Your mobile phone has a built-in clock.

To access this function, touch the Application tab from the Home screen, then

touch Clock.

Touch icon at the bottom of the screen. Touch Set alarm to set the

alarm.

To set an alarm5.2.1

From Clock screen, touch a currently existing alarm or press the Alarm set

and touch " + " to enter the alarm editing screen.

Enable alarm• Select to enable alarm.

Time• Touch to set time.

Repeat• Touch to select days you want alarm to sound

Ringtone• Touch to select a ringtone for the alarm

Vibrate• Select to activate vibration

Label• Touch to set a name for the alarm

When finished, touch Done to confirm.

To adjust alarm settings5.2.2

Press the from Alarms screen, then touch Settings. The following options

can now be adjusted:

Alarm in silent mode• Select to play alarm with sound or vibration even

when the phone is in Silent mode

Alarm volume• Touch to set volume of alarms

Snooze duration• Touch to set temporary turn off time of an alarm

Auto-silence• Touch to set the duration that Alarm will silence.

Side button behavior• Touch to set side Volume up/down key behaviors

when alarm sounds: None, Snooze or Dismiss

Calculator 5.3

With Calculator, you can solve many mathematical problems.

To access this function, touch the Application tab from the Home screen, then

touch Calculator.

There are two panels available: Basic panel and Advanced panel.

To switch between panels, select one of the following two ways:

Touch and drag the basic screen to the left to open the Advanced panel. •

Enter a number and the arithmetic operation to be performed, and enter the

second number, then touch “=” to display the result. Touch to delete digits

one by one, touch to delete all at one time.

When some number or operations have been entered, touch and hold the

entering bar to open a menu offering these further operations:

Cut • To delete all entered text

Copy • To copy all entered text

Paste • (1) To paste what you have previously copied to the entering

bar

(1)

(1) Option will not appear unless copy or cut operation has been made.

Getting connected 6

To connect to the internet with this phone, you can use GPRS/EDGE/3G

networks or WI-FI, whichever is most convenient.

Connecting to the Internet6.1

GPRS/EDGE/3G6.1.1

The first time you turn on your phone with the SIM card inserted, it will

automatically configure network service: GPRS, EDGE or 3G.

To check the network connection you are using, press the Menu key in the

Home screen, then touch Settings > More > Mobile networks > Network

operators or Access Point Names.

To create a new access point

A new GPRS/EDGE/3G network connection can be added to your phone with

the following steps:

a Press the from the Home screen.

b Touch Settings > More > Mobile networks > Access Point Names.

c Then press ,touch New APN.

d Enter the required APN information.

e When finished, press the and touch Save.

To activate/deactivate Data roaming

When roaming, you can decide to connect/disconnect to a data service.

a Press the icon from the Home screen.

b Touch Settings > More > Mobile networks > Data roaming.

c Mark/Unmark the checkbox to activate or deactivate data roaming.

d When Data roaming is deactivated, you can still perform data exchange with

a Wi-Fi connection (refer to section 6.1.2 Wi-Fi).

Wi-Fi6.1.2

Using Wi-Fi, you can connect to the Internet when your phone is within range

of a wireless network. Wi-Fi can be used on phone even without a SIM card

inserted.

To turn Wi-Fi on and connect to a wireless network

a Press the icon from the Home screen.

b Touch Settings > Wi-Fi.

c Touch the On/Off toggle next to the Wi-Fi icon to turn Wi-Fi on or off.

d Touch Wi-Fi. The detailed information of detected Wi-Fi networks is displayed

in the Wi-Fi networks section.

e Touch a Wi-Fi network to connect. If the network you selected is secured,

you are required to enter a password or other credentials (you may contact

network operator for details). When finished, touch Connect.

To activate notification when a new network is detected

When Wi-Fi is on and network notification is activated, the Wi-Fi icon will appear

on the Status bar whenever the phone detects an available open wireless

network within range. The following steps activate the notification function:

a Touch and drag down the Status bar to open the Notification panel. Press

To add a Wi-Fi network

When Wi-Fi is on, you may add new Wi-Fi networks according to your

preference.

a Press the icon from the Home screen.

b Touch Settings > Wi-Fi, press "+" .

c Enter the name of the network and any required network information.

d Touch Save.

When successfully connected, you phone will be connected automatically the

next time you are within range of this network.

To forget a Wi-Fi network

The following steps prevent automatic connection to networks which you no

longer wish to use.

a Turn on Wi-Fi, if it’s not already on.

b In the Wi-Fi settings screen, touch & hold the name of the network.

c Touch Forget network in the dialog that opens.

To add a WPS network

WPS (Wi-Fi Protected Setup) is an easy way for users to access Wi-Fi network by

entering PIN or using push button.

a Press the icon from the Home screen.

b Touch Settings > Wi-Fi, press and touch WPS Pin Entry.

c Enter PIN number or use push button.

d Touch Start to get access to a WPS network.

Browser 6.2

Using Browser, you can enjoy surfing the Web.

To access this function,tap on the Home screen.

To go to a web page

In the Browser screen, touch the URL box at the top, enter the address of the

web page, then touch Go.

To set home page

a Press the from Browser screen to display option menu, touch home page.

b Enter the URL of the website you want to set as your home page.

c Finally touch OK to confirm.

Viewing web pages6.2.1

When opening a website, you can navigate on web pages by sliding your finger

on the screen in any direction to locate the information you want to view.

To zoom in/out of a web page

Using your finger to zoom in/out of a web page.

To quickly zoom into a section of a web page, double-tap on the section you

want to view. To return to normal zoom level, double-tap again.

To find text on a web page

a Press the from web page screen, then touch More > Find on page.

b Enter the text or phrase you want to find.

c The first word with matching characters will be highlighted on the screen,

and subsequent matches are boxed.

d Touch the left or right arrow to switch to the previous or next matching

items.

e When finished, you can touch to close the search bar.

To copy text on a web page

You can copy text from a web page and paste it into emails or SMS/MMS

messages.

a Long press the text in web page.

b Place your finger at the start of the text you want to copy and then drag it to

the end of the text.

c Selected text is copied and highlighted in color.

d Release your finger.

To paste the copied text into an email or SMS/MMS message, touch and hold

the enter box and then touch Paste on the options menu.

To open new window/switch between windows

Multiple windows can be opened at the same time for your convenience.

a Press the from web page screen, and touch +.

b To view all currently open windows, press the key.

c Touch a window you want to view.

To close a window, touch on the window you want to close.

Other options:

Refresh• To refresh the current page (press on web page screen, then

touch Refresh).

Close• To close all tabs (press on web page screen, then touch

Close).

Share page• To share the current page with your friends via various ways,

like Message, Email, Bluetooth, etc. Press , touch Share

page.

Manage links, history, downloads6.2.2

To manage a link, phone number or address displayed on a web page

Link• Touch the link to open the web page.

Touch and hold the link to open options for further

operation, like open in new window, save link, share

link, copy link, etc.

Phone number• Touch to call the phone number.

Address• Touch to open Google Maps and locate the address

To view Browser history

Press the Menu key from Browser screen•

Touch • Bookmarks

Touch • History tab to view browser history.

Manage bookmarks6.2.3

To bookmark a web page

a Open the web page you want to bookmark.

b Touch the bookmark icon at the top of the screen, or press the Menu key

and touch Save to bookmarks.

c Enter the name and location if needed and touch OK to confirm.

To open a bookmark

a Touch the bookmark icon at the top of the screen, or press the Menu key

and touch Bookmarks.

b On the Bookmarks tab, touch the bookmark you want to open.

c You can also touch and hold to display the options screen, then touch Open

or Open in new window.

To edit a bookmark

a Touch the bookmark icon at the top of the screen, or press the Menu key

and touch Bookmarks.

b On the Bookmarks tab, touch and hold the bookmark you want to edit.

c Touch Edit bookmark.

d Enter your changes.

e When finished, touch OK to confirm.

Touch and hold a bookmark in the bookmark list to view these additional

options:

Share link• To share the bookmark.

Copy link URL• To copy the bookmark link.

Add shortcut to •

Home

To add a bookmark shortcut to the Home screen.

Delete bookmark• To delete a bookmark.

Settings6.2.4

A series of settings are available for your adjustment. To access Browser

settings, press from Browser screen, and touch Settings.

Page content settings accessed by touch Settings > General

Set home page• Touch to set home page.

Form auto-fill• Fill in the forms which

Privacy & security

Clear cache• Touch to clear locally cached content and

databases.

Clear history• Touch to clear the browser history.

Show security •

warnings

Mark to show warning if there is a problem with a

site’s security.

Accept cookies• Mark to allow sites to save and read cookie data.

Clear all cookie data• Touch to clear all browser cookies.

Remember form data• Mark to remember data in forms for later use.

Clear form data• Touch to clear all the saved form data.

Enable location• Mark to allow sites to request access to your

location.

Clear location access• Touch to clear location access for all websites.

Remember •

passwords

Mark to remember username and passwords for

websites.

Clear passwords• Touch to clear all saved passwords.

Advanced settings

Website settings• Touch to view advanced settings for individual

websites.

Reset to default• Touch to clear all browser data and reset all settings

to default.

Connecting to Bluetooth devices 6.3

Bluetooth is a short-range wireless communications technology that you can

use to exchange data, or connect to other Bluetooth devices for various uses.

To access this feature, press the Menu key from the Home screen, touch

Settings > Bluetooth.

To turn on Bluetooth

a Press the icon from the Home screen.

b Touch Settings > Bluetooth.

c Touch the On/Off .

To change device name

To make your phone more recognizable, you can change your phone name

which is visible to others.

a Press the icon from the Home screen.

b Touch Settings, press and touch Rename phone.

c Enter a name, and touch Rename.

To make device visible

a Press the icon from the Home screen.

b Touch Settings > Bluetooth, press and touch Visibility timeout > Never

timeout.

c Mark/Unmark the checkbox to activate/deactivate this function.

To pair/connect your phone with a Bluetooth device

To exchange data with another device, you need to turn Bluetooth on and pair

your phone with the Bluetooth device with which you want to exchange data.

a Press the Menu key from the Home screen.

b Touch Settings > Bluetooth

c Auto search for nearby devices

d Select a Bluetooth device you want to be paired with in the list.

e Enter a passcode (0000 or 1234)

f If the pairing is successful, your phone connects to the device.

To disconnect/unpair from a Bluetooth device

a Touch on the device.

b Touch the device to disconnected, touch Unpair in Settings.

Connecting to a computer via USB6.4

With the USB cable, you can transfer media files and other files between your

phone’s microSD card and the computer.

To connect/disconnect your phone to/from the computer

To connect your phone to the computer:

a Use the USB cable that came with your phone to connect the phone to a

USB port on your computer. You will receive a notification that the USB is

connected.

b Open the Notifications panel and touch USB debugging connected.

c Touch USB debugging in the dialog that opens to confirm that you want to

transfer files.

To disconnect:

a Unmount the microSD card on your computer.

b Open the Notifications panel and touch USB debugging connected.

c Unmark checkbox in USB debugging

To safely remove the microSD card from your phone

The microSD card can be removed from your phone any time the phone is

powered off. To remove the microSD card while the phone is on, you must

unmount the storage card from the phone first, to prevent corrupting or

damaging the storage card.

a Press the icon from the Home screen.

b Touch Settings > Storage.

c Touch Unmount SD card.

You can now safely remove the microSD card from the phone.

To format a microSD card

a Press the icon from the Home screen.

b Touch Settings > Storage

c Touch Format SD card. On the screen that warns you that formatting the

microSD card will erase its contents, touch .

Sharing your phone's mobile data connection6.5

You can share your phone's mobile data connection with a single computer via

a USB cable (USB tethering) or with up to eight devices at once by turning your

phone into a portable Wi-Fi hotspot.

The functions below may incur additional network charges from your

network operator. Extra fees may also be charged in roaming areas.

To share your phone's data connection via USB

Use the USB cable that along with your phone to connect the phone to a USB

port on your computer.

a Press and hold the Multitask key in the Home screen.

b Touch Settings > More > Tethering & portable hotspot.

c Mark\unmark the check box USB tethering to activate/deactivate this

function.

To share your phone's data connection as a portable Wi-Fi hotspot

a Press and hold the Multitask key in the Home screen.

b Touch System settings > More > Tethering & portable hotspot.

c Mark/Unmark the check box of Portable Wi-Fi hotspot to activate/

deactivate this function.

To rename or secure your portable hotspot

When Portable Wi-Fi hotspot is activated, you could change the name of your

phone's Wi-Fi network (SSID) and secure its Wi-Fi network.

a Press and hold the Multitask key in the Home screen.

b Touch Settings > More > Tethering & portable hotspot.

c Touch Set up Wi-Fi hotspot to change the network SSID or set your network

security.

d Touch Save.

Connecting to virtual private networks6.6

Virtual private networks (VPNs) allow you to connect to the resources inside

a secured local network, from outside that network. VPNs are commonly

deployed by corporations, schools, and other institutions so that their users

can access local network resources when not on campus, or when connected

to a wireless network.

To add a VPN

a Press the Menu key in the Home screen.

b Touch Settings > More > VPN settings > Add VPN profile.

c Touch the type of VPN to add.

d In the screen that opens, follow the instructions from your network

administrator to configure each component of the VPN settings.

e Press the Menu key and touch Save.

The VPN is added to the list on the VPN settings screen.

To connect/disconnect to a VPN

To connect to a VPN:

a Press the Menu key in the Home screen.

b Touch Settings > More > VPN settings.

c VPNs you have added are listed; touch the VPN you want to connect with.

d In the dialog that opens, enter any requested credentials and touch

Connect.

To disconnect:

a Open the Notifications panel and touch the resulting notification for the VPN

connection.

To edit/delete a VPN

To edit a VPN:

a Press the Menu key from the Home screen.

b Touch Settings > More > VPN settings.

c VPNs you have added are listed; touch & hold the VPN you want to edit.

d Touch Edit network.

e After finishing, press the Menu key and touch Save.

To delete:

a Touch and hold the VPN you want to delete, in the dialog that opens, touch

Delete network.

b Touch OK to confirm.

Multimedia applications7

Camera 7.1

Your mobile phone is fitted with a Camera for taking photos and shooting

videos.

Before using Camera, please ensure that a microSD card where all pictures and

videos are stored is correctly installed. Also, be sure to open the protective lens

cover before use to avoid it affecting your picture quality.

To access this function, touch the Application tab from the Home screen and

then touch Camera.

Touch to view pictures or

videos you have taken.

Flash mode

Touch to access

Camera mode.

Settings

Touch to access

Video mode.

Zoom

Touch to take a picture or

record a video.

To take a picture

The screen acts as the viewfinder. First position the object or landscape in the

viewfinder, and touch icon to take the picture, which will be automatically

saved.

To shoot a video

Switch Camera mode to Video mode or access Camcorder directly from the

applications list. First position the object or landscape in the viewfinder, and

touch icon to start recording. Touch icon to stop shooting. The video

will be automatically saved.

Further operations when viewing a picture or a video you have taken:

Touch to share the picture or video you have just taken or shot by

MMS, Email, etc.

Touch to play the video you have just shot.

Touch to enter Slideshow.

Settings in framing mode7.1.1

Before taking a photo/shooting a video, you can adjust a number of settings

in framing mode.

Camera settings

ZSD• Slide to right to activate it,it will store the photo at the

exact moment when push the button to snap a photo.

Store location• Touch to turn on/off stored location information of

pictures by using the phone's GPS.

Shutter sound• Touch to turn on/off the shutter sound.

Timer• Touch to set timer when you take a picture or video.

Picture size• Touch to adjust picture size.

Video/Camcorder settings:

Microphone• Touch to ON/OFF to turn on/off microphone when you

take a video.

Video duration• Touch to set the video duration.

Video quality• Touch to set video quality.

Record Mode• Touch to set Normal/MMS limit

Restore to •

defaults

Touch to activate it.

Other settings:

Scene mode• Touch to set Night/Auto mode.

Exposure• Touch to set exposure time during taking a video/a


White balance•

Touch to adjust color in different lights.

Time lapse interval• Touch to set time lapse interval: off, 1s, 1.5s, 2s etc.

Capture mode• To to choose different mode: Normal, ON, Auto scene

detect, Face beauty, Smile shot, EV bracket.

Grid• Touch to activate On/Off grid.

Gallery 7.2

Gallery acts as a media player for you to view photos and playback videos. In

addition, a set of further operations to pictures and videos are available for

your choice (refer to page 74).

To access this function, touch the Application tab from the Home screen, then

touch Gallery.

From this menu, you can access Camera or Camcorder for taking a picture or

video.

Touch to open camera.

Pinch the album and spread it apart.

Slide left or right to view more albums.

To view a picture/play a video

Pictures and videos are displayed by albums in Gallery.

Touch to view picture in slide mode.

Drag left or right to scroll

through the album quickly.

Working with pictures

You can work with pictures by rotating or cropping them, sharing them with

friends, setting them as contact ID or wallpaper, etc.

Locate the picture you want to work on, press the from full-screen picture

view.

Touch Menu key, four

options will appear below.

To crop a picture, touch a picture to view controls and touch Menu > Crop.

The cropping square appears in the middle of the picture. Select the portion

to crop, touch and Save.

YouTube 7.3

YouTube is an online video-sharing service where the user can download,

share and view videos. It supports a streaming function that allows you to

start watching videos almost as soon as they begin downloading from the

Internet.

To access this function, touch the Application tab from the Home screen, then

touch YouTube.

As an online video service, your phone must have a network connection

to access YouTube.

All videos in YouTube are grouped into several categories, like Recommended,

Most subscribed, Most viewed, Local, and Noteworthy.

Touch to learn more about a video.

Touch to search for a video.

By pressing the Menu key from YouTube screen, you can rate, share, label

as favourite, etc. For details about these features, please visit the YouTube

website: www.YouTube.com

Watch videos7.3.1

Touch a video to play it.

Touch video playing screen to display playback controls with which you can

pause, or drag the progress bar to the point you want to watch.

To exit video playing screen, press the Back key to return to video list.

Music 7.4

Using this menu, you can play music files stored on the microSD card in your

phone. Music files can be downloaded from computer to microSD card using

a USB cable.

To access this function, touch the Application tab from the Home screen, then

touch Music.

You will find four libraries in which all songs are classified: Artists, Albums,

Songs, and Playlists. Touch a category and view the list.

With the help of Search key, you can easily search for songs you want to play

in libraries.

To delete a song, press the Menu key from playback screen and then touch

Delete to remove it from the microSD card.

You can also set a song as a ringtone, press the Menu key from playback screen

to display option menu, then touch Use as ringtone.

Playing music7.4.1

From any of the four library screens, touch a song to play it back.

a Touch to play the current playlist in shuffle mode (tracks are played in random

order).

bTouch to open the current playlist.

cTouch to toggle repeat mode: Don't repeat, Repeat the playlist, or Repeat the

current track.

dTouch and hold to search for more information.

eTouch to skip to the next track in the album, playlist, or shuffle.

fTouch to pause/resume playback.

gTouch to skip to the previous track in the album, playlist, or shuffle.

hView lyrics

Adjust volume

To adjust the volume, you can press Volume up and Volume down key.

Using Party shuffle7.4.2

All songs will be displayed in order by default. When Party shuffle is activated,

some songs will be selected and played at random. Press the Menu key, then

touch Party shuffle to turn on this function. To turn it off, press the Menu key

again, then touch Party shuffle off.

Working with playlists7.4.3

Playlists allow you to conveniently organize all the songs stored in the card.

You can create a new playlist, add a song to the list, rearrange the order of the

list, and delete or rename a playlist.

To create a playlist

Press the Menu key from playback screen to display the option menu, touch

Add to playlist, then touch New, enter the name and finally touch Save.

To change the order of songs in a playlist

Enter a playlist, drag a song up or down to change the order within the

playlist.

To delete a song or a playlist

Locate the song or playlist you want to delete, touch and hold or press the

Menu key from playback screen to display option menu, then touch Delete.

To rename a playlist

Locate the playlist you want to rename, touch and hold to display option

menu, then touch Rename. When finished, touch Save.

Google Maps 8

Get My Location8.1

Choose a data source to decide My Location8.1.1

Press the Menu key from the Home screen, touch Settings > Location services.

Mark the check box of • Google's location service to set Wi-Fi and/or mobile

networks as My Location data source.

Or mark the check box of • GPS satellites to set GPS as My Location data

source.

Open Google Maps and view My Location8.1.2

Touch the Application tab from the Home screen, then touch Maps.

Press the and touch My Location.

The map will then center on a blue dot with a blue circle around. Your actual

position is within the blue circle.

To move the map, drag the map with your finger.

You can also zoom in/out by double-tapping a location on screen.

To clear the map history, press the Menu key and touch > Clear Map.

Search for a location8.2

a While viewing a map, touch and type the address you want to go.

b In the search box, enter an address, a city or a local business.

c Touch the search icon and in a while your search results will appear on the

map highlighted by markers with letter labels.

You can touch a marker to open a balloon that contains a label. Touch the

balloon to open a screen with more handy information about the location.

Star a location8.3

Just like bookmarking a web address on the Internet, you can star any position

on the map for later use.

How to star (or unstar) a location8.3.1

a Touch & hold a location on a map

b Touch the address rectangle that opens

c Touch the gray star at the top of the screen to star the location. (Or touch a

gold star to unstar that location.)

Get driving, public transport or walking directions8.4

Get suggested routes for your trip8.4.1

a Press the from maps screen.

b Touch enter bar or to edit your start point by one of the following

methods: entering an address, using My Location, selecting a start point on

a map, selecting a starred item, selecting an address from your contacts or

using search history.

c Do likewise for your end point.

d To reverse directions, press the Menu key and touch Reverse Start & End.

e Then select a transport mode: driving by car, using public transport, or

walking directions.

f Finally touch GET DIRECTIONS.

g A couple of suggested routes will appear in a list. Touch any routes to view

their respective detailed directions.

To get reverse directions for a route you’ve already made, simply open that

route’s directions window, press Menu key and select Reverse. No need to

enter your start point and end point again.

Preview suggested routes and decide on a route more 8.4.2

preferable or feasible to you

You can preview each turn in your route in Navigation, Satellite, and other

views.

Touch a left or right arrow to preview the next or previous leg of your route. •

You can view turn-by-turn directions in a list by touching • DIRECTIONS LIST,

press the Back key to return to previous view.

When selecting a more preferable or feasible route, distance and time will be

the two most important factors for your evaluation. Distance and estimated

time will be displayed at the top of the directions screen.

Search for locations along your route8.4.3

Please refer to section 8.2 for detailed information.

View route progress and calculate estimated arrival 8.4.4

time

To view your route progress, pinpoint My Location, zoom out until the whole

route goes into one screen, with both finished and unfinished miles in sight.

Start another Directions screen based on your current and intended destination

locations. Estimated arrival time will be shown in the results. Please note that

the estimated arrival time is not available for the public transport mode.

Get an alternative route to your destination8.4.5

If traffic is slow on your current route, or if you just want to try a different route,

you can request an alternative route from Google Maps with turn-by-turn

Navigation service.

Press the Menu key and touch "Route and alternates" option. Touch the

alternative route icon. An alternative route is drawn on the map.

Arrangement of Layers8.5

Layers allow you to view locations and additional information overlaid on the

map. You can add multiple layers or remove only certain layers so you control

exactly what information you want visible on the map at one time.

To view multiple layers8.5.1

a Press in maps screen.

b Choose layers what you want to see.

c All available layers are listed (like Traffic, Satellite, Latitude, etc), select one

to view.

To clear the map8.5.2

After you get directions or search on a map, you can clear the markers/

layers that have been drawn: press the Menu key on maps screen and touch

Clear Map.

To view more layers8.5.3

You can browse more layers to add to the map such as My Maps, Transit Lines

or Wikipedia, etc.

a Touch More layers to the bottom of the screen.

b All available layers are listed for your selection.

Join Latitude to see your friends' locations and 8.6

share yours with them

With Google Latitude, you can:

see your friends' locations on a map or in a list.•

quickly contact your friends with a text message, instant message, or phone •

call.

you can share, set, hide your location, or sign out of Google Latitude.•

control who sees your location, and at what level of detail.•

To join Latitude8.6.1

a Press the Menu key in the maps screen.

b Touch Join Latitude.

When you joined Latitude, the menu item changes to Latitude.

To open Latitude, press the Menu key from maps screen, then touch Latitude.

How to invite friends to share their locations8.6.2

a Press the Menu key in the Latitude screen, touch Add friends.

b Touch Select from Contacts or Add via email address.

c After selecting your chosen contacts touch Add friends at the bottom of

the screen.

When finished, an invitation will be sent to the friends you have invited.

To respond to an invitation, you can select one of the following:

Accept and share •

back

You and your friend can share locations with each

other.

Accept, but hide •

my location

You can view your friend's location, but they can not

view yours.

Don’t accept• No locations can be shared between you and your

friend.

To view your friends' location8.6.3

You can view your friends' locations on a map or in a list.

Map view• When Google Maps is opened, your friends' locations

will display with their photo icon for identification.

List view• Press the Menu key from maps screen, then touch

Latitude. Your friends are displayed in a list.

To connect with your friends8.6.4

Select a contact, you can communicate with your friend and set privacy

options.

Show on map• Locate the friend's position on the map.

Chat using Google •

Talk

Send instant message to the friend.

Send email• Send email to the friend.

Directions• Get directions to this friend's location.

Hide from •

this friend

Set to hide your location from this friend.

Share only •

city level location

Set to share only locations at city level, but not

street level, etc.

Remove• Remove this friend from your list and stop sharing

information with him or her.

To control what you share8.6.5

You can control the information you want to share with your friends.

Press the Menu key from maps screen, touch Latitude, touch your own name

and then touch Privacy.

The following options are available to choose from:

Detect your location• Enable Latitude to detect your location automatically

when you move around.

Set your location• Select a location on the map manually.

Hide your location• Hide your location from all friends.

Turn off Latitude• Deactivate Latitude and stop sharing.

Others 9

File Manager 9.1

To access this function, touch the Application tab from the Home screen, then

touch File Manager.

File Manager works with your SD card instead of your phone memory. To use

it, you have to install your SD card first. See page 9 for instructions on inserting

the SD card.

File Manager displays all data stored on the microSD card, including

applications, media files downloaded from Android Market, YouTube or other

locations; video, pictures or audios you have captured; other data transferred

via Bluetooth, USB cable, etc.

When you download an application from PC to microSD card, you can locate

the application on FileManager, then touch it to install it in your phone.

FileManager allows you to perform and be really efficient with the following

common operations: create (sub) folder, open folder/file, view, rename, move,

copy, delete, play, share, etc.

Notes 9.2

To access this function, touch the Application tab from the Home screen, then

touch Notes.

Use Notes to note down inspirations, ideas, excerpts, things to do and all those

things you may want to keep for future reference.

Existing notes can be sent via message or Email.

Video Player 9.3

To access this function, touch the Application tab from the Home screen, then

touch Video Player.

Video Player is a small built-in video player that lists all your videos.

Touch an item from the list to play. While playing, use Pause, Forward and Back

functional icons as required, press the Menu key to go to full screen, or touch

a point on the timeline to jump to and play from.

Voice Search 9.4

To access this function, touch the Application tab from the Home screen, then

touch Sound Recorder.

Voice Search allows you to search by voice.

SyncMLClient 9.5

To access this function, touch the Application tab from the Home screen, then

touch SyncMLClient.

You have to configure your own sync-hosting server account to locate the

synchronisation source at the other side. Also you might be asked to decide

on the following options:

Who to sync: account name, username and password are needed to

authenticate your identity

How to sync: available synchronisation types are two-way synchronisation,

backup to server, restore from server, export to server, and import from server

What to sync: supported synchronisation applications are Contacts and

Calendar, each with an independent secure database that doesn’t allow

anonymous access

When to sync: synchronise when roaming, synchronise when data is modified,

synchronise when phone is turned on or synchronise at a regular basis (daily,

weekly, and monthly)

Radio 9.6

Your phone is equipped with a radio (1) with RDS (2) functionality. You can use

the application as a traditional radio with saved channels or with parallel visual

information related to the radio program on the display if you tune to stations

that offer Visual Radio service.

To access this function, touch the Application tab from the Home screen, then

touch Radio.

(1) The quality of the radio depends on the coverage of the radio station in that

particular area.

(2) Depending on your network operator and market.

To use it, you must plug in your headset, which works as an antenna

connected with your phone.

Touch to play/stop

Touch to go to next saved

channel

Touch to add the current

station to favourites.

Touch to open and view

the saved channels list

Touch and hold to

search and go to

the nearest higher

frequency channel

Touch to go to

previous saved

channel

Touch and hold to search and go to the nearest

lower frequency channel

Available options:

Search • Touch to search for channels

RDS settings • Mark the check box of Channel information and

Alternative frequency

Record FM• Touch to record

Recorded files • Touch to access recorded files

Exit• Touch to exit radio

LED Torch 9.7

To access this function, touch the Application tab from the Home screen, then

touch LED Torch.

LED Torch is an application which can provide power light for your convenience

and you can select to turn on/off or adjust the brightness as needed.

Other applications 9.8 (1)

The previous applications in this section are preinstalled to your phone. To

read a brief introduction of the preinstalled 3rd party applications, please refer

to the leaflet provided with the phone. You can also download thousands more

3rd party applications by going to Android Market on your phone.

(1) Application availability depends on country and operator.

Settings 10

To access this function, touch the Application tab from the Home screen,

and touch Settings on applications list, or you can also press and hold the

Multitask key from the Home screen and touch System settings.

Wireless & networks10.1

Wi-Fi10.1.1

Using Wi-Fi you can now surf the Internet without using your SIM card

whenever you are in range of a wireless network. The only thing you have to do

is to enter the Wi-Fi settings screen and configure an access point to connect

your phone to the wireless network.

For detailed instructions on using Wi-Fi, please refer to section 6.1.2 Wi-Fi.

Bluetooth 10.1.2

Bluetooth allows your phone to exchange data (videos, images, music and

more) over short distances with another Bluetooth supported device (phone,

computer, printer, headset, car kit and more).

For more information on Bluetooth, please refer to section 6.3 Connecting to

Bluetooth devices.

Data usage10.1.3

You may check the details of data usage, as well you can set mobile data limit

to control.

Airplane mode10.1.4

Mark the check box of Airplane mode to simultaneously disable all wireless

connections including Wi-Fi, Bluetooth and more.

VPN settings10.1.5

A mobile virtual private network (mobile VPN or mVPN) provides mobile devices

with access to network resources and software applications on their home

network, when they connect via other wireless or wired networks. Mobile VPNs

are used in environments where workers need to keep application sessions

open at all times, throughout the working day, as the user connects via various

wireless networks, encounters gaps in coverage, or suspend-and-resumes

their devices to preserve battery life. A conventional VPN cannot survive

such events because the network tunnel is disrupted, causing applications to

disconnect, time out, fail, or even the computing device itself to crash.

For more information of VPN, please refer to section 6.6 Connecting to

virtual private networks.

Tethering & portable hotspot10.1.6

This function allows you to share your phone's mobile data connection via USB

or as a portable Wi-Fi access point (Please refer to section 6.5).

NFC 10.1.7 (1)

Near Field Communication (NFC) is a new, short-range wireless connectivity

technology which allows mobile users to read and write NFC tags, pair with

other NFC devices, and even make fast and secure mobile payments. With

NFC activated, you can use this application to open, act on and organize the

tags you've scanned.

To access this function, touch the Application tab from Home screen, then

select NFC Task Launcher.

Your new Vodafone Smartphone comes with built-in Near Field Communication

(or NFC for short), which can make your life easier.

With just one tap against an NFC-enabled sticker (we call them ‘Tags’), your

phone will instantly perform a pre-programmed action or set of actions – such

as starting an app, switching on Wi-Fi, or even checking in to Facebook.

There are two free pre-programmable stickers included here to start you off.

(1) Vodafone 975N.

Mobile networks10.1.8

Data enabled

If you do not need to transmit data on all mobile networks, unmark the check

box of Data enabled to avoid incurring significant charges for data use on

local carrier mobile networks, particularly if you do not have a mobile data

agreement.

Data roaming

If you don’t need to transmit data on other carriers’ mobile networks, unmark

the check box of Data roaming to avoid incurring significant roaming

charges.

Network mode

Touch to select you preferred network mode: WCDMA only, GSM only, GSM/

WCDMA atuo.

Access Point Names

Touch to enter GSM/UMTS options, where you can view Access point names,

you can select to use only 2G networks or select a network operator.

Network operators

You can select your preferred network with this menu.

Sound10.2

Use the Sound settings to configure many aspects of call and notification

ringtones, music, and other audio settings.

Volume• Touch to set volume for Incoming call, Media and

Alarm.

Silent mode• Mark the Mute check box to silence all sounds

except media & alarms.

Phone ringtone• Touch to set your default incoming call ringtone.

Default notification• Touch to set your default notification ringtone.

Vibrate and ring• Touch to access phone vibrate and ring options.

Dial pad touch tones• Mark the check box to enable playing tones when

using dial pad.

Audible selection• Mark the check box to enable playing sound when

making screen selection.

Screen lock sounds• Mark the check box to enable playing sounds when

locking and unlocking the screen.

Haptic feedback• Mark the check box to activate vibration when

pressing soft keys and on certain UI interactions.

Display10.3

Brightness• Touch to adjust the brightness of the screen or

select Automatic brightness.

Orientation• Mark the check box to activate automatic orientation

switch when rotating phone.

Menu appearance• Touch to select and then you may see Settings when

you long keypress Multitask key in home screen.

Sleep• Touch to set screen timeout.

Storage10.4

Use the microSD card & Phone Storage settings to monitor the total and

available space on your phone and on your microSD card; to manage your

microSD card; and if necessary, to reset the phone, erasing all of your personal

information.

SD card10.4.1

Total space/Available space

Lists the amount of space on any microSD card installed in your phone and the

amount you can use to store photos, videos, music, and other files.

Unmount SD card

Unmounts the microSD card from your phone so that you can format the

card or safely remove it when the phone is on. This setting is dimmed if there

is no microSD card installed, if you have already unmounted it, or if you have

mounted the microSD card on your computer.

100

Format SD card

Permanently erases everything on a microSD card and prepares it for use with

your phone. You must unmount a microSD card before you can format it.

Internal storage10.4.2

Available space

Touch to display the amount of internal phone storage used by the operating

system, its components, applications (including those you downloaded), and

their permanent and temporary data.

If a warning message comes up saying that phone memory is limited,

you are required to free up space by deleting some unwanted

applications, downloaded files etc.

Battery10.5

Touch to open a list of the applications and operating system components you

have used since you last connected the phone to a power source, sorted by

the amount of power they have used. Touch an application in the list to view

details about its power use and, if available, touch a button to open a settings

or information screen for that component or application.

Applications10.6

You use the Applications settings to view details about the applications

installed on your phone, to manage their data and force them to stop, and to

set whether you want to permit installation of applications that you obtain

from web sites and email.

Location services10.7

Use the Location service settings to set your preferences for using and sharing

your location when your search for information and use location-aware

applications, such as Google Maps. You can also configure settings that help

secure your phone and its data.

Use Google's location service

Mark the check box to use information from Wi-Fi and mobile networks to

determine your approximate location, for use in Google Maps, when you

search, and so on. When you select this option, you’re asked whether you

consent to sharing your location anonymously with Google’s location service.

Use GPS satellites

Check to use your phone’s global positioning system (GPS) satellite receiver

to pinpoint your location within an accuracy as close as several metres (“street

level”). The process of accessing the GPS satellite and setting your phone's

precise location for the first time will require up to 5 minutes. You will need to

stand in a place with a clear view of the sky and avoid moving. After this, GPS

will only need 20-40 seconds to identify your precise location.

101

102

Credential storage10.8.5

Trusted credentials

Mark the check box to allow applications to access your phone’s encrypted store

of secure certificates and related passwords and other credentials. Credential

storage is used to establish some kinds of VPN and Wi-Fi connections. If you

have not set a password for the credential storage, this setting is dimmed.

Install from SD card

Touch to install encrypted certificates from the microSD card.

Clear storage

Touch to clear credential storage of all contents and reset its password.

Language & input10.9

Use the Language & input settings to select the language for the text on your

phone and for configuring the onscreen keyboard, including words that you’ve

added to its dictionary.

Language10.9.1

Touch to select language and region you want.

Android keyboard 10.9.2

For phones with physical keyboards, unmark to disable the onscreen

keyboard.

Security10.8

Set up screen lock10.8.1

None• Touch to disable screen unlock security.

Slide• Touch to slide to unlock screen.

Pattern• Touch to draw pattern to unlock screen.

PIN• Touch to enter a numeric PIN to unlock screen.

Password• Touch to enter a password to unlock screen.

SIM card lock10.8.2

Set up SIM card lock

Opens a screen where you can configure the PIN required to use the phone,

and where you can change the SIM PIN.

Passwords10.8.3

Make passwords visible

Mark the check box to show password as you type.

Device administrators10.8.4

Touch to add or remove device administrators.

103

104

The Android keyboard settings apply to the onscreen keyboard that is

included with your phone. The correction and capitalization features affect

all languages (including English version) of the keyboard. Available options

are as follows:

Input languages•

Touch to set input language.

Auto-capitalization •

Mark the check box to have the onscreen keyboard automatically capitalize

the first letter of the first word after a period, the first word in a text field, and

each word in name fields.

Vibrate on keypress •

Mark the check box to have the phone vibrate briefly each time you touch a

key on the onscreen keyboard.

Sound on keypress •

Mark the check box to play a brief sound each time you touch a key on the

onscreen keyboard.

Popup on keypress•

Mark or unmark the check box to activate/deactivate the function.

Voice input key•

Touch to display the Mic button on keyboard.

Auto correction•

Correct commonly typed mistakes.

Show correction suggestions •

Display suggested words while typing.

Voice search settings10.9.3

Touch to set Google voice recognition items:

Language• Choose an input language

Speech output• Set speech output always speak or Hands-free only.

Block offensive •

words

Mark the check box to hide recognized offensive voice

results

Hotword •

detection

Mark the check box to activate/deactivate this

function.

105

106

Text-to-speech settings 10.9.4 (1)

You use the Text-to-Speech settings to configure the Android text-to-speech

synthesizer, for applications like TalkBack that can take advantage of it.

If you don’t have speech synthesizer data installed, only the Install voice data

setting is available.

Listen to an example

Touch to play a brief sample of the speech synthesizer, using your current

settings.

Install voice data

If your phone does not have speech synthesizer data installed, connect to

Android Market and find yourself guided through the process of downloading

and installing the data. This setting is not available if the data is already

installed.

Speech rate

Touch to open a dialog where you can select how quickly you want the

synthesizer to speak.

Language

Touch to open a dialog where you can select the language of the text you want

the synthesizer to read.

(1) Availability depending on your country and network operator.

Backup and reset10.10

Back up my data

Mark the check box to back up your phone’s settings and other application

data to Google Servers, with your Google Account. If you replace your phone,

the settings and data you’ve backed up are restored onto the new phone the

first time you sign in with your Google Account. If you mark this option, a wide

variety of settings and data are backed up, including your Wi-Fi passwords,

bookmarks, a list of the applications you’ve installed, the words you’ve added

to the dictionary used by the onscreen keyboard, and most of the settings

that you configure with the Settings application. If you unmark this option,

you stop backing up your settings, and any existing backups are deleted from

Google Servers.

Automatic restore

Mark the check box to restore your backed up settings or other data when you

reinstall an application.

Factory data reset

Erase all of your personal data from internal phone storage, including

information about your Google Account, any other accounts, your system and

application settings, and any downloaded applications. Resetting the phone

does not erase any system software updates you’ve downloaded or any files

on your microSD card, such as music or photos. If you reset the phone in this

way, you’re prompted to re-enter the same kind of information as when you

first started Android.

When you are unable to power on your phone, there is another way to perform

a factory data reset by using hardware keys. Hold down the Volume up key and

press the Power key at same time until the screen lights up.

107

108

Accounts10.11

Use the Accounts settings to add, remove, and manage your Google and other

supported accounts. You also use these settings to control how and whether

all applications send, receive, and synchronise data on their own schedules,

and whether all applications can synchronise user data automatically.

Gmail, Google Calendar, and other applications may also have their own

settings to control how they synchronise data; see the sections on those

applications for details.

General sync settings10.11.1

Background data

Mark the check box to permit applications to synchronise data in the

background, whether or not you are actively working in them. Unmarking this

setting can save battery power and lowers (but does not eliminate) data use.

Auto-sync

Mark the check box to permit applications to synchronise data on their own

schedule. If you unmark this setting, you must touch an account in the list on

this screen, press the Menu key, and touch Sync now to synchronise data for

that account.

Synchronizing data automatically is disabled if Background data is unchecked.

In that case, the Auto-sync checkbox is dimmed.

Manage accounts10.11.2

The rest of this screen lists the Google Accounts and other accounts you’ve

added to the phone. If you touch an account in this screen, its account screen

opens.

This screen contains different options, depending on the kind of account. For

Google Accounts, it lists the kinds of data you can synchronise to the phone,

with checkboxes so you can turn synchronizing on and off for each kind. You

can also press the Menu key and touch Sync now to synchronise data. Touch

Remove Account to remove the account along with all its data (contacts,

mail, settings, and so on).

Date & time10.12

Use Date & time settings to customise your preferences for how date and time

are displayed.

Automatic

Mark the check box to use network-provided values. Or unmark to set all

values manually.

Set date

Touch to open a dialog where you can manually set the phone’s date.

Set time

Opens a dialog where you can set the phone’s time.

Select time zone

Touch to open a dialog where you can set the phone’s time zone.

Use 24-hour format

Mark the check box to display the time using 24-hour clock format.

Select date format

Touch to open a dialog where you can select the format for displaying dates.

109

110

Accessibility 10.13 (1)

You use the Accessibility settings to configure any accessibility plug-ins you

have installed on your phone.

TalkBack

Mark the check box to have an installed speech synthesizer speak the labels or

namesofitemsasyounavigatethephone’suserinterface.、

Large text

Mark the check box to have large text in screen.

Power button ends call

Mark the check box to end a call by pressing the Power key during the call.

Development10.14

The Development screen contains settings that are useful for developing

Android applications. For full information, including documentation of the

Android applications and development tools, see the Android developer web

site (http://developer.android.com).

(1) Availability depending on your country and network operator.

USB debugging:• mark the check box to permit debugging tools on a

computer to communicate with your phone via a USB connection.

Stay awake:• mark the check box to prevent the screen from dimming and

locking when the phone is connected to a charger or to a USB device that

provides power. Don’t use this setting with a static image on the phone for

long periods of time, or the screen may be marked with that image.

Allow mock locations:• mark the check box to permit a development tool

on a computer to control where the phone believes it is located, rather than

using the phone’s own internal tools for this purpose

About phone10.15

Actually this contains information about a lot of things ranging from Legal

information, Model number, Firmware version, Baseband version, Kernel

version, Build number to those listed below:

Status

This contains the status of the Battery charging level, My phone number,

Network, Signal strength, Mobile network type, Service state, Roaming, Mobile

network state, IMEI, IMEI SV, Wi-Fi MAC address, Bluetooth address, Up time.

Legal information

Touch to view legal information.

Software updates

Touch to check for system updates.

111

112

Making the most of your phone 11

Android Manager11.1

You can download the Android Manager PC suite software for free from the

website:www.vodafone.com/smart3

The PC suite includes:

Contacts•

It allows you to back up contact entries so that you don't have to worry about

losing, breaking, or changing your phone.

Messages•

It allows you to write messages from your computer instead of using the

phone's onscreen keyboard. It also manages your messages.

Photos•

It allows you to easily import photos from either your PC or your phone, and

organize them in different albums.

Videos•

It allows you to playback video files from your PC and upload them to a folder

on your phone.

Music•

It allows you to quickly find your favourites on your PC, manage your library,

and set up playlists for your phone's music player.

Application •

It allows you to import downloaded mobile applications and have them

installed onto your phone upon synchronisation.

File•

It allows you to organise your phone's files with just a few clicks, so they will

appear on your phone where you want them.

Sync•

It allows you to synchronise the Contacts and Calendar in Outlook/ Outlook

Express and handset.

Supported Operating Systems

Windows XP/Vista/Windows 7.

FOTA Upgrade11.2

Using FOTA Upgrade tool you can update your phone's software.

To access Software updates, please open notification panel and touch

icon , then press About phone > Software updates. Or you touch icon

and access Settings > About phone > Software updates. Touch Check for

updates, and the phone will search for the latest software. If you want to

update the system, please touch the button Download, after it done please

touch Install to complete the upgrade. Now your phone's software will have

the latest version.

You should turn on data connection before searching for updates.

Settings for auto-check intervals and reminders about upgrades are also

available once you restart the phone.

If you have chosen auto-check, when the system discovers the new version,

the icon will appear in the status bar. Touch the notification to access the

Software Updates directly.

During FOTA downloading or updating,to avoid errors in locating the

correct update packages, do not change your default storage location.

113

114

Product Safety Information12

Pictograms and Graphic Symbols

Read the Safety Information section of this user guide on page 114

Do not use while re-fuelling

Do not use hand-held while driving

This device may produce a bright or flashing light

When using the phone, make sure it is kept at least 10 mm away

from your head or body.

Do not dispose of in a fire

Small parts may cause a choking hazard

Avoid contact with magnetic media

This device may produce a loud sound

Avoid extreme temperatures

Keep away from pacemakers and other personal medical devices

Avoid contact with liquid, keep dry

Switch off when instructed in hospitals and medical facilities

Do not try to disassemble

Switch off when instructed in aircraft and airports

Do not rely on this device for emergency communications

Switch off in explosive environments

Only use approved accessories

Product Safety Information

RF Exposure

General Statement on RF energy

Your phone contains a transmitter and a receiver. When it is ON, it receives and transmits

RF energy. When you communicate with your phone, the system handling your call

controls the power level at which your phone transmits.

Specific Absorption Rate (SAR)

Your mobile device is a radio transmitter and receiver. It is designed not to exceed the

limits for exposure to radio waves recommended by international guidelines. These

guidelines were developed by the independent scientific organisation ICNIRP and include

safety margins designed to ensure the protection of all persons, regardless of age and

health.

The guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR.

The SAR limit for mobile devices is 2 W/kg and the highest SAR value for this device when

tested at the ear was 0.543 W/kg(1). As mobile devices offer a range of functions, they can

be used in other positions, such as on the body as described in this user guide.

As SAR is measured utilising the device’s highest transmitting power, the actual SAR

of this device while operating is typically below that indicated above. This is due to

automatic changes to the power level of the device to ensure it only uses the minimum

power required to communicate with the network.

Body worn operation

Important safety information regarding radiofrequency radiation (RF) exposure.

To ensure compliance with RF exposure guidelines the phone must be used with a

minimum of 10 mm separation from the body.

Failure to observe these instructions could result in your RF exposure exceeding the

relevant guideline limits.

"The highest SAR value for this mobile phone when tested for use at the body and

compliance against the standard is 0.757 W/kg. While there may be differences between

the SAR levels on various phones and at various positions, they all meet the relevant

International guidelines and EU requirements for RF (radio-waves) exposure"

Limiting exposure to radio frequency (RF) fields

For individuals concerned about limiting their exposure to RF fields, the World Health

Organisation (WHO) provides the following advice:

Precautionary measures: Present scientific information does not indicate the need for any

special precautions for the use of mobile phones. If individuals are concerned, they might

choose to limit their own or their children’s RF exposure by limiting the length of calls, or

using 'hands-free' devices to keep mobile phones away from the head and body.

(1) The tests are carried out in accordance with IEC standard PT62209-1.

115

116

Further information on this subject can be obtained from the WHO home page http://

www.who.int/peh-emf WHO Fact sheet 193: June 2000.

Regulatory information

The following approvals and notices apply in specific regions as noted.

Vodafone 975: Vodafone 975N:

117

118

Distraction

Driving

Full attention must be given to driving at all times in order to reduce the risk of an

accident. Using a phone while driving (even with a hands free kit) causes distraction and

can lead to an accident. You must comply with local laws and regulations restricting the

use of wireless devices while driving.

Operating machinery

Full attention must be given to operating machinery in order to reduce the risk of an

accident.

Product Handling

General Statement on handling and use

You alone are responsible for how you use your phone and any consequences of its use.

You must always switch off your phone wherever the use of a phone is prohibited.

Use of your phone is subject to safety measures designed to protect users and their

environment.

• Always treat your phone and its accessories with care and keep it in a clean and dust-free

place.

• Do not expose your phone or its accessories to open flames or lit tobacco products.

• Do not expose your phone or its accessories to liquid, moisture or high humidity.

• Do not drop, throw or try to bend your phone or its accessories.

• Do not use harsh chemicals, cleaning solvents, or aerosols to clean the device or its

accessories.

• Do not paint your phone or its accessories.

•

Do not attempt to disassemble your phone or its accessories, only authorised personnel

must do so.

• Do not expose your phone or its accessories to extreme temperatures, minimum -10 and

maximum +50 degrees Celsius.

• Please check local regulations for disposal of electronic products.

Do not carry your phone in your back pocket as it could break when you sit down.

Small Children

Do not leave your phone and its accessories within the reach of small children or allow

them to play with it.

They could hurt themselves or others, or could accidentally damage the phone.

Your phone contains small parts with sharp edges that may cause an injury or which could

become detached and create a choking hazard.

Demagnetisation

To avoid the risk of demagnetisation, do not allow electronic devices or magnetic media

close to your phone for a prolonged time.

Electrostatic discharge (ESD)

Do not touch the SIM card’s metal connectors.

Antenna

Do not touch the antenna unnecessarily.

Normal use position

When placing or receiving a phone call, hold your phone to your ear, with the bottom

towards your mouth or as you would a fixed line phone.

Air Bags

Do not place a phone in the area over an air bag or in the air bag deployment area.

Store the phone safely before driving your vehicle.

Seizures/Blackouts

This phone is capable of producing bright flashing lights.

Repetitive Motion Injuries

To minimise the risk of RSI, when texting or playing games with your phone:

• Do not grip the phone too tightly

• Press the buttons lightly

• Make use of the special features in the handset which minimise the number of buttons

which have to be pressed, such as message templates and predictive text

• Take lots of breaks to stretch and relax

119

120

Emergency Calls

This phone, like any wireless phone, operates using radio signals, which cannot guarantee

connection in all conditions. Therefore, you must never rely solely on any wireless phone

for emergency communications.

Loud Noise

This phone is capable of producing loud noises which may damage your hearing.

Prolonged exposure to music at full volume on the music player may damage the

listener's hearing. Use the recommended headphones only.

PROTECT YOUR HEARING

To prevent possible hearing damage, do not listen at high volume levels for

long periods. Exercise caution when holding your device near your ear while the

loudspeaker is in use.

Bright Light

This phone is capable of producing flashes of light, do not use it too close to the eyes.

Phone Heating

Your phone may become warm during charging and during normal use.

Electrical Safety

Accessories

Use only approved accessories.

Do not connect with incompatible products or accessories.

Take care not to touch or allow metal objects, such as coins or key rings, to contact or

short-circuit the battery terminals.

Connection to a Car

Seek professional advice when connecting a phone interface to the vehicle's electrical

system.

Faulty and Damaged Products

Do not attempt to disassemble the phone or its accessories.

Only qualified personnel must service or repair the phone or its accessories.

If your phone or its accessories have been submerged in water, punctured, or subjected

to a severe fall, do not use them until you have taken it to be checked at an authorised

service centre.

Battery Handling & Safety

Always switch the device off and disconnect the charger before removing the battery.

Only use the battery and charger supplied, or manufacturer approved replacements

intended for use with your phone. Using other batteries and chargers could be dangerous.

Do not disassemble or short-circuit the battery. Accidental short-circuiting can occur if a

metallic object such as a key, paper clip, or pen touches the terminals of the battery.

Improper battery use may result in a fire, explosion, or other hazard. If you believe the

battery has been damaged, do not use it, take it to a service centre for testing.

Interference

General statement on interference

Care must be taken when using the phone in close proximity to personal medical devices,

such as pacemakers and hearing aids.

Pacemakers

Pacemaker manufacturers recommend that a minimum separation of 15 cm be

maintained between a mobile phone and a pacemaker to avoid potential interference

with the pacemaker. To achieve this use the phone on the opposite ear to your pacemaker

and do not carry it in a breast pocket.

Hearing Aids

People with hearing aids or other cochlear implants may experience interference noises

when using wireless devices or when one is nearby. The level of interference will depend

on the type of hearing device and the distance from the interference source, increasing

the separation between them may reduce the interference. You may also consult your

hearing aid manufacturer to discuss alternatives.

Medical devices

Please consult your doctor and the device manufacturer to determine if operation of your

phone may interfere with the operation of your medical device.

Hospitals

Switch off your wireless device when requested to do so in hospitals, clinics or health

care facilities. These requests are designed to prevent possible interference with sensitive

medical equipment.

Aircraft

Switch off your wireless device whenever you are instructed to do so by airport or airline

staff.

Consult the airline staff about the use of wireless devices on board the aircraft, if your

device offers a ‘flight mode’ this must be enabled prior to boarding an aircraft.

Interference in cars

Please note that because of possible interference to electronic equipment, some vehicle

manufacturers forbid the use of mobile phones in their vehicles unless a handsfree kit

with an external antenna is included in the installation.

121

122

Explosive environments

Petrol stations and explosive atmospheres

In locations with potentially explosive atmospheres, obey all posted signs to turn off

wireless devices such as your phone or other radio equipment.

Areas with potentially explosive atmospheres include fuelling areas, below decks on

boats, fuel or chemical transfer or storage facilities, areas where the air contains

chemicals or particles, such as grain, dust, or metal powders.

Blasting Caps and Areas

Turn off your mobile phone or wireless device when in a blasting area or in areas posted

with notifications requesting "two-way radios" or "electronic devices" are turned off to

avoid interfering with blasting operations.

Your telephone is a transceiver that operates on GSM in quad-band

(850/900/1800/1900MHz) or UMTS in dual-band (900/2100MHz).

This equipment is in compliance with the essential requirements and other relevant

provisions of Directive 1999/5/EC. The entire copy of the Declaration of Conformity for

your telephone can be obtained through our website: http://www.vodafone.com/smart3

Protection against theft (1)

Your telephone is identified by an IMEI (phone serial number) shown on the packaging

label and in the product’s memory. We recommend that you note the number the first

time you use your telephone by entering * # 0 6 # and keep it in a safe place. It may be

requested by the police or your operator if your telephone is stolen. This number allows

your mobile telephone to be blocked preventing a third person from using it, even with

a different SIM card.

(1) Contact your network operator for service availability.

This symbol on your telephone, the battery and the accessories means that

these products must be taken to collection points at the end of their life:

- Municipal waste disposal centres with specific bins for these items of

equipment

- Collection bins at points of sale.

They will then be recycled, preventing substances being disposed of in the environment,

so that their components can be reused.

In European Union countries:

These collection points are accessible free of charge.

All products with this sign must be brought to these collection points.

In non European Union jurisdictions:

Items of equipment with this symbol are not to be thrown into ordinary bins if your

jurisdiction or your region has suitable recycling and collection facilities; instead they are

to be taken to collection points for them to be recycled.

CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

123

124

Telephone warranty13

WARRANTY TERMS AND CONDITIONS

1. Vodafone undertakes the warranty of this Mobile Phone for a period of two

(2) years from the date of Purchase by the original owner (not transferable)

under normal use.

2. The Battery has a limited warranty for twelve (12) months, and Charger for

twenty-four (24) months against manufacturing defects. Other accessories

have a limited warranty for twenty-four (24) months against manufacturing

defects.

3. This Warranty does not cover damage resulting from;

a) Normal wear & tear of the equipment;

b) Defects and damages due to the equipment being used other than its

normal and customary manner;

c) An unauthorized disassembly, repair, alteration or modification being

carried out;

d) Misuse, abuse, negligence or accident howsoever caused;

e) Defects or damage arising from improper testing, operation, maintenance,

installation, or any alteration or modification;

f) Defects or damage due to spillage of food or liquids, corrosion, rust or the

use of wrong voltage;

g) Scratches or damage to plastic surfaces and all other externally exposed

parts that are due to normal customer use;

4. The Handset requiring service/repair must be delivered at the user’s cost.

5. This warranty will be null and void in any of the following events:

a) If the serial number or warranty seal on the equipment has been defaced or

removed.

b) If any term contained in this warranty has been altered or modified in any way

without prior written consent of Vodafone.

6. The limited warranty extends only to customer who purchase the product in one of the

countries (or areas) set forth at the end of this document. The limited warranty is only

valid in Vodafone’s intended country (or area) of sale of the Product.

7. If the product is returned to Vodafone after the expiration of the warranty period,

Vodafone’s normal service policies shall apply and the Consumer will be charged

accordingly.

a) Vodafone neither assumes for it any other obligation or liability beyond that which is

expressly provided for in this limited warranty.

b) All warranty information, product features and specifications are subject to change

without notice.

8. THIS WARRANTY IS IN LIEU OF ANY AND OTHER WARRANTIES EXPRESSED OR IMPLIED,

SPECIFICALLY INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILlTY OR FITNESS

FOR A PARTICULAR PURPOSE. VODAFONE ASSUMES NO LIABILITY FOR THE BREACH

OF THE WARRANTY BEYOND CORRECTING THE BREACH IN THE MANNER DESCRIBED

ABOVE. IN NO EVENT SHALL VODAFONE BE LIABLE FOR CONSEQUENCES.

125

126

Accessories 14

The latest generation of Vodafone GSM mobile phones offers a built-in handsfree

feature that allows you to use the telephone from a distance, placed on a table

for example. For those who prefer to keep their conversations confidential, an

earpiece is also available known as the headset.

1. Charger

2. Battery

3. USB cable

4. Stereo headset

Only use your telephone with the batteries, chargers and accessories in

your box.

Specifications15

Processor MTK 6575

Platform Android 4.1

Memory ROM: 4GB, RAM: 1GB

Dimensions (LxWxT) (NFC Version) Size: 123.2 x 64.4 x 11.3 mm

(Non NFC Version) Size: 123.2 x 64.4 x 10.9 mm

Weight Around 136 grams with battery

Display 4.0-inch TN-LCD touch screen with 800 x 480

WVGA resolution

Network UMTS:

Dual band 900/2100 MHZ

GSM/GPRS/EDGE:

Quad-bad 850/900/1800/1900 MHZ

GPS Assisted GPS/internal GPS Antenna

Connectivity Bluetooth V4.0+ EDR•

Wifi:802.11b/g/n•

3.5mm audio jack•

Micro-USB•

Camera 5 Megapixel color Autofocus camera

Audio supported

formats

AAC, AAC+, AAC Enhanced, WB AMR, MP3, Midi

Video supported

formats

H.263, H.264

127

Battery Recharge lithium-ion battery•

Capacity: 1500 mAh•

Expansion Slot microSD Memory card

Special Features 1.G-sensor •

2.E-compass•

3.Light and proximity sensor •

Note Specifications are subject to change without prior notice.

Vodafone 975 Instruction Manual 975N EN

Navigation menu

Versions of this User Manual:

Views

Navigation
