Some services and apps may not be available in all

countries. Please ask in-store for details.

Android is a trademark of Google Inc. The Android robot

is reproduced or modied from work created and shared

by Google and used according to terms described in the

Creative Commons 3.0 Attribution Licence.

logos are trade marks of Vodafone Group. Any product

or company names mentioned herein may be the trade

marks of their respective owners.

English - CJA27J4VDAAA

Smart 4 fun

User manual

IP5032_VF685_UM_Eng_GB_Smart4fun_02_140818.indd 2-3 2014-8-18 15:43:30

Notice

Your phone is made exclusively for Vodafone by TCT.

No part of this manual may be reproduced or transmitted

in any form or by any means without prior written consent

of TCT.

Trademarks

VODAFONE, the Vodafone logos are trade marks of the

Vodafone Group. Other product and company names

mentioned herein may be trade marks of their respective

owners.

TCT is a trademark of TCT.

The Bluetooth® word mark and logos are owned by Bluetooth®

SIG, Inc. Bluetooth® QDID (Qualified Design ID): B021282

microSD™ is a trade mark of SD Card Association.

Co.,Ltd.

Licences

microSD Logo is a trademark.

The Bluetooth word mark and logos are owned by

the Bluetooth SIG, Inc. and any use of such marks

by TCT Mobile Limited and its affiliates is under

license. Other trademarks and trade names are

those of their respective owners.

VF685 Bluetooth Declaration

ID B021282

The Wi-Fi Logo is a certification mark of the Wi-Fi

Alliance.

Google, the Google logo, Android, the Android

logo, Google SearchTM, Google MapsTM, GmailTM,

YouTube, Google Play Store, Google LatitudeTM

and HangoutsTM are trademarks of Google Inc.

The Android robot is reproduced or modified from work

created and shared by Google and used according to terms

described in the Creative Commons 3.0 Attribution License

(the text will show when you touch and hold Google legal in

Settings > About phone > Legal information) (1).

(1) This may not be available depending on your country.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:1-Sec2:2IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:1-Sec2:2 2014-8-18 14:16:302014-8-18 14:16:30

You have purchased a product which uses the open source

(http://opensource.org/) programs mtd, msdosfs, netfilter/

iptables and initrd in object code and other open source

programs licensed under the GNU General Public License and

Apache License.

We will provide you with a complete copy of the corresponding

source codes upon request within a period of three years from

the distribution of the product.

You may download the source codes from vodafone.com/

devices/smart4fun. The provision of the source code is free of

charge from the internet.

Notice

The information in this manual is subject to change without

notice. Every effort has been made in the preparation of this

manual to ensure accuracy of the contents, but all statements,

information, and recommendations in this manual do not

constitute a warranty of any kind, expressed or implied. Read

the safety precautions and safety information carefully to

ensure that you use this wireless device in a correct and safe

manner.

TCT Mobile Limited Address:

Room 1910-12A, Tower 3, China HK City, 33 Canton Road,

Tsimshatsui, Kowloon, Hong Kong

1 Table of Contents

1 Your phone ........................................................... 7

1.1 Keys and connectors ............................................... 7

1.2 Getting started ........................................................... 9

1.3 Home screen .............................................................13

1.4 Widgets list .................................................................21

2 Text input ............................................................21

2.1 Using the onscreen keyboard ............................21

2.2 Text editing ................................................................22

3 Phone call, Call log & Contacts ...................23

3.1 Phone call ..................................................................23

3.2 View your call history ............................................30

3.3 People ..........................................................................30

4 Messaging & Email ..........................................37

4.1 Messaging ..................................................................37

4.2 Gmail/Email ..............................................................44

5 Calendar, Alarm clock & Calculator ..........47

5.1 Calendar ......................................................................47

5.2 Clock .............................................................................49

5.3 Calculator ...................................................................50

6 Getting connected ...........................................52

6.1 Connecting to the Internet .................................52

6.2 Browser ........................................................................55

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:3-Sec2:4IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:3-Sec2:4 2014-8-18 14:16:302014-8-18 14:16:30

6.3 Connecting to Bluetooth devices ...................60

6.4 Connecting to a computer via USB .................61

6.5 Sharing your phone’s mobile data

connection .............................................................62

6.6 Connecting to virtual private networks .........64

7 Google Play Store ...........................................66

8 Multimedia applications ...............................67

8.1 Camera.........................................................................67

8.2 Gallery ..........................................................................69

8.3 Play music ..................................................................72

8.4 Video player ...............................................................74

9 Google Maps ........................................................ 75

9.1 Get My Location .......................................................75

9.2 Search for a location ..............................................76

9.3 Save a location .........................................................76

9.4 Open Street View for a location ........................77

9.5 Get driving, public transportation

or walking directions ............................................. 77

10 Others ..................................................................78

10.1 File Manager ..............................................................78

10.2 Sound Recorder .......................................................78

10.3 Radio .............................................................................79

11 Settings ...............................................................81

11.1 Wireless & networks ...............................................81

11.2 Device ...........................................................................84

11.3 Personal.......................................................................86

11.4 Accounts .....................................................................93

11.5 System .........................................................................93

12 Update your phone’s system .....................100

13 Product safety information ........................101

14 Telephone warranty ......................................111

15 Accessories .....................................................113

16 Specifications ..................................................114

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:5-Sec2:6IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:5-Sec2:6 2014-8-18 14:16:302014-8-18 14:16:30

1 Your phone

1.1 Keys and connectors

Power key

Micro-USB connector

Back key

Home key

Menu key

Touch screen

LED light

Headset connector

Volume up

Volume down

Camera

Menu key

• Touch: display menu options. On the Home

screen, touch to access Wallpapers, Widgets

and Settings.

• Touch & hold: this shows you images of your most

recently-used apps. Touch an image to open the

associated app, or swipe it left or right to remove

it from the list.

Home key

• While on any app or screen, touch the Home key

to return to the main Home screen.

• Touch & hold this key to access Google Now &

Voice Search.

Back key

• Touch to go back to the previous screen,

or to close a dialogue box, options menu, the

Notification panel, etc.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:7-Sec2:8IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:7-Sec2:8 2014-8-18 14:16:302014-8-18 14:16:30

910

Power key

• Press: activate the lock screen/wake up the screen.

• Press and hold: show the pop-up menu to select

from Power off, Restart, Airplane mode, and

icons for ringing modes.

Press and hold: power on.

• Press and hold the Power key and the Volume

down key to capture a screenshot.

Volume keys

• During a call, they adjust the earpiece or headset

volume.

• In Music/Video/Streaming mode, they adjust the

media volume.

• In general mode, they adjust the ringtone volume.

• Mute the ringtone of an incoming call.

• In Camera mode, pressing either volume key

captures a photo.

1.2 Getting started

1.2.1 Set-up

Removing or installing the back cover

Inserting or removing the SIM card

You must insert your SIM card to make phone calls. Please

power off your phone before inserting or removing the SIM

card.

Place the SIM card with the chip facing downwards and slide

it into its housing. Make sure that it is correctly inserted. To

remove the SIM card, press and slide it out.

Your phone only supports mini-SIM cards. Do not

attempt to insert other SIM card types, like micro-SIMs

or nano-SIMs, otherwise this may cause damage to

your phone.

Installing or removing the battery

Please power off your phone before removing the battery.

• Insert the battery and click it into place, then close the cover.

• Unclip the cover, then remove the battery.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:9-Sec2:10IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:9-Sec2:10 2014-8-18 14:16:312014-8-18 14:16:31

11 12

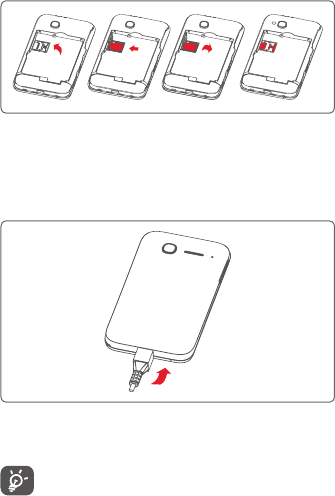

Installing the microSD card

First remove the battery. Slide the microSD holder to the left

to unlock it, then lift it up. Place the microSD card in the space

provided, with the gold contacts facing down. Then fold the

microSD holder down and slide it to the right until it locks.

Charging the battery

To charge the battery, connect the charger to your phone

and mains socket. You can also charge your phone via a USB

cable.

To reduce energy wastage, disconnect your charger

from the plug when the battery is fully charged.

To reduce your phone’s power consumption, switch

off Wi-Fi, Bluetooth or apps running in the background

when not needed. In Settings you can also lower the

brightness of the screen, and shorten the length of

time before the screen goes to sleep.

1.2.2 Power on your phone

Hold down the Power key until the phone powers on. It will

take a few seconds before the screen lights up. Unlock your

phone (Slide, PIN, password or pattern) if necessary and

confirm. The Home screen will be displayed.

If you do not know your PIN code or if you have forgotten it,

contact your network operator. Do not leave your PIN code

with your phone. Store this information in a safe place when

not in use.

Set up your phone for the first time

The first time you power on the phone you will be asked to set

the following options: language, mobile data, Google account,

date & time, etc.

1 Select the phone’s language, then touch Start.

2 Select Mobile Data, then touch Next.

3 Setup Google account: Touch Setup now. If you have a

Google Account, touch Existing to sign in, then enter your

user name and password. If you forget your password, you

can go to http://www.google.com/ to retrieve it. If you don’t

own a Google Account, you are prompted to create one by

touching New.

4 Touch Next to go to Date & Time, to set your date and

time zone (you can also choose Automatic time zone), then

touch Finish to confirm.

If you power on your phone with no SIM card inserted you will

still be able to connect to a Wi-Fi network to sign into your

Google account and to use some features.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:11-Sec2:12IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:11-Sec2:12 2014-8-18 14:16:312014-8-18 14:16:31

13 14

1.2.3 Power off your phone

Hold down the Power key from the Home screen until the

Phone options appear, then select Power off.

1.3 Home screen

You can bring all your favourite items (apps, shortcuts, folders

and widgets) to your Home screen for quick access. Touch the

Home key to switch to the Home screen.

Status bar

• Status/Notification indicators

• Touch and drag down to open the

Notification panel

Application tab

• Touch to open All apps

Slide left or right to view other panels on

the Home screen

Google Search bar

• Touch a to enter text search screen

• Touch b to enter voice search screen

Favourite tray apps

• Touch to enter the app

• Touch and hold to move or change apps

The Home screen extends on the right side of the screen to

allow more space for adding apps, shortcuts, etc. Slide the

Home screen horizontally left and right to get a complete view

of the Home screen. The white spot in the lower part of the

screen indicates which screen you are viewing.

1.3.1 Using the touchscreen

Touch

To access an app, touch it with your finger.

Touch and hold

Touch and hold the Home screen to access the available

options for setting the wallpaper.

Drag

Touch and hold an item to be able to drag it to another

location.

Slide/Swipe

Slide the screen to scroll up and down lists, screens of apps,

images, web pages, etc.

Flick

Similar to swiping, but flicking makes it move quicker.

Pinch/Spread

Place your fingers of one hand on the screen surface and draw

them apart or together to scale an element on the screen.

Rotate

Automatically change the screen orientation from portrait to

landscape by turning the phone sideways.

1.3.2 Status bar

From status bar, you can view both phone status (on the right

side) and notification information (on the left side).

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:13-Sec2:14IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:13-Sec2:14 2014-8-18 14:16:312014-8-18 14:16:31

15 16

Status icons

GPRS connected Alarm is set

GPRS in use Roaming

EDGE connected No SIM card inserted

EDGE in use Vibrate mode

3G connected Ringer is silenced

3G in use Phone microphone

is mute

HSPA (3G+)

connected Battery is very low

HSPA (3G+) in use Battery is low

HSPAP (3G+)

connected Battery is partially

drained

HSPAP (3G+) in use Battery is full

Connected to a Wi-Fi

network Battery is charging

Bluetooth is on Headset connected

Connected to a

Bluetooth device No signal

Airplane mode Signal strength

Notification icons

New GmailTM message Call in progress

New text or

multimedia message Missed call

Problem with SMS or

MMS delivery Call on hold

New Hangouts

message Call forwarding is on

New voicemail Uploading data

Upcoming event Downloading data

Data is synchronising Download finished

No microSD card

installed

An open Wi-Fi network

is available

Song is playing Phone is connected

via USB cable

Screenshot error Radio is on

USB tethering is on System update

available

Portable Wi-Fi hotspot

is on Connected to VPN

Screenshot captured International Roaming

is enabled

Carrier data use

threshold approaching

or exceeded

International Roaming

is disabled

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:15-Sec2:16IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:15-Sec2:16 2014-8-18 14:16:312014-8-18 14:16:31

17 18

Notification panel

Touch and drag down the Status bar to open the Notification

panel. Touch and drag up to close it. From the Notification

panel, you can open items and other reminders indicated by

notification icons or view wireless service information.

Touch to access Quick setting bar

Touch a notification and slide it sideways to delete it.

Touch the icon to clear all event–based notifications (other

ongoing notifications will remain).

Touch and then the Settings icon to access Settings.

Quick setting bar

• Touch icons to enable/disable functions

or to change modes

• Touch & hold to show the settings

1.3.3 Search bar

The phone provides a Search function which can be used to

locate information within applications, the phone or the web.

a Search by text

• Touch Search bar from the Home screen.

• Enter the text/phrase you want to search for.

• Touch on the keyboard if you want to search on the web.

b Search by voice

• Touch from Search bar to display a dialogue screen.

• Speak the word/phrase you want to search for. A list of

search results will display for you to select from.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:17-Sec2:18IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:17-Sec2:18 2014-8-18 14:16:322014-8-18 14:16:32

19 20

1.3.4 Lock/Unlock your screen

To protect your phone and privacy, you can lock your phone

screen with a variety of patterns, PIN or password, etc. through

Settings > Security > Screen lock.

To create a screen unlock pattern (Follow onscreen

instructions)

• Drag down the Notification panel and touch and then the

Settings icon to access Settings, then touch Security >

Screen lock > Pattern.

• Draw your own pattern.

Draw your unlock pattern

Touch to confirm by drawing pattern

again

To create a screen unlock PIN/Password

• Touch Settings > Security > Screen lock > PIN or

Password.

• Set your PIN or password.

To lock phone screen

Press the Power key once to lock the screen.

To unlock phone screen

Press the Power key once to light up the screen, draw the

unlock pattern you have created or enter PIN or password to

unlock the screen.

If you have chosen Slide as the screen lock, touch and drag

the icon right to unlock the screen.

1.3.5 Personalise your Home screen

Add an app or widget

Touch the Application tab or Menu key, then touch and

hold the app or widget to activate the Move mode, and drag

the item to any Home screen.

Move an app or widget

Touch and hold the item to be repositioned to activate the

Move mode, drag the item to the desired position and then

release. You can move items both on the Home screen and

the Favourite tray. Hold the icon on the left or right edge of the

screen to drag the item to another Home screen.

Remove an app or widget

Touch and hold the item to be removed to activate the Move

mode, drag the item up to the top of the Remove icon, and

release after the item turns red.

Create folders

To make it easier to organise apps and shortcuts on the Home

screen and the Favourite tray, you can add them to a folder

by stacking one item on top of another. To rename a folder,

open it and touch the folder’s title bar to input the new name.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:19-Sec2:20IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:19-Sec2:20 2014-8-18 14:16:322014-8-18 14:16:32

21 22

Wallpaper customisation

Touch and hold an empty area on the Home screen or go to

Settings > Display > Wallpaper to customise your wallpaper.

1.3.6 Application tab

Touch from the Home screen to show a list of all your apps.

To return to the Home screen, touch the Home key.

1.3.7 Volume adjustment

You can set the ringer, media and phone ringtone volume

by pressing the Volume up/down key or go to Settings >

Sound.

1.4 Widgets list

The list contains all pre-installed and newly installed widgets.

To open the list, touch the Menu key and then Widgets. To

return to the Home screen, touch the Home key or the Back

key.

Touch the icon to access the Play Store.

2 Text input

2.1 Using the onscreen keyboard

Onscreen keyboard settings

Touch the Application tab from the Home screen, select

Settings > Language & input, then touch the Settings icon

on the right of Google Keyboard.

Adjust the onscreen keyboard orientation

Turn the phone sideways or upright to adjust the Onscreen

Keyboard orientation. You can also adjust it by changing the

settings (go to Settings > Display > Auto rotate screen).

2.1.1 Google Keyboard

Touch to switch between the symbol and numeric keyboards

Touch & hold, then select to enter

symbols/emoticons

Touch to enter text or numbers

Touch & hold to show input options

Touch to switch between "abc/Abc"

modes; touch & hold to switch between

"abc/ABC" modes

Touch to select suggested word

2.2 Text editing

You can edit the text you have entered.

• Touch and hold or double-tap on the text you would like

to edit.

• Drag the end points to change the highlighted selection.

• The following options will show: Select all , Cut ,

Copy and Paste .

Touch the icon to confirm.

You can also insert new text

• Touch where you want to type, or touch and hold a blank

space, the cursor will blink and the tab will show. Drag the

tab to move the cursor.

• If you have selected any text, touch the tab to show PASTE

icon which allows you to paste any text you have previously

copied.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:21-Sec2:22IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:21-Sec2:22 2014-8-18 14:16:322014-8-18 14:16:32

23 24

3 Phone call, Call log &

Contacts

3.1 Phone call

3.1.1 Placing a call

You can easily make a call using Phone. Touch the Application

tab from the Home screen and select Phone.

Touch to access New contact,

People and Setting.

History

Touch to dial

new number

Touch and

hold to access

voicemail.

Enter the number you want from the dialpad directly or select

a contact from Contacts or History by sliding or touching

tabs, then touch to place the call.

The number you entered can be saved to Contacts by

touching key and selecting Add to Contacts.

If you make a mistake, you can delete the incorrect digits by

touching .

To hang up a call, touch .

International call

To dial an international call, touch and hold to enter "+",

then enter the international country prefix followed by the full

phone number and finally touch Call.

Emergency call

If your phone has network coverage, dial emergency number

and touch to make an emergency call. This works even

without a SIM card and without typing the PIN code.

3.1.2 Answering or rejecting a call

When you receive a call, touch .

• Slide the icon right to answer the call;

• Slide the icon left to reject the call;

• Slide the icon up to reject the call by sending a preset

message.

To mute incoming calls, press the Volume up/down key or

turn the phone face down if Turn over to mute is active (to

turn this on, go to Settings > Gestures > Turn over to mute).

3.1.3 Calling your voicemail

Your voicemail is provided by your network to avoid missing

calls. It works like an answering machine that you can consult

at any time.

To access your voicemail, touch and hold on Phone tab.

To set your voicemail number, touch key and touch

Settings > Voice call > Voicemail.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:23-Sec2:24IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:23-Sec2:24 2014-8-18 14:16:332014-8-18 14:16:33

25 26

If you receive a voicemail, a voicemail icon appears on

the Status bar. Open the Notification panel, touch New

voicemail.

3.1.4 During a call

To adjust the volume during a call, press the Volume up/

down key.

Touch to hold the current call. Touch this icon again

to retrieve the call.

Touch to display Dialpad.

Touch to end the current call.

Touch to mute the current call. Touch this icon again

to unmute the call.

Touch to activate the speaker during the current call.

Touch this icon again to deactivate the speaker.

Touch and select Start recording to record.

To avoid misoperation on touchscreen during a call,

screen will be locked automatically when you put the

cellphone close to your ear; and it will be unlocked

when the cellphone is taken away from your ear.

3.1.5 Managing multiple calls

With this phone you can handle multiple calls at the same

time.

Conference calls (1)

You can set up a conference call.

• Place a call to the first participant of the conference call.

• Enter the phone number of the person you want to add to

conference and touch . You can also add participants

from People or History.

• Touch icon to start a conference call.

• During a conference call, touch to drop a participant

or to talk privately to one of the participants. Touch to

drop the participant from the conference, touch to talk

privately to the participant and hold on other participants.

• Touch to end the conference call and disconnect all

callers.

(1) Depending on your network operator.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:25-Sec2:26IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:25-Sec2:26 2014-8-18 14:16:332014-8-18 14:16:33

27 28

3.1.6 Call settings

Touch key and select Settings from Dial screen, the

following options are available:

Voice call

• Voicemail

Service Opens a dialogue box where you can

select your carrier’s voicemail service or

another service.

Voicemail

settings

If you are using your carrier’s voicemail

service, this opens a dialogue box where

you can enter the phone number to

use for listening to and managing your

voicemail. You can enter a comma (,) to

insert a pause into the number — for

example, to add a password after the

phone number.

• Call forwarding

Touch to configure how your calls are always forwarded or

when you are busy, unanswered or unreachable.

• Call barring

You can activate or deactivate the call barring for outgoing

and incoming calls. The various options are:

All outgoing calls All outgoing calls are barred.

International

outgoing calls

Outgoing international calls are barred.

International

except home

Outgoing international calls except

those to your country of subscription

are barred.

All incoming calls All incoming calls are barred.

Incoming calls in

roaming

Incoming calls are barred when you are

abroad.

Cancel all Deactivate all call barring.

Change barring

password

Change the original barring password for

activating call barring.

• Additional settings

Caller ID Opens a dialogue box where you can

set whether your phone number is

displayed when making calls.

Call waiting Mark the check box to notify you of a

new incoming call.

Call waiting

status

Check the call waiting status of your

phone.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:27-Sec2:28IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:27-Sec2:28 2014-8-18 14:16:332014-8-18 14:16:33

29 30

Other settings

• Fixed dialing numbers

Fixed Dialing Number (FDN) is a service mode of SIM, where

outgoing calls are restricted to a set of phone numbers.

These numbers are added to the FDN list. The most common

practical application of FDN is for parents to restrict the phone

numbers which their children can dial.

For security reasons, you’ll be prompted to enable FDN by

entering SIM PIN2 which is usually acquired from your service

provider or SIM maker.

• Minute reminder

Mark the check box to enable minute reminder at 50s of every

minute during a call.

• Turn over to mute

Mark the check box to enable mute incoming call by turning

phone over.

• Dual mic noise reduction

Mark the checkbox to turn on dual mic for noise reduction.

• Quick responses

Touch to edit quick responses which will be used when you

reject a call with messages.

• International dialing assist

Mark the checkbox to activate.

• Hearing aids

Mark the checkbox to turn on hearing aid compatibility.

3.2 View your call history

You can view your call history by touching from the Dial

screen to view call history in categories of Incoming calls,

Outgoing calls, and Missed calls.

Touch a contact or number to view information or further

operations.

You can view detailed information of a call, launch a new call

or send messages to a contact or number, or add numbers

to People (only available for unsaved phone numbers), etc.

Touch the photo to open the Quick Contact panel.

To clear the entire call memory, touch key and Delete.

3.3 People

You can view and create contacts on your phone and

synchronise these with your Gmail contacts or other apps on

the web or on your phone.

When using People for the first time you are asked

to add new contacts, import contacts from your

SIM card or synchronise contacts from other app

accounts to your phone.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:29-Sec2:30IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:29-Sec2:30 2014-8-18 14:16:332014-8-18 14:16:33

31 32

3.3.1 View your contacts

To access People app, touch the Application tab on the Home

screen, then select People.

Touch icon to open Quick Contact panel

Touch to view the contact’s detailed

information

Touch to view your favourite contacts

Touch to view your contact groups

Contact list

Touch to search in Contacts

Touch to add a new contact

Touch key to display contacts list option menu.

Following actions are enabled:

• Delete contact Select and delete unwanted contacts.

• Contacts to

display

Choose contacts to display.

• Import/Export Import or export contacts between

phone, SIM card, and microSD card, or

share contacts.

• Accounts Manage the synchronisation settings for

different accounts.

• Settings Access to contact display settings.

• Share visible

contacts

Share contacts with others by sending

the contact’s vCard to them via Bluetooth,

Email, SMS, etc.

3.3.2 Managing contact groups

The contact group helps you to improve the organisation of

your contacts. You can add, remove and view groups in the

Contact group screen.

Touch the icon to view local groups. To create a new group,

touch the icon , enter the new name and touch DONE to

confirm. If you have added accounts to your phone, touch the

icon to view groups in accounts.

3.3.3 Adding a contact

Touch the Application tab on the Home screen, select the

People, then touch the icon in the contact list to create

a new contact.

Touch to take a photo or select a picture

for the contact

Touch to open other available labels

Touch to save

Touch to add a new label

If you want to add more information, touch Add another field

to add a new category.

When finished, touch DONE to save.

To exit without saving, you can touch key and then

Discard.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:31-Sec2:32IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:31-Sec2:32 2014-8-18 14:16:332014-8-18 14:16:33

33 34

Add to/remove from Favourites

To add a contact to favourites, you can touch a contact to view

details then touch to add the contact to favourites.

To remove a contact from favourites, touch on contact

details screen.

Only phone and account contacts can be added to

favourites.

3.3.4 Editing your contacts

To edit contact information, touch key in the contact

details screen, then touch Edit. When finished, touch DONE.

Change a contact’s default phone number

The default phone number (the number which has priority

when making a call or sending a message) will always be

displayed under the contact name.

To change the default phone number, touch and hold the

number you want to set as the default number from the

contact’s details screen, then select Set default. A appears

after the number.

This choice is only available when the contact has more than

one number.

Delete a contact

To delete a contact, touch key and touch Delete from

contact (details) screen.

On contacts list screen, touch key and then Delete

contact, select the contact(s) you want to remove and touch

OK to confirm. Touch Select all and then to select all

contacts, touch again to deselect.

The contact you have deleted will also be removed

from other applications on the phone or web the next

time you synchronise your phone.

3.3.5 Communicating with your contacts

From contact details screen, you can communicate with your

contacts by making a call or exchanging messages.

To launch a call, touch the phone number.

To send a message, touch the icon on the right side of

the number.

Use quick contact for Android

Touch a contact’s picture to open Quick Contact for Android,

then you can touch the number or the icon for the way

you want to connect.

The icons available on Quick Contact panel depend on the

information you have for the contact and the applications/

accounts on your phone.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:33-Sec2:34IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:33-Sec2:34 2014-8-18 14:16:342014-8-18 14:16:34

35 36

3.3.6 Importing, exporting and sharing contacts

From the Contacts screen, touch key to open the options

menu, touch Import/Export, then select to import/export

contacts from/to your SIM card, Phone, microSD card, Phone

storage, Accounts, etc.

To import/export a single contact from/to your SIM card,

choose an account and target SIM card(s), select the contact

you want to import/export, and touch OK to confirm.

To import/export all contacts from/to your SIM card, choose

an account and target SIM card(s), touch Select all and touch

OK to confirm.

You can share a single contact or contacts with others by

sending the contact’s vCard to them via Bluetooth, Gmail, etc.

To do this, touch a contact you want to share, touch key

and Share from contact details screen, then select the app to

perform this action.

3.3.7 Displaying contacts

You can configure which group of contacts, for each account,

you want to display in the Contacts list. Touch key and

then Contacts to display from contacts list screen, then you

can choose contacts to display.

Touch key and then Settings, you can Sort list by Given

name or Family name, as well as View contact names as

Given name first or Family name first.

3.3.8 Joining/Discarding contacts

To avoid duplication, you can add any new contact information

to existing contacts in a single action.

Touch the contact which you want to add information to,

touch key and then Edit, then touch key in edit

screen and touch Join.

At this time, you are required to select the contact whose

information you want to join with the first contact. The

information from the second contact is added to the first

one, and the second contact will no longer be displayed in

the Contacts list.

To separate contact information, touch the contact whose

information you want to separate, touch key and then

Edit, then touch key in edit screen and touch Separate,

touch OK to confirm.

3.3.9 Synchronising contacts in multiple accounts

Contacts, data or other information can be synchronised

from multiple accounts, depending on the apps installed on

your phone.

To add an account, touch on Quick setting bar to get to

Settings, then touch Add account.

You are required to select the kind of account you are adding,

like Google, Corporate, etc.

As with other account set-ups, you need to enter detailed

information, like username, password, etc.

You can remove an account and all associated information

from the phone. Open the Settings screen, touch the account

you want to delete, touch key and then select Remove

account, then confirm.

Sync

You can synchronise an account on Accounts screen, touch

an account in the list, then touch key and select Sync

now.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:35-Sec2:36IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:35-Sec2:36 2014-8-18 14:16:342014-8-18 14:16:34

37 38

4 Messaging & Email

4.1 Messaging

Your phone can create, edit and receive SMS and MMS

messages.

Touch the Application tab from the Home screen, then select

Messaging.

All messages you receive or send out can be saved

in your phone memory or SIM card. To view SMS

messages stored on your SIM card, touch key

from Messaging screen, then touch Settings > Text

messages (SMS) > Manage SIM messages.

4.1.1 Create a new message

On the message list screen, touch the new message icon to

write new text/multimedia messages.

Touch to create a new message

Touch to search in all messages

• Touch to view the whole message

thread

• Touch & hold message threads to

delete messages or to add shortcut

Sending a text message

Enter the mobile phone number of the recipient on the

Type name or number bar or touch to add recipients,

then touch the Enter message bar to enter the text of the

message. When you’ve finished, touch to send the text

message.

An SMS of more than 160 characters will be charged

as several SMS. Specific letters (like accents, for

example) will also increase the size of the SMS,

so this may cause multiple SMS to be sent to your

recipient.

Sending a multimedia message

MMS enables you to send video clips, images, photos,

animations, slides and audio to other compatible phones and

email addresses.

An SMS will be converted to MMS automatically when media

files (image, video, audio, slides, etc.) are attached or Subject

or email addresses are added.

To send a multimedia message, enter the recipient’s phone

number in the Type name or number bar, touch Enter

message bar to enter the text of the message, touch

key to open the option menu, touch Add subject to insert

a subject, and touch to attach picture, video, audio and

so on.

When finished, touch to send the multimedia message.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:37-Sec2:38IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:37-Sec2:38 2014-8-18 14:16:342014-8-18 14:16:34

39 40

Attach options:

• Pictures Access Gallery or File manager to select a

picture as attachment.

• Capture picture Access Camera to capture a new picture

for attaching.

• Videos Access Gallery or File manager to select a

video as attachment.

• Capture video Access Camcorder to record a new video

for attaching.

• Record audio Access Sound Recorder to record a new

record.

• Audio Access music from Ringtone or Audio.

• Slideshow Enter Edit slide show screen, touch Add

slide to create a new slide, and touch

currently existing slide to edit it (see

following picture). Touch to get more

options, like slide duration setting, music

adding, etc.

• Contact Access People to select one or more

contact(s) to attach.

• Calendar Access Calendar to select one or more

event(s) to attach.

Touch to go to previous or next slide

Touch to preview current slide

Touch to edit the title of this slide

4.1.2 Manage messages

When a new message comes, an icon will appear on

status bar as notification. Drag down the status bar to open

the Notification panel, touch the new message to open it.

You can also access Messaging and touch the new message

to open it.

Messages are displayed in conversational order.

To reply to a message, touch the current message to enter

message-composing screen, enter the text, then touch .

Touch and hold a message in message details screen, the

following options will be available:

• Copy This option is only available for SMS. Touch

to copy current message content and

past it to Enter message bar of the new

message you are going to compose.

• Forward Touch to forward the message to another

recipient.

• Delete

message

Delete the current message.

• Lock/Unlock

message

Touch to lock/unlock message.

• View message

details

Touch to view details of the message.

• Select text Touch to select text to Enter message

bar as new message.

• Save message

to SIM card

This option displays when the message

is an SMS. Touch to save the message to

SIM card.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:39-Sec2:40IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:39-Sec2:40 2014-8-18 14:16:342014-8-18 14:16:34

41 42

4.1.3 Adjust message settings

In message list screen, touch key and select Settings.

Text messages (SMS)

• Delivery

reports

Mark to request a delivery report for each

text message you send.

• Manage SIM

messages

Touch to view or manage messages on

your SIM card.

• Edit quick text Touch to add or edit message templates.

• SMS service

centre

Touch to view or edit your SMS service

centre.

• Validity period Touch to select SMS validity period.

• SMS storage

location

Touch to select phone or SIM card to

store messages.

• Alphabet

management

Touch to manage alphabet.

Multimedia messages (MMS)

• Group

messaging

Mark the checkbox to send a single

message to multiple recipients.

• Delivery

reports

Select to request a delivery report for

each multimedia message you send.

• Read reports Select to request a report on whether

each recipient has read a multimedia

message sent by you.

• Send read

report

Select to request a report on whether the

multimedia message is sent out.

• Auto-retrieve Select to download full MMS message

(including message body and attachment)

automatically to your phone. Otherwise,

download only the MMS message

header.

• Roaming auto-

retrieve

Select to download full MMS message

(including message body and attachment)

automatically when roaming. Otherwise,

download only the MMS message header

to avoid extra charges.

• Creation mode Touch to set MMS creation mode when

composing message.

• Maximum

message size

Select to edit the message size, but it

should not be more than 300KB.

• Priority Set MMS priority as High, Normal or

Low.

Notifications

• Notifications Select to display message notifications

in status bar.

• Mute Select to make phone mute as a notification

when receiving a new message.

• Select ringtone Touch to select a ringtone as a new

message notification tone.

• Popup

notification

Select to show popup for push

notifications.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:41-Sec2:42IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:41-Sec2:42 2014-8-18 14:16:342014-8-18 14:16:34

43 44

General

• Chat wallpaper Touch to select wallpaper for message

background.

• Message font

size

Touch to select message font size.

• Show email

address

Mark the checkbox to include email

address in contact results.

• Delete old

messages

Select to delete old messages when

maximum number of stored messages

is reached.

• Text message

limit

Touch to set the number of text messages

to be saved per conversation.

• Multimedia

message limit

Touch to set the number of multimedia

messages to be saved per conversation.

• Enable CB

ringtone

Mark/unmark the checkbox to enable/

disable cell broadcast ringtone.

• Select CB

ringtone

Touch to select a ringtone for cell

broadcast.

• Cell broadcast Touch to enable or disable cell broadcast

service or to choose language and

channel for it.

• Enable WAP

PUSH

Mark the checkbox to enable to receive

WAP PUSH.

4.2 Gmail/Email

The first time you set up your phone, you can select to use an

existing Gmail account or to create a new Email account.

4.2.1 Gmail

As Google’s web-based email service, Gmail is configured

when you first set up your phone. Gmail on your phone can

be automatically synchronised with your Gmail account on

the web. Unlike other kinds of email account, each message

and its replies in Gmail are grouped in your inbox as a single

conversation; all emails are organised by labels instead of

folders.

To access Gmail

From the Home screen, touch the Application tab to enter the

applications list, then touch Gmail.

To create and send emails

1 Touch from Inbox screen.

2 Enter recipient(s)’s email address in To field.

3 If necessary, touch key and touch Add Cc/Bcc to add a

copy or a blind copy to the message.

4 Enter the subject and the content of the message.

5 Touch key and select Attach file to add an attachment.

6 Finally, touch the icon to send.

7 If you do not want to send the mail out right away, you can

touch key and then Save draft or touch the Back key

to save a copy. To view the draft, touch your account name

to display all labels, then select Drafts.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:43-Sec2:44IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:43-Sec2:44 2014-8-18 14:16:342014-8-18 14:16:34

45 46

If you do not want to send or save the mail, you can touch

key and then touch Discard.

To add a signature to emails, touch the account of inbox and

then touch Settings from inbox screen, choose an account,

then touch Signature.

To receive and read your emails

When a new email arrives, you will be notified by a ringtone or

vibration, and an icon will appear on Status bar.

Touch and drag down the Status bar to display the Notification

panel, touch the new email to view it. Or you can also access

the Gmail Inbox label and touch the new mail to read it.

You can search for an email by sender, recipient, subject, etc.

• Touch the icon from Inbox screen.

• Enter the keyword you want to search for in the searching

box and touch on the software keyboard.

To reply or forward emails

• Reply When viewing an email, touch to reply

this mail.

• Reply all Touch and select Reply all to send

message to all people in a mail loop.

• Forward Touch and select Forward to forward the

received mail to other people.

4.2.2 Email

Besides your Gmail account, you can also set up external

email accounts on your phone.

Touch the Application tab from the Home screen, then select

Email.

An email wizard will guide you through the steps to set up an

email account.

1 Enter the email address and password of the account you

want to set up.

2 Touch Next. If the account you entered is not provided by

your service provider in the phone, you will go to the email

account settings screen to enter settings manually. Or you

can touch Manual setup to directly enter the incoming and

outgoing settings for the email account you are setting up.

3 Enter the account name and display name in account setup.

4 To add another email account, you can touch key and

Settings. Touch ADD ACCOUNT on the right of the title to

create a new account.

To create and send emails

1 Touch the icon on Inbox screen.

2 Enter recipient(s) email address(es) in the To field.

3 If necessary, touch key and touch Add Cc/Bcc to add a

copy or a blind copy to other recipients.

4 Enter the subject and the content of the message.

5 Touch key, then touch Attach file to add an attachment.

6 Finally, touch to send.

7 If you do not want to send the mail right away, you can touch

key and Save draft or touch the Back key to save a copy.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:45-Sec2:46IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:45-Sec2:46 2014-8-18 14:16:342014-8-18 14:16:34

47 48

5 Calendar, Alarm clock &

Calculator

5.1 Calendar

Use Calendar to keep track of important meetings,

appointments, etc.

To access this function, touch the Application tab from the

Home screen, then touch Calendar.

5.1.1 Multimode view

You can display the Calendar in daily, weekly, monthly, or

agenda view.

To change your Calendar view, touch the date title to open a

drop-down menu for your options. Touch the icon to return

to Today’s view.

In Agenda, Day or Week

view touch an event to view

its details. Touch a day in Month

view to open that

day’s events.

Agenda view

Day view

Week view

Month view

5.1.2 To create new events

You can add new events from any Calendar view.

• Touch the icon to access new event edit screen.

• Fill in all required information for this new event. If it is a

whole-day event, you can select All day.

• When finished, touch DONE from the top of the screen.

To quickly create an event from Day, Week view screen, touch

and hold an empty spot or an event to open Option menu,

then touch New event to enter the event details screen of

the time you have previously selected. Or you can also touch

an empty spot till it turns blue, then tap again to enter new

event editing screen.

5.1.3 To delete or edit an event

To share, delete or edit an event, touch the event to enter

details screen, touch the icon to share the event to other

people by Bluetooth, Email and messaging, etc., touch the

icon to edit the event, and touch the icon to delete.

5.1.4 Event reminder

If a reminder is set for an event, the upcoming event icon

will appear on Status bar as a notification when the reminder

time arrives.

Touch and drag down the status bar to open the Notification

panel, touch event name to view Calendar notification list.

Touch Snooze to turn off all event reminders for 5 minutes.

Touch Back key to keep the reminders pending in the status

bar and the Notification panel.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:47-Sec2:48IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:47-Sec2:48 2014-8-18 14:16:352014-8-18 14:16:35

49 50

Important options by touching key from Calendar main

screen:

• Refresh To refresh the calendar.

• Search To search in the calendar.

• Calendars to

display

To show or hide the synchronised

calendars.

• Clear events To clear events in the calendar.

• Go to Select to go to specific date.

• Settings To set a series of Calendar settings.

5.2 Clock

Your mobile phone has a built-in clock.

To access this function, touch the Application tab from the

Home screen, then touch Clock.

Touch to add or set an alarm.

5.2.1 To set an alarm

From Time screen, touch to enter Alarms screen, touch

to add a new alarm. Following options will show:

• Time Touch numbers to set the time for your

alarm.

• Label Touch to set a name for the alarm.

• REPEAT Touch to select days you want alarm

to work.

• OCEAN Touch to select an alarm ringtone.

• VIBRATE Select to activate vibration.

Touch and hold an already existing alarm and touch to

delete the selected alarm.

5.2.2 To adjust alarm settings

Touch key from Alarms screen. The following options will

be available under Settings:

CLOCK

• Style Touch to set Analog or Digital style.

• Automatic

home clock

Touch to set home clock while travelling

outside.

• Home time

zone

Touch to set home time zone.

ALARMS

• Silence after Touch to set time silence.

• Snooze length Touch to choose length of snooze.

• Alarm volume Touch to set alarm volume.

• Volume buttons Touch to choose Snooze, Dismiss or Do

nothing as volume buttons.

• Turn over to

activate

Touch to choose Snooze or Stop as turn

over behaviour.

5.3 Calculator

With Calculator, you can solve many mathematical problems.

To access this function, touch the Application tab from the

Home screen, then touch Calculator.

There are two panels available: Basic panel and Advanced

panel.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:49-Sec2:50IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:49-Sec2:50 2014-8-18 14:16:352014-8-18 14:16:35

51 52

To switch between panels, select one of the following two

ways:

• Touch and drag the basic screen to the left to open the

Advanced panel.

• Or touch key from basic panel to open option menu and

touch Advanced panel.

6 Getting connected

Your phone can connect to the Internet using either GPRS/

EDGE/3G or Wi-Fi.

6.1 Connecting to the Internet

6.1.1 GPRS/EDGE/3G

The first time you turn on your phone with the SIM card

inserted, it will automatically configure a mobile network

service: GPRS, EDGE or 3G. If the network is not connected,

you can turn on Mobile data on Settings > Data usage.

To check the network connection you are using, touch the

Application tab on the Home screen, then touch Settings >

More... > Mobile networks > Access Point Names or Network

operators.

To create a new access point

A new GPRS/EDGE/3G network connection can be added to

your phone with the following steps:

1 Touch on Quick setting bar to get to Settings.

2 Touch More... > Mobile networks > Access Point Names.

3 Then touch key and select New APN.

4 Enter the required APN information.

5 When finished, touch key and Save.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:51-Sec2:52IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:51-Sec2:52 2014-8-18 14:16:352014-8-18 14:16:35

53 54

To activate/deactivate Data roaming

When roaming, you can decide to connect/disconnect to a

data service.

1 Touch on Quick setting bar to get to Settings.

2 Touch More... > Mobile networks.

3 Mark/Unmark the checkbox to activate or deactivate data

roaming.

4 When Data roaming is deactivated, you can still perform

data exchange with a Wi-Fi connection (refer to "6.1.2

Wi-Fi").

6.1.2 Wi-Fi

You can connect to the Internet when your phone is within

range of a wireless network. Wi-Fi can be used on the phone

even without a SIM card inserted.

To turn Wi-Fi on and connect to a wireless network

1 Touch on the Quick setting bar to go to Settings.

2 Touch the switch beside Wi-Fi to turn on/off Wi-Fi.

3 Touch Wi-Fi: detailed information of all detected Wi-Fi

networks is displayed in the Wi-Fi networks section.

Touch a Wi-Fi network to connect to it. If the network you

selected is secured, you are required to enter a password

or other credentials (contact network operator for details).

When you’re finished, touch Connect.

To activate notification when a new network is detected

When Wi-Fi is on and the network notification is activated,

the Wi-Fi icon will appear on the status bar whenever the

phone detects an available wireless network within range.

The following steps activate the notification function when

Wi-Fi is on:

1 Touch on Quick setting bar to get to Settings.

2 Touch Wi-Fi, then key and select Advanced.

3 Mark/Unmark the Network notification checkbox to

activate/deactivate this function.

To add a Wi-Fi network

When Wi-Fi is on, you may add new Wi-Fi networks according

to your preference.

1 Touch on Quick setting bar to get to Settings.

2 Touch Wi-Fi, and then touch .

3 Enter the name of the network and any required network

information.

4 Touch Save.

When successfully connected, your phone will be connected

automatically the next time you are within range of this

network.

To forget a Wi-Fi network

The following steps prevent automatic connections to

networks which you no longer wish to use.

1 Turn on Wi-Fi, if it’s not already on.

2 In the Wi-Fi screen, touch & hold the name of the saved

network.

3 Touch Forget network in the dialogue that opens.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:53-Sec2:54IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:53-Sec2:54 2014-8-18 14:16:352014-8-18 14:16:35

55 56

6.2 Browser

Using the Browser you can enjoy surfing the Web.

To get onto the Web, touch the Application tab from the Home

screen, then touch Browser.

To go to a web page

On Browser screen, touch the URL box at the top, enter the

address of the web page, then touch to confirm.

Touch to delete all contents

Touch to search and go to this address

Touch to go the suggested web site

To set homepage

1 Touch key from Browser screen to display option menu,

touch Settings > General > Set homepage.

2 Choose a page or most visited website as your homepage.

3 If you choose Other, enter the URL of the website you want

to set as your homepage, touch OK to confirm.

6.2.1 Viewing web pages

When opening a website, you can navigate on web pages by

sliding your finger on the screen in any direction to locate the

information you want to view.

To find text on a web page

1 Touch key from web page screen, then touch Find on

page.

2 Enter the text or phrase you want to find.

3 The first word with matching characters will be highlighted

on the screen, and subsequent matches will be boxed.

4 Touch the up or down arrow to switch to the previous or next

matching items.

5 When finished, you can touch or the Back key to close

the search bar.

To open new window/switch between windows

Multiple windows can be opened at the same time for your

convenience.

1 Touch to open all windows’ thumbnails.

2 Slide up and down to view all windows, touch one to view it.

3 Touch to open a new window.

4 To close a window, touch on the window you want to

close or slide it sideways.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:55-Sec2:56IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:55-Sec2:56 2014-8-18 14:16:352014-8-18 14:16:35

57 58

Other options:

• Refresh To refresh the current page.

• Stop To stop opening the current page.

• Home page To get back to the homepage you set.

• Save to

bookmarks

To add the current website page as

bookmark.

• Close To close all tabs and exit.

• Share page To share the current page with your friends via

various ways, like Message, Email, Bluetooth,

etc.

• Find on page To input contents you want to find on the

current page.

• Request

desktop site

To enable/disable computer version

websites.

• Bookmarks/

History

To see the bookmarks and browsing history.

• Settings To access a series of Browser settings.

• Version To see the version of browser.

6.2.2 Manage links, history, downloads

To manage a link, phone number or address displayed

on a web page

• Link Touch the link to open the web page.

Touch and hold the link to open options for

further operation, like open in new window,

save link, Copy link URL, etc.

• Phone

number

Touch to call the phone number.

• Address Touch to open Google Maps and locate the

address.

To view Browser history

• Touch key from Browser screen.

• Touch Bookmarks/History.

• Touch History tab to view browser history.

To download a web application/view your downloads

Before downloading a web application, you need to enable

your phone to install web applications (touch the Application

tab from the Home screen, touch Settings > Security, mark

checkbox of Unknown sources, finally touch OK to confirm).

To download a item, touch the item or the link you want to

download.

To cancel a download, touch the downloaded item from the

Notification panel, touch and hold the item to be deleted, and

touch to confirm.

To view items you have downloaded, touch the Application

tab, then touch DOWNLOADED.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:57-Sec2:58IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:57-Sec2:58 2014-8-18 14:16:362014-8-18 14:16:36

59 60

Manage bookmarks

To bookmark a web page

• Open the web page you want to bookmark.

• Touch key and touch Save to bookmarks, or from the

History screen, touch the star beside the URL.

• Enter the name and the location if needed and touch OK

to confirm.

To open a bookmark

• Touch key and touch Bookmarks/History, or touch

the icon to enter the Bookmarks screen.

• Touch the bookmark you want to open.

• You can also touch and hold to display the options screen,

then touch Open or Open in new window.

Touch and hold a bookmark in the bookmark list to view

additional options:

• Edit bookmark To edit the bookmark.

• Add shortcut to

Home

To add a bookmark shortcut to the Home

screen.

• Share link To share the bookmark.

• Copy link URL To copy the bookmark link.

• Delete

bookmark

To delete the bookmark link.

• Set as

homepage

To set this page as the homepage.

6.2.3 Settings

A series of settings are available for your adjustment. To

access Browser settings, touch key from Browser screen,

and touch Settings.

6.3 Connecting to Bluetooth devices

Bluetooth is a short-range wireless communication technology

that you can use to exchange data, or connect to other

Bluetooth devices for various uses.

To access this function, touch on Quick setting bar to get

to Settings, then touch Bluetooth, your device and other

available ones will show on the screen.

To turn on Bluetooth

1 Touch on Quick setting bar to get to Settings.

2 Touch to activate/deactivate this function.

To make your phone more recognisable, you can change your

phone name which is visible to others.

1 Touch on Quick setting bar to get to Settings.

2 Touch Bluetooth.

3 Touch key and select Rename phone.

4 Enter a name, and touch Rename to confirm.

To make device visible

1 Touch on Quick setting bar to get to Settings.

2 Touch Bluetooth.

3 Touch your device to make it visible or invisible.

4 Touch key and select Visibility timeout to select the

visible time.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:59-Sec2:60IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:59-Sec2:60 2014-8-18 14:16:362014-8-18 14:16:36

61 62

To pair/connect your phone with a Bluetooth device

To exchange data with another device, you need to turn

Bluetooth on and pair your phone with the Bluetooth device

with which you want to exchange data.

1 Touch on Quick setting bar to get to Settings.

2 Touch Bluetooth.

3 Touch SEARCH FOR DEVICES.

4 Touch a Bluetooth device you want to be paired with in the

list.

5 A dialogue will popup, touch Pair to confirm.

6 If the pairing is successful, your phone connects to the

device.

To disconnect/unpair from a Bluetooth device

1 Touch the device name you want to unpair.

2 Touch Unpair to confirm.

6.4 Connecting to a computer via USB

With the USB cable, you can transfer media files and other files

between your phone and computer.

To connect/disconnect your phone to/from the computer:

Use the USB cable that came with your phone to connect

the phone to a USB port on your computer. You will receive a

notification that the USB is connected.

If you want to change the USB connection type, open the

Notifications panel and touch .

To locate data you have transferred or downloaded in the

internal storage:

1 Touch the Application tab from the Home screen to open

the apps list.

2 Touch File Manager.

All data you have downloaded is stored in File Manager,

where you can view media files (videos, photos, music and

others), rename files, install apps onto your phone, etc.

To format a microSD card

1 Touch on Quick setting bar to get to Settings.

2 Touch Storage.

3 Touch Format SD card, a popup message appears to

warn you that formatting the miscroSD card will erase its

contents.

4 Touch to confirm.

6.5 Sharing your phone’s mobile data

connection

You can share your phone’s mobile data connection with a

single computer via a USB cable (USB tethering) or with up to

eight devices at once by turning your phone into a portable

Wi-Fi hotspot.

To turn on USB tethering or Portable Wi-Fi hotspot

1 Touch on Quick setting bar to go to Settings.

2 Touch More... > Tethering & portable hotspot.

3 Mark the checkbox of USB tethering or turn on Wi-Fi

hotspot to activate this function.

Sharing data may incur additional charges from your

network operator. Extra fees may also be charged in

roaming areas.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:61-Sec2:62IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:61-Sec2:62 2014-8-18 14:16:362014-8-18 14:16:36

63 64

To share your phone’s data connection via USB

Use the USB cable that along with your phone to connect the

phone to a USB port on your computer.

1 Drag down the Notification panel and touch then the

Settings icon to access Settings.

2 Touch More... > Tethering & portable hotspot.

3 Mark\unmark the checkbox of USB tethering to activate/

deactivate this function.

To share your phone’s data connection as a portable Wi-Fi

hotspot

1 Drag down the Notification panel and touch then the

Settings icon to access Settings.

2 Touch More... > Tethering & portable hotspot.

3 Touch the switch beside Wi-Fi hotspot to activate/

deactivate this function.

To rename or secure your portable hotspot

When Portable Wi-Fi hotspot is activated, you could change

the name of your phone’s Wi-Fi network (SSID) and secure its

Wi-Fi network.

1 Drag down the Notification panel and touch then

the Settings icon to access Settings. Drag down the

Notification panel and touch then the Settings icon to

access Settings.

2 Touch More... > Tethering & portable hotspot > Wi-Fi

hotspot.

3 Touch Set up Wi-Fi hotspot to change the network SSID or

set your network security.

4 Touch Save.

6.6 Connecting to virtual private networks

Virtual private networks (VPNs) allow you to connect to

the resources inside a secured local network from outside

that network. VPNs are commonly deployed by corporations,

schools, and other institutions so that their users can access

local network resources when not inside that network, or

when connected to a wireless network.

To add a VPN

1 Touch on Quick setting bar to get to Settings.

2 Touch More... > VPN and then touch .

3 In the screen that opens, follow the instructions from your

network administrator to configure each component of the

VPN settings.

4 Touch Save.

The VPN is added to the list on the VPN settings screen.

Before adding a VPN, you should set a lock screen

pattern, PIN code or password for your phone.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:63-Sec2:64IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:63-Sec2:64 2014-8-18 14:16:362014-8-18 14:16:36

65 66

To connect/disconnect to a VPN

To connect to a VPN:

1 Touch on Quick setting bar to get to Settings.

2 Touch More... > VPN.

3 VPNs you have added are listed; touch the VPN you want to

connect with.

4 In the dialogue that opens, enter any requested credentials

and touch Connect.

To disconnect:

• Open the Notification panel and touch the resulting

notification for VPN disconnection.

To edit/delete a VPN

To edit a VPN:

1 Touch on Quick setting bar to get to Settings.

2 Touch More... > VPN.

3 VPNs you have added are listed; touch & hold the VPN you

want to edit.

4 Touch Edit profile.

5 After finished, touch Save.

To delete:

• Touch and hold the VPN you want to delete, in the dialogue

that opens, touch Delete profile.

7 Google Play Store (1)

Google Play Store is an online software store, where you can

download and install applications and games to your Android

Powered Phone.

To open Google Play Store:

• Touch the Application tab from the Home screen, then touch

Play Store.

• For the first time you access Google Play Store, a screen with

to continue.

Touch the top left corner, then touch HELP to enter Google

Play Shop help page for more information on this function.

(1) Depending on your country and operator.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:65-Sec2:66IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:65-Sec2:66 2014-8-18 14:16:362014-8-18 14:16:36

67 68

8 Multimedia applications

8.1 Camera

Your mobile phone is fitted with a Camera for taking photos

and shooting videos.

Before using the Camera, please be sure to open the protective

lens cover before use to avoid it affecting your picture quality.

To access this function, touch the Application tab from the

Home screen and then touch Camera.

Slide to switch to video recorder

Touch to open settings

Slide to view pictures or videos you

have taken

Double tap or Pinch/Spread to zoom

in/out

Touch to take a picture

To take a picture

The screen acts as the viewfinder. First position the object or

landscape in the viewfinder, touch icon to take the picture

which will be automatically saved.

To shoot a video

First position the object or landscape in the viewfinder, and

touch icon to start recording. Touch to stop recording.

Touch , to save the video.

Further operations when viewing a picture/video you

have taken

• Touch the icon of Gmail, Bluetooth, Messaging, etc to share

the photo or video you have taken.

• Slide right to access Gallery.

8.1.1 Settings in framing mode

Before taking a photo/shooting a video, touch the icon to

adjust a number of settings in framing mode.

Camera settings

• HDR Touch to switch to HDR mode.

• Panorama Touch to switch to Panorama mode.

• Night Touch to switch to Night mode.

• Filter Touch to switch to Filter mode.

• Full screen Touch to turn on/off the full screen

view.

• Shutter sound Touch to turn on/off shutter sound.

• Restore defaults Touch to restore camera settings to

default.

• Advanced Touch to show series of advanced

options: Location Tag, picture size, timer,

exposure, etc.

• Location Tag Touch to turn on/off Location Tag.

• Picture size Touch to select picture size.

• Timer Touch to select pause duration before

capturing pictures.

• Exposure Touch to adjust the value of exposure.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:67-Sec2:68IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:67-Sec2:68 2014-8-18 14:16:362014-8-18 14:16:36

69 70

Camcorder settings

• Video quality Touch to set Video quality as

Superfine, Fine or Normal.

• Sound recording Touch to turn on/off sound recording.

8.2 Gallery

Gallery acts as a media player for you to view photos and

playback videos. In addition, a set of further operations to

pictures and videos are available for your choice.

To access this function, touch the Application tab from the

Home screen, then touch Gallery.

Touch to Switch to camera

Touch to select categories: Albums,

Locations, Times

Touch to select album, then choose

several pictures (max 9) for further editing

Touch the album to open it

Slide left or right to view more albums

To view a picture/play a video

Pictures and videos are displayed by albums in Gallery.

Touch to return to gallery’s main screen

Slide left or right to view more pictures

• Touch an album and all pictures or videos will spread the

screen.

• Touch the picture/video directly to view or play it.

• Slide left/right to view previous or next pictures/videos.

Working with pictures

You can work with pictures by rotating or cropping them,

sharing them with friends, setting them as contact photo or

wallpaper, etc.

Locate the picture you want to work on, touch the picture

from full-screen picture view. Touch icon to share the

picture, touch icon above and confirm OK to delete the

picture.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:69-Sec2:70IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:69-Sec2:70 2014-8-18 14:16:362014-8-18 14:16:36

71 72

Touch to play the slideshow

Touch to set the picture as contact photo

or wallpaper

Touch to edit the picture: Beauty,

Enhance, Effect, Frame, Mosaics, etc.

Touch to share the picture through

selected apps

Touch from full-screen picture view to edit a picture.

Edit Touch to Crop, Rotate or Sharpen the picture.

Beauty Touch to beautify the picture by Dermabrasion,

Whitening, Complexion.

Enhance Touch to open Color mixing and Smart fill light.

Effect Touch to set effect of Lomo, Portrait, Fashion

or Art.

Frame Touch to choose frame.

Mosaics Touch to add mosaics to the picture.

Word Touch to edit words onto the picture.

Bokeh Touch to set Circle bokeh or Line bokeh.

After activating the crop mode, the cropping square

appears in the middle of the picture. Select the

portion to crop, touch to confirm and Save,

touch icon to exit without saving.

Batch operation

Gallery provides a multi-select function, so that you can work

with pictures/videos in batches.

Open the main Gallery window or an album, touch key

and touch Select album to activate batch operation mode

(you can also touch and hold one album/picture), then touch

albums/pictures you want to work on. Touch to delete.

Touch to share selected ones.

8.3 Play music

Using this menu, you can play music files stored on the

microSD card in your phone. Music files can be downloaded

from computer to microSD card using a USB cable.

To access this function, touch the Application tab from the

Home screen, then touch Play Music.

You will find four categories in which all songs are classified:

GENRES, ARTISTS, ALBUMS and SONGS. Slide left and right

to view all. Touch Shuffle all to shuffle all songs.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:71-Sec2:72IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:71-Sec2:72 2014-8-18 14:16:362014-8-18 14:16:36

73 74

8.3.1 Playing music

Touch a song to play the song.

Touch to play the current playlist in shuffle

mode (tracks are played in random order)

Touch to select Listen now, My Library

or Playlists

Touch to search music

Touch to pause/resume playback

Touch the top left corner to get to SETTINGS.

GENERAL

Google Account Touch to choose account.

My devices Touch to access your music from up to

10 devices.

Equaliser Touch to get to audio settings.

DEVELOPER

Open-source

licences

Touch to read licences.

Music version Check version of Music.

While playing songs with Music, the operation of

pause, play or skip is still available even if the screen

is locked.

Touch to get available options:

Play next Touch to play the song you choose next.

Add to queue Touch to add the song into playing queue.

Add to playlist Touch to add to playlist.

Go to artist Touch to go to artist.

Go to album Touch to go to album.

Delete Touch to delete the song.

8.4 Video player

To access this function, touch the Application tab from the

Home screen, then touch Video player.

Video player is a small built-in video player that lists all your

videos.

Touch an item from the list to play. While playing, touch a

point on the timeline to jump to and play from.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:73-Sec2:74IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:73-Sec2:74 2014-8-18 14:16:372014-8-18 14:16:37

75 76

9 Google Maps

9.1 Get My Location

To activate your phone's positioning using Wi-Fi or mobile data

connection network:

1 Touch on Quick setting bar to go to Settings.

2 Touch Location.

3 Touch the switch beside Location to turn on.

Touch the Application tab from the Home screen, then touch

Maps.

Touch icon on the map to view My Location.

The map will then centre on a blue dot. Your actual position at

the blue dot.

To move the map, drag the map with your finger.

To zoom in and out of a map, pinch or spread your fingers, or

you can also zoom in by double-tapping a location on screen.

9.2 Search for a location

While viewing a map, touch the search icon to activate

search function.

In the search box, enter an address, a city or a local business.

Touch the search icon to search, your search results will

appear on the map as red dots. You can touch one to show

a label.

Slide left or right to view more search

results

Touch to show more information

9.3 Save a location

Just like bookmarking a web address on the Internet, you can

star any position on the map for later use.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:75-Sec2:76IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:75-Sec2:76 2014-8-18 14:16:372014-8-18 14:16:37

77 78

9.4 Open Street View for a location

1 Touch and hold a location to display its address at the

bottom of the maps screen.

2 Drag up the details screen to display a Street View

thumbnail.

3 Touch Street view.

9.5 Get driving, public transportation or

walking directions

9.5.1 Get suggested routes for your trip

Touch icon from Maps screen.

1 Touch enter bar to edit your start point by entering an

address or selecting a saved item.

2 Do likewise for your end point.

3 To reverse directions, touch .

4 Then select a transport mode: driving by car, using public

transportation, or walking directions.

5 Touch Route options to select Avoid motorways, Avoid

tolls or Avoid ferries.

6 A couple of suggested routes will appear in a list. Touch any

route to view its respective detailed direction.

10 Others

10.1 File Manager

To access this function, touch the Application tab from the

Home screen, then touch File Manager.

File Manager works with both microSD card and phone

storage.

File Manager displays all data stored on both microSD card

and phone storage, including applications, media files; videos,

pictures or audios you have captured; other data transferred

via Bluetooth, USB cable, etc.

When you download an application from PC to microSD card,

you can locate the application on File Manager, then touch it

to install it in your phone.

File Manager allows you to perform and be really efficient with

the following common operations: create (sub) folder, open

folder/file, view, rename, move, copy, delete, play, share, etc.

10.2 Sound Recorder

To access this function, touch the Application tab from the

Home screen, then touch Sound Recorder.

Sound Recorder allows you to record voice/sound for

seconds/hours.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:77-Sec2:78IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:77-Sec2:78 2014-8-18 14:16:372014-8-18 14:16:37

79 80

10.3 Radio

Your phone is equipped with a radio(1). You can use the

application as a traditional radio with saved channels or with

parallel visual information related to the radio program on the

display if you turn to stations that offer Visual Radio service.

To access this function, touch the Application tab from the

Home screen, then touch Radio.

Please insert a headset to improve the FM Radio reception

quality.

Touch to play/stop

Touch to increase 0.1MHz

Touch to search for channels.

Touch to go to next saved channel

Touch to go to previous saved channel

Touch to decrease 0.1MHz

Touch and hold to search and go to the

nearest lower frequency channel

Touch to open and view the saved

channels list

(1) The quality of the radio depends on the coverage of the radio

station in that particular area.

Available options:

• Save channel Save the current tuned station to the

channels list.

• Audio mode Listen to the radio using loudspeaker or

headset.

• Delete Delete the channel.

• Enter

frequency

Enter the frequency manually.

• Station info Mark the checkbox to get the station

information.

• Exit Turn off the radio.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:79-Sec2:80IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:79-Sec2:80 2014-8-18 14:16:372014-8-18 14:16:37

81 82

11 Settings

Drag down the Notification panel and touch then the

Settings icon to access Settings.

11.1 Wireless & networks

11.1.1 Wi-Fi

Using Wi-Fi you can now surf the Internet without using your

SIM card whenever you are in range of a wireless network.

The only thing you have to do is to enter the Wi-Fi screen

and configure an access point to connect your phone to the

wireless network.

For detailed instructions on using Wi-Fi, please refer to "6.1.2

Wi-Fi".

11.1.2 Bluetooth

Bluetooth allows your phone to exchange data (videos, images,

music, etc.) in a small range with another Bluetooth supported

device (phone, computer, printer, headset, car kit, etc.).

For more information on Bluetooth, please refer to "6.3

Connecting to Bluetooth devices".

11.1.3 Data usage

To enable/disable mobile data by touching the switch

Mark the checkbox of Set mobile data limit, then you can

drag the limit line and the warning line according to your

limitation. Your mobile data connection will be disabled when

the specified limit is reached. You can also choose a data

usage cycle to view the statistics and related applications of

used data by your phone.

Touch key, and you can view more settings related to

your data usage.

Data usage is measured by your phone, and your

carrier may count differently. Please consider using a

conservative limit.

11.1.4 Airplane mode

Through More... > Airplane mode to simultaneously disable

all wireless connections including Wi-Fi, Bluetooth and more.

You can also open Airplane mode by touching AIRPLANE

MODE on Quick setting bar or in phone options when pressing

Power key.

11.1.5 VPN

A mobile virtual private network (mobile VPN or mVPN)

provides mobile devices with access to network resources

and software applications on their home network, when

they connect via other wireless or wired networks. Mobile

VPNs are used in environments where workers need to keep

application sessions open at all times, throughout the working

day, as the user connects via various wireless networks,

encounters gaps in coverage, or suspend-and-resumes their

devices to preserve battery life. A conventional VPN cannot

survive such events because the network tunnel is disrupted,

causing applications to disconnect, time out, fail, or even the

computing device itself to crash.

For more information on VPN, please refer to "6.6 Connecting

to virtual private networks".

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:81-Sec2:82IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:81-Sec2:82 2014-8-18 14:16:372014-8-18 14:16:37

83 84

11.1.6 Tethering & portable hotspot

This function allows you to share your phone’s mobile

data connection via USB or as a portable Wi-Fi access point

(Please refer to "6.5 Sharing your phone’s mobile data

connection").

11.1.7 Mobile networks

• Data connection

Touch to turn on/off data connection.

• Data roaming

Mark the check box to connect to data services when

roaming.

• Preferred networks

Touch to view/edit/delete preferences.

• Network mode

Touch to select network mode.

• Access Point Names

You can select your preferred network with this menu.

• Network operators

You can select a network operator.

11.1.8 USB Internet

Mark the checkbox to share Windows PC internet via USB

cable.

1 Connect your phone to your PC with USB cable.

2 Select PC system version, then touch Next.

3 Finish connection as instructed, then touch Done.

11.2 Device

11.2.1 Gestures

Mark the checkbox or touch to enable the following gestures:

Turn over to mute, Turn over to activate.

11.2.2 Sound

Use the Sound settings to configure ringtones for different

events and environments.

VOLUME

• Vibrate Mark the check box to vibrate phone for

incoming calls.

• Silent mode Mark the check box to silence all sounds

except media & alarms.

• Ringtone &

notifications

Slide to adjust volume of Ringtone and

notifications.

• Music, video,

games and

other media

Slide to adjust multimedia volume of

music, video, games, etc.

• Alarms Slide to adjust Alarms ringtone volume.

RINGTONE & NOTIFICATIONS

• Phone ringtone Touch to select your default incoming

call ringtone.

• Ascending ring Mark the check box to enable Ascending

ring.

• Notification

sound

Touch to select your default notification

ringtone.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:83-Sec2:84IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:83-Sec2:84 2014-8-18 14:16:372014-8-18 14:16:37

85 86

SYSTEM

• Dial pad touch

tones

Mark the check box to enable playing

tones when using dial pad.

• Touch sounds Mark the check box to enable playing

sound when making screen selection.

• Screen lock

sound

Mark the check box to enable sounds

to play when locking and unlocking the

screen.

• Vibrate on touch Mark the check box to activate vibration

when pressing soft keys and on certain

UI interactions.

11.2.3 Display

• Lock screen

notifications

Mark the checkbox to show notifications

on lock screen.

• Wallpaper Touch to set the wallpaper.

• Brightness Touch to adjust the brightness of the

screen.

• Auto rotate

screen

Mark the checkbox to select whether

rotate screen automatically or not.

• Sleep Touch to set screen timeout.

• Daydream Touch to select from Clock, Colours,

Photo Frame and Photo Table.

• Font size Touch to set the font size.

• Pulse

notification light

Mark the checkbox to show pulse

notification light.

11.2.4 Status bar notifications

Touch the switch to open all notifications of 3rd-party

applications to be shown on the top left of the status bar.

You can also touch some apps icons to deactivate their

notifications in status bar.

11.2.5 Storage

Use these settings to monitor the total and available space

on your phone and on your microSD card; to manage your

microSD card.

If a warning message comes up saying that phone

memory is limited, you are required to free up

space by deleting some unwanted applications,

downloaded files, etc.

11.2.6 Battery

In battery screen you can view the battery usage data since

you last connected the phone to a power source. The screen

also shows your battery status and how long it has been used

since last charging. Touch one category, then you can learn its

specific power consumption.

You can adjust power use via the screen brightness or screen

timeout in Display screen.

11.2.7 Applications

You use the Applications settings to view details about the

applications installed on your phone, to manage their data

and force them to stop, and to set whether you want to permit

installation of applications that you obtain from web sites

and emails.

11.3 Personal

11.3.1 Location

Use your wireless network to pinpoint your location within an

accuracy as close as several meters (“street level”).

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:85-Sec2:86IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:85-Sec2:86 2014-8-18 14:16:372014-8-18 14:16:37

87 88

11.3.2 Security

Set up screen lock

• None Touch to disable screen unlock security.

• Slide Touch to enable slide unlock mode.

• Voice

Unlock

Touch to record voice to unlock screen.

• Pattern Touch to draw pattern to unlock screen.

• PIN Touch to enter a numeric PIN to unlock screen.

• Password Touch to enter a password to unlock screen.

Owner info

Touch to input owner information which will display on the

lock screen.

Encrypt phone

You can encrypt your accounts, settings, download apps and

their data, media and other files by touching Encrypt phone.

Set up SIM card lock

Choose a SIM card you want to configure.

Mark the checkbox of Lock SIM card to lock the SIM card

with PIN code.

Touch Change SIM PIN to change the PIN code.

Make passwords visible

Mark the checkbox to show passwords as you type.

Device administrators

Touch to view or deactivate device administrators.

Unknown sources

Mark the checkbox to permit installation of applications that

you obtain from web sites, emails, or other locations other

than Android Market.

To protect your phone and personal data, download

applications only from trusted sources, such as Android

Market.

Verify apps

Mark the checkbox to disallow or warn before installing apps

which my cause harm.

Storage type

Touch to display the storage type.

Trusted credentials

Touch to display trusted CA certificates.

Install from phone storage

Touch to install encrypted certificates from the phone storage.

Clear credentials

Touch to remove all credentials.

11.3.3 Language & input

Use the Language & input settings to select the language

for the text on your phone and for configuring the onscreen

keyboard. You can also configure voice input settings and the

pointer speed.

Language

Touch to select the language and the region you want.

Spell checker

Mark the checkbox to enable the system to show suggested

words.

Personal dictionary

Touch to open a list of the words you’ve added to the

dictionary. Touch a word to edit or delete it. Touch the add

button (+) to add a word.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:87-Sec2:88IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:87-Sec2:88 2014-8-18 14:16:372014-8-18 14:16:37

89 90

Default

Touch to select a default input method. Touch the Settings

icon on the right of selected input method, a series of

settings are available for your selection.

Google keyboard

The Google keyboard settings apply to the onscreen

keyboard that is included with your phone. The correction and

capitalisation features affect only the English version of the

keyboard. Available options are as follows:

• Input languages

Touch to set input language.

• Auto-capitalisation

Mark the checkbox to have the onscreen keyboard

automatically capitalise the first letter of the first word after

a period, the first word in a text field, and each word in name

fields.

• Vibrate on keypress

Mark the checkbox to have the phone vibrate briefly each time

you touch a key on the onscreen keyboard.

• Sound on keypress

Mark the checkbox to play a brief sound each time you touch

a key on the onscreen keyboard.

• Popup on keypress

Mark the checkbox to popup the key that you touched.

• Voice input key

Mark the checkbox to enable voice input.

• Personal dictionary

Touch to use personal dictionary.

• Add-on dictionaries

Touch to Install or Delete the language dictionaries.

• Block offensive words

Mark the checkbox to block the offensive words.

• Auto correction

Touch to turn on/off auto correction, or you can also adjust

the sensitivity of correction.

• Show correction suggestions

Touch to show or not the correction suggestions while typing.

• Personalised suggestions

Mark the checkbox to popup word prediction.

• Enable gesture typing

Mark the checkbox to enable input a word by sliding through

the letters.

• Dynamic floating preview

Mark the checkbox to see the suggested word while gesturing.

• Show gesture trail

Mark the checkbox to show gesture trail.

• Phrase gesture

Mark the checkbox to enable input spaces during gestures by

sliding to the space key.

• Next-word suggestions

Mark the checkbox to use the previous word when making

suggestions.

• Advanced settings

Touch to view more advanced settings for Google keyboard,

such as Key popup dismiss delay, Suggest Contact names,

etc.

Voice search

Touch to view settings about voice search, such as Language,

Speech output, etc.

Text-to-speech output

• Preferred engine

Touch to choose a preferred text-to-speech engine, touch the

Settings icon to show more choices for each engine.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:89-Sec2:90IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:89-Sec2:90 2014-8-18 14:16:372014-8-18 14:16:37

91 92

• Speech rate

Touch to open a dialogue where you can select how quickly

you want the synthesiser to speak.

• Listen to an example

Touch to play a brief sample of the speech synthesiser, using

your current settings.

Pointer speed

Touch to open a dialogue where you can change the pointer

speed, touch OK to confirm.

11.3.4 Backup and reset

Data backup

This phone enables you to back up your phone’s settings and

other app data to Google Servers, using your Google Account.

If you replace your phone, the settings and data you’ve backed

up can be restored onto the new phone the first time you sign

in with your Google Account.

To activate this function:

1 Touch on Quick setting bar to go to Settings.

2 Touch Backup and reset > Back up my data.

3 Mark the checkbox.

If you’ve turned on this function, a wide variety of settings

and data are backed up, including your Wi-Fi passwords,

bookmarks, a list of the apps you’ve installed, the words you’ve

added to the dictionary used by the onscreen keyboard, and

most of the settings that you configure with the Settings app.

If you turn this option off, it will stop backing up your settings,

and any existing backups are deleted from Google Servers.

Factory data reset

To activate a factory data reset:

1 Touch on Quick setting bar to go to Settings.

2 Touch Backup and reset > Factory data reset.

3 Touch Reset phone > Erase everything.

Reset phone will erase all of your personal data from

internal phone storage, including information about

your Google Account, any other accounts, your system

and app settings, and any downloaded apps. Resetting

the phone does not erase any system updates you have

downloaded. If you reset the phone in this way, you are

prompted to re-enter the same kind of information as when

you first started Android.

If you’re unable to turn your phone on, there is another

alternative to perform a factory data reset by pressing the

Volume up key and the Power key at same time under power

off mode until the screen lights up.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:91-Sec2:92IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:91-Sec2:92 2014-8-18 14:16:372014-8-18 14:16:37

93 94

11.4 Accounts

Use the settings to add, remove, and manage your Email and

other supported accounts. You can also use these settings to

control how and whether all applications send, receive, and

synchronise data on their own schedules, and whether all

applications can synchronise user data automatically.

11.4.1 Add account

Touch to add an account for selected app.

11.5 System

11.5.1 Date & time

Use Date & Time settings to customise your preferences for

how date and time are displayed.

Automatic date & time

Touch to select Use network provided time or Off.

Mark the checkbox to use network provided time.

Automatic time zone

Mark the checkbox to use network-provided time zone. Or

unmark to set all values manually.

Set date

Touch to open a dialogue where you can manually set the

phone’s date.

Set time

Touch to open a dialogue where you can manually set the

phone’s time.

Select time zone

Touch to open a dialogue where you can set the phone’s

time zone.

Use 24-hour format

Mark the checkbox to display the time using 24-hour clock

format.

Choose date format

Touch to open a dialogue where you can select the format for

displaying dates.

11.5.2 Schedule power on/off

Touch to preset the power on/off time and repeat mode.

11.5.3 Accessibility

You use the Accessibility settings to configure any accessibility

plug-ins you have installed on your phone.

TalkBack

Touch to turn on/off TalkBack.

Captions

Touch to turn on/off Captions.

Magnification gestures

Touch to turn on/off to activate/deactivate zoom in/out

function by triple-tapping the screen.

Large text

Mark the checkbox to enlarge the screen text.

Power button ends call

Mark the checkbox to end a call by pressing Power key during

the call.

Auto rotate screen

Mark the checkbox to rotate screen automatically.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:93-Sec2:94IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:93-Sec2:94 2014-8-18 14:16:382014-8-18 14:16:38

95 96

Speak passwords

Mark the checkbox to speak passwords while typing.

Accessibility shortcut

Touch to turn on/off to enable/disable accessibility features.

Text-to-speech output

Touch to open Text-to speech output options.

Touch & hold delay

Touch to adjust the duration of touch and hold delay. This

function enables your phone to differ touch and touch & hold,

which may avoid incorrect operations.

Quick boot

Mark the checkbox to enable quick boot.

11.5.4 Developer options

To access this function, touch Settings > About phone, then

touch Build number 7 times. Now Developer options is

available.

The Development screen contains settings that are useful

for developing Android applications. For full information,

including documentation of the Android applications and

development tools, see the Android developer web site

(http://developer.android.com).

Take bug report

Touch to select to collect information about your current

device state and send as an email message.

Desktop backup password

Touch to set/change/remove desktop full backup password.

Stay awake

Mark the checkbox to prevent the screen from dimming and

locking when the phone is connected to a charger or to a USB

device that provides power. Don’t use this setting with a static

image on the phone for long periods of time, or the screen

may be marked with that image.

Select runtime

Touch to choose Use Dalvik or Use ART.

Enable Bluetooth HCI snoop log

Mark the checkbox to capture all bluetooth HCI packets in

a file.

Process status

Touch to display the status about running processes.

USB debugging

Mark the checkbox to permit debugging tools on a computer

to communicate with your phone via a USB connection.

Revoke USB debugging authorizations

Touch to revoke access to USB debugging from all computers

you've previously authorized.

Power menu bug report

Mark the checkbox to select to include option in power menu

for submitting a bug report.

Allow mock locations

Mark the checkbox to permit a development tool on a

computer to control where the phone believes it is located,

rather than using the phone’s own internal tools for this

purpose.

Select debug app

Touch to select debug app.

Wait for debugger

Mark the checkbox to wait for debugger to attach before

executing.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:95-Sec2:96IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:95-Sec2:96 2014-8-18 14:16:382014-8-18 14:16:38

97 98

Verify apps over USB

Mark the checkbox to check apps over USB.

Wireless Display certification

Mark the checkbox to show options for Wireless Display

certification.

Show touches

Mark the checkbox to show visual feedback for touches.

Pointer location

Mark the checkbox to show current touch data.

Show screen updates

Mark the checkbox to show screen updates.

Show layout bounds

Mark the checkbox to show clip bounds, margins, etc.

Force RTL layout direction

Mark the checkbox to force screen layout direction to RTL

for all locales.

Window animation scale

Touch to adjust the animation scale for your window.

Transition animation scale

Touch to adjust the animation scale while performing

transition.

Animator duration scale

Touch to adjust the animator duration scale.

Simulate secondary displays

Touch to adjust the Simulate secondary displays.

Force GPU rendering

Mark the checkbox to use 2D hardware acceleration in

applications.

Show GPU view updates

Mark the checkbox to show GPU view updates.

Show hardware layers updates

Mark the checkbox to show hardware layers updates.

Debug GPU overdraw

Mark the checkbox to show GPU overdraw.

Debug non-rectangular clip operations

Mark the checkbox to show non-rectangular clip operations.

Force 4x MSAA

Mark the checkbox to enable 4x MSAA.

Disable HW overlays

Mark the checkbox to select to always use GPU for screen

compositing.

Strict mode enabled

Mark the checkbox to enable strict mode. After enabled, the

screen will flash when applications do long operations on the

main thread.

Show CPU usage

Mark the checkbox to show current CPU usage.

Profile GPU rendering

Mark the checkbox to use 2D hardware acceleration in

applications.

Enable OpenGL traces

Touch to adjust OpenGL traces.

Don’t keep activities

Mark the checkbox to remove all activities as soon as you

leave.

Background process limit

Touch to change the limit for background processes.

Show all ANRs

Mark the checkbox to show "Application Not Responding"

dialogue for background applications.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:97-Sec2:98IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:97-Sec2:98 2014-8-18 14:16:382014-8-18 14:16:38

99 100

11.5.5 Regulatory & Safety

Touch to view Regulatory & Safety information, including

Product model, Manufacturer name, etc.

11.5.6 About phone

This contains information about things ranging from Legal

information, Model number, Android version, Baseband

version, Kernel version, Build number, Custom build version

to those listed below:

System updates

Touch to check for system updates.

System updates (storage)

Touch to check for system updates (storage).

Status

This contains the status of the Battery status, Battery level, My

phone number, Network, Signal strength, etc.

Legal information

Touch to view legal information.

12 Update your

phone’s

software

Using the FOTA (Firmware Over The Air) Upgrade tool you can

update your phone’s software.

To access System updates, open the Notification panel and

touch and then , then touch About phone > System

updates. Or you can directly touch and access Settings >

About phone > System updates. Touch Check for updates,

and the phone will search for the latest software. If you want to

update the system, please touch Download, and when that’s

finished, touch Install to complete the upgrade. Now your

phone will have the latest version of the software.

You should turn on data connection before searching for

updates. Settings for auto-check intervals and reminders about

upgrades are also available once you restart the phone.

If you have chosen auto-check, when the system discovers

the new version, the icon will appear in the status bar.

Touch the notification to access the System updates directly.

During FOTA downloading or updating, to avoid

errors in locating the correct update packages, do

not change your default storage location.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:99-Sec2:100IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:99-Sec2:100 2014-8-18 14:16:382014-8-18 14:16:38

101 102

13 Product safety information

Pictograms and graphic symbols

Read the Safety Information section of this user

guide on page 102

Do not use while re-fuelling

Do not use hand-held while driving

This device may produce a bright or flashing light

When using the phone, make sure it is kept at least

10 mm away from your head or body

Do not dispose of in a fire

Small parts may cause a choking hazard

Avoid contact with magnetic media

This device may produce a loud sound

Avoid extreme temperatures

Keep away from pacemakers and other personal

medical devices

Avoid contact with liquid, keep dry

Switch off when instructed in hospitals and medical

facilities

Do not try to disassemble

Switch off when instructed in aircraft and airports

Do not rely on this device for emergency

communications

Switch off in explosive environments

Only use approved accessories

Product safety information

RF exposure

General statement on RF energy

Your phone contains a transmitter and a receiver. When

it is ON, it receives and transmits RF energy. When you

communicate with your phone, the system handling your call

controls the power level at which your phone transmits.

Specific Absorption Rate (SAR)

Your mobile device is a radio transmitter and receiver. It is

designed not to exceed the limits for exposure to radio waves

recommended by international guidelines. These guidelines

were developed by the independent scientific organisation

ICNIRP and include safety margins designed to ensure the

protection of all persons, regardless of age and health.

The guidelines use a unit of measurement known as the

Specific Absorption Rate, or SAR. The SAR limit for mobile

devices is 2 W/kg and the highest SAR value for this device

when tested at the ear was 0.932 W/kg (1). As mobile devices

offer a range of functions, they can be used in other positions,

such as on the body as described in this user guide.

As SAR is measured utilising the device’s highest

transmitting power, the actual SAR of this device while

operating is typically below that indicated above. This is

due to automatic changes to the power level of the device

to ensure it only uses the minimum power required to

communicate with the network.

Body worn operation

Important safety information regarding radiofrequency

radiation (RF) exposure.

To ensure compliance with RF exposure guidelines the phone

must be used with a minimum of 10 mm separation from

the body.

Failure to observe these instructions could result in your RF

exposure exceeding the relevant guideline limits.

"The highest SAR value for this mobile phone when tested

for use at the body and compliance against the standard

is 1.01 W/kg. While there may be differences between the

SAR levels on various phones and at various positions,

they all meet the relevant International guidelines and EU

requirements for RF (radio-waves) exposure".

(1) The tests are carried out in accordance with IEC standard PT62209-1.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:101-Sec2:102IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:101-Sec2:102 2014-8-18 14:16:382014-8-18 14:16:38

103 104

Limiting exposure to radio frequency (RF) fields

For individuals concerned about limiting their exposure to

RF fields, the World Health Organisation (WHO) provides the

following advice:

Precautionary measures: present scientific information does

not indicate the need for any special precautions for the use

of mobile phones. If individuals are concerned, they might

choose to limit their own or their children’s RF exposure by

limiting the length of calls, or using ‘hands-free’ devices to

keep mobile phones away from the head and body.

Further information on this subject can be obtained from the

WHO home page http://www.who.int/peh-emf WHO Fact

sheet 193: June 2000.

Regulatory information

The following approvals and notices apply in specific regions

as noted.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:103-Sec2:104IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:103-Sec2:104 2014-8-18 14:16:392014-8-18 14:16:39

105 106

Distraction

Driving

Full attention must be given to driving at all times in order to

reduce the risk of an accident. Using a phone while driving

(even with a hands free kit) causes distraction and can lead to

an accident. You must comply with local laws and regulations

restricting the use of wireless devices while driving.

Operating machinery

Full attention must be given to operating machinery in order

to reduce the risk of an accident.

Product handling

General statement on handling and use

You alone are responsible for how you use your phone and any

consequences of its use.

You must always switch off your phone wherever the use of

a phone is prohibited. Use of your phone is subject to safety

measures designed to protect users and their environment.

• Always treat your phone and its accessories with care and

keep it in a clean and dust-free place.

• Do not expose your phone or its accessories to open flames

or lit tobacco products.

• Do not expose your phone or its accessories to liquid,

moisture or high humidity.

• Do not drop, throw or try to bend your phone or its

accessories.

• Do not use harsh chemicals, cleaning solvents, or aerosols

to clean the device or its accessories.

• Do not paint your phone or its accessories.

• Do not attempt to disassemble your phone or its

accessories, only authorised personnel must do so.

• Do not expose your phone or its accessories to extreme

temperatures, minimum -10 and maximum +50 degrees

Celsius.

• Please check local regulations for disposal of electronic

products.

Do not carry your phone in your back pocket as it could break

when you sit down.

Small children

Do not leave your phone and its accessories within the reach

of small children or allow them to play with it.

They could hurt themselves or others, or could accidentally

damage the phone.

Your phone contains small parts with sharp edges that may

cause an injury or which could become detached and create

a choking hazard.

Demagnetisation

To avoid the risk of demagnetisation, do not allow electronic

devices or magnetic media close to your phone for a

prolonged time.

Electrostatic discharge (ESD)

Do not touch the SIM card’s metal connectors.

Antenna

Do not touch the antenna unnecessarily.

Normal use position

When placing or receiving a phone call, hold your phone to

your ear, with the bottom towards your mouth or as you would

a fixed line phone.

Air bags

Do not place a phone in the area over an air bag or in the air

bag deployment area.

Store the phone safely before driving your vehicle.

Seizures/Blackouts

This phone is capable of producing bright flashing lights.

Repetitive motion injuries

To minimise the risk of RSI, when texting or playing games

with your phone:

• Do not grip the phone too tightly.

• Press the buttons lightly.

• Make use of the special features in the handset which

minimise the number of buttons which have to be pressed,

such as message templates and predictive text.

• Take lots of breaks to stretch and relax.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:105-Sec2:106IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:105-Sec2:106 2014-8-18 14:16:392014-8-18 14:16:39

107 108

Emergency calls

This phone, like any wireless phone, operates using radio

signals, which cannot guarantee connection in all conditions.

Therefore, you must never rely solely on any wireless phone

for emergency communications.

Loud noise

This phone is capable of producing loud noises which may

damage your hearing. Prolonged exposure to music at full

volume on the music player may damage the listener’s

hearing. Use the recommended headphones only.

PROTECT YOUR HEARING

To prevent possible hearing damage, do not listen at

high volume levels for long periods. Exercise caution

when holding your device near your ear while the

loudspeaker is in use.

Bright light

This phone is capable of producing flashes of light, do not use

it too close to the eyes.

Phone heating

Your phone may become warm during charging and during

normal use.

Electrical safety

Accessories

Use only approved accessories.

Do not connect with incompatible products or accessories.

Take care not to touch or allow metal objects, such as coins

or key rings, to contact or short-circuit the battery terminals.

Connection to a car

Seek professional advice when connecting a phone interface

to the vehicle’s electrical system.

Faulty and damaged products

Do not attempt to disassemble the phone or its accessories.

Only qualified personnel must service or repair the phone or

its accessories.

If your phone or its accessories have been submerged in

water, punctured, or subjected to a severe fall, do not use

them until you have taken it to be checked at an authorised

service centre.

Battery handling & safety

Always switch the device off and disconnect the charger

before removing the battery.

Only use the battery and charger supplied, or manufacturer

approved replacements intended for use with your phone.

Using other batteries and chargers could be dangerous.

Do not disassemble or short-circuit the battery. Accidental

short-circuiting can occur if a metallic object such as a key,

paper clip, or pen touches the terminals of the battery.

Improper battery use may result in a fire, explosion, or other

hazard. If you believe the battery has been damaged, do not

use it, take it to a service centre for testing.

Interference

General statement on interference

Care must be taken when using the phone in close proximity

to personal medical devices, such as pacemakers and hearing

aids.

Pacemakers

Pacemaker manufacturers recommend that a minimum

separation of 15 cm be maintained between a mobile phone

and a pacemaker to avoid potential interference with the

pacemaker. To achieve this use the phone on the opposite

ear to your pacemaker and do not carry it in a breast pocket.

Hearing aids

People with hearing aids or other cochlear implants may

experience interference noises when using wireless devices

or when one is nearby. The level of interference will depend

on the type of hearing device and the distance from the

interference source, increasing the separation between them

may reduce the interference. You may also consult your

hearing aid manufacturer to discuss alternatives.

Medical devices

Please consult your doctor and the device manufacturer to

determine if operation of your phone may interfere with the

operation of your medical device.

Hospitals

Switch off your wireless device when requested to do so

in hospitals, clinics or health care facilities. These requests

are designed to prevent possible interference with sensitive

medical equipment.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:107-Sec2:108IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:107-Sec2:108 2014-8-18 14:16:392014-8-18 14:16:39

109 110

Aircraft

Switch off your wireless device whenever you are instructed to

do so by airport or airline staff.

Consult the airline staff about the use of wireless devices on

board the aircraft, if your device offers a ‘flight mode’ this must

be enabled prior to boarding an aircraft.

Interference in cars

Please note that because of possible interference to electronic

equipment, some vehicle manufacturers forbid the use of

mobile phones in their vehicles unless a handsfree kit with an

external antenna is included in the installation.

Explosive environments

Petrol stations and explosive atmospheres

In locations with potentially explosive atmospheres, obey all

posted signs to turn off wireless devices such as your phone

or other radio equipment.

Areas with potentially explosive atmospheres include fuelling

areas, below decks on boats, fuel or chemical transfer or

storage facilities, areas where the air contains chemicals or

particles, such as grain, dust, or metal powders.

Blasting caps and areas

Turn off your mobile phone or wireless device when in a

blasting area or in areas posted with notifications requesting

"two-way radios" or "electronic devices" are turned off to avoid

interfering with blasting operations.

Your telephone is a transceiver that operates on GSM in dual-band

(900/1800 MHZ) or UMTS in dual-band (900/2100 MHz).

This equipment is in compliance with the essential

requirements and other relevant provisions of Directive

1999/5/EC. The entire copy of the Declaration of Conformity

for your telephone can be obtained through our website:

vodafone.com/devices/smart4fun.

Protection against theft (1)

Your telephone is identified by an IMEI (phone serial number)

shown on the packaging label and in the product’s memory.

We recommend that you note the number the first time you

use your telephone by entering * # 0 6 # and keep it in a safe

place. It may be requested by the police or your operator if

your telephone is stolen. This number allows your mobile

telephone to be blocked preventing a third person from using

it, even with a different SIM card.

This symbol on your telephone, the battery and

the accessories means that these products must

be taken to collection points at the end of their life:

- Municipal waste disposal centres with specific

bins for these items of equipment.

- Collection bins at points of sale.

They will then be recycled, preventing substances being

disposed of in the environment, so that their components

can be reused.

In European Union countries:

These collection points are accessible free of charge.

All products with this sign must be brought to these collection

points.

In non-European Union jurisdictions:

Items of equipment with this symbol are not to be thrown into

ordinary bins if your jurisdiction or your region has suitable

recycling and collection facilities; instead they are to be taken

to collection points for them to be recycled.

CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN

INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING

TO THE INSTRUCTIONS.

(1) Contact your network operator for service availability.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:109-Sec2:110IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:109-Sec2:110 2014-8-18 14:16:392014-8-18 14:16:39

111 112

14 Telephone warranty

WARRANTY TERMS AND CONDITIONS

1. Vodafone undertakes the warranty of this Mobile Phone for

a period of two (2) years from the date of Purchase by the

original owner (not transferable) under normal use.

2. The Battery has a limited warranty for twelve (12)

months, and Charger for twenty-four (24) months

against manufacturing defects. Other accessories have

a limited warranty for twenty-four (24) months against

manufacturing defects.

3. This Warranty does not cover damage resulting from:

a) Normal wear & tear of the equipment;

b) Defects and damages due to the equipment being used

other than its normal and customary manner;

c) An unauthorised disassembly, repair, alteration or

modification being carried out;

d) Misuse, abuse, negligence or accident howsoever

caused;

e) Defects or damage arising from improper testing,

operation, maintenance, installation, or any alteration

or modification;

f) Defects or damage due to spillage of food or liquids,

corrosion, rust or the use of wrong voltage;

g) Scratches or damage to plastic surfaces and all other

externally exposed parts that are due to normal

customer use;

4. The phone needing service/repair must be delivered at

the user’s cost.

5. This warranty will be null and void in any of the following

events:

a) If the serial number or warranty seal on the equipment

has been defaced or removed.

b) If any term contained in this warranty has been altered

or modified in any way without prior written consent of

Vodafone.

6. The limited warranty extends only to customer who

purchase the product in one of the countries (or areas) set

forth at the end of this document. The limited warranty is

only valid in Vodafone’s intended country (or area) of sale

of the Product.

7. If the product is returned to Vodafone after the expiration

of the warranty period, Vodafone’s normal service policies

shall apply and the Consumer will be charged accordingly.

a) Vodafone neither assumes for it any other obligation or

liability beyond that which is expressly provided for in

this limited warranty.

b) All warranty information, product features and

specifications are subject to change without notice.

8. THIS WARRANTY IS IN LIEU OF ANY AND OTHER

WARRANTIES EXPRESSED OR IMPLIED, SPECIFICALLY

INCLUDING ANY IMPLIED WARRANTY OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE. VODAFONE ASSUMES NO LIABILITY FOR THE

BREACH OF THE WARRANTY BEYOND CORRECTING

THE BREACH IN THE MANNER DESCRIBED ABOVE.

IN NO EVENT SHALL VODAFONE BE LIABLE FOR

CONSEQUENCES.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:111-Sec2:112IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:111-Sec2:112 2014-8-18 14:16:402014-8-18 14:16:40

113 114

15 Accessories

The latest generation of Vodafone GSM mobile phones offers a

built-in handsfree feature that allows you to use the telephone

from a distance, placed on a table for example. For those who

prefer to keep their conversations confidential, an earpiece is

also available known as the headset.

1. Charger

2. Battery

3. Rock headset

Only use your telephone with the batteries, chargers

and accessories in your box.

16 Specifications

Processor MT6572M

Platform Android™ 4.4

Memory ROM: 4 GB

RAM: 512 MB

Dimensions

(LxWxT) 112.2 x 62 x 11.95 mm

Weight Around 100 grams with battery

Display 3.5-inch TFT-LED touchscreen with

480 x 320 HVGA Capacity resolution

Network GSM:

Dual band 900/1800 MHz

UMTS:

Dual band 900/2100 MHz

(Band frequency and data speed are

operator dependent.)

Connectivity Bluetooth V4.0/A2DP, AVRCP, OPP, PAN,

PBAP, SPP

Wi-Fi IEEE 802.11 b/g/n

3.5 mm audio jack

Micro-USB

Camera 2.0 megapixel embedded camera

Audio supported

formats

AMR-NB, AMR-WB, AAC, MP3, MIDI,

Vorbis, APE, FLAC, G711, RAW

Video supported

formats

H.263, MPEG4, H.264, AVC, VP80, DIVX,

MJPEG

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:113-Sec2:114IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:113-Sec2:114 2014-8-18 14:16:402014-8-18 14:16:40

115

Battery (1) Rechargeable Lithium battery

Capacity: 1400 mAh

Expansion Slot microSD™ memory card

(Availability of microSD card depends

on market)

Special Features G-sensor

Note: Specifications are subject to change without prior

notice. (1)

(1) The original battery has undergone rigorous safety inspections to

meet qualification standards, the use of non-original batteries may

be dangerous.

IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:115IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818.indd Sec2:115 2014-8-18 14:16:402014-8-18 14:16:40

Vodafone IP5032_VF685_UM_Eng_GB_Smart4fun_01_140818 Smart 4 Fun Owner's Guide VF685 UM Eng

Navigation menu

Versions of this User Manual:

Views

Navigation
