![](asset-1.png)
2
3
English - CJB32F2VDAAB
Facebook is a trademark of Facebook, Inc.
© Vodafone Group 2012. Vodafone and the Vodafone logos
are trademarks of Vodafone Group.
Any product or company names mentioned herein may be
the trademarks of their respective owners. Quick start guide
Vodafone Chat
IP4347_VF655W_QG_Eng_GB_White_14_120827.indd 2-3 2012-8-27 10:52:38
![](asset-2.png)
1 2
Your mobile1
Keys and connectors1.1
Space key Facebook key
Notification
light
Status bar
Home screen
Widget bar
Send key
Sym key
Shift key
Voicemail key
Silence key
Left softkey
Alt key
Microphone
Enter key
Delete key
End key
Right softkey
Navigation key/
OK key
Earpiece
For more information about how to use the phone, please go to
www.vodafone.com/vodafonechat to download complete user manual.
Moreover, from the website you can also consult FAQ, realize software
upgrade, etc.
Flick to go left/right/up/down•
Press to confirm an option (press the middle of •
the key)
Pick up/Send a call•
Enter Call log•
Press: End a call•
Return to the Home screen
Press and hold: Power on/off•
Press and hold: Access your voicemail•
Press once: Input a capital letter•
Press twice: Lock the keyboard in capital letter •
input mode
Press once: Input a top-half key character•
Press twice: Lock the keyboard in top-half key •
input mode
Alt + B: Access Bluetooth
Alt + J: Access Apps
Alt + M: Access Music
Alt + P: Access Device sound profiles
Headset
connector
micro-USB connector
Volume key
Camera
Flash
Loudspeaker
IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:1-Sec1:2IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:1-Sec1:2 2012-8-27 10:50:562012-8-27 10:50:56
![](asset-3.png)
3 4
Press: Enter a space (in Edit mode)•
Press OK key, then Space key to unlock the
keypad (on the Lock screen)
Press and hold: Access text input language list (in •
Edit mode)
Lock the keypad (on the Home
screen)
Hold down • Space key, then press Alt key to select
input method
Enter symbol table•
Hold down • Alt key, then press Sym key to enter
emoticon table
Confirm an option•
Enter the next line•
Press and hold: Switch between General and Silent •
profile
Volume up/down•
Scroll up/down•
Press to delete a word or character•
Press to access Facebook •
Home screen1.2
The Home screen is divided into several parts, as shown below:
Status bar
Widget bar
Select to enter main
menu screen
Status bar 1.2.1 (1)
From the status bar, you can view both phone status and notifications.
Battery charge level.
Bluetooth activated and visible.
Bluetooth activated but invisible.
Bluetooth connecting.
Java application activated.
Headset connected.
Keypad locked.
Mute is on during a call.
Silent profile is activated.
Alarm or appointment programmed.
Level of network reception.
Missed calls.
Call in progress.
Stopwatch activated.
Email unread.
Radio is on.
WAP message. (2)
Roaming.
SD card inserted.
SIM card unavailable.
GPRS in use.
(1) The icons and illustrations in this guide are provided for informational
purposes only.
(2) Depending on your network operator.
IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:3-Sec1:4IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:3-Sec1:4 2012-8-27 10:50:562012-8-27 10:50:56
![](asset-4.png)
5 6
2G network available.
3G network available.
Wi-Fi disconnected.
Wi-Fi connected.
Line switching (1) : indicates the selected line.
Vibrate and ring mode: your phone vibrates and rings.
Music active.
GPRS connected.
Edge in use.
Edge connected.
Music player active.
Vibration mode.
SMS unread.
MMS unread.
Sending MMS.
Flight mode.
Widget bar1.2.2
Widgets are convenient shortcuts for quick access from the Home
screen.
Lock/Unlock screen1.2.3
To protect your phone and privacy, you can lock the screen by pressing
and holding the Space key.
To unlock the screen, press , then the Space key.
Main menu 1.2.4
To access the main menu screen, select "Menu" from the Home screen.
(1) Depending on your network operator.
Getting started2
Set-up2.1
Removing or installing the back cover
Inserting or removing the SIM card
You must insert your SIM card to make phone calls. Please power
off your phone and remove battery before inserting or removing the
SIM card.
Place the SIM card with the chip facing downwards and slide it into its
housing. Make sure that it is correctly inserted. To remove the card,
press it and slide it out.
Installing or removing the battery
Insert and click the battery into place, then close the telephone •
cover.
Unclip the cover, then remove the battery.•
IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:5-Sec1:6IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:5-Sec1:6 2012-8-27 10:50:572012-8-27 10:50:57
![](asset-5.png)
7 8
Installing and removing the memory card (microSD card)
Insert the microSD card with its golden contact facing downwards into
the slot until it is locked in place. To remove it, gently push the card in
until it unlocks.
Charging the battery
Connect the battery charger to your phone and mains socket
respectively.
To reduce power consumption and energy waste, when battery
is fully charged, disconnect your charger from the plug; switch
off Bluetooth or background-running applications when not in
use; reduce the backlight time, etc.
Power on your phone2.2
Hold down the key until the phone powers on, type in your PIN code
if necessary. The main screen is displayed.
Set up your phone for the first time
The first time you power on the phone, you are required to adjust initial
basic settings and login to your Facebook account to synchronize
Facebook information.
Power off your phone2.3
Hold down the key from the Home screen.
Calls3
Placing a call3.1
Enter the desired number from the keypad directly or select a contact
from Contacts or Call log, then press the key to place the call. The
number you entered can be saved to Contacts by selecting "Save".
If you make a mistake, you can delete the incorrect digits by pressing
the Delete key.
To hang up, press the key.
Answering or rejecting a call3.2
When you receive an incoming call, press the key or select "Answer"
by pressing the key to answer.
Hang up the call by pressing the key. If the caller (local contact only)
is not one of your Facebook friends and the remind setting is active,
a reminder screen will appear to suggest sending a Facebook friend
request to the caller.
Calling your voicemail 3.3 (1)
Your voicemail is provided by your network to avoid missing calls. It
works like an answering machine that you can listen to at any time. To
access your voicemail, hold down the key.
Changing the menus4
The menus can be changed to the way you want them.
Change the order
Access the main menu, focus on the main menu item you want to move,
select "Options/Move", and tick "√" will be shown on the item you
selected, then release it to your favourite destination.
Show/Hide
Access the main menu, select "Options/Add and remove menu", and
select the left check box of the selected menu once to show/hide, and
then select "Done" to save the operation.
(1) Contact your network operator to check service availability.
IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:7-Sec1:8IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:7-Sec1:8 2012-8-27 10:50:572012-8-27 10:50:57
![](asset-6.png)
9 10
Messaging5 ........................
You may access this menu using the following options:
Access from the main menu screen by selecting "• Messaging".
Select • from the widget bar.
SMS/MMS5.1
You can create, edit and receive SMS and MMS with this mobile phone.
MMS enables you to send video clips, images, photos, animations and
sounds to other compatible mobiles and e-mail addresses.
Write new SMS/MMS5.1.1
You can select "Write new SMS/MMS" from the messaging screen
to write text/multimedia messages. One or more recipients can be
added from the contact list and you can remove a recipient by pressing
. Select "Contacts" using the key and then select multiple
recipients.
An SMS will be converted to MMS automatically when images, videos,
audio, slides or attachments are inserted; Subject, CC/BCC/email
address is added; or the message contains more than 8 pages of text.
When finished entering text, press the key to send it.
An SMS message of more than a certain number of characters
(the number of characters depends on your language) will
be charged as several SMS messages. An MMS message
containing photos and/or sounds may also be billed as more
than one message. Specific letters (accents) will increase the
size of the SMS, this may cause your recipient to receive your
message as two or more SMS messages.
Email5.2
Your phone has an email client with the settings pre-defined for a few
popular email services like – GoogleMail, Yahoo, AOL, etc. Besides
these, you can set up other POP3 or IMAP4 email accounts that you
may be using.
Email account set-up5.2.1
Pre-defined email service
If you own an email account with a predefined service, you can
install it to your phone by selecting the service (GoogleMail, Yahoo,
etc.), entering the username, password and account name, and then
confirming by selecting "OK".
New email service
To set up a new email account other than the predefined email services,
select "Other Email accounts".
You are required to enter your email address, display name, password,
account name, then confirm with "Save". Afterwards you‘ll need to
select protocol (1) (POP3 or IMAP4), then enter your incoming server
address and outgoing server address, and finally select "Save".
Contacts6 .............................
Consulting your contacts6.1
You can access this function from the main menu screen by selecting
"Contacts" or selecting from the widget bar.
When accessing this menu, you will see two tabs:
Phone List all contacts
Group Organize contacts into groups
When consulting your contacts for the first time, you are
required to import them from the SIM card to your phone.
Adding a contact6.2
You can add a new contact by selecting "Add contact".
The following fields are accessible when you create a new entry in
Contacts: Name, Image, Mobile, Home, Work, Email, Birthday, Birthday
reminder, URL, Address, Ringtone.
(1) Consult your email service provider for more information about protocol.
IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:9-Sec1:10IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:9-Sec1:10 2012-8-27 10:50:572012-8-27 10:50:57
![](asset-7.png)
11 12
Call log7 ...............................
You can access this function like this:
Select • from main menu
Press • key from Home screen
Select • from widget bar
All calls 7.1
The call log shows three different types of call:
Missed calls
Outgoing calls (Redial)
Answered calls
Locate one contact, select "View" to view call details, press the key
to place a call directly.
Available options7.2
When you press "Options", you can have access to Send message, Dial,
Missed calls, Call settings, Edit before call, Delete, etc.
Voicemail7.3
From this menu, you can view all voicemail memory.
Facebook8 ...........................
Facebook is a social utility that connects people with friends and others
who work, study and live around them. You can select "Facebook" in
main menu to launch Facebook application.
Music9 ...................................
You can access this feature from the main menu screen by selecting
"Music".
From here, you can access either the Music player or the Radio.
Music player 9.1
Gives you full flexibility when managing music both on your mobile
and SD card.
Radio9.2
Your phone is equipped with an FM radio (1) with RDS (2) functionality.
You can use the application as a traditional radio with saved channels
or display parallel visual information related to the radio program if
you tune to stations offering Visual Radio service. You can listen while
running other applications.
Wi-Fi10 ...................................
Using Wi-Fi, you can connect to the Internet when your phone is within
range of a wireless network. Wi-Fi can be used on phone even when no
SIM card is inserted.
To access this function, press to enter the main menu, and select
.
To connect/disconnect a wireless network
Press "• Wi-Fi"
Select "• WIFI Connection"
If the network you selected is secured, you are required to enter a
password or other credentials (contact network operator for details).
When finished, select "Options/Done".
To disconnect a Wi-Fi network, select "Options/Disconnect".
(1) The quality of the radio depends on the coverage of the radio station in
that particular area.
(2) Depending on your network operator and market.
IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:11-Sec1:12IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:11-Sec1:12 2012-8-27 10:50:572012-8-27 10:50:57
![](asset-8.png)
13 14
Available options:
Connect Press to connect to Wi-Fi network
Add Press to add new Wi-Fi networks of your
choice when Wi-Fi is on
Define Access Point Press to set Access Point
Wi-Fi status Press to check the status of Wireless Local
Area Networks
Disable Wi-Fi Press to deactivate Wireless Local Area
Networks
Power save mode Press to select Constantly awake mode,
Power save mode, Max power save mode
Refresh Press to refresh all the available Wi-Fi networks
WEB11 ..................................
WEB lets you browse the entire Web anywhere. It recognises and
suggests URL completions based on your bookmarks and browsing
history, lets you save pages for viewing offline and gives your phone a
virtual mouse.
Camera12 ............................
Your mobile phone is fitted with a camera for taking photos and
shooting videos.
To access this function, select from the main menu screen.
SD card (if available) is automatically set as the preferred
storage location for any photos and videos which you take.
Pictures13
.............................
This menu displays the following two tabs when accessed:
Camera roll List photos you have taken
Images List images provided with the phone
Videos List videos you have taken
Facebook gallery is displayed in albums. The first album will be "Fan
photos" which is generated automatically and contains all pictures
where you have been tagged.
Clock14 ...............................
Alarm14.1
Your mobile phone has a built-in alarm clock with a snooze feature.
You can set up to five separate alarms and choose whether or not the
alarm should repeat.
WorldTime14.2
The WorldTime shows current local time and the time zone in different
cities. You may view up to three cities at one time.
Time and Date14.3
Allows you to set the date and time in either 12/24h format.
You can also set the daylight saving adjustment.
IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:13-Sec1:14IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:13-Sec1:14 2012-8-27 10:50:572012-8-27 10:50:57
![](asset-9.png)
15 16
Calendar15 ..........................
Once you enter this menu from the main menu screen, you'll see a
month-view calendar for you to keep track of important meetings,
appointments, etc. Days with events entered will be marked in colour.
When you are logged onto Facebook, all your Facebook
friends' birthday reminders will be synced automatically to
your local calendar. An icon will appear on the status bar
to notify you of upcoming birthdays.
Social16 ...............................
You can enter this menu by selecting "Social" on the main menu.
It enables to you easily access features including MSN, Gtalk, FBChat
and Twitter.
Apps17 ..................................
Access useful applications from this menu.
The applications you use most frequently can be added to or removed
from the main menu screen by selecting "Options" on the main menu
screen, and then selecting "Add and remove menu".
Tools18 .................................
Your phone is equipped with several frequently used tools. You can
access these tools by selecting "Tools" on the main menu.
Weather18.1 ......................................................
Your phone is equipped with a weather app which will give you forecasts
of up to three days for favourite cities.
To access the function, select "Menu" through the key to access the
main menu screen and select , then .
News18.2 .............................................................
A huge time saver, providing news updates from a website in a simple
form.
Once subscribed to a channel, it gives you the ability to track and
manage all your favourite RSS content on your mobile phone at
anytime, anywhere!
Tasks18.3 .............................................................
Enables you to easily manage and track the progress of a task with
priorities. All the tasks will be sorted by due date.
Notes18.4 ............................................................
You can create a note in text or voice format by accessing "Notes" from
the applications list.
IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:15-Sec1:16IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:15-Sec1:16 2012-8-27 10:50:582012-8-27 10:50:58
![](asset-a.png)
17 18
Calculator18.5 ....................................................
Access this feature by selecting "Calculator" from the applications list.
Enter a number, select the type of operation to be performed, and enter
the second number, then press the key to display the result.
Converter18.6 ...................................................
You can use the Weight and Length conversion by selecting the unit
you wish to convert, then press the to input the digits. Finally
confirm with "OK".
Stopwatch18.7 ..................................................
The stopwatch is a simple application for measuring time with the ability
to register several results and pause/resume measurement.
File manager19 ..........................
You will have an access to all audio and visual files stored in phone or
SD card in File manager. You can access a number of items with this
option: My music, My images, My videos, Camera roll, Other files,
Phone, SD card, etc.
Inserting the SD card:
Insert the microSD card with its golden contact facing downwards into
the slot until it is locked in place.
Settings20 .............................
From the main menu, select the menu icon and select the function
of your choice in order to customise your phone.
Device sound profiles20.1
To modify the device sound profiles, select "Edit" to reveal the following
functions using the OK key: Mode, Ringtone, Ring type, Volume,
Keypad, Message beep, Power on beep, Power off beep.
Device settings20.2
Enables you to easily set your phone: Display, Set language, Time and
date, Headset mode, Keypad shortcuts, Set auto-lock time.
Connectivity20.3
A set of profile settings for Bluetooth, Data account, Multimedia
message, Internet, Email, Streaming, etc.
Bluetooth20.3.1
To use your phone with a Bluetooth device, you need to proceed in
two steps:
• Pair and register the device to your phone,
• Select it to use hands-free communication. Only one Bluetooth audio
device (your Bluetooth headset or your Bluetooth car kit) can be
connected during communication.
Factory reset20.4
Select to restore factory settings.
All user data, files and downloaded applications will be lost
permanently.
You may also realize factory reset using hard keys: hold down and
press key at the same time.
IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:17-Sec1:18IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:17-Sec1:18 2012-8-27 10:50:582012-8-27 10:50:58
![](asset-b.png)
19 20
Making the most of your 21
mobile
Vodafone Chat 655W PC suite21.1
Vodafone Chat 655W PC suite is available for downloading from the
website: www.vodafone.com/vodafonechat
The Vodafone Chat 655W PC suite includes:
Backup/restore•
You can backup important data in your mobile and restore it when
needed.
GPRS Modem•
Use your phone to connect a PC to the internet.
Multimedia Personalization•
Customize your phone with images, animations and melodies.
Music management•
Create and transfer playlists with music files and provide lyric editing.
Messaging•
You can compose SMS/MMS easily on your PC and transfer them to
your phone.
Supported Operating Systems
Windows XP/Vista/Windows 7•
Vodafone Chat 655W Software Upgrade21.2
Using the Vodafone Chat 655W Software Upgrade tool you can update
your phone’s software from your PC.
Download Vodafone Chat 655W Software Upgrade from website
(www.vodafone.com/vodafonechat) and install it on your PC. Launch the
tool and update your phone by following the step by step instructions
(refer to the User Guide provided together with the tool).
Your phone will now have the latest software.
All personal information will be permanently lost
following the update process. We recommend you backup
your personal data using Vodafone Chat 655W PC suite before
upgrading.
Webcam 21.3 (1)
You can use your phone as a webcam for instant messaging on your PC.
Connect your phone to your PC via the USB cable.•
Go to the "• My computer" folder on your PC and find the USB video
device.
(1) Webcam use may vary according to the operating system of your PC.
IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:19-Sec1:20IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:19-Sec1:20 2012-8-27 10:50:582012-8-27 10:50:58
![](asset-c.png)
21 22
Text input mode/22
character table
There are two text entry methods that can be used to write messages:
Normal •
Predictive mode•
Normal
This mode allows you to type text by choosing a letter or a sequence
of characters.
Predictive mode
This mode can perform predictive input in the hardware keypad and
supports multi-language input.
Product 23
Safety
Information
Pictograms and Graphic Symbols
Read the Safety Information section of this user guide on page 23
Do not use while re-fuelling
Do not use hand-held while driving
This device may produce a bright or flashing light
For body-worn operation maintain a separation of 1.5 cm
Do not dispose of in a fire
Small parts may cause a choking hazard
Avoid contact with magnetic media
This device may produce a loud sound
Avoid extreme temperatures
Keep away from pacemakers and other personal medical
devices
Avoid contact with liquid, keep dry
Switch off when instructed in hospitals and medical facilities
Do not try to disassemble
Switch off when instructed in aircraft and airports
Do not rely on this device for emergency communications
Switch off in explosive environments
Only use approved accessories
IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:21-Sec1:22IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:21-Sec1:22 2012-8-27 10:50:582012-8-27 10:50:58
![](asset-d.png)
23 24
Product Safety Information
RF Exposure•
General Statement on RF energy
Your phone contains a transmitter and a receiver. When it is ON, it
receives and transmits RF energy. When you communicate with your
phone, the system handling your call controls the power level at which
your phone transmits.
Specific Absorption Rate (SAR)
Your mobile device is a radio transmitter and receiver. It is designed
not to exceed the limits for exposure to radio waves recommended
by international guidelines. These guidelines were developed by the
independent scientific organisation ICNIRP and include safety margins
designed to ensure the protection of all persons, regardless of age
and health.
The guidelines use a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/kg
and the highest SAR value for this device when tested at the ear
was 1.04 W/kg (1). As mobile devices offer a range of functions, they
can be used in other positions, such as on the body as described in
this user guide.
As SAR is measured utilising the device’s highest transmitting power,
the actual SAR of this device while operating is typically below that
indicated above. This is due to automatic changes to the power level
of the device to ensure it only uses the minimum power required to
communicate with the network.
Body worn operation
Important safety information regarding radiofrequency radiation (RF)
exposure.
To ensure compliance with RF exposure guidelines the phone must be
used with a minimum of 1.5 cm separation from the body.
Failure to observe these instructions could result in your RF exposure
exceeding the relevant guideline limits.
"The highest SAR value for this mobile phone when tested for use at the
body and compliance against the standard is 1.06 W/kg. While there
may be differences between the SAR levels on various phones and at
various positions, they all meet the relevant International guidelines and
EU requirements for RF (radio-waves) exposure"
Limiting exposure to radio frequency (RF) fields
For individuals concerned about limiting their exposure to RF fields, the
World Health Organisation (WHO) provides the following advice:
(1) The tests are carried out in accordance with IEC standard PT62209-1.
Precautionary measures: Present scientific information does not indicate
the need for any special precautions for the use of mobile phones. If
individuals are concerned, they might choose to limit their own or their
children’s RF exposure by limiting the length of calls, or using 'hands-
free' devices to keep mobile phones away from the head and body.
Further information on this subject can be obtained from the WHO home
page http://www.who.int/peh-emf WHO Fact sheet 193: June 2000.
Regulatory information
The following approvals and notices apply in specific regions as noted.
IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:23-Sec1:24IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:23-Sec1:24 2012-8-27 10:50:582012-8-27 10:50:58
![](asset-e.png)
25 26
Distraction•
Driving
Full attention must be given to driving at all times in order to reduce the
risk of an accident. Using a phone while driving (even with a hands free
kit) causes distraction and can lead to an accident. You must comply
with local laws and regulations restricting the use of wireless devices
while driving.
Operating machinery
Full attention must be given to operating machinery in order to reduce
the risk of an accident.
Product Handling•
General Statement on handling and use
You alone are responsible for how you use your phone and any
consequences of its use.
You must always switch off your phone wherever the use of a phone is
prohibited. Use of your phone is subject to safety measures designed to
protect users and their environment.
- Always treat your phone and its accessories with care and keep it in
a clean and dust-free place.
- Do not expose your phone or its accessories to open flames or lit
tobacco products.
- Do not expose your phone or its accessories to liquid, moisture or
high humidity.
- Do not drop, throw or try to bend your phone or its accessories.
- Do not use harsh chemicals, cleaning solvents, or aerosols to clean
the device or its accessories.
- Do not paint your phone or its accessories.
- Do not attempt to disassemble your phone or its accessories, only
authorised personnel must do so.
- Do not expose your phone or its accessories to extreme temperatures,
minimum -10 and maximum +50 degrees Celsius.
- Please check local regulations for disposal of electronic products.
Do not carry your phone in your back pocket as it could break when
you sit down.
Small Children
Do not leave your phone and its accessories within the reach of small
children or allow them to play with it.
They could hurt themselves or others, or could accidentally damage
the phone.
Your phone contains small parts with sharp edges that may cause an
injury or which could become detached and create a choking hazard.
Demagnetisation
To avoid the risk of demagnetisation, do not allow electronic devices or
magnetic media close to your phone for a prolonged time.
Electrostatic discharge (ESD)
Do not touch the SIM card’s metal connectors.
Antenna
Do not touch the antenna unnecessarily.

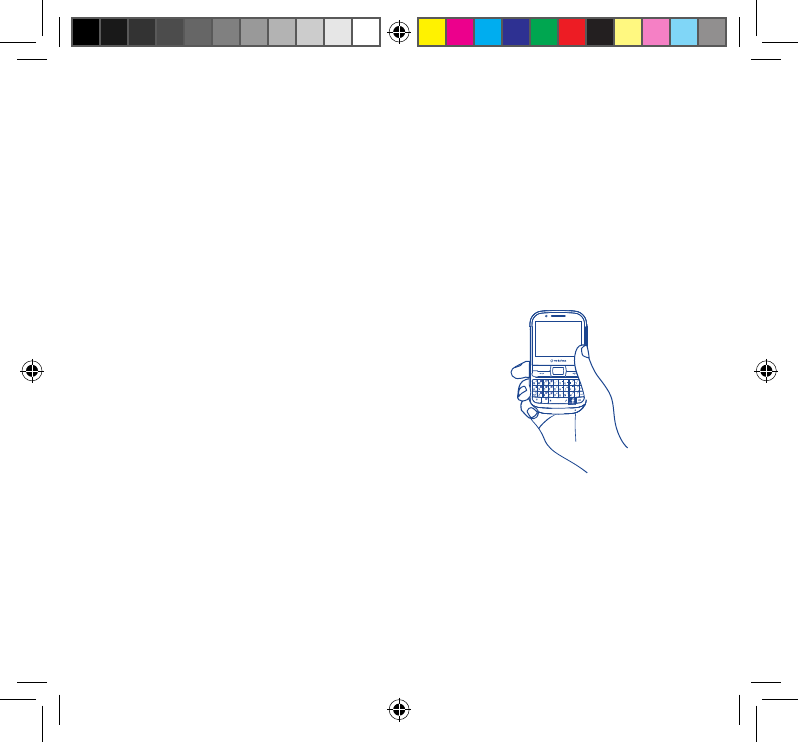

Normal use position
When placing or receiving a phone call, hold your phone to your ear, with
the bottom towards your mouth or as you would a fixed line phone.
IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:25-Sec1:26IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:25-Sec1:26 2012-8-27 10:50:582012-8-27 10:50:58
![](asset-f.png)
27 28
Air Bags
Do not place a phone in the area over an air bag or in the air bag
deployment area.
Store the phone safely before driving your vehicle.
Seizures/Blackouts
This phone is capable of producing bright flashing lights.
Repetitive Motion Injuries
To minimise the risk of RSI, when texting or playing games with your
phone:
- Do not grip the phone too tightly
- Press the buttons lightly
- Make use of the special features in the handset which minimise
the number of buttons which have to be pressed, such as message
templates and predictive text
- Take lots of breaks to stretch and relax
Emergency Calls
This phone, like any wireless phone, operates using radio signals,
which cannot guarantee connection in all conditions. Therefore,
you must never rely solely on any wireless phone for emergency
communications.
Loud Noise
This phone is capable of producing loud noises which may damage
your hearing. Prolonged exposure to music at full volume on the music
player may damage the listener's hearing. Use the recommended
headphones only.
Bright Light
This phone is capable of producing flashes of light, do not use it too
close to the eyes.
Phone Heating
Your phone may become warm during charging and during normal use.
Electrical Safety•
Accessories
Use only approved accessories.
Do not connect with incompatible products or accessories.
Take care not to touch or allow metal objects, such as coins or key rings,
to contact or short-circuit the battery terminals.
Connection to a Car
Seek professional advice when connecting a phone interface to the
vehicle's electrical system.
Faulty and Damaged Products
Do not attempt to disassemble the phone or its accessories.
Only qualified personnel must service or repair the phone or its
accessories.
If your phone or its accessories have been submerged in water,
punctured, or subjected to a severe fall, do not use them until you have
taken it to be checked at an authorised service centre.
Battery Handling & Safety
Always switch the device off and disconnect the charger before
removing the battery.
Only use the battery and charger supplied, or manufacturer approved
replacements intended for use with your phone. Using other batteries
and chargers could be dangerous.
Do not disassemble or short-circuit the battery. Accidental short-
circuiting can occur if a metallic object such as a key, paper clip, or pen
touches the terminals of the battery.
Improper battery use may result in a fire, explosion, or other hazard. If
you believe the battery has been damaged, do not use it, take it to a
service centre for testing.
Interference•
General statement on interference
Care must be taken when using the phone in close proximity to personal
medical devices, such as pacemakers and hearing aids.
Pacemakers
Pacemaker manufacturers recommend that a minimum separation of
15 cm be maintained between a mobile phone and a pacemaker to
avoid potential interference with the pacemaker. To achieve this use
the phone on the opposite ear to your pacemaker and do not carry it
in a breast pocket.
Hearing Aids
People with hearing aids or other cochlear implants may experience
interference noises when using wireless devices or when one is nearby.
The level of interference will depend on the type of hearing device and
the distance from the interference source, increasing the separation
between them may reduce the interference. You may also consult your
hearing aid manufacturer to discuss alternatives.
Medical devices
Please consult your doctor and the device manufacturer to determine
if operation of your phone may interfere with the operation of your
medical device.
IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:27-Sec1:28IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:27-Sec1:28 2012-8-27 10:50:582012-8-27 10:50:58
![](asset-10.png)
29 30
Hospitals
Switch off your wireless device when requested to do so in hospitals,
clinics or health care facilities. These requests are designed to prevent
possible interference with sensitive medical equipment.
Aircraft
Switch off your wireless device whenever you are instructed to do so by
airport or airline staff.
Consult the airline staff about the use of wireless devices on board the
aircraft, if your device offers a ‘flight mode’ this must be enabled prior
to boarding an aircraft.
Interference in cars
Please note that because of possible interference to electronic
equipment, some vehicle manufacturers forbid the use of mobile
phones in their vehicles unless a handsfree kit with an external antenna
is included in the installation.
Explosive environments•
Petrol stations and explosive atmospheres
In locations with potentially explosive atmospheres, obey all posted
signs to turn off wireless devices such as your phone or other radio
equipment.
Areas with potentially explosive atmospheres include fuelling areas,
below decks on boats, fuel or chemical transfer or storage facilities,
areas where the air contains chemicals or particles, such as grain, dust,
or metal powders.
Blasting Caps and Areas
Turn off your mobile phone or wireless device when in a blasting area
or in areas posted with notifications requesting "two-way radios" or
"electronic devices" are turned off to avoid interfering with blasting
operations.
Your telephone is a transceiver that operates on GSM in quad-band with
850/900/1800/1900 MHz or UMTS in dual-band with 900/2100 MHz.

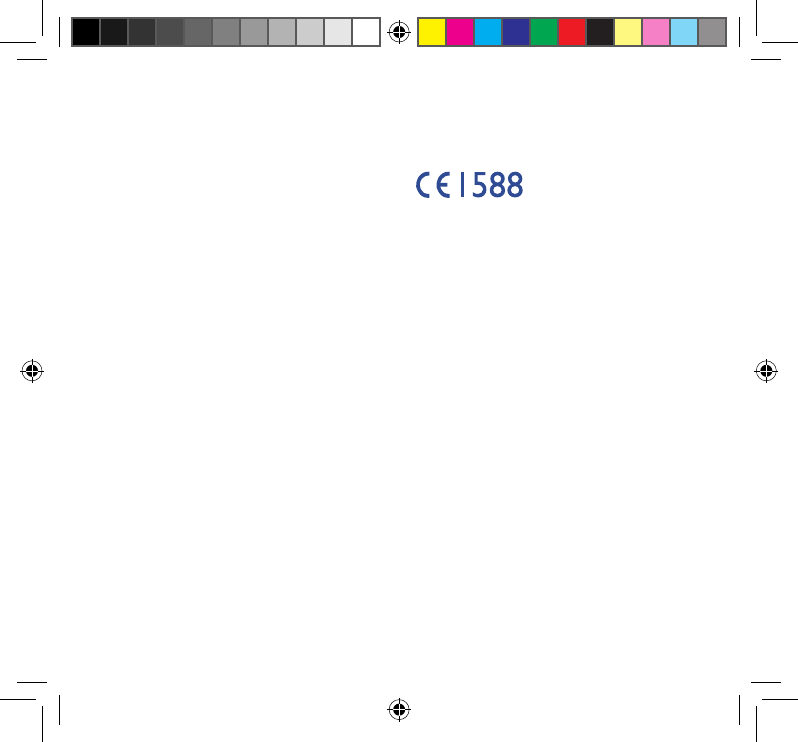

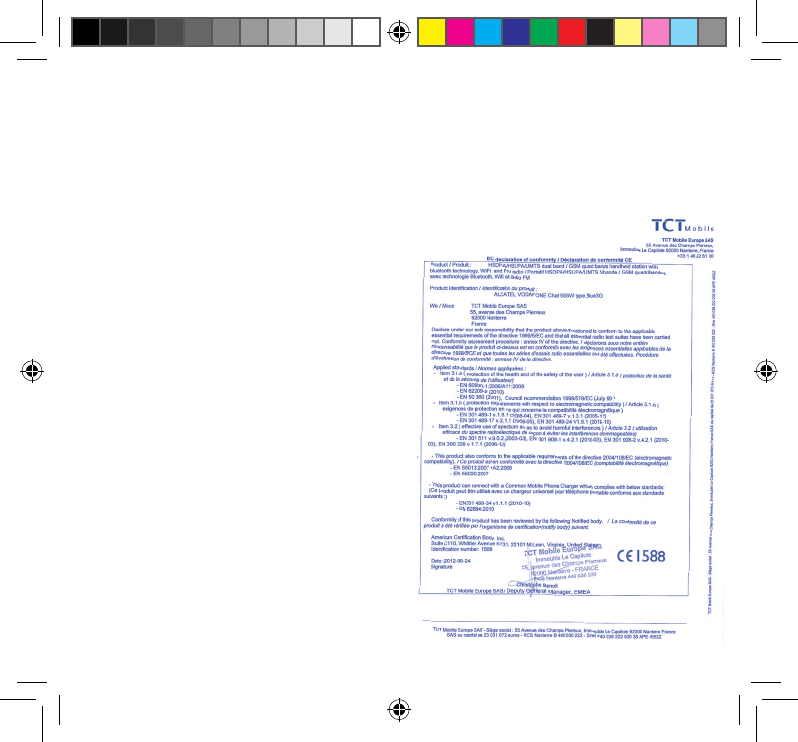

This equipment is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC. The entire copy of the
Declaration of Conformity for your telephone can be obtained through
our website: www.alcatelonetouch.com.
Protection against theft• (1)
Your telephone is identified by an IMEI (phone serial number) shown on
the packaging label and in the product’s memory. We recommend that
you note the number the first time you use your telephone by entering
* # 0 6 # and keep it in a safe place. It may be requested by the police
or your operator if your telephone is stolen. This number allows your
mobile telephone to be blocked preventing a third person from using it,
even with a different SIM card.
(1) Contact your network operator for service availability.
IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:29-Sec1:30IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:29-Sec1:30 2012-8-27 10:50:592012-8-27 10:50:59
![](asset-11.png)
31 32
Disclaimer•
There may be certain differences between the user manual description
and the phone’s operation, depending on the software release of your
telephone or specific operator services.
TCT Mobile shall not be held legally responsible for such differences, if
any, nor for their potential consequences, which responsibility shall be
borne by the operator exclusively.
This symbol on your telephone, the battery and the
accessories means that these products must be taken to
collection points at the end of their life:
- Municipal waste disposal centres with specific bins for
these items of equipment
- Collection bins at points of sale.
They will then be recycled, preventing substances being
disposed of in the environment, so that their components can be
reused.
In European Union countries:
These collection points are accessible free of charge.
All products with this sign must be brought to these collection points.
In non European Union jurisdictions:
Items of equipment with this symbol are not to be thrown into ordinary
bins if your jurisdiction or your region has suitable recycling and
collection facilities; instead they are to be taken to collection points for
them to be recycled.
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN
INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS.
Licences•
microSD Logo is a trademark.
The Bluetooth word mark and logos are owned by
Bluetooth SIG, Inc. and any use of such marks by
TCT Mobile Limited and its affiliates is under license.
Other trademarks and trade names are those of their
respective owners.
Vodafone Chat 655W Bluetooth
QD ID B018931
The Wi-Fi Logo is a certification mark of the Wi-Fi
Alliance.
Your device uses non-harmonised frequency and is
intended for use in all European countries. The WLAN
can be operated in the EU without restriction indoors,
but cannot be operated outdoors in France.
Notice
The information in this manual is subject to change without notice.
Every effort has been made in the preparation of this manual to
ensure accuracy of the contents, but all statements, information, and
recommendations in this manual do not constitute a warranty of any
kind, expressed or implied. Read the safety precautions and safety
information carefully to ensure that you use this wireless device in a
correct and safe manner.
TCT Mobile Limited Address:
TCT Mobile Europe SAS, 55 Av. des champs pierreux Le Capitole, Noyau
B, 1er é tage, 92000 Nanterre, France.
Website: http://www.vodafone.com/vodafonechat
IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:31-Sec1:32IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:31-Sec1:32 2012-8-27 10:50:592012-8-27 10:50:59
![](asset-12.png)
33 34
Telephone warranty24
WARRANTY TERMS AND CONDITIONS
1. Vodafone undertakes the warranty of this Mobile Phone for a period
of two (2) years from the date of Purchase by the original owner (not
transferable) under normal use.
2. The Battery has a limited warranty for twelve (12) months, and
Charger for twenty-four (24) months against manufacturing defects.
Other accessories have a limited warranty for twenty-four (24) months
against manufacturing defects.
3. This Warranty does not cover damage resulting from;
a) Normal wear & tear of the equipment;
b) Defects and damages due to the equipment being used other than
its normal and customary manner;
c) An unauthorized disassembly, repair, alteration or modification
being carried out;
d) Misuse, abuse, negligence or accident howsoever caused;
e) Defects or damage arising from improper testing, operation,
maintenance, installation, or any alteration or modification;
f) Defects or damage due to spillage of food or liquids, corrosion, rust
or the use of wrong voltage;
g) Scratches or damage to plastic surfaces and all other externally
exposed parts that are due to normal customer use;
4. The Handset requiring service/repair must be delivered at the
user's cost.
5. This warranty will be null and void in any of the following events:
a) If the serial number or warranty seal on the equipment has been
defaced or removed.
b) If any term contained in this warranty has been altered or modified
in any way without prior written consent of Vodafone.
6. The limited warranty extends only to customer who purchase the
product in one of the countries (or areas) set forth at the end of this
document. The limited warranty is only valid in Vodafone's intended
country (or area) of sale of the Product.
7. If the product is returned to Vodafone after the expiration of the
warranty period, Vodafone's normal service policies shall apply and
the Consumer will be charged accordingly.
a) Vodafone neither assumes for it any other obligation or liability
beyond that which is expressly provided for in this limited
warranty.
b) All warranty information, product features and specifications are
subject to change without notice.
8. THIS WARRANTY IS IN LIEU OF ANY AND OTHER WARRANTIES
EXPRESSED OR IMPLIED, SPECIFICALLY INCLUDING ANY IMPLIED
WARRANTY OF MERCHANTABILlTY OR FITNESS FOR A PARTICULAR
PURPOSE. VODAFONE ASSUMES NO LIABILITY FOR THE BREACH OF
THE WARRANTY BEYOND CORRECTING THE BREACH IN THE MANNER
DESCRIBED ABOVE. IN NO EVENT SHALL VODAFONE BE LIABLE FOR
CONSEQUENCES.
IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:33-Sec1:34IP4347_VF655W_QG_Eng_GB_White_14_120827.indd Sec1:33-Sec1:34 2012-8-27 10:50:592012-8-27 10:50:59
