zBoost YX545-PCS-CEL2 Cellular Signal Booster User Manual

zBoost, LLC Cellular Signal Booster Users Manual

UserManual.wiki >

zBoost >

YX545 PCS CEL2 User Manual HTML Version

Users Manual

zBoost YX545 SOHO

User Guide

30 day money back guarantee when you buy directly from Wi-Ex®. If product is purchased

from a reseller or third party, you must use their return policy.

1 Year Manufacturer Warranty. Register your zBoost® product at www.Wi-Ex.com

v.042512

zBOOST® YX545 SOHO USER GUIDE zBOOST® YX545 SOHO USER GUIDE

About zBoost® from Wi-Ex®

Wi-Ex, the leader in cell phone signal boosters manufactures zBoost, the award-winning line

of cell phone signal boosters that enhance the performance of your cell phone, smartphone

and wireless data card.

Compatibility – Dual Band zBoosts are compatible with 800MHz and 1900MHz regardless of

technology- including CDMA and GSM.

Patented technologies protect the carrier network.

1-year manufacturer warranty – register your product at www.Wi-Ex.com.

zBoost products have more awards, more sales and more locations than all other signal

boosters…COMBINED.

FCC Information

FCC ID: SO4YX545-PCS-CEL2

Warning: Changes or modications to this device not expressly approved by Wi-Ex® could void the

user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If the equipment does cause

harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment to an outlet on a circuit different from that to which the receiver is

connected

• Consult the dealer or an experienced radio/TV technician for help

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter. In accordance with FCC requirements of human exposure to radiofrequency

elds, the radiating element (antenna) shall be installed such that a minimum separation distance of

20cm (8in) is maintained from all persons.

Industry Canada Regulations

IC ID: 5544A-YX545PCSCL2

This Class B digital apparatus meets all requirements of the Canadian Interference Causing

Equipment Regulations. Operation is subject to the following two conditions: (1) this device may not

cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

The term “IC:” before the radio certication number only signies that Industry Canada technical

specications were met.

RF Exposure: The manufacturer’s rated output power of this equipment is for single carrier

operation. For situations when multiple carrier signals are present, the rating would have to be

reduced by 3.5 dB, especially where the output is re-radiated and can cause interference to

zBOOST® YX545 SOHO USER GUIDE

iii

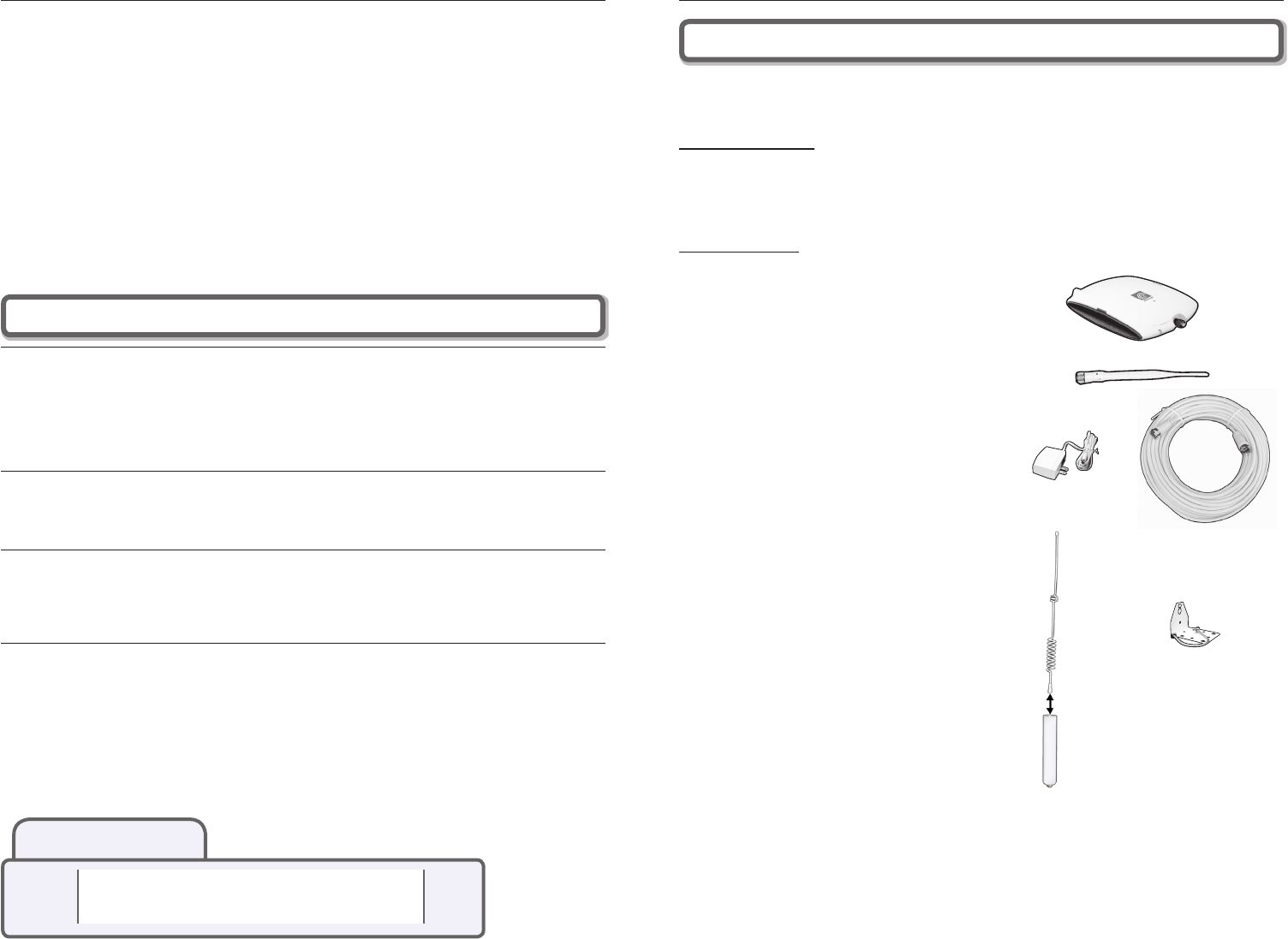

Package Contents: zBoost YX545 SOHO

⑦

②

③

④

⑤

⑥

Before you begin, make sure all of the following parts came with your zBoost YX545.

Literature Contents:

① Set-up overview for zBoost® YX545 SOHO

(User Guide online only)

Product Contents:

② zBoost Base Unit

③ Base Unit Antenna

④ Power Supply

⑤ RG-59 (mini) Coax Cable 50 ft.

⑥ Signal Antenna

⑦ Signal Antenna Mounting Hardware

adjacent band users. This power reduction is to be by means of input power or gain reduction and

not by an attenuator at the output of the device.

Cet appareillage numérique de la classe [B] répond à toutes les exigences de l’interférence

canadienne causant des règlements d’équipement. L’opération est sujette aux deux conditions

suivantes: (1) ce dispositif peut ne pas causer l’interférence nocive, et (2) ce dispositif doit accepter

n’importe quelle interférence reçue, y compris l’interférence qui peut causer l’opération peu désirée.

Le fabricant nominale de la puissance de sortie de ce matériel est simple transporteur. Pour les

situations lorsque plusieurs signauxporteurs sont présents, l’évaluation devrait être réduite de

3.5 dB, en particulier lorsque le signal de sortie est ré-émise et peut provoquer des interférences

adjacentes à la bande utilisateurs. Ce pouvoir est de la réduction par le biais de la sortie

d’alimentation ou la réduction de gain et non par un atténuateur à la sortie du dispositif.

Please note: This unit has been approved for use in Canada under RSS 131, however, consent

for the use of this device to improve cellular or PCS coverage, must be obtained through your

cellular or PCS provider, prior to placing the unit in operation. Please refer to the Industry Canada

document CPC 2-1-05, Section 6.1 available or viewable at:

http://www.ic.gc.ca/epic/site/smt-gst.nsf/en/sf08942e.html

photocopied, reproduced, translated or reduced to any electronic medium or machine readable

form for distribution. This manual whole or in part, may not be modied without prior consent, in

writing, from Wireless Extenders.

Trademarks

Wireless Extenders, Wi-Ex, the Wi-Ex logo, zBoost, the zBoost logo and Extending Cell Zones are

registered trademarks of Wireless Extenders, Inc.

Safety Guidelines

In accordance with FCC requirements of human exposure to radiofrequency elds, the radiating

element (antenna) shall be positioned such that a minimum separation distance of 8 inches (20cm)

is maintained between the radiating element and the user and/or general population.

Limited Liability

In no event shall Wireless Extenders be liable for any direct, indirect, special, punitive, incidental,

exemplary or consequential damages, or any damages, whether in an action under contract,

negligence, or any other theory, arising out of or in connection with the set up of, use of, inability

to use, or performance of the information, services, products, and materials available from this

manual. These limitations shall apply notwithstanding any failure of essential purpose of any

limited remedy. Because some jurisdictions do not allow limitations on how long an implied

warranty last, or the exclusion or limitation of liability for consequential or incidental damages, the

above limitations may not apply to you.

For full warranty guidelines, see page 11.

Safety and Product Warranty Information

Note

Changes or modications not expressly approved by

Wi-Ex® could void the user’s authority to operate this

equipment and/or void the product warranty.

zBOOST® YX545 SOHO USER GUIDE

Optional zBoost® Accessories Table of Contents

About zBoost® from Wi-Ex® .........................................................................................................................i

FCC Information .................................................................................................................................... i

Industry Canada Regulations .................................................................................................................. i

Safety and Product Warranty Information ..................................................................................................ii

Copyright Notice ................................................................................................................................... ii

Trademarks ............................................................................................................................................ ii

Safety Guidelines ................................................................................................................................... ii

Limited Liability .................................................................................................................................... ii

Package Contents: zBoost® YX545-PCS-CEL............................................................................................ iii

Optional zBoost® Accessories .....................................................................................................................iv

Table of Content .........................................................................................................................................1

Overview .....................................................................................................................................................2

Why Indoor Signals Can Be Weak ......................................................................................................... 2

Preparing to Set Up Your zBoost® Product ..................................................................................................3

Tools Needed ......................................................................................................................................... 3

Check for Signal Strength ...................................................................................................................... 3

Determine the Needed Coverage Area .................................................................................................... 4

Determine the Location of Signal Antenna and Base Unit Antenna ....................................................... 4

Additional Cable Requirements ............................................................................................................. 5

Securing Cable with a Drip Loop ........................................................................................................... 5

Power Requirements .............................................................................................................................. 5

Setting Up Your zBoost® Signal Booster ......................................................................................................6

Placement of the Signal Antenna ............................................................................................................ 6

Easiest Set-Up ........................................................................................................................................ 6

Better Performance................................................................................................................................. 7

Best Performance ................................................................................................................................... 8

Positioning the Base Unit ..................................................................................................................... 10

Conrm at Your zBoost® is Working Properly .................................................................................. 10

Improving Your Coverage Area .................................................................................................................11

zBoost® Base Unit Light Indicators ...........................................................................................................12

YX545-SOHO Technical Specications ....................................................................................................13

Frequently Asked Questions .....................................................................................................................14

zBoost® Warranty Information ...........................................................................................................15&16

The following accessories are available to improve signal reception and provide increased coverage

in your home or ofce. Please see our website for complete selection.

To order, call 1-800-871-1612 or visit, www.Wi-Ex.com

YX545-Dual Band

Part # Description

Most Popular Accessory for YX545 SOHO:

X YX039-PCS-CEL Bi-Directional receiving Signal Antenna upgrade

(13 dBi PCS / 8 dBi CEL)

Other Accessories:

X YX012 Outside Grounding Kit

X YX027-PCS-CEL Directional transmitting Base Unit Antenna upgrade

(9 dBi PCS / 6 dBi CEL)

X YX028-PCS-CEL Directional transmitting window-mount Base Unit Antenna

upgrade (9 dBi PCS / 6 dBi CEL)

X YX030-15W 15 ft. Signal Antenna coax extension, low-loss RG-6

X YX030-35W 35 ft. Signal Antenna coax extension cable, low-loss RG-6

X YX031-10W 10 ft. Base Unit Antenna coax extension cable

X YX030-08W 8” at window entry cable

X YX050-PCS-CEL Omni-Directional transmitting ceiling-mount Base Unit

Antenna (2 dBi PCS / 1 dBi CEL)

zBOOST® YX545 SOHO USER GUIDE

Preparing to Set Up Your zBoost ProductOverview

Thank you for choosing zBoost. You will now be able to use your cell phone INSIDE your home or

ofce. Gone are the days when you had to go to the window upstairs or walk outside to use your

cell phone. Like a skylight that brings sunlight into your home, zBoost® transports and amplies the

outdoor cellular signals into your home or ofce.

By following the easy instructions in this user guide, you will be Extending Cell Zones™ into your

home or ofce.

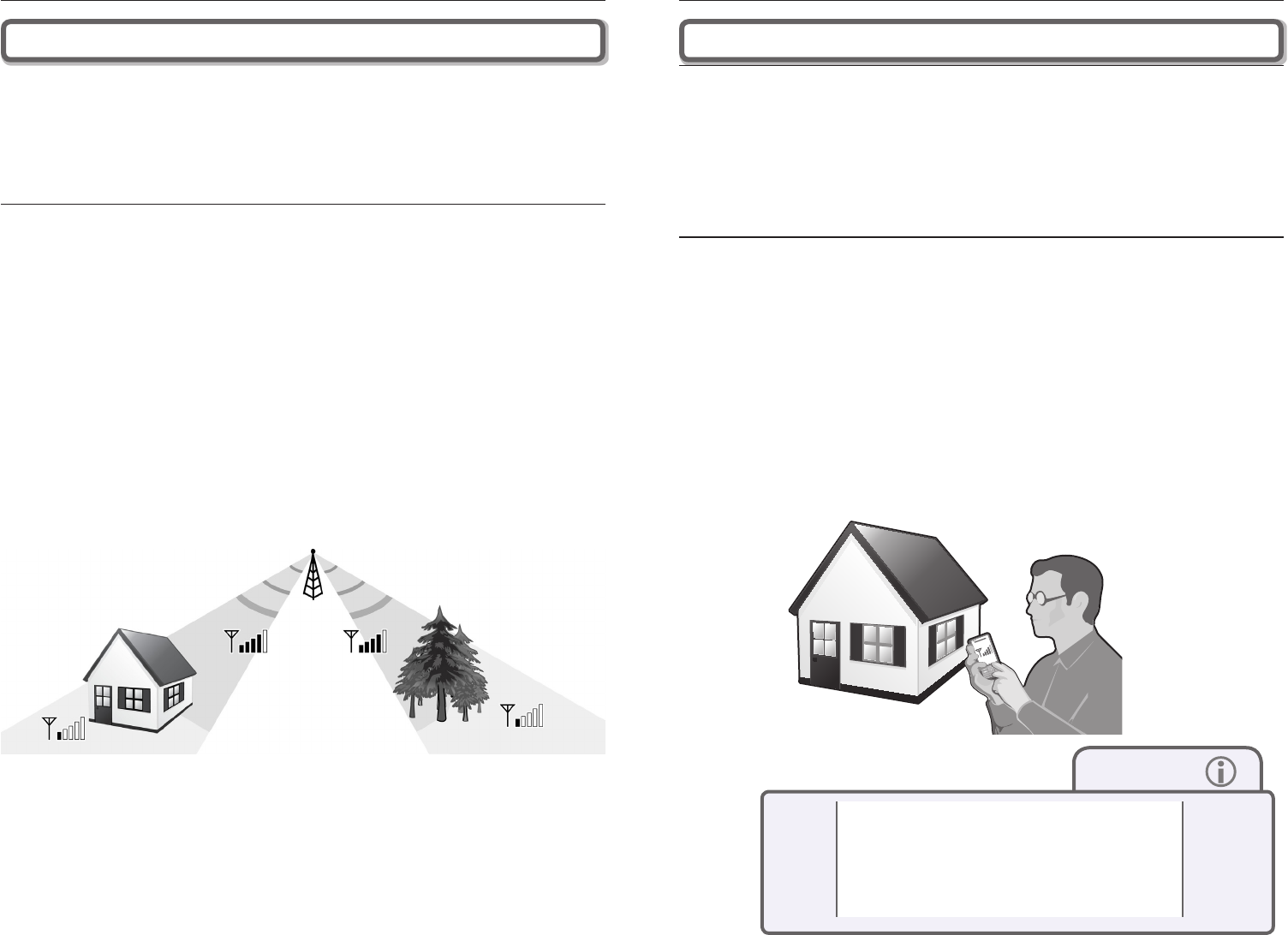

Why Indoor Signals Can Be Weak

There are several obstacles that can contribute to the poor reception you receive in your home or

ofce:

1. Location of the Cell Phone Tower in Relation to Your Home/Ofce

While cell phone providers have tried to place cell phone towers to provide the best overall

coverage, local ordinances and terrain features can impose restrictions on where these

towers can be placed, thus, limiting the signal strength available at your location.

2. Obstructions Caused by Buildings, Terrain and Trees

Cell phone signals can be completely blocked or reected by buildings, walls, trees, hills

and other terrain features resulting in low signal strength.

3. Energy Efcient Windows

These new windows can also affect signal penetration into the house

Tools Needed

The following tools are needed to set up zBoost:

• #2 Phillips screwdriver

• Cellular phone operating in the band supported by your zBoost® unit

• Drill (may be required for outdoor or attic antenna placement)

Check for Signal Strength

Before placing a zBoost in your home, make sure that you can place calls on the outside of your

home, in the attic, at roof level or wherever you plan to place the signal antenna. zBoost® can

only bring signal into your home when signal reaches the Signal Antenna. If there is no signal, the

zBoost will not work for you.

Using your cell phone, place a call from an outdoor location to conrm that enough signal is present

to complete the call. If a weak signal is available at ground level, check the signal strength in your

attic or at roof level location where the signal will likely be stronger and where the Signal Antenna

can be placed for best performance.

If you can reliably make and receive calls outside your home, then zBoost can bring the signal into

your home.

If only one signal bar is displayed on your cell phone outside, indoor coverage will be

limited to one small room. We recommend placing the Signal Antenna outside and/or purchasing

a Wi-Ex upgrade Signal Antenna for increased coverage (see page iv).

Note

Cell phone signal bars are approximate and vary from

phone to phone. The number of bars can uctuate

widely, depending on the location of the phone, the

position or angle of the phone, weather, etc. Most cell

phone signal meters update every 6 to 10 seconds. An

increase of only one bar typically indicates a 4x to 10x

signal increase.

zBOOST® YX545 SOHO USER GUIDE

Pole Bracket

Saddle

U-Bolt

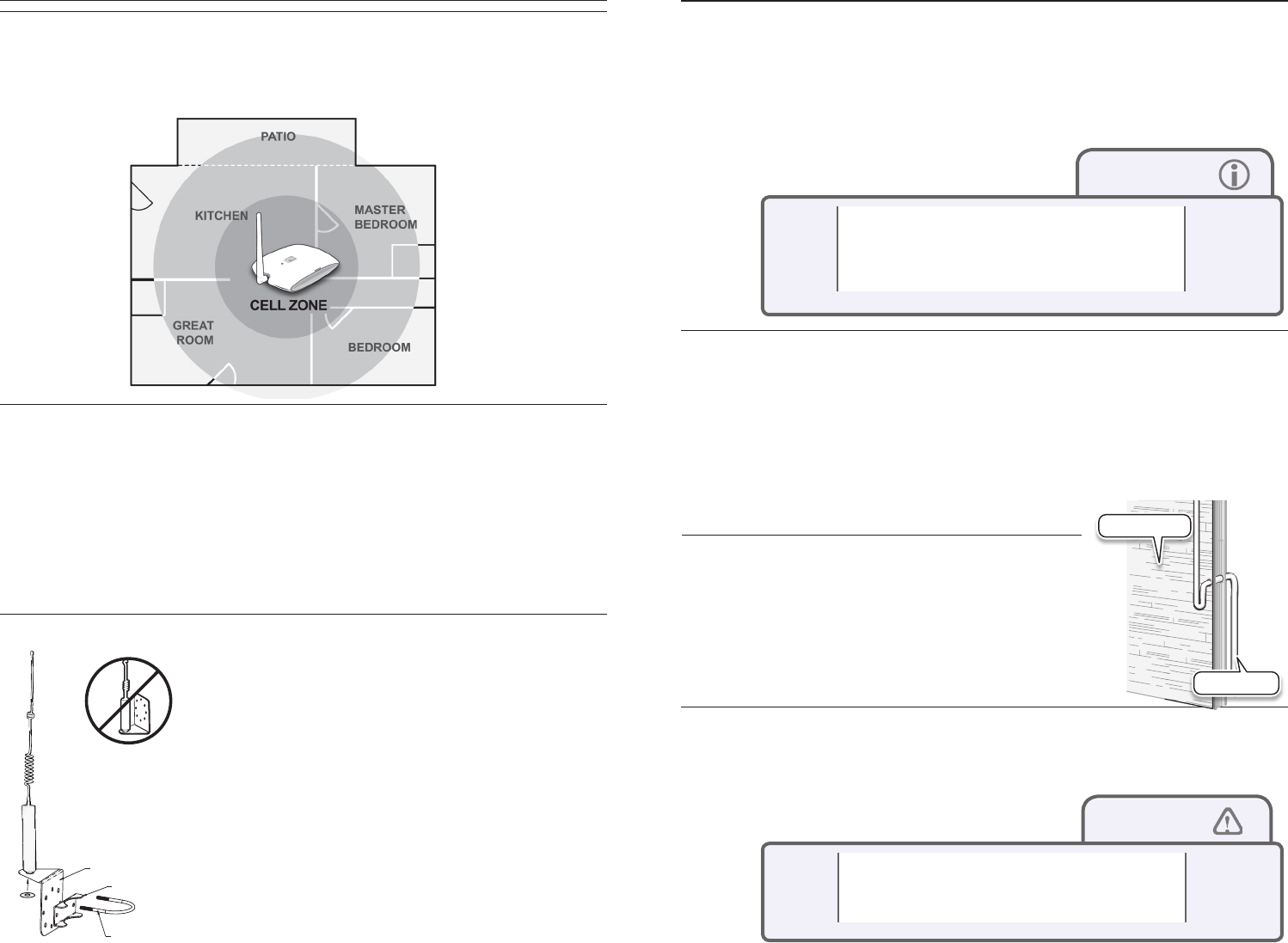

Determine the Needed Coverage Area

Identify the location in your home/ofce where you need signal coverage the most. The zBoost®

YX545 SOHO can cover up to 3000 square feet (coverage varies based on outdoor signal level,

building construction, and placement of antennas). Walls, ceilings or oors will reduce the coverage

area.

Determine the Location of Signal Antenna and Base Unit Antenna

It is recommended that the Signal Antenna and Base Unit Antenna have at least 15 feet of

vertical separation.

If the antennas are too close together, the light on the Base Unit will ash red, indicating a problem

see the Light Indicators section (Page 12). To capture the best signal, place the Signal Antenna as

high as possible and position it vertically, keeping it at it at least 2 feet away from any metal.

The location of the Signal Antenna should be at least 15 feet higher than the Base Unit Antenna. If

this is not possible, maximizing the horizontal separation between the 2 antennas is advised.

See page 6, Setting Up Your zBoost® Product, for additional information.

Note

Avoid placing the Signal Antenna near metal such as

wiring, A/C ducts, metal siding, truss plates, etc.

When connecting the cable to the antenna, run the

cable straight down from the antenna. Avoid draping

the coax near the antenna.

Additional Cable Requirements

If the distance between the Signal Antenna and the Base Unit exceeds 50 feet, extension cables

are available on our website or at many home improvement and electronic stores. The included

cable is RG59-mini. For better performance, you may replace it with RG-6 cable for satellite TV.

The total cable length should not exceed 70 feet unless you also purchase an upgraded signal

antenna (see page iv). A longer cable is helpful only if it allows you to place the Signal Antenna in a

location where you measure stronger signal.

Grounding the Signal Antenna

If you decide to place the Signal Antenna outdoors, it must be properly grounded. (See page iv for a

recommended grounding kit).

The set up must be in accordance with Article 810 of the National Electric Code (NEC). A listed

antenna discharge unit must be provided for the lead-in coaxial cable per NEC article 8.10.20 or the

shield of the coaxial cable must be permanently and effectively grounded in accordance with NEC

article 8.10.21. Please consult a professional installer or electrician for more information. (See page

iv).

Securing Cable with a Drip Loop

If you place the Signal Antenna outdoors, create a drip loop with

the coaxial cable at the point where the cable enters the building

through an outside wall. This can be done by twisting and

securing the cable into a loop (no less than 4” across) near the

entry point. This will help prevent moisture from gathering at entry

point and leaking into the building. Consult a professional installer

if you need more information.

Power Requirements

The Base Unit can be plugged into a standard 2 or 3 prong 110 VAC receptacle using the Included

power supply. The power supply consumes less than 10W (less than 0.2A).

Note

The zBoost® YX545 SOHO base unit MUST only be

used with the provided power adaptor. Use of other

power adaptors will void the warranty and may damage

the unit. Use of other equipment is not FCC approved.

Antenna Bracket Assembly

IMPORTANT: Incorrectly mounting the Signal Antenna to the

mounting bracket (see gure A) will impede performance.

Ensure that the Signal Antenna is properly positioned in the

mounting bracket as pictured below.

To mount antenna to a pole: Attach bottom of antenna to pole

bracket as pictured. Use U-Bolt to secure bracket to pole and

fasten.

To mount antenna to a at surface: Attach bottom of antenna to

pole bracket as pictured. Secure bracket to desired surface using

provided screws. Use of the Saddle and U-Bolt are not necessary

for this option.

Figure A

Coax Cable

Exterior Wall

zBOOST® YX545 SOHO USER GUIDE

Setting Up Your zBoost® Signal Booster

Placement of the Signal Antenna

Choosing the best location for the Signal Antenna provides the best performance and the largest

area of improved signal. Determine the location that provides the strongest signal using the signal

strength indicator on your cell phone. Find the location that provides the most bars of signal

strength and place the Signal Antenna at or near that location. Assemble the Signal Antenna

mounting bracket as shown on page 4. Avoid placing the Signal Antenna near metal such as wiring,

A/C ducts, metal siding, truss plates, etc. When connecting the cable to the antenna, run the cable

straight down from the antenna. Avoid draping the coax near the antenna.

Choose 1 of the following 3 options for setting up your zBoost®

system:

 EASIEST: Inside, by a window

Locate a window where you get service.

1. Mount the Signal Antenna above the window. The

coverage your zBoost® provides is largely determined by

the quality of signal received by the Signal Antenna.

2. Assemble the Base Unit Antenna. Place the Base Unit in

desired location – where you want to create a Cell Zone™

(15 feet of vertical separation between the Base Unit and

Signal Antenna is recommended). Connect the Base Unit

Antenna to the Base Unit and place it where you need

signal.

3. Attach the coaxial cable to the Signal Antenna.

4. Connect the other end of the coaxial cable to the Base Unit.

5. Attach the Base Unit Antenna to the Base Unit and position it

vertically.

6. Connect the Power Supply to the Base Unit and plug into a power outlet.

NOTE: The zBoost YX545 SOHO requires at least 15 feet of vertical separation between the Base

Unit and the Signal Antenna. Generally, increasing this distance (up to 40 feet) will increase the

performance and decreasing the distance will limit zBoost performance. Keep the Base Unit off

the oor and at least 2 feet away from other cords, metal objects or other wireless devices such

as wireless routers or wireless access points. The zBoost SOHO performs best when there are no

obstructions between the zBoost Base Unit and your mobile device.

Upon initial power up, a solid GREEN light should appear indicating normal conditions. If a RED

light appears, adjustments may be needed to optimize performance. If you nd the increased signal

coverage is acceptable, however, no additional adjustments are needed. See Light Indicator section

(Page 12) for more information.

 BETTER PERFORMANCE: Outside of a window

Locate a window where you get signal.

1. Mount the Signal Antenna outside of the window. The

coverage your zBoost provides is largely determined by

the quality of signal received by the Signal Antenna.

2. Assemble the Base Unit Antenna. Place the Base Unit

in desired location – where you want to create a Cell

Zone™ (15 feet of vertical separation between the Base

Unit and Signal Antenna is recommended).

3. Attach the coaxial cable to the Signal Antenna.

4. Run the coaxial cable from the Signal Antenna through

the window (an optional window entry kit is available:

see page iv) and to the Base Unit.

5. Attach the Base Unit Antenna to the Base Unit and position it

vertically.

6. Connect the Power Supply to the Base Unit and plug into a

power outlet.

NOTE: The zBoost SOHO requires at least 15 feet of vertical separation between the Base

Unit and the Signal Antenna. Generally, increasing this distance (up to 40 feet) will increase the

performance and decreasing the distance will limit zBoost performance. (If 15 feet of separation is

not possible, you may try our new METRO model, which was designed for lofts and urban dwellings

and requires no vertical separation.) Keep the Base Unit off the oor and at least 2 feet away from

other cords, metal objects or other wireless devices such as wireless routers or wireless access

points. The zBoost SOHO performs best when there are no obstructions between the zBoost Base

Unit and your mobile device.

Upon initial power up, a solid GREEN light should appear indicating normal conditions. If a RED

light appears, adjustments may be needed to optimize performance. If you nd the increased signal

coverage is acceptable, however, no additional adjustments are needed. See Light Indicator section

(Page 12) for more information.

*An 8 inch window entry cable may be needed for this option. It is available for purchase at www.

Wi-Ex.com (Part #: YX030-08W).

Easiest Set-up

Place Signal Antenna

inside, by a window

Better

Performance

Place Signal Antenna

outside of window*

zBOOST® YX545 SOHO USER GUIDE

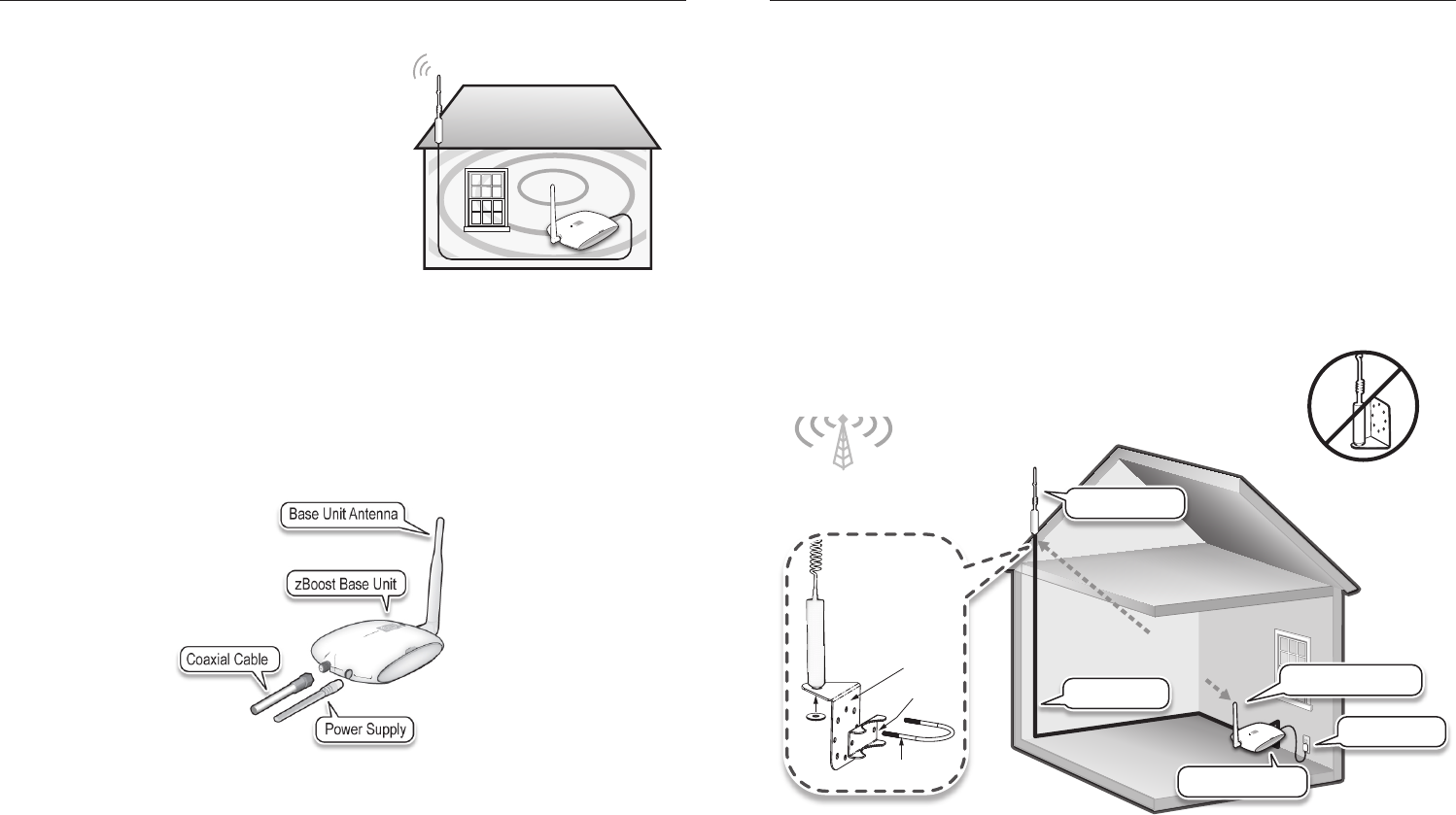

 BEST PERFORMANCE: Attic/Outdoor placement

The following instructions are recommended for the

best reception:

1. Using your cell phone as a signal meter,

conrm that either your attic or your roof

will deliver optimal signal strength to the

Signal Antenna. Identify the best location for

attachment of the mounting bracket – such

as an attic cross or main beam. The coverage

your zBoost provides is largely determined

by the quality of signal received by the Signal

Antenna.

2. Secure the mounting bracket at the highest

possible point and at least 3 feet (1 meter)

away from metal objects such as pipes, metal

siding, A/C unit etc).

3. Position the mounting bracket such that the Signal

Antenna will be vertical and attach the Signal Antenna. See page 4 for more information.

4. Connect the supplied coaxial cable to the base of the Signal Antenna. Run the coaxial cable

along a descending pipe or through a wall that leads closest to the location of the Base

Unit. Use the provided 50 feet of RG-59(mini) coaxial cable to connect the Signal Antenna

and the Base Unit. Should you need additional cable length, 15 foot extensions (Part #:

YX30-15w) are available at www.Wi-Ex.com. Please note: Cable longer than 75 feet is not

recommended.

NOTE: Refrain from securing cable or drilling holes until the system has been tested.

5. From the other end, connect the coax cable it to the Base Unit. Assemble the Base Unit

Antenna. Connect the Base Unit Antenna to the Base Unit and place it where you need

signal. Place the zBoost Base Unit where you want to create a Cell Zone. For the widest

possible signal area, it is recommended that you position the Base Unit near the middle of

a room or mount it on an interior wall. This Base Unit uses an omni-directional antenna that

delivers signal in a circular pattern around the antenna.

6. Connect the zBoost Base Unit to the provided power supply and plug into a power outlet.

When your zBoost system is in place and fully connected, walk throughout your home or

ofce and verify that you are able to reliably place calls. If the signal strength has improved,

your zBoost is working. Remember, coverage varies based on outdoor signal level, building

construction, and antenna placement. Coverage in adjoining rooms (next to, above, or

below) will be reduced by walls and ceiling/oors.

Best Performance

Place Signal Antenna on roof

or in attic

NOTE: The zBoost YX545 SOHO requires at least 15 feet of vertical separation between the Base

Unit and the Signal Antenna. Generally, increasing this distance (up to 40 feet) will increase the

performance and decreasing the distance will limit zBoost performance. (If 15 feet of separation is

not possible, you may try our new METRO model, which was designed for lofts and urban dwellings

and requires no vertical separation.) Keep the Base Unit off the oor and at least 2 feet away from

other cords, metal objects or other wireless devices such as wireless routers or wireless access

points. The zBoost SOHO performs best when there are no obstructions between the zBoost®

Base Unit and your mobile device.

Upon initial power up, a solid GREEN light should appear indicating normal conditions. If a RED

light appears, adjustments may be needed to optimize performance. If you nd the increased signal

coverage is acceptable, however, no additional adjustments are needed. See Light Indicator section

(Page 12) for more information.

zBoost Base Unit

Power Supply

Base Unit Antenna

Coaxial Cable

Signal Antenna

Cell Tower

15 ft

separation

Pole Bracket

Saddle

U-Bolt

Figure A

zBOOST® YX545 SOHO USER GUIDE

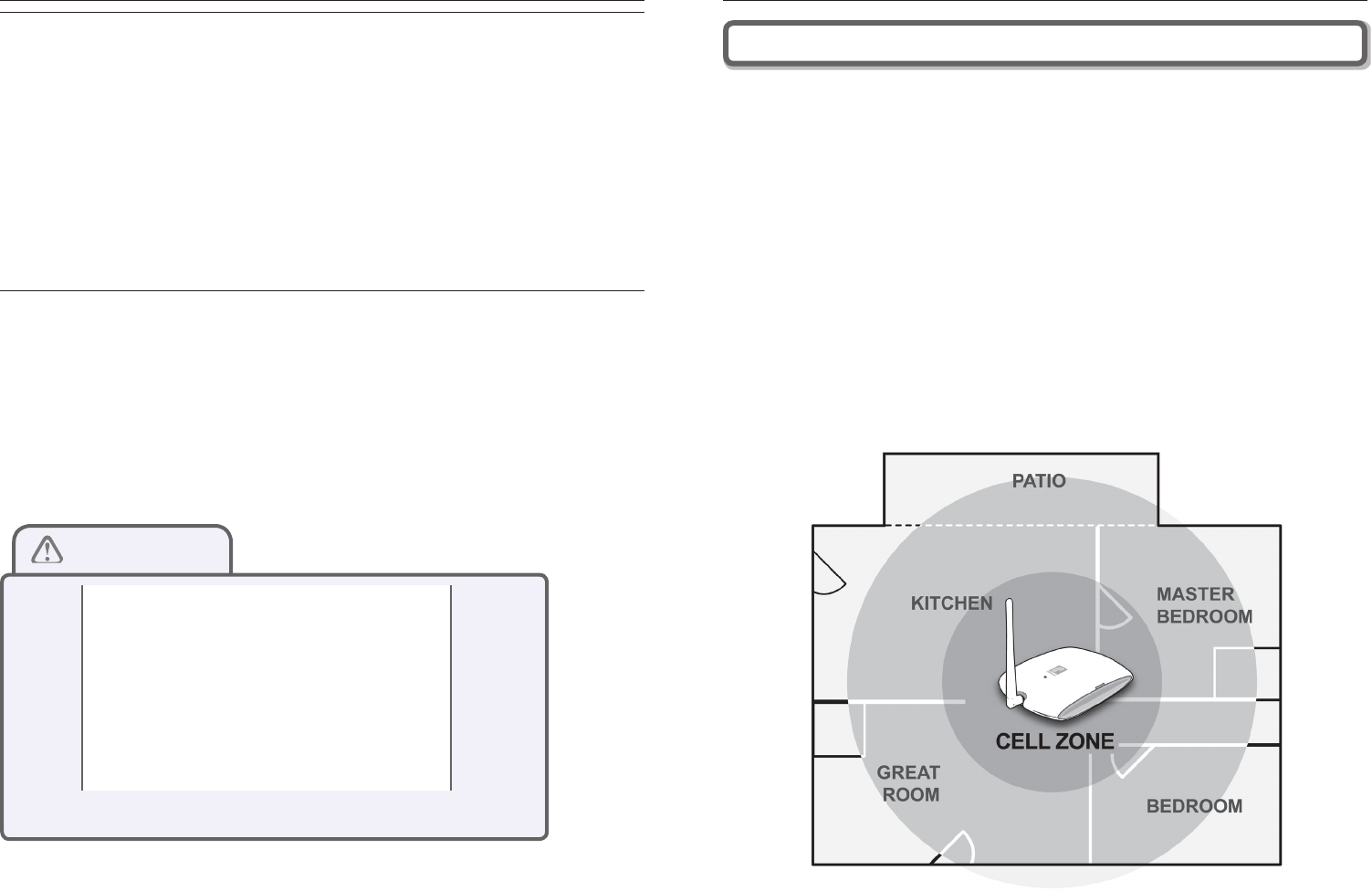

Improving Your Coverage Area

Positioning the Base Unit

For the widest possible signal area, it is recommended that you position the zBoost® YX545 SOHO

Base Unit near the middle of a room or mount it on an interior wall. This Base Unit uses an omni-

directional antenna that delivers signal in a circular pattern around the antenna.

If you decide to position the Base Unit on or near an outside wall, we recommend purchasing a

Directional Base Unit Antenna (Page iv) to focus the signal in the direction of your choice.

The Base Unit can be mounted either directly on a wall or placed on a at surface (e.g., a

bookshelf, desk, end table, etc.). The Base Unit performs best when located at least 4 feet above

the oor or approximately the height of a cell phone when it is typically in use (avoid placing the

Base Unit on the oor).

For best results, avoid placing the Base Unit antenna within 2 feet of other cords, metal objects or

other wireless devices such as wireless routers or wireless access points.

Conrm That Your zBoost is Working Properly

Perform the following steps to conrm that the unit is now working properly:

1. Unplug the Base Unit power cord.

2. Turn on your cell phone and check the signal meter.

3. Plug the power cord into the Base Unit.

4. Hold your cell phone about 5 feet from the Base Unit and then turn it on. Wait up to 1 minute

for the cell phone to register the signal coming from the Base Unit.

5. If the signal meter shows improvement, your zBoost® unit is working properly.

Note

Cell phone signal bars are approximate and vary from

phone to phone. The number of bars can uctuate

widely, depending on the location of the phone, the

position or angle of the phone, weather, etc. Most cell

phone signal meters update every 6 to 10 seconds. An

increase of only one bar typically indicates a 4x to 10x

signal increase.

THE BEST INDICATOR OF PRODUCT

PERFORMANCE IS THE ABILITY TO RELIABLY

PLACE AND RECEIVE CALLS WHERE YOU COULD

NOT BEFORE SETTING UP THE YX545 SOHO.

When your zBoost® system is in place and fully connected, you should walk throughout the room

and see that you are able to reliably place calls.

Remember, coverage varies based on outdoor signal level, building construction, and antenna

placement. Coverage in adjoining rooms (next to, above, or below) will be reduced due to walls or

ceiling/oors.

Should you desire to improve coverage, you may:

• Relocate the Signal Antenna in order to capture a better signal –higher is usually better and

outside is better than inside.

• Increase the distance between the Base Unit Antenna and the Signal Antenna.

• Purchase an upgrade antenna available at www.Wi-Ex.com

NOTE: The zBoost YX545 SOHO requires at least 15 feet of vertical separation between the Base

Unit and the Signal Antenna. Generally, increasing this distance (up to 40 feet) will increase the

performance and decreasing the distance will limit zBoost performance. (If 15 feet of separation is

not possible, you may try our new METRO model, which was designed for lofts and urban dwellings

and requires no vertical separation.) Keep the Base Unit off the oor and at least 2 feet away from

other cords, metal objects or other wireless devices such as wireless routers or wireless access

points. The zBoost® SOHO performs best when there are no obstructions between the zBoost®

Base Unit and your mobile device.

zBOOST® YX545 SOHO USER GUIDE

Solid GREEN Normal condition at power up.

Slowly Alternating RED and GREEN zBoost is working, but at reduced

performance and coverage due to

“non-ideal” setup.

Solution: Increase the distance

between antenna and amplier to

achieve maximum performance and

coverage.

Fast Flashing RED Indicates insucient distance between

the antenna and the amplier. The

amplier is operating at signicantly

reduced coverage.

Solution: Increase space between

base unit and antenna.

Solid RED System is receiving signals from either

the mobile device or the base station

transceiver which are too strong for

proper operation.

Solutions:  Move away from

receiving antenna with your cell

phone.  Move antenna away from

other devices..

Fast Alternating RED and GREEN

followed by no light

The amplier is disabled.

Solution: Unplug and start over.

zBoost® Base Unit Light Indicators

At Initial Power Up Only

Solid GREEN Normal condition.

Solid RED System is receiving signals from either

the mobile device or the base station

transceiver which are too strong for

proper operation.

Solution: Please unplug your system.

Re-orient your Signal Antenna and/

or Base Unit to reduce the excessive

signal source. Plug your system

back in. If still solid red, call customer

support 1-800-871-1612.

After Initial Power Up

Technical Specications

Product Specications for zBoost® YX545 SOHO – Dual Band

PCS band

Frequency Uplink: 1850 to 1910 MHz

Downlink: 1930 to 1990 MHz

System Gain 60dB

PCS band supported A, D, B, E, F, C

Networks CDMA, GSM, GPRS, EDGE, EVDO, 1xRTT,

UMTS, HSPA, 3G

Cellular band

Frequency Uplink: 824 to 849 MHz

Downlink: 869 to 894 MHz

System Gain 60dB

CEL band supported A, B, A’, B’

Networks CDMA, GSM, GPRS, EDGE, EVDO, 1xRTT,

UMTS, HSPA, 3G

General

Power Consumption – Power Supply Current 3W standby; 7W max signal - 5.0VDC, 2.0A Max

Wall Supply Input ; Voltage 100-240VAC, 50-60 Hz

Output Power +20 in UL and +13 in DL

Input and Output Impedance TNC Connector: 50ohm; F Connector:75 ohm

System Certications FCC Parts 15 & 24 (PCS), Parts 15 & 22 (CEL),

Industry Canada

Base Unit Size and Weight 5” x 7” x 1.25” – 9 oz.

Operating Conditions Indoor Use Only (40° - 105° F)

This product uses patented technology to protect the carrier network

This product is covered by patent US 7,706,744. Other U.S. and

foreign patents pending.

zBOOST® YX545 SOHO USER GUIDE

Frequently Asked Questions

What can I expect my cell phone signal range and strength to be inside my home or ofce?

The closer you are to the base, the stronger the signal. This will vary with dierent conditions. Some

of the conditions that will aect the improved coverage area are signal strength outdoors, the type

of building materials in the home, the placement of the unit and the antenna’s proximity to cellular

towers.

You can expect that your indoor coverage will be improved. You will be able to make calls where

you couldn’t before. The degree of improvement will depend upon many factors. The intent of

zBoost® products are to bring outside coverage inside. Just as the signal bars move up and down

when outside, the boosted signal will uctuate in a similar fashion.

Is a cellular phone signal booster the same as a wireless router; will it help my WiFi signal?

The Wi-Ex® unit will not help your WiFi service. This unit is designed to work with wireless PCS and

Cellular phones and devices. The WIFI in your home or oce operates on a dierent frequency.

Is your product available for international use?

Yes, we have products that work on European frequencies. Our zBoost YX520-I– Dual band works

on 900MHz and 1800Mhz.

We also sell zBoost® ONE YX400-U for UMTS/HSPA devices on the 2100MHz Frequency, a

frequency used for voice and data overseas.

Why isn’t my cell phone indicating more signal with more bars?

You may not always observe more bars that gain on your signal meter because of the signal

spreading out from the antenna. If your phone has a dB meter, 3dB is a signicant increase of 2x,

6dB is 4x, and 10dB is 10x. On a four bar phone, one "bar" equals about 10dB.

The increase in signal you will see depends upon:

• The level of signal at the Signal antenna (outdoor)

• The care of the antenna placement (two feet away from metal, adequate antenna

separation [15 feet recommended])

• The signal already present inside (related to building losses)

• The distance of your phone/device from the Base Unit (signal spreads or diminishes rapidly

with distance.)

There are usually several cell phones in use at one time in my home, will your product boost

all of our signals simultaneously?

The zBoost YX545 SOHO is designed to cover multiple signals simultaneously and will allow

multiple users to operate at the same time.

Does the zBoost® work if you have no bars?

No, if no signal is present outdoors zBoost products will not work for you. Also, keep in mind if your

best signal is 1 bar at the Signal Antenna, your coverage will be limited to a small room. You could

improve that with an upgraded antenna. (See page iv).

Limited 1 Year Warranty

Wi-Ex® warrants every Wi-Ex® product to be free from defects in material and workmanship under

normal use for the warranty period of one year.

Who Is Covered?

You must have proof of purchase to receive warranty service. A sales receipt or other

documentation showing the product purchased and the purchase date is considered proof of

purchase. This limited warranty extends only to the original consumer purchaser or any person

receiving the product as a gift from the original consumer purchaser and to no other purchaser or

transferee. This warranty does NOT extend to commercial users.

What is Covered?

Warranty coverage begins the day you purchase the product. For one year from the original

date, the Wi-Ex® Cell Phone Signal Booster will be repaired or replaced with a new, repaired,

refurbished or comparable product (whichever is deemed necessary by Wi-Ex® ) if it becomes

defective or inoperative. The exchange will be made without charge to you for parts and labor. You

will be responsible for the cost of shipping to the location designated by Wi-Ex®.

All products, including replacement products, are covered only for the original warranty period.

When the warranty on the original product expires, the warranty on the replacement product also

expires.

What is Excluded?

Your warranty does NOT cover:

• Labor charges for set up of the unit.

• Product replacement because of misuse, accident, lightning damage, unauthorized repair or

other cause not within the control of Wi-Ex®.

• Incidental or consequential damages resulting from the product. Some states do not allow

the exclusion of incidental or consequential damages, so the above exclusion may not apply

to you.

• Any modications or other changes to the product, including but not limited to software or

hardware modications in any way other than as expressly authorized by Wi-Ex® will void

this limited warranty.

• Product that has been modied or adapted to enable it to operate in any country other than

the country for which it was designed, manufactured, approved and/or authorized, or repair

of products damaged by these modications.

Warranty Information

zBOOST® YX545 SOHO USER GUIDE

Make sure you keep…

Please keep your sales receipt or other document showing proof of purchase. Attach it to this User

Guide and keep both nearby. Also, keep the original box and packing material in case you need to

return your product.

Before requesting repair service…

If red light is on, system is receiving signals from either the mobile device or the base station

transceiver which are too strong for proper operation. Please unplug your system. Re-orient your

Signal Antenna and/or Base Unit to reduce the excessive signal source. Plug your system back in.

If still solid red, call customer support 1-800-871-1612.

To get warranty service…

Warranty service will be provided by Wi-Ex®. If you believe you need service for your unit,

contact Wi-Ex® at 1-800-871-1612 or support@wi-ex.com. A representative will go through a

diagnostic checklist with you. If it is determined that the product needs to be returned for service or

exchanged, you will receive a return merchandise authorization (RMA) number. The representative

will give you complete shipping details. Do not return products to Wi-Ex® without a Return

Authorization Number (RMA).

To get out of warranty service…

To obtain out of warranty service, contact Wi-Ex® at 1-800-871-1612 or support@wi-ex.com for

information on the possibility of any costs for repair or replacement of out-of-warranty products.

Reminder

Record the model and serial number found on the product below:

Model #: __________________________________

Serial #: ___________________________________

Purchase Date: ____________________________

zBoost YX545-PCS-CEL2 Cellular Signal Booster User Manual

zBoost, LLC Cellular Signal Booster Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
