Installation Manual

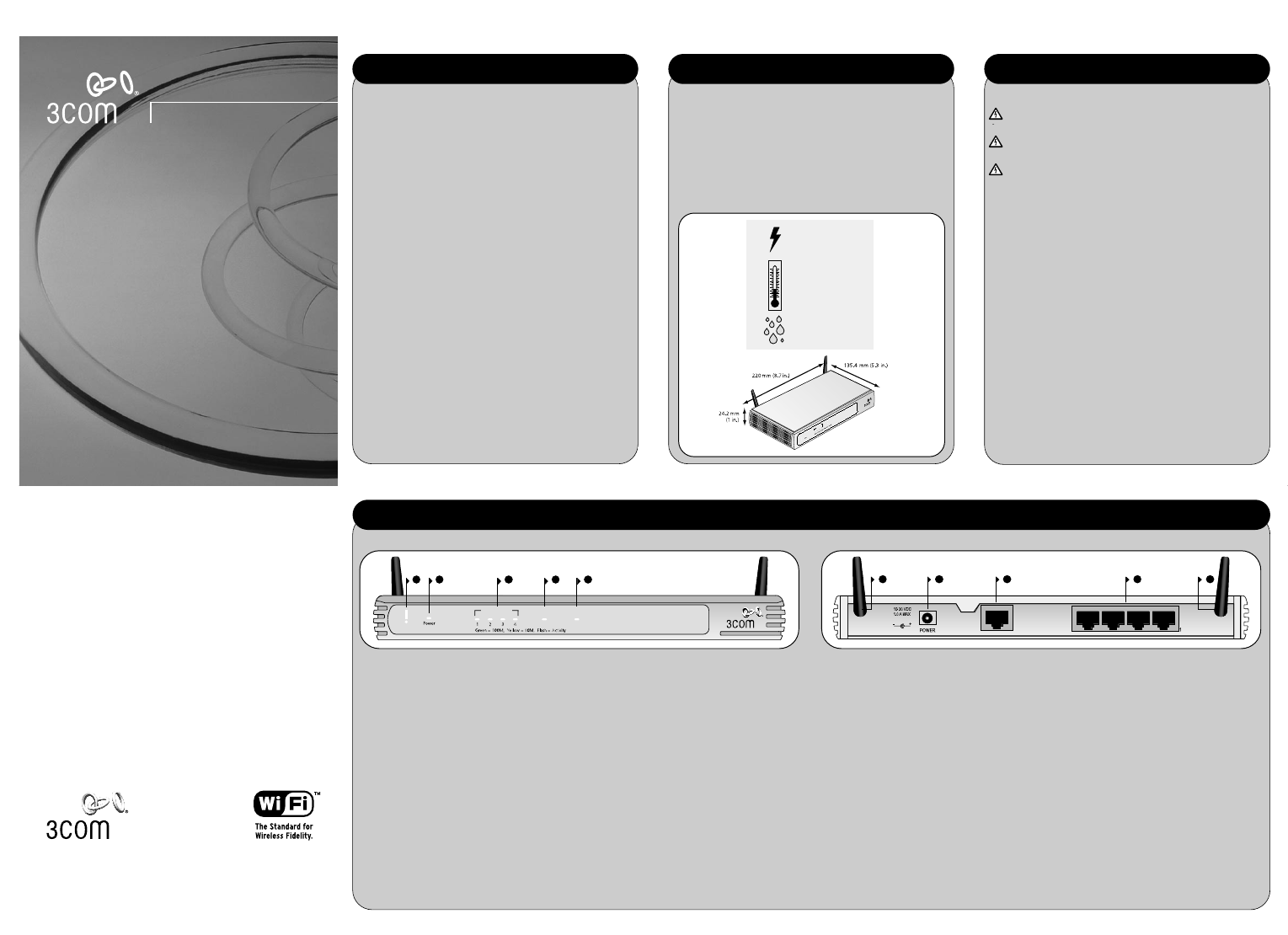

![](/img.php?id=326364&img=bg1.png)
OfficeConnect®
Wireless Cable/DSL Gateway
(3CRWE53196)
About This Guide:
This Guide takes you through the basic steps necessary to install and configure
your OfficeConnect Wireless Cable/DSL Gateway, and establish a connection
from your computers to the Internet. Throughout this guide the OfficeConnect
Wireless Cable/DSL Gateway is simply referred to as the Gateway.
Note: 3Com recommends that the Gateway is configured from a wired
Ethernet computer during the initial set-up.
Your package contains:
●
One OfficeConnect Wireless Cable/DSL Gateway
●
One power adapter for use with the Gateway
●
Four rubber feet
●
One Ethernet cable
●
One CD-ROM containing the Gateway Discovery program and the User Guide
●
This Installation Guide
●
One Support and Safety Information Sheet
●
One Warranty Flyer
System Requirements
Before starting, you must ensure the following:
●
You already have a cable or DSL broadband connection to the Internet, with
a suitable modem, and that this connection works properly. The modem
must have an Ethernet port for connection to your Gateway.
●
You have a computer that has an Ethernet connection available and is
already correctly configured for communication with the Internet. Your
computer must be able to connect to the Internet via the modem, and must
have a Web browser installed.
●
There are no other DHCP server devices on your local network that are
responsible for allocating IP addresses to your computers and other network-
connected devices. Your Gateway will now perform this function by default.
●
You have a computer with a wireless 802.11b adapter card installed.
If one or more of these conditions are not met, refer to the comprehensive Gateway
User Guide provided on the accompanying CD-ROM for further guidance.
INTRODUCTION
ABOUT YOUR GATEWAY
21 3 4
OfficeConnect Wireless Cable/DSL Gateway
3CRWE52196
LAN Status Cable/DSL
5
WLAN
Alert
7 8 9
4
Ethernet
Cable/
DSL
6 6
LAN
Safety Information
WARNING: Please read the ‘Important Safety Information’ section in the
Support and Safety Information sheet before you start.
VORSICHT: Bitte lesen Sie den Abschnitt ‘Wichtige Sicherheitsinformationen’
sorgfältig durch, bevor Sie das Gerät einschalten.
AVERTISSEMENT: Veuillez lire attentivement la section "Consignes
importantes de sécurité" avant de mettre en route.
When positioning your Gateway, ensure:
●The unit is centrally located to the wireless computers that will connect
to the Gateway. A suitable location might be on top of a high shelf or
similar furniture to optimise wireless connections to computers in both
horizontal and vertical directions, allowing coverage throughout.
●It is out of direct sunlight and away from sources of heat.
●Cabling is away from power lines, fluorescent lighting fixtures, and
sources of electrical noise such as radios, transmitters and broadband
amplifiers.
●In order to meet FCC radiation exposure regulations the Gateway should be
located in a position that maintains a minimum distance of 20 cm (8 inches)
from any personnel (refer to the User Guide for details).
●Water or moisture cannot enter the case of the unit.
●Air flow around the unit and through the vents in the side of the case
is not restricted. We recommend you provide a minimum of 25 mm
(1 in.) clearance.
Using the Rubber Feet
Use the four self-adhesive rubber feet to prevent your Gateway from
moving around on your desk or when stacking with other flat top
OfficeConnect units. Only stick the feet to the marked areas at each
corner of the underside of your Gateway.
4 Wireless LAN (WLAN) Status LED (yellow)
If the LED is on it indicates that wireless networking is
enabled. If the LED is flashing, the link is OK and data is
being transmitted or received. If the LED is off, the
Wireless LAN has been disabled in the Gateway, or there
is a problem (refer to the User Guide).
5 Cable/DSL Status LED
green (100Mbps link) / yellow (10Mbps link)
If the LED is on, the link between the Gateway and the
cable or DSL modem is OK. If the LED is flashing, the link
is OK and data is being transmitted or received. If the LED
is off, nothing is connected, the modem is switched off
or there is a problem (refer to the "Problem Solving"
section).
6 Wireless Antennae
The antennae on the product should be placed in a ‘V’
position when initially installed.
7 Power Adapter socket
Only use the power adapter that is supplied with this
Gateway. Do not use any other adapter.
8 Ethernet Cable/DSL port
The Ethernet Cable/DSL port is configured as MDI, for
connection to your modem with the supplied straight-
through patch cable. The port will automatically adjust
to the correct speed and duplex.
9 Four 10/100 LAN ports
Using suitable RJ45 cable, you can connect your
Gateway to a computer, or to any other piece of
equipment that has an Ethernet connection (for
example, a hub or a switch). The LAN ports are
configured as MDIX, for connection to a computer with
a straight through RJ-45 cable.
1 Alert LED (orange)
Indicates a number of different conditions, as described
below.
Off - The Gateway is operating normally.
Flashing quickly - Indicates one of the following
conditions:
• The Gateway has just been started up and is
running a self-test routine, or
• The administrator has invoked the Reset to Factory
Defaults command, or
• The system software is in the process of being
upgraded
In each of these cases, wait until the Gateway has
completed the current operation and the alert LED
is Off.
Flashing slowly - The Gateway has completed the Reset
to Factory Defaults process, and is waiting for you to
reset the unit. To do this, remove power, wait 10 seconds
and then re-apply power. The Gateway will then enter
the start-up sequence and resume normal operation.
On for 2 seconds, and then off - The Gateway has
detected and prevented a hacker from attacking your
network from the Internet.
Continuously on - A fault has been detected with your
Gateway during the start-up process. Refer to the main
User Guide.
2 Power LED (green)
Indicates that the Gateway is powered on.
3 Four LAN Status LEDs
green (100Mbps link) / yellow (10Mbps link)
If the LED is on, the link between the port and the next
piece of network equipment is OK. If the LED is flashing,
the link is OK and data is being transmitted or received. If
the LED is off, nothing is connected, or the connected
device is switched off, or there is a problem with the
connection (refer to the "Problem Solving" section). The
port will automatically adjust to the correct speed and
duplex.
Wireless Cable/DSL Gateway - Front Wireless Cable/DSL Gateway - Rear
Installation Guide
POSITIONING YOUR GATEWAY
Dimensions and Operating Conditions
* Refer to Regulatory Notices section in the Support and Safety Information sheet
Wireless Cable/DSL
Gateway 7VA,
23.9 BTu/hr power
requirement
0 to 40ºC (32 to 105ºF)
operating
temperature
0 to 90%
(non-condensing)
humidity
Wireless Cable/DSL Gateway
592 g (1.3 lb)
OfficeConnect Wireless Cable/DSL Gateway
3CRWE51196
LAN StatusCable/DSLWireless
Alert
DIMENSIONS AND STANDARDS
Standards
Functional: ISO 8802/3, IEEE 802.3, 802.3u, 802.11b, WiFi
Safety: UL 1950, EN 60950, CSA 22.2 #950, IEC60950
EMC: EN 55022 Class B, EN 55024, FCC Part 15 Class B*
ICES-003 Class B, CNS 13438 Class A, ETS 300-826
Environmental: EN 60068 (IEC 68)
Radio: CFR47 FCC Part 15.207, 15.209, 15.247 and 15.249
ETS 300 328 (2.4 Ghz ISM band Wide band transmission systems)
3Com Corporation, Corporate Headquarters, 5400 Bayfront Plaza, Santa Clara, CA 95052-8145
Copyright © 2002 3Com Corporation. All rights reserved. 3Com, the 3Com logo, and OfficeConnect
are registered trademarks of 3Com Corporation.
Microsoft, MS-DOS and Windows are registered trademarks of Micorsoft Corporation.
All other company and product names may be trademarks of their respective companies.
Part number: DIA5119-6AAA02 Published: November 2002
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
![](/img.php?id=326364&img=bg2.png)

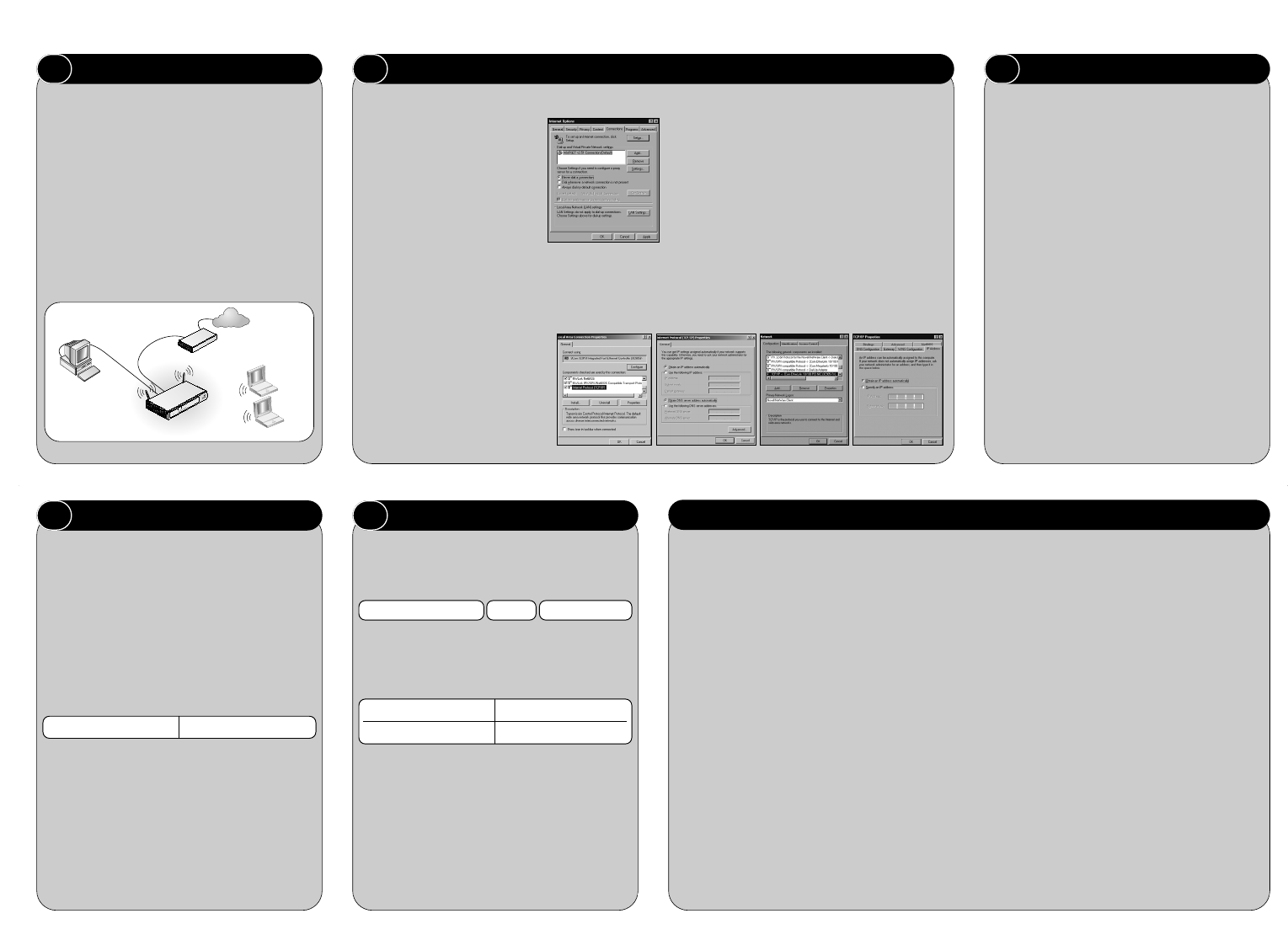

Connecting Your Gateway
1. Connect the power adapter to the Gateway and wait for the Alert
LED to stop flashing.
2. Ensure that your modem and computer are both switched on.
3. Use the supplied cable to connect the Gateway's Ethernet Cable/
DSL port to the modem. Check that the Cable/DSL Status LED lights.
4. Connect your computer to one of the 10/100 LAN ports on the
Gateway. Check that the LAN Port Status LED lights.
Connecting to a Hub or Switch
To share your Gateway with more than four users you will need an
additional Hub or Switch. To connect your Gateway to a Hub or Switch on
the LAN side you must either:
• use a Hub or Switch with Auto MDIX ports, for example, the
OfficeConnect Dual Speed Switch 8 Plus, or
• connect a straight-through cable to a Hub or Switch which has a cross-
over port and set it to the "Uplink" or "MDI" position, or
• use a cross-over cable.
1
I
NSTALLING YOUR GATEWAY
You may need to make some changes to the configuration of your computers in
order to communicate with the Gateway.
DSL users with PPPoE or PPTP Client Software
If you have PPPoE or PPTP client software installed on
your computer, you will need to disable it. To do this:
1. From the Windows Start menu, select Settings >
Control Panel.
2. Double click on Internet Options.
3. Select the Connections Tab. A screen similar to
Figure 2 should be displayed.
4. Select the Never Dial a Connection option and
click OK.
You may wish to remove the PPPoE client software
from your computer to free resources, as it is not
required for use with the Gateway.
Obtaining an IP Address automatically
Follow the instructions below for your particular operating system to ensure that
your computers are configured to obtain an IP address automatically.
For computers using Windows 2000.
1. From the Windows Start Menu, select Settings >
Control Panel.
2. Double click on Network and Dial-Up connections
3. Double click on Local Area Connection.
4. Click on Properties.
5. A screen similar to Figure 3 should be displayed.
Select Internet Protocol TCP/IP and click on Properties.
6. Ensure that the options Obtain an IP Address
automatically, and Obtain DNS servers automatically
are both selected as shown in Figure 4. Click OK.
7. Restart your computer.
For computers using Windows 95, 98 and ME.
1. From the Windows Start Menu, select Settings > Control Panel.
2. Double click on Network. Select the TCP/IP item for your network card as
shown in Figure 5 and click on Properties.
3. In the TCP/IP dialog, select the IP Address tab, and ensure that Obtain IP
address automatically is selected as shown in Figure 6. Click OK.
4. Restart your computer.
For computers using Windows XP.
1. From the Windows Start menu, select Control Panel
2. Click on Network and Internet Connections
3. Click on the Network Connections icon
4. Double click on LAN or High Speed Connection icon. A screen titled Local
Area Connection Status will appear
5. Select Internet Protocol TCP/IP and click on Properties.
6. Ensure that the options Obtain an IP Address automatically, and Obtain
DNS servers automatically are both selected as shown in Figure 4. Click OK.
7. Restart your computer.
Figure 3 Figure 4 Figure 5 Figure 6
2 CHANGING YOUR COMPUTER'S CONFIGURATION
Figure 2
1. If you haven’t already done so, restart your computer.
2. Launch your web browser and attempt to contact the Gateway by
typing the following URL in the location bar: http://192.168.1.1.
If you can access the Login page, then your computer has correctly
received an IP address from the Gateway.
3. Login using the default password admin. The Wizard will attempt to
launch automatically, but if it fails, select the Wizard tab and click on
the Wizard... button.
4. Where possible, the Wizard will recommend settings for most
parameters. However, there are some settings which you must provide.
Most of these will have been provided to you by your ISP when you set
the account up.
5. By default, 3Com recommends that you leave the LAN IP address for
the Gateway as 192.168.1.1. However, if you should choose to change
it, make a note of the new address :
6. When the DHCP Server Settings page is displayed, make sure that the
Enable the DHCP Server with the following settings option is selected.
Connecting to the Internet
When the Wizard has completed, attempt to browse to an Internet web site,
such as www.3com.com. If you can successfully access this site, then your
computer, Gateway and Cable/DSL modem have been correctly configured.
Refer to the Problem Solving section if you cannot make contact with the
Gateway or the Internet.
Gateway's LAN IP Address _______._______._______._______
If you are experiencing difficulties with your installation, try the following:
• Ensure all networking equipment is switched on. The Gateway
should be showing a green Power LED. If it is not, check the power
adapter connection. Do not use any power adapter with your Gateway
other than the one supplied.
• Ensure the Cable/DSL Modem is connected. The Gateway should be
displaying a green or yellow Cable/DSL Status LED. If no LED is displayed,
check that your modem is switched on and that it is connected to the
Cable/DSL port with an Ethernet cable.
• Ensure that the computer is connected to the Gateway. The Gateway
should be displaying a green or yellow LAN Status LED. If it is not, check
that the computer is connected to one of the Gateway's LAN ports with
an Ethernet cable.
• Ensure your computer is configured correctly. Make sure that the
computer obtains an IP address automatically. See Section 2 for details.
Ensure that the NIC card is configured for autonegotiation.
• Ensure that you do not have a web proxy enabled on your
computer. Go to the Control Panel and click on Internet Options. Select
the Connections tab and click on the LAN Settings button at the bottom.
Make sure that the Use Proxy Server option is unchecked.
• If you are unable to access the Gateway's Web interface. Launch a
web browser and enter http://192.168.1.1. If you chose a different IP
address, use that instead. Ensure that you include the http:// prefix.
• If you cannot remember the Gateway IP address. Run the Gateway
Discovery application from a wired computer. The application can be
found on the CD-ROM. This will always connect you to the Gateway.
• If you have connected your Gateway to a Switch and the Link LED
is not lit. Refer to Section 1 "Connecting to a Hub or Switch".
Cable Internet Connections.
• Some Cable providers authenticate to the user’s computer MAC address.
If this is required, go to Internet Settings and select Clone the MAC
Address. This will copy the MAC address of your computer onto the
Internet port of the Gateway.
• Some Cable providers authenticate to the user’s Host Name. If this is
required, go to Internet Settings and enter the host name of your
computer into the Host Name field.
DSL Internet Connections.
• If you have an existing DSL line and have PPPoE or PPTP client software
installed on your computer, you will need to disable it. See section 2.
• If your DSL line uses PPPoE or PPTP, go to Internet Settings and ensure that
the correct IP Allocation mode is selected. Check that your Username and
Password are correct.
• Some DSL providers require the use of a PPPoE Service Name. If this is
required, go to Internet Settings and enter the PPPoE Service Name in
the field provided. If it is not required, you must leave it blank.
Wireless Configuration. If you are unable to access the wireless LAN:
• Ensure that the wireless client is set to infrastructure mode.
• If you have a wired and wireless NIC in the same computer, ensure that
the wired NIC is disabled. See section 5 for details.
• Ensure that the Service Area Name /SSID is the same for the wireless
client and the Gateway.
• Ensure that the Gateway WLAN LED is on. If not, go to the Wireless
Settings menu and enable Wireless Networking.
• Ensure that WEP (Wired Equivalent Privacy) is the same for the wireless
client and the Gateway. If there are problems, turn WEP off in the client
and the Gateway until you have established a wireless connection.
PROBLEM SOLVING
OfficeConnect Wireless
Cable/DSL Gateway
Your existing
Cable/DSL
Modem
Wireless
users
OfficeConnect Wireless Cable/DSL Gateway
3CRWE51196
LAN StatusCable/DSLWireless
Alert
Internet
Figure 1 Example Network with OfficeConnect Wireless Cable/DSL Gateway.
4 RUNNING THE SETUP WIZARD
1. Now you have configured the Gateway via the wired computer, you
can connect to the Gateway via a wireless computer.
The Gateway and wireless clients must have both the same SSID and the
same WEP settings. All wireless clients must use Infrastructure mode.
The default wireless settings for the Gateway are:
2. If you do not have a Wireless LAN you can use the Gateway’s default
settings. Ensure that your wireless clients have the default SSID, channel
and WEP as detailed above.
If you have an existing Wireless LAN, configure the Gateway to use the
same SSID and WEP settings to be compatible with your existing wireless
network.
3. If your computer has both a wired and wireless NIC installed, you must
ensure that only one NIC is used to communicate with the LAN. To use the
wireless NIC, unplug the Ethernet cable and reboot your computer.
4. Launch your web browser and attempt to browse to an internet web site
such as www.3com.com. If you can successfully access this site, then your
wireless computer, Gateway and Cable/DSL modem have been successfully
configured.
5. 3Com strongly recommends that you enable WEP encryption to improve
the security of your wireless network and you change the SSID to
something other than the default. Consult the on line help or the User
Guide for details.
5CONNECTING TO THE WIRELESS LAN
Before you can configure the Gateway you need to know the IP
information allocation method used by your ISP. There are four different
ways that ISPs allocate IP information, as described below:
1. Dynamic IP Address (DSL or Cable)
Dynamic IP addressing (or DHCP) automatically assigns the Gateway IP
information. This method is popular with Cable providers. This method
is also used if your modem has a built in DHCP server.
2. PPPoE (DSL only)
If the installation instructions that accompany your modem ask you to
install a PPPoE client on your PC then select this option. Note that
when you install the Gateway, you will not need to use the PPPoE
software on your PC. To configure the Gateway you will need to know
the following: Username, Password, and Service Name (if required by
your ISP).
3. Static IP Address (DSL or Cable)
The ISP provides the IP addressing information for you to enter
manually. To configure the Gateway you will need to know the
following: IP Address, Subnet Mask, ISP Gateway Address, and DNS
address(es).
4. PPTP (DSL or Cable)
PPTP is only used by some European providers. If the installation
instructions that accompany your modem ask you to setup a dialup
connection using a PPTP VPN tunnel then select this option. Note that
when you install the Gateway, you will not need to use the dialup VPN
on your PC anymore. To configure the Gateway you will need to know
the following: Username, Password, Service Name (if required by your
ISP), and VPN Server address (usually your modem).
You will be asked for the IP Allocation Mode when you run the Setup Wizard.
3 ISP CONNECTION METHODS
Service Area Name/SSID ______________________________
Channel Number ______________________________
Service Area Name / SSID is 3Com Channel 11 WEP Encryption is off.
