IEEE 802.11g 2.4GHz 54Mbps Wireless
Module
![](/img.php?id=316683&img=bg2.png)
Wireless Module
![](/img.php?id=316683&img=bg3.png)
COPYRIGHT
Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable.
However, no responsibility is assumed by SMC for its use, nor for any infringements of patents
or other rights of third parties which may result from its use. No license is granted by
implication or otherwise under any patent or patent rights of SMC. SMC reserves the right to
change specifications at any time without notice.
Copyright © 2003 by
SMC Networks, Inc.
38 Tesla
Irvine, CA 92618
All rights reserved. Printed in Taiwan
Trademarks:
SMC is a registered trademark; and Barricade is a trademark of SMC Networks, Inc. Other
product and company names are trademarks or registered trademarks of their respective
holders.
![](/img.php?id=316683&img=bg4.png)
Installation Guide for the RF Module
This module has been authorized under FCC ID: HEDWG4005ACC
under mobile module approval category. The integrator of this module
has to be aware that this module can only be used in mobile host
equipment such as Access Point or Router.

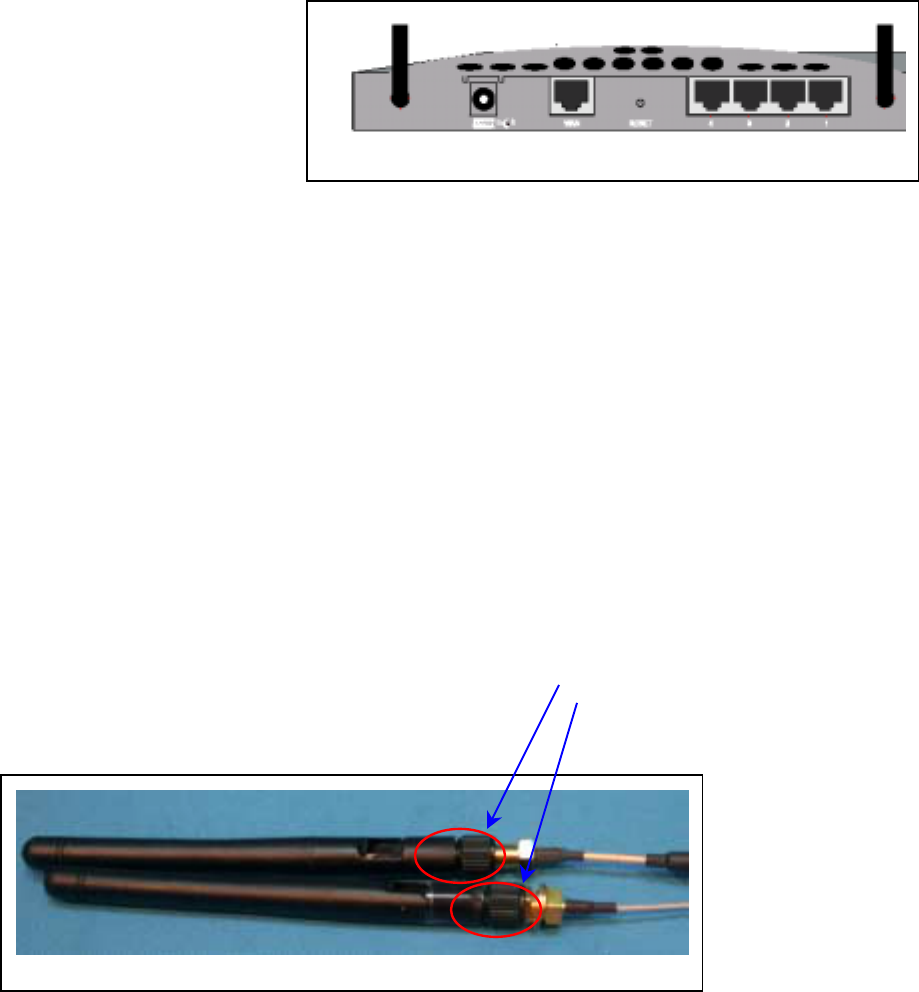

The picture on left side is
a wireless router which
integrate this wireless
module.
The host equipment should provide an internal mini-pci interface for the
main board of this module. Also the housing of the host equipment should
provide a pair of antenna sockets for the installation of the diversity
antennas.
There are 3 pairs of antenna in this filing. The folded part of these
antennas has to be fixed with the housing of the host equipment, which
makes the end users impossible to remove the antenna unless destroy the

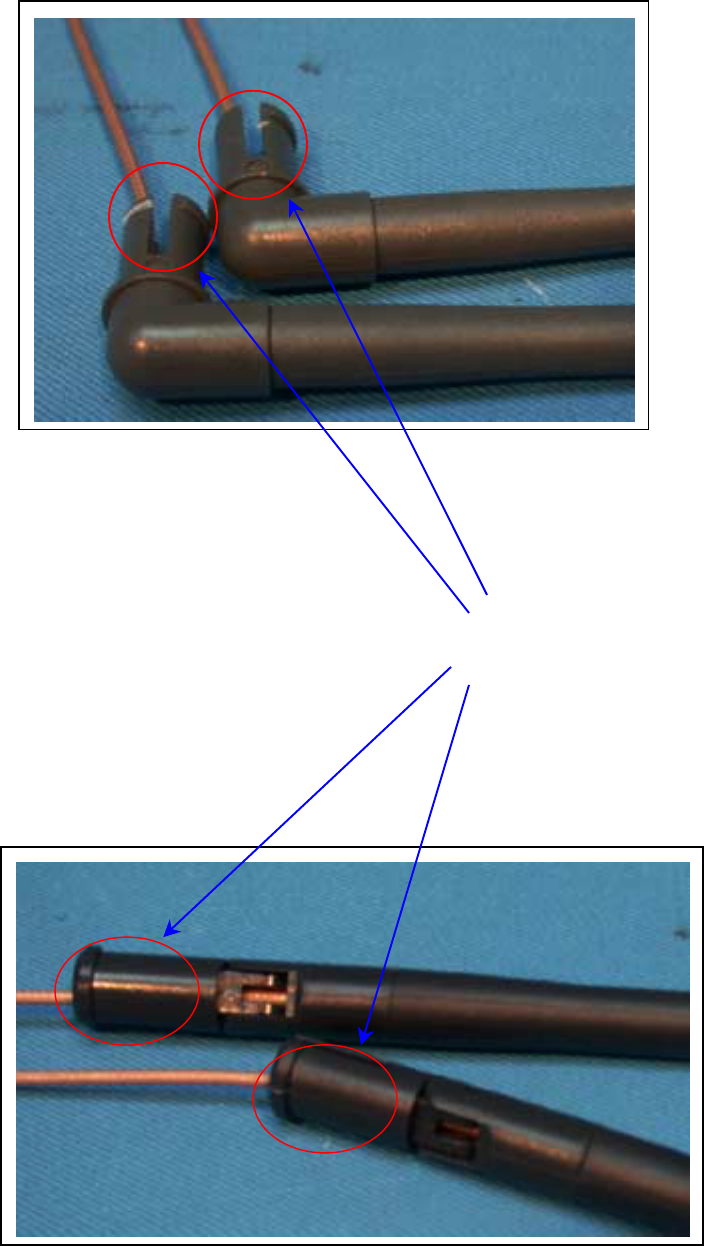

housing. The photo of these antennas are shown below, also the folded
part of each antenna type has been indicated.
Folded Parts
![](/img.php?id=316683&img=bg5.png)
Folded Parts
