Alvarion Technologies EXTR-CPE-50 BreezeMAX Extreme CPE System User Manual OD210 UG R01
Alvarion Technologies Ltd. BreezeMAX Extreme CPE System OD210 UG R01
Manual
![](/img.php?id=1527417&img=bg1.png)
BreezeMAX Series
Extreme CPE Manual
Extreme CPE
February 2009
P/N 149100003100W
![](/img.php?id=1527417&img=bg2.png)
ii Extreme CPE Product Manual
Document History
Document History
Topic Description Date Issued
This is the document’s first
Release
February 2009
![](/img.php?id=1527417&img=bg3.png)
Extreme CPE Product Manual i
Legal Rights
Legal Rights
© Copyright 2008 Alvarion Ltd. All rights reserved.
The material contained herein is proprietary, privileged, and confidential and
owned by Alvarion or its third party licensors. No disclosure thereof shall be made
to third parties without the express written permission of Alvarion Ltd.
Alvarion Ltd. reserves the right to alter the equipment specifications and
descriptions in this publication without prior notice. No part of this publication
shall be deemed to be part of any contract or warranty unless specifically
incorporated by reference into such contract or warranty.
Trade Names
Alvarion®, BreezeCOM®, WALKair®, WALKnet®, BreezeNET®, BreezeACCESS®,
BreezeMANAGE™, BreezeLINK®, BreezeConfig™, BreezeMAX™, AlvariSTAR™,
AlvariCRAFT™, BreezeLITE™, MGW™, eMGW™ and/or other products and/or
services referenced here in are either registered trademarks, trademarks or
service marks of Alvarion Ltd.
All other names are or may be the trademarks of their respective owners.
Statement of Conditions
The information contained in this manual is subject to change without notice.
Alvarion Ltd. shall not be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing, performance, or use of
this manual or equipment supplied with it.
Warranties and Disclaimers
All Alvarion Ltd. ("Alvarion") products purchased from Alvarion or through any of
Alvarion's authorized resellers are subject to the following warranty and product
liability terms and conditions.
Exclusive Warranty
(a) Alvarion warrants that the Product hardware it supplies and the tangible
media on which any software is installed, under normal use and conditions, will
be free from significant defects in materials and workmanship for a period of
fourteen (14) months from the date of shipment of a given Product to Purchaser
(the "Warranty Period"). Alvarion will, at its sole option and as Purchaser's sole
remedy, repair or replace any defective Product in accordance with Alvarion'
standard R&R procedure.
(b) With respect to the Firmware, Alvarion warrants the correct functionality
according to the attached documentation, for a period of fourteen (14) month from
![](/img.php?id=1527417&img=bg4.png)
ii Extreme CPE Product Manual
Legal Rights
invoice date (the "Warranty Period")". During the Warranty Period, Alvarion may
release to its Customers firmware updates, which include additional performance
improvements and/or bug fixes, upon availability (the "Warranty"). Bug fixes,
temporary patches and/or workarounds may be supplied as Firmware updates.
Additional hardware, if required, to install or use Firmware updates must be
purchased by the Customer. Alvarion will be obligated to support solely the two (2)
most recent Software major releases.
ALVARION SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING
AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT
DOES NOT EXIST OR WAS CAUSED BY PURCHASER'S OR ANY THIRD
PERSON'S MISUSE, NEGLIGENCE, IMPROPER INSTALLATION OR IMPROPER
TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE
BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE,
LIGHTNING OR OTHER HAZARD.
Disclaimer
(a) The Software is sold on an "AS IS" basis. Alvarion, its affiliates or its licensors
MAKE NO WARRANTIES, WHATSOEVER, WHETHER EXPRESS OR IMPLIED,
WITH RESPECT TO THE SOFTWARE AND THE ACCOMPANYING
DOCUMENTATION. ALVARION SPECIFICALLY DISCLAIMS ALL IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE AND NON-INFRINGEMENT WITH RESPECT TO THE SOFTWARE.
UNITS OF PRODUCT (INCLUDING ALL THE SOFTWARE) DELIVERED TO
PURCHASER HEREUNDER ARE NOT FAULT-TOLERANT AND ARE NOT
DESIGNED, MANUFACTURED OR INTENDED FOR USE OR RESALE IN
APPLICATIONS WHERE THE FAILURE, MALFUNCTION OR INACCURACY OF
PRODUCTS CARRIES A RISK OF DEATH OR BODILY INJURY OR SEVERE
PHYSICAL OR ENVIRONMENTAL DAMAGE ("HIGH RISK ACTIVITIES"). HIGH
RISK ACTIVITIES MAY INCLUDE, BUT ARE NOT LIMITED TO, USE AS PART OF
ON-LINE CONTROL SYSTEMS IN HAZARDOUS ENVIRONMENTS REQUIRING
FAIL-SAFE PERFORMANCE, SUCH AS IN THE OPERATION OF NUCLEAR
FACILITIES, AIRCRAFT NAVIGATION OR COMMUNICATION SYSTEMS, AIR
TRAFFIC CONTROL, LIFE SUPPORT MACHINES, WEAPONS SYSTEMS OR
OTHER APPLICATIONS REPRESENTING A SIMILAR DEGREE OF POTENTIAL
HAZARD. ALVARION SPECIFICALLY DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY OF FITNESS FOR HIGH RISK ACTIVITIES.
(b) PURCHASER'S SOLE REMEDY FOR BREACH OF THE EXPRESS
WARRANTIES ABOVE SHALL BE REPLACEMENT OR REFUND OF THE
PURCHASE PRICE AS SPECIFIED ABOVE, AT ALVARION'S OPTION. TO THE
FULLEST EXTENT ALLOWED BY LAW, THE WARRANTIES AND REMEDIES SET
FORTH IN THIS AGREEMENT ARE EXCLUSIVE AND IN LIEU OF ALL OTHER
![](/img.php?id=1527417&img=bg5.png)
Extreme CPE Product Manual iii
Legal Rights
WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY
OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING BUT NOT
LIMITED TO WARRANTIES, TERMS OR CONDITIONS OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE, SATISFACTORY QUALITY,
CORRESPONDENCE WITH DESCRIPTION, NON-INFRINGEMENT, AND
ACCURACY OF INFORMATION GENERATED. ALL OF WHICH ARE EXPRESSLY
DISCLAIMED. ALVARION' WARRANTIES HEREIN RUN ONLY TO PURCHASER,
AND ARE NOT EXTENDED TO ANY THIRD PARTIES. ALVARION NEITHER
ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY
OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION,
MAINTENANCE OR USE OF ITS PRODUCTS.
Limitation of Liability
(a) ALVARION SHALL NOT BE LIABLE TO THE PURCHASER OR TO ANY THIRD
PARTY, FOR ANY LOSS OF PROFITS, LOSS OF USE, INTERRUPTION OF
BUSINESS OR FOR ANY INDIRECT, SPECIAL, INCIDENTAL, PUNITIVE OR
CONSEQUENTIAL DAMAGES OF ANY KIND, WHETHER ARISING UNDER
BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY
OR OTHERWISE AND WHETHER BASED ON THIS AGREEMENT OR
OTHERWISE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
(b) TO THE EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL
THE LIABILITY FOR DAMAGES HEREUNDER OF ALVARION OR ITS EMPLOYEES
OR AGENTS EXCEED THE PURCHASE PRICE PAID FOR THE PRODUCT BY
PURCHASER, NOR SHALL THE AGGREGATE LIABILITY FOR DAMAGES TO ALL
PARTIES REGARDING ANY PRODUCT EXCEED THE PURCHASE PRICE PAID
FOR THAT PRODUCT BY THAT PARTY (EXCEPT IN THE CASE OF A BREACH OF
A PARTY'S CONFIDENTIALITY OBLIGATIONS).
Electronic Emission Notices
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one of the following measures:
-Reorient or relocate the receiving antenna.
![](/img.php?id=1527417&img=bg6.png)
iv Extreme CPE Product Manual
Legal Rights
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Operation is subject to the following two conditions:
1This device may not cause harmful interference.
2This device must accept any interference received, including interference that
may cause undesired operation.
Radio Frequency Interference Statement
The Extreme CPE Access Unit has been tested and found to comply with the limits
for a class B digital device, pursuant to part 15 of the FCC rules and to EN 301
489-1 rules.These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential environment
notwithstanding use in commercial, business and industrial environments. This
equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications.
FCC Radiation Hazard Warning
To comply with FCC RF exposure requirement, the antenna used for this
equipment must be fixed-mounted on outdoor permanent structures with a
separation distance of at least 62 centimeters (25 inches) from al persons.
R&TTE Compliance Statement
This equipment complies with the appropriate essential requirements of Article 3
of the R&TTE Directive 1999/5/EC.
This device is intended for use in the following European Community and EFTA
countries:
Czech
Estonian
Eesti
Käesolevaga kinnitab Accton seadme Radio LAN vastavust direktiivi
1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele
asjakohastele sätetele.
English Hereby, Accton, declares that this Radio LAN device is in compliance
with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
![](/img.php?id=1527417&img=bg7.png)
Extreme CPE Product Manual v
Legal Rights
Finnish
Suomi
Valmistaja Accton vakuuttaa täten että Radio LAN device tyyppinen
laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien
direktiivin muiden ehtojen mukainen.
Dutch
Nederlands
Hierbij verklaart Accton dat het toestel Radio LAN device in
overeenstemming is met de essentiële eisen en de andere relevante
bepalingen van richtlijn 1999/5/EG
Bij deze Accton dat deze Radio LAN device voldoet aan de essentiële
eisen en aan de overige relevante bepalingen van Richtlijn 1999/5/EC.
French
Français
Par la présente Accton déclare que l'appareil Radio LAN device est
conforme aux exigences essentielles et aux autres dispositions
pertinentes de la directive 1999/5/CE
Swedish
Svenska
Härmed intygar Accton att denna Radio LAN device står I
överensstämmelse med de väsentliga egenskapskrav och övriga
relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Danish
Dansk
Undertegnede Accton erklærer herved, at følgende udstyr Radio LAN
device overholder de væsentlige krav og øvrige relevante krav i direktiv
1999/5/EF
German
Deutsch
Hiermit erklärt Accton, dass sich dieser/diese/dieses Radio LAN device
in Übereinstimmung mit den grundlegenden Anforderungen und den
anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet".
(BMWi)
Hiermit erklärt Accton die Übereinstimmung des Gerätes Radio LAN
device mit den grundlegenden Anforderungen und den anderen
relevanten Festlegungen der Richtlinie 1999/5/EG. (Wien)
Greek
ελληνικά
Με την παρουσα Accton δηλωνει οτι radio LAN device συμμορφωνεται
προσ τισ ουσιωδεισ απαιτησεισ και τισ λοιπεσ σΧετικεσ διαταξεισ τησ
οδηγιασ 1999/5/εκ
Hungarian
Magyar
Alulírott, Accton nyilatkozom, hogy a Radio LAN megfelel a vonatkozó
alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb
elõírásainak.
Italian
Italiano
Con la presente Accton dichiara che questo Radio LAN device è
conforme ai requisiti essenziali ed alle altre disposizioni pertinenti
stabilite dalla direttiva 1999/5/CE.
Latvian
Latviski
Lithuanian
Maltese
Malti
Spanish
Español
Por medio de la presente Accton declara que el Radio LAN device
cumple con los requisitos esenciales y cualesquiera otras
disposiciones aplicables o exigibles de la Directiva 1999/5/CE
Polish
Polski
Portuguese
Português
Accton declara que este Radio LAN device está conforme com os
requisitos essenciais e outras disposições da Directiva 1999/5/CE.
![](/img.php?id=1527417&img=bg8.png)
vi Extreme CPE Product Manual
Legal Rights
Caution
To avoid electrical shock, do not perform any servicing unless you are qualified to
do so.
Line Voltage
Before connecting this instrument to the power line, make sure that the voltage of
the power source matches the requirements of the instrument. The unit must be
connected to an earthed (grounded) outlet to comply with international safety
standards.
Radio
The instrument transmits radio energy during normal operation. To avoid possible
harmful exposure to this energy, do not stand or work for extended periods of time
in front of its antenna. The long-term characteristics or the possible physiological
effects of Radio Frequency Electromagnetic fields have not been yet fully
investigated.
Outdoor Unit and Antenna Installation and Grounding
Ensure that outdoor units, antennas and supporting structures are properly
installed to eliminate any physical hazard to either people or property. Make sure
that the installation of the outdoor unit, antenna and cables is performed in
accordance with all relevant national and local building and safety codes. Even
where grounding is not mandatory according to applicable regulation and national
codes, it is highly recommended to ensure that the outdoor unit and the antenna
mast (when using external antenna) are grounded and suitable lightning
protection devices are used so as to provide protection against voltage surges and
static charges. In any event, Alvarion is not liable for any injury, damage or
regulation violations associated with or caused by installation, grounding or
lightning protection.

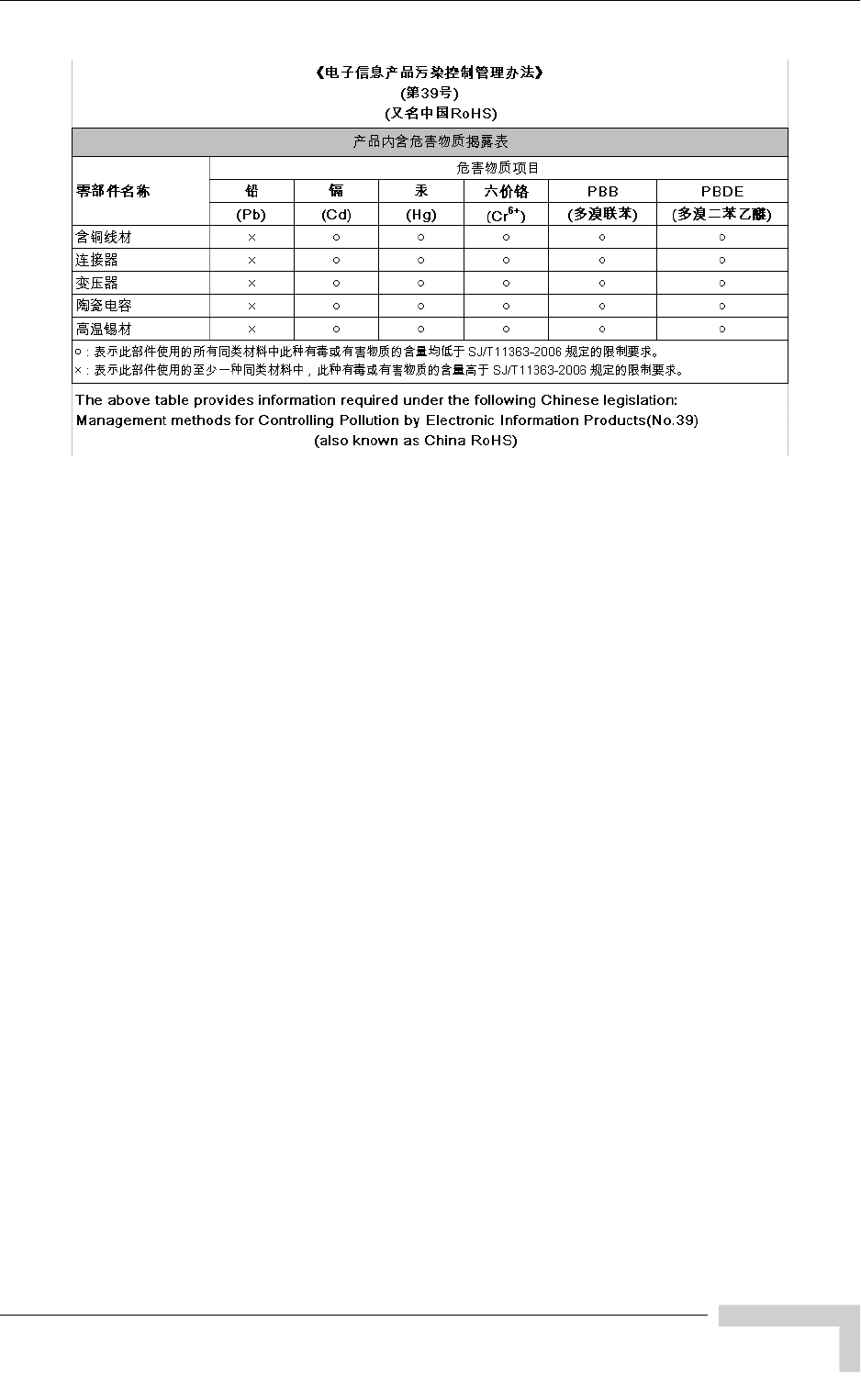

Disposal of Electronic and Electrical Waste
Slovak
Slovensky
Slovenian
Slovensko
Accton izjavlja, da je ta Radio LAN v skladu z bistvenimi zahtevami in
ostalimi relevantnimi dolo?ili direktive 1999/5/ES.
Disposal of Electronic and Electrical Waste
Pursuant to the WEEE EU Directive electronic and electrical waste must not be disposed of with
unsorted waste. Please contact your local recycling authority for disposal of this product.
![](/img.php?id=1527417&img=bg9.png)
Extreme CPE Product Manual vii
Legal Rights
Important Notice
This user manual is delivered subject to the following conditions and restrictions:
This manual contains proprietary information belonging to Alvarion Ltd. Such
information is supplied solely for the purpose of assisting properly authorized
users of the respective Alvarion products.
No part of its contents may be used for any other purpose, disclosed to any
person or firm or reproduced by any means, electronic and mechanical,
without the express prior written permission of Alvarion Ltd.
The text and graphics are for the purpose of illustration and reference only.
The specifications on which they are based are subject to change without
notice.
The software described in this document is furnished under a license. The
software may be used or copied only in accordance with the terms of that
license.
Information in this document is subject to change without notice.
Corporate and individual names and data used in examples herein are
fictitious unless otherwise noted.
Alvarion Ltd. reserves the right to alter the equipment specifications and
descriptions in this publication without prior notice. No part of this
publication shall be deemed to be part of any contract or warranty unless
specifically incorporated by reference into such contract or warranty.
The information contained herein is merely descriptive in nature, and does not
constitute an offer for the sale of the product described herein.
Any changes or modifications of equipment, including opening of the
equipment not expressly approved by Alvarion Ltd. will void equipment
warranty and any repair thereafter shall be charged for. It could also void the
user's authority to operate the equipment.
Some of the equipment provided by Alvarion and specified in this manual, is
manufactured and warranted by third parties. All such equipment must be
installed and handled in full compliance with the instructions provided by such
manufacturers as attached to this manual or provided thereafter by Alvarion or
![](/img.php?id=1527417&img=bgb.png)
Extreme CPE Product Manual ix
Legal Rights
the manufacturers. Non-compliance with such instructions may result in serious
damage and/or bodily harm and/or void the user's authority to operate the
equipment and/or revoke the warranty provided by such manufacturer.
![](/img.php?id=1527417&img=bgc.png)
xExtreme CPE Product Manual
Legal Rights
![](/img.php?id=1527417&img=bgd.png)
About This Manual
This manual describes the Extreme CPE and details how to install, operate and
manage it.
This manual is intended for technicians responsible for installing, setting and
operating the BreezeMAX Extreme CPE system, and for system administrators
responsible for managing the system.
This manual contains the following chapters and appendices:
Chapter 1 - Product Description - Describes the Extreme CPE unit and its
functionality.
Chapter 2 - Installation - Describes how to install the Extreme CPE and how
to connect to subscriber’s equipment.
Chapter 3 - Initial Configuration - Describes how to initially configure the
Extreme CPE in order to test basic link operation.
Chapter 4 - System Settings - Describes general management functions for
the
Extreme CPE.
Chapter 5 - Unit Control - Describes management functions for the operation
of the Ethernet port, software version and configuration of password.
Chapter 6 - Registration - Describes the manner in which the Extreme CPE
can be described to identify itself on a network.
Chapter 7 - BS Scanning - Describes the manner in which the access unit
can interoperate with the base station.

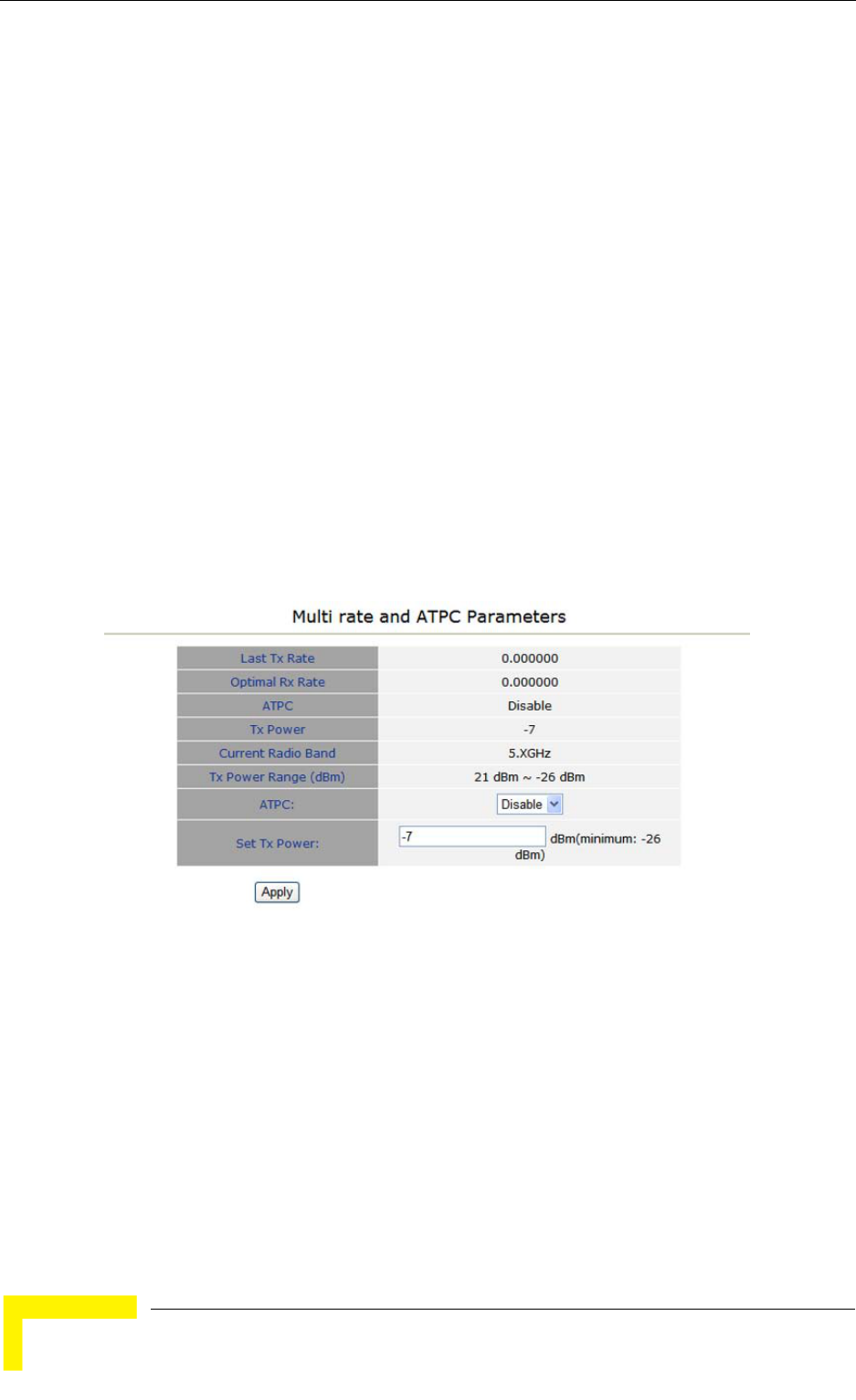

Chapter 8 - ATPC - Describes the functions of the adaptive transmission
power control (ATPC) algorithm.
Chapter 9 - Performance Monitor - Describes the performance statistics for
all aspects of the Ethernet link and WiMAX connection.
![](/img.php?id=1527417&img=bge.png)
ii Extreme CPE Product Manual
About This Manual

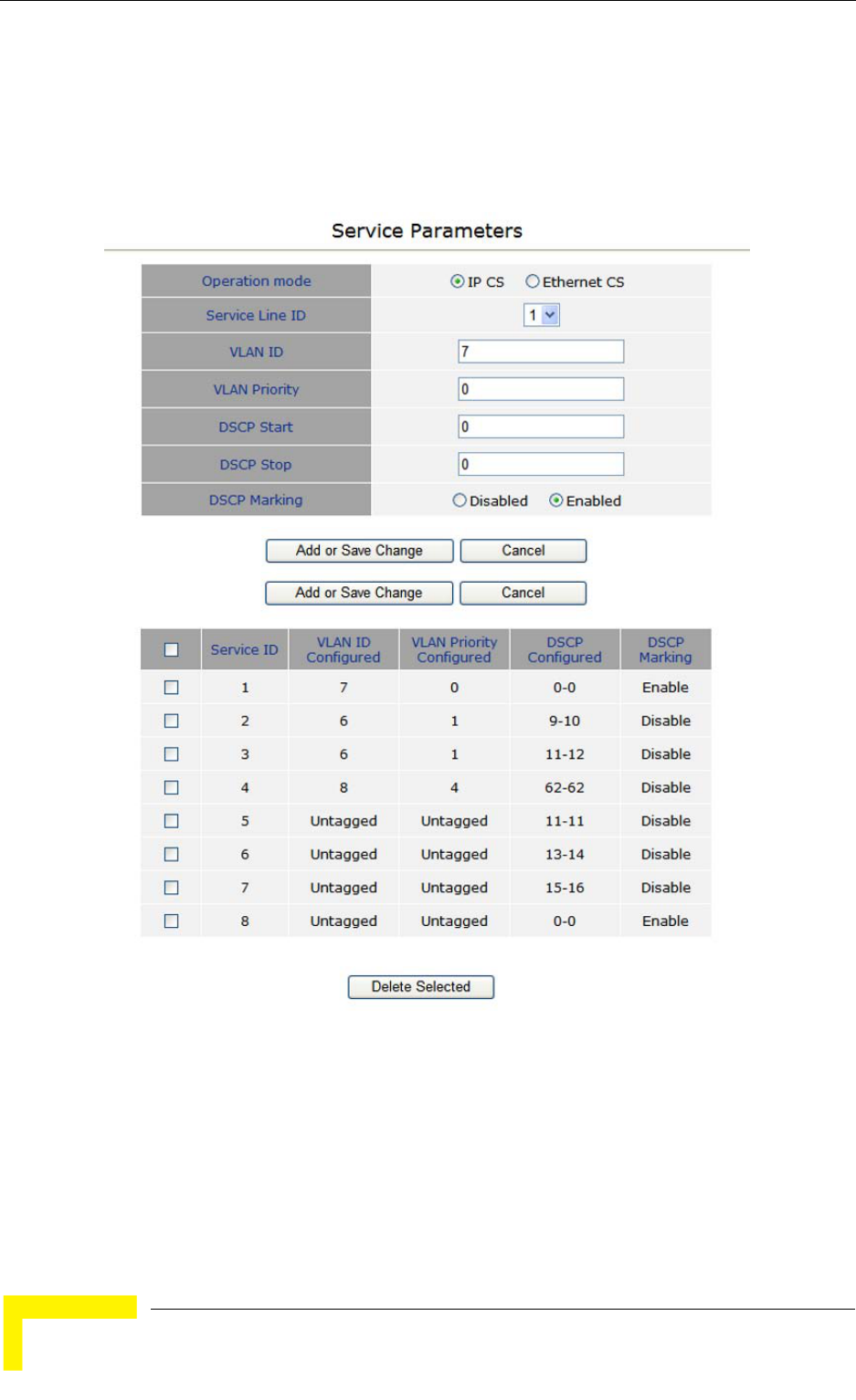

Chapter 10 - Service - Describes the configuration of VLANs and DSCP
parameters.

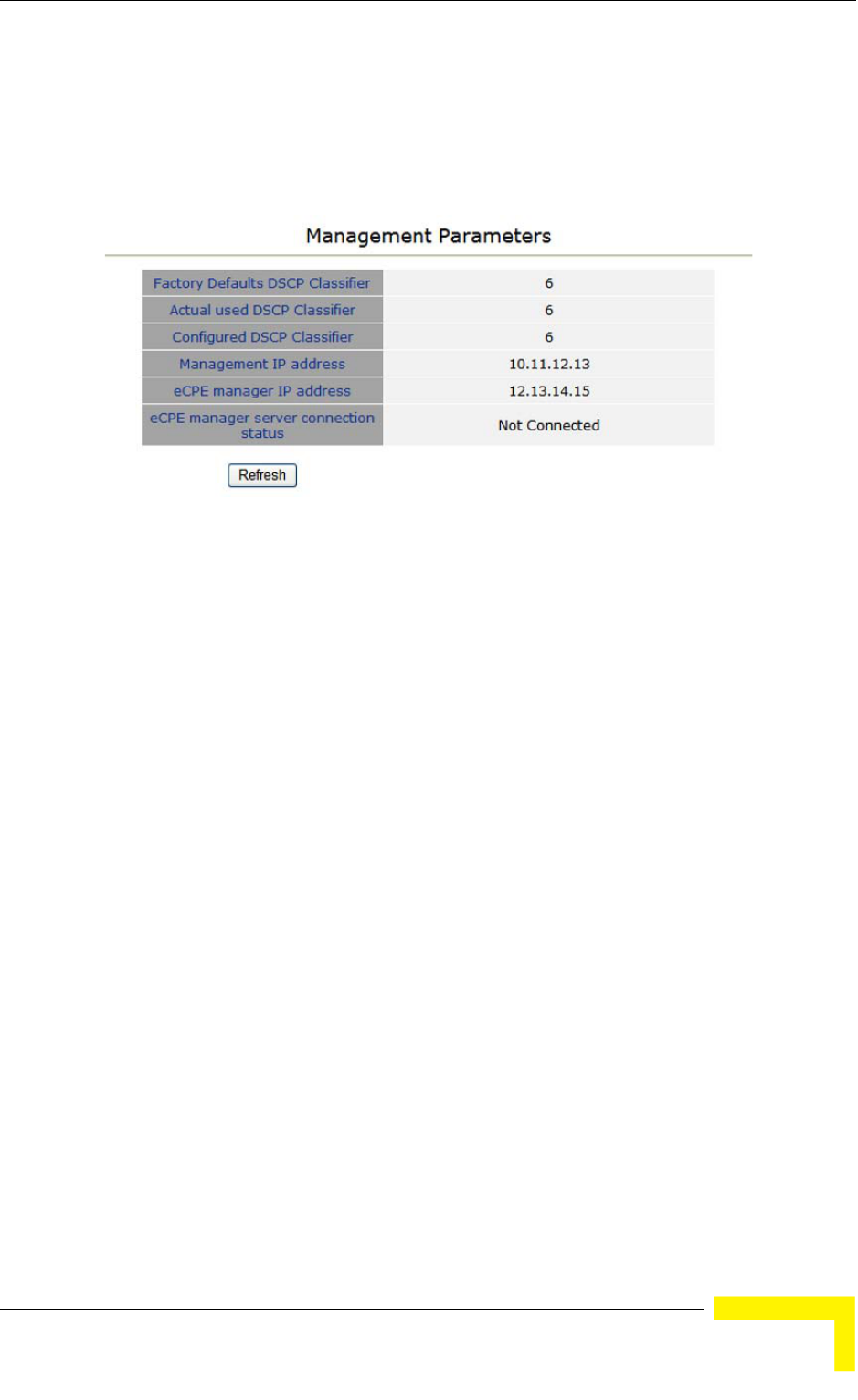

Chapter 11 - Management - Describes system management statistics.

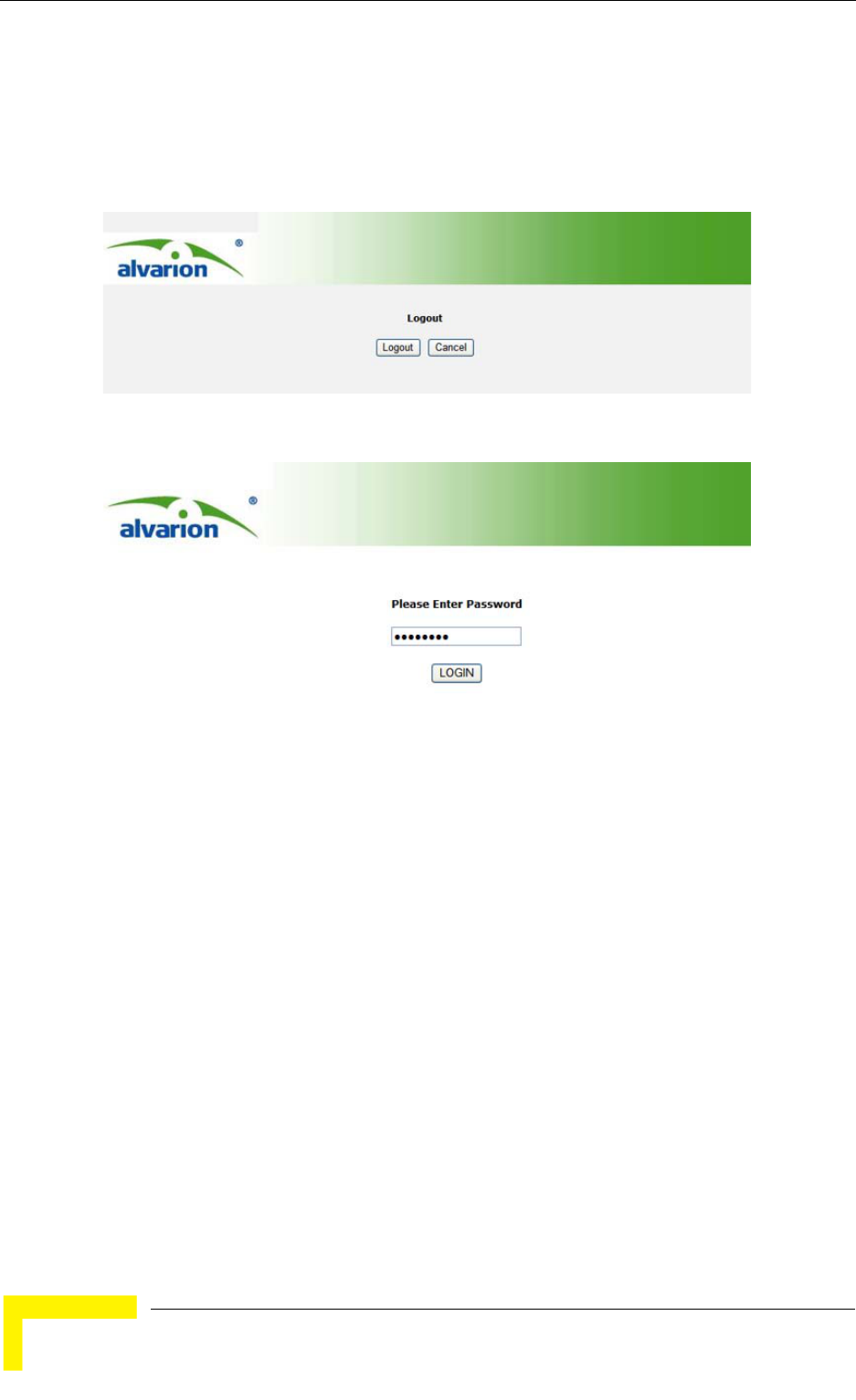

Chapter 12 - Logout - Describes logging out of the system.
Appendix A - GNU License
Glossary - Glossary of terms used in the Extreme CPE User Guide.
![](/img.php?id=1527417&img=bgf.png)
Contents
Chapter 1 - Product Description
1.1 Introducing the Extreme CPE range............................................................................2
1.1.1 The Extreme CPE range of products ...................................................................3
1.2 Specifications................................................................................................................4
1.2.1 WiMAX Radio ....................................................................................................... 4
1.2.2 VoIP Specifications ............................................................................................. 5
1.2.3 Configuration and Management...........................................................................6
1.2.4 Mechanical IDU.................................................................................................... 6
1.2.5 Mechanical ODU ..................................................................................................6
1.2.6 Electrical............................................................................................................... 7
1.2.7 Environmental IDU .............................................................................................. 7
1.2.8 Environmental ODU ............................................................................................ 7
1.2.9 Standards Compliance.........................................................................................8
Chapter 2 - Hardware Installation
2.1 Installation Requirements ..........................................................................................12
2.1.1 Packings List ...................................................................................................... 12
2.2 ODU Hardware Description ........................................................................................13
2.2.1 Built-in WiMAX Antenna.....................................................................................13
2.2.2 Propriety Ethernet RJ-45 Port ............................................................................13
2.2.3 SAU Port ............................................................................................................ 13

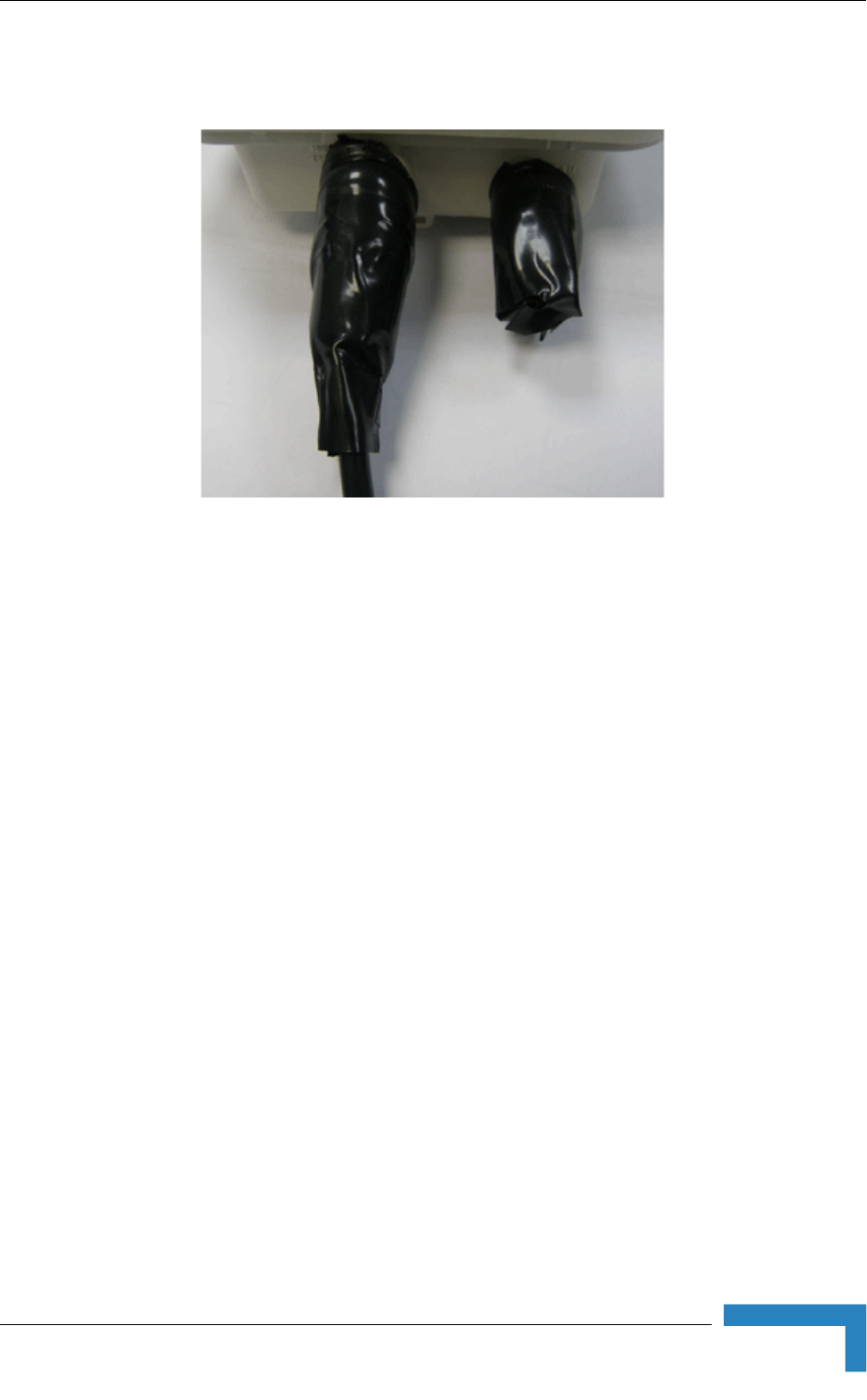

2.2.4 Weatherproof Port Covers ................................................................................. 14
2.2.5 Ground Screw ....................................................................................................15
2.2.6 Pole-Mounting Bracket Kit.................................................................................. 16
![](/img.php?id=1527417&img=bg10.png)
2Extreme CPE Product Manual
Contents
2.2.7 Tilt-Mount Bracket (Optional) .............................................................................16
2.2.8 SAU (Optional) ................................................................................................... 17
2.3 IDU Hardware Description..........................................................................................19
2.3.1 10BASE-T/100BASE-TX LAN Port ....................................................................20
2.3.2 ODU Port............................................................................................................ 20
2.3.3 System Status LEDs .......................................................................................... 21
2.3.4 Power Adapter Socket ....................................................................................... 21
2.3.5 Backup Battery Charger (Optional) ....................................................................21
2.4 Installation Steps.........................................................................................................22
2.5 ODU Installation ..........................................................................................................23
2.5.1 ODU Location..................................................................................................... 23
2.5.2 Mount the Unit....................................................................................................23
2.6 IDU Installation ............................................................................................................26
2.6.1 Select a location................................................................................................. 26
2.6.2 Installing the unit ................................................................................................ 26
2.7 ODU Cable Connection...............................................................................................28
2.7.1 ODU-IDU Propriety Ethernet Cable Connection ................................................28
2.7.2 ODU 10 PIN Ethernet Port ................................................................................. 30

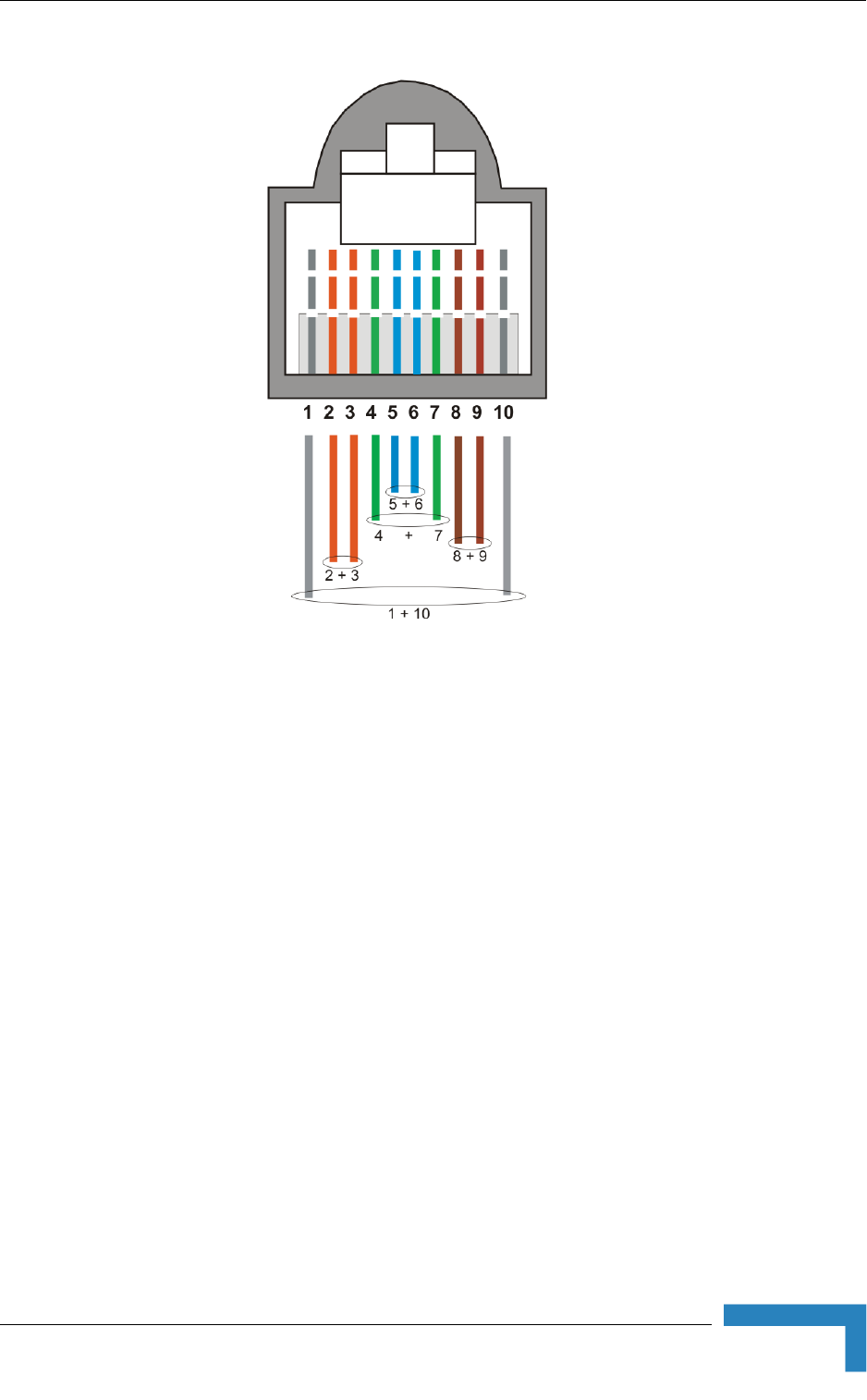

2.7.3 Propriety 10 Pin Assignments ............................................................................ 30
2.8 IDU Data Port ...............................................................................................................36

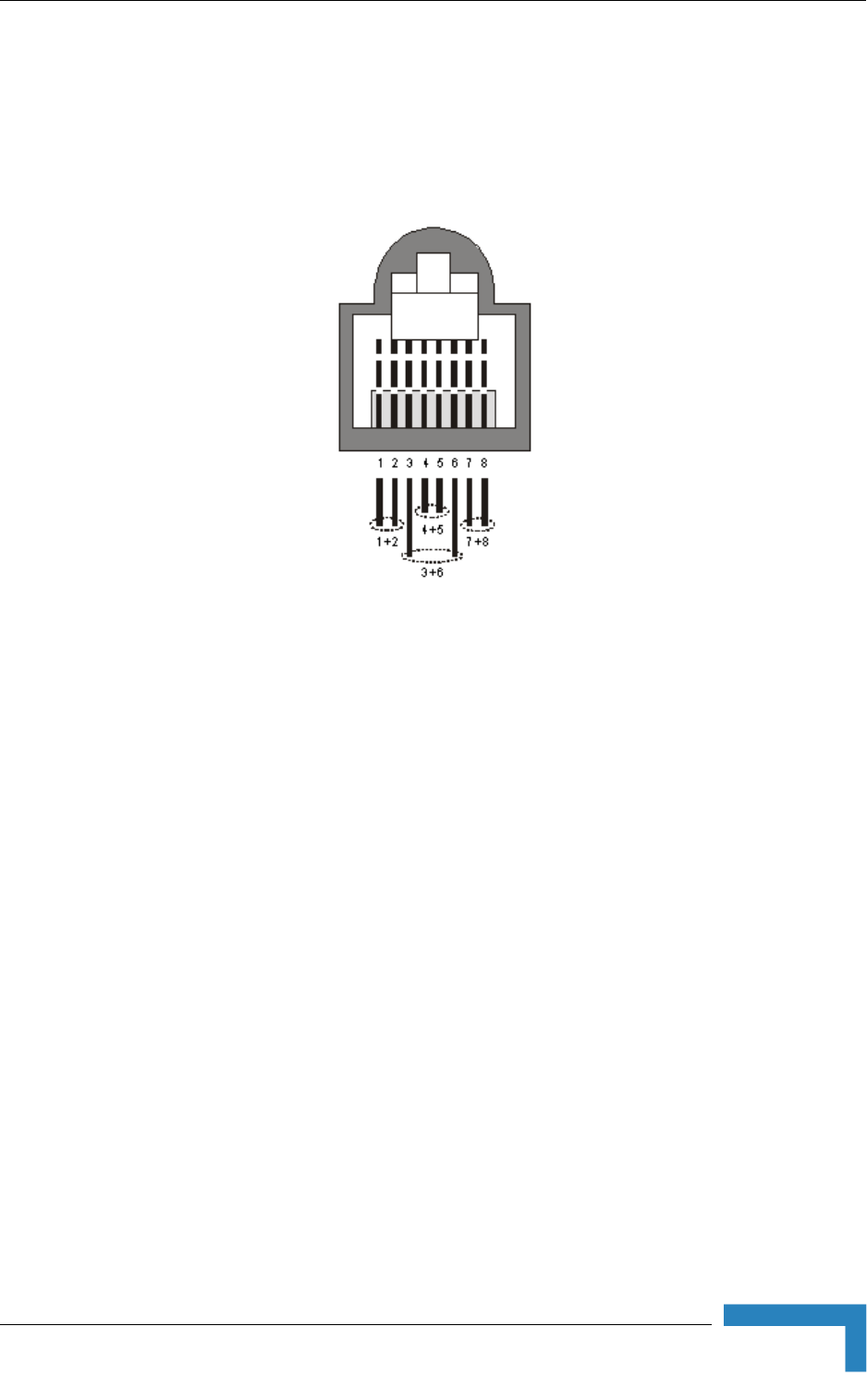

2.8.1 10/100BASE-TX Pin Assignments .....................................................................36
2.8.2 Extreme CPE Cables ......................................................................................... 38
2.9 ODU Antenna Alignment ............................................................................................40
2.9.1 Align the WiMAX Antenna.................................................................................. 41
Chapter 3 - Initial Configuration
3.1 Introduction .................................................................................................................44
![](/img.php?id=1527417&img=bg11.png)
Extreme CPE Product Manual 3
Contents

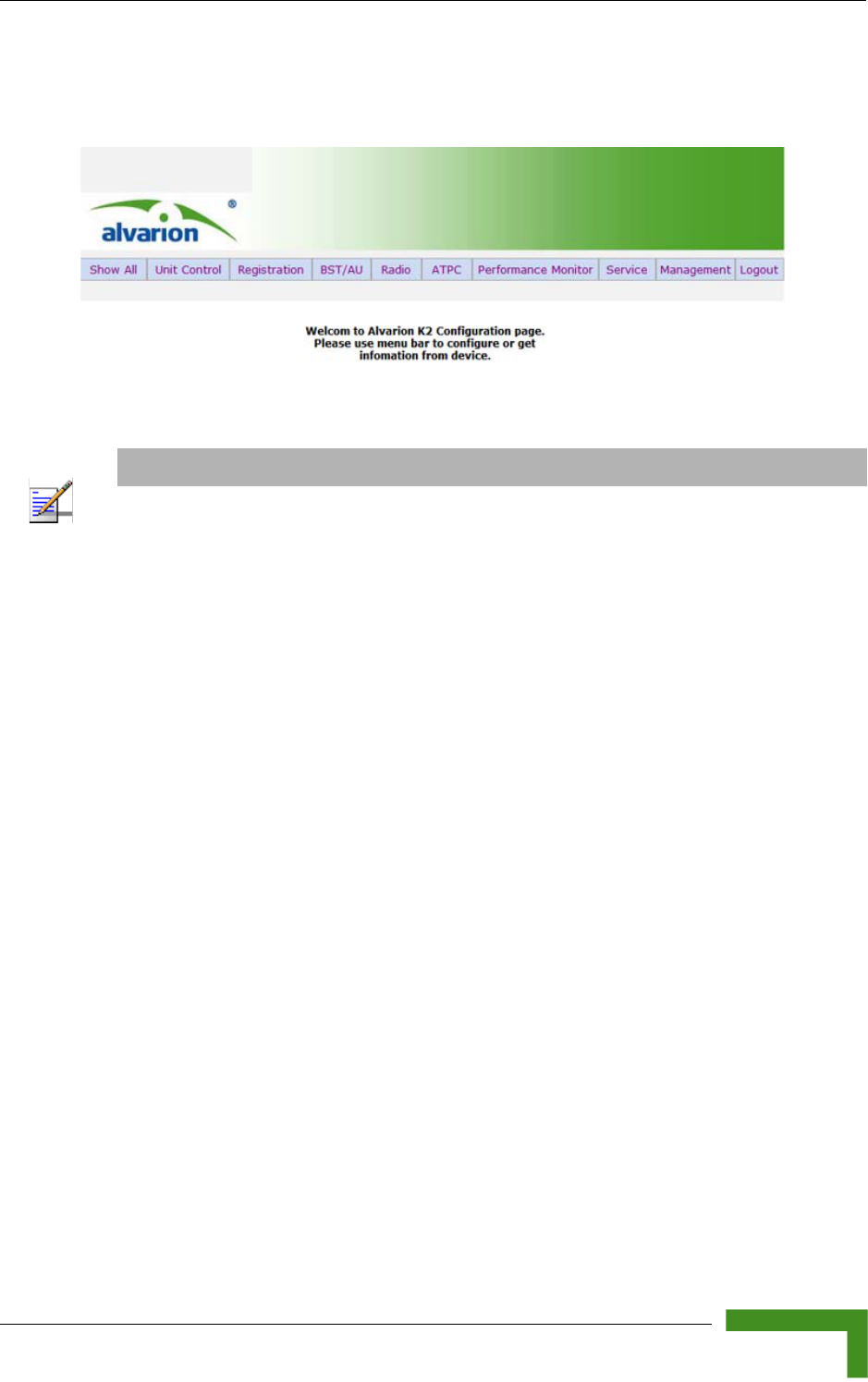

3.1.1 Accessing the Web Management Interface .......................................................44
Chapter 4 - System Settings
4.1 Introduction .................................................................................................................48
4.2 System Status..............................................................................................................49
Chapter 5 - Unit Control
5.1 Introduction .................................................................................................................56
5.2 Show Unit Control.......................................................................................................57
5.3 Reset.............................................................................................................................61
5.4 Change Password .......................................................................................................62
5.5 Software Version Control ...........................................................................................63

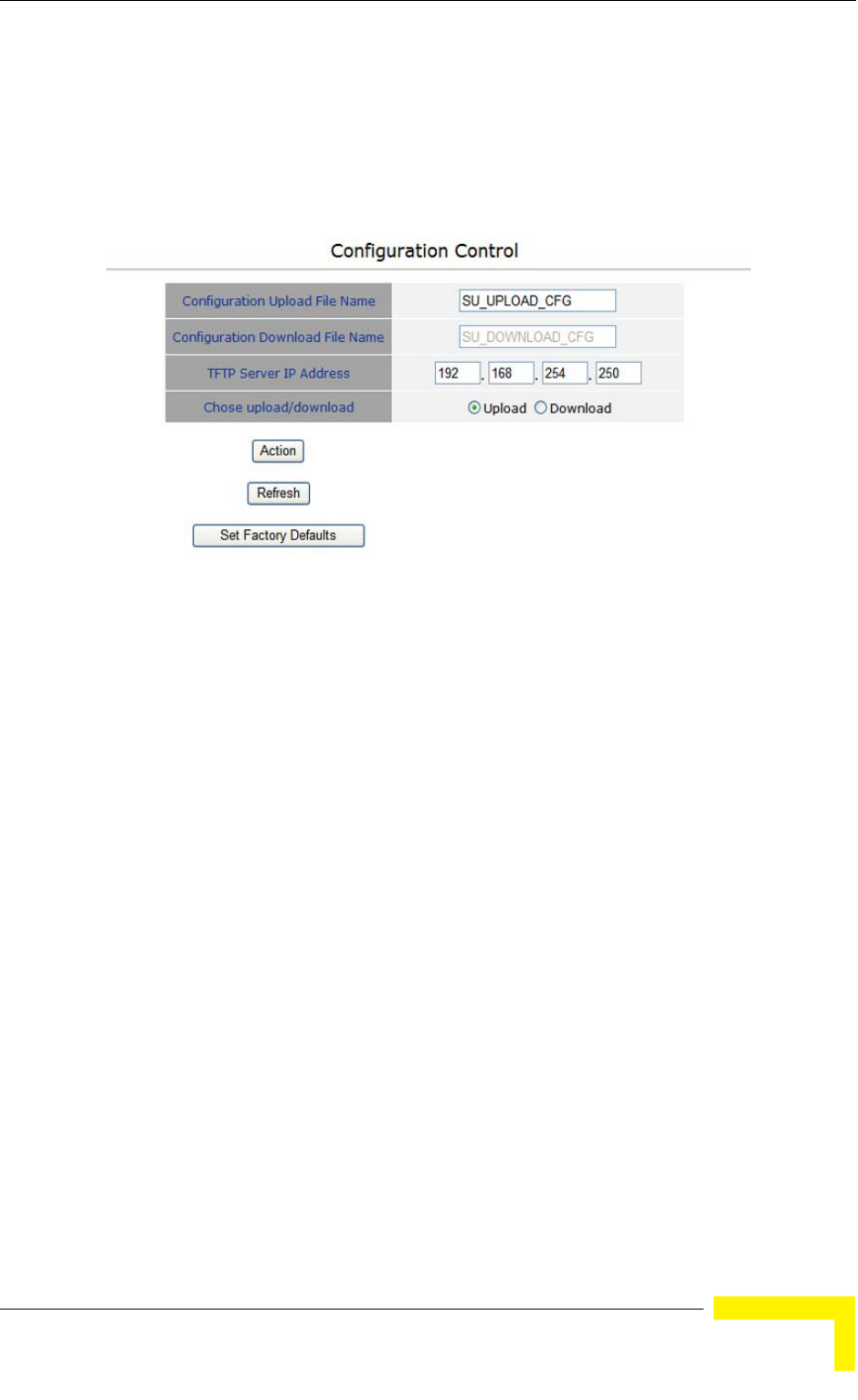

5.6 Configuration Control.................................................................................................65

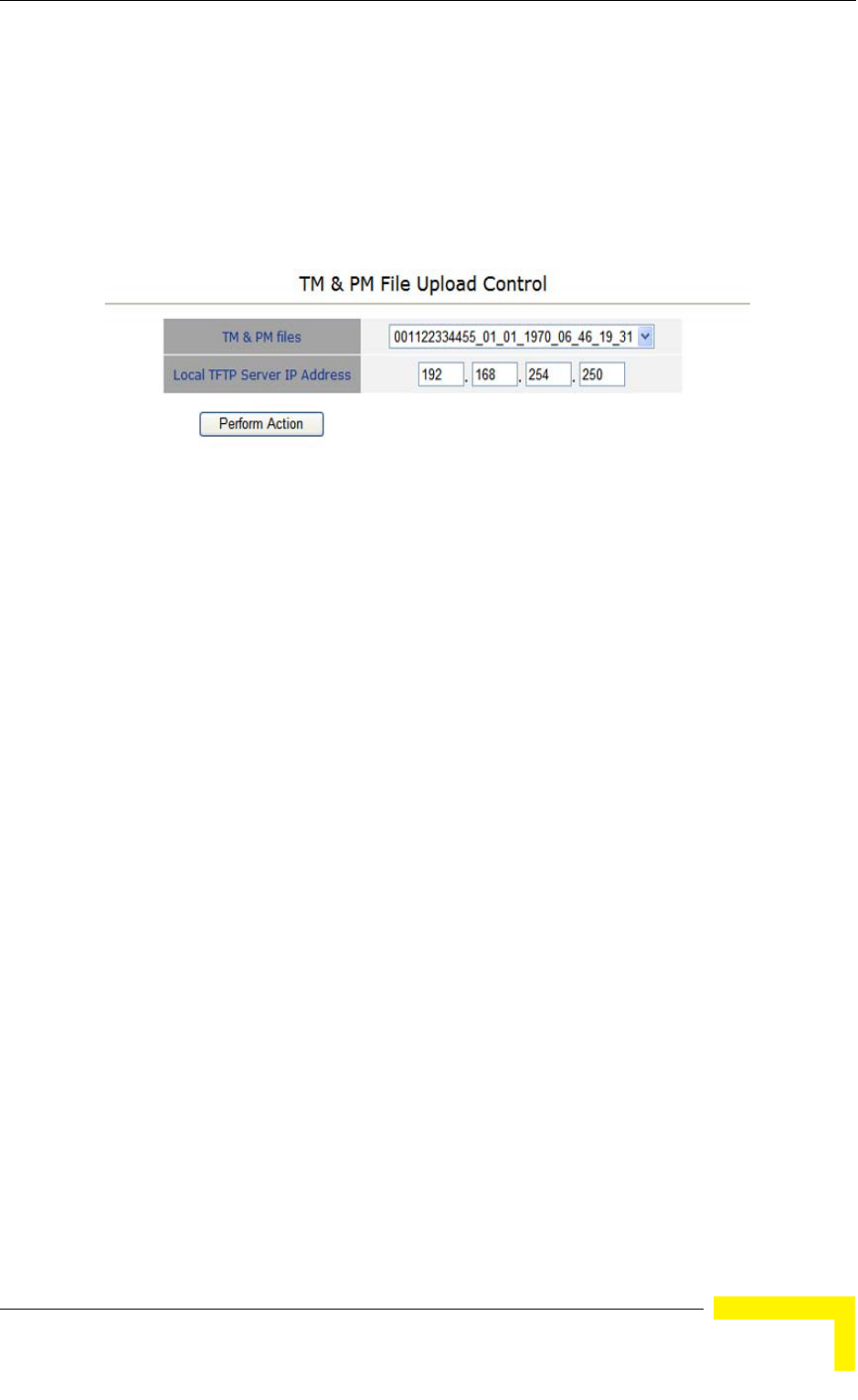

5.7 TM and PM File Upload Control .................................................................................67
5.8 Ethernet Operation Mode ...........................................................................................68
Chapter 6 - Registration
6.1 Introduction .................................................................................................................70
6.2 Show Registration Parameters ..................................................................................71
6.3 Registration Configuration.........................................................................................72

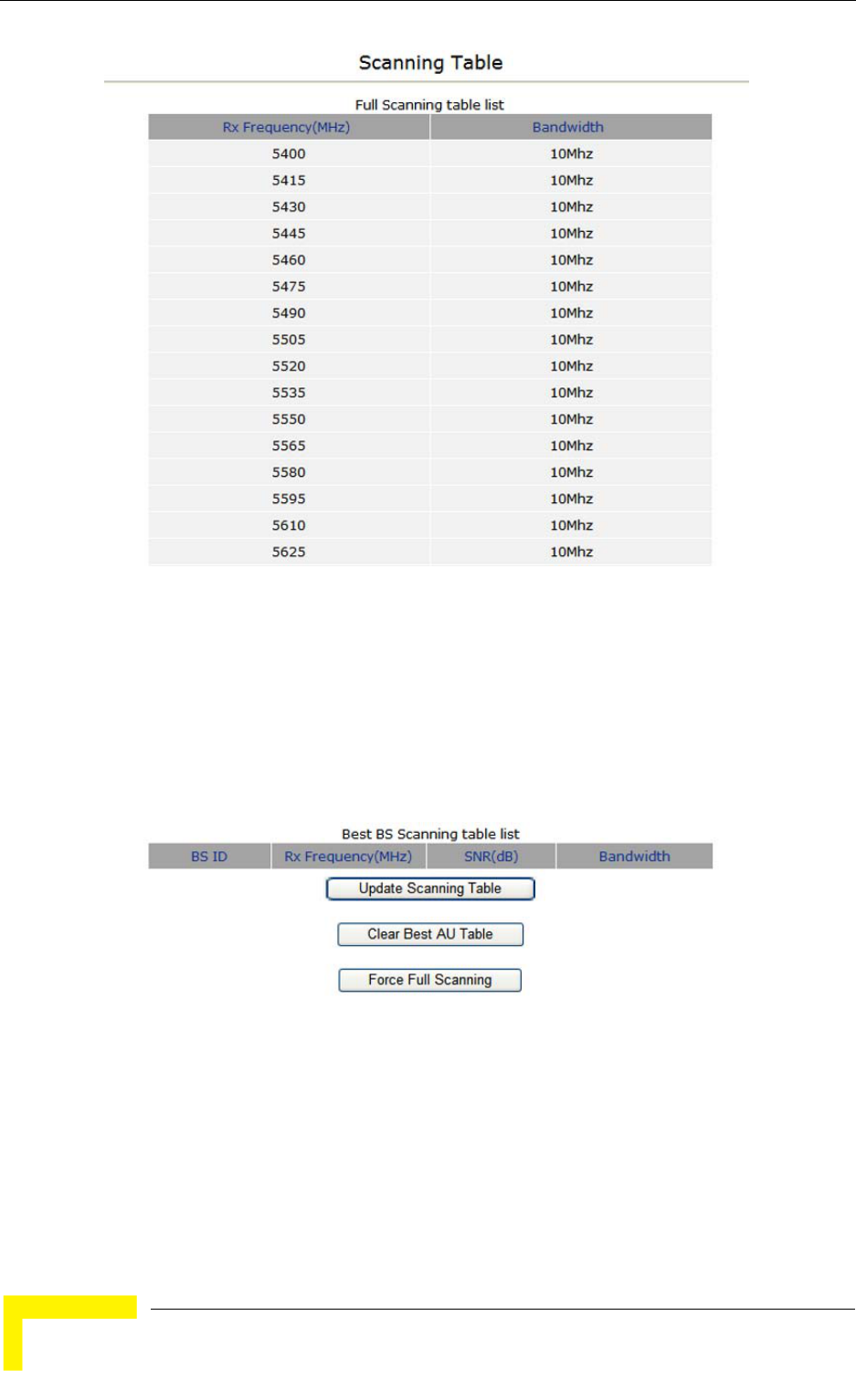

Chapter 7 - Base Station Scanning
7.1 Introduction .................................................................................................................74

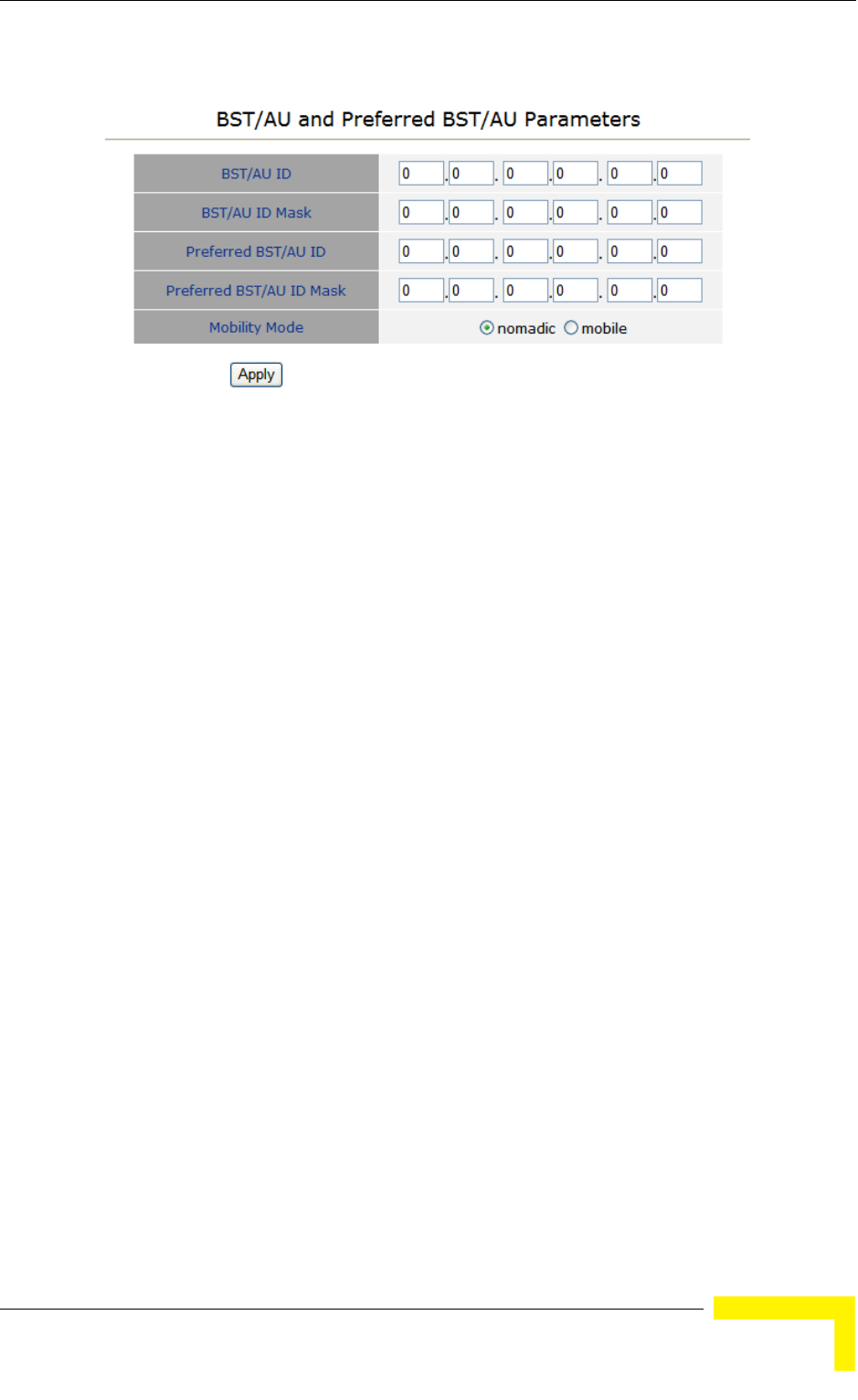

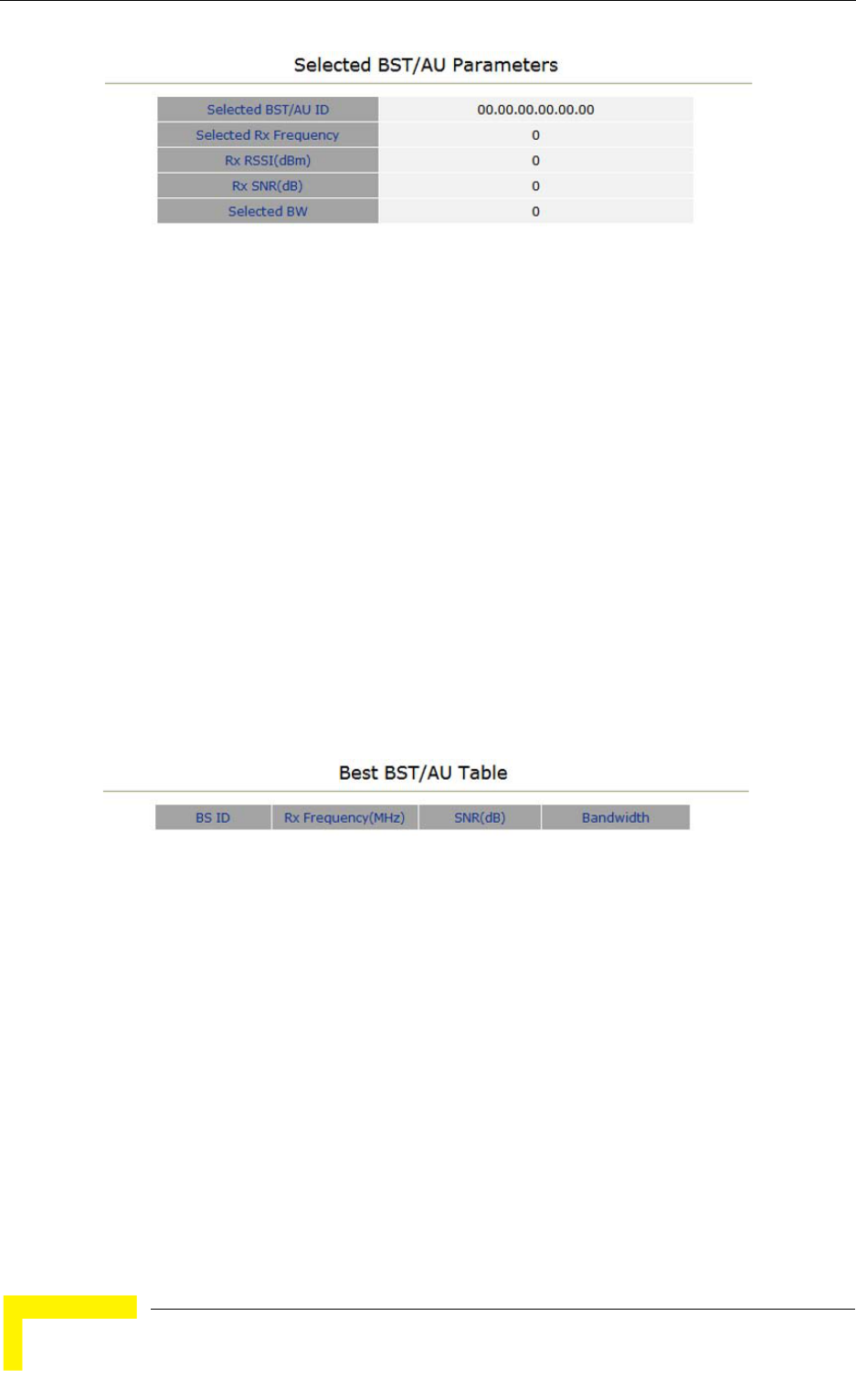

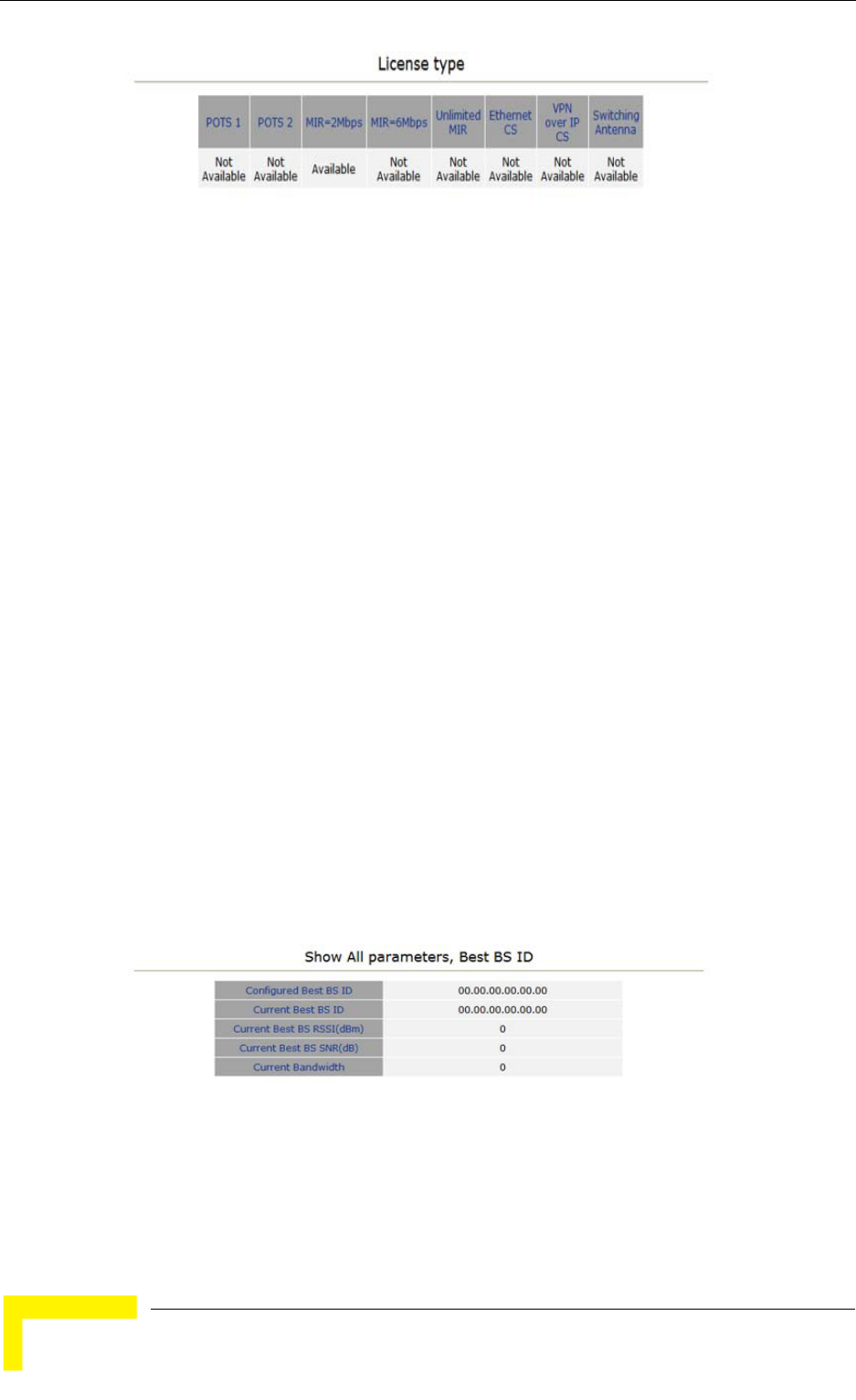

7.2 BS Scanning ................................................................................................................75

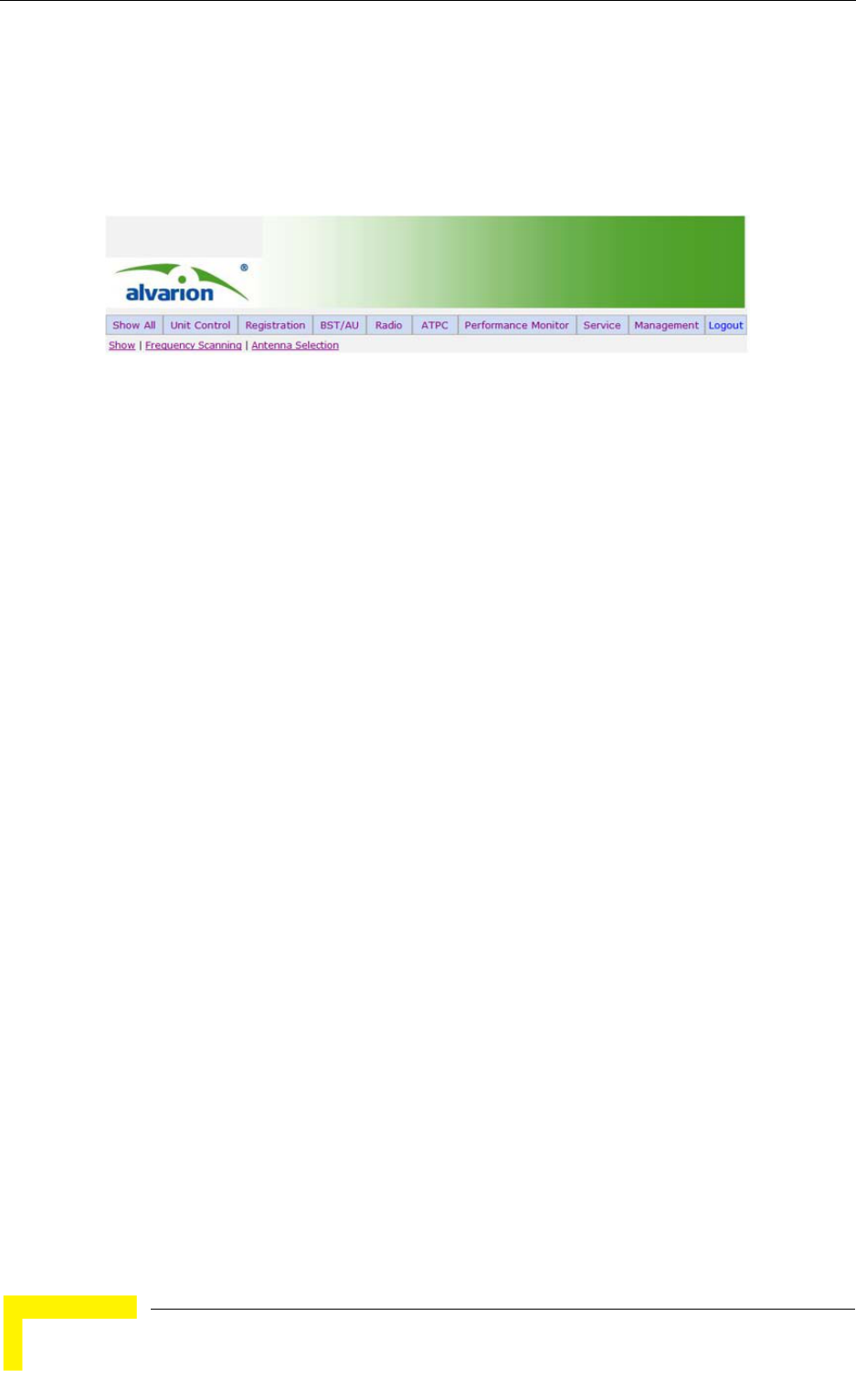

Chapter 8 - Radio Parameters
8.1 Introduction .................................................................................................................80

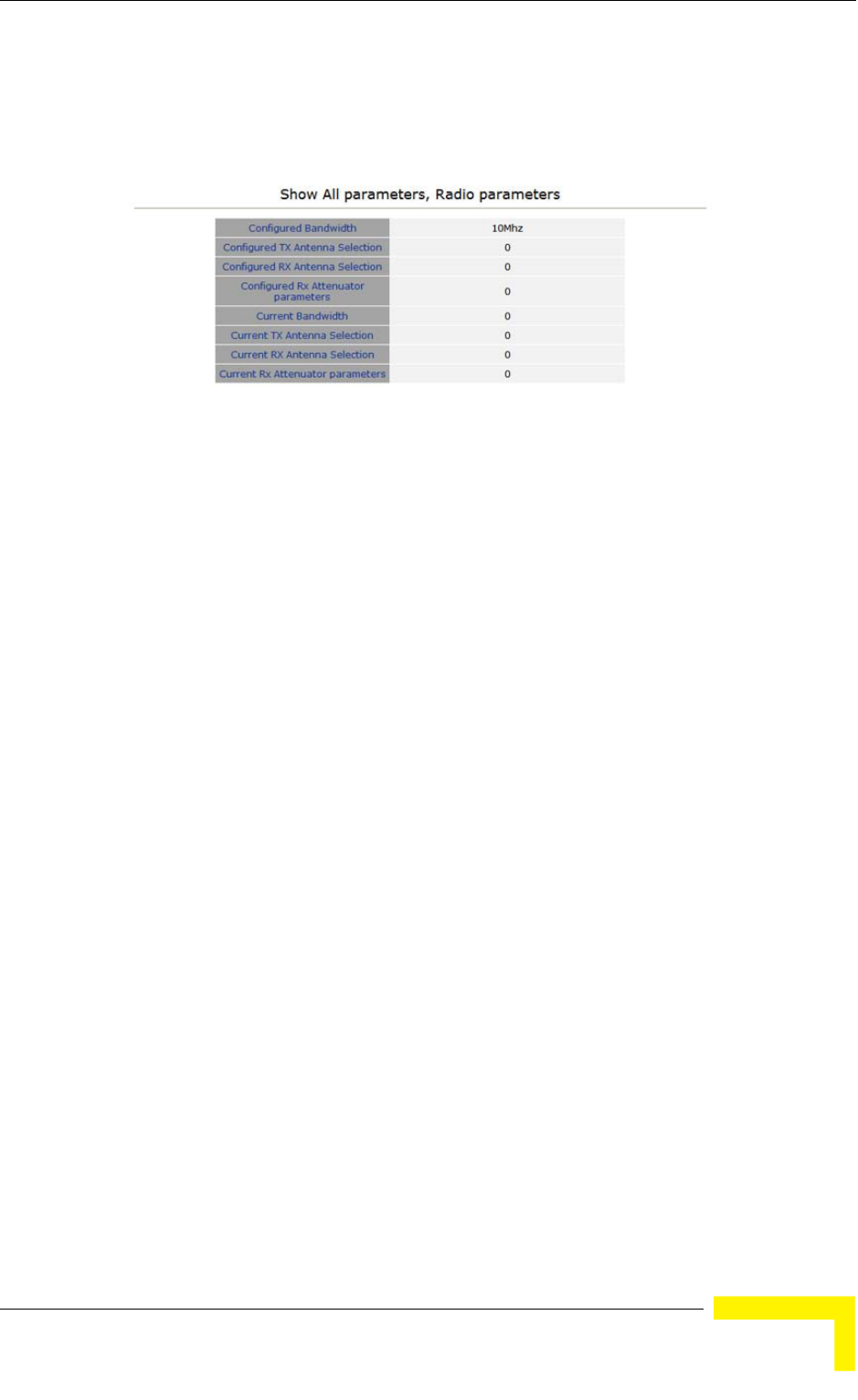

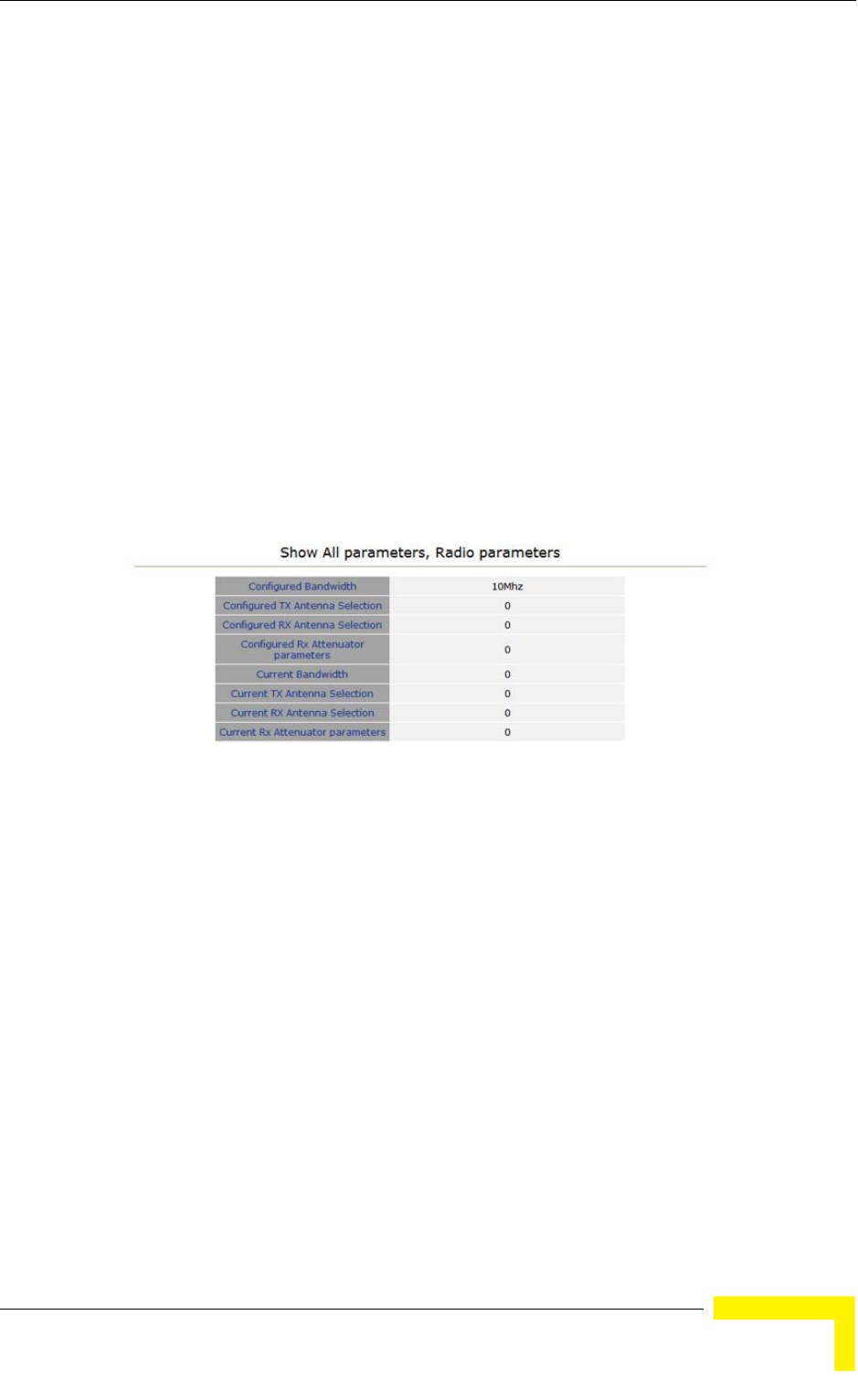

8.2 Radio Parameters........................................................................................................81

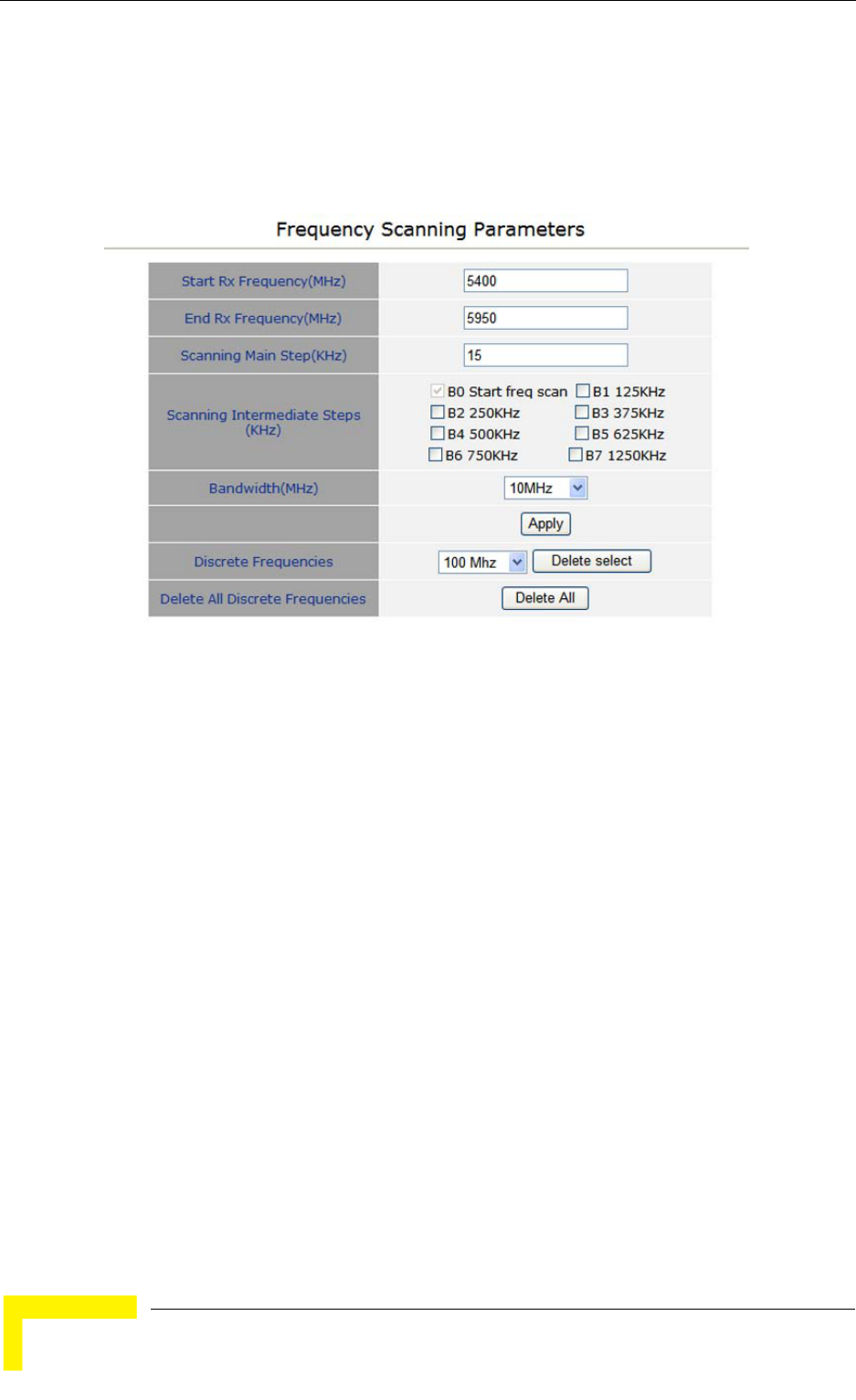

8.3 Frequency Scanning...................................................................................................82

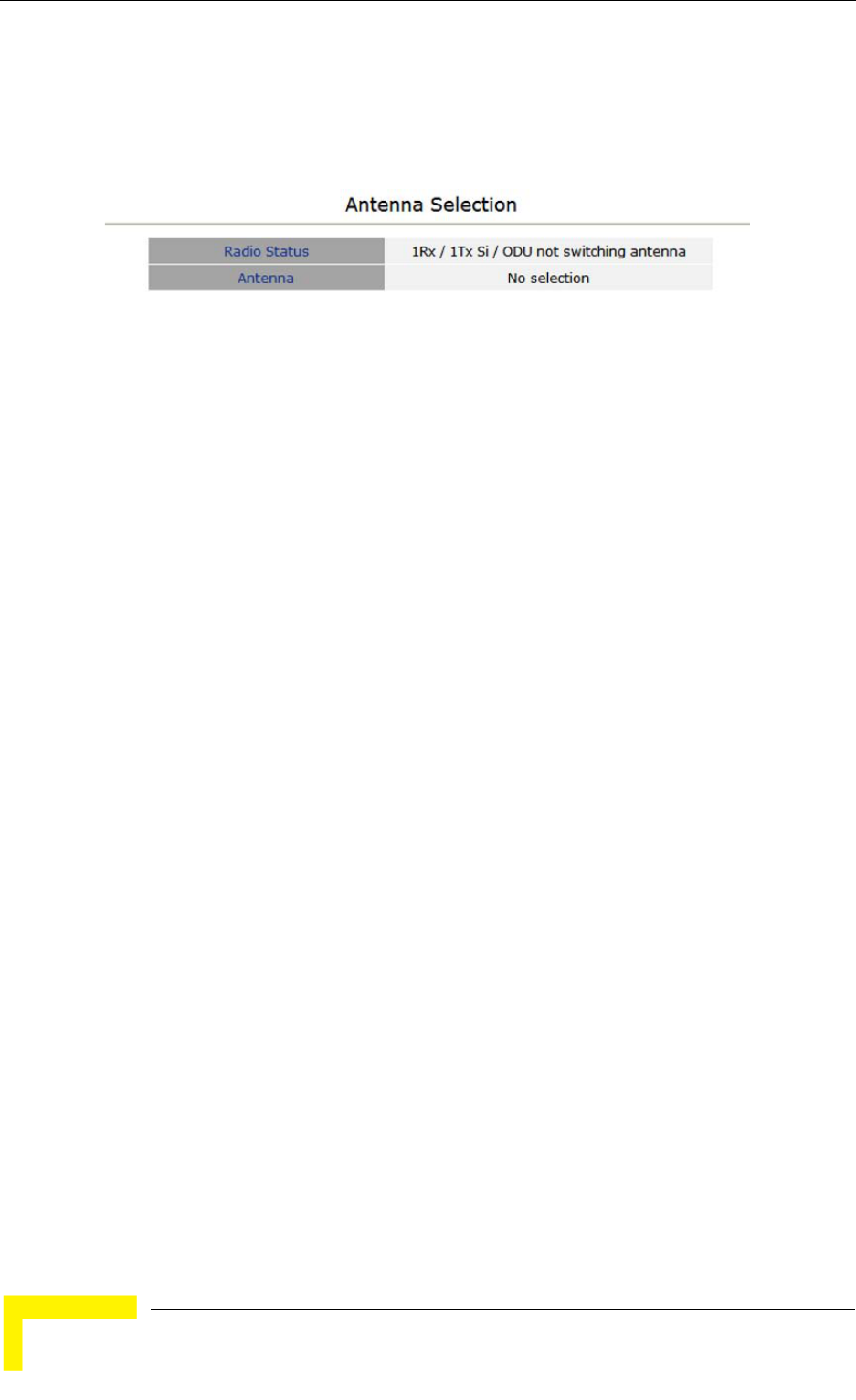

8.4 Antenna Selection.......................................................................................................85
![](/img.php?id=1527417&img=bg12.png)
4Extreme CPE Product Manual
Contents

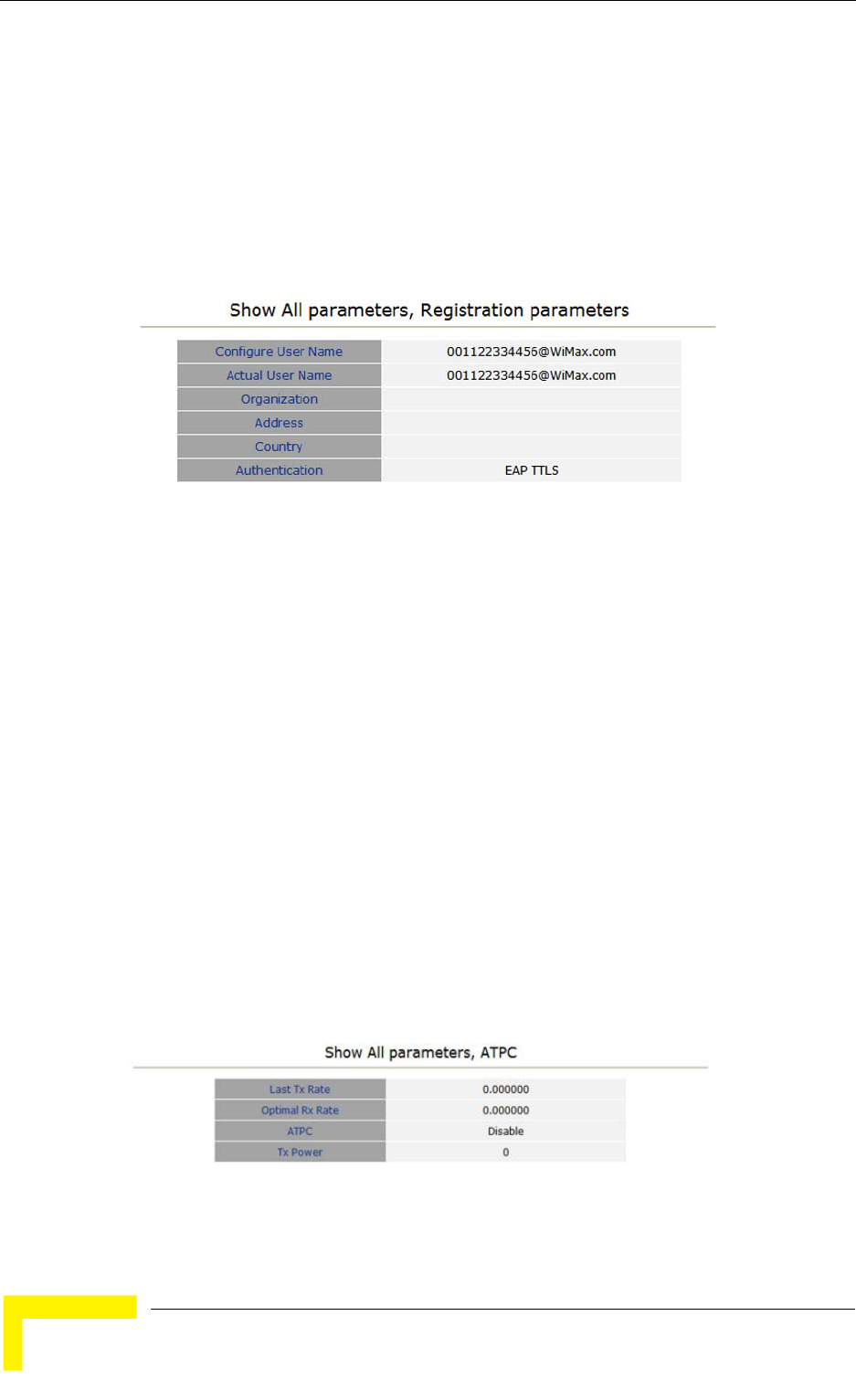

Chapter 9 - ATPC
9.1 Introduction .................................................................................................................88
9.2 ATPC Parameters........................................................................................................ 89
9.3 ATPC Configuration....................................................................................................90

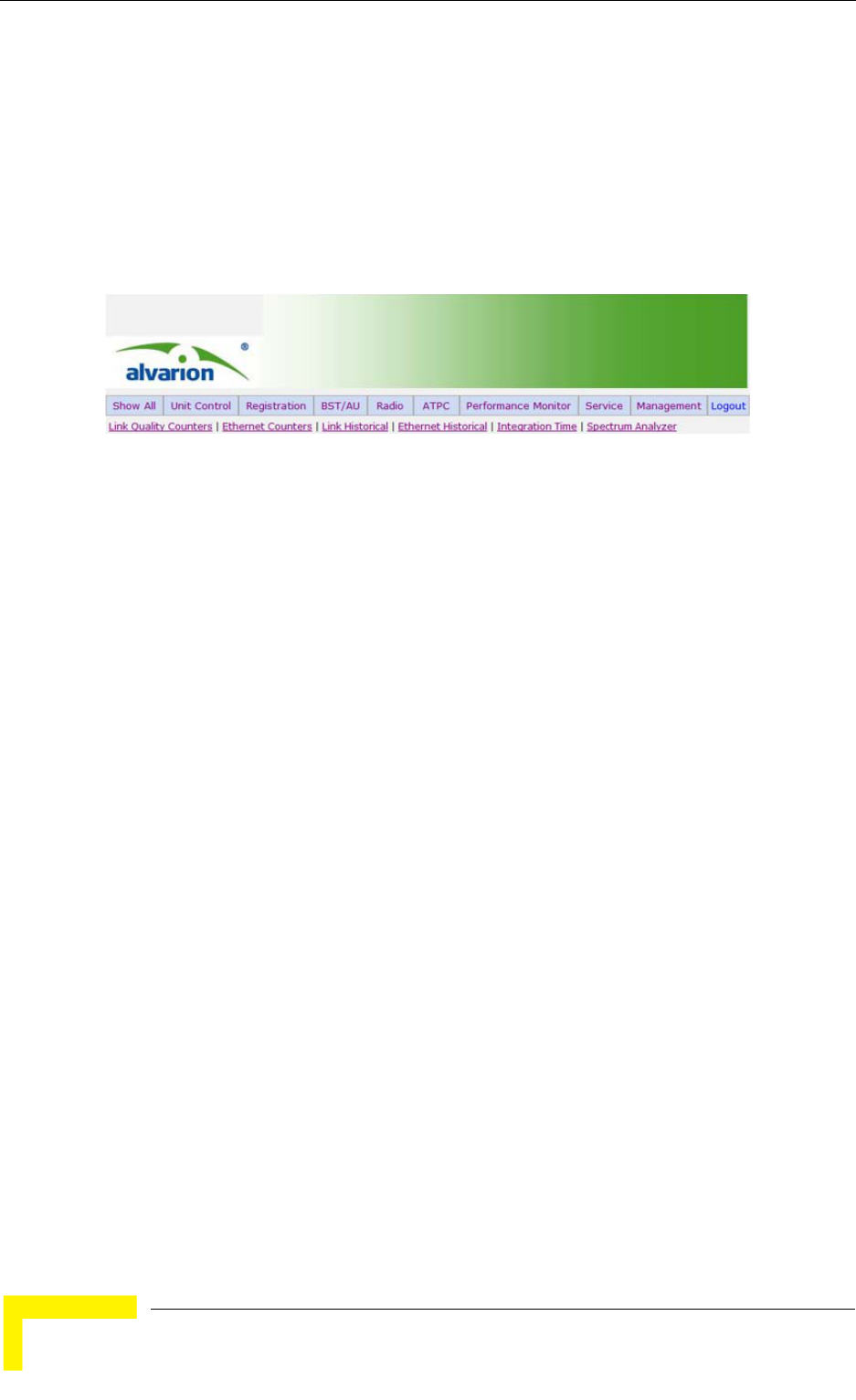

Chapter 10 - Performance Monitor
10.1Introduction.................................................................................................................94

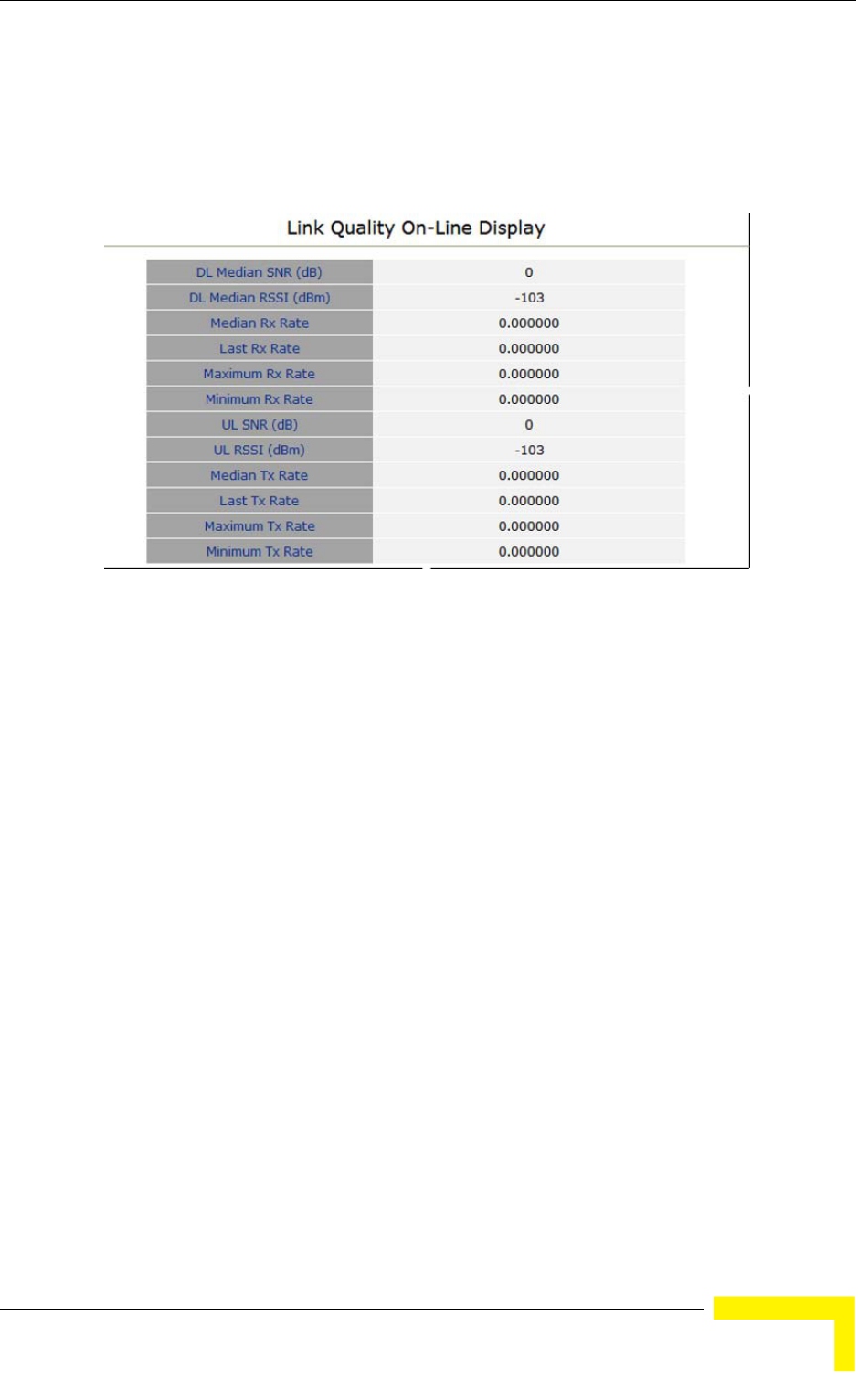

10.2Link Quality Counters ................................................................................................95

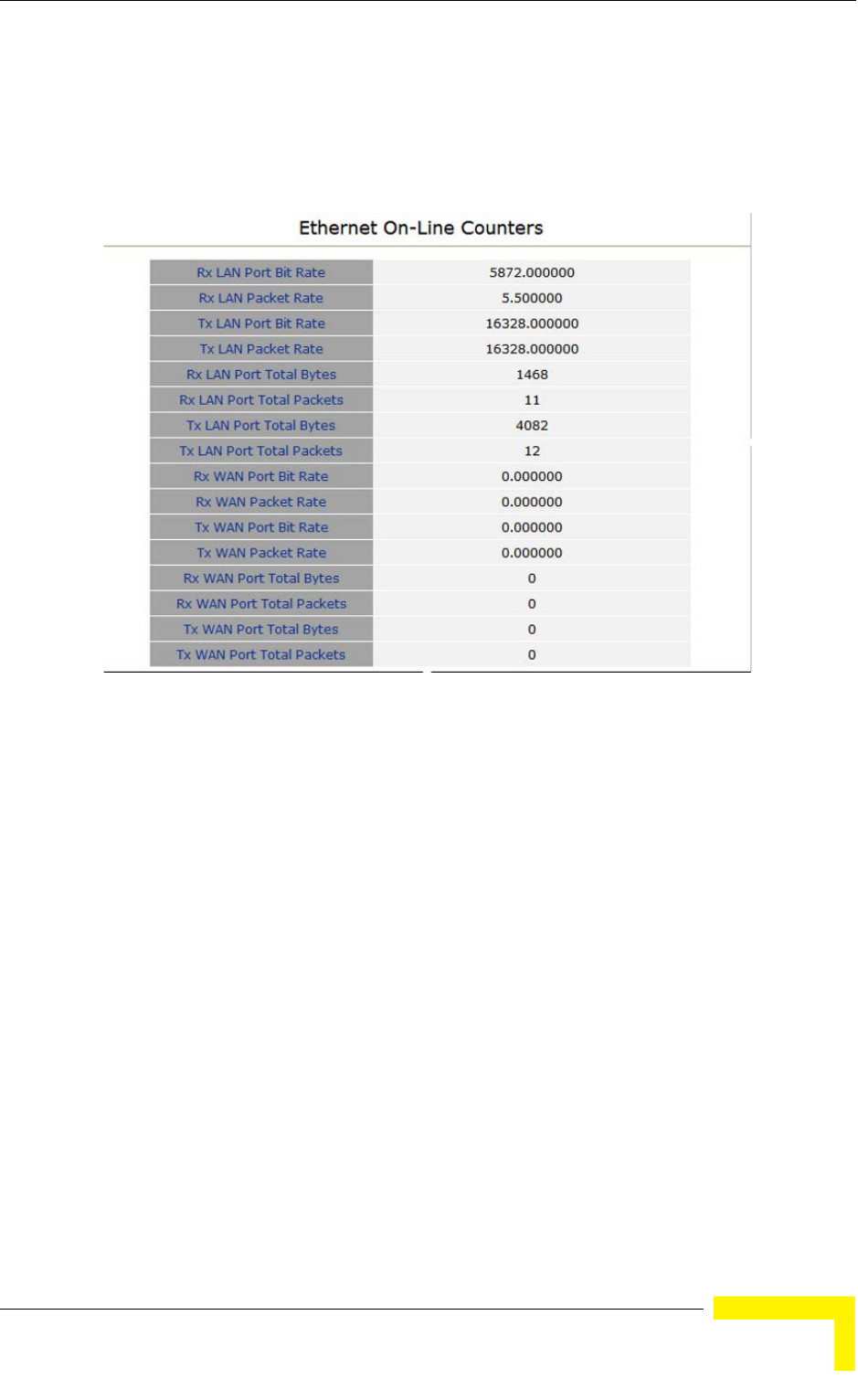

10.3Ethernet Counters ......................................................................................................97

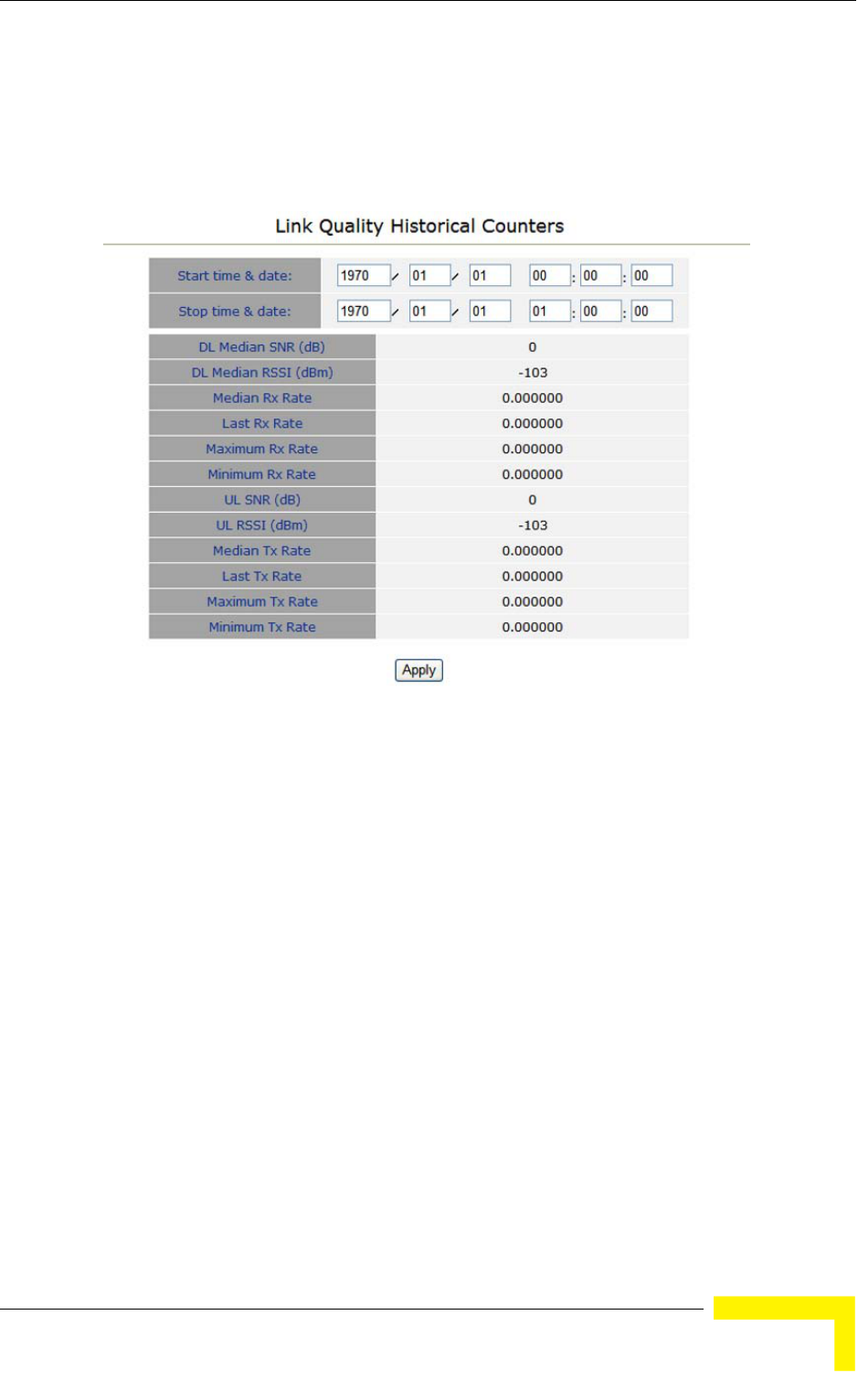

10.4Link Historical .............................................................................................................99

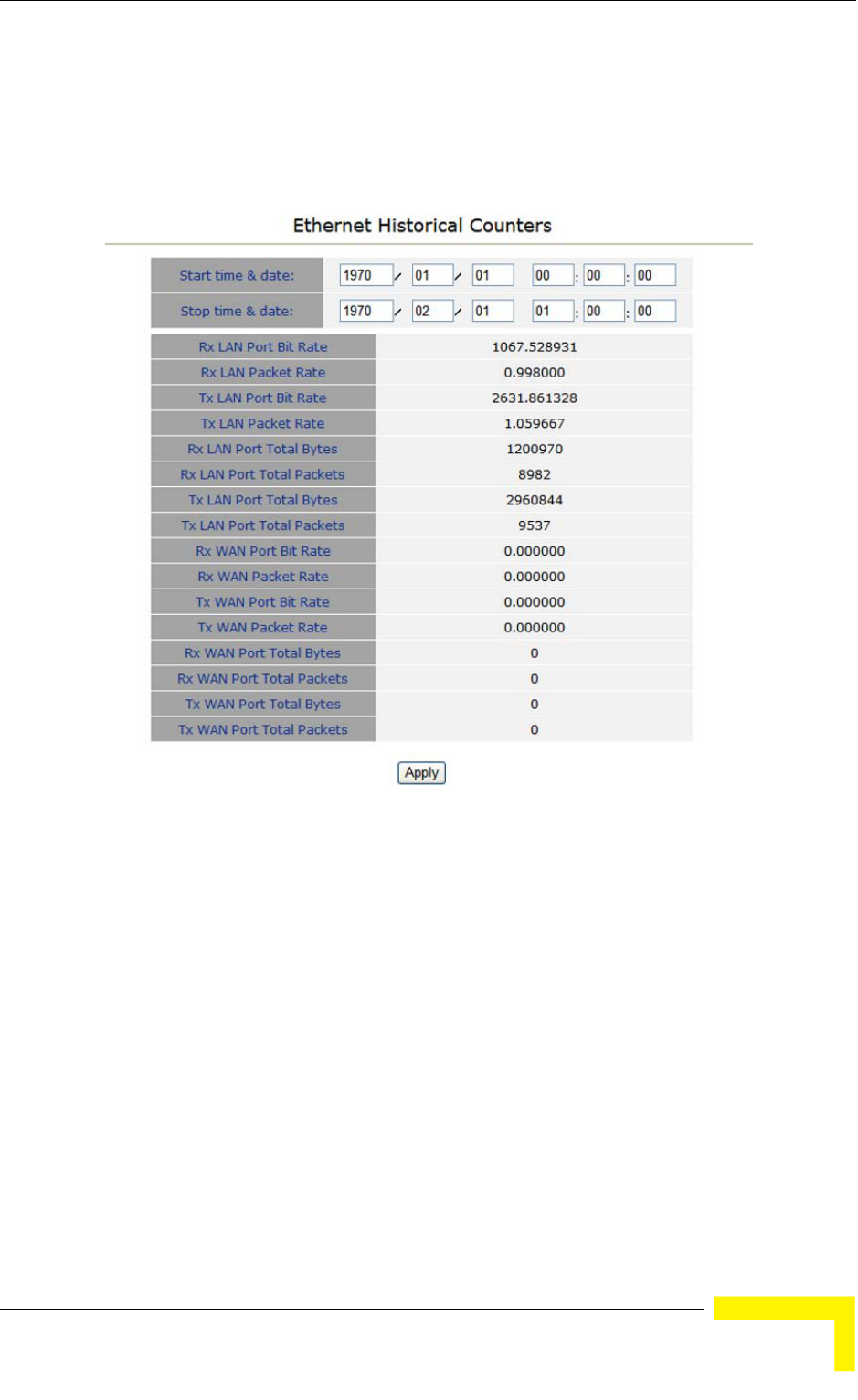

10.5Ethernet Historical....................................................................................................101
10.6Integration Time........................................................................................................104
10.7Spectrum Analyzer ...................................................................................................105
Chapter 11 - Service
11.1Introduction...............................................................................................................108

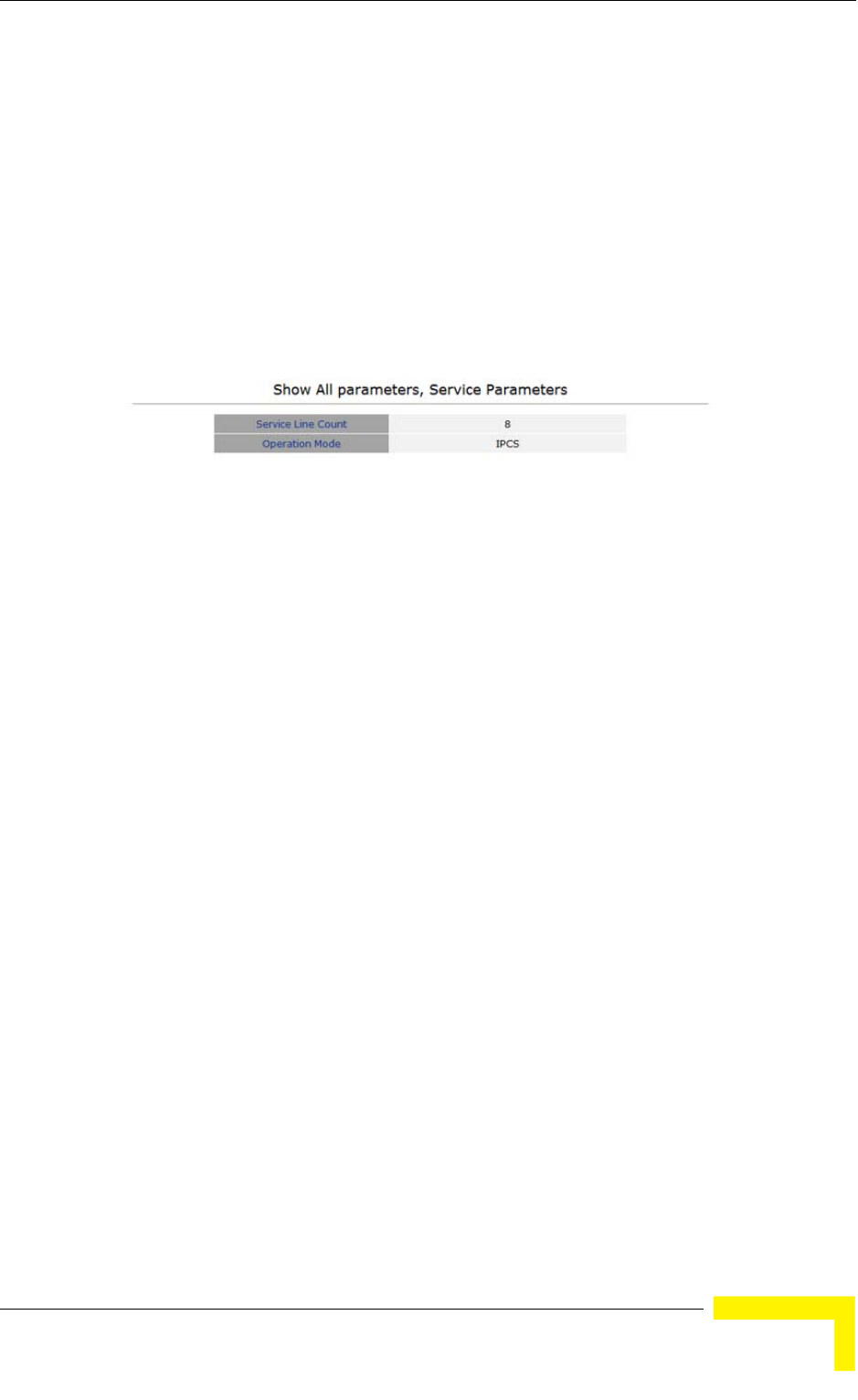

11.2Show Service ............................................................................................................109
11.3Service Parameters ..................................................................................................110
Chapter 12 - Management
12.1Introduction...............................................................................................................112
12.2Management Parameters .........................................................................................113
Chapter 13 - Logout
13.1Logout........................................................................................................................116
Appendix A - Troubleshooting
Appendix B - GNU License
B.1 The GNU General Public License ............................................................................122
B.1.1 Preamble.......................................................................................................... 123
B.1.2 GNU GENERAL PUBLIC LICENSE TERMS AND CONDITIONS FOR COPYING,
![](/img.php?id=1527417&img=bg16.png)
2Extreme CPE Product Manual
Chapter 1 - Product Description
1.1 Introducing the Extreme CPE range
Extreme CPE is a set of outdoor (ODU) units with an indoor component (IDU), that
are either 2.3 GHz, 2.5GHz, 3.5 GHz, or 5 GHz, high capacity gateways and
WiMAX Wireless Broadband Access subscriber stations, for a home or small office.
Which ODU set you use depends on the frequency band of your service provider’s
WiMAX service. Each system provides network connections that are always on,
supporting immediate access to the Internet and other IP services at high data
rates. The unit provides a gateway function between a WiMAX service provider
and a local Ethernet LAN. The device enables a service provider to deliver last mile
broadband wireless access as an alternative to wired DSL or cable modems.
Part of an extended and field-proven product portfolio, Extreme CPE is an integral
part of the Extreme family, the latest most technologically advanced wireless
solution for broadband deployment. With capacity of up to 20 Mbps download and
7 Mbps upload speed per unit, the Extreme CPE solution enables the delivery of
powerful wireless broadband services to the subscriber. Extreme CPE is an
out-of-the-box solution with immediate available local stock enabling virtually
instant network expansion and simplified deployment. Extreme CPE provides a
wireless solution for the subscriber to connect to the internet.
With a range of up to 5 Km and lower equipment and deployment costs, Extreme
CPE enables service providers to wirelessly extend their services to customers in
areas where the cost of cabling is prohibitive to deployment. Remote residential
areas can now benefit from high-speed wireless Internet access, Web browsing
and e-mail, and advanced applications such as multi-media services.

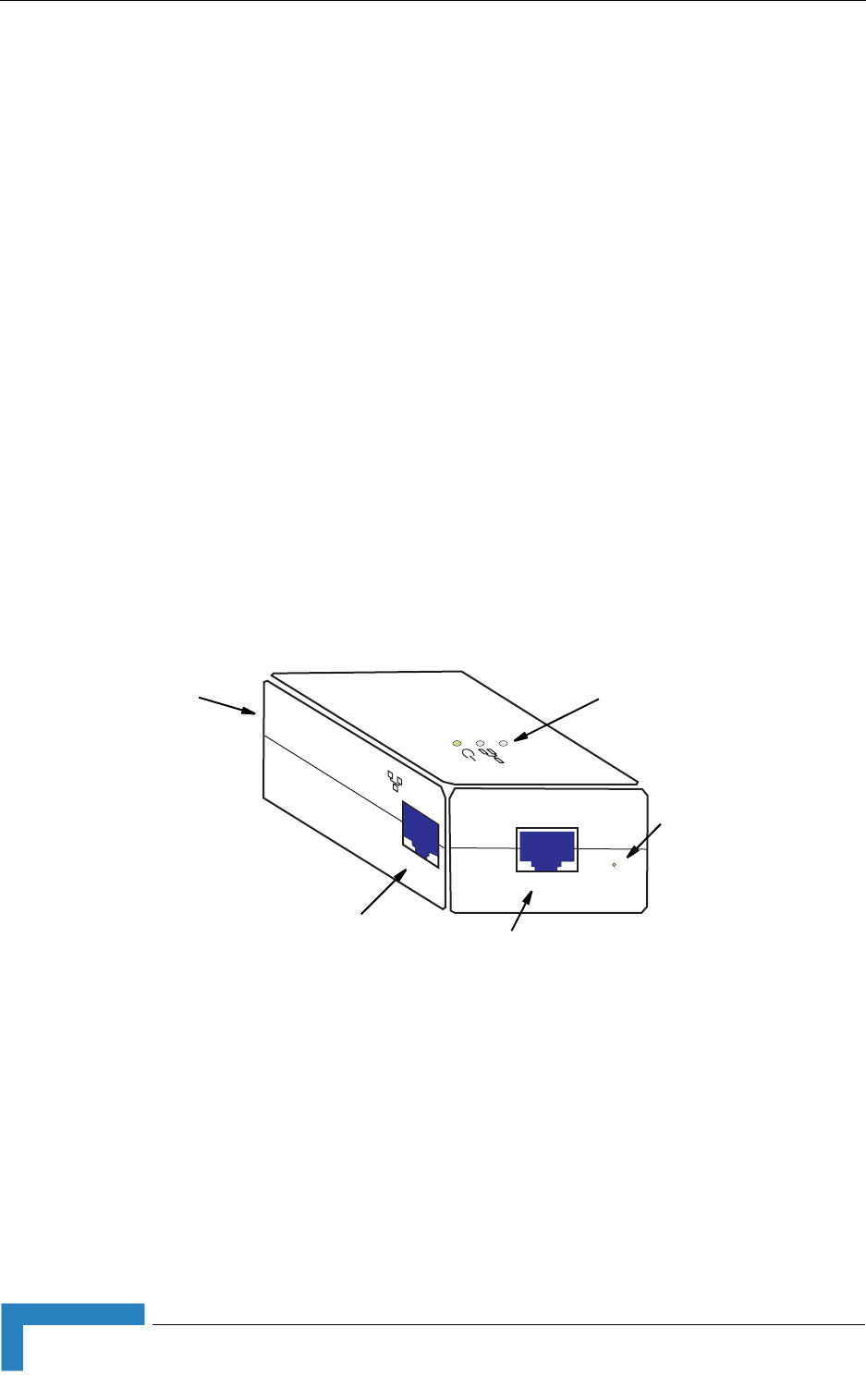

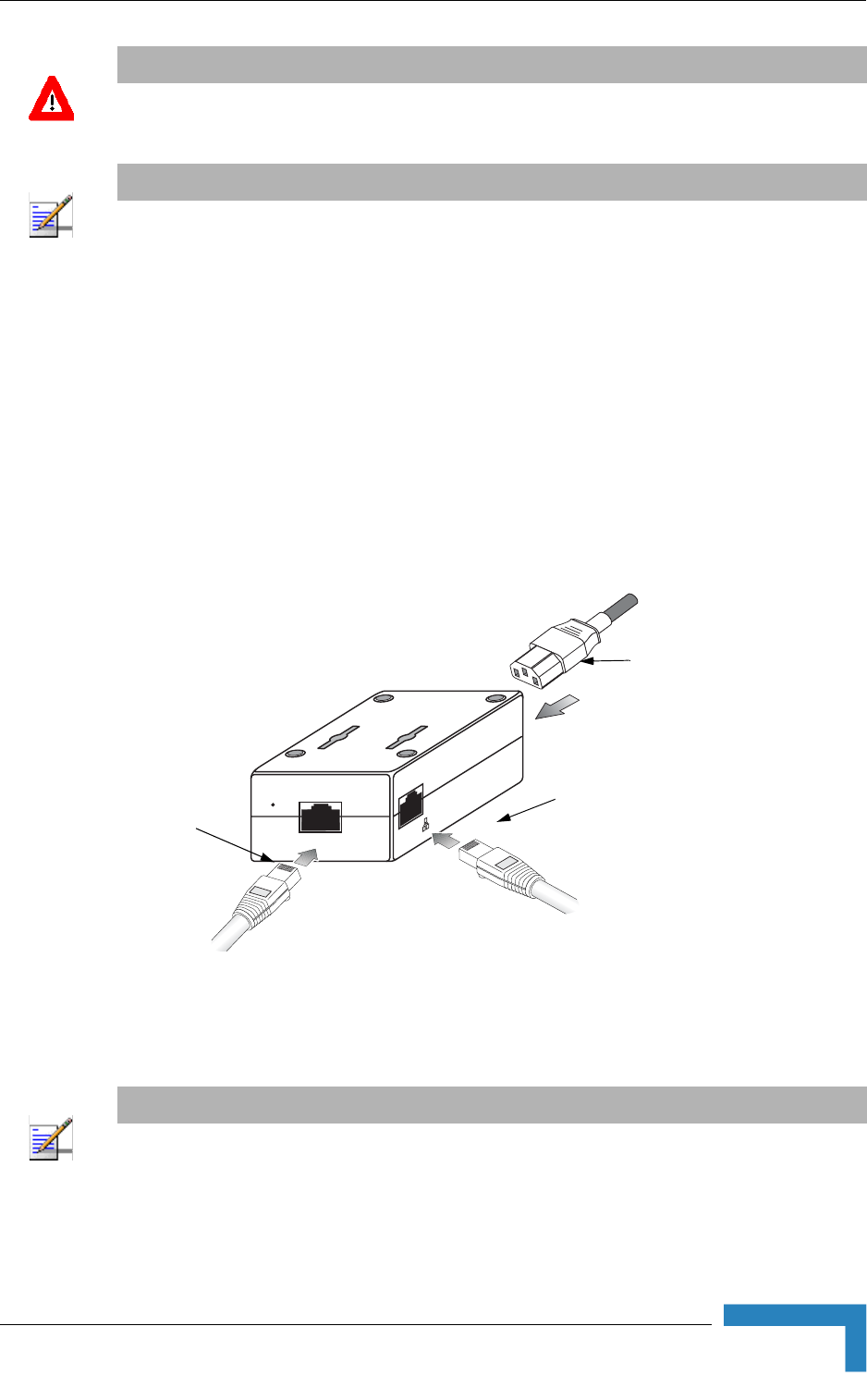

The Extreme CPE indoor unit (IDU) is a plug-and-play device that provides PoE
power to the ODU and a network interface through an RJ-45 Ethernet switch
port, as well as two RJ-11 Voice over IP (VoIP) phone ports for
telecommunications.
![](/img.php?id=1527417&img=bg17.png)
Introducing the Extreme CPE range
Extreme CPE Product Manual 3
1.1.1 The Extreme CPE range of products
The following table lists the available Extreme CPE models:

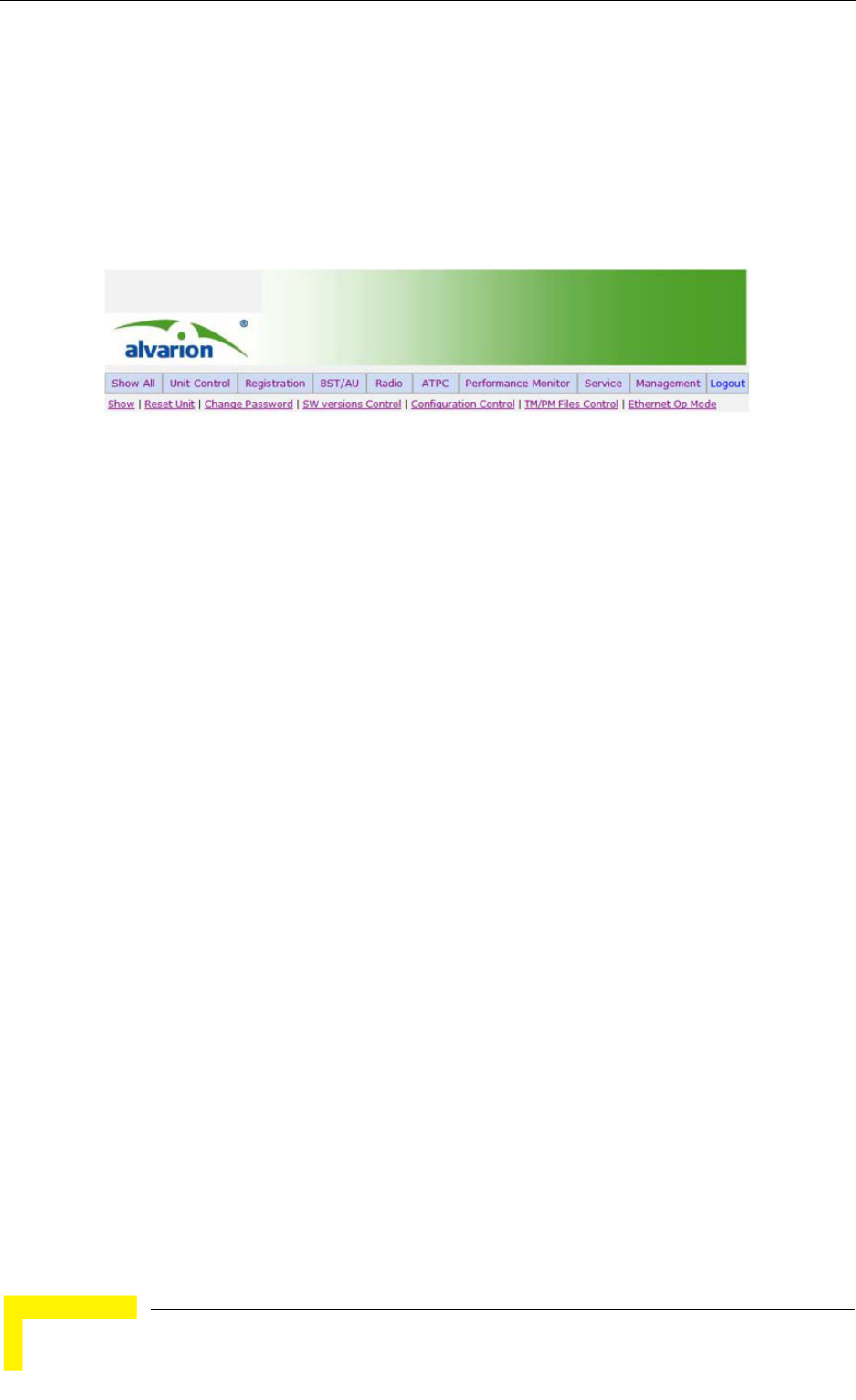

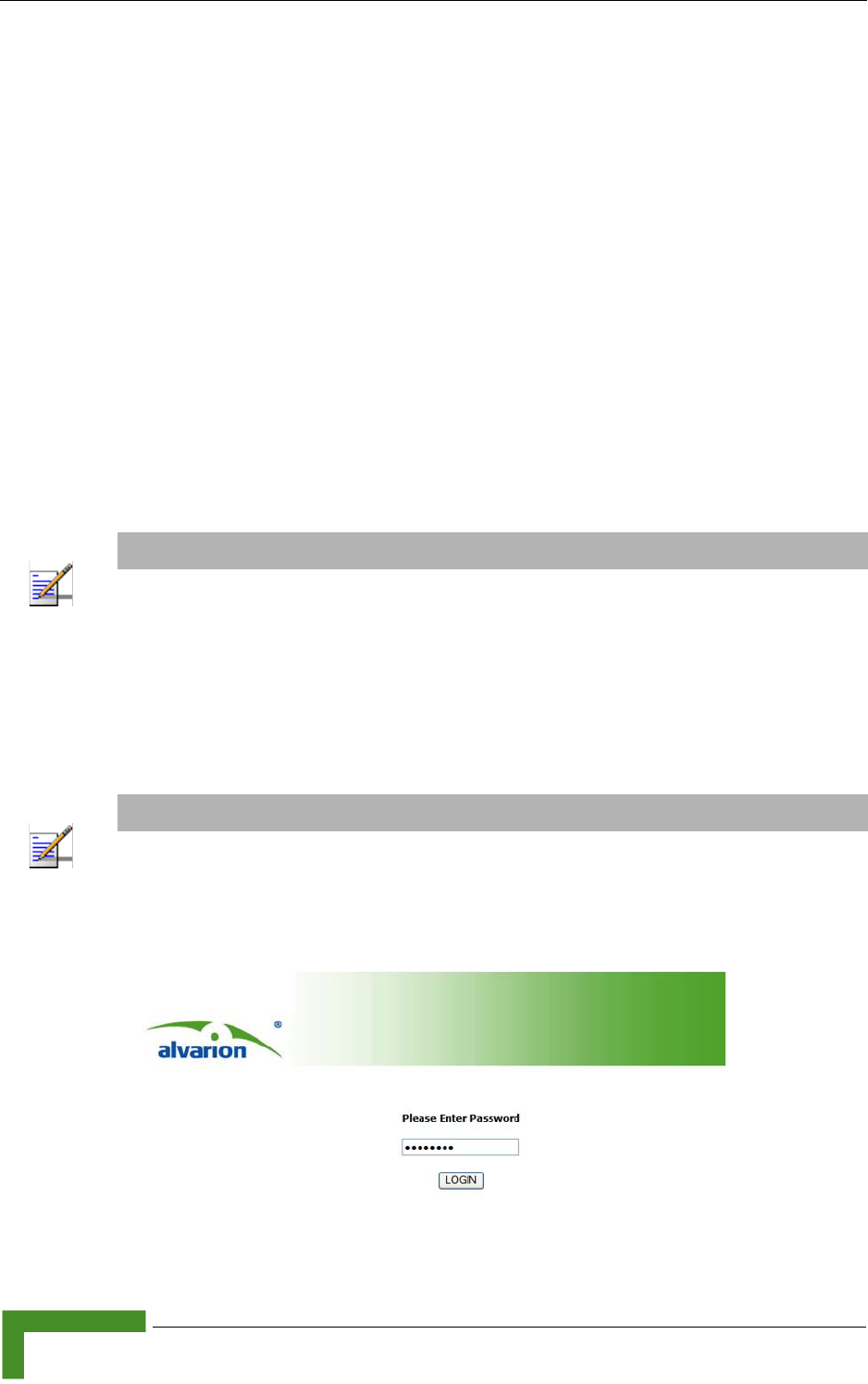

The Extreme CPE offers a user-friendly web-based management interface for the
configuration of all the unit’s features. Any PC directly attached to the unit can
access the management interface using a web browser, such as Internet Explorer
(version 6.0 or above) or Firefox (version 1.5 or above).
The initial configuration steps can be made through the web browser interface
using the Setup Wizard. It is recommended to make the initial changes by
connecting a PC directly to one of the Extreme’s LAN ports.
Table 1-1: Extreme CPE Range of Models
Frequency
Band Model Number Description
2.3 GHz 1 RJ-45 data port
1 RJ-45 data port and 2 RJ-11 VoIP ports
2.5 GHz 1 RJ-45 data port
1 RJ-45 data port and 2 RJ-11 VoIP ports
3.5 GHz 1 RJ-45 data port
1 RJ-45 data port and 2 RJ-11 VoIP ports
5 GHz 1 RJ-45 data port
1 RJ-45 data port and 2 RJ-11 VoIP ports
![](/img.php?id=1527417&img=bg18.png)
4Extreme CPE Product Manual
Chapter 1 - Product Description
1.2 Specifications
1.2.1 WiMAX Radio
Table 1-2: WiMAX Radio Specifications
Item Description
Radio Type IEEE 802.16e WAVE 1 & WAVE 2
Frequency Band Range 2305-2360 MHz, or
2496-2690 MHz, or
3400-3600 MHz, or
4900-5950 MHz
Antenna Type (ODU) Integrated Flat Panel Antenna, 17dBi, 24°AZ x 18°EL.
Channel Bandwidth 5.00, 7.00, 8.75, and 10.00 MHz
Maximum Throughput 5 Mbps Upload, 20 Mbps download
Radio Technology Maximum-Ratio Combining (MRC)
Modulation Technique Scaleable OFDMA employing Time-Division Duplex (TDD)
mechanism
PRBS subcarrier randomization
Contains pilot, preamble, and ranging modulation
FEC Coding Rates Down Link: QPSK, 16 QAM, 64 QAM
Up Link: QPSK, 16 QAM
Antenna Gain Flat panel antenna:
2.3 GHz: 13.5 dBi
2.5 GHz: 13.5 dBi
3.5 GHz: 15 dBi
5 GHz: 17 dBi
TPL (Transmit Power Level) +24 dBm maximum
Receive Sensitivity -94 dBm maximum
![](/img.php?id=1527417&img=bg19.png)
Specifications
Extreme CPE Product Manual 5
1.2.2 VoIP Specifications
Table 1-3: VoIP Specifications
Item Description
Voice Signalling Protocol SIP v2 (RFC 3261)
Voice Codex G.711 (a-law and u-law)
G.729ab
G.722
G.722.1
Voice Quality G.726 VAD (Voice Activity Detection)
G.723 CNG (Comfortable Noise Generation)
Echo cancellation (G.165/G.168)
Adaptive jitter buffer, up to 200 milliseconds
DTMF tone detection and generation
Configurable Cadence Rings
Call Features Call transfer
Call waiting/hold/retrieve
3-way conference call
Call blocking
T.38 fax relay
Dial plan (E.164 dialing plan)
Call forwarding: No Answer/Busy/All
REN (Ring Equivilent Number) 3 REN total in system
![](/img.php?id=1527417&img=bg1a.png)
6Extreme CPE Product Manual
Chapter 1 - Product Description
1.2.3 Configuration and Management
1.2.4 Mechanical IDU
1.2.5 Mechanical ODU
Table 1-4: Configuration and Management
Item Description
Management options Web-based (HTTP/HTTPS)
SNMP
TR-069
TFTP
Telnet
SNMP agent V1 / V2c, supports 802.11 MIB, RFC-1213 MIB II and private MIB.
Management access From Wired LAN, Wireless Link
Management access protection Access Password
Encryption WEP 152-bits
Allocation of IP parameters Configurable or automatic (DHCP client)
Software upgrade HTTP/FTP/TFTP
Configuration Upload/Download HTTP
Table 1-5: Mechanical Specifications
Item Description
Dimensions 156mm (L) X 60mm (W) X 33mm (T)
Weight 0.32kg
Mounting Desktop
Cabling Category 5 cable connection
Table 1-6: Mechanical Specifications
Item Description
Dimensions 230mm (H) X 230mm (W) X 63 (T) mm
Weight 2kg
Mounting Pole-mount
Cabling Category 5 cable connection
![](/img.php?id=1527417&img=bg1b.png)
Specifications
Extreme CPE Product Manual 7
1.2.6 Electrical
The Extreme CPE provides two types of power supply with charger and without
charger capability. The charger provides optional battery backup features for
areas that have no PSTN service but do need to comply with emergency laws for
VoIP service. The backup battery supply is not available in this release.
1.2.7 Environmental IDU
1.2.8 Environmental ODU
Table 1-7: Electrical Specifications
Type Details
AC Power Supply Input: 100-240 VAC, 50-60 Hz, maximum power consumption 0.5A
Output: 55 VDC, maximum power consumption 1A
MTBF 200,000 hrs
Bellcore SR332
Table 1-8: Environmental Specifications
Item Details
Operating Temperature -5ºC to 45ºC
Storage Temperature -40 to 75 °C
Humidity Maximum 95%, non-condensing.
Table 1-9: Environmental Specifications
Item Details
Operating Temperature -40ºC to 55ºC
Storage Temperature -40 to 70 °C
Humidity Maximum 95%, non-condensing.
Rain IEC 68-2-18 method 2.2
Random Vibration IEC 68-2-64
Shock IEC-68-2-29
Salt Fog IEC-68-2-11
Ice Loading 25mm radial ice density 7kN/m3
Solar Radiation IEC-68-2-5, MIL-STD-810D
Wind Speed 160Km/Hr required for antenna stability under operation
![](/img.php?id=1527417&img=bg1c.png)
8Extreme CPE Product Manual
Chapter 1 - Product Description
1.2.9 Standards Compliance
Table 1-10: Standards Compliance
Type Standard
EMC FCC Part 15B Class B
EN 55022 Class B
EN 61000-3-2
EN 61000-3-3
EN 301 489-1/4
Safety UL 60950-1/-22
IEC/EN 60950-1/-22
Immunity EN 61000-4-2/3/4/6/11
ITU-T K21
WiMAX Radio Signal
Certification
EN 302 326, EN 302 326-1, EN 302 326-3, EN 301 893, EN 302 502
FCCp15.407 , p15.247, p.27
ETSI/EN-301753 V1.1.1
Standards IEEE 802.16e-2005 WAVE 1 and WAVE 2
IEEE 802.3-2005 10BASE-T and 100BASE-TX
![](/img.php?id=1527417&img=bg1d.png)
Specifications
Extreme CPE Product Manual 9
![](/img.php?id=1527417&img=bg1f.png)
2
Chapter 2 - Hardware Installation
In This Chapter:
“Installation Requirements” on page 12
“Packings List” on page 12
“ODU Hardware Description” on page 13
“IDU Hardware Description” on page 20
“Installation Steps” on page 23
“ODU Installation” on page 24
“IDU Installation” on page 28

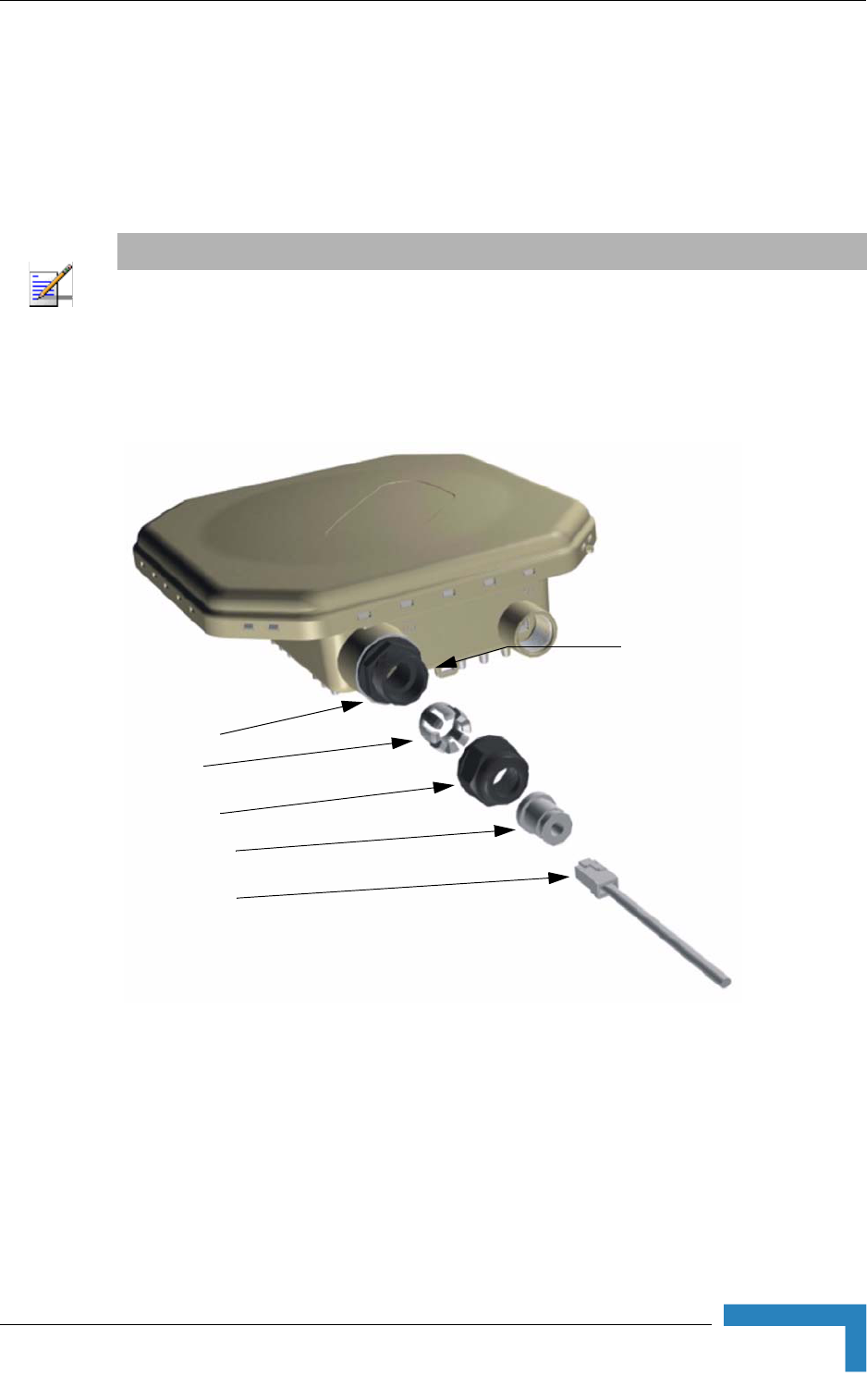

“ODU Cable Connection” on page 30

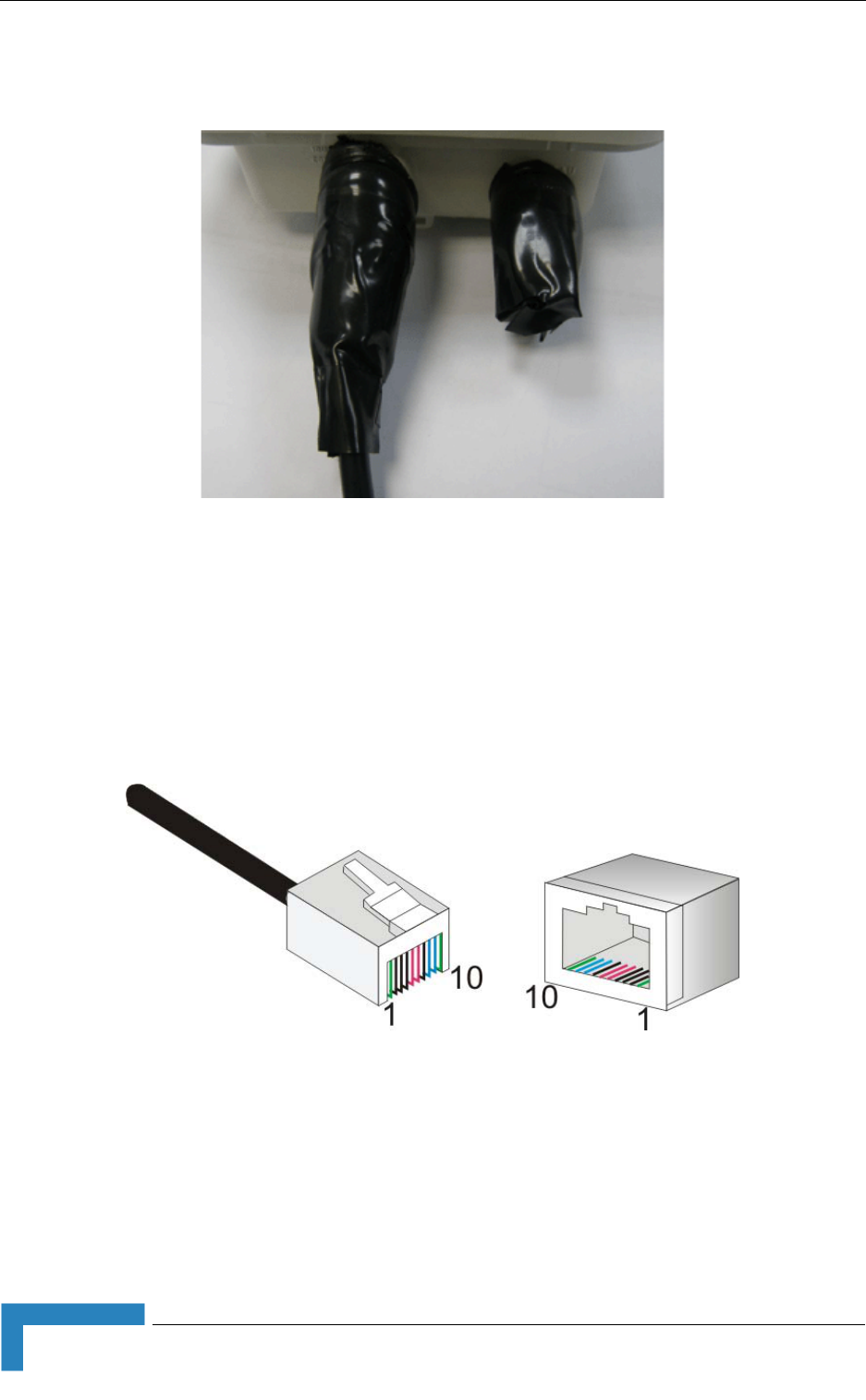

“Propriety 10 Pin Assignments” on page 32
“IDU Data Port” on page 38
“ODU Antenna Alignment” on page 42
“Align the WiMAX Antenna” on page 43
![](/img.php?id=1527417&img=bg20.png)
12 Extreme CPE Product Manual
Chapter 2 - Hardware Installation
2.1 Installation Requirements
This section describes how to install and connect the Extreme CPE WiMAX
Residential Gateway.
2.1.1 Packings List
The BreezeMAX K2 CPE is split into four separate packages which include the
following components:
BreezeMAX K2 CPE ODU unit with integrated antennas*
Extreme CPE IDU unit, comprising of AC power adapter and internal gateway

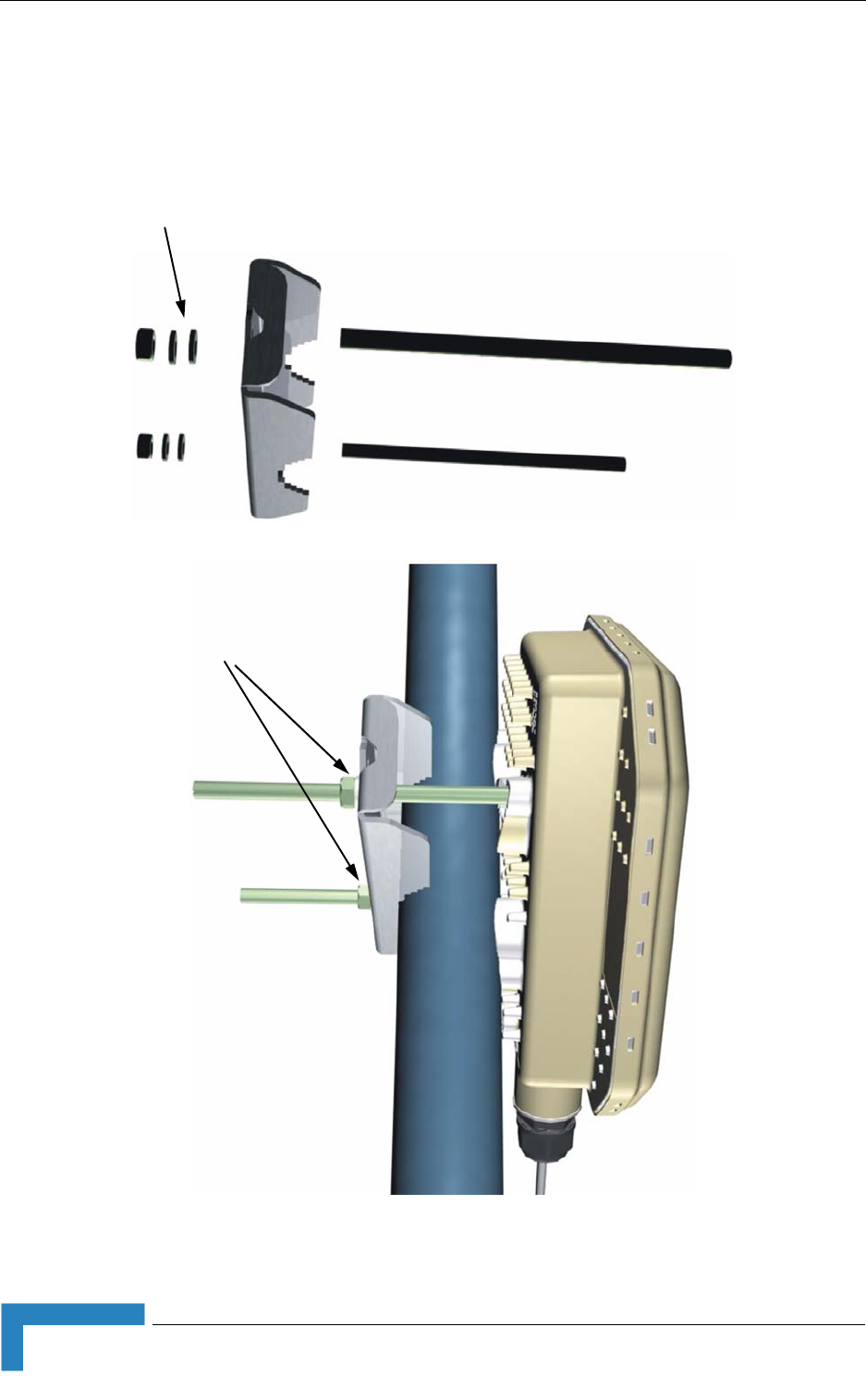

ODU pole mount bracket kit
Propriety 10 PIN RJ-45 Category 5 network cable (90m)
Software Utilities and User Guide CD
*For the bandwidth specifcation of your choice of model see “The Extreme CPE range of products”
on page 3
Optional:
Backup power supply.
Tilt mount bracket.

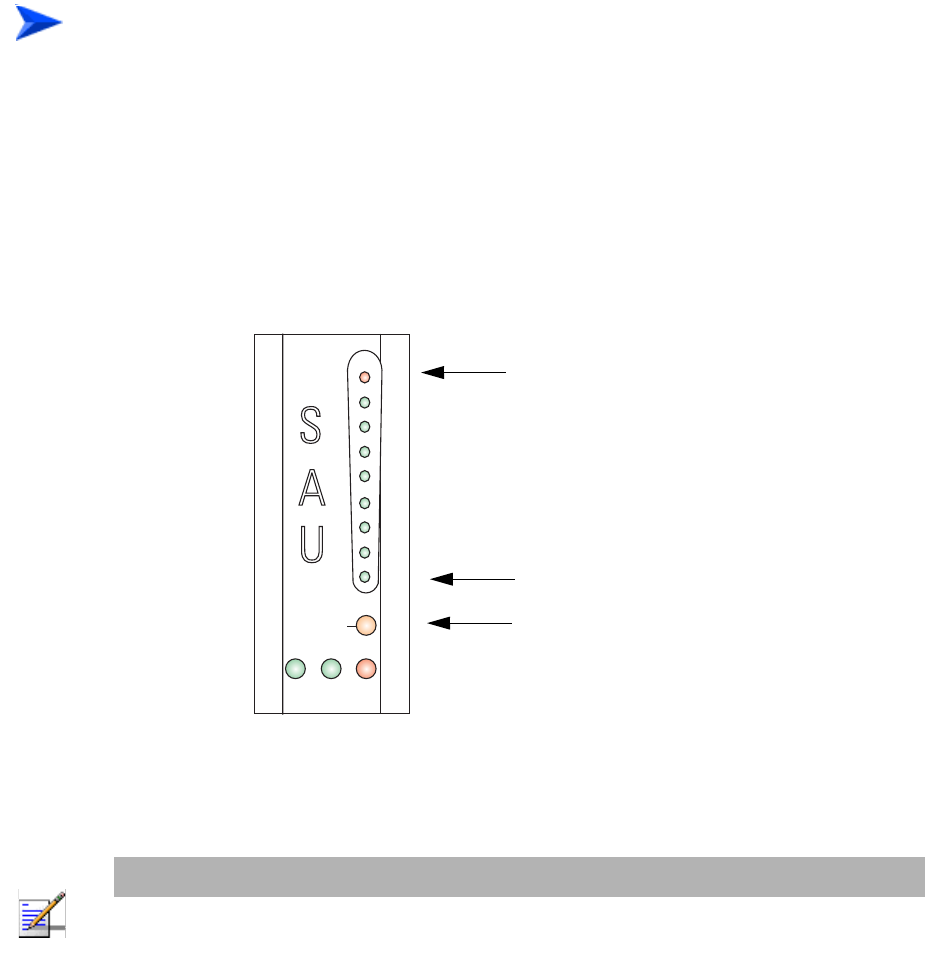

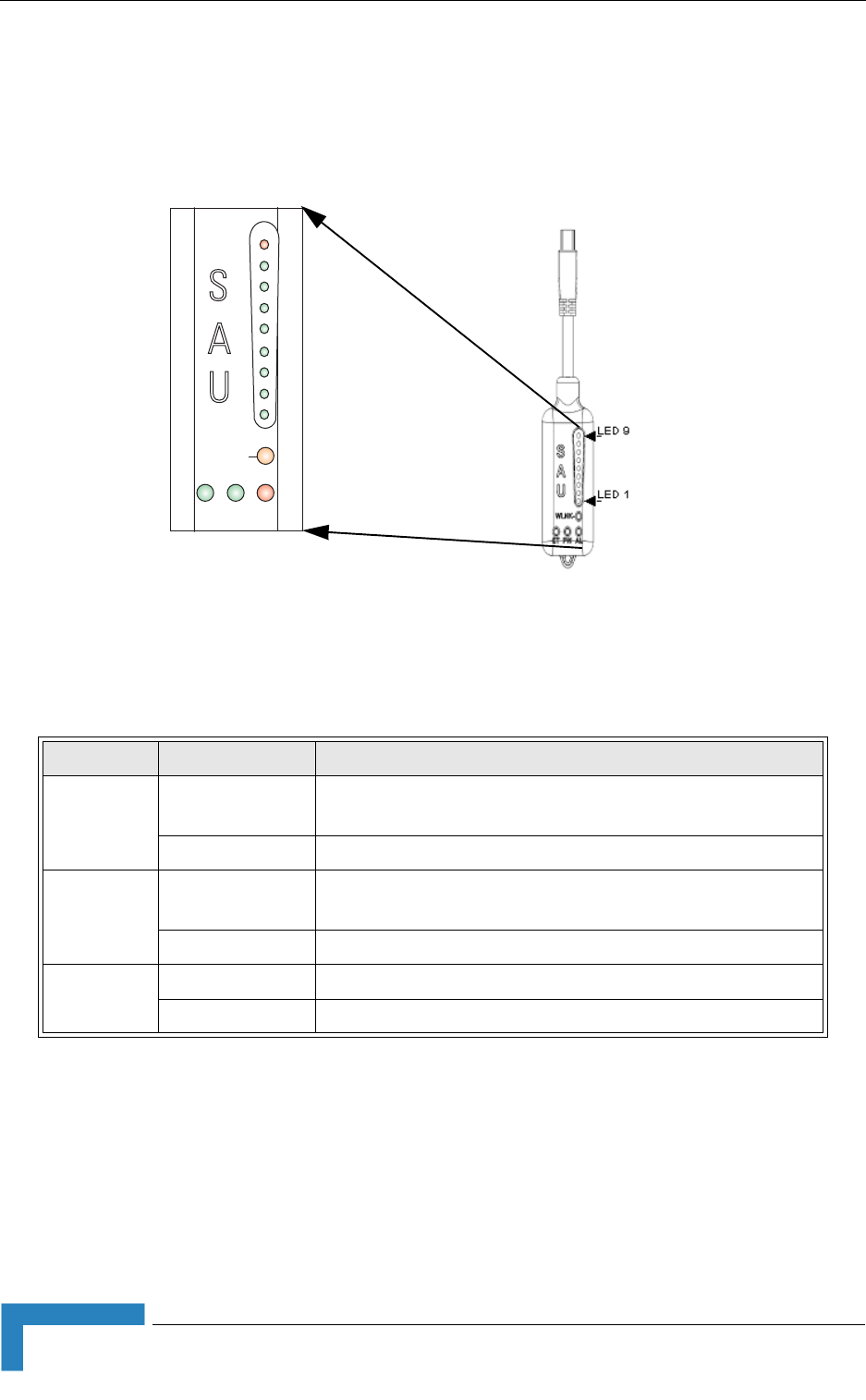

SAU
![](/img.php?id=1527417&img=bg21.png)
ODU Hardware Description
Extreme CPE Product Manual 13

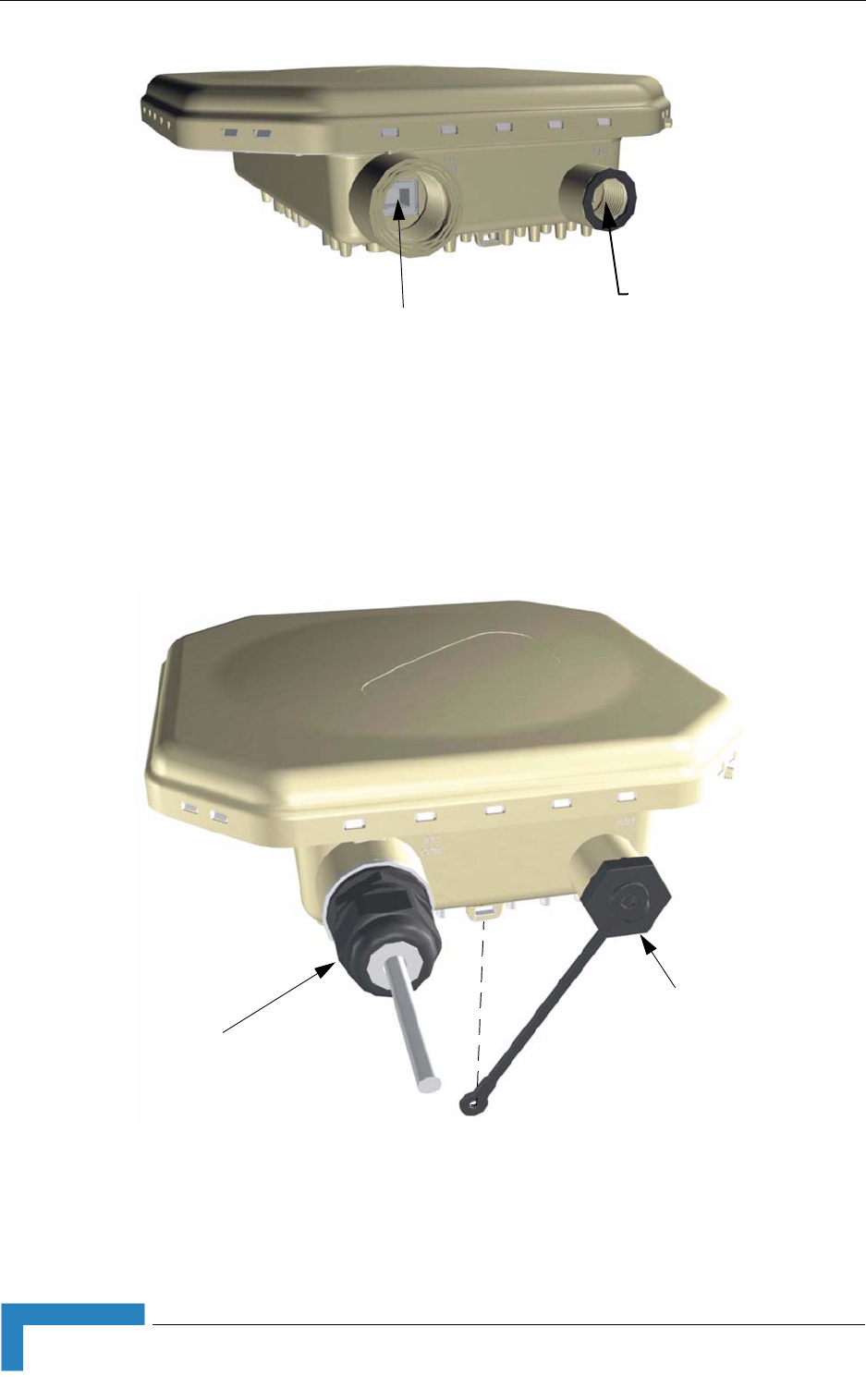

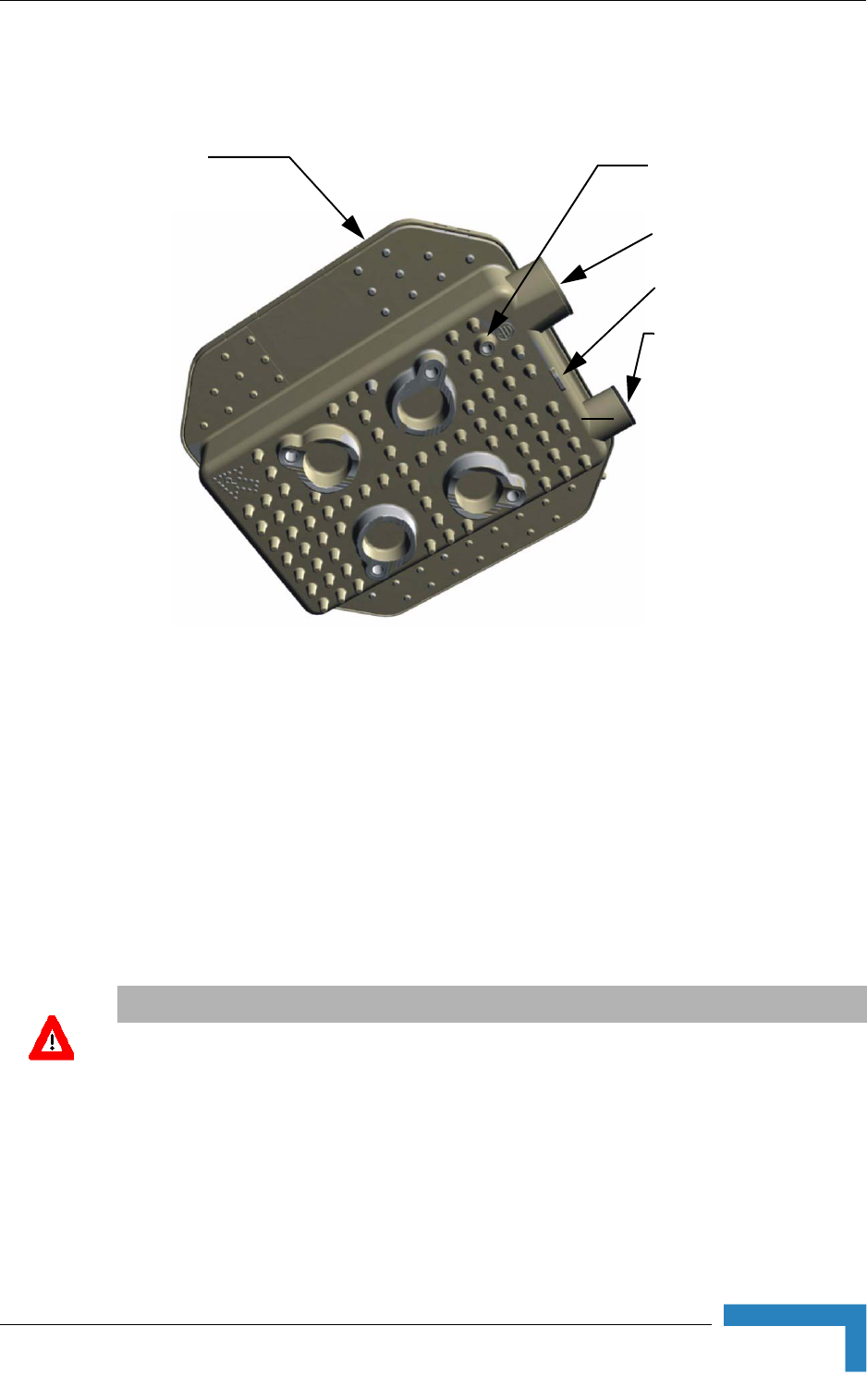

2.2 ODU Hardware Description
2.2.1 Built-in WiMAX Antenna
One high-gain internal antenna is built into the ODU for WiMAX communications.
The antenna must be aligned towards the direction of the WiMAX service
provider’s base station.
2.2.2 Propriety Ethernet RJ-45 Port
The ODU has one propriety 10 PIN RJ-45 PoE port that connects to the IDU using
Ethernet cable. The Ethernet port connection provides power to the ODU as well
as a data link to the IDU.
2.2.3 SAU Port
A Subscriber Unit Alignment Unit (SAU) port is included for connecting an
optional SAU device that provides indicator status LEDs for antenna alignment.
CAUTION
Do not connect a standard RJ-45 Category 5e cable to the ODU port or your unit will not function
correctly. Use only the provided propriety 10 PIN Ethernet cable with 10 PIN plug adapters.
Built-in Antenna Ground
Screw
SAU Port
Ethernet RJ-45
Port
Eyelet
![](/img.php?id=1527417&img=bg22.png)
14 Extreme CPE Product Manual
Chapter 2 - Hardware Installation
2.2.4 Weatherproof Port Covers
The ODU includes rubber weatherproof port covers for the RJ-45 and SAU ports.
The RJ-45 port cover allows the Ethernet cable to be fed through and connected to
the RJ-45 port. The SAU port cover protects the SAU port when it is not in use
and its rubber chord should be threaded through the eyelet on the ODU to
prevent loss of the cover when unscrewing and attaching an SAU.
SAU Port
Propriety 10 PIN Ethernet
RJ-45 Port
Thread through
eyelet
Weatherproof RJ-45 cover
Weatherproof SAU
port cover
![](/img.php?id=1527417&img=bg23.png)
ODU Hardware Description
Extreme CPE Product Manual 15

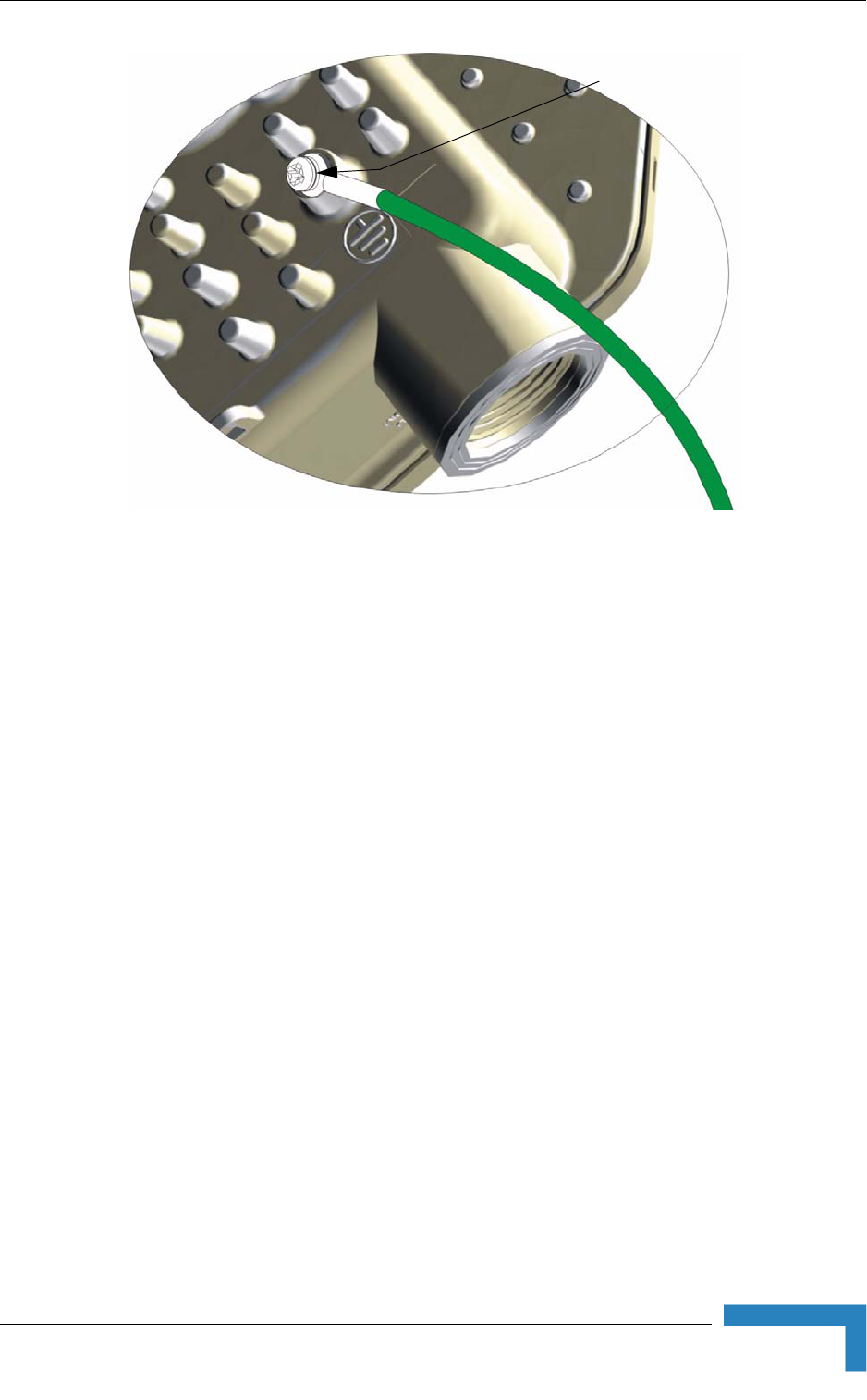

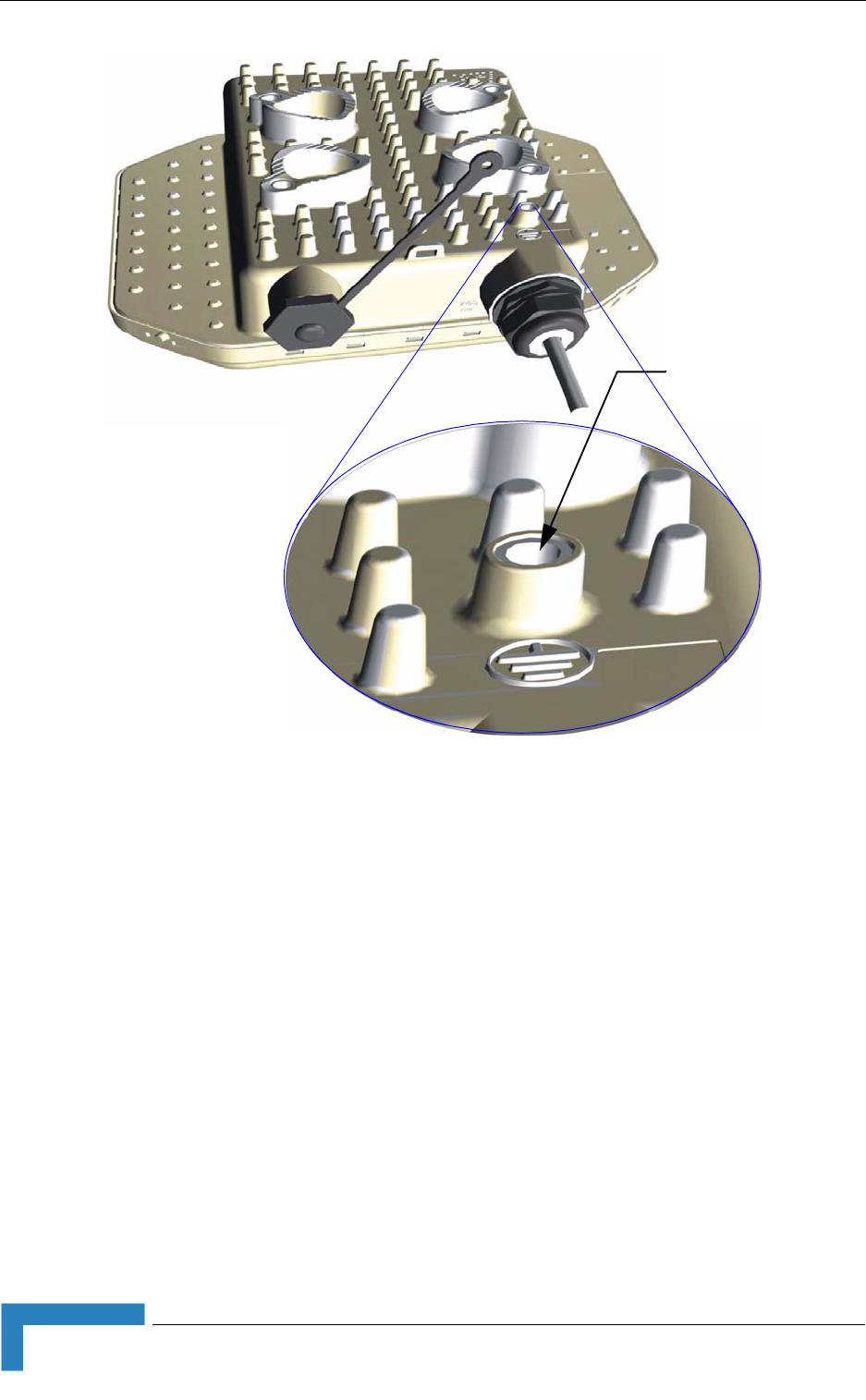

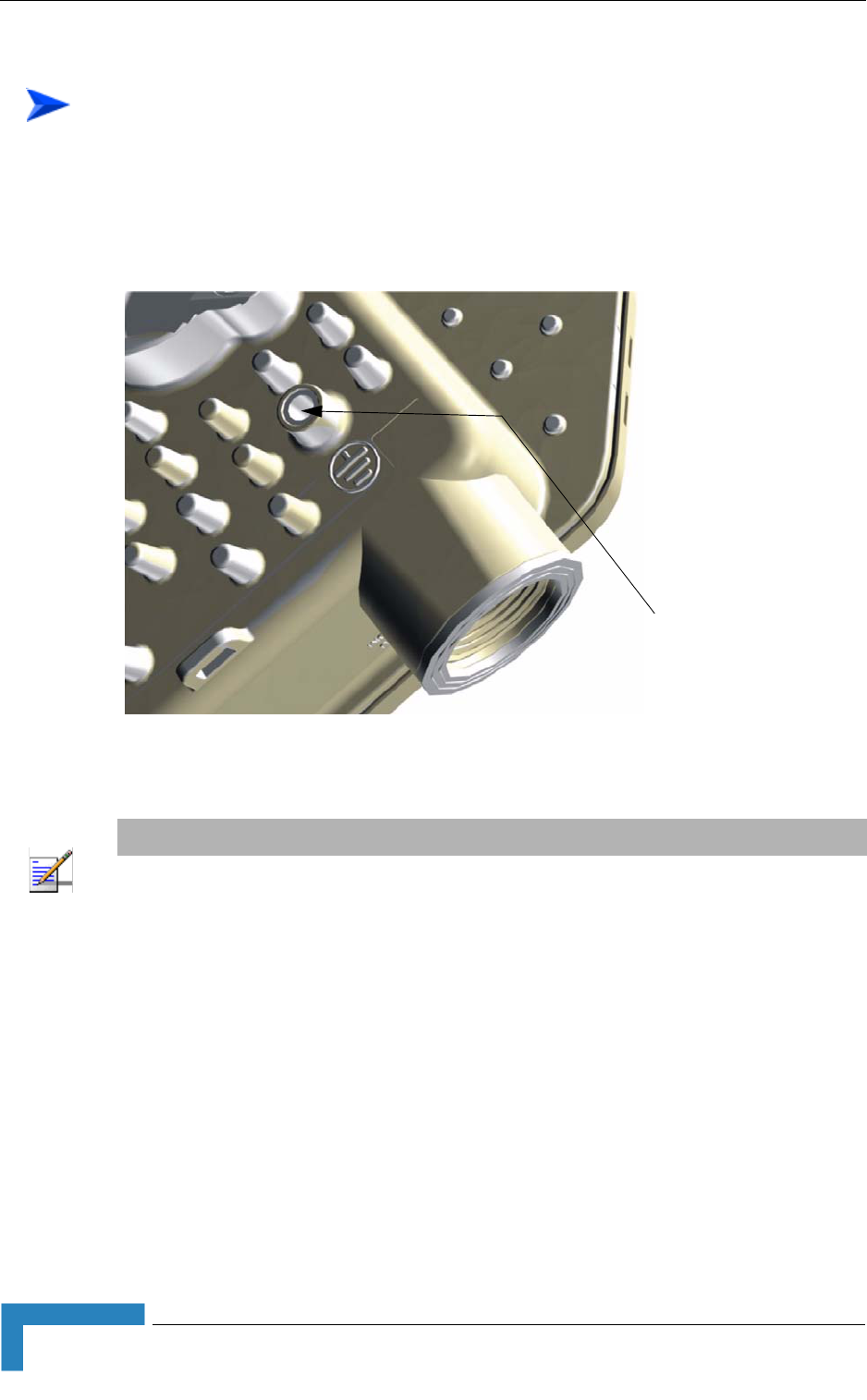

2.2.5 Ground Screw
The ODU includes its own built-in lightning protection, it is important that the
unit is properly connected to ground. A grounding screw is provided for attaching
a ground wire to the unit.
Be sure to use #14 AWG category cable to ground the unit.
The unit can be grounded to the bracket or to the pole, alternatively you can
ground the unit straight to earth.
If grounding to the bracket or the pole make sure that you attach the
grounding wire to a non-painted exposed part of either. Subsequently make
sure that the pole is grounded to earth.
To ground the unit please follow the guidelines below:
![](/img.php?id=1527417&img=bg24.png)
16 Extreme CPE Product Manual
Chapter 2 - Hardware Installation
2.2.6 Pole-Mounting Bracket Kit
The ODU includes a bracket kit that is used to mount the unit to a pole, radio
mast, or part of a tower structure.
Grounding
Point
![](/img.php?id=1527417&img=bg25.png)
ODU Hardware Description
Extreme CPE Product Manual 17
2.2.7 Tilt-Mount Bracket (Optional)
The ODU may be mounted to a pole with an optional tilt-mount bracket which
provides greater scope and accuracy for adjusting the antenna direction of the
ODU to the transmitting Access Unit (base-station).
Pole-Mount
Bracket
Bolts
Nuts,
washers,
and
fastening
washers
Pole
ODU
![](/img.php?id=1527417&img=bg26.png)
18 Extreme CPE Product Manual
Chapter 2 - Hardware Installation
2.2.8 SAU (Optional)
The SAU device can be connected to the ODU during installation to assist with
antenna alignment and testing.
When connected to the ODU, the SAU provides status LED indications as
described in the following table:
:
Table 2-11: SAU LED Indicators
LED Status Description
AL (Alarm) Off The diagnostic test has passed and the ODU is operating
normally.
On Red An ODU failure has been detected.
PW (Power) Off The ODU is not receiving power or there is an internal 3.3 VDC
failure.
On Green The SAU is receiving power from the ODU.
ET
(Ethernet)
Off There is no valid Ethernet link between the ODU and the IDU.
On Green There is a valid Ethernet link between the ODU and the IDU.
WLNK
ET PW AL
![](/img.php?id=1527417&img=bg27.png)
ODU Hardware Description
Extreme CPE Product Manual 19
WLNK
(Wireless
link)
Off The ODU is not connected to a base station.
On Orange The ODU is connected to and receives services from a base
station (Network Entry completed). Link quality is indicated by
LEDs 1-9, as described below.
Blinking Orange Authentication has failed due to one of the following reasons
(indicated by the WiMAX Link LEDs):
If LEDs 7, 8 and 9 are on: Authentication has been rejected by
the RADIUS server.
If LEDS 8 and 9 are on: Authentication has been rejected by
the base station (due to a duplicate subscriber unit name in its
database).
If LED 9 is on: Authentication has failed due to a timeout, or
there was a re-authentication failure (connection to the
RADIUS server was lost or a mismatched shared secret).
1 On Green 5dB ≤ SNR < 10dB
1-2 On Green 10dB ≤ SNR < 15dB
1-3 On Green 15dB ≤ SNR < 20dB
1-4 On Green 20dB ≤ SNR < 24dB
1-5 On Green SNR ≥ 24dB and RSSI < -75dBm
1-6 On Green SNR ≥ 24dB and RSSI ≥ -75dBm
1-7 On Green SNR ≥ 24dB and RSSI ≥ -70dBm
1-8 On Green SNR ≥ 24dB and RSSI ≥ -60dBm
1-9 1-8 On Green
9 On Red
RSSI ≥ -20dBm (saturation)
1-8 in
sequence
Cycle On/Off
Green
Indicates a full frequency scan in progress.
5, 4&6, 3&7,
2&8, 1 in
sequence
Cycle On/Off
Green
Selecting a detected base station with the strongest signal, or a
short scan.
Table 2-11: SAU LED Indicators
LED Status Description
![](/img.php?id=1527417&img=bg28.png)
20 Extreme CPE Product Manual
Chapter 2 - Hardware Installation
2.3 IDU Hardware Description
The Extreme CPE receives power through its network cable connection using
power-over-Ethernet technology. A power injector IDU is included in the Extreme
CPE package and provides two RJ-45 Ethernet ports, one for connecting to the
ODU (Radio), and the other for connecting to a local LAN switch (Ethernet), as well
as two RJ-11 phone ports for VoIP communications.
The Radio port is a propriety 10 PIN RJ-45 port that should not be confused with
a regular RJ-45 connection. Use only the propriety cable provided in the package
contents. To make sure you are using the right cable count the number of pins on
the RJ-45 socket, which should number ten.
The Ethernet port uses an MDI (i.e., internal straight-through) pin configuration.
You can therefore use straight-through twisted-pair cable to connect this port to
most network interconnection devices such as a switch or router that provide
MDI-X ports. However, when connecting the Extreme CPE to a workstation or
other device that does not have MDI-X ports, you must use a crossover
twisted-pair cable.
The following figures show the external components of the IDU:
The Extreme CPE does not have a power switch. It is powered on when its
Ethernet port is connected to the power injector module, and the power injector
module is connected to an AC power source.
The Power LED indicates whether AC power is applied.
The power injector module automatically adjusts to any AC voltage between
100-240 volts at 50 or 60 Hz. No voltage range settings are required.
RADIO
RESET
ETHERNET
ETH
POWER
ProprietyEthernet
and Power to ODU
LED Indicators
AC Power Socket
(Hidden)
Ethernet from
Local Network
Reset Button
![](/img.php?id=1527417&img=bg29.png)
IDU Hardware Description
Extreme CPE Product Manual 21
2.3.1 10BASE-T/100BASE-TX LAN Port
The IDU provides one 10BASE-T/100BASE-TX RJ-45 data port. This LAN port is
standard RJ-45 Ethernet network ports that connect directly to PCs. They can
also be connected to an Ethernet switch or hub to support more users.
The port supports automatic MDI/MDI-X operation, so you can use
straight-through cables for all network connections to PCs or servers, or to other
switches or hubs. Each of these ports support auto-negotiation, so the optimum
transmission mode (half or full duplex), and data rate (10 or 100 Mbps) is selected
automatically.
2.3.2 ODU Port
The IDU includes one propriety 10 pin RJ-45 port that supports a
Power-over-Ethernet (PoE) connection to the ODU.
WARNING
The power injector module is designed for indoor use only. Never mount the power injector outside
with the Extreme CPE unit.
CAUTION
Do not connect a standard RJ-45 Category 5e cable to the ODU port or your unit will not function
correctly. Use only the provided propriety 10 PIN Ethernet cable with 10 PIN plug adapters.
CAUTION
Due to the DC current the unit draws from its power socket, DO NOT connect a PC to the RJ-45
Data and Power port.
NOTE
The Extreme CPE’s propriety Ethernet port does not support Power over Ethernet (PoE) based on
the IEEE 802.3af standard. Do not try to power the unit by connecting it directly to a network switch
that provides IEEE 802.3af PoE. Always connect the unit to the included power injector module.
CAUTION
Due to the DC current the unit draws from its power socket, DO NOT connect a PC to the RJ-45
Data and Power port.
![](/img.php?id=1527417&img=bg2a.png)
22 Extreme CPE Product Manual
Chapter 2 - Hardware Installation
2.3.3 System Status LEDs
Both the propriety RJ-45 and RJ-45 data ports may be monitored through the
LED indicators on the top of the IDU. The LED indicators are described in the
following table.
2.3.4 Power Adapter Socket
The power socket is located on the rear panel of the IDU. The power socket is for
the AC power adapter connection.
The unit is powered on when connected to its AC power adapter, and the power
adapter is connected to an AC power source between 100-240 volts at 50-60Hz.
2.3.5 Backup Battery Charger (Optional)
An optional backup battery charger can be used with the AC power adapter to
provide redundant power in the event that the AC supply fails.
The backup battery charger holds 10 rechargable AA-type batteries. The batteries
are charged while the AC power adapter is powering the Extreme CPE units. If the
AC power fails, the batteries can power the Extreme CPE for up to five hours.
Table 2-12: System Status LED Indicators
LED Status Description
ETH On Green Ethernet port has a valid link with an attached device.
Flashing Green The port is transmitting or receiving data.
Off Ethernet port has no link with another device.
POWER On Green Power is being supplied to the ODU.
Off The power supply is disconnected.
CAUTION
Use ONLY the power adapter IDU supplied with the Extreme CPE. Otherwise, the product may be
damaged.
![](/img.php?id=1527417&img=bg2b.png)
Installation Steps
Extreme CPE Product Manual 23
2.4 Installation Steps
Before installing the BreezeMAX K2 CPE, verify that you have all the items listed
in the package checklist above. If any of the items are missing or damaged,
contact your local dealer. Also, be sure you have all the necessary tools and
cabling before installing the Extreme CPE.
Mount the ODU on a pole, mast, or tower using the mounting bracket.
Install the IDU indoors.
Connect the ODU-IDU Ethernet cable and a grounding wire to the ODU.
Align the ODU antenna with the base station.
CAUTION
Only the Extreme CPE ODU can be installed outdoors.
The BreezeMAX Extreme IDU power supply is an indoor unit and must not be installed outdoors.
ONLY experienced installation professionals who are familiar with local building and safety codes
and, wherever applicable, are licensed by the appropriate government regulatory authorities should
install outdoor antennas.
Failure to abide may void the BreezeMAX Extreme CPE product warranty and may expose the end
user or Service Provider to legal and financial liabilities. Alvarion and its resellers or distributors are
not liable for injury, damage or regulation violations associated with the installation of Outdoor
antennas.
Hardware installation of the Extreme CPE involves these steps:
![](/img.php?id=1527417&img=bg2c.png)
24 Extreme CPE Product Manual
Chapter 2 - Hardware Installation
2.5 ODU Installation
The ODU includes its own bracket kit for mounting the unit to a 1 to 4 inch
diameter steel pole or tube. The pole-mounting bracket allows the unit to be
mounted to part of a radio mast or tower structure.
2.5.1 ODU Location
The ODU should be installed outdoors, mounted to a pole using the included
mounting bracket.
The ODU should be installed where it can provide a direct, or near line of sight
with the WiMAX base station. Normally, the higher the unit placement, the
better the link quality.
Make sure there are no other radio antennas within 2 m (6 ft) of the ODU.
Place the ODU away from power and telephone lines.
Avoid placing the ODU too close to any metallic, refective surfaces, such as
roof-installed air-conditioning equipment, wire fences, or water pipes.
2.5.2 Mount the Unit
The ODU’s pole-mounting bracket attaches directly to the ODU using two long
threaded bolts. The bracket has V-shaped edges on one side that clamp the unit
to a pole. The bracket allows the ODU’s built-in antenna to be mounted to a pole
in either a vertical or horizontal polarization direction.
CAUTION
The planning and installation of the ODU requires professional personnel that are trained in the
installation of radio transmitting equipment. The user is responsible for compliance with local
regulations concerning items such as building safety codes, use of lightning arrestors, and
grounding. Therefore, you must consult a professional contractor knowledgeable in local radio
regulations prior to equipment installation.
When selecting an suitable location for the unit, consider these points:
Perform the following steps to mount the unit to a 1 to 4 inch diameter steel pole or
tube using the mounting bracket:
![](/img.php?id=1527417&img=bg2d.png)
ODU Installation
Extreme CPE Product Manual 25

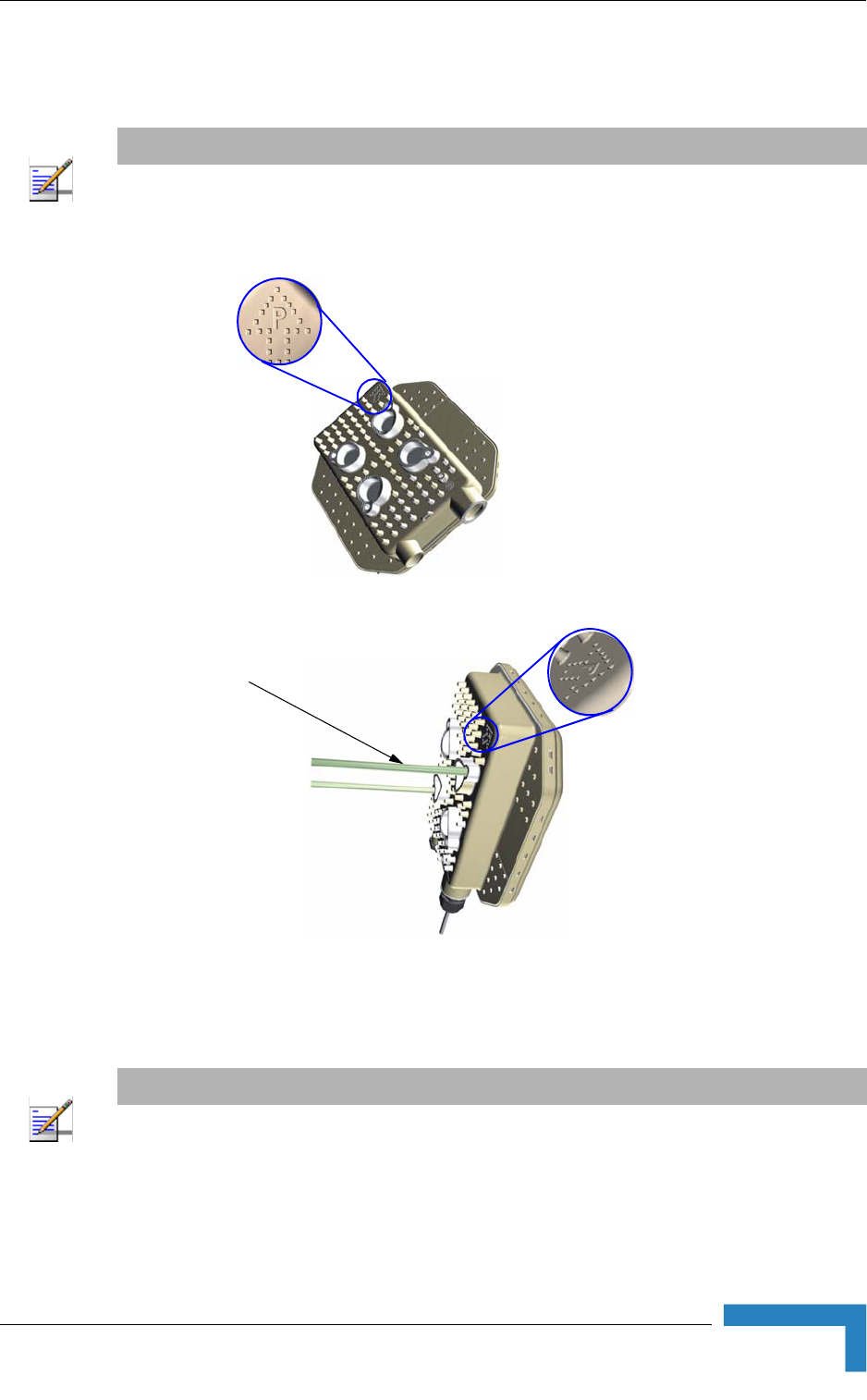

1Attach the two threaded bolts to the back of the ODU using a flat screwdriver.
Make sure you use the correct threaded holes for the required polarization.
2Place the ODU against one side of the pole and then fit the bracket onto the
threaded bolts. The bracket’s V-shaped edges should be against the pole.
NOTE
Antennas in a wireless link must be mounted in the same polarization direction.
NOTE
Make sure that the ODU connectors always face downward.
Attach the two
threaded bolts to the
ODU using a flat
screwdriver
Di
rec
ti
ona
l
A
rrow
Vertical Positioning
Horizontal Positioning
Directional Arrow
![](/img.php?id=1527417&img=bg2e.png)
26 Extreme CPE Product Manual
Chapter 2 - Hardware Installation
3Use the included nuts and washers to secure the ODU to the pole. The
securing nuts should be just tight enough to hold the ODU to the pole. (The
bracket may need to be rotated around the pole during the antenna alignment
process.)
Use the provided nuts and
washers to attach the
bracket to the bolts
Tighten the nuts to secure
the ODU to the pole
![](/img.php?id=1527417&img=bg2f.png)
ODU Installation
Extreme CPE Product Manual 27
![](/img.php?id=1527417&img=bg30.png)
28 Extreme CPE Product Manual
Chapter 2 - Hardware Installation
2.6 IDU Installation
2.6.1 Select a location
The IDU can be installed indoors on any horizontal surface, such as a desktop or
shelf. Be sure to select an suitable location for the device. Consider these points:
Select a cool, dry place, which is out of direct sunlight.
The device should have adequate space (approximately two inches) on all sides
for proper air flow.
The device must be near an AC power outlet that provides 100 to 240 V, 50 to
60 Hz.
Be sure to attach the IDU ground wire to a nearby electrical earth point.
The device should be accessible for network cabling and allow the status LED
indicators to be clearly visible.
2.6.2 Installing the unit
The IDU is a plug-and-play device, so once it has been connected to your PC and
powered up, it is fully operable.
1Power on the IDU by connecting the AC power adapter and plugging it into an
AC power source.
To connect the Extreme CPE, follow these steps:
CAUTION
Use ONLY the IDU power adapter supplied with the Extreme CPE. Otherwise, the CPE may be
damaged.
CAUTION
Do not install the power injector outdoors. The unit is for indoor installation only.
![](/img.php?id=1527417&img=bg31.png)
IDU Installation
Extreme CPE Product Manual 29
2Observe the Indicator LEDs. When you power on the IDU, verify that the Power
LED turns on and that the other LED indicators start functioning.
3Connect Category 5 or better Ethernet cables from the IDU’s LAN ports to the
network ports of your PCs. Alternatively, you can connect the LAN ports to an
Ethernet switch or other devices. Make sure the length of each cable does not
exceed 100 meters (328 ft).
If your PCs are powered on, the RJ-45 LAN port LEDs on the IDU should turn
on to indicate valid links.
4Use your PC’s web browser to access the unit’s management interface to make
any configuration changes. For more information, see Chapter 3, “Initial
Configuration.”
CAUTION
Install lightning protection at the power injector end of the Ethernet cable, use a lightning arrestor
immediately before the cable enters the building.
NOTE
The Extreme CPE’s Ethernet port does not support Power over Ethernet (PoE) based on the IEEE
802.3af standard. Do not try to power the unit by connecting it directly to a network switch that
provides IEEE 802.3af PoE. Always connect the unit to the included IDU power injector module.
NOTE
The Extreme CPE will search for a base station upon boot up, however if no base station is found
the hardware will automatically reboot every ten minutes.
RESET RADIO
ETHERNET
Ethernet cable
from LAN switch
Propriety
Ethernet cable
to ODU
AC power
![](/img.php?id=1527417&img=bg32.png)
30 Extreme CPE Product Manual
Chapter 2 - Hardware Installation
2.7 ODU Cable Connection
The ODU needs to be connected to the IDU using propriety Ethernet cable, and
the ODU must be grounded by connecting a grounding wire.
2.7.1 ODU-IDU Propriety Ethernet Cable
Connection
Use outdoor-rated 10 pin propriety Ethernet cable with RJ-45 connectors on each
end. Before connecting the cable, first plan a cable route from the ODU outdoors
to the IDU indoors. Consider these points:
Make sure the cable length does not exceed 90 meters (295 ft).
Determine a building entry point for the cable.
Determine if conduits, bracing, or other structures are required for safety or
protection of the cable.
Be sure to ground the outdoor-rated 10 pin propriety Ethernet cable
immediately before it enters the building.
For additional lightning protection, it is recommended to use a lightning
arrestor immediately before the Ethernet cable enters the building.
1Remove the rubber sealing cover from the IDU COM port on the ODU.
2Cut the Ethernet cable to the required length and feed it through the port
cover. Then use a crimp tool to attach an RJ-45 connector to the Ethernet
cable.
Make sure the Ethernet twisted-pair wires are attached to the RJ-45 connector
following standard pin assignments.
3Connect the Ethernet cable to the IDU COM RJ-45 connector.
4Screw the port cover back into the unit and tighten it to ensure protection
against moisture.
To connect the ODU-IDU Ethernet cable, follow these steps:
![](/img.php?id=1527417&img=bg33.png)
ODU Cable Connection
Extreme CPE Product Manual 31
5Seal the IDU COM connector using tar seal or weatherproof tape to protect
against rain and moisture.
6Route the Ethernet cable from the ODU to the IDU following your cable plan
and connect it to the ODU port on the IDU. The RJ-45 port LED on the IDU
should turn on to indicate a valid link.
The sequence of inserting the RJ-45 cable into the ODU and the supplied ODU
components are described in the following diagram.
7Insert the sealing cover into the port to ensure protection against moisture.
NOTE
Connecting the propriety Ethernet cable to the IDU powers on the ODU.
RJ-45 cable
Rubber sealing
cap
Plastic crimp
Internal sealing
chamber
Screw-off
external chamber
RJ-45 port
![](/img.php?id=1527417&img=bg34.png)
32 Extreme CPE Product Manual
Chapter 2 - Hardware Installation
8Seal the IDU COM connector using tar seal or weatherproof tape to protect
against rain and moisture.
2.7.2 ODU 10 PIN Ethernet Port
The PoE ports on both the ODU and IDU use a non-standard propreity 10 PIN
connection. You must use the cable provided with the unit. Attempting to insert a
standard RJ-45 plug into either port simply won’t fit and may damage the unit.
The following figure illustrates how the pins on the RJ-45 connector are
numbered. Be sure to hold the connectors in the same orientation when attaching
the wires to the pins.
2.7.3 Propriety 10 Pin Assignments
The Extreme CPE cable provides pin-to-pin connection on both ends.
The following figure shows the required wire pair connections.
![](/img.php?id=1527417&img=bg35.png)
ODU Cable Connection
Extreme CPE Product Manual 33
![](/img.php?id=1527417&img=bg36.png)
34 Extreme CPE Product Manual
Chapter 2 - Hardware Installation
To comply with safety regulations, the shield of the ODU-IDU outdoor-rated
Ethernet cable must be connected to protective ground (earth). The grounding
point can be either inside the building, or immediately at the entry point to the
building, depending on where a protective ground is available.
Table 2-13: Propriety Cable Color Codes
Wire color Pin
Striped Grey 1
Orange 2
Striped Orange 3
Green 6
Striped Blue 4
Blue 5
Striped Green 7
Brown 8
Striped Brown 9
Grey 10
Table 2-14: Propriety MDI and MDI-X Port Pinouts
PIN MDI-X Signal Name MDI Signal Name
1 FXS Channel B TIP Line
2 Receive Data plus (RD+) Transmit Data plus (TD+)
3 Receive Data minus (RD-) Transmit Data minus (TD-)
4 Transmit Data plus (TD+) Receive Data plus (RD+)
5 Power over Ethernet (V+)
6 Power over Ethernet (V-)
7 Transmit Data minus (TD-) Receive Data minus (RD-)
8 FXS Channel A TIP Line
9 FXS Channel A RING Line
10 FXS Channel B RING Line
Note: The “+” and “-” signs represent the polarity of the wires that make up
each wire pair.
![](/img.php?id=1527417&img=bg37.png)
ODU Cable Connection
Extreme CPE Product Manual 35

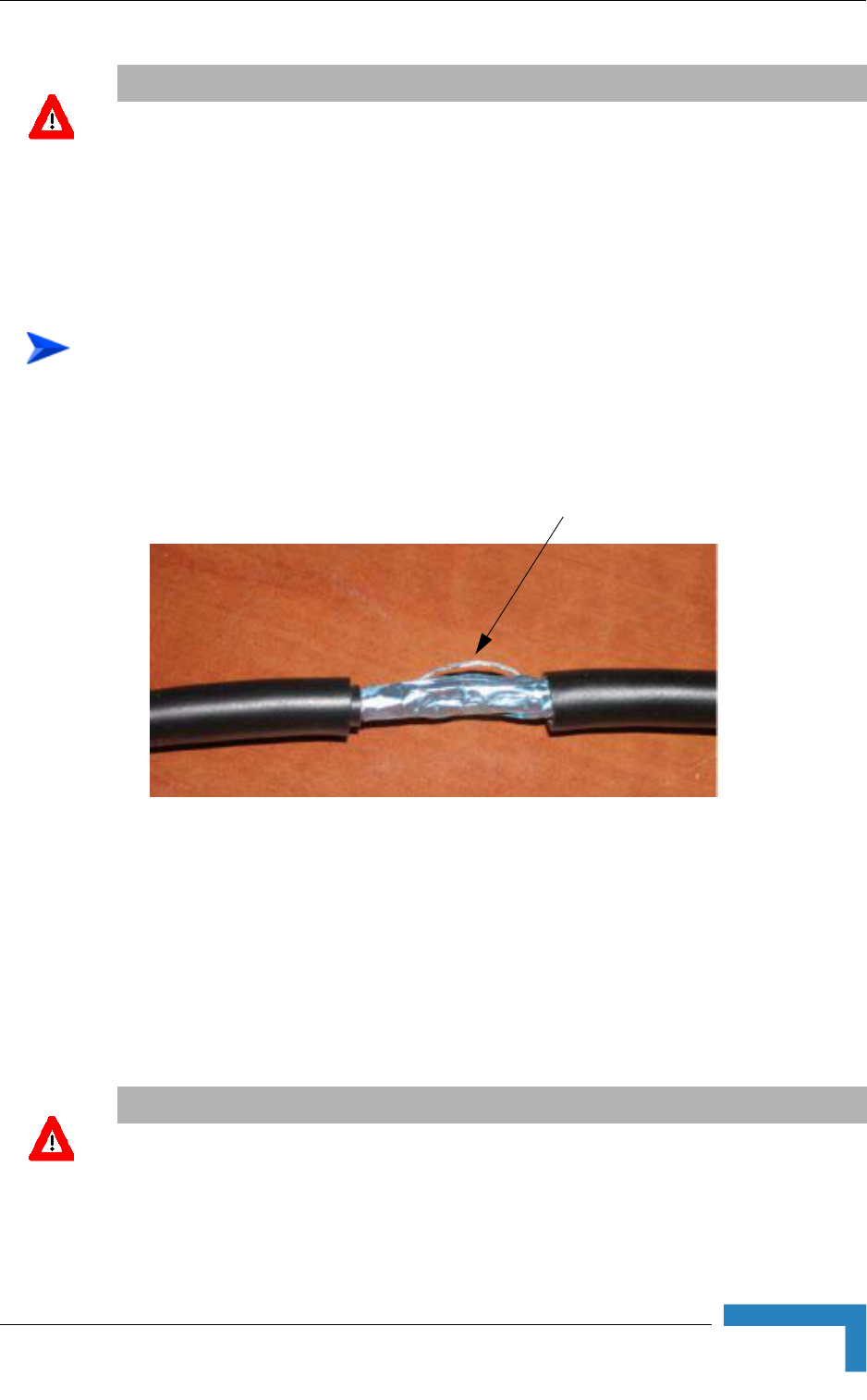

This document proposes one method for grounding the outdoor-rated Category 5E
Ethernet cable through its drain wire. The actual connection method employed is
left to the professional installer.
1Strip back about a one inch (2.4 cm) section of the Ethernet cable jacket to
expose the drain wire.
2Attach a grounding cable to the drain wire and then connect it to protective
earth.
3Use weatherproof tape to cover and seal the attachment area on the Ethernet
cable.
2.7.3.1 Ground Wire Connection
When connecting a ground wire to the ODU, use the grounding screw located on
the base of the unit. Be sure to use #14 AWG or larger copper core ground wire.
CAUTION
Grounding the ODU-IDU Ethernet cable must be performed by a professional installer in
conformance with local safety regulations.
To ground the ODU-IDU Ethernet cable, follow these steps:
CAUTION
Be sure that grounding is available and that it meets local and national electrical codes. Grounding
the ODU must be performed by a professional installer.
Drain Wire
![](/img.php?id=1527417&img=bg38.png)
36 Extreme CPE Product Manual
Chapter 2 - Hardware Installation
1Crimp a ring lug onto the end of the ground wire before connecting it to the
unit.
2Place the ground wire lug on the grounding point and firmly tighten the screw.
3Connect the other end of the grounding wire to a good ground (earth)
connection.
To connect a grounding wire to the ODU, follow these steps:
NOTE
Use cable strips to secure all cables to the pole.
Ground Screw
Chamber
![](/img.php?id=1527417&img=bg39.png)
ODU Cable Connection
Extreme CPE Product Manual 37
Grounding Screw
![](/img.php?id=1527417&img=bg3a.png)
38 Extreme CPE Product Manual
Chapter 2 - Hardware Installation
2.8 IDU Data Port
For standard category 5e or better, non-propreity Ethernet cables follow the
guldelines below.
2.8.0.1 Preparing Ethernet Cables
Use a crimp tool for RJ-45 connectors to prepare the wires. Insert them into the
appropriate pins and use the tool to crimp the connector. Make sure to do the
following:
Remove as small a length as possible of the external jacket. Verify that the
external jacket is well inside the sealing cover when connected to the unit, to
ensure good sealing.
Pull back the shield drain wire before inserting the cable into the RJ-45
connector, to ensure a good connection with the connector's shield after
crimping.
For 10/100BASE-TX connections, a twisted-pair cable must have two pairs of
wires. Each wire pair is identified by two different colors. For example, one
wire might be green and the other, green with white stripes. Also, an RJ-45
connector must be attached to both ends of the cable.

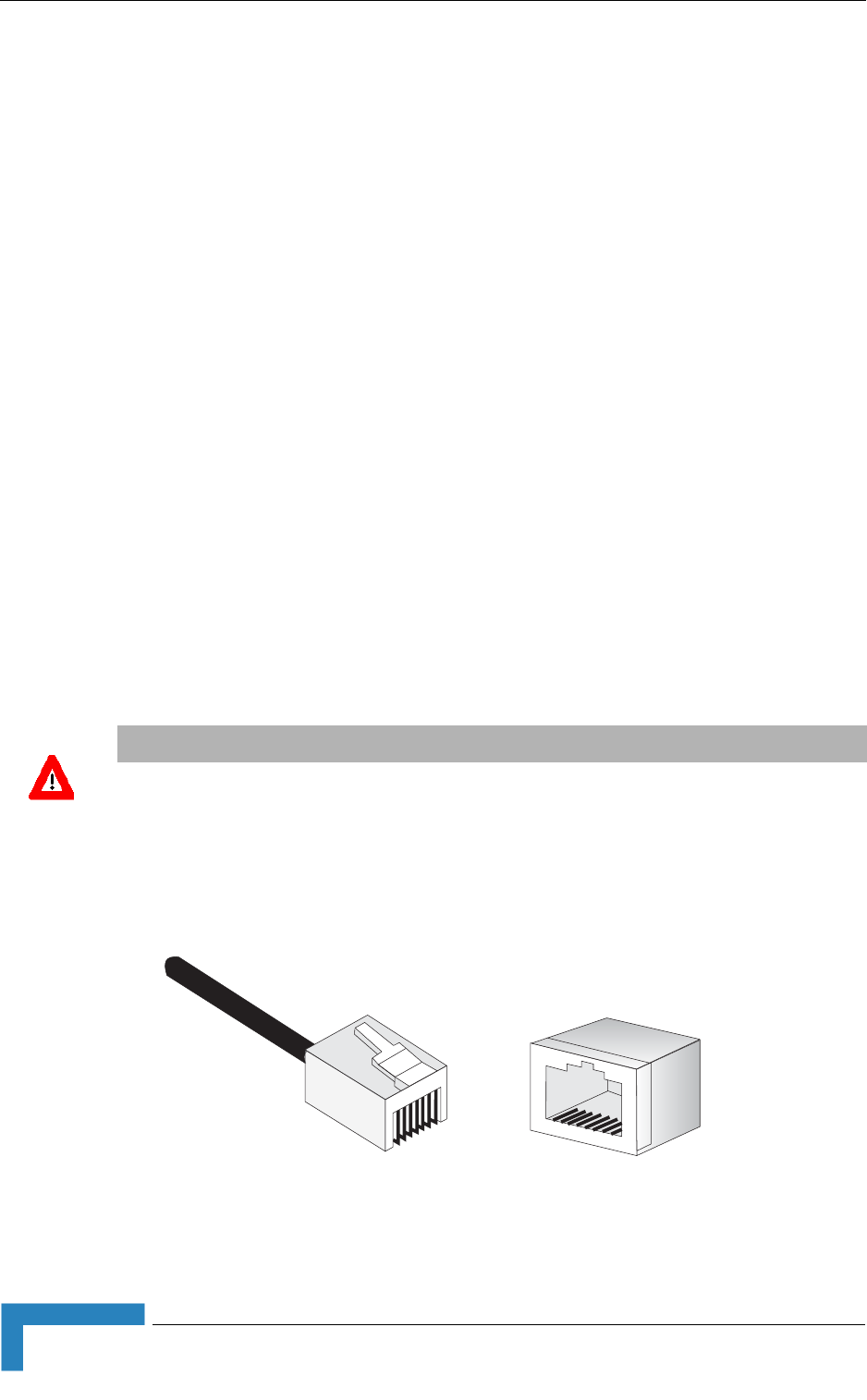

The following figure illustrates how the pins on the RJ-45 connector are
numbered. Be sure to hold the connectors in the same orientation when attaching
the wires to the pins.
CAUTION
Each wire pair must be attached to the RJ-45 connectors in a specific orientation.
DO NOT plug a phone jack connector into the RJ-45 port. Use only twisted-pair cables with RJ-45
connectors that conform with FCC standards.
81
1
8
![](/img.php?id=1527417&img=bg3b.png)
IDU Data Port
Extreme CPE Product Manual 39
2.8.1 10/100BASE-TX Pin Assignments
The Extreme CPE cable provides pin-to-pin connection on both ends.
The following figure shows the required wire pair connections.
The color codes used in standard cables supplied by Alvarion are as listed in the
following table:
![](/img.php?id=1527417&img=bg3c.png)
40 Extreme CPE Product Manual
Chapter 2 - Hardware Installation
2.8.2 Extreme CPE Cables
Use only Category 5E Ethernet cables from either Alvarion or any of the approved
manufacturers, listed in Table 2-17. Consult with Alvarion's specialists on the
suitability of other cables.
Table 2-15: Cable Color Codes
Wire color Pin
Blue 1
Blue/white 2
Orange 3
Orange/white 6
Brown 4
Brown/white 5
Green 7
Green/white 8
Table 2-16: 10/100BASE-TX MDI and MDI-X Port Pinouts
PIN MDI-X Signal Name MDI Signal Name
1 Receive Data plus (RD+) Transmit Data plus (TD+)
2 Receive Data minus (RD-) Transmit Data minus (TD-)
3 Transmit Data plus (TD+) Receive Data plus (RD+)
6 Transmit Data minus (TD-) Receive Data minus (RD-)
4,5,7,8 Not used Not used
Note: The “+” and “-” signs represent the polarity of the wires that make up
each wire pair.
NOTE
The length of the Ethernet cable connecting the Extreme CPE to the data equipment, should not
exceed 100 meters.
Table 2-17: Approved Category 5E Ethernet Cables
Manufacturer Part Number
Superior Cables Ltd.
www.superior-cables.com
612098
![](/img.php?id=1527417&img=bg3d.png)
IDU Data Port
Extreme CPE Product Manual 41
In case of missing information in the manufacturer's WEB site (product
specifications, ordering issues, etc.), it is highly recommended to contact the
manufacturer's sales representative directly.
HES Cabling Systems
www.hescs.com
H5E-00481
Teldor
www.teldor.com
8393204101
Southbay Holdings Limited
11th Fl., 15, Lane 347, Jong Jeng Rd.
Shin Juang City, Taipei County
Taiwan, R.O.C.
Attn: Eva Lin
Tel. 886-2-2832 3339
Fax. 886-2-2206 0081
E-mail: eva@south-bay.com.tw
TSM2404A0D
GU-Tech., LLC . - A Member of OVIS GroupTel/Fax :
732 918 8221 Mobile: 718 909 4093
www.OVIS.COM.TW www.GU-TECH.COM
Table 2-17: Approved Category 5E Ethernet Cables
Manufacturer Part Number
![](/img.php?id=1527417&img=bg3e.png)
2.9 ODU Antenna Alignment
The ODU will provide the best link quality when its antenna is aligned in the
direction of the WiMAX base station. The optional SAU can be connected to the
ODU to provide status LED indications and assist with antenna alignment.
1Remove the rubber sealing cover from the SAU port on the ODU.
2Connect the SAU device to the SAU port. The PW (power) LED should turn on
to indicate that it is properly connected.
3Point the ODU antenna in the general direction of the base station, then pan
the ODU back and forth while watching the link quality LEDs (see “SAU LED
Indicators” on page 18).
4Find the point where the link quality is best and secure the ODU in that
position. Verify that the SAU’s WLNK LED is on, indicating that the unit is
synchronized with the base station.
5Remove the SAU connection and replace the rubber sealing cover on the port.
To align the ODU antenna using the SAU, follow these steps:
NOTE
If all the SAU link quality LEDs are on, including LED 9 (red), the received signal strength is too
high. Move the ODU’s position so that only LEDs 1 to 8 are on.
WLNK
ET PW AL
LED 9
LED 1
Network Entry Complete
![](/img.php?id=1527417&img=bg3f.png)
ODU Antenna Alignment
Extreme CPE Product Manual 43
6Seal the SAU connector using tar seal or weatherproof tape to protect against
rain and moisture.
2.9.1 Align the WiMAX Antenna
After the Extreme CPE unit has been mounted, connected, and its radio is
operating, the antenna must be accurately aligned to ensure optimum
performance on the wireless link. This alignment process is particularly important
for long-range links.
To start the alignment process, you can just point the antenna in the general
direction of the Access Unit’s (base station) antenna using binoculars or a
compass. For accurate alignment, you must monitor the signal strength LEDs as
the antenna moves horizontally.
The signal strength LEDs indicate the received radio signal strength for the link.
The more LEDs that turn on, the stronger the signal.
When you move the antenna during alignment, the radio signal from the remote
antenna can be seen to have a strong central main lobe and smaller side lobes.
The object of the alignment process is to set the antenna so that it is receiving the
strongest signal from the central main lobe.
To align the antennas in the link, monitor the signal strength LEDs. For details
see Table 2-11. Perform the following procedure:
1Pan the ODU horizontally back and forth while checking the LEDs, preferrably
with an SAU.
![](/img.php?id=1527417&img=bg40.png)
44 Extreme CPE Product Manual
Chapter 2 - Hardware Installation
2Find the point where the signal is strongest (refer to Table 2-11) and leave in
that position.
NOTE
Sometimes there may not be a central lobe peak because vertical alignment is too far off; only two
similar peaks for the side lobes are detected.
![](/img.php?id=1527417&img=bg42.png)
44 Extreme CPE Product Manual
Chapter 3 - Initial Configuration
3.1 Introduction
The Extreme CPE offers a user-friendly web-based management interface for the
configuration of all the unit’s features. Any PC directly attached to the unit can
access the management interface using a web browser, such as Internet Explorer
(version 6.0 or above).
The initial configuration steps can be made through the web-browser interface
using the default IP address.
3.1.1 Accessing the Web Management Interface
The Extreme CPE has the default IP address of 192.168.254.251 and the subnet
mask 255.255.255.0. Be sure to first check if your PC’s IP address is set on the
same subnet as the Extreme CPE and that the PC’s IP address is
192.168.254.250.
In the web browser’s address bar, type the default IP address:
http://192.168.254.251.
The web browser displays the Extreme CPE’s login page.
NOTE
The Extreme CPE does not support DHCP. Your PC must be set to the same subnet as the unit, ie.
192.168.254.x, and be set to the specific IP address 192.168.254.250.
NOTE
The Extreme CPE will scan for a base station upon boot up, however if no base station is found the
unit will automatically reboot every ten minutes causing a temporary loss of connection to the web
interface. To overcome this problem reload the web page.
![](/img.php?id=1527417&img=bg43.png)
Introduction
Extreme CPE Product Manual 45
Figure 3-1: Login Window
To log in, enter the user password installer, and click Login. The homepage
displays.

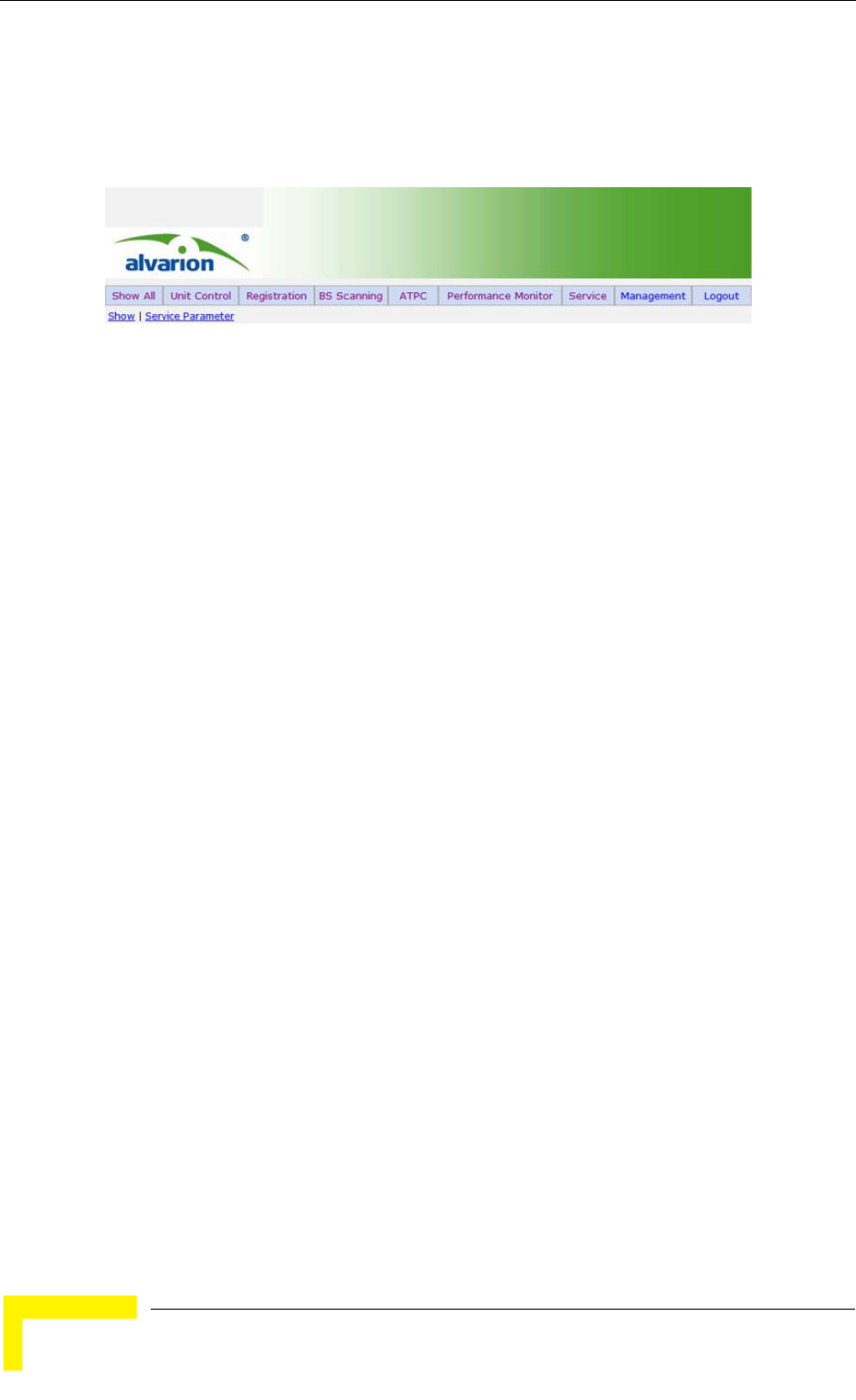

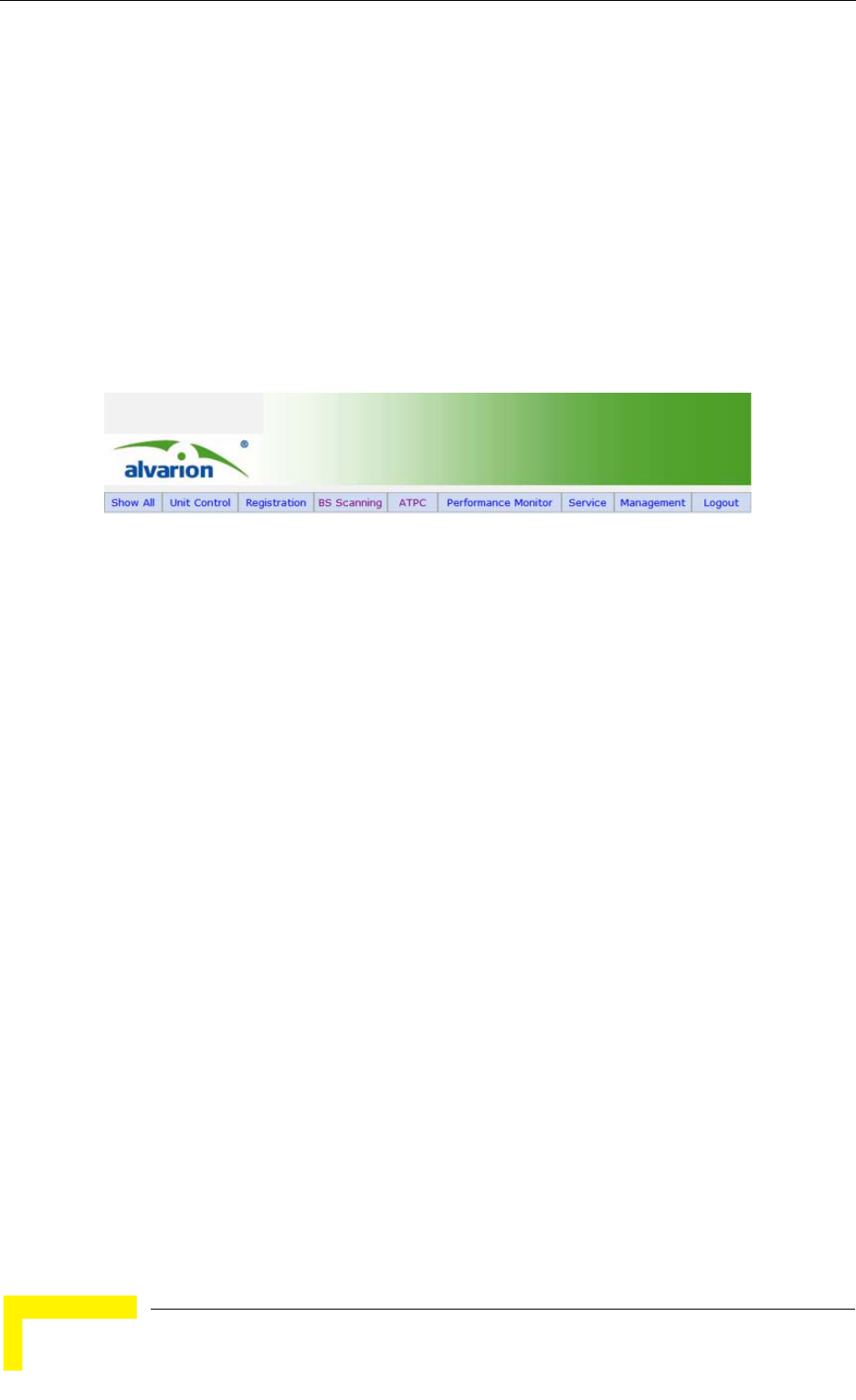

Figure 3-2: Main Window
NOTE
It is strongly recommended that you configure your own password. If a password is not configured,
the management interface is not protected and anyone who can connects to the Extreme CPE may
be able to compromise your network security.
![](/img.php?id=1527417&img=bg44.png)
46 Extreme CPE Product Manual
Chapter 3 - Initial Configuration
![](/img.php?id=1527417&img=bg46.png)
48 Extreme CPE Product Manual
Chapter 4 - System Settings
4.1 Introduction
The Extreme CPE’s System menu allows you to perform general management
functions for the unit, including setting the system time, configuring an access
password, and upgrading the system software.
Through an easy to use web management interface the Extreme CPE can be
configured to be a powerful wireless connection to any telecommunications
network.

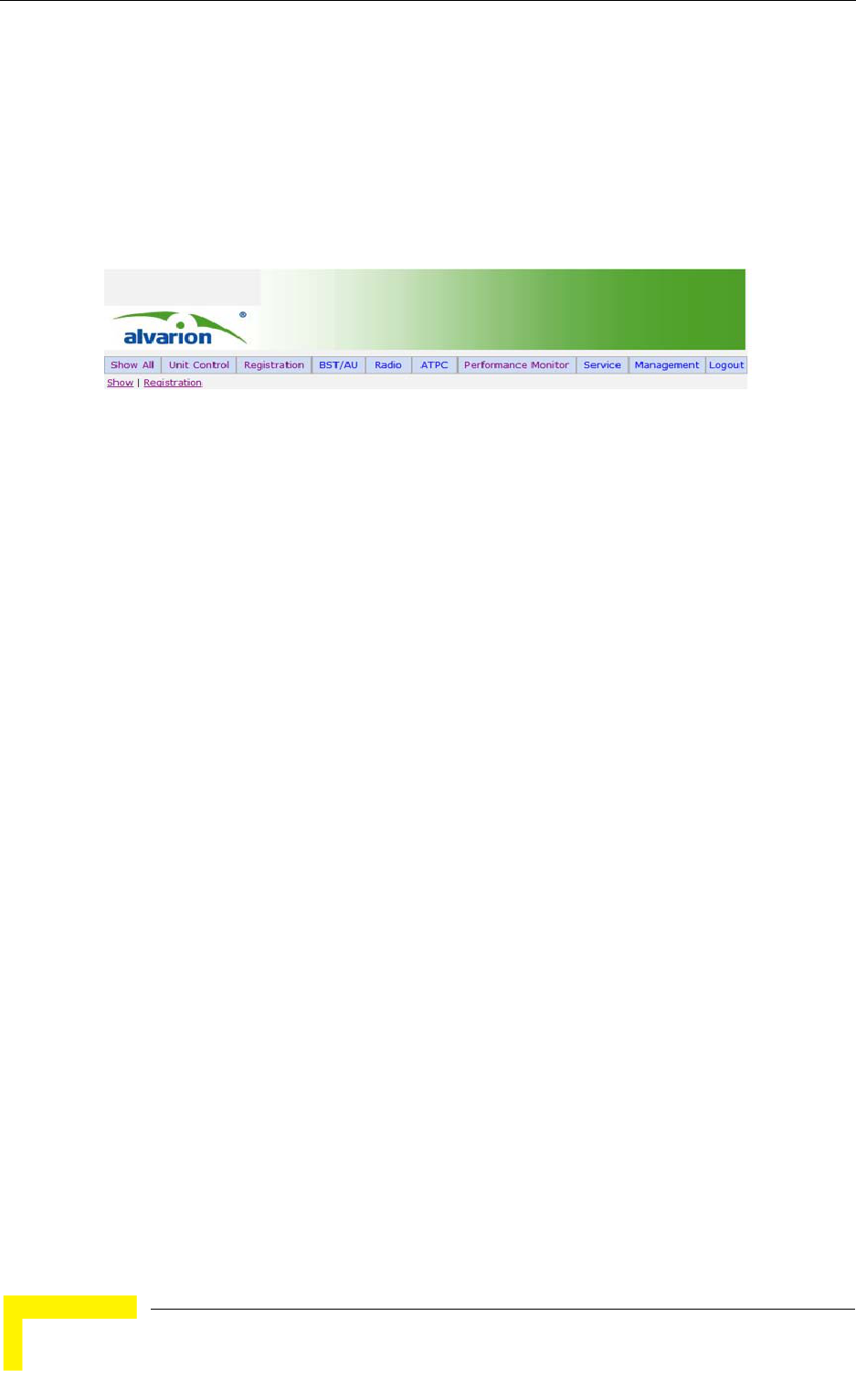

Figure 4-3: Show Settings Menu
NOTE
You can use the web browser interface to access IP addressing only if the Extreme CPE already has
an IP address that is reachable through your network.
The default IP address of the Extreme CPE is 192.168.254.251. You should set your PC network card
to be on the same subnet, with a network mask of 255.255.255.0 and an IP address of
192.168.254.250. This can be set through the Network Connections menu on your PC.
![](/img.php?id=1527417&img=bg47.png)
System Status
Extreme CPE Product Manual 49
4.2 System Status

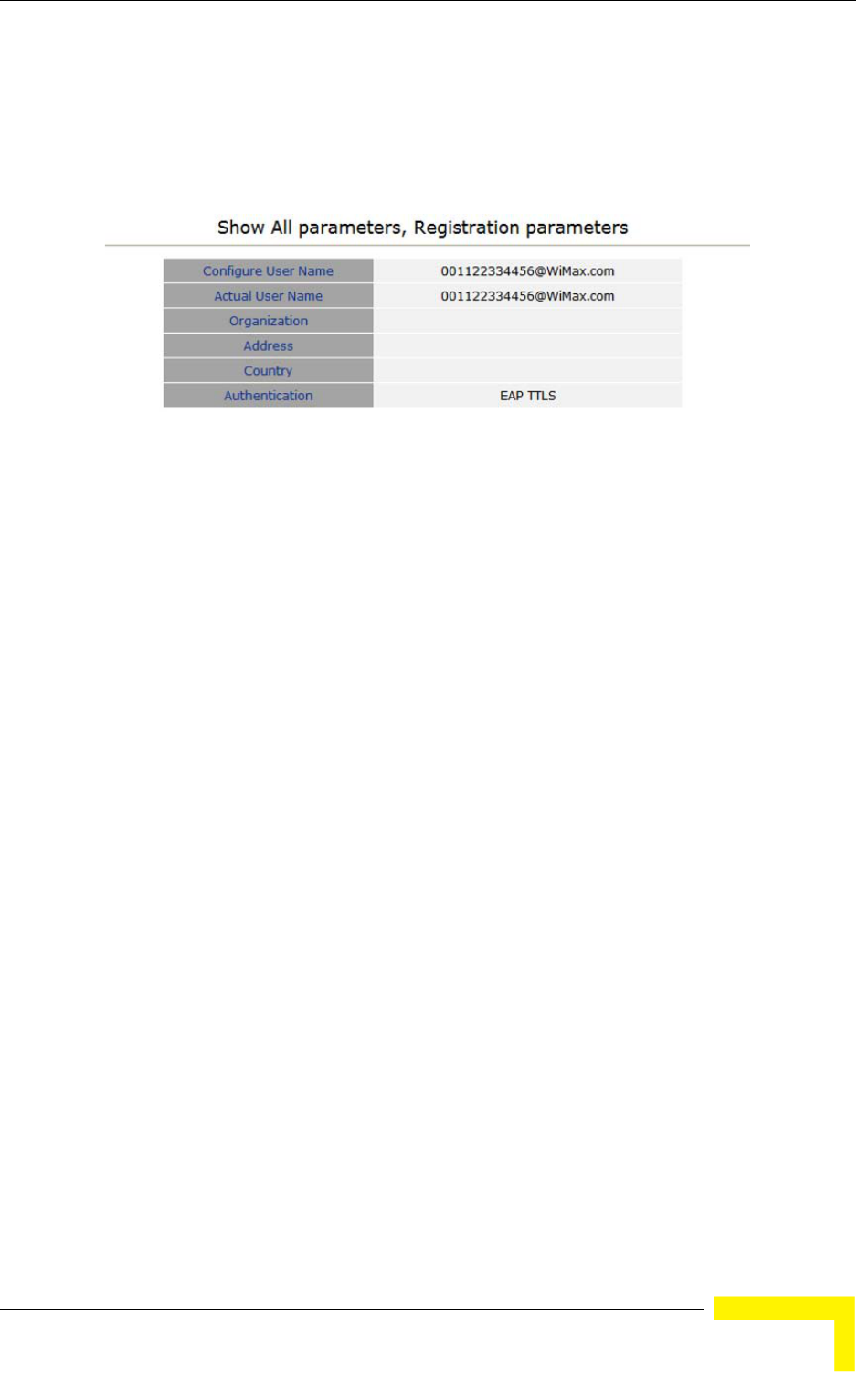

The Show All page is a display-only menu of non-configurable parameters for Unit
Control, Registration, Base Station Identification (BSID), Radio, Multi rate,
Adaptative Transmission Power Control (ATPC) and Service. To configure the
parameters associated with each show menu item refer to the sections listed in
the main menu.

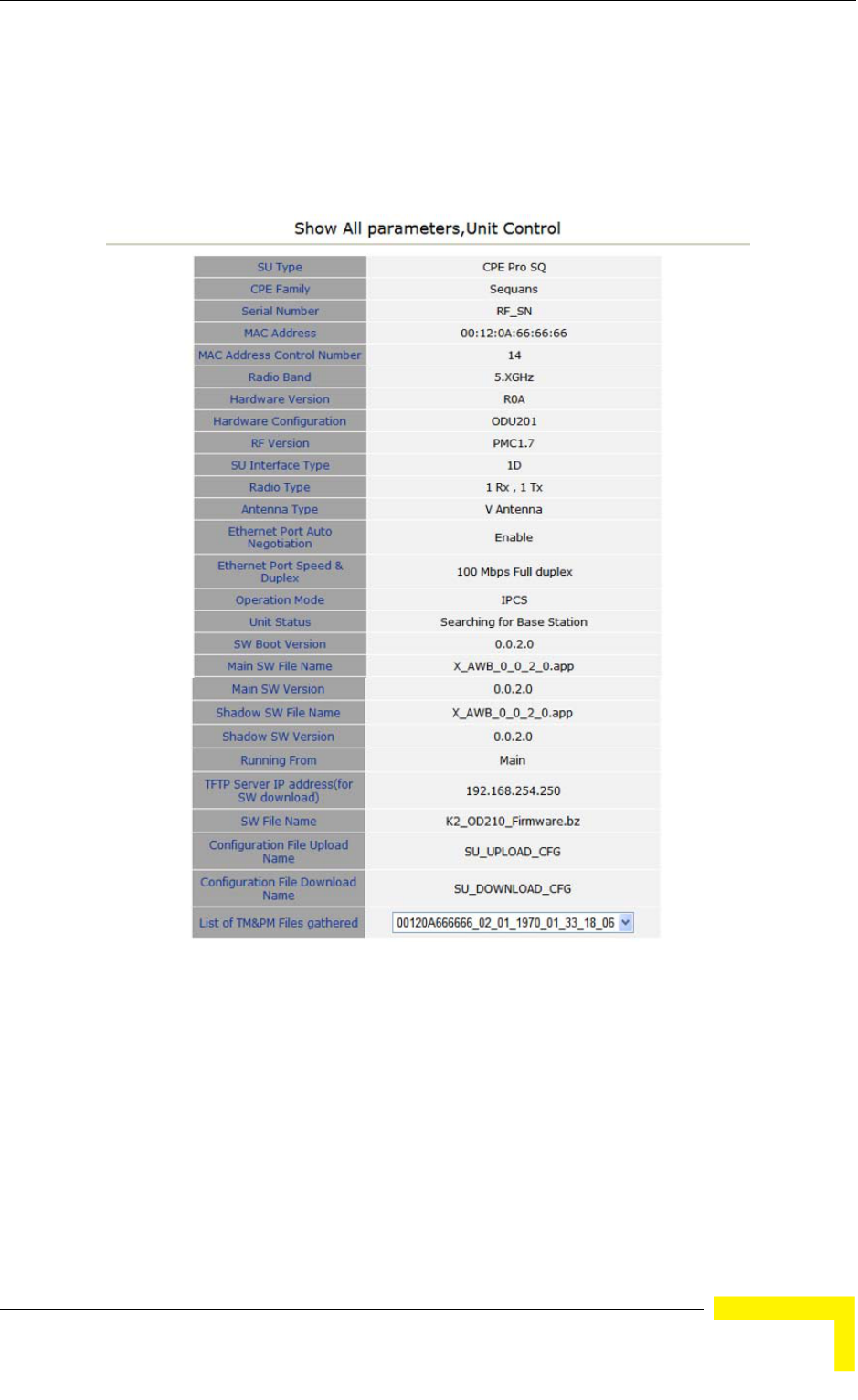

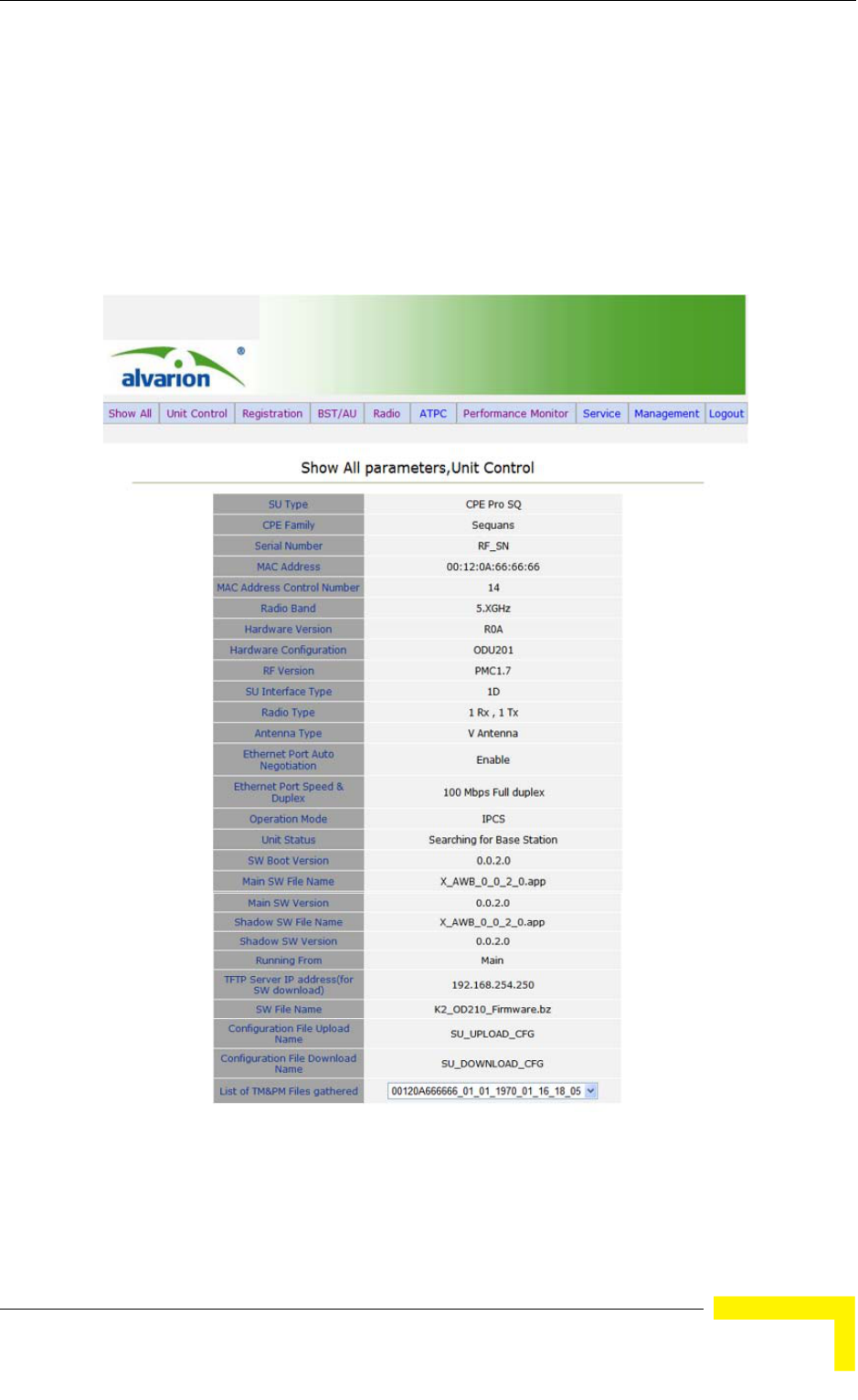

Figure 4-4: Show All - Unit Control
![](/img.php?id=1527417&img=bg48.png)
50 Extreme CPE Product Manual
Chapter 4 - System Settings
UNIT CONTROL – The Show All - Unit Control menu provides information on the
default system configuration and radio type.
SU Type – Describes the service unit (SU) type.
CPE Family – Describes the primary chipset of the Extreme CPE.
Serial Number – Describes the serial number of the Extreme CPE unit. This
number can be used to determine the identity of the subscriber unit by the
base station operator.
MAC Address – Describes the physical layer address of the LAN port. The WAN
port MAC address can be determined by adding “1” to the LAN port MAC
address.
MAC Address Control Number – Displays the MAC address control number.
Radio Band – Describes the radio band in use. The radio band for the Extreme
CPE is 5.x.
Hardware version – Describes the revision of hardware in use.
Hardware configuration – Describes the identity of the current hardware
configuration by serial number.
RF version – Describes the radio frequency (RF) or rate of oscillation of the
electrical circuit.
SU Interface Type – Describes the number of ports available on the interface.
“D” refers to data ports, “V” refers to VoIP ports, with a prefix number in use as
a quantifier.
Radio Type – Describes the receive (Rx) and transmit (Tx) capacity of the
radio.
Antenna Type – Describes the antenna type employed by the Extreme CPE.

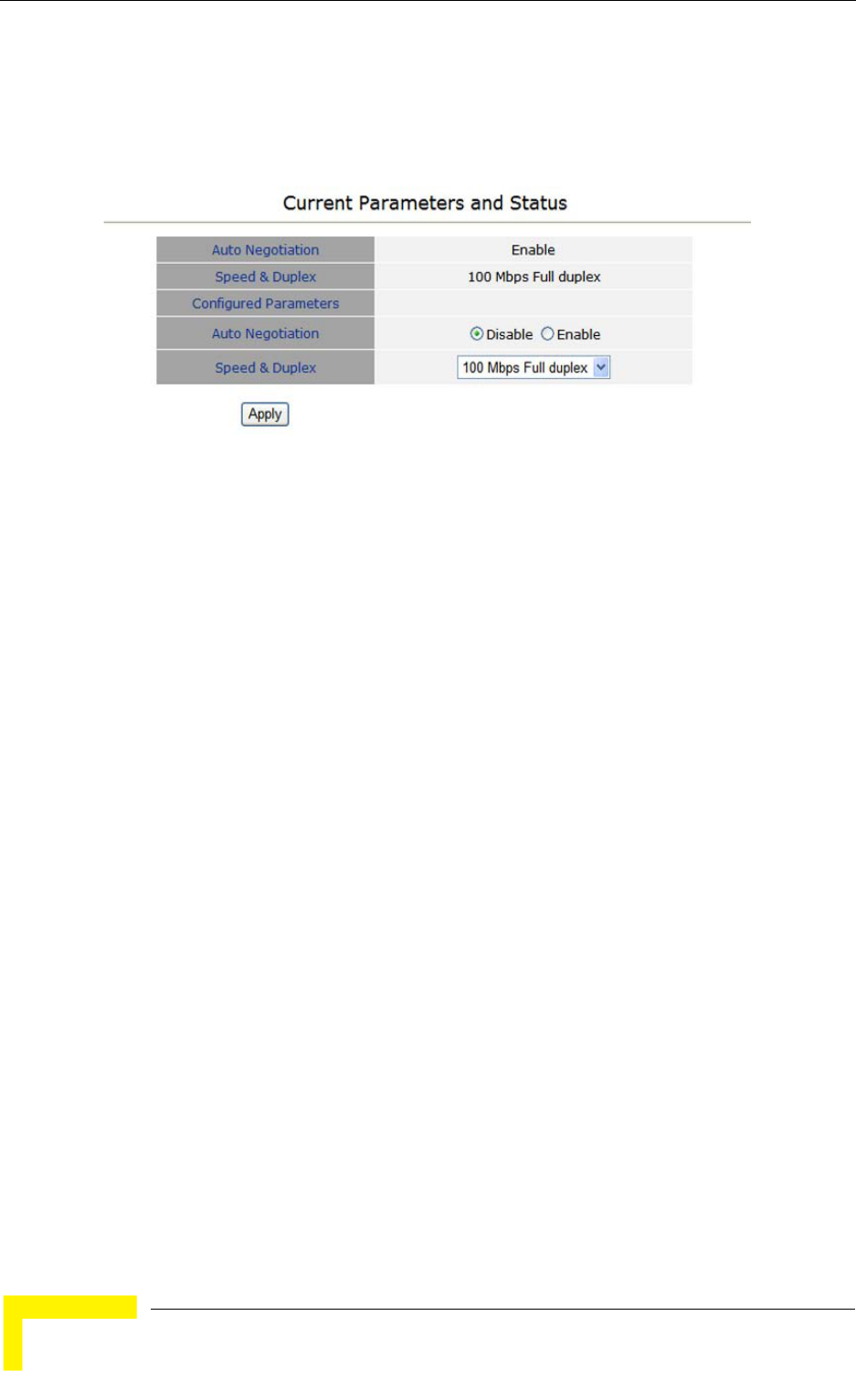

Ethernet Port Auto Negotiation – Describes the Ethernet port auto
negotiation enable/disable state.
Ethernet Port Speed & Duplex – Describes the speed and duplex capabilities
to which the Ethernet port has been set to.
![](/img.php?id=1527417&img=bg49.png)
System Status
Extreme CPE Product Manual 51
Operation Mode – Describes the operation mode of the Extreme CPE, either
IPCS or ETHCS where IPCS refers to transparent delivery of IPv4 packets and
ETHCS refers to transparent delivery of tagged 802.3 packets over Ethernet.
Unit Status – Describes the connectivity status of the Extreme CPE to the
base station.

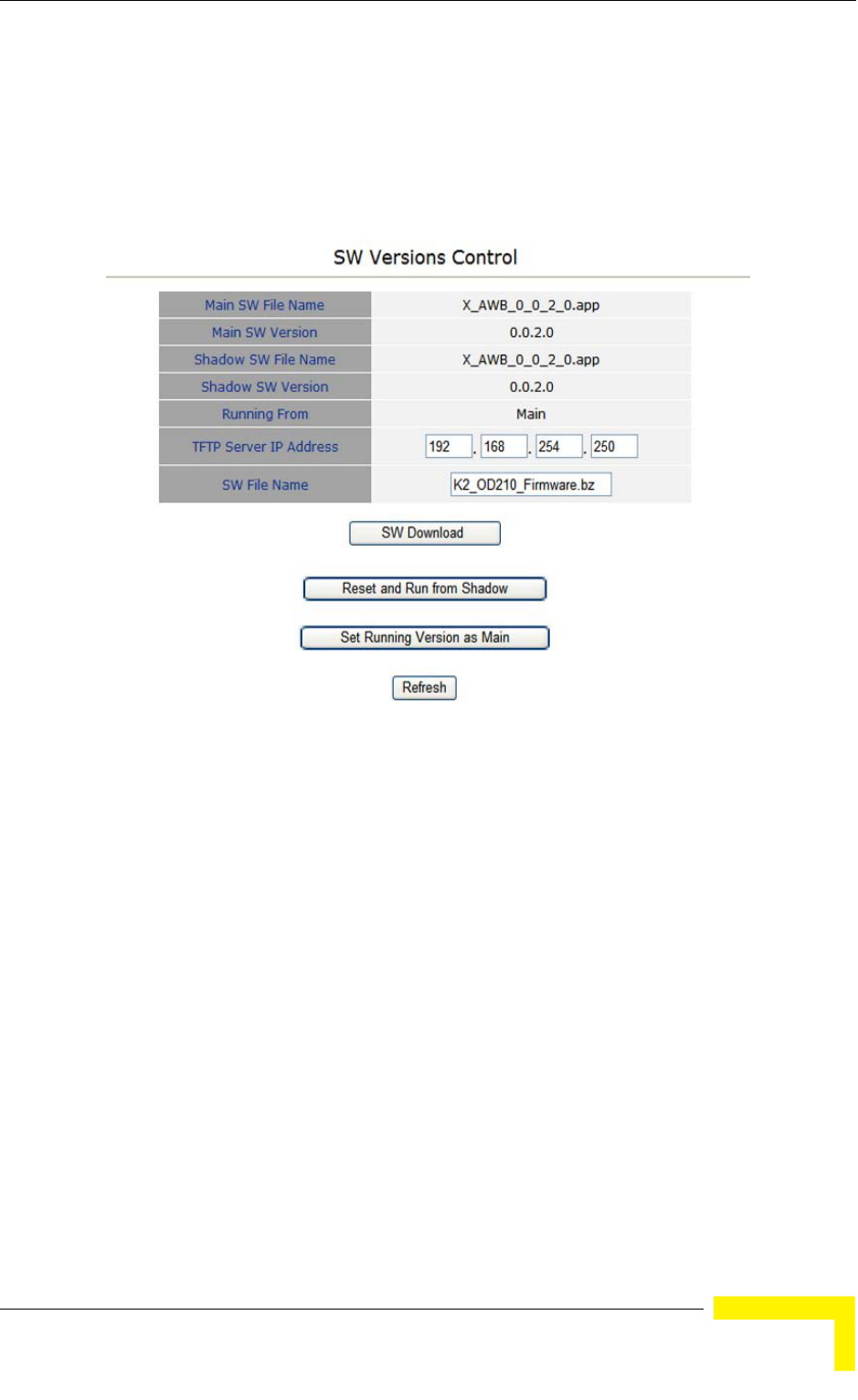

SW Boot Version – Describes the current software boot version file.
Main SW File Name – Describes the name of the current firmware.
Main SW Version – Describes the version of the current firmware.
Shadow SW File Name – Describes the name of the secondary, or shadow,
firmware file.
Shadow SW Version – Describes the version of the shadow firmware file.
Running From – Describes the firmware file being used by the Extreme CPE
as a running configuration. (Options: Main, or Shadow)
TFTP Server IP address(for SW download) – Describes the TFTP server IP
address that is being used for firmware download.
SW File Name – Describes the name of the download firmware file from the
TFTP server.
Configuration File Upload Name – Describes the name of the uploaded
configuration file.
Configuration File Download Name – Describes the name of the current
configuration file.
List of TM&PM Files Gathered – Describes the TM (Traffic Monitoring) and
PM (Performance Monitoring) files that the unit has detected.
![](/img.php?id=1527417&img=bg4a.png)
52 Extreme CPE Product Manual
Chapter 4 - System Settings

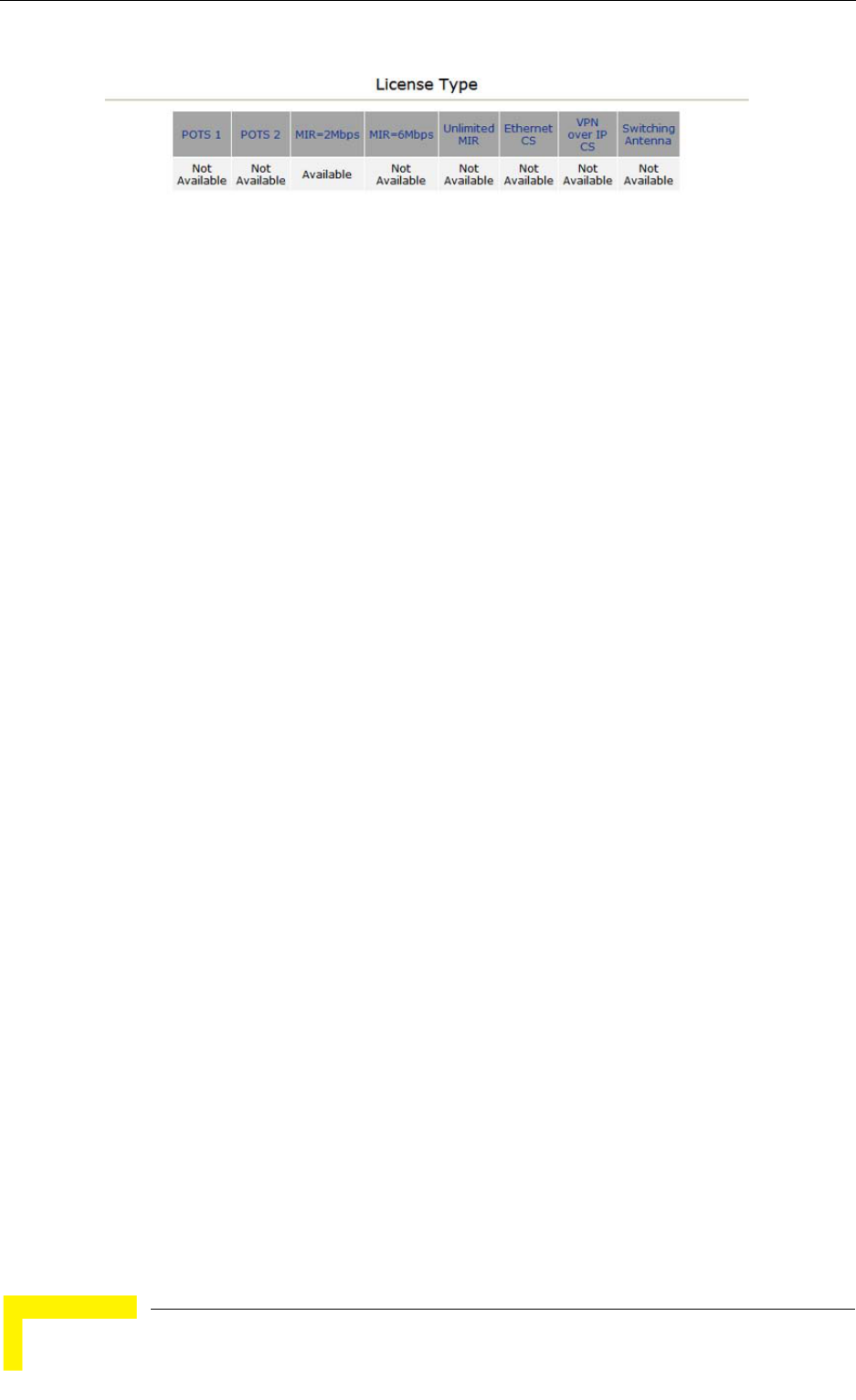

Figure 4-5: Show All - License Type
LICENSE TYPE – Describes the availability of VoIP ports, operator preset
maximum information rates (MIR), Ethernet status, virtual private networks (VPN)
status and switching antenna status.
POTS1/2 – Describes the availability status of the VoIP plain old telephone
service (POTS) ports. ‘Available’ indicates that the specified VoIP port is open
for use.
MIR=2Mbps – Describes the operator preset maximum information rate (MIR)
state per subscriber at 2Mbps upload/download.
MIR=6Mbps – Describes the operator preset maximum information rate (MIR)
state per subscriber at 6Mbps upload/download.
Unlimited MIR – Describes if the operator preset maximum information rate
(MIR) is unlimited in upload/download bandwidth, or unavailable to the
subscriber.
Ethernet CS – Describes the Ethernet convergence sublayer (CS) status.
VPN over IP CS – Describes the status of the virtual private network (VPN)
over internet protocol (IP) convergence sublayer.
Switching Antenna – Describes the status of the switching antenna.

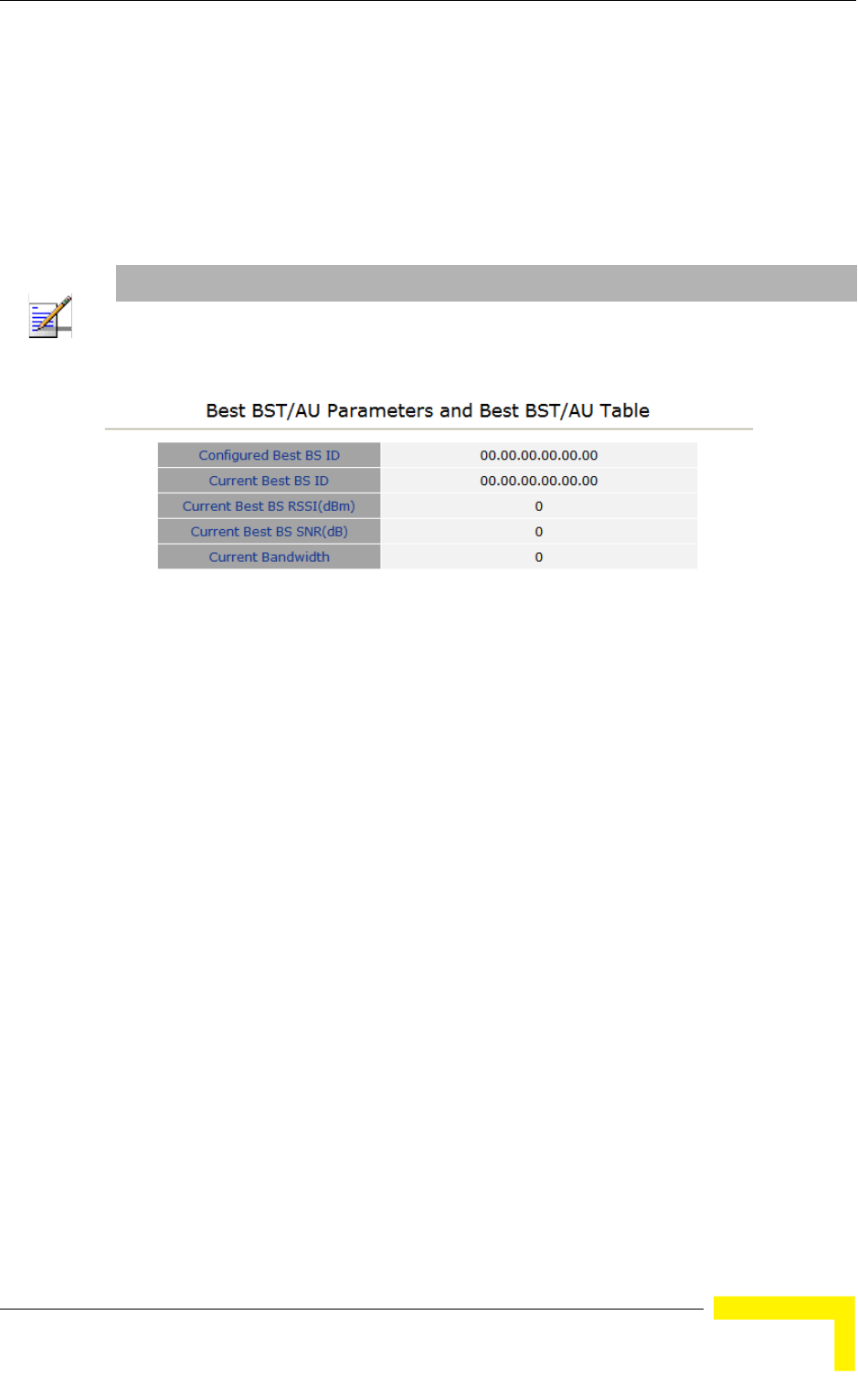

Figure 4-6: Show All - Best BSID
![](/img.php?id=1527417&img=bg4b.png)
System Status
Extreme CPE Product Manual 53
BEST BSID – The Show All - Best BSID page displays information on the base
station identity (BSID), as well as signal strength indication, noise ratio and
bandwidth of the WiMAX connection.
Configured Best BS ID – Describes the configured base station identity, in the
form xx.xx.xx.xx.xx.xx.
Current Best BS ID – Describes the identity of the best base station, in the
form xx.xx.xx.xx.xx.xx.
Current Best BS RSSI (dBm) – Describes the receive signal strength indicator
of the WiMAX link, in decibels per milliwatt.
Current Best BS SNR (dB) – Describes the signal to noise ratio of the WiMAX
link, in decibels.
Current Bandwidth – Describes the bandwidth of the WiMAX link.
Figure 4-7: Show All - Radio Parameters
RADIO PARAMETERS – The Show All - Radio Parameters page displays
information on the bandwidth and antenna selection of the Extreme CPE.
Configured Bandwidth – Describes the configured bandwidth in megahertz.
Configured Tx Antenna Selection – Describes the configured tranmission
antenna selection.
Configured Rx Antenna Selection – Describes the configured receive
antenna selection.
Configured Rx Attenuator Parameters – Describes the configured receive
signal after attenuation.
Current Bandwidth – Describes the current bandwidth of the WiMAX link.
![](/img.php?id=1527417&img=bg4c.png)
54 Extreme CPE Product Manual
Chapter 4 - System Settings
Current Tx Antenna Selection – Describes the current transmission antenna
selection.
Current Rx Antenna Selection – Describes the current receive antenna
selection.
Current Rx Attentuator Parameters – Describes the current receive
attenuator parameters.
Figure 4-8: Show All - Registration Parameters

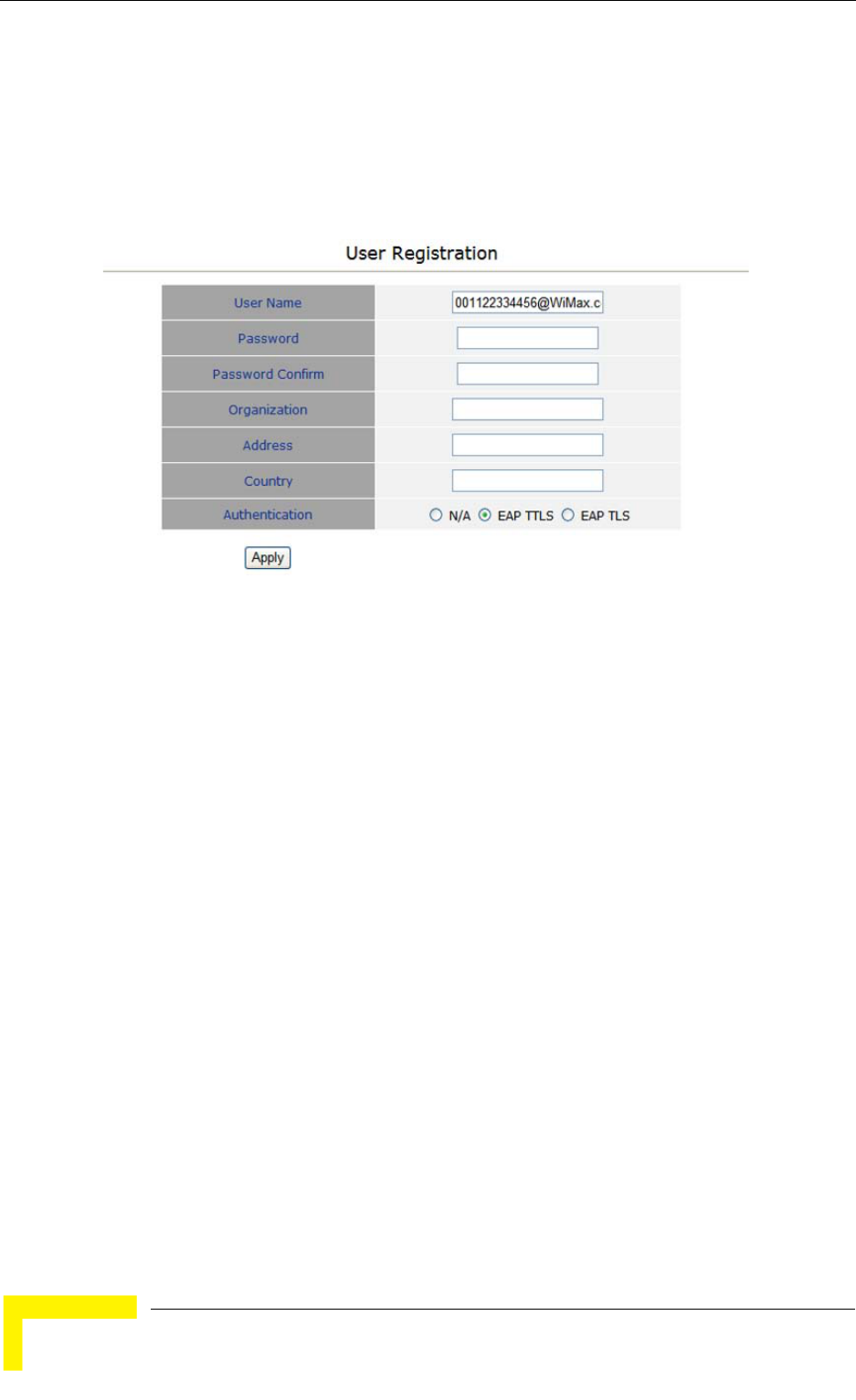

REGISTRATION PARAMETERS – The Show All - Registration Parameters page
displays information on the authentication parameters required to support
provisioning on the unit.
Configure User Name – Describes the configured user name for the unit.
Actual User Name – Describes the current name being used to identify the
user of the unit.
Organization – Describes the WiMAX subscriber name.
Address – Describes the contact information for the WiMAX subscriber.
Country – Describes the country of operation.
Authentication – Describes the method of authentication being used to
secure the WiMAX connection.
Figure 4-9: Show All - ATPC
![](/img.php?id=1527417&img=bg4d.png)
System Status
Extreme CPE Product Manual 55
ATPC – The Show All - ATPC (Automatic Transmitter Power Control) page displays
information on the transmitted signal.
Last Tx Rate – Describes the last detected tranmission rate.
Optimal Rx Rate – Describes the transmission rate best suited to the
connection.
ATPC – Describes the level of automatic transmitter power control.
Tx Power – Describes the transmission power level.

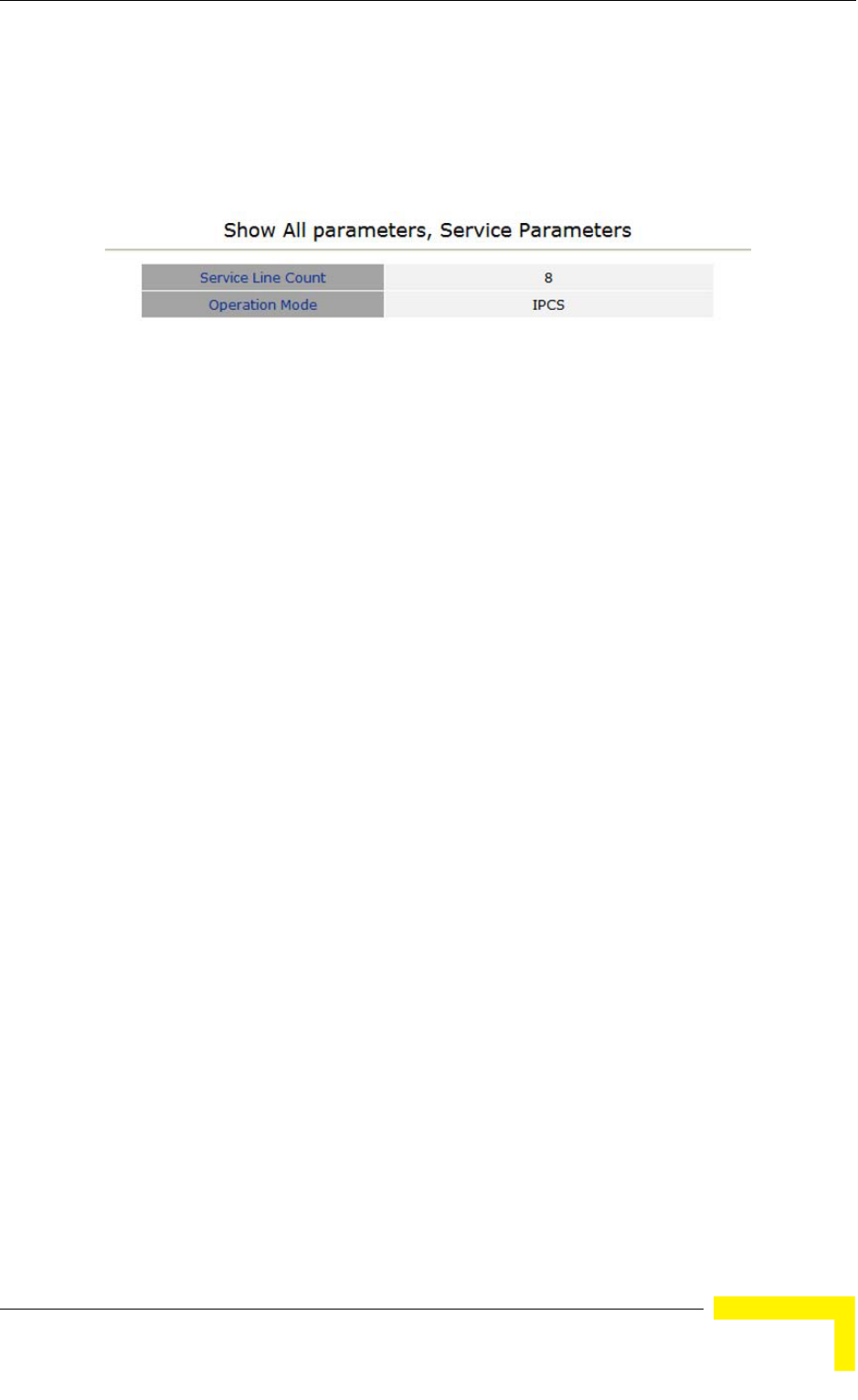

Figure 4-10: Show All - Service Parameters
SERVICE PARAMETERS – The Show All - Service Parameters page displays
information on WiMAX service related capabilities.
Service Line Count – Describes the service line count.
Operation Mode – Describes the operation mode of the Extreme CPE.
![](/img.php?id=1527417&img=bg4e.png)
56 Extreme CPE Product Manual
Chapter 4 - System Settings
![](/img.php?id=1527417&img=bg50.png)
56 Extreme CPE Product Manual
Chapter 5 - Unit Control
5.1 Introduction
The Unit Control menu enables resetting the unit, reverting to the default
configuration, changing the password, configuring the operation mode of the
Ethernet port, and selecting the running software version. It also enables you to
download a new software version.

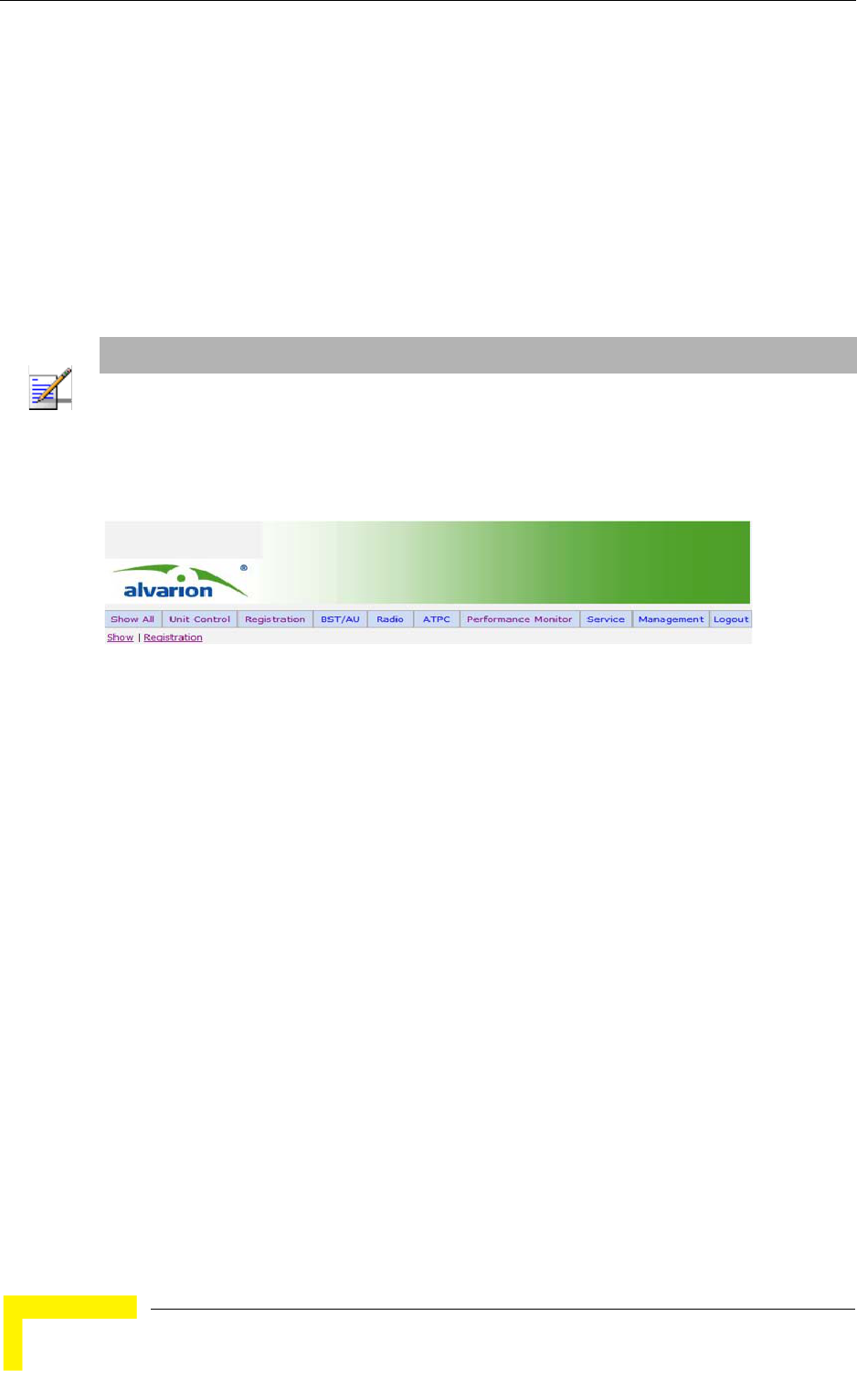

Figure 5-11: Unit Control Menu
![](/img.php?id=1527417&img=bg51.png)
Show Unit Control
Extreme CPE Product Manual 57
5.2 Show Unit Control
The Show All page displays the show parameters for Unit Control, Registration,
Base Station ID (BSID), Radio, Multi rate, ATPC and Service.
Figure 5-12: Unit Control - Show
UNIT CONTROL – The Show All - Unit Control menu provides information on the
default system configuration and radio type.
SU Type – Describes the service unit (SU) type.
CPE Family – Describes the primary chipset of the Extreme CPE.
![](/img.php?id=1527417&img=bg52.png)
58 Extreme CPE Product Manual
Chapter 5 - Unit Control
Serial Number – Describes the serial number of the Extreme CPE unit. This
number can be used to determine the identity of the subscriber unit by the
base station operator.
MAC Address – Describes the physical layer address of the LAN port. The WAN
port MAC address can be determined by adding “1” to the LAN port MAC
address.
MAC Address Control Number – Displays the MAC address control number.
Radio Band – Describes the radio band in use. The radio band for the Extreme
CPE is 5.x.
Hardware version – Describes the revision of hardware in use.
Hardware configuration – Describes the identity of the current hardware
configuration by serial number.
RF version – Describes the radio frequency (RF) or rate of oscillation of the
electrical circuit.
SU Interface Type – Describes the number of ports available on the interface.
“D” refers to data ports, “V” refers to VoIP ports, with a prefix number in use as
a quantifier.
Radio Type – Describes the receive (Rx) and transmit (Tx) capacity of the
radio.
Antenna Type – Describes the antenna type employed by the Extreme CPE.
Ethernet Port Auto Negotiation – Describes the Ethernet port auto
negotiation enable/disable state.
Ethernet Port Speed & Duplex – Describes the speed and duplex capabilities
to which the Ethernet port has been set to.
Operation Mode – Describes the operation mode of the Extreme CPE, either
IPCS or ETHCS where IPCS refers to transparent delivery of IPv4 packets and
ETHCS refers to transparent delivery of tagged 802.3 packets over Ethernet.
Unit Status – Describes the connectivity status of the Extreme CPE to the
base station.
![](/img.php?id=1527417&img=bg53.png)
Show Unit Control
Extreme CPE Product Manual 59
SW Boot Version – Describes the current software boot version file.
Main SW File Name – Describes the name of the current firmware.
Main SW Version – Describes the version of the current firmware.
Shadow SW File Name – Describes the name of the secondary, or shadow,
firmware file.
Shadow SW Version – Describes the version of the shadow firmware file.
Running From – Describes the firmware file being used by the Extreme CPE
as a running configuration. (Options: Main, or Shadow)
TFTP Server IP address(for SW download) – Describes the TFTP server IP
address that is being used for firmware download.
SW File Name – Describes the name of the download firmware file from the
TFTP server.
Configuration File Upload Name – Describes the name of the uploaded
configuration file.
Configuration File Download Name – Describes the name of the current
configuration file.
List of TM&PM Files Gathered – Describes the TM (Traffic Monitoring) and
PM (Performance Monitoring) files that the unit has detected.
![](/img.php?id=1527417&img=bg54.png)
60 Extreme CPE Product Manual
Chapter 5 - Unit Control
LICENSE TYPE – Describes the availability of VoIP ports, operator preset
maximum information rates (MIR), Ethernet status, virtual private networks (VPN)
status and switching antenna status.
POTS1/2 – Describes the availability status of the VoIP plain old telephone
service (POTS) ports. ‘Available’ indicates that the specified VoIP port is open
for use.
MIR=2Mbps – Describes the operator preset maximum information rate (MIR)
state per subscriber at 2Mbps upload/download.
MIR=6Mbps – Describes the operator preset maximum information rate (MIR)
state per subscriber at 6Mbps upload/download.
Unlimited MIR – Describes if the operator preset maximum information rate
(MIR) is unlimited in upload/download bandwidth, or unavailable to the
subscriber.
Ethernet CS – Describes the Ethernet convergence sublayer (CS) status.
VPN over IP CS – Describes the status of the virtual private network (VPN)
over internet protocol (IP) convergence sublayer.
Switching Antenna – Describes the status of the switching antenna.
![](/img.php?id=1527417&img=bg55.png)
Reset
Extreme CPE Product Manual 61
5.3 Reset
The Reset page allows you to reset the Extreme CPE for configuration changes to
take effect.
Figure 5-13: Unit Control - Reset Unit
RESET UNIT – Reseting the unit reboots the device.
Reset Unit – Click ‘Reset Unit’ to reboot the Extreme CPE.
NOTE
Reseting the unit does not restore factory defaults.
![](/img.php?id=1527417&img=bg56.png)
62 Extreme CPE Product Manual
Chapter 5 - Unit Control
5.4 Change Password
The Change Password page enables you to create a new password for access to the
Extreme CPE. It is advisable to change the factory default password upon receipt
of your Extreme CPE device.

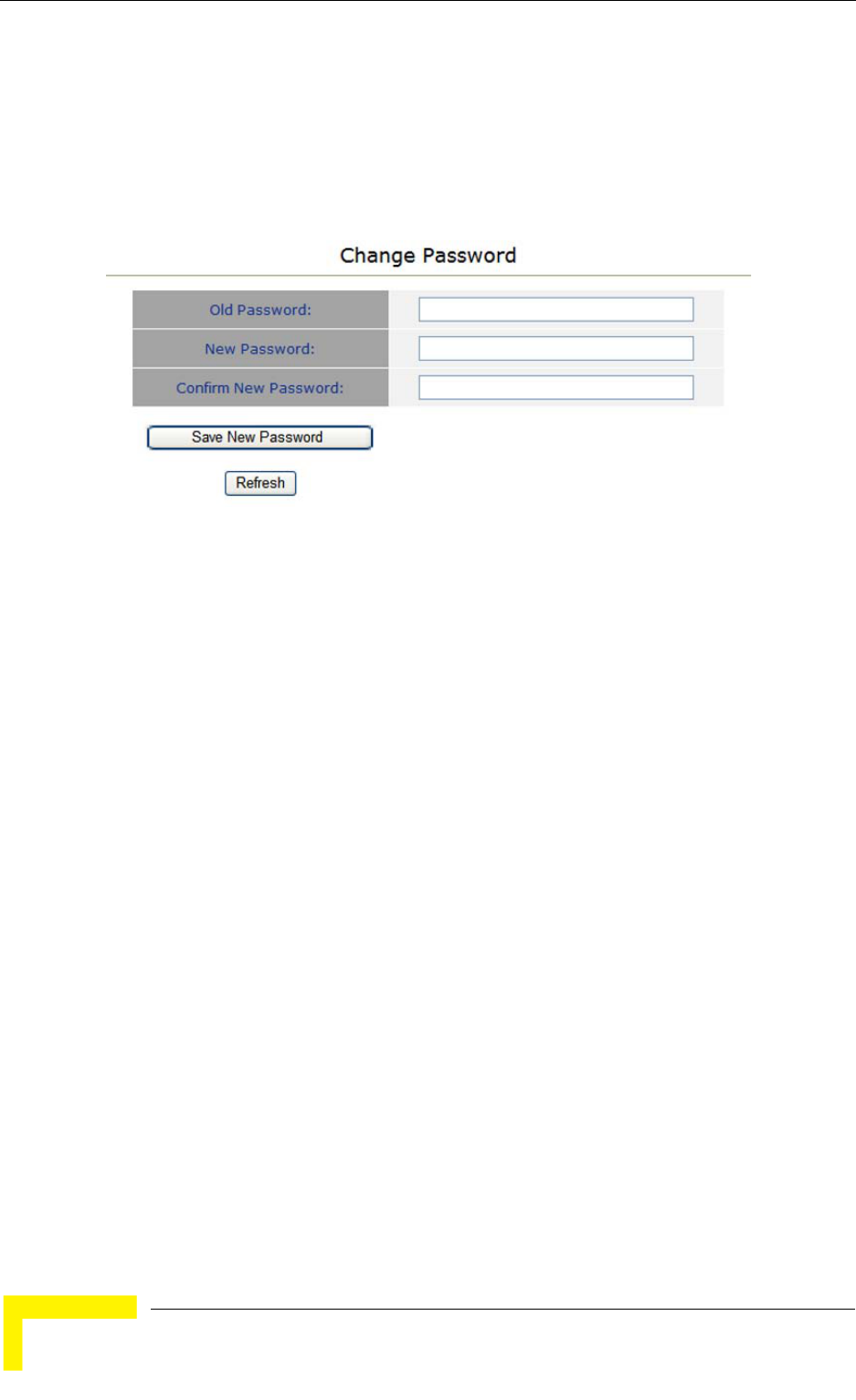

Figure 5-14: Unit Control - Change Password
CHANGE PASSWORD – Allows changing of the current user password for security
purposes.
Old Password – Prompts you to enter your current password.
New Password – Prompts you to enter a new password. (Length: 1-20
characters, cannot include the characters ‘<>?:;,.’”{[}]/\|,’ and is case
sentivitive.
Confirm New Password – Prompts you to re-enter the new password.
Save New Password – Clicking ‘Save New Password’ saves the new password
and deletes the old password.
Refresh – Clicking ‘Refresh’ clears all information boxes.
![](/img.php?id=1527417&img=bg57.png)
Software Version Control
Extreme CPE Product Manual 63
5.5 Software Version Control
The Software Version Control page allows you to download new runtime software
for the Extreme CPE, run a backup runtime image (or shadow), reset the device
and select the current running configuration file.
Figure 5-15: Unit Control - Software Version Control
SW VERSIONS CONTROL – Enables uploading and setting of main and shadow
software versions.
Main SW File Name – Describes the file name of the currently loaded
software.
Main SW Version – Describes the version of software currently in use.
Shadow SW File Name – Describes the shadow or backup software loaded
into memory for failover measures.
Shadow SW Version – Describes the shadow software version.
Running From – Describes if the unit is running Main or Shadow software on
bootup.
![](/img.php?id=1527417&img=bg58.png)
64 Extreme CPE Product Manual
Chapter 5 - Unit Control
TFTP Server IP Address – Allows the user to enter the IP address of the TFTP
server from which to download code to the unit.
SW File Name – Allows the user to enter the file name of the software file to be
downloaded to the unit.
SW Download – Click ‘SW Download’ to download user specified software to
the unit from the TFTP IP address. The image downloaded will overwrite the
current shadow image.
Reset and Run from Shadow – Click ‘Reset and Run from Shadow’ to reboot
the unit and run from the shadow image.
Set Running Version as Main – Click ‘Set Running Version as Main’ to make
the currently running software configuration the main image.
Refresh – Click ‘Refresh’ to reload the current page and parameters associated
with it.
![](/img.php?id=1527417&img=bg59.png)
Configuration Control
Extreme CPE Product Manual 65
5.6 Configuration Control
The Configuration Control page allows you to specify an IP address from which to
upload or download a running configuration file. It also allows you to restore the
factory default TFTP server address.
Figure 5-16: Unit Control - Configuration Control
CONFIGURATION CONTROL – Use the configuration control page to transfer
running configuration files.
Configuration Upload File Name – Allows the user to specify the
configuration upload file name for copying to the TFTP server.
Configuration Download File Name – Allows the user to specify the
configuration download file name for downloading from the TFTP server.
TFTP Server IP Address – Specifies a TFTP server IP address for
upload/download.
Chose upload/download – Selects to either upload to, or download from the
specified TFTP server.
Action – Performs the selected upload or download procedure.
Refresh – Reloads the page and the parameters associated with it.
Set Factory Defaults – Resets the factory default configuration file path
settings from the TFTP server to the Extreme CPE.
![](/img.php?id=1527417&img=bg5a.png)
66 Extreme CPE Product Manual
Chapter 5 - Unit Control
NOTE
Selecting this option does not perform a factory reset. It simply makes available the TFTP IP path of
the default factory configuration file settings to the unit. Selecting ‘Action’ will implement the file
settings.
![](/img.php?id=1527417&img=bg5b.png)
TM and PM File Upload Control
Extreme CPE Product Manual 67
5.7 TM and PM File Upload Control
The TM (Traffic Monitoring) & PM (Performance Monitoring) File Upload Control
page enables the user to define parameters related to uploading the TM & PM files
where link quality data is stored, to the TFTP server directory and to initiate the
upload operation.
Figure 5-17: Unit Control - TM & PM File Upload Control
TM & PM FILE UPLOAD CONTROL – Traffic and performance monitoring allow
for a variety of statistical data to be collected about the Extreme CPE and its
WiMAX link.
TM & PM Files – Specifies the available TM and PM files from the drop down
menu for uploading to the TFTP server.
Local TFTP Server IP Address – Specifies a local TFTP server IP address from
which to upload the TM and PM files.
Perform Action – Clicking ‘Perform Action’ initiates the upload procedure.
![](/img.php?id=1527417&img=bg5c.png)
68 Extreme CPE Product Manual
Chapter 5 - Unit Control
5.8 Ethernet Operation Mode
The Ethernet Op Mode page enables configuration of the Ethernet connection.
Figure 5-18: Unit Control - Ethernet Op Mode
CURRENT PARAMETERS AND STATUS – Specifies the current Ethernet port
settings.
Auto Negotiation – Describes the auto negotiation status of the Ethernet port.
Speed & Duplex – Describes the speed and duplex capabilities set for the
Ethernet port.
Configured Parameters –
Auto Negotiation – Select to enable or disable auto-negoatiation on the
Ethernet port.
Speed & Duplex – If auto-negotiation is disabled, select from the drop down
menu the speed and duplex setting for the Ethernet port.
Apply – Click ‘Apply’ to save and apply settings to the port.
![](/img.php?id=1527417&img=bg5e.png)
70 Extreme CPE Product Manual
Chapter 6 - Registration
6.1 Introduction
The Registration menu enables the user to enter station information about for the
Extreme CPE, such as user name, password, country of operation and
organisation. It also enables the user to select the authentication method used to
authenticate the Extreme CPE with the base station.
Figure 6-19: Registration Menu
![](/img.php?id=1527417&img=bg5f.png)
Show Registration Parameters
Extreme CPE Product Manual 71
6.2 Show Registration Parameters
The Show Registration Parameters page displays the show registration parameters
such as configured user name and the country of operation of the Extreme CPE.
Figure 6-20: Registration - Show
REGISTRATION PARAMETERS – The Show All - Registration Parameters page
displays information on the authentication parameters required to support
provisioning on the unit.
Configure User Name – Describes the configured user name for the unit.
Actual User Name – Describes the name being used to identify the actual user
of the unit.
Organization – Describes the WiMAX subscriber name.
Address – Describes the contact information for the WiMAX subscriber.
Country – Describes the country of operation.
Authentication – Describes the method of authentication being used to
secure the WiMAX connection.
![](/img.php?id=1527417&img=bg60.png)
72 Extreme CPE Product Manual
Chapter 6 - Registration
6.3 Registration Configuration
The User Registration page allows the user to define registration parameters such
as configured user name, password, organisation and the country of operation of
the Extreme CPE. It also allows the user to select the authentication method.
Figure 6-21: Registration - User Registration Configuration
USER REGISTRATION – Allows the user to enter information on the
authentication parameters required to support provisioning on the unit.
User Name – Allows the user to enter a user name for the unit, in the form
someone@WiMAX.com.
Password – Allows the user to set a password for registration purposes.
Password Confirm – Prompts the user to re-enter the password.
Organization – Enter the WiMAX subscriber name.
Address – Enter the contact information for the WiMAX subscriber.
Country – Enter the country of operation.
Authentication – Allows the user to describe the method of authentication
being used to secure the WiMAX connection. (Options: none; EAP TTLS; EAP
TLS)
![](/img.php?id=1527417&img=bg62.png)
74 Extreme CPE Product Manual
Chapter 7 - Base Station Scanning
7.1 Introduction
The base station/access unit (BST/AU) page displays base station (BST) and
access unit (AU) information for the the base station that the Extreme CPE
connects to. It also enables configuration of BST/AU identification, network
masks, and WiMAX mobility mode.
Figure 7-22: BS Scanning Menu
![](/img.php?id=1527417&img=bg63.png)
BS Scanning
Extreme CPE Product Manual 75
7.2 BS Scanning
The BS AU scanning page allows the user to scan for a nearby base station,
specify a frequency, a preferred bandwidth, and frame duration.
The table will display all base stations that match the criteria entered.
Figure 7-23: BST/AU - Best BST/AU
BEST BS/AU – The Best BS/AU page displays information on the base station
identity (BSID), as well as signal strength indication, noise ratio and bandwidth of
the WiMAX connection.
Configured Best BS ID – Describes the configured base station identity, in the
form xx.xx.xx.xx.xx.xx.
Current Best BS ID – Describes the identity of the best base station, in the
form xx.xx.xx.xx.xx.xx.
Current Best BS RSSI (dBm) – Describes the receive signal strength indicator
of the optimal WiMAX link, in decibels per milliwatt.
Current Best BS SNR (dB) – Describes the signal to noise ratio of the optimal
WiMAX link, in decibels.
Current Bandwidth – Describes the bandwidth of the optimal WiMAX link.
NOTE
The access unit will search for the preferred base station first, but the displayed best base station
might not be that which is specified as preferred if it the preferred base station unavailable.
![](/img.php?id=1527417&img=bg64.png)
76 Extreme CPE Product Manual
Chapter 7 - Base Station Scanning
Figure 7-24: BST/AU - Selected BST/AU Parameters
SELECTED BST/AU PARAMETERS – The Selected BST/AU Parameters page
describes the BSID, frequency, signal strength, noise ratio and identity of the
selected base station.
Selected BST/AU ID – Describes the configured base station identity, in the
form xx.xx.xx.xx.xx.xx.
Frequency – Describes the selected receive signal frequency.
Rx RSSI (dBm) – Describes the receive signal strength indicator of the WiMAX
link, in decibels per milliwatt.
Rx SNR (dB) – Describes the signal to noise ratio of the WiMAX link, in
decibels.
Selected Bandwidth – Describes the bandwidth of the WiMAX link.
Figure 7-25: BST/AU - Best BST/AU Table
BEST BST/AU TABLE – The Best BST/AU Table describes the optimal base
station identity, frequency, signal to noise ratio and bandwidth of the selected
base station.
BS ID – Describes the optimal base station identity (BSID).
Rx Frequency (MHz) – Describes the optimal base station receive frequency
for the WiMAX link, in megahertz.
SNR(dB) – Describes the optimal signal to noise ratio of the WiMAX link, in
decibels.
![](/img.php?id=1527417&img=bg65.png)
BS Scanning
Extreme CPE Product Manual 77
Bandwidth – Describes the optimal bandwidth of the WiMAX link.
Figure 7-26: BST/AU - BST/AU and Preferred BST/AU Parameters
BEST BST/AU TABLE – The BST/AU and Preferred BST/AU Parameters page
describes the user configured base station identity, mask, perferred base station
identity and mask, as well as the mobility mode.
BST/AU ID – Allows the user to configure the base station identity.
BEST/AU ID MASK – Alllows the user to configure the base station mask.
Preferred BST/AU ID – Allows the user to configure the preferred base station
identity.
Preferred BST/AU ID Mask – Allows the user to configure the preferred base
station mask.
Mobility Mode – Selects the mobility mode of the WiMAX radio. (Options:
nomadic and mobile)
Apply – Applies the specified changes.
![](/img.php?id=1527417&img=bg66.png)
78 Extreme CPE Product Manual
Chapter 7 - Base Station Scanning
![](/img.php?id=1527417&img=bg68.png)
80 Extreme CPE Product Manual
Chapter 8 - Radio Parameters
8.1 Introduction
The radio page allows you to configure frequency scanning parameters for the
Extreme CPE, view the scanning table and antenna selection.
Figure 8-27: Radio Menu
![](/img.php?id=1527417&img=bg69.png)
Radio Parameters
Extreme CPE Product Manual 81
8.2 Radio Parameters
The Show Radio Parameters page displays the parameters of the radio settings.
Figure 8-28: Show All - Radio Parameters
RADIO PARAMETERS – The Show All - Radio Parameters page displays
information on the bandwidth and antenna selection of the Extreme CPE.
Configured Bandwidth – Describes the configured bandwidth in megahertz.
Configured Tx Antenna Selection – Describes the configured tranmission
antenna selection.
Configured Rx Antenna Selection – Describes the configured receive
antenna selection.
Configured Rx Attenuator Parameters – Describes the configured receive
signal after attenuation.
Current Bandwidth – Describes the current bandwidth of the WiMAX link.
Current Tx Antenna Selection – Describes the current transmission antenna
selection.
Current Rx Antenna Selection – Describes the current receive antenna
selection.
Current Rx Attentuator Parameters – Describes the current receive
attenuator parameters.
![](/img.php?id=1527417&img=bg6a.png)
82 Extreme CPE Product Manual
Chapter 8 - Radio Parameters
8.3 Frequency Scanning
Frequency Scanning allows the user to enter frequencies with which to scan for
nearby base stations.
Figure 8-29: Radio - Frequency Scanning Parameters
FREQUENCY SCANNING PARAMETERS – The Frequency Scanning Parameters
page specifies the frequency, scanning steps and bandwidth for purposes of
scanning for nearby base stations.
Start Rx Frequency(MHz) – Specifies the frequency at which to start
scanning, in megahertz.
End Rx Frequency(MHz) – Specifies the frequency at which to stop scanning,
in megahertz.
Scanning Main Step(KHz) – Specifies the main step in the frequency
scanning process using the formula F(N) = Start Frequency + N*Main Step, for
N = 0,1,2..
Scanning Intermediate Steps(KHz) – Specifies the intermediate step in the
scanning process using the formula F(N) = Start Frequency + N*(Main Step),
Start Frequency + N*(Main Step + Intermediate Step), for N= 0,1, 2,..
Bandwidth(MHz) – Specifies the bandwidth for the scanning process.
![](/img.php?id=1527417&img=bg6b.png)
Frequency Scanning
Extreme CPE Product Manual 83
Apply – Saves the specified bandwidth.
Discrete Frequencies – Delete a selected discrete frequency.
Delete All Discrete Frequencies – Deletes all discrete frequencies.

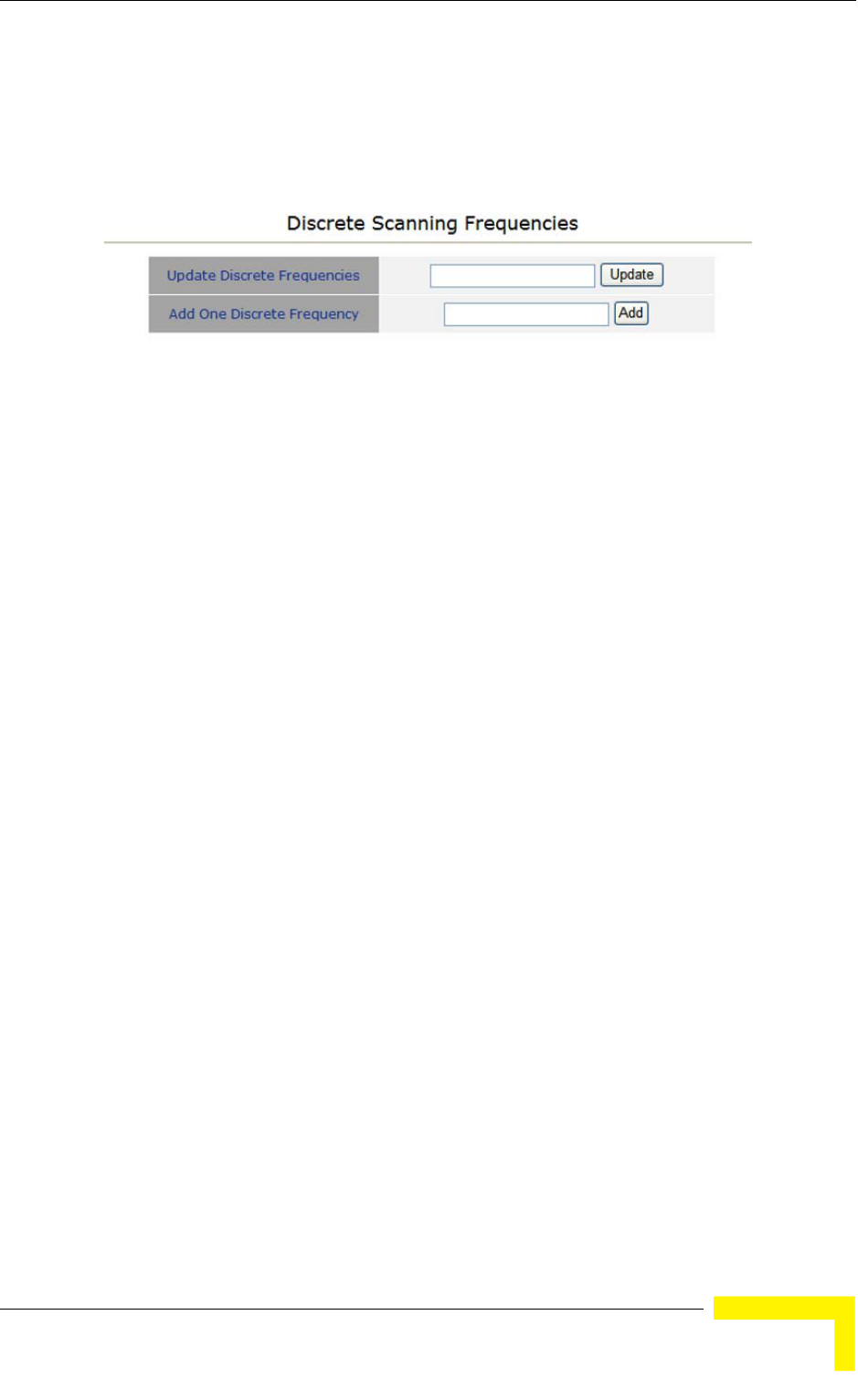

Figure 8-30: Radio - Discrete Scanning
DISCRETE SCANNING FREQUENCIES – Allows the user to enter up to 10
discrete frequencies to scan for a base station with. The frequecneis must comply
with the the supported hardware bands.
Update Discrete Frequencies – Enter up to 10 discrete frequencies,
separated by commas. The resolution used is 125KHz.
Update – Adds the frequencies and replaces any previous discrete frequency.
Add One Discrete Frequency – Adds one discrete frequecny to the list.
![](/img.php?id=1527417&img=bg6c.png)
84 Extreme CPE Product Manual
Chapter 8 - Radio Parameters
Figure 8-31: Radio - Scanning Table
SCANNING TABLE – The Scanning Table displays all frequencies and bandwidths
scanned by the Extreme CPE.
Rx Frequency(MHz) – Describes the receive frequency scanned.
Bandwidth – Describes the receive bandwidth scanned.
Figure 8-32: Radio - Best BS Scanning Table List
SCANNING TABLE – The Scanning Table displays all frequencies and bandwidths
scanned by the Extreme CPE.
BS ID –
![](/img.php?id=1527417&img=bg6d.png)
Frequency Scanning
Extreme CPE Product Manual 85
Rx Frequency(MHz) –
SNR(dB) –
Bandwidth –
Update Scanning Table –
Clear Best AU Table –
Force Full Scanning –
![](/img.php?id=1527417&img=bg6e.png)
86 Extreme CPE Product Manual
Chapter 8 - Radio Parameters
8.4 Antenna Selection
Antenna Selection displays the current antenna deployed by the Extreme CPE.
Figure 8-33: Radio - Antenna Selection
ANTENNA SELECTION – The Antenna Selection page displays information on the
antenna in use by the Extreme CPE.
Radio Status – Describes the status of the WiMAX radio.
Antenna – Describes the selection of antenna.
![](/img.php?id=1527417&img=bg70.png)
88 Extreme CPE Product Manual
Chapter 9 - ATPC
9.1 Introduction
The Adaptive Transmission Power Control (ATPC) page displays the WiMAX
transmit signal levels and allows configuration of the ATPC algorithm or disabling
of the feature.
ATPC provides system designers with the ability to dynamically control the
transmission power, and offers a register to specify the transmission power level
during runtime. It is desirable to specify the minimum transmission power level
that achieves the required communication reliability for the sake of saving power
and increasing the system lifetime.
Figure 9-34: ATPC Menu
![](/img.php?id=1527417&img=bg71.png)
ATPC Parameters
Extreme CPE Product Manual 89
9.2 ATPC Parameters
The Show All Parameters, ATPC page displays the transmit and receive data
levels.
Figure 9-35: ATPC - Show Parameters
ATPC – The Show All - ATPC (Automatic Transmitter Power Control) page displays
information on the transmitted signal.
Last Tx Rate – Describes the last detected tranmission rate.
Optimal Rx Rate – Describes the transmission rate best suited to the
connection.
ATPC – Describes the level of automatic transmitter power control.
Tx Power – Describes the transmission power level.
![](/img.php?id=1527417&img=bg72.png)
90 Extreme CPE Product Manual
Chapter 9 - ATPC
9.3 ATPC Configuration
The Multi rate and ATPC Parameters page enables the user to view the
transmission (Tx) and reception (Rx) power levels, their optimum levels, radio
band, and allows enabling or disabling of the ATPC feature, as well as setting of
the the transmission power level.
Once enabled the ATPC feature implements a power control algorithm for the
WiMAX network. The result of applying ATPC is that every node knows the proper
transmission power level to use for each of its neighbours, and every node
maintains good link qualities with its neighbours by dynamically adjusting the
transmission power through on-demand feedback packets.
Uniquely, ATPC adopts a feedback-based and pairwise transmission power
control. By collecting the link quality history, ATPC builds a model for each
neighbor of the node. This model represents an in-situ correlation between
transmission power levels and link qualities. With such a model, ATPC tunes the
transmission power according to monitored link quality changes. The changes of
transmission power level reflect changes in the surrounding environment.
Figure 9-36: ATPC - Configuration
MULTI RATE / ATPC – The Multi rate and ATPC Parameters page displays
information on the transmitted and received signals, allows enabling of the ATPC
algorithm and setting of the transmission power level.
Last Tx Rate – Describes the last transmission power rate.
Optimal Rx Rate – Describes the optimal receive signal stregth.
![](/img.php?id=1527417&img=bg73.png)
ATPC Configuration
Extreme CPE Product Manual 91
ATPC – Describes the status of the ATPC algorithm.
Tx Power – Describes the mean transmission power rate.
Current Radio Band – Describes the current radio band in GHz.
Tx Power Range (dBm) – Describes the transmission power range in dBm.
ATPC – Allows the user to enable or disable the ATPC algorithm.
Set Tx Power – Allows the user to set the transmission power rate.
Apply – Applies all modified parameters.
![](/img.php?id=1527417&img=bg74.png)
92 Extreme CPE Product Manual
Chapter 9 - ATPC
![](/img.php?id=1527417&img=bg76.png)
94 Extreme CPE Product Manual
Chapter 10 - Performance Monitor
10.1 Introduction
The Performance Monitor Page displays performance monitoring of link quality,
Ethernet counters, link history, Ethernet history, integration times and spectrum
analyser for fault management. The Extreme CPE collects data on a regular basis
and is able to deliver the data to the Access Control Server NMS (Network
Management Station) upon request.
Figure 10-37: Performance Monitor Menu
![](/img.php?id=1527417&img=bg77.png)
Link Quality Counters
Extreme CPE Product Manual 95
10.2 Link Quality Counters
The Link Quality On-Line Display page displays the SNR (signal to noise ratio),
RSSI (receive signal strength indication), and Tx/Rx data levels.
Figure 10-38: Performance Monitor - Link Quality
ONLINE LINK QUALITY – The Link Quality On-Line Display displays information
related to the quality of the link between the Extreme CPE and the base station.
DL Median SNR (dB) – Displays the median level of the downlink (DL)
Signal-to-Noise (SNR) ratio, measured over a duration of two seconds. The
figure will refresh every two seconds.
DL Median RSSI (dBm) – Displays the median level of the downlink Receive
Signal Strength Indicator (RSSI), measured over a duration of two seconds.
The figure will refresh every two seconds.
Median Rx Rate – Displays the current average data rate of the WiMAX link in
Megabits per second, measured over a duration of two seconds. The figure will
refresh every two seconds.
Last Rx Rate – Displays the strength of the received signal in Megabits per
second, measured over a duration of two seconds. The figure will refresh every
two seconds.
![](/img.php?id=1527417&img=bg78.png)
96 Extreme CPE Product Manual
Chapter 10 - Performance Monitor
Maximum Rx Rate – Displays the upper maximum of the received signal
strength detected over a duration of two seconds. The figure will refresh every
two seconds.
Minimum Rx Rate – Displays the lowest received signal strength detected
over a duration of two seconds. The figure will refresh every two seconds.
UL SNR (dB) – Displays the median uplink (UL) Signal-to-Noise Ratio received
by the base station, measured over a duration of two seconds. The figure will
refresh every two seconds.
UL RSSI (dBm) – Displays the median uplink Receive Signal Strength
Indicator received by the base station, measured over a duration of two
seconds. The figure will refresh every two seconds.
Median Tx Rate – Displays the median transmit data rate of the Extreme CPE
in Megabits per second, measured over a duration of two seconds. The figure
will refresh every two seconds.
Last Tx Rate – Displays the most recent transmit data rate of the Extreme
CPE in Megabits per second, measured over the last two seconds. The figure
will refresh every two seconds.
Maximum Rx Rate – Displays the maximum receive data rate of the Extreme
CPE in Megabits per second, measured over a duration of two seconds. The
figure will refresh every two seconds.
Minimum Rx Rate – Displays the mimimum receive data rate of the Extreme
CPE in Megabits per second, measured over a duration of two seconds. The
figure will refresh every two seconds.
![](/img.php?id=1527417&img=bg79.png)
Ethernet Counters
Extreme CPE Product Manual 97
10.3 Ethernet Counters
The Ethernet On-Line Counters page displays RX and Tx levels for the Ethernet
connection.
Figure 10-39: Performance Monitor - Online Counters
ETHERNET ON-LINE COUNTERS – The Ethernet On-Line Counters page
describes the incremental statistical values of the LAN and WAN ports.
Rx LAN Port Bit Rate – Displays the received bit rate of the Ethernet LAN
port. The figure will refresh every two seconds.
Rx LAN Packet Rate – Displays the received packet rate of the Ethernet LAN
port. The figure will refresh every two seconds.
Tx LAN Port Bit Rate – Displays the transmitted bit rate of the Ethernet LAN
port. The figure will refresh every two seconds.
Tx LAN Packet Rate – Displays the transmitted packet rate of the Ethernet
LAN port. The figure will refresh every two seconds.
Rx LAN Port Total Bytes – Displays the received byte rate of the Ethernet LAN
port. The figure will refresh every two seconds.
![](/img.php?id=1527417&img=bg7a.png)
98 Extreme CPE Product Manual
Chapter 10 - Performance Monitor
Rx LAN Port Total Packets – Displays the total received packets of the
Ethernet LAN port. The figure will refresh every two seconds.
Tx LAN Port Total Bytes – Displays the transmitted byte rate of the Ethernet
LAN port. The figure will refresh every two seconds.
Tx LAN Port Total Packets – Displays the total number of packets
transmitted by the Ethernet LAN port. The figure will refresh every two
seconds.
Rx WAN Port Bit Rate – Displays the received bit rate of the WiMAX WAN
port. The figure will refresh every two seconds.
Rx WAN Packet Rate – Displays the received packet rate of the WiMAX WAN
port. The figure will refresh every two seconds.
Tx WAN Port Bit Rate – Displays the transmitted bit rate of the WiMAX WAN
port. The figure will refresh every two seconds.
Tx WAN Packet Rate – Displays the transmitted packet rate of the WiMAX
WAN port. The figure will refresh every two seconds.
Rx WAN Port Total Bytes – Displays the total bytes received on the WiMAX
WAN port. The figure will refresh every two seconds.
Rx WAN Port Total Packets – Displays the total packets received on the
WiMAX WAN port. The figure will refresh every two seconds.
Tx WAN Port Total Bytes – Displays the total bytes transmitted by the
WiMAX WAN port. The figure will refresh every two seconds.
Tx WAN Port Total Packets – Displays the total number of packets
transmitted by the WiMAX WAN port. The figure will refresh every two
seconds.
![](/img.php?id=1527417&img=bg7b.png)
Link Historical
Extreme CPE Product Manual 99
10.4 Link Historical
The Link Quality Historical Counters page allows you to set a start/stop time and
date for monitoring WiMAX link quality statisitics.
Figure 10-40: Performance Monitor - Link Historical
LINK QUALITY HISTORICAL COUNTERS – The Link Quality Historical Counters
page allows the user to modify the time over which to monitor the WiMAX link and
to display WiMAX receive/transmit link statistics. The user may configure up to
96 Historical Counters, the amalgamation of which will be displayed as averages
in the display-only parameters below. Between the dates chosen a frequency of
monitoring for information can be set on the Integration Time page.
Start Time & Date – Allows the user to enter the year, month, day, hour,
minute and second on which to start monitoring the WiMAX link.
Stop time & date – Allows the user to enter the year, month, day, hour,
minute and second on which to stop monitoring the WiMAX link.
DL Median SNR (dB) – Displays the median downlink (DL) Signal-to-Noise
Ratio for the selected time period.
![](/img.php?id=1527417&img=bg7c.png)
100 Extreme CPE Product Manual
Chapter 10 - Performance Monitor
DL Median RSSI (dBm) – Displays the downlink Receive Signal Strength
Indicator for the selected time period.
Median Rx Rate – Displays the average number of received data packets in
Megabits per second for the selected time period.
Last Rx Rate – Displays the last 1 or 15 minutes of received data, depending
on the configuiration of the Integration Time settings, in Megabits per second
for the selected time period.
Maximum Rx Rate – Displays the maximum received data rate in Megabits
per second, for the selected time period.
Minimum Rx Rate – Displays the minimum received data rate in Megabits per
second, for the selected time period.
UL SNR (dB) – Displays the median level of Signal-to-Noise Ratio received by
the base station from the Extreme CPE, for the selected time period.
UL RSSI (dBm) – Displays the median level of Receive Signal Strength
Indication that the base station detects from the Extreme CPE, for the selected
time period.
Median Tx Rate – Displays the average number of data packets transmitted in
Megabits per second, for the selected time period.
Last Tx Rate – Displays the last 1 or 15 minutes of data packets transmitted
in Megabits per second. The frequency for this parameter can be set on the
Integration Time page.
Maximum Tx Rate – Displays the maximum rate of data transfer for the
selected time period.
Minimum Tx Rate – Displays the minimum rate of data transfer for the
selected time period.
Apply – Applies the Ethernet Historical Counter setting and saves it.
![](/img.php?id=1527417&img=bg7d.png)
Ethernet Historical
Extreme CPE Product Manual 101
10.5 Ethernet Historical
The Link Quality Historical Counters page allows you to set a start/stop time and
date for monitoring Ethernet link quality statisitics.
Figure 10-41: Performance Monitor - Ethernet Historical
ETHERNET HISTORICAL COUNTERS – The Ethernet Historical Counters page
allows the user to modify the time over which to monitor the Ethernet link and to
display Ethernet receive/transmit link statistics.
Start Time & Date – Allows the user to enter the year, month, day, hour,
minute and second on which to start monitoring the Ethernet link.
Stop time & date – Allows the user to enter the year, month, day, hour,
minute and second on which to stop monitoring the Ethernet link.
Rx LAN Port Bit Rate – Displays the received bit rate of the Ethernet LAN
port, for the selected time period.
![](/img.php?id=1527417&img=bg7e.png)
102 Extreme CPE Product Manual
Chapter 10 - Performance Monitor
Rx LAN Port Packet Rate – Displays the received packet rate of the Ethernet
LAN port, for the selected time period.
Tx LAN Port Bit Rate – Displays the transmitted bit rate of the Ethernet LAN
port, for the selected time period.
Tx LAN Port Packet Rate – Displays the transmitted packet rate of the
Ethernet LAN port, for the selected time period.
Rx LAN Port Total Bytes – Displays the total bytes received by the Ethernet
LAN port, for the selected time period.
Rx LAN Port Total Packets – Displays the total number of packets received
by the Ethernet LAN port, for the selected time period.
Tx LAN Port Total Bytes – Displays the total bytes transmitted by the
Ethernet LAN port, for the selected time period.
Tx LAN Port Total Packets – Displays the total number of packets
transmitted by the Ethernet LAN port, for the selected time period.
Rx WAN Port Bit Rate – Displays the received bit rate of the WiMAX WAN
port, for the selected time period.
Rx WAN Packet Rate – Displays the received packet rate of the WiMAX WAN
port, for the selected time period.
Tx WAN Port Bit Rate – Displays the transmitted bit rate of the WiMAX WAN
port, for the selected time period.
Tx WAN Packet Rate – Displays the transmitted packet rate of the WiMAX
WAN port, for the selected time period.
Rx WAN Port Total Bytes – Diplays the total number of bytes received by the
WiMAX WAN port, for the selected time period.
Rx WAN Port Total Packets – Displays the total number of packets received
by the WiMAX WAN port, for the selected time period.
Tx WAN Port Total Bytes – Displays the total number of bytes transmitted by
the WiMAX WAN port, for the selected time period.
![](/img.php?id=1527417&img=bg7f.png)
Ethernet Historical
Extreme CPE Product Manual 103
Tx WAN Port Total Packets – Displays the total number of packets
transmitted by the WiMAX WAN port, for the selected time period.
![](/img.php?id=1527417&img=bg80.png)
104 Extreme CPE Product Manual
Chapter 10 - Performance Monitor

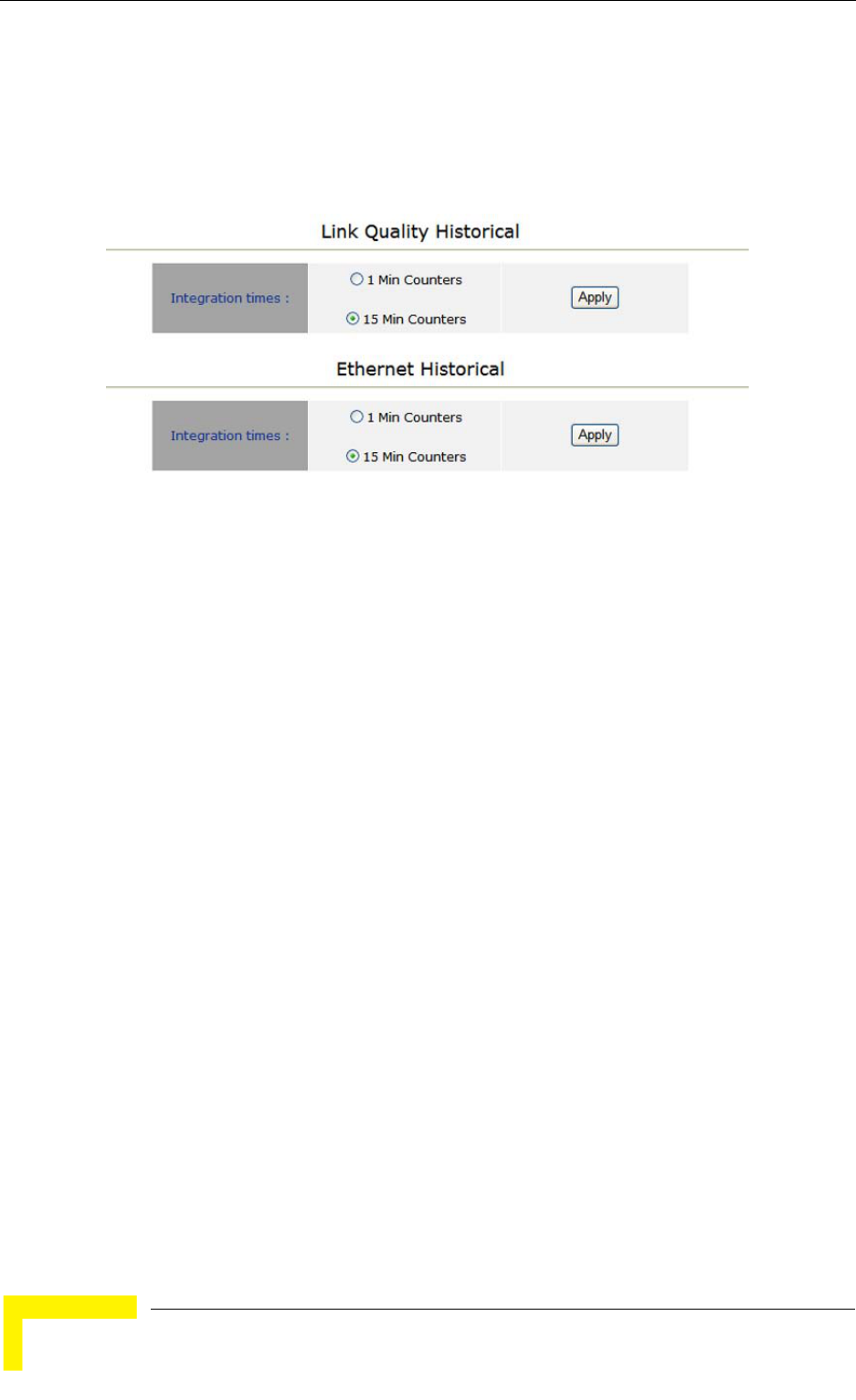

10.6 Integration Time
The Integration Time page allows you to set the frequency with which the Extreme
CPE will monitor traffic statistics on both the WiMAX link and Ethernet link.
Figure 10-42: Performance Monitor - Integration Time
LINK QUALITY HISTORICAL – The Link Quality Historical page allows the user
to define a time period for monitoring the WiMAX WAN port link.
1 Min Counters – Sets the counter to a duration of one minute.
15 Min Counters – Sets the counter to a duration of fifteen minutes.
Apply – Applies the chosen setting.
ETHERNET HISTORICAL – The Ethernet Historical page allows the user to define
a time period for monitoring the Ethernet LAN port link.
1 Min Counters – Sets the counter to a duration of one minute.
15 Min Counters – Sets the counter to a duration of fifteen minutes.
Apply – Applies the chosen setting.
![](/img.php?id=1527417&img=bg81.png)
Spectrum Analyzer
Extreme CPE Product Manual 105
10.7 Spectrum Analyzer
The Spectrum Analyzer page allows the Extreme CPE to provide off line Spectrum
analyzing for walk test / drive test site surveying. The Spectrum analyzer runs an
off line frequency scanning from the WEB interface.
A spectrum analysis identifies, classifies, and finds sources of RF interferences
that impact the performance of WiMAX networks.
Figure 10-43: Performance Monitor - Spectrum Analyzer
![](/img.php?id=1527417&img=bg82.png)
106 Extreme CPE Product Manual
Chapter 10 - Performance Monitor
![](/img.php?id=1527417&img=bg84.png)
108 Extreme CPE Product Manual
Chapter 11 - Service
11.1 Introduction
The Service page allows configuration of VLANs and DSCP parameters.
Figure 11-44: Service Menu
![](/img.php?id=1527417&img=bg85.png)
Show Service
Extreme CPE Product Manual 109
11.2 Show Service
The Show All parameters, Service Parameters page displays the service line count
and the operation mode.
Figure 11-45: Service - Show Service Parameters
![](/img.php?id=1527417&img=bg86.png)
110 Extreme CPE Product Manual
Chapter 11 - Service
11.3 Service Parameters
The Ethernet On-Line Counters page displays RX and Tx levels for the Ethernet
connection.
Figure 11-46: Service - Service Parameters
![](/img.php?id=1527417&img=bg88.png)
112 Extreme CPE Product Manual
Chapter 12 - Management
12.1 Introduction
The Management page displays system management statisitics.
Figure 12-47: Management Menu
![](/img.php?id=1527417&img=bg89.png)
Management Parameters
Extreme CPE Product Manual 113
12.2 Management Parameters
The Management Parameters page displays non-configurable DSCP and IP related
statistics.
Figure 12-48: Management - Management Parameters
![](/img.php?id=1527417&img=bg8a.png)
114 Extreme CPE Product Manual
Chapter 12 - Management
![](/img.php?id=1527417&img=bg8c.png)
116 Extreme CPE Product Manual
Chapter 13 - Logout
13.1 Logout
The Logout page enables you to log out of the web interface and terminate your
session. Logging out is proceeded by a prompt to log in again.
Figure 13-49: Logout
Figure 13-50: Login
![](/img.php?id=1527417&img=bg8d.png)
A
Appendix A - Troubleshooting
In This Chapter:
This appendix provides a lists of things to check in case of problems before
contacting local Technical Support.
![](/img.php?id=1527417&img=bg8e.png)
118 Extreme CPE Product Manual
Appendix A - Troubleshooting
Check the following before you contact local Technical Support.
1If you cannot access the Internet from the PC, check the following:
If you cannot access the Internet, be sure your WIndows system is
correctly configured for TCP/IP. The IP settings should be set to “obtain an
IP address automatically.”
The WAN Type settings for the service provider may not be configured
correctly. Use the web interface to check that the WAN settings match
those provided by the service provider.
You may be out of the service area of the WiMAX base station. Check with
the WiMAX service provider for service coverage information.
If you cannot resolve the problem, check the System Status page of the web
interface and contact your WiMAX service provider.
2If the management interface cannot be accessed using a web browser:
Be sure the management station is correctly configured for TCP/IP. The IP
settings should be set to “obtain an IP address automatically.”
Try a Ping command from the management station to the unit’s IP address
to verify that the entire network path between the two devices is
functioning correctly.
Check that the management station has a valid network connection and
that the Ethernet port that you are using has not been disabled.
Check the network cabling between the management station and the unit.
If the problem is not resolved, try using a different port or a different cable.
3Forgot or Lost the Password
Set the unit to its default configuration by pressing the reset button on the
back panel for 5 seconds or more. Then use the default password “admin”
to access the management interface.
4If all other recovery measures fail and the unit is still not functioning properly,
take either of these steps:
Reset the unit using the web interface, or through a power reset.
![](/img.php?id=1527417&img=bg8f.png)
Extreme CPE Product Manual 119
Table A-1: Troubleshooting Chart
Ports Description
POWER LED is Off AC power adapter may be disconnected. Check
connections between the unit, the AC power adapter, and
the wall outlet.
The unit has detected a system error. Reboot the unit to try
and clear the condition.
If the condition does not clear, contact your local dealer for
assistance.
ETH link LED is Off Verify that the unit and attached device are powered on.
Be sure the cable is plugged into both the unit and
corresponding device.
Verify that the proper cable type is used and its length
does not exceed specified limits.
Check the cable connections for possible defects. Replace
the defective cable if necessary.
![](/img.php?id=1527417&img=bg91.png)
B
Appendix B - GNU License
In This Chapter:
This appendix provides summary of the terms and conditions of use of the GNU
license that applies to the software on the Extreme CPE.
![](/img.php?id=1527417&img=bg92.png)
122 Extreme CPE Product Manual
Appendix B - GNU License
This product includes copyrighted third-party software subject to the terms of the
GNU General Public License (GPL), GNU Lesser General Public License (LGPL), or
other related free software licences. The GPL code used in this product is
distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or
more authors. For details, refer to the section “The GNU General Public License”
below, or refer to the applicable licence as included in the source-code archive.
B.1 The GNU General Public License
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.
59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Everyone is permitted to copy and distribute verbatim copies of this license
document, but changing it is not allowed.
![](/img.php?id=1527417&img=bg93.png)
The GNU General Public License
Extreme CPE Product Manual 123
B.1.1 Preamble
The licenses for most software are designed to take away your freedom to share
and change it. By contrast, the GNU General Public License is intended to
guarantee your freedom to share and change free software--to make sure the
software is free for all its users. This General Public License applies to most of the
Free Software Foundation's software and to any other program whose authors
commit to using it. (Some other Free Software Foundation software is covered by
the GNU Library General Public License instead.) You can apply it to your
programs, too.
When we speak of free software, we are referring to freedom, not price. Our
General Public Licenses are designed to make sure that you have the freedom to
distribute copies of free software (and charge for this service if you wish), that you
receive source code or can get it if you want it, that you can change the software
or use pieces of it in new free programs; and that you know you can do these
things.
To protect your rights, we need to make restrictions that forbid anyone to deny
you these rights or to ask you to surrender the rights. These restrictions translate
to certain responsibilities for you if you distribute copies of the software, or if you
modify it.
For example, if you distribute copies of such a program, whether gratis or for a
fee, you must give the recipients all the rights that you have. You must make sure
that they, too, receive or can get the source code. And you must show them these
terms so they know their rights.
We protect your rights with two steps: (1) copyright the software, and (2) offer you
this license which gives you legal permission to copy, distribute and/or modify the
software.
Also, for each author's protection and ours, we want to make certain that
everyone understands that there is no warranty for this free software. If the
software is modified by someone else and passed on, we want its recipients to
know that what they have is not the original, so that any problems introduced by
others will not reflect on the original authors' reputations.
Finally, any free program is threatened constantly by software patents. We wish
to avoid the danger that redistributors of a free program will individually obtain
patent licenses, in effect making the program proprietary. To prevent this, we
have made it clear that any patent must be licensed for everyone's free use or not
licensed at all.
![](/img.php?id=1527417&img=bg94.png)
124 Extreme CPE Product Manual
Appendix B - GNU License
The precise terms and conditions for copying, distribution and modification
follow.
B.1.2 GNU GENERAL PUBLIC LICENSE TERMS AND
CONDITIONS FOR COPYING, DISTRIBUTION
AND MODIFICATION
This License applies to any program or other work which contains a notice placed
by the copyright holder saying it may be distributed under the terms of this
General Public License. The "Program", below, refers to any such program or
work, and a "work based on the Program" means either the Program or any
derivative work under copyright law: that is to say, a work containing the Program
or a portion of it, either verbatim or with modifications and/or translated into
another language. (Hereinafter, translation is included without limitation in the
term "modification".) Each licensee is addressed as "you".
Activities other than copying, distribution and modification are not covered by this
License; they are outside its scope. The act of running the Program is not
restricted, and the output from the Program is covered only if its contents
constitute a work based on the Program (independent of having been made by
running the Program). Whether that is true depends on what the Program does.
You may copy and distribute verbatim copies of the Program's source code as you
receive it, in any medium, provided that you conspicuously and appropriately
publish on each copy an appropriate copyright notice and disclaimer of warranty;
keep intact all the notices that refer to this License and to the absence of any
warranty; and give any other recipients of the Program a copy of this License along
with the Program.
You may charge a fee for the physical act of transferring a copy, and you may at
your option offer warranty protection in exchange for a fee.
You may modify your copy or copies of the Program or any portion of it, thus
forming a work based on the Program, and copy and distribute such modifications
or work under the terms of Section 1 above, provided that you also meet all of
these conditions:
You must cause the modified files to carry prominent notices stating that you
changed the files and the date of any change.
You must cause any work that you distribute or publish, that in whole or in part
contains or is derived from the Program or any part thereof, to be licensed as a
whole at no charge to all third parties under the terms of this License.
![](/img.php?id=1527417&img=bg95.png)
The GNU General Public License
Extreme CPE Product Manual 125
If the modified program normally reads commands interactively when run, you
must cause it, when started running for such interactive use in the most ordinary
way, to print or display an announcement including an appropriate copyright
notice and a notice that there is no warranty (or else, saying that you provide a
warranty) and that users may redistribute the program under these conditions,
and telling the user how to view a copy of this License. (Exception: if the
Program itself is interactive but does not normally print such an announcement,
your work based on the Program is not required to print an announcement.)
These requirements apply to the modified work as a whole. If identifiable sections
of that work are not derived from the Program, and can be reasonably considered
independent and separate works in themselves, then this License, and its terms,
do not apply to those sections when you distribute them as separate works. But
when you distribute the same sections as part of a whole which is a work based
on the Program, the distribution of the whole must be on the terms of this
License, whose permissions for other licensees extend to the entire whole, and
thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to
work written entirely by you; rather, the intent is to exercise the right to control
the distribution of derivative or collective works based on the Program.
In addition, mere aggregation of another work not based on the Program with the
Program (or with a work based on the Program) on a volume of a storage or
distribution medium does not bring the other work under the scope of this
License.
You may copy and distribute the Program (or a work based on it, under Section 2)
in object code or executable form under the terms of Sections 1 and 2 above
provided that you also do one of the following:
Accompany it with the complete corresponding machine-readable source code,
which must be distributed under the terms of Sections 1 and 2 above on a
medium customarily used for software interchange; or,
Accompany it with a written offer, valid for at least three years, to give any third
party, for a charge no more than your cost of physically performing source
distribution, a complete machine-readable copy of the corresponding source code,
to be distributed under the terms of Sections 1 and 2 above on a medium
customarily used for software interchange; or,
Accompany it with the information you received as to the offer to distribute
corresponding source code. (This alternative is allowed only for noncommercial
distribution and only if you received the program in object code or executable form
with such an offer, in accord with Subsection b above.)
![](/img.php?id=1527417&img=bg96.png)
126 Extreme CPE Product Manual
Appendix B - GNU License
The source code for a work means the preferred form of the work for making
modifications to it. For an executable work, complete source code means all the
source code for all modules it contains, plus any associated interface definition
files, plus the scripts used to control compilation and installation of the
executable. However, as a special exception, the source code distributed need not
include anything that is normally distributed (in either source or binary form)
with the major components (compiler, kernel, and so on) of the operating system
on which the executable runs, unless that component itself accompanies the
executable.
If distribution of executable or object code is made by offering access to copy from
a designated place, then offering equivalent access to copy the source code from
the same place counts as distribution of the source code, even though third
parties are not compelled to copy the source along with the object code.
You may not copy, modify, sublicense, or distribute the Program except as
expressly provided under this License. Any attempt otherwise to copy, modify,
sublicense or distribute the Program is void, and will automatically terminate
your rights under this License. However, parties who have received copies, or
rights, from you under this License will not have their licenses terminated so long
as such parties remain in full compliance.
You are not required to accept this License, since you have not signed it.
However, nothing else grants you permission to modify or distribute the Program
or its derivative works. These actions are prohibited by law if you do not accept
this License. Therefore, by modifying or distributing the Program (or any work
based on the Program), you indicate your acceptance of this License to do so, and
all its terms and conditions for copying, distributing or modifying the Program or
works based on it.
Each time you redistribute the Program (or any work based on the Program), the
recipient automatically receives a license from the original licensor to copy,
distribute or modify the Program subject to these terms and conditions. You may
not impose any further restrictions on the recipients' exercise of the rights granted
herein. You are not responsible for enforcing compliance by third parties to this
License.
If, as a consequence of a court judgment or allegation of patent infringement or for
any other reason (not limited to patent issues), conditions are imposed on you
(whether by court order, agreement or otherwise) that contradict the conditions of
this License, they do not excuse you from the conditions of this License. If you
cannot distribute so as to satisfy simultaneously your obligations under this
License and any other pertinent obligations, then as a consequence you may not
distribute the Program at all. For example, if a patent license would not permit
![](/img.php?id=1527417&img=bg97.png)
The GNU General Public License
Extreme CPE Product Manual 127
royalty-free redistribution of the Program by all those who receive copies directly
or indirectly through you, then the only way you could satisfy both it and this
License would be to refrain entirely from distribution of the Program.
If any portion of this section is held invalid or unenforceable under any particular
circumstance, the balance of the section is intended to apply and the section as a
whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other
property right claims or to contest validity of any such claims; this section has the
sole purpose of protecting the integrity of the free software distribution system,
which is implemented by public license practices. Many people have made
generous contributions to the wide range of software distributed through that
system in reliance on consistent application of that system; it is up to the
author/donor to decide if he or she is willing to distribute software through any
other system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a
consequence of the rest of this License.
If the distribution and/or use of the Program is restricted in certain countries
either by patents or by copyrighted interfaces, the original copyright holder who
places the Program under this License may add an explicit geographical
distribution limitation excluding those countries, so that distribution is permitted
only in or among countries not thus excluded. In such case, this License
incorporates the limitation as if written in the body of this License.
The Free Software Foundation may publish revised and/or new versions of the
General Public License from time to time. Such new versions will be similar in
spirit to the present version, but may differ in detail to address new problems or
concerns.
Each version is given a distinguishing version number. If the Program specifies a
version number of this License which applies to it and "any later version", you
have the option of following the terms and conditions either of that version or of
any later version published by the Free Software Foundation. If the Program does
not specify a version number of this License, you may choose any version ever
published by the Free Software Foundation.
If you wish to incorporate parts of the Program into other free programs whose
distribution conditions are different, write to the author to ask for permission.
For software which is copyrighted by the Free Software Foundation, write to the
Free Software Foundation; we sometimes make exceptions for this. Our decision
will be guided by the two goals of preserving the free status of all derivatives of our
free software and of promoting the sharing and reuse of software generally.
![](/img.php?id=1527417&img=bg98.png)
128 Extreme CPE Product Manual
Appendix B - GNU License
NO WARRANTY
BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO
WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE
LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT
HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS"
WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE
RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH
YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST
OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN
WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY
MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE
LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR
INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF
DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY
YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH
ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
![](/img.php?id=1527417&img=bg99.png)
Glossary
100BASE-TX IEEE 802.3u specification for 100 Mbps Fast Ethernet over two
pairs of Category 5 or better UTP cable.
10BASE-T IEEE 802.3 specification for 10 Mbps Ethernet over two pairs
of Category 3 or better UTP cable
Advanced Encryption
Standard (AES)
An strong encryption algorithm that implements symmetric
key cryptography.
Authentication The process to verify the identity of a client requesting network
access. IEEE 802.11 specifies two forms of authentication:
open system and shared key.
Auto-negotiation Signalling method allowing each node to select its optimum
operational mode (speed and duplex mode) based on the
capabilities of the node to which it is connected.
Base Station A WIMAX service provider’s equipment that is installed at a
fixed location to provide network connectivity for subscriber
stations within a defined service area.
Broadcast Key Broadcast keys are sent to stations using 802.1X dynamic
keying. Dynamic broadcast key rotation is often used to allow
the access point to generate a random group key and
periodically update all key-management capable wireless
clients.
Customer Premise
Equipment (CPE)
Customer Premise Equipment: Communications equipment
that resides on the customer's premises.
Domain Name System
(DNS)
A system used for translating host names for network nodes
into IP addresses.
Dynamic Host Control
Protocol (DHCP)
Dynamic Host Configuration Protocol: Provides a framework for
passing configuration information to hosts on a TCP/IP
network. DHCP is based on the Bootstrap Protocol (BOOTP),
adding the capability of automatic allocation of reusable
network addresses and additional configuration options.
Ethernet A popular local area data communications network, which
accepts transmission from computers and terminals.
![](/img.php?id=1527417&img=bg9a.png)
130 Extreme CPE Product Manual
Glossary
Encryption Data passing between the SU-A-EZ and clients can use
encryption to protect from interception and evesdropping.
Extended Service Set
(ESS)
Extended Service Set: More than one wireless cell can be
configured with the same Service Set Identifier to allow mobile
users can roam between different cells with the Extended
Service Set.
Extensible Authentication
Protocol (EAP)
An authentication protocol used to authenticate network
clients. EAP is combined with IEEE 802.1X port authentication
and a RADIUS authentication server to provide “mutual
authentication” between a client, the access point, and the a
RADIUS server
File Transfer Protocol
(FTP)
File Transfer Protocol: A TCP/IP protocol used for file transfer.
Hypertext Transfer
Protocol (HTTP)
Hypertext Transfer Protocol: HTTP is a standard used to
transmit and receive all data over the World Wide Web.
IEEE 802.16e A standard that provides mobile broadband wireless access
using Scalable Orthogonal Frequency Division Multiple Access
(SOFDMA).
Local Area Network (LAN) Local Area Network: A group of interconnected computer and
support devices.
MAC Media Access Control: The lower of the two sub-layers of the
data link layer defined by the IEEE. The MAC sub-layer
handles access to shared media, such as whether token
passing or contention will be used.
MAC Address
Standardized data link layer address that is required for every
port or device that connects to a LAN. Other devices in the
network use these addresses to locate specific ports in the
network and to create and update routing tables and data
structures. MAC addresses are 6bytes long and are controlled
by the IEEE.
Network Time Protocol
(NTP)
NTP provides the mechanisms to synchronize time across the
network. The time servers operate in a
hierarchical-master-slave configuration in order to synchronize
local clocks within the subnet and to national time standards
via wire or radio.
![](/img.php?id=1527417&img=bg9b.png)
Glossary
Extreme CPE Product Manual 131
Orthogonal Frequency
Division Multiplexing
(OFDM)
Orthogonal Frequency Division Multiplexing: OFDM allows
multiple users to transmit in an allocated band by dividing the
bandwidth into many narrow bandwidth carriers.
Power Over Ethernet (PoE) Power over Ethernet: A specification for providing both power
and data to low-power network devices using a single Category
5 Ethernet cable. PoE provides greater flexibility in the locating
of Wi²s and network devices, and significantly decreased
installation costs.
RTS Threshold Transmitters contending for the medium may not be aware of
each other. RTS/CTS mechanism can solve this “Hidden Node
Problem.” If the packet size is smaller than the preset RTS
Threshold size, the RTS/CTS mechanism will NOT be enabled.
Service Set Identifier
(SSID)
An identifier that is attached to packets sent over the wireless
LAN and functions as a password for joining a particular radio
cell; i.e., Basic Service Set (BSS).
Session Key Session keys are unique to each client, and are used to
authenticate a client connection, and correlate traffic passing
between a specific client and the AU-EZ.
Shared Key A shared key can be used to authenticate each client attached
to a wireless network. Shared Key authentication must be used
along with the 802.11 Wireless Equivalent Privacy algorithm.
Simple Network
Management Protocol
(SNMP)
Simple Network Management Protocol: The application
protocol in the Internet suite of protocols which offers network
management services.
Simple Network Time
Protocol (SNTP)
SNTP allows a device to set its internal clock based on periodic
updates from a Network Time Protocol (NTP) server. Updates
can be requested from a specific NTP server, or can be received
via broadcasts sent by NTP servers.
Subscriber Station A general term for a customer’s WIMAX terminal equipment
that provides connectivity with a base station.
Subscriber Unit Alignment
Unit
(SAU)
An optional device that provides additional assistance in
aligning the ODU antenna.
Trivial File Transfer
Protocol (TFTP)
Trivial File Transfer Protocol: A TCP/IP protocol commonly
used for software downloads.
UTP Unshielded twisted-pair cable.
Wired Equivalent Privacy
(WEP)
Wired Equivalent Privacy: WEP is based on the use of security
keys and the popular RC4 encryption algorithm. Wireless
devices without a valid WEP key will be excluded from network
traffic.
![](/img.php?id=1527417&img=bg9d.png)
Index
Extreme CPE Product Manual 133
Numerics
10/100BASE-TX pin assignments, 30, 36
A
aligning the WiMAX antenna, 41
antenna alignment, WiMAX, 40
B
BreezeMAX approved cable suppliers, 38
BreezeMAX Pro range, 2
C
cable connections, ODU, 28
configuration and management, 6
configuration, initial setup, 43
E
electrical, 7
environment, 7
Ethernet cable, IDU to ODU, 28
G
GNU, 121
GNU license, 121, 122
I
IDU hardware description, 19
IDU, 10BASE-T/100BASE-TX LANports, 20
IDU, ODU port, 20
IDU, optional backup battery charger, 21
IDU, power socket, 21
initial setup, 43
installation requirements, 12
installation steps, 22
installation steps, IDU installation, 26
installation steps, IDU location, 26
installation steps, mount the ODU, 23
installation steps, ODU, 23
installation steps, ODU location, 23
M
MDI, RJ-45 pin configuration, 19
mechanical, 6
O
ODU, Ethernet port, 13
ODU, ground screw, 15
ODU, hardware description, 13
ODU, optional SAU, 17
ODU, optional tilt-mount bracket, 16
ODU, pole-mounting kit, 16
ODU, SAU port, 13
ODU, weatherproof covers, 14
ODU, WiMAX antenna, 13
P
packing list, 12
perparing Ethernet cables, 36
PoE, 20, 27
Power over Ethernet See PoE
R
RSSI BNC, 20, 75
S
specifications, 4
configuration and management, 6
electrical, 7
environmental, 7
mechanical, 6
radio, 4
sensitivity, 5
standards compliance, 8
specifications, VoIP, 5
specifications, WiMAX radio, 4
standards compliance, 8
T
troubleshooting, 117, 121
