Andrew Wireless System ION-B Extension Booster for cellular systems Installation Instruction

Contents

Installation Instruction

Installation Instruction
The Remote Unit, Extension Unit or Master Unit has to be
mounted by proffessionel / special trained installer.
1.1. HIGH POWER EU MECHANICAL INSTALLATION
1.1.1. Health and Safety for mechanical installation
Read and observe chapter 1.3 Health and Safety.
1. Caution: Risk of injury by the considerable weight of the unit falling. Ensure there is
adequate manpower to handle the weight of the system.
2. Caution: Risk of serious personal injury by equipment falling due to improper installation.
The installer must verify that the supporting surface will safely support the combined load
of the electronic equipment and all attached hardware and components. The screws and
dowels (wall anchors) used should also be appropriate for the structure of the supporting
wall.
1.1.2. Property Damage Warnings for Mechanical Installation
1. Attention: Do not install the unit in a way or at a place where the specifications outlined in
the Environmental and Safety Specifications leaflet of the supplier are not met.
2. Attention: Due to power dissipation, the Remote Unit may reach a very high temperature.
Ensure sufficient airflow for ventilation.
3. Notice: Exceeding the specified load limits may cause the loss of warranty.
4. Notice: When connecting and mounting the cables (RF, optical, mains, ...) ensure that no
water can penetrate into the unit through these cables.
5. Notice: If any different or additional mounting material is used, ensure that the mounting
remains as safe as the mounting designed by the manufacturer. The specifications for
stationary use of the Remote Unit must not be exceeded. Ensure that the static and
dynamic strengths are adequate for the environmental conditions of the site. The mounting
itself must not vibrate, swing or move in any way that might cause damage to the Remote
Unit.
Specified torques must be observed for certain mounting procedures according to the following table:
Type Pins Hex nuts Screws
Thread M 6 M 6 M6
Specified torques 3.3 N-m 3.3 N-m 3.3 N-m
1.2. ELECTRICAL INSTALLATION
1.2.1. Health and Safety for electrical installation
Read and observe chapter 1.3 Health and Safety.
1. Danger: Electrical hazard. Danger of death or fatal injury from electrical current. Obey all
general and regional installation and safety regulations relating to work on high voltage
installations, as well as regulations covering correct use of tools and personal protective
equipment.
2. Danger: Electrical hazard. Danger of death or fatal injury from electrical current inside the
unit in operation. Before opening the unit, disconnect mains power.
1.2.2. Property Damage Warnings for Electrical Installation
1. Attention: It is compulsory to ground (earth) the unit before connecting the power supply.
Grounding bolts are provided on the cabinet to connect the ground-bonding cable.
2. Attention: If the mains connector of the Remote Unit is not easily accessible, a disconnect
device in the mains power circuit must be provided within easy reach.
3. Attention: A connection of the mains supply to a power socket requires the power socket
to be nearby the Remote Unit.
4. Attention: Before connecting or disconnecting the mains connector at the Remote Unit,
ensure that mains power supply is disconnected.
5. Attention: Make sure that an appropriate circuit breaker acting as a disconnect device (as
required by IEC/EN60950-1) and an overcurrent limiting device are connected between
mains power and the Remote Unit.
6. Attention: Incorrectly wired connections can destroy electrical and electronic components.
7. Notice: Although the Remote Unit is internally protected against overvoltage, it is strongly
recommended to ground (earth) the antenna cables close to the antenna connectors of the
Remote Unit for protection against atmospheric discharge. In areas with strong lightning, it
is strongly recommended to install additional lightning protection.
8. Notice: To avoid corrosion at the connectors caused by electrochemical processes, the
material of the cable connectors must not cause a higher potential difference than 0.6 V
(see electrochemical contact series).
9. Notice: For unstabilized electric networks, which frequently generate spikes, the use of a
voltage limiting device is advised.
10. Notice: The unit complies with the surge requirement according to EN 61000-4-5 (fine
protection); however, installation of an additional medium (via local supply connection)
and/or coarse protection (external surge protection) is recommended depending on the
individual application in order to avoid damage caused by overcurrent.
11. Notice: Observe the labels on the front panels before connecting or disconnecting any
cables.

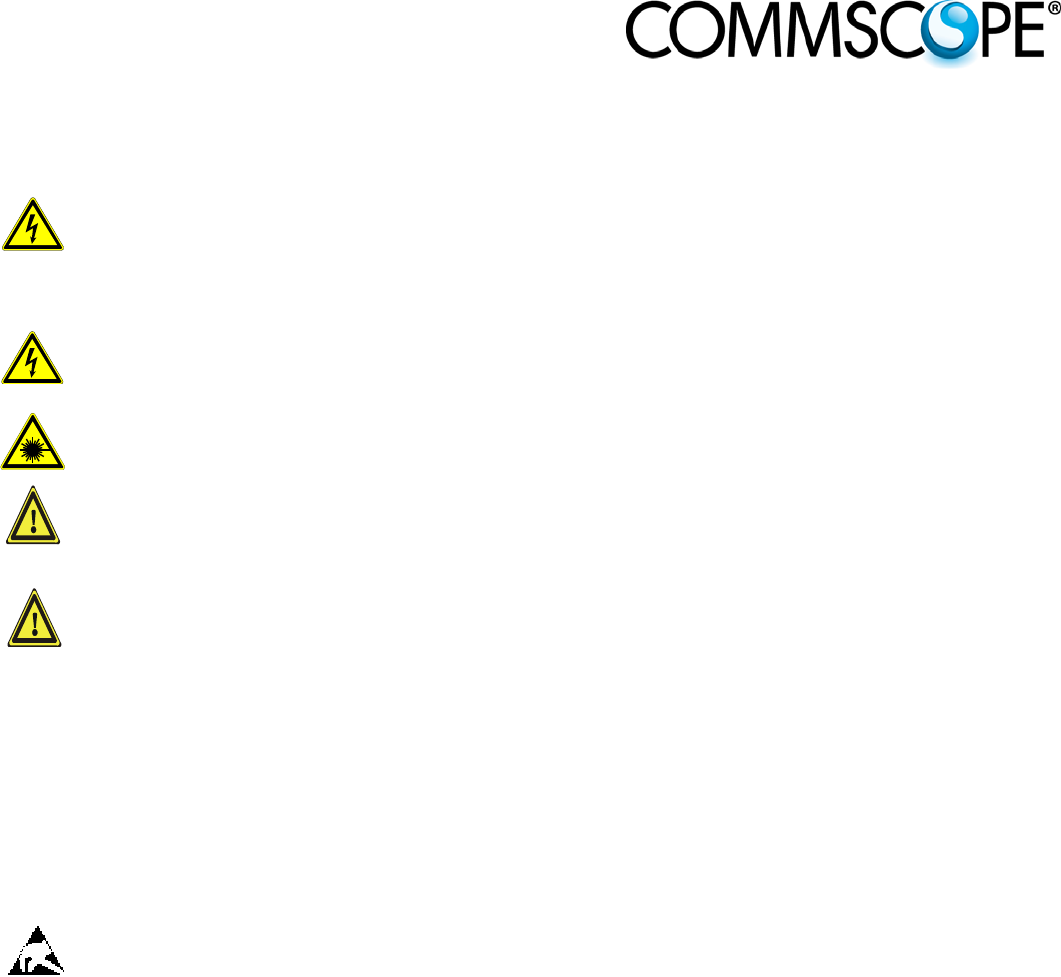

1.3. HEALTH AND SAFETY
1. Danger: Electrical hazard. Danger of death or fatal injury from electrical current. Obey all
general and regional installation and safety regulations relating to work on high voltage
installations, as well as regulations covering correct use of tools and personal protective
equipment.
2. Danger: Electrical hazard. Danger of death or fatal injury from electrical current inside the
unit in operation. Before opening the unit, disconnect mains power.
3. Caution: Laser radiation. Risk of eye injury in operation. Do not stare into the beam; do not view it
directly or with optical instruments.
4. Caution: High frequency radiation in operation. Risk of health hazards associated with radiation
from the unit’s inner conductor of the antenna port(s). Disconnect mains before connecting or
replacing antenna cables.
5. Caution: High frequency radiation in operation. Risk of health hazards associated with radiation
from the antenna(s) connected to the unit. Implement prevention measures to avoid the possibility of
close proximity to the antenna(s) while in operation.
1.3.1. Property Damage Warnings
1. Attention: Due to power dissipation, the Remote Unit may reach a very high temperature. Do not
operate this equipment on or close to flammable materials. Use caution when servicing the unit.
2. Notice: Although the Remote Unit is internally protected against overvoltage, it is strongly
recommended to ground (earth) the antenna cables close to the repeater’s antenna connectors for
protection against atmospheric discharge.
3. Notice: ESD precautions must be observed. Before commencing maintenance work, use the
available grounding (earthing) system to connect ESD protection measures.
4. Notice: Only suitably qualified personnel are allowed to work on this unit and only after becoming
familiar with all safety notices, installation, operation and maintenance procedures contained in this
manual.
5. Notice: Keep operating instructions within easy reach and make them available to all users.
6. Attention: Only authorized and trained personnel are allowed to open the unit and get access to the
inside.
7. Notice: Read and obey all the warning labels attached to the unit. Make sure that all warning labels
are kept in a legible condition. Replace any missing or damaged labels.
8. Notice: Only license holders for the respective frequency range are allowed to operate this unit.
9. Notice: Make sure the repeater settings are correct for the intended use (refer to the manufacturer
product information) and regulatory requirements are met. Do not carry out any modifications or fit
any spare parts, which are not sold or recommended by the manufacturer.
1.3.2. Compliance
1. Notice: For installations which have to comply with European EN50385 exposure compliance
requirements, the following Power Density limits/guidelines (mW/cm²) according to ICNIRP are
valid:
o 0.2 for frequencies from 10 MHz to 400 MHz
o F (MHz) / 2000 for frequencies from 400 MHz to 2 GHz
o 1 for frequencies from 2 GHz to 300 GHz
2. Notice: For installations, which have to comply with FCC RF exposure requirements, the
antenna selection and installation must be completed in a way to ensure compliance with
those FCC requirements. Depending on the RF frequency, rated output power, antenna
gain, and the loss between the repeater and antenna, the minimum distance D to be
maintained between the antenna location and human beings is calculated according to this
formula:
]/[
][
][
2
4cmmW
mW
cm PD
P
D
where
P (mW) is the radiated power at the antenna, i.e. the max. rated repeater output power in
addition to the antenna gain minus the loss between the repeater and the antenna.
PD (mW/cm²) is the allowed Power Density limit acc. to 47 CFR 1.1310 (B) for general
population / uncontrolled exposures which is
o F (MHz) / 1500 for frequencies from 300MHz to 1500MHz
o 1 for frequencies from 1500MHz to 100,000MHz
RF exposure compliance may need to be addressed at the time of licensing, as required by the
responsible FCC Bureau(s), including antenna co-location requirements of 1.1307(b)(3).
3. Notice: Installation of this equipment is in full responsibility of the installer, who has also
the responsibility, that cables and couplers are calculated into the maximum gain of the
antennas, so that this value, which is filed in the FCC Grant and can be requested from the
FCC data base, is not exceeded. The industrial boosters are shipped only as a naked
booster without any installation devices or antennas as it needs for professional installation.
4. Notice: Corresponding local particularities and regulations must be observed. For national
deviations, please refer to the respective documents included in the manual CD that is
delivered with the unit.
5. Note: For a Class A digital device or peripheral:
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
6. Note: This unit complies with European standard EN60950.

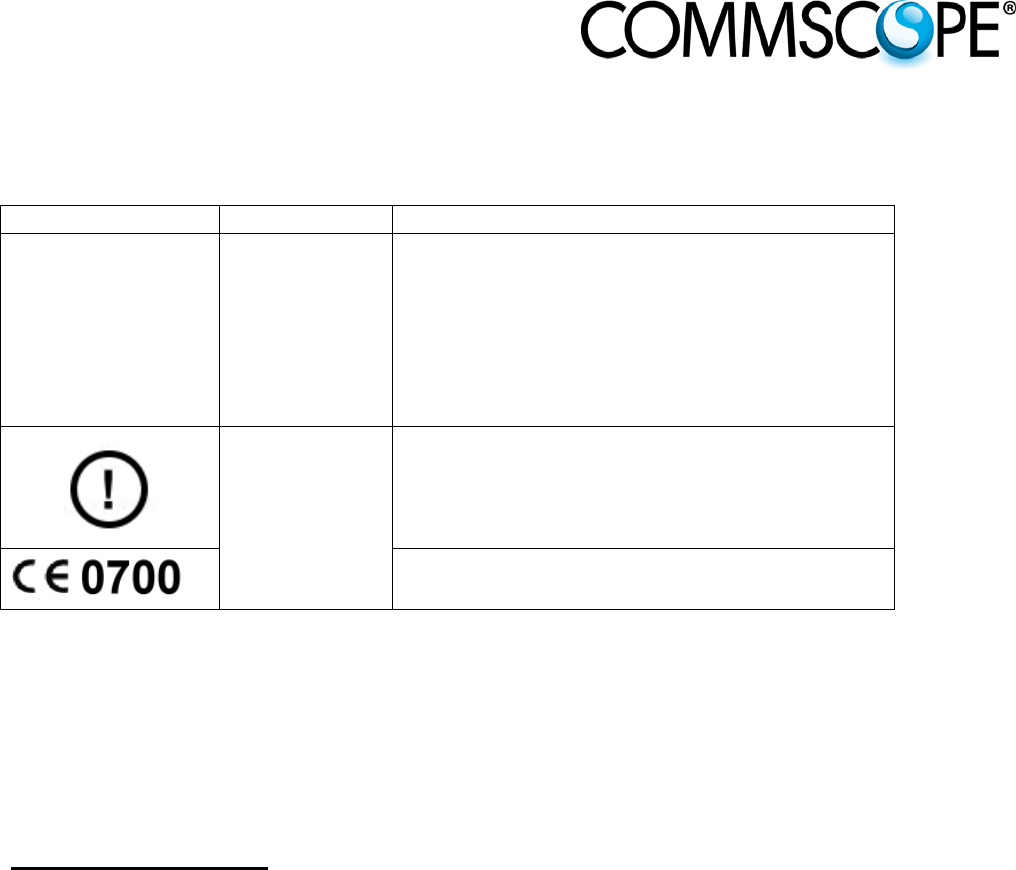

1.4. EQUIPMENT SYMBOLS USED / COMPLIANCE
Please observe the meanings of the following symbols used in our equipment and the compliance
warnings:
Symbol Compliance Meaning / Warning
--- FCC
For industrial (Part 20) signal booster:
WARNING: This is NOT a CONSUMER device. It is
designed for installation by FCC LICENSEES and
QUALIFIED INSTALLERS. You MUST have an FCC
LICENSE or express consent of an FCC Licensee to
operate this device. Unauthorized use may result in
significant forfeiture penalties, including penalties in
excess of $100,000 for each continuing violation.
CE
Alert sign to R&TTE
To be sold exclusively to mobile operators or authorized
installers – no harmonized frequency bands, operation
requires license. Intended use: EU and EFTA countries
Indicates conformity with the R&TTE directive 1999/5/EC
certified by the notified body no. 0700.
Please be aware that each country or governmental body has established its own specific limits for RF
exposure, to which the installation of any radiating antenna must conform. When installing your ION-B
system, take care to comply to your local regulations and guidelines about RF exposure limits.
Antenna installation must conform to the following guidelines to meet FCC and RSS RF exposure
limits, otherwise an environmental evaluation is required.
RSS Canadian standards
To meet RSS Canadian standard the following guidelines have to be taken into account:
For any situation where multiple carrier signals are present, take care to reduce the single-carrier
output rating at least by 3.5dB, especially when the output signal is reradiated and can cause
interference with adjacent band users. This power reduction can be achieved by reducing the
input power which enters the TFLN input ports, not through an attenuator at the output of the
ION-B devices.
