WirelessHD Tx/RX Box
User’s Manual
![](/img.php?id=1509951&img=bg2.png)
FCC Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.
![](/img.php?id=1509951&img=bg3.png)
IC Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B onforme á la norme NMB-003 du Canada.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts
de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire
de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
This device is not permitted for used on aircraft or satellites.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm between
the radiator & your body.
![](/img.php?id=1509951&img=bg4.png)
Index
1 Introduction ...................................................................................................................... 1
1.1 Product Layout ........................................................................................................ 1
1.2 Features ..................................................................................................................... 1
1.3 Package Content ..................................................................................................... 2
1.4 Specification Table ................................................................................................. 2
1.5 LED Indication.......................................................................................................... 3
1.6 Connectors and end-user interfaces ................................................................. 4
2 Installation Steps ............................................................................................................ 4
3 Important Notice .............................................................................................................. 6
![](/img.php?id=1509951&img=bg5.png)
1
1 Introduction
AW-WH036T and AW-WH036R is a whole set of WirelessHD products. They can
stream uncompressed audio and video up Full HD (FHD) resolution. It works at 60GHz
band which is available on an unlicensed basis in many regulatory domains with a
typical range of 10 meter.
AW-WH036T and AW-WH036R replaces the HDMI cable and simplifies home theater
system installation. The source devices, such as BD player or Set Top Box, don’t need
to be located near to the TV.
1.1 Product Layout
1.2 Features
Standard: WirelessHD 1.0
Frequency: 60GHz
Data Rate: 4Gbps
Distance: 10m (In Room)
No Video Compression
Latency: <1ms
Video Resolution:
Up to 1920 X 1080 Progressive (1080P)
~ 8 Channels Audio (32 ~ 192KHz)

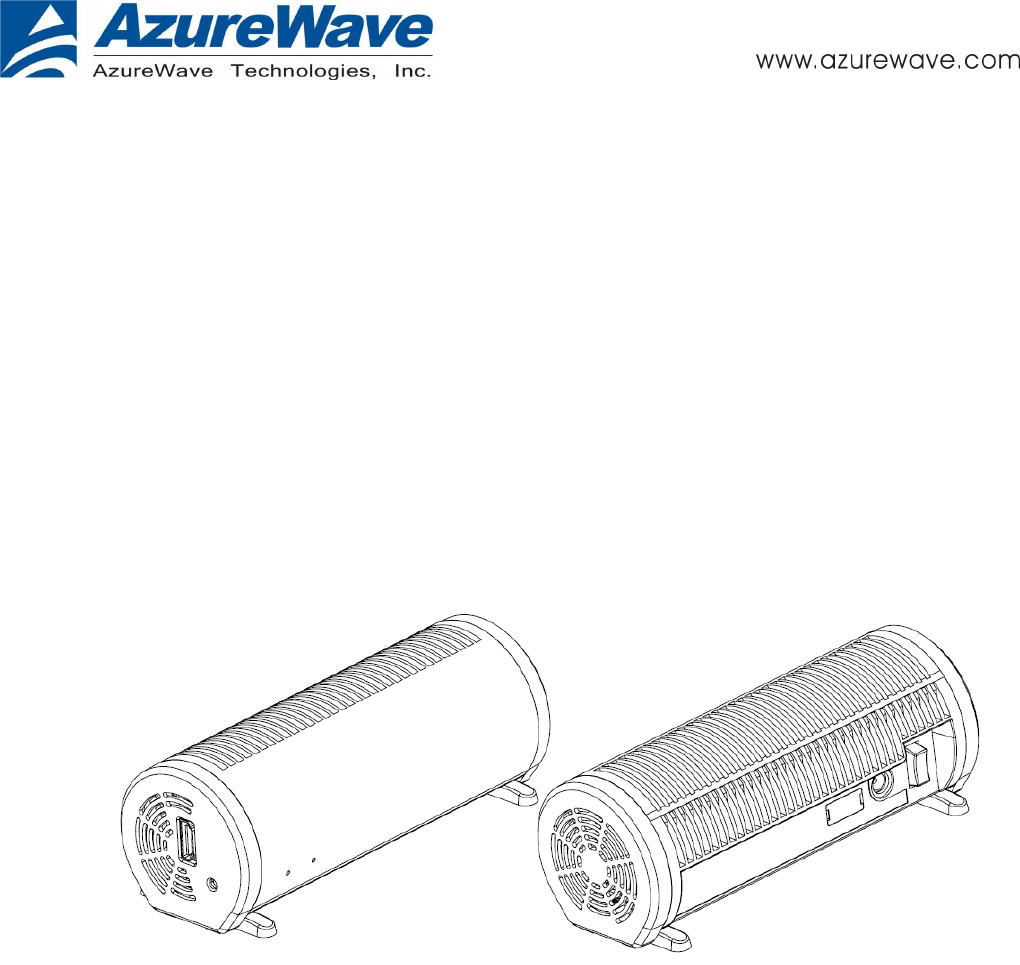

Front View Back View
![](/img.php?id=1509951&img=bg6.png)
2
Array Antenna
HDMI 1.3 Compatible
DTCP (Digital Transmission Content Protection):AES-128 CTR mode
HDCP 2.0 Support
1.3 Package Content
The package include the below package content:
One set of AW-WH036T and AW-WH036R
Power Adapter
User’s Manual
1.4 Specification Table
Model Name AW-WH036T & R
Product Description HDMI (type-A ) wireless module
WirelessHD Standard WirelessHD V1.0
HDMI Standard HDMI 1.3a
Interface HDMI (type-A )
Major Chipset
Tx:
SB9210A HRTX RF Transceiver
SB9220A HRTX Network Processor
AT91SAM7S256 Microcontroller
Rx:
SB9221A HRRX Network Processor
SB9211A HRRX RF Transceiver
AT91SAM7S256 Microcontroller
Dimension 139.9 x 23.6 x 11.08 mm(exclude heat sinks)
Antenna 32 Antenna Array support Beam-forming
Operating Conditions
Voltage 5V
Currency 2A
Operating Temperature 0~40℃
℃℃
℃
Connector Micro USB Connector
Display
Resolution
Support 480p/60Hz to 1080p/60Hz
Video Format
RGB: 4:4:4
![](/img.php?id=1509951&img=bg7.png)
3
YCbCr: 4:4:4
Audio
Channel
2~8
Sample Rate
32-192kHz
RF Specifications
Frequency Range 57~66GHz
Modulation HRP: OFDM with QPSK , 16-QAM
LRP: OFDM with BPSK
Occupied Bandwidth HRP:1.76Ghz
LRP: 92Mhz
Output Power HRP: TBD
LRP: TBD
Receive Sensitivity HRP: TBD
LRP: TBD
Data Rates HRP: Up to 3.807 Gb/s
LRP: Omni-directional mode Up to 10.168 Mb/s
Operating Range
Indoor: 10 m
(The transmission speed may vary according to the
environment)
Security DTCP: AES-128 CTR mode
HDCP 2.0
Operation & Storage Environment
Temperature Operating temperature: 0 ~ 45℃
℃℃
℃
Storage temperature: -10 ~ 60℃
℃℃
℃
Humidity Operating Humidity: 20 ~ 80 %RH
Storage Humidity: 10 ~ 90 %RH
Air pressure Operating Altitude: ~7500ft (2286m) (760hpa)
Storage Altitude: ~20000ft (6096m) (468hpa)
1.5 LED Indication
LED indicator Color Status Condition
Power Green On
Off
Power On
Power off
Link Orange ON
OFF
Connected
Not connected
![](/img.php?id=1509951&img=bg8.png)
4

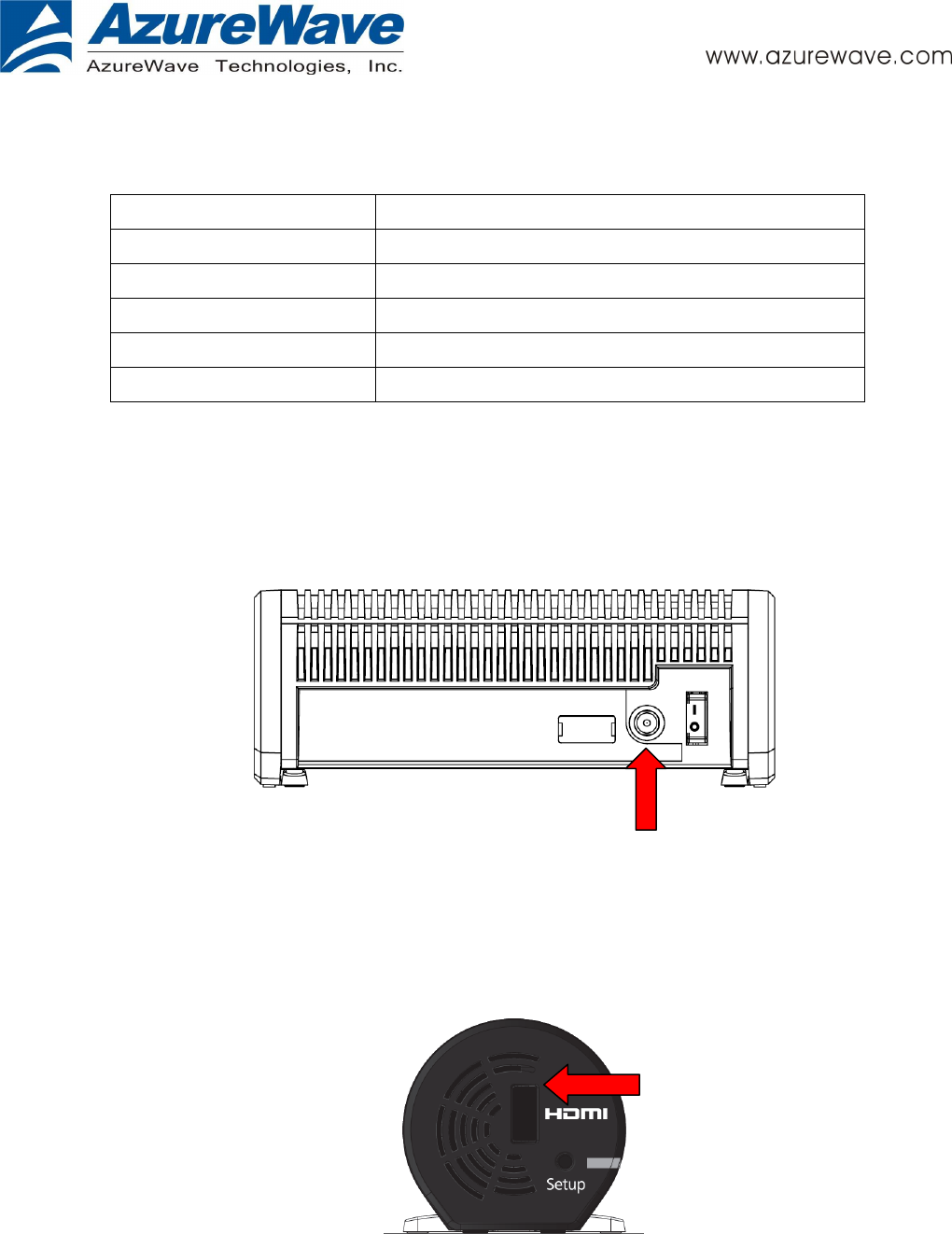

1.6 Connectors and end-user interfaces
Item Function
10-pin connector For upgrading firmware usage
DC Jack For power supply
HDMI Type A connector For HDMI input or output
Main Power Switch Switch between power on and power off
Push Button For setup application
2 Installation Steps
1. Remove the WirelessHD products and accessories from package
2. Connect the power adapter to the WirelessHD product and power outlet.
3. Connect HDMI connector on AW-WH036T to media source such as BD Player and
connect HDMI connector on AW-WH036R to flat panel display such as LCD TV by
HDMI cable.
4. Turn on power switch to be “on” status.
Connect to power outlet via power adaptor
AW-WH036T’s HDMI connector to media
source and AW-WH036R’s HDMI connector
to flat panel display by HDMI cables
![](/img.php?id=1509951&img=bg9.png)
5

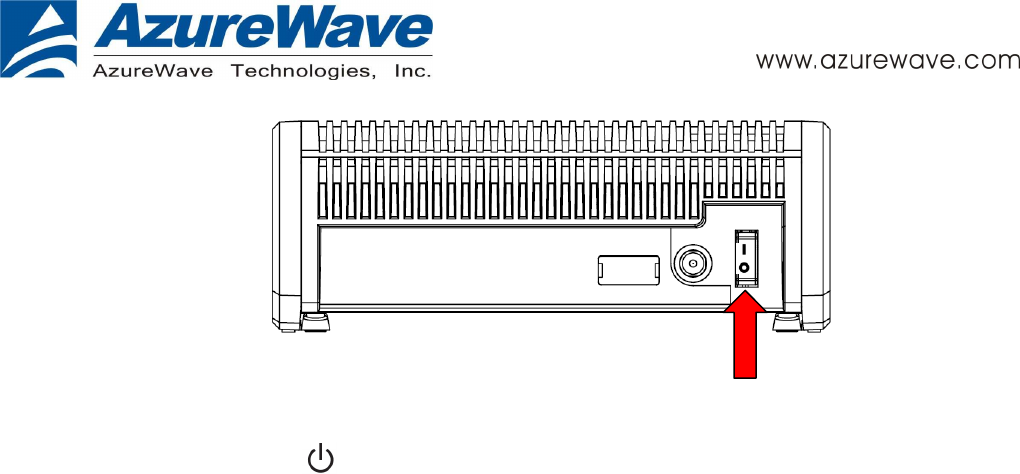

5. Make sure that “ ” in front side of WirelessHD product is “On”
6. After 10 ~ 30 seconds auto-connection, the orange LED will be “On”. it means that
the products begin working.
Switch to “On” status
![](/img.php?id=1509951&img=bga.png)
6
3 Important Notice
The Power adapter must be 5A / 2A.
The WirelessHD products are only for indoor use, the transmitting distance is
suggested to be less than 10 meters and no blocks between TX and RX.
Always check the LED lights for troubleshooting.
