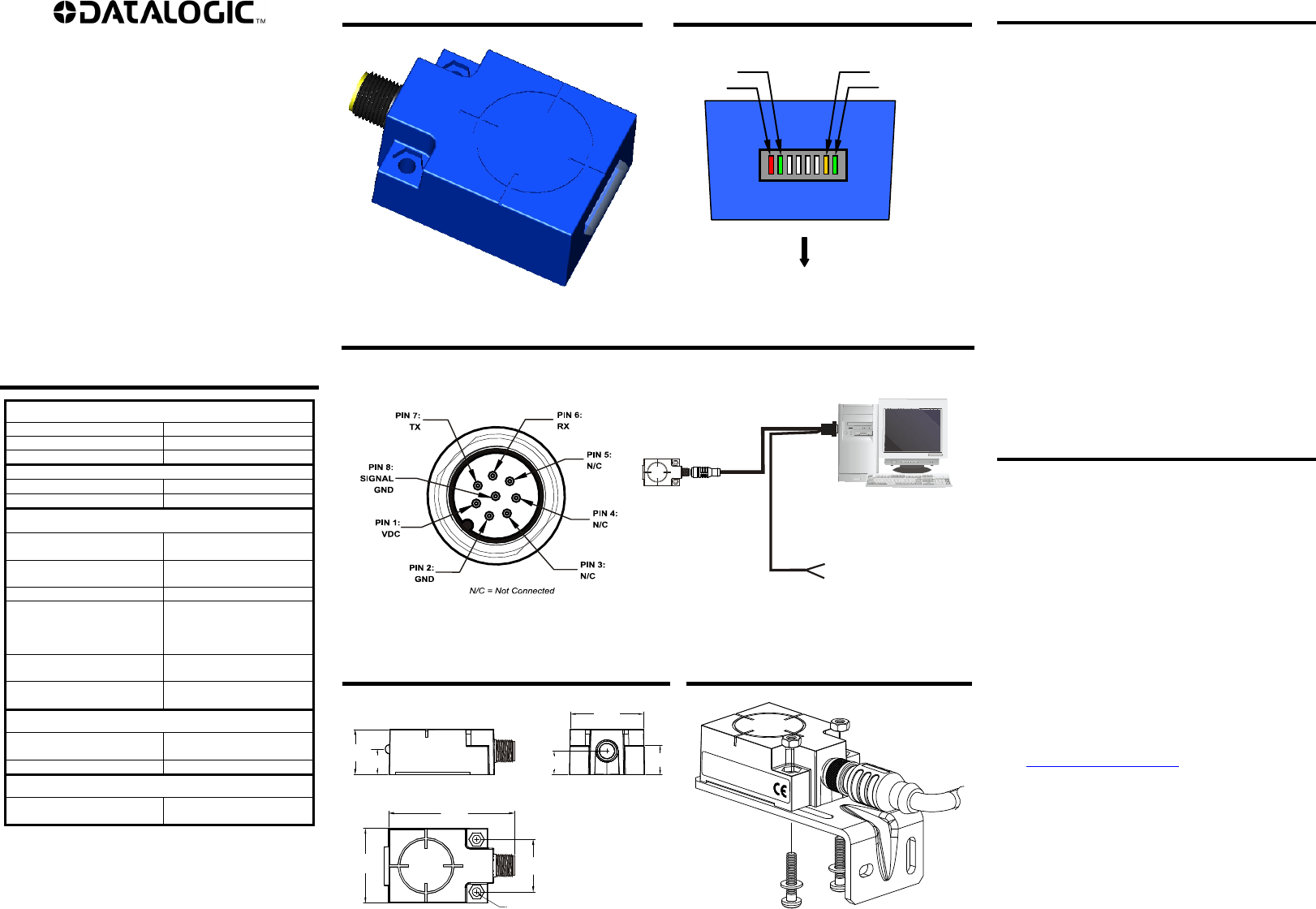

COBALT C0405-232-01
High Frequency Passive Radio Frequency,
Identification Controller
QUICK REFERENCE GUIDE
This document provides instructions and information designed
to assist users in the hardware setup of the Cobalt C0405-
232-01 RFID Controller. For configuration details download
the C-Series Reference Manual from the product page at
www.automation.datalogic.com.
TECHNICAL FEATURES
ELECTRICAL FEATURES
Power Supply 10 to 30 VDC
DC Input Current 150 to 60 mA
Communication Interface RS232
RADIO FEATURES
Frequency 13.56 MHz
Air Protocols ISO 14443A, ISO 15693
ENVIRONMENTAL FEATURES
Operating Temperature -20° to +50 °C
(-4° to +122 °F)
Storage Temperature -20° to +70 °C
(-4° to +158 °F)
Humidity max. 90% non condensing
Vibration Resistance
EN 60068-2-6
14 mm @ 2 to 10 Hz;
1.5 mm @ 13 to 55 Hz;
2 g @ 70 to 200 Hz;
2 hours on each axis
Shock Resistance
EN 60068-2-27
30 g; 11 ms;
3 shocks on each axis
Protection Class
EN 60529 IP67
PHYSICAL FEATURES
Dimensions 67 x 40 x 24 mm
(2.64 x 1.57 x .94 in)
Weight 47 g (1.7 oz)
USER INTERFACE
LED Indicators RF, COM, Operating
Mode/Diagnostic, Power
GENERAL VIEW LED INDICATORS
Antenna Field Top
Bottom
Power
COM
RF
RS232
C0405
CONNECTIVITY
Cobalt C0405-232-01
M12 8-pin Male Connector
Typical Layout
See the C-Series Reference Manual for a complete list of
accessories including alternative cables and connectors.
MECHANICAL DIMENSIONS MOUNTING
67
[2.64]
28
[1.10]
Ø4.5
[Ø.18]
MOUNTING HOLE 2X
40
12.5
[0.49]
39
.
2
[1.54]
15.5
[0.61
]
mm
[in]
24
14.3
[0.94]
[1.57]
[0.56]
INSTALLATION GUIDELINES
Select a suitable location to mount the C0405 Controller.
C0405 Series RFID Controllers can be mounted to wood
or plastic fixtures. The C0405 may be mounted
horizontally or vertically, but should be aligned in such a
manner that the LED indicators can be seen during
operation.
RF performance and read/write range can be negatively
impacted by the proximity of metallic objects. Avoid
mounting the controller within 5 cm (2 in.) of any metallic
object or surface.
Do not route cables near other unshielded cables or near
wiring carrying high voltage or high current. Cross cables
at perpendicular intersections and avoid routing cables
near motors and solenoids.
Avoid mounting the controller near sources of EMI
(electro-magnetic interference) or near devices that
generate high ESD (electro-static discharge) levels.
Always use adequate ESD prevention measures to
dissipate potentially high voltages.
If electrical interference is encountered (as indicated by a
significant reduction in read/write performance), relocate
the controller to an area free from potential sources of
interference.
When installing multiple RFID controllers that operate at
the same frequency (13.56 MHz), maintain a minimum
distance of 20 cm (8 in.) between adjacent RF devices.
INSTALLATION
1. Attach the C0405 Controller to the polycarbonate
mounting bracket (for metallic isolation) using the two
sets of M4 screws, washers and nuts provided as shown
in the mounting figure. Fasten the other end of the
mounting bracket to your work area. Tighten all screws to
0.7 Nm (6 lbs per inch).
2. Connect the CBL-1478 M12 8-pin female connector to
the M12 8-pin male connector on the C0405. Connect the
CBL-1478 9-pin female D-sub connector to an RS232
COM port on the host computer. Tighten the cable’s two
locking thumbscrews.
3. Connect the power supply to the VDC (red) and GND
(black) wires on the CBL-1478 cable.
4. Apply power to the controller after all cable connections
have been made. The LEDs on the unit will flash.
5. On the host computer, set COM port parameters to: 9600
baud, 8 data bits, 1 stop bit, no parity and no
handshaking.
To verify operations, download the Cobalt Dashboard™ Utility
from www.automation.datalogic.com. The Cobalt Dashboard™
Utility allows users to configure and control their C0405
controllers and send RFID commands for testing purposes.
CBL-1478
C0405
VDC (red)
GND (black) Power Supply
