Cobalt C1007-Series RFID Controllers -
Operators Manual
For Models: C1007-232/485/USB-01
Publication P/N: 17-1327 REV 02 (08/07)
![](/img.php?id=828605&img=bg3.png)
For C1007 models:
•C1007-232-01
•C1007-485-01
•C1007-USB-01

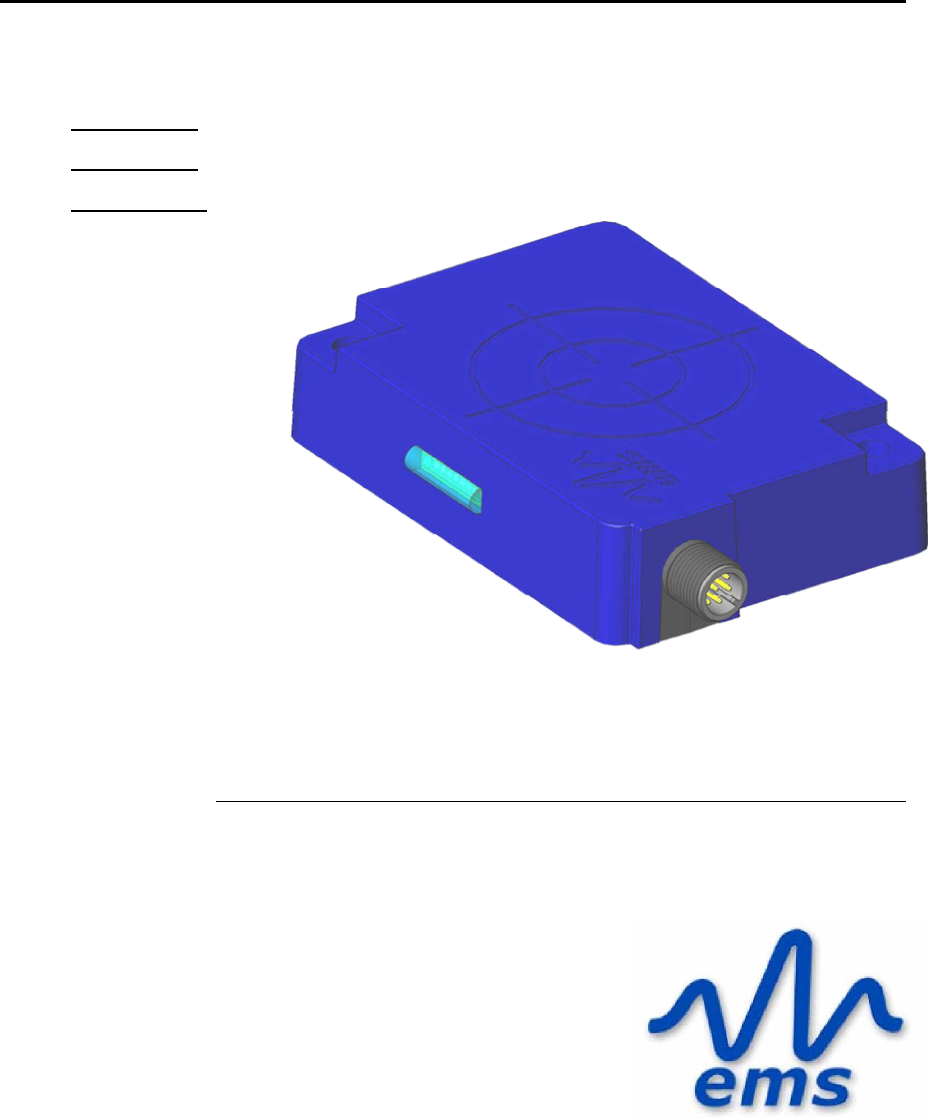

ESCORT MEMORY SYSTEMS
COBALT C1007-SERIES
RFID CONTROLLERS
High Frequency, Multi-Protocol, Passive RFID Controllers
OPERATORSMANUAL
How to Install, Configure and Operate
Cobalt C1007-Series RFID Controllers
REGULATORY COMPLIANCE -PENDING
FCC PART 15.105
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment uses, generates, and can radiate radio frequency energy and, if not
installed and used in accordance with these instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC PART 15.21
Users are cautioned that changes or modifications to the unit not expressly approved
by Escort Memory Systems may void the users authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference that may cause undesired operation.
This product complies with CFR Title 21 Part 15.225.
CE
This product complies with the following regulatory specifications: EN-300-330, EN-
300-683, EN 60950, IEC 68-2-1, IEC 68-2-6, IEC 68-2-27 and IEC 68-2-28.
TELEC
This product complies with TELEC Regulations for Enforcement of the Radio Law
Article 6, section 1, No. 1.
![](/img.php?id=828605&img=bg5.png)
CONTENTS
P/N: 17-1327 REV 02 (08/07) PAGE 5 OF 82
CONTENTS
CONTENTS .................................................................................... 5
LIST OF TABLES................................................................................................8
LIST OF FIGURES ..............................................................................................9
CHAPTER 1: GETTING STARTED ................................................10
1.1 INTRODUCTION........................................................................................10
1.1.1 Company Background ................................................................................................10
1.1.2 The C1007-Series RFID Controller ............................................................................. 10
1.1.3 Contents of the C1007 Package .................................................................................11
1.1.4 C1007 Features..........................................................................................................12
1.2 ABOUT THIS MANUAL...............................................................................13
1.2.1 Who Should Read this Manual?..................................................................................13
1.2.2 HEX Notation..............................................................................................................13
1.3 COMMUNICATION OPTIONS .......................................................................14
1.3.1 Connection and Communication Interface Options......................................................14
1.3.2 C1007 Controllers - Interface Connectors ...................................................................14
CHAPTER 2: INSTALLING THE C1007..........................................15
2.1 PREPARING FOR INSTALLATION.................................................................15
2.1.1 Installation Guidelines.................................................................................................15

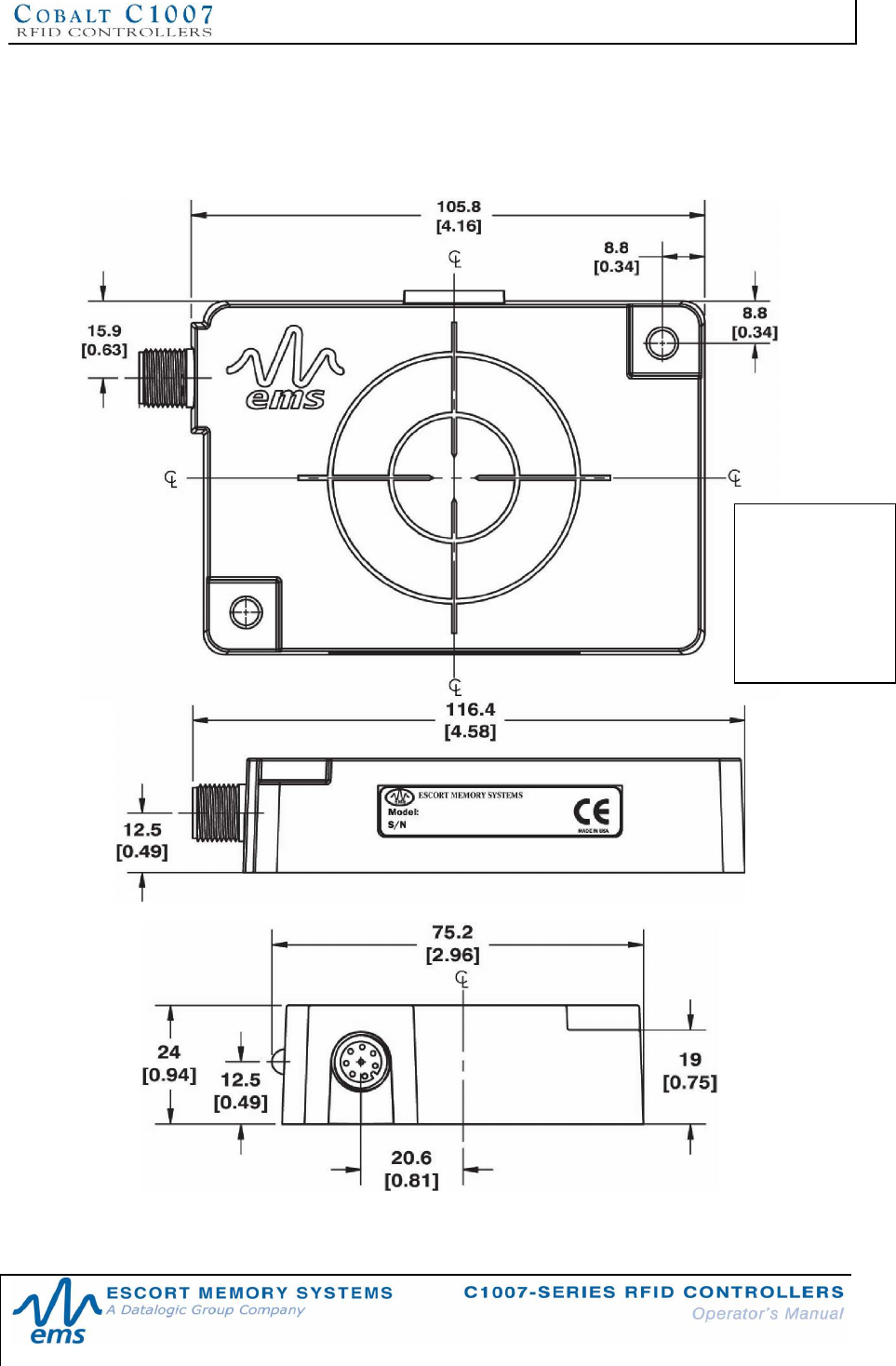

2.1.2 C1 00 7 Controller D imen sions .....................................................................................16
2.1.3 Mounting the Controller...............................................................................................17
2.2 INSTALLING THE C1007-232-01 CONTROLLER............................................19
2.2.1 Steps to Install the C1007-232-01...............................................................................19

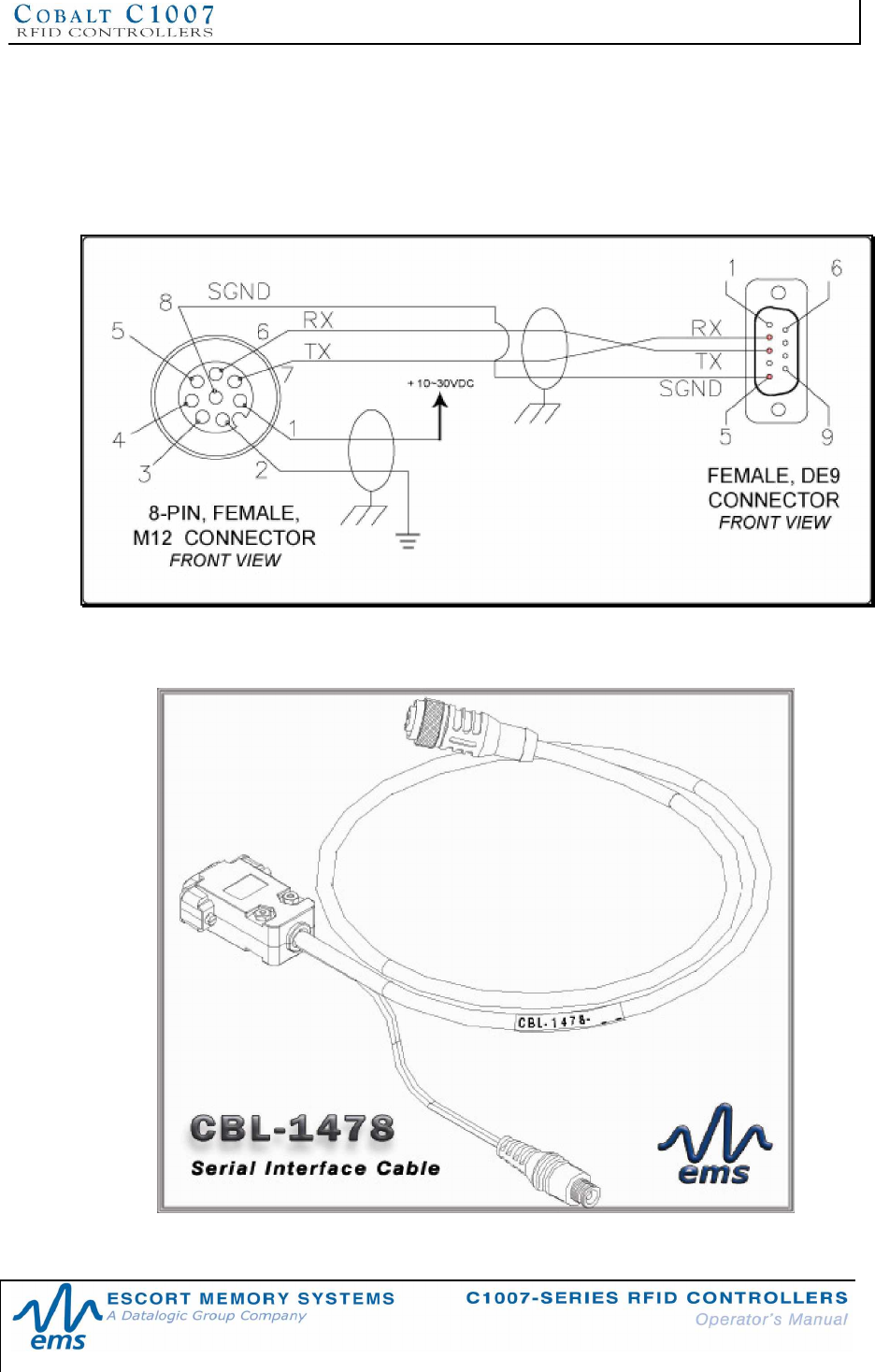

2.2.2 C1007-232-01 Cabling Inf ormation ........................ ........ ................ ........ ................ .....20
2.3 INSTALLING THE C1007-485-01 CONTROLLER............................................23
2.3.1 Steps to Install the C1007-485-01...............................................................................23
2.3.2 C1007-485-01 Cabling Inf ormation ........................ ........ ................ ........ ................ .....24
2.4 INSTALLING THE C1007-USB-01 CONTROLLER ..........................................25
2.4.1 Steps to Install the C1007-USB-01..............................................................................25
2.4.2 C1007-USB-01 Cabling Information................ ........ ........ ........ ........ ................ ........ ....26

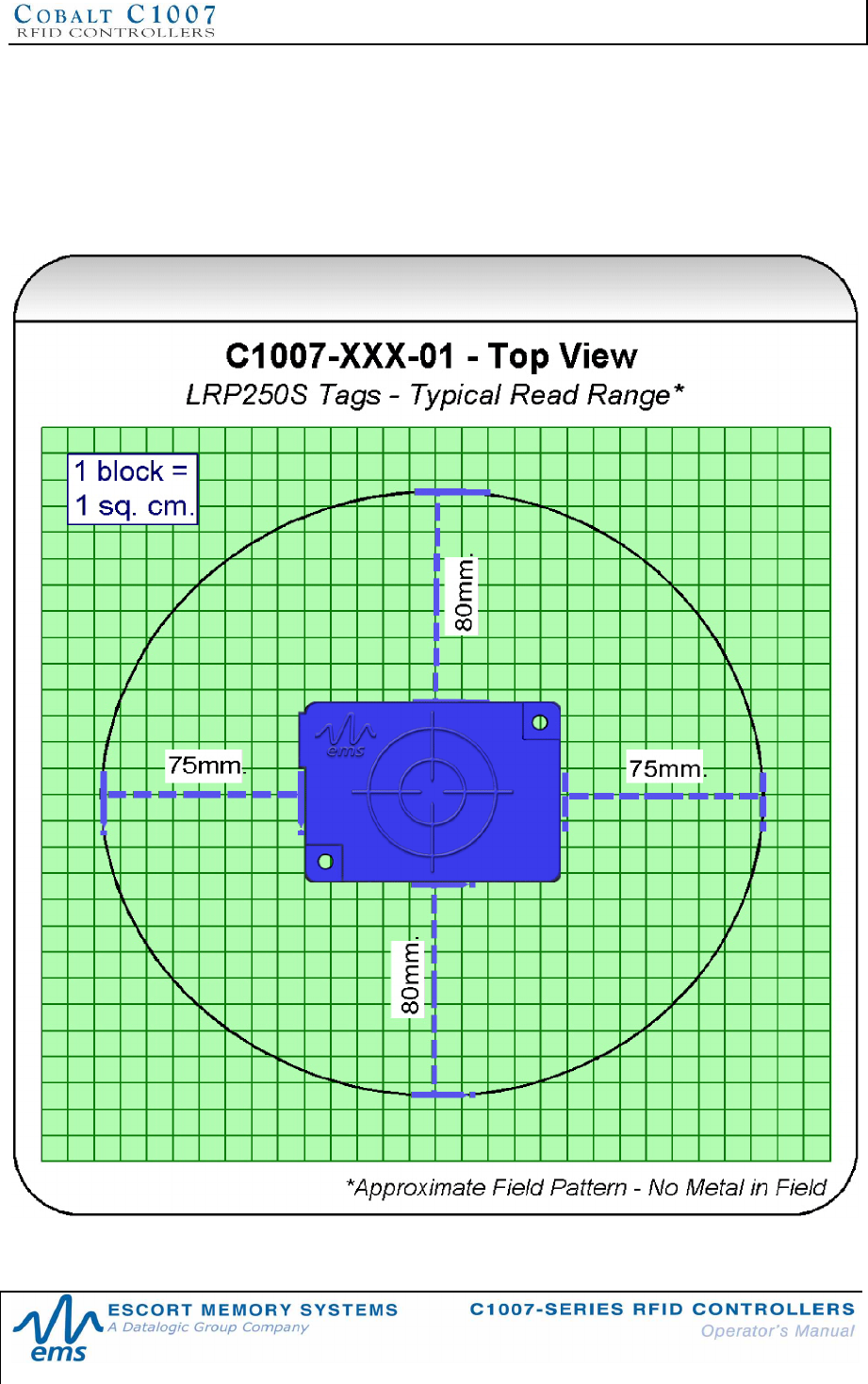

2.5 ANTENNA ENVIRONMENT..........................................................................27
CHAPTER 3: POWER & COMMUNICATION...................................31
3.1 POWER REQUIREMENTS ...........................................................................31
3.1.1 C1007-232-01/C1007-485-01 Power Requirements....................................................31
3.1.2 C1007-USB-01 Power Requirements........... .............. .............. .............. .............. .......31

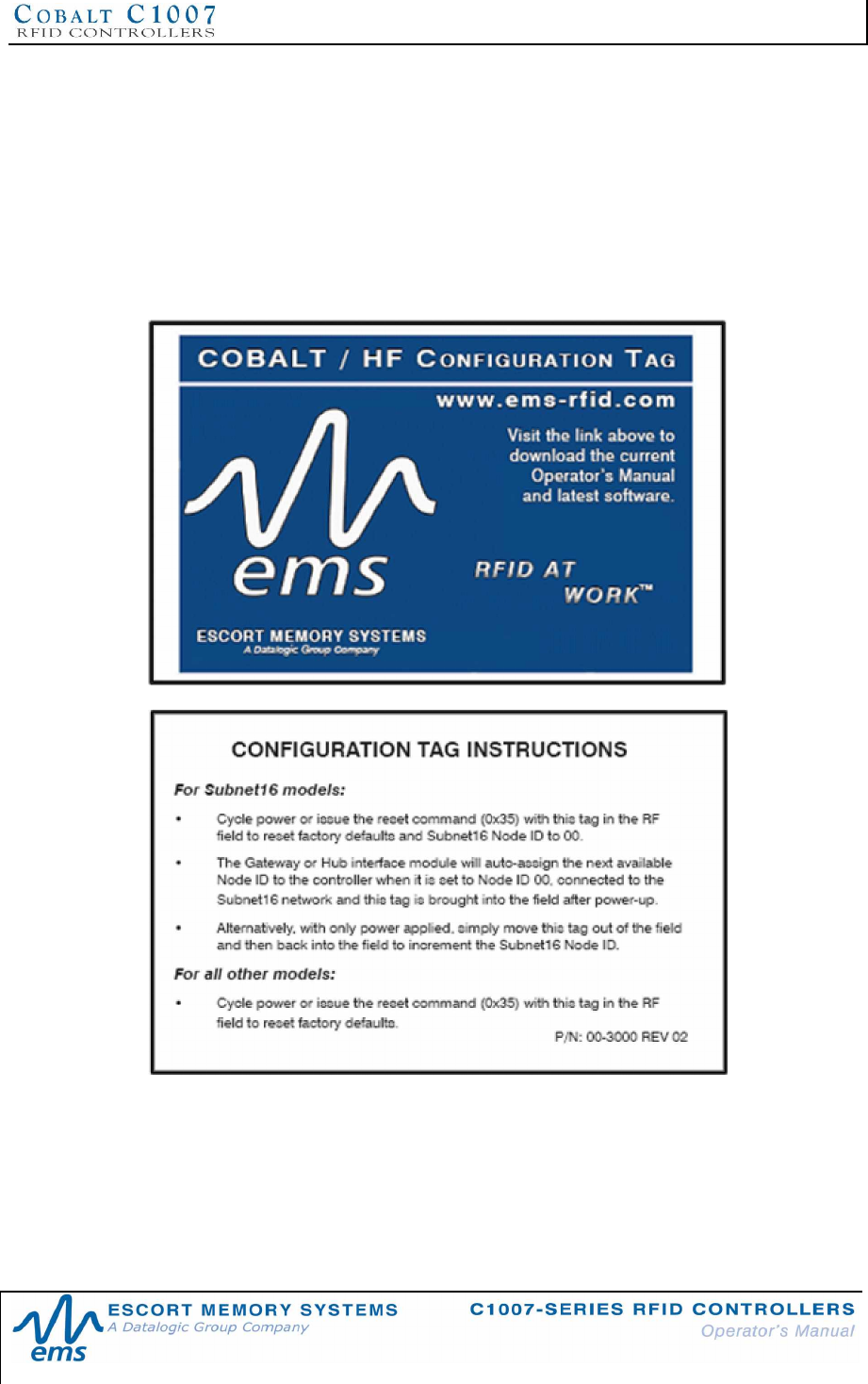

3.2 COBALT HF CONFIGURATION TAG.............................................................32
3.2.1 Co nfigura tion Tag Over view........................................................................................32
3.2.2 Configuration Tag Memory Map.................................................................................. 33
3.2.3 Using the Configuration Tag ....................................................................................... 33
![](/img.php?id=828605&img=bg6.png)
CONTENTS
P/N: 17-1327 REV 02 (08/07) PAGE 6 OF 82

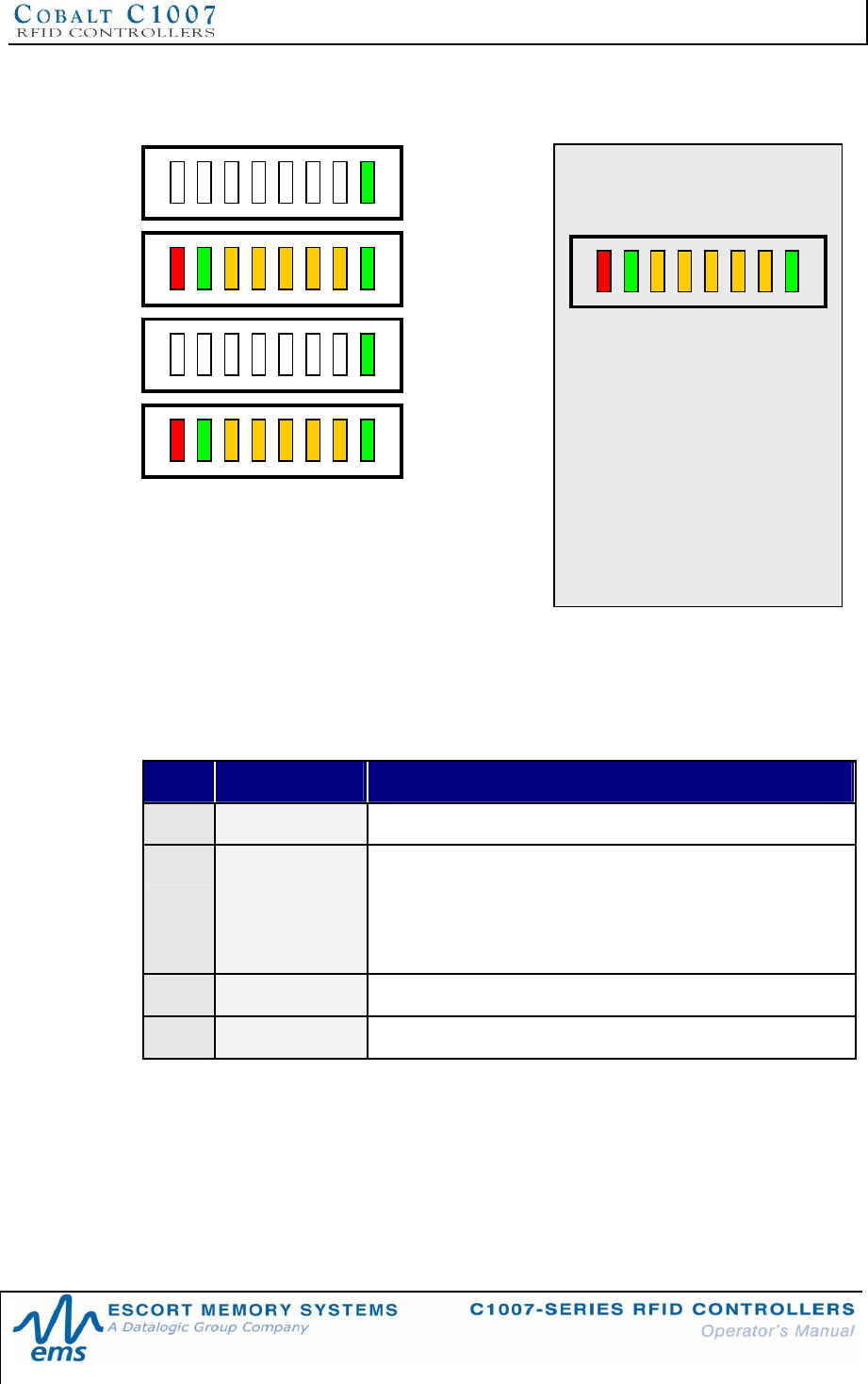

CHAPTER 4: LED STATUS ..........................................................35
4.1 LED FUNCTIONS OVERVIEW .....................................................................35

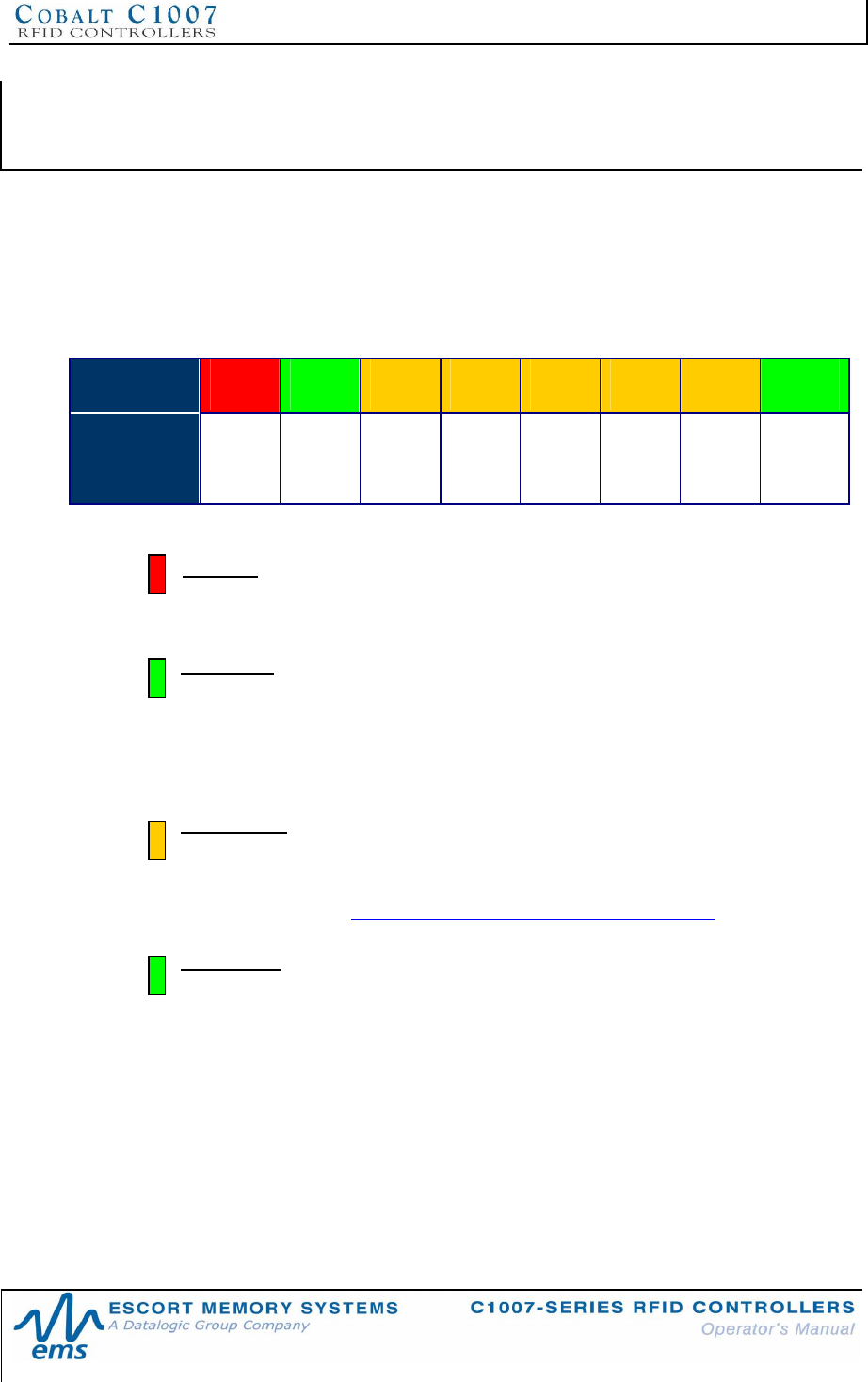

4.1.1 LED Descriptions........................................................................................................35
4.1.2 C1 007-23 2/USB LED Status.......................................................................................36
4.1.3 C1 007- 48 5 LED Status...............................................................................................36
4.2 SPECIAL LED FUNCTIONS........................................................................39
4.2.1 Updating the Controllers Firmware.............................................................................39

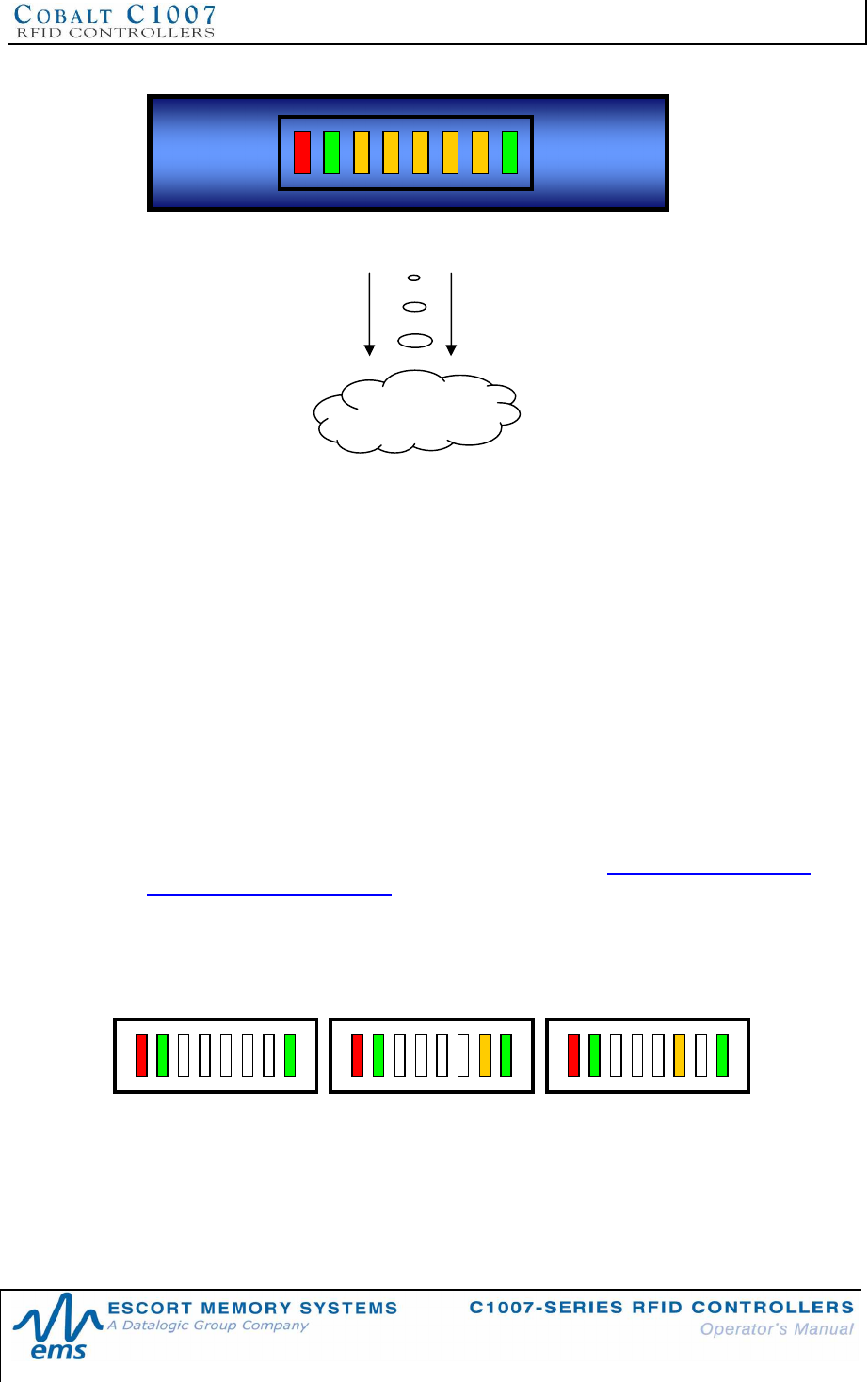

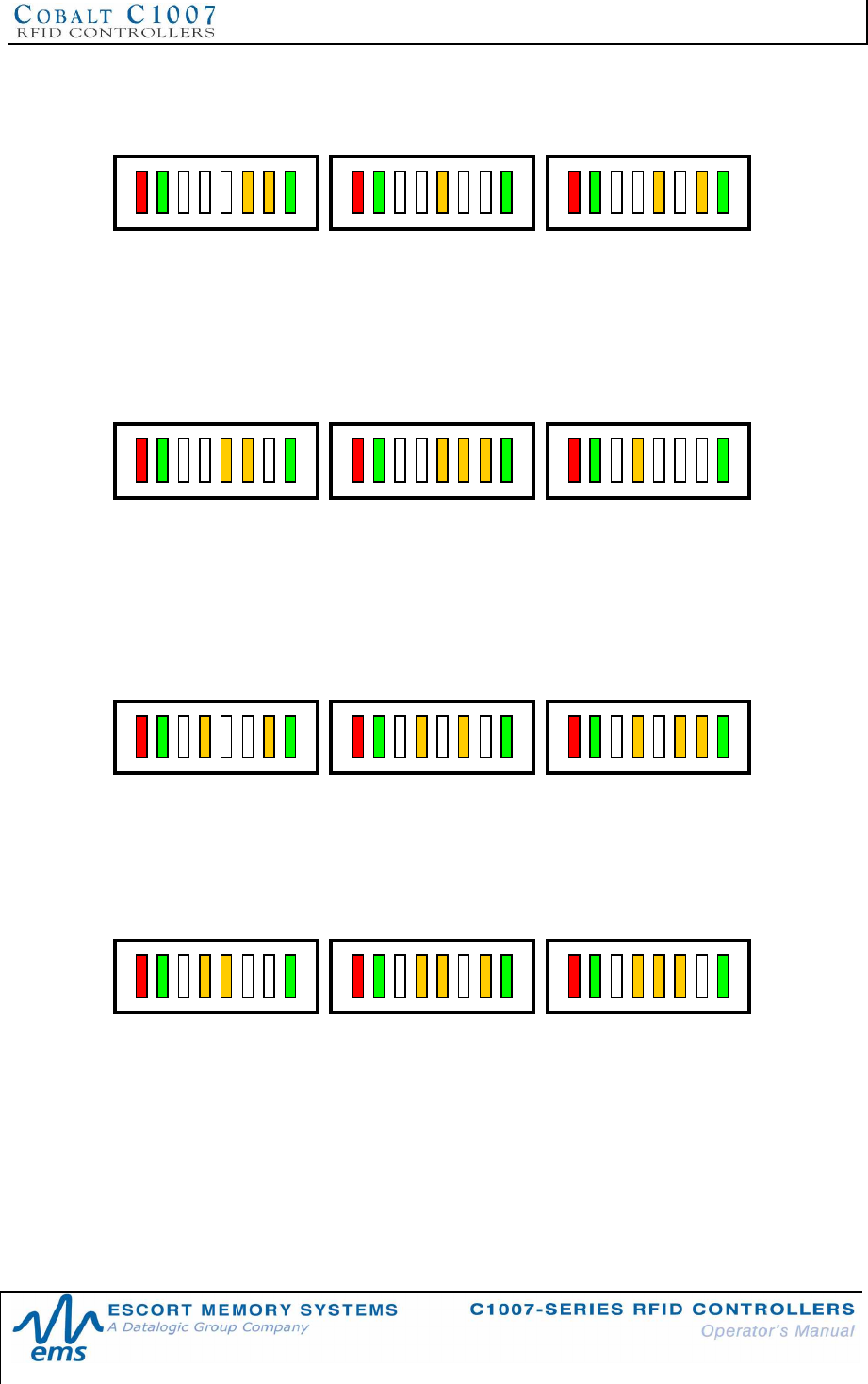

4.2.2 Continuous Read Mode LED Behavior.....................................................................40
4.3 LED DISPLAYED ERROR CODES ...............................................................41
CHAPTER 5: RFID TAGS .............................................................43
5.1 RFID TAG OVERVIEW ..............................................................................43
5.1.1 RFID Standards .......................................................................................................43
5.2 EMS RFID TAGS ....................................................................................44
5.2.1 HMS-Series Tags.......................................................................................................44

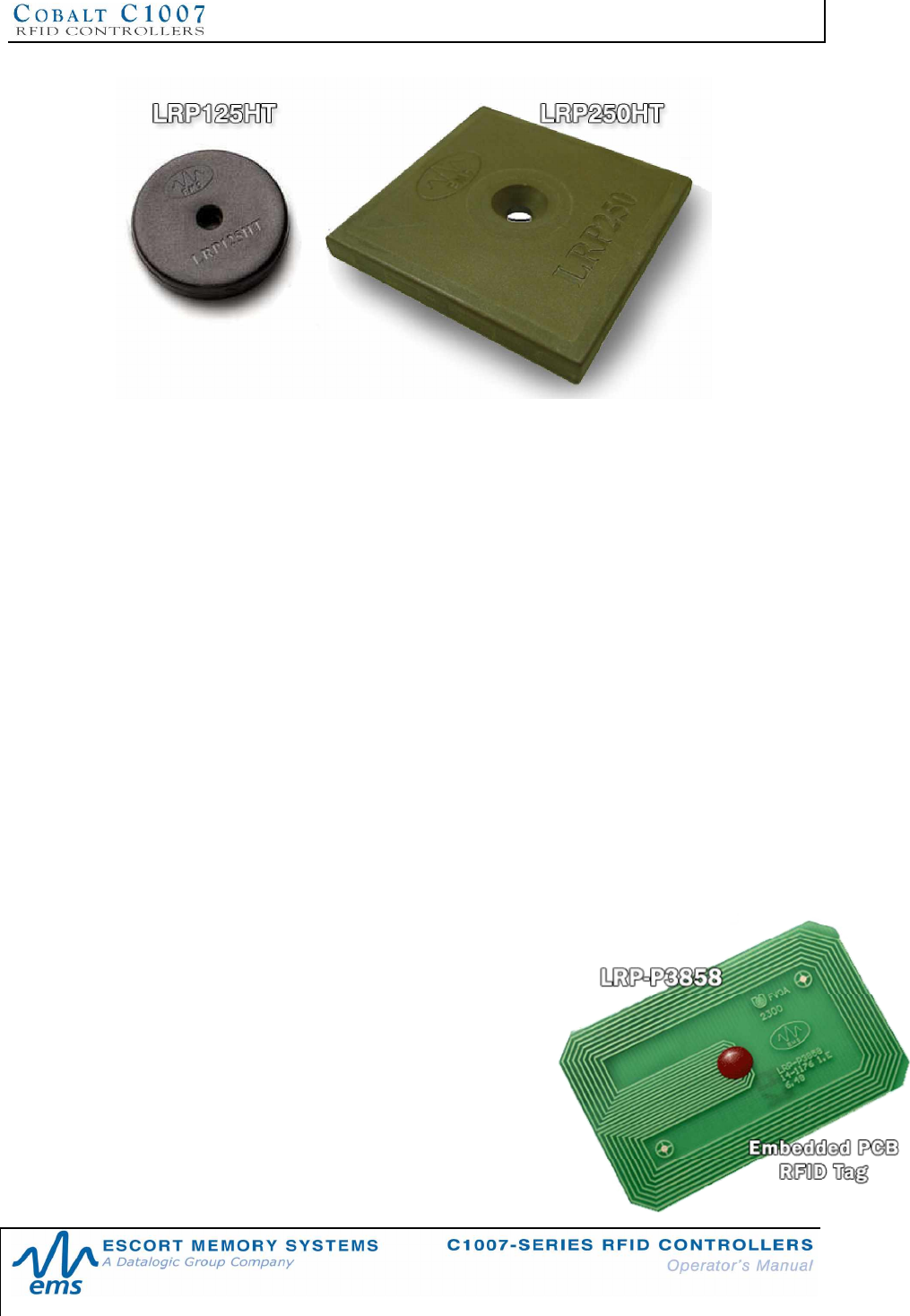

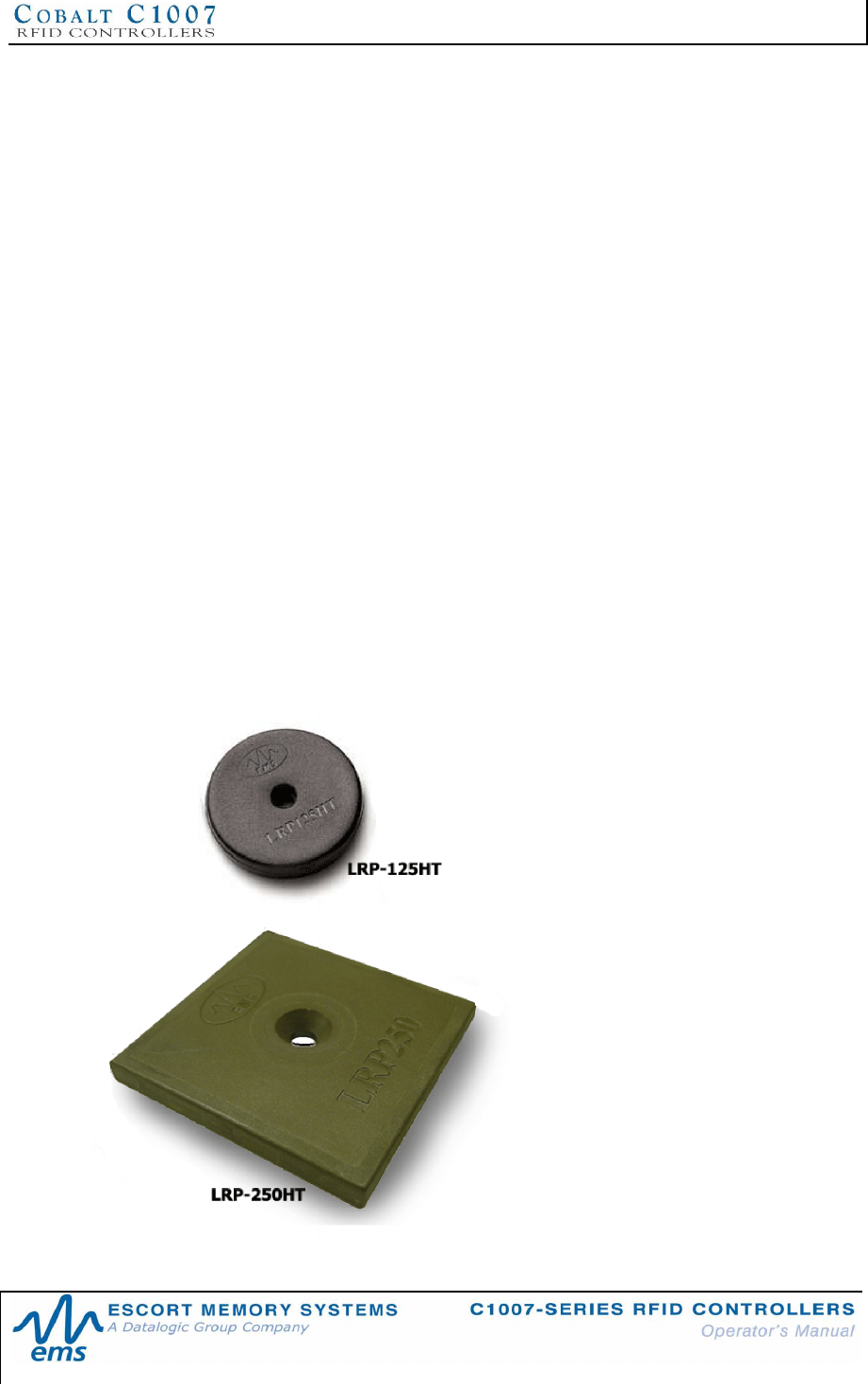

5.2.2 LRP-Series Tags ........................................................................................................44
5.3 TAG EMBODIMENTS .................................................................................45
5.3.1 Printed Circuit Board RFID Tags.................................................................................45
5.3.2 Molded RFID Tags .....................................................................................................46
5.4 TAG MEMORY .........................................................................................46
5.4.1 Mapp ing Tag Memory.................................................................................................47
5.4.2 Creating an RFID Tag Memory Map ...........................................................................47

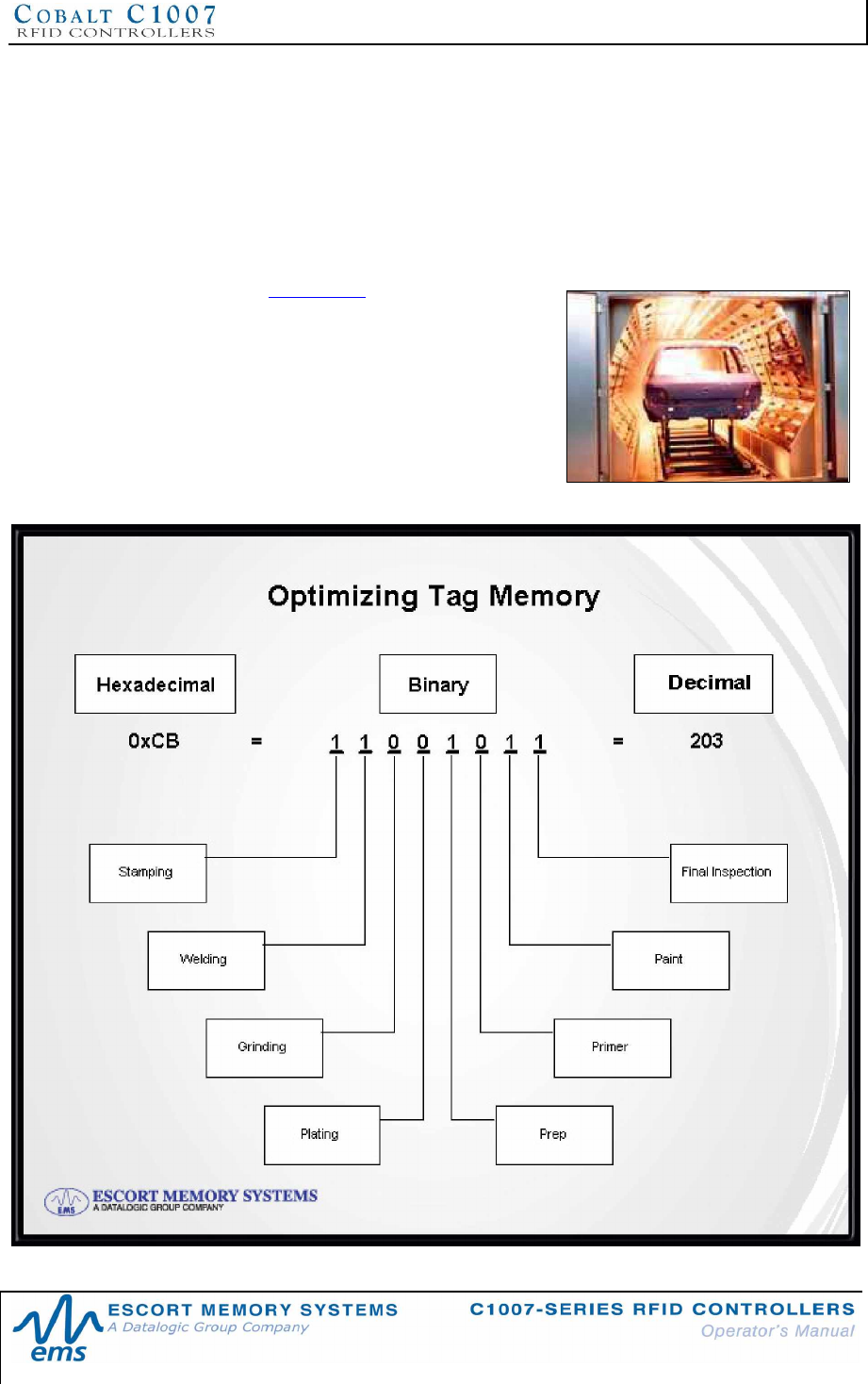

5.4.3 Opt im iz ing Tag Memory..............................................................................................47
CHAPTER 6: COMMAND PROTOCOLS.........................................49
6.1 COMMAND PROTOCOLS OVERVIEW............................................................49
6.1.1 ABx Protocols - Command Structures.........................................................................50
6.1.2 ABx Protocols - Headers and Terminators ..................................................................50
6.1.3 ABx Protocols - Response Structures .........................................................................50
6.2 ABXFAST COMMAND PROTOCOL..............................................................51
6.2.1 ABx Fast - Command / Response Procedure..............................................................51
6.2.2 ABx Fast - Command Packet Structure.......................................................................52
6.2.3 ABx Fast - Response Packet Structure.......................................................................53
6.2.4 ABx Fast - Command Packet Parameters...................................................................54
6.2.5 ABx Fast Multi-Tag Command Packet Structure..........................................................55
6.2.6 ABx Fast Multi-Tag Command Packet Elements.........................................................57
6.2.7 ABx Fast Multi-Tag Response Packet Structures........................................................59
6.2.8 ABx Fast Multi-Tag Response Final Termination Packet Structure..............................60
6.3 ABXSTANDARD COMMAND PROTOCOL......................................................61

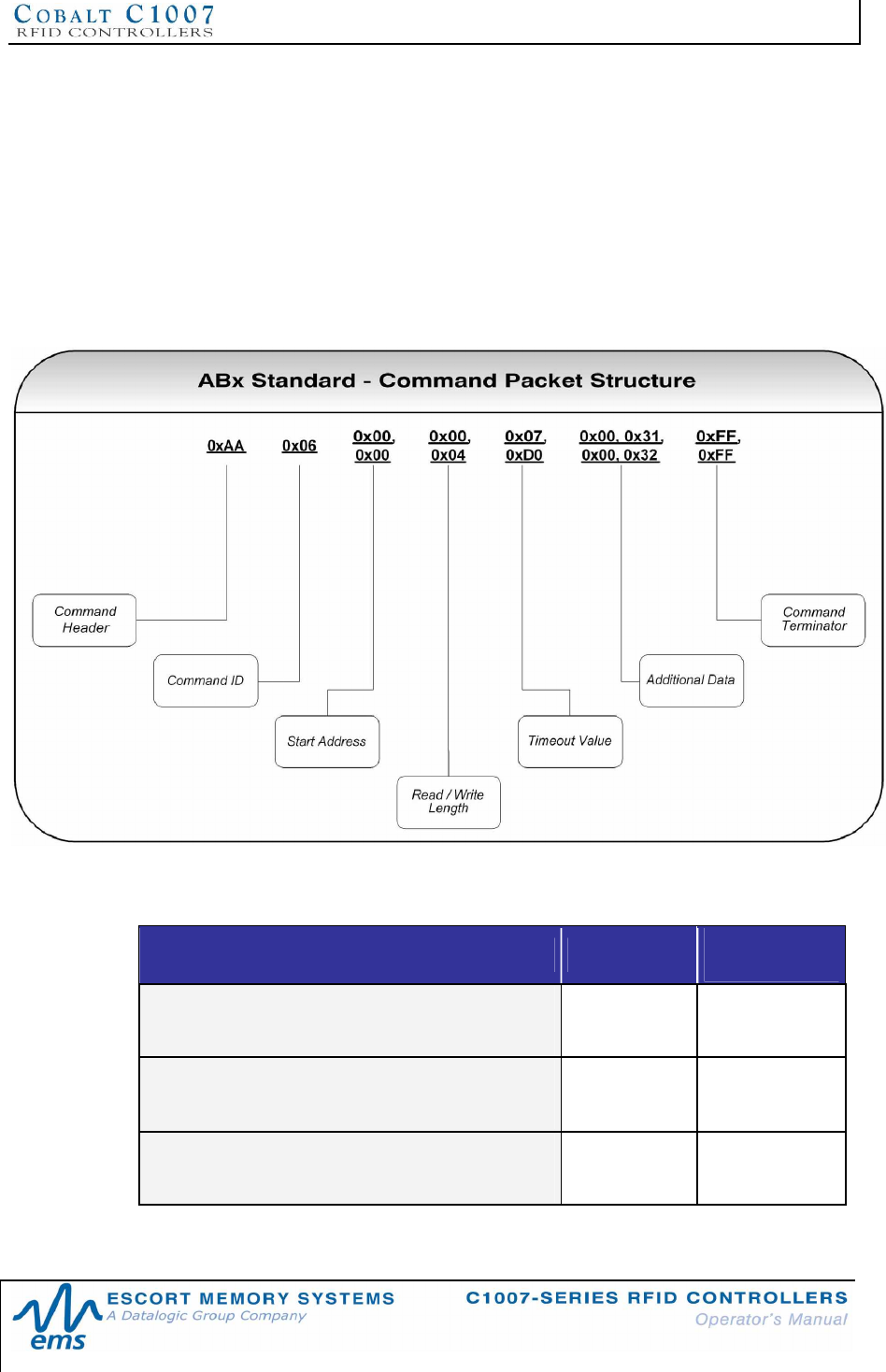

6.3.1 ABx Standard - Command Packet Structure ...............................................................61
6.3.2 ABx Standard - Response Packet Structure................................................................62
6.3.3 ABx Standard - Command Example............................................................................63
![](/img.php?id=828605&img=bg7.png)
CONTENTS
P/N: 17-1327 REV 02 (08/07) PAGE 7 OF 82
CHAPTER 7: RFID COMMANDS AND ERROR CODES ...................64
7.1 ABXFAST RFID COMMAND TABLE............................................................64
7.2 ABXSTANDARD RFID COMMAND TABLE ...................................................66
7.3 ERROR CODES........................................................................................67
7.4 ABXERROR CODE TABLE........................................................................68
7.5 ABXFAST ERROR RESPONSE STRUCTURE.................................................69
7.6 ABXSTANDARD ERROR RESPONSE STRUCTURE.........................................70
APPENDIX A: TECHNICAL SPECIFICATIONS................................71
APPENDIX B: MODELS & ACCESSORIES .....................................73
EMS HARDWARE ............................................................................................73
C 10 0 7 -S e r i e s RF I D Co n t r ol l e r s ..............................................................................73
COBALT FAMILY SOFTWARE & DEMONSTRATION KITS .........................................74
7.6.1 Sof t ware A ppl i cati on s ....................................................................................74
7.6.2 Demon st rat i on Ki t s .........................................................................................74
CABLE AND NETWORK ACCESSORIES ................................................................75
POWER SUPPLIES ...........................................................................................76
7.6.3 Escort Memory Systems RFID Tags........................................................................76

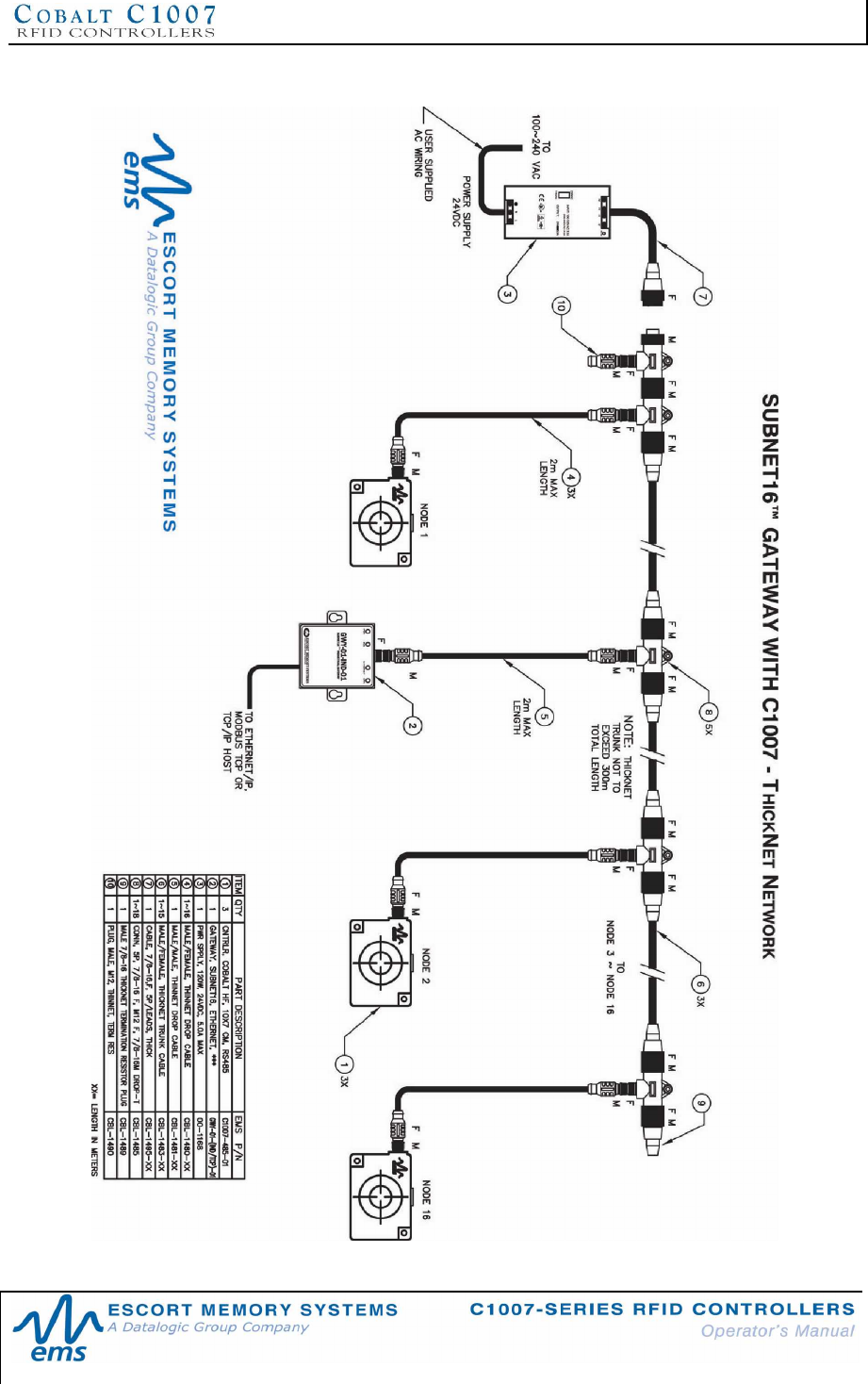

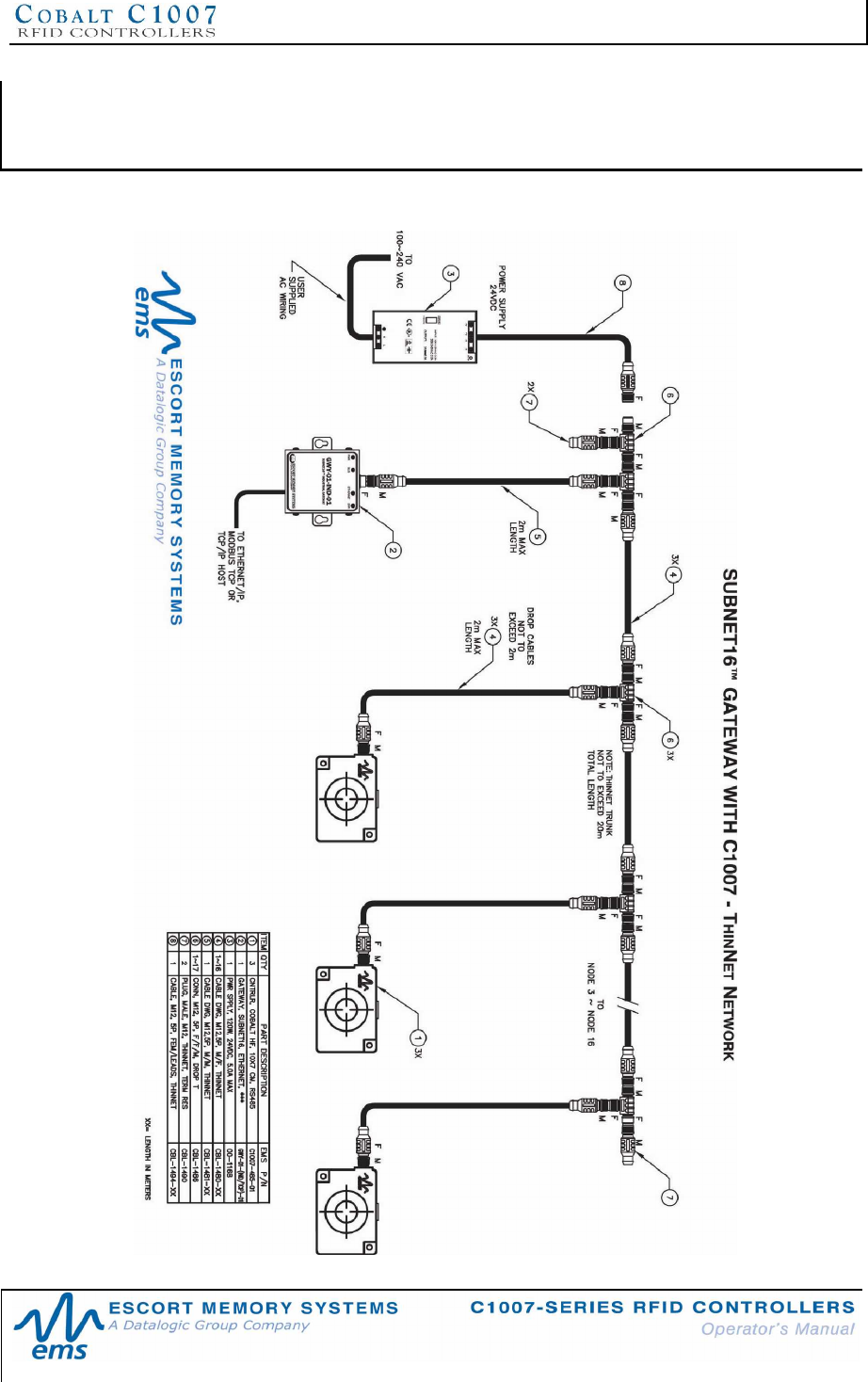

APPENDIX C: NETWORK DIAGRAMS ...........................................77

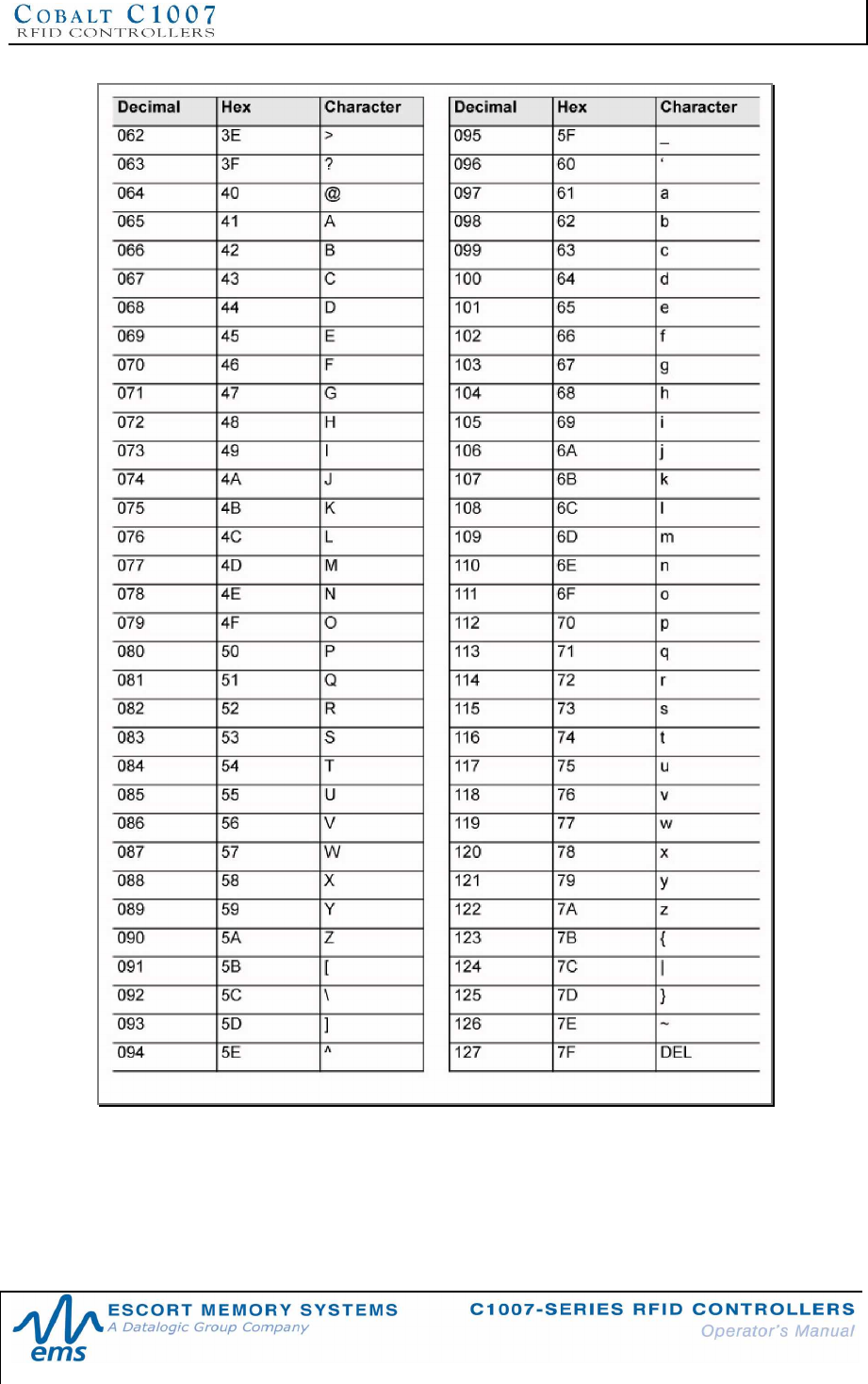

APPENDIX D: ASCII CHART .........................................................80
EMS WARRANTY ..........................................................................82
![](/img.php?id=828605&img=bg8.png)
CONTENTS
P/N: 17-1327 REV 02 (08/07) PAGE 8 OF 82
LIST OF TABLES
Table 1-1: Connection and Communication Interface Options....................................................14
Table 1-2: C1007 Controllers - Interface Connectors .................................................................14
Table 2-1: C1007-232-01 Interface Connector - Pinout..............................................................20
Table 2-2: C1007-485-01 Interface Connector - Pinout..............................................................24
Table 2-3: C1007-USB-01 Interface Connector - Pinout.............................................................26
Table 3-1: EMS Power Supplies ................................................................................................31
Table 3-2: Controller Default Values .......................................................................................... 33
Table 4-1: Continuous Read Mode - LED Behavior....................................................................40
Table 5-1: Tag Memory Map Example.......................................................................................47
Table 6-1: ABx Protocols - Headers and Terminators ................................................................50
Table 6-2: ABx Fast - Command Packet Structure.....................................................................53
Table 6-3: ABx Fast - Response Packet Structure.....................................................................53
Table 6-4: ABx Fast Multi-Tag Command Packet Structure........................................................56
Table 6-5: ABx Fast Multi-Tag Response Packet Structure........................................................59
Table 6-6: ABx Fast Multi-Tag Response Final Termination Packet Structure............................60
Table 6-7: ABx Standard - Command Packet Structure..............................................................62
Table 6-8: ABx Standard - Response Packet Structure..............................................................62
Table 7-1: ABx Fast RFID Command Table...............................................................................65
Table 7-2: ABx Standard RFID Command Table........................................................................66
Table 7-3: ABx Error Codes....................................................................................................... 68
Table 7-4: ABx Fast - Error Response Structure........................................................................69
Table 7-5: ABx Standard - Error Response Structure.................................................................70
![](/img.php?id=828605&img=bg9.png)
CONTENTS
P/N: 17-1327 REV 02 (08/07) PAGE 9 OF 82
LIST OF FIGURES
Figure 2-1: C1007 RFID Controller Dimensions.........................................................................16

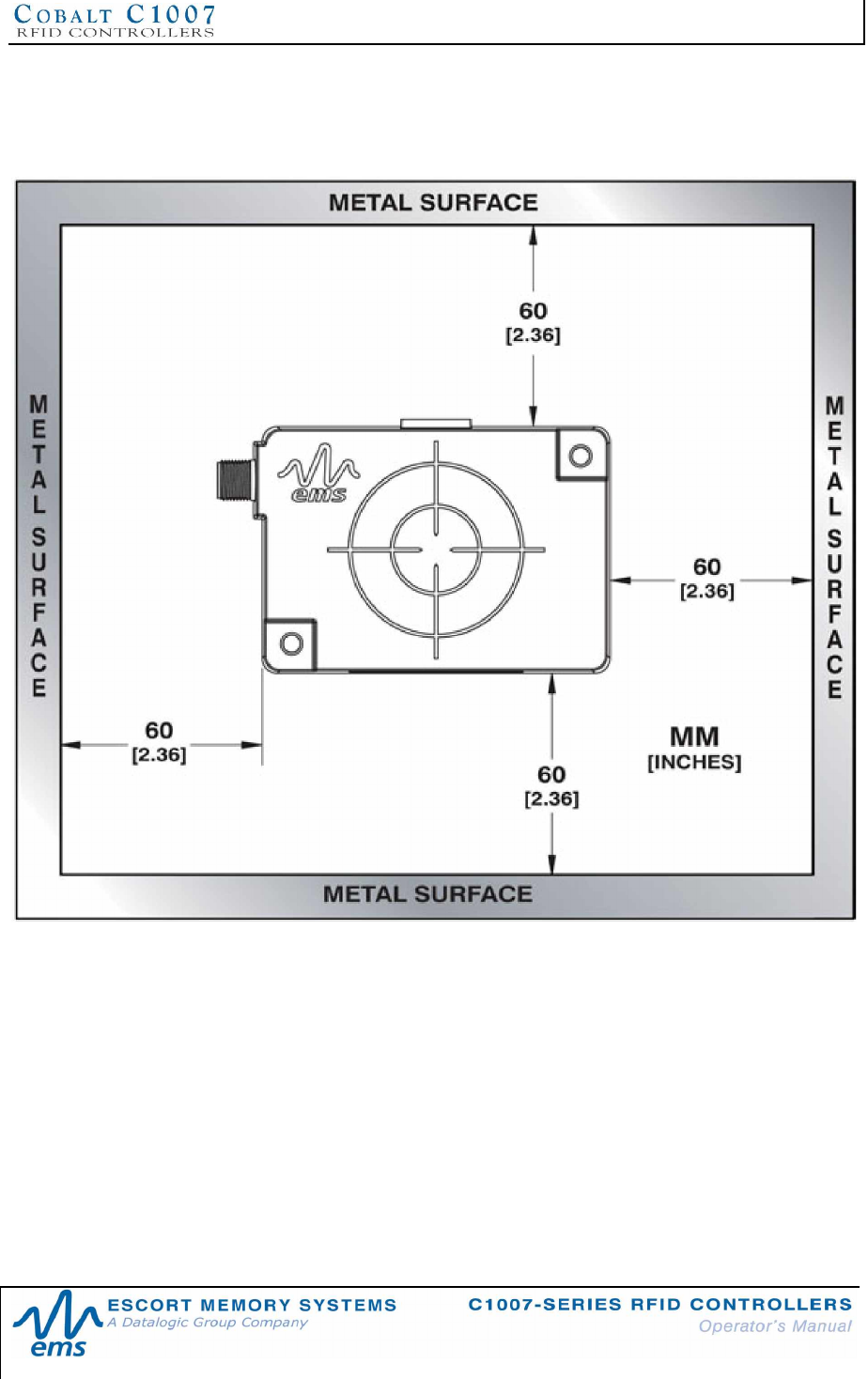

Figure 2-2: Mounting the Controller Near Metallic Surfaces........................................................18
Figure 2-3: C1007-232-01 Interface Connector - Diagram..........................................................20
Figure 2-4: RS232 Interface Cable Schematic ...........................................................................21
Figure 2-5: CBL-1478 Serial Interface Cable..............................................................................21

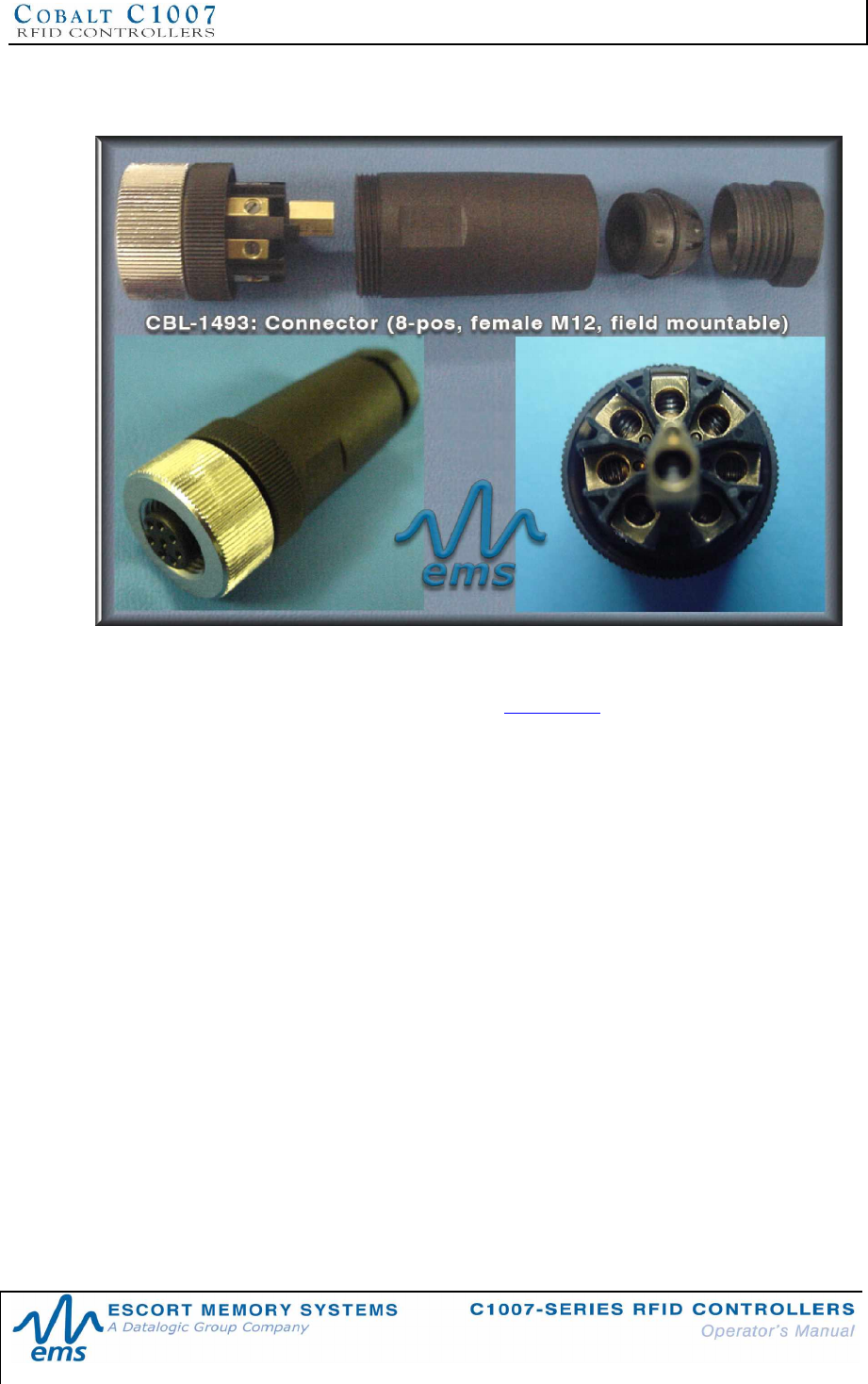

Figure 2-6: CBL-1493 Connector ...............................................................................................22

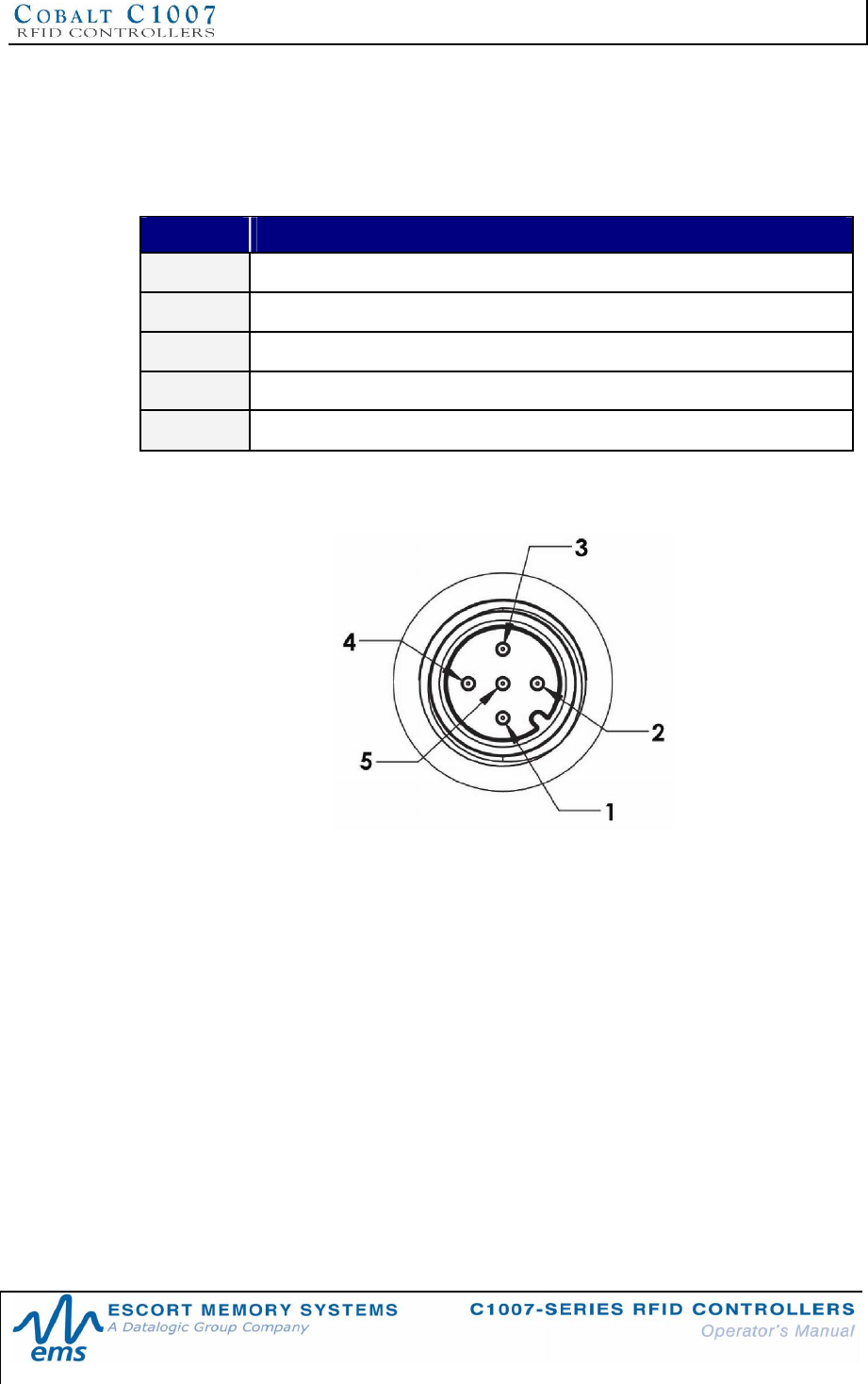

Figure 2-7: C1007-485-01 Interface Connector - Diagram..........................................................24

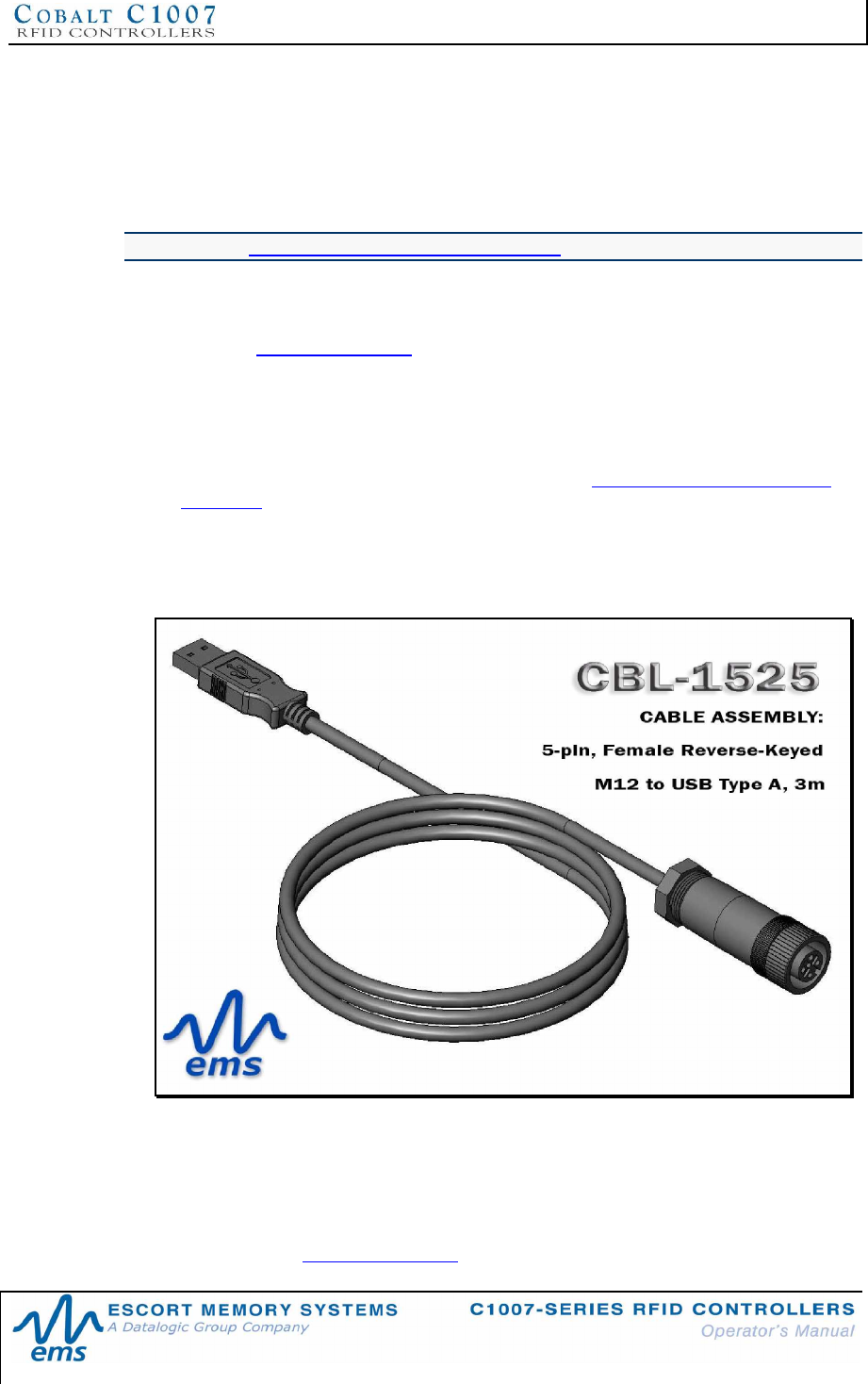

Figure 2-8: CBL-1525................................................................................................................25
Figure 2-9: C1007-USB-01 Interface Connector - Diagram ........................................................26
Figure 2-10: C1007 Top View - LRP250S Typical Read Range..................................................27

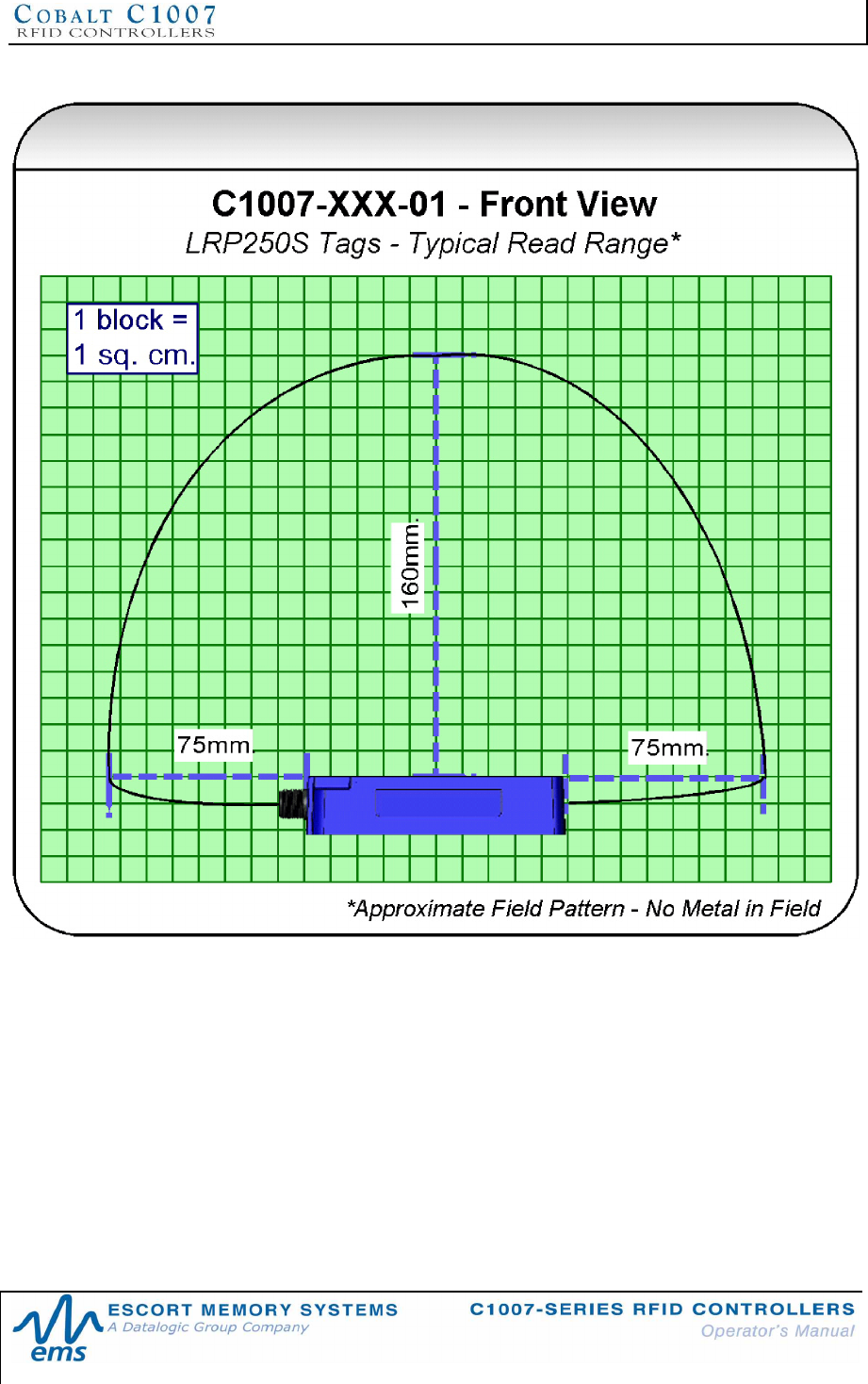

Figure 2-11: C1007 Front View - LRP250S Typical Read Range ...............................................28
Figure 2-12: C1007 Top View - HMS150 Typical Read Range...................................................29

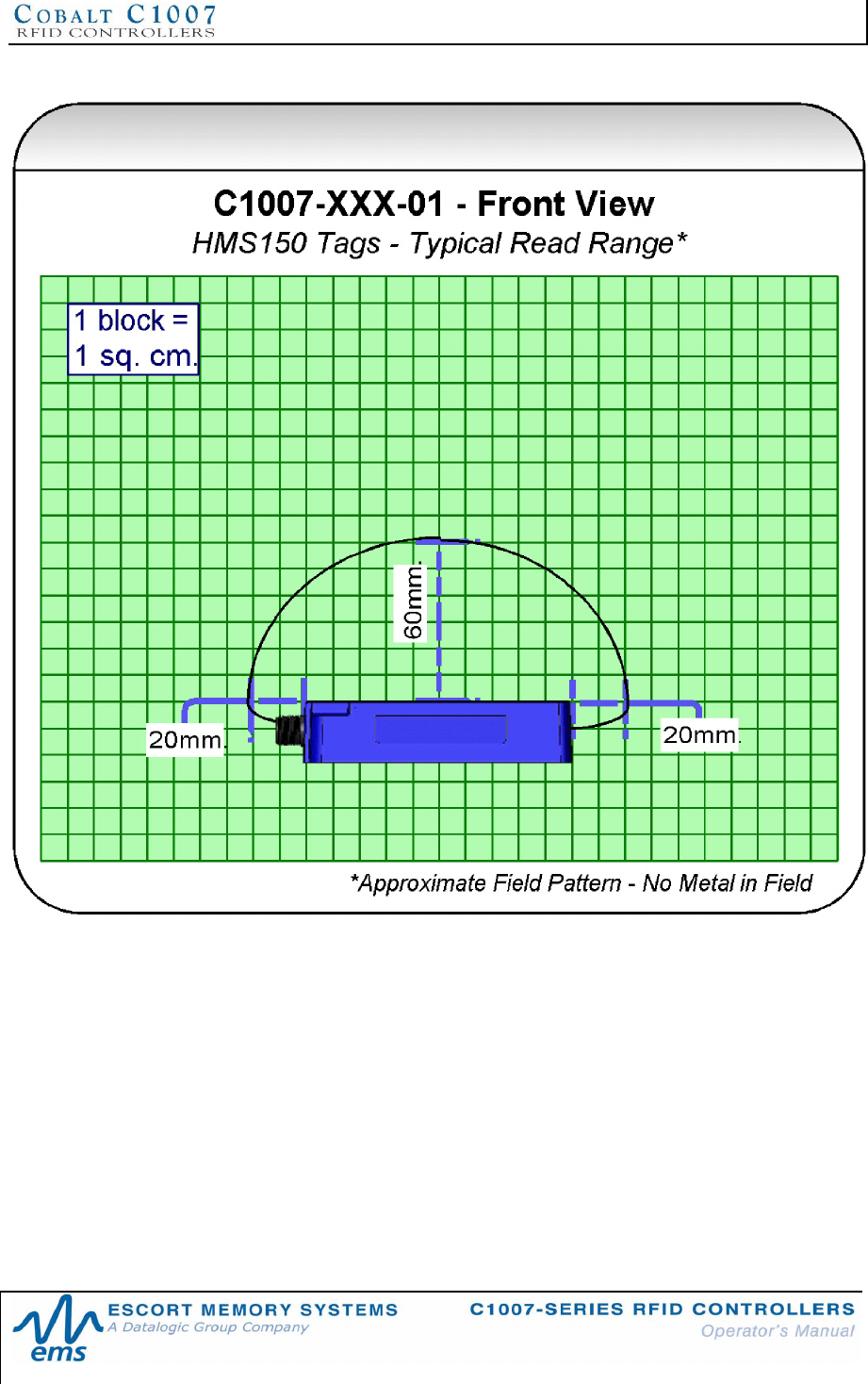

Figure 2-13: C1007 Front View - HMS150 Typical Read Range.................................................30
Figure 3-1: Cobalt HF Configuration Tag ...................................................................................32
Figure 5-1: HMS125HT and HMS150HT tags............................................................................44
Figure 5-2: LRP-Series Tags..................................................................................................... 45
Figure 5-3: Optimizing Tag Memory...........................................................................................48

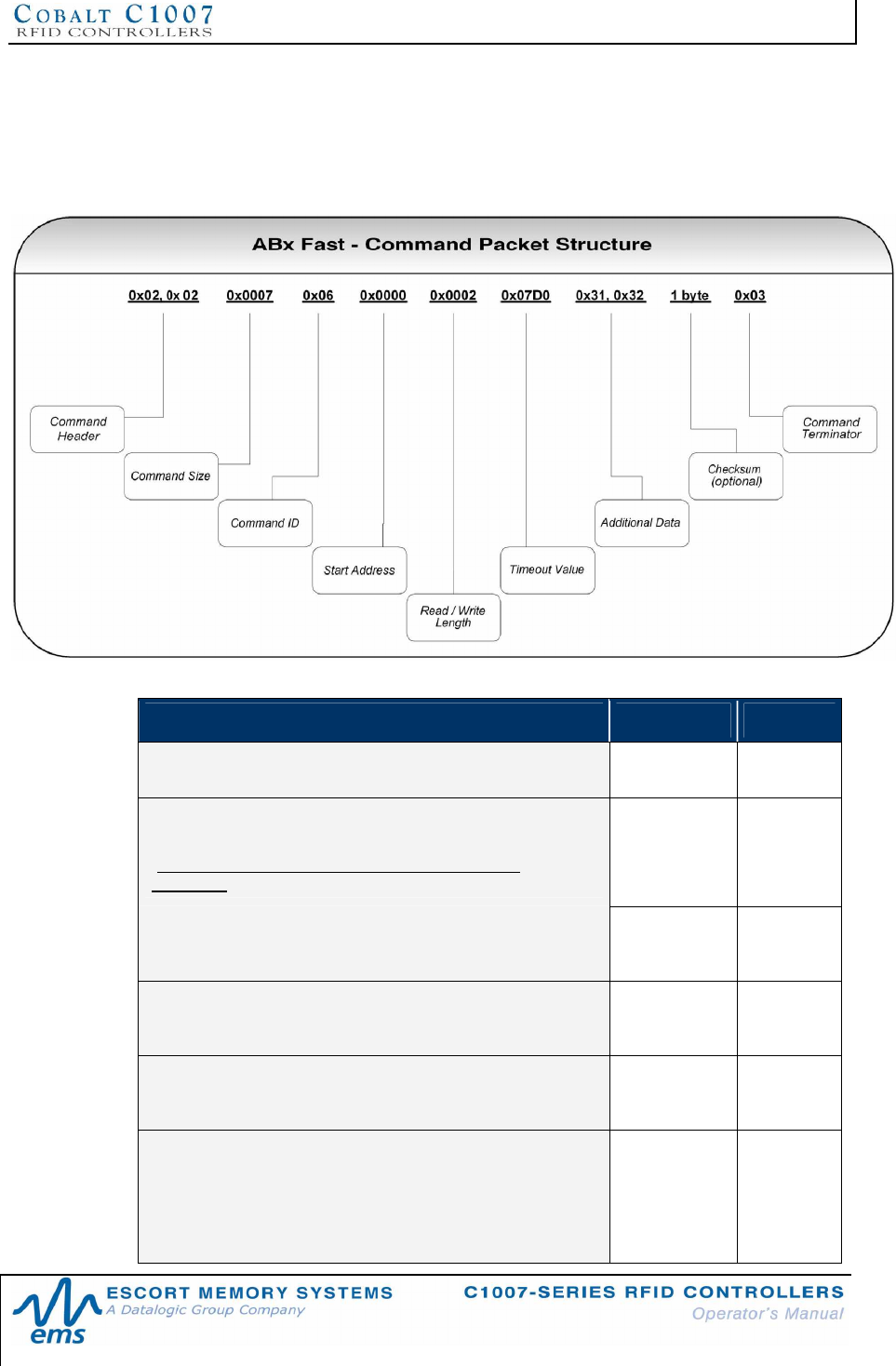

Figure 6-1: ABx Fast - Command Packet Structure....................................................................52
Figure 6-2: ABx Standard - Command Packet Structure ............................................................61
Figure Appendix A-0-1: C1007-Series RFID Controller Dimensions ...........................................72
Figure Appendix C-0-1: Subnet16 Gateway - C1007-485-01 ThinNet Network Diagram.............77
Figure Appendix C-0-2: Subnet16 Gateway - C1007-485-01 ThinNet Network Diagram.............78
Figure Appendix C-0-3: Subnet16 Hub - C1007-485-01 Network Diagram .................................79
![](/img.php?id=828605&img=bga.png)
CHAPTER 1: GETTING STARTED
P/N: 17-1327 REV 02 (08/07) PAGE 10 OF 82
Escort Memory Systems headquarters in
Scotts Valley, CA.
CHAPTER 1:
GETTING STARTED
1.1 INTRODUCTION
Welcome to the C1007-Series RFID Controllers - Operators Manual. This manual
will assist you in the installation, configuration and operation of Escort Memory
Systems C1007-Series RFID Controllers.
The C1007-Series product family is a complete line of passive high frequency
read/write Radio-Frequency Identification solutions. These devices are designed to
be compact, reliable and rugged, in order to meet and exceed the requirements of
the industrial automation industry.
1.1.1 Company Background
Escort Memory
Systems is an
industry leader in
providing Radio
Frequency
Identification
(RFID) systems.
By consistently
delivering an
extended selection
of high quality,
highly durable
RFID devices,
Escort Memory
Systems has built
a solid reputation.
1.1.2 The C1007-
Series RFID
Controller
Escort Memory Systems' C1007-Series RFID Controllers are among the
most compact in our line of passive RFID controllers. Through
inductive coupling, RFID enabled tags are able to utilize the
Radio Frequency (RF) field from the controllers integrated
antenna to acquire power. By being able to receive power
from the RFID controller, the tag, itself, does not require
an internal power supply or battery - and is therefore
said to be passive.
Passive tags, however, must enter the antennas
electromagnetic field to establish a link with the controller, and
must remain within RF range during the entire data transfer process.
![](/img.php?id=828605&img=bgb.png)
CHAPTER 1: GETTING STARTED
P/N: 17-1327 REV 02 (08/07) PAGE 11 OF 82
The C1007 Controller utilizes the internationally recognized ISM (Industrial, Scientific
and Medical) frequency of 13.56 MHz to power the tag, while modulating side-band
frequencies for communicating data.
The entire RFID system works by attaching a tag to a product or its carrier. The RFID
tag acts as an electronic identifier, portable job sheet, or real-time tracking database.
Tags are identified, read and written to by issuing specific commands from a host
computer.
RFID tags can be read and written to through any nonconductive, non-metallic
material, while moving or standing still, in or out of the direct line of sight.
The controller provides cost effective RFID data collection and control solutions to
shop floor, item-level tracking and material handling applications. It is compatible with
all LRP and HMS-Series tags from Escort Memory Systems.
1.1.3 Contents of the C1007 Package
Unpack the C1007 hardware and accessories. Retain the original shipping carton
and packing material in case any items need to be returned. Inspect each item for
evidence of damage. If an item appears to be damaged, notify your EMS product
distributor.
The C1007 product package contains the following components:
EMS P/N QTY DESCRIPTION
C1007-XXX-01 1 C1007-Series RFID Controller
00-3000 1 HF-Series Configuration Tag (I-CODE SLi)
17-3140~3 1 C1007-Series RFID Controller Installation Guide
Note: XXX = 232, 485 or USB
User Supplied Components
To configure a complete RFID system, you will need to provide the following items:
•Passive, read/write RFID tags (EMS HMS, LRP and/or T-Series)
•Controller-to-Host communication interface cable: (RS232, RS485 or USB)
•Host device: (PC, PLC, MUX32, TCP/IP, Ethernet/IP, Subnet16 Gateway or
Hub)
•Power supply: 10~30VDC, 3.6W (150mA @ 24VDC)
•Mating connectors: (when applicable)
•Mounting hardware (screws, washers and nuts)
![](/img.php?id=828605&img=bgc.png)
CHAPTER 1: GETTING STARTED
P/N: 17-1327 REV 02 (08/07) PAGE 12 OF 82

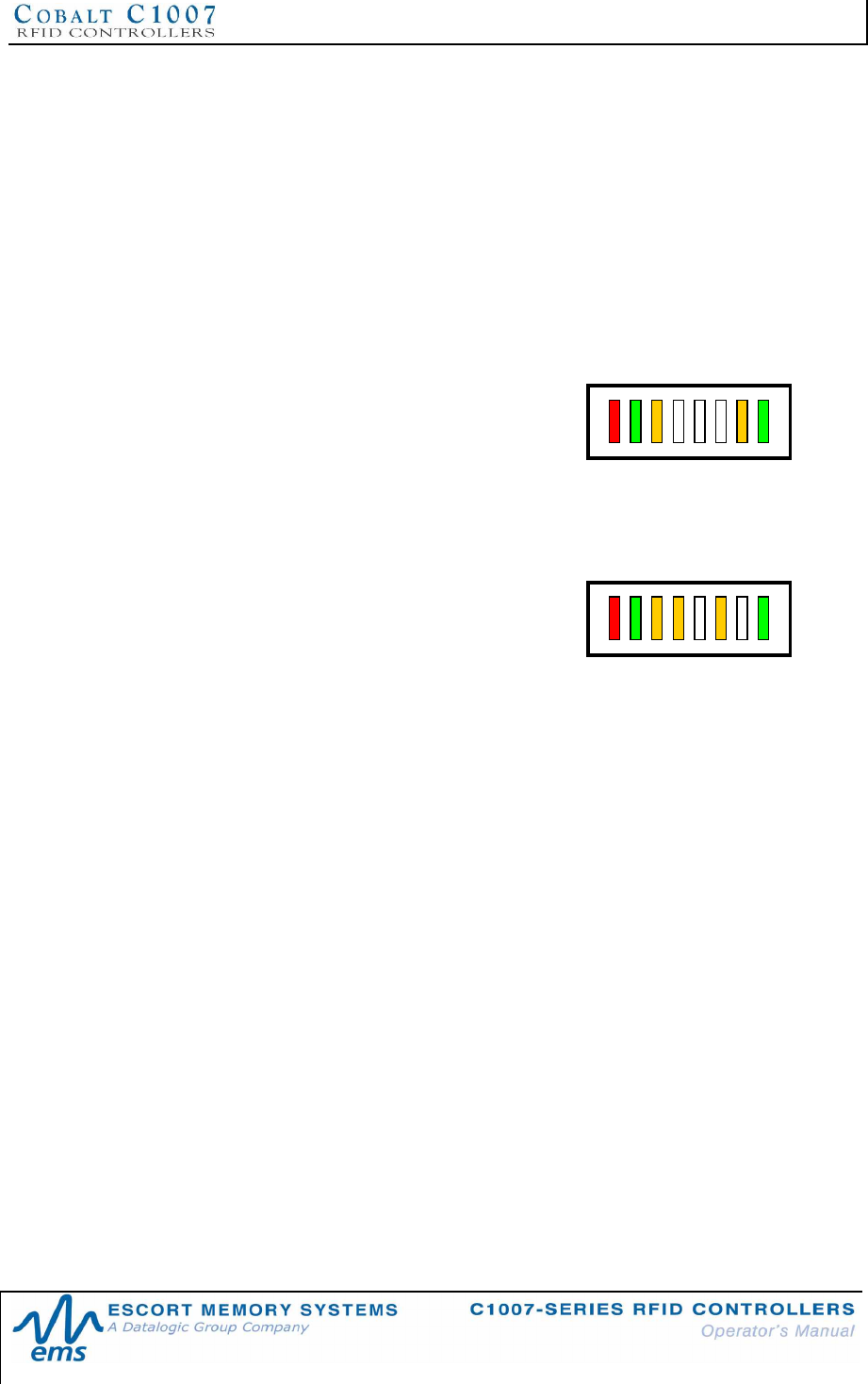

1.1.4 C1007 Features
§ High performance, low-cost, 13.56MHz RFID controller with integrated RF
antenna that may be mounted directly to metallic surfaces
§ Supports multiple RF, ABx, air and serial communications protocols
§ Small controller size: approximately 100mm x 70mm
§ Flash memory for software updates and configuration storage
§ Auto configurable / software programmable

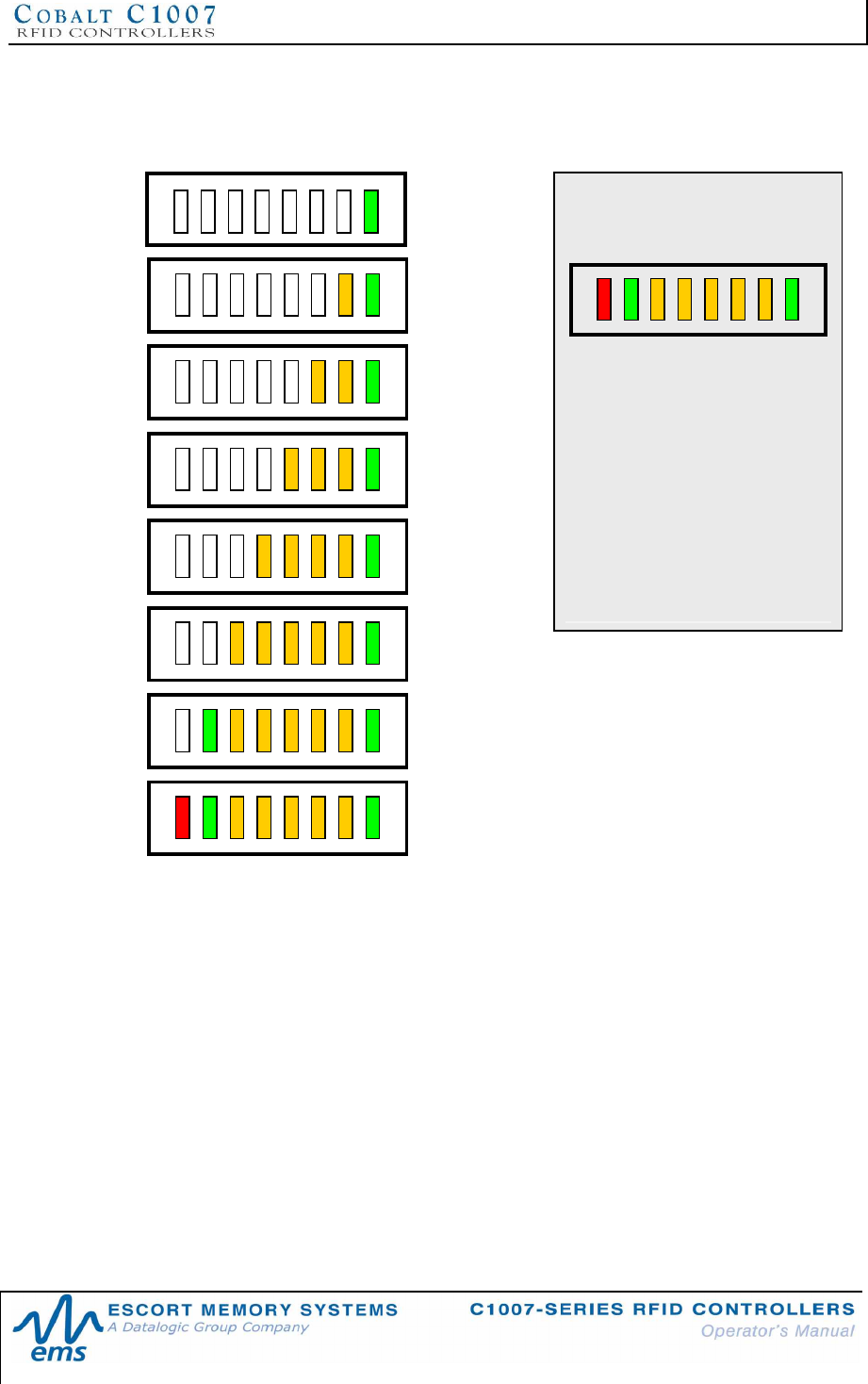

§ Eight LED indicators display power, COM port activity, RF activity, Subnet16
Node ID, system diagnostics, error codes and controller status
§ Reads/Writes ISO 14443A and ISO 15693 compatible RFID tags (LRP, HMS
and T-Series RFID tags from EMS)
§ FCC/CE/TELEC agency compliance certification (PENDING)
§ IP67 rated enclosure and M12 interface connector (8-pin for RS232; 5-pin for
RS485/USB)
§ Fully encapsulated electronics
![](/img.php?id=828605&img=bgd.png)
CHAPTER 1: GETTING STARTED
P/N: 17-1327 REV 02 (08/07) PAGE 13 OF 82
1.2 ABOUT THIS MANUAL
This document provides guidelines and instructions on how to install and operate
C1007-Series RFID Controllers.
This document does NOT include explicit details regarding each of the C1007s RFID
commands. Specific RFID command related information is available in the ABx Fast
Command Protocol Reference Manual and the ABx Standard Command
Protocol Reference Manual, both of which are available at www.ems-rfid.com.
However, this manual does explain the process of issuing commands from a host PC
to a C1007 RFID controller.
NOTE:
Occasionally in this manual, the C1007-Series RFID Controller is referred to as the
C1007 Controller, the C1007 or just simply the controller.
1.2.1 Who Should Read this Manual?
This manual should be read by those who will be installing, configuring and operating
C1007-Series RFID Controllers. This may include the following people:
§ Hardware Installers
§ System Integrators
§ Project Managers
§ IT Personnel
§ System and Database Administrators
§ Software Application Engineers
§ Service and Maintenance Engineers
1.2.2 HEX Notation
Throughout this manual, numbers expressed in Hexadecimal notation are prefaced
with 0x. For example, the number "10" in decimal is expressed as "0x0A" in
hexadecimal. See Appendix D for a chart containing Hex values, ASCII characters
and their corresponding decimal integers.
![](/img.php?id=828605&img=bge.png)
CHAPTER 1: GETTING STARTED
P/N: 17-1327 REV 02 (08/07) PAGE 14 OF 82
1.3 COMMUNICATION OPTIONS
There are three distinct versions of the C1007 RFID Controller. Each model provides
support for one specific communication interface requirement.
1.3.1 Connection and Communication Interface Options
CONTROLLER
MODEL CONNECTION
TYPE COMMUNICATION
INTERFACE MAX CABLE
LENGTH
C1007-232-01 RS232 Point-to-Point, Host/Controller 15 Meters
C1007-485-01 RS485 Subnet16 Multidrop bus
architecture via Subnet16
Gateway or Hub
300 Meters
C1007-USB-01 USB 2.0 Point-to-Point, Host/Controller 5 Meters
Table 1-1: Connection and Communication Interface Options
1.3.2 C1007 Controllers - Interface Connectors
CONTROLLER MODEL INTERFACE CONNECTOR(S)
C1007-232-01 8-pin, male M12 connector
C1007-485-01 5-pin, male M12 connector
C1007-USB-01 5-pin, male, reverse-keyed M12 connector
Table 1-2: C1007 Controllers - Interface Connectors
Through the Subnet16 protocol, multiple C1007-485-01 controllers can be networked
via a single bus that is connected to an EMS Subnet16 Gateway or Hub interface
module.
See Appendix B: Models & Accessories for more information on model numbers,
parts and accessories for all C1007-Series RFID Controllers.
![](/img.php?id=828605&img=bgf.png)
CHAPTER 2: INSTALLING THE C1007
P/N: 17-1327 REV 02 (08/07) PAGE 15 OF 82
CHAPTER 2:
INSTALLING THE C1007
2.1 PREPARING FOR INSTALLATION
C1007-Series RFID Controllers support direct connections for point-to-point
(host/controller) applications (RS232, RS485 and USB). Up to 16 C1007-485 units
can be networked via Subnet16 Gateway interface module and Escort Memory
Systems Subnet16 Multidrop Bus Architecture. Host/controller data transmission is
achieved via 5-pin or 8-pin serial interface cable.
2.1.1 Installation Guidelines
•Conduct a test phase where you will construct a small scale, independent
network that includes only the essential devices required to test your RFID
application. To avoid possible interference with other devices, do not initially
connect your RFID testing environment to an existing local area network.
•RF performance and read/write range can be negatively impacted by the
proximity of metallic objects. Avoid mounting the controller within 60mm (2.36
inches) of any metallic object or surface.
•If electrical interference is encountered (as indicated by a reduction in
read/write performance), relocate the controller to an area free from potential
sources of interference.
•Route cables away from other unshielded cables and away from wiring
carrying high voltage or high current. Avoid routing cables near motors and
solenoids.
•Refrain from mounting the controller near sources of EMI (electro-magnetic
interference) or near devices that generate high ESD (electro-static
discharge) levels.
•Always use adequate ESD prevention measures to dissipate potentially high
voltages. C1007 controllers are designed to withstand 8kV of direct ESD and
15kV of air gap discharge. However, it is not uncommon for some RFID
applications to generate considerably higher ESD levels.
•For applications using multiple RFID controllers operating at the 13.56 MHz
frequency, maintain a minimum distance of at least 20 centimeters between
adjacent RF devices.
![](/img.php?id=828605&img=bg10.png)
CHAPTER 2: INSTALLING THE C1007
P/N: 17-1327 REV 02 (08/07) PAGE 16 OF 82
2.1.2 C1007 Controller Dimensions
The graphic below contains the dimensions of the Cobalt C1007-Series RFID
Controllers. Dimensions are listed in millimeters and [inches].
Figure 2-1: C1007 RFID Controller Dimensions
Tighten
mounting
screws to
between 1.3
and 1.7 Nm (12
15 lbf/in).
![](/img.php?id=828605&img=bg11.png)
CHAPTER 2: INSTALLING THE C1007
P/N: 17-1327 REV 02 (08/07) PAGE 17 OF 82
2.1.3 Mounting the Controller
C1007-Series RFID Controllers can be mounted to wood, plastic fixtures and metal
plate surfaces. However, do not recess the C1007 in metal and allow at least 60mm
clearance from metallic objects along the sides of the C1007.
To fasten the controller to the mounting surface you will need two M5 (#10) diameter
screws, four flat washers, two spring lock washers and two nuts (not included).
NOTE: The controller may be mounted horizontally or vertically, but should be aligned
in such a manner that the LED indicators can be seen during operation.
1. Select a suitable location to
mount the C1007 Controller.
2. Place one flat washer on each
screw and pass the screws
through the mounting holes
on the C1007.
3. From the backside, place one
flat washer, one spring lock
washer and one nut on each
screw.
4. Tighten screws to between
1.3 and 1.7 Nm (12-15 lbf/in).
NOTE:
To convert Newton metres to pound force inches
1 Nm = 8.851 lbf/in
To convert pound force inches to Newton metres
1 lbf/in = 0.1129 Nm
![](/img.php?id=828605&img=bg12.png)
CHAPTER 2: INSTALLING THE C1007
P/N: 17-1327 REV 02 (08/07) PAGE 18 OF 82
Though the C1007 may be mounted directly to metallic plate surfaces, to avoid a
potential drop in read/write range, do not affix the controller in such a manner that
metal is within 60mm of the sides of the device.
Figure 2-2: Mounting the Controller Near Metallic Surfaces
![](/img.php?id=828605&img=bg13.png)
CHAPTER 2: INSTALLING THE C1007
P/N: 17-1327 REV 02 (08/07) PAGE 19 OF 82

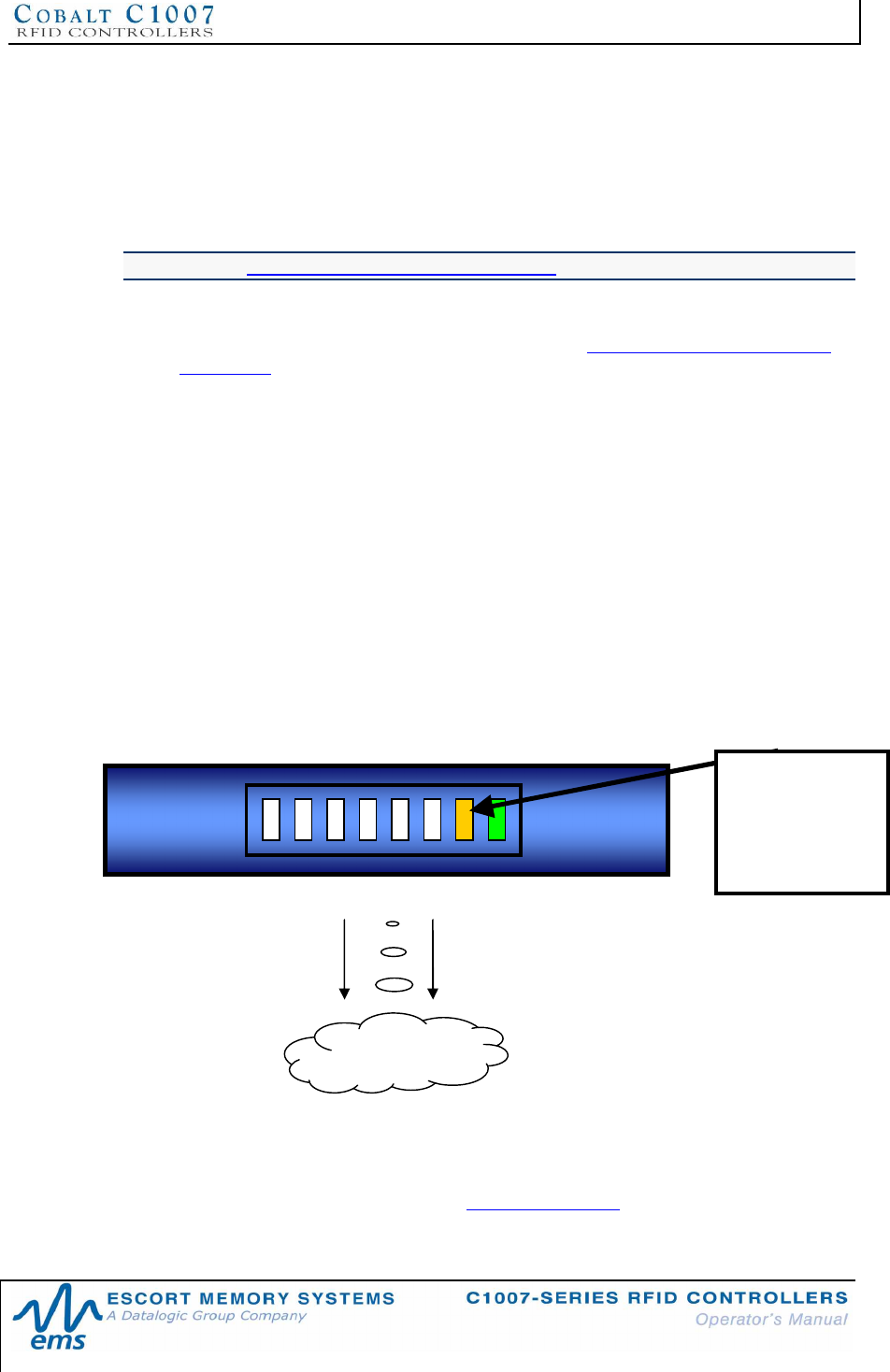

2.2 INSTALLING THE C1007-232-01 CONTROLLER
The C1007-232-01 RFID Controller is designed for point-to-point RFID applications,
where the distance from host to controller is less than 15 meters (50 feet). The
controller connects directly to a serial communications port on a host computer via an
RS232-compatible interface cable.
NOTE: review Section 2.1.1 Installation Guidelines prior to installing the controller.
2.2.1 Steps to Install the C1007-232-01
1. Attach the controller to the work area as noted in Section 2.1.3 Mounting the
Controller.
2. Connect the 8-pin, female M12 connector from your serial interface cable (EMS
Cable P/N: CBL-1478: 8-pin, female M12 to RS232; with 2.5mm DC power jack,
2m) to the 8-pin, male M12 connector on the C1007-232-01.
3. Connect the serial interface cables DE9F D-Sub connector to a COM port on the
host computer. Tighten the cables two locking thumbscrews.
4. Provide a power supply for the controller that is capable of delivering 10~30VDC,
3.6W (150mA @ 24VDC).
5. Connect the 2.5mm DC power plug on the power supply transformer to the DC
power jack receptacle on the serial interface cable. Tighten the locking ring to
prevent power from becoming disconnected during use.
6. Plug the power supply transformer into a suitable AC power source. Apply power
to the controller after all cable connections have been made. The LEDs on the
unit should flash. For the C1007-232 model, the amber LED 20 should stay lit
indefinitely to indicate that the controller is in RS232 mode.
7. On the host computer, set COM port parameters to: 9600 baud, 8 data bits, 1
stop bit, no parity and no handshaking.
8. To verify operations, download the Cobalt HF Serial Dashboard Utility from
Escort Memory Systems website (www.ems-rfid.com). The Dashboard Utility
allows users to send RFID commands to the controller for testing purposes.
2
3
2
1
PWR
2
4
2
2
2
0
COM
R F
RF FIELD
LED 2
0
will
illuminate to
indicate RS232
mode.
![](/img.php?id=828605&img=bg14.png)
CHAPTER 2: INSTALLING THE C1007
P/N: 17-1327 REV 02 (08/07) PAGE 20 OF 82
2.2.2 C1007-232-01 Cabling Information
The C1007-232-01 has one 8-pin, male M12 interface connector.
C1007-232-01 Interface Connector Pinout
PIN # DESCRIPTION
110~30VDC POWER
20VDC (POWER GROUND)
3NOT CONNECTED
4NOT CONNECTED
5NOT CONNECTED
6RX
7TX
8SGND (SIGNAL GROUND)
Table 2-1: C1007-232-01 Interface Connector - Pinout
C1007-232-01 Interface Connector Diagram
Figure 2-3: C1007-232-01 Interface Connector - Diagram
Cabling Part Numbers for the C1007-232-01
•CBL-1478: Cable Assembly (8-pin, female M12 to RS232; with 2.5mm DC power
jack, 2m)
•CBL-1488-XX: Cable (8-pin, female M12 to bare wire leads)
•CBL-1492-XX: Cable (8-pin, right-angle female M12 to bare wire leads)
•CBL-1493: Connector (8-pos, straight female M12, field mountable)
(XX = Cable Length in Meters)
![](/img.php?id=828605&img=bg15.png)
CHAPTER 2: INSTALLING THE C1007
P/N: 17-1327 REV 02 (08/07) PAGE 21 OF 82
RS232 Serial Interface Cable Schematic
If you intend to assemble your own RS232 serial interface cable, follow the schematic
below. Note that signals and electrical loads applied to Pin 6 (RX) and Pin 7 (TX)
should conform to RS232 specifications. For bulk RS232 cable, see Belden cable
P/N: 9941 (www.belden.com).
Figure 2-4: RS232 Interface Cable Schematic
CBL-1478: Serial Interface Cable
Figure 2-5: CBL-1478 Serial Interface Cable
![](/img.php?id=828605&img=bg16.png)
CHAPTER 2: INSTALLING THE C1007
P/N: 17-1327 REV 02 (08/07) PAGE 22 OF 82
CBL-1493: Field Mountable Connector
Figure 2-6: CBL-1493 Connector
The CBL-1493 field mountable connector is available for connecting the C1007-232-
01 to a host computer via bulk cable. (See Appendix B for more information regarding
cables and connectors for the entire line of C1007-Series RFID Controllers).
![](/img.php?id=828605&img=bg17.png)
CHAPTER 2: INSTALLING THE C1007
P/N: 17-1327 REV 02 (08/07) PAGE 23 OF 82
2.3 INSTALLING THE C1007-485-01 CONTROLLER
The C1007-485-01 supports RS485 communications and EMS Subnet16
Multidrop bus architecture and RFID network protocol. Through the Subnet16
protocol, multiple C1007-485-01 units can be connected to one Subnet16 RFID
Gateway or Hub interface device. The Gateway or Hub assigns each attached
C1007-485-01 a unique Node ID number through which communication with a host
PC and/or Programmable Logic Controller (PLC) is achieved.
NOTE: review Section 2.1.1 Installation Guidelines prior to installing the controller.
2.3.1 Steps to Install the C1007-485-01
1. Attach the controller to the work area as noted in Section 2.1.3 Mounting the
Controller.
2. Connect the 5-pin, female end of your Subnet16 compatible cable to the 5-pin,
male M12 interface connector on the C1007-485. Connect the opposite end of
this cable to an EMS Subnet16 Gateway or Hub device. Connect the Gateway or
Hub to a host computer via Category 5E Ethernet cabling*.
3. Turn the power supply ON. The green power LED on the unit will illuminate when
power is applied to the unit. The five amber Node LEDs, when lit, display the
Node ID value (in binary format from right to left) currently assigned to the
C1007-485 RFID Controller. Note: the default Node ID value is zero, in which
case none of the amber Node LEDs will be lit.
4. To verify operations, download the Cobalt HF TCP/IP Dashboard Utility from
Escort Memory Systems website (www.ems-rfid.com). The Dashboard Utility
allows Gateway/Hub users to send RFID commands to any connected Cobalt
controller for testing purposes.
* For more information regarding the installation of a Subnet16 Gateway or Subnet16
Hub, refer to the Operators Manual for each product, available online at www.ems-
rfid.com.
23 2
1
PWR
2422 2
0
COM
R F
RF FIELD
Amber Node
LEDs 20- 24
indicate Node ID
of the C1007-485
controller.
![](/img.php?id=828605&img=bg18.png)
CHAPTER 2: INSTALLING THE C1007
P/N: 17-1327 REV 02 (08/07) PAGE 24 OF 82
2.3.2 C1007-485-01 Cabling Information
The C1007-485-01 has one 5-pin, male M12 interface connector.
C1007-485-01 Interface Connector - Pinout
PIN # DESCRIPTION
1SGND (SIGNAL GROUND)
210~30VDC POWER
30V (POWER GROUND)
4TX/RX+
5TX/RX-
Table 2-2: C1007-485-01 Interface Connector - Pinout
C1007-485-01 Interface Connector - Diagram
Figure 2-7: C1007-485-01 Interface Connector - Diagram
![](/img.php?id=828605&img=bg19.png)
CHAPTER 2: INSTALLING THE C1007
P/N: 17-1327 REV 02 (08/07) PAGE 25 OF 82
2.4 INSTALLING THE C1007-USB-01 CONTROLLER
The C1007-USB-01 RFID Controller is designed for point-to-point RFID applications
that support USB 2.0 communications. Host/controller data is transmitted via
standard USB cabling.
NOTE: review Section 2.1.1 Installation Guidelines prior to installing the controller.
2.4.1 Steps to Install the C1007-USB-01
1. Download the Cobalt USB driver software from the Escort Memory Systems
website (www.ems-rfid.com). Extract the .zip file archive to a separate folder on
the desktop of the host computer.
2. Install the Cobalt USB driver. For instructions, refer to EMS document P/N: 17-
3128Cobalt USB Driver - Installation Instructions,which is included in the
Cobalt USB driver archive.
3. Attach the controller to the work area as noted in Section 2.1.3 Mounting the
Controller.
4. Attach the 5-pin, female, reverse-keyed M12 connector from a suitable USB
cable (EMS P/N: CBL-1525, not included) to the 5-pin, male, reverse-keyed M12
interface connector on the C1007-USB-01.
Figure 2-8: CBL-1525
5. Plug the remaining end of the USB interface cable into a USB port on the host
computer. The LEDs on the unit should flash. For the C1007-USB model, the
amber LED 22 should illuminate to indicate that the controller is in USB mode.
6. To verify operations, download the Cobalt HF Serial Dashboard Utility from the
EMS website (www.ems-rfid.com). The Dashboard Utility allows users to send
RFID commands to the controller for testing purposes.
![](/img.php?id=828605&img=bg1a.png)
CHAPTER 2: INSTALLING THE C1007
P/N: 17-1327 REV 02 (08/07) PAGE 26 OF 82
2.4.2 C1007-USB-01 Cabling Information
The C1007-USB-01 has one 5-pin, male, reverse-keyed, M12 interface connector.
C1007-USB-01 Interface Connector - Pinout
PIN # DESCRIPTION
1+5V
2D-
3D+
4GND
5SHIELD
Table 2-3: C1007-USB-01 Interface Connector - Pinout
C1007-USB-01 Interface Connector Diagram
Figure 2-9: C1007-USB-01 Interface Connector - Diagram
Cabling Part Numbers for the C1007-USB-01
•CBL-1514: Connector (5-pin, straight male, reverse-keyed M12 for USB)
•CBL-1525: Cable Assembly (5-pin, female, reverse-keyed M12 to USB type A,
3m)
2321
PWR
242220
COM
R F
RF FIELD
LED 22will
illuminate to
indicate USB
mode.
![](/img.php?id=828605&img=bg1b.png)
CHAPTER 2: INSTALLING THE C1007
P/N: 17-1327 REV 02 (08/07) PAGE 27 OF 82
2.5 ANTENNA ENVIRONMENT
The antenna used to power and communicate with RFID tags is integrated within the
housing module of the C1007 RFID Controller. Electro-magnetic interference (EMI)
and the presence of metal near the antennas RF field can negatively affect the
communication range of the RFID controller.
Figure 2-10: C1007 Top View - LRP250S Typical Read Range
![](/img.php?id=828605&img=bg1c.png)
CHAPTER 2: INSTALLING THE C1007
P/N: 17-1327 REV 02 (08/07) PAGE 28 OF 82
Figure 2-11: C1007 Front View - LRP250S Typical Read Range
![](/img.php?id=828605&img=bg1d.png)
CHAPTER 2: INSTALLING THE C1007
P/N: 17-1327 REV 02 (08/07) PAGE 29 OF 82
Figure 2-12: C1007 Top View - HMS150 Typical Read Range
![](/img.php?id=828605&img=bg1e.png)
CHAPTER 2: INSTALLING THE C1007
P/N: 17-1327 REV 02 (08/07) PAGE 30 OF 82
Figure 2-13: C1007 Front View - HMS150 Typical Read Range
![](/img.php?id=828605&img=bg1f.png)
CHAPTER 3: POWER & COMMUNICATION
P/N: 17-1327 REV 02 (08/07) PAGE 31 OF 82
CHAPTER 3:
POWER & COMMUNICATION
3.1 POWER REQUIREMENTS
3.1.1 C1007-232-01/C1007-485-01 Power Requirements
C1007-232-01 and C1007-485-01 RFID Controllers require an agency compliant LPS
power supply capable of providing the following:
10~30VDC, 3.6W (150mA @ 24VDC)
EMS Power Supplies for C1007-232 and C1007-485 RFID Controllers
EMS PART NUMBER DESCRIPTION
00-1166 45W, 1.88A max @ 24VDC
00-1167 100W, 4.17A max @ 24VDC
00-1168 120W, 5.0A max @ 24VDC
Table 3-1: EMS Power Supplies
3.1.2 C1007-USB-01 Power Requirements
The C1007-USB-01 RFID Controller obtains power directly from the USB bus
Typical power consumption under normal conditions = 2.5W (500mA @ 5VDC)
CAUTION:
Do not connect or disconnect the C1007 while power is applied. Turn the power supply
off at the source prior to connecting or disconnecting the unit. Reapply power only after
the controller has been reconnected.
Use only high quality, shielded cables for power and interface connections. See
Appendix B for a list of compatible cables and network components.
![](/img.php?id=828605&img=bg20.png)
CHAPTER 3: POWER & COMMUNICATION
P/N: 17-1327 REV 02 (08/07) PAGE 32 OF 82
3.2 COBALT HF CONFIGURATION TAG
3.2.1 Configuration Tag Overview
In the past, RFID controllers had multiple jumpers and DIP-switches that were used
to set various configuration parameters. C1007-Series RFID Controllers do not
require jumpers or DIP-switches because they are software configurable via
commands sent from a host PC as well as through the use of a Cobalt HF
Configuration Tag.

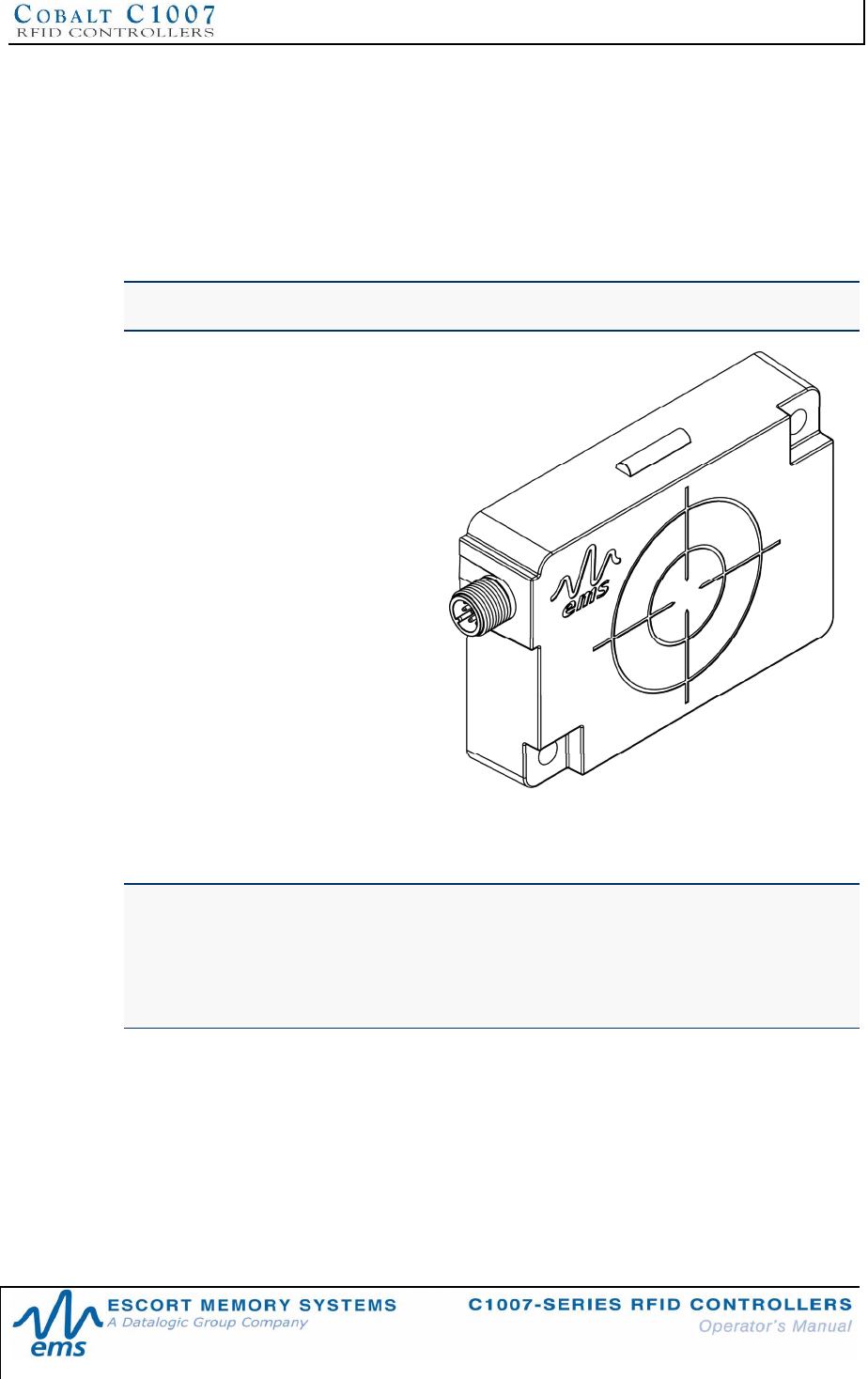

Figure 3-1: Cobalt HF Configuration Tag
In the event that serial communication parameters become improperly assigned,
reset or cycle power to the RFID controller while holding the Configuration Tag in the
controllers RF field. When power returns to the controller, factory default settings will
be read from the Configuration Tag and the controllers internal configuration will be
reset. For the C1007-485, the Configuration Tag can also be used to set the devices
Node ID manually. It is recommended that you write the product model and serial
number on the tag and store it in a safe place.
![](/img.php?id=828605&img=bg21.png)
CHAPTER 3: POWER & COMMUNICATION
P/N: 17-1327 REV 02 (08/07) PAGE 33 OF 82
3.2.2 Configuration Tag Memory Map
Containing a Philips I-CODE SLi IC, the Configuration Tag is a 112-byte ISO 15693
compliant tag that has had much of its memory locked at the factory to prevent
important data from being erased or overwritten. Of the 112 bytes of memory, the first
80 bytes (addresses 0x0000 0x0079) are allocated to storing factory default
settings, product ID and manufacturing information. The first 16-bytes (addresses
0x0000 through 0x0015) contain specific data that the controller reads to identify this
special tag.
You are welcome to experiment with the remaining 32 bytes available (addresses
0x0080 0x0111). All addresses on the Configuration Tag can be read and no user
identifiable information is stored.
3.2.3 Using the Configuration Tag
Resetting the Controller Configuration to Default Values
The Configuration Tag can be used to reset factory defaults to all versions of the
C1007. To restore factory default values, cycle power to the controller or issue the
reset command (Command 0x35) while the Configuration Tag is in the RF field. Two
seconds after power returns to the C1007, remove the Configuration Tag from the RF
field. The controllers configuration will be reset to the following default values:
CONFIGURATION PARAMETER DEFAULT VALUE
Command Protocol ABx Fast No Checksum
Tag Type ISO 15693 (I-Code SLi)
Serial Communications 9600, N, 8, 1, N (C1007-232 model)
Node ID zero (C1007-485 model)
Table 3-2: Controller Default Values

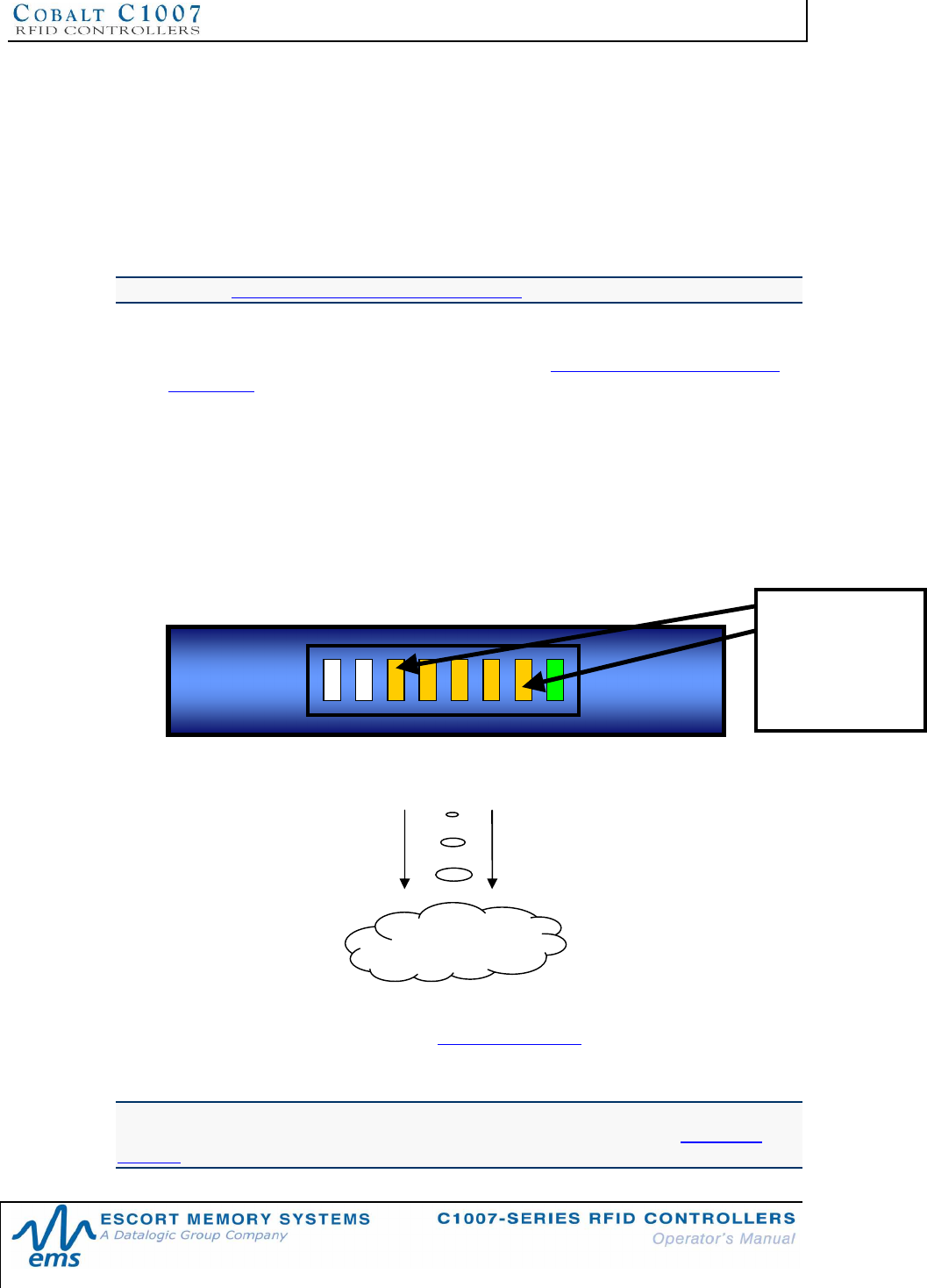

Setting Node ID Manually (C1007-485 Model Only)
To set the Node ID on C1007-485 models, cycle power to the controller or issue the
reset command (Command 0x35) while the Configuration Tag is in the RF field. Two
seconds after power returns to the C1007, remove the Configuration Tag from the RF
field. This will set the Node ID value back to the default value of Node ID 00.
• All amber Node LEDs should be off.
After power returns to the unit, move the Configuration Tag out of the RF field and
then back into the RF field to increment the Node ID from zero to one.
• Amber Node LED 20 should now be lit.
Removing the Configuration Tag from the controllers RF field and then placing it
back into the field will increment the Node ID value once each time the Configuration
Tag re-enters the RF field.
• The amber Node LEDs will display, in binary, the Node ID assigned to the
controller.
![](/img.php?id=828605&img=bg22.png)
CHAPTER 3: POWER & COMMUNICATION
P/N: 17-1327 REV 02 (08/07) PAGE 34 OF 82
This procedure can be used to cycle through all 16 possible Node ID values. Note
that after reaching Node ID 16, incrementing the value once more returns the
controller to Node ID 00.
After selecting the desired Node ID value, reset the C1007 with the Configuration Tag
out of RF range to allow the unit to reset completely and resume operation under its
new Node ID.
See Section 4.1 LED Functions Overviewfor more information regarding LED
positions and colors.
Setting Node ID Automatically (C1007-485 Model Only)
To allow a Subnet16 Gateway or Hub to assign the Subnet Node ID to a C1007-485
automatically, reset the controller to Node ID 00, connect the controller to the network,
and apply power to the Subnet16 bus. When the Gateway or Hub comes on line,
hold the Configuration Tag in the RF field of the controller for several seconds to
allow the Gateway or Hub to assign the next available Node ID value.
For more information on using a Subnet16 Gateway and Hub product to auto-assign
Subnet Node ID values, please refer to the Operators Manuals for the Subnet16
Gateway and/or subnet16 Hub.
![](/img.php?id=828605&img=bg23.png)
CHAPTER 4: LED STATUS
P/N: 17-1327 REV 02 (08/07) PAGE 35 OF 82
CHAPTER 4:
LED STATUS
4.1 LED FUNCTIONS OVERVIEW
C1007-Series RFID Controllers have eight LED indicators. The LEDs are
conveniently located on the top panel of the device and display everything from
antenna RF and communications activity to Node ID, diagnostic information and
power status.
LED
COLOR Red Green Amber Amber Amber Amber Amber Green
FUNCTION RF
Activity
COM
Activity
Node
24(16)
Node
23(8)
Node
22(4)
Node
21 (2)
Node
20 (1)
Power
On
4.1.1 LED Descriptions
RF LED: Color is red. The RF LED will illuminate while RF power is being
transmitted by the antenna, and will stay ON during the entire RF operation. By
default, this occurs each time an RF command is being executed.
COM LED: Color is green. The COM LED indicates that data is being transmitted
between the host and the C1007. On receipt of a command, the COM LED will
begin flashing ON and OFF rapidly. After the controller generates the command
response, COM LED flashing will halt. When in Continuous Read mode, the COM
LED will remain ON and will turn OFF briefly only while a tag is in the antenna field
and data is being read or written to the tag.
Node LEDs: Colors are amber. These five LEDs indicate the serial
communications type for C1007-232 and -USB models. For the C1007-485
model, the five amber LEDs indicate (in binary from right to left) the current Node
ID value assigned to the controller. The five amber LEDs also flash an error code
when a fault occurs (see Section 4.3 LED Displayed Error Codes).
Power LED: Color is green. The Power LED will remain ON while power is
applied to the C1007-Series RFID Controller.
![](/img.php?id=828605&img=bg24.png)
CHAPTER 4: LED STATUS
P/N: 17-1327 REV 02 (08/07) PAGE 36 OF 82
Node 0
(default) Node 1 Node 2
4.1.2 C1007-232/USB LED Status
C1007-232 - amber Node LED 20 will illuminate. Node LED 20indicates RS232 mode.
C1007-USB - amber Node LED 23will illuminate. Node LED 23indicates USB mode.
4.1.3 C1007-485 LED Status
When used in conjunction with a Subnet16 Gateway or Subnet16 Hub, the five
amber Node LEDs on the C1007-485 model indicate (in binary, weighted by powers
of two, from right to left) the Node ID value currently assigned (for which there are 16).
For example, 20 (0x01) = Node ID 1, 21 (0x02) = Node ID 2, 22 (0x04) = Node ID 4, 23
(0x08) = Node ID 8, 24(0x10) = Node ID 16.
By default, C1007-485 RFID Controllers ship with their Node ID value set to zero
(none of the five amber Node LEDs will be lit). After the controller is connected to a
Subnet16 bus and has been recognized by a Subnet16 Gateway or Hub, it will be
automatically assigned the next available Node ID (1 through 16). For configuring or
resetting the Node ID using the Configuration Tag, see Chapter 3 Section 3.2:
Cobalt HF Configuration Tag.

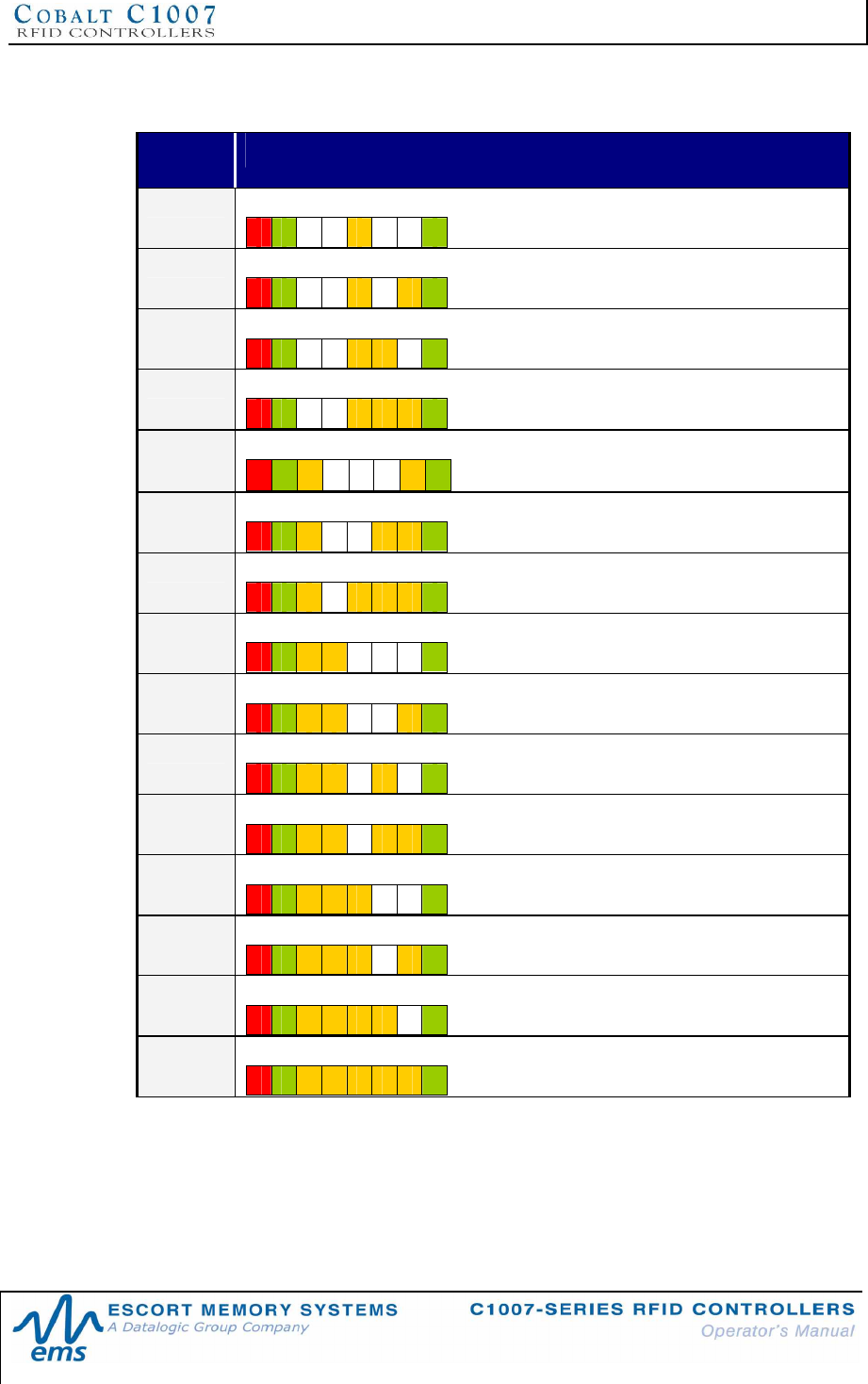

N ode ID Values for the C1007-485
2321
PWR
242220
COM
R F
RF FIELD
P
W
R
242321
2220
C
O
M
R
F
P
W
R
242321
2220
C
O
M
R
F
P
W
R
242321
2220
C
O
M
R
F
![](/img.php?id=828605&img=bg25.png)
CHAPTER 4: LED STATUS
P/N: 17-1327 REV 02 (08/07) PAGE 37 OF 82
Node 3 Node 4 Node 5
Node 6 Node 7 Node 8
Node 9 Node 10 Node 11
Node 12 Node 13 Node 14
P
W
R
242321
2220
C
O
M
R
F
P
W
R
242321
2220
C
O
M
R
F
P
W
R
242321
2220
C
O
M
R
F
P
W
R
242321
2220
C
O
M
R
F
P
W
R
242321
2220
C
O
M
R
F
P
W
R
242321
2220
C
O
M
R
F
P
W
R
242321
2220
C
O
M
R
F
P
W
R
242321
2220
C
O
M
R
F
P
W
R
242321
2220
C
O
M
R
F
P
W
R
242321
2220
C
O
M
R
F
P
W
R
242321
2220
C
O
M
R
F
P
W
R
242321
2220
C
O
M
R
F
![](/img.php?id=828605&img=bg26.png)
CHAPTER 4: LED STATUS
P/N: 17-1327 REV 02 (08/07) PAGE 38 OF 82
Node 15 Node 16
NOTE:
Node ID 00 is the default Node ID for C1007-485 controllers. In this state the controller
will be unable to perform commands until it has been initialized by a Gateway or Hub, at
which time it will be assigned a Node ID value between 1 and 16.
P
W
R
242321
2220
C
O
M
R
F
P
W
R
242321
2220
C
O
M
R
F
![](/img.php?id=828605&img=bg27.png)
CHAPTER 4: LED STATUS
P/N: 17-1327 REV 02 (08/07) PAGE 39 OF 82
4.2 SPECIAL LED FUNCTIONS
4.2.1 Updating the Controllers Firmware
Updating Firmware
(Part 1)
With the PWR LED on the
right, the remaining LEDs will
illuminate one at a time
sequentially from right to left to
indicate that new firmware
code is being copied to
internal memory.
The LEDs will repeat this R to
L sequence until the C1007
has completely received the
firmware installation file.
![](/img.php?id=828605&img=bg28.png)
CHAPTER 4: LED STATUS
P/N: 17-1327 REV 02 (08/07) PAGE 40 OF 82
4.2.2 Continuous Read Mode LED Behavior
The table below describes the behavior of the LEDs when the C1007 is in
Continuous Read Mode (Command 0x0D).
LED BEHAVIOR DESCRIPTION
PWR ON Controller is powered and functioning
COM ON Duplicate Read Delay 1 and a tag has entered the RF field.
COM LED will remain ON while a tag is in the RF field.
After the tag has exited the RF field the COM light will remain
ON for the duration of the Duplicate Read Delay before turning
OFF
COM BLINKING Duplicate Read Delay = 0 and a tag is in the RF field
RF ON Continuous Read mode is enabled
Table 4-1: Continuous Read Mode - LED Behavior
Updating Firmware
(Part 2)
After the new firmware has
been copied to internal
memory, the LEDs will blink
ON and OFF repeatedly during
which time the new code is
being written to flash memory.
Warning: do not cancel or
abort this operation, AND do
not unplug or remove power
from the controller under any
circumstance until this
procedure is completed.
![](/img.php?id=828605&img=bg29.png)
CHAPTER 4: LED STATUS
P/N: 17-1327 REV 02 (08/07) PAGE 41 OF 82
4.3 LED DISPLAYED ERROR CODES
When an error occurs, other than a Timeout, the red RF LED and one or more amber
Node LEDs will flash in unison. The amber Node LEDs flash a binary representation
of the one-byte error code value of the fault that transpired. The COM LED will also
be illuminated after an error occurs to help orient the binary LED positions. See
Chapter 8: ABx Error Codes for a complete list of errors and their descriptions.
To display the single-byte error code in binary, the two left-most amber Node LEDs
(LED 24and LED 23) represent the first or most significant digit (MSD) of the error
code. The three remaining amber Node LEDs (LED 22, LED 21and LED 20) are
combined to represent the second or least significant digit (LSD) of the error code.

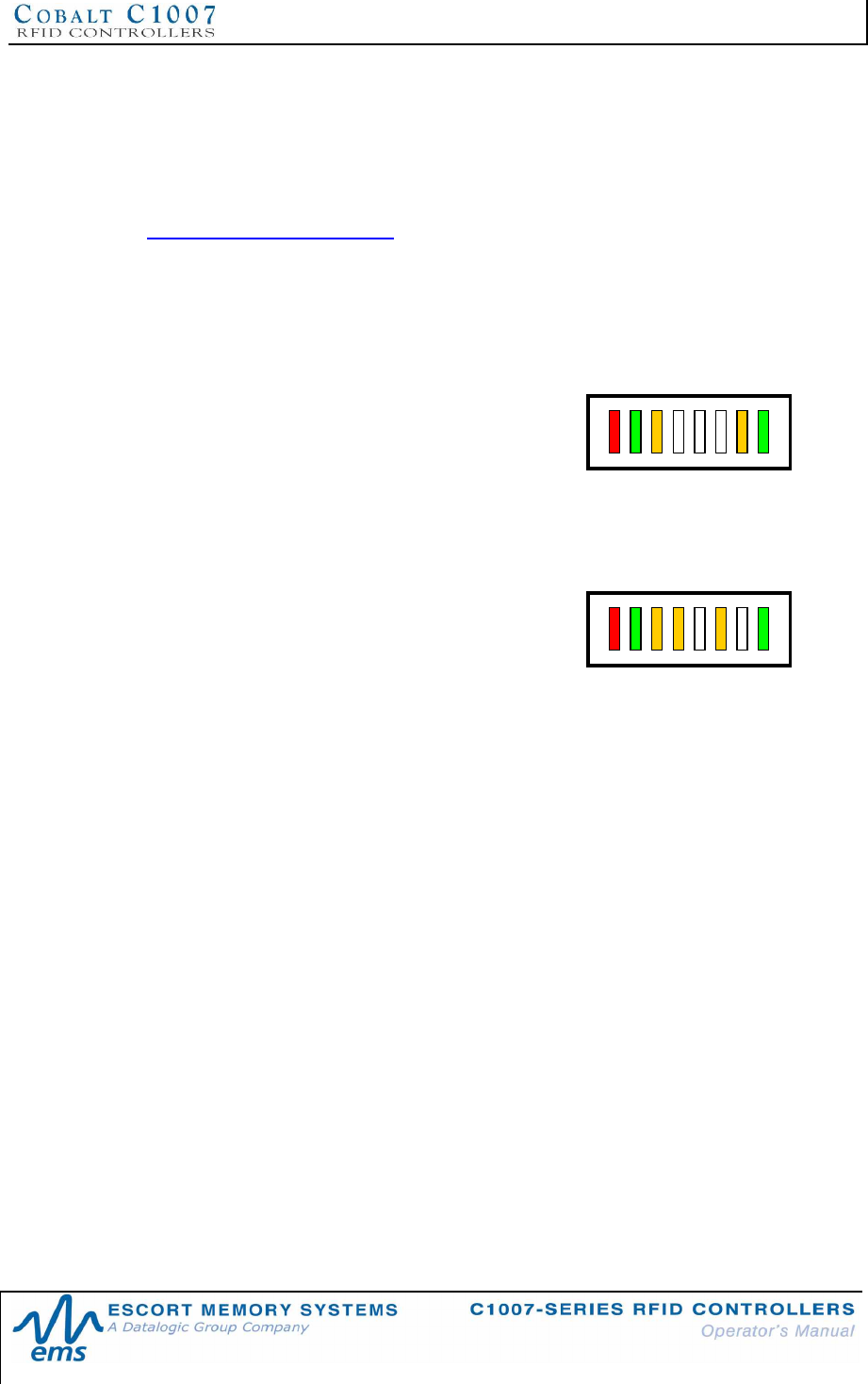

Examples:
•If the five amber Node LEDs (from L to R) =
ON, OFF, OFF, OFF, ON, the first digit of the
error code is a 2 and the second digit is a
1, meaning that error code 0x21 occurred
(error code 0x21 = command syntax error).
•If the five amber Node LEDs (from L to R) =
ON, ON, OFF, ON, OFF, the first digit of the
error code is a 3 and the second digit is a
2, meaning that error code 0x32 occurred
(error code 0x32 = invalid programming
address).
The red RF LED and amber Node LEDs will continue to flash until a valid command
is received by the controller. If an unrecoverable error occurs, the LEDs will
continuously flash the error code until the C1007 has been reset.
P
W
R
242321
2220
C
O
M
R
F
P
W
R
242321
2220
C
O
M
R
F
![](/img.php?id=828605&img=bg2a.png)
CHAPTER 4: LED STATUS
P/N: 17-1327 REV 02 (08/07) PAGE 42 OF 82
P
W
R
2
4
2
3
2
1
2
2
2
0
C
O
M
R
F

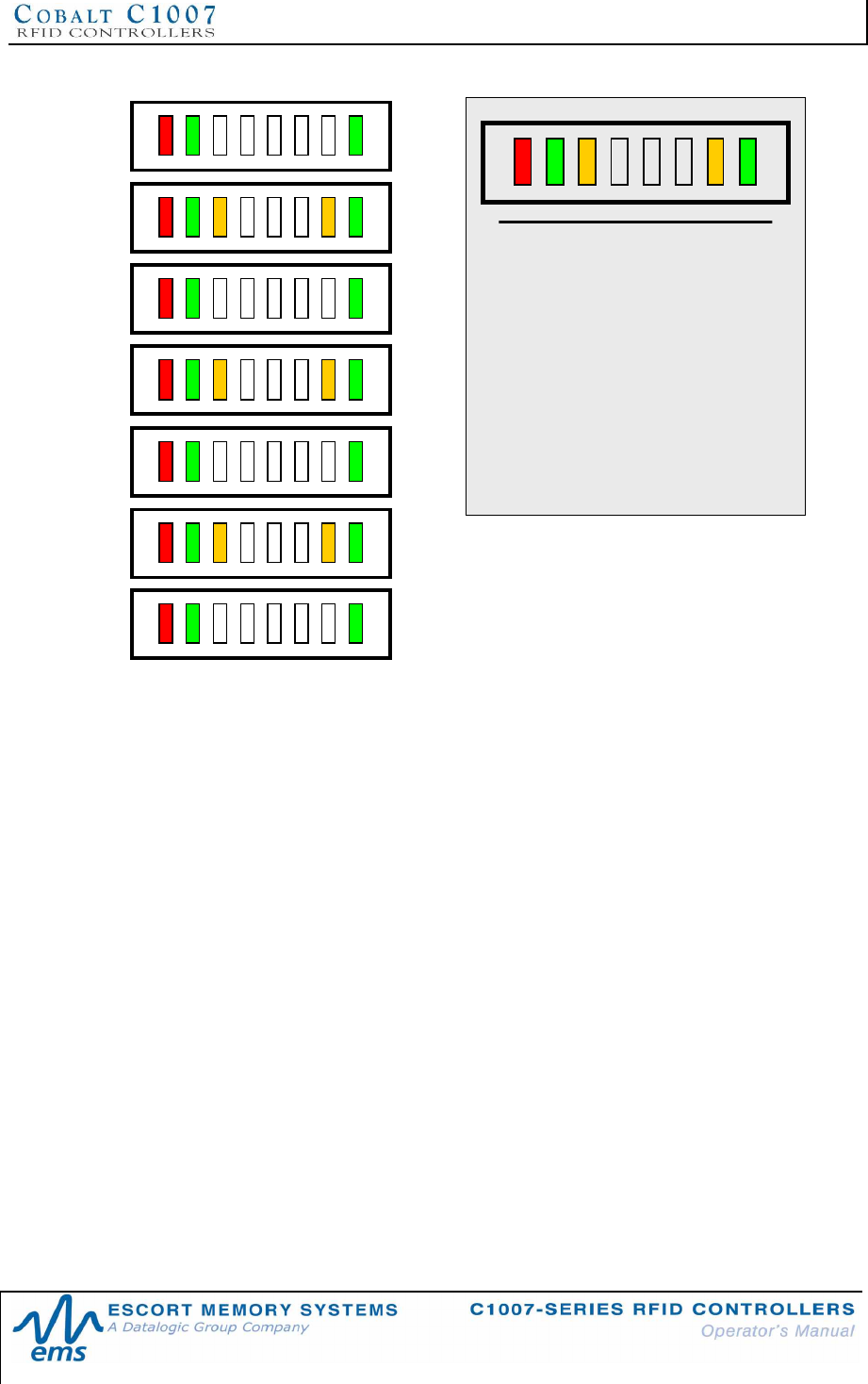

This example depicts Error 0x21.
When an error occurs, the green
COM LED will remain ON to help
orient the binary LED positions. The
green power LED will also be ON
while power is applied to the C1007.
![](/img.php?id=828605&img=bg2b.png)
CHAPTER 5: RFID TAGS
P/N: 17-1327 REV 02 (08/07) PAGE 43 OF 82
CHAPTER 5:
RFID TAGS
5.1 RFID TAG OVERVIEW
RFID tags, which are also referred to as transponders, smart labels, or inlays, come
in a variety of sizes, memory capacities, read ranges, frequencies, temperature
survivability ranges and physical embodiments. C1007-Series RFID Controllers are
capable of reading Escort Memory Systems HMS, LRP and T-Series RFID tags as
well as most tags made by other manufacturers.
5.1.1 RFID Standards
ISO 14443A
RFID integrated circuits (ICs) designed to meet the ISO 14443A standard were
originally intended for use in smart cards used in secure transactions such as credit
cards, passports, bus passes, ski lift tickets, etc. For this reason there are many
security authentication measures taken within the air protocol between the RFID
controller and the tag. Escort Memory Systems was the first company to adopt ISO
14443A RFID ICs with this technology for industrial automation applications. Because
these applications do not require the level of security monetary or passport
applications require, many of these features have not been implemented in current
controllers. It is important to understand the requirements of an ISO 14443A
application before assuming the C1007-Series controller is suitable.
ISO 14443A compliant tags and controllers incorporate security authentication and
use software keys during the transfer of data to and from a tag. Both the RFID
controller and the tag must use the same security keys for communication to be
authenticated. The C1007 controllers operating system manages these security
features, making their existence essentially transparent to the user.
However, it is important to understand the implications associated with ISO 14443A
when using a third party manufacturers tags. Because of the aforementioned
security features an ISO 14443A tag made by one manufacturer might not be
readable by C1007 controllers and likewise, an EMS ISO 14443A compliant tag
might not be readable by another manufacturers RFID controller. C1007-Series
Controllers support EMS security keys for use on Mifare-based ISO 14443A tags.
ISO 15693
ISO 15693 was established at a time when the RFID industry identified that the lack
of standards was preventing market growth and further adoption of RFID
technologies. Philips Semiconductor and Texas Instruments were the major
manufacturers producing RFID ICs for the Industrial, Scientific, and Medical (ISM)
frequency of 13.56MHz, but each used a unique protocol and modulation algorithm.
Texas Instruments Tag-it and Philips Semiconductors I-CODE product lines
were eventually standardized on the mutually compatible ISO 15693 standard. After
the decision was made to standardize, the door opened for other silicon
manufacturers to enter the RFID business, many of which have since contributed to
RFID ISO definitions. This healthy competition has led to rapid growth in the industry
and has pushed the development of other standards, such as ISO 18000 for
Electronic Product Code (EPC) applications.
![](/img.php?id=828605&img=bg2c.png)
CHAPTER 5: RFID TAGS
P/N: 17-1327 REV 02 (08/07) PAGE 44 OF 82
ISO 18000-3.1
The ISO 18000 standard has not been implemented in C1007-Series RFID
Controllers at the time of publication of this manual. It is a planned product
enhancement for future release. This will provide support for EPC and Unique
Identification (UID) tag applications.
ADDITIONAL INFORMATION:
Because ISO 14443A and ISO 15693 standards leave many features open to the
discretion and interpretation of the RFID equipment manufacturer, EMS can not
guarantee that all 13.56MHz RFID tags will be compatible with Cobalt controllers. When
using any tag other than those supplied by Escort Memory Systems, you should ensure
compatibility of those tags with your RFID system provider.
5.2 EMS RFID TAGS
As of the publication of this manual, tags that contain the following RFID integrated
circuits are compatible with Cobalt C1007-Series RFID Controllers.
5.2.1 HMS-Series Tags
•Philips Mifare Classic: 1KB total IC memory, + 32-bit tag ID. Of this memory, 736
bytes are available for user data (ISO 14443A compliant).
•Philips Mifare Classic: 4KB total IC memory, + 32-bit tag ID. Of this memory,
3,440 bytes are available for user data (ISO 14443A compliant).
Figure 5-1: HMS125HT and HMS150HT tags
5.2.2 LRP-Series Tags
§Philips I-CODE 1: 48 bytes total IC memory available for user data, + 64-bit tag
ID.
§Philips I-CODE SLi: 112 bytes total IC memory available for user data, + 64-bit
tag ID (ISO 15693 compliant).
§Texas Instruments Tag-it: 32 bytes total IC memory available for user data, +
64-bit tag ID (ISO 15693 compliant).
§Infineon My-D Vicinity: 1KB total IC memory available for user data, + 64-bit tag
ID (ISO 15693 compliant).
![](/img.php?id=828605&img=bg2d.png)
CHAPTER 5: RFID TAGS
P/N: 17-1327 REV 02 (08/07) PAGE 45 OF 82
Figure 5-2: LRP-Series Tags
The HMS-Series and LRP-Series RFID tags listed in the above section are passive
devices, meaning that they require no internal batteries. These tags are fully readable
and writeable, except for the tags unique ID number, which is read only.
There are no serviceable or repairable parts inside these tags, yet most are capable
of providing over 100,000 write cycles and 10 years of data retention. In fact, tests
resulting in over one million write cycles have been recorded by some tags.
Numerous tag-related factors can adversely affect RF range and data transmission
between the controller and the tag, including the tags integrated circuit (IC), the tags
antenna coil design, the tags antenna conductor material, the tags antenna coil
substrate, the tag IC incorporated, the antenna coil bonding process and the
embodiment material that is used.
Additionally, the mounting environment of the tag and controller can hinder
performance due to other materials affecting the tuning of either antenna. Escort
Memory Systems has performed extensive testing to produce tags that obtain
optimum performance with our RFID devices. In most cases, optimal range will be
obtained when mounting the tag and antenna in locations free from the influence of
metals and EMI emitting devices.
5.3 TAG EMBODIMENTS
RFID tags are designed, produced and distributed in a variety of sizes and packages.
5.3.1 Printed Circuit Board RFID Tags
RFID tags that incorporate Printed Circuit Board
technology are designed for encasement inside totes,
pallets, or products that can provide the protection
normally associated with injection-molded
enclosures.
These tags are made primarily from etched copper
PCB materials (FR-4, for example) and are die-
bonded by means of high quality wire bonding. This
procedure ensures reliable electrical connections that
are superior to flip-chip assembly methods. The RFID
tags integrated circuit is then encapsulated in epoxy to
protect it and the electrical connections.
![](/img.php?id=828605&img=bg2e.png)
CHAPTER 5: RFID TAGS
P/N: 17-1327 REV 02 (08/07) PAGE 46 OF 82
5.3.2 Molded RFID Tags
Molded tags utilize PCB tags and are the most rugged and reliable of the tags offered
by Escort Memory Systems. These tags are designed for closed-loop applications
where the tag is reused; thereby the cost of the tag can be amortized over the life of
the production line. Typically, molded tags will be mounted to a pallet or carrier that
transports (and accompanies) the product through the entire production process.
Other applications for these tags include (but are not limited to) embedding tags
within concrete floors for location identification, shelf identification for storage and
retrieval systems, and tool identification.
Escort Memory Systems offers a wide variety of molded tags that have been
developed over the years for real world applications. High temperature tags using
patented processes and specialized materials allow tags to survive elevated
temperatures, such as those required for automotive paint and plating applications.
5.4 TAG MEMORY
Tag memory addressing begins at address zero (0x0000), with the highest
addressable memory location equal to one less than the total number of bytes in the
tag. Each address is equal to one byte (8-bits), where the byte is the smallest
addressable unit of data. So for example, writing 8-bytes to a tag beginning at
address 0 will fill addresses 0 to 7 with 64-bits of data in all.
Depending on the manufacturer, RFID labels, molded tags and embedded PCBs can
have differing memory storage capacities and organization. Tag memory is grouped
into blocks of bytes that can vary in organization from manufacturer to manufacturer.
Even when compliant to ISO standards, byte memory addressing can differ from one
manufacturer to another (for example, tag memory can be organized in blocks of 4 or
8 bytes, depending on the RFID IC).
Additionally, all bytes may not be
available for data storage as some
bytes may be used for security and
access conditions. For more information
regarding a specific RFID tags memory
allocation, please refer to each IC
manufacturers datasheet or Website.
Escort Memory Systems has taken
great care to simplify tag memory
addressing. The mapping from logical
address to physical address is handled
by the C1007-Series Controllers
operating system. Users only need to
identify the starting address location on
the tag and the number of bytes to be
read or written. However, extra attention
needs to be paid to the memory block
structure when memory lock commands
are used. When data is locked, it cannot
be altered. Caution should be exercised
when using memory lock commands as
locked data cannot be unlocked, even
by Escort Memory Systems.
![](/img.php?id=828605&img=bg2f.png)
CHAPTER 5: RFID TAGS
P/N: 17-1327 REV 02 (08/07) PAGE 47 OF 82
5.4.1 Mapping Tag Memory
Customers need to take into account that there are some RFID tag manufacturers
that measure and specify their tag memory sizes by the total number of bits, as this
method generates a much larger (8X) overall number designed to inflate their
specifications. Escort Memory Systems, on the other hand, prefers to specify total tag
memory sizes in terms of bytes (rather than in bits), as this method more closely
reflects how data is stored and retrieved from a tag and is typically what our
customers really want to know.
5.4.2 Creating an RFID Tag Memory Map
Creating a tag memory map is much like creating a spreadsheet that outlines the
actual data you plan to capture as well as the specific tag memory locations in which
you wish to store said data. Tag memory maps should be carefully planned, simple
and straightforward. It is advisable to utilize more storage space than is initially
required, as inevitably a need will arise to hold more data.
Tag M emory Map Example
In the example below, 90-bytes of a 112-byte tag have been allocated to areas of the
memory map (leaving roughly 20% free for future uses). Because a short paragraph
of alphanumeric characters could quickly use all 90 bytes, creating an efficient
mapping scheme, which utilizes all 720-bits out of the 90-bytes allocated, will provide
a better use of tag space.
TAG ADDRESS DESCRIPTION OF USAGE
00 - 15 Serial Number
16 - 47 Model Number
48 - 63 Manufacturing Date
64 - 71 Lot Number
72 - 89 Factory ID
90 - 111 Reserved
Table 5-1: Tag Memory Map Example
5.4.3 Optimizing Tag Memory
Data is always stored in tag memory in a binary form (1s and 0s). Binary numbers
are notated using the hexadecimal numbering system (otherwise it would be too
confusing looking at a screen full of 1s and 0s).
Below is an example of how hexadecimal notation simplifies the expressing of byte
values for the decimal number 52,882.
DECIMAL BINARY HEXADECIMAL
52,882 1100111010010010 CE92
In the above example, instead of using 5-bytes of data to store the ASCII bytes
representing characters 5, 2, 8, 8, and 2 (ASCII bytes: 0x35, 0x32, 0x38, 0x38, 0x32)
![](/img.php?id=828605&img=bg30.png)
CHAPTER 5: RFID TAGS
P/N: 17-1327 REV 02 (08/07) PAGE 48 OF 82
by simply writing two Hex bytes (0xCE and 0x92), 60% less tag memory is used to
store the same information.
When an alphabetical character is to be written to a tag, the ASCII value of the given
character is written to the tag. For example, to write a capital (ASCII value 0x44),
the binary equivalent of the ASCII character 0x44 is written to the tag.
Additionally, if a database with look up values is used in the RFID application, the
logic level of the individual bits in the tag can be used to maximize tag memory.
(Note: refer to Appendix D in this document for
a complete chart of ASCII characters and their
corresponding Hex values).

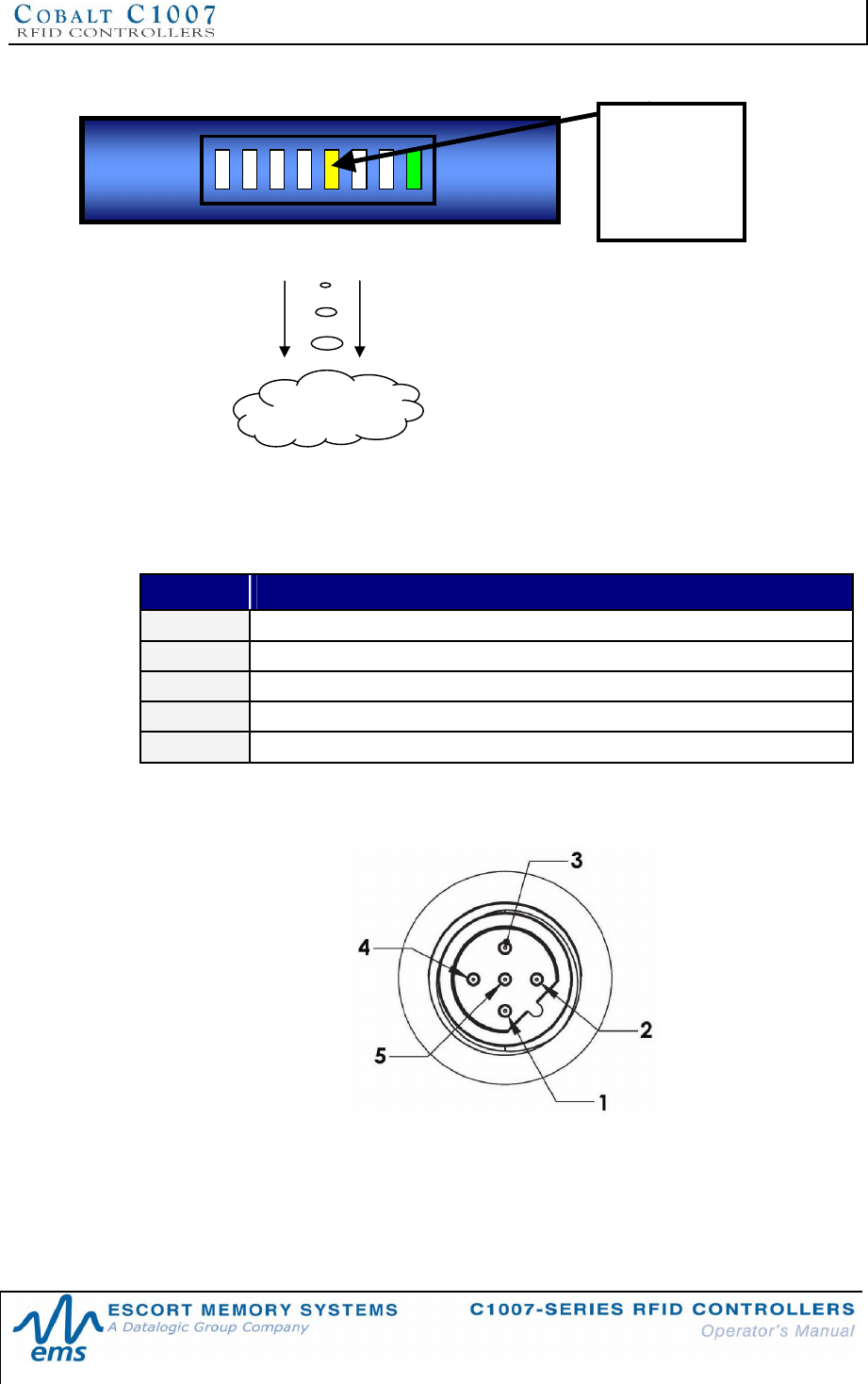

The graphic below illustrates how a single byte
(8-bits) can be efficiently used to track an
automobiles inspection history at eight
inspection stations. The number one (1)
represents a required operation and the number
zero (0) represents an operation that is not
required for that particular vehicle.
Figure 5-3: Optimizing Tag Memory
![](/img.php?id=828605&img=bg31.png)
CHAPTER 6: COMMAND PROTOCOLS
P/N: 17-1327 REV 02 (08/07) PAGE 49 OF 82
CHAPTER 6:
COMMAND PROTOCOLS
6.1 COMMAND PROTOCOLS OVERVIEW
When an RFID command is issued, the host computer instructs the RFID controller to
perform a given task. After performing that task, the RFID controller will normally
reply back with a Command Response message indicating the status or results of the
attempted command. This response notifies the host as to whether the command
was successfully completed or if the RFID controller failed to complete the command.
To understand and execute RFID commands, the C1007 and the host must be able
to communicate using the same language. The language that is used to
communicate RFID commands is referred to as the Command Protocol. The type of
Command Protocol that is used is known as the ABx Command Protocol, of which
there are two primary variations. The two versions of the ABx Command Protocol that
are supported by the C1007-Series RFID Controller are:
•ABx Fast (default)
•ABx Standard
The ABx Fast Command Protocol is the default command protocol used by C1007
RFID Controllers. It has a single-byte based packet structure that permits the
execution of RFID commands while transferring fewer total bytes than ABx Standard
requires. It can be used with or without a checksum byte.
The ABx Standard Command Protocol uses a double-byte, word based format that
shares a common syntax with most existing RFID systems produced by Escort
Memory Systems. This protocol offers legacy support, which may be required by
existing PLC applications that only support a 2-byte word packet format. If your
application requires compatibility with existing or legacy RFID devices from Escort
Memory Systems, use ABx Standard. ABx Standard does not support the use of a
checksum byte.
NOTE:
By default, the C1007 is configured to use the ABx Fast Command Protocol. ABx Fast
(as the name suggests) is the faster and more efficient of the two ABx protocols,
offering increased communication speed and error immunity.
![](/img.php?id=828605&img=bg32.png)
CHAPTER 6: COMMAND PROTOCOLS
P/N: 17-1327 REV 02 (08/07) PAGE 50 OF 82
6.1.1 ABx Protocols - Command Structures
All ABx-based RFID commands contain certain fundamental packet elements,
including a Command Header, a Command ID, one or more Command
Parameters (when applicable) and a Command Terminator.
Command Packet Structure = [Command Header + Command ID + Command Parameters
+ Command Terminator]
6.1.2 ABx Protocols - Headers and Terminators
In ABx Fast, commands begin with the two-byte command header 0x02, 0x02 and
end with the one-byte command terminator 0x03.
In ABx Standard, commands begin with the one-byte command header "0xAA," and
end with the two-byte command terminator "0xFF, 0xFF".
ABx Protocols - Headers and Terminators
ABX PROTOCOL HEADER TERMINATOR
ABx Fast 0x02, 0x02 0x03
ABx Standard 0xAA 0xFF, 0xFF
Table 6-1: ABx Protocols - Headers and Terminators
6.1.3 ABx Protocols - Response Structures
After completing an ABx command, the C1007 generates a host-bound, response
packet that indicates the status and/or results of the attempted command. The
response packet structure for all ABx protocols consists of a Response Header, a
Command Echo, one or more Response Values (when applicable), and a
Response Terminator.
Response Packet Structure = [Response Header + Command Echo + Response Values +
Response Terminator]
Note that for each ABx protocol, Response Header and Response Terminator
parameters are the same as their Command Header and Command Terminator
counterparts.
![](/img.php?id=828605&img=bg33.png)
CHAPTER 6: COMMAND PROTOCOLS
P/N: 17-1327 REV 02 (08/07) PAGE 51 OF 82
6.2 ABXFAST COMMAND PROTOCOL
The default command protocol used by C1007-Series RFID Controllers for Point-to-
Point data transmission is known as the ABx Fast Command Protocol. ABx Fast has
a single-byte oriented packet structure that permits the rapid execution of RFID
commands while requiring the transfer of a minimal number of bytes.
ABx Fast supports the inclusion of an optional checksum byte. When increased data
integrity is required, the checksum should be utilized. See Section 6.2.4.
Checksum,for more information on using the checksum parameter.
6.2.1 ABx Fast - Command / Response Procedure
After an RFID command is issued by the host, a packet of data, called the
Command Packet is sent to the controller. The command packet contains
information that instructs the controller to perform a certain task.
The controller automatically parses the incoming data packet, searching for a specific
pair of start characters, known as the Command Header. In ABx Fast, the
Command Header / Start Characters are 0x02, 0x02. When a valid Command
Header is recognized, the controller then checks for proper formatting and for the
presence of a Command Terminator byte. In ABx Fast, the Command Terminator
byte is 0x03.
Having identified a valid command, the controller will attempt to execute the given
instructions. After which the controller will generate a host-bound response message
containing EITHER the results of the attempted command or an error code if the
operation failed.
NOTE: For RFID applications that use an EMS Gateway or Hub Interface Module, the
CBx Command Protocol applies. Please refer to the Gateway or Hub Operators
Manuals and the CBx Command Protocol Reference Manual (all of which are available
at www.ems-rfid.com) for further information regarding CBx commands.
![](/img.php?id=828605&img=bg34.png)
CHAPTER 6: COMMAND PROTOCOLS
P/N: 17-1327 REV 02 (08/07) PAGE 52 OF 82
6.2.2 ABx Fast - Command Packet Structure
The packet structure of all ABx Fast command contains certain basic elements,
including Command Header, Command Size, Command ID and Command
Terminator. Additional options are available depending on the command being
performed.
Figure 6-1: ABx Fast - Command Packet Structure
COMMAND PACKET ELEMENT CONTENT SIZE
COMMAND HEADER:
The first two bytes of an ABx Fast command packet
0x02, 0x02 2 bytes
COMMAND SIZE:
This 2-byte integer defines the number of bytes in the packet
(excluding header, command size, checksum and
terminator).
0x0007 +
(number of
bytes of
additional
data)
2-byte
integer
COMMAND ID:
This single-byte value indicates the RFID command to
execute.
0x06
(Write Data)1 byte
START ADDRESS:
This two-byte parameter indicates the location of tag
memory where a read or write operation shall begin.
0x0000 2-byte
integer
READ-WRITE LENGTH / BLOCK SIZE:
This two-byte parameter represents the number of bytes that
are to be retrieved from or written to the RFID tag.
0x0001 2-byte
integer
TIMEOUT VALUE:
This two-byte parameter indicates the maximum length of
time for which the controller will attempt to complete the
command. Measured in milliseconds, this value can have a
range of 0x0001 to 0xFFFE or between 1 and 65,534
msecs.
0x07D0
(0x07D0 =
2000 x .001 =
2 seconds)
2-byte
integer
![](/img.php?id=828605&img=bg35.png)
CHAPTER 6: COMMAND PROTOCOLS
P/N: 17-1327 REV 02 (08/07) PAGE 53 OF 82
ADDITIONAL DATA:
This parameter uses one byte to hold a single character for
fill operations and supports the use of multiple bytes when
several characters are needed for write commands (when
applicable).
0x00 One or
more bytes
(when
applicable)
CHECKSUM:
This optional parameter holds a single-byte checksum (only
applicable when using ABx Fast with Checksum).
Optional 1 byte
(when
applicable)
COMMAND TERMINATOR:
Single-byte command packet terminator (always 0x03)
0x03 1 byte
Table 6-2: ABx Fast - Command Packet Structure
6.2.3 ABx Fast - Response Packet Structure
After performing a command, the C1007, in most cases, will generate a host-bound
response packet. ABx Fast responses contain a Response Header, Response Size,
Command Echo, one or more Response Values (when applicable), an optional
Checksum and a Response Terminator.
RESPONSE PACKET ELEMENT CONTENT SIZE
RESPONSE HEADER:
First two bytes of an ABx Fast response packet
0x02, 0x02 2 bytes
RESPONSE SIZE:
This two-byte integer defines the total number of bytes
in the response packet (excluding header, size,
checksum and terminator).
0x0001 2-byte integer
COMMAND ECHO:
The single-byte parameter identifies the command for
which the response packet was generated.
0x06 1 byte
RETRIEVED DATA:
This parameter is used to hold one or more bytes of
data that was requested by the command (when
applicable).
Data 1 or more bytes
(when
applicable)
CHECKSUM:
This optional parameter holds a single-byte checksum
(only applicable when using ABx Fast with
Checksum).
Optional 1 byte
(when
applicable)
RESPONSE TERMINATOR:
Single-byte response packet terminator (always 0x03)
0x03 1 byte
Table 6-3: ABx Fast - Response Packet Structure
![](/img.php?id=828605&img=bg36.png)
CHAPTER 6: COMMAND PROTOCOLS
P/N: 17-1327 REV 02 (08/07) PAGE 54 OF 82

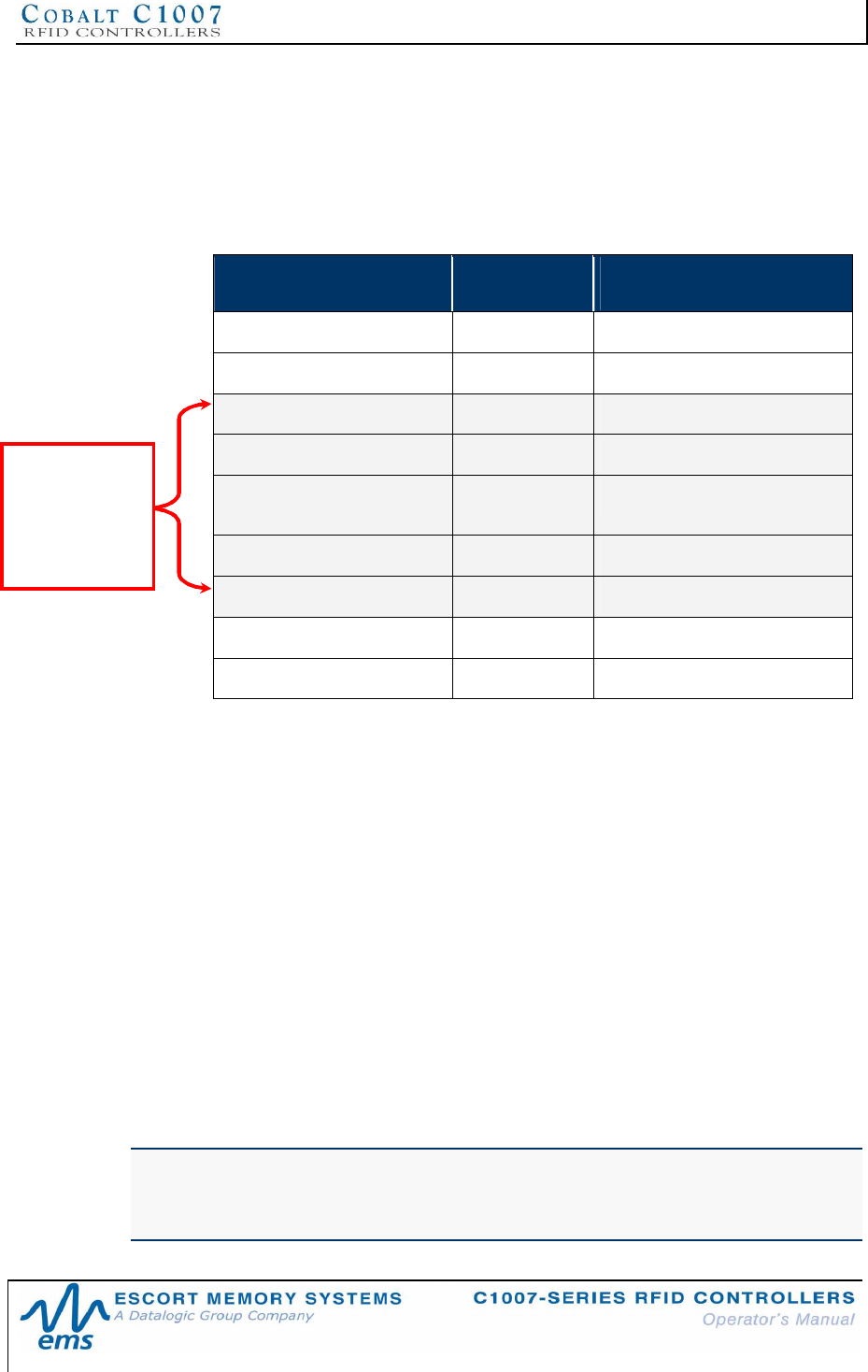

6.2.4 ABx Fast - Command Packet Parameters
Command Size
The ABx Fast protocol requires that the byte count, known as the Command Size
be specified as a two-byte integer. To calculate the Command Size, add the total
number of bytes within the command packet while excluding the Header, Command
Size, Checksum (if present) and Terminator (see example below).
COMMAND ELEMENT # OF BYTES INCLUDED IN
COMMAND SIZE?
Command Header 2No
Command Size 2No
Command ID 1Yes
Start Address 2Yes
Read/Write Length
(Block Size) 2Yes
Timeout Value 2Yes
Additional Data Bytes 1Yes
Checksum 1No
Command Terminator 1 No
The Command Size for this example is 0x0008.
Start Address
The Start Address parameter holds a two-byte integer representing the tag memory
address location where a read or write operation will begin.
Read/Write Length (Block Size)
The two-byte Read/Write Length (Block Size) integer indicates the number of bytes
that are to be read from or written to the RFID tag.
Timeout Value
A two-byte Timeout Value parameter (measured in one-millisecond increments) is
used to set the length of time that the controller will attempt to complete the specified
operation.
The maximum supported Timeout Value is 0xFFFE or 65,534ms (slightly longer than
one minute). Setting a long Timeout Value does not necessarily mean that a
command will take any longer to execute. This value only represents the period of
time for which the controller will attempt to complete the command.
IMPORTANT: During write commands, the tag must remain within the antennas RF
field until the write operation completes successfully, or until the timeout value has
expired. If a write operation is not completed before the tag leaves the controllers RF
field, data may be incompletely written.
Command
Size =
number of
bytes in these
fields
![](/img.php?id=828605&img=bg37.png)
CHAPTER 6: COMMAND PROTOCOLS
P/N: 17-1327 REV 02 (08/07) PAGE 55 OF 82
Checksum
ABx Fast and ABx ASCII Command Protocols support the inclusion of an additional
Checksum byte that is used to verify the integrity of data being transmitted between
host and controller.
The Checksum is calculated by adding together (summing) the byte values in the
command packet (less the Header, Checksum and Terminator), and then subtracting
the total byte sum from 0xFF. Therefore, when the byte values of each packet
element (from Command Size to Checksum) are added together, the byte value sum
will equal 0xFF.

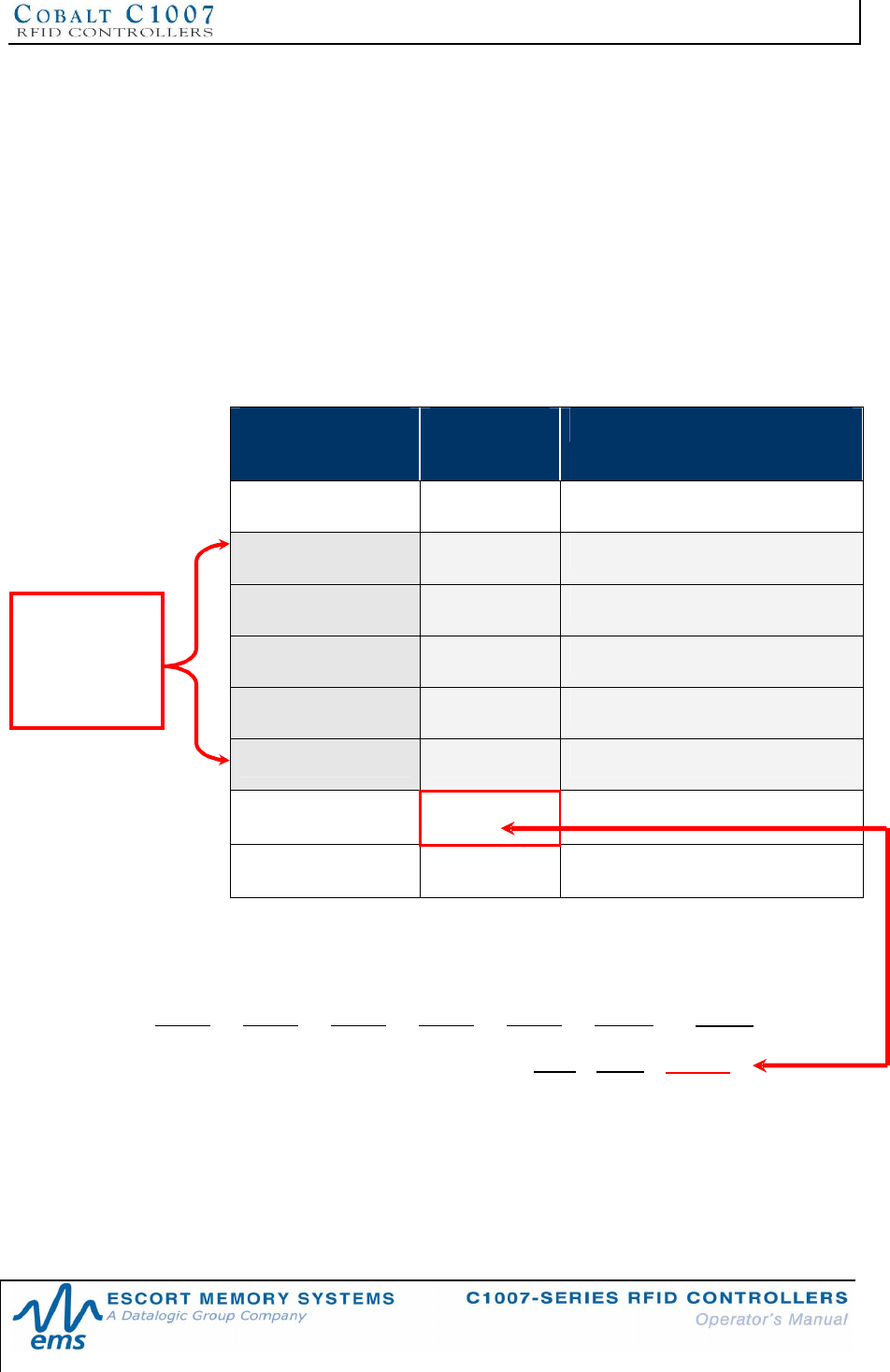

CHECKSUM EXAMPLE
The following example depicts Command 0x05 (Read Data) using a Checksum (Start
Address: 0x0001, Read Length: 0x0004, Timeout Value: 0x07D0).
COMMAND
PACKET
ELEMENT
CONTENTS USED IN CHECKSUM
Command Header 0x02, 0x02 n/a
Command Size 0x0007 0x00, 0x07
Command ID 0x05 0x05
Start Address 0x0001 0x00, 0x01
Read Length 0x0004 0x00, 0x04
Timeout Value 0x07D0 0x07, 0xD0
Checksum 0x17 n/a
Command Terminator 0x03 n/a
Add the byte values from the Command Size, Command ID, Start Address, Read
Length and Timeout Value parameters together and subtract from 0xFF. Resulting
value will be the Checksum.
[0x07 + 0x05 + 0x01 + 0x04 + 0x07 + 0xD0] = 0xE8
The Checksum equation is: [0xFF 0xE8] = 0x17
6.2.5 ABx Fast Multi-Tag Command Packet Structure
ABx Fast Multi-tag Commands are capable of interrogating one or more RFID tags,
when numerous tags are simultaneously within RF range. These commands also
Checksum =
[0xFF (sum
of these
fields)]
![](/img.php?id=828605&img=bg38.png)
CHAPTER 6: COMMAND PROTOCOLS
P/N: 17-1327 REV 02 (08/07) PAGE 56 OF 82
allow users to retrieve data from or write data to several tags at once. Below is the
structure of a basic ABx Fast Multi-tag command packet.
ABx Fast Multi-tag Command Packet Structure
COMMAND PACKET ELEMENT CONTENT SIZE
COMMAND HEADER:
The first two bytes of an ABx Fast command.
0x02, 0x02 2 bytes
COMMAND SIZE:
This two-byte integer defines the number of bytes in the
packet (excluding Header, Command Size and Terminator).
0x0007 +
(number of
additional
data bytes)
2-byte
integer
COMMAND ID:
This single-byte value indicates the command to perform.
0x87
(Multi-Tag
Inventory)
1 byte
FAMILY CODE:
This single-byte value is used to specify a subset of tags when
many are identified simultaneously in RF range. Zero =
broadcast to all tags in RF range (see description in Section
6.2.6)
0x00 1 byte
ANTI-COLLISION MODE:
This single-byte value allows the user to enable the use of 16
time slots for retrieving data, choices are: 0x01 = use 16 time
slots, 0x00 = use single slot (see description in Section 6.2.6)
0x01 1 byte
TAG LIMIT:
This single byte specifies the maximum # of tags expected in
RF range, up to 100; 0x64 = 100 tags expected max, when
applicable (see description in Section 6.2.6)
0x64 1 byte
START ADDRESS:
This two-byte integer indicates the location of tag memory
where a read or write operation shall begin.
0x0000 2-byte
integer
BLOCK SIZE:
This two-byte integer represents the number of bytes that are
to be read from or written to an RFID tag during the operation,
when applicable.
0x0001 2-byte
integer
TIMEOUT VALUE:
This two-byte integer indicates the maximum length of time for
which the controller will attempt to complete the command.
Measured in milliseconds, this value can have a range of
0x0001 to 0xFFFE or between 1 and 65,534 msecs.
0x07D0
(0x07D0 =
2000 x .001 =
2 seconds)
2-byte
integer
ADDITIONAL DATA:
This parameter uses one byte for fill operations and supports
the use of multiple bytes when several characters are needed
for write commands, when applicable.
0x00 1 or
more
bytes
COMMAND TERMINATOR:
The single-byte command packet terminator is always 0x03.
0x03 1 byte
Table 6-4: ABx Fast Multi-Tag Command Packet Structure
![](/img.php?id=828605&img=bg39.png)
CHAPTER 6: COMMAND PROTOCOLS
P/N: 17-1327 REV 02 (08/07) PAGE 57 OF 82
6.2.6 ABx Fast Multi-Tag Command Packet Elements
Family Code
The Family Code parameter is a one-byte value (0x00 0xFF) that can be used in
multi-tag commands to specify a subset of tags when many are identified
simultaneously in RF range. The parameter allows the user to filter tags based on a
pre-written value stored at a special location on the tag.
For example, if the Family Code value is set to one (0x01), only those tags with the
value 0x01 will respond to the given command. When a Family Code value of zero
(0x00) is entered for this parameter, the command will be broadcast to all tags in RF
range.
Anti-Collision Mode
Tag collision in RFID applications occurs when numerous passive RFID tags
become simultaneously active or energized (by the RFID controller) and thus reflect
their respective signals back to the reader at the same time, such that the reader
cannot differentiate between tags.
EMS RFID readers make use of anti-collision algorithms to enable a single reader
to read more than one tag in the reader's field.
The Anti-collision Mode parameter controls the tag-reading algorithm used to
achieve the fastest reading speed for the number of tags expected in RF range at
any given moment. This parameter helps the reader/antenna avoid data collisions
when simultaneously reading multiple tags
The choices for this parameter are one (0x01) for Multi-Slot and zero (0x00) for
Single-Slot.
•ONE: Setting this parameter to one (0x01) implements a system of 16 time slots.
To avoid data collisions when the controller encounters multiple tags
simultaneously, data requested from each tag is transferred to the host only
during the time slot that matches a specific pattern in the tag ID number.
•ZERO: Setting this parameter to zero (0x00) utilizes a single time slot under
which the requested data from all tags is transferred to the host as soon as it
becomes available to the controller. This setting can result in faster tag read
performance when only a few tags are expected in the RF field
The Anti-Collision Mode parameter immediately follows the Family Code parameter
in the command packet string.
Tag Limit
The Tag Limit parameter holds a one-byte value that indicates the maximum number
of tags expected simultaneously in RF range for the given command operation. This
parameter allows users to limit the number of attempted read/write operations the
controller will make per execution.
The Tag Limit value should be set in relation to the maximum number of tags that
could possibly be present in the reading field at any one time. Users do not have to
wait for the timeout to expire. Setting the value higher increases the number of tags
expected to be read in the antennas RF field. Lowering the value, however, can
speed up tag read operations for a small group of tags.
Setting the proper value is therefore a tradeoff between the number of expected tags
in the reading field, and the time required to read/write to them. The permitted values
![](/img.php?id=828605&img=bg3a.png)
CHAPTER 6: COMMAND PROTOCOLS
P/N: 17-1327 REV 02 (08/07) PAGE 58 OF 82
range from zero to 100 (0x00 0x64). The Tag Limit parameter resides directly after
the Anti-collision Mode parameter in the command string (when applicable).
Timeout Value
Multi-tag commands also contain a two-byte Timeout Value parameter that is used to
limit the length of time for which the controller will attempt to complete a given
operation.
It is important to set a realistic Timeout Value that permits enough time for the
controller to read/write to all tags specified in the command. Processing multiple-tag
operations requires a longer time period than does the execution of single-tag
commands.
The value is expressed in one-millisecond increments, with a maximum value of
0xFFFE (65,534 milliseconds) or approximately 60 seconds. For most single tag
read/write commands, a Timeout Value of at least 1000ms is recommended.
However, it is recommended that you allow an additional 100ms per tag for multi-tag
read operations and 150ms per tag for multi-tag writes.
Using a Timeout Value that is too short may cause the controller to inadvertently
time out before the data has been successfully read from or written to all tags in RF
range. Setting a long Timeout Value does not necessarily mean that the command
will take any longer to complete. The value only represents the period of time in
which the controller will attempt to complete the particular operation. If all required
tags are in RF range when the command is sent, the time necessary to complete the
command will be approximately the same whether the Timeout Value is 1000ms or
10,000ms.
For time critical applications, the optimal Timeout Value should be obtained through
rigorous performance testing.
TIMEOUT VALUE EXAMPLE
When writing to 16 different tags in RF range, for example, set the two-byte Timeout
Value to at least 0x0D48 (16 x 150ms + 1000ms = 3400ms or 3.4 seconds). A
Timeout Value of zero (0x0000) will cause the controller to return a syntax error
message.
Tag ID / Serial Number
Several multi-tag commands are available that will retrieve or allow the user to
specify, a tags ID number. The tag ID number is a unique read-only, 64-bit (eight-
byte) number stored in tag memory. Tag ID commands can be used to selectively
read from or write to one or more specific tags, identified by their distinctive tag IDs.
Targeted tags can be recognized with a previously issued Read Tag ID command.
![](/img.php?id=828605&img=bg3b.png)
CHAPTER 6: COMMAND PROTOCOLS
P/N: 17-1327 REV 02 (08/07) PAGE 59 OF 82
6.2.7 ABx Fast Multi-Tag Response Packet Structures
When executing multi-tag commands designed to retrieve information from several
tags at once (for example ABx Fast Command 0x82: Multi-Tag Read ID and Data
All), the RFID controller will generate separate host-bound response packets for each
tag that has been read, followed by a final termination packet.
Below is the structure of a basic ABx Fast multi-tag response packet.
ABx Fast Multi-tag Response Packet Structure (One Packet for Each Tag Read)
RESPONSE PACKET ELEMENT CONTENT SIZE
RESPONSE HEADER:
The first two bytes of an ABx Fast response
0x02, 0x02 2 bytes
RESPONSE SIZE:
This two-byte integer defines the number of bytes in the
packet (excluding Header, Response Size and
Terminator).
0x0009 +
(number of Read
Data bytes)
2-byte
integer
COMMAND ECHO:
This single-byte value indicates the RFID command that
was performed.
0x82
(Multi-Tag Read
ID and Data All
Command)
1 byte
TAG ID:
8-bytes, when applicable
<8-byte tag ID> 8 bytes
READ DATA <N-bytes> N-bytes
RESPONSE TERMINATOR:
The single-byte response packet terminator is always
0x03 for ABx Fast.
0x03 1 byte
Table 6-5: ABx Fast Multi-Tag Response Packet Structure
![](/img.php?id=828605&img=bg3c.png)
CHAPTER 6: COMMAND PROTOCOLS
P/N: 17-1327 REV 02 (08/07) PAGE 60 OF 82
6.2.8 ABx Fast Multi-Tag Response Final Termination
Packet Structure
After the RFID controller has issued response packets for each tag identified and/or
read, a final termination packet is generated.
Below is the structure of a standard ABx Fast multi-tag response final termination
packet.
ABx Fast Multi-tag Response Final Termination Packet Structure
RESPONSE PACKET ELEMENT CONTENT SIZE
RESPONSE HEADER:
The first two bytes of an ABx Fast response
0x02, 0x02 2 bytes
RESPONSE SIZE:
This two-byte integer defines the number of bytes in the
packet (excluding Header, Response Size and
Terminator).
0x0003 2-byte
integer
FINAL TERMINATION PACKET IDENTIFIER:
0xFF indicates that this packet is the final termination
packet.
0xFF 1 byte
NUMBER OF TAGS READ/WRITTEN:
One-byte value indicates the number of tags that were
read or written to during the operation.
<N-tags> 1 byte
STATUS:
0x00 = operation completed successfully, 0x07 = Read
Tag ID failed / Tag Not Found
0x00 1 byte
RESPONSE TERMINATOR:
The single-byte response packet terminator is always
0x03 for ABx Fast.
0x03 1 byte
Table 6-6: ABx Fast Multi-Tag Response Final Termination Packet Structure
![](/img.php?id=828605&img=bg3d.png)
CHAPTER 6: COMMAND PROTOCOLS
P/N: 17-1327 REV 02 (08/07) PAGE 61 OF 82
6.3 ABXSTANDARD COMMAND PROTOCOL
The ABx Standard Command Protocol is a binary, double-byte, word oriented
protocol where data is transmitted in 2-byte increments: a Most Significant Byte
(MSB) or High Byte and a Least Significant Byte (LSB) or Low Byte.
For ABx Standard commands, the first data word sent to the controller contains the
Command Header and Command ID, followed by parameters such as Start Address,
Read/Write Length and Timeout Value.
Note that at no time can the complete command packet string (including Terminator)
exceed 50 words or 100 bytes.
Figure 6-2: ABx Standard - Command Packet Structure
6.3.1 ABx Standard - Command Packet Structure
COMMAND PACKET ELEMENT CONTENT BYTE
COUNT
COMMAND HEADER:
0xAA is always the MSB of the first word of an ABx
Standard command.
0xAA 1
COMMAND ID:
The Command ID is always the LSB of the first word
and indicates the RFID command to execute.
0x06
(Write Data)1
START ADDRESS:
This two-byte parameter indicates the location of tag
memory where a read or write operation shall begin.
0x0000 2
![](/img.php?id=828605&img=bg3e.png)
CHAPTER 6: COMMAND PROTOCOLS
P/N: 17-1327 REV 02 (08/07) PAGE 62 OF 82
READ/WRITE LENGTH (BLOCK SIZE):
This two-byte parameter represents the number of
bytes that are to be retrieved from or written to the
RFID tag.
0x0001 2
TIMEOUT VALUE:
This two-byte integer indicates the maximum length of
time for which the controller will attempt to complete
the command. Measured in milliseconds, this value
can have a range of 0x0001 to 0xFFFE or between 1
and 65,534 msecs (0x07D0 = 2000 x .001 = 2
seconds).
0x07D0 2
ADDITIONAL DATA:
This parameter uses two bytes to hold a single
character (data to be written to the tag is included in
the LSB only, MSB = 0x00).
0x00, 0x00 2 (or more when
applicable)
COMMAND TERMINATOR:
Double-byte command packet terminator
0xFF, 0xFF 2
Table 6-7: ABx Standard - Command Packet Structure
6.3.2 ABx Standard - Response Packet Structure
RESPONSE PACKET ELEMENT CONTENT BYTE
COUNT
RESPONSE HEADER:
0xAA is always the MSB of the first word of an ABx
Standard response packet
0xAA 1
COMMAND ECHO:
The command echo is always the LSB of the first word
and indicates the RFID command that was executed.
0x06
(Write Data)2
ADDITIONAL DATA:
This parameter uses two bytes to hold a single
character of retrieved data (data is returned in the LSB
only, MSB = 0x00).
0x00, 0x00 2 (or more when
applicable)
RESPONSE TERMINATOR:
Double-byte command packet terminator
0xFF, 0xFF 2
Table 6-8: ABx Standard - Response Packet Structure
![](/img.php?id=828605&img=bg3f.png)
CHAPTER 6: COMMAND PROTOCOLS
P/N: 17-1327 REV 02 (08/07) PAGE 63 OF 82
6.3.3 ABx Standard - Command Example
The example below depicts the packet structure of the ABx Standard command and
response messages for Command 0x08 (Tag Search). In this example, the RFID
controller is instructed to search for a tag in the RF field. A Timeout Value of two
seconds (0x07D0) is set for the completion of this operation.
Command from Host
COMMAND ELEMENT CONTENT
Command Header and Command ID
(MSB/LSB)
0xAA, 0x08 (Tag Search)
Timeout Value 0x07D0
Command Terminator 0xFF, 0xFF
Response from Controller
RESPONSE ELEMENT CONTENT
Response Header and Command Echo
(MSB/LSB)
0xAA, 0x08 (Tag Search)
Response Terminator 0xFF, 0xFF
If the Timeout Value expires before the controller finds a tag, it will return an error
code, 0x07 (Tag Not Found).
![](/img.php?id=828605&img=bg40.png)
CHAPTER 7: RFID COMMANDS AND ERROR CODES
P/N: 17-1327 REV 02 (08/07) PAGE 64 OF 82
CHAPTER 7:
RFID COMMANDS AND ERROR CODES
7.1 ABXFAST RFID COMMAND TABLE
The table below lists the ABx Fast RFID commands supported by C1007-Series
RFID Controllers.
COMMAND ID COMMAND NAME DESCRIPTION
Single-Tag RFID Commands
0x04 Fill Tag Fills a specified tag address range with a
one-byte value
0x05 Read Data Reads a specified length of data from a
contiguous (sequential) area of tag memory
0x06 Write Data Writes a specified number of bytes to a
contiguous area of tag memory
0x07 Read Tag ID Retrieves a tags unique identification (Tag
ID) number
0x08 Tag Search Instructs the controller to search for a tag in
its RF field
0x0D Start
Continuous
Read Instructs the controller to start or stop
Continuous Read mode.
0x0E Read Tag ID and
Data Reads a tags ID number as well as a
specified number of bytes of tag memory
0x0F Start
Continuous
Read Tag ID and
Data
Instructs the controller to start or stop
Continuous Read Tag ID and Data mode.
0x27 Lock Memory
Block Write protects a block of tag memory
RFID Controller Commands
0x35 Reset Controller Resets power to the controller
0x36 Set Controller
Configuration
Used to set (configure or modify) the
controllers configuration parameters and
settings
0x37 Get Controller
Configuration Retrieves the controllers configuration
settings
0x38 Get Controller
Info Retrieves hardware, firmware and serial
number information from the controller
![](/img.php?id=828605&img=bg41.png)
CHAPTER 7: RFID COMMANDS AND ERROR CODES
P/N: 17-1327 REV 02 (08/07) PAGE 65 OF 82
COMMAND ID COMMAND NAME DESCRIPTION
0x51 Set Controller
Time Used to set the time for the controller
0x72 Execute
Controller Macro Instructs the controller to execute one of its
eight macros
Multi-Tag RFID Commands
0x82 Multi-Tag Read ID
and Data All Retrieves a contiguous segment of data and
the tag ID from all RFID tags in range
0x85 Multi-Tag Block
Read All Retrieves a contiguous segment of data
from all RFID tags in range
0x86 Multi-Tag Block
Write All Writes a contiguous segment of data to all
RFID tags in range
0x87 Multi-Tag Get
Inventory Retrieves the tag ID from all RFID tags in
range
0x88 Multi-Tag Search All Checks for the presence of any RFID tags
in range
0x95 Multi-Tag Block
Read by ID Reads a contiguous segment of data from a
specific RFID tag identified by its tag ID
0x96 Multi-Tag Block
Write by ID Writes a contiguous segment of data to a
specific RFID tag identified by its tag ID
Table 7-1: ABx Fast RFID Command Table
![](/img.php?id=828605&img=bg42.png)
CHAPTER 7: RFID COMMANDS AND ERROR CODES
P/N: 17-1327 REV 02 (08/07) PAGE 66 OF 82
7.2 ABXSTANDARD RFID COMMAND TABLE
The table below lists the ABx Standard RFID commands supported by C1007-Series
RFID Controllers.
COMMAND ID COMMAND NAME DESCRIPTION
RFID Tag Commands
0x04 Fill Tag Fills a specified tag address range with
a one-byte value
0x05 Read Data Reads a specified number of bytes from
a contiguous (sequential) length of tag
memory
0x06 Write Data Writes a specified number of bytes to a
contiguous length of tag memory
0x07 Read Tag ID Retrieves a tags unique identification
(Tag ID) number
0x08 Tag Search Instructs the controller to search for a
tag in its RF field
0x0D Start Continuous
Read Instructs the controller to start and stop
Continuous Read mode.
0x0E Read Tag ID and
Data Retrieves the tag ID and a specified
number of bytes from the tag
0x0F Start Continuous
Read Tag ID and
Data
Instructs the controller to start and stop
Continuous Read Tag ID and Data
mode.
RFID Controller Commands
0x35 Reset Controller Resets power to the controller
0x36 Set Controller
Configuration Used to modify and update the
configuration settings of the controller
0x37 Get Controller
Configuration Retrieves configuration settings from the
controller
0x38 Get Controller Info Retrieves hardware, firmware and serial
number information from the controller
Table 7-2: ABx Standard RFID Command Table
![](/img.php?id=828605&img=bg43.png)
CHAPTER 7: RFID COMMANDS AND ERROR CODES
P/N: 17-1327 REV 02 (08/07) PAGE 67 OF 82
7.3 ERROR CODES
If the C1007 encounters a fault during operation, it will generate a response that
includes a one-byte ABx error code. Entering an invalid Start Address for a Read
Data command, for example, will generate ABx Error Code 0x32 (Invalid
Programming Address).
To display the single-byte error code in binary, the two left-most amber Node LEDs
(LED 24and LED 23) represent the first or most significant digit (MSD) of the error
code. The three remaining amber Node LEDs (LED 22, LED 21and LED 20) are
combined to represent the second or least significant digit (LSD) of the error code.
Examples:
•If the five amber Node LEDs (from L to R) =
ON, OFF, OFF, OFF, ON, the first digit of the
error code is a 2 and the second digit is a
1, meaning that error code 0x21 occurred
(error code 0x21 = command syntax error).
•If the five amber Node LEDs (from L to R) =
ON, ON, OFF, ON, OFF, the first digit of the
error code is a 3 and the second digit is a
2, meaning that error code 0x32 occurred
(error code 0x32 = invalid programming
address).
The RF LED and amber Node LEDs will continue to flash until a valid command is
received by the controller. The green COM LED will remain ON to help orient the
binary LED positions. If an unrecoverable error occurs, the LEDs will continuously
flash the error code until the C1007 has been reset.
P
W
R
242321
2220
C
O
M
R
F
P
W
R
242321
2220
C
O
M
R
F
![](/img.php?id=828605&img=bg44.png)
CHAPTER 7: RFID COMMANDS AND ERROR CODES
P/N: 17-1327 REV 02 (08/07) PAGE 68 OF 82
7.4 ABXERROR CODE TABLE
ERROR
CODE DESCRIPTION
0x04 Fill Operation not Completed
0x05 Read Operation not Completed
0x06 Write Operation not Completed
0x07 Read Tag ID Operation not Completed (Tag not Found)
0x21 Command Syntax Error
0x23 Unsupported Tag Type / Unsupported RF Command
0x27 Memory Lock Operation not Completed (Memory Locked)
0x30 Internal Error, Buffer Overflow
0x31 Invalid Controller Type
0x32 Invalid Programming Address
0x33 Invalid CRC Value
0x34 Invalid Software Version
0x35 Invalid Reset
0x36 Set Configuration Operation not Completed
0x37 Get Configuration Operation not Completed
Table 7-3: ABx Error Codes
![](/img.php?id=828605&img=bg45.png)
CHAPTER 7: RFID COMMANDS AND ERROR CODES
P/N: 17-1327 REV 02 (08/07) PAGE 69 OF 82
7.5 ABXFAST ERROR RESPONSE STRUCTURE
ABx Fast error responses contain a two-byte Header, a two-byte Response Size
parameter followed by a single-byte Error Flag (0xFF) and a single-byte Error Code
parameter, which identifies the error that occurred.
ERROR RESPONSE ELEMENT CONTENT
Header 0x02, 0x02
Response Size 0x0002
Error Flag 0xFF
Error Code Single-byte Error Code
Checksum Optional
Terminator 0x03
Table 7-4: ABx Fast - Error Response Structure
ABXFAST ERROR RESPONSE EXAMPLE
Below is an example of an ABx Fast error response for a failed Write Data command
(error code 0x06).
ERROR RESPONSE ELEMENT CONTENT
Header 0x02, 0x02
Response Size 0x0002
Error Flag 0xFF
Error Code 0x06
Checksum Optional
Terminator 0x03
![](/img.php?id=828605&img=bg46.png)
CHAPTER 7: RFID COMMANDS AND ERROR CODES
P/N: 17-1327 REV 02 (08/07) PAGE 70 OF 82
7.6 ABXSTANDARD ERROR RESPONSE STRUCTURE
In ABx Standard, the error code will be returned in the LSB of the second word of the
response.
Below is the structure of an ABx Standard error response.
ERROR RESPONSE ELEMENT CONTENT (MSB/LSB)
Error Response Header (MSB/LSB) 0xAA, 0xFF
Error Code (MSB/LSB) 0x00, <1-byte error code value>
Terminator (MSB/LSB) 0xFF, 0xFF
Table 7-5: ABx Standard - Error Response Structure
ABXSTANDARD ERROR RESPONSE EXAMPLE
Below is an example of an ABx Standard error response message for a failed Write
Data operation (error code: 0x06).
ERROR RESPONSE ELEMENT CONTENT (MSB/LSB)
Error Response Header (MSB/LSB) 0xAA, 0xFF
Error Code (MSB/LSB) 0x00, 0x06
Terminator (MSB/LSB) 0xFF, 0xFF
![](/img.php?id=828605&img=bg47.png)
APPENDIX A: TECHNICAL SPECIFICATIONS
P/N: 17-1327 REV 02 (08/07) PAGE 71 OF 82
APPENDIX A:
TECHNICAL SPECIFICATIONS
ELECTRICAL
Supply Voltage 10~30VDC
Power Consumption:
C1007-232-01 and C1007-485-01
3.6W (150mA @ 24VDC)
Power Consumption:
C1007-USB-01
5VDC (from USB bus)
COMMUNICATION
Communication Interfaces Point-to-Point: RS232, USB
Multi-drop, Subnet16, MUX32: RS485
RFID Interface Cobalt C1007-Series RFID System
RF Output Power 100mW
Air Protocols ISO 15693, ISO 14443A
Air Protocol Speed 26.5k Baud / 106k Baud with CRC error detection
RS232/RS485 Baud Rates 9600 (default), 19.2k, 38.4k, 57.6k, 115.2k
MECHANICAL
Dimensions 116.4mm x 73.1mm x 24mm (4.58in x 2.88in x .94in)
Weight 210 grams (7.4 ounces)
Enclosure Polycarbonate
ENVIRONMENTAL
Operating Temperature -20° to 49°C (-4° to 120°F),
Storage Temperature -40° to 85°C (-40° to 185°)
Humidity 100%
Protection Class IP67
Shock Resistance IEC 68-2-27, Half-sine 30 G, 11ms, 3 shocks each axis
Vibration Resistance IEC 68-2-6, Test FC 1.5mm; 10 to 55Hz;
2 hours each axis
NOTE: Specifications are subject to change without notice
![](/img.php?id=828605&img=bg48.png)
APPENDIX A: TECHNICAL SPECIFICATIONS
P/N: 17-1327 REV 02 (08/07) PAGE 72 OF 82
C1007-SERIES RFID CONTROLLER DIMENSIONS
Dimensions are listed in millimeters and [inches].
Figure Appendix A-0-1: C1007-Series RFID Controller Dimensions
![](/img.php?id=828605&img=bg49.png)
APPENDIX B: MODELS & ACCESSORIES
P/N: 17-1327 REV 02 (08/07) PAGE 73 OF 82
APPENDIX B:
MODELS & ACCESSORIES
Escort Memory Systems designs, manufactures and distributes a wide range of high
frequency (HF) RFID equipment including RFID controllers, network interface
modules (Gateways and Hubs), RFID tags and the cables needed to make it all work.
This portion of the manual lists the products and accessories available for the C1007-
Series RFID product family. To purchase any of the items listed below contact your
EMS distributor, call us directly at (800) 626-3993 or visit our Web site:
http://www.ems-rfid.com. Please let us know if you have any questions.
EMS HARDWARE
C1007-Series RFID Controllers
There are three models of the C1007-Series RFID Controller:
§C1007-232-01
§C1007-485-01
§C1007-USB-01
The C1007 product package contains the following components:
EMS P/N QTY DESCRIPTION
C1007-XXX-01 1 C1007-Series RFID Controller
00-3000 1 Configuration Tag for C1007 (I-CODE SLi)
17-3140/2/3 1 C1007-Series RFID Controller Installation Guide
Note: XXX = 232, 485 or USB
Subnet16 Gateway Interface Modules
GWY-01-TCP-01
Subnet16 TCP/IP Gateway
GWY-01-IND-01
Subnet16 Industrial Ethernet Gateway
Subnet16 Hub Interface Modules
HUB-04-TCP-01
Subnet16 4-Port TCP/IP Hub
HUB-04-IND-01
Subnet16 4-Port Industrial Ethernet Hub
![](/img.php?id=828605&img=bg4a.png)
APPENDIX B: MODELS & ACCESSORIES
P/N: 17-1327 REV 02 (08/07) PAGE 74 OF 82
COBALT FAMILY SOFTWARE & DEMONSTRATION KITS
7.6.1 Software Applications
Visit the Escort Memory Systems website (www.ems-rfid.com) for download
instructions.
Cobalt HF Dashboard (for TCP/IP or Serial Connections)
Communicate in real time with one or more readers directly or via Multi-drop network.
Allows users to configure, monitor and control their RFID devices from anywhere on
their network.
C-Macro Builder
C-Macro Builder is an easy to use, GUI-driven utility that provides rapid development
and implementation of custom RFID command macros.
7.6.2 Demonstration Kits
00-1202
C1007-USB-01 Demo Kit (includes one C1007-USB-01 controller, one CBL-1525
USB interface cable, one LRP125VS tag, one LRP250S tag and one T7036 tag.
00-1203
Gateway TCP Demo Kit (includes one GWY-01-TCP-01 TCP Gateway interface
module, one C0405-485-01 controller, one C1007-485-01 controller, one HF-0405-
485-01 controller, LRP125S, LRP250 and T7036 RFID tags, interface cables, display
board, power supply and carrying case).
00-1218
Conveyor Demo Kit (includes one GWY-01-IND-01 Industrial Gateway interface
module, one C0405-485-01 controller, one C1007-485-01 controller, one HF-CNTL-
485-01 controller, one HF-ANT-1010-01 antenna, one LRP108S tag, three LRP250S
tags, one LRP525S tag, two T5050 tags, three T7036 tags, interface cables and
power supply).
![](/img.php?id=828605&img=bg4b.png)
APPENDIX B: MODELS & ACCESSORIES
P/N: 17-1327 REV 02 (08/07) PAGE 75 OF 82
CABLE AND NETWORK ACCESSORIES
EMS P/N COMPONENT DESCRIPTION
CBL-1478 Cable Assembly 8-pin, female M12 to RS232; with 2.5mm DC power
jack, 2m
CBL-1480-XX Cable 5-pin, male M12 to 5-pin, female M12 (ThinNet)
CBL-1481-XX Cable 5-pin, male M12 to 5-pin, male M12 (ThinNet)
CBL-1481-02 Cable 5-pin, male M12 to 5-pin, male M12, 2m (ThinNet,
Gateway to Drop-T)
CBL-1482-XX Cable 5-pin, male M12 to 5-pin, female, right-angle M12
(ThinNet)
CBL-1483-XX Cable 5-pin, male 7/816 to 5-pin, female 7/8-16 (ThickNet)
CBL-1484-XX Cable 5-pin, male, right-angle 7/8-16 to bare wire leads
(ThickNet)
CBL-1485 Drop-T Connector 5-pin, female 7/8-16 / female M12 / male 7/8-16
(ThickNet to ThinNet)
CBL-1486 Drop-T Connector 5-pin, female M12 / 5-pin, female M12 / 5-pin, male
M12 (ThinNet to ThinNet)
CBL-1487 Field Mountable
Connector 5-pos, straight female M12
CBL-1488-XX Cable 8-pin, female M12 to bare wire leads
CBL-1489 Termination
Resistor Plug 5-pin, male 7/8-16 (ThickNet)
CBL-1490 Termination
Resistor Plug 5-pin, male M12 (ThinNet)
CBL-1491 Field Mountable
Connector 5-pos, right-angle female M12
CBL-1492-XX Cable 8-pin, right-angle female M12 to bare wire leads
CBL-1493 Field Mountable
Connector 8-pos, straight female M12
CBL-1494-01 Cable 5-pin, female M12 to bare wire leads, 1m (ThinNet)
CBL-1495-XX Cable 5-pin, female 7/8-16 to bare wire leads
CBL-1496 Termination
Resistor Plug 5-pin, female M12 (ThinNet)
![](/img.php?id=828605&img=bg4c.png)
APPENDIX B: MODELS & ACCESSORIES
P/N: 17-1327 REV 02 (08/07) PAGE 76 OF 82
CBL-1497 Termination
Resistor Plug 5-pin, female 7/8-16 (ThickNet)
CBL-1498-02 Cable 5-pin, male M12 to bare wire leads, 2m (ThinNet)
CBL-1514 Connector 5-pin, straight male, reverse-keyed M12 (for USB)
CBL-1515-05 Cable CAT5E shielded Ethernet to 5-Pin, male, D-Code M12,
5m
CBL-1524 Connector 5-pin, straight female, reverse-keyed M12
CBL-1525 Cable Assembly 5-pin, female, reverse-keyed M12 to USB Type A, 3m
XX = Length in Meters
POWER SUPPLIES
00-1166
45W, 24VDC, 1.88A max, universal input (90-264VAC, 47-63Hz), 5.5x2.5mm plug,
positive tip; requires country specific power cord to mate to IEC 320 power cord
receptacle.
00-1167
100W, 24VDC, 4.17A max, universal input (90-264VAC, 47-63Hz), 5.5x2.5mm plug,
positive tip; requires country specific power cord to mate with IEC 320 power cord
receptacle.
00-1168
120W, 24VDC, 5.0A max, universal input (88-132VAC/176-264VAC switch
selectable, 47-63Hz) DIN rail mount; AC wire receptacles are spring clamped for
direct wire connection.
7.6.3 Escort Memory Systems RFID Tags
Escort Memory Systems designs and manufactures several lines of RFID tags. LRP,
HMS and T-Series passive read/write RFID tags are specially suited for the C1007-
Series product line.
![](/img.php?id=828605&img=bg4d.png)
APPENDIX C: NETWORK DIAGRAMS
P/N: 17-1327 REV 02 (08/07) PAGE 77 OF 82
APPENDIX C:
NETWORK DIAGRAMS
Subnet16 Gateway C1007-485-01 ThinNet Network Diagram
Figure Appendix C-0-1: Subnet16 Gateway - C1007-485-01 ThinNet Network Diagram
![](/img.php?id=828605&img=bg4e.png)
APPENDIX C: NETWORK DIAGRAMS
P/N: 17-1327 REV 02 (08/07) PAGE 78 OF 82
Subnet16 Gateway C1007-485-01 ThickNet Network Diagram
Figure Appendix C-0-2: Subnet16 Gateway - C1007-485-01 ThinNet Network Diagram
![](/img.php?id=828605&img=bg4f.png)
APPENDIX C: NETWORK DIAGRAMS
P/N: 17-1327 REV 02 (08/07) PAGE 79 OF 82
Subnet16 Hub C1007-485-01 Network Diagram
Figure Appendix C-0-3: Subnet16 Hub - C1007-485-01 Network Diagram
![](/img.php?id=828605&img=bg50.png)
APPENDIX D: ASCII CHART
P/N: 17-1327 REV 02 (08/07) PAGE 80 OF 82
APPENDIX D:
ASCII CHART
![](/img.php?id=828605&img=bg51.png)
APPENDIX D: ASCII CHART
P/N: 17-1327 REV 02 (08/07) PAGE 81 OF 82
![](/img.php?id=828605&img=bg52.png)
EMS WARRANTY
P/N: 17-1327 REV 02 (08/07) PAGE 82 OF 82
EMS WARRANTY
scort Memory Systems warrants that all products of its own manufacturing conform to
Escort Memory Systems specifications and are free from defects in material and
workmanship when used under normal operating conditions and within the service
conditions for which they were furnished. The obligation of Escort Memory Systems hereunder
shall expire one (1) year after delivery, unless otherwise specified, and is limited to repairing,
or at its option, replacing without charge, any such product that in Escort Memory Systems
sole opinion proves to be defective within the scope of this Warranty. In the event Escort
Memory Systems is not able to repair or replace defective products or components within a
reasonable time after receipt thereof, Buyers shall be credited for their value at the original
purchase price. Escort Memory Systems must be notified in writing of the defect or
nonconformity within the warranty period and the affected product returned to Escort Memory
Systems factory or to an authorized service center within thirty (30) days after discovery of
such defect or nonconformity. Shipment shall not be made without prior authorization by Escort
Memory Systems.
This is Escort Memory Systems' sole warranty with respect to the products delivered
hereunder. No statement, representation, agreement or understanding oral or written, made by
an agent, distributor, representative, or employee of Escort Memory Systems which is not
contained in this warranty, will be binding upon Escort Memory Systems, unless made in
writing and executed by an authorized Escort Memory Systems employee.
Escort Memory Systems makes no other warranty of any kind what so ever, expressed or
implied, and all implied warranties of merchantability and fitness for a particular use which
exceed the aforementioned obligation are here by disclaimed by Escort Memory Systems and
excluded from this agreement. Under no circumstances shall Escort Memory Systems be liable
to Buyer, in contract or in tort, for any special, indirect, incidental, or consequential damages,
expenses, losses or delay however caused. Equipment or parts that have been subjected to
abuse, misuse, accident, alteration, neglect, unauthorized repair or installation are not covered
by warranty. Escort Memory Systems shall make the final determination as to the existence
and cause of any alleged defect. No liability is assumed for expendable items such as lamps
and fuses. No warranty is made with respect to equipment or products produced to Buyers
specification except as specifically stated in writing by Escort Memory Systems in the contract
for such custom equipment. This warranty is the only warranty made by Escort Memory
Systems with respect to the goods delivered hereunder, and may be modified or amended only
by a written instrument signed by a duly authorized officer of Escort Memory Systems and
accepted by the Buyer.
Extended warranties of up to four years are available for purchase for most Escort Memory
Systems products. Contact Escort Memory Systems or your distributor for more information.
