Cheng Uei Precision Industry H680 Bluetooth Handsfree Headset User Manual 9510a87o Front
Cheng Uei Precision Industry Co., Ltd. Bluetooth Handsfree Headset 9510a87o Front
User Manual
![](/img.php?id=783513&img=bg1.png)
MOTOROLA and the Stylized M Logo are registered in the US
Patent & Trademark Office. The use of wireless devices and their
accessories may be prohibited or restricted in certain areas.
Always obey the laws and regulations on the use of these
products. The Bluetooth trademarks are owned by their
proprietor and used by Motorola, Inc. under license. All other
product or service names are the property of their respective
owners.
© Motorola, Inc. 2007.
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
1-877-MOTOBLU
1-888-390-6456 (TTY/TDD United States for
hearing impaired)
Guide Number: 6809510A87-O
motorola
Bluetooth®
Handsfree Headset

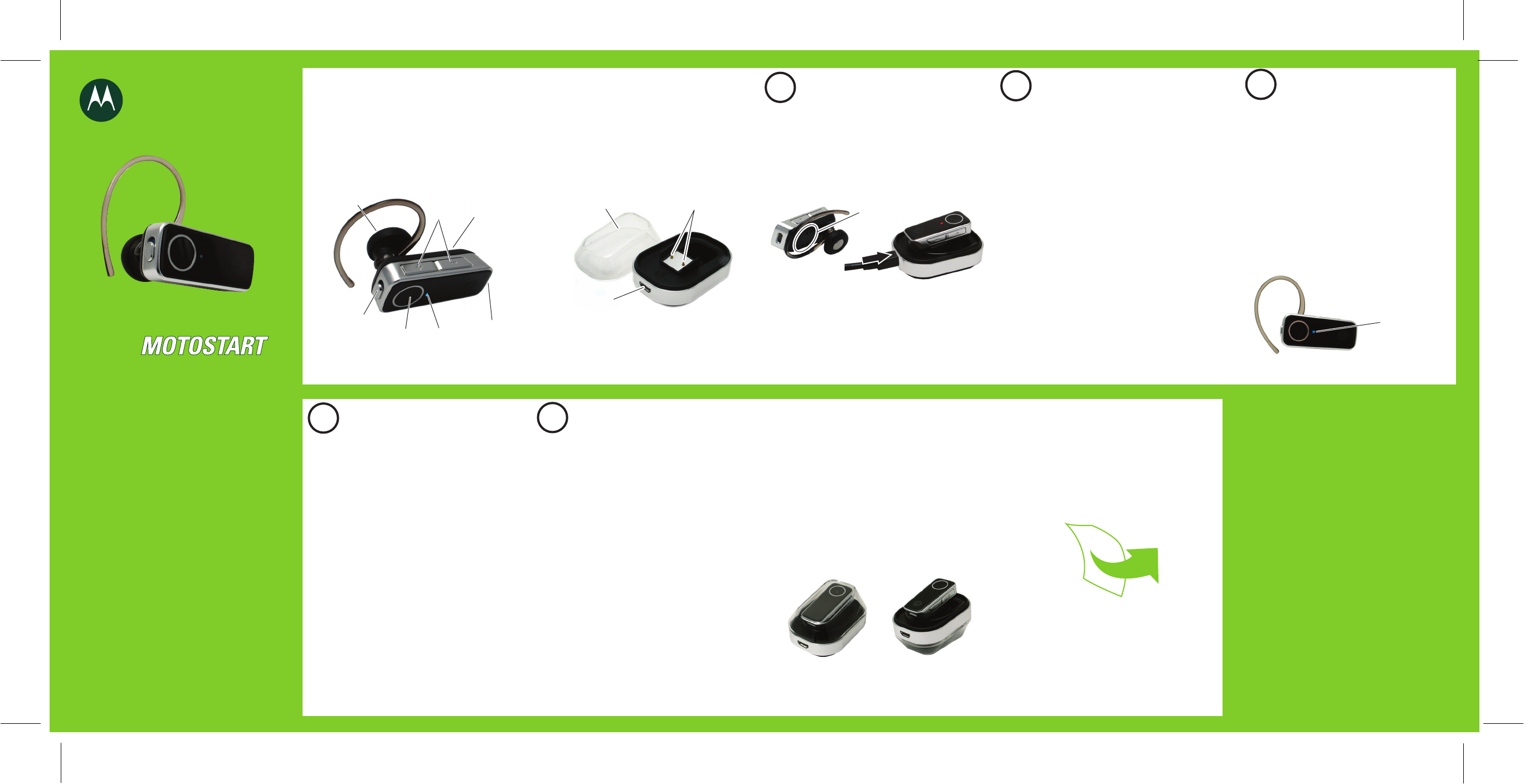

Get connected in 4 quick steps.
H680
Volume
Buttons
Microphone
Speaker
Power
Switch Call
Button
Indicator
Light
Indicator Light
(steadily blue
for pairing mode)
Charging
Contacts
(on reverse
side)
My headset will not enter pairing mode.
Make sure that any devices previously paired with
the headset are turned off. If the indicator light is
not steadily lit in blue, turn off both the other
device and headset, wait 10 seconds, then turn
headset back on. Wait for the indicator light to
become steadily lit in blue, indicating the headset
is now in pairing mode.
My phone doesn't find my headset.
Make sure the indicator light on your headset is
on (lit in blue) and steady when your phone is
searching for devices (see step 3).
My headset worked before but now it's not
working.
Make sure your phone is on and the Bluetooth
feature is turned on in your phone (see step 2). If
the Bluetooth feature was turned off or was
turned on only temporarily, you may need to
restart the Bluetooth feature (see step 2) and pair
your phone and headset again (see step 3).
Support.
If you need more help, contact us at
1-877-MOTOBLU or visit us at
www.hellomoto.com/Bluetoothsupport
TROUBLESHOOTING
Before using this product, read the Important Safety and Legal Information pamphlet and follow its instructions.
Take a moment before you get started to familiarize yourself with your new H680
Bluetooth Handsfree Headset. Along with your headset, a charger base is provided for
both charging and storage.
Charger
Port
BEFORE YOU BEGIN
12
START BLUETOOTH
FEATURE
Your Phone
Press (Menu) > Settings > Connection >
Bluetooth Link > Setup.
Scroll to Power.
Select Change.
Scroll to On.
Press Select to turn on the Bluetooth
feature. The Bluetooth feature remains on
until you turn the feature off.
Note: These steps are for most Motorola phones.
For other phones, see your phone's user's guide.
1
2
3
4
5
Your phone's Bluetooth feature is off by default.
To use your headset, you must turn on the
Bluetooth feature in your phone.
For most Motorola phones (at the main menu):
M
3
PAIR
Your Headset
Before you can use your headset, you must pair
(link) it with your phone.
Step A - ENSURE HEADSET IS IN PAIRING
MODE
Remove headset from charging base and
power on by sliding Power switch to the On
position (towards Power symbol on headset).
The indicator light flashes to initiate easy
pairing. After a few moments, the indicator
light will be steadily lit in blue to indicate
headset is in pairing mode.
If the headset does not enter pairing mode,
see TROUBLESHOOTING for help.
PAIR CONTINUED
Your Phone
Step B - SET YOUR PHONE TO LOOK FOR
YOUR HEADSET
3
4
5
1
2
For most Motorola phones:
On your Motorola phone, press (Menu) >
Settings > Connection > Bluetooth Link >
Handsfree > Look for Devices.
The phone lists Bluetooth devices it finds.
Select Motorola H680.
Select OK or Yes to pair your headset with
your phone.
Enter the passkey: 0000
Select OK.
When your headset successfully pairs and
connects with your phone, the indicator light
changes from steadily lit to flashing blue.
Note: These steps are for most Motorola phones.
For other phones, see your phone's user's guide.
M
4
TEST AND USE
Your phone and headset are now paired and
ready to make and receive calls.
To make a call:
Place the headset over your ear. See
"Wearing the Headset" on the reverse side
of this guide.
On the phone, dial the number you want to
call and press SEND key on your phone.
If your phone and headset are successfully
paired, you will hear ringing on the headset.
After you have successfully paired your
phone and headset, you don't need to
repeat these steps. For daily use, ensure
that your headset is turned ON and that
your phone's Bluetooth feature is ON.
1
2
USING YOUR H680
See

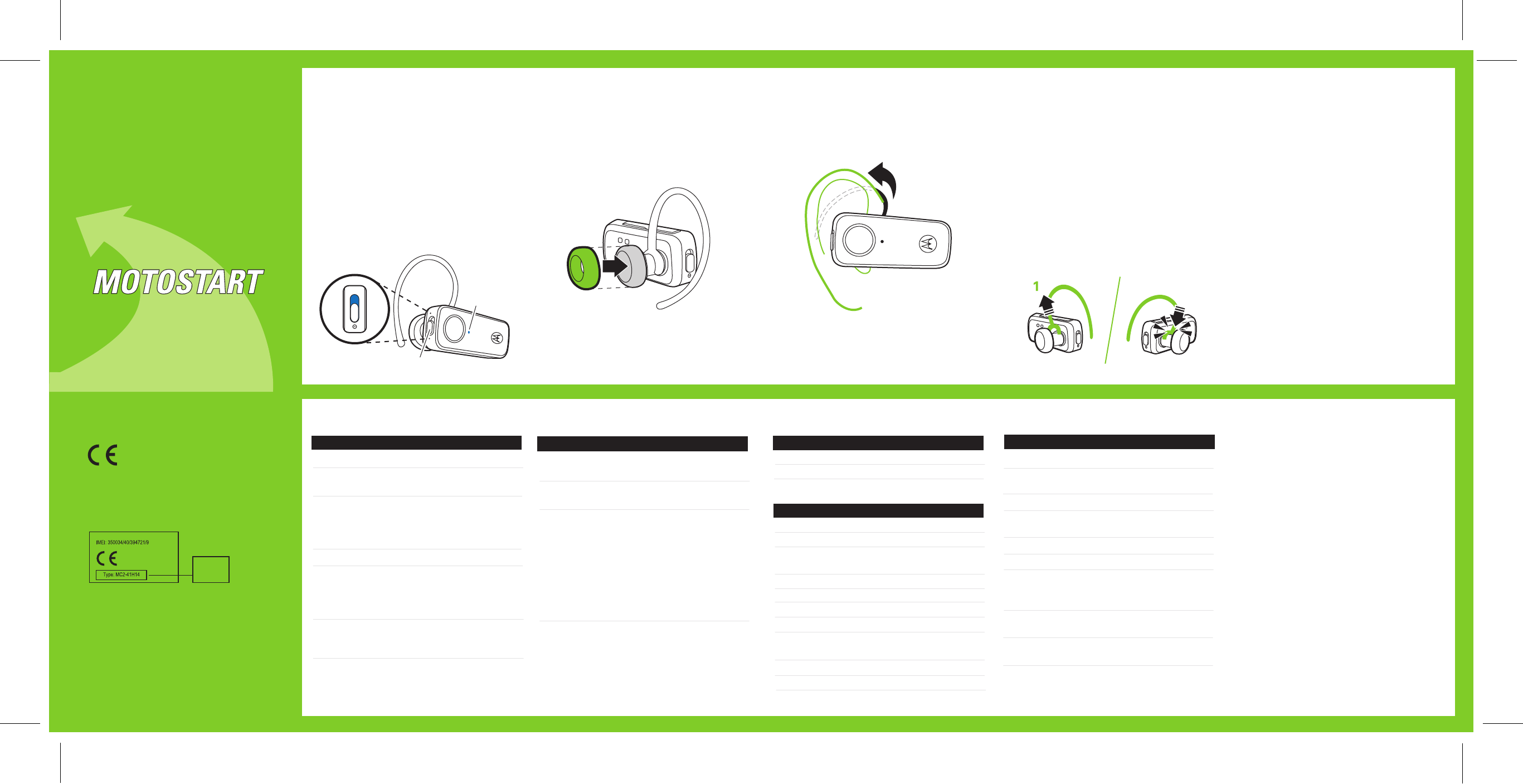

Features and
Functions Guide
on the reverse side
for information on
using your H680
1
2
Note: Headset is not functional while charging.
3
Plug the Motorola charger into the port on the
charger base.
Place headset into charger base ensuring that
charging contacts on the headset and
charging base connect.
The indicator light turns red when the battery
is charging. It may take up to 1 minute for the
indicator light to turn on. When the headset's
battery is fully charged (about 2 hours), the
indicator light turns off.
Disconnect the charger.
CHARGE
Your Headset's Battery
3
STORING YOUR
HEADSET
The charger base provided is used to charge
and store your headset. When not using your
headset, you should place it in the charger
base.
As shown, the charger cover can be placed on
top of the charger base, or underneath it to
provide support for desktop placement.
Charger
Cover
Charging
Contacts Charging
Contacts
DRAFT
DRAFT
![](/img.php?id=783513&img=bg2.png)
Power
Switch
Indicator
Light
IMPORTANT:
Be sure to first follow the
Quick Start Guide
on the reverse side
of this guide
to complete initial setup
of your H680.
Features and
Functions Guide
H680
Bluetooth®
Handsfree Headset
TURNING HEADSET ON
AND OFF
EARBUDS AND YOUR
HEADSET
Your H680 headset is supplied with multiple
earbuds. The earbud is fitted onto the end of
your headset’s earpiece speaker, and placed
onto your ear when using your headset.
Your headset’s performance is greatly
dependent upon achieving a good fit on your
ear. Therefore, we recommend trying all the
supplied earbuds with your headset.
• The essential requirements and
other relevant provisions of Directive
1999/5/EC.
• All other relevant EU Directives.
European Union Directives
Conformance Statement
Product
Approval
Number
The above gives an example of a typical Product
Approval Number.
You can view your product’s Declaration of Conformity
(DoC) to Directive 1999/5/EC (to R&TTE Directive) at
www.motorola.com/rtte. To find your DoC, enter the
product Approval Number from your product’s label in
the “Search” bar on the web site.
Hereby, Motorola declares that this
product is in compliance with:
To turn your headset on, slide the Power
switch on (towards Power symbol on
headset). The indicator light is steadily
purple for several seconds, then flashes
blue (if paired and connected with another
device) or is steadily blue (if ready to be
paired).
To turn your headset off, slide the Power
switch off. The indicator light will turn off.
WEARING THE
HEADSET
To wear your headset, flex the earhook and
loop it over your ear as shown.
Be sure to position the ear bud into your ear
canal for optimal audio performance and
comfort.
CHANGING FOR USE
ON OTHER EAR
Gently lift and pull the top of the earhook up
and off speaker stem.
Flip the headset over.
Attach the earhook to the speaker stem.
1
2
3
3
You can wear your H680 headset on your left or
right ear. The headset comes ready for the right
ear. To change the headset for the left ear:
MAKING CALLS MAKING CALLS CONTINUED
Note: Your H680 supports both Handsfree and Headset
Profiles. Accessing call functions depends upon which
profile your phone supports. See your phone's user's guide
for more information.
Function Action
Receive a call Tap the Call button
Mute or unmute a call Tap both Volume
buttons
Reject a call Press and hold a
Volume button until
you hear two
descending tones
End a call Tap the Call button
Redial last call Press and hold the
Call button until you
hear two ascending
tones
Make a voice dial call Tap the Call button
and speak the
name after the tone
Function Action
Answer a second Tap the Call button
incoming call
End an active call and Tap the Call button
resume a call on hold
Disable the First slide the switch
indicator light toward charging plug
(to turn headset off),
then press and hold
both Volume
buttons AND slide
the switch towards
the microphone (to
turn headset on)
Note: Some features are phone/network dependent.
INDICATOR LIGHTS
With the Charger Plugged In
Headset Indicator Headset Status
Steady red Charging
Off Charging complete
With No Charger Plugged In
Headset Indicator Headset Status
Off Power off
Steady purple Powering up
Steady blue Pairing/connection
mode
10 rapid purple flashes Connection successful
Slow blue flash Standby (not on call)
Quick blue flash Incoming call
Slow blue pulse Connected (on a call)
Slow purple pulse Connected
(on a muted call)
Red flash Idle (not connected)
Quick red flash Low battery
Note: After 30 minutes of inactivity, the light stops flashing to
conserve power, but the headset remains in standby mode.
AUDIO TONES
Audio Tone Headset Status
Ring tone Incoming call
Single high tone Phone network not
available
High to low tone End call
Single high tone when Volume at minimum
pressing volume button or maximum
Two ascending tones Mute enabled
Two descending tones Mute disabled
Low to high tone Connection
confirmation/voice
activation
No audio indications; Out of range
deteriorating quality
Two tones Low battery
repeated every 30 sec.
DRAFT
DRAFT
![](/img.php?id=783513&img=bg3.png)
![](/img.php?id=783513&img=bg4.png)

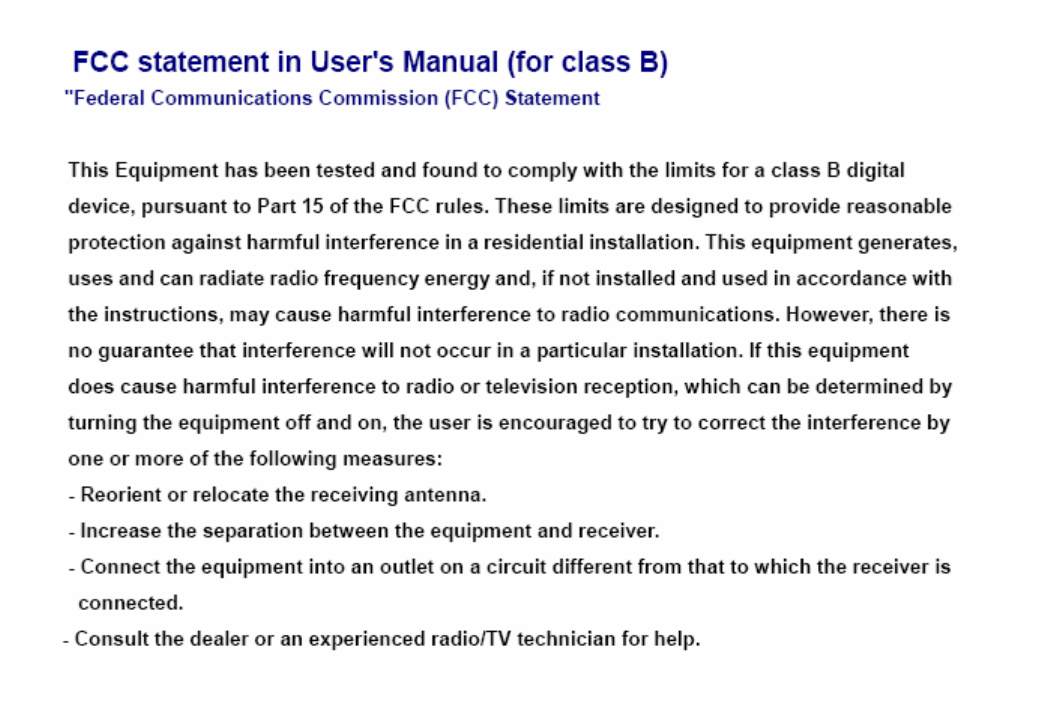

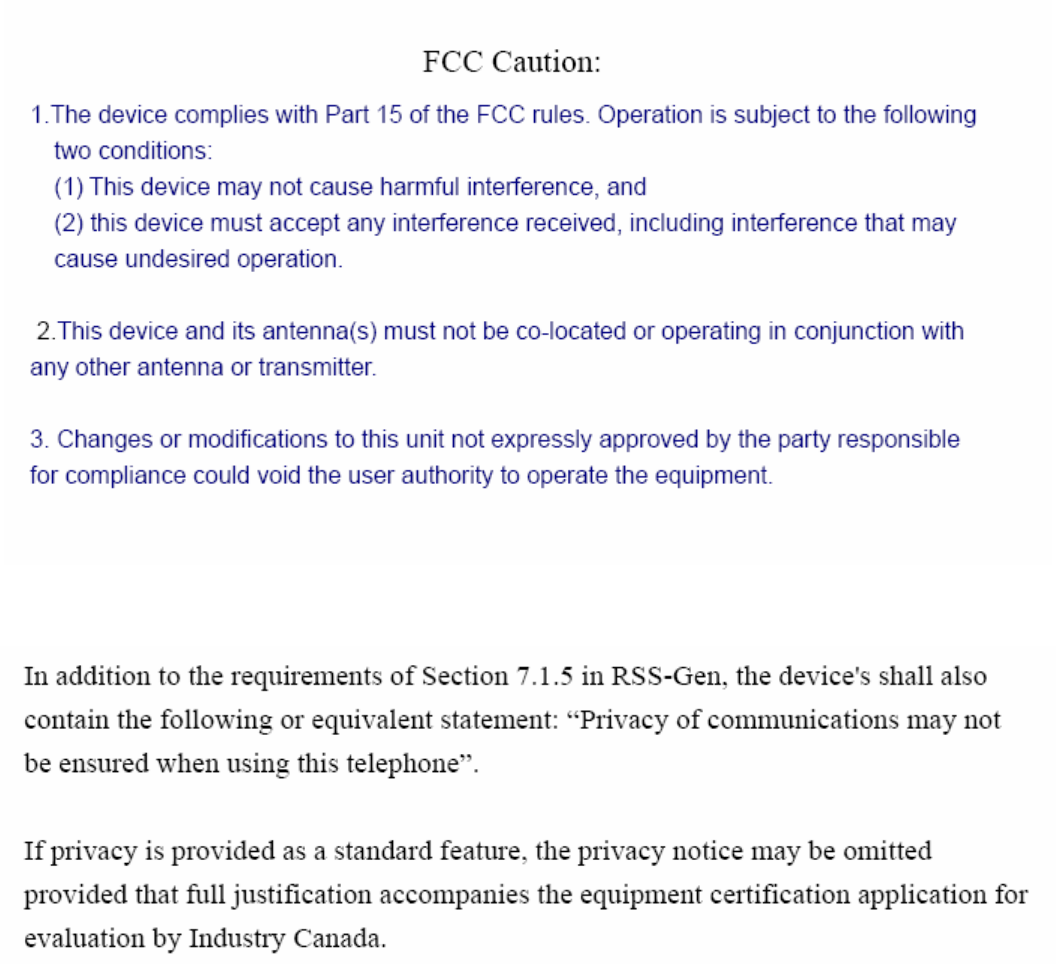

IC Statement
