Cheng Uei Precision Industry QM03YB3 GSM 850/1900 Terminal Device User Manual
Cheng Uei Precision Industry Co., Ltd. GSM 850/1900 Terminal Device
user manual
1
QM03YB3
User Manual
Copyrights 2010, Foxlink Technologies
![](/img.php?id=1383577&img=bg2.png)
1
Welcome
Thank you for purchasing a QM03YB3 Handset Mobile phone.
We built our Handset to give user what we believe user really
want from a wireless phone, clear sound, and fashion outlook.
Our advanced technology is designed to grow with user’s
communications needs so that one day you will be able to rely
entirely on users Handset to stay connected.
This guide will familiarize user with our technology and new
Handset phone through simple, easy to follow instructions.
This section provides the entire information user needs to
quickly activate phone, and much more.
We congratulate on your choice.
![](/img.php?id=1383577&img=bg3.png)
2
Safety Information
Please read and understood the details which are both safe to
you and your environment. Failure to observe these
instructions may lead to suspension of cellular phone services
to the user, or some legal action
Emergency Calls (SOS)
Emergency call can be made from your cellular phone
even without a SIM in the network service area.
Traffic Safety
Please do not use your cellular phone while driving;
find a safe place to stop first.
Switch off in Hospital
The use of cellular phones may interfere with the
functionality of some possible insufficiently protected
medical devices in hospital.
Switch off in Airplane
The use of cellular phone in an aircraft may be
dangerous to the operation of the aircraft, disrupt the
cellular network and may be illegal.
Switch off in Gasoline Station and Explosive Site
It is advisable that users turn off cellular phone when
refueling is in progress, users are reminded to observe
restrictions on the use of radio equipment in fuel
depots.
Important information for parents:
Please read the operating instructions and safety
precautions carefully before use. Explain the content and
the hazards associated with using the phone to your
children.
![](/img.php?id=1383577&img=bg4.png)
3
Operating Environment
Mobile radio transmitting equipment, including cellular
phones, may be subject to interference and may cause
danger. Switch off your phone whenever it is forbidden
to use it.
Use Sensibly
Do not hold the phone to your ear when it rings or when
you have switched on the hand free function.
Otherwise you risk serious permanent damage to your
hearing.
Appropriate Maintenance
Only qualified and authorized personnel should service
your cellular phone. Faulty installation or repair may be
hazardous.
Replace
You may only open the phone to replace the battery
and SIM card. You must not open the battery under any
circumstances. All other changes to this device are
strictly prohibited and will invalidate the operating
license.
Interference Noticed
The phone may cause interference in the vicinity of TV
sets, radios and PCs.
Safety Warnings
Accessories
Use only accessories and charging devices approved
by the phone manufacturer! Otherwise you risk
serious damage to health and property. The battery
could explode, for instance.
Power Voltage
The mains voltage specified on the power supply unit
(Volt) must not be exceeded. Otherwise the charging
device may be destroyed.
![](/img.php?id=1383577&img=bg5.png)
4
Waste Disposal
Dispose of worn out batteries and phone in
accordance with local provisions!
Rechargeable Battery
If battery is over discharged the handset will need to
pre-charge less than 10-20 minutes.
A
void accidental shorts across the contacts of battery by
metal parts. Shorts can cause rapid discharge currents
that can damage the battery, the part that creates the short
or cause injuries.
Prevent extreme low and high ambient temperatures for
the battery. Therefore, do not place battery near a heater
or on the car dashboard.
Do not open, penetrate or otherwise physically damage
the battery.
Do not incinerate battery.
FCC Regulations
• You are cautioned that changes or modifications not
expressly approved by the part responsible for compliance
could void the user’s authority to operate the equipment.
• This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of
the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
![](/img.php?id=1383577&img=bg6.png)
5
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
• This device complies with Part 15 of the FCC
Rules.Operation is subject to the following two conditions:
1) this device may not cause harmful interference and
2) this device must accept any interference received,
including interference that may cause undesired
operation of the device.
• FCC RF Radiation Exposure Statement:
For body worn operation, this phone has been tested and
meets FCC RF exposure guidelines when used with an
accessory that contains no metal and that positions the
handset a minimum of 1.5 cm from the body. Use of other
accessories may not ensure compliance with FCC RF
exposure guidelines."
Warning:
• SAR Head Max value : 0.629 W/Kg(1g )
• Body Max value : 1.32 W/Kg(1g)
6
Contents
WELCOME ................................................................... 1
SAFETY INFORMATION ..............................................2
SAFETY WARNINGS....................................................... 3
FCC REGULATIONS....................................................... 4
GETTING STARTED..................................................... 9
SIM CARD AND BATTERY INFORMATION ......................... 9
Insert SIM Card ......................................................... 9
Insert Memory Card................................................... 9

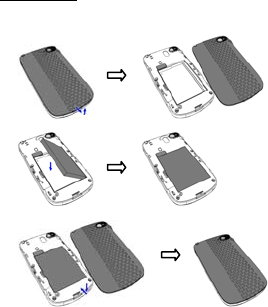

Insert Battery........................................................... 10
CARGA DE LA BATERÍA ............................................ 11
YOUR PHONE .............................................................. 12
Front / Back / Side View of Phone........................... 12
Key Function List.....................................................13
Idle Mode................................................................. 15
Main Menu............................................................... 16
Essential Indicators .................................................16
Listing of Functions..................................................17
Personalizing your Phone........................................ 19
Writing Text.............................................................. 20
Calling .....................................................................21
MENU FUNCTIONS & THEIR DESCRIPTIONS......... 25
CALLS......................................................................... 25
All calls ....................................................................25
Dialed calls.............................................................. 25
Received calls .........................................................25
Missed calls............................................................. 26
Call duration ............................................................ 26
Call cost................................................................... 27
SMS counter............................................................ 27
GPRS counter ......................................................... 27
Delete call lists.........................................................28
Call setup ................................................................28
7
PHONEBOOK............................................................... 28
Search..................................................................... 28
Add new entry .........................................................28
Smart Search .......................................................... 29
Caller groups........................................................... 29
Speed dials.............................................................. 30
Extra numbers......................................................... 30
Phonebook Setup.................................................... 31
MESSAGING................................................................31
Messaging............................................................... 31
Voice mail server ..................................................... 35
Broadcast message................................................. 35
NEO NAVEGACION....................................................... 36
Homepage............................................................... 36
Bookmarks .............................................................. 36
Recent pages .......................................................... 37
Offline pages ........................................................... 37
Go to URL ...............................................................37
Service inbox........................................................... 38
Settings ................................................................... 38
MULTIMEDIA................................................................ 40
Camera.................................................................... 40
Photo album ............................................................ 40
Entertainment.......................................................... 40
Video recorder......................................................... 41
Video player............................................................. 42
Music Player............................................................ 43
Sound Recorder ...................................................... 45
FM radio .................................................................. 46
FM radio recorder scheduler ................................... 46
FILE MANAGER ............................................................ 46
ENTERTAINMENT ......................................................... 47
EXTRA ........................................................................ 48
8
Movilnet................................................................... 48
Calendar.................................................................. 48
To do list .................................................................. 49
Alarm....................................................................... 49
Java......................................................................... 49
World clock.............................................................. 50
Stopwatch................................................................ 50
Calculator ................................................................ 50
Unit converter.......................................................... 51
Memo ...................................................................... 51
Heath....................................................................... 52
Torch........................................................................52
FM RADIO ................................................................... 52
CAMERA .....................................................................54
TV.............................................................................. 57
SETTINGS ...................................................................58
Phone setup ............................................................ 58
Sound profiles ......................................................... 59
Display setup...........................................................61
Call setup ................................................................63
Phonebook Setup.................................................... 66
Message setup........................................................ 67
Time and Date......................................................... 69
Connectivity setup................................................... 70
Security setup.......................................................... 71
Bluetooth ................................................................. 72
File manager ........................................................... 73
Java setup............................................................... 73
Game setup............................................................. 73
Factory reset ...........................................................74
TO USE MASS STORAGE (USB CABLE).................. 75
![](/img.php?id=1383577&img=bga.png)
9
Getting Started
SIM Card and Battery Information
Insert SIM Card
The SIM card is inserted into the back of the phone
underneath the battery.
• Press the knob and open the battery cover off.
• Remove the battery.
• Place the card inside the SIM cardholder such that the
golden connectors are facing downwards.
Insert Memory Card
• Use only compatible T-Flash (Micro SD) card with this
device. Other memory cards, such Secure digital (SD)
cards, do not fit in the T-Flash (Micro SD) card slot and are
not compatible with this device. Using an incompatible
![](/img.php?id=1383577&img=bgb.png)
10
memory card may damage the memory card as well as
phone, and data stored on the incompatible card may be
corrupted.
• The T-Flash (Micro SD) cardholder is the side of the
phone.
• Place the T-Flash (Micro SD) card in the notch. Make sure
that the T-Flash (Micro SD) card is properly inserted and
that the golden contact area on the card is facing upwards.
Insert Battery
• Slide the battery into the cradle and press the battery down
flat.
• Place the back cover and slide it into place.
![](/img.php?id=1383577&img=bgc.png)
11
Warning:
1. If the battery is totally empty, charging icon or LED is not
on. There fore, you should charge the battery maximum
up to 10-20 minutes.
2. If you turn off handset abnormally, please take out battery
about 10 seconds then insert battery. Otherwise the
battery will discharge and run out of power quickly.
Carga de la Batería
1. Conecte el cargador tal como se muestra en la ilustración.
En la pantalla se indicará el proceso de carga de la batería
durante algunos segundos si el teléfono está encendido y
entonces regresará al estado anterior. (El teléfono puede
utilizarse mientras se está cargando la batería).
Si se apaga el teléfono la pantalla mostrará de forma
permanente el proceso de carga de la batería.
2. Cuando finalice la carga, la pantalla tendrá el aspecto de
la ilustración. Para quitar el cargador, mantenga
presionados ambos extremos y acontinuación extráigalo.
![](/img.php?id=1383577&img=bgd.png)
12
Your phone
Front / Back / Side View of Phone
1 Ear speaker 10 Keypad
2 Display screen 11 Microphone
3 Navigation key 12 Headset connector
4 Left soft key 13 Memory card slot
5 Right soft key 14 USB connector
6 Multimedia key 15 Touch light
7 Send key 16 Camera
8 Camera key 17 Speaker
9 End key 18 TV antenna
1
2
3
5
6
7
11
10
4
8
9
12
13
14
15
16
17
18
![](/img.php?id=1383577&img=bge.png)
13
Key Function List
Send key
Answer key
Dials a phone number and answer a
call.
In idle mode: it shows the most recently
called.
Multimedia
key
In idle mode: Access to the multimedia
menu.
End key
Power key
In idle mode: Switch phone on and off.
In call context: End Call.
In menu: Back to idle mode.
Navigation
key
In idle mode: Use for quick access to
phone functions in idle mode.
♦ Up: Access to the Sound profiles.
♦ Down: Access to the Messaging.
♦ Left: Access to the Photo album.
♦ Right: Access to the Internet service.
♦ Center: Short press will access to the
Main menu.
[Note]: Navigation shortcut maybe
different depends on personal setting in
“Phone setup/Dedicated key”.
In the menu list: Use
Up/Down/Left/Right to move through
selections on the list.
In call mode: Briefly press the up or
down key to increase or reduce the
volume.
Camera key Enter to Camera function.
Left softkey In idle mode: Access to the Main menu.
In other screens: Choose the function
shown directly above the soft key,
usually Select, OK or Save.
Right softkey In idle mode: Access to the Contacts.
In other screens: Choose the function
shown directly above the soft key,
usually Back, Delete or Cancel.
TV key Enter to TV function.
![](/img.php?id=1383577&img=bgf.png)
14
Message key In idle mode: Go to “Write SMS” page.
In phonebook list: Go to “Write SMS”
page and assign receiver as that
contact.
Delete key In text mode: Delete the text.
In menu list: When highlighted bar is at
any file and press Delete key, the phone
delete that file.
Enter key In menu list: It can “Enter / open / View /
Play / Select” the menu or files.
In text mode: Insert a blank column.
Space key In idle mode: Long press to
activate/deactivate keypad lock.
In text mode: Short press to input space.
SYM key In idle mode: Short press will open /
closed the torch.
In text mode: To display the Symbol
table.
Shift key In idle mode: Long press to
activate/deactivate silent mode.
In text mode:
Short press to switch between Small
and Capital letters.
Alt key In text mode: Short press to switch
between letter and symbol/number.
Language
key
In Idle mode: To input the number 0.
In text mode: Switch from one input
mode to another.
Number key In Idle mode:
Short press: To input the number 1.
Long press: To call voice mail.
In text mode: Based the input method,
enter the corresponding characters.
~
Number key In Idle mode:
Short press: To input the
corresponding number.
Long press: To call the contact
specified in the menu Phonebook >
Speed dials.
In text mode: Based the input method,
![](/img.php?id=1383577&img=bg10.png)
15
enter the corresponding characters.
~ Character
key
In text mode: Based the input method,
enter the corresponding characters.
Idle Mode
When the phone is on, and you have not keyed in any
characters, the phone is in idle mode.
1. Top of the screen shows Essential Indicators.
2. SIM network provider.
3. Date information.
4. Time information.
5. To enter Menu.
6. To enter Mcontents.
1
2
4
6
1
2
4
5
3
6
![](/img.php?id=1383577&img=bg11.png)
16
Main Menu
1. Calls 7. Entertainment
2. Phonebook 8. Extra
3. Messaging 9. FM radio
4. Neo Navegacion 10. Camera
5. Multimedia 11. TV
6 File manager 12. Settings
Essential Indicators
Indicates signal strength of SIM.
Shows handset current battery charge strength.
Bluetooth feature is active.
Indicates the phone keypad is locked.
Indicates the current profile is General.
Indicates the current profile type is Silent.
Indicates the current profile type is Meeting.
Indicates the current profile type is Outdoor.
Indicates the current profiles type is Headset.
The Alarm clock is set on.
The Stopwatch function is on.
Indicates “roaming”.
Indicates new SMS.
Indicates new MMS.
Indicates call forward is set on.
Indicates GPRS is connected.
Indicates Music player is in background playing.
Menu title
Main menu
Soft key bar
Menu title
Main menu
Softkey bar
![](/img.php?id=1383577&img=bg12.png)
17
Listing of Functions
Calls
All calls
Missed calls
Received calls
Dialed calls
Call duration
Call cost
SMS counter
GPRS counter
Delete call lists
Call setup
Phonebook
Search
Add new entry
Smart search
Caller groups
Speed dials
Extra numbers
Phonebook setup
Messaging
Messaging
Voice mail server
Broadcast message
Neo Navegacion
Homepage
Bookmarks
Recent pages
Offline pages
Go to URL
Service inbox
Settings
Multimedia
Camera
Photo album
Entertainment
Video recorder
Video player
Music player
Sound recorder
FM radio
FM radio recorder
schedule
File manager
Phone
Card
Entertainment
Copter
Fruit
Game setup
Extra
Movilnet
Calendar
To do list
Alarm
Java
World clock
Stopwatch
Calculator
Unit converter
Memo
Health
Torch
![](/img.php?id=1383577&img=bg13.png)
18
FM radio
Camera
TV
Settings
Phone setup
Sound profiles
Display setup
Call setup
Phonebook setup
Message setup
Time and date
Connectivity
Security setup
Bluetooth
File manager
Java setup
Game setup
Factory reset
![](/img.php?id=1383577&img=bg14.png)
19
Personalizing your Phone
Display Language
• From idle mode, press Menu and select Settings / Phone
setup / Language, press OK to enter language list.
• Select a language and press OK.
Tone
• From Idle mode, press Menu and select Settings / Sound
profiles / General / Customize / Tone settings /
incoming call, then select item enter to tone list.
• Select a ring tone and press OK.
Wallpaper
• You can set wallpaper for the idle screen.
• From idle mode, press Menu and select Settings /
Display setup / Wallpaper press OK to enter option list.
• Select Default or My folder and link to image list.
• Select image and press OK.
Navigator key
• Use predefined navigation key shortcuts to quickly reach
certain function. Edit the navigation key shortcuts to suit
your own needs. In idle mode, press up / down / left / right /
center to go to a shortcuts menu, or directly to a function.
• To edit a navigation key shortcut, from idle mode, press
Menu and select Settings / Phone setup / Dedicated key,
press Edit to enter shortcuts list.
• Select a menu function and press OK to be assigned to the
navigation key.
Activated Profile
• To access the list of profiles from idle mode, press Menu,
then use Navigation key scroll to Settings / Sound
profiles and press OK.
• Press Options key to activate the certain profile and press
OK.
![](/img.php?id=1383577&img=bg15.png)
20
Silent Mode
• You can switch the phone to Silent mode easy and quickly
to avoid disturbing other people.
• Long press in idle mode.
Writing Text
There are two ways of writing messages, notes or name in
contacts, Multitap text input and Smart text input mode.
Multitap text input
• Press a character key, all the characters of that keypad will
be shown on the below area. Use navigation key left and
right to choose the character that you wanted and press
Select.
• When you are writing text, press either to change
input mode.
• The most common punctuation marks are available under
the .
Smart text input
Smart text input mode is based on a built- in dictionary. And
this input mode is only available for the modes and languages
on the mode list. When you writing text, you can key in any
letter with a single key press. The word changes after each
keystroke.
• Start writing a word by using the character keys. Press
each key only once for one letter. The word changes after
each keystroke.
• Example: To write Happy when the predictive test mode is
selected, press once for H, once for A, once for
p, once for other p, and once for Y.
• When you have finished writing the word and it is correct,
confirm it by press Select.
![](/img.php?id=1383577&img=bg16.png)
21
Tips for writing text
• To insert a space, press .
• To delete a character to the left of the cursor, press .
Press and hold “Clean” key to delete all characters more
quickly.
• The phone can remember the latest input method.
Text Input Mode
Multitap Abc (Traditional input mode)
Multitap abc (Traditional input mode)
Multitap ABC(Traditional input mode)
Multitap spanish (Traditional input mode)
Multitap spanish (Traditional input mode)
Multitap spanish (Traditional input mode)
Numeric
Smart abc (English Smart mode)
Smart Abc (English Smart mode)
Smart ABC (English Smart mode)
Smart es (Spanish smart mode)
Smart Es (Spanish smart mode)
Smart ES(Spanish smart mode)
Calling
Making and answering call
Before you can make or answer any calls, make sure that the
phone is charged and your SIM card is inserted before you
power on the phone.
Ensure that the phone is on, the network operator name is
displayed and the signal strength meter shows network
coverage is available in the current area.
To make a call
• Enter phone number include area code you want to dial. If
you key in wrong character, press Clean key to delete it.
• Press to call the number.
• Press to end the call or to cancel the call attempt.
![](/img.php?id=1383577&img=bg17.png)
22
To make international call
• Press key to input a + sign.
• Enter the country code, area code and phone number, and
then press to make a call.
To answer call
• To receive a call, the phone must be switched on and the
signal strength meter must be displayed.
• Press to answer a call.
Missed calls
• When an incoming call is not answered, the Missed call log
is displayed on your screen. To display the Missed call
entry.
• Select the entry to read call detail.
To use loudspeaker during a call
• Loudspeaker mode is uses handset as loudspeaker during
a call. Do not hold the handset to your ear if loudspeaker
mode on. To activate/deactivate the loudspeaker during a
call, press “H-free/H-held”, and the single will show on the
screen.
• The loudspeaker is automatically deactivated when you
end the call or call attempt or connect the headset to the
phone.
• The loudspeaker is default setting for playing MP3, voice
recorder, using the loudspeaker with MP3 player and Voice
recorder, see detail on MP3 player and Voice recorder.
To call emergency
• Your phone supports the international emergency number,
for example, 060, 112 or 911. This number can normally
be used to make emergency calls in any country, with or
without a SIM card inserted, if a GSM network is within
range.
• You can place emergency calls “dial 060, 112 or 911 and
press ” even if your phone is locked or your account is
![](/img.php?id=1383577&img=bg18.png)
23
restricted.
Tip of call options
A call can be connected to any single caller by pressing
Options. When user presss “Options” during active call, user
can choose one of those functions from the list:
♦ Hold single call: Put a call on.
♦ End single call: End a call.
♦ New call: Make a new call during an active call.
♦ Phonebook: Shortcut to phonebook menu.
♦ Messaging: Shortcut to Message menu.
♦ Sound recorder: Star recorder conversation.
♦ Mute: Mute the call during the conversation.
♦ DTMF: Set On / Off for DTMF (Dual Tone Multi-Frequency)
tone dialing system.
Hold single call
Pressing “Options” and selecting Hold single call allows you
to put an active call on hold. This feature can be used when an
incoming call is received during an active call or if you want to
make another without disconnecting the active call.
Make a new call during a call
You can dial a number during a call without disconnecting the
active call.
• Press and selecting Hold single call to put an active
call on hold and press Options select New call make a
new call by keying new number.
• Press Options and select Swap, new number will go on
hold, and old number will be active.
• Also, you can select record from phonebook, after select
New call, press Back to option list and choose Contacts.
Multiparty call
• You can connect to several people together or individually
at a time.
1. Make a call to the first participant.
![](/img.php?id=1383577&img=bg19.png)
24
2. Call the second participant as explained in Make a new
call during a call.
3. Press “Options” and select Conference. This joins the
calls to the conference.
4. Repeat step 2 and 3 to allow new participants to be
connected to the Conference.
5. Press Options and select End all to end the call. Or
press .
• Any call (participant) can be disconnected by press
Options key and select End Single call.
Switch two calls
• Press “Options”. The first call is put on hold.
• To switch between two calls, press Options and choose
Swap.
• To end the active call press .
(Or to end both calls at the same time. Press Options, and
then move to End single call or End all calls. And press
OK.)
![](/img.php?id=1383577&img=bg1a.png)
25
Menu Functions & Their Descriptions
Calls
The numbers of the last 150 (Each page of Missed calls /
Dialed calls/ Received calls can save 50 calls) calls that you
have made are saved in the call record list. If your subscription
includes the Calling Line Identification service and the caller’s
number is identified, the call record list also shows the
numbers of received and missed calls. Call records, Dialed
calls, Received calls and Missed calls are list under separate
tabs. User can press (Send key) enter call list from idle
mode. Use navigation key to scroll between the tabs.
All calls
♦ From idle mode, press (Send key), you can view all
the Missed, Dialed, and Received calls.
♦ In the list of Calls press OK display Call information.
♦ In the Call info list, press Options, you can: Delete / Save /
Dial / Edit/ Mark/ Send SMS / Send MMS / Delete all.
Dialed calls
♦ From idle mode, press (Send key). Scroll to the
Dialed calls press OK. Within the submenu you can view
the numbers from which you have most recently called or
attempted calls.
♦ In the dialed calls list you can saw icon.
♦ In the list of dialed calls press OK display Call information.
♦ In the dialed calls list, press Options, you can: Delete /
Save / Dial / Edit/ Mark/ Send SMS / Send MMS / Delete
all.
Received calls
♦ From idle mode, press (Send key). Scroll to the
Received calls press OK. Within the submenu you can
view the numbers from which you have most recently
accepted calls
![](/img.php?id=1383577&img=bg1b.png)
26
♦ In the received calls list you can saw icon.
♦ In the list of missed calls press OK display Call
information.
♦ In the received calls list, press Options, you can: Delete /
Save / Dial / Edit/ Mark/ Send SMS / Send MMS / Delete
all.
Missed calls
♦ From idle mode, press (Send key). Scroll to the
Missed calls press OK. Within the submenu, you can view
the phone numbers from which somebody has most
recently tried to call you
♦ In the missed calls list you can saw icon.
♦ In the list of missed calls press OK display Call
information.
♦ In the missed calls list, press Options, you can: Delete /
Save / Dial / Edit/ Mark/ Send SMS / Send MMS / Delete
all.
Users also can press Menu, select Calls press OK to see all
the Missed calls, Dialed calls and Received calls
information in this submenu.
* Users only can see Calls information by pressing
(Send key) from idle mode.
Within the Calls submenu, we also have many other
functions:
Call duration
This function records the length of time or duration of all
incoming and outgoing calls in hours, minutes, and seconds.
Press "OK" will display the following list:
♦ Last call time: Display last one outgoing call in hours,
minutes, and seconds.
♦ Total dialed: Display the time for all outgoing calls in hours,
minutes, and seconds.
♦ Total received: Display the time for all incoming calls in
hours, minutes, and seconds.
![](/img.php?id=1383577&img=bg1c.png)
27
♦ Reset all time: Clear the time records.
Call cost
This network service allows you to check the cost of your last
call or all calls. The call costs are shown separately for each
SIM card.
♦ Last call cost: you can set the phone to show the cost of
last call. You may need the PIN2 code to select the
currency or unit. Contact your service provider for charging
unit prices.
♦ Total cost: you can set the phone to show the remaining
talk time in terms of charging units or units of currency by
using this option. You may need the PIN2 code to select
the currency or unit. Contact your service provider for
charging unit prices.
♦ Reset cost: this option allows you to reset the call cost
counter. You may need the PIN2 code to clear your setting.
♦ Max cost set: you can limit the costs of your calls to a
certain amount of charging units or units of currency by
using this option. You can make and receive charged calls
as long as the specified cost limit is not exceeded. The
number of remaining units is shown in the idle mode. You
may need the PIN2 code to set the Max cost.
♦ Price per unit: this is the cost that the Service Provider
charges for one unit of call time. At this point you will be
asked to enter your PIN 2 code to set this function.
SMS counter
This function can show you how many SMS you already sent
and received. Press "OK" will display contents
GPRS counter
With the GPRS counter you can check the amount of data
sent and received data in last session in total and to clear the
counters. The counters unit is a byte. To reset counter, answer
“Yes” when confirm window show up. Press "OK" will display
contents.
![](/img.php?id=1383577&img=bg1d.png)
28
Delete call lists
♦ In this submenu, Press "OK" will display the following list
• Missed calls
• Dialed calls
• Received calls
• Delete all
♦ Press OK to delete it
Call setup
This menu allows you to setup the call function. For details,
please refer to "call setup" in the “Settings”
Phonebook
Search
You can search contacts by name characters or number.
♦ Name and Number, allow you key in the first characters of
the name or number for which you are searching in the
editor line, the matched record will be shown.
♦ To search the name, users also can put up to 9 characters
in the editor line; the matched record will be shown.
♦ To input or edit a searched item, press Options key to
enter into the submenu. You can View, Edit, Delete, Copy,
Move, Send SMS, Send MMS, Send contact, and Mark
an entry.
Add new entry
♦ It is possible to store phone numbers in three places:
• Add to Phone memory
• Add to SIM
♦ To store a Number in the Phone memory:
In main menu, enter to Phonebook menu and select Add
new entry. You can store max. to 1000 entries in your
phone. (Phone and private storage space for a total of
1000 entries.)
• Then select Add to phone memory, press OK.
• Enter the name and number, press Done.
![](/img.php?id=1383577&img=bg1e.png)
29
• For each number or text item you can choose:
Name / Number / Home number / Company name /
Email address / Office number / Fax number / Birthday /
Image / Video call / Tone / Caller group
[Note]: Tone support MP3, Midi, AMR, and WAV files.
[Note]: Image support JPEG, GIF format. The JPEG
/GIF images size should be less than 200k.
[Note]: Video support motion JPEG files
* When users select Ring tone, Image, Video, you
can go to File manager page to choose from every
folder. When users use these functions, if there is
an incoming call, the Video function will only be
performed by Image, the ring tone will not work.
The Video function can be on or off. When the
Video sound is off, the Ring tone can be used.
♦ To store a number in the SIM card:
In main menu, select Phonebook, and select Add new
entry. You can store 500 entries (Maximum) in your SIM
card for name, telephone number and image.
• Then select Add to SIM card, press OK.
• Enter the name, number, caller group and image, press
OK.
[Note]: Image support JPEG, GIF format. The JPEG
/GIF images size should be less than 200k.
[Note]: The number of store entries in SIM card, it may
be different depend on your SIM card service
provider.
Smart Search
You can search contacts by first number of number you key,
user can put number search in the editor line, the matched
record will be shown, then press Name you send key.
Caller groups
♦ You can set the phone to sound a specific ring tone and
flash a selected graphic on the display when you receive a
call from a particular name and phone number. To do this,
first include a name and number in a caller group. Then
![](/img.php?id=1383577&img=bg1f.png)
30
define a ring tone and picture/animation for this group. If
you want to activate this function, please store names and
phone numbers in the phone memory.
♦ After entering the Caller group’s menu, use Navigation key
to select group name. Group default name include:
Friends, Family, VIP, Business and Others.
♦ After selecting the Group name, you can make Group
settings to edit Group name, tone, image, Video call and
member list for each group. After each setting, press
Done and Save.
Speed dials
In this function, you can make a call by using the speed dialing
keys.
♦ You can set any of the numbers key 2 to 9, to work as a
speed-dialing key. To do this you need to assign a contact
record to a number key.
♦ Within Speed Dials submenu, select Status to activation
or deactivation the function.
♦ Select Set number and select records from contacts then
press OK.
♦ After assigning a number to a speed dial key, you can call,
reassign the record or undo the speed dial.
♦ When a phone number is assigned to one of the speed
dialing keys ( 2 to 9 ) you can call the phone number in the
following ways:
If you have set the menu function Speed dials to on, press
and hold to corresponding speed dialing key until the call is
started.
Extra numbers
♦ My numbers
• You can view and edit personal name and phone
number. To display my number on idle screen.
• Press “OK” to view and edit information.
♦ Service dial number
• Your service provider may program some special
![](/img.php?id=1383577&img=bg20.png)
31
phone numbers into your SIM. It is not possible to
modify the Service Dial Numbers.
• The phone number pointed to can only be recalled or
dialed.
• Press “OK” to recalled or dialed service number.
♦ SOS number
You can view and dial the SOS number
Phonebook Setup
This menu allows you to setup the Phonebook function. For
details, please refer to "Phonebook setup" in the “Settings”.
Messaging
This function only used if your network operator or service
provider supports it. Only devices that offer compatible picture
message, or multimedia message features can receive and
display these messages. Devices that do not have multimedia
features may receive details of a link to a web page.
In Messages you can create, send receive, view, and edit text
message (SMS) / multimedia message (MMS).
Messaging
Write new
Create and send a text message.
In the navigation bar, you can see the message length
indicator counting backwards from 160/(1). For example, 30/(2)
means that you can still add 30 characters for the text to be
sent as two messages.
The “SMS” option list includes options for Done, Insert
template and Input method.
The handset supports the sending and receiving of multimedia
message that contain several pages (slides). Each slide can
contain text, one image and one sound clip.
![](/img.php?id=1383577&img=bg21.png)
32
SMS
For detail information is about how to write text in the phone.
♦ Select Write new press OK, the create options appear,
you can select one of the following options: Done, Insert
template and Input method.
♦ In the message press Options key, select Insert template.
You can choose templates from the list.
♦ To send the message, press Options, select Done and
SIM options then send option appear, choose send option:
Send only, Send and save, Save, Send to many, Send
to by group and press OK.
• If users select Send only, you should enter the Phone
number by yourself or search the contacts by pressing
LSK, which is Quick Search (in this page, users can put
up to 9 characters to sorting the desired names.) and
press OK to send the message.
• If users select Send and save / Save, and then the
sent message is stored in the Outbox folder.
MMS
Create and send a multimedia message.
Use navigation key up/down to select message type then
press OK. If select “MMS”, the MMS editor screen appear.
♦ Use navigation key to select recipients from the contacts
directory, or write the phone number or email address of
the recipient in the To field if you are sending a MMS or
email to the recipient. You also can edit the phone number
or email address of the recipient in the CC and BCC fields
if you are sending a MMS or email to the recipient.
♦ To edit the subject of the MMS or email, scroll to Subject
field.
♦ Scroll to Edit content, press Edit enter Edit slide text.
Press Options, you can select: Done, Input method, My
pictures, My sounds, My videos and Insert attachment,
Add slide behind, Add slide before, Add slide after,
Delete slide, Next slide, Preview MMS, Slide timing.
♦ To insert a file in the message, scroll to Insert attachment
option then press OK. Press Open to link a specific folder
![](/img.php?id=1383577&img=bg22.png)
33
in File manager and scroll to the desired file, then press
OK and Done. An attached file is indicated with the file
name in the message.
♦ To send the message, press Done and send option appear,
choose send option: Send only, Send and save, Save to
drafts, Send options, Exit and press OK.
If users select Send only, you should enter the Phone
number by yourself or search the Contacts by pressing
LSK, which is Quick Search (in this page, users can put
up to 9 characters to sorting the desired names.) and
press OK to send the message.
If users select Save to drafts, the sent message is
stored in the Drafts folder.
Inbox
To check an unread message later:
♦ Selects Inbox press OK.
♦ Move to desired message and press OK to enter list. Press
Options and inbox option list appears, you can select
View, Delete, Delete all, Detail and Mark. The message
is stored in the inbox folder after you have read it.
The icon is indicate whether a SMS is read or
unread and also show message stored
position in front of the message in the list.
The icon indicates whether a SMS is illegal
message format or broken message, which
cannot be displayed in the Message body
screen.
♦ While reading the message, press Options to select
through the list of options and press OK at the highlighted
option to select it.
♦ The inbox message option list includes options have
Reply by SMS, Delete, Edit, Forward, Advance, Use
number and Use URL.
Outbox
♦ In Idle mode enter Menu, Messaging and Outbox than
Press OK.
34
♦ Move to desired message and press OK to enter list. Press
Options and inbox option list appears, you can select
View, Delete, Delete all, Detail and Mark.
♦ While reading the message, press Options to select
through the list of options and press OK at the highlighted
option to select it.
♦ The outbox message option list includes options have
Send from SIM, Edit, Copy to SIM/Phone, Move to
/Phone, Delete, Use Number and Use URL.
♦ Move to desired message and press OK to enter list. Press
Options and inbox option list appears, you can select
View, Delete, Delete all, Mark, Use number and Detail.
♦ While reading the message, press Options to select
through the list of options and press OK at the highlighted
option to select it.
Sending box
The Sending box is a temporary storage location for
messages that are to be sent. If there is no network
connection, the message will remain in the Sending box. After
a network connection has been reestablished the message
will be automatically sent and moved to the Outbox folder.
Drafts
♦ To finish or view an draft message.
♦ From Messaging submenu select Drafts move to desired
message and press Options, the options list appears you
can select View, Delete, Delete all, Detail and Mark.
♦ While reading the message, press Options to select
through the list of options and press OK at the highlighted
option to select it.
♦ The Drafts message option list includes options have
Send, Edit, Delete, Use Number and Use URL.
Delete Folder
You can choose delete process depend on that selection
message box or once deleted all folder messages.
![](/img.php?id=1383577&img=bg24.png)
35
Templates
♦ Select Templates press OK, the templates options
appear.
♦ From the MMS templates list, press Options key to View,
Use and Details.
Memory status
♦ You can check what percentage of the phone’s internal
memory is occupied and how many messages can still be
stored in SIM card’s or Phone’s memory.
♦ The phone will show message to remind user if SIM card
and Phone set both out of memory.
Message setup
This menu allows you to setup the message function. For
details, please refer to "Message setup" in the “Settings”.
Voice mail server
Voice messages are a network service and you may need to
subscribe to it first. For more information and for the voice mail
number, contact your service provider. Press Menu, and
select Messaging, and Voice mail server.
♦ Each phone line may have its own voice mailbox number.
♦ Within Voice messages submenu, choose phone line 1 or
2.
• The option are:
Edit: general number editor.
Erase: erase the voice mail number.
Call voicemail: user can dial the voice mail server
number to listen voice mails.
• Choose the option and press OK to save it.
• In the Idle mode, holding and pressing can connect
to voice mail.
Broadcast message
Broadcast message are spread by the network service to all
handsets in a cell. User cans enable/disable the service to
![](/img.php?id=1383577&img=bg25.png)
36
choose if user wants to receive broadcast messages from
particular channels or not.
♦ Info service
When you turn on/off the mode, you can choose to receive
or not receive the last broadcast message received.
♦ Topics
Using the direction of Navigation key allows you browse
through the message. Press OK or Back, if you want to
read or exit.
♦ Languages
User can select the languages of the Info Messages user
wants to receive.
♦ Channel settings
• You can select the channels from the channel list.
• You can add new channels where you want the
messages to be received to the list. Then select it from
select list.
• Also, the function allows you Select, Add, Edit, and
Delete setting.
Neo Navegacion
The Internet service enables your phone to surf the Internet.
Your phone offers you several default profiles to choose form.
These default profiles are based on the connection settings of
major operators at the time this phone was manufactured. You
can apply the desired connection settings by simply activating
the respective profile, and you are ready to go.
Homepage
For each profile you are allowed to store a “Home URL”
(Universal Resource Locator) address. You can quickly
access the homepage of the active profile by selecting “Home
URL” when the WAP menu is displayed.
Bookmarks
You can save the addresses of web pages as bookmarks in
![](/img.php?id=1383577&img=bg26.png)
37
the phone’s memory.
Press Menu, and select Neo Navegacion and Bookmarks.
Choose the bookmarks you want to use and press left soft key
(Options). And then you can:
Goto: Open a connection to the page associated
with the bookmark.
Edit: Edit the select bookmark.
Send book
mark: Send this bookmark by SMS or MMS.
Delete: Delete the select bookmark.
Delete all
files: Delete all select bookmark.
Add
bookmark: Add a new bookmark by entering the title and
URL address.
Set as
Homepage Set the select URL address as homepage.
Recent pages
You can view the recent pages that you have read. And you
can press left soft key (Options), then you can:
Goto: Connect to the select page
View URL: View the select page’s URL
Delete: Delete the select bookmark
Delete all: Delete all select bookmark
Offline pages
You can view the offline pages that you have read. And you
can press left soft key (Options), then you can:
Goto: Connect to the select page
Delete: Delete the select bookmark
Delete all: Delete all select bookmark
Go to URL
Key in the URL address and press OK to connect to the
address.
![](/img.php?id=1383577&img=bg27.png)
38
Service inbox
Received return message from GSM operator.
Settings
♦ Profiles
• The WAP settings are stored in a WAP profile. In most
cases you only need to use one of the default profiles
to access the Internet. The settings are different from
operator to operator. Please consult your operator or
service provider for the correct settings and proceed
with care. Wrong settings will cause the connection to
fail.
• Within Edit profile submenu, press OK to enter
profile-editing list. And then you can:
Rename
profile: Rename the selected WAP profile
Homepage: Enter a title and address of the WAP
web site as the homepage. You can
only have a homepage for each profile.
Data
account: Users are only allowed to choose a data
account. The list of the accounts should
be consistent to those under Settings
menu - Connectivity - Data account.
Connect
type: Select Connection-oriented or HTTP
from the list.
User name: Enter your user ID for the WAP gateway
Password: Enter your user password for the WAP
gateway
• Browser options
Timeout: Set the timeout value for the browser.
The browser will stop connecting to the
web site if the web site does not
respond within the timeout time.
Show
images: Set option On/Off to view pictures while
browsing.
• Service message settings
Turn Off or On to decide whether you want to receive
39
the service message or not. The message is saved in
the Service inbox.
• Clear cache
The information or data you have accessed are
stored in the cache of the phone. A cache is a file
buffer that is used to store data temporarily.
Within Settings submenu, select Clear cache, and
press OK.
• Clear cookies
It is advisable to clear any sensitive information like
cookies of previously visited web sites. This is to
avoid privacy and security risks if your phone is
misplaced, lost or stolen.
Press OK to clear all the cookies
• Trusted certificates
For using some services, such as banking services,
you need security certificates. After you have
downloaded the required security certificate from
the Internet, you can view the certificate and then
save or delete it. If you save it, the certificate is
added to the list of trust certificates under the
Settings of WAP menu.
View the list of Trusted Certificates:
Press Menu, select, Neo Navegacion / Settings /
Trusted certificates press View.
If the security indicator is displayed during a
connection, the data transmission between the
phone and the gateway server is encrypted.
However, the security indicator does not indicate
that the data transmission between the gateway
and the content server (the location where the
requested resource is stored) is secure. It is up to
the service provider to secure the data transmission
between the gateway and the content serve.
![](/img.php?id=1383577&img=bg29.png)
40
Multimedia
Camera
Your phone has a digital camera and digital video recorder.
You can take pictures, record video clips, view them and send
them in MMS. For details, please refer to "Camera" chapter.
Photo album
Photo album is a folder under Multimedia; it is a folder to
save the photo images. You can view image in this folder.
Press Options and choice one of the following functions that
may be available for the selected files:
♦ View: To view the photo.
When you viewing the photo, press navigation to the
image, and press navigation key up/down can change the
image.
[Note]: Press can rotate image.
♦ Image info: To display image detail information.
♦ View mode: To select image display style.
♦ Set as: You can use the photo to Wallpaper and Caller
picture.
♦ Send: You can use MMS or Bluetooth function send this
♦ Rename: Change the name of photo.
♦ Delete: Delete selected photo.
♦ Delete all: selected delete all photo.
♦ Sort: To sort the file by File name, File type, Time, File size
and None.
♦ Storage: Select storage place in phone and memory card.
♦ Mark: You can mark several or mark all many photos to
delete, copy or move.
Entertainment
Your phone software includes some games specially designed
for this handset. For details, please refer to "Entertainmen"
chapter.
![](/img.php?id=1383577&img=bg2a.png)
41
Video recorder
1. Press (LSK) to choose video recorder options,
2. press (RSK) to back to previous level or saving
recording.
3. Use the navigation key up/down adjust zoom in/zoom
out t.
4. Use the navigation key left/right key direction to adjust
EV.
5. Press center key to start record video.
6. Area used for displaying recorder time.
♦ To record a video clip
1. Press Menu, and select Multimedia and Video
recorder.
2. The live image appears on the display, and you can use
the display as a viewfinder.
3. To record a video clip, press center key.
4. The phone saves the video in the Video player of the
Multimedia menu.
♦ To setup video recorder option
Enter options list. User can select:
Video recorder settings: The settings including - EV/
Night mode / Banding. For detail see table below.
Video settings: The settings including Video quality /
Size limit reached / Rec time limit / Record audio /
Encode format. For detail see table below.
White balance: Adjust the color balance of the video,
the detail option see below table
Effect settings: Apply a special effect to the photo, the
2
5
1
2
5
1
4
3
6
![](/img.php?id=1383577&img=bg2b.png)
42
detail option see below table.
Storage: Select storage place in phone and memory
card.
Restore default: to restore video settings to default.
Video recorder options
W
hite
balance
A
uto / Daylight / Tungsten /
Fluorescent / Cloudy /
Incandescence
EV EV+1 ~ EV+4 / EV0 / EV-1 ~ EV-4
Night mode On / Off
Banding 50 Hz / 60 Hz
V
ideo qualit
y
High / Normal / Low
Effect
s
ettings
Normal / Gray scale / Sepia / Sepia
g
reen / Sepia blue / Color invert
Restore
d
efault
Restore video recorder settings to
d
efault
Video player
1. Press (LSK) to choose video player options,
press (RSK) to back to previous level.
2. Use the navigation key up/down direction to adjust the
volume.
3. Press center key to start play video.
4. Use the navigation key right/left direction to Fast
Forward or Slow Forward.
5. Press key to full screen the video.
1
2
3
4
5
![](/img.php?id=1383577&img=bg2c.png)
43
Video player is a folder under Multimedia, the folder name
Video player. It is a folder to save the video. You can view
video in this folder.
Press Options and choice one of the following functions that
may be available for the selected files:
♦ Play: play the video.
♦ Set as: Set the video to Caller video.
♦ Send: You can use MMS or Bluetooth function send this
Video
♦ Rename: Change the name of the file.
♦ Delete: Delete the file.
♦ Delete all: Delete all the recorder files.
♦ Sort: To sort the file by File name, File type, Time, File size
and None.
♦ Storage: Select storage place in phone and memory card.
♦ Mark: You can choose many photos to delete or copy.
Music Player
Your phone includes a Music player for listening to music
tracks. MP3 files stored in the Audio folder (Default setting)
will automatically be detected and added to the default play
list. You can listen to the sound files via a compatible headset,
or the phone’s loudspeaker. You can make or answer a call
while using the music player. During a call, the playback is
paused.
[Note]: Because of the small dimension of the speaker, in
some cases the audio could be distorted, especially at
maximum volume and when there are lots of bass sounds.
Therefore, we recommend you to use the stereo headset in
order to appreciate the high quality of your music.
The Music Player supports: AAC, AAC+, MP3, AMR, WAV,
MIDI, iMelody formats.
♦ Playing the audio
User can listen to music on the loudspeaker or with
headphone.
MP3 headphones jack: Only for playing MP3 file. It
provides the other user can also listen to the music or
sound from MP3 file by his headphones.
![](/img.php?id=1383577&img=bg2d.png)
44
Use the functions of the four ways Navigation key as
describe in the bellow table:
Four Ways
Navigation key Audio Play Function
Center key X Play / Pause music
▲ Up Increase the volume.
▼ Down Reduce the volume.
◄ Left
Short press to skip previous
tracks.
Long press to jump previous
segment.
► Right
Short press to skip next
tracks.
Long press to jump next
segment.
♦ In the Music player menu, pressing List allows access to
the following settings.
List
You can view all the tracks available on the track list
and play the desired track. If you press Options in the
Play list, you can:
• Play: To play selected music.
• Add: To add music, which not store in the MP3
folder.
• Remove: To delete the selecting music.
• Rename: To modify the name of the selecting
music.
• Add to SIM ring tone: To add selected music for
ring tone.
• Detail: To show music information.
• Delete all: To delete all the music in the play list.
Settings
Music player’s setting options
• Storage: Storage place in phone and memory card.
• List auto generate: Turn On/Off for List auto
generate.
When List auto generate function turns on, user
![](/img.php?id=1383577&img=bg2e.png)
45
can refresh the track list (for example after
adding new tracks to the list) and change the
track list that is shown.
When List auto generate functions turns off, user
can add tracks from the different folder in File
manager.
• Repeat: To play the current track or the enter track
list repeatedly.
• Shuffle: Turn On/Off Shuffle function.
• Background play: Turn On/Off Background plays
function.
On: Allow music continuing playing when left
music player.
Off: When user left music player, music will stop.
Add / Delete Music to play list
• Please turn off the handset before Add/Delete
music.
• Plug in cable (USB) to handset and PC, screen
show three options:
Mass storage mode: For add / remove music or
image. In the Mass Storage mode, user can add
/ remove music to handset via PC.
COM port: as USB charger.
[Note]: When you plug in USB cable, can select
Mass storage, the handset will remain power on
status. The handset will automatically connect to
memory card only. If you want connect to the
phone, please power off the handset.
Sound Recorder
Sound Recorder is a simple voice recording application,
which provides functionalities for the user to manage voice
files.
Within Recorder/List submenu, press Options you can
select:
♦ New record: To record new sound.
♦ Play: Play the selected sound.
♦ Append: To append the new sound with the already
![](/img.php?id=1383577&img=bg2f.png)
46
existing sound (for AMR format only).
♦ Rename: To modify the name of the selecting sound.
♦ Delete: To delete the selected sound file.
♦ List: To view the all record files.
♦ Delete all: To delete the entire available sound files.
♦ Settings: The further setting of recorder.
Storage: Storage place in phone and memory card.
File format: There are two types format setting: AMR or
WAV.
♦ Set as: To forward the sound file to “SIM ringtone”, “SIM
message tone”, “Caller ring tone” or “Alarm tone”.
♦ Send: You can use MMS or Bluetooth function send this
sound.
FM radio
Your phone has FM radio feature allows you to listen to the
radio music. For details, please refer to "FM radio" chapter.
FM radio recorder scheduler
♦ Press Menu, select Multimedia/FM radio recorder
scheduler, press OK to enter submenu of FM radio
recorder scheduler.
♦ To set the recorder scheduler, press Edit and set on the
radio, key in the date, and time to start and stop.
♦ You can repeat the recorder to Everyday, Once, or Days.
♦ The record settings can edit Record format (AMR / WAV),
Audio Quality (High / Low) or Storage (phone and
Card).
File manager
In the File manager menu, you can manage images, photos,
recordings, tones that you have. Press Menu / File manager,
press OK to enter submenu of File manager.
♦ In the File manager screen, a list of folders is shown.
♦ Scroll to the desired device Phone or Card press Options,
you can choose Open, Create folder, Memory status
![](/img.php?id=1383577&img=bg30.png)
47
and Format item. One of the options is available.
Open: To view the files in the folder. The files in this
folder have: Audio, Bluetooth, Images, My
Music, Photos, Received and Video.
For selected folder, press “Options”, one of the
options is available: Open, Create folder,
Rename, Delete and Sort.
Create
folder:
To add a new folder into list.
Memory
status:
You can check what percentage of the phone’s
internal memory is occupied and how many
files can still be stored in Phone’s memory and
memory card.
Format: You can format the file list.
Remove Let’s you phone and SD card data change to
empty after choose delete This phone and SD
card will without any data.
♦ Scroll to the desired file, and press Options select options,
the file option have: View (Image), Play (Video, Audio),
Set as (Set as Ringtone, Set as Message Tone), Send
(MMS, Bluetooth), Detail, Rename, Copy, Move, Delete,
Delete all, Sort and Mark.
Entertainment
Your phone software includes some games specially designed
for this handset. You can launch a game by press Menu /
Entertainment.
♦ Use Navigation key select a game or game setup, press
OK.
♦ Press OK again, you can choose the option that you want:
Resume
Start game
Game level
Best grades
Game help
♦ Game setup
![](/img.php?id=1383577&img=bg31.png)
48
This function designs for Games only.
BGM: Turn On / Off music.
Sound effect: Turn On / Off effect of game.
Game vibration: Turn On / Off vibration of game.
Volume: Adjust the volume level.
Extra
Movilnet
In addition to the functions available in the phone, your SIM
card* may provide additional services under the SIM service
submenu**. By entering the submenu, you can find a list of
services provided by your operator. The requested information
may be responded via voice speech or SMS (Short Message
Service). Additional charges may apply for services involve
sending a SMS or making a phone call.
Note:
* Some SIM cards may not support SIM service. In
such case, you won’t be able to see the SIM
service submenu.
** SIM service varies from operator to operator. The
name and contents of the menu depend entirely
on the SIM card provided by your operator. For
availability, rates and information on using the
SIM service, contact your network operator,
service provider or other third-party vendor.
Calendar
♦ You can use the phone’s calendar to keep track of
reminders, calls you need to make, meetings and
birthdays. You can set the calendar to sound an alarm
when it’s time for you to make a call or to go to a meeting.
♦ Press Menu, select Extra/Calendar. Press Options to the
options list, you can Add task, View, week view, Jump to
date.
♦ Calendar display depend on user setting calendar format
in the Calendar setting.
![](/img.php?id=1383577&img=bg32.png)
49
♦ If you want to add new task, within the calendar submenu,
use Navigation key move to the day you want or use Go to
date option the current day is indicated with a frame
around the day. If there is any tasks set for the day, the day
is changed display icon. To view the appointments, press
OK to Edit and Delete.
To do list
♦ In this function, you can View the task, Add task, Edit
task, Delete task, and Delete all the list of tasks. You can
also select and view a single task.
♦ The task view allows you to view the details of the select
task. You can move through the task.
♦ When setting time is coming, the alarm notification is
enable, the phone will remain user his activities.
Alarm
The alarm clock uses the time format set for the clock.
♦ Press Menu, select Extra / Alarm, press OK to enter
submenu.
♦ To set the alarm, press Edit and set on the alarm, key in
the alarm time. You can set at least 5 lists.
♦ You can set the alarm to repeat, Once, Days or Everyday.
♦ Press Stop to stop the alarm. If you let the phone continue
to alarm for a minute or press Snooze, the alarm stops for
about 1 minute and then resumes.
♦ If the alarm time is reached while the phone is switched off,
the phone switches itself on and starts sounding the alarm
tone, if you press Stop, the phone ask whether you want to
active the phone (Power on?), Press No to switch off the
phone or Yes to switch on the phone.
Java
This device supports JAVA, providing you the freedom of
using JAVA applications and games. You can into the “File
manager” and choose the JAVA game to install.
![](/img.php?id=1383577&img=bg33.png)
50
World clock
♦ The screen shows the city name, current date and time.
♦ You can press Navigation key to choose the city and check
the local time.
The time zone setting of each city in world time menu may
be affected by network condition.
Stopwatch
You can measure time, take intermediate times, or take lap
times using the stopwatch. During timing, the other functions
of the phone can be used. To set the stopwatch timing in the
background, press the end key.
Using the stopwatch or allowing it to run in the background
when using other features increases the demand on battery
power and reduces the battery life. The stopwatch continues
to run when you answer an incoming call.
Press Menu, select Extra / Stopwatch, press OK to enter
submenu of Stopwatch.
Split
timing: To take intermediate times. To start the time
observation, press Start, press Split every
time that you want to take an intermediate
time. To stop the time observation, press Stop.
To save the measured time, press Save. To
start the time observation again, press
Resume, the new time is added to the
previous time.
Lap timing: To take lap times. To set the stopwatch timing
in the background presses the End key.
Countdown
timer: To count down timer. Set up the time of count
down timer, and then begin to count down
according to press Start.
View
record: To view the saved time. The record options
have: View, Delete and Delete all.
Calculator
♦ You can use your phone’s calculator to add, subtract,
multiply and divide.
♦ Press Menu, select Extra/Calculator, and press OK.
![](/img.php?id=1383577&img=bg34.png)
51
♦ With the screen showing a “0”, enter the first number in the
calculation.
♦ Use Navigation key to select add, subtract, multiply, and
divide then press OK or center key to continue operation.
♦ Press Clear to start the new calculation.
Unit converter
♦ To convert measures such as Weight from one unit (Pound)
to another (Kg), press the Menu, and select Extra then
Unit converter.
♦ In the Unit converter submenu, press Options to select
converter options, option in Set weight converter is
Reverse converter and Set converter.
[Note]: the Converter option display is depending on user
settings
♦ In the first amount field, and enter the value you want to
convert, the other amount field automatically shows the
converted value. For example, in weight converter, pound
units expressed in kg units, enter 110 and 49.895164
automatically show in kg field.
♦ Press Navigation key up/down to reverse converter, or
press Options to select reverse converter option.
♦ If you want to select other converter types, press Options
and select Set converter to open a list of measures.
Choose the measure you want to use and press OK to
enter converter unit list.
♦ Choose the converter unit from which you want to
converter and press Options\Activate.
Memo
♦ In this function, you can Add the memo, View the memo,
Edit, Send Note, Delete, and Mark the list of memo. You
can also select and view a single memo.
♦ The memo view allows you to view the details of the select
memo. You can remember through the memo.
♦ When view this memo, you can press options to Edit,
Send Note or Delete.
![](/img.php?id=1383577&img=bg35.png)
52
Heath
Application program to offer a series of for BMI, Pink schedule,
let you finish body and mind clever health care at the same
time.
Torch
Torch is equivalent to normal flashlight. When the user opens
this feature, the phone will open the flash function to facilitate
lighting. You can set torch need to light up the length of time.
FM radio
To listen to the FM radio on your phone connects the
compatible headset connector on the top of the phone. Note
that the quality of the radio broadcast depends on the radio
station’s coverage in that particular area.
♦ To turn on the radio
Press Menu and select FM radio.
Press center key to turn on/off radio.
On the display are:
• Channel location number and the name of the radio
channel if you have saved the channel.
• Frequency of the radio channel.
♦ If you have already saved radio channels, you can scroll to
the channel you would like to listen to or select a radio
channel location 1 to 10 by pressing the corresponding
number key.
♦ Search a radio channel
When the radio is on, long press navigation left/right
direction ◄ or ► key to search channel when a channel is
found searching will stop. Or you can press navigation
left/right direction ◄ or ► key to search channel by hand.
♦ Saving radio channels
To save channels quickly in positions 1-9, press and hold
number key to .
![](/img.php?id=1383577&img=bg36.png)
53
♦ FM recorder
To record FM radio, press key to begin FM recorder.
Four Ways
Navigation
key
FM Radio Function
▲ Up Increase the volume.
▼ Down Reduce the volume.
◄ Left Press to skip 0.05 MHZ
► Right Press to skip 0.05 MHZ
Key 0 ~ 9
To change radio channel, by
pressing the corresponding number
key.
♦ Using the radio
When the radio is on, press key selection FM Radio
function.
Stations: To save the channel you have found, press
and select Edit. Key in the name of the channel and
Frequency press OK. You can save 20 radio channels
in the handset.
Set frequency: If you know the frequency of the radio
channel you would like to listen to (between 87.50 MHz
and 108.00 MHz), key it in and press OK.
Auto search: If you want to search radio channel,
press Yes when Preset list confirm message show up.
The search stops when channels has been found and
show channel in Stations.
Settings:
FM radio setting options:
Background play: Turn On/Off Background plays
function.
• On: allow radio continuing playing when exit FM
radio.
• Off: when user exits FM radio, radio will stop.
Record format: Select the record format,
AMR/WAV.
Loud speaker: To turn On / Off the speaker.
Record Storage: Storage place in phone and
memory card.
![](/img.php?id=1383577&img=bg37.png)
54
Record: Beginning record FM radio.
Append: To append new radio with the already
existing file.
File list: Show amount of record files.
[Note]:Before use FM radio option, please turn on the
radio first.
[Note]:You can normally make a call or answer an
incoming call while listening to the radio. The
volume of the radio is muted. When you end the
call, the radio volume will automatically be
turned up again. Also, when an application using
GPRS or HSCSD connection is sending or
receiving data, it may interfere with the radio.
Camera
[Note]: Please obey all local laws governing the taking of
picture.
Your phone has a digital camera and digital video recorder.
You can take pictures, record video clips, view them and send
them in MMS. To do this, you must subscribe to these services.
Please check with your network operator. The camera lens is
on the back of the handset and the display of the handset
works as viewfinder. The camera produces pictures in JPEG
format and the video clips in motion JPEG format. Please pay
attention; if handset is not enough memory to take a new
photo, you need to free some by deleting old photos or other
files in the File manager.
To access this menu, and select Camera.
1
3
1
2
3
4
![](/img.php?id=1383577&img=bg38.png)
55
1. Press “Back” to go back previous level.
2. To select option displayed in the areas, press the
Options to choose camera options.
3. Press center key to snapshoot this screen.
4. Camera’s options menu.
♦ Taking a Photo
• The live image appears on the display, and you can use
the display as a viewfinder.
• To take a photo press center key to capture. When
taking a photo a shutter sound is heard. The phone
saves the photo in the Photo album of the Multimedia
menu.
♦ To setup camera option
Press Options enter options bar. User can select:
• Self timer: Set a time delay before the camera takes a
photo, the detail option see below table.
[Note]: To switch/adjust camera Self timer setting, by
pressing the corresponding number key .
• Image size: Select an image size, for detail see table
below.
[Note]: To switch/adjust camera Image size setting, by
pressing the corresponding number key .
• Image quality: To define how much the photo file will
be compressed when saving the image, the detail
option see below table.
[Note]: To switch/adjust camera Image quality setting,
by pressing the corresponding number key .
• Effect settings: Apply a special effect to the photo, the
detail option see below table.
[Note]: To switch/adjust camera effect setting, by
pressing the corresponding number key .
• Shutter sound: Select the sound that you hear when
you take photo.
• EV: Select the value of EV to the photo, for detail see
table below.
![](/img.php?id=1383577&img=bg39.png)
56
• Banding: Adjust screen backlight flicker, the detail
option see below table.
• White balance: Adjust the color balance of the photo,
the detail option see below table.
[Note]: To switch/adjust camera White balance setting,
by pressing the corresponding number key .
• Storage: Storage place in phone and memory card.
• Restore default: Restore camera setting to default.
• Help: Reveal the swift function of each button.
• Capture mode: Take a photo in the following mode.
Single: Take a photo in the normal mode.
[Note]: When user set camera capture mode to
“Single”, and then all camera options available
except “Mode setting”
Burst shot: Take a series of photos.
Note]: To switch/adjust camera Burst shot setting,
by pressing the corresponding number key .
• Save mode: There are Manual Save and Auto Save
that you can choose.
• Mode setting: The option might change depend on
Capture mode, for detail see table below.
Camera options
Capture mode Single / Burst
Mode setting 1.If capture mode set to Burst shot,
the mode setting have options are:
4 shots / 6 shots
2.If capture mode set to single shot,
the mode setting will be disabling.
Save Mode
T
ake and save / Automatic save
Scene mode
A
uto / Night
Self time
r
Off / 5 sec / 10 sec / 15 sec
Image size 160*120 / 240*320 / 320*240 /
6
40*480
Image qualit
y
Low / Normal / High
Effect settings Normal / Gray scale / Sepia / Sepia
g
reen / Sepia blue / Color invert
![](/img.php?id=1383577&img=bg3a.png)
57
Shutter sound Off / Sound 1 / Sound 2 / Sound 3
EV EV+1 ~ EV+4 / EV0 / EV-1 ~ EV-4
Storge Phone / Card
Banding 50 Hz / 60 Hz
W
hite Balance
A
uto / Daylight / Tungsten /
Fluorescent / Cloudy /
Incandescence
Restore
d
efault Restore camera setting to default
Help Reveal the swift function of each
button.
TV
Watch full screen analog TV on this device and be the first to
get the news! Please plug in the antenna before watching TV
in this device. You can adjust the antenna lines for better
signals.
When launching TV for the first time, the device will require
you to set the country and automatically start searching for
available channels and will set the first channel detected as
default channel.
♦ Use the functions of the key as describe in the bellow
table:
Center key Option menu
Up key To skip previous channel
Down key To skip next channel
Left key To reduce Volume level
Right key To add Volume level
Left soft key Function options
Right soft key Exit TV function
# key Capture the photo
* key Mute / Unmute
♦ TV Volume Control Method:
You can press left/right soft key to adjust volume. When
![](/img.php?id=1383577&img=bg3b.png)
58
watching TV, the volume adjustment bar will appear on the
bottom of the screen after you press volume control key.
♦ When the TV is on, press key, and then select:
Write new: You can send the SMS on the watching TV.
Set Country: Choose the country of the position of
mobile phone.
Auto search: When select “Auto search”, the device
will automatically start searching for available channels
and will set the first channel detected as default
channel.
Change channel:
• Channel list: To save the channel you have found,
press and select Edit channel. Key in the channel
number and press OK. You can save 35 channels in
the handset.
• Favorite list: To input the favorite channel. You can
save the 35 channels in the handset.
Brightness: You can choose 4 kinds of level (Level 1 ~
Level 4).
Reminder: You can set reminder to open the TV.
Auto off: Select the auto off time, the option include
None, 15 min, 30 min and 60 min.
Capture mode: You can set the capture mode to
Single shot or Nine shot.
Add to favorite list: Add the channel you are currently
watching to favorite list.
Restore setting: After you select restore factory, TV
setting values are returned default value.
Exit: To exit TV function.
Settings
Phone setup
♦ Language
This allows you to switch between different languages and
to select a language for the display texts.
![](/img.php?id=1383577&img=bg3c.png)
59
♦ Preferred input method
Choose preferred input method of the editor.
♦ Shortcuts
The Shortcuts screen displays 12 favorites items set by
the user.
You can edit some specific functions to the default list
for your personal favorites list and activate them.
Within Favorites menu, tick the box from the function
list.
The phone offers you an extensive range of functions,
which are grouped in menus and submenus. From idle
mode, press Navigation key can access the shortcuts
menus.
♦ Dedicated key
You can edit some specific functions to the navigation
key for your personal hot key and activate them.
Within Up, Down, Left, Right and Center, and shortcut
options list, select desired shortcut from the function
list.
♦ Flight mode
You can switch you phone to flight mode when you take
aircraft. The options of flight mode are: On and Off.
Sound profiles
Within the Profiles menu, you can adjust and customize the
phone tone for different events, environments and caller
groups.
♦ Activate
In the idle mode, press Menu and select
Settings/Sound profiles and press OK to access the
list of profiles.
Use Navigation key to select the profile. Pressing
Options to activate and customize the profile.
♦ Customize
In the idle mode, press Menu and select
Settings/Sound profiles and press OK to access the
list of profiles.
General / Silent / Meeting / Outdoor / Headset /
![](/img.php?id=1383577&img=bg3d.png)
60
Bluetooth.
Use Navigation key to select the profile. Press Options
to customize the profile
Within Profile submenu, select one of the following
profiles and press Options.
In the idle mode, user can hold and press the to
change profiles to Silent quickly and easily. Or in the
list of profiles, scroll to Silent and press
Options/Activate Silent mode.
Select the Customize and choose the desired option
and press OK that you want to personalize. For
example, Tone setting, Sound effect, Volume, Alert type,
Ring type, Answer mode, Extra tone.
Once you have selected the setting customize, you can
personalize the following settings of the selected
profile:
• Tone settings
Incoming call: To define how the phone notifies
you of an incoming voice call.
Keypad tone: To set any one of the options and
the active one is highlighted.
Power on: To set any one of the options and the
active one is highlighted.
Power off: To set any one of the options and the
active one is highlighted.
Message tone: To define how the phone notifies
you of receiving a message.
* Ring tone can support these formats: MP3, VDO +
sound, Midi, AMR and also can select files from
NAND or Memory Card. Message tone can also
support MP3 (no longer than 5 seconds), Midi and
AMR formats.
• Volume: To set the volume level for the Ringing
volume, Key tone, Message tone, Power on and
Power off.
• Alert type to choose the phone notifies you for
incoming calls and receiving a message. The
![](/img.php?id=1383577&img=bg3e.png)
61
options are: Ring /Vibration only / Vibrate and ring /
Vibrate then ring / Beep once.
• Ring type: To set the ring type, the options have
Repeat, Single and Ascending.
• Answer mode: To set the phone answer incoming
voices call by press any key.
Only when user chooses Headset mode, the
answer mode have two options Send key, Any key
and Auto (for Headset mode only) options
• Extra tone: To set the Warning tone, Error tone,
Camp-on tone, Connect tone, Miss Calls and
Unread Messages On or Off. For example, when
set Extra tone function to on, the phone sounds a
warning tone when the battery is running out of
powe.
♦ Rename
Yon can change the name of selected profiles.
Display setup
♦ Wallpaper
You can set your phone to display a background picture,
wallpaper, when the phone is in idle mode. You can
also download wallpaper from WAP and MMS and then
save them in My folder under File manager. Your phone
supports JPEG, GIF formats.
[NOTE]: The wallpaper and screen saver should be
less than 1280x1024(for JPG) and 320x240(for GIF). In
addition, the file size can’t be over 300kb.
[NOTE]: If image size is over size, the image displays
speed might get slow and please wait for more time to
show up.
To select a wallpaper picture.
• Press Menu, and select Settings, Display Setup
and Wallpaper.
• Select Default and image list will be shown.
Use navigation key Left ◄ and Right ►direction to
select the image and press OK to choose the
desired picture then press OK
62
• To set own picture for wallpaper.
To select My folder and press OK. Users can select
wallpaper from Images, Photos and Card folders.
Scroll to desired folder and press Open. Use
navigation key ▲and down ▼direction to select the
image or photo and press OK.
♦ Screen saver
The screen saver is activated when the phone is in idle
mode and none of the phone’s function been used for a
certain time. Press any key to deactivate the screen
saver.
Turn Settings on to activate the screen saver.
With Select, you can choose an image or animation as
screen saver from the Default list.
Select in timeout after which time the screen saver will
be activated.
To set own picture for Screen Saver, with Select,
choose From Gallery.
Users can select screen saver from Images, Photos,
Video, Phone and Card folders. Scroll to desired folder
and press Open.
Use Navigation key up ▲and down ▼direction to
select the image and press OK to select.
♦ Themes
You can change the appearance of the display, for
example, the colors and background picture, by use
Themes. Your phone comes with some pre-set color
schemes. You cannot delete these color schemes and
choose one of them from the list. There are three
themes canned been choosing.
For activate each one themes, press Options to
Activate.
♦ Standby mode settings
Date and time
You can turn this function on or off to show or hide Date
and Time.
SIM Network name
You can turn the function on or off to display or hide
![](/img.php?id=1383577&img=bg40.png)
63
your service provider name in idle screen.
SIM Own number
You can turn the function on or off to display or hide
your own number in idle screen.
♦ Light
LCD backlight
You can set the LCD backlight level (10 level) and
waiting time (5 ~ 45 sec).
Keypad backlight
You can turn this function on or off.
♦ Font setting
Font size
This function allows you to change the size of the font
displayed in SMS, Phonebook, Time or Date. The
options are: Small font / Normal font / Large font
Font color
This function allows you to change the color of the font
displayed in Menu, SMS, Phonebook, Time and Dtae.
The options are: Theme color/ Red/ Cyan/ Teal/ Yellow/
Green/ Navy/ Blue/ Purple/ Black/ Silver/ Gray/ White/
Maroon/ Fuchsia/ Lime/ Olive
Dial number color
This function allows you to change the color of the font
displayed in Dial number. The options are: Theme /
Black / Blue / Brown / Dark blue / Gray / Green / Yellow
/ Pink / Red / White.
Call setup
♦ Caller ID
In the call setup menu, the Caller ID allows you to check
the status of whether a caller’s identification is sent
This network service allows you to answer an incoming
call while you have a call in progress if you have
activated the menu function.
In the submenu, you can choose Set by network, No
or Yes.
When you choose Set by network, your phone must
be registered with a network.
64
♦ Call waiting
In the submenu, select Activate and press OK to
switch on function. It way, selects Deactivate to switch
off the function.
You can check function status while you select Check
status.
♦ Call divert
This network service allows you to redirect incoming calls
from you phone.
Divert all voice calls
All voice calls are diverted and no ringing tone is played
at an incoming call.
Divert if out of reach
Voice calls are diverted when your phone is switched
off or outside of the network service area.
Divert if not answered
Voice calls are diverted when you don’t answer a call
within the present timeout.
Divert if busy
Voice calls are diverted when your number is busy. If
divert If busy is activated, rejecting an incoming call will
also divert the call.
Divert all data calls
All data calls are diverted.
Cancel all diverts
In the submenu, select Cancel all divert, Press OK to
cancel all divert.
♦ Call barring
This network service allows you to restrict incoming calls to
and outgoing calls from your phone. A barring password is
required for using the function.
Outgoing calls
To barring all Outgoing calls.
International calls
To barring Outgoing international call.
Int. calls except to home country
To barring Outgoing international call expect home
country.
65
Incoming calls
To barring all Incoming calls.
Incoming calls when roaming
To barring all Incoming calls when roaming.
Cancel all barrings
• This function is cancel all call barring.
• This service may sometimes not be supported by
your network. Also, a network code is required to
access this service.
Change bar code
To set barring call, you are asked to input your barring
call password. This menu enables you to change your
barring call password. To know the default password
setting, please contact your service operator.
♦ Line Switch
Line for outgoing calls is a network service to select
phone line 1 or 2 that is subscriber number for making
calls, within call setup submenu, select Line Switch,
and choose Line1 or 2.
If you select Line2 and have not subscribed to this
networks service, you will not be able to make call.
However, calls on both lines can be answered
regardless of the selected line.
♦ Closed user group
This is a network service that specifies the group of people
whom you can call and who can call you. For more
information place contact your network operator or service
provider.
♦ Call time reminder
Turn function On/Off to remind duration of a call. When this
option is set to On, there will be a short beep when
duration of a call exceeds the reminder time.
♦ Call time display
Turn function On/Off to show calling time.
♦ Auto redial
Select On and your phone will make a maximum of ten
attempts to connect the call after an unsuccessful call
attempt.
![](/img.php?id=1383577&img=bg43.png)
66
Phonebook Setup
♦ Move
You can move names and phones number from the
phone’s memory to SIM card’s memory or from SIM card’s
memory to Phone’s memory. The copy options have: One
by one, All from SIM to phone, All from phone to SIM.
You can view and edit personal name and phone number.
To display my number on idle screen.
♦ Delete
You can remove name and phone numbers from selected
contacts all at once.
• In the Phonebook Menu, select Delete then press OK.
• Choose All from phone, All from SIM or One by one
press OK. User needs to enter phone code to
confirmed delete then press OK.
[Note]: The default phone code is 0000
♦ Copy
You can copy names and phones number from the phone’s
memory to SIM card’s memory or from SIM card’s memory
to Phone’s memory. The copy options have:
• All from SIM to phone
• All from phone to SIM
Copy entry records will both save in SIM and Phone’s
memory.
♦ Memory status
You can check what percentage of the phone’s internal
memory is occupied and how many name and number
entries can still be stored in SIM card’s and Phone’s
memory.
♦ Prefer storage
You can choose where you want to save the name and
phone number. You can select SIM, Phone or All.
♦ Phonebook backup
• You can backup your phonebook to memory card or
restore the phonebook.
• Selected the card, and the phonebook will be backup or
restore to Phone or SIM Card memory.
![](/img.php?id=1383577&img=bg44.png)
67
♦ Fields
The phone allows you to personalize the contacts looking.
In the Setting submenu, selected Fields, and choose the
item you want to display or not.
♦ My vCard
You can edit personal vCard in the handset. Also, you can
send vCards to your friends that numbers save in the
contacts list.
• Edit my vCard
In the My vCard submenu, select Edit my vCard enter
the information for your vCard then press Save.
• Send my vCard
In the My vCard submenu, select Send my vCard and
select transfer method: Send by SMS, Send by MMS,
Send by Bluetooth and Save to file.
♦ Video Audio
You can turn the function to On or Off. When this function
is On, if there is an incoming call, the Video function will
only be performed by Image, the ring tone will not work.
When the Video sound is off, the Ring tone can be used.
Message setup
SMS
Message setup have been divided into groups according to
the different message types. Select the settings you want to
edit, and press “OK” to select message settings for you to
choose the following list.
♦ Profile setting: lists all the message centers that have been
defined.
♦ Common settings: The message settings under the SMS
menu are common to all outgoing SMS, irrespective of the
selected set.
• Delivery report
User can turn On or Off this function if user wants to
receive delivery report from service provider or not.
• Reply path
Also, user can choose to use the same service center
![](/img.php?id=1383577&img=bg45.png)
68
as the received message to reply or not.
♦ Memory status
• You can check what percentage of the phone’s internal
memory is occupied and how many messages can still
be stored in SIM card’s or Phone’s memory.
• The phone will show message to remind user if SIM
card and Phone set both out of memory.
♦ Prefer storage
• You can choose where you want to save the message
depend on memory status.
• If either one of storage locations, SIM card or Phone,
already full, the phone will automatically save
information to another.
• Select Phone memory or SIM card and press OK.
MMS
Within the Message setup you can change the settings of a
Multimedia message sending option:
♦ Compose:
Creation User can set Free or Restricted mode to
restrict to inserting media object.
resizing User can switch to Off, 160x120 or
320X240 from this function and your
attached image will be changed follow
your setting.
Auto signature User can edit content from this function
and it will be attached in MMS.
♦ Sending:
Validity period This is the duration that your message is
stored at the Message center. Delivery
attempts will be repeated until the
message has been delivered or expired.
The options of length of time have: Max.
/1 hour/ /12 hours/1 day/1 week.
Delivery report User can turn On or Off this function i
f
user wants to receive delivery report
from service provider or not.
Read report User can turn On or Off this function i
f
![](/img.php?id=1383577&img=bg46.png)
69
user wants to read report from service
provider or not.
Priority User can choose message priority; the
options have: Normal, High, and Low.
Slide timing User can set slide timing by own desire.
Delivery time The option of length of time has:
Immediate/ In one hour/In 12 hours/In 24
hours.
♦ Retrieve:
Home network The options of home network have:
Immediate / Restricted / Delayed.
Roaming The options of roaming network have:
As home / Delayed / Restricted.
Read report The options of read report have: On
request / Send / Never send.
Delivery report User can turn On or Off this function to
ask the network to send delivery reports
about your message.
♦ Filters:
Anonymous The option of anonymous have: Allow/
Reject.
Advertisement The option of advertisement setting
has: Allow/ Reject.
♦ Profile:
You may use network or service provider to receive and
send multimedia message.
♦ Memory status
• You can check what percentage of the phone’s internal
memory is occupied and how many messages can still
be stored in SIM card’s or Phone’s memory.
• The phone will show message to remind user if SIM
card and Phone set both out of memory.
Time and Date
♦ Set the time
This function allows you to set the time. The format is
<HH:MM>.
![](/img.php?id=1383577&img=bg47.png)
70
♦ Time format
This function allows you select the format of the time
display, 12 or 24. Use navigation key to change it and
press OK.
[Note]: The time and date format display is depending on
user settings.
♦ Set the date
This function allows you to set the date.
♦ Date format
This function allows you select format of the date display,
use navigation key to change it press OK.
♦ Auto-update of date / time
Within Settings menu, select Auto-update of date / time
(network service) to set the phone to automatically
update the time and date according to the current time
zone, select On.
Automatic update of date and time does not change the
time you have set for the alarm clock, calendar or the
alarm notes. They are in local time. Updating may
cause some alarms you have set to expire.
Connectivity setup
The function allows you to set network related settings.
♦ Network selection
• The phone automatically selects one of the cellular
networks available in you area, when auto mode is
selected.
• In manual mode the phone will show a list of available
networks that you can choose from. Only networks that
have a roaming agreement with your home network
operator are allow to be selected.
♦ Prefer networks
The network list is used when the mode is set to automatic.
The order of the prefer network list indicates the search
priority. Press Options key to edit prefer networks: “Add
from list”, “Create new”, “Change priority” and “Delete”.
♦ Band selection
The wireless phone described in this guide is approved for
![](/img.php?id=1383577&img=bg48.png)
71
use on 850MHz, 1900MHz, and Auto. You can choose the
band from the list.
♦ Data account
Connect way while choosing the mobile phone to browse
through the WAP. Detailed materials setting up value,
please arrange with a network supplier.
Security setup
♦ Pin lock
This function allows you to lock the phone with a
specific SIM card. The feature is designed to prevent
the use of your phone by means of another person’s
SIM cards if your phone becomes lost.
You can switch on or off to activate the PIN lock
function. If you switch PIN Lock on, every time you turn
phone on, you need to enter the PIN number to set the
request on.
♦ Fixed dialing
You can switch mode on and off.
This function dials only the numbers in the fixed dialing
number (FDN). To save and edit numbers on the list,
you need the PIN2 code.
♦ Barred dialing
You can switch mode on and off.
♦ Change PIN code
Change PIN cod
This allows you to change the PIN number.
Change PIN2 code
This allows you to change the PIN2 number.
♦ Phone lock
You can switch When switch on / Off the Phone lock
function to protect your phone. If you select When switch
on, you need enter the password to set the request on.
[Note]: the default password is 0000.
♦ Auto keypad lock
This allows you to lock the phone’s keypad to prevent
accidental key presses.
In submenu, select the time that after the last key press
![](/img.php?id=1383577&img=bg49.png)
72
will be disabled, then press OK.
Mobile Tracker
You can switch mode to Activate or Deactivate.
After mobile tracker function active, the mobile will
remember the IMSI of the SIM. If mobile phone lost and
insert the new SIM, then it will send new SIM card's
IMSI automatically for the number set up.
[Note]: The default password is 0000.
♦ Change security code
This allows you to change the password.
♦ Mobile tracker
When this function is active, the mobile device will send an
SMS to a predetermined number when a different SIM
card has been inserted. This enables a lost mobile phone
to be located. To enter the tracker submenu a password
(Phone code) is needed.
Bluetooth
You can utilize wireless technology of Bluetooth to connect
other inclusive devices. The inclusive device may include the
mobile phone, the computer and earphone, etc. You can
utilize Bluetooth technology transfer image, the film, music
and sound file.
[Note]: After opening the Bluetooth function, will increase the
power consumption of the battery.
Power
Turn on or off the Bluetooth function. After turn on the
Bluetooth function, will reveal in top screen
Inquiry audio device
Search the new Bluetooth device in the range and pair it.
Before pairing, please set up the password, and reach an
agreement to use the same password with another device
user.
My device
Pair the old Bluetooth device.
Active device
To Active the Bluetooth device that has.
![](/img.php?id=1383577&img=bg4a.png)
73
Settings
• Visibility: Whether setting up your mobile phone should
let the other Bluetooth device be found.
• Change device name: Change your mobile telephone
name (the display among other Bluetooth
apparatuses).
• Audio path: Whether choose from mobile phone
answering a call directly or forward to BT headset.
• Storage: Select storage place in phone or memory
card.
• FTP settings: File transfer protocol setting.
About
Your Bluetooth mobile phone device explains.
File manager
In the File manager menu, you can manage images, photos,
recordings, tones that you have. For details, please refer to
"File manager" chapter.
Java setup
♦ Java audio
Adjust the volume of JAVA application program.
♦ Java backlight
Turn On/Off the backlight of JAVA application program.
♦ Java vibration
Turn On/Off the vibration of JAVA application program.
♦ Java SIM profile
You need to choose one of the default profiles to access
the Internet.
♦ Heap size
The maximum size of Java applications.
Game setup
♦ BGM
Turn On / Off music.
♦ Sound effect
Turn On / Off effect of game.
![](/img.php?id=1383577&img=bg4b.png)
74
♦ Game vibration
Turn On / Off vibration of game.
♦ Volume
Adjust the volume level.
Factory reset
♦ Within this menu you can reset the menu settings to their
original values. The security code is needed for this
function.
[Note]: The default password is 0000.
♦ After you select restore factory, setting values are returned
default value. Those value including Profile, Ring tone,
Call log, Caller group, Time format, Wallpaper, Screen
saver, Themes, WAP setting etc.
![](/img.php?id=1383577&img=bg4c.png)
75
To Use Mass storage (USB cable)
[NOTE]: System default requirement: PC hardware and
software for Windows 2000/XP/Vista/7 and above. For more
information, please see below “Install USB Software”
[NOTE]: Please use USB according to the standard steps as
below; otherwise the data may lose or cause damage.
If you want to add/remove music and images to the Handset,
connect it to a PC with USB cable.
♦ Plug in cable (USB) to handset and PC, screen show three
options:
Mass storage mode: for add / remove music or image
files.
Webcam: for connecting with PC as webcam.
COM port: as USB charger.
Java connection: as a modem to connect internet.
♦ Connecting the handset to PC
After connected the handset and PC, choice “Mass
Storage” handsets will automatic turn off.
The OS will automatically generate two “Removable
Disk” in My Computer, one for handset, one for
memory card. You can enter the disk to access the data
![](/img.php?id=1383577&img=bg4d.png)
76
in the handset.
You can access to the handset from the Window
Explorer (Windows 2000/XP/Vista/7) / File Manager or
My Computer and add / erase audio, image or other
files to the handset.
If you want to remove the USB cable from the handset
after adding or erasing files.
• Double click the Remove Hardware icon in the
taskbar tray.
• Select “USB Mass Storage”, then clicks Stop when
the message “You can remove hardware now”
appears on the screen, and remove the handset.
♦ Copy files into the handset
After connecting the handset to a PC successfully,
there will be two new disks “Removable Disk” in My
computer.
Enter the directory stored your music, image, or other
files, and select them thru your mouse. After selection,
move your mouse on the selected files and click right
button of your mouse to select “Copy”, enter the
Removable Disk from My Computer, and click right
button of your mouse to select “Paste” then the
selected files will be copied into the handset.
