PSS-29ZBS Power Switch
Introduction
PSS-29ZBS is a ZigBee Power Switch. It is capable of receiving wireless signals from the coordinator in
the Zigbee network to toggle On/Off of appliances that are attached to it.
The Power Switch utilizes ZigBee technology for wireless signal transmission. ZigBee is a wireless
communication protocol that is reliable, has low power consumption and has high transmission
efficiency. Based on the IEEE802.15.4 standard, ZigBee allows a large amount of devices to be
included in a network and coordinated for data exchange and signal transmission.
The Power Switch serves as an end device in the ZigBee network. It can be included in the ZigBee
network to transmit or receive signal, but cannot permit any other ZigBee device to join the network
through the Power Switch.
Parts Identification

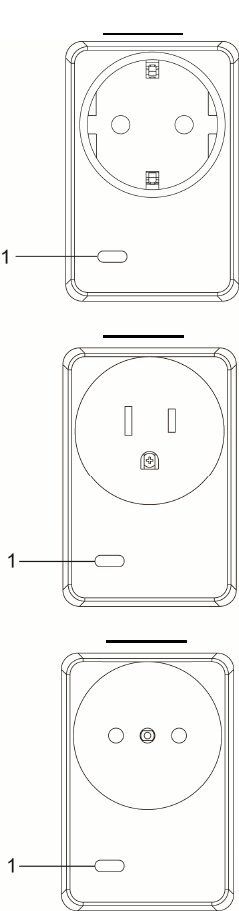

1. Function Button aka LED indicator
The Function Button also doubles as the LED Indicator. The
function button is used to control the Power Switch. The LED indicator
is used to indicate Power Switch status.
LED Indication:
The LED indicator lights up in the following conditions:
- On:
The Power Switch is turned on.
- Off:
The Power Switch is turned off.
- Flashes twice:
The Power Switch has successfully joined a ZigBee network.
- Flashes once every 20 minutes:
The Power Switch is not joined into any ZigBee network, or has
lost connection to its current ZigBee network.
- Flashes three times
The Power Switch has successfully bound with a controller
- Flashes five times
The Power Switch was unable to bind with a controller
Function Button Usage:
- Press the button to toggle on/off the Power Switch
- Press and hold the button for 10 seconds then release to reset the
Power Switch.
- Press and hold the button for 3 seconds then release to bind with
a controller
ZigBee Network Setup
Z
Zi
ig
gB
Be
ee
e
D
De
ev
vi
ic
ce
e
G
Gu
ui
id
de
el
li
in
ne
e
ZigBee is a wireless communication protocol that is reliable, has low
power consumption and has high transmission efficiency. Based on
the IEEE802.15.4 standard, ZigBee allows a large amount of
devices to be included in a network and are coordinated for data
exchange and signal transmission.
J
Jo
oi
in
ni
in
ng
g
t
th
he
e
Z
Zi
ig
gB
Be
ee
e
N
Ne
et
tw
wo
or
rk
k
As a ZigBee device, the Power Switch needs to join a ZigBee
network to receive commands and transmit energy consumption
information. Please follow the steps bellow to join the Power Switch
into a ZigBee network.
Case A
Case
B
Case
C
2
1. Plug in the Power Switch into a power outlet.
2. Press and hold the function button for 10 seconds as the Power Switch resets and starts
searching for existing ZigBee network. Please make sure the permit-to-join feature on the router
or coordinator of your ZigBee network is enabled.
3. If the Power Switch successfully joins a ZigBee network, the LED Indicator will flash twice to
confirm.
4. After joining the ZigBee network, the Power Switch will be registered in the network automatically.
Please check the Zigbee network coordinator, system control panel or CIE (Control and
Indicating Equipment) to confirm if joining and registration is successful.
5. If registration and joining to the network is unsuccessful, the Power Switch LED indicator will
flash every 20 minutes after warming up to indicate the situation. Please check your ZigBee
network coordinator, system control panel or CIE setting to ensure the permit-to-join function is
available, and then use the Factory Reset function below to join the ZigBee network.
B
Bi
in
nd
di
in
ng
g
w
wi
it
th
h
C
Co
on
nt
tr
ro
ol
ll
le
er
r
After joining the ZigBee network, the Power Switch can bind itself with a controller device which
can be used to turn on/off the Power Switch. To bind the Power Switch and the device:
1. Press and hold the Function Button for 3 seconds, then release the button. The Power Switch
will send binding request to the coordinator.
2. Refer to your controller manual to send binding request for the device within 16 seconds.
3. If binding is successful, the Power Switch LED indicator will flash 3 times to confirm. You can
now use the controller to adjust power output level for the Power Switch.
4. If binding is unsuccessful, the Power Switch LED indicator will flash 5 times. Please retry the
binding process.
F
Fa
ac
ct
to
or
ry
y
R
Re
es
se
et
t
If you want to remove the Power Switch from current network and join a new network, you need to
use the Factory Reset function to clear the Power Switch from its stored setting and information
first before it can join another network. To perform Factory Reset:
1. Press and hold the switch button for 10 seconds, release the button until the LED Indicator flash
once.
2. The Power Switch has been reset to factory default setting with all its previous network
information removed. It will now actively search for available ZigBee network again and join the
network automatically.
3. If the Power Switch successfully joins a ZigBee network, the LED Indicator will flash twice to
indicate.
4. If the Power Switch cannot find an available ZigBee network, the LED Indicator will flash every
20 minutes to indicate.
Operation
I
In
ns
st
ta
al
ll
la
at
ti
io
on
n
Plug the Power Switch into a power outlet.
Plug the appliance into the socket of the Power Switch. The appliance must be in ON status.
A
Ap
pp
pl
li
ia
an
nc
ce
e
C
Co
on
nt
tr
ro
ol
l
After the Power Switch has successfully joined a ZigBee network, the coordinator can
remotely turn on/off the Power Switch to control the appliance
You can also press the button on the Power Switch to toggle its on/off status
If you have bound a controller with the Power Switch, you can also use the controller to turn
on/off the Power Switch.
If the Power Switch is removed from power outlet, after replugging the Power Switch, its
previous on/off status will be restored within 1 minute
M
Ma
ax
xi
im
mu
um
m
O
Op
pe
er
ra
at
ti
io
on
n
L
Lo
oa
ad
d
For 110V: the maximum operation load is 1760W and 16A.
For 230V: the maximum operation load is 3680W and 16A.
![](/img.php?id=2421017&img=bg3.png)
3
Appendix (For developers only)
P
Po
ow
we
er
r
S
Sw
wi
it
tc
ch
h
C
Cl
lu
us
st
te
er
r
I
ID
D
Device ID: On Off Output :0x0002
Endpoint:0x0A
Server Side Client Side
Mandatory
Basic (0x0000) None
Identify(0x0003)
Groups(0x0004)
Scenes(0x0005)
On/Off(0x0006)
Optional
None None
A
At
tt
tr
ri
ib
bu
ut
te
e
o
of
f
B
Ba
as
si
ic
c
C
Cl
lu
us
st
te
er
r
I
In
nf
fo
or
rm
ma
at
ti
io
on
n
Identifier
Name Type Range Access
Default
Mandatory
/ Optional
0x0000 ZCLVersion
Unsigned
8-bit
integer
0x00 –0xff Read
only 0x01 M
0x0001 ApplicationVersion
Unsigned
8-bit
integer
0x00 –0xff Read
only 0x00 O
0x0003 HWVersion
Unsigned
8-bit
integer
0x00 –0xff Read
only 0 O
0x0004 ManufacturerName Character
String 0 – 32 bytes
Read
only Climax Technology
O
0x0005 ModelIdentifier Character
String 0 – 32 bytes
Read
only PSS_00.00.00.14TC
O
0x0006 DateCode Character
String 0 – 16 bytes
Read
only
O
0x0007 PowerSource 8-bit 0x00 –0xff Read
only M
0x0010 LocationDescription Character
String 0 – 32 bytes
Read /
Write O
0x0011 PhysicalEnvironment 8-bit 0x00 –0xff Read /
Write 0x00 O
0x0012 DeviceEnabled Boolean 0x00 –0x01
Read /
Write 0x01 M
A
At
tt
tr
ri
ib
bu
ut
te
e
o
of
f
I
Id
de
en
nt
ti
if
fy
y
C
Cl
lu
us
st
te
er
r
I
In
nf
fo
or
rm
ma
at
ti
io
on
n
Identifier
Name Type Range Access
Default
Mandatory
/ Optional
0x0000 IdentifyTime Unsigned
16-bit integer
0x00 –0xffff
Read /
Write 0x0000 M
A
At
tt
tr
ri
ib
bu
ut
te
es
s
o
of
f
t
th
he
e
G
Gr
ro
ou
up
ps
s
c
cl
lu
us
st
te
er
r
I
In
nf
fo
or
rm
ma
at
ti
io
on
n
Identifier
Name Type Range Access
Default
Mandatory
/ Optional
0x0000 NameSupport 8-bit bitmap
x0000000
Read
only
- M
A
At
tt
tr
ri
ib
bu
ut
te
es
s
o
of
f
t
th
he
e
S
Sc
ce
en
ne
es
s
c
cl
lu
us
st
te
er
r
I
In
nf
fo
or
rm
ma
at
ti
io
on
n
Identifier
Name Type Range Access
Default
Mandatory
/ Optional
0x0000 NameSupport 8-bit bitmap
x0000000
Read
only
0x00 M
0x0001 CurrentScene Unsigned
8-bit integer
0x00 – 0xff
Read
only
0x00 M
0x0002 CurrentGroup Unsigned
16-bit
0x0000 –
0xfff7
Read
only
0x00 M
![](/img.php?id=2421017&img=bg4.png)
4
integer
0x0003 SceneValid Boolean 0x00 –
0x01
Read
only
0x00 M
0x0004 NameSupport 8-bit bitmap x0000000 Read
only
- M
A
At
tt
tr
ri
ib
bu
ut
te
e
o
of
f
O
On
n/
/O
Of
ff
f
C
Cl
lu
us
st
te
er
r
I
In
nf
fo
or
rm
ma
at
ti
io
on
n
Identifier Name Type Range Access Default Mandatory
/ Optional
0x0000 OnOff Boolean 0x00 –0x01 Read
only 0x00 M
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one of the following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
. Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, any changes or modifications
not expressly approved by the party responsible for compliance could void the
user's authority to operate this equipment. (Example - use only shielded
interface cables when connecting to computer or peripheral devices).
FCC Radiation Exposure Statement
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
“This equipment complies with FCC RF radiation exposure limits set forth for
an uncontrolled environment. The antenna(s) used for this transmitter must be
installed to provide a separation distance of at least 20 cm from all persons and
must not be co-located or operating in conjunction with any other antenna or transmitter.”
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must
accept any interference received, including interference that may cause
undesired operation.
