1
SRAC-23-ZBS / SRAC-23B-ZBS / SRAC-23B-ZBSR
AC Powered Indoor Siren
Introduction
SRAC-23(B)-ZBS is an AC Powered ZigBee Indoor Siren. It is capable of raising alarm upon receiving
alarm signal from the coordinator in the ZigBee network when an alarm is activated. During the alarm,
the siren will sound alarm with its built-in buzzer.
The Indoor Siren utilizes ZigBee technology for wireless signal transmission. ZigBee is a wireless
communication protocol that is reliable and has low power consumption and high transmission efficiency.
Based on IEEE802.15.4 standard, ZigBee allows a large amount of devices to be included in a network
and coordinated for data exchange and signal transmission.
Model
The Indoor Siren includes the following models:
SRAC-23-ZBS: Standard Indoor Siren
SRAC-23B-ZBS: Features built-in rechargeable battery to serve as backup power source when the Siren
is unplugged from AC power.
SRAC-23B-ZBSR: Features built-in rechargeable battery and ZigBee network router function
Model No. Rechargeable Battery ZigBee Router
SRAC-23-ZBS No No
SRAC-23B-ZBS Yes No
SRAC-23B-ZBSR Yes Yes
Parts Identification

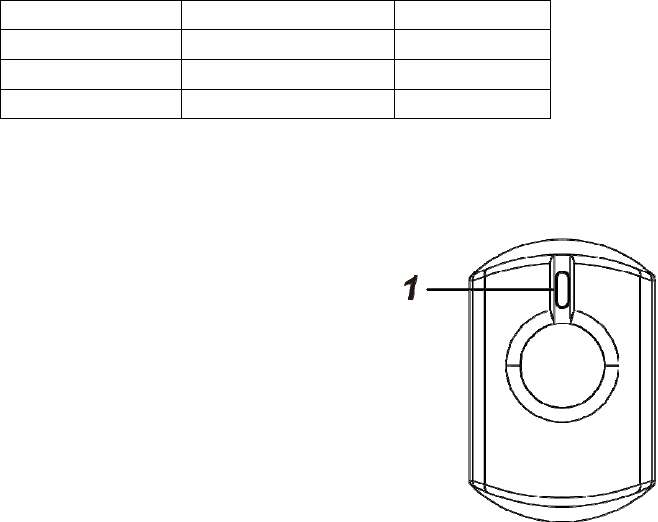

1. Function Button/LED Indicator
Function Button Usage:
- Press once to send a supervision signal.
- Press and hold the button for 10 seconds then release to
reset the Indoor Siren.
- Press and hold the button for 3 seconds to change
indication beep volume.
LED Indicator:
- One Flash:
The security system is armed.
- Two flashes:
The security system is disarmed
The Indoor Siren has successfully joined a ZigBee
network
- One Flash every 20 minutes (SRAC-23(B)-ZBS Only)
The Indoor Siren has not joined any ZigBee network, or has lost
connection to its current ZigBee network.
- Continuous Flash:
The Siren is alarming.
Features
Alarm Activation
When an alarm is activated, the Indoor Siren will activate its buzzer and the LED indicator will flash
continuously while the siren is alarming. If the alarm system control panel has programmed alarm
duration, the Siren will be activated according to panel alarm length. If the alarm system does not
have alarm duration programmed, the Siren will be activated for 15 minutes.
![](/img.php?id=3229210&img=bg2.png)
2
Audio Status Indication
The Indoor Siren activates different audio sounds
according to different statuses of the security system, as
listed in table on the right:
You can change the volume of the indication beeping
sound between High and Low by pressing and holding the
learn button for 3 seconds. The factory default volume is
set to Low.
Power Supply
The Siren is powered by AC power; plug the Siren into the power socket to activate the Siren. The
Siren will enter normal operation mode.
SRAC-23B-ZBS and SRAC-23B-ZBSR models have a rechargeable battery inside that serves as
backup when the Siren is unplugged from AC power. The battery will be charged automatically
when the Siren is plugged. It takes about 72 hours to fully charge the battery.
Low Battery Detection (SRAC-23B-ZBS / SRAC-23B-ZBSR only)
After AC power failure, the Siren will transmit a Low Battery signal to The Control Panel when low
battery voltage is detected. To restore battery, re-plug AC power into the power socket. After 12
hours, the Siren will transmit a low battery restored notification to the Control Panel.
AC Failure Detection
Whenever the Siren is removed from the power socket, the siren will transmit an AC fault signal to
the coordinator to notify the situation and switch to its internal battery for power supply.
When the Siren is plugged in again on the power socket, it will send an AC power restore signal to
the coordinator.
Supervision
The Indoor Siren will transmit a supervision signal to report its condition regularly according to user
setting. The factory default interval is 30 minutes. The user can also press the Function Button once
to transmit a supervision signal manually.
ZigBee Network Setup
ZigBee Device Guideline
ZigBee is a wireless communication protocol that is reliable and has low power consumption and
high transmission efficiency. Based on IEEE802.15.4 standard, ZigBee allows a large amount of
devices to be included in a network and coordinated for data exchange and signal transmission.
Due to the fundamental structure of ZigBee network, ZigBee device will actively seek and join
network after powering on. Since performing a task in connecting network may consume some
power, it is required to follow the instructions to avoid draining battery of a ZigBee device
- Ensure your ZigBee network router or coordinator is powered on before powering on the ZigBee
device.
- Ensure the ZigBee network router or coordinator is powered on and within range while a ZigBee
device is in use.
- Do not remove a ZigBee device from the ZigBee network router or coordinator without powering
down the ZigBee device.
Joining the ZigBee Network
As a ZigBee device, the Indoor Siren needs to join a ZigBee network to send and receive alarm
signal. Please follow the steps below to join the Indoor Siren into the ZigBee network.
1. Plug the Indoor Siren into a power outlet.
2. Press and hold the function button for 10 seconds as the Siren resets and starts searching for
existing ZigBee network. Please make sure the permit-to-join feature on the router or coordinator
of your ZigBee network is enabled.
3. If the Siren successfully joins a ZigBee network, the LED Indicator will flash twice to confirm.
4. After joining the ZigBee network, the Indoor Siren will be registered in the security system in the
network automatically. Please check the security system control panel or CIE (Control and
Indicating Equipment) to confirm if joining and registration is successful.
5. For SRAC-23(B)-ZBS, after joining the ZigBee network, if the Siren loses connection to its
current ZigBee network, the LED indicator will flash every 20 minutes to indicate. Please check
your ZigBee network condition and siren signal range and correct the condition.
Removing Device from ZigBee Network (Factory Reset)
To remove the Siren from current ZigBee network, the Siren must be put to Factory Reset to
Siren Audio
Arm/Home 1 beep
Disarm 2 beeps
Entry/Exit Sound Count-down
beeps
![](/img.php?id=3229210&img=bg3.png)
3
complete device removal. Factory Reset function will clear the device of its stored setting
information and prompt the Siren to search for new ZigBee network.
Before removing device, make sure the Siren is within current ZigBee network signal range
1. Press and hold the function button for 10 seconds, then release the button to reset Siren.
2. Upon reset, the Siren will clear current ZigBee network setting and transmit signal to ZigBee
coordinator to remove itself from current ZigBee network. It will then actively search for
available ZigBee network again and join the network automatically.
ZigBee Router Device Capacity (SRAC-23B-ZBSR)
The Siren model with Router function (SRAC-23B-ZBSR) allows other ZigBee devices to join the
ZigBee Network through the Router. It has maximum capacity of 40 ZigBee devices or routers
Appendix (For developers only.)
Indoor Siren Cluster ID
Device ID: IAS Warning Device: 0x0403
Endpoint: 0x01
Server Side Client Side
Mandatory
Basic (0x0000) None
Identify(0x0003)
IAS Zone(0x0500)
IAS WD(0x0502)
Optional
None None
Attribute of Basic Cluster Information
Identifier Name Type Range Access Default
Mandatory
/ Optional
0x0000 ZCLVersion Unsigned
8-bit integer 0x00 – 0xff Read
only 0x01 M
0x0001 ApplicationVersion Unsigned
8-bit integer 0x00 – 0xff Read
only 0x00 O
0x0003 HWVersion Unsigned
8-bit integer 0x00 –0xff Read
only 0 O
0x0004 ManufacturerName Character
String 0 – 32 bytes Read
only Climax
Technology O
0x0005 ModelIdentifier Character
String 0 – 32 bytes Read
only (Model Version) O
0x0006 DateCode Character
String 0 – 16 bytes Read
only O
0x0007 PowerSource 8-bit 0x00 –0xff
Read
only M
0x0010 LocationDescription Character
String 0 – 32 bytes Read /
Write O
0x0011 PhysicalEnvironment 8-bit 0x00 –0xff
Read /
Write 0x00 O
0x0012 DeviceEnabled Boolean 0x00 –0x01 Read /
Write 0x01 M
Attribute of Identify Cluster Information
Identifier Name Type Range Access Default
Mandatory
/ Optional
0x0000 IdentifyTime Unsigned
16-bit integer 0x00 –0xffff Read /
Write 0x0000 M
Attribute of IAS Zone Cluster Information
Identifier Name Type Range Access Default
Mandatory
/ Optional
0x0001 ZoneState 8-bit
Enumeration All Read
only 0x00 M
0x0002 ZoneType 8-bit
Enumeration All Read
only M
![](/img.php?id=3229210&img=bg4.png)
4
0x0003 ZoneStatus 16-bit bitmap All Read
only 0x00 M
0x0010 IAS_CIE_ADDRESS IEEE
ADDRESS Valid 64bit
IEEE address Read /
Write M
0x0011 ZONE_ID Unsigned
8-bit integer All Read
only 0xFF M
Attribute of IAS WD Cluster Information
Identifier Name Type Range Access Default
Mandatory
/ Optional
0x0000 MaxDuration Unsigned
16-bit integer 0x00 –0xfffe Read /
Write 240 M
