Computer Access Technology BT004APA-X Bluetooth Protocal Analyzer and Test Generator User Manual 01 BTTracer
Computer Access Technology Corporation Bluetooth Protocal Analyzer and Test Generator 01 BTTracer
Contents
- 1. Main User Manual
- 2. WAND Manual 1 of 2
- 3. WAND Manual 2 of 2
Main User Manual
2403 Walsh Avenue, Santa Clara, CA 95051-1302 Tel: +1/408.727.6600 Fax: +1/408.727.6622
For Software Version 1.0
Manual Version 1.0
8 February, 2002
CATC BTTracer™
Bluetooth™Protocol Analyzer
User’s Manual
2
Merlin Protocol Analyzer User’s ManualCATC Version 1.0
Document Disclaimer
The information contained in this document has been carefully checked and
is believed to be reliable. However, no responsibility can be assumed for
inaccuracies that may not have been detected.
CATC reserves the right to revise the information presented in this
document without notice or penalty.
Trademarks and Servicemarks
CATC, Merlin, Merlin’s Wand, NetMate, Advisor, Chief, FireInspector,
Inspector, Detective, Traffic Generator, BusEngine, USB4DOS, UPT, HPT,
UHT, Galaxy, IBTracer,SATracer,andAndromeda are trademarks of
Computer Access Technology Corporation.
Microsoft, Windows, and Windows NT are registered trademarks of
Microsoft Inc.
All other trademarks are property of their respective companies.
Copyright
Copyright © 2002, Computer Access Technology Corporation (CATC); All
Rights Reserved.
This document may be printed and reproduced without additional
permission, but all copies should contain this copyright notice.
FCC Conference Statement
This equipment has been tested and found to comply with the limits for a
Class A digital device and an intentional radiator, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to
correct the interference at their own expense. The end user of this product
should be aware that any changes or modifications made to this equipment
without the approval of CATC could result in the product not meeting the
Class A limits, in which case the FCC could void the user's authority to
operate the equipment.
3
Merlin Protocol Analyzer User’s ManualCATC Version 1.0
Important Notice: To comply with FCC RF exposure requirements
(sections 1.1307 and 1.310 of the Rules) only the antenna supplied by
CATC must be used for this device. The antenna must be located at least 20
cm away from all persons.
EU Conference Statement
This equipment complies with the R&TT Directive 1999/5/EC. It has been
tested and found to comply with EN55022:1994/A1:1995/A2:1997 Class A,
EN61000-4-2:1995, EN61000-4-3:1995, EN61000-4-4:1995,
EN61000-4-5:1995, EN61000-4-6:1995, EN61000-4-11:1994,
EN61010-1:1993, and ESTI EN 300 328-1 V1.2.2 (2000-07).
Manual Version 1.8 Part number: 730-0017-00
4
Merlin Protocol Analyzer User’s ManualCATC Version 1.0
iii
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
TABLE OF CONTENTS
Chapter1 Overview.....................................1
Bluetooth™Overview..............................................1
GeneralDescription ...............................................2
Automation.......................................................4
Features .........................................................4
General...................................................4
Physical Components ........................................5
DisplayOptions ............................................5
RecordingOptions ..........................................5
TrafficGeneration ..........................................5
Bluetooth™BusEngine ......................................6
Specifications.....................................................7
Package...................................................7
PowerRequirements.........................................7
Environmental Conditions . ...................................7
Switches ..................................................7
LEDs ....................................................7
RecordingMemorySize .....................................7
Certification ...............................................7
Chapter2 QuickInstallation .............................9
SettingUptheAnalyzer.............................................9
InstallingtheSoftware..............................................9
YourFirstBluetooth™Recording....................................10
Chapter3 DetailedInstallation...........................13
System Components/Packing List . . ..................................13

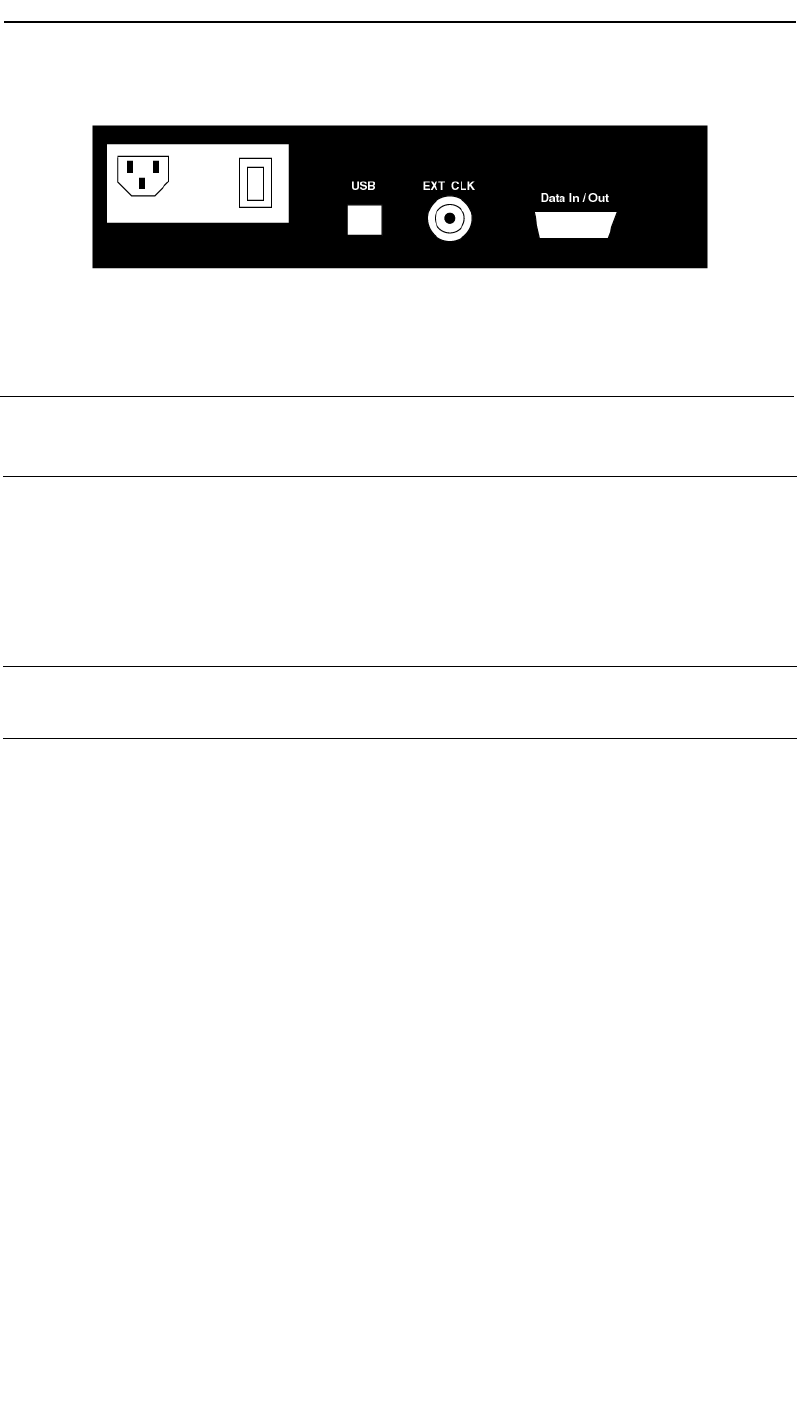

TheInstalledMerlinUnit...........................................13
MerlinSystemSetup ..............................................14
ACPowerSource.................................................14
ExternalInterfaceBreakoutBoard....................................15

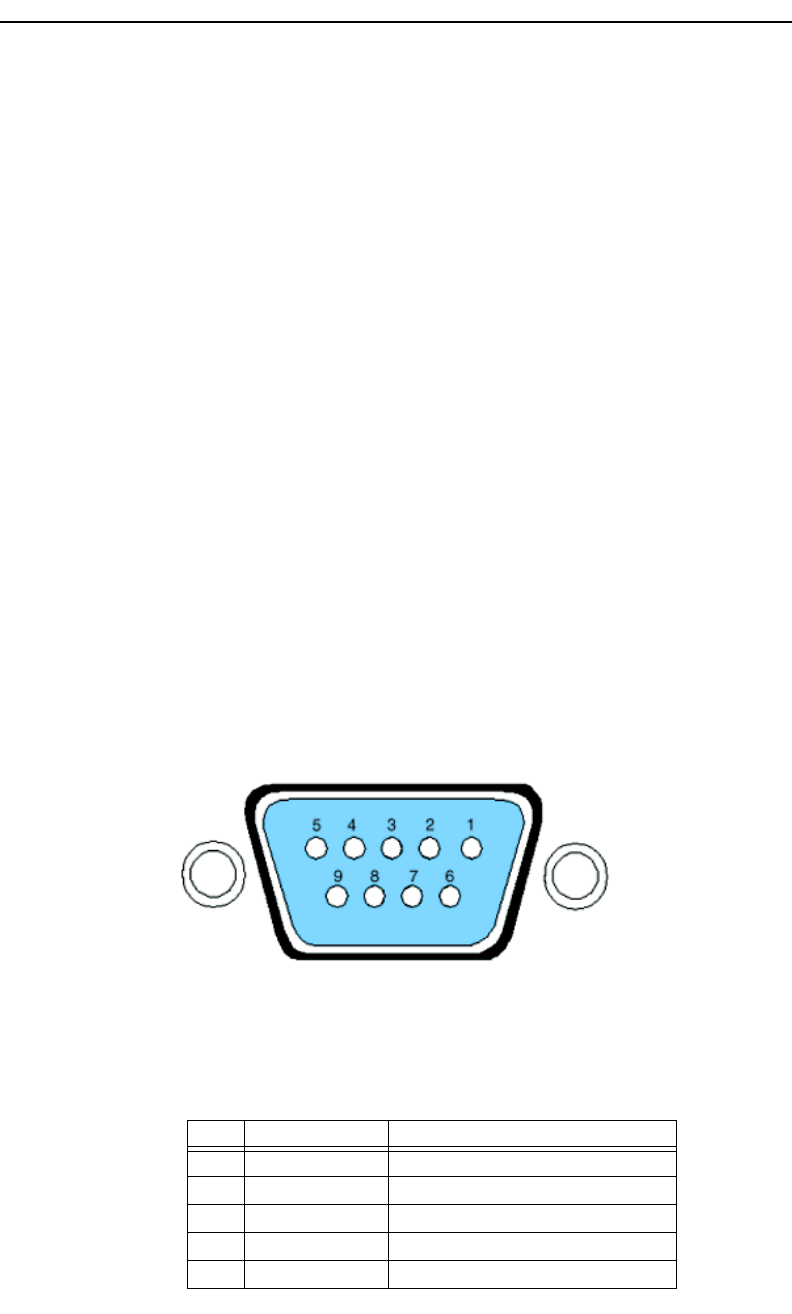

BreakoutBoardExternalOutputSignallingPins..................16
PrototypeReworkArea......................................17
PCConnection...................................................17
AntennaInformation ..............................................17
AnalyzerPCRequirements .........................................17
MerlinProgramInstallation.........................................18
LoadingtheMerlinUSBDrivers..............................18
InstallingtheMerlinApplicationProgram ......................18
MerlinProgramStartup............................................19
MakingaRecording...............................................20
Chapter4 Updates.....................................21
Software,Firmware,andBusEngineRevisions..........................21
SoftwareUpdates.................................................22
iv
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0

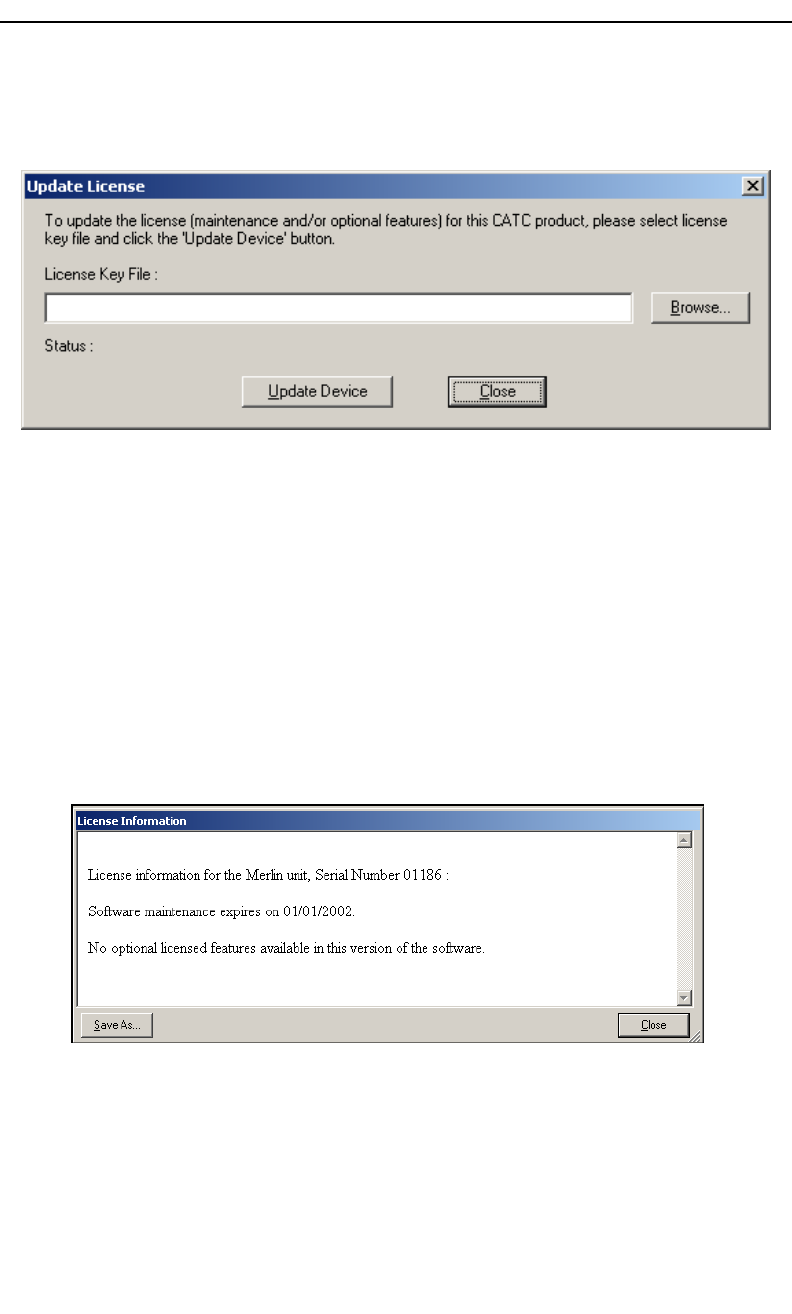

SoftwareLicenseUpdates..........................................22
Viewinglicensinginformation................................23
BusEngineandFirmwareUpdateUpdates..............................23
AutomaticUpdates.........................................24
ManualUpdatestoBusEngineandFirmware ....................25

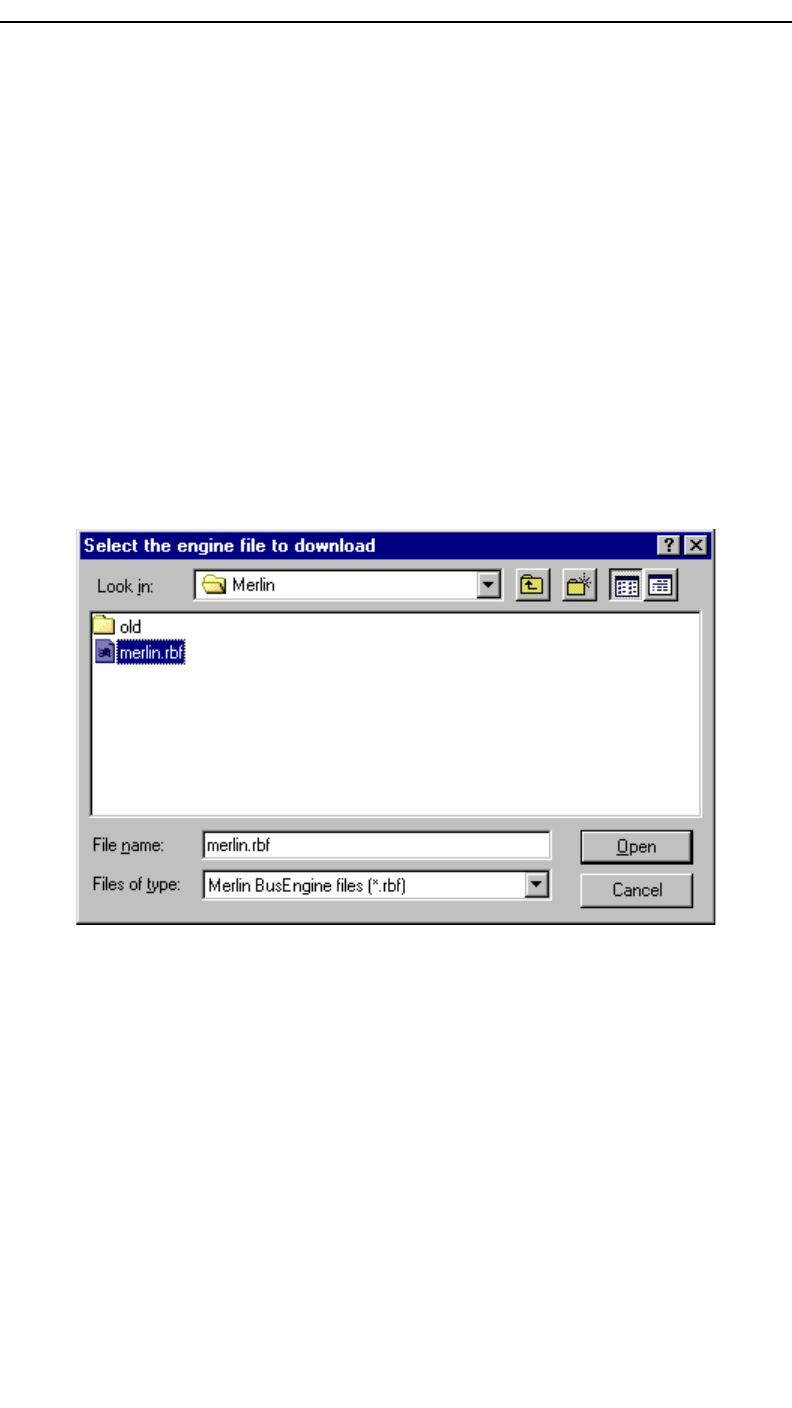

UpdatingtheBusEngine.....................................26

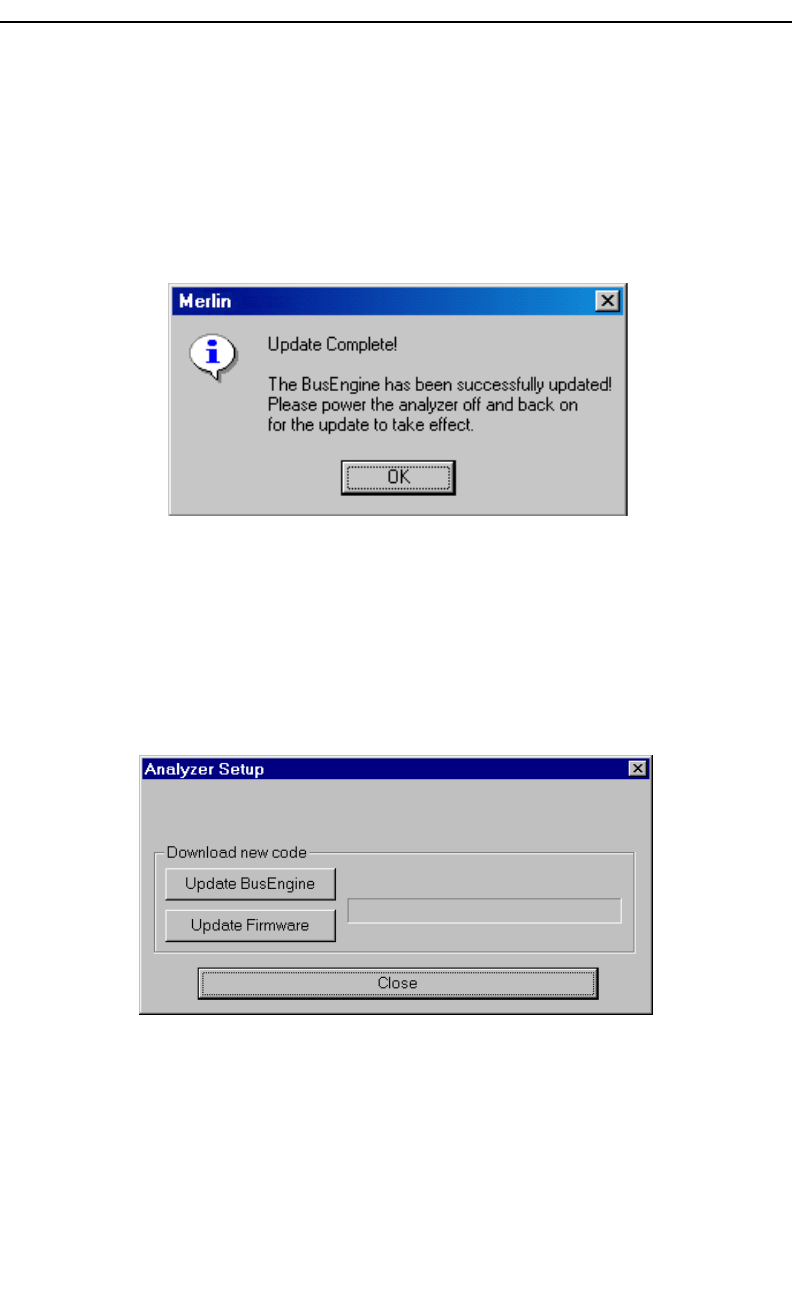

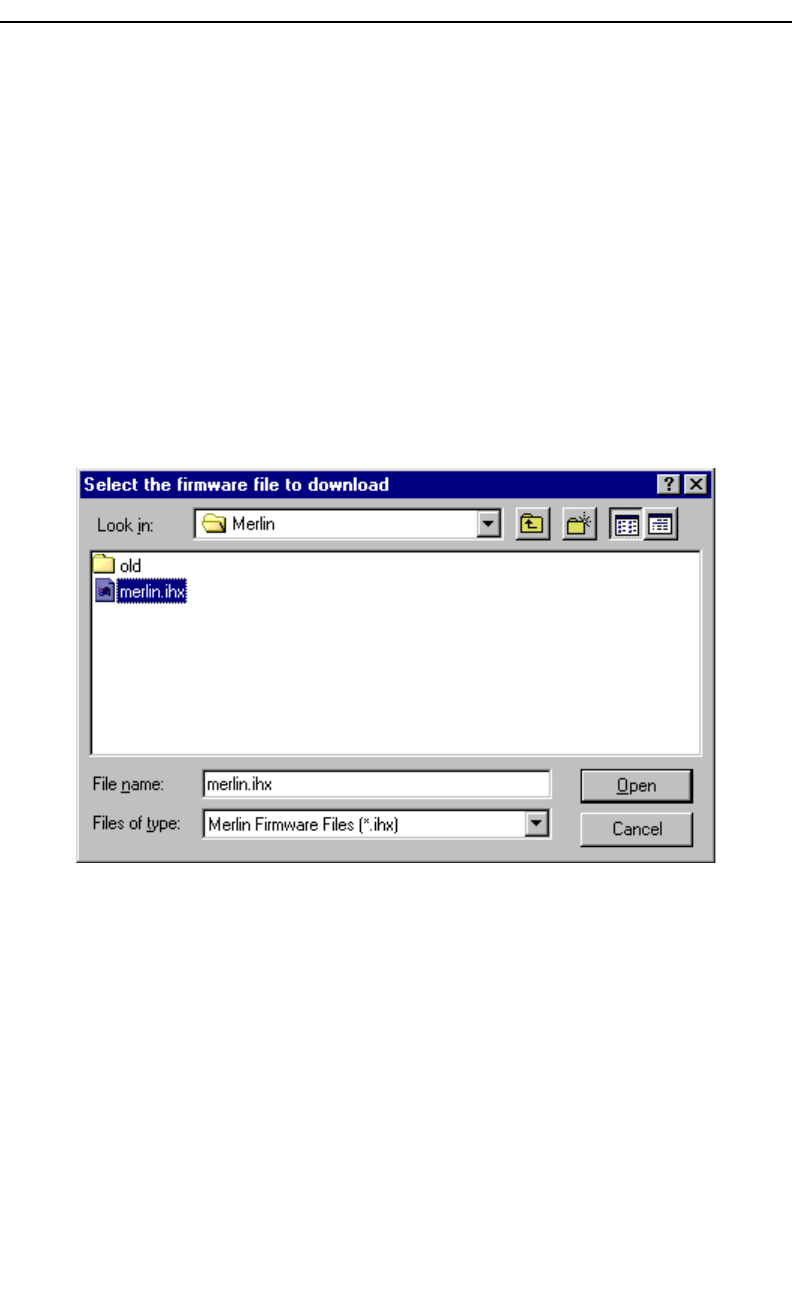

UpdatingtheFirmware......................................27
Chapter5 SoftwareOverview............................29
TheMainDisplayWindows.........................................29
ViewOptions....................................................31

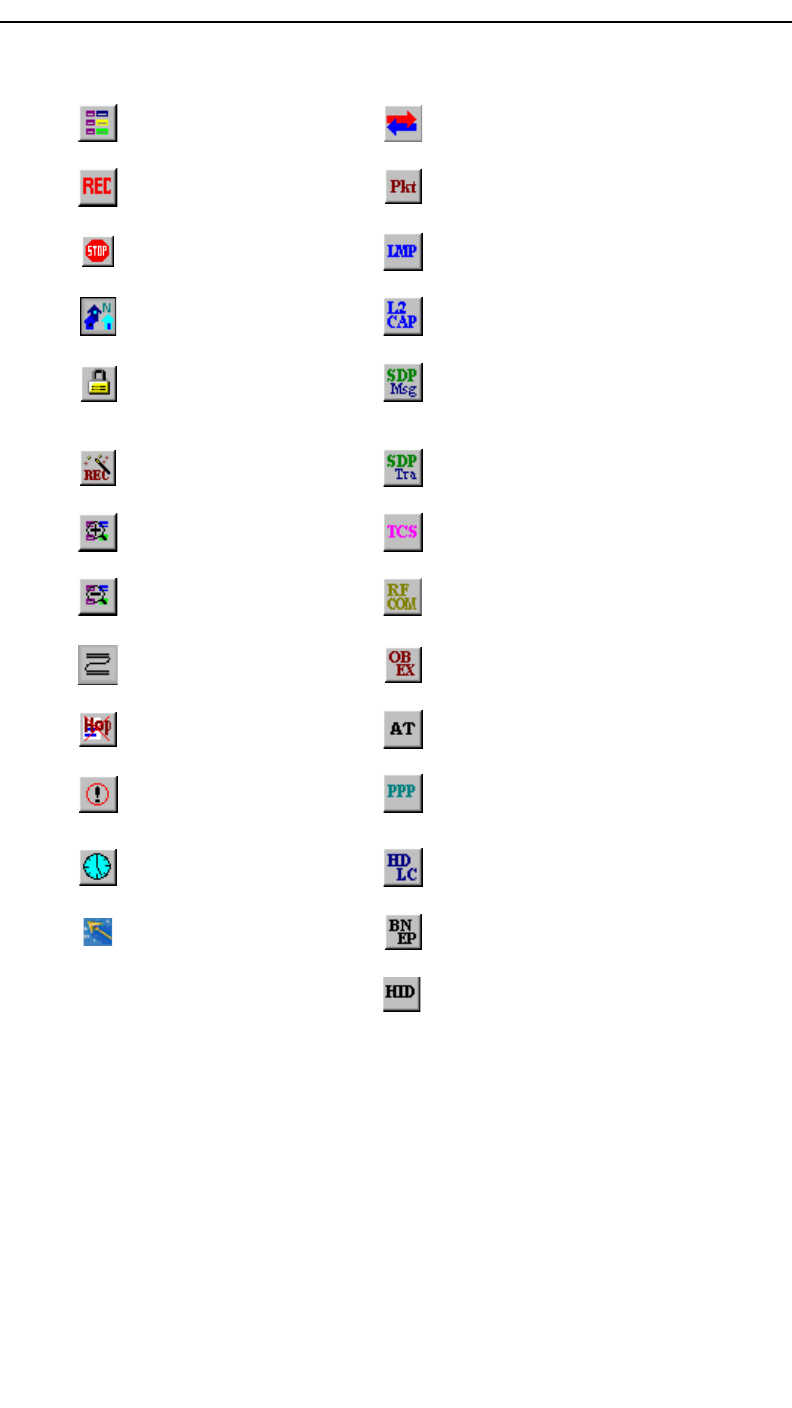

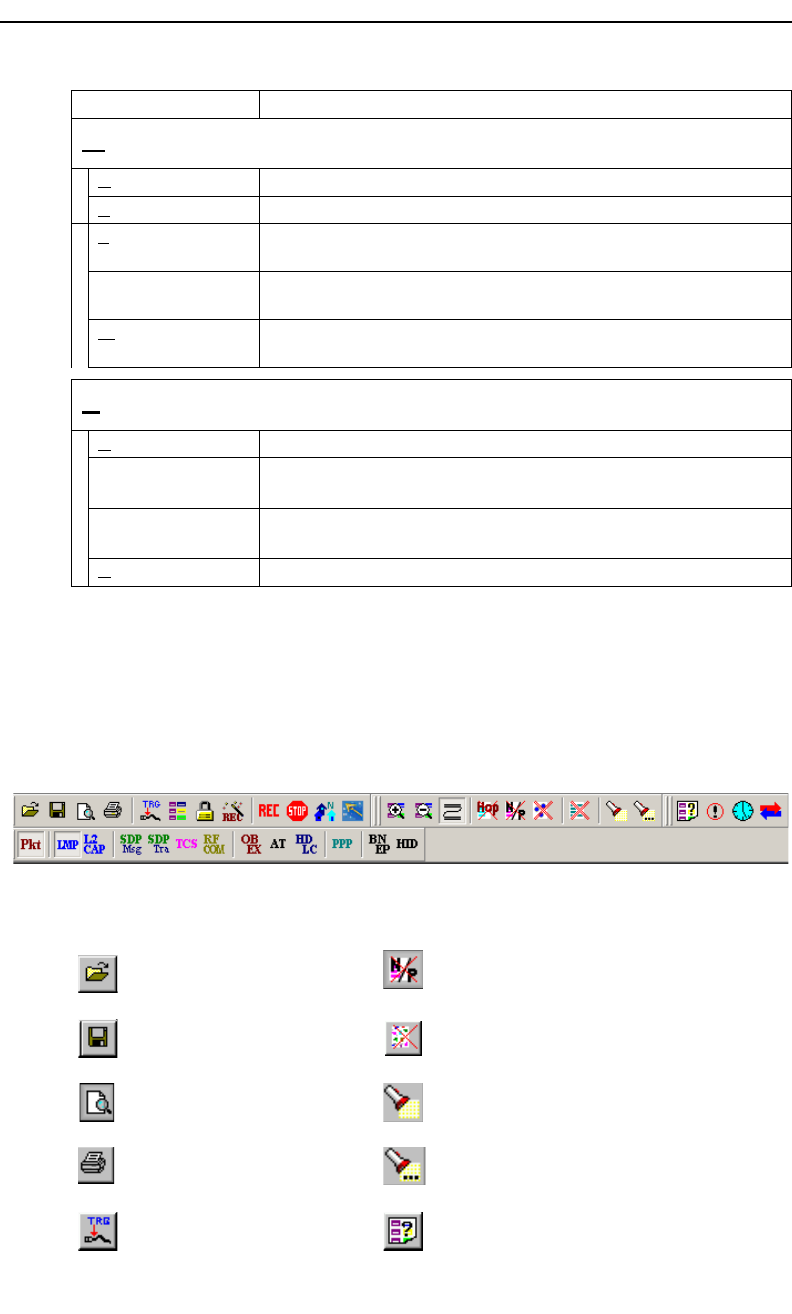

ToolBar..................................................31

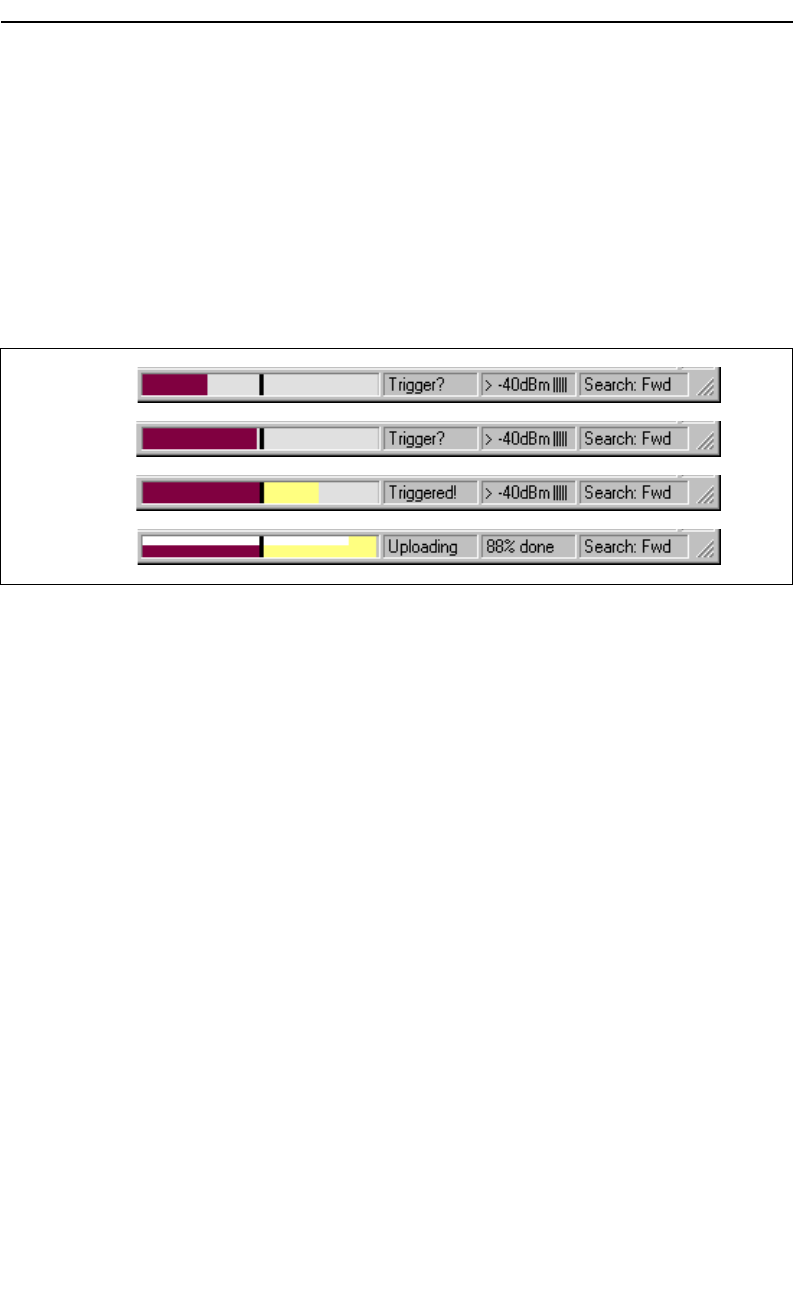

StatusBar.......................................................33
RecordingProgress.........................................33
RecordingStatus...........................................34
AnalyzerStatus............................................34
SearchStatus..............................................35
ZoomIn..................................................35
ZoomOut ................................................35
ToolTips........................................................35
MerlinAnalyzerKeyboardShortcuts .................................36

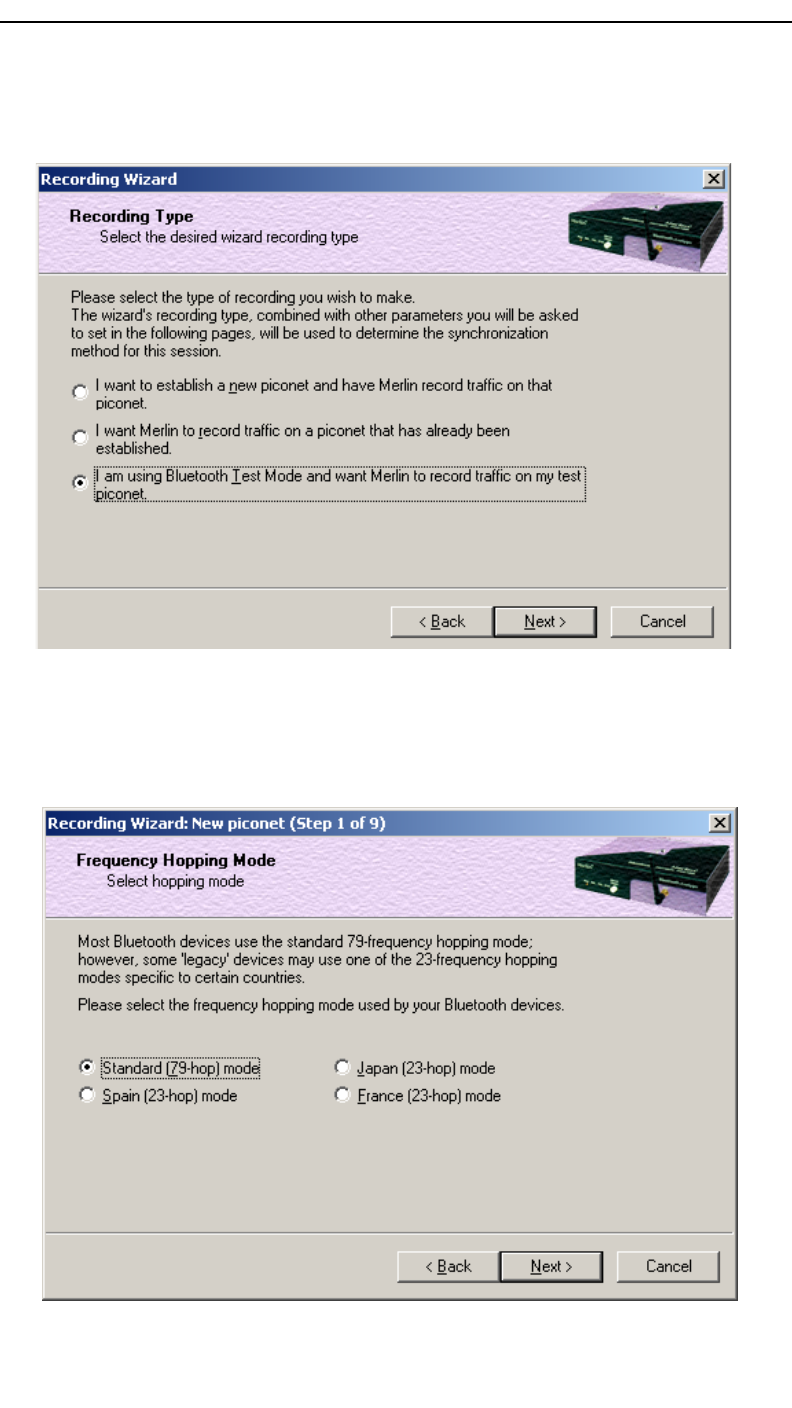

Chapter6 RecordingWizard ............................37

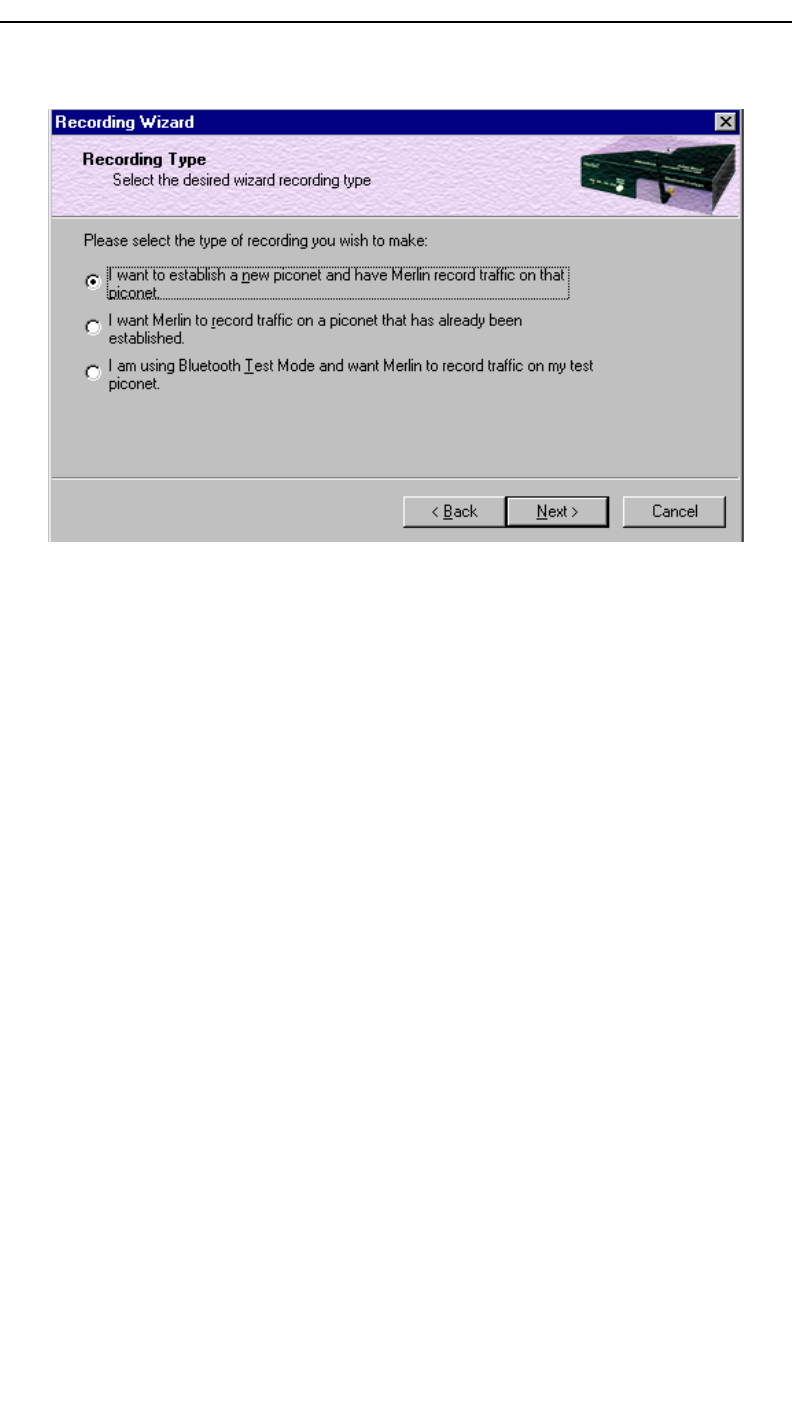

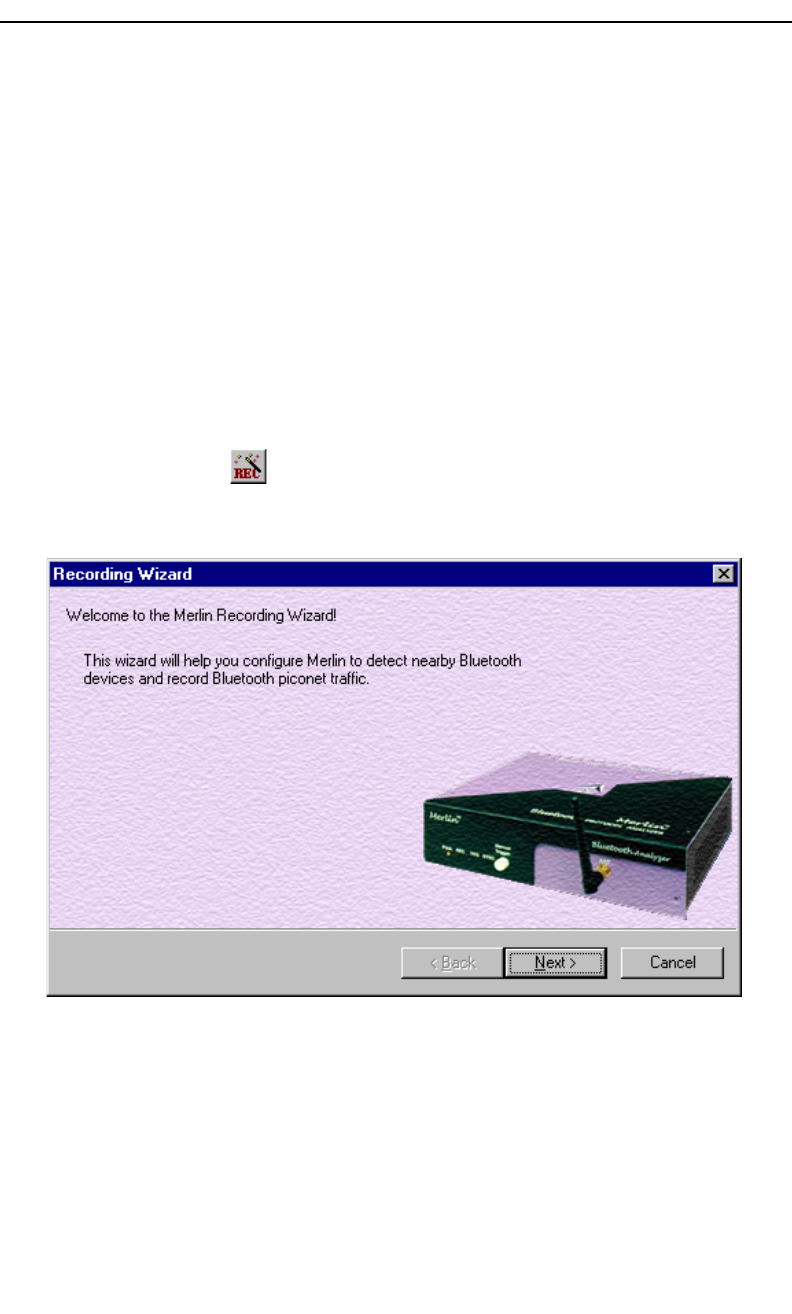

StartingRecordingWizard...................................37

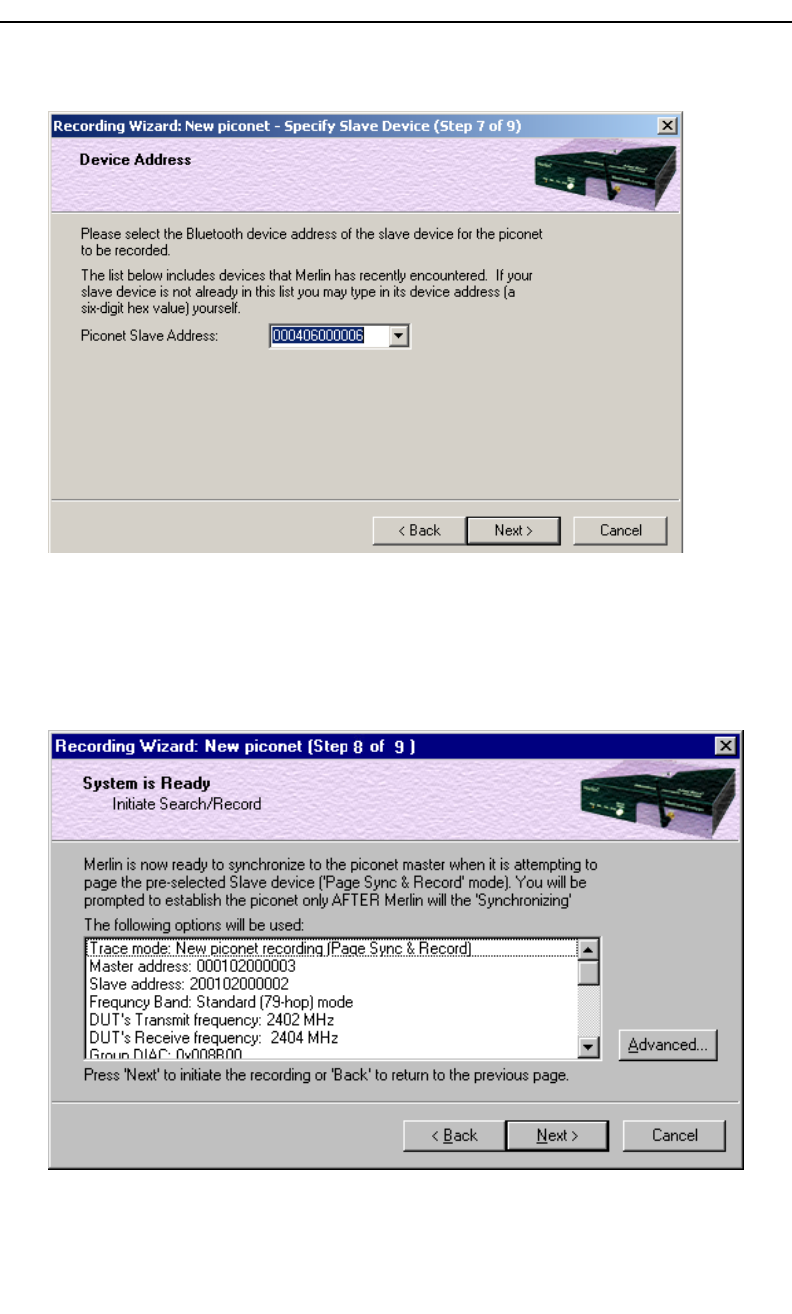

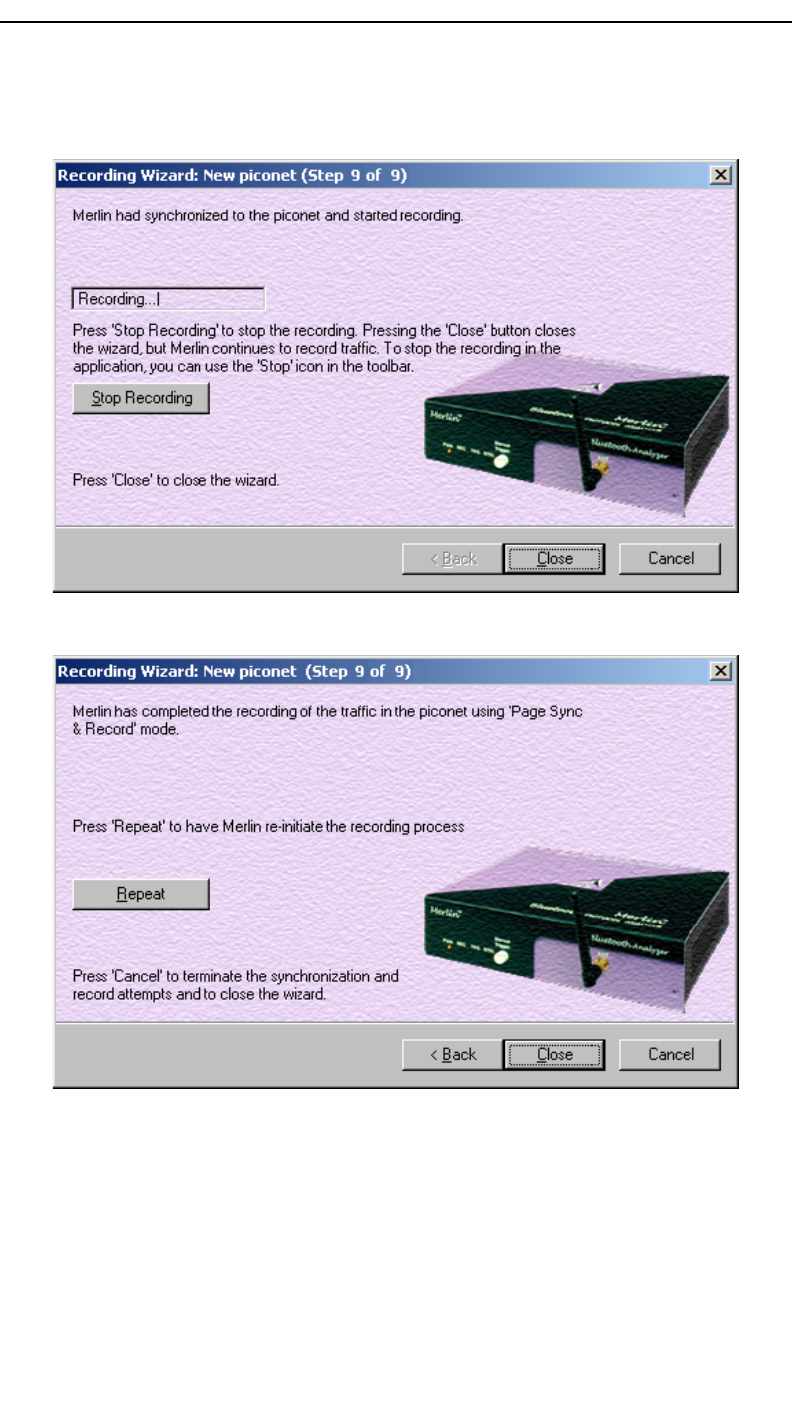

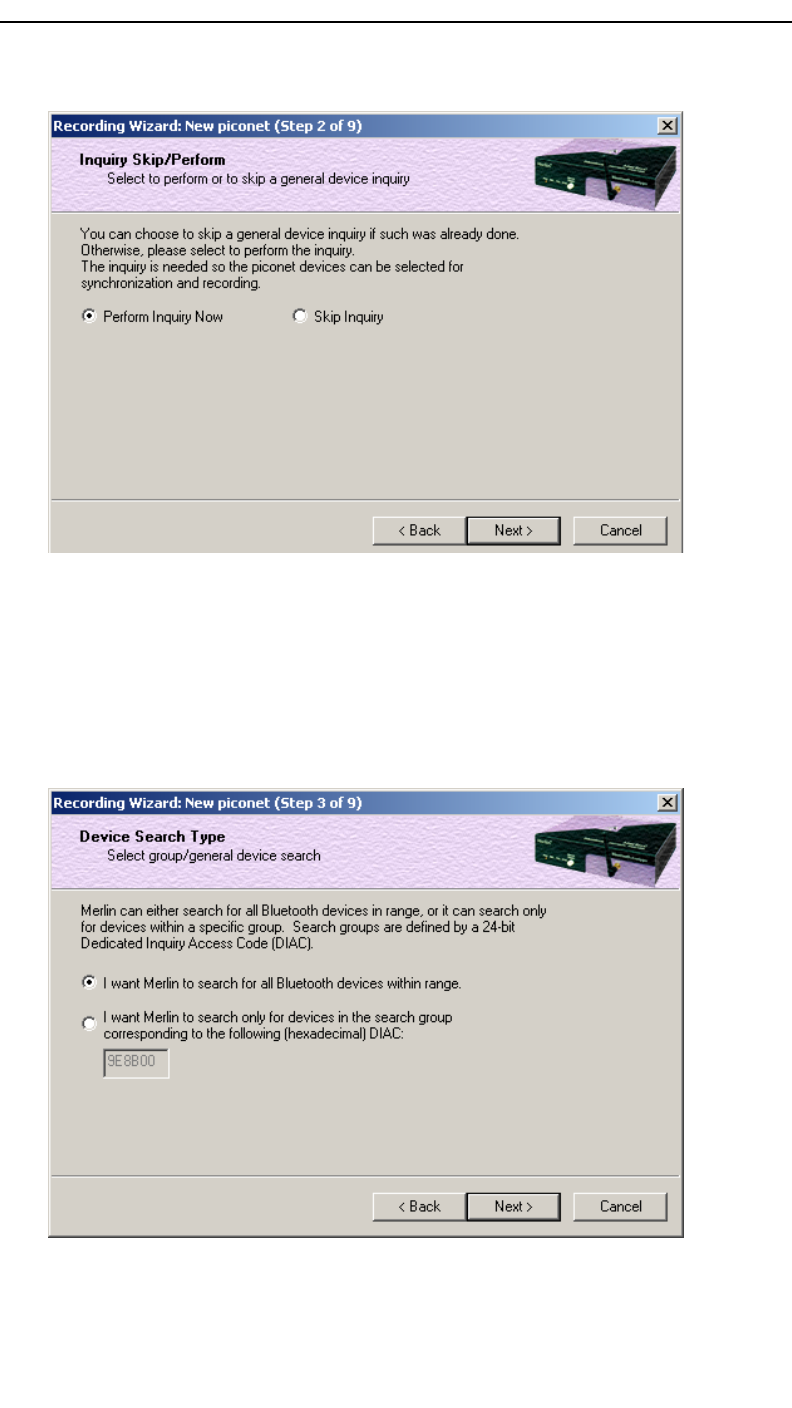

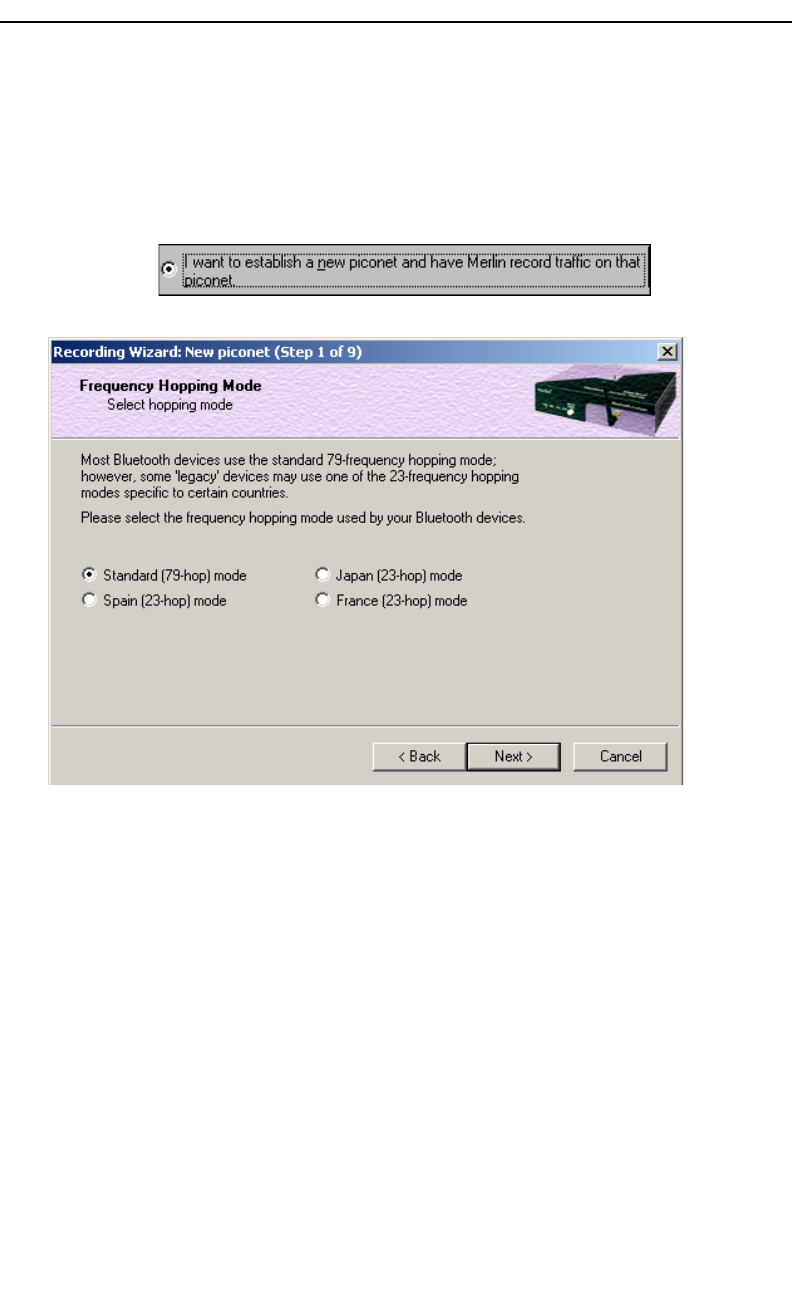

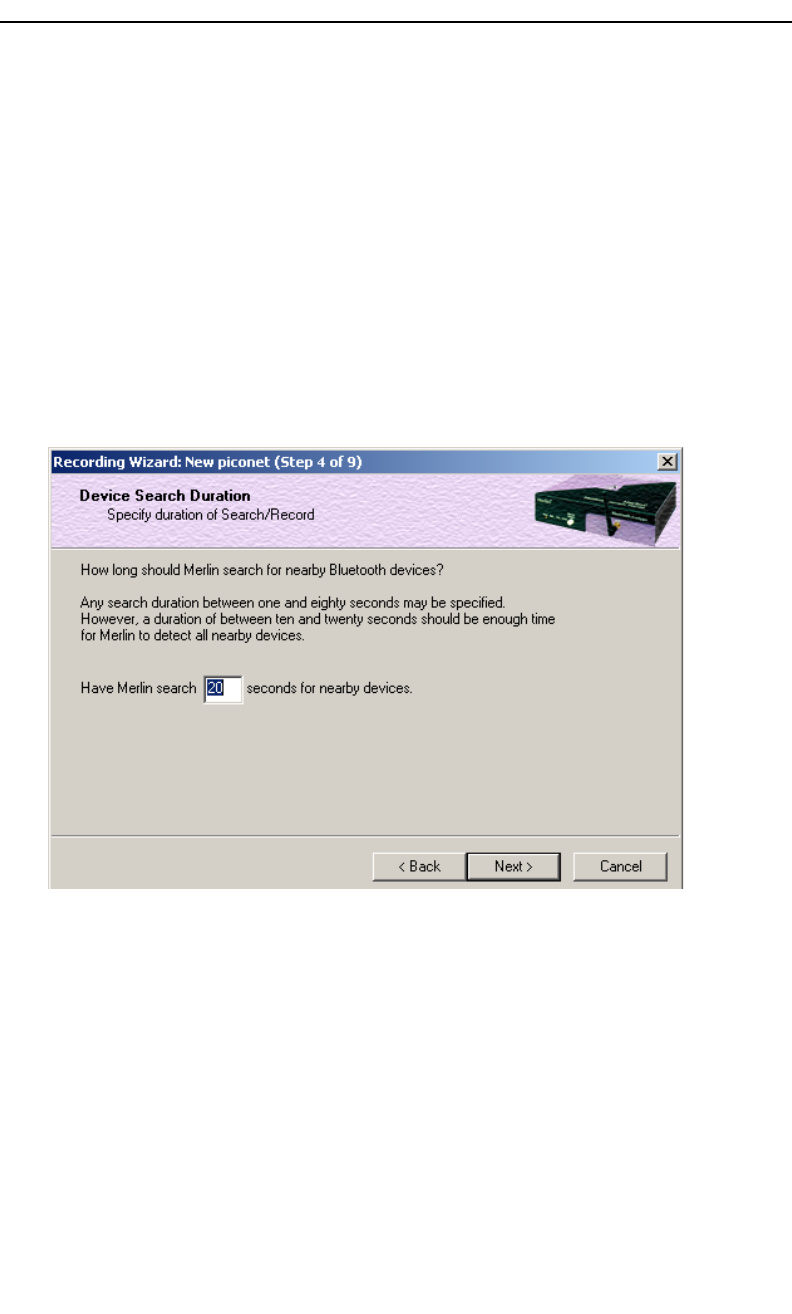

RecordingaTrafficonaNewPiconet.................................38

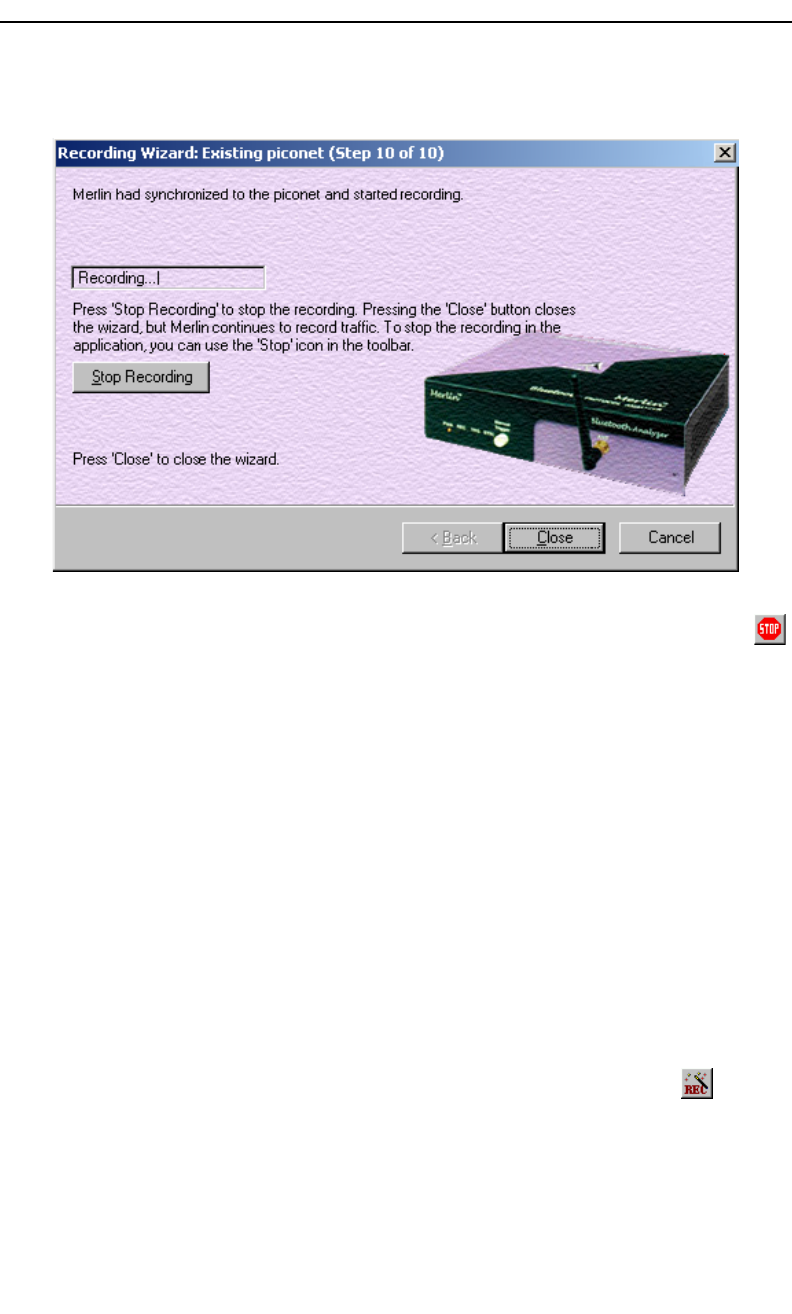

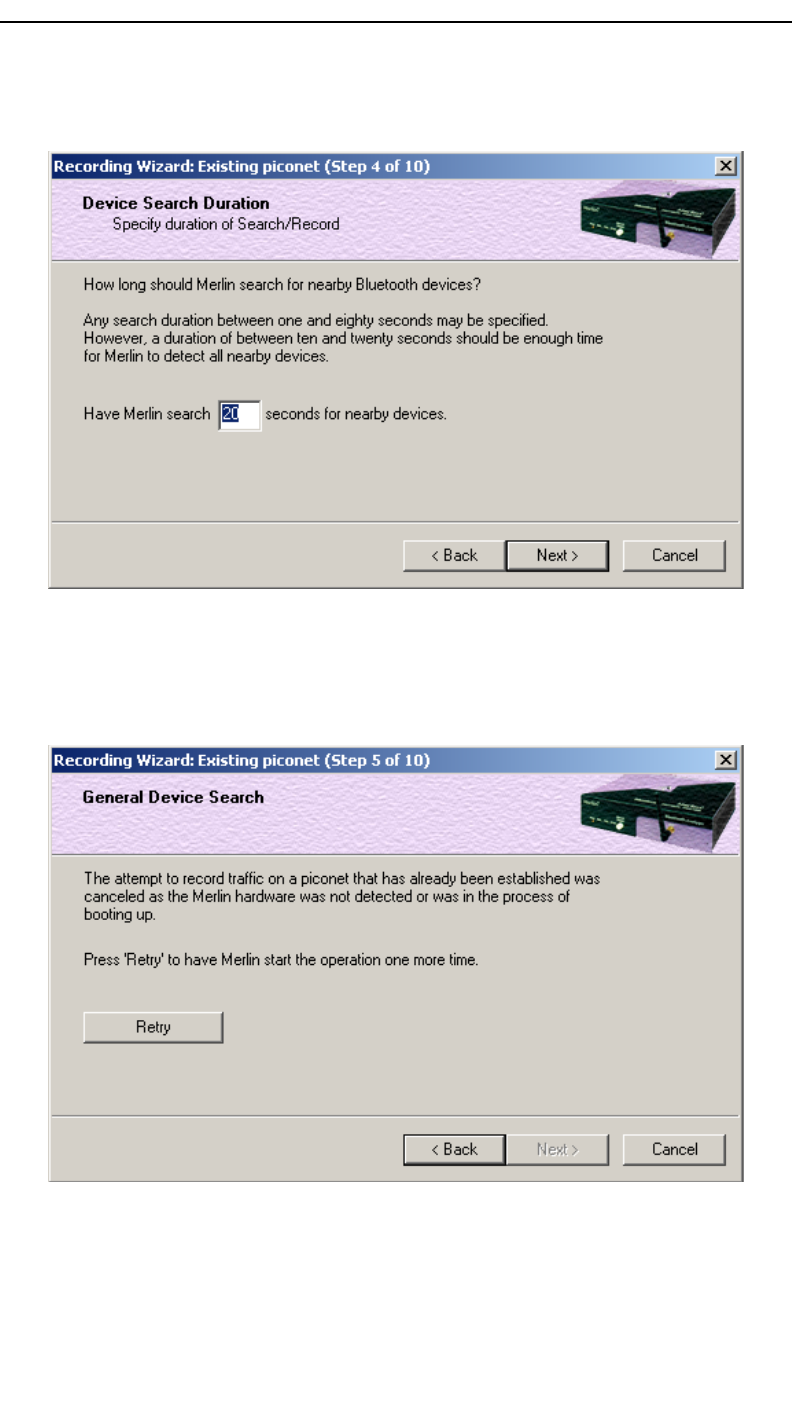

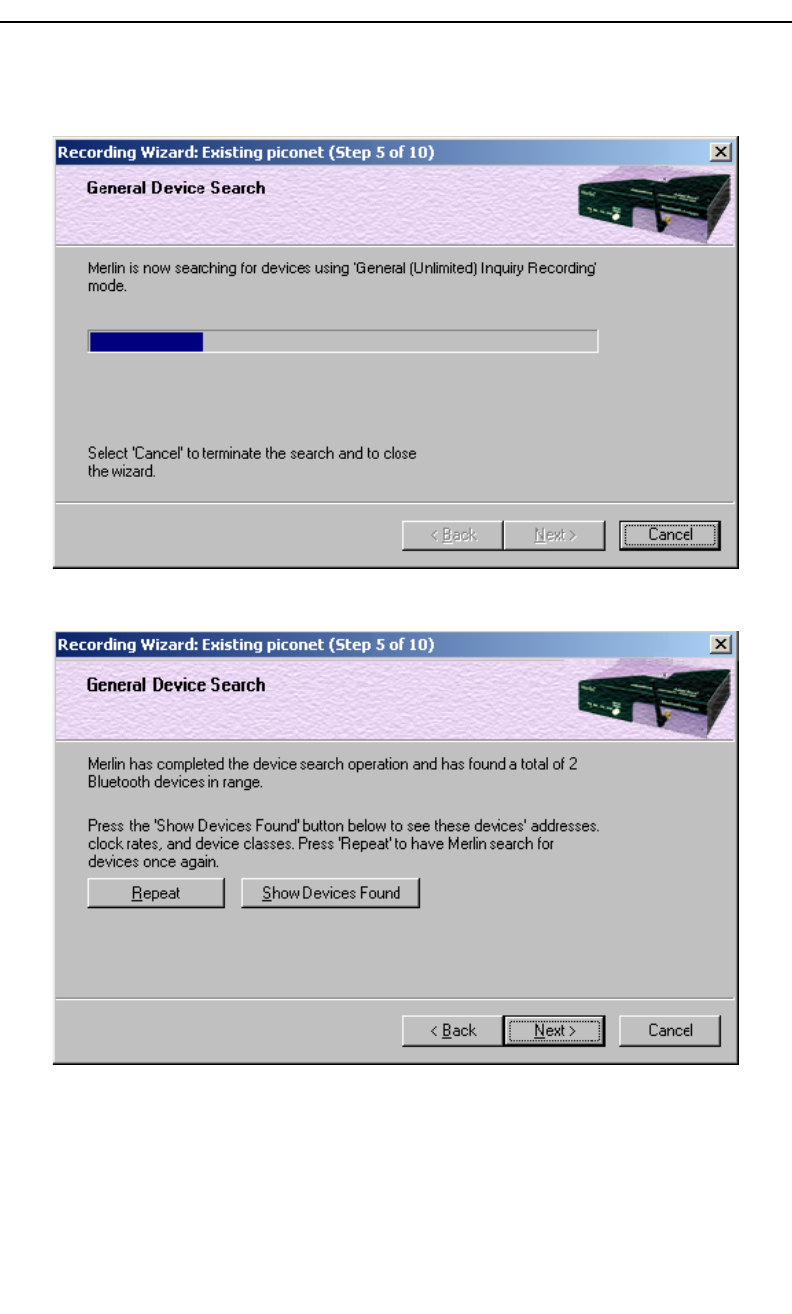

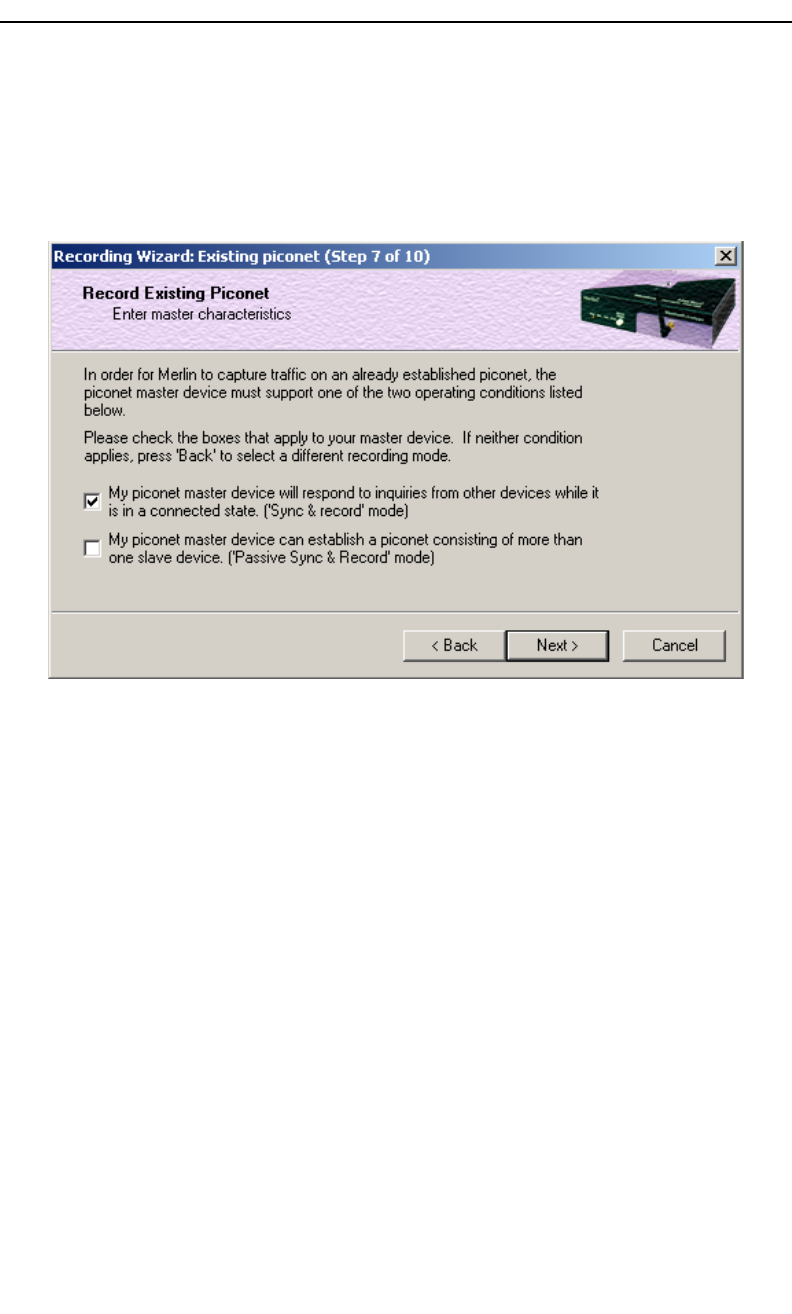

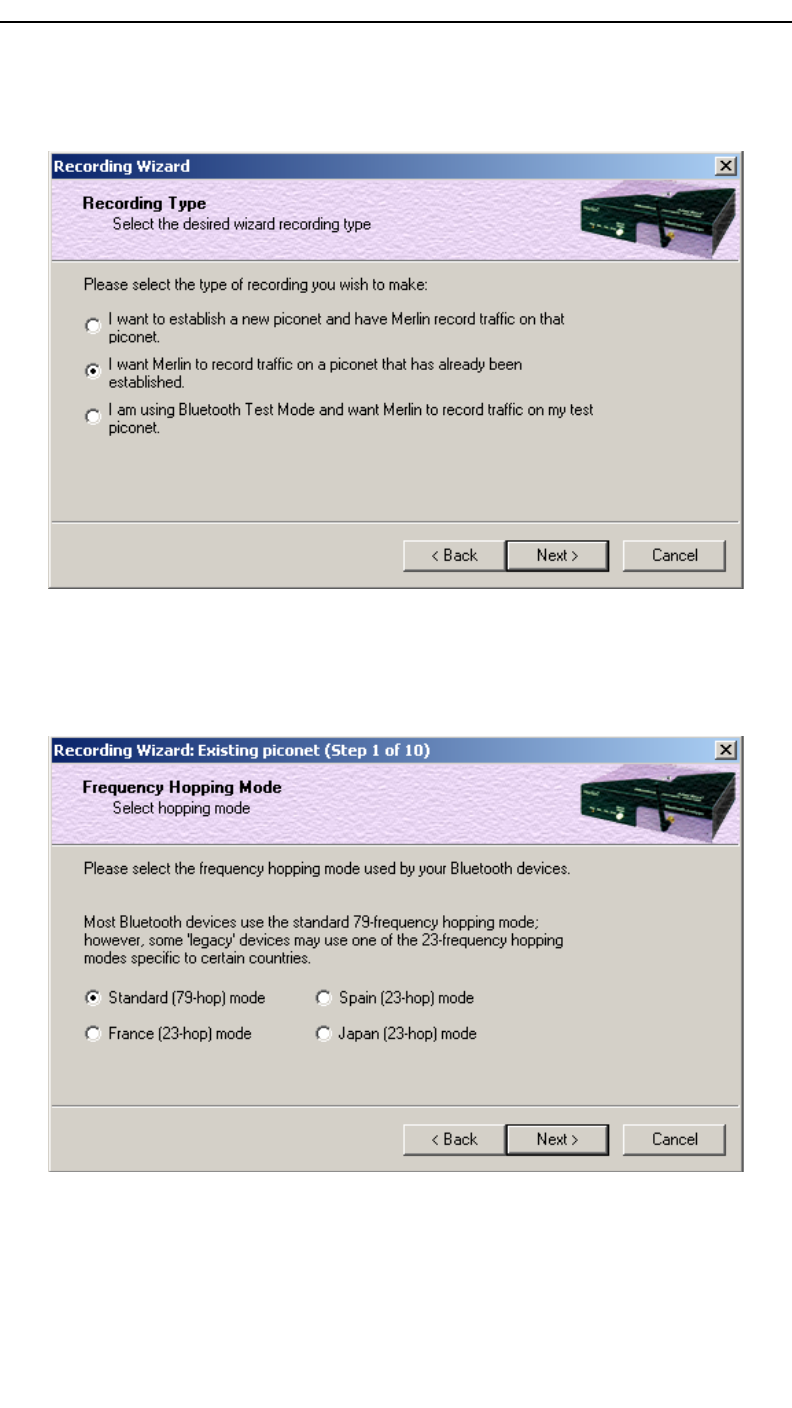

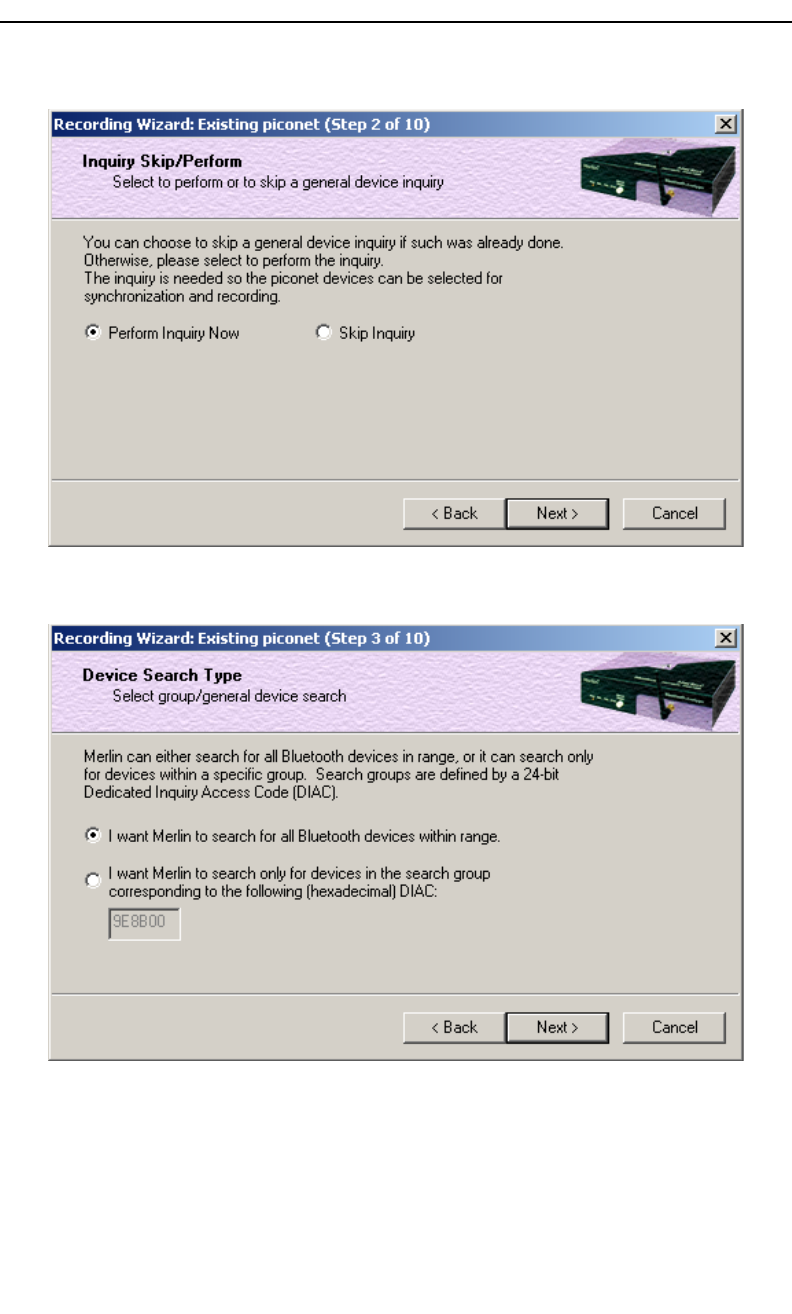

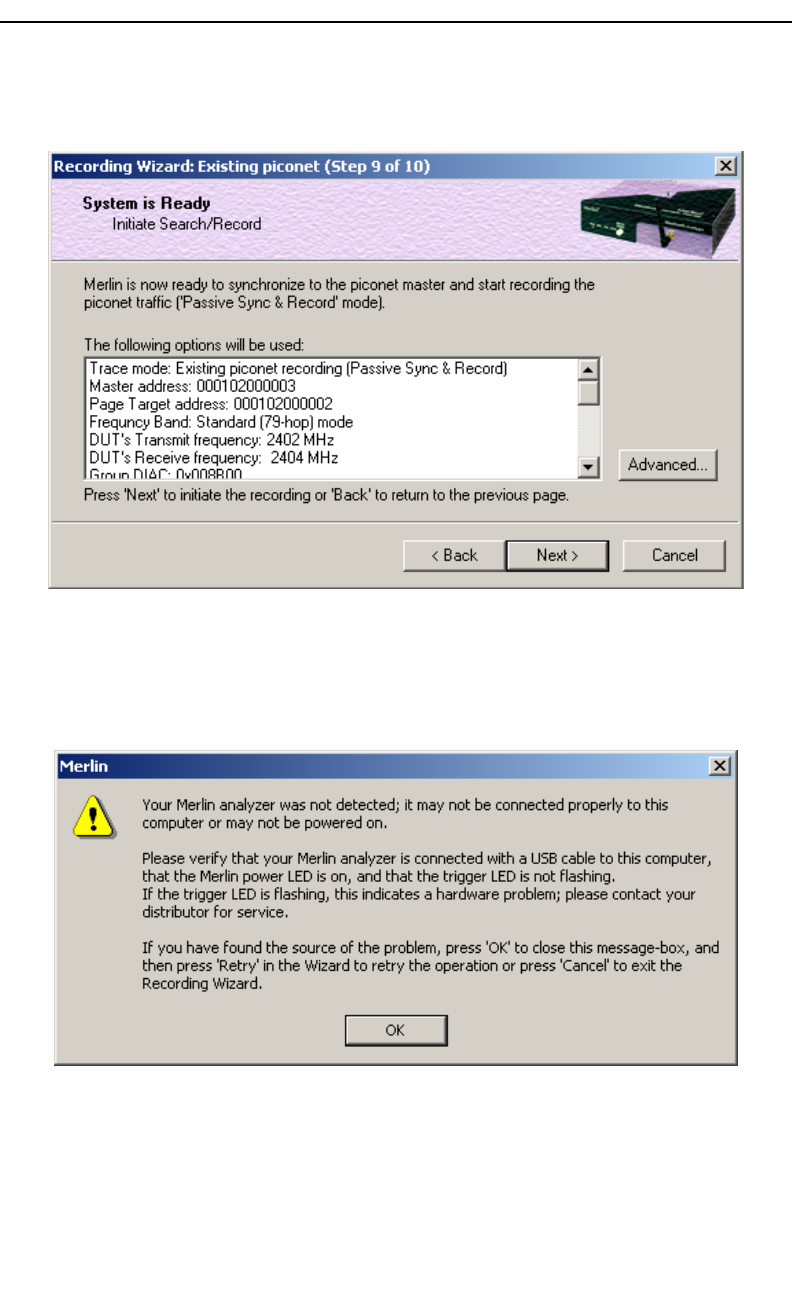

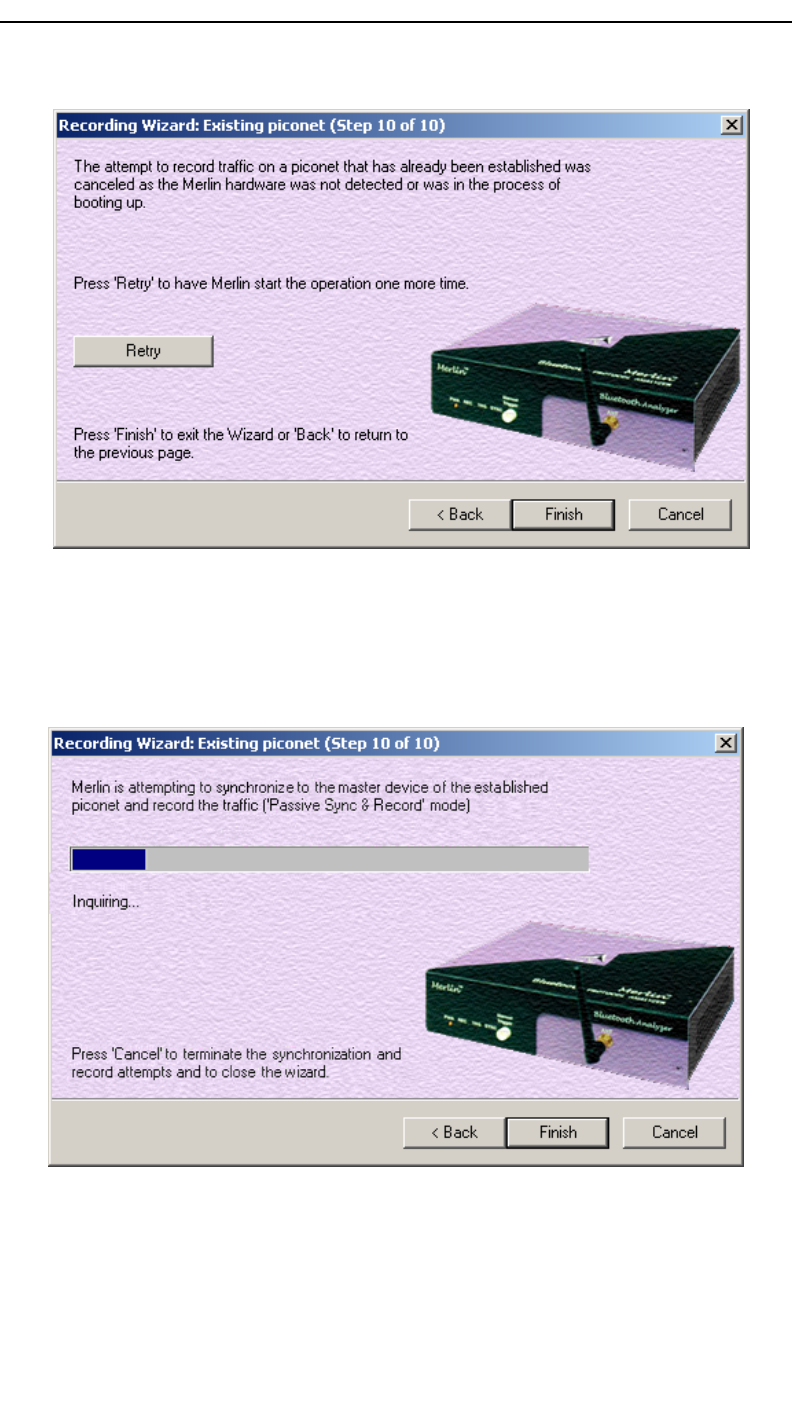

RecordinganExistingPiconet ......................................49

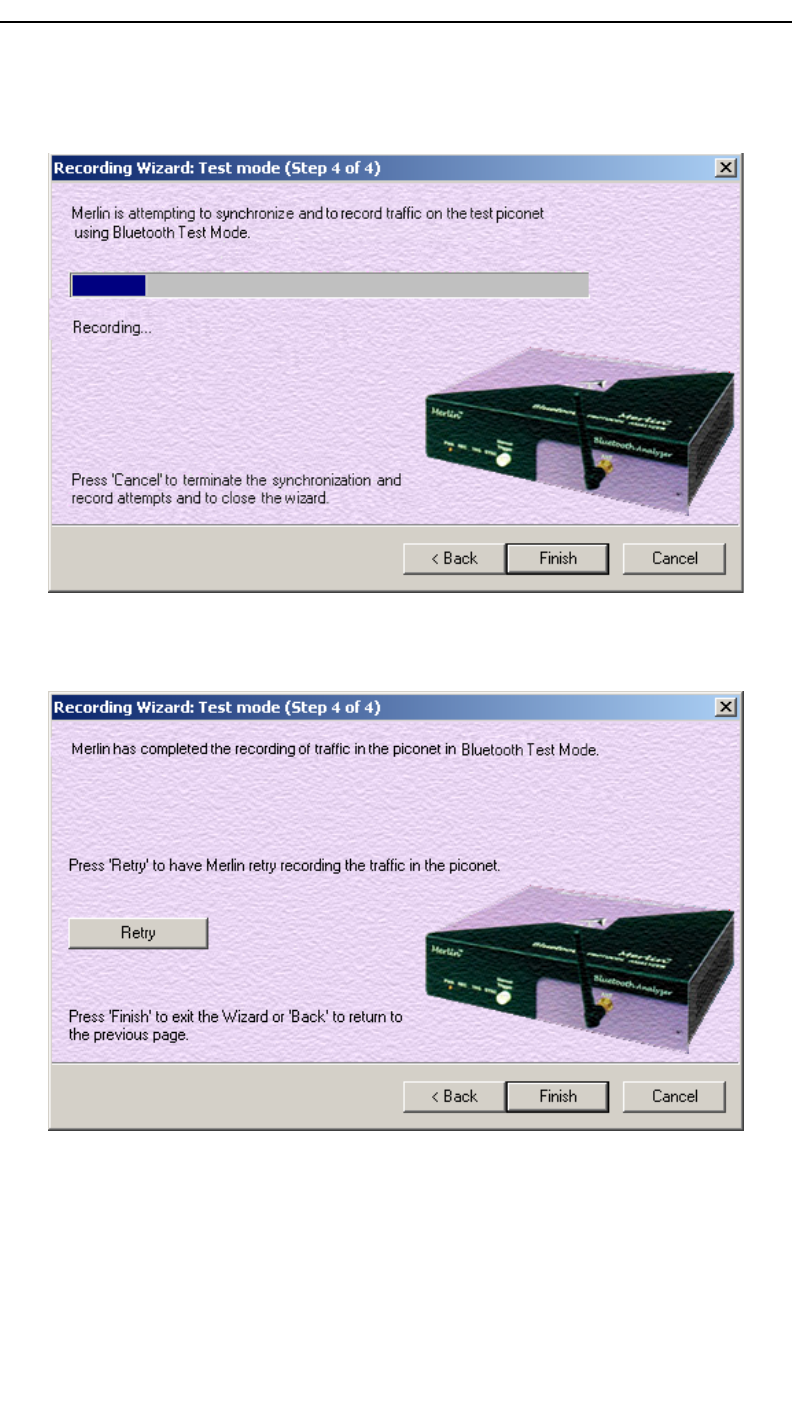

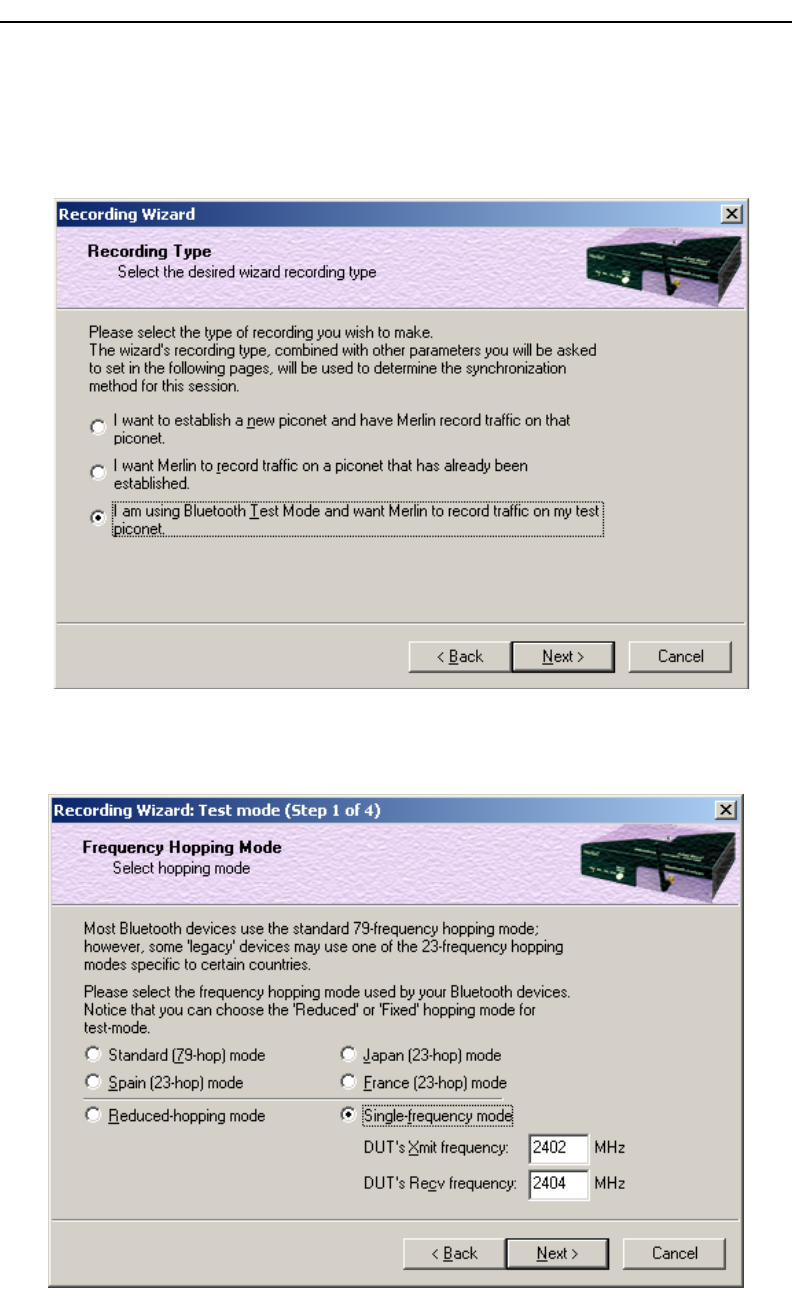

RecordinginTestMode............................................58
RecordinginReducedHoppingMode..........................58
RecordinginSingleFrequencyMode.................................62
Chapter7 RecordingOptions............................63
OpeningtheRecordingOptionsDialogBox .....................63

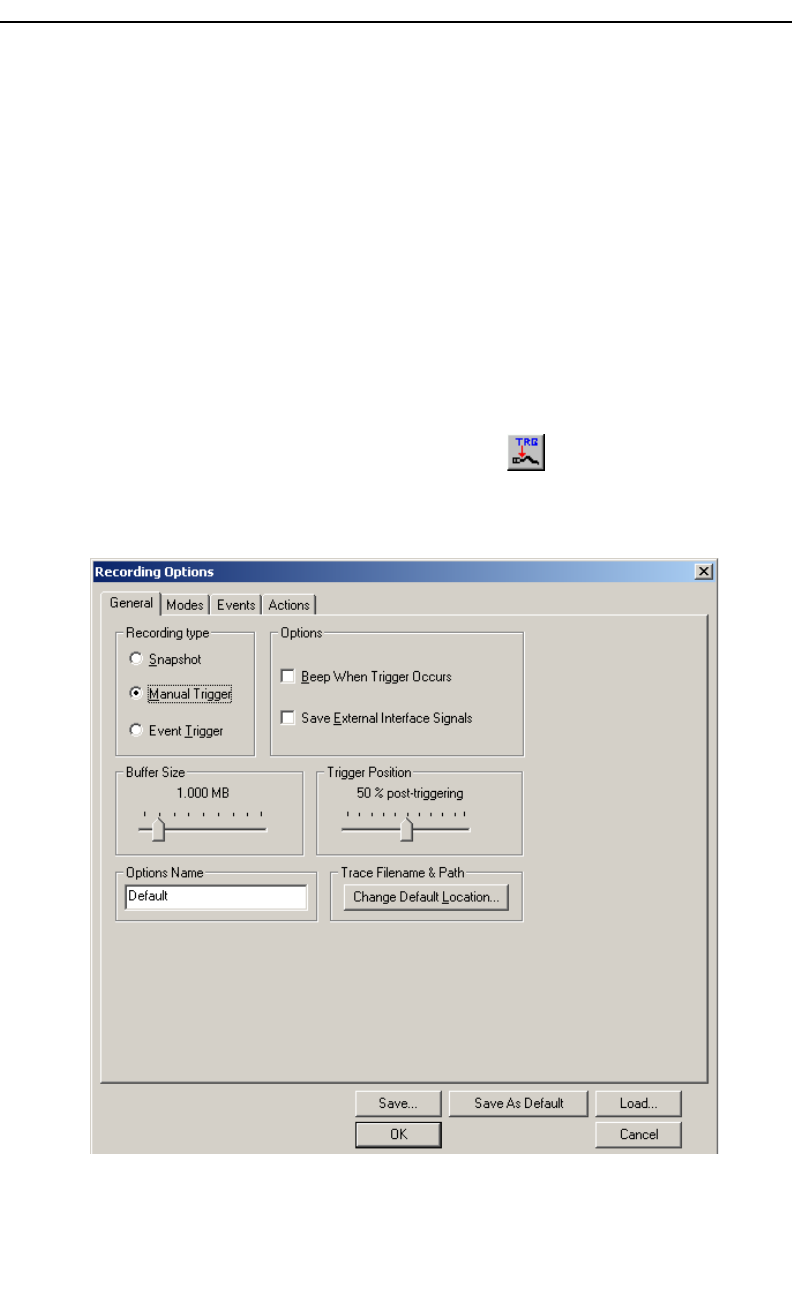

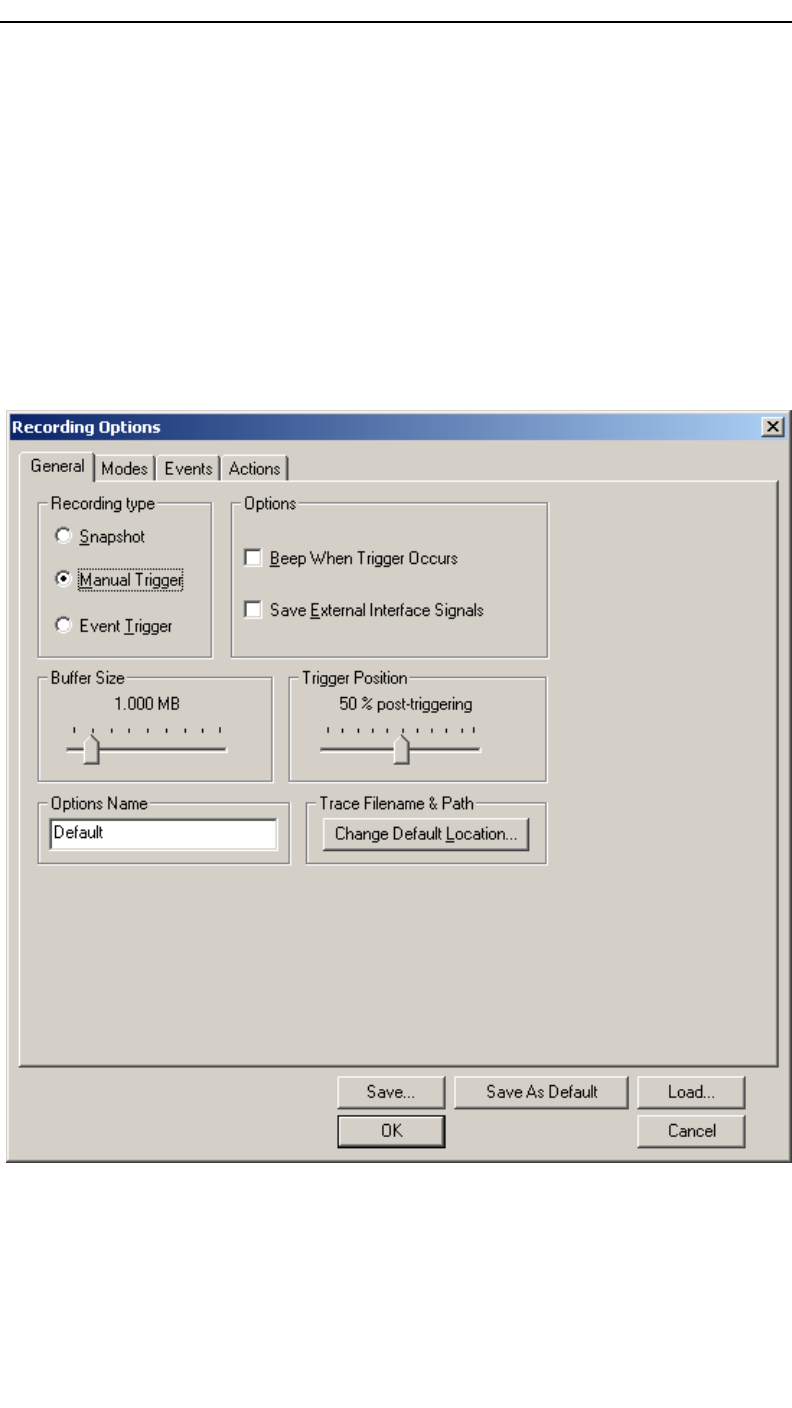

RecordingOptions-General........................................64

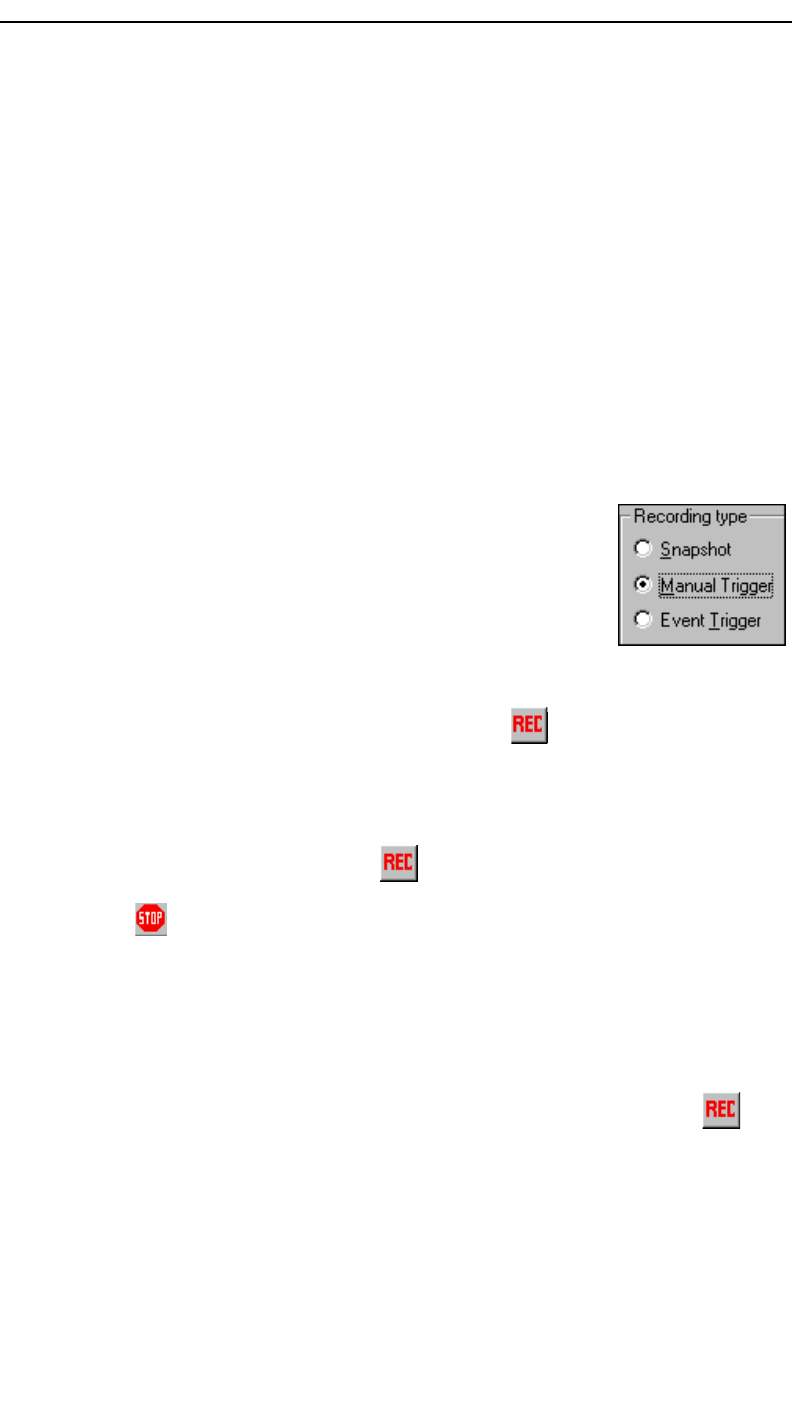

Recordingtype ............................................64

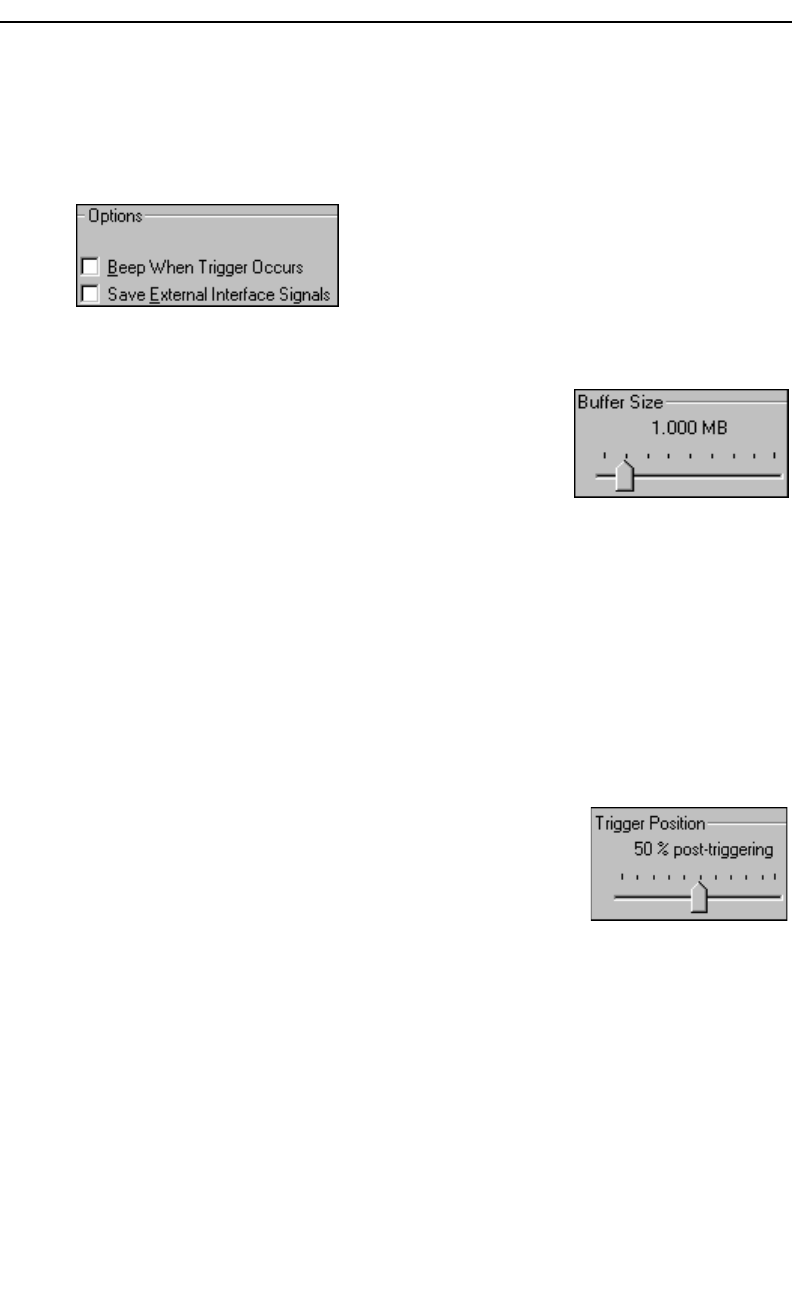

Options..................................................65
BufferSize ...............................................65
TriggerPosition............................................65

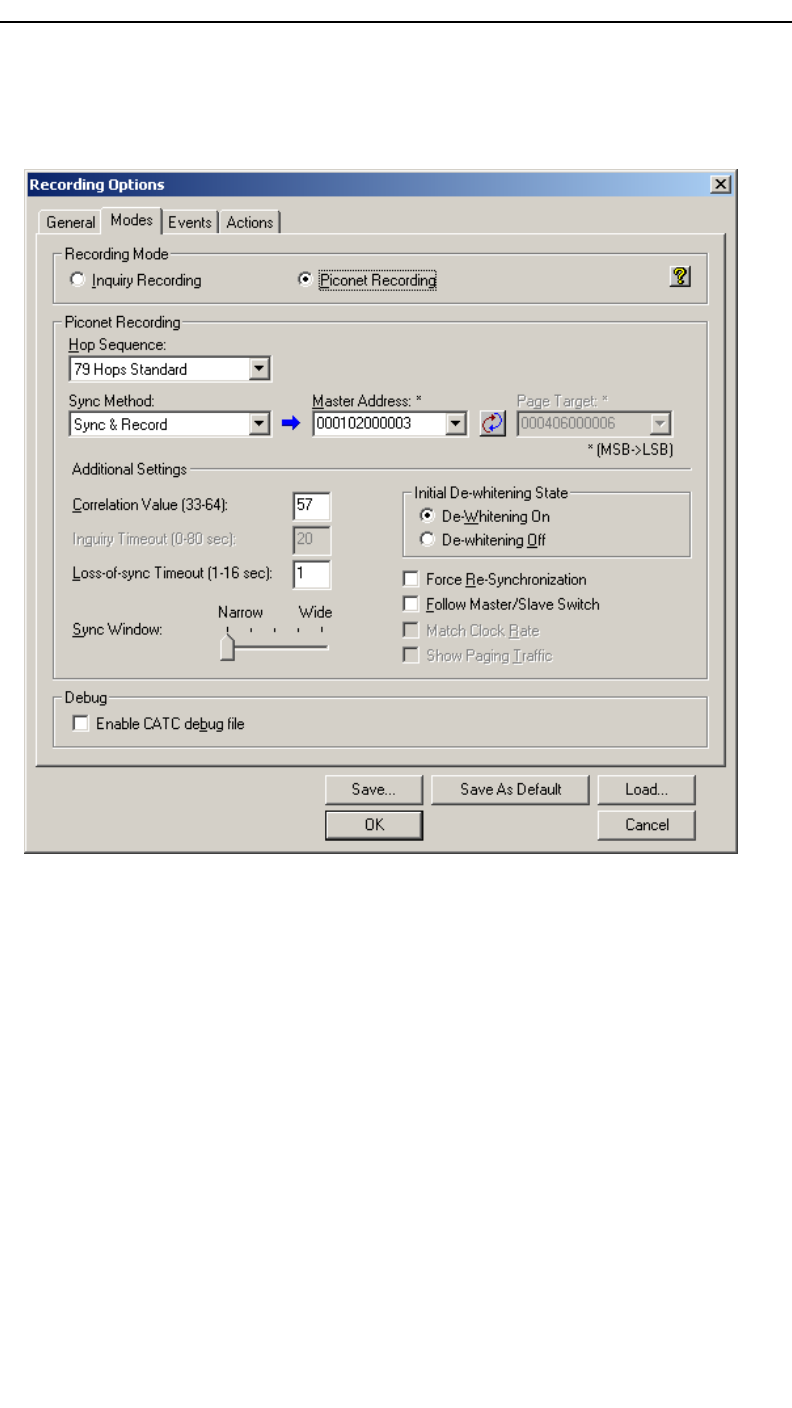

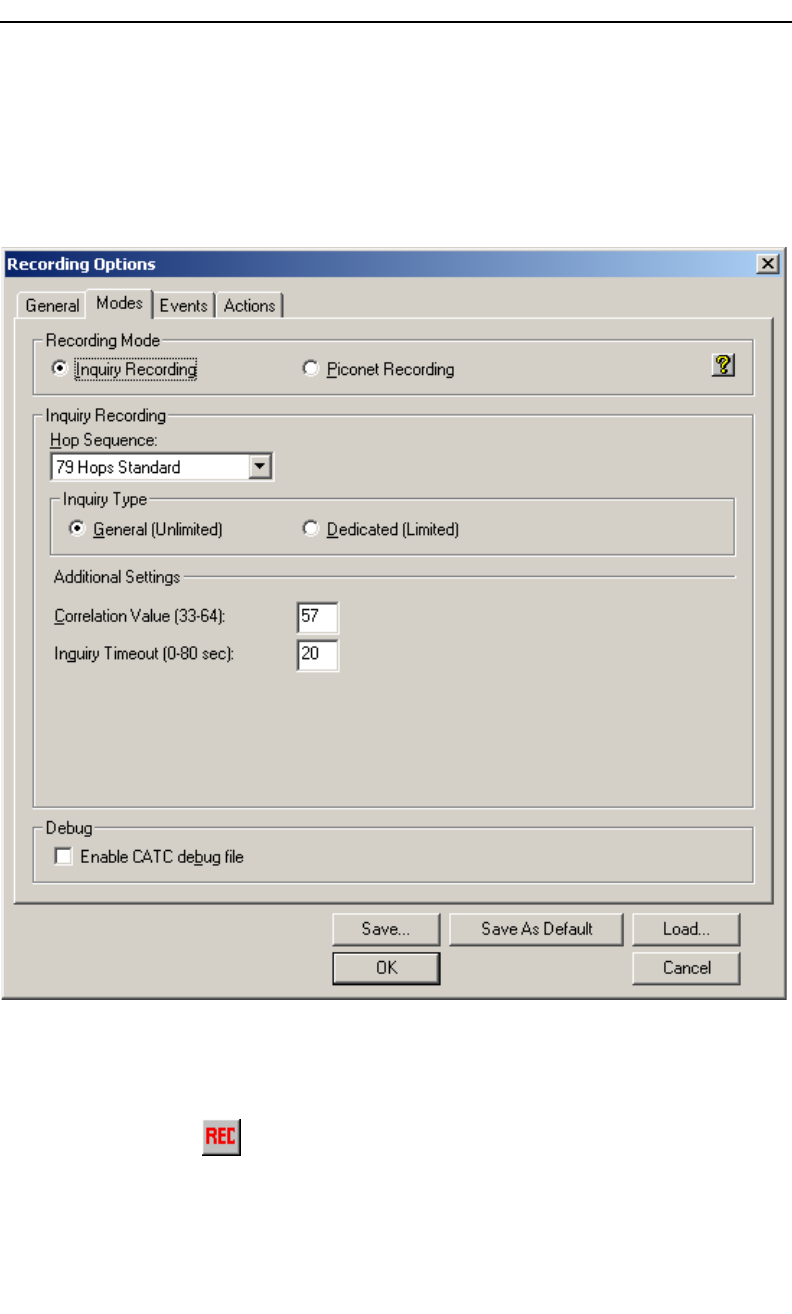

RecordingOptions-Modes.........................................66
RecordingMode...........................................67
InquiryRecording..........................................67
PiconetRecording..........................................68
HopSequence.............................................68

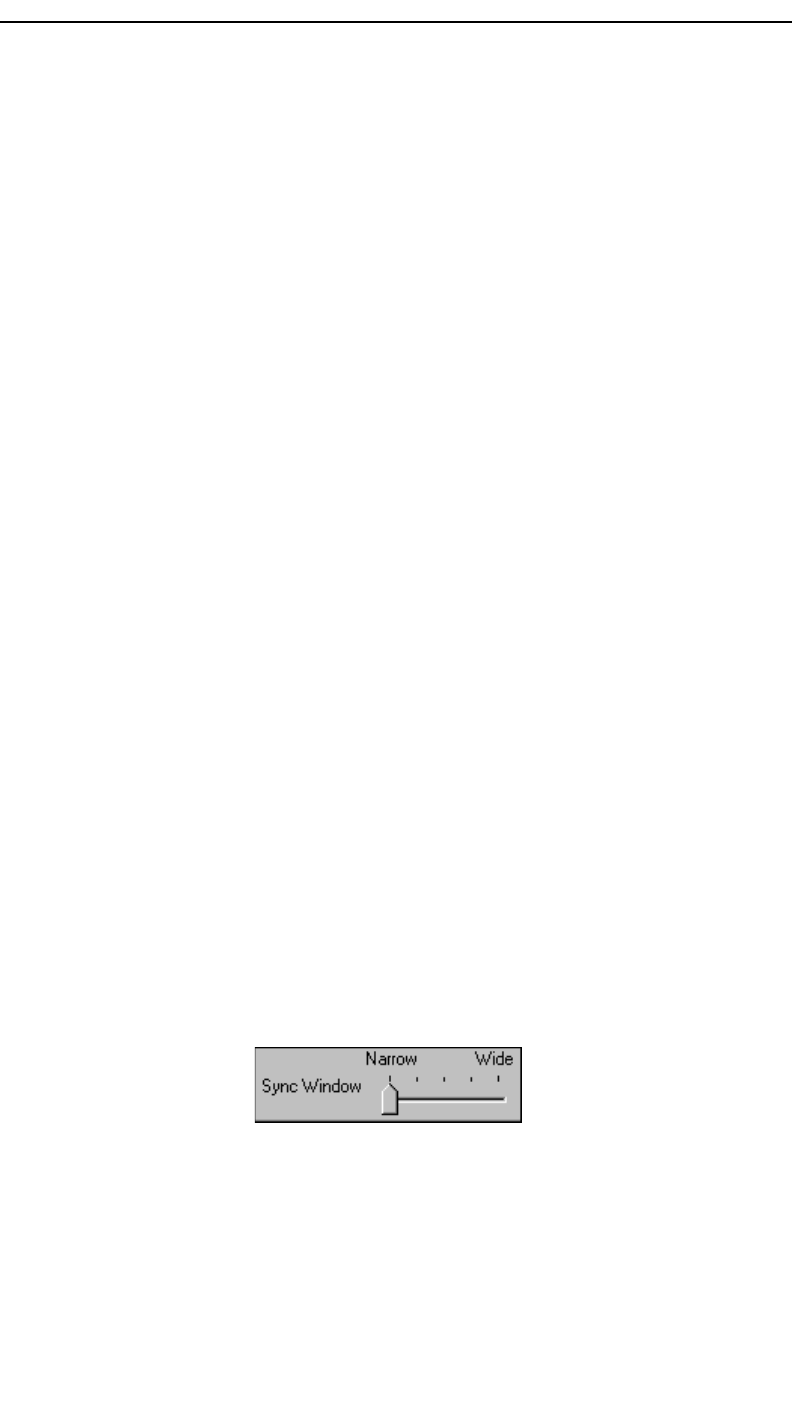

SyncMethods.............................................69
ForceRe-synchronization....................................72
FollowMaster/SlaveSwitch..................................73
MatchClockRate..........................................73
ShowPagingTraffic........................................73
v
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
PiconetAddresses(MSB->LSB) .............................73
OtherParameters...........................................74
Debug/Test ...............................................75

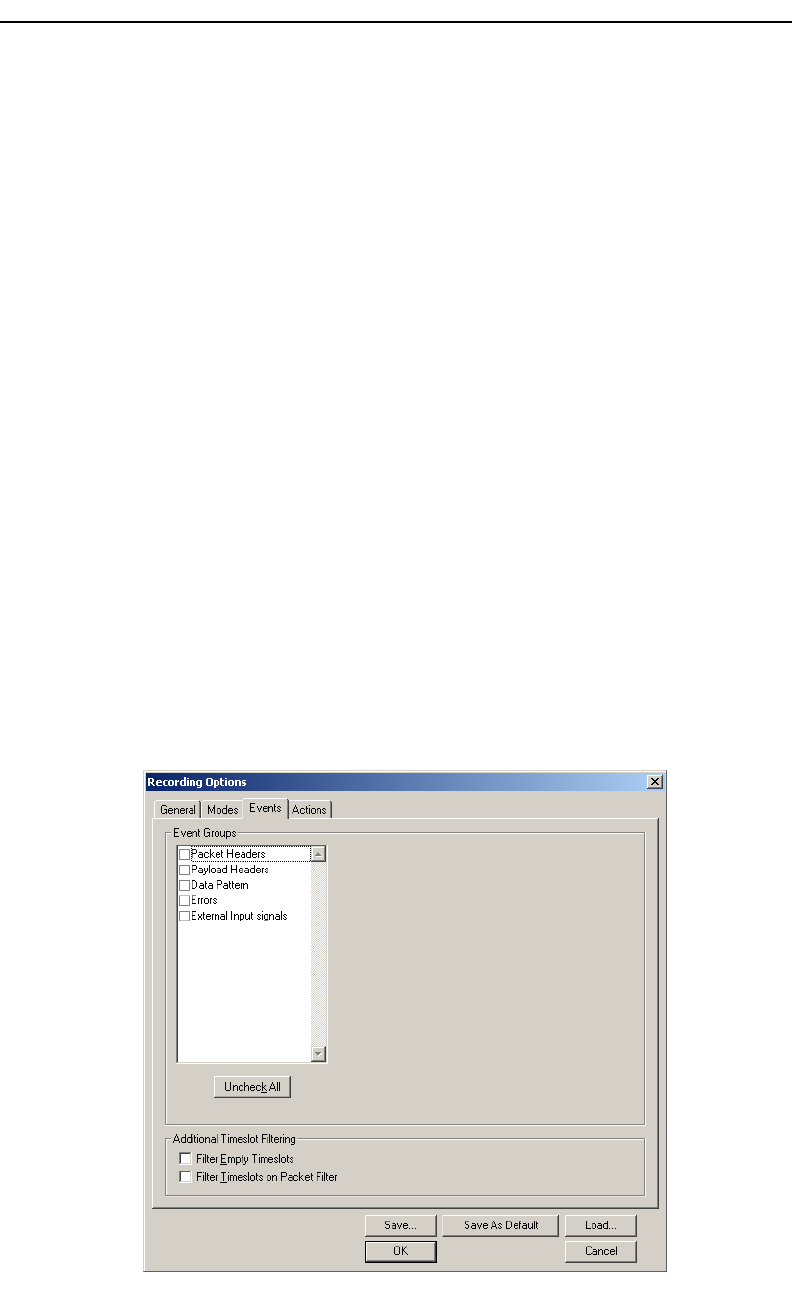

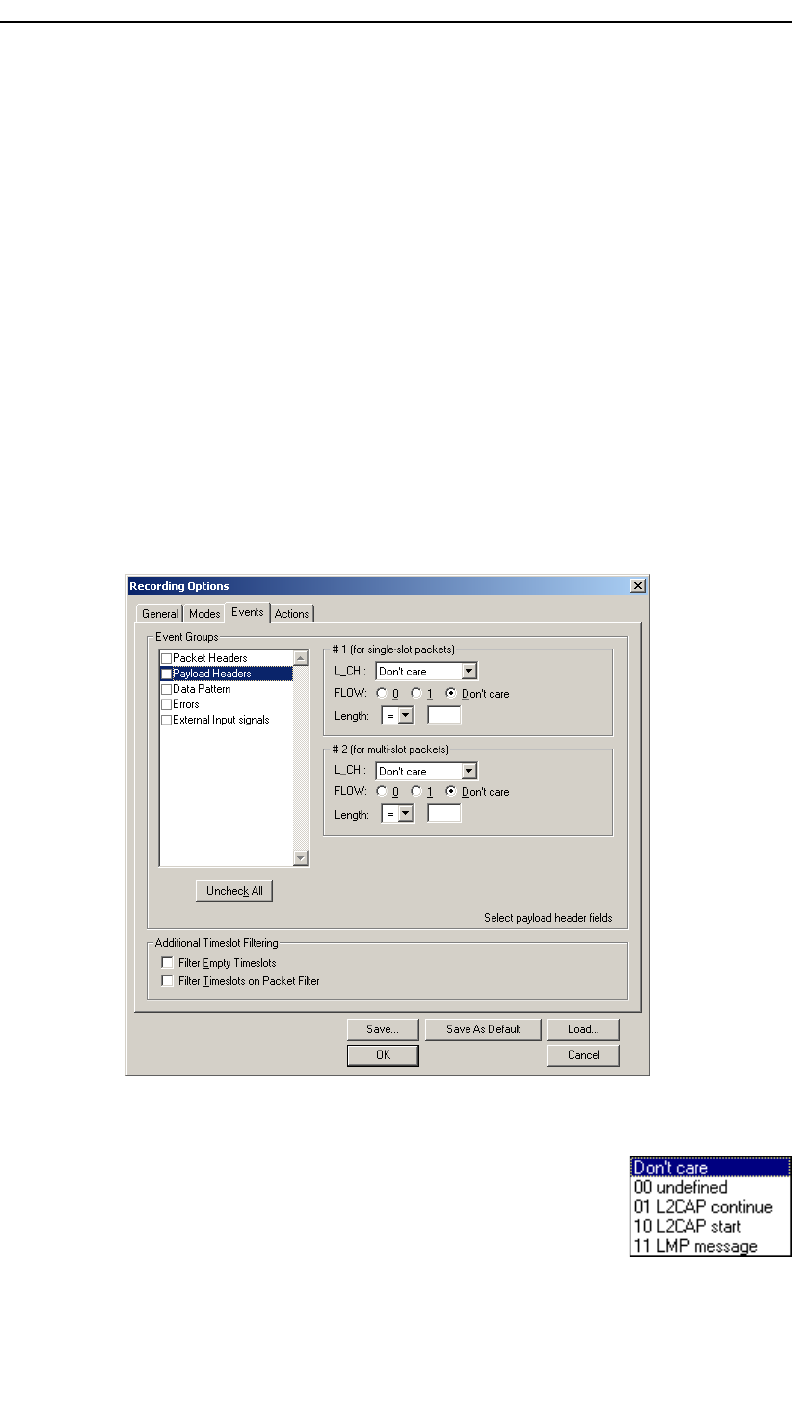

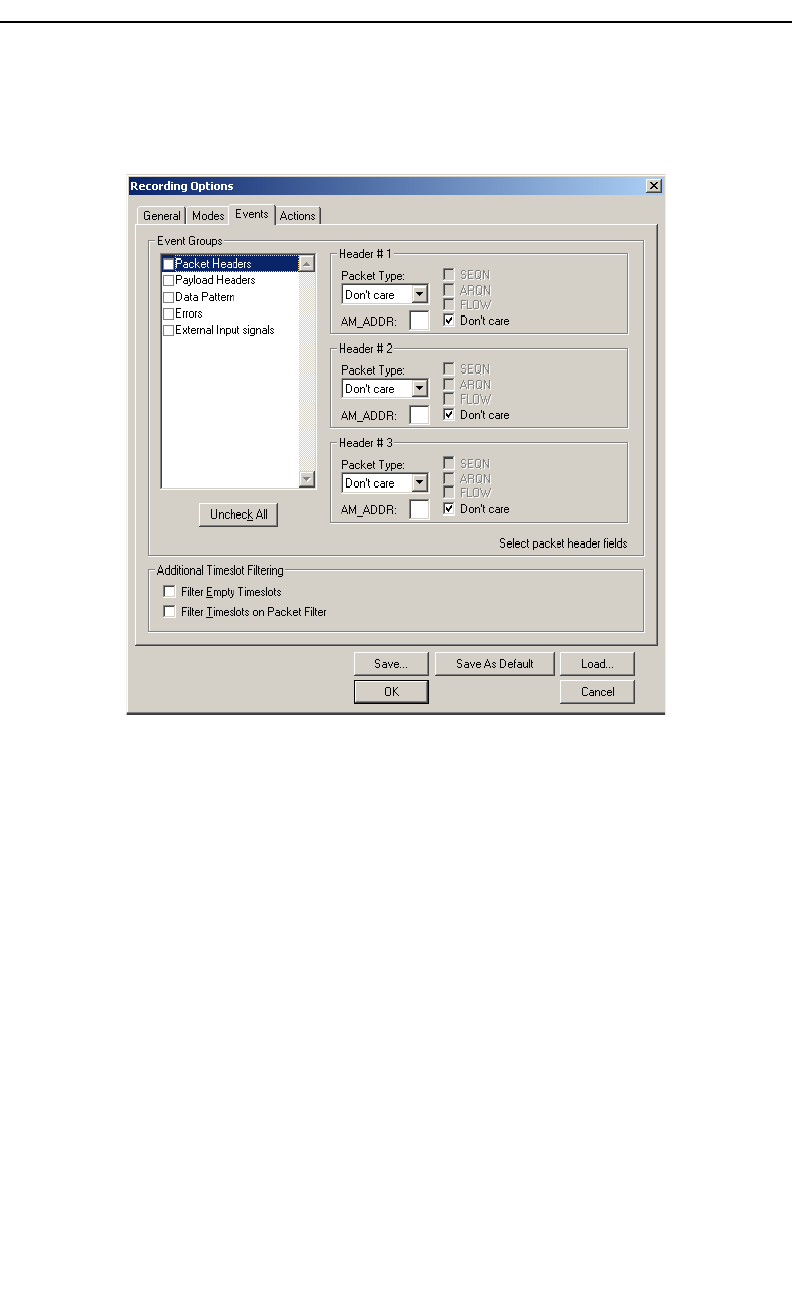

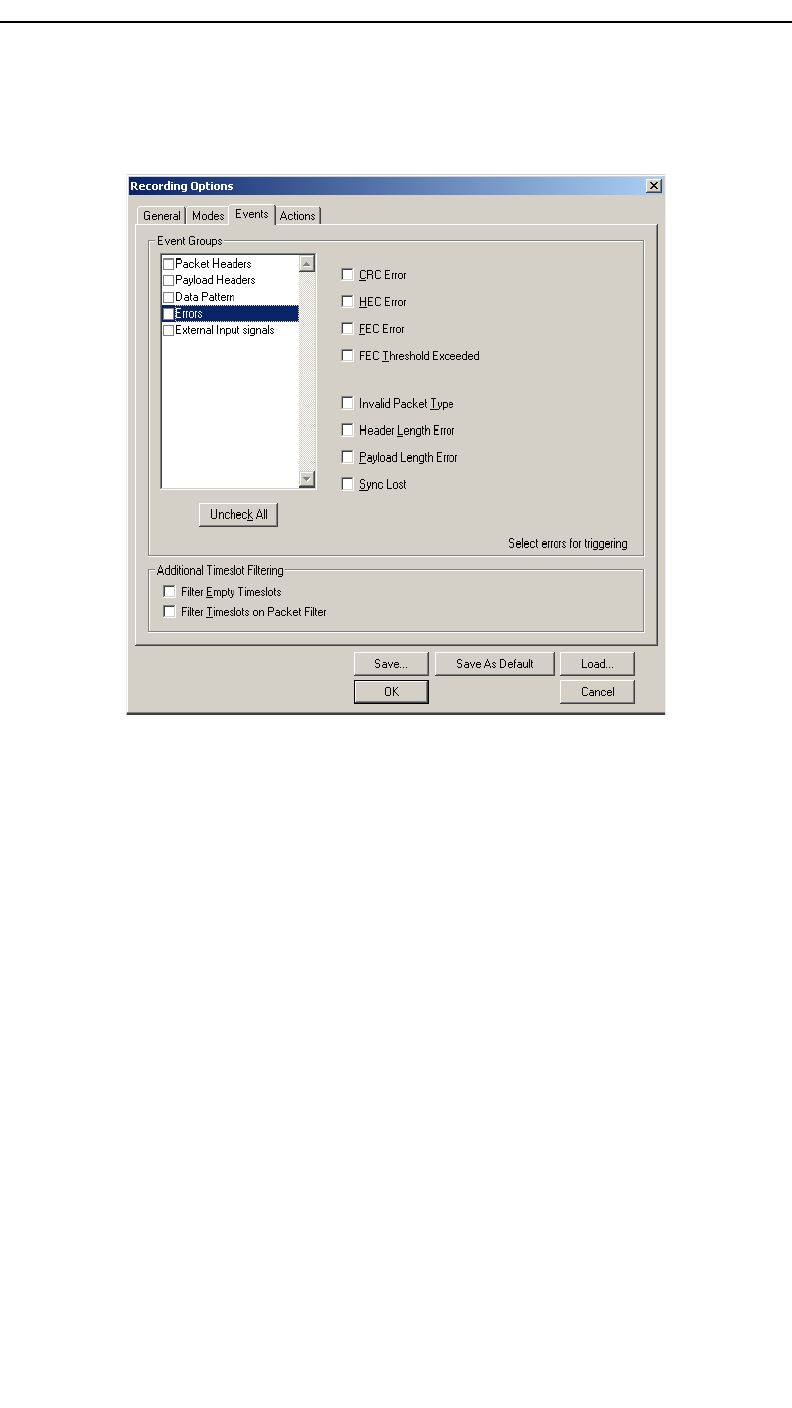

RecordingOptions-Events.........................................75
EventsOptions ............................................75
PayloadLengthError.......................................81

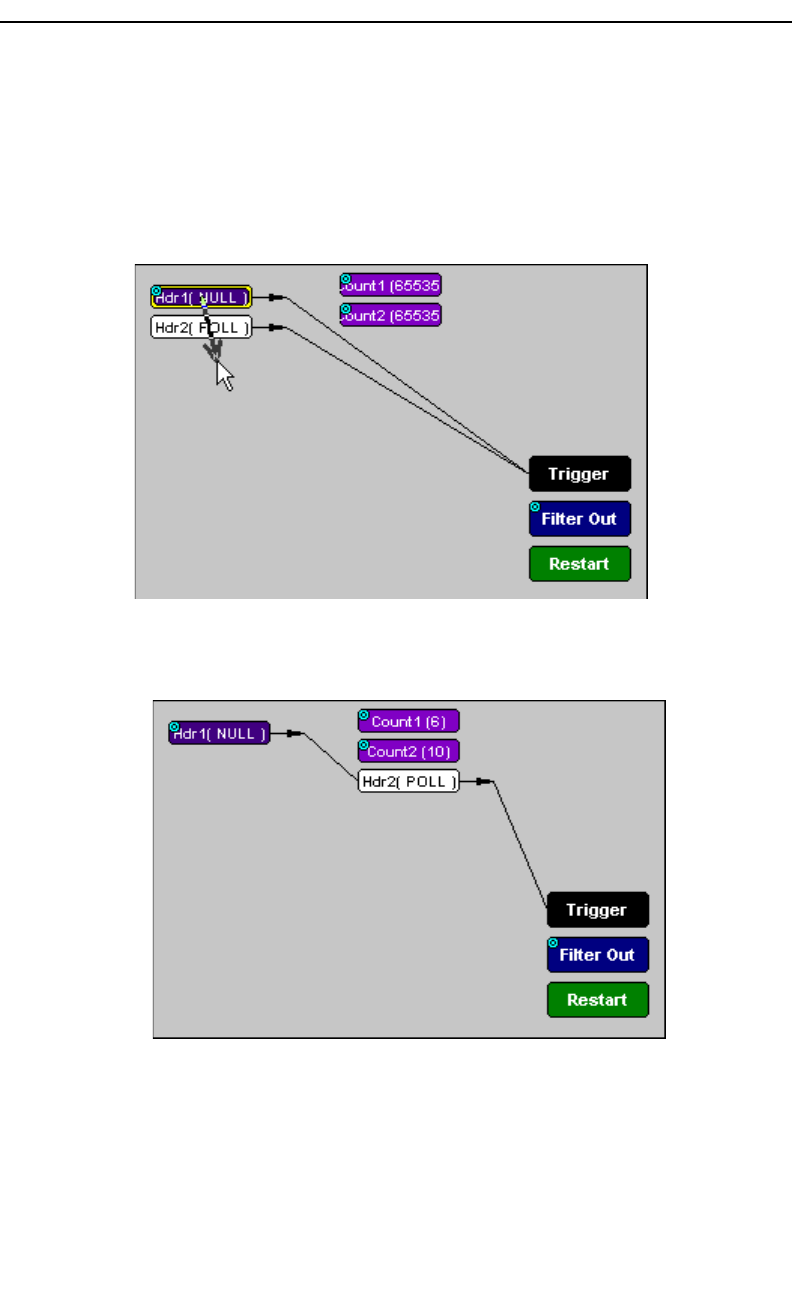

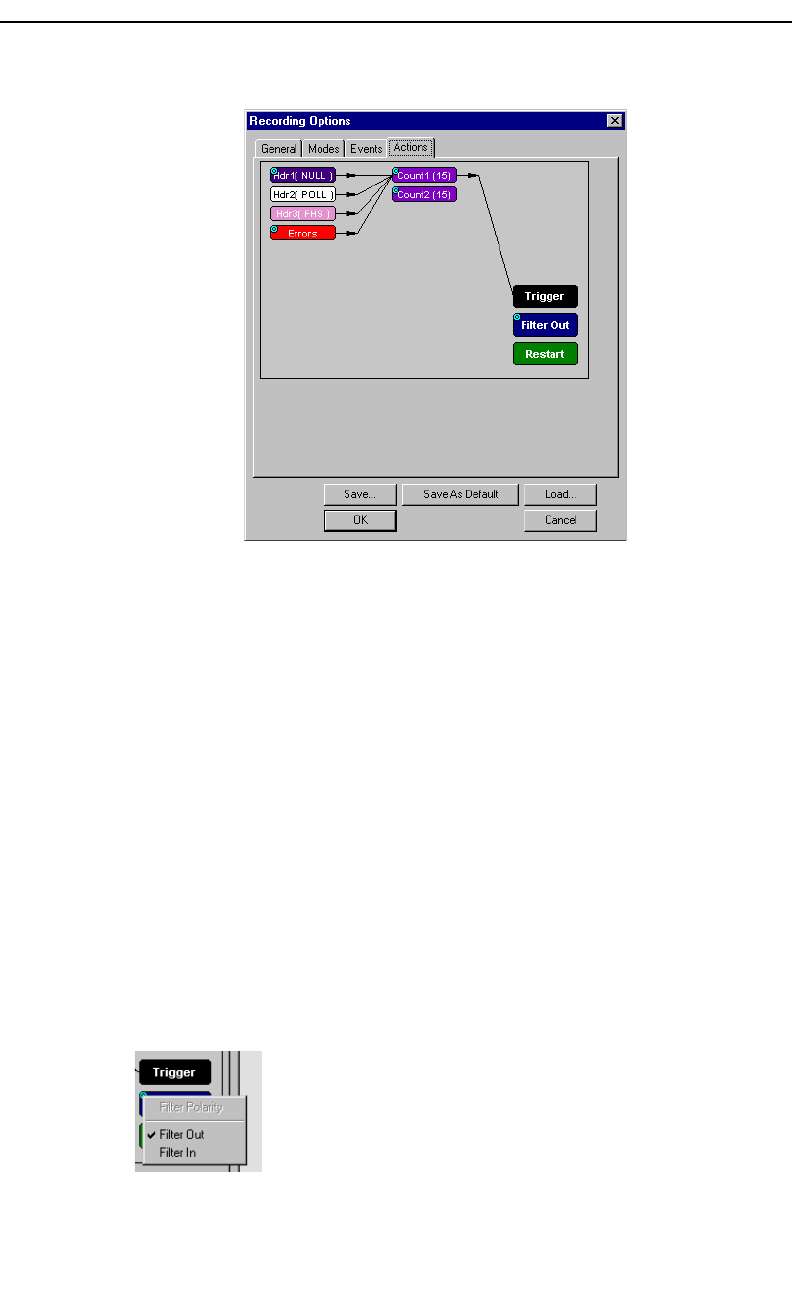

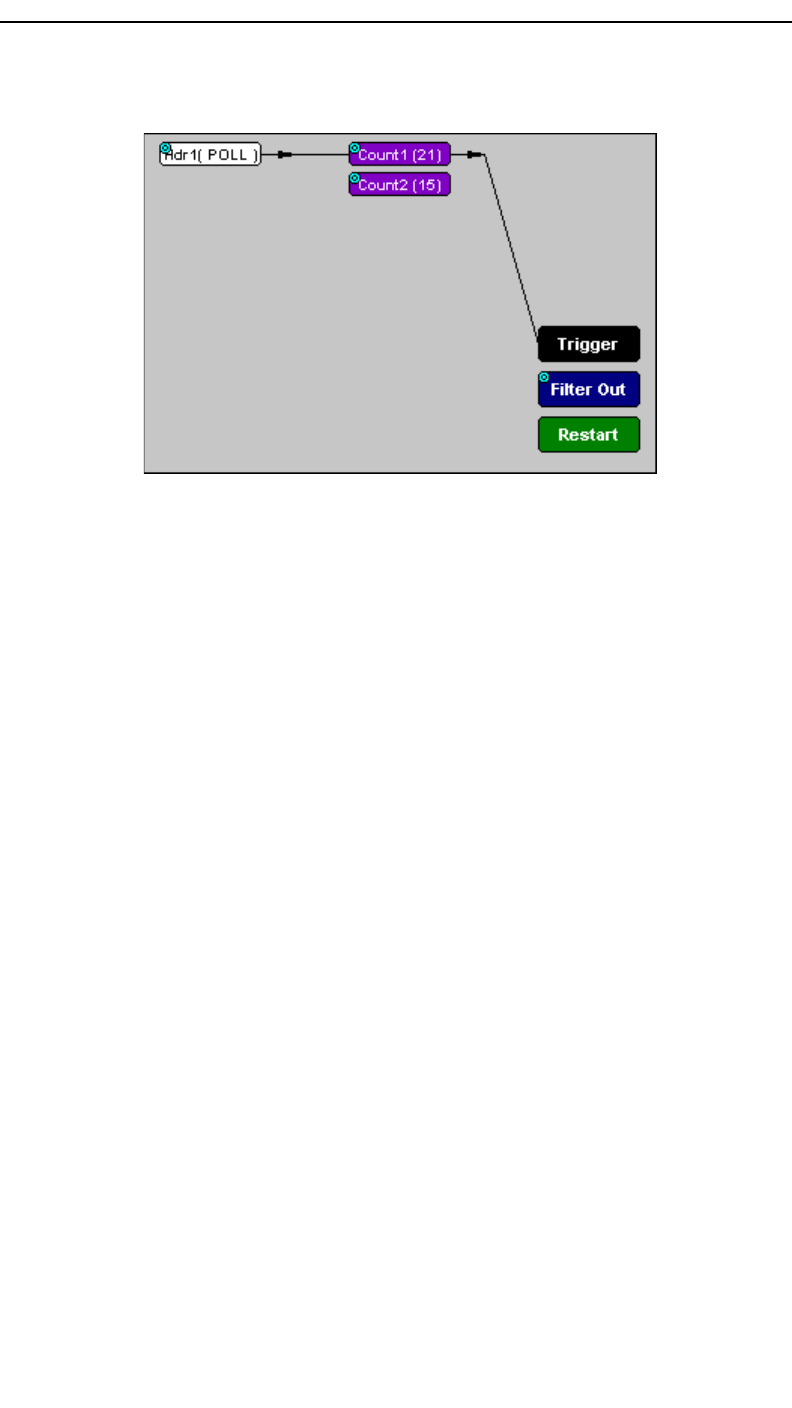

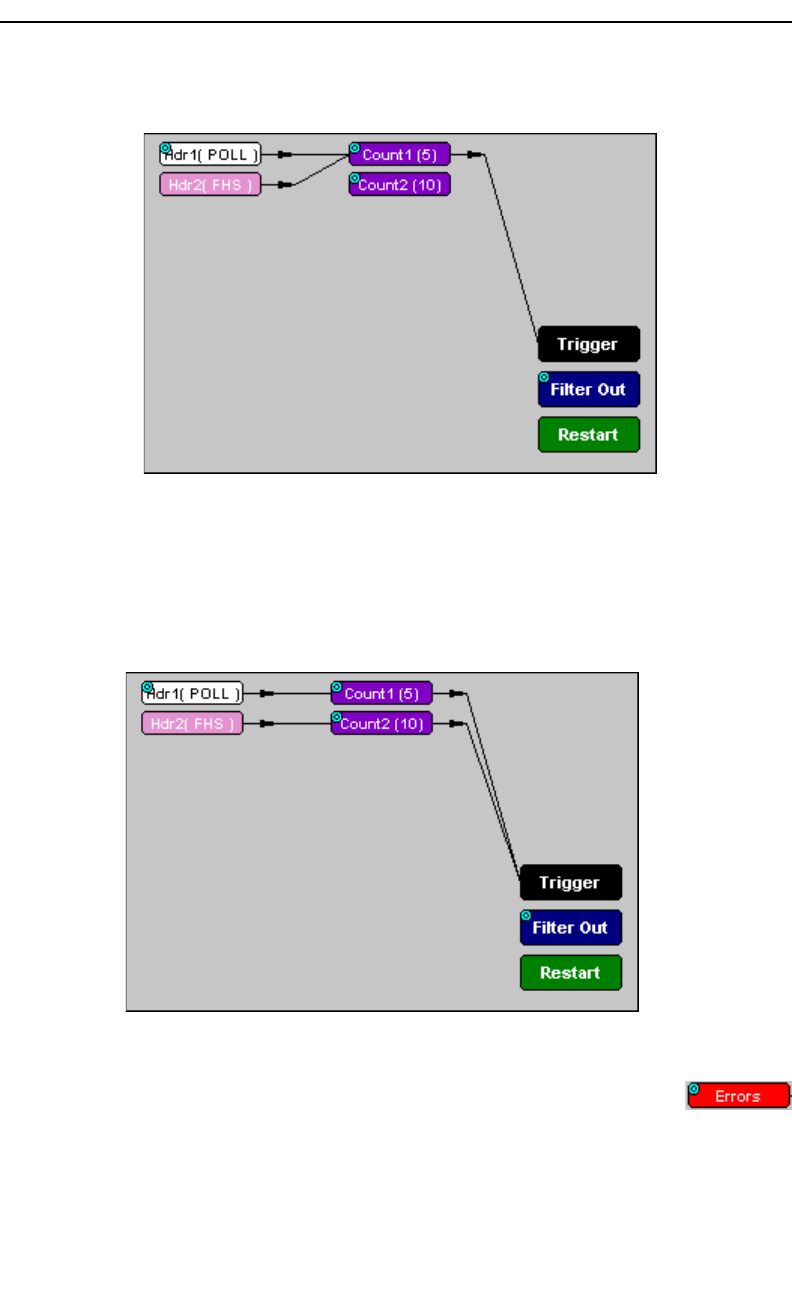

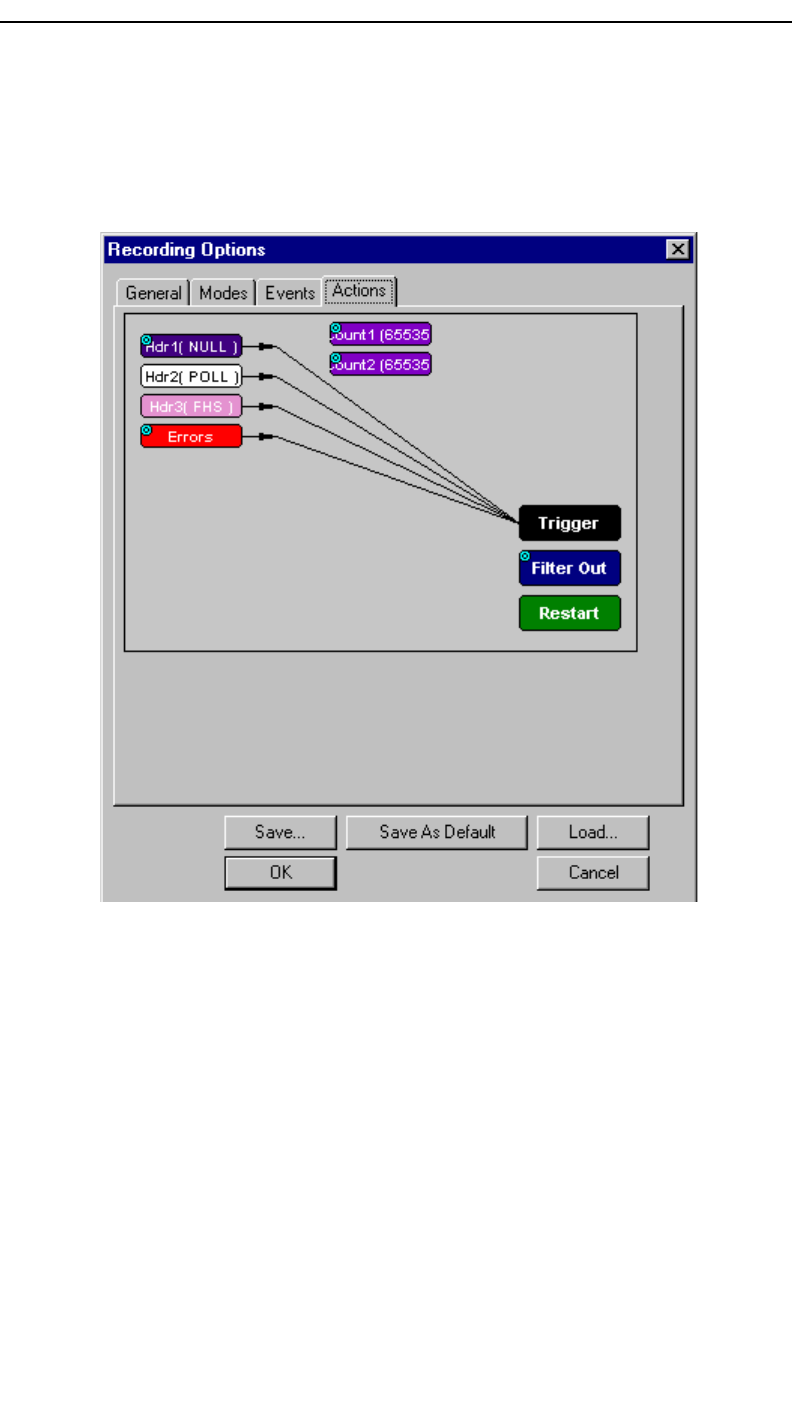

RecordingOptions-Actions........................................82
ActionsWindowLayout.....................................82
ActionButtons-TheirFunctions..............................83

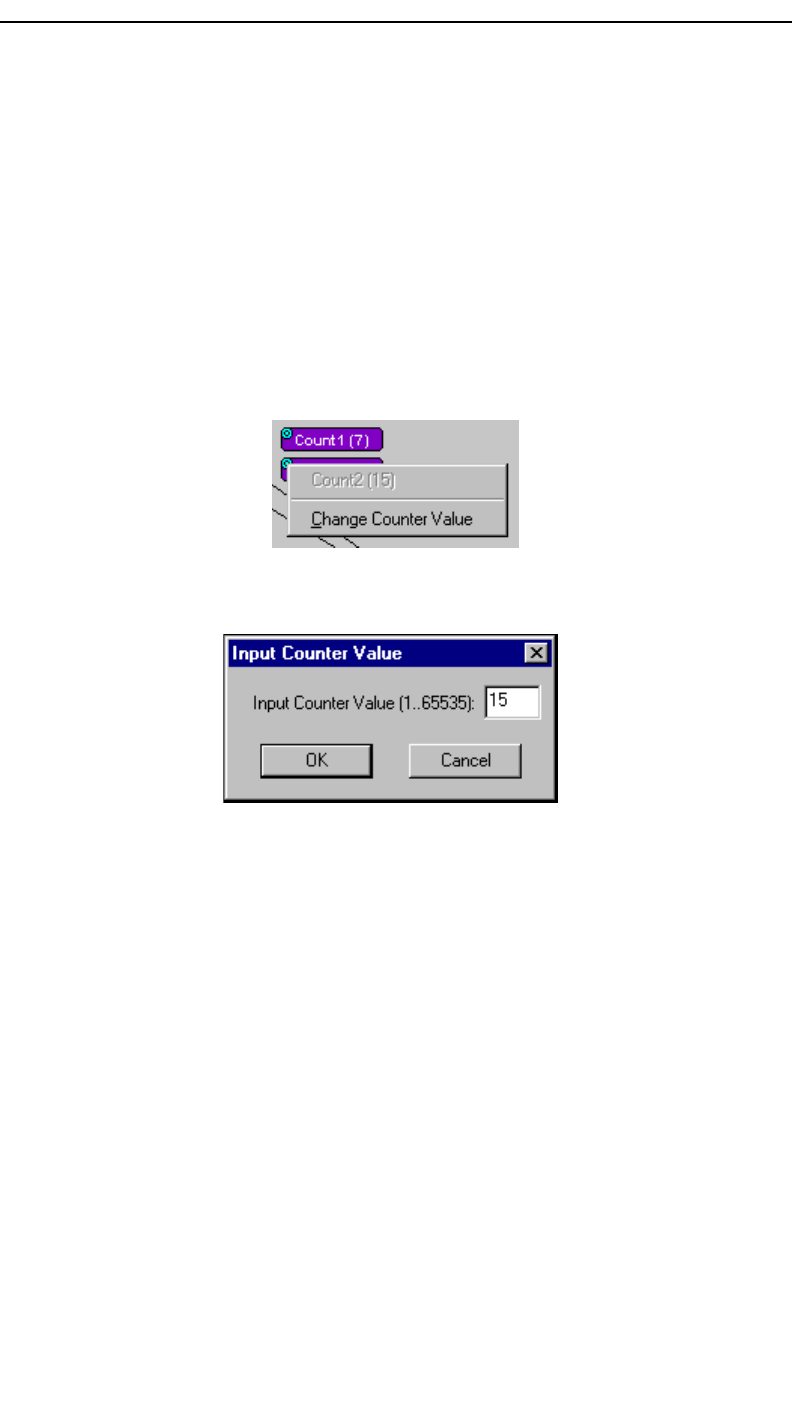

Counting Buttons - Their Functions . . . .........................83

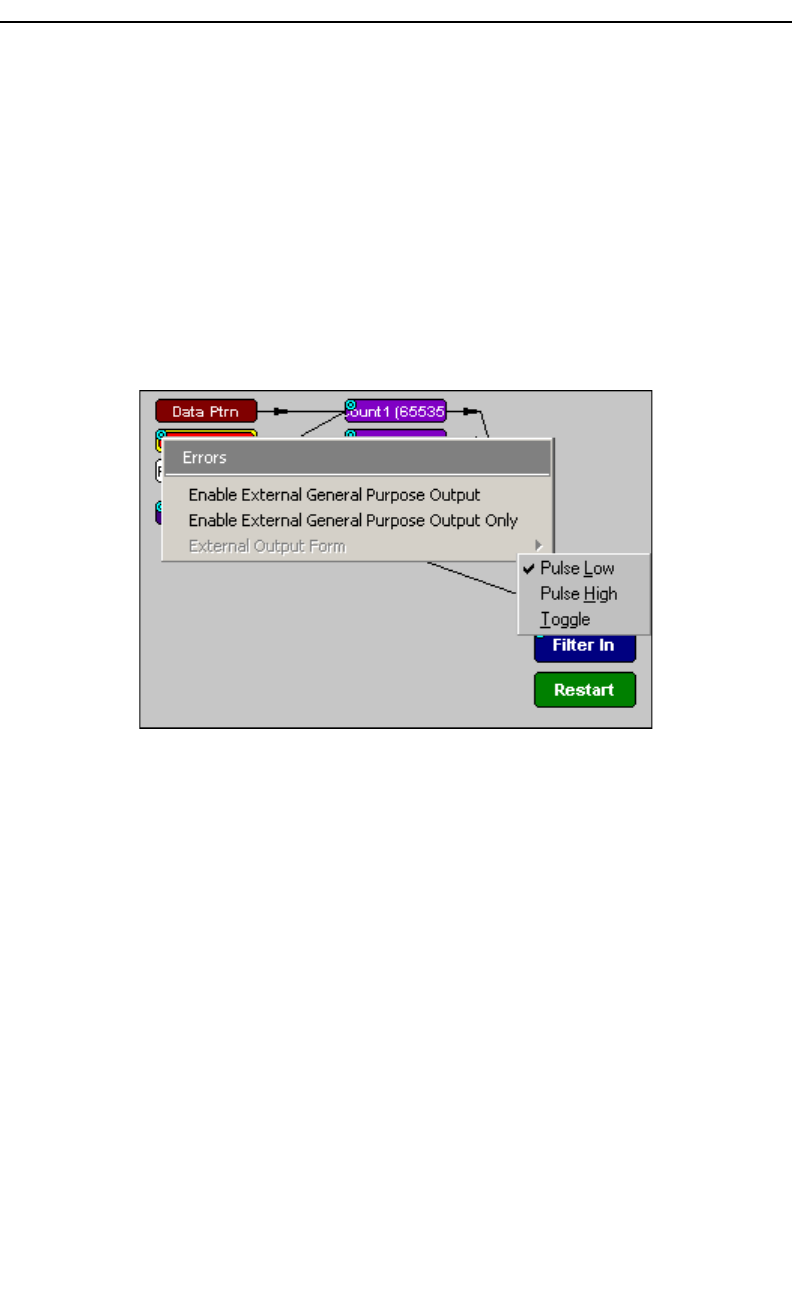

BlueDotMenus ...........................................85
SavingRecordingOptions..........................................91
RecordingBluetoothTraffic ........................................92
Chapter8 DisplayOptions ..............................95

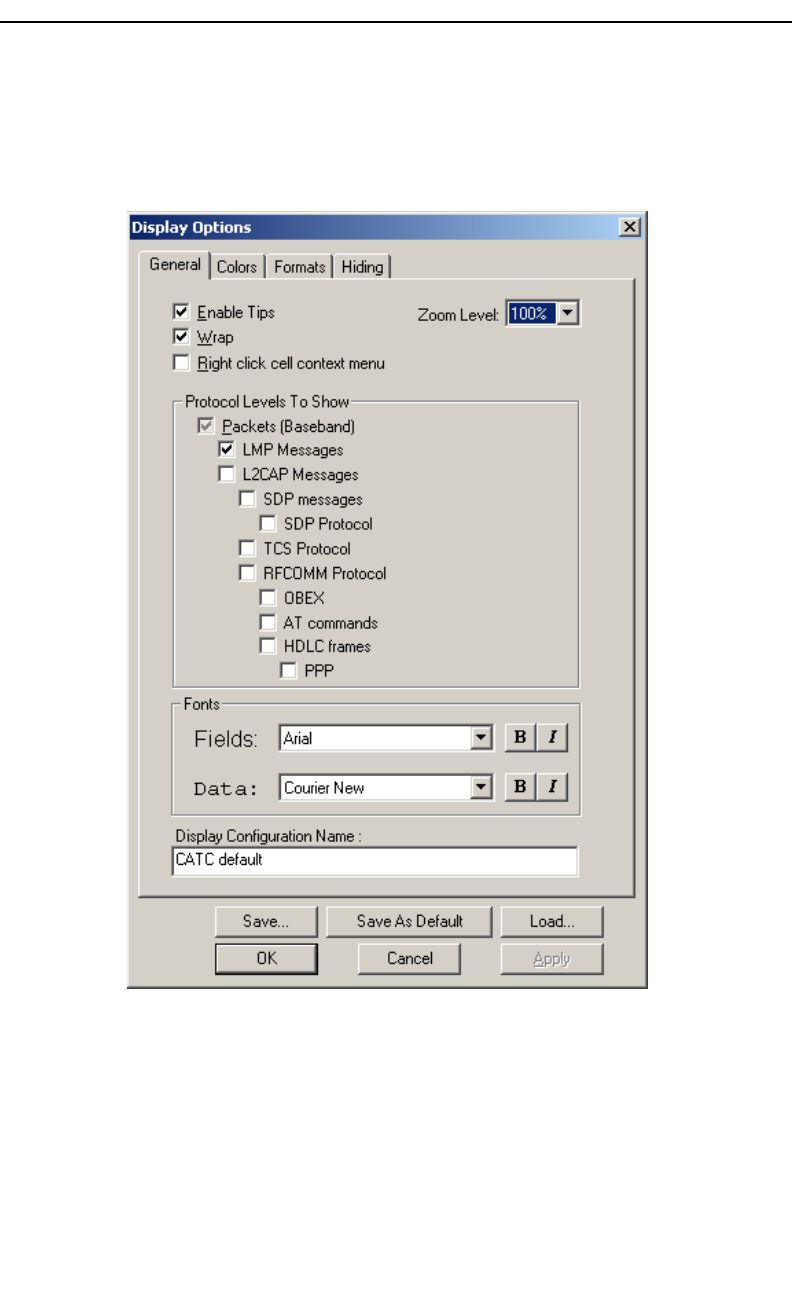

GeneralDisplayOptions ...........................................95
TraceViewingLevel........................................96
CreatingNewDisplayOptionsFiles ...........................96

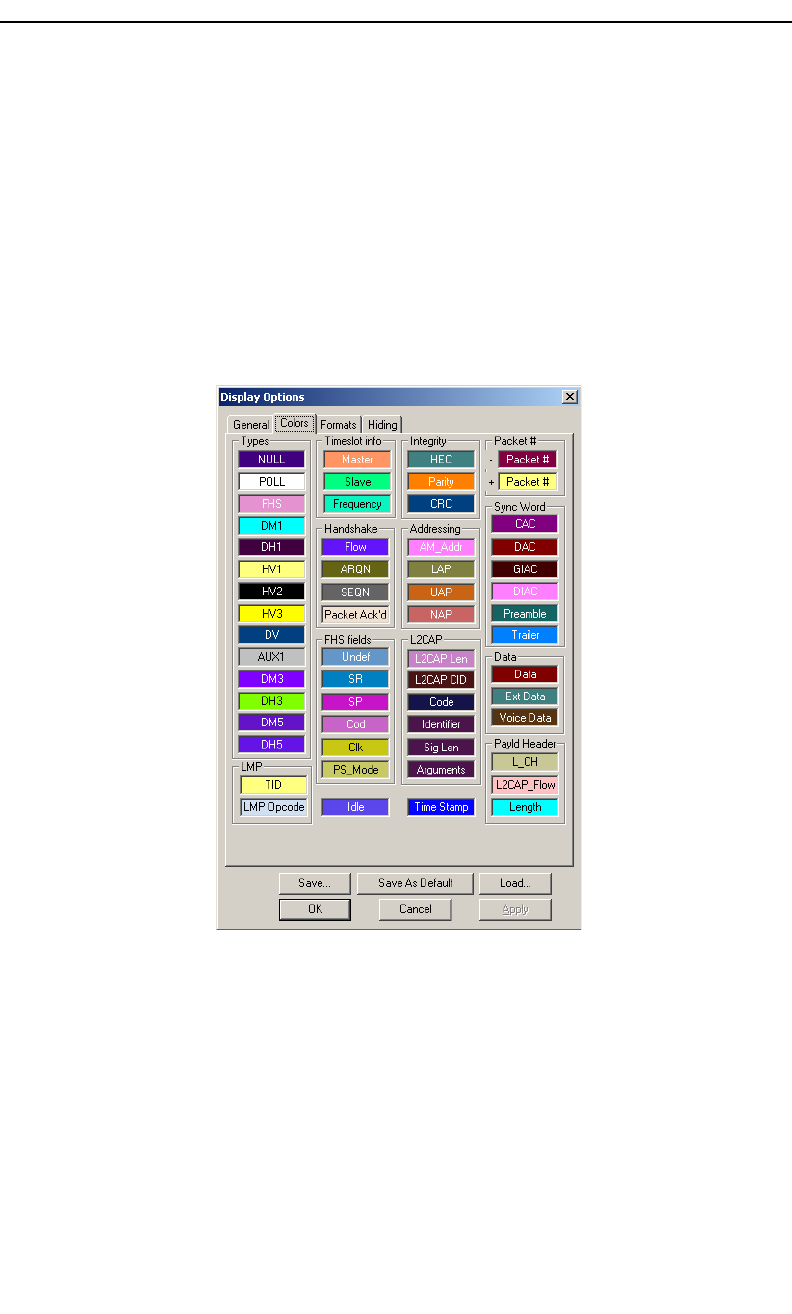

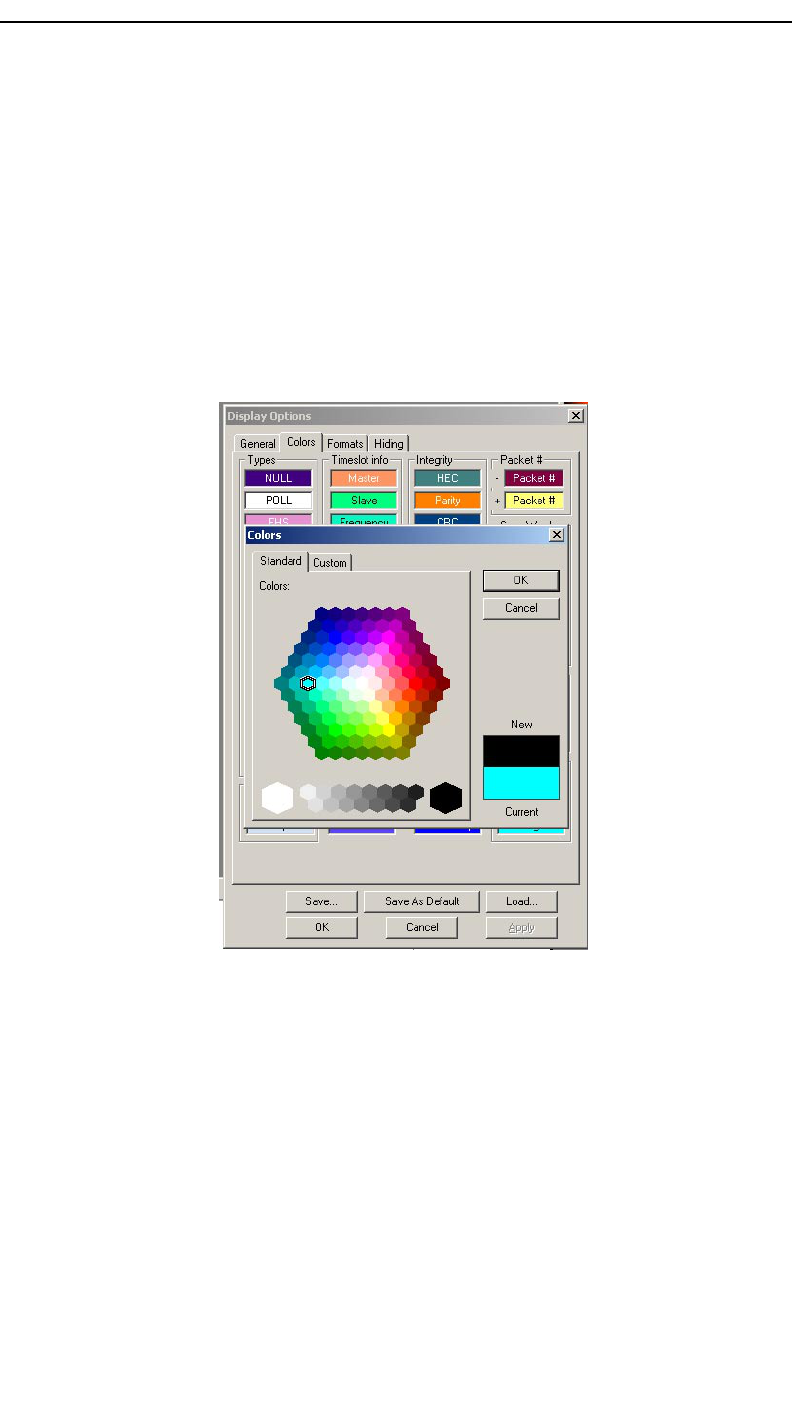

ColorDisplayOptions.............................................97

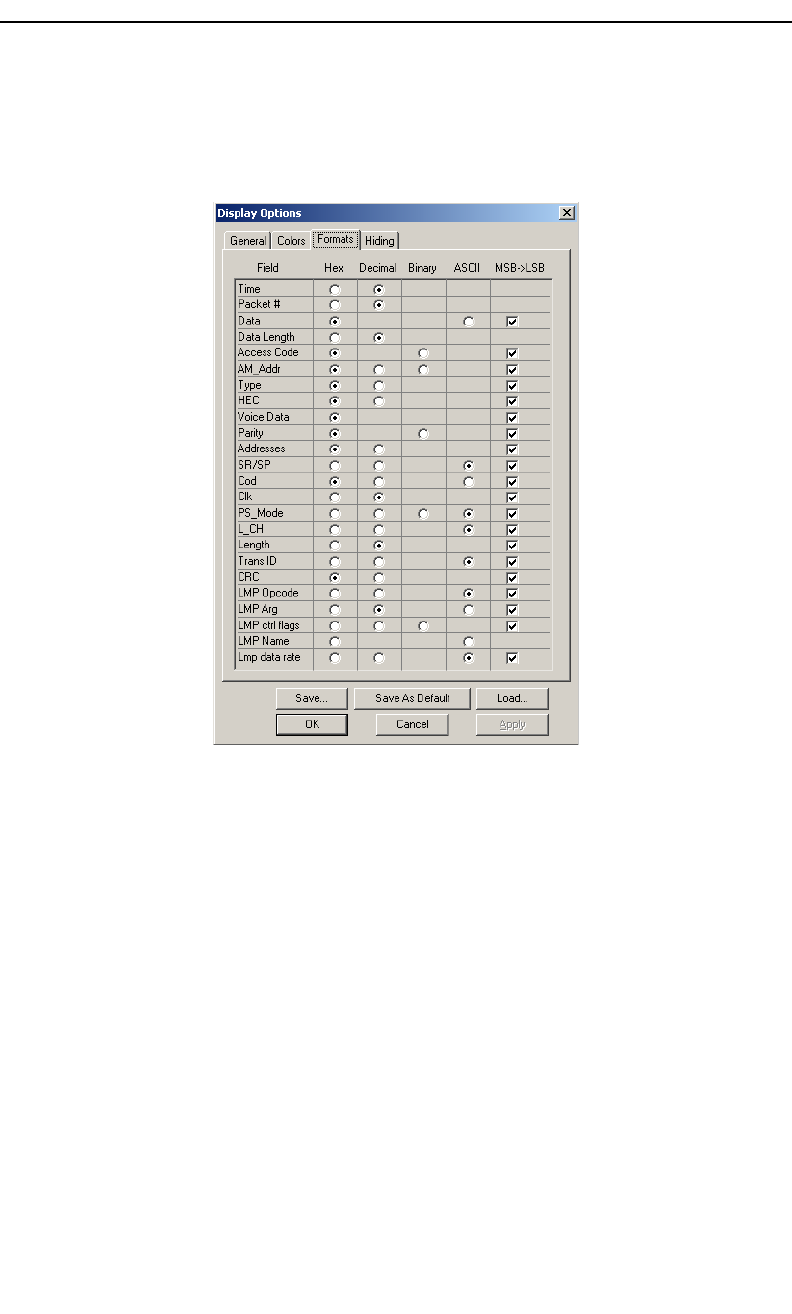

FormatsDisplayOptions...........................................99

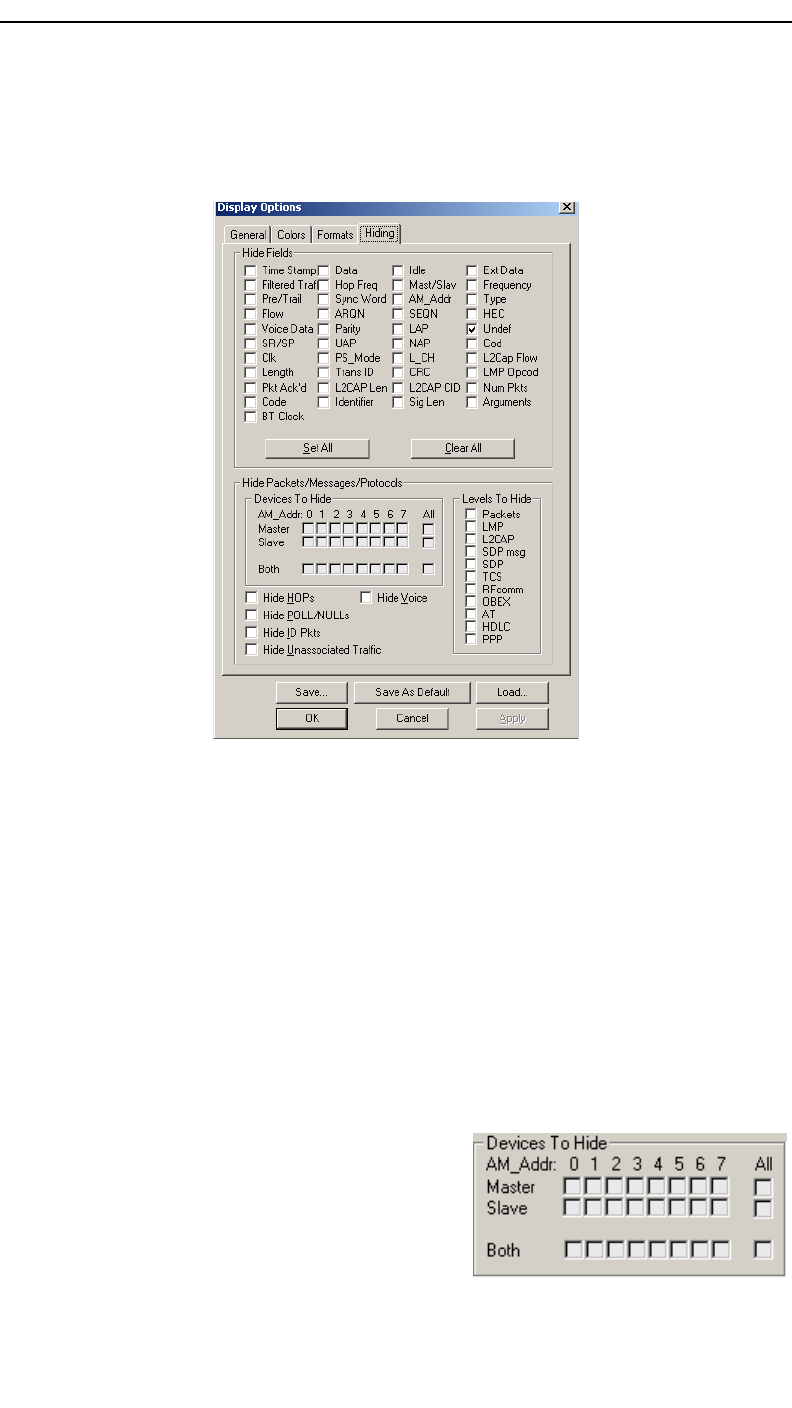

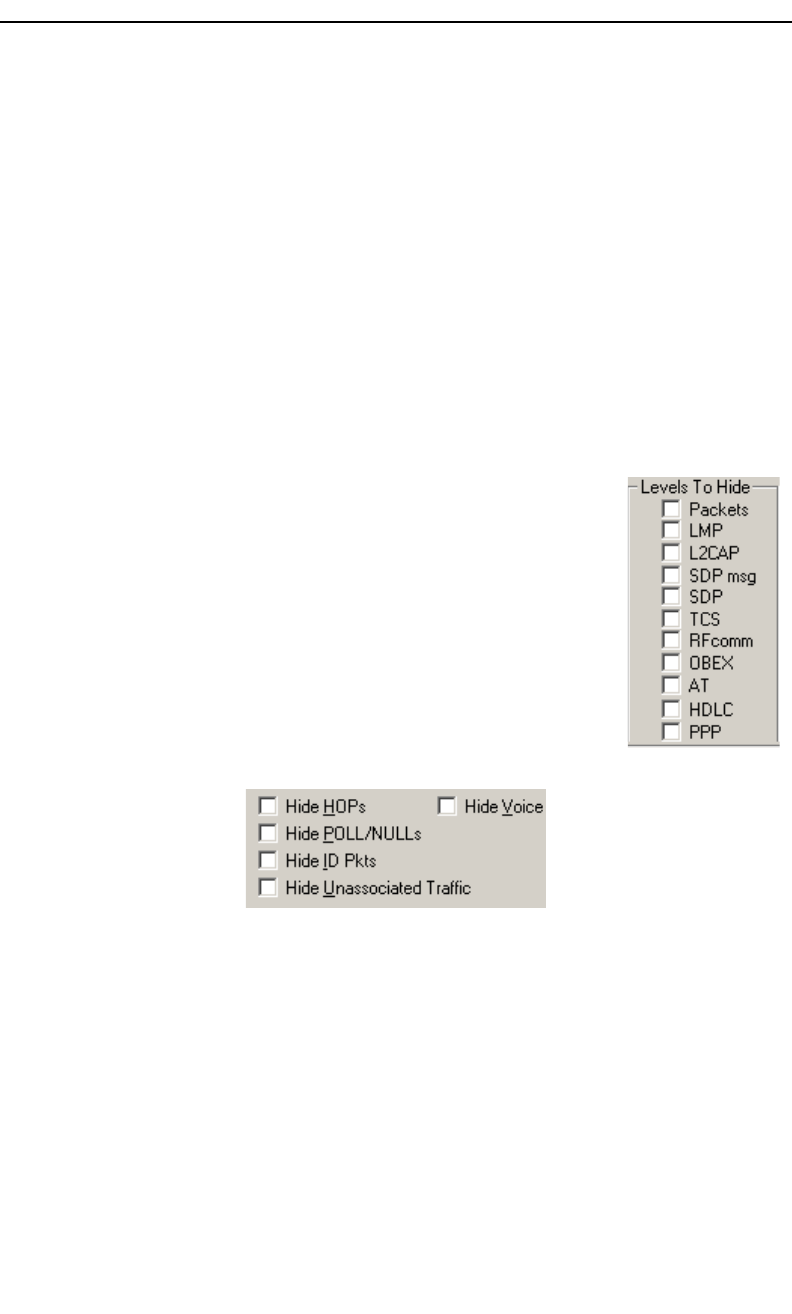

Hiding.........................................................100
SavingDisplayOptions...........................................101

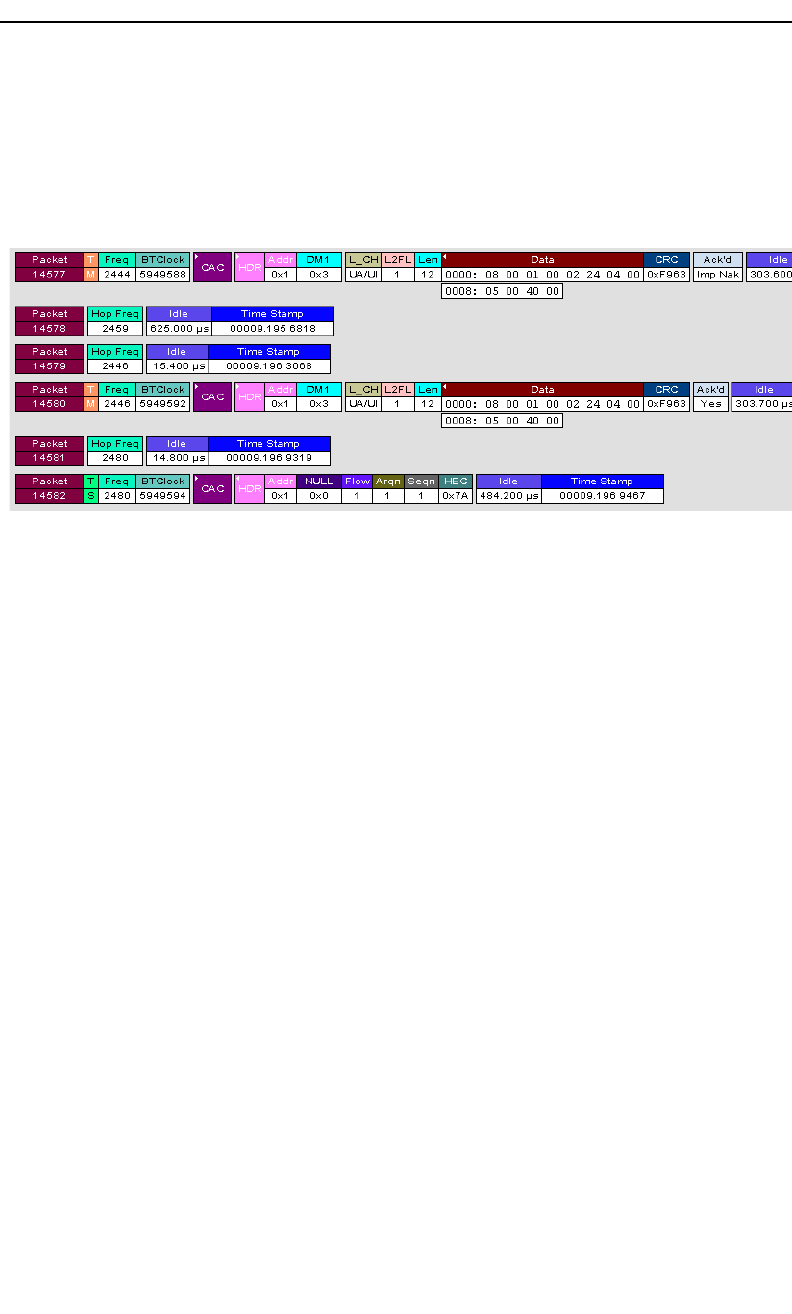

Chapter9 ReadingaCATCTrace.......................103
TraceViewFeatures..............................................103

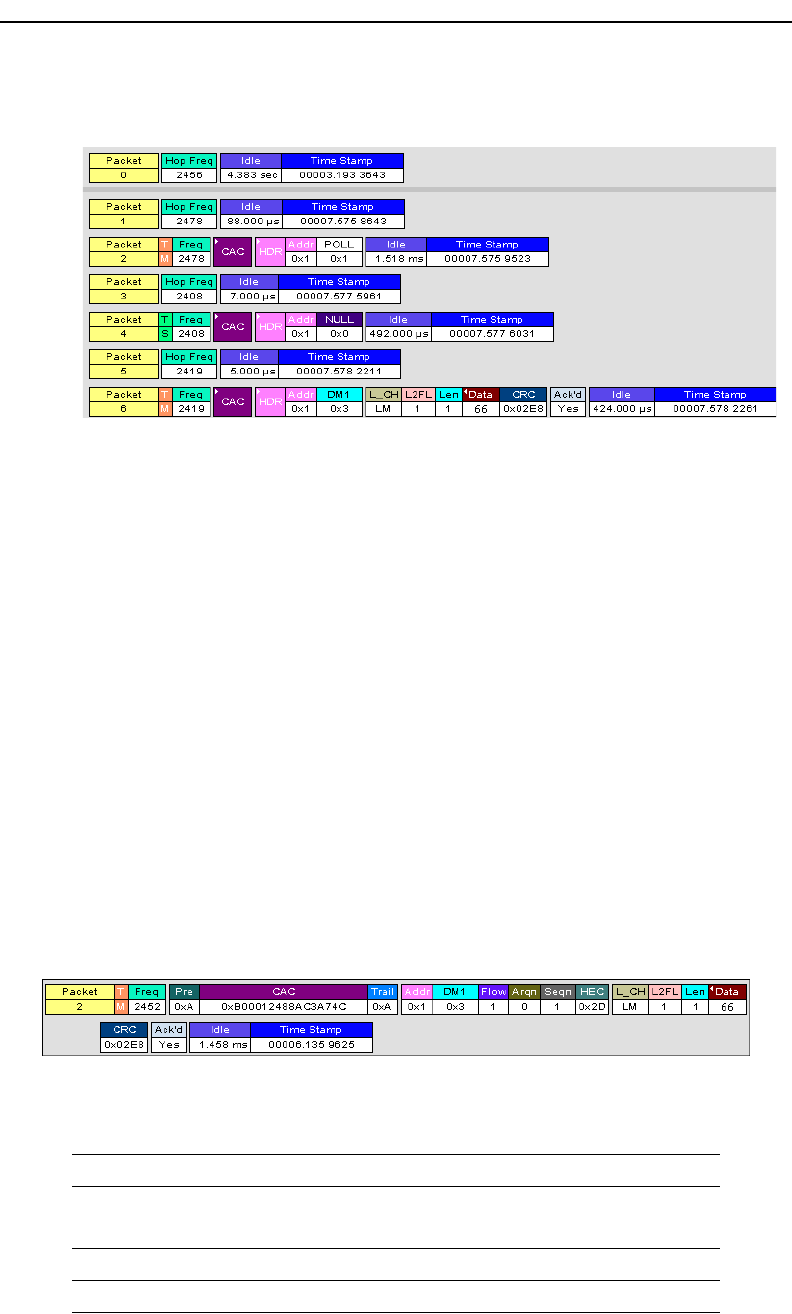

InterpretingtheDisplayedInformation...............................103
Tooltips........................................................104

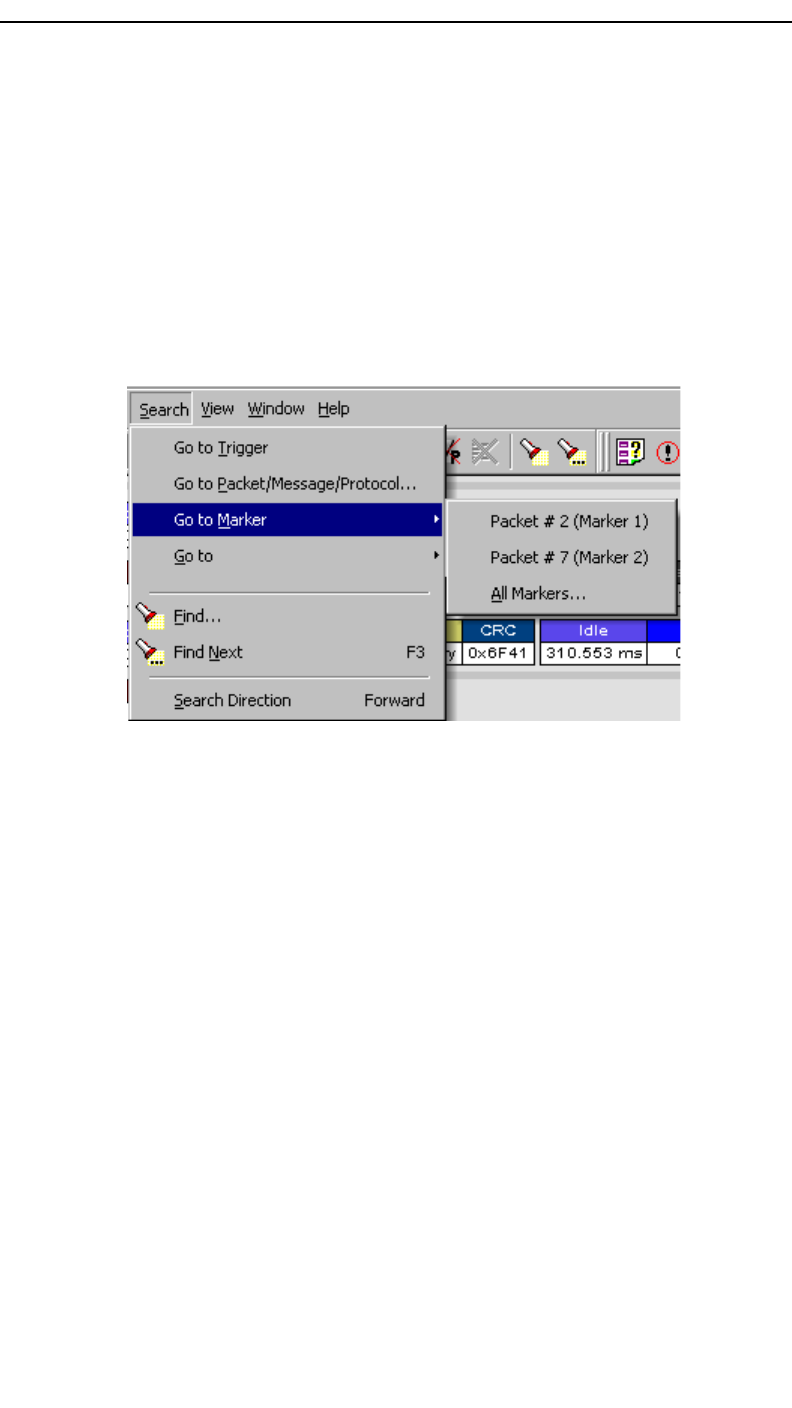

SetMarker .....................................................104

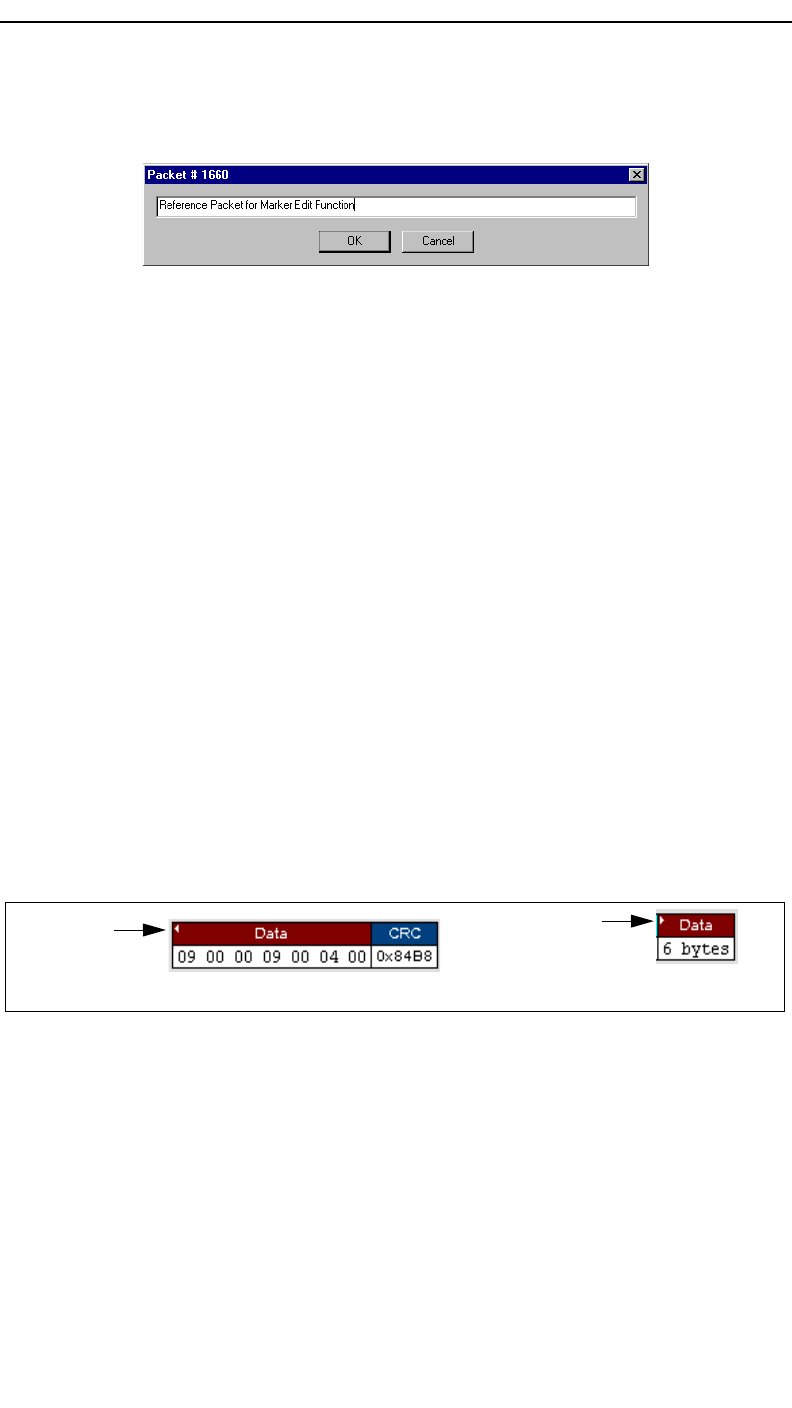

EditorClearMarker .............................................105

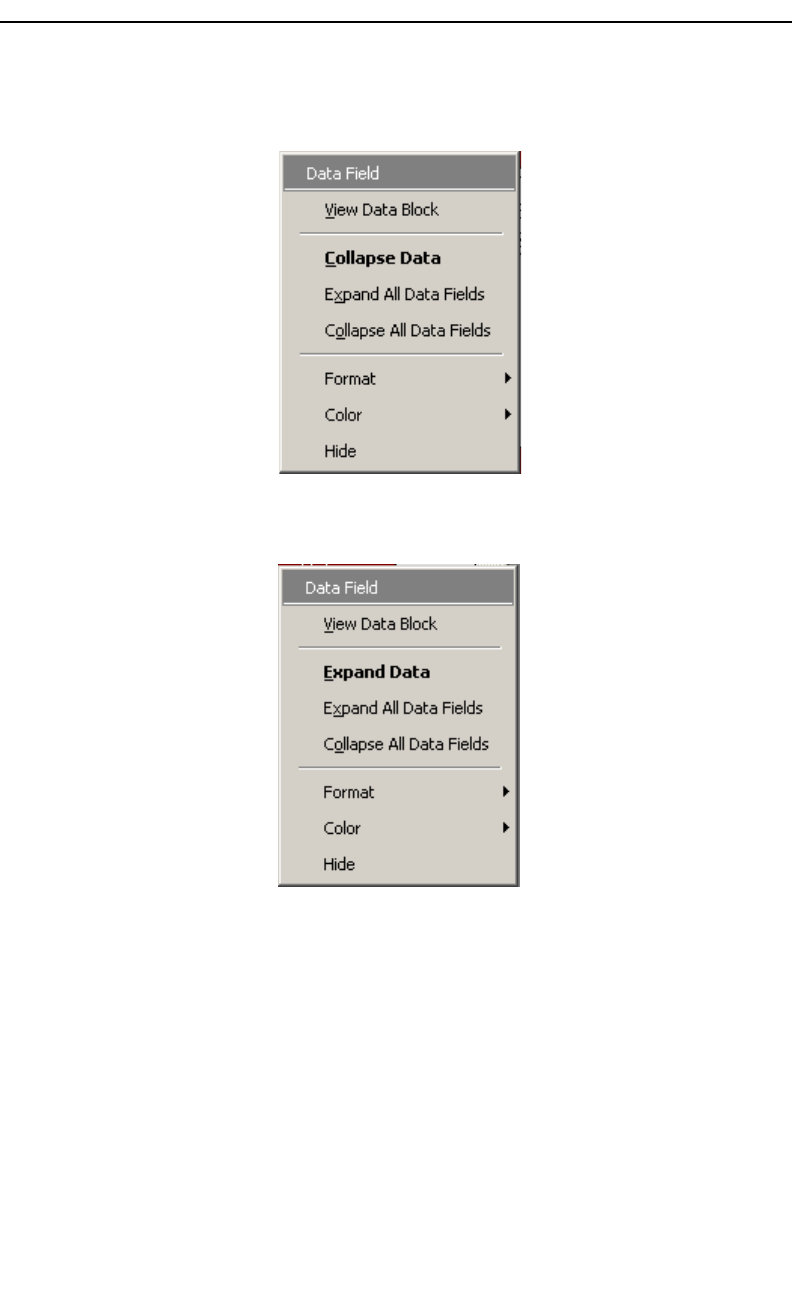

ExpandedandCollapsedDataFormats...............................106
HideFrequencyHops.............................................107
HideNullsandPolls..............................................108

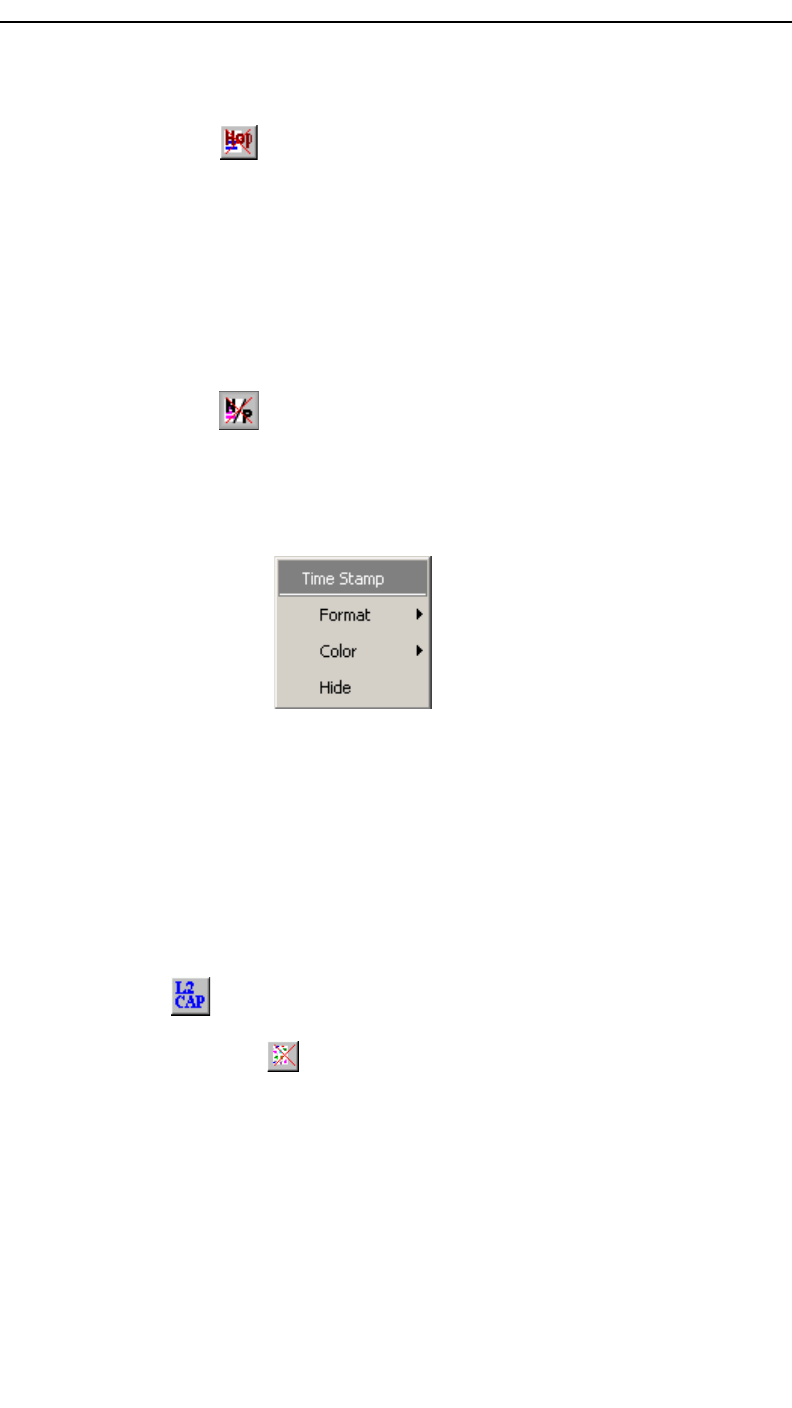

MenusinClickedFields...........................................108
HideUnassociatedTraffic.........................................108

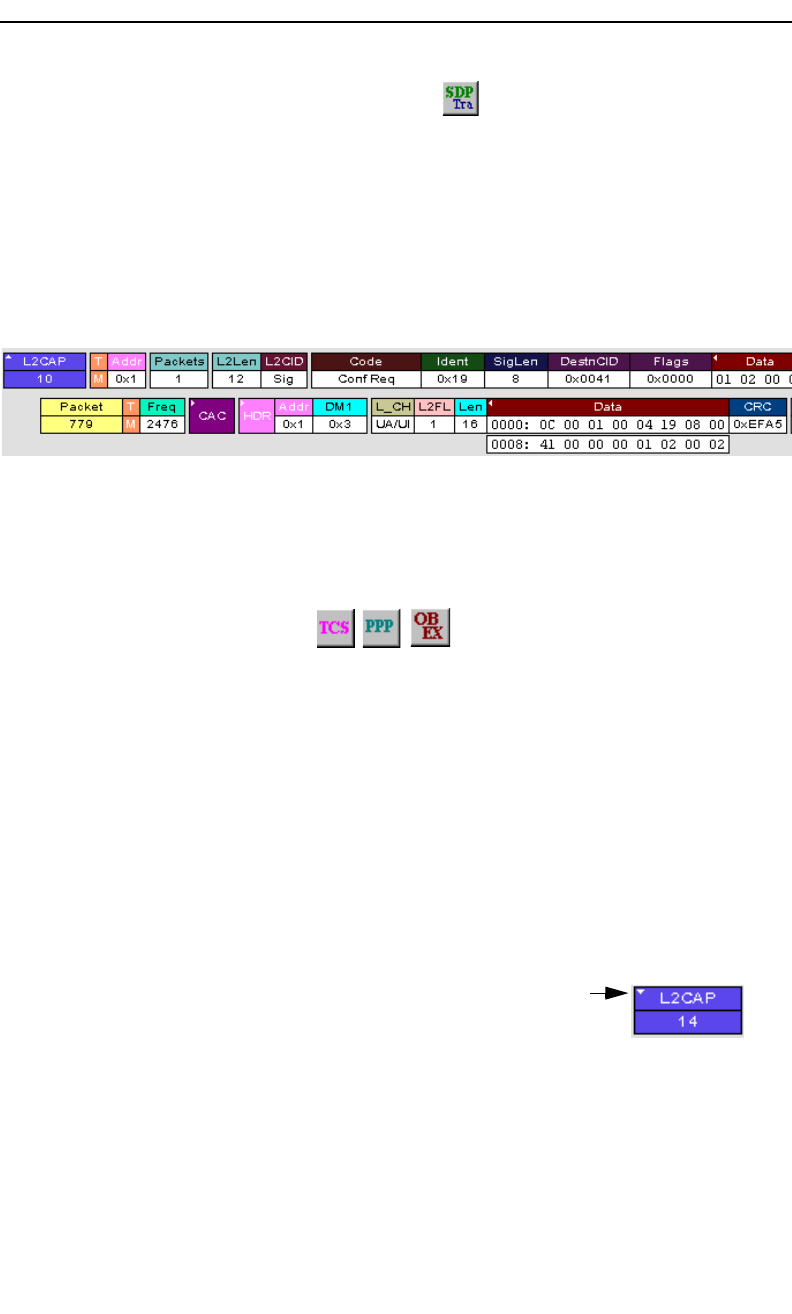

Chapter10 DecodingHigherProtocols...................109
Introduction ....................................................109
LMPandL2CAPMessages........................................109

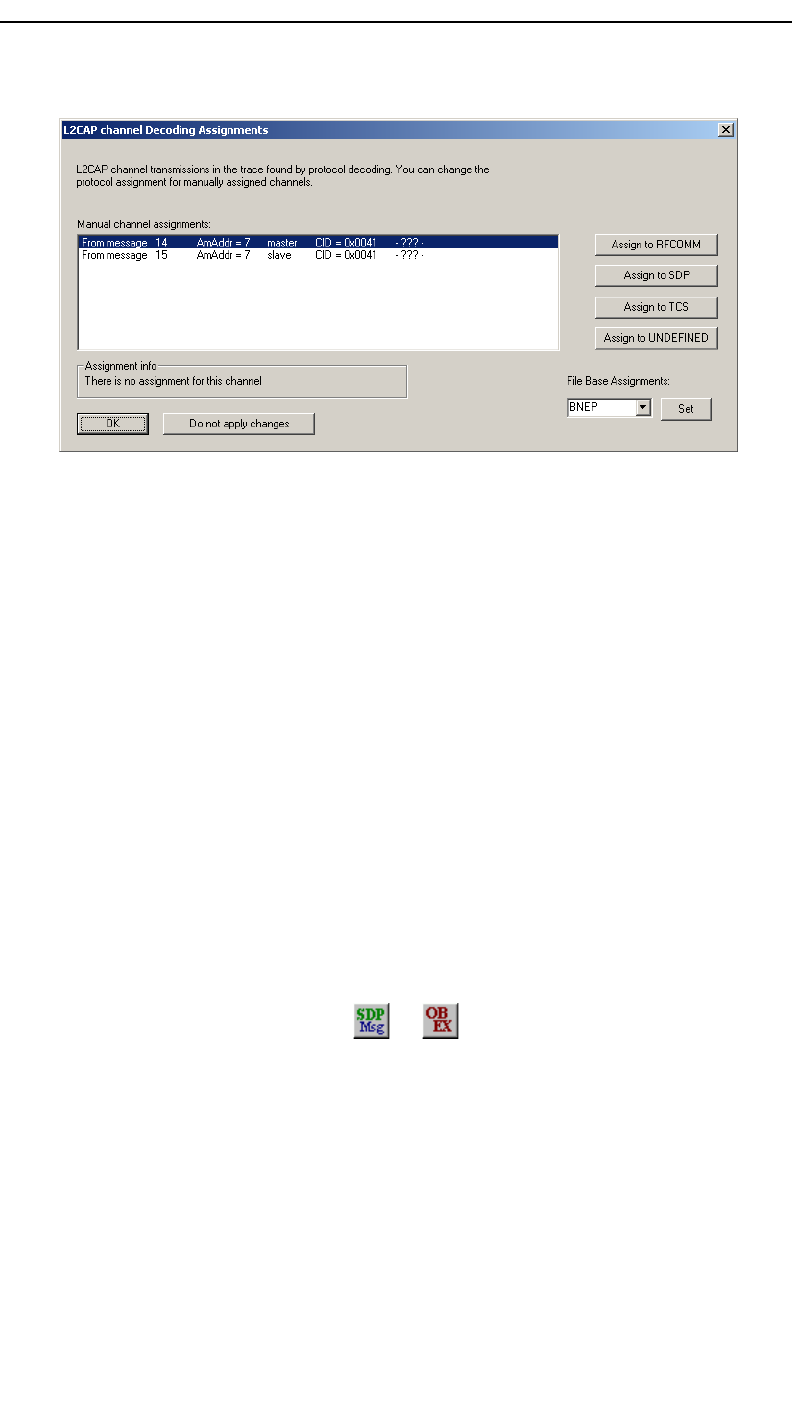

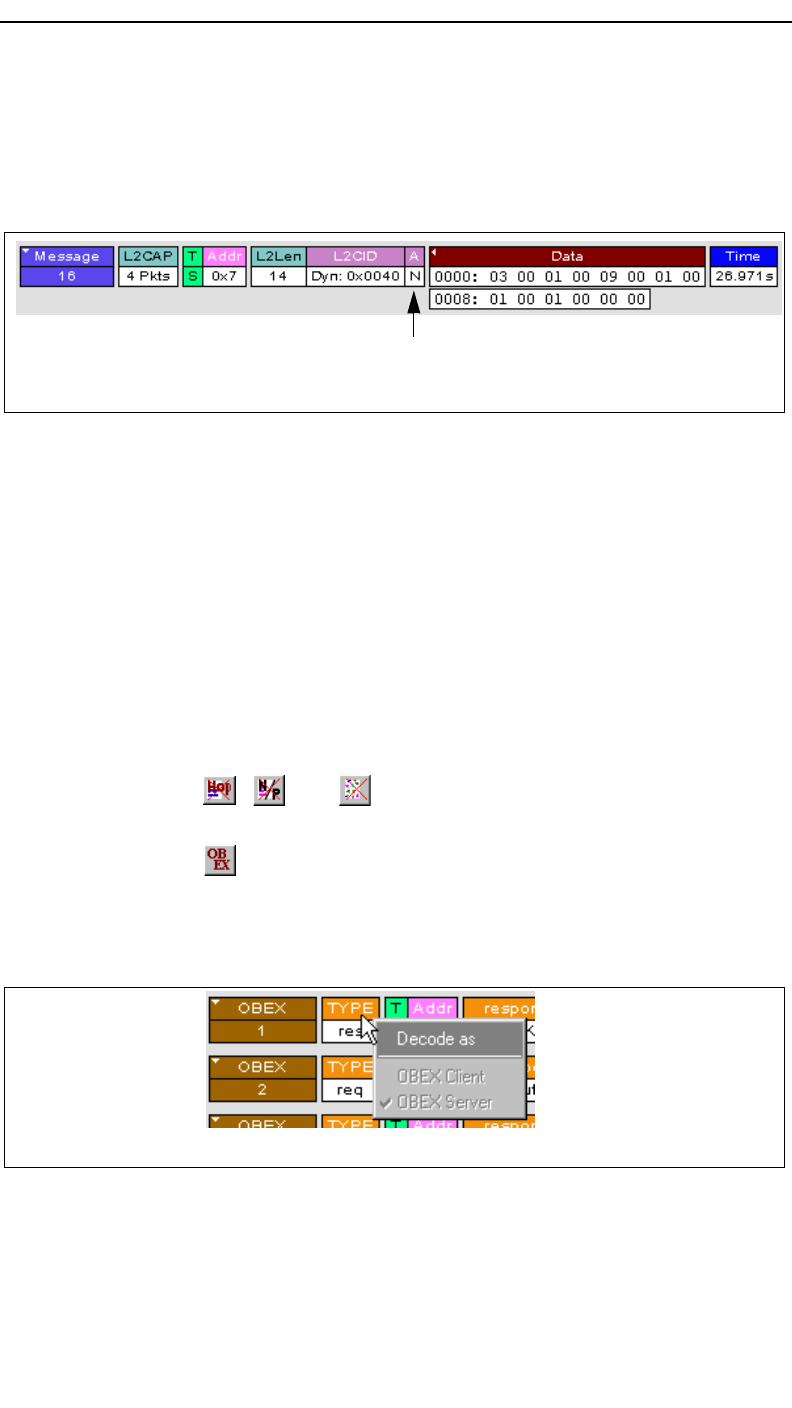

DecodingandViewingHigherProtocolData..........................110

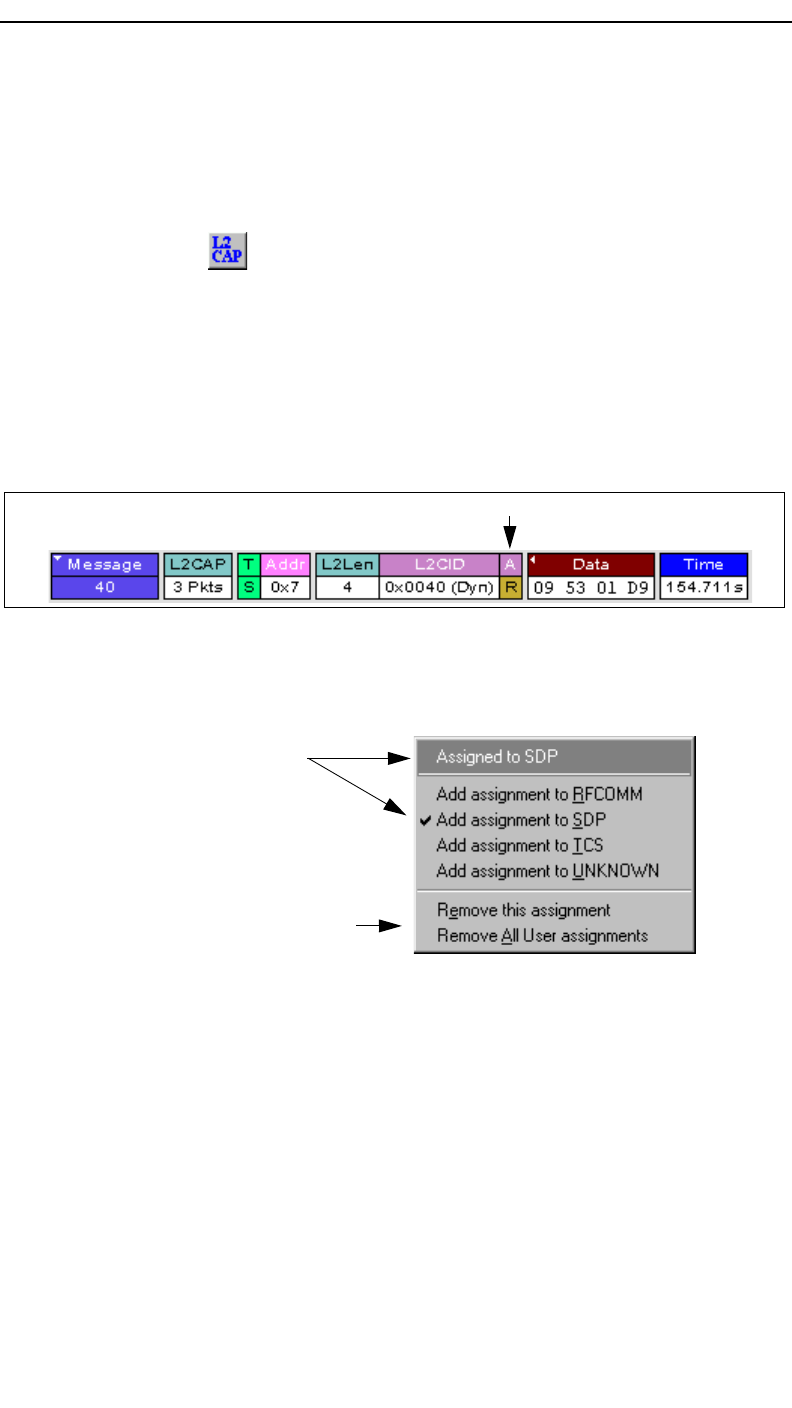

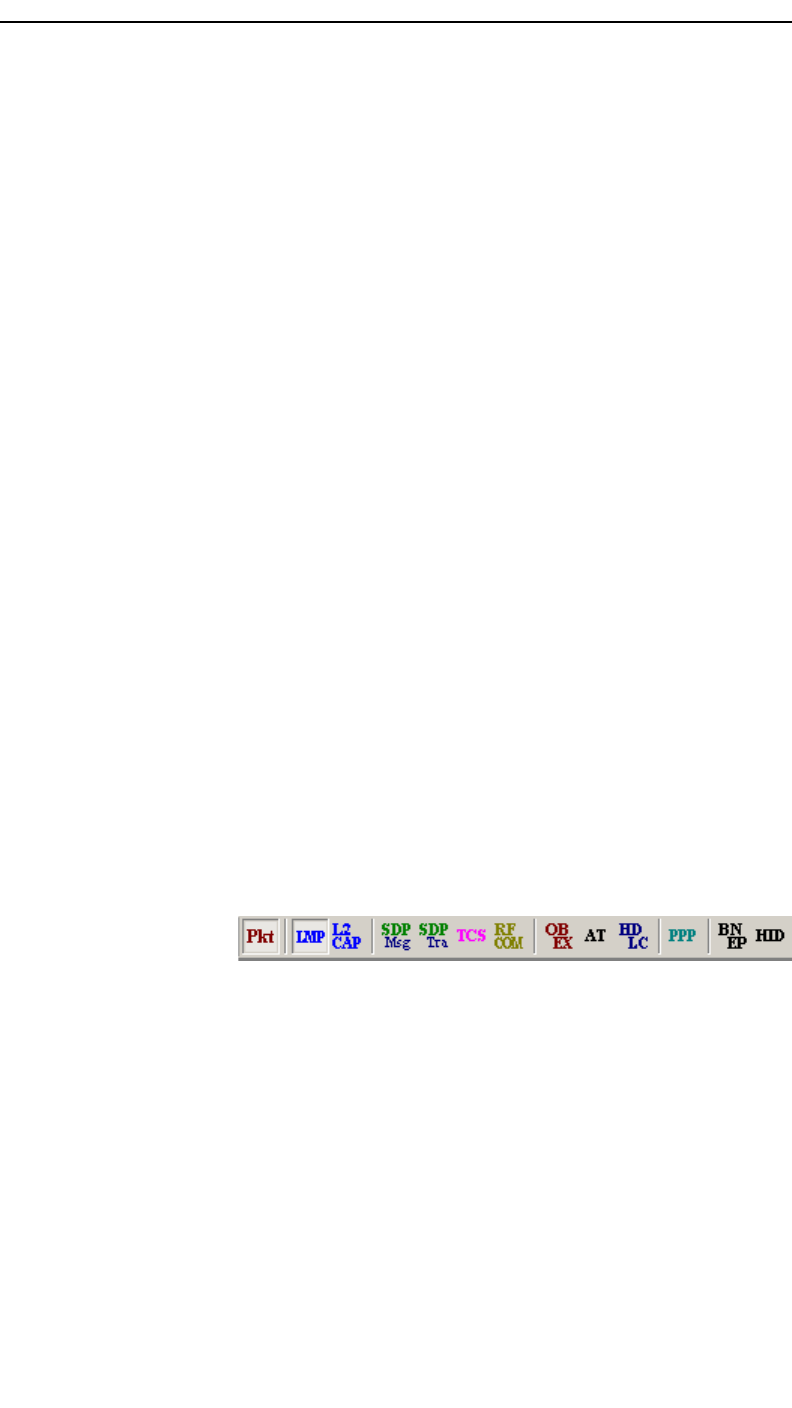

DecodingViatheDecodingToolbar...........................110
DecodingViatheDisplayOptionsDialogBox ..................111

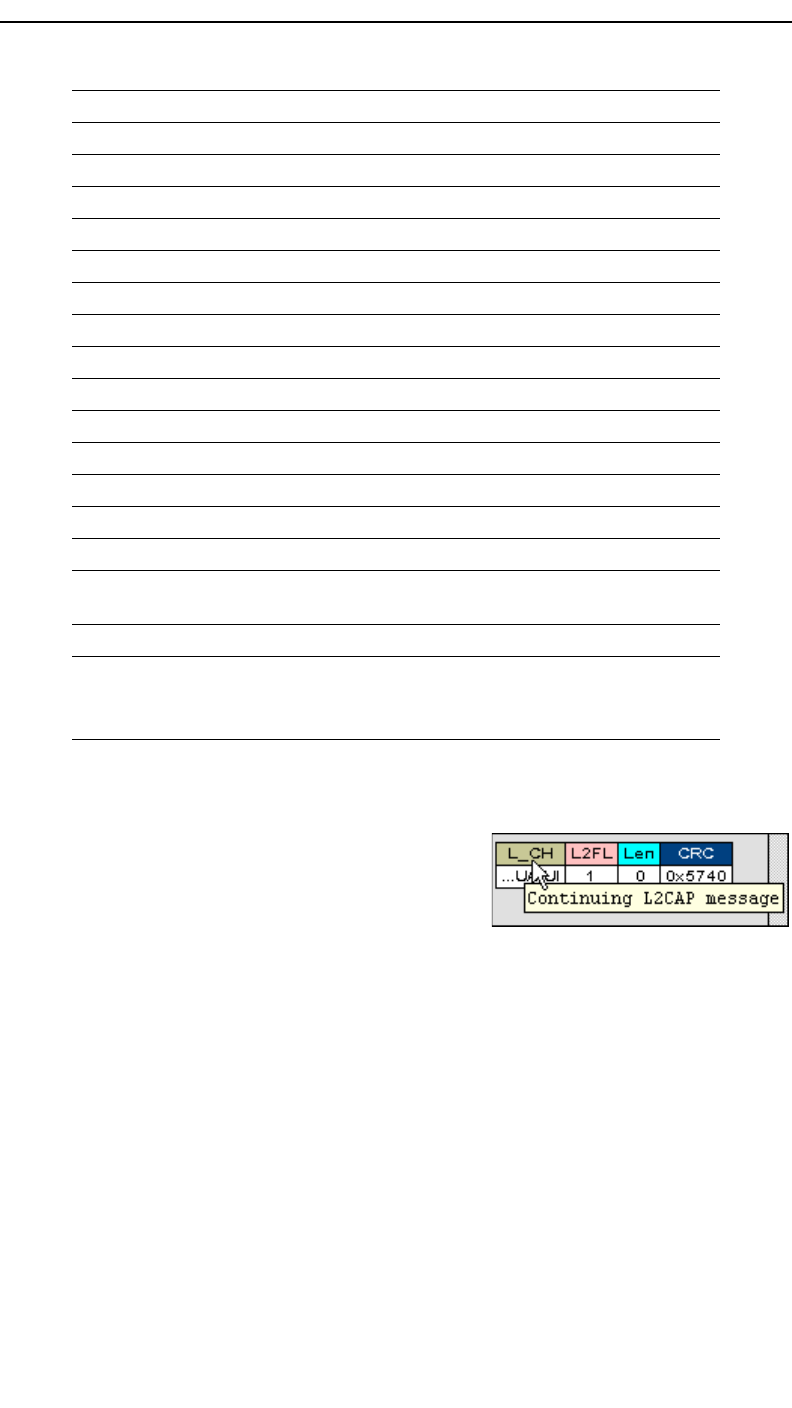

Tooltips........................................................112

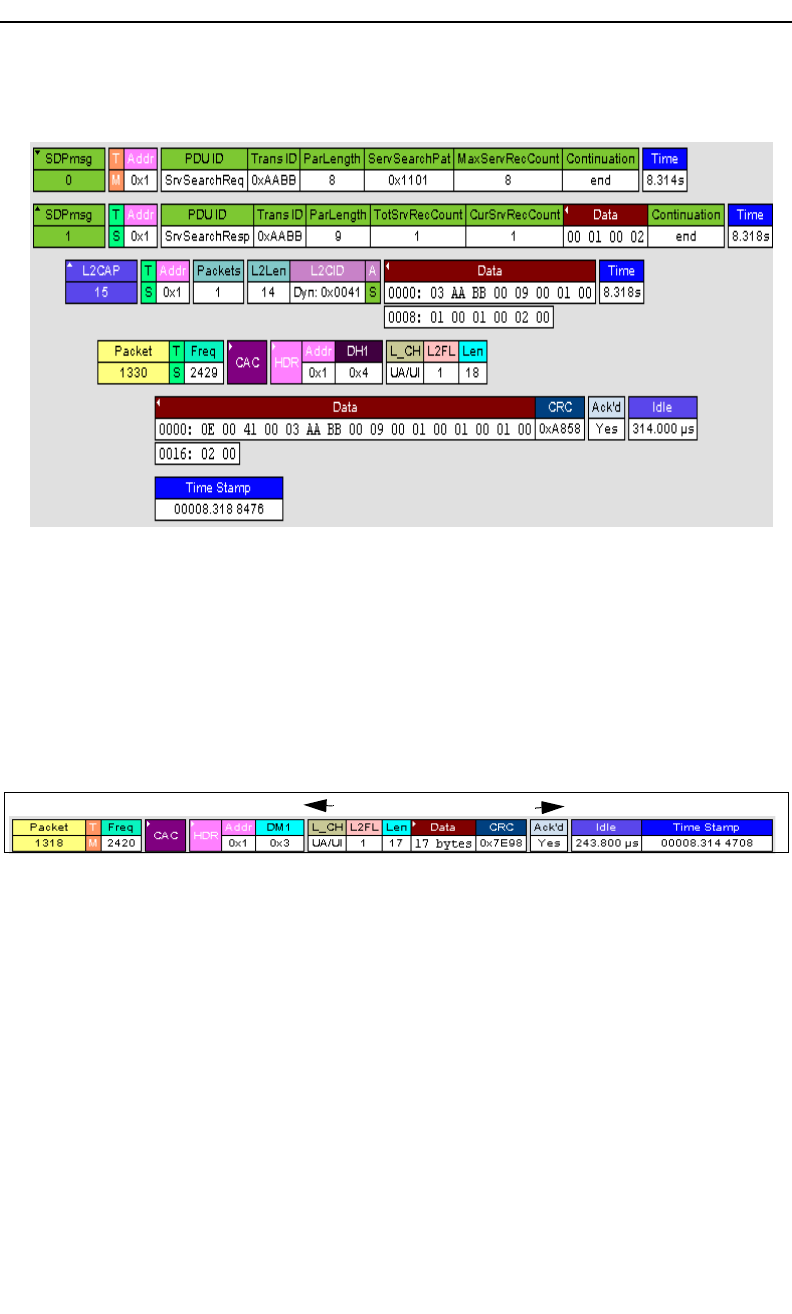

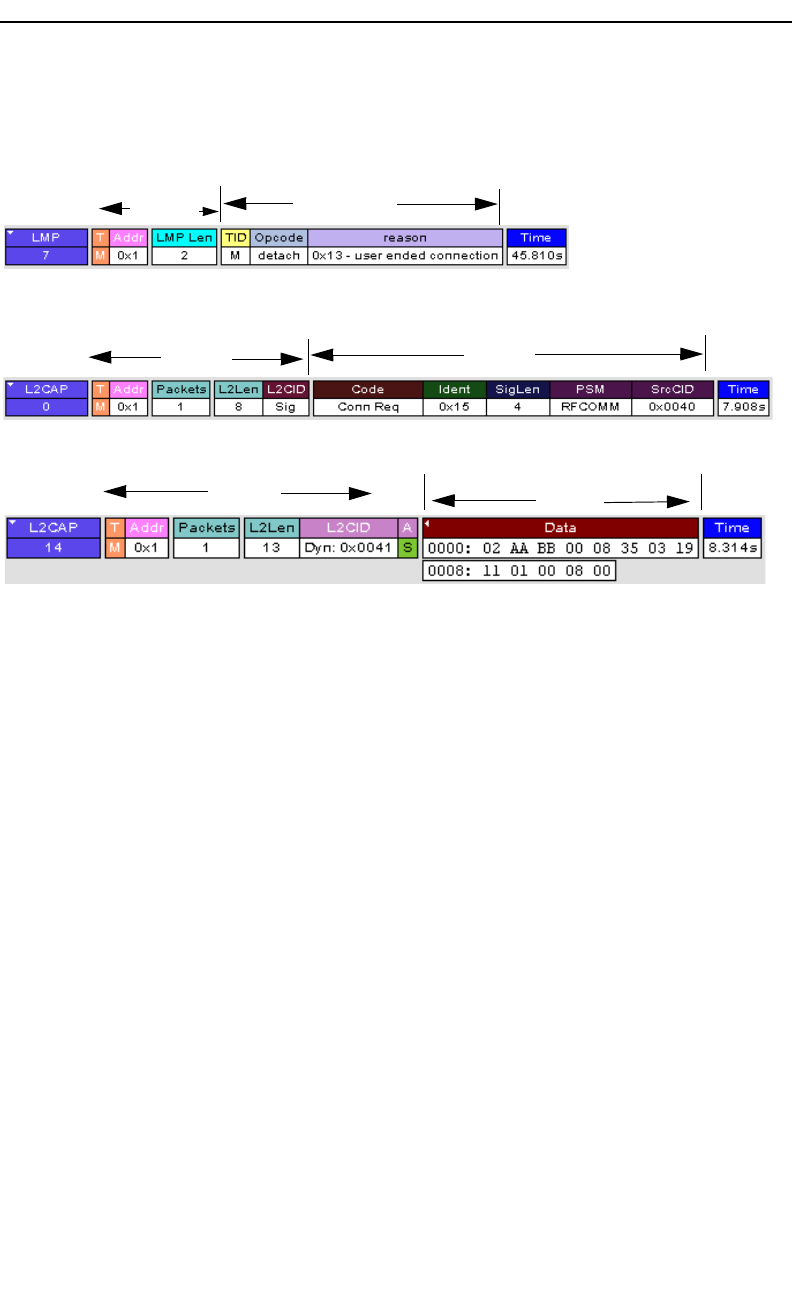

ViewingPacketsinLMPandL2CAPMessages........................112
TypesofLMPandL2CAPMessages ................................112
Viewing L2CAP Channel Connections . . .............................113
ViewingProtocolMessagesandTransactions..........................114
ViewingL2CAPMessagesinProtocolMessages ................115
vi
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
HowtoDecode...........................................115
ExpandingProtocolMessages ...............................115
ChangingProtocolAssignments ....................................116
UsingtheDecodingAssignmentsDialogBox...................116
RemovingUser-AssignedProtocolAssignments.................117
ManuallyAssigningProtocols...............................118
OtherAssignments:OBEXClient/ServerStatus.................118
ChanginganOBEXClientorServerStatus.....................119
DecodingBNEP..........................................119
DecodingHID............................................119
Chapter11 OtherFeatures .............................121

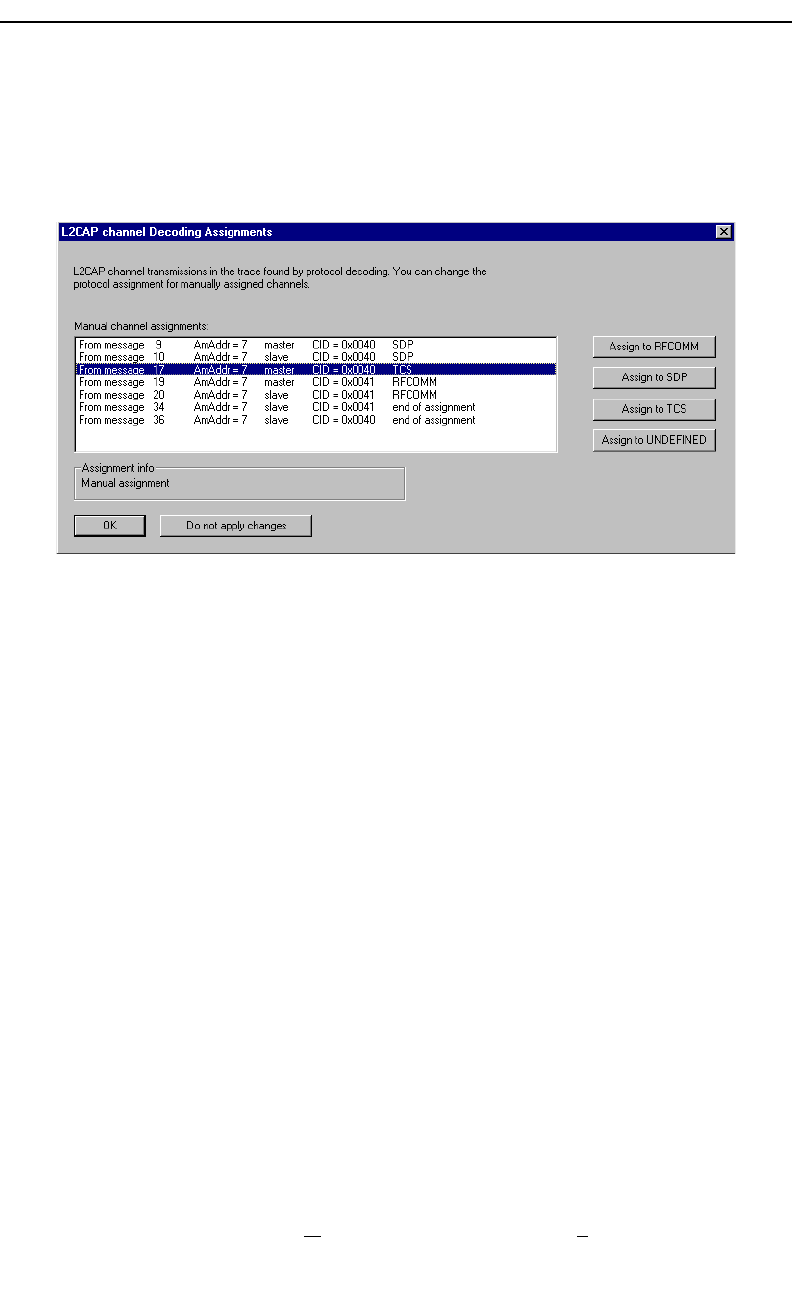

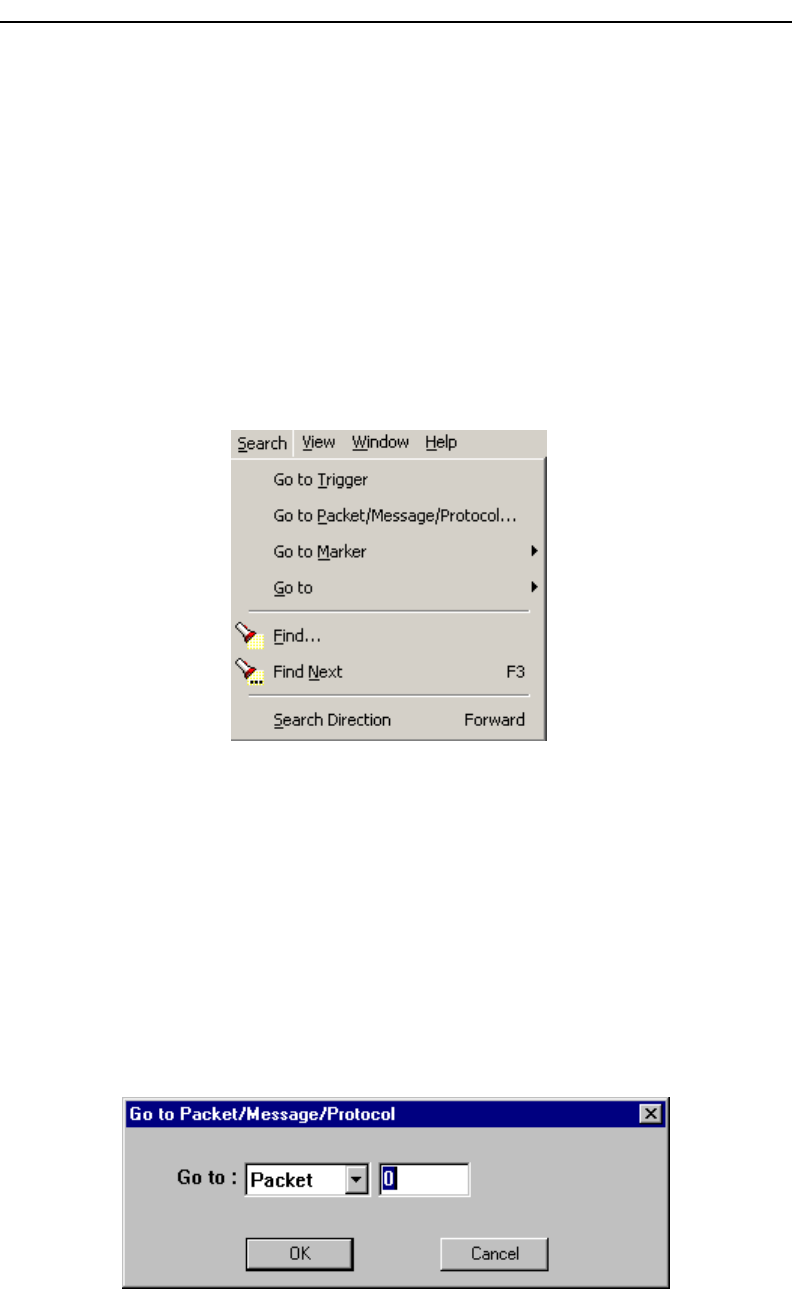

Search.........................................................121

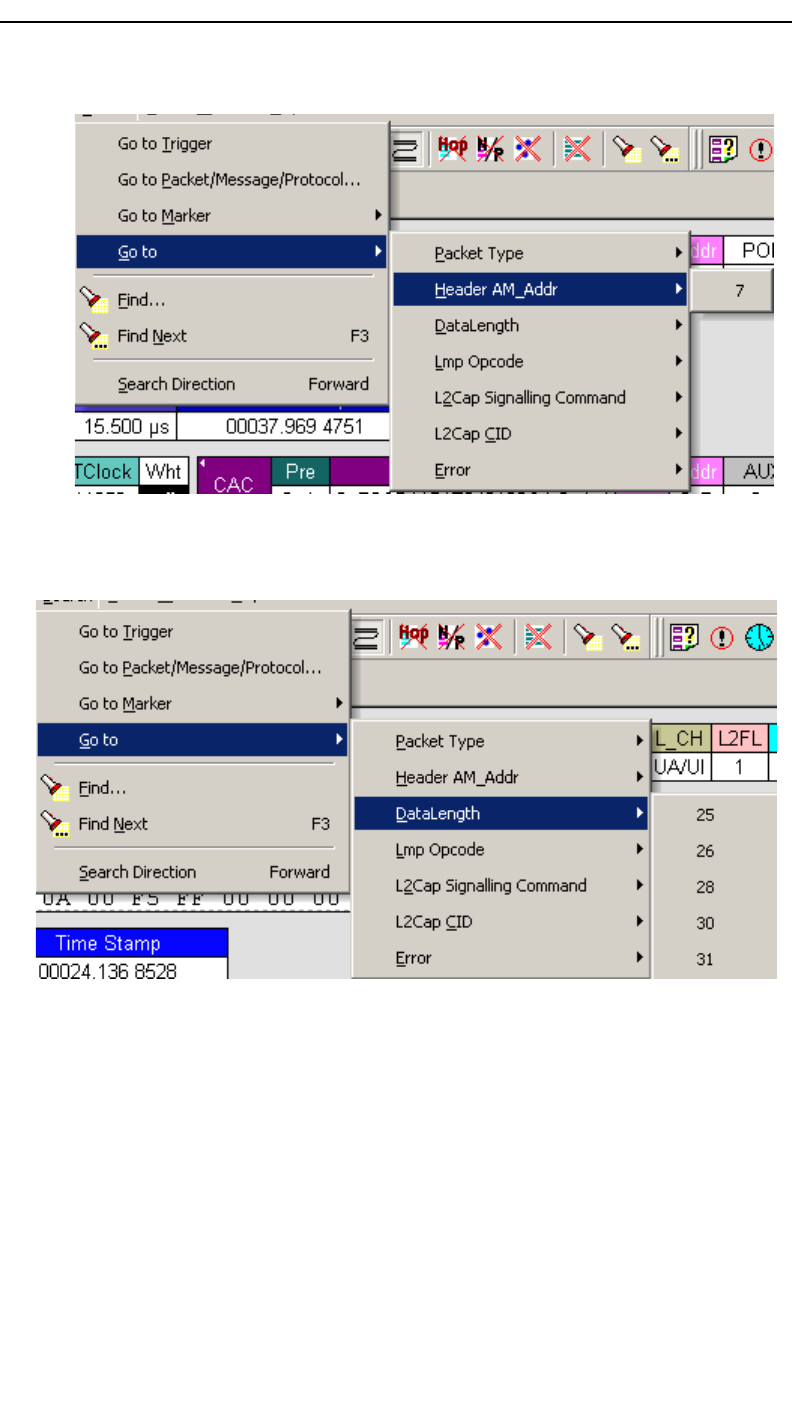

GotoTrigger.............................................121
GotoPacket/Message/Protocol ..............................121
GotoMarker.............................................122

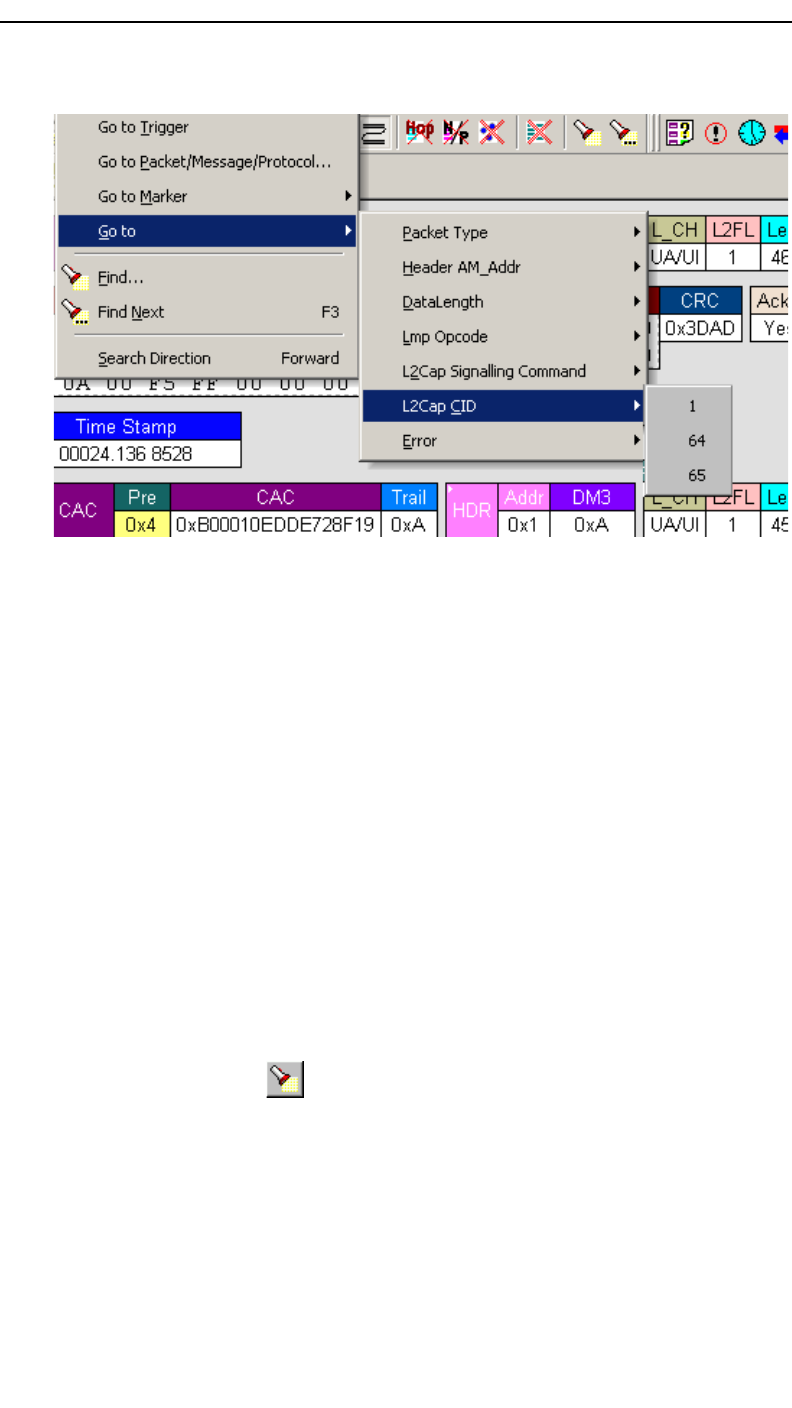

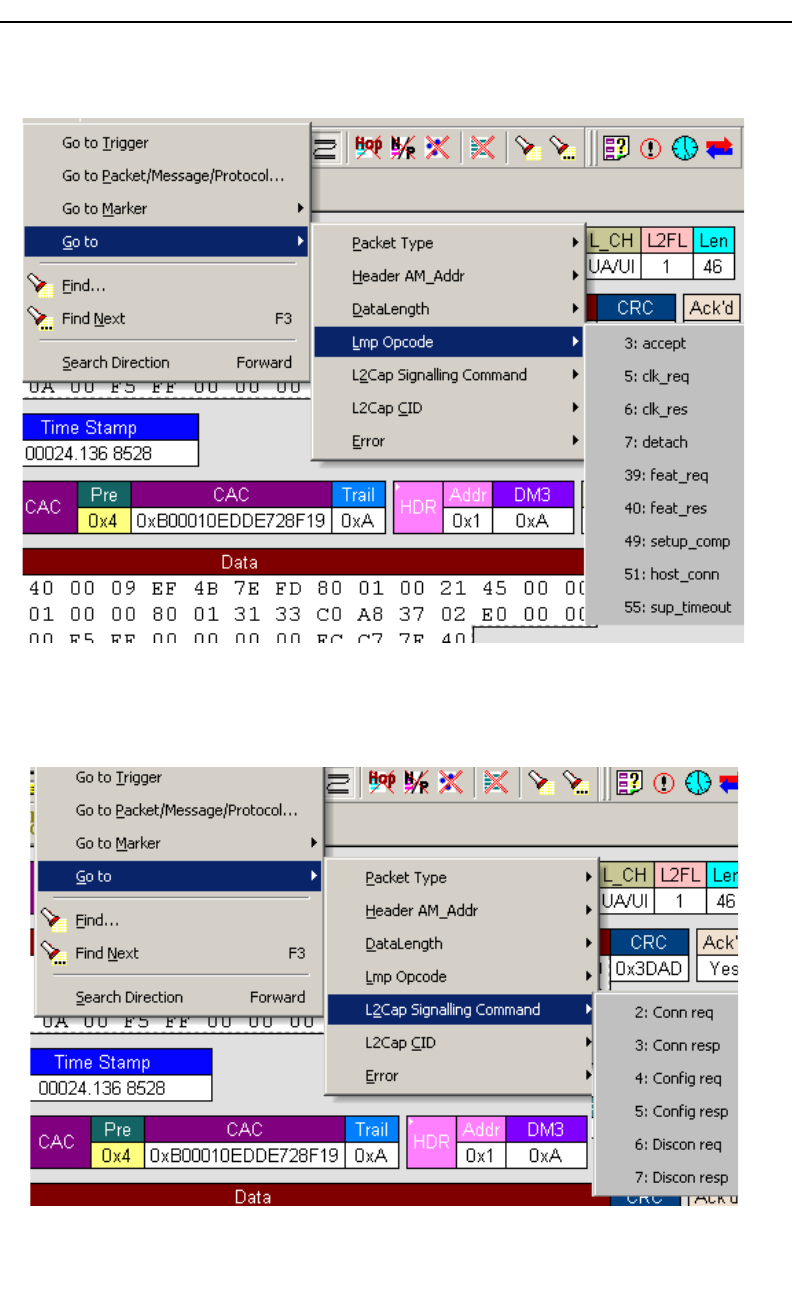

Goto...................................................122
Error ...................................................126
SoftBitError.............................................126
LossofSync.............................................126

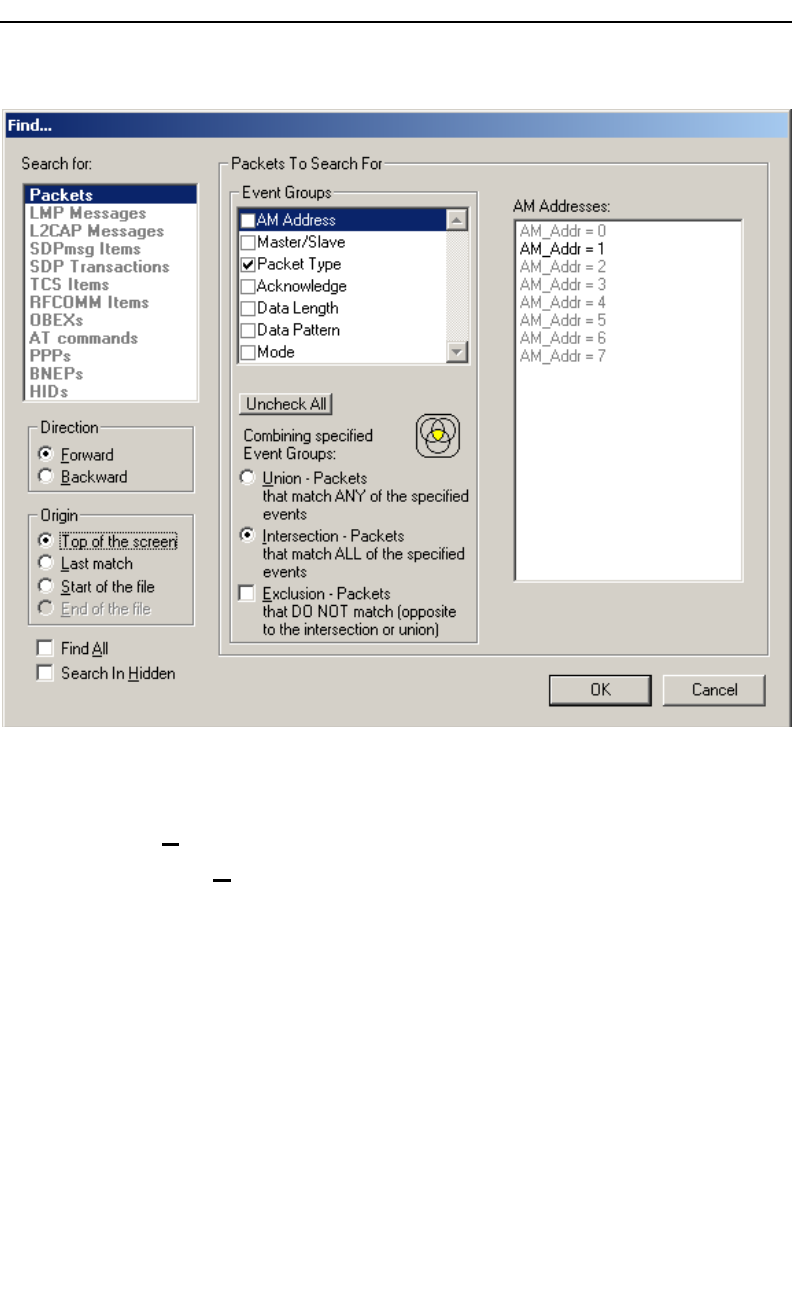

Find....................................................126

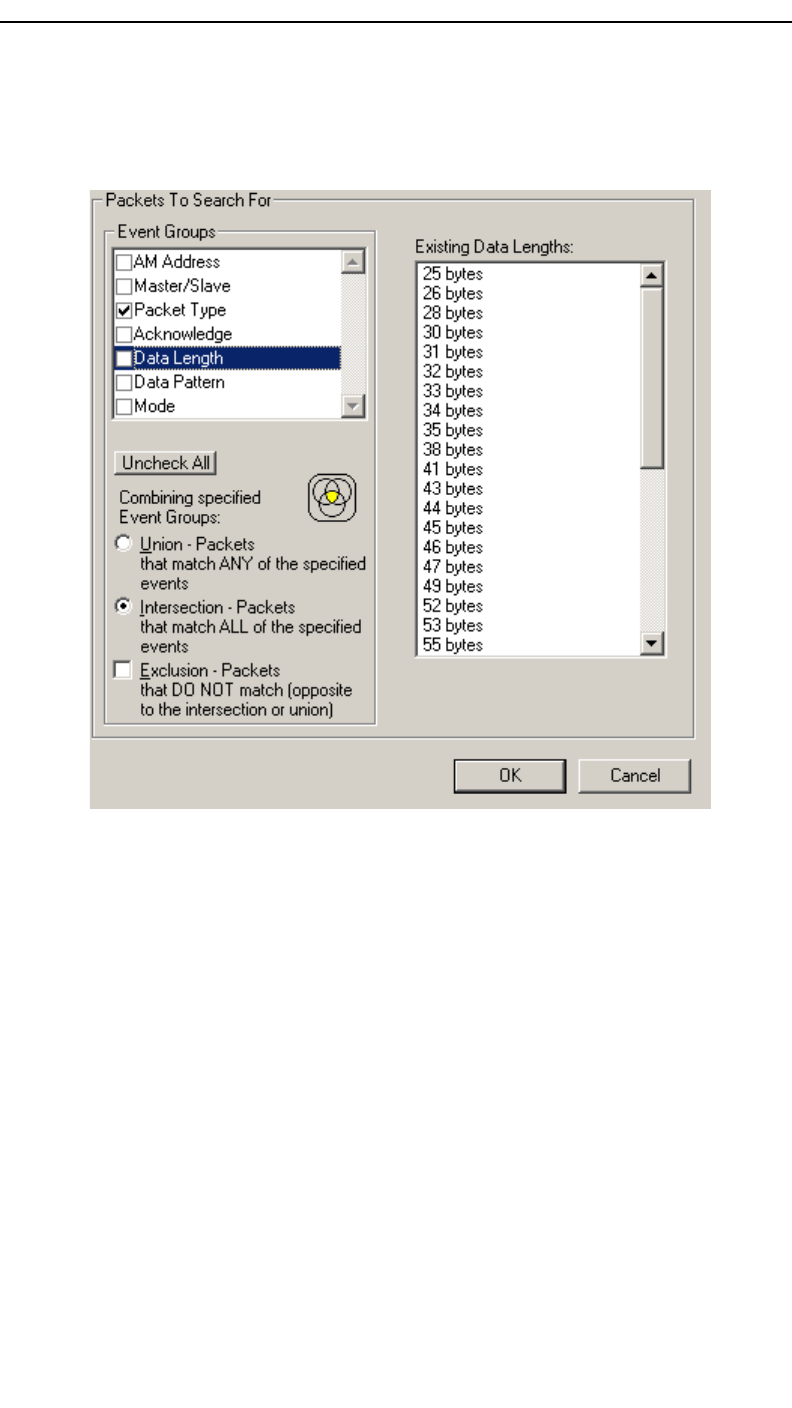

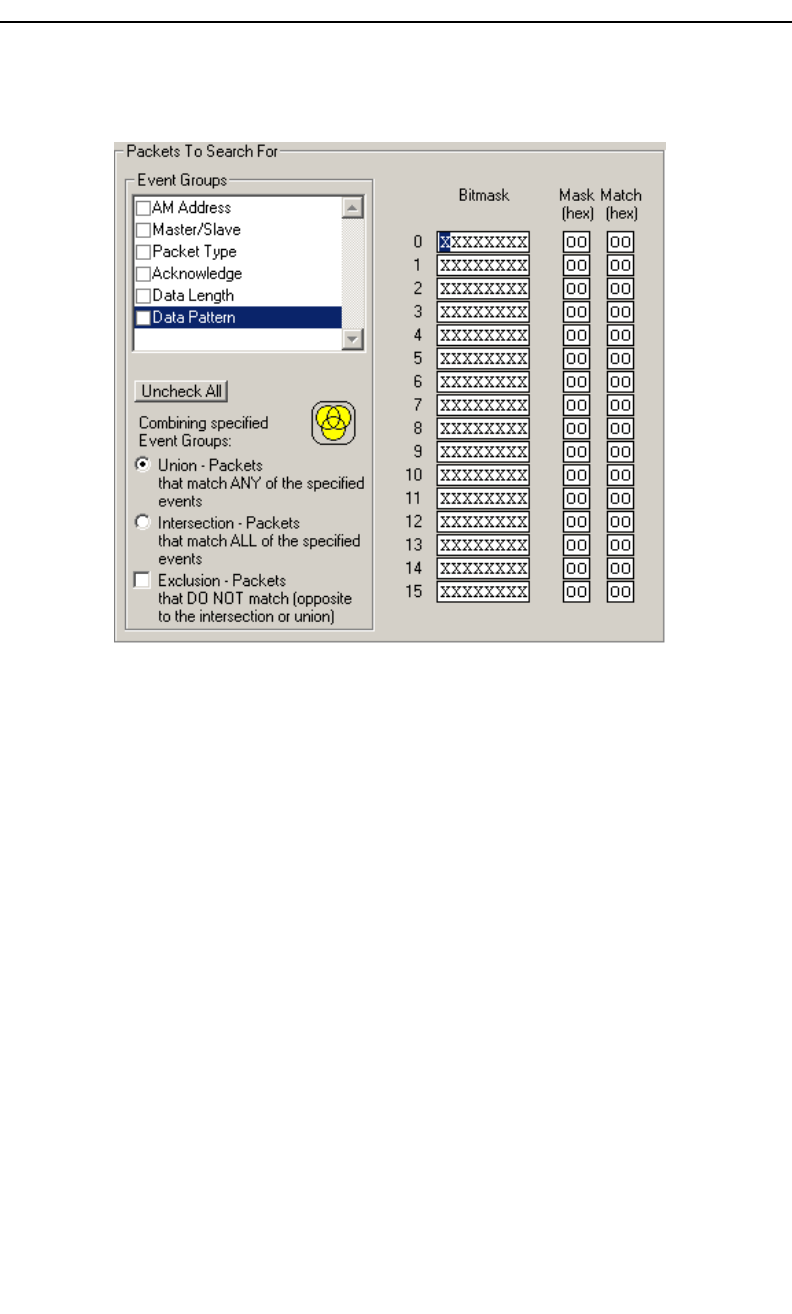

Event Groups . . ..........................................128
Union,Intersection,andExclusion............................132
UsingFind...............................................132
FindNext ...............................................134
EditComment ..................................................135
Reports........................................................135
FileInformation ..........................................135
ErrorSummary...........................................136
TimingCalculations .......................................136

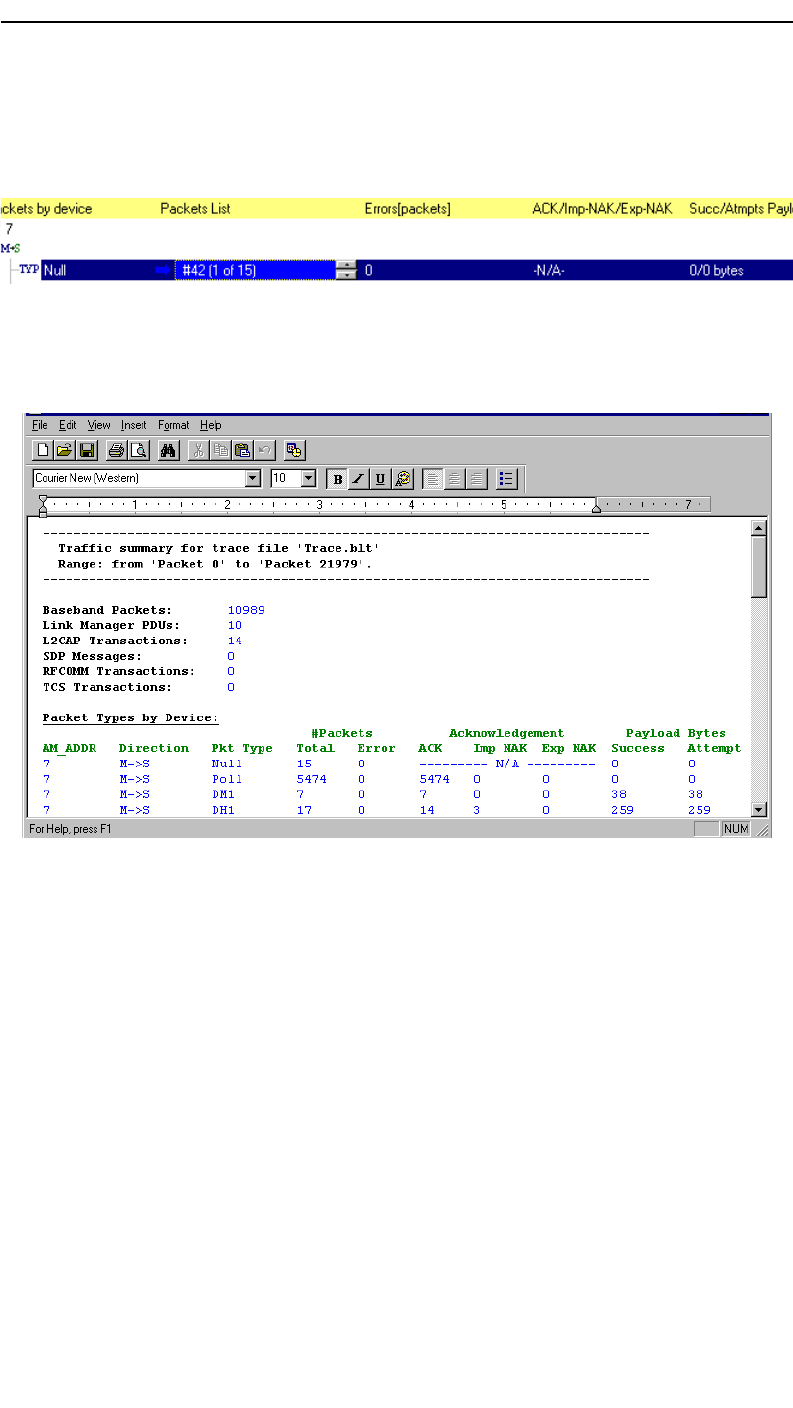

TrafficSummary .........................................137

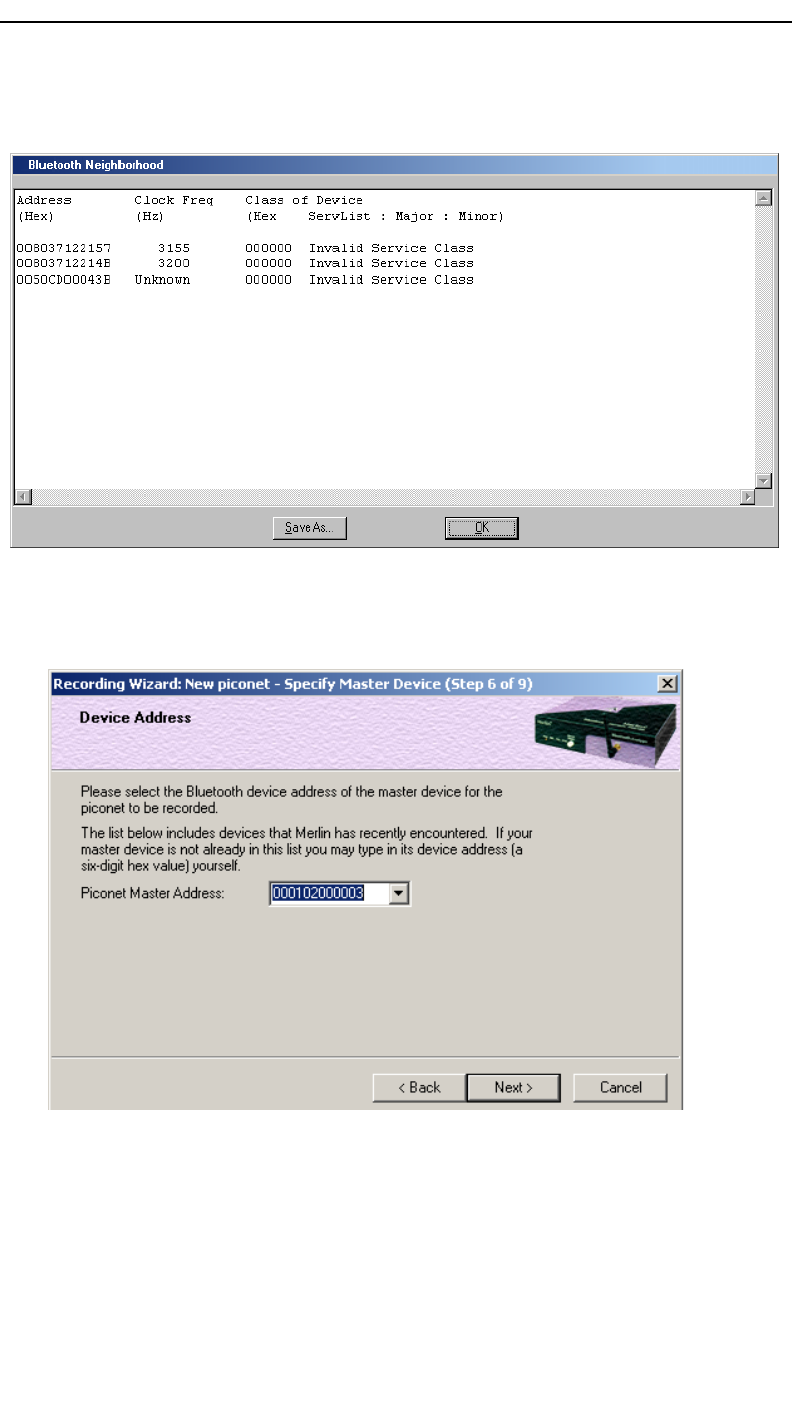

BTNeighborhood................................................139
Encryption .....................................................139
ConfiguringMerlinforEncryption............................140
Chapter12 HowtoContactCATC.......................143
Chapter13 WarrantyandLicense.......................143
Index................................................145
1
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
1. Overview
The CATC BTTracer™ Protocol Analyzer is a member in CATC's
industry-leading line of high performance, serial bus protocol analyzers.
PrecededbyCATC’sUSBChief™ and IEEE 1394 FireInspector™
Analyzers, BTTracer has been designed using the same modular software
and hardware architecture that made its predecessors highly successful in
the serial bus protocol analyzer market worldwide.
1.1 Bluetooth™ Overview
The Bluetooth™ wireless technology is set to revolutionize the personal
connectivity market by providing freedom from wired connections. It is a
specification for a small-form factor, low-cost radio solution providing links
between mobile computers, mobile phones and other portable handheld
devices, and connectivity to the internet.
The Bluetooth™ Special Interest Group (SIG), comprised of leaders in the
telecommunications, computing, and network industries, is driving
development of the technology and bringing it to market. The Bluetooth™
SIG includes promoter companies 3Com, Ericsson, IBM, Intel, Lucent,
Microsoft, Motorola, Nokia and Toshiba, and more than 2500 SIG
members.
Bluetooth™ is a radio technology specification designed to transmit both
voice and data wirelessly, providing an easier way for a variety of mobile
computing, communications and other devices to communicate with one
another without the need for cables. Bluetooth™ could make possible what
is being called the personal-area network by allowing users to transmit small
amounts of data at 1M bit/sec with a range of 10 to 100 meters, depending
the power of the radio, over the 2.4-GHz radio frequency. The key benefits
of the Bluetooth™ technology are robustness, low complexity, low power
and low cost. Bluetooth™ employs a rapid frequency hopping mechanism
to minimize the effects of ‘collisions’ with other protocols and devices
operating in the same frequency band. Mechanisms exist for a Bluetooth™
device to determine all devices in range as well as to request connection to
a piconet as either a master or a slave.
Please refer to the Bluetooth™ Specification, version 1.1 for details on the
protocol. The Bluetooth™specification is available from the Bluetooth™
SIG at its web site http://www.bluetooth.org/
2
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
1.2 General Description
The BTTracer Protocol Analyzer is designed as a stand-alone unit that can
be easily configured and controlled by a portable or desktop PC connected
via its USB port. BTTracer provides customers with the familiar ‘CATC
Trace’ user interface that is the de facto industry standard for documenting
the performance of high-speed serial protocols.
BTTracer supports the functionality required to analyze all levels, including
the baseband, of the Bluetooth™ wireless protocol. The featured Radio
Interface allows users to probe and analyze transactions at the lowest level
within the Bluetooth™ architecture. By creating this "Point of Observation"
or probing point within the radio level packet view, the user can analyze all
levels of the protocol stack.
BTTracer is a non-intrusive testing tool for Bluetooth™ piconets providing
network traffic capture and analysis. Hardware triggering allows real-time
events to be captured from a piconet. Hardware filtering allows the filtering
out of fields, packets, and errors from the recording. Filtering allows users
to focus recordings on events of interest and to preserve recording memory
so that the recording time can be extended.

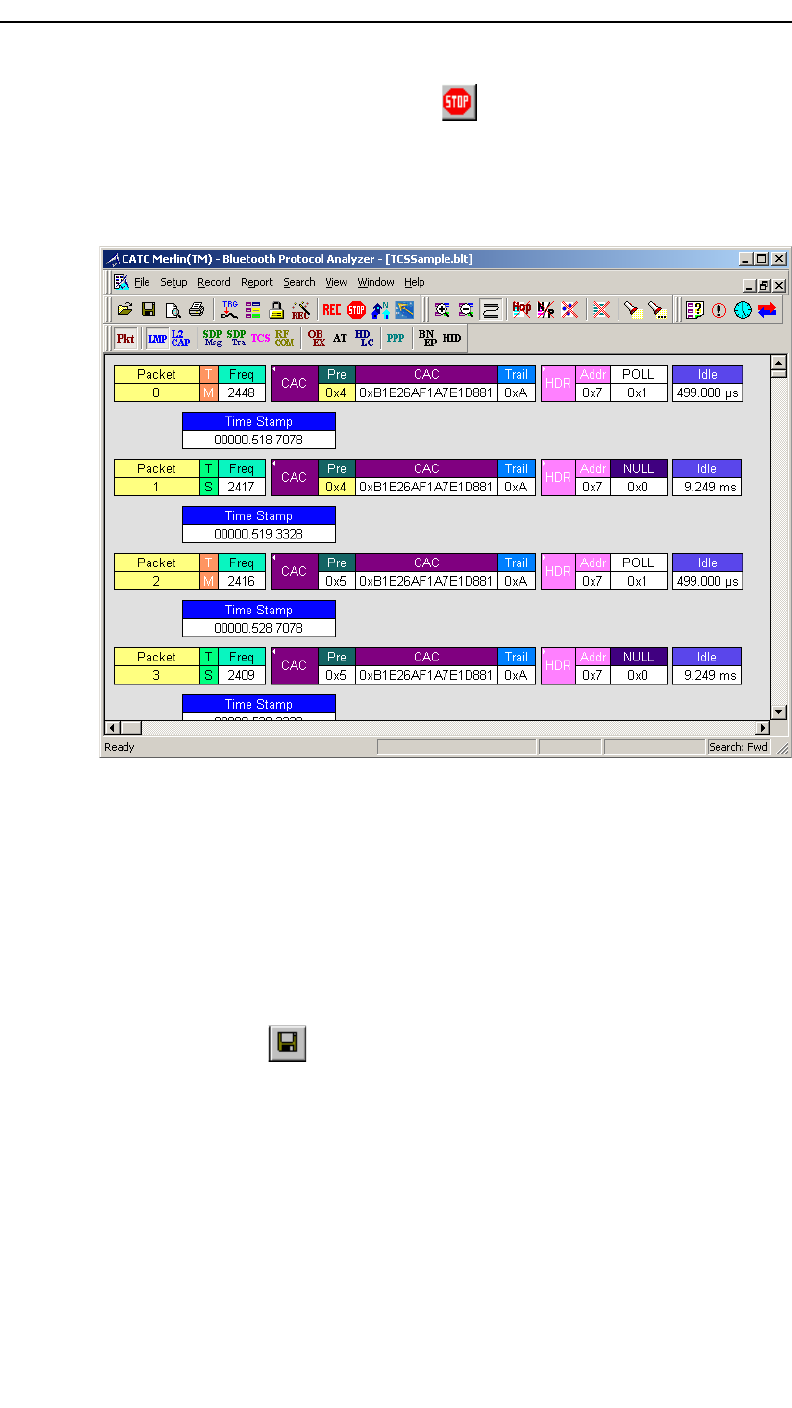

Recorded data is presented in colored graphics in a trace viewer application.
This application has advanced search and viewing capabilities that allow the
user to quickly locate specific data, errors and other conditions, thereby
focussing the user’s attention on events of interest.
The BTTracer Protocol Analyzer functions with any personal computer
using the Windows 98, Windows 98SE, Windows 2000, Windows NT 4.0,
Windows ME, or Windows XP operating systems and equipped with a
functional USB interface. For an updated set of system requirements for the
host machine, please refer to the readme file.
The Analyzer is configured and controlled through a personal computer
USB port. It can be used with portable computers for field service and
maintenance as well as with desktop units in a development environment.
The Analyzer is easily installed by connecting a cable between the
computer’s USB port and the Analyzer’s USB port.
3
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0

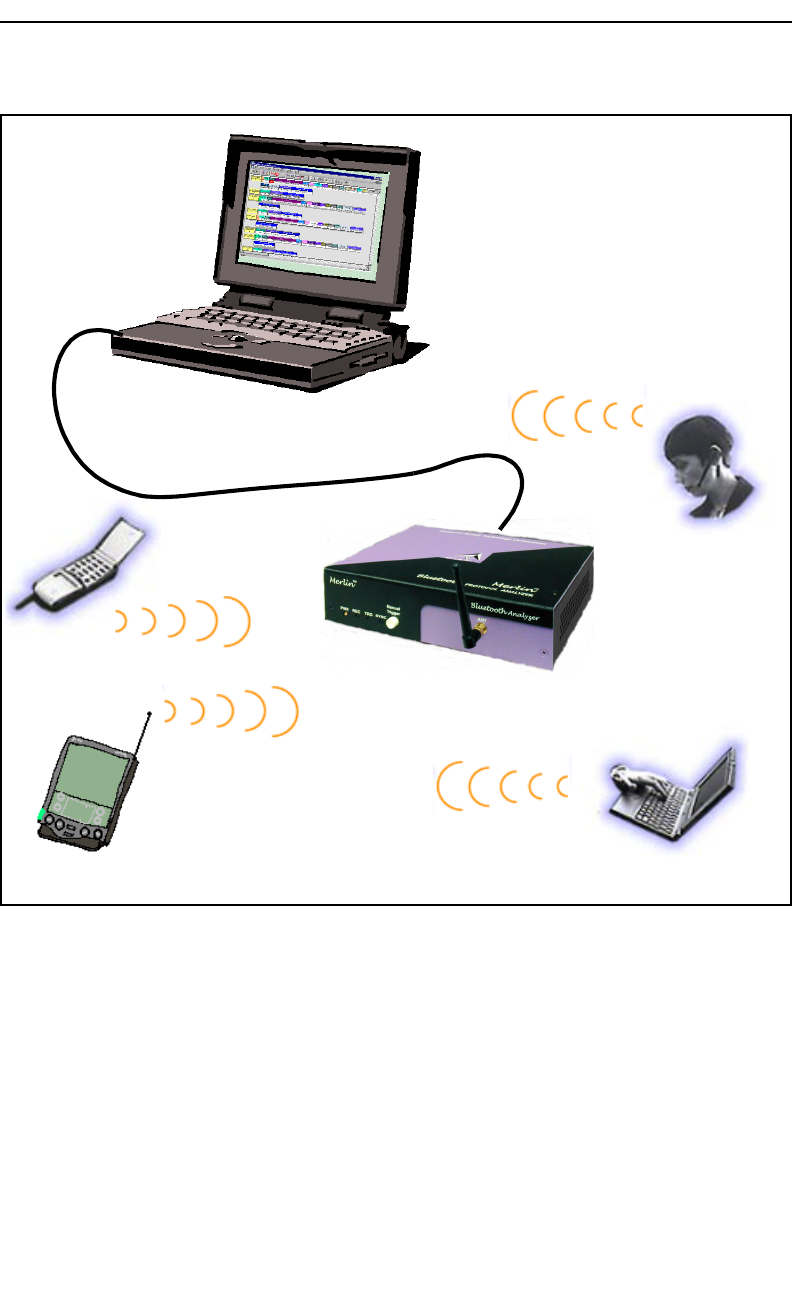

Sample Bluetooth™ Piconet with BTTracer Protocol Analyzer
BTTracer provides on-the-fly detection of and triggering on such events as
Packet Headers and Errors. Whether recording manually or with a specified
trigger condition, BTTracer continuously records the bus data in a
wrap-around fashion until manually stopped or until the Trigger Event is
detected and a specified post-Trigger amount of bus data is recorded.
Upon detection of a triggering event, the analyzer continues to record data
up to a point specified by the user. Real-time detection of events can be
individually enabled or disabled to allow triggering on events as they
happen. This includes predefined exception or error conditions and a
4
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
user-defined set of trigger events. The unit can also be triggered by an
externally supplied signal. An external DB-9 connector provides a path for
externally supplied data or timing data to be recorded along with bus traffic.
This DB-9 connector also provides a path for BTTracer to transmit
externally two control, timing, or recovered signals for purposes of probing
and use by other circuitry.
The BTTracer software provides powerful search functions that enable
investigation of particular events and allow the software to identify and
highlight specific events. In addition to immediate analysis, you can print
any part of the data. Use the Save As feature to save the data on disk for later
viewing. The program also provides a variety of timing information and
data analysis reports.
1.3 Automation
The BTTracer software includes an Application Program Interface (API) for
developing testing programs and scripts in C++ and Visual Basic. The API
reproduces most of the commands embodied in the BTTracer trace viewer
software. This API allows users to automate procedures that otherwise have
to be run manually via the trace viewer software. The Automation API can
be run locally on the PC attached to BTTracer or remotely over a network
connection.
For further details, download the BTTracer Automation Application
Programming Interface User’s Manual from the CATC website:
http://www.catc.com/support.html
1.4 Features
General
• Flexible design - reconfigurable hardware for future enhancements.
• User friendly - the Graphical User Interface software of BTTracer
Analyzer is designed to be consistent with the ‘CATC Trace’ using color
and graphics to display Bluetooth™ traffic.
• Radio Level Point of Observation and Capture - traffic capture at the
Radio Level for comprehensive analysis.
• Complies with Bluetooth™ v1.1 specification.
• Supports point-to-point and point-to-multipoint Bluetooth™ piconets.
• Supports both 79 frequency hop and 23 frequency hop standards.
• Automatic tracking of changes in the hopping scheme.
5
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
• Automatic tracking of whitened and non-whitened packets and traffic.
• Free non-recording, view-only software available.
• Power-on self-diagnostics.
• Internal 100V to 240 V AC power supply.
• Compliant with FCC class A requirements / meets all CE mark
requirements.
• One year warranty and hot-line customer support.
Physical Components
Note For an updated description of requirements for the host machine, please refer to the
readme file.
• Trace viewer software support for all of the above plus Windows 95.
• Recording memory of 128MB - enough to record twenty five minutes of
high volume traffic.
Display Options
• Analyzes and displays a transaction-level view of piconet traffic with
accurate time-stamps and frequency hop information.
• Software analysis and data presentation at several protocol levels:
Baseband, LMP, L2CAP, SDP, RFCOMM, TCS, OBEX, HDLC, BNEP,
PPP, AT, and HID Commands.
Recording Options
• Flexible advanced triggering capabilities including - multiple triggering
modes, selective views, timing analysis, search functions, protocol
packet errors, transaction errors, packet type and destination device, data
patterns, or any of these trigger types in combination.
• User defined trigger position.
• Support for various piconet characteristics by enabling the user to
configure the synchronization method and recording parameters.
• Real-time hardware filtering of captured traffic for optimizing analyzer
memory usage.
Traffic Generation
Traffic generation capability is provided by BTTrainer.
6
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Bluetooth™ BusEngine
CATC’s BusEngine™ Technology is at the heart of the new BTTracer
Analyzer. The revolutionary BusEngine core uses state-of-the-art EPLD
technology and incorporates both the real-time recording engine and the
configureable building blocks that implement data/state/error detection,
triggering, capture filtering, external signal monitoring and event counting
& sequencing. And like the flash-memory-based firmware that controls its
operation, all BusEngine logic is fully field upgradeable, using
configuration files that can be downloaded from the CATC Website.
7
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
1.5 Specifications
Package
Power Requirements
90-264VAC, 47-63Hz (universal input), 100W maximum
Environmental Conditions
Switches
LEDs
Recording Memory Size
128M x 8-bit DRAM for traffic data capture, timing, state and other data.
Certification
FCC (Class A), CE Mark
Dimensions: 9.2 x 8.4 x 2.5 inches
(23.4 x 21.3 x 6.4 cm)
Connectors: AC power connection
external clock input (EXT CLK, BNC)
host connection (USB, type ‘B’)
data connector (Data In/Out, 9-pin DB)
Weight: 2.8 lbs. (1.2 kg)
Operating Range: 0 to 55 °C (32 to 131 °F)
Storage Range: -20 to 80 °C (-4 to 176 °F)
Humidity: 10 to 90%, non-condensing
Power: on/off
Manual Trigger: when pressed forces a trigger event
Power (PWR): illuminated when the analyzer is powered on.
Recording (REC): illuminated when the analyzer is actively recording traffic
data.
Triggered (TRG): illuminated during power-on testing, and when the analyzer
has detected a valid trigger condition.
Synchronized
(SYNC):
flashes during acquisition of the traffic hop sequence, illu-
minated when the analyzer is locked to the hop sequence.
8
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
9
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
2. Quick Installation
The BTTracer Protocol Analyzer components and software are easily
installed and quickly ready to run on most Windows-based personal
computer systems. You can begin making Bluetooth™ recordings after
following these initial steps. However, if you are new to personal computers
and protocol analyzers, or if you are unsure about what to do after reading
the Quick Installation instructions, or if your analyzer does not work after
you follow these instructions, read through the subsequent sections in this
manual.
2.1 Setting Up the Analyzer
Step 1 Attach the Antenna to the ANT connection point. The
antenna should point up.
Step 2 Connect the AC power cable to the rear of the analyzer.
Step 3 Turn on the power switch on the rear of the analyzer.
Step 4 Insert the BTTracer CD into the CD ROM drive of the PC
that will be administering the Analyzer. If you prefer to
install from diskette, insert the first BTTracer diskette (Disk
1 of 6) into the floppy disk drive.
Step 5 Connect the USB cable between the USB port on the back of
the analyzer and a USB port on the analyzing PC.
Step 6 Follow Windows on-screen Plug-and-Play instructions for
the automatic installation of the BTTracer Analyzer as a
USB device on your analyzing PC (the required USB files
are included on the BTTracer CD and the first BTTracer
diskette).
2.2 Installing the Software
Step 1 From the setup directory, run setup, and follow the on-screen
instructions to install the BTTracer application on the
analyzing PC hard disk.
Step 2 To start the application, launch the CATC BTTracer
program from the Start Menu:
Start>Programs>CATC>BTTracer.
10
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
2.3 Your First Bluetooth™ Recording
After installing and launching the software, you can test BTTracer by
creating a recording of a General Inquiry. In this test, BTTracer will issue
a General Inquiry that asks local devices to identify themselves. BTTracer
then records the responses.
Step 1 Select Recording Options under Setup on the Menu Bar.
The Recording Options dialog box will open showing factory default
settings such as “manual trigger” and 1 Mbytes buffer size. For the
General Inquiry recording you are about to create, these settings can be
left unchanged.
11
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0

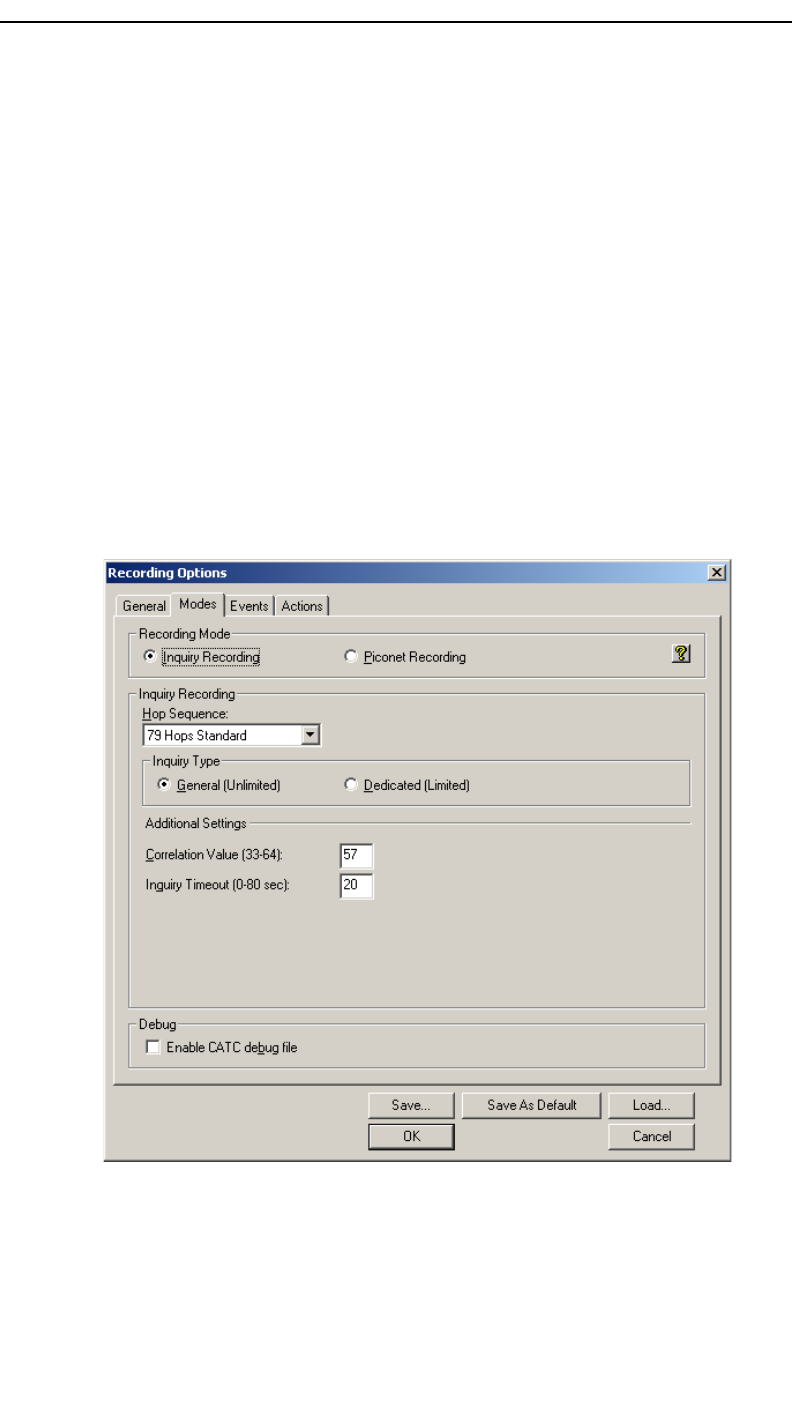

Step 2 Select the Modes tab.
The following dialog box will open showing factory default settings.
BTTracer defaults to “General Inquiry.” For this recording, leave most
of these settings unchanged. If you are recording a Hop Frequency that
is not 79 Hops Standard, you will need to select the appropriate
standard from the Hop Frequency menu below.
Step 3 Click OK to close the Recording Options window and
activate the recording options you selected.
At this point, BTTracer will be ready to record.
Step 4 Click on the Tool Bar.
BTTracer starts to record the Bluetooth™ traffic immediately. The
Bluetooth™ Inquiry process will proceed for 20 seconds. After 20
seconds has elapsed, the analyzer uploads the data and displays the
packets.
Step 5 If you wish to terminate the recording before the snapshot
12
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
automatically completes, click on the Tool Bar.

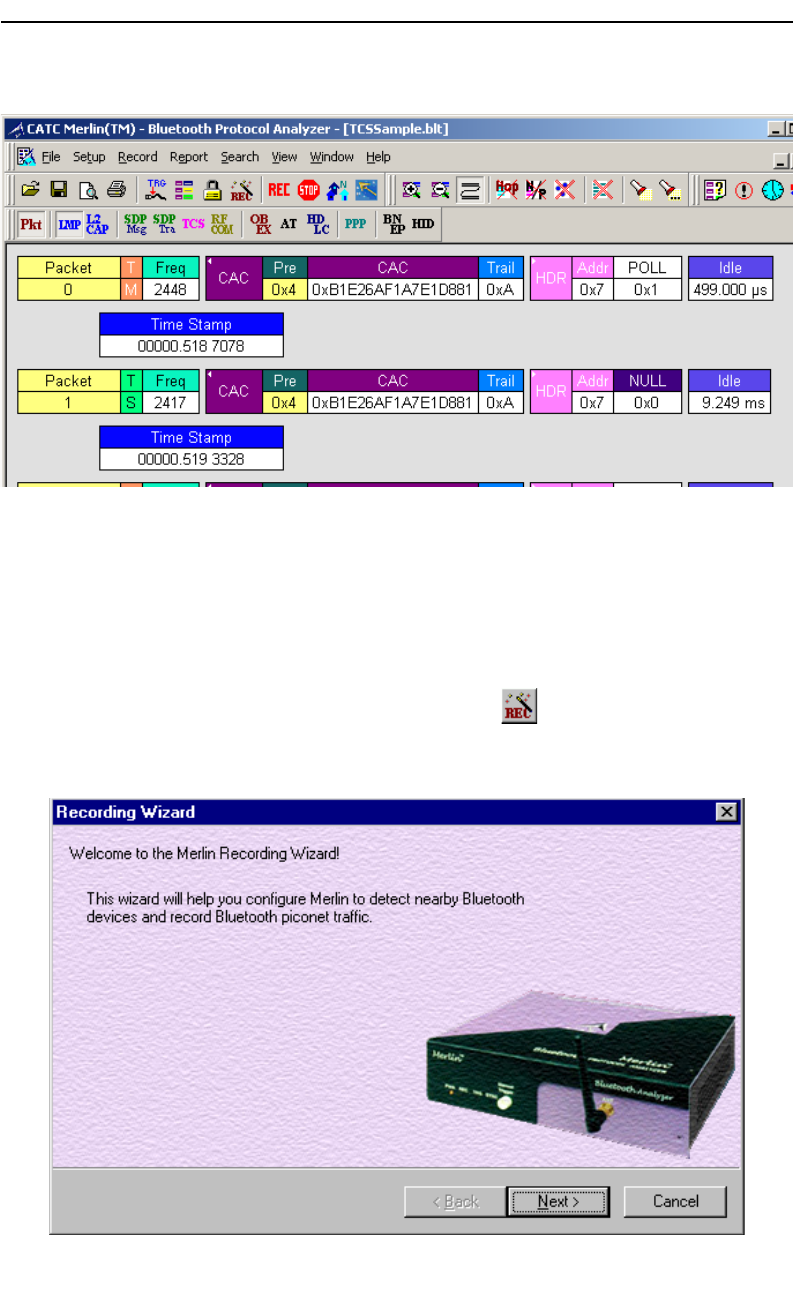

After a few moments, the recording will terminate and the results will
display. The screen should look like the sample recording below which
shows the FHS packets generated during the Inquiry process.
When the recording session is finished, the bus traffic is saved to the hard
drive as a file named data.blt or whatever name you assign as the default
filename. While the file is being saved, you should see a brown progress
bar at the bottom of the screen. When the bar turns white, it indicates that
the data has been saved to disk.
Step 6 To save a current recording for future reference, Select Save
As under File on the Menu Bar.
OR
Click on the Tool Bar.
You see the standard Save As screen.
Step 7 Give the recording a unique name and save it to the
appropriate directory.
13
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
3. Detailed Installation
3.1 System Components/Packing List
• One stand-alone BTTracer Analyzer module
• One Antenna
• One External Interface Breakout Board with a 9-pin ribbon cable
• One 6-foot (2-meter) USB cable
• BTTracer software program installation CD and diskettes
• Product documentation
3.2 The Installed BTTracer Unit
The BTTracer Analyzer has several user-accessible controls and LEDs on
its front and rear panels of the OmniBus.
Figure 1: Front Panel
•RedPWR (power) indicator LED (lights when the unit power is
switched on).
•GreenREC (recording) LED (lights when the unit is recording).
• Yellow TRG (triggered) LED (lights when the unit triggers an event).
Note TRG also lights during power-on testing and will be turned off at the end of the
power on cycle. If the LED blinks at the end of this cycle, the hardware is faulty.
•GreenSYNC (synchronized) LED (lights when the unit is locked onto a
specific piconet, based on the Master Address).
•Manual Trigger push-button (allows a manual Trace capture)
—After beginning a recording session, press the Manual Trigger switch to
force a Trigger condition. The session completes when a specified
post-Trigger amount of bus data is recorded or when you manually stop a
recording session.
•ANT Bluetooth™ Antenna connector
14
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Figure 2: Rear Panel
•Wide range AC connector module
—Power socket
—Enclosed 5x20 mm 2.0A 250 V fast acting glass fuse
Warning: For continued protection against fire, replace fuse only with the
type and rating specified above.
—Power on/off switch
•External Clock (EXT CLK) input for future enhancement (Note: THIS PORT
IS NOT USED)
•USB type “B” host computer connector
•Data In/Out DB-9 (9-pin) external interface connector
Warning: Do not open the BTTracer Analyzer enclosure. There are no
operator servicable parts inside. Refer servicing to CATC.
3.3 BTTracer System Setup
The BTTracer Analyzer is designed to work with either desktop or laptop
computers equipped with a functional USB interface. To set up the system
hardware,
• Attach the Antenna to the ANT connector. Set the antenna to
point up.
• Connect the Analyzer to an AC power source.
• Connect the External Interface Breakout Board to the Data
In/Out connector (optional).
• Connect to the analyzing PC via USB.
3.4 AC Power Source
Step 1 Connect the Analyzer box to a 100-volt to 240-volt, 50 Hz to
60 Hz, 100 W power outlet using the provided power cord.
15
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Note The Analyzer is capable of supporting supply voltages between 100-volt and
240-volt, 50 Hz or 60 Hz, thus supporting all known supply voltages around the
world.
Step 2 Use the power switch located on the rear panel to turn the
analyzer unit on and off.
Note At power-on, the analyzer initializes itself in approximately ten seconds and
performs an exhaustive self-diagnostic that lasts about five seconds. The Trigger
LED illuminates during the power-on testing and turns off when testing is
finished. If the diagnostics fail, the trigger LED blinks continuously, indicating a
hardware failure. If this occurs, call CATC Customer Support for assistance.
3.5 External Interface Breakout Board
The External Interface Breakout Board is an accessory that allows
convenient access to several potentially useful standard fast TTL output and
input signals. It also offers a simple way to connect logic analyzers or other
tools to the BTTracer Analyzer unit. Four ground pins and one 5-volt pin are
provided.
The Breakout Board connects via a ribbon cable to the Data In/Out
connector located on the rear of the analyzer box. Each pin is isolated by a
100Ωseries resistor and a buffer inside the Analyzer box.
Figure 3: Data In/Out Connector
Table 1 lists the pin-out and signal descriptions for the Data In/Out
connector.
Table 1: Data In/Out Connector – Pin-Out
Pin Signal Name Signal Description
1 +5V +5 Volts, 250mA DC source
2 TRG IN Trigger Input
3 GP IN General Purpose Input
4 TRG OUT Trigger Output
5 GP OUT General Purpose Output
16
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Table 2: External Interface Breakout Board
Breakout Board External Output Signalling Pins
The "TRG OUT" and "G.P. OUT" pins found on the Analyzer’s Breakout
Board have similar functions. Both pins serve to transmit output signals
when a trigger event occurs. The main differences between the two pins is
in the number of signals that the Analyzer will send through them (TRG
OUT will transmit just one signal whereas G.P. OUT may transmit several
sequential signals), and in their initial state (TRG OUT is always enabled by
the Analyzer whereas G.P. OUT must be enabled in the recording options
before it can be utilized).
TRG OUT
When an event trigger occurs, TRG OUT transitions from ground to a
continuous 5 V signal on the first instance of a trigger event. TRG OUT is
a one-time event: it will not re-signal or change signals with subsequent
triggering events. When this first trigger event occurs, the Trigger LED will
illuminate (so this pin can be thought of as a reflection of the state of this
LED).
6 GND Ground
7 GND Ground
8 GND Ground
9 GND Ground
Pin Signal Name Signal Description
17
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
G. P. O U T

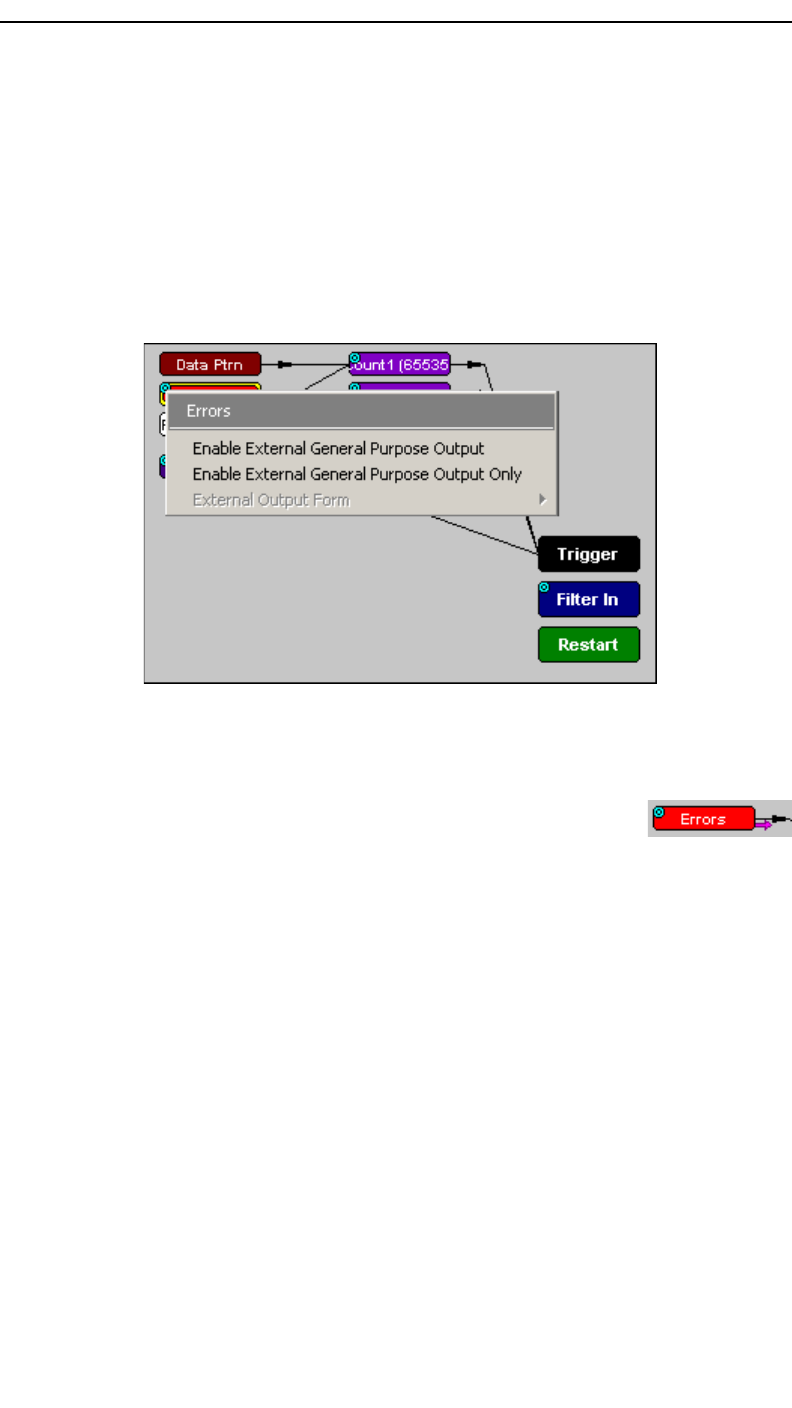

G.P. OUT needs to be enabled before it will output signalling. See “Blue
Dot Menus for the Event Buttons” on page 88 for details on how to enable
output signalling.
If enabled, G.P. OUT will provide signalling each time a trigger event is
detected by the Analyzer. G.P. OUT’s signalling can be set to three different
formats - "Pulse High" provides a 16.66 ns (ground to +5V) signal, "Pulse
Low" a 16.66 ns (+5 V to ground) signal or "Toggle", a signal with an initial
High (+5V) state that alternates with each trigger event between continuous
High (+5 V) and continuous Low (Ground). "Pulse High" is the default
condition. To change the format, see “Enabling High Pulse, Low Pulse or
Pulse Toggle Signal Outputs” on page 88 for details.
Prototype Rework Area
The Breakout Board contains a prototype rework area for making custom
circuits for rapid development. The area consists of plated-through holes, 20
columns wide by 27 rows long. The top row of holes is connected to GND
and the bottom row is connected to +5V. The remaining holes are not
connected. Use the rework area to insert custom components and wire-wrap
their respective signal, power, and ground pins.
3.6 PC Connection
Use the USB cable provided to connect the host computer to the BTTracer
Analyzer.
3.7 Antenna Information
According to the Bluetooth™specifications, Bluetooth™Antennas should
be placed at least 10 cm apart. It is recommended that BTTracer be placed
at least 1 meter away from the nearest device in the piconet under
observation.
3.8 Analyzer PC Requirements
For an updated description of requirements, please refer to the readme file.
Note If installing BTTracer software on a Windows NT 4.0 system, you will need a
separate set of diskettes, which is available from CATC.
18
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
3.9 BTTracer Program Installation
The CATC BTTracer software is provided on a CD and also on six 3½ inch
diskettes. The software is also available on zip files at the CATC web site:
http://www.catc.com/support.html
If you are downloading the files from the CATC web site, you will be
retrieving several zipped files. The first of these has an executable called
install.exe. Double-click on this file and follow the on-screen instructions.
Installation of the analyzer software requires a Windows 98, Windows
98SE, Windows 2000, Windows ME, or Windows XP operating system. If
you are loading BTTracer onto Windows NT 4.0 you will need to get a
separate diskette and instructions from CATC.
Loading the BTTracer USB Drivers
Before you can install the BTTracer Windows application, you will need to
install BTTracer as a USB device:
Step 1 Insert the BTTracer program CD into the CD ROM drive of
the PC that will be administering the Analyzer. If you prefer
to install from floppy diskette, install the floppy for your
operating system labeled Disk 1 of 6 into the a: drive.
Step 2 Power-on the BTTracer Analyzer.
Step 3 Connect the USB cable to the rear of the analyzer and to the
personal computer.
The host operating system detects the analyzer and begins to install the
USB driver.
Step 4 Follow the installation instructions provided on your screen
to complete the installation of the driver.
Note When Windows prompts you for a file, browse to the CATC floppy in the a: drive.
Installing the BTTracer Application Program
Run Setup.exe from the BTTracer CD or from the BTTracer floppy disk 1
of 6.
The CATC BTTracer Install Wizard automatically installs the necessary
files to the computer’s hard drive. BTTracer software is installed in the
C:\Program Files\CATC\BTTracer directory unless you specify otherwise.
Follow the installation instructions on your screen.
19
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
3.10 BTTracer Program Startup
You can start the BTTracer program from the Desktop or from the installed
directory. The program always begins with its main screen active:
The software may be used with or without the analyzer box. When used
without an analyzer box attached to the computer, the program functions in
a Trace Viewer mode to view, analyze, and print captured protocol traffic.
When the program is used with the BTTracer Protocol Analyzer attached to
the computer, you can set trigger conditions, record, monitor and analyze
the activity of your Bluetooth™ device or piconet.
20
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
3.11 Making a Recording
After installation, the software is configured to make a manual recording
("Manual Trigger") of General Inquiry traffic.
To make your first recording of this traffic,
Step 1 Click on the Tool Bar.
After 20 seconds, Inquiry timeout occurs and the analyzer will upload the
data and display the packets.
To terminate the recording before Inquiry timeout occurs,
Step 2 Click on the Tool Bar at any time before recording
automatically terminates.
When the recording session is finished, the traffic is saved to the hard
drive as a file named data.blt or whatever name you assign as the default
filename.
To save a current recording for future reference,
Step 3 Select Save As under File on the Menu Bar.
OR

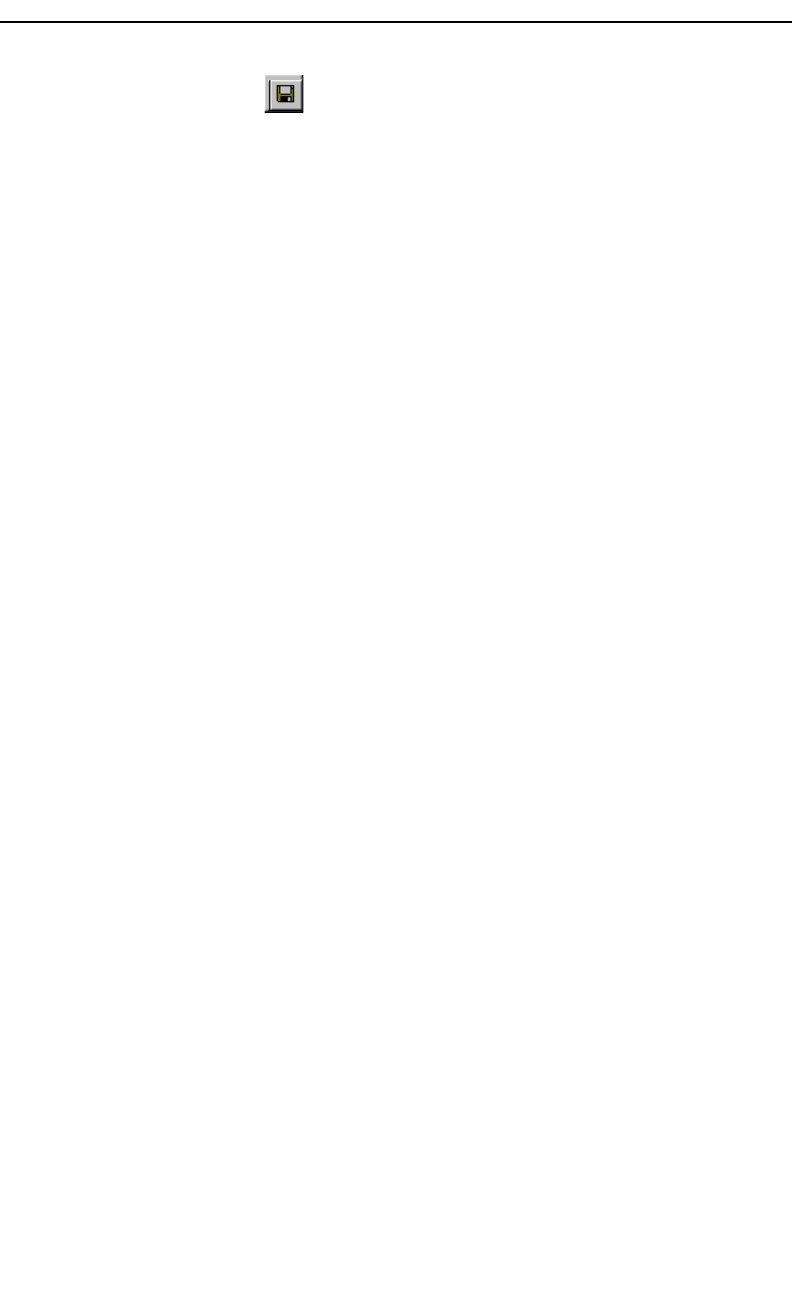

Click on the Tool Bar.
You see the standard Save As screen.
Step 4 Give the recording a unique name and save it to the
appropriate directory.
21
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
4. Updates
From time to time as modifications are made to BTTracer, it is necessary to
update the Firmware and/or BusEngine for optimal performance. Updates
can be performed two ways: either automatically or manually. This chapter
describes both procedures.
4.1 Software, Firmware, and BusEngine Revisions
The Readme.htm or Readme.txt file on the first installation disk and in the
installed directory gives last-minute updates about the current release.
Included with each release are the most recent downloadable images of the
Firmware and the BusEngine. The Readme file lists the latest versions and
informs you if new Firmware or a new BusEngine needs to be updated in
your hardware.
Once the Analyzer has completed the self diagnostics and is connected to
the PC, you can check the latest revision of the software and BusEngine:

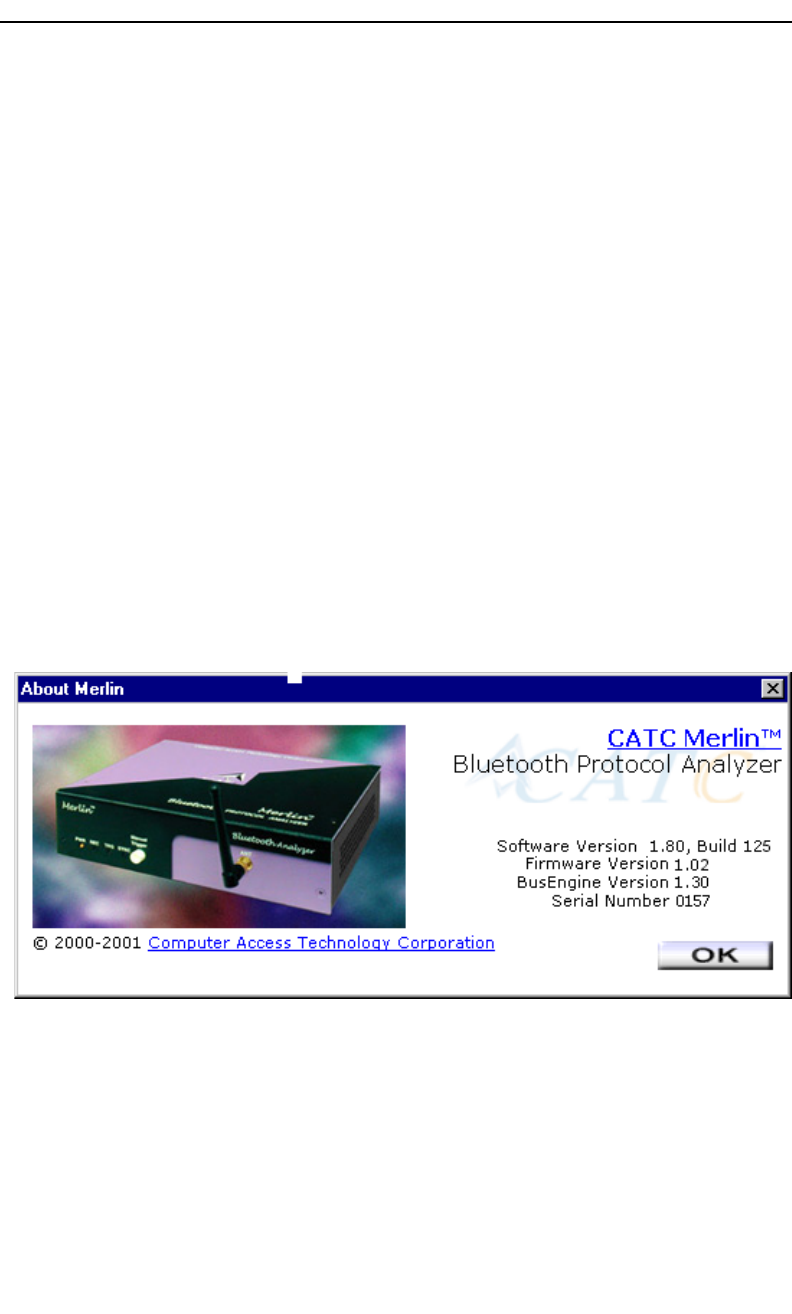

•Selecting About Merlin… in the Help Menu.
You see this screen:
About Merlin details revisions of the following software and hardware:
•Merlin Software Version
•Merlin Firmware Version
•BusEngine Version
•Unit Serial Number
Note When contacting CATC for technical support, please have available all the
revisions reported in the About Merlin window.
22
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
4.2 Software Updates
When a new software release is available, it is posted on the Support page
of the CATC website at www.catc.com/support.html.
To update the software,
Step 1 In the About Merlin screen,verifywhichversionof
BTTracer Software you are currently running.
Step 2 Find the latest released software version on the CATC
website under Support.
If you are running the latest version of the software, no further action is
needed.
If you are not running the latest version, continue to Step 3.
Step 3 Click on the first link to download the zipped Disk 1 files for
your operating system.
Step 4 Click on the second link to download the zipped Disk 2 files.
Step 5 Unzip the files into your choice of directory.
Step 6 Click Start, then Run, and browse to where you unzipped
the files.
Step 7 Select the program named Setup and click Open.
Step 8 Click OK to run the Setup and begin the installation.
Step 9 Follow the on-screen instructions to complete the
installation.
Step 10 Read the Readme file for important information on changes
in the release.
4.3 Software License Updates
A license key is a file that CATC provides to you when you enter a
maintenance agreement. You use this file when you make updates to your
CATC software.
23
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Step 1 From the Help menu, select Update License.
Step 2 Type the path and filename to the license key or click the
Browse button to map to the directory containing the license
key.
Step 3 Click Update Device.
Viewing licensing information
You can also view licensing information to see what version of the license
you are running.
From the Help menu, select Display License Information.
The following window appears containing information about the current
status of your analyzer’s license:
4.4 BusEngine and Firmware UpdateUpdates
BusEngine and Firmware updates often need to be performed when you
update the BTTracer software. These updates can be performed
automatically or manually. Both processes are described.
24
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Automatic Updates
When BTTracer’s software is updated, the software may become
incompatible with the BusEngine and Firmware. If a recording is
attempted, BTTracer will display an error message and then automatically
begin an update process for the BusEngine and Firmware. If you prefer, you
can abort this update and undertake the steps manually as described later in
this chapter.
To perform an automatic BusEngine and Firmware update,
Step 1 If needed, update the BTTracer software using the steps
outlined in "Software Updates" described above.
Step 1 Turn on the Analyzer.

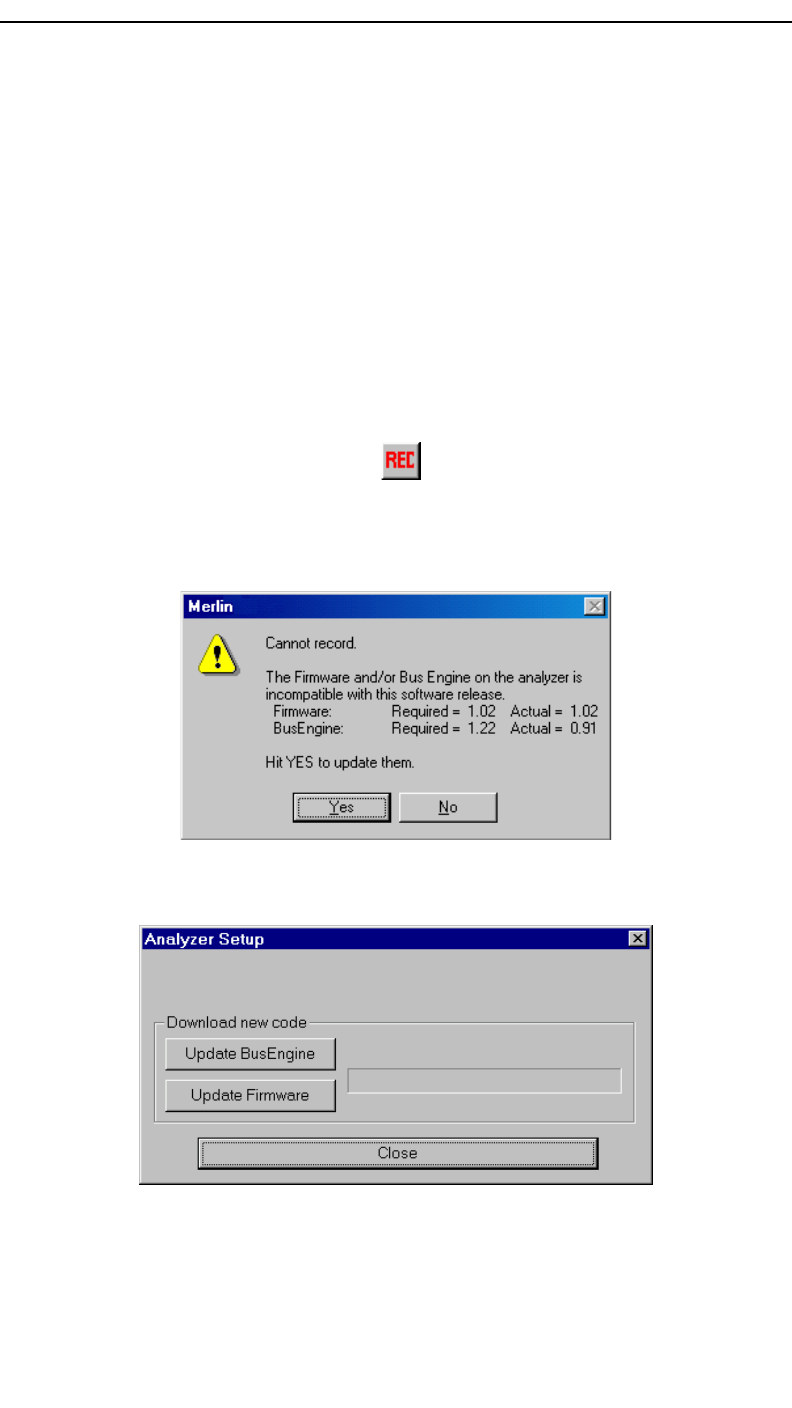

Step 2 On the toolbar, click the button.
Since the BusEngine and/or the Firmware are incompatible with the
current BTTracer software version, an error message will appear
displaying your current versions and indicating what versions you need
to install.
Step 3 Click Yes.
The above window closes and the Analyzer Setup window opens.
Step 4 Click Update BusEngine or Update Firmware on the
25
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Analyzer Setup screen.
You can select only one item at this point. If both the BusEngine and the
Firmware need to be updated, the update will complete for the first item
and then return to the above screen so the second update can be
performed.
When the second update has finished, you will see the following message
telling you that the update is complete.
Step 5 Power cycle BTTracer to complete the update.
Manual Updates to BusEngine and Firmware
You can manually update BTTracer’s Firmware and/or BusEngine by
performing the following steps:
Step 1 Select Analyzer under Setup on the Menu Bar.
You see th e Analyzer Setup screen:
Step 2 Click Reset Analyzer
The Analyzer resets, performs self-diagnostics, and returns to service.
Note The self-diagnostics should complete about five seconds after the trigger LED
lights. If the diagnostics fail, the trigger LED blinks on and off continually,
indicating faulty hardware. If this occurs, contact CATC for customer support.
26
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Updating the BusEngine
The BusEngine core is the heart of the Merlin Analyzer. Using
state-of-the-art PLD technology, it incorporates both the high speed
recording engine and the configurable building blocks that implement
data/state/error detections, triggering, capture filtering, external signal
monitoring, and event counting and sequencing. Both the BusEngine
program and the Firmware that manages the internal microcontroller are
fully field updateable.
Within a new software release, it may be necessary to update the Analyzer’s
BusEngine hardware for proper operation. The Readme file lets you know
if this is necessary.
To update the BusEngine,
Step 1 Click Update BusEngine on the Analyzer Setup screen.
You see th e Select engine file window:
The program has already automatically searched for the correct file and
displays it in the File name field.
Note The most current Primary BusEngine file (BTTracer.rbf) was copied to your
\CATC\BTTracer directory when you installed the program.
Step 2 Click Open.
It is not necessary to restart the Analyzer. Once updated, the Analyzer takes
approximately 15 seconds to reinitialize, with Time Remaining displayed
on the screen. During this time the Trigger LED is on, indicating that
27
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
power-on diagnostics are being run. If there is a hardware failure, the
Trigger LED continues to blink after initialization is complete. If this
occurs, contact CATC for customer support.
Updating the Firmware
Within a new software release, it may also be necessary to update the
Analyzer’s firmware for proper operation. The Readme file informs you if
this is necessary.
To update the firmware,
Step 1 Click Update Firmware on the Analyzer Setup screen.
You see th e Select firmware file window:
The program has already automatically searched for the correct file and
displays it in the File name field.
Step 2 Click Open.
The Analyzer updates the Firmware.
Step 3 Unplug the USB cable from the back of the Analyzer box
and then reinsert it so the new Firmware update can take
effect.
28
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
29
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
5. Software Overview
5.1 The Main Display Windows
While some of the analyzer’s Main Display window options are familiar,
many contain options specific to the analyzer program.
Table 3: Main Display Pull-Down Windows
Menu Function
File
Open…Opens a file
Close Closes the current file
Save As…Saves all or a specified range of packets from the current file with a
specified name
Print…Prints part or all of the current traffic data file
Print Preview Produces an on-screen preview before printing
Print Setup…Sets up your current or new printer
Edit Comment…Creates or edits the Trace file comment field
Export »Packets to
Text (Packet View
Format)
Saves all or part of a trace to a text file or to a Comma Separated Values
(CSV) file suitable for viewing in a spreadsheet application
Export »Packets to
CSV Text
Saves all or part of a trace to a Comma Separated Values (CSV) file
suitable for viewing in a spreadsheet application
Last File Lists the last files that were opened
Exit Exits the BTTracer program
Setup

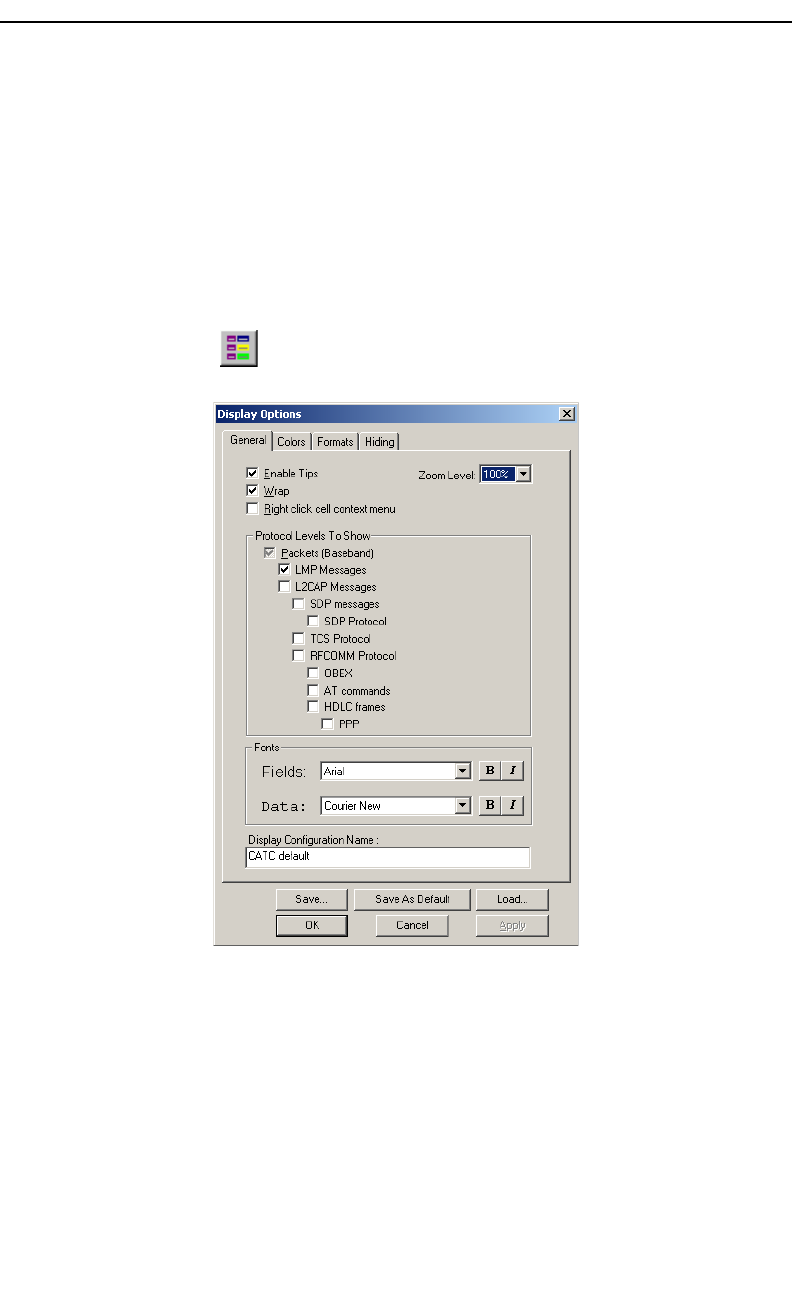

Display Options…Provides the control of various display options such as color, formats,
and filters.
Recording
Options…
Provides setup options for recording, triggering events and filtering
events.

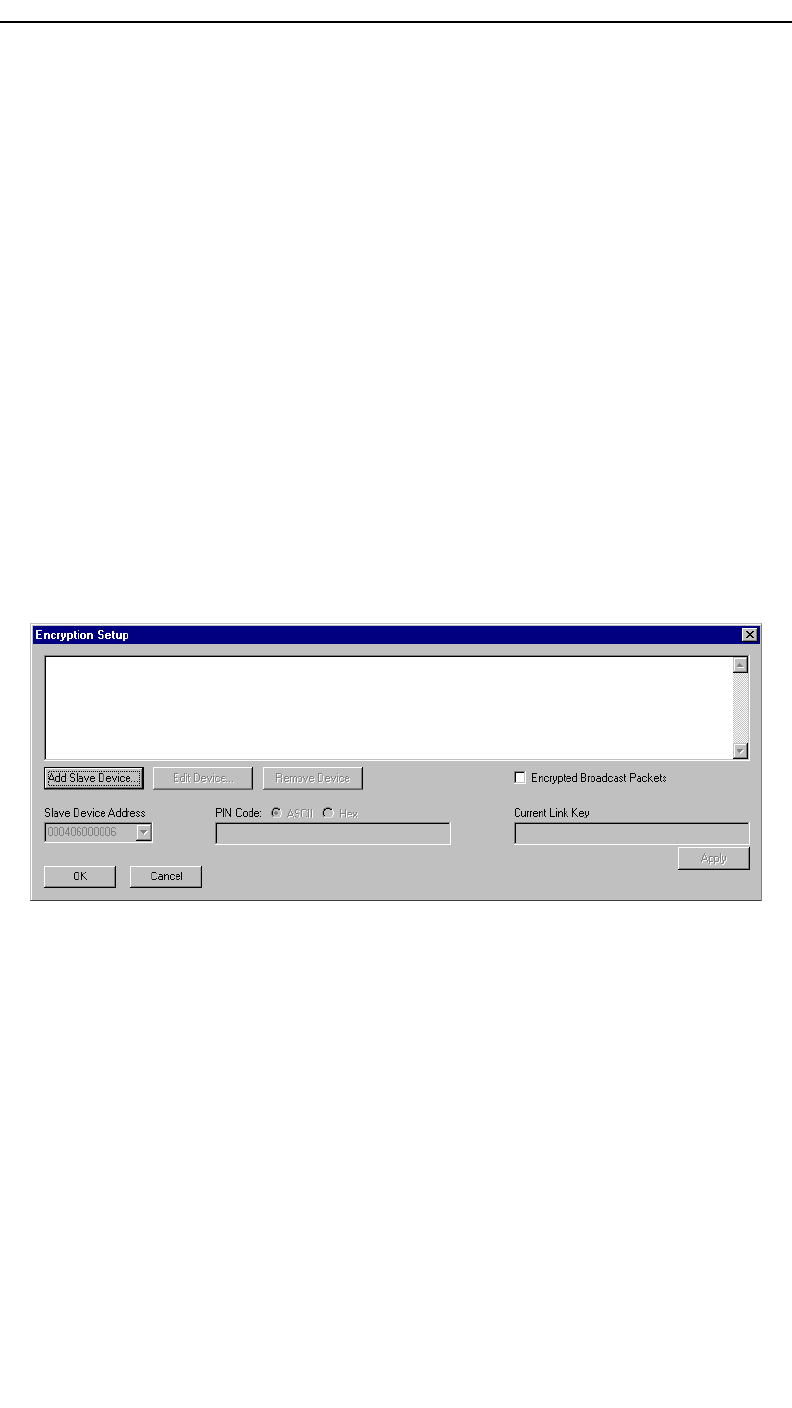

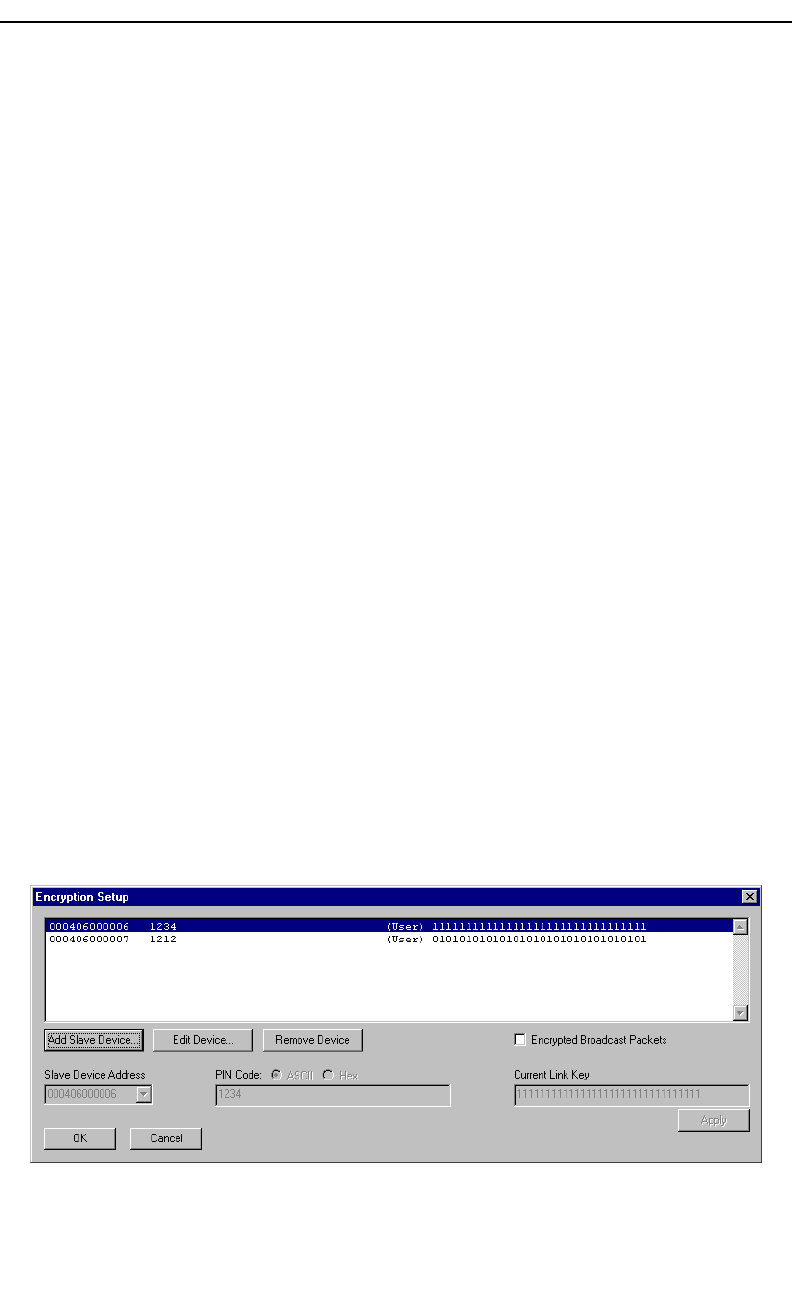

Encryption
Options ...
Allows a pin code to be assigned to a device to facilitate encryption
decoding.

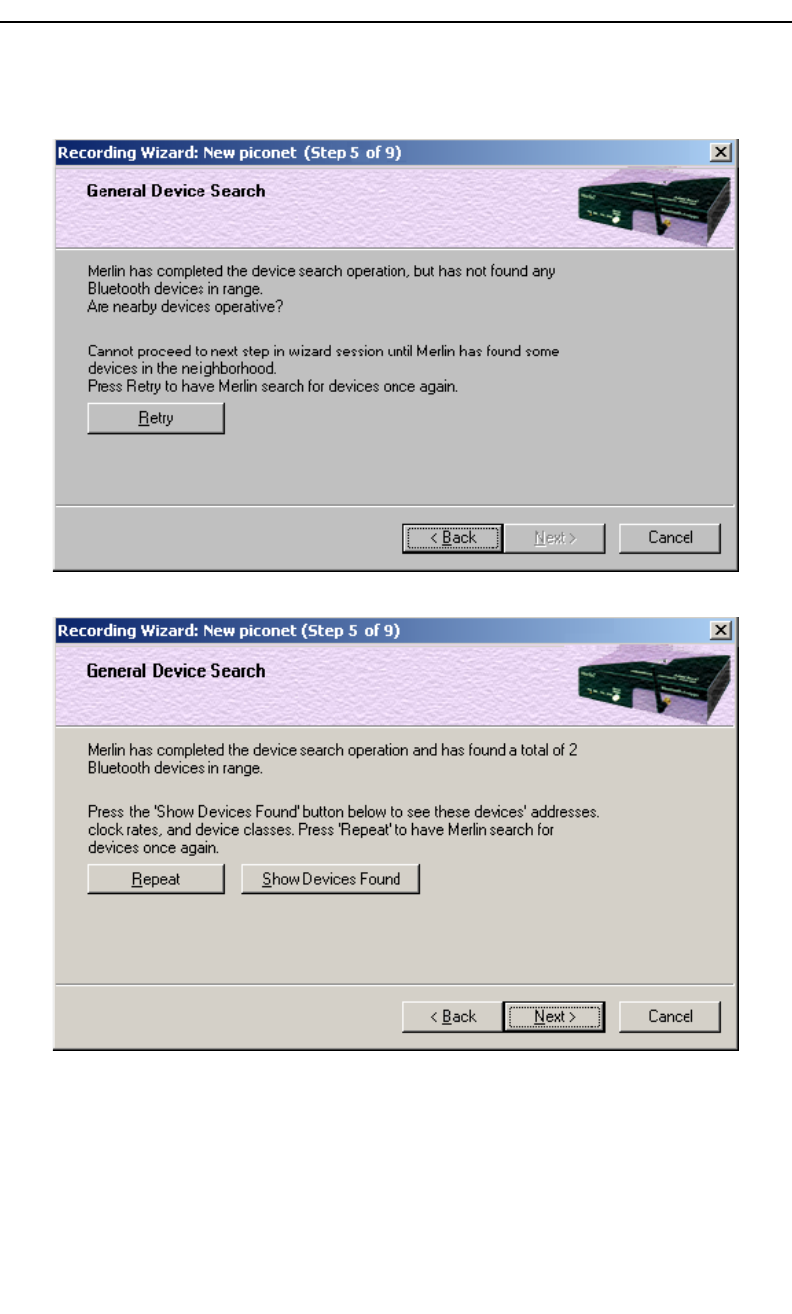

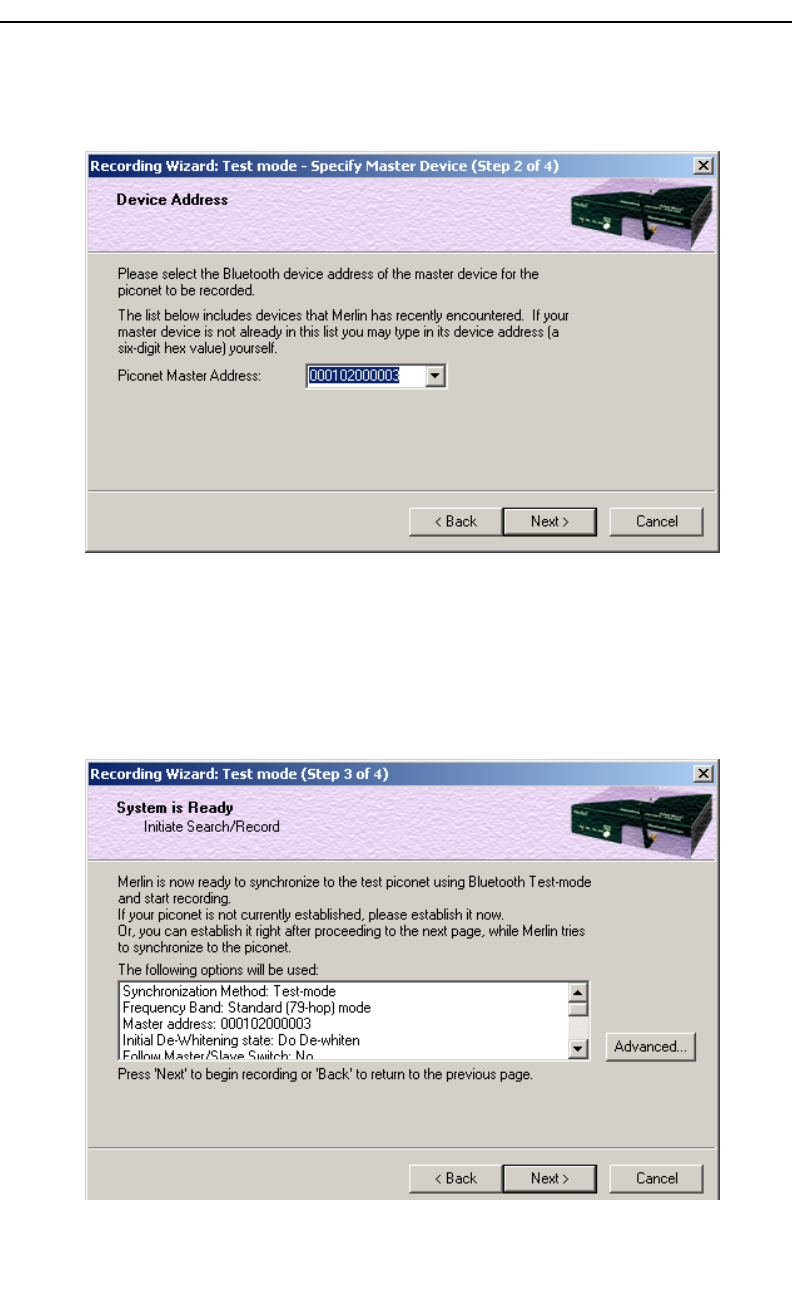

Recording Wizard ... Starts a sequence of interactive dialog boxes that configures BTTracer
for a recording. This utility provides an alternative to the Recording
Options dialog box.
Analyzer…Allows the operator to reset the Analyzer or update the BusEngine and
Firmware.
Record
Start Causes the Analyzer to begin recording Bluetooth™ activity.
Stop Causes the Analyzer to stop recording.
Inquiry Provides a fast setting of the frequency hopping scheme and the inquiry
mode.
Piconet Provides a fast way for setting the frequency hopping scheme and the
synchronization method.
30
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Report
File Information Details such information about the recording as number of packets and
triggering setup.
Error Summary Displays an error summary of the current trace file and allows you to
go to a specific packet, and save the error file to a uniquely named file.

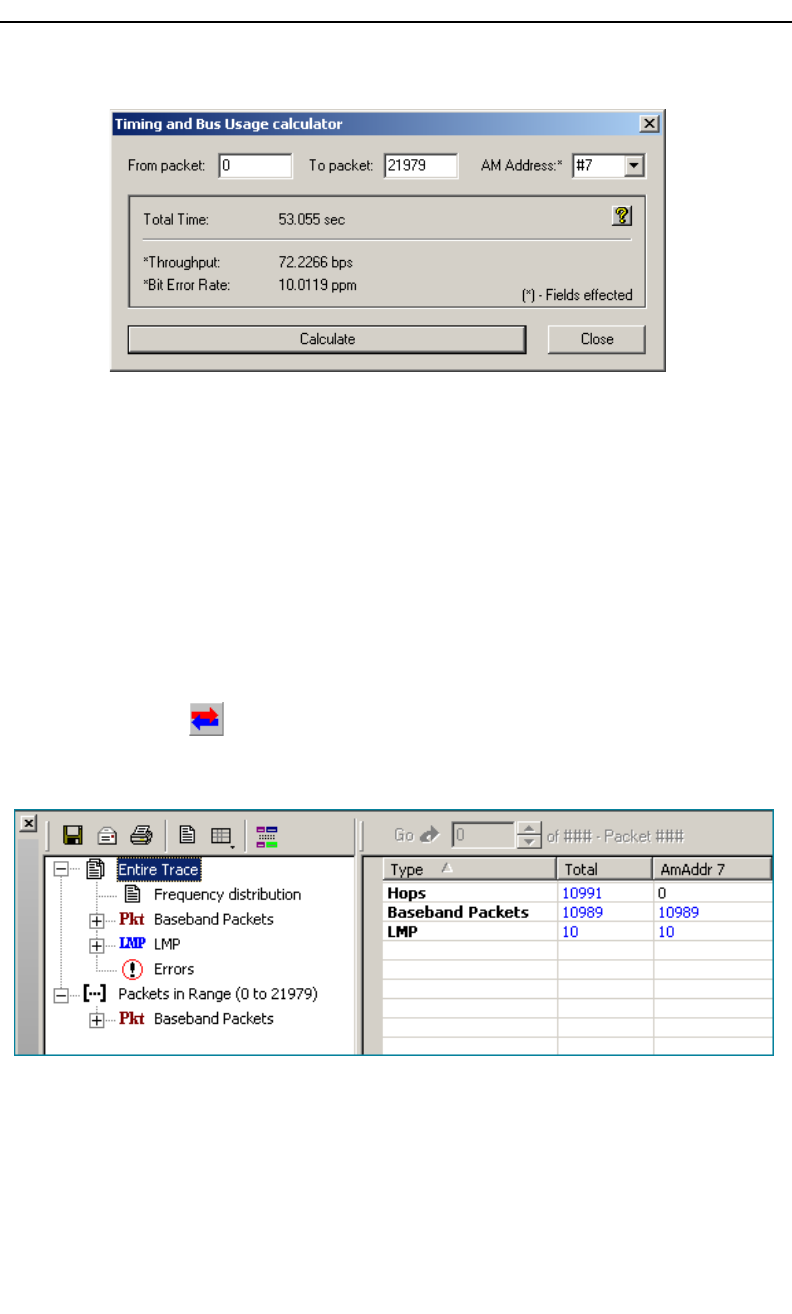

Timing Calculation Starts the calculator dialog for calculating various timing and
bandwidth parameters in the recording file.
Traffic Summary Details the number and type of packets were transferred during the
recording, as well as message-level statistics.
Search
Go to trigger Positions the display to show the first packet that follows the trigger
event.
Go to
Packet/Message/
Protocol ...
Positions the display to the indicated packet, LMP/L2CAP message, or
Protocol Message (RFCOMM, TCS, or SDP protocols).
Go to Marker » Positions the display to a previously marked packet.

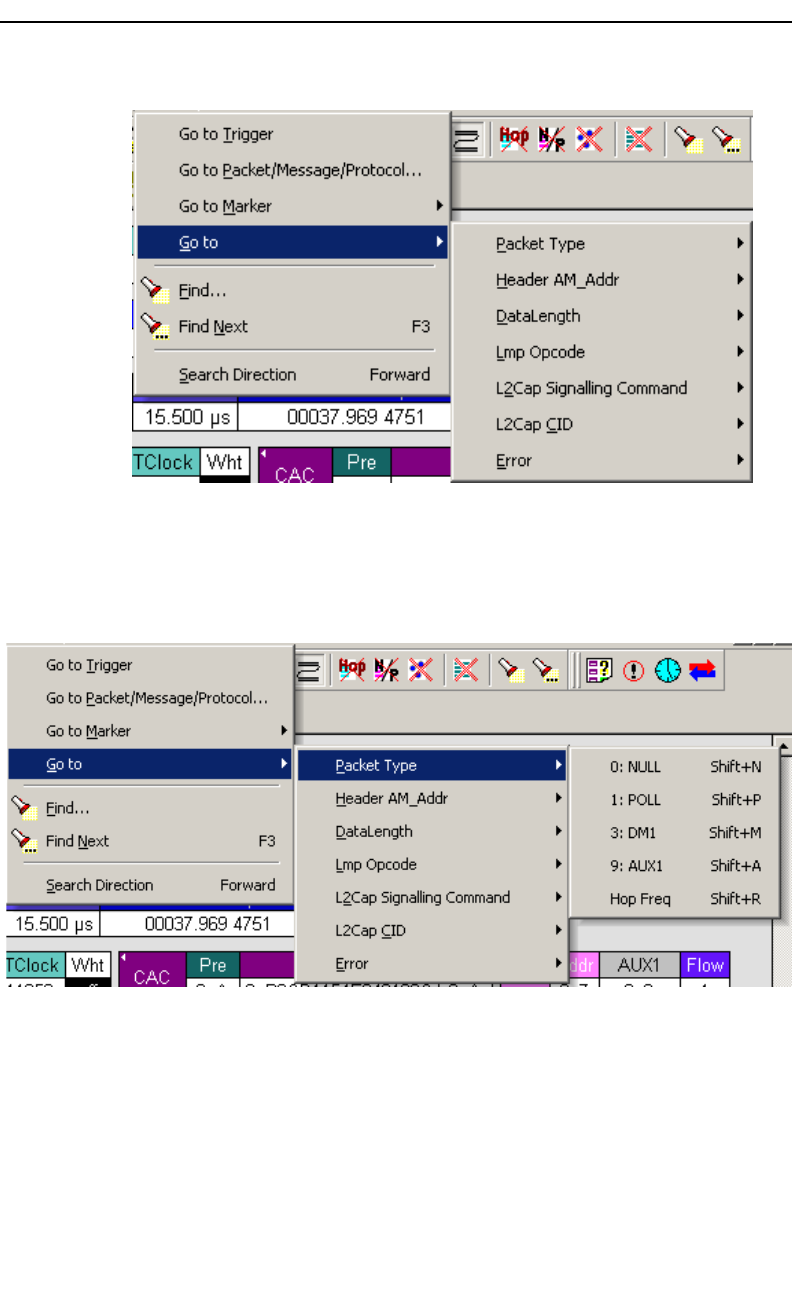

Go to » Enables quick searching for specific events using a cascade of pop-up
windows.
Find Allows complex searches.
Find Next Repeats the previous Find operation. Can also use F3 to find next.
Search Direction Allows you to specify a forward or backward search of a trace file.
View
Toolbars Displays list of available toolbars.
Status Bar Switches display of the Status Bar on or off.
Unhide cells Allows you to unhide cells.
Zoom In Zoom in increases the size of the displayed elements.
Zoom Out Zoom out decreases the size of the displayed elements.
Wrap Allows the display to wrap.

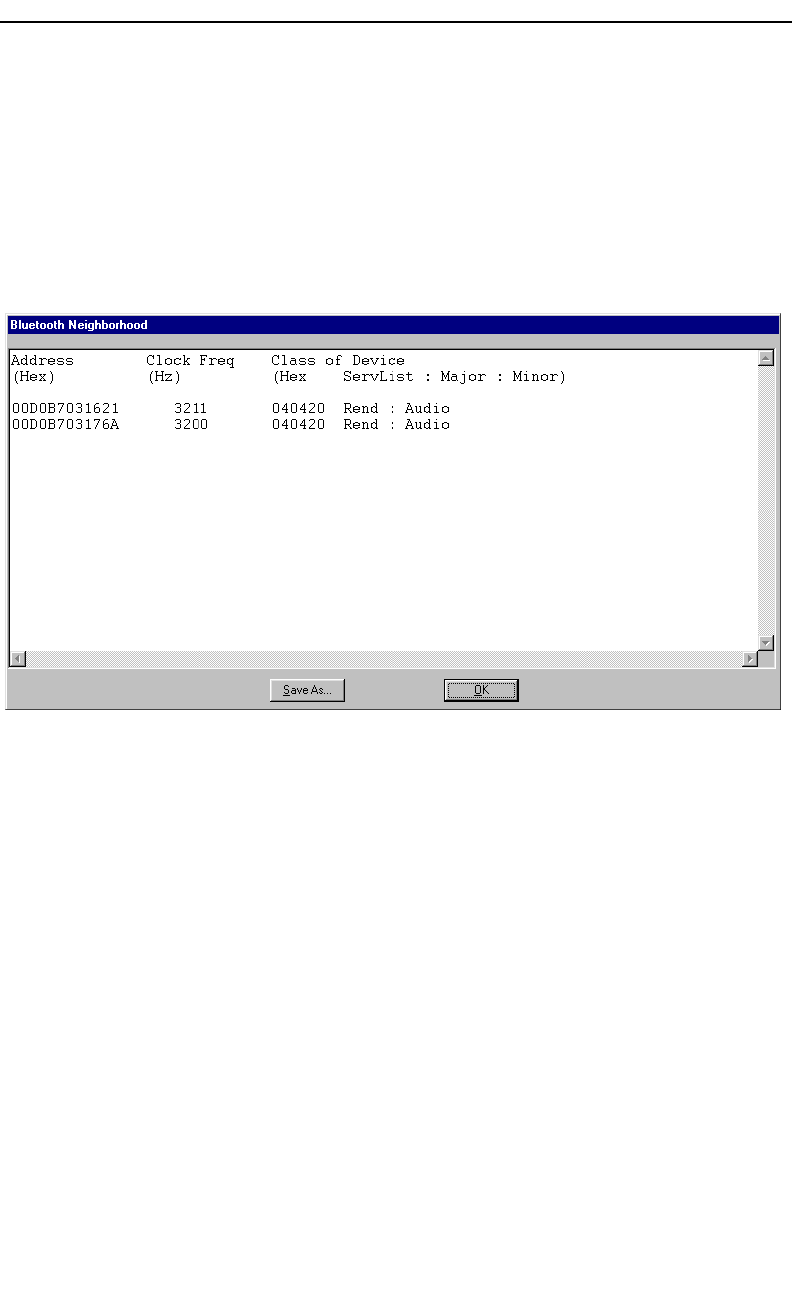

BT Neighborhood Displays Bluetooth™ Address and clock frequency for devices in
range. The expected Bluetooth™ clock frequency is 3200 Hz +/- 250
ppm.
Decoding
Assignments
Displays current decoding assignments and provides options for
changing them.
L2CAP connections Displays current L2CAP connections and provides options for
changing them.
RFCOMM Channel
Assignments
Displays current RFCOMM Channel Assignments and provides
options for changing them.
Levels Displays the level you select.
Menu Function
31
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
5.2 View Options
The View feature in the Menu Bar allows you to
•Control the display of the Tool Bar and the Status Bar.
Tool Bar
The Tool Bar provides access to the most popular program functions. Tool tips
describe icon functionality as the mouse arrow is moved over the icon/item.
Window
New Window Switches display of the Tool Bar on or off.
Cascade Displays all open windows in an overlapping arrangement.
Tile Displays all open windows in a side-by-side arrangement.
Arrange Icons Arranges minimized windows at the bottom of the display.
Windows Displays a list of open windows.
Help
Help Topics... Displays online help.
Update License... Opens a dialog box for entering license key information for the
analyzer.
Display License
Information...
Displays current license information for the analyzer.
About BTTracer... Displays version information about BTTracer.
Open file Hide Nulls & Polls
Save As Hide Unassociated Traffic
Preview Complex Find
Print… Find Next
Setup Record Options File Information Report
Menu Function
32
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Setup Display Options Traffic Summary
Start Recording View Packet Level (Baseband)
Stop Recording View/Hide LMP Message Level
Bluetooth Neighborhood View/Hide L2CAP Message Level
Setup Encryption Options View/Hide SDP Message Protocol Level
Recording Wizard View/Hide SDP Transaction Protocol Level
Zoom In View/Hide TCS Protocol Level
Zoom Out View/Hide RFCOMM Protocol Level
Wrap View/Hide OBEX Protocol Level
Hide Frequency Hops View AT Commands Protocol Level
Error Summary View/Hide PPP
Timing Calculatons View/Hide HDLC Protocol
Start BTTracer’s Wand View/Hide BNEP Protocol
View HID Protocol Layer
33
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
5.3 Status Bar
The Status Bar is located at the bottom of the main display window.
Depending on the current activity, the bar can be divided into as many as
four segments.
Recording Progress
When you begin recording, the left-most segment of the Status Bar displays
a Recording Progress Indicator:
As recording progresses, the Progress Indicator changes to reflect the
recording progress graphically:
•In the Progress Indicator, a black vertical line illustrates the location of the
Trigger Position you selected in Recording Options.
—Pre-Trigger progress is displayed in the field to the left of the Trigger
Position in the before-Trigger color specified in the Display Options.
—When the Trigger Position is reached, the progress indicator wiggles as it
waits for the trigger.
—After the trigger occurs, the field to the right of the Trigger Position fills
in the post-Trigger color specified in the Display Options.
—When recording is complete, the upper half of the progress indicator fills
in white, indicating the progress of the data upload to the host computer.
You should be aware of two exceptional conditions:
•If a Trigger Event occurs during the before-Trigger recording, the
before-Trigger color changes to the after-Trigger color to indicate that not all
the expected data was recorded pre-Trigger.
•When you click Stop before or after a Trigger Event, the Progress Bar adjusts
accordingly to begin uploading the most recently recorded data.
The Progress Bar fills with color in proportion to the specified size and
actual rate at which the hardware is writing and reading the recording
memory. However, the Progress Indicator is normalized to fill the space
within the Status Bar.
34
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Recording Status
During recording activity, the current Recording Status is temporarily
displayed in the next segment. When you activate the Record function, this
segment flashes one of the following messages (depending on the selected
Recording Options):
—Trigger?
—Triggered!
—Uploading
After recording stops,
—The flashing message changes to Uploading data–x%done(x%
indicates the percentage completion of the data uploading process).
—The traffic data is copied to disk (overwriting any previous version of this
file) using the default file name data.blt or a new name specified in the
Recording options.
To abort the upload process,
•Press Esc on your keyboard
OR
Again click in the Tool Bar.
You are prompted to choose whether to keep the partially uploaded data or to
throw it away.
When the data is saved, the Recorded Data file appears in the main display
window and the Recording Status window is cleared.
•If the recording resulted from a Trigger Event, the first packet following the
Trigger (or the packet that caused the Trigger) is initially positioned second
from the top of the display.
•If the recording did not result from a Trigger Event, the display begins with the
first packet in the traffic file.
Analyzer Status
The third segment in the status bar displays analyzer status. During
synchronization, the analyzer status will read:
Inquiring – BTTracer is conducting a General Inquiry
Syncing – BTTracer is syncing to the Master device
No Sync – BTTracer has not yet started syncing to the Master device
After the analyzer has synchronized to the Bluetooth™ piconet under
observation, the Status Bar will display activity bars. The activity bars will
increase or decrease with activity. If there are no vertical bars, there is no
recorded activity.
35
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
During uploading, this segment displays the percent of the upload process
completed.
Note If packets are filtered from the recording or data are truncated, the recording
activity is reduced.
In addition to showing activity, the third segment of the Status Bar will also
display the radio signal strength in dBm received by the analyzer. BTTracer
can display five possible values:
•below-60dBm
• - 60 dBm
• - 50 dBm
• - 40 dBm
• above - 40 dBm
The valid range for a signal is between -70 and - 20 dBm.
Search Status
The rightmost segment displays the current search direction: Fwd (forward)
or Bwd (backward).
Zoom In
Zoom In increases the size of the displayed elements, allowing fewer (but
larger) packet fields per screen.
•Click on the Tool Bar.
Zoom Out
Zoom Out decreases the size of the displayed elements, allowing more (but
smaller) packet fields per screen.
•Click on the Tool Bar.
5.4 Tool Tips
Throughout the application, tool tips provide useful information.
To display a tool tip, position the mouse pointer over an item. The tool tip
displays in a short moment if present. Tool tips can also be found over the
Tool Bar and in areas of the packet view screen.
36
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
5.5 BTTracer Analyzer Keyboard Shortcuts
Several frequently-used operations are bound to keyboard shortcuts.
Table 4: Keyboard Shortcuts
Key Combination Operation Key Combination Operation
Ctrl+O Open file Ctrl+P Print...
Ctrl+Home Jump to First packet Ctrl+End Jump to Last packet
Ctrl+F Search Forward Ctrl+B Search Backward
F3 Find Next Ctrl+L Search for Loss of Sync
Shift+I Goto ID packet Shift+R Goto Freq Hop packet
Shift+P Goto Poll packet Shift+N Goto Null packet
Shift+M Goto DM1 packet Shift+F Goto FHS packet
Shift+1 Goto HV1 packet Shift+H Goto DH1 packet
Shift+3 Goto HV3 packet Shift+2 Goto HV2 packet
Shift+A Goto AUX1 packet Shift+V Goto DV packet
Shift+5 Goto DH3 packet Shift+4 Goto DM3 packet
Shift+7 Goto DH3 packet Shift+6 Goto DM5 packet
Shift+S Search for Soft Error Shift+E Search Error
37
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
6. Recording Wizard
Recording Wizard is an interactive utility that presents a series of
user-friendly dialog boxes for setting up a recording session. Recording
Wizard serves as an alternative method of configuring the Recording
Options dialog box. When you are finished using the Wizard, you can view
your settings in the Recording Options window. By providing data to the
prompts in the Wizard’s dialog boxes, you configure BTTracer for a
recording session.
Starting Recording Wizard
To start the Recording Wizard,
• Click on the Tool Bar or select Recording Wizard under
Setup on the Menu Bar.
You se e the Recording Options window:
The Recording Options window has three buttons marked Next,Back,and
Cancel that allow you to move forward or backward through the wizard or
to cancel the wizard.
To begin advancing through the wizard,
•ClickNext to see the options for the three types of recordings that
the Recording Wizard can make.
38
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
The Wizard advances to the next screen which presents three options:
•Establish a new piconet and have BTTracer record traffic on
that piconet.
This option causes BTTracer to perform an Inquiry so it can discover
local devices and then establish a new piconet and record the piconet
traffic.
•Record traffic on a piconet that has already been established.
This option lets BTTracer record traffic from an already established
piconet.
•Record traffic in Test Mode on a test piconet.
This option lets BTTracer create either a single frequency range
recording of a range that you specify or create a recording of a limited
hop frequency range consisting of 5 frequency hops.
6.1 Recording a Traffic on a New Piconet
The New Piconet option shown in the previous screen presents users with
the means of recording the traffic from a new piconet. This option will
cause a sequence of screens to prompt you for information such as the
piconet Master address.
39
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
The following steps shows you how to configure BTTracer to record a new
piconet.
Step 1 From the screen shown in the previous screenshot, select the
first option: I want to establish a new piconet and have
BTTracer record traffic on that piconet,thenpressNext.
The following screen displays.
Step 2 Select the Frequency Hopping Mode for your country, then
press Next.
40
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
The following screen displays.
Step 3 Select Perform Inquiry Now,thenpressNext.
Selecting Perform Inquiry Now will cause BTTracer to perform a
General Inquiry and collect addresses and other details about local
Bluetooth devices. If you already have address information for your
Bluetooth devices you can choose Skip Inquiry. Choosing Skip
Inquiry will cause the Recording Wizard to advance to Step 6. If you
are not sure what option to select, choose Perform Inquiry Now.
The following screen will display.
You will see two options:
41
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
•I want to search for all Bluetooth devices within range
This option will cause BTTracer to search for all Bluetooth devices that
are in range and ready to transmit and receive data (i.e., in Inquiry Scan
Mode)
•I want to search only for devices corresponding to the
following (hexadecimal) DIAC:
This option will cause BTTracer to search for the class of devices that
you specify in the DIAC text box. DIAC stands for Device Inquiry
Access Code. Values are entered in hexadecimal format. You can get
DIAC values from the Bluetooth Specification.
Step 4 Select the first option: I want to search for all Bluetooth devices
within range,thenpressNext. The following screen will display.
You will see two options:
Step 5 In the text box, enter the length of time you want BTTracer to search
for nearby devices.
The default value is 20. If you do not sure what time value to enter, use
the default value.
42
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Step 6 Press Next.
Before the Inquiry, BTTracer tests the hardware connection. In the case
of failure, the following screen will display.
Clicking OK will close the message box.
If BTTracer passes the hardware test, it will search for devices. The
Recording Wizard will display a progress bar and a message telling you
that a search is under way:
43
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
If no device is found, the Recording Wizard will display the following
screen:
If devices found, the Recording Wizard will display the following screen:
Two buttons will display:
•Repeat - This button will cause BTTracer to repeat the General
Inquiry
•Show Devices Found - This button will cause a window to open
and display details about the found devices.
44
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Step 7 Press the button marked Show Devices Found.
The following screen will display:
Step 8 Click OK to close the window.
Step 9 Press Next.
The following window will display:
Step 10 Select from the drop-down menu the hexadecimal address for your
Master device. If you do not see your device’s address, you may
type it into the text box yourself.
45
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
The following window will display:
Step 11 Select from the drop-down menu the hexadecimal address for your
slave device into the box labeled Piconet Slave Address. If you do
not see your slave’s address, you can type it into the box.
Step 12 Press Next.
The following screen will display.
This screen displays the settings you selected.
46
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0

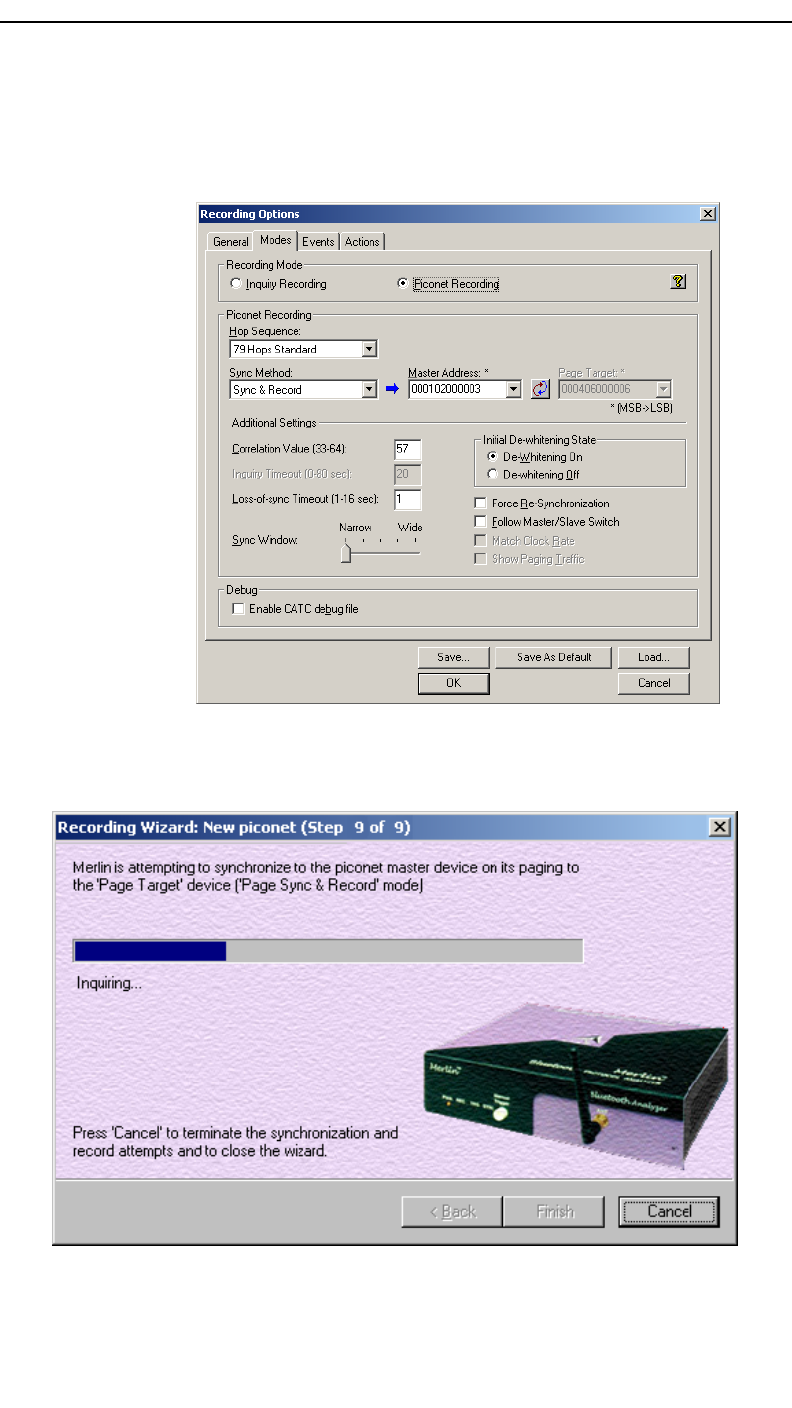

The Advanced button on the right will open the Recording Options
dialog box shown below. This screen will show the settings you selected
through the Recording Wizard have been applied to the Recording
Options dialog.
Step 13 Press Next to advance the Recording Wizard to the next screen.
The following screen displays:
BTTracer pages the Master and if specified in Step 8, the Slave devices.
47
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
If BTTracer is unable to complete its pages, the following screen will
display:
If BTTracer is able to complete its pages, it will enter into a
synchronizing state and then wait for you to create the piconet. During
this waiting period, BTTracer will display the following screen:
48
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Once you have created the piconet, BTTracer will synchronize to the
piconet and begin recording. During the recording, BTTracer will
display the following screen:
At the completion of the recording, BTTracer will display the following
screen:
You can repeat the recording by pressing the Repeat button.
Step 14 To close the wizard, press the Close button.
49
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
The wizard will close and your trace will display.
6.2 Recording an Existing Piconet
Using Recording Wizard to record an existing piconet is similar to recording
a new piconet. The main difference is that you will be asked if your Master
device can support multiple slave devices and whether it can respond to
pages once it has created a piconet with another device.
Step 1 To start the Recording Wizard, press or select Setup >
Recording Wizard from the menu.
The Recording Wizard introductory page will open:
50
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Step 2 Press Next to advance to the next screen.
You will see three choices:
Step 3 Select the second option: I want BTTracer to record
traffic on a piconet that has already been established.
Step 4 Press Next.
You will see four choices:
Select the hop mode appropriate to your area.
Step 5 Select the hop mode appropriate to your area, then press
Next.
51
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
You will see two choices:
Step 6 Select Perform Inquiry Now.
You will see two choices:
Step 7 Select the first option: I want BTTracer to search for all
Bluetooth devices within range.
If you want to limit the inquiry to a class of devices, select the second
option and enter the hexadecimal value for the device class in the text
box.
52
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Step 8 Press Next.
You will see two choices:
Step 9 If you want to change the search duration, type in a new
value into the text box. Otherwise, use the default value (20
seconds), then press Next.
The PC-BTTracer hardware connection will be tested. If BTTracer
cannot be detected, the following message will display:
53
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
If BTTracer passes the hardware test, it will then goes onto conduct a
General Inquiry to locate local Bluetooth devices.
If BTTracer finds Bluetooth devices, it will display the following
message:
Step 10 To display a list of the discovered devices, press the button
54
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
marked Show Devices Found.
A screen will display showing the devices that BTTracer discovered
through the General Inquiry:
If you feel that the list is incomplete, you can close this window and press
the button marked Repeat. This will cause BTTracer to repeat the
General Inquiry and recollect information on local Bluetooth devices.
Step 11 Press OK to close the Bluetooth Neighborhood window.
Step 12 Press Next to advance to the next screen.
The following screen will prompt you for the Master device’s address.
The address can be selected from the drop-down menu or typed into the
box:
Step 13 Select or type in the Master device’s address into the box
55
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
next to the label Piconet Master Address.
Step 14 Press Next.
The following screen will display. This screen asks you which of the
following two options apply to your Master device. For some devices,
both options will apply.
You can select either or both options. They are not mutually exclusive:
If the Master supports inquiries while in a connected state, select the first
option. This will set BTTracer to use the 'Sync & Record' mode in its
attempts to synchronize to the Master. This will also cause the wizard to
skip to step 8.
If the Master can support piconets with multiple slaves, select the second
option. If you select this box alone (i.e., you leave the first box
unchecked), BTTracer will use the 'Passive Sync & Record' mode to
synchronize to the Master. The wizard will then advance to Screen 8*.
If the first checkbox was selected, BTTracer will use 'Sync & Record' no
matter what was set in the second box.
Step 15 If you want to skip the Master verification, put a check in the
box. If you are in doubt, leave the box unchecked.
56
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
If you selected only the second option in Step 15 (=’Passive Sync &
Record’), the following screen will display.
This screen asks you for the address of the Page Target device -- which
in this case is BTTracer. Since the devices in your piconet are not able
to respond to inquiries, BTTracer will not be able to page the devices and
join the piconet. Instead, you will assign BTTracer an address here in
this screen, then direct your piconet Master device to connect to
BTTracer. The Master will attempt to connect to BTTracer and therein
give BTTracer the information it needs to record the Master and slave
devices.
Step 16 Type in an address of your choosing for BTTracer (= Page Target).
You are making up an address for BTTracer that the Master will use to
try to connect to BTTracer.
57
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Step 17 Press Next
BTTracer will then display your current settings.
The Advanced button will open the Recording Options dialog box
shown on page 46 and described in detail in Chapter 7.
Step 18 Press Next to begin the recording.
If the BTTracer hardware is not ready or connected or is in the process
of booting up, the following information message box will display:
Step 19 If the above information box opened, press OK to close it.
58
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
The following dialog box will display:
Step 20 Press Retry or Back to re-attempt the process.
If the hardware failure described in Steps 20 and 21 do not occur,
BTTracer will conduct an inquiry. The screen will show that BTTracer
is going to attempt a recording in either ’Passive Sync & Record’ mode
as shown below or in ’Sync & Record’ mode depending on the options
you selected in Step 15.
Step 21 If you are recording in ’Passive Sync & Record’ mode, you will
need to direct your Master device to attempt a connection to
BTTracer. This will provide BTTracer with the information it needs
to record the piconet.
59
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Once BTTracer has the information it needs, it will begin recording. The
following screen will display:
The recording will end following a trigger event or when you press Stop
Recording button on the screen shown above or when you press the
button on the toolbar.
Step 22 When finished, press Close to close the Recording Wizard.
6.3 Recording in Test Mode
A Test Mode recording allows you to limit the frequency hopping range that
BTTracer will record. Two Test Modes are available: Reduced Hopping
Mode and Single Frequency Mode. Reduced Hopping Mode limits
BTTracer’s recording to the five frequency hops that are described in the
Bluetooth Specification. Single Frequency Mode limits BTTracer’s
recording to a single frequency range that you specify in the Recording
Wizard.
Recording in Reduced Hopping Mode
To record in Reduced Hopping Mode, perform the following steps:
Step 1 Start the Recording Wizard by either pressing the button
or selecting Setup > Recording Wizard from the menu.
The Recording Wizard greeting screen will open.
60
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Step 2 Press Next to advance to the Recording Type screen.
The following screen will display:
Step 3 Select the third option: I am using Bluetooth Test Mode
and want BTTracer to record traffic on my test piconet.
Step 4 Press Next.
The following screen will display:
61
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Step 5 Select the option Reduced-hopping mode,thenpressNext.
The following screen will display:
Step 6 Select the address for your piconet’s Master device from the
drop-down menu. If you prefer, you can type in the address
into the box.
Step 7 Press Next.
The following screen will display. This screen will show the current
settings for the recording:
The Advanced button will open the Recording Options dialog box. See
Chapter 7 for details on the Recording Options dialog box.
62
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Step 8 Press Next to begin the recording.
The following screen will display:
Step 9 When the recording finishes, the following screen will
display. You can repeat the recording by pressing the
Repeat button.
Step 10 To close the wizard, press Finish.
63
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
6.4 Recording in Single Frequency Mode
Step 1 In the Recording Type window, select the third radio button
and click Next.
Step 2 In the Frequency Hopping Mode, window select the
Single-Frequency Mode radio button, enter the appropriate
values in the text boxes, and click Next.
64
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
63
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
7. Recording Options
The Recording Options dialog box lets you configure BTTracer for
recording Bluetooth™ data. This dialog box offers an alternative to the
Recording Wizard described in the previous chapter. At the top of the
Recording Options dialog box are four tabs that provide access to dialog
boxes called General, Modes, Events, and Actions. Using these dialog
boxes, you can configure BTTracer to create event triggers, increase or
decrease memory allocation for recording, and interact with other
Bluetooth™ devices in different ways.
Opening the Recording Options Dialog Box
To open the Recording Options menu, click on the Tool Bar or select
Recording Options under Setup on the Menu Bar.
You se e the Recording Options window:
The Recording Options window has four tabs marked
64
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
•General
•Modes
•Events
•Actions
7.1 Recording Options - General
The General tab is displayed by default when the Recording Options dialog
box is oppened. It is shown in the previous illustration. The General tab
display four boxes marked Recording Type, Buffer Size, Trigger Position,
and Options.
Recording type
The Recording Type box presents three options that
allow you to set how BTTracer begins and ends a
recording. The options are: Snapshot, Manual Trigger,
and Event Trigger.
Snapshot
A Snapshot is a fixed-length recording whose size is determined by the
"Buffer Size" box in the Recording Options dialog or by a manual click of
the Stop button. Recording begins by clicking on the Tool Bar and ends
when either the selected buffer size is filled or you press the Stop button.
Manual Trigger
A Manual Trigger recording is a one that is manually begun and ended.
Recording is begun by pressing on the Tool Bar. Recording continues
in a circular manner within the limits set by the buffer size. Recording ends
when is clicked on the Tool Bar or the Trigger button is pressed on the
analyzer's front panel. If you press the Trigger button, recording will
continue until the post-trigger memory has been filled.
Event Trigger
An Event Trigger recording is one that uses an event trigger to end the
recording. Before recording begins, you define the event trigger in the
Trigger Options dialog box. You begin the recording by clicking on
the Tool Bar. Recording continues in a circular manner within the limits set
by the buffer size. Once the trigger event occurs, some post-trigger
recording occurs, then the recording ends.
Note In this mode, the recording can be stopped manually in the same way as for
"manual trigger" mode.
65
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Options
The Options box contains two options:
Beep When Trigger Occurs
Will cause the PC to beep when a trigger event
has occurred.
Save External Interface Signals
Will enable BTTracer to record input signals
from a breakout board as fields in a trace.
Buffer Size
The Buffer Size box has a slide bar for adjusting the
recording buffer size from 0.1 megabytes to 128
megabytes.
The Recording Type option determines how this buffer is used. Although
there are 128 megabytes of physical memory in the analyzer, the efficiency
of the recording ranges from 2:1 to 4:1 ratios of physical memory to actual
Bluetooth™ traffic. Shorter Bluetooth™ packets yield a less efficient
recording. The non-traffic portion of physical memory is utilized for control
and timing information.
Note The scale is not linear and affords more granularity in the smaller buffer sizes.
Trigger Position
The Trigger Position slide bar sets the amount of
post-trigger recording that BTTracer will perform. It
also allows adjustment of the location of the trigger
within the defined buffer. You can adjust the
Triggering Position between 1 and 99% post-Trigger.
Trigger Position is available only when Manual Trigger or Event
Trigger is selected as Recording type.
As an example, if the buffer size is set to 16MB, then for the following
Trigger Position settings, the amount of pre- and post-Trigger data is
66
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
• 95% post-triggering: 0.8MB pre-trigger, 15.2MB post-trigger
• 75% post-triggering: 4MB pre-trigger, 12MB post-trigger
• 50% post-triggering: 8MB pre-trigger, 8MB post-trigger
• 25% post-triggering: 12MB pre-trigger, 4MB post-trigger
• 5% post-triggering: 15.2MB pre-trigger, 0.8MB post-trigger
Note When a Trigger occurs, recording continues until the post-Trigger amount of the
buffer is filled.
7.2 Recording Options - Modes
The tab marked Modes opens a window for setting recording mode options.
This window is divided into six boxes marked Recording Mode, Piconet
Addresses, Hop Frequency, Other Parameters, and Debug/Test.
67
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Recording Mode
To record Bluetooth™ traffic, the BTTracer analyzer needs to synchronize
to the piconet under observation. BTTracer does not participate in the
piconet and behaves as a passive listener. It needs, however, to
communicate briefly with the devices in the piconet to learn the Master
clock and frequency hopping sequence.
To synchronize to the piconet under observation, BTTracer can be set up in
different recording modes: Inquiry Recording and Piconet Recording.The
option you select affects the types of settings that display in the window.
Inquiry Recording
Selecting the "Inquiry Redcording" button causes the Modes window to
display the options shown in the previous screenshot.
The "Inquiry Recording" option presents two choices for recording
Inquiries: "General (Unlimited)" and "Dedicated (Limited)."
General (Unlimited)
"General" means "General Inquiry" and is used to search for ALL
Bluetooth™ devices that are within range, for the amount of time specified
in the Inquiry Timeout field. Completion of the inquiry process is indicated
by illumination of the "trigger" light on the front of the analyzer. All
responding packets will be displayed when data upload from the analyzer
completes.
Dedicated (Limited)
"Dedicated" means a specific class or group of Bluetooth™ devices
(designated by the DIAC field of the Recording Options dialog). Selecting
"Dedicated" causes BTTracer to search for all devices from a specific class
or group that are within range, for the amount of time specified in the
Inquiry Timeout field. Completion of the inquiry process is indicated by
illumination of the "trigger" light on the front of the analyzer. All
responding packets will be displayed when stop is selected.
68
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Piconet Recording
The "Piconet Recording" option presents three choices for recording piconet
traffic: Sync and Record, Passive Sync & Record, and Page Sync & Record.
A Help button next to the menu briefly explains these options.
Page Sync & Record is the preferred option and should be used whenever
possible. If Page Sync & Record can not be used, then Sync & Record
should be used. Passive Sync and Record should be used only if the first
two options can not be used.
Hop Sequence
Until recently, local regulations in Japan, France, and Spain defined a
Bluetooth™ frequency range that was different than the range used by the
rest of the world. We have included the selections for organizations for
testing of devices developed before all frequencies were made available on
aworld-widebasis.
To set BTTracer to the correct Hop Frequency, select from the drop-down
menu one of the following choices:
69
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
•79 Hops Standard
• 23 Hops Japan
• 23 Hops Spain
• 23 Hops France
• Reduced Hop - Restricts BTTracer to five hop frequencies
defined in the test mode specification of the Bluetooth™
Specification. When Reduced Hop or Single Frequency is
selected, the Sync method is set to Test Mode and cannot be
modified by the user.
• Single Frequency - Allows the the transmit and receive frequency
ranges to be specified. Selecting this option highlights the "DUT
Xmit" and "DUT Recv" text boxes. When Reduced Hop or
Single Frequency is selected, the Sync method is set to Test Mode
and cannot be modified by the user.
• Enter values into the two text boxes to the set the transmit and
receive frequency ranges:
• DUT Xmit Freq, MHz (+2402) – Allows the setting of the
transmit signal for the Device Under Test
• DUT Recv Freq, MHz (+2404) – Allows the setting of the
receive signal for the Device Under Test
Sync Methods
Note If the selected Hop Sequence is "Reduced Hop" or "Single Frequency," the Sync
Method is set to "Test Mode" and cannot be modified by the user.
Page Sync & Record
"Page Sync and Record" is the recommended method of recording. "Page
Sync and Record" should be implemented before a piconet is established.
This mode causes BTTracer to perform a General Inquiry and collect sync
information from the specified slave device when it responds. BTTracer
then waits for the Master to begin paging the Slave devices. When paging
begins, BTTracer synchronizes to the Master and begins recording.
Note In order for this mode to work, the intended Slave must support "inquiry scan".
The following steps describe the simplest way to use this mode:
Step 1 Place both the "intended master" as well as its first "intended slave"
into inquiry scan mode.
70
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Step 2 Have BTTracer perform a General Inquiry. You do this by selecting
"General (Unlimited)" from the "Inquiry Recording" drop-down
menu on the "Modes" tab in the "Recording Options" window, and
then depressing the "REC" button found on BTTracer's toolbar.
Step 3 After the General Inquiry completes, as indicated by the automatic
uploading and displaying of a CATC trace (approximately 20
seconds), reselect the "Modes" tab in the "Recording Options". At
this point, the addresses of all Bluetooth™ devices that were in
range will be listed in the pull-down windows in the "Piconet
Addresses" area of this window. Using the pull-down windows
select both your "Intended BT Master" as well as your "Intended
Slave" address for display in their appropriate windows.
Step 4 After closing this window by pressing the "OK" button at the bottom
of the window, once again depress the "REC" button found on
BTTracer's toolbar. After approximately 20 seconds, the "SYNC"
light on the front of BTTracer will begin to flash, meaning that
BTTracer has acquired all the information it needs to fully
synchronize with the piconet about to be established. At this point,
you should establish the piconet using the devices previously
defined as master and slave.
Step 5 When the piconet is established, the "Sync" light on the front of
BTTracer will change from flashing to solid, indicating that
BTTracer is fully synchronized to the piconet and is currently
recording all traffic within that piconet.
Note If the "sync" light on the front of BTTracer does not change from
flashing to solid it means that BTTracer did not synchronize with the
piconet when it was established.
Sync & Record
Sync and Record works just like "Page Sync and Record" except that
BTTracer takes its sync data directly from the Master instead of the Slave
devices. With Sync and Record, BTTracer conducts a General Inquiry to
get hop frequency and clock information from the Master. BTTracer then
waits to detect piconet traffic from the Master device’s piconet. When the
piconet is established, BTTracer is able to synchronize to the Master and
begin recording. In contrast to "Page Sync and Record", "Page Sync and
Record" can be run with or without an established piconet.
Note This mode can only be used to find master devices that support Inquiry Scan.
71
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
To perform a "Sync and Record", follow the steps below:
Step 1 Turn on the Bluetooth™ devices under observation, and set up the
master device so it is ready to respond to Inquiry scan. For a typical
recording, ensure that the Master and Slave device(s) are not yet
connected.
Step 2 In the Modes tab under Recording Options, enter the Master
Device’s address.
Step 3 Start BTTracer recording by pressing REC icon in the
toolbar.
Step 4 When the analyzer is able to Sync up to the Piconet Master Clock,
the Green Sync LED in the BTTracer front panel will start
blinking.
Step 5 Establish connection between the Bluetooth™ devices under
analysis.
Step 6 When BTTracer senses Piconet traffic, the Green Sync light goes
ON solid, recording starts and the status bar in the bottom of the
analyzer screen shows activity.
Recording may be stopped manually or when the recording buffer is filled.
Note After the Sync light starts blinking, a connection between the
Bluetooth™ devices should be established within one (1) minute.
Passive Sync & Record
Passive Sync and Record is used in situations where the Master device and
slave devices do not support Inquiry Scan mode. When selected, BTTracer
enters Inquiry Scan and Page Scan mode and waits for a page from the
Master device. When the piconet Master pages BTTracer, BTTracer
obtains the information necessary for synchronization and then attempts to
synchronize to the piconet controlled by that Master.
"Passive Sync and Record" is designed to be used with established piconets
or private device networks.
Running "Passive Sync and Record" with Established Piconets
For most situations, "Passive Sync and Record" will be run after a piconet
has been established. The steps are as follows:
Step 1 Establish a connection between two or more Bluetooth™ devices.
Step 2 Under General Recording Options, select "Passive Sync & Record."
Step 3 Under the Modes tab in Recording Options, enter the address for the
72
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
piconet’s master device.
Step 4 Make up an address for BTTracer and enter it into the Page Target
address in the Modes tab in Recording Options. Make sure you do
not select an address for any other local device.
Step 5 Press the REC button on the toolbar in BTTracer to start a recording
session.
Step 6 If necessary, have Master "discover" BTTracer through a General
Inquiry.
Step 7 From the Master device, initiate a page to BTTracer’s address. This
action will enable BTTracer to synchronize to the piconet. However,
the analyzer will not complete the page sequence from the Master.
This will cause the Master to time out in this request.
Step 8 At the end of this sequence, the green Sync light will go on solid,
recording will begin and activity will be displayed on the status bar
in the bottom of the analyzer screen.
Running "Passive Sync and Record" with Private Device Piconets
Because private device networks do not allow other devices to join the
network, BTTracer needs to temporarily assume the identity of a slave in the
network in order to join that network. To do this requires disabling the slave
and beginning the operation without an established piconet. The following
steps show the process.
Step 1 Turn the Master device on and the slave device off. You need the
slave device turned off so that BTTracer can take its place in the
piconet.
Step 2 Enter the slave’s address into BTTracer’s "Page Target" field in the
Modes tab in the Recording Options dialog box.
Step 3 Run "Passive Sync and Record." The Master will then page the
slave’s address and BTTracer will be able to sync.
Step 4 When BTTracer synchronizes to the Master, turn the slave back on.
When the Master re-pages the address the slave will be admitted into
the private network. Since BTTracer is passive in this mode, the
slave and BTTracer do not conflict over the shared address.
BTTracer is then able to record the traffic between the Master and
73
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
slave.
Force Re-synchronization
"Force Re-Synchronization" forces BTTracer to re-synchronize at the
beginning of each "Page Sync & Record," "Passive Sync & Record," or
"Sync & Record" operation. By default, "Force Re-Synchronization" is
disabled (i.e., unchecked).
Unchecking the "Force Re-Synchronization" checkbox tells BTTracer to
use its existing data on Bluetooth™ devices, thereby bypassing the
synchronization process and saving a few seconds from the beginning of the
trace. If you know that BTTracer’s data is correct, you can uncheck this
checkbox and cause BTTracer to try to use the existing data. If the data is
incomplete or incorrect, however, BTTracer will automatically perform a
refresh.
To examine BTTracer’s Bluetooth™ data, open "BT Neighborhood" under
the View menu.
Follow Master/Slave Switch
If enabled, this option allows BTTracer to follow a role switch between a
Master and Slave. This capability allows BTTracer to keep track of changes
in a device’s role when it changes from one role to another.
BTTracer is able to follow a role change by listening to the Slave device’s
Bluetooth clock and hop frequency as soon as it becomes a Master.
Match Clock Rate
Match Clock Rate is a useful option if the Master device’s clock is
inaccurate. Match Clock Rate causes BTTracer to do a General Inquiry to
determine the Page Target's clock rate prior to synchronizing to the piconet.
If unchecked, BTTracer will begin piconet synchronization without first
doing a General Inquiry.
This option only works with Page Sync and Record mode.
Show Paging Traffic
Show Paging Traffic causes BTTracer to capture paging traffic between the
Master and Page Target devices. This option is used only with Page Sync
and Record Mode.
Piconet Addresses (MSB -> LSB)
•Master Addr - Piconet Master Address for device under
observation. Used for all Piconet recording modes.
•Page Target - User selectable address for the BTTracer
Analyzer. Used for Passive Sync & Record and Page Sync &
74
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Record.
•DIAC LAP- Device Inquiry Access Code. Used for Device
Inquiry.
•Swap - The "swap" button swaps the addresses between the
Master Addr and Page Target text boxes. This button will allow
addresses to be swapped even if the boxes are grayed out.
Note GIAC - General Inquiry Access Code is hard-coded in the analyzer and does not
require user selection.
Other Parameters
Correlation Value (33-64)
This value tells BTTracer how many bits in the sync word of each received
packet must be matched in order for BTTracer to consider the packet valid
and start recording.
Inquiry Timeout (0-80 secs)
Default value is 20 seconds.
This value specifies how long BTTracer should perform the Inquiry process
for the General (unlimited) and Dedicated (limited) recording modes. After
the specified time has elapsed, BTTracer will illuminate the trigger light on
the front of the analyzer.
Loss of Sync Timeout (1-16 secs)
This value specifies the amount of time that BTTracer will wait for piconet
traffic before determining that synchronization has been lost.
Sync Window
The Sync Window slide bar controls the amount of time that BTTracer
should wait between receiving an Inquiry Response (which will cause the
Sync LED to blink) and detecting Master-Slave piconet traffic (which will
cause the Sync LED to turn solid.)
A "Narrow" setting means that the wait time will be minimal, a "Wide"
setting means it will be "maximal." The default is "Narrow" and this is
suitable for most recordings. However, if significant drift occurs between
BTTracer’s clock and that of the Master, BTTracer may not be able to sync
properly to the piconet. Under these conditions, you should move the slide
bar towards the "Wide" Setting. The slide bar has five discrete settings.
75
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
After sync is established, BTTracer will remain in sync as long as there is
piconet traffic.
Debug/Test
Enable CATC debug file
Checking this box enables the creation of a file that can be used by CATC
Support to aid in debugging. This option should always be disabled unless
you are requested to enable it by CATC personnel.
7.3 Recording Options - Events
If you have selected Event Trigger mode under the General tabinthe
Recording Options screen, you may now select specific Bluetooth™ events

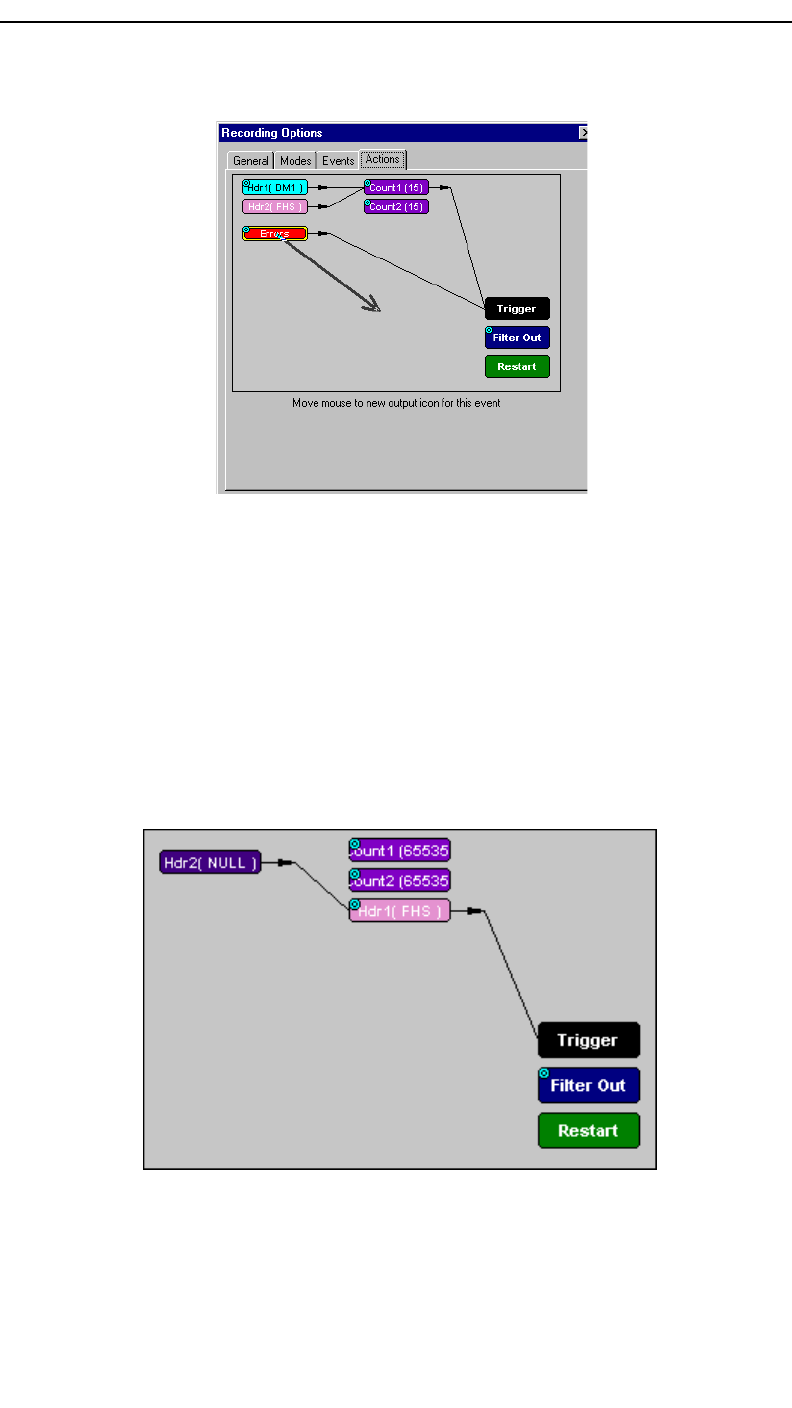

using the Events tab on the Recording Option Screen. You can also use the
Actions tab to define specific event sequences that will trigger BTTracer to
record a Bluetooth™ session.
In addition, the Events and Actions screens allow you to specify which
packets you want to include or exclude from the recording.
Events Options
• Click the Events tabontheRecording Options screen.
You see th e Event Groups window:
76
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
The Event triggering and filtering options allow you to set event conditions
for errors and/or a variety of packet characteristics.
Clicking a check box causes further options to display in the right side of the
window.
Additional Timeslot Filtering
By default, BTTracer records frequency hop and timestamp information for
all time slots in the Piconet under analysis, regardless of whether the time
slot contained a Bluetooth™ packet. This means that in instances where
there is little piconet traffic, BTTracer will display row after row of empty
packets -- each representing an empty time slot. Through the use of timeslot
filtering, these empty packets can be filtered out. Filtering out this
information has the benefit of freeing memory so that more traffic can be
recorded.
Filter Empty Slots
If "Filter Empty Slots" is checked, BTTracer will exclude all empty time
slots from a recording except for those that lie immediately in front of
Bluetooth™ communications packets. These remaining empty packets are
preserved to give timestamp and frequency hop reference data to the packets
that follow.
Filter Slots on Packet Filter
If filters are used to exclude FHS, DM1 or other packets, BTTracer will
exclude these packets from a trace and mark their locations with empty
packets. The result can be rows and rows of empty packets. The option
"Filter Empty Slots" will not exclude these empty slots because they lie
immediately in front of Bluetooth™ communications packets - even though
those packets were not recorded. To eliminate these empty packets, select
"Filter Slots on Packet Filter."
Packet Headers
Clicking "Packet Headers" opens three sets of check boxes and menus on
the right that represent fields within packet headers: Packet Type, Active
Member Address, Flow Control, Acknowledgment, and Sequence Number.
77
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
• Select Packet Headers under Event Groups.
You see the Packet Headers window:
Packet Type
The Packet Type drop down menu lets you select the following packet types
for filtering or triggering: NULL, POLL, FHS, DM1, DH1, HV1, HV2,
HV3, DV, AUX1, DM3, DH3, 1100, 1101, DM5, or DH5.
Select “Don’t Care” if you want BTTracer to ignore this field.
AM_ADDR
(Active Member Address) The AM_ADDR is a three bit slave address. To
select packets from a particular slave device for filtering or triggering, enter
an address into the AM_ADDR text box. You can target up to three devices
using the three text boxes.
SEQN, ARQN, and Flow Control Bits
To set event conditions on SEQN, ARQN, and Flow control, uncheck
"Don't Care." Unchecking "Don't Care" sets the event condition to
SEQN=0 AND ARQN=0 AND Flow=0. This action also puts a checkmark
in the box marked "Packet Headers." A checkmark next to SEQN, ARQN,
78
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
or Flow changes the value of this field from zero to one. For example, if
SEQN is checked, the event condition becomes "SEQN=1 AND ARQN=0
AND Flow=0.
To cause BTTracer to ignore this set of check boxes, choose "don't care."
Payload Headers
Clicking "Payload Headers" causes a series of options to display on the right
for setting conditions on payload headers. You will see two sets of options
- one for single slot packets such as DM1 packets and a second for multi-slot
packets such as DM3 packets. Within each set is a menu for the Logical
Channel and sub-options for Flow Control, and Payload length. These latter
two options allow you to modify searches based on the Logical Channel.
An example would be "Trigger on a start L2CAP message whose flow
control bit is 1 and whose data field length is less than 20."
• Select Payload Headers under Event Groups.
You see the Payload Headers window
L_CH (Logical Channel)
The "L_CH" drop down menu presents five options for
setting conditions on the Logical Channel:
• Don’t care
• 00 Undefined
79
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
• 01 L2CAP continue
• 10 L2CAP start
• 11 LMP message
Select "Don’t care" if you do not want to set conditions on Logical Channel.
Flow

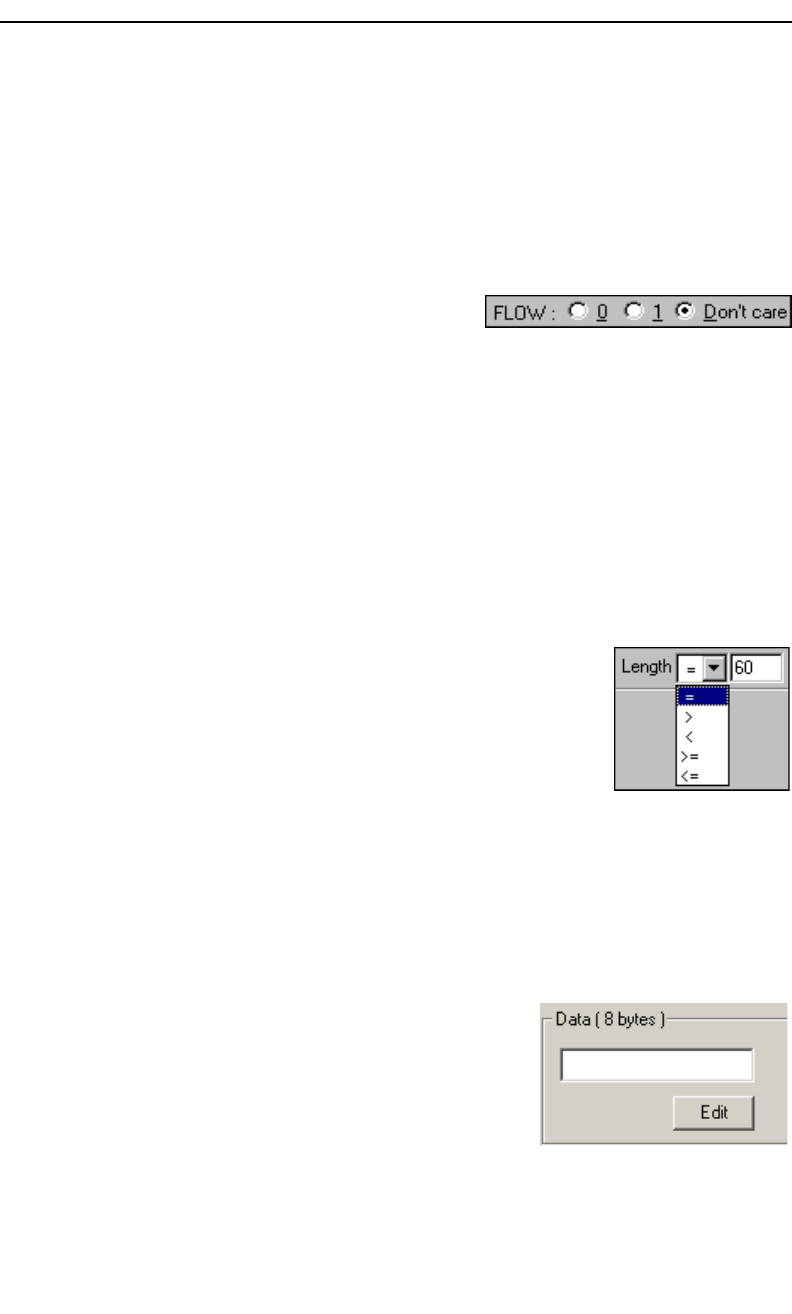

Three "radio buttons" are presented for
setting conditions based on Flow control:
•0
•1
• Don’t care
Flow works in conjunction with the Logical Channel (L_CH) menu - you
select an option from the L_CH menu and then select an option under Flow.
Select "Don’t care" if you do not want to set conditions on Flow control.
Length (in bytes)
Using both the drop down menu and the text box, you
can set conditions based on data field length. The
maximum length for a single slot packet is 29 bytes. The
maximum length for multi-slot packets is 339 bytes.
The drop-down menu gives you options for selecting
operators such as "greater than" and "equal to." The text box to the right of
the drop-down menu lets you enter values.
The Length option works in conjunction with the Logical Channel (L_CH)
menu - you first select an option from the L_CH menu and then select an
option under Length.

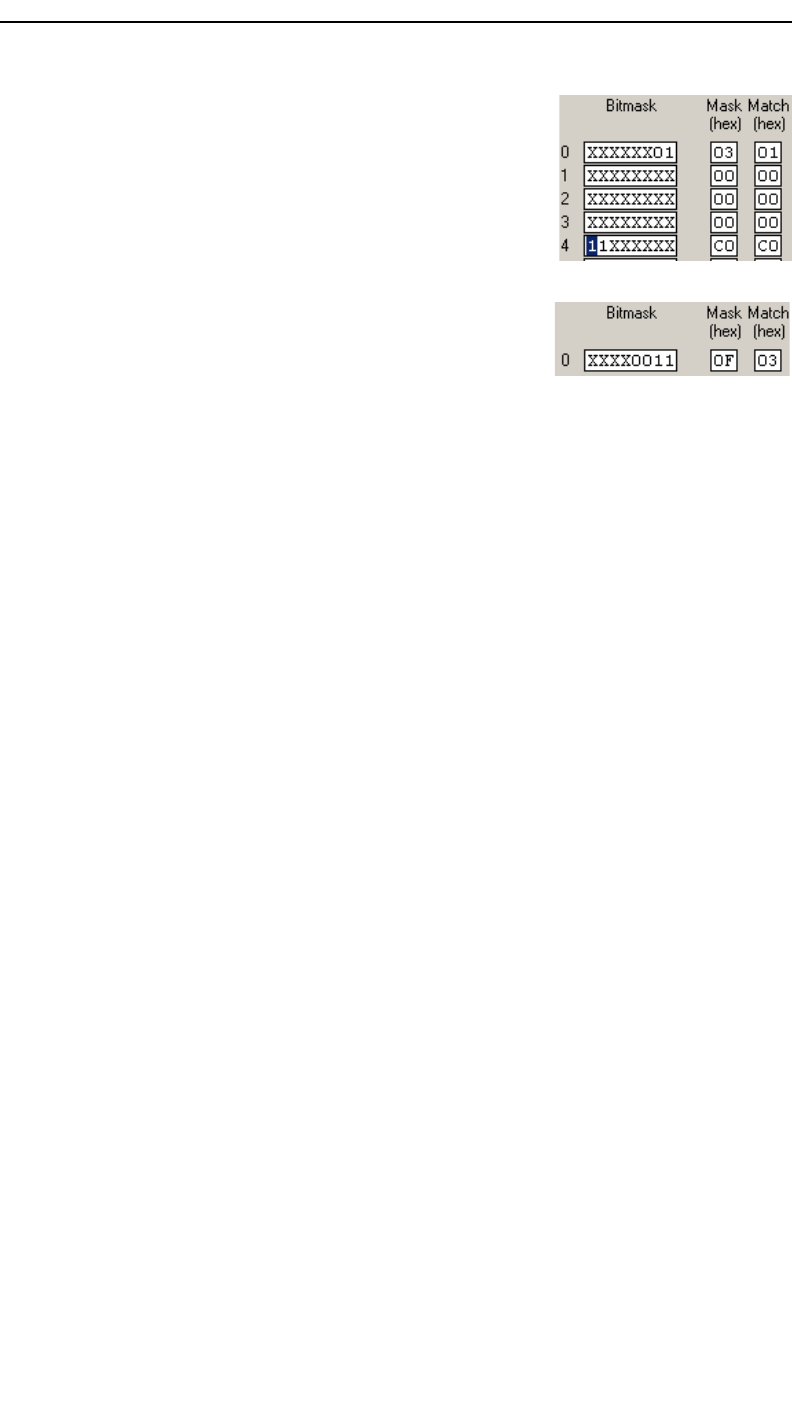

Data Patterns
Clicking "Data Patterns" causes a text box to
appear for entering patterns to be matched in the
raw payload data. Patterns of up to eight
hexidecimal bytes can be entered.
Errors
Clicking "Errors" causes check boxes to appear for setting conditions for
triggering or filtering based on packet/signaling/protocol errors. You can
select one or a combination of errors.
80
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
• Select Errors under Event Groups.
You see the Errors window:
Use any combination of the listed packet/signaling/protocol errors as a Trigger.
CRC Error
A CRC error in the packet data payload of the previous Bluetooth™ data
packet.
HEC Error
An HEC (header error check) error in the packet header for the previous
Bluetooth™ data packet.
FEC Error
An uncorrectable FEC (Forward Error Correction) error in the packet
header for the previous Bluetooth™ data packet.
Threshold Exceeded
Indicates that the number of single-bit FEC errors detected since the current
recording started has exceeded the specified value.
Invalid Packet Type
An invalid value was detected in the 'packet type' field of the packet header
for the previous Bluetooth™ data packet.
81
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Header Length Error
Indicates that a received Bluetooth™ data packet was terminated before all
bits of the packet header were received.
Payload Length Error
Indicates that the payload of a received Bluetooth™ data packet was either
longer than expected, or that a Bluetooth™ data packet terminated before
the expected end of the payload data.
Sync Loss
When set, indicates that a loss of piconet synchronization occurred during
the frequency slot prior to this slot.
External Input Signals
Clicking "External Input Signals" causes two check boxes to appear for
setting conditions based on breakout board input signals. The names of the
two check boxes are the same ones you will find on the break out board:
• Trigger Input [TRIG IN]
• General Purpose Input [G.P. IN]
82
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
7.4 Recording Options - Actions
The Actions screen allows you to specify the type of action that BTTracer
should perform when it encounters the events specified in the Events
window.
Actions Window Layout
The Actions window divides into three sections: a left, a center, and a right
section.
The left section displays Event buttons such as Header buttons and Error
buttons. The number of Event buttons displayed depends on the number of
Events you selected in the Events window. If you selected no Events, no
Event buttons will display. If all Events were selected, eight Event buttons
will display.
The center section displays two Counter buttons marked Count1 and
Count2. These buttons are used for counting events and are permanent
features of this section.
83
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
This center section can also hold Event buttons such as Errors and Payload
Hdr1. Event buttons in this section are used to create triggers based on a
sequence of Events. Event Sequencing is explained later in the chapter.
The right section has three permanent buttons for setting actions. These
buttons are Trigger,Filter Out/In,andRestart. These buttons allow you
to set actions such as triggering or filtering.
Arrows connect Event, Counting, and Action buttons. Arrows represent
the current associations between actions and events. As will be described
further on, these associations can be easily changed with the mouse.
Action Buttons - Their Functions
The Action buttons in the right side of the window provide the means of
setting triggers, filters, and restarts. To set an action, you simply drag your
mouse from an Event to an Action. As described further on, this movement
will link the two via an arrow.
Trigger
The Trigger button enables event triggering.
Filter In/Out
The Filter In/Out button allows events to be filtered in or out of the
recording.
Restart
The Restart button causes the two counters Count1 and Count2 to be reset
to zero.
Counting Buttons - Their Functions
The center section of the Actions window has two buttons for counting
events called Count1 and Count2. Below these buttons, you can add Event
buttons to create Event Sequencing.
Count1, Count2
Count1 and Count2 are counters for specifying how many events must occur
before an event can cause a trigger. Counters allow conditions to be made
such as "Trigger after the 21st Poll packet" (see screenshot below).
84
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
The Actions window showing a condition based on a Poll packet and a
counter. This condition reads "Trigger after the 21st Poll packet."
Connecting Events to Counters
To connect an event to a counter, click an Event button, then click one of the
two counter buttons. An arrow will appear that will join the Event to the
Counter and then to a trigger.
This latter connection between the Counter button and the Trigger button
occurs because counters always work in association with triggers. Counters
act as assistants to triggers.
Setting Multiple Conditions with Counters
You can create multiple event conditions by linking a counter to multiple
events or by linking two counters to two or more events.
Linking Multiple Events to One Counter - When two or more Events are
connected to a counter, it creates a condition that reads "Trigger when the
counter value is reached by any combination of the specified events."
85
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
The following example reads "Trigger after any combination of 5 Poll
packets and FHS packets have occurred."
Linking Two Events to Two or More Counters - If an Event is linked to
Count1 and a second event is linked to Count2, it creates an "or" statement.
This statement reads "Trigger when Count1 OR Count2 has reached their
specified values."
This example reads "Trigger when Count1 has counted 5 Poll packets or
Count2 has counted 10 FHS packets."
Blue Dot Menus
Count1,Count2 and a few other buttons in the Actions
window have blue dots in their top left-hand corners that
indicate the presence of context-sensitive menus. These menus
let you set the button’s values and/or operations. Click the left
mouse button on a dot to open the menu.
86
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Counters Blue Dot Menu
The Count1 and Count2 blue dot menus allow the value of their counters
to be changed. The value you specify here tells BTTracer how many
instances of an event must take place before a trigger occurs. The counter
can be set between 1 and 65,535.
To set a Counter,
Step 1 Click on the blue dot in the upper left corner of the Count
button.
You see th e Change Counter Value menu:
Step 2 Click Change Counter Value
You see th e Input Counter Value menu
Step 3 Enter an input value to tell the Analyzer how many times this
event must occur before triggering the end of a recording
Step 4 Click OK.
You may connect as many Event buttons to a counter as you like.
However, the Counter does not treat each event as a discrete specification
but treats them all as one event.
87
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
As an example, look at the specifications set in the following screen:
Counter 1 has been set to trigger four events after 15 occurrences. But the
Counter does not count 15 occurrences for EACH event. It counts ALL
events as they happen to occur until it reaches a total of 15 and then
triggers.
Filter Out/In Blue Dot Menu
The Filter Out/In button toggles between "Filter Out" and "Filter In".
•Filter In records ONLY those packets related to the specified
event.
•Filter Out records all packets EXCEPT those related to the
specified event.
To filter an event in or out of a recording,
Step 1 Click the blue dot on Filter Out. (Note: the button may say
Filter In depending on the last action specified.)
You see the Filter Out/In menu:
Use this menu to toggle the selection between Filter Out and Filter In.
Step 2 Select "Filter In".
The button changes to read "Filter In".
88
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Blue Dot Menus for the Event Buttons
The Errors button and the first Headers button (marked "Hdr1") have the
same Blue Dot menus. These menus allow BTTracer to trigger external
output.
To enable or disable external trigger output,
Step 1 Click the Blue Dot on an Event button such as Hdr1 or Errors.
A menu similar to the one below will open. Your menu may say
"Disable" instead of "Enable."
Step 2 Select "Enable External Trigger Output" (or "Disable
External Trigger Output" if that is the choice presented.)
If you have chosen "Enable External Trigger
Output", a small arrow will appear on the right side
of the button. This arrow indicates that a condition
has been set for creating an external output signal.
Choosing "Disable External Trigger" will cause the arrow to disappear.
Enabling High Pulse, Low Pulse or Pulse Toggle Signal Outputs
Once External Trigger Output has been enabled, you can configure the
output signal to one of three formats:
Pulse High - This is the default format. The Pulse High setting causes the
Analyzer to transmit a 5 volt, 16.66 nanosecond signal.
Pulse Low - This format causes the Analyzer to transmit a -5 volt, 16.66
nanosecond signal.
Toggle - This format causes the Analyzer to transmit a signal that will
toggle with each trigger event between a continuous 5 volt signal and a
continuous -5 volt signal.
89
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
To configure the output signal,
Step 1 Click the blue dot on an Event button that has a small arrow
attached to it like the one shown above.
A Blue Dot Menu will open. "External Trigger Form" should be a
choice available. If it is not, you will need to choose "Enable External
Trigger" and then reopen the menu.
Step 2 Choose "External Trigger Form"
A menu will appear with choices for "Pulse Low", "Pulse High", and
"Toggle".
Step 3 Choose an option not currently selected.
The menu closes.
Step 4 Reopen the menu.
Note that your new selection is now checked.
Elastic Arrow
Elastic arrows allow you to associate Events, Counters, and Actions. To
make an association,
Step 1 Click the left mouse button on an Event button such as Hdr1
or Errors.
90
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
The elastic arrow appears.
Step 2 Drag the arrow to the desired Action button.
Step 3 With the pointer over an Actions button, click again the left
mouse button again.
The arrow is replaced with a black line connecting the Event button to
the Action button.
Event Sequencing
If you drag your mouse from one event button to another, you will create a
compound condition known as an Event Sequence. An event sequence is a
condition that says "Trigger when you see the following sequence of
packets." The example below may help to clarify.
This example means "Trigger when you see a packet with an Null Header
followed by a packet with a FHS Header."
91
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
To create an event sequence, perform the following steps:
Step 1 Select two events from the Events window
Step 2 Open the Actions window and click on one of the two Event
buttons.
An elastic arrow should appear.
Step 3 Click on the other event.
The arrow should connect to the second button and the second button
should instantly change locations to the center section of the window.
7.5 Saving Recording Options
To complete your Recording Options settings, use the features at the bottom
of the Recording Options screen. These features remain the same no matter
which of the three Recording Options screens you are working in.
•ClickSave to save the currently specified Recording Options for
use in future recording sessions. Any file name can be specified,
92
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
though use of the .rec is recommended; if no extension is
specified, .rec is added by default.
•ClickLoad to load a previously saved *.rec file, thus restoring a
previous set of Recording Options.
•TheSave as Default function is equivalent to the Save function,
specifying the file name default.rec. Whenever you start up the
Analyzer, it automatically loads the default.rec file if one exists.
•ClickOK to apply any changes and close this dialog box.
•ClickCancel to cancel any immediate changes you have made
and exit the Recording Options menu.
7.6 Recording Bluetooth Traffic
To start recording Bluetooth™ traffic once the appropriate Recording
Options have been set,
Step 1 Select Start under Record on the Menu Bar
OR
Click on the Tool Bar.
Your recording session can continue until it has finished naturally or you
may need to stop manually by clicking on the Tool Bar, depending on
how you set the Recording Options.
To manually stop recording,
Step 2 Select Stop under Record on the Menu Bar
OR
Click on the Tool Bar.
Note The manual Stop Recording feature is primarily of use when recording
low-volume traffic, which can take a long time to fill the recording buffer.
When the recording session is finished, the bus traffic is saved to the hard
drive as a file named data.blt or whatever name you assign as the default
filename.
To save a current recording for future reference,
Step 3 Select Save As under File on the Menu Bar.
OR
93
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Click on the Tool Bar.
You see the standard Save As screen.
Step 4 Give the recording a unique name and save it to the
appropriate directory.
94
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
95
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
8. Display Options
Use the Display Options menu to specify the way CATC Trace information
is displayed.
To open the Display Options menu,
•Select Display Options under Setup on the Menu Bar
OR
•Click on the Tool Bar
You see th e Display Options window:
The Display Options window always opens with the screen for the General
tab displayed.
8.1 General Display Options
Use the General Display Options to specify the basic appearance of a Trace
View.
•Zoom Level: Adjustable in discrete increments from 10% to 200% percent.
•Enable Tool Tips: Select to enable tool tips with explanation text to pop up
when you position your cursor over various fields in the Trace View.
96
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
•Wrap: Inhibits carriage returns in packets when they exceed the width of the
window.
•Trace Viewing Level: Enables different levels of transaction to be displayed.
•Display Configuration Name:ACommentfieldassociatedwiththe*.opt file
containing the current Display Options values. You can also create and store
your unique Display Options for future use.
•Fonts: Allows field fonts and data fonts to be changed. The fonts can be
italisized and/or bolded by pressing the Iand/or Bbuttons.
Trace Viewing Level
Trace Viewing Level allows BTTracer to display ten levels of transaction:
•Packet
Packet is the default selection.
•LMP Messages
•L2CAP Messages
•STP Messages
•STP Protocol
•TCS Messages
•TCS Protocol
•RFCOMM Protocol
•OBEX Protocol
•AT Commands Protocol
•HDLC Frames
•PPP
•BNEP
Changing the Trace
View Level
To change the
Trace Viewing Level, use the decode buttons on the toolbar or select a
checkbox in the Display Options dialog box.
For further details on these viewing levels, see the Chapter 7: Decoding
Higher Protocols.
Creating New Display Options Files
To create a new Display Options file,
Step 1 Enter a comment for the new file in the Display
Configuration Name field.
97
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Step 2 Click Save...
You see th e Save As window.
Step 3 Specify a filename (*.opt).
Step 4 Click Save.
8.2 Color Display Options
•Click the Colors tabontheDisplayOptionsscreen.
You see th e Colors screen:
Use this menu to customize the colors associated with each field in the Trace
View. You can experiment with this option to achieve the color combination
best suited to a particular graphic system. A brighter color might be
appropriate for a specific field that should stand out in the display (e.g. the
Packet Types).
Note The colors of the following packet types cannot be changed: Invalid Data (packet
error) field (red) and Softbit Errors (yellow.)
Two color fields are provided for packet number displays to differentiate
between pre-Trigger traffic and post-Trigger traffic.
98
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
•The packet that causes the Trigger and all the packets before it are colored with
the -color.
•The packet that follows a Trigger is colored with the +color.
•All packets are colored with a +color when there is no Trigger.
Use the color buttons labeled +and -under the Packet # section of the
Colors screen to select a Trigger color.
To select or change a color,
•Click the appropriate color button.
You see the color palette:
Use this palette to choose the desired color for the Packet Types,
Miscellaneous, Integrity, Handshake, Packet #, Access Codes, Data, Idle
and Timestamp.
99
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
8.3 Formats Display Options
•Click the Formats tabontheDisplay Options screen.
You see th e Formats window:
Select a number format corresponding to the column labels along the top of
the screen for each number field that labels the rows along the left of the
screen. The number format changes in the respective location in the packet
view window. You can also select the bit ordering to be displayed. Not every
number format is available for every number field.
100
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
8.4 Hiding
•Click the Hiding tabontheDisplay Options screen.
You see th e Hiding window:
Use the Hiding window to hide various fields, packets, messages, and
protocols from the Trace View screen. You can modify these settings at will
to display a specific area of a Trace.
Hiding Fields
The "Hide Fields" checkboxes allow individual fields to be hidden within a
trace. Click the checkbox(es) of your choice to hide one or more fields.
Hiding Packets, Messages, and Protocols
The "Hide Packets and Transactions" box contains two grids of checkboxes
for hiding whole packets, messages, protocols, and traffic from individual
devices. The grids are labeled "Devices to Hide" and "Levels to Hide".
Devices to Hide
The "Devices to Hide" grid lets you hide
traffic according to device address. The
grid devides into columns which
represent different devices.
101
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Columns labeled "0" through "7" and "All" represent the Active Member
Address of a device. By checking one of the boxes in a column, you hide
the traffic of the selected device (or traffic from all devices if you have
selected All.)
The row in which you place your checkmark determines whether you are
hiding traffic going to or from a device.
• Master - Hide traffic from a Master to selected Slaves
• Slave - Hide traffic from selected Slaves to the Master
• Both - Hide all traffic between the Master and selected Slave
Example: to hide all traffic from a Master to a Slave device with an address
of six, click the checkbox under column 6on the row marked Master.
Levels to Hide
The "Levels to Hide" grid divides into rows which
represent the different packet, message, and protocol
levels. Clicking a checkbox will cause BTTracer to hide
all traffic of a selected level.
Hiding Packets
At the bottom of the Hiding tab of the Display Options
window, check boxes are available for hiding HOPs,
POLLs, NULLs, and other kinds of traffic.
8.5 Saving Display Options
To complete your Display Options settings, use the features at the bottom of
the Display Options screen. These features remain the same no matter
which of the four Display Options screens you are working in.
•Click Save to save the currently specified Display Options for use in future
sessions. Any file name can be specified, but you must use the .opt extension.
If no extension is specified, .opt is added by default.
•Click Load to load a previously saved *.opt file, thus restoring a previous set
of Display Options.
102
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
•The Save as Default function is equivalent to the Save function, specifying the
file name default.opt. Whenever you start up the analyzer, it automatically
loads the default.opt file if one exists.
•Click OK to apply any changes you have made to Display Options and close
this dialog box.
•Click Cancel to cancel any immediate changes you have made and exit the
Display Options menu.
•Click Apply to apply your changes.
103
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
9. Reading a CATC Trace
9.1 Trace View Features
•The BTTracer packet view display makes extensive use of color and graphics
to fully document the captured traffic.
•Packets are shown on separate rows, with their individual fields both labeled
and color coded.
•Packets are numbered (sequentially, as recorded), time-stamped, and
highlighted to show the device status (master or slave).
•Display formats can be named and saved for later use.
•Pop-up Tool Tips annotate packet fields with detailed information about their
contents.
•Data fields can be collapsed to occupy minimal space in the display (which can
in turn be zoomed in and out to optimize screen utilization).
•The display software can operate independent of the hardware and so can
function as a stand-alone Trace Viewer that may be freely distributed.
9.2 Interpreting the Displayed Information
The following table describes the abbreviations used in the Merlin display.
Packet #0 is described from left to right:
Packet:# Packet/Event Number
T/M, T/S M =Master Device Transmitting
S = Slave Device Transmitting
Freq Current Hop Frequency (in MHz)
Pre Preamble of the Sync word
104
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0

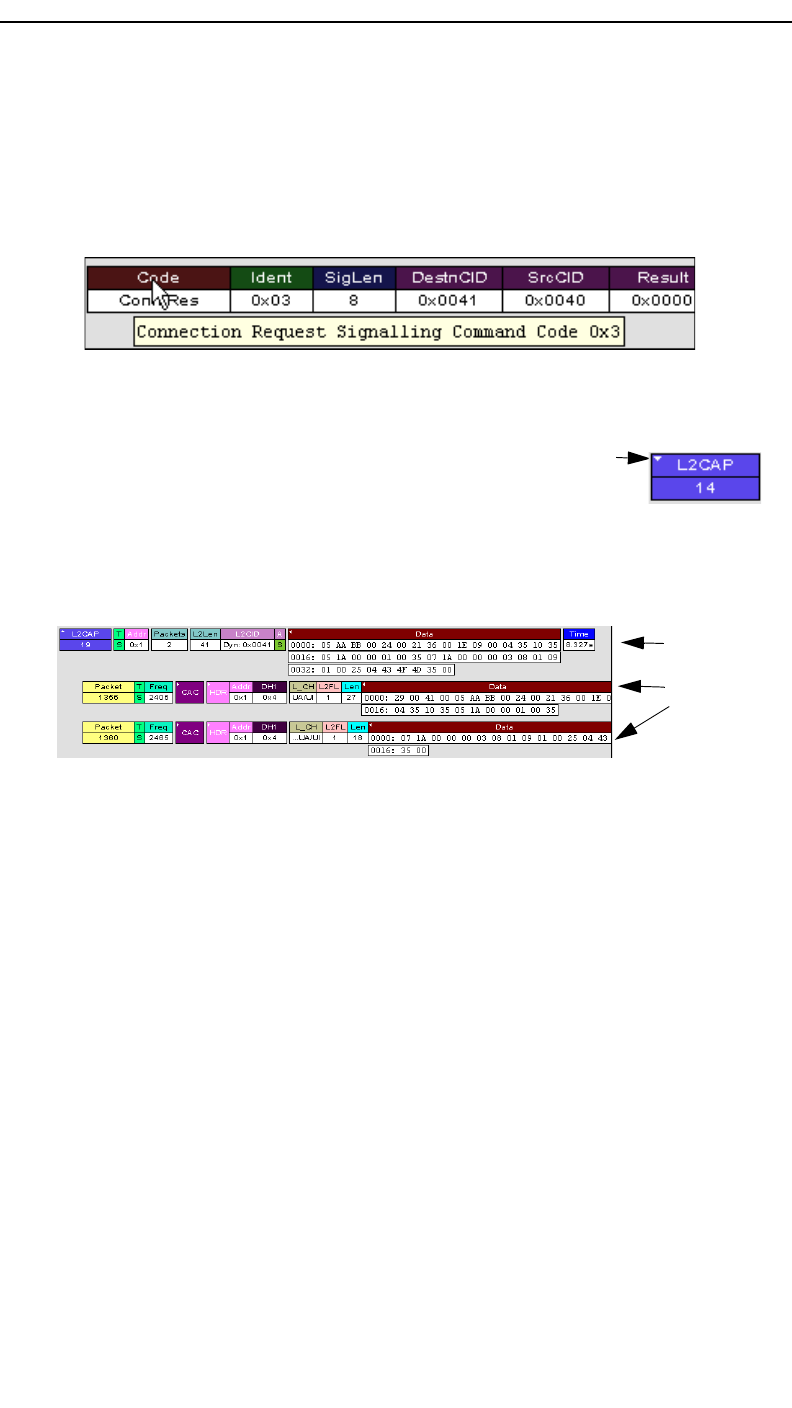

9.3 Tooltips
You can get additional information about
each field in a trace by holding your
mouse pointer over a field. A tooltip will
appear with details about the field.
9.4 Set Marker
Note The Set Marker works in conjunction with the Go to Marker feature.
You can define a unique Marker for each packet.
To place a marker on a packet,
Step 1 Left-click on Packet # for the packet you wish to mark.
CAC Channel Access Code
Trail Access Code Trailer of the Sync word
Addr Active Member Address
DM1 DM1 Packet Type
Flow ACL Link Flow Control
Arqn Acknowledgment Indication Flag
Seqn Sequential Numbering
HEC Header Error Correction Code
L_CH LMP Message
L2FL L2CAP Flow Control Flag
Len Message Length in Bytes including Opcode
TID LMP Transition initiated by Master
Opcode LMP-host_connection_req
CRC Cyclic Redundancy Check
Ack’d Packet Acknowledgment based on subsequent packet’s ARQN with
same AM_ADDR
Idle Idle Time in nanoseconds
Time Stamp Decimal in Seconds.Milliseconds.Microseconds*10
This is the analyzer internal clock as a reference with resolution of
100 ns.
Packet:# Packet/Event Number
105
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0

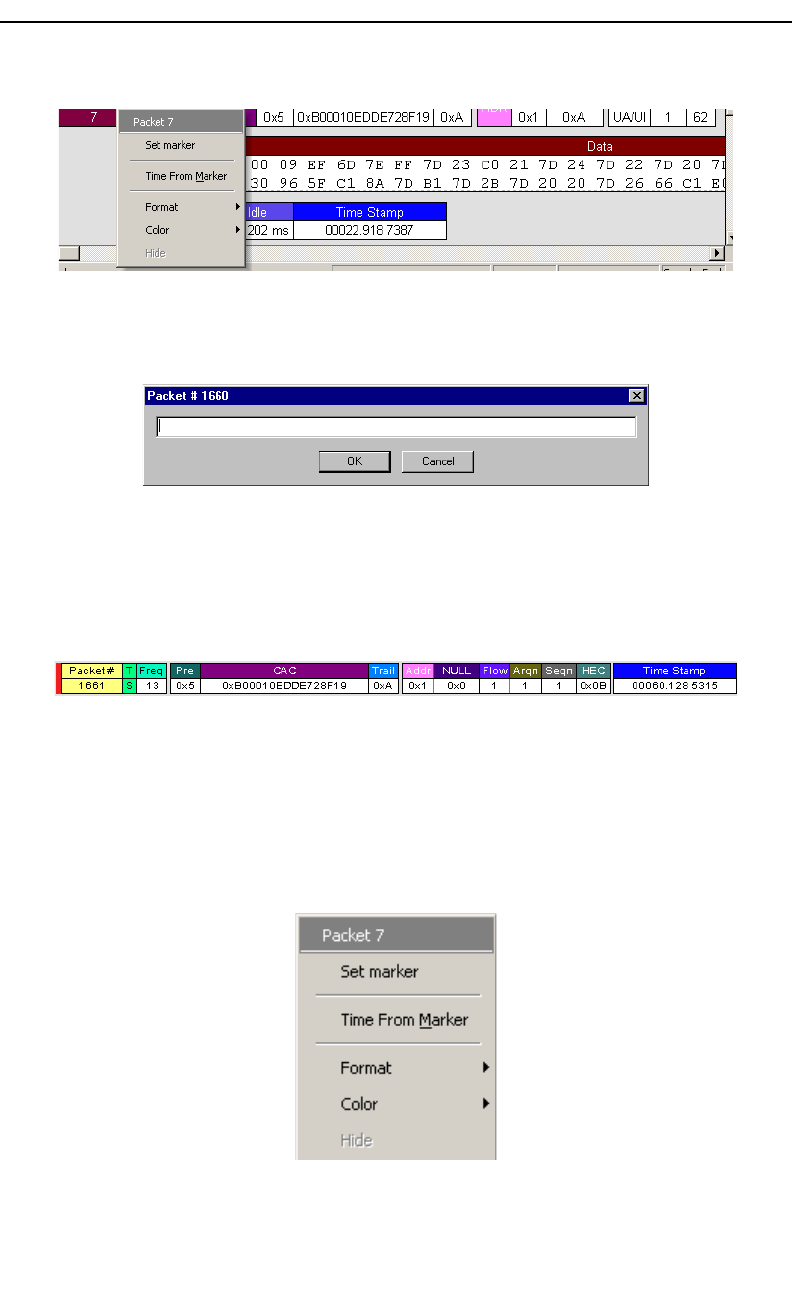

You see th e Packet menu:
Step 2 Select Set Marker.
You see th e Edit Marker Comment window where you can enter a
unique comment about this packet.:
Step 3 Enter your comment.
Step 4 Click OK.
A marked packet is indicated by a vertical red bar along the left edge of the
packet # block:
9.5 Edit or Clear Marker
To clear or edit the comments associated with a packet marker,
Step 1 Left-click on Packet # for the chosen packet.
You see th e Packet menu:
To edit the Marker Comment,
106
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Step 2 Select Edit marker.
You see th e Edit marker comment window:
Step 3 Edit the comment as desired.
Step 4 Click OK.
To clear a Marker,
Step 5 Click Clear marker.
The vertical red Marker bar disappears.

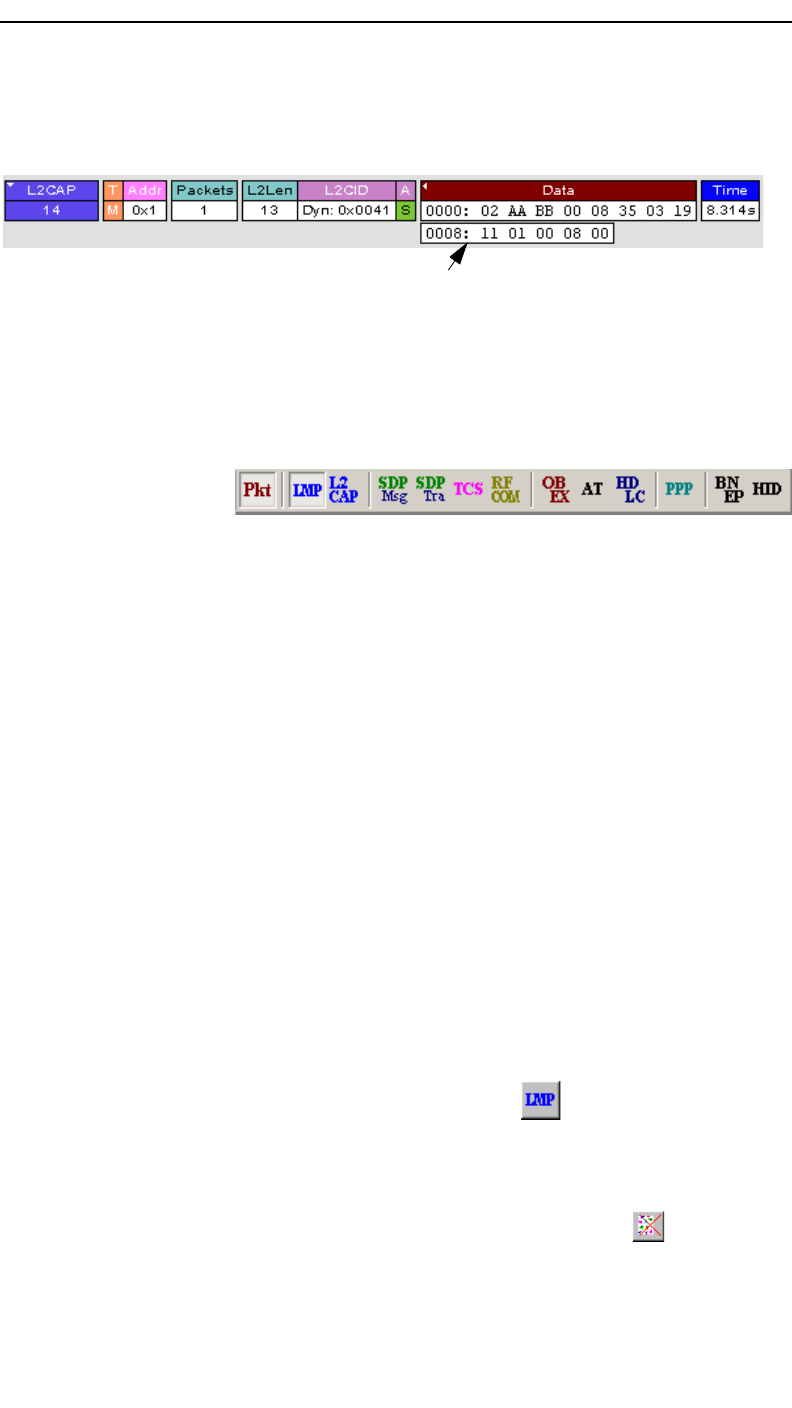

9.6 Expanded and Collapsed Data Formats
The data field can be expanded to display greater detail or collapsed to a
compact view. The Expand/Collapse Data feature operates as a toggle.
There are three ways to toggle between the two views.
Double-Clicking
You can expand or collapse a Data field by double-clicking anywhere in the
Data field of a packet.
Left-clicking a Field Arrow
Many fields have small arrows in the top left corner. If you left-click this
arrow, the field will toggle back and forth between collapsed and expanded
views.
If you click and hold down the left mouse button on one of these arrows, you
can collapse or expand the field for ALL packets, messages or protocols.
Using the Shortcut Menu
If you left-click on a Data field, a menu will open for expanding or
collapsing data fields.
Step 1 Left-click on Data in the Data packet you want to expand or
collapse.
data
Left-facing
field arrow
will collapse Expanded Data
Right-facing
arrow will
expand data Collapsed
the field
107
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
If your Data Trace View is currently expanded, you see the Collapse
Data menu:
If your Data Trace View is currently collapsed, you see the Expand Data
menu:
Note that you can choose to expand or collapse
•Only the Data in the selected Data packet
OR
•All Data Fields in the Trace View.
Step 2 Select the desired Expand Data or Collapse Data menu item.
The Trace View is repositioned with the selected packet(s) adjusted in the
format you have specified.
9.7 Hide Frequency Hops
You can hide Frequency Hops (Hops) from a trace by pressing the Hide
Hops button on the Tool Bar:
108
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
From the Tool Bar
•Click to hide all Hop packets.
9.8 Hide Nulls and Polls
You can hide Nulls and Polls from a trace by pressing the Hide Nulls and
Polls button on the Tool Bar.
From the Tool Bar
•Click to hide all Nulls and Polls.
9.9 Menus in Clicked Fields
Youcandisplaythefollowingmenuwhenyouclickinafieldinatrace.
9.10 Hide Unassociated Traffic
You can hide all traffic that is not associated with the current decode level
by pressing the Hide Unassociated Traffic button on the Tool Bar.
From the Tool Bar
•First, click one or more decode buttons such as the View L2CAP Messages
. This button will cause BTTracer to decode the trace and display
selected level of decode.
•Next, click to hide all unassociated traffic.
The Hide Unassociated Traffic button will cause BTTracer to hide all
traffic except for the selected decode messages or protocols. In the example
above, all packets would be hidden and only L2CAP messages would
display.
109
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
10. Decoding Higher Protocols
10.1 Introduction
BTTracer can decode LMP and L2CAP messages, and RFCOMM, SDP,
TCS, HDLC, PPP, and OBEX protocols. The default is packet level
decoding, which means that baseband packets will be displayed when you
first view a trace. If these packets are carrying LMP, L2CAP or higher
protocols, the protocols will display as undecoded fields such as the L2CAP
packet below.
By issuing a decode command, BTTracer can decode these LMP and higher
fields and display the data in summary statements called LMP/L2CAP
Messages,Protocols Messages, and Protocol Transactions.
10.2 LMP and L2CAP Messages
LMP and L2CAP Messages are lines in a trace that summarize LMP and
L2CAP actions such as an LMP connection request. LMP and L2CAP
Messages summarize the type of action, the number of packets involved in
Undecoded L2CAP fields
110
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
the action, and the device performing the action. If the message is carrying
higher protocol data such as RFCOMM, TCS, OBEX or SDP data, the
message displays this data in an undecoded format that can be decoded later.
10.3 Decoding and Viewing Higher Protocol Data
Higher protocol data can be decoded two ways: by clicking a decode button
on the toolbar or by selecting a decode command from a pull down menu.
Decoding Via the
Decoding Toolbar
The Decoding Toolbar has ten buttons for decoding packets, messages, and
protocols:
•Pkt (Display Packets)
•LMP(Display LMP Messages)
•L2CAP (Display L2CAP Messages)
•SDP Msg (Display SDP Protocol Messages)
•SDPTra (Display SDP Transactions)
•TCS(Display TCS Protocol messages)
•RFCOMM(Display
•OBEX (Display OBEX Protocol)
•AT(Display AT Commands Protocol)
•HDLC(Display HDLC Protocol)
• PPP (Display Point to Point Protocol)
•BNEP(Display Bluetooth Network Encapsulation Protocol)
•HID(Display HID Protocol)
For example, to display LMP messages, click .
Note Once a decode has been performed, it will probably be necessary to scroll through
the display to find the decoded messages or protocols. You can shorten your
search by first clicking the Hide Unassociated Traffic button .
Undecoded higher protocol data
111
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Decoding Via the Display Options Dialog Box
The Display Options dialog box has three options for issuing decode
commands. To issue a command,
Step 1 Fromthemenubar,selectSetup>Decoding Options
Step 2 Select the option for the desired level of decoding.
Step 3 Click OK or Apply.
112
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
10.4 Tooltips
Additional information about fields can be attained by positioning your
mouse pointer over a field of interest. A tooltip will appear that will provide
details about the field. In some cases, there can be a considerable amount
of information available.
10.5 Viewing Packets in LMP and L2CAP Messages
LMP and L2CAP Messages can be "opened" to reveal
their constituent packets by double-clicking the first
cell in of the message or clicking once on the small
arrow on that same cell. The packets will then display below the message.
The following screenshot shows an example of a message and its packets.
10.6 Types of LMP and L2CAP Messages
If you scroll through a trace, you will see three kinds of message:
•LMP Signalling Message
•L2CAP signalling Message
•L2CAP Data Transfer Message
Message
Packets
making up
the
message
113
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Each message has the same basic message header but differs in its payload.
LMP and L2CAP Signalling messages have payloads of commands for
establishing LMP and L2CAP channels. L2CAP Data-Transfer messages
have a payload that may include RFCOMM, SDP, or TCS data. In order to
view higher protocol data, you will need to decode the messages (shown in
the next section). The decoded data will appear as new lines in the trace
called "Protocol Messages."
10.7 Viewing L2CAP Channel Connections
Once L2CAP messages have been decoded and displayed, you can check or
change their L2CAP channel connections by opening the L2CAP Decoding
Connections dialog box.
To view or change an L2CAP channel connection,
Step 1 Select from the menu bar
View>Decoding Assignments
LMP Signalling Message
L2CAP Signalling Message
L2CAP Data Transfer Message
Payload
Payload
Header Payload
Header
Header
114
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
The following dialog box will open.
Step 2 Click on a channel assignment and then look at the Connect
and Disconnect buttons on the far right of the dialog box.
If the Connect and Disconnect buttons are grayed-out, it means that
BTTracer made the channel assignments using data in the trace. You can
verify that BTTracer performed the assignments by looking at the text in
the "Slave Channel" box in the lower left corner of the dialog box. If
you see "Connection Recorded" it means that BTTracer performed the
channel assignments.
If BTTracer was not able to make these channel assignments, then the
Connect and Disconnect buttons on the right side of the dialog box will
be active. You can then assign and edit channel connections.
Step 3 Open the drop-down menu labeled AM_Addr (Active
Member Address). If possible, select an address other than
the currently displayed address.
The connections for the ’new’ device should now display.
10.8 Viewing Protocol Messages and Transactions
By pressing a button such as or , you can cause BTTracer to decode
the higher level protocol data contained within L2CAP messages and
display them as packet-like rows called Protocol Messages.Protocol
Messages have headers marked "protocol" and fields that vary in
appearance and content depending on the type of protocol.
Some Protocol Messages can be grouped into a higher level entity called a
Protocol Transaction. A Protocol Transaction is a row in a trace that
summarizes the higher level protocol data that is transmitted between a
Master and Slave device when one sends a request and the other sends back
115
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
a response. For example, if you press ,BTTracer will locate SDP
requests and responses between a Master and Slave device summarize their
data.
Viewing L2CAP Messages in Protocol Messages
If the protocol heading is double-clicked, the L2CAP data-transfer
messages that make up the protocol will display below the protocol. You
can also expand the protocol by left-clicking the small downward pointing
arrow on the protocol header.
How to Decode
Decoding Protocol messages is the same process as decoding LMP and
L2CAP messages.
Using the Toolbar - To decode using the Toolbar, press one of the protocol
decode buttons such as: . .
Using the Menu - To decode using the menu, select:
Setup>Display Options
Then select one of the decode checkboxes.
Once a decode command has been issued, BTTracer will create Protocol
Messages in the trace. You will probably have to hide hops, polls, and null
packets and then scroll through the trace in order to find Protocol messages.
Expanding Protocol Messages
Protocol messages can be expanded to reveal their constituent packets using
any of the following methods:
•Left-click the small downward pointing arrow in
the message/protocol header
•Double-click a message/protocol header
•Left-click the message/protocol header and choose "Expand Transaction"
from the short-cut menu
116
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
10.9 Changing Protocol Assignments
If a sequence of messages is assigned the wrong protocol, errors will
display. To change or remove a protocol assignment, you will need to
access the Assignment menu and issue an Add Assignment command.
Step 1 Click to display L2CAP messages.
Note You need to view L2CAP Messages in order to have access to the "A" field that
permits reassigning protocols.
Step 2 Scroll through the trace until you have located an L2CAP
message with a field marked "A."
Step 3 Left-clickthefieldmarked"A."
An Assignment menu will open for assigning, re-assigning, or
un-assigning protocols to messages. This menu is context-sensitive and
will vary in content depending on the protocols in the trace.
Step 4 From the menu, select one of the "Add Assignment" options
not already selected.
At this point, the protocol assignment will change to your selection.
Using the Decoding Assignments Dialog Box
You can get a complete list of all protocol assignments by opening the
Decoding Assignments dialog box. This dialog box will tell you which
protocol assignments were made by BTTracer and which are user-assigned.
User-assigned protocols can be reassigned if need be using this dialog box.
Left-click
The Assignment Menu
Current assignment
Select another assignment
to change assignment from
this point downward
through the trace
Will let one or all protocol
assignments be removed
117
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
To open the Decoding Assignments dialog box and reassign a protocol,
Step 1 Select from the menu
View>Decoding assignments
The Decoding Assignments dialog box will open. A status message in
the bottom left corner of the dialog box will indicate who assigned the
protocol.
Step 2 Click on one of the displayed assignments.
If the protocol was assigned by BTTracer, the Assign buttons on the right
will be grayed out and unavailable. If you want to change these
assignments, you will have to use the pop-up menus described in the
previous section. If a protocol has been manually assigned by a user, the
Assign buttons will become active and allow you to make a change in
assignment.
Step 3 If possible, click the appropriate Assign button.
Removing User-Assigned Protocol Assignments
As you practice assigning and reassigning protocols, you will find that one
of the more useful commands is "Remove All User Assignments." This
command allows you to undo all of your assignments.
To remove some or all user-assigned protocol assignments,
Step 1 Double-click any Protocol Message header to open view
L2CAP messages.
Step 2 Locate a message with a field marked "A."
Step 3 Left-click on the "A" field to open the Assignment menu.
Step 4 Select "Remove All User assignments" or "Remove this
assignment."
118
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Manually Assigning Protocols
If a recording does not capture the beginning of a dialog between a Master
and Slave devices, BTTracer may not have the L2CAP messages it needs to
determine the correct protocol assignments. In this case, L2CAP messages
will display an "N" in the Assignment field that means "Not Assigned."
If you know what the protocol assignment should be for the missing
assignments, you can manually add them by right-clicking your mouse over
the A field shown above and selecting from the pop-up Assignment menu
shown on the previous page.
Other Assignments: OBEX Client/Server Status
OBEX messages carry a status that indicates whether the transmitting
device is an OBEX client or OBEX server.
To view an OBEX message’s client/server status,
Step 1 Open an OBEX trace file such as the sample file
"OBEXsample.blt" in C:\Program files\CATC\BTTracer.
Step 2 Press . , and to hide Hops, NAKs, and unassociated
traffic.
Step 3 Press to decode OBEX.
Step 4 Left-click your mouse over the field marked Type.
A pop-up menu will appear indicating whether the message was
produced by an OBEX client or server. If the menu items appear
grayed-out (as they do in this example) it means that BTTracer assigned
the client or server status based on data it found in the trace. If the menu
items appear in black, it means that the user assigned the status and is
therefore free to change the assignment.
N=Protocol not assigned
An L2CAP message without a protocol assignment for the higher protocol data.
Left-click over the Type field to open the OBEX Client/Server Assign menu.
119
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Changing an OBEX Client or Server Status
If the beginning sequence of traffic is not recorded in a trace, the
client/server status of the transmitting devices will not be preserved in the
trace. In this case, the OBEX Client/Server pop-up menu will become
active and you will be able to change the assignment.
Decoding BNEP
BNEP (Bluetooth Network Encapsulation Protocol) is a protocol that allows
devices to encapsulate network protocols such as IP. Since BNEP can carry
different types of network protocols, you need to tell BTTracer what
protocol the BNEP is going to be carrying. You do this via a script file
called bnep.dec that is read during the initialization of the BTTracer
software. This file tells BTTracer how to decode BNEP fields. Once read,
BNEP can be correctly decoded by pressing the button on the toolbar.
If the decode file is not read at initialization, BTTracer will display the data
in an undecoded format.
For more information on BNEP decoding, see a supplemental document on
BNEP in the support directory on the CATC web site:
http://www.catc.com/products/support/sup_BTTracerbluetooth.html
Decoding HID
HID (Human Interface Device) is a profile associated with traffic from
devices such as a mouse or a keyboard. To decode HID traffic, you will
need to tell BTTracer what types of HID traffic it will be recording. You do
this by editing a script file called hid.dec. BTTracer reads this file during the
initialization of the BTTracer software. This file tells BTTracer how to
decode the HID fields. Once read, HID can be correctly decoded by
pressing the button. If the decode file is not read at initialization,
BTTracer will display the data in an undecoded format.
BTTracer has the capability to decode HID (Human Interface Device
profile) based on version 0.90b of the specifications.
120
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
121
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
11. Other Features
11.1 Search
The Search feature provides several options for searching through recorded
traffic, allowing you to find specific packets based on triggering status,
packet number, marking, or content.
To view the Search options,
•Click Search in the Menu bar.
You see the Search drop-down menu:
Go to Trigger
To display a triggering event, select Go to Trigger under Search on the
Menu bar. The Trace Viewer display will reposition the trace to show the
triggering event at the top of the screen.
Go to Packet/Message/Protocol
To display a specific packet, Message or Protocol
Step 1 Select Go to Packet/Message/Protocol under Search on the
Menu Bar.
You see th e Go to Packet/Message/Protocol window:
122
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Step 2 Enter the number of the packet, message or protocol you want to
display.
Step 3 Click OK.
The Trace View repositions to show the packet at the top of your screen.
Go to Marker
To instruct the analyzer to display a marked packet,
Step 1 Select Go to Marker under Search on the Menu Bar.
You see a drop-down menu listing the marked packets in that Trace View:
Step 2 Select the desired packet from the displayed list.
The Trace View repositions to show the packet at the top of your screen.
Note The Go to Marker feature functions in conjunction with the Set Marker feature.
The comments within the parentheses following each marked packet are added or
edited with the Set Marker feature.
Go to
The Go To feature takes you directly to an event in a Trace.
Step 1 Select Go To under Search on the Menu Bar.
123
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
You see th e Go To drop-down menu:
Step 2 Select the event you want to go to and enter the necessary
information.
Packet Types
Select the type of packet you want to go to.
124
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Header AM_Addr
Select an Active Member Address from the list.
DataLength
Allows searching based on data length in bytes from the recording.
125
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Lmp Opcode
Select the Link Management Protocol Operational Code (Lmp Opcode) that you
want to go to.
L2Cap Signalling Command
Select the type of L2Cap Signalling Command that you want to go to.
126
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
L2Cap CID
Select the L2Cap Channel ID (L2 Cap CID) that you want to go to.
Error
Moves trace view to next uncorrected error.
Soft Bit Error
Moves trace view to next soft (corrected) error.
Loss of Sync
Moves trace viewer to the next loss of sync.
Find
Find is a utility within MBTTracerat allows you to conduct searches of one
or more events within a trace. Find allows you to search different
hierarchical levels within the trace - packets, LMP Messages, L2CAP
messages etc.
To start find,
• Select Find... under Search on the Menu Bar
OR
Click in the Tool Bar.
127
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
You see th e User-Defined Find Events screen:
The Find window divides into three areas:
Left area -- Controls the search level, search direction and search origin.
Find All - Extracts the results and place them in a separate trace.
Search In Hidden - Searches all packets including packets that have
been hidden.
Center area -- Controls the event groups to be searched. The selection you
make will display further choices on the right side of the Find window. At
the bottom are three options called Union, Intersection, and Exclusion that
are used with multi-criteria searches. These options are explained below.
Right area -- Controls the specific events to be searched within the trace.
The box in this right section displays events from the selected Event Group.
The right area is context sensitive -- the Event Group selected in the Center
area will determine what events will display on the right. For example, if
you select Packet Type, the Right area will show you a list of packet types.
Bold entries in the list represent items that actually occurred in the trace.
128
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
In the screenshot shown above, for example, AM Address is selected. On
the right, you see that only Address 1 is in bold. This indicates that only a
single device was transmitting traffic in the displayed trace.
Event Groups
Event Groups are categories of events that can occur in a trace. Clicking on
an Event Group will display a list of Event types on the right side of the Find
window that occur within each Event Group.
AM Address
Contains a list of seven Active Member addresses. Bold entries represent
devices that occur in the trace.
Master/Slave
Contains two options labeled Master and Slave. Selecting an option will
cause BTTracer to search for traffic based on the selected role.
Packet Type
Contains a list of all Bluetooth packet types. If a packet type occurs in the
trace, it will appear in bold.
Acknowledge
Contains a list of three Acknowledge types: Explicit NACK,Implicit
NACK,andACK. The three Acknowledge types are responses a device
can issue to attempts to transmit packets to it.
A device can send an Acknowledgment in two ways: through setting the
ARQN field to 0 (= explicitly not acknowledged), to 1 (explicitly
acknowledged) or by sending an empty packet that does not have an ARQN
field (= implicitly not acknowledged).
Explicit NACK - Explicitly not acknowledged. An Explicit NACK is an
explicit response by a device that it did not receive a data packet. The
Explicit NACK is transmitted in the ARQN field (=Acknowledgment
Request Negotiation field). ARQN=0 means ’Explicit NACK.’
Implicit NACK - Implicitly not acknowledged. An Implicit NACK is a
NACK that is implied rather than explicitly stated. If a device responds
to a data packet by sending an empty packet, the NACK is implied.
ACK - Acknowledged. If a data packet is successfully transmitted to a
target device, the target device acknowledges the received packet by
setting the ARQN field to 1.
129
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Acknowledgments are easily seen in BTTracer traces because BTTracer
adds an Ack’d field on data packets of the transmitting device. This means
that you do not have to hunt through the trace to see if the packet was
acknowledged.
The following screenshot shows two examples of Acknowledgments.
Implicit NACK - Packet 14577 is a data packet sent by the piconet Master
device. Packet 14579 should have been a data packet with an
acknowledgment. Instead, it is an empty packet. This Master interprets this
empty packet as an Implicit NACK (i.e., implicitly not acknowledged).
BTTracer summarizes this packet exchange by adding an Ack’d fieldtothe
Master’s data packet and setting the Ack’d field to Imp Nak.
ACK - Packet 14580 is the Master’s retransmission of the data sent in
packet 14577. Packet 14582 is the reply by the Slave device. This reply
contains an ARQN field with a value of (= Acknowledge). BTTracer
summarizes this packet exchange by setting the Ack’d field on packet
14580 to Ack.
130
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Data Length
Contains a list of all data lengths that occur in the trace.
131
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Data Pattern
Searches for the next packet that has a specified data pattern.
Searching for Bit Patterns
You search for a bit pattern by using the box labeled Bitmask. Enter one of
the three following values:
•X = 'Don't care,'
•0 = 'Match a 0',
•1 = 'Match a 1.'
Example -- xxxxxx01 means 'Look for a data pattern where the first 6 bits
can be any value but the last two bits must be 01.'
Searching for Long Patterns
You can search for long pattern sequences by entering patterns into multiple
rows within the editor. Entering a pattern on one row and skipping several
rows before entering the second pattern tells BTTracer to search for the
entire pattern between the two specified rows.
Example - Enter xxxxxx01 in row 1 and 11xxxxxx in row 2. This pattern
means 'Look for the pattern xxxxxx0111xxxxxx.'
132
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Example - If you enter xxxxxx01 into row 0 and
11xxxxxx into row 4, it means 'Look for the pattern
xxxxxx01 xxxxxxxx xxxxxxxx xxxxxxxx
11xxxxxx.'
Searching for Hexadecimal Patterns
The columns marked Match and Mask allow you
to specify a pattern in hex. You enter the pattern
you want to match in the column marked Match,
and enter the mask in the column marked Mask. The Mask column allows
you to specify which bits you are searching for.
Example - A Match of 03 and a Mask of '0F' tells BTTracer that you are
looking for the hex pattern of 03 occurring in the last four bits of the pattern.
If you enter these values in the Match and Mask columns, the Bitmask
section will automatically display the equivalent bit values: XXXX0011.
Union, Intersection, and Exclusion
If you select multiple events, you will need to use the options Union or
Intersection to conduct the search.
Union is used to search for any selected event: "Find x or y." Union lets
you tell the analyzer to search the trace for any of any of the selected items.
Intersection is used to search for all selected events: "Find x and y."
Intersection lets you tell the analyzer to search the trace for any packet
having all of the selected events.
Exclusion is used to exclude selected traffic from the trace. Exclusion is
used with Union and Intersection --i.e., you select Exclusion with Union or
Intersection.
•Exclusion + Union -- tells BTTracer to exclude packets with any of the
specified events.
•Exclusion + Intersection -- tells BTTracer to exclude packets with all of the
specified events.
Using Find
Step 1 Select the display level to be searched from the Search For
box on the left side of the window.
For example, to search through L2CAP messages, select L2CAP. The
display level that you select will affect options presented in the Events
Group box.
133
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Step 2 Select a search direction and origin.
Step 3 Select one or more events from the Events Group box.
Your choices will affect options presented in the box on the right side of
the screen.
Step 4 If you have selected two or more criteria, then select either :
•Union: Find all packets that match ANY of the specified events. An
example would be to find packets with either X or Y.
•Intersection: Find all packets that match ALL of the specified
events. An example would be to find all packets with X and Y.
If you want to selected events from the trace, then select:
•Exclusion: Exclude all packets that match any of the specified
events. This option works in cunjunction with Union and Intersection.
Select an exclusion plus one of the other two options. If you select
Exclusion and Union, it means Exclude packets in any of the
following events. An example would be to exclude packets with
either X or Y.
Step 5 Click OK.
The search will then occur. Afterwards, the packets meeting the search criteria
will display.
Some Find Examples
Search for all DM1 and Poll packets with an Active Member Address of 7.
Step 1 From the Event Group, select Packet Types.
Step 2 From the box on the right, select DM1 and Poll.
Step 3 From the Event Group, select Header AM_Addr.
Step 4 From the box on the right, select AM_Addr=7.
Step 5 From the Center area, select Intersection.
Selecting Intersection tells BTTracer to find packets with ALL of the
selected traits.
134
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Step 6 Press OK.
The trace should reposition to the first DM1 or Poll packet that has an
Active Member address of 7.
Exclude all DM1 and Poll Packets with Active Member Addresses of 7.
Step 1 Select Packet Types from the From the Event Group
Step 2 Select DM1 and Poll from the box on the right.
Step 3 Select Header AM_Addr from the Event Group.
Step 4 Select AM_Addr=7 from the box on the right.
Step 5 From the Center area, select Intersection and Exclusion
Step 6 Press OK.
The trace will redisplay so that it excludes DM1 packets with AM_Addr=7 and
Poll packets with AM_Addr=7.
Exclude all packets with ANY of the following attributes: DM1, Poll, or
AM_Addr=7.
Step 1 Select Packet Types from the Event Groups.
Step 2 Select DM1 and Poll from the box on the right.
Step 3 Select Header AM_Addr from Event Group.
Step 4 Select AM_Addr=7 from the box on the right
Step 5 Select Union and Exclusion.
Selecting Union causes the analyzer to search for any of the selected
events.
Step 6 Press OK.
The trace will redisplay so that it excludes DM1s, Polls, or any packet with
AM_Addr=7.
Find Next
To apply the previous Find parameters to the next search,
•Select Find Next under Search on the Menu Bar
OR
Click on the Tool Bar.
135
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
11.2 Edit Comment
You can create, view, or edit the 100-character comment field associated
with each Trace file.
Step 1 Select Edit Comment under File on the Menu Bar.
You see th e Edit comment for trace file window:
Step 2 Create, view, or edit the comment.
Step 3 Click OK.
11.3 Reports
The Report menu provides several reports to assist you in analyzing
Bluetooth™ traffic recorded by the analyzer.
File Information
To display a File Information report,
•Select File Information under Report in the Menu Bar
OR
Click in the Tool Bar.
You see the File Information screen:
136
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
The File Information report provides valuable information about how the
recording was made, what the buffer settings were, what the trigger options
were, and what version of all the analyzer hardware was used to make the
recording.
Error Summary
The Error Summary command displays an error summary of the current
trace file and allows you to go to a specific packet, and save the error file to
a uniquely named file.
Timing Calculations
Starts the modeless calculator dialog for calculating various timing and
bandwidth parameters in the recording file.
To display a File Information report,
•Select Timing Calculations under Report in the Menu Bar
OR
Click in the Tool Bar.
137
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
You see the Timing and Bus Usage Calculator screen:
To calculate bus usage and bit rate errors,
Step 1 Enter the range of packets to be examined in the text boxes
marked "From packet" and "To packet."
Step 2 If you wish to limit your calculations to a single device,
select the device’s address from the AM Address drop-down
menu.
Step 3 Click the "Calculate" button.
At this point, bus usage will be calculated.
Traffic Summary
The Traffic Summary dialog box displays a text summary of traffic captured
in the current trace.
The Traffic Summary window divides into two main sections: a short top
section (shown above in the top left corner of the window) that summarizes
traffic for each protocol level, and a long section below describing the traffic
details for each protocol level.
138
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
The second section is scrollable: click on an item below one of the headings
to display scroll arrows. The arrows will allow you to scroll through the
packets or transactions within that section. As you scroll, the trace will
simultaneously jump to the packet or transaction that is listed.
At the bottom of the Traffic Summary window is a button marked "Textual
Summary." Clicking this button will cause WordPad to open and display the
current Traffic Summary, as shown below. This data can then be printed or
saved.
139
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
11.4 BT Neighborhood
The BT Neighborhood status box displays information about known
Bluetooth™ devices. This command is accessible through the View menu
in the menu bar. Three types of data are displayed: Device Address, Class
of Device (COD), and the Bluetooth™ Clock Frequency for each
discovered device. The expected Bluetooth™ clock frequency is 3200 Hz
+/- 250 PPM.
11.5 Encryption
Bluetooth encryption is a multi-staged process that provides devices with
secure, encrypted communications. The process begins with a device
prompting the user for a Personal Identification Number (PIN). When the
right PIN is entered, the Slave begins an encryption setup dialogue with the
Master. At the beginning of this dialogue, the Slave and the Master agree
on a Link Key. A Link Key is a 128-bit value that the two devices use for
authentication. When the Slave and Master agree on a Link Key, the Slave
then negotiates for the transfer of the Encryption Key from the Master
device. The Encryption Key is used to encrypt and decrypt messages. Once
the Encryption Key is transferred, both devices use it to encrypt all
subsequent communications.
In order for BTTracer to decode encrypted traffic, it needs the Link Key for
each Master-Slave connection for which encryption will be used. If you
know the Link Key, you can enter the Key into the Encryption Options
dialog box. If you do not know it, you give BTTracer the PIN for a device
140
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
and allow BTTracer to discover the Link Key on its own. Once BTTracer
has the Link Key, it can capture the rest of what it needs by listening to the
Master and Slave devices as they negotiate for the Encryption Key.
Configuring BTTracer for Encryption
For BTTracer to successfully decrypt traffic, two steps need to be
performed: 1) BTTracer needs to be given the PIN or Link Key for each
Master-Slave connection; and 2) Recording needs to be begun before the
Slave connects to the Master. If recording is begun prior to the creating the
Master-Slave connection, BTTracer will be able to obtain the encryption
key and decode encrypted traffic.
The following steps show how to configure BTTracer for encrypted traffic.
Note Be sure to begin the following process prior to connecting your Slave device to
the Master or BTTracer will not be able to capture the Link Key.
Step 1 Select Setup >Encryption Options ...
The following dialog box opens.
Step 2 Click the button marked Add Slave Device.
When you click this button, a list of devices will appear in the Slave
Device Address drop-down menu.
Step 3 Select an address from the drop-down menu marked Slave
Device Address or enter the Device Address manually if it
is not in the list.
Step 4 Enter the appropriate Personal Identification Number (PIN)
for the selected device to the box marked PIN Code. This
PIN allows BTTracer to learn the Link Key. If you do not
141
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
havethePIN,skiptoStep5.
Note The PIN you provide should be the same used by the Slave. For example, if your
Slave device requires a PIN of "1234", then enter the same PIN in the dialog box
shown above.
Step 5 If you do not have the PIN, or if the Master and Slave have already
agreed upon the Link Key, manually enter a Link Key as a 128 bit
(sixteen byte) hex value into the box marked Current Link Key.If
you have the PIN, you can skip this step.
Note If the Master and Slave were previously connected, they may already agree on the
Link Key. In this case, you will need to provide BTTracer with the Link Key and
not simply the PIN.
Step 6 Click Apply
The changes you have made are applied and the information is displayed
in the dialog box as shown below. Four fields will display: Device
Address, PIN, the Link Key, and Link Key status.
Link Key status may read:
Mstr (=Master unit’s Link Key)
Slve (=Slave unit’s Link Key)
Comb (=Combination Key)
Init (=Initialization Key)
Temp (=Temporary Key)
User (=User-defined Key)
Step 7 Click OK.
The dialog box closes.
142
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
143
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
How to Contact CATC
Warranty and License
Computer Access Technology Corporation
(hereafter CATC) warrants this product to be free
from defects in material, content, and
workmanship, and agrees to repair or replace any
part of the enclosed unit that proves defective
under these terms and conditions. Parts and labor
are warranted for one year from the date of first
purchase.
The CATC software is licensed for use on a single personal computer. The
software may be copied for backup purposes only.
This warranty covers all defects in material or workmanship. It does not
cover accidents, misuse, neglect, unauthorized product modification, or acts
of nature. Except as expressly provided above, CATC makes no warranties
or conditions, express, implied, or statutory, including without limitation
the implied warranties of merchantability and fitness for a particular
purpose.
CATC shall not be liable for damage to other property caused by any defects
in this product, damages based upon inconvenience, loss of use of the
product, loss of time or data, commercial loss, or any other damages,
whether special, incidental, consequential, or otherwise, whether under
theory of contract, tort (including negligence), indemnity, product liability,
or otherwise. In no event shall CATC's liability exceed the total amount paid
to CATC for this product.
CATC reserves the right to revise these specifications without notice or
penalty.
Type o f Service Contact
Call for technical support… US and Canada: 1 (800) 909-2282
Worldwide: 1 (408) 727-6600
Fax your questions… Worldwide: 1 (408) 727-6622
Write a letter… Computer Access Technology Corp.
Customer Support
2403 Walsh Avenue
Santa Clara, CA 95051-1302
Send e-mail… support@CATC.com
Visit CATC’s web site… http://www.CATC.com/
144
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
145
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
INDEX
Numerics
1100 packet 77
1101 packet 77
A
Abort upload 34
About Merlin 21
Acknowledge 128
Action buttons 31, 83
Actions tab 82
Addr 104
Addresses
AM_ADDR 77
Bluetooth 54
piconet 73
slave device 44
swap 74
target 55
AM Address 128
Analyzer
describing Bluetooth 2
requirements 17
set up 9
status 34
updates 24
API 4
Application installation 9, 18
Architecture of Piconet 3
Arqn 104
ARQN condition 77
AT 110
AT commands protocol 96
Authentication 139
Automatic updates 24
Automation Feature 4
AUX1 packet 77
B
Basic installation 9
Bit pattern, searching 131
Blue dot menus 85
Bluetooth
antenna 13
BusEngine 6
described 1
device address 54
first recording 10
limited search 67
neighborhood 139
recording traffic 92
search for device 51
searching for devices 40
target address 55
BNEP 96, 110
Breakout board 15
BT neighorhood 139
Bubble help 35
Buffer size 10, 65
BusEngine
automatic updates 24
Bluetooth 6
general updates 21, 23
manual updates 25
Buttons
counting 83
toolbar 31
C
CAC 104
Calculations, timing 136
Capturing a trace 20
CATC Technical Support 143
Certification 7
Changing trace view 96
Channel connections, L2CAP 113
Circuits, custom 17
Clicked fields, menus in 108
Clock rate, match 73
Collapse data 106
Colors 97
Comments, editing 135
Components, physical 5
Configuring encryption 140
Connecting events 84
Connectors
146
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
data 7, 15
physical 7, 15
Correlation Value 74
Counters
connecting events 84
value 85, 86
Counting buttons 83
CRC 104
CRC error 80
Creating Display Option Files 96
Custom circuits 17
D
Data
connector 15
decoding 110
expand, collapse 106
filename 10
length 79
pattern 75, 79
searching by length 124
searching by pattern 131
transfer message 112
DB-9 15
Debug file 11, 75
Decoding 110
Dedicated inquiry 11
Description of Merlin 2
Detailed installation 13
Device
address 139
Bluetooth address 54
general search 42
hiding 100
inquiry 74
search 40
search for Bluetooth 51
search results 53
slave address 44
DH1,2,3packet77
DIAC LAP 74
Display configuration name 96
Display options
colors 97
creating files 96
formats 99
general 95
hiding 100
saving 101
Displaying information 103, 135
DM1 104
DM1, 2, 3 packet 77
Drivers, loading USB 18
Duration of search 51
DUT Recv/Xmit Freq 69
DV packet 77
E
Editing comments 135
Enable
debug file 75
tooltips 95
Encryption 139, 140
Environmental Conditions 7
Error summary 136
Errors
CRC 80
FEC 80
header length 81
HEC 80
invalid packet 80
payload length 81
Searching for 126
setting conditions for 80
sync loss 81
threshold exceeded 80
types of 75
Established Piconets 71
Events
conditions 77
connecting 84
options 75
sequencing 90
tab 75
trigger 10, 64
Exclusion search 132
Existing Piconet, recording 49
Expand data 106
147
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Explicit NACK 128
External
input signals 75, 81
interface 15
trigger form 89
F
Features 4
FEC Error 80
FHS packet 77
File information, displaying 135
File menu 29
Filename and data 10
Filter In/Out button 83
Filter Out/In 87
Filtering 76, 77
Find feature, using 132
Finding 126
Finding devices 40
Firmware updates 21, 23, 24, 25, 27
Flow 104
Fonts 96
Force resynchronization 73
Formats tab 99
Found devices 43, 53
France hops 69
Frequencies, DUT 69
Frequency hops, hiding 107
frequency mode 50
G
G.P. OUT 17
General description 2
General features 4
General inquiry 11, 67, 70
General options
display 95
recording 63
General purpose output 89
Generating reports 135
Go to
DataLength 124
error 126
Header AM_Addr 124
L2Cap CID 126
Lmp Opcode 125
marker 122
packet types 123
packet/Message/Protocol 121
Groups, events 75
H
HDLC 110
HDLC frames 96
Headers
AM_Addr 124
length error 81
packets 76
payload 78
HEC 104
HEC Error 80
Help menu 31
Hexadecimal patterns, searching 131
HID 110
Hiding 100, 107, 108
Higher protocols, decoding 109
High-pulse output 88
Hop 50
Hops
hiding 107
reduced mode 58
sequence 11, 68
Hot keys 36
Humidity 7
HV1,2,3packet77
I
Idle 104
Implicit NACK 128
In/Out connector 15
Information, interpreting 103
Input signals 75, 81
Inquiry
dedicated 11
general 67
perform/skip 39
recording 11, 67
timeout 11, 74
148
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Installation
basic 9
detailed 13
Merlin 18
Interpreting a trace 103
Intersection search 132
Introduction 1
Invalid packet type error 80
J
Japan hops 69
K
Keyboard shortcuts 36
L
L_CH (Logical Channel) 78, 104
L2CAP
channel connections 113
CID, searching 126
described 110
messages 96, 108, 109, 112
L2FL 104
Len 104
Length of data 79
License 143
information 23
update software 22
Limited inquiry 11
Linking events 84
LMP
described 110
messages 96, 109, 112
Opcode 125
Logical Channel 78
Long pattern, searching 131
Loss of sync
searching for 126
timeout 74
Low-pulse output 88
M
Manual trigger 7, 10, 64
Manual updates 25
Markers
editing and clearing 105
searching 122
setting 104
Master
address 73
and slave 128
device, syncing to 34
switch 73
Master/address 54
Match clock rate 73
Memory, Recording 7
Menus
blue dots in events 85
clicked fields 108
pulldown 29
Merlin
configure encryption 140
description of 2
installation 18
installing software 18
program startup 19
rear panel 14
setup 14
Message
searching 121
Messages
hiding 100
LMP, L2CAP 109, 112
transfer 112
Mode, recording 67
Modes
test, recording in 58
Modes tab 66
N
Neighborhood, BT 139
Nine-pin connector 15
NULL packet 77
Nulls, hiding 108
O
OBEX 110
OBEX protocol 96
Opcode 104
149
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Operating temperature 7
Options
general display 95
general recording 63
name 10
Piconet recording 68
search 56
Output signaling pins 16
Output signals, enabling 88
Overview 1, 29
P
Package dimensions 7
Packets
1100, 1101 77
AUX1 77
DM1, 2, 3 77
DV 77
FHS 77
headers 75, 76
headers in 76
hiding 100, 101
HV1,2,377
invalid type error 80
NULL 77
POLL 77
searching 121, 123
types 77, 128
viewing 112
Page
sync and record 68, 69
target 73
Paging traffic 73
Passivesyncandrecord71
Patterns, data 79
Payload
headers 75, 78
length error 81
PC requirements 17
Percentage of triggering 66
Perform inquiry 50
Phone numbers, Technical Support 143
Physical Components 5
Piconet
addresses 73
established devices 71
master address 54
private device 72
recordiing 68
recording 11, 45, 49
recording traffic on 38
sample 3
search options 56
slave address 44
sync and record 71
synchronizing 45
target address 55
Wizard 46
PIN 139
Pin-out description 15
Pins, output signaling 16
Pkt 110
Polls
hiding 108
POLL packet 77
Position of trigger 65
Post triggering, percentage 66
Power
LED 7
Switch 7
PPP 96, 110
Pre-triggering 66
Private Device Piconets 72
Program
installation 9, 18
starting Merlin 19
Progress indicator, recording 33
Protocol
Analyzer 2
Architecture 3
decoding 110
hiding 100
searching 121
Prototype rework area 17
Pull-down menus 29
Pulse low signal 88
Pulse toggle signal 88
150
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
R
Radio strength 35
Reading a trace 103
Record inquiry 67
Record menu 29
Recording
atrace20
Bluetooth traffic 10, 92
existing Piconet 49
LED 7
memory 7
mode 11
mode, inquiry 67
Piconet 45
piconet 68
progress indicator 33
reduced hop mode 58
session 12
type 64
Recording Options
events 75
general 10, 63, 64
in Wizard 45
Piconet 68
saving 91
synchronization methods 66
Recording type 49
Recv, DUT freq 69
Reduced hops 58, 69
Reports
generating 135
menu 29
Requirements, Analyzer and PC 17
Restart button 83
Results of search 53
Resynchronization, forced 73
Revisions 21
Rework area, for prototype 17
RFCOMM 110
RFCOMM protocol 96
S
Sample
Piconet 3
recording 12
Saving
display options 101
recording options 91
SDP Msg 110
Search 42
duration of 51
general 52
Search menu 29
Search options 56
Search results 53
Search type 40, 51
Searching
by data pattern 131
complex 126
data length 124
for bit pattern 131
for bit patterns 131
for errors 126
Header AM_Addr 124
L2Cap CID 126
Lmp Opcode 125
packet types 123
recorded traffic 121
Security 139
SEQN condition 77
Sequence
event 90
hop 68
Set marker 104
Setup
menu 29
Merlin 14
Shortcuts, keyboard 36
Signalling
message 112
output pins 16
Signals
input 75, 81
outputs, enabling 88
strength, radio 35
Single frequency hops 69
151
BTTracer Protocol Analyzer User’s ManualCATC Version 1.0
Size of buffer 65
Skip inquiry 50
