Specifications
1. Characteristics
Frequency:125 kHz
Modulation:Bi-phase
DC Supply Voltage: Low voltage input 12 ±10% Vdc unregulated
Current Consumption: 100mA @ quiescent maximum
Door Relay: 5Amp 12Vdc
Alarm output load: 150mA pull current
2. Wiring Connections
Electric lock
External bell
External Push Switch
Magnetic Contacts
Alarm
3. Programming memory:
Non volatile Eeprom memory
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Keypad Housing: Metal
Dimensions: 121mm x 46mm x 24mm
Weight: 500g
NOTE
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING
TO INSTALL
Intramural Interface Circuit
1. Alarm output interface (See Figure 1)
2. Electric lock interface (See Figure 2)
![](/img.php?id=906833&img=bg3.png)
3
Mounting

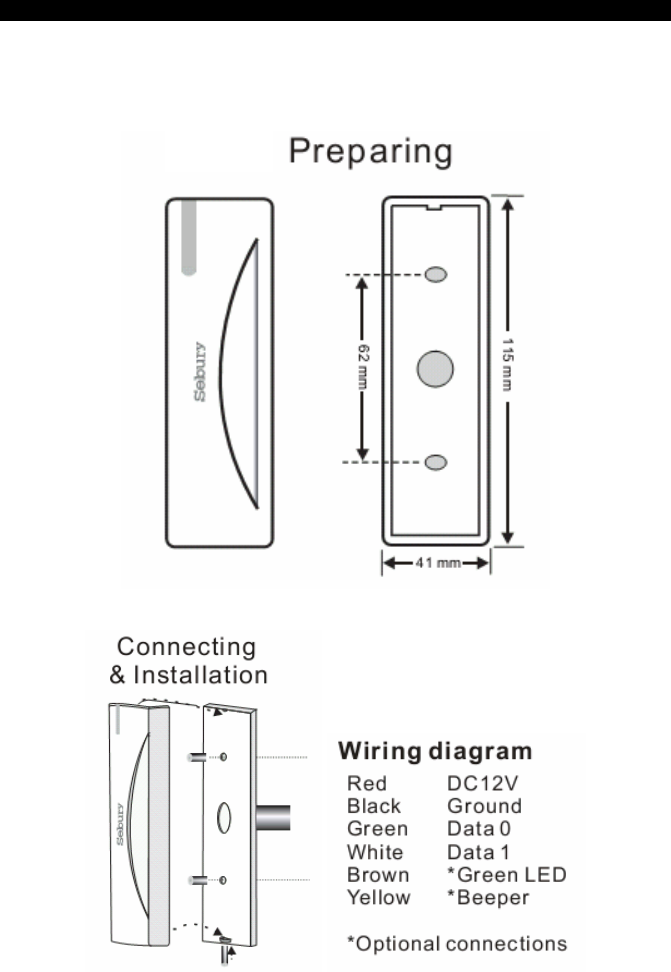

1. Attach the rear plate to a single or double gang electrical box or secure to the
wall firmly with at least three flat head screws.
2. When wiring has been completed, attach the front cover to the rear plate.
Figure 1
Figure 2
![](/img.php?id=906833&img=bg4.png)
4
Size

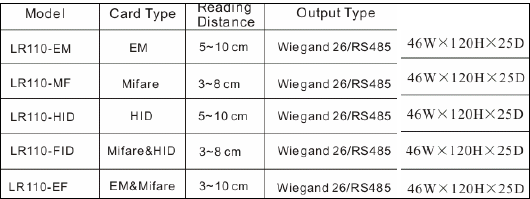

Model & characteristics
FCC WARNING
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following
two conditions: (1) this device may not cause harmful interference,
and (2) this device must
accept any interference received, including interference that may
cause undesired operation.
The antenna provided is a unique antenna. By installation of
unauthorized antenna to this equipment. Such unauthorized
installation could void the user's authority to opearte the equipment.
NOTE: The manufacturer is not responsible for and radio or TV
interference caused by unauthorized modifications to this equipment.
Such modifications could void the user’s authority to operate the
equipment.
