378
3-3. Using the Display Audio system
■About the phonebook in this system
The following data is stored for every registered phone. When another
phone is connecting, you cannot read the registered data.
●Phonebook data
●All of call history
●Speed dial
When you delete the phone, the above-mentioned data is also deleted.
■When you release your car
Be sure to initialize your data. (→P. 311)
■About Bluetooth®
■Compatible models
This system supports the following service.
●Bluetooth® Specification:
Ver. 1.1 or higher (Recommended: Ver. 2.1 + EDR or higher)
●Profiles:
• HFP (Hands Free Profile) Ver. 1.0 or higher (Recommended: Ver. 1.5 or
higher)
This is a profile to allow hands-free phone calls using the cellular phone
or head sets. It has an outgoing and incoming call function.
• OPP (Object Push Profile) Ver. 1.1 or higher
This is a profile to exchange phonebook data. When the Bluetooth®
phone has PBAP and OPP, OPP cannot be used.
• PBAP (Phone Book Access Profile) Ver. 1.0 or higher
This is a profile to transfer phonebook data.
If your cellular phone does not support HFP, you cannot enter the Bluetooth®
phone. You need to take OPP or PBAP service individually.
Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
The Bluetooth wordmark and logo are
owned by Bluetooth SIG. and permission
has been granted to use the trademark of
the licensee FUJITSU TEN LIMITED.
Other trademarks and trade names are
owned by various different owners.
![](/img.php?id=1665804&img=bg2.png)
3-3. Using the Display Audio system
3
Interior features
■Certification
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
CAUTION:
Radio Frequency Radiation Exposure
This equipment complies with FCC radiation exposure limits set forth for
uncontrolled equipment and meets the FCC radio frequency (RF) Exposure
Guidelines in Supplement C to OET65. This equipment has very low levels
of RF energy that it deemed to comply without maximum permissive expo-
sure evaluation (MPE). But it is desirable that it should be installed and oper-
ated with at least 20 cm and more between the radiator and person’s body
(excluding extremities: hands, wrists, feet and ankles).
Co-location:
This transmitter must not be co-located or operated in conjunction with any
other antenna or transmitter.
![](/img.php?id=1665804&img=bg3.png)
380
3-3. Using the Display Audio system
CAUTION
■While driving
Do not use the cellular phone or connect the Bluetooth® system.
NOTICE
■When leaving the vehicle
Do not leave your cellular phone in the vehicle. The inside of the vehicle may
become hot, causing damage to the phone.
![](/img.php?id=1665804&img=bg4.png)
381
3-3. Using the Display Audio system
3
Interior features
Using the Bluetooth® phone
Device name
Bluetooth® connection status
Make a call
To display the screen shown above, press on the steering
wheel or .
![](/img.php?id=1665804&img=bg5.png)
382
3-3. Using the Display Audio system

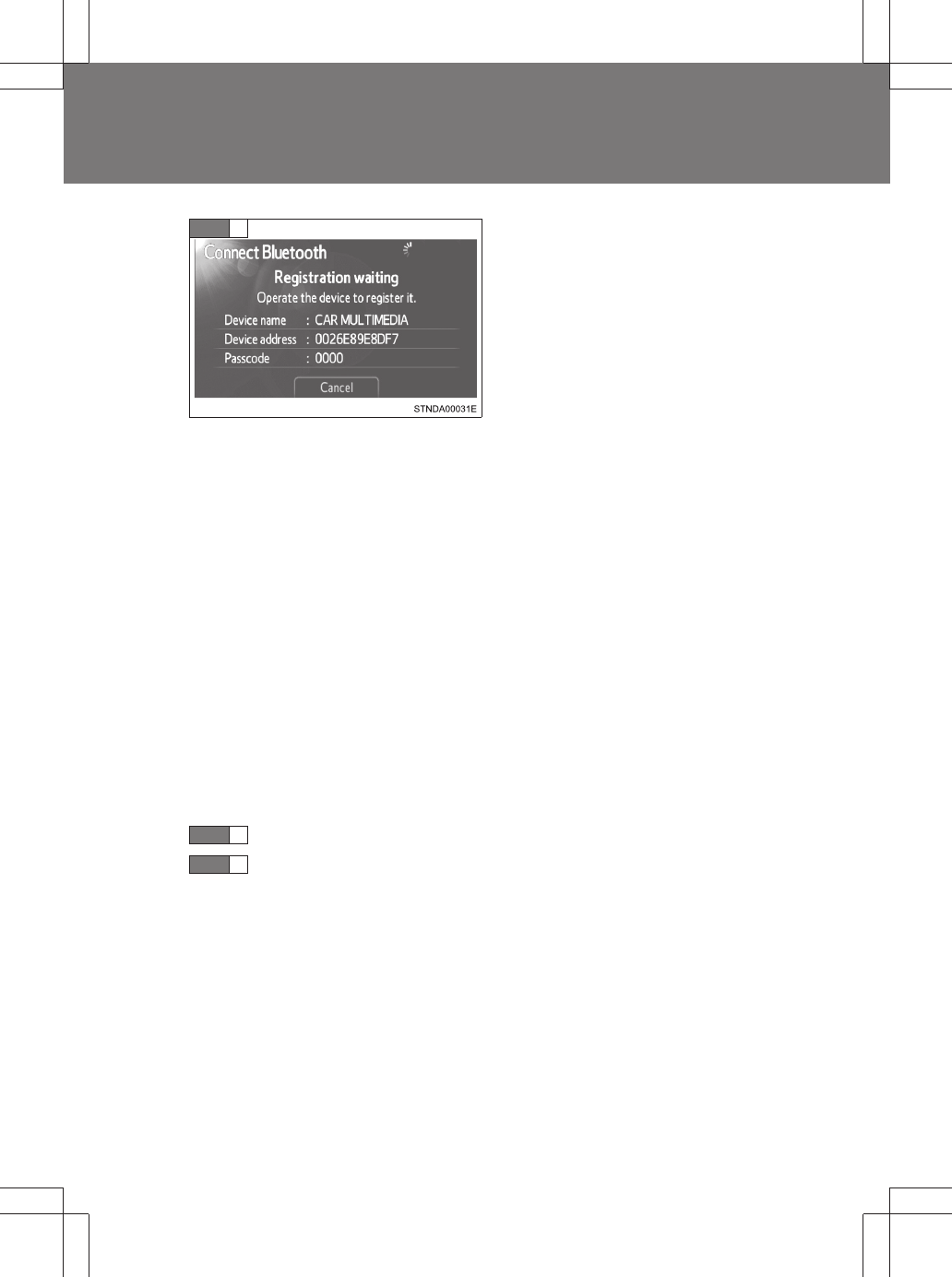

Registering a Bluetooth® phone
To use the hands-free system, you must register a Bluetooth® phone
in the system. You can register up to 5 phones in the system.
Display the “Telephone” screen. (→P. 381)
Touch “Yes”.
Input the passcode displayed on
the screen into your phone.
For the operation of the phone,
see the manual that comes with
your cellular phone.
Passcodes are not required for
SSP (Secure Simple Pairing)
compatible Bluetooth® devices.
Depending on the phone, you
may need to select “Yes” to regis-
ter, or “No” to cancel on your cel-
lular phone.
If you want to cancel it, select
“Cancel”.
If a completion message is dis-
played, registration is complete.
If an error message is displayed,
follow the guidance on the screen
to try again.
STEP
1
STEP
2
STEP
3
![](/img.php?id=1665804&img=bg6.png)
383
3-3. Using the Display Audio system
3
Interior features
Selecting the Bluetooth® phone
If multiple Bluetooth® devices are registered, follow the procedure
below to select the Bluetooth® device to be used. You may only use
one device at a time.
Display the “Telephone” screen. (→P. 381)
Touch “Connect telephone”.
Touch the device to connect.
“Add new”: Registering a
Bluetooth® device. (→P. 409)
The selection indicator is
displayed on left side of the
selected device name.
The Bluetooth® mark is displayed
when you connected the device.
STEP
1
STEP
2
STEP
3
![](/img.php?id=1665804&img=bg7.png)
384
3-3. Using the Display Audio system
Connecting a Bluetooth® phone
There are two connecting methods available-automatic and manual.
Automatic
When you register your phone, auto connection will be activated.
Always set it to this mode and leave the Bluetooth® phone in a place
where connection can be established.
Vehicles without a smart entry & start system:
When the engine switch is turned to the “ACC” or “ON” position, the
system will search for a nearby cellular phone you have registered.
Vehicles with a smart entry & start system:
When the “ENGINE START STOP” switch is turned to ACCESSORY
or IGNITION ON mode, the system will search for a nearby cellular
phone you have registered.
Next, the system automatically connects with the most recent of the
phones connected to in the past. Then, the connection result is dis-
played.
![](/img.php?id=1665804&img=bg8.png)
385
3-3. Using the Display Audio system
3
Interior features
Manual
When the auto connection has failed or “Bluetooth* power” is turned
off, you must connect Bluetooth® manually.
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
Display the “Telephone” screen. (→P. 381)
Touch “Connect telephone”.
Touch the device to connect.
A message is shown if connection
has been successful.
If connection fails, a message will
be displayed and connection will
be re-attempted.
STEP
1
STEP
2
STEP
3
![](/img.php?id=1665804&img=bg9.png)
386
3-3. Using the Display Audio system
Making a call
Once the Bluetooth® phone is registered, you can make a call using
the following procedure:
■Dialing
Display the “Telephone” screen. (→P. 381)
Input the phone number.
To delete the inputted phone
number, touch .
For the first digit, you can enter
“+” by touching “∗” for a while.
Press on the steering wheel or touch .
■Reconnecting to the Bluetooth® phone
Vehicles without a smart entry & start system:
If the system cannot connect due to poor signal strength with the engine
switch in the “ACC” or “ON” position, the system will automatically attempt to
reconnect.
Vehicles with a smart entry & start system:
If the system cannot connect due to poor signal strength with the “ENGINE
START STOP” switch in ACCESSORY or IGNITION ON mode, the system
will automatically attempt to reconnect.
If the phone is turned off, the system will not attempt to reconnect. In this
case, connection must be made manually, or the phone must be re-selected.
■Connecting the phone while Bluetooth® audio is playing
●Bluetooth® audio will stop temporarily.
●It may take time to connect.
STEP
1
STEP
2
STEP
3
![](/img.php?id=1665804&img=bga.png)
387
3-3. Using the Display Audio system
3
Interior features
■Dialing from the phonebook
You can dial a number from the phonebook data imported from
your cellular phone. The system has one phonebook for each tele-
phone. Up to 1000 entries may be stored in each phonebook.
(→P. 398)
Display the “Telephone” screen. (→P. 381)
Touch “Contacts” on the “Telephone” screen.
Choose the desired data to call
from the list.
If the phonebook is empty, a mes-
sage will be displayed. (→P. 388)
Choose the number and then
press on the steering wheel
or touch .
STEP
1
STEP
2
STEP
3
STEP
4
![](/img.php?id=1665804&img=bgb.png)
388
3-3. Using the Display Audio system
●When the phonebook is empty
You can transfer the phone numbers in your Bluetooth® phone to
the system.
Operation methods differ between PBAP compatible and PBAP
incompatible Bluetooth® phones. If your cellular phone does not
support either PBAP or OPP service, you cannot transfer contacts.
Touch “Contacts” on the “Telephone” screen.
If the phonebook is empty, a
message will be displayed.
For PBAP compatible Bluetooth® phone
Touch “Yes” if you want to transfer new contacts from a cellu-
lar phone.
Touch “No” if you want to cancel transferring the contacts.
For PBAP incompatible and OPP compatible Bluetooth® phone
Touch “Transfer” if you want to transfer new contacts from a
cellular phone.
Touch “Cancel” if you want to cancel transferring the contacts.
You need to operate your phone to transfer new contacts.
STEP
1
STEP
2
STEP
3
STEP
3
![](/img.php?id=1665804&img=bgc.png)
389
3-3. Using the Display Audio system
3
Interior features
■Calling using speed dial
You can make a call using numbers registered from the phone-
book.
Display the “Telephone” screen. (→P. 381)
Touch “Speed dials” on the “Telephone” screen.
Select the desired tab and
choose the desired number to
make a call.
■Dialing from history
You can call using the call history which has the 4 functions below.
“All”: all the calls below which were memorized
“Missed”: calls which you missed
“Incoming”: calls which you received
“Outgoing”: calls which you called
Display the “Telephone” screen. (→P. 381)
Touch “Call history” on the “Telephone” screen.
Select the desired tab and
choose the desired data from the
list.
STEP
1
STEP
2
STEP
3
STEP
1
STEP
2
STEP
3
![](/img.php?id=1665804&img=bgd.png)
390
3-3. Using the Display Audio system
Press on the steering wheel
or touch .
STEP
4
■Call history list
●If you make a call to or receive a call from a number registered in the
phonebook, the name is displayed in the call history.
●If you make multiple calls to the same number, only the last call made is
displayed in the call history.
■When driving
The functions “Dialing”, “Dialing from the phonebook”, and “Dialing from
history” (only the 6th page of “All” tab) are unavailable.
■International calls
You may not be able to make international calls, depending on the mobile
phone in use.
■Calling by using the latest call history item
Press on the steering wheel to display the “Telephone” screen.
Press on the steering wheel to display the “Call history” screen.
Press on the steering wheel to select the latest history item.
Press on the steering wheel or touch to call the latest his-
tory item.
STEP
1
STEP
2
STEP
3
STEP
4
![](/img.php?id=1665804&img=bge.png)
391
3-3. Using the Display Audio system
3
Interior features
Receiving a call
When a call is received, the following screen is displayed together
with a sound.
To answer the phone:
• Press on the steering
wheel.
•Touch .
■To refuse a call
Press on the steering wheel or touch .
■To adjust the incoming call volume
Touch “-” or “+”. You can also adjust the volume using the steering
switches or volume knob.
■International calls
Received international calls may not be displayed correctly depending on
the cellular phone in use.
![](/img.php?id=1665804&img=bgf.png)
392
3-3. Using the Display Audio system
Speaking on the phone
The following screen is displayed when speaking on the phone.
■To adjust the incoming call volume
Touch “-” or “+”. You can also adjust the volume using the steering
switches or the volume knob.
■To prevent the other party from hearing your voice
Touch “Mute”.
■Inputting tones
When using phone services such as an answering service or a
bank, you can store phone numbers and code numbers in the
phonebook.
Touch “0-9”.
Input the number.
STEP
1
STEP
2
![](/img.php?id=1665804&img=bg10.png)
393
3-3. Using the Display Audio system
3
Interior features
If repeated tone symbols* are
stored in the phone book, “Send”
and “Exit” are displayed on the
right side of the screen.
*: Repeated tone symbols are sym-
bols or numbers displayed as p or
w, that come after the phone
number. (e.g. 056133w0123p#1
∗)
Confirm the number displayed on the screen, and touch
“Send”.
If you touch “Exit”, this function will end.
■To transfer a call
Touch “Handset Mode” to change from Hands-free call to cellular
phone call.
Touch “Handsfree Mode” to change from cellular phone call to
Hands-free call.
■To hang up
Press on the steering wheel or touch .
STEP
3
STEP
4
![](/img.php?id=1665804&img=bg11.png)
394
3-3. Using the Display Audio system
■Call waiting
When a call is interrupted by a third party while talking, the incom-
ing call message will be displayed.
To talk with the other party:
• Press on the steering
wheel.
•Touch .
To refuse the call:
• Press on the steering
wheel.
•Touch .
Every time you press on the steering wheel or touch dur-
ing call waiting, you will be switched to the other party.
■Transferring calls
●It is not possible to transfer from hands-free to the cellular phone while
driving.
●If you transfer from the cellular phone to hands-free, the hands-free
screen will be displayed, and you can operate the system using the
screen.
●Transfer method and operate may vary according to the cellular phone
used.
●For operation of the cellular phone in use, see the phone’s manual.
■Call waiting operation
Call waiting operation may differ depending on your phone company and
cellular phone.
![](/img.php?id=1665804&img=bg12.png)
395
3-3. Using the Display Audio system
3
Interior features
Setting the hands-free system
You can set the hands-free system to your desired settings.
Setting the sound
Phonebook settings
To display the screen shown above, press “SETUP”, and touch
“Telephone” on the “Setup” screen.
![](/img.php?id=1665804&img=bg13.png)
396
3-3. Using the Display Audio system
Setting the sound
Display the “Telephone settings” screen. (→P. 395)
Touch “Sound settings” on the “Telephone settings” screen.
Changes the speaker volume
(→P. 396)
Changes the ring tone volume
(→P. 396)
Changes the ring tone
(→P. 397)
Restore default settings
■Setting the volume
Touch “Call volume” or “Ring tone volume” on the “Sound
settings” screen.
Touch “-” or “+” to lower or raise
the volume, and then “OK”.
When you complete all settings, touch “OK”.
STEP
1
STEP
2
STEP
3
STEP
1
STEP
2
STEP
3
![](/img.php?id=1665804&img=bg14.png)
397
3-3. Using the Display Audio system
3
Interior features
■Setting the ring tone
Touch “Ring tone” on the “Sound settings” screen.
Touch “Tone 1”, “Tone 2” or
“Tone 3” to change the ring tone,
and then “OK”.
When you complete all settings, touch “OK”.
STEP
1
STEP
2
■To return to the default volume settings
Touch “Default”, and then “Yes”.
STEP
3
![](/img.php?id=1665804&img=bg15.png)
398
3-3. Using the Display Audio system
Phonebook settings
The phonebook manages a maximum of 5 phones in total. The data
for 1000 contacts (up to 3 numbers per contact) can be registered in
each phonebook.
Managing the contacts
Managing the speed dials
Deleting the call history
To display the screen above, follow the steps below.
Display the “Telephone settings” screen. (→P. 395)
Touch “Phonebook” on the “Telephone settings” screen.
STEP
1
STEP
2
![](/img.php?id=1665804&img=bg16.png)
399
3-3. Using the Display Audio system
3
Interior features
■Managing the contacts
●Transferring a phone number
You can transfer the phone numbers in your Bluetooth phone to the
system. Operation methods differ between PBAP compatible and
PBAP incompatible Bluetooth phones. If your cellular phone does
not support either PBAP or OPP services, you cannot transfer con-
tacts.
Display the “Phonebook settings” screen. (→P. 398)
Touch “Manage contacts” on the “Phonebook settings”
screen.
Touch “Transfer contacts”.
For PBAP compatible Bluetooth phones
Automatic phonebook
download on/off
The phonebook data can be auto-
matically transferred.
Depending on the cellular phone,
call history will be also trans-
ferred.
Update phonebook
The phonebook data can be
updated.
Restore default settings
STEP
1
STEP
2
STEP
3
STEP
4
![](/img.php?id=1665804&img=bg17.png)
400
3-3. Using the Display Audio system
For PBAP incompatible Bluetooth phones
Replace contacts
The phonebook data can be
replaced.
Add contacts
The phonebook can be added.
●Deleting the phonebook data
Display the “Phonebook settings” screen. (→P. 398)
Touch “Manage contacts” on the “Phonebook settings”
screen.
Touch “Delete contacts”.
If your phone supports PBAP ser-
vice, “Automatic phonebook
download” setting needs to be set
to “Off”. (→P. 399)
Choose the data to delete.
To delete all data, touch “All
delete”.
A confirmation message will be displayed. If everything is cor-
rect, touch “Yes”.
STEP
4
STEP
1
STEP
2
STEP
3
STEP
4
STEP
5
![](/img.php?id=1665804&img=bg18.png)
401
3-3. Using the Display Audio system
3
Interior features
■Phonebook data
Phonebook data is managed for every registered phone. When another
phone is connecting, you cannot read the registered data.
■Setting the phonebook in a different way (To display the “Contacts”
screen)
Display the “Telephone” screen. (→P. 381)
Touch “Contacts” on the “Telephone” screen.
Touch “Options” on the “Contacts” screen.
Touch “Manage contacts” on the “Phonebook settings” screen.
■When transferring a phone number
Transfer the phone number while engine is running.
If your cellular phone is OPP or PBAP compatible, you may need to input
“1234” by your cellular phone for OBEX certification.
■When you have selected “Update phonebook” to transfer the phone
number
●If your cellular phone does not support PBAP service, you cannot use
this function.
●If your phone supports PBAP service, you can transfer the phonebook
data without operating your phone.
■When you have selected “Replace contacts” or “Add contacts” to
transfer the phone number
If your cellular phone does not support OPP service, you cannot use these
functions. You can transfer the phonebook data only by operating your
phone.
■Transferring the phone number in a different way (To display the
“Contact transfer method” screen)
Display the “Telephone” screen. (→P. 381)
Touch “Contacts” on the “Telephone” screen.
Touch “Transfer” on the “Contacts” screen.
■Transferring the phone number while Bluetooth audio is playing
Bluetooth audio will disconnect. It will reconnect automatically when data
transfer finishes. It will not be reconnected depending on the phone you are
using.
STEP
1
STEP
2
STEP
3
STEP
4
STEP
1
STEP
2
STEP
3
![](/img.php?id=1665804&img=bg19.png)
402
3-3. Using the Display Audio system
■Managing the speed dials
●Registering the speed dial from contacts
You can register the desired phone number from phonebook. Up to
18 numbers per phone can be registered.
Display the “Phonebook settings” screen. (→P. 398)
Touch “Manage speed dials” on the “Phonebook settings”
screen.
Touch “New speed dial from
contacts”.
■Deleting the phonebook data in a different way
Display the “Telephone” screen. (→P. 381)
Touch “Contacts” on the “Telephone” screen.
Choose the desired data from the list.
Touch “Options” on the “Contact” screen.
Touch “Delete” on the “Contact data” screen.
A confirmation message will be displayed. If everything is correct,
touch “Yes”.
If your phone supports PBAP service, “Automatic phonebook download” set-
ting needs to be set to “Off”. (→P. 399)
When you delete a Bluetooth phone, the phonebook data will be deleted at
the same time.
STEP
1
STEP
2
STEP
3
STEP
4
STEP
5
STEP
6
STEP
1
STEP
2
STEP
3
![](/img.php?id=1665804&img=bg1a.png)
403
3-3. Using the Display Audio system
3
Interior features
Choose the data to register.
Touch the desired phone num-
ber.
Touch the switch you want to
register the number in.
If you select a switch you registered before, a confirmation
message will be displayed. If you want to replace it, touch
“Yes”.
STEP
4
STEP
5
STEP
6
STEP
7
![](/img.php?id=1665804&img=bg1b.png)
404
3-3. Using the Display Audio system
●Registering the speed dial from call history
Display the “Phonebook settings” screen. (→P. 398)
Touch “Manage speed dials” on the “Phonebook settings”
screen.
Touch “New speed dial from call
History”.
Choose the data to register.
Touch the switch you want to
register the number in.
If you select a switch you registered before, a confirmation
message will be displayed. If you want to replace it, touch
“Yes”.
STEP
1
STEP
2
STEP
3
STEP
4
STEP
5
STEP
6
![](/img.php?id=1665804&img=bg1c.png)
405
3-3. Using the Display Audio system
3
Interior features
●Deleting the speed dial
Display the “Phonebook settings” screen. (→P. 398)
Touch “Manage speed dials” on the “Phonebook settings”
screen.
Touch “Delete speed dials” on the “Speed dials” screen.
Choose the data to delete.
To delete all data, touch “All
delete”.
A confirmation message will be displayed. If everything is cor-
rect, touch “Yes”.
STEP
1
STEP
2
STEP
3
STEP
4
■Setting the speed dials in a different way (From “Speed dial” screen)
Display the “Telephone” screen. (→P. 381)
Touch “Speed dials” on the “Telephone” screen.
Touch “Options” on the “Speed dial” screen.
■Setting the speed dials in a different way (From “Contacts” screen)
Display the “Telephone” screen. (→P. 381)
Touch “Contacts” on the “Telephone” screen.
Touch “Options” on the “Contacts” screen.
Touch “Manage speed dials” on the “Phonebook settings” screen.
STEP
5
STEP
1
STEP
2
STEP
3
STEP
1
STEP
2
STEP
3
STEP
4
![](/img.php?id=1665804&img=bg1d.png)
406
3-3. Using the Display Audio system
■Registering the speed dial in a different way (From “Speed dial”
screen)
Display the “Telephone” screen. (→P. 381)
Touch “Speed dials” on the “Telephone” screen.
Touch “(add new)” on the “Speed dial” screen.
Touch “Contacts” or “History” to set new speed dial.
Touch “Cancel” to cancel it.
Choose the desired data from the list.
Touch the desired phone number.
Follow the steps “Registering the speed dial from contacts” from
“STEP6” (→P. 402) or “Registering the speed dial from call history”
from “STEP5”. (→P. 404)
■Registering the speed dial in a different way (From “Contact” screen)
Display the “Telephone” screen. (→P. 381)
Touch “Contacts” on the “Telephone” screen.
Choose the desired data from the list.
Touch “Options” on the “Contact” screen.
Touch “Set speed dial” on the “Contact data” screen.
Touch the desired telephone number.
Follow the steps “Registering the speed dial from contacts” from
“STEP6” (→P. 402) or “Registering the speed dial from call history”
from “STEP5”. (→P. 404)
■Registering the speed dial in a different way (From “Call history”
screen)
Display the “Telephone” screen. (→P. 381)
Touch “Call history” on the “Telephone” screen.
Choose the desired data from the list.
Touch “Add speed dial” on the “Call history” screen.
Follow the steps “Registering the speed dial from contacts” from
“STEP6” (→P. 402) or “Registering the speed dial from call history”
from “STEP5”. (→P. 404)
STEP
1
STEP
2
STEP
3
STEP
4
STEP
5
STEP
6
STEP
7
STEP
1
STEP
2
STEP
3
STEP
4
STEP
5
STEP
6
STEP
7
STEP
1
STEP
2
STEP
3
STEP
4
STEP
5
![](/img.php?id=1665804&img=bg1e.png)
407
3-3. Using the Display Audio system
3
Interior features
■Deleting the call history
Display the “Phonebook settings” screen. (→P. 398)
Touch “Delete call history” on the “Phonebook settings”
screen.
If your phone supports PBAP service, the “Automatic phonebook
download” setting needs to be set to “Off”. (→P. 399)
Choose the desired history to
delete.
Choose the data to delete.
To delete all data, touch “All
delete”.
A confirmation message will be displayed. If everything is cor-
rect, touch “Yes”.
STEP
1
STEP
2
STEP
3
STEP
4
■Deleting call history in a different way
Display the “Telephone” screen. (→P. 381)
Touch “Call history” on the “Telephone” screen.
Touch “Delete” on the “Call history” screen.
Follow the steps “Deleting the call history” from “STEP4”. (→P. 407)
STEP
5
STEP
1
STEP
2
STEP
3
STEP
4
![](/img.php?id=1665804&img=bg1f.png)
408
3-3. Using the Display Audio system
Bluetooth® settings
You can set the Bluetooth system to your desired settings.
Registered devices settings
Connecting telephone
Connecting audio player
Detailed Bluetooth settings
To display the screen shown above, press “SETUP”, and touch
“Bluetooth*” on the “Setup” screen.
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
![](/img.php?id=1665804&img=bg20.png)
409
3-3. Using the Display Audio system
3
Interior features
Registered devices settings
■Registering a Bluetooth device
Bluetooth devices compatible with phones (HFP) and portable audio
players (AVP) can be registered simultaneously. You can register up
to 5 Bluetooth devices.
Display the “Bluetooth* Settings” screen. (→P. 408)
Touch “Registered devices” on the “Bluetooth* Settings”
screen.
Touch “Add new”.
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
STEP
1
STEP
2
STEP
3
![](/img.php?id=1665804&img=bg21.png)
410
3-3. Using the Display Audio system
When this screen is displayed,
input the passcode displayed on
the screen into your Bluetooth
device.
For the operation of the
Bluetooth® device, see the
manual that comes with your
Bluetooth® device.
Passcodes are not required for
SSP (Secure Simple Pairing)
compatible Bluetooth® devices.
Depending on the phone, you
may need to select “Yes” to
register, or “No” to cancel on your
cellular phone.
If you want to cancel it, touch
“Cancel”.
If a completion message is
displayed, registration is
complete.
If an error message is displayed,
follow the guidance on the screen
to try again.
■Removing a Bluetooth device
Display the “Bluetooth* Settings” screen. (→P. 408)
Touch “Registered devices” on the “Bluetooth* Settings”
screen.
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
STEP
4
STEP
1
STEP
2
![](/img.php?id=1665804&img=bg22.png)
411
3-3. Using the Display Audio system
3
Interior features
Touch “Remove”.
Touch the device to remove.
A confirmation message will be displayed, touch “Yes” to
remove the device.
■Displaying a Bluetooth device details
You can confirm and change the device details.
Display the “Bluetooth* Settings” screen. (→P. 408)
Touch “Registered devices” on the “Bluetooth* Settings”
screen.
Touch “Details”.
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
STEP
3
STEP
4
STEP
5
STEP
1
STEP
2
STEP
3
![](/img.php?id=1665804&img=bg23.png)
412
3-3. Using the Display Audio system
Touch the device.
Following screen is displayed:
Display device name
Display device address
Display your telephone num-
ber
The number may not be dis-
played depending on the
phones.
Display compatibility profile of
the device
Change connection method
(→P. 413)
Restore default settings
When you complete settings, touch “OK”.
STEP
4
STEP
5
STEP
6
![](/img.php?id=1665804&img=bg24.png)
413
3-3. Using the Display Audio system
3
Interior features
●Changing connection method
Touch “Connection method” on the “Device details” screen.
Touch “From vehicle” or “From
audio player”.
“From vehicle”: Connect the
audio system to the portable
audio player.
“From audio player”: Connect the
portable audio player to the audio
system.
Selecting the Bluetooth phone
If multiple Bluetooth devices are registered, follow the procedure
below to select the Bluetooth device to be used. You may only use
one device at a time.
Display the “Bluetooth* Settings” screen. (→P. 408)
Touch “Connect telephone” on the “Bluetooth* Settings”
screen.
Touch the device to connect.
“Add new”: Registering a
Bluetooth device. (→P. 409)
The selection indicator is dis-
played on left side of the selected
device name.
The Bluetooth mark is displayed
when you connected the device.
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
STEP
1
STEP
2
STEP
1
STEP
2
STEP
3
![](/img.php?id=1665804&img=bg25.png)
414
3-3. Using the Display Audio system
Selecting the audio player
If multiple Bluetooth devices are registered, follow the procedure
below to select the Bluetooth device to be used. You may only use
one device at a time.
Display the “Bluetooth* Settings” screen. (→P. 408)
Touch “Connect audio player” on the “Bluetooth* Settings”
screen.
Touch the device to connect.
“Add new”: Registering a
Bluetooth device. (→P. 409)
The selection indicator is dis-
played on left side of the selected
device name.
The Bluetooth mark is displayed
when you connected the device.
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
STEP
1
STEP
2
STEP
3
![](/img.php?id=1665804&img=bg26.png)
415
3-3. Using the Display Audio system
3
Interior features
Detailed Bluetooth settings
You can confirm and change the detailed Bluetooth settings.
Display the “Bluetooth* Settings” screen. (→P. 408)
Touch “Detailed Bluetooth* settings” on the “Bluetooth*
Settings” screen.
Following screen is displayed:
Change Bluetooth power on/
off
You can change Bluetooth func-
tion to “On” or “Off”
Display device name
Change passcode (→P. 416)
Display device address
Display compatibility profile of
the system
Change displaying telephone
status on/off
You can set the system to show
the status confirmation display
when connecting telephone
Change displaying audio
player status on/off
You can set the system to show
the status confirmation display
when connecting audio player
Restore default settings
When you complete settings, touch “OK”.
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
STEP
1
STEP
2
STEP
3
STEP
4
![](/img.php?id=1665804&img=bg27.png)
416
3-3. Using the Display Audio system
■Editing the passcode
You can change the passcode that you use to register your
Bluetooth device in the system.
Touch “Passcode” on the “Detailed Bluetooth* settings”
screen.
Input a passcode, and touch
“OK”.
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
STEP
1
STEP
2
