INSTRUCTION BOOK
SP1000M
User Guide
Package Contents
Product Overview
Power Management
Charging
Connections
Firmware Updates
02
03
05
06
07
12
Getting Started _01
Basic Operations
Home Screen
Notification Bar
Music Services
Music Services
AK CONNECT
Listening to Music

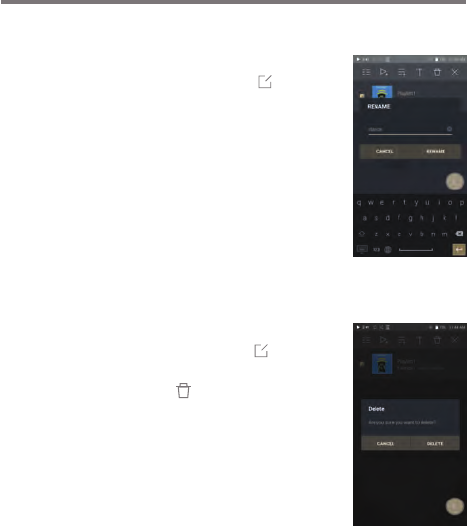

Playlist Management
USB DAC Installation
How to Use USB Audio
CD Ripping
Settings

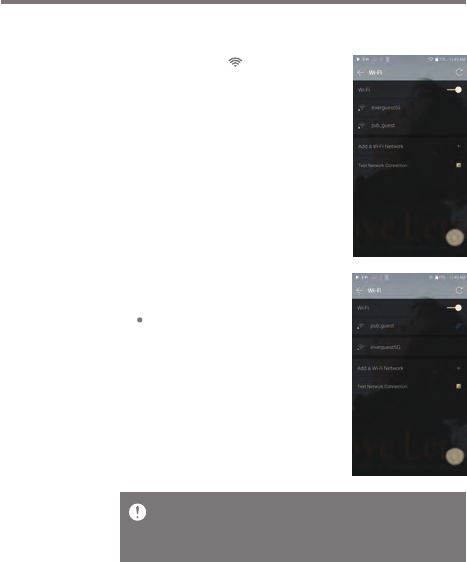

Connecting to Wi-Fi
Using Bluetooth

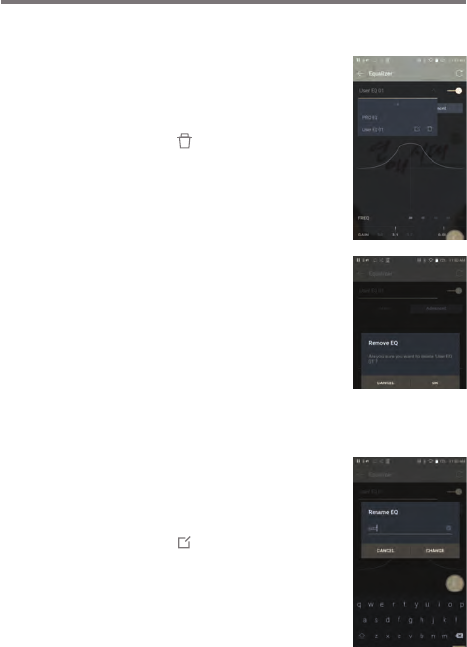

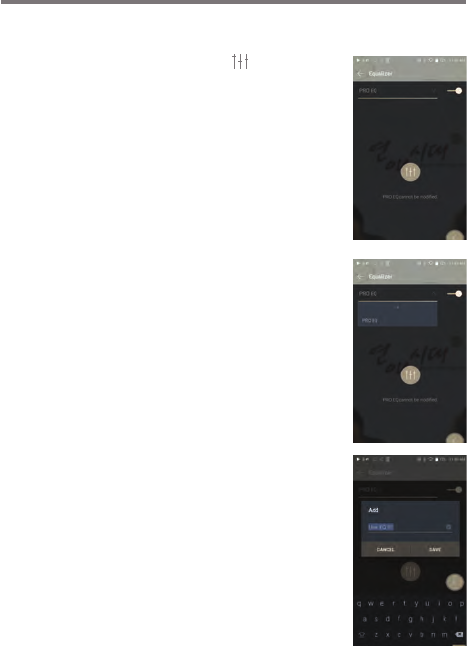

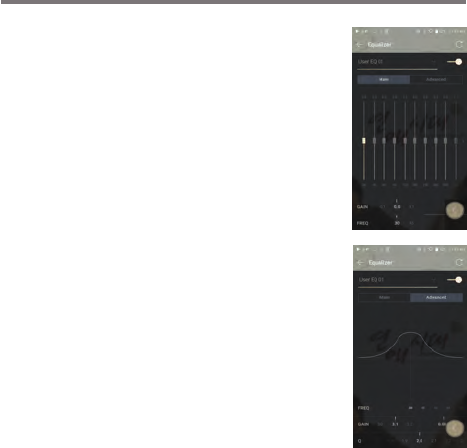

Equalizer Setup
13
17
19
22
23
24
30
33
36
37
38
40
45
46
48
Using the Device _02
Safety Pre-Cautions
Troubleshooting
Copyright
Certifications
Registered Trademarks
Disclaimers
Specifications
51
53
54
55
56
57
58
Miscellaneous _03
CONTENTS
![](/img.php?id=4006960&img=bg3.png)
User Guide
Contents may be changed without prior notice to improve the
performance or quality of the product.

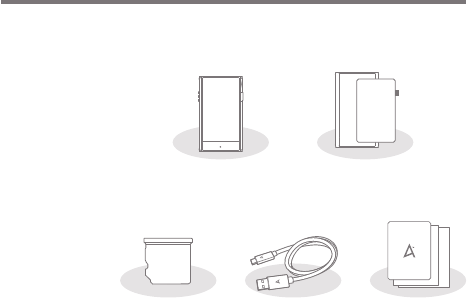

Package
Contents
Getting Started 02
Leather Case & Protective Film: Protect the device and its
screen.
microSD Card Slot Cover: The cover is used to protect the
microSD card slot when not in use. It is installed in the
product by default.
USB Type-C Cable: For charging and data transfer.
Quick Start Guide: Basic overview of device functionality.
Warranty Card: Provides warranty details for your device.
Maintain a copy of this card since it may be required for
future technical support requests.
User Guide: The User Guide can be downloaded from the
Astell&Kern website.
[http://www.astellnkern.com Support > Download].
Quick Start Guide
& Warranty Card
USB Type-C CablemicroSD Card
Slot Cover
Leather Case &
Protective Film
SP1000M
![](/img.php?id=4006960&img=bg4.png)
3.5mm Unbalanced Port: - 3.5mm Unbalanced Port symbol.
For audio output, connect earphones or headphones that
utilize a 3.5mm jack.
2.5mm Balanced Port: - 2.5mm Balanced Port symbol.
For audio output, connect earphones or headphones that
utilize a 2.5mm jack.
microSD Card Slot: - microSD Card Slot symbol.
Insert a microSD card to access its files.
USB Type-C Port: - DC Power symbol.
For charging and data transfer.
Power: - Power symbol.
Press - Turns the screen on or off.
Press and Hold - Turns the device on or off.
Getting Started
03
User Guide
The appearance of the product, as well as the printed and
engraved information, may vary depending on the model.
Product
Overview
Previous/Rewind
Next/
Fast-Forward
Play/Pause
3.5mm Unbalanced Port
Power
2.5mm Balanced Port
LCD
Touchscreen
Home Button
Volume
microSD Card Slot
USB Type-C Port
![](/img.php?id=4006960&img=bg5.png)
User Guide
Getting Started
04
Volume: Turn the wheel to adjust the playback output volume
level.
LCD Touchscreen: Display screen with touch control features.
Previous/Rewind:
Short press - Play the previous song or restart the current
song.
Press and hold - Rewind the current song.
Play/Pause: Play or pause the current song.
Next/Fast-Forward: Short press - Play the next song.
Press and hold - Fast-forward the
current song.
Home Button: Press to return to the Home Screen.
![](/img.php?id=4006960&img=bg6.png)
Getting Started
05
User Guide
Resetting the device will not affect stored data or time settings. Do
not use the reset function while the product is in use. Doing so may
corrupt the data on the device.
This device has an automatic timeout feature to save battery power.
The screen will turn off if there is no user input during the period
defined in [Menu - Settings - Timer Settings - Screen Off]. (See Page
43)
Reset Function
1. In case of unexpected device failure or freeze, press and
hold [Power ] for 7 seconds to force a shutdown. The
device can then be restarted after the shutdown is complete.
Turning the Screen On/Off
1. While the screen is on, press the [Power ] button to
turn off the screen.
2. Press [Power ] button again to turn it on.
This device has an automatic shutdown feature to save battery
power. The device will turn off if there is no user input during the
period defined in [Menu - Settings - Timer Settings - Auto Power
Off] (See Page 43)
Powering the Device On/Off
1. Press and hold the [Power ] button to turn on the device.
2. While the device is on, press and hold the [Power ]
button to shut down the device. A confirmation message
will appear.
3. Press [OK] to turn off the device.
Power
Manage-
ment
![](/img.php?id=4006960&img=bg7.png)
User Guide
Getting Started
06
Fast charging Time: Approx. 2 hours 50 minutes (Fully discharged,
Power-off, 9V 1.67A adapter) / Normal charging: About 5 hours 30
minutes (Fully discharged, Power-off, 5V 2A adapter)
A fast charger of 9V 1.67A may be used. Using a 12V adapter will not
charge the device and may cause malfunctions.
Charging via USB Wall Adapter
1. Commercially available 9V 1.67A output adapters may be
used for charging.
Charging
![](/img.php?id=4006960&img=bg8.png)
Getting Started
07
User Guide
Connec-
tions

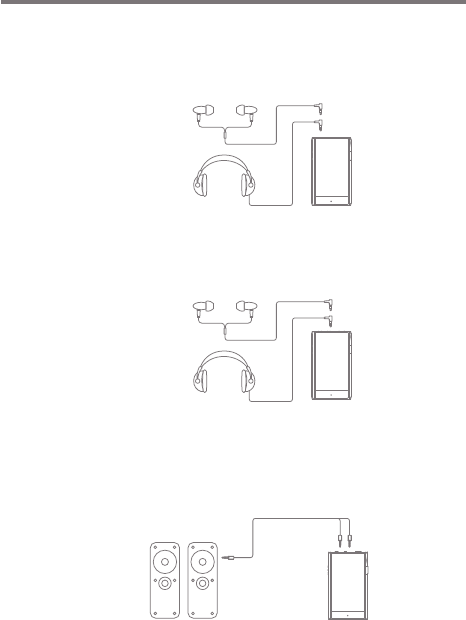

3.5mm Unbalanced Port
1. Connect earphones or headphones to the 3.5mm
unbalanced port.
2.5mm Balanced Port
1.
Connect earphones or headphones to the 2.5mm balanced port.
OR
OR
Connecting to Balanced Audio Device
1. Connect to an external audio device by using the 3.5mm
unbalanced port and 2.5mm balanced port.
Unbalanced
Port (Ground)
Balanced Port (LR)
![](/img.php?id=4006960&img=bg9.png)
Getting Started
08
User Guide
Connecting to Computer
1. Turn on the device and your computer.
2.
Use the USB Type-C cable to connect the device to a computer
in accordance with settings in [Menu - Settings - USB mode].
[Default] Media Device (USB Drive): Transfer files from a
computer to the device.
DAC Input: Listen to music on a connected computer
through the device. (See Page 37)
Mac users need to download and install Android File Transfer from
the Astell&Kern website. [http://www.astellnkern.com > Support >
Download]
For an optimal connection, quit any unnecessary programs before
connecting the device to the computer.
Do not use cables other than the USB Type-C cable provided with the
device. Doing so may cause malfunctions.
For both Windows and MAC, the device only works with USB 2.0.
Type-C-to-Type-C cable is recommended when connecting with a
MAC that supports Type-C port.
![](/img.php?id=4006960&img=bga.png)
Getting Started
09
User Guide

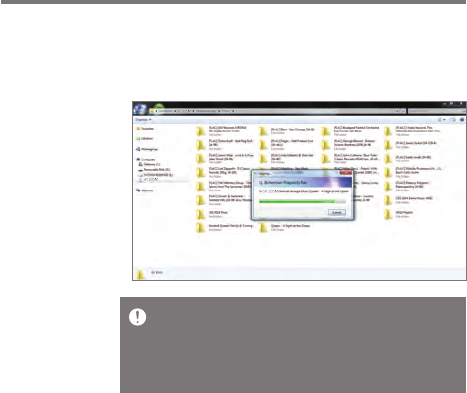

Copy Files (Folders) to the Device
1. To copy files/folders from your computer, select the desired
files/folders and drag & drop them into the device folder.
Ensure the USB Type-C cable is properly connected.
Turning off the device, computer or disconnecting the USB Type-C
cable while copying or moving files/folders may corrupt files or
device memory.
File transfer speeds may be affected by the computer and/or the OS
environment.
![](/img.php?id=4006960&img=bgb.png)
Getting Started
10
User Guide
Delete Files (or Folders) from the Device
1. Select the file/folder to delete, right-click the mouse, and
then select [Delete].
2. Select [Yes] in the [Confirm File/Folder Deletion] window
to delete the selected files/folders.
Disconnecting from the Computer
1. Disconnect the USB Type-C cable after the transfer between
the device and computer is complete.
Disconnecting the device from the computer during a file transfer
may corrupt data on the device.
![](/img.php?id=4006960&img=bgc.png)
Maximum Capacity: 400GB
Notes on Inserting a microSD Card
Do not force the microSD card into the slot. Doing so may cause
malfunction of the product and damage to the card.
Do not repeatedly insert/remove the microSD card.
If not inserted properly, the microSD card may cause product
malfunctions and may become lodged in the product.
Notes on Removing a microSD Card
Be sure to safely remove the microSD card from the device.
Not following the proper procedure may corrupt data and cause
serious damage to the both the card and device.
Do not remove the microSD card during use. Doing so may cause
malfunction, delete data and damage the microSD card.
Getting Started
11
User Guide
Recommended microSD Cards
SanDisk, Transcend
Insert/Remove a microSD Card
1. Refer to the diagram and gently
insert a microSD card into the
microSD card slot.
2. To safely remove a microSD card,
on the Home Screen, select
[Safely remove SD card] from the
Notification Bar or select
[Unmount SD card] from
[Menu - Settings - System
Information].
3. Gently press the microSD card in
to unlock and release it from the
slot.
![](/img.php?id=4006960&img=bgd.png)
Notes on Using a microSD Card
If the microSD card is not recognized or functions improperly,
format the card, preferably in the FAT32 system.
Using cards other than the recommended microSD card types
may cause malfunctions.
A microSD card is not included in the product package. Please
purchase separately.
Getting Started
12
User Guide
For Wi-Fi connections, see Page 45.
The firmware update may not start if the battery level is too low.
(A minimum battery level of 20% is required.)
Do not disconnect from the wireless network while downloading the
update file. Doing so may cause data corruption and/or damage to
the system.
If an error occurs or the notice in the Notification Bar disappears
during an update, download the firmware update again through
[Menu - Settings - Update - System].
Moving to another screen during a file download will cancel the
download.
Wi-Fi Update / OTA (Over-the-Air)
1. Connect to a wireless network.
2. If a new firmware update is available, the screen will
display a Firmware Update Guide window.
3. Select [Update].
4. Follow the on-screen instructions to proceed with the
firmware update.
Firmware
Updates
![](/img.php?id=4006960&img=bge.png)
User Guide
Using the Device
13
Basic
Operations
LCD Touchscreen
1. This device features an LCD touchscreen that allows you
to perform operations by touch.
Use the touchscreen to access various features on the
device.
To prevent damage to the screen, do not use a sharp object or
excessive force.

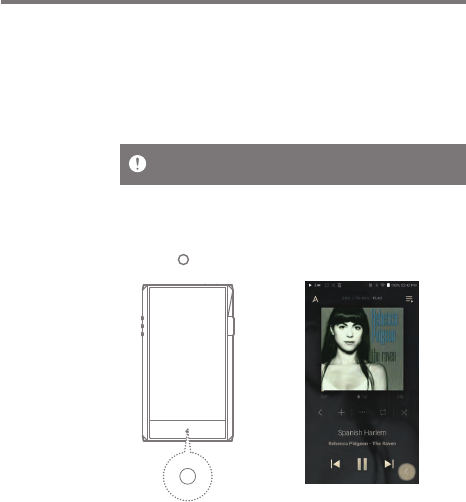

Return to the Home Screen
Home Screen
1. Press [ ] at any time to return to the Home Screen.
![](/img.php?id=4006960&img=bgf.png)
Using the Device
14
User Guide

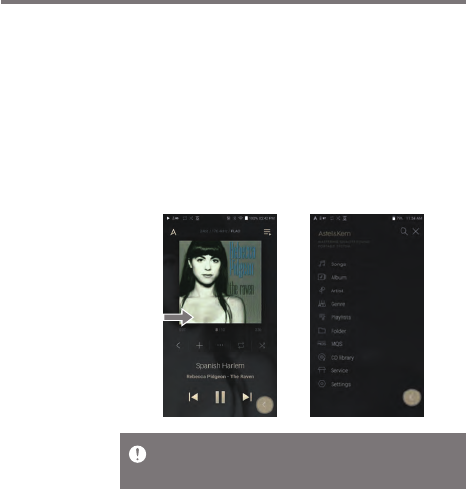

Main Menu
1. From the left edge of the touchscreen, swipe your finger
right to display the Main Menu.
From the Home Screen, swipe your finger to the left, right,
up or down from any edge of the touchscreen to access display
menus. Each side of the Home Screen will activate a different
display menu.
Music files extracted using the AK CD-Ripper accessory that are
stored in the Ripping folder of the internal memory will be displayed
in the CD library menu.
![](/img.php?id=4006960&img=bg10.png)
Using the Device
15
User Guide
Notification Bar
1. From the top edge of the touchscreen, swipe your finger
down to display the Notification Bar.
View Current Playlist
1. From the right edge of the touchscreen, swipe your finger
left to display the Now Playing menu.
![](/img.php?id=4006960&img=bg11.png)
Using the Device
16
User Guide
View Play History
1. From the bottom edge of the touchscreen, swipe your
finger up to display the Play History menu.
Moving Up/Down on a List
1. Scroll through a list by dragging your finger up or down.
![](/img.php?id=4006960&img=bg12.png)
19
17
18
Using the Device
17
User Guide
Displays the Main Menu.
Displays current song information.
Indicates song duration.
Go to the last displayed menu list.
Add the current song to a playlist.
Song title information.
File name is displayed when the title
is unavailable.
Displays the artist and album info.
Menu
Details
Song Progress
Recent Menu
List
Add to Playlist
Title
Artist/Album
1
2
3
4
5
6
7
Home
Screen 9
1
4
6
7
8
3
11
15
14
5
2
16
13
12
10
![](/img.php?id=4006960&img=bg13.png)
Using the Device
18
User Guide
Short press: Play the previous
song or restart the current song.
Press and hold: Rewind the current song.
Display current playlist.
Displays the bit rate and sampling
frequency data.
Displays album cover of current song.
Tap image to view the song lyrics.
Displays the current song number playing/
total number of songs in Now Playing.
Shows the current track playback
progress. Drag the Playback Progress
Bar to move to the desired track time.
Indicates the song’s total duration.
Press to switch from elapsed time
to remaining time.
Press [ ] to set track sequence for
playback.
: Shuffle mode on.
: Shuffle mode off.
Press [ ] to set the Repeat mode.
: Repeat entire playlist.
: Repeat current track.
: Repeat mode off.
Play or pause the current song.
Short press: Play the next song.
Press and hold: Fast-forward the
current song.
The Floating Back button will be
displayed on the screen.
Previous/
Rewind
Playlist
Format
Information
Album Cover
Now Playing
Song Count
Playback
Progress Bar
Song Duration
Shuffle Mode
Repeat Mode
Play/Pause
Next/FF
Back button
8
9
10
11
12
13
14
15
16
17
18
19
![](/img.php?id=4006960&img=bg14.png)
Using the Device
19
User Guide
Notifi-
cation
Bar
11
12
1 2 3 4 5 6 7 8 9 10
13
![](/img.php?id=4006960&img=bg15.png)
Using the Device
20
User Guide
Press [ ] to turn Wi-Fi on/off.
Press [ ] to turn Bluetooth on/
off.
Press [ ] to turn the EQ on/
off. The most recent EQ settings
are applied by default.
Select the mode to use when
connected to a computer.
: Listen to music on a
connected computer
through the device.
[Default] : Enables transfer
of media files.
After connecting the device to a
portable USB DAC, press [ ] to
connect or disconnect the device.
Turn CD ripping function on/off.
Press [ ] to turn AK Connect
on/off.
Press [ ] to turn line-out on/
off.
Press [ ] to turn Gapless
Playback on/off.
Press [ ] to turn Wheel lock
on/off. The volume wheel is
disabled when the screen is
locked.
Wi-Fi
Bluetooth
EQ
Computer
Connection
Mode
USB Audio
CD Ripping
AK CONNECT
Line-out
Gapless Playback
Wheel Lock
1
2
3
4
5
6
7
8
9
![](/img.php?id=4006960&img=bg16.png)
Long-press an icon [ / / / / ] to navigate to the
corresponding full settings menu screen.
Using the Device
21
User Guide
Press [ ] to display the
full settings menu.
Use the adjustment bar to
control the display brightness.
Device notifications are
displayed in this area.
Clear notifications.
Settings
Brightness
Notifications
Display
Clear Notifications
10
11
12
13
![](/img.php?id=4006960&img=bg17.png)
Using the Device
22
User Guide
Streaming or Purchasing Music
1. Connect to a wireless network.
2. Select [Services] from the menu.
3. Select from the the list of service options available.
4. Check the user guide or help menu within each Services
for detailed information.
Select [Menu > User Guide] within the Groovers Services
for detailed instructions.
Listen to streaming services or purchase music from the
Services when connected to a wireless network. (Streaming
services and ability to purchase music vary by country.
Not all services are available in all countries.)
Music
Services
For Wi-Fi connections, see Page 45.
Currently supported services are Groovers and Tidal.
Show
Menu
User
Guide
![](/img.php?id=4006960&img=bg18.png)
Using the Device
23
User Guide
The Open APP Service enables the user to install a specific
APK music streaming app to the device. Copy the desired
APK into the Open APP folder of the product and install the
relevant App in the Menu-Service of the product.
Using
Open APP
Service
The source of the app you are trying to install is unknown. Be aware that
if the app is installed, the device may be damaged and personal data
compromised.
If you install an app from an unknown source, despite this warning, the
company is not responsible for any damages to the device and data
resulting from the app’s installation, and downloading and installing
such apps may limit the scope of after-sales services provided by this
company.
![](/img.php?id=4006960&img=bg19.png)
Using the Device
24
User Guide
MQS Streaming Server for your Computer
1. Visit the Astell&Kern website and download the MQS
Streaming Server installer that corresponds to your operating
system. [http://www.astellnkern.com > Support > Download].
2. Run the downloaded installer and follow the on-screen
instructions.
3. Check the User Guide within the program for detailed
information on using the MQS Streaming Server.
Access and play back music files stored on a computer on the
same network, as well as output sound through compatible
speakers with AK Connect.
AK
CONNECT
Please refer to the following computer minimum system requirements.
Minimum Computer Requirements
OS: Windows 7/8/10 (32 & 64-bit)
Mac Requirements
OS X 10.7 (Lion) or later
Using AK Connect to Link Music Libraries/Speakers
1. Turn on the music library device
and/or speaker and AK player.
Run the MQS streaming server
on your computer.
2. Connect all devices to the same
Wi-Fi network.
3. Turn on the AK CONNECT feature
by pressing and holding [ ] in the
Notification Bar or selecting [Menu-
Settings-AK CONNECT].
4. Press [AK CONNECT] on the menu.
![](/img.php?id=4006960&img=bg1a.png)
Using the Device
25
User Guide
For Wi-Fi connections, see Page 45.
5. A list of libraries / speakers that
are on the same network with
AK player will be displayed.
6. Select a library / speaker to
connect.
7. After selecting a library / speaker,
select a category from the menu
to display the corresponding music
list.
![](/img.php?id=4006960&img=bg1b.png)
Using the Device
26
User Guide
Streaming Music from Your Library
1. Select a category from the library
menu to see your list of music.
2. Select a song to begin streaming.
Downloading Music from Your Library
1. Select a category from the library
menu to see your list of music.
2. Press [ ] button at the upper-
right corner of the music list.
3. Select the desired music and
press [ ] to initiate the
download.
A message on the Notification
Bar will indicate when the
download is complete.
Depending on network conditions, song loading may be slow and
streaming may stutter.
Performing other operations on the linked computer may cause
slower response time.
If you stream and download at the same time, it may slow the
device’s response time depending on the speed of the Wi-Fi network
or server.
To stop a download in progress, tap the notification in the Notification
Bar to go to the download screen. Then, select the items to pause or
delete.
![](/img.php?id=4006960&img=bg1c.png)
Using the Device
27
User Guide
AK Connect Usage Examples
Case 1
LIBRARY SPEAKER
AK T1SP1000M
Case 2
AK500N
LIBRARY REMOTE SPEAKER
AK T1SP1000M
![](/img.php?id=4006960&img=bg1d.png)
Using the Device
28
User Guide
Case 3
REMOTE & LIBRARY
SP1000M
SPEAKER
AK500N
Case 4
LIBRARY SPEAKER
AK T1SP1000M AK500N
REMOTE
![](/img.php?id=4006960&img=bg1e.png)
Using the Device
29
User Guide
Case 5
SPEAKER
AK T1
LIBRARY
SP1000M
or
REMOTE
AK Connect APP
AK500N
LIBRARY
![](/img.php?id=4006960&img=bg1f.png)
Using the Device
30
User Guide
To search, press [ ] on the menu list and enter the title.
The search result will be displayed.
At the top of the Play History menu, press [ / ] to
sort the music list in order of most recently played/most
played.
After selecting the [MQS] category, press [ / ] at the
top to sort the music list in order of high quality /
alphabetical order.
In the [MQS] category, the MQS tab shows PCM files of 24
bits or more, and the DSD tab shows DSD files.
MQS: PCM[8~384kHz(24/32bit)]
DSD: DSD [2.8/5.6/11.2MHz]
Select the [Folder] category to check the internal / external
memory capacity and number of files / folders, and copy /
move music.
Press [ ] on the music list to add all music to the
current playlist.
Listening
to Music
Selecting Music
1. Select a category from the menu to display the corresponding
music list.
2. Select a song from the list to begin playback.
Listening to Music
Select [Folder] to search music by folder.
Continuous Playing Time: Approx. 10 hours 30 minutes (Music:
FLAC,16bit, 44.1kHz, Unbalanced, Volume 80, EQ Off, LCD Off)
Supported Formats: PCM [8~384kHz(8/16/24/32bit)]
DSD [2.8/5.6/11.2MHz]
![](/img.php?id=4006960&img=bg20.png)
Using the Device
31
User Guide
Press [ ] on top of the music list to view the options:
: Select / deselect entire list
: Add the selected list at the top / bottom / after the
current song of Now Playing
: Add selected list to a playlist
: Delete selected list
: Exit
Turn the [Volume] wheel to adjust the volume.
Press [ ] during playback to pause and [ ] to resume
playback.
Press [ / ] during playback for the previous/next track.
Press and hold [ / ] to rewind/fast-forward the track.
Drag the indicator on the Playback Progress Bar to a desired
location of a track during playback.
Press the album art on the Home Screen to display the
song lyrics.
Press the [ ] to go to Home Screen.
Press [ ] at the top of the menu list to hide the menu list.
After selecting [ALBUM] or [CD LIBRARY] category, press
[ / / ] at the top to sort by different viewing options.
![](/img.php?id=4006960&img=bg21.png)
Using the Device
32
User Guide
Playlist Screen
13
2
4
Return to the previous screen.
Displays the current playlist.
Display the editing options for the music list.
Play all songs in the current list.
Previous
Playlist
Edit mode
Play All
1
2
3
4
![](/img.php?id=4006960&img=bg22.png)
Using the Device
33
User Guide
Playlist
Manage-
ment
Creating a Playlist
1. Press [Playlists] on the menu to
view the playlists.
2. Select [ + ] in the upper right corner
of the screen.
3. Enter a name for the playlist, and
then press [Add] to create a new
playlist.
Adding a Song to a Playlist
1. Press [Playlists] to display the
list of playlists.
2. Select a playlist and press
[+ Add Song] to display a list of
songs by album.
3. Select a song and press [Add]
to add the song to the selected
playlist.
![](/img.php?id=4006960&img=bg23.png)
Using the Device
34
User Guide
Removing a Song from a Playlist
1. Press [Playlists] to display the
list of playlists.
2. Select the playlist to edit.
3. Press [ ] at the top, then select
the song you want to delete from
the playlist.
4. Press [ ] on top of the screen.
5. Press [DELETE] to remove the
song from the selected playlist.
Playing a Playlist
1. Select the desired playlist for
playback.
2. Press [ ] at the top right of the
screen to play the entire playlist.
3. To playback part of the playlist or
add it to a current Now Playing
playlist, press [ ] at the top of
the playlist, select the music you
want to play and press [ ] to
add the selected list to the top /
bottom / after the current song
of Now Playing.
This action will only remove the song from the selected playlist, not
the memory.
![](/img.php?id=4006960&img=bg24.png)
Using the Device
35
User Guide
Renaming a Playlist
Deleting a Playlist
1. Press [Playlists] to view the
playlists and press [ ].
2. Select the playlist to be deleted.
3. Press [ ] at the top of the screen.
4. Press [DELETE] to delete the
selected playlist.
1. Press [Playlists] to view the
playlists, and press [ ].
2. Select a playlist to be renamed.
3. Press [RENAME] at the top of the
screen to display the RENAME
window.
4. Enter a name for the playlist and
then press [RENAME] to confirm
the change.
![](/img.php?id=4006960&img=bg25.png)
Using the Device
36
User Guide
Playback is unavailable when settings exceed the supported
formats.
The Previous, Play, and Next buttons are unavailable when
connected as a USB DAC.
Playback may stutter when computer performance is slow or the
USB connection is experiencing heavy usage.
There may be issues with audio-to-video synchronization during
video playback depending on the sound quality and operating
environment.
Volume cannot be adjusted via the Windows volume control. The
volume wheel on the device or volume control on the appropriate
program must be used to adjust the volume.
Install a dedicated driver to use the AK device as a USB DAC.
The driver file is located in SP1000M\Internal_Storage\SP1000M_
Contents\Driver. Before installing the driver, set device to USB DAC
mode and connect to the computer.
USB DAC
Installation
The USB DAC function allows the device to be recognized
as a sound card on a computer. Music from the computer is
played through the device’s headphone port for an enhanced
listening experience.
USB DAC Specifications
Supported OS
Windows 7(32bit/64bit) / Windows 8(32bit/64bit) /
Windows 10(32/64bit)
MAC OS 10.7(Lion) or later
USB DAC Support Specifications
Supported Formats: PCM [8~384kHz(8/16/24/32bit)]
DSD [2.8/5.6/11.2MHz]
Control the volume with the AK device’s volume wheel.
![](/img.php?id=4006960&img=bg26.png)
Using the Device
37
User Guide
How to
Use USB
Audio
Connect the device to a portable amp or DAC using USB
Audio Out.
How to Connect a Portable USB DAC
1. Connect the portable USB DAC to the AK device’s USB
Type-C port with a dedicated cable.
2. Press [ ] in the Notification Bar.
3. Once [ ] is activated, you can enjoy music stored on the
device through the connected portable USB DAC.
How to Change USB Audio DSD Output Type
You can change the type of DSD data that is outputted through
the USB audio out.
1. Select a DSD output type on [Menu - Settings - USB Audio].
PCM : DSD audio is converted into PCM before being
outputted through the USB audio out.
DoP : DSD audio is converted into DoP before being
outputted through the USB audio out.
The USB Type-C cable that comes packaged with the device is only
to be used for computer data transfer or to charge the device.
The type of dedicated cable needed to connect to the portable DAC
varies; please refer to USB DAC manufacturer instructions for
correct cable type.
A USB DAC cable is not included with the device and must be
purchased separately.
Depending on the OTG cable used, the connection may be unstable.
The portable USB DAC must be able to receive digital input through
the micro-USB's OTG.
Audio output may vary widely depending on the digital input specs
of the portable USB DAC used. This is not a defect in the device
output and not a reason for exchange or refund.
When using DoP as a DSD output type, no sound may be outputted
except noise depending on the portable USB DAC.
![](/img.php?id=4006960&img=bg27.png)
Using the Device
38
User Guide
CD
Ripping
CDs can be ripped directly to the device using the AK CD-
RIPPER (sold separately).
Connecting the AK CD-RIPPER
1. Connect the AK CD-RIPPER to USB Type-C port of the
device using the proper cable.
2. In the Notification Bar press [ ] to link the devices and
activate the CD Ripping Menu.
3. When ripping is complete, before disconnecting, press [ ]
on the Notification Bar to unlink/disconnect the devices.
Automatic CD Ripping
1. In [Menu-Settings-CD Ripping], turn on automatic CD
ripping function.
2. Connect the AK CD-RIPPER to the device and insert a CD.
3. Metadata (ID3 tags) for the inserted CD will be retrieved
via Gracenote if Wi-Fi is turned on.
4. CD ripping will begin automatically after the metadata has
been downloaded.
5. When finished, press [OK] when prompted to complete the
automatic CD ripping process.
The USB Type-C cable provided with the device is to be used to
connect to the computer or to charge the product.
Depending on the CD-Ripper model the dedicated USB Type-C OTG
cable may not be provided in the product package.
Depending on the OTG cable used, the connection may be unstable.
Manual CD Ripping
1. In [Menu-Settings-CD Ripping], turn off automatic CD
ripping function.
![](/img.php?id=4006960&img=bg28.png)
Using the Device
39
User Guide
CD Ripping Results
: Indicates that CD ripping is complete, or that CD ripping
was successfully completed after correcting an error
via error correction.
: Indicates that the song currently being ripped can be
canceled by user.
: Indicates that CD ripping failed due to an error that
can’t be corrected, such as a scratched CD, or that CD
ripping was canceled by user.
To search the Gracenote database, the device must be connected to
Wi-Fi. Database access time may vary depending on the network
environment.
Please note that metadata for certain CDs may not be available on
the Gracenote database.
You cannot access the Home Screen while CD ripping is in progress.
The AK Connect service will be disabled during CD ripping. The
service will automatically restart when CD ripping is completed.
Music playback is disabled during ripping.
You can set the desired file format and ripping speed from the
[Menu - Settings - CD Ripping] menu.
Several attempts at correction will be made for data with errors
when the feature is enabled under [Menu - Settings - CD Ripping -
Error Correction]. Please note that the CD ripping speed will be
affected when this feature is enabled.
2. Connect AK CD-RIPPER and insert CD to display the [CD
Ripping] notification at the bottom of the Notification Bar.
3. Press [CD Ripping] and select from the file format options
of FLAC or WAV.
4. If Wi-Fi is turned on the Gracenote database will be searched
for matching CD metadata after the file format is selected.
5. When the database search is complete, press [Start] to
begin CD ripping.
![](/img.php?id=4006960&img=bg29.png)
Using the Device
40
User Guide
Settings The settings menu allows users to customize the device.
The settings menu may vary depending on the firmware
version.
Setup
1. Select [Main Menu - Settings] or select [ ] from the
Notification Bar menu.
2. Select the feature to view setting options.
Wi-Fi
Change wireless network settings and turn Wi-Fi on/off
Bluetooth
Connect a Bluetooth device to listen to music wirelessly.
See page 45 for more information on connecting to Wi-Fi.
See page 46 for more information on using Bluetooth.
AK CONNECT
Turn AK Connect on/off and set AK Connect options.
![](/img.php?id=4006960&img=bg2a.png)
Using the Device
41
User Guide
Gapless Playback
Plays the next song without any interruption.
Gapless playback is only supported between two files
with identical bit rates, sample rates, and channels.
Line Out
Set the voltage value generated when Line Out is activated.
Do not use earphones with the Line Out feature enabled. Doing so
may cause permanent hearing loss.
Supported Formats for EQ: PCM [8 ~ 192kHz(8/16/24bit)]
Using the equalizer may negatively affect device performance.
See pages 48 - 50 for more information on using the equalizer.
Equalizer
Set the equalizer according to the user's preferences.
USER EQ: Adjust the frequencies according to the user's
preferences.
Left-Right Balance
Adjust the left-right balance for earphones/headphones.
Playback Settings
Set how to add a song to Now Playing when a song is
selected from a music list.
![](/img.php?id=4006960&img=bg2b.png)
Using the Device
42
User Guide
USB Audio
Select the type of DSD sound being outputted through
USB Audio Out to a connected portable DAC.
CD Ripping
Set the automatic CD ripping function as well as the file
format and ripping speed.
Screen Brightness
Adjust screen brightness settings.
Date & Time
Set the current date and time.
USB mode
Media Device (USB Drive): When connected to a computer,
device appears as a removable drive.
DAC Input: Output sound from a connected computer to
the device.
Device Name
Set the name of the device.
The maximum name length is 50 characters.
![](/img.php?id=4006960&img=bg2c.png)
Using the Device
43
User Guide
Language
Select the display language.
Supported languages are English, Korean, Japanese, Chinese
(Simplified/Traditional), French, Russian, German, and Spanish.
Timer Settings
Auto Power Off: The device will automatically power off after
the selected amount of time of no user and device activity.
Screen Off: The screen will turn off after the selected
amount of time of no user activity.
Screen Timer: Music playback will stop and the device will
turn off after the selected amount of time.
Input method
Back button:The Floating Back button will be displayed on
the screen.
Move the Back button to the desired position by dragging
and dropping the icon with your finger.
Move the button to the center of the screen to deactivate it.
To reactivate the button, use the Input Method menu in
the Settings.
Keyboard: Select a language for the keyboard.
Supported languages are English, Korean, Japanese, Chinese
(Simplified/Traditional), French, Russian, German, and Spanish.
Downloads
Select a folder for downloaded files to be saved by default.
Supported languages may vary depending on your location.
![](/img.php?id=4006960&img=bg2d.png)
Using the Device
44
User Guide
System Information
System Information: View model number, firmware version,
MAC address and memory usage information. The microSD
card can be mounted/dismounted and data can be deleted.
Legal information: Check open source licenses and regulations.
Formatting the microSD card will delete all data on the memory
card. Be sure to backup any important files before formatting.
When formatting the microSD card on a computer, use of the FAT32
system is recommended.
System Reset
Initialize Media Scan: Resets and rescans the internal database.
Database initialization time may vary depending on the
number of files stored on the device.
Settings Reset: Resets all user settings back to the default
settings.
Factory Data Reset: Deletes all user data and resets all
user settings back to the default setting.
Update
System Update: Update the device when a new firmware
version is available.
Application Update: Update the default applications
(including the Services) when new versions are available.
When using AK Connect to download music, if the [Default folder] is
selected in settings, downloading will automatically begin to the
pre-set Downloads folder.
When [Select Folder] is selected, the user is prompted to choose a
download folder each time a file is downloaded.
![](/img.php?id=4006960&img=bg2e.png)
Using the Device
45
User Guide
Connecting
to Wi-Fi
2. Select the desired AP to connect to
the wireless network.
Additional information such as
Wi-Fi password may be required
depending on Wi-Fi settings.
Connecting to a Wi-Fi Network
1. Press and hold [ ] from the
Notification Bar or select [Menu
- Settings - Wi-Fi] to display a
list of available Wi-Fi networks.
Networks requiring browser or other additional certifications are
not supported.
Wi-Fi Channels 1 through 13 are supported (but channels 12 and 13
are not supported by the FCC).
![](/img.php?id=4006960&img=bg2f.png)
Using the Device
46
User Guide
Using
Bluetooth
Connect a Bluetooth device to listen to music wirelessly.
Turning Bluetooth On/Off
A Bluetooth device must be paired
with the device prior to use.
Refer to the Bluetooth device's
instruction manual for details.
1. Select [ ] from the Notification
Bar menu or select [On/Off] from
[Menu - Settings - Bluetooth].
Bluetooth Pairing
1. In the Settings Menu, select the appropriate Bluetooth
device from the list of available devices.
Disconnect a Bluetooth Device
1. Press the connected Bluetooth
device and confirm the message
prompt to disconnect the device.
![](/img.php?id=4006960&img=bg30.png)
Using the Device
47
User Guide
Bluetooth Support Specifications
Profile: A2DP, AVRCP, aptX™HD
Device performance may be affected during Hi-Res playback.
Do not turn off the device while connected to Bluetooth.
Turn the Bluetooth device off then on in case of issue.
Pairing methods may differ for each individual Bluetooth device.
Always refer to the respective instruction manual for details.
When connecting the product to a Bluetooth device, the distance
between the two must be within 20 cm.
Audio quality will degrade with longer distances and the pairing may
disconnect at a distance of 2 m (6.5 ft.) or more. (Distances may vary
depending on device and environment.)
Crosstalk may be heard while using Bluetooth.
For multipoint devices, make the necessary connections prior to use.
Car audio Bluetooth connections may not be fully compatible.
Some
features may not be supported and quality of playback may vary.
Malfunction, noise, and other undesirable effects may occur due to the
device's battery level and the environment.
If signal interference affects data transmission. (e.g., holding
the device while wearing a Bluetooth device, holding the device
while holding another electronic device, etc.)
If the device or Bluetooth headset's radio transmitters are
touching parts of the body.
If the transmission strength is affected by walls, corners,
partitions, etc.
If devices using the same frequencies cause interference. (e.g.,
medical devices, microwave ovens, Wi-Fi, etc.)
Areas with an excessive amount of interference or weak signals.
(e.g., elevators, underground, etc.)
Removing a Bluetooth Pairing
1. Press [ ] to the right of the
paired device to go to settings.
2. Select [Remove] to complete
the process.
![](/img.php?id=4006960&img=bg31.png)
Using the Device
48
3. Enter a name for the custom
EQ settings and select [SAVE].
User Guide
Equalizer Setup
1. Press and hold [ ] on the
Notification Bar or turn on
[Menu - Settings - Equalizer].
2. Press [PRO EQ] to activate the
drop-down menu and select [ + ].
Equalizer
Setup
![](/img.php?id=4006960&img=bg32.png)
Using the Device
49
4. Adjust the frequencies up and
down according to the user's
preferences.
5. The number values at the lower-
left corner of the screen can be
adjusted for fine-tuning.
User Guide
6. Press the [Advanced] tab on the
top to display PEQ settings screen.
Adjust Freq/Gain/Q.
![](/img.php?id=4006960&img=bg33.png)
Using the Device
50
User Guide
Deleting a Custom Equalizer Setting
1. Press on the drop-down menu
at the upper-left corner of the
screen to display the list of the
saved EQ settings.
2. Press [ ] next to the EQ name
to be deleted.
3. Press [OK] to delete the selected
EQ setting.
Renaming a Custom Equalizer Setting
1. Press on the drop-down menu
at the upper-left corner of the
screen to display the list of the
saved EQ settings.
2. Press [ ] next to the EQ setting
name you wish to change and enter
a new name for the selected EQ.
3. Press [CHANGE] to save.
![](/img.php?id=4006960&img=bg34.png)
Miscellaneous
51
User Guide
Safety
Pre-
Cautions
Device
When a plug is inserted into the earphones, 2.5mm balanced,
or USB port, do not apply any force or impact to the plug.
Do not insert any metal objects (coins, hairpins, etc.) or
flammable debris into the device.
Do not put heavy objects on the device.
If the device gets wet (rain, water, chemicals, medicine,
cosmetics, sweat, moisture, etc.), allow the device to dry
thoroughly before powering on. Contact the nearest IRIVER
Customer Support Center for service. (Damage may not
be repairable, however if deemed repairable, any damage
due to liquid exposure will be repaired for an additional
fee even if the device is under warranty.)
Avoid exposing the device to direct sunlight or extreme
temperatures (-10℃ - +50℃; 14℉~ 122℉) such as the
inside of a car during the summer.
Do not store or use in hot and humid places such as saunas.
Avoid places with excessive dust, or smoke.
Do not use for extended periods on blankets, electric
blankets, or carpet.
Do not place near a fire or in a microwave.
Never disassemble, repair, or alter the product.
Do not store for extended periods in a confined space with
the power on.
Do not place the device near magnetic objects (magnets,
televisions, monitors, speakers, etc.).
Do not let chemicals or detergents come in contact with
the product since they may damage the surface and paint.
Do not drop or expose the product to strong impacts
(places where there is strong vibration. etc.).
Do not press multiple buttons simultaneously.
Do not disconnect the USB Type-C cable during data transfer.
When connecting the device to a computer with the USB Type-C
cable, use a USB port on the back of the computer for best results.
![](/img.php?id=4006960&img=bg35.png)
Miscellaneous
52
User Guide
Other
Do not use earphones/headphones or use the device while
operating any type of vehicle. It is not only dangerous,
but may be a violation of the law in certain regions.
Do not use the product during physical activities (driving,
walking, hiking, etc.).
Always use in a safe environment to avoid the risk of an
accident.
When using the device while moving, make sure the area
is free of obstacles.
Avoid using the device during thunderstorms to reduce
the possibility of electric shock.
If there is a ringing in the ears, reduce the volume or stop
using the device.
Do not listen to music at excessive volumes for extended periods.
Do not use earphones/headphones at excessive volumes.
Make sure that the headphone/earphone does not get stuck
in another object or get caught between other objects.
Do not sleep with earphones in your ears or leave them in
for extended periods.
Connecting the cable to a defective or damaged USB port
on a computer may damage the device.
Displaying one image for an extended period may cause
screen burn-in(afterimage).
Using poor quality protective films or adhesive stickers
on the screen may cause damage.
Do not insert any foreign objects into the device ports.
The device may become warm while playing and charging,
so handle it carefully.
Product’s corners may be sharp, so handle carefully.
![](/img.php?id=4006960&img=bg36.png)
Miscellaneous
53
1. The device won't turn on.
The battery may need to be recharged. Charge the device
for at least one hour and try again.
Reset the device. (See Page 5)
2. The device will not charge when connected to a computer
via USB cable.
Connect to the computer using the provided USB Type-C cable.
Charging may not be performed depending on the condition
of your PC.
(Charging with a PC is not recommended. Use the adapter.)
Connect the device to a USB wall adapter using the provided
USB Type-C cable to charge directly from a wall outlet.
3. The computer won't recognize the device or an error
occurs when connected.
Use a USB port on the back of the computer.
Check if the USB Type-C cable is connected correctly.
For Mac, check to ensure the MTP program is installed
properly.
Check if the device connects properly on a different computer.
4. The screen turns off repeatedly.
The screen turns off automatically after a defined period
to reduce battery consumption. Set the time at [Menu-
Settings - Timer Settings - Screen Off].
5. The screen does not display images properly.
Check the screen for debris.
6. There is no sound, or there is static/interference.
Check that the volume setting is above [0].
Check that the earphones are plugged in properly and
make sure nothing is obstructing the port connection.
Verify that the music file is not corrupt.
Verify that the audio settings have been set properly.
(Balanced out, line out, etc.)
User Guide
Trouble-
shooting
Solutions to Common Issues
![](/img.php?id=4006960&img=bg37.png)
Miscellaneous
54
User Guide
7. A file does not play, or the product becomes unstable
when a certain file is played.
File may be damaged or corrupt if the following occurs:
Playback stops or freezes.
Device may act erratically or freeze.
File may sound different on another device.
There may be a difference in the performance of
playback or other functions.
There may be differences in the file specs.
Converting the file to a different format or use of a different
file is recommended.
Copyright IRIVER Limited retains the rights to patents, trademarks,
copyrights, and other intellectual property rights related to
this manual. No contents of this user manual may be
duplicated or reproduced in any format or by any means
without the prior approval of IRIVER.
Using or reproducing, in whole or part, the contents of this
document is subject to penalties. Software, audio, video,
and any other copyrighted contents are protected in
accordance with relevant copyright laws.
The user accepts all legal responsibility for the unauthorized
reproduction or distribution of the copyrighted contents from
this product.
Companies, organizations, products, people, and events used
in the examples are fictional. IRIVER has no intention to be
associated with any company, institution, product, person, or
incident through this instruction book, and no such inference
should be made. It is the responsibility of the user to comply
with applicable copyright laws.
©1999~2018 IRIVER Limited. All rights reserved.
The SP1000M was designed and audio-tuned under the
advisement of MSD.
![](/img.php?id=4006960&img=bg38.png)
Miscellaneous
55
User Guide
Certifica-
tions
KC / FCC / CE / TELEC
Class B Device (Communication equipment for residential
use): This is a Class B Device and is registered for EMC
requirements for residential use. This device can be used in
residential areas and all other areas.
FCC ID: QDMPPF32
This device complies with Part 15 of the FCC Rules, Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
FCC Caution Any changes or modifications not expressly
approved by the party responsible for compliance could void
the user's authority to operate this equipment.
(b) For a Class B digital device or peripheral, the instructions furnished
the user shall include the following or similar statement, placed in a
prominent location in the text of the manual: NOTE: This equipment
has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference
in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help
![](/img.php?id=4006960&img=bg39.png)
Miscellaneous
56
Body-Worn operation
This device was tested for typical body-worn operations with the back
of the portable music player kept 5mm from the body. To maintain
compliance requirements, use only belt-clips, holsters or similar
accessories that maintain a 5mm separation distance between the
user’s body and the back of the portable music player, including the
antenna. The use of belt-clips, holsters and similar accessories should
not contain metallic components in its assembly. The use of
accessories that do not satisfy these requirements may not comply
with CE RF exposure requirements, and should be avoided.
Body-worn accessory exposure conditions “Specific information must
be included in the operating manuals to enable users to select
body-worn accessories that meet the minimum test separation
distance requirements. Users must be fully informed of
the operating requirements and restrictions, to the extent that the
typical user can easily understand the information, to acquire the
required body-worn accessories to maintain compliance. Instructions
on how to place and orient a device in body-worn accessories, in
accordance with the test results, should also be included in the user
instructions. All supported bodyworn accessory operating
configurations must be clearly disclosed to users through conspicuous
instructions in the user guide and user manual to ensure unsupported
operations are avoided. All body-worn accessories containing metallic
components must be tested for compliance and clearly identified in the
operating manual. The instruction must inform users to avoid using
other body-worn accessories containing metallic components to
ensure RF exposure compliance.”
User Guide
Registered
Trademarks
Windows 7, Windows 8, Windows 10, and Windows Media Player
are registered trademarks of Microsoft Corp.
![](/img.php?id=4006960&img=bg3a.png)
Miscellaneous
57
User Guide
Disclai-
mers
The manufacturer, importer, and distributor shall not be liable
for damages including accidental and personal injury due to
the improper use or operation of this product. The information
in this user manual was written based on current product
specifications. The manufacturer, IRIVER Limited, regularly
adds new features via OTA updates and will continue to apply
new technologies in the future. Product specifications may
be changed without prior notice. There is no warranty against
data loss due to the use of this product.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS
The device must be used a minimum of 5mm away from the human
(body) in normal use conditions.
The excessive sound pressure from earphones and headphones can
cause hearing loss.
![](/img.php?id=4006960&img=bg3b.png)
Miscellaneous
58
User Guide
Specifi-
cations
SP1000M
PPF32
Lapis Blue
Aluminum
4.1inch 720x1280 touch display
WAV, FLAC, WMA, MP3, OGG, APE, AAC, ALAC, AIFF,
DFF, DSF
PCM : 8kHz ~ 384kHz (8/16/24/32bits per Sample)
DSD Native: DSD64(1bit 2.8MHz), Stereo/
DSD128(1bit 5.6MHz), Stereo / DSD256(1bit 11.2MHz), Stereo
Unbalance 2.1Vrms / Balance 4.2Vrms (Condition No Load)
AKM4497EQ x2 (Dual DAC)
Support up to 32bit / 384kHz Bit to Bit playback
USB Type-C input (for PC & MAC)
PHONES (3.5mm) /
Balanced Out (2.5mm, only 4-pole supported)
802.11 b/g/n (2.4GHz)
V4.1 (A2DP, AVRCP, aptX™ HD)
2.67” (67.9mm)[W] x 4.60” (117mm)[H] x 0.66”(16.9mm)[D]
7.16oz(203g)
Firmware upgrade supported(OTA)
±0.062dB (Condition : 20Hz~20kHz) Unbalance /
±0.061dB (Condition : 20Hz~20kHz) Balance,
±0.68dB (Condition : 10Hz~70kHz) Unbalance /
±0.67dB (Condition : 10Hz~70kHz) Balance
120dB @ 1kHz, Unbalance / 123dB @ 1kHz, Balance
138dB @ 1kHz, Unbalance / 144dB @ 1kHz, Balance
0.0007% @ 1kHz, Unbalance / 0.0006% @ 1kHz, Balance
0.0004% 800Hz 10kHz(4:1) Unbalance /
0.0004% 800Hz 10kHz(4:1) Balance
Balanced out 2.5mm (1ohm) / PHONES 3.5mm (2ohm)
25ps(Typ)
200 Femto Seconds
128GB[NAND]
MicroSD(Max. 400GB) x 1
3,300mAh 3.7V Li-ion Battery
Windows 7,8,10(32/64bit) Mac OS X 1.7 and up
General Specifications
Product Name
Model
Body Color
Body Material
Display
Supported Audio
Formats
Sample rate
Output Level
DAC
Decoding
Input
Outputs
Wi-Fi
Bluetooth
Dimensions
Weight
Feature Enhancements
Audio Specifications
Frequency Response
S/N
Crosstalk
THD+N
IMD SMPTE
Output impedance
Clock Jitter
Reference Clock Jitter
Memory
Built-in Memory
External Memory
Battery
Capacity
Supported OS
Supported OS
