Delta Electronics orporated D85YYYYYY DLP Projector User Manual
Delta Electronics Incorporated DLP Projector
user manual
![](/img.php?id=1722801&img=bg1.png)
Copyright
This publication, including all photographs, illustrations and software, is protected under international copy-
right laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be
reproduced without written consent of the author.
© Copyright 2012
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes no repre-
sentations or warranties with respect to the contents hereof and specifically disclaims any implied
warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to
revise this publication and to make changes from time to time in the content hereof without obligation of
the manufacturer to notify any person of such revision or changes.
Trademark Recognition
Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pend-
ing applications in other countries throughout the world.
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC in the United States and other countries.
All other product names used in this manual are the properties of their respective owners and are ac-
knowledged.
— i —
![](/img.php?id=1722801&img=bg2.png)
DLP Projector—User’s Manual
— ii —
Important Safety Information
Important:
It is strongly recommended that you read this section carefully before using the projector. These
safety and usage instructions will ensure that you enjoy many years of safe use of the projector.
Keep this manual for future reference.
Symbols Used
Warning symbols are used on the unit and in this manual to alert you of hazardous situations.
The following styles are used in this manual to alert you to important information.
Note:
Provides additional information on the topic at hand.
Important:
Provides additional information that should not be overlooked.
Caution:
Alerts you to situations that may damage the unit.
Warning:
Alerts you to situations that may damage the unit, create a hazardous environment, or cause per-
sonal injury.
Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this
example:
“Push the Menu button on the remote control to open the Main menu.”
General Safety Information
¾ Do not open the unit case. Aside from the projection lamp, there are no user-serviceable parts in
the unit. For servicing, contact qualified service personnel.
¾ Follow all warnings and cautions in this manual and on the unit case.
¾ The projection lamp is extremely bright by design. To avoid damage to eyes, do not look into the
lens when the lamp is on.
¾ Do not place the unit on an unstable surface, cart, or stand.
¾ Avoid using the system near water, in direct sunlight, or near a heating device.
¾ Do not place heavy objects such as books or bags on the unit.
![](/img.php?id=1722801&img=bg3.png)
Preface

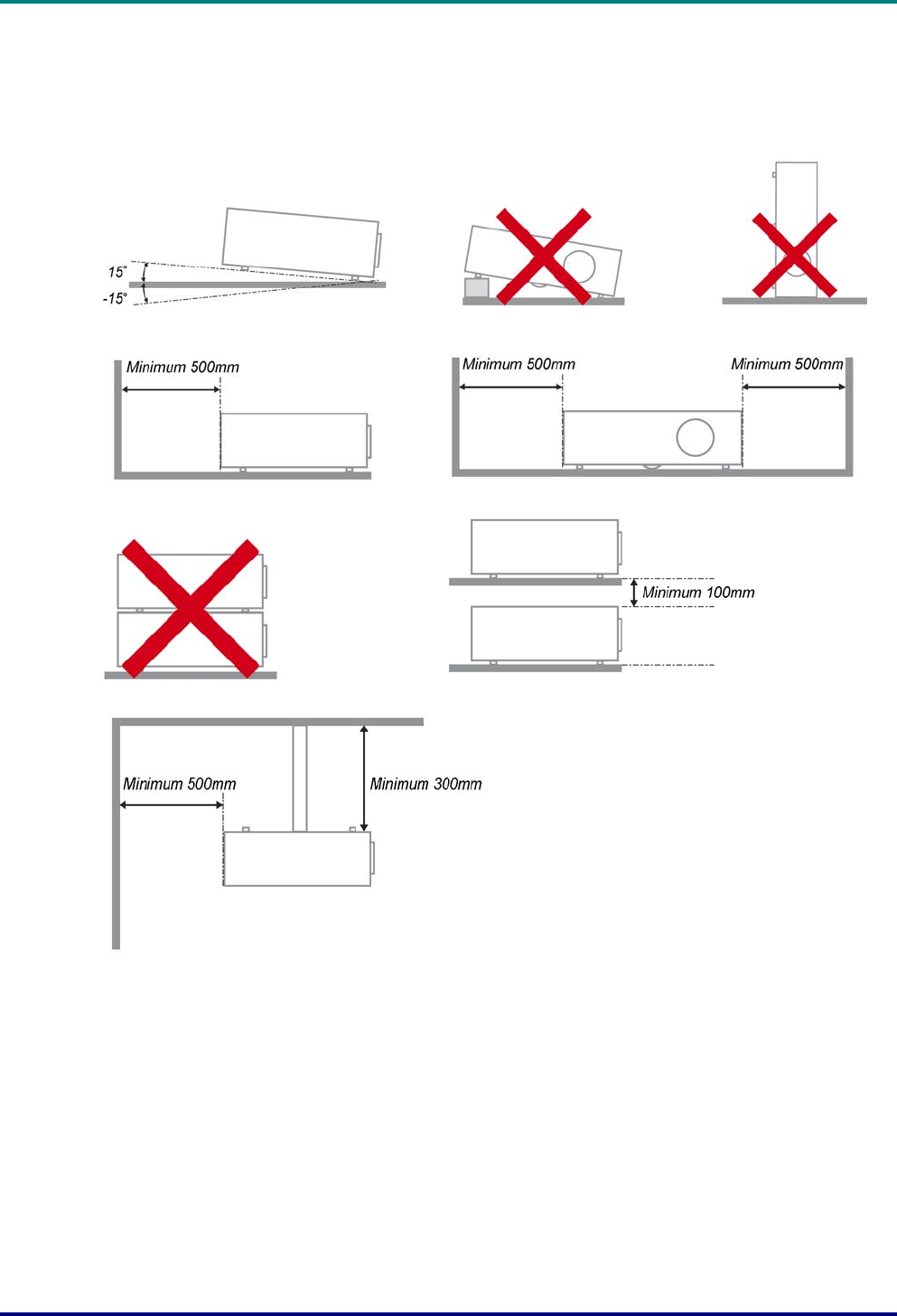

Projector Installation Notice
¾ Place the projector in a horizontal position
The tilt angle of the projector should not exceed 15 degrees, nor should the projector be in-
stalled in any way other than the desktop and ceiling mount, otherwise lamp life could decrease
dramatically, and may lead to other unpredictable damages.
¾ Allow at least 50 cm clearance around the exhaust vent.
¾ Ensure that the intake vents do not recycle hot air from the exhaust vent.
¾ When operating the projector in an enclosed space, ensure that the surrounding air temperature
within the enclosure does not exceed operation temperaturewhile the projector is running, and the
air intake and exhaust vents are unobstructed.
¾ All enclosures should pass a certified thermal evaluation to ensure that the projector does not
recycle exhaust air, as this may cause the device to shutdown even if the enclosure temperature is
with the acceptable operation temperature range.
– iii –
![](/img.php?id=1722801&img=bg4.png)
DLP Projector—User’s Manual
— iv —
Verify Installation Location
¾ Verify if the voltage is stable, grounded properly and there is no electricity leakage.
¾ Measure total power consumption which should not higher the safety capacity and avoid safety is-
sue and short circuit.
¾ Turn on Altitude Mode when located in high altitude areas
¾ The projector can only be installed upright or inverted.
¾ When installation the bracket, make sure the weight limit is not exceed and firmly secured.
¾ Avoid installing near air conditioner duct or subwoofer.
¾ Avoid installing at high temperature, insufficient cooling and heavy dust locations.
¾ Keep your product away from fluorescent lamps to avoid malfunction
caused by IR interference
¾ Install the projector above 200cm to avoid damage.
Cooling notes
Air outlet
¾ Make sure the air outlet is 50cm clear of any obstruction to ensure proper cooling.
¾ Air outlet location should not be in front of the lens of other projector to avoid causing illusions.
¾ Keep the outlet at least 100cm away from the inlets of other projectors
Air inlet
¾ Make sure there is no object blocking air input within 30 cm.
¾ Keep the inlet away from other heat sources
¾ Avoided heavy dust area
Choosing a Projector
Edge blending application
Not only brightness, bright balances, lens but stability is important too when choosing a projector.
¾ A projector need 30 to 60 minutes warm up to adjust properly.
¾ After lens shift, there should not be any optical distortion such as trapezoidal and barrel shape dis-
tortions.
¾ Quick dis-assemble lens need to be firmly secured, the electric motor cannot be mistakenly shift.
The screen should not be offset for long time use or during booting up and shutting down the pro-
jector.
¾ Projector six-axis colors (R,G,B,Y,C,W). Projector adjust functions require: Hue, Saturation, Gain
¾ Vertical or 360 degree projection application. Needs to VERIFY engineering design of lamp aging
to avoid conflict with client.
HDMI Cable
Edge blending signal needs to use digital transfer, the 4 pairs of TMDS transfer impedance require 100 Ω
diameter as following to maintain signal quality:
¾ 5 M : AWG 26
¾ 10 M : AWG 24
¾ 15 M : AWG 22
¾ 20 M : AWG 22
¾ 25 M : AWG 22
![](/img.php?id=1722801&img=bg5.png)
Preface
Power Safety
¾ Only use the supplied power cord.
¾ Do not place anything on the power cord. Place the power cord where it will not be in the way of
foot traffic.
¾ Remove the batteries from the remote control when storing or not in use for a prolonged period.
Replacing the Lamp
Replacing the lamp can be hazardous if done incorrectly. See Replacing the Projection Lamp on page 41
for clear and safe instructions for this procedure. Before replacing the lamp:
¾ Unplug the power cord.
¾ Allow the lamp to cool for about one hour.
Cleaning the Projector
¾ Unplug the power cord before cleaning. See Cleaning the Projector page 45.
¾ Allow the lamp to cool for about one hour.
Regulatory Warnings
Before installing and using the projector, read the regulatory notices in the Regulatory Compliance on
page 56.
Important Recycle Instructions:
Hg
Lamp(s) inside this product contain mercury. This product may contain other electronic waste that
can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal
Laws. For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG. For lamp
specific disposal information check WWW.LAMPRECYCLE.ORG.
Symbol Explanations
DISPOSAL: Do not use household or municipal waste collection services for
disposal of electrical and electronic equipment. EU countries require the use
of separate recycling collection services.
– v –
![](/img.php?id=1722801&img=bg6.png)
DLP Projector—User’s Manual
— vi —
Main Features
• Lightweight unit, easy to pack away and transport.
• Compatible with all major video standards including NTSC, PAL, and SECAM.
• A high brightness rating allows for presentations in daylight or in lit rooms.
• Supports resolutions up to UXGA at 16.7 million colors to deliver crisp, clear images.
• Flexible setup allows for front, rear projections.
• Line-of-vision projections remain square, with advanced keystone correction for angled
projections.
• Input source automatically detected.
About this Manual
This manual is intended for end users and describes how to install and operate the DLP projector. Wher-
ever possible, relevant information—such as an illustration and its description—has been kept on one
page. This printer-friendly format is both for your convenience and to help save paper, thereby protecting
the environment. It is suggested that you only print sections that are relevant to your needs.
![](/img.php?id=1722801&img=bg7.png)
Preface
– vii –
Table of Contents
GETTING STARTED.......................................................................................................................................................... 1

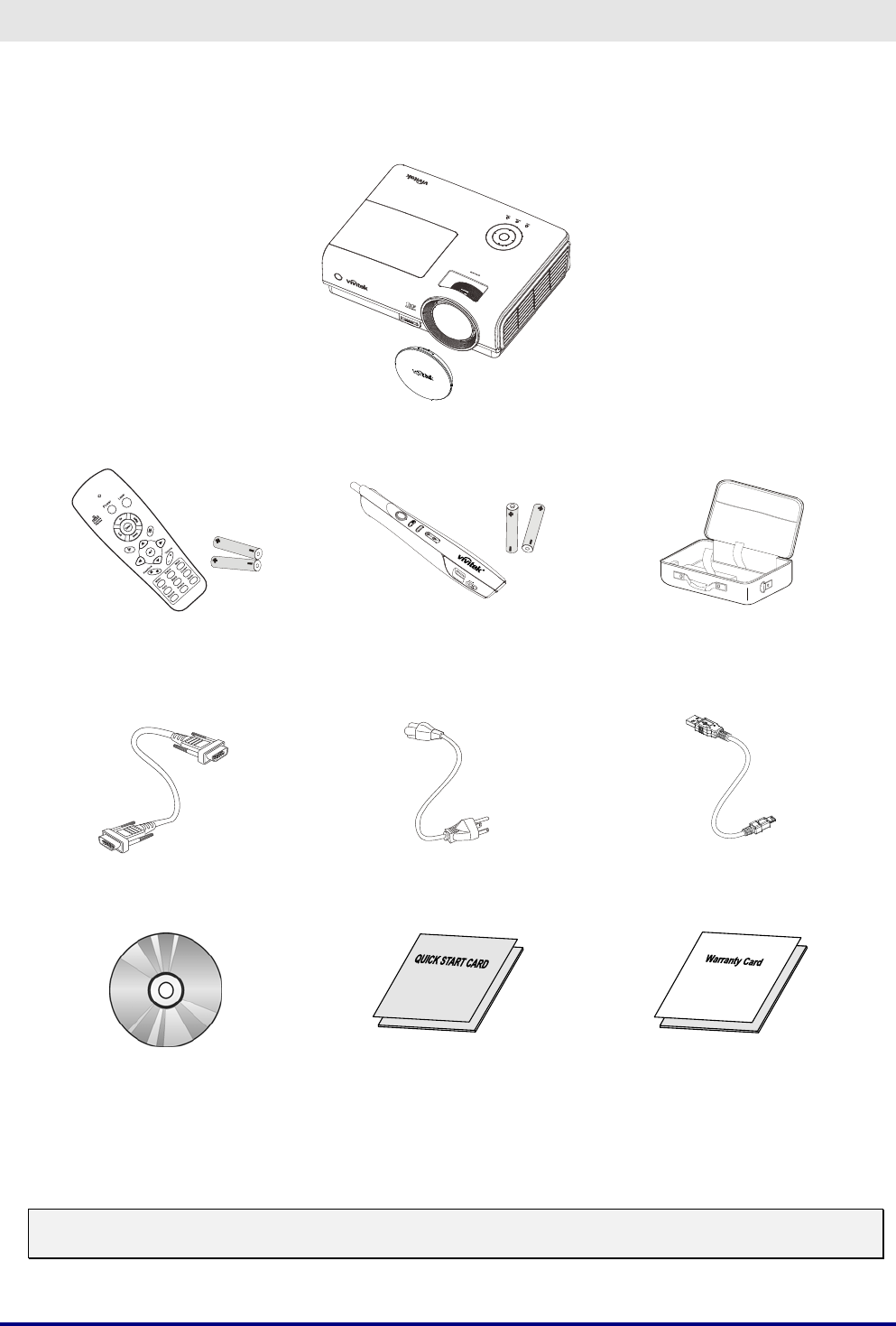

PACKING CHECKLIST ........................................................................................................................................................... 1
VIEWS OF PROJECTOR PARTS............................................................................................................................................... 2

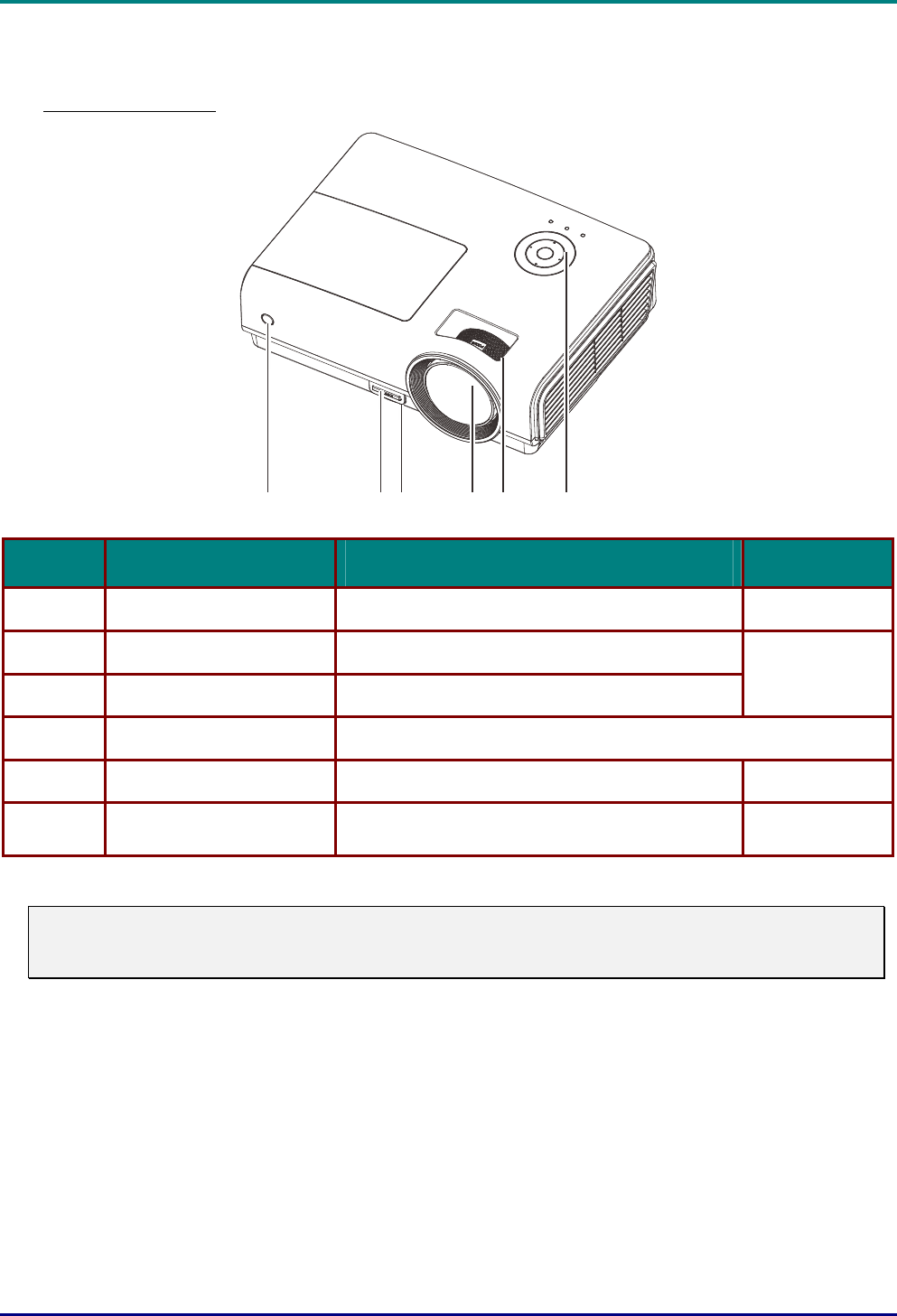

Front-right View ............................................................................................................................................................. 2

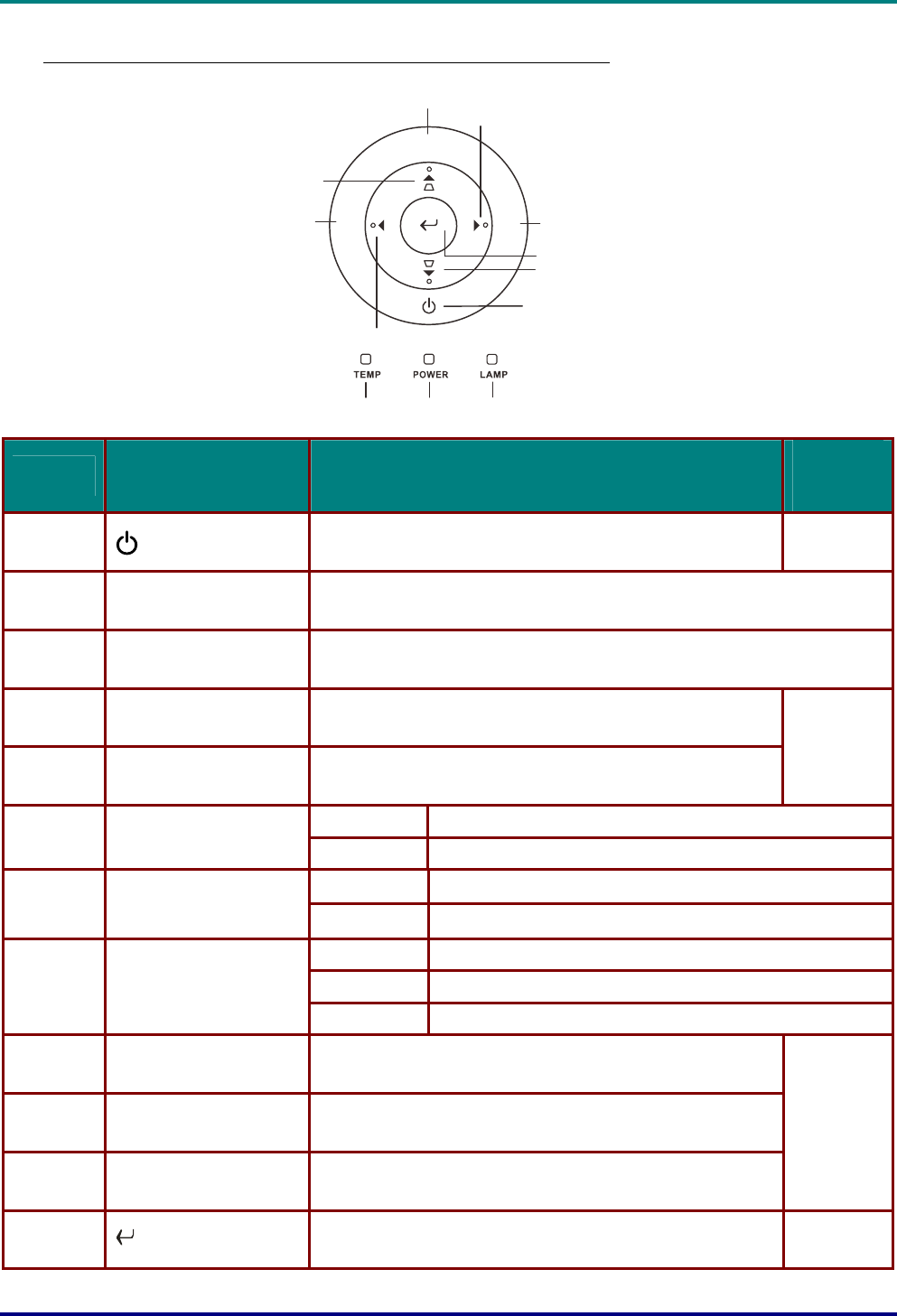

Top view—On-screen Display (OSD) buttons and LEDs ............................................................................................... 3

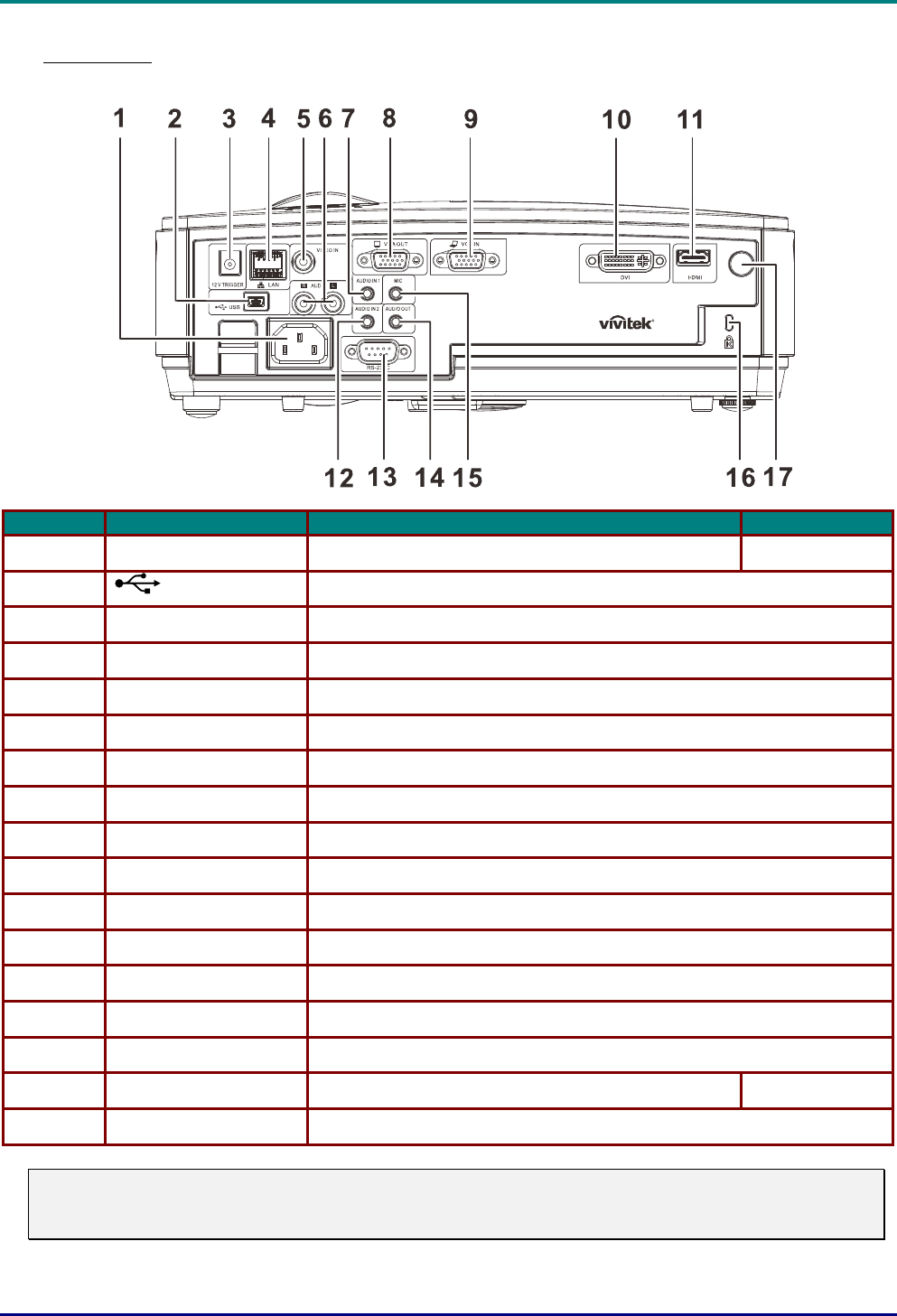

Rear view ........................................................................................................................................................................ 4
Bottom view..................................................................................................................................................................... 5

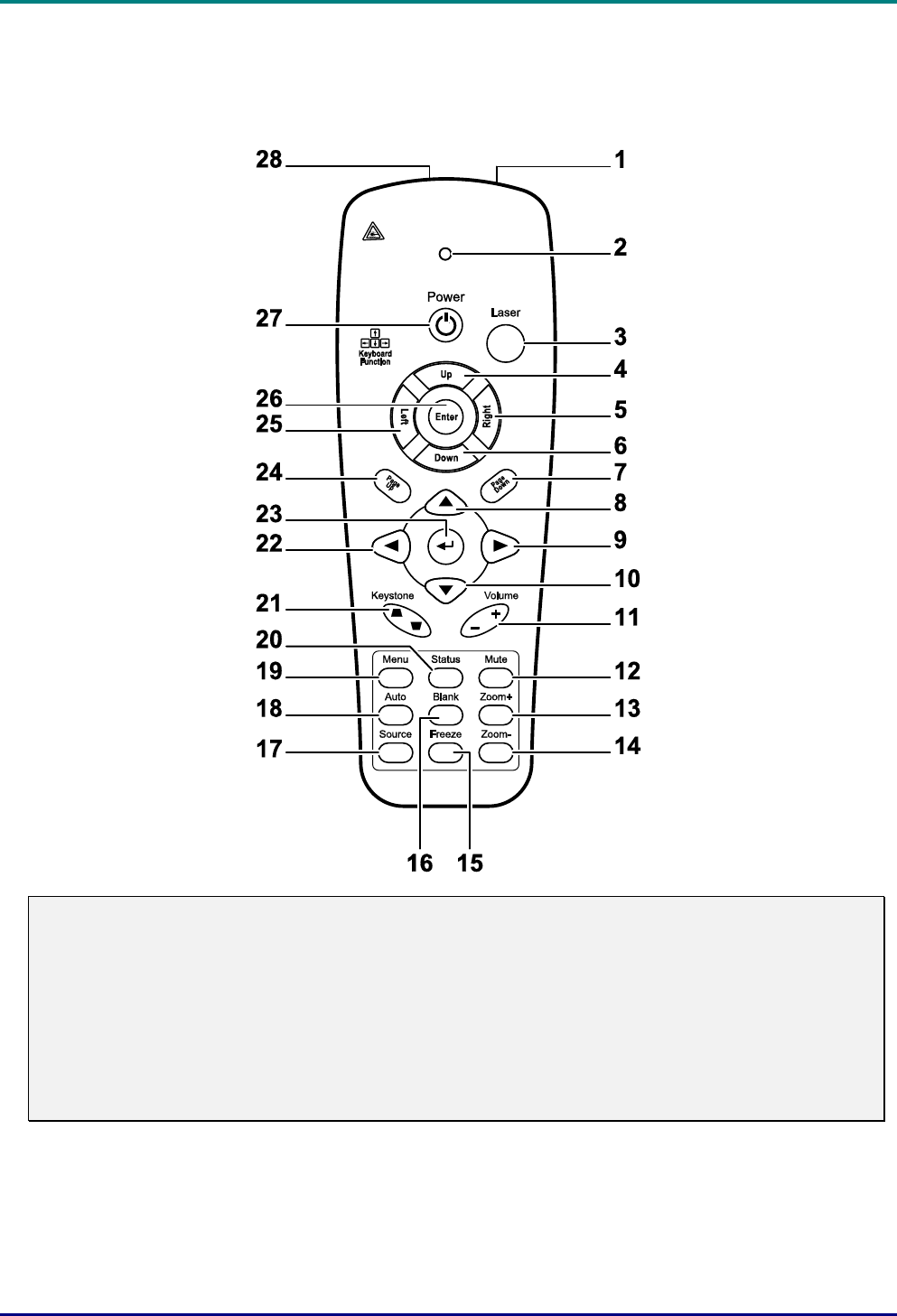

REMOTE CONTROL PARTS ................................................................................................................................................... 6
REMOTE CONTROL OPERATING RANGE............................................................................................................................... 8
PROJECTOR AND REMOTE CONTROL BUTTONS.................................................................................................................... 8
SETUP AND OPERATION................................................................................................................................................. 9

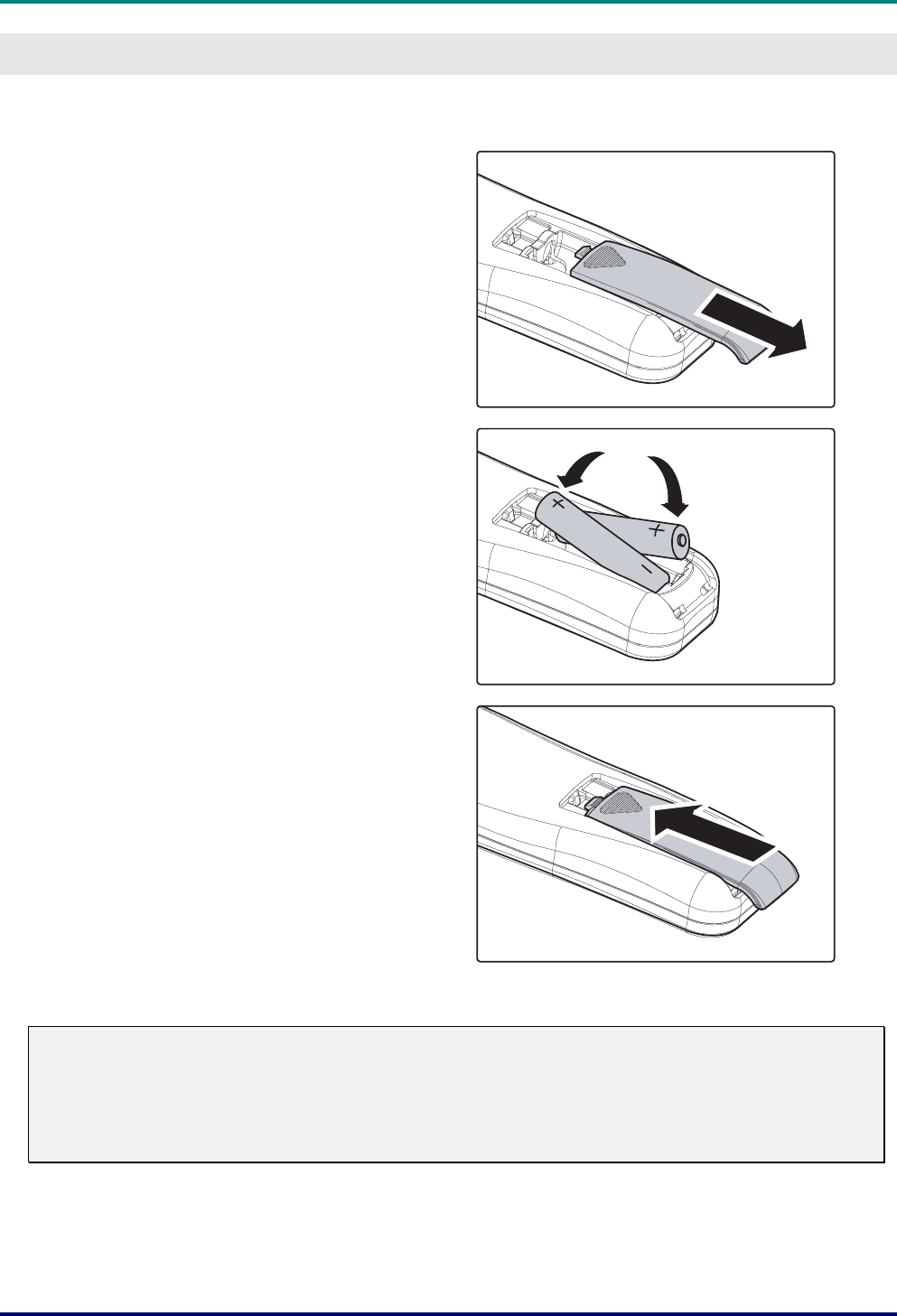

INSERTING THE REMOTE CONTROL BATTERIES ................................................................................................................... 9

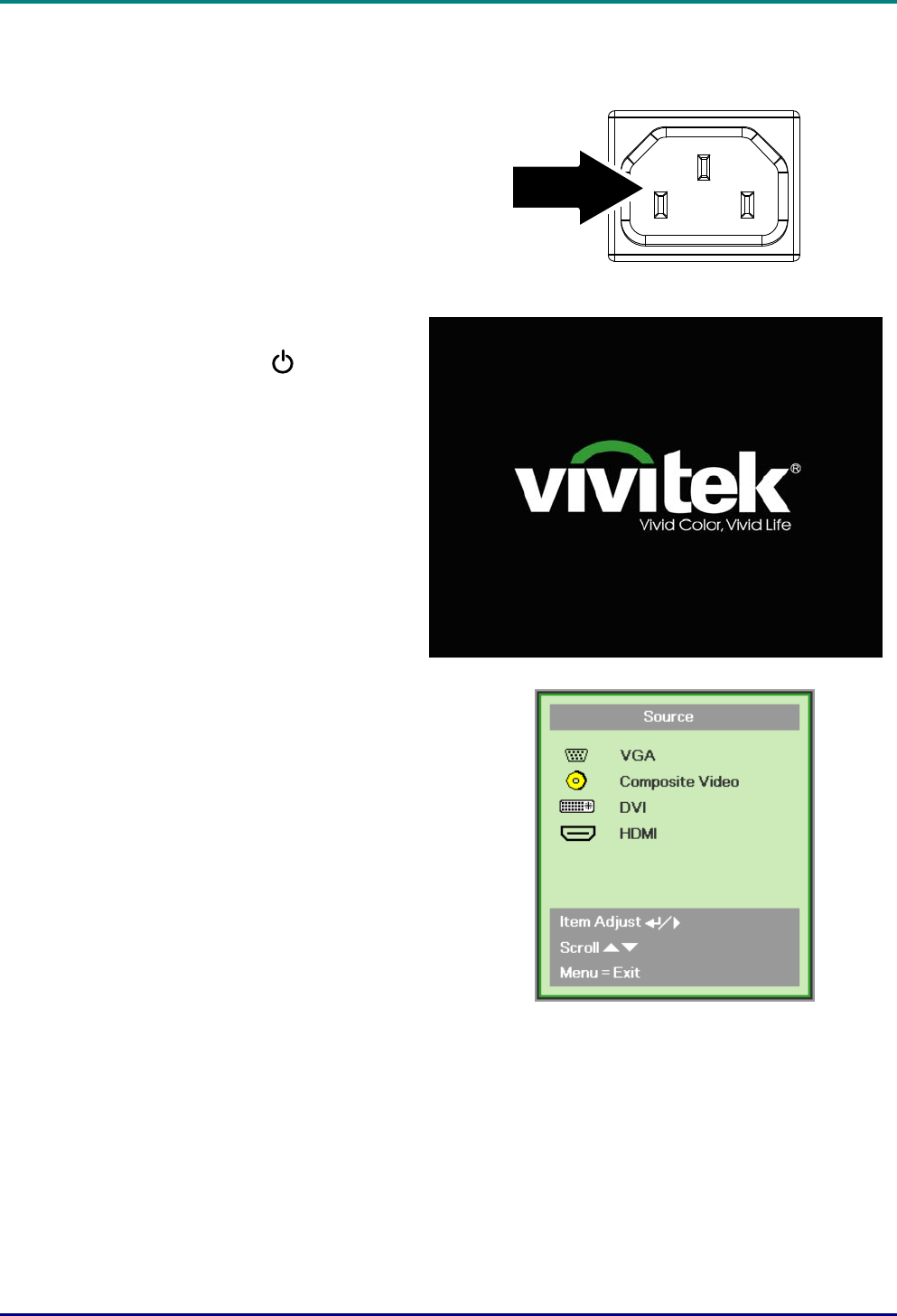

STARTING AND SHUTTING DOWN THE PROJECTOR............................................................................................................. 10

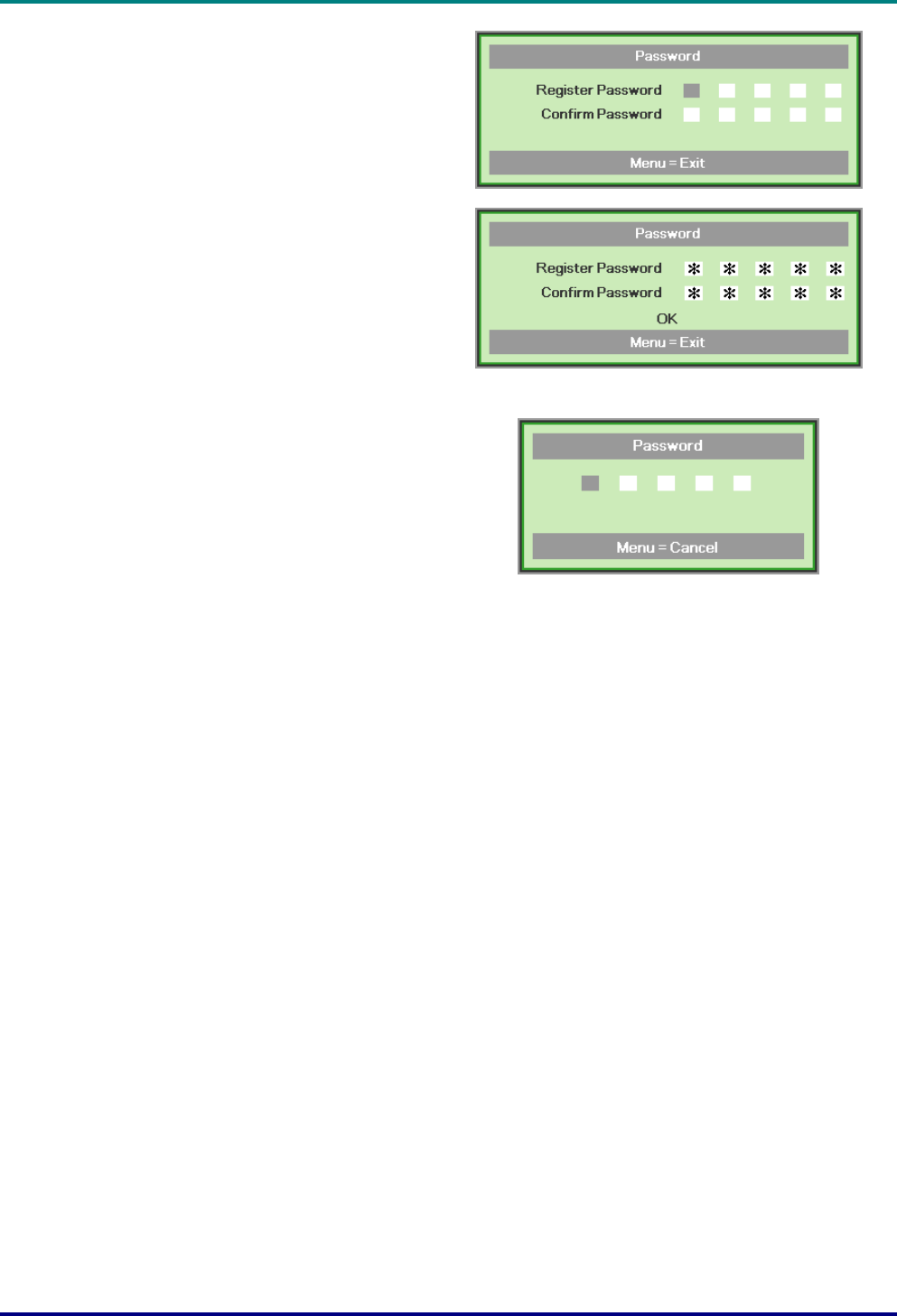

SETTING AN ACCESS PASSWORD (SECURITY LOCK).......................................................................................................... 12

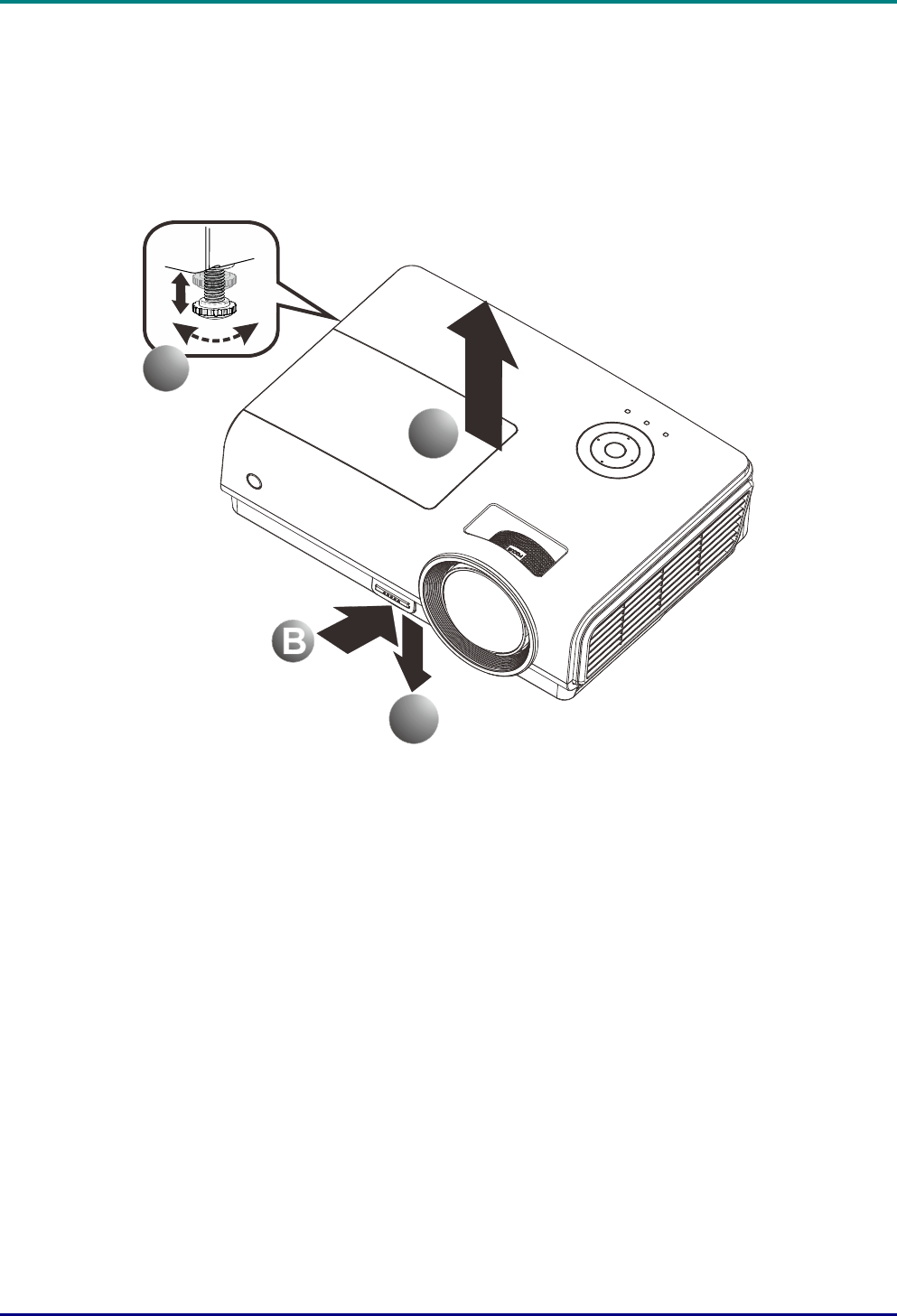

ADJUSTING THE PROJECTOR LEVEL ................................................................................................................................... 14

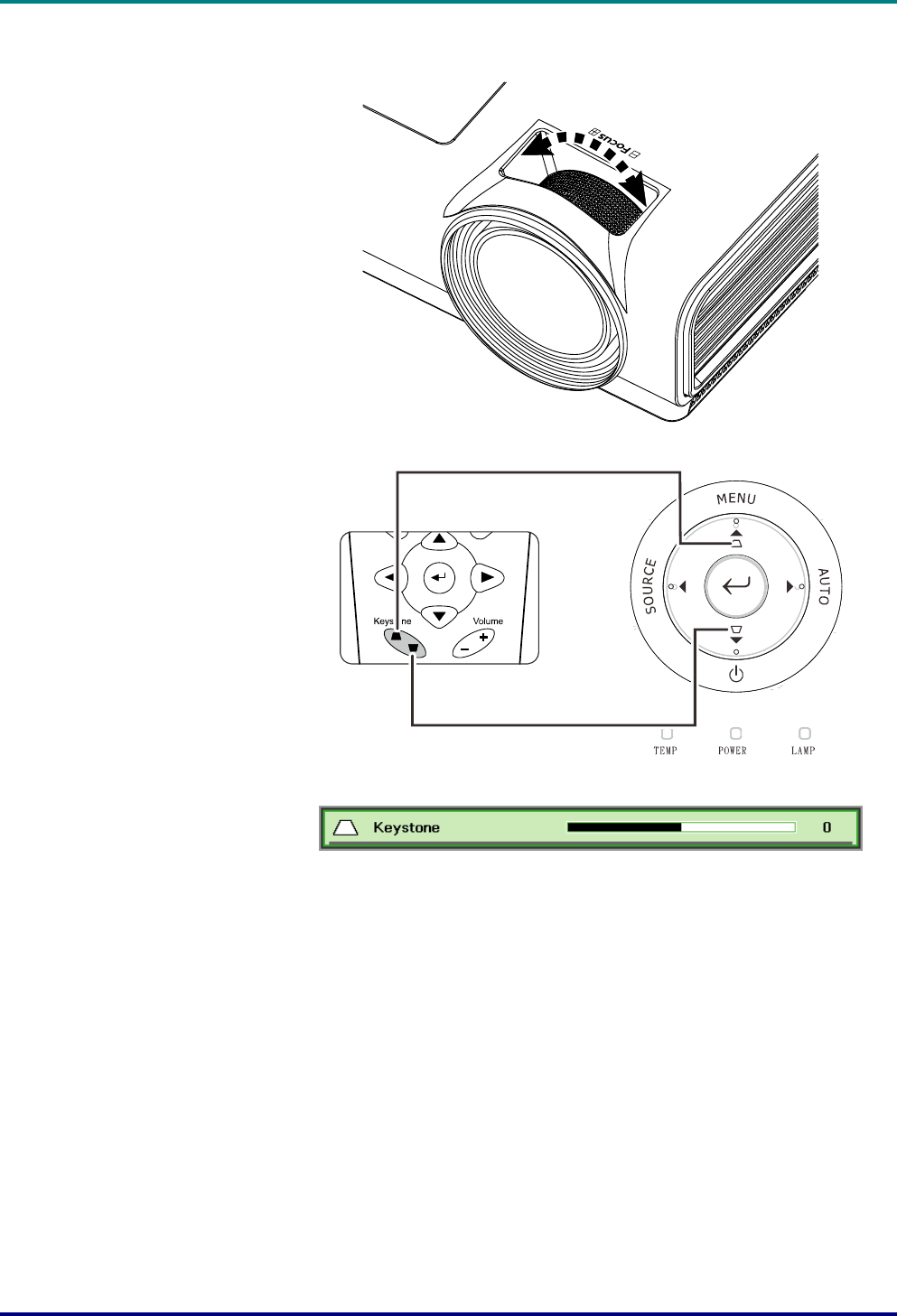

ADJUSTING FOCUS AND KEYSTONE ................................................................................................................................... 15

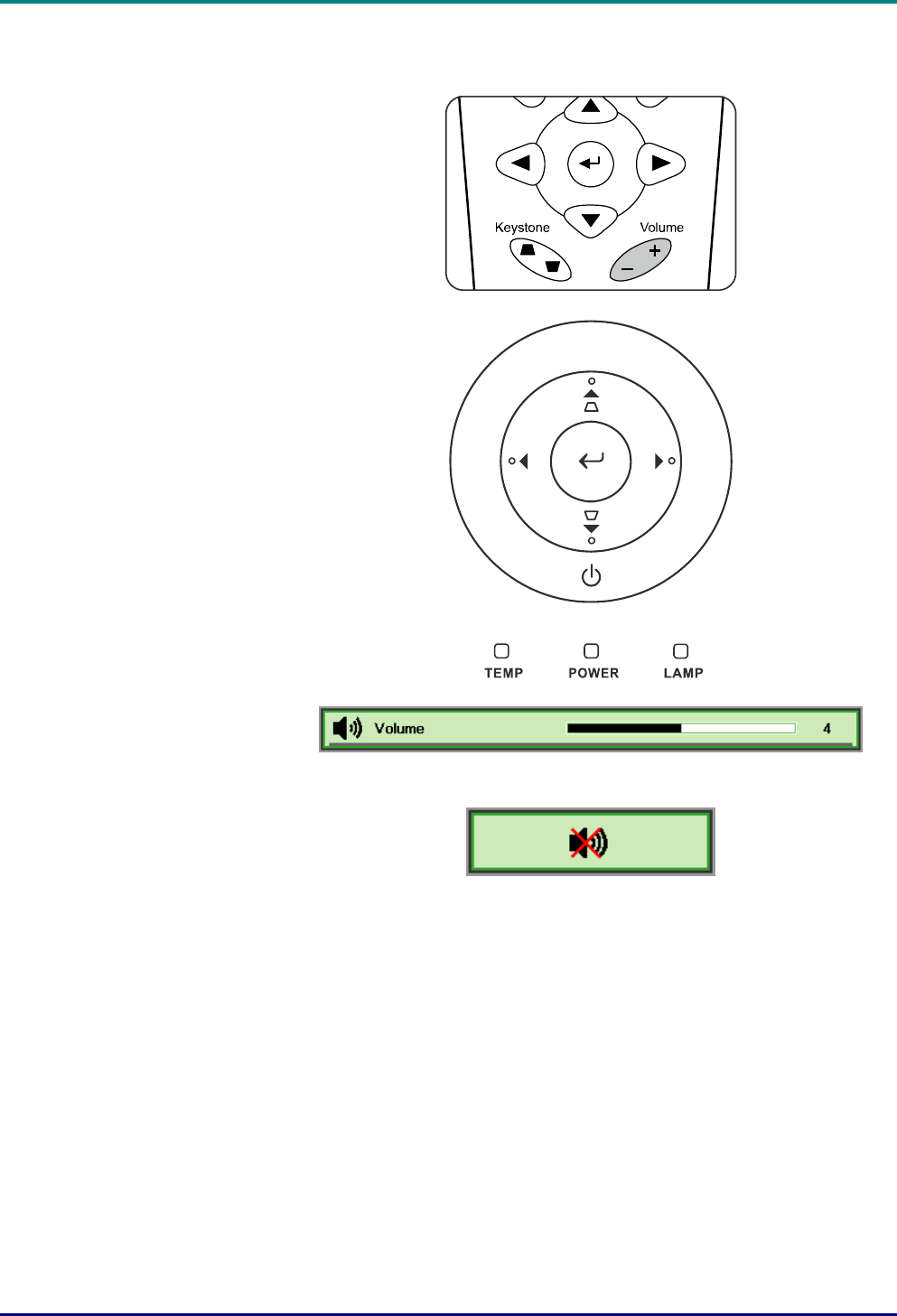

ADJUSTING THE VOLUME .................................................................................................................................................. 16
ON-SCREEN DISPLAY (OSD) MENU SETTINGS....................................................................................................... 17
OSD MENU CONTROLS ..................................................................................................................................................... 17

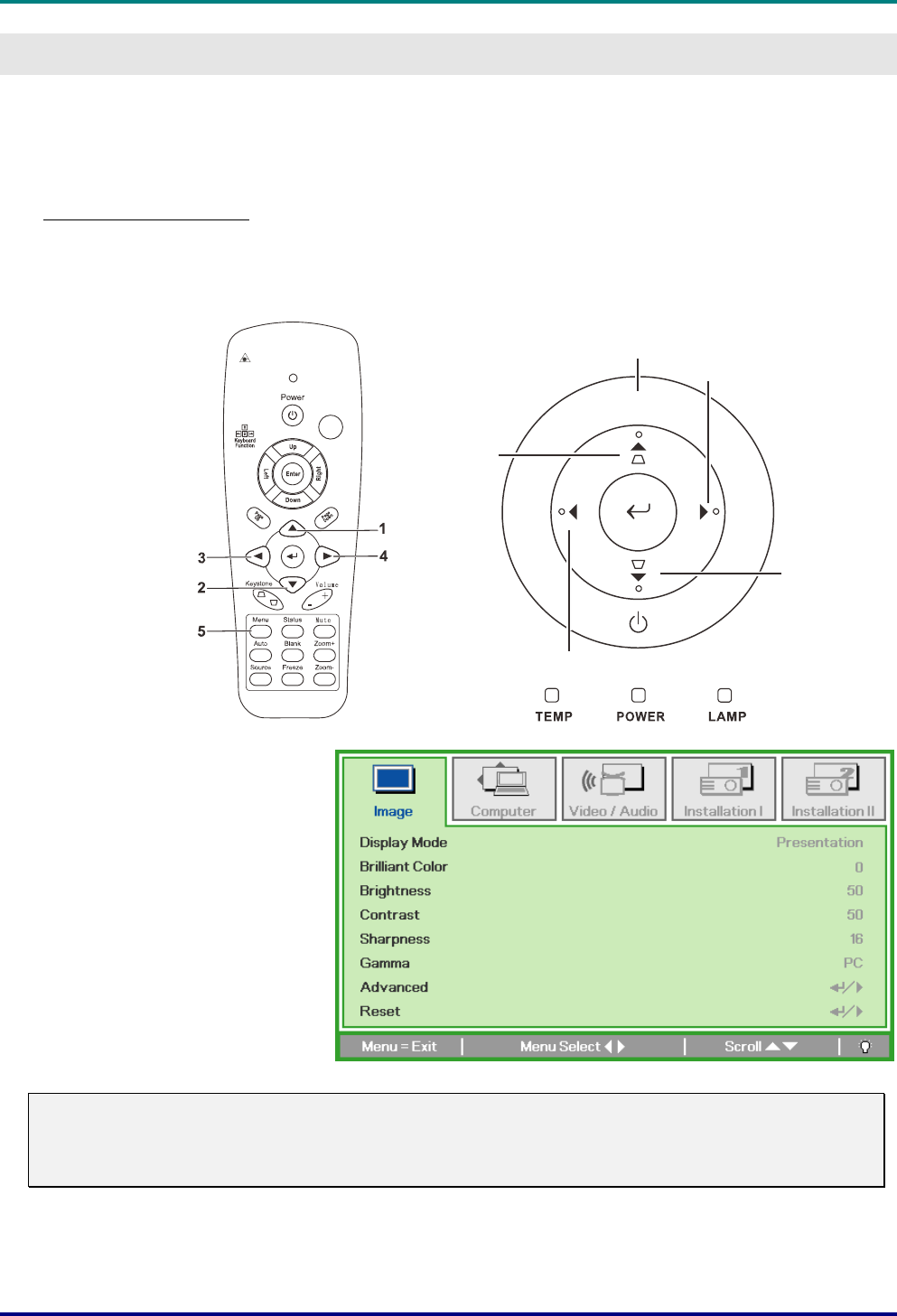

Navigating the OSD...................................................................................................................................................... 17
SETTING THE OSD LANGUAGE .......................................................................................................................................... 18

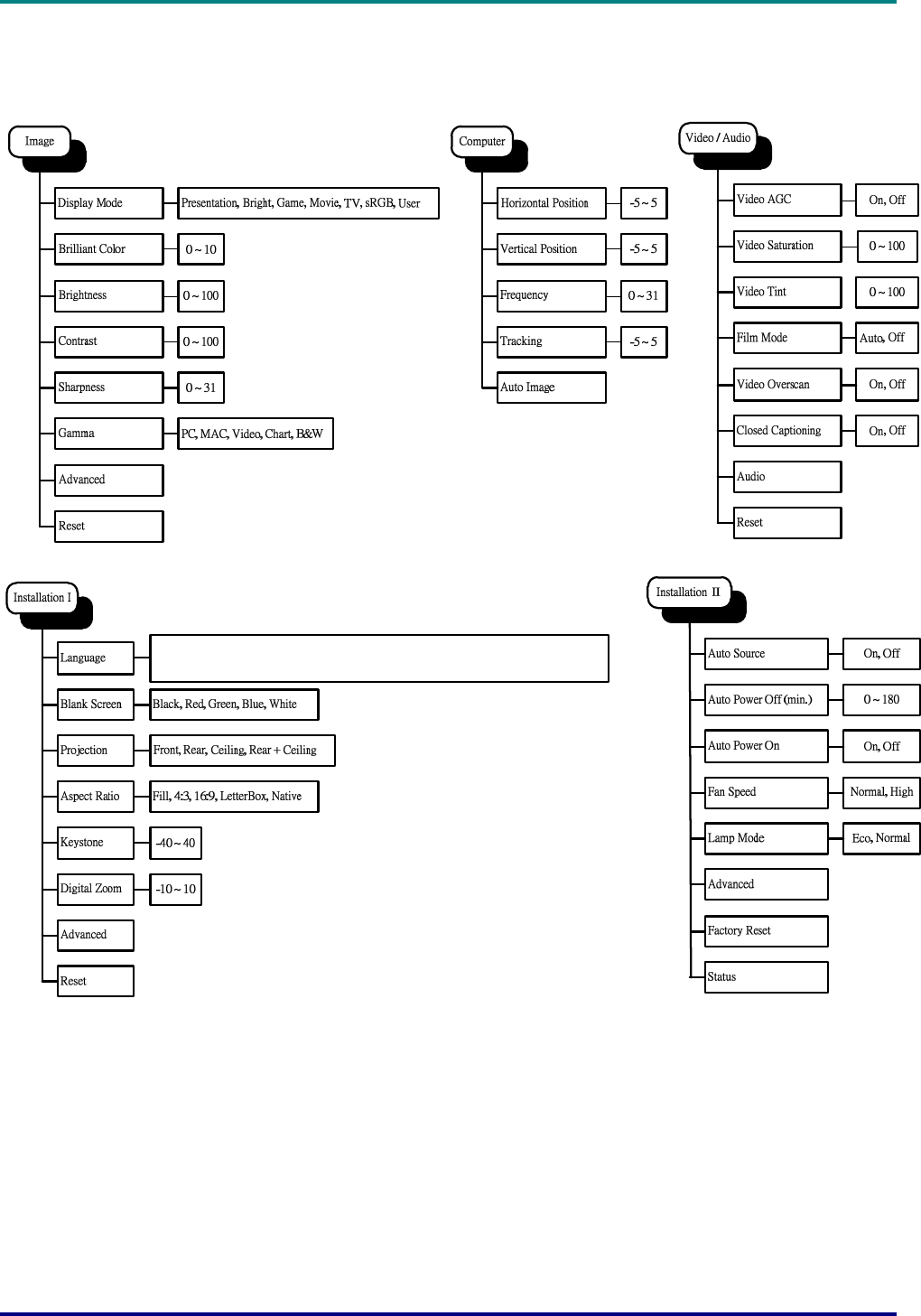

OSD MENU OVERVIEW ..................................................................................................................................................... 19

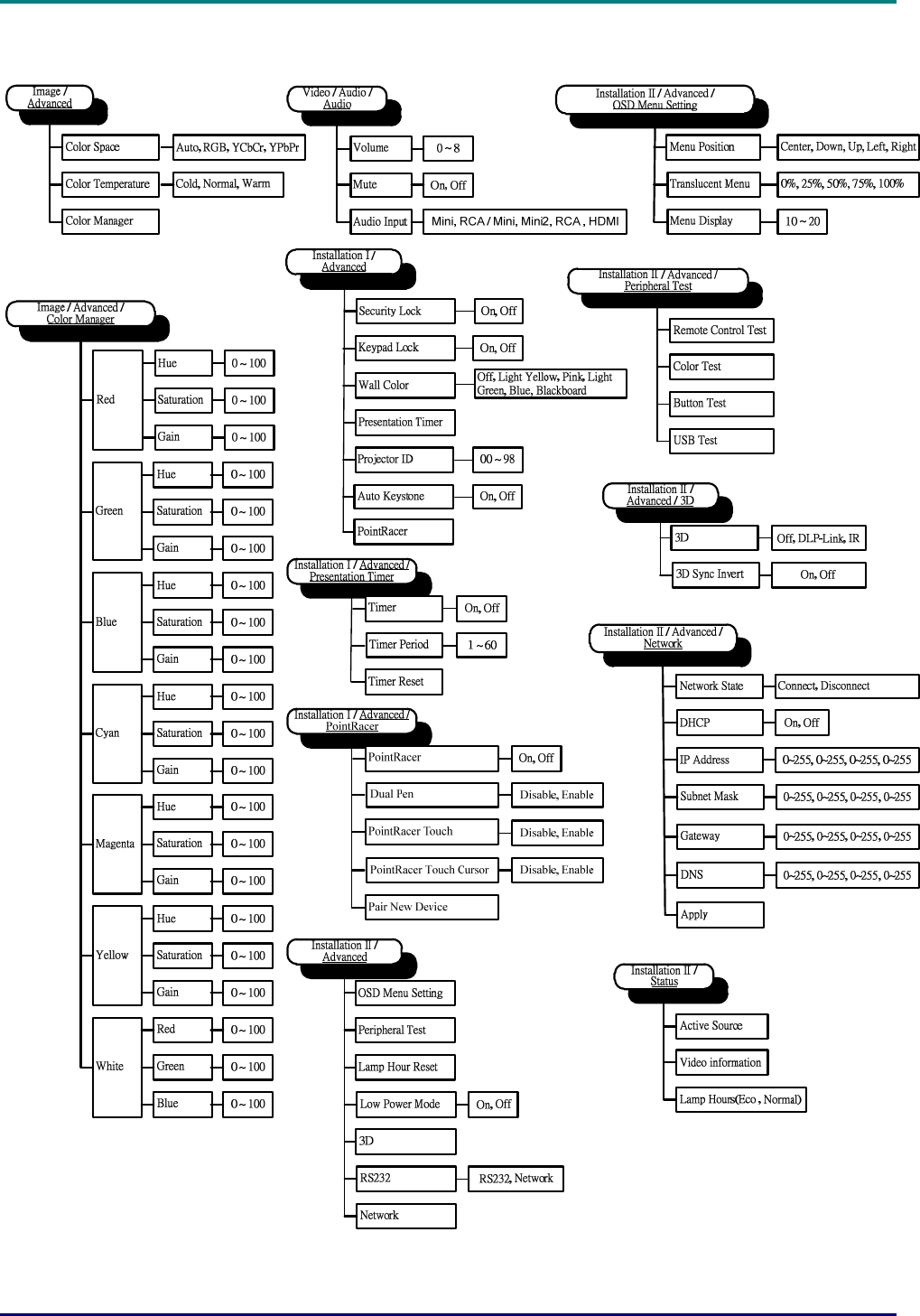

OSD SUB-MENU OVERVIEW ............................................................................................................................................. 20

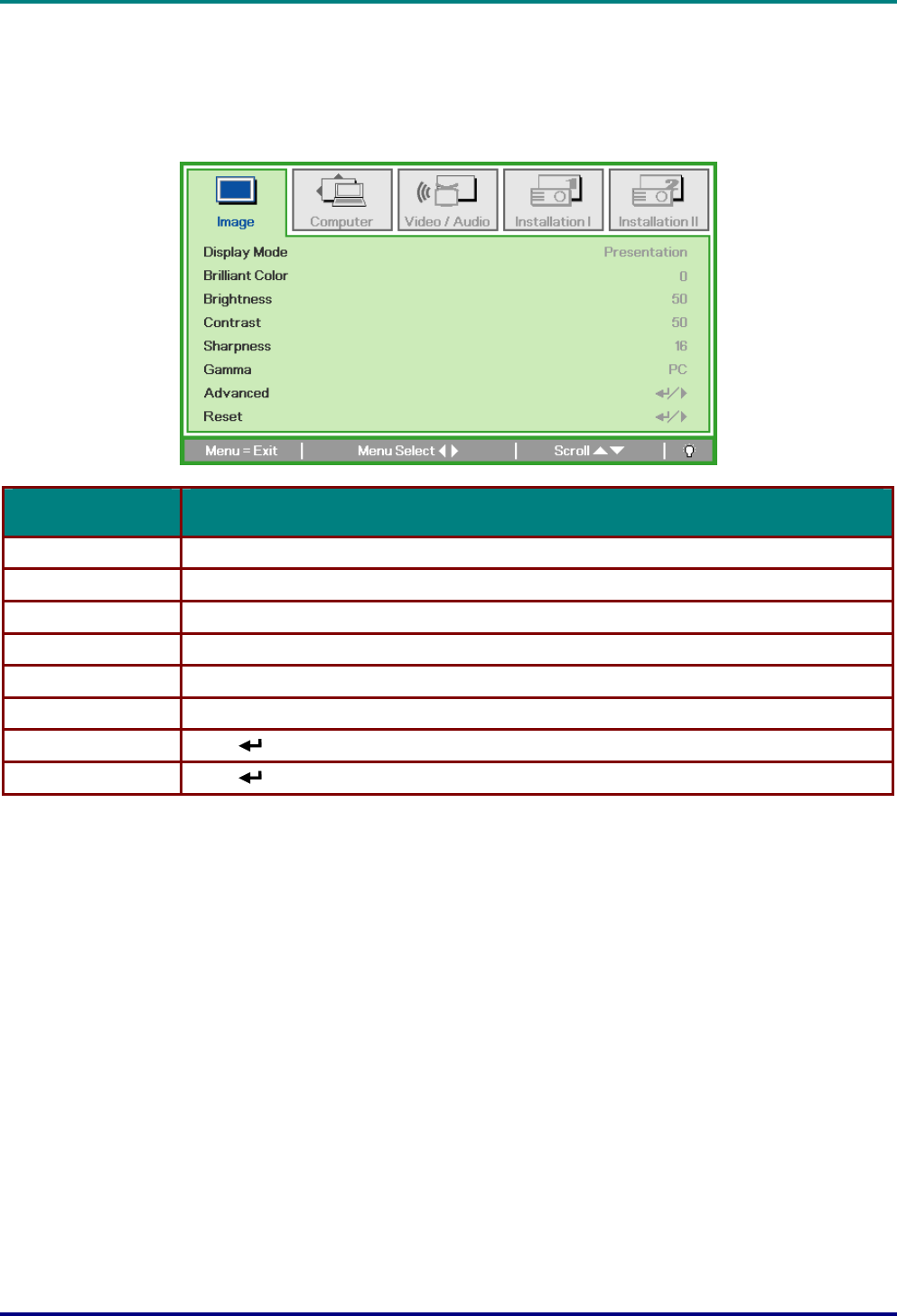

IMAGE MENU..................................................................................................................................................................... 21

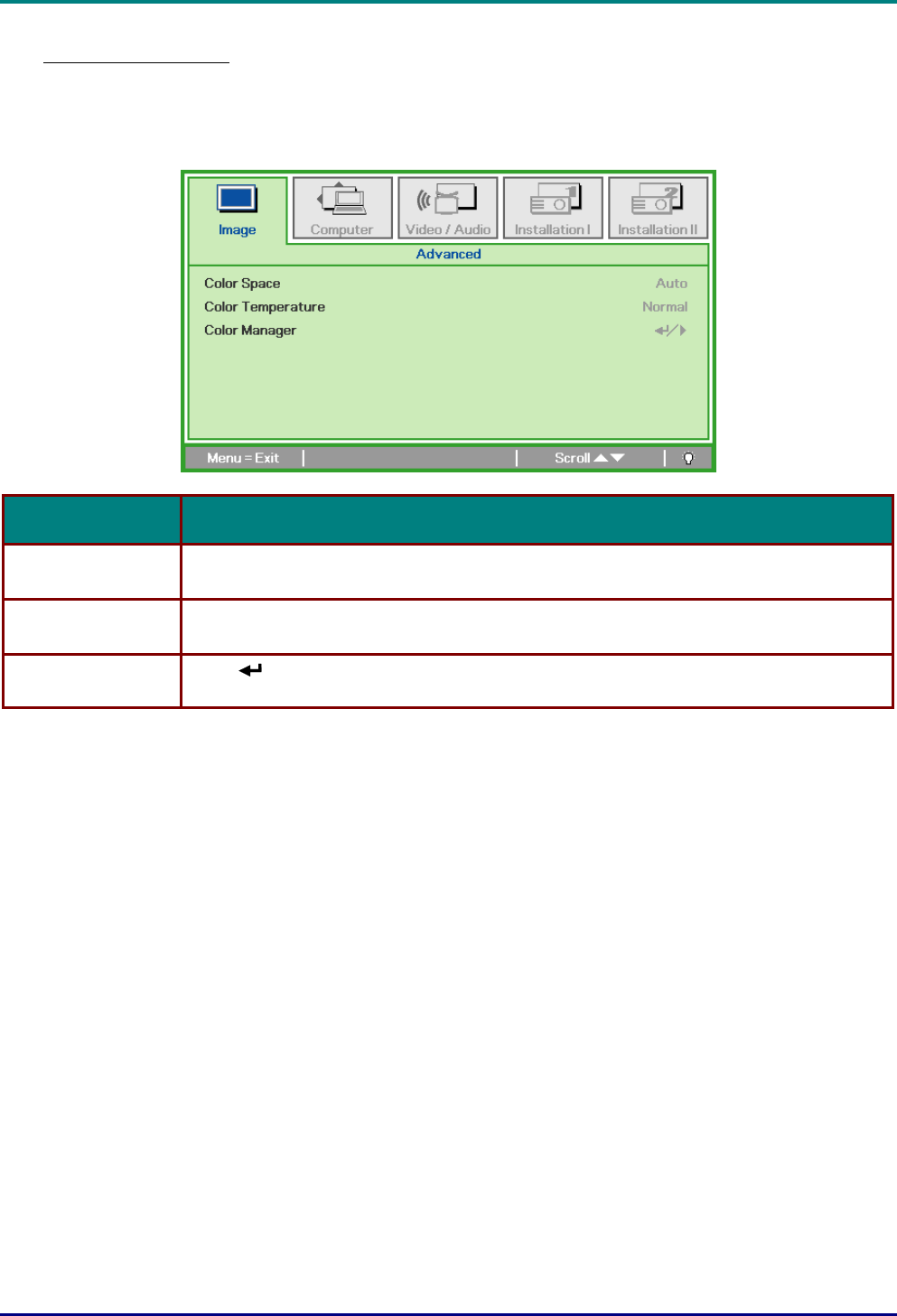

Advanced Feature......................................................................................................................................................... 22

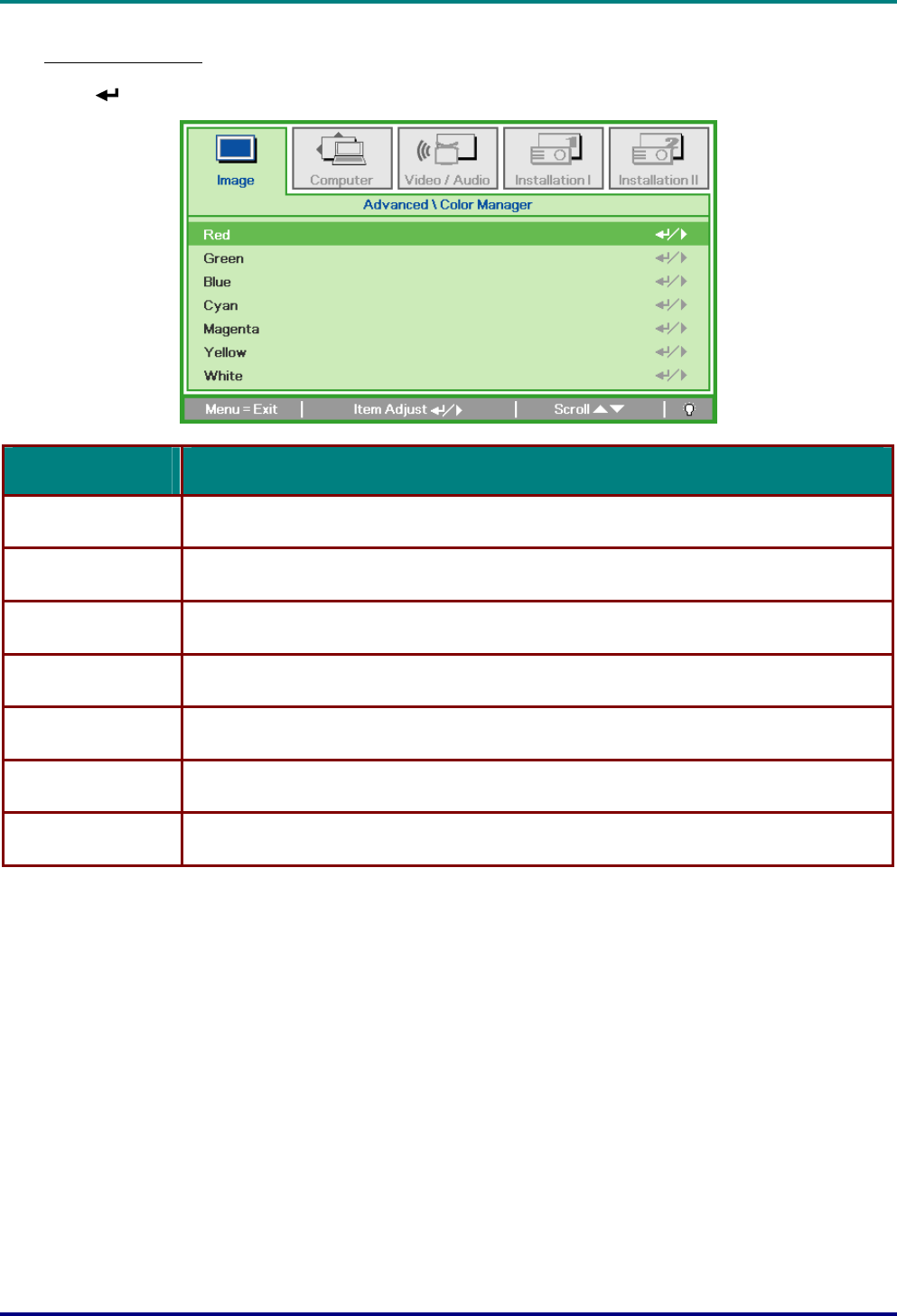

Color Manager.............................................................................................................................................................. 23

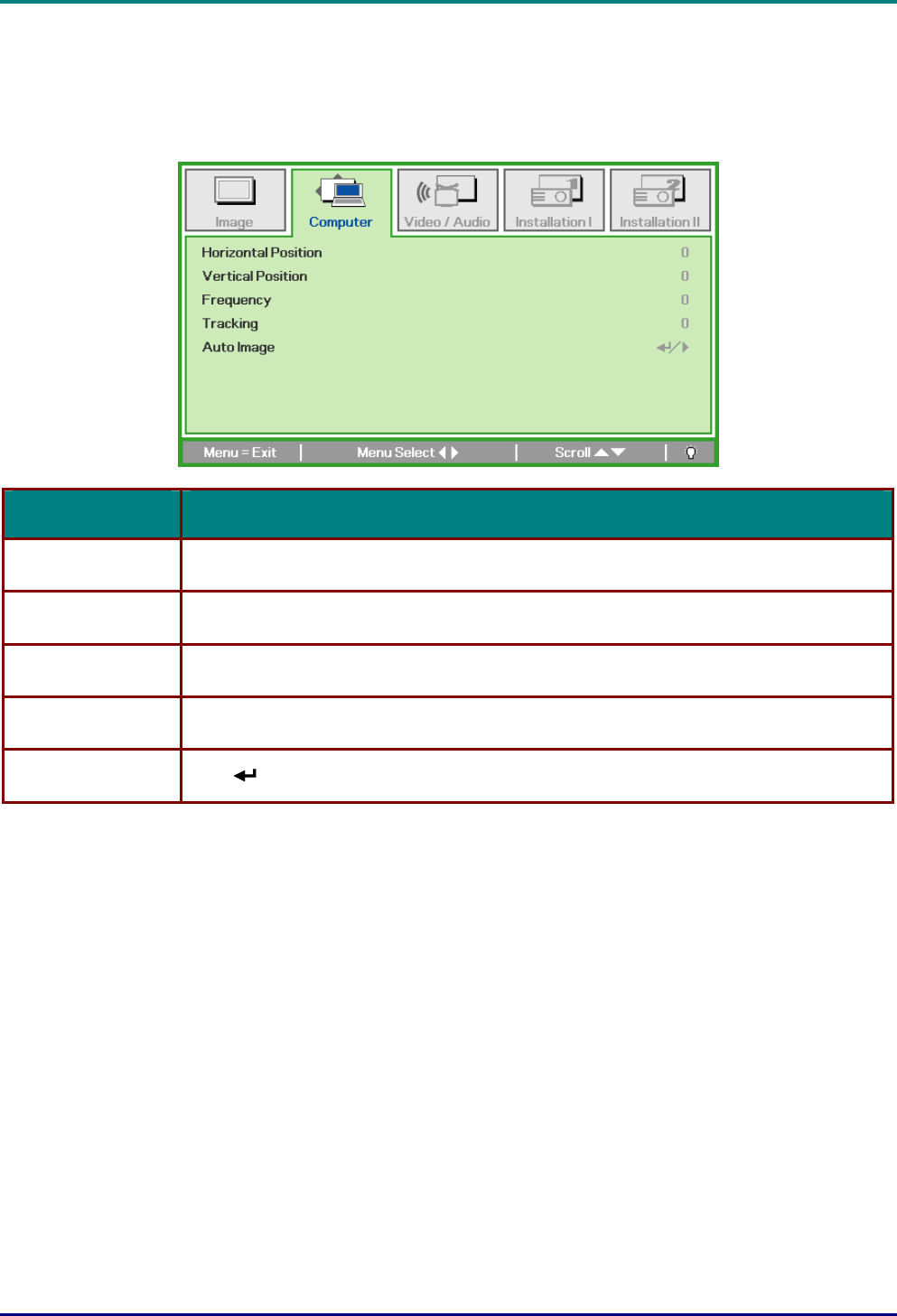

COMPUTER MENU.............................................................................................................................................................. 24 U

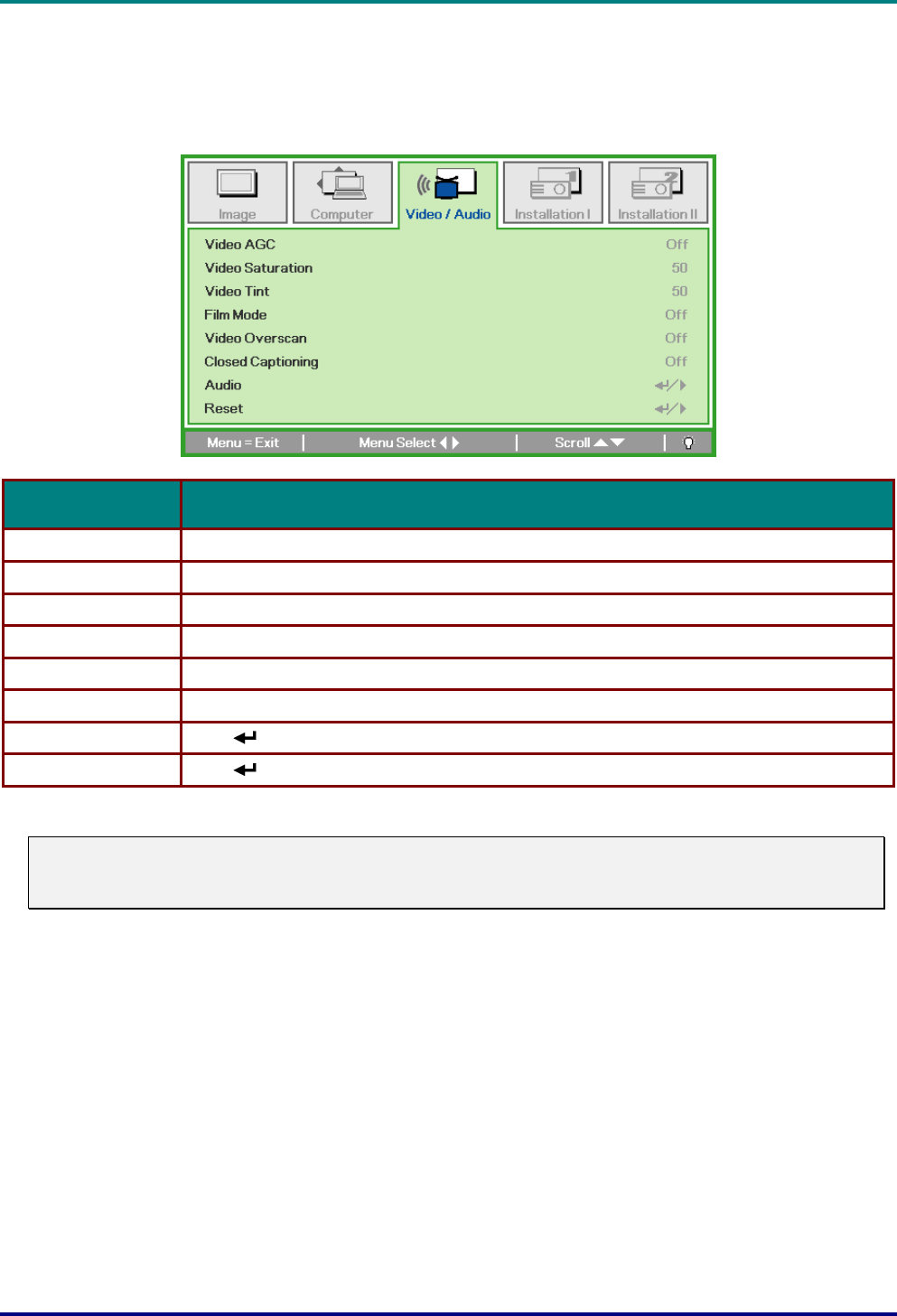

VIDEO/AUDIO MENU ......................................................................................................................................................... 25

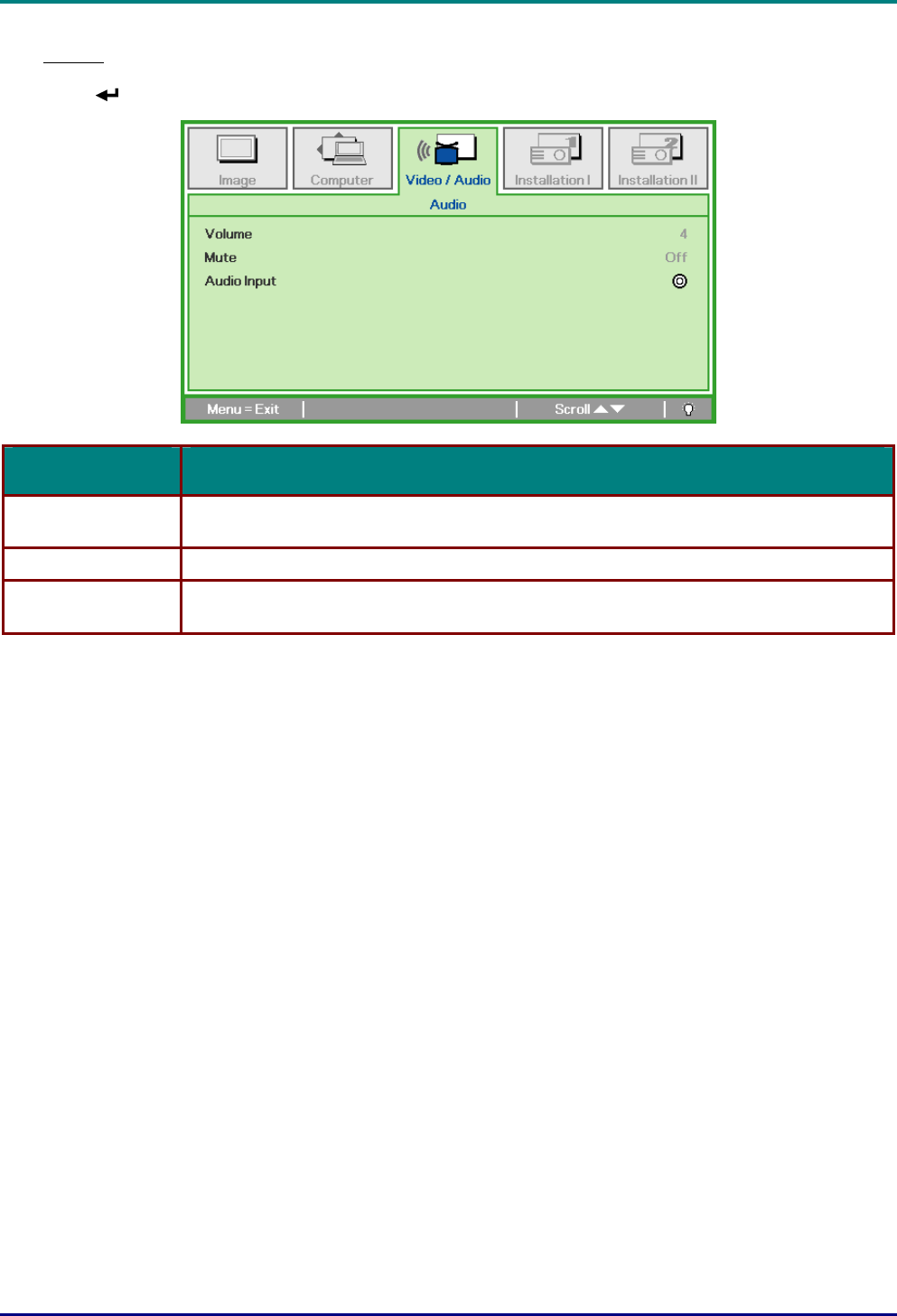

Audio............................................................................................................................................................................. 26

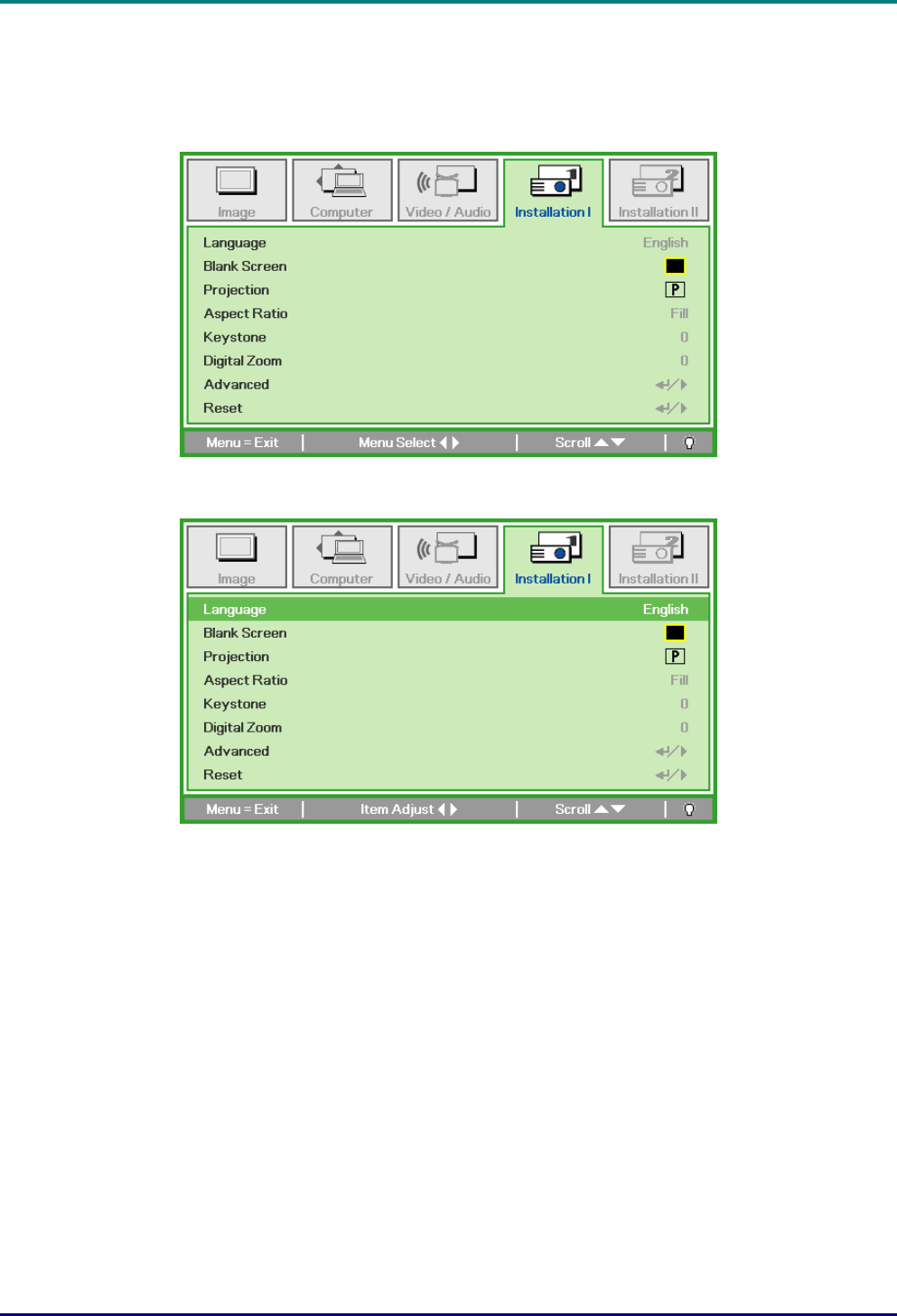

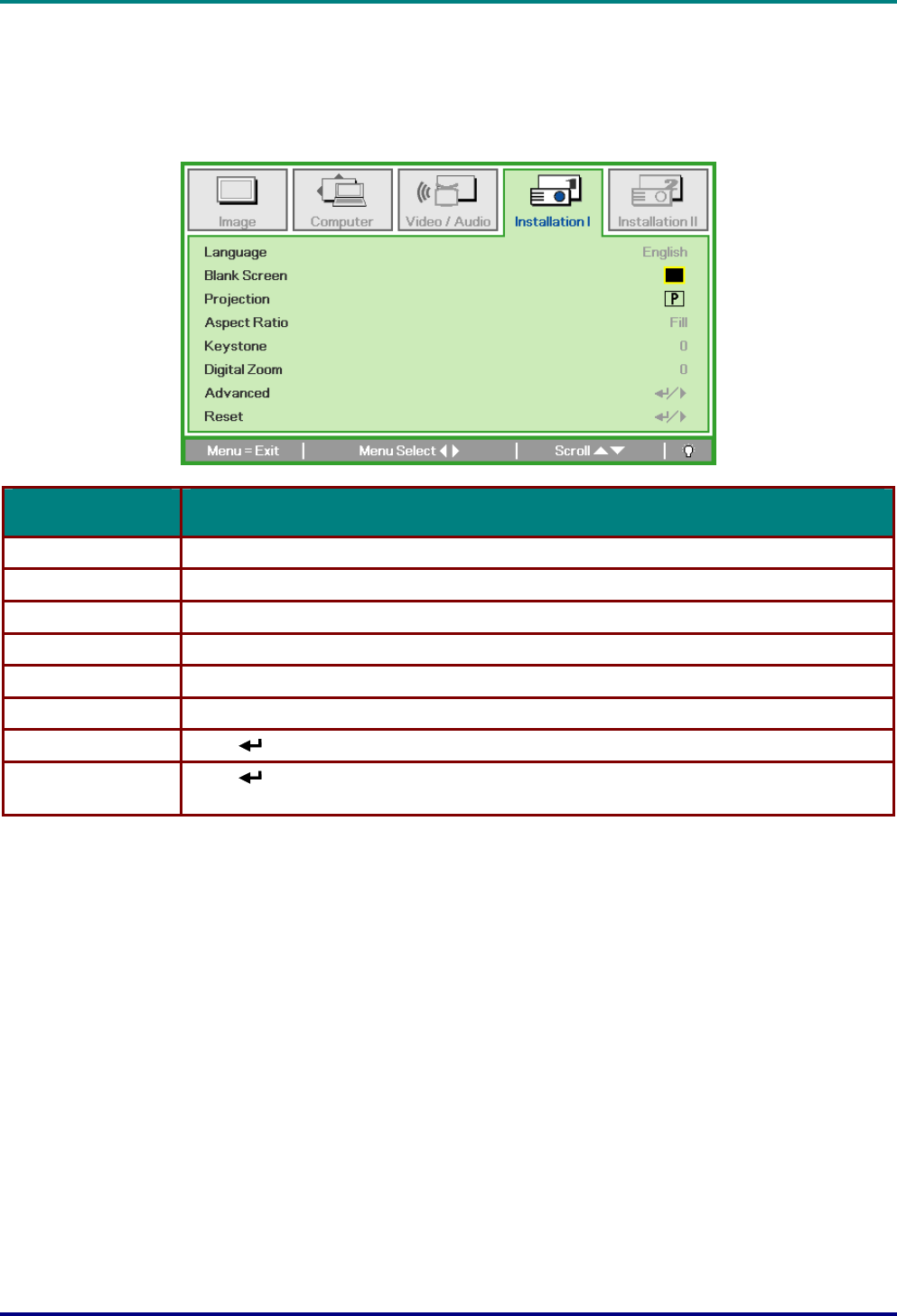

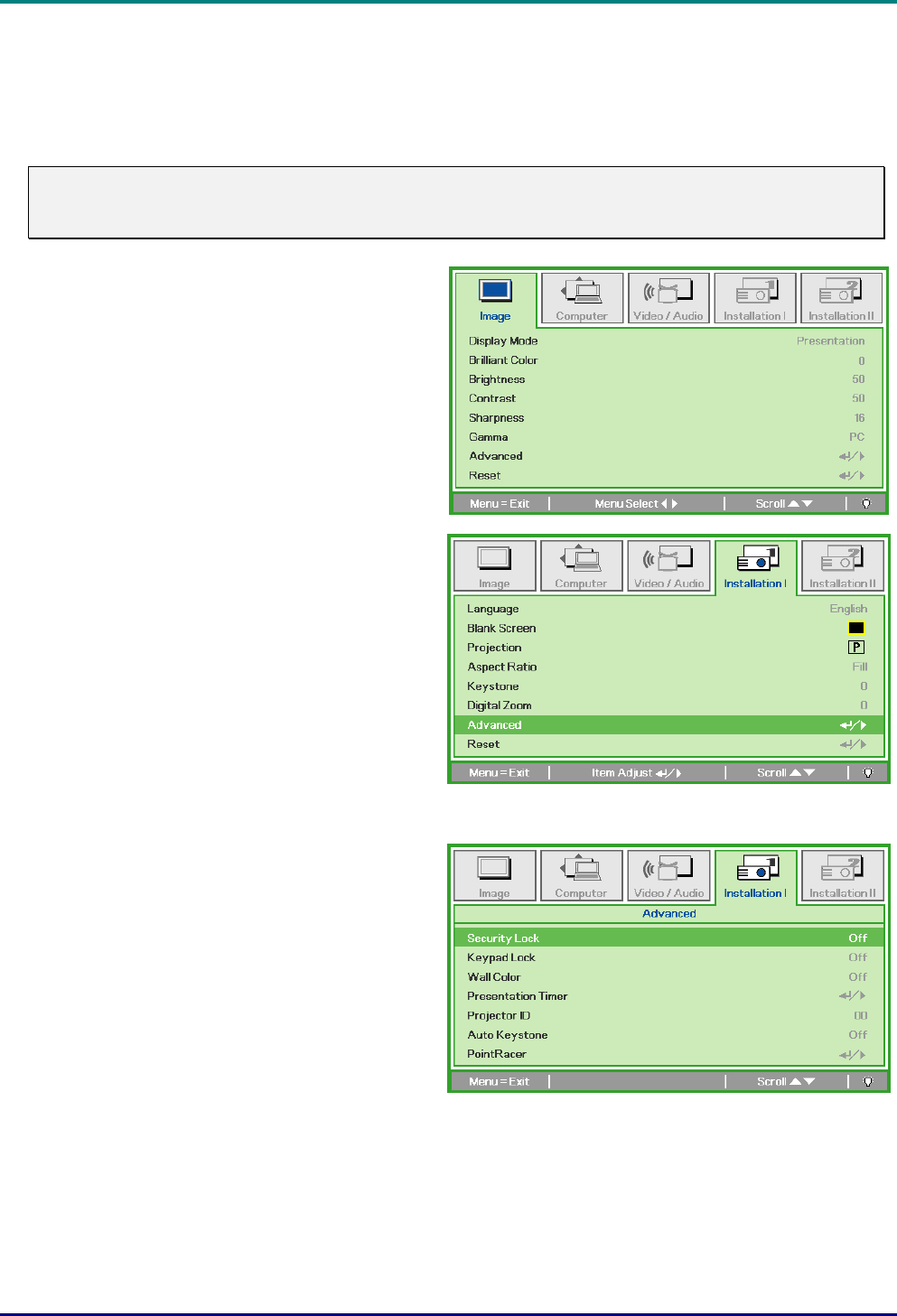

INSTALLATION I MENU ...................................................................................................................................................... 27

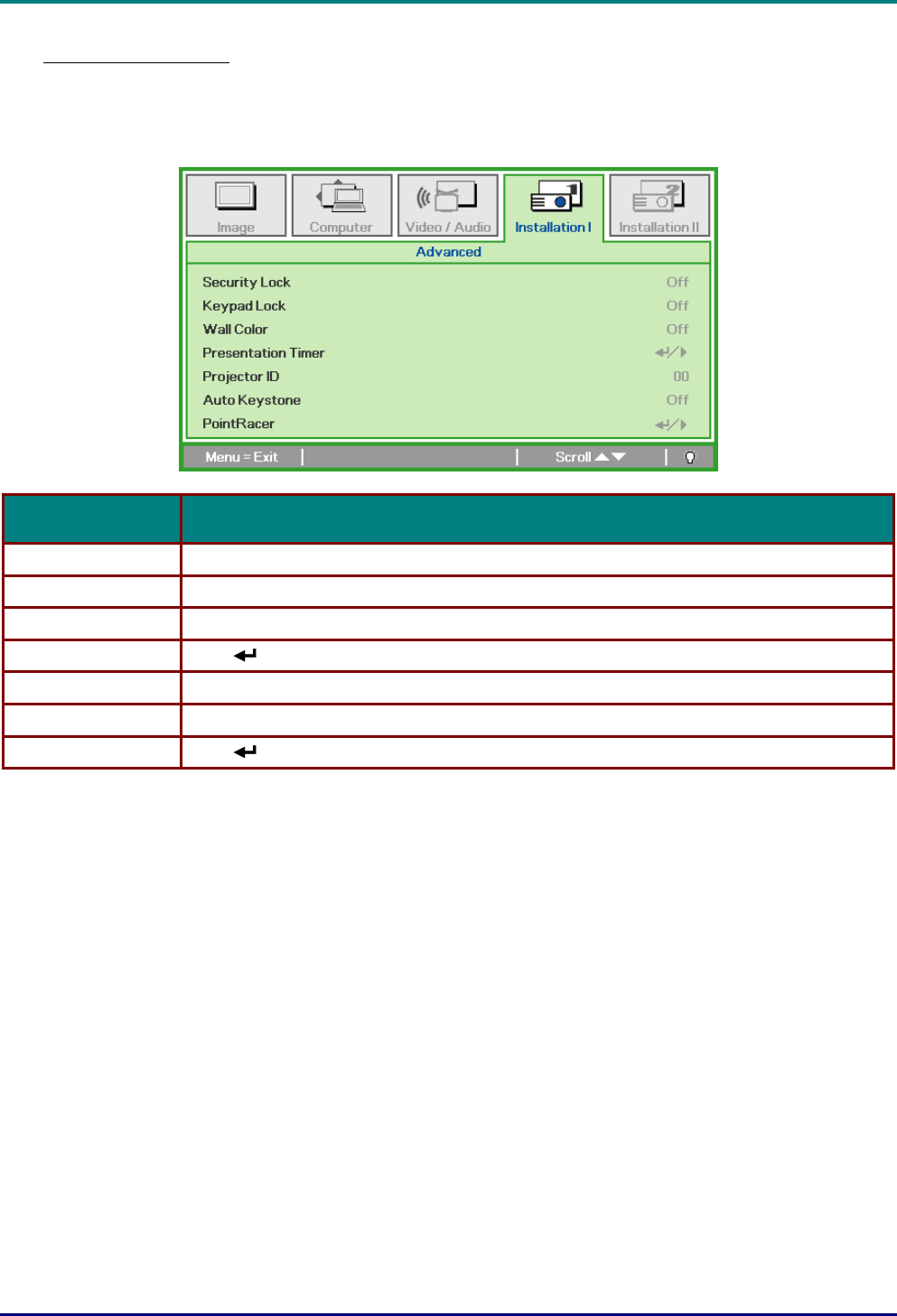

Advanced Feature......................................................................................................................................................... 28

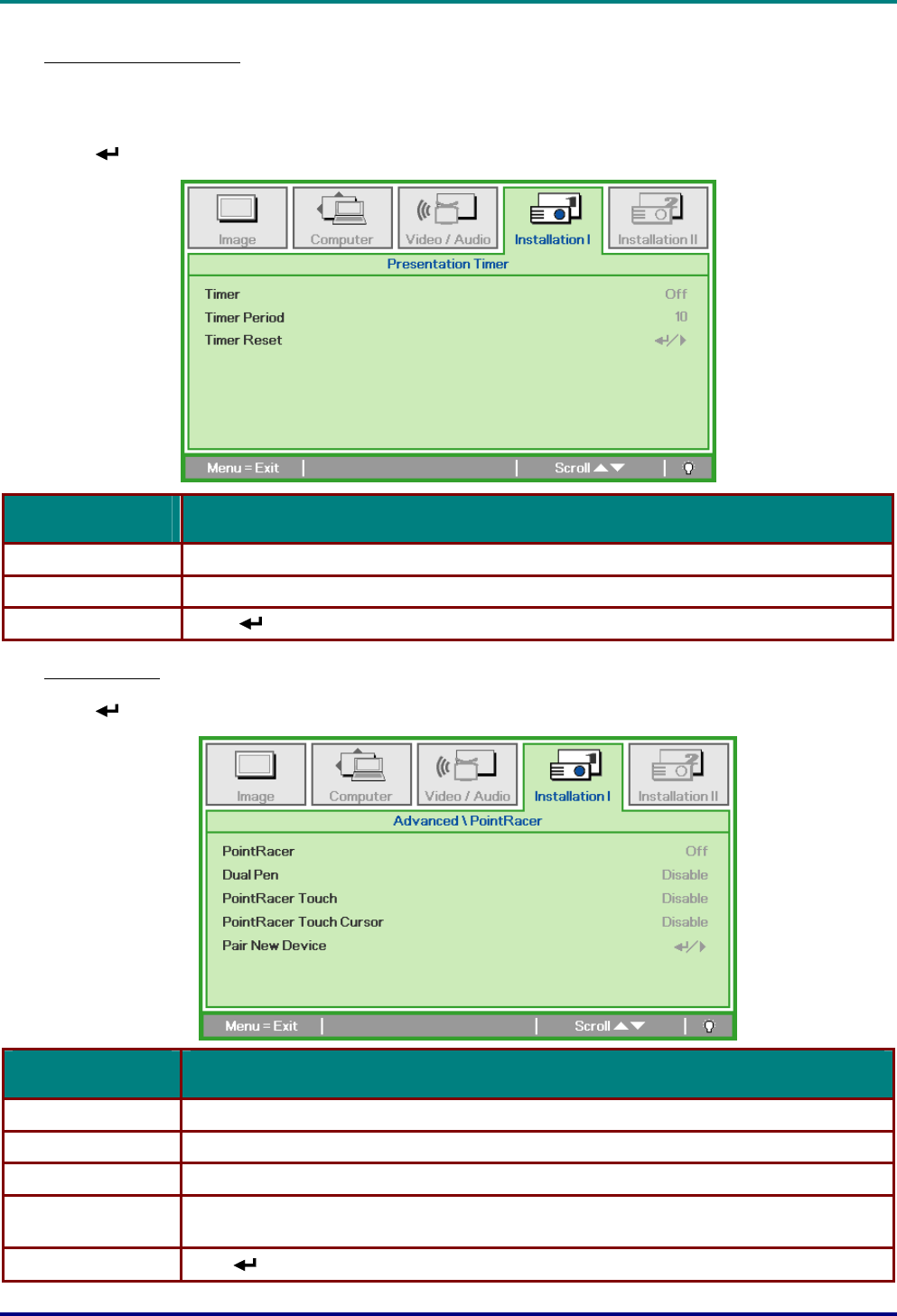

Presentation Timer........................................................................................................................................................ 29
PointRacer .................................................................................................................................................................... 29

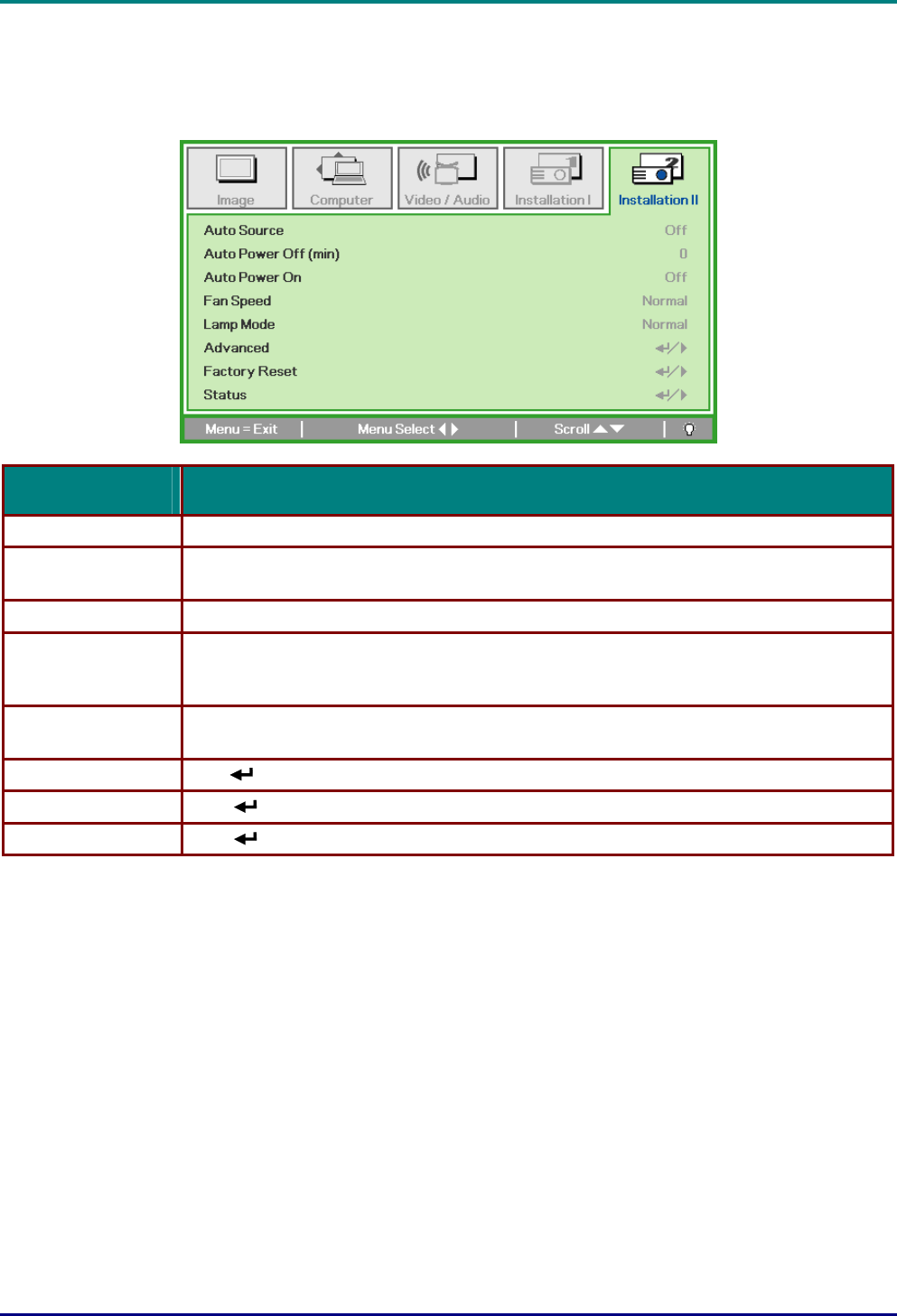

INSTALLATION II MENU..................................................................................................................................................... 30

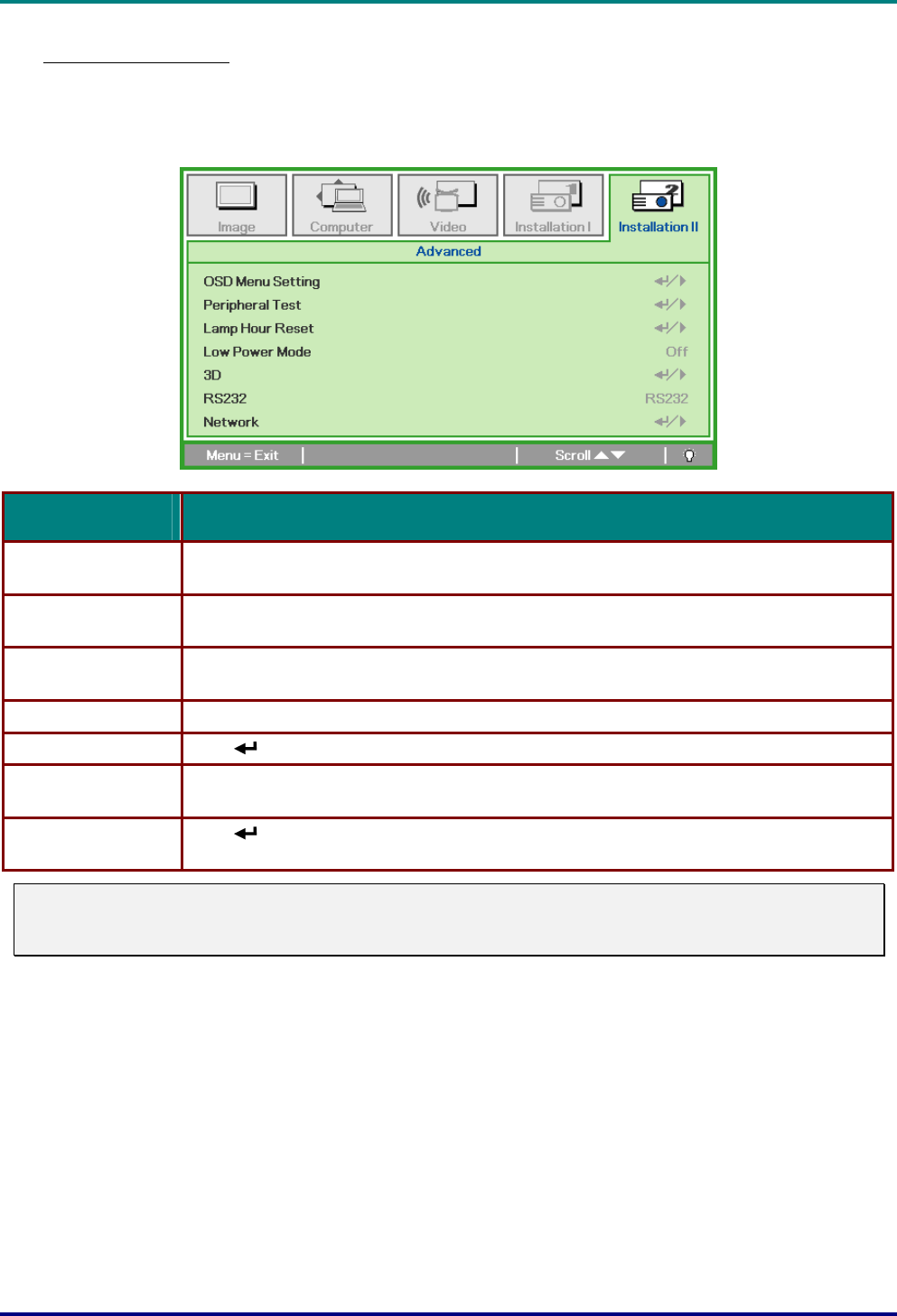

Advanced Feature......................................................................................................................................................... 31

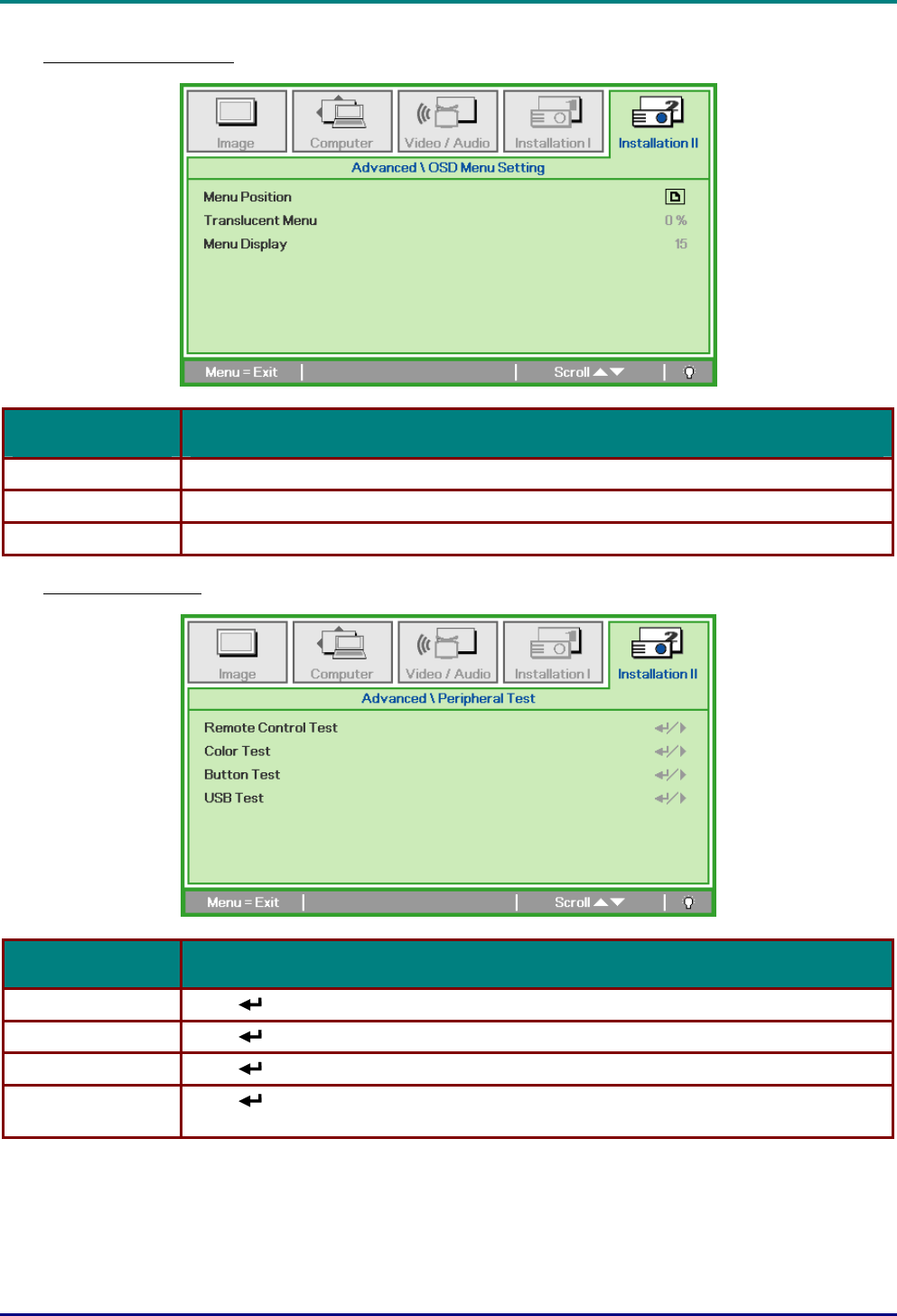

OSD Menu Setting......................................................................................................................................................... 32
Peripheral Test.............................................................................................................................................................. 32

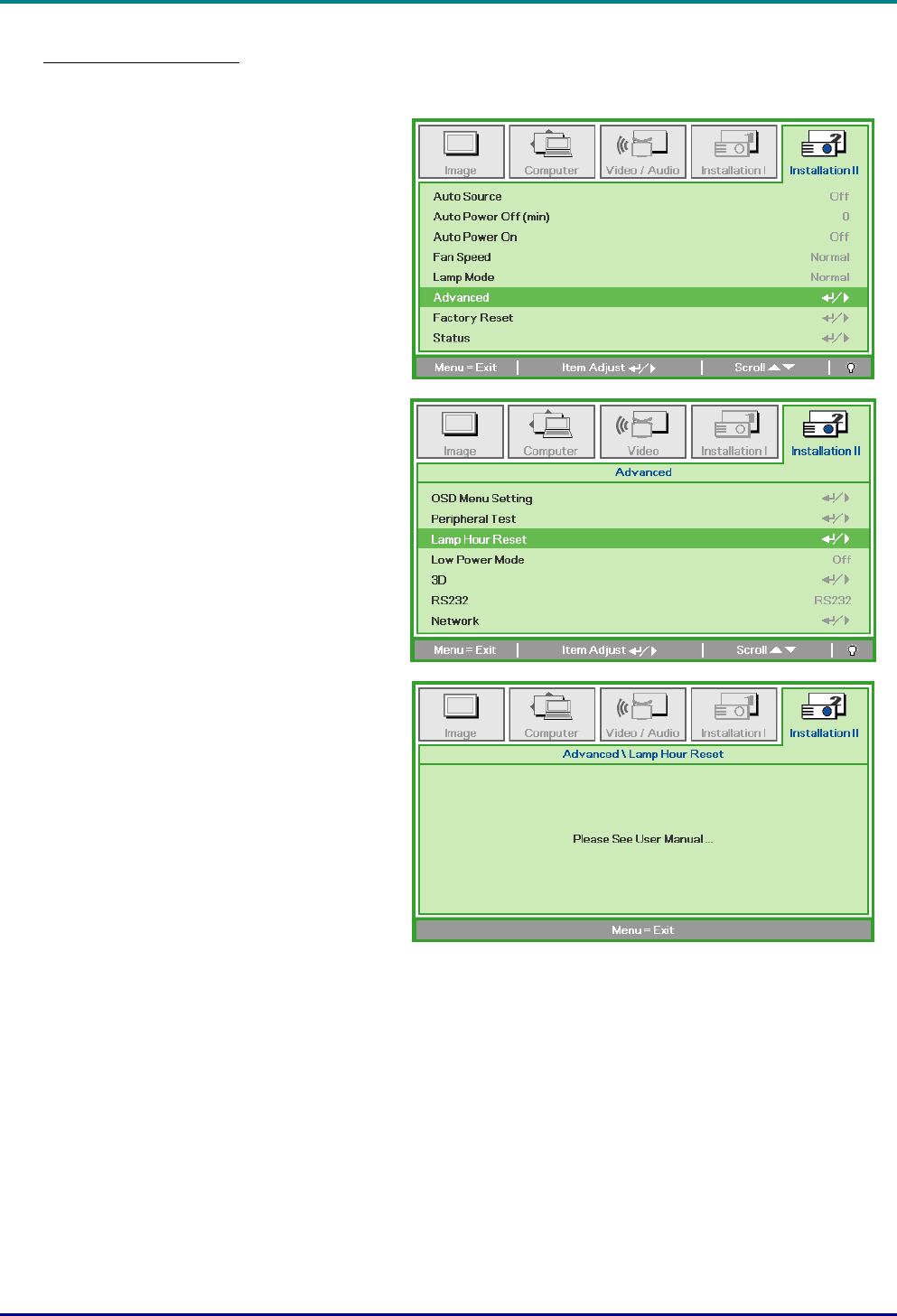

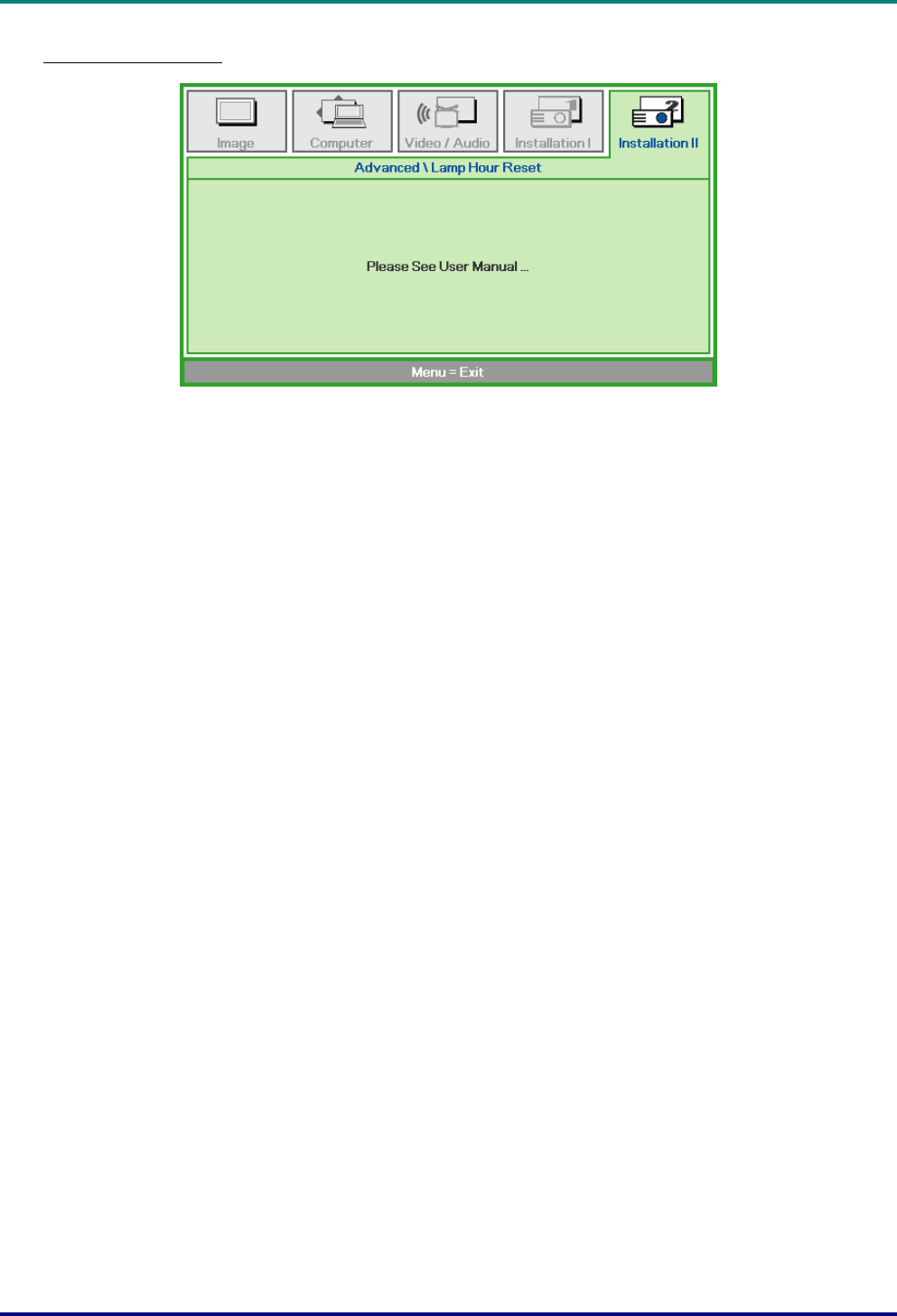

Lamp Hour Reset .......................................................................................................................................................... 33

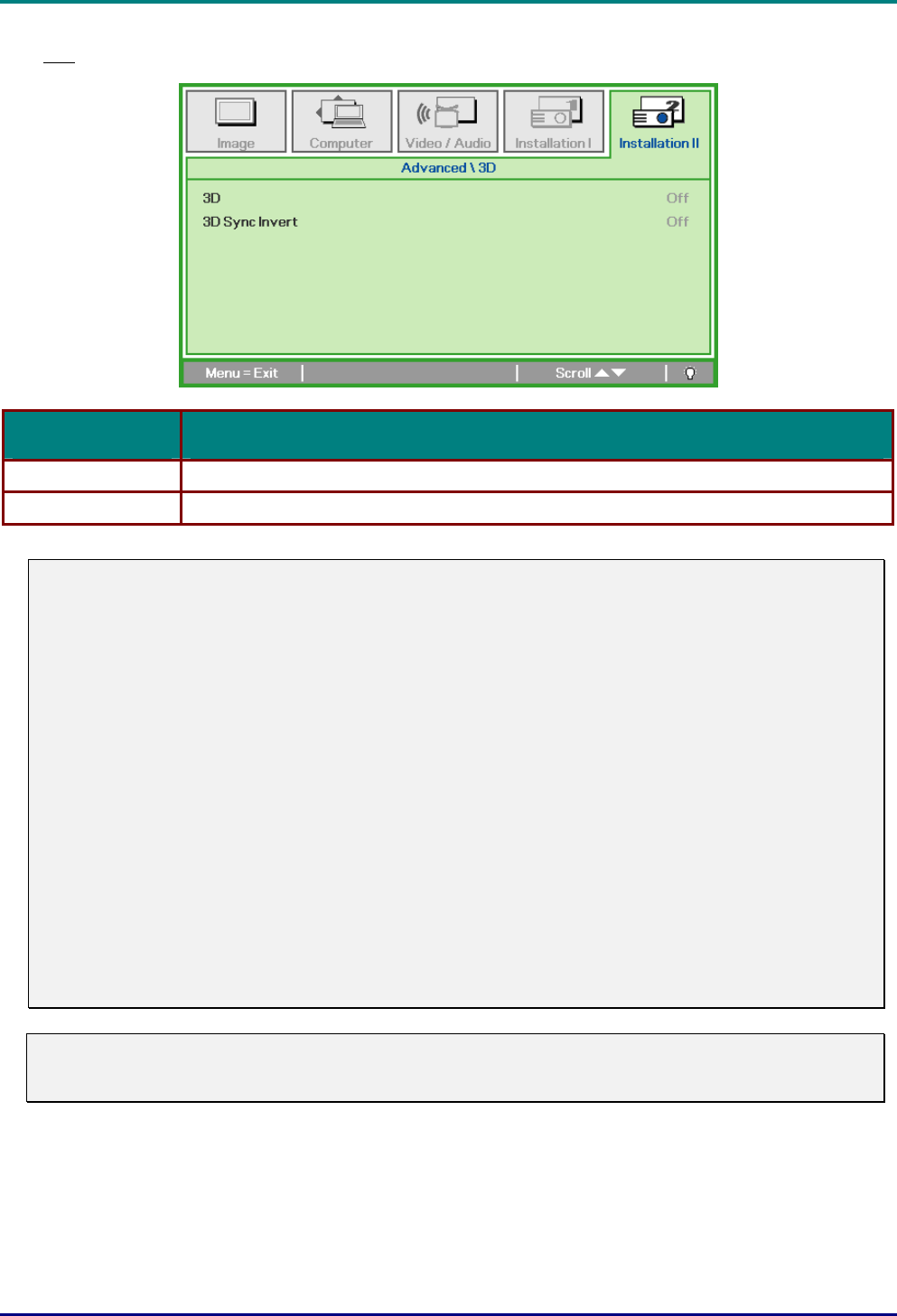

3D ................................................................................................................................................................................. 34

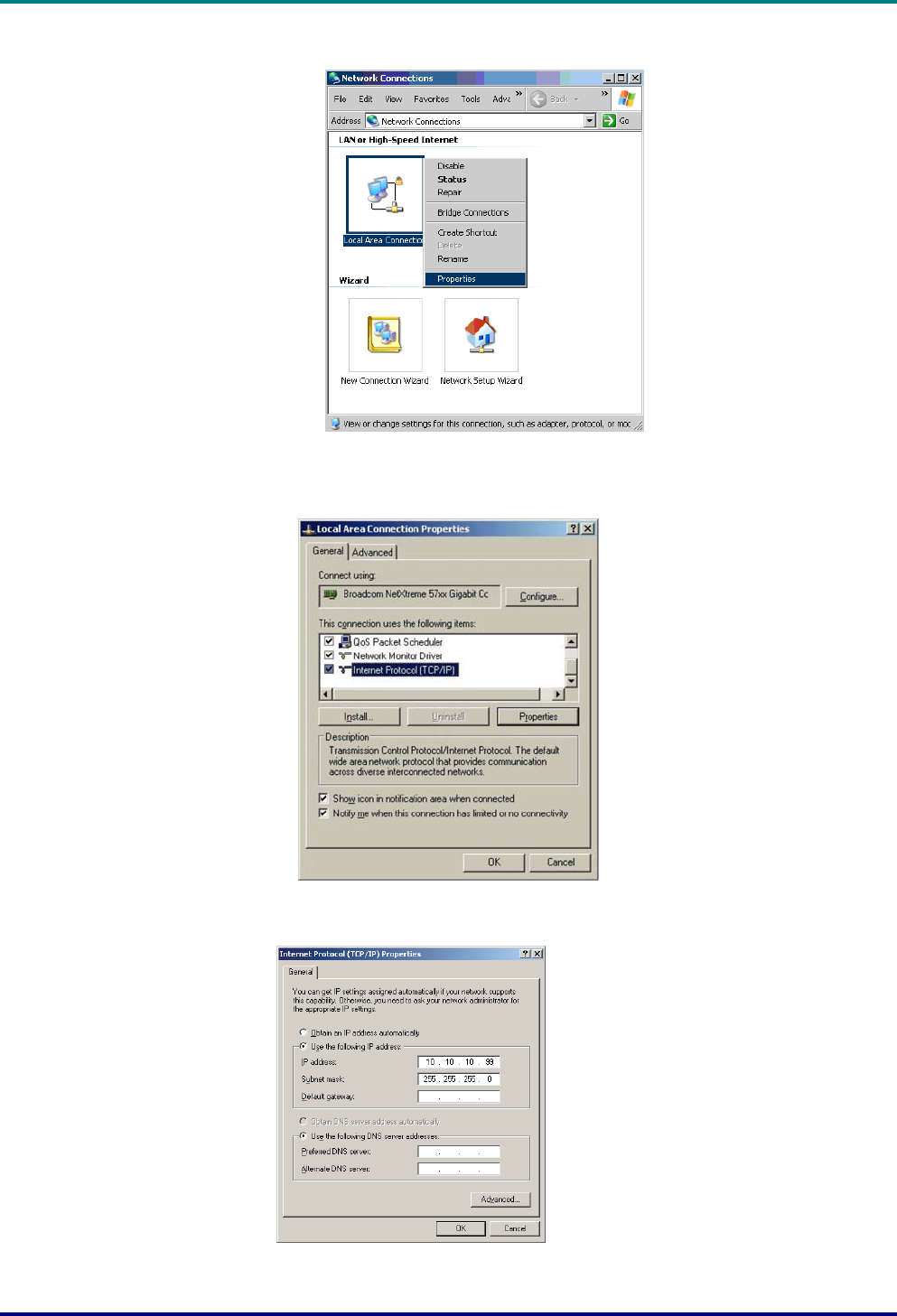

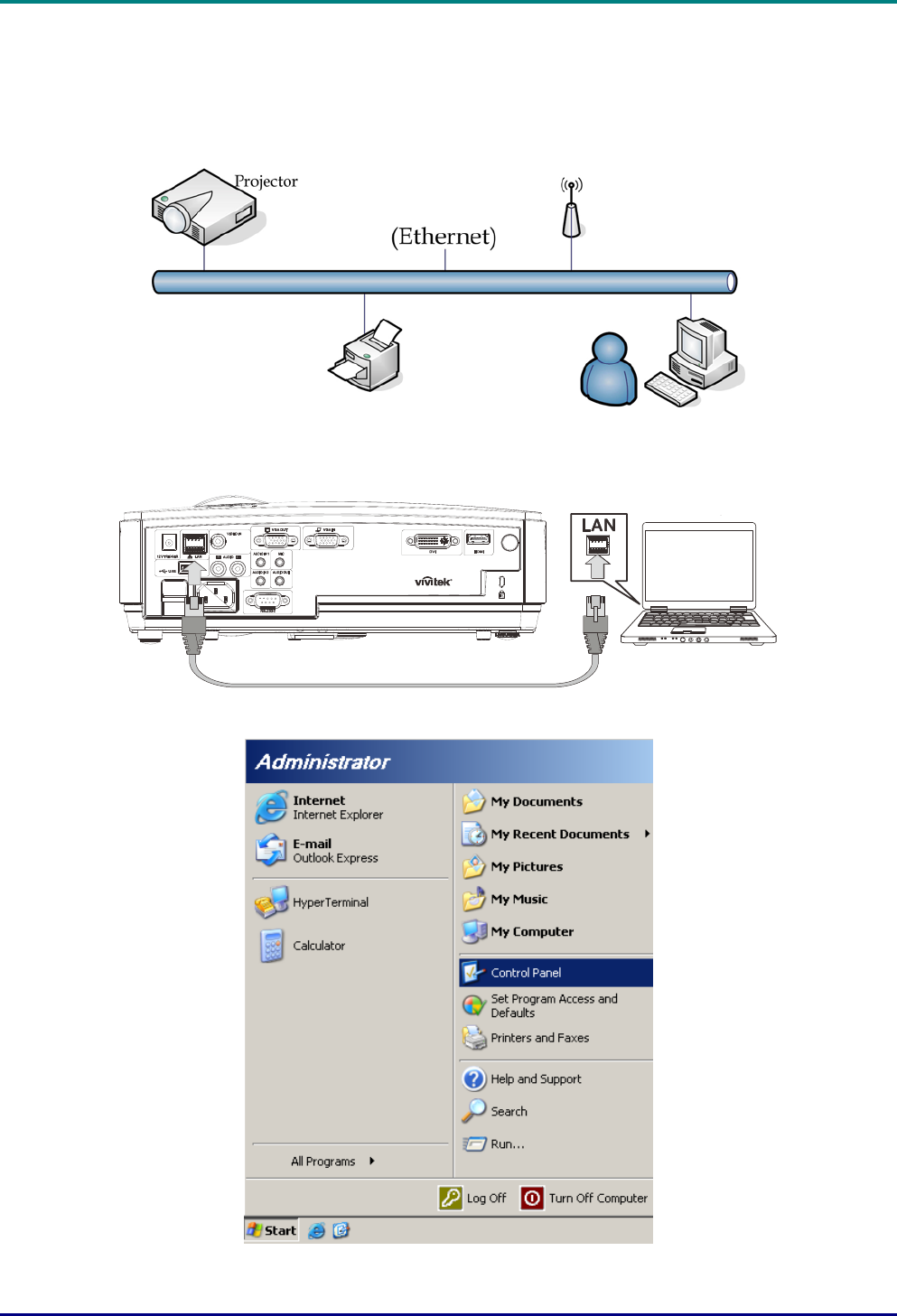

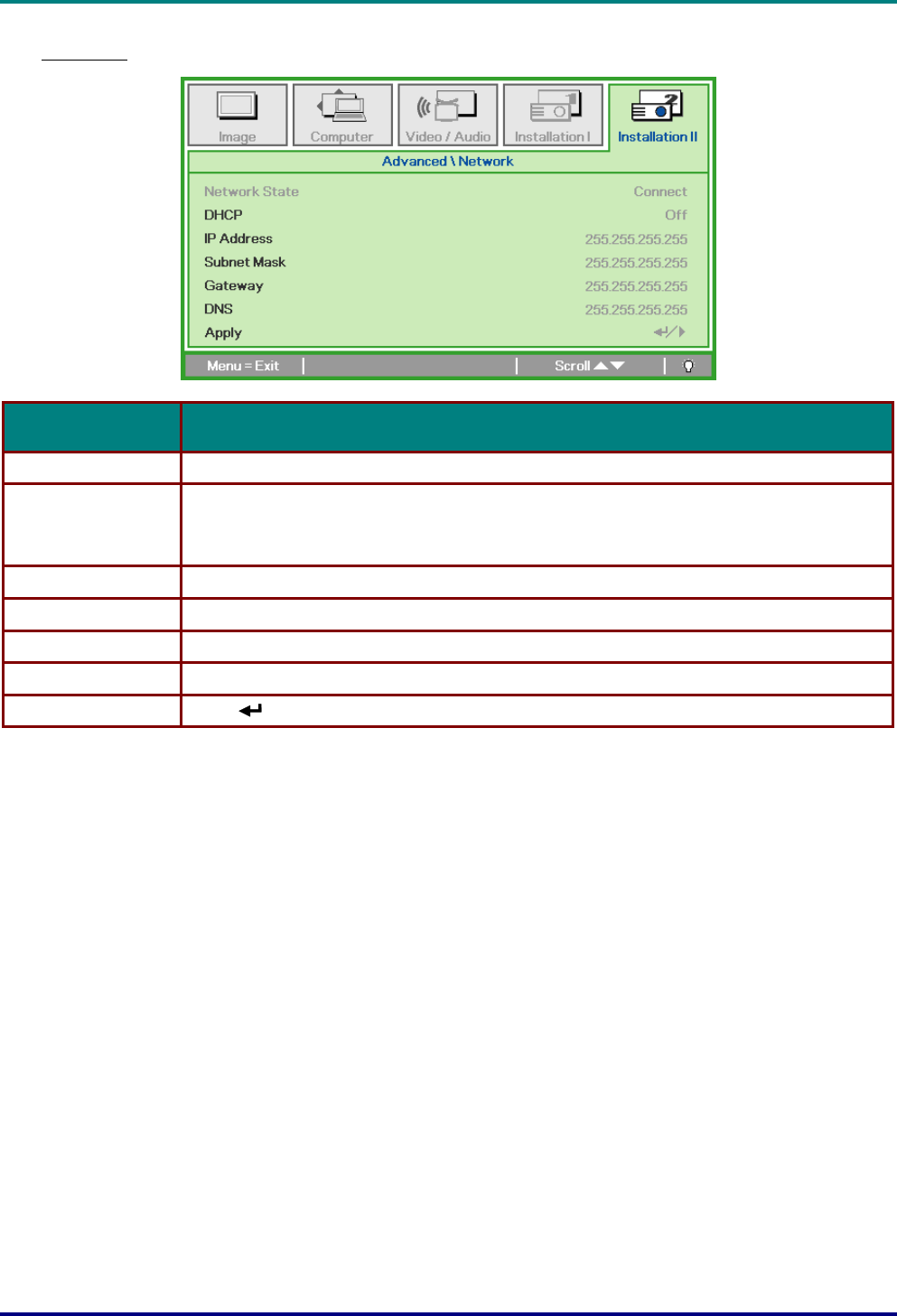

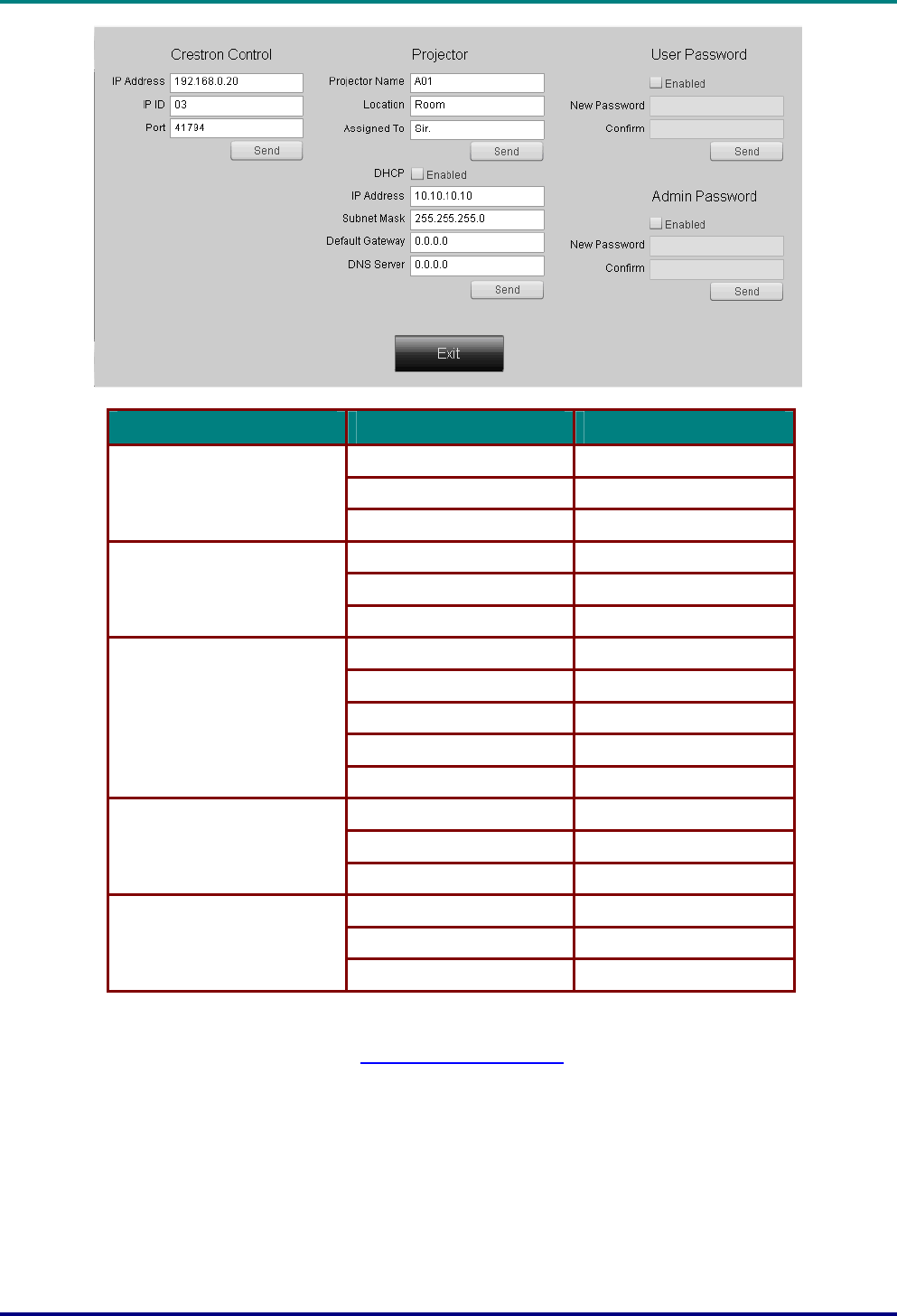

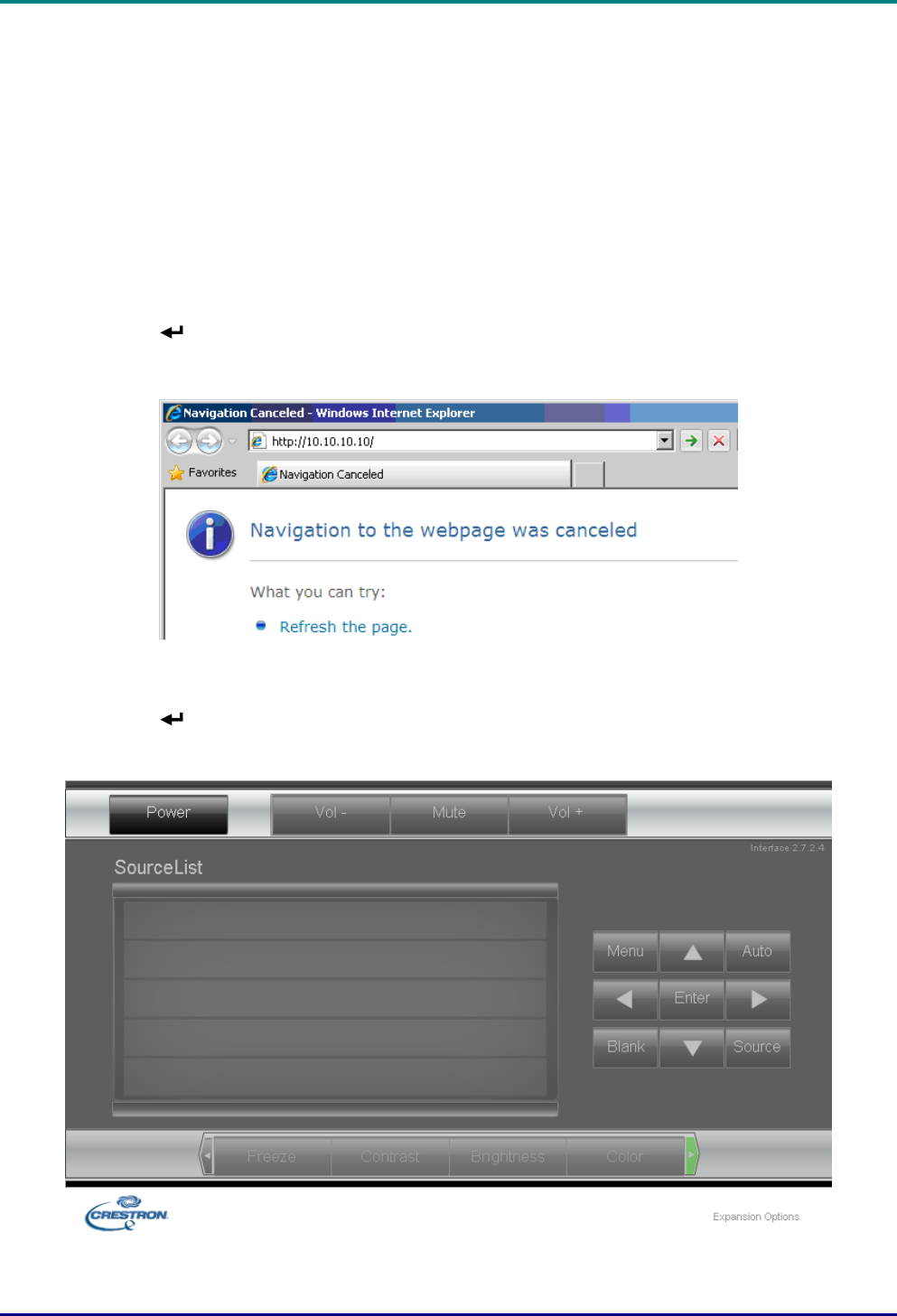

Network......................................................................................................................................................................... 35

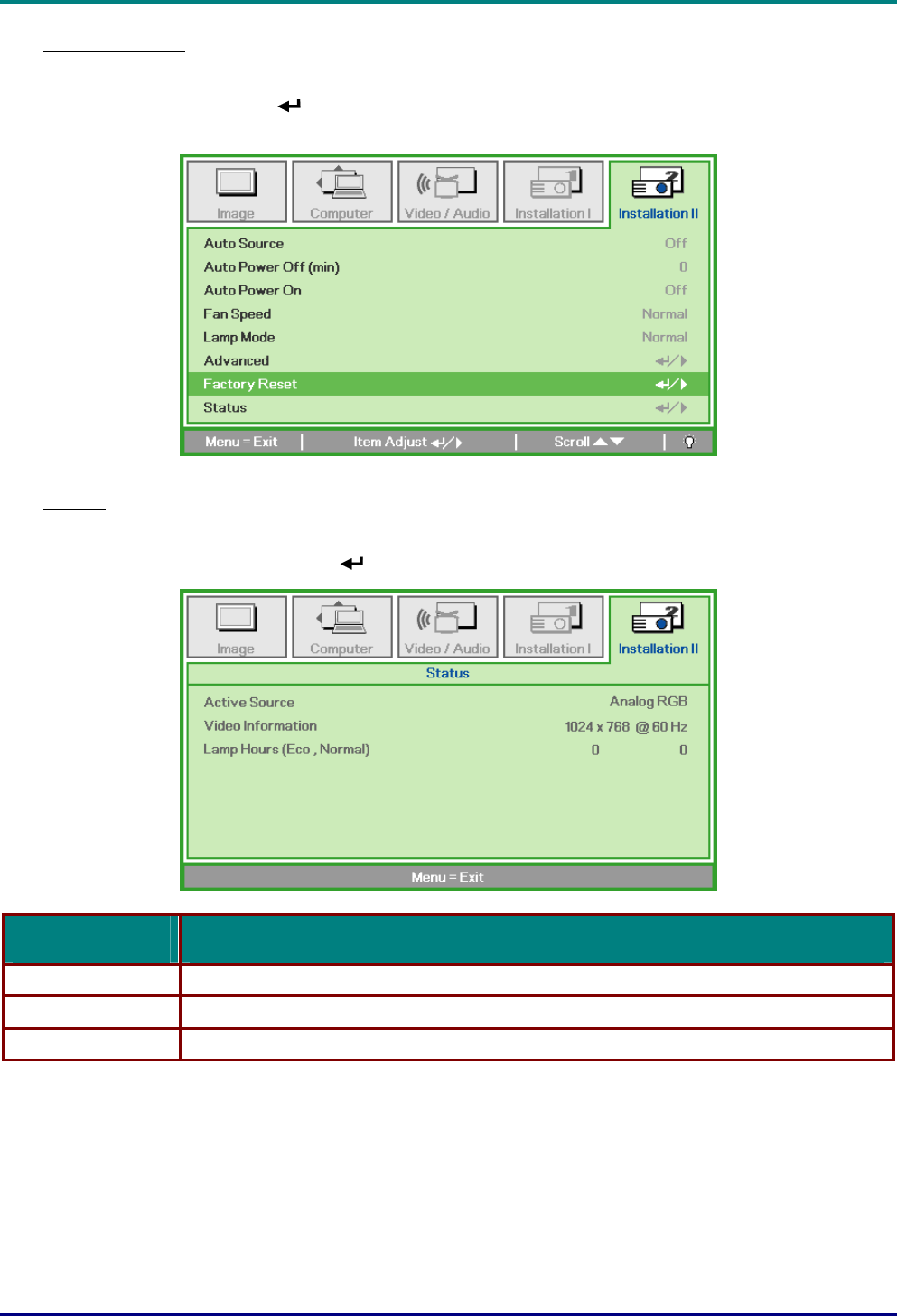

Factory Reset................................................................................................................................................................ 40
Status............................................................................................................................................................................. 40
MAINTENANCE AND SECURITY................................................................................................................................. 41

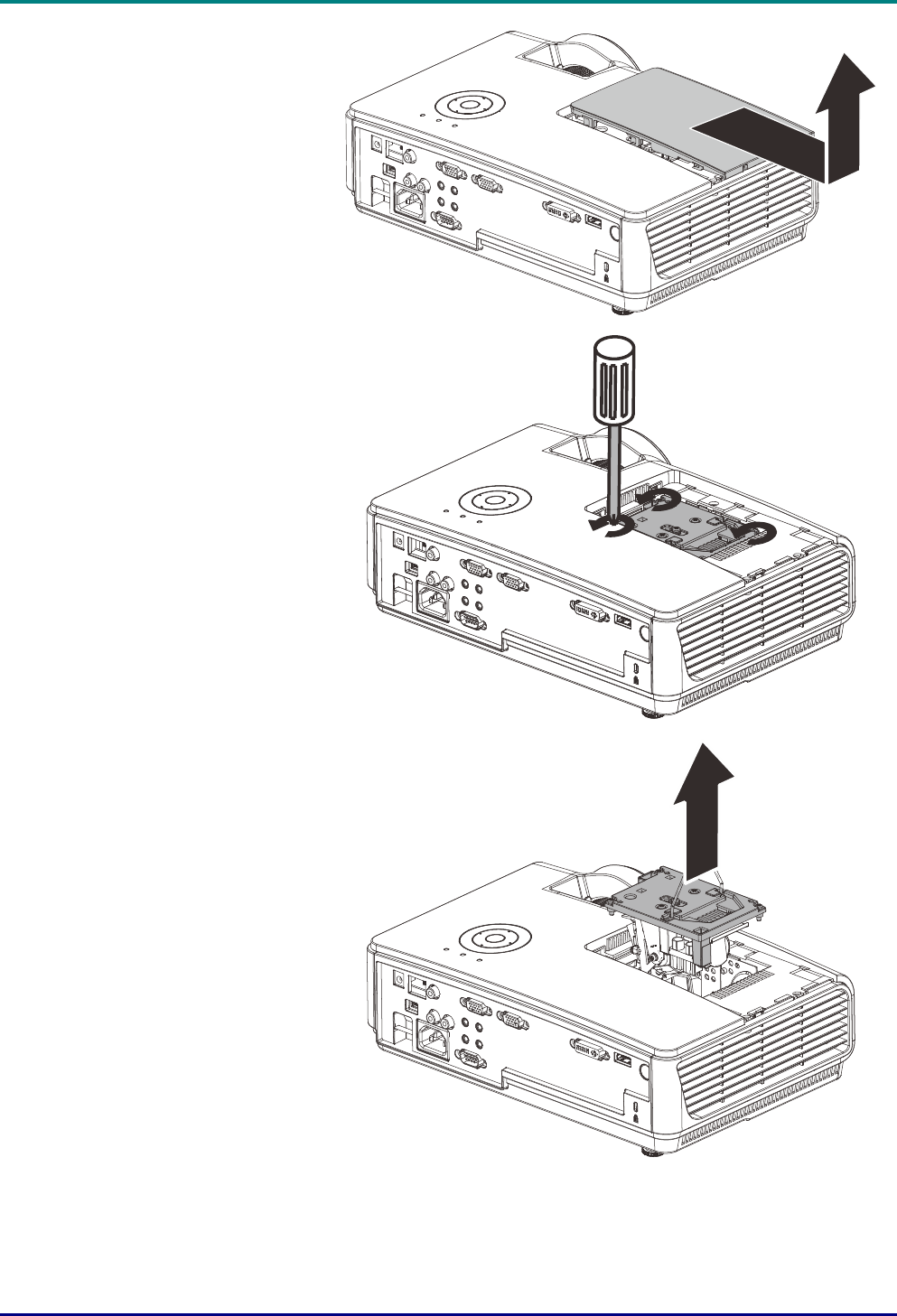

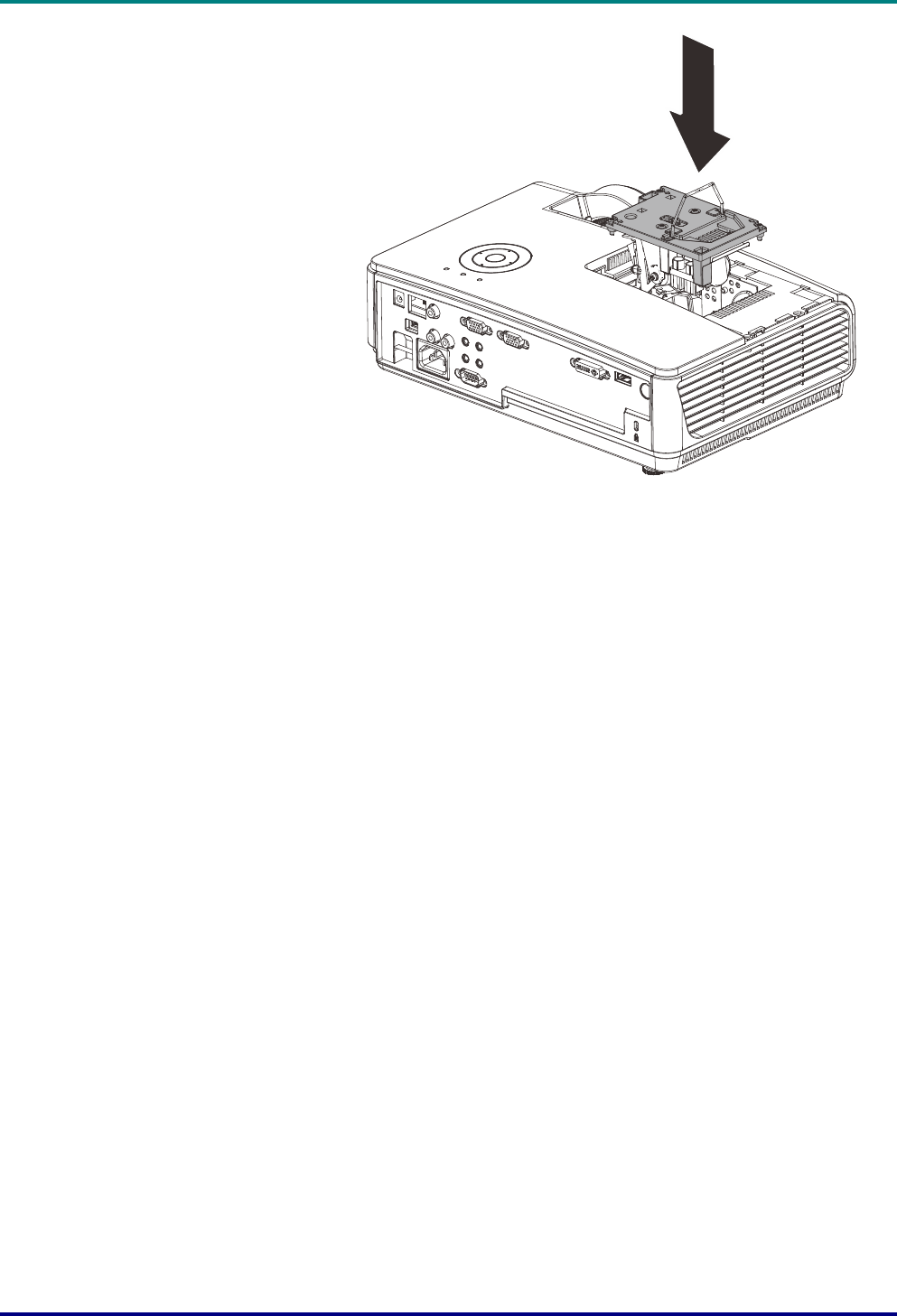

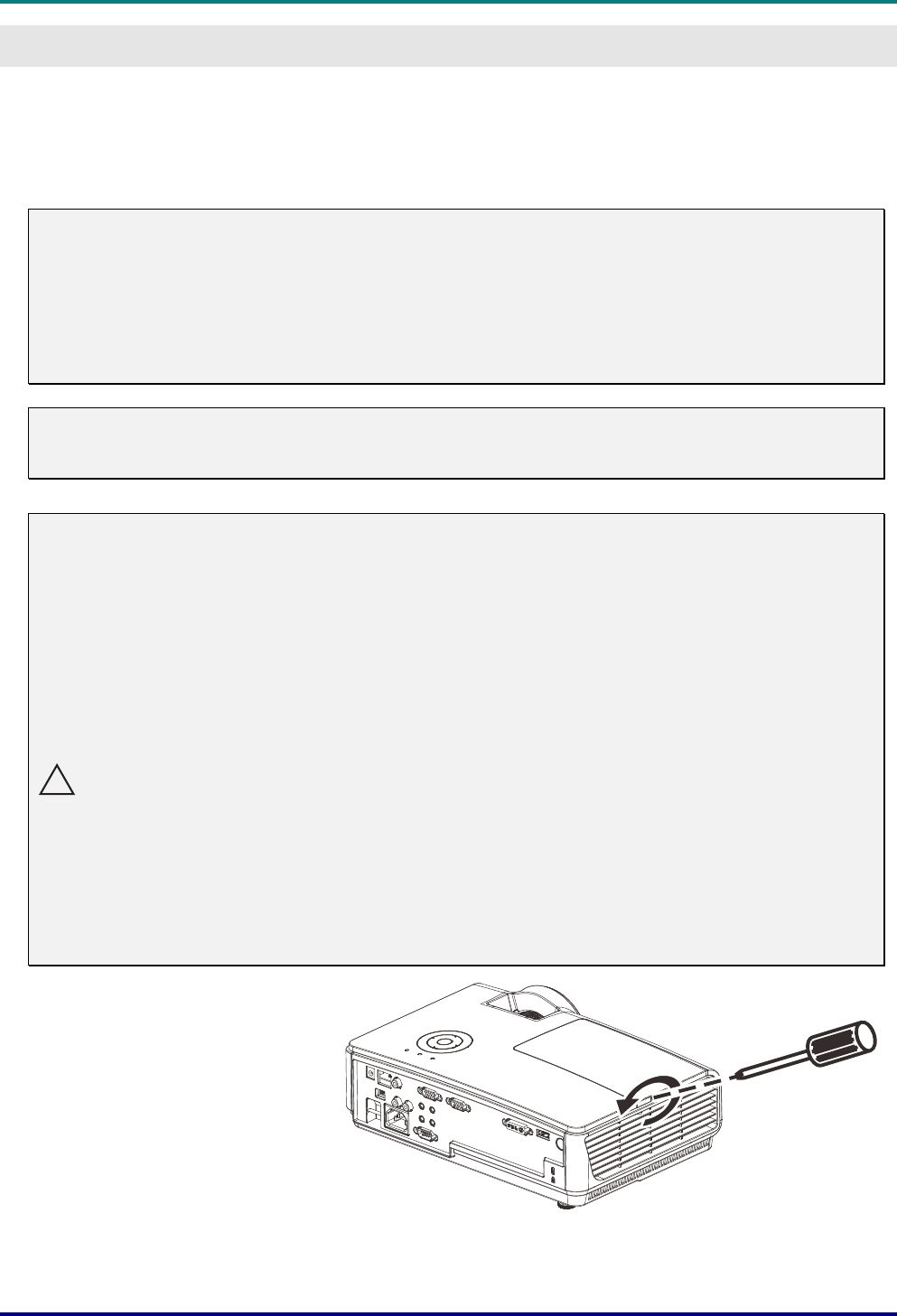

REPLACING THE PROJECTION LAMP................................................................................................................................... 41
Resetting the Lamp........................................................................................................................................................ 44
CLEANING THE PROJECTOR................................................................................................................................................ 45
Cleaning the Lens ......................................................................................................................................................... 45
Cleaning the Case......................................................................................................................................................... 45

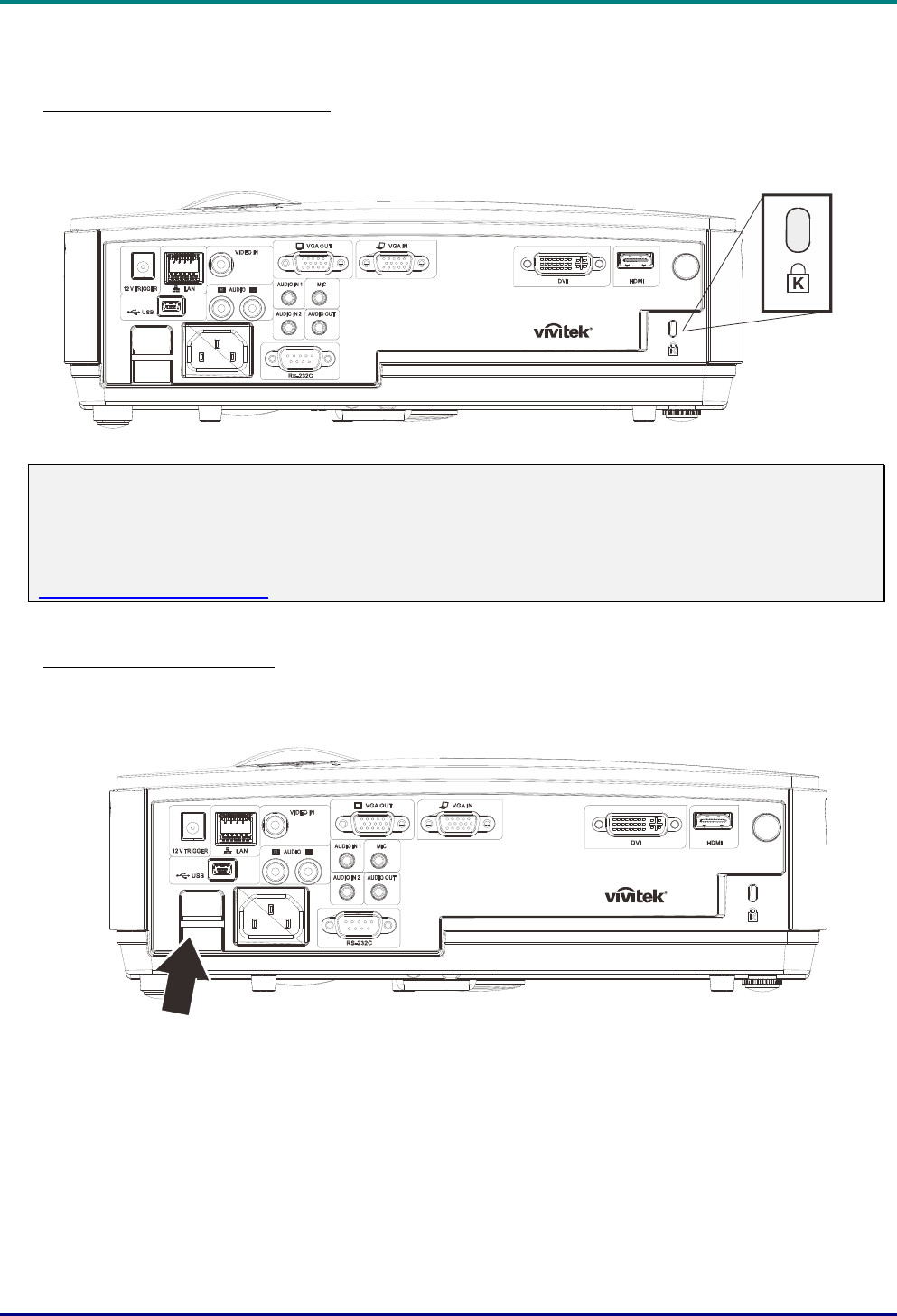

USING THE KENSINGTON® LOCK & USING THE SECURITY BAR ......................................................................................... 46
Using the Kensington® Lock ......................................................................................................................................... 46
Using the Security Bar.................................................................................................................................................. 46
TROUBLESHOOTING ..................................................................................................................................................... 47
COMMON PROBLEMS AND SOLUTIONS ............................................................................................................................... 47
TIPS FOR TROUBLESHOOTING ............................................................................................................................................ 47
![](/img.php?id=1722801&img=bg8.png)
DLP Projector—User’s Manual
— viii —
LED ERROR MESSAGES..................................................................................................................................................... 48
IMAGE PROBLEMS.............................................................................................................................................................. 48
LAMP PROBLEMS ............................................................................................................................................................... 49
REMOTE CONTROL PROBLEMS .......................................................................................................................................... 49
AUDIO PROBLEMS ............................................................................................................................................................. 49
HAVING THE PROJECTOR SERVICED .................................................................................................................................. 49
HDMI Q & A.................................................................................................................................................................... 50
SPECIFICATIONS............................................................................................................................................................. 51
SPECIFICATIONS................................................................................................................................................................. 51

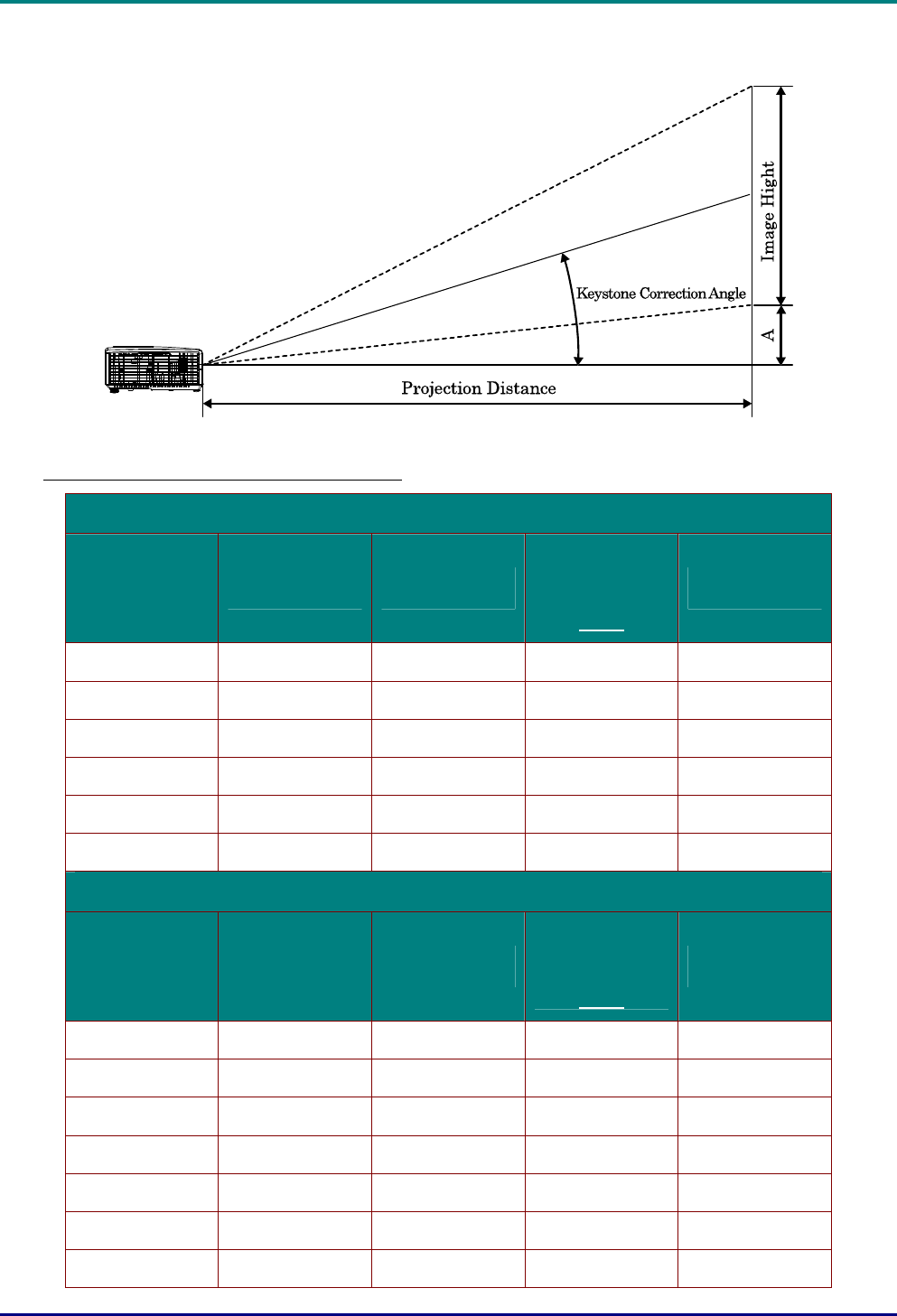

PROJECTION DISTANCE VS. PROJECTION SIZE.................................................................................................................... 52
Projection Distance and Size Table.............................................................................................................................. 52
TIMING MODE TABLE ........................................................................................................................................................ 53
PROJECTOR DIMENSIONS ................................................................................................................................................... 55
REGULATORY COMPLIANCE ..................................................................................................................................... 56
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT .................................................. 56
CAUTION: ....................................................................................................................................................................... 56
RF EXPOSURE WARNING .................................................................................................................................................... 56
CANADA ............................................................................................................................................................................ 56
SAFETY CERTIFICATIONS ................................................................................................................................................... 56
APPENDIX I....................................................................................................................................................................... 57
RS-232C PROTOCOL.......................................................................................................................................................... 57
![](/img.php?id=1722801&img=bg9.png)
G
ETTING
S
TARTED
Packing Checklist
Carefully unpack the projector and check that the following items are included:
DLP PROJECTOR WITH LENS CAP
REMOTE CONTROL
(WITH TWO AAA BATTERIES) POINTRACER
(WITH TWO AAA RECHARGEABLE
BATTERIES)
CARRYING CASE
RGB CABLE POWER CORD USB CABLE
CD-ROM
(THIS USER’S MANUAL) QUICK START GUIDE WARRANTY CARD
Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. It
is recommend that you keep the original packing material should you ever need to return the equipment
for warranty service.
Caution:
Avoid using the projector in dusty environments.
— 1 —
![](/img.php?id=1722801&img=bga.png)
DLP Projector—User’s Manual
Views of Projector Parts
Front-right View
123456
ITEM LABEL DESCRIPTION SEE PAGE:
1. IR receiver Receive IR signal from remote control 6
2. Height-adjuster button Push to release height adjuster
3. Height adjuster Adjusts level of projector
14
4. Lens Projection Lens
5. Focus ring Focuses the projected image 15
6. Function keys See Top view—On-screen Display (OSD) buttons
and LEDs. 3
Important:
Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp
cool. Do not obstruct any of the ventilation openings.
— 2 —
![](/img.php?id=1722801&img=bgb.png)
Preface
Top view—On-screen Display (OSD) buttons and LEDs
M
E
N
U
S
O
U
R
C
E
A
U
T
O
1
23
4
5
6
7
8
9
10
11
12
ITEM LABEL DESCRIPTION SEE
PAGE:
1. (POWER) Turns the projector On or Off 10
2. SOURCE Detects the input device
3. AUTO Optimizes image size, position, and resolution
4. ▲ (Up cursor) /
KEYSTONE
Navigates and changes settings in the OSD
Quick Menu – For Keystone
5. ► (Right cursor) Navigates and changes settings in the OSD
17
On System over temperature
6. TEMP LED
Off Normal State
On Lamp Error.
7. LAMP LED
Off Normal State
Green Power On
Off Power Off (AC Off)
8. POWER LED
Flashing System Initialized / Cooling / Error code
9. ▼ (Down cursor) /
KEYSTONE
Navigates and changes settings in the OSD
Quick Menu – For Keystone
10. MENU Open and exits the OSD buttons
11. ◄ (Left cursor) Navigates and changes settings in the OSD
17
12. Enter Changes settings in the OSD 17
– 3 –
![](/img.php?id=1722801&img=bgc.png)
DLP Projector—User’s Manual
Rear view
ITEM LABEL DESCRIPTION SEE PAGE:
1. AC IN Connect the POWER cable 10
2. (USB) Connect the USB cable from a computer
3. 12V TRIGGER Connect the DC 12V OUT
4. LAN Connect a LAN cable from Ethernet
5. VIDEO IN Connect the composite cable from a video device
6. AUDIO IN (L and R) Connect the audio cable from audio device
7. AUDIO IN – 1 Connect an AUDIO cable from audio device
8. VGA OUT Connect the RGB cable to a display
9. VGA IN Connect the RGB cable from a computer or components
10. DVI Connect the DVI cable from DVI device
11. HDMI Connect the HDMI cable from a HDMI device
12. AUDIO IN – 2 Connect an AUDIO cable from audio device
13. RS-232C Connect RS-232 serial port cable for remote control
14. AUDIO OUT Connect an AUDIO cable for audio loop through
15. MIC Connect the Microphone input device
16. Kensington Lock Secure to permanent object with a Kensington® Lock system 46
17. IR receiver Receive IR signal from remote control
Warning:
As a safety precaution, disconnect all power to the projector and connecting devices before making
connections.
— 4 —
![](/img.php?id=1722801&img=bgd.png)
Preface

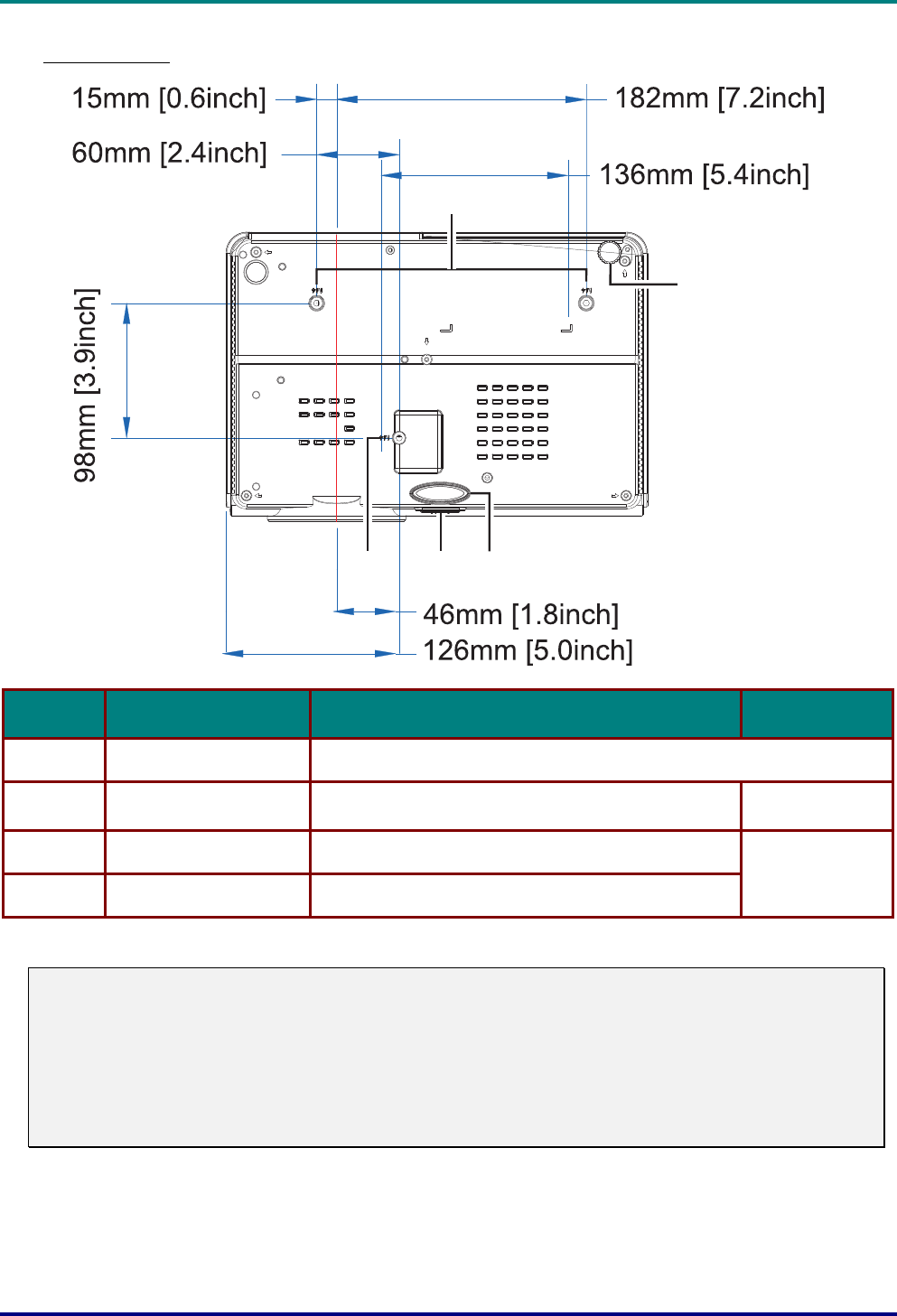

Bottom view
1
1
43
2
ITEM LABEL DESCRIPTION SEE PAGE:
1. Ceiling support holes Contact your dealer for information on mounting the projector on a ceiling
2. Tilt adjustor Rotate adjuster lever to adjust angle position. 14
3. Height adjustor Adjuster drops down when adjuster button is pushed.
4. Height adjustor button Push to release adjustor.
14
Note:
When installing, ensure that you use only UL Listed ceiling mounts.
For ceiling installations, use approved mounting hardware and M4 screws with a maximum screw
depth of 12 mm (0.47 inch).
The construction of the ceiling mount must be of a suitable shape and strength. The ceiling mount
load capacity must exceed the weight of the installed equipment, and as an additional precaution
be capable of withstanding three times the weight of the equipment (not less than 5.15 kg) over a
period of 60 seconds.
– 5 –
![](/img.php?id=1722801&img=bge.png)
DLP Projector—User’s Manual
Remote Control Parts
Important:
1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluo-
rescent lights can disrupt remote control operation.
2. Be sure nothing obstructs the path between the remote control and the projector. If the path be-
tween the remote control and the projector is obstructed, you can bounce the signal off certain
reflective surfaces such as projector screens.
3. The buttons and keys on the projector have the same functions as the corresponding buttons on
the remote control. This user’s manual describes the functions based on the remote control.
— 6 —
![](/img.php?id=1722801&img=bgf.png)
Preface
– 7 –
ITEM LABEL DESCRIPTION SEE PAGE:
1. IR transmitter Transmits signals to projector
2. Status LED Lights when the remote control is used
3. Laser Press to operate the on-screen pointer
4. Up Up arrow when connected through USB to a PC
5. Right Right arrow when connected through USB to a PC
6. Down Down arrow when connected through USB to a PC
7. Page Down Page down when connected through USB to a PC
8. Up cursor
9. Right cursor
10. Down cursor
Navigates and changes settings in the OSD 17
11. Volume +/- Adjusts volume 16
12. Mute Mutes the built-in speaker
13. Zoom+ Zoom in
14. Zoom- Zoom out
15. Freeze Freeze/unfreezes the on-screen picture
16. Blank Makes the screen blank
17. Source Detects the input device
18. Auto Auto adjustment for phase, tracking, size, position
19. Menu Opens the OSD 17
20. Status Opens the OSD Status menu (the menu only opens when an
input device is detected) 40
21. Keystone top/bottom Corrects image-trapezoid (wider top/bottom) effect 15
22. Left cursor Navigates and changes settings in the OSD
23. Enter Changes settings in the OSD
24. Page Up Page up when connected through USB to a PC
25. Left Left arrow when connected through USB to a PC
26. Enter Enter key when connected through USB to a PC
17
27. Power Turns the projector on or off 10
28. Laser Use as on-screen pointer. DO NOT POINT IN EYES.
![](/img.php?id=1722801&img=bg10.png)
DLP Projector—User’s Manual
— 8 —
Remote Control Operating Range
The remote control uses infrared transmission to control the projector. It is not necessary to point the
remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or
the rear of the projector, the remote will function well within a radius of about 7 meters (23 feet) and
15 degrees above or below the projector level. If the projector does not respond to the remote control,
move a little closer.
Projector and Remote Control Buttons
The projector can be operated using the remote control or the buttons on the top of the projector. All
operations can be carried out with the remote control; however, the buttons on the projector are lim-
ited in use.
![](/img.php?id=1722801&img=bg11.png)
Preface
– 9 –
S
ETUP AND
O
PERATION
Inserting the Remote Control Batteries
1.
Remove the battery compartment cover
by sliding the cover in the direction of
the arrow.
2.
Insert the battery with the positive side
facing up.
3.
Replace the cover.
Caution:
1. Only use AAA batteries (Alkaline batteries are recommended).
2. Dispose of used batteries according to local ordinance regulations.
3. Remove the batteries when not using the projector for prolonged periods.
![](/img.php?id=1722801&img=bg12.png)
DLP Projector—User’s Manual
Starting and Shutting down the Projector
1.
Connect the power cord to the projector.
Connect the other end to a wall outlet.
The POWER LED on the projector
light.
2.
Turn on the connected devices.
3.
Ensure the LAMP LED not a flashing
orange. Then press the POWER
button to turn on the projector.
The projector splash screen displays and
connected devices are detected.
See Setting an Access Password
(Security Lock) on page 12 if security
lock is enabled.
4.
If more than one input device is con-
nected, press the SOURCE button and
use ▲▼ to scroll among devices.
(Component is supported through the
RGB to COMPONENT ADAPTER.)
• VGA: Analog RGB
Component: DVD input YCbCr / YPbPr, or
HDTV input YPbPr via HD15 connector
• Composite Video: Traditional composite video
• DVI: DVI
• HDMI: HDMI (Not available in some models.)
— 10 —
![](/img.php?id=1722801&img=bg13.png)
Preface
5.
When the “Power Off? /Press Power
again” message appears, press the
POWER button. The projector turns
off.
Caution:
1. Be sure to remove the lens cap before starting projector.
2. Do not unplug the power cord until the POWER LED stops flashing–indicating the projector has
cooled down.
– 11 –
![](/img.php?id=1722801&img=bg14.png)
DLP Projector—User’s Manual
Setting an Access Password (Security Lock)
You can use the four (arrow) buttons to set a password and prevent unauthorized use of the projector.
When enabled, the password must be entered after you power on the projector. (See Navigating the
OSD on page 17 and Setting the OSD Language on page 18 for help on using OSD menus.)
Important:
Keep the password in a safe place. Without the password, you will not be able to use the projector.
If you lose the password, contact your reseller for information on clearing the password.
1.
Press the MENU button to open the OSD
menu.
2.
Press the cursor ◄► button to move to
the Installation I menu, press the cursor
▲▼ button to select Advanced.
3.
Press the cursor ▲▼ button to select
Security Lock.
4.
Press the cursor ◄► button to enable or
disable security lock function.
A password dialog box automatically
appears.
— 12 —
![](/img.php?id=1722801&img=bg15.png)
Preface
5.
You can use the cursor buttons ▲▼◄►
either on keypad or IR remote control for
password entry. You can use any
combination including the same arrow five
times, but not less than five.
Press the cursor buttons in any order to set
the password. Push the MENU button to
exit the dialog box.
6.
The password confirm menu appears when
user presses the power-on key in case the
Security Lock is enabled.
Enter the password in the order you set it
at step 5. In case you forget the password,
please contact the service center.
The service center will validate the owner
and help reset the password.
– 13 –
![](/img.php?id=1722801&img=bg16.png)
DLP Projector—User’s Manual
Adjusting the Projector Level
Take note of the following when setting up the projector:
• The projector table or stand should be level and sturdy.
• Position the projector so that it is perpendicular to the screen.
• Ensure the cables are in a safe location. You could trip over them.
A
D
C
1. To raise the level of the projector, lift the projector [A] and press the height-adjuster
button [B].
The height adjuster drops down [C].
2. To lower the level of the projector, press the height-adjuster button and push down
on the top of the projector.
3. To adjust the angle of the picture, turn the tilt-adjuster [D] right or left until the
desired angle has been achieved.
— 14 —
![](/img.php?id=1722801&img=bg17.png)
Preface
Adjusting Focus and Keystone
1.
Use the Image-focus
control (on the projector
only) to adjust the pro-
jected image.
2.
Use the KEYSTONE
buttons (on the projector
or the remote control) to
correct image-trapezoid
(wider top or bottom)
effect.
Remote control and OSD panel
3.
The keystone control
appears on the display.
– 15 –
![](/img.php?id=1722801&img=bg18.png)
DLP Projector—User’s Manual
Adjusting the Volume
1.
Press the Volume +/-
buttons on the remote
control.
The volume control
appears on the display.
2.
Press the Left or Right
Cursor buttons on the
keypad to adjust Volume
+/-.
M
E
N
U
S
O
U
R
C
E
A
U
T
O
3.
Press the MUTE button to
turn off the volume (This
feature is available only
on the remote).
— 16 —
![](/img.php?id=1722801&img=bg19.png)
Preface
– 17 –
O
N
-S
CREEN
D
ISPLAY
(OSD)
M
ENU
S
ETTINGS
OSD Menu Controls
The projector has an OSD that lets you make image adjustments and change various settings.
Navigating the OSD
You can use the remote control cursor buttons or the buttons on the top of the projector to navigate
and make changes to the OSD. The following illustration shows the corresponding buttons on the
projector.
M
E
N
U
S
O
U
R
C
E
A
U
T
O
1
2
3
4
5
1. To enter the OSD, press the
MENU button.
2. There are five menus. Press
the cursor ◄► button to
move through the menus.
3. Press the cursor ▲▼ button
to move up and down in a
menu.
4. Press ◄► to change values
for settings.
5. Press MENU to close the
OSD or leave a submenu.
Note:
Depending on the video source, not all items in the OSD are available. For example, the Horizon-
tal/Vertical Position items in the Computer menu can only be modified when connected to a PC.
Items that are not available cannot be accessed and are grayed out.
![](/img.php?id=1722801&img=bg1a.png)
DLP Projector—User’s Manual
Setting the OSD Language
Set the OSD language to your preference before continuing.
1. Press the MENU button. Press the cursor ◄► button to navigate to Installation I.
2. Press the cursor ▲▼ button until Language is highlighted.
3. Press the cursor ◄► button until the language you want is highlighted.
4. Press the MENU button twice to close the OSD.
— 18 —
![](/img.php?id=1722801&img=bg1b.png)
Preface
OSD Menu Overview
Use the following illustration to quickly find a setting or determine the range for a setting.
English, French, German, Spanish, Portuguese, Simplified Chinese, Traditional
Chinese, Italian, Norwegian, Swedish, Dutch, Russian, Polish, Finnish, Greek,
Korean, Hungarian, Czech, Arabic, Turkish, Vietnamese, Japanese, Thai, Farsi
– 19 –
![](/img.php?id=1722801&img=bg1c.png)
DLP Projector—User’s Manual
OSD Sub-Menu Overview
— 20 —
![](/img.php?id=1722801&img=bg1d.png)
Preface
Image Menu
Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Image
Menu. Press the cursor ▲▼ button to move up and down in the Image menu. Press ◄► to change
values for settings.
ITEM DESCRIPTION
Display Mode Press the cursor ◄► button to set the Display Mode.
Brilliant Color Press the cursor ◄► button to adjust the Brilliant Color value.
Brightness Press the cursor ◄► button to adjust the display brightness.
Contrast Press the cursor ◄► button to adjust the display contrast.
Sharpness Press the cursor ◄► button to adjust the display sharpness level.
Gamma Press the cursor ◄► button to adjust the gamma correction of the display.
Advanced Press (Enter) / ► to enter the Advanced menu. See Advanced Feature on page 22.
Reset Press (Enter) / ► to reset all settings to default values.
– 21 –
![](/img.php?id=1722801&img=bg1e.png)
DLP Projector—User’s Manual
Advanced Feature
Press the Menu button to open the OSD menu. Press ◄► to move to the Image menu. Press ▼▲
to move to the Advanced menu and then press Enter or ►. Press ▼▲ to move up and down in the
Advanced menu.
ITEM DESCRIPTION
Color Space Press the cursor ◄► button to adjust the color space.
(Range: Auto – RGB – YPbPr – YCbCr)
Color Temperature Press the cursor ◄► button to adjust the color temperature.
(Range: Cold – Normal – Warm)
Color Manager Press (Enter) / ► to enter the color manager menu. (Range: Red-Green-Blue-Cyan-
Magenta-Yellow-White). See page 23 for more information on Color Manager.
— 22 —
![](/img.php?id=1722801&img=bg1f.png)
Preface
Color Manager
Press (Enter) / ► to enter the Color Manager sub menu.
ITEM DESCRIPTION
Red Select to enter the Red Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.
Green Select to enter the Green Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.
Blue Select to enter the Blue Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.
Cyan Select to enter the Cyan Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.
Magenta Select to enter the Magenta Color Manager.
Press the ◄► buttons to adjust the Hue, Saturation, and Gain.
Yellow Select to enter the Yellow Color Manager.
Press the◄► buttons to adjust the Hue, Saturation, and Gain.
White Select to enter the White Color Manager.
Press the ◄► buttons to adjust the Red, Green, and Blue.
– 23 –
![](/img.php?id=1722801&img=bg20.png)
DLP Projector—User’s Manual
Computer Menu
Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Com-
puter menu. Press the cursor ▲▼ button to move up and down in the computer menu. Press ◄► to
change values for settings.
ITEM DESCRIPTION
Horizontal Position Press the cursor ◄► button to adjust the display position to left or right.
Vertical Position Press the cursor ◄► button to adjust the display position to up or down.
Frequency Press the cursor ◄► button to adjust the A/D sampling clock.
Tracking Press the cursor ◄► button to adjust the A/D sampling dot.
Auto Image Press (Enter) / ► to automatically adjustment for phase, tracking, size and position.
— 24 —
![](/img.php?id=1722801&img=bg21.png)
Preface
Video/Audio Menu
Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the
Video/Audio menu. Press the cursor ▲▼ button to move up and down in the Video/Audio menu.
Press ◄► to change values for settings.
ITEM DESCRIPTION
Video AGC Press the ◄► buttons to enable or disable the Automatic Gain Control for video source.
Video Saturation Press the ◄► buttons to adjust the video saturation.
Video Tint Press the ◄► buttons to adjust the video tint/hue.
Film Mode Press the ◄► buttons to select a different film mode.
Video Overscan Press the ◄► buttons to enable or disable video over scan.
Closed Captioning Press the ◄► buttons to enable or disable Closed Captioning
Audio Press (Enter) / ► to enter the Audio menu. See Audio on page 26.
Reset Press (Enter) / ► to reset all settings to default values.
Note:
Video jagging may occur when playing interlace video. To overcome this issue, open the
Video / Audio menu and adjust the Film Mode feature.
– 25 –
![](/img.php?id=1722801&img=bg22.png)
DLP Projector—User’s Manual
Audio
Press (Enter) / ► to enter the Audio sub menu.
ITEM DESCRIPTION
Volume Press the ◄► buttons to adjust the audio volume.
(Range: 0~8)
Mute Press the ◄► buttons to turn on or off the speaker.
Audio Input Press the cursor ◄► button to select audio input.
(Range: Mini ~ RCA)
— 26 —
![](/img.php?id=1722801&img=bg23.png)
Preface
Installation I Menu
Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Installa-
tion I menu. Press the cursor ▲▼ button to move up and down in the Installation I menu. Press
◄► to change values for settings.
ITEM DESCRIPTION
Language Press the cursor ◄► button to select a different localization Menu.
Blank Screen Press the cursor ◄► button to select different color to blank the screen.
Projection Press the cursor ◄► button to choose from four projection methods:
Aspect Ratio Press the cursor ◄► button to adjust the video aspect ratio.
Keystone Press the cursor ◄► button to adjust the display keystone.
Digital Zoom Press the cursor ◄► button to adjust the Digital Zoom menu. (Range: -10 ~ +10)
Advanced Press (Enter) / ► to enter the Advanced menu. See Advanced Feature on page 31.
Reset Press (Enter) / ► to reset all settings to default values
(expect Language and Security Lock).
– 27 –
![](/img.php?id=1722801&img=bg24.png)
DLP Projector—User’s Manual
Advanced Feature
Press the Menu button to open the OSD menu. Press ◄► to move to the Installation I menu. Press
▲▼ to move to the Advanced menu and then press Enter or ►. Press ▲▼ to move up and down in
the Advanced menu. Press ◄► to change values for setting.
ITEM DESCRIPTION
Security Lock Press the cursor ◄► button to enable or disable security lock function.
Keypad Lock Press the cursor ◄► button to enable or disable keypad lock function.
Wall Color Press the cursor ◄► button to select different wall color setting.
Presentation Timer Press (Enter) / ► to enter the Presentation menu. See Presentation Timer on page 29.
Projector ID Press the cursor ◄► button to adjust a two digit projector ID from 00 through 98.
Auto Keystone Press the cursor ◄► button to enable or disable auto keystone function.
PointRacer Press (Enter) / ► to enter the PointRacer menu. See PointRacer on page 29
— 28 —
![](/img.php?id=1722801&img=bg25.png)
Preface
Presentation Timer
The Presentation Timer function can indicate the presentation time on the screen to help you achieve
better time management when giving presentations.
Press (Enter) / ► to enter the Presentation Timer sub menu.
ITEM DESCRIPTION
Timer Press the cursor ◄► button to enable or disable presentation timer function.
Timer Period Press the cursor ◄► button to adjust the display timer period.
Timer Reset Press (Enter) / ► to reset presentation timer counter.
PointRacer
Press (Enter) / ► to enter the PointRacer sub menu.
ITEM DESCRIPTION
PointRacer Press the cursor ◄► button to enable or disable PointRacer function.
Dual Pen Press the cursor ◄► button to enable or disable Dual Pen function.
PointRacer Touch Press the cursor ◄► button to enable or disable PointRacer Touch function.
PointRacer Touch
Cursor Press the cursor ◄► button to enable or disable PointRacer Touch Cursor function.
Pair New Device Press (Enter) / ► to reset a new pen.
– 29 –
![](/img.php?id=1722801&img=bg26.png)
DLP Projector—User’s Manual
Installation II Menu
Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Installa-
tion II menu. Press the cursor ▲▼ button to move up and down in the Installation II menu.
ITEM DESCRIPTION
Auto Source Press the cursor ◄► button to enable or disable automatic source detection. (Range: On ~ Off)
Auto Power Off
(min.) Press the cursor ◄► button to enable or disable automatic shutdown of lamp when no signal.
Auto Power On Press the cursor ◄► button to enable or disable automatic power On when AC power is supplied.
Fan Speed
Press the cursor ◄► button to toggle between Normal and High fan speeds.
Note: We recommend selecting high speed in high temperatures, high humidity, or high
altitude(above 1500m/4921ft) areas.
Lamp Mode Press the cursor ◄► button to select the lamp mode for higher brightness or lower brightness
to save lamp life.
Advanced Press (Enter) / ► to enter the Advanced menu. See Advanced Feature on page 31.
Factory Reset Press (Enter) / ► to reset all items to factory preset values.
Status Press (Enter) / ► to enter the Status menu. See page 40 for more information on Status.
— 30 —
![](/img.php?id=1722801&img=bg27.png)
Preface
Advanced Feature
Press the Menu button to open the OSD menu. Press ◄► to move to the Installation II menu.
Press ▲▼ to move to the Advanced menu and then press Enter or ►. Press ▲▼ to move up and
down in the Advanced menu. Press ◄► to change values for setting.
ITEM DESCRIPTION
OSD Menu Setting Press Enter / ► to enter the OSD setting menu. See page 32 for more information on OSD
Menu Setting.
Peripheral Test Press Enter/ ► to enter the Peripheral Test menu. See page 32 for more information on
Peripheral Test.
Lamp Hour Reset After replacing the lamp, this item should be reset. See page 33 for more information on Lamp
Hour Reset.
Low Power Mode Press ◄► to turn Low Power Mode on or off.
3D Press Enter/ ► to enter the 3D menu. See page 34 for more information on 3D setting..
RS232 Press ◄► to select RS232 (remote) or Network (LAN) mode depending on projector connec-
tion method.
Network Press (Enter) / ► to enter the Network menu. See page 35 for more information on
Network.
Note:
To enjoy the 3D function, first enable the Play Movie in 3D setting found in your DVD
device under the 3D Disc Menu.
– 31 –
![](/img.php?id=1722801&img=bg28.png)
DLP Projector—User’s Manual
OSD Menu Setting
ITEM DESCRIPTION
Menu Position Press ◄► button to select different OSD location.
Translucent Menu Press ◄► button to select OSD background translucent level.
Menu Display Press ◄► button to select OSD timeout delay.
Peripheral Test
ITEM DESCRIPTION
Remote Control Test Press (Enter) / ► to test the IR remote controller for diagnostic.
Color Test Press (Enter) / ► to select different colors on screen.
Button Test Press (Enter) / ► to test the button on keypad.
USB Test Press (Enter) / ► to test the USB connection with connected PC.
Note: Not available in special model
— 32 —
![](/img.php?id=1722801&img=bg2a.png)
DLP Projector—User’s Manual
3D
ITEM DESCRIPTION
3D Press ◄► to select Off, DLP-Link or IR.
3D Sync Invert Press ◄► to turn 3D Sync Invert On or Off.
Note:
1. The 3D OSD menu item is gray if there is no appropriate 3D source. This is the default setting.
2. When the projector is connected to an appropriate 3D source, the 3D OSD menu item is enabled for
selection.
3. Use 3D glasses to view a 3D image.
4. You need 3D content from a 3D DVD or 3D media file.
5. You need to enable the 3D source (some 3D DVD content may have a 3D on-off selection feature).
6. You need DLP link 3D or IR 3D shutter glasses. With IR 3D shutter glasses, you need to install a
driver on your PC and connect a USB emitter.
7. The 3D mode of the OSD needs to match the type of glasses (DLP link or IR 3D).
8. Power on the glasses. Glasses normally have a power on -off switch.
Each type of glasses has their own configuration instructions. Please follow the configuration instruc-
tions that come with your glasses to finish the setup process.
Note:
Since different types of glass (DLP link or IR shutter glass) have their own setting instructions,
Please follow the guide to finish the setup process.
— 34 —
![](/img.php?id=1722801&img=bg2b.png)
Preface
Network
ITEM DESCRIPTION
Network State Displays the network connection status.
DHCP
Press ◄► to turn DHCP On or Off.
Note: If you select DHCP Off, complete the IP Address, Subnet Mask, Gateway, and DNS
fields.
IP Address Enter a valid IP address if DHCP is turned off.
Subnet Mask Enter a valid Subnet Mask if DHCP is turned off.
Gateway Enter a valid Gateway address if DHCP is turned off.
DNS Enter a valid DNS name if DHCP is turned off.
Apply Press (Enter) / ► to confirm settings.
– 35 –
![](/img.php?id=1722801&img=bg2c.png)
DLP Projector—User’s Manual
For simplicity and ease of operation, the projector provides diverse networking and remote management
features.
The LAN/RJ45 function of the projector through a network, such as remotely manage: Power On/Off,
Brightness and Contrast settings. Also, projector status information, such as: Video-Source, Sound-Mute,
etc.
LAN_RJ45
1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (Laptop).
2. On the PC (Laptop), select Start → Control Panel → Network Connections.
— 36 —
![](/img.php?id=1722801&img=bg2d.png)
Preface
3. Right-click on Local Area Connection, and select Properties.
4. In the Properties window, select the General tab, and select Internet Protocol (TCP/IP).
5. Click Properties.
6. Click Use the following IP address and fill in the IP address and Subnet mask, then click OK.
– 37 –
![](/img.php?id=1722801&img=bg2e.png)
DLP Projector—User’s Manual
7. Press the Menu button on the projector.
8. Select Installation II → Advanced → Network.
9. After getting into Network, input the following:
` DHCP: Off
` IP Address: 10.10.10.10
` Subnet Mask: 255.255.255.0
` Gateway: 0.0.0.0
` DNS Server: 0.0.0.0
10. Press (Enter) / ► to confirm settings.
Open a web browser
(for example, Microsoft Internet Explorer with Adobe Flash Player 9.0 or higher).
11. In the Address bar, input the IP address: 10.10.10.10.
12. Press (Enter) / ►.
The projector is setup for remote management. The LAN/RJ45 function displays as follows.
— 38 —
![](/img.php?id=1722801&img=bg2f.png)
Preface
CATEGORY ITEM INPUT-LENGTH
IP Address 14
IP ID 3
Crestron Control
Port 5
Projector Name 10
Location 9
Projector
Assigned To 8
DHCP (Enabled) (N/A)
IP Address 15
Subnet Mask 15
Default Gateway 15
Network Configuration
DNS Server 15
Enabled (N/A)
New Password 15
User Password
Confirm 15
Enabled (N/A)
New Password 15
Admin Password
Confirm 15
For more information, please visit http://www.crestron.com.
– 39 –
![](/img.php?id=1722801&img=bg30.png)
DLP Projector—User’s Manual
Factory Reset
Press the cursor ▲▼ button to move up and down in the Installation II menu. Select the Factory
Reset sub menu and press (Enter) / ► to reset all the menu items to the factory default values
(expect Language and Security Lock).
Status
Press the cursor ▲▼ button to move up and down in the Installation II menu. Select the
Installation II sub menu and press (Enter) / ► to enter the Status sub menu.
ITEM DESCRIPTION
Active Source Display the activated source.
Video Information Displays resolution/video information for RGB source and color standard for Video source.
Lamp Hours Lamp hour used information is displayed. Eco and Normal counters are separated.
— 40 —
![](/img.php?id=1722801&img=bg31.png)
Preface
– 41 –
M
AINTENANCE AND
S
ECURITY
Replacing the Projection Lamp
The projection lamp should be replaced when it burns out. It should only be replaced with a certified
replacement part, which you can order from your local dealer.
Important:
a. The projection lamp used in this product contains a small amount of mercury.
b. Do not dispose this product with general household waste.
c. Disposal of this product must be carried out in accordance with the regulations of your local
authority.
Warning:
Be sure to turn off and unplug the projector at least 30 minutes before replacing the lamp. Failure to
do so could result in a severe burn.
Caution:
In rare cases the lamp bulb may burn out during normal operation and cause glass dust or shards
to be discharged outward from the rear exhaust vent.
Do not inhale or do not touch glass dust or shards. Doing so could result in injury.
Always keep your face away from the exhaust vent so that you do not suffer from the gas and bro-
ken shards of the lamp.
When removing the lamp from a ceiling-mounted projector, make sure that no one is under the pro-
jector. Glass fragments could fall if the lamp has been burned out.
!
IF A LAMP EXPLODES
If a lamp explodes, the gas and broken shards may scatter inside the projector and they may come
out of the exhaust vent. The gas contains toxic mercury.
Open windows and doors for ventilation.
If you inhale the gas or the shards of the broken lamp enter your eyes or mouth, consult the doctor
immediately.
1.
Loosen the single screw on
the lamp compartment cover.
![](/img.php?id=1722801&img=bg32.png)
DLP Projector—User’s Manual
2.
Remove the lamp compart-
ment cover.
3. Remove the three screws
from the lamp module.
4. Lift the module handle up.
5. Pull firmly on the module
handle to remove the lamp
module.
— 42 —
![](/img.php?id=1722801&img=bg33.png)
Preface
6. Reverse steps 1 to 5 to install
the new lamp module.
While installing, align the
lamp module with the
connector and ensure it is
level to avoid damage.
Note: The lamp module must
sit securely in place and the
lamp connector must be con-
nected properly before
tightening the screws.
– 43 –
![](/img.php?id=1722801&img=bg34.png)
DLP Projector—User’s Manual
Resetting the Lamp
After replacing the lamp, you should reset the lamp hour counter to zero. Refer to the following:
1.
Press the MENU button to open the
OSD menu.
2.
Press the cursor ◄► button to move
to the Installation II menu. Press the
cursor button to move down to
Advanced.
3.
Press the cursor ▼▲ button to move
down to Lamp Hour Reset.
4.
Press the cursor ► or Enter button.
A message screen appears.
5.
Press ▼▲◄► buttons to reset the
lamp hour.
6.
Press the MENU button to get back
to Installation II.
— 44 —
![](/img.php?id=1722801&img=bg35.png)
Preface
– 45 –
Cleaning the Projector
Cleaning the projector to remove dust and grime will help ensure trouble-free operation.
Warning:
1. Be sure to turn off and unplug the projector at least 30 minutes before cleaning. Failure to do so
could result in a severe burn.
2. Use only a dampened cloth when cleaning. Do not allow water to enter the ventilation openings
on the projector.
3. If a little water gets into the projector interior while cleaning, leave unplugged in a well-ventilated
room for several hours before using.
4. If a lot of water gets into the projector interior when cleaning, have the projector serviced.
Cleaning the Lens
You can purchase optic lens cleaner from most camera stores. Refer to the following to clean the pro-
jector lens.
1. Apply a little optic lens cleaner to a clean soft cloth. (Do not apply the cleaner directly to the lens.)
2. Lightly wipe the lens in a circular motion.
Caution:
1. Do not use abrasive cleaners or solvents.
2. To prevent discoloration or fading, avoid getting cleaner on the projector case.
Cleaning the Case
Refer to the following to clean the projector case.
1. Wipe off dust with a clean dampened cloth.
2. Moisten the cloth with warm water and mild detergent (such as used to wash dishes), and then wipe
the case.
3. Rinse all detergent from the cloth and wipe the projector again.
Caution:
To prevent discoloration or fading of the case, do not use abrasive alcohol-based cleaners.
![](/img.php?id=1722801&img=bg36.png)
DLP Projector—User’s Manual
Using the Kensington® Lock & Using the Security Bar
Using the Kensington® Lock
If you are concerned about security, attach the projector to a permanent object with the Kensington
slot and a security cable.
Note:
Contact your vendor for details on purchasing a suitable Kensington security cable.
The security lock corresponds to Kensington’s MicroSaver Security System. If you have any com-
ment, contact: Kensington, 2853 Campus Drive, San Mateo, CA 94403, U.S.A. Tel: 800-535-4242,
http://www.Kensington.com.
Using the Security Bar
In addition to the password protection function and the Kensington lock, the Security Bar helps pro-
tect the projector from unauthorized removal. See the following picture.
— 46 —
![](/img.php?id=1722801&img=bg37.png)
Preface
– 47 –
T
ROUBLESHOOTING
Common problems and solutions
These guidelines provide tips to deal with problems you may encounter while using the projector. If
the problem remains unsolved, contact your dealer for assistance.
Often after time spent troubleshooting, the problem is traced to something as simple as a loose con-
nection. Check the following before proceeding to the problem-specific solutions.
• Use some other electrical device to confirm that the electrical outlet is working.
• Ensure the projector is turned on.
• Ensure all connections are securely attached.
• Ensure the attached device is turned on.
• Ensure a connected PC is not in suspending mode.
• Ensure a connected notebook computer is configured for an external display.
(This is usually done by pressing an Fn-key combination on the notebook.)
Tips for Troubleshooting
In each problem-specific section, try the steps in the order suggested. This may help you to solve the
problem more quickly.
Try to pin point the problem and thus avoid replacing non-defective parts.
For example, if you replace batteries and the problem remains, put the original batteries back and go
to the next step.
Keep a record of the steps you take when troubleshooting: The information may be useful when call-
ing for technical support or for passing on to service personnel.
![](/img.php?id=1722801&img=bg38.png)
DLP Projector—User’s Manual
— 48 —
LED Error Messages
ERROR CODE MESSAGES POWER LED
BLINK OVER TEMP
LED LAMP LED
BLINK
Standby mode ON 0 0
Over temperature 0 ON 0
Thermal break status error 4 0 0
Lamp error 0 0 ON
Fan1 error 6 0 1
Fan2 error 6 0 2
Fan3 error 6 0 3
Lamp door open 7 0 0
DMD error 8 0 0
Color wheel error 9 0 0
In the event of an error, please disconnect the AC power cord and wait for one (1) minute before restarting
the projector. If the Power or Lamp LEDs are still blinking or the Over Temp LED is lit, or any other situa-
tion that isn't listed in the chart above, please contact your service center.
Image Problems
Problem: No image appears on the screen
1. Verify the settings on your notebook or desktop PC.
2. Turn off all equipment and power up again in the correct order.
Problem: The image is blurred
1. Adjust the Focus on the projector.
2. Press the Auto button on the remote control or projector.
3. Ensure the projector-to-screen distance is within the 10-meter (33-feet) specified range.
4. Check that the projector lens is clean.
Problem: The image is wider at the top or bottom (trapezoid effect)
1. Position the projector so it is as perpendicular to the screen as possible.
2. Use the Keystone button on the remote control or projector to correct the problem.
Problem: The image is reversed
Check the Projection setting on the Installation I menu of the OSD.
Problem: The image is streaked
1. Set the Frequency and Tracking settings on the Computer menu of the OSD to the de-
fault settings.
2. To ensure the problem is not caused by a connected PC’s video card, connect to another
computer.
Problem: The image is flat with no contrast
Adjust the Contrast setting on the Image menu of the OSD.
Problem: The color of the projected image does not match the source image.
Adjust the Color Temperature and Gamma settings on the Image menu of the OSD.
![](/img.php?id=1722801&img=bg39.png)
Preface
– 49 –
Lamp Problems
Problem: There is no light from the projector
1. Check that the power cable is securely connected.
2. Ensure the power source is good by testing with another electrical device.
3. Restart the projector in the correct order and check that the Power LED is green.
4. If you have replaced the lamp recently, try resetting the lamp connections.
5. Replace the lamp module.
6. Put the old lamp back in the projector and have the projector serviced.
Problem: The lamp goes off
1. Power surges can cause the lamp to turn off. Re-plug power cord. When the Power LED
is on, press the power button.
2. Replace the lamp module.
3. Put the old lamp back in the projector and have the projector serviced.
Remote Control Problems
Problem: The projector does not respond to the remote control
1. Direct the remote control towards remote sensor on the projector.
2. Ensure the path between remote and sensor is not obstructed.
3. Turn off any fluorescent lights in the room.
4. Check the battery polarity.
5. Replace the batteries.
6. Turn off other Infrared-enabled devices in the vicinity.
7. Have the remote control serviced.
Audio Problems
Problem: There is no sound
1. Adjust the volume on the remote control.
2. Adjust the volume of the audio source.
3. Check the audio cable connection.
4. Test the source audio output with other speakers.
5. Have the projector serviced.
Problem: The sound is distorted
1. Check the audio cable connection.
2. Test the source audio output with other speakers.
3. Have the projector serviced.
Having the Projector Serviced
If you are unable to solve the problem, you should have the projector serviced. Pack the projector in
the original carton. Include a description of the problem and a checklist of the steps you took when
trying to fix the problem: The information may be useful to service personnel. For servicing, return the
projector to the place you purchased it.
![](/img.php?id=1722801&img=bg3a.png)
DLP Projector—User’s Manual
— 50 —
HDMI Q & A
Q. What is the difference between a “Standard” HDMI cable and a “High-Speed” HDMI
cable?
Recently, HDMI Licensing, LLC announced that cables would be tested as Standard or High-
Speed cables.
․Standard (or “category 1”) HDMI cables have been tested to perform at speeds of 75Mhz or
up to 2.25Gbps, which is the equivalent of a 720p/1080i signal.
․High Speed (or “category 2”) HDMI cables have been tested to perform at speeds of
340Mhz or up to 10.2Gbps, which is the highest bandwidth currently available over an
HDMI cable and can successfully handle 1080p signals including those at increased color
depths and/or increased refresh rates from the Source. High-Speed cables are also able to
accommodate higher resolution displays, such as WQXGA cinema monitors (resolution of
2560 x 1600).
Q. How do I run HDMI cables longer than 10 meters?
There are many HDMI Adopters working on HDMI solutions that extend a cable’s effective
distance from the typical 10 meter range to much longer lengths. These companies
manufacture a variety of solutions that include active cables (active electronics built into
cables that boost and extend the cable’s signal), repeaters, amplifiers as well as CAT5/6 and
fiber solutions.
Q. How can I tell if a cable is an HDMI certified cable?
All HDMI products are required to be certified by the manufacturer as part of the HDMI
Compliance Test Specification. However, there may be instances where cables bearing the
HDMI logo are available but have not been properly tested. HDMI Licensing, LLC actively
investigates these instances to ensure that the HDMI trademark is properly used in the
market. We recommend that consumers buy their cables from a reputable source and a
company that is trusted.
For more detail information check http://www.hdmi.org/learningcenter/faq.aspx#49
![](/img.php?id=1722801&img=bg3b.png)
Preface
– 51 –
S
PECIFICATIONS
Specifications
Model D856STPB D858WTPB
Display type TI DMD 0.55” TI DMD 0.65”
Resolution XGA 1024x768 WXGA 1280x800
Projection distance 0.66m ~ 1.69m
Projection screen size 49.9" ~ 127.9" 37.8" ~ 113.5"
Projection lens Manual Focus/Fix Zoom
Zoom ratio Fix
Vertical keystone correction +/- 40 steps
Projection methods Front, Rear, Desktop/Ceiling (Rear, Front)
Data compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, Mac
SDTV/EDTV/ HDTV 480i, 480p, 720p, 1080i, 1080p
Video compatibility NTSC/NTSC 4.43, PAL (B/G/H/I/M/N/60), SECAM
H-Sync 15, 30 – 90 kHz
V-Sync 43 – 85 Hz
Safety certification FCC-B, cUL, UL, CE, C-tick, CCC, KC, CB, GOST, NOM, SASO, Taiwan Green Mark
Operation temperature 5° ~ 35°C
Dimensions 306 mm (W) x 206 mm (D) x 104 mm (H)
AC Input AC Universal 100-240, Typical @ 110VAC (100-240)/+-10%
Power consumption Typical 280W (Normal) / Typical 240W (Eco)
Stand By <1 watts
Lamp 220W (Normal) / 190W (Eco)
Audio speaker 10W mono speaker
VGA x 1
DVI-I x 1
Composite video x 1
HDMI x 1
AUDIO RCA x 2
Input Terminals
Audio Mini-jack x 2
VGA x 1
Output Terminals Audio Mini-jack x 1
RS-232C
RJ45
MIC mini-jack x 1
DC 12V screen trigger
Control Terminals
USB
Security Kensington lock / Security Bar
Note:
For questions regarding product specifications, please contact your local distributor.
![](/img.php?id=1722801&img=bg3c.png)
DLP Projector—User’s Manual
Projection Distance vs. Projection Size
Projection Distance and Size Table
D856STPB (0.55" XGA)
IMAGE DIAGONAL
(INCH) IMAGE WIDTH
(INCH) IMAGE HIGHT
(INCH)
PROJECTION
DISTANCE
(MM)
FROM
OFFSET-A
( MM )
49.9 760.5 1014.0 0.66 108.4
60 914.4 1219.2 0.79 130.3
80 1219.2 1625.6 1.06 173.7
100 1524.0 2032.0 1.32 217.2
120 1828.8 2438.4 1.58 260.6
127.9 1949.2 2598.9 1.69 277.
D858WTPB
IMAGE DIAGONAL
(INCH) IMAGE WIDTH
(INCH) IMAGE HIGHT
(INCH)
PROJECTION
DISTANCE
(MM)
FROM
OFFSET-A
( MM )
58.4 786.2 1257.9 0.66 91.9
60 807.7 1292.3 0.68 94.4
70 942.3 1507.7 0.79 110.1
80 1077.0 1723.1 0.90 125.8
100 1346.2 2153.9 1.13 157.3
120 1615.4 2584.7 1.36 188.8
149.4 2011.2 3218.0 1.69 235.0
— 52 —
![](/img.php?id=1722801&img=bg3d.png)
Preface
– 53 –
Timing Mode Table
SIGNAL RESOLUTION H-SYNC
(KHZ) V-SYNC
(HZ) COMPOSITE
/ S-VIDEO COMPONENT RGB DVI/
HDMI
NTSC - 15.734 60.0 O - - -
PAL/SECAM - 15.625 50.0 O - - -
720 x 400 37.9 85.0 - - O O
640 x 480 31.5 60.0 - - O O
640 x 480 37.9 72.0 - - O O
640 x 480 37.5 75.0 - - O O
640 x 480 43.3 85.0 - - O O
800 x 600 35.2 56.0 - - O O
800 x 600 37.9 60.0 - - O O
800 x 600 48.1 72.0 - - O O
800 x 600 46.9 75.0 - - O O
800 x 600 53.7 85.0 - - O O
1024 x 768 48.4 60.0 - - O O
1024 x 768 56.5 70.0 - - O O
1024 x 768 60.0 75.0 - - O O
1024 x 768 68.7 85.0 - - O O
1280 x 800 49.7 59.8 - - O O
1280 x 800 62.8 74.9 - - O O
1280 x 800 71.6 84.8 - - O O
1280 x 1024 63.98 60.0 - - O O
1280 x 1024 79.98 75.0 - - O O
1280 x 1024 91.10 85.0 - - O O
1280 x 960 60.0 60.0 - - O O
1280 x 960 85.9 85.0 - - O O
1400 x 1050 65.3 60.0 - - O O
1440 x 900 70.6 75.0 - - O O
VESA
1440 x 900 55.6 60.0 - - O O
![](/img.php?id=1722801&img=bg3e.png)
DLP Projector—User’s Manual
— 54 —
SIGNAL RESOLUTION H-SYNC
(KHZ) V-SYNC
(HZ) COMPOSITE
/ S-VIDEO COMPONENT RGB DVI/
HDMI
1600 x 1200 75.0 60.0 - - O O
640 x 480 35.0 66.68 - - O O
832 x 624 49.725 74.55 - - O O
1024 x 768 60.24 75.0 - - O O
Apple Mac
1152 x 870 68.68 75.06 - - O O
480i 15.734 60.0 - O - O
SDTV
576i 15.625 50.0 - O - O
480p 31.469 60.0 - O - O
EDTV
576p 31.25 50.0 - O - O
720p 37.5 50.0 - O - O
720p 45.0 60.0 - O - O
1080i 33.8 60.0 - O - O
1080i 28.1 50.0 - O - O
1080p 67.5 60.0 - O - O
HDTV
1080p 56.3 50.0 - O - O
O: Frequency supported
—: Frequency not supported
* : Displayable level
![](/img.php?id=1722801&img=bg3f.png)
Preface

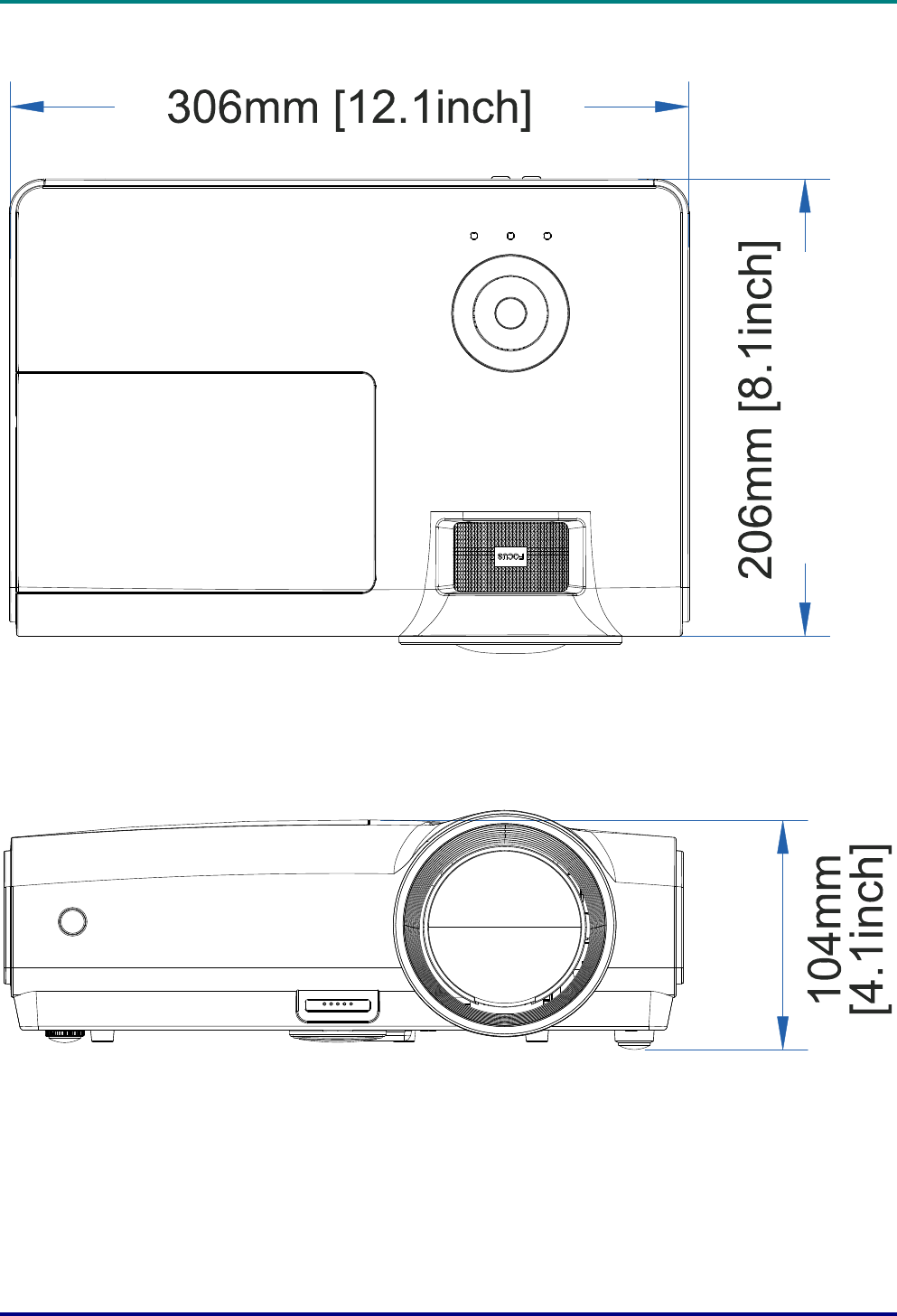

Projector Dimensions
– 55 –
![](/img.php?id=1722801&img=bg40.png)
DLP Projector—User’s Manual
— 56 —
R
EGULATORY
C
OMPLIANCE
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pur-
suant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate ra-
dio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is en-
couraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is con-
nected.
-Consult the dealer or an experienced radio/ TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could void the
user's authority to operate the equipment.
RF exposure warning
This equipment must be installed and operated in accordance with provided instructions and the an-
tenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm
from all persons and must not be co-located or operating in conjunction with any other antenna or
transmitter. End-users and installers must be provide with antenna installation instructions and
transmitter operating conditions for satisfying RF exposure compliance.
Canada
This class B digital apparatus complies with Canadian ICES-003.
Safety Certifications
FCC-B, cUL, UL, CE, C-tick, CCC, KC, CB, GOST, NOM, SASO, and Taiwan Green Mark.
![](/img.php?id=1722801&img=bg41.png)
Preface
– 57 –
A
PPENDIX
I
RS-232C Protocol
RS232 Setting
Baud rate: 9600
Parity
check: None
Data bit: 8
Stop bit: 1
Flow Con-
trol None
Minimum delay for next command: 1ms
Control Command Structure
Header code Command code Data code End code
HEX Command Data 0Dh
ASCII `V’ Command Data CR
Operation Command
Note:
XX=00-98, projector's ID, XX=99 is for all projectors
Return Result P=Pass / F=Fail
n: 0:Disable/1: Enable/Value(0~9999)
Command Group 00
ASCII Function Description Return Result
VXXS0001 Power On P/F
VXXS0002 Power Off P/F
VXXS0003 Resync P/F
VXXG0004 Get Lamp Hours Pn/F
VXXS0006 System Reset P/F
VXXG0007 Get System Status
0:Reset
1:Standby
2:Operation
3:Cooling
Pn/F
VXXG000 8 Get F/W Version Pn/F
Command Group 01
ASCII Function Description Return Value
VXXG0101 Get Brightness n=0~100 Pn/F
VXXS0101n Set Brightness n=0~100 P/F
VXXG0102 Get Contrast n=0~100 Pn/F
VXXS0102n Set Contrast n=0~100 P/F
VXXG0103 Get Color n=0~100 Pn/F
VXXS0103n Set Color n=0~100 P/F
VXXG0104 Get Tint n=0~100 Pn/F
VXXS0104n Set Tint n=0~100 P/F
VXXG0105 Get Sharpness 0~31 Pn/F
![](/img.php?id=1722801&img=bg42.png)
DLP Projector—User’s Manual
— 58 —
VXXS0105n Set Sharpness 0~31 P/F
VXXG0106 Get Color Temperature
0:Cold
1:Normal
2:Warm
Pn/F
VXXS0106n Set Color Temperature
0:Cold
1:Normal
2:Warm
P/F
VXXG0107 Get Gamma
0:PC
1:MAC
2:Video
3:Chart
4: B&W
Pn/F
VXXS0107n Set Gamma
0:PC
1:MAC
2:Video
3:Chart
4: B&W
P/F
Command Group 02
ASCII Function Description Return Value
VXXS0201 Select RGB P/F
VXXS0202 Select RGB2 P/F
VXXS0203 Select DVI P/F
VXXS0204 Select Video P/F
VXXS0205 Select S-Video P/F
VXXS0206 Select HDMI P/F
VXXS0207 Select BNC P/F
VXXG0220 Get Current Source
Return
1:RGB
2:RGB2
3:DVI
4:Video
5:S-Video
6:HDMI
7:BNC
Pn/F
Command Group 03
ASCII Function Description Return Value
VXXG0301 Get Scaling
0: Fill
1: 4:3
2: 16:9
3 :Letter Box
4 :Native
Pn/F
VXXS0301n Set Scaling
0: Fill
1: 4:3
2: 16:9
3 :Letter Box
4 :Native
P/F
VXXG0302 Blank Pn/F
VXXS0302n Blank P/F
![](/img.php?id=1722801&img=bg43.png)
Preface
– 59 –
VXXG0303 Auto Keystone On Pn/F
VXXS0303n Auto Keystone On P/F
VXXG0304 Freeze On Pn/F
VXXS0304n Freeze On P/F
VXXG0305 Volume n=0~8 Pn/F
VXXS0305n Volume n=0~8 P/F
VXXG0308 Projection Mode
0:Front
1:Rear
2:Ceiling
3:Rear+Ceiling
Pn/F
VXXS0308n Projection Mode
0:Front
1:Rear
2:Ceiling
3:Rear+Ceiling
P/F
VXXG0309 Get vertical keystone value n= -40~40 Pn/F
VXXS0309n Set vertical keystone value n= -40~40 P/F
VXXG0311 Adjust the zoom n=-10~10 Pn/F
VXXS0311n Adjust the zoom n=-10~10 P/F
Command Group 04 (Remote Control)
ASCII Function Description Return Value
VXXS0401 UP arrow P/F
VXXS0402 DOWN arrow P/F
VXXS0403 LEFT arrow P/F
VXXS0404 RIGHT arrow P/F
VXXS0405 POWER P/F
VXXS0406 EXIT P/F
VXXS0407 INPUT P/F
VXXS0408 AUTO P/F
VXXS0409 KEYSTONE+ P/F
VXXS0410 KEYSTONE- P/F
VXXS0411 MENU P/F
VXXS0412 STATUS P/F
VXXS0413 MUTE P/F
VXXS0414 ZOOM+ P/F
VXXS0415 ZOOM- P/F
VXXS0416 BLANK P/F
VXXS0417 FREEZE P/F
VXXS0418 VOLUME+ P/F
VXXS0419 VOLUME- P/F
VXXS0420 Enter P/F
