1 Introduction
Thank you for purchasing the 802.11g Wireless LAN Mini USB Adapter. This USB Adapter is
designed to comply with IEEE 802.11g Wireless LAN standard and easy to carry with the
Mini size. It is suitable for any Laptop or Desktop computers.
This adapter supports 64/128/256-bit WEP data encryption that protects your wireless
network from eavesdropping. It also supports WPA (Wi-Fi Protected Access) feature that
combines IEEE 802.1x and TKIP (Temporal Key Integrity Protocol) technologies. Client
users are required to authorize before accessing to APs or AP Routers, and the data
transmitted in the network is encrypted/decrypted by a dynamically changed secret key.
This adapter has built-in AES engine which ensure the highest degree of security and
authenticity for digital information and it is the most advanced solution defined by IEEE
802.11i for the security in the wireless network.
This adapter is cost-effective, together with the versatile features; it is the best solution for
you to build your wireless network.
1.1 Features
• Complies with the IEEE 802.11b and IEEE 802.11g 2.4GHz standards.
• Up to 54Mbps high data transfer rate.
• Support 64/128/256-bit WEP, WPA (TKIP, IEEE 802.1x) and AES functions for high level of
security.
• Supports Software AP function, which turns the wireless station into a wireless AP.
• Complies with IEEE 802.11d country roaming standard.
• Support the most popular operating system: Windows 98SE/Me/2000/XP.
• Supports USB 2.0/1.1/1.0 interface.
• Portable and mini-size design.
• Suitable for Any Notebook or Desktop PC.
1.2 Specifications
• Standard: IEEE 802.11g/b
• Bus Type: USB 2.0 Type A
• Frequency Band: 2.4000~2.4835GHz (Industrial Scientific Medical Band)
• Modulation: OFDM with BPSK, QPSK, 16QAM, 64QAM (11g)
BPSK, QPSK, CCK (11b)
• Data Rate: 54/48/36/24/18/12/11/9/6/5.5/2/1Mbps auto fallback
• Security: 64/128/256-bit WEP Data Encryption, WPA (IEEE 802.1x with TKIP) and AES
• Antenna: Internal Antenna
• Drivers: Windows 98SE/Me/2000/XP/2003 Server
• LED: Link/Activity
• Transmit Power: 16dBm (Typical)
2
• Dimension: 9(H) x 27(W) x 87(D)
• Temperature: 32~131°F (0 ~55°C)
• Humidity: 0-95% (NonCondensing)
• Certification: FCC, CE
1.3 Package Contents
Before you begin the installation, please check the items of your package. The package
should include the following items:
• One USB Adapter
• One USB 2.0 Extension Cable (100 cm)
• One Quick Guide
• One CD (Driver/Utility/Manual)
If any of the above items is missing, contact your supplier as soon as possible.
![](/img.php?id=446175&img=bg8.png)
3
2 Installation Procedure
Before you proceed with the installation, please notice following descriptions.
Note1: Please do not install the USB adapter into your computer before installing the software
program from the CD.
Note2: The following installation was operated in Windows XP. (Procedures are similar for
Windows 98SE/Me/2000/2003 Server.)
Note3: If you have installed the Wireless PC Card driver & utility before, please uninstall the
old version first.
Please follow below instructions to install the USB Adapter.
I. Install the Configuration Utility
A. Insert the Installation CD to your CD-ROM Drive. Execute the “setup” program.
B. If you want to install the software program in another location, click “Browser” and select
an alternative destination. Then, click “Next”.
![](/img.php?id=446175&img=bg9.png)
4
C. Click “Continue Anyway” to finish the installation.
![](/img.php?id=446175&img=bga.png)
5
II. Install the USB Adapter
A. Plug the USB Adapter into the USB port of your computer.
B. The “Found New Hardware Wizard” is displayed, select “Install the software automatically
(Recommended)” and click “Next”.
C. Click “Continue Anyway” and the system will start to install the USB adapter.
![](/img.php?id=446175&img=bgb.png)
6
D. Click “Finish” to complete the installation.
III. Using the Configuration Utility
To setup the USB adapter, double-click the icon in the system tray.
For Windows XP, there is a “Windows Zero Configuration Tool” by default for you to setup
wireless clients. If you want to use the Utility of the USB adapter, please follow one of the
ways as below.
![](/img.php?id=446175&img=bgc.png)
7
First Way
A. Double-click the utility
icon in the system tray.
B. Click “Yes” to use the
utility of the USB adapter.
Second Way
A. Double-click the icon.
B. Click “Advance”.
C. Uncheck “Use Windows to
configure my wireless
network settings”.
![](/img.php?id=446175&img=bgd.png)
8
3 Configuration Utility
The Configuration Utility is a powerful application that helps you configure the 802.11g
Wireless LAN Mini USB Adapter and monitor the link status during the communication
process.

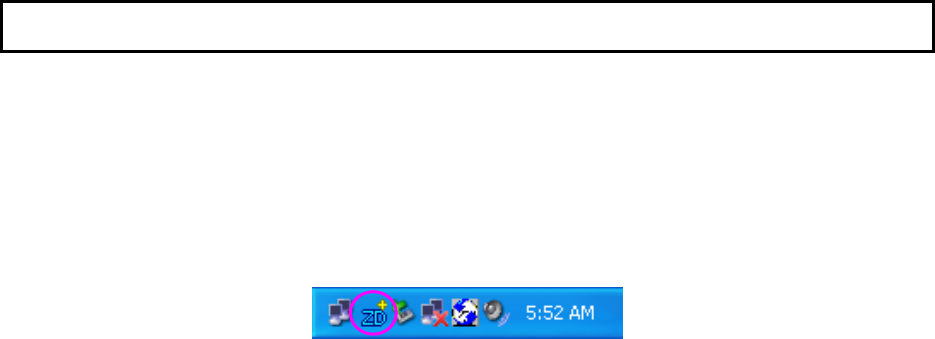

The Configuration Utility appears as an icon on the system tray of Windows while the card is
running. You can open it by double-click on the icon.
Right click the icon, there are some items for you to operate the configuration utility.
Open Utility Window
Select “Open Utility Window” to open the Configuration Utility tool.
Exit ZDWlan
Select “Exit ZDWlan” to close the Configuration Utility tool.
Before using the utility, you have to know some restrictions of the utility.
1. If you want to connect to 11g (up to 54Mbps) network, please ensure to install the
adapter to PC or laptop with USB 2.0 interface. This adapter runs at lower performance
while you connect it to the USB 1.1/1.0 port of your computer.
2. This adapter will work in 11b mode when the network type is in Ad Hoc mode. It is
defines by Wi-Fi organization. If you want to enable the data rate up to 54Mbps (11g),
please follow steps listed below.
A. Go to “Network Connections”.
B. Right Click the “Wireless Network Connection” and select “Properties”.
C. From the pop-up screen, click “Configure”.
D. Enter into “Advanced” page of the “Properties” screen.
E. Enable the setting of “IBSS_G_Mode”.
3.1 Wireless Connection
When you open the Configuration Utility, the system will scan all the channels to find all the
access points/stations within the accessible range of your card and automatically connect to
the wireless device with the highest signal strength. From the screen, you may know all the
infomration about the wireless connection.
![](/img.php?id=446175&img=bge.png)
9
Parameter Description
Mode Station – Set the USB adapter a wireless client.
Access Point – Turns the USB adapter to function as a wireless
AP.
Network Adapter Display the product information of the USB Adapter.
Available Network Display all the SSID and Signal Strength of wireless stations
nearby. To re-survey the available wireless devices please click
“Refresh”.
There are two ways to automatically make the connection
between the USB Adapter and the wireless station on the list.
1. Double-click the wireless station on the list directly.
2. Select the station you intend to connect and then click
“Connect this site“.
Current Network Information Display the information about the wireless network this adapter is
connecting to. The information includes Channel, Type, SSID, TX
Rate and Encrypt settings. Note: Please refer to Section 3.2 for
the description of each item.
More Setting For setting more functions including disable/enable WEP and
Power Saving Mode, etc. Please refer to Section 3.2, 3.3 and 3.4.
Link Status Display the status of the wireless connection.
![](/img.php?id=446175&img=bgf.png)
10
Parameter Description
Signal Strength This bar shows the signal strength level. The higher percentage
shown in the bar, the more radio signal been received by the
adapter. This indicator helps to find the proper position of the
wireless station for quality network operation.
Link Quality This bar indicates the quality of the link. The higher the
percentage, the better the quality.
TX Frame It shows the number of data frames which are transmitted by the
adapter successfully.
RX Frame It shows the number of data frames which are received by the
adapter successfully.
3.2 General Connection Setting
Click “More Setting”, users are allowed to setup the wireless connection setting and
Encryption Setting of the USB adapter.
Parameter Description
General Connection Setting
Channel Select the number of the radio channel used for the networking.
The channel setting of the wireless stations within a network
should be the same.
![](/img.php?id=446175&img=bg10.png)
11
Parameter Description
Tx Rate There are several options including
Auto/1/2/5.5/11/6/9/12/18/24/36/48/54Mbps for you to select.
When the “Auto” is selected, the device will choose the most
suitable transmission rate automatically. The higher data rate you
designated in the network, the shorter distance is allowed
between the adapter and the wireless stations.
When the adapter works in 11b mode, the maximum data rate is
11Mbps so that there are only “Auto/1/2/5.5/11Mbps” options you
can select.
SSID The SSID (up to 32 printable ASCII characters) is the unique
name identified in a WLAN. The ID prevents the unintentional
merging of two co-located WLANs.
You may specify a SSID for the adapter and then only the device
with the same SSID can interconnect to the adapter.
Any If “Any“ check box is enabled, the adapter will survey and connect
to one of the available wireless stations without checking the
consistency of channel and SSID with the wireless station.
Network Type Ad-Hoc – This mode enables wireless network adapters
interconnecting without through AP or Router. Select this mode if
there is no AP or Router in the network.
Infrastructure – This operation mode requires the presence of an
802.11 Access Point. All communication is done via the Access
Point or Router.
Change Clcik “Change“ will enable you to setup the parameters of
“General Connection Setting“. In the meantime, the button will
change to “Apply“ for you to confirm your settings.
Encryption Setting In the block, users may enable/disable WEP encryption within the
network. Please refer to Section 3.3 for more description.
![](/img.php?id=446175&img=bg11.png)
12
Parameter Description
Authentication Mode This setting has to be consistent with the wireless networks that
the adapter intends to connect.
Open System – No authentication is needed among the wireless
network.
Shared Key – Only wireless stations using a shared key (WEP
Key identified) are allowed to connecting each other.
Auto – Auto switch the authentication algorithm depending on the
wireless networks that the adapter is connecting to.
WEP Encryption Key Setting Click this button to setup the WEP key. Please refer to the
following description.
Profile
Profile Name Input the profile name to write the setting values of the adapter to
the file or load the setting values from the file you designate.
Load Load the setting values from the file entered in the “Profile
Name“. The new settings will be activated immediately.
Save Current Write the current setting values to the file entered in the “Profile
Name“. Please record the file name the data are saved.
Delete Delete the profile you select.
Other
Advanced Setting... For more advanced setting, please click it. To know more of the
setting, please refer to Section 3.4.
Information To view the version of the driver, firmware and the MAC Address
of the adapter, click the button.
3.3 WEP Encryption
WEP is an authentication algorithm, which protects authorized Wireless LAN users against
eavesdropping. The Authentication type and WEP key must be the same on the wireless
stations within the network. This adapter supports 64/128/256-bit WEP Encryption function.
With this function, your data will be transmitted over the Wireless network securely.

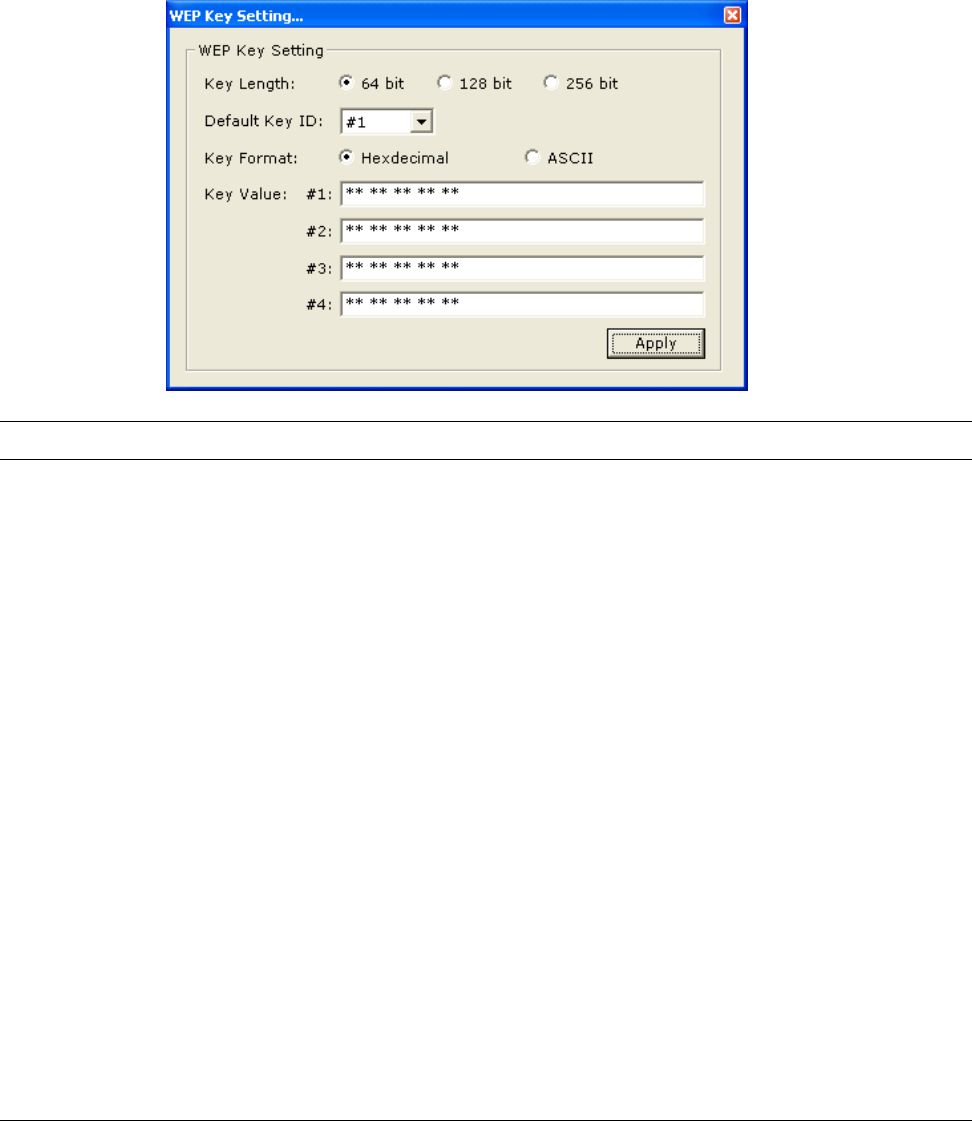

![](/img.php?id=446175&img=bg12.png)
13
Parameter Description
Key Length You may select the 64-bit, 128-bit or 256-bit to encrypt
transmitted data. Larger key length will provide higher level of
security, but the throughput will be lower.
Default Key ID Select one of the keys (1~4) as the encryption key.
Key Format Hexdecimal – Only “A-F“, “a-f“ and “0-9“ are allowed to be set as
WEP key.
ASCII –Numerical values, characters or signs are allowed to be
the WEP key. It is more recognizable for user.
Key1 ~ Key4 The keys are used to encrypt data transmitted in the wireless
network. Fill the text box by following the rules below.
64-bit – Input 10-digit Hex values or 5-digit ASCII values as the
encryption keys. For example: “0123456aef“ or “Guest“.
128-bit – Input 26-digit Hex values or 13-digit ASCII values as the
encryption keys. For example:
“01234567890123456789abcdef“ or “administrator“.
256-bit – Input 30-digit Hex values or 29-digit ASCII values as the
encryption keys.
3.4 Advanced Setting
The “Advanced Setting” allows user to enable/disable country roaming and power
consumption mode, setup the fragmentation threshold and RTS/CTS threshold of the
adapter.
![](/img.php?id=446175&img=bg13.png)
14
Parameter Description
User Interface Select the display language of the utility. Two languages are
enabled: English and Chinese.
Power Consumption Setting Continuous Access Mode (CAM) – The adapter will always set
in active mode.
Maximum Power-Saving Mode – Enable the adapter in the
power saving mode when it is idle.
Fast Power-Saving Mode – Enable the adapter in the power
saving mode when it is idle, but some components of the adapter
is still alive. In this mode, the power consumption is larger than
“Max“ mode.
Fragementation Threshold The value defines the maximum size of packets, any packet size
larger than the value will be fragmented. If you have decreased
this value and experience high packet error rates, you can
increase it again, but it will likely decrease overall network
performance. Select a setting within a range of 256 to 2346 bytes.
Minor change is recommended.
RTS / CTS Threshold Minimum packet size required for an RTS/CTS (Request To
Send/Clear to Send). For packets smaller than this threshold, an
RTS/CTS is not sent and the packet is transmitted directly to the
WLAN. Select a setting within a range of 0 to 2347 bytes. Minor
change is recommended
![](/img.php?id=446175&img=bg14.png)
15
4 Troubleshooting
This chapter provides solutions to problems usually encountered during the installation and
operation of the adapter.
1. What is the IEEE 802.11g standard?
802.11g is the new IEEE standard for high-speed wireless LAN communications that
provides for up to 54 Mbps data rate in the 2.4 GHz band. 802.11g is quickly becoming
the next mainstream wireless LAN technology for the home, office and public networks.
802.11g defines the use of the same OFDM modulation technique specified in IEEE
802.11a for the 5 GHz frequency band and applies it in the same 2.4 GHz frequency
band as IEEE 802.11b. The 802.11g standard requires backward compatibility with
802.11b.
The standard specifically calls for:
A. A new physical layer for the 802.11 Medium Access Control (MAC) in the 2.4 GHz
frequency band, known as the extended rate PHY (ERP). The ERP adds OFDM as
a mandatory new coding scheme for 6, 12 and 24 Mbps (mandatory speeds), and
18, 36, 48 and 54 Mbps (optional speeds). The ERP includes the modulation
schemes found in 802.11b including CCK for 11 and 5.5 Mbps and Barker code
modulation for 2 and 1 Mbps.
B. A protection mechanism called RTS/CTS that governs how 802.11g devices and
802.11b devices interoperate.
2. What is the IEEE 802.11b standard?
The IEEE 802.11b Wireless LAN standard subcommittee, which formulates the
standard for the industry. The objective is to enable wireless LAN hardware from
different manufactures to communicate.
3. What does IEEE 802.11 feature support?
The product supports the following IEEE 802.11 functions:
CSMA/CA plus Acknowledge Protocol
Multi-Channel Roaming
Automatic Rate Selection
RTS/CTS Feature
Fragmentation
Power Management
4. What is Ad-hoc?
An Ad-hoc integrated wireless LAN is a group of computers, each has a Wireless LAN
adapter, Connected as an independent wireless LAN. Ad hoc wireless LAN is
applicable at a departmental scale for a branch or SOHO operation.
16
5. What is Infrastructure?
An integrated wireless and wireless and wired LAN is called an Infrastructure
configuration. Infrastructure is applicable to enterprise scale for wireless access to
central database, or wireless application for mobile workers.
6. What is BSS ID?
A specific Ad hoc LAN is called a Basic Service Set (BSS). Computers in a BSS must
be configured with the same BSS ID.
7. What is WEP?
WEP is Wired Equivalent Privacy, a data privacy mechanism based on a 40 bit shared
key algorithm, as described in the IEEE 802 .11 standard.
8. What is TKIP?
TKIP is a quick-fix method to quickly overcome the inherent weaknesses in WEP
security, especially the reuse of encryption keys. TKIP is involved in the IEEE 802.11i
WLAN security standard, and the specification might be officially released by early
2003.
9. What is AES?
AES (Advanced Encryption Standard), a chip-based security, has been developed to
ensure the highest degree of security and authenticity for digital information, wherever
and however communicated or stored, while making more efficient use of hardware
and/or software than previous encryption standards. It is also included in IEEE 802.11i
standard. Compare with AES, TKIP is a temporary protocol for replacing WEP security
until manufacturers implement AES at the hardware level.
10. Can Wireless products support printer sharing?
Wireless products perform the same function as LAN products. Therefore, Wireless
products can work with Netware, Windows 2000, or other LAN operating systems to
support printer or file sharing.
11. Would the information be intercepted while transmitting on air?
WLAN features two-fold protection in security. On the hardware side, as with Direct
Sequence Spread Spectrum technology, it has the inherent security feature of
scrambling. On the software side, WLAN series offer the encryption function (WEP) to
enhance security and Access Control. Users can set it up depending upon their needs.
17
12. What is DSSS?What is FHSS?And what are their differences?
Frequency-hopping spread-spectrum (FHSS) uses a narrowband carrier that changes
frequency in a pattern that is known to both transmitter and receiver. Properly
synchronized, the net effect is to maintain a single logical channel. To an unintended
receiver, FHSS appears to be short-duration impulse noise. Direct-sequence spread-
spectrum (DSSS) generates a redundant bit pattern for each bit to be transmitted. This
bit pattern is called a chip (or chipping code). The longer the chip is, the greater the
probability that the original data can be recovered. Even if one or more bits in the chip
are damaged during transmission, statistical techniques embedded in the radio can
recover the original data without-the need for retransmission. To an unintended
receiver, DSSS appears as low power wideband noise and is rejected (ignored) by
most narrowband receivers.
13. What is Spread Spectrum?
Spread Spectrum technology is a wideband radio frequency technique developed by
the military for use in reliable, secure, mission-critical communication systems. It is
designed to trade off bandwidth efficiency for reliability, integrity, and security. In other
words, more bandwidth is consumed than in the case of narrowband transmission, but
the trade off produces a signal that is, in effect, louder and thus easier to detect,
provided that the receiver knows the parameters of the spread-spectrum signal being
broadcast. If a receiver is not tuned to the right frequency, a spread –spectrum signal
looks like background noise. There are two main alternatives, Direct Sequence Spread
Spectrum (DSSS) and Frequency Hopping Spread Spectrum (FHSS).
