Elpas Solutions Ltd. Lone Worker Active RFID Tag
User manual
![](/img.php?id=2866998&img=bg1.png)
Elpas 3 Shield
P/Ns: 5-LW200037-1 (BLE, LF, No Button), 5-LW240057-1 (Fall detect, RF/LF, BLE), 5-
LW243037-0 (Fall Detect, RF/LF/IR), 5-LW242057-0 (Fall Detect, RF/LF), 5-LW243037-1
(Fall Detect, IR/RF/LF, BLE), 5-LW242057-1 (Fall Detect, RF/LF, BLE)
User Guide
www.elpas.com
Page 1 of 6
V1/June 2015
Introduction
T
his User Guide provides basic instructions for the successful usage of the Lone Worker Transmitter.
CAUTION! Reasonable effort was made to ensure that the specifications and other information in this guide are accurate and complete at the time of its
publication. Nonetheless, all information contained in this document is subject to change at any time without prior notice. Any modifications to this equipment
w
ithout prior written consent of Elpas Solutions Ltd. will void all warranties including the pertinent regulatory certifications and as such revoke your authority
t
o operate this product. Furthermore, unauthorized modifications may also result in damage to this device and may cause a safety hazard to the users.
Product Description
The Elpas Shield is a personal duress button device with optional pull cord and fall
detection capabilities. Elpas Shield is designed for real-time monitoring and tracking of
staff members and visitors, both indoors and outdoors. The LoneWorker Fall Detect
Transmitter is designed both for seniors in assisted living facilities or work place staff
members that may be subject to attack or injury in high-risk environments.
Alarms can be triggered either by squeezing the two side buttons. In the Fall Detect
version, when worn on a belt, a short rip cord may be attached to a belt loop so that
an alarm is transmitted when the device is pulled off the belt.
Note: Users can also wear the Shield as a pendant using a lanyard. If you choose to do so, make
sure you use a lanyard for which, the force required to unlatch the tether switch is less than the
force required to open the clasp.
The pull mechanism is particularly useful for seniors with arthritis who have difficulties
pressing buttons.
The LoneWorker Fall Detect Transmitter also detects falls and alarms when tilted
horizontally. To prevent false alarms, the device indicates a pre-alarm by giving the
wearer a chance to cancel the alarm before it is transmitted by pressing on the front
cancel button.

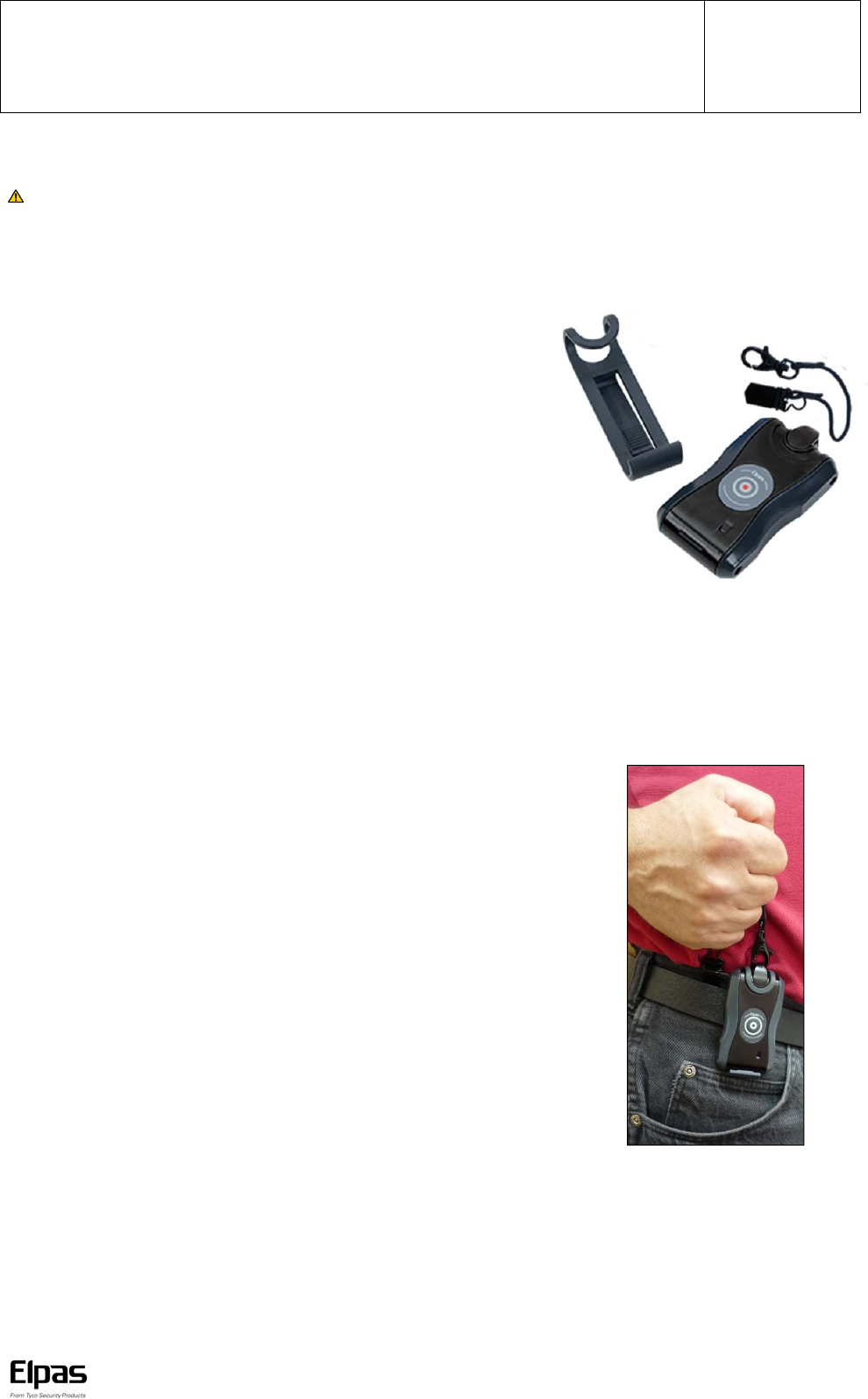

(Actual product may vary from photo)
Button press or pull cord (pull cord is present only in Fall detect version) should be
used as the primary means of calling for help even after a fall. The fall detection is
meant to alert in the event that the victim falls unconscious and may not trigger if not
sufficiently horizontal.
Elpas Shield based help call systems may be monitored by Elpas ELC controllers
and/or by Eiris Software which also receives alerts, through Eiris Cloud, from the
LoneWorker application that connects to Elpas Shield through Bluetooth, outdoors.
Elpas Low Frequency Beacons may be used to provide room level indoor location.
Outputs on all Elpas network devices may be used to drive sirens, strobe lights or PA
systems. Alerts may be sent to various handheld devices such as DECT handsets
using Eiris DECT interfaces or to IOS or Android smartphones using EirisGo apps.
Calls may be cleared by exposing Elpas Shield to a responder’s handheld LF beacon
requiring that staff arrive at the location of the caller.
The same Elpas infrastructure used for the duress solution may also be leveraged for
Access control, Asset tracking, Attendance and intrusion alarming making Elpas one
of the most competitive comprehensive solutions available today.
![](/img.php?id=2866998&img=bg2.png)
Elpas Lone Worker Transmitter – User Guide
www.elpas.com Page 2 of 6
V1/June 2015
Emergency Call Button Events
Factory Default: B1=0 (Button Up)
Activation/Emergency Call (LoneWorker Panic event): Pressing both buttons, simultaneously, for at least 1 second or pulling the cord
(in the Fall Detect version) is - B1=1 (Button Down) and last LF location, 6 RF messages, 3 for B1 Down and 3 for last LF, are transmitted
(each @ 4ms in duration), 312.5ms apart.
Upon button release, B1=0 (Button Up), 3 RF messages are transmitted (each @ 4ms in duration), 312.5ms apart.
Alert Testing (LoneWorker Test event): Pressing either button alone, B1=1 (Button Down), 3 RF messages are transmitted (each @ 4ms
in duration), 312.5ms apart.
Upon button release, B1=0 (Button Up) 3 RF messages are transmitted (each @ 4ms in duration), 312.5ms apart.
Product Specifications
RTLS Technologies IR (Reception, 800nm) RF (433MHz) LF (125KHz)
RF (Motion/Stationary) Supervision messages every 30secs /60secs
IR (Motion/Stationary) Supervision messages every 5secs /60secs
RF under LF 6 RF transmissions (each transmission
@ 4ms in duration), 312.5ms apart
IR under LF Does not transmit
Event Messages
Button Press/Release
Low Battery
3 RF transmissions (each transmission
@4ms in duration), 312.5ms apart
Bluetooth 2.4 GHz
Power Source
(recommended) CR2450 Lithium Battery: 620 mAh/2V
Battery Life 18 to 36 months, depending on usage
LED Status Indicator Button Press/Release, Motion/Stationary
Entering/Exiting LF Field, Low Battery
Badge ID Unique, factory-programmed ID
Construction Nylon Plastic (IP65)
Dimensions (H x W x D) 8.3 x 4.4 x 1.7 cm (3.3 x 1.7 x 0.7 inches)
Weight 40 grams (1.4 ounces)
Mounting Belt worn
Operating
Environment Temp: -30°C to 70°C (25°F to 159°F)
Humidity: 95% non-condensing
Management Software Eiris V4.8 or higher
Regulatory IC, FCC & CE compliant
Warranty 1 year limited (excluding battery)
Product offerings and specifications are subject to change without notice.
Accessories
5-LW009800-0 Belt Clip – 5 units
5-LW009700-0 LoneWorker Pull Cord – 5 units
![](/img.php?id=2866998&img=bg3.png)
Elpas Lone Worker Transmitter – User Guide
www.elpas.com Page 3 of 6
V1/June 2015

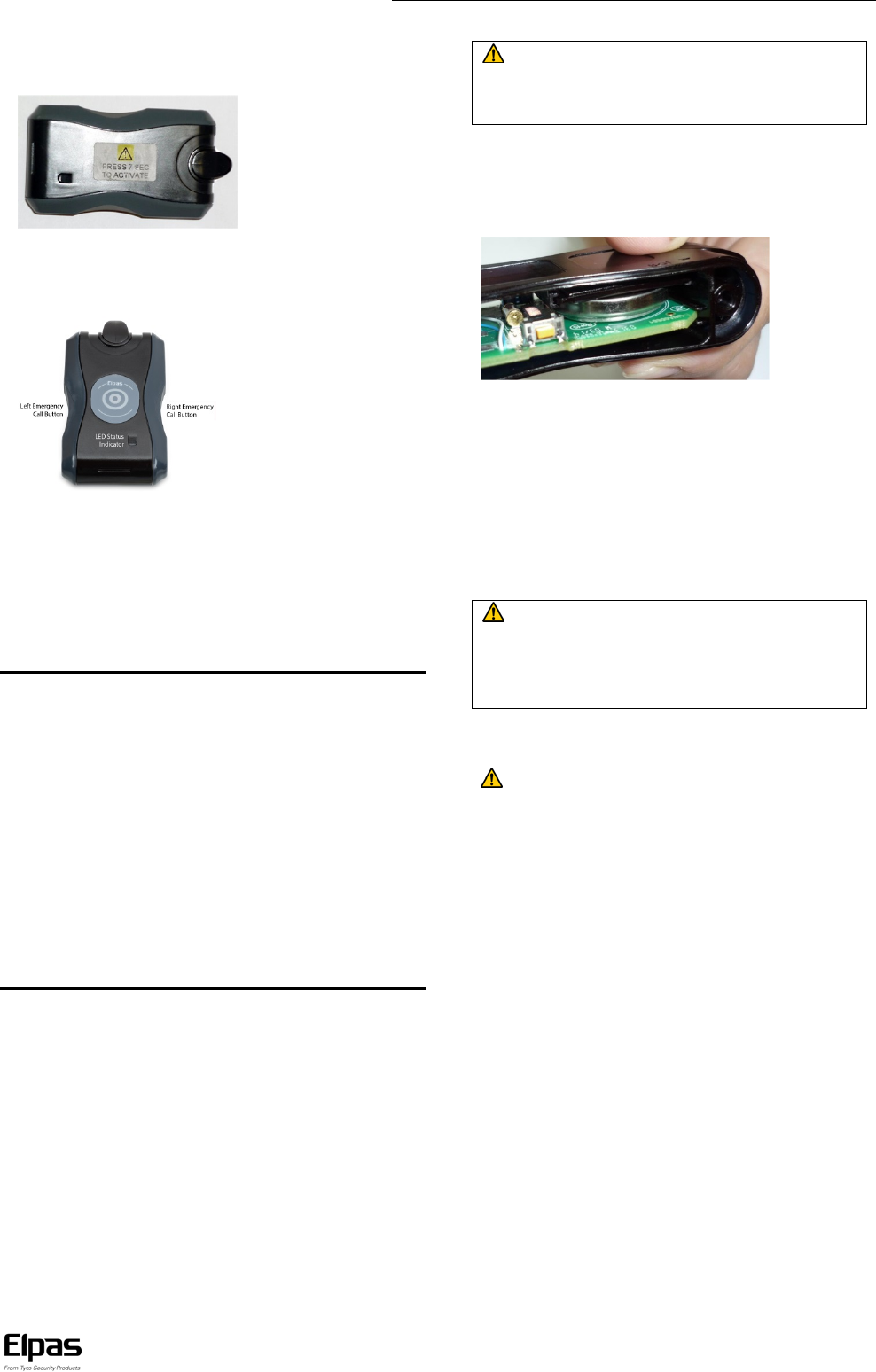

Initial Activation & Software Enrollment
The Lone Worker Transmitter is shipped from the factory in
Sleep Mode to conserve battery power during transit.
1. Prior to initial usage, remove the Activation Label and then
press, simultaneously, both of the emergency call push buttons
for at least 7 seconds.
This action Awakens the Transmitter from Sleep Mode and also
enrolls its unique factory installed ID Number (a six-digital
hexadecimal value) into the Host RTLS Application.
If the Enrollment process is successful, the Red LED
Status Indicator of the transmitter lights up for 3 seconds.
(Refer to your Eiris Configuration Guides for additional details.)
Battery Replacement
CAUTION! Risk of explosion if battery is replaced by
an incorrect type. Dispose of used batteries according to
the instructions.
1. Temporarily suspend usage of the Transmitter in the host
RTLS application.
2. Place the transmitter on its right side. Remove the 2 screws
that hold the battery cover to the body of the Transmitter
3. First time replacement: Utilize the pull tab (find it with the
Bat▼ mark engraved on the back) to slide the battery out of
the Transmitter.
Future replacements: In the absence of the pull tab,
remove the cover from the other side, and use a plastic
instrument to slide the battery out.
Dispose of the used battery in accordance with local
regulations.
CAUTION! After removing the battery please wait at
least 30 seconds before installing the replacement battery
so as to not cause damage to the tag or to negatively affect
the tag’s operational performance.
4. Slide the new battery into the transmitter. Recommended
battery: CR2450 Lithium Battery.
IMPORTANT! Ensure that the positive (+) side of the
battery faces up.
5. Close the side-cover(s) such that the screw holes are
correctly aligned. Tighten the 2 screws snugly into place. Do
not over-tighten as this may strip the case threads.
6. Reactivate the Transmitter in the Host RTLS Application.
Safety Issues
It is the responsibility of the system installer to ensure that the
appropriate staff members are suitably trained in the usage and
maintenance of the Lone Worker Transmitter.
Additionally, Supervisory Alerts should be configured in the Host
RTLS Application to notify staff members that the detection
Transmitter is:
In a low battery condition, or
Not properly transmitting location and status data.
Note: The above configured Supervisory Alerts should be triggered
periodically to ensure system integrity.
Alert Testing
When you press either the left or the right emergency call push-
button individually, you trigger the Lone Worker Transmitter to emit
a Test Alert Message for the host RTLS application to confirm that
the unit is functioning properly.
![](/img.php?id=2866998&img=bg4.png)
Elpas Lone Worker Transmitter – User Guide
www.elpas.com Page 4 of 6
V1/June 2015
RF Transmissions in LF Fields
For Moving Transmitter
LF Response Time: Onboard LF receiver polls every 250ms to check if the Transmitter is in an LF zone
Transmission Rate: 3 RF event transmissions (each transmission about 2ms in duration), at 0.4 second intervals.
If the Transmitter stays in an LF zone, then repeated at 2 seconds intervals.
Transmitted Message Type: RF Data Message includes ID code of LF Beacon. Motion bit, M=1.
For Motionless Transmitters
LF Response Time: Onboard LF receiver polls every 250ms to check if the Transmitter is in an LF zone
Transmission Rate: 3 RF supervision transmissions (each transmission about 2ms in duration), 0.4 seconds apart:
If the Transmitter stays in a LF zone for more than 10 minutes, then repeated at 15 second intervals.
Transmitted Message Type: RF Data Message includes ID code of LF Beacon. Motion bit, M=0
Cleaning & Disinfection Procedures
Use an appropriate antibacterial disinfectant such as Dispatch® Hospital Cleaner Disinfectant with Bleach from Caltech Industries
(http://www.caltechind.com) to clean the Lone Worker Transmitter.
Since ‘Cleaning Procedures’ may vary according to facility guidelines, thus the procedures given below are for illustrative purposes only:
Option 1 – Using Dispatch Disinfectant Spray
1. Lightly wet a disposable towel with Dispatch spray.
Do not saturate the towel
2. Wipe the outer surfaces of the sensor
3. Wipe the sensor with a dry disposable towel
4. Allow the sensor to air dry
5. Return the clean sensor to inventory or usage
6. Dispose of used towels per facility policies
Option 2 – Using Dispatch Disinfectant Towels
1. Open a new Dispatch pre-moistened towel
2. Wipe the outer surfaces of the sensor
3. Wipe the sensor with a dry disposable towel
4. Allow the sensor to air dry
5. Return the clean sensor to inventory or usage
6. Dispose of used towels per facility policies
Pull Switch Cleaning: Frequent use of the pull switch may result in a buildup of dust on the mechanism. Dust buildup causes friction
w
hich requires added force to pull and restore the switch. Should this occur, clean the switch using a compressed air duster. Gently
spray on the pull switch, and use a brush (often included in the canister).
Alert Event Configuration in Eiris
There are nine alert events relevant to the Lone Worker tag.
LoneWorker Fall Alarm (Fall Detect version only): When the
tag tilts and the Pre Alarm event is not cancelled within 15
seconds, the tag transmits the LoneWorker Fall Alarm which
indicates that the user has fallen and unable to function.
LoneWorker Front Button Press: In regular version, B2
down. In Fall Detect version, to cancel an alert event, the
user can press the button in the front of the tag. To cancel a
Pre Alarm event, the user can place the tag in the up-right
position. If the tag is repositioned, it transmits the Cancel
(cancel the Pre Alarm) alert event.
LoneWorker Panic: When under duress, the user can press
both of the side buttons, simultaneously, or pull the cord to
transmit a LoneWorker Panic event.
LoneWorker Pre Alarm: When the tag tilts, it transmits a
Pre Alarm event and starts to vibrate. The pre Alarm and
vibration last for 15 seconds during which, the user can
cancel it.
LoneWorker Pull Cord Restore: When the user inserts
the cord back into place, the tag transmits a cancellation
for the Pre Alarm event.
LoneWorker Single Side Button: To test the alerts, the
user can press either of the side buttons to transmit a
LoneWorker Single Side Button event.
Low Battery: When the battery of the tag runs low, it
transmits a Low Battery event.
Motion: When the tag is in motion, it transmits a Motion
event.
Stationary: When the tag is stationary, it transmits a
Stationary event.
![](/img.php?id=2866998&img=bg5.png)
Elpas Lone Worker Transmitter – User Guide
www.elpas.com Page 5 of 6
V1/June 2015
Users can configure all or some of these alert events in one alert object, the Elpas Badge Alert object.
Note: This document includes only the Shield alert event specific instructions. For further information regarding alert configuration, see Eiris Configuration
Guide, section 5.
To configure LoneWorker alerts:
1. In the EV2 setup mode, Right-click the Alerts branch and select Add by Type. The alerts Add Object window opens.
2. Select Elpas Badge Alert and click Add. A new Elpas Badge Alert object is created and opens in its General tab.
3. In the Name field, enter the name you choose (one that includes LoneWorker is recommended since the object is also used for
other badges).
4. Open the Inputs tab.
5. Under the Events pane, from the Filter drop-down list, select LoneWorker. The LoneWorker related events appear in the
Events pane.
6. Select the check-boxes of the events for which you want the alerts.
Configuring LoneWorker Application
The LoneWorker application and the alerts it sends to Eiris through the Cloud need to be configured in Eiris. See Eiris Cloud
Extension and LoneWorker Application Configuration and User Guide.
![](/img.php?id=2866998&img=bg6.png)
Elpas Personal Safety Bracelet – User Guide
Page 6 of 6
V1/June 2015
W.E.E.E. Product Recycling Declaration
For information regarding the recycling of this product you must contact the company from which you orignially purchased it.
If you are discarding this product and not returning it for repair then you must ensure that it is returned as identified by your supplier.
This product is not to be thrown away with everyday waste - Directive 2002/96/EC Waste Electrical and Electronic Equipment.
Compliance with Standards
This device complies with FCC Rules Part 15 and with Industry Canada license
exempt RSS standard(s). Operation is subject to two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference that may be received or that may
cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autoriséeaux deux conditions
suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Cet équipement a été testé et jugé conforme aux limites s’appliquant à un appareil
numérique de classe B, conformément à la Partie 15 des réglementations de la
FCC. Ces limites ont été élaborées pour offrir une protection raisonnable contre
les interferences nuisibles dans une installation résidentille.
Cet équipement génère, utilize et peut émettre de l’énergie de fréquence radio et, s’il
n’est pas installé et utilize conformément aux instructions du fabricant, peut
provoquer des interférences dangereuses pour les communications radio. Toutefois,
rien ne garantit l’absence d’interférences dans une installation particuliére. Si cet
équipement provoque des interférences nuisibles au niveau de la réception radio ou
television, ce qui peut étre determine par la mise hors, puis sous tension de
l’équipment, vous étes invite à essayer de corriger les interferences en pregnant les
mesures suivantes:
Réorientez ou déplaces l’antenne réceptrice.
Augmentez la distance qui sépare l’équipement et le récepteur.
Branchez l’équipement à une prise d’un circuit different de celui auquel est
branché le récepteur.
Consultez le revendeur ou un technician radio/television expérimenté pour
obtenir de l’aide.
Warning!
Changes or modifications to this equipment not expressly approved by the party
responsible for compliance (Elpas Solutions Ltd.) could void the user’s authority to
operate the equipment.
Europe
This equipment complies with the RTTE requirements - Directive 1999/5/EC of the
European Parliament and of the council of 9 March 1999.
EN 300220, EN 301489, EN 50130-4, EN 61000-6-3, EN 60950-1.
Product Warranty
Elpas Solutions, Ltd. (Elpas or the Company), and its affiliates, warrants its products (hereinafter referred to as "the Product”) to be free of defects in materials and workmanship
under normal operating conditions and use for a period of one year from the date of shipment by Elpas. The Company’s obligations shall be limited within the warranty period, at
its option, to repair or to replace the defective Product or any defective component or part thereof. To exercise this warranty, the product must be returned to the manufacturer
freight prepaid and insured.
This warranty does not apply to repairs or replacement caused by improper installation, Product misuse, failure to follow installation or operating instructions, alteration, abuse,
accident, tampering, repair by anyone other than Elpas, external causes, and failure to perform required preventive maintenance. This warranty also does not apply to any
products, accessories, or attachments used in conjunction with the Product, including batteries, which shall be covered solely by their own warranties, if any. Elpas shall not be
liable for any damage or loss whatsoever, whether directly, indirectly, incidentally, consequentially or otherwise, resulting from a malfunction of the Product due to products,
accessories, or attachments of others, including batteries, used in conjunction with the Product.
ELPAS MAKES NO EXPRESS WARRANTIES EXCEPT THOSE STATED IN THIS STATEMENT. ELPAS DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. ELPAS’S SOLE RESPONSIBILITY FOR WARRANTY
CLAIMS IS LIMITED TO REPAIR OR TO REPLACE AS SET FORTH IN THIS STATEMENT.
Elpas shall have no liability for any death, personal injury, property damage, or other loss whether direct, indirect, incidental, consequential, or otherwise, based on a claim that
the Product failed to function. However, if Elpas is held liable, whether directly or indirectly, for any loss or damage arising under this limited warranty or otherwise, regardless of
cause or origin, the company's maximum liability shall be limited to the purchase price of the Product, which shall be fixed as liquidated damages and not as a penalty, and shall
be the complete and exclusive liability of Elpas.
Elpas shall not, under any circumstances whatsoever, be liable for any inaccuracy, error of judgment, default, or negligence of Elpas, its employees, officers, agents, or any other
party, or of the purchaser or user, arising from any assistance or communication of any kind regarding the configuration, design, installation, or creation of security system
involving the Product, that being the responsibility of the purchaser or user. If Elpas is unable to make such repair or replacement, the company’s entire liability shall be limited to
the cost of a reasonable substitute product. Elpas shall not be responsible for any dismantling, installation, reinstallation, purchasing, shipping, insurance, or any similar charges.
Elpas shall have no liability for any damages, including without limitation, any direct, indirect, incidental, special, or consequential damages, expenses, costs, profits, lost savings
or earnings, or other damages arising out of the use of the Product or the removal, installation, reinstallation, repair or replacement of the Product or any related events. In the
event that there is any liability against Elpas, such liability shall be limited to the purchase price of the Product which amount shall be fixed as liquidated damages.
The purchaser and user understand that this Product may be compromised or circumvented by intentional acts; that the Product will not in all cases prevent death, personal injury,
property damage, or other loss resulting from burglary, robbery, fire or other causes; and that the Product will not in all cases provide adequate warning or protection. The
purchaser and user also understand that a properly installed and maintained alarm may reduce the risk of events such as burglary, robbery, and fire without warning, but it is not
insurance or a guarantee that such events will not occur or that there will be no death, personal injury, property damage, or other loss as a result of such events.
By purchasing the Product, the purchaser and user shall defend, indemnify and hold Elpas, its officers, directors, affiliates, subsidiaries, agents, servants, employees, and
authorized representatives harmless from and against any and all claims, suits, costs, damages, and judgments incurred, claimed, or sustained whether for death, personal injury,
property damage, or otherwise, because of or in any way related to the configuration, design, installation, or creation of a security system involving the Product, and the use,
sale, distribution, and installation of the Product, including payment of any and all attorney’s fees, costs, and expenses incurred as a result of any such events.
The purchaser or user should follow the Product installation and operation instructions and test the Product and the entire system at least once each week. For various reasons,
including but not limited to changes in environmental conditions, electric, electronic, or electromagnetic disruptions, and tampering, the Product may not perform as expected. The
purchaser and user are advised to take all necessary precautions for the protection and safety of persons and property.
This statement provides certain legal rights. Other rights may vary by state or country. Under certain circumstances, some states or countries may not allow exclusion or limitation
of incidental or consequential damages or implied warranties, so the above exclusions may not apply under those circumstances and in those states or countries.
Elpas reserves the right to modify this statement at any time, in its sole discretion without notice to any purchaser or user. However, this statement shall not be modified or varied
except by Elpas in writing, and Elpas does not authorize any single individual to act on its behalf to modify or vary this statement.
Any questions about this statement should be directed to Elpas.
