Zigbee USB
Serial Adapter
ABOUT FZ200BS
Zigbee 2006 Support
USB Interface
4dBi Dipole Antenna Provided
AT Command provided
![](/img.php?id=1496806&img=bg2.png)
FZ200BS Manual VERSION 0.1.0
2
(C) Copyright FIRMTECH Co., Ltd. 2005
All rights reserved
The products and operation descriptions contained herein shall be protected by copyright
law.
Any part or whole of products or operation description shall not be copied, reproduced,
translated, nor transformed into readable form by electronic device or machines, without
prior consent in writing by FIRMTECH Co., Ltd.
There might be some misprinting or technical faults in the products and operation
description which are subject to change without prior notice.
FCC Information to User
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
con-nected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution
Modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
FCC Compliance Information : This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation
IMPORTANT NOTE:
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of
20 centimeters between the radiator and your body. This transmitter must not be co-located
or operating in conjunction with any other antenna or transmitter.
![](/img.php?id=1496806&img=bg3.png)
FZ200BS Manual VERSION 0.1.0
3
FIRMTECH Co., Ltd. 2005
Room B-606, Ssangyong IT Twin Tower, Sangdaewon-dong, 442-5, Jungwon-gu, Seongnam-si,
Gyeonggi-do, Korea 462-120
Homepage : www.firmtech.co.kr
Marketing Inquiry : contact@firmtech.co.kr
Technical Support Inquiry : techsupport@firmtech.co.kr
Tel : 82-31-719-4812
Fax : 82-31-719-4834
![](/img.php?id=1496806&img=bg4.png)
FZ200BS Manual VERSION 0.1.0
4
What is zigbee?
1. Features of Bluetooth
1) Objectives of Zigbee : To realize Personal Wireless Communication for short distance and slow
speed with Low Power consumption and Low Cost, which is based on IEEE 802.15.4 Standard.
2) Frequency in Use : To use ISM(Industrial, Scientific, Medical) Band which does not require any
permission to use.
- 2.405 ~ 2.480 GHz: 16 channels in all nations (No.11 ~26 channel)
3) Transmission Rate
- 2.405 ~ 2.480 GHz: 250Kbps
4) Working distance
- Inside: 30m, Outside: 100m
5) Configuration
- Zigbee device is configured of Coordinator, Router and End Device.
- Coordinator configures Network
- Router expands Network
- End device participates in Network
- With 64bit address, can configure a maximum of 65536 Networks connected
6) Reliability
- Supports Network level and Device level using Authentication-Network Key and Link Key.
- Supports encrypted packet transmission using 128bit AES Encryption.
- Guarantees data reliability on the application layer using ACK option in APS Packet
- Guarantees data reliability on the physical layer using ACK option in MAC Packet.
![](/img.php?id=1496806&img=bg5.png)
FZ200BS Manual VERSION 0.1.0
5
2. Zigbee operation

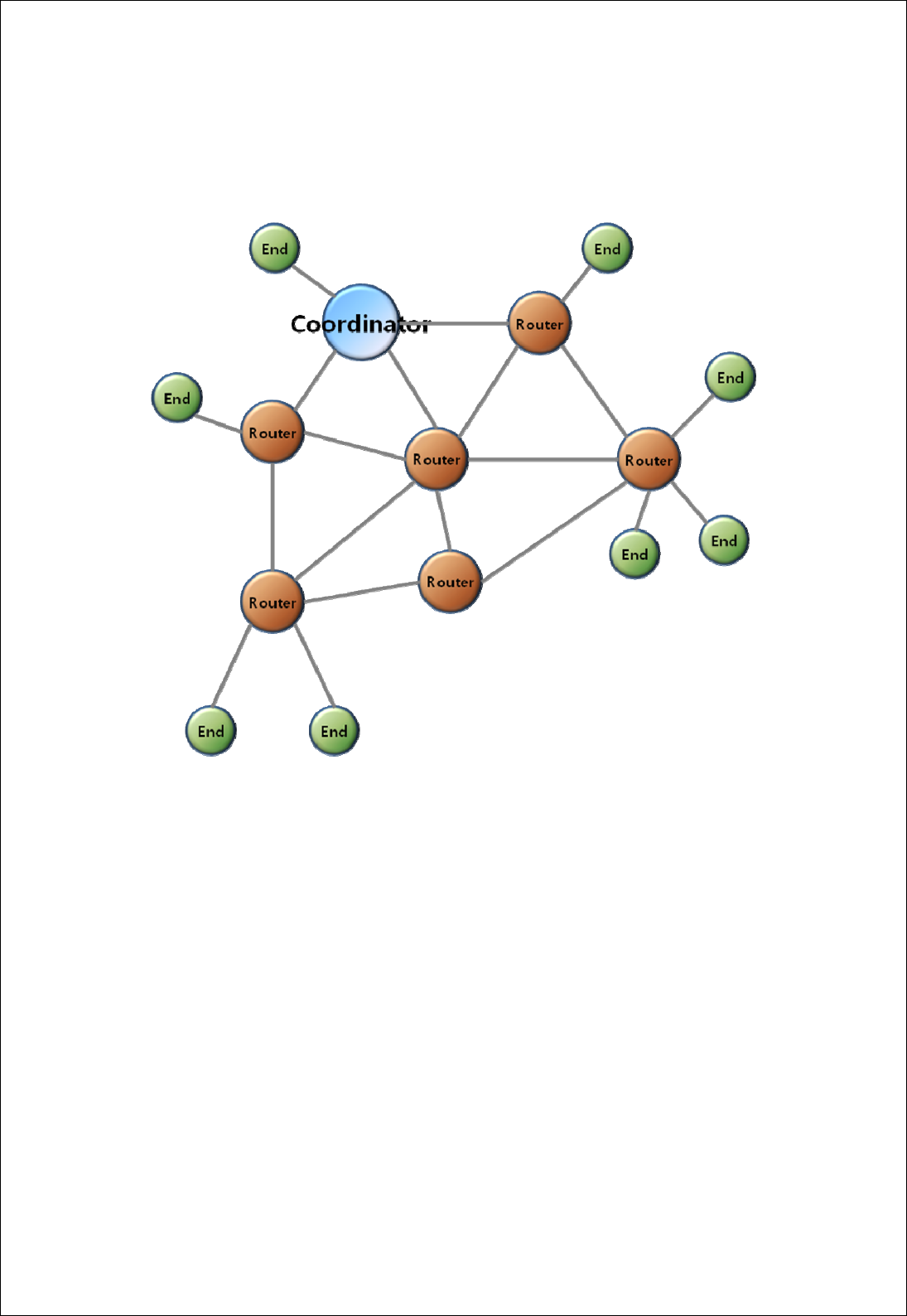

< Zigbee Mesh network configuration>
1) Coordinator configures the Zigbee Network.
Coordinator communicates with Router and End Device.
2) Router expands Network by connecting Coordinator or other Routers.
3) End Device participates in Zigbee network and communicates with Router or Coordinator.
![](/img.php?id=1496806&img=bg6.png)
FZ200BS Manual VERSION 0.1.0
6
Products overview
FZ200BS can configure Zigbee network with low power consumption and low capacity by using
Zigbee stack.
Serial data transmission via USB interface is available
FZ200BS can be used in conjunction with the FZ100BS/FZ750BS/FZ750BC.
< Major features of FZ200BS>
1. Zigbee 2006 support
2. Mesh network support
3. USB Interface is configured as easy as installing a USB driver for the serial data input / output
available
4. Supports AT command, and control Devices by using the AT command.
5. Can check whether data is successfully transmitted or not by using ACK option.
6. By using Key Option, can obtain new Zigbee Network Routes so that data re-transmission is
possible even if finding the communication route is failed for the first time.
7. Use 2.400 ~ 2.4835 GHz(ISM Band) 15 channels (No.11 ~25 channel)
11 (0x0B): 2405MHZ, 12 (0x0C): 2410MHZ, 13 (0x0D): 2415MHZ,
14 (0x0E): 2420MHZ, 15 (0x0F): 2425MHZ, 16 (0x10): 2430MHZ,
17 (0x11): 2435MHZ, 18 (0x12): 2440MHZ, 19 (0x13): 2445MHZ,
20 (0x14): 2450MHZ, 21 (0x15): 2455MHZ, 22 (0x16): 2460MHZ,
23 (0x17): 2465MHZ, 24 (0x18): 2470MHZ, 25 (0x19): 2475MHZ,
26 (0x20): 2480MHZ
※ We request the new users of FZ200BS to read the information on this description carefully before
they start to use the products.
※ Please consult Firmtech.co., Ltd if you want to configure Zigbee Network using more than 30
devices of FZ200BS
![](/img.php?id=1496806&img=bg7.png)
FZ200BS Manual VERSION 0.1.0
7
FZ200BS Overview
(1) To configure the Zigbee network, set each device (FZ200BS) to Coordinator, Router and End
Device.
The initial factory set value of FZ200BS is set to Router.
(2) Do not use Broadcast accompanied by a lot of traffic in the Zigbee network unless it is vital to be
used.
It is not recommended to make a lot of traffic in the Zigbee network because it causes lots of trouble
when transmitting data and bothers to set the new route toward target devices.
(3) Do not set short time for data transmission in the Zigbee Network. The more nodes the Zigbee
Network has, the longer time for transmission time should be set.
Example.1) Zigbee Network Contribution using 10 FZ200BSs,
Set a time space to 2seconds for data transmission between FZ200BSs.
(set 2sec minimally per 10 FZ200BSs)
Example.2) Zigbee Network Contribution using 20 FZ200BSs,
Set a time space to 4seconds for data transmission between FZ200BSs.
(set 2sec minimally per 10 FZ200BSs*2=4sec)
It is not recommended to make a lot of traffic in the Zigbee Network.
It is not recommended to make a lot of traffic in the Zigbee network because it causes lots of trouble
when transmitting data and bothers to set the new route toward target devices.
![](/img.php?id=1496806&img=bg8.png)
FZ200BS Manual VERSION 0.1.0
8

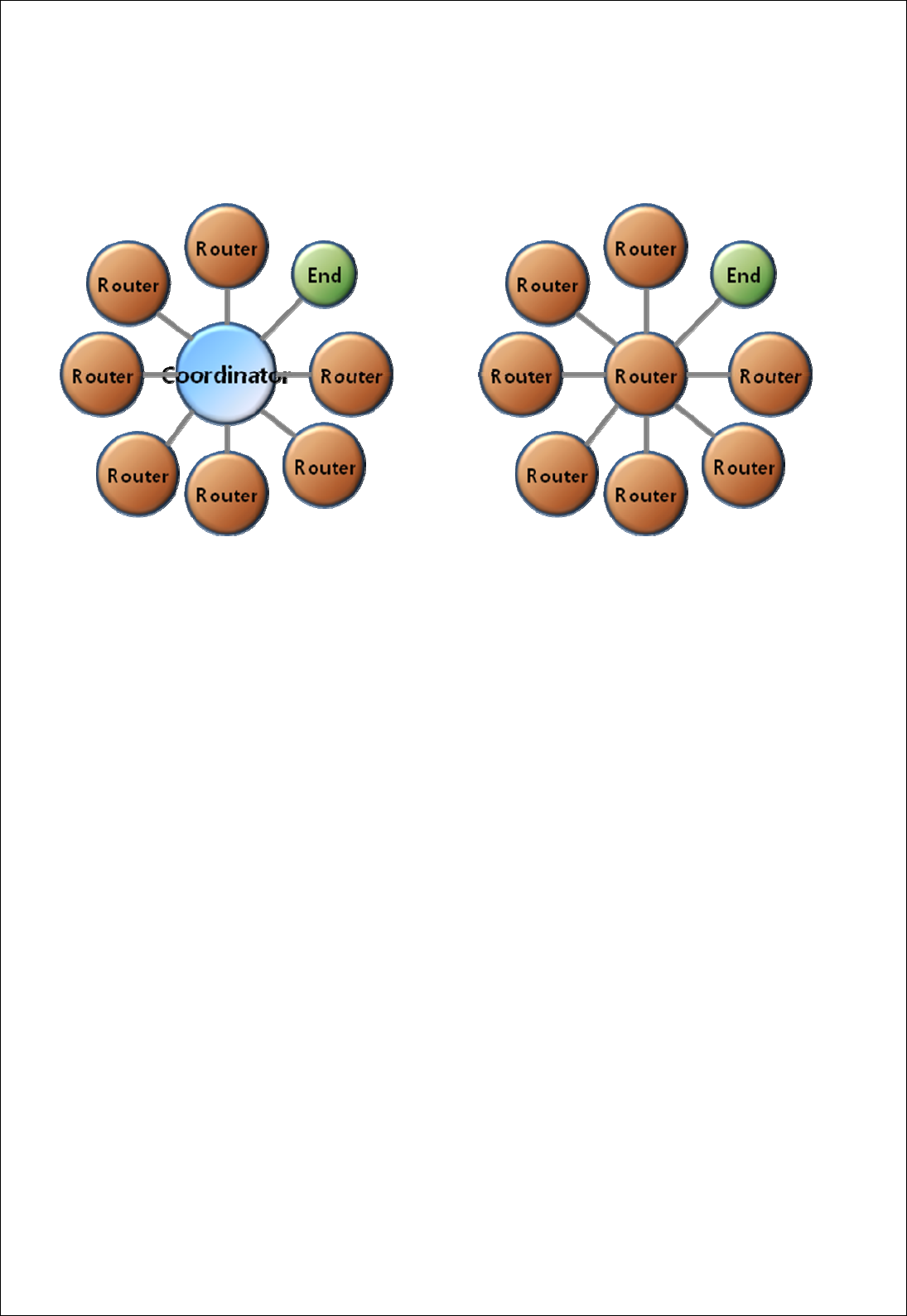

(4) Coordinator and Router can configure child nodes up to 8
(5) End Devices cannot configure Child nodes
Setting FZ200BS to End Devices should be prior to the Zigbee Network Configuration. If you want to
change the device type of FZ200BS from Router to End Device in the Zigbee Network, you had
better re-configure the whole Zigbee Network in advance.
FZ200BS can configure Child nodes after they are set to Routers and participated in the Zigbee
Network. Also, other devices can participate in the Zigbee Network by setting the FZ200BS set to
Routers to their parent nodes, as well. If you change the FZ200BS set to parent nodes to End
Devices, the current End Devices cannot configure child nodes. In this situation, it is possibly can
happen that other devices set the Routers to their parent nodes before the Routers are changed to
End devices.
FZ200BS supports mesh network, so you can expect the stable Zigbee Network. However, in order
to make sure of proper Zigbee Network configuration, FZ200BS of child nodes had better save
FZ200BSs set to Router (or coordinator) as their parent nodes.
Thus, you had better set the type of each Device (especially End Device) before the Zigbee Network
Configuration.
![](/img.php?id=1496806&img=bg9.png)
FZ200BS Manual VERSION 0.1.0
9
(6) FZ200BS can configure the Zigbee Network up to 4 Depth.
(7) FZ200BSC configures the Zigbee Network with one Coordinator.
(8) FZ200BS can transmit data by multipath because it supports mesh network.
Contribute the Zigbee Network which has multipath.
(9) If you input Serial data into FZ200BS, It transmits the Serial data to its target device.
(10) FZ200BS has STATUS LED for showing the status of the Device.
(OK Status LED, ERROR Status LED, Condition Status LED)
(11) When you transmit data by using FZ200BS, you need to check the result value for the transmission
![](/img.php?id=1496806&img=bga.png)
FZ200BS Manual VERSION 0.1.0
10
through the OK/ERROR LED.
(12) FZ200BS has an IEEE ADDRESS and a NETWORK ADDRESS.
64 Bit IEEE ADDRESS is a physical address of FZ200BS.
Every device has its own IEEE ADDRESS and the IEEE ADDRESS is not changeable.
FZ200BS set target devices by using IEEE ADDRESS.
In conclusion, “target device set-up” is an inquiry using IEEE ADDRESS for NETWORK ADDRESS
of its target devices
FZ200BS has a 16 Bit of NETWORK ADDRESS for the Zigbee Network communication.
NETWORK ADDRESS is given when FZ200BS participates in the Zigbee Network.
NETWORK ADDRESS can be changed depending on the Zigbee Network Configuration.
NETWORK ADDRESS cannot be shown unless FZ200BS participates in the Zigbee Network.
FZ200BS performs data transmission by using NETWORK ADDRESS.
(13) If you configure the Zigbee Network and perform data transmission, the result value is shown as
[volume of received data > volume of transmitted data].
FZ200BS on a MAC layer automatically re-transmits data depending on the Zigbee Network
Configuration.
In case of using ACK option, FZ200BS on an application layer automatically re-transmits data
depending on the Zigbee Network Configuration. Thus, Received data could be more than 2
depending on the Zigbee network configuration even if only one data is transmitted.
![](/img.php?id=1496806&img=bgb.png)
FZ200BS Manual VERSION 0.1.0
11
※ < Routing table update of FZ200BS >
Routing table is assigned to each FZ200BS after the Zigbee Network Configuration.
Below is the Zigbee network status when data is transmitted from Router2 to Router1
to Coordinator.
Data is input into Router2, the Router2 transmits the data to Router1, and then the
Router1 transmits the data to Coordinator. Consequently, the data inputted into
Router2 is transmitted to Coordinator by routing table belonging to Router2 and
Router1
If Router 1 is in abnormal status in the Zigbee Network, Router2 cannot
transmit data, and shows its error status through ERROR port.
When ACK Option is disabled (NACK communication) of FZ200BS, Device is
automatically reset and Router2 creates a new routing table if the Router2
happens to show its error status 5times successively through the error port
because of the abnormal Router1. Multipath set-up is required ahead of the
time to update the routing table.
When the ACK Option of FZ200BS is enabled (ACK communication), users
should control the routing table directly to update it. If the data transmission is successively failed,
users need to reset its target device’s address (same as the existing one) and the Device.
![](/img.php?id=1496806&img=bgc.png)
FZ200BS Manual VERSION 0.1.0
12
■ List of contents
IMPORTANT NOTE: .......................................................................................................................................................2
FCC RF RADIATION EXPOSURE STATEMENT:......................................................................................................2
1. PRODUCT COMPONENTS ......................................................................................................................................13
2. PRODUCT APPEARANCE........................................................................................................................................14
3. USB INTERFACE.......................................................................................................................................................14
4. DIP SWITCH & INTERFACE SOCKET ...................................................................................................................15
5. LED INDICATION / RESET SWITCH......................................................................................................................16
6. PRODUCT PERFORMANCE....................................................................................................................................17
7. CURRENT CONSUMPTION .....................................................................................................................................17
8. SET VALUE OF PRODUCT......................................................................................................................................17
9. USES GUIDE..............................................................................................................................................................18
9-1. SERIAL COMMUNICATION (HYPER TERMINAL) PROGRAM EXECUTE......................................................................19
9-2. SET-UP FZ200BS DEVICE TYPE ........................................................................................................................21
9-2-1. FZ200BS End Device Set-up..............................................................................................................22
9-2-2. FZ200BS Router Set-up.......................................................................................................................23
9-2-3. FZ200BS Coordinator set-up..............................................................................................................24
9-3. THE ZIGBEE NETWORK CONFIGURATION..............................................................................................................25
9-3-1. The Zigbee Network configuration.....................................................................................................25
9-3-2. Zigbee Network Extension ...................................................................................................................25
9-3-3. Zigbee Network Participation .............................................................................................................. 26
9-4. TARGET DEVICE SET-UP.......................................................................................................................................26
9-4-1. Searching for an IEEE ADDRESS of Coordinator ...........................................................................27
9-4-2. Target device set-up ............................................................................................................................27
9-5. SERIAL DATA TRANSMISSION................................................................................................................................28
10. FZ200BS MANAGEMENT TIP ...............................................................................................................................30
10-1. FZ200BS DEVICE TYPE SET-UP ......................................................................................................................30
10-2. ZIGBEE NETWORK CONFIGURATION ...................................................................................................................30
10-3. [SET-UP] TARGET DEVICE & TRAFFIC ...............................................................................................................31
10-4. START MESSAGE...........................................................................................................................................32
10-5. RESET OPTION...............................................................................................................................................34
![](/img.php?id=1496806&img=bgd.png)
FZ200BS Manual VERSION 0.1.0
13

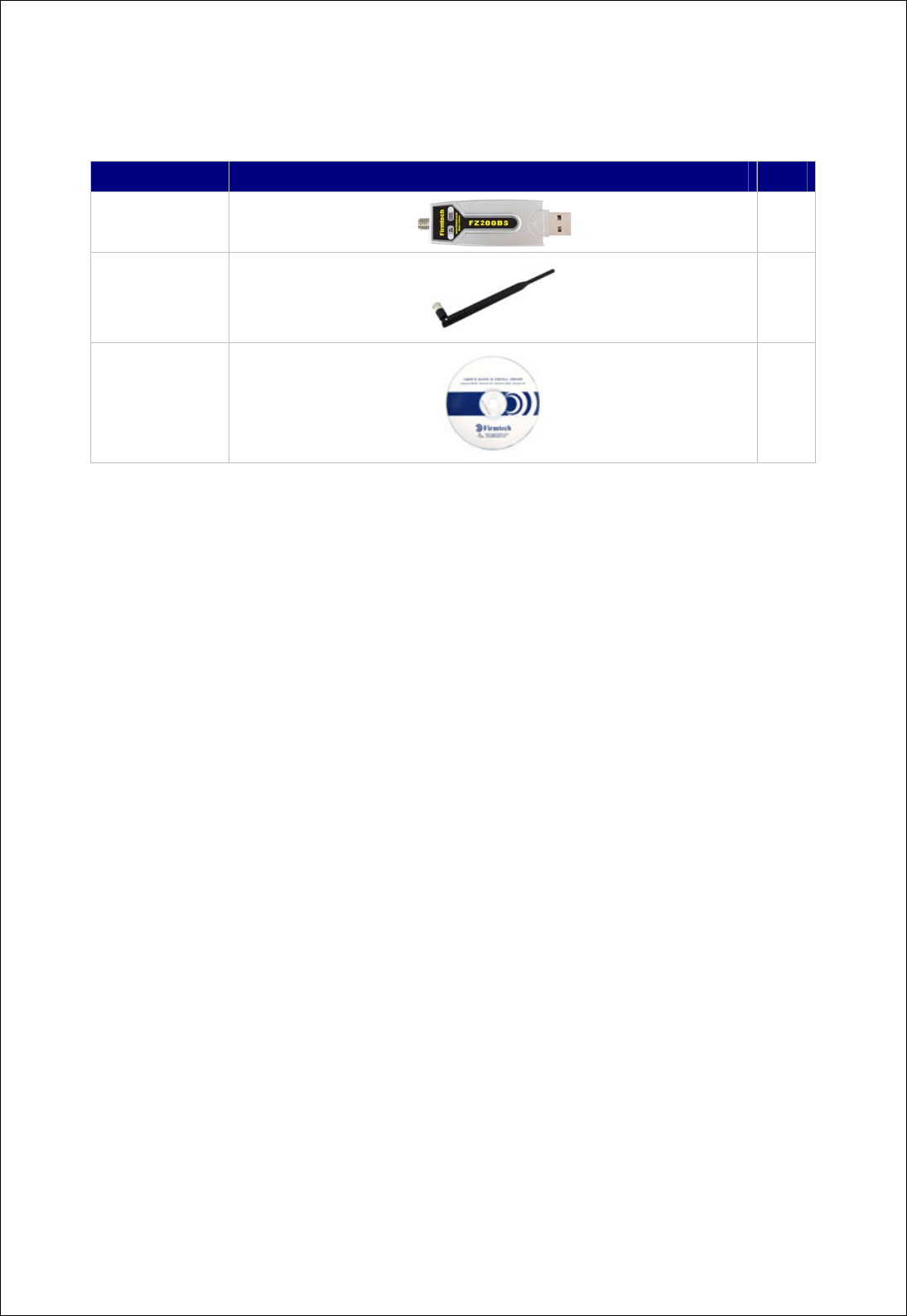

1. Product components
Model Name Pictures Q’ty
FZ200BS
1EA
WE – 2405TO
1EA
CD
1EA
※ If you find any of above components is defective, or not included in the package, please contact
the seller you purchased.
![](/img.php?id=1496806&img=bge.png)
FZ200BS Manual VERSION 0.1.0
14
2. Product Appearance

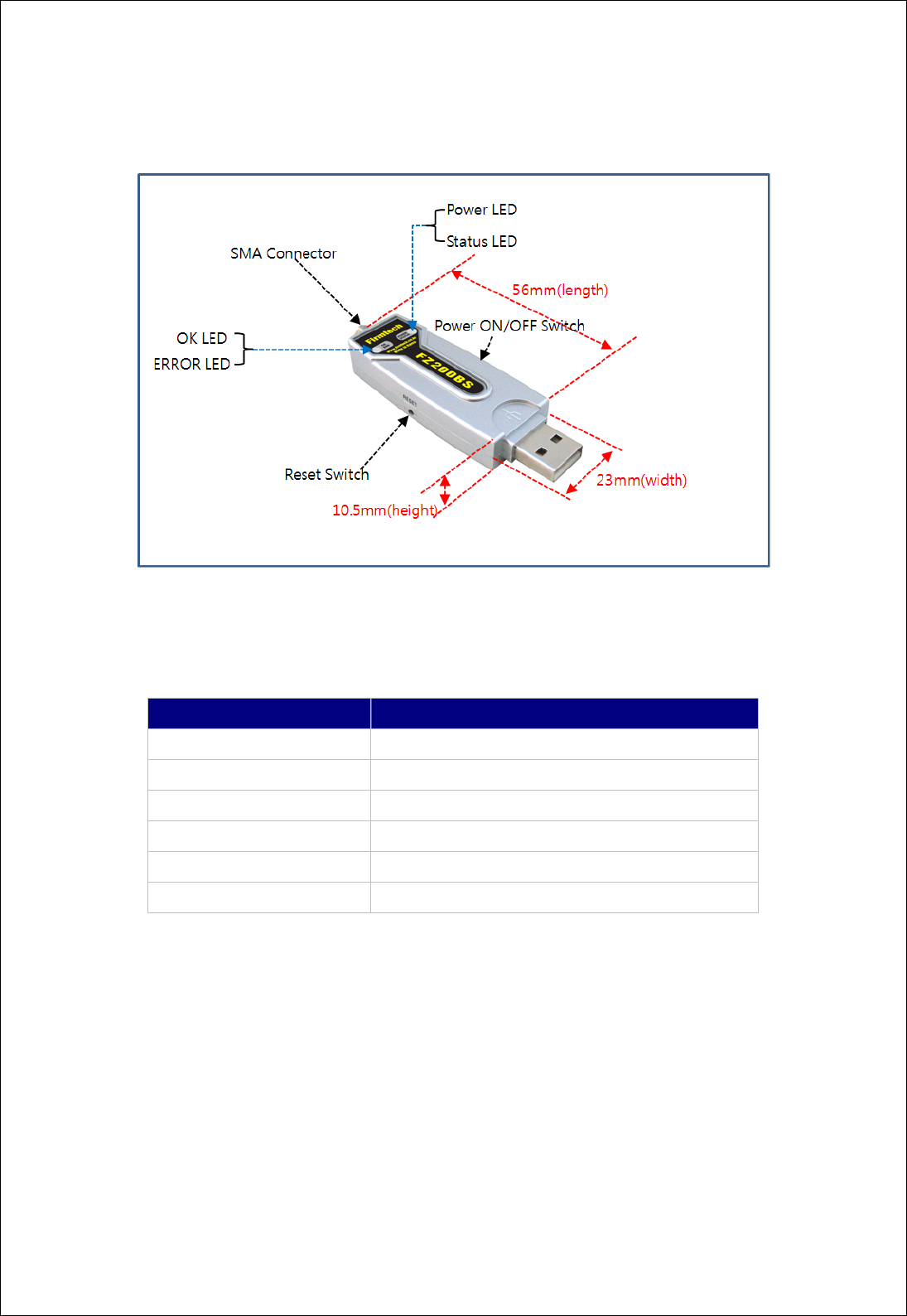

< Figure 2 Details and Dimension of FZ200BS >
3. USB Interface
Signal Name Description
STATUS (DCD) Status Indication
TX Transfer Data(Data Output)
RX Received Data(Data Input)
GND Ground
ERROR (DTR) Status Indication
OK (RTS) Status Indication
![](/img.php?id=1496806&img=bgf.png)
FZ200BS Manual VERSION 0.1.0
15

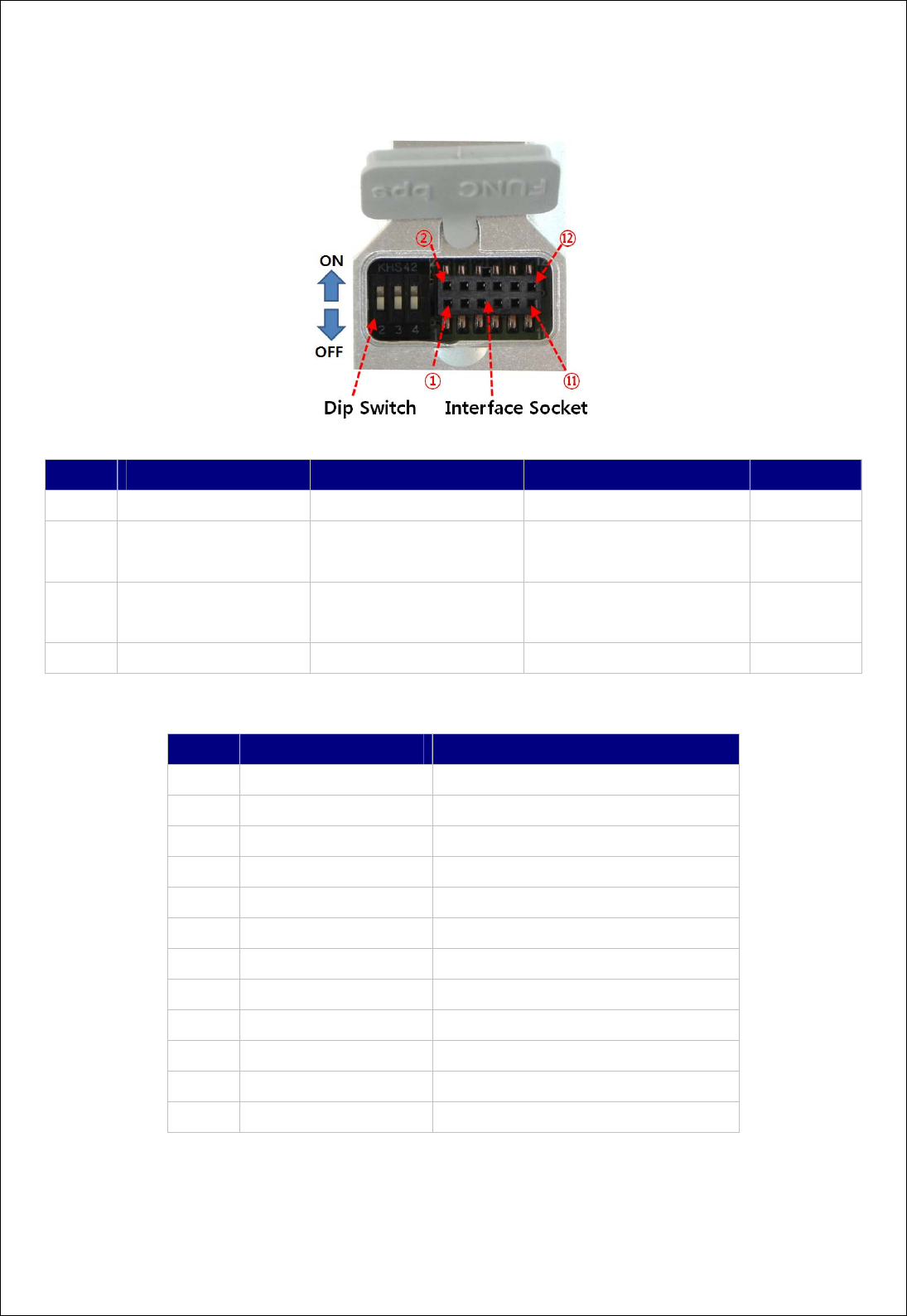

4. Dip Switch & Interface Socket
번호 FEATURES ON OFF BASIC SET
1 Do not use - - -
2 Do not use - - -
3 Firmware Download
Select
Firmware Download
Mode Operation Mode OFF
4 Do not use - - -
<Table 4-1 Features of Dip Switch >
NO. Port Description
1 VCC(3.3V) 3.3V Output Port
2 ADC Analog Data Input Port
3 GPIO_0 Digital Data Input / Output Port
4 GPIO_1 Digital Data Input / Output Port
5 GPIO_2 Digital Data Input / Output Port
6 GPIO_3 Digital Data Input / Output Port
7 GPIO_4 Digital Data Input / Output Port
8 GPIO_5 Digital Data Input / Output Port
9 GPIO_6 Digital Data Input / Output Port
10 GPIO_7 Digital Data Input / Output Port
11 GND Ground
12 KEY Digital Data Input Port
< Table 4-2 Features of Interface Socket >
![](/img.php?id=1496806&img=bg10.png)
FZ200BS Manual VERSION 0.1.0
16
5. LED Indication / Reset Switch
LED State Description
Power LED Power Input Red Power LED is lit.
Create a network or networks involved
in the case, Status LED flashes about
one second intervals.
Network Creation
or Participation Did not create the network or the
network did not participate in the
case, Status LED blinks rapidly.
If the target is set, the Status LED is
lit
Target Setting If you have not set a target of
approximately 1 second intervals
Status LED blinks.
Status LED
Check the
Operation Mode
AT Command Mode is turned off if
the Status LED
Check data
transmission
If data transmission is completed, the
OK LED blinks once.
OK LED Check the
Operation Mode
AT Command Mode if the OK LED is
lit.
Check data
transmission
If you did not complete the data
transmission has ERROR LED flashes
once
STATUS LED
ERROR LED
Check the
Operation Mode
AT Command Mode if the ERROR LED
is lit.
![](/img.php?id=1496806&img=bg11.png)
FZ200BS Manual VERSION 0.1.0
17
6. Product Performance
List Specification
Zigbee Spec. Zigbee 2006 Specification Support
Communication Distance 120 M
Frequency Range 2405~2480MHz
Sensitivity -98 dBm
Transmit Power 6 dBm
Input Power 5V
Current Consumption 00 mA (Max)
Operating Temperature -20 ℃ - +50 ℃
Max Operating Temperature -30 ℃ - +80 ℃
Communication Speed 9,600 bps ~ 230,400 bps
Antenna Dipole Antenna (4 dBi)
Interface USB
7. Current consumption
Current Consumption
Device type Low Power
Consumption mode Data transmission
Coordinator - 40mA
Router - 40mA
Wake-up - 40mA
Low power consumption mode1 2mA -
Low power consumption mode2 2mA -
End Device
Low power consumption mode3 2mA -
8. Set value of Product
![](/img.php?id=1496806&img=bg12.png)
FZ200BS Manual VERSION 0.1.0
18
List Initial set value
Device Name FZx00 Vx.x.x
Device Type ROUTER
Device Channel 0B
Device Transmit Power 00
UART (baud rate-data bit-parity bit-stop bit) 115200 (8, N, 1 fixed)
KEY Option 0(Disable)
ADC Option 0(Disable)
Count Option 0(Disable)
GPIO Option 0(Disable)
Internal Time 10
ACK Option 0(Disable)
Retry Option 9
Power Mode 1
Reset Option 0(Disable)
Target Device Address 0000000000000000
Link Quality Option 0(Disable)
Start Message Option 1(Enable)
Debug Message Option 0(Disable)
Battery Low Option 0(Disable)
Quick Low Power Entry 0(Disable)
To change the set values of FZ200BS, use PC Software (Window HyperTerminal, Firmtech
configuration program) after connecting FZ200BS to PC with AT Command.
Note: Please, refer to the contents in “9. Uses Guide” or “FZx00_Appendix_2_GUI” for further
information on Set-up Modification.
9. USES GUIDE
The following is a procedure for FZ200BS Set-up using Serial communication (HyperTerminal)
![](/img.php?id=1496806&img=bg13.png)
FZ200BS Manual VERSION 0.1.0
19
Program.
The signal speed of FZ200BS is basically 115200bps.
9-1. Serial Communication (Hyper Terminal) Program Execute
FZ200BS first power ON. Using a USB virtual COM Port FZ200BS By using the device's power is not ON
unless you can not run the HyperTerminal.

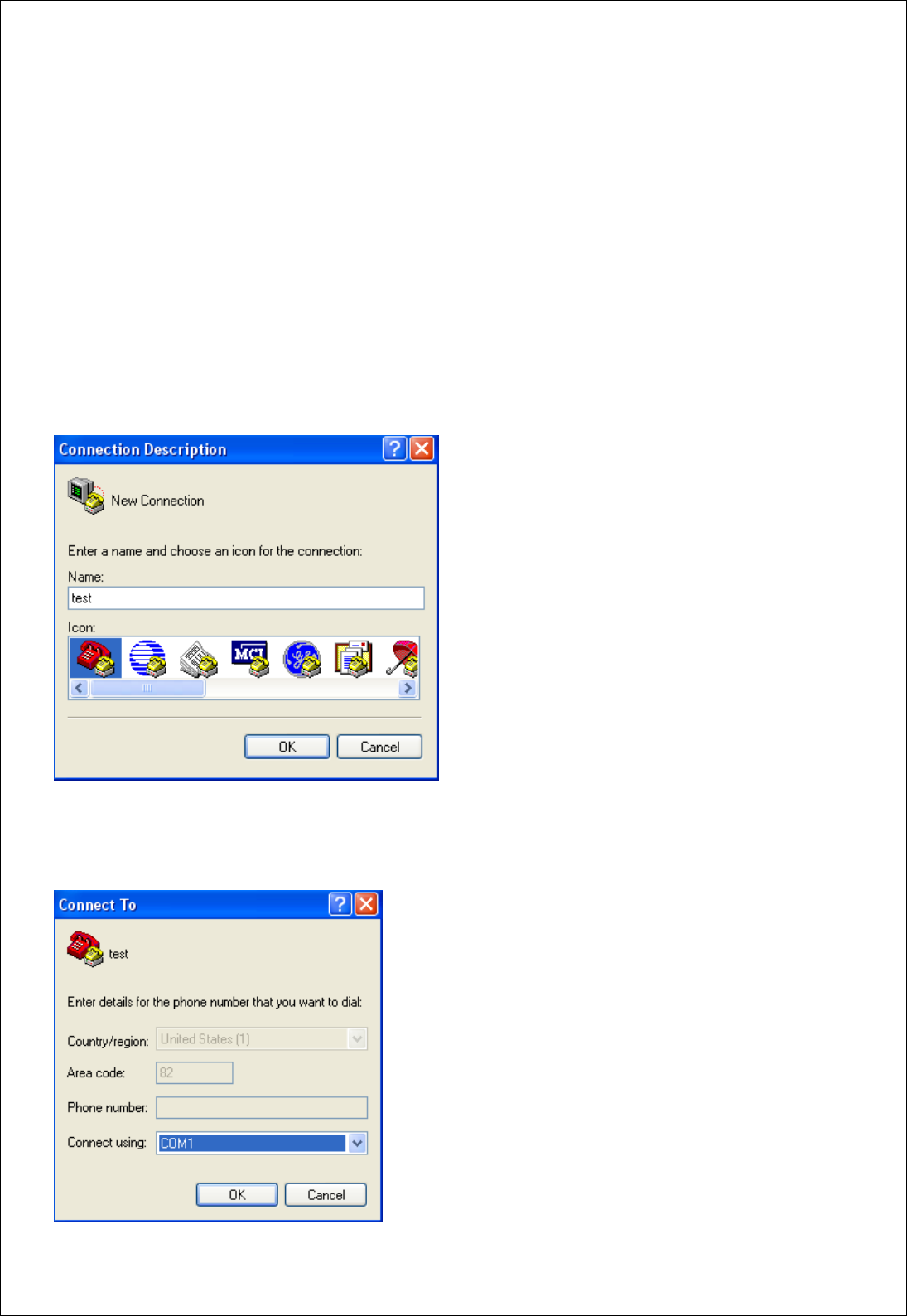

Select [Start][All Programs][Accessories][Communication][Hyper Terminal] in order, and
then a window for Connection Set-up comes up. Put a name in the name blank, and click the OK
button.
When a window for Connection target comes up, select COM ports connected to FZ200BS, and click
the OK button.
![](/img.php?id=1496806&img=bg14.png)
FZ200BS Manual VERSION 0.1.0
20

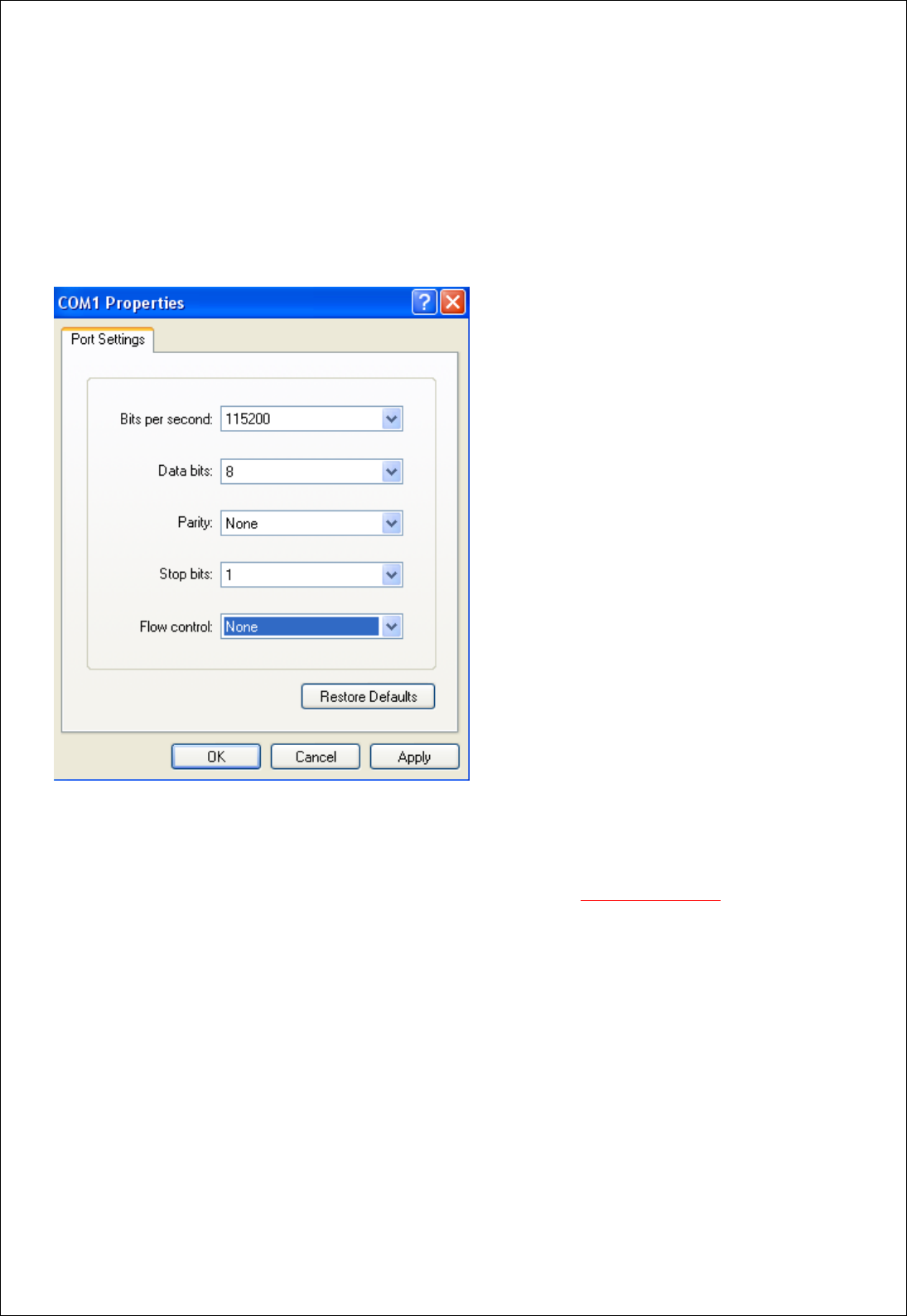

Select each blank as below “Bit/sec: 115200, data Bit: 8, Parity: None, Stop Bit: 1, Flow Control: None”,
and click the OK button. Hyper Terminal is executed.
Hyper Terminal simply does not show any letters inputted.
If you check on “Echo typed characters locally” to get to know what letters are inputted, the
Recommends between FZ200BS and Hyper Terminal are mixed up. Do not check this.
![](/img.php?id=1496806&img=bg15.png)
FZ200BS Manual VERSION 0.1.0
21
9-2. Set-up FZ200BS Device Type
Zigbee Device is classified as Coordinator, Router, and End Device by objective of its operation.
There should be Coordinator in the Zigbee Network. A Coordinator should exist in a Zigbee Network.
Coordinator manages the Network in the Zigbee Network.
Router extends the Network in the Zigbee Network.
End Device participates in the Zigbee Network using low power consumption.
Router and End Device are automatically participated in the Network once Coordinator configures the
Zigbee Network.
Note : Please, refer to the following when you try to configure the Zigbee Network.
1. Do not turn the power of the Device set to Coordinator ON before all devices’ types are set.
2. If you already set the rest type of each Device and operate them with the Coordinator that the power
is turned on, execute Factory Reset for the devices set to Coordinator and Router.
Before the Factory reset, the power of the Coordinator and the Router should be turned OFF. After the
Factory reset is done, set each Device to Coordinator and Router, and turn on the power of all
devices. The Zigbee Network shall be properly configured.
![](/img.php?id=1496806&img=bg16.png)
FZ200BS Manual VERSION 0.1.0
22
3. Do not change the Device Type of FZ200BS once the Zigbee Network is configured.
※ It is better to set Coordinator and Router again(Factory Reset) if the Device Type of FZ200BS is
changed after the Zigbee Network is already configured.
※ See if the Zigbee Network is configured before resetting FZ200BS to initial set value. The FZ200BS
reset automatically participates in the Zigbee Network if the Zigbee Network still exists there.
9-2-1. FZ200BS End Device Set-up
(1) The Initial set value of FZ200BS is ROUTER.
(2) FZ200BS device and the PC is connected and powered ON.
After running the HyperTerminal program, FZ200BS When you

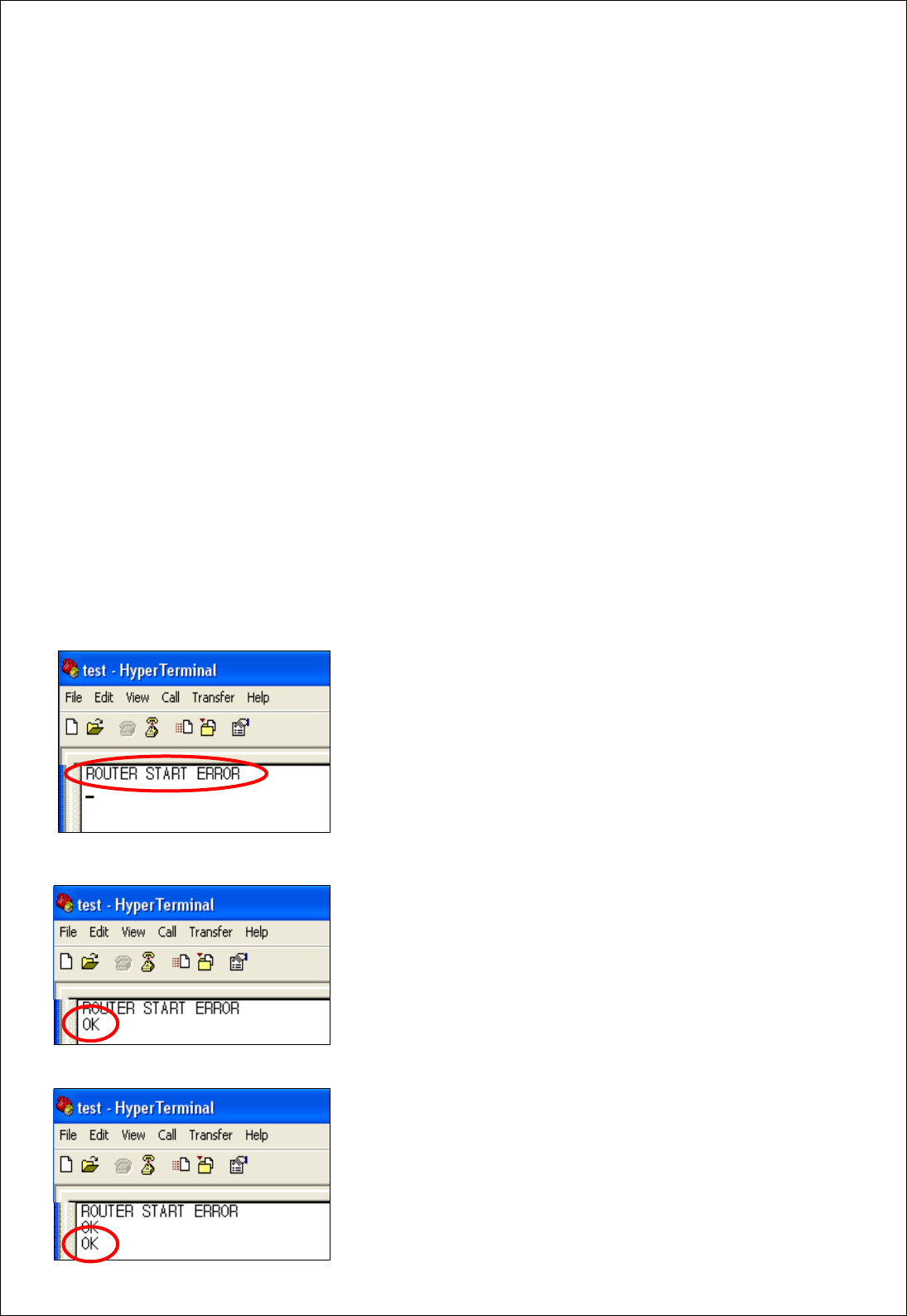

reset the serial port "ROUTER START ERROR" is output.
“ROUTER START ERROR” means that The Zigbee Network
Participation is failed. “ROUTER START OK” is output if the
Zigbee Network is configured.

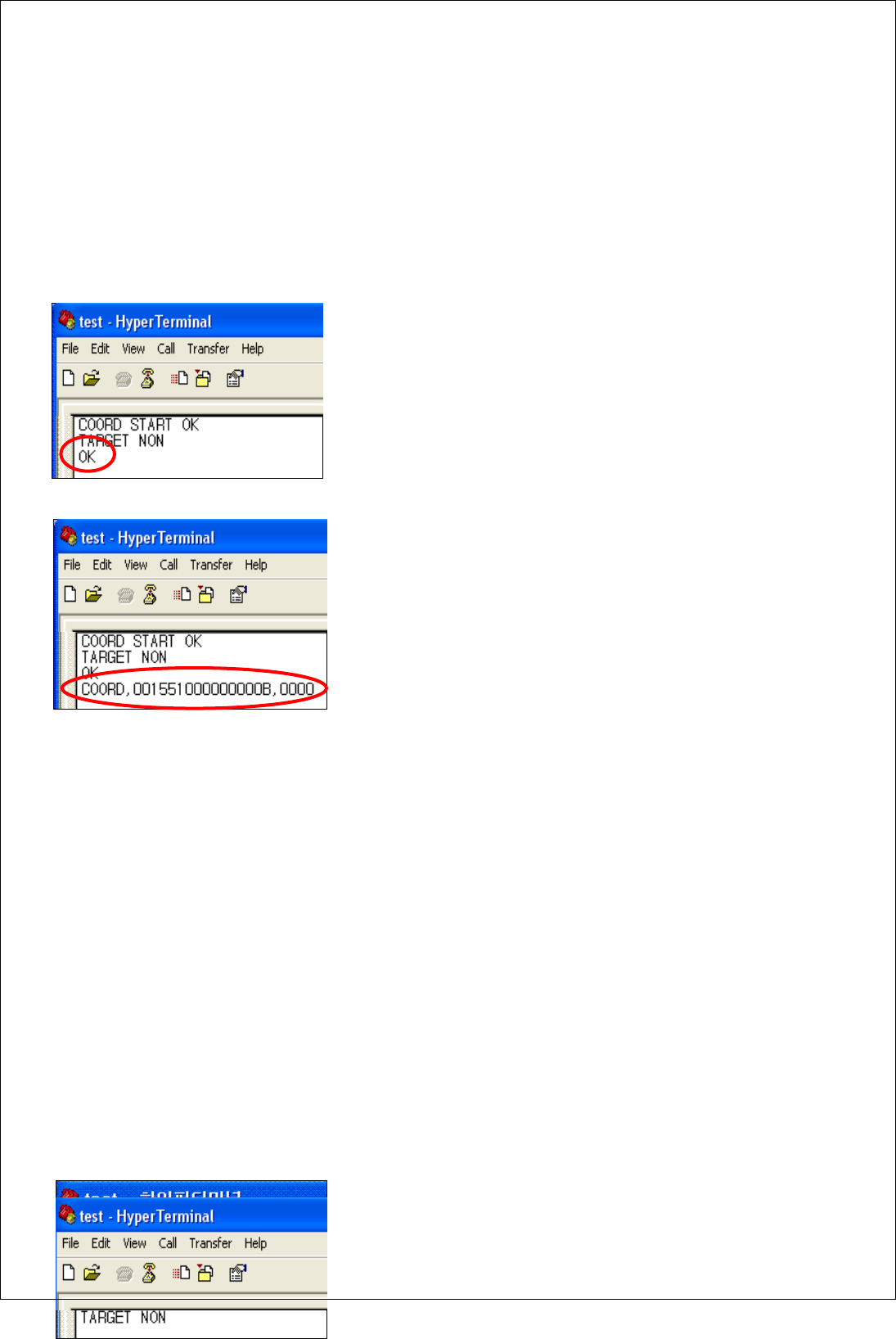

(3) Input “+++” in Hyper Terminal.
(4) If “OK” is outputted from FZ200BS, AT-Command can be
used from then.
If “OK” is not output even after inputting “+++”, press “Enter”
key and input “+++” again, or reboot the device and input “+++”.
(5) After inputting “AT+SETEND” into Hyper Terminal, press Enter
Key.
![](/img.php?id=1496806&img=bg17.png)
FZ200BS Manual VERSION 0.1.0
23
(6) If “OK” is output from FZ200BS, reboot FZ200BS by
inputting “ATZ”.

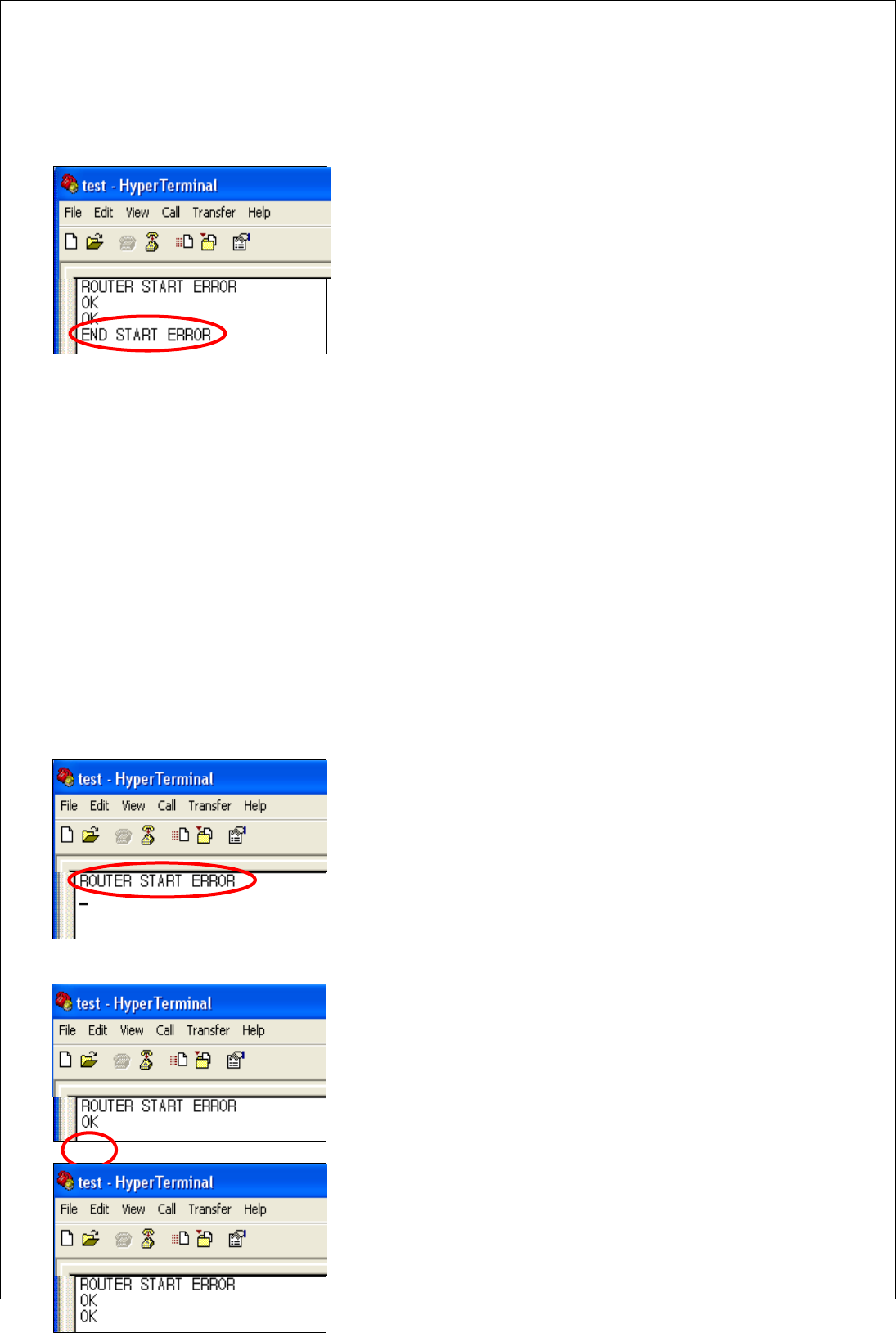

(7) “END START ERROR” is output at the moment when
FZ200BS is rebooted.

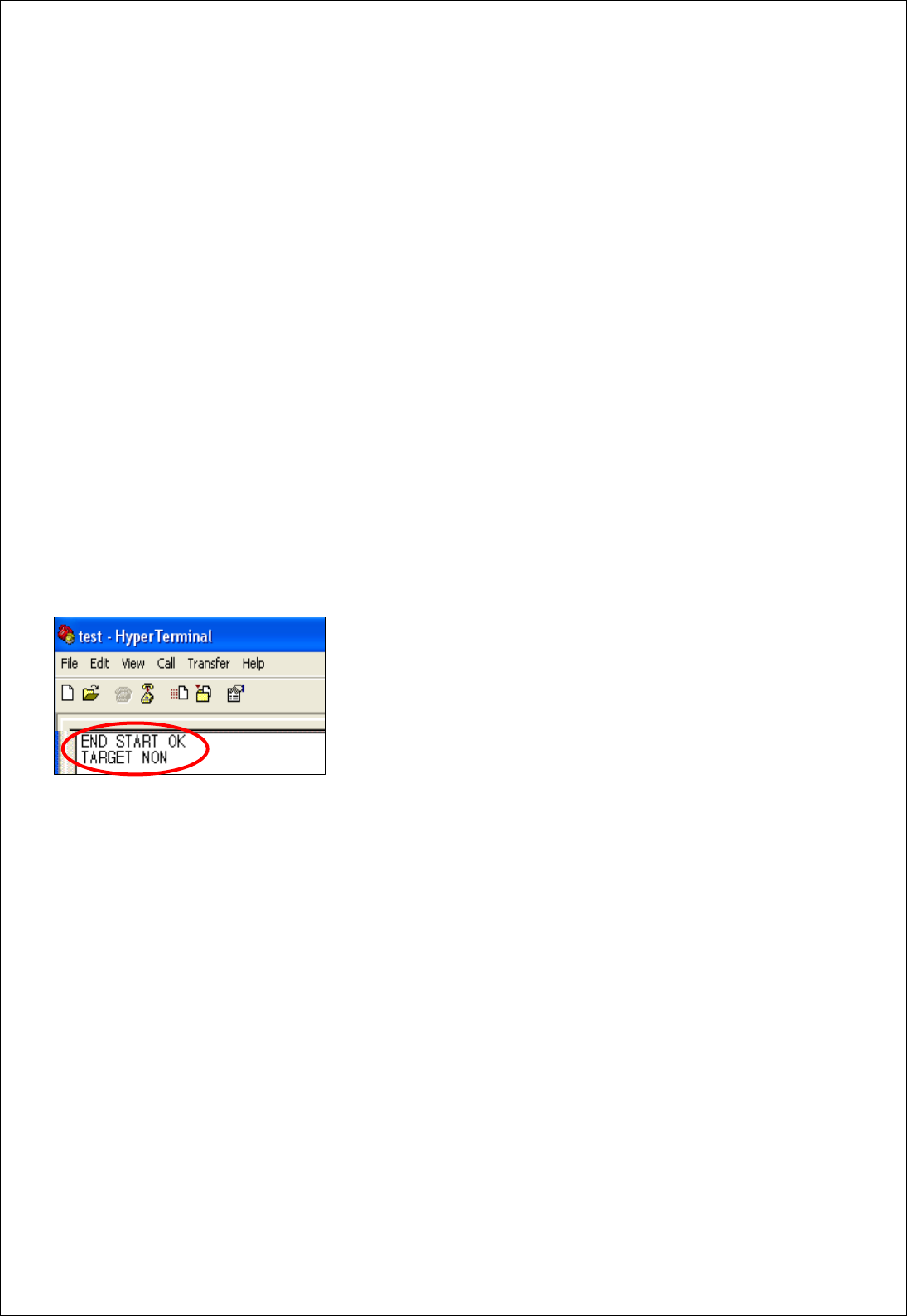

“END START OK” is output if the Zigbee Network is successfully
configured.
(8) Now, End Device of FZ200BS set-up is completed.
Turn the Power of the End Device OFF, and set other devices.
9-2-2. FZ200BS Router Set-up
(1) The initial set value of Device is ROUTER.
※ The initial set value of FZ200BS is ROUTER.
The following is a procedure of purposely setting Device to Router by using AT-Command.
However, Device originally operates as Router without intentional setting.
(2) FZ200BS device and the PC is connected and powered ON.
After running the HyperTerminal program, FZ200BS When you
reset the serial port "ROUTER START ERROR" is output.
“ROUTER START ERROR” means that the Zigbee Network
participation is failed.
“ROUTER START OK” is output if the Zigbee is successfully
configured Network.
(3) Input “+++” into Hyper Terminal.
(4) If “OK” is output from FZ200BS, AT-Command can be used
from then.
If “OK” is not output even after inputting “+++”, press “Enter”
key and input “+++” again, or reboot the device and input “+++”.
(5) Input “AT+SETROUTER” through Serial port of PC and press
“Enter” key.
![](/img.php?id=1496806&img=bg18.png)
FZ200BS Manual VERSION 0.1.0
24
(6) If “OK” is output from FZ200BS by inputting “ATZ”, reboot
FZ200BS.
(7) “ROUTER START ERROR” is output at the moment when
FZ200BS is rebooted.
“ROUTER START OK” is output if the Zigbee Network is
successfully configured.
(8) Now, Router of FZ200BS Set-up is completed.
Turn the Power of the End Device OFF, and set other devices.
9-2-3. FZ200BS Coordinator set-up
(1) The initial set value of FZ200BS is ROUTER.
(2) FZ200BS device and the PC is connected and powered ON.
After running the HyperTerminal program, FZ200BS When you
reset the serial port "ROUTER START ERROR" is output.
“ROUTER START ERROR” means that the Zigbee Network
participation is failed.
“ROUTER START OK” is output if the Zigbee Network is
successfully configured.
(3) Input “+++” into Hyper Terminal.
(4) If “OK” is output from FZ200BS, AT-Command can be used
from then.
If “OK” is not output even after inputting “+++”, press “Enter”
key and input “+++” again, or reboot the device and input “+++”.
(5) Input “AT+SETCOORD” through Serial port of PC and press
“Enter” key
.
(6) If “OK” is output from
FZ200BS by inputting
![](/img.php?id=1496806&img=bg19.png)
FZ200BS Manual VERSION 0.1.0
25
“ATZ”, reboot FZ200BS.
(7) “COORD START OK” is output at the moment when FZ200BS is rebooted.
(8) Now, Coordinator of FZ200BS Set-up is completed, and the Zigbee Network is successfully
configured.
Turn the Power of the Coordinator Device OFF, and set other devices.
9-3. The Zigbee Network Configuration using FZ200BS
Try to configure the Zigbee Network after setting the Type for each Device.
9-3-1. The Zigbee Network configuration
Coordinator leads the Zigbee Network Configuration.
Coordinator manages the Zigbee Network.
(1) Coordinator to set up the device's power is ON.
After running HyperTerminal, FZ200BS will reset.
(2) “COORD START OK” and “TARGET NON” are output.
“TARGET NON” means that FZ200BS has yet to set its target
device.
(3) Zigbee Network is configured by Coordinator.
(4) From then, Zigbee Network Participation and Extension is possible by Router and End Device.
(5) Coordinator can transmit Data.
9-3-2. Zigbee Network Extension
Router performs the Zigbee Network Extension.
Communication distance and route can be extended because of the Zigbee Network Extension by
Router.
The number of End Device which participates in the Zigbee Network can be increased because of the
Zigbee Network Extension by Router.
Router also transmits data in the Zigbee Network, as well.
(1) Router to set up the device's power is ON. After running
![](/img.php?id=1496806&img=bg1a.png)
FZ200BS Manual VERSION 0.1.0
26
HyperTerminal, FZ200BS will reset.
(2) “ROUTER START OK” and “TARGET NON” are output.
“TARGET NON” means that FZ200BS has yet to set its target device.
If “ROUTER START ERROR” is output, which means that no Zigbee Network is around, reset the
Device or check if the Coordinator’s status is okay.
(3) Router participates in the Zigbee Network and extends the Zigbee Network.
(4) Router can transmit Data.
9-3-3. Zigbee Network Participation
End Device participates in the Zigbee Network.
End Device performs data transmission in the Zigbee Network.
End Device supports Low power consumption mode.
(1) END DEVICE to set up the device's power is ON. After running
HyperTerminal, FZ200BS will reset.
(2) “END START OK” and “TARGET NON” are output.
“TARGET NON” means that FZ200BS has yet to set its target
device.
If “END START ERROR” is output, which means that no Zigbee
Network is around, reset the Device or check if the Coordinator’s status is okay.
(3) End Device participates in the Zigbee Network, and is ready to transmit Data.
9-4. Target device set-up
To transmit Data, setting a target device, which is supposed to receive the Data, is required in terms
of the Zigbee Network using FZ200BS.
![](/img.php?id=1496806&img=bg1b.png)
FZ200BS Manual VERSION 0.1.0
27
With no target device, data transmission cannot be done even if data is inputted.
To set a target device, you need to know an IEEE ADDRESS of the Device.

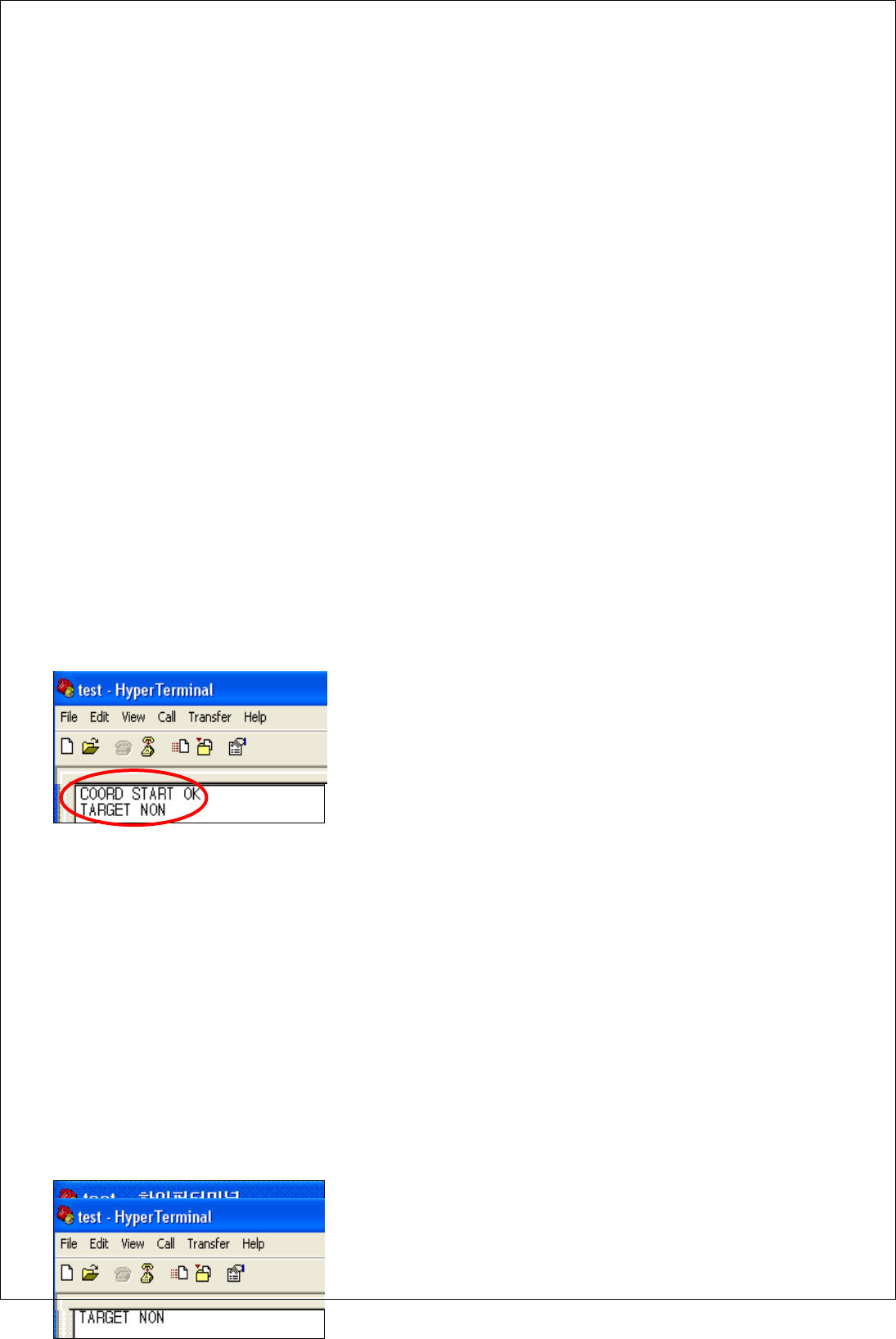

9-4-1. Searching for an IEEE ADDRESS of Coordinator
(1) Input “+++” through Serial port of PC while a Device operates.
With Inputting “+++”, the mode of FZ200BS(Coordinator)
switches from operation mode to AT-command mode.
Data transmission becomes possible when FZ200BS is in an
operation mode. Users can control FZ200BS when the device is
in an AT-command mode.
(2) “OK” is output from FZ200BS, input “AT+GETLOCAL”
through Serial port of PC and press Enter Key.
(3) “COORD,001551000000000B,0000” is output from the Device.
COORD : It is the Device Type of FZ200BS.
001551000000000B : It is an IEEE ADDRESS of FZ200BS.
0000 : It is a NETWORK ADDRESS.
(4) The IEEE ADDRESS “001551000000000B” is required for the target device set-up.
9-4-2. Target device set-up
Set a target device with the IEEE ADDRESS that is mentioned on the previous page.
(1) Devices in the active state, FZ200BS (router) will reset
![](/img.php?id=1496806&img=bg1c.png)
FZ200BS Manual VERSION 0.1.0
28
(2) FZ200BS outputs a message “TARGET NON”, which means that its target device is not set.
(3) Input “+++” through Serial port of PC while FZ200BS
operates. “OK” is output. From then, its target device set-up is
possible with AT Command.
(4) After “OK” is output from FZ200BS “AT+SETTARGET
001551000000000B” through Serial of PC and press “Enter” Key.
AT+SETTARGET : It is a command to save the target device’s
address.
001551000000000B : It is the target device’s IEEE ADDRESS
(5) “OK” is output from FZ200BS which means that the command for saving target device is cognized.
If “ERROR” is output, the command inputted is wrong.
(6) Re-start FZ200BS by inputting a command “ATZ” or turn the power of FZ200BS off and on, again.
(7) FZ200BS is re-started and outputs a message “TARGET OK”.
(The target device must be power ON.)
Now, the target device set-up using its address is completed.
If “TARGET ERROR” is output, FZ200BS which has an IEEE
ADDRESS “001551000000000B” does not exist in the Zigbee Network or the address saved is wrong.
9-5. Serial Data Transmission
Data transmission is done in the Zigbee Network.
Data is transmitted to the target device “001551000000000B” that is set on the previous page.
IEEE ADDRESS of the Device(Router) which is supposed to transmit the data is 0015510000000005.
![](/img.php?id=1496806&img=bg1d.png)
FZ200BS Manual VERSION 0.1.0
29

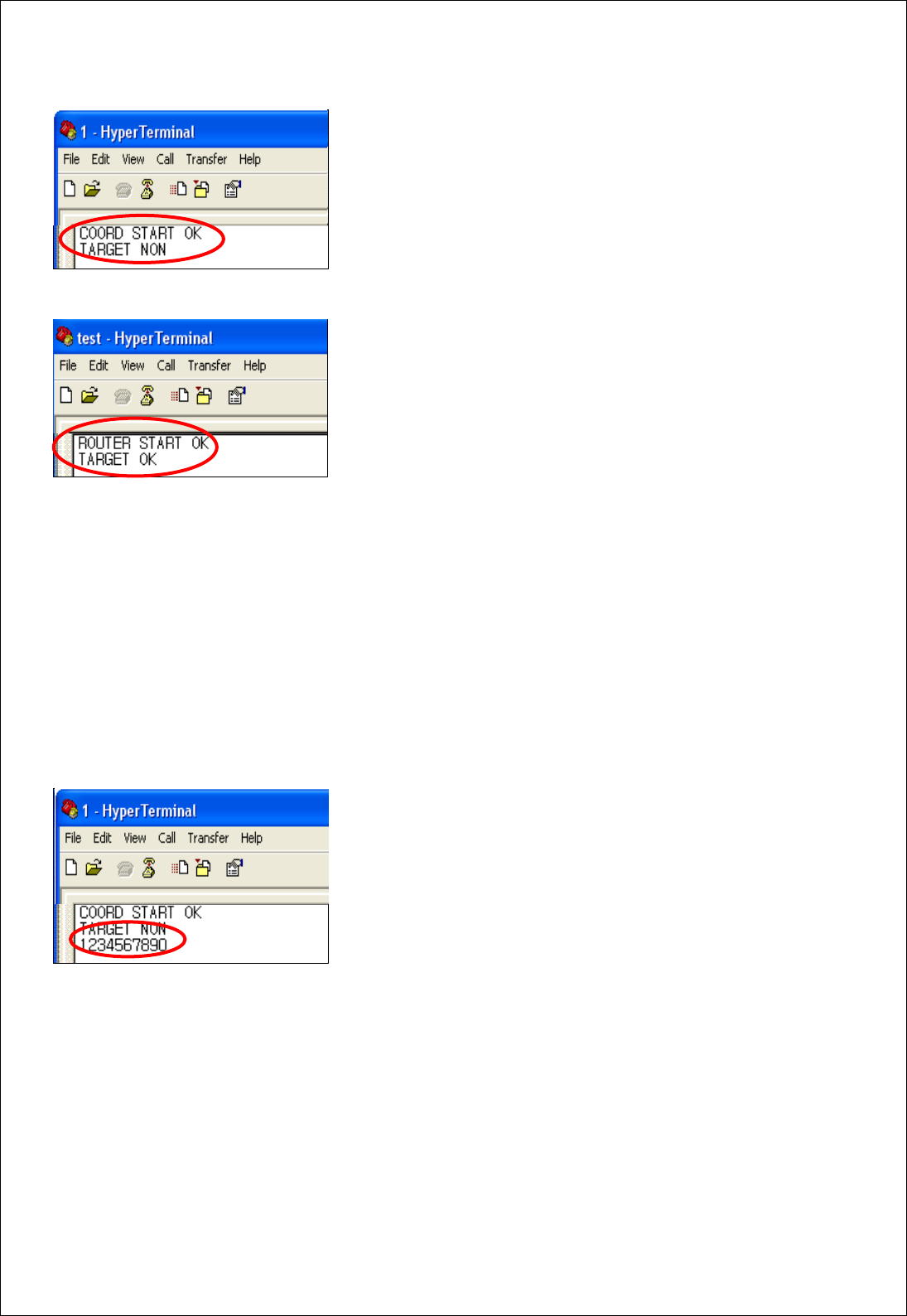

(1) Coordinator to set up the device's power is ON. After running
HyperTerminal, FZ200BS will reset.
The Zigbee Network is configured by Coordinator.
(2) Router to set up the device's power is ON. After running
HyperTerminal, FZ200BS will reset.
The Device participates in the Zigbee Network.
Its target device is automatically set.
A message “TARGET OK” is output.
If, “TARGET NON” or “TARGET ERROR” is output, its target device is not set.
Do the “9-4-2.Target device set-up”, again.
(3) Input “1234567890” into Hyper terminal(Router) and press “Enter(0x0D)” key.
FZ200BS transmits data (1234567890) inputted, Carriage Return(0x0D), and Line Feed(0x0A) at the
same time. (Do not input 0x0A. 0x0A is automatically added by FZ200BS.)
(4) Serial Data“1234567890” is output.(Coordinator)
※ Input Serial data of Serial port of FZ200BS.
※ After inputting the serial data, press “Enter” key.
※ 53 bit including “Enter” key is a maximum length of Serial data can be transmitted by FZ200BS.
※ The Serial data sent from a Device is output through Serial port of its target device.
※ To transmit the other forms of data after Serial data transmission, you should wait until you get the
Serial Data’s result value. In other words, the other data transmission becomes possible after OK LED or
![](/img.php?id=1496806&img=bg1e.png)
FZ200BS Manual VERSION 0.1.0
30
ERROR LED shows its status.
10. FZ200BS Management TIP
Refer to the following to configure Zigbee Network properly in terms of data transmission and Controls.
10-1. FZ200BS Device Type Set-up
(1) End Device Set-up
Set FZ200BS to End Device before Coordinator and Router is set. (AT+SETEND)
Turn the power of the FZ200BS OFF.
(2) Router Set-up
Set FZ200BS to Router before Coordinator is set. (AT+SETROUTER)
Turn the power of the FZ200BS OFF.
(3) Coordinator Set-up
Set FZ200BS to Coordinator. (AT+SETCOORD)
Turn the power of FZ200BS OFF.
10-2. Zigbee Network Configuration
![](/img.php?id=1496806&img=bg1f.png)
FZ200BS Manual VERSION 0.1.0
31
(1) Turn the power of FZ200BS set to Coordinator ON.
(2) Turn the power of Router and End Device which are supposed to make 1 Depth ON.
- You can create Devices in 1 Depth up to 8.
(3) Turn the power of Router and End Device which are supposed to make 2 Depth ON.
- You can create Devices in 2 Depth up to the number of Router in 1 Depth * 8.
- Devices are automatically created in 1 Depth if any seats are available in 1 Depth.
(4) Turn the power of Router and End Device which are supposed to make 3 Depth ON.
- You can create Devices in 3 Depth up to the number of Router in 2 Depth * 8.
- Devices are automatically created in 1/2 Depth if any seats are available in 1/2 Depth.
(5) Turn the power of Router and End Device which are supposed to make 4 Depth ON.
- You can create Devices in 4 Depth up to the number of Router in 3 Depth * 8.
- Devices are automatically created in 1/2/3 Depth if any seats are available in 1/2/3 Depth.
10-3. [Set-up] target device & traffic
Set target device of each Device after the Zigbee Network is configured.
Save an IEEE ADDRESS of target device by using a command “AT+SETTARGET”
Reset the Device so that its target device set-up can be processed.
< It is not recommended that there is a lot of traffic in the Zigbee Network. >
Refer to the meanings of Traffic in terms of Zigbee Network.
The Traffic is caused by “Zigbee Device which performs data transmission in the Zigbee Network”,
“Zigbee Device which performs data transmission to get its target device”, “Zigbee Device which
transmits data to its target device” “ACK data for checking if Zigbee Device transmits data its target
device properly”, and “Transmitted data for checking if the Zigbee Network works properly.”
There is no traffic in case of Coordinator and Router unless they are turned ON again.
Coordinator and Router are always turned ON because they intermediate Devices.
In case of End Device, a lot of traffic is caused because the power of End Device is turned ON and
OFF repeatedly.
![](/img.php?id=1496806&img=bg20.png)
FZ200BS Manual VERSION 0.1.0
32
If there are a lot of Nodes in the Zigbee Network, set the space of time longer for data transmission
between the Nodes,
Especially, in case of End Device, great caution is required.
(A space of data transmission per 10 Devices: minimum 2seconds)
The Shorter the space of data transmission is, the more traffic in the Zigbee Network is caused.
Do not change target device too often. When you set or change a target device, data for transmission
is more created to get its route. The more data there is in the Zigbee network, the more traffic is
caused.
In case thatEnd Device receives ACK data after data transmission, (For control using MICOM and data
re-transmission) set ACK data transmission receipt to be enabled by using a command AT+SETACK1.
In this situation, more traffic in the Zigbee Network is caused in comparison.
If ACK data recipe is not required after data transmission using End device (For data transmission
only), set ACK data receipt to be disabled by using a command AT+SETACK0.
In this situation, less traffic in the Zigbee Network is caused in comparison.
Do not set target device to FFFFFFFFFFFFFFFF(Broadcast) when performing data transmission.
If data is transmitted by Broadcast, all Routers in the middle transmit the data to all nodes again.
The more Devices using Broadcast data exist and the more Routers in the middle exist, the more
traffic is caused in the Zigbee Network.
Do not use Broadcast data transmission unless it is essential.
When FZ200BS performs a command to get information on Nodes participated in the Zigbee Network,
a lot of traffic in the Zigbee Network is caused.
Because Router cannot save information on all nodes in the Zigebee Network, the inquired data is
mostly transmitted by broadcast.
Broadcast data increase traffic in the Zigbee Network.
In case of you need, use AT command to inquire information on nodes in the Zigbee Network.
A lot of traffic in the Zigbee Network bothers data transmission and target device set-up
10-4. START MESSAGE
(1) START MESSAGE
It means that FZ200BS starts to operate.
START MESSAGE is output as Serial data through Serial port.
If you don’t want a Device to output the START MESSAGE, input AT command (AT+SETSTAMSG0).
![](/img.php?id=1496806&img=bg21.png)
FZ200BS Manual VERSION 0.1.0
33
(2) Sorts of START MESSAGE
COORD START OK
: A Device starts as Coordinator and the Zigbee Network is configured properly.
Thus, data transmission is possible.
COORD START ERROR
: A Device starts as Coordinator, and the Zigbee Network Configuration is failed.
In this situation, a normal Zigbee Network cannot be configured.
After initializing the Device to factory set value (AT&F) and set the Device to Coordinator again,
Change the Channel used.
ROUTER START OK
: A Device starts as Router and the Zigbee Network is configured properly.
Thus, Zigbee Network Extension and data transmission is possible.
ROUTER START ERROR
: A Device starts as Router, and the Zigbee Network Configuration is failed.
See if there is Coordinator around.
See if there is Router participated in the Zigbee Network configured by Coordinator.
See if there is channel which is the same as the one Coordinator use.
END START OK
: A Device starts as End Device and the Zigbee Network is configured properly.
Thus, data transmission is possible.
END START ERROR
: A Device starts as Router, and the Zigbee Network Configuration is failed.
See if there is Coordinator around.
![](/img.php?id=1496806&img=bg22.png)
FZ200BS Manual VERSION 0.1.0
34
See if there is Router participated in the Zigbee Network configured by Coordinator.
See if there is Coordinator which has 8 child nodes.
See if there is Router which participates in the Zigbee Network and has 8 child nodes.
TARGET NON
: There is no IEEE ADDRESS of target device saved.
In this case, data transmission is not possible.
Set a target device to process data transmission.
TARGET OK
: Target Set-up is properly done by using an IEEE ADDRESS of target device.
Data transmission is possible.
TARGET ERROR
: Target Set-up using IEEE ADDRESS of target device is failed.
See if there is the target device in the Zigbee Network.
If there is the target device participated in the Zigbee network, check if the IEEE ADDRESS of
the target device is correctly saved.
OK
: The message “OK” is output from FZ200BS when a Device switches its mode from operation
mode to AT command mode.
- Use a command +++ to make the Device switches its mode from operation mode to AT
command mode.
The massage “OK” is also output when a Device switches its mode from AT command mode to
operation mode.
- Use a command “ATO” to make the Device switches its mode AT command mode to
operation mode.
10-5. RESET OPTION
(1) RESET OPTION
FZ200BS operates properly in the Zigbee Network.
Once the power of FZ200BS is turned ON, the device automatically participates in the Zigbee
Network. After the Zigbee Network Participation, the Device outputs “ROUTER START OK” or “END
![](/img.php?id=1496806&img=bg23.png)
FZ200BS Manual VERSION 0.1.0
35
START OK”. Target device Se-up is possible afterwards.
FZ200BS outputs “ROUTER START ERROR” or “END START ERROR” if there is no Zigbee Network
around or the Device cannot participate in the Zigbee Network.
Target device set-up is prior to data transmission.
Turn the power of FZ200BS ON, and then the Device is participated in the Zigbee Network. If
FZ200BS has its target device’s Address, FZ200BS searches if its target device is participated in the
Zigbee Network.
If the target device of FZ200BS is participated in the Zigbee Network and the target device is
properly set, “TARGET OK” is output. Data transmission becomes possible from then.
If the target device of FZ200BS is not participated in the Zigbee Network and the target device is
failed, “TARGET ERROR” is output.
When RESET OPTION is set to be enabled with a command AT+SETRESET1 , FZ200BS fails to
participate in the Zigbee Network and its target device is not properly set, FZ200BS is reset.
When RESET OPTION is set to be disabled with a command AT+SETRESET0 , FZ200BS fails to
participate in the Zigbee Network and its target device is not properly set, FZ200BS is put on standby
for a handle by users.
※ References
Appendix_1: FZx00_AT Command
Appendix_2: FZx00_GUI
Appendix_3: FZx00_End Device & ADC/KEY/GPIO
![](/img.php?id=1496806&img=bg24.png)
FZ200BS Manual VERSION 0.1.0
36
