Main Features
High-quality Design
Comfortable Grip & Dynamic Design
Long Recording Time
In LP mode, 66 hours and 20 minutes(128MB), 133 hours and 20 minutes(256MB).
USB Digital Interface
Download and Upload files Easily thru PC connection.
Telephone Message Recording
You can record the important telephone conversation and messages.
Automatic Power Off
Power automatically turns off when the recorder is not in use for more than three
minutes.
Recording Quality Mode
Recording quality can be selected using four modes, XQ/HQ/SP/LP.
VOR Recording
The Recorder activates when sound is present, so that it may save memory space for
eliminating blank space in recording.
Microphone Sensitivity
Microphone sensitivity can be adjusted according to the distance from the sound
source and the ambient noise level.
Repeated Playback
Any desired recorded file can be played repeatedly.
Section Repeat Playback
Quick Message Search
Desired recorded message can be easily searched by scan function while playing
back.
Beep Sound
Beep sound can be set to sound at every press of the button.
Vibration Mode on Recording
Secret Recording with Vibration on Recording On & Off.
Additional Recording (Appendix)
You can add the recording to the same file number without affecting
the original.
Time Indicator for Remained Recording
All in One Menu Button
Recorded Message Monitoring
Recording can be monitored through earphone during recording.
File Search (Intro Scan)
Intro scan function consecutively plays the first 7 seconds of each file
for easy search of the recorded messages.
Playback Speed
It’s possible to set playback speed in 7 steps,
50/70/100(normal)/130/150/170/200%.
Hearing Aids
You can listen to the voice coming from the microphone on
earphones and adjust the sound levels without using the recording
function.
Firmware Upgrade Function
01 Voice Recorder
Voice Recorder 02
![](/img.php?id=714249&img=bg3.png)
Voice Recorder 04
Preparing
Features 1
Name of Each Part 5
Package Contents 7
Putting the Batteries 7
External Power Supply Setting 8
Power ON/OFF 8
HOLD Setting 9
Volume Adjustmen 9
Contents
03 Voice Recorder
Using
Recording 10
Playback 11
Playback Speed Adjustment 12
Section Repeat Playback 13
Intro Scan 13
Deleting Recorded File 14
Recovery of erased file 16
Format 17
User-Friendly Functions
Menu Structure 21
Menu Setting 23
Connecting to an External Device
Recording through an External Microphone 26
Connecting to an Audio System 27
Listening through an Earphone 28
Recording a Telephone Message 29
Connecting to a PC 30
Firmware Upgrade 39
Others
Precautions 41
Troubleshooting 43
Specifications 45
Warranty
![](/img.php?id=714249&img=bg4.png)
Preparing Preparing
05 Voice Recorder
Voice Recorder 06

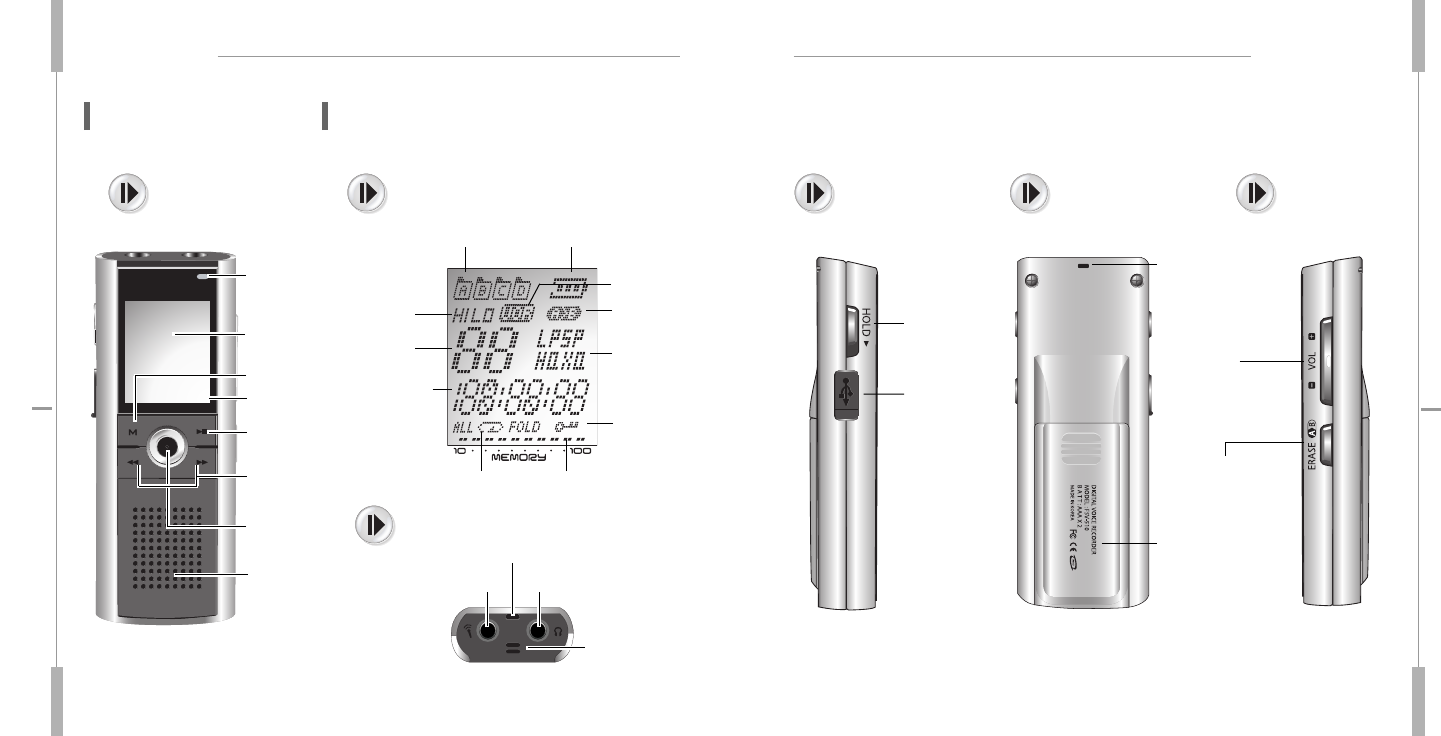

Name of Each Par
Front View Left View Right ViewBack View
Top View
LCD Display
Recording
Indicator
Folder Indicator
Mic.
Sensitivity
Indicator
File No.
Indicator
Battery Level Indicator
Hold Switch
VOR Recording
Indicator
Recording Quality
Indicator
Hold Status
Indicator
Play / Pause
Button
Remained
Memory Indicator
REW / FF Button
Rec./Stop Button
Built-in Speaker
Menu Button
LCD Display
Recording/Play
back Time
Indicator
Repeat Playback
Indicator
Microphone/Input Terminal Earphone / Output Terminal
Strap Hole
Built-in Mic
Recording/Playback Level Indicator
and Remained Memory Indicator
Section Repeat
Indicator
Hand Strap Ring
Volume
Button
Erase Button and
Section Repeat
Button
Battery Cover
USB Port
Terminal
![](/img.php?id=714249&img=bg5.png)
Preparing Preparing
07 Voice Recorder
Voice Recorder 08

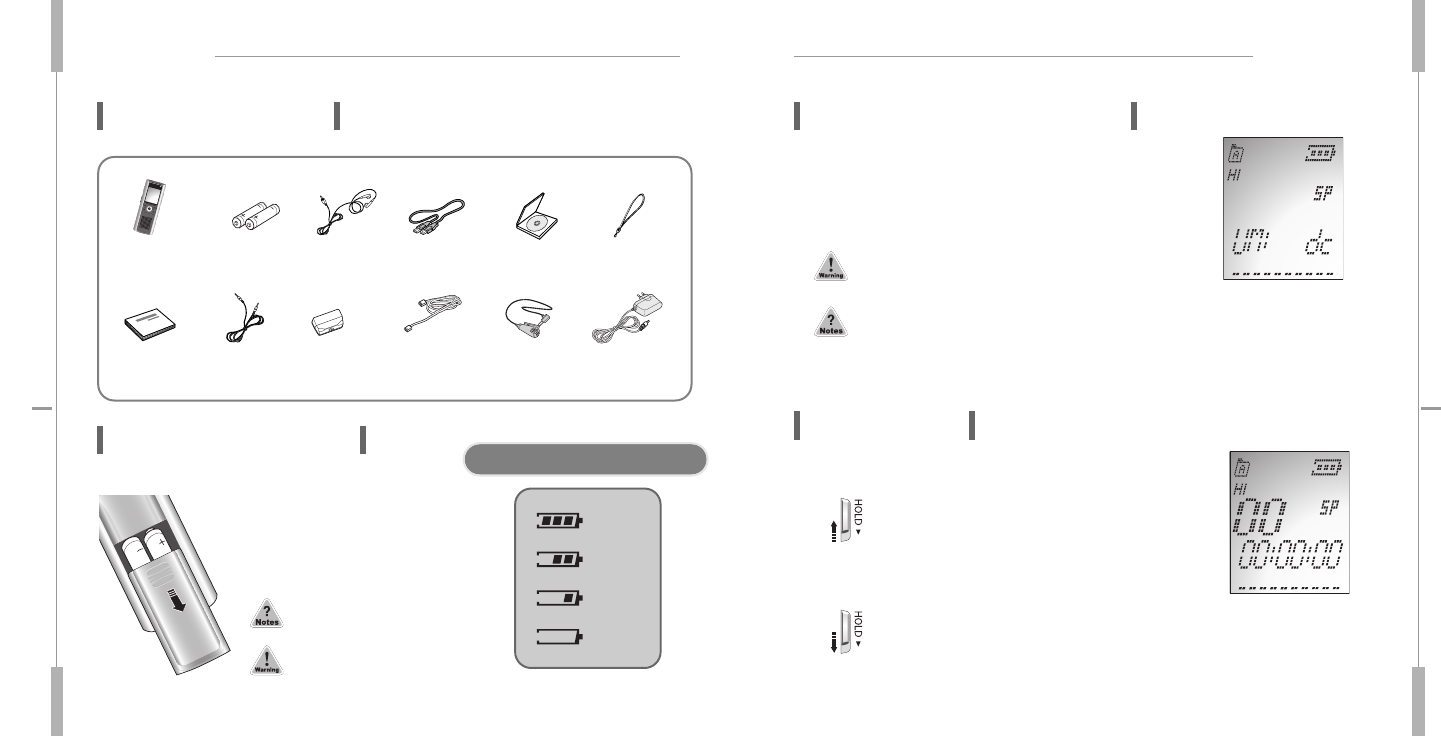

Package Contents External Power Supply Setting
Power ON/OFF
Putting the batteries
Recorder DVR-Manager
Install CD
Earphone Hand Strap
User’s Manual
Battery(AAAX2)
External Device
Connection
Cable
Telephone
Recording Adaptor
External
Microphone
Telephone
Connection Cord
DC Adapter
(Option)
USB Connection Cable
1.Push the Battery cover downside.
2. Insert two batteries with the correct
polarity as indicated by the + and -
symbols and close the cover.
Recorded files will not be erased
during replacing the batteries.
Full
High-Normal
Weak
Exhausted
Checking the batteries Level
You can use external power supply by connecting DC adaptor(Optional)
●Using External Power thru PC connection could cause some noisy on telephone
recording and it could prevent VOR function from working properly.
In this case, using DC adaptor(optional) is recommended.
Select “DC”at the menu of USB Mode in General.
Connect the Recorder to PC by USB cable.
●Recorder operates with PC power supply.
▶Power ON
▶Power OFF
Slide the HOLD switch in the direction, and
press the REC/STOP button to turn the power on.
●Automatic Power OFF - The power automatically turns off when the recorder is
not in use for more than 3 minutes at STOP mode.
●Manual Power OFF - Slide HOLD switch in the direction at STOP mode.
Using Direct USB port from the PC is highly recommended
rather than using USB hub due to weak voltage.
In case of malfunction, please
remove the batteries out of the
recorder and put the batteries into
the recorder again.
![](/img.php?id=714249&img=bg6.png)
Preparing Using
09 Voice Recorder
Voice Recorder 10
HOLD Setting Recording

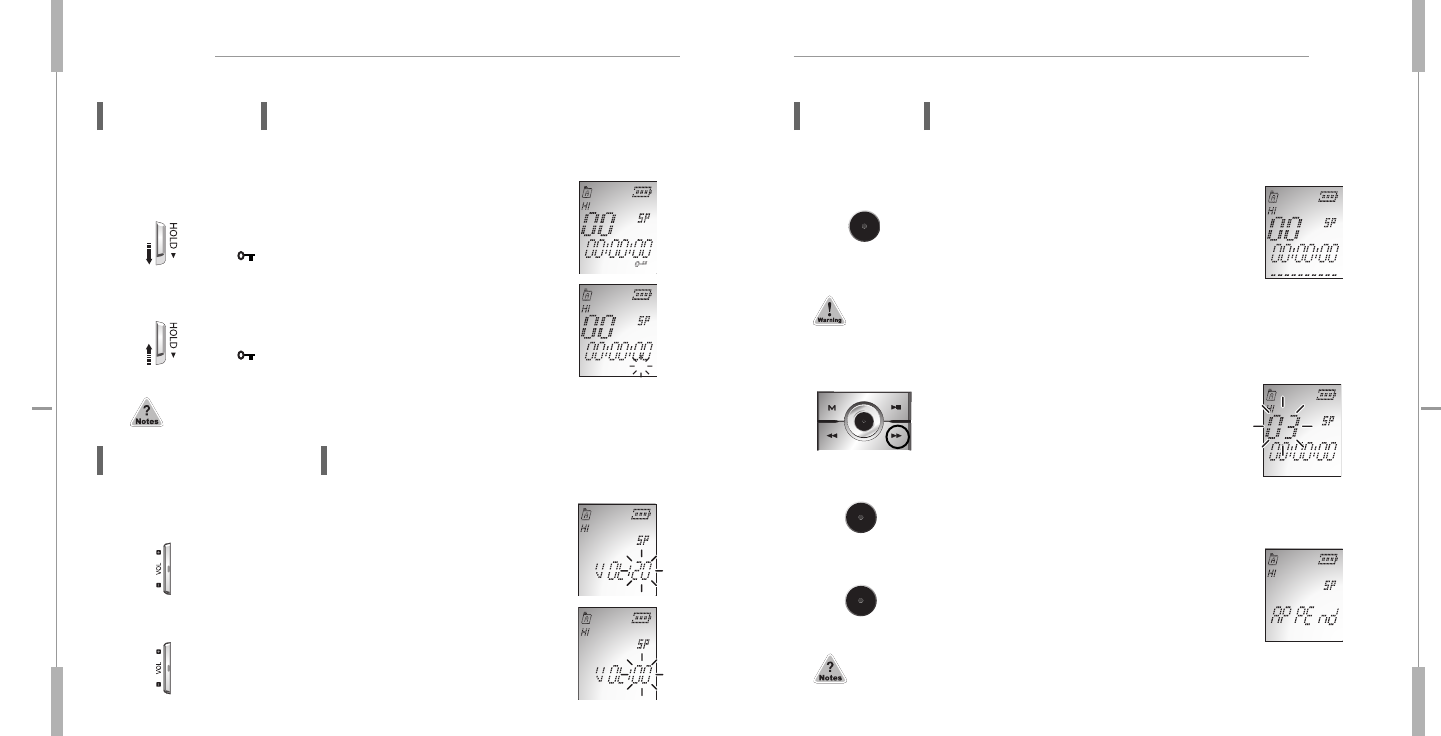

●HOLD switch performs locking function during playback or recording and manual
power off function at STOP mode.
●
Press the Play/Pause button while recording to display the recording remaining time and if you
press once more, the current recording time is displayed.
●
Press MENU button while recording in order to change the previous setting of VOR function.
HOLD function locks all the button functions to prevent unwanted use and the discharge
of the batteries.
In recording, please position the built-in microphone toward the sound source.
Volume Adjustment
Volume can be adjusted from level 0 to 20 at STOP mode or during Playback.
▶To Set HOLD
Slide HOLD switch in the direction during recording or
playback.
●The symbol flickers at one second intervals, and HOLD is set.
▶To Release HOLD
Slide HOLD switch in the direction during recording or
playback.
●Flickering of the symbol disappears and HOLD is cancelled.
▶To Turn Up the Volume
Press ‘+’symbol of the VOL button.
●As the number on the LCD display increases, the volume increases.
▶To Turn Down the Volume
Press ‘-’ symbol of the VOL button.
●As the number on the LCD display decreases, the volume decreases.
▶Press REC/STOP button.
●Recording begins with the red light on the recording
indicator. The display shows the current folder, file
number, recording elapsed time and the recording sound
level. The recorder automatically selects the file number
next to the previously recorded file in current folder.
▶To Record into the Next File Number during recording
Press ▶▶button while recording.
●The recorder stops at the current file number and continues
recording into the next file number.
▶To Stop Recording
Press REC/STOP button once again.
●The red light goes off and recording stops.
▶To Add Recording
Press and hold REC/STOP button for more than 3
seconds at STOP mode.
●The recorder attaches the message to the current file number.
●Please check the recording sound level works while recording.
●When the recording sound level does not work on recording with loud voice, stop recording and play back
the recorded file to check whether recording works well. Then continue to use if there is no problem.
![](/img.php?id=714249&img=bg7.png)
Using Using
11 Voice Recorder
Voice Recorder 12
Playback

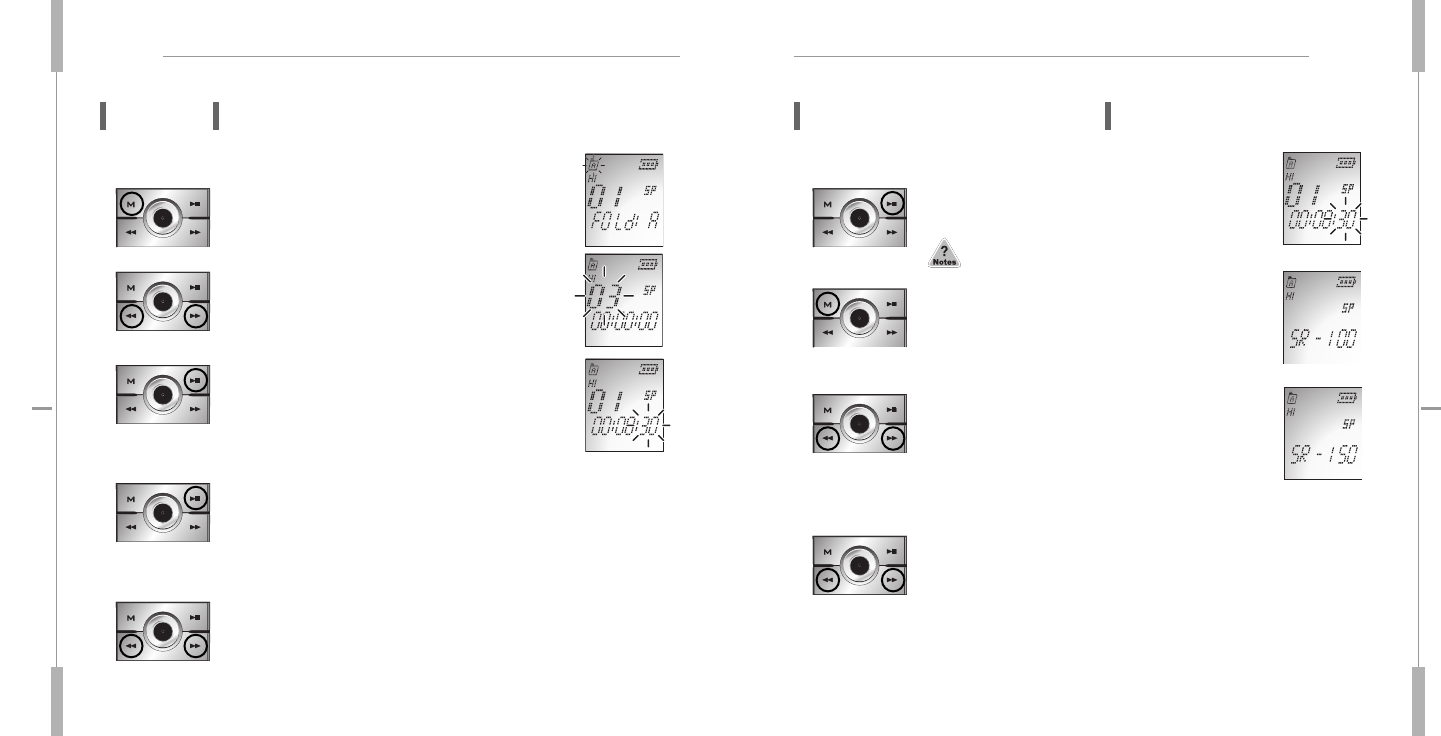

▶To Start Playback
▶To Stop Playback
Press Menu(M) Button and Select the folder which
contains the file to play.
●For folder selection, pls. refer to page 23
In stop mode, press the FF/REW(◀◀/ ▶▶) button to
select the file number to play back.
●For careful search, press the button briefly. For quick search,
press and hold the button for a few seconds.
Press Play/Pause(▶■) button.
●The Recorder starts playback with the file number, playback
elapsed time and playback sound level.
Press Play/Pause(▶■) button.
●Playback stops. Now, press Play/Pause(▶■) button again to resume playback from the
previous stop position.
▶To playback other recorded file during playback of current file
Press FF(▶▶) button shortly during playback.
●The playback of current file stop and playback of next file starts Press REW (◀◀)
button shortly during playback.
●The playback of previous file starts.
Playback Speed Adjustment
▶To start play back
Press Play/Pause(▶■) button.
●Play back starts.
Press Menu(M) button seven times.
●Default speed is set as ‘100’(Normal).
◀◀/ ▶▶ button with direction of right or left.
●Playback speed can be adjusted in 7 levels as follows (50,
70, 100(normal), 130, 150, 170, 200%).
▶To search the desired section within a file during playback
Press and hold ▶▶button during playback.
●The file is fast forwarded and playback resumes when you release the button.
Press and hold ◀◀ button during playback
●The file is rewind and playback resumes when you release the button.
●At stop mode, you can adjust play back speed also.
![](/img.php?id=714249&img=bg8.png)
Using Using
13 Voice Recorder
Voice Recorder 14
Section Repeat Playback
Intro Scan
Press and hold Play/Pause(▶■) button for more than
3 seconds at STOP mode.
●This function enables fast file search by playing back the
first 7 seconds of each file.
●For playback the file during scanning, press JOG button in.
●Press REC/STOP button in while playback to display the playback remaining time and if you
press once more, the current playback time is displayed.
●Pressing Menu(M) button twice while playback shows the status of repeat playback, you can
change the status with ◀◀/ ▶▶ buttons.
●Pressing Menu(M) button four times shows ‘SR:100’ on display. If you don°Øt want to change
playback speed, simply press other buttons except for ◀◀/ ▶▶ buttons.

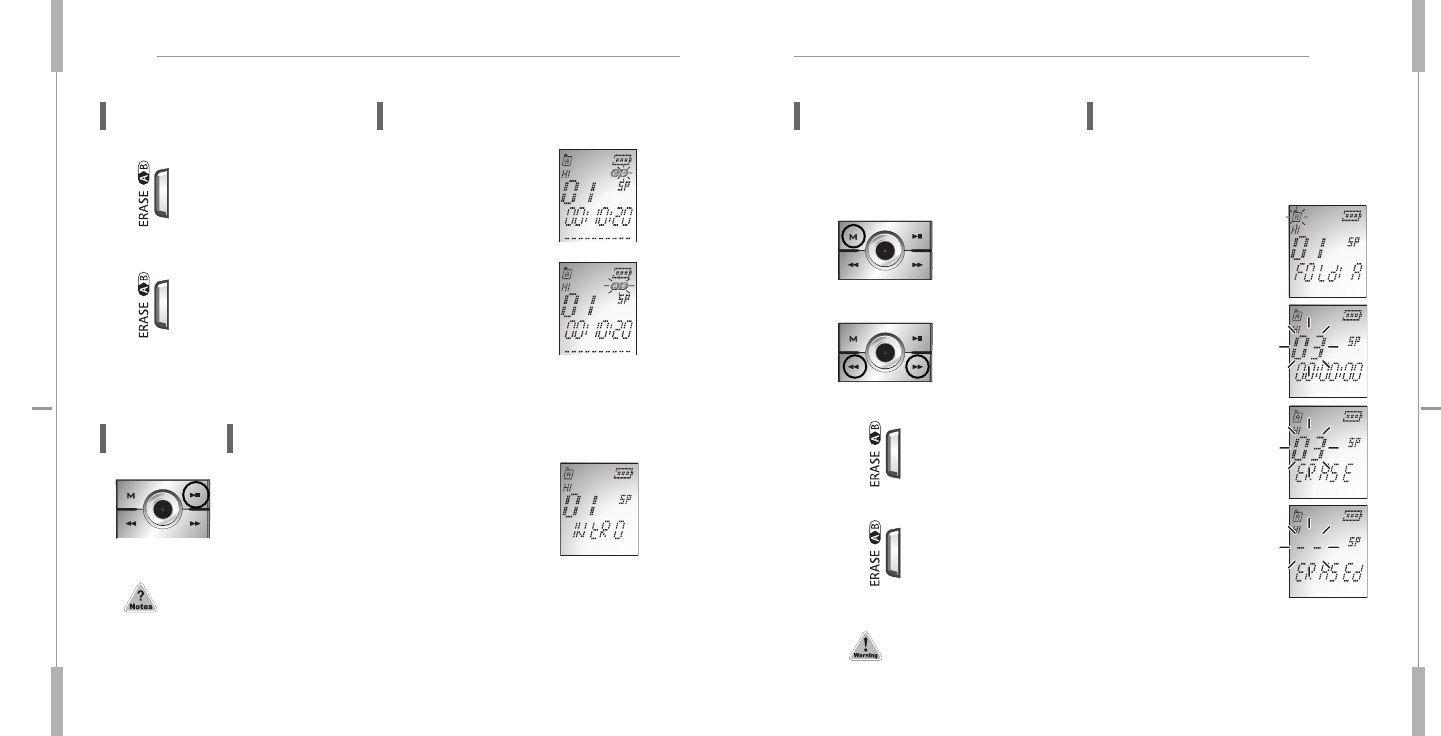

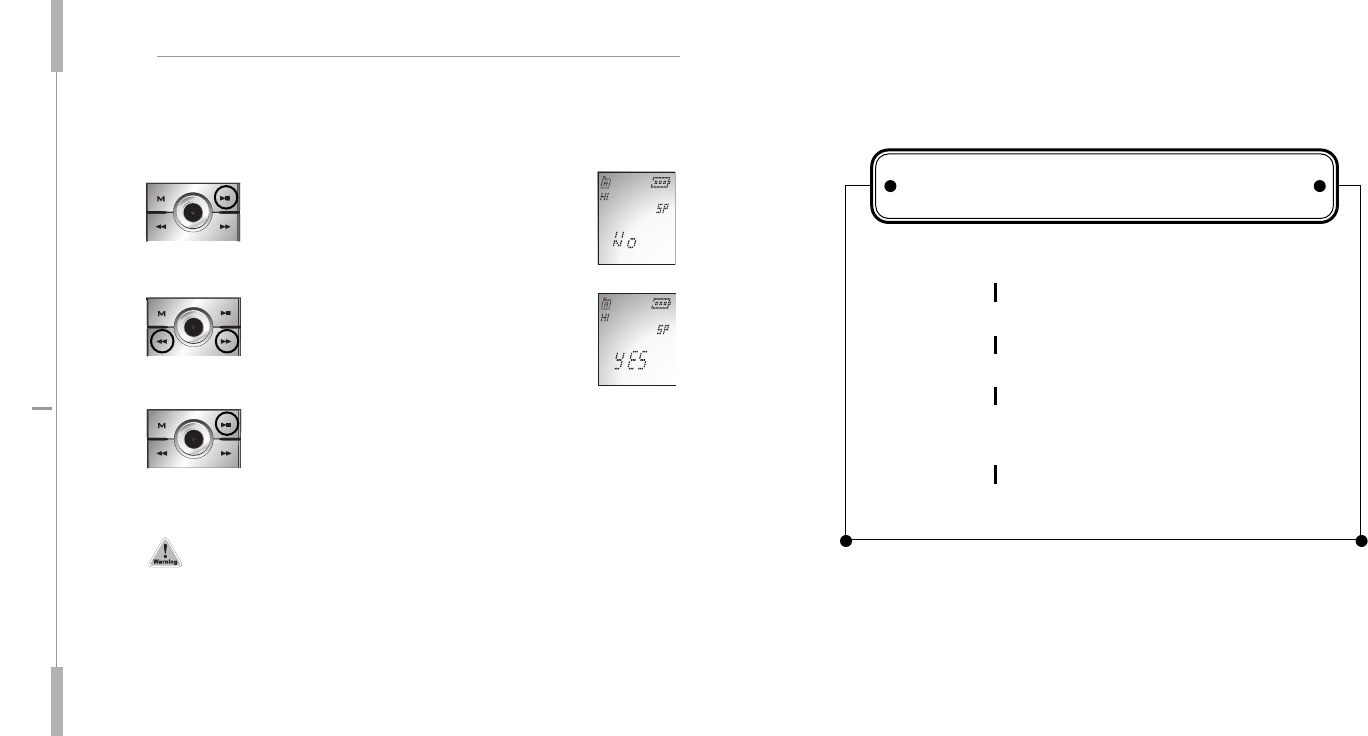

Deleting the Recorded File
Press Menu(M) button and Select the folder that
contains the file to be deleted.
●For folder selection, pls. refer to page 23.
In stop mode, press ◀◀/ ▶▶button with direction of
right or left to select the recorded file to delete.
●For careful search, press the button briefly.
For quick search, press and hold the button for a few seconds.
Press ERASE button briefly.
●The selected file number flickers and the selected file
is played back.
Press ERASE button again briefly.
●The selected file is deleted and file numbers are automatically
rearranged.
Press A > B button at the starting point of the
desired section
●‘A’ appears and ‘B’ flickers.
Press A > B button again at the ending point of the desired
section.
●‘B’ appears and the section from 'A' to 'B' is repeated.
●Press A > B button once again to cancel Section Repeat Playback
and then, normal playback continues.
●The ERASE operation is cancelled if any other button is pressed during the
selected file number is flickering or the ERASE button is not pressed again in 5
seconds.
▶To delete a recorded file
![](/img.php?id=714249&img=bg9.png)
Using
15 Voice Recorder
Using
Voice Recorder 16

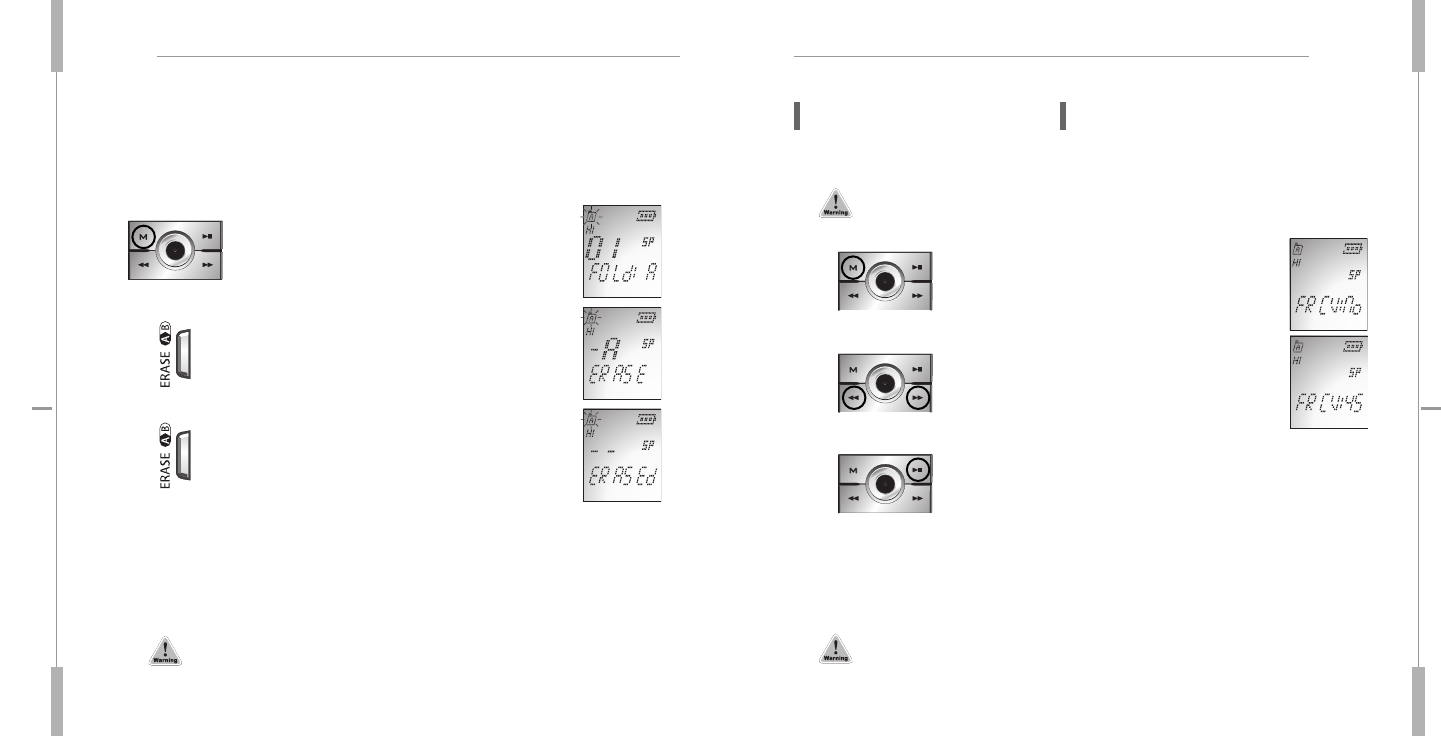

▶To delete all the files in the selected folder
Press Menu(M) button and Select a folder to be
deleted.
●For folder selection, pls. refer to page 23.
Press ERASE button more than 5 seconds.
●The selected folder flickers and 1-FOLDER and ERASE is
displayed.
Press ERASE button for more than 5 seconds again.
●All the selected folder is deleted.
●The ERASE operation is cancelled if any other button is pressed during the
selected file number is flickering or the ERASE button is not pressed again in 5
seconds.
●In case of recording after deleting a recorded file, Recovery is not available.
Recovery of Erased File
Press MENU(M) button over five seconds at STOP mode.
●FRCV:No appears on the display.
This function enables to recovers the erased file by mistake of user.
Press ◀◀/ ▶▶button and Select ‘FRCV: YS
Press ‘Play/Pause(▶■)’button and erased files
are recovered.
●In case of erasing by using Reset mode(Low Format), the recovery function is not available.
![](/img.php?id=714249&img=bga.png)
Using
18 Voice Recorder
Using
17 Voice Recorder

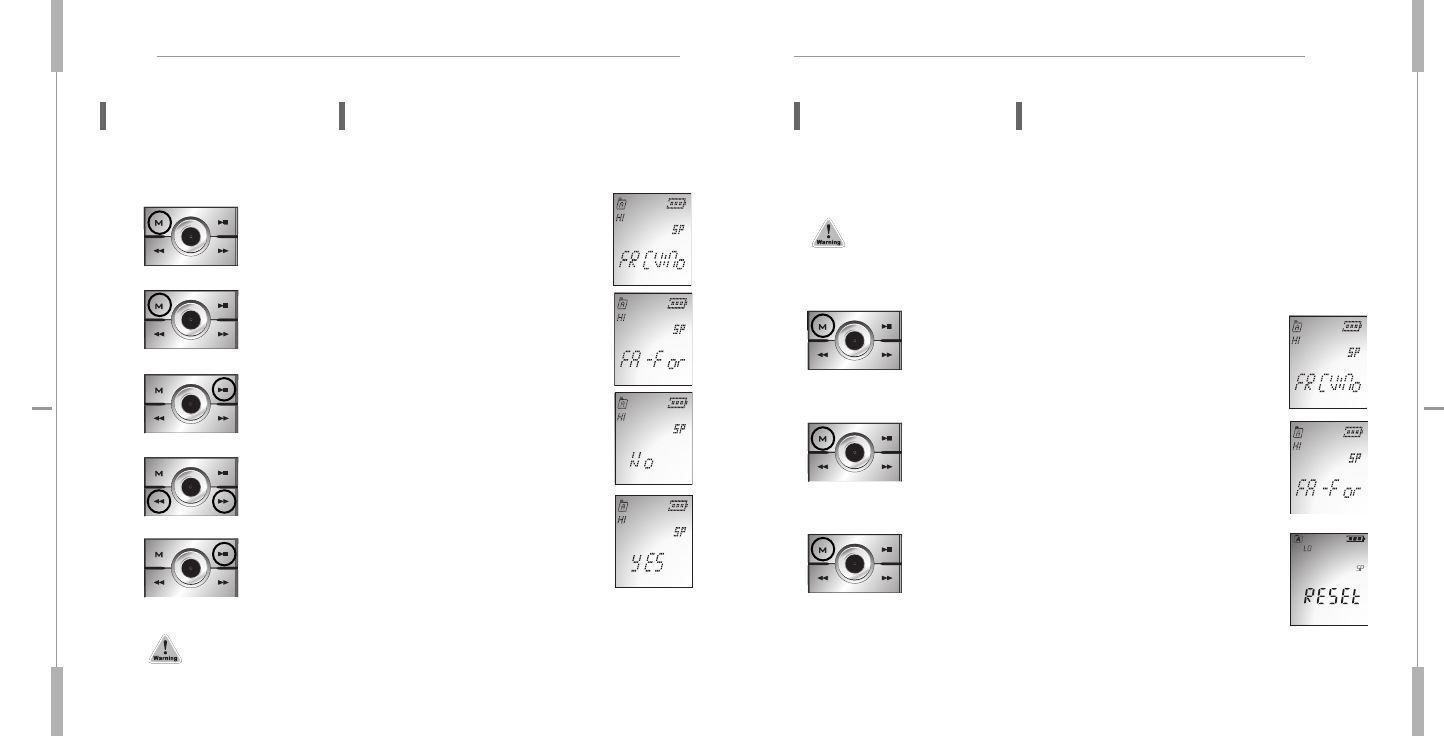

Quick Format Setting
Press MENU button over five seconds at STOP mode.
●FRCV:No appears on the display.
This function is used to erase the recorded files quickly.
Press Menu(M) button again shortly.
●FA-For appears on the display.
Press ‘Play/Pause(▶■)’button and ‘No’appears
on the display.
Press ◀◀/ ▶▶button and Select ‘YES’.
Press ‘Play/Pause(▶■)’button and all files are
erased.
●In case of erasing by using Reset mode(Low Format), the recovery function is not
available.
●Please make sure that file recovery is not available in case of using this function.
Low Format Setting
In case of erasing the recorded file by using this function, the recorded file is erased
completely and it’s not possible to recover.
Press MENU button over five seconds at STOP mode.
●FRCV:No appears on the display.
Press Menu(M) button again shortly.
●FA-For appears on the display.
Press Menu(M) button again shortly.
●RESET appears on the display.
![](/img.php?id=714249&img=bgb.png)
Using
19 Voice Recorder
Press ◀◀/ ▶▶button and Select ‘YES’.
Press ‘Play/Pause(▶■)’button and all files are
erased. Also memory format is proceeded.
▶Menu function chart
▶Setting Menu
▶Connecting to an
External Device
▶Others
Using User-Friendly Functions
Press ‘Play/Pause(▶■)’button and ‘No’appears on
the display.
●In case of erasing the recorded file by using this function, the recorded file is erased
completely and it’s not possible to recover.
●Low formatting restores the recorder to the default mode.
![](/img.php?id=714249&img=bgc.png)
Set Up Menu
21 Voice Recorder
Set Up Menu
22 Voice Recorder
Menu Structure
Folder Selection
Recording
Quality Setting
Mic. Sensitive
Setting
Repeat Playback
Setting
SIGNAL MODE
Setting
USB Mode
Setting
Listen & Repeat
Setting
LP SP HQ XQ
VOR Recording VOR ON VOR OF
PLAYBACK SPEED Setting
CHECK VERSION INFORMATION
LCD BACKLIGHT Setting
UM USB UM DC
MIC HI MIC LO MIC US
SM BEEP SM SIL
L REP ON L REP OFF
SM VIB
REP ONE REP FOLDER
REP ALL REP NONE
![](/img.php?id=714249&img=bgd.png)
23 Voice Recorder
24 Voice Recorder
Set Up Menu Set Up Menu
Set Up Menu
Set Up Menu
Menu
Items Set Up
Menu(M)
button
At stop mode, press Menu(M) button to move into each menu mode.
Press ◀◀/ ▶▶button and Select each function on the mode.
Folder can be selected for playback or recording.
Press ◀◀/ ▶▶button and select folders from A to D.
Folder
Selection
1
You can set up recording quality.
Press ◀◀/ ▶▶button and select recording quality among LP,SP,HQ,XQ.
LP: Longtime Recording mode
SP: Standard Recording mode
HQ: High-quality Recording mode
XQ: Ultra high-quality Recording mode
*Recording
Quality
Setting
2
VOR (Voice Operated Recording)
With VOR mode, the recorder activates only when sound is present and
pauses when no sound is detected.
You can control Mic. Sensitivity according to sound level and noise
neighborhood.
Press ◀◀/ ▶▶button and select sensitivity among Hi,Lo,US.
High : Select in case the sound source is distant or the ambient noise level
is low.
VOR
Recording
Mic.
Sensitivity
Setting
3
4
Menu
Items Set Up
Menu(M)
button
Lo : Select in case the sound source is close or the ambient noise level is
high.
User : Select this to manually set the microphone°Øs sensitively.
* Microphone sensitivity can be adjusted in 15 steps and it can be made each
2 step
Repeat Playback Setting
Press ◀◀/ ▶▶button and select repeat mode among REP ONE, REP
FOLDER REP ALL, REP NONE.
REP ONE: To repeat One file
REP Folder: To repeat One folder
REP All: To repeat all files
REP None: No Repeat
Repeat
Playback
Setting
5
4
You can control playback speed with fast or slow speed.
Press ◀◀/ ▶▶button and select Playback Speed as follows.
SR50, SR70, SR100(NORMAL), SR130, SR150, SR175, SR200
Playback
Speed Setup
7
Beep, Silent, Vibration modes are available.
Press ◀◀/ ▶▶button and select among SM Beep, SM SIL, SM VIB.
SM Beep : Beep sounds
SM SIL : No sound
SM VIB : The recorder vibrates only when recording starts and stops.
(Vibration works only at following three operations)
Power On: The recorder vibrates for about 2 seconds.
REC START: The recorder vibrates twice shortly.
REC STOP: The recorder vibrates once shortly.
Signal Mode
Setup
6
![](/img.php?id=714249&img=bge.png)
26 Voice Recorder
25 Voice Recorder
Set Up Menu Connecting to an External Device

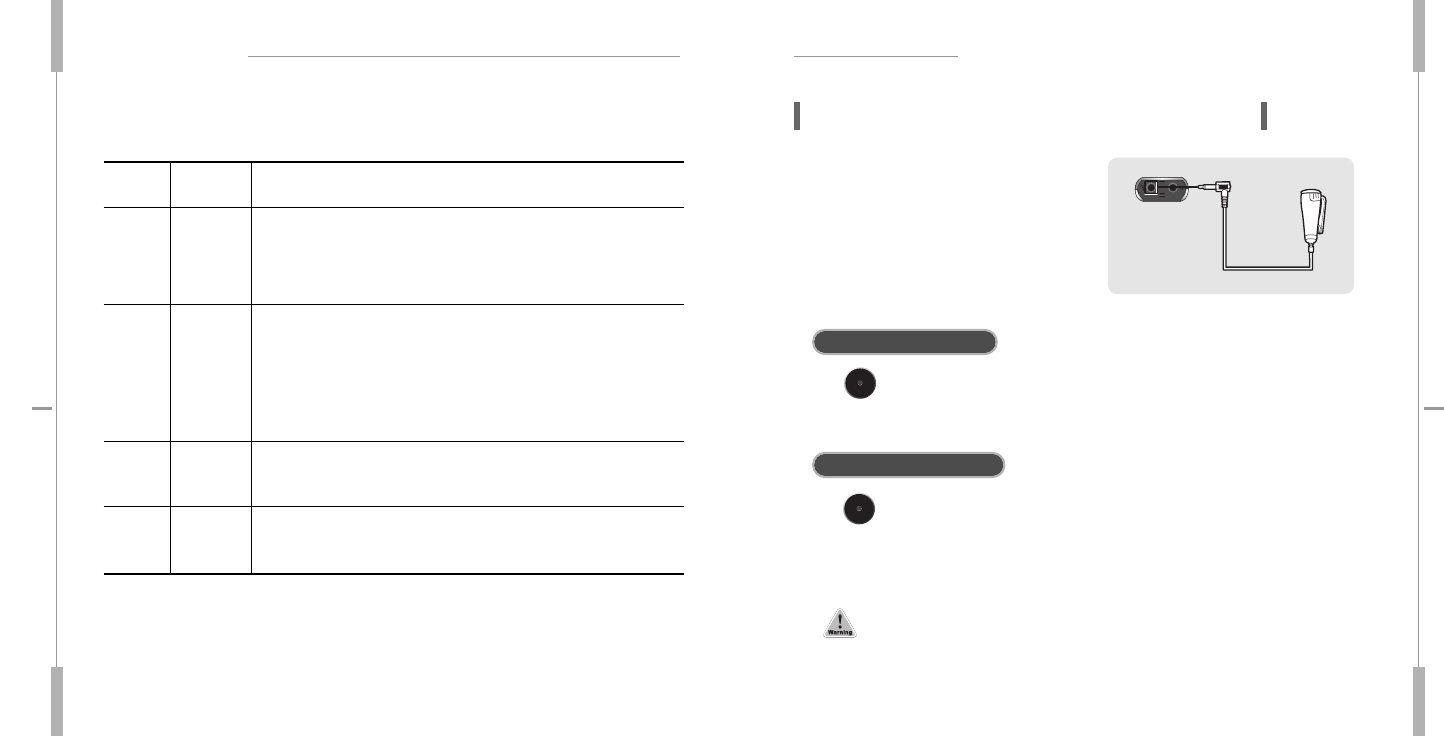

Recording through an External Microphone
▶Connect external microphone to Voice
Recorder.
●Plug the external microphone into the
Microphone/Input terminal of the Recorder.
Press REC/STOP button.
●Voice is recorded through the external microphone.
Press REC/STOP button again.
●Recording stops.
To start Recording
To finish Recording
●Please check the recording sound level works while recording.
Menu
Items Set Up
Menu(M)
button
By connecting Recorder to PC thru USB cable, USB connection or DC Power
Supply can be selectable according to user’s choice.
Press ◀◀/ ▶▶button and select USB or DC in orders.
UM USB: USB connection
UM DC: DC Power Supply
USB Mode
Setup
8
You can hear and follow-up because the concerned time has no sound after
section repeat playback is setup.
If you connect earphone to the recorder, you can hear your own voice when
you speak at this mode.
Press ◀◀/ ▶▶button and select L REP ON, L REP OFF in orders.
L REP ON: For this function
L REP OFF: No for this function
Backlight time can be setup.
Press ◀◀/ ▶▶button and select Off, 10sec, 20sec, 30sec, 60sec, all in
orders.
Listen and
Repeat
Setup
9
LCD
Backlight
time setup
10
You can check full memory capacity, version information.
Check
Version
Information
11
![](/img.php?id=714249&img=bgf.png)
Connecting to an External Device
28 Voice Recorder
Connecting to an External Device
27 Voice Recorder
●Adjust the recording sound volume with the volume control of the audio system.
●Recording quality may be affected by the performance of the external device.

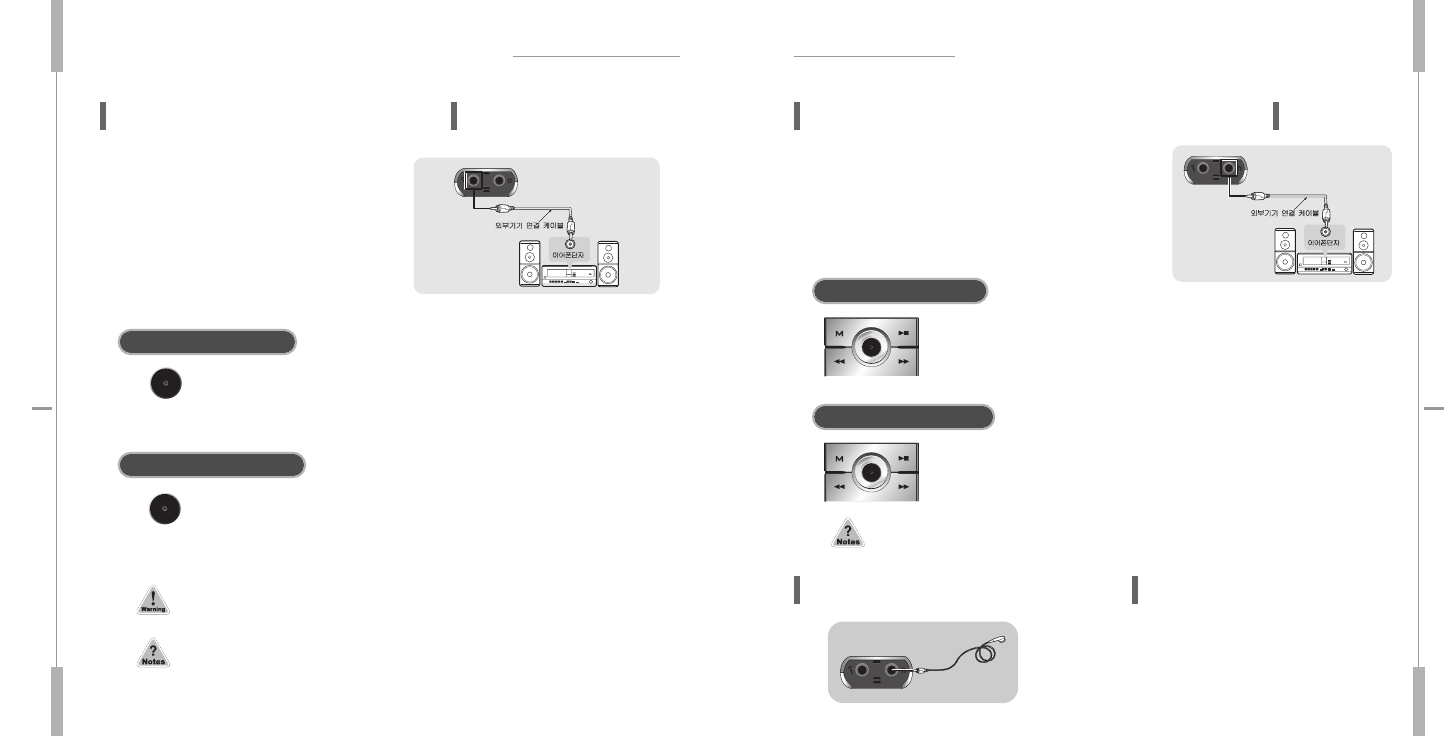

Connecting to an Audio System
▶To Record contents of the Audio into the
Voice Recorder,
Connect the Voice Recorder to the audio
system.
●Connect the Microphone/Input terminal to
the Earphone terminal of the audio system
using the supplied external device
connection cable.
Press REC/STOP button and the play button of the audio system
simultaneously.
●The Voice Recorder starts recording the audio contents. To Finish Recording
Press REC/STOP button and the stop button of the audio system
simultaneously.
●Recording stops.
To start Recording
To finish Recording
●Please check the recording sound level works while recording.
●The recording sound volume can be adjusted using VOL button of the Voice Recorder.
●Recording quality may be affected by the performance of the external device.
Connecting to an Audio System (continued )
Listening through an Earphone
▶To Record Contents of the Recorder into an Audio
System.
Connect the Voice Recorder to the audio system.
●Connect the Earphone/Output terminal to the microphone
terminal of the audio system using the supplied external
device connection cable.
To start recording
To finish recording
Select the file to be recorded.
Press ▶■button of the Voice Recorder and the record button of the audio
system simultaneously.
●The selected file in the Voice Recorder is recorded into the audio system.
Press ▶■button of the Voice Recorder and the stop button of the audio
system.
●Recording stops.
▶Plug the earphone to the Earphone/Output terminal.
●The playback sound is automatically routed to the earphone.
The playback volume can be adjusted by +and -of VOL
button.
![](/img.php?id=714249&img=bg10.png)
30 Voice Recorder
29 Voice Recorder
Connecting to an External DeviceConnecting to an External Device
●The digital telephone cannot be connected to the Voice recorder.
●To record only when you talk on the telephone, please select VOR recording and then
press REC/STOP button. (For details, pls. refer to page )
●If the VOR function does not work properly, set the MIC sensitivity low.
(For details, pls. refer to page )
●The input volume of the recorded sound is affected by the telephone and phone line
condition. If input volume is too low, disable the VOR function.
(For details, pls. refer to page .)
Recording a Telephone Message
▶Connect the Voice Recorder to
the telephone.
●Using the external device connection cable,
connect the Microphone/Input terminal of the
Voice Recorder and the telephone recording
adapter as shown in the picture.
Telephone messages can be recorded on the Voice Recorder.
Connecting to a PC

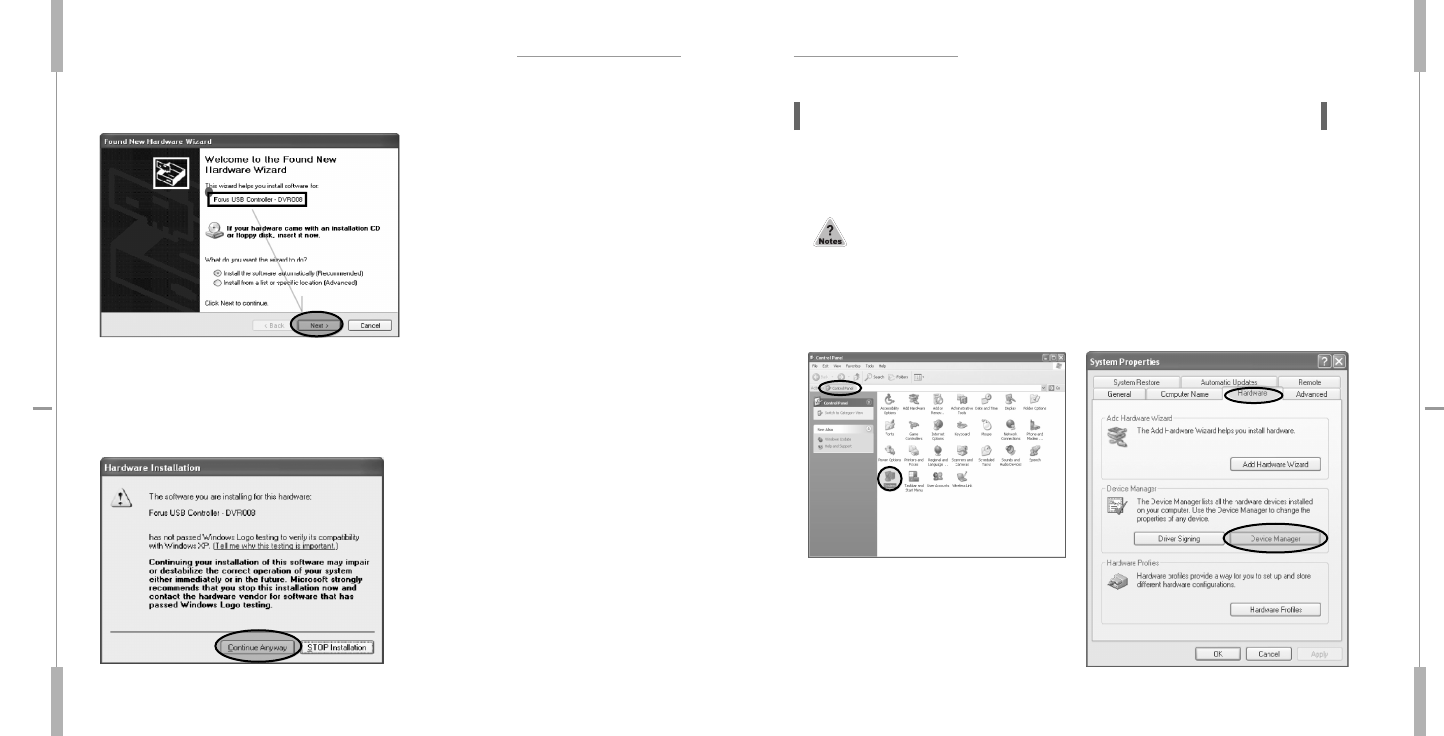

DVR-Manager should be installed to PC prior to connecting Voice Recorder to PC.
When you insert DVR-Manager CD into CD-ROM drive, the language selection window appears.
System
Requirements
Computer: IBM-compatible, Intel Pentium (or better) based with USB
port support
Memory: More than 64MB of RAM
OS: Windows 98/Me/2000/XP
Hard Disk: More than 50MB space
For Playing: Sound card and speaker
For Recording: Sound card and microphone
Installation of DVR-Manager
DVR-Manager software provides various functions such as file uploading to PC,
playback, recording, editing of recorded files and sending recorded files via email.
1Select language
2Click
●Caution: Installation should be proceeded without connecting the recorder to PC
via USB cable.
Press REC/STOP button during the telephone conversation.
●The Voice Recorder starts recording the conversation.
Press REC/STOP button again.
●Recording stops.
To Start Recording
To Finish Recording
![](/img.php?id=714249&img=bg11.png)
32 Voice Recorder
31 Voice Recorder
3Click
4Click
6Click
7Click
5Type in your name and company name.
8Click
9Click
●Installation has been completed and the shortcut icon appears on the desktop.
Connecting to an External DeviceConnecting to an External Device
![](/img.php?id=714249&img=bg12.png)
Connecting to an External Device
34 Voice Recorder
Connecting to an External Device
33 Voice Recorder
First connect Recorder to PC for the better use of the Recorder Manager
Pro Software.
Connecting to PC
Take the batteries out of the Voice Recorder.
Connect the Voice Recorder to computer by the provided USB cable and then press "REC/STOP"
Button.
Check " the picture shown the connection of Voice Recorder to computer" on the LCD of Voice
Recorder.
●If you can't find out the picture, you are required to select "USB" from "DC" at "USB Mode" Refer to User Guide
Manual.
When you connect the voice recorder to computer first time after purchasing, you can find out "Found
New Hardware".
Click the Pop-up Window and then check "Forus USB Controller-DVR008".
●After connecting the Recorder to PC, try not to touch the Recorder since it
may cause the malfunction of the device.
●If you have connected USB cable while batteries are installed, you must
first press REC/STOP button to power on Recorder.
DVR Manager Installation Guide Win XP User
You should install DVR-Manager Program provided by maker for uploading or
downloading a file(s) from computer to the Voice Recorder .
Please watch out below procedure before the installation of DVR-Manager Program.
Insert DVR-Manager CD to CD-Rom
Complete installation procedure as computer indicates.
There will be "DVRM-008" icon on the screen if completed installation.
●Please refer tp enclosed User Manual Guide for more deail.
USB port connection terminal
PC
USB
connection
cable
Diameter 3.5 Microphone in put terminal
of the sound card
USB port connection terminal

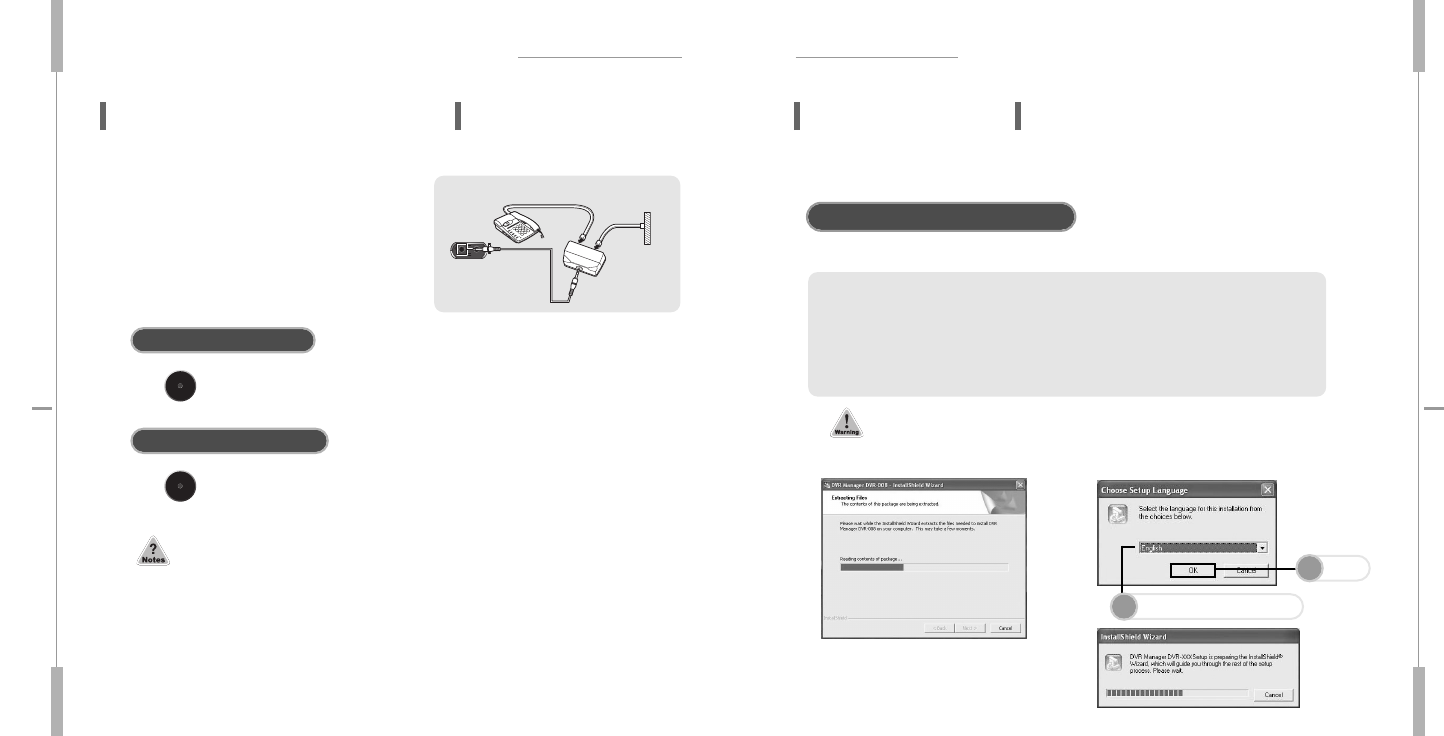

Installation of DVR-Manager
Connection of the Voice Recorder to computer(Installation of Driver)
![](/img.php?id=714249&img=bg13.png)
Connecting to an External Device
36 Voice Recorder
Connecting to an External Device
35 Voice Recorder

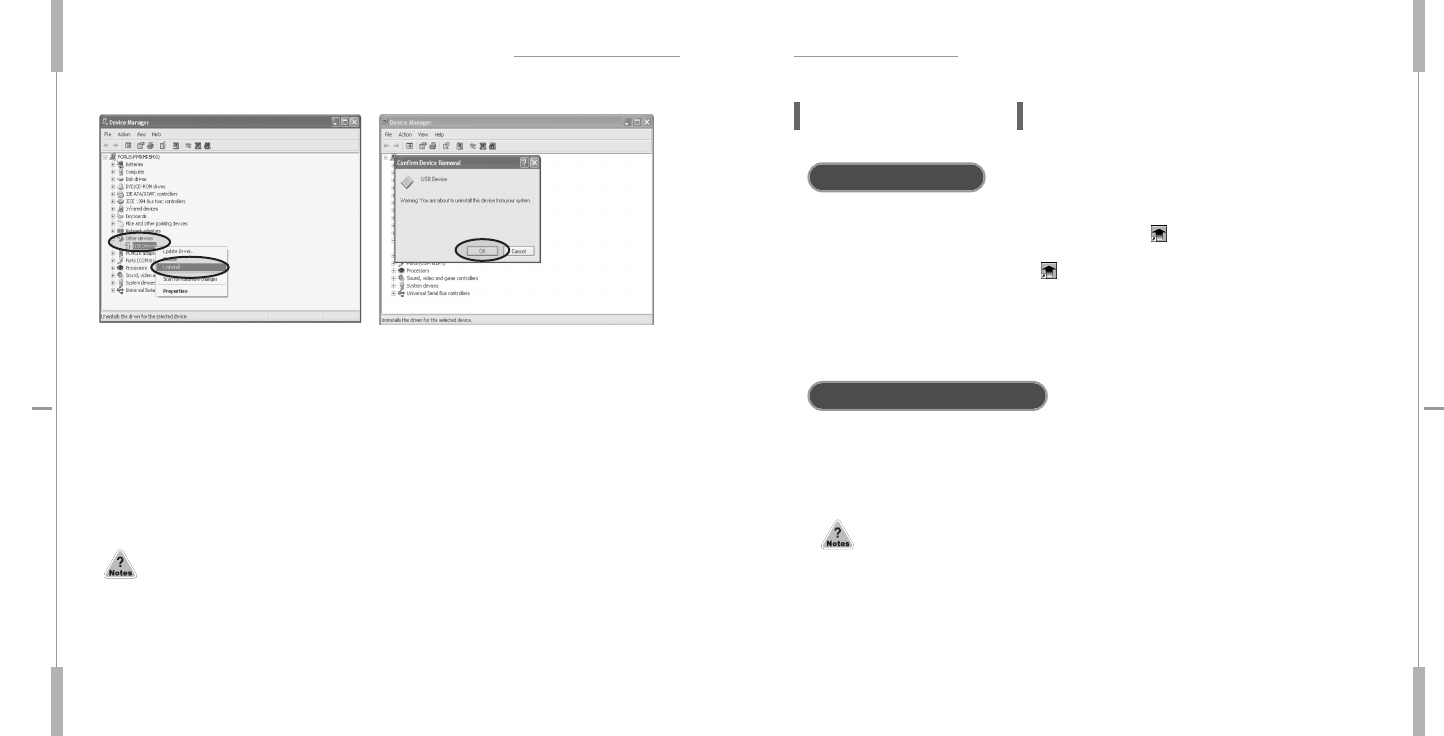

Trouble Shooting in Manager program for Win XP
If you won't continuously find out "Forus USB Controller-DVR008" on The Found New
Hardware Wizard when the Voice Recorde connects to PC, please check if you installed
"Driver" or not in the connection of the Voice Recorder to the PC at the first time.
●Yes. I installed Driver without checking if "USB Driver" or "Forus USB Controller-DVR008"
in "The Found New Hardware Wizard"
Remove abnormal driver installed
●Place the mouse to "Start" on the Win XP.
●Control Panel->System->System Properties->Hardware->Device Manager
●If "USB Device" on it, disconnect the Voice
reocrder from USB Cable and then try to
connect again. Check "Forus USB
Controller-DVR008"
●If you see "USB Device" Constantly, Look at
the "Tip for Voice Recorder" in
English/Readme/CD.
If "Forus USB Controller-DVR-008" is detected, click "Next".
On the Notice about "MS Logo Test" as below, maker recommends to keep the rest procedures of
installtion because this is no harmful to your PC thru its strict compliance testing with this OS by
itself.
![](/img.php?id=714249&img=bg14.png)
Connecting to an External Device
38 Voice Recorder
Connecting to an External Device
37 Voice Recorder
Connecting to a PC
Instruction for using DVR-Manager is provided in detail in Help.
If installation is finished, shortcut icon is displayed.
Using online Help
In case of managing files in PC, you can use conveniently because multi-language for
file name or error message is supported.
Multi-languages Support
Double click the shortcut icon.
●DVR-Manager is executed.
Select Help of main menu
●Help appears.
DVR-Manager Deleting
●Select menus in the sequence of : Start > Settings > Control panel > Add/Remove
Program > DVR-Manager DVR-xxx Ver.1.0 > Add/Remove
●If the Driver is installed abnormally, you can find out the above window with "the yellow question mark and
USB Device".
●Remove the Driver by clicking the right mouse and "Unintall".
Uninstall DVR-Manager
●Uninstall the installed DVR-Manager Program in the PC.
●Restart the PC.
●Install DVR-Manager Program again. Restart PC.
Installation DVR-Manager Program and Driver of the Voice Recorder again.
Refer to previous pages about Installation of DVR-Manager and Driver.
●Despite the above procedures, the PC does not detect the Voice Recorder in
DVR-Manager Program, follow up the above procedures to remove DVR-Manager &
abnormal Driver excepting the Installtion Drvier at.
Get the "USB Driver_XP.exe" from the provided CD or website(Maker or distributor) and
install this driver by double-click and then connect the Voice Recorder to PC and follow up
the procedures to install the Driver .
![](/img.php?id=714249&img=bg15.png)
Connecting to an External Device
40 Voice Recorder
Connecting to an External Device
39 Voice Recorder
Please adopt temporary measures as follows when upgrading firmware did not be
completed normally because of the batteries’separation or shock to the unit.
Remove the batteries from the unit please.
Push down Hold key and set up Hold-On mode.
Press and hold ‘REC’button and connect the unit to PC via
USB cable.
Please repeat the above procedures of upgrading firmware from
No.2 to No.5.
▶Trouble shooting in case of error while upgrading firmware

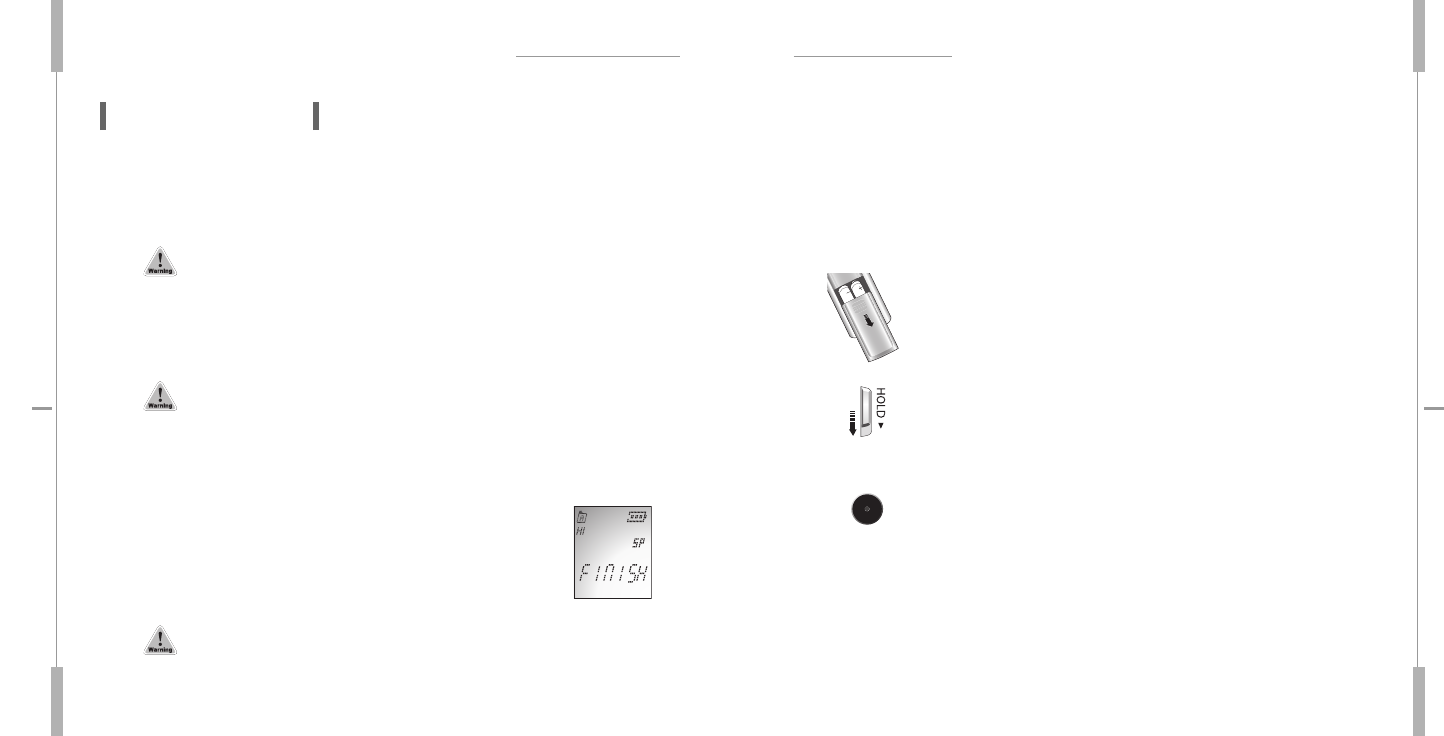

Firmware Upgrade
This unit provides the Firmware Upgrade function to improve the unit functions and
to correct errors.
Connect the recorder to PC thru USB cable
Execute DVR Manager and download ‘FSV510_FIRMUP.ROM’(UPGRADE
FILE) to D folder of the recorder.
After download is completed, disconnect USB cable.
Power on the unit. Then the unit is upgraded automatically. Remove
the batteries when ‘FINSH’appears on the display and put the
batteries on again.
●Do not remove the batteries or drop or give a shock to the unit while upgrading
firmware.
●Caution: In case of downloading upgrade file, there should be no file at D folder.
●Caution: DVR Manager should be installed in advance.
(Refer to Installation of DVR Manager)
![](/img.php?id=714249&img=bg16.png)
Others
42 Voice Recorder
41 Voice Recorder
1. Do not short-circuit, disassemble or heat the battery, or do not put the battery into a fire.
Electrolyte such as an alkaline solution may flow out, so you may get it in your eyes, or it may
cause the generation of heat, or the breakdown of the battery.
2. When the skin or clothes are stained with electrolyte such as an alkaline solution, wash the
stain out with water immediately. If you get it in your eyes, seek immediate medical treatment
after washing out the area of the eye with water.
3. Do not use the different kind of batteries together.
4. When the unit is not in use for a long time, remove the battery from the unit.
For the Battery
1. Do not repair, disassemble or modify this unit by yourself.
2. If smoke or deformation occurs due to the generation of heat, remove the battery from the
unit immediately.
3. Do not use this unit in an airplane or place where the use of electronic machines are
prohibited.
4. Do not use during you are driving or walking. It may cause an accident.
For your safety
Others
Precautions
Important information on safe and efficient operation. Read this information before
using your voice recorder.
1. Do not drop the unit or give a shock to the unit. It may cause a malfunction.
2. Do not leave the unit in such a location as described below.
- A place of very high temperature (60℃)
- A place subject to direct sunlight or near heat sources
- A car with its windows closed (especially in summer)
- A place subject to excessive moisture like a bathroom
- A place subject to excessive dust
3. Do not apply heavy forces to the LCD (Liquid Crystal Display) unit, or it may cause breakage
or abnormal display taking into account the properties of liquid crystal.
4. If you place cards using magnetism such as cash cards or transportation pass cards near to
the speaker of the unit, the magnetism may be transformed due to magnetic influence so that
the magnetic cards cannot be used any more.
5. Our company does not reimburse you for any loss from the use of the Voice recorder or any
demand of indemnity from a third party.
6. Message loss due to malfunctions, repairs, etc is not a responsibility of ours. Please
understand this.
For the unit
![](/img.php?id=714249&img=bg17.png)
Others
44 Voice Recorder
Others
43 Voice Recorder
For DVR-Manager
REC/PLAY icons
are inactive.When
using D
확인1
확인2
Troubleshooting
Check the following items before asking a technical support.
Is the battery's power
exhausted?
▶Replace the battery with a new
one. (Refer to page 7)
Is the battery installed to the
correct polarity?
▶Install the battery to the correct
polarity
CHECK1
Is the volume set to '0'?
Has the sound card been
installed?
Is the volume set excessively
high?
Is the external microphone
connected to the PC (Sound
Card)?
Does the MIC IN (Microphone)
become active at the
Recording Control Window,
when you click : Control Panel
> Multimedia > Audio >
Recording?
Is the volume set to '0'?
Is the earphone plugged in
properly?
Is the earphone plugged in?
▶Adjust the volume.
(Refer to page 9)
▶Adjust the volume.
(Refer to page 9)
▶Install the sound card first and
then reinstall the 'DVR-Manager'
software.
▶
Adjust the volume of the
DVR-Manager, since the excessively
high volume may cause noise.
▶Connect the external microphone
to the sound card and start
recording.(Refer to page 33)
▶Cancel Mute function, if the unit is
in the mode, and select the MIC IN.
▶Plug the earphone in properly.
▶Pull out the earphone completely.
CHECK1
CHECK2
CHECK1
CHECK1
CHECK2
CHECK2
CHECK2
LCD doesn’’
t
w o r k .
No sound comes
from the speaker.
The earphones
do not work.
When using Voice Recorder
Recordng
doesn’t work.
Playback
doesn’t work.
CHECK1
CHECK1
CHECK2
CHECK3
CHECK2
CHECK3
Is the device locked by the
HOLD key? ▶Release the HOLD key
Has the memory or file
numbers been used up?
▶Delete unnecessary files.
(Refer to pages 14)
Is the battery's power
exhausted?
▶Replace the battery with a new
one. (Refer to page 7)
Is the device locked by the
HOLD key? ▶Release the HOLD key
Is the battery's power
exhausted?
▶Replace the battery with a new one.
(Refer to page 7)
Is there any recorded file? ▶Check the folder and file numbers.
Can't hear the
voice due to noise.
Can't record with
an external
microphone
![](/img.php?id=714249&img=bg18.png)
