Chapter 1 Introducing Your M1028 CafeBook
This chapter will show you how to operate your M1028 SERIES M1028 CafeBook computer,
including connecting the AC adaptor, turning the computer on/off, using touch-pad, keyboard, hot
keys, battery, and so on. If you are new to computers and to the operating system, this chapter will
guide you through some of the new exciting features.
1
2
3
4 5
6
7

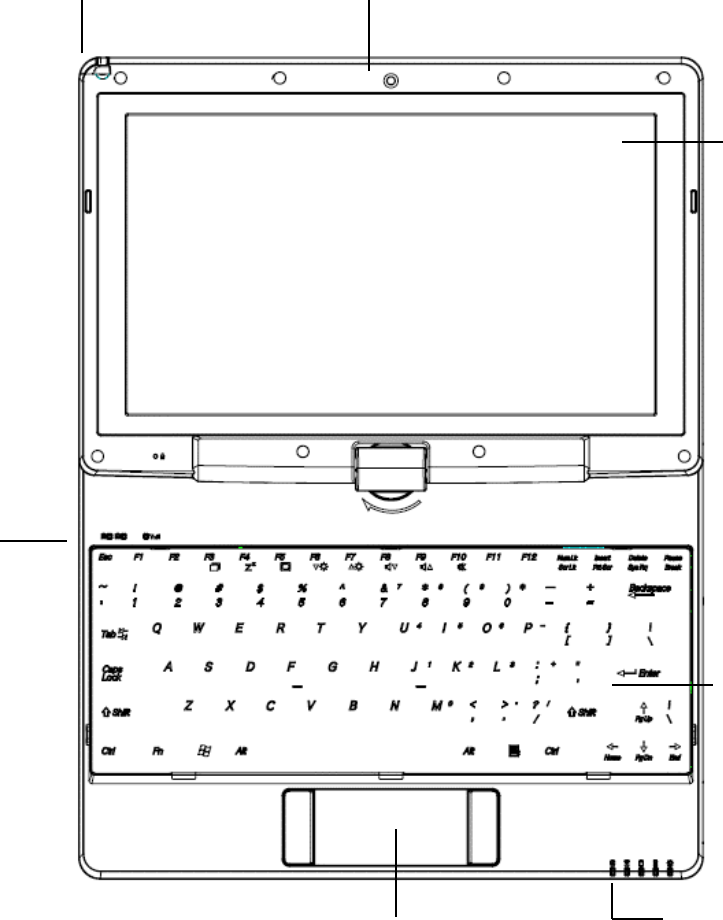

1.1 Panoramic View
No. Item Function
1 Web camera Built-in 1.3M camera
2 LCD To display the content output
form the system
3 Keyboard To input characters and
numbers
4 Five system LEDs Five LED lights of system signal
From left to right
Bluetooth signal
WLAN signal
HDD signal
Battery signal
Power on signal
5 Touchpad To function as mouse
6 Stylus Pen Slot To place the stylus pen.
7 Num. Lock , Caps Lock & 3.5G
LEDs
Num. Lock, Caps Lock & 3.5G
LED lights
![](/img.php?id=1077941&img=bg3.png)
1.2 Left Side
No. Item Function
1 LAN RJ45 Jack To connect LAN
2 VGA Port To connect VGA monitor.
3 USB port To connect peripheral
equipment with USB interface.
4 MIC jack To connect MIC to input audio
signal.
5 Line out To connect equipment to output
sound.
1 2 3 45
![](/img.php?id=1077941&img=bg4.png)
1.3 Right Side
No. Item Function
1 USB port To connect peripheral
equipment with USB interface.
2 DC-in hole To connect AC adapter to
power on M1028 CafeBook.
3 3.5G External Antenna To connect 3.5G antenna
4 Function bottom To switch function key on
5 Media Card Slot(SD/MMC/MS) To connect SD/MMC/MS Card
6 Express Card slot To connect an Express Card.
3
12
4
5 6
![](/img.php?id=1077941&img=bg5.png)

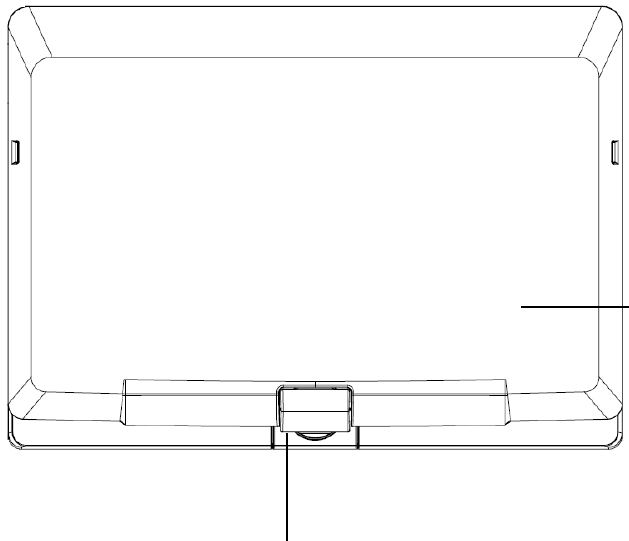

1.4 Cover Side
No. Item Function
1 Cover To Protect the
M1028
CafeBook
2 Axle To turn
2
1
![](/img.php?id=1077941&img=bg6.png)

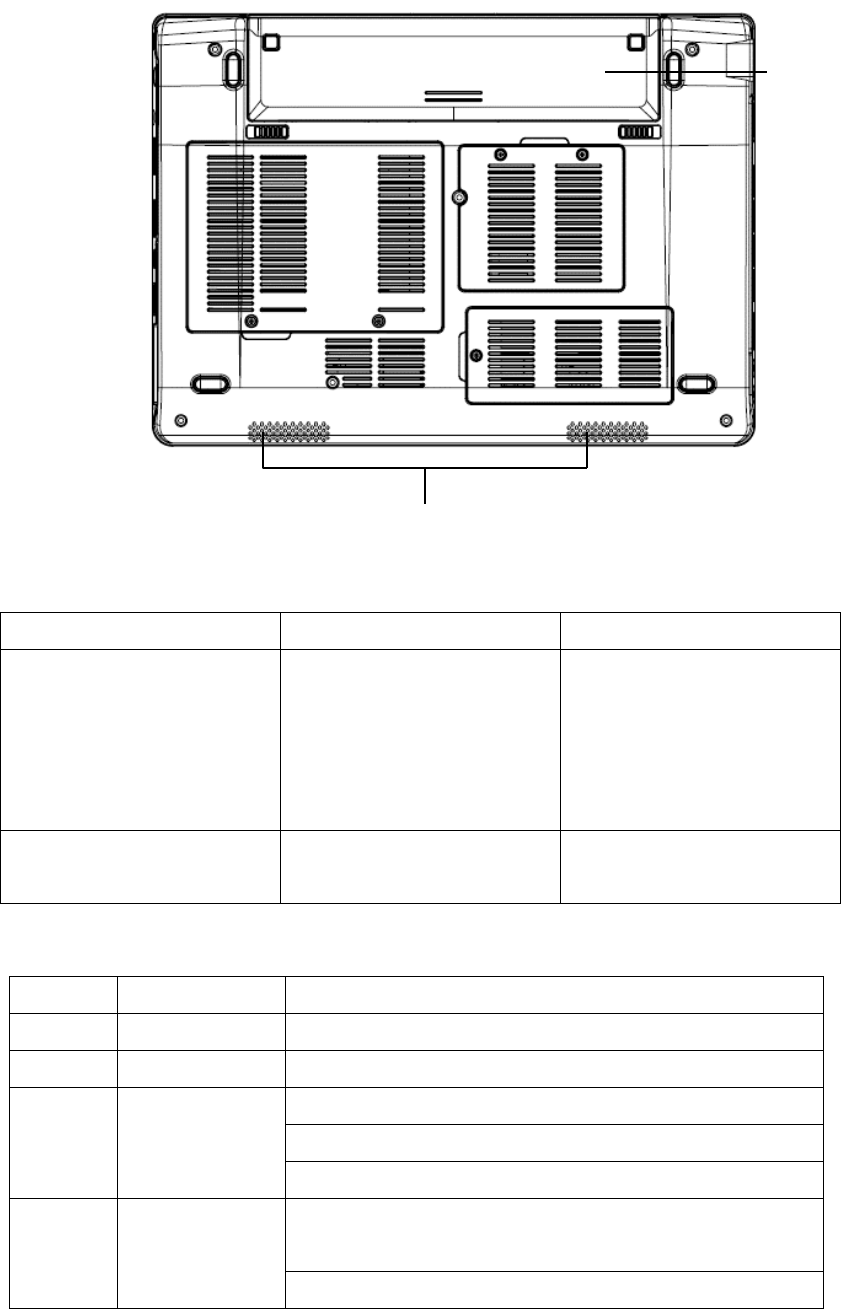

1.5 Bottom Side
No. Item Function
1 Battery Pack Installed in the battery
compartment, to supply
power to M1028 CafeBook
when AC power is
disconnected.
2 Speaker To output the audio sound
from the system.
1.6 Status Indicators
Icon Item Function
WLAN Status Wireless on/off status.
HDD M1028 CafeBook is reading from, or writing to hard disk.
Blue off \ System is turned off or in hibernation mode.
Blue flashing \ System is in Standby mode.
Power status
Blue on \ System is in operating.
Blue off \ Recharging is finished or M1028 CafeBook is not
powered by AC adapter.
Battery status
Blue on \ Battery is in recharging.
1
2
![](/img.php?id=1077941&img=bg7.png)
1.7 Turning Your M1028 CafeBook On and Off
Turning on the power
Open the M1028 CafeBook lid, press and hold the power switch for one or two seconds. The power
indicator will glow blue once the computer is powered on.
Turning off the power
If you are not going to use your M1028 CafeBook computer for a while, it is best to turn off its power.
Before turning off power, close all program first and shut down the operating system.
After turning off your M1028 CafeBook computer, make it a habit to leave the LCD panel open for a
while after it has been used for an extended period of time. This allows the interior of your M1028
CafeBook computer to cool off. Closing the panel will force the heat up against the LCD screen, and
doing so after a while may damage the screen. More importantly, never close the LCD panel for a
long period of time when the computer is on or when the power saving function is disabled.
Suspend mode
You can adjust default power management settings in the Power Option/Advanced dialog box. The
Power Options dialog box provides several operating functions after your computer has been idle for
a while.
1.8 Keyboard Functions
M1028 M1028 CafeBook computer is equipped with a standard typewriter-layout keyboard and has
extra features.
Icon Description
Caps Lock Press Caps Lock to set all the characters
input are capital letters.
Num Lk
(Fn+F11)
To turn on the numeric keypad overlay,
press Num Lk.
Scrl Lk
(Fn+F12)
Press this key to scroll the screen under
some programs.
Press this key to activate Windows®
START menu.
Press this key to function as the right key of
mouse.
Fn Combination Keys (Hot Keys)
Use Fn key combined with other keys to activate, close or set special functions. These
combinations are also called Hot Keys. To use the Hot Keys, press and hold down <Fn> together
with the keys described below:
![](/img.php?id=1077941&img=bg8.png)
Icon Description
Fn+F1 Hibernation
Press this key combination to make system
enter hibernation mode.
In this mode, the back light of the LCD panel
would be turned off and a host of internal
devices would enter into a stage of lower
power consumption.
Fn+F2 Wireless LAN
To activate Wireless LAN.
Fn+F3 Brightness decreasing
Press this key combination to decrease the
brightness of the LCD.
Fn+F4 Brightness increasing
Press this key combination to increase the
brightness of the LCD.
Fn+F5 LCD / Video-out Switch
Press this key combination to switch
between:
LCD mode only;
Video-out mode only;
LCD and Video-out simultaneously mode
Notice: This function works under certain
setting of OS, please refer to your instruction
of OS.
Fn+F6 Touch Pad Enable/Disable
Press this key combination to enable/disable
Touch Pad function.
Fn+F7 Mute
Press this combination to open/close output
of audio signal.
Fn+F8 Voice weakening
Press this key combination to weaken the
voice output.
Notice: This function works under certain
setting of OS, please refer to your instruction
of OS.
![](/img.php?id=1077941&img=bg9.png)
Fn+F9 Voice strengthening
Press this key combination to strengthen the
voice output.
Notice: This function works under certain
setting of OS, please refer to your instruction
of OS.
Fn+F10 3.5G
To activate 3.5G
Fn+F11 Bluetooth
To activate Bluetooth
1.9 Using the Touchpad
The built-in touch pad is a PS/2-compatible pointing devise that senses movement on its surface.
This means that cursor responds as you move your finger on the surface of the touchpad. The
central location on the palm rest provides optimum comfort and support.
The following teaches you how to use the touch pad:
Move your finger across the touch pad to move the cursor.
Press the left and right buttons located on the edge of the touch pad to do selection and execution
functions. These two buttons are similar to the left and right buttons on a mouse.
Tapping on the touch pad produces similar results.
1.10 Using the built-in camera
The availability of the function depend on the configuration of M1028 CafeBook you bought. The
model you bought may be equipped with a built-in camera, and the built-in camera adds video
functionality to instant messaging software and video editing software.
Tips: For using the built-in camera, see the help file on the utility software.
Tips: The built-in camera cannot be shared by more than on software application. If another
application is using the camera, exit the application before using the built-in camera.
1.11 Using the Audio
You can Control volume under your Windows operation system:
Click the volume icon on task bar and use the button to adjust volume.
Or you can double click the volume icon to activate Volume Control to adjust control items of
volume.
Tips: You can use Fn combination keys to adjust volume. Please refer to “FN combination
keys”.
Please adjust the voice down before your connect an external audio equipment, such as
earphone or MIC.
1.12 Using the Wireless LAN (WLAN)
You can use Wireless LAN to connect to the network and use the Internet in your home and office,so
there is no need anymore to pull cables or wires.
Connecting and using the wireless network
You can use the Function key (1.8 Using the Launch Keys) or Fn combination keys (1.8 Keyboard
Function) to turn on wireless Lan
Right-click the Wireless network icon on the Taskbar and select View available wireless network
Select AP (Access Point) you want to connect to and type necessary information. Click Connect.
And If you place the mouse pointer on the Wireless network icon on the Taskbar, you can see the
status of the wireless network.
○ ••••••••••••••••••••••••
Tips: You can learn details by referring to instruction document of wireless network.
○ ••••••••••••••••••••••••
The availability of the functions depend on the configuration of M1028 CafeBook you bought,
see the Spec to see whether your model supports the function.
○ ••••••••••••••••••••••••
Notice: Creating security settings for the wireless LAN is important, we assume no
responsibility for any security problems that may arise from the use of the wireless LAN.
1.13 Using the Battery Pack
M1028 M1028 CafeBook computer is designed to operate with one of the following power sources:
*AC power (using the AC adapter connected to an electrical outlet)
*Lithium-Ion (Li-Ion) battery pack
You should use the AC adapter whenever possible; use the battery pack only when AC power is
unavailable. The rechargeable Li-Ion battery pack allows you to operate your M1028 CafeBook
computer without an external power source. When you use the AC adapter to connect your M1028
CafeBook to a power outlet, the internal battery will begin to recharge. While the battery is charging,
the Battery Charge icon on the indicator panel will be on. Once the battery is fully charged, the
Battery Charge icon will turn off. Quick charging time is 2.5 hours for the Lithium-Ion (Li-Ion) battery
when the computer is turned off, while the normal battery charging time is 3.5 hours.
*Operating video, or audio equipment can increase the use of your computer’s power.
*Decreasing monitor brightness can also save power.
*When the battery is not fully charged, allow your battery to be charged completely before using it
(i.e., before disconnecting AC power). Calibrating the battery before use is also highly
recommended.
*Li-Ion Battery is vulnerable; do not charge it with other power adapter, otherwise fire or explosion
may occur.
Replacing the Battery
The battery will gradually weaken over time. We recommend that you replace your battery when you
notice a significant decrease of battery capacity.
To change the battery pack, follow the steps below:
1. Turn off the computer.
2. Close the lid and flip the computer over.
3. Slide the battery latch. Continue to hold it until the battery is removed.
4. Make sure the replacement battery is properly oriented before inserting it into the battery
compartment.
Note: The battery can not be charged to 100% when remaining battery is no less than 95%. It is
based on the supplier’s advice, and to extend charging frequency and battery life.
Maintenance of the AC Adapter
*Do not connect the adapter to any other device.
*Do not step on the power cord or place heavy objects on top of it. Carefully route the power cord
and keep cables away from all traffic.
*When unplugging the power cord, do not pull on the cord itself but on the plug instead.
*If you are using an extension cord, make sure that the devices plugged onto the cord do not exceed
its total capacity. Furthermore, the devices plugged into the electrical outlet shall not exceed the
fuse’s total ampere rating.
*Please verify power voltage before connecting the electrical cord to the power outlet. If you are
uncertain of its power specification, please consult with your local vendors or power company for
more details.
1.14 Connecting the AC Adapter
The AC adapter converts AC power to DC power and reduces the voltage supplied to the computer.
It can automatically adjust to any voltage from 100 to 240 volts and outputs power at 12V, (12V, 3.0A
for M1028), allowing you to use your M1028 CafeBook computer in almost any region.
CAUTION: Use only the AC adapter and the power cord we recommend. Using the wrong adapter
may damage your computer. We assume no responsibilities for damages arising from misuse of AC
adapters.
To properly connect the adapter, follow the steps as below:
1. Connect the power cord to the AC adapter.
2. Connect the AC adapter to the DC power port of your computer.
3. Connect the AC adapter power cord to an AC outlet.
1.15 Installing M1028 Device Drivers
If your M1028 M1028 CafeBook Computer already has an operating system installed, it is best to
install all necessary device drivers in order for he hardware to properly function.
Before installing drivers, check with your vendors to see if they have already installed all the drivers
with the operating system, if not, please follow the steps below:
1. You can find the Utility Driver CD like the one shown below:
2. Put the CD into the CD R-W or DVD-RW (optional) Drive. An Auto Run installation screen will
appear.
1.16 Touch Screen Calibration
If your M1028 M1028 CafeBook Computer already has an operating system installed, it is best to
install all necessary device drivers in order for he hardware to properly function.
The stylus pen together with the system touch-screen LCD display provides you a touch-screen
operation by emulating the industry standard mouse left click. Below are the two conditions that you
need to calibrate your touch-screen.
• The first time Windows is installed and boot up. The active cursor is shifted; not exactly the same
position where the stylus pen tip is tapped.
• Periodically when you find the active cursor is shifted away from the screen position where the
stylus pen tip is tapped.
To calibrate the touch-screen, go into Desktop Manu => PenMount Control => Device =>
PenMount 6000 USB Resistive Digitizer => Configure => Calibrate => Standard Calibration. In
the Setting screen, select Calibrate. Then follow instruction to complete calibration.
Note: You need to set screen display resolution to right resolution 1280x768 or 1024x600
(depends on your hardware specification) before proceeding with the calibration.
1.17 Use your M1028 as a Tablet PC
The screen of M1028 is convertible to simulate a Tablet PC. Follow the steps to use this function.
1. Open the lid (the screen display) of M1028.
2. On the top center above the keyboard is the pivot connecting the display panel to the bottom case.
There is a sign
3. Follow the sign to turn the screen clockwise up to 180 degree so that the screen is facing out.
4. Lay the turned screen down into the flat position. The keyboard will be covered by the display. Use
the stylus or simply touch the screen to operate M1028 as a Tablet PC.
5. When done with Tablet PC, reverse the above instruction (erect the screen to 90 degree, turn
counterclockwise to 180 degree) to set M1028 back to original position.
* Attention: Please note that the screen can only rotate at 180 degree clockwise. Be sure to turn the
screen according to the sign. Forcing the screen to turn at the wrong angle will cause serious
damage to M1028.
1.18 Operating Temperature
Operating Temperature : 10ºC to 35ºC
Chapter 2 Battery
2.1 Battery Pack
Your M1028 CafeBook is equipped with a high-energy rechargeable Lithium Ion (Li-Ion) battery
pack. Battery life will vary depending on the product configuration, product model, applications
loaded on the product, power management settings of the product, and the product features used by
the customer. As with all batteries, the maximum capacity of this battery will decrease with time and
usage.
2.2 Recharging The Battery Pack
Your M1028 CafeBook supports both on-line and off-line recharge. Follow the procedure below to
recharge battery:
*Make sure the battery pack is installed in the M1028 CafeBook.
*Connect the AC adapter to the M1028 CafeBook and to an electrical outlet.
When a battery pack is being recharged, its battery LED (located at the upper left corner of LCD
display) would be lit. For details on the LEDs, please refer to Chapter 1.3. When the M1028
CafeBook is OFF, a depleted Li-Ion battery will take three hours to recharge.
2.3 Questions And Answers
Q: I can feel a mild heat next to the battery pack. Is it normal?
A :The battery will generate heat during recharging and discharging. There is a protection circuit
inside the M1028 CafeBook to prevent overheating. User needs not to worry.
Q:My battery operation time is not as long as it should be. Why?
A:The battery is heat sensitive and can only be charged to its maximum if the battery and its
environmental temperature remain within 15-25°C (59-77°F). The more the temperature deviates
from this range during recharging, the less chance there is for the battery to be fully charged. In
order to recharge the pack to its full capacity, users are requested to cool down the unit by
unplugging the AC Adapter. Wait until it is cooled down. Then plug in the AC Adapter to start
recharging again.
Q:I did not use my spare battery for a few days. Even though it was fully recharged, there wasn’t as
much power left as a newly charged one. Why?
A:The batteries will self-discharge when they are not being recharged. To make sure a battery pack
is fully charged, recharge before use. Always keep the battery inside the M1028 CafeBook and
have the AC adapter connected whenever possible.
Q:I did not use my spare battery for months. I have problem in recharging it.
A:If you happen to leave your battery pack to go through an extended period of self-discharge, say
more than three months, the battery voltage level will become too low and needs to be
Pre-Charged (to bring the battery voltage level high enough) before it automatically (for Li-Ion
only) resumes its normal Fast Charge. Pre-Charge may take 30 minutes. Fast Charge usually
takes 2~3 hours.
2.4 Battery Maintenance
To maintain the battery pack's maximum capacity, you should occasionally let the M1028 CafeBook
deplete its battery power completely before recharging.
To carry out a complete depletion of the battery, disconnect the AC adapter and let your M1028
CafeBook consume the remaining battery power. To speed up the depletion, use the HDD as much
as possible. When the battery is empty, wait for the M1028 CafeBook to cool down (especially the
battery). The temperature should be within 15-25°C (59-77°F). Then insert the AC adapter to
recharge the battery.
2.5 Power Consumption
The Windows™ operating system has incorporated the latest state-of-the-art ACPI (Advanced
Configuration Power Interface) power management methodology. In order to fully utilize the power
of your battery packs, it would be a good idea for you to spend sometime to acquire a basic
understanding of the power management concept from your operating system.
In Windows™ Operating Systems, you can go through Power Options of the Control Panel
according to the version of Windows™ Operating System the M1028 CafeBook applies. We shall
not describe them in details.
2.6 Reducing Power Consumption
Although your M1028 CafeBook (together with the operating system) is capable of power
conservation, there are measures you can take to reduce the power consumption:
*Use the AC power whenever possible.
*Try to use the HDD drive to read and write files, instead of using the external USB FDD.
*Disable unused devices, such as Web Cam, WLAN, Bluetooth®, and etc.
*Decrease LCD panel brightness through Windows.
Note: Whenever system is powered on or powered off, make sure the battery pack is installed in the
battery pack compartment.
2.7 Removing The Battery Pack
This battery pack can easily be removed and replaced. Make sure that the computer is properly
shutdown before changing the battery pack. If you would like to change the battery pack while
power is on, make sure this battery pack is not the only electrical source to the system unit. Follow
the steps below to remove the battery pack.
*Make sure the system is properly shutdown.
*Flip the system upside down as shown.
*Push the battery lock to the unlock position as shown by #1.
*Push the battery latch to the unlock position as shown by #2.
*Remove the battery pack as shown by #3.
To insert the battery pack, reverse the steps above.
Connecting System To AC Adapter
![](/img.php?id=1077941&img=bgf.png)
*Connect AC adapter to system unit as shown by #1.
*Connect AC power cord to AC adapter as shown by #2.
*Connect other end of power cord to an electrical outlet as shown by #3.
Chapter 3 The BIOS Setup program
The BIOS Setup Utility is a hardware configuration program built into your M1028 CafeBook’s BIOS
(basic input/output system). Your M1028 CafeBook is already properly configured and optimized,
and you do not need to run this utility. However, if you encounter configuration problems, you may
need to run it.
This chapter will introduce:
*Activate the BIOS Setup Utility
*Security
*Setup Boot priority order
*Recover original setting
3.1 Activate the BIOS Setup Utility
To activate the BIOS Setup Utility, press F2 during POST.
The setup utility menu bar has six main screens. Following is general introduction on these six items:
Menu Description
Main The Main screen displays a summary of your M1028 CafeBook hardware information,
and also includes basic setup parameters.
Advanced This screen contains parameters involving your hardware devices.
Security The Security screen contains parameters that help safeguard and protect your M1028
CafeBook from unauthorized use.
Boot To set the order of booting equipments, enabling or disabling equipments.
Exit To exit the interface of setting system.
Tips: For more information about Menu and Keys, please refer to the help information of
respective selection. There may be difference of BIOS setting between different versions of
![](/img.php?id=1077941&img=bg10.png)
BIOS of different batch of M1028 CafeBook produced.
Notice: The BIOS of your M1028 CafeBook has been initialized to best settings. It’s advised
you not to change it if not so necessary.
Tips: The pictures showed at this chapter may be different from those showed by your M1028
CafeBook due to different versions of BIOS. Please set pictures of your M1028 CafeBook as
standard.
System Time
Allows you to change the system time using the hour:minute:second format of your M1028
CafeBook computer.
Enter the current time for reach field and use the <Tab>, <Shift>+<Tab>, or <Enter> key to move
from one field or back to another.
You can also change the system time from your operating system.
![](/img.php?id=1077941&img=bg11.png)
System Date
Allows you to set the system date using the month/date/year format.
Enter the current time for reach field and use the <Tab>, <Shift>+<Tab>, or <Enter> key to move
from one field or back to another.
You can also change the system time from your operating system.
System BIOS Version
Display the BIOS version.

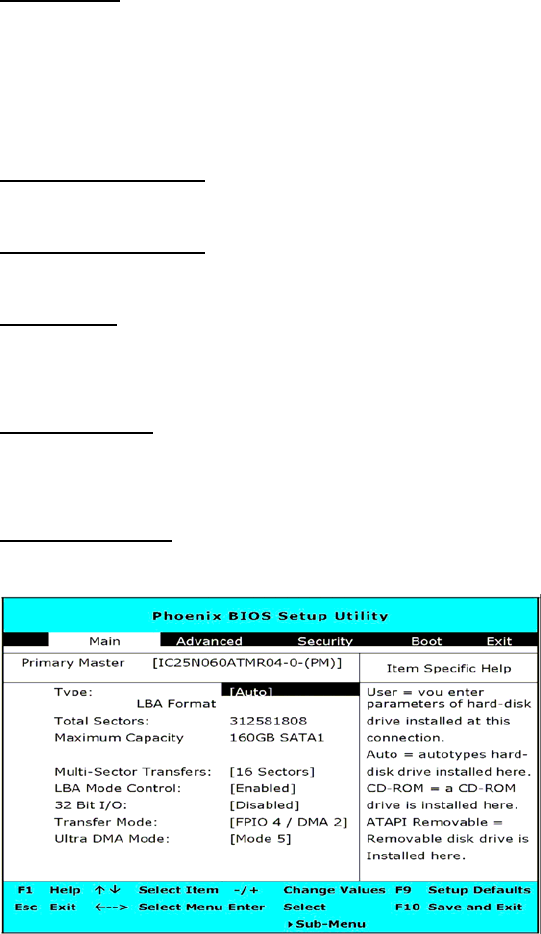

IDE Channel 0 Master
This field display various parameters for the hard disk drive.
SATA Port 1
This field is for information only as the BIOS automatically detects the SATA Hard disk drive
information.
System Memory
This field reports the amount of base (or conventional) memory found by the BIOS during Power-On
Self-Test (POST).
Extended Memory
This field reports the amount of extended memory
Use the Type field to select the drive type installed. You can select different drive types as CD-ROM,
User, Auto, ATAPI Removable, IDE Removable, Other ATAPI or None by pressing <Space> bar.
Set this option to Auto so your M1028 CafeBook computer will automatically detect the drive type
during power on. Set this option to None when your M1028 CafeBook computer is not installed any
devices.
Press <Esc> to return to the Main Menu.
![](/img.php?id=1077941&img=bg12.png)

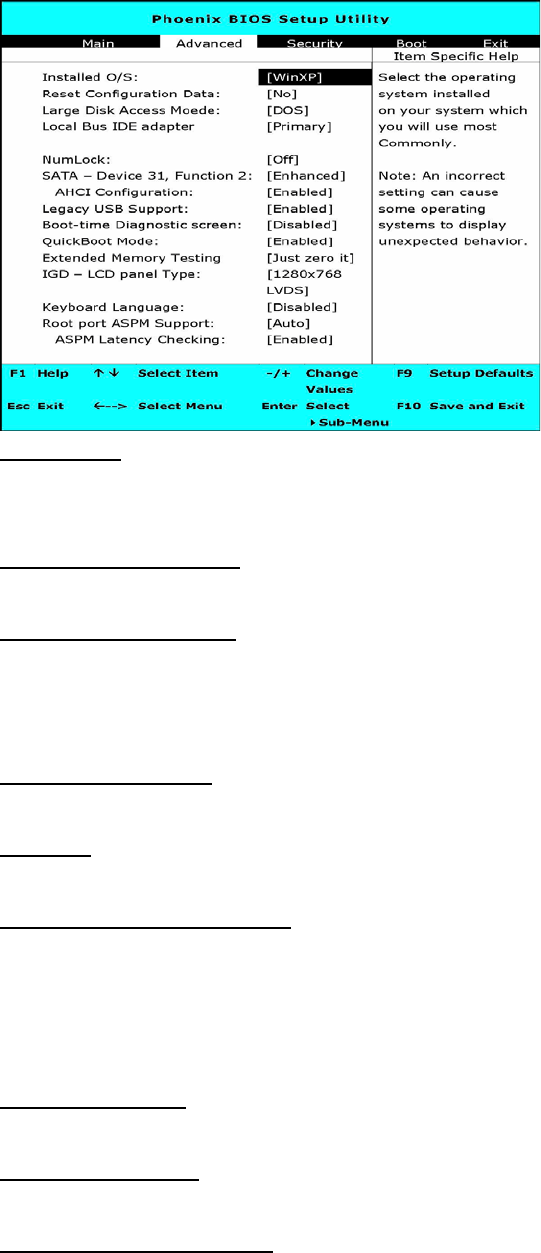

3.2 Using the Advanced CMOS Setup
Installed O/S
Select the operating system installed on your system which you will use most commonly. Note: An
incorrect setting can cause some operating systems to display unexpected behavior.
Reset Configuration Data
Select ‘Yes’ if you want to clear the Extended System Configuration Data (ESCD) area.
Large Disk Access Mode
UNIX, Novell NetWare, or other operating systems, select ‘Other’. If you are installing new software
and the drive fails, change this selection and try again. Different operating systems require different
representations of drive geometries.
Local Bus IDE adapter
Enable the integrated local bus IDE adapter.
NumLock
Selects Power-on state for NumLock
SATA – Device 31, Function 2
Compatible: SATA Driver = Primary on SATA Controller, in Legacy Mode. PATA Driver = Secondary
on SATA Controller, in Legacy Mode.
Enhanced: SATA Driver = Primary on SATA Controller, in Native Mode. PATA Drive = Primary on
PATA Controller, in Legacy Mode.
AHCI Configuration
Enhanced AHCI: WinXP-SP1+IAA driver supports AHCI mode.
Legacy USB Support
Enable support for Legacy Universal Serial Bus.
Boot-time Diagnostic Screen
Display the diagnostic screen during boot
![](/img.php?id=1077941&img=bg13.png)
QuickBoot Mode
Allows the system to skip certain tests while booting. This will decrease the time needed to boot the
system.
Extended Memory Testing
Determines which type of tests will be performed on extended memory (above 1M).
IGD – LCD Panel Type
Select the LCD Panel used by the Internal Graphics Device by selecting the appropriate setup item.
Keyboard Language
Set propriety language for your keyboard.
Root Port ASPM Support
Control ASPM support for all the enabled Root Ports. Auto = will set APMC to the highest common
supported ASPM between the Port and Endpoint.
ASPM Latency Checking
Enabled: Enables ASPM latency checking when enabling ASPM. Note: Does not check below
switches. Disabled: ASPM latencies are ignored when enabling ASPM.

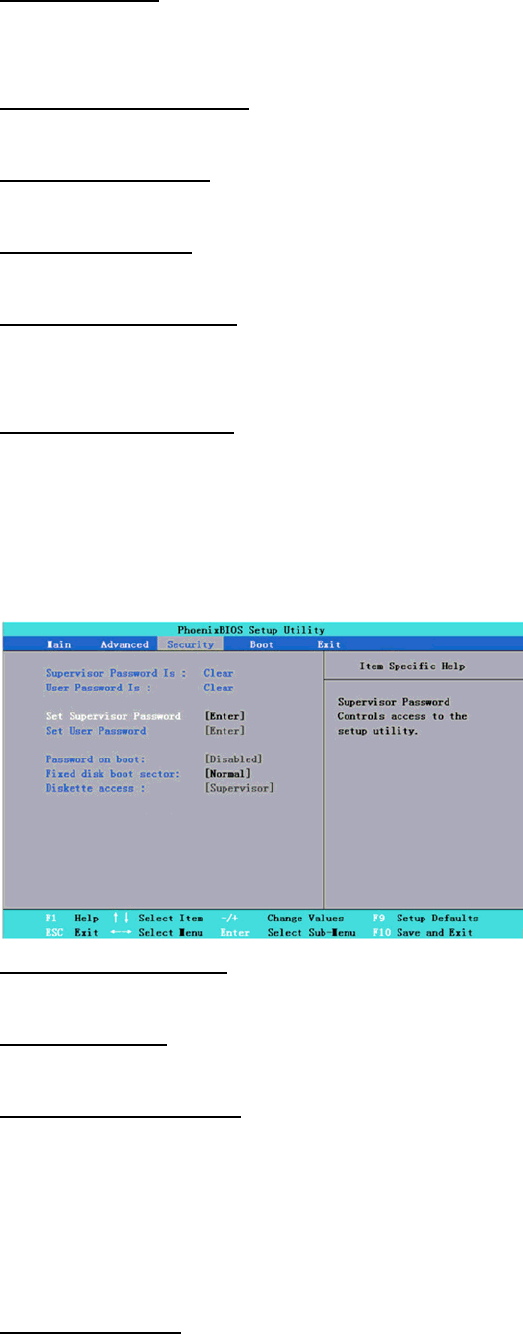

3.3 Security
The Security screen contains parameters that help safeguard and protect your M1028 CafeBook
from unauthorized use.
Supervisor Password Is
Shows that your M1028 CafeBook computer is under controlled by Supervisor Password or not.
User Password Is
Shows that your M1028 CafeBook computer is under controlled by User Password or not.
Set Supervisor Password
With this setting, only authorized user can enter the system. Follow the below to set:
Select menu Security.
Select “Set Supervisor Password” and then press “Enter”.
Input the desired password twice.
When the box of Setup Notice shows password information, press “Enter
Set User Password
![](/img.php?id=1077941&img=bg14.png)
It’s always the same to set user passport as that of supervisor password. But the former can only
enter OS, not BIOS Setup.
Password on Boot
This setting is to select whether password of supervisor and/or user is needed when booting.
Fixed disk boot sector
This setting is to select whether to have Write Protect on hard disk boot section to anti virus or not.
Notice: Do not lose the password of your system. In the event of this, you should have to
refer to GIGABYTE service center.

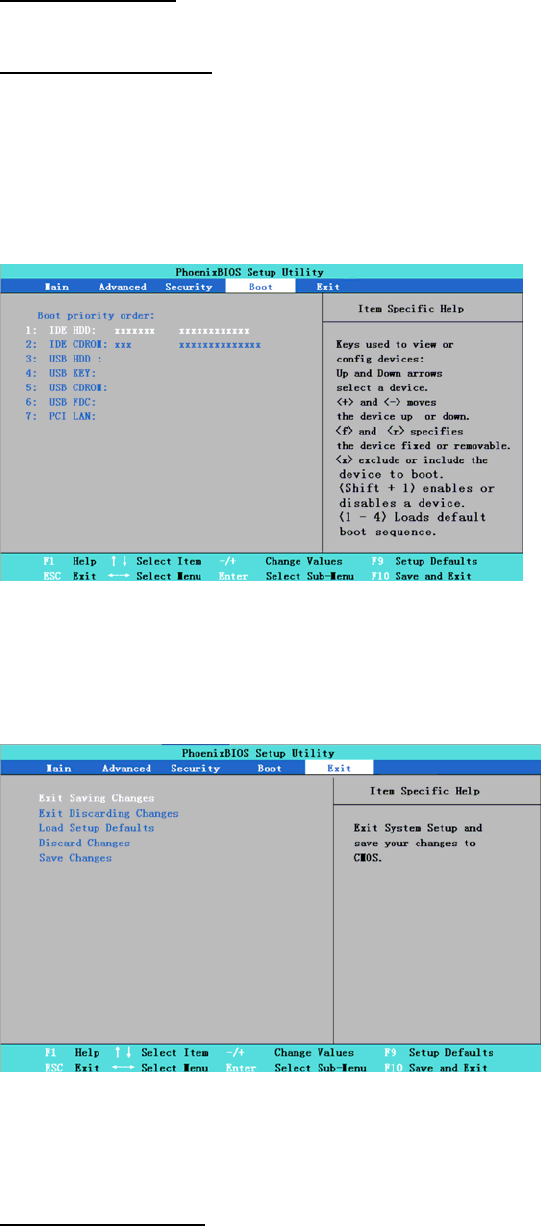

3.4 Set Boot priority order
With this setting, you can set the order of booting the hardware of M1028 CafeBook.
To select the boot device, you can use the up or down arrow key, then press <+> to move up the
device in the list or press <-> to move down the device in the list. To exit from this menu, press
<Esc>.
3.5 How to Exit the Setup Program
Exit Saving Changes:
Save the settings by user and exit the BIOS setting menu.
![](/img.php?id=1077941&img=bg15.png)
Exit Discarding Changes:
Not save the settings by user and exit the BIOS setting menu.
Load Setup Defaults:
Recovery all the default setting by manufacturer.
••••••••••••••••••••••••
Tips: If you change the BIOS settings and can not return to original settings, you can return
to original settings by “ Load Setup Defaults”.
Discard Changes:
User can discard current settings and return to last settings.
Save Changes:
User can save the settings but will not exit the BIOS setting menu

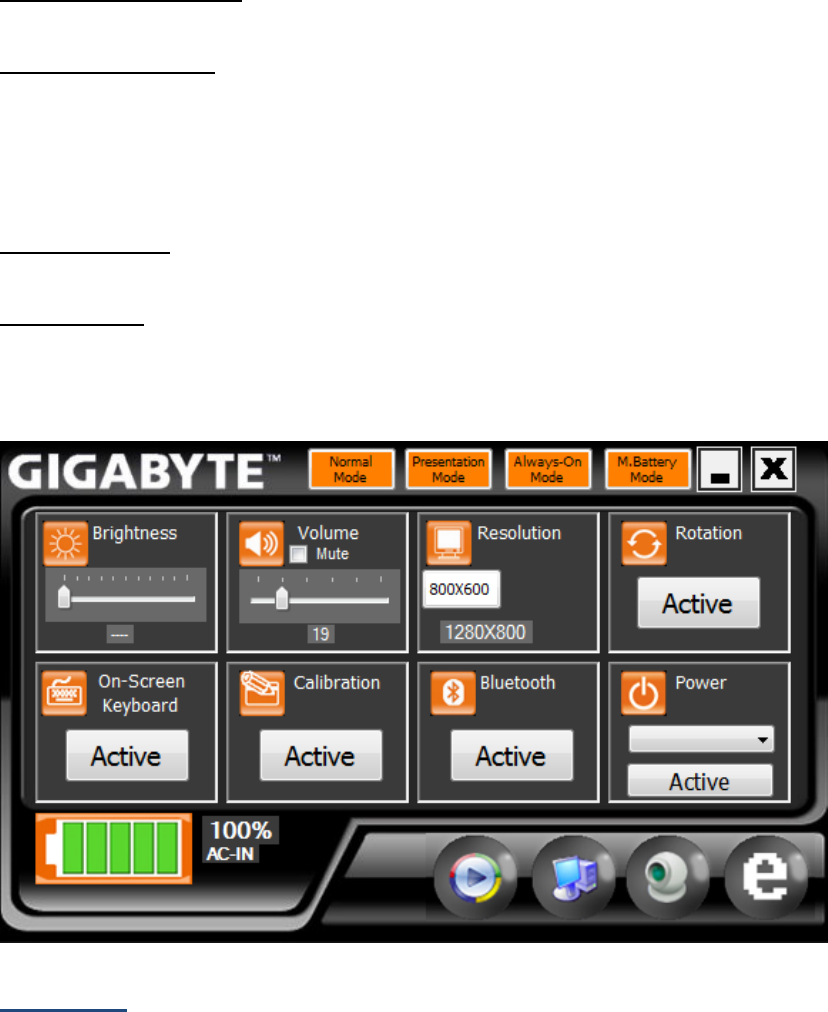

Chapter 4 Introduction to Smart Manager:
Brightness:
Move the slider to temporarily adjust the brightness of your display. To adjust the display
brightness settings for your power plan, click the icon on the title to open Power Option in
Control Panel.
![](/img.php?id=1077941&img=bg16.png)
Volume:
Move the slider to adjust the speaker volume of your Netbook or select the Mute check
box.
Resolution:
Click on the icon to change the resolution. There are two specs in the M912 series.
a)1024X600 panel :: 800X600, 1024X600
b)1280X768 panel :: 800X600,1280X768
Rotation:
This function only supports 2 rotation styles.
1. Normal mode: 0 degree
2. Vertical mode: 90 degree
Click on the Active icon to rotate your display.
On-Screen Keyboard:
To Active the keyboard.
Click on the Active button will detect the On-Screen Keyboard status.
Calibration:
Click on this button to active the Penmount Calibration utility(4 ways calibration)
Bluetooth:
Click on the icon to active the Bluetooth sync-center.
Power:
Click on this button to call the computer power sequence. (Suspend, Hibernate, Power off,
Restart)
Battery Status:
AC-IN / Battery Life time:
a)If the AC power adapter plug-in, the icon will show ‘AC-IN’, and if unplug the AC
power adapter, the icon will show the battery life and counting the battery life time.
Media Q-button:
Press this button to call the default media player
![](/img.php?id=1077941&img=bg17.png)
Computer Q-button:
Press this button to call the My computer function.
WebCAM Q-button:
Press this button to call the E-CAM webcam pre-view utility.
E Q-button:
Press this button to call the Microsoft Internet Browser.
Normal Mode:
Press this icon to active the Netbook power plan and set the brightness to middle high level
“60%”
Presentation Mode:
Press this icon to active the Presentation power plan and set the brightness to middle level
“44%”.
Always-on Mode:
Press this icon to active the Always-on power plan and set the brightness to high level
“100%”.
Max-Battery Mode:
Press this icon to active the Max-battery power plan and set the brightness to low level
“20%”.
![](/img.php?id=1077941&img=bg18.png)
Chapter 5 Troubleshooting / Q&A
This chapter contains advice and solutions to a few basic troubles you might encounter when you
use M1028 CafeBook. Please refer to this chapter and follow the instructions to solve troubles.
5.1 Troubleshooting
Warning: Under the condition that you can’t handle trouble, please refer to your dealer to get
professional service.
AC Adapter
Trouble Solution
Make sure the AC adapter is well connected to
the power source and M1028 CafeBook.
No power supplies to M1028 CafeBook
Check the cable and plug to make sure they
are OK. If they are broken, please contact your
local dealer ASAP.
Battery pack
Trouble Solution
No power supplies to M1028
CafeBook
The remaining power in battery pack may be not enough to power
on the machine. Connect AC Adapter to recharge it.
Check temperature of battery pack’s surface. Battery pack can’t be
recharged if its temperature
is too high or too low. Recharged it after its temperature is the
same with the normal environment one.
If battery pack is fully discharged, it won’t be recharged at once.
Please wait for some minutes.
Can’t be recharged after
connecting AC Adapter
If the power indicators of battery pack are always not lit up,
its life may be over. Please contact your dealer to buy another one.
Battery life depends on using condition of M1028 CafeBook.
You can change the settings in Power Manager of OS to save
power.
Battery life is not as long
as it should be
Battery pack cant exert its full capacity if it works when not fully
recharged frequently. Power M1028 CafeBook by battery pack until
its power drops to a critically low level and the machine emits a
high-pitched beep or displays a warning message; after that,
recharge battery pack to make battery pack work longer.
Warning: Please pay attention for below information regarding to Battery pack:
![](/img.php?id=1077941&img=bg19.png)
1. 請務必將廢棄電池進行回收,
2. 嚴禁將電池存放靠近高熱的地方或是靠近火源/丟進燃燒的火堆中. 這將造成電池爆炸之危險.
3. 嚴禁私自組裝/拆解/改裝電池.
4. 請使用原廠所提供之電池組, 非原廠電池將可能對機器本身造成損壞.
Keyboard
Trouble Solution
Press character keys but number displayed
instead of character
Check if Num Lock is activated.
Confusing display Make sure there is not certain software to con-
figure to the keyboard.
Warning: Please pay attention for below information about the keyboard maintain.
1. 鍵盤長時間使用均容易造成灰塵累積. 此時建議使用小毛刷清潔鍵盤. 請關機清潔鍵盤表面, 並
使用軟布沾上少許清潔劑或水輕輕擦拭即可
2. 當鍵盤不慎侵入任何液體時, 請立即關閉電源, 移除電池, 並請直接與原廠聯繫進行維修. 嚴禁自
行拆解鍵盤進行維修.
Hard disc drive (HDD)
Trouble Solution
Operating system was corrupted by incorrect operating or virus. Try to
clean virus and then configure your operating system correctly.
HDD can’t be booted
The documents of your OS maybe run in error, please refer to the
manual of your OS.
HDD performs very slowly There is too much file fragment. Use disk defrag tools to rearrange the
programs on the hard disk.
Warning: Please pay attention for below information about the Hard Drive maintain.
1. 硬碟屬於高速資料儲存裝置, 盡量避免在容易在容易晃動的地方使用 Cafebook, 以避免硬碟損壞
造成資料流失
2. 請依造正常開關機程序使用電腦, 不當開關機容易降低硬碟壽命
![](/img.php?id=1077941&img=bg1a.png)
LCD
Trouble Solution
Press hot key Fn + F5 to change the display mode if certain
external monitor is connected.
The screen is blank
Make sure the system isn’t in the mode of Hibernation or Standby.
WARNING: Please pay attention for below matters at mounting design of touch panel of LCD
module.
1.Do not put a heavy force along the edge of active area
2.Do not put a heavy shock or stress on the touch panel
and film surface.
3. Do not put heavy goods on the touch panel.
4. LCD觸控式液晶螢幕屬於Cafebook裡面最脆弱的零組件, 容易因為受到外力而破裂, 請勿放置
任何物品於鍵盤上及螢幕之間, 以避免造成液晶螢幕之損傷.
5. 攜帶技嘉M1028 Cafebook外出時, 請放置於專用攜行袋中並僅可能排列整齊, 過多物品擺設
容易造成機器本體擠壓而造成液晶螢幕損傷.
6. 嚴禁使用尖銳的物品或直接使用手指頭碰觸螢幕.
7. 建議使用螢幕專用擦拭布清潔液晶螢幕, 請輕輕擦拭, 避免用力過度造成螢幕破裂.
8. 液晶螢幕嚴禁使用任何液體侵入. 否則將造成液晶螢幕之元件損壞.
Printer
Trouble Solution
Make sure printer is powered on.
Make sure its cable is OK and its USB interface is well connected to M1028
CafeBook.
The data can’t be output from
M1028 CafeBook to printer
Make sure your printer is compatible to your M1028 CafeBook.
Error printing Please refer to the user’s manual of your printer for help.
Audio
Trouble Solution
Adjust sound controller.
Check the setting of sound volume of software.
Check if the ear phone is firmly connected.
No sound emitted
Check the Devices Manager of Windows. Be sure the Sound function has
been activated and isn’t interfered with other hardware.
![](/img.php?id=1077941&img=bg1b.png)
USB
Trouble Solution
Check and be sure USB port of M1028 CafeBook is firmly connected with
the USB cord of the equipment.
Equipments connected can’t
work Be sure the driver of the equipment is installed correctly.
Stand by / Hibernation
Trouble Solution
Can’t enter into
Standby
/Hibernation
Please check if the Windows Media Player is
running. If Yes, the M1028 CafeBook can’t enter
into Standby or Hibernation mode. Please close
Windows Media Player.
LAN
Trouble Solution
Can’t be connected Be sure the RJ45 connector is firmly connected
to the Network Hub or Switch.
Can’t be booted Check the configuration of hardware in BIOS
Setup Utility and activate the function of LAN
Waken.
5.2 Q&A
Q: My computer switches to hibernation mode much too quickly, and I have to constantly hit
a key or move the mouse to bring back the screen. What can I do?
A: This is part of Windows Power Management. Access Power Management by clicking on Start /
Control Panel / Performance and Maintenance / Power Options, and change the time next to the
“Turn off monitor” option to the time you want. You have the chice of either adjusting time for the
power supply or for the battery.
Q: I’ve heard that cleaning and rearranging files on the hard drive will improve program’s
launch speed, how do I do that?
A: Good disk maintenances can improve program launch speed. This normally includes deleting
unnecessary files, and defragmenting hard disk so that files can be more efficiently grouped.
Windows contains maintenance utilities for these tasks; run Disk Cleanup to remove unnecessary
files, and Disk Defragmenter to defragment fragmented file blocks. For more information about these
utilities, please refer to your Windows documentation.
Q: What kind of external microphone can I use with my notebook computer?
A: You will need to use a self-amplifying microphone.
Q: There are echoes coming from my speakers. What can I do?
A: Double click on the Speaker icon on the task bar. Then, under Microphone Balance, check the
Mute box.
Q: Because of a software problem, I was unable to shut the computer down from Windows, I
pressed the power button to power off the computer, but it didn’t work. How can I force a
power off?
A: Make sure you press the power button for at least 4 seconds. Normally, this will force the
computer to shut off.
Q: Why can’t I charge the battery of my portable computer after it was out of use for some
time?
A: After your portable computer has not been used for a long time (say:more than one month), the
battery will enter into low voltage protection mode. Under this circumstance, restoring to normal
voltage will require the battery to be slowly charged for several hours. Once the battery has been
fully charged, your computer will resume to normal operation.
Q: My computer says: “CMOS Battery Low”, what should I do?
A: If your computer is without power (i.e. unplug the computer power source from the power outlet
and remove the battery pack from it) for over 45 days, you would lose the information stored in
CMOS.
Please follow the steps below to reconfigure your CMOS settings:
1. Press F2 to enter into the BIOS setup utility.
2. Select “Load Optional Defaults?”. When you see the following prompt, choose <OK> and then
press <Enter>.
3. Select “Save Changes and Exit”, select <OK> and press <Enter> to restart your computer.
Q: How to unplug or eject devices
A:
![](/img.php?id=1077941&img=bg1d.png)
1. In the notification area next to your task bar, double-click the Safe Removal icon. Safe Removal
displays a list of Plug and Play devices that support safe removal and that are currently attached
to the system.
If you do not see the Safe Removal icon, your device does not support safe removal, and you cannot
unplug or eject your device using Safe Removal.
2. In Safely Remove Hardware, in the list of devices, select the device that you want to unplug or
eject, and then click Stop. This tells the system that you will be unplugging or ejecting the
device.
3. In Stop a Hardware device, click OK.
A notification appears stating that it is now safe to unplug or eject the device.
Caution
Unplugging or ejecting a device that supports safe removal without first using the Safe Removal
application to warn the system can cause data to be lost or your system to become unstable. For
example, if you use Safe Removal, however, you can warn the system before you unplug or eject a
device, preventing possible loss of data.
Note
For removable storage devices that can safely be removed while the system is on, the system
disables write caching by default. It does this so the devices can be removed without loss of data.
When write caching is disabled, however, the system will likely experience slower performance, so
be sure to enable write caching when you have finished removing the device.
Appendix I Specification
Processor
Intel® Atom 1.6GHz N270
OS
Microsoft Windows XP compliance / Linux/ VISTA
Core Logic
Intel® 945GSE
]
Memory
DDRII-533 SO-DIMM X 1, Max 2 GB
For the compatible HDDs & RAMs by model, please refer to GIGABYTE AVL List
Video Interface
Intel® 945GSE
![](/img.php?id=1077941&img=bg1e.png)
Display
8.9”LCD panel/WXGA 1280x768, w/Touch screen, as 180° rotation angle
8.9”LCD panel/WSVGA 1024x600, w/Touch screen, as 180° rotation angle (Optional)
Hard Disk Drive
2.5” ,9.5mm S-ATA HDD 120/160/250GB
Optical Drive
External ODD by USB connection
Input Device
80 key keyboard/Touch Pad
I/O Port
USB X 3,Mic in/Earphone out/D-SUB
RJ45 / SD/MMC/MS Card Reader / Express card
Audio
Speaker 1.5 watt x 2
Bluetooth
BlueTooth 2.1 built-in
Web Camera
1.3M pixel CMOS camera
LAN/Wierless LAN
802.11b/g by mini-card
Keyboard
80 key keyboard
Protection
Kensington lock
Battery
Li-ion 4500mAh, Battery (Standard)
Li-ion 7650mAh, Battery (Optional)
Dimension &Weight
235 x 180 x 28~42mm
1.3kg
Service
1 year global warranty
1 year battery warranty
More service information, please refer to
http://www.gigabyte.com.tw
••••••••••••••••••••••••
Tips: The above specification is for users’ reference. The final configuration depends on the
M1028 CafeBook users bought.
![](/img.php?id=1077941&img=bg1f.png)
Appendix II Recovery Update Notices
How to restore your Netbook to factory defaults
Time to restore: When your computer is infected by virus or there is any other reason that you want
to restore your operation system to the factory defaults.
Execute Xpress Recovery3 Lite (XR3 Lite) Professional Recovery Utility.Please take the following
procedures:
1. Start up your computer first. Restart your computer if it has already booted into system.
2. Right after you see the startup screen (such as trademark, logo or text), the DOS screen will
appear. Press F9.
F9 is a typical hotkey to restore professional settings. Please consult with your computer
manufacture if your hotkey doesn't function.
3. There are four options on the menu: "RESTORE" (to restore data), "ABOUT" (to display XR3
software related information) and "REBOOT" (to cancel the recovery and restart the computer).
We recommend you to select "RESTORE" to restore factory defaults
4. Then the prompt "Restore Image?" will appear on the menu. We recommend you to select
"YES" to restore an image file.* "Image file" is a compressed file that compresses all the
Windows operation system data. Recovery an image file allows you to restore your operation
system to factory defaults.
![](/img.php?id=1077941&img=bg20.png)

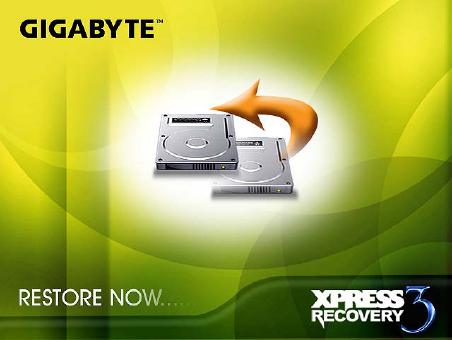

5. After all the selections have been made, the screen shows "RESTORE NOW…", indicating your
computer is now recovering the operation system data. When the recovery is complete, the
computer will automatically restart and restore to factory defaults.
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE TATEMENT
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment.
This equipment must not be co-located or operating in conjunction with any
other antenna or transmitter.
Max. SAR Measurement (1g)
802.11 b/g/n: 0.323W/kg
