General Dynamics Itronix GD3000 TABLET PC User Manual
General Dynamics Itronix Corporation TABLET PC Users Manual
Users Manual
![](/img.php?id=1307789&img=bg1.png)
T
T1
10
0Y
Y
M
MC
CA
A
G
GD
D3
30
00
00
0
U
Us
se
er
r’
’s
s
M
Ma
an
nu
ua
al
l
![](/img.php?id=1307789&img=bg2.png)
ii
Table Of Contents
CHAPTER 1
GETTING STARTED 1
Getting Started.................................................................................2
Inventory ..........................................................................................3
Safety and Maintenance ..................................................................4
Checklists ........................................................................................5
Features ...........................................................................................6
Where to Look For Information .......................................................8
Quick Start .......................................................................................8
Loading Windows ..........................................................................10

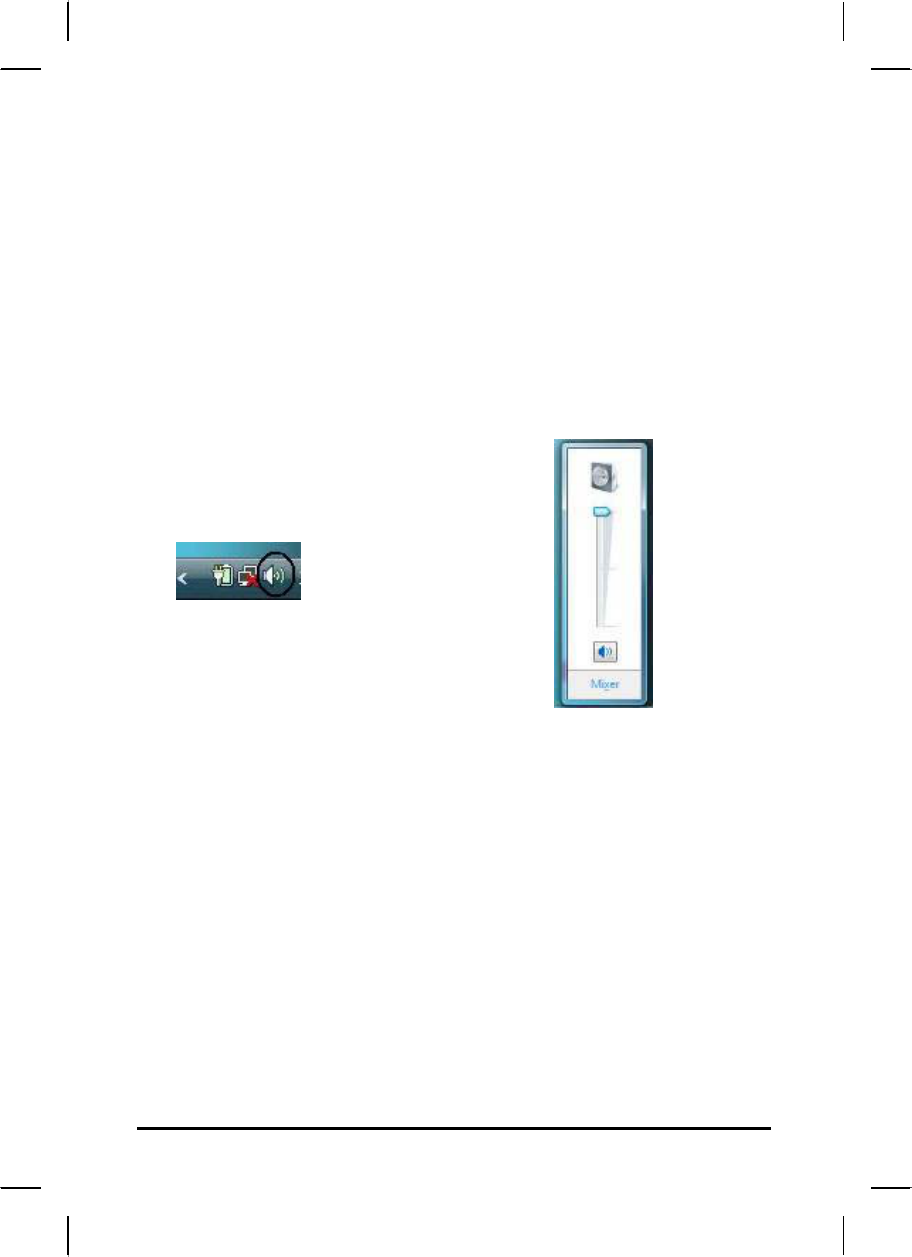

Adjusting the Volume ....................................................................11
Adjusting the Brightness...............................................................11
Turning off Your MCA....................................................................12
CHAPTER 2
GETTING STARTED 13
Hardware and Software .................................................................14
Front View ......................................................................................15
Right View ......................................................................................16
Bottom View...................................................................................17

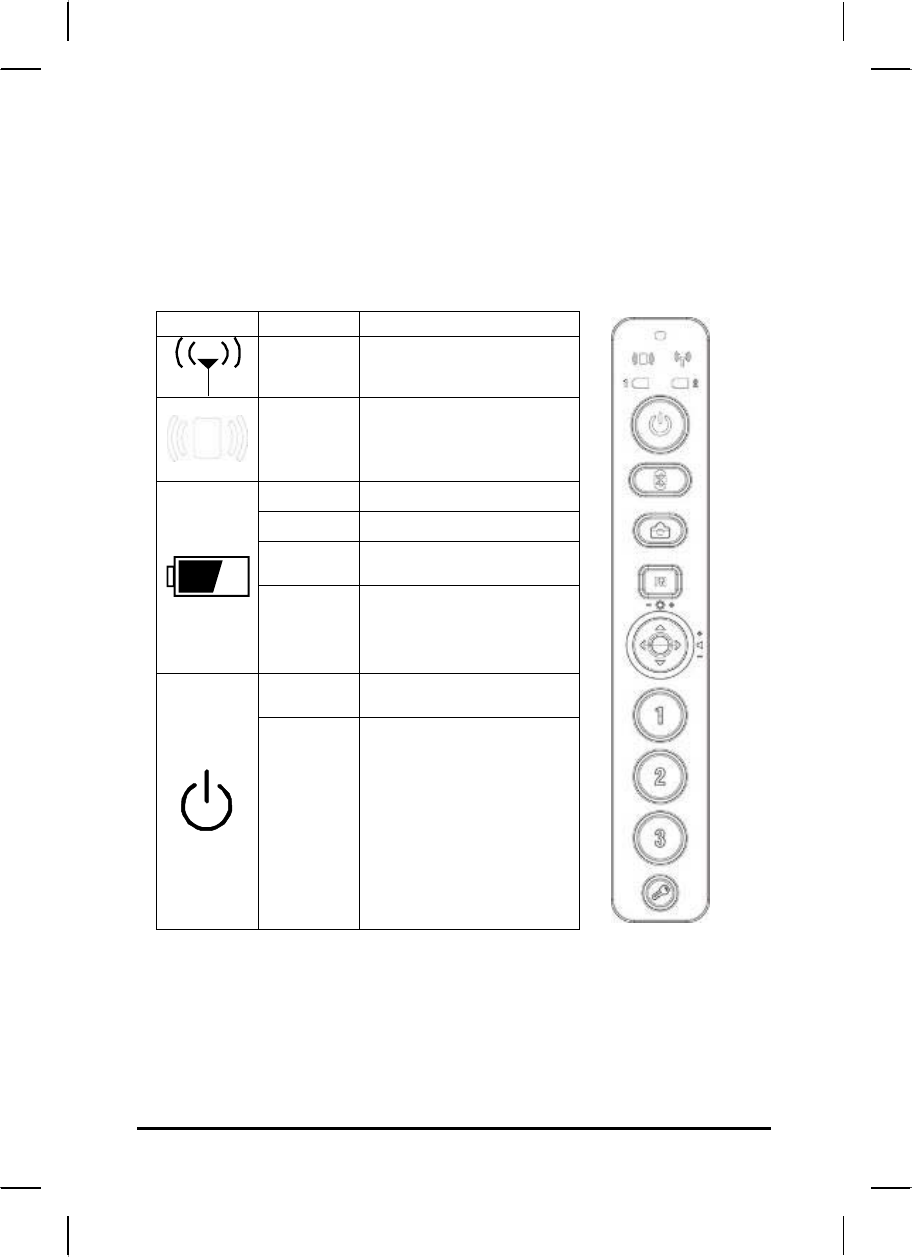

Power Indicators............................................................................18

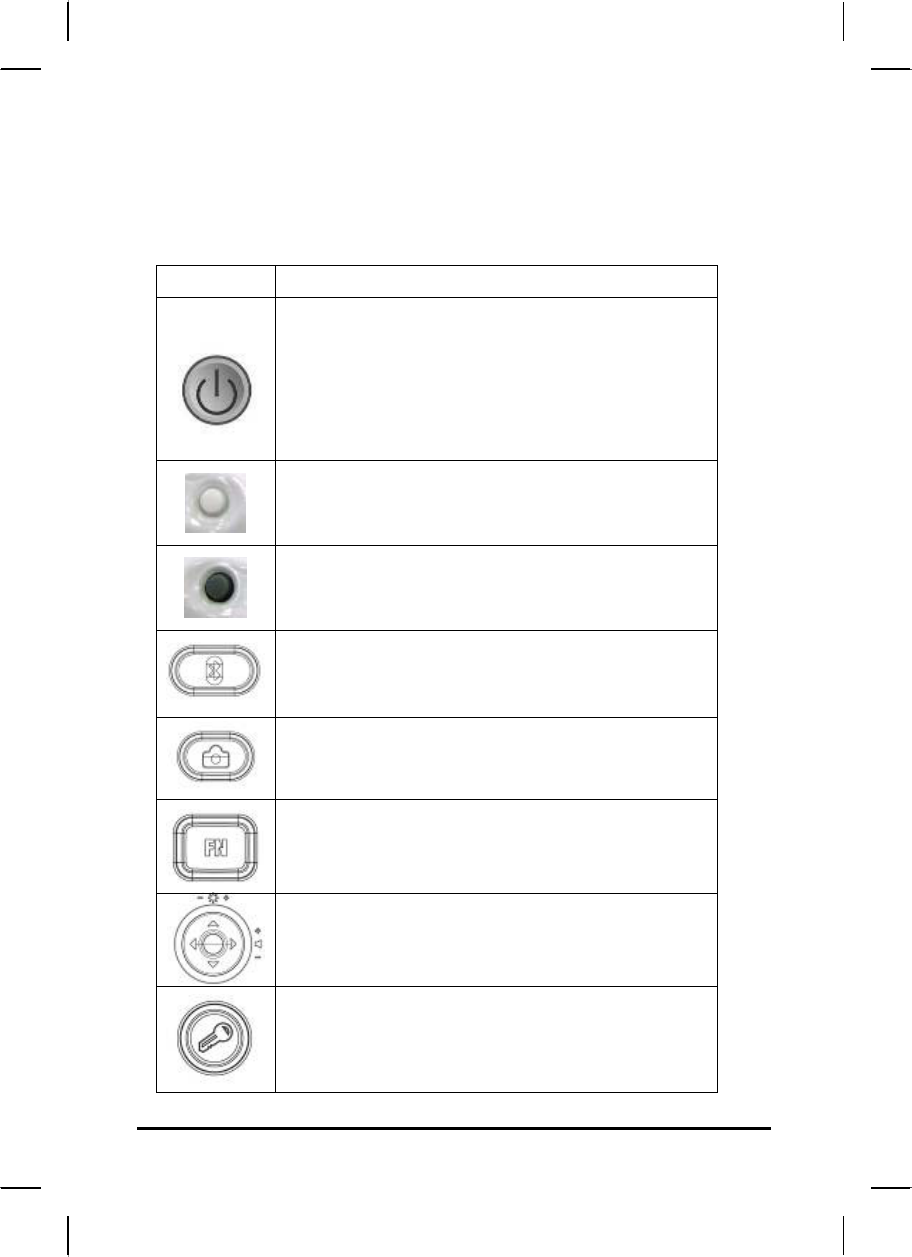

Buttons...........................................................................................19
Function Keys ................................................................................20
Touch Pen ......................................................................................21
Disk Drives.....................................................................................21
LCD Screen ....................................................................................23
Touch Screen.................................................................................24

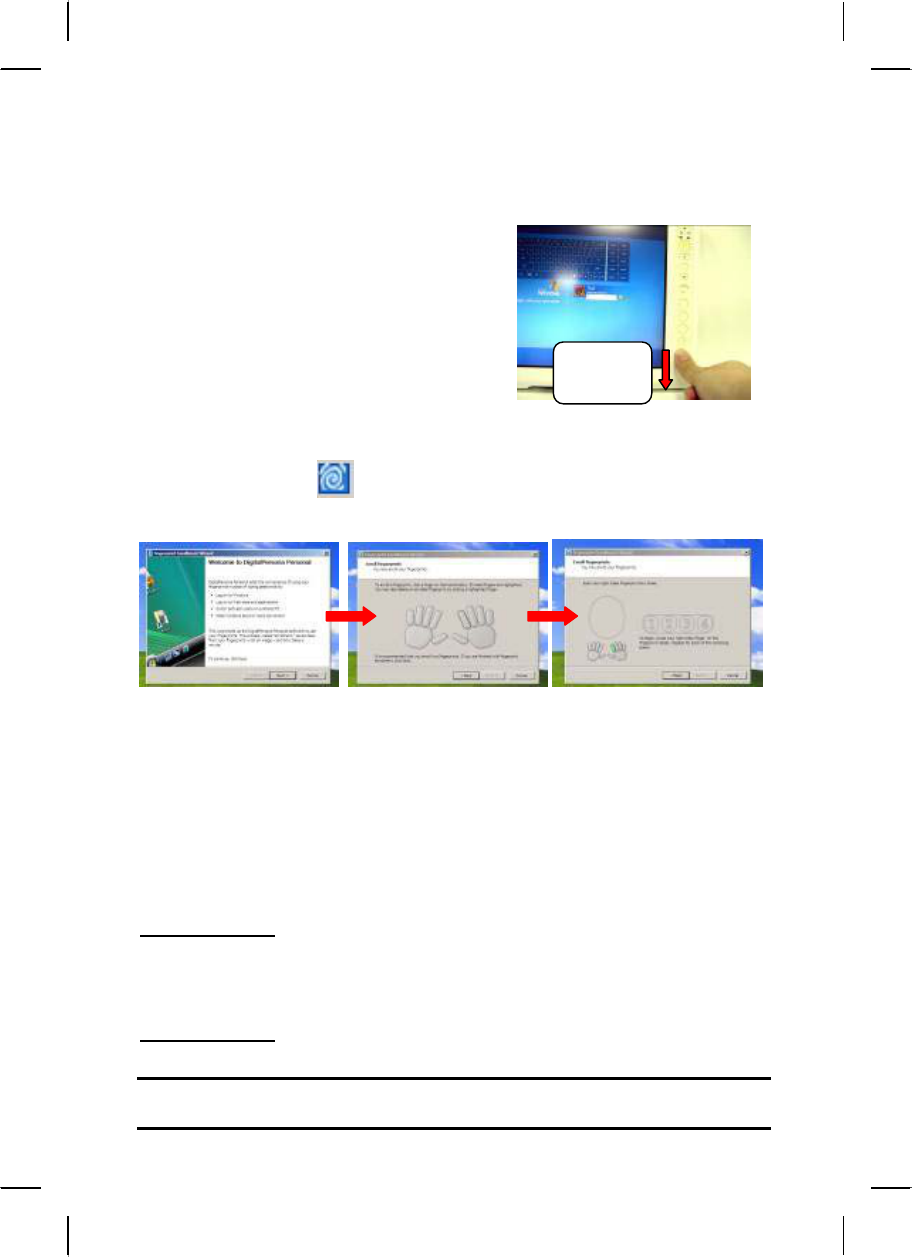

Information about Fingerprint function ........................................26
Information about Barcode scanner .............................................27

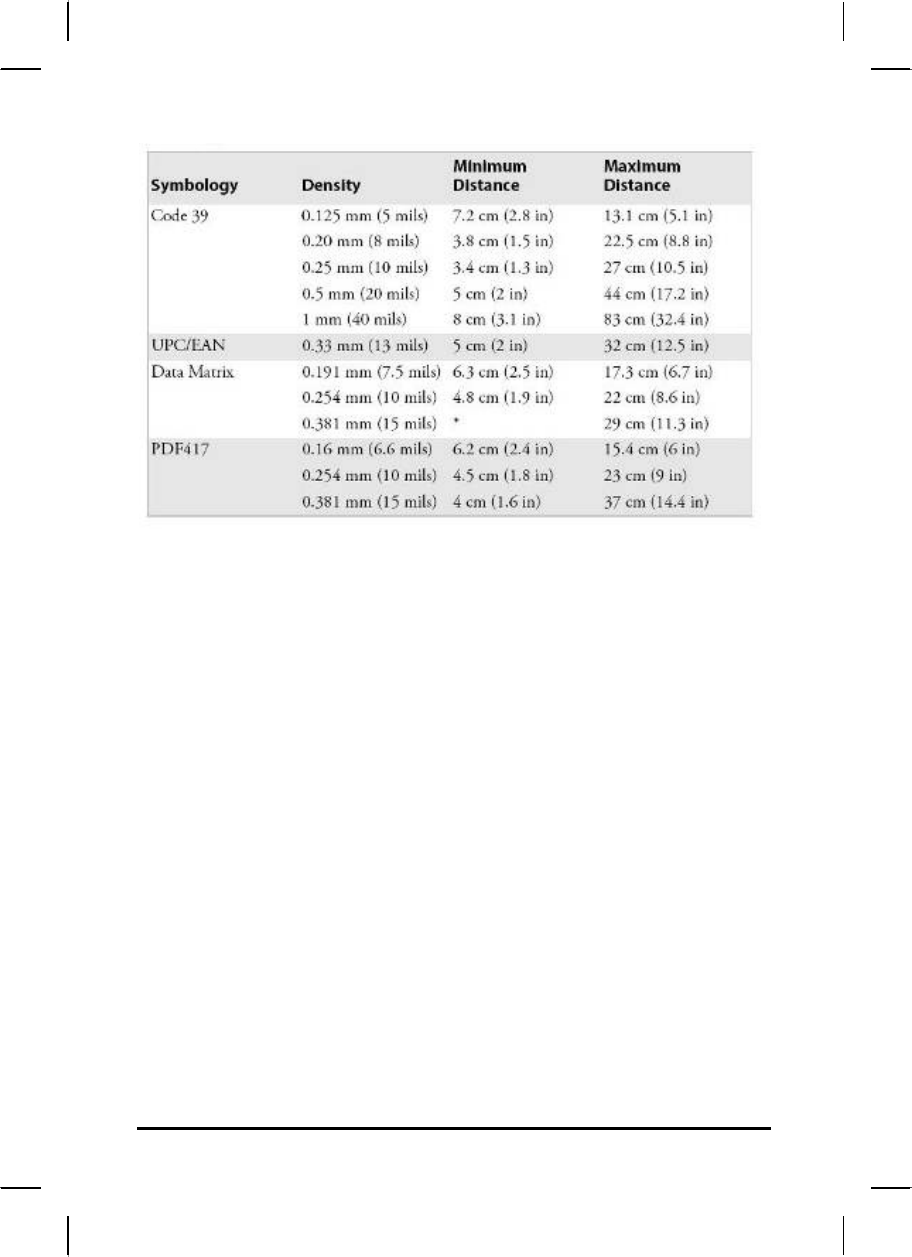

How to use the Barcode scanner..................................................29
![](/img.php?id=1307789&img=bg3.png)
iii
Information about RFID reader......................................................30
Information about Camera function..............................................32
Communication Components .......................................................33
Information about 3G function ......................................................34
Information about Bluetooth function ..........................................35
CHAPTER 3
MAKING CONNECTIONS 36
Making Connections......................................................................37
CHAPTER 4
POWER MANAGEMENT 38
Power Management .......................................................................39
When to Replace the Battery.........................................................41
Heat Considerations......................................................................41
CHAPTER 5
DOCKING STATION CONNECTORS 42
Docking Station Connectors-Front & Left side ............................43
Docking Station Connectors-Right side .......................................44
Docking Station Connectors-Top side..........................................45
Mechanical Specification...............................................................46
APPENDIX A
STATEMENTS 47
Statements .....................................................................................48
European Notice ............................................................................49
Safety Compliance.........................................................................57
Battery Disposal ............................................................................57
CAUTION FOR ADAPTER ..............................................................58
BATTERY CAUTION.......................................................................58
REGULATORY INFORMATION(INTEL WIFI) .................................60
![](/img.php?id=1307789&img=bg4.png)
iv
![](/img.php?id=1307789&img=bg5.png)
C
Ch
ha
ap
pt
te
er
r
1
1
I
In
nt
tr
ro
od
du
uc
ct
ti
io
on
n
![](/img.php?id=1307789&img=bg6.png)
2
Getting Started
Congratulations on your purchase of a MCA. The mobile clinical
assistant (MCA) is a category of mobile computing platform
developed by Intel® to be a new usage model that is customized for
healthcare-specific use at the point of care, supporting the workflow
of nurses and clinicians. This mobile clinical assistant (MCA)
integrates technology from Intel® Health.
With your MCA you will be able to organize and access important
clinical information anywhere, anytime. In addition, you will be able to
use the biometric fingerprint reader or authenticate your badge with the
RFID reader.
This Manual contains all the information you need to set up and use
your MCA. It describes all the features of the MCA in an easy-to-read
yet thorough manner.
The Intel® Health brand signals the company’s specialization in healthcare and
commitment to the healthcare industry while drawing on Intel’s rich heritage as a
technology innovator. Intel is a trusted name associated with innovation, reliability,
quality, and speed — attributes that resonate with key decision makers in the
healthcare sector.
Intel and the Intel logo are tradem arks of Intel Corpor ation in the U.S. and other
countries.
![](/img.php?id=1307789&img=bg7.png)
3
Inventory
This MCA is designed for years of productive and pleasurable
computing. Use this section to keep details of your purchase. This
information will be required should you need to make repairs to your
MCA during the warranty period. Update this section when you add
new options.
DATE OF PURCHASE:
PLACE OF PURCHASE:
DEALER'S NAME:
DEALER'S ADDRESS:
TELEPHONE:
E-MAIL ADDRESS/WWW:
CONTACT PERSON:
MODEL NUMBER:
SERIAL NUMBER:
![](/img.php?id=1307789&img=bg8.png)
4
Safety and Maintenance
You can use your MCA under a wide range of environmental
conditions. However, to ensure long use and continued high
performance, consider the following factors when setting up your
MCA:
• Follow all warnings and instructions noted in this documentation
and in the Windows Help program.
• The first time you use your MCA, we recommend that you
carefully read the Making Connections section of this manual
and initialize the battery to ensure optimum battery performance.
• Unplug the MCA from the power outlet before cleaning. Use a
damp cloth for cleaning. Do not use aerosols, solvents, or strong
detergents.
• Slots and openings in the system cabinet are for ventilation
purposes. Do not block or cover these openings or the system
could overheat. Do not use or store the MCA near a source of
heat or dust.
• On the base or rear panel of this MCA, there is a label with
information on the power requirements of this system. These
requirements must be followed. If you are unsure of your local
power supply, consult your dealer or local Power Company.
• Do not step on or place anything on the power cord.
• If you use the MCA with an extension cord, ensure that the total
ampere ratings of all the devices sharing the extension do not
exceed the rating of the extension cord or the rating of the wall
outlet.
• Never push foreign objects into the MCA through any of the slots
or openings. Dangerous voltages are present, which could cause
electric shock or fire, or damage sensitive components.
Cleaning the MCA
To clean the MCA, wipe its surface gently using a soft cotton cloth
slightly dampened with alcohol or disinfecting products.
The device’s outer surfaces (plastic shell, seal, touch panel, buttons,
docking base connector, barcode scanner window, etc) can resist
(80% or less) Alcohol, bleach, iodine and common hospital
disinfectants.
![](/img.php?id=1307789&img=bg9.png)
5
Checklists
After opening the package, carefully inspect the contents. If any of
the items is missing or appear damaged, contact your dealer. The
shipping carton should contain the following:
STANDARD
• A MCA with a hard disk drive
• Two standard batteries
• An AC adapter with power cord
(I.T.E. AC power or Medical AC power)(Option)
• User's Manual (Installed in Hard Disk)
• Driver CD (Installed in Hard Disk)
OPTIONS
The following items are normally optional, but some vendors may
include them in the standard package. Some items may not be
available in some countries, or some vendors may choose not to
carry all the items.
• Additional battery
• 3G module
• RFID reader
• Barcode scanner
• 2 mega pixels camera module
• Docking station
Caution: When purchasing any of the accessories
listed above, purchase only those accessories that
are approved for use with your MCA. The above
accessories are proprietary items. Your system
vendor can obtain these approved accessories. If
you use items that are not approved for use with
this MCA, you may cause your MCA to malfunction, or
to emit or receive electro-magnetic radiation in
excess of local regulations. For non-proprietary
accessories such as PC cards or printers, ensure
that the accessory functions properly in your MCA
before making the purchase. Your system vendor may
be able to recommend reliable brands and models.
![](/img.php?id=1307789&img=bga.png)
6
Features
Software Included
Widows® XP Tablet PC Edition (Optional) which includes:
• Microsoft® Internet Explorer
• Microsoft® Outlook Express
• Microsoft® Windows Media Player
High performance Processors
z Intel® ULV U2100 1.06GHz CPU or above (FSB 533MHz)
z Intel® ULV Celeron® 423 1.06GHz CPU or above (FSB 533MHz)
Data Protection

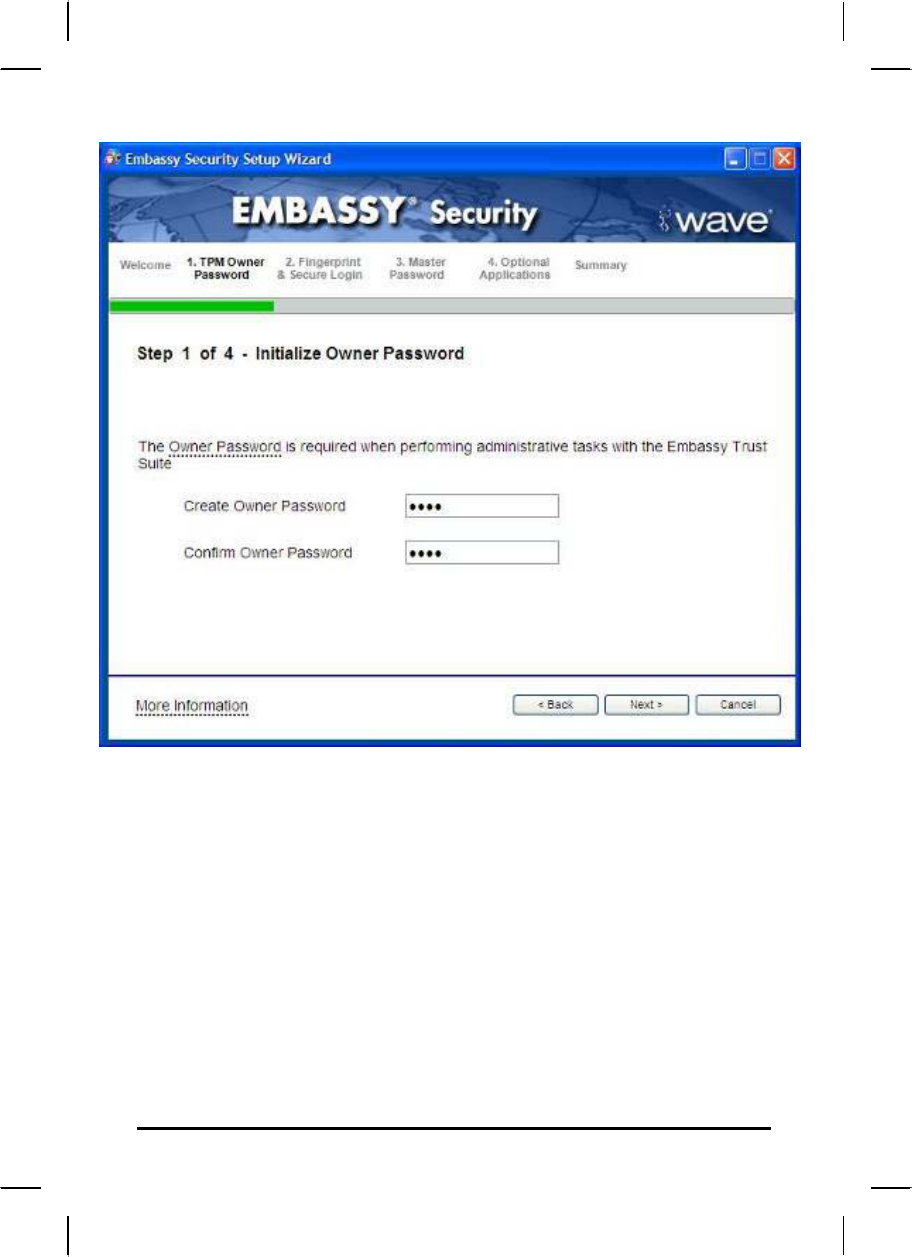

Secure your data by embedded TPM
Smart Display
Automatic screen orientation & brightness adjustment
Smart Touch
Fingertip & stylus accessible, automatically timing control & palm rejection
implemented
Comprehensive Network Connection
z PAN: Bluetooth 2.1
z LAN: Wireless LAN 802.11 a/b/g/n
z MAN: 3G module (optional)
Versatile Integration
RFID Reader, Barcode Scanner, Fingerprint Reader, Webcam and
Microphone Array
Unburdened Consideration
Slim, light weight, no noise (fanless), and “grip & go” ergonomic handle
Rugged Enhancement
![](/img.php?id=1307789&img=bgb.png)
7
Sustainable from the free drop (3 feet height) and severe ingress level
(IP54)
Flexible Battery Supply
Long power supply up to 4.5 hrs
Extended Access Control
3 user programmable keys available to define
Rugged Standard
Drop Resistant:
26 drops of 36 inches to plywood over concrete with unit on
2 units to pass.
Water Sealing:
Rain chamber to operate at no less than 40 PSIG and no less than 4
in/hr. 10 min per axis, 6 axes, Unit is non-operating.
Environmental
Tablet PC & Docking Station
Operating Environment Temperature: 5~35
Storage Environment Temperature: -20~75
Transportation Environment Temperature: -20℃~75℃
Operating Humidity: 10% ~ 90%
Power Supply
* Operating Temperature 0℃ to 40℃ with no deracinating
* Storage temperature -30℃ to +85℃
* Relative humidity 5% to 95% non-condensing
* Cooling Convectional - non vented case
![](/img.php?id=1307789&img=bgc.png)
8
Where to Look For Information
About Your MCA
This User’s Manual describes the key elements of your MCA. New
users can find a simple step-by-step orientation in the Quick Start
section of this chapter.
About Windows
Windows Online Help, found on the Start menu, offers extensive Windows
assistance. Welcome to Windows offers an online orientation for new
Windows users. Find it in:
Start/Programs/Accessories/System Tools.
Quick Start
Turning on the MCA for the First Time
1. Connect the power cord to the AC/ DC adapter.
2. Connect the AC/ DC adapter to the DC power port on the right hand
side of your MCA.
3. Connect the power cord to an AC outlet.
![](/img.php?id=1307789&img=bgd.png)
9
4. Press the power button to turn on the power.
AC Adaptor features:
I.T.E. AC power
Input:100V-240V,50Hz-60Hz
Output: 65W, 20V
Medical AC power
Input:100V-240V,47Hz-63Hz
Output: 78W , 18V
Manufacturer: Ault Korea CO., LTD.
Model: JMW180KA1800F02
Type: Medical Power Supply
INPUT: AC 100 - 240V, 50 - 60Hz, 1.5A~0.75A
OUTPUT: +18VDC at 4.33A
Note: The battery is not fully charged. Allow
your battery to fully charge before using it
(i.e., before disconnecting AC power).
Calibrating the battery before use is also
highly recommended. Refer to Chapter of Power
Management, for further information.
Warning: The operator not to touch a part and
the patient simultaneously.
![](/img.php?id=1307789&img=bge.png)
10
Loading Windows
The following section is for installing the Windows operating system
only. If you are installing a different operating system, please check
with your vendor for installation details.
Product key number
Your MCA will begin
loading Windows once
you turn on the power.
Wait a few seconds for
Windows setup to load.
The Windows setup will
prompt you for the
product key number,
shown to the right: Note: The product key is on a sticker
adhered inside of the battery
compartment of the MCA.
1. Type your name, and, if applicable, the name of your company.
2. Read the End User's License Agreement. Click Next to accept it.
3. Enter the product key number. You can find this on the
Certificate of Authenticity on a sticker attached to the MCA. Click
Finish.
4. The Start Wizard will prompt you to set the date, and your local
time.
After the Start Wizard updates your system settings, the Welcome to
Windows screen will appear. You may disable this feature by
clearing the check box labeled show this screen each time
Windows starts.
Some software comes preloaded with Windows. New users can
familiarize themselves with this software by selecting Programs from
the start menu, then clicking on programs to run them.
![](/img.php?id=1307789&img=bgf.png)
11
Adjusting the Volume
You can adjust the volume with hot key:
• Fn On + Navigation Key with pressing it upward: volume up
• Fn On + Navigation Key with pressing it downward: volume down
Alternatively, you can adjust
the volume with the Windows
volume control applet located
on the taskbar.
Adjusting the Brightness
Use the following hot key combinations to adjust the LCD panel
brightness:
• Fn On + Navigation Key toward left: decreases the brightness
• Fn On + Navigation Key toward right: increases the brightness
![](/img.php?id=1307789&img=bg10.png)
12
Turning off Your MCA
Turning off the MCA properly is important to maintaining your MCA.
1. On the Start menu, click
Shut Down.
2. Click the radio button next to
Shut Down in the Shut Down
Windows screen, and then click
OK.
If you are going to be away from the MCA for a short period, there are
ways of conserving power without shutting down the system.
Warning: Shutting off the MCA improperly may
result in data loss.
![](/img.php?id=1307789&img=bg11.png)
C
Ch
ha
ap
pt
te
er
r
2
2
G
Ge
et
tt
ti
in
ng
g
S
St
ta
ar
rt
te
ed
d
![](/img.php?id=1307789&img=bg12.png)
14
Hardware and Software
This chapter introduces the different components and controls of your MCA,
including the hardware components, the software, and the audio and video
systems.
Getting Started
Before you begin using your MCA, read this chapter to familiarize yourself
with the main components installed in the system.
![](/img.php?id=1307789&img=bg13.png)
15
Front View
1. Tablet handle
2. RFID reader trigger
3. Barcode scanner trigger
4. Status indicator
5. Power button
6. Bluetooth On/Off button
7. Camera capture
8. Function key
9. Navigation & Enter key
10. User programmable keys
11. Security key
12. Finger print scanner
13. Internal microphone array
14. Touch Screen panel
15. Internal RFID reader antenna
![](/img.php?id=1307789&img=bg14.png)
16
Right View
1. LCD panel
2. Barcode scanner sensor
3. DC power jack
4. Docking connector
![](/img.php?id=1307789&img=bg15.png)
17
Bottom View
1. Camera lens
2. Touch pen holder
3. Touch pen
4. 1st battery
5. 2nd battery
6. Internal speaker
![](/img.php?id=1307789&img=bg16.png)
18
Power Indicators
The power indicators show which power source the system is using. They
also show battery status and low battery power alerts. The power indicators
remain active and viewable even when the LCD panel is closed.
Icon Light Description
Green Wireless LAN is in use
Green RFID is in use
Green Battery fully charged
Orange Battery charging
Red When battery capacity
is low than 10%
Flashing
Orange
When OTP (over
temperature protection)
of the battery is
activated
Green Power is on and the
battery is in use
Flashing
Green
Power is in suspend
mode
![](/img.php?id=1307789&img=bg17.png)
19
Buttons
The eleven hot keys are unique features of your MCA. The function as
follows:
Icon Function
Suspend/Power on-off button
The Power button turns system on and goes into
standby automatically. If the unit has been sitting
unused for a while. Press momentarily to turn on
the system or to exit from standby. Press and hold
for at least 3-4 seconds to turn off the system.
These settings can be changed.
RFID reader trigger
Through setting in Intel MCA SDK
(White button on handle).
Barcode scanner trigger (grey)
Through setting in Intel MCA SDK
(Grey button on handle).
Bluetooth On/Off button
Press to wakeup built-in Bluetooth module,
Bluetooth module will be power down after certain
time set by user if no more activities.
Camera Capture
Through setting in Intel MCA SDK
Function Button
Alternative definition for navigation, user
programmable and security button.
Navigation & Enter Key
5 ways button for Up/Down/Left/Right/Enter.
Security key
Similar function as pressing Ctrl+Alt+Delete on a
standard keyboard.
![](/img.php?id=1307789&img=bg18.png)
20
3 user programmable keys
Press to launch specific program defined by user
through Intel MCA SDK (software development kit)
Function Keys
Press the Fn key first and then press the function key.
Function key Description
Fn on + Down Volume down
Fn on + Up Volume up
Fn on + Left Brightness decrease
Fn on + Right Brightness increase
Fn on + button 3 Enable/ disable the 3G module
Fn on + Security key To lock/unlock the touchscreen manually
Fn on + Enter key To unlock the docking station manually
*User may also choose to lock the touchscreen automatically after some idle
time. See page 23 for detailed setting.
![](/img.php?id=1307789&img=bg19.png)
21
Activate TPM
Get into BIOS setup and check TCP/TPM support

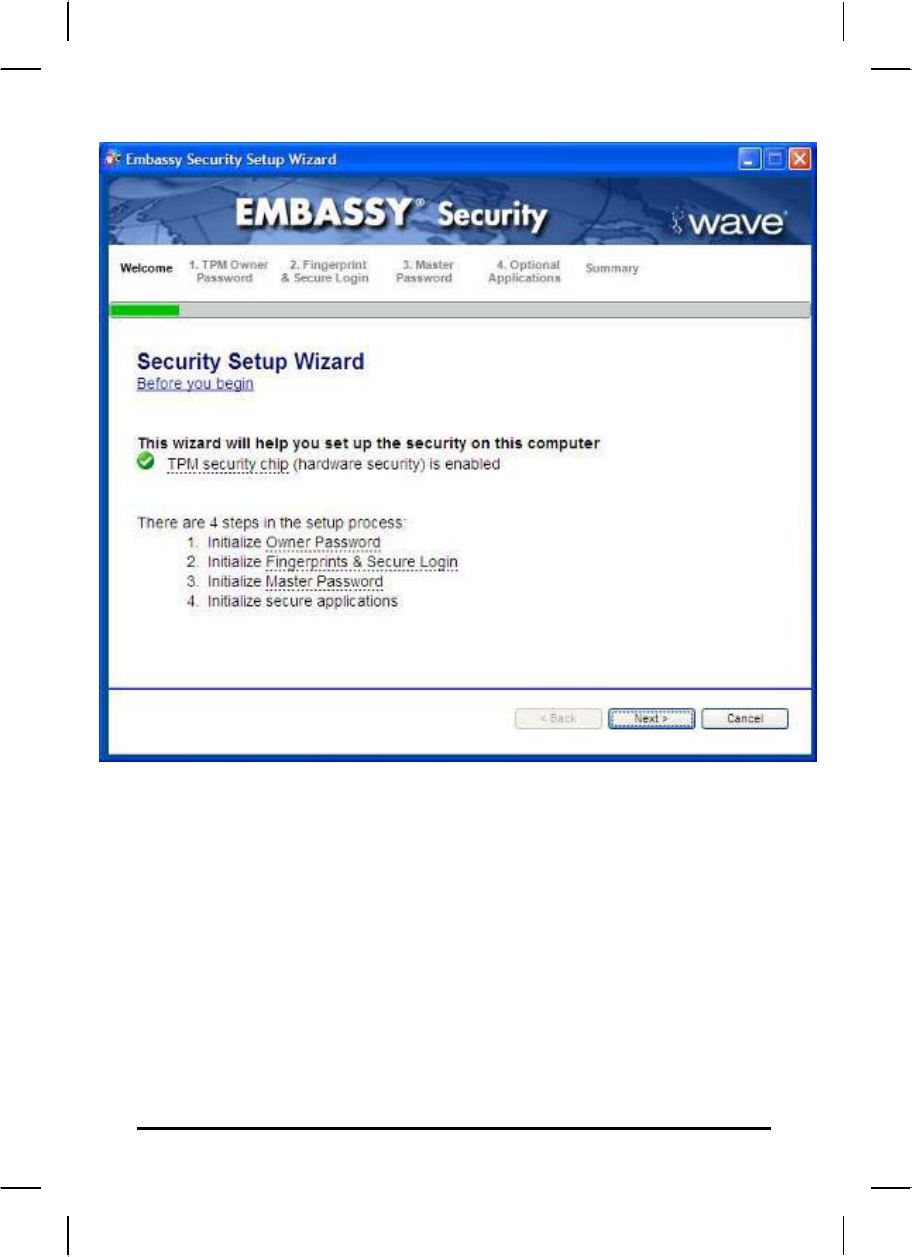

Set up TPM security function
![](/img.php?id=1307789&img=bg1a.png)
22
![](/img.php?id=1307789&img=bg1b.png)
23
![](/img.php?id=1307789&img=bg1c.png)
24
![](/img.php?id=1307789&img=bg1d.png)
25
![](/img.php?id=1307789&img=bg1e.png)
26
![](/img.php?id=1307789&img=bg1f.png)
27
Touch pen
You can use the touch pen to replace a mouse when using a MCA. Store
the pen in the pen holder when not in use. To put the pen in the pen holder,
press it until it clicks into place. To remove the pen, press down on one end,
grab the other end, and remove from the holder.
![](/img.php?id=1307789&img=bg20.png)
28
Disk Drives
Your MCA comes with component for reading and writing (recording)
information.
Hard Disk Drive
The hard disk provides high-capacity storage and fast access. Windows OS
and most programs are stored here. Your MCA identifies the hard disk drive
as drive C. In order to protect your precious data, this MCA features a G-
sensor which ”parks” the hard drive when it senses a dropping motion.
Operation instructions on the HDD protection application.
Click the HDD protection icon to
launch HDD protection application.
You will see the program screen as:
“HDD protection OFF” is checked as default. If you are using default
parameters, just click the “ON” tag under “HDD protection “to
activate hard disk protection function.
![](/img.php?id=1307789&img=bg21.png)
29

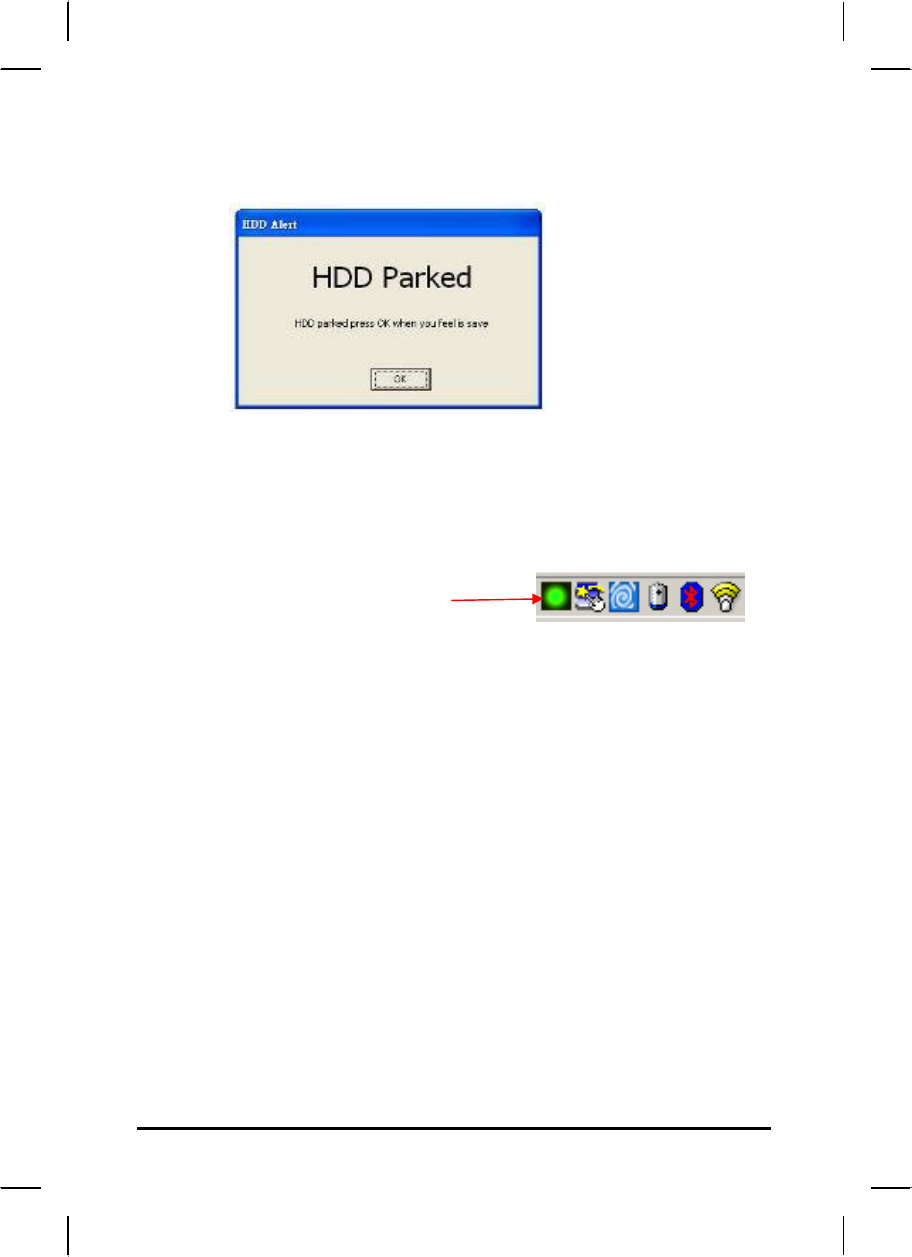

When HDD protection is activated, there will be a pop-up window
shown on the screen once a free fall or abrupt motion detected.
At this situation, all disk access requests will be blocked. Certain
application may detect some error if they set timer when accessing
files. But others are just waiting their disk I/O to complete. User may
release the hard disk by pressing OK button. Otherwise HDD will be
released automatically after some preset time period (5 seconds by
default) if no more free-fall or movements is detected.
You may also find the HDD protection
icon at the task bar.
When the icon shows green, it means that the HDD protection
function is on. When the icon shows red, it means that the HDD
protection function is off.
LCD Screen
z 10.4” XGA (1024x768) TFT LCD
z LED Backlight
z Luminance: 165 nit (minimum), 240 nit (typical)
z Contrast ratio: 120 (minimum), 250 (typical)
z Light Sensor
The built in ambient light sensor is to adjust the brightness of LCD.
This will be performed automatically while in battery mode for saving
power, and can be enabled/ disabled through setting in the BIOS.
![](/img.php?id=1307789&img=bg22.png)
30
z Screen Rotation
This MCA uses G sensor to switch Landscape/Portrait mode
automatically when the machine turns. It works for 0º - 90º - 180º -
270º, and can be enabled/ disabled through the [Digiheal Application
software]. Default setting is enabled.
![](/img.php?id=1307789&img=bg23.png)
31
Touch Screen
z Calibration software will be provided for use by users
z Calibration and precision will be retained at least 72 hours of full time
use, except for below:
1. Frequently abnormal power the unit off
2. Reinstall the OS on the unit
3. Expose the unit to the environment which has great temperature
difference than the one performs the calibration
z Palm rejection
This MCA features palm rejection function which refers to the touch
screen’s resistance to making the cursor jump when you inadvertently
touch the screen with the palm of your hand.
z To lock/unlock the touch screen
(Factory Default: Lock Touch Function Time UNSELECTED)
To lock: 1. Manually (FN + SAS key)
2. Automatically (after some idle time presetting by user)
To unlock: Manually (FN + SAS key)
*If you want to lock the touch screen automatically, you need to
follow following instruction:
(1) Double click the Touchkit icon to launch Touchkit
application.
![](/img.php?id=1307789&img=bg24.png)
32
(2) Select [Setting] Æ [Option]
(3) You will find [Lock Touch Function Time] section on the bottom.
Select [Enable] to activate this function. You can also adjust the
idle time in this section.
Information
about Fingerprint function
With use of fingerprint authentication, you
can log on to Windows by only
authenticating fingerprints that have
previously been registered.
![](/img.php?id=1307789&img=bg25.png)
33
With fingerprint authentication, you can omit entering a user name and a
password by just sliding your finger onto the fingerprint sensor at the time
of logging in homepages or logging on Windows.
Tips:
*Hold your finger and scan at the same
angle each time.
*Don’t swipe too fast or too slow or it will
make a capture unsuccessful.
User will find an icon on Windows task bar.
Please double click on it to execute fingerprint software.
*Up to 10 sets of fingerprint data can be saved in the system. Users who
use fingerprint authentication can be added and deleted.
Information about Barcode scanner
Barcode scanner with red light scanning, supports 1D/2D barcode.
1D symbologies:
EAN/UPC, RSS, Code 39, Code 128, ISBN, ISBT, Interleaved, Matrix, Industrial
and Standard 2 of 5, Codabar, Code 93/93i, Code 11, MSI, Plessey, Telepen,
Postal Codes
2D symbologies:
Data Matrix, PDF417, Micro PDF 417, Maxicode, QR, Aztec, EAN, UCC composite
Sliding
Direction
![](/img.php?id=1307789&img=bg26.png)
34
Reading Distances
All distances are measured from the front of a non-integrated imager using Grade A
symbologies. An exit window reduces reading distances by about 4%.
Typical Reading Distances
Typical Reading Distances: These distances are measured in an office
environment (250 lux).
Typical Reading Distances
![](/img.php?id=1307789&img=bg27.png)
35
*Minimum distance depends on symbology length and scan angle.
How to use the Barcode Scanner:
![](/img.php?id=1307789&img=bg28.png)
36
Open the WORD or NOTEPAD, move the cursor to the application, then
press the gray button on the top to activate Barcode Scanner, and the data
will be sent to the WORD/NOTEPAD directly.
It will be ready to read when there is a red light beam emitting from the
device, and complete the reading when the light is off.
* Through software developed by ISV to define Barcode scanner function.
(button on handle)
![](/img.php?id=1307789&img=bg29.png)
37

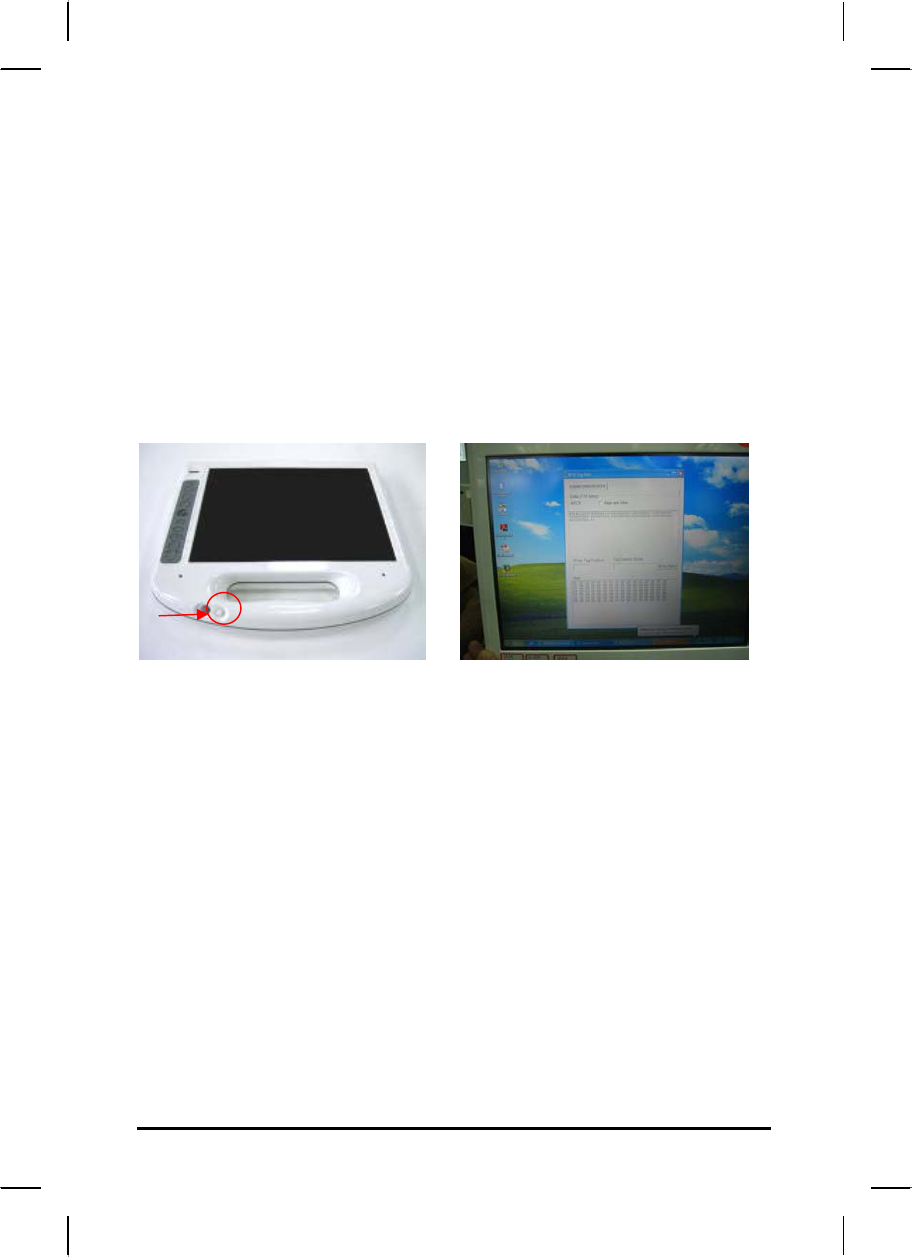

Information about RFID reader
The RFID reader is a compact contactless reader which supports Mifare®
cards and ISO15693 (NOTE: Optional supports ISO14443A & ISO 14443B
with non-healthcare standard)
How to use the RFID reader:
Click the white button on the top to activate the RFID reader. When data is
grabbed successfully, there will be a pop up message like below
picture. Please notice that RFID Reader only supports ISO 15693 format
tag under Intel MCA platform driver..
*Through software developed by ISV to define RFID function.
(Button on the
handle)
![](/img.php?id=1307789&img=bg2a.png)
38
Allowable position to read the tag:
Correct position
Wrong position
The maximum reading distances for different protocol:
Protocol Distance
ISO 15693 7cm
ISO 14443A 6cm
ISO 14443B 3cm
![](/img.php?id=1307789&img=bg2b.png)
39
Information about Camera function
The camera lens is on the back of the MCA.
Features:
z 2 mega pixels resolution (1600 x 1200)
z Support Auto Focus
How to use the Camera:
Click on the CAMERA button, it will pop up a preview screen, then press
the CAMERA button again to save the photo. The preview screen will
close after 10 sec automatically.
(手柄上的相机拍摄
按钮)
![](/img.php?id=1307789&img=bg2c.png)
40
Communication Components
This system includes built-in Wireless LAN, Bluetooth and 3G functions:
Built-in Wireless Local Area Network
The built-in Wireless Local Area Network (WLAN) interface card can
provide a quick access without using cables for the connection to the
network equipments. The interface card adopts the IEEE 802.11 a/b/g/n
protocol and uses the 2.4/5 GHz ISM electric wave frequency band as
the transmission interface to set up the communications between the
host computer and other computers.
The way of processing communications through the WLAN interface
card is the same as that through Ethernet interface card. The
“Configuration Tool” is a Window application program. If users have a
computer equipped with the WLAN interface card, then users can use
it to set up the interface card and show the current configuration and
status.
Note: Contact your distributor for the information of upgrading the
wireless local area network.
![](/img.php?id=1307789&img=bg2d.png)
41
Information about 3G function
Note: The system does not support 3G Voice features.
The system provides 3G function
(optional), please remove the SIM card cover.
Then insert 3G SIM card into the slot.
Attention: WLAN function will be auto
turn-off when 3G function is on.
Please click on [3G Watcher] program
shown on Desktop to turn on 3G function.
Please follow 3G Watcher Help Topics/
Wireless Data Connections/Manage
profiles to create a profile first.
After all settings are completed, click
Connect to access Internet.
User will find on Windows task bar.
The indicator shows the received signal
strength in dBm up to a maximum of five
![](/img.php?id=1307789&img=bg2e.png)
42
bars..
Please click 3G Watcher Tools/Turn Radio Off to stop connection.
Information about Bluetooth function
A Bluetooth wireless technology is the ability to simultaneously handle both
data and voice transmissions. This enables users to enjoy a variety of
solutions such as hands-free headset for voice calls, printing and fax
capabilities, and synchronizing PDA, laptop, and mobile phone applications.
Please press hot key to turn on Bluetooth function.
User could check Bluetooth connection status from indicator on Windows
task bar. : Bluetooth disconnection : Bluetooth connection
Double click Bluetooth indicator or on Desktop to turn on
application program.
![](/img.php?id=1307789&img=bg30.png)
C
Ch
ha
ap
pt
te
er
r
3
3
M
Ma
ak
ki
in
ng
g
C
Co
on
nn
ne
ec
ct
ti
io
on
ns
s
![](/img.php?id=1307789&img=bg31.png)
37
Making Connections
Right Side Connectors
1. DC-in Jack
Connect the power plug of the AC adapter to this jack.
2. Docking Station connector
The Connector is reserved for specific purpose which is used to
connect to its docking station.
![](/img.php?id=1307789&img=bg32.png)
C
Ch
ha
ap
pt
te
er
r
4
4
P
Po
ow
we
er
r
M
Ma
an
na
ag
ge
em
me
en
nt
t
![](/img.php?id=1307789&img=bg33.png)
39
Power Management
Checking the Battery Level
You can check the remaining battery power in the Windows® battery status
indicator located at the lower right-hand corner of the task tray. The Battery
Status icon only appears in the task tray while the unit is running on the
battery power but not while the unit is running off an external power source
through the AC adaptor.
Battery Power Indicator
Enter Monitoring Battery Power
There are two ways to
monitor how much power the
battery has left.
1. Click Start / Settings /
Control Panel / Power
Options, then click Power
Meter.
2. Moving the cursor to the
battery icon on the
taskbar is the simplest
way to check on battery
power status.
If you do not see the battery icon, enable it in Start / Settings /
Control Panel / Power Options. Choose the Advanced tab and click
“Always show icon on the taskbar.”
Low Battery Alarms
How your MCA responds to a low battery condition is set under Start /
Settings / Control Panel / Power Options / Alarms.
Two different power alarms can be enabled or disabled: the Low
Battery Alarm, and the Critical Battery Alarm.
Warning: When battery power is low, the battery
indicator will flash red, and the alarm will
display a warning on your screen. Take immediate
action, such as saving files or connecting to the
AC adapter, or data may be lost.
![](/img.php?id=1307789&img=bg34.png)
40
Battery Charging
When you use the AC adapter to connect your MCA to a power
outlet, the internal battery will automatically begin to recharge (get
charged first with battery 1, then goes to battery 2 when battery 1 is
fully charged, and the MCA is powered by the AC adaptor.) While the
battery is charging, the Battery Charge icon on the Indicator panel
will be active after 6~12 seconds. When the battery is fully charged,
the Battery Charge icon will turn off.
If your MCA is system off, a fully discharged battery will take about 2
hours to recharge. If your MCA is turned on and is not in suspend
mode, it twill take about 2~3 hours to recharge the battery. Refer to
the following table:
Charging
System On
(Under Screen Saver Mode) 2~3 hours
System Off (suspend to RAM) ~2 hours
To ensure the battery be charged to its Max. capacity, we suggest
you execute the following steps to refresh battery.
1. Fully charged the battery
2. Enter the BIOS set up menu and stay the unit untouched. Then,
the unit can fully discharge the battery to lowest level.
3. Fully discharge the unit to 100%. Then the battery learning is
done.
Note: The battery only can be charged in the condition of room
temp. 0-30 degree C. Other than this range, the battery may
not be fully charged. One fully charged Li-Ion battery can run
the MCA for approximately 2.25 hours.
![](/img.php?id=1307789&img=bg35.png)
41
When to Replace the Battery
Over time, the battery's capacity gradually decreases. We recommend that
you replace your battery when you notice that it begins to store significantly
less charge.
Changing the Battery
Change the main battery pack as
follows:
1. Turn off the MCA.
2. To replace the Battery, reposition the
latch n and latch o, then gently pull
the battery out of the battery bay.
3. Make sure the replacement battery is properly orientated. Then
insert the battery into the battery compartment. Check that the
latch locks back into position.
Heat Considerations
The MCA processor has been specially designed to consume little
power, and generates very little heat. However, working in a hot
environment, or working for long periods may raise the temperature.
If the temperature continues to rise, processor activity will be
reduced. You may notice a slight loss of performance when this
happens.
![](/img.php?id=1307789&img=bg36.png)
42
Chapter 5
D
Do
oc
ck
ki
in
ng
g
S
St
ta
at
ti
io
on
n
C
Co
on
nn
ne
ec
ct
to
or
rs
s
![](/img.php?id=1307789&img=bg37.png)
43

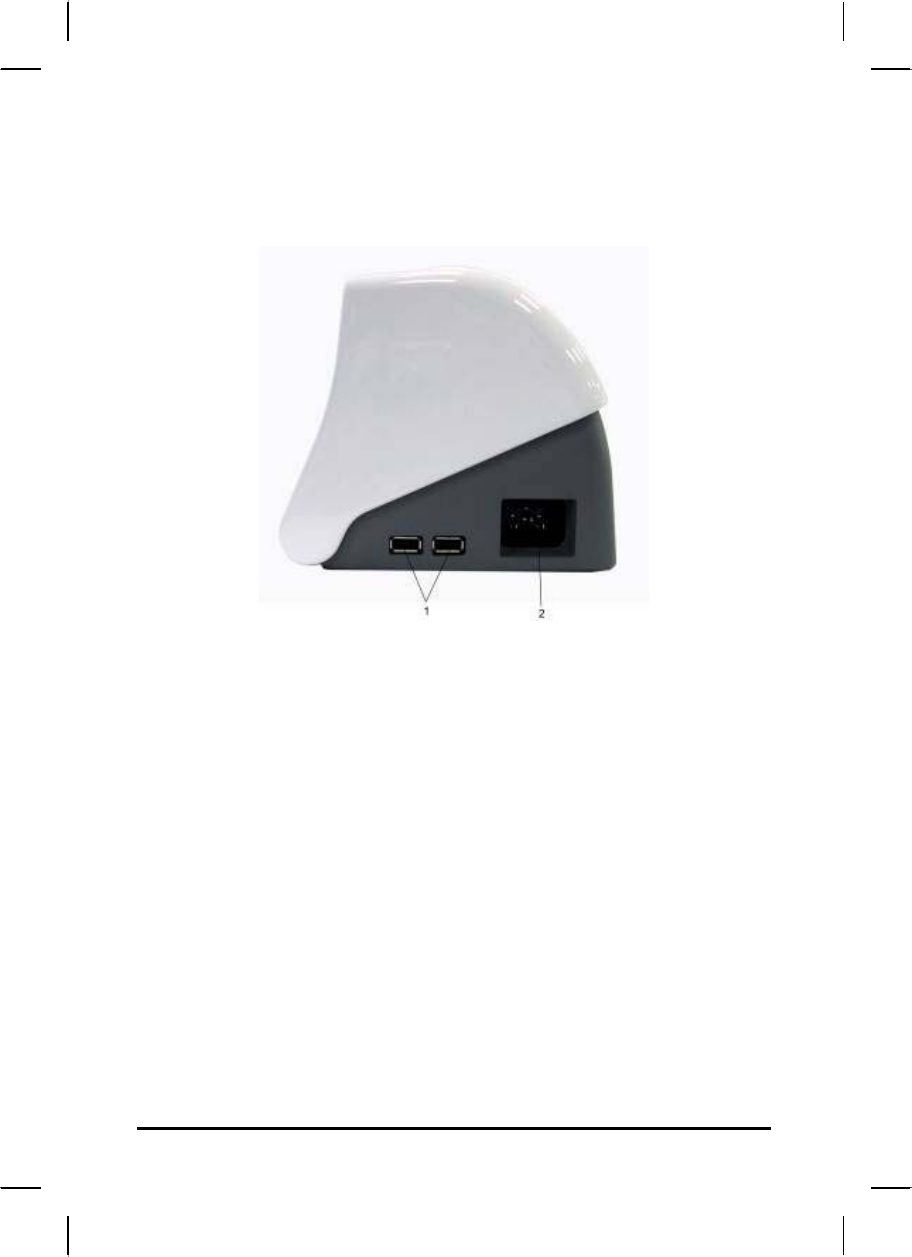

Docking Station Connectors – Front & left side
1. USB (Universal Serial Bus) Ports
The Universal Serial Bus (USB) is the latest standard for attaching
input devices, scanners, and other devices to a PC.
2. Kensington Slot
Kensington slot is part of an anti-theft system used as a deterrent to
prevent opportunist theft. It is used for attaching a lock-and-cable
apparatus.
3. LAN RJ-45 Jack
With the built-in Ethernet LAN combo, you can make LAN
connections without installing PC cards. Connection speed is 10/100
Mbps.
4. LED Indicator
Power Green when system is active
Battery 1 & 2 Green when battery is fully charged
Orange when battery is charging
LAN Green when the LAN is connected
Lock Green when the locking mechanism is on
![](/img.php?id=1307789&img=bg38.png)
44
Docking Station Connectors – Right side
1. USB (Universal Serial Bus) Ports
The Universal Serial Bus (USB) is the latest standard for attaching
monitors, input devices, scanners, and other devices to a PC.
2. Power Cord Entry
Connect the power cord from the AC outlet to this entry.
There is a power adaptor embedded inside of the docking station
(Input:100V-240V,47Hz-63Hz, output: 78W , 18V).
![](/img.php?id=1307789&img=bg39.png)
45
Docking Station Connectors – Top side
1. Battery charger
Provide 2 battery charging bays. The charging time may vary
depending on system and environmental temperature.
2. Host slot
The host is used to connect to your MCA.
3. Locking mechanism
An electronic lock to keep the unit locked on the dock.
![](/img.php?id=1307789&img=bg3a.png)
46
Mechanical Specification
Mounting:
An optional bracket (VESA standard, hole pattern 75 x 75 mm) is
available when there is need to mount the docking station for
different purposes.
Tilt:
To provide an optimal viewing performance while user is in different
operating position, this docking station is capable of adjusting the tilt
angle, and it ranges from 5° forwardly, and 25° backwardly.
![](/img.php?id=1307789&img=bg3b.png)
A
Ap
pp
pe
en
nd
di
ix
x
A
A
S
St
ta
at
te
em
me
en
nt
ts
s
![](/img.php?id=1307789&img=bg3c.png)
48
Statements
Federal Communications Commission Statement
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and the receiver.
3. Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for
help.
Shielded interconnect cables and shielded AC power cable must be
employed with this equipment to insure compliance with the pertinent
RF emission limits governing this device. Changes or modifications
not expressly approved by the system's manufacturer could void the
user's authority to operate the equipment.
CAUTION
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment.
![](/img.php?id=1307789&img=bg3d.png)
49
Declaration of Conformity
This device complies with part 15 of the FCC rules. Operation is
subject to the following conditions:
• This device may not cause harmful interference
• This device must accept any interference received, including
interference that may cause undesired operation.
According to FCC 15.407(e), the device is intended to operate in the
frequency band of 5.15GHz to 5.25GHz under all conditions of
normal operation. Normal operation of this device is restricted to
indoor used environment only.
Radio Frequency Interference Requirements
This device is restricted to INDOOR USE due to its operation in the
5.15 to 5.25GHz frequency range. According to FCC 15.407(e),
requires this product to be used indoors for the frequency range 5.15
to 5.25GHz to reduce the potential for harmful interference to co-
channel of the Mobile Satellite Systems.
High power radars are allocated as primary user of the 5.25 to
5.35GHz and 5.65 to 5.85GHz bands. These radar stations can
cause interference with and / or damage this device.
RF Exposure
This equipment complies with FCC RF Exposure (SAR) limits for the
uncontrolled environment. This device has been tested and
approved for internal co-location with the Sierra Wireless Gobi2000
WWAN module (FCC ID: N7NGOBI2) and PIFA/PCB WWAN
Diversity Antenna (P/N: TWT10GPPI01+G and TWT10GPPI02+A).
This device and its antenna must not be co-located or operating in
conjunction with any other antenna or transmitter.
![](/img.php?id=1307789&img=bg3e.png)
50
European Notice
CE Declaration of Conformity
For the following equipment: Tablet built-in 802.11a/b/g/n WLAN
module
Is herewith confirmed to comply with the requirements set out in the
Council Directive on the Approximation of the Laws of the Member
States relating to Electromagnetic Compatibility (89/336/EEC), Low-
voltage Directive (73/23/EEC) and the Amendment Directive
(93/68/EEC), the procedures given in European Council Directive
99/5/EC and 89/3360EEC.
The equipment was passed. The test was performed according to the
following European standards:
• EN 300 328 V.1.4.1 (2003-04)
• EN 301 489-1 V.1.3.1 (2001-09) / EN 301 489-17 V.1.1.1
(2000-09)
• EN 301 893 V.1.2.2 (2003-06)
• EN 50371: 2002
• EN 60950: 2000
Guidance and manufacturer’s declaration –
electromagnetic emissions
The T10YXXXXXX is intended for use in the electromagnetic environm ent specified
below. The customer or the user of the Equipment or System should assure that it is
used in such an environment.
Emissions test Compliance Electromagnetic
environment – guidance
RF emissions
CISPR 11
Group 1 The T10YXXXXXX uses
RF energy only for its
internal function.
Therefore, its RF
emissions are ver y low
and are not likely to cause
![](/img.php?id=1307789&img=bg3f.png)
51
any interference in nearby
electronic equipment.
RF emissions
CISPR 11
Class B
Harmonic
emissions
IEC 61000-3-2
Class A
Volt age
fluctuations/
flicker emissions
IEC 61000-3-3
Not applicable
The T10YXXXXXX is
suitable for use in all
establishments, including
domestic establishments
and those directly
connected to the public
low-voltage power supply
network that supplies
buildings used for
domestic purposes.
Guidance and manufacturer’s declaration –
electromagnetic immunity
The T10YXXXXXX is intended for use in the electromagnetic environm ent specified
below. The customer or the user of the T10YXXXXXX should assure that it is used in
such an environment.
Immunity
test
IEC
60601
test
level
Compliance
level
Electromagnetic
environment –
guidance
Electrostatic
discharge
(ESD)
IEC
61000-4-2
±6 kV
contact
±8 kV
air
±6 kV cont act
±8 kV air
Floors should be
wood, concrete or
ceramic tile. If
floors are covered
with synthetic
material, the
relative humidity
should be at least
30 %.
Electrical fast
transient/burst
IEC 61000-4-4
±2 kV
for
power
supply
lines
±1 kV
for
input/out
±2 kV for
power
supply lines
±1 kV for
input/output
lines
Mains power
quality should be
that of a typic al
commercial or
hospital
environment.
![](/img.php?id=1307789&img=bg40.png)
52
put
lines
Surge
IEC 61000-4-5
±1 kV
line(s) to
line(s)
±2 kV
line(s) to
earth
±1 kV line(s)
to line(s)
±2 kV line(s)
to earth
Mains power
quality should be
that of a typic al
commercial or
hospital
environment.
interruptions
and
voltage
variations
on power
supply
input lines
IEC 61000-4-
11
<5 % UT
(>95 %
dip in
UT)
for 0,5
cycle
40 % UT
(60 %
dip in
UT)
for 5
cycles
70 % UT
(30 %
dip in
UT)
for 25
cycles
<5 % UT
(>95 %
dip in
UT)
for 5 sec
<5 % UT
(>95 % dip in
UT)
for 0,5 cycle
40 % UT
(60 % dip in
UT)
for 5 cycles
70 % UT
(30 % dip in
UT)
for 25 cycles
<5 % UT
(>95 % dip in
UT)
for 5 sec
Mains power
quality should be
that of a typic al
commercial or
hospital
environment. If the
user of the
T10YXXXXXX ]
requires continued
operation during
power
mains
interruptions, it is
recommended that
the T10YXXXXXX
be powered from
an uninterruptible
power supply or a
battery.
Power
frequency
(50/60 Hz)
magnetic field
3 A/m
3 A/m
Power frequency
magnetic fields
should be at levels
characteristic of a
typical location in a
typical commercial
or hospital
![](/img.php?id=1307789&img=bg41.png)
53
IEC 61000-4-8
environment.
NOTE UT is the a.c. mains voltage prior to application of the test level.
Guidance and manufacturer’s declaration –
electromagnetic immunity
The T10YXXXXXX is intended for use in the electromagnetic environment specified
below. The customer or the user of the T10YXXXXXX should assure that it is used in
such an environment.
Immunity
test
IEC
6060
1
test
level
Compliance
level
Electromagnetic
environment –
guidance
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
3
Vrm
s
150
kHz
to 80
MHz
3
V/m
80
MHz
to
2,5
GHz
3 Vrms
3 V/m
Portable and
mobile RF
communications
equipment should
be used no closer
to any part of the
T10YXXXXXX ,
including cables,
than the
recommended
separation distance
calculated from the
equation applicable
to the frequency of
the transmitter.
Recommended
separation
distance
d = 1,2
d = 1,2 80
MHz to 800 MHz
![](/img.php?id=1307789&img=bg42.png)
54
d = 1,2 800
MHz to 2,5 GHz
where P is the
maximum output
power rating of the
transmitter in watts
(W) according to
the transmitter
manufacturer and d
is the
recommended
separation distance
in metres (m).
Field strengths
from fixed RF
transmitters, as
determined by an
electromagnetic
site survey,a should
be less than the
compliance level in
each frequency
range.b
Interference may
occur in the vicinity
of equipment
marked with the
following symbol:
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation
is affected by absorption
and reflection from structures, objects and people.
![](/img.php?id=1307789&img=bg43.png)
55
a Field strengths from fixed transmitters, such as base stations for radio
(cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM
radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To
assess the electromagnetic environment due to fixed RF transmitters, an
electromagnetic site survey should be considered. If the measured field strength in the
location in which the T10YXXXXXX is used exceeds the applicable RF compliance
level above, the T10YXXXXXX should be observed to verify normal operation. If
abnormal performance is observed, additional measures may be necessary, such as
reorienting or relocating the T10YXXXXXX.
b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3
V/m.
Recommended separation distances between
portable and mobile RF communications equipment and the
T10YXXXXXX
The T10YXXXXXX is intended for use in an electromagnetic environment in which
radiated RF disturbances are controlled. The customer or the user of the
T10YXXXXXX can help prevent electromagnetic interference by maintaining a
minimum distance between portable and mobile RF communications equipment
(transmitters) and the T10YXXXXXX as recommended below, according to the
maximum output power of the communications equipment.
Separation distance according to frequency of
transmitter
m
Rated
maximum
output
power of
transmitter
W
150 kHz to
80 MHz
d = 1,2
80 MHz to
800 MHz
d = 1,2
800 MHz to
2,5 GHz
d = 2,3
0,01 0,12 0,12 0,23
0,1 0,38 0,38 0,73
1 1,2 1,2 2,3
10 3,8 3,8 7,3
100 12 12 23
![](/img.php?id=1307789&img=bg44.png)
56
For transmitters rated at a maximum output power not listed above, the recommended
separation distance d in metres (m) can be estimated using the equation applicable to
the frequency of the transmitter, where P is the maxim um output power rating of the
transmitter in watts (W) according to the transmitter manufacturer.
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency
range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation
is affected by absorption and reflection from structures, objects and people.
Classification (clause 5):
Class I equipment
No applied part
IP54 (for table PC), IPX0 (for adapter and docking station)
No AP and APG
Continuous operation
Standard Inspection Bureau for Japan
Authentication sign of the Standard Inspection Bureau for Japan
Standard Inspection Bureau for Korea
Authentication sign of the Standard Inspection Bureau for Korea
![](/img.php?id=1307789&img=bg45.png)
57
Standard Inspection Bureau for China
Authentication sign of the Standard Inspection Bureau for China.
Standard Inspection Bureau for Taiwan
Authentication sign of the Standard Inspection Bureau for Taiwan.
Regulatory statement (R&TTE / WLAN IEEE 802.11b
& 802.11g)
European standards dictate maximum radiated transmit power of
100mW EIRP and frequency range 2.400-2.4835GHz; In France, the
equipment must be restricted to the 2.4465-2.4835GHz frequency
range and must be restricted to indoor use.
![](/img.php?id=1307789&img=bg46.png)
58
Safety Compliance
Safety for Canada
c-UL/CSA C22.2 No 60950-1
Safety for Korea
KETI (eK) : for adaptor only
Battery Disposal
THIS PRODUCT CONTAINS A LITHIUM-ION OR NICKEL-METAL
HYDRIDE BATTERY. IT MUST BE DISPOSED OF PROPERLY.
CONTACT LOCAL ENVIRONMENTAL AGENCIES FOR
INFORMATION ON RECYCLING AND DISPOSAL PLANS IN YOUR
AREA.
WEEE Symbol
The WEEE symbol, indicating separate collection for WEEE- Waste of
electrical and electronic equipment, consists of the crossed-out
wheeled bin, as shown below.
![](/img.php?id=1307789&img=bg47.png)
59
CAUTION FOR ADAPTER
THIS MCA IS FOR USE WITH MODEL NO. 0335A2065, 0335C2065,
JWM180KA1800F02.
BATTERY CAUTION
DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED.
REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY
THE MANUFACTURER. DISPOSE OF USED BATTERIES ACCORDING TO THE
MANUFACTURER'S INSTRUCTIONS.
Regulatory information / Disclaimers
Installation and use of this Wireless LAN device must be in strict
accordance with the instructions included in the user documentation
provided with the product. Any changes or modifications (including
the antennas) made to this device that are not expressly approved
by the manufacturer may void the user’s authority to operate the
equipment. The manufacturer is not responsible for any radio or
television interference caused by unauthorized modification of this
device, or the substitution of the connecting cables and equipment
other than manufacturer specified. It is the responsibility of the user
to correct any interference caused by such unauthorized modification,
substitution or attachment. Manufacturer and its authorized resellers
or distributors will assume no liability for any damage or violation of
government regulations arising from failing to comply with these
guidelines.
W/detachable antenna
“To reduce potential radio interference to other users, the antenna
type and its gain should be so chosen that the equivalent
isotropically radiated power (EIRP) is not more than that required for
successful communication.”
![](/img.php?id=1307789&img=bg48.png)
60
![](/img.php?id=1307789&img=bg49.png)

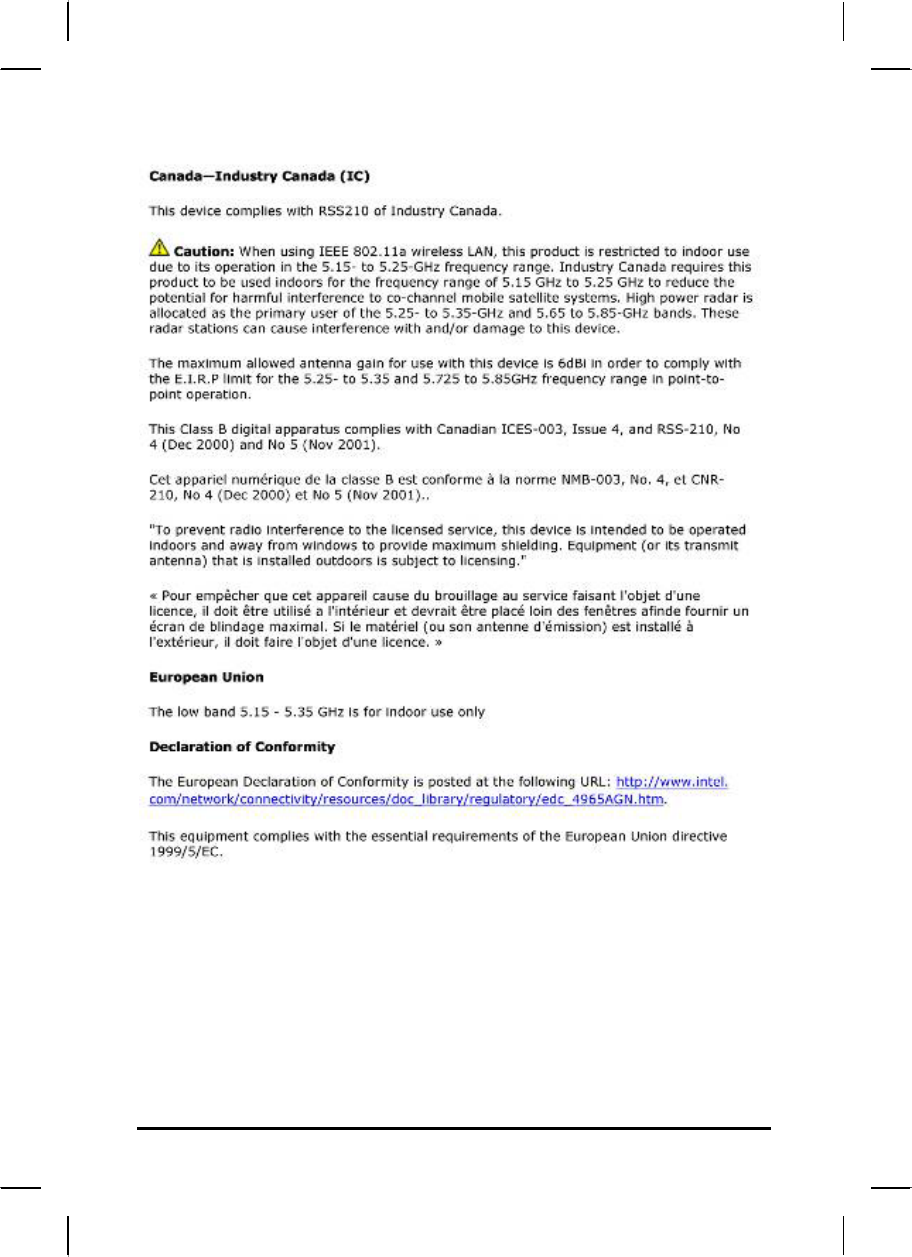

61
![](/img.php?id=1307789&img=bg4a.png)

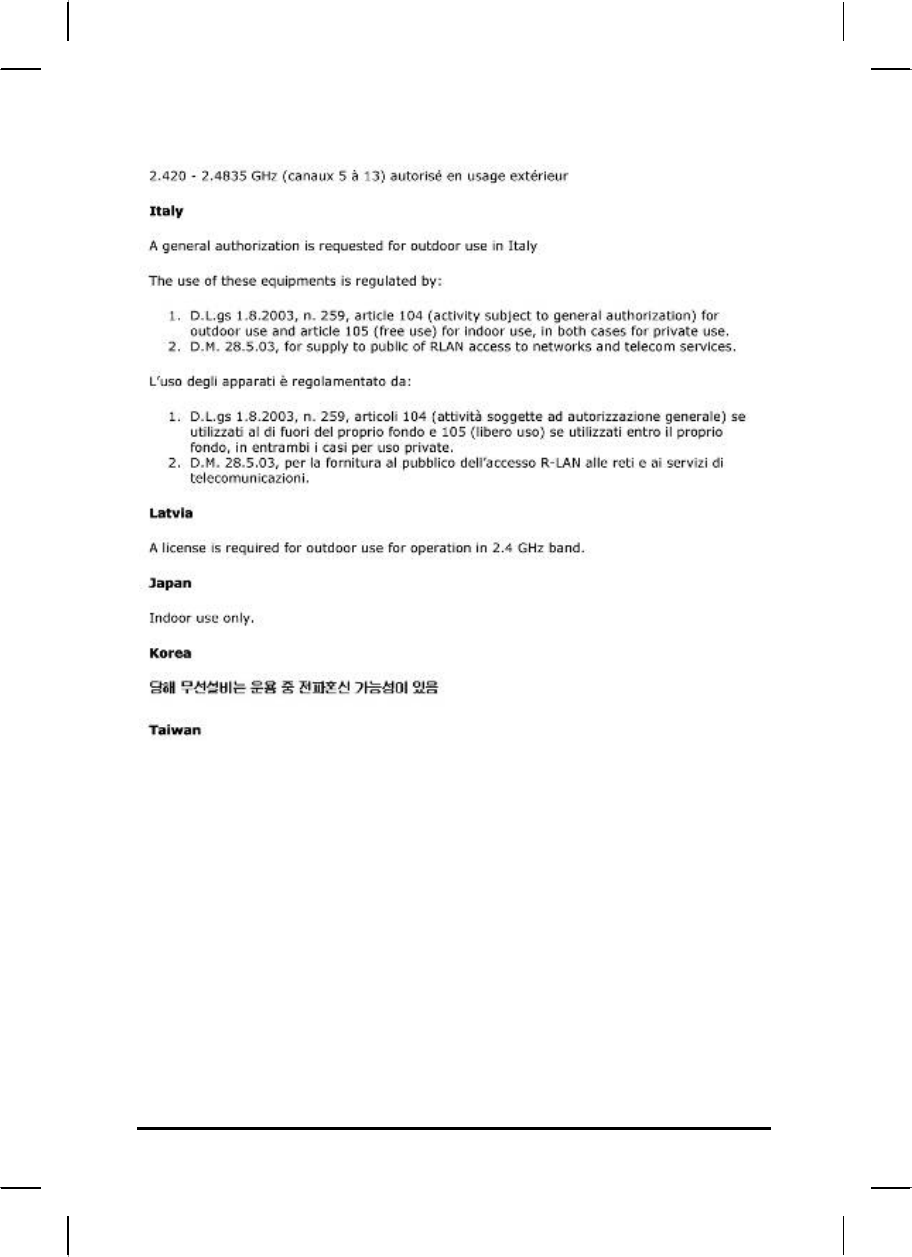

62
![](/img.php?id=1307789&img=bg4b.png)

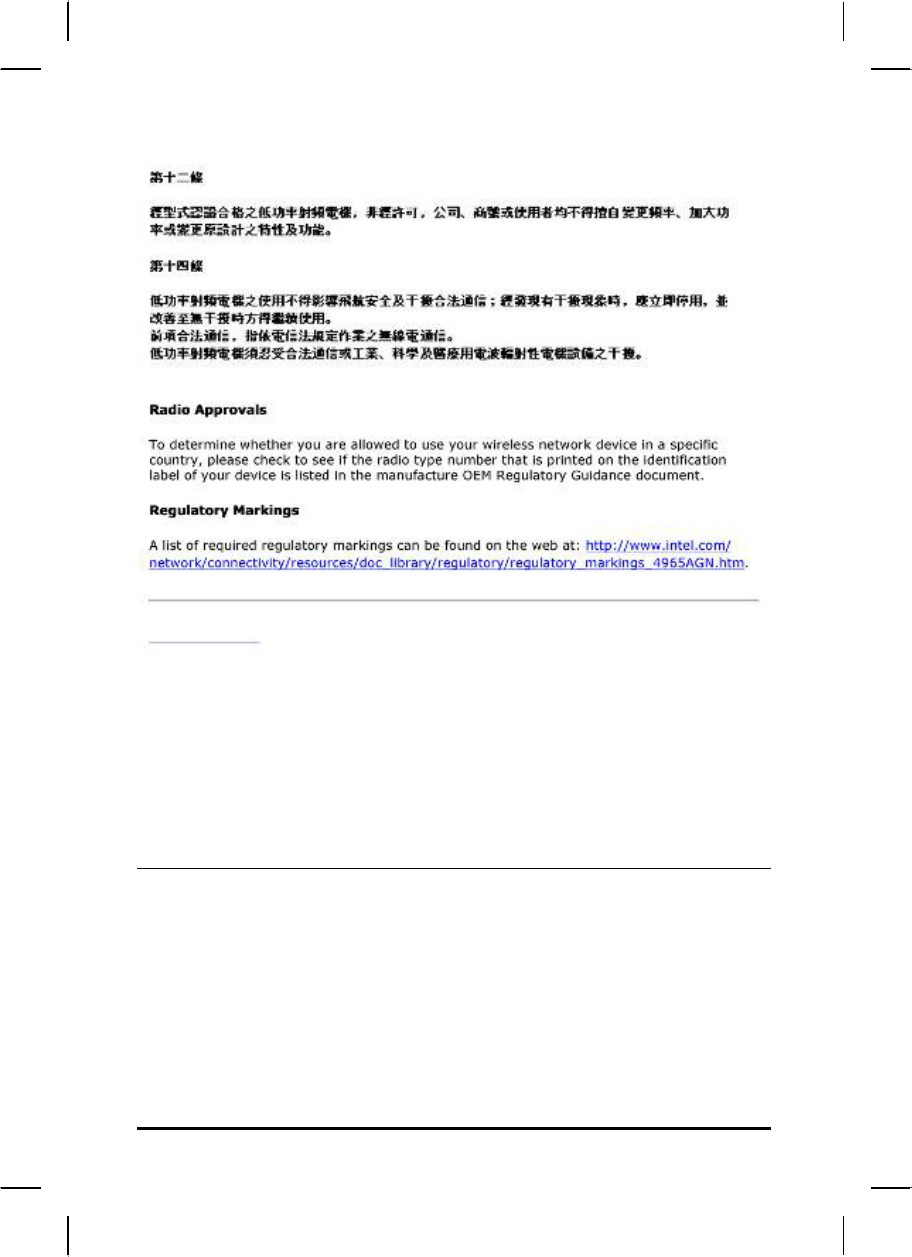

63
![](/img.php?id=1307789&img=bg4c.png)
64
![](/img.php?id=1307789&img=bg4d.png)
65
![](/img.php?id=1307789&img=bg4e.png)
66
![](/img.php?id=1307789&img=bg4f.png)
67
![](/img.php?id=1307789&img=bg50.png)
68
MANUFACTURED BY
TWINHEAD INTERNATIONAL CORP.
10F, 550 RUEIGUANG ROAD.
NEIHU, TAIPEI, TAIWAN 11492, R.O.C.
