Grandstream Networks GDS3710 Hemispheric HD IP Video Door Phone User Manual
Grandstream Networks, Inc. Hemispheric HD IP Video Door Phone
User manual
![](/img.php?id=3304532&img=bg1.png)
GDS3710
Hemispheric HD IP Video Door Phone

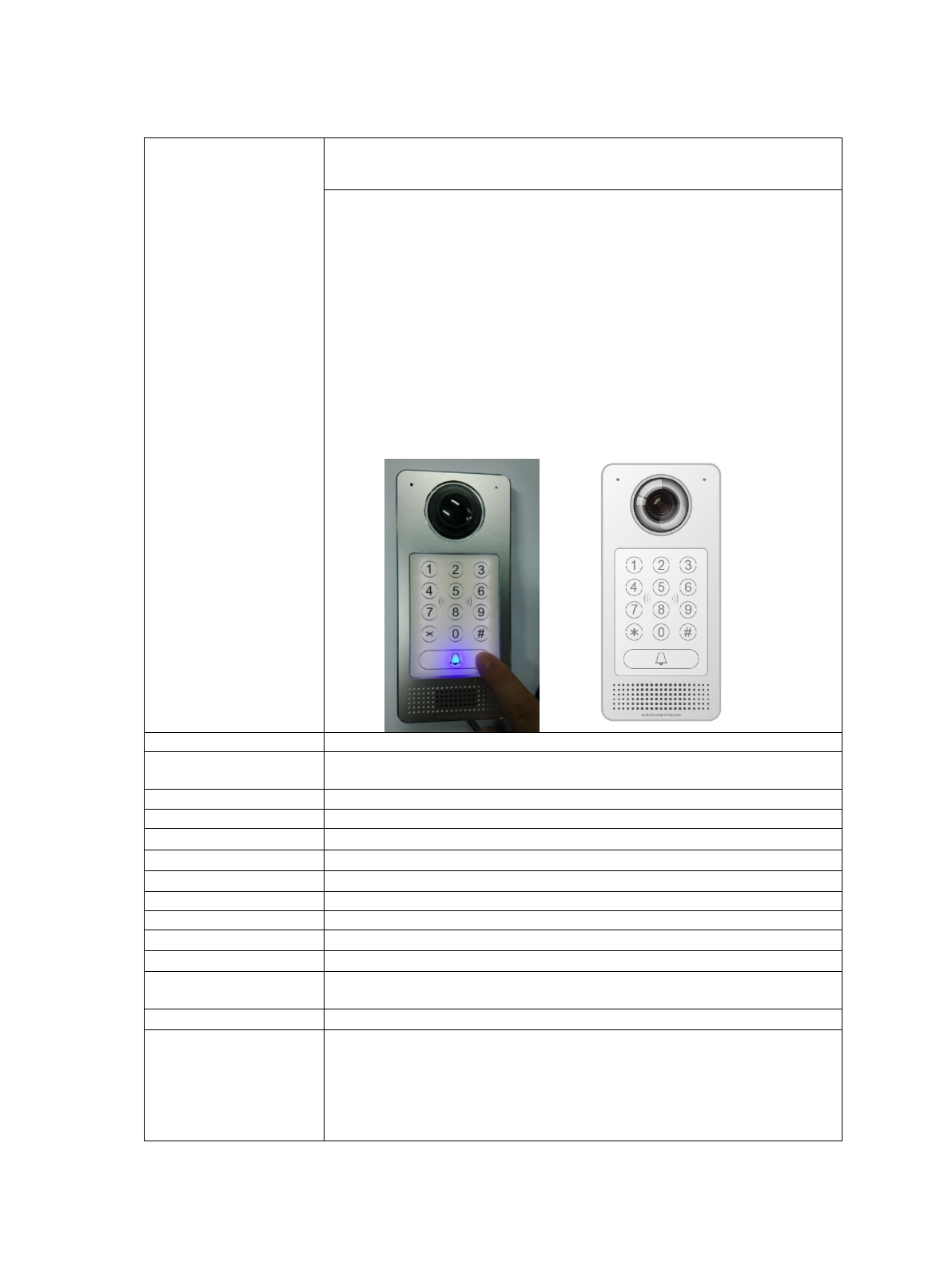

GDS3710 is a hemispheric IP video door phone and a high-definition
IP surveillance camera – ideal for monitoring from wall to wall without
blind spots. Powered by an advanced Image Sensor Processor (ISP)
and state of the art image algorithms, it delivers exceptional
performance in all lighting conditions. The GDS3710 IP video door
phone features industry-leading SIP/VoIP for 2-way audio and video
streaming to smart phones and SIP phones. It contains integrated PoE,
LEDs, HD loudspeaker, RFID, motion detector, lighting control switch
and more. Together with Grandstream videophone, mobile Apps, and
Network Video Recorder (NVR), the GDS3710 provides a powerful
recording and monitoring solution. The GDS3710 can be managed with
GSURF Pro or any ONVIF-compliant video management system. It also
offers a flexible HTTP API for easy integration with 3rd party applications
and other surveillance systems.
Video Compression
H.264 High Profile / Main Profile / Base Profile, Motion JPEG
Image Sensor
Resolution
1/2.7”, 2 Megapixel, 1920H x 1080V
Lens Type
1/2”, F2.5, FOV: 180°(W) x 180°(H)
Day & Night
White LEDs with smart brightness control
Max Video Resolution
1920x1080
Max Frame Rate
30 frames per second
Minimum Illumination
0.5Lux
Wide Dynamic Range
Yes, up to 120db
Video Bit Rates
32 Kbps to 8 Mbps, Multi-rate for Preview & Recording
Embedded Analytics
Motion detection (up to 8 target areas)
Privacy Mask Support
Yes (4 zones)
Pre-/Post-Alarm
recording
Yes
Snapshots
Triggered upon Events, Send via email and/or FTP
Multi-Stream Resolution
High-performance streaming server allowing multiple simultaneous
accesses
Primary video stream: 1920*1080 resolution for continuous full HD
recording
Secondary video stream: 640*480 resolution for SIP/VoIP video calls
Third video stream: 320*240 resolution for smartphone Apps
![](/img.php?id=3304532&img=bg2.png)
Network Protocol
TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A
record, SRV, NAPTR), DHCP, PPPoE, SSH, SMTP, TFTP, NTP,
STUN, SIMPLE, LLDP-MED, LDAP, 802.1x, TLS, SRTP
SIP/VoIP Support
Broad interoperability with most 3rd party SIP/VoIP devices and leading
SIP/NGN/IMS platforms
Voice Codecs
G.711µ/a-law, G.722, in-band and out-of-band DTMF (in audio,
RFC2833, SIP INFO), AEC
QoS
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, DiffServ, MPLS)
Security
User and administrator level access control, MD5 and MD5-sess based
authentication, 256-bit AES encrypted configuration file, TLS, SRTP,
HTTPS, 802.1x media access control
Upgrade/ Provisioning
Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using
TR-069 (Pending) or AES encrypted XML configuration file
Audio Input
Built-in digital microphone, up to 1.5m with good AEC
Audio Output
Built-in HD loudspeaker, up to 3m with good loudness
Button
12-key touchpad plus a capacitive doorbell button, each with individual
LED illumination
RFID
125KHz: ISO1 4223, ISO18000-2 (2 RFID cards included)
Motion Sensor
Yes, built-in Infrared tube with detection range of 0.5 m
Alarm Input
Yes, 2 channels, Vin < 15V, for door sensor or other devices
Alarm Output
Yes, 2 channels, 125VAC/0.5A, 30VDC/2A, Normal Open or Normal
Close, for electric lock, light switch or other devices
Network Interface
10M/100M auto-sensing
Expansion Interface
RS485, Wiegand input and output
Weight
0.6Kg
Package Content
Base unit, Ethernet cable, Quick Start Guide, Screwdriver
Dimensions (H x W x D)
173mm(H) x 80mm(W) x 36mm(D)
Power Supply
PoE IEEE 802.3af Class 3, or 12VDC/1A connection (AC power
adapter not included)
Ingress Protection
Weather proof, vandal resistant, with support for extra back reinforcing
metal plate
Temperature and
Humidity
Operation: -30°C to 55°C (-22°F to 131°F)
Storage: -35°C to 60°C (-31°F to 140°F)
Humidity: 10% to 90% Non-condensing
![](/img.php?id=3304532&img=bg3.png)

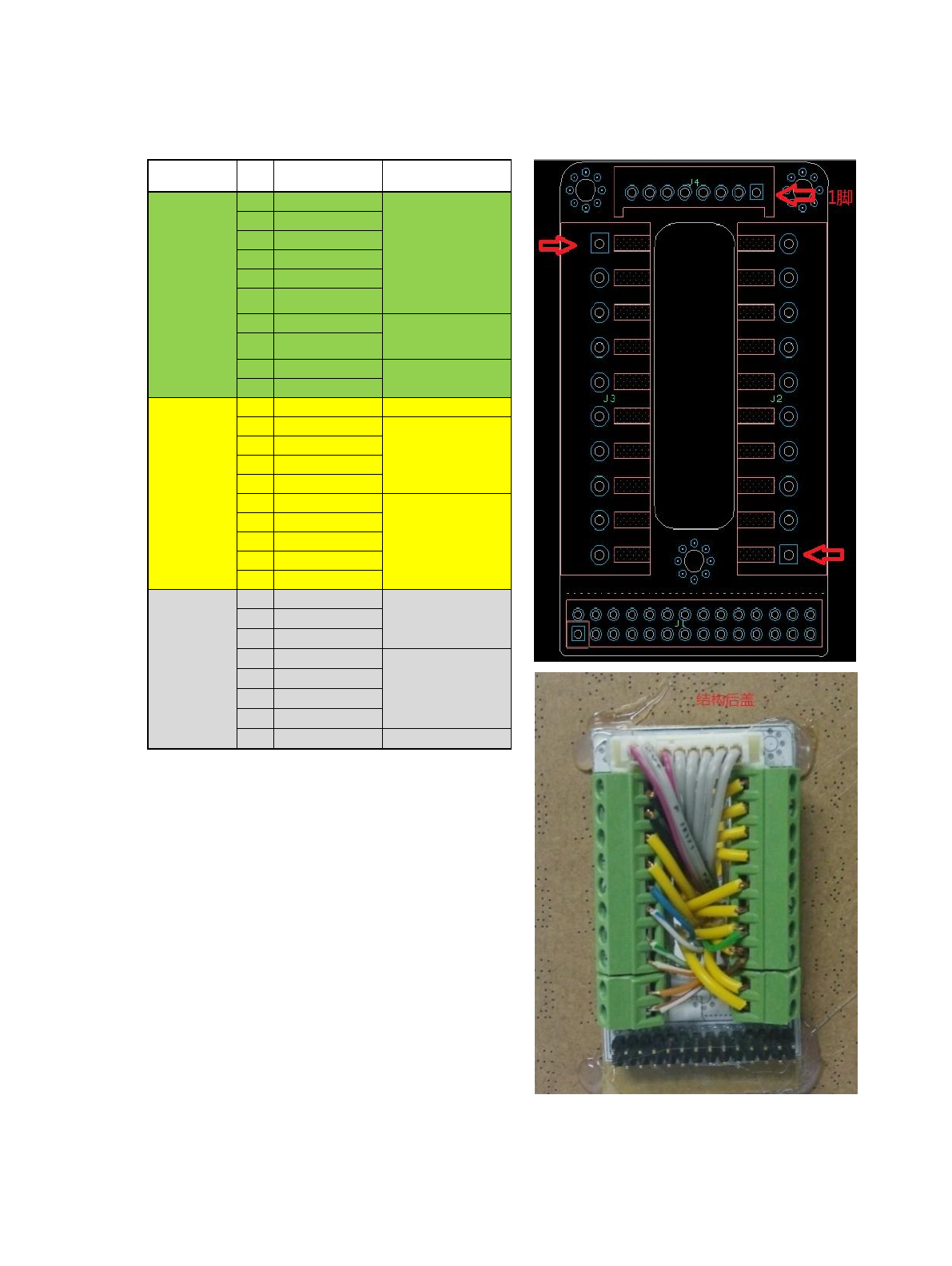

Appendix I: Cable Wiring on Rear Panel
Jack
Pin
Signal
Function
J2
(basic)
3.81mm
1
TX+
Ethernet, PoE
2
TX-
3
RX+
4
RX-
5
POE_SP2
6
POE_SP1
7
RS485_B
RS485
8
RS485_A
9
GND
Power Supply
10
12V
J3
(advanced)
3.81mm
1
GND
Alarm Ground
2
ALARM1_IN+
Alarm In
3
ALARM1_IN-
4
ALARM2_IN+
5
ALARM2_IN-
6
NO1
Alarm Out
7
COM1
8
NO2
9
COM2
10
NC2
J4
(special)
2.00mm
1
GND
Wiegand Out
2
WG_D1_OUT
3
WG_D0_OUT
4
LED
Wiegand In
5
WG_D1_IN
6
WG_D0_IN
7
BEEP
8
5V
Wiegand Power
![](/img.php?id=3304532&img=bg4.png)

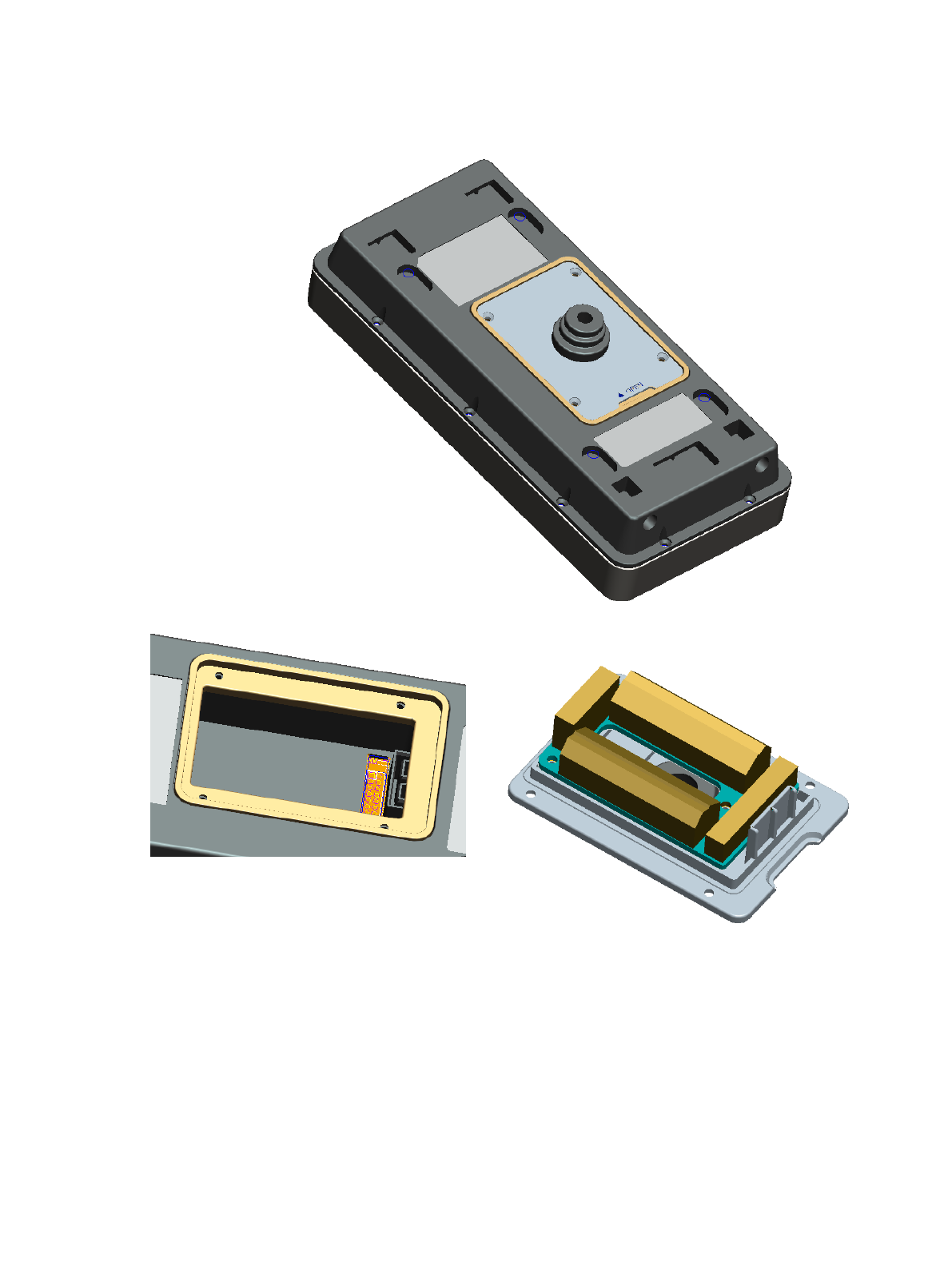

Appendix II: Rear Panel Installations
![](/img.php?id=3304532&img=bg5.png)
