HON HAI PRECISION IND MICA2 WIFI 11A/N MODULE User Manual MIC A2 2011 08 10
HON HAI Precision Ind. Co., Ltd. WIFI 11A/N MODULE MIC A2 2011 08 10
Contents
- 1. User Manual
- 2. EN_manual
User Manual
Confidential 1
MIC-A2 WIFI Module
User Manual
Rev. 0.01
Confidential 2
Reviewers
Department Name
Review Dates
Plan Results
Director of Engineering
Hardware Engineering
Confidential 3
Table of Contents
1. INTRODUCTION .................................................................................................................................................. 4
1.1 SCOPE .............................................................................................................................................................. 4
1.2 FUNCTION ........................................................................................................................................................ 4
2. PRODUCT SPECIFICATION ............................................................................................................................... 5
2.1 ELECTRICAL SPECIFICATION ................................................................................................................................ 5
3. MECHANICAL DRAWING .................................................................................................................................. 6
4. REGULATORY INFORMATION ........................................................................................................................ 7
Confidential 4
1. Introduction
Project Name: 802.11n WIFI module
This documentation describes the product specification of the 802.11n WIFI
module, it is a confidential document of FOXCONN.
1.1 Scope
The MIC-A2 802.11n WIFI module provides wireless modem functionality
utilizing OFDM technology. The objective of this use manual is to verify the
functionality of the MIC-A2 802.11n WIFI module RF/Digital electronic
design against the design specifications.
This revision includes results taken at various temperatures
(0℃,25℃,65 ℃) and VDD voltages (3.1V,3.3V,5.25V), VDDIO Voltage
(2.7V,2.8V,2.9V). Included are statements of test purpose, test
methodologies, test modes and parameters, environmental conditions,
applicable specifications, and typical reference design performance.
The major specifications and documents are listed below and upon
to update in the following new revisions.
● 802.11n: IEEE P802.11n/D2.07-Mar 2006 Paragraph 20.3.20.1
This device is operated in 5180~5240MHz (indoor only) and 5745~5825MHz.
1.2 Function
Support IEEE 802.11n specified functions
1x1 single stream with antenna diversity
SDIO V2.0 interface support
Confidential 5
2. Product Specification

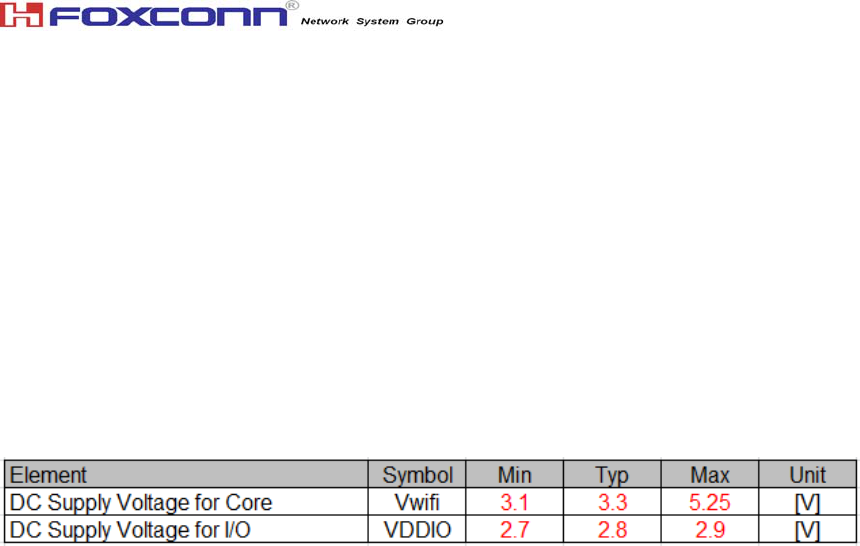

2.1 Electrical Specification
Absolute Maximum Ratings
These specifications indicate levels where permanent damage to the
device can occur. Functional operation is not guaranteed under these
conditions. Operation at absolute maximum conditions for extended can
adversely affect long-term reliability of the device.
Confidential 6

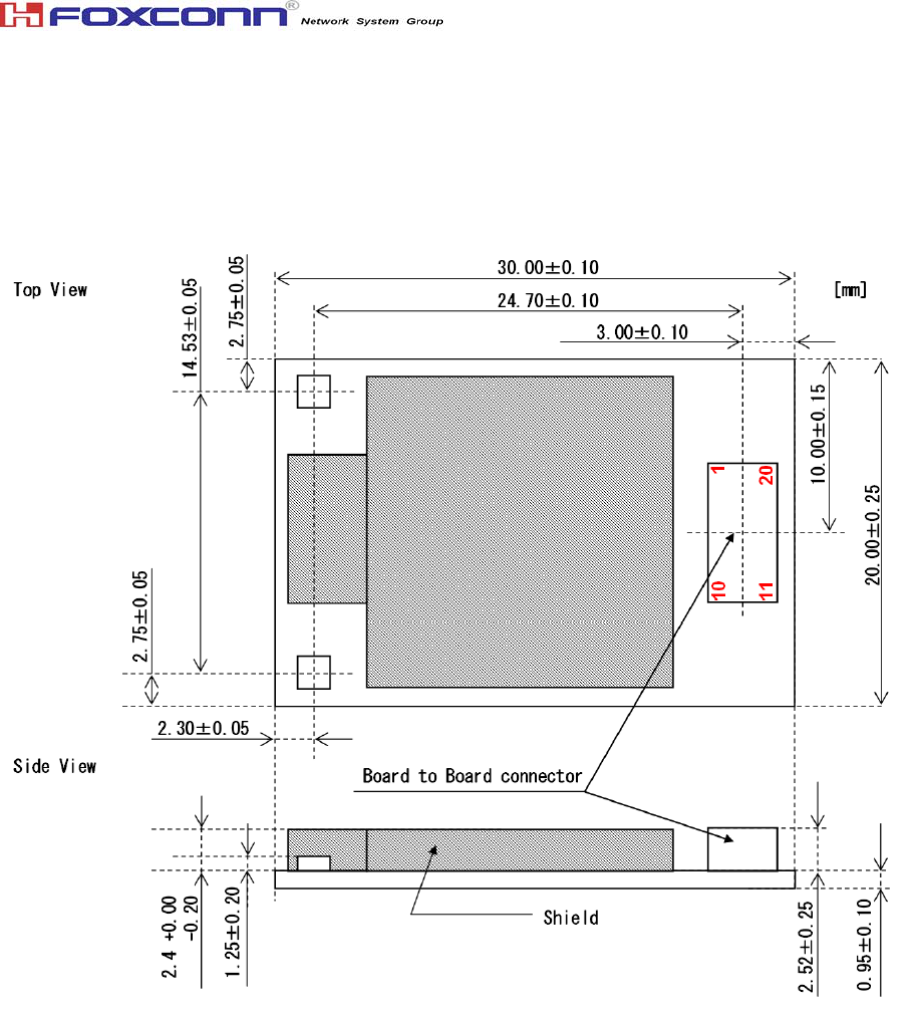

3. Mechanical Drawing
Confidential 7
4. Regulatory Information
USA-Federal Communications Commission (FCC)
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
Caution
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
Labeling
Hon Hai Precision 802.11n WIFI module MIC-A2 labeled as below.
FCC ID: MCLMICA2
The proposed with FCC ID label format is to be placed on the module. If
FCC ID is not visible when the module is installed into the system,
“Contains FCC ID: MCLMICA2” shall be placed on the outside of final host
system.
Caution: Exposure to Radio Frequency Radiation.
To comply with FCC RF exposure compliance requirements, a separation
distance of at least 20 cm must be maintained between the antenna of this
device and all persons. This device must not be co-located or operating in
conjunction with any other antenna or transmitter.
Canada-Industry Canada (IC)
This device complies with RSS 210 of Industry Canada.
Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may
cause undesired operation of this device.
Labeling
Hon Hai Precision 802.11n WIFI module MIC-A2 labeled as below.
IC :2878D-MICA2
The proposed with IC No. label format is to be placed on the module. If
IC No. is not visible when the module is installed into the system,
“Contains IC :2878D-MICA2” shall be placed on the outside of final host
Confidential 8
system.
The term “IC” before the equipment certification number only signifies that the
Industry Canada technical specifications were met.
Caution: Exposure to Radio Frequency Radiation.
To comply with IC RF exposure compliance requirements, a separation
distance of at least 20 cm must be maintained between the antenna of this
device and all persons. This device must not be co-located or operating in
conjunction with any other antenna or transmitter.
