Contents
- 1. User manual -1
- 2. User manual -2
User manual -1
![](/img.php?id=1768145&img=bg1.png)
Warnings and Cautions
Key Product Features
Component Names and Functions
Using the System for the First Time
1 General
![](/img.php?id=1768145&img=bg2.png)
Even when receiving route guidance from the Navigation system,
please abide by actual traffic and road regulations. Following only
the Navigation route guidance may lead to violations of actual
traffic and road regulations and lead to traffic accidents.
When checking the current vehicle speed, first check the
speedometer rather than the speed displayed within the
Navigation.
Do not stare at the screen while driving. Staring at the screen
for prolonged periods of time could lead to traffic accidents.
Do not operate the Navigation system while driving, such as
entering POIs or conducting route searches. Such acts could lead
to accidents. Park the vehicle before operating the device.
Do not disassemble, assemble, or modify the AVN system. Such
acts could result in accidents, fire, or electric shock.
Using phone features while driving may distract drivers from
paying attention to traffic conditions and result in traffic accidents.
Use phone features only after the vehicle has been parked.
Safety Warnings
Heed caution not to spill water or introduce foreign objects into
the device. Such acts could lead to smoke, fire, or product
malfunction.
Please refrain from use if the screen is blank or no sound can be
heard as these signs may indicate product malfunction. Continued
use in such conditions could lead to accidents (fires, electric shock)
or product malfunctions.
Do not touch the antenna during thunder or lightening as such
acts may lead to lightning induced electric shock.
Do not stop or park in parking-restricted areas to operate the
product. Such acts could lead to traffic accidents.
The video screen will not operate when the vehicle is in motion.
For your safety, first park the vehicle to watch or view the screen.
Some Non-video features may also not operate when the
vehicle is in motion. These features will operate only when the
vehicle has been parked.
Warnings and Cautions
![](/img.php?id=1768145&img=bg3.png)
In some instances, the navigation may provide guidance through
restricted areas.
Operating the device while driving could lead to accidents due to
a lack of attention to external surroundings. First park the vehicle
before operating the device. In addition, some features may not
work for your safety when the vehicle is in motion. These features
will operate only when the vehicle has been parked.
Adjust the volume to levels that allow the driver to hear sounds
from outside of the vehicle. Driving in a state where external
sounds cannot be heard may lead to accidents.
Pay attention to the volume setting when turning the device on.
A sudden output of extreme volume upon turning the device on
could lead to hearing impairment. (Adjust the volume to a suitable
levels before turning off the device.)
If you want to change the position of device installation, please
inquire with your place of purchase or service maintenance center.
Technical expertise is required to install or disassemble the device.
Safety Cautions
Turn on the car ignition before using this device. Do not operate
the Audio Video Navigation system for long periods of time with
the ignition turned off as such operations may lead to battery
discharge.
Upon using the Audio Video Navigation system for more than 10
minutes with the car engine turned off, the following warning will
be displayed. After 10 minutes, the warning will be displayed for 5
seconds every 1 minute.
Do not subject the device to severe shock or impact Direct
pressure onto the front side of the monitor may cause damage to
the LCD or touch screen.
When cleaning the device, make sure to turn off the device and
use a dry and smooth cloth.
Never use tough materials, chemical cloths, or solvents (alcohol,
benzene, thinners, etc.) as such materials may damage the device
panel or cause color/quality deterioration.
When experiencing product malfunctions, inquire with your
place of purchase or service maintenance center.
Warnings and Cautions
![](/img.php?id=1768145&img=bg4.png)
Key Product Features
This device is an all-in-one Driver Information System equipped with a multifunctional DVD player, Navigation, Bluetooth Handsfree,
Blue Link and various other features. The WIDE VGA LCD provides a high quality resolution to both driver and passengers while the
powerful and rich sound system adds to driving enjoyment.
Display Wide TFT-LCD Display Provides high quality video through a Wide TFT-LCD Display using an LED Back Light
AV
Support for various
Media Formats
• Support for various media formats, including HD Radio, XM Radio, Audio/MP3/Video CD, DVD,
AUX

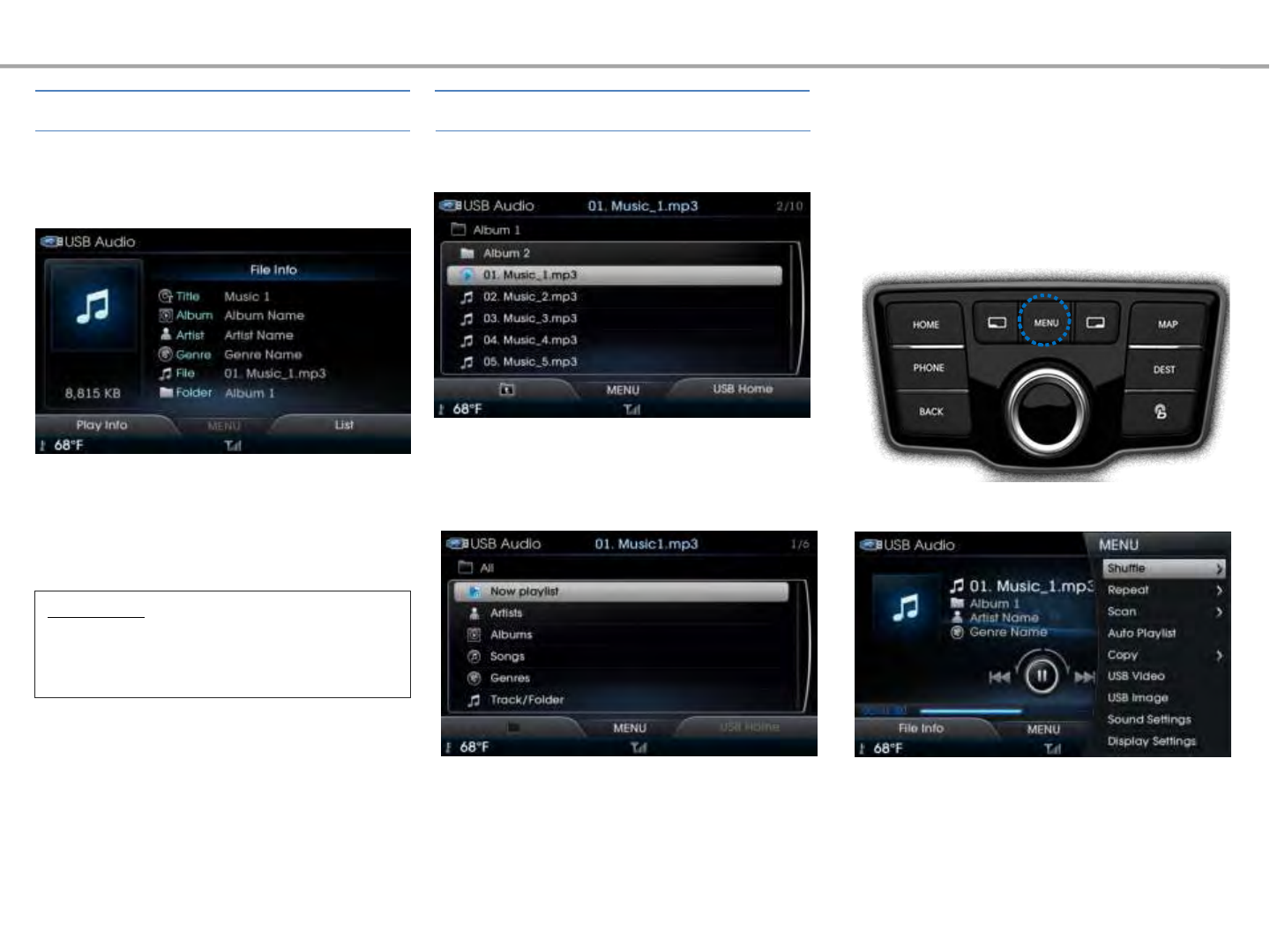

• Supports USB, iPod, and Bluetooth Audio Streaming modes
Jukebox Supports copy and play of music, video, image stored within USB into Jukebox (internal memory)
mode (Max. 30GB)
Gracenote When playing music, automatically receives detailed music information, such as song name,
artist, album, and genre and displays on the screen (Audio CD, USB, Jukebox modes supported)
Navigation
Voice Guidance • Voice route guidance to safely and conveniently reach set destinations
• Various map scales that enables drivers to accurately view map and surrounding areas
Traffic Information • Displays traffic congestion information on the map
•Provides route guidance optimized according to traffic conditions
ZAGAT Information • Provides restaurant information by synchronizing with ZAGAT data within the Search by POI feature
Etc
Bluetooth Handsfree Convenient use of Bluetooth Handsfree by using buttons within the steering remote controller
Front Central Controller 8-directional jog-dial controllers for convenient control and access to various system features
XM Data Provides Weather, Traffic, Sports, Stock related information
Blue Link Provides Downloaded POI, ECO Driving, Gas Station, Location sharing and various other features
![](/img.php?id=1768145&img=bg5.png)

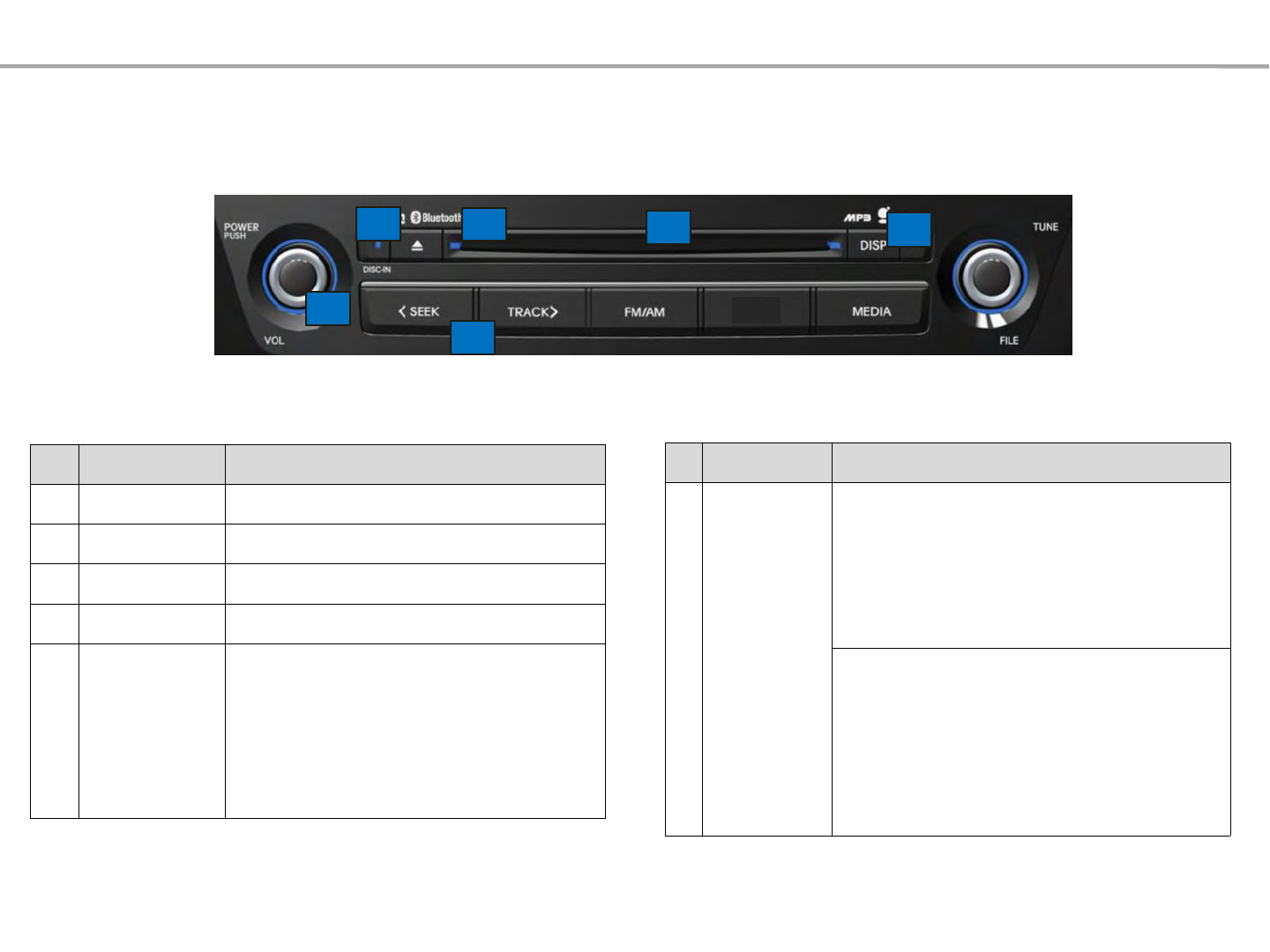

No. Name Details
1 DISC-IN LED Displays the DISC insert state
2 DISC OUT DISC eject key
3 DISC Insert Slot DISC insert/eject slot
4 DISP Turns off the screen or displays the default image
5 Power/Volume
• Used to turn device power ON/OFF and control
volume
• When power is off, press to turn power on
• When power is on, press and hold (over 0.8
seconds) to turn power off
• When power is on, press shortly (under 0.8
seconds) to turn AV off
• Turn left/right to adjust volume

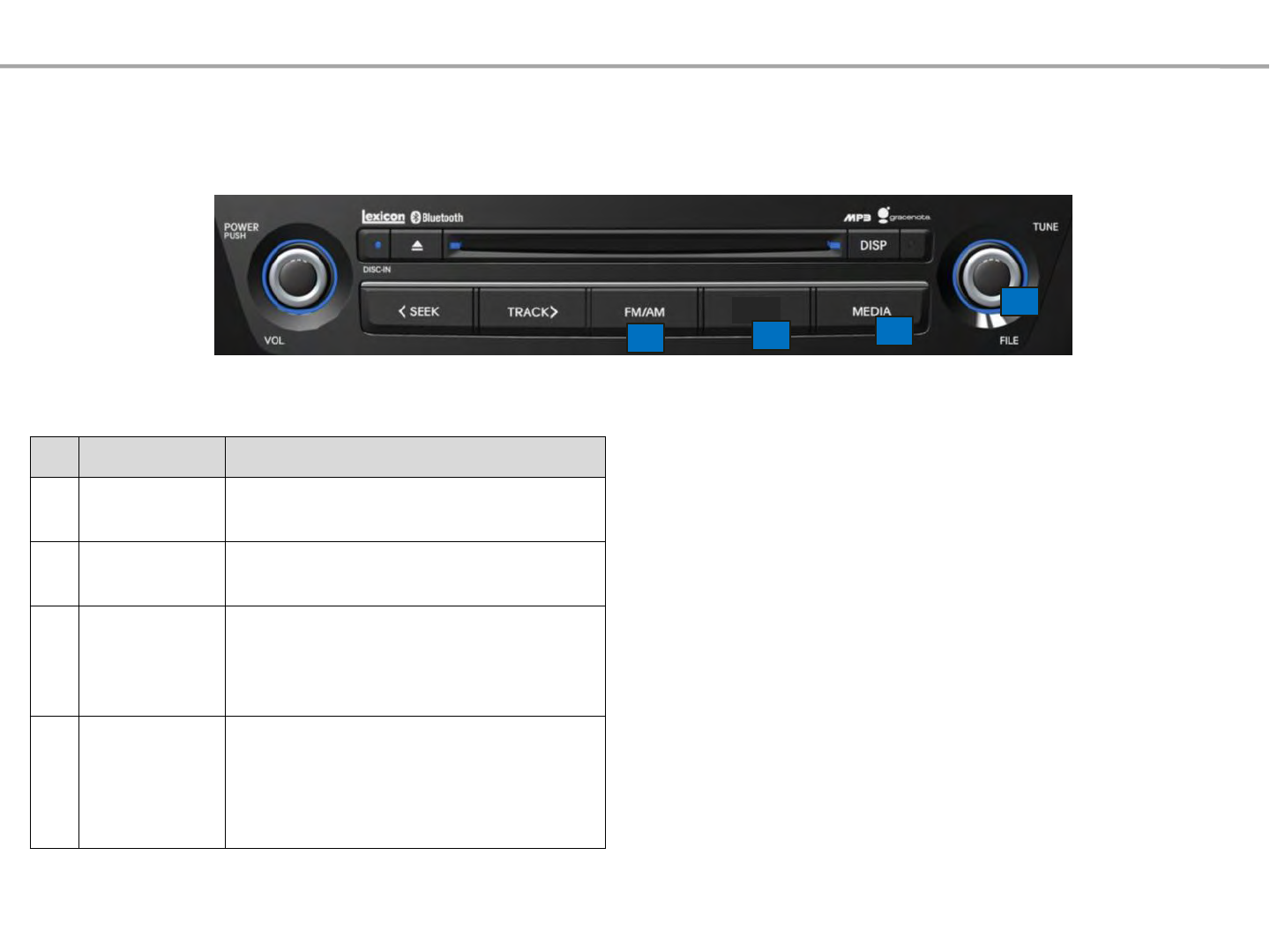

Head Unit
No. Name Details

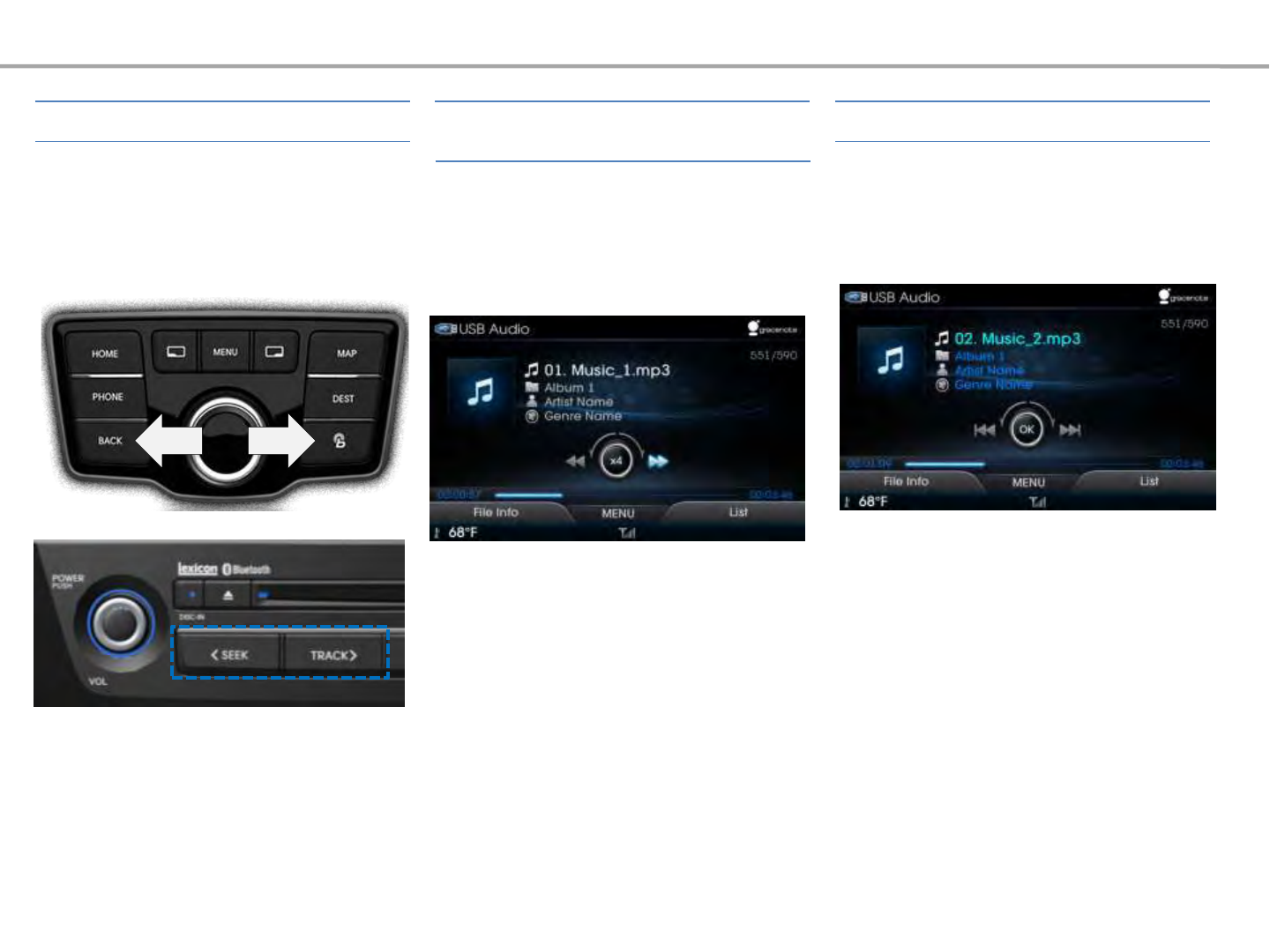

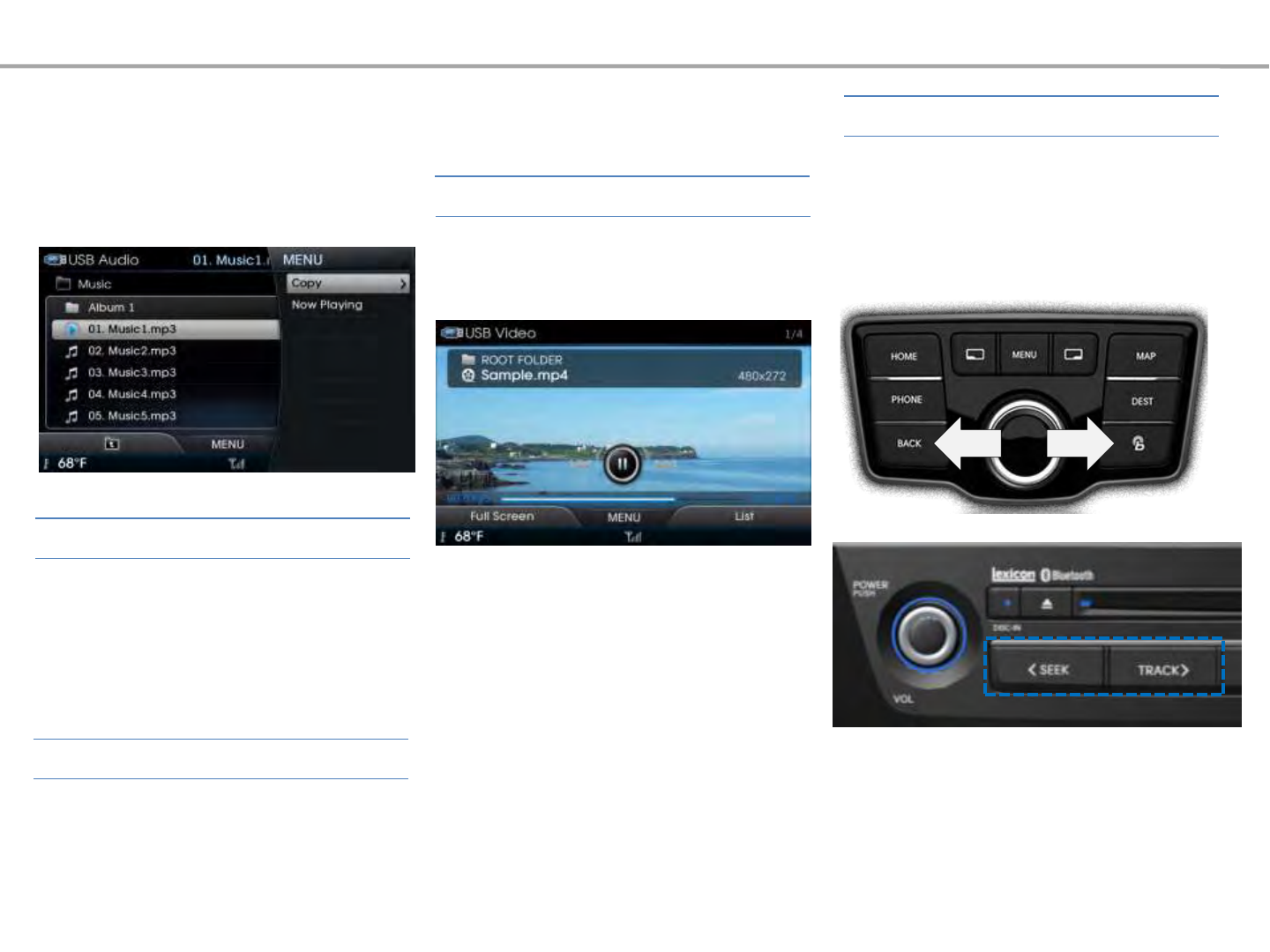

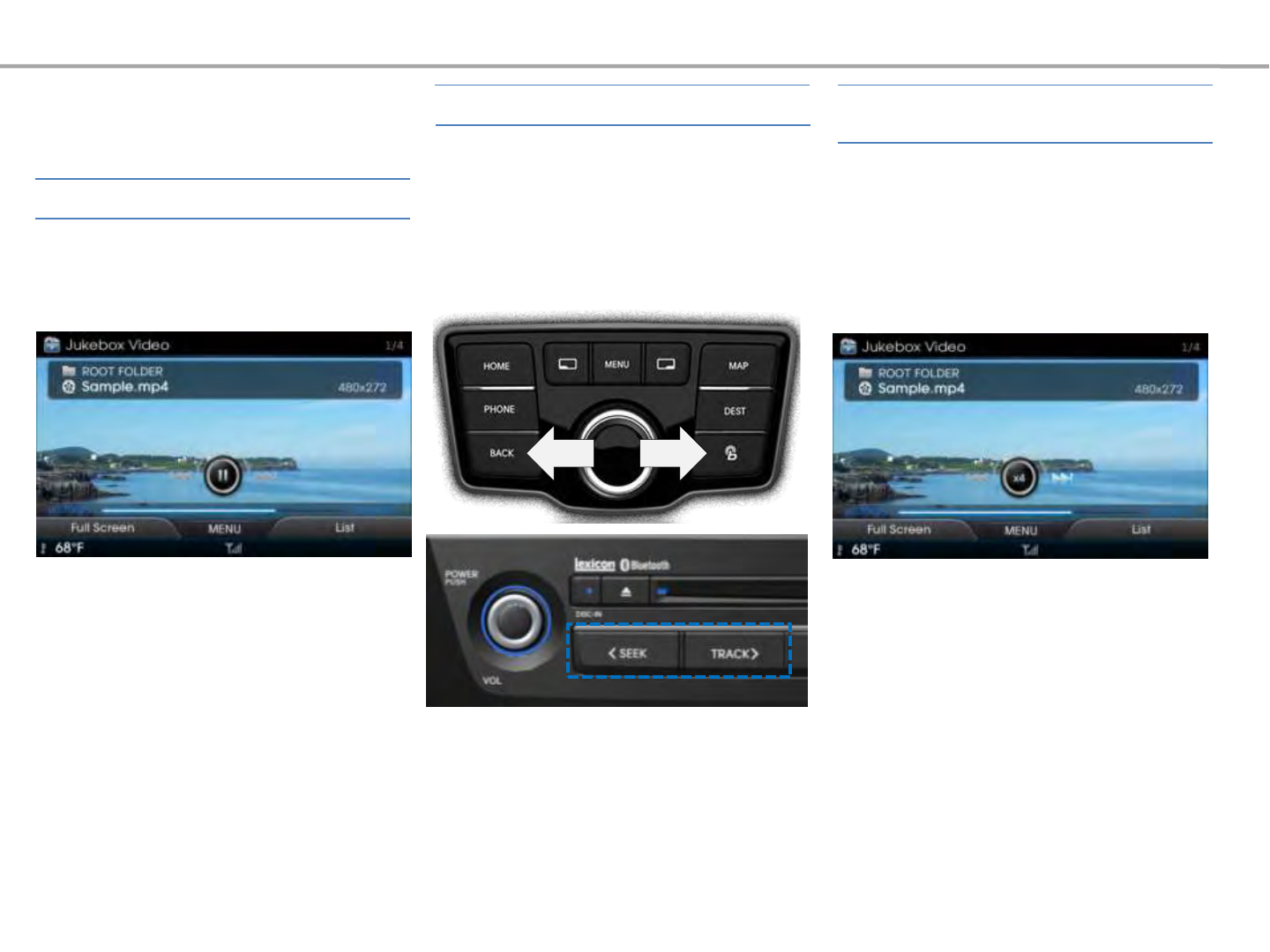

6 SEEK/TRACK
When the [∧SEEK] [TRACK∨] keys are pressed
shortly (under 0.8 seconds)
• In FM/AM mode, searches broadcast frequencies
• In XM Radio mode, changes to the previous/next
channel
• In DVDP CD/MP3/DVD and Jukebox/USB/iPod mod
es, changes the track, file or chapter
When the [∧SEEK] [TRACK∨] keys are pressed and
held (over 0.8 seconds)
• In FM/AM mode, automatically searches broadcast
frequencies. Once released, searches and begins playi
ng the next broadcast frequency
• In DVDP CD/MP3/DVD and Jukebox/USB/iPod mod
es, rewinds or fast forwards the track or file
Component Names and Functions
SAT
2 1 3 4
5
6
![](/img.php?id=1768145&img=bg6.png)
Head Unit
No. Name Details

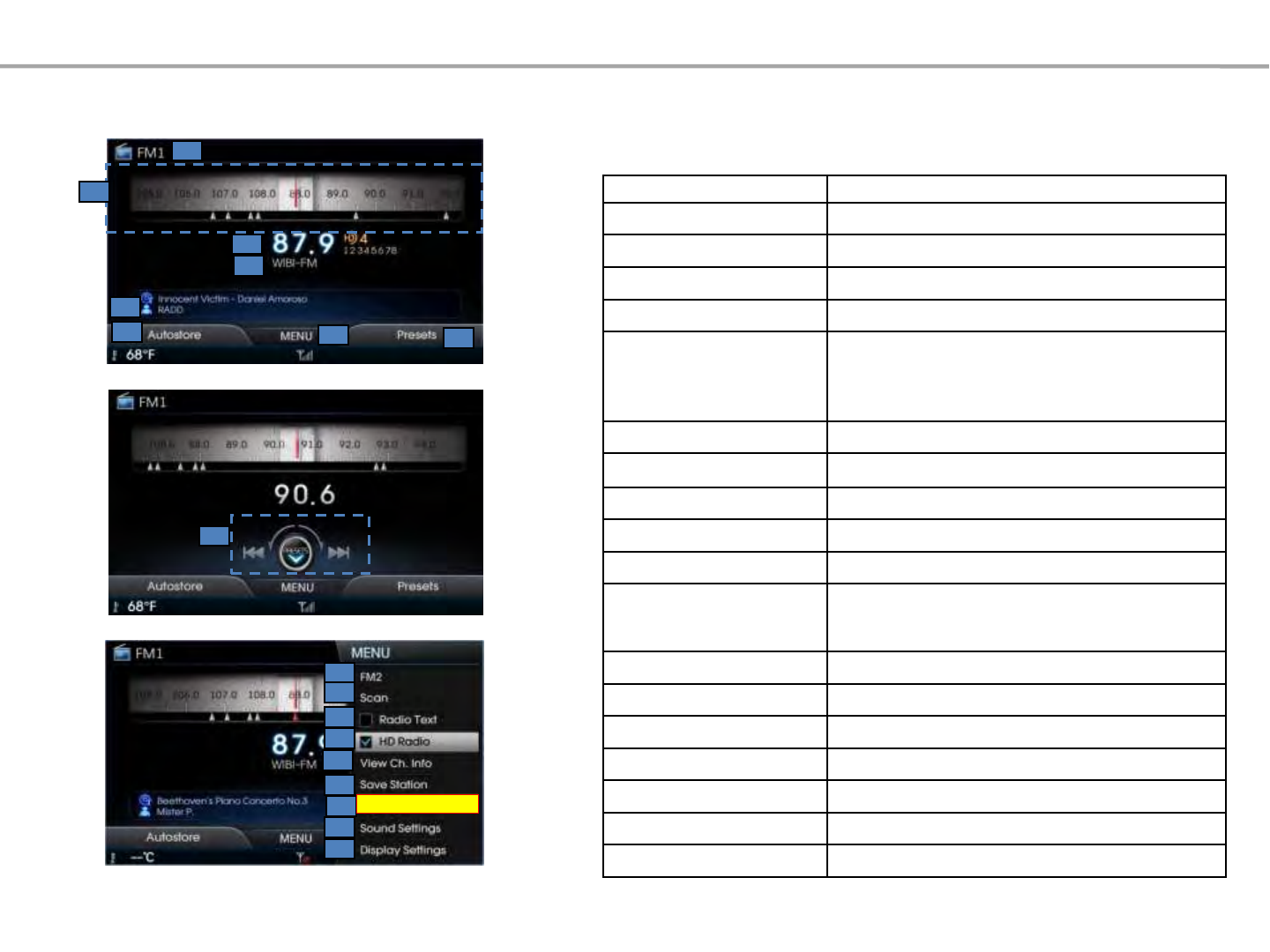

8 FM/AM
• Operates FM/AM mode
• Each time the key is pressed, mode is changed in
order of FM1→FM2→AM
9 SAT
• Operates XM Radio mode
• Each time the key is pressed, mode is changed in
order of XM1→XM2→XM3
10 MEDIA
• Operates DISC Jukebox USB/iPod AUX
Bluetooth Audio modes
• If the media is not connected or a disc is not
inserted, corresponding modes will be disabled
11 TUNE/FILE knob
• In FM/AM mode, turn to change broadcast frequ
encies
• In DISC, Jukebox, USB, and iPod modes, turn to se
arch tracks/channels/files. When the desired chann
el or file name is displayed, press to operate the cor
responding track/channel/file
Component Names and Functions
SAT
8 10
11
9
![](/img.php?id=1768145&img=bg7.png)

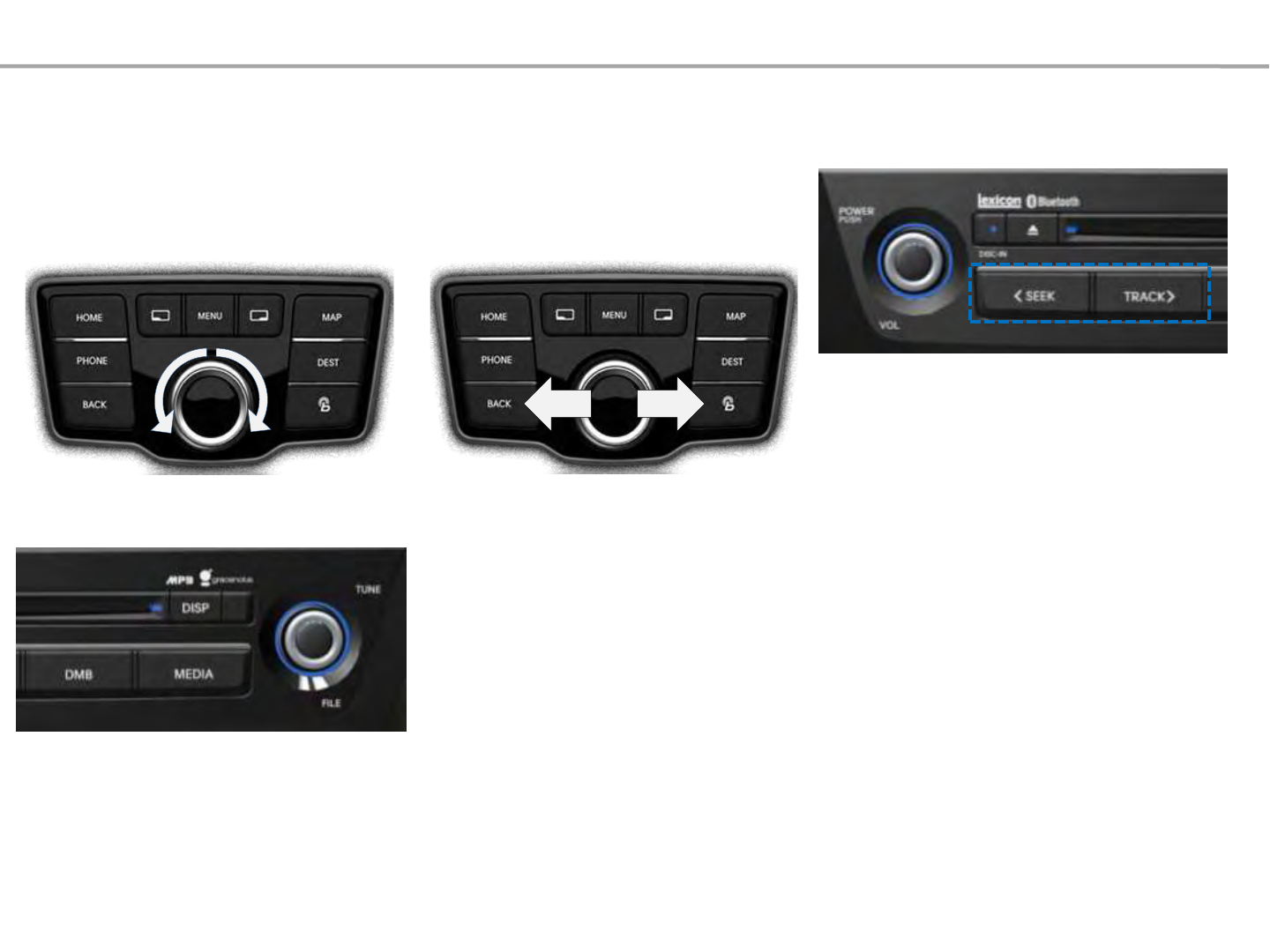

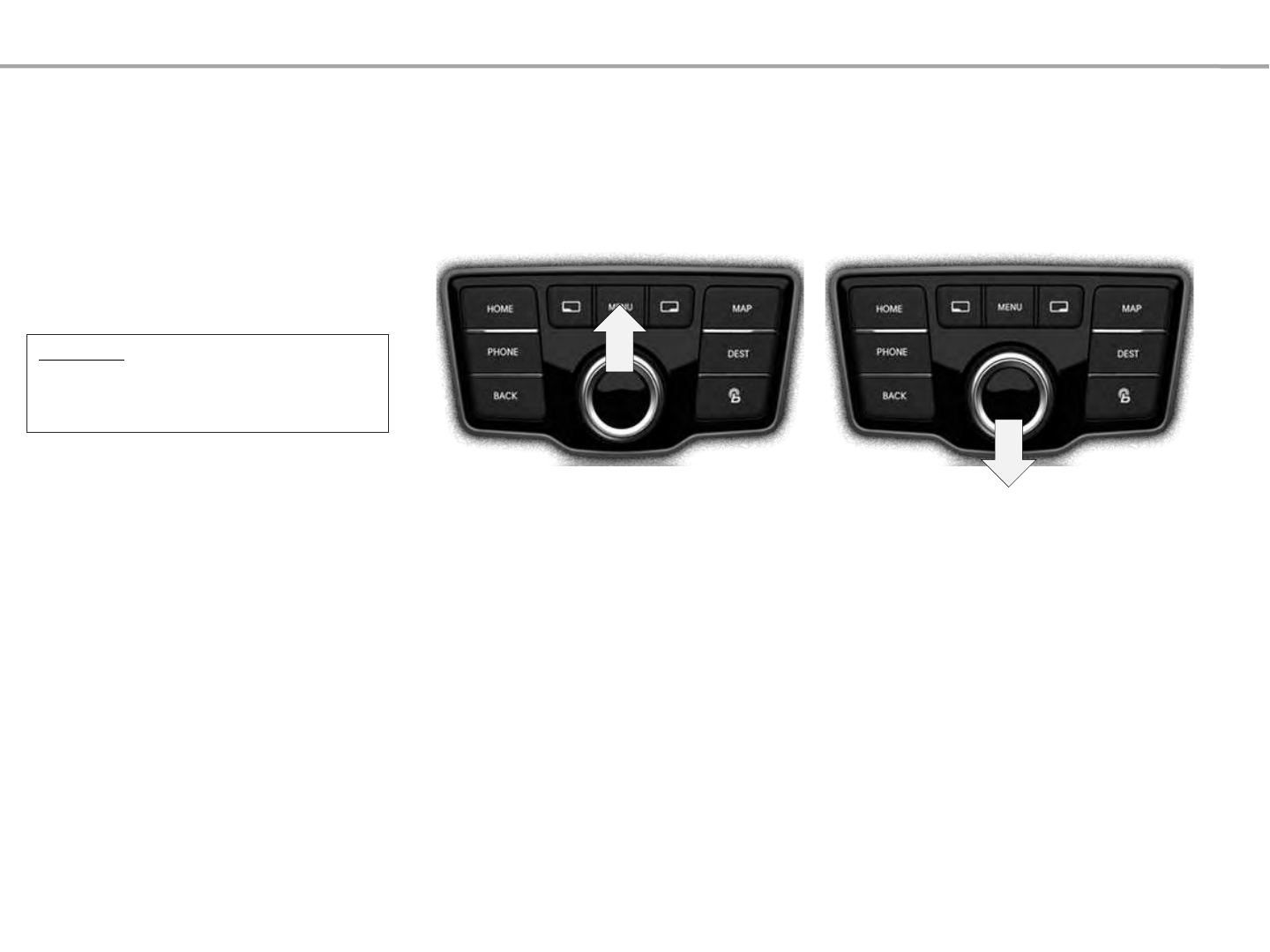

Front Central Controller
No. Name Details
1 Left Soft Key Key synchronized with the button shown on the
bottom left side of the screen
2 MENU Displays the MENU popup screen
3 Right Soft Key Key synchronized with the button shown on the
bottom right side of the screen
4 HOME Displays the HOME screen
5 PHONE Displays the Bluetooth® Handsfree screen
No. Name Details
6 Back Displays the previous screen
7 Controller All desired functions can be operated by turning,
8-directional pushing and pressing the controller.
8 MAP/VOICE Displays the map for the current position
9 DEST Displays the Destination setup menu
10 Blue Link Displays the Blue Link screen
Component Names and Functions
4
9
1
5
2
6
3
10
7
8
![](/img.php?id=1768145&img=bg8.png)

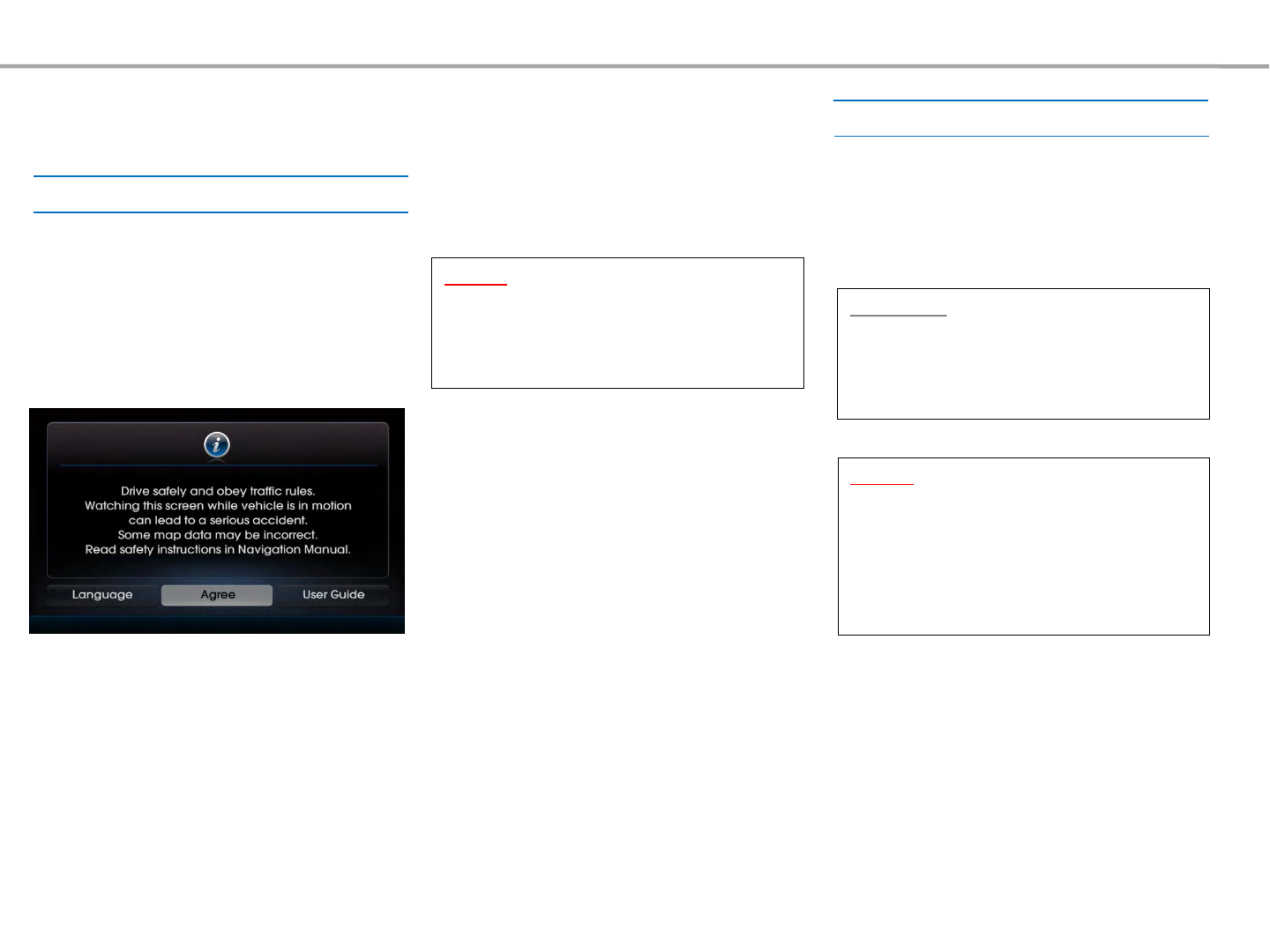

Press the engine start button. If the brakes
are not pressed, then the ACC and system
will turn on. If the brakes are pressed, then
the IGN and system will turn on and the
ignition will start. In both instances, the
following safety warning will be displayed.
Once the system is turned on, then the
booting process will start. No operations
are supported while the system is booting.
Some time may be required until all
features are ready for use.
Press the engine start button again or press
and hold the ◎ power key on the head unit
to turn the system off.
Turning the System On
Turning the System Off
Turning the System On/Off
Information
• If the system is turned off while the
Handsfree is being used, then the call will
automatically switch back to the mobile
phone.
Caution
• Pay attention to the volume setting when
turning the device on. A sudden output of
extreme volume upon turning the device on
could lead to hearing impairment.
Adjust the volume to a suitable levels
before turning off the device.
Caution
• The safety warning page is displayed
every time the ignition is turned on. As
these matters are related to safety, closely
read and comply with the safety warnings.
Using the System for the First Time
![](/img.php?id=1768145&img=bg9.png)
Battery Warning Message
This feature is used to reset the system in
the occurrence of an unforeseen error or
problem.
While pressing and holding the [1] key,
press the [2] key twice and then press the
[3] key twice.
Use the system only when the engine is
running. If the system is turned on with
the engine off, then the following warning
will be displayed.
This message will automatically disappear
once the engine is turned on.

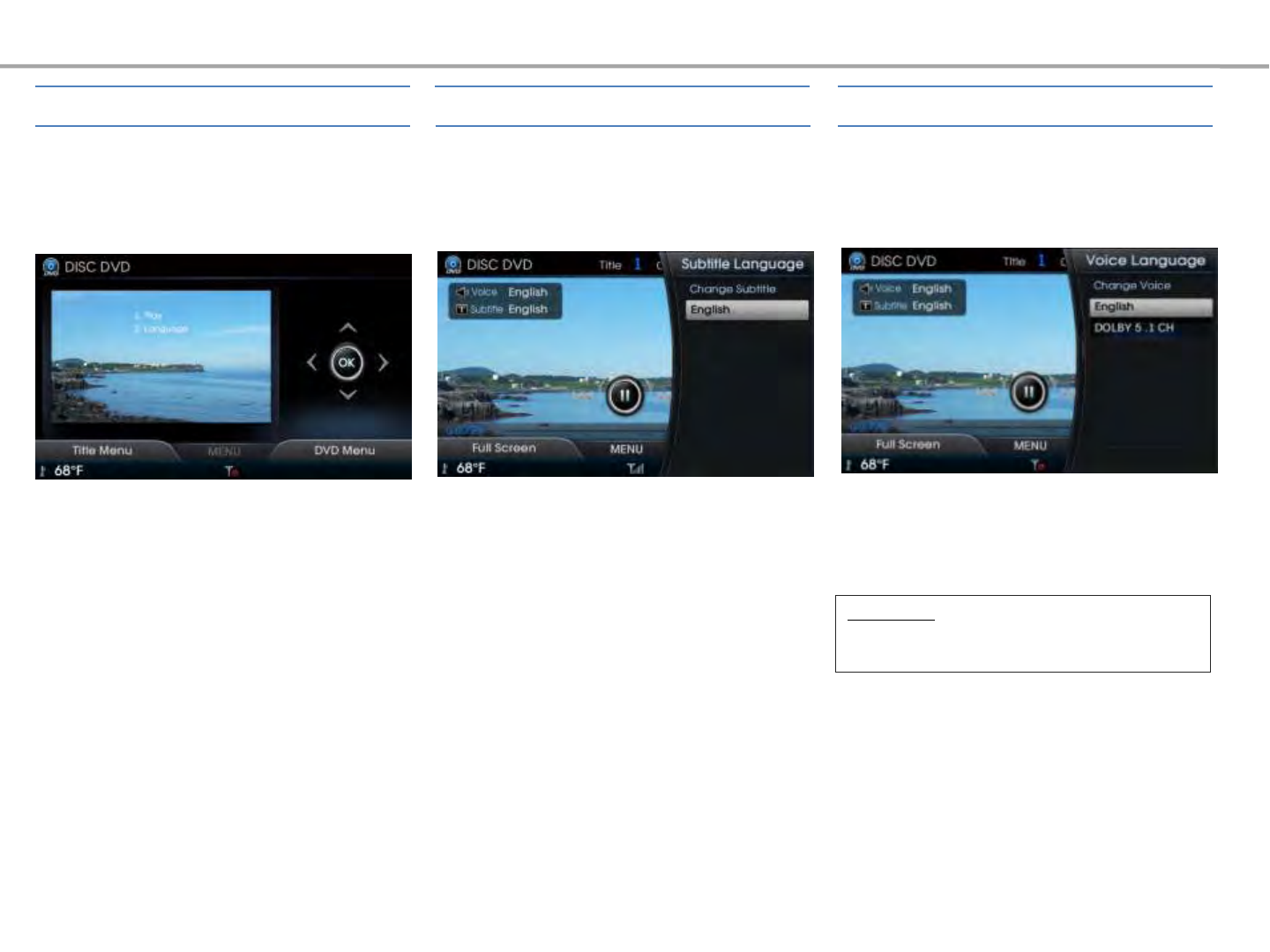

When using the DVD, VCD, or another
video mode, the display will be turned off
for safety. A related message screen is
also displayed.
Auto Video Lock
Even if the screen is turned off, the
media sound will continue to be played.
The screen will automatically turn back
on once the gear is set to P or the
parking brake is turned On.

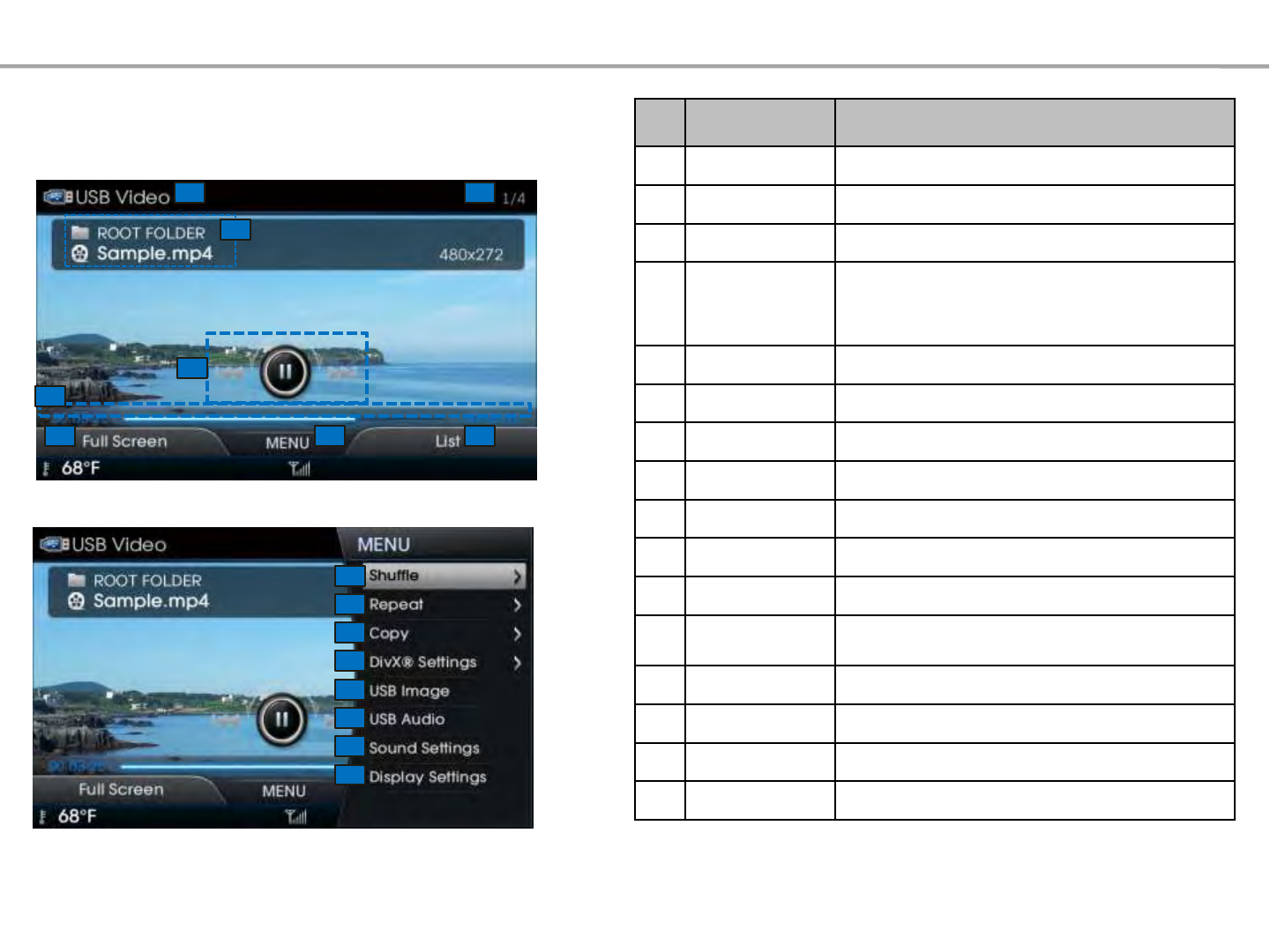

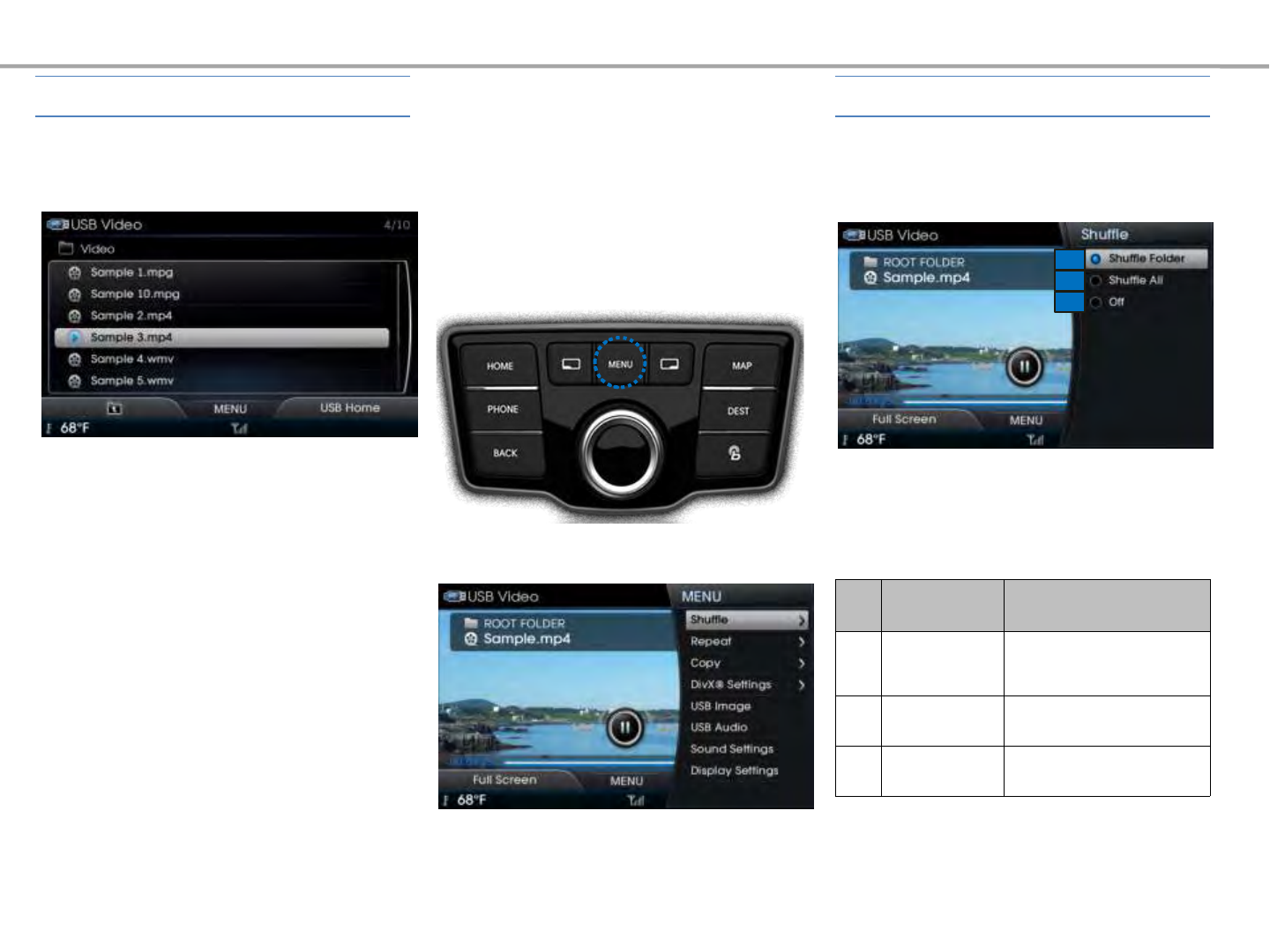

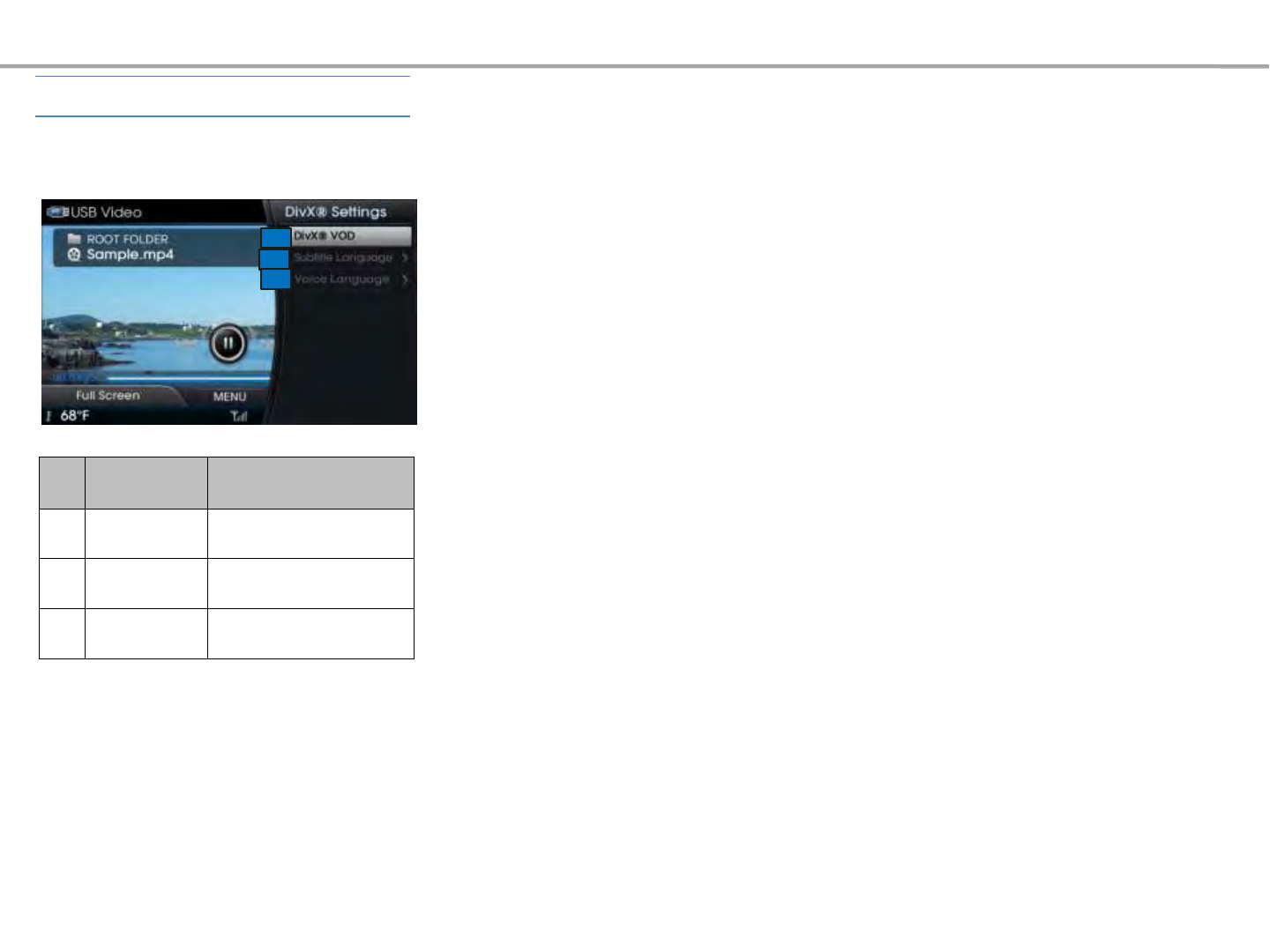

<While In USB Video Mode>
Resetting the System
Information
• Upon resetting the system, saved data
and settings information (radio frequencies,
volume and display settings, etc.) will be
restored back to the default factory state.
Such are not indications of malfunctions.
Information
• Using the system for prolonged periods of
time without the engine running may result
in battery discharge.
Using the System for the First Time
1
2
3
![](/img.php?id=1768145&img=bga.png)

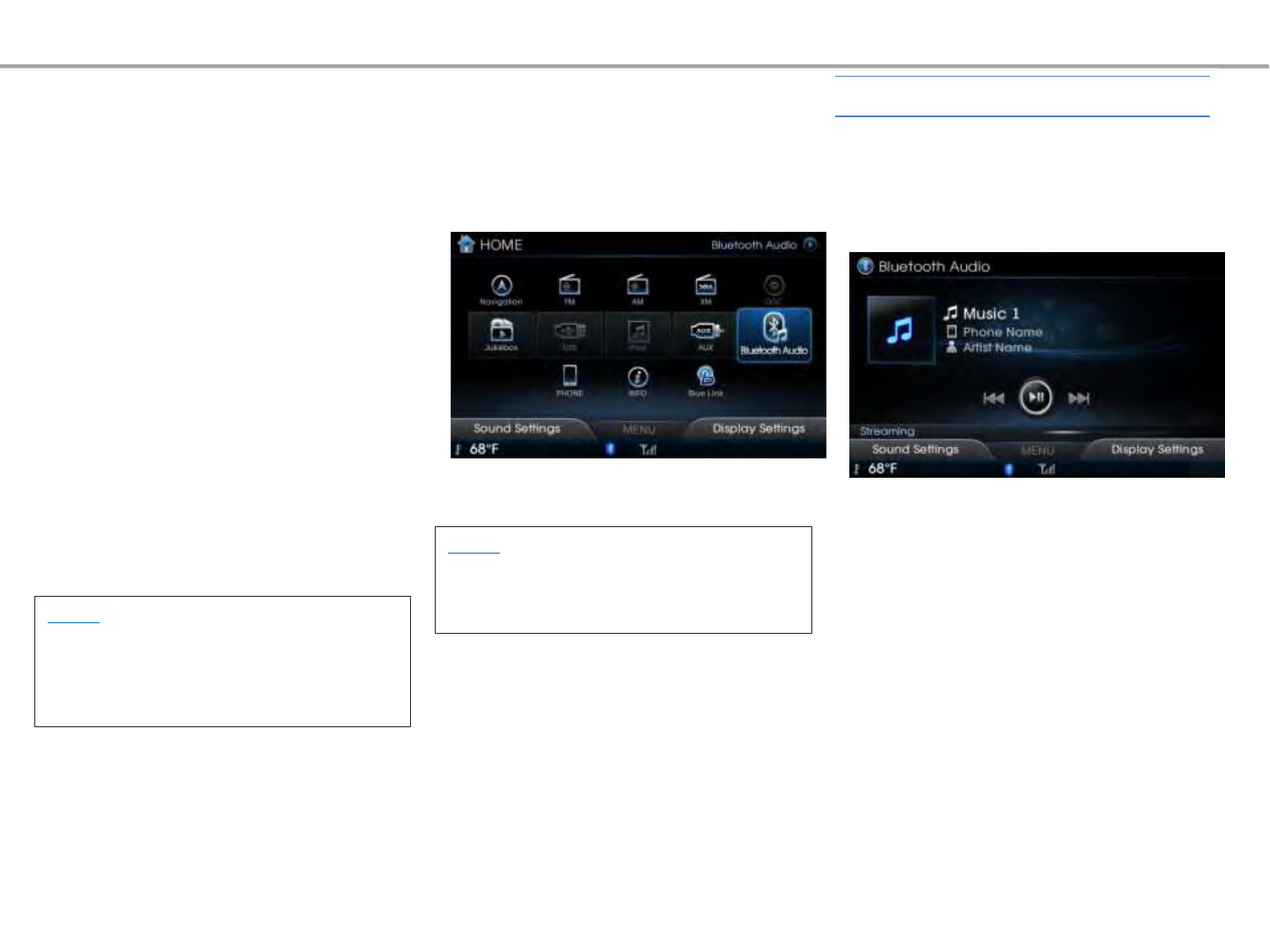

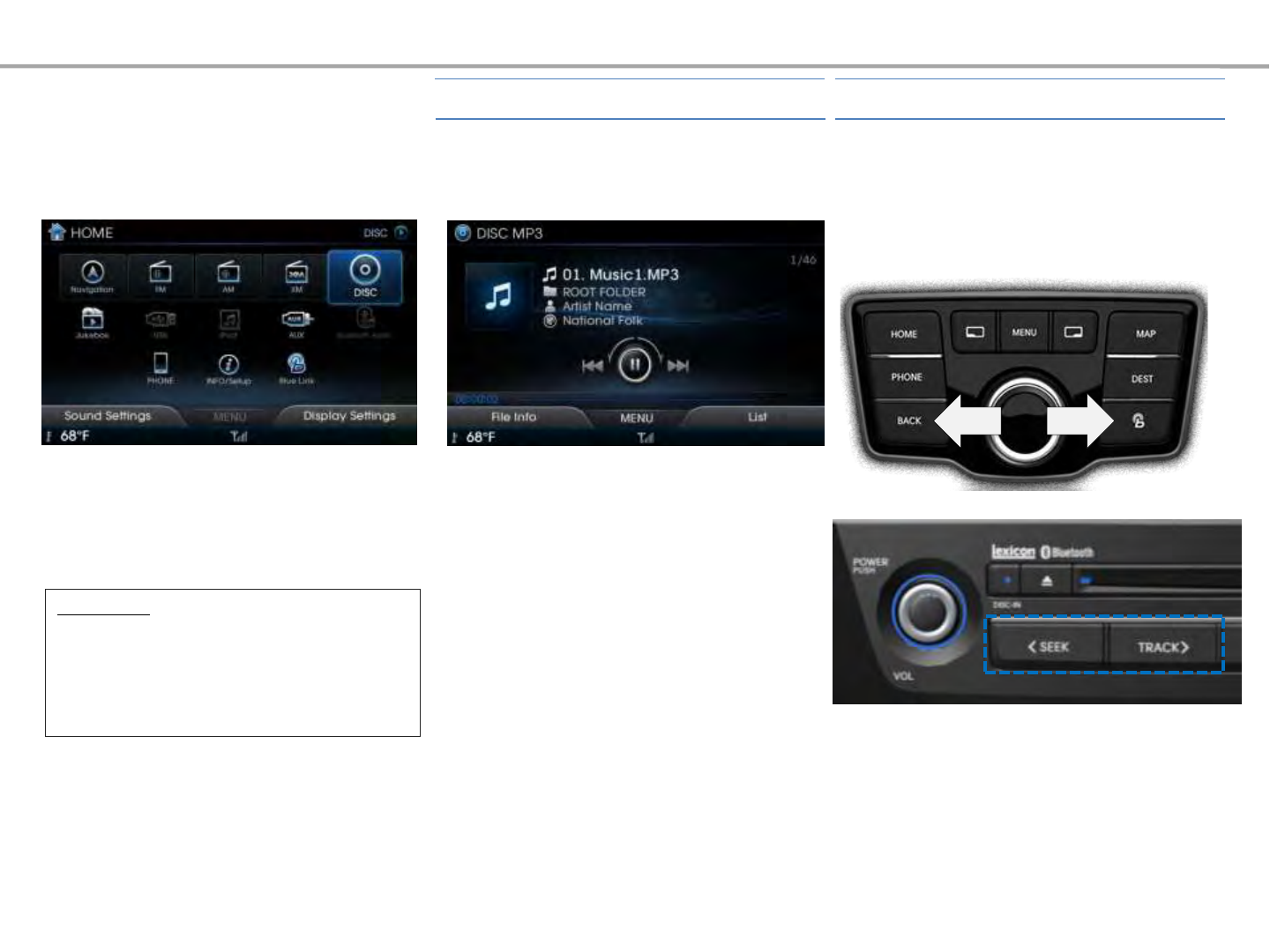

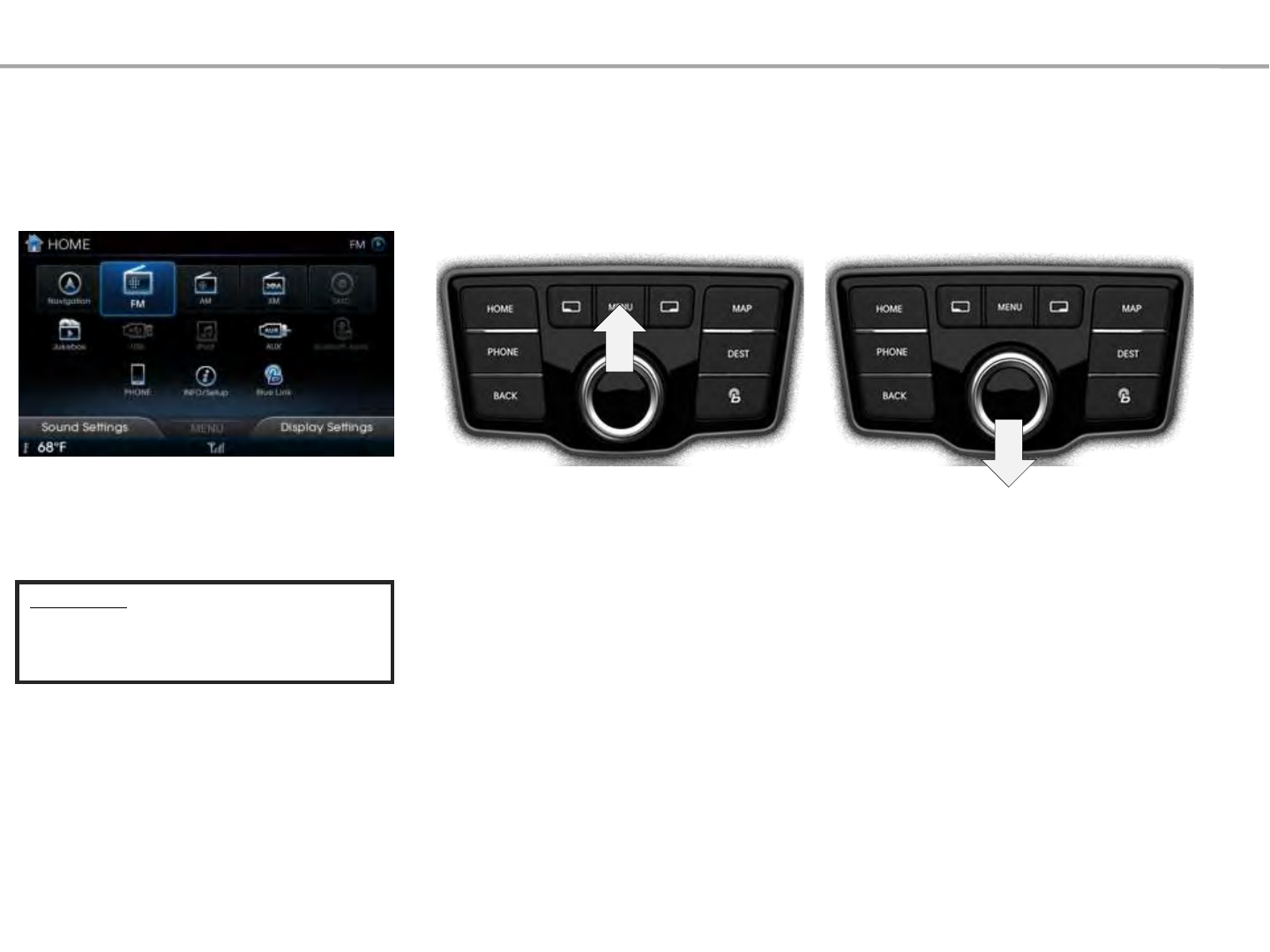

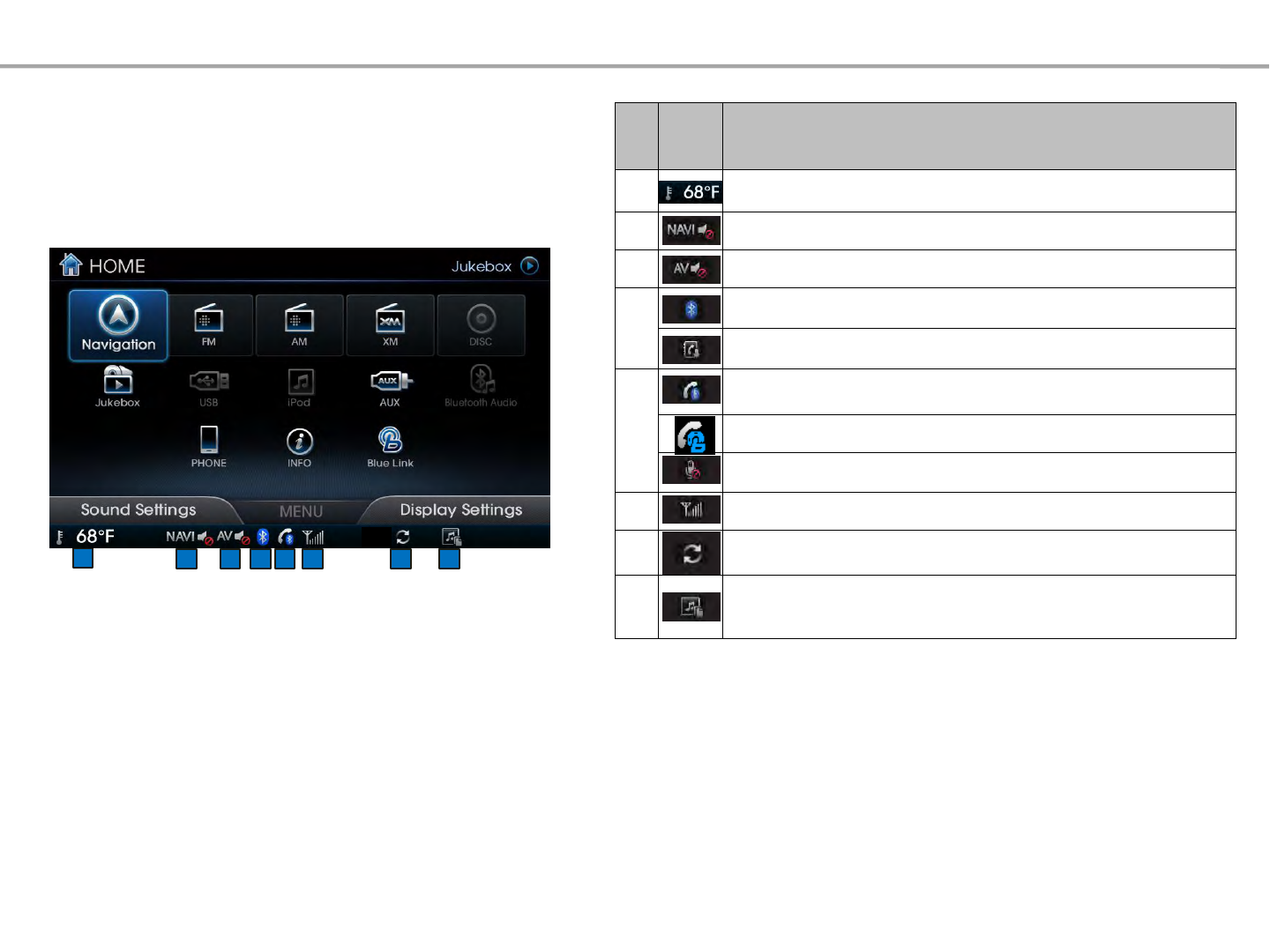

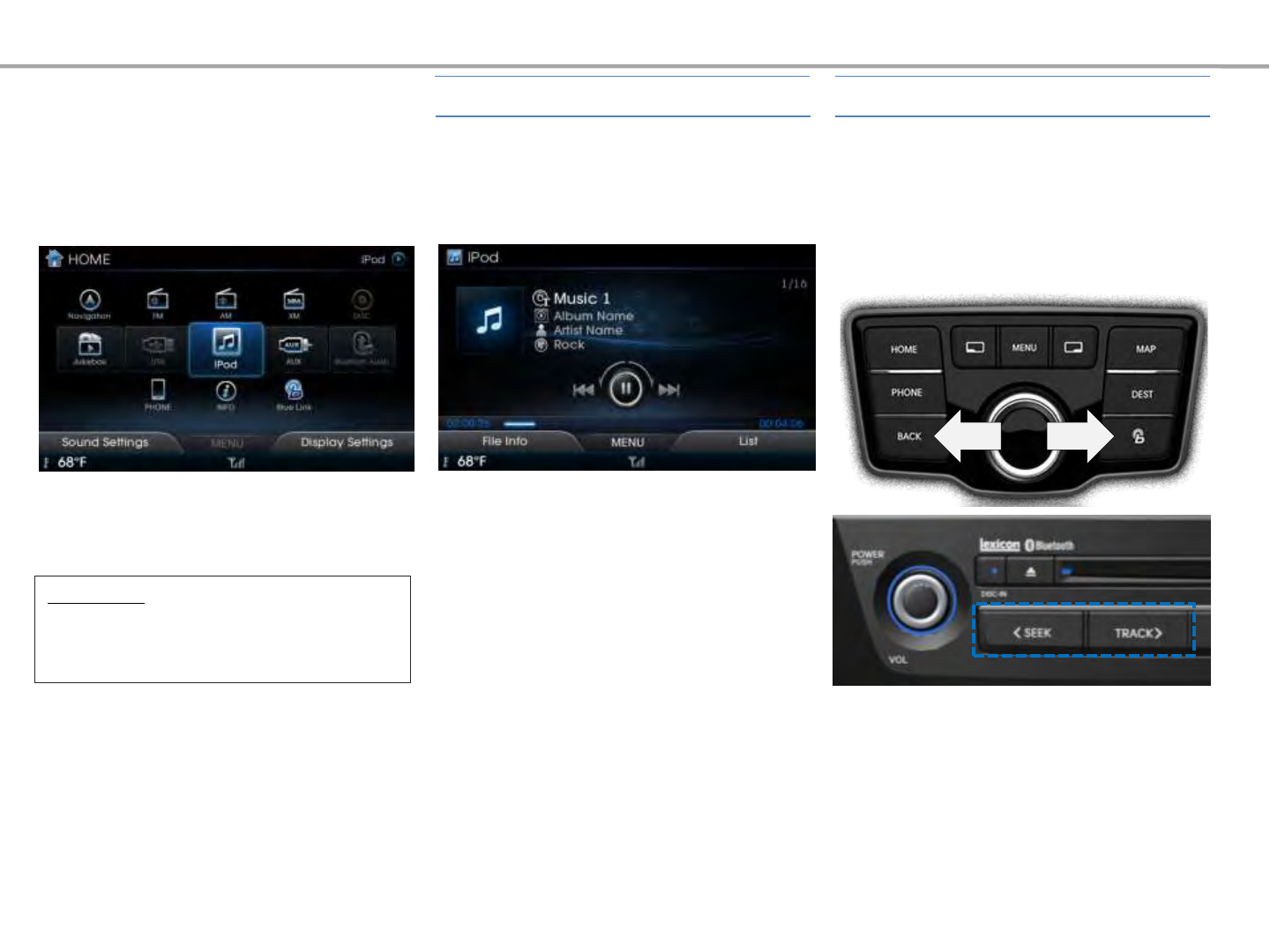

Press the [HOME] key to display the
System Home screen.

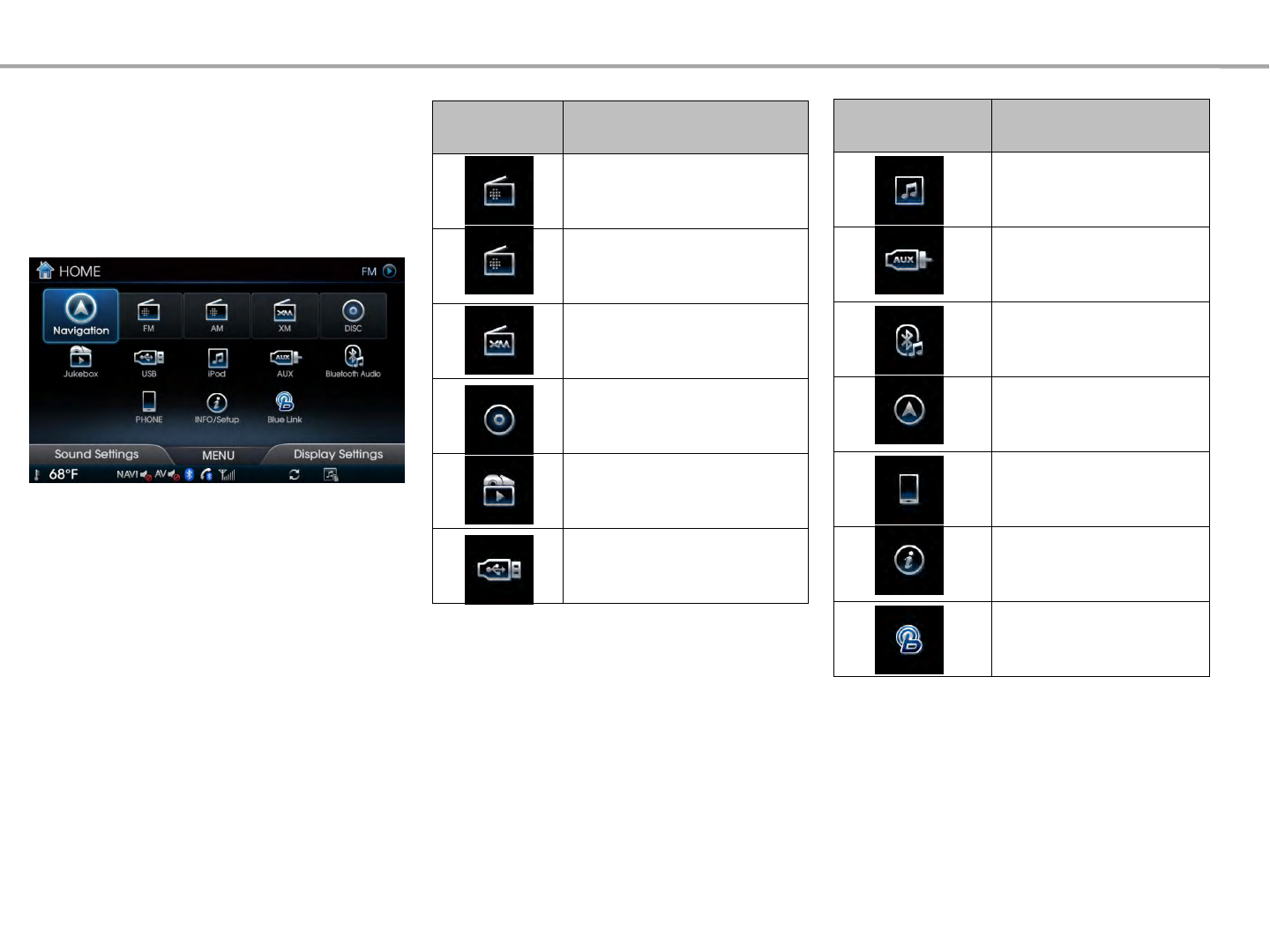

HOME Screen Icon Description
FM
AM
XM
DISC
Jukebox
USB
Turn the controller left/right to select the
desired mode.
While in the Home screen, press the [LFT]
key to enter Sound Settings and the [RHT]
key to enter Display Settings.
Icon Description
iPod
AUX
Bluetooth Audio
Navigation
PHONE
INFO/Settings
Blue Link
Using the System for the First Time
![](/img.php?id=1768145&img=bgb.png)
Various system status icons, including Navigation, AV, and Bluetooth,
are displayed at the bottom of the screen.
No. Icon Description
1 Displays the outside temperature.
2 Displayed when the Navigation voice guidance has been set to mute.
3 Displayed when AV mode has been set to mute.
4
Displayed when a Bluetooth phone has been connected.
Displayed upon downloading contacts from the Bluetooth phone.
5
Displayed when the user is on a Bluetooth call.
Displayed when the user is on a Blue Link call.
Displayed when the microphone has been turned off during a call.
6 Displays the Blue Link phone sensitivity.
7 Displayed when data within the disc, Jukebox, or USB is currently being read.
8 Displayed when a file is being copied into the Jukebox.
Status Icons
1 2 3 4 5 6 7 8
Using the System for the First Time
![](/img.php?id=1768145&img=bgc.png)

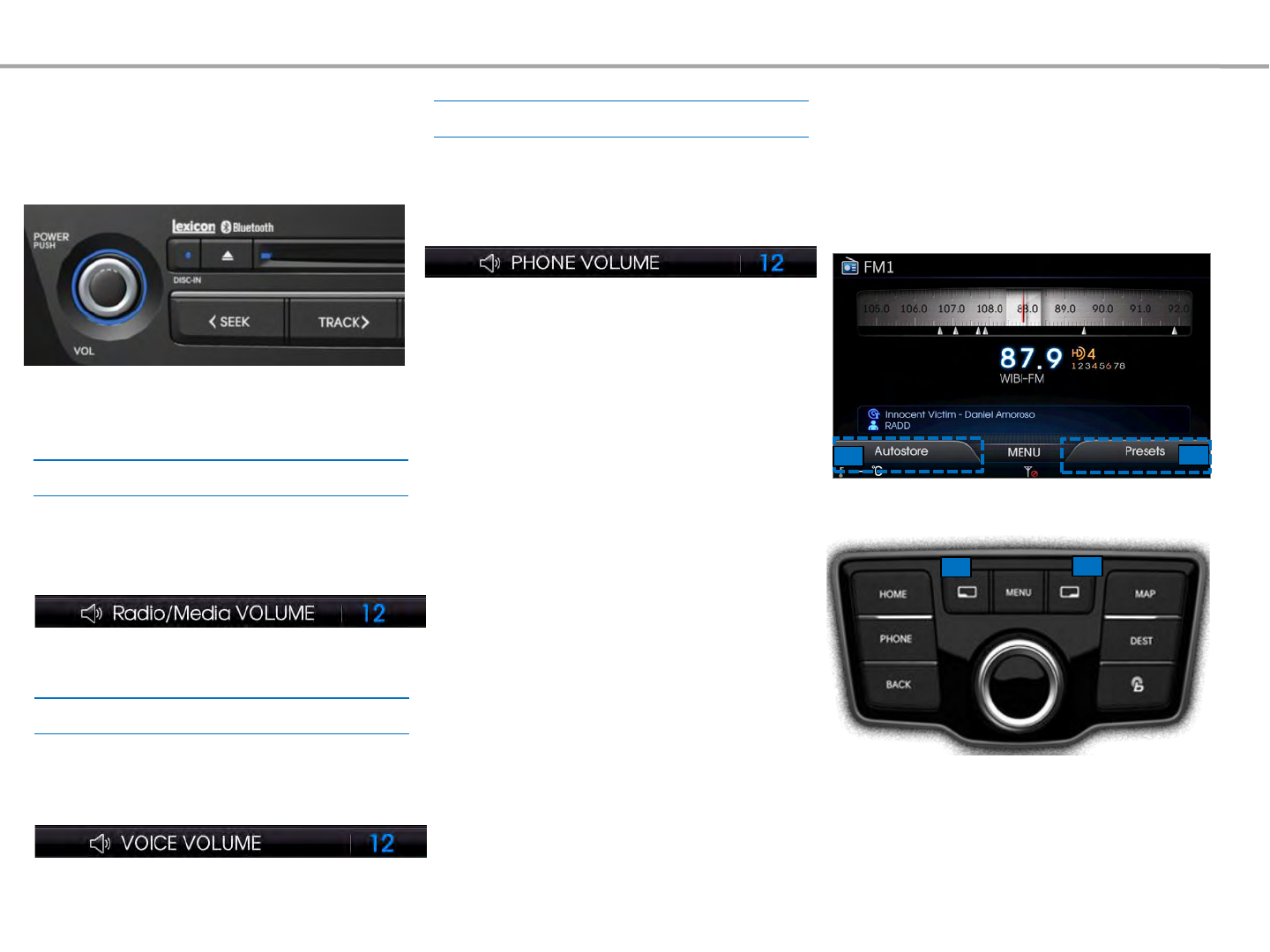

Adjusting the Volume
Adjusting the Radio/Media Volume
Adjusting the Voice Guidance Volume
Adjusting the Call Volume
While playing the radio/media ▶ Turn the knob
left/right to adjust the volume
During voice guidance ▶ Turn the knob left/right to
adjust the guidance volume
While on a call▶ Turn the knob left/right to adjust
the call volume
Using the Soft Keys
The screen soft keys are set with features most
frequently used within the current screen.
Using the System for the First Time
1 2
1 2
![](/img.php?id=1768145&img=bgd.png)
1. Turn the controller left/right to select the
desired character.
2. Press the controller to input the selected
text.
3. Pressing the left soft key will delete one
character at a time.
4. Pressing the right soft key will complete
text inputting.

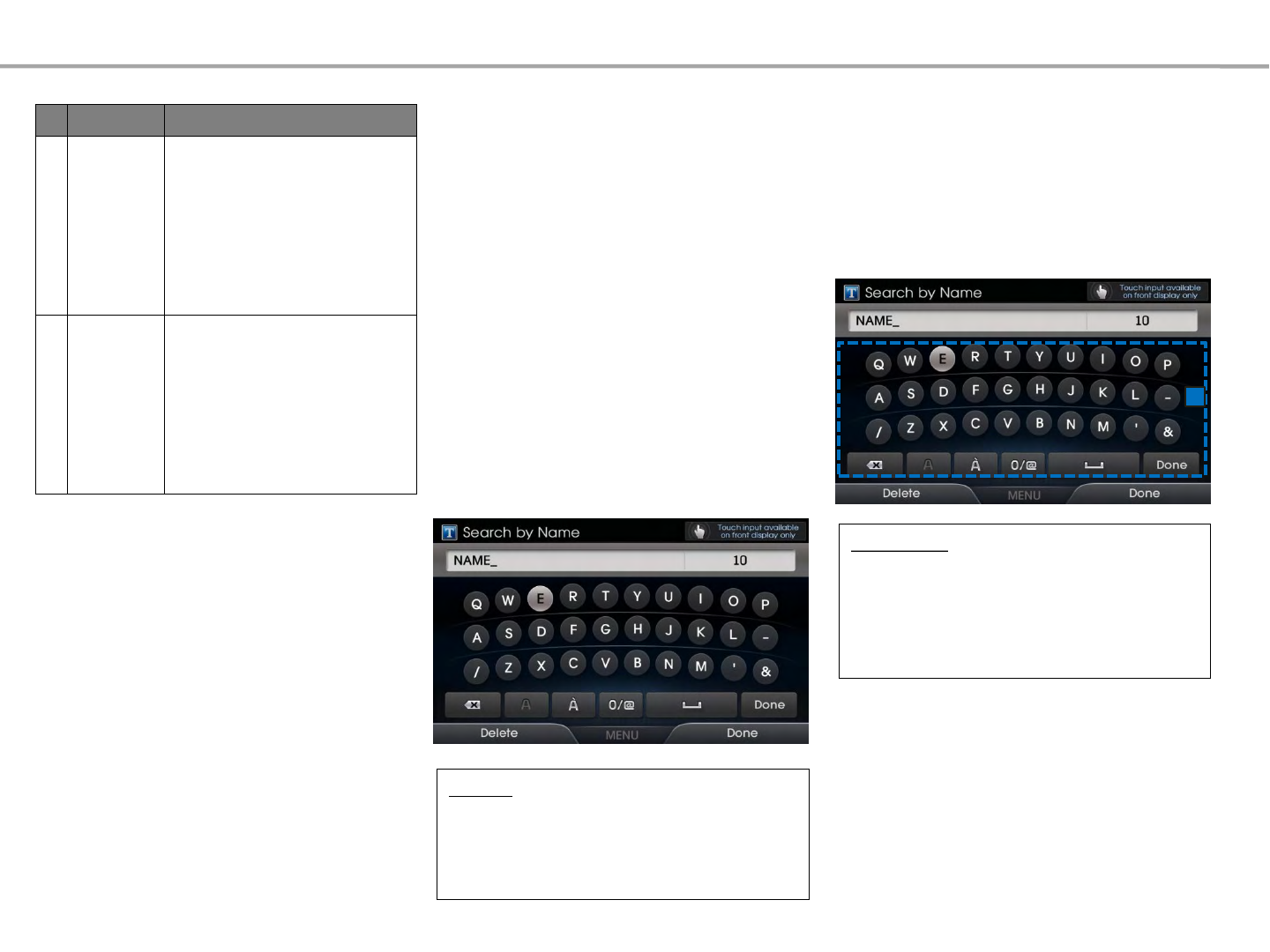

The Text Input screen supports two inputting
methods.
1. Within the keyboard screen, the (1) area
can be operated by touching the screen.
2. Press the desired characters to input on
the screen.
Inputting Text with the Controller
Inputting Text with Touch Buttons
Inputting Text
No. Name Details
1 [LFT]
If the left soft key is pressed, the
function displayed on the
bottom left side of the current
screen is operated. For
example, pressing the left soft
key within the Radio Screen will
operate the [Autostore]
feature.
2 [RHT]
If the right soft key is pressed,
the function displayed on the
bottom right side of the current
screen is operated. For example,
pressing the left soft key within
the Radio Screen will display the
[Preset List] screen.
Caution
• Inputting text while driving may lead to
negligent driving practices and lead to
accidents. For safety, use this feature after
the vehicle has been parked.
Information
• Inputting text with touch buttons is
supported only within the keyboard screen.
• All screens with the exception of the
keyboard screen do not support the touch
input feature.
Using the System for the First Time
1
![](/img.php?id=1768145&img=bge.png)
FM/AM
XM
DISC
DISC CD
DISC MP3
DVD
VCD
Jukebox
USB
iPod
AUX
Bluetooth® Audio
Auto Playlist
2AV
![](/img.php?id=1768145&img=bgf.png)
Basic Mode Screen

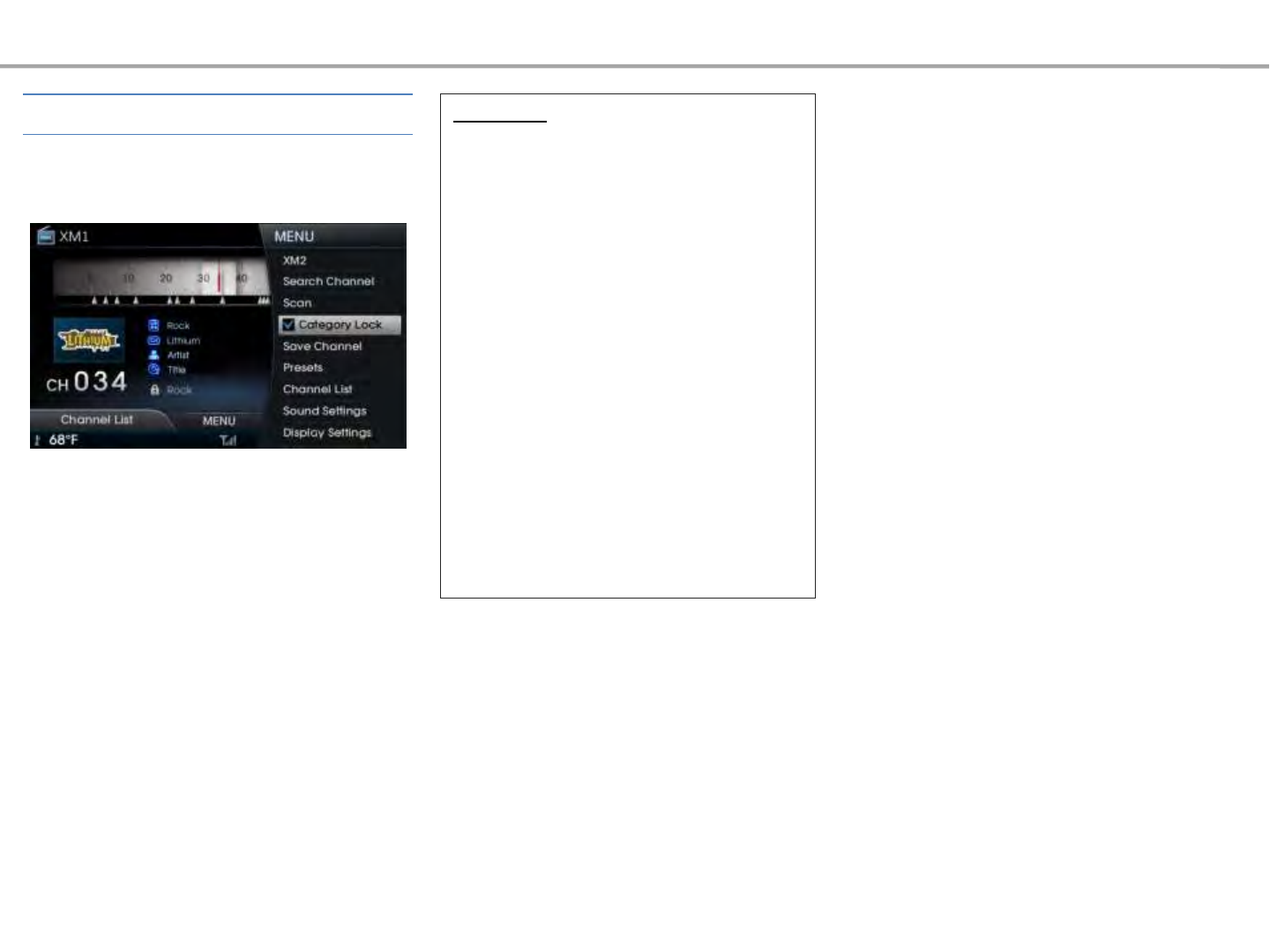

Name Description
1. Mode Displays currently operating mode
2. Frequency Range and Presets Displays the frequency range and saved presets
3. Frequency Currently playing frequency
4. Broadcast Station Name Name of current broadcast station
5. Control Panel
(Not displayed in HD Radio Broadcast)
Converts to frequency search function, and preset mode
•When turned left/right: moves to previous/next frequency
•When pushed left/right: moves to previous/next station
•When pushed up/down: converts to TUNE or PRESET mode
6. Radio Info Displays HD Radio or Radio Text information
7. Auto Store Saves frequencies with superior reception to Preset
buttons
8. MENU Displays the pop up menu
9. Presets Moves to saved preset list
10. FM1/FM2 Converts to FM1 or FM2 mode
11. Scan
In Tune mode, plays frequencies with superior reception for 5
seconds each
In Preset mode, plays broadcasts saved to presets for 5 seconds
each
12. Radio Text Turns radio text info display on/off
13. HD Radio Turns HD Radio reception status on/off
14. View CH. Info Displays information of current station
15. Save Station Saves current station
16. Tagging Tagging a song playing on HD Radio
17. Sound Settings Displays the sound settings screen
18.Display Settings Displays the display settings screen
FM/AM
1
2
3
4
6
789
5
10
13
14
15
17
18
12
11
16
Radio
Tagging
![](/img.php?id=1768145&img=bg10.png)
Press the [HOME] key ▶Select the FM or
AM button.
Pressing the [FM/AM] key on the head unit
to change the mode in order of FM1 →FM2
→ AM.
Information
•Pressing the [FM/AM] key while the power
is off will automatically turn the device on
and start radio mode.
Switching to Tune Mode
In the radio screen ▶Push the controller
up to enter Tune mode.
Within the tune mode, it is possible to
manually search for frequencies by turning
the controller left/right.
Starting Mode
In the radio screen ▶Push the
controller down to enter Preset mode.
In Preset mode, turn the controller
left/right to search broadcasts saved as
presets.
Switching to Preset Mode
FM/AM Radio
![](/img.php?id=1768145&img=bg11.png)
• FM1 / FM2: Increases/decreased by
200kHz
• AM: Increases/decreased by 10kHz
In the Tune mode ▶Turn the controller
left/right to select the desired frequency.
Or turn the [○] TUNE knob left/right on
the head unit to select the desired
frequency
Searching Broadcasts
Manually
Searching Broadcasts
Automatically

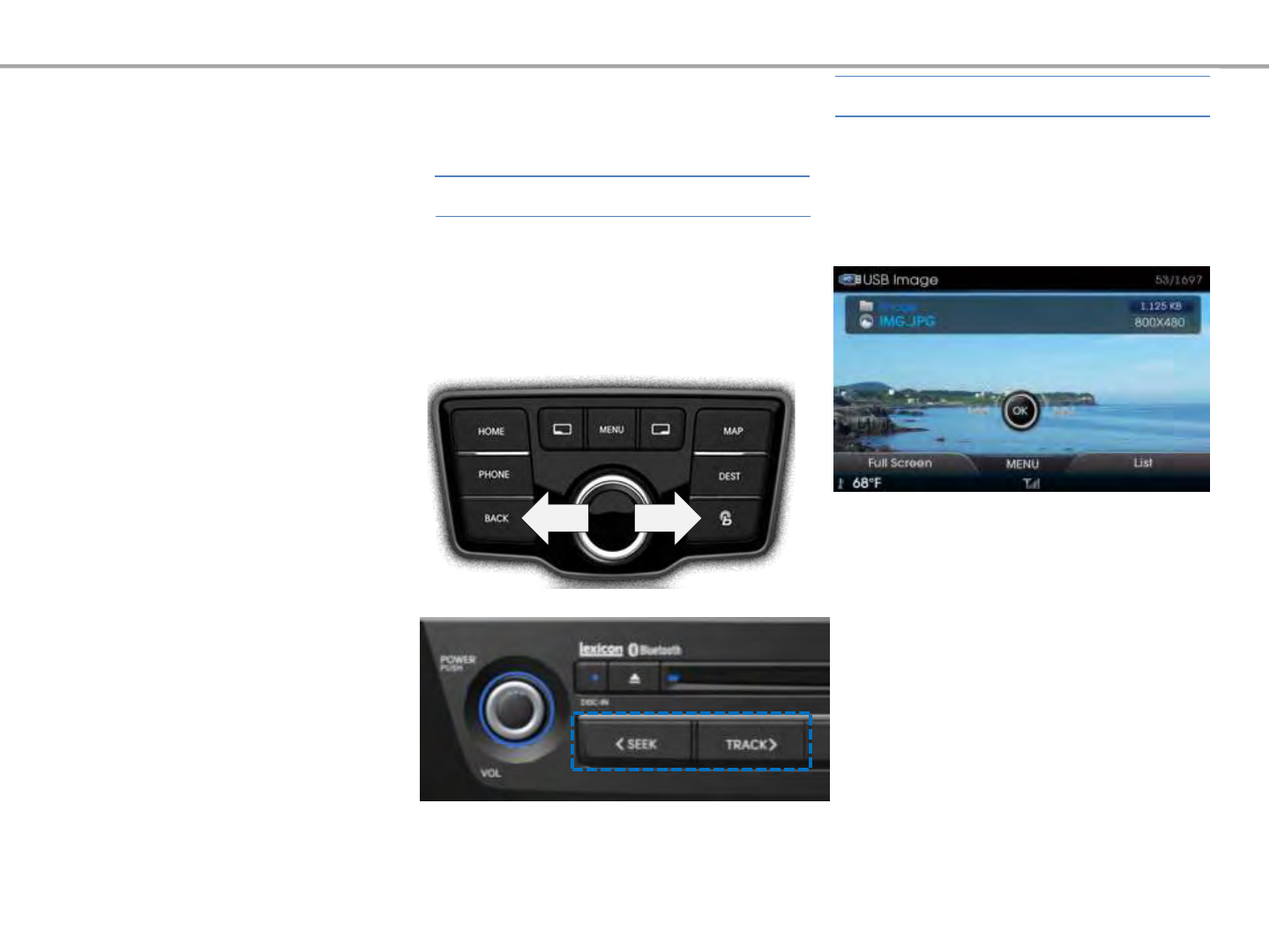

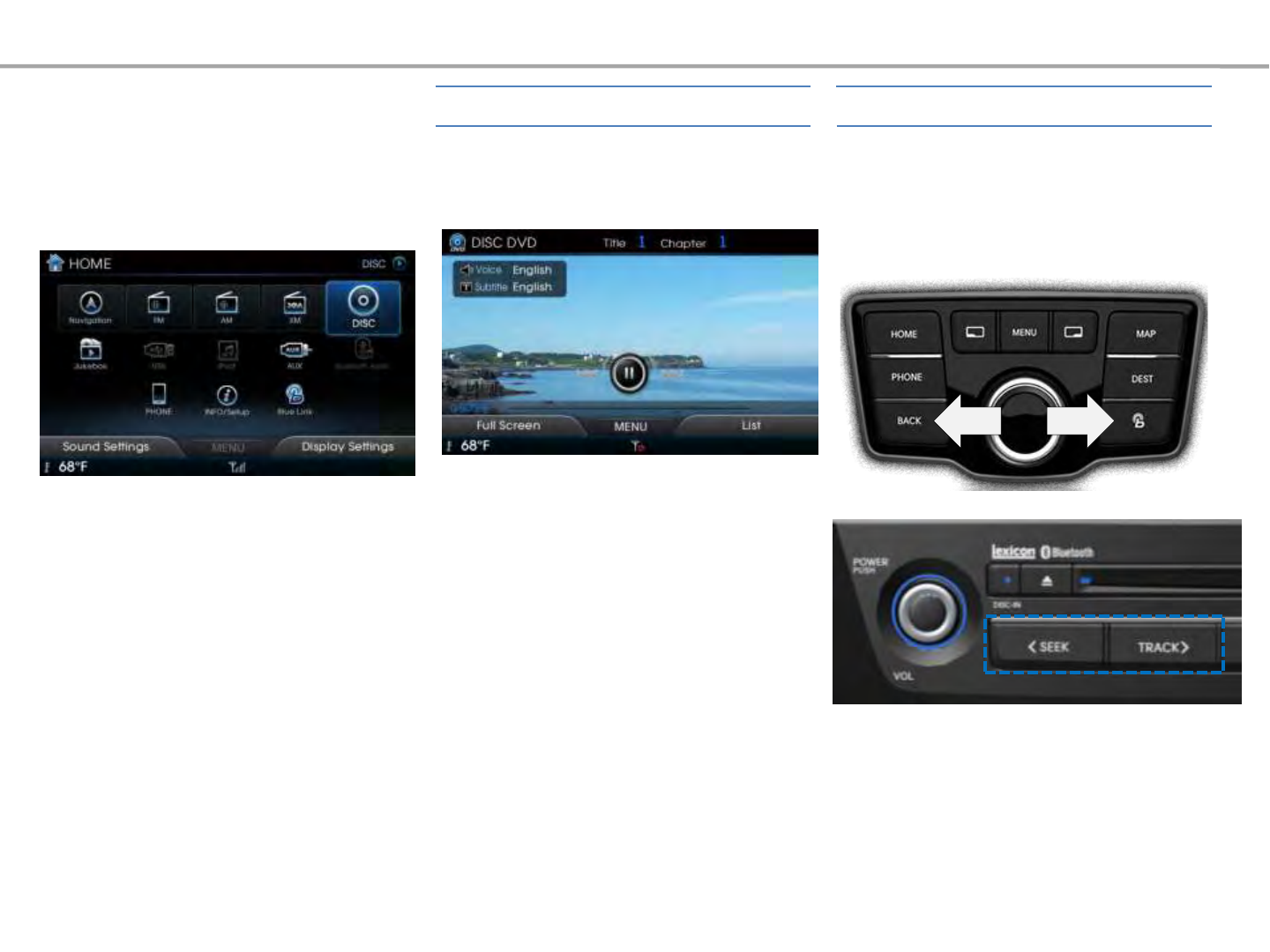

In the radio screen ▶Push the
controller left/right to search for
frequencies
In addition, operations can also be made
from the head unit.
Press the [<SEEK],[TRACK>] keys to
automatically search for frequencies.
• Shortly press the key (under 0.8 seconds):
Plays previous/next frequency
• Press and hold the key (under 0.8
seconds): While pressed, changes the
frequency. Upon release, receives the
previous/next broadcast.
The frequency is continuously changed
while the controller is pushed. Once the
controller is released, the following
broadcast frequency and station is
automatically searched.
FM/AM Radio
SAT
![](/img.php?id=1768145&img=bg12.png)
In the radio screen ▶Press the [LFT]
Autostore button
• A total of 36 frequencies with 12
preset frequencies each for
FM1/FM2/AM modes can be saved.
Information
While Autostore is operating, pressing the
controller will cancel the function and
return to the previous frequency.
In addition, the preset list is also maintained.

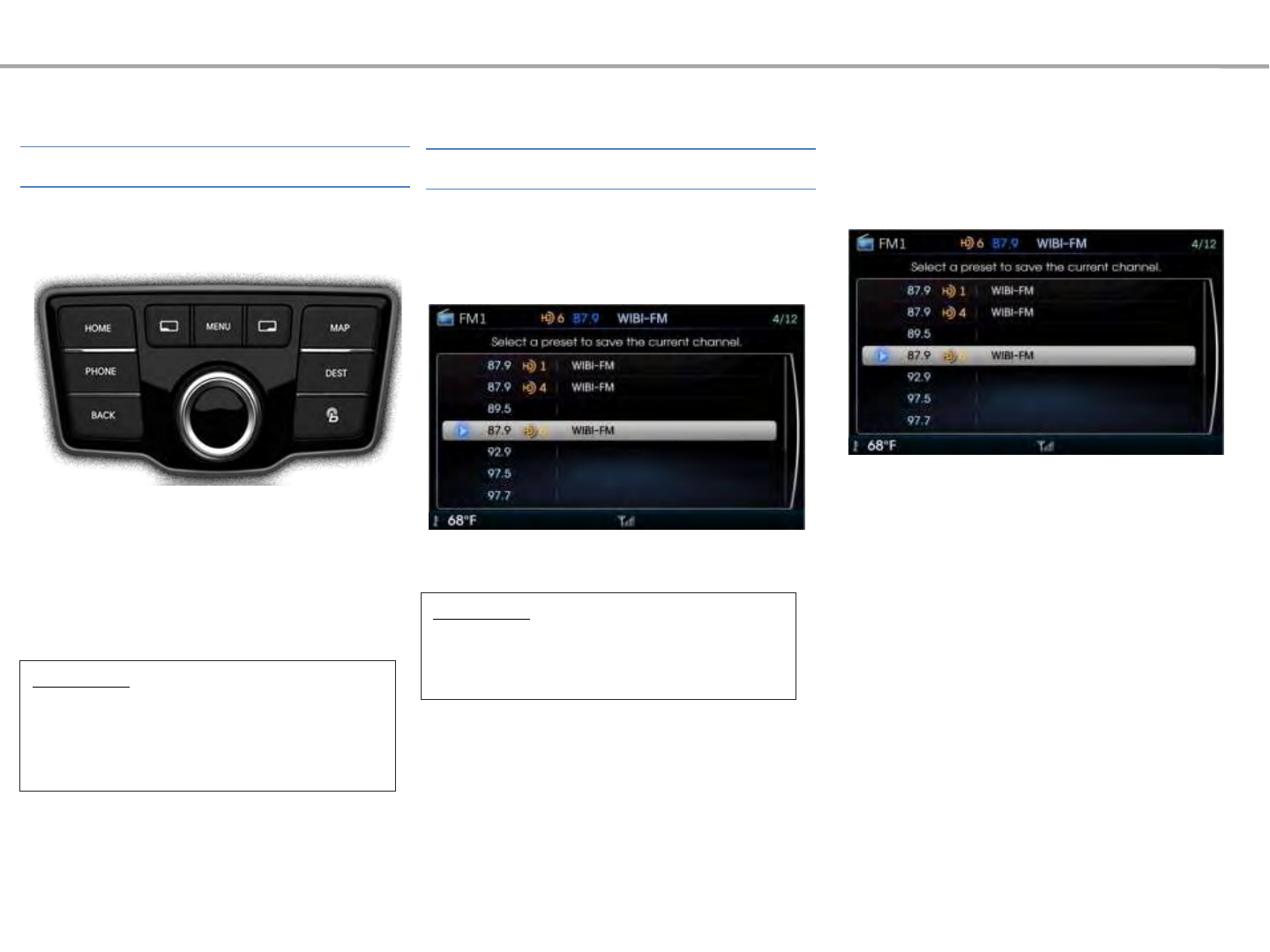

Saving Radio Frequencies
Saving Automatically (Autostore)
Select the desired frequency ▶Press
and hold the controller ▶Select
position to save station
Information
Stations can also be saved manually by
pressing the [MENU] key ▶Selecting [Save
Station].
Saving Stations Manually
In the radio screen ▶Press the [RHT] key
Presets
Turn the controller left/right to select
the desired station. Once found, press
the controller to start listening.
FM/AM Radio
![](/img.php?id=1768145&img=bg13.png)

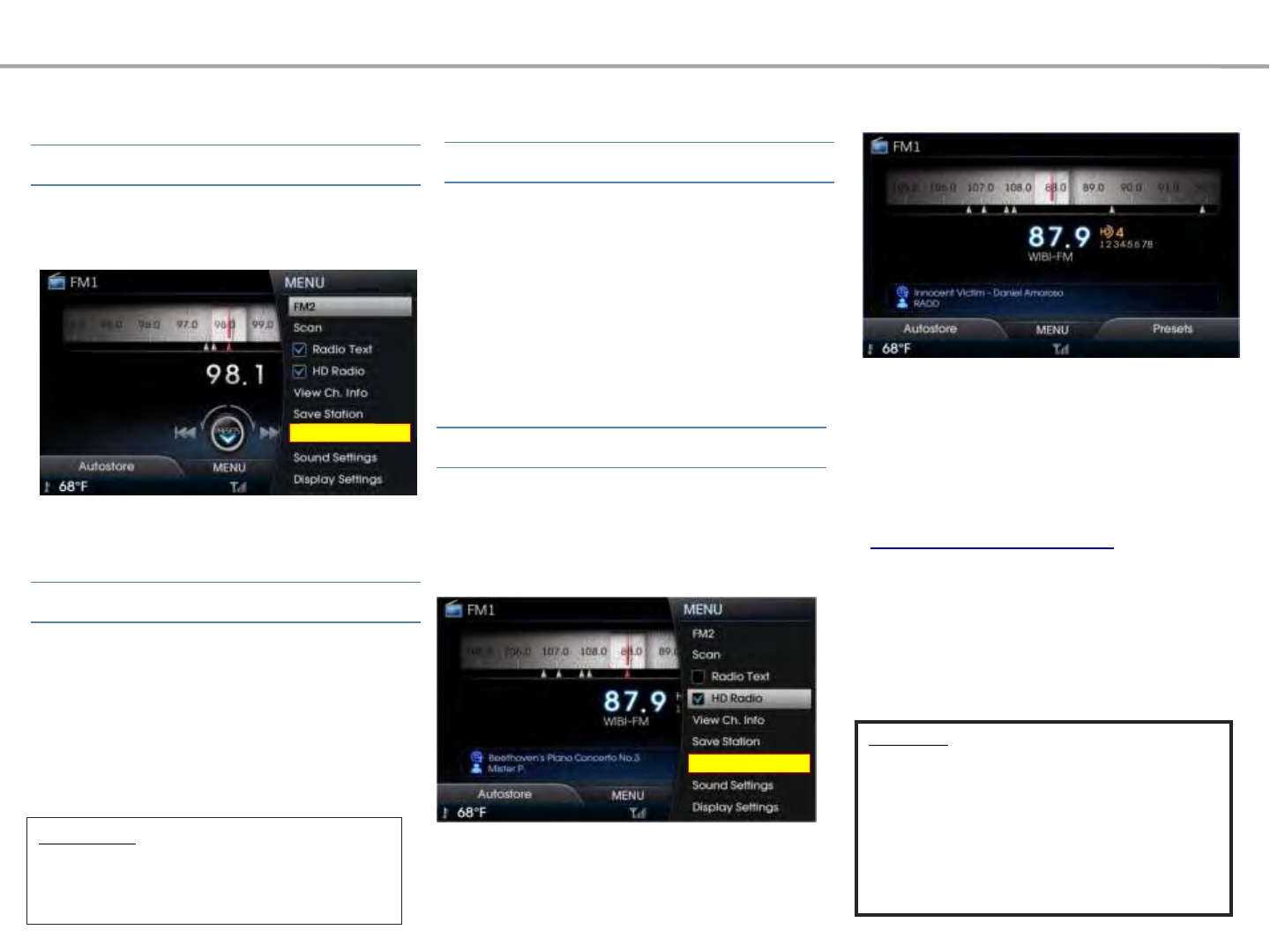

Press the [MENU] key ▶Select [Scan]
The mode can be changed between FM1
and FM2.
Information
While Scan is operating, pressing the
controller will cancel the function and
return to the previous frequency.
Using the Menu Key
In the radio screen ▶Press the [MENU]
key ▶Select [FM1] or [FM2]
- Tune mode: Starting from the current
frequency, frequencies with superior
reception are scanned for 5 seconds .
- Preset mode: Previews saved presets
for 5 seconds each.
FM1/FM2
Scanning Radio Frequencies
Radio text On/Off
In the radio screen ▶Press the [MENU]
key ▶Select [Radio Text]
If the current broadcast includes Radio Text
information, then the text information is
displayed on the screen.
Changing HD Radio stations
Turn the Controller ([○] TUNE knob) left/right to
select the desired HD Radio station. If HD Radio
stations do not exist, frequencies will be
searched manually.
Information
•HD Radio Technology is a digital radio technology
used by AM and FM radio stations to transmit audio
and data via a digital signal in conjunction with their
analog signals.
•While listening to the radio, the HD Radio icon will
become displayed if receiving an HD Radio broadcast.
In the radio screen ▶Press the [MENU] key
▶Select [HD Radio]
You can select HD Radio from the menu and
listen to HD Radio Broadcasts.
HD Radio may differ depending on the system.
HD Radio On/Off
FM/AM Radio
Tagging
Tagging
![](/img.php?id=1768145&img=bg14.png)

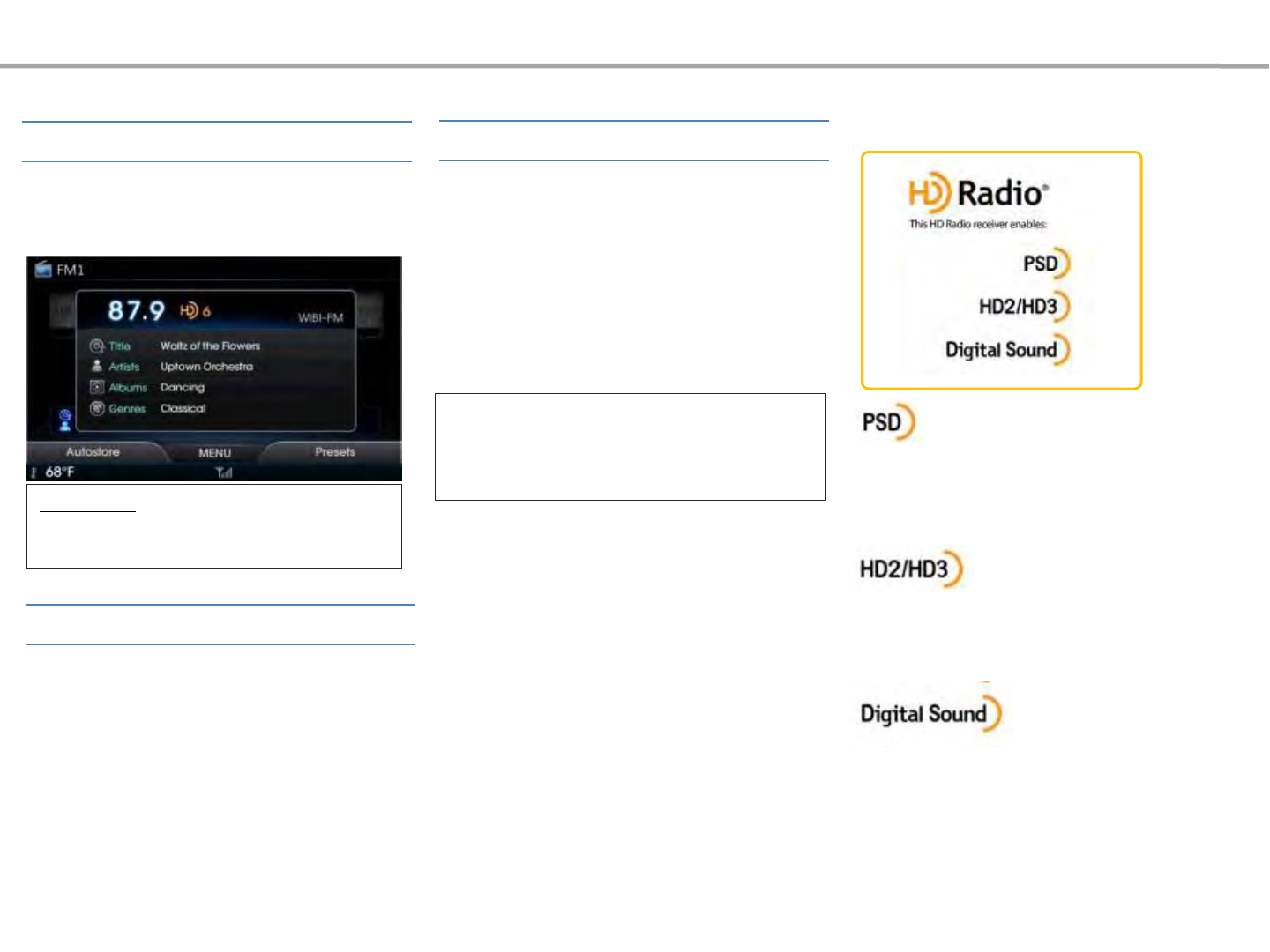

HD RadioTM Technology
Program Service Data: Contributes to the superior
user experience of HD Radio Technology. Presents
song name, artist, station IDs, HD2/HD3 Channel
Guide, and other relevant data streams.
Adjacent to traditional main stations are extra local
FM channels. These HD2/HD3 Channels provide new,
original music as well as deep cuts into traditional
genre.
Digital, CD-quality sound. HD Radio Technology
enables local radio stations to broadcast a clean
digital signal. AM sounds like today’s FM and FM
sounds like a CD.
In the radio screen ▶Press the [MENU] key
▶Select [View Ch. Info] to view
information on the current station.
In the radio screen ▶Press the [MENU]
key ▶Select [Save Station]
The current frequency can be saved.
Save Station
Viewing channel information
Information
This feature is supported only when HD
Radio is active.
FM/AM Radio
In the radio screen ▶Press the [MENU]
key ▶Select [Tagging]
Tagging
Tagging a song playing on HD Radio
Maximum 50 song can be tagged.
When the iPod is connected to system,
Automatically tagging information are
downloaded to the iPod.
Information
•Tagging information can be found on iTunes
•Tagging may support depending on the iPod
device.

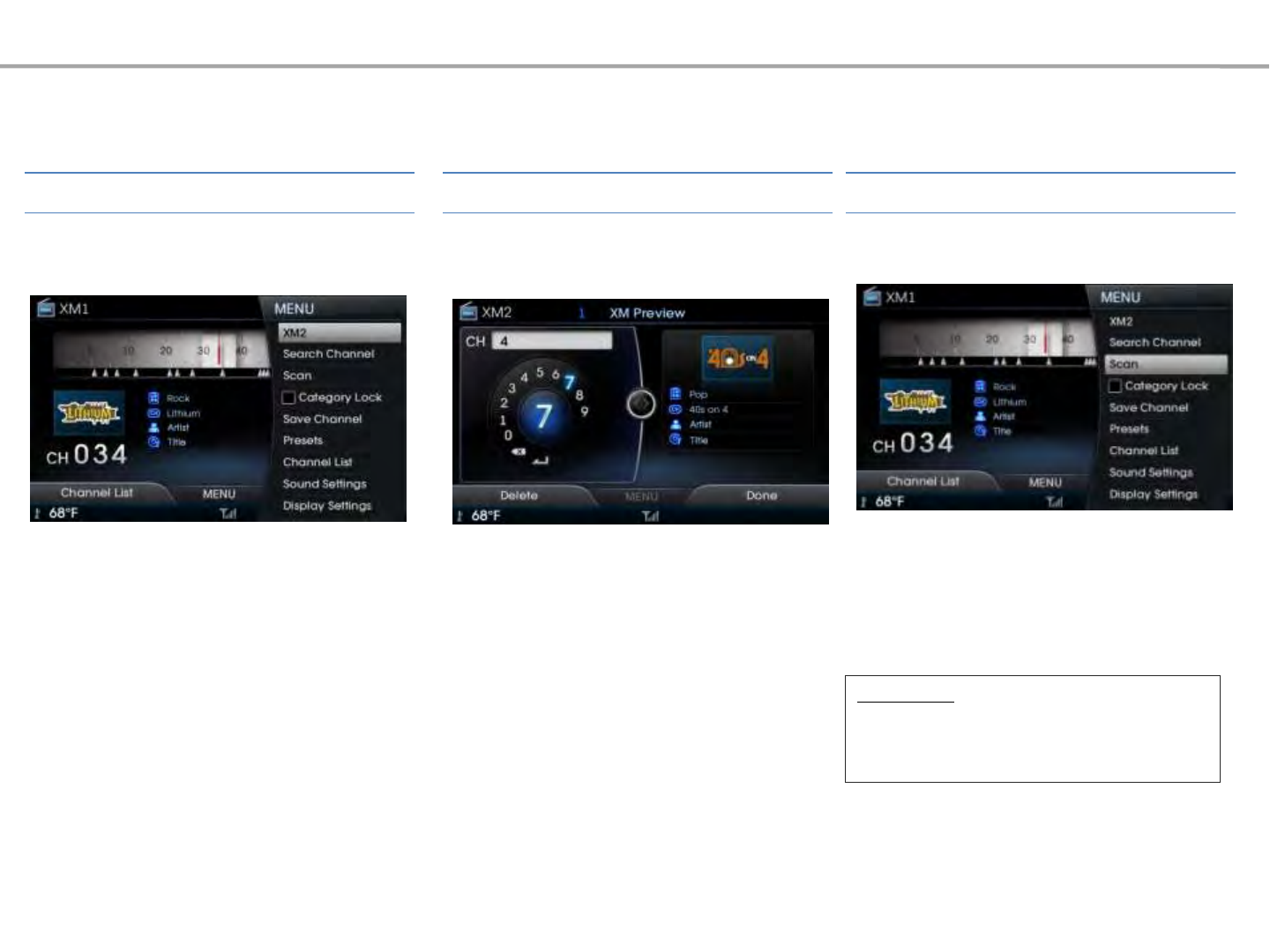

![](/img.php?id=1768145&img=bg15.png)
Name Description
1. Mode Displays currently operating mode
2. Channel Range and
Presets Displays the frequency range and saved presets
3. XM Image XM channel image
4. XM Info Shows category, channel, artist and title information
5. Control Panel
Converts to Channel search function, and preset mode
•When turned left/right: moves to previous/next channel
•When pushed left/right: moves to previous/next Channel
•When pushed up/down: converts to TUNE or PRESET mode
6. Channel Number Current channel number
7. Channel list Channel list screen by category
8. MENU Displays the pop up menu
9. Preset Moves to saved preset list
10.XM1/XM2/XM3Converts to XM1, XM2 or XM2 mode
11. Search Channel Searches XM channels..
12. Scan •Plays channel with superior reception for 5 seconds each.
•Within preset mode, scans previously saved presets.
13. Category Lock When searching for channels with the category lock set, only the
channels within the fixed category can be searched.
14. Save Channel Saves current frequency
15. Sound Settings Displays the sound settings screen
16. Screen Settings Displays the display settings screen
Basic Mode Screen
1
Part 2. AV (XM)
2
3
6
4
5
789
10
11
12
13
14
9
15
16
7
XM
![](/img.php?id=1768145&img=bg16.png)
Press the [HOME] key ▶Select the XM
button.
Press the [XM] key on the head unit to
change the mode in order of XM1 →XM2
→ XM3
Information
•Pressing the [XM] key while the power is off
will automatically turn the device on and start
radio mode.
Part 2. AV (XM)
Starting Mode Switching to Tune Mode
In the XM screen ▶Push the controller up
to enter Tune mode.
Within the tune mode, it is possible to
manually search for channel by turning the
controller left/right.
In the XM screen ▶Push the controller
down to enter Preset mode.
In Preset mode, turn the controller
left/right to search channel saved as
presets.
Switching to Preset Mode
XM
![](/img.php?id=1768145&img=bg17.png)
Part 2. AV (XM)
In the Tune mode ▶Turn the controller
left/right to select the desired channel.
Or turn the ◎TUNE knob left/right on the
head unit to select the desired channel.
Searching Channels
In the XM screen ▶Push the controller
left/right to change the channel
In addition, operations can also be made from
the head unit.
Press the [<SEEK], [TRACK>] keys to
change the channel.
• Shortly press the key (under 0.8 seconds):
Plays previous/next channel.
• Press and hold the key (under 0.8 seconds):
The channel is continuously changed while the
controller is pushed.
The channel is continuously changed while
the controller is pushed.
XM
![](/img.php?id=1768145&img=bg18.png)
Part 2. AV (XM)

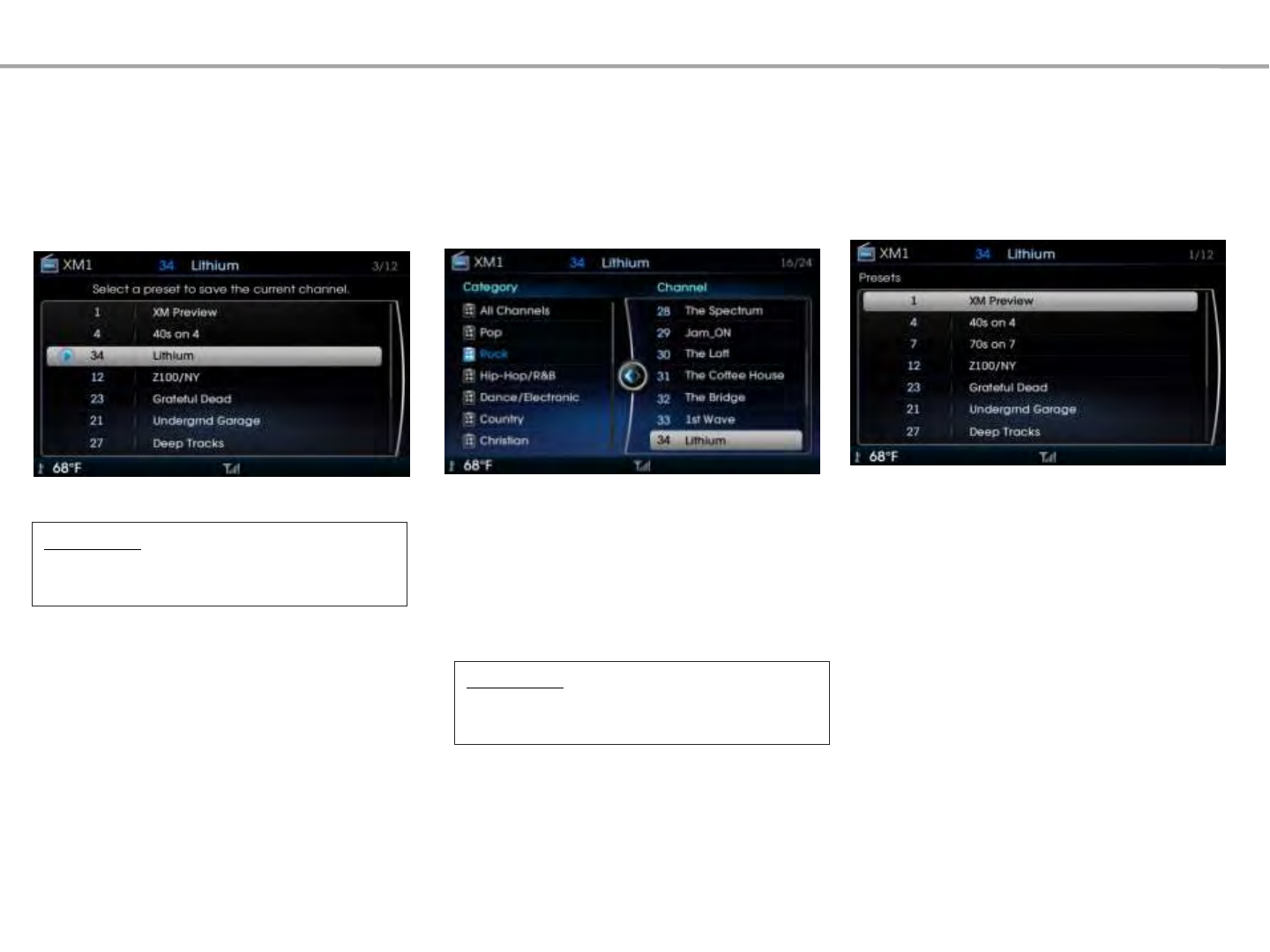

Once you select a category shown on the left
column, lists of channels included within the
selected category are displayed on the right
column.
Select the desired channel from the right
column.
In the XM screen ▶Press the [LFT]
Channel List button
Channel List
In the XM screen ▶Press the [RHT]
Presets button.
Presets
Select the desired channel ▶Press and
hold the controller ▶Select position
to save channel
Information
channel can also be saved by pressing the
[MENU] key ▶Selecting [Save channel].
Turn the controller left/right to select the
desired channel. Once found, press the
controller to start listening.
Saving channel
Information
Channel list can also be selected by pressing
the [MENU] key ▶Selecting [Channel list].
XM
![](/img.php?id=1768145&img=bg19.png)
Part 2. AV (XM)
Using the Menu Key
The mode can be changed to XM1, XM2
and XM3
In the XM screen ▶Press the [MENU]
key ▶Select [XM1] or [XM2] or [XM3]
XM1/XM2/XM3 Searching a Channel
In the XM screen ▶Press the [MENU]
key ▶Select [Search Channel]
- Turn the controller to enter the desired
channel number.
- Press the [RHT] or the [Back] key to return to
the main screen.
Scan
- Tune Mode : Starting from the current
channel, channels with superior reception are
scanned for 5 seconds .
- Preset mode : Previews saved presets for 5
seconds each.
Press the [MENU] key ▶Select [Scan]
Information
While Scan is operating, pressing the
controller will cancel the function and
return to the previous frequency.
XM
![](/img.php?id=1768145&img=bg1a.png)
Once Category Lock is turned on, the
Category Lock icon is displayed on the main
screen. Upon operating seek with the Lock on,
only channels within the category are
searched.
Information
• Performing the below operations in Lock
ON state will search only the channels
within the current category.
- Operating Scan in Tune mode
- Changing channels by turning the
controller in Tune mode
- Changing channels by turning the TUNE
knob in Tune mode
- Searching channels through Seek
Up/Down
• The below operations are not affected by
the Category Lock feature.
- Selecting saved Preset channels
- Changing channels by turning the
controller in Preset mode
- Changing channels from the Channel List
- Changing channels through voice
recognition
Part 2. AV (XM)
Category Lock
Press the [MENU] key ▶Select
[Category Lock]
XM
![](/img.php?id=1768145&img=bg1b.png)
•Steam can become condensed on the
fiber optic lens due to rain, wet
conditions, or upon operating the
heating system. In such cases, discs may
not be properly recognized could be the
cause of product malfunction. Remove
the disc and wait until the moisture
dries.
•Skipping may occur to the audio and
video when driving on bumpy roads for
prolonged periods of time or upon
severe shock to the vehicle. In case of
severe shock, video and audio may not
properly play.
•Do not attach stickers or labels on to
discs. Stickers or labels could cause
damage to the system.
•Do not insert more than one disc at
once. Such acts could lead to product
damage or malfunctions.
•Do not forcefully eject or pull on discs
when a disc is being loaded into the disc
player. Such acts could lead to product
damage or malfunctions.
•After using a disc, put the disc back in
its original case to prevent disc scratches.
•Do not use abnormally shaped discs
(8cm, heart-shaped, octagon-shaped) as
such discs could lead to malfunctions.
•Do not clean discs with chemical
solutions, such as record sprays,
antistatic sprays, antistatic liquids,
benzene, or thinners.
•Do not expose the disc to direct
sunlight or high temperatures for
prolonged periods of time. Such
exposure may lead to disc deformation.
•Upon playing a disc contaminated by
dirt or other substances, the sound and
video quality may deteriorate and result
in skipping sounds. Writing on either
side of the disc could result in damage
to disc surfaces.
About Discs •Clean fingerprints and dust off the disc
surface (coated side) with a soft cloth.
•Copy-protected CDs, such as S-type
CDs, may not properly operate in the
device.
•DATA CDs cannot be played. (However,
such discs may still abnormally operate.)
•Do not disassemble the device.
Contact a designated service center in
case of malfunction. (Complete after
service assistance will not be provided if
the user disassembles the device.)
•Do not use water to clean the device.
Exposure to water could lead to product
malfunction.
•Do not to introduce foreign substances
into the disc insert/eject slot.
Introducing foreign substances could
damage the device interior.
•The device may fail to properly operate
in extremely hot or cold temperatures.
(The operating temperature range is: -
10℃~ 65℃)
•Non-genuine discs may result in disc
recognition failure or product
malfunction
DISC
Precautions upon handling discs
![](/img.php?id=1768145&img=bg1c.png)
Disc Type Disc Format Device Support
CD
5inch (12cm)
CD
CD-R
CD-RW
Multisession-CD
O
O
O (Read Only)
O (Read Only)
O (Read Only)
DVD
DVD
DVD±R
DVD±RW
DVD-RAM
O
O (Read Only)
O (Read Only)
X
SACD SACD (Single, SACD layer)
SACD (Hybrid)
X
O (Only CD layer)
Disc Type Disc Format Device Support
CD
CD-DA
MP3
WMA
MPEG4 AAC
VIDEO-CD
DTS-CD
CD-ROM
CD-G
CD-EXTRA
CD-TEXT
O
O
O
X
O
O
O
O
O
O
DVD
MPEG4(VIDEO)
DivX® (VIDEO)
DVD-VIDEO
DVD-AUDIO
DVD-MP3
DVD-ROM
DVD-VR
CPRM
X
X
O
O
X
O
O
O
DISC
Disc Type
Supported Disc Format
Disc Formats
![](/img.php?id=1768145&img=bg1d.png)

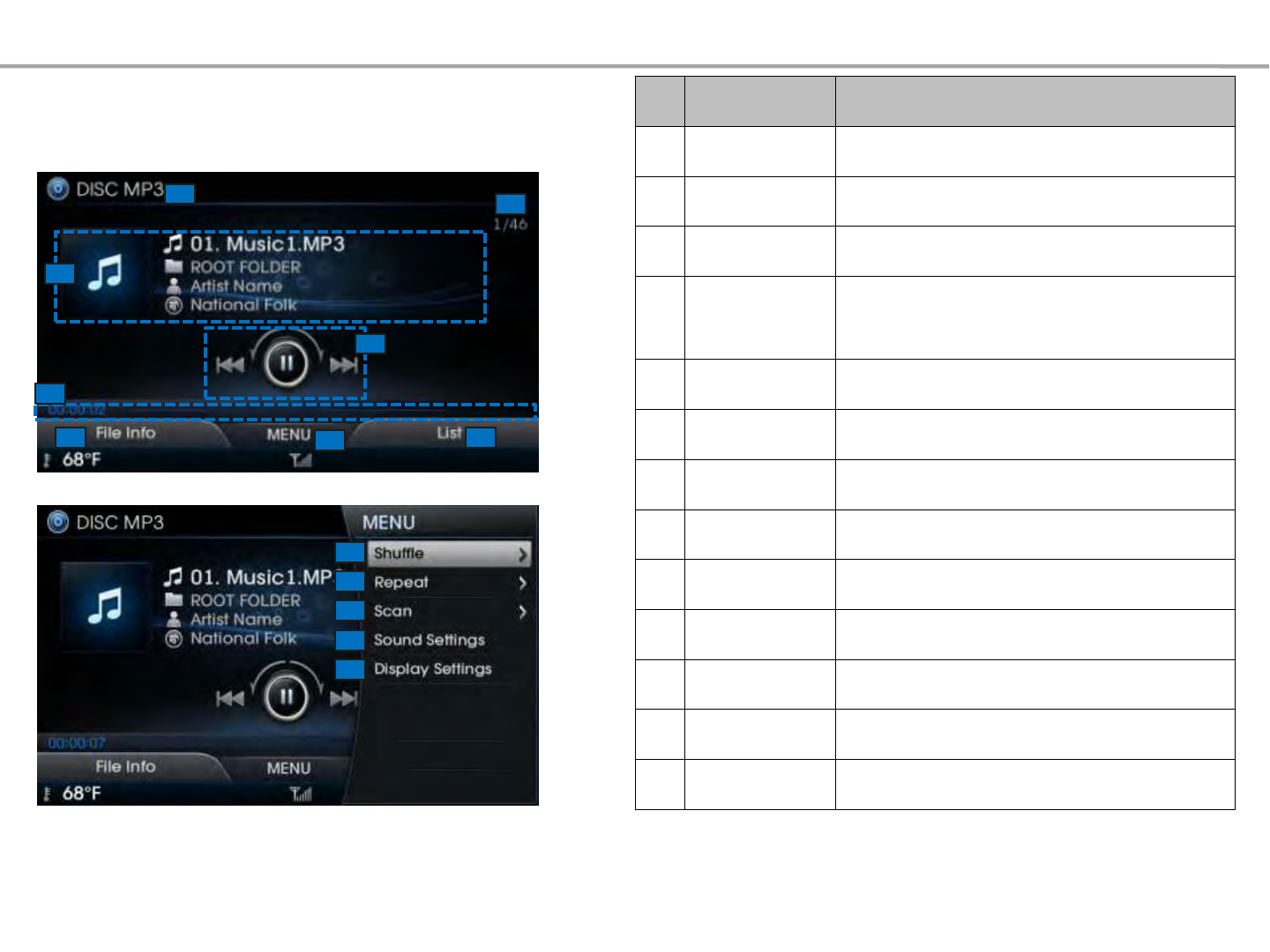

Before playing a MP3 Disc
· Acceptable standard: MPEG1 AUDIO LAYER
33
· Acceptable sampling frequency: 8, 11.025,
12, 16, 22.05, 24, 32, 44.1, 48 (kHz)
· Acceptable bit rate: 8 ~ 320 (Kbps)
· Sampling frequency: 96 ~ 192 Kbps fixed
bit rate /44.1kHz
· Maximum directory layers: 8 layers
· Maximum folder length: 64 bytes, file
name length: 64 bytes
· Supported characters for folder name/file
name: Alphanumeric characters, Korean
standard character set 2350 characters,
Simplified Chinese 4888 characters
·The use of ISO 9660 LEVEL 2 JOLIET format
is recommended.
·The use of CDs exceeding 700MB may
result in faulty disc recognition or errors
upon play.
· This device does not support multisession
discs.
· This device supports only 8 layer folders.
· Maximum number of folders per disc: 256
folders (including ROOT)
· Maximum number of files per disc: 512 files
· Supported ID3 tags : ID3v1 0, ID3v1 1, ID3v2
2, ID3v2 3, ID3v2 4
· Supported MP3 Media: CD-ROM
· Supported media formats: ISO9660 LEVEL1
and LEVEL2
· This device supports MP3 ID3 tag versions
of Ver. 1.0, Ver. 1.1, Ver. 2.2, Ver. 2.3, Ver.
2.4. When using discs with other versions,
the ID3 info will not be displayed.
· Although this device has been designated
to be compatible with various bit rates,
playing low bit rate MP3 tracks may result in
low quality sound.
When a multi-session disc is being recorded,
make sure to close the session before
recording.
·If mp3/wma file extensions are changed,
such could result in malfunctions.
·In the case of MP3/WMA, write using only
Korean or English. (Other languages are not
supported)
· Unauthorized use of copy-protected music
files is prohibited by law.
· Prolonged use of CD-R/CD-RW products
that do not satisfy related specifications
may result in product malfunction.
·When writing CDs, low-speed writing is
recommended.
DISC
Supported MP3 File Specification
Recommended bit rates and frequency
Detailed Specification
Precautions upon burning MP3 files
![](/img.php?id=1768145&img=bg1e.png)
The DVD Player and DVD discs are
assigned region codes. The region code
of this device is <1>.
Discs that have region codes besides <1> or
<ALL> cannot be played.
This device supports PBC-compatible Video
CDs.
·This device has been
designed/manufactured to be compatible
with software bearing the following logo
marks.
·This device supports the IEO Super VCD
standard. Super VCD supports outstanding
quality and supports 2 sound tracks upon
recording.
·CD-R/RW discs (Audio CD) created with CD
recording devices or PCs may not properly
operate in the device. This is a result of
various causes, including disc format,
recording method, and contamination to
the disc or lens.
·When burning a disc on the PC, the disc
may not operate in this device depending
on the software settings. In such cases,
inquire with the software manufacturer.
·Additional information regarding
compatibility is displayed on the CD-R/RW
software disc box.
·DVD-R/W discs are not compatible with
this device.
and do not signal a product malfunction.
·CD-R or CD-RW DISC without quality
guarantees or discs over 650mb may not be
properly recognized by the device.
·Inserting an abnormal disc may result in
faulty operation/recognition.
Disc/Content
Format Compatibility
Disc
Type Disc Format Device
Support
DVD
LPCM
Dolby Digital
DTS
MPEG
O
O
O
O
CD LPCM O
MP3
MPEG1, Layer3
MPEG2, Layer3
MPEG2.5
O
O
O
WMA Ver9 O
· This device supports CD-R, CD-RW, and
MP3 discs burned in Audio CD, Video CD
formats.
· The recording of CD-R and CD-RW discs
with this device is not supported.
· CD-R/RW discs recorded as audio CDs that
were not finalized are not supported by this
device.
·When playing a dual-layer disc, video/
sound lags may occur for up to several
seconds. Such phenomena are not
unusual when using a dual-layer disc
DISC
CD-R/RW Compatibility
By Format according to Disc Type
Ordinary Disc Compatibility
Dual-Layer DVD Video Discs
DVD Region Code
PBC (Play-Back Control)-
Compatible Video CD
PC-created Disc Compatibility
![](/img.php?id=1768145&img=bg1f.png)
·Physical formats of CD: Model 1, Model 2
XA format 1.
· This device supports audio file compressed
through MPEG-1 audio stream layer 3 (MP3)
using 8kbps ~ 320kbps (CBR), VBR. For
stable operation, the use of files in
95kbps~192kbps bit rate range and 44.1kHz
SAMPLING frequency is recommended.
· This device supports WMA audio files using
20kbps ~ 320kbps(CBR), VBR.
· Variable bit rate files may operate, but the
play time information may not be properly
displayed.
· This device only supports tracks with file
extension of ".mp3" or".wma".
About DVD Titles
•Contents of DVD Titles
The video and sound recorded on a DVD are
divided into titles and can be recognized by
their title numbers. Each title is sub-divided
into smaller units called chapters and each
chapter can be recognized by the chapter
number. The title number and chapter
number of the currently playing DVD title is
displayed on the upper side of the DVD
operation menu screen.
•DVD Region Code
The DVD player and DVD discs are set with
region codes and can be played in
accordance to the sales region. If a disc
besides "Region Code 1" or "All region disc”
is inserted, then a “Region Code Error”
screen will be displayed and the disc will not
normally play.

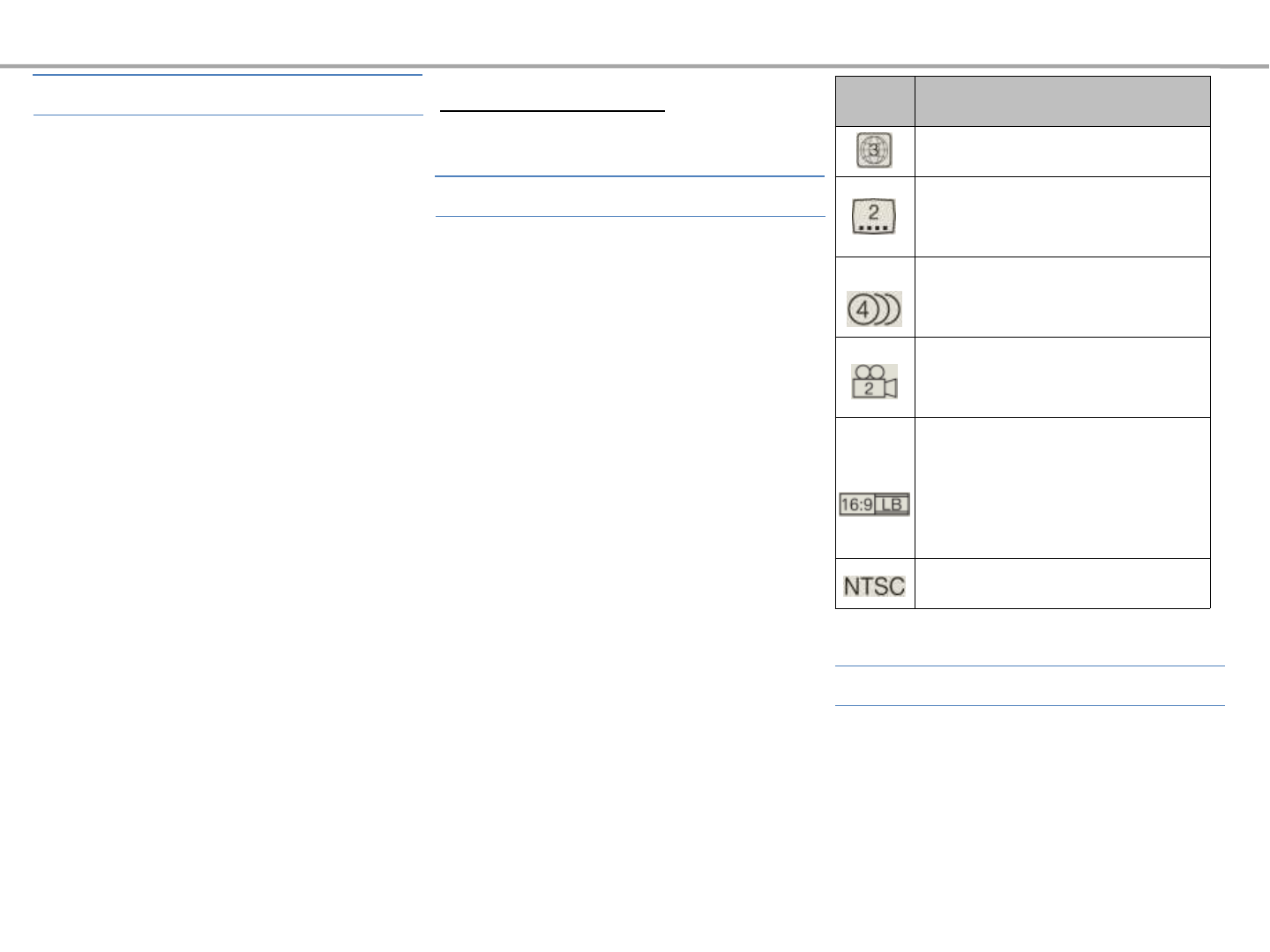

Icon Description
Shows the supported region codes.
Up to 32 subtitles can be recorded
within a DVD. The number within the
icon indicates the number of subtitle
languages recorded within the DVD.
Up to 8 voice languages can be recorded
within a DVD. The number within the
icon indicates the number of voices
languages recorded within the DVD.
DVD allows viewing of filmed footage
from up to 9 angles (multi-angle). The
number within the icon indicates the
number of screen angles.
This icon the screen ratio and display
method. “16:9" or “4:3” indicates the
screen proportion (ratio) while “LB”, “PS”
and “WIDE” indicates the screen display
method and stands for “Letter Box”,
“Pan-Scan” and “Wide Screen”,
respectively.
NTSC: This is the color method as used
in Korea, Japan and the United States.
This device supports NTSC color encoding
methods. Other methods besides NTSC may
not be supported.
DISC
Compressed Audio Compatibility
Understanding of the DVD Titles
Color TV Support
![](/img.php?id=1768145&img=bg20.png)

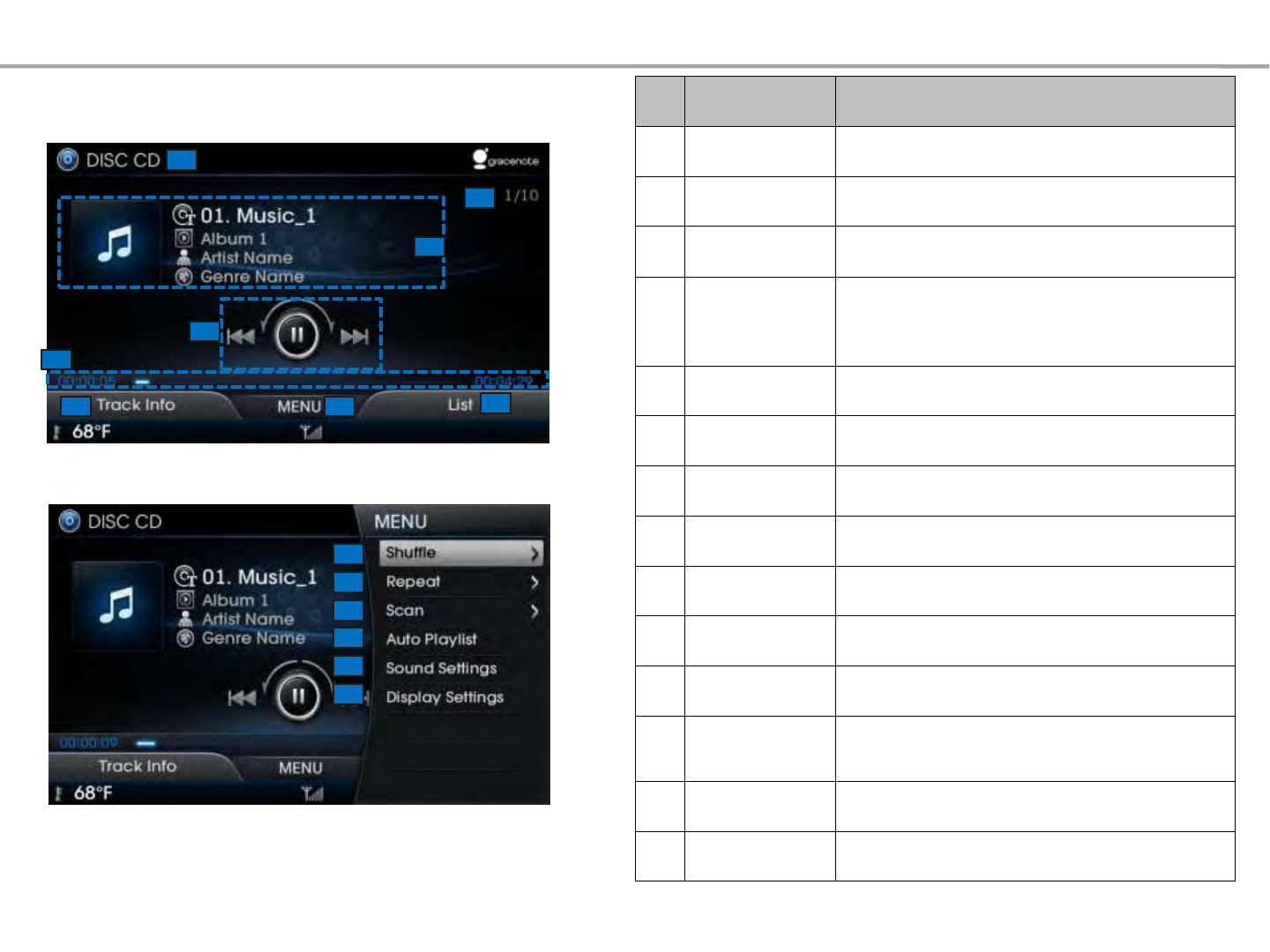

No Name description
1Mode Displays currently operating mode
2Track Index Shows the current track/total tracks
3Play Track Info Shows track number(title)/album/artist/genre
information
4Control Panel
Enables use of play/pause/select/search features
•When turned left/right: Moves to previous/next track
•When pushed left/right: Plays previous/next song
•When pressed: Plays or pauses
5Play Time Displays the current play time and total play time
6Track Info Shows track information
7MENU Displays the pop up menus
8List Moves to the track list screen
9Shuffle Turns Shuffle feature on/off
10 Repeat Turns Repeat feature on/off
11 Scan Scans the beginning parts of disc tracks
(approx 10 seconds per track)
12 Auto Playlist
Moves to list screen showing current song (It is supported
only for CD that support Gracenote Auto Playlist mode for
more information)
13 Sound Settings Displays the sound settings screen
14 Display Settings Displays the display settings screen
Basic Mode Screen
4
10
1
5
12
2
6
3
11
78
9
13
14
DISC CD
![](/img.php?id=1768145&img=bg21.png)

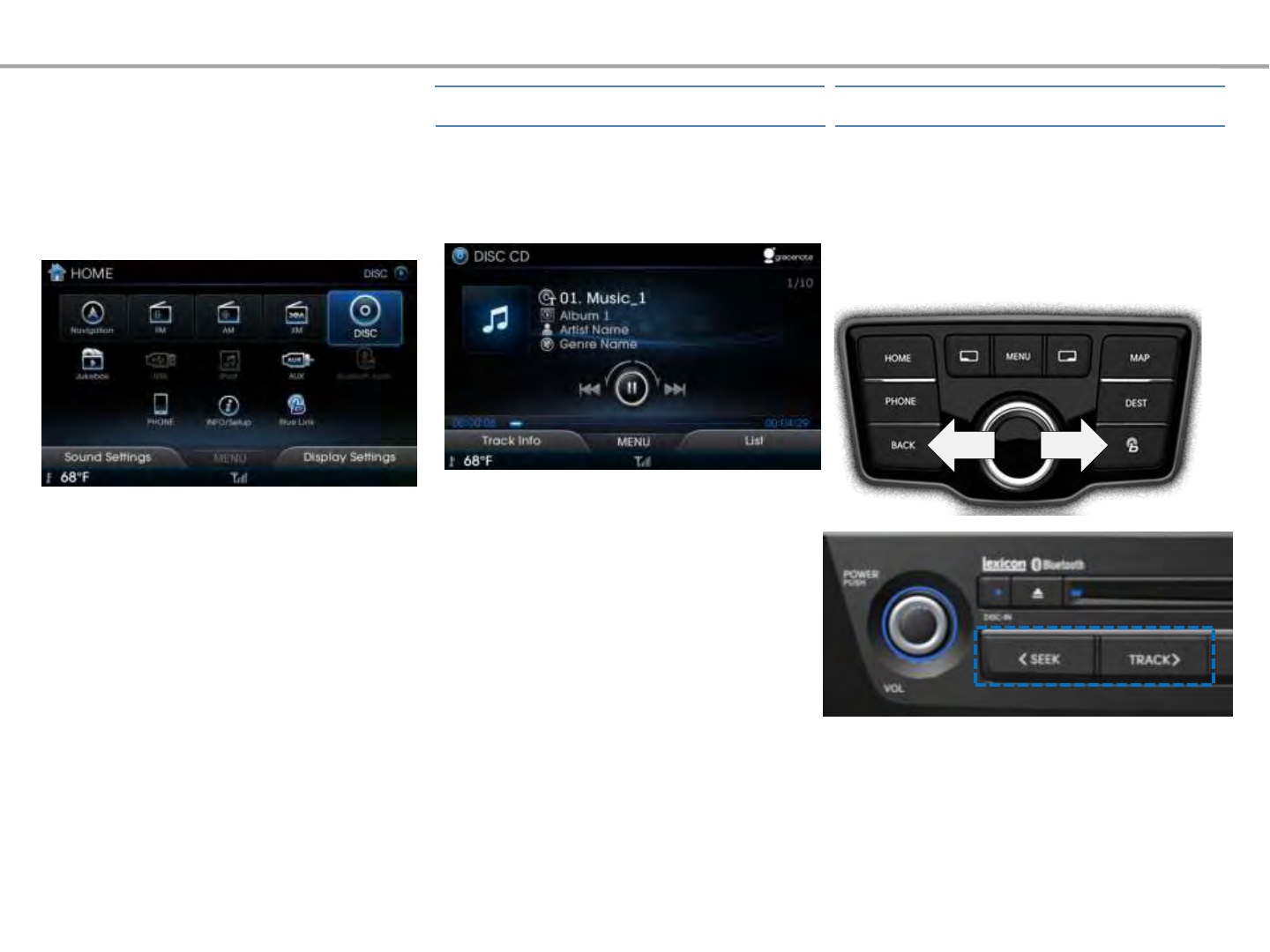

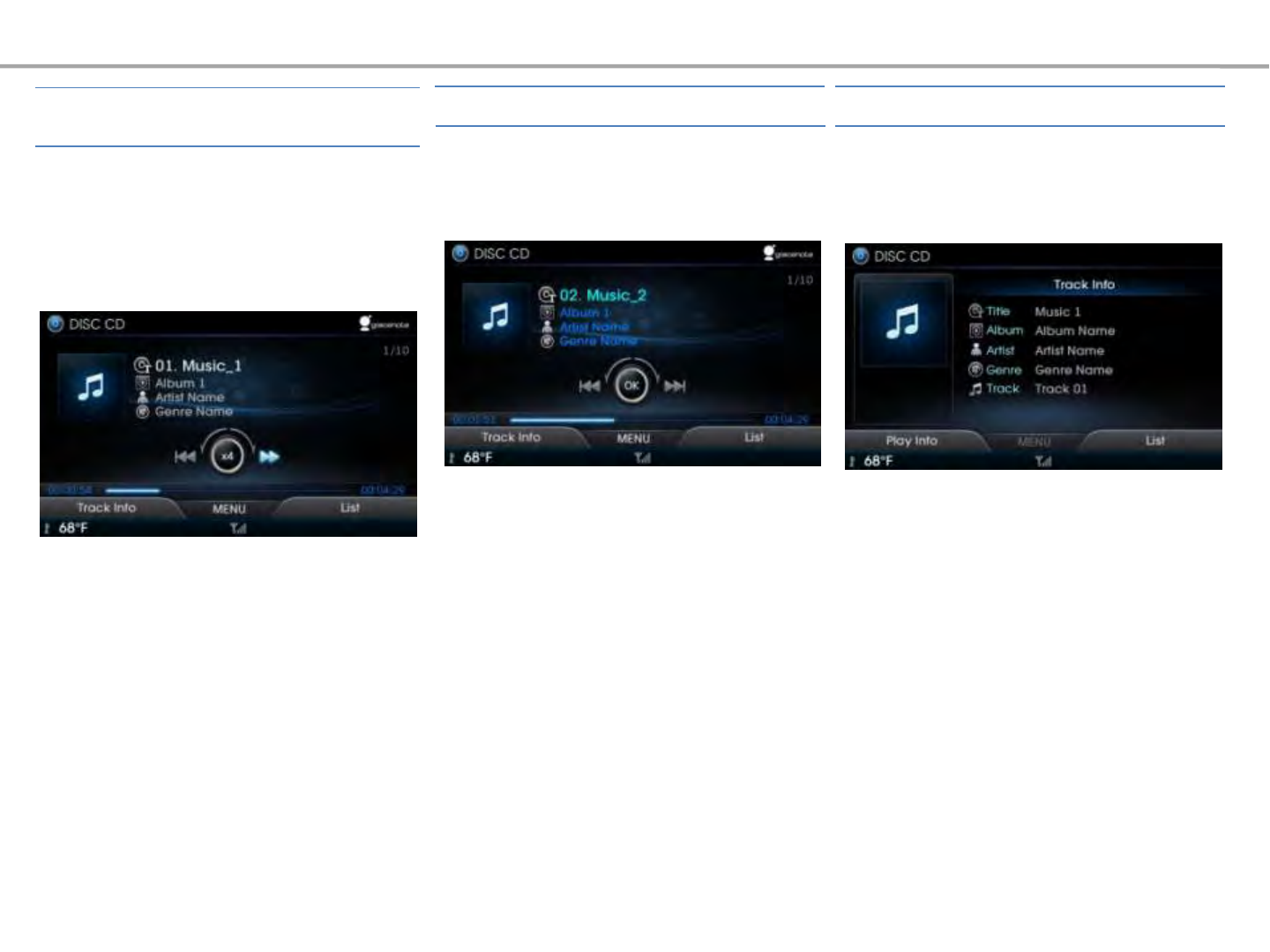

Starting Mode
DISC mode will automatically start once
a CD is inserted.
Press the controller to play or pause
the track.
Press the [HOME] Key ▶Select the
DISC button.
While playing ▶Shortly push the
controller left/right (under 0.8 seconds)
or shortly press the [<SEEK], [TRACK>]
keys to select the previous/next track.
While Gracenote checks CD information,
the message “Indexing.” will blink at the
top right side.
Once Indexing is complete, song
information is displayed on the screen
for songs supported by Gracenote.
Playing a CD Selecting a Track
DISC CD
![](/img.php?id=1768145&img=bg22.png)
While playing ▶Push and hold the
controller left/right (under 0.8 seconds) or
press and hold the [<SEEK],[TRACK>] keys
to rewind/fast-forward the track.
While playing ▶Turn the controller (○
TUNE knob) left/right to search for tracks
Press the [LFT] Play Info key to view the
track information.
To return to the previous screen, select the
[LFT] Play Info button.
Fast-forwarding or
Rewinding CD Tracks Searching CD Tracks Track Info/Play Infor
During search, the track name is
displayed. Press the controller (○TUNE
knob) to play the selected track.
DISC CD
![](/img.php?id=1768145&img=bg23.png)
Press the [Menu] button to set the
Shuffle, Repeat, Scan, Auto Playlist,
Sound Settings and Display Settings.
Using the Menu Key
Press the [MENU] key ▶Select [Shuffle]
▶Select [Shuffle All]
Press the [RHT] List button to select
from the list.
Select the desired track by turning the
controller. Once the desired track has
been found, press the controller to play
the track.
The [LFT] Category up and [RHT] CD
Home button will be enabled when
playing a CD that supports Gracenote
and songs can be selected through
Category Searches.
Songs within the current playlist are
played in random order. Select the [Off]
button to turn the shuffle option off.
CD List Shuffle
DISC CD
![](/img.php?id=1768145&img=bg24.png)

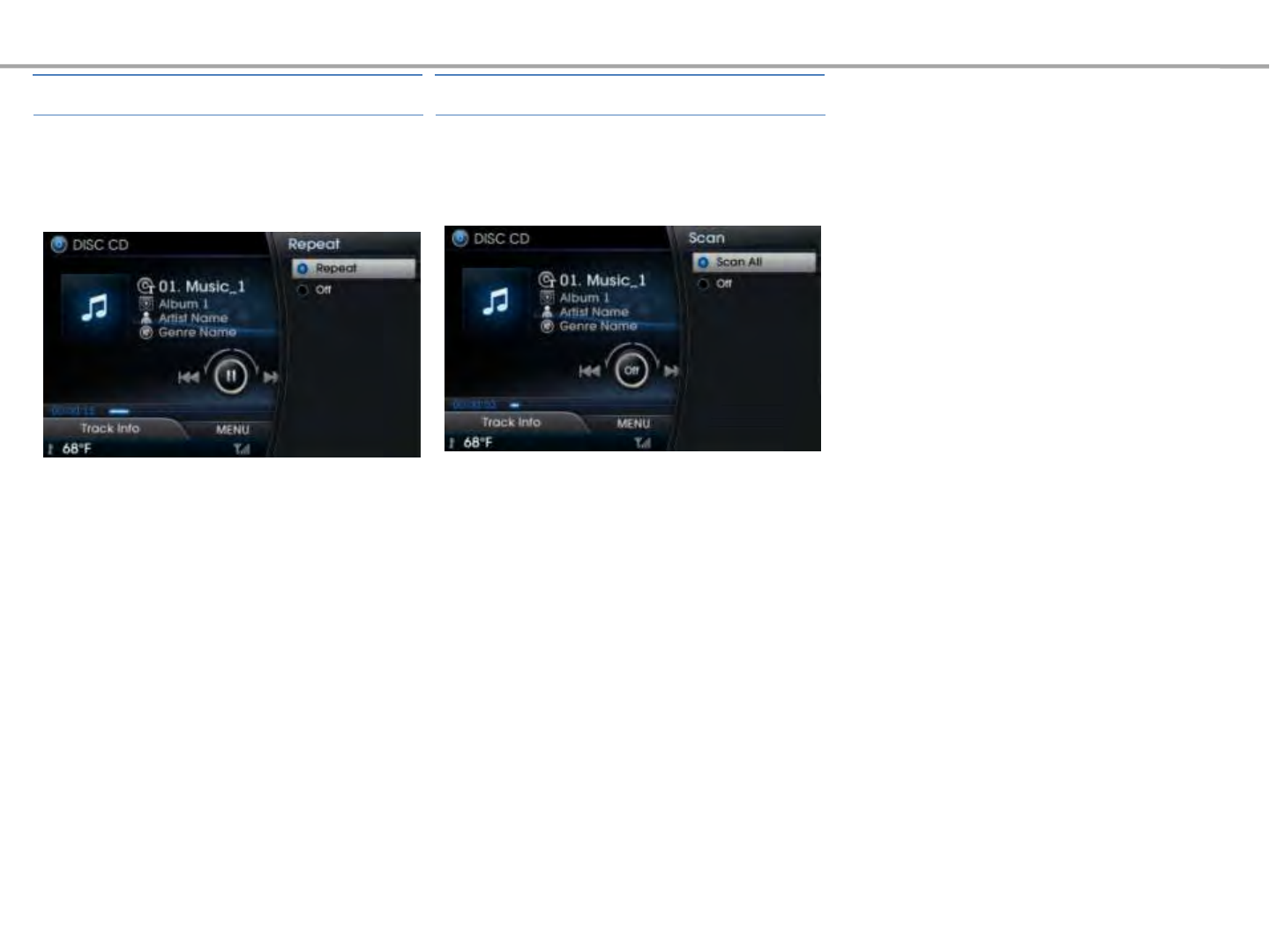

Press the [MENU] key ▶Select [Repeat]
▶Select [Repeat]
The current track is repeated. Select the
[Off] button to turn off repeat.
The beginning (approx 10 seconds) of all
tracks within the CD are scanned.
Select the [Off] button or press the
controller to turn off scan.
Press the [MENU] key ▶Select [Scan]
▶Select [Scan All]
Repeat Scan
DISC CD
![](/img.php?id=1768145&img=bg25.png)
Basic Mode Screen
4
10
1
5
12
2
6
3
11
78
9
13
No Name Description
1Mode Displays currently operating mode
2File index Shows the current MP3 file/total number
3Play File Info Shows file number/album/artist/genre info
4Control Panel
Enables use of play/pause/select/search features
•When turned left/right: Moves to previous/next track
•When pushed left/right: Plays previous/next song
•When pressed: Plays or pauses
5Play Time Displays the current play time
6File Info. Shows file information
7MENU Displays the pop up menus
8List Moves to MP3 Disc list screen
9Shuffle Turns Shuffle feature on/off
10 Repeat Turns Repeat feature on/off
11 Scan Scans the beginning parts of disc files (approx 10 seconds
per track)
12 Sound Settings Displays to the sound settings screen
13 Display Settings Displays to the display settings screen
DISC MP3
![](/img.php?id=1768145&img=bg26.png)

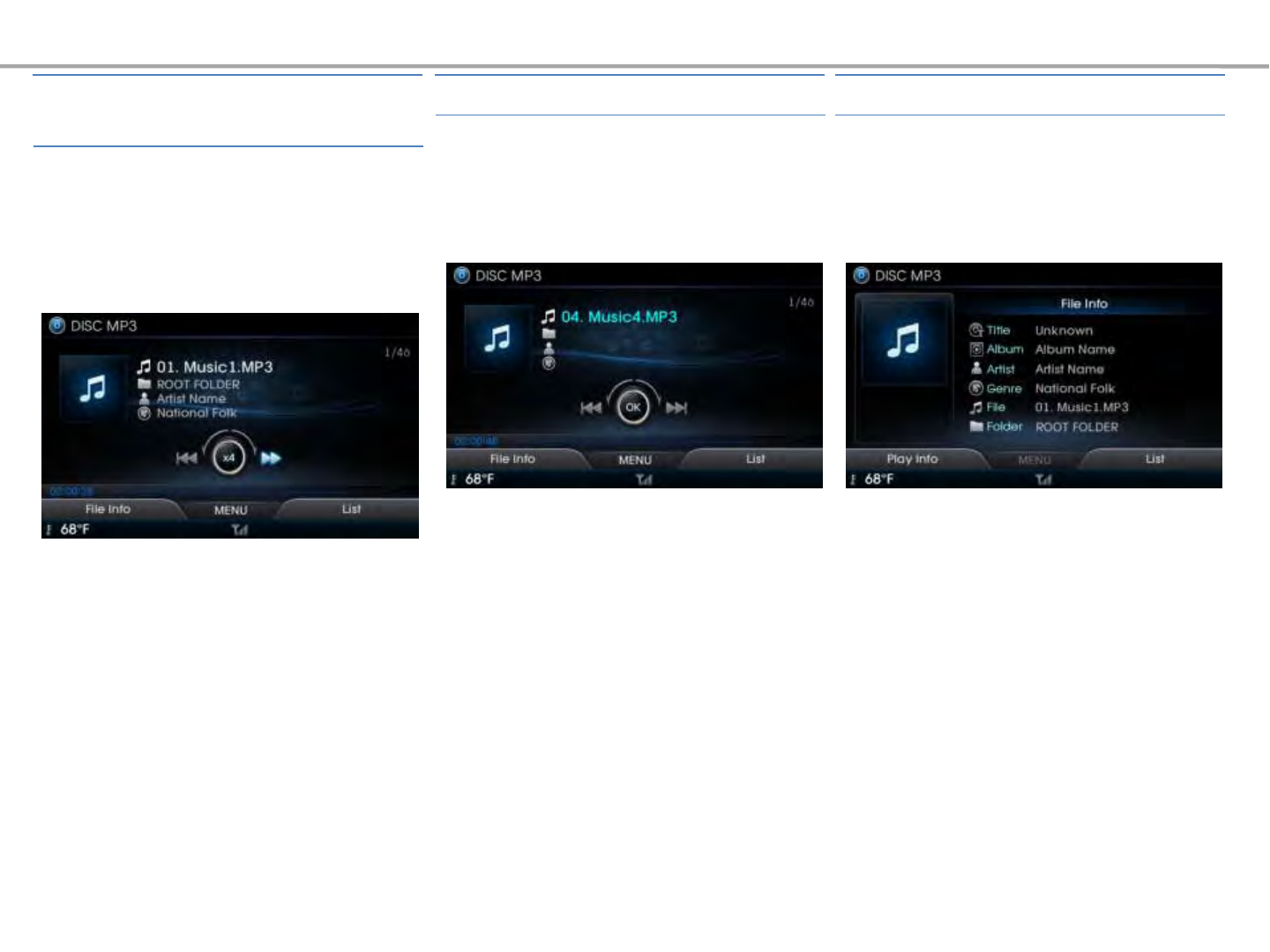

Starting Mode
DISC MP3 mode will automatically start
once a MP3 disc is inserted.
While playing ▶Shortly push the
controller left/right (under 0.8 seconds)
or shortly press the [<SEEK], [TRACK>]
keys to select the previous/next file.
Information
• If there are numerous songs and folders
within the disc, reading time could take more
than 10 seconds and the list may not be
displayed or song searches may not operate.
Once loading is complete, try again.
Press the [HOME] Key ▶Select DISC
button.
Press the controller to play or pause
the DISC MP3.
DISC MP3 do not display the play graph
and total time information.
DISC MP3
Playing DISC MP3 Selecting DISC MP3 files
![](/img.php?id=1768145&img=bg27.png)
While playing ▶Push and hold the
controller left/right (over 0.8 seconds)
or press and hold the [<SEEK], [TRACK>]
keys to rewind/fast-forward the file.
While playing ▶Turn the controller (○
TUNE knob) left/right to search for files.
During search, the file name is displayed.
Press the controller (○TUNE knob) to
play the selected file.
To return to the previous screen, select
the [LFT] Play Info button.
DISC MP3
Fast-forwarding or Rewinding DISC
MP3 Files
Searching DISC MP3 File Info/Play Info
Press the [LFT] Play File button to view
the file information.
![](/img.php?id=1768145&img=bg28.png)

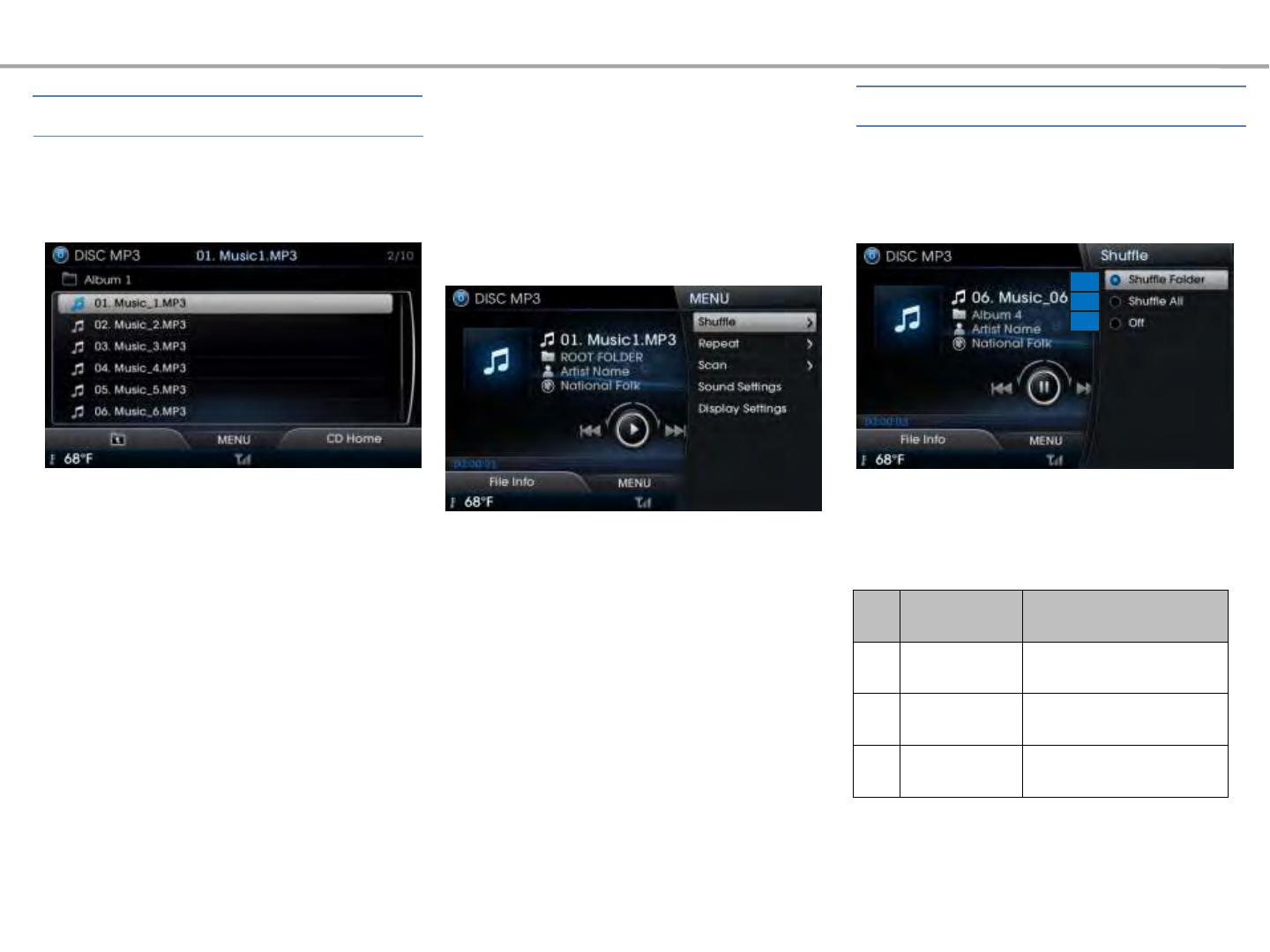

Press the [MENU] key to use the
Shuffle, Repeat, Scan, Sound Settings
and Display Settings.
Using the Menu Key
Press the [RHT] List button to select the
list and check the playlist.
Turn the controller left/right to select
and play the desired file. Once the
desired file has been found, press the
controller to play the file.
Pressing the [MENU] key and the |Now
Playing| button within the list screen
will move the focus to the currently
playing file.
DISC MP3
MP3 List
No Name Description
1Shuffle Folder Plays current folder in
random order
2Shuffle All Plays all files in random
order
3Off Turn the Shuffle feature off.
Press the [MENU] key ▶Select [Shuffle]
▶Select [Shuffle Folder] or [Shuffle All]
1
2
All songs or songs within the current
folder can be played in random order.
3
Shuffle
![](/img.php?id=1768145&img=bg29.png)

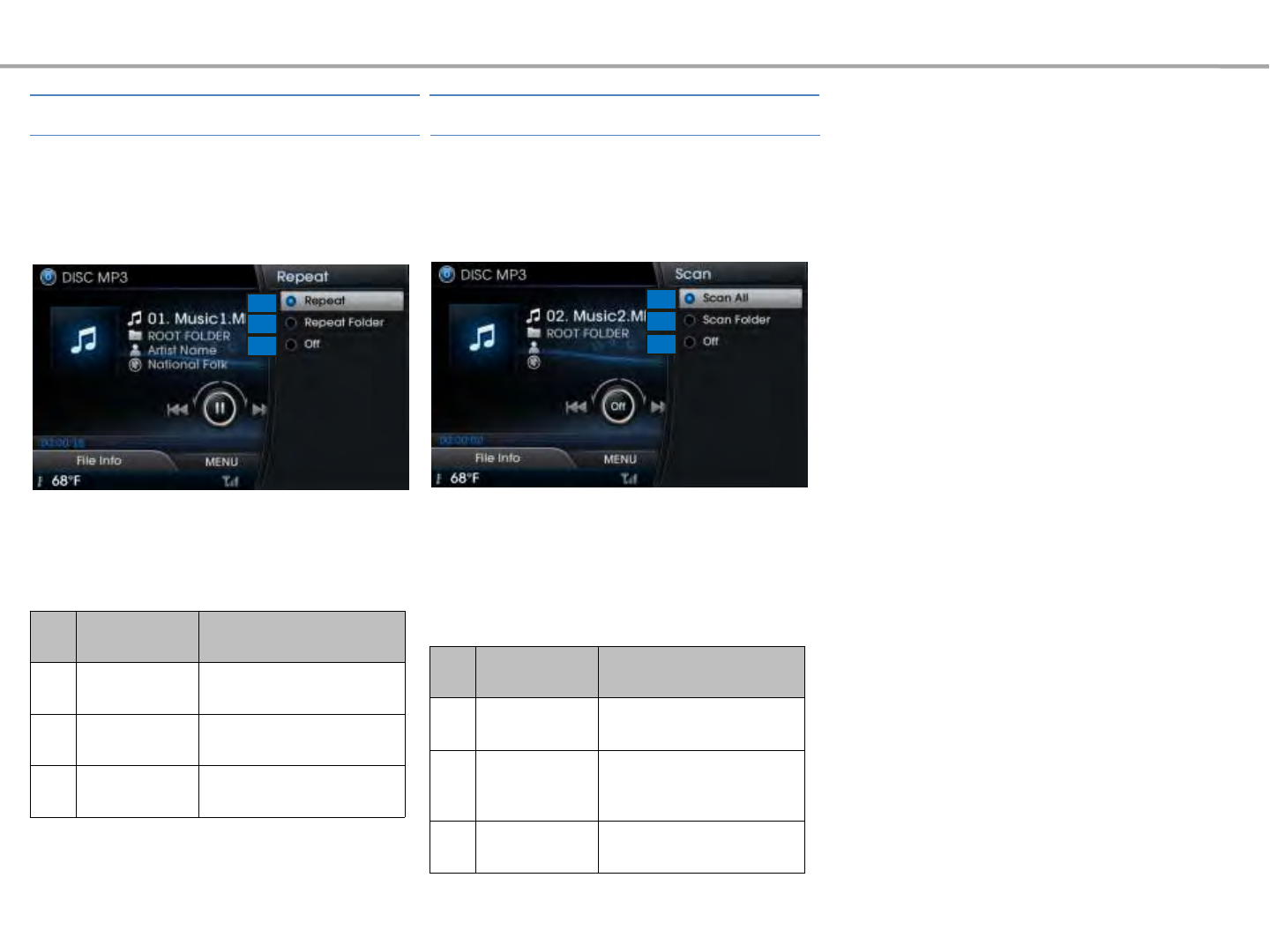

Press the [MENU] key ▶Select [Repeat]
▶Select [Repeat] or [Repeat Folder]
The current song or the all files within
the folder can be repeated.
The beginning part (approximately first
10 seconds) of all files within the current
folder or the entire DISC MP3 are
scanned.
Press the [MENU] key ▶Select [Scan]
▶Select [Scan All] or [Scan Folder]
1
2
1
2
No Name Description
1Repeat Repeat current song
2Repeat Folder Repeat current folder
3Off Turn the Repeat feature off.
No Name Description
1Scan All
Scans the beginning parts
(approx 10 seconds) of all
files
2Folder Scan
Scans the beginning parts
(approx 10 seconds) of all
files within the current
folder
3Off Turn the Scan feature off.
33
DISC MP3
Repeat Scan
MP3
![](/img.php?id=1768145&img=bg2a.png)

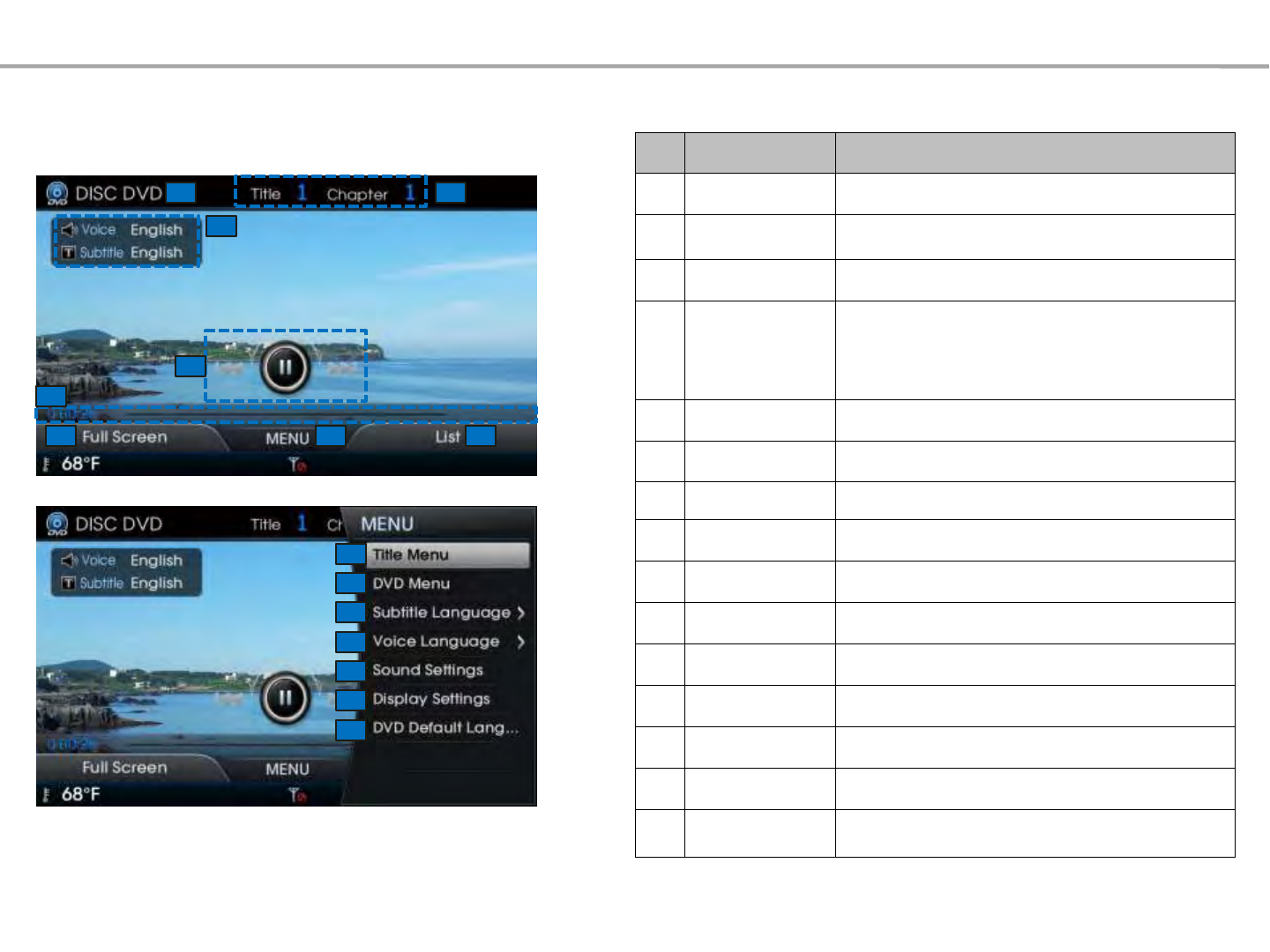

4
10
1
5
12
2
6
3
11
78
9
13
15
14
Basic Mode Screen
No Name description
1Mode Displays currently operating mode
2Index Shows the current DVD title/chapter number
3Code Info Shows information on voice and subtitle codes
4Control Panel
Enables use of play/pause/search features
•When turned left/right: Searches previous/next chapter
•When pushed left/right: Plays previous/next chapter
•When pressed: Plays or pauses
5Play Time Shows the current play time
6Full screen Converts DVD into full screen
7MENU Displays the pop up menus
8List Displays the DVD list screen
9Title Menu Moves to the Title menu screen
10 DVD Menu Moves to the DVD menu screen
11 Subtitle Language Set Subtitle Language
12 Voice Language Set Voice Language
13 Sound Settings Displays to the sound settings screen
14 Display Settings Displays to the display settings screen
15 DVD Default
Language Displays to the DVD language setting screen
DVD
DVD
![](/img.php?id=1768145&img=bg2b.png)
Starting Mode
Press the controller to play or pause
the DVD.
While playing ▶Shortly push the
controller left/right (under 0.8 seconds)
or shortly press the [<SEEK], [TRACK>]
keys to select the previous/next
chapter.
Press the [HOME] Key ▶Select the
DISC button.
DVD do not display the play graph and
total time information.
Playing a DVD Selecting a Chapter
DVD
DVD mode will automatically start once
a DVD disc is inserted.
![](/img.php?id=1768145&img=bg2c.png)

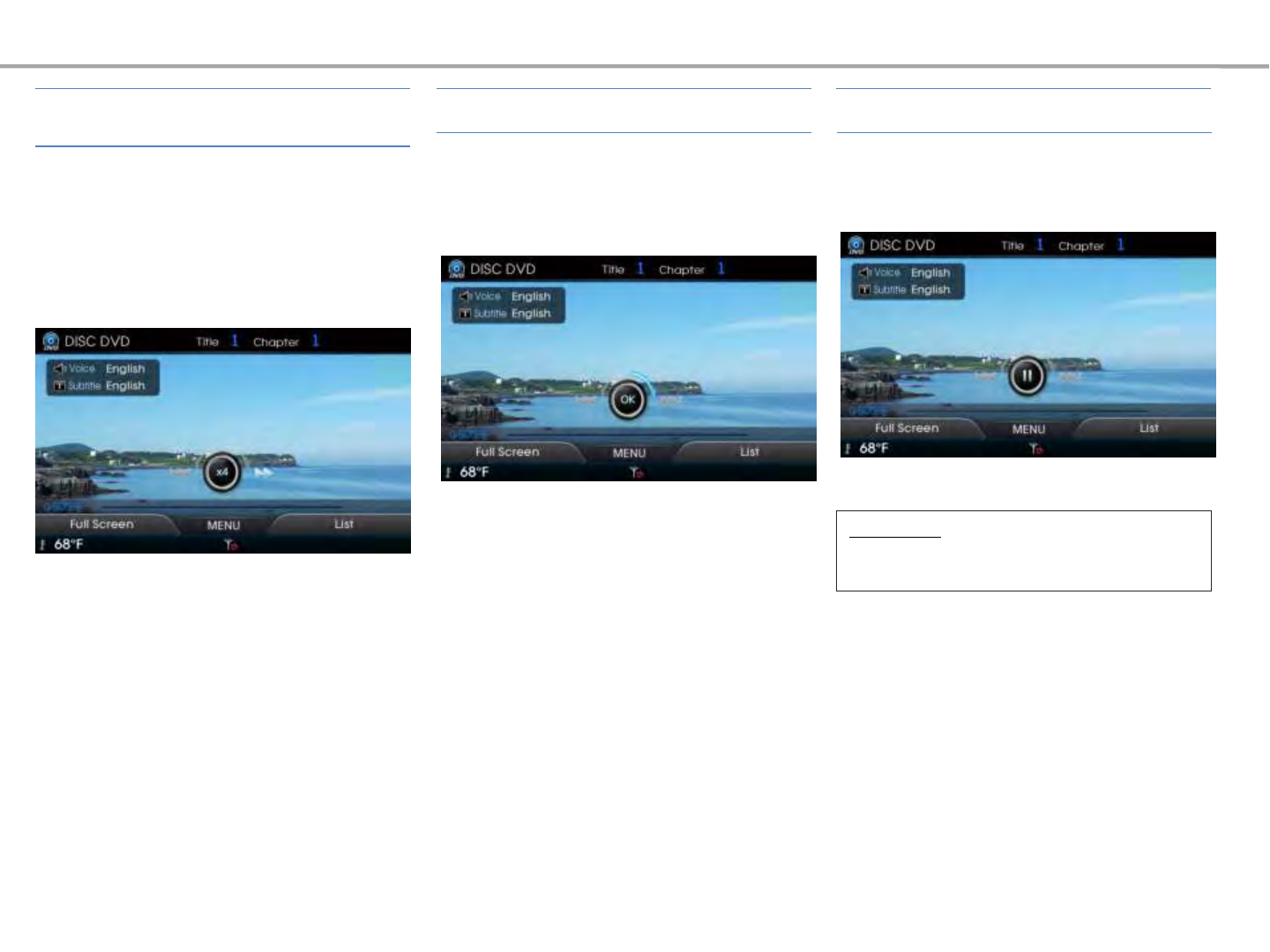

While playing ▶Push and hold the
controller left/right (over 0.8 seconds)
or press and hold the [<SEEK], [TRACK>]
key to rewind/fast-forward the current
DVD.
While playing ▶Turn the controller (○
TUNE knob) left/right to search for
chapters.
Press the [LFT] Full Screen to view the
DVD in full screen.
Information
•If there are no operations for 10 seconds,
the screen menu will automatically disappear.
Fast-forwarding or Rewinding
Chapter Searching Chapter Viewing in Full Screen
DVD
During search, the file name is displayed.
Press the controller (○TUNE knob) to
play the selected chapter.
![](/img.php?id=1768145&img=bg2d.png)

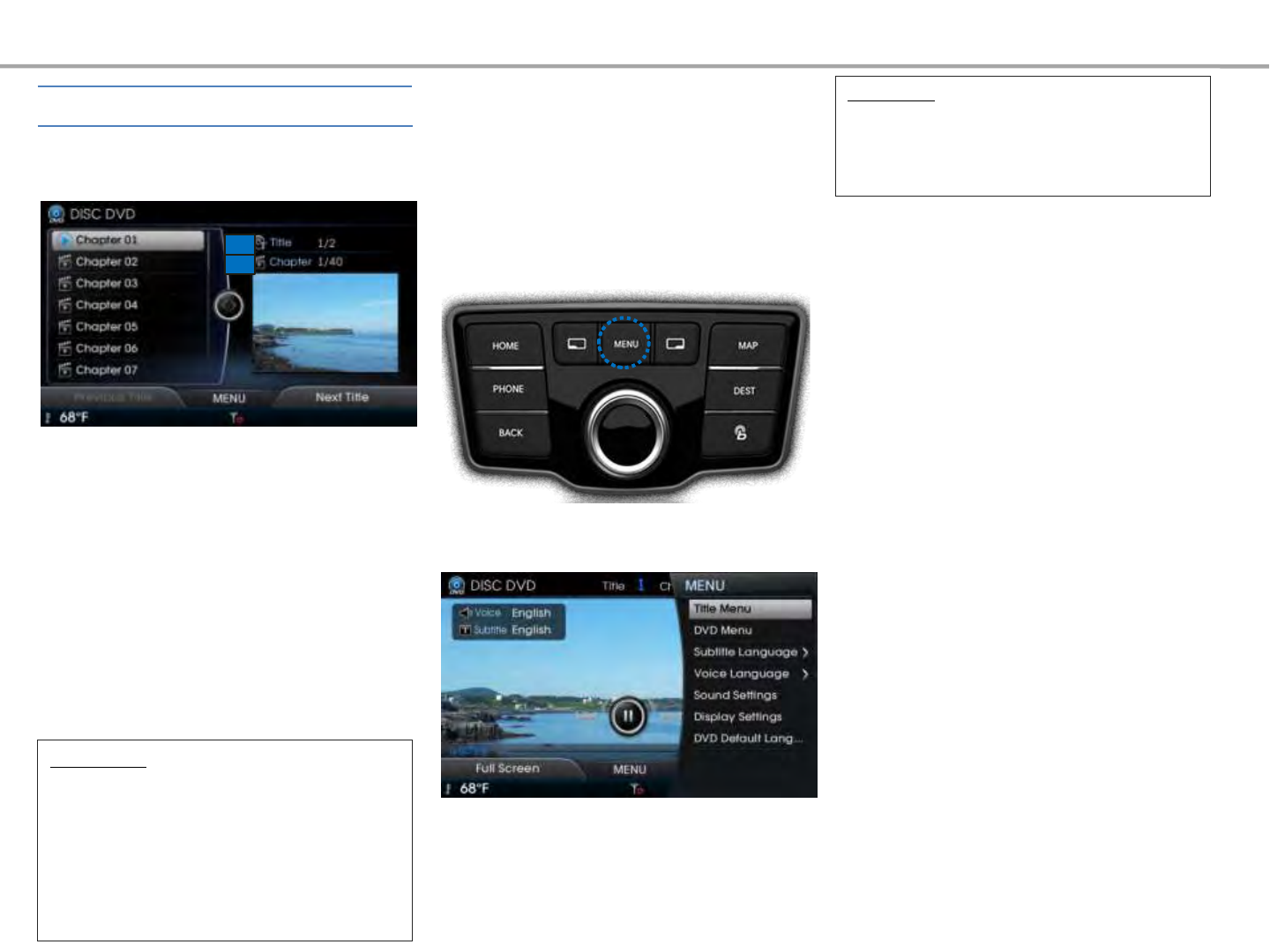

•Searching Titles
Press the [RHT] List button to search
DVD titles and chapters.
Press the [LFT] Previous Title and the
[RHT] Next Title button to change to the
previous or next title.
•Searching Chapters
Turn the controller left/right or shortly
press the [<SEEK], [TRACK>] keys (under
0.8 seconds) to select the previous/next
chapter.
Press the [MENU] key to set the Title
Menu, DVD Menu, Subtitle Language,
Voice Language, Sound Settings,
Display Settings and DVD Default
Language.
Using the Menu Key
Information
• The [1] displays the number of currently
playing title and the total number of titles
within the DVD disc.
• The [2] displays the number of currently
playing chapter and the total number of
chapters within the current title.
Information
•The Title Menu and DVD Menu options can
only be used within DVDs that support these
features. For DVD Menus, different DVD titles
may have different menu organizations.
1
2
Searching Titles/Chapters
DVD
![](/img.php?id=1768145&img=bg2e.png)
Push the controller up/down/left/right
directions to select the desired menu
and press the [OK] button.
Press the [MENU] key ▶Select [Title
Menu] or [DVD Menu] button
Press the controller to change the
subtitle language.
Press the [MENU] key ▶Select
[Subtitle Language]
Press the [MENU] key ▶Select [Voice
Language]
Press the controller to change the voice
language.
Information
•Supported subtitle and voice languages may
differ according to DVD title.
Title/DVD Menu Subtitle Language Voice Language
DVD
![](/img.php?id=1768145&img=bg2f.png)

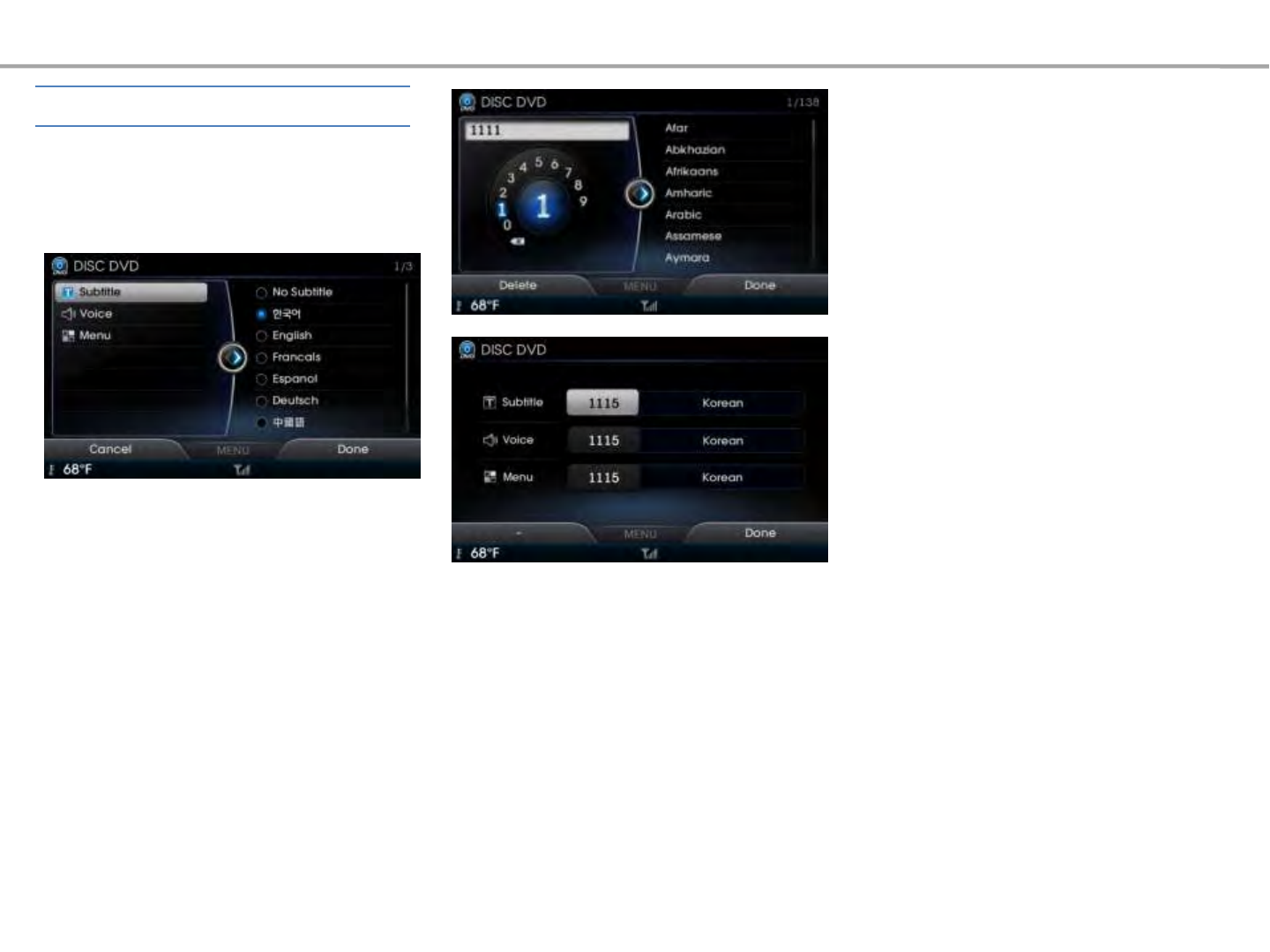

Press the [MENU] key ▶Select [DVD
Default Language]
DVD Default Language
DVD
This menu is used to set the languages
used when playing the DVD.
If you select ‘Others’ from the list of
languages, the desired language can be
searched by directly entering the
corresponding language code.
![](/img.php?id=1768145&img=bg30.png)
4
10
1
5
12
2
6
3
11
78
9
13

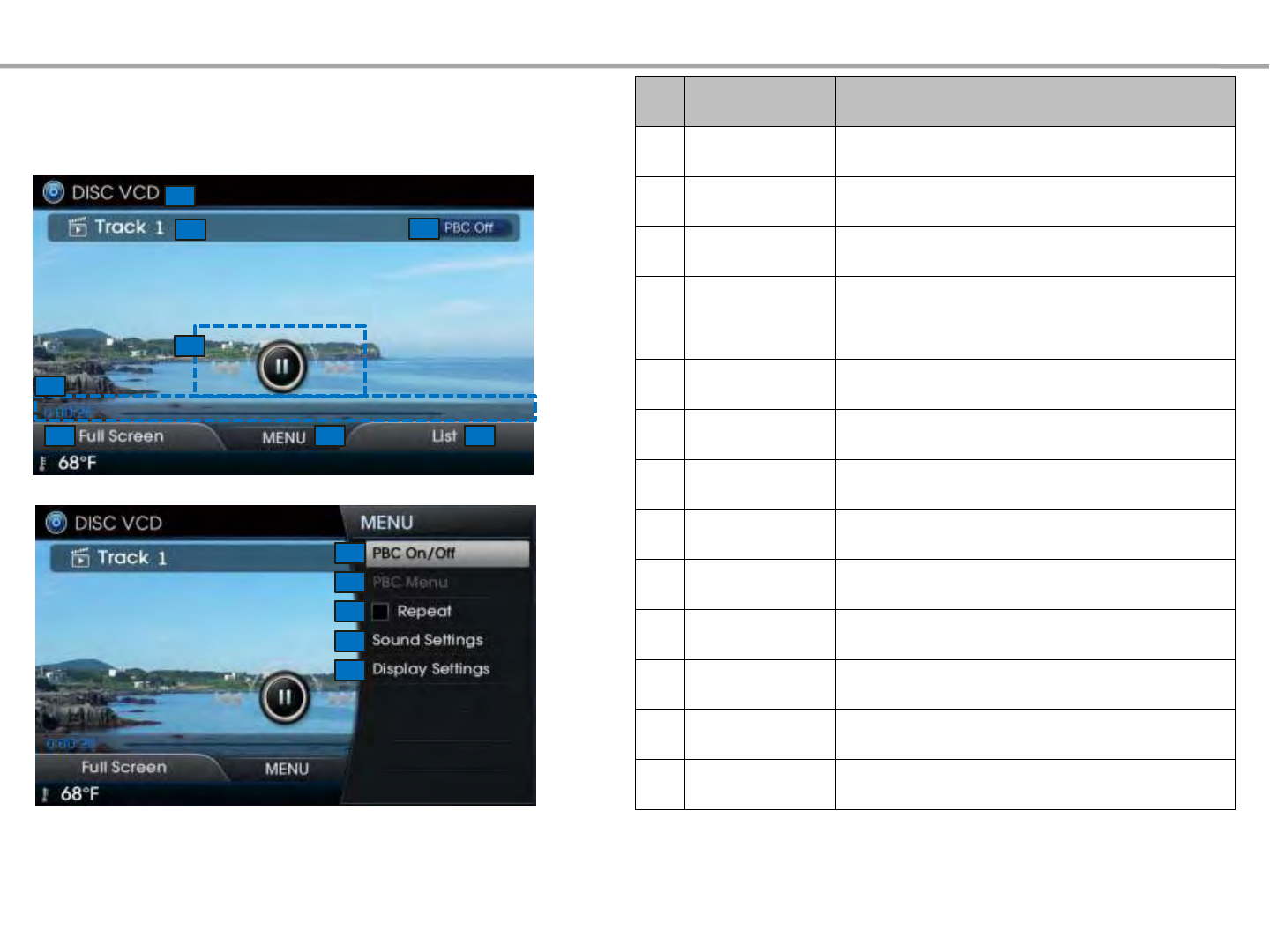

Basic Mode Screen No Name description
1Mode Displays currently operating mode
2Track Index Shows the current track number
3PBC Displays PBC function On/Off
4Control Panel
Enables use of play/pause/search features
When turned left/right: Searches previous/next file
When pushed left/right: Plays previous/next file
When pressed: Plays or pauses
5Play Time Displays the current play time
6Full Screen Converts VCD into full screen
7MENU Displays the pop up menus
8List Moves to the VCD list screen
9PBC On/Off Turns the PBC feature On/Off
10 PBC Menu Moves to the PBC Menu screen
11 Repeat
Turns Repeat feature on/off
12 Sound Settings Displays to the sound settings screen
13 Display Settings Displays to the display settings screen
VCD
![](/img.php?id=1768145&img=bg31.png)

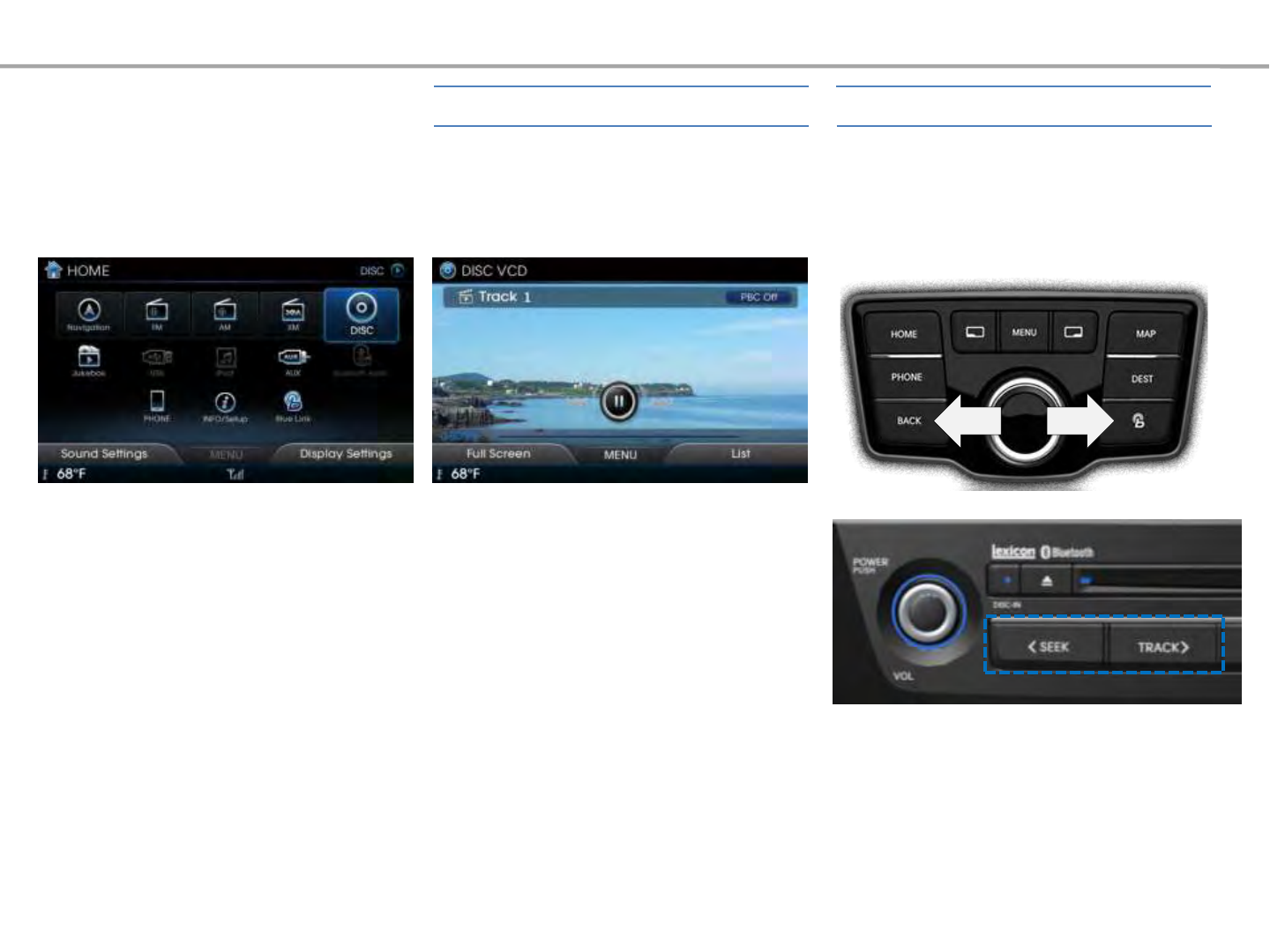

Starting Mode
VCD mode will automatically start once
a VCD disc is inserted.
Press the controller to play or pause
the VCD.
Press the [HOME] Key ▶Select DISC
button.
While playing ▶Shortly push the
controller left/right (under 0.8 seconds)
or shortly press the [<SEEK], [TRACK>]
keys to select the previous/next track.
Playing a VCD Selecting VCD tracks
VCD
VCD do not display the play graph and
total time information.
![](/img.php?id=1768145&img=bg32.png)

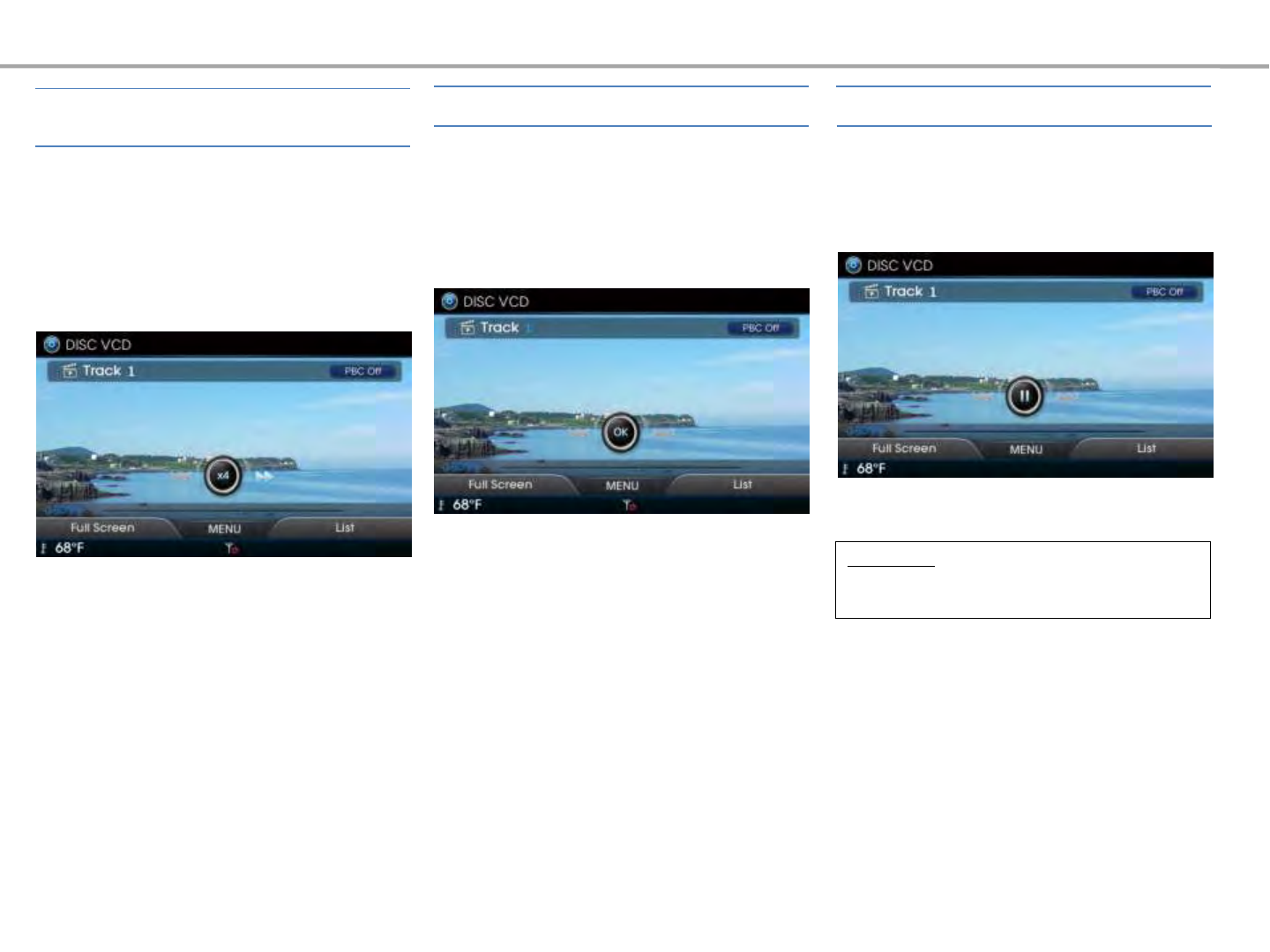

While playing ▶Turn the controller (○
TUNE knob) left/right to search for
tracks.
During search, the track name is
displayed. Press the controller (○TUNE
knob) to play the selected track.
While playing ▶Push and hold the
controller left/right (over 0.8 seconds)
or press and hold the [<SEEK], [TRACK>]
keys to rewind/fast-forward the current
VCD.
Press the [LFT] Full Screen button to
view the VCD in full screen.
Information
•If there are no operations for 10 seconds, the
screen menu will automatically disappear.
Searching VCD tracks Viewing in Full Screen
Fast-forwarding or Rewinding VCD
tracks
VCD
![](/img.php?id=1768145&img=bg33.png)

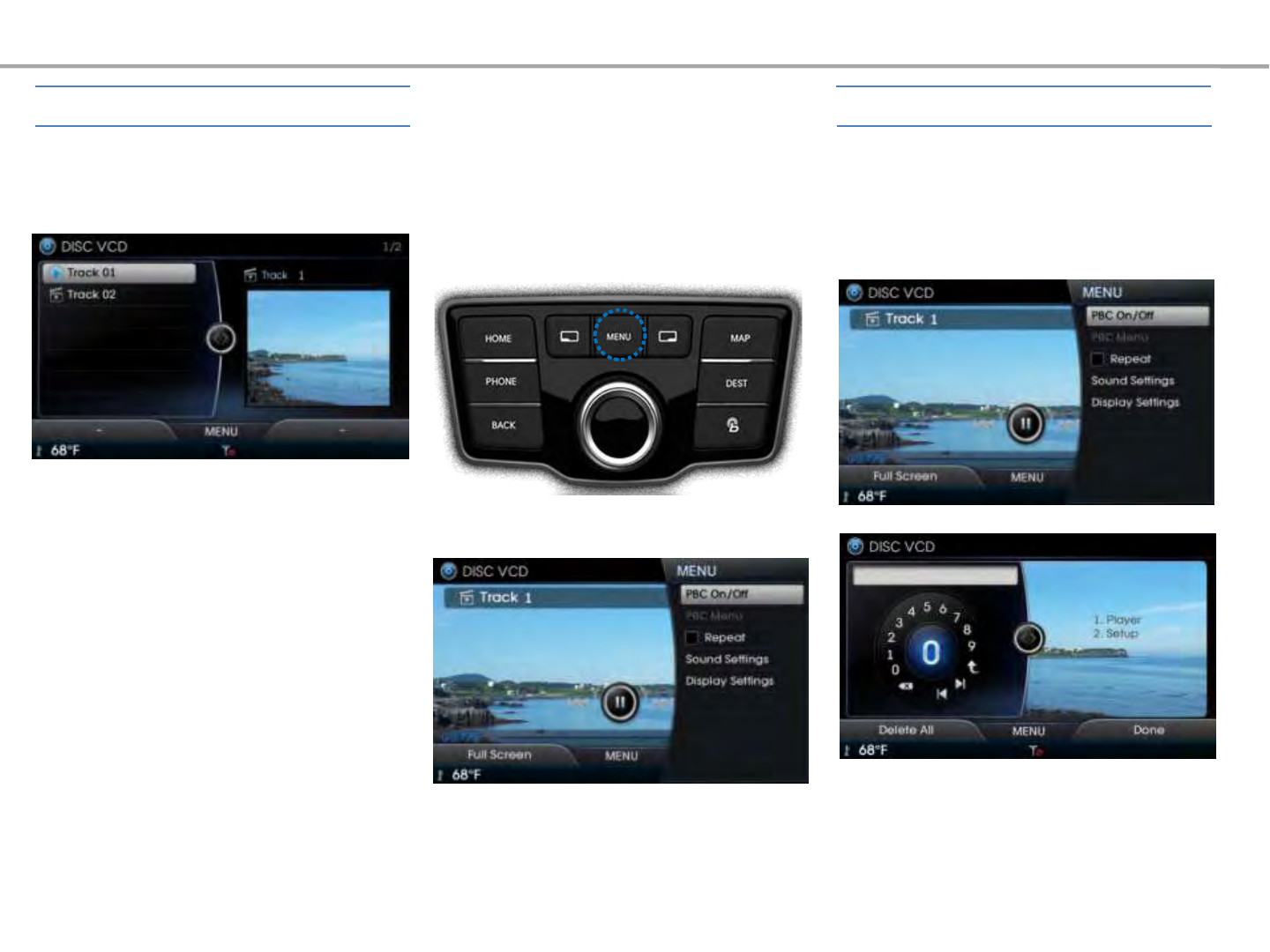

Press the [RHT] List button to view the
play list.
Press the [MENU] key to use the PBC
On/Off, PBC Menu, Repeat, Sound
Settings and Display Settings.
Using the Menu Key
Press the [MENU] key ▶Select [PBC
On/Off] ▶Select the [0]~[9] buttons
▶Set and press [Done] button.
Within PBC ON state, press the [PBC Menu]
button to display the PBC menu screen.
PBC On/OffVCD List
VCD
Select the desired track by turning the
controller. Once the desired track has
been found, press the controller to play
the track.
VCD
![](/img.php?id=1768145&img=bg34.png)

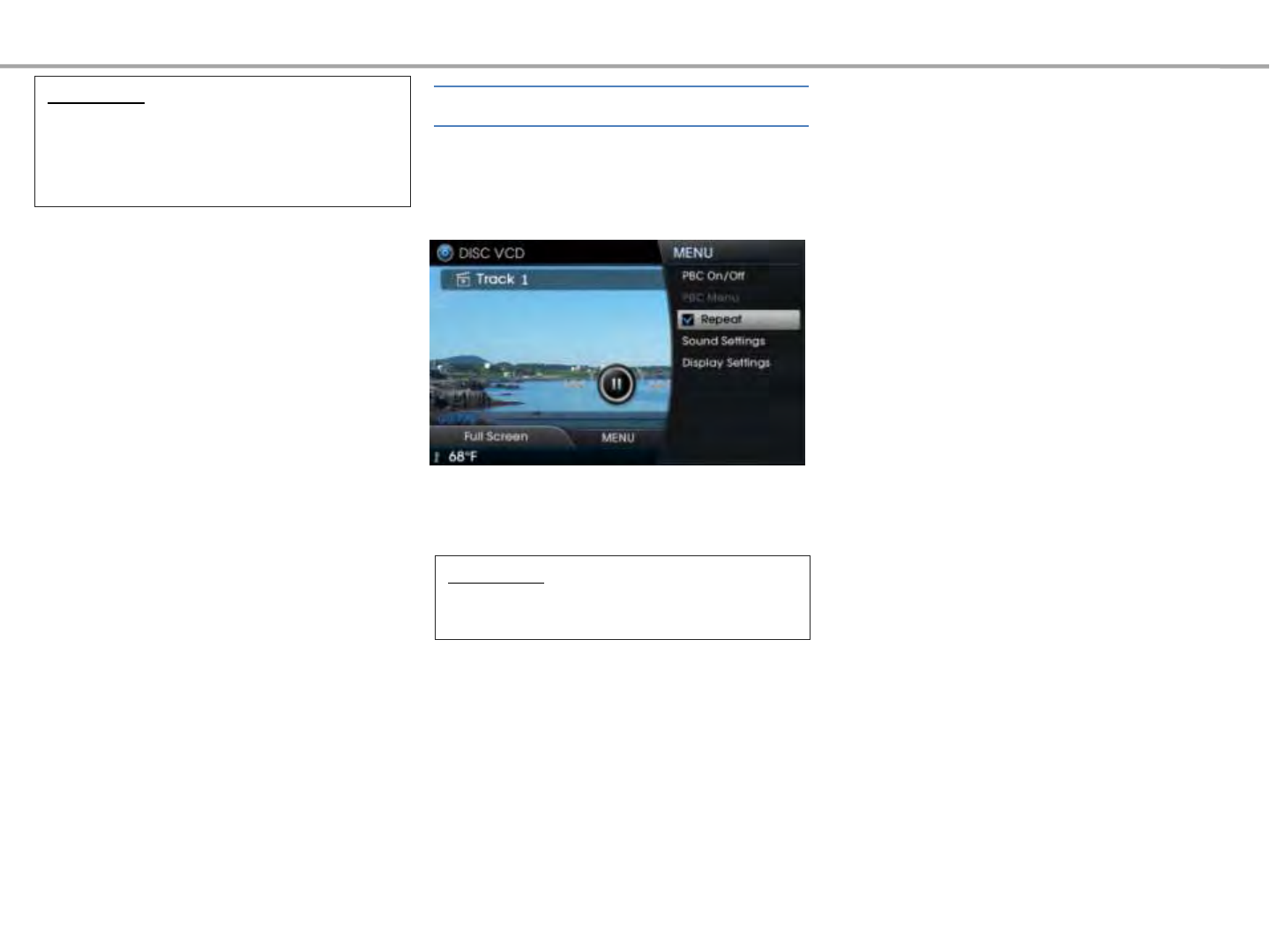

Press the [MENU] key ▶Select [Repeat]
The current track is repeated.
Information
• Press the *PBC On/Off+ button to turn the
PBC setting OFF.
• Press the *<<+ *>>+ buttons to move to the
previous/next list menu page.
Information
•Press the [Repeat] button again to turn off
repeat.
Repeat
VCD
VCD
![](/img.php?id=1768145&img=bg35.png)

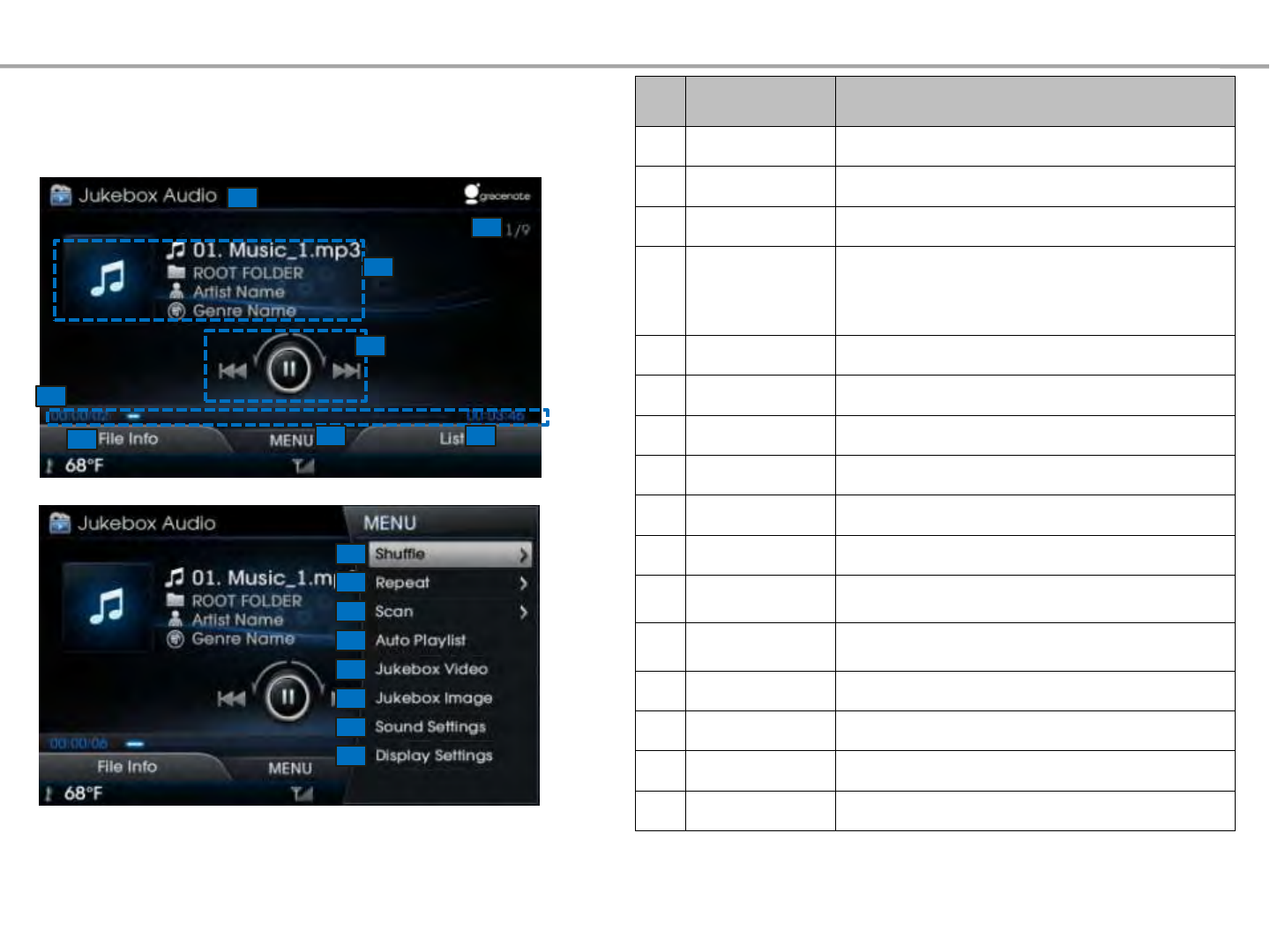

4
10
1
5
12
2
6
3
11
78
9
13
15
14
Basic Mode Screen(Audio)
16
No Name description
1Mode Displays currently operating mode
2File Index Shows the current file/total files
3Play File Info Shows track number/album/artist/genre infomation
4Control Panel
Enables use of play/pause/select/search features
•When turned left/right: Searches previous/next files
•When pushed left/right: Plays previous/next file
•When pressed: Plays or pauses the file
5Play Time Displays the play time information
6File Info Shows file information
7MENU Displays the pop up menus
8List Moves to the Jukebox Audio list screen
9Shuffle
Turns Shuffle feature on/off
10 Repeat
Turns Repeat feature on/off
11 Scan Scans the beginning parts of files (approx 10 seconds per
file)
12 Auto Playlist Moves to list screen showing current song (Refer to the
Auto Playlist mode for more information)
13 Jukebox Video Moves to Jukebox Video mode
14 Jukebox Image Moves to Jukebox Image mode
15 Sound Settings Displays the sound settings screen
16 Display Settings Displays the display settings screen
JUKEBOX
JB Audio
![](/img.php?id=1768145&img=bg36.png)

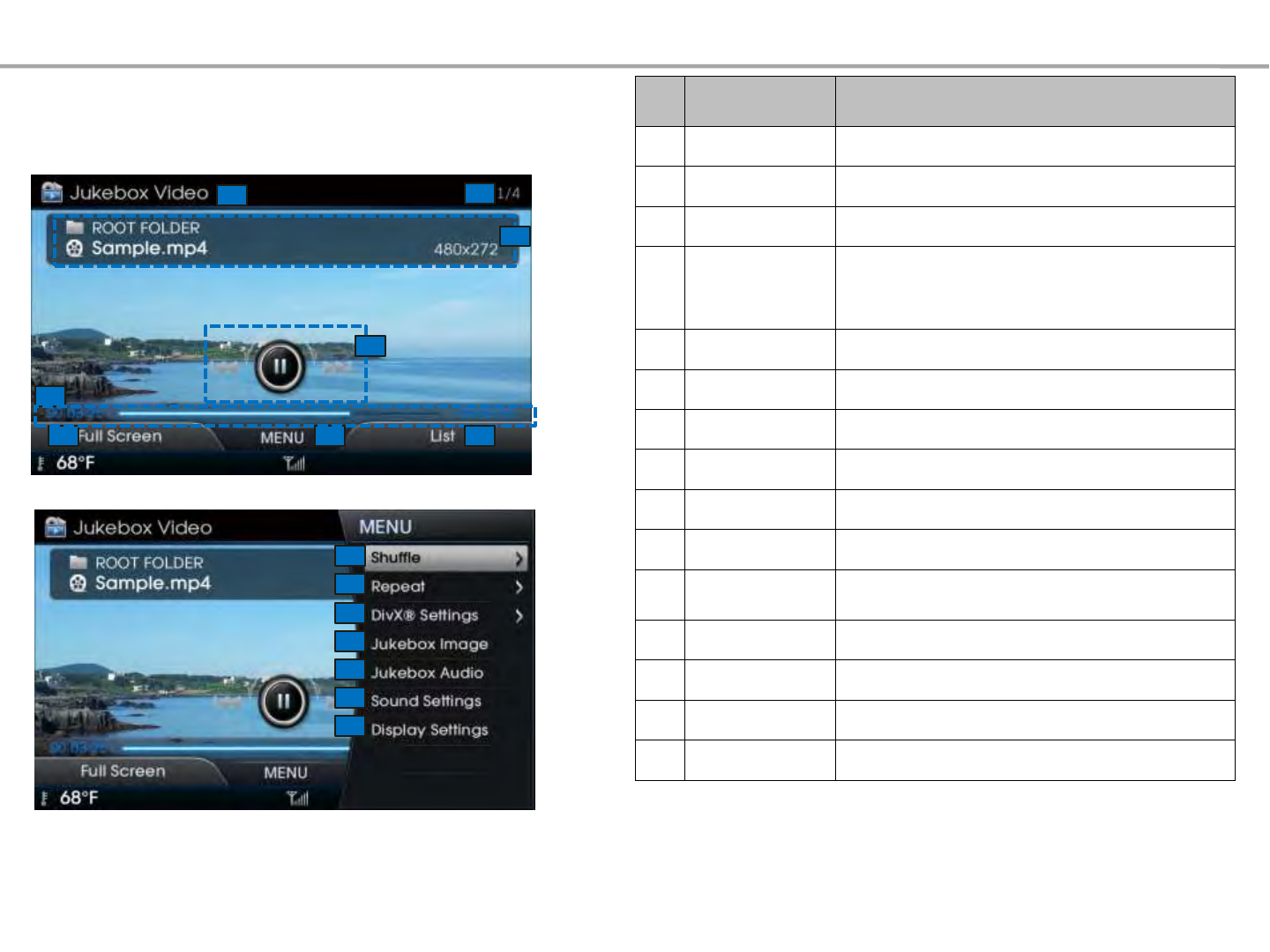

Basic Mode Screen(Video) No Name description
1Mode Displays currently operating mode
2File Index Shows the current file/total number of files
3Play File Info Shows File name/Folder/Resolution information
4Control Panel
Enables use of play/pause/select/search features
When turned left/right: Searches previous/next files
When pushed left/right: Plays previous/next file
When pressed: Plays or pauses the file
5Play Time Displays the playtime information
6Full Screen Displays the video in full screen
7MENU Displays the pop up menus
8List Moves to the Jukebox Video list screen
9Shuffle
Turns Shuffle feature on/off
10 Repeat
Turns Repeat feature on/off
11 DivX® Setting Used to set DivX VOD related settings/subtitles and voice
language settings
12 Jukebox Image Moves to Jukebox Image mode
13 Jukebox Audio Moves to Jukebox Audio mode
14 Sound Settings Displays the sound settings screen
15 Display Settings Displays the display settings screen
4
1
5
2
15
3
67
10
12
11
9
13
14
8
JUKEBOX
JB Video
![](/img.php?id=1768145&img=bg37.png)

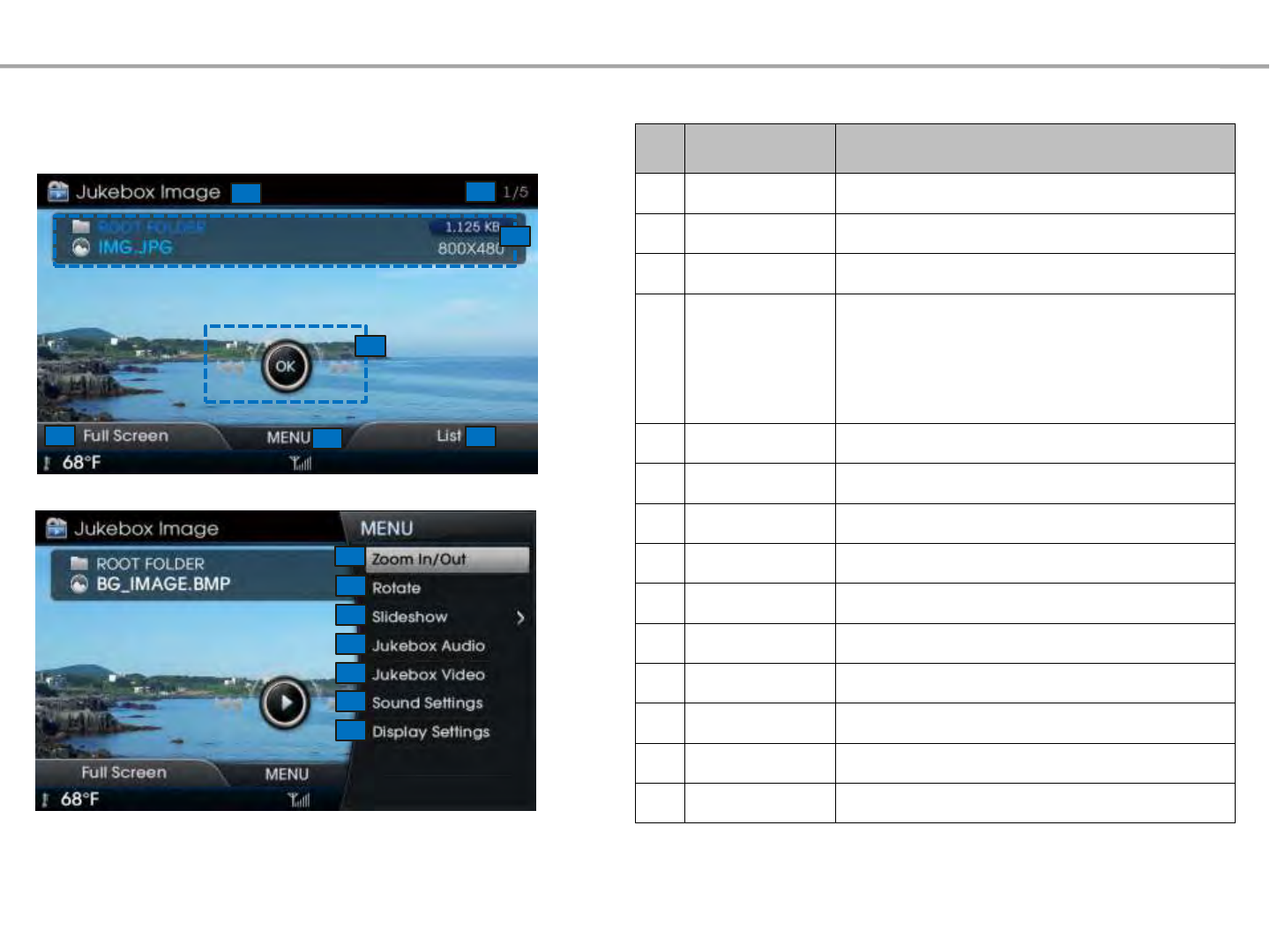

Basic Mode Screen(Image)
No Name description
1Mode Displays currently operating mode
2File Index Shows the current file/total files
3Play File Info Shows File name/Folder/Size/Resolution information
4Control Panel
Enables use of play/pause/select/search features
•When turned left/right: searches previous/next files
•When pushed left/right: plays previous/next files
•When pressed: Starts/stops slideshow
5Full Screen Displays the image in full screen
6MENU Displays the pop up menus
7List Moves to the Jukebox Image list screen
8Zoom In/Out Enlarges/reduces image (zoom in/out)
9Rotate Rotates image
10 Slideshow Setting Set image slideshow time
11 Jukebox Audio Moves to Jukebox Audio mode
12 Jukebox Video Moves to Jukebox Video mode
13 Sound Settings Displays the sound settings screen
14 Display Settings Displays the display settings screen
4
1
5
2
8
3
67
10
12
11
9
13
14
JUKEBOX
JB Image
![](/img.php?id=1768145&img=bg38.png)

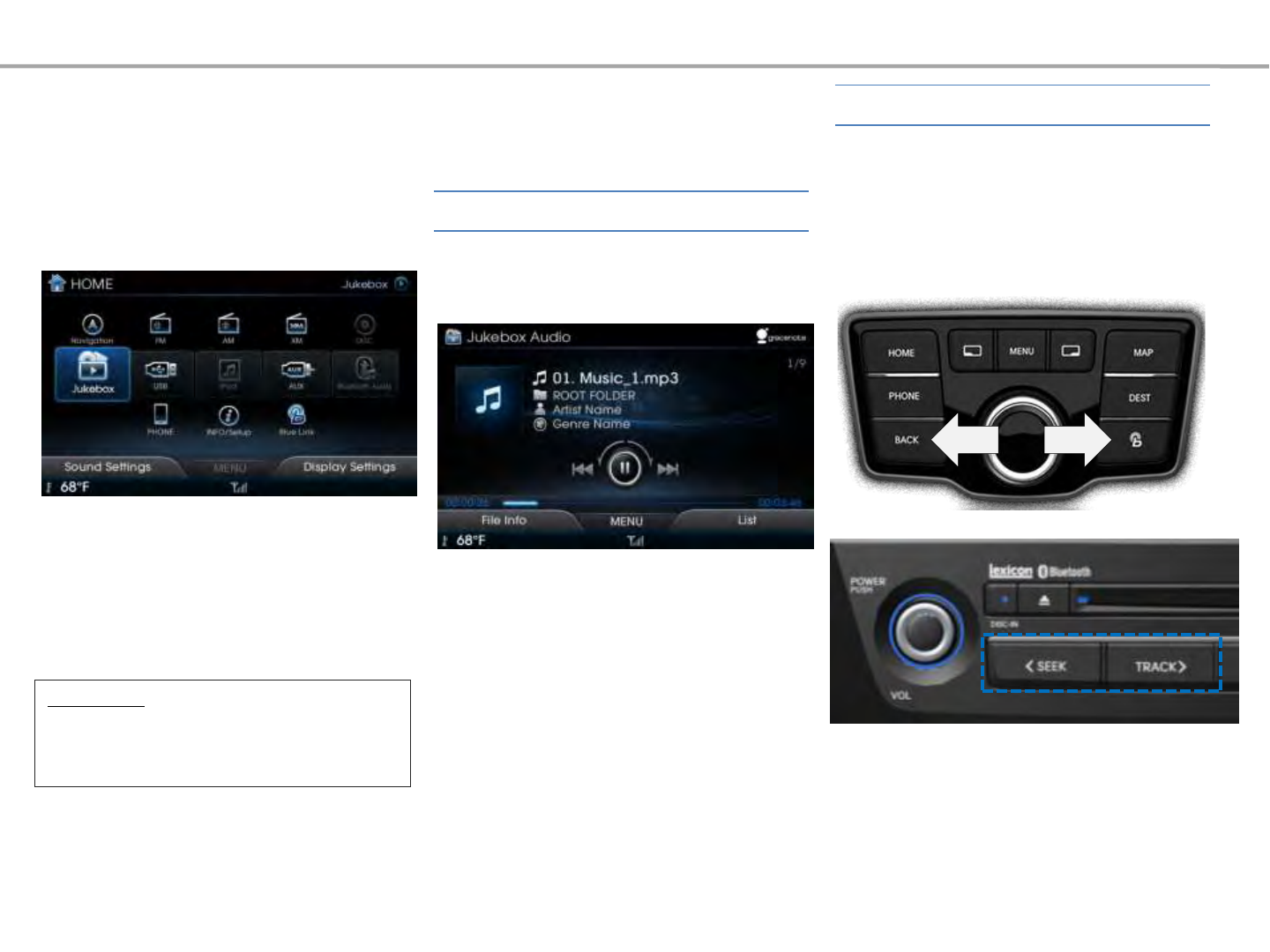

Starting Mode
Press the [HOME] key ▶Select the
Jukebox button.
If there are files saved within the
Jukebox, then the Jukebox menu will be
enabled.
Once Jukebox is selected, the most
recently operated mode (Audio, Image,
and Video) will operate.
Information
• If Jukebox is being operated for the first
time, then Jukebox Audio mode will begin
to operate.
Press the controller to play or pause the
current file.
While playing ▶Shortly push the
controller left/right (under 0.8 seconds)
or shortly press the [<SEEK], [TRACK>]
keys to select the previous/next file.
Playing Jukebox Audio
Selecting Jukebox Audio Files
JUKEBOX
While Gracenote checks the music
information, the message “Indexing.” will
blink at the top right side.
Once Indexing is complete, song
information is displayed on the screen for
songs supported by Gracenote.
Jukebox Audio Mode
JB Audio
![](/img.php?id=1768145&img=bg39.png)

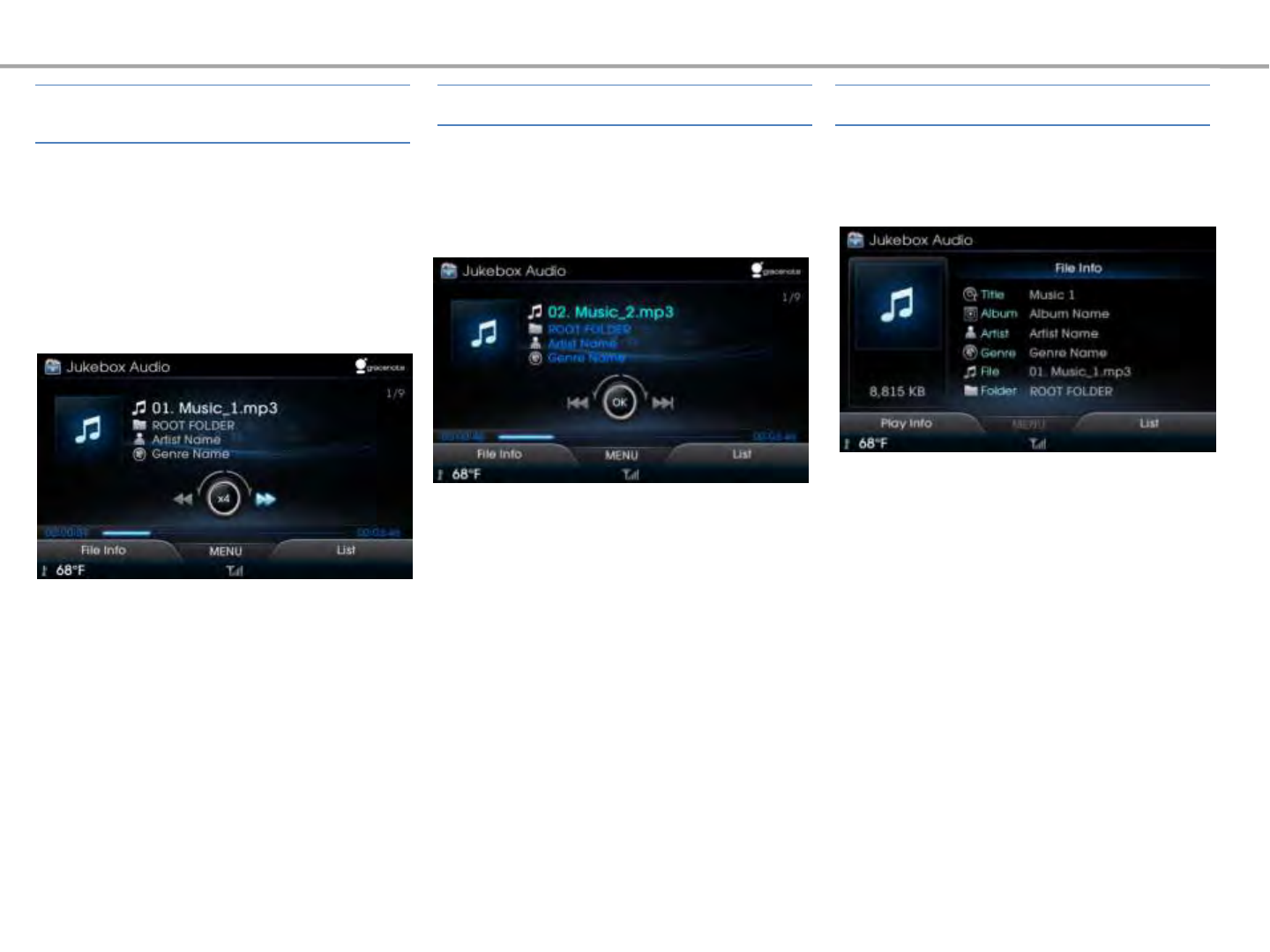

While playing ▶Press and hold the
controller in left/right (over 0.8
seconds) or press and hold the [<SEEK],
[TRACK>] keys to rewind/fast-forward
the current file.
While playing ▶Turn the controller (○
TUNE knob) left/right to search for files.
Press the [LFT] File Info button to view
file information.
During search, the file name is displayed.
Press the controller(○TUNE knob) to
play the selected file.
To return to the previous screen, select the
[LFT] Play Info button.
Searching Jukebox Audio Files File Info/Play Info
Fast-forwarding or Rewinding
Jukebox Audio Files
JUKEBOX
JB Audio
![](/img.php?id=1768145&img=bg3a.png)

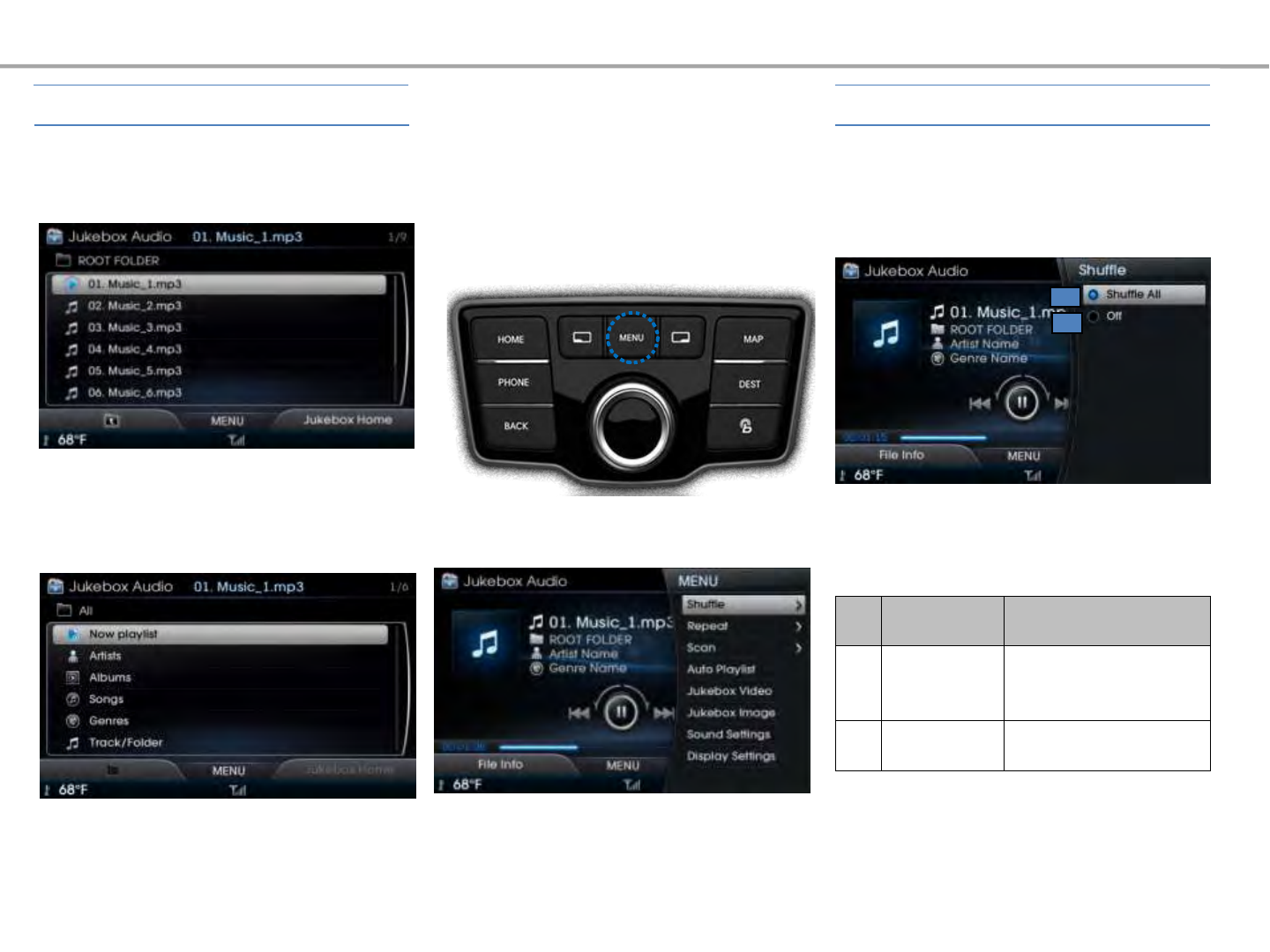

Press the [RHT] List button to select
from the list.
Once Gracenote indexing (checking for
song information) is complete, songs
can be selected by searching through
categories from the root list screen.
Using the Menu Key
Press the [MENU] key to use the Shuffle,
Repeat, Scan, Auto Playlist, Sound
Settings and Display Settings. This menu
is also used to move to other Jukebox
modes.
Press the [MENU] key ▶Select [Shuffle]
▶Select [Shuffle All]
This option is used to play audio files
within the Jukebox in random order.
No Name Description
1Shuffle All Play audio files within the
Jukebox in random order
2Off Turn the Shuffle feature off
Jukebox Audio List Shuffle
JUKEBOX
Select the desired file by turning the
controller. Once the desired file has
been found, press the controller to play
the file.
JB Audio
1
2
![](/img.php?id=1768145&img=bg3b.png)

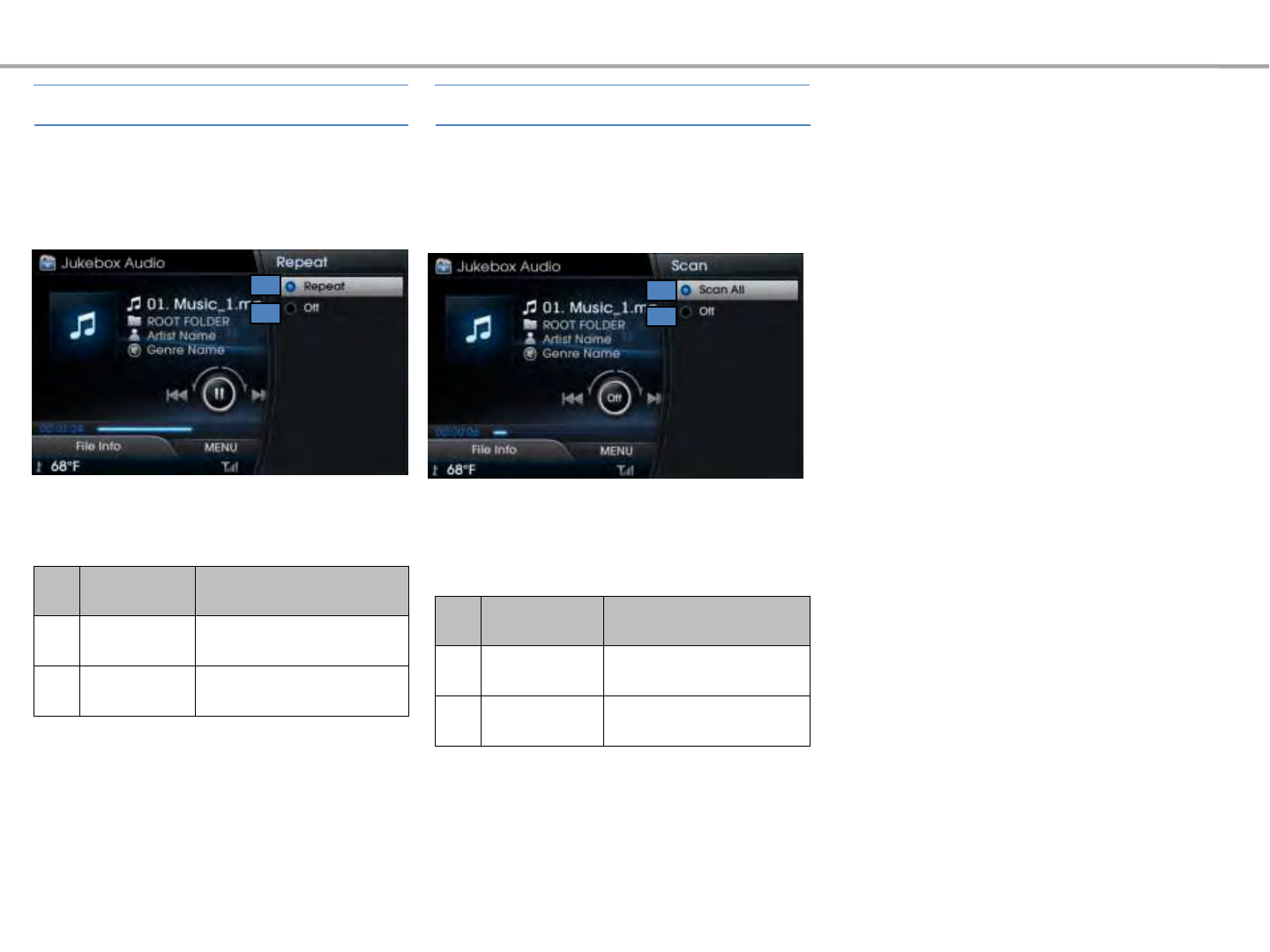

Press the [MENU] key ▶Select [Repeat]
▶Select [Repeat]
The current song can be repeated.
Press the [MENU] key ▶Select [Scan]
▶Select [Scan All]
The beginning part (approximately first
10 seconds) of all files are played.
No Name Description
1Scan All Previews the first 10 seconds
of all files
2Off Turn the Scan feature off
No Name Description
1Repeat Repeats play of currently
playing file
2Off Turn the Repeat feature off
Repeat Scan
JUKEBOX
JB Audio
1
2
1
2
![](/img.php?id=1768145&img=bg3c.png)

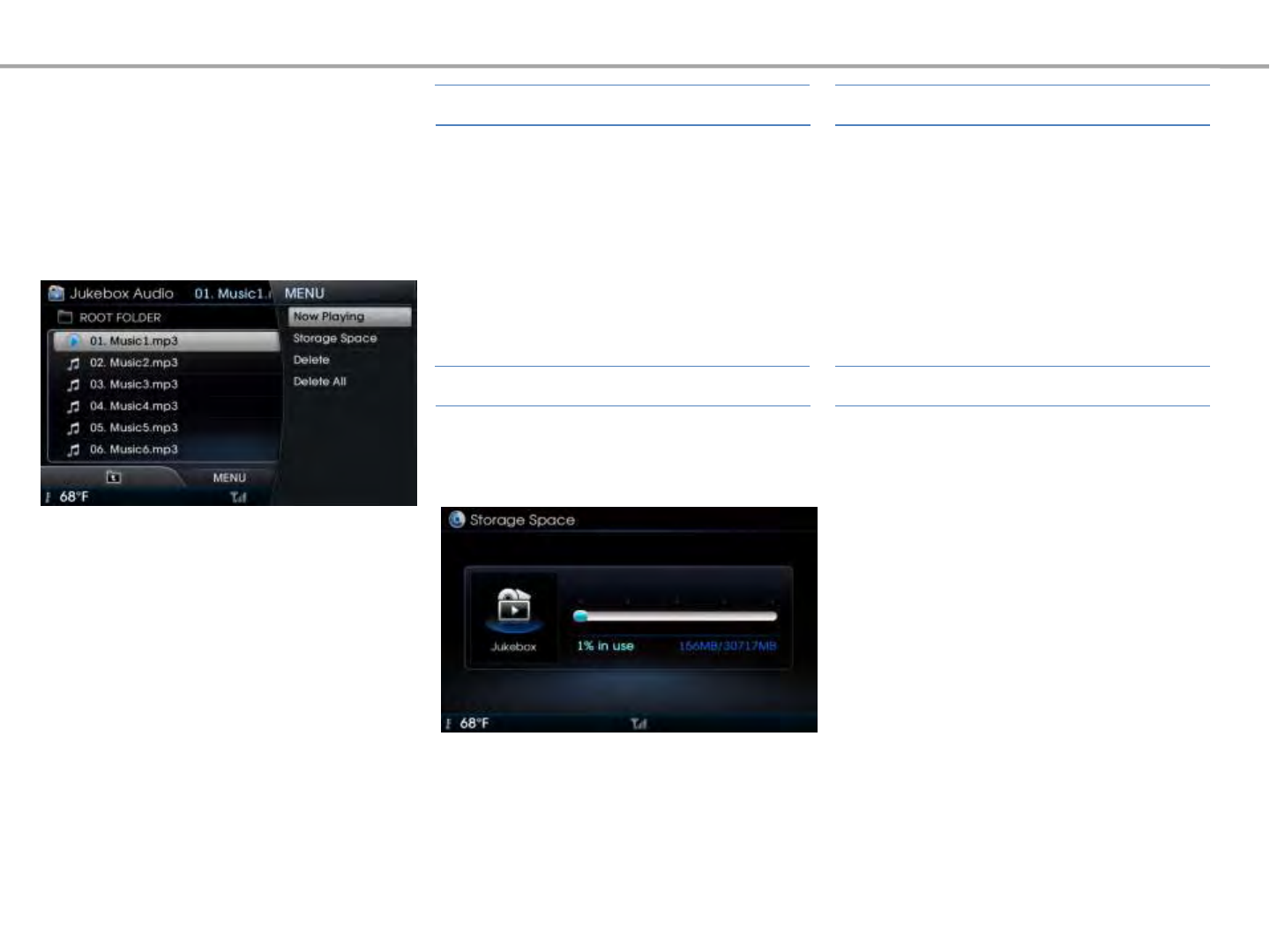

Using the List Menu Key
From the list screen ▶Press the
[MENU] key ▶Select [Now Playing]
The focus is moved to the currently
playing file.
From the list screen ▶Press the
[MENU] key ▶Select [Delete]
The selected file is deleted.
From the list screen ▶Press the
[MENU] key ▶Select [Storage Space]
From the list screen ▶Press the
[MENU] key ▶Select [Delete All]
All files saved within Jukebox Audio are
deleted.
The total memory and available memory is
displayed.
Now Playing
Storage Space
Delete
Delete All
JUKEBOX
From the List screen, press the [MENU]
key to use the Now Playing, Storage,
Delete, and Delete All options.
JB Audio
![](/img.php?id=1768145&img=bg3d.png)
Jukebox Video Mode
While playing ▶Shortly push the
controller left/right (under 0.8 seconds)
or shortly press the [<SEEK], [TRACK>]
keys to select the previous/next file.
While playing ▶Press and hold the
controller in left/right direction (over
0.8 seconds) or press and hold the
[<SEEK], [TRACK>] keys to rewind/fast-
forward the current file.
Once the controller or [SEEK/TRACK] key
is released, the file will begin playing at
normal speed.
Selecting Jukebox Video Files Fast-forwarding or Rewinding
Jukebox Video Files
Playing Jukebox Video
JUKEBOX
JB Video
Press the controller to play or pause
the Jukebox Video.
![](/img.php?id=1768145&img=bg3e.png)

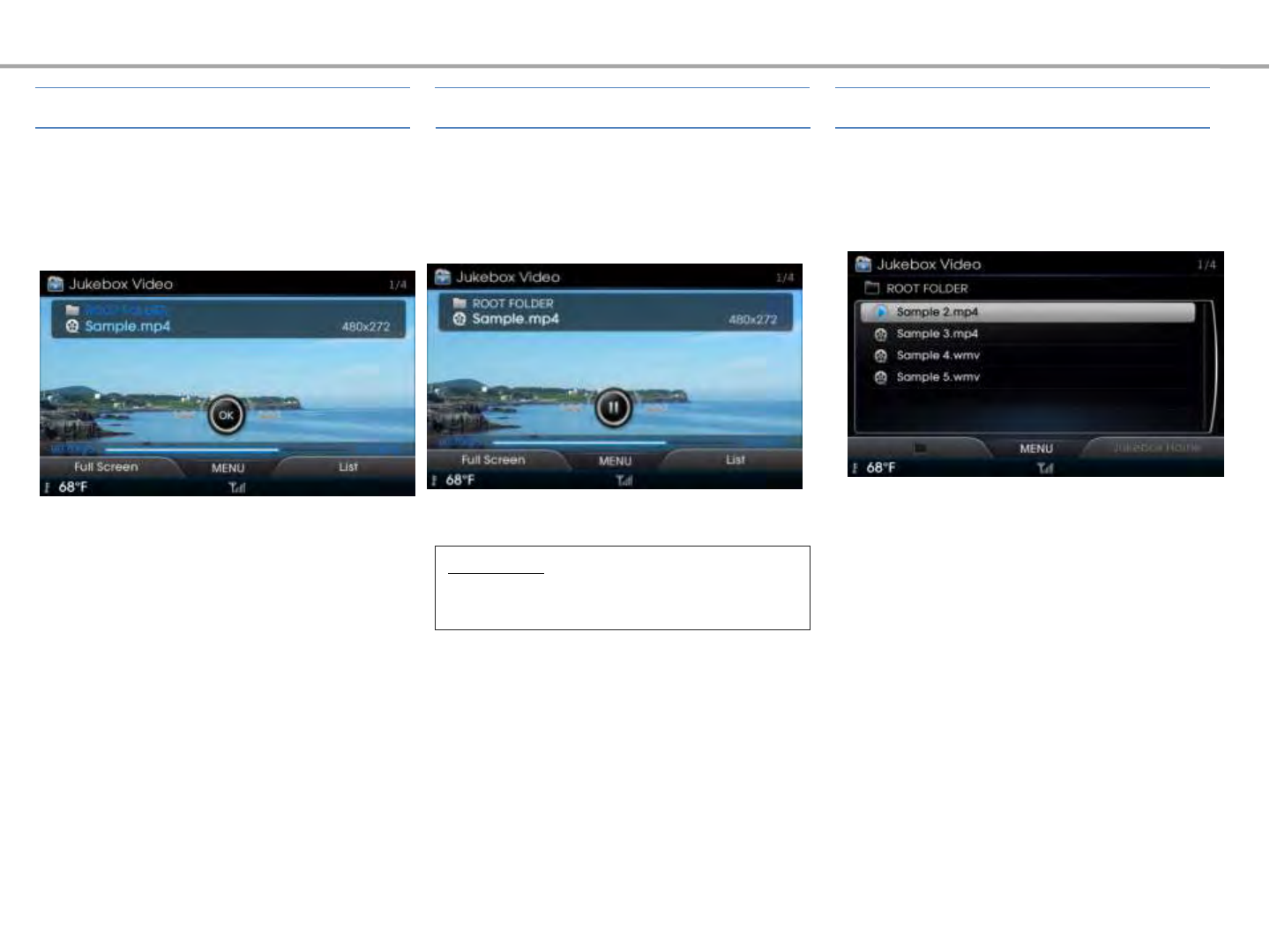

While playing ▶Turn the controller (○
TUNE knob) left/right to search for files.
Press the [LFT] Full Screen button to
view the file in full screen.
Press the [RHT] List button to select
from the list.
Searching Jukebox Video Files Viewing in Full Screen Jukebox Video Lists
JUKEBOX
Information
•If there are no operations for 10 seconds,
the menu will automatically disappear.
Select the desired file by turning the
controller. Once the desired file has
been found, press the controller to play
the file.
During search, the image name is
displayed. Press the controller (○TUNE
knob) to play the selected file.
JB Video
![](/img.php?id=1768145&img=bg3f.png)

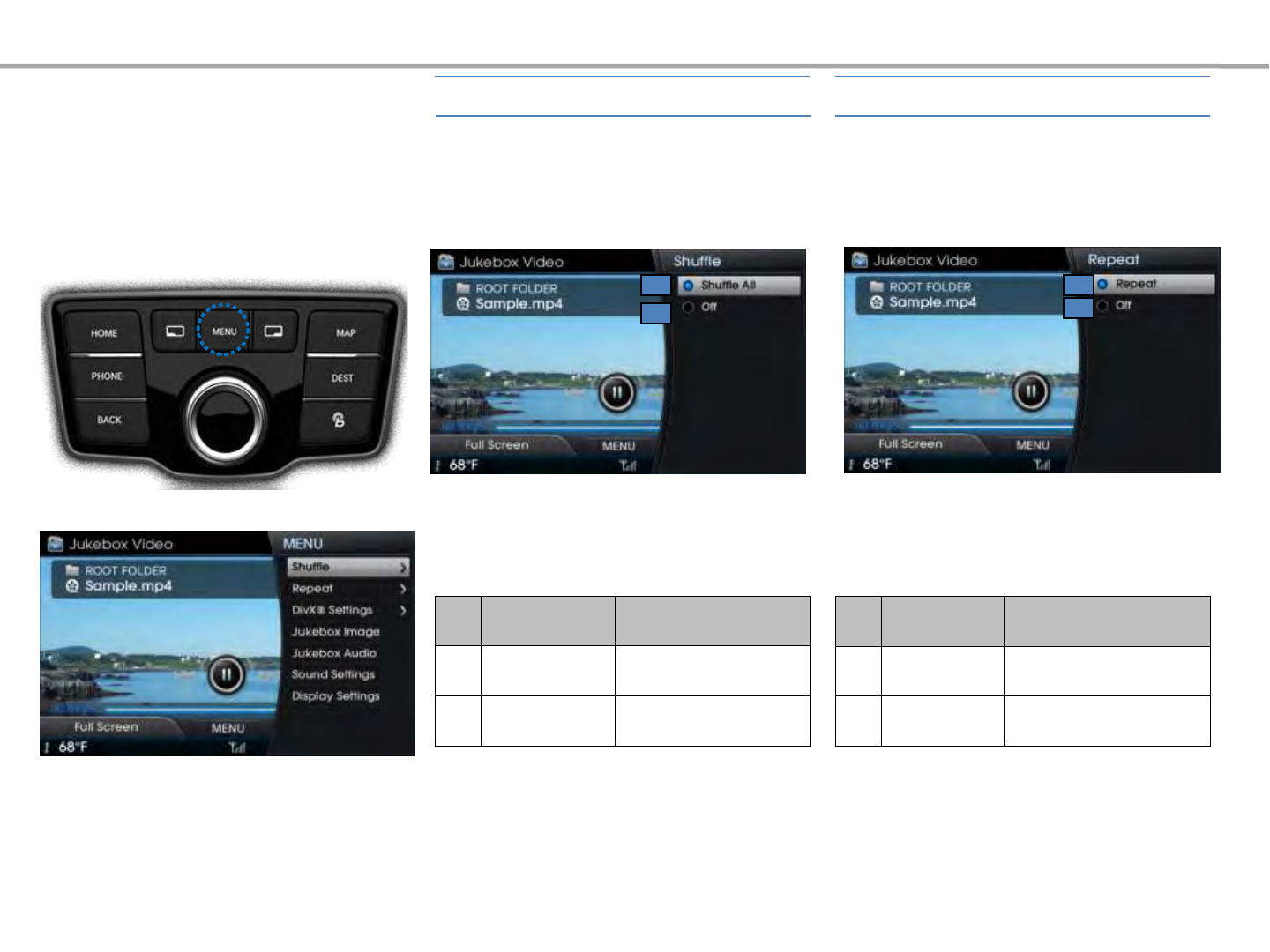

Using the Menu Key
Press the [MENU] ▶Select [Shuffle] ▶
Select [Shuffle All]
No Name Description
1Shuffle All Plays all files in random
order
2Off Turn the Shuffle feature
off
No Name Description
1Repeat Repeats play of currently
playing file.
2Off Turn the Repeat feature off
Press the [MENU] ▶Select [Repeat]
▶Select [Repeat]
Press the [MENU] key to use the Shuffle,
Repeat, DivX® Settings, Sound Settings
and Display Settings. This menu is also
used to move to other Jukebox modes.
This option is used to play video files
within the Jukebox in random order.
The current song or the all files within
the folder can be repeated.
Shuffle Repeat
JUKEBOX
JB Video
1
2
1
2
![](/img.php?id=1768145&img=bg40.png)

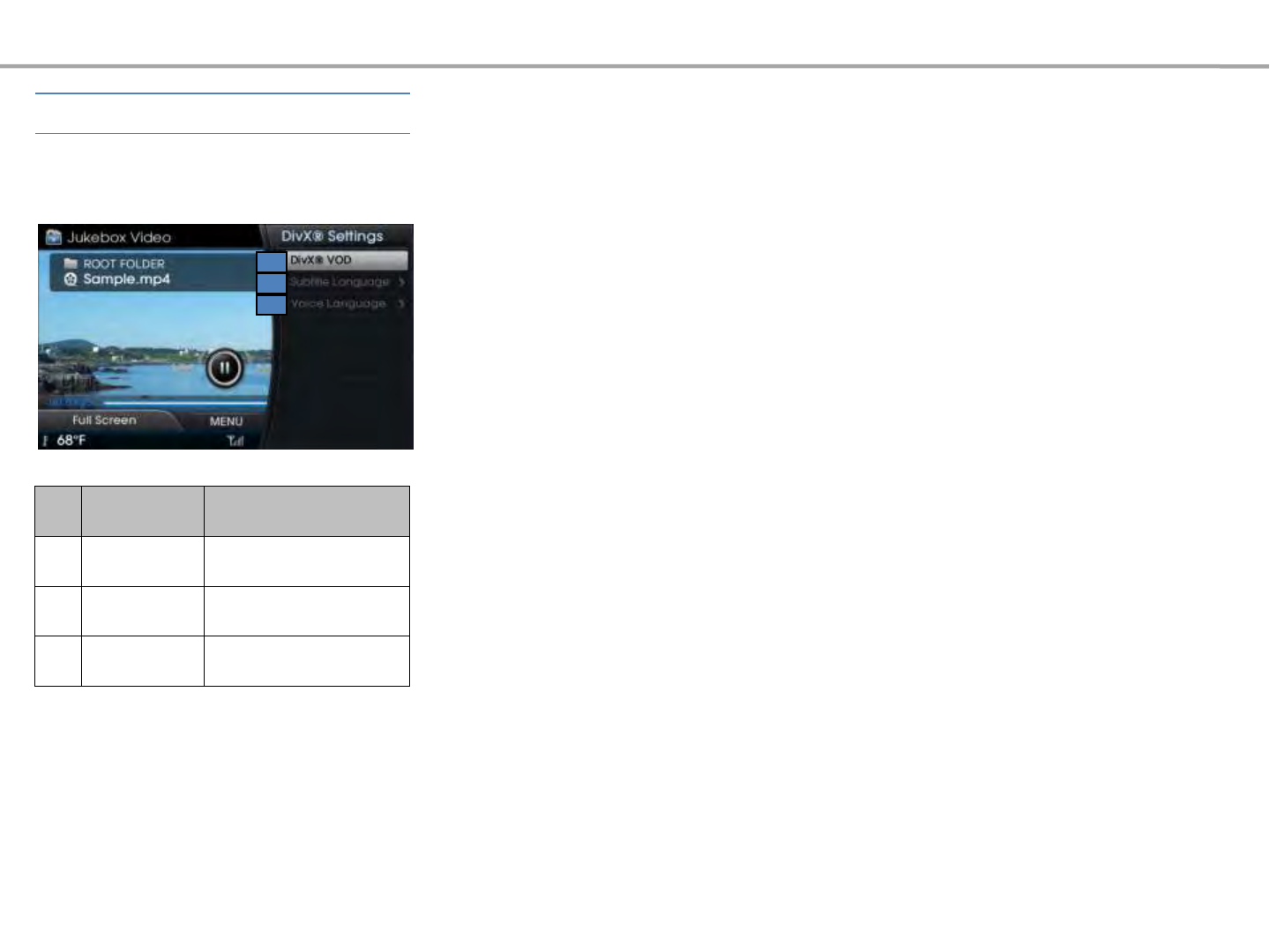

Press the [MENU] key ▶Select [DivX®
Settings]
No Name Description
1DivXⓇVOD Set DivX VOD related
options
2Subtitle
Language Set Subtitle language
3Voice Language Set Voice language
Upon first use of this feature, you must
register your product through the DivX
website.
DivX ⓇSettings
JUKEBOX
JB Video
1
2
3
![](/img.php?id=1768145&img=bg41.png)
Using the List Menu Key
JUKEBOX
From the List screen, press the [MENU]
key to use the Now Playing, Storage,
Delete, and Delete All options.
JB Video
※Refer to the 'Using the List Menu Key'
of the Jukebox Audio for more
information.
![](/img.php?id=1768145&img=bg42.png)

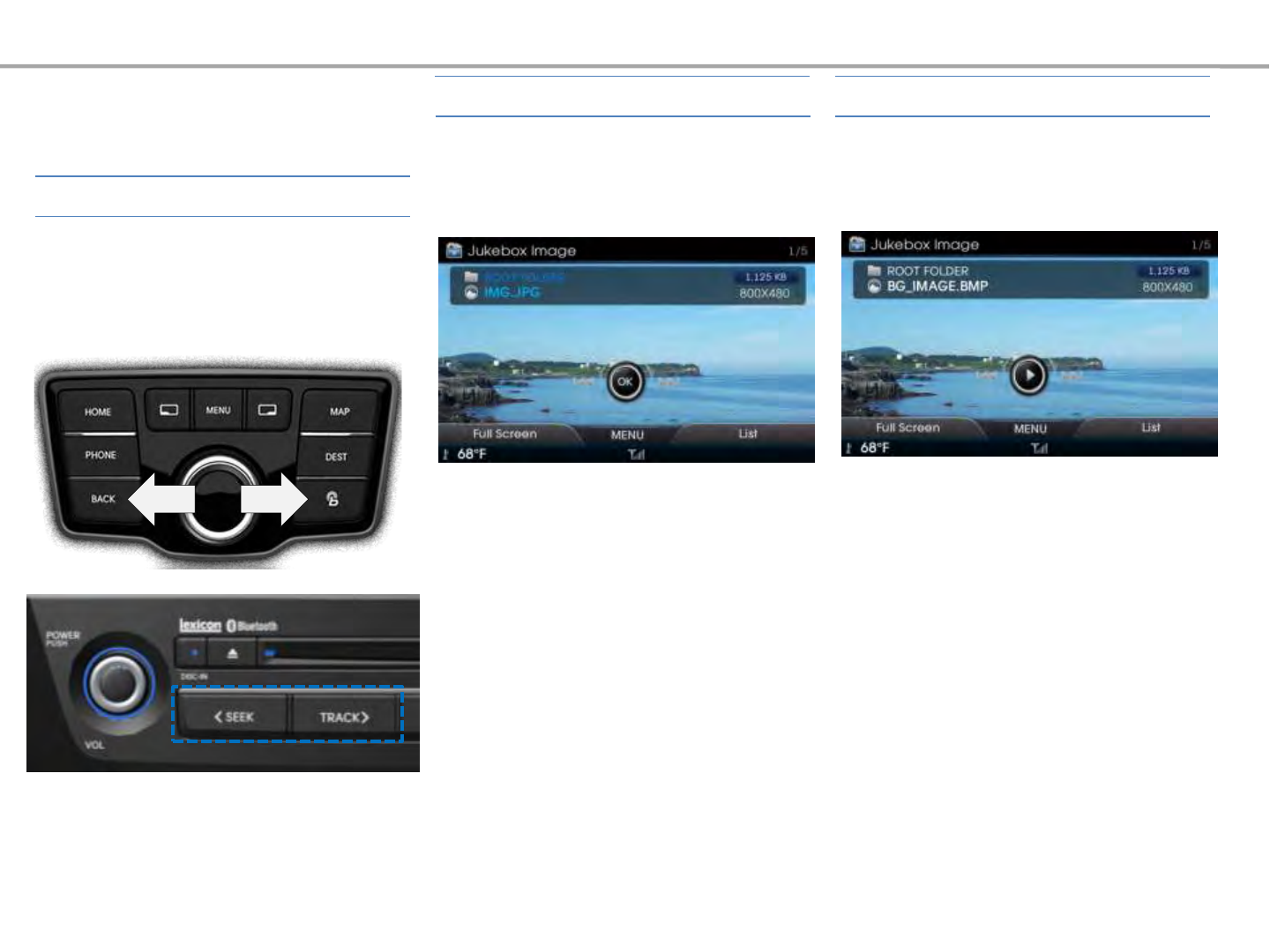

Jukebox Image Mode
While Playing▶Turn the controller (○
TUNE knob) left/right ▶Search files
Press the controller to start the
slideshow.
During search, the image name is
displayed. Press the controller (○TUNE
knob) to play the selected image.
Searching Jukebox Image Files Slideshow
Selecting Jukebox Image Files
JUKEBOX
While playing ▶Shortly push the
controller left/right (under 0.8 seconds)
or shortly press the [<SEEK], [TRACK>]
keys to select the previous/next file
JB Image
![](/img.php?id=1768145&img=bg43.png)
Press the [LFT] Full Screen button to
view the Jukebox Video in full screen.
Jukebox Image ListViewing in Full Screen
JUKEBOX
Information
•If there are no operations for 10 seconds,
the menu will automatically disappear.
Press the [RHT] List button to select
from the list.
Select the desired file by turning the
controller. Once the desired file has
been found, press the controller to play
the file.
JB Image
![](/img.php?id=1768145&img=bg44.png)

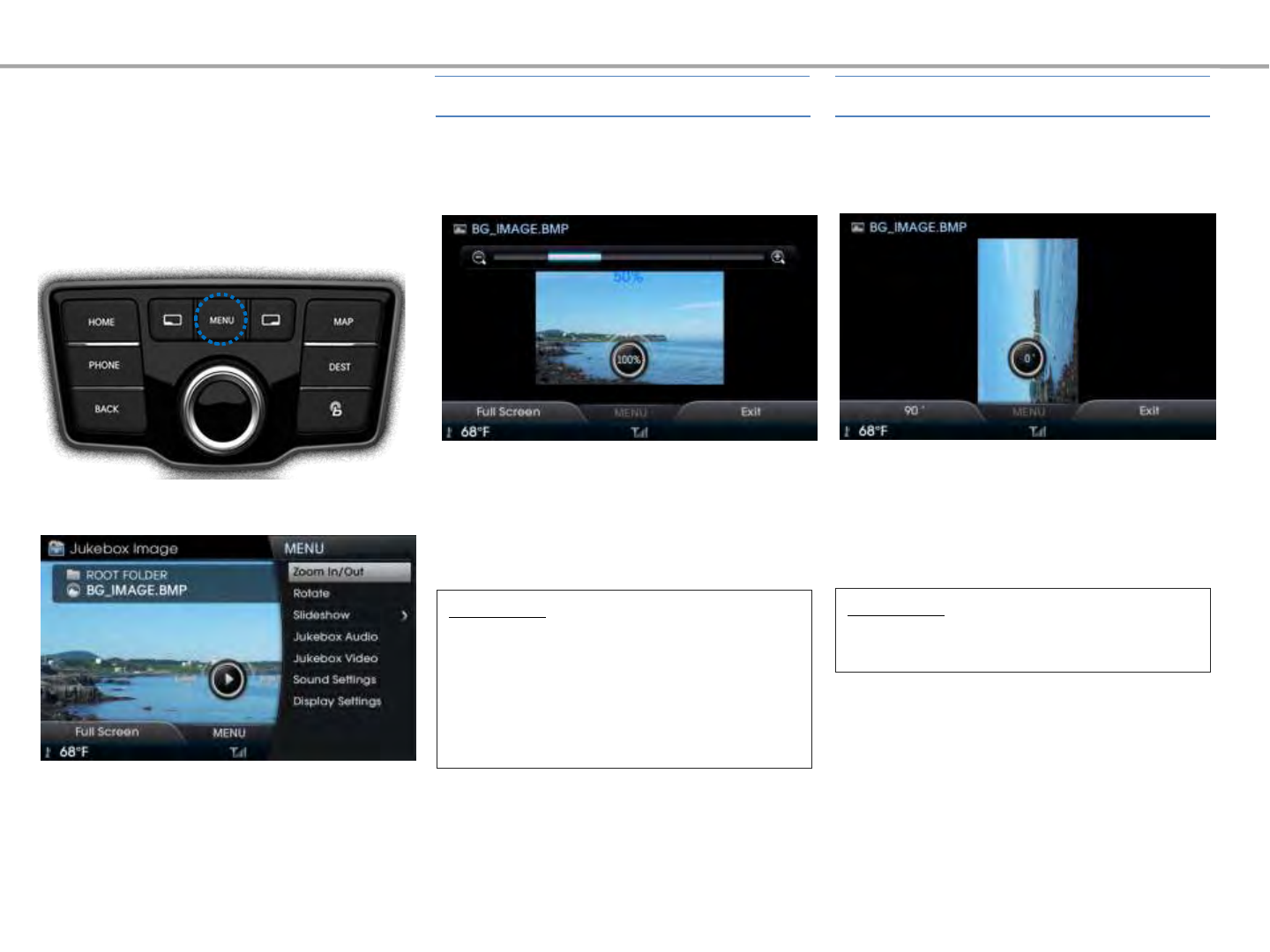

Using the Menu Key
Press the [MENU] key ▶Select [Zoom
In/Out]
Press the [MENU] key ▶Select [Rotate]
Turn the controller left/right to enlarge
or reduce the image size. The scale can
be changed to 25%, 50%, 100%, 200%,
400%.
Each time the controller is turned, the
image is rotated from 0˚, 90˚, 180˚, 270˚.
Information
• Press the controller to restore the original
image size.
• When the image is not entirely displayed
on the screen, different areas of the current
image can be viewed by pushing the
controller up/down/left/right.
Information
• Press the controller to restore the original
image size.
Zoom In/Out Rotate
JUKEBOX
Press the [MENU] key to use the Zoom
In/Out, Rotate, Slideshow Setting, Sound
Settings and Display Settings. This menu
is also used to move to other Jukebox
modes.
JB Image
![](/img.php?id=1768145&img=bg45.png)
Press the [MENU] key ▶Select
[Slideshow]
Image slideshow intervals can be set at
[5secs], [10secs], [20secs], [30secs]
intervals.
Slideshow Setting
JUKEBOX
JB Image
![](/img.php?id=1768145&img=bg46.png)

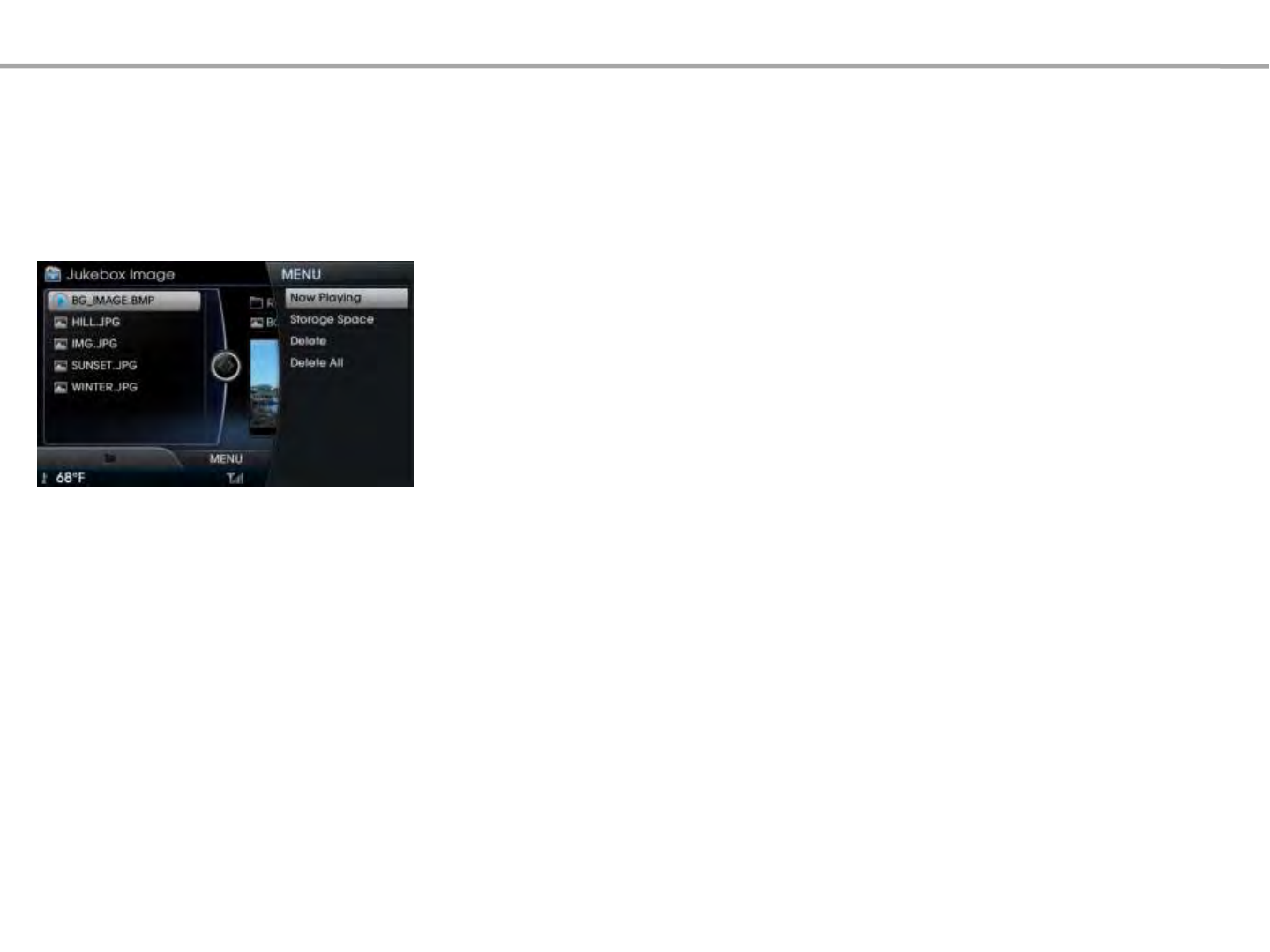

Using the List Menu Key
JUKEBOX
From the List screen, press the [MENU]
key to use the Now Playing, Storage
Space, Delete, and Delete All options.
JB Image
※Refer to the 'Using the List Menu Key'
of the Jukebox Audio for more
information.
![](/img.php?id=1768145&img=bg47.png)
•Connect the USB device after turning on
the engine. The USB device may become
damaged if it is already connected when the
ignition is turned on.
•Files that are not standard MP3 and WMA
format files are not supported.
•For MP3/WMA files, only music files with
compression rates between 8Kbps ~
320Kbps can be played.
•Heed caution to static electricity when
connecting/disconnecting external USB
devices.
•Encoded MP3 Players will not be
recognized when connected as an external
device.
•When connecting an external USB device,
the device may not properly recognize the
USB is in some states.
•Only products formatted with byte/sectors
under 64Kbyte will be recognized.
About USB •The device may not recognize the USB
device if separately purchased USB hubs
and extension cables are being used.
Connect the USB directly with the
multimedia terminal of the vehicle.
•When using mass storage USB devices
with separate logical drives, only files saved
to the root drive can be played.
•When application programs are installed
to specific USBs, files may not properly play.
•The device may not operate normally if
MP3 Players, cellular phones, digital
cameras, or other electronic devices (USB
devices not recognized as portable disk
drives) are connected with the device.
•Charging through the USB may not work
for some mobile devices.
•The device may not support normal
operation when using a USB memory type
besides Metal Cover Type USB Memory.
•The device may not support normal
operation when using formats such as HDD
Type, CF, or SD Memory.
•This device recognizes USB devices
formatted in FAT 12/16/32 as well as NTFS
file systems.
•Some USB devices may not be supported
due to compatibility issues.
•Avoid contact between the USB connector
with bodily parts/foreign objects.
•Repeated connecting/disconnecting of
USB devices within short periods of time
may result in product malfunction.
•Make sure to connect/disconnect external
USB devices with the audio power turned
off.
•The amount of time required to recognize
the external USB device may differ
depending on the type, size, or file formats
stored on the USB. Such differences in
required time are not indications of
malfunction.
•Please wait until the device fully
recognizes the USB devices. The device
supports only USB devices used to play
music/video/image files.
•Do not use the USB I/F to charge batteries
or USB accessories that generate heat. Such
acts may lead to worsened performance or
damage to the device.
Before playing a USB MP3
USB
USB
![](/img.php?id=1768145&img=bg48.png)
•The device will not support files locked by
DRM (Digital Rights Management.)
•USB memory sticks used by connecting an
Adaptor (SD Type or CF Type) may not be
properly recognized.
•Only use Plug type connector products, as
shown in the figure below.
Product Name Manufacturer
XTICK LG
BMK BMK Technology
SKY-DRV Skydigital
TRANSCEND JetFlash Transcend
Sandisk Cruzer SanDisk
Micro ZyRUS ZyRUS
NEXTIK Digiworks
* Problems that occur through use of USB
devices not listed within the above table are
not covered by the product warranty.
Plug-in type
connector
Product Name Description
MP3 file Specification Specification: MPEG1 AUDIO LAYER3
Recommended bit rates
and sampling frequency
Acceptable sampling frequency:: 32, 44.1, 48 (KHz)
Acceptable frequency: 32, 40, 48, 56, 64, 80, 96, 112, 128, 160, 192, 224,
256, 320 (Kbps)
96, 128, 192 Kbps fixed bit rate / 44.1KHz
ID3 Tag Supports ID3v1.0 and ID3v1.1, ID3v2.2, ID3v2.3,
ID3v2.4 ID3 tags
Detailed Specifications
Maximum directory layers: 20 layers
Maximum length of folder name/file name: 255Bytes
Supported characters for folder name/file name:
Alphanumeric characters, Korean standard character set 2350 characters,
Simplified Chinese 4888 characters
Maximum number of folders which can be stored onto one USB: 2000
folders (including ROOT)
Maximum number of files which can be stored onto one USB: 8000
Information
•In cases that are not fixed bit rates, the play time may not be properly displayed.
•If a problem occurs while playing or when playing an unsupported video format file, use an up-to-
date encoding software to change the format for use.
USB MP3 Information and Precautions
USB
USB
![](/img.php?id=1768145&img=bg49.png)
Supported Video and Imege Specification (USB/Jukebox)
Product Name Description
Format AVI(DivX), MPG, MP4
Video Coden DivX 3/4/5/6, XviD, MPEG1/2, H264, WMV9
Video Resolution DivX : 720 x 576, MPEG : 720 x 576 (30fps),
WMV : 320 x 240
Audio Codec MP3, AC3, AAC, OGG
Subtitle SMI
Image Format JPG, BMP, GIF, PNG
Image Resolution 4,000 x 3,000 max / 5MBytes
Unsupported File
• Unsupported file specification
• Format-changed file
• H.264, MJPEG, or H.263 encoded AVI file
• Unindexed file
• File that exceeds supported bit rate range(3Mbps), WMV(0.7Mbps)
• High resolution file may operate abnormally or not properly play.
![](/img.php?id=1768145&img=bg4a.png)

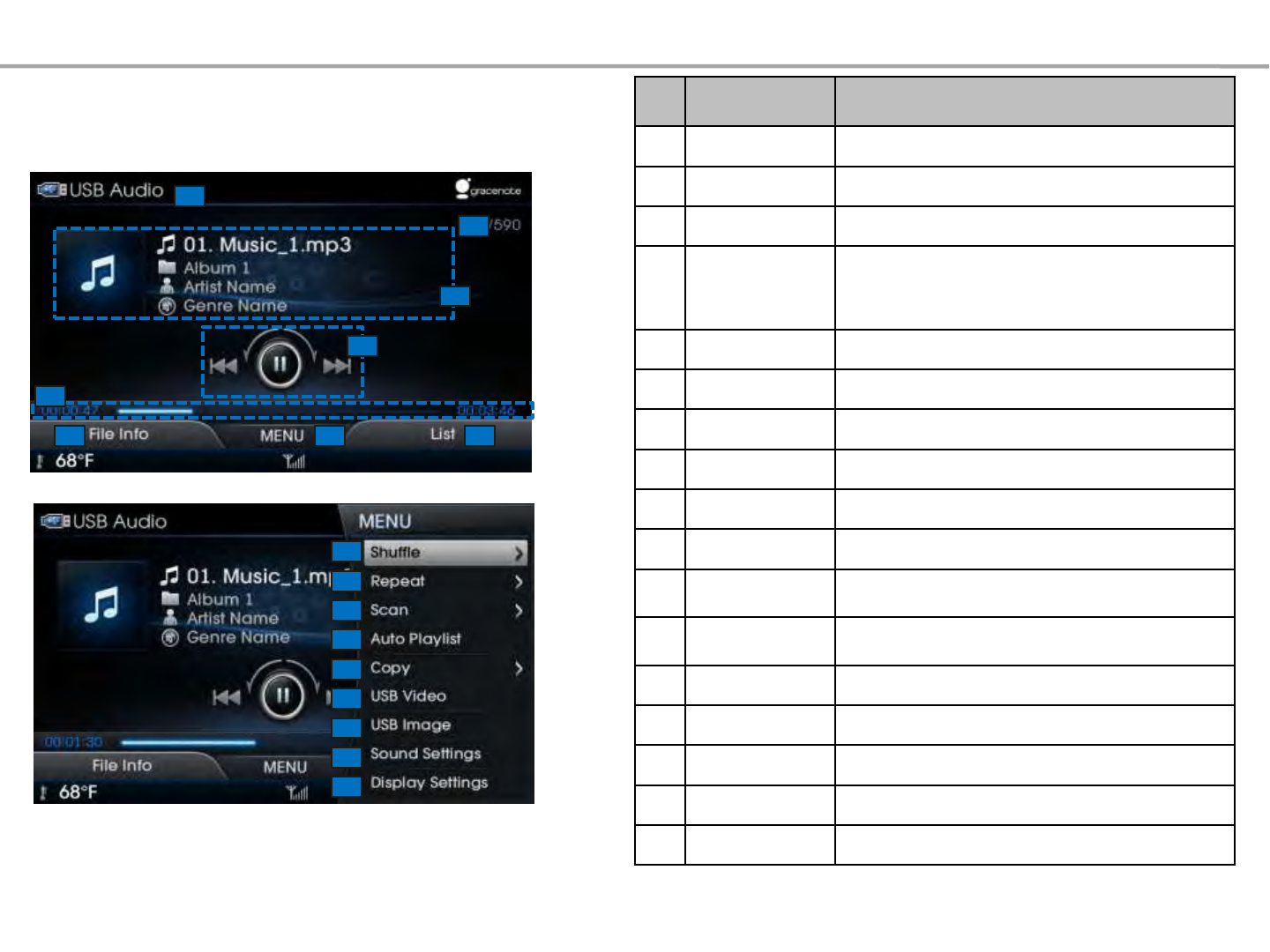

Basic Mode Screen(Audio)
4
10
1
5
12
2
6
3
11
78
9
13
15
14
16
17
No Name description
1Mode Displays currently operating mode
2File Index Shows the current file/total files
3Play File Info Shows file number/Album/Artist/Genre information
4Control Panel
Enables use of play/pause/select/search features
When turned left/right: Searches previous/next file
When pushed left/right: Plays previous/next file
When pressed: Plays or pauses the file
5Play Time Displays the play time information
6File Info Shows file information
7MENU Displays the pop up menus
8List Moves to the USB Audio list screen
9Shuffle
Turns Shuffle feature on/off
10 Repeat
Turns Repeat feature on/off
11 Scan Scans the beginning parts of files (approx 10 seconds per
file)
12 Auto Playlist Moves to list screen showing current song (Refer to the
Auto Playlist mode for more information)
13 Copy Copies file to Jukebox
14 USB Video Moves to USB Video mode
15 USB Image Moves to USB Image mode
16 Sound Settings Displays the sound settings screen
17 Display Settings Displays the display settings screen
USB
USB Audio
![](/img.php?id=1768145&img=bg4b.png)
Basic Mode Screen(Video)
4
10
1
5
12
2
6
3
11
78
9
13
15
14
16
No Name description
1Mode Displays currently operating mode
2File Index Shows the current file/total number of files
3Play File Info Shows file name/Folder/Resolution information
4Control Panel
Enables use of play/pause/select/search features
When turned left/right : Searches previous/next files
When pushed left/right : Plays previous/next file
When pressed :Plays or pauses the file
5Play Time Displays the playtime information
6Full Screen Displays the video in full screen
7MENU Displays the pop up menus
8List Moves to the USB Video list screen
9Shuffle
Turns Shuffle feature on/off
10 Repeat
Turns Repeat feature on/off
11 Copy Copies file to Jukebox
12 DivX® Setting Used to set DivX VOD related settings/subtitles and voice
language settings
13 USB Image Moves to USB Image mode
14 USB Audio Moves to USB Audio mode
15 Sound Settings Displays the sound settings screen
16 Display Settings Displays the display settings screen
USB
USB Video
![](/img.php?id=1768145&img=bg4c.png)
Basic Mode Screen(Image)
4
10
1
5
12
2
6
3
11
7
8
9
13
15
14
No Name description
1Mode Displays currently operating mode
2File Index Shows the current file/total files
3Play File Info Shows File name/Folder/Size/Resolution information
4Control Panel
Enables search/selection of previous/next files
•When turned left/right: searches previous/next files
•When pushed left/right: plays previous/next files
•When pressed : Starts/stops slideshow
5Full Screen Displays the image in full screen
6MENU Displays the pop up menus
7List Moves to the USB Image list screen
8Zoom In/Out Enlarges/reduces image (zoom in/out)
9Rotate Rotates image
10 Slideshow Setting Views images as slideshow
11 Copy Copies file to Jukebox
12 USB Audio Moves to USB Video mode
13 USB Video Moves to USB Image mode
14 Sound Settings Displays the sound settings screen
15 Display Settings Displays the display settings screen
USB
USB Image
![](/img.php?id=1768145&img=bg4d.png)

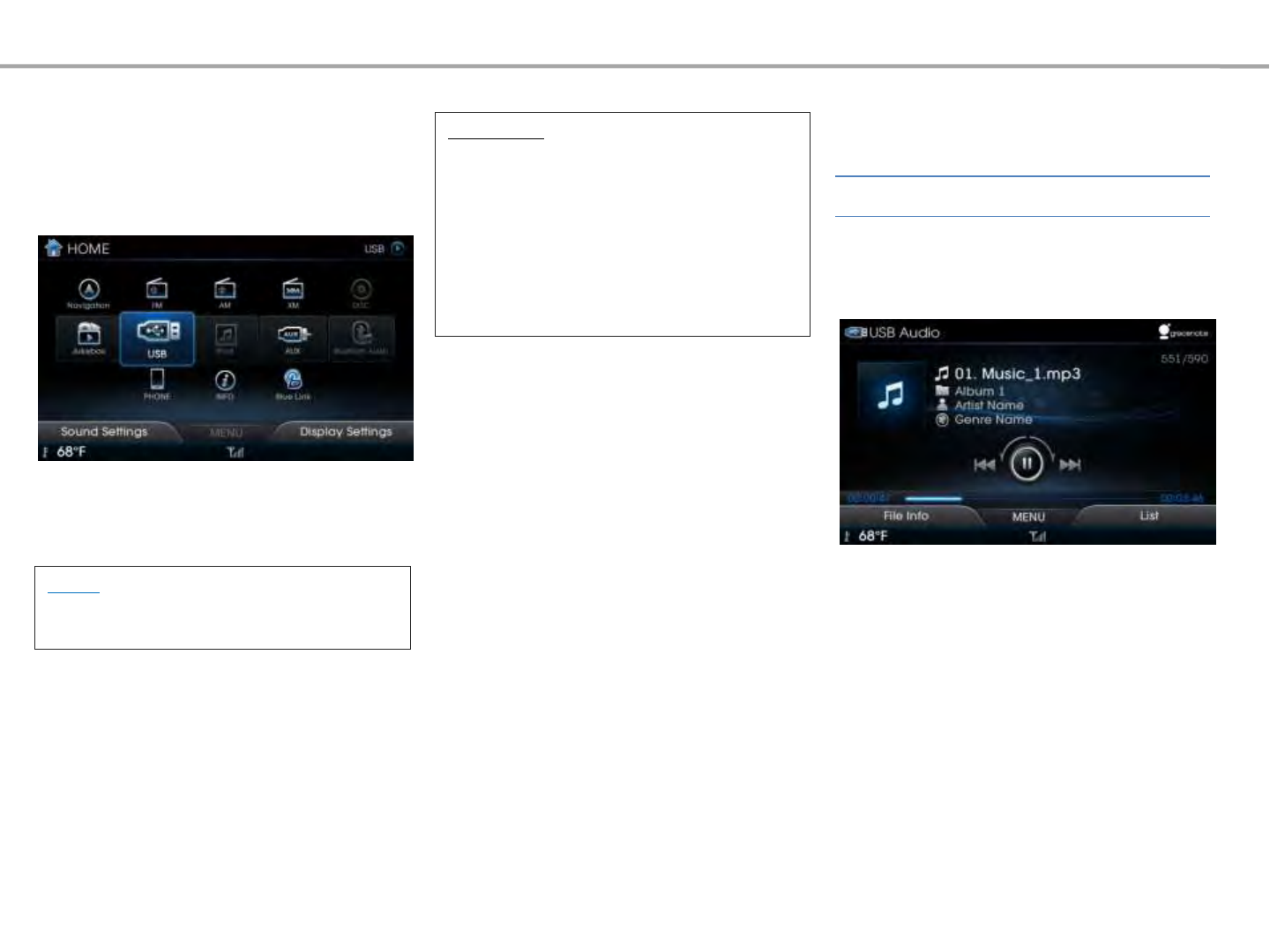

Starting Mode
Press the [HOME] button ▶Select the
USB button.
Information
• If a previously played USB is reconnected,
then the song after the most recently
played song is played. However, if a
different USB is connected or the file
information within the USB was changed,
then the USB file order information is
deleted and will start playing from the first
song within the USB.
Notice
• If the USB is not connected, then the USB
button will be disabled.
USB Audio Mode
Press the controller to play or pause
the USB Audio.
Playing USB Audio
USB
While Gracenote checks the music
information, the message “Indexing.” will
blink at the top right side.
Once Indexing is complete, song
information is displayed on the screen for
songs supported by Gracenote.
USB Audio
USB mode will automatically start once
a USB is inserted.
![](/img.php?id=1768145&img=bg4e.png)
While playing ▶Shortly push the
controller left/right (under 0.8 seconds)
or shortly press the [SEEK]/[TRACK] key
to select the previous/next file.
While playing ▶Push and hold the
controller left/right (over 0.8 seconds)
or press and hold the [SEEK]TRACK] key
to rewind /fast-forward the current file.
While playing ▶Turn the controller (○
TUNE knob) left/right to search for files.
During search, the file name is displayed.
Press the controller (○TUNE knob) to
play the selected file.
Selecting USB Audio Files Fast-forwarding or Rewinding USB
Audio Files Searching USB Audio Files
USB
USB Audio
![](/img.php?id=1768145&img=bg4f.png)
Press the [MENU] key to use the Shuffle,
Repeat, Scan, Auto Playlist, Copy, Sound
Settings and Display Settings. This menu is
also used to move to other USB play modes.
Using the Menu Key
Press the [LFT] File Info button to view
the file information.
To return to the previous screen, select
the [LFT] Play Info button.
Information
•Information is not displayed when ID3 tag
or Gracenote song information does not
exist.
File Info/Play Info USB Audio List
USB
Press the [RHT] List button to select
from the list.
Select the desired file by turning the
controller. Once the desired file has
been found, press the controller to play
the file.
You can move to the previous folder or
the root list screen by pressing the [LFT]
Category Up button and the [RHT] USB
Home button.
Once Gracenote indexing (checking for
song information) is complete, files can
be selected by searching through
categories from the root list screen.
USB Audio
![](/img.php?id=1768145&img=bg50.png)

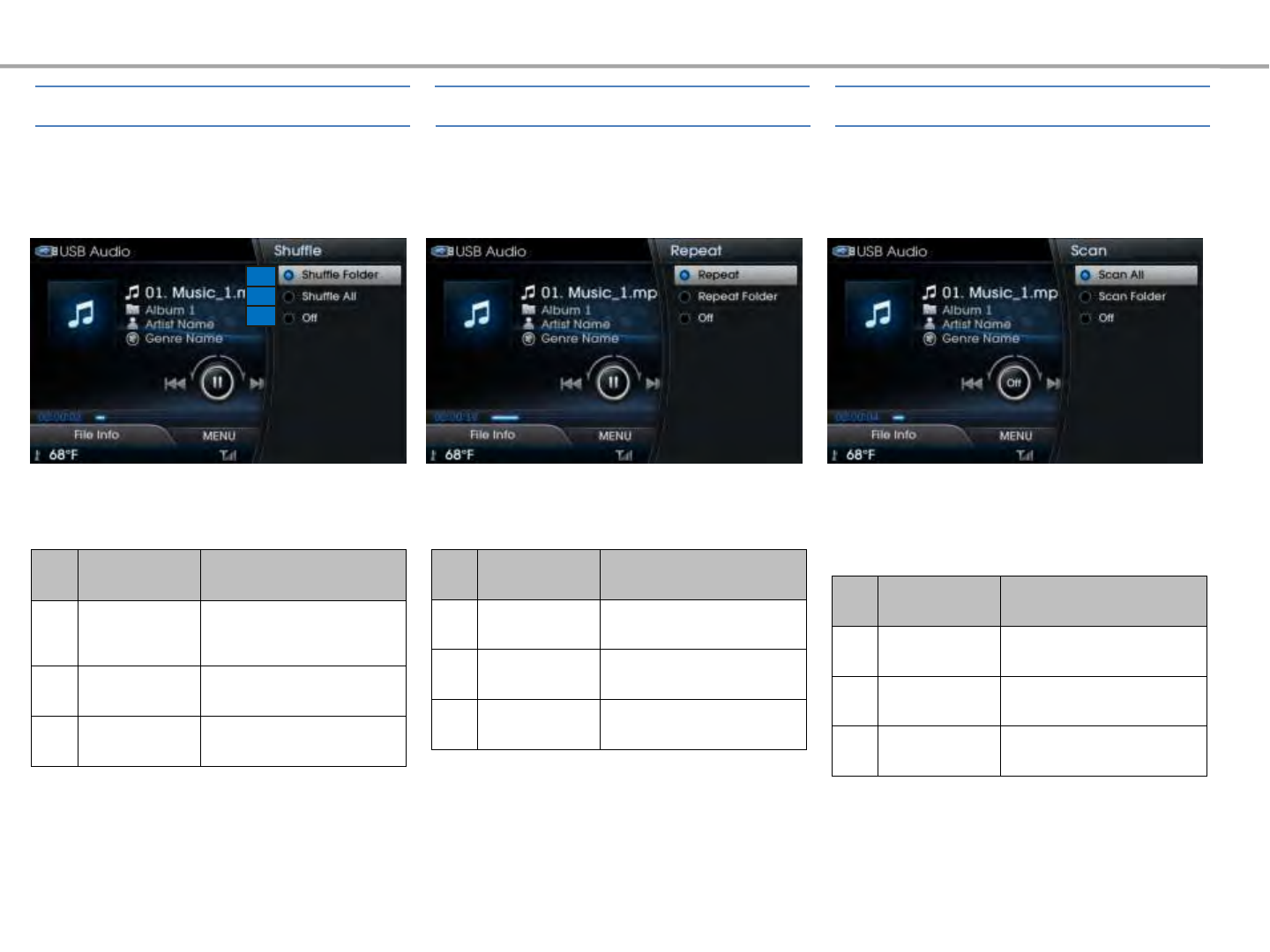

Shuffle Repeat Scan
Press the [MENU] key ▶Select [Shuffle]
▶Select [Shuffle Folder] or [Shuffle All]
1
2
No Name Description
1Shuffle Folder Plays files within the current
folder in random order.
2Shuffle All Plays files within the USB in
random order.
3Off Turn the Shuffle feature off.
No Name Description
1Repeat Repeats play of currently
playing file.
2Repeat Folder Repeats the files in the
current folder.
3Off Turn the Repeat feature off.
No Name Description
1Scan All Scans files within the USB
in random order.
2Scan Folder Searches files within the
current folder.
3Off Turn the Scan feature off.
Press the [MENU] key ▶Select [Repeat]
▶Select [Repeat] or [Repeat Folder]
The current song or the all files within
the folder can be repeated.
The beginning part (approximately first
10 seconds) of all files within the current
folder or the entire USB are scanned.
Press the [MENU] key ▶Select [Scan]
▶Select [Scan All] or [Scan Folder]
3
1
2
3
1
2
3
All files within the folder or USB can be
played in random order.
If songs are played by artists, albums,
Songs or genres from the root list,
shuffle menus are displayed as [Shuffle]
and [Off],
USB
If songs are played by artists, albums,
songs or genres from the root list,
repeat menus are displayed as [Repeat]
and [Off],
If songs are played by artists, albums,
Songs or genres from the root list, scan
menus are displayed as [Scan Playlist]
and [Off],
USB Audio
![](/img.php?id=1768145&img=bg51.png)

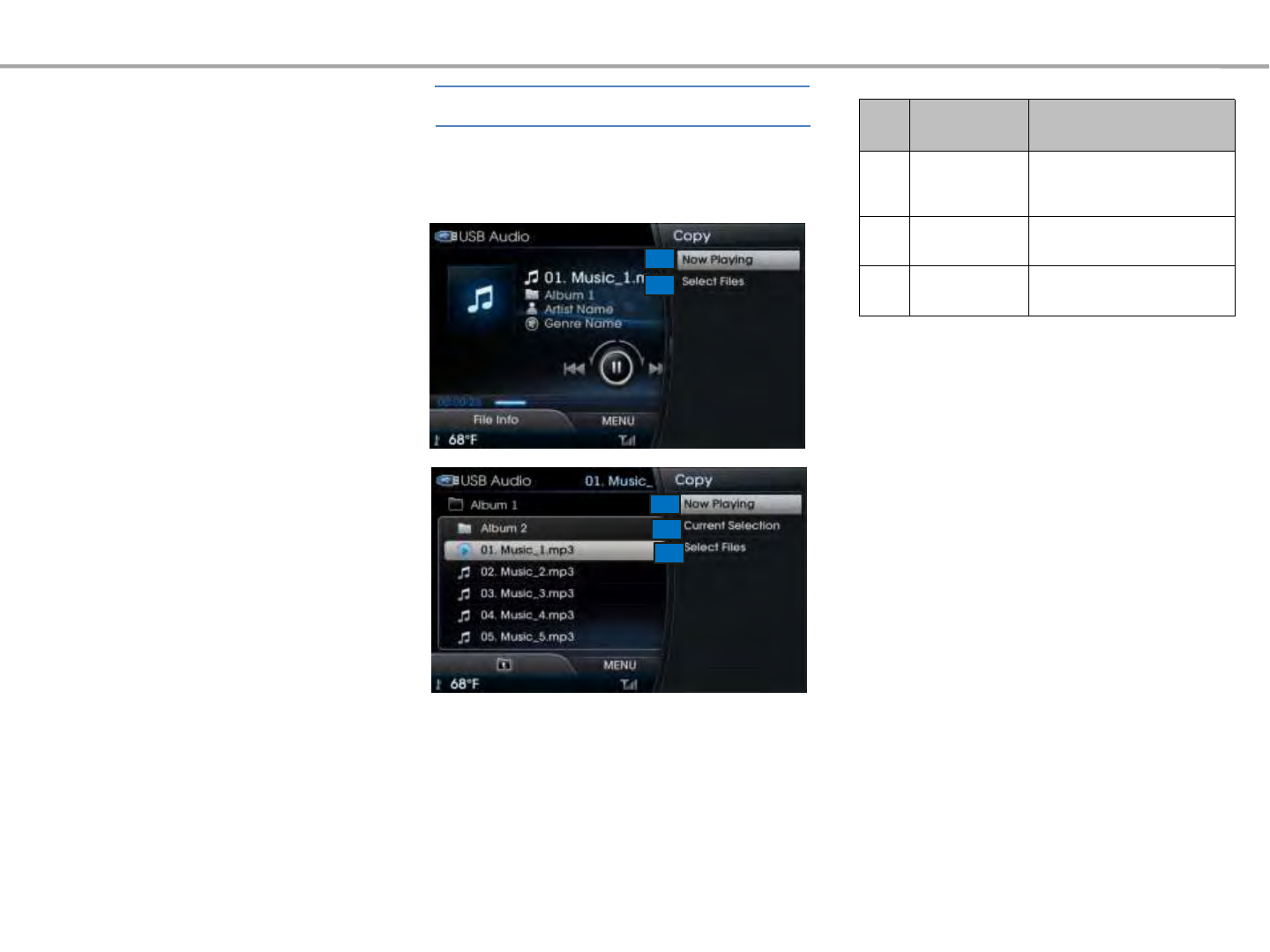

Press the [MENU] key ▶Select [Copy]
▶Set copy options
Copying to Jukebox
USB
If [Select Files] is selected, desired files can
be selected to copy into the Jukebox.
Turn the controller to select files. Once files
are selected, press the [RHT] Copy Selected
File button to copy selected files into the
Jukebox.
1
2
3
1
2
USB Audio
No Name Description
1Now Playing Copy currently playing file
into the Jukebox
2Select Files Select desired files from the
list to copy
3Current
Selection
Copies currently selected
files
![](/img.php?id=1768145&img=bg52.png)

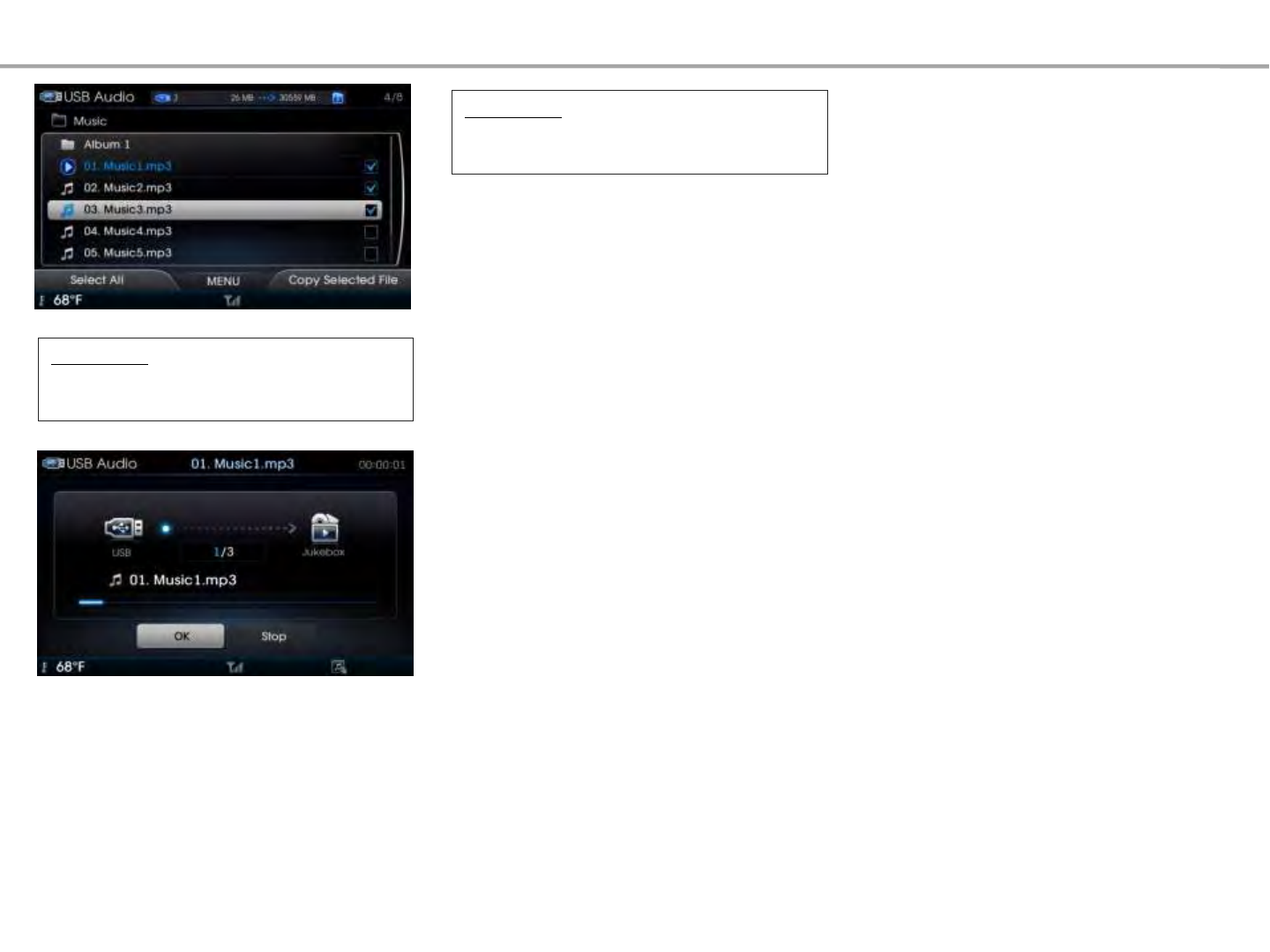

USB
Information
•Copying will be canceled if you move to a
different mode while copying is in progress.
USB Audio
Information
•The [Select Files] button can be used to
select files within the current folder.
While copying is in progress, press the [OK]
button to display the play screen. Within
the play screen, press the [MENU] key and
[Cancel Copy] button to cancel copying.
![](/img.php?id=1768145&img=bg53.png)
Using the List Menu Key USB Video Mode
Press the controller to play or pause
the USB Video.
While playing ▶Shortly push the
controller left/right (under 0.8 seconds) or
shortly press the [SEEK], [TRACK] key to
select the previous/next file.
Copy
Now Playing
Playing USB Video
Selecting USB Video Files
USB
From the List screen, press the [MENU]
key to use the Copy and Now Playing
options.
From the list screen ▶Press the
[MENU] key ▶Select [Copy]
※Refer to the section of copying within
the Jukebox section.
From the list screen ▶Press the
[MENU] key ▶Select [Now Playing]
The focus is moved to the currently
playing file.
USB Video
![](/img.php?id=1768145&img=bg54.png)

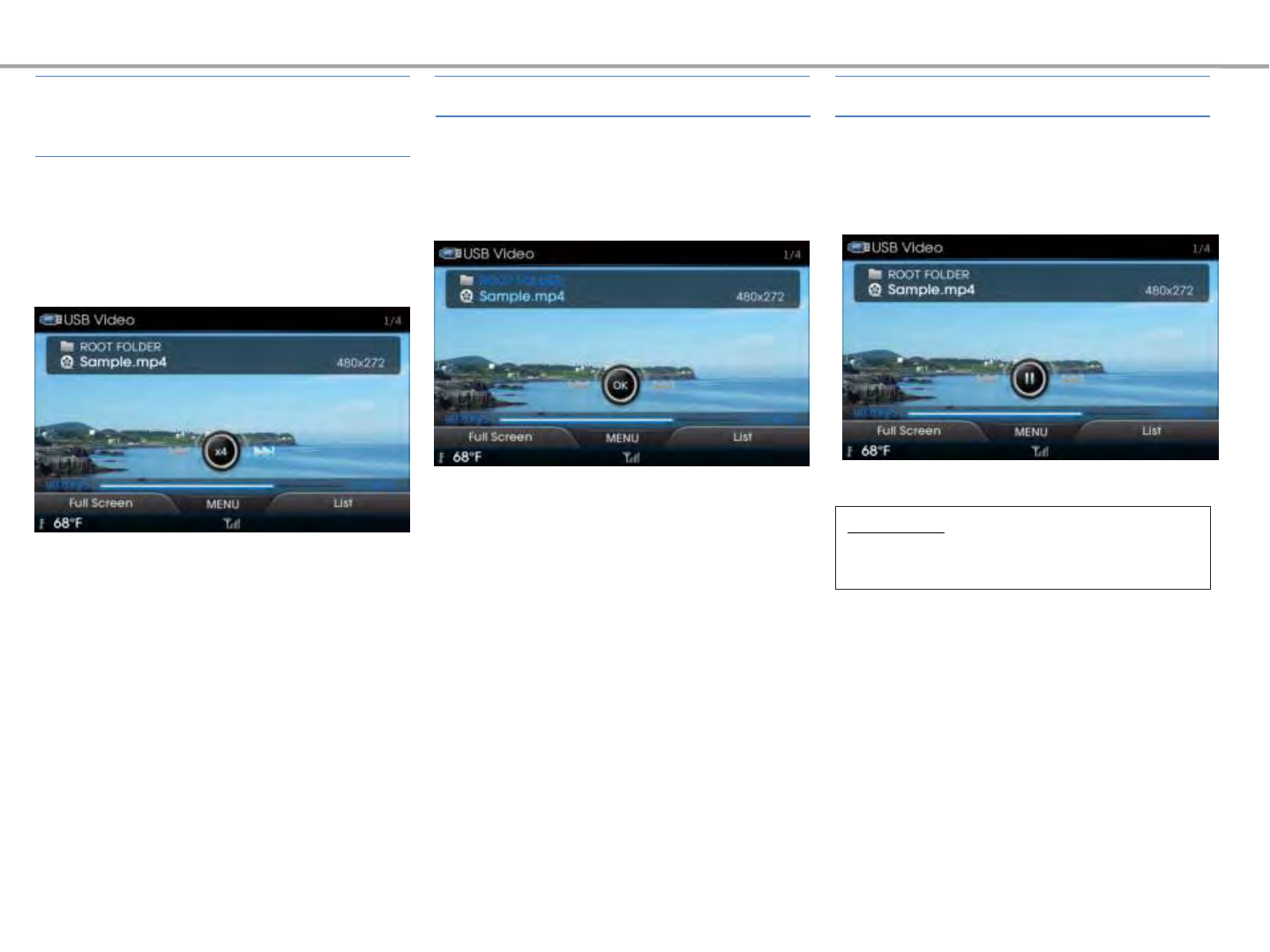

While playing ▶Push and hold the
controller left/right (over 0.8 seconds)
or press and hold the [SEEK], [TRACK]
key to rewind/fast-forward the current
file.
While playing ▶Turn the controller (○
TUNE knob) left/right to search for files.
During search, the file name is displayed.
Press the controller (○TUNE knob) to
play the selected file and display the
basic display info.
Press the [LFT] Full Screen button to
view the file in full screen.
Information
•If there are no operations for 10 seconds,
the menu will automatically disappear.
Searching USB Video Files
Fast-forwarding or Rewinding USB
Video Files
Viewing in Full Screen
USB
USB Video
Once the controller or (SEEK/TRACK) key
is released, the file will begin playing at
normal speed.
![](/img.php?id=1768145&img=bg55.png)
Press the [MENU] key to use the
Shuffle, Repeat, Copy, DivX®Settings,
Sound Settings and Display Settings.
This menu is also used to move to
other USB play modes.
Press the [MENU] key ▶Select [Shuffle]
▶[Shuffle Folder] or [Shuffle All]
Using the Menu Key
1
2
No Name Description
1Shuffle Folder Plays files within the current
folder in random order.
2Shuffle All Plays files within the USB in
random order.
3Off Turn the Shuffle feature off.
USB Video List Shuffle
3
Folders or All files within the USB can be
played in random order.
USB
Press the [RHT] List button to select
from the list.
Select the desired file by turning the
controller. Once the desired file has
been found, press the controller to play
the file.
You can move to the previous folder or
the root list screen by pressing the [LFT]
Category Up and [RHT] USB Home
buttons.
USB Video
![](/img.php?id=1768145&img=bg56.png)

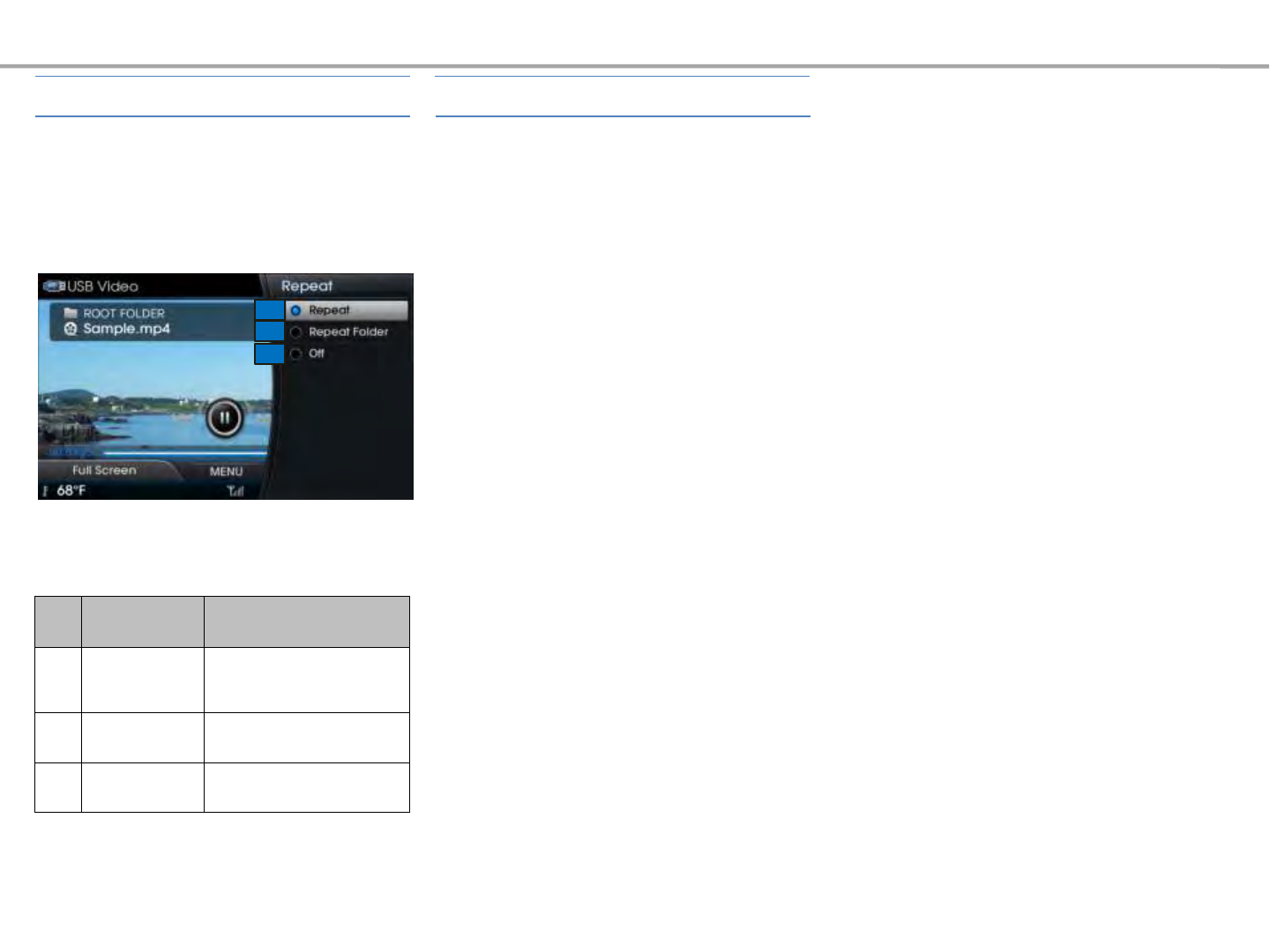

Press the [MENU] key ▶Select [Repeat]
▶Select [Repeat] or [Repeat Folder]
The current song or the all files within
the folder can be repeated.
Press the [MENU] key ▶Select [Copy]
▶Set copy options
1
2
No Name Description
1Repeat Repeats play of currently
playing file.
2Repeat Folder Repeats the files in the
current folder.
3Off Turn the Repeat feature off.
Repeat Copying to Jukebox
USB
3
USB Video
※Refer to the USB Audio 'Copying to
Jukebox' section for more information.
![](/img.php?id=1768145&img=bg57.png)
Press the [MENU] key ▶Select [DivX®
Settings]
1
2
3
No Name Description
1DivX® VOD Set DivX® VOD features
2Subtitle
Language Set subtitle language
3Voice Language Set Voice language
DivX Setting
USB
When using DivX for the first time, you must
register the product through the DivX
website.
USB Video
![](/img.php?id=1768145&img=bg58.png)
While playing ▶Shortly push the
controller left/right (under 0.8 seconds)
or shortly press the [SEEK], [TRACK] key
to select the previous/next file.
USB Image Mode
While playing ▶Turn the controller (○
TUNE knob) left/right to search for files.
During search, the image name is
displayed. Press the controller (○TUNE
knob) to play the selected image.
Searching USB Image Files
Selecting USB Image Files
USB
USB Image
![](/img.php?id=1768145&img=bg59.png)

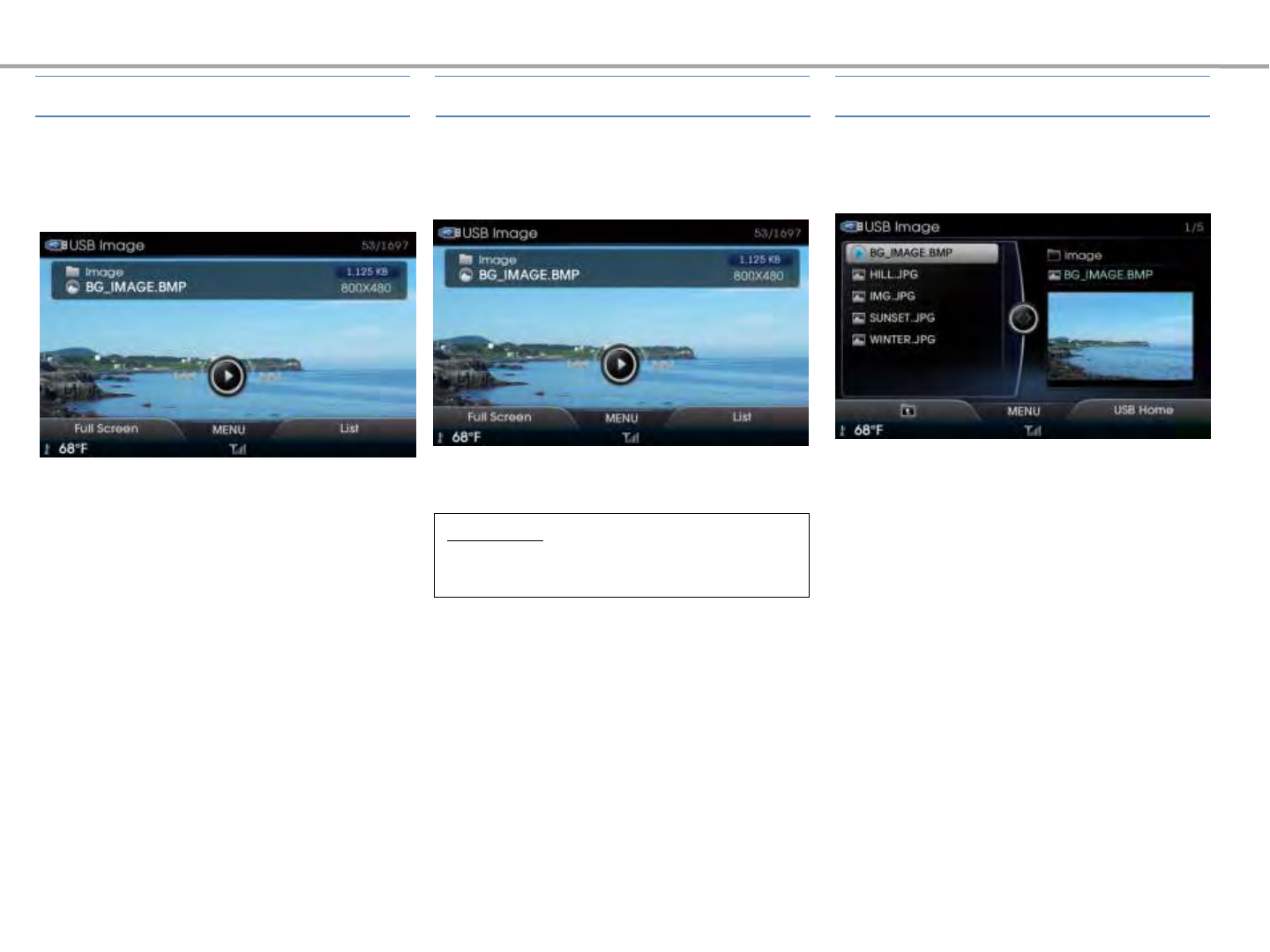

Press the [LFT] Full Screen button to
view the file in full screen.
Information
•If there are no operations for 10 seconds,
the menu will automatically disappear.
Slideshow Show Viewing in Full Screen USB Image List
USB
Press the controller and select the [▶]
button to start the slideshow.
Press the [RHT] List button to select
from the list.
Select the desired file by turning the
controller. Once the desired file has
been found, press the controller to play
the file.
You can move to the previous folder or
the root list screen by pressing the [LFT]
and [RHT] keys.
USB Image
![](/img.php?id=1768145&img=bg5a.png)

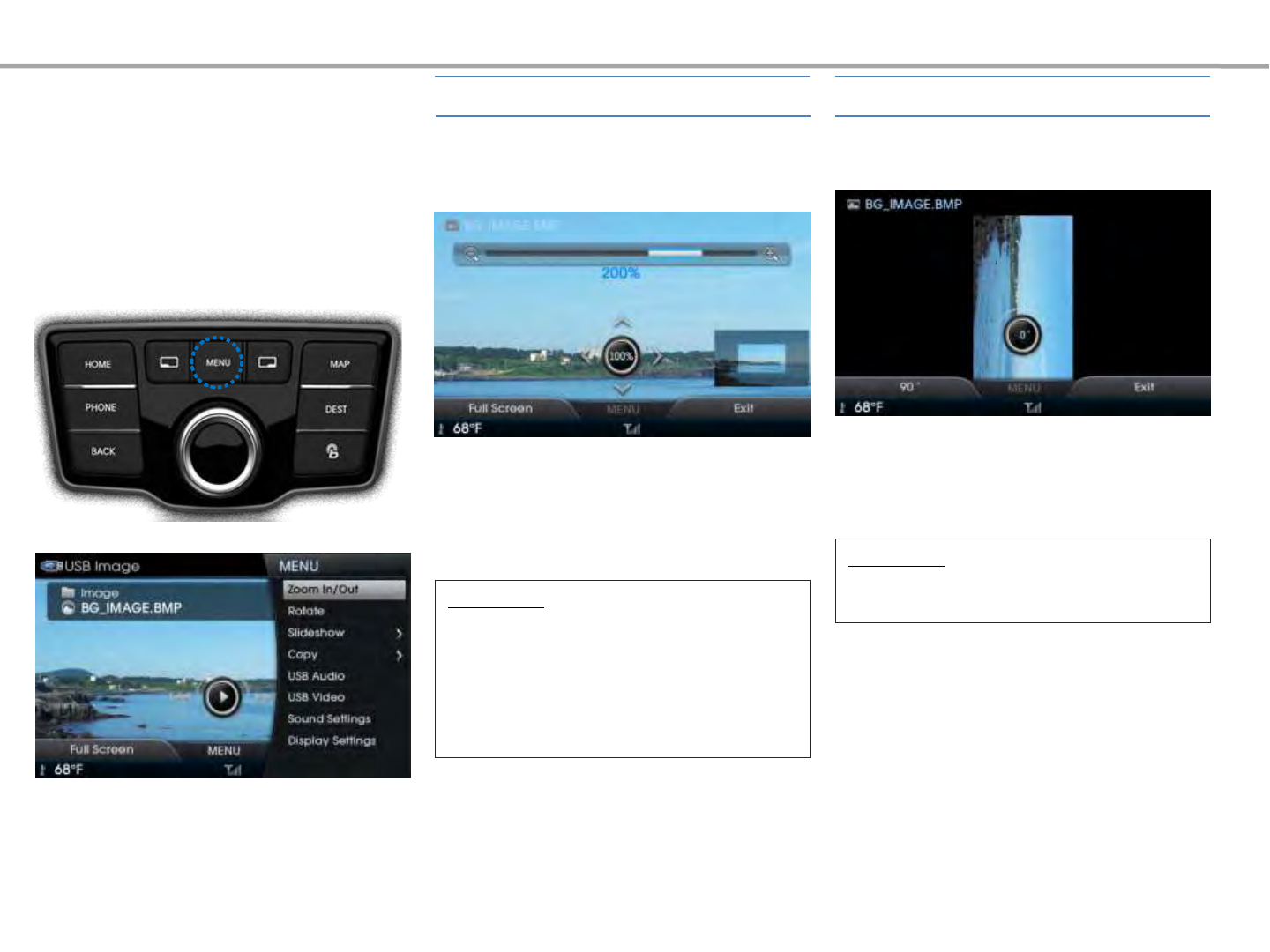

Press the [MENU] key to use the Zoom
In/Out, Rotate, Slideshow, Copy, Sound
Settings and Display Settings options.
This menu is also used to move to
other USB play modes.
Press the [MENU] key ▶Select [Zoom
In/Out]
Turn the controller left/right to enlarge
or reduce the image size. The scale can
be changed to 25%, 50%, 100%, 200%,
and 400%.
Press the [MENU] key ▶Select [Rotate]
Each time the controller is rotated, the
image is rotated from 0˚, 90˚, 180˚, 270˚.
Information
• Press the controller to restore the original
image size.
• When images are not all displayed on the
screen, pushing the controller in
up/down/left/right directions will display
other images.
Information
• Press the controller to restore the original
image state.
Using the Menu Key Zoom In/Out Rotate
USB
USB Image
![](/img.php?id=1768145&img=bg5b.png)

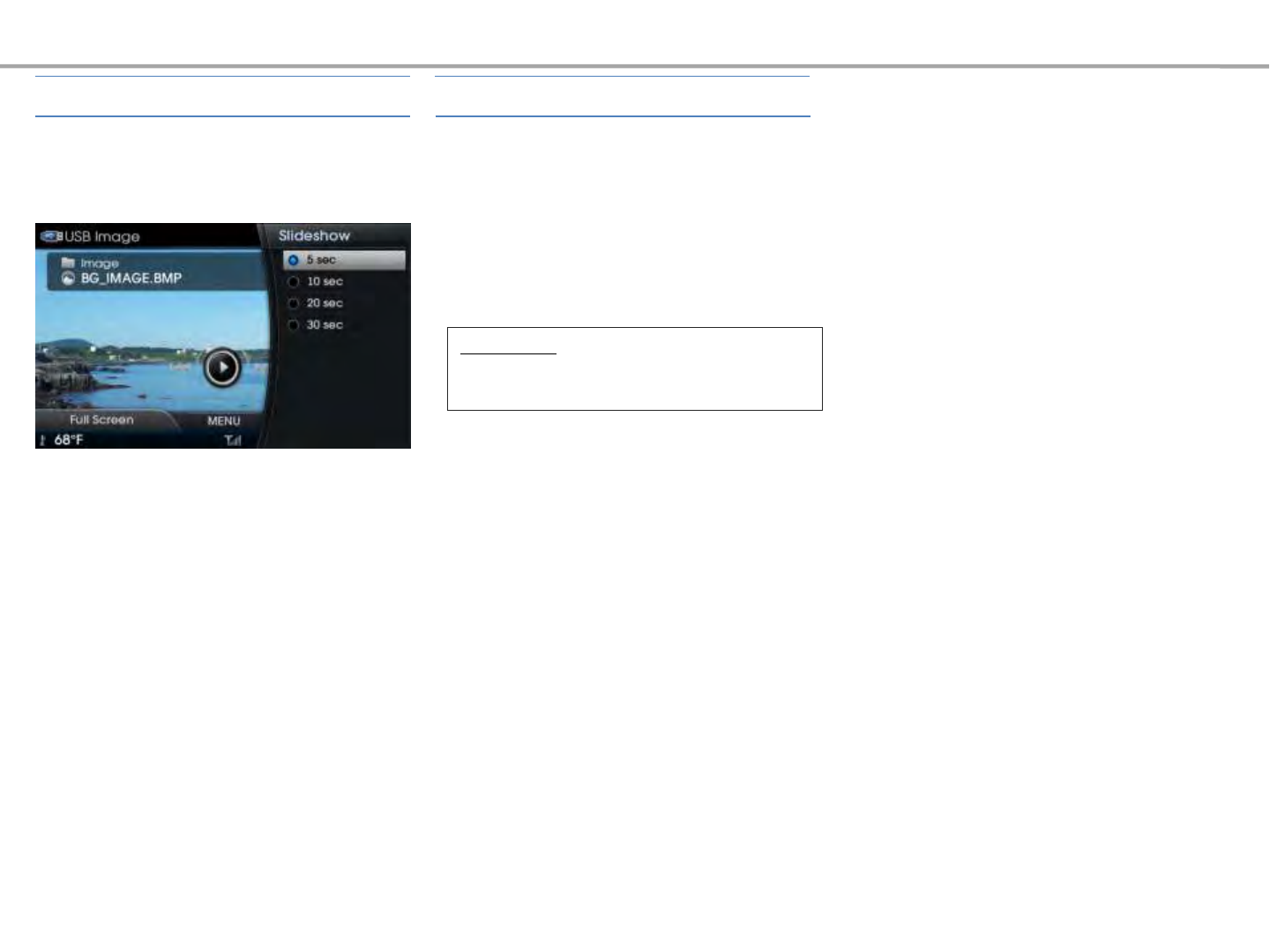

Press the [MENU] key ▶Select [Copy]
▶Set copy options
Press the [MENU] key ▶Select
[Slideshow]
Image slideshow intervals can be set at
[5secs], [10secs], [20secs], [30secs]
intervals.
Copying to JukeboxSlideshow Setting
USB
USB Image
※Refer to the USB Audio 'Copying to
Jukebox' section for more information.
Information
•Copying will be canceled if you move to a
different mode while copying is in progress.
![](/img.php?id=1768145&img=bg5c.png)
• iPod is a registered trademark of
Apple Inc.
• iPod mode will not operate if the
connected iPod cannot be recognized
due to operation of unsupported
versions that do not support related
protocols, iPod abnormalities, or iPod
device defects.
• Some iPods with unsupported
communication protocols may not
properly operate in the Audio Video
Navigation system.
• For fifth generation iPod Nano devices,
the iPod may not be recognized when
the battery level is low. Please charge
the iPod for use.
• Search/play orders shown within the
iPod device may differ with the orders
shown within the Audio Video
Navigation system.
• If the iPod malfunctions due to an iPod
device defect, reset the iPod and try
again. (To learn more, refer to your iPod
manual)
Using iPod Devices • For some iPod Touch and iPhone
devices, connecting Bluetooth® while
the iPod is operating may result in
discontinued iPod sound. When such
devices with Bluetooth® support is
connected, this problem occurs as the
sound source is changed from the Dock
Connector (USB connector cable) to
Bluebird (Audio Video Navigation
Bluetooth® Module).
• To listen to the iPod sound, re-connect
the USB cable or exit then re-enter iPod
mode.
• In order to use the iPod while
operating the keys, you must use a
dedicated iPod cable. (the cable that is
supplied when purchasing iPod/iPhone
products)
※During ACC ON state, connecting the
iPod through the iPod cable (the cable
that is supplied when purchasing
iPod/iPhone products), will charge the
iPod through the head unit.
• When connecting with the iPod cable,
make sure to fully insert the jack to
prevent communication interference. If
the iPod is connected to the vehicle
while it is playing, a high pitch tone may
sound for about 1~2 seconds
immediately after connection.
• Within iPhones, streaming audio and
iPod control may occasionally conflict. If
problems persist, remove the iPhone
and connect again.
• Some iPod versions may not sync with
the system. then the system may not
properly restore the previously operated
mode. (For iPads, battery charging is not
supported.)
• When playing iPods, use an iPod-
dedicated car cable. Normal operations
cannot be guaranteed when a dedicated
iPod cable is not used.
• if music or video applications are
playing or active within the connected
iPod device, the contents of such
applications may begin playing. In such
cases, first end such applications within
the iPod device before connecting with
the system.
iPod
iPod
![](/img.php?id=1768145&img=bg5d.png)
Category 1 Step 2 Step 3 Step 4 Step 5 Step
Playlist Playlist Play List name (category is same as iPod)
Artist Artist Artist
Name
Album
Name
Song
Name
Album Album Album
Name
Song
Name
Genre Genre Genre
Name
Artist
Name
Album
Name
Song
Name
Song Song Song Name
Composer Composer Composer
Name
Album
Name
Song
Name
Device /
Generation First Second Third Fourth Fifth Sixth
iPod
classic O O Not Released
iPod
nano O O O O O O
iPod
mini Not Supported
iPod
shuffle Not Supported
iPod
touch O O O O Not Released
iPhone Not Released O O Not Released
iPad O O Not Released
(may differ depending on the type of iPod device.)
Supported iPod devices Search Steps
iPod
iPod
![](/img.php?id=1768145&img=bg5e.png)

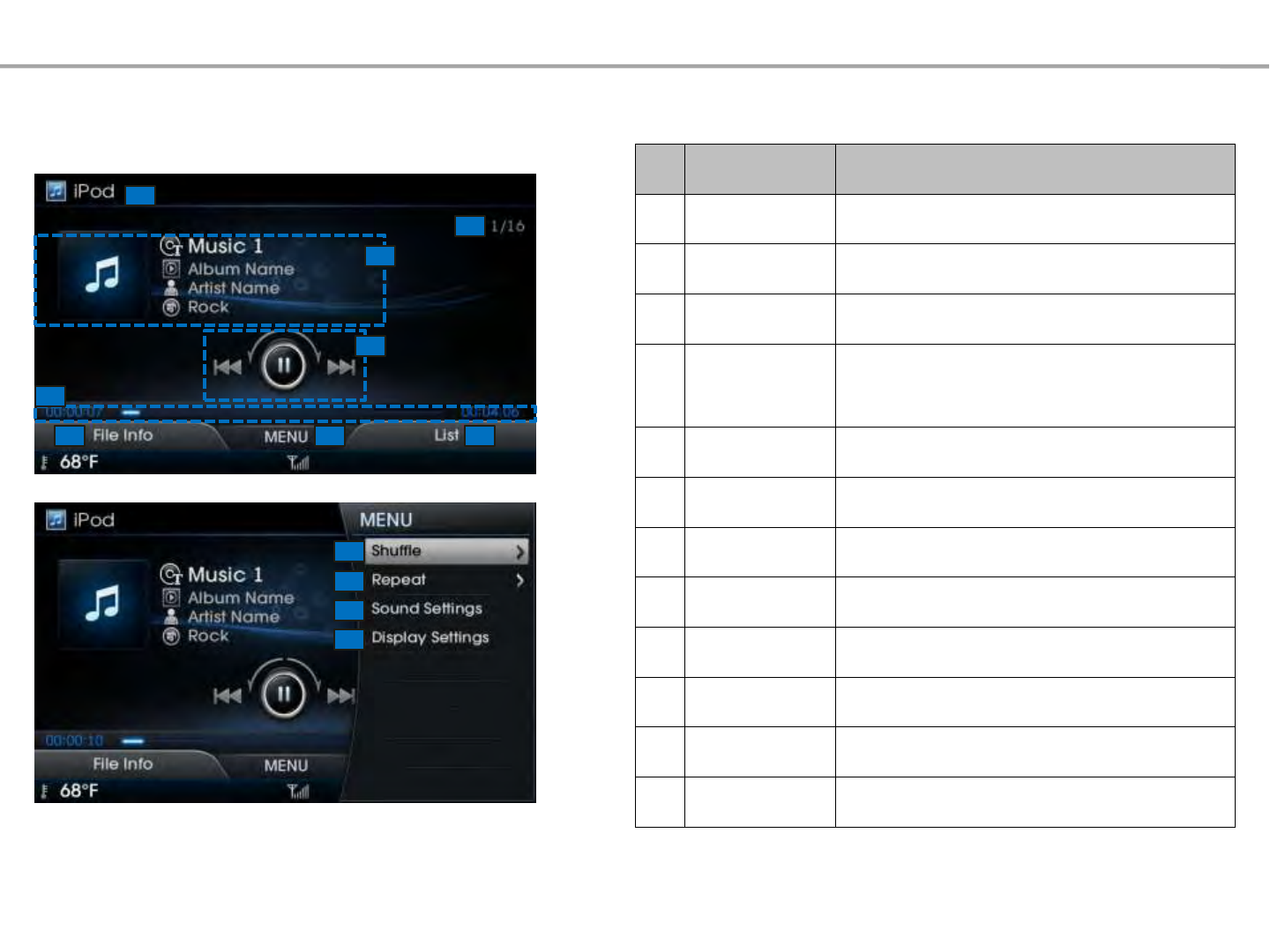

Basic Mode Screen
No Name Description
1Mode Displays currently operating mode
2File Index Shows the current file/total files within the iPod
3Play File Info Displays Title/Album/Artist/Genre info
4Control Panel
Enables use of play/pause/select/search features
• When turned left/right: Moves to previous/next songs
• When pushed left/right: Plays previous/next songs
• When pressed: Plays or pauses
5Play Time Displays the play time information
6File Info Shows file information
7MENU Displays the pop up menu
8List Moves to the list screen
9Shuffle
Turns Shuffle feature on/off
10 Repeat
Turns Repeat feature on/off
11 Sound Settings Displays to the sound settings screen
12 Display Settings Displays to the display settings screen
4
10
1
5
12
2
6
3
11
78
9
iPod
iPod
![](/img.php?id=1768145&img=bg5f.png)
Starting Mode
Press the [HOME] button ▶Select
[iPod]
iPod mode will automatically start once
an iPod is connected.
While playing ▶Shortly push the
controller left/right (under 0.8 seconds)
or shortly press the [SEEK], [TRACK] key
to select the previous/next song.
Information
•Some iPods with unsupported
communication protocols may not properly
operate within the system.
Playing iPod Selecting iPod File
iPod
iPod
Press the controller to play or pause
the iPod.
![](/img.php?id=1768145&img=bg60.png)

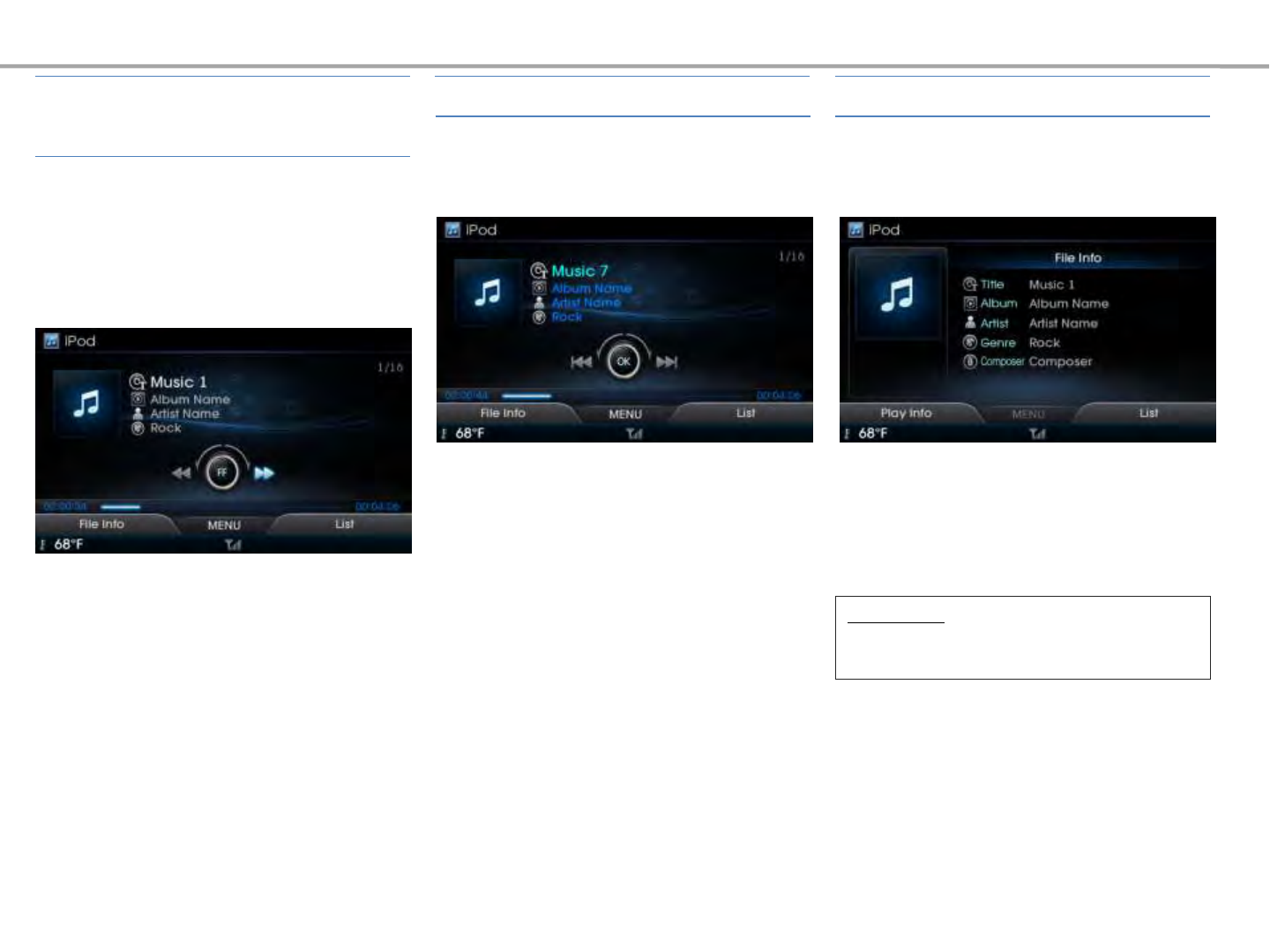

While playing ▶Push and hold the
controller left/right (over 0.8 seconds)
or press and hold the [SEEK], [TRACK]
key to rewind/fast-forward the current
song.
While playing ▶Turn the controller (○
TUNE knob) left/right to search for
songs.
During search, the song name is
displayed. Press the controller (○TUNE
knob) to play the selected song.
Press the [LHT] File Info button to
select Play Info to view the file
information.
To return to the previous screen, select
the [LFT] Play Info button.
Information
• No information are shown for MP3 files
without file information.
Fast-forwarding or Rewinding iPod
Files
Searching iPod Files File Info/Play Info
iPod
iPod
![](/img.php?id=1768145&img=bg61.png)

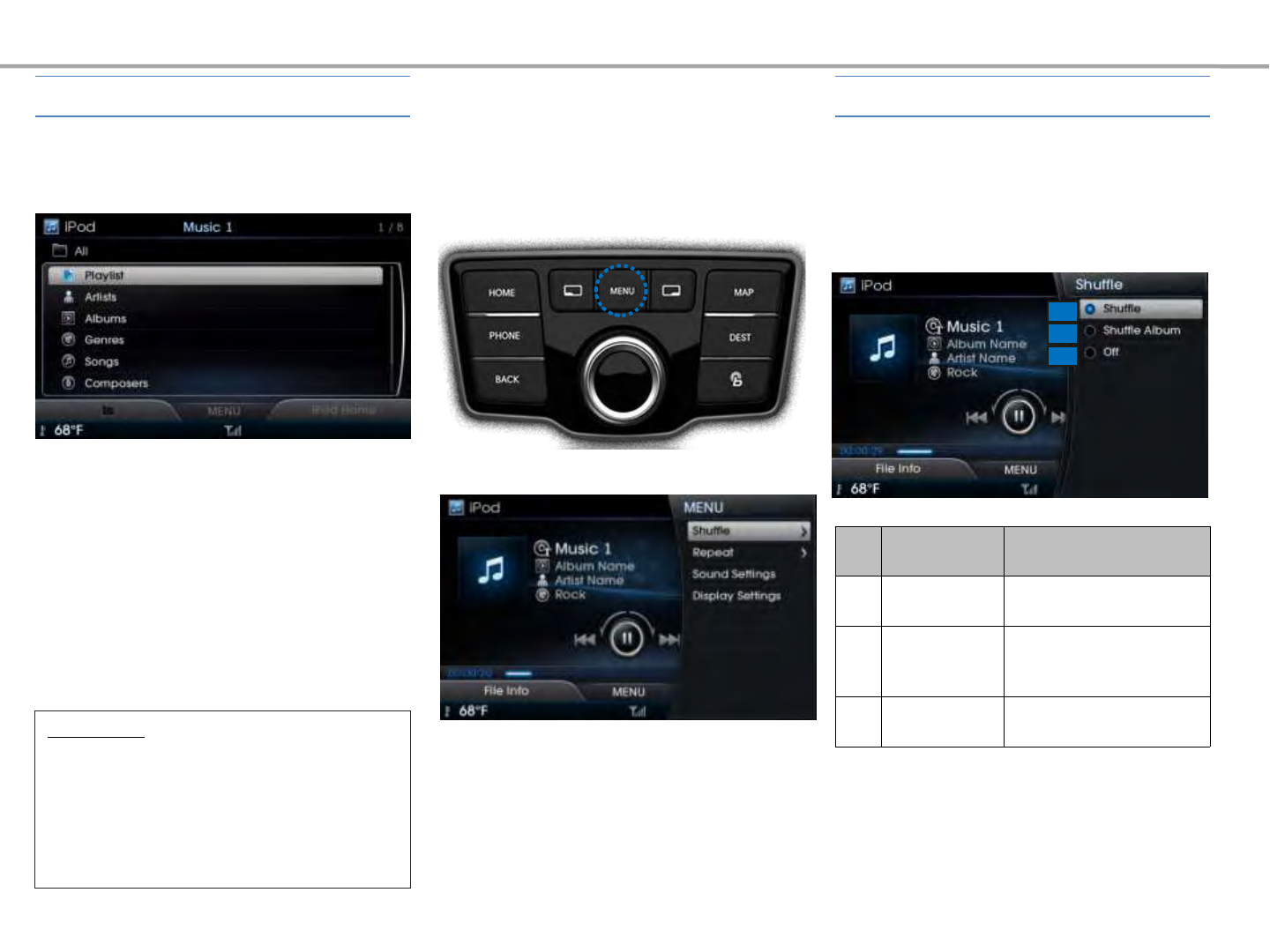

Press the [MENU] key to use the
Shuffle, Repeat, Sound Settings and
Display Settings.
Using the Menu Key
Press the [MENU] key ▶Select [Shuffle]
▶Select [Shuffle] or [Shuffle Album]
1
2
Information
• If the search mode is accessed while
playing a song, the most recently searched
step will become displayed.
• Upon initial connection, the search steps
may differ depending on the type of iPod
device.
No Name Description
1Shuffle Plays songs within play list in
random order
2Shuffle Album
Plays albums in random
order
(plays songs within the
album in sequential order)
3Off Turn the Shuffle feature off.
3
Searching iPod List Shuffle
iPod
Press the [RHT] key to select from the
list.
Songs can be searched from various
categories, including Playlist, Artists,
Albums, Genres, Songs Composers,
Audiobooks, and Podcasts..
You can move to the previous category
or the root list screen by pressing the
[LFT] Category Up and [RHT] iPod Home
buttons.
iPod
![](/img.php?id=1768145&img=bg62.png)

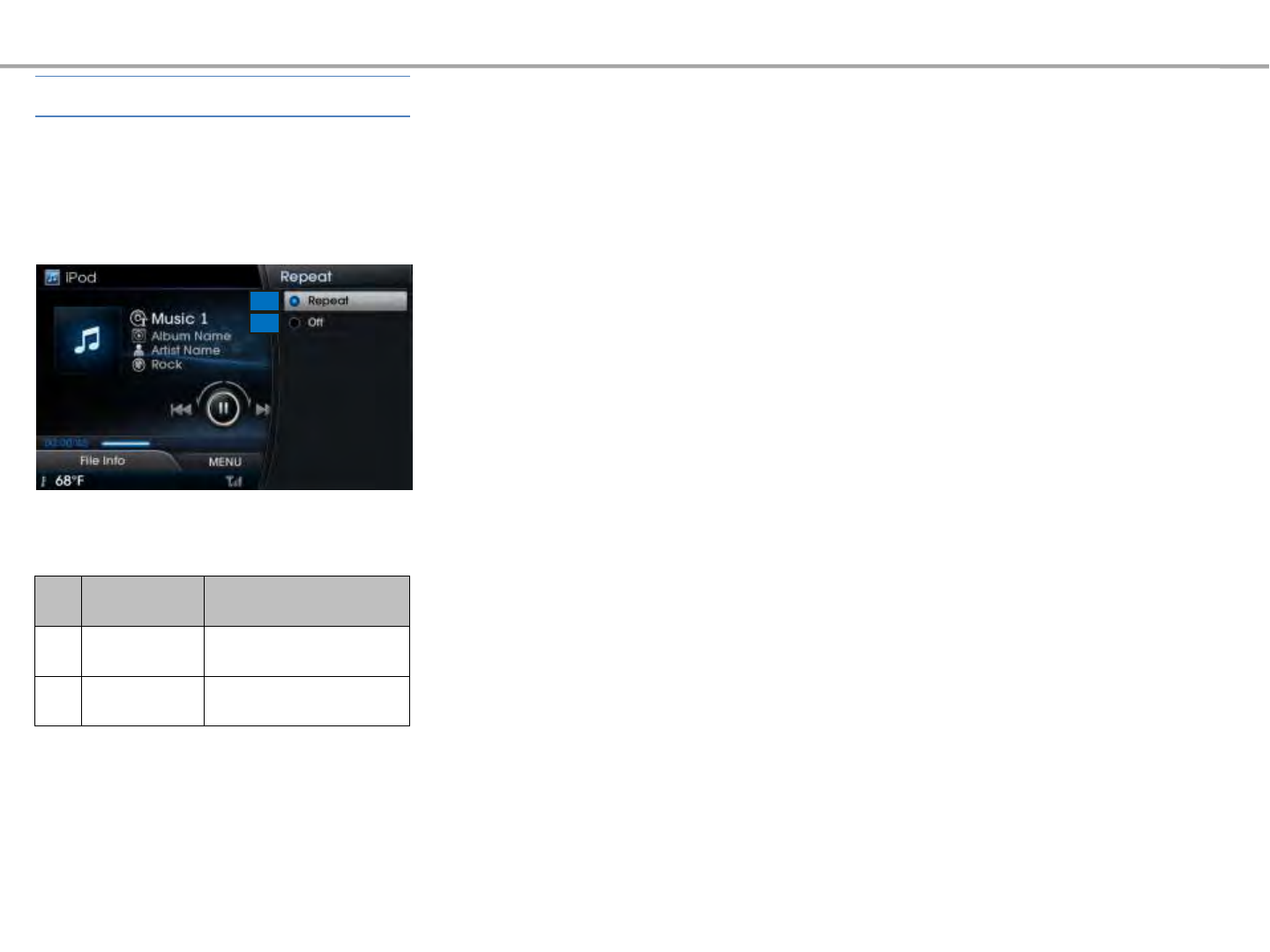

Press the [MENU] key ▶Select [Repeat]
▶Select [Repeat]
The current song is repeated.
No Name Description
1Repeat Repeats play of currently
playing file.
2Off Turn the Repeat feature off.
1
2
Repeat
iPod
iPod
![](/img.php?id=1768145&img=bg63.png)

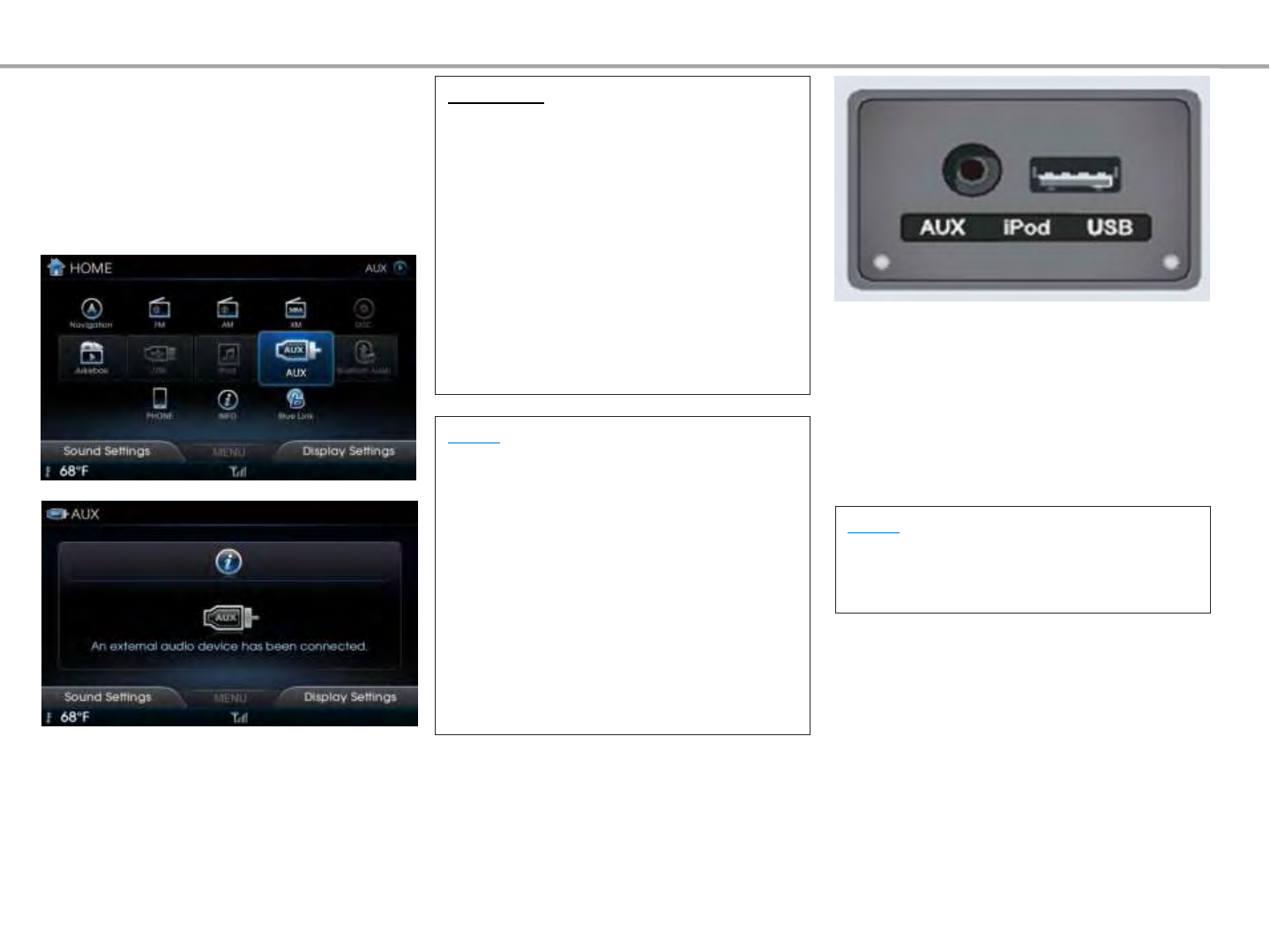

Starting Mode
Press the [HOME] button ▶Select the
AUX button.
External AUDIO and VIDEO players
(Camcorders, car VCR, etc.) can be
played through a dedicated cable. The
position of the AUX jack is at the top of
the gear box located between the driver
and passenger seats.
Information
• If an external device connector is
connected with the AUX terminal, then AUX
mode will automatically operate. Once the
connector is disconnected, the previous
mode will be restored.
• AUX mode can be used only when an
external audio/video player (camcorder, car
VCR, etc.) has been connected.
• The AUX volume can be controlled
separately from other AV modes.
Notice
• Connecting a connector jack to the AUX
terminal without an external device will
convert the system to AUX mode, but only
output noise. When an external device is
not being used, also remove the connector
jack.
• When the external device power is
connected to the power jack, playing the
external device may output noise. In such
cases, disconnect the power connection
before use.
Notice
•This device supports the NTSC color
system. Other color systems are not
supported.
AUX
AUX
![](/img.php?id=1768145&img=bg64.png)
About Using Bluetooth®
Audio
•Bluetooth® Audio Mode can be used
only when a Bluetooth® phone has been
connected.
•While Bluetooth® Audio is playing,
disconnecting the Bluetooth® phone will
also terminate Bluetooth music.
•Bluetooth® streaming audio may not
be supported in some mobile phones.
•If you switch to the Bluetooth mode
screen while playing streaming audio,
then the streaming audio will stop and
the previous AV mode will be restored.
Starting Mode
Press the [HOME] button ▶Select the
[Bluetooth Audio] button.
Press the controller to begin playing
Bluetooth Audio. Pressing the controller
again will pause the Bluetooth Audio.
Notice
•If the Bluetooth® device is not connected,
then the [Bluetooth Audio] button will be
disabled.
Notice
•If Bluetooth Audio Streaming is used
simultaneously with another music
application, then the display and sound may
operate abnormally.
Playing Bluetooth Audio
Bluetooth Audio
BT Audio
