User Manual
![](/img.php?id=1464467&img=bg1.png)
W07I98M-RTC1
User’s Manual
7 inch Tablet PC
Quick Start Guide
Version: 1.0
W07I98M-RTC1
7 inch Rugged Tablet PC
![](/img.php?id=1464467&img=bg2.png)
W07I98M-RTC1
Users Manual Rugged Table PCs
2

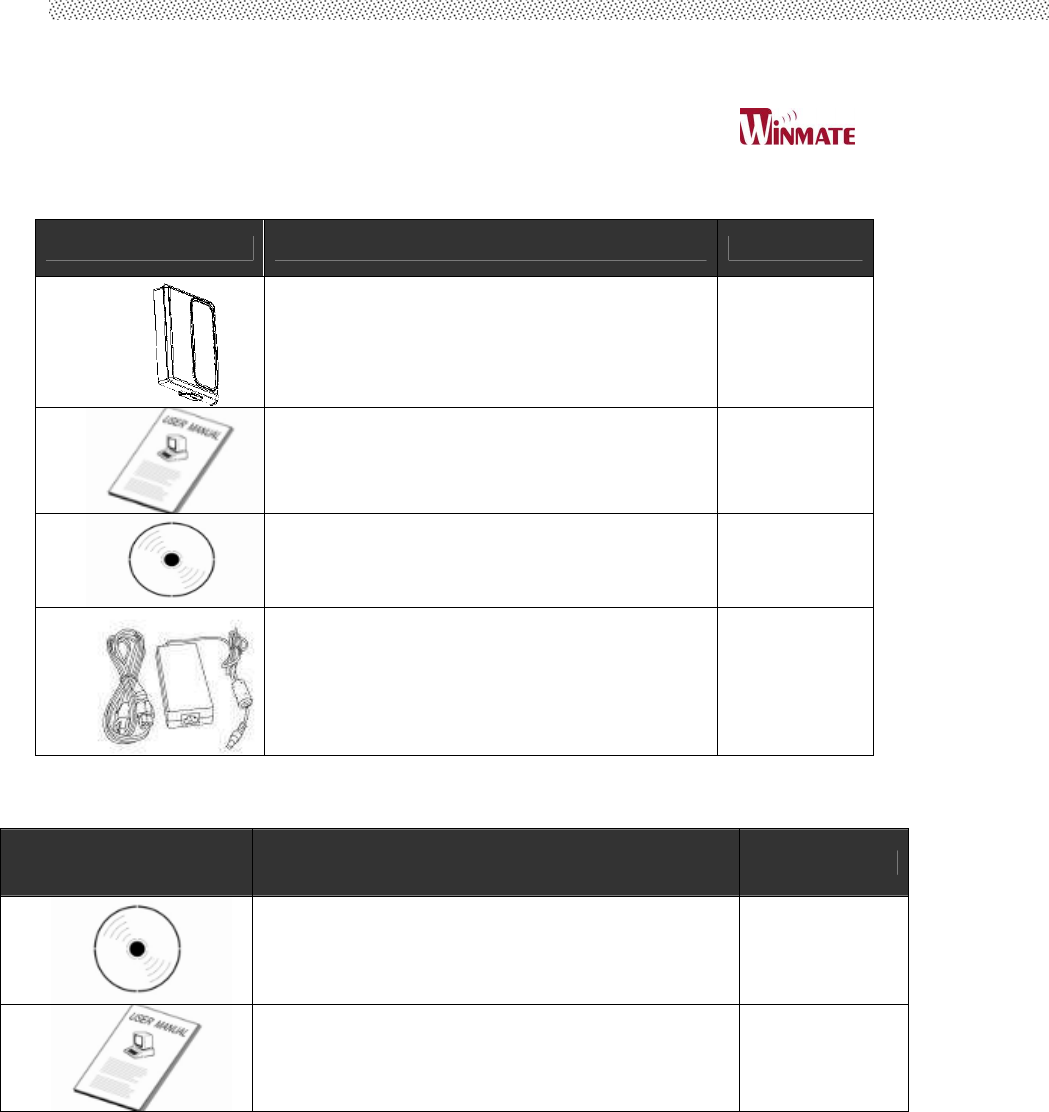

Accessory
Item Description Note

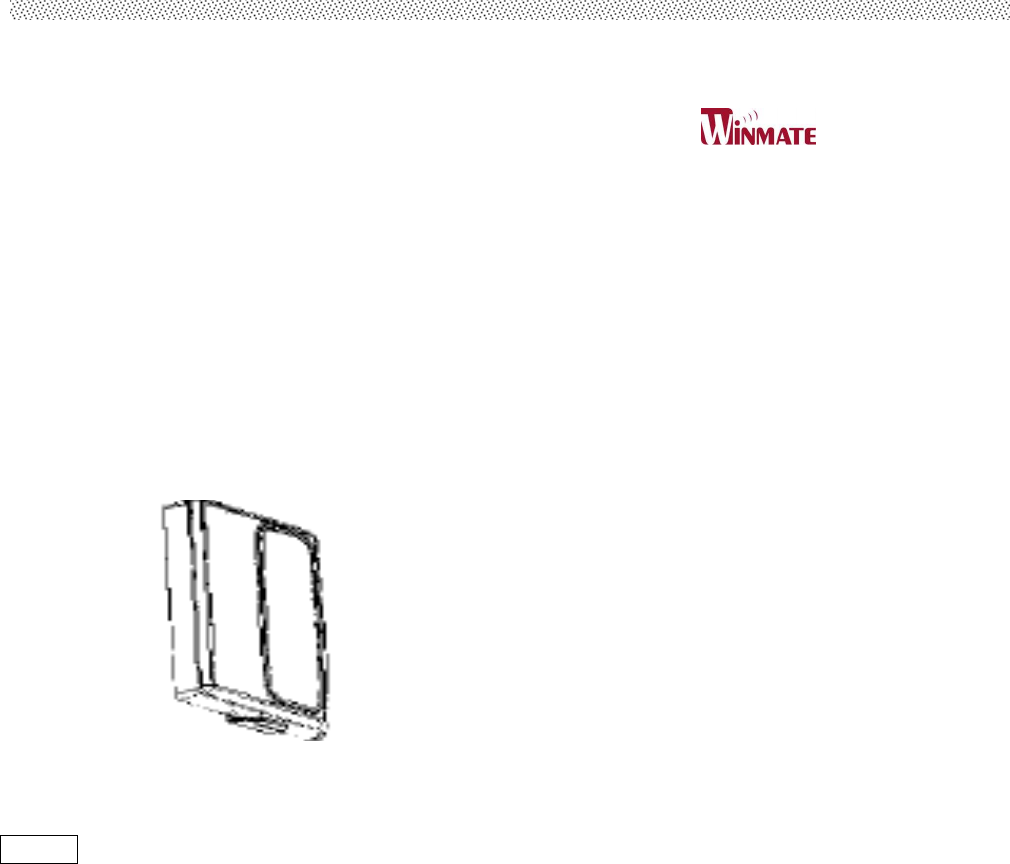

2 piece of 2 Cell Li-Polymer Battery
Pack
Hot-swappab
le for battery
change
1 piece of Rugged Tablet PC Quick Start
Guide.
1 piece of CD for System Driver Utility.
1 piece of 12V Adapter w/ Standard
Power Cord.
Euro / U.S. Std type, 1.8m
Operation System Packing List
Item Description Note
1 piece of CD for Recovery CD for
Operation System (Windows 7 or Windows
XP embedded).
Optional with
Windows XP
embedded
preinstalled
1 piece of Windows 7 or Windows XP
embedded Recovery User’s Guide.
Optional with
Windows XP
embedded
preinstalled
![](/img.php?id=1464467&img=bg3.png)
W07I98M-RTC1
Users Manual Rugged Table PCs
3
IMPORTANT SAFETY INSTRUCTIONS
Please read these instructions carefully before using the product and
save for later reference.
Follow all warnings and instructions marked on the product.
Unplug this product from the wall outlet before cleaning. Clean the
product with a damp soft cloth. Do not use liquid or aerosol cleaners
as it may cause permanent damage to the screen.
Do not use this product near water.
Do not place this product on an unstable cart, stand, or table. The
product may fall, causing serious damage to the product.
This product should be operated from the type of power indicated on
the marking label. If you are not sure of the type of power available,
consult your dealer or local power company.
This product is equipped with a 3-wire grounding type plug, a plug
having a third (grounding) pin. This plug will only fit into a
grounding-type power outlet. This is a safety feature. If you are
unable to insert the plug into the outlet, contact your electrician to
replace your obsolete outlet. (For AC version only)
Do not defeat the purpose of the grounding-type plug.
Do not allow anything to rest on the power cord. Do not locate this
product where persons will walk on the cord.
Never push objects of any kind into this product through cabinet slots
as they may touch dangerous voltage points or short out parts that
could result in a risk of fire or electric shock. Never spill liquid of any
kind on the product.
Do not attempt to service this product by yourself, as opening or
removing covers may expose you to dangerous voltage points or
other risks and will void the warranty. Refer all servicing to qualified
service personnel.
Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
When the power cord or plug is damaged or frayed.
If liquid has been spilled into the product.
If rainy or water has been exposed to the product.
If the product does not operate normally that the operating
instructions are followed. Adjust only those controls that are covered
by the operating instructions since improper adjustment of other
controls may result in damage and will often require extensive work
by a qualified technician to restore the product to normal operation.
If the product has been dropped or the cabinet has been damaged.
If the product exhibited a distinct change in the performance, that
indicates a need for service.
![](/img.php?id=1464467&img=bg4.png)
W07I98M-RTC1
User’s Manual
4
Copyright Notice
Copyright © 2008 Winmate Communication Inc., ALL RIGHTS RESERVED. No
part of this document may be reproduced, copied, translated, or transmitted in any
form or by any means, electronic or mechanical, for any purpose, without the prior
written permission of the original manufacturer.
Trademark Acknowledgement
Brand and product names are trademarks or registered trademarks of their
respective owners.
Disclaimer
Winmate Communication Inc. reserves the right to make any product changes
without notice, including circuits and/or software described or contained in this
manual in order to improve design and/or performance. Winmate Communication
assumes no responsibility or liability for the use of the described product(s),
conveys no license or title under any patent, copyright, or masks work rights to
these products, and makes no representations or warranties that these products
are free from patent, copyright, or mask work right infringement, unless otherwise
specified. Applications that are described in this manual are for illustration
purposes only. Winmate Communication Inc. makes no representation or warranty
that such application will be suitable for the specified use without further testing or
modification.
Warranty
Winmate warrants that each of its products will be free from material and
workmanship defects for a period of one year from the invoice date. If the customer
discovers a defect, Winmate will, at its option, repair or replace the defective
product at no charge to the customer, provided it is returned during the warranty
period of one year, with transportation charges prepaid. The returned product must
be properly packaged in it’s original packaging to obtain warranty service.
If the serial number and the product shipping data differ by over 30 days, the
in-warranty service will be made according to the shipping date. In the serial
numbers the third and fourth two digits give the year of manufacture, and the fifth
digit means the month (e. g., with A for October, B for November and C for
December).
For example, the serial number 1W08Axxxxxxxx means October of year 2008.
![](/img.php?id=1464467&img=bg5.png)
W07I98M-RTC1
User’s Manual
5
Customer Service
We provide service guide for any problem as follow steps:First, visit the website
at http://www.winmate.com.tw to find the update information about the product.
Second, contact with your distributor, sales representative, or our customer service
center for technical support if you need additional assistance. You may have the
following information ready before you call:
Product serial number
Peripheral attachments
Software (OS, version, application software, etc.)
Description of complete problem
The exact wording of any error messages
In addition, free technical support is available from our engineers every
business day. We are always ready to give advice on application requirements or
specific information on the installation and operation of any of our products. Please
do not hesitate to call or e-mail us.
Notice
1. Do not touch the LCD panel surface with sharp or hard objects.
2. Do not use abrasive cleaners, waxes or solvents for cleaning, use only a dry or
damp, soft cloth.
3. Use only with a high quality, safety-approved, AC/DC power adapter.
![](/img.php?id=1464467&img=bg6.png)
W07I98M-RTC1
User’s Manual
6
Safety Precautions
Warning!
Always completely disconnect the power cord from your
chassis whenever you work with the hardware. Do not make
connections while the power is on. Sensitive electronic
components can be damaged by sudden power surges. Only
experienced electronics personnel should open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precaution, use a
grounding wrist strap at all times. Place all electronic
components in a static-dissipative surface or static-shielded bag
when they are not in the chassis
![](/img.php?id=1464467&img=bg7.png)
Users Manual Rugged Tablet PCs

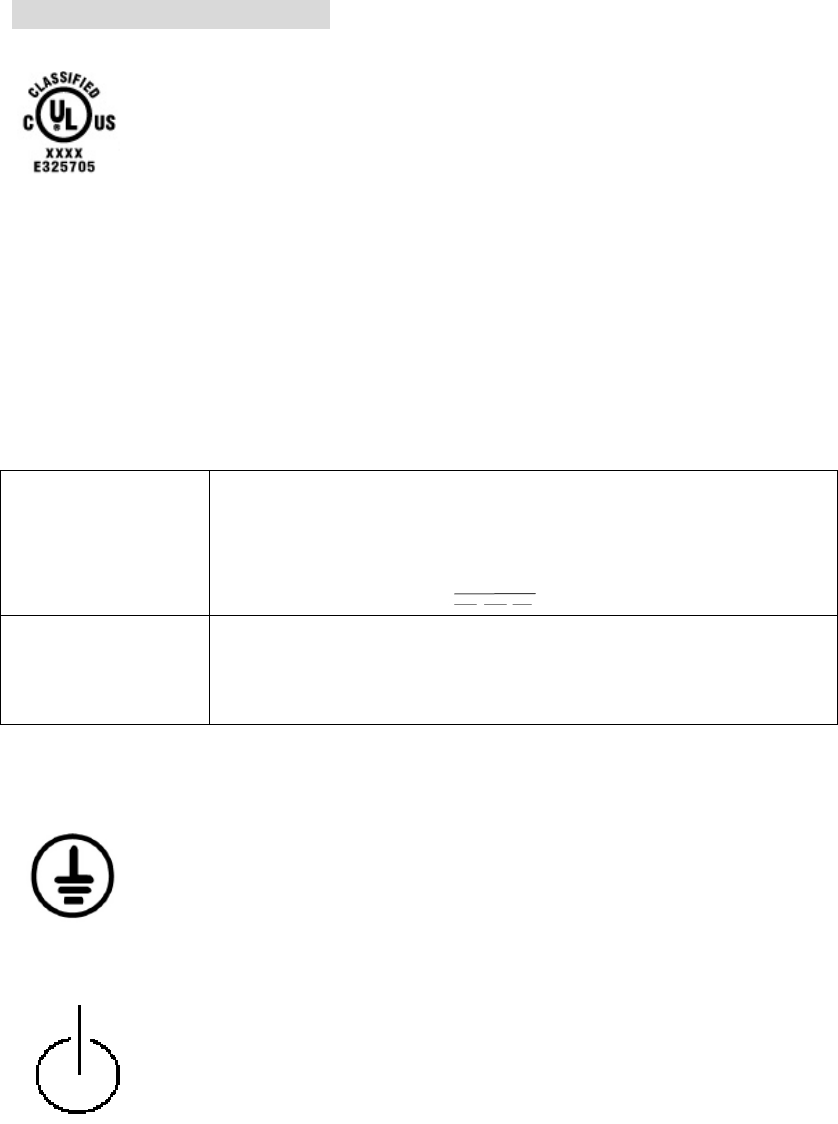

UL Safety Announcement
UL Classification: Class I mark: with respect to electronic
shock; Fire and hazardous material only in accordance with
the regulation of UL-60950 and CAN/CSA C22.2 No. 601.1.
Power Supply Announcement
The Handheld Rugged Tablet PC Power Supplies are supported by
Power Adapter and Battery Pack, the power rating announcement and
manufacturer information list as below.
Power Notice!
(1) Please aware of the power code of adapter need to be
connected to the Earth ground.

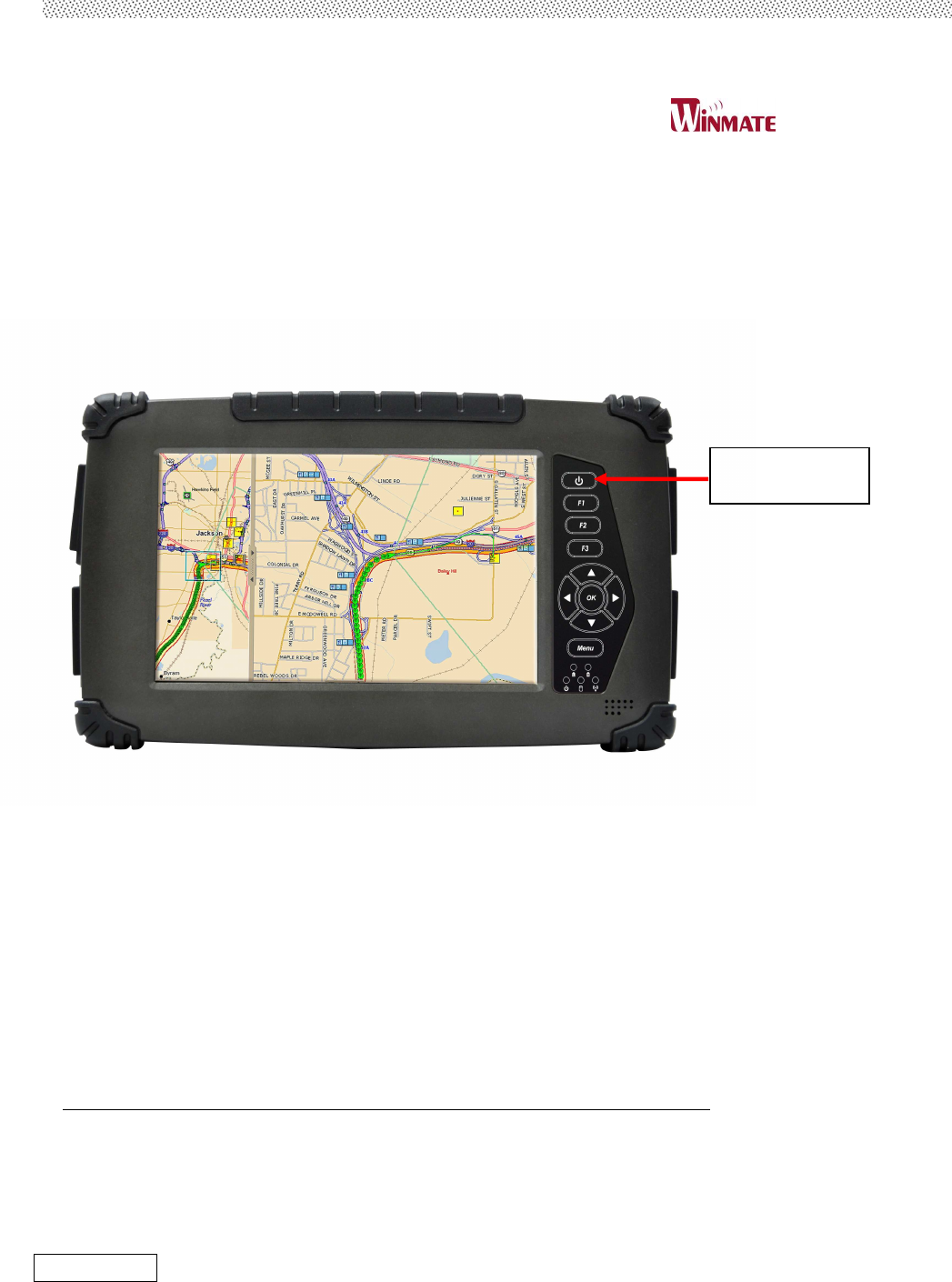

(2) Please notice the Power Standby mode when push
power button at least 4 seconds to go to sleep status. (See
Chapter 2.1 Starting and Stopping the Tablet PC)

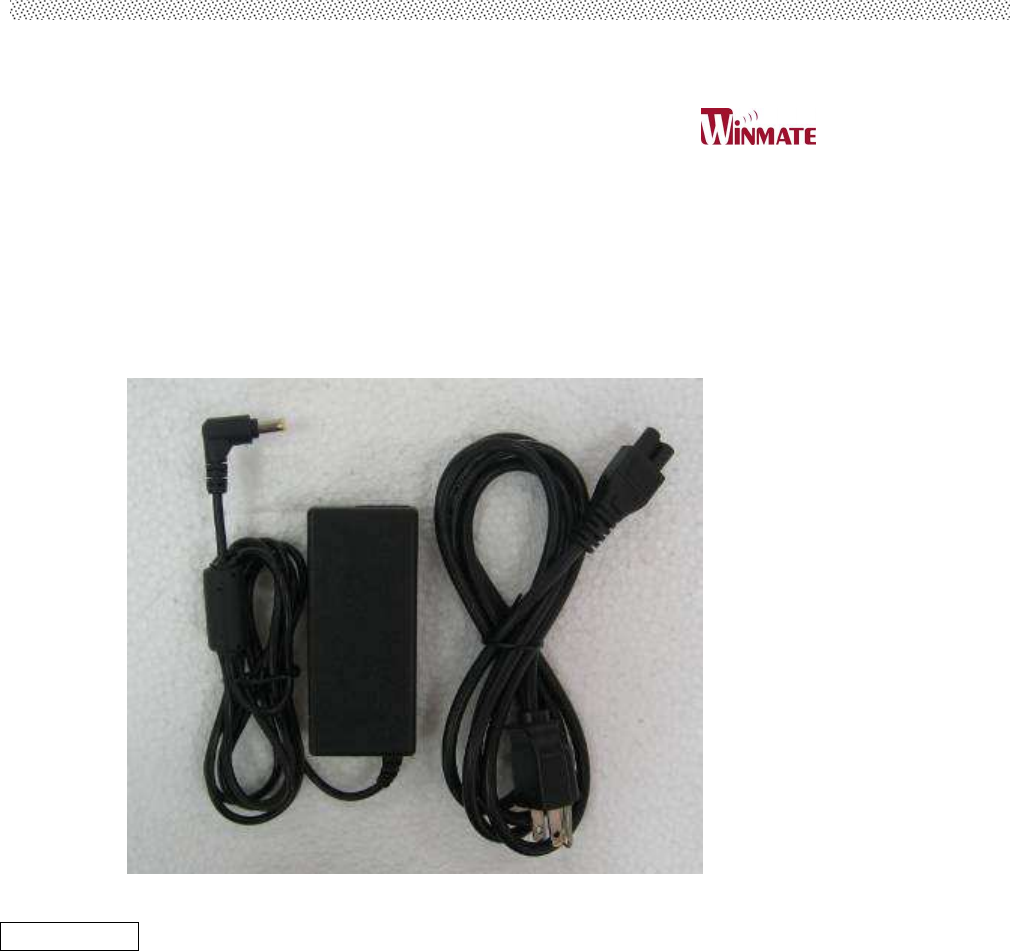

Power Adapter Manufacture: EDAC Power Electronics Co Ltd
Model: EA1050C-120
Input Rated: 100-240Vac, 1.8A, 50-60Hz.
Output Rated: DC 12V, 4.16A.
Battery Pack Manufacture: JHT energy International Co Ltd
Model: RTB-1
Rated: 2600mAh DC 7.4V
![](/img.php?id=1464467&img=bg8.png)
W07I98M-RTC1
User’s Manual
8
Battery Notice!
WARNING
Do not fix or replace battery, it may cause
explosion! Only use with specified battery
by following the manufacturer’s user
manual’s instruction.
![](/img.php?id=1464467&img=bg9.png)
W07I98M-RTC1
User’s Manual
9
Contents
IMPORTANT SAFETY INSTRUCTIONS................................................3
CHAPTER 1 SPECIFICATION ......................................................................12
1.1
S
YSTEM
S
PECIFICATION
........................................................................................................12
1.2
H
OW TO
U
SE THE
T
ABLET
PC...............................................................................................13
1.3
LED
I
NDICATOR
....................................................................................................................14

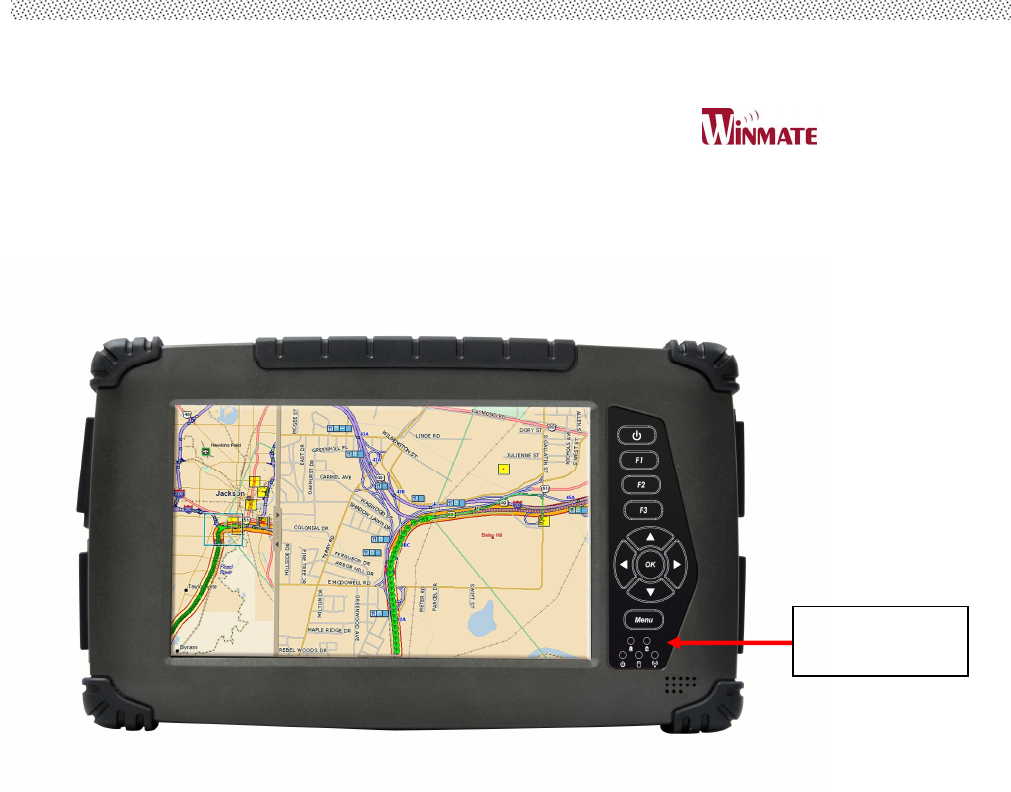

1.4
U
SING THE
B
ATTERY
P
ACKS
.................................................................................................15
1.5
T
HE
B
ATTERY
L
IGHT
S
IGNAL
I
NSTRUCTION
........................................................................19
CHAPTER 2 SOFTWARE OPERATION.....................................................22
2.1
T
URNING
O
N AND
O
FF THE
T
ABLET
PC...............................................................................22
2.1.1
T
URN ON THE
T
ABLET
PC..................................................................................................22
2.1.2
T
URN OFF THE
T
ABLET
PC ................................................................................................22
2.2
H
OW TO USE THE SOFTWARE UTILITY
......................................................................................23

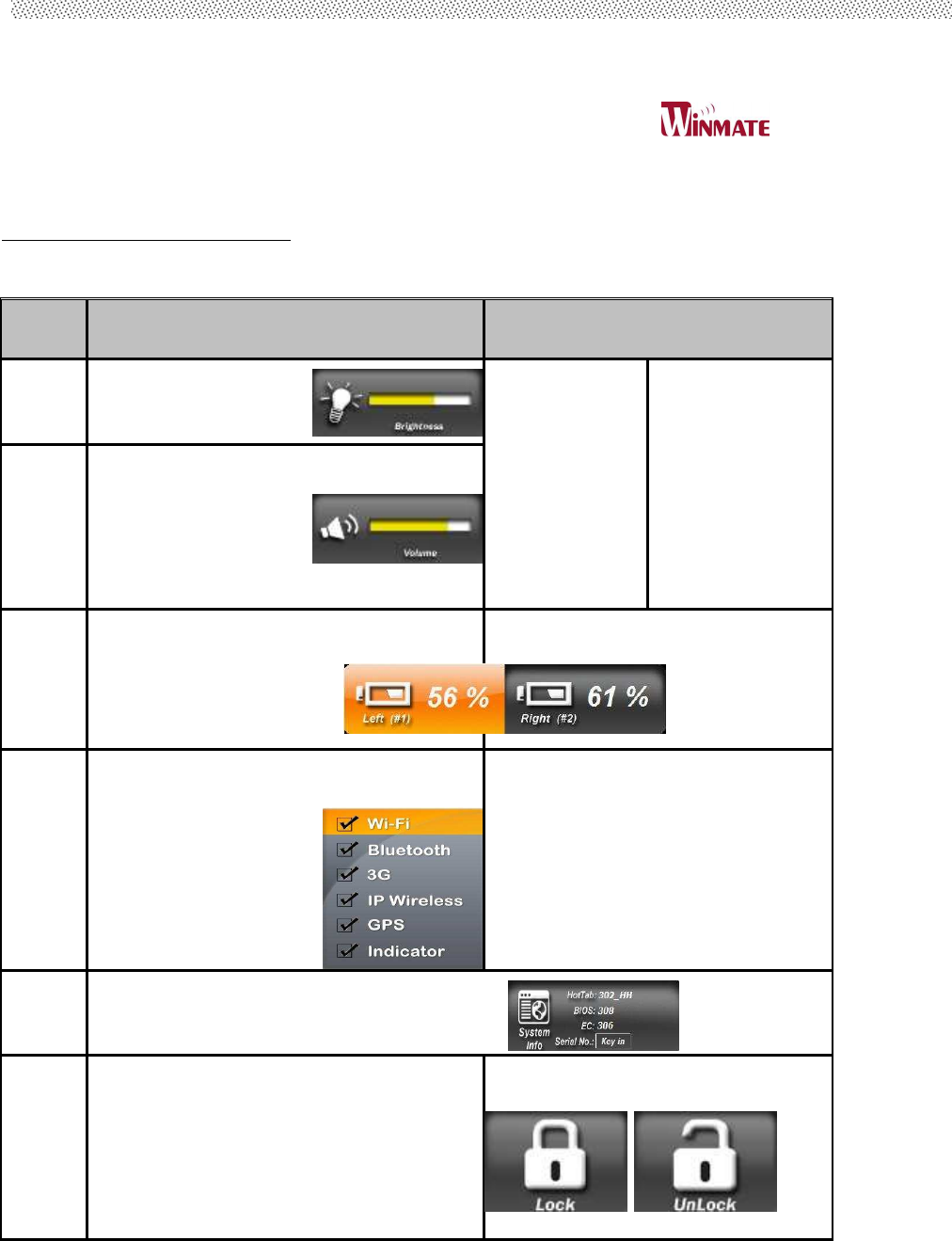

2.3
H
OT
TAB
S
OFTWARE
U
TILITY
F
UNCTIONS
..............................................................................24
CHAPTER 3 TABLET PC POWER MANAGEMENT............................34
3.1
A
BOUT
AC
A
DAPTER
.................................................................................................................34
3.2
C
HARGING AND
C
HECKING
C
HARGING
S
TATUS
......................................................................35
3.3
P
OWER
-S
AVING
T
IPS
................................................................................................................38
CHAPTER 4 EXPANDING YOUR TABLET PC ...................................40
4.1
H
OW AND
W
HEN TO
U
SE

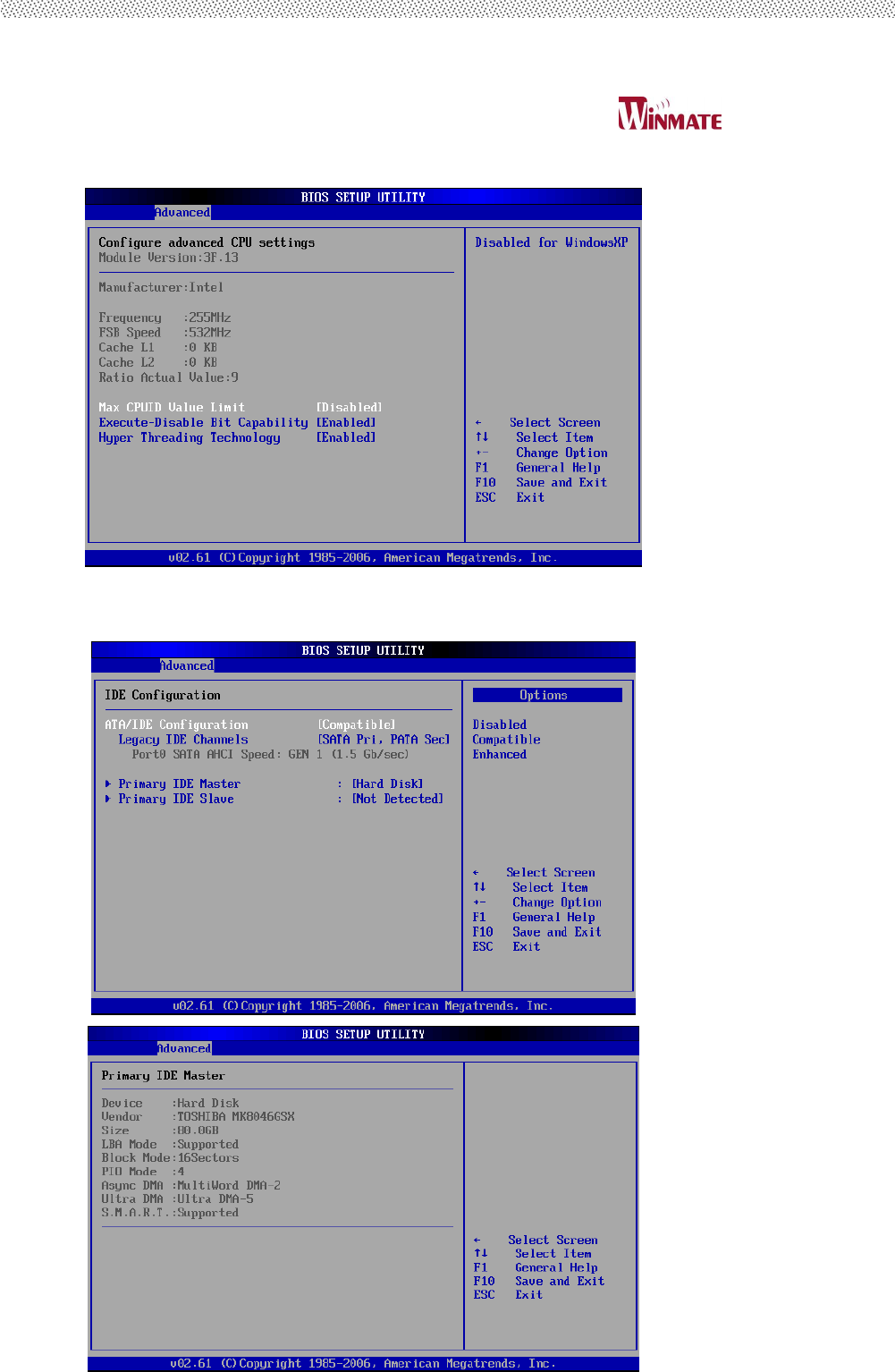

BIOS
S
ETUP
...................................................................................40
4.2
BIOS
F
UNCTIONS
.....................................................................................................................41

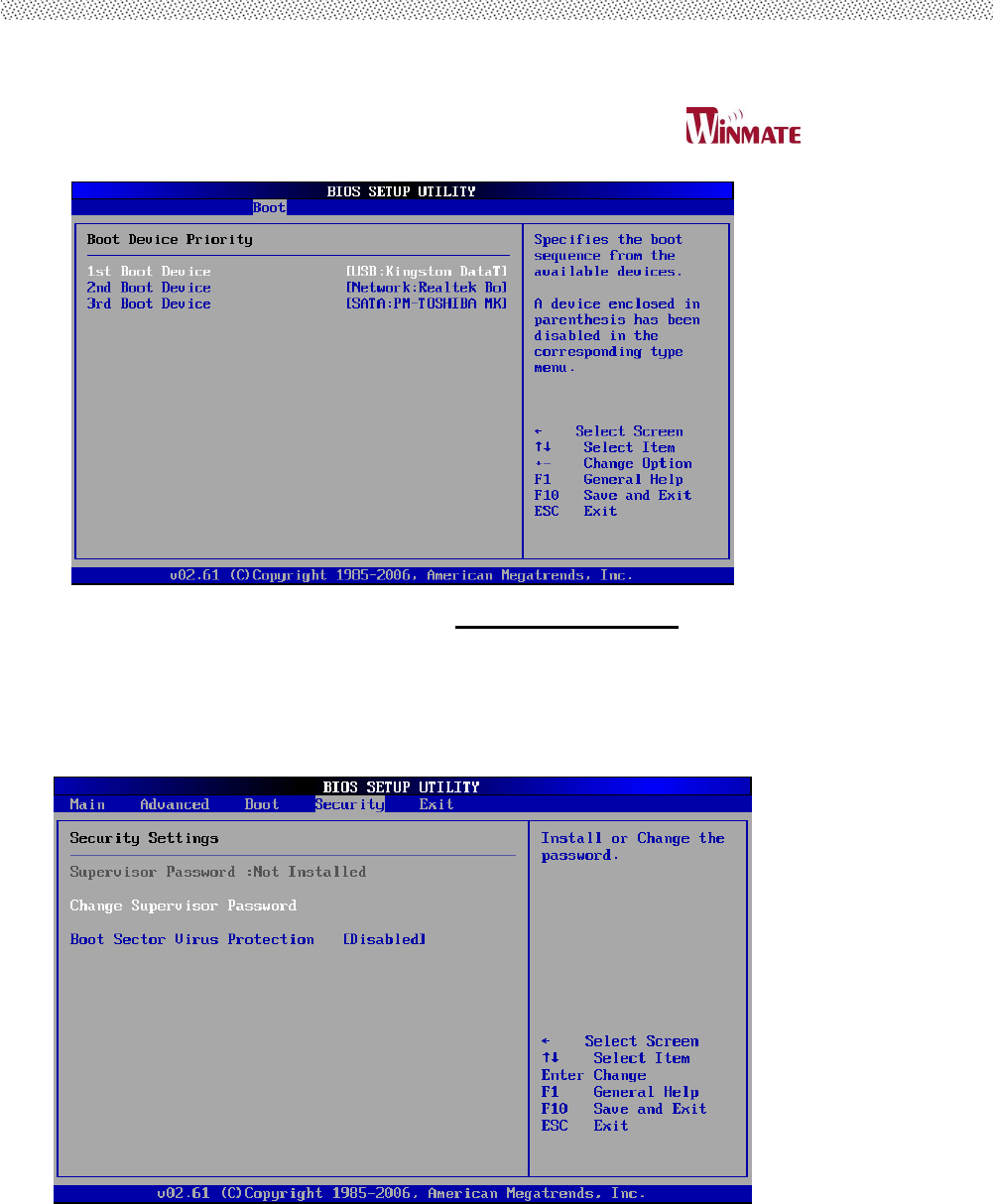

4.2.3 Boot Menu.......................................................................................................................44
4.2.4 Security Menu................................................................................................................45
4.2.5 Exit Menu ........................................................................................................................46
![](/img.php?id=1464467&img=bga.png)
W07I98M-RTC1
User’s Manual
10
CHAPTER 1
Specification
![](/img.php?id=1464467&img=bgb.png)
W07I98M-RTC1
User’s Manual
11
This User Manual cover the use of an W07I98M-RTC1 with Microsoft
Windows 7 and Windows XP E OS, but other operating systems can
also be used. Please contact your supplier for further information.

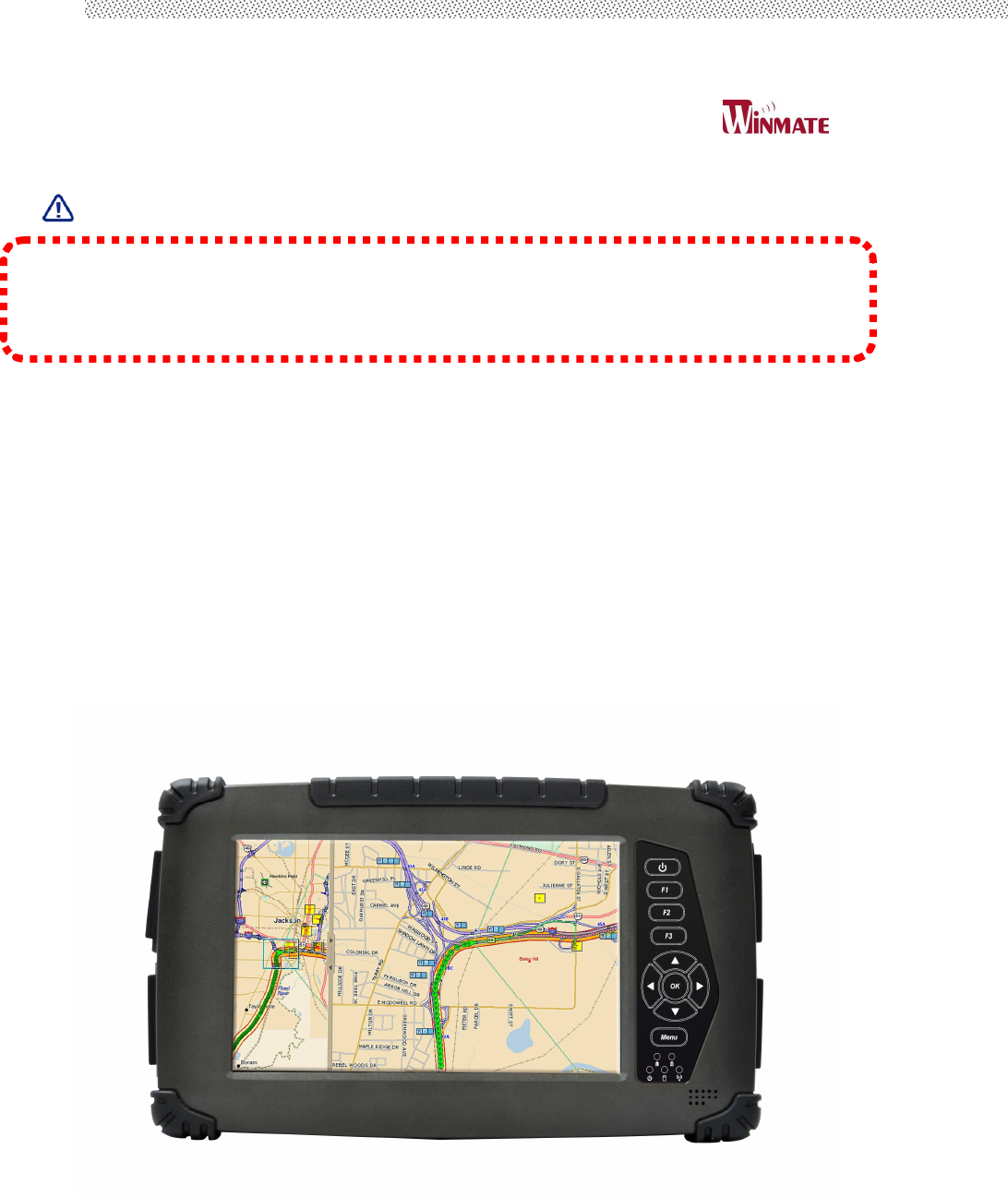

The W07I98M-RTC1 is a compact high performance, low weight
rugged Tablet PC designed for outdoor fieldwork purpose. The
W07I98M-RTC1 can survive in severe environmental conditions
including vibration, shock, moisture and temperature variations. The
W07I98M-RTC1 is suitable for use in harsh environments such as
construction sites, warehousing, defense, manufacturing and field
service. The W07I98M-RTC1 is delivered with two batteries and an AC
adapter.
![](/img.php?id=1464467&img=bgc.png)
W07I98M-RTC1
User’s Manual
12
CHAPTER 1 SPECIFICATION
This Chapter introduces the W07I98M-RTC1 specification.
1.1 System Specification
System
Processor Intel® ATOM™ Z530
BIOS AMI System BIOS
Chipset Intel US15W
Memory 1 x SODIMM, Max 2GB DDR2 400/533 (Default
512MB)
LAN Controller Realtek RTL811B Chipset, 10/100/1000 Mbps
Storage PATA interface support Mini-PCIe interface SSD
(Default 32GB)
Audio Audio out for headset, Micro-in for microphone
jack,1.5W Speaker (Internal)
I/O Connectors
Left I/O Port 1x Micro-In, 1x Audio Out,1x Giga LAN, 1x USB, 1x
DC Power Jack
Right I/O Port 1x RS232, 1x USB
In Front Control
Control Button 1x Power On/Off, 1x Menu, 1x Up, 1x Down, 1x
Left, 1x Right
3x Programmable Hotkeys
LED indicator 1x Power Status, 1x HDD Status, 2x Battery
Status, 1x Wireless Status
Display Specification
Size 7” (16:9)
Resolution 1024x600
Brightness 600 nit
Touch 4 Wire Resistive Touch
Power Management
Power Input 12 V DC @ 4.16A
Power
Consumption
9W
Battery Li-Polymer 7.4V 2S1P, 2600mAh /2S2P,
5200mAh
Adapter 100-240V, 50-60Hz, 12VDC
![](/img.php?id=1464467&img=bgd.png)
W07I98M-RTC1
User’s Manual
13
Wireless Communication
WLAN 802.11b/g/n (USB Half-Mini-Card.) built-in
Bluetooth Bluetooth (internal by usb module)
WWAN PCI Express® full size (Type F1) mini-card form
factor 3G Modem
Supported frequency range:
WCDMA Release 99、HSDPA Release 5、HSUPA
Release 6、 GPRS、EGPRS、CDMA2000 1X、
CDMA2000 1xEV-DO(for Optional)
GPS MTK GPS Solution (internal UART module) (for
Optional)

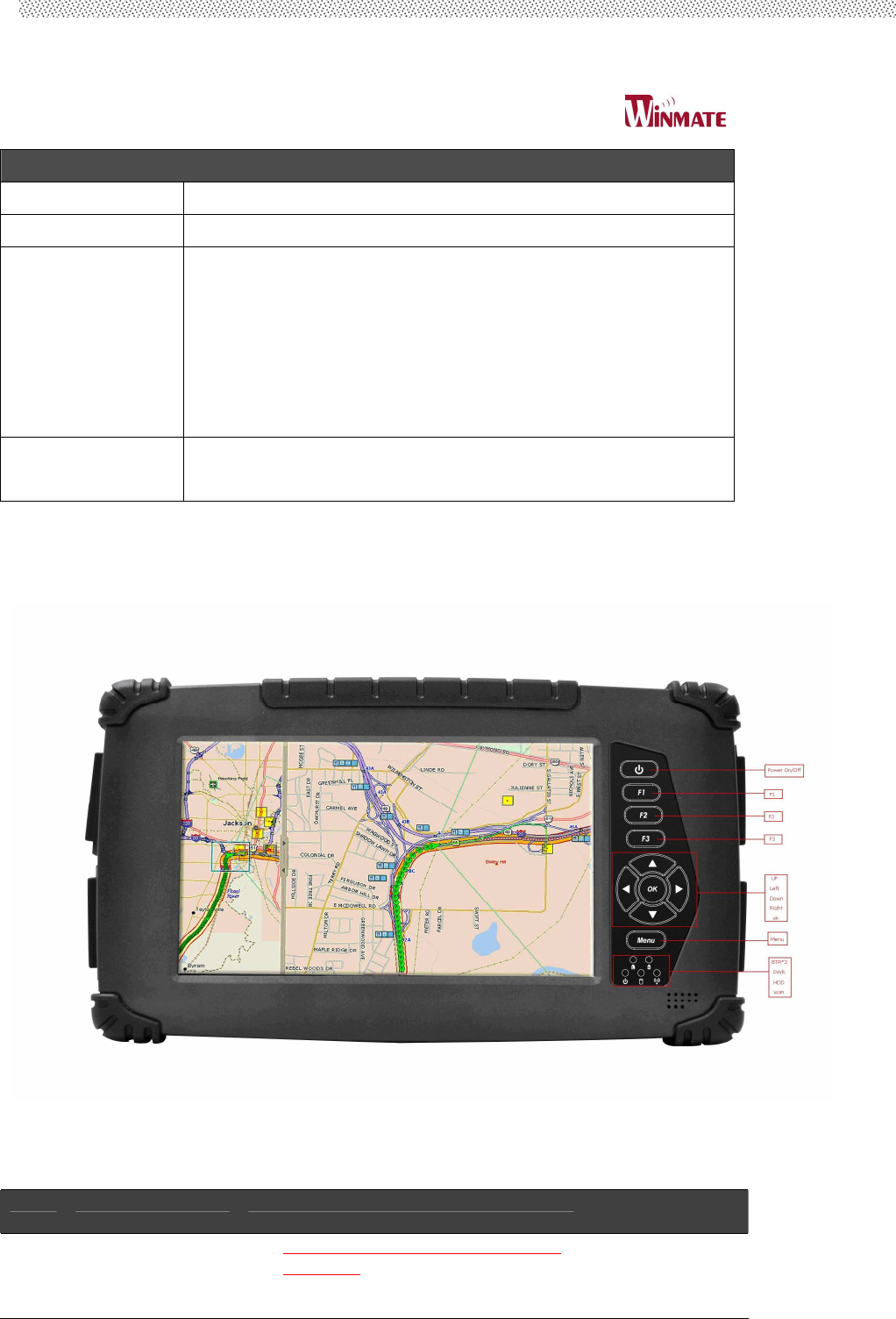

1.2 How to Use the Tablet PC
This section describes how to control this Tablet PC.
Components Function Description See Other
Intro.
1
Power On
Button
PUSH 4 seconds to turn on the
tablet pc
![](/img.php?id=1464467&img=bge.png)
W07I98M-RTC1
User’s Manual
14
2
LED Indicator
Shows the Power Status, HDD
Status, Left and Right Battery
Status, and Wireless Status
3
Menu Push Menu function to show
Brightness, Volume,Battery
status and Wireless
Enable/Disable.
4
F1 – F3
Hotkey
6 programmable Hot-key
functions for user to define by
application, default first short
push key (F1 short) will turn-on
Outlook Express
5
Up/Down/
Left/
Right/OK
Button
Cotrol the up, down, left, right
and Enter function.
1.3 LED Indicator
Power
mode
Green: System Turn On.
No Light : System Turn Off
Battery
Status
No Light: 100% full charge or power on with AC adapter
Orange Light: Product under charge
Green Light: Discharging battery between 3% ~ 100%
Red Light: Discharging batery under 3%
Red light : Battery Absent
Storage
Status Green Light blinking: HDD is using
Wifi status Green Light blinking: Wifi is using
No Light: Wifi is not working
![](/img.php?id=1464467&img=bgf.png)
W07I98M-RTC1
User’s Manual
15
1.4 Using the Battery Packs
This section describes the details of using the battery packs.
Using the Battery Packs
Before you use your Handheld tablet PC on the road, you will have to
charge the battery packs, the battery packs begins to charge as soon
as the Handheld tablet PC is connected with the external power
source. Please fully charge the batteries before using them in the first
time. The new battery packs must 100% charged before the Handheld
tablet PC is disconnected with the external power source. The battery
pack is fully charged when the battery light indicator turns OFF. It
takes about couple of hours to fully charge the battery when the
Handheld tablet PC is turned OFF.
Battery Care
The Handheld tablet packs like all rechargeable batteries, it have limit
on the number times it can be fully recharged. Fully draining and
charging the battery once a day in each day will leave the batteries
last over a year, but rechargeable time limits are based on your
environmental temperature, humidity, and how your tablet PC is used.
The ideal environmental temperature range between 10∘C and 29∘C
(50∘F and 85∘F).
Battery Power System
The Handheld tablet PC is designed to work with two removable
battery packs located inside the battery pack compartment. The fully
charged batteries pack will provide several hours of battery life, which
can further extended by using power management features through
the BIOS setup. The battery system implements the power
management software which allows the battery to accurately report
the amount of charge percentage left in the battery.
Charging the Battery Pack
You can charge the battery pack by using the power adapter. When
the power adapter is plugged in, the inserted batteries packs
automatically recharges whether your tablet PC is ON or OFF. It takes
![](/img.php?id=1464467&img=bg10.png)
W07I98M-RTC1
User’s Manual
16
about couples of hours for battery to receive fully charge when the
power is OFF but takes twice as long when the tablet PC is in use.
When the red charge LED indicator in flashing, charging is required.
The battery is charging when the red LED is solid, when the LED is
turned OFF, the battery pack is fully charged.

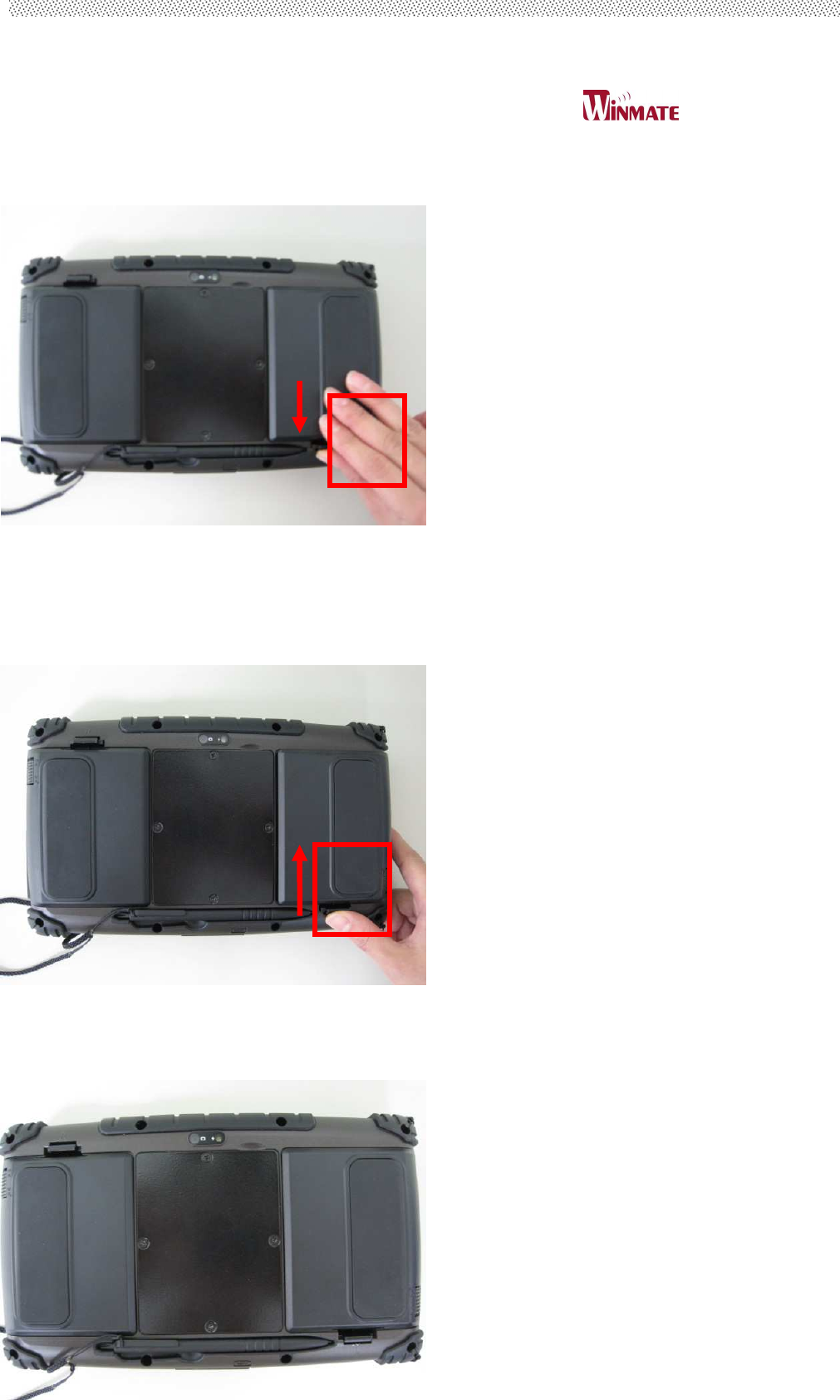

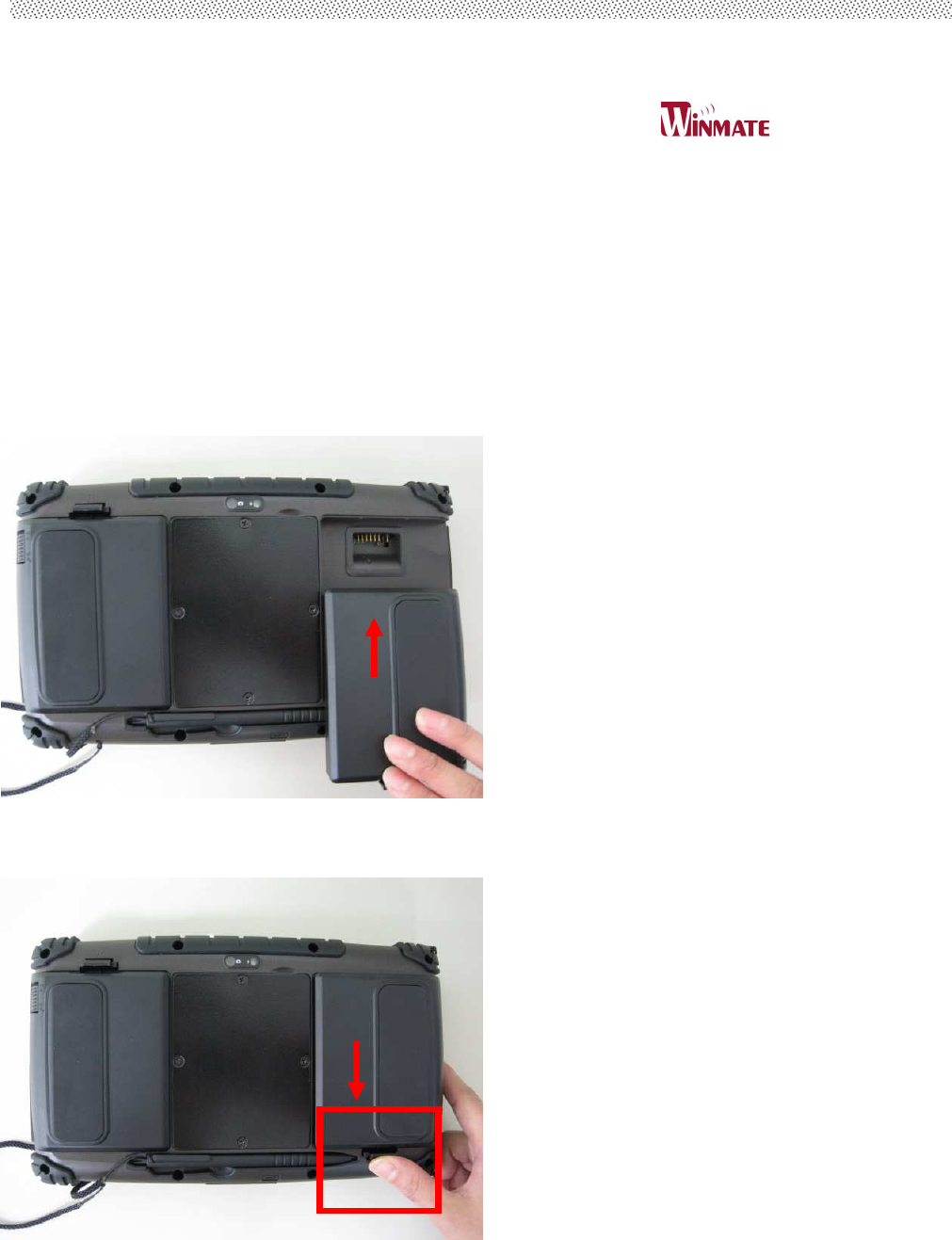

Insert the battery pack
Step 1
Insert the battery pack into the battery slot.
Step 2
Press down the
compression lock into the tablet pc.
![](/img.php?id=1464467&img=bg11.png)
W07I98M-RTC1
User’s Manual
17
Step 3
Press the latch down to fasten the battery on the tablet PC

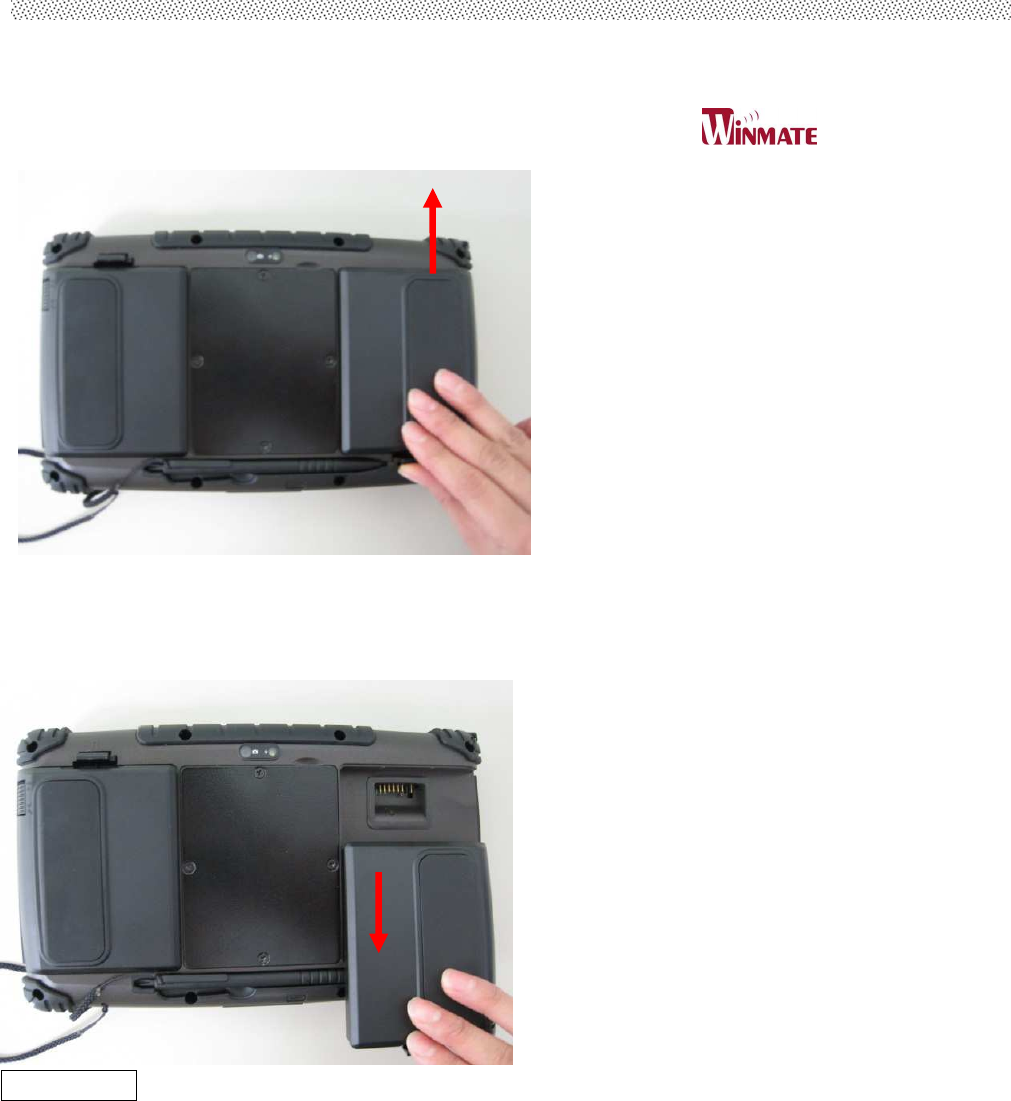

To remove the Battery
Step 1
Press the latch up to loose the battery pack on the tablet PC
Step 2
Press up the
compression lock from the tablet pc.
![](/img.php?id=1464467&img=bg12.png)
W07I98M-RTC1
User’s Manual
18
Step 3
Take the battery pack from the battery slot.
**Caution
Do not use the stylus pen to open the service window under normal
situation .
![](/img.php?id=1464467&img=bg13.png)
W07I98M-RTC1
User’s Manual
19
1.5 The Battery Light Signal Instruction
1. The two battery packs charging procedure.
When the tablet pc is connected with the power source, the battery
packs are starting to charge.
A. Battery Charging Mechanism:
1. The battery packs are both at low power level
a. If first battery’s power level is higher the second battery than 10%,
the PC will charge the second battery first.
b. If both batteries’ power level differences are lower than 10%, the
PC will charge two batteries at the same time.
2. If one battery is full charged, the other is at low power level, the PC
will charge the battery which is at low power level.
3. If both batteries are full charged, the PC will shut down the
charging current.
Battery Light
Signal
![](/img.php?id=1464467&img=bg14.png)
W07I98M-RTC1
User’s Manual
20
B. Battery Discharging Mechanism:
1. If the battery on the right is full charged (>3%), the PC will select
the right
one as the power source.
2. If the battery on the left is full charged (>3%), the PC will select the
left one
as the power source.
3. If the both batteries are full charged, long push the F3 hot tab to
switch the
battery power source.
4. When the battery’s power level is under 3%, the PC will
automatically switch the power source to the other battery.
5. When both batteries power level are under 3%, the PC will turn off
the power automatically to protect the battery pack.
Battery Light Signal: Charging
●
Low Power
◎
Battery
Left(#1)\Right(#2)
Right:
3%~100%
Right: 0%~3% Right :No battery
Left: 3%~100% Use Left : ● ○
Use Right: ○ ●
Use Left: ● ◎
Use Right:
Switch to Left
Left: ●◎
Left: 0%~3% Use Left :
Switch to Right
Use Right: ◎ ●
Turn off the PC Turn off the PC
Left: No battery Use Right: ◎ ● Turn off the PC Turn off the PC
![](/img.php?id=1464467&img=bg15.png)
W07I98M-RTC1
User’s Manual
21
CHAPTER 2
Software Operation
![](/img.php?id=1464467&img=bg16.png)
W07I98M-RTC1
User’s Manual
22
CHAPTER 2 SOFTWARE OPERATION
This Chapter will guide you how to operate the Tablet PC, including
start / stop the PC, and how to use menu function including basic
hardware function adjustment and the Hot Tab hotkey utility software
that is very easy & helpful for operating the computer.
2.1 Turning On and Off the Tablet PC
2.1.1 Turn on the Tablet PC
1. Place your tablet PC on a flat and stable surface or hold the tablet
PC on your hand.
2. Make sure the tablet PC is either connected with AC power adapter
or the battery pack with power.
3. Press the power button at least for 4 seconds to turn it on.
2.1.2 Turn off the Tablet PC
Turn off the tablet PC power source by using the “Shut Down”
command of your operating system.
**Caution
If you have to turn the tablet PC on again immediately after turning it off, please
wait for at least for five seconds. Be sure to know that turn the tablet PC off and on
rapidly can damage the whole device.
Power On/Off
Switch
![](/img.php?id=1464467&img=bg17.png)
W07I98M-RTC1
User’s Manual
23
2.2 How to use the software utility
Hot-Tab Hotkey Function
PUSH
Menu
Function Description Function Adjustment
1st
Time
Show Current
Brightness
2nd
Time
Show current Volume
Click “Left/
Down” button
to increase
brightness
(Or Drag by
Touch)
Click ”OK” to
confirm and
eliminate UI.
Click ”Right/Up”
to decrease
brightness(Or
Drag by Touch)
Click ”OK” to
confirm and
eliminate UI.
3rd
Time
Show current Battery Usage and
Two BTR status
4th
Time
Show current on/off
of Wireless\ Bluetooth mode
Use touch button to select all
kind of wireless
communication function and
the led indicator on the
membrane Enable/ Disable
5th
Time
Show software version for
a. Hot TAB Utility version
b. BIOS / EC version
LONG
PUSH 4
sec
Lock/Unlock all button function
Push 4 seconds to Lock all
button**(not including Touch)
Push 4 seconds to Unlock back
to normal operation
![](/img.php?id=1464467&img=bg18.png)
W07I98M-RTC1
User’s Manual
24
2.3 Hot TAB Software Utility Functions

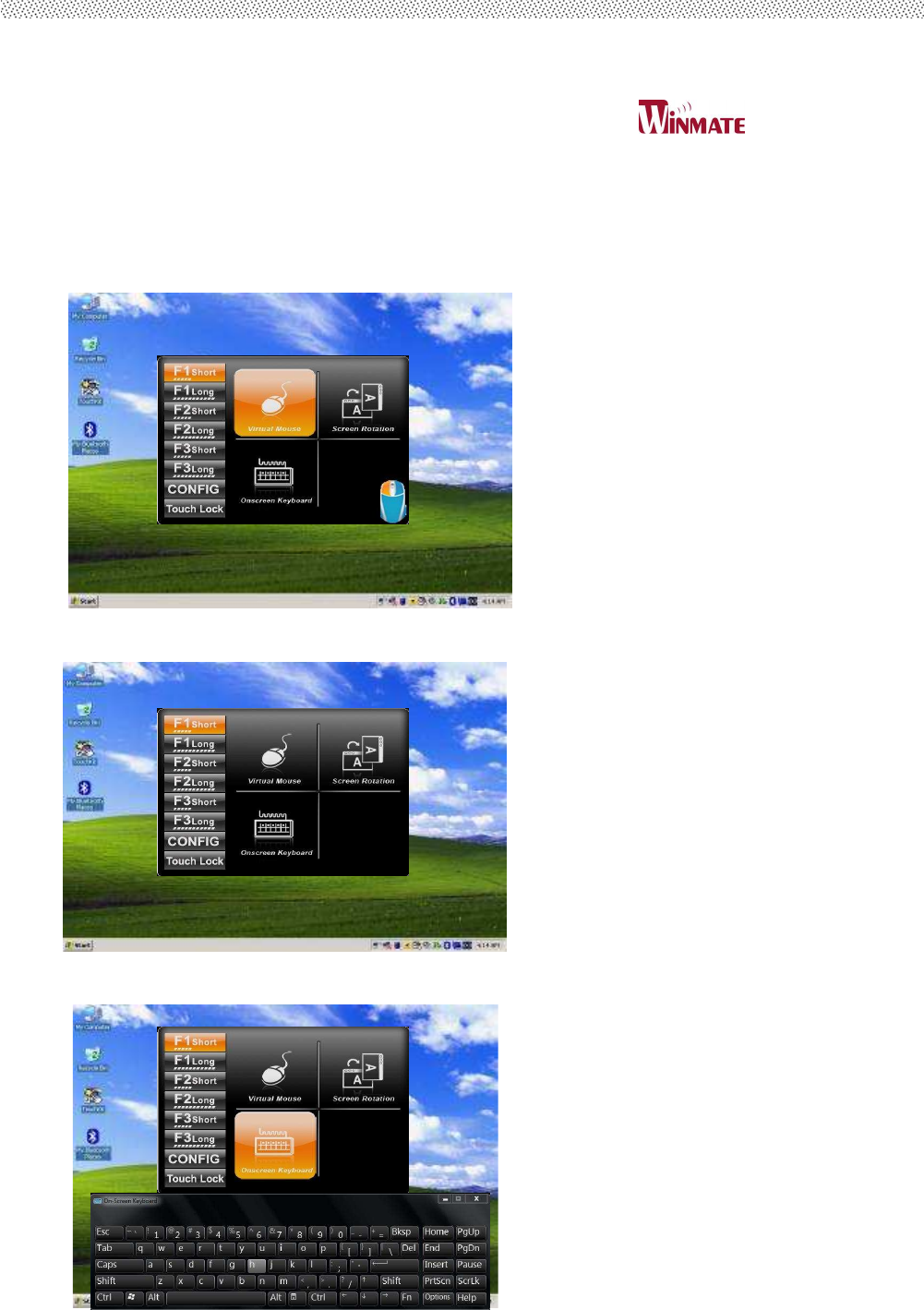

2.3.1 F1 Hot TAB functions will show four functions
A. The first is virtual mouse
B. Screen rotation
C. Onscreen Keyboard
![](/img.php?id=1464467&img=bg19.png)
W07I98M-RTC1
User’s Manual
25

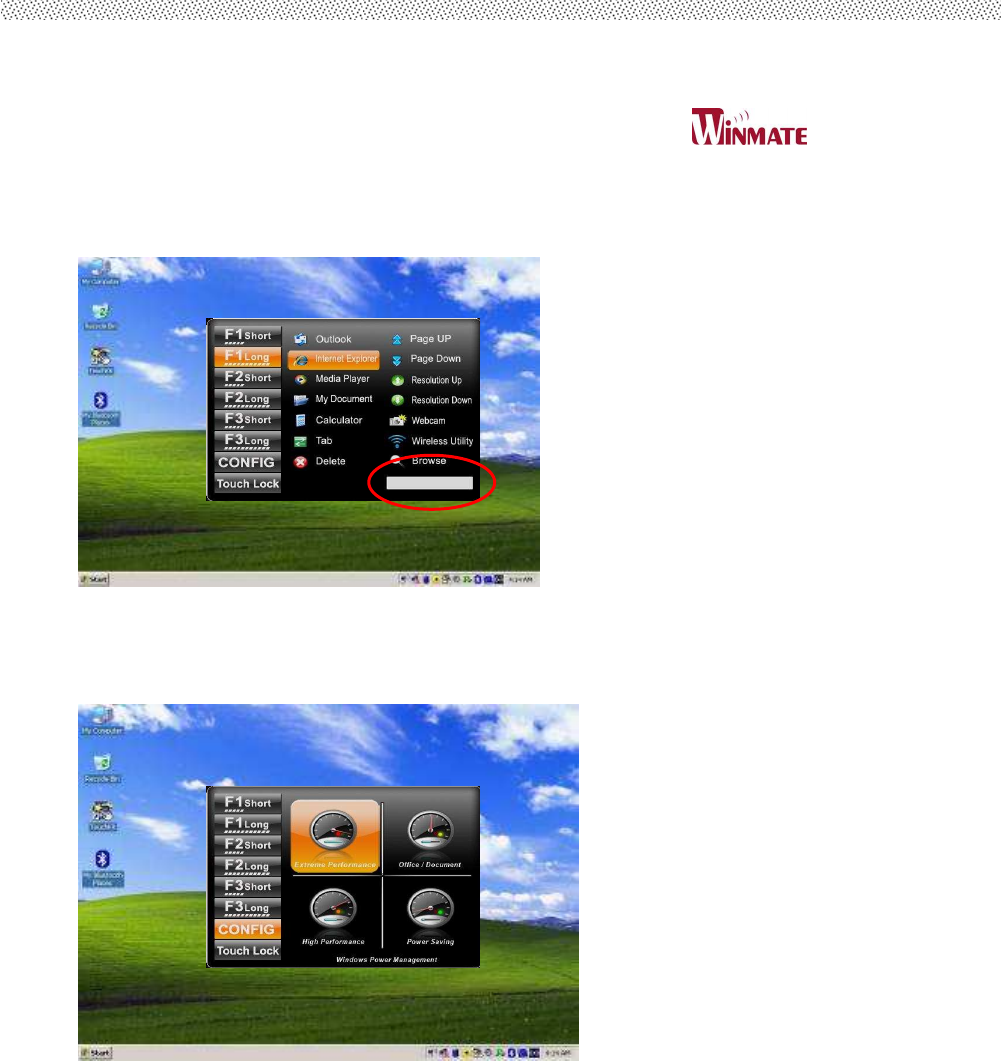

D. F2 to F3 functional Hot key
You can use “Browse” and choose the execution program file.
2.3.2 Power Manage function

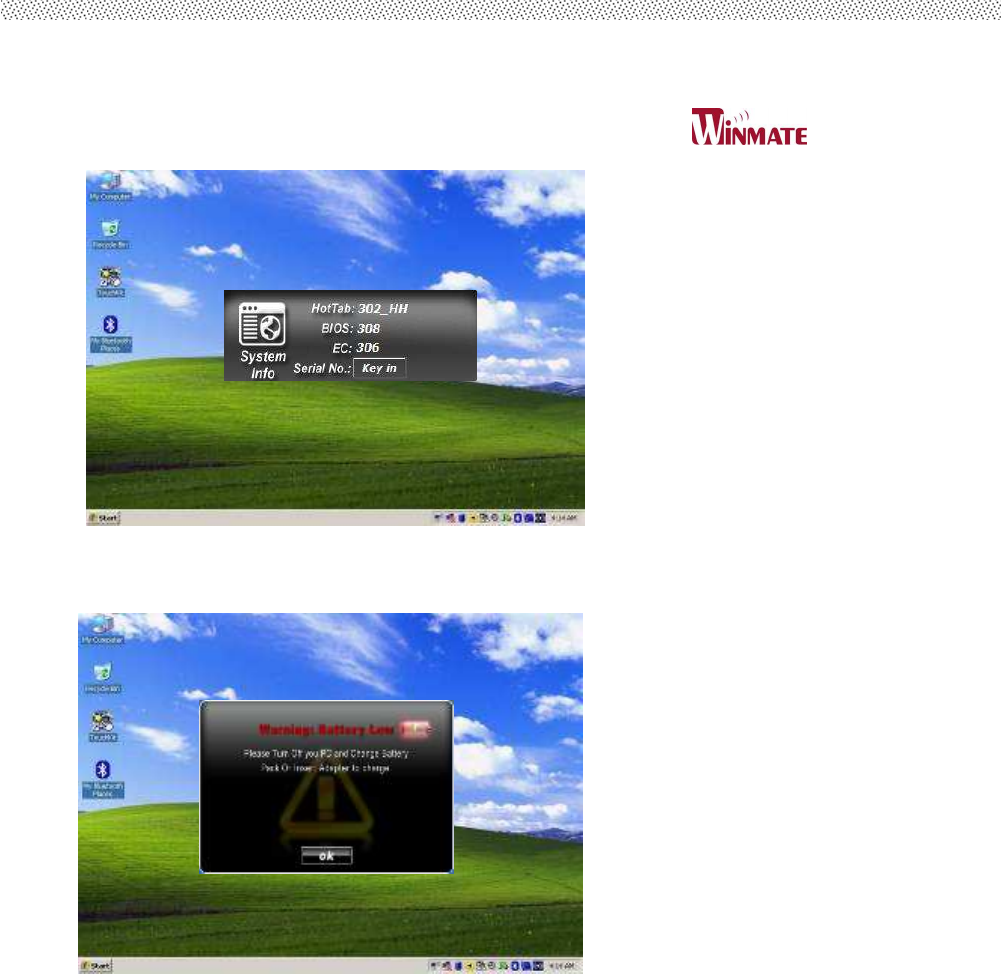

2.3.3 System Information
1. When you press menu 5th time, you can see the system
information.
![](/img.php?id=1464467&img=bg1a.png)
W07I98M-RTC1
User’s Manual
26
2. Low battery warning notice:
![](/img.php?id=1464467&img=bg1b.png)
W07I98M-RTC1
User’s Manual
27

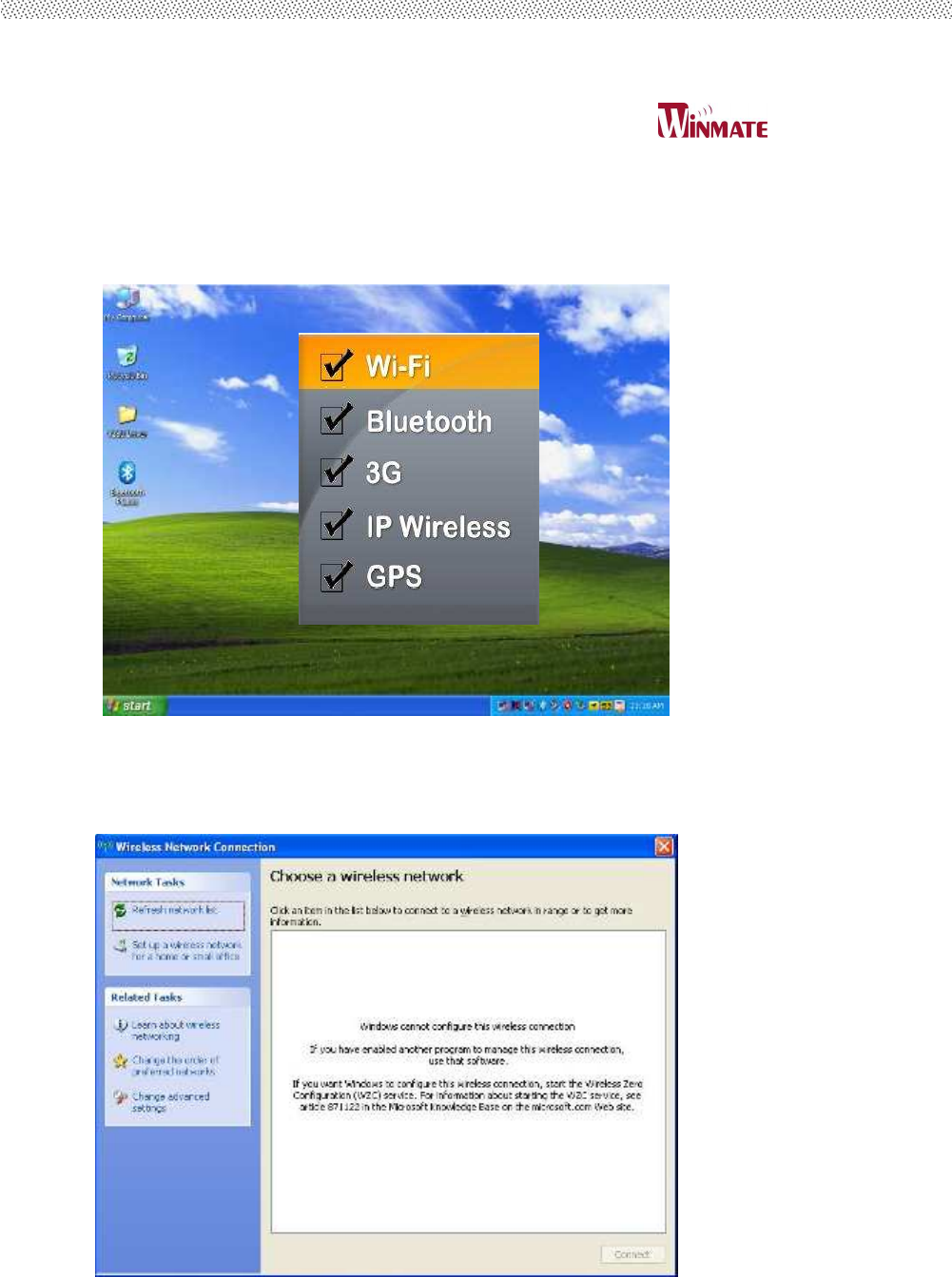

2.3.4 Connecting to a Wireless Network
To connect to a wireless network:
1. Push Menu function and making sure the Wireless function is “On”.
2. By using the defult build-in module, the Windows Wireless
Network Connection will be disabled. The Ralink wireless
connection utility is recommended in our Tablet PC systems.
![](/img.php?id=1464467&img=bg1c.png)
W07I98M-RTC1
User’s Manual
28

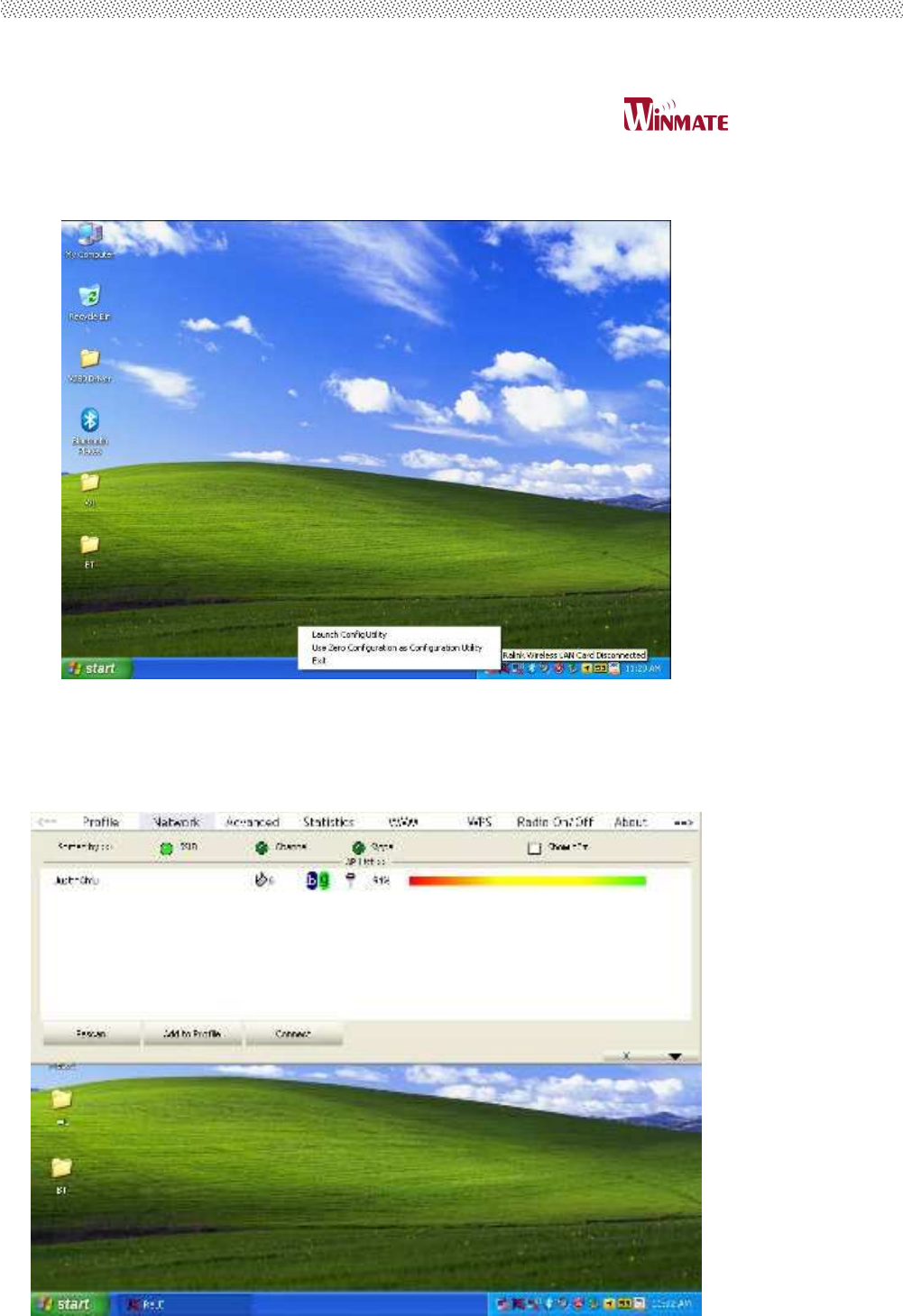

3. Right-click the Ralink utility in Windows system tray and choose
“Launch Configu Utility”.
4. The Ralink Utility program will detect all wireless links
automatically and show each status, choose one you want to link
and click “Connect”.
![](/img.php?id=1464467&img=bg1d.png)
W07I98M-RTC1
User’s Manual
29

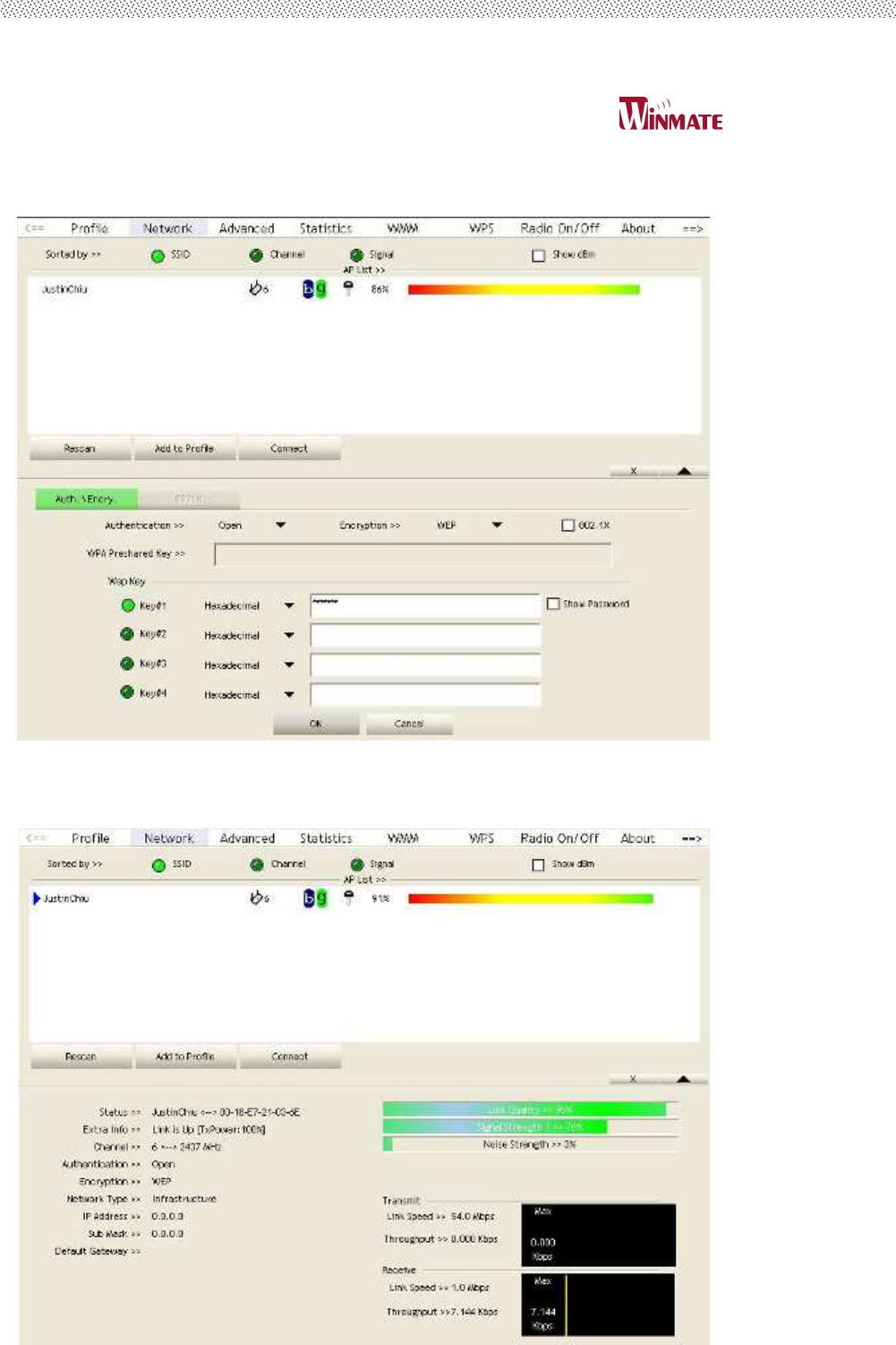

5. Log in password if necessary, and click “OK” to enter detail
connection quality status.
6. Log in password if necessary, and click “OK” to enter detail
connection quality status.
![](/img.php?id=1464467&img=bg1e.png)
W07I98M-RTC1
User’s Manual
30
2.3.5 Using the Bluetooth Wireless Feature
We apply Bluetooth 2.1+ EDR module for default function of the Tablet
PC series. Depending on your application, the Bluetooth module can
give you capability for short-range wireless communicaitons between
devices without requiring a cable connection. The transmission can go
through walls, pockets and briefcases as long as two devices are
within range around 10 meters. Following the easy step to connect to
the Bluetooth communication.

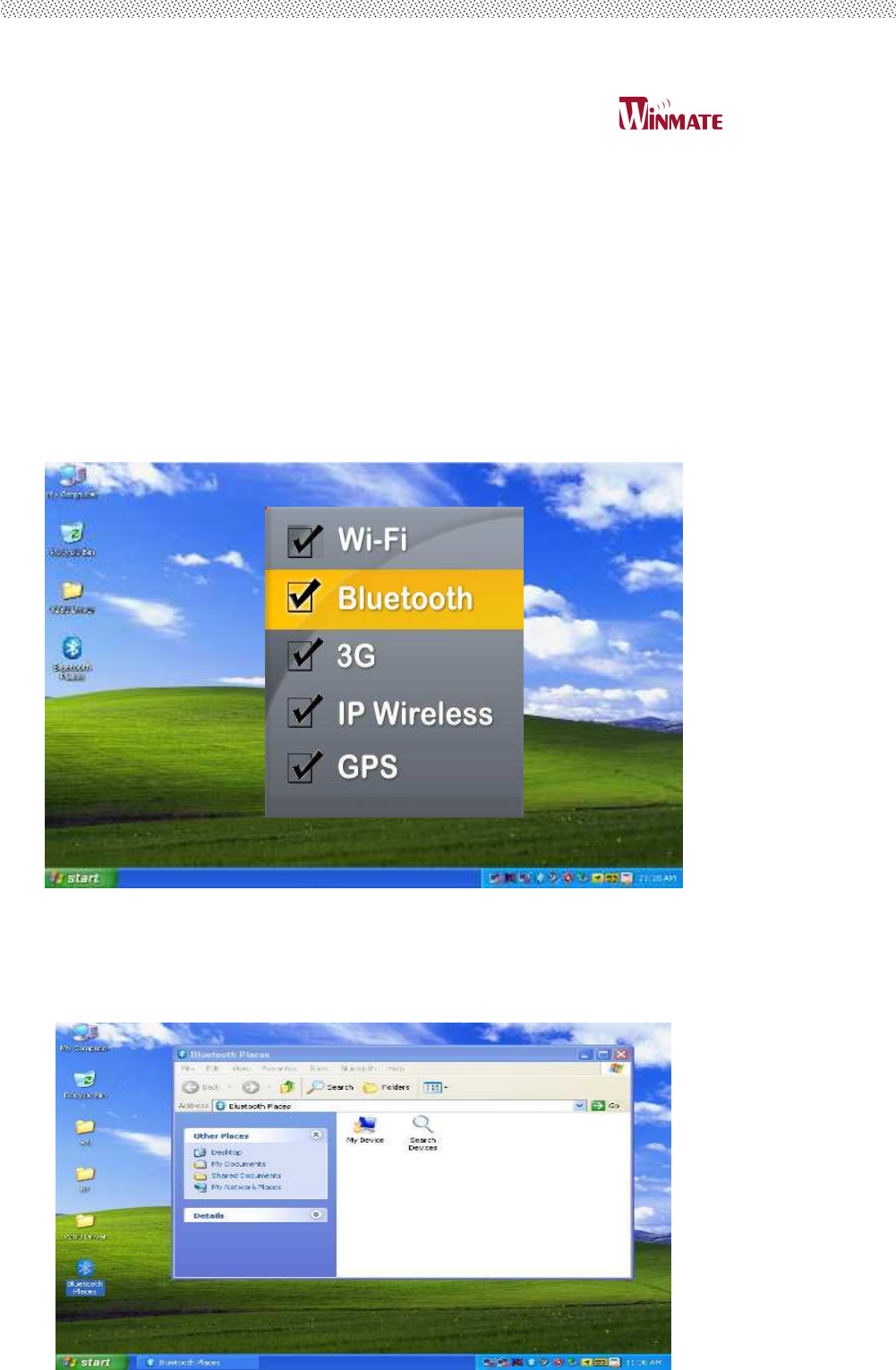

1. Choose HotTab AP Menu function and making sure the Bluetooth
function is “On”.
2. After installing the driver utility, the Bluetooth shortcut will shown
on screen, double click the shortcut and it will search any bluetooth
device automatically. Or double click “Search Devices” to search
again.
![](/img.php?id=1464467&img=bg1f.png)
W07I98M-RTC1
User’s Manual
31

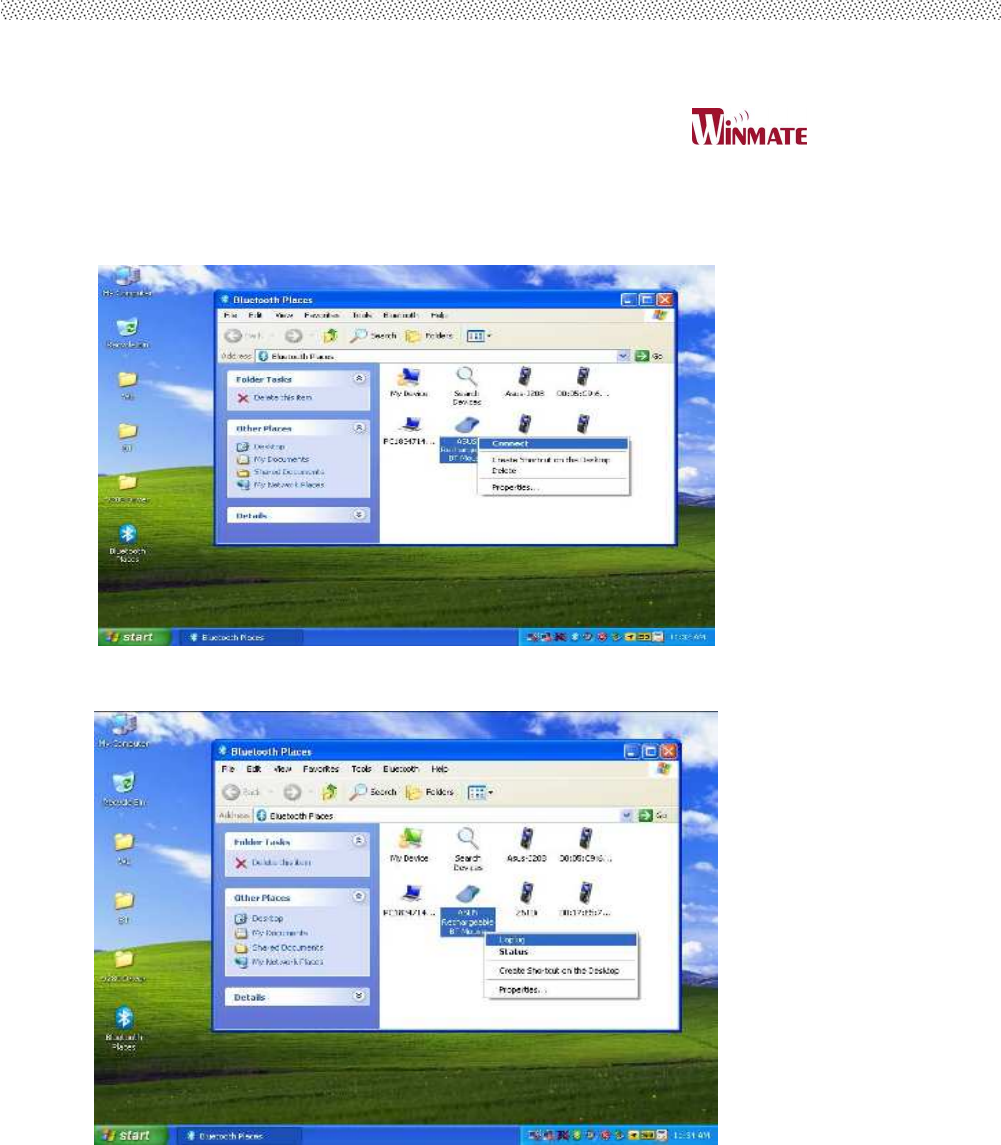

3. Choose the bluetooth device you want to connect, and left click to
choose “Connect”. Then the device will be connected to the
module.
4. When under connecting, left click to check the connection status,
or choose “Unplug” to remove the connection.
![](/img.php?id=1464467&img=bg20.png)
W07I98M-RTC1
User’s Manual
32
2.3.6 Using the 3G Feature
We apply a PCI Express® full size 3G module for default function of
the Tablet PC series. Depending on your application, the 3G module
can datacard and host PC software combination deliver multiband
CDMA2000®
1xEV-DO, UMTS, and GSM wireless wide area network (WWAN)
connectivity in a single hardware configuration.
1. Choose HotTab AP Menu function and making sure the 3G Module
is “On”.
2. After installing the driver utility, the 3G shortcut will shown on
screen, double click the shortcut and it will search any bluetooth
device automatically. Or double click “Search Devices” to search
again.
3. Choose HotTab AP Menu function and making sure the 3G Module
is “On”.
![](/img.php?id=1464467&img=bg21.png)
W07I98M-RTC1
User’s Manual
33
CHAPTER 3
Tablet PC Power
Management
![](/img.php?id=1464467&img=bg22.png)
W07I98M-RTC1
User’s Manual
34
CHAPTER 3 TABLET PC POWER MANAGEMENT
3.1 About AC Adapter
Our Tablet PC support one set of AC adapter and power code by
country area. Please confirm with your dealer for appropriate power
code if necessary.
**Caution
1. When you disconnect the AC adapter, disconnect from the
electrical outlet first and then from the tablet PC. A reverse
procedure may damage the AC adapter or tablet PC.
2. Always hold the plug head when you unplug the connector, Never
pull on the cord.
3. The AC adapter is designed for use with your tablet PC only.
Connecting the AC adapter to another device can damage the
adapter.
The adapter operates on any voltage in the range of 100~240 V AC.
The AC adapter serves as a converter from AC (Alternating Current) to
DC (Direct Current) power because the tablet PC runs on DC power
input, but an electrical outlet usually provides AC power. It also
charges the battery pack when connected to AC power.
![](/img.php?id=1464467&img=bg23.png)
W07I98M-RTC1
User’s Manual
35
3.2 Charging and Checking Charging Status
3.2.1 Charging the Battery Pack
The battery pack is the internal power source for the tablet PC. It is
rechargeable using the AC adapter. The operating time of a fully
charged battery pack depends on how you are using the tablet PC.
When your applications often access peripherals, you will experience a
shorter operating time.
NOTE:
1. Charging will not start if the battery’s temperature is below 0 °
°°
°C
(32 °
°°
°F). It is also recommended not to charge the battery when
temperature is above 45 °
°°
°C (113 °
°°
°F)
2. To prevent damage, the charging process may stop and the
Battery Charge Indicator flashes red when the environmental
temperature gets above 55 °
°°
°C (131°
°°
°F)
3. The battery level may automatically lessen due to the
self-discharge process (0.21 % per day), even when the battery
pack is fully charged (100 %). This happens no matter if the
battery pack is installed in the tablet PC.
![](/img.php?id=1464467&img=bg24.png)
W07I98M-RTC1
User’s Manual
36
3.2.2 Regulating the Battery
If the battery is used frequently, recommend you to regulate the
battery every month. And if you have following conditions, please
regulate the battery immediately:
The battery status is incorrect battery level.
The battery pack is not use above one month.
The battery work time have striking change.

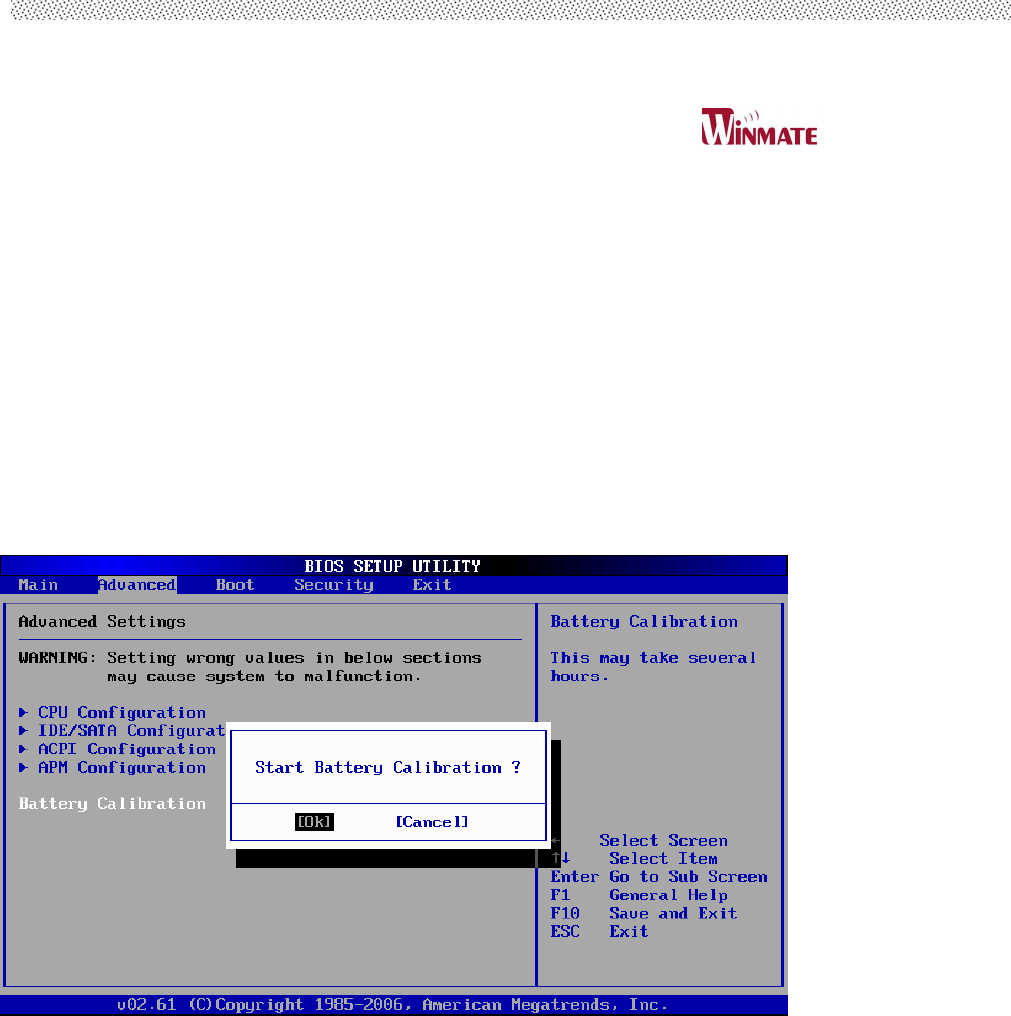

Following the step by step to set up Battery Calibration in BIOS.
1. Enter to the Tablet PC BIOS setup, select in “Advanced” option.
2. Enter to the Battery Calibration, press “OK” to go next.
When you Push “OK” to start Battery Calibration, following below
indicated to regulate the battery.
3. Please plug-in an AC adapter to supply power,it will recalibrate
the gauge of battery now.
4. Initialize battery and adjust LCD brightness. It is charging the
battery, the waiting time depend on the battery level between few
second and four hours.
5. While the battery is fully charged, please remove the AC adapter
and LEAVE the Battery RUNNING OUT OF POWER that normally
need to wait for few hours.
6. While the power level running out, you can charge the battery
again. When the battery is fully charged, it’s finished to regulate.
You can turn on the tablet PC to normal use.
![](/img.php?id=1464467&img=bg25.png)
W07I98M-RTC1
User’s Manual
37
3.2.3 Battery Low Signals and Actions
Battery Low occurs when the battery has approximately 10 %
(Windows default setting) of its charge remaining. The tablet PC’s
Battery Charge Indicator ( ) blinks red to alert you take
actions.
NOTICE:
1. You can set up the Battey Low threshold and signals under
Windows. Immediately save your data upon Battery Low. The
remaining operating time depends on how you are using the
tablet PC. If you are using the audio subsystem, PC card, hard or
USB flash disk, the battery might run out of charge very quickly.
2. Always respond to Battery Low by placing your tablet PC on the
Standby or Hibernation mode, turning off the tablet PC, or
connecting the AC adapter.
CAUTION:
1. If you do not take any action, the tablet PC will automatically
hibernate and turn off.
2. If you are using a PC card, do not access the card during battery
low periods. The access may takes longer time than battery to
run out of charge, thus making your access to the card fail.
3. If you fail to save your data when the battery completely runs out
of charge, then you will lose your data.
![](/img.php?id=1464467&img=bg26.png)
W07I98M-RTC1
User’s Manual
38
3.3
Power-Saving Tips
The following are some Power-Saving Tips suggestions to
maximize the battery’s operating time.
Do not disable Power Management.
Decrease the LCD brightness to the lowest comfortable level.
Shorten the length of time before Windows turn off the display.
USB devices use power just by being connected. If you use a USB
mouse, you can save power by disconnecting the mouse and using
the optional touchscreen pen.
If you use a USB flash drive, unplug it when you are not using it.
If you work with an application that uses a PC card, exit the
application when you finish using it.
If you have a PC card installed, remove it when not in use. Some PC
cards drain power even while they are inactive.
Deactivate the Wireless LAN function if you are not using it (see
Chapter 2).
Deactivate the Bluetooth wireless feature if you are not using it (see
Chapter 2)
Turn off the tablet PC when you are not using it.
![](/img.php?id=1464467&img=bg27.png)
W07I98M-RTC1
User’s Manual
39
CHAPTER 4
Expanding Your Tablet
PC
![](/img.php?id=1464467&img=bg28.png)
W07I98M-RTC1
User’s Manual
40
CHAPTER 4 EXPANDING YOUR TABLET PC
4.1 How and When to Use BIOS Setup
For enter to the Tablet PC BIOS setup, you need connect to external
usb keyboarb, press “Del” key when the prompt appears on the
screen during start up. The prompt screen shows only few seconds so
need press Del key quickly.
**NOTICE
Updated BIOS version may be published after the manual is
released. Check with the latest version of BIOS on website.
You may need to run BIOS setup utility when the below status.
1. Error message on sreen indicate to check BIOS setup.
2. Restoring the factory default settings.
3. Modifing the specific hardware specification
4. Want to opttimize the specification.
To control the keyboard to select BIOS utility setup, you need
Keyboard Icon
Function Description
,
Selects a menu title
,
Selects an item or option
Enter Go to the sub-menu when available
Opens or closes the option window when an item is
selected
Esc To leave sub-menu and return to main menu.
**NOTICE
You can press the F1, F9, F10, –/+, and Esc keys by connecting a USB
keyboard to your tablet PC. Make sure that the item “Legacy USB Support”
under the Main menu is set at Enabled (default).
![](/img.php?id=1464467&img=bg29.png)
W07I98M-RTC1
User’s Manual
41

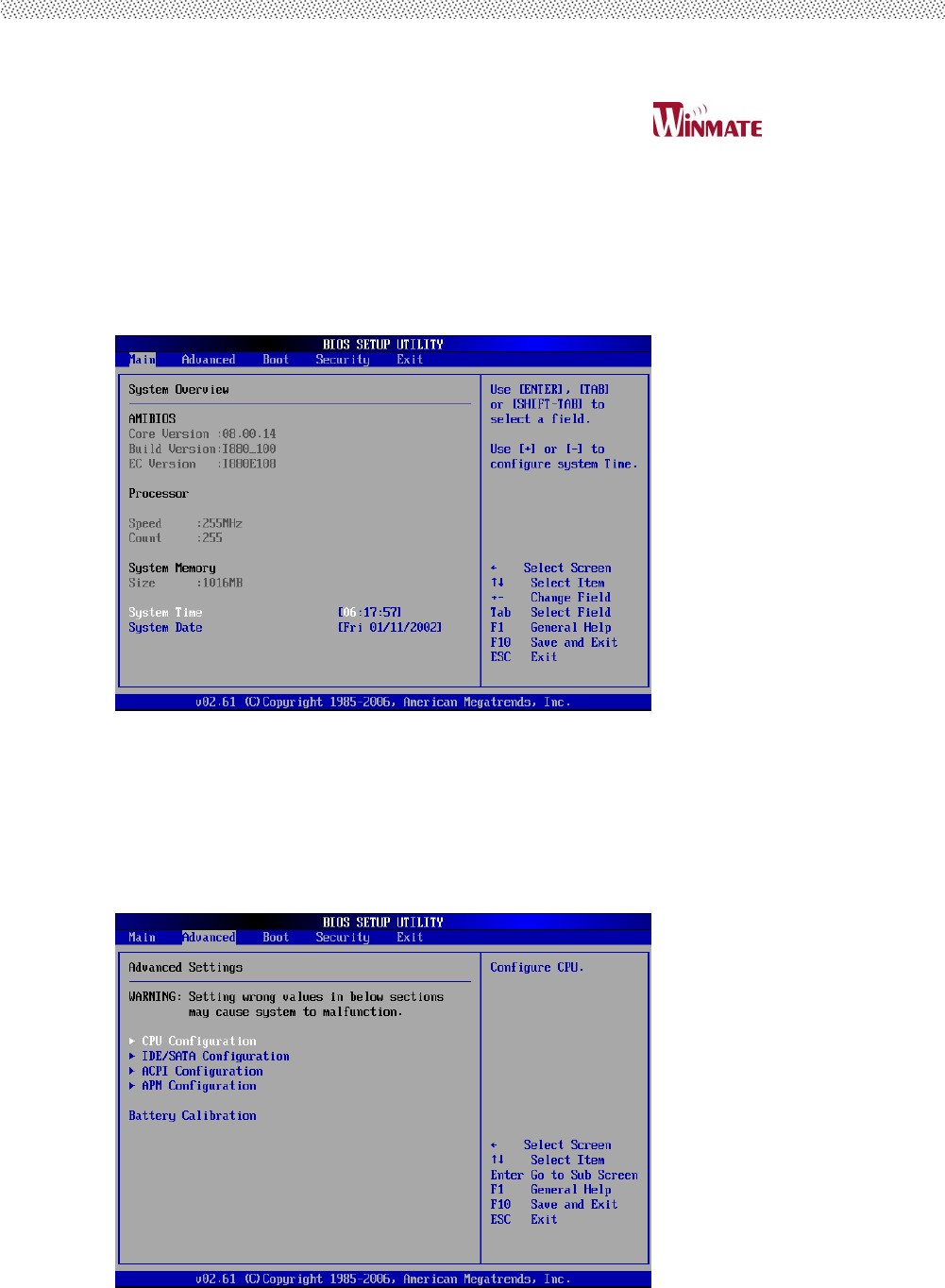

4.2 BIOS Functions
3.2.3 Main Menu
The main menu contains the information of the Tablet system
including BIOS version, processor, system memory, time, and date.
4.2.2 Advanced Menu
The advanced menu contains the configuration information of CPU,
IDE/ SATA, ACPI, APM Configuration and Battery Calibration(see
Chapter 3.2.4 for detail).
![](/img.php?id=1464467&img=bg2a.png)
W07I98M-RTC1
User’s Manual
42
1. CPU Configuration
2. IDE/ SATA Configuration
![](/img.php?id=1464467&img=bg2b.png)
W07I98M-RTC1
User’s Manual
43

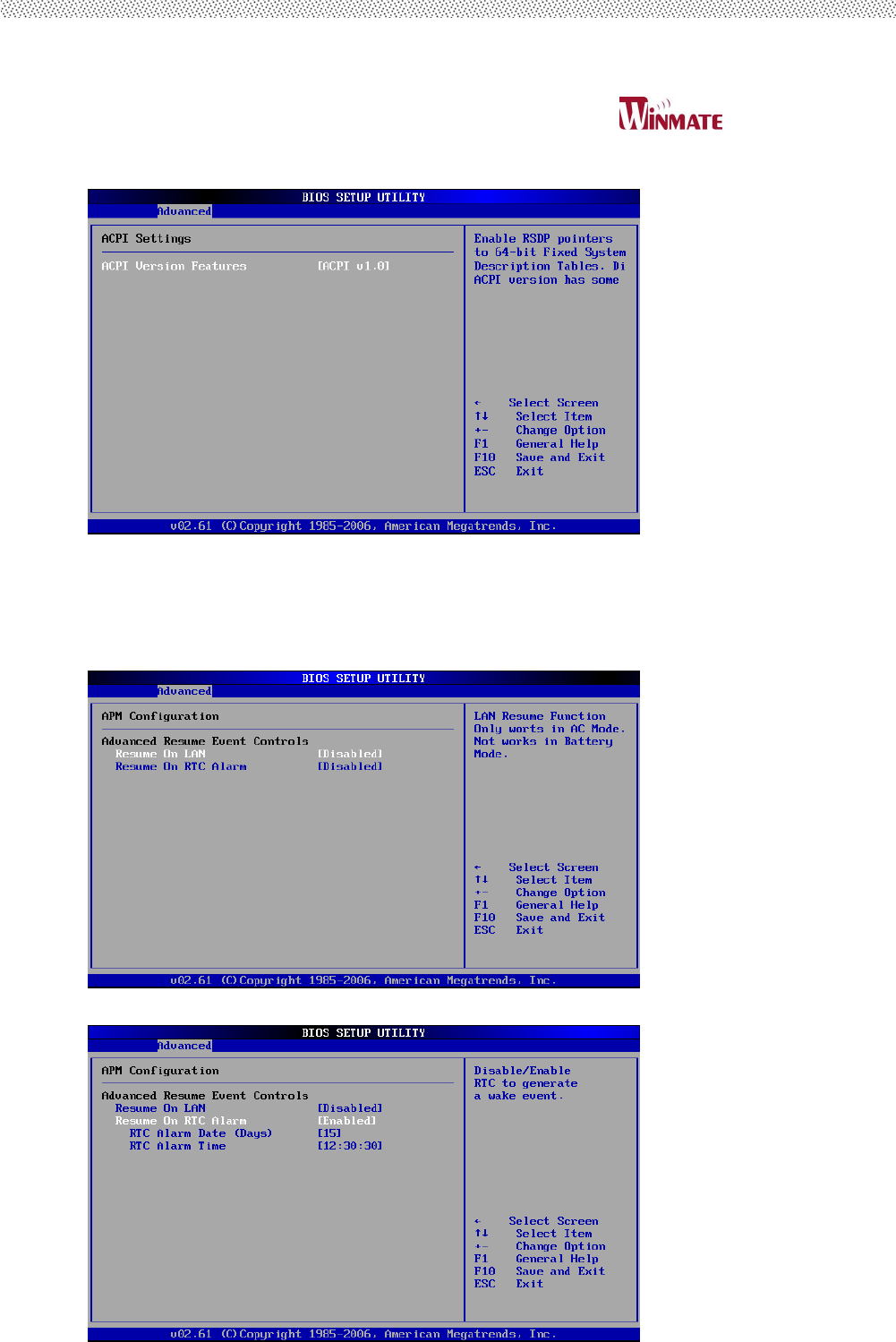

3.
ACPI Configuration
4. ACPI Configuration
Sets the Resume On LAN and Resume On RTC Alarm function.
(1). Resume On LAN:Disable or Enable LAB GPI to generate a wake
event.
(2). Resume On RTC Alarm
Note:
::
:The LAN Resume function only works in AC mode, not works in
![](/img.php?id=1464467&img=bg2c.png)
W07I98M-RTC1
User’s Manual
44
battery mode.

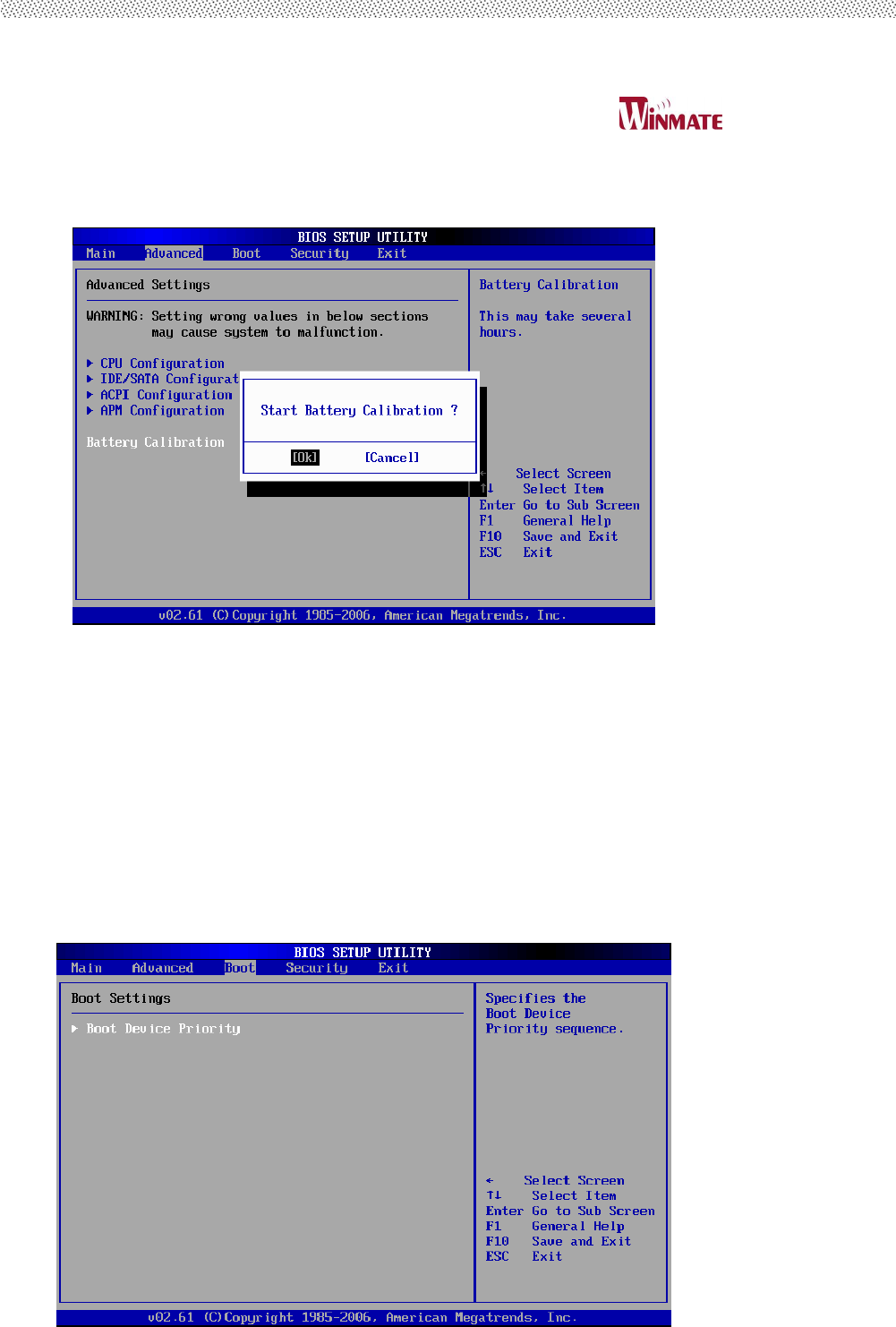

5. Battery Calibration
The detail of Battery calibration is show in chapter 3.2.4.
4.2.3 Boot Menu
The Boot menu sets the sequence of the devices to be searched for
the operating system.
The bootable devices will be automatically detected during POST and
shown here, allowing you to set the sequence that the BIOS uses to
look for a boot device from which to load the operating system. A brief
description of button usage is listed next:
![](/img.php?id=1464467&img=bg2d.png)
W07I98M-RTC1
User’s Manual
45
Chck the Hard Disk Device in Hard Disk Drives.
4.2.4 Security Menu
Change Supervisor Password, Change User Passwaord and Clear User
Password.
![](/img.php?id=1464467&img=bg2e.png)
W07I98M-RTC1
User’s Manual
46

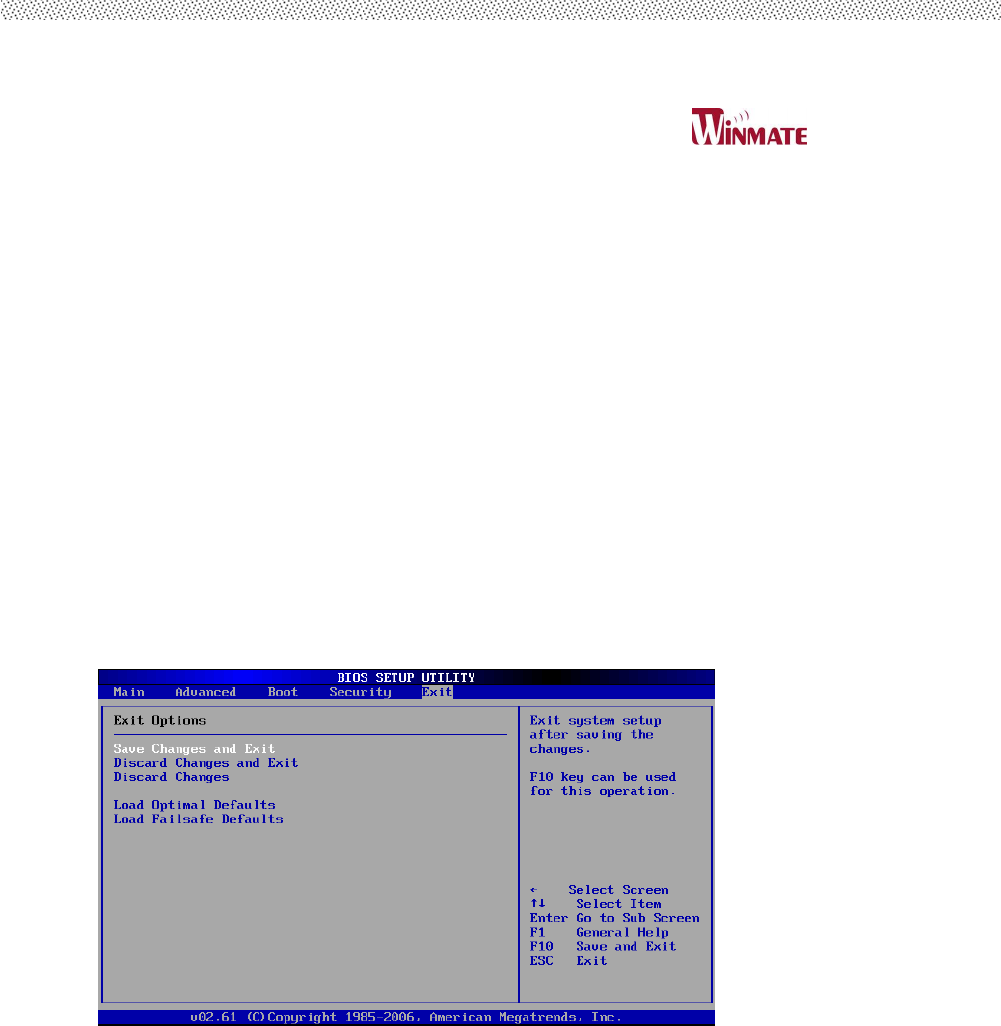

4.2.5 Exit Menu
The Exit menu displays ways of exiting BIOS Setup utility. After
finishing with your settings, you must save and exit so that the
changes can take effect.
Save Canges and Exit saves the changes you have made and exits
BIOS Setup utility.
Discarding Changes and Exit exits BIOS Setup utility without
saving the changes you have made.
Discard Changes restores the previous values for all the items.
Load Optimal Default loads the factory default values for all the
items.
![](/img.php?id=1464467&img=bg2f.png)
W07I98M-RTC1
User’s Manual
47
FCC regulatory statements, notices and warning
IMPOTANT SAR INFORMATION
Your wireless phone is a radio transmitter and receiver. It is designed and
manufactured not to exceed the emission limits for exposure to radiofrequency (RF)
energy set by the FCC of USA. These limits are part of comprehensive guidelines and
establish permitted levels of RF energy for the general population. The guidelines are
based on standards that were developed by independent scientific organizations
through periodic and thorough evaluation of scientific studies. The standards include a
substantial safety margin designed to assure the safety of all persons, regardless of
age and health. The exposure standard for wireless mobile phones employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by
the FCC is 1.6 W/kg. *
Tests for SAR are conducted with the phone transmitting at its highest certified power
level in all tested frequency bands. Although the SAR is determined at the highest
certified power level, the actual SAR level of the phone while operating can be well
below the maximum value. This is because the phone is designed to operate at
multiple power levels so as to use only the power required to reach the network. In
general, the closer you are to a wireless base station antenna, the lower the power
output.
Before a phone model is available for sale to the public, it must be tested and certified
to the FCC that it does not exceed the limit established by the government adopted
requirement for safe exposure. The tests are performed in positions and locations
(e.g., at the ear and worn on the body) as required by the FCC for each model. The
highest SAR value for this model phone when worn on the body, as described in this
user guide, is 0.529 W/Kg. (Body-worn measurements differ among phone models,
depending upon available accessories and FCC requirements). While there may be
differences between the SAR levels of various phones and at various positions, they
all meet the government requirement for safe exposure.
* In the United States and Canada, the SAR limit for mobile phones used by the public
is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a
substantial margin of safety to give additional protection for the public and to account
for any variations in measurements.
Use only the supplied or an approved antenna. Unauthorized antennas, modifications,
or attachments could impair call quality, damage the phone, or result in violation of
FCC regulations. Do not use the phone with a damaged antenna. If a damaged
antenna comes into contact with the skin, a minor burn may result. Please contact
your local dealer for replacement antenna.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
FCC Part 15 Notice
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Warning: This device has been tested and found to comply with the limits for a Class
B digital device pursuant to Part 15 of the Federal Communications Commissions
Rules and Regulations. These limits are designed to provide reasonable protection
![](/img.php?id=1464467&img=bg30.png)
W07I98M-RTC1
User’s Manual
48
against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged
to try and correct the interference by one or more of the following measures:
. Relocate this device
. Increase the separation between the device and the receiver
. Connect the device into an outlet on a circuit different from that of other electronics.
Consult the dealer or an experienced radio technician for help.
FCC Radiation Exposure Statement
Important Note: To comply with FCC RF exposure compliance requirement, the
antenna used for this transmitter must not be co-located or operating in conjunction
with any other transmitter.
Caution:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
