Handheld Group AB Rugged Tablet PC
User manual
![](/img.php?id=3727061&img=bg1.png)

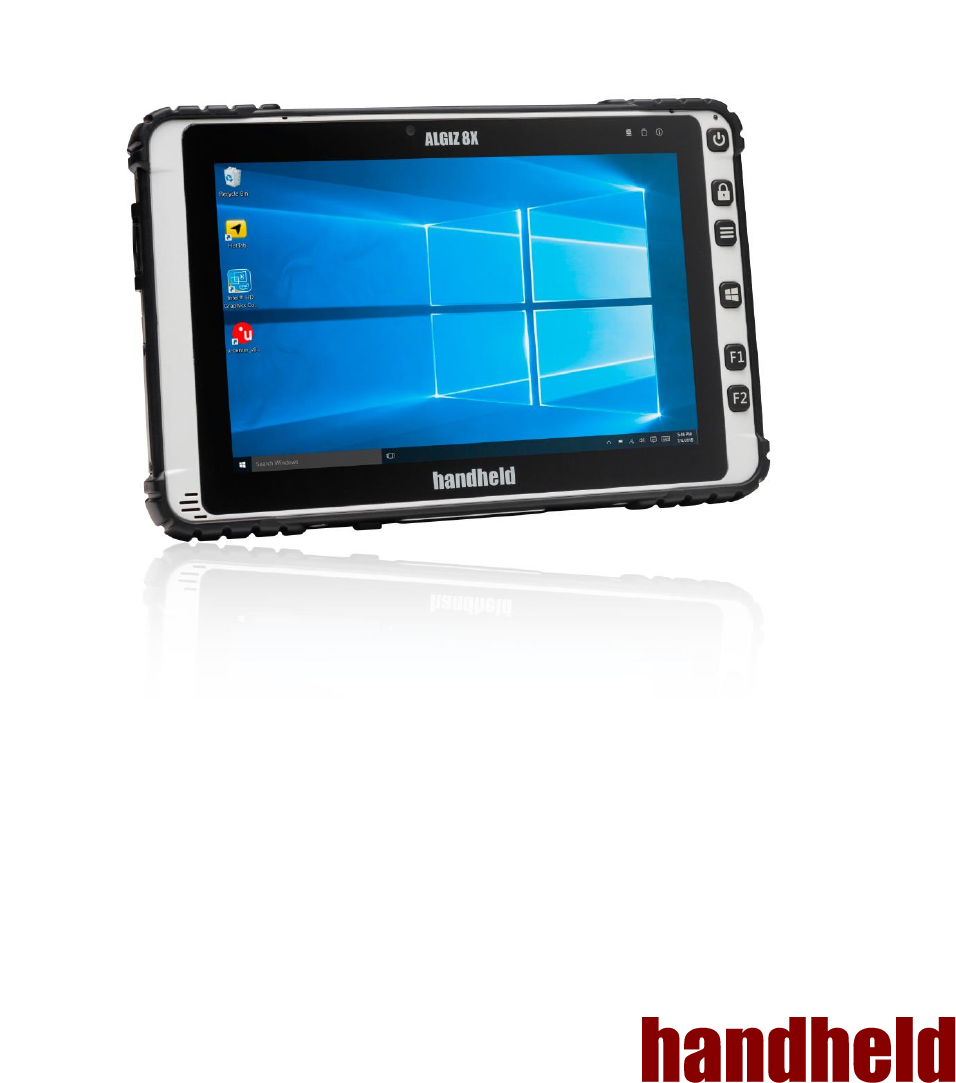

ALGIZ 8X
MANUAL
![](/img.php?id=3727061&img=bg2.png)
Ver 1.0
2
CONTENT
1. Getting Started ......................................................................................................................................... 6
1.1 System Specification........................................................................................................................... 6
1.2Unpacking ........................................................................................................................................... 7
1.3 Description Of Parts ............................................................................................................................ 8
1.4 Hot Key For Specific Functions ......................................................................................................... 10
1.5First-time Operation ........................................................................................................................... 11
1.6 Powering On/Off ............................................................................................................................... 12
2. Quick Access through Hottab ................................................................................................................. 13
2.1 Hottab Introduction ........................................................................................................................... 13
2.2.Device ON/OFF ................................................................................................................................ 14
3. Frequently Used Settings ....................................................................................................................... 26
3.1Replacing Hot Swappable Battery ...................................................................................................... 26
3.2 Using Recovery Wizard to Restore Computer .................................................................................... 27
3.3 Docking Connector Pin Definition ...................................................................................................... 28
3.4 Expansion Port Pin Definition ............................................................................................................ 28
3.5. COM Port Definition ......................................................................................................................... 29
![](/img.php?id=3727061&img=bg3.png)
Ver 1.0
3
Copyright Notice
Copyright © 2012 Handheld Inc., ALL RIGHTS RESERVED. No part of this document may be reproduced,
copied, translated, or transmitted in any form or by any electronic or mechanical means, for any purposes
without the permission of the original manufacturer in advance.
Trademark Acknowledgement
Brand and product name are trademarks or registered trademarks of their respective owners.
Disclaimer
Handheld Inc. reserves the right to make any product changes without notice, including circuits and/or
software described or contained in this manual in order to improve product design and/or performance.
Handheld Inc. assumes no responsibility or liability for the use of the described product(s), conveys no license
or title under any patent, copyright, or masks work rights to these products, and makes no representations or
warranties that these products are free from patent, copyright, or mask work right infringement, unless
otherwise specified. Applications that are described in this manual are for illustration purposes only. Handheld
Inc. makes no representation or warranty that such application will be suitable for the specified use without
further testing or modification.
Warranty
Handheld Inc. guarantees that all Handheld products will be free including material and workmanship defects
for one year from the invoice date. If the customer discovers any defects, Handheld will, at its option, repair or
replace the defective product without any charge to customers, and ship the returned product with prepaid
transportation charges during the warranty time of one year. The returned product must be properly packaged
in its original packaging to be qualified for warranty service.
If there is a time gap of over 30 days between the date marked on the serial number and the shipping date,
the one-year warranty time will then activate from the shipping date. The third and fourth digits of the serial
numbers stand for the manufacturing year and the fifth digit stands for the manufacturing month (e. g., with A
for October, B for November and C for December). For example, the serial number 1W10Axxxxxxxx means
October of year 2010.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
![](/img.php?id=3727061&img=bg4.png)
Ver 1.0
4
FOR PORTABLE DEVICE USAGE (<20cm from body/SAR needed)
Radiation Exposure Statement:
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency
(RF) energy set by the Federal Communications Commission of the U.S. Government.
The exposure standard for wireless device employs a unit of measurement known as the Specific Absorption
Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted using standard
operating positions accepted by the FCC with the device transmitting at its highest certified power level in all
tested frequency bands.
FOR COUNTRY CODE SELECTION USAGE (WLAN DEVICES)
Note: The country code selection is for non-US model only and is not available to all US model. Per FCC
regulation, all WiFi product marketed in US must fixed to US operation channels only.
![](/img.php?id=3727061&img=bg5.png)
Ver 1.0
5
Safety Precautions
WARNING -Always completely disconnect the power cord from the device before you uncover the device and work on the
hardware. Do not connect the electronic device with power socket while the power is on. Sensitive electronic components can
be damaged by sudden power surges. Only experienced electronics personnel are suggested to open mechanical housing.
CAUTION -Always ground yourself to remove any static charge before touching the CPU card. The electronic devices are very
sensitive to static electricity. For safety concerns, please use a grounding wrist strap all the time. Place all electronic
components in a static-dissipative surface or static-shielded bag when they are outside of the chassis.
UL Safety Announcement
UL Classification: Class I mark: with respect to electronic shock; Fire and hazardous material only in
accordance with the regulation of UL-60950 and CAN/CSA C22.2 No. 601.1.
Power Supply Announcement
The Handheld Rugged Tablet PC Power is supplied by Power Adapter and Battery Pack, the power rating
announcement and manufacturer information are listed as below.
Power Notice!
Please notice that the power code of adapter needs to be connected to the ground (earth).
Please push the power button for at least 4 seconds to enter sleep mode.Starting and Stopping the
Tablet PC.
Power Adapter
Manufacture: EDAC Power Electronics Co Ltd
Model: EA10633B(01)Level IV
Input Rated: 100-240Vac, 2.0A, 50-60Hz.
Output Rated: DC 19V, 3.42A.
Battery Pack
Manufacture :JHT Electronic Co., Ltd
Model: ALG8X-08A
Rated: 5200mAh DC 7.6V
WARNING -Do not fix or replace battery, it may cause explosion! Only use with specified battery by following the
manufacturer’s user manual’s instruction.
![](/img.php?id=3727061&img=bg6.png)
Ver 1.0
6
1. GETTING STARTED
1.1 System Specification
System
Processor
Intel® Pentium® Processor N3710
(2M Cache, up to 2.56 GHz)
BIOS
AMI System BIOS
Memory
1 x SODIMM, DDR3L 16004GB
Storage
SATA III 6Gb/s M.2 SSD 128GB
Audio
Digital Microphone with noise canceling (Internal)
1.5W Speaker (Internal)
Display Specification
Size
8” (16:10)
Resolution
800 x 1280
Brightness
700 cd/m2 (typ.)
Touch

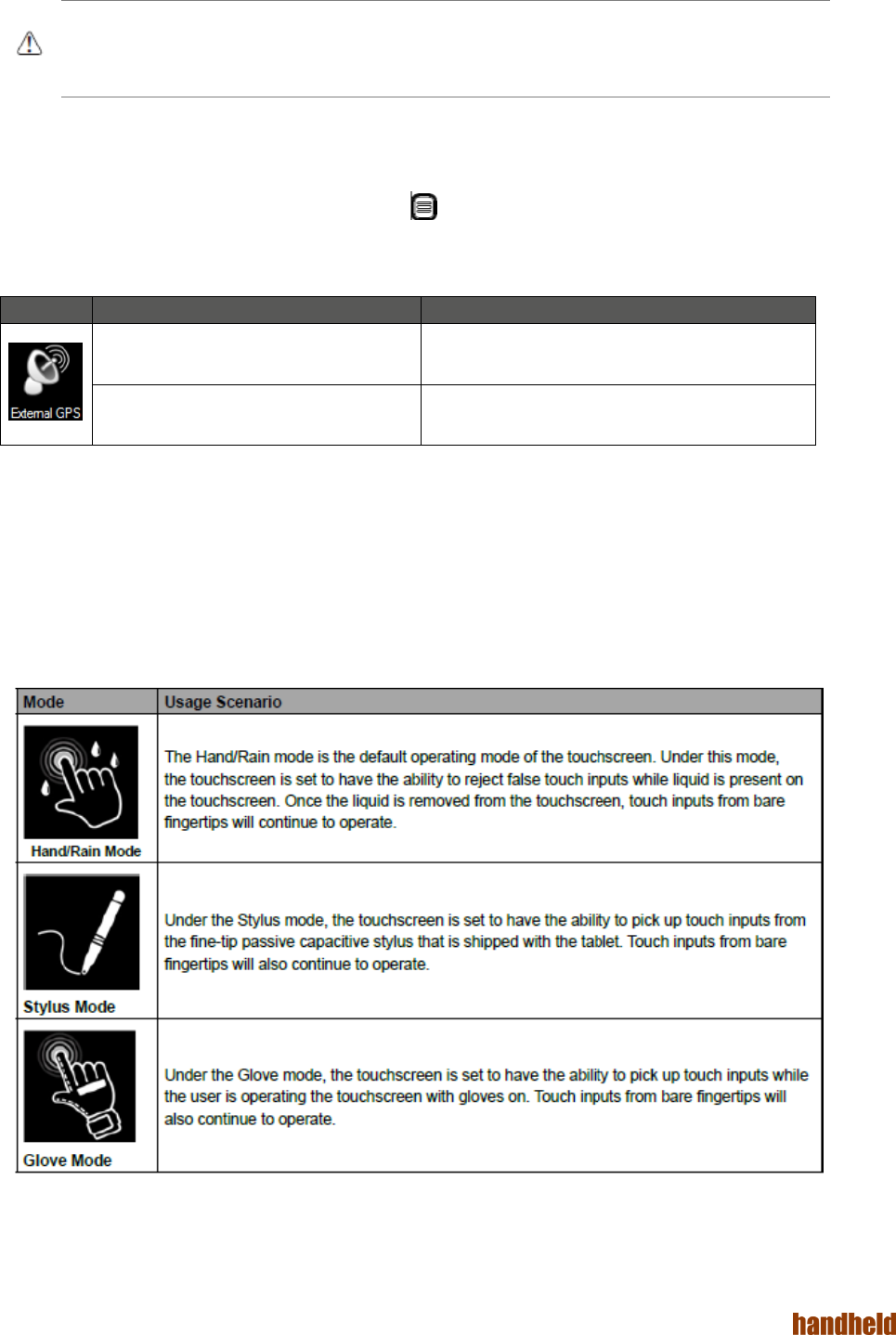

Projected Capacitive Touch. Support Normal Mode,Rain Mode, Gloves
Mode.
I/O Connectors
Right Side
2x USB 3.0 , 1xMicro HDMI ,4 different types of inter-changeable I/O
Port(Dummy--Deafault,LAN,COM,2D Barcode,
Bottom Side
1x Pogo-pin for Docking, 1x DC Power Jack
Rear Side
1x Pogo-pin for Expansion I/O Port
Buttons and Indicators
Control Button
1 x Power (Front)
1 x Touch Lock Key,1 x Menu Key, 1x Home Key,
2 programmable Function Keys
LED indicators
1 x Power LED (Green)
1 x Storage(Green)
1 x Battery (Green & Red)
1 x Configuration (It should be off unless configured by the user.)
![](/img.php?id=3727061&img=bg7.png)
Ver 1.0
7
1.2 Unpacking
Check and identify the supplied accessories:
Tablet Computer Standard Battery
Power Adapter Power Cord and Plugs
![](/img.php?id=3727061&img=bg8.png)
Ver 1.0
8

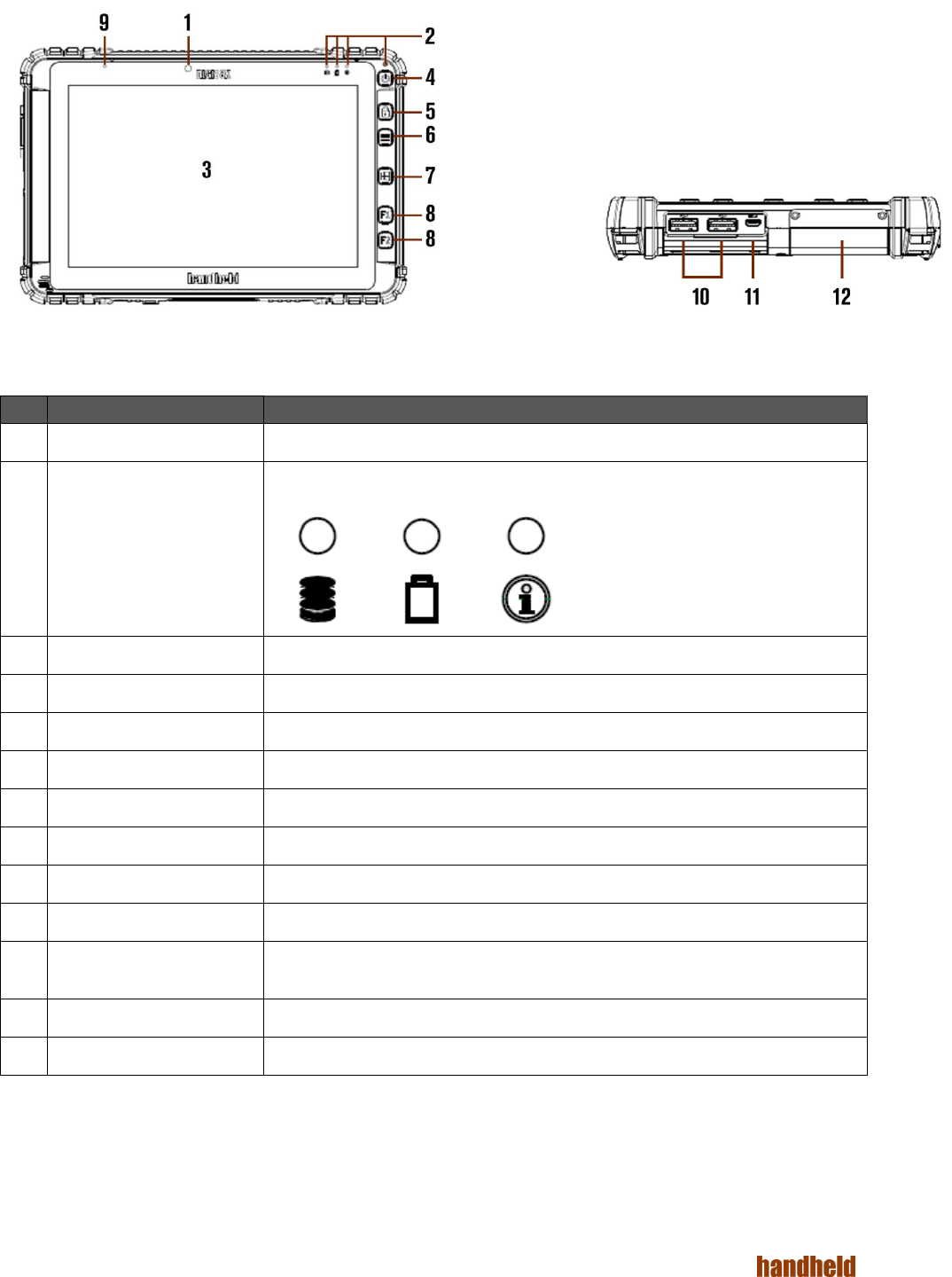

1.3 Description Of Parts
Front:
Left:
No
Item
Description
1
Front Camera
2 Megapixel Webcam
2
LED Indicators:
Front LED Indicators Detail:
Show the current status of the Tablet Computer
3
Touch Screen
Display and act as one of the inputs for the Tablet Computer
4
Power Button
Power on/off tablet
5
Touch Lock
Touch mode select and touch screen lock to prevent input.
6
Menu Button
Hottab Quick Access
7
Home Button
Windows Start Menu
8
F1 Button
Programmable function key configured by Hottab Utility
8
F2 Button
Programmable function key configured by Hottab Utility
9
Digital Microphone
With noise canceling function.
10
USB 3.0
High speed USB port connects to USB devices, such as USB flash drive, mouse,
keyboard, printer, etc.
11
Micro HDMI
HDMI output to external display
12
Changeable I/O Port
Adapter port for LAN/RS232/2D Barcode Reader. Default is dummy.
![](/img.php?id=3727061&img=bg9.png)
Ver 1.0
9

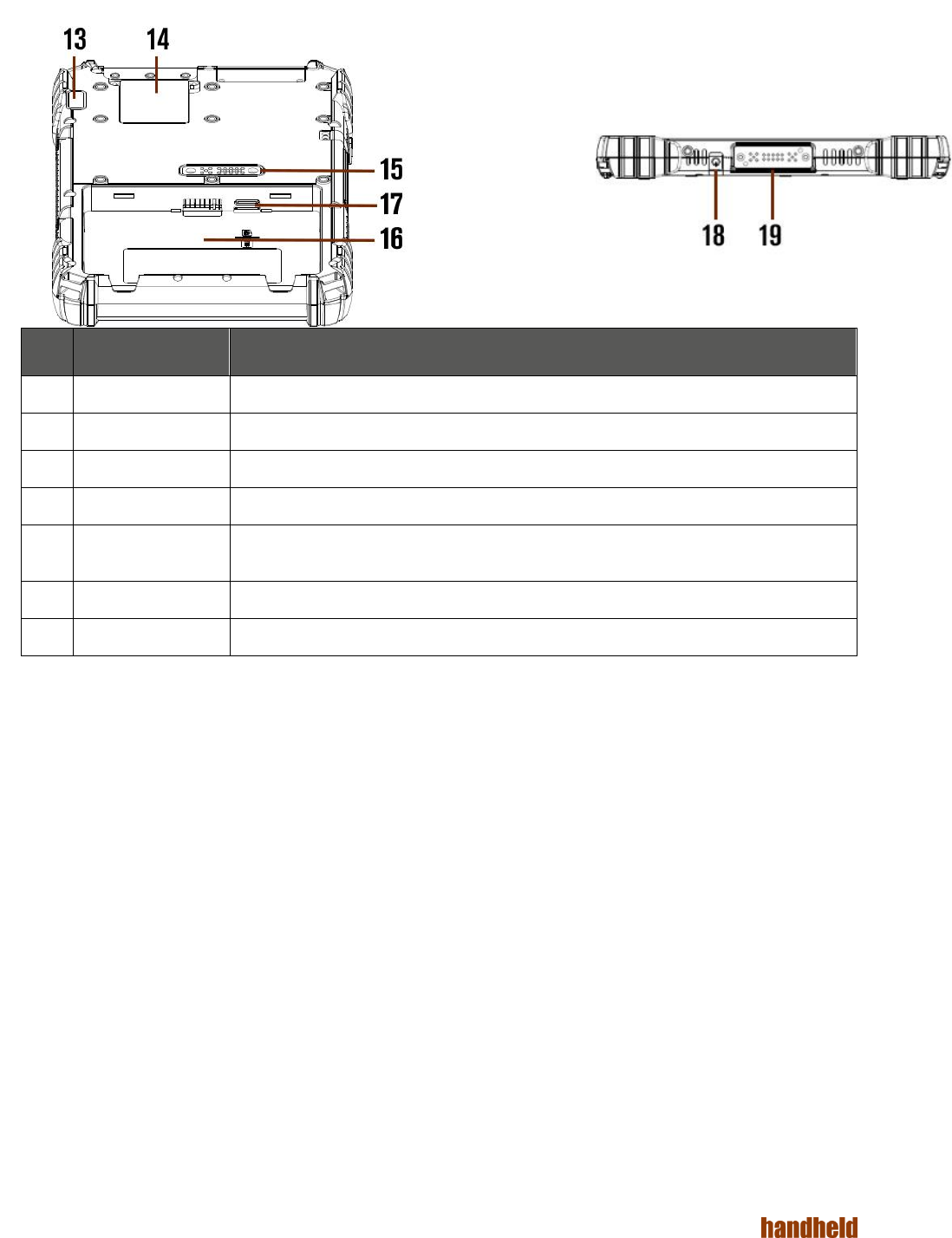

Rear: Bottom:
No
Item
Description
13
Rear Camera
8MP with Autofocus
14
Service Windows
For WWAN Card
15
Expansion Port
Provide optional connectivity to custom modules for special application.
16
Main Battery Slot
For Main Battery pack.
17
MicroSD & Micro
SIM Card Port
Memory card & SIM card reader port
18
Power Jack
DC-IN power input jack
19
Docking Connector
Port to docking solutions such as vehicle docking to provide power
![](/img.php?id=3727061&img=bga.png)
Ver 1.0
10
1.4 Hot Key For Specific Functions
For the physical buttons on the ALGIZ 8X tablet computer, in addition to their dedicated functions detailed in
the previous section, they can also be used to emulate commonly used keyboard key strokes. Under different
scenario, a single physical button or a combination of physical buttons provide different keyboard key strokes,
which are specified below:
During POST (before Windows boots up): During Windows:
Buttons
Keystroke
Menu
F7 to enter BIOS setup screen
F1
Recovery Menu
F2
ESC
Menu + F1
Enter
Buttons
Keystroke
Power
Power ON/ OFF
Touch Lock
Touch mode select and touch
screen lock to prevent input.
Menu
Hottab Quick Access
Home
Normal start menu Quick
Access
F1
Default: Web Browser
F2
Default: Windows 10 Action
Center
LED Indicators:
Item
Description
Power Indicator
Green – Tablet is ON
No light – Tablet is OFF
Battery Status
Orange – AC adapter is plugged in and charging
Green – AC adapter is plugged in and battery is full charged
Solid Red - Low battery (<10%)
Blinking Red – Battery is being hot swapped.
No light – Battery is in use and more than 10%
Disk Activity Indicator
Green - Disk Activity
No light - Disk Idling
Configuration)
It should be off unless configured by the user.
![](/img.php?id=3727061&img=bgb.png)
Ver 1.0
11
1.5 First-time Operation

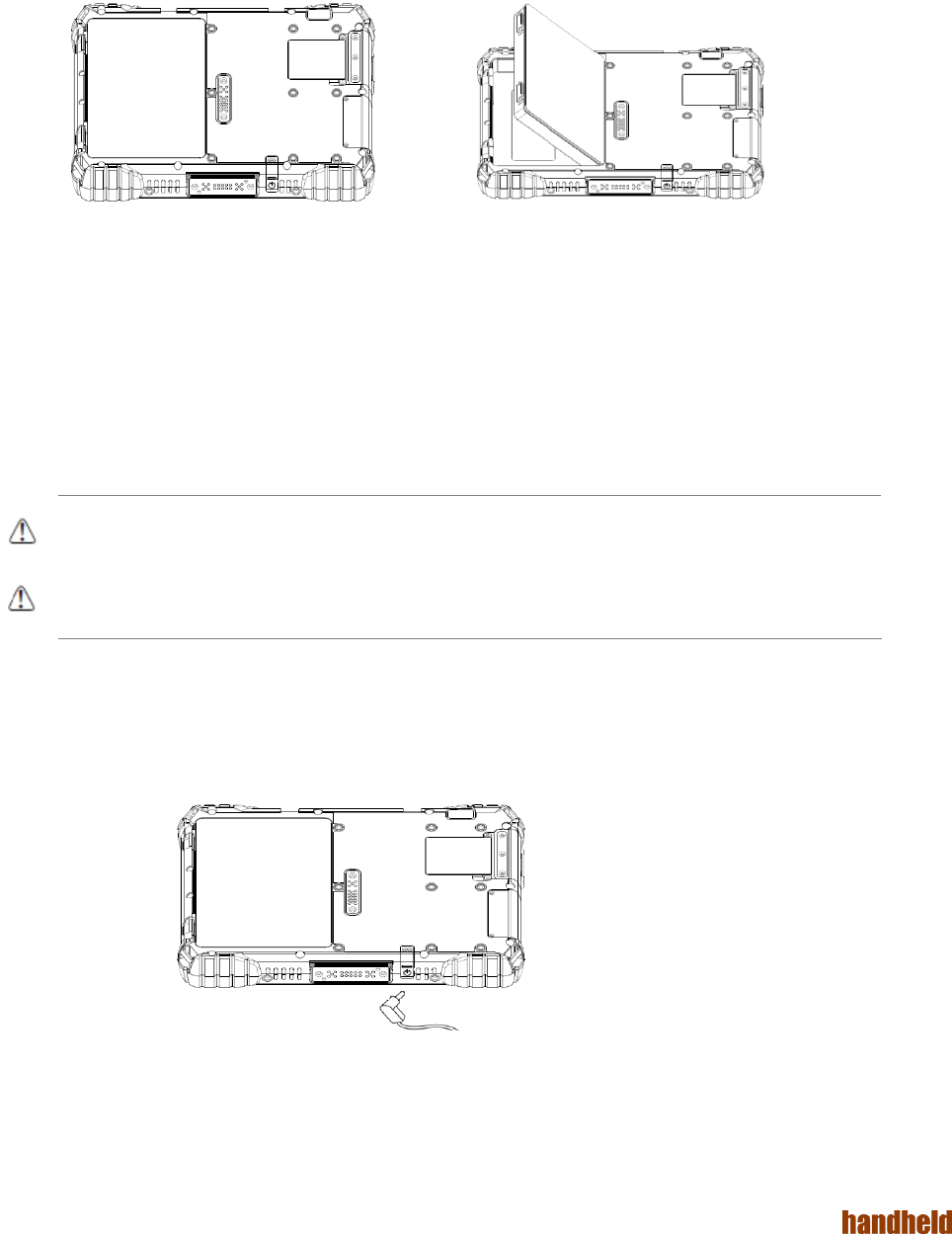

Inserting Battery Pack
To insert the standard battery pack into the Tablet Computer:
1. Disconnect AC adapter and power cord from the tablet computer.
2. Turn the tablet computer over, back facing up.
3. Insert the battery on the connector-pins side first, and then lower the battery into the battery
compartment. Continue to hold the Battery before battery is fully inserted.
4. Make sure the battery is completely lowered into the compartment before letting go the Battery
will be flat against the housing once fully inserted
Removing the Battery Pack
1. Power off the tablet computer (or put it to sleep). Disconnect any cords connected to the
computer.
2. Turn the tablet computer over, back facing up.
3. Lift the battery out using the opening on side of battery compartment.
Connecting to Power Supply
The Tablet Computer operates either on external AC power or internal battery power. It is recommended to
use AC power when you start up the Tablet Computer for the first time.
CAUTION - Use only the AC adapter included with your Tablet Computer. Using other AC adapters may damage the Tablet
Computer and the Battery.
CAUTION - For users start up the Tablet Computer for the first time with internal battery power, please make sure the battery is
full charged before using.
Perform the following to connect the Tablet computer to AC Power:
1. On the side of the Tablet computer, lift the I/O protective cover by pulling on the latch
2. Plug the DC cord of the AC adapter into the Power Jack of the tablet computer.
3. Plug the AC power cord into the AC adapter.
4. Finally, Plug the AC power cord into the electrical outlet.
When the AC Adapter is connected, the battery pack starts charging. The battery LED indicator on the tablet
computer would show different states. Please refer to description of LED indicator on Description of Parts
![](/img.php?id=3727061&img=bgc.png)
Ver 1.0
12
1.6 Powering On/Off
Powering On
Press and hold the power button for 3.5 seconds until the blue LED power indicator light up.
_________________________________________________________________________________________________________________________________________________
NOTE
Do not press the power button repeatedly.
Do not perform the following operations until the Disk Activity Indicator off
o Connecting or disconnecting the AC adapter
o Pressing the power button
o Touching the tablet buttons, screen, or external keyboard/mouse
__________________________________________________________________________________________________________________________________________________
Powering Off
Perform the following procedure to power off the Tablet Computer:
1. Make sure you have closed any programs that are open on the Desktop.
2. Under Windows 10 OS, click the Start menu, you'll see a lengthy pop-up shortcut menu.
3. Tap on Power.
4. Tap on Shut Down.
5. Wait for Tablet Computer to power off.
NOTE The computer will forcibly be powered off if the power button is pressed and held for 6 seconds or longer.
![](/img.php?id=3727061&img=bgd.png)
Ver 1.0
13

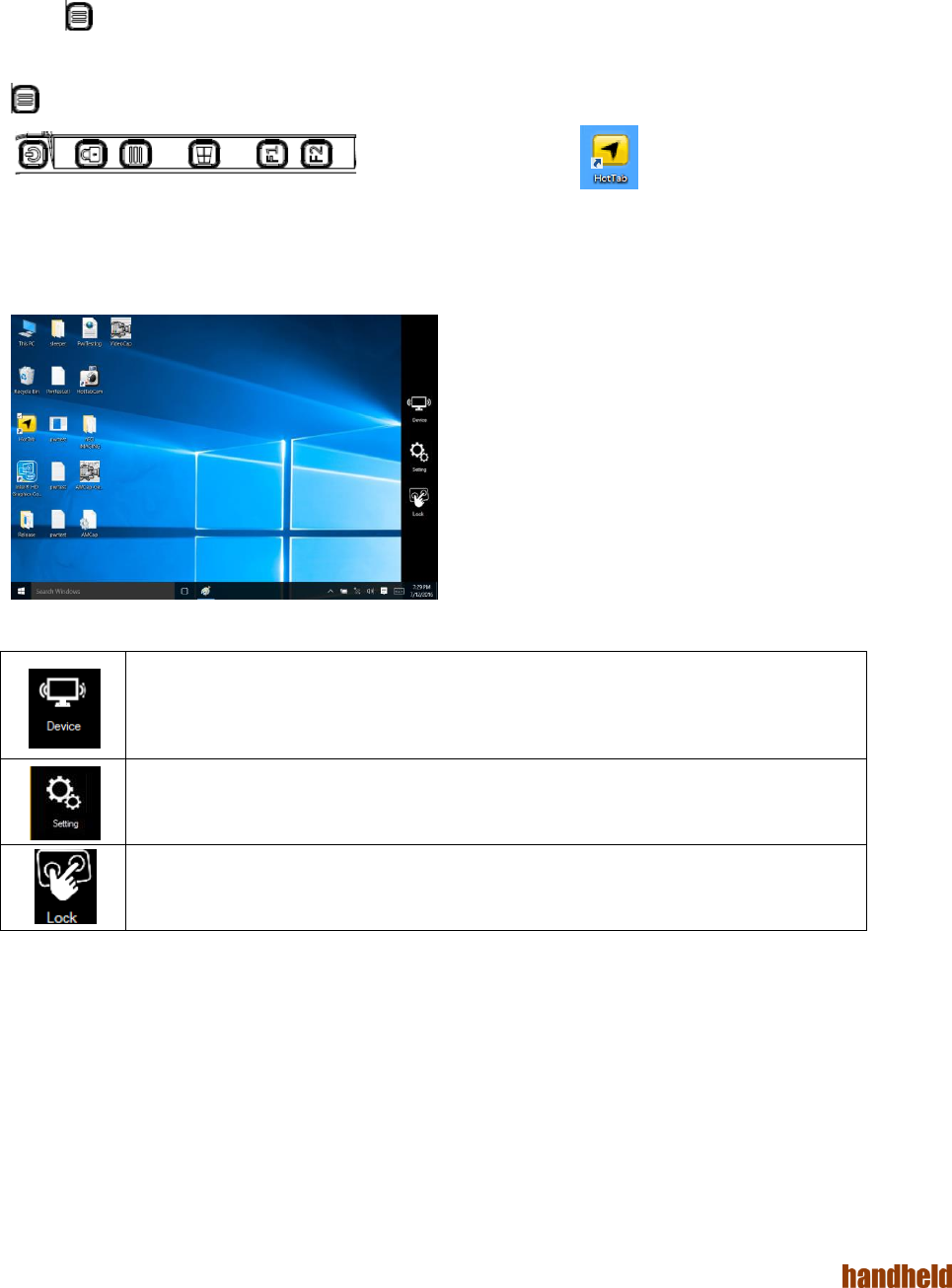

2. QUICK ACCESS THROUGH HOTTAB
2.1Hottab Introduction
Hottab provides quick access to the tablet’s functions and features, such as setting up shortcuts, using
camera, powering on/off built-in devices, programming function key, and changing power management.
As Windows starts up, Hottab starts and runs in the background. To display the Hottab control utility, press the
(Menu) Button located on the front panel, or launching the Hottab Utility application.
(Menu) Button on the Front Panel: Hottab Utility Icon:
The main user interface is located on the right side of the screen. There are 3 main menu options: Device
ON/OFF, Settings and Touch Lock. Operations and functions on each menu options is explained in detail in
the coming section.
Device button enables/disables tablet computer’s hardware functions. The configurable
functions are WWAN(3G/4G/LTE), GPS, Camera, GPS/WWAN Antenna routing and Touch
mode options.
Setting button provides users information such as PC Information, Battery status, and also
device settings such as power management setting, and function key mappings.
Disable the double click and front panel OSD functions.
![](/img.php?id=3727061&img=bge.png)
Ver 1.0
14

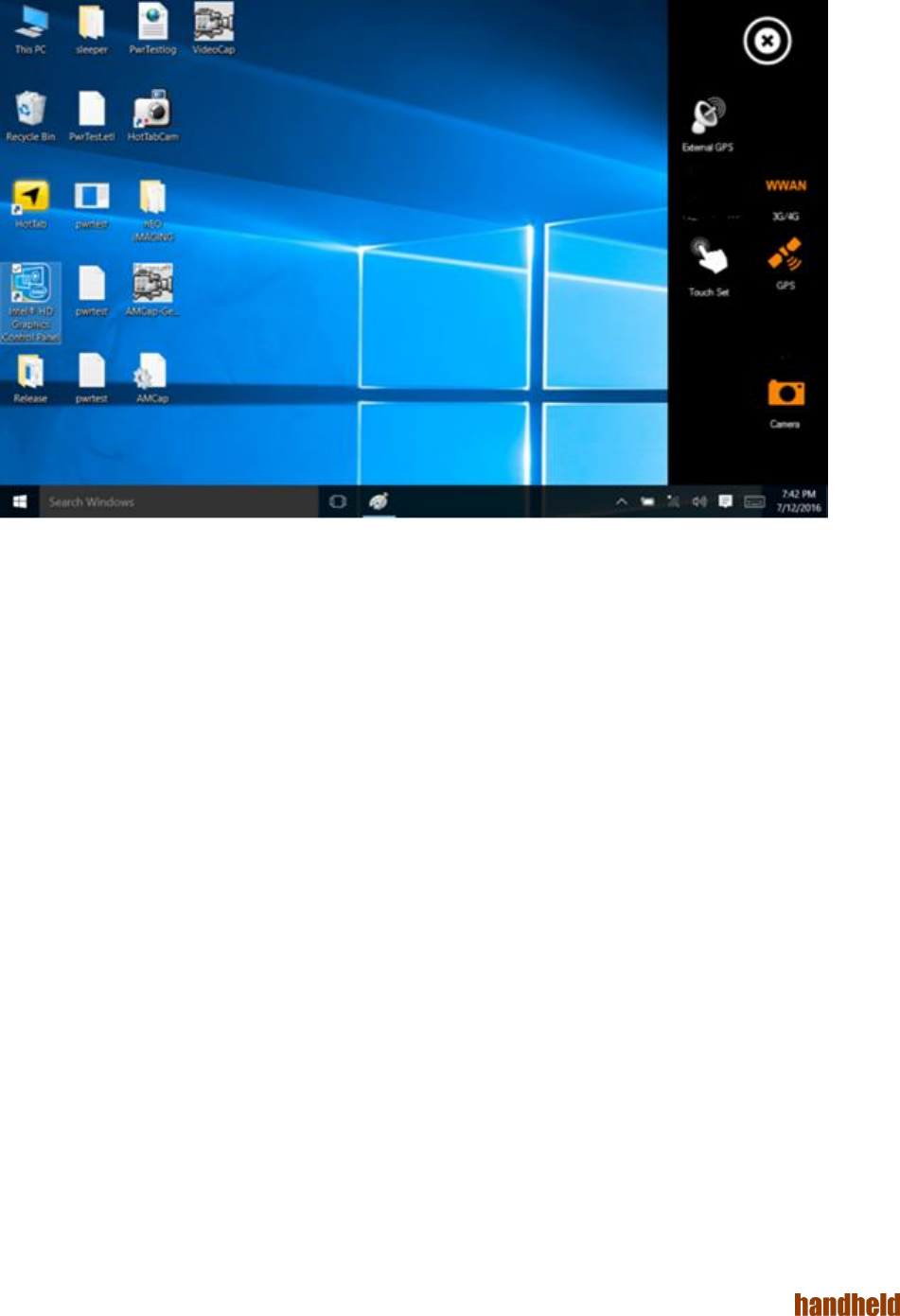

2.2. Device ON/OFF
This section provides a quick access to set-up built-in devices, including turning on/off RF modules, camera
module and setting up touch mode.
![](/img.php?id=3727061&img=bgf.png)
Ver 1.0
15
Using the Wireless WAN (3G/LTE) feature
Insert SIM card (For Optional 3G/LTE equipped device)
CAUTION - Please power off the tablet before installing the 3G/LTE module and Micro SIM card, or the tablet computer might
be damaged by the incorrect installation behaviors.
The Tablet Computer supports data connection with 3G/LTE modules and fits Micro-SIM card. (Note: 3G/LTE
feature is optional). Before using the data connection program, please perform the following procedures to
insert the Micro-SIM card to your Tablet Computer:
1. Power off the Tablet Computer.

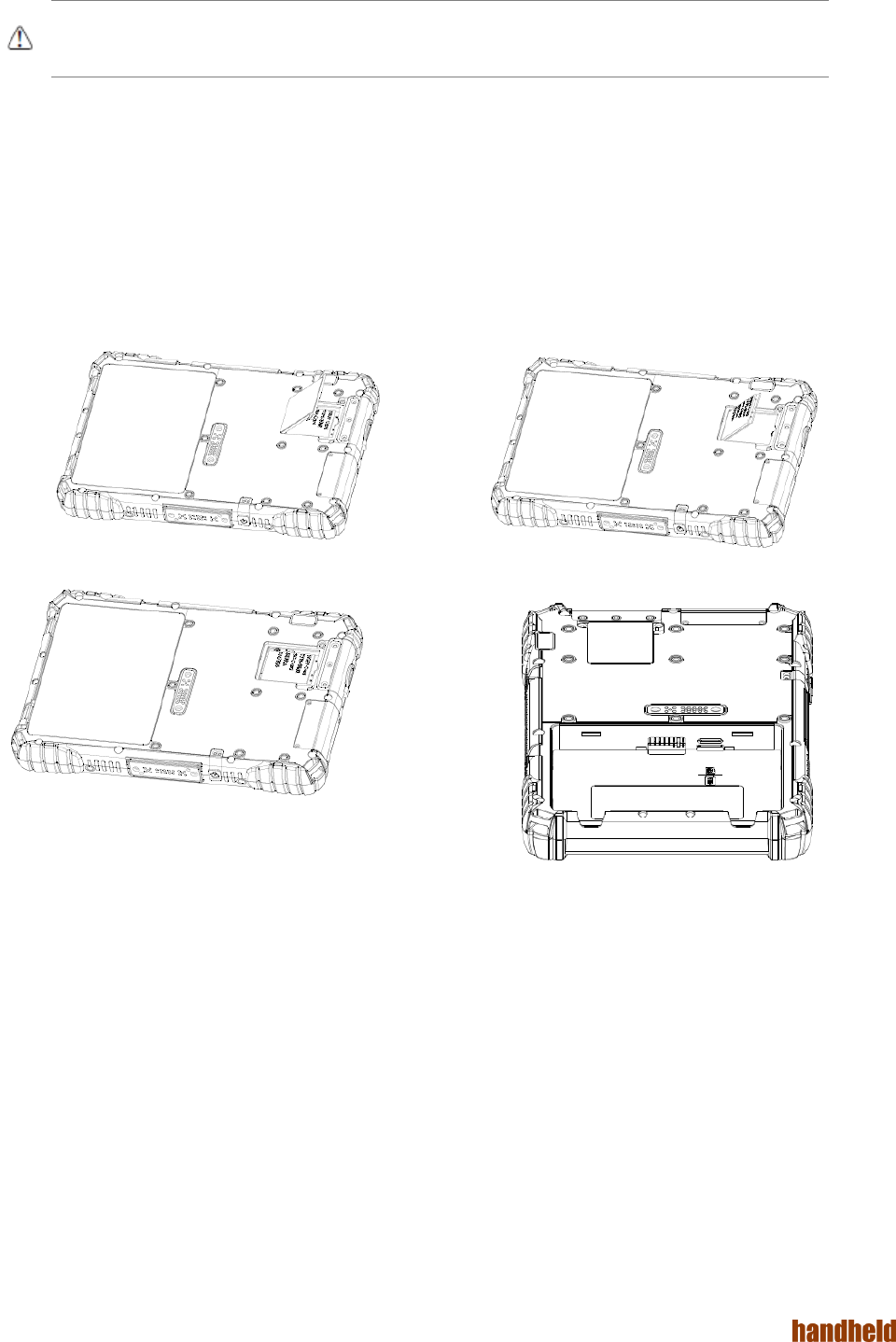

2. Remove the service window in the rear by unscrewing four screws.
3. Remove the screw that is securing the 3G/LTE module.
4. Carefully lift the 3G wireless module up, and be cautious not to damage the connected cable.
5. Make sure the SIM card IC contact patch is faced down, notch is in the direction of insertion
(towards right).
Micro SD Card
![](/img.php?id=3727061&img=bg10.png)
Ver 1.0
16
Use Wireless WAN Feature
For tablets equipped with wireless WAN (3G or 4G/LTE) card, to use the wireless WAN feature to connect to
the network, perform the following procedure:
1. Open the Hottab utility by press the (Menu) Button located on the front panel, OR launching the
Hottab Utility application.
2. Tap on the Device ON/OFF button.
3. Check the status color of the WWAN icon:
Item
Status Color
Description
Orange
WWAN (3G/4G) is enabled.
White
WWAN (3G/4G) is disabled.
4. If the WWAN feature is disabled (white), tap on the WWAN icon to enable it (orange).
5. You can check the wireless WAN connection status through the wireless network connection
status icon in the Windows notification area. The more bars encompassed, the better the signal
is.
NOTE - For the Windows 10 operating system, you also can check the Access Connections gauge, the Access Connections status icon,
or the Access Connections wireless status icon in the Windows notification area.
Using the GPS feature
To enable the wireless GPS feature, perform the following procedure:
1. Open the Hottab utility by press the (Menu) Button located on the front panel, OR launching the
Hottab Utility application.
2. Tap on the Device ON/OFF button.
3. Check the status color of the GPS icon:
Item
Status Color
Description
Orange
GPS is enabled.
White
GPS is disabled.
4. If the GPS feature is disabled (white), tap on the GPS icon to enable it (orange).
5. Now the GPS feature is ready to be used with an application utilizing the GPS.
![](/img.php?id=3727061&img=bg11.png)
Ver 1.0
17

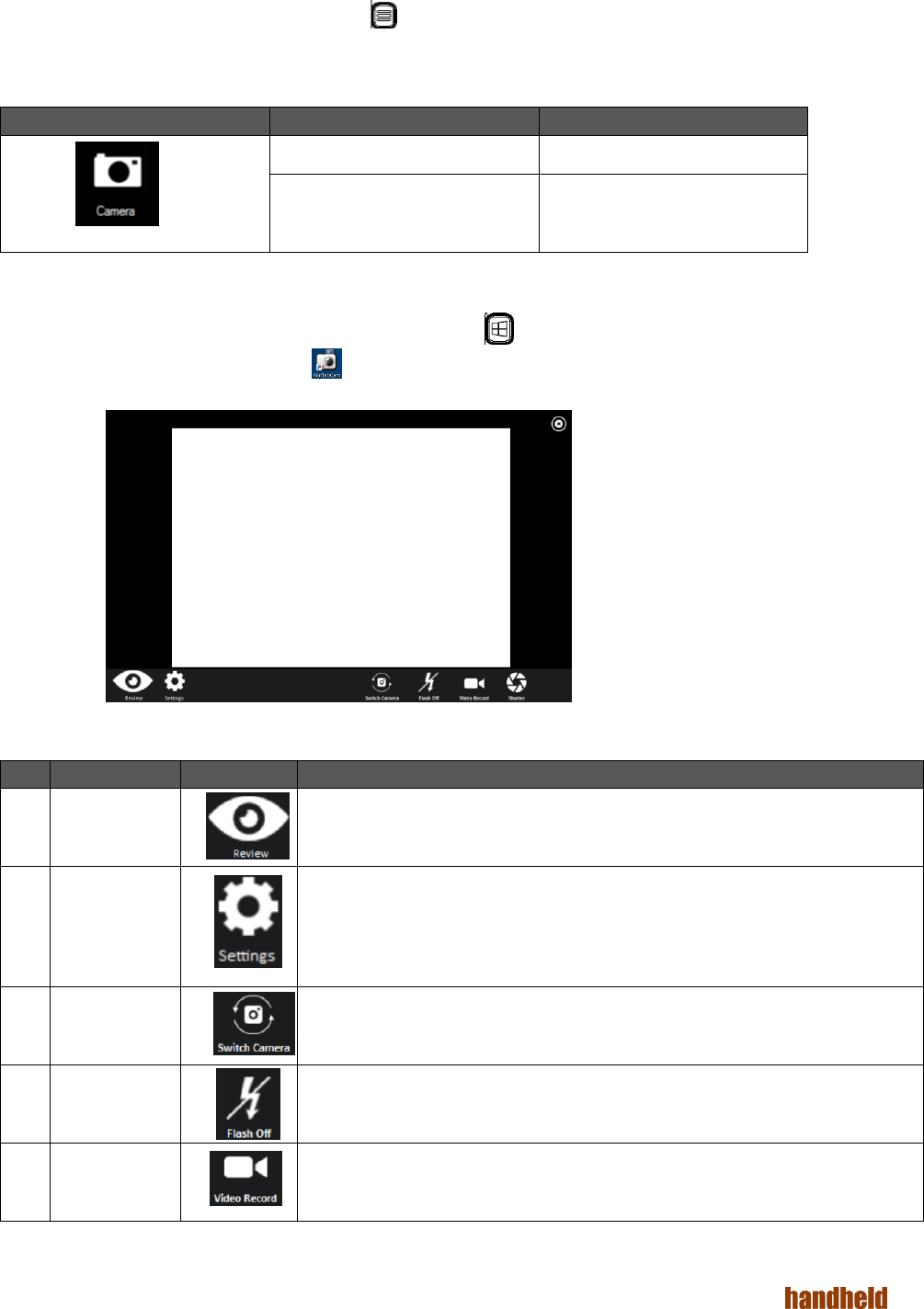

Using Camera Features
This Hottab menu option allows users take a picture or record a video. Before use, make sure the Camera is
powered on under Devices menu with the following scenarios:
1. Open the Hottab utility by press the (Menu) Button located on the front panel, OR launching the
Hottab Utility application.
2. Tap on Device button to check the built-in devices status.
3. Check the status color of the Camera icon:
Item
Status Color
Description
Orange
Camera is enabled.
White
Camera is disabled.
4. If the Camera feature is disabled (white), tap on the Camera icon to enable it (orange).
5. Go back to the Hottab main menu by pressing the (Menu) Button located on the front panel OR
click on the back arrow on top.
6. Tap on the HotTabCamera shortcut to go into the Camera menu. The Camera user interface will
take up the entire screen as shown below:
Description of Camera User Interface Buttons:
No
Item
Description
1
Review
Preview the take picture.
2
Settings
Brings up Camera settings page.Available Settings:
Photo format: modify/inspect saved location for pictures.
Rear Video Resolution: Picture compression quality.
File Location: Opens the location where pictures and videos are saved in a
window.
3
Switch
Camera
Switches the front or rear camera device.
4
Flash Control
Enable/Disables LED Flash when taking picture.
5
Video Record
Video Record Button. Tap to Start, and press again to stop recording.
![](/img.php?id=3727061&img=bg12.png)
Ver 1.0
18
6
Shutter
Camera Shutter Button. Tap to take picture.
7
Exit
Exits the Camera and hide Hottab Utility.
![](/img.php?id=3727061&img=bg13.png)
Ver 1.0
19
Turn on/off the GPS Ext. Antenna
CAUTION - The vehicle dock of ALGIZ 8X Tablet PC supports external GPS antenna through standard SMA connector. To work
with external GPS antenna, please make sure the tablet PC is well installed to vehicle dock, and the vehicle dock has
connected with external GPS antenna.
When working with vehicle dock connecting to external antenna, user can switch GPS antenna from the
internal one to the external one from Hottab menu. To enable/disable the External GPS Antenna, perform the
following procedure:
1. Open the Hottab utility by press the (Menu) Button located on the front panel, or launching
the Hottab Utility application.
2. Tap on the Device icon.
3. Check the status color of the External GPS icon:
Item
Status Color
Description
Orange
GPS Ext. Antenna is enabled, and using external
antenna if available
White
GPS Ext. Antenna is disabled, and using built-in
antenna
4. If the External GPS antenna is disabled (white), tap on the External GPS icon to enable it
(orange).
Switch Touch Modes
The tablet’s advanced capacitive touchscreen has 3 built-in operating modes, for users to choose under
different usage scenarios:
![](/img.php?id=3727061&img=bg14.png)
Ver 1.0
20
To switch between the different touchscreen modes via the HotTab utility, perform the following procedure:
1. Open the Hottab utility by press the (Menu) Button located on the front panel, OR launching the
Hottab Utility application.
2. Tap on the Device button.
3. Check the status color of the Touch Set icon:
Item
Status Color
Description
White
Switch between the different
modes available.
![](/img.php?id=3727061&img=bg15.png)
Ver 1.0
21

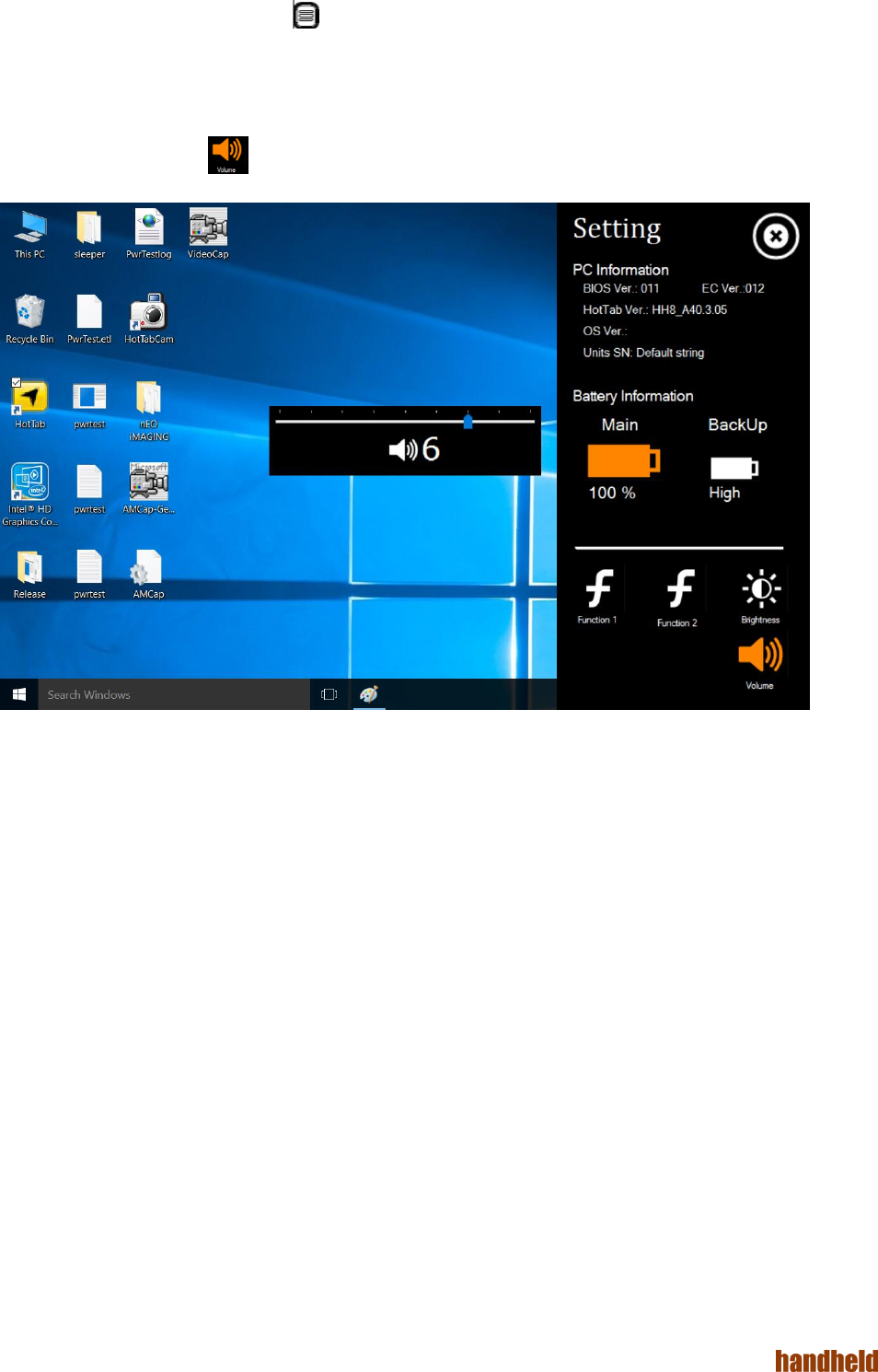

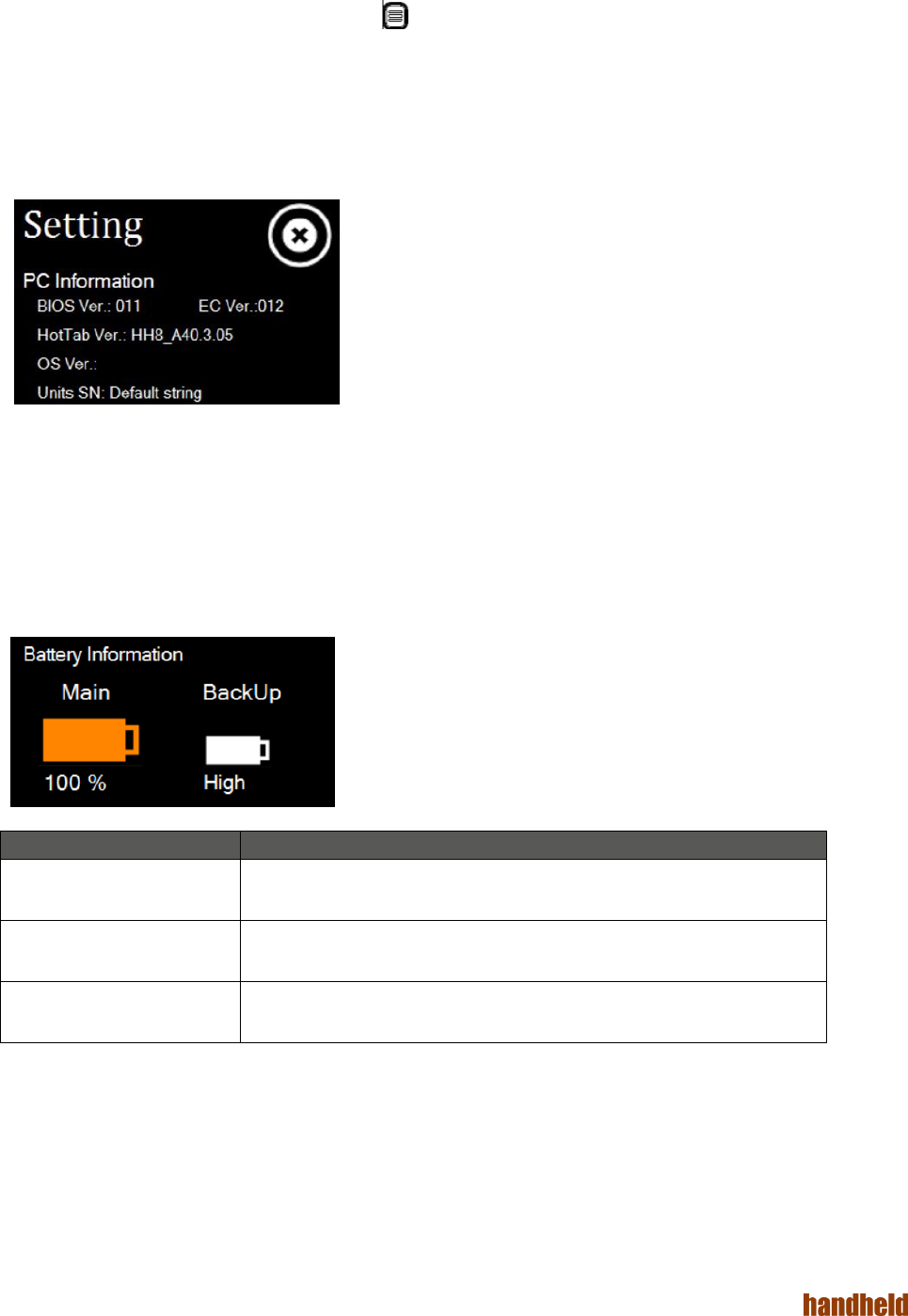

Setting
This Hottab menu option provides users information such as PC Information, Battery status, and also device
settings such as power management setting, and function key mappings. Perform the following procedure to
access the Hottab Setting menu:
1. Open the Hottab utility by press the (Menu) Button located on the front panel, OR launching the
Hottab Utility application.
2. Tap on the Settings button.
3. Below shows the items listed in Settings Menu.
PC Information:
This section provides user device information in regards to BIOS Version, EC Versions, Hottab Versions, OS
Versions, as well as Unit Serial Number, shown in the picture sample.
Battery Information:
This section provides user battery Information.
Main Battery:The main battery Icon displays the battery level in percentages (0 to 100%).
Backup Battery: (Optional)The backup battery used for battery hot swapping displays its state in text with the
following meanings.
Status
Description
High
Backup battery is fully charged, and can be used for hot swapping
Medium
Backup battery level is intermediate, but can be used for hot swapping
Low
Backup battery level is low, and hot swapping is not recommended.
Battery Charge Time:The Battery Information also displays estimated time needed to fully charge the main
battery when AC adapter is plugged in. Meanwhile, the backup battery is charged by the main battery.
![](/img.php?id=3727061&img=bg16.png)
Ver 1.0
22

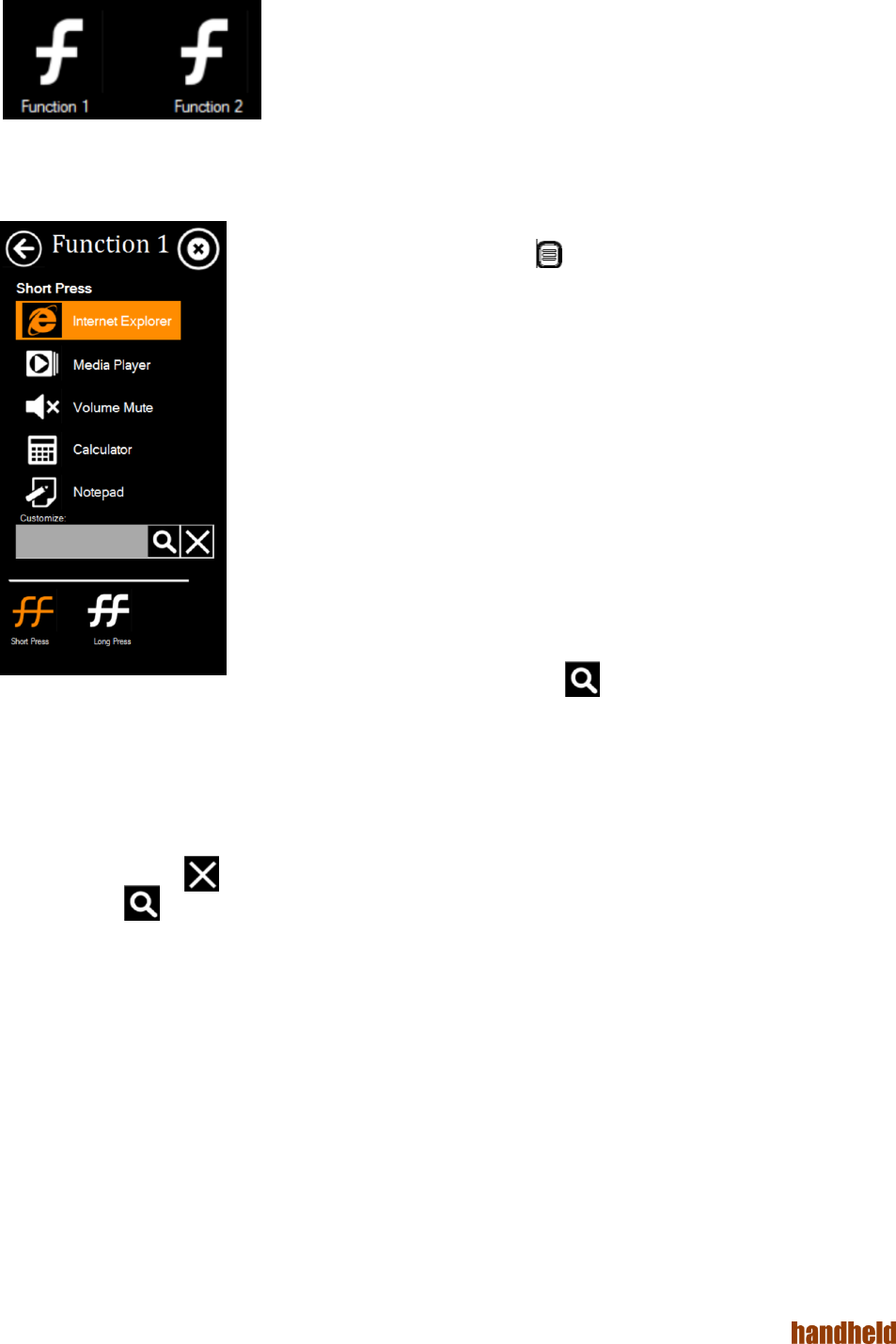

Using the physical function keys (Hotkeys)
The function key mapping menu option allows user to change the physical function buttons, F1 and F2. Users
can change what application will be launched with short press or long press of keys.
To configure function key mapping, perform the following:
1. Open the Hottab utility by press the (Menu) Button located on the front
panel, or launching the Hottab Utility application.
2. Tap on the Setting button.
3. Tap on function key icon for the corresponding key that you want to
change.
4. At top of utility, it will say “Short Press” or “Long Press” to indicate what
type of press is being configured
5. You can switch what type of press you want to configure by tapping on the
“Short Press” or “Long Press” icon at the bottom of the utility window.
6. Pick from list of preset applications by tapping on the application icons OR
customize which application to execute using the picker.
Using the Custom picker:
1. Tap the icon to reveal browser window
2. Navigate to the desired executable to map to function key
3. Tap on “Done” to save selection.
To map the function key to another application:
1. Tap on the icon to remove connection to the original application, and pick again tapping on
icon.
Using the physical function keys:
1. While operating the tablet, click on the physical function keys to activate functions mapped via
the setup in this section.
![](/img.php?id=3727061&img=bg17.png)
Ver 1.0
23

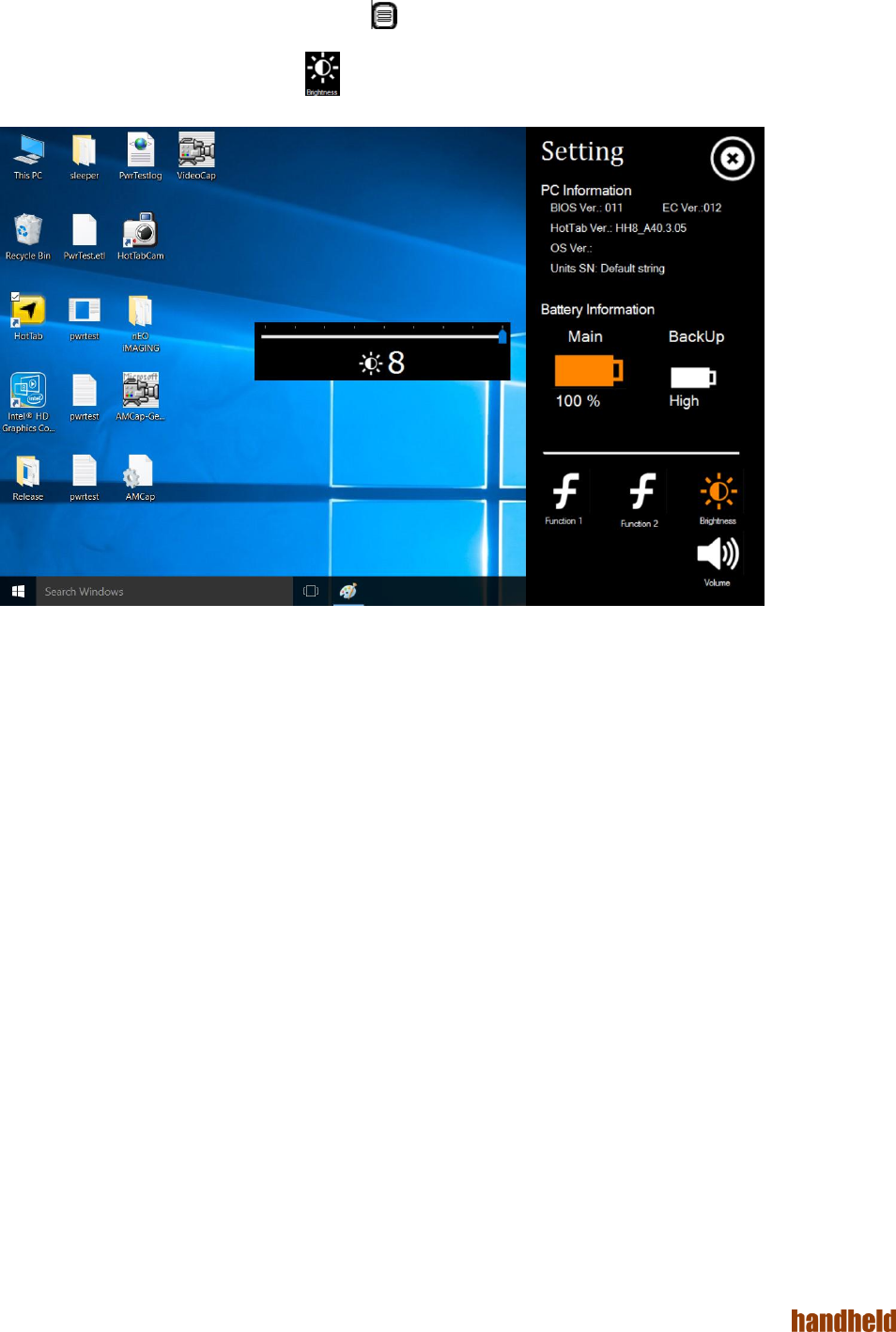

Adjust the Brightness Level
The panel brightness can be adjusted from Hottab menu. To adjust the brightness, perform the following
procedure:
1. Open the Hottab utility by press the (Menu) Button located on the front panel, or launching the
Hottab Utility application.
2. Tap on the Setting button.
2. 3. Tap on the Brightness icon:
![](/img.php?id=3727061&img=bg18.png)
Ver 1.0
24

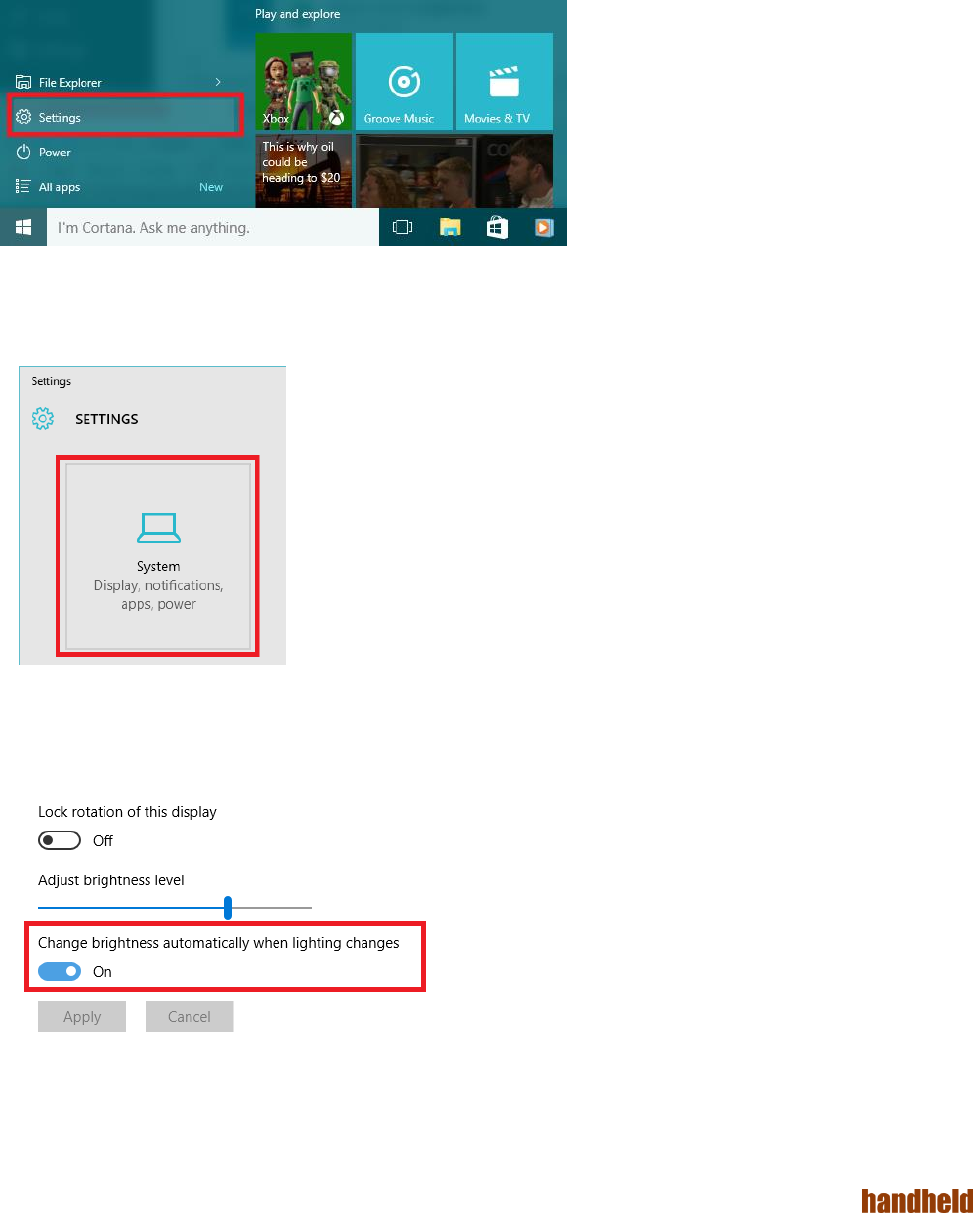

How to disable automatic brightness adjustments
For computers with a light sensor, Windows 10 has the ability to automatically adjust the screen brightness
depending on the ambient light levels.
This feature can be more annoying than helpful, either leaving your screen too dark or frequently adjusting the
brightness levels.
Here’s three ways to disable the Ambient light sensor
1: using the systems setting
Open the Windows start menu and click on ‘Settings’
1. In the settings window, click on ‘System’
2. The ‘Display’ menu should selected on the left, if it is not – click on‘Display’
3. Turn the ‘Change brightness automatically when lighting changes’ to ‘Off’
4. Click ‘Apply’ to save the changes.
![](/img.php?id=3727061&img=bg19.png)
Ver 1.0
25
Adjust the Volume Level
The volume level can be adjusted fromHottab menu. To perform volume adjustment. The adjustment slide bar
will appear on screen transparently. Tap on the right side of the bar to increase the volume and Tap on the left
side of the bar to decrease the volume .Open the Hottab utility by press the (Menu) Button located on the
front panel, or launching the Hottab Utility application.
1. Tap on the Setting button.
2. Tap on the Volume icon:
![](/img.php?id=3727061&img=bg1a.png)
Ver 1.0
26
3. FREQUENTLY USED SETTINGS
3.1 Replacing Hot Swappable Battery
The tablet computer supports hot-swapping of batteries, meaning the tablet doesn’t need to be powered off in
order to replace the main battery. To support such mechanism, there is a backup battery inside the tablet that
is charged up with the main battery. This backup battery cannot be removed, and needs to have adequate
power for hot swapping of main battery to be done without issue. When the backup battery is fully charged, it
can sustain up to 5 minutes of runtime to allow for battery hot-swapping.
Perform the following to hot swap the batteries:
1. While the tablet is powered on, go to Hottab utility to check on the power level of the Backup
battery.
2. If the Backup battery level is at “Low”, please charge the tablet with AC Power until the Backup
battery level is at “Medium” or “High”, and do not remove the main battery.
3. If the Backup battery level is at “Medium” or “High”, continue to remove the main battery.
4. Insert a new charged up removable battery into the battery compartment.
5. Go to Hottab utility to check if Main battery level can be correctly read. If not, check if the new
removable battery is inserted properly.
6. If Main battery level can be read, continue to use the tablet computer.
CAUTION - To keep battery health and prevent possible issues from battery over-discharged, please charge the tablet built-in
back-up battery once for every 2 months.
![](/img.php?id=3727061&img=bg1b.png)
Ver 1.0
27
3.2 Using Recovery Wizard to Restore Computer
ALGIZ 8X tablet computer has a dedicate recovery partition stored on the hard drive of the tablet to enable
quick one-key recovery process. This partition occupies about 11GB of the storage space, and comes built-in
to each ALGIZ 8X tablet computer.
WARNING - Before starting the recovery process, be sure to backup all user data, as all data will be lost after the recovery
process.
Follow the procedure below to enable quick one-key recovery procedure:
1. Plug-in the AC adapter to ALGIZ 8X tablet computer. Make sure the ALGIZ 8X tablet computer
stays plugged in to power source during the recovery process.
2. Power on the tablet computer, and when the boot screen shows up, press the F1 button
(Recovery Key) on the front bezel or press F6 when using an external USB keyboard to initiate
the Recovery Wizard.
3. The following screen shows the Recovery Wizard. Click on “Recovery” button to continue.
4. A warning message about data loss will show up. Make sure data is backed up before recovery,
and click on “Yes” to continue.
5. Wait till the recovery process to complete. During the recovery process, a command prompt will
show up to indicate the percent of recovery process. After recovery is completed, and the tablet
computer will restart automatically.
![](/img.php?id=3727061&img=bg1c.png)
Ver 1.0
28
3.3 Docking Connector Pin Definition
ALGIZ 8X tablet computer supports one 20-pin docking connector at the bottom side. The pin definition is
listed as the following table.
20 Pin Docking Connector
Pin No.
Description
Pin No.
Description
1
DOCK1_USB_P
11
GND_WWAN
2
DOCK_DET#
12
GND_WWAN
3
DOCK1_USB_M
13
ANT_GPS
4
DOCK_USB_P
14
GND_WWAN
5
GND
15
ANT_SEL_DET
6
DOCK_USB_N
16
GND_GPS
7
DOCK_PWR
17
GND_GPS
8
GND
18
ANT_WWAN
9
DOCK_PWR
19
DETECT-
10
DOCK_PWR
GND_GPS
3.4Expansion Port Pin Definition
ALGIZ 8X tablet computer supports one optional 19-pin expansion port at the rear side. The pin definition is
listed as the following table.
19 Pin Docking Connector
Pin No.
Description
Pin No.
Description
1
POGO_PWR
11
GND
2
USB3V_POGO
12
USB_D4-
3
POGO_PWR
13
USB_D4+
4
POGO_PWR
14
GND
5
USB5V_POGO
15
FK_CTS2
6
DET
16
DETECT_POGO
7
FK_SOUT2
17
GND
8
GND
18
FK_RTS2
9
FK_SIN2
19
DET
10
GND
![](/img.php?id=3727061&img=bg1d.png)
Ver 1.0
29
3.5. COM Port Definition
ALGIZ 8X tablet computer uses Hottab utility for built-in peripherals control. All the COM port numbers have
been defined in the OS image coming with the package.
COM Port
Device
COM 1
RS232 at I/O
COM 2
RS232 of Expansion Port (optional)
COM 3
GPS
COM 11
RS232 at Docking (optional)
COM 12
RS232 at Docking (optional)
For some special applications, user might re-install OS and lose the COM port settings. To make sure the
features works properly with Hottab utility, please follow the procedure below to re-define the COM port
numbers:
1. Go to "Device Manager", right click on the COM number need to be changed, and tap on
"Properties" to open the setting page.
![](/img.php?id=3727061&img=bg1e.png)
Ver 1.0
30

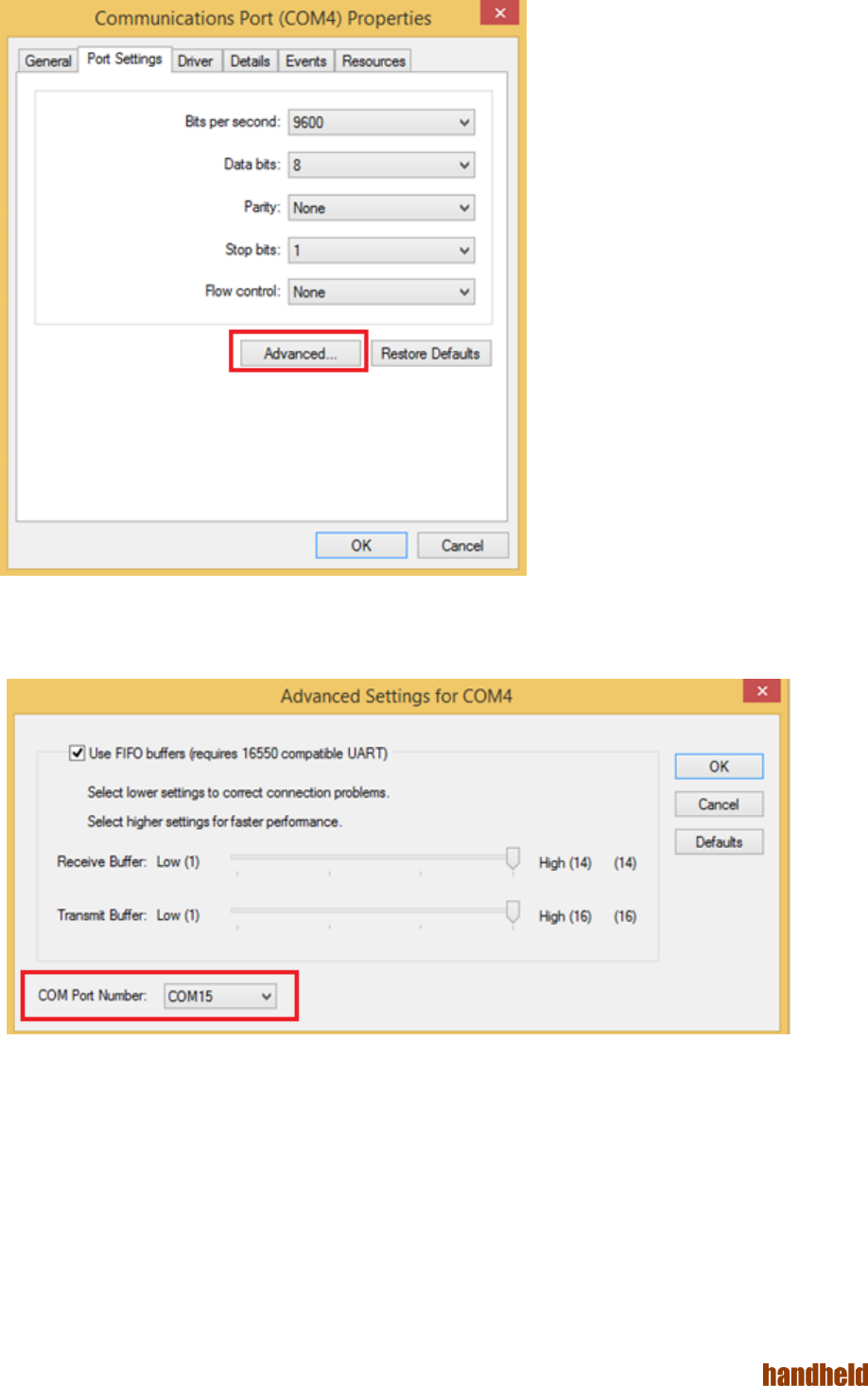

2. Tap on "Port Setting" tab and click on "Advanced" button.
3. Tap on the dropdown list and choose the correct COM Port Number (refer to the COM Port
Definition Table), and click "OK".
4. Double check "Device Manager" to make sure the COM Port number has been re-defined
successfully, and then restart the system.
