1.
Introduction
1.1
Overview
RFRM is a GUI application that functions on JAVA-based platform, and is developed to test and manage
RFID Reader produced by Samsung Techwin.
Followings are functions that RFRM
provides.
Displaying tag data
P
arsing tag
data
S
etting/ Reset RFID Reader
Selecting tag protocol
Transmitting control command to
RFID Reader
1.2
Installation
When an installing file that suits to platform is selected and executed, as seen below, an installing wizard program
will be run. Then, once pressing the “Next” button with each step and selecting “installation folder,” the RFID
Reader
Manager
will be installed.
4
www.samsungtechwin.co.kr
![](/img.php?id=1021124&img=bg5.png)
UHF
RFID READER
1.3
RFRM
Configuration
①
②
③
④
⑤
Screen composition of RFRM
is as follows:
①
Pull
Down
Menu
–
File,
Connect
System,
User,
Help.
②
Toolbar
–
frequently used command should be transmitted to icons.
③
Tag
Information
Table
–
it displays information on the t
ag.
④
Information
–
all options usable for simple statistical information and tag are set.
⑤
User
Command
– Hex
c
ommand,
A
lias,
and M
acro
are transmitted, and response from reader is
displayed.
5
www.samsungtechwin.co.kr
![](/img.php?id=1021124&img=bg6.png)
UHF
RFID READER
2.
Main
View
and
Pull-Down
Menus
2.1
Pull-Down
Menu
RFRM
menu is made up of total 5 main menus as above diagram:
File,
Connect,
System,
User,
Help. The
sub-menu items for each menu are as followings.
File Menu
Save
Reader
Setup
Saves what is set on the Reader setup menu as xml file.
Load
Reader
Setup
Retrieves what Reader
Setup
sets from
xml
f
ile.
Save
Excel
Contents is saved as excel format on the tag
i
nformation
t
able.
Exit
End RFRM.
Connect
Menu
Connect
via
Serial
Sets connection as serial
p
ort.
Connect
via
TCP/IP
Sets connections with TCP/IP.
Serial
Port
Setting
Sets serial
p
ort.
TCP/IP
Setting
Sets TCP/IP.
6
www.samsungtechwin.co.kr
![](/img.php?id=1021124&img=bg7.png)
UHF
RFID READER
System
Menu
Reader
Setting
Sets all functions on the reader.
Reader
Control
Controls external
I/O
or reads or records
ISO18000-6B,
or
EPC
Gen2
t
ag.
System
Reset
Resets the reader.
Firmware
Upgrade
Upgrades firmware on the reader.
User
Menu

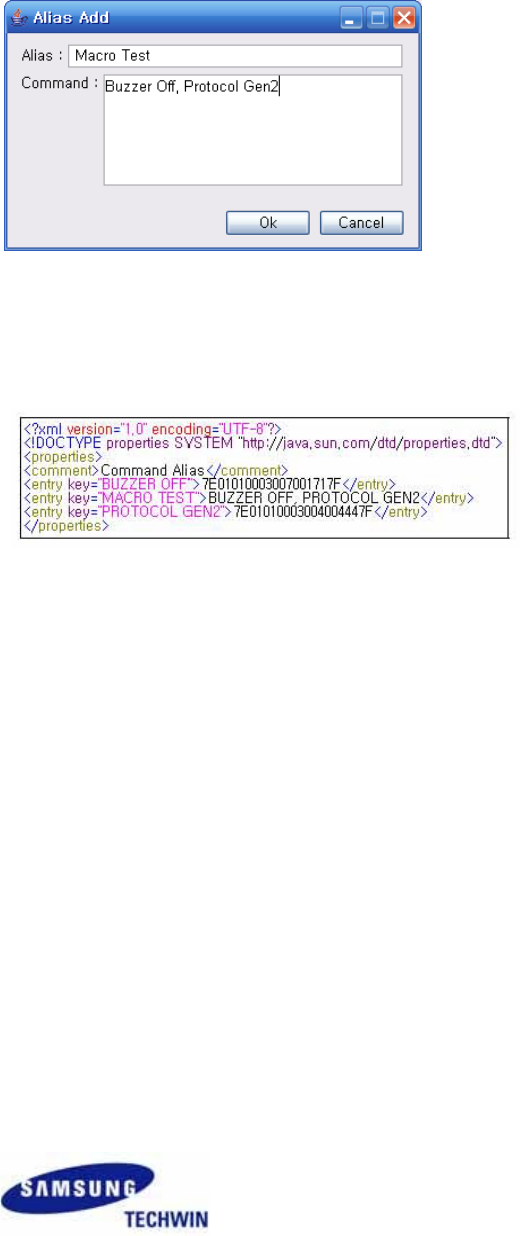

Command
Alias
Sets alias or macro on hex
c
ommand.

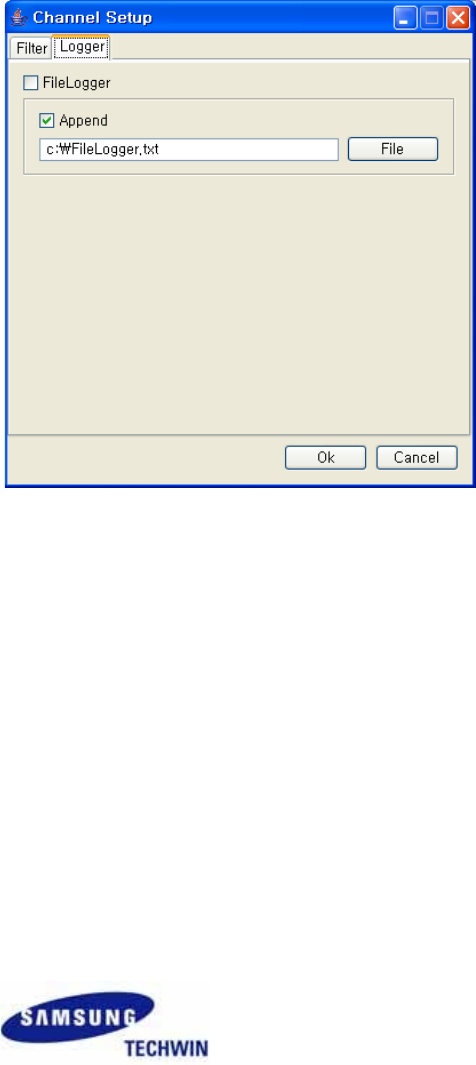

Channel
Setup
Sets filter
and l
ogger.
2.2
Tool
Bar
The tool bars on the RFRM is made up of following types, and each function per icon
is as follows.
Connect to the reader through serial
p
ort
Connect to the reader through TCP/IP.
Set serial
p
ort.
Set IP and port.
Set a variety of options on the reader.
Connect to the reader.
Disconnect from the reader.
Start reading the tag.
Stop reading the tag.
Save contents as excel file on the tag
i
nformation
t
able.
2.3
Tag
Information
Table
On the tag information table of main screen, all RF tags detected by RFID Reader
are displayed.
The t
ag
data are expressed with following items.
Tag
ID
-
tag
ID
(If clicked, it is moved to the corresponding tag’s memory handling screen right
away.)
Tag
Name
–
tag
ID is displayed and, when enable leak is checked, depending on setting time, it is
displayed as “No Tag.”
Type
-
tag
type
(ISO
18000-6B,
EPC
C1
GEN2)
Total
Read
–
the number of read corresponding tags.
7
www.samsungtechwin.co.kr
![](/img.php?id=1021124&img=bg8.png)
UHF
RFID READER
Read
Rate
-
the number that tag reads during i
nterval
t
ime
Success
–
the number that the corresponding
tag reads in the most recent time.
Trial
–
the number of trials to read a corresponding tag in the most recent time.
Success
Ratio
–
the most successful read rate of corresponding tag in the most recent time
(Success/Trial)
A
ntenna
-
RFID Reader
antenna number
(1~4) that tag reads
CH
–
the channel that tag is read.
Date/Time
–
the last time the tag is read.
(MMDD-hh:mm:ss)
2.4
Information
Total
Unique
Tag
It shows the number of read tags. If clear
t
ag
button is pressed, the value is initialized.
Total
Read
Count
It shows total number of read tag
data. Missing tag data by enable
l
eaks
is not included.
Rate
Mode
Followings are all items, that shows on the list with am method to calculate tag speed, and their
calculating methods.
time
mode
–
total number of read tag data is divided by interval time.
trial
mode
–
the number of trial time for
RFID Reader
to read
tag
data and successfully read count,
calculating rate
Rate
It shows information of how many tag data is read per second within interval time. It displays when rate
mode is time mode.
Success
Ratio
It is an item when rate mode is trial mode, and it displays how successfully tag data is read with what
success rate. It is displayed as percentage that c
ount
value divided by
trial
value.
Success
When rate
m
ode
is
trial
mode, it is displayed and means total sum of success value of tag data.
Trial
When rate
m
ode
is t
rial
mode, it displays and it is total sum of trial value of tag data.
Interval
It sets interval time to calculate rate. For example,
if i
nterval
value is set to 10, it shows tag data speed for
10 seconds.
ISO6B
Sensitivity
Average value of ISO-B
type
tags shows average sensitivity
value divided by 0~10 steps.
GEN2
Sensitivity
Average sensitivity value of GEN2 type tags shows
value divided by 0~10 steps.
Enable
Leaks
When “enable leaks” checkbox is selected, for an unread tag during corresponding hour is marked its
tag name as “No Tag.”
Fixed
Time
Test
If fixed time test checkbox is selected, test time and starting button become activated and it can test tag
data to read for a particular intervals. When s
tart
f
ixed
t
ime
r
eader
t
est
button is clicked, the test begins,
and value of tag information table and value of
total
u
nique
t
ags and
t
otal
r
ead
c
ount rate
become
initialized.
Reset
Rate
Total tags read from tag information table and value from read rate column become initialized to zero,
and total count and rate value on the main menu reset to zero.
8
www.samsungtechwin.co.kr
![](/img.php?id=1021124&img=bg9.png)
UHF
RFID READER
Clear
Tag
Data
Delete tag
i
nformation
t
able.
Beep
Sound
If “Beep
Sound” checkbox is selected, beep alarms when tag data is read.
Temperature
It displays temperatures on the reader.
2.5
User
Command
Command
Right after command is input as Hex
String,
Alias,
or
Macro on the
input control, the command is
transmitted to the connected RFID Reader when the “Send” button is pressed.
Response
Response packet from the RFID Reader regarding the received command is displayed.
9
www.samsungtechwin.co.kr
![](/img.php?id=1021124&img=bga.png)
UHF
RFID READER
3.
Reader
Connect
Setting

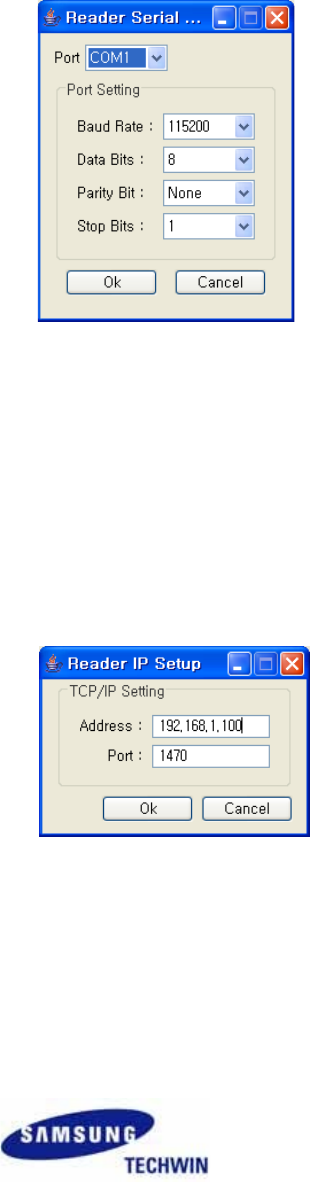

3.1
Serial
Port
Setting
The serial port is set as COM
p
ort,
or b
aud
r
ate.
Port
–
COM port is selected on the host.
Baud
Rate
–
sets communication speed.
Data
Bits
–
sets d
ata
b
it.
Parity
Bit
–
sets p
arity
b
it.
Stop
Bit
–
sets s
top
b
it.
3.2
TCP/IP
Setting
IP and port are set on the reader.
Address –IP Address is set on the Reader.
Port – Port is set on the Reader.
10
www.samsungtechwin.co.kr
![](/img.php?id=1021124&img=bgb.png)
UHF
RFID READER
4.
Reader
Setting

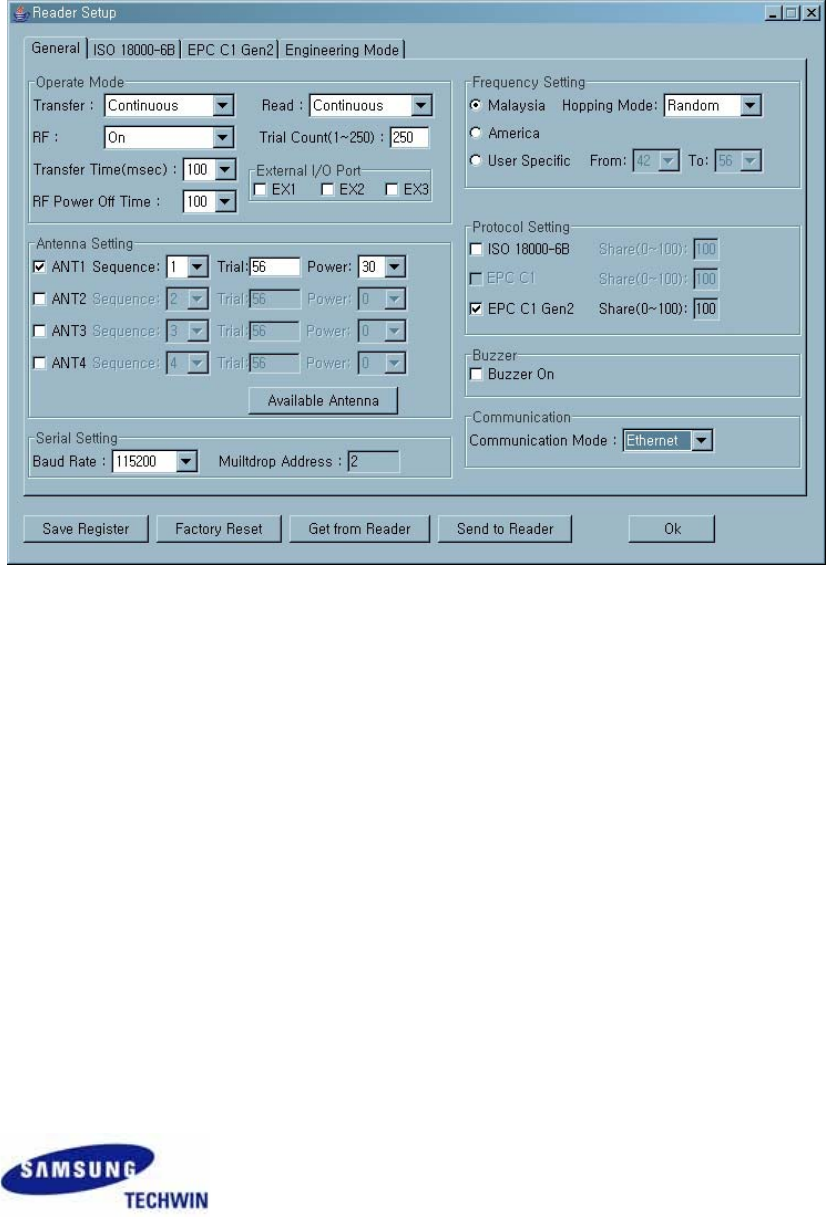

4.1
General
Setting
OP
Mode
Setting
It decides work mode of RFID Reader.
Transfer
-
Polled,
Continuous
Read
-
continuous,
polled_command,
polled_external_input
RF
-
On,
Off
Trial
Count
–
0
~
255
Transfer
Time
–
100
~
1000
msec
(100
msec
interval
)
External
I/O
Port
–
it chooses from e
xternal
I/O
Port
1,2, or 3.
RF Power
o
ff Time
-
100
~
1000
msec
(100
msec
interval
)
Antenna
Setting
It sets to use antenna 1~4 and their options.
Sequence
–
sets using order on the antenna
Trial –
sets antenna
trial
c
ount
Power
–
antenna o
utput
p
ower
is set
.
Available
Antenna
–
searches antenna that is connected with
RFID reader.
Serial
Setting
It sets serial communication speed on the reader.
Baud
Rate
–
sets communication speed of the r
eader.
11
www.samsungtechwin.co.kr
![](/img.php?id=1021124&img=bgc.png)
UHF
RFID READER
Multi-drop
Address
–
sets m
ulti-drop
a
ddress.
Serial
Mode
Setting
Sets frequency channels to use
From
–
sets “
Start” channel
To
–
sets “
End” channel
Hopping
Mode
–
select whether frequency hopping will be at random basis or in a series basis
within the selected frequency band
(Random,
Series).
Protocol
Setting
Sets protocol
(ISO
18000-6B,
EPC
C1,
EPC
C1
Gen2).
Buzzer
It turns on and off the buzzer of RFID Reader.
Communication
The communication method for RFID Reader
is set.
Communication
Mode
–
RS232,
Ethernet
12
www.samsungtechwin.co.kr
![](/img.php?id=1021124&img=bgd.png)
UHF
RFID READER

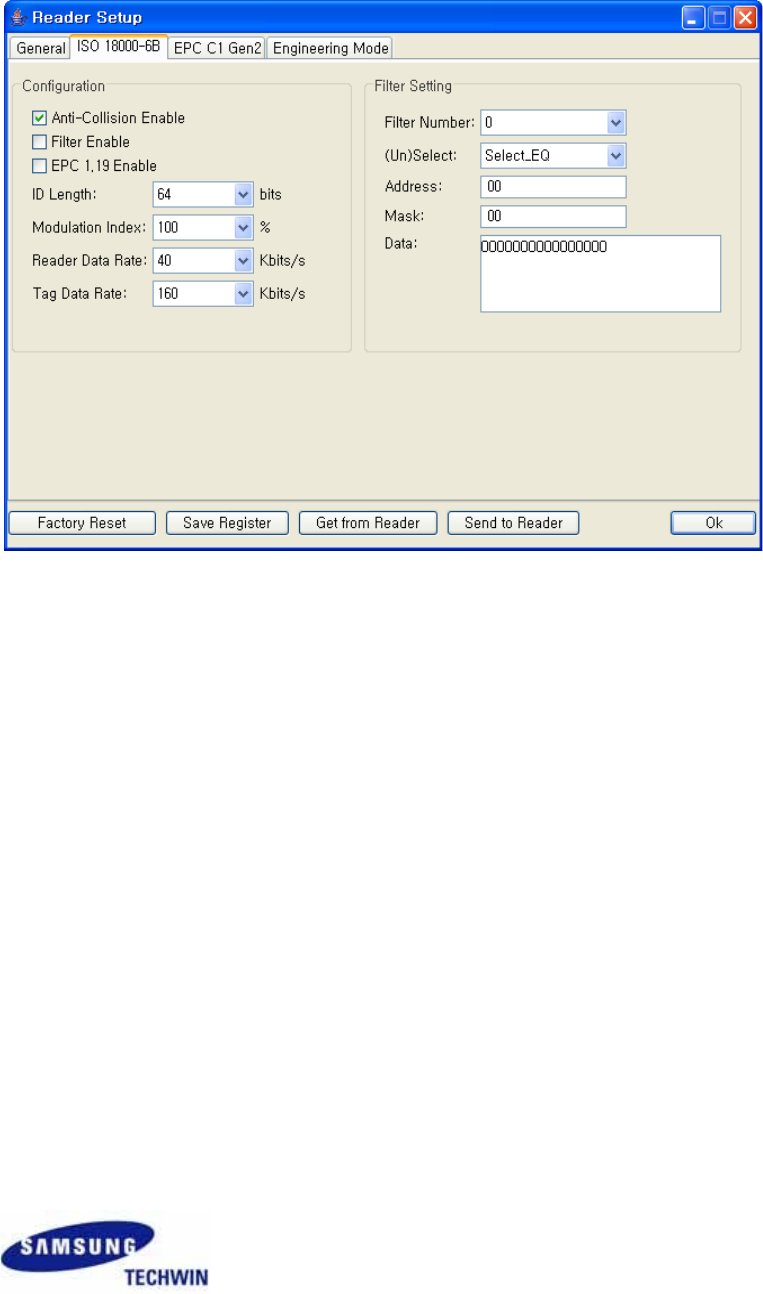

4.2
ISO
18000-6B
Setting
Configuration
ISO18000-6B
: sets all functions while
protocol
works.
Anti-Collision
–
using anti-collision algorism, it decides whether to read tag.
Filter
Enable
–
decides whether to read selectively read one with specific data when reading
tag
data
EPC
1.19
–
decides whether to apply
EPC1.19
protocol
ID
Length
–
decides the length of
tag
ID
(64,
96)
Modulation
Index
–
decides modulation
(18,
30,
50,
100)
Reader
Data
Rate
–
decides
RFID Reader’s communication speed
(40)
TAG
Data
Rate
–
decides
tag’s communication speed
(40,
160)
Filtering
Setting
When tag
ID
is being read, particular
data is selected and it sets options to read.
Filter
Number
–
filter number
(0
~
7)
(Un) Selection
-
Select_EQ,
select_GT,
select_LT,
Unselect_EQ,
Unselect_GT,
Unselect_LT
Address
-
tag
memory
address
Mask
-
it decides bites to compare when
tag’s
memory
data and data are compared.
Data
-
data to compare
13
www.samsungtechwin.co.kr
![](/img.php?id=1021124&img=bge.png)
UHF
RFID READER
4.3
EPC
C1
Gen2

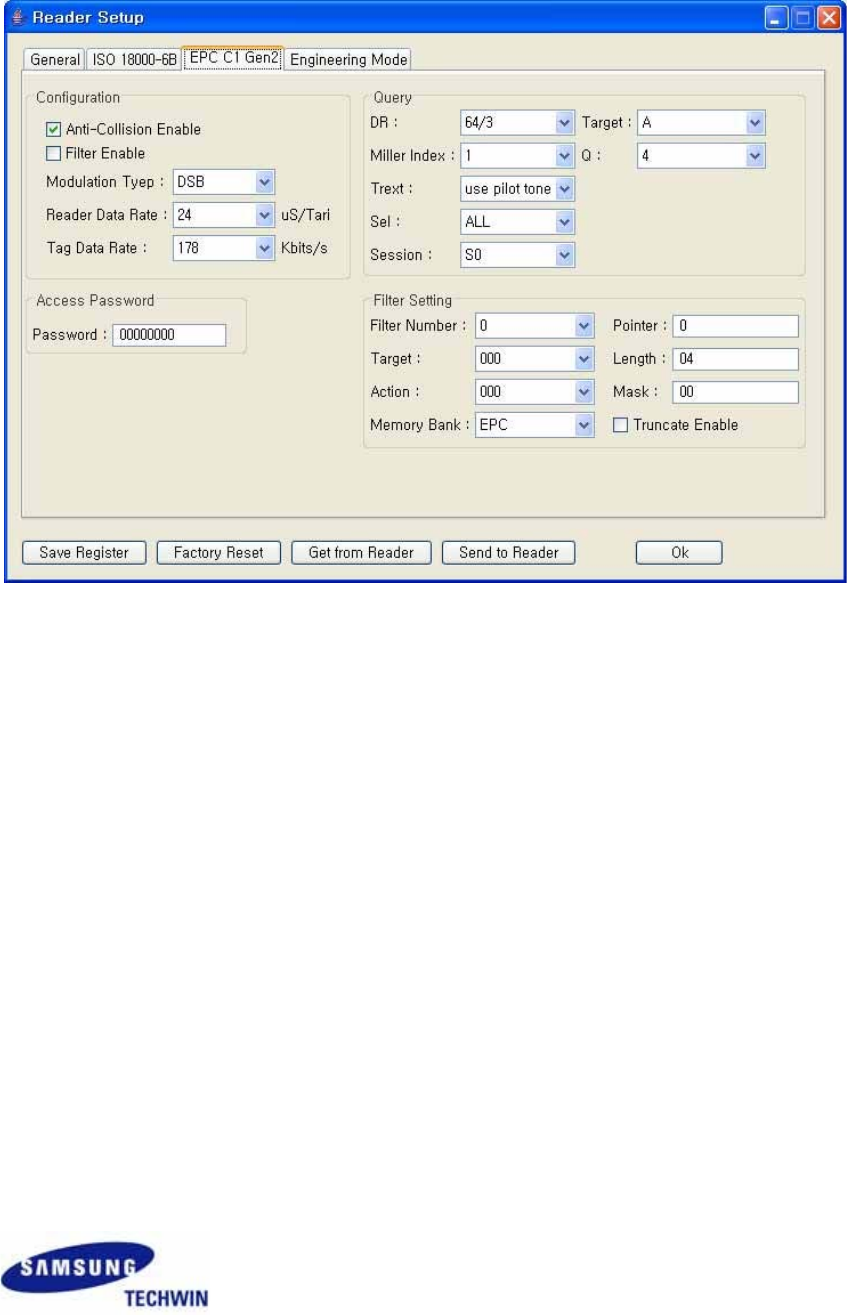

Setting
Configuration
EPC
C1
Gen2
sets all functions while
protocol
functions.
Anti-Collision
–
decides whether to read tag using anti-collision algorism.
Filtering
–
while reading
tag
data, it decides whether to read one with specific data.
Modulation
Type
–
selects type of modulation
(DSB,
SSB,
PR-ACK)
Reader
Data
Rate
-
decides communication speed of
RFID Reader
(24)
TAG
Data
Rate
–
decides communication speed of
tag
(40,
178)
Query
Setting
EPC
C1
Gen2
sets all functions while
protocol
functions.
DR
-
8,
64/3
Miller
Index
-
1,
2,
4,
8
Trext
-
no
pilot
tone,
use
pilot
tone
Sel
-
ALL,
ALL,
~SL,
SL
Session
-
S0
~
S3
Target
-
A,
B
Q
-
0
~
15
Filtering
Setting
When tag
ID
is read, it sets options to selectively read one with specific data
Filter
Number
–
filter number
(0
~
7)
Target
-
000
~
111
Action
-
000
~
111
Memory
Bank
-
RFU,
EPC,
TID,
User
14
www.samsungtechwin.co.kr
![](/img.php?id=1021124&img=bgf.png)
UHF
RFID READER
Pointer
–
starting address of memory to filter tag
Length
–
the number of data bit to filter
Mask
-
data bit to filter
Truncate
Enable
–
true,
false
Access
Password
Gen2
tag
confirms or changes password.
4.4

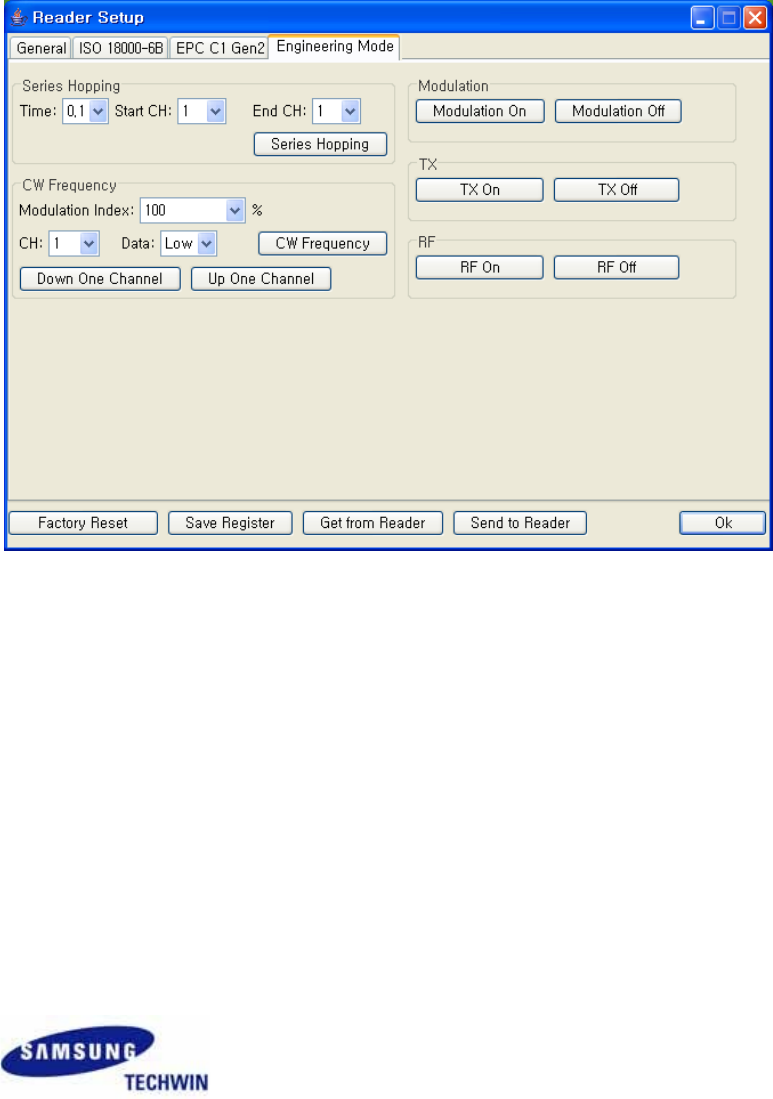

Engineering
Mode
Series
Hopping
When RF
frequency is measured,
within specific range of frequency, option to send out carrier
is set.
Time
-
0.1
~
1.0
Start
Channel
–
starting frequency channel
(1
~
127)
End
Channel
–
last frequency channel
(1
~
127)
Series
Hopping
-
Series
h
opping
command is transmitted to
RFID Reader.
CW
Frequency
CW from corresponding
channel is sent out.
CH
-
frequency channel
(1
~
127)
Data
-
LOW,
HIGH
Modulation
Index
–
decides modulation
(18,
30,
50,
100)
CW
Frequency
-
CW
Frequency
command is transmitted to
RFID Reader.
Up
One
Channel
–
increases another channel and
CW
Frequency
command is transmitted to
RFID
Reader.
Down
One
Channel
–
channel is decreases and
CW
f
requency
command is transmitted to
RFID
Reader.
15
www.samsungtechwin.co.kr
![](/img.php?id=1021124&img=bg10.png)
UHF
RFID READER
Modulation
Setting
It turns on and off modulation.
Modulation
On
Modulation
Off
TX
Setting
It turns on and off transmitting frequency.
TX
On
TX
Off
RF
Setting
It turns on and off transmitting and receiving frequency.
RF
On
RF
Off
4.5
Command
Button
Factory
Reset
It sets register value that RFID Reader
is made at the beginning point.
Save
Register
The register value that current RFID Reader
has is saved on the
RFID Reader
memory.
Get
from
Reader
Setting value of RFID Reader
is read and shown on the screen. Process of g
etting
from
the
Reader
is
executed by
General,
ISO
18000-6B, 0EPC
C1
Gen2,

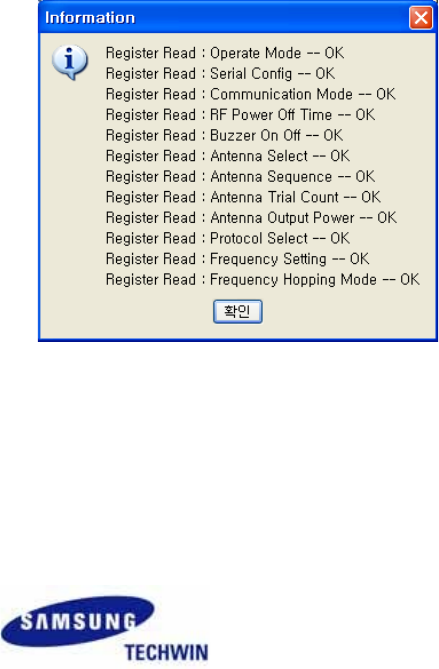

respectively. Response for command is as below
following message box.
Send
to
Reader
To reflect setting value of the screen on the RFID Reader, commands are transmitted. It is run by unit of
General,
ISO
18000-6B,
and
EPC
C1
Gen2,
respectively. Response for each command is shown as
message box below.
16
www.samsungtechwin.co.kr
![](/img.php?id=1021124&img=bg11.png)
UHF
RFID READER
17
www.samsungtechwin.co.kr
![](/img.php?id=1021124&img=bg12.png)
UHF
RFID READER
5.
Reader
Control
5.1
External
I/O

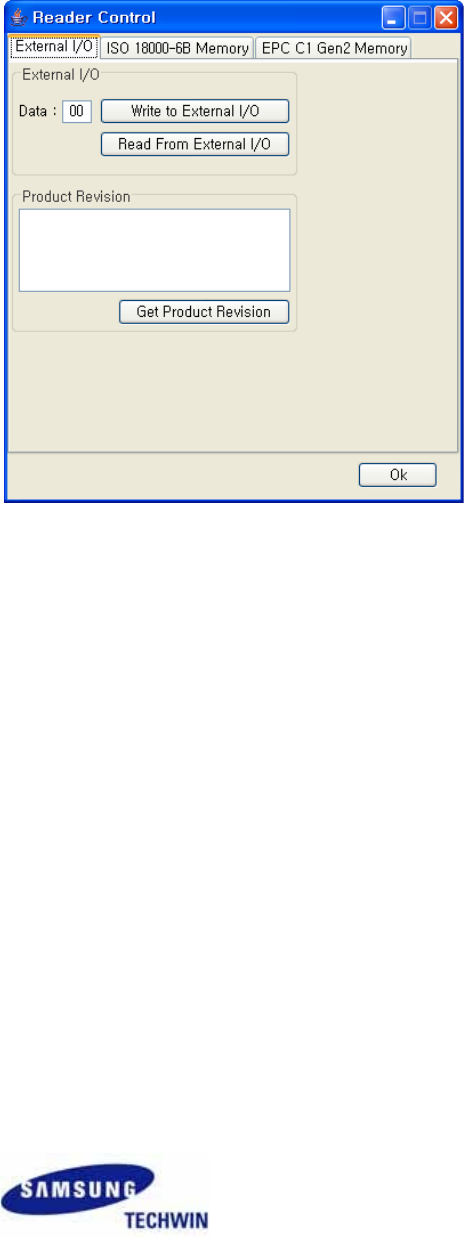

Write
to
External
I/O
–
outputs on the exterior output port
Data
-
1
Byte
Data
Read
from
External
I/O
–
it reads status of exterior output port and displays it.
Get
Product
Revision
-
RFID Reader’s version and serial number are transmitted and are displayed.
18
www.samsungtechwin.co.kr
![](/img.php?id=1021124&img=bg13.png)
UHF
RFID READER
5.2

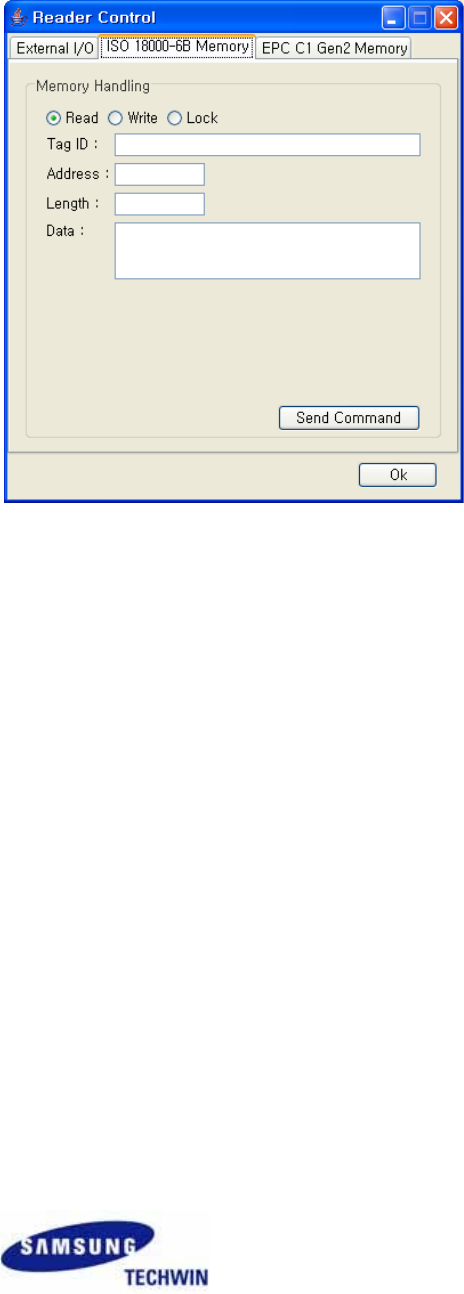

ISO
18000-6B
Memory
Memory
Handling
-
Read
Reads data of the corresponding
memory
address
ID
-
tag
ID
Address
-
tag
memory
address
(0x00
~
0xDF)
Length
–
the number of bites to be read from the
corresponding
memory
address (below 128 byte)
Memory
Handling
-
Write
Writes corresponding data on the corresponding
memory
address.
ID
-
tag
ID
Address
-
tag
memory
address
(0x00
~
0xDF)
Length
–
number of bites to be recorded
(below 128 byte)
Data
-
data
to be recorded
(below 255 byte)
Memory
Handling-
Lock
Lock on the corresponding
memory
address.
ID
-
tag
ID
Address
-
tag
memory
address
(0x00
~
0xDF)
Length
–
the number of bites to lock from the
corresponding
memory
address
19
www.samsungtechwin.co.kr
![](/img.php?id=1021124&img=bg14.png)
UHF
RFID READER
5.3

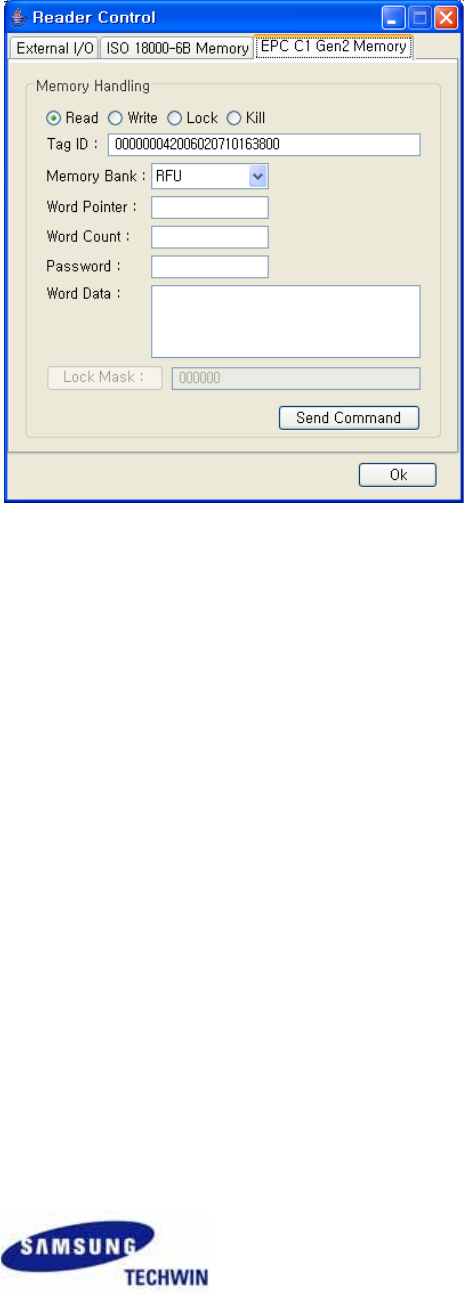

EPC
C1
Gen2
Memory
Memory
Handling
-
Read
It reads data value of the corresponding memory address.
ID
-
tag
ID
Memory
Bank
-
RFU,
EPC,
TID,
User
WORD
Pointer
-
tag
memory
address (automatically operated to EVB)
WORD
Count
–
the number of data word that is to be read from
corresponding
memory
address
Memory
Handling
-
Write
Corresponding
data
value is written on the
corresponding
memory
address.
TAG
ID
-
tag
ID
Memory
Bank
-
RFU,
EPC,
TID,
User
WORD
Pointer
-
tag
memory
address (automatically operated to EVB)
WORD
Count
-
the number of
data
word to be read from the corresponding
memory
address
WORD
Data
–
the
data
to record
(more than 1
word
)
Memory
Handling
–
Lock
Lock corresponding memory address.
ID
-
tag
ID
Password
-
Lock
4 bites password
Lock
Mask
–
If the
Lock
Mask

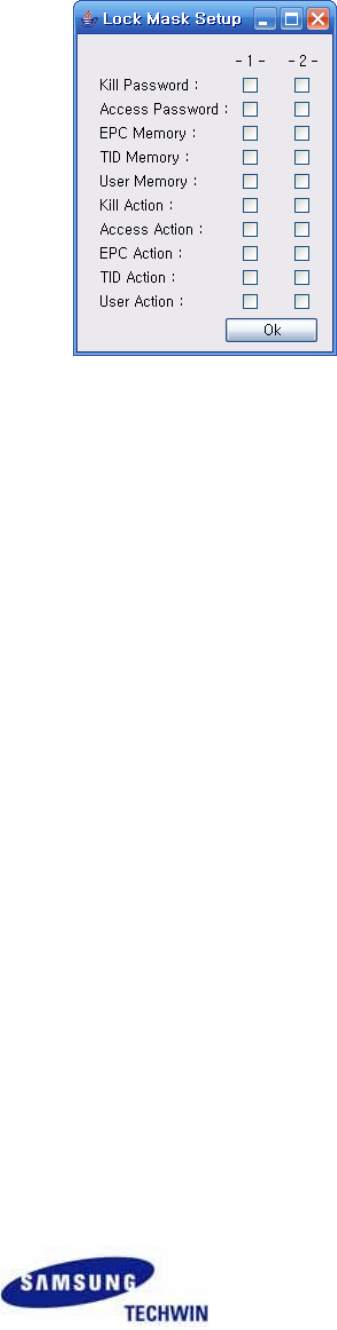

button is clicked, following diagram will pop up. Check each item
and press “O.K.” button. Then, automatically Lock Mask value of 3 bites is calculated.
20
www.samsungtechwin.co.kr
![](/img.php?id=1021124&img=bg15.png)
UHF
RFID READER
Memory
Handling
-
Kill
Kills tag
ID
-
tag
ID
Password
-
Kill
password 4 bites
21
www.samsungtechwin.co.kr
![](/img.php?id=1021124&img=bg16.png)
UHF
RFID READER
6.
Firmware
Upgrade
Firmware
Upgrade
It is upgraded to the latest version of the RFID Reader
firmware.

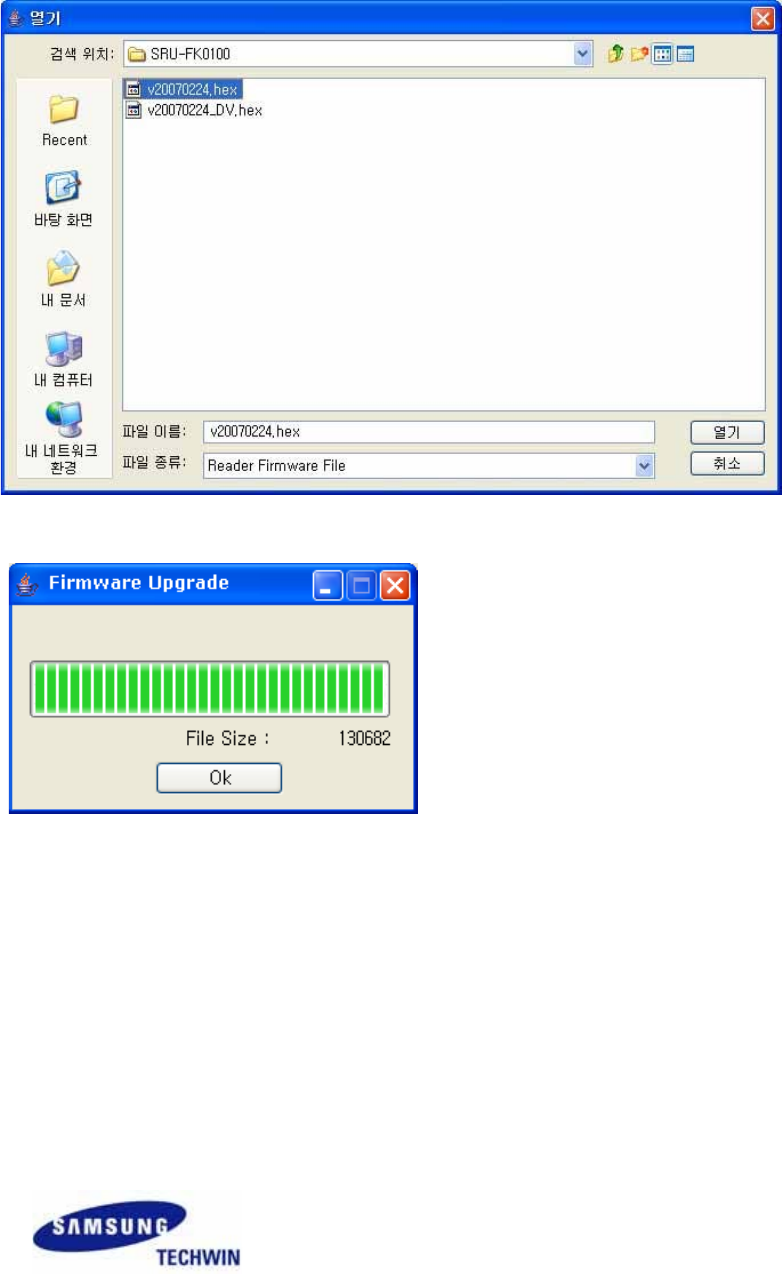

On the s
ystem
menu,
f
irmware
u
pgrade
is selected.
Windows to select f
irmware
is displayed.
Select
*.hex
file.
It appears as the above diagram and, upon completion, beep sound will alarm on the RFID Reader.
Once
O.K.
button is pressed, download is completed.
Disconnect on the
GUI
screen and reconnect.
22
www.samsungtechwin.co.kr
![](/img.php?id=1021124&img=bg17.png)
UHF
RFID READER
7.
Command
Alias
Command alias gives alias to hex command that transmits to RFID Reader for user to help to use command.
And also it is designed to transmit multiple commands at once in order to input several aliases into one alias.
The
command
a
lias

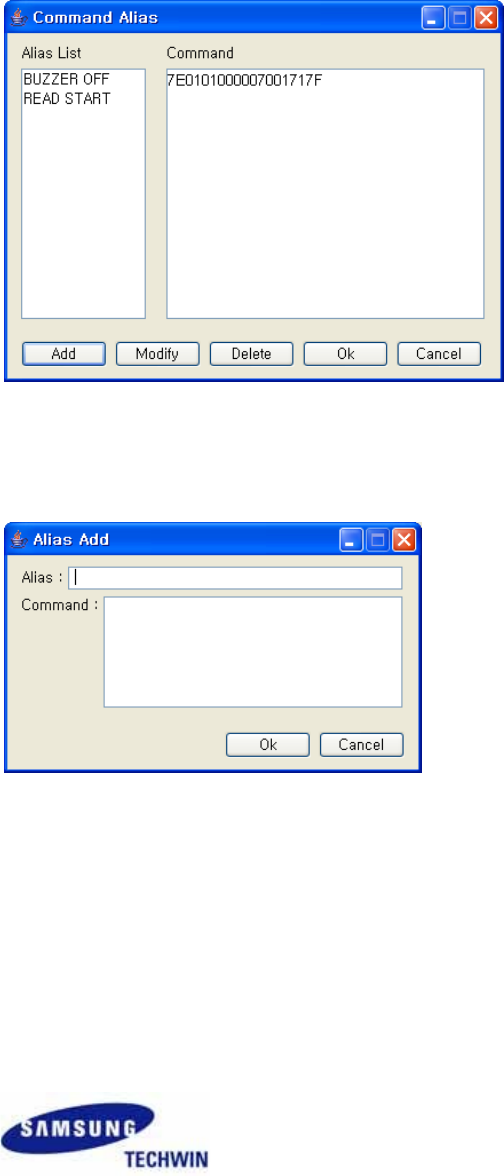

is composed of following pop-up menu and has functions that can add, modify and delete
alias.
Add
When “Add” button is clicked, then following pop-up menu appears. Input “Alias” and “Command,”
and
press “O.K.” button adding alias.
Modify
When Hex Command assigned to Alias is modified, directly modify on the command text box and click on
“Modify” button.
Delete
To delete the Alias, select Alias to be deleted and click on “Delete” button.
23
www.samsungtechwin.co.kr
![](/img.php?id=1021124&img=bg18.png)
UHF
RFID READER
Macro
Macro
is composed of multiple alias and can be generated on the alias add windows as seen on the following
menu.
Provide macro name as the pop-up menu and input alias that can be included on the command.
Ok
When “O.K.” button is clicked, defined contents on the command alias screen is saved on the
/Config/CommandAlias.xml. The contents of the CommandAlias.xml is as seen below.
24
www.samsungtechwin.co.kr
![](/img.php?id=1021124&img=bg19.png)
UHF
RFID READER
8.
Channel
Setup
8.1
Channel
Setup
Overview
Channel
Setup

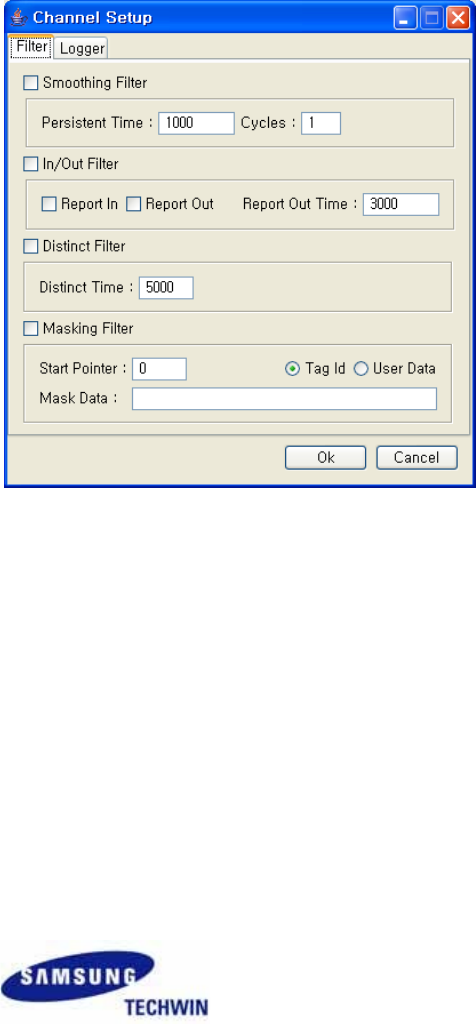

is a screen that sets filter and logger, and set-up contents is reflects on the tag information
view. It is implemented by filter of c
hannel
s
etup; a
nd l
ogger
is by
Java
API. Channel
s
etup’s filter
has
s
moothing,
i
n/out,
d
istinct,
and m
asking, and logger has file logger. Each will be explained further in
details.
.
8.2
Filter
Smoothing
Filter
During persistent
t
ime, at least tag should be read as cycles to make happen tag event.
Persistent
Time
–
assigned time
(unit:
msec)
Cycles
–
the number of assignment
In/Out
Filter
When tag is initially recognized (In), tag event occurs. And when tag is not read during report out time
(Out), tag event occurs.
Report
In
–
When
tag is in, tag event is made.
Report
Out
–
When
tag is out, tag
event is made.
Report
Out
Time
–
the time to process
tag
o
ut
(unit:
msec)
Distinct
Filter
Tag event is distinct during distinct time. When the tag is read on the distinct time, tag event is again
distinct from that point.
Distinct
Time
–
the time that is distinct event
(unit:
msec)
25
www.samsungtechwin.co.kr
![](/img.php?id=1021124&img=bg1a.png)
UHF
RFID READER
Masking
Filter
With regards to tag ID and user data, when designated data(mask data) and hex pattern matche from
designated location(starter pointer), tag event occurs.
Start
Pointer
–
location that compares starting
tag
Mask
Data
–
comparing
data
Tag
Id
–
Apply masking filter to t
ag
ID.
User
Data
–
Apply masking filter to u
ser
d
ata.
8.3
Logger
File
Logger
Record tag
event on the file.
The tag event that is recorded on file
is as follows:
time,
tagID,
tagProtocol,
antennaNumber,
count,
sensitivity
Append
–
if file exists, do not overwrite on and add at the end of it.
26
www.samsungtechwin.co.kr
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
con-nected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, (example - use only shielded interface cables
when connecting to computer or peripheral devices). Any changes or modifications not
expressly approved by the party responsible for compliance could void the user’s authority to
operate this equipment.This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation
IMPORTANT NOTE:
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
![](/img.php?id=1021124&img=bg1c.png)
IMPORTANT Safety Instruction:
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this equipment near water.
6) Do not using near any heat sources such as radiators, heat resisters, stove, or other
equipment that produce heat.
7) Internal Lithium coin batteries type:
- Rechargeable coin battery(BT2) SANYO ENERGY, ML 2430
- RTC(Real Time Clock) coin battery(BT1) FDK Energy Co., Ltd., CR 2032
* This device will only be installed professionally
*Antenna information
- Antenna type : PANNEL Antenna
- Antenna Gain : 5.19dBi
- RF cable length : 5m
