Transmitter

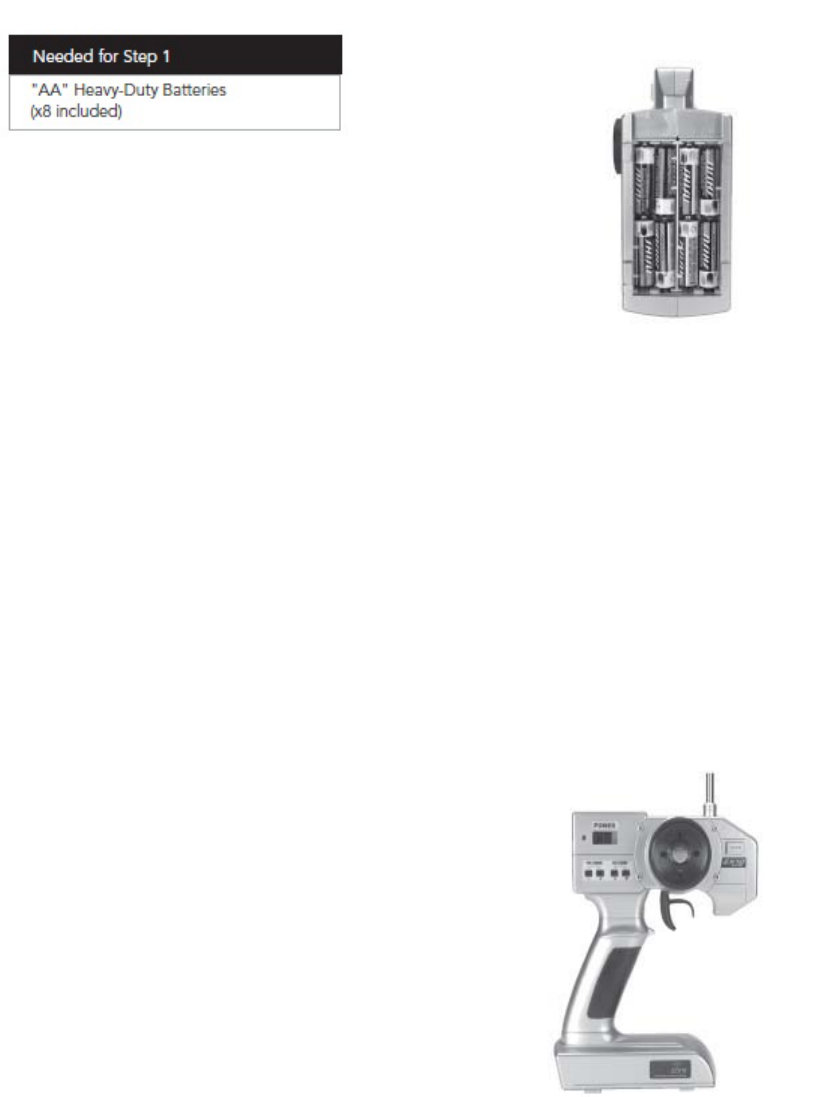

1. Remove the transmitter bottom cover by pushing down with
thumbs, as indicated by the arrows
2. Install batteries. Use fresh 1.5V “AA” batteries only.
3. Watch polarity. Replace cover.
4. To test, switch on transmitter—LED should glow brightly
5. Replace batteries when you hear low-battery alarm(beeping
sound)
Motor Test and Battery Discharging
CAUTION:Keep everthing clear of the propller. A moving propller can cause injury
1. The buttons below the power switch and labeled as
“TH. Trim” are the digital throttle trim buttons. With
your boat on the stand, turn on the transmitter and
install the battery.
2. If motor is running, make sure the throttle trigger is
centered at neutral and press”-“ throttle trim button
until the motor stops
3. Pull the throttle trigger back. Motor speed will increase
as the throttle trigger is pulled back.
4. In order to fully discharge the battery , run the motor
at high speed until it shuts off. If there is not eough
charge in the battery to power the propeller, then
proceed to Step4.
5. When finished with the motor test, be sure to
disconnect the battery first, then turn off the
transmitter.
![](/img.php?id=1928183&img=bg2.png)
Rudder Test

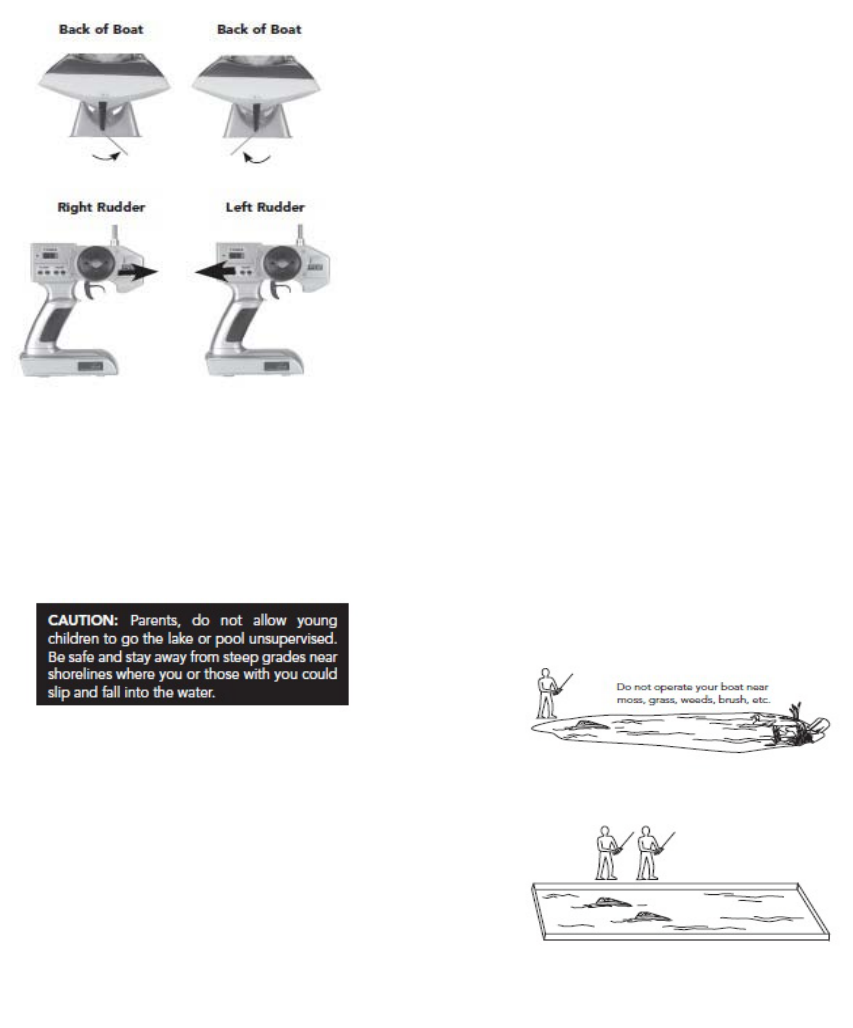

Move the steering wheel side to side. The rudder should
move as shown in the drawings
NOTE: The small buttons labeled as ”ST.Tr im” under the
power switch are the digital steering buttons and are used
to adjust the “neutral” point of your steering wheel. To do
this, leave the steering wheel in the center position. If
rudder is not aligned straight ahead, use the digital rudder
trim buttons to center it
Choosing Your Location
1. Choose a locatoin that is not being used by
swimmers when you are running your boat
2. If you choose a lake, be sure there is no moss,
grass, weeds or debris present that could get
warpped around the propeller or trap your boat
offshore
3. Make sure the shoreline is clear and relatively
flat so you can easily launch, operate and
retrieve your boat.
Do Not mix radio control boating and swimming.
![](/img.php?id=1928183&img=bg3.png)
Range test

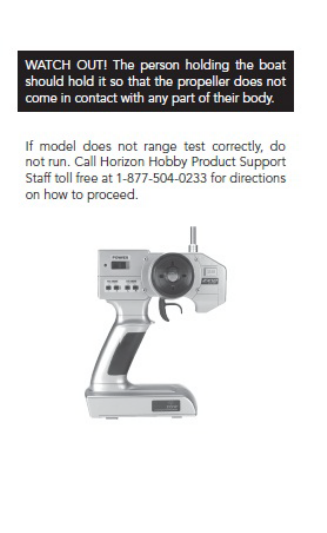

You will need two people to do the range test: one to
hold the transmiiter and one to hold the zig zag Racer 3.
1. One person holds the tranmitter; the other person
walks 100paces away with the boat
2. Extend the transmitter antenna completely and turn
the transmitter on.
3. Plug in the battery and close the hatch cover.
4. As the first person moves both of the trasmitter
controls at the same time, the other person watches
to be sure the boat’s motor and rudder controls
operate smoothly
This equipment has been tested and found to comply
with the limits for Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does
cause harmful interference to radio or television reception, which can be determined by turning the
equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Note: Modifications to this product will void the user’s authority to operate this equipment.
This Category II radiocommunication device complies with Industry Canada Standard RSS-310.
Ce dispositif de radiocommunication de catégorie II respecte la norme CNR-310 d’Industrie Canada.
