iii
this radio by the manufacturer or an antenna specifically authorized
by the manufacturer for use with this radio.
•DO NOT transmit for more than 50% of total radio use time (
“
50%
duty cycle”). Transmitting more than 50% of the time can cause
FCC RF exposure compliance requirements to be exceeded. The
radio is transmitting when the “TX indicator” lights red. You can
cause the radio to transmit by pressing the “PTT” switch.
•ALWAYS use Icom authorized accessories (antennas, batteries,
belt clips, speaker/mics, etc). Use of unauthorized accessories can
cause the FCC RF exposure compliance requirements to be ex-
ceeded.
•ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the
body when transmitting and only use the Icom belt-clips, listed in p. 22,
when attaching the radio to your belt, etc., to ensure FCC RF ex-
posure compliance requirements are not exceeded. To provide the
recipients of your transmission the best sound quality, hold the an-
tenna at least 5 cm (2 inches) from mouth, and slightly off to one
side.
The information listed above provides the user with the information
needed to make him or her aware of RF exposure, and what to do to
assure that this radio operates within the FCC RF exposure limits of this
radio.
Electromagnetic Interference/Compatibility
During transmissions, your Icom radio generates RF energy that
can possibly cause interference with other devices or systems. To
avoid such interference, turn off the radio in areas where signs are
posted to do so. DO NOT operate the transmitter in areas that are
sensitive to electromagnetic radiation such as hospitals, aircraft,
and blasting sites.
Your Icom radio generates RF electromagnetic
energy during transmit mode. This radio is de-
signed for and classified as “Occupational Use
Only”, meaning it must be used only during the
course of employment by individuals aware of the
hazards, and the ways to minimize such hazards.
This radio is NOT intended for use by the “General Popula-
tion” in an uncontrolled environment.
This radio has been tested and complies with the FCC RF expo-
sure limits for “Occupational Use Only.” In addition, your Icom radio
complies with the following Standards and Guidelines with regard to
RF energy and electromagnetic energy levels and evaluation of
such levels for exposure to humans:
• FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating
Compliance with FCC Guidelines for Human Exposure to Radio
Frequency Electromagnetic Fields.
• American National Standards Institute (C95.1 – 1992), IEEE Stan-
dard for Safety Levels with Respect to Human Exposure to Radio
Frequency Electromagnetic Fields, 3 kHz to 300 GHz.
• American National Standards Institute (C95.3 – 1992), IEEE Rec-
ommended Practice for the Measurement of Potentially Hazardous
Electromagnetic Fields – RF and Microwave.
To ensure that your exposure to RF electromag-
netic energy is within the FCC allowable limits for
occupational use, always adhere to the following
guidelines:
•DO NOT operate the radio without a proper antenna attached, as
this may damage the radio and may also cause you to exceed FCC
RF exposure limits. A proper antenna is the antenna supplied with
WARNING
CAUTION
SAFETY TRAINING INFORMATION
![](/img.php?id=159694&img=bg2.png)
iviii
FOREWORD
Thank you for purchasing the IC-F11/S, F21/S FM transceiver.
READ ALL INSTRUCTIONS carefully and completely before using
the transceiver.
SAVE THIS INSTRUCTION MANUAL–This instruction manual
contains important operating instructions for the transceiver.
IMPORTANT
RCAUTION! NEVER hold the transceiver so that the antenna is
very close to, or touching exposed parts of the body, especially the
face or eyes, while transmitting. The transceiver will perform best if
the microphone is 2 to 4 in. (5 to 10 cm) away from the lips and the
transceiver is vertical.
RCAUTION! NEVER operate the transceiver with a headset or
other audio accessories at high volume levels.
RCAUTION! NEVER short the terminals of the battery pack.
DO NOT push the PTT when not actually desiring to transmit.
AVOID using or placing the transceiver in direct sunlight or in areas
with temperatures below +14°F (–10°C) or above +122°F (+50°C).
DO NOT modify the transceiver for any reason.
KEEP the transceiver from the heavy rain, and Never immerse it in
the water. The transceiver construction is water resistant, not
water proof.
The use of non-Icom battery packs/chargers may impair transceiver
performance and invalidate the warranty.
FCC caution: Changes or modifications to this transceiver, not
expressly approved by Icom Inc., could void your authority to op-
erate this transceiver under FCC regulations.
TABLE OF CONTENTS
SAFETY TRAINING INFORMATION . . . . . . . . . . . . . . . . . . . . . . .i-ii
FOREWORD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
IMPORTANT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
TABLE OF CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv
1 PANEL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–3
‘Switches, controls, keys and connectors . . . . . . . . . . . . . . .1–2
‘LED indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2 ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3 BATTERY PACKS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–11
‘Battery pack replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
‘Battery cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
‘Battery charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-9
‘ Charging NOTE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
‘ Battery case (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
44 PPRROOGGRRAAMMMMAABBLLEE FFUUNNCCTTIIOONNSS .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..12-16
‘General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
5 CONVENTIONAL OPERATION . . . . . . . . . . . . . . . . . . . . . .17-18
‘Receiving and transmitting . . . . . . . . . . . . . . . . . . . . . . . . . .17
‘Call procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
‘Transmitting notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
6 CLONING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
7 OPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21-22
![](/img.php?id=159694&img=bg3.png)
1 2
1
PANEL DESCRIPTION
PANEL DESCRIPTION
1

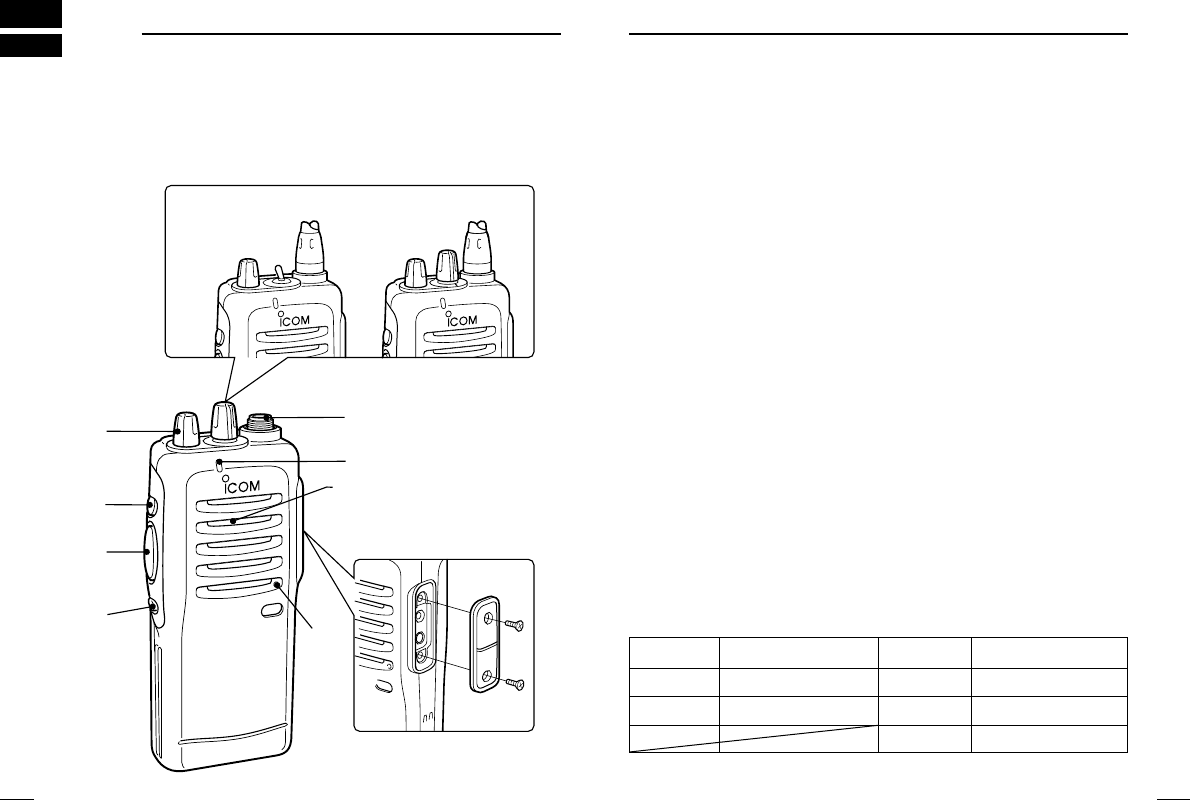

qCHANNEL SELECTOR/SW [CH]
• 2CH version: Toggle the CH switch to select CH1 or CH2.
• 16CH version: Turn the selector knob to select the pro-
grammed operating channel.
wVOLUME CONTROL [OFF/VOL]
Turns power ON and adjusts the audio level.
eDEALER-PROGRAMMABLE KEY [Upper]
Can be programmed for one of several functions by your Icom
dealer.
rPTT SWITCH [PTT]
Push and hold to transmit; release to receive.
tDEALER-PROGRAMMABLE KEY [Lower]
Can be programmed for one of several functions by your Icom
dealer.
yANTENNA CONNECTOR
Connects the supplied antenna.
uTX/RX INDICATOR LED (see p. 3)
• Lights red while transmitting.
• Lights green while receiving a signal, or squelch is open.
i[SP]/[MIC] JACK
Connects optional speaker-microphone.
NOTE: Above functions depend on pre-setting.
‘‘Switches, controls, keys and
connectors
y
u
Speaker
Mic
w
e
r
t
i
2CH version
CH1↔CH2 16CH version
CH1 to CH16
q
SP MIC
Red
Upper
Lower
Mic Up*
Mic Down*
Mic A*
Mic B*
DDProgrammable key reference ([Red] depends on version.)
*These functions are available when the optional Speaker/Mic. is con-
nected.
![](/img.php?id=159694&img=bg4.png)
‘‘LED indicator

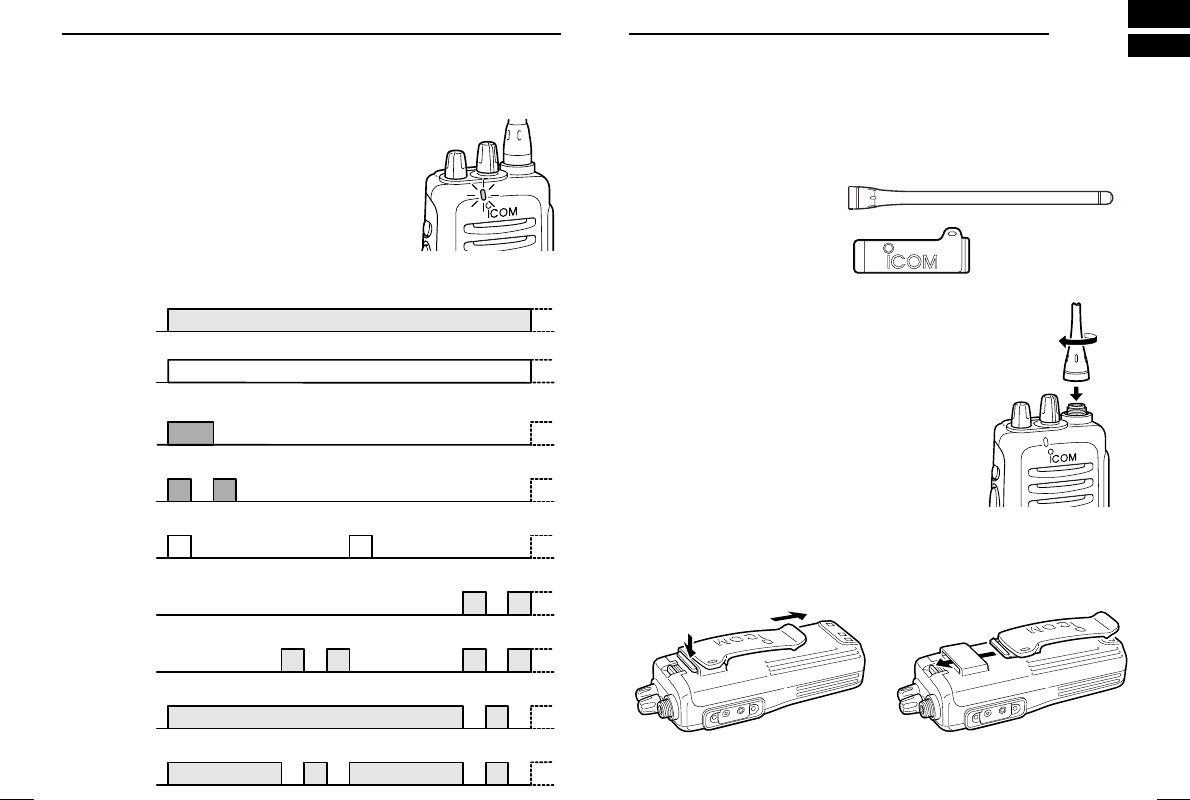

The TX/RX indicator LED indicates several
more information as follows;
(Ref.; R=Red, G=Green, O=Orange)
2
ACCESSORIES
PANEL DESCRIPTION
1
43
‘‘Accessory attachment
DSupplied accessories
The transceiver comes supplied with the following accessories.
qFlexible antenna
wBelt clip

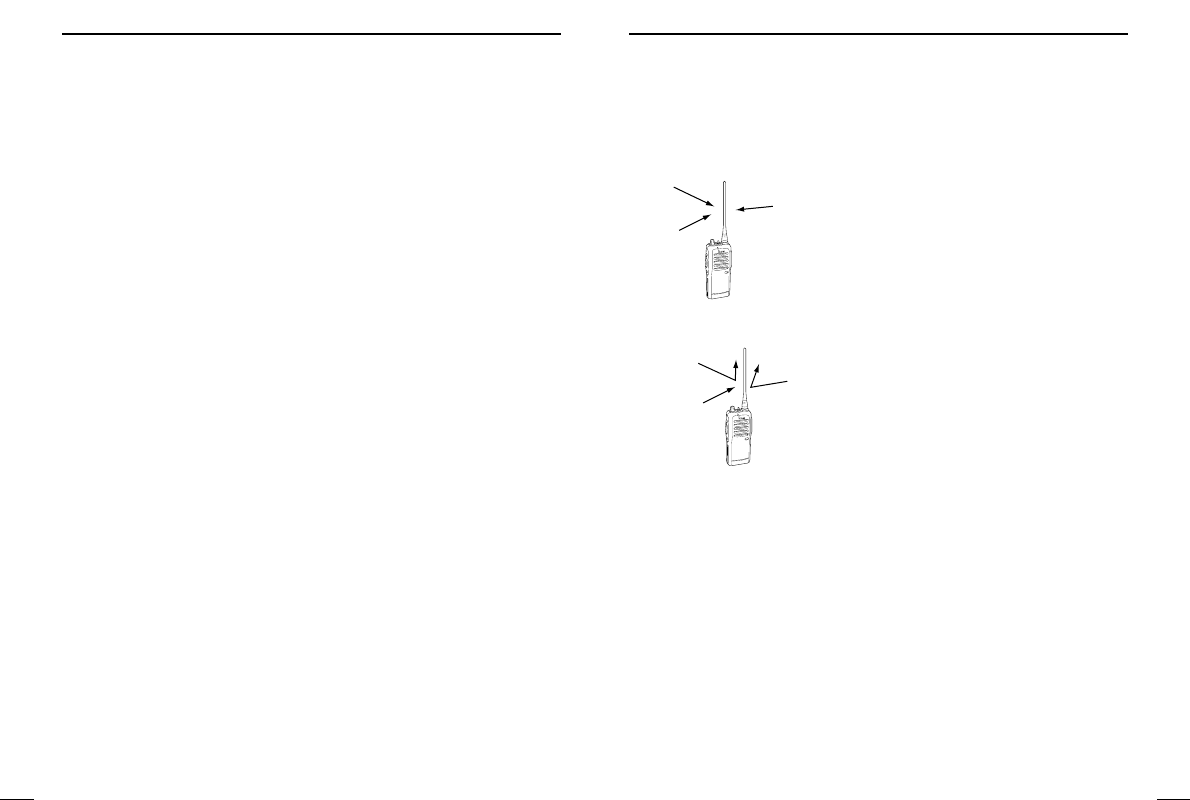

DAntenna
The antenna screws onto the transceiver as
illustrated right.
DBelt clip
Attach the belt clip to the transceiver as illustrated below.
q
w
R R R R
R R
O O
O O
R R R R
R R
G
G G
R
•TX: Turns Red while transmitting a signal.
•RX: Turns Green while receiving a signal.
•Call LED (ON): When receiving a matched 2/5TONE.
•Call LED (Blink): When receiving a matched 2/5TONE.
•Fast/Slow scan: Blinks while Fast/Slow scan is activated.
•Low BATT1: You should charge the battery. (blinks slowly)
•Low BATT2: You must charge the battery. (blinks fast)
•TX low BATT1: Low BATT1 was detected during TX mode.
•TX low BATT2: Low BATT2 was detected during TX mode.
![](/img.php?id=159694&img=bg5.png)
65
3
BATTERY PACKS
3BATTERY PACKS
‘‘Battery cautions
• CAUTION! NEVER short the terminals of the battery pack (or
charging terminals of the transceiver). Also, current may flow into
nearby metal objects such as a necklace, so be careful when plac-
ing battery packs (or the transceiver) in handbags, etc.
Simply carrying with or placing near metal objects such as a neck-
lace, etc. causes shorting. This will damage not only the battery
pack, but also the transceiver.
• NEVER incinerate used battery packs. Internal battery gas may
cause an explosion.
• NEVER immerse the battery pack in water. If the battery pack be-
comes wet, be sure to wipe it dry BEFORE attaching it to the
transceiver.
• Clean the battery terminals to avoid rust or miss contact.
• Keep battery contacts clean. It’s a good idea to clean battery ter-
minals once a week.
If your battery pack seems to have no capacity even after being
charged, completely discharge them, then fully charge the battery
pack again. If the battery pack still does not retain a charge (or only
very little charge), a new battery pack must be purchased.
DDRecycling information (U.S.A. only)
The battery (BP-209, BP-210 or BP-222) that you
have purchased is recyclable. At the end of its life,
under various state and local laws, it may be illegal
to dispose of this battery into the municipal waste
stream. Call 1-800-822-8837 for battery recycling
options in your area or contact your dealer.
‘‘Battery pack replacement
Before replacing the battery pack, the volume control MUST be ro-
tated fully counterclockwise,
until a click is heard, to turn the
power OFF.

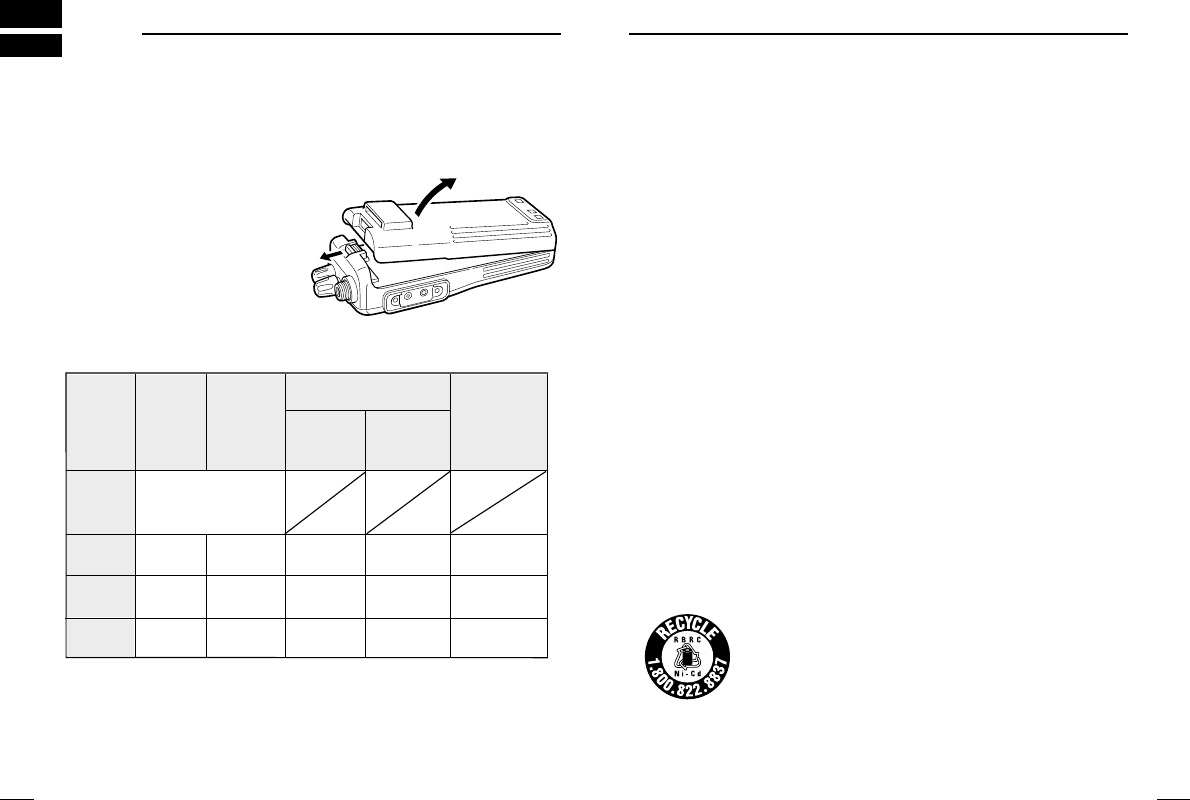

•Push the battery release for-
ward, then pull the battery
pack upward with the trans-
ceiver facing you.
DDBATTERY PACKS
*1Operating periods are calculated under the following conditions;
Tx : Rx : standby =5 : 5 : 90
*1Operating period depends on the alkaline cells used. (BP-208 only)
*2Output power is automatically reduced to 1 W to retain sufficient power
in case of an emergency, etc.
*3Operating period measured with the 2 W model.
yrettaB kcap egatloV yticapaC
doirepgnigrahC gnitarepO *doirep
1
BC-146
BP-208*
2
AArofesacyretta
B)6R( ×enilakla6
902-PB V2.7srh21srh5.1srh8
012-PB V2.7 0561 hAm 18.5 hrs srh0.2srh11
1100
mAh
BP-222*
3
V2.7 006 hAm rh1 hrs
5.5*
3
6.5 hrs
BC-144,
BC-119 or
BC-121
![](/img.php?id=159694&img=bg6.png)
8
3
BATTERY PACKS
7
3BATTERY PACKS
DRapid charging with the BC-144+AD-99
DDSpacer combination.
•Be sure to attach the
spacer (Spacer B/C) to
the adapter (Spacer A)
with the orientation as il-
lustrated in the diagram at
right.
•Attach the spacer
(Spacer B/C) to the
adapter with the orientation of the stamp “” pointing up.
NOTE: Push the notch carefully
when remove the spacer from the
adapter.
Turn power OFF
BP-209, BP-210
or BP-222 attached
to the transceiver.
AC adapter
BC-145A/E/V/UK
Charging indicator
‘‘Battery charging

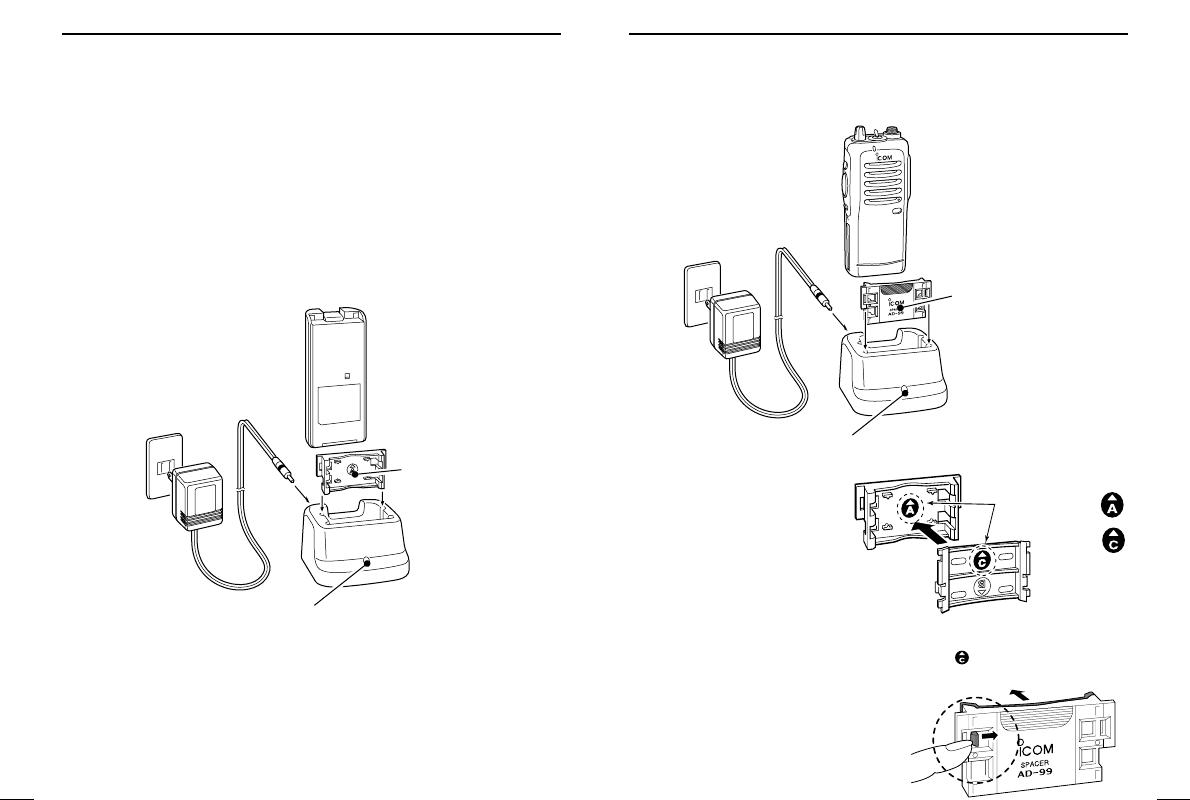

DRapid charging with the BC-144+AD-99
The optional BC-144 provides rapid charging of optional battery
packs.
The following are additionally required:
• One AD-99 (depends on version.).
• An AC adapter (may be supplied with the BC-144 depending on
version).
AC adapter
BC-145A/E/V/UK
BP-209, BP-210
or BP-222 only
Charging indicator
Check orientation.
Check orientation
and
Spacer A
Spacer B/C
Check orientation
and the spacer com-
bination as follows.
![](/img.php?id=159694&img=bg7.png)
10
3
BATTERY PACKS
9
3BATTERY PACKS

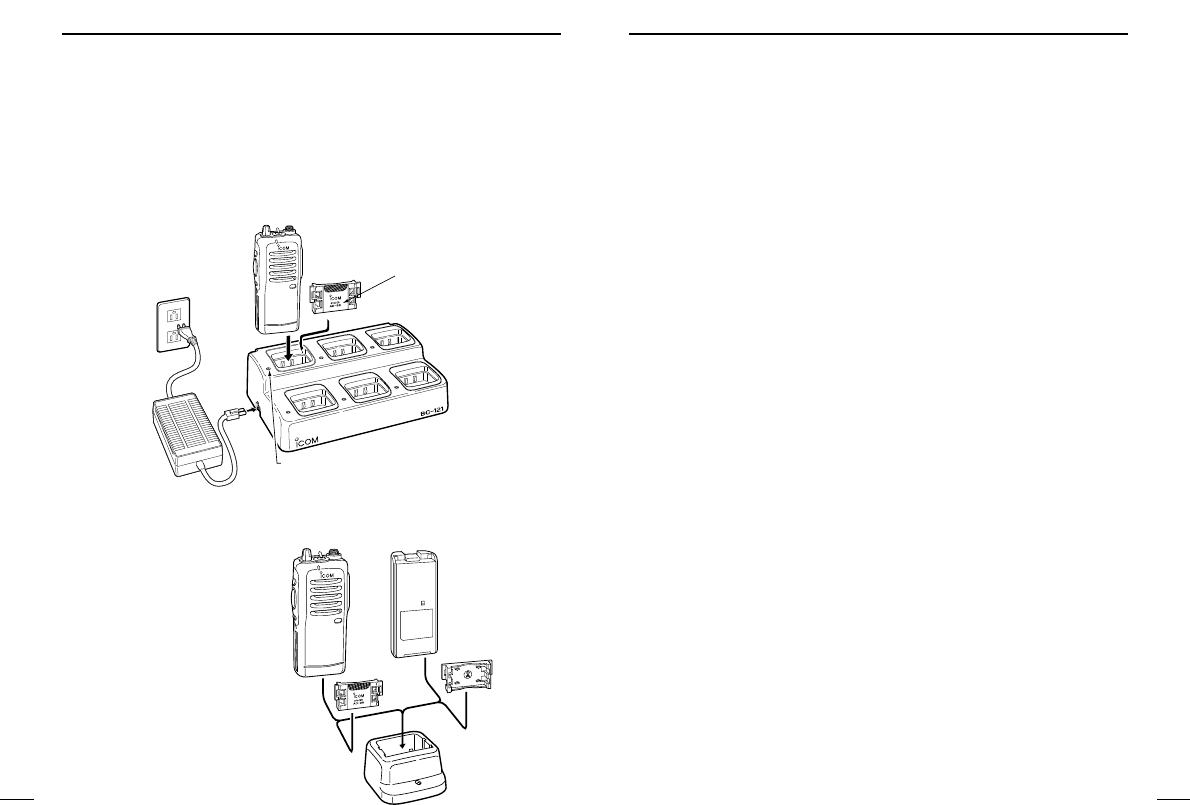

DRapid charging with the BC-121+AD-99
The optional BC-121 allows up to 6 battery packs to be charged si-
multaneously. The following are additionally required.
• Six AD-99s (Some versions require additional AD-99s).
• An AC adapter (may be supplied with the BC-121 depending on
version).
DRegular charging with the BC-146
The optional BC-146 pro-
vides regular charging of
optional battery pack with/
without transceiver.
The following is additionally
required:
• An optional AC adapter.
(A charging spacer is sup-
plied with BC-146.)
MULTI-CHARGER
AC adapter
(purchased
separately)
Charge indicator
(each indicator functions independently)
Turn power OFF.
AD-99
Check orientation
for correct charg-
ing.
(Insert togeth-
er with charging
adapter.)
Turn power OFF.
BC-146
‘‘Charging NOTE
Prior to using the transceiver for the first time, the battery pack must
be fully charged for optimum life and operation.
• Recommended temperature range for charging:
+10°C to +40°C (50°F to 140°F).
• Use the supplied charger or optional charger (BC-119/BC-121/BC-
144 for rapid charging, BC-146 for regular charging) only. NEVER
use other manufacturers’chargers.
The optional BP-209, BP-210 or BP-222 battery packs include
rechargeable Ni-Cd(Ni-MH: BP-210) batteries and can be charged
approx. 300 times. Charge the battery pack before first operating
the transceiver or when the battery pack becomes exhausted.
If you want to charge the battery pack more than 300 times, the fol-
lowing points should be observed:
• Avoid overcharging–batteries must be removed from the charger
to stop charging. Batteries should not be charged for more than
15 hours after the LED indicator turns green.
• Use the battery until it becomes almost completely exhausted
under normal conditions.
DDBattery pack life
When the operating period becomes extremely short even after
charging the battery pack fully, a new battery pack is needed.
NOTE: The charger rapidly charges a battery pack to a speci-
fied level, not a completed level, to prevent overcharging. Leave
the battery pack in the charger for a few more hours (up to
15 hours; depending on battery condition) after the LED indica-
tor turns green, to charge the battery completely.
![](/img.php?id=159694&img=bg8.png)
12
4
PROGRAMMABLE FUNCTIONS
‘‘Battery case (Option)
When using a BP-208 OPTIONAL BATTERY CASE attached to the
transceiver, install 6 AA (R6) size alkaline batteries as illustrated
below.
NOTE: Output power is automatically reduced to 1 W to retain suffi-
cient power in case of an emergency, etc.
DDCAUTIONS
• Use ALKALINE batteries only.
• Make sure all battery cells are the same brand, type and ca-
pacity.
• Never mix old and new batteries.
Either of the above may cause a fire hazard or damage the
transceiver, if ignored.
• Never incinerate used battery cells since internal battery gas
may cause them to rupture.
• Never expose a detached battery case to water.
If the battery case gets wet, be sure to wipe it dry before using
it.
11
3BATTERY PACKS
‘‘General
In the following explanations, programmable function names are
bracketed, the specific switch used to activate the function depends
on programming.
DDKEY LOCK FUNCTION1/2
This function locks access to all programmable switches (except
the switch assigned for the lock function):
Lock1: All Key Lock (except Lock key).
Lock2: Channel select switch Lock.
Push and hold the [Lock1] or [Lock2] switch for 1 sec. to toggle the
lock function ON and OFF.
• This function may be inhibited on some channels.
DDPRIORITY CHANNEL
This function is used to select a pre-programmed channel at the
push of a switch.
Push the [PrioA], [PrioA(Rewrite)] or [PrioB] switch to select the pri-
ority channel.
• Priority channel is automatically selected.
![](/img.php?id=159694&img=bg9.png)
4
PROGRAMMABLE FUNCTIONS
13
4PROGRAMMABLE FUNCTIONS
14
DDSCAN FUNCTION
The scan function allows you to search a pre-programmed group
of channels for signals.
Push the [Scan] switch to start/stop scan.
• Scan pauses on a channel when receiving a signal.
• “Lockout SCAN” (pre-programmed list SCAN) or “Priority SCAN”
can be pre-programmed.
• When the “Power-save function” is activated, the transceiver
checks all pre-programmed channels then returns to the “Power-
save function” again.
DDHIGH/LOW POWER OUTPUT
This function selects high or low power for a channel.
Push the [High/Low] switch to toggle between high and low power.
DDMONITOR AUDIBLE FUNCTION
The monitor function allows you to open the transceiver’s squelch
manually to check whether a channel is busy or not. The trans-
ceiver has 2 conditions for receive standby:
Audible condition:
This condition mutes audio ONLY when
no carrier is present. You can receive (or
monitor) any signals on a channel.
• Push and hold the [Moni], switch to se-
lect the audible condition.
Any audio mute functions are cancelled
while pushing the [Moni] switch.
Inaudible condition:
This condition mutes ALL signals except
those directed to you. Therefore you
should check a channel’s condition (busy
or not) with the monitor function before
transmitting.
• Push the [Moni] switch momentarily to
select the inaudible condition.

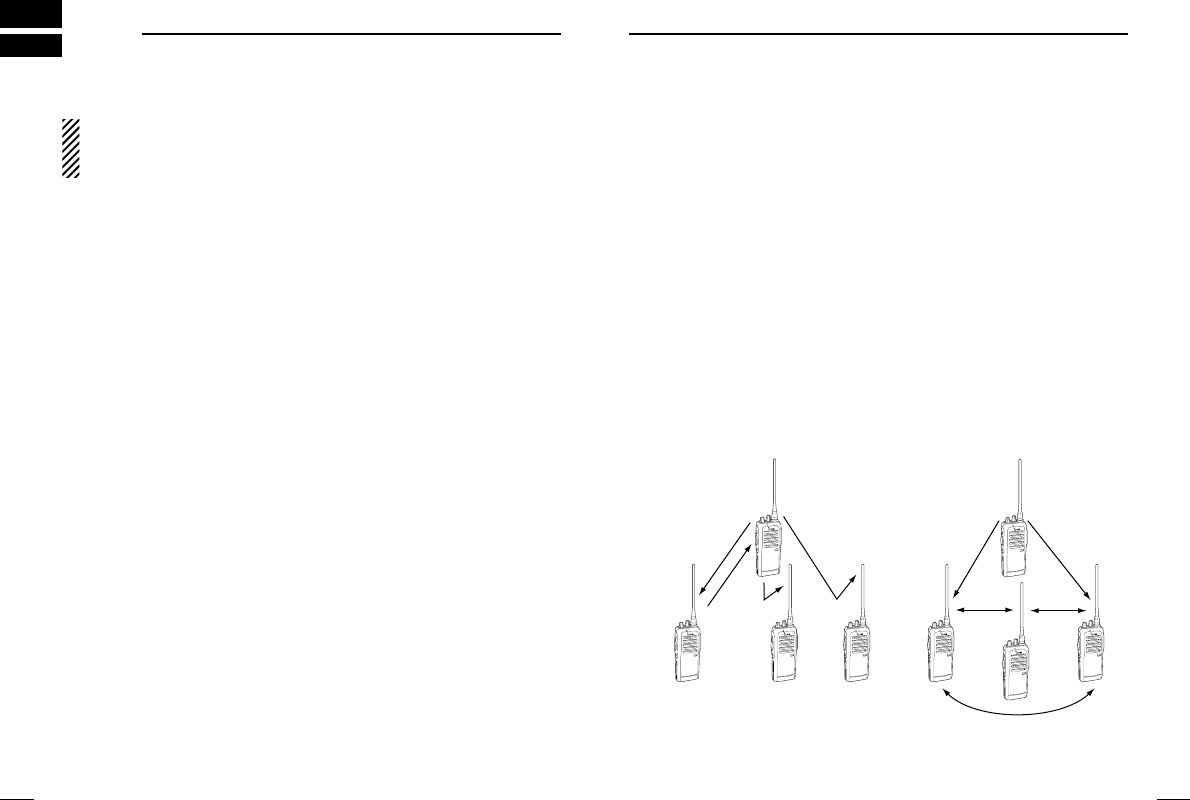

DDTALK AROUND
The talk around function changes duplex channels to simplex chan-
nels.
• Duplex allows you to contact your base station, repeaters, etc.
• Simplex allows you to contact other portable transceivers directly
(portable-to-portable contact).
Push the [Talk Around] switch one or more times to toggle the func-
tion ON and OFF.
All signals are
received
Only signals con-
taining the proper
tone are received
![](/img.php?id=159694&img=bga.png)
4
PROGRAMMABLE FUNCTIONS
PROGRAMMABLE FUNCTIONS
1615
2
DDDTMF TRANSMISSION
This function allows you to send a pre-programmed DTMF code to
control a repeater, open another transceiver’s squelch, etc.
Automatic pre-programmed transmission:
Push the [DTMF Autodial] switch to send a DTMF code.
DDEMERGENCY FUNCTION
The emergency function allows you to send your ID quickly and
easily to your Base Station, etc. in case of emergency.
Push and hold the [Emergency Single/repeat] switch for 1 sec. to
activate the emergency function.
• The transceiver selects a pre-programmed channel, then sends
an emergency signal to your Base Station.
• The pre-programmed channel remains selected until a control sig-
nal is received from the Base Station, or power is turned OFF.
• The emergency call is repeatedly transmitted at pre-programmed
intervals.
DDMR-CH1, MR-CH2, MR-CH3, MR-CH4
This function temporarily allows you to select one of memory CH1
to CH4, when you push the [MR-CH1–4] key.
DDCODE SQUELCH
This conveniently eliminates unwanted audio and is useful in group
activities or security related activities where unwanted output can
be a problem. The function is similar to a CTCSS tone squelch.
In order to use the above functions, cloning is necessary via a PC
using the optional CS-F11 cloning software. Using this software, the
transceiver’s model, individual RX Code CH, TX Code CH, Special
Tone Link2 (must be ‘E’) in 5Tone screen, 5Tone Signaling Form in
Memory-CH screen, Log, RX C-No, Key&Display, Common Au-
toReset TimerB, and other settings related to operation can be set.
Refer to the HELP file that comes with the CS-F11 CLONING SOFT-
WARE for available settings.
![](/img.php?id=159694&img=bgb.png)
18
5
CONVENTIONAL OPERATION
17
5CONVENTIONAL OPERATION
‘‘Receiving and transmitting
NOTE: Transmitting without an antenna may damage the trans-
ceiver. See p.4 for antenna attachment.
Turn power ON as described on p. 2.
Receiving:
qSelect a desired channel.
wListen for a transmission and adjust [VOL] to a comfortable lis-
tening level.
• When no transmission is heard, push and hold [Moni] (moni-
tor) while adjusting [VOL] (your transceiver may not be pro-
grammed with the monitor function).
The transceiver is now set to receive desired calls on the selected
channel.
Transmitting:
Wait for the channel to become clear to avoid interference.
eWhile pushing and holding [PTT], speak into the microphone at a
normal voice level.
• When a tone signalling system is used, the call procedure de-
scribed at right may be necessary.
rRelease [PTT] to return to receive.
IMPORTANT: To maximize the readability of your transmitted sig-
nal, pause a few sec. after pushing [PTT], hold the microphone 10
to 15 cm from your mouth and speak at a normal voice level.
‘‘Call procedure
When your system employs tone signalling (excluding CTCSS and
DTCS), the call procedure may be necessary prior to voice trans-
mission. The tone signalling employed may be a selective calling
system which allows you to call specific station(s) only and prevent
unwanted stations from contacting you.
qSelect the desired Tx code channel or 5-tone code according to
your System Operator’s instructions.
• This may not be necessary depending on programming.
wPush the call switch (assigned to one of the dealer programma-
ble switches: [Upper] and [Lower], etc.).
eAfter transmitting a 5-tone code, the remainder of your commu-
nication can be carried out in the normal fashion.
Non-selective calling
Selective calling
![](/img.php?id=159694&img=bgc.png)
20
6
CLONING
CONVENTIONAL OPERATION
19
5
‘‘Transmitting notes
DDTIME-OUT TIMER
After continuous transmission for a pre-programmed period, the
time-out timer is activated, causing the transceiver to stop transmit-
ting and automatically select receive.
DDPENALTY TIMER
Once the time-out timer is activated, transmission is further inhibited
for a period determined by the penalty timer.
‘‘Cloning
Cloning allows you to quickly and easily transfer the programmed
contents from one transceiver to another transceiver; or data from
PC to a transceiver using the optional CS-F11 CLONING SOFT-
WARE.
DDTransceiver-to-transceiver cloning
NOTE:
‘
Transceiver-to-transceiver cloning’is available be-
tween the same models on 2CH model to 16CH model or the
opposite case cannot be cloned.
qConnect the optional OPC-474 CLONING CABLE with adapter
plugs to the [SP] jack of the master and slave transceivers.
•The master transceiver is used to send data to the slave trans-
ceiver.
wWhile pushing [PTT] and [Upper], turn the transceiver’s power
on to enter cloning mode (master transceiver only–power ON
only for slave transceiver).
ePush [PTT] on the master transceiver.
•When cloning is finished, a “Beep” tone is emitted two times.
NOTE: DO NOT push the [PTT] on the slave transceiver during
cloning. This will cause a cloning error.
rWhen cloning is finished, turn power off, then on again to return
to normal operation.
DDPC-to-transceiver cloning
Please refer to the HELP file that comes with the CS-F11 CLONING
SOFTWARE.
CAUTION: Imprudent cloning operation causes a cloning error.
In such a case, memory contents may be lost. Cloning must
then be repeated.
![](/img.php?id=159694&img=bgd.png)
22
7
OPTION
21
7OPTION
‘‘Options
DDBATTERY PACKS
• BP-208 BATTERY CASE
Allows a set of Alkaline batteries to operate the handheld when
charging the rechargeable battery or in emergencies, etc. 6 AA
(R6) cells are required.
• BP-209 Ni-Cd BATTERY PACK
7.2 V/1100 mAh Ni-Cd battery pack, allows more than 8 hours op-
eration.
• BP-210 Ni-MH BATTERY PACK
7.2 V/1650 mAh Ni-MH battery pack, allows approx. 11 hours op-
eration.
• BP-222 Ni-Cd BATTERY PACK
7.2 V/600 mAh Ni-Cd battery pack, allows approx. 5.5* hours op-
eration (Same as supplied with 2 W models).
*When used with 2 W model.
DDCHARGER
• BC-119 DESKTOP CHARGER
For rapid charging of battery packs. An AC adapter is supplied
with the charger. Charging time: 1.5 to 2 hrs.
• BC-121 MULTI-CHARGER
For rapid charging up to 6 battery packs simultaneously. An AC
adapter may be supplied depending on version. Six AD-94’s are
necessary. Charging time: 1.5 to 2 hrs.
•AD-99 CHARGER ADAPTOR
• BC-144 DESKTOP CHARGER
For rapid charging of BP-209 (Ni-Cd), BP-210 (Ni-MH) and BP-
222 (Ni-Cd).
• BC-146 DESKTOP CHARGER
For regular charging of BP-209 (Ni-Cd), BP-210 (Ni-MH) and BP-
222 (Ni-Cd).
DDOTHER OPTIONS
• HM-46L/HM-75A/HM-131L SPEAKER-MICROPHONES
Combination speaker-microphone that provides convenient oper-
ation while hanging the transceiver from your belt.
HM-75A has programmable function key Mic Up, Mic Down, Mic
A, Mic B.
HM-131L has a moisture proof construction.
• HS-51 HEAD SET
Allows you hands-free operation. Includes PTT and TOT.
• SP-13 EARPHONE
Provides clear receive audio in noisy environments.
• MB-68 BELT CLIP
Same as that supplied with the transceiver.
• MB-74 BELT CLIP
Exclusive alligator-type belt clip.
• AD-98FSC ANTENNA CONNECTOR ADAPTER
Allows you to connect a BNC-type antenna.
• CS-F11 CLONING SOFTWARE
Allows you to clone the memory contents of an IC-F11/S, IC-
F21/S by PC editing.
• OPC-474 CLONING CABLE
Cloning cable for transceiver to transceiver
• OPC-478 CLONING CABLE
Cloning cable for PC to transceiver.
![](/img.php?id=159694&img=bge.png)
INSTRUCTION MANUAL
UHF TRANSCEIVER
iF21/S
This device complies with Part 15 of the FCC rules. Oper-
ation is subject to the following two conditions: (1) This de-
vice may not cause harmful interference, and (2) this
device must accept any interference received, including in-
terference that may cause undesired operation.
VHF TRANSCEIVER
iF11/S
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003 Japan
A-6021H-1EX
Printed in Japan
© 2001 Icom Inc.
Count on us!
IC-F11/F21S series
