User Manual
![](/img.php?id=420260&img=bg1.png)
Wireless Acyrlic Thermo-Hygrometer &
Atomic Alarm Clock
Model : RMR613HGA
User Manual
RMR613HGA lab test cover R3 2/10/04, 3:38 PM1
![](/img.php?id=420260&img=bg2.png)
EN
1
CONTENTS
Contents ................................................................... 1
Introduction .............................................................. 2
About Oregon Scientific .......................................... 2
Product Overview .................................................... 3
Front View .............................................................. 3
Back View .............................................................. 4
Remote Sensor (THGR122NX) ............................. 5
Getting Started ......................................................... 6
Batteries ................................................................. 6
Change Settings .................................................... 6
Table Stand ............................................................ 6
Remote Sensor (THGR122NX) ................................ 6
Setup Sensor ......................................................... 6
Data Transmission ................................................. 7
Search for Sensor .................................................. 8
Clock ......................................................................... 8
Turn Atomic Clock ON/OFF ................................... 9
Set Clock ............................................................... 9
Switch Clock Display ............................................. 9
Alarms ....................................................................... 9
View Alarm Settings ............................................... 9
Set Alarm ............................................................... 9
Activate Alarm ...................................................... 10
Silence Alarm ....................................................... 10
Temperature and Humidity .................................... 10
Select Temperature Unit ...................................... 10
Select Sensor Channel ........................................ 10
Minimum / Maximum Records ............................. 11
Comfort Zone ....................................................... 11
Reset System ......................................................... 11
Safety and Care ...................................................... 12
Warnings ................................................................. 12
Troubleshooting ..................................................... 12
Specifications ......................................................... 13
Main Unit Dimensions .......................................... 13
Remote Sensor Dimensions ................................ 13
Temperature ......................................................... 13
Relative Humidity ................................................. 13
Remote Sensor (THGR122NX) ........................... 13
Clock .................................................................... 13
Power ................................................................... 14
FCC Statement ....................................................... 14
RMR613HGA lab test R3 2/18/04, 2:22 PM1
![](/img.php?id=420260&img=bg3.png)
EN
2
INTRODUCTION
Thank you for selecting the Oregon ScientificTM Wireless
Acyrlic Thermo-Hygrometer & Atomic Alarm Clock
(RMR613HGA). This device bundles precise time
keeping, dual alarm, and temperature and humidity
monitoring features into a single tool you can use from
the convenience of your home.
In this box, you will find:
•Main unit
•Remote sensor (THGR122NX)
Keep this manual handy as you use your new product.
It contains practical step-by-step instructions, as well
as technical specifications and warnings you should
know.
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientific.com) to learn
more about other Oregon Scientific products such as
digital cameras, hand-held organizers, health and fitness
gear, and projection clocks. The website also includes
contact information for our customer service department,
in case you need to reach us.
RMR613HGA lab test R3 2/18/04, 2:22 PM2
![](/img.php?id=420260&img=bg4.png)
EN
3

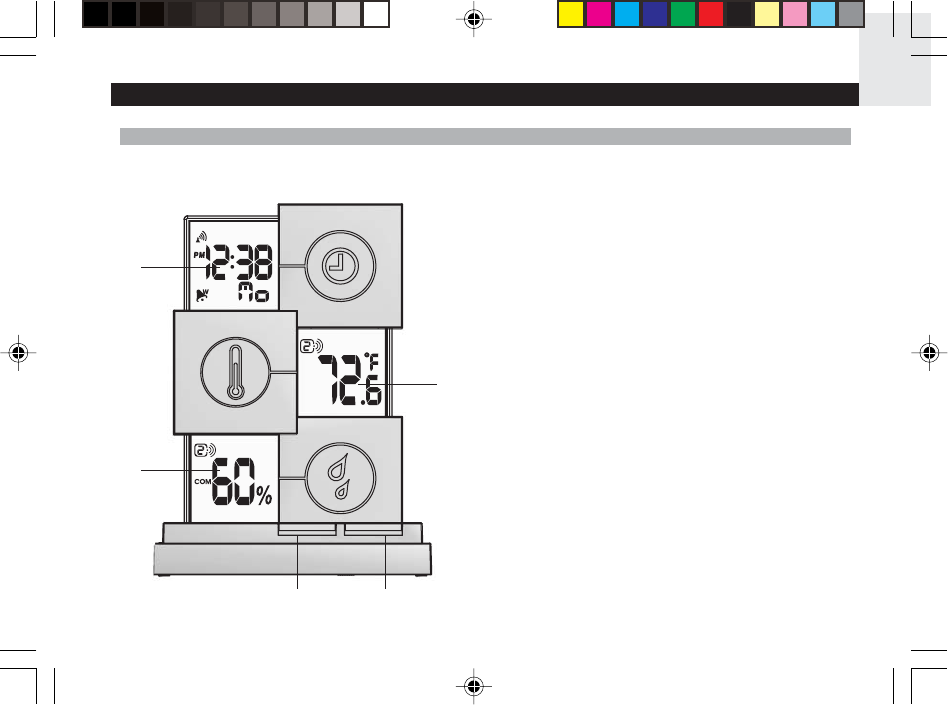

PRODUCT OVERVIEW
FRONT VIEW
1. Clock / Alarm Area: Date, time, dual alarm; and
Atomic Clock reception status
2. Temperature Area: Readings; sensor channel
number; remote unit reception and battery status
3. Humidity / Comfort Zone Area: Readings, comfort
zone and battery status.
4. Channel button: switch remote sensor
5. Alarm button: view alarm status; set alarm
1
2
3
4 5
RMR613HGA lab test R3 2/18/04, 2:22 PM3
![](/img.php?id=420260&img=bg5.png)
EN
4

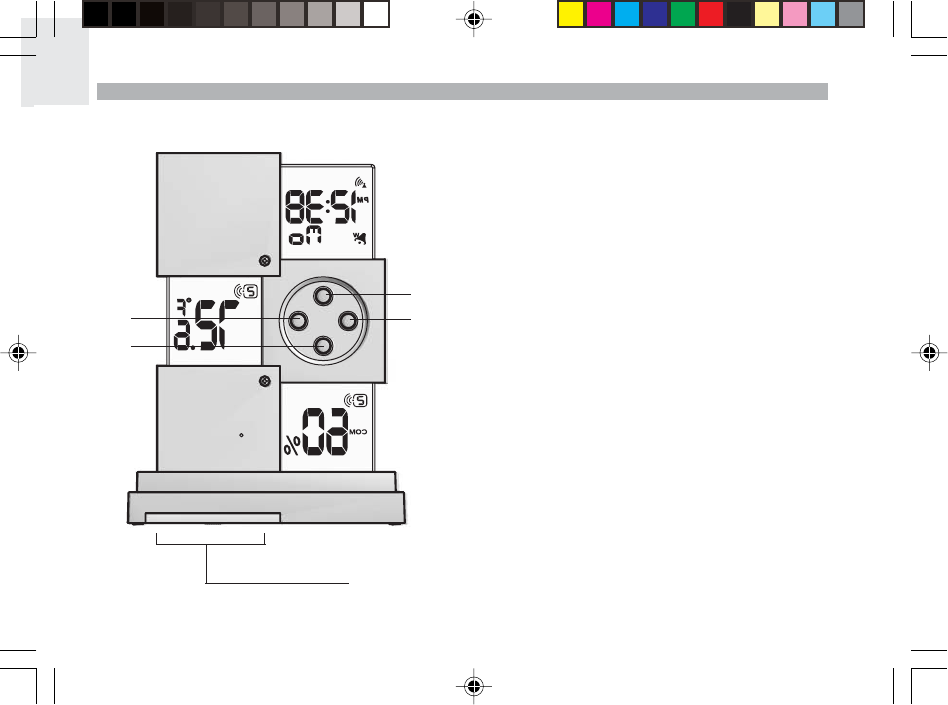

BACK VIEW
1. MEM: view current, maximum, and minimum
temperature / humidity readings
2. DOWN: decrease setting / deactivate radio-
controlled clock / activate or deactivate alarm
3. UP: increase setting / activate radio-controlled clock /
activate or deactivate alarm
4. MODE: change display / settings
5. Battery compartment
6. °C / °F switch
7. RESET hole
3
4
1
2
5, 6, 7
RMR613HGA lab test R3 2/18/04, 2:22 PM4
![](/img.php?id=420260&img=bg6.png)
EN
5

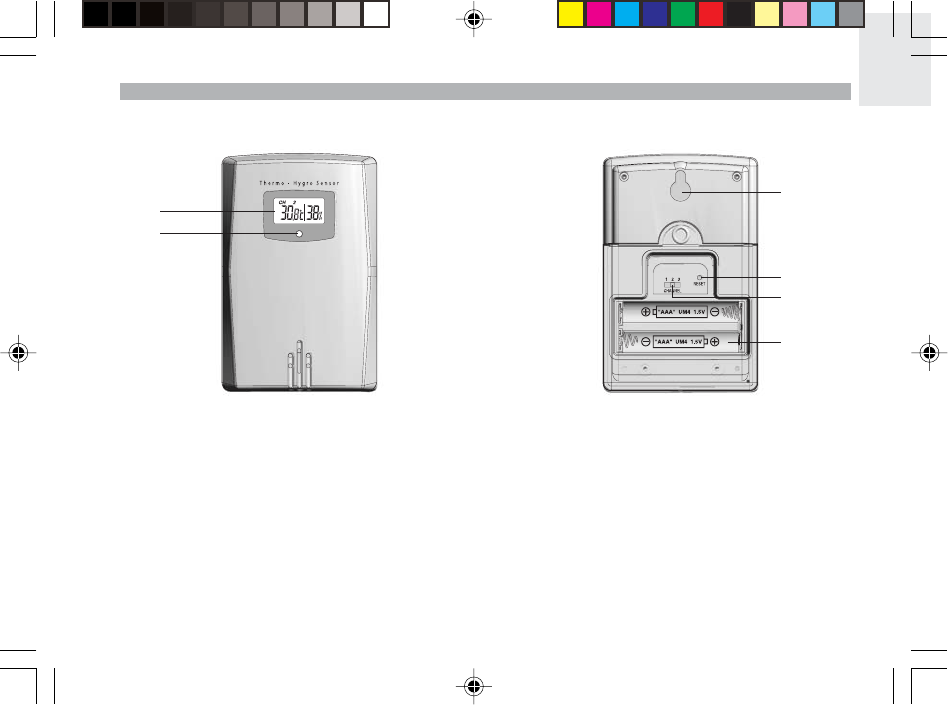

REMOTE SENSOR (THGR122NX)
1. LCD display
2. LED Status indicator
1
2
1
2
3
4
1. Wall mount hole
2. RESET
3. Channel number (1 - 3)
4. Battery compartment
(Battery compartment cover not shown)
RMR613HGA lab test R3 2/18/04, 2:22 PM5
![](/img.php?id=420260&img=bg7.png)
EN
6
CHANGE SETTINGS
1. Press and hold MODE for 2 seconds to enter setting
mode.
2. Press UP or DOWN to change settings.
3. Press MODE to confirm.
REMOTE SENSOR (THGR122NX)
This product is shipped with a THGR122NX Thermo/
Hygro Sensor that collects Temperature and Humidity
data. Data can be collected from up to 3 sensors.
Additional sensors sold separately.
SETUP SENSOR
Open the remote sensor battery compartment with a
small Phillips screwdriver.
GETTING STARTED
BATTERIES
Batteries are not supplied with this product. You will need
to purchase 2 x UM-3 (AA) 1.5V alkaline batteries for
the main unit, and 2 x UM-4 (AAA) 1.5V alkaline batteries
for the remote sensor.
Insert the batteries before first use, matching the polarity
as shown in the battery compartment. For best results,
install batteries in the remote sensor before the main
unit. Press RESET after each battery change.
Do not use rechargeable batteries.
NOTE
UNIT LOCATION
MainTemperature Area when
the INDOOR temperature
is shown.
Remote Temperature Area when the
OUTDOOR temperature is
shown.
shows when batteries are low.
RMR613HGA lab test R3 2/18/04, 2:22 PM6
![](/img.php?id=420260&img=bg8.png)
EN
7
3. Place the sensor near the main unit. Press RESET
on the sensor to initiate signal sending between the
sensor and the main unit. The reception icon on
the main unit will blink for approximately 3 minutes
while it is searching for the sensor. (Refer to the
Search for Sensor section for more information.)
4. Close the remote sensor battery compartment.
5. Secure the sensor in the desired location using the
wall mount or table stand.
1. Insert the batteries, matching the polarity as shown
in the battery compartment.
2. Set the channel. The switch is located in the battery
compartment.
SWITCH OPTION
Channel Channel 1 - 3. If you are using
more than one sensor, select a
different channel for each sensor.
For best results:
•Insert the batteries and select the channel and
temperature unit before you mount the sensor.
•Place the sensor out of direct sunlight and
moisture.
•Do not place the sensor more than 30 meters
(98 feet) from the main (indoor) unit.
•Position the sensor so that it faces the main
(indoor) unit, minimizing obstructions such as
doors, walls, and furniture.
•Place the sensor in a location with a clear view
to the sky, away from metallic or electronic
objects.
•Position the sensor close to the main unit during
cold winter months as below-freezing
temperatures may affect battery performance
and signal transmission.
You may need to experiment with various locations to
get the best results.
DATA TRANSMISSION
Data is sent from the sensor(s) every 40 seconds.
The reception icon shown in the Temperature and
Humidity Areas show the status.
RMR613HGA lab test R3 2/18/04, 2:22 PM7
![](/img.php?id=420260&img=bg9.png)
EN
8

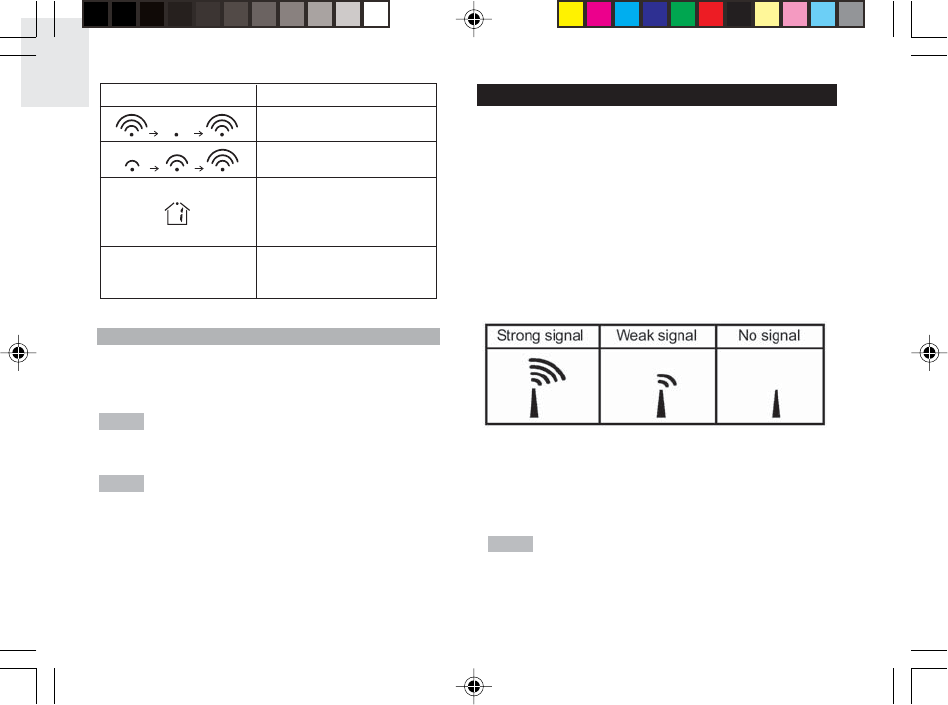

SEARCH FOR SENSOR
To search for a sensor, press and hold MEM and
CHANNEL for 2 seconds.
If the sensor is still not found, check the
batteries, obstructions, and remote unit location.
Signals from household devices such as
doorbells, electronic garage doors, and home security
systems may cause temporary reception failure. This is
normal and does not affect general product performance.
The reception will resume once the interference ends.
NOTE
--- shows in Temp
/ Humidity Areas
ICON DESCRIPTION
Main unit is searching for
sensors.
At least 1 channel has
been found.
Channel 1 is selected
(number will change
depending on the sensor
you select)
The selected sensor cannot
be found. Search for the
sensor or check batteries.
NOTE
CLOCK
This product can track the date and time for up to
2 locations (Clock with Offset Hour). The US Atomic
Clock in Boulder, Colorado automatically updates this
information unless you disable the feature. The signals
are collected by the main unit when it is within 1500 km
(932 miles) of a signal.
Initial reception takes 2 - 10 minutes, and is initiated
when you first setup the unit, and whenever you press
RESET. Once complete, the reception icon will stop
blinking. The icon is shown in the Clock Area.
To force a manual search for Atomic Clock signals, press
and hold UP for 2 seconds. If no signal is found, check
the batteries.
If the Atomic Clock signal is received and the
hour is incorrect, use the "hour offset" feature to adjust
it to to the right value. Please see "SET CLOCK" on
pg. 9 for instructions.
NOTE
RMR613HGA lab test R3 2/18/04, 2:22 PM8
![](/img.php?id=420260&img=bga.png)
EN
9
TURN ATOMIC CLOCK ON/OFF
Perform this step if you cannot receive Atomic Clock
signals. Press and hold DOWN for 2 seconds. Then,
manually set the clock following the “Set Clock”
instructions (below).
SET CLOCK
You only need to do this if you have disabled the Atomic
Clock feature (for example, if you are too far from or
cannot receive a signal).
1. Press and hold MODE for 2 seconds. The Clock
Area will blink.
2. Select the offset hour, 12 / 24 hour format, hour,
minute, year, month, day, and language. Press UP
or DOWN to change the setting. Press MODE to
confirm.
The language options are (E) English,
(F) French, (D) German, (I) Italian, and (S) Spanish.
The signal icon indicates that the Atomic Clock
feature is ON. No icon means that it is OFF
SWITCH CLOCK DISPLAY
Press MODE to toggle between Clock with Seconds,
Clock with Weekday and Calendar, and Clock with Offset
Hour display.
ALARMS
This product has 2 alarms: a Single Alarm and a Weekday
Alarm. The Single Alarm can be set to go off at a specific
time for a one-time event (for example, if you are napping
on Saturday). The Weekday Alarm will sound at the same
time Monday - Friday (but not on weekends).
VIEW ALARM SETTINGS
Press ALARM to display the Alarm settings you wish to
view: Weekday W or Single S.
SET ALARM
1. Press ALARM to display the type of Alarm you wish
to set: Weekday or Single.
2. Press and hold ALARM for 2 seconds. The Alarm
settings will blink.
3. Select the hour and minute. Press UP or DOWN to
change settings. Press ALARM to confirm.
NOTE
RMR613HGA lab test R3 2/18/04, 2:22 PM9
![](/img.php?id=420260&img=bgb.png)
EN
10
ACTIVATE ALARM
Press ALARM to switch to Weekday or Single Alarm view.
To activate or deactivate the alarm, press UP or DOWN.
•Alarm deactivated: --:--
•Alarm activated: Alarm time is shown
The bell icons W and S indicate the alarm display
mode selected.
SILENCE ALARM
When the Alarm time is reached, the crescendo alarm
will sound for 2 minutes. Press ALARM to silence it.
The Weekday Alarm will sound at the same time the
next day provided the next day is Monday - Friday. The
Single Alarm will not sound unless you manually activate
it again.
TEMPERATURE AND HUMIDITY
This product can display the following information from
the remote sensors:
VIEW BAROMETER AREA
•Current, minimum, and maximum temperatures
and relative humidity percentages.
•Comfort level
Data is collected and displayed every 40 seconds.
SELECT TEMPERATURE UNIT
Slide the °C / °F switch into the desired location. The
switch is located in the battery compartment. The setting
for the main unit overrides the remote sensor setting.
SELECT SENSOR CHANNEL
Press CHANNEL to switch between sensors 1 - 3.
The icon shows the selected sensor.
RMR613HGA lab test R3 2/18/04, 2:22 PM10
![](/img.php?id=420260&img=bgc.png)
EN
11
To auto-scan between sensors, press and hold
CHANNEL for 2 seconds. Each sensor's data will be
displayed for 3 seconds. To end auto-scan, press
CHANNEL or MEM.
If you use a sensor that collects only
temperature data, humidity will not be shown.
MINIMUM / MAXIMUM RECORDS
Press MEM to toggle between current, maximum (MAX)
and minimum (MIN) records for the selected sensor. To
clear the records, press and hold MEM for 2 seconds.
A beep will sound to confirm that the memory has been
cleared.
COMFORT ZONE
The Comfort Zone indicates how comfortable the climate
is, based on current temperature and humidity
measurements.
NOTE
ZONE TEMPERATURE HUMIDITY
Any >70%
20 – 25 ° C
(68 - 77 ° F)
40 – 70%
<40%
Any
This information is shown in the Humidity Area when
the current measurement is displayed.
RESET SYSTEM
The RESET buttons are located in the battery
compartment for the main unit and sensors. Press
RESET when you change the batteries and whenever
performance is not behaving as expected (for example,
unable to establish radio frequency link with remote
sensor or radio-controlled clock).
When you press RESET, all settings will return
to default value, and you will lose all stored information.
NOTE
Indoor
Display
Designat-
ed
Display
Remote
Display
Channel 1
Kinetic-
wave
Icon
Remote
Display
Channel 2
Remote
Display
Channel 3
RMR613HGA lab test R3 2/18/04, 2:22 PM11
![](/img.php?id=420260&img=bgd.png)
EN
12
Do not make any changes or modifications to this
product. Unauthorized changes may void your right to
use the product. The technical specification of this
product and contents of this user guide are subject to
change without notice. Images not drawn to scale.
TROUBLESHOOTING
Check here before contacting our customer service
department.
Problem Symptom Remedy
Calendar Strange date /
month
Change language
( 9)
Clock Cannot adjust
clock
Disable Atomic Clock
( 9)
Cannot auto-
synch
1. Adjust batteries.
( 6)
2. Press RESET
( 11)
3. Manually activate
Atomic Clock
feature ( 8)
SAFETY AND CARE
Clean the product with a slightly damp cloth and alcohol-
free mild detergent. Avoid dropping the product or placing
it in a high-traffic location.
WARNINGS
This product is designed to give you years of service if
handled properly. Observe the following guidelines:
•Never immerse the product in water. This can
cause electrical shock and damage the product.
•Do not subject the main unit to extreme force,
shock, or fluctuations in temperature or humidity.
•Do not tamper with the internal components.
•Do not mix new and old batteries or batteries of
different types.
•Do not use rechargeable batteries with this
product.
•Remove the batteries if storing this product for a
long period of time.
•Do not scratch the LCD display. Temp Shows “LLL”
or “HHH”
Temperature is out-of-
range
RMR613HGA lab test R3 2/18/04, 2:22 PM12
![](/img.php?id=420260&img=bge.png)
EN
13
Problem Symptom Remedy
Data does
not match
main unit
Initiate a manual sensor
search ( 8)
Cannot
change
channel
Check sensors. Only
one sensor is working
( 6)
Check batteries ( 6)
Check location ( 6)
Remote
sensor
Cannot locate
remote
sensor
SPECIFICATIONS
MAIN UNIT DIMENSIONS
L x W x H 123 x 49.5 x 165 mm
(4.84 x 19.5 x 6.50 inches)
Weight 245 grams (8.64 ounces)
with batteries
REMOTE SENSOR DIMENSIONS
L x W x H 92 x 60 x 20 mm
(3.6 x 2.4 x 0.79 inches)
Weight 63 grams (2.22 ounces)
without battery
TEMPERATURE
Unit °C or °F
Indoor Range -5 °C to 50 °C
(23 °F to 122 °F)
Outdoor Range -20 °C to 60 °C
(-4 °F to 140 °F)
Resolution 0.1 °C (0.2 °F)
RELATIVE HUMIDITY
Range 25% to 95%
Resolution 1%
REMOTE SENSOR (THGR122NX)
RF frequency 433 MHz
Range 30 meters (98 feet)
with no obstructions
Transmission every 40 seconds
Channel No. 1 - 3
CLOCK
Atomic Clock Auto or manual (disabled)
Clock display HH:MM:SS
Hour format 12hr AM/PM or 24hr
Time offset +/- 9 hours
RMR613HGA lab test R3 2/18/04, 2:22 PM13
![](/img.php?id=420260&img=bgf.png)
EN
14
Calendar MM/DD; weekday in
5 languages (E, D, F, I, S)
Alarm Weekday and Single
Alarm; 2- minute
crescendo
POWER
Main unit batteries 2 x UM-3 (AA) 1.5V alkaline
Sensor batteries 2 x UM-4 (AAA) 1.5V
alkaline
FCC STATEMENT
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
Warning: Changes or modifications to this unit not
expressly approved by the party responsible for
compliance could void the user's authority to operate
the equipment.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment
and receiver.
•Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV
technician for help.
RMR613HGA lab test R3 2/18/04, 2:22 PM14
![](/img.php?id=420260&img=bg10.png)
EN
15
DECLARATION OF CONFORMITY
The information below is not to be used as contact for
support or sales. Please call our customer service number
(listed on our website at www.oregonscientific.com,
or on the warranty card for this product) for all inquiries
instead.
We
Name: Oregon Scientific, Inc.
Address: 19861 SW 95th Place,
Tualatin, Oregon 97062 USA
Telephone No.: 1-800-853-8883
Fax No.: 1-503-684-8883
declare that the product
Product No.: RMR613HGA
Product Name: Wireless Thermo-Hygro Clock
Manufacturer: IDT Technology Limited
Address: Block C, 9/F, Kaiser Estate,
Phase 1, 41 Man Yue St.,
Hung Hom, Kowloon,
Hong Kong
is in conformity with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
1) This device may not cause harmful
interference.
2) This device must accept any interference
received, including interference that may
cause undesired operation.
RMR613HGA lab test R3 2/18/04, 2:22 PM15
![](/img.php?id=420260&img=bg11.png)
P/N.: 086-003326-03
© 2004 Oregon Scientific. All rights reserved.
RMR613HGA lab test back coverR1 2/13/04, 2:14 PM1
