1
EN
Professional all-in-one Weather Station
Model: WMR500
USER MANUAL
CONTENTS
Introduction .............................................................................................................. 1
Packaging Contents ............................................................................................... 1
All-in-one sensor .................................................................................................. 1
Accessories - sensors ............................................................................................ 2
Overview ................................................................................................................... 2
Main unit ................................................................................................................ 2
Real and bottom view ............................................................................................ 2
Lcd display ............................................................................................................ 2
All-in-one sensor ................................................................................................... 3
Installation ................................................................................................................ 3
Assemble the wind sensor ................................................................................... 3
Remove The Tape On The Debris Collector ......................................................... 3
Power the base station .......................................................................................... 4
Power the all-in-one sensor ................................................................................. 4

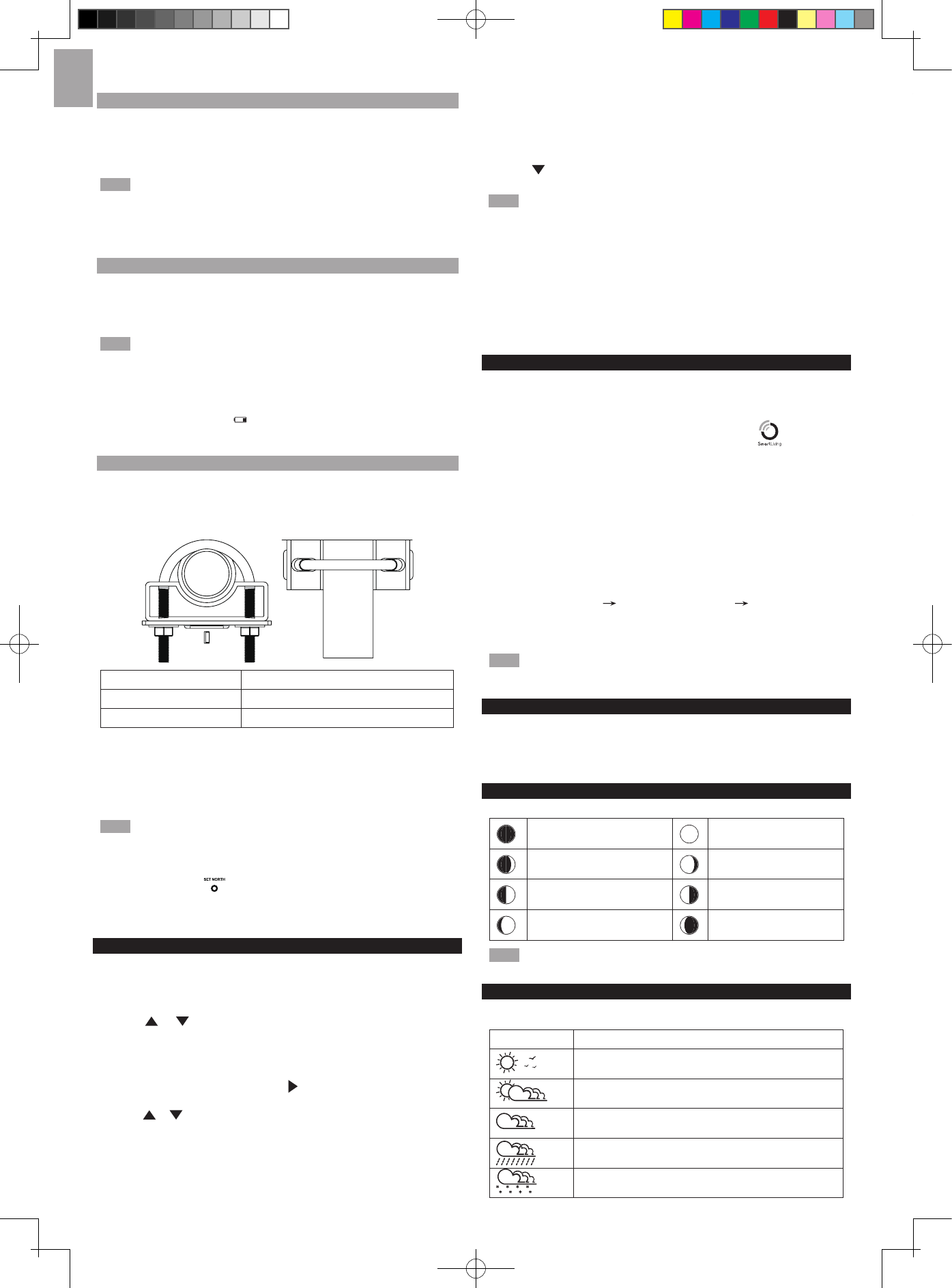

Mounting the all-in-one sensor .............................................................................. 4
Pairing the sensor .................................................................................................. 4
Pair your smart device with the weather station .................................................. 4
Setting the clock time ............................................................................................. 4
Moon phase .............................................................................................................. 4
Weather forecast ..................................................................................................... 4
Temperature and humidity ..................................................................................... 5
Temperature and humidity trend ........................................................................... 5

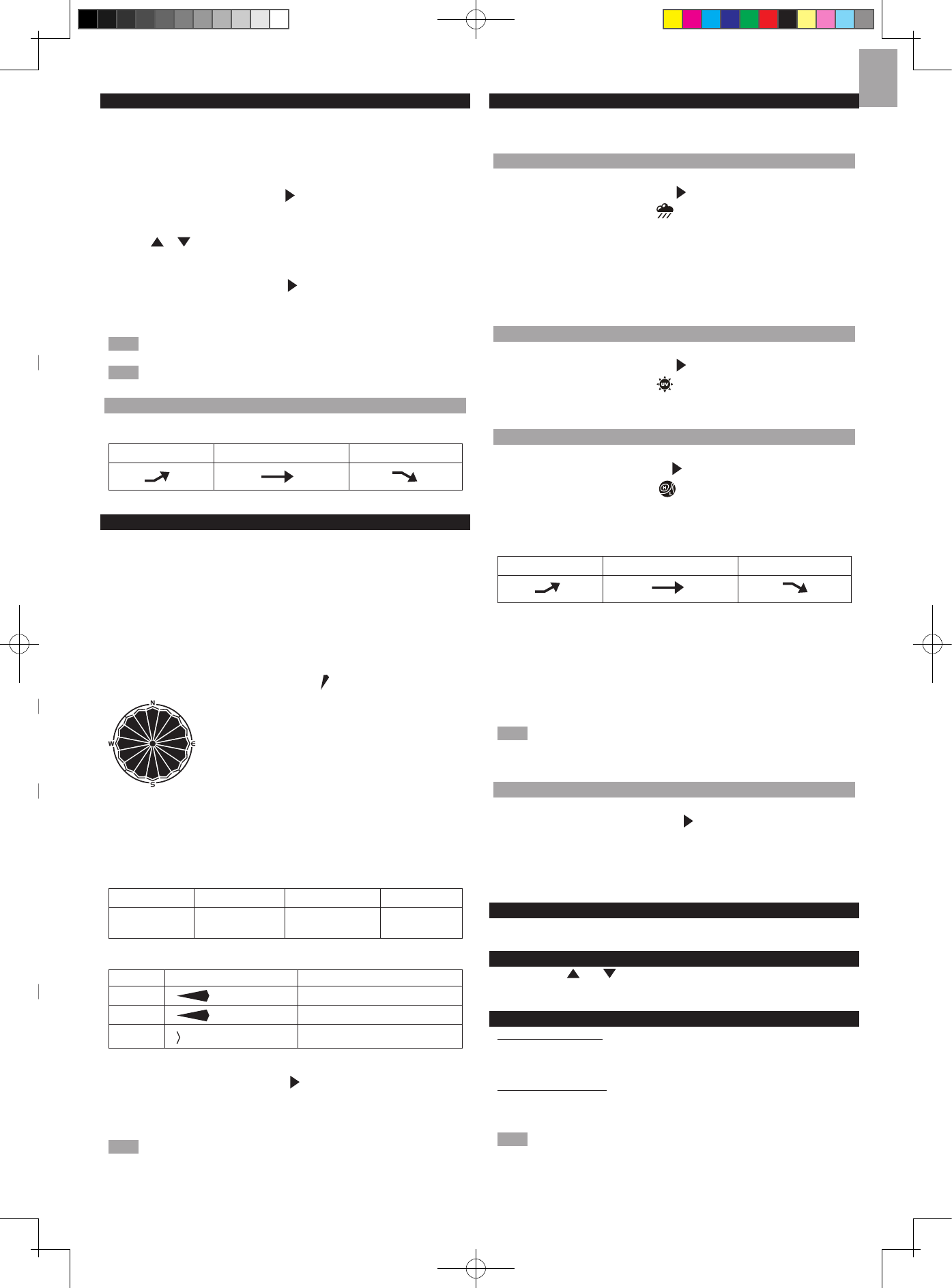

Wind chill / direction / speed .................................................................................. 5
Uv/rainfall/ barometer/pmi ...................................................................................... 5
Rainfall .................................................................................................................. 5
Uv index (optional) ................................................................................................ 5
Barometer ............................................................................................................ 5
Pmi (optional) ........................................................................................................ 5
Backlight .................................................................................................................. 5
Reset ......................................................................................................................... 5
Maintainance ............................................................................................................ 5
Specications .......................................................................................................... 6
Main Unit ............................................................................................................... 6
All-in-one sensor ................................................................................................... 6
Indoor barometer ................................................................................................... 6
Indoor temperature ................................................................................................ 6
Indoor relative humidity ......................................................................................... 6
Outdoor temperature ............................................................................................. 6
Outdoor relative humidity ...................................................................................... 6
Wind sensor ......................................................................................................... 6
Rain gauge ............................................................................................................ 6
Precautions .............................................................................................................. 6
About Oregon Scientic ......................................................................................... 7
EU-Declaration Of Conformity ................................................................................ 7
FCC Statement ........................................................................................................ 7
Declaration of Conformity ...................................................................................... 7
Information for users .............................................................................................. 7
INTRODUCTION
Thank you for selecting the Oregon Scientic™ Weather Station (WMR500).
This product can provide you with weather information through an all-in-one sensor
with high levels of accuracy. Download the dedicated app to set up your weather
station and experience all of the features of the WMR500. The App remembers the
data for a time range for you to monitor and analyze the weather status.
The base station is compatible with other weather sensors. To purchase additional
sensors, please contact your local retailer.
NOTE
Please read this user manual before using your product and keep it for future
reference. For the complete operation instructions, please visit http://global.
oregonscientic.com/customerSupport.php.

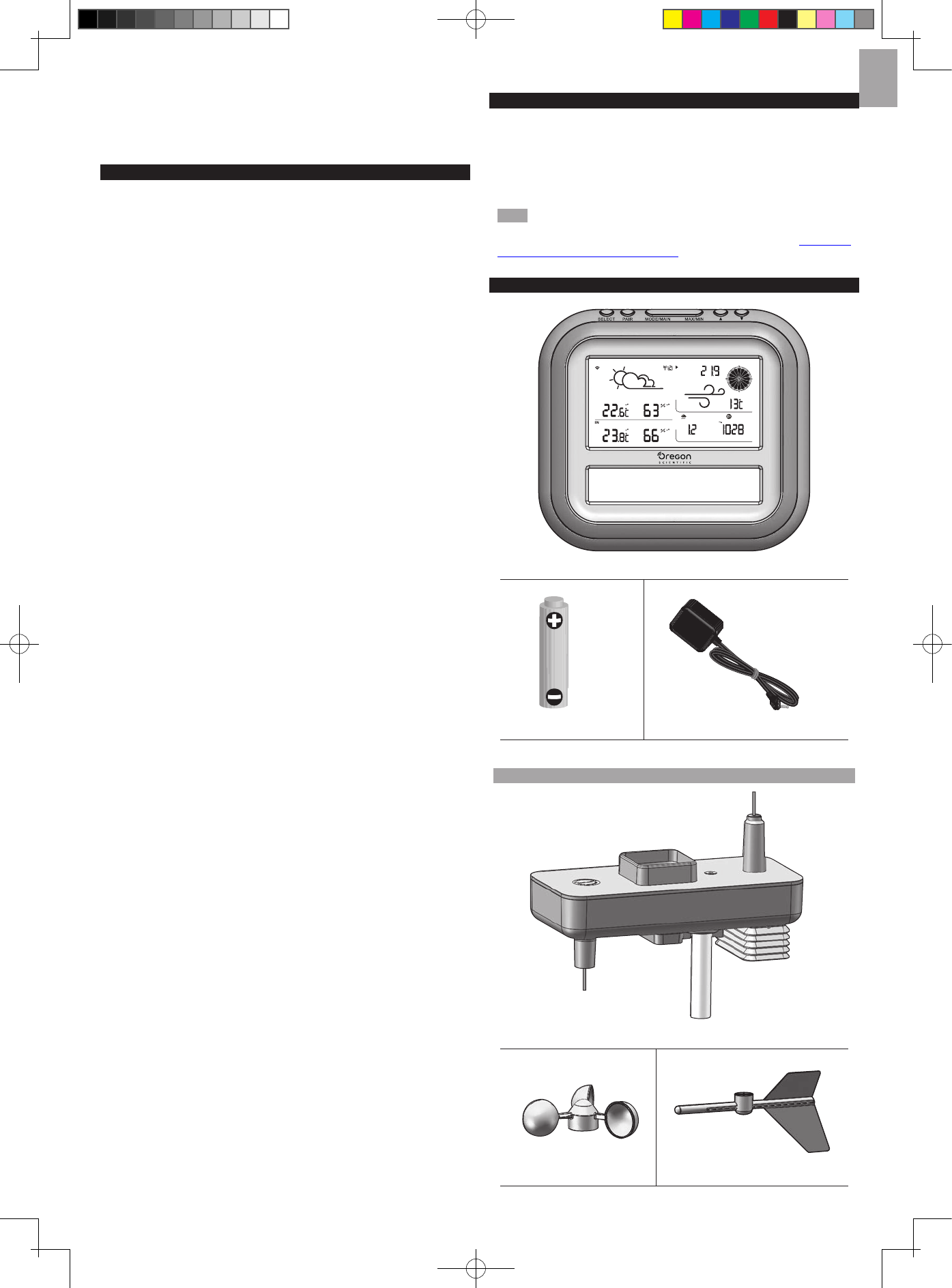

PACKAGING CONTENTS
1 x Base Station
3 x AA UM-3 1.5V batteries 1x Power Adapter
ALL-IN-ONE SENSOR
1x Main unit
1x Wind cups 1x Wind vane
in mb
MODERATE
SPEED
kph
WIND CHILL
WMR500_EN R25.indd 1 2017/3/14 下午2:50
![](/img.php?id=3473585&img=bg2.png)
2
EN
9
10
4 x AA UM-3 1 x U-bolt (with 2 x lock washer &
1.5V batteries 1x Backing metal plate 2 x at washer & 2 x hex nut)
ACCESSORIES - SENSORS
This product can work with other sensors to maximize the performance of your
weather station.
Optional wireless remote sensors (Oregon Scientic brand) such as those listed
below can be purchased separately. For more information, please contact your local
retailer.* Please visit our website at www.oregonscientic.com for more details about
these sensors.
• Dust sensor
• UV sensor (UV index )
* Features and accessories will not be available in all countries.
OVERVIEW

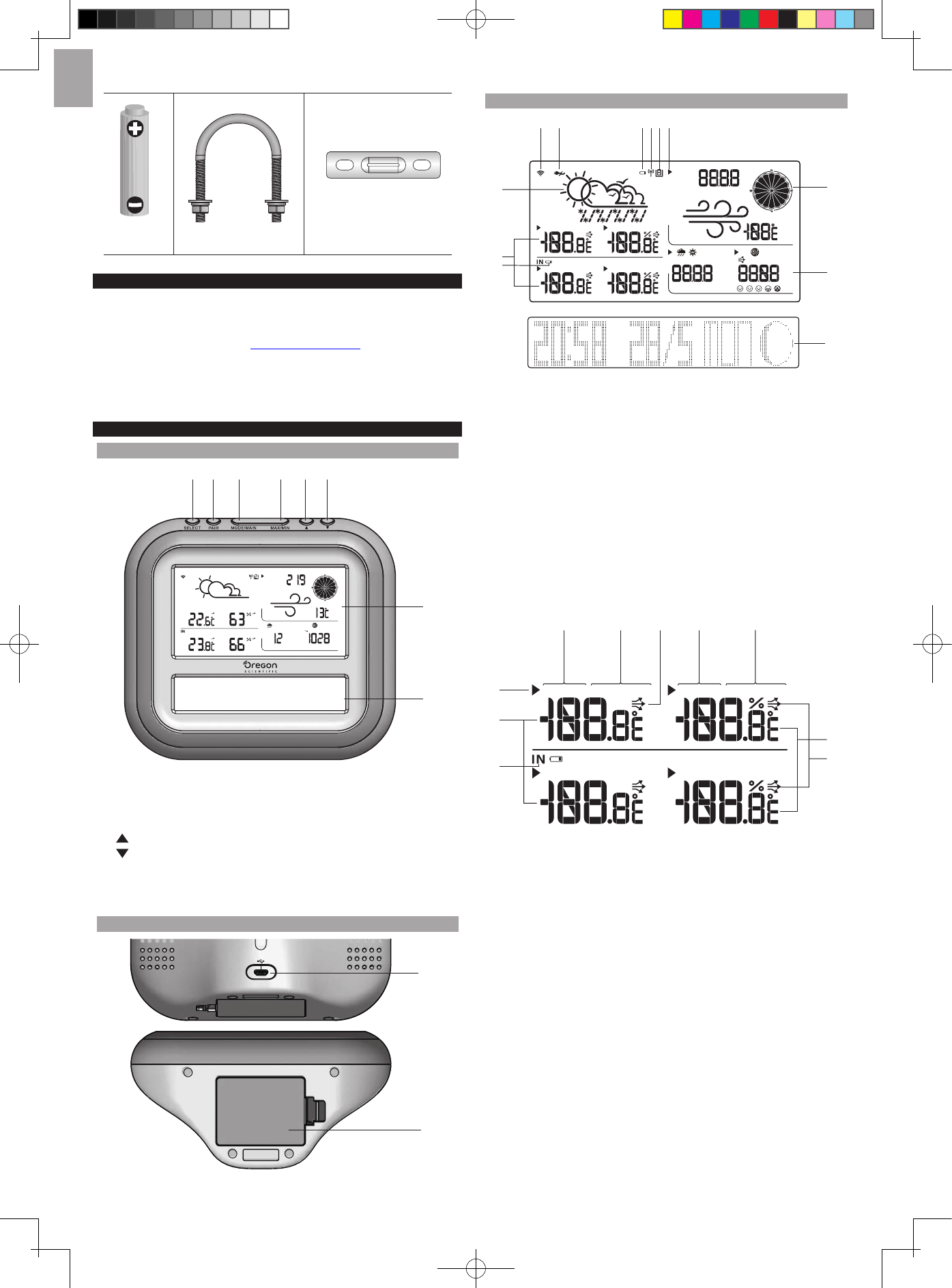

MAIN UNIT
1. SELECT: Switch among the different areas
2. PAIR: Enter and conrm pairing mode
3. MODE/MAIN: Toggle among the different display modes
4. MAX/MIN: Read today max/min memory readings
5. : Increase value; toggle to browse outdoor channels; select pairing mode
6. : Decrease value; toggle to browse outdoor channels; remove sensor; select
pairing mode
7. All weather information display area
8. Dot matrix display area
REAL AND BOTTOM VIEW
9. Micro USB power jack
10. Battery compartment
LCD DISPLAY
A. Temperature/Heat Index /Humidity/Dew-point area
B. Wind speed/Wind direction/ Wind chill area
C. UVI/ Rainfall / Barometric pressure/Air quality area
D. Clock /Calendar/Weekday/Moon Phase area
1. Weather forecast
2. Wi-Fi connection indicator
3. No main power supply
4. Low battery indicator for the sensor
5. Sensor searching indicator
6. Sensor channel
7. Selected area icon
8. Low battery indicator for the base station
A Temperature/Heat Index /Humidity/Dew-point area
1. Selected area icon
2. Indoor/Outdoor temperature reading (°C for EU/°F for US)
3. Indoor temperature/humidity indicator
4. Heat index
5. Today Max/Min temperature/heat index
6. Temperature trend
7. Dew-point
8. Today Max/Min humidity/dew-point
9. Humidity /dew-point reading
10. Humidity trend
B Wind speed/Wind direction/ Wind chill area
1. Wind speed level indicator
2. Wind speed indicator (AVG/GUST)
3. Wind speed reading (m/s, knots, kph or mph)
4. Today max wind speed memory
5. Wind direction indicator
6. Today minimum wind chill
7. Wind speed level description
C UVI/ Rainfall area / Barometric pressure / Air quality area
1. UVI level indicator
2. UVI/rainfall reading (UVI; mm; inch; mm/hr; in/hr)
3. Today/Past 24 hours rainfall
4. Rainfall/rain rate indicator
5. UVI indicator
6. Current/Max UVI or rain rate
7. Barometric pressure trend
8. Barometric pressure indicator
9. PM (Particle Matter) reading indicator
10. AQI (Air quality index)
11. Barometric pressure unit (mb/hPa/mmHg/inHg)
12. PM2.5/PM10 unit (μg/m3/ppm)
13. AQI level indicator
14. Barometric pressure /PM reading
D Clock /Calender/Weekday/Moon Phase area
1. Clock
2. Date
3. Weekday
4. Moon phase
in mb
MODERATE
SPEED
kph
WIND CHILL
12 3456
7
8
AVG
GUST
HEAT INDEX TODAY MAX MIN
HEAT INDEX TODAY MAX MINDEW-POINT TODAY MAX MIN
DEW-POINT TODAY MAX MIN
STORM
STRONG
MODERATE
LIGHT
WIND CHILL
kph mph m/s knots
SPEED
PM
2.5PM
10 AQI
PAST24hrs TODAY MAXmbhPa
mmHg
inHg
µg/m³
ppm
UVI
mm
in/hr
LOW MED V.HI EX.HI
TODAY
MIN
TODAY
MAX
2 3
1
8
A
B
4 5 6
C
7
D
HEAT INDEX TODAY MAX MIN
HEAT INDEX TODAY MAX MINDEW-POINT TODAY MAX MIN
DEW-POINT TODAY MAX MIN
4567 8
10
9
1
2
3
WMR500_EN R25.indd 2 2017/3/14 下午2:50
![](/img.php?id=3473585&img=bg3.png)
3
EN
LCD DISPLAY
A. Temperature/Heat Index /Humidity/Dew-point area
B. Wind speed/Wind direction/ Wind chill area
C. UVI/ Rainfall / Barometric pressure/Air quality area
D. Clock /Calendar/Weekday/Moon Phase area
1. Weather forecast
2. Wi-Fi connection indicator
3. No main power supply
4. Low battery indicator for the sensor
5. Sensor searching indicator
6. Sensor channel
7. Selected area icon
8. Low battery indicator for the base station
A Temperature/Heat Index /Humidity/Dew-point area
1. Selected area icon
2. Indoor/Outdoor temperature reading (°C for EU/°F for US)
3. Indoor temperature/humidity indicator
4. Heat index
5. Today Max/Min temperature/heat index
6. Temperature trend
7. Dew-point
8. Today Max/Min humidity/dew-point
9. Humidity /dew-point reading
10. Humidity trend
B Wind speed/Wind direction/ Wind chill area
1. Wind speed level indicator
2. Wind speed indicator (AVG/GUST)
3. Wind speed reading (m/s, knots, kph or mph)
4. Today max wind speed memory
5. Wind direction indicator
6. Today minimum wind chill
7. Wind speed level description
C UVI/ Rainfall area / Barometric pressure / Air quality area
1. UVI level indicator
2. UVI/rainfall reading (UVI; mm; inch; mm/hr; in/hr)
3. Today/Past 24 hours rainfall
4. Rainfall/rain rate indicator
5. UVI indicator
6. Current/Max UVI or rain rate
7. Barometric pressure trend
8. Barometric pressure indicator
9. PM (Particle Matter) reading indicator
10. AQI (Air quality index)
11. Barometric pressure unit (mb/hPa/mmHg/inHg)
12. PM2.5/PM10 unit (μg/m3/ppm)
13. AQI level indicator
14. Barometric pressure /PM reading
D Clock /Calender/Weekday/Moon Phase area
1. Clock
2. Date
3. Weekday
4. Moon phase

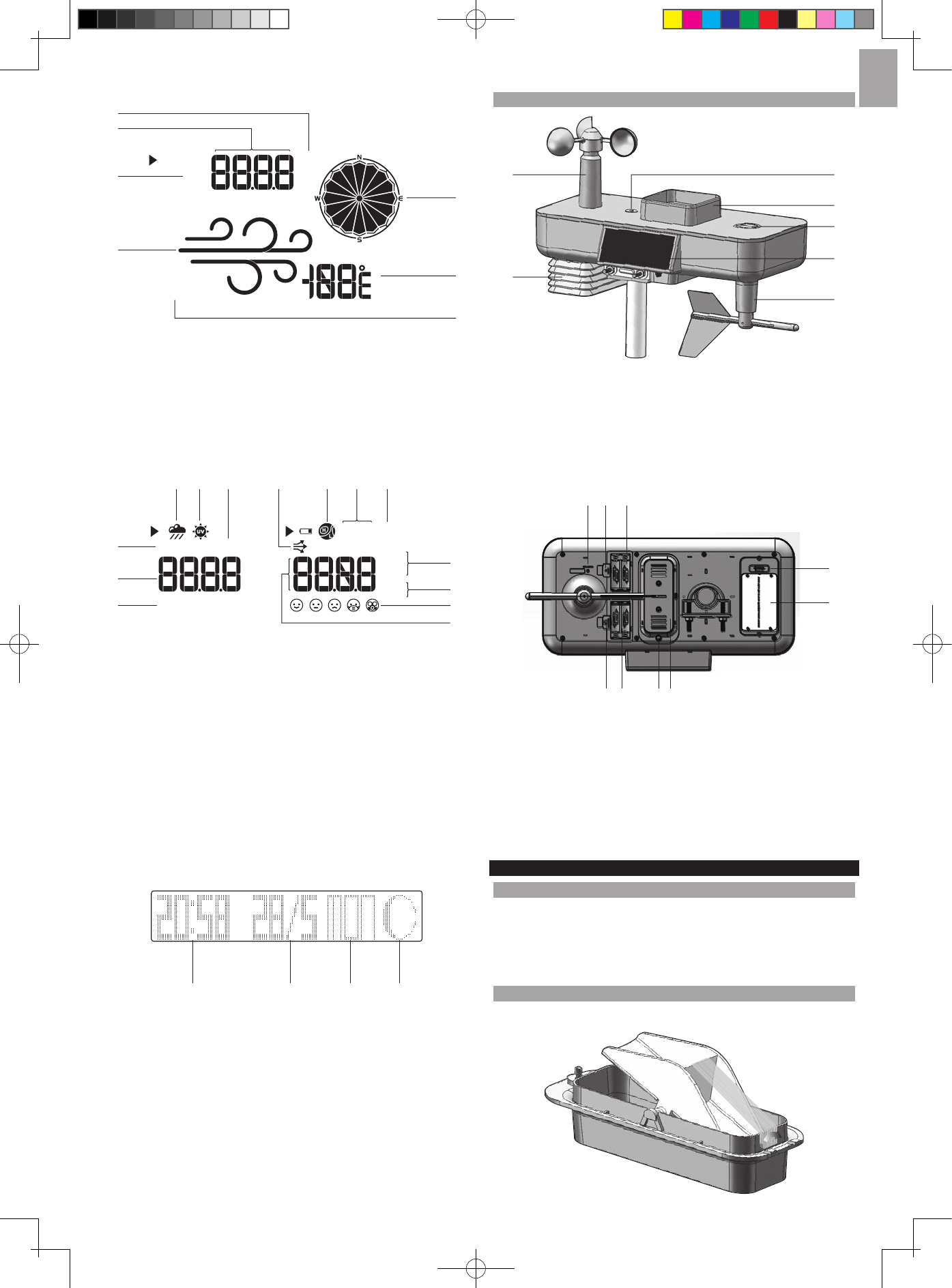

ALL-IN-ONE SENSOR
1. Wind speed sensor: Measures wind speed
2. Level indicator: Indicates whether the sensor is level or needs adjustment
3. Rain gauge with collector: Takes rainfall readings/ Collects rain
4. UV sensor (not included) location: Take UV readings
5. Solar panel: Provide power to the sensor and prolongs battery life
6. Wind direction vane: Takes wind direction
7. Temperature/Humidity sensor: Measures temperature and humidity readings
8. Dust sensor (not included): Take PM 2.5/PM 10 readings
9. SET NORTH: Calibrate the direction of wind sensor
10. RESET: Returns unit to default settings
11. Battery compartment for the all-in-one sensor
12. Temperature/Humidity sensor location
13. Dust sensor location (optional)
14. Debris collector
15. Screw to open/close the debris collector
16. Battery compartment for dust sensor (optional)
17. CHANNEL 1, 2, 3: Select sensor channel
INSTALLATION
ASSEMBLE THE WIND SENSOR
1. Loosen the screws in the wind cups and wind vane.
2. Insert the top of the wind sensor unit into the wind cups securely with some
pressure and then twist the screw tightly.
3. Insert the bottom of the wind sensor unit into the wind vane securely with some
pressure and then twist the screw tightly.
REMOVE THE TAPE ON THE DEBRIS COLLECTOR
A debris collector is located under the rain collector and xed by ber tape. Unscrew
it and remove the tape before rst time using.
AVG
GUST
STORM
STRONG
MODERATE
LIGHT
WIND CHILL
kph mph m/s knots
SPEED
TODAY
MIN
TODAY
MAX
5
6
7
2
4
3
1
PM
2.5PM
10 AQI
PAST24hrs TODAY MAXmbhPa
mmHg
inHg
µg/m³
ppm
UVI
mm
in/hr
LOW MED V.HI EX.HI
11
12
13
14
3
456 78910
2
1
1 2 3 4
1
7
2
3
4
5
6
91011
12
13
14151617
WMR500_EN R25.indd 3 2017/3/14 下午2:50
![](/img.php?id=3473585&img=bg4.png)
4
EN
To remove a sensor
1. Press and hold SELECT for 3 seconds on the base station, two options will
display on the dot matrix display area.
"Do you want to remove sensor x ?
[Yes]: Press DOWN, [No]: Press MODE/MAIN".
2. Press to remove/disconnect the specic sensor (channel).
NOTE
• Complete the pairing within 30 minutes after you power up or reset the sensor.
Otherwise, the base station will stop searching the sensor.
• To replace a specic sensor, remove it before replacing.
• If the new sensor is successfully paired, the new channel number and weather contents
will display. Otherwise, the base station will still display the data from the old sensor.
• If the base station cannot receive the weather data from the sensor, or “- -“
displays as the data value. Press and hold PAIR to search the sensor again.
“- -“ means lost link.
“NA” means data not available or data cannot be calculated.
PAIR YOUR SMART DEVICE WITH THE WEATHER STATION
You can view the weather contents and weather forecast, set the altitude, select the
display units, and review the history data by monthly, weekly, daily and hourly from
different sensor channel on the App.
Download the App
Scan the QR code or search "Oregon Scientic Smart Living" to nd the App
and download on your smart device. The App is available on both Apple App Store
and Google Play.
Join the Wi-Fi network
1. Make sure your Wi-Fi network is on and your smart device is Wi-Fi connected.
2. Open the App, follow the screen instructions to register an account and log in.
3. Press and hold PAIR for 3 seconds to enter pairing mode, select "Wi-Fi network joining",
then press PAIR to conrm.The weather station starts to search the Wi-Fi network.
4. A message “Joining WiFi network” displays on the dot matrix display area, then
immediately tap Start on your smart device.
The following messages appear in steps until successfully paired,
“Joined Wi-Fi network” “Adding device to account” “Device added”.
5 The current clock time/date/weekday/moon phase will be displayed.
6. Tap Add this device on your smart device to bind your account with the weather station.
NOTE
Always keep Wi-Fi connected for the weather station to store data to the
server.
SETTING THE CLOCK TIME
The main unit will automatically synchronize the clock time when connected with our
server and App via Wi-Fi.
You can also set the language (English, French, German, Italian, Spanish), time zone
(-12 to 14) and hour format (12/24 hr) on the App.
MOON PHASE
Following icons illustrate how the moon will appear on the base station.
New
Moon Full Moon
Waxing
Crescent Waning
Gibbous
First
quarter Third
quarter
Waxing
Gibbous Waning
Crescent
NOTE The moon phase displays in opposite orientation if you are in southern hemisphere.
WEATHER FORECAST
The weather station displays the current weather within a 30-50 km (19-31 mile)
radius. You can view the weather forecast for 7 days on App.
ICON DESCRIPTION
Sunny
Partly cloudy
Cloudy
Rainy
Snowy
POWER THE BASE STATION
1. Insert the 3 AA batteries (included) to the battery compartment of the base station
for back-up usage, matching the polarity symbols (+ and -) marked inside.
2. Connect the supplied power adapter to the Micro USB power jack, then plug into
a standard AC outlet.
NOTE
• The power adapter is intended to be correctly oriented in a vertical or oor mount
position. The prongs are not designed to hold the plug in place if it is plugged into
a ceiling, under-the-table or cabinet outlet. The socket-outlet shall be installed
near the equipment and shall be easily accessible.
POWER THE ALL-IN-ONE SENSOR
Insert the 4 AA batteries (included) to the MAIN UNIT battery compartment, matching
the polarity symbols (+ and -) marked inside.
(Optional) Install 4 AA batteries (not included) to the DUST SENSOR battery
compartment for back-up usage, matching the polarity symbols (+ and -) marked inside.
NOTE
• If you will be connecting more than one all-in-on sensor, slide the channel
switch CHANNEL 1, 2, 3 to select another channel before replace the battery
compartment cover.
• For longer performance, recommend to use alkaline batteries and consumer
grade lithium batteries in temperatures below freezing.
• Replace the batteries when displays on the base station. Press RESET after
each battery replacement.
MOUNTING THE ALL-IN-ONE SENSOR
The sensor is capable of transmitting data to the base station wirelessly within an
approximate operating range of 300 m (1000 feet). Ideal locations for the sensor would
be in any location on the roof of a building that is in an open area away from trees or
other obstructions preventing from the wind ow for an accurate reading. Additionally,
locate the sensor in direct sunlight for optimal power supply to the solar panel.
Solar panel facing: If you reside in the:
North Southern Hemisphere
South Northern Hemisphere
Secure the all-in-one sensor connector in the desired location:
1. Align the back of the sensor connector to an existing pole.
2. Secure in place by inserting the ends of the U-bolt into the holes on the sensor
connector and securing it with washers and bolts.
3. Securely locate the pole in your desired outdoor area.
NOTE
• Make sure the water bubble in the level indicator on the top surface stays within
the circle. Check the balance status regularly for an accurate rainfall rate reading.
• Ensure the wind sensor is pointing North to enable it be record accurate readings.
Press SET NORTH at the bottom of the sensor to calibrate the direction.
You can use a compass to look for an accurate direction of north if necessary.
• Press RESET button on the main unit to erase all testing data.
PAIRING THE SENSOR
1. Press and hold PAIR for 3 seconds on the base station, two pairing options will
display on the dot matrix display area.
(1) Wi-Fi network joining
(2) Sensor pairing
2. Press or to select "Sensor pairing", then press PAIR to conrm. A
message "Pairing sensor" will display and the base station starts to search for the
sensor. When successfully paired, select the sensor channel on the base station
to view the weather contents of the paired sensor.
To select a sensor channel
1. Press SELECT repeatedly to navigate icon to any area except the indoor
temperature/heat index/dew-point area.
2. Press or to select a sensor channel.
To add a new sensor or replace the sensor
1. Slide the channel switch to select a channel.
2. Power up or press RESET on the new sensor.
3. Follow the above pairing steps 1-2 to pair the new sensor.
TEMPERATURE AND HUMIDITY
You can view the current indoor/outdoor temperature/heat index, humidity, dew-point
and the max/min memories on the base station.
Select the temperature unit on App: oC (for EU)/oF(for US).
To view current temperature, heat index and TODAY MAX/MIN readings on the
device:
1. Press SELECT repeatedly to navigate icon to the temperature/heat index area.
2. Press MODE repeatedly to toggle between the temperature/heat index displays.
3. Press MAX / MIN to toggle among current / MAX /MIN readings.
4. Press or to change channel (outdoor temperature only).
To view humidity, TODAY MAX/MIN and dew-point readings on the device:
1. Press SELECT repeatedly to navigate icon to the humidity/dew-point area.
2. Press MODE repeatedly to toggle between the humidity/dew-point displays.
3. Press MAX / MIN to toggle among current/MAX/MIN readings.
NOTE
The heat index provides an indication on how hot it feels based on air
temperature and relative humidity.
NOTE
The dew point advises at what temperature condensation will form.
TEMPERATURE AND HUMIDITY TREND
The trend lines are shown next to the temperature and humidity readings. The trend
is shown as follows:
RISING STEADY FALLING
WIND CHILL / DIRECTION / SPEED
You can view and set the numeric wind speed with maximum memory display on our
dedicated App.
Select the wind units on the App.
• Kilometers per hour (kph)
• Miles per hour (mph)
• Meters per second (m/s)
• Knots (knots)
View on the device:
The base station provides wind speed and wind direction information.
To read the wind direction, nd the compass point is pointing to.
To select wind display mode:
Press MODE on wind area to toggle between:
• GUST (Gust)
• AVG (Average)
The wind level is shown by a series of text icon:
LIGHT MODERATE STRONG STORM
2 -8 mph
(3-13 km/h) 9-25 mph
(14-41 km/h) 26-54 mph
(42-87 km/h) >55 mph
(>88 km/h)
To read the wind direction:
Status Wind Direction Indicator Meaning
GUST Real-time wind direction
AVG Real-time average wind direction
AVG (Max 6 sets) Wind direction of last hour
To view today maximum wind speed and minimum wind chill readings:
1. Press SELECT repeatedly to navigate icon to the wind speed/wind direction/
wind chill area.
2. Press MAX / MIN to toggle between current/MAX wind speed and current/MIN
wind chill readings.
NOTE
The wind chill factor is based on the combined effects of temperature and
wind speed.
WMR500_EN R25.indd 4 2017/3/14 下午2:50
![](/img.php?id=3473585&img=bg5.png)
5
EN
To remove a sensor
1. Press and hold SELECT for 3 seconds on the base station, two options will
display on the dot matrix display area.
"Do you want to remove sensor x ?
[Yes]: Press DOWN, [No]: Press MODE/MAIN".
2. Press to remove/disconnect the specic sensor (channel).
NOTE
• Complete the pairing within 30 minutes after you power up or reset the sensor.
Otherwise, the base station will stop searching the sensor.
• To replace a specic sensor, remove it before replacing.
• If the new sensor is successfully paired, the new channel number and weather contents
will display. Otherwise, the base station will still display the data from the old sensor.
• If the base station cannot receive the weather data from the sensor, or “- -“
displays as the data value. Press and hold PAIR to search the sensor again.
“- -“ means lost link.
“NA” means data not available or data cannot be calculated.
PAIR YOUR SMART DEVICE WITH THE WEATHER STATION
You can view the weather contents and weather forecast, set the altitude, select the
display units, and review the history data by monthly, weekly, daily and hourly from
different sensor channel on the App.
Download the App
Scan the QR code or search "Oregon Scientic Smart Living" to nd the App
and download on your smart device. The App is available on both Apple App Store
and Google Play.
Join the Wi-Fi network
1. Make sure your Wi-Fi network is on and your smart device is Wi-Fi connected.
2. Open the App, follow the screen instructions to register an account and log in.
3. Press and hold PAIR for 3 seconds to enter pairing mode, select "Wi-Fi network joining",
then press PAIR to conrm.The weather station starts to search the Wi-Fi network.
4. A message “Joining WiFi network” displays on the dot matrix display area, then
immediately tap Start on your smart device.
The following messages appear in steps until successfully paired,
“Joined Wi-Fi network” “Adding device to account” “Device added”.
5 The current clock time/date/weekday/moon phase will be displayed.
6. Tap Add this device on your smart device to bind your account with the weather station.
NOTE
Always keep Wi-Fi connected for the weather station to store data to the
server.
SETTING THE CLOCK TIME
The main unit will automatically synchronize the clock time when connected with our
server and App via Wi-Fi.
You can also set the language (English, French, German, Italian, Spanish), time zone
(-12 to 14) and hour format (12/24 hr) on the App.
MOON PHASE
Following icons illustrate how the moon will appear on the base station.
New
Moon Full Moon
Waxing
Crescent Waning
Gibbous
First
quarter Third
quarter
Waxing
Gibbous Waning
Crescent
NOTE
The moon phase displays in opposite orientation if you are in southern hemisphere.
WEATHER FORECAST
The weather station displays the current weather within a 30-50 km (19-31 mile)
radius. You can view the weather forecast for 7 days on App.
ICON DESCRIPTION
Sunny
Partly cloudy
Cloudy
Rainy
Snowy
TEMPERATURE AND HUMIDITY
You can view the current indoor/outdoor temperature/heat index, humidity, dew-point
and the max/min memories on the base station.
Select the temperature unit on App: oC (for EU)/oF(for US).
To view current temperature, heat index and TODAY MAX/MIN readings on the
device:
1. Press SELECT repeatedly to navigate icon to the temperature/heat index area.
2. Press MODE repeatedly to toggle between the temperature/heat index displays.
3. Press MAX / MIN to toggle among current / MAX /MIN readings.
4. Press or to change channel (outdoor temperature only).
To view humidity, TODAY MAX/MIN and dew-point readings on the device:
1. Press SELECT repeatedly to navigate icon to the humidity/dew-point area.
2. Press MODE repeatedly to toggle between the humidity/dew-point displays.
3. Press MAX / MIN to toggle among current/MAX/MIN readings.
NOTE The heat index provides an indication on how hot it feels based on air
temperature and relative humidity.
NOTE
The dew point advises at what temperature condensation will form.
TEMPERATURE AND HUMIDITY TREND
The trend lines are shown next to the temperature and humidity readings. The trend
is shown as follows:
RISING STEADY FALLING
WIND CHILL / DIRECTION / SPEED
You can view and set the numeric wind speed with maximum memory display on our
dedicated App.
Select the wind units on the App.
• Kilometers per hour (kph)
• Miles per hour (mph)
• Meters per second (m/s)
• Knots (knots)
View on the device:
The base station provides wind speed and wind direction information.
To read the wind direction, nd the compass point is pointing to.
To select wind display mode:
Press MODE on wind area to toggle between:
• GUST (Gust)
• AVG (Average)
The wind level is shown by a series of text icon:
LIGHT MODERATE STRONG STORM
2 -8 mph
(3-13 km/h) 9-25 mph
(14-41 km/h) 26-54 mph
(42-87 km/h) >55 mph
(>88 km/h)
To read the wind direction:
Status Wind Direction Indicator Meaning
GUST Real-time wind direction
AVG Real-time average wind direction
AVG (Max 6 sets) Wind direction of last hour
To view today maximum wind speed and minimum wind chill readings:
1. Press SELECT repeatedly to navigate icon to the wind speed/wind direction/
wind chill area.
2. Press MAX / MIN to toggle between current/MAX wind speed and current/MIN
wind chill readings.
NOTE The wind chill factor is based on the combined effects of temperature and
wind speed.
UV/RAINFALL/ BAROMETRIC PRESSURE/PM
The station is capable of displaying the UV index, the current or past 24 hours of
rainfall, max rain rate, barometric pressure and air quality readings.
RAINFALL
To view the recorded rainfall/rain rate of the current hour or past 24 hours:
1. Press SELECT repeatedly to navigate icon to the UV/Rainfall area.
2. Press MODE repeatedly to select .
3. Press MAX / MIN repeatedly to toggle among current / today max rain rate, past
24 hours, or today accumulated rainfall readings.
Select the measurement unit for the rainfall/rain rate on the App:
• mm (millimeter); in (inch)
• mm/hr (millimeter per hour); In/hr (inch per hour)
UV INDEX (OPTIONAL)
To view the UV reading:
1. Press SELECT repeatedly to navigate icon to the UV/rainfall area.
2. Press MODE repeatedly to select .
3. Press MAX / MIN to toggle between current/MAX UV index display.
BAROMETRIC PRESSURE
To view the barometric pressure reading:
1.
Press SELECT repeatedly to navigate icon to the barometric pressure/PM area.
2. Press MODE repeatedly to select .
To view pressure trend:
The barometric pressure trend icons are based on recent sensor readings.
The trend lines are shown next to the pressure readings. The trend is shown as
follows:
RISING STEADY FALLING
Select the measurement unit for the barometer on the App:
• Barometric pressure: mmHg (Millimeters of mercury)
• inHg (inches of mercury), mbar (millibars)
• hPa (hectopascal).
Set the altitude level compensation:
The altitude reects the distance from sea level at your position. You can set the
altitude level compensation for the barometric pressure readings on the App.
NOTE When altitude is set to 0 meter, the pressure reading is the local pressure.
If the altitude is set to the current location, the new pressure reading is an offset
pressure to the sea level.
PM (OPTIONAL)
To view the PM reading:
1. Press SELECT repeatedly to navigate icon to the Barometric pressure/PM
area.
2. Press MODE repeatedly to select PM 2.5, PM10, AQI.
Select the measurement unit ppm or ug/m3 for the PM on the App.
BACKLIGHT
Press any button on the base station to activate the backlight.
RESET
Press and hold and together for 5 seconds to return the device to default
settings.
MAINTAINANCE
Maintain the Rain Gauge
Clean the hole of the rain collector and the debris collector for maintaining accuracy is
very important. Unscrew the debris collector and clean the dirt by water periodically.
Maintain the Wind Sensor
If the wind cup doesn’t spin in the wind or does not spin as fast as they should.
Remove the wind cup and clear out all bugs, spider webs or debris.
NOTE
Do not apply any uid lubricant on the shaft and bearing. It probably breaks
the inner electronic components.
WMR500_EN R25.indd 5 2017/3/14 下午2:50
![](/img.php?id=3473585&img=bg6.png)
6
EN
SPECIFICATIONS
BASE STATION
Dimension (L x W x H) 180 x 90 x 160 mm
(7 x 3.54 x 6.3 inches)
Weight 427.5 g (0.94 lbs) without battery
Battery 4 x 1.5 V AA batteries
AC/DC Adapter Input: 100-240 V, 50-60 Hz 300 mA
Output: DC 5V, 1000 mA
ALL-IN-ONE SENSOR
Dimension (L x W x H) 385 x 195 x 315 mm
(15.16 x 7.68 x 12.4 inches)
Weight 1139 g (2.51 lbs) without battery
RF transmission frequency EU: 868mhz, US: 915mhz
No. of channel 3
RF transmission
range 250 - 300 m (internal antenna)
Transmission Cycle 15 seconds
Battery 4 x 1.5 V AA + 4 x 1.5 V AA (optional for dust
sensor)
Battery life with dust sensor: 6 months (8 x 1.5 V AA)
without dust sensor: 12 months (4 x 1.5 V AA)
BAROMETRIC PRESSURE
Unit mb, inHg, mmHg and hPa
Measuring range 700 – 1050 hPa
Accuracy +/- 7 hP a
Altitude setting Sea level
User setting for offset pressure to sea level
Weather display Sunny, Partly Cloudy, Cloudy,
Rainy and Snowy
INDOOR TEMPERATURE
Temperature unit °C / °F (°C for EU, °F for US)
Measuring Range -5 to 50 °C (23 – 122 °F)
Accuracy 0 – 40 °C (32 – 104 °F): +/-1 °C (+/- 2 °F)
-5 to 0 °C (23 – 32.0 °F): +/-2 °C (+/- 4 °F)
40 – 50 °C (104 – 122 °F): +/-2 °C (+/- 4 °F)
Resolution 0.1 °C (0.2 °F)
Memory Current, Min. and Max.
RELATIVE HUMIDITY
Measuring Range 25 % - 90 % RH
Accuracy 40 % - 80 % RH: +/-5 % RH
25 % - 40 % RH and 80 %- 90 %RH: +/-7 % RH
Resolution 1 %
Memory Current, Min and Max
OUTDOOR TEMPERATURE
Temp. unit °C / °F (°C for EU, °F for US)
Measuring Range -30 to 60 °C (-22 to 140 °F)
Accuracy -20 to 0 °C: +/-2.0 °C (+/- 4.0 °F)
0 – 40 °C: +/-1.0 °C (+/- 2.0 °F)
40 – 50 °C: +/-2.0 °C (+/- 4.0 °F)
50 – 60 °C: +/- 3.0 °C (+/- 6.0 °F)
Temperature resolution 0.1°C (0.2 °F)
Memory Current, Min and Max
WIND SENSOR
Wind speed unit m/s, knots, kph, mph
Speed accuracy 2 - 10 m/s (+/-2 m/s)
10 - 56 m/s (+/- 10%)
Direction resolution 22.5 degree
Memory Max wind speed
RAIN GAUGE
Rainfall unit mm , inch (mm for EU, inch for US)
Rain rate unit mm/hr and inch/hr
Measuring range for rainfall 0 mm to 9999 mm (0-393.6 inches)
Measuring range for rain rate 0, 0.04 in/hr (1mm/hr) to
40 in/hr (1016 mm/hr)
Accuracy 0 - 15 mm (0 - 0.6”)/hr : +/- 1 mm/hr (0.04”)
15 - 991 mm/hr (0.6 - 39”) : +/- 10 %
Memory Past 24 hrs, hourly from last memory reset
PRECAUTIONS
• Use only fresh batteries of the required size and type. Do not mix old and new
batteries, different types of batteries.
• Do not dispose old batteries as unsorted municipal waste. Collection of such
waste separately for special treatment is necessary.
• If you do not plan to use the product for a long time, remove the batteries.
Batteries can leak chemicals that can damage electronic parts.
• Do not subject the device to excessive force, shock, dust, temperature or
humidity.
• Do not immerse the device in water. If you spill liquid over it, dry it immediately
with a soft, lint-free cloth.
• Do not clean the device with abrasive or corrosive materials.
• Do not tamper with the device’s internal components. Doing so invalidates the
warranty.
• Images shown in this manual may differ from the actual display.
• When disposing of this product, ensure it is collected separately for special
treatment.
• The contents of this manual may not be reproduced without the permission of the
manufacturer.
NOTE The technical specications for this product and the contents of the user
manual are subject to change without notice.
NOTE
Features and accessories will not be available in all countries. For more
information, please contact your local retailer. To download an electronic version of
the user manual, please visit http://global.oregonscientic.com/customerSupport.php.
ABOUT OREGON SCIENTIFIC
Visit our website www.oregonscientic.com to learn more about Oregon Scientic
products.
For any inquiry, please contact our Customer Services at info@oregonscientic.com.
Oregon Scientic Global Distribution Limited reserves the right to interpret and
construe any contents, terms and provisions in this user manual and to amend it,
at its sole discretion, at any time without prior notice. To the extent that there is any
inconsistency between the English version and any other language versions, the
English version shall prevail.
EU-DECLARATION OF CONFORMITY
Hereby, IDT Technology Limited, declares that Professional all-in-one Weather
Station (model: WMR500) is in compliance with the essential requirements and other
relevant provisions of Directive RED 2014/53/UE. A copy of the signed and dated
Declaration of Conformity is available on request via our Oregon Scientic Customer
Service.
COUNTRIES RED APPROVAL COMPLIED
All EU countries, Switzerland CH
and Norway N
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
This device must accept any interference received, including interference
WARNING
Changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
NOTE
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.
DECLARATION OF CONFORMITY
The following information is not to be used as contact for support or sales. Please call
our customer service number (listed on our website at www.oregonscientic.com), or
on the warranty card for this product) for all inquiries instead.
We
Name: Oregon Scientic, Inc.
Address: Centerpointe CENTER
5 Centerpointe DRIVE, SUITE 400
LAKE OSWEGO, OREGON 97035
Telephone No.: 971-204-0378
declare that the product
Product No.: WMR500
Product Name: Professional all-in-one Weather Station
Manufacturer: IDT Technology Limited
Address: Block C, 9/F, Kaiser Estate,
Phase 1, 41 Man Yue St.,
Hung Hom, Kowloon,
Hong Kong
WMR500_EN R25.indd 6 2017/3/14 下午2:50
![](/img.php?id=3473585&img=bg7.png)
7
EN
WIND SENSOR
Wind speed unit m/s, knots, kph, mph
Speed accuracy 2 - 10 m/s (+/-2 m/s)
10 - 56 m/s (+/- 10%)
Direction resolution 22.5 degree
Memory Max wind speed
RAIN GAUGE
Rainfall unit mm , inch (mm for EU, inch for US)
Rain rate unit mm/hr and inch/hr
Measuring range for rainfall 0 mm to 9999 mm (0-393.6 inches)
Measuring range for rain rate 0, 0.04 in/hr (1mm/hr) to
40 in/hr (1016 mm/hr)
Accuracy 0 - 15 mm (0 - 0.6”)/hr : +/- 1 mm/hr (0.04”)
15 - 991 mm/hr (0.6 - 39”) : +/- 10 %
Memory Past 24 hrs, hourly from last memory reset
PRECAUTIONS
• Use only fresh batteries of the required size and type. Do not mix old and new
batteries, different types of batteries.
• Do not dispose old batteries as unsorted municipal waste. Collection of such
waste separately for special treatment is necessary.
• If you do not plan to use the product for a long time, remove the batteries.
Batteries can leak chemicals that can damage electronic parts.
• Do not subject the device to excessive force, shock, dust, temperature or
humidity.
• Do not immerse the device in water. If you spill liquid over it, dry it immediately
with a soft, lint-free cloth.
• Do not clean the device with abrasive or corrosive materials.
• Do not tamper with the device’s internal components. Doing so invalidates the
warranty.
• Images shown in this manual may differ from the actual display.
• When disposing of this product, ensure it is collected separately for special
treatment.
• The contents of this manual may not be reproduced without the permission of the
manufacturer.
NOTE
The technical specications for this product and the contents of the user
manual are subject to change without notice.
NOTE
Features and accessories will not be available in all countries. For more
information, please contact your local retailer. To download an electronic version of
the user manual, please visit http://global.oregonscientic.com/customerSupport.php.
INFORMATION FOR USERS
Pursuant to and in accordance with Article 14 of the Directive 2012/19/EU
of the European Parliament on waste electrical and electronic equipment
(WEEE), and pursuant to and in accordance with Article 20 of the Directive
2006/66/EC of the European Parliament on batteries and accumulators
and waste batteries.
The barred symbol of the rubbish bin shown on the equipment indicates that, at the
end of its useful life, the product must be collected separately from other waste.
Please note that the batteries/rechargeable batteries must be removed from the
equipment before it is given as waste. To remove the batteries/accumulators refer
to the specications in the user manual. Therefore, any products that have reached
the end of their useful life must be given to waste disposal centers specializing in
separate collection of waste electrical and electronic equipment, or given back to
the dealer when purchasing a new WEEE, pursuant to and in accordance with Article
14 as implemented in the country.
The adequate separate collection for the subsequent start-up of the equipment sent to
be recycled, treated and disposal of in an environmentally compatible way contributes
to preventing possible negative effects on the environment and
health and optimizes the recycling and reuse of components making up the apparatus.
Abusive disposal of the product by the user involves application of the administrative
sanctions according to the laws in force.
ABOUT OREGON SCIENTIFIC
Visit our website www.oregonscientic.com to learn more about Oregon Scientic
products.
For any inquiry, please contact our Customer Services at info@oregonscientic.com.
Oregon Scientic Global Distribution Limited reserves the right to interpret and
construe any contents, terms and provisions in this user manual and to amend it,
at its sole discretion, at any time without prior notice. To the extent that there is any
inconsistency between the English version and any other language versions, the
English version shall prevail.
EU-DECLARATION OF CONFORMITY
Hereby, IDT Technology Limited, declares that Professional all-in-one Weather
Station (model: WMR500) is in compliance with the essential requirements and other
relevant provisions of Directive RED 2014/53/UE. A copy of the signed and dated
Declaration of Conformity is available on request via our Oregon Scientic Customer
Service.
COUNTRIES RED APPROVAL COMPLIED
All EU countries, Switzerland CH
and Norway N
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
This device must accept any interference received, including interference
WARNING Changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
NOTE
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.
DECLARATION OF CONFORMITY
The following information is not to be used as contact for support or sales. Please call
our customer service number (listed on our website at www.oregonscientic.com), or
on the warranty card for this product) for all inquiries instead.
We
Name: Oregon Scientic, Inc.
Address: Centerpointe CENTER
5 Centerpointe DRIVE, SUITE 400
LAKE OSWEGO, OREGON 97035
Telephone No.: 971-204-0378
declare that the product
Product No.: WMR500
Product Name: Professional all-in-one Weather Station
Manufacturer: IDT Technology Limited
Address: Block C, 9/F, Kaiser Estate,
Phase 1, 41 Man Yue St.,
Hung Hom, Kowloon,
Hong Kong
WMR500_EN R25.indd 7 2017/3/14 下午2:50
