Owner's Manual
PLEASE READ BEFORE OPERATING THIS EQUIPMENT.
with Bluetooth® Wireless Technology
with Bluetooth® Wireless Technology
IB Size: 105.5 x 210mm (A5)
32 INCH
32 INCH
STEREO SOUND BAR
STEREO SOUND BAR
Model:CHT939
![](/img.php?id=2458827&img=bg2.png)

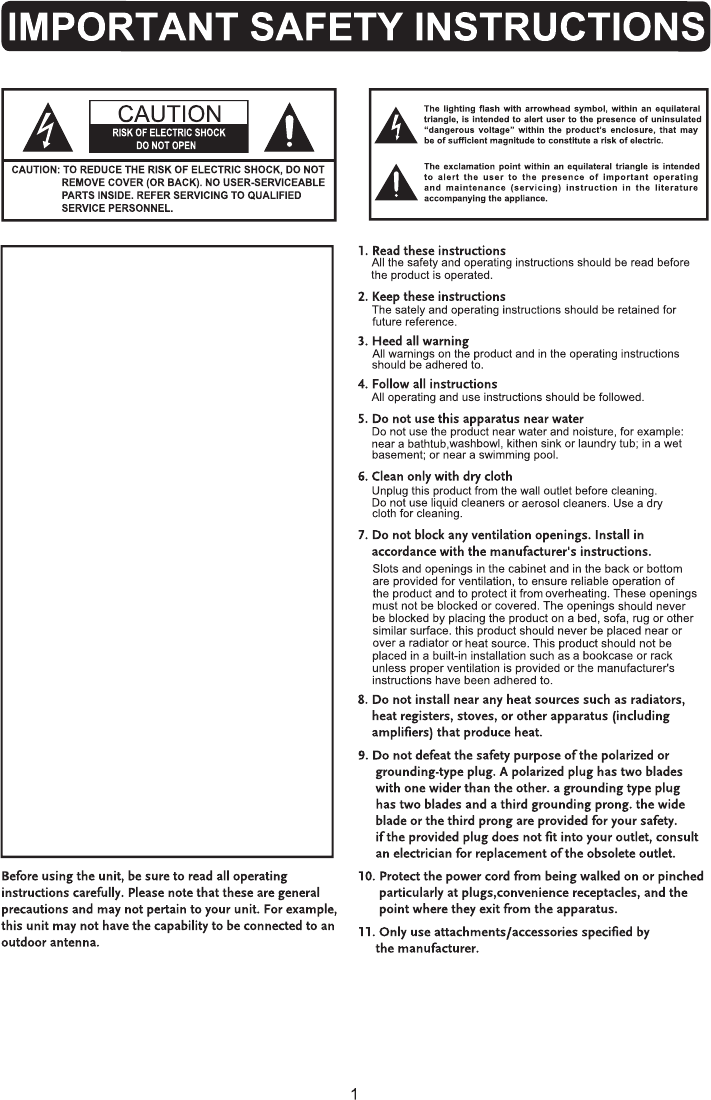

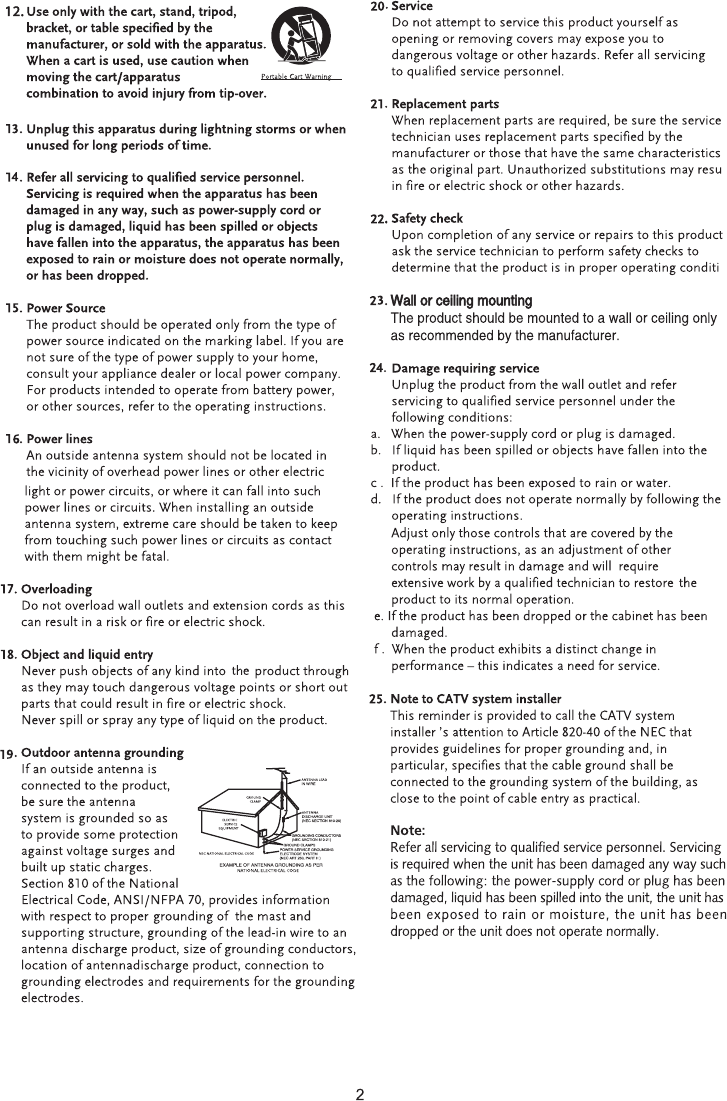

WARNING:Changes or modifications to this unit
not expressly approved by the party responsible
for compliance could void the user’s authority to
operate the equipment.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference
in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference
by one or more of the following measures:
•Reorient or relocate the receiving antenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV
technician for help.
•
•
•
FCC Warnings
FCC NOTICE:
To assure continued compliance, follow the attached installation
instructions and use only shielded cables when connecting to other
devices. Modifications not authorized by the manufacturer may void
user’s authority to operate this device.
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions: 1) this
device may not cause harmful interference, and 2) this
device must accept any interference received,
including interference that may cause undesired operation.
![](/img.php?id=2458827&img=bg3.png)
![](/img.php?id=2458827&img=bg4.png)
2. Mounting the Speaker Bar onto a wall
We recommend having this speaker professionally mounted. By using the included
wall mounting accessories, the sound bar can be mounted onto a wall.
Distance Between Two Brackets
1. Placing on the table
When placing the Sound Bar on an entertainment center, bookshelf, or any type of
enclosed space, be sure to allow at least 2-3 inches of space around the Sound Bar
for ventilation. If the Sound Bar is enclosed in a tight space, without ventilation, heat
generated from the Sound Bar could produce a potential heat hazard.

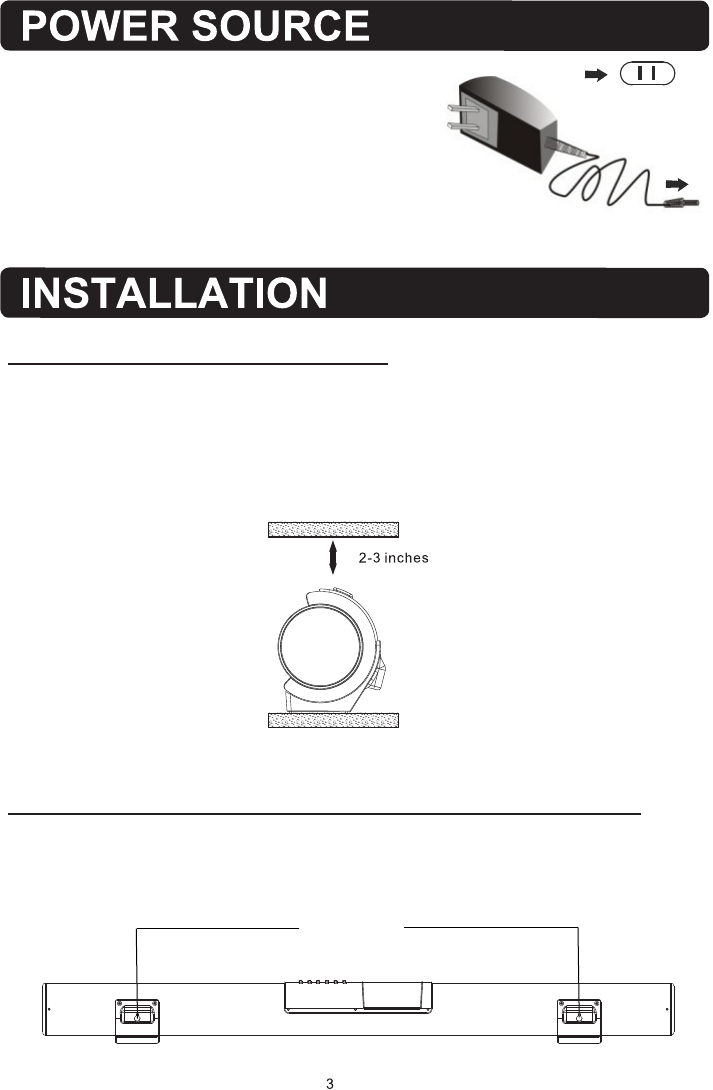

To the DC IN jack on the top of the unit.
22.4 inches
To the wall outlet
NOTE:
If Long period of time will not use the unit, unplug the AC Cord from the wall outlet.
1. Insert the plug from the supplied AC/DC adaptor
to the DC In Jack on the top of unit.
2. Insert the small plug from the supplied AC Power
Cord to the AC In Jack on the AC/DC Adaptor.
3. Insert the AC Plug from the supplied to the wall
outlet Having AC 100-240V~; 50/60Hz.
To the AC In Jack
![](/img.php?id=2458827&img=bg5.png)

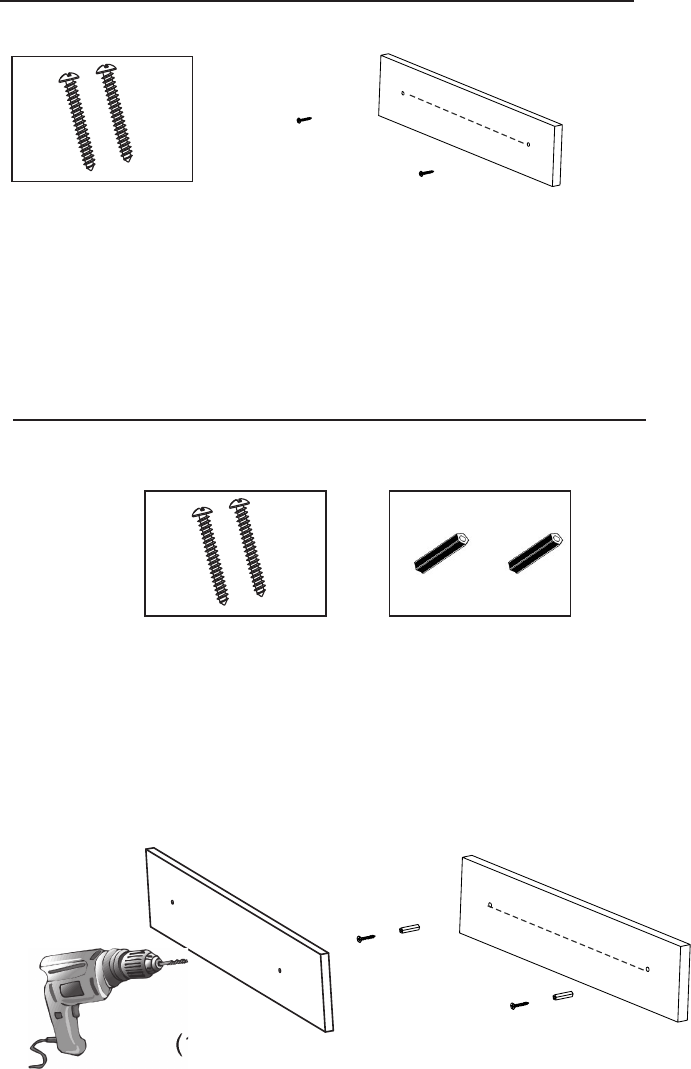

1. Mark the position of the mounting screws on the wall using a pencil.
2. Drill the supplied screws directly into the marks that you have made on the wall
and leave approx. 0.3 inch length to hook the sound bar.
3. Put the sound bar onto the mounting screws. Make sure they are firm and stable.
4
You may use
2 pieces plastic inserts
(Included)
2 pieces screws
(Included)
1. Mark the position of the mounting screws on the wall using a pencil.
3. Insert the supplied plastic inserts into the holes by hammer .
5. Put the sound bar onto the mounting screws. Make sure they are firm and stable.
(1) (2)
4. Secure the supplied screws into the plastic insert and leave approx. 0.3 inch
2 pieces screws
(Included)
2.2 Mounting on the wooden wall:
You may use
2.2 Mounting on the wall
2.1 Mounting on the wooden wall
length to hook the sound bar.
( Not Supplied )
2. Drill 2 x 7/32 inch diameter holes by a powerful electric drill ( Not Supplied ).
22.4 inches
22.4 inches
![](/img.php?id=2458827&img=bg6.png)
OPTICA L
AUX IN 2
L
R
AUX IN 1
FM ANT
POWER/
SOURCE
VOL- VOL + PLAY/
PAUSE
TUNE- TU NE+
5
2.Remote sensor
3. Speakers
1. Indicator
3. Speakers

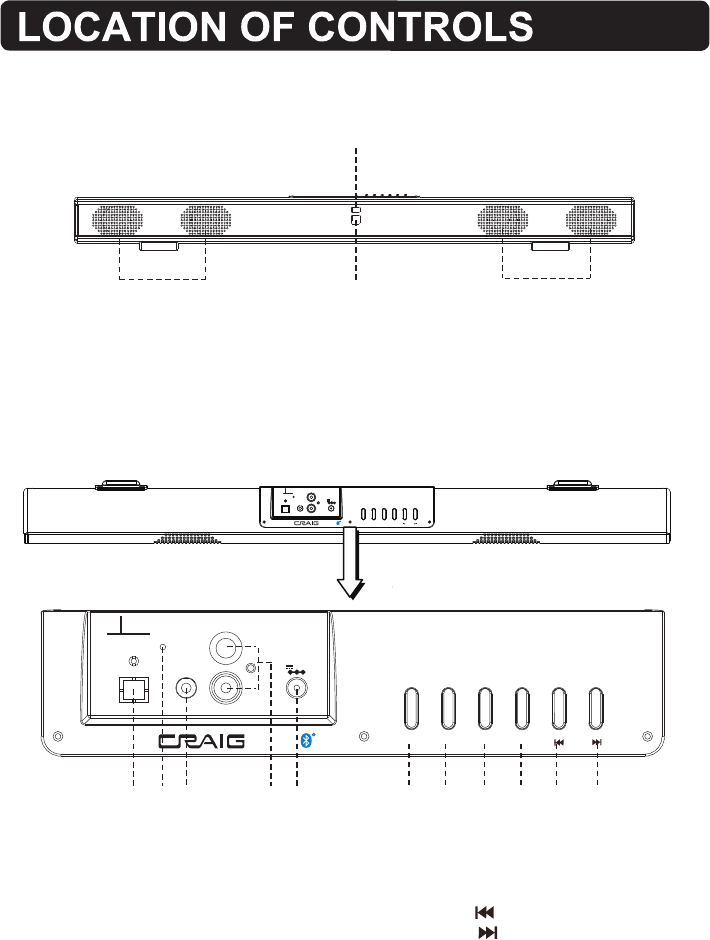

Front View
POWER/
SOURCE
VOL- VOL+ PLAY/
PAUSE
FM ANT
AUX IN1
AUX IN2
L
R
2 3 4 5 6 7 8 9 10 11
2. FM ANT ( FM Antenna )
3. AUX IN 1 jack
4. AUX IN 2 jacks
5. DC IN jack
6. POWER/SOURCE button
7. VOL- ( Volume Down ) button
8. VOL+ ( Volume Up ) button
9. PLAY/PAUSE button
10. TUNE-/ ( Skip Backward ) button
TUNE- TUNE+
11. TUNE+/ ( Skip Forward ) button
Top View
OP TIC AL
1
1. OPTICAL (Optical In Jack)
DC I N
DC 1 6V, 1.8A
DC IN
DC 16V, 1.8 A
![](/img.php?id=2458827&img=bg7.png)
EQ
SOURCE
BASS -
BASS+
VOL-
VOL+
MO/ST
TREBLE-
TREBLE+
6
In Standby mode, press and hold to enter to time set mode.
14.SOURCE(mode)
Press repeatedly to select the input source to
FM; LINE; AUX or BT.
1
2
3
4
5
6
7
8
9
10
11
TUNE- TUNE+
2. TUNE-/ ( Skip Backward ) button
3. TUNE+/ ( Skip Forward ) button

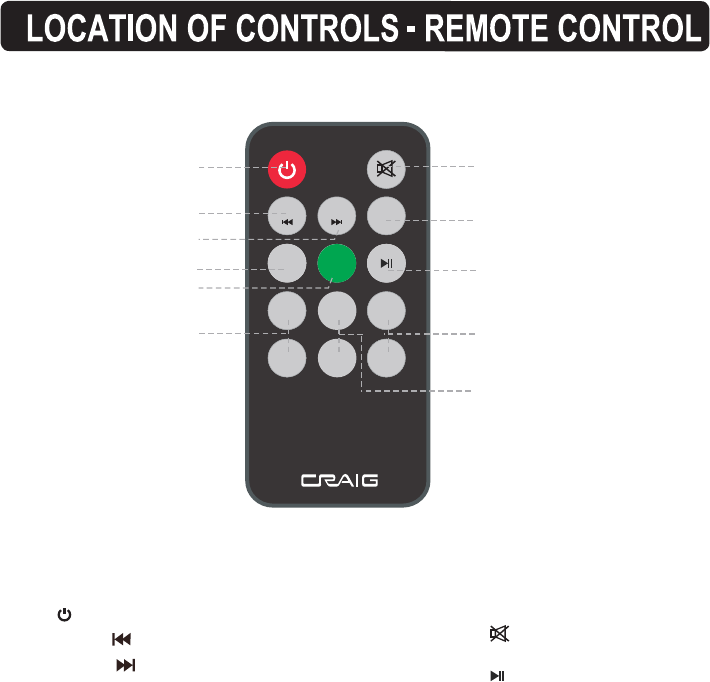

1. Power ON/OFF button
4. MO/ST ( Mono/Stereo ) button
5. SOURCE button
6. BASS +/- buttons
7. ( Mute ) button
8. EQ ( Equalizer ) button
9. ( Play/Pause ) button
10. VOL ( Volume ) +/- buttons
11. TREBLE +/- buttons
![](/img.php?id=2458827&img=bg8.png)
7
BATTERY PRECAUTIONS
Fig.1 Fig.2 Fig.3
- First Time Use

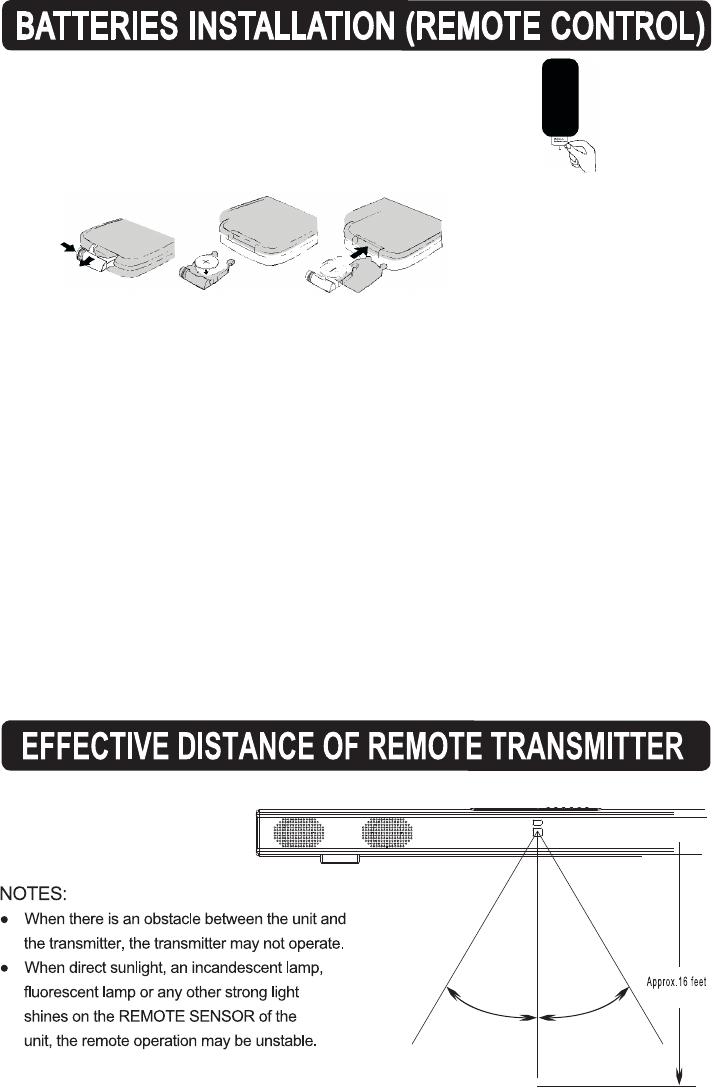

Remove and discard the insulation tab as figure on the right.
1. Push and slide out the battery holder as figure 1 below.
3. Close the battery holder.
2. Replace the battery with a new CR2025 button cell as the polarity
markings on the rear of the Remote Control.
°
Remote Sensor
30 °
30
8. This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it
can cause severe internal burn in just 2 hours and can lead to death. Keep new and used
batteries away from children. If the battery compartment does not close securely, stop using the
product and keep it away from children. If you think batteries might have been swallowed or
placed inside any part of the body, seek immediate medical attention.
- If the battery is consume, replace it as below:
Folloe these precautions when using a battery in this device:
1. Use only the size and type of battery specified.
2. Be sure to follow the correct polarity when installing the battery as indicated in the battery
compartment. A reversed battery may cause damage to the device.
3. Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc ) or old
batteries with fresh ones.
4. If the batteries in the device are consumed or device is not to be used for a long period of
time, remove the batteries to prevent damage or injury from possible battery leakage.
5. Do not try to recharge the battery not intended to be recharged; it can overheat and rupture.
( Follow battery manufacturer's instructions.)
6. The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
7. Clean the battery contacts and also those of the device prior to battery installation.
![](/img.php?id=2458827&img=bg9.png)
1. Connect the Sound Bar to the power as previous procedures.
2. Press the
4.
LISTEN TO FM RADIO
FM Antenna
and extend the wire or relocate the wire to improve the radio reception.
The Antenna wire on the top of the unit is for radio reception. If reception is weak, unwind
8
4. During Playback:
~ Press the VOL ( Volume ) + or - buttons to adjust volume level as desired.
~ Press the EQ button repeatedly to select and set equalizer mode as desired.
~ Press the ( Mute ) button to turn off the sound. Press again to resume.
GENERAL OPERATIONS
1. Connect the AC/DC adapter to the unit and wall outlet as the previous procedure. The Red
6. If long period of time will not use the unit, unplug the AC/DC Adaptor from the wall outlet.
3. Press the POWER/SOURCE button on the unit or press SOURCE button on the remote control
~ Press the BASS +/- buttons to adjust the sound level of bass.
~ Press the TREBLE +/- buttons to adjust the sound level of treble.
( Standby mode ) the unit.
repeatedly to switch to desired mode, the color of the Indicator will turn to:
2. Press the POWER/SOURCE button on the unit or press the Power button on the remote
button on the remote control to power off
5. When finished listening, press and hold the POWER/SOURCE button on the unit or press the
POWER/SOURCE button on the unit or the button on the remote control
to power on the unit.
Press and hold the TUNE -/ or TUNE +/ buttons until the Indicator start blinking
3. Press the POWER/SOURCE button on unit or press the SOURCE button on the
remote control repeatedly until the color of the Indicator turns to Purple.
5.
Press and release the TUNE - / or TUNE + / buttons repeatedly to fine tune.
Indicator will light.
Purple------------------------------------------------------------FM Radio
AUX IN 1
Yellow----------------------------------------------------------- AUX IN 2
Blue--------------------------------------------------------------- Bluetooh
to search and plays the searched available FM station.
6. If the available FM station is stereo, the unit will play it in stereo mode automatically.
If the reception is no good, press the MO/ST button on the remote control to switch it
to Mono mode. Press again to turn back to Stereo mode.
control to power on the unit from standby mode. The color of the Indicator will turn to
correspondence color.
Green------------------------------------------------------------
(To reset the EQ to normal mode; power off the unit then power on again)
Cyan---------------------------------------------------------------- Optical
![](/img.php?id=2458827&img=bga.png)
9
BLUETOOTH PARING AND PLAYBACK
1. Power on the unit as previous procedures.
3. Power on the external BT Device and enter to searching mode. Start pairing as the on
Notes:
1. When the external BT Device searched the unit, our model number
" CHT939 " will appear on the display of external BT Device.
2. Pairing code "0000" or "1234" may need to enter.
Normal operation after paired:
2. Turn on the BT function of the external BT Device.
1. Power on the unit and selected the playback source to BT as previous procedures.
3. Wait a few seconds until the unit paired to the external BT Device automatically. The
4. Play the music in the connected BT Device as usual.
screen instructions on the external BT Device. After paired,
( For details pairing procedures, please refer to the user's manual of your BT Device.)
The Indicator will stop
blinking.
In first time use or re-pairing to new BT Device, pairing the unit to the external
BT Device as follows:
2. Press the POWER/SOURCE button on the unit or press the SOURCE button on the
remote control repeatedly until the color of the Indicator turns to Blue.
Blue tooth
Blue indicator stop blinking.
5. During playback:
~ Press the TUNE -/ or TUNE +/ buttons to skip the tracks.
~ Press the PLAY/PAUSE button on the unit or button on the remote control to
pause. Press again to resume normal playback.
![](/img.php?id=2458827&img=bgb.png)

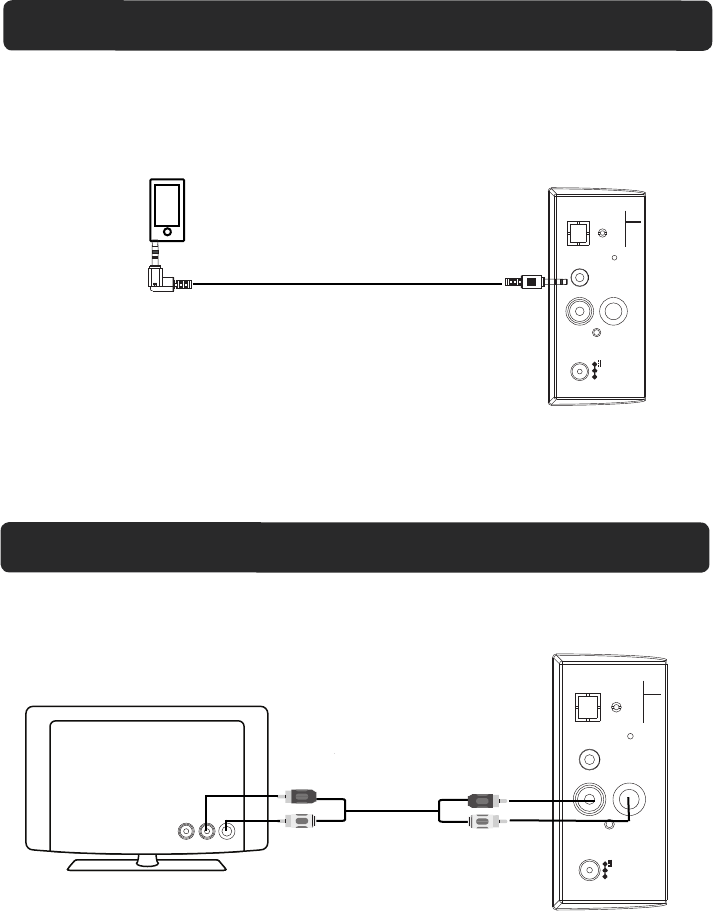

1. Connect the Headphone/Earphone; Aux
(such like MP3 player; Discman … etc) to the AUX IN 1 jack on the top of
unit by the supplied Audio Connection Cable as the figure below:
Audio
Player
To Phone Jack
2. Connect the unit to the power as previous procedures.
4. Power on the connected external player and start playback music as usual.
10
1. Connect the Aux out jacks from the external audio player (such like TV, DVD player,
VCR …etc.) to the AUX IN 2 jacks on the top of unit by the RCA Connection Cable
as the figure below:
2. Connect the Sound Bar to the power as previous procedures.
Red
White
To Audio Out Jacks
AUX IN 1 : LISTEN TO EXTERNAL AUDIO DEVICES
AUX IN 2 : LISTEN TO TV/DVD/VCR/DVR
FM ANT
AUX IN1
AUX IN2
L
R
FM ANT
AUX IN1
AUX IN2
L
R
Top of the unit
Top view of the unit
3. Press the POWER/SOURCE button on the unit or press the SOURCE button on the
out jack or Line out jack from the external
audio player
3. Press the POWER/SOURCE button on the unit or press the
SOURCE button on the remote control repeatedly until the
VIDEO R L
TV
color of the Indicator turns to Green.
remote control repeated until the Indicator turns to Yellow.
4. Power on the connected external player and start playback the Video/Music as usual.
OPTICAL OPTICAL
DC I N
DC 1 6V, 1.8A
DC I N
DC 1 6V, 1.8A
![](/img.php?id=2458827&img=bgc.png)
DVD or TV, etc.
POWER/
SOURCE
VOL- VOL+ PLAY/
PAUSE
FM ANT
AUX IN1
AUX IN2
L
R
TUNE- TUNE+
OP TIC AL
DC I N
DC 1 6V, 1.8A
Top view of the unit
2. Connect the Sound Bar to the power as previous procedures.
3. Press the POWER/SOURCE button on the unit or press the SOURCE button on the
remote control repeated until the Indicator turns to Cyan.
4. Power on the connected external player and start playback the Music as usual.

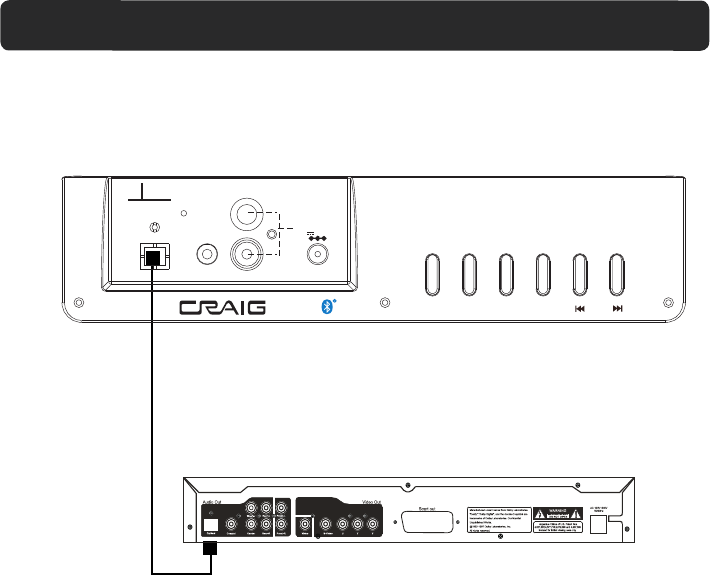

1. Connect the Optical out jack from the external audio player (such like TV, DVD
VCR …etc.) to the OPTICAL jack on the top of unit by the Optical Connection
OPTICAL IN
Optical Cable ( not included )
11
Cable as the figure below: ( F or PCM format only )
![](/img.php?id=2458827&img=bgd.png)
Check the followings before requesting service
SYMPTOM POSSIBLE CAUSE POSSIBLE SOULTION
TROUBLESHOOTING GUIDE
No power
No sound
Sound distortion
Remote not
working
Bluetooth
reception failure
Have not paired
The external device is far from
the unit
The battery is consumed
Volume level too high
Bass level of the connected
device too high
Input source incorrect
The paired/connected device
is not in payback mode
Volume in minimum position
The unit is in Standby mode
Connect the power AC/DC adapter.
Press the button to turn on the unit.
Raise volume level by pressing the VOL
(Volume) + button.
Play music/movie in the paired/connected
device as usual and make sure the
volume level of it is in high level.
Reduce the bass level of the connected
device.
VOL (Volume ) - button.
Reduce the volume level by pressing
the
Replace with new battery.
Put the external BT device close to the
unit.
Power AC/DC adapter
not connected
12
Press the BASS - button on the
Sound Bar to reduce bass level.
Poor FM reception Relocate and unwind the FM antenna wire.
Reduce the volume level of the paired/
connected device.
Pair the unit with the BT Device as the
procedures on page 9.
Press the POWER/SOURCE button on the
unit or press SOURCE on the remote
control repeatedly to set the input source
to the desired mode.
![](/img.php?id=2458827&img=bge.png)
13
Power Source................................................................................... DC 16V; 1.8A,
---
Loud Speakers
1 x Remote Control, using CR 2025 button cell ( Included, already installed in remote control )
1 x Stereo Audio Connection Cable with 3.5mm stereo plugs
1 x User's Manual
1 x AC/DC Adaptor ( Input: AC 100-240V~; 50/60Hz; 1A. Output: DC 16V; 1.8 A, )
2 x Metallic Screws ( For Wall Mount )
2 x Plastic Inserts ( For Wall Mount )
---
8 Ohm,10 W x 2
..............................................................................................
Loud Speakers: 10 W ( RMS ) x 2
Total:................................................................................................................................20W
Impedance of Speakers:
Audio Power:
Bluetooth Effective Range in Open Area............................................................Up to 32 feet
Remote Effective Range.....................................................................................Up to 16 feet
Radio Coverage..........................................................................................FM 87.5-108 MHz
............................................................................................
![](/img.php?id=2458827&img=bgf.png)
CHT939_WC_E0CL1_B0US
