32" SOUND BAR SPEAKER
USER MANUAL
Model:PSB322
PLEASE READ BEFORE OPERATING THIS EQUIPMENT.
SAFETY INSTRUCTIONS
1.Read these instructions.
2.Keep these instructions.
3.Heed all warnings.
4.Follow all instructions.
5.Do not use this apparatus near water.
6.Clean only with a slightly damp cloth.
7.Do not block any ventilation openings.
8.Install in accordance with the manufacturer’s instructions.
9.Do not install or operate near any heat sources such as radiators,stoves,or other apparatus
that produce heat
10.Unplug this apparatus during lightning storms or when unused for long periods of time.
11.Servicing is required when the apparatus has been damaged in any way, such as the
power-supply cord or plug is damaged,liquid hasbeenspilledorobjectshavefallenintotheapparatus,
the apparatus has normally, or has been dropped.
Warning:
D o not expose this product to rain or moisture. The product must not be exposed to dripping
splashing and no object filled with liquids should be placed on the product.
Caution:
Changes or modifications not expressly approved by the manufacturer could void the user’s
authority to operate this device.
Caution:
Usage of controls or adjustments or herein may result in hazardous exposure.
Refer all servicing to qualified service personnel.
Caution:
To reduce the risk of fire or electrical shock.No fire sources such as candles should be
placed on the products.
1
FCC NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
The antenna(s) used for this transmitter must be installed to provide a separation distance of at
least 20 cm from all persons and must not be co-located or operating in conjunction with any other
antenna or transmitter.
2
![](/img.php?id=1891537&img=bg4.png)

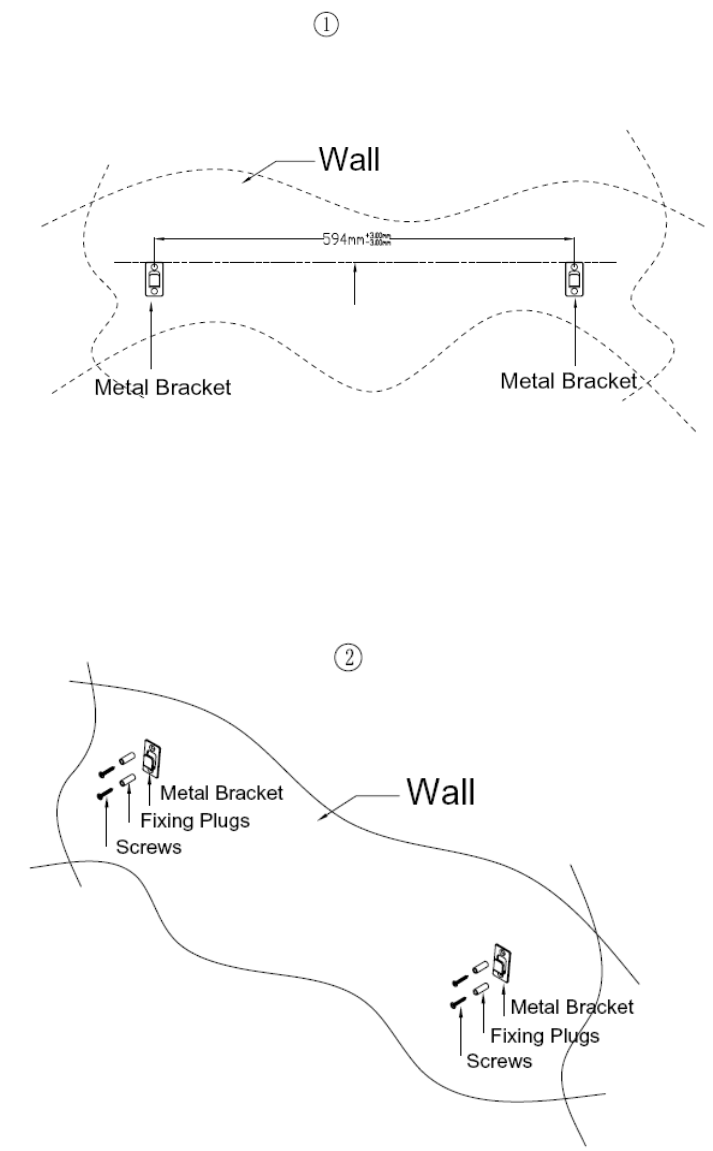

MOUNTING
1. Follow the figure 1 above to determine the positions where the screws should be mounted.
Make sure the two brackets are mounted in the same level.
2. Insert the fixing plugs into the screw holes and insert screws to fix the metal bracket onto the
wall.
3
![](/img.php?id=1891537&img=bg5.png)

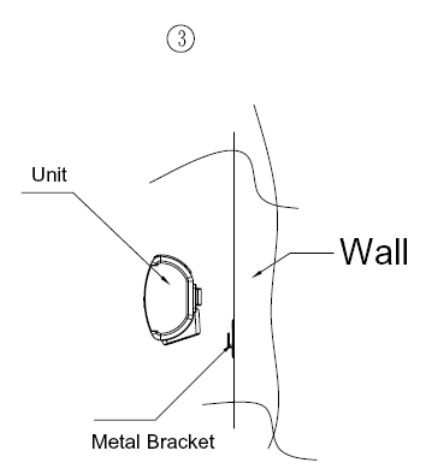

3. Hang the unit on the wall
Note:
The gap between the metal bracket and plastic mounting holder on the rear of the unit is designed
for simple mounting, which will make the unit movable.
4
![](/img.php?id=1891537&img=bg6.png)
PRODUCT OVERVIEW
Front View
1. LCD Display 6. Remote Sensor
3. Tune- Button 8. Volume- Button
4. Tune+ Button 9. Speakers
Rear View
5
1
2
3
4
6
7
8
9
TUN- TUN+
VOL- VOL+
AUX IN 1
MODE
TUN- TU N+
VOL- VO L+
AUX IN 1
MODE
5
2. Standby/MODE Button
JackIN1
ANT
R
L
AUX 2
R
L
AUX IN2
DC IN
A1212090750000001
S/N:A1 2 1 2 0 9 0 7 5 0 0 0 0 0 0 0 1
10 11 11 12
ANT
R
L
AUX 2
R
L
AUX IN2
DC IN
12.FM Antenna
11.RCA Audio Input Jacks
10.DC IN Jack
5. AUX
Button7. Volume+
![](/img.php?id=1891537&img=bg7.png)

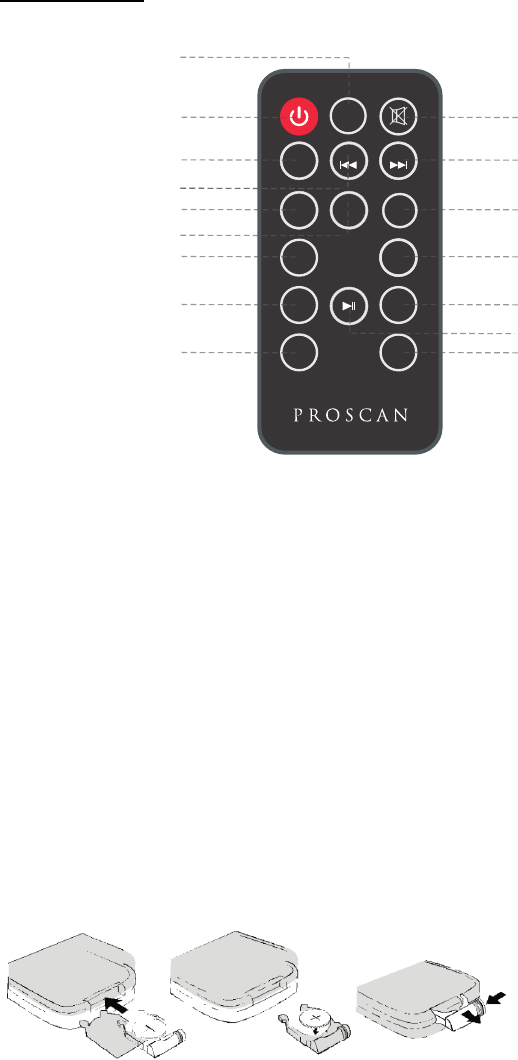

Remote Control
4. TUNE-Button 9. TREBLE- Button 15. Play/Pause Button
BATTERY INSTALLATION
- Before installation
Remove and discard the insulation tab.
-Replace battery for the remote control
1. Push and slide out the battery holder as Figure 1 below.
2. Replace the battery with a new CR2025 button cell with the polarity (+) side upward.
3. Slide into the battery holder.
Battery precautions
• Never recharge the batteries, apply heat to them or take them apart.
• Battery shall not be exposed to excessive heat such as sunshine, ire or the like.
• Do not throw the batteries in ire!
• Attention should be drawn to the environmental aspects of battery disposal.
• If the remote control is not going to be used for a long time, remove the battery
to avoid damage caused by battery leakage corrosion.
6
2
3
5
7VOL+
FM SCAN
TUN-
M+ EQ
VOL-
BASS- BASS+
TREBLE-
TREBLE+
TUN+
8
9
4
6
1
10
11
12
13
14
16
15
CLOCK
MO/ST
MODE
Button on Button6. EQ Butt1.MODE
2. Standby Button 7. VOL-(Volume-) Button 13. VOL+ (Volume+) Button
5. M+(Memory+) Button 10. Mute Button 16. TREBLE+ Button
11. TUNE+ Button
12. CLOCK/MO/ST
3. FM SCAN Button 8. BASS- Button 14. BASS+ Button
POWER CONTROL
- To turn the unit on
·
·Press STANDBY button to turn on the unit.
- To turn the unit off
·Press STANDBY button on the remote control or hold STANDBY button in the front of the unit.
NOTE:
If the unit is not used for a long period of time, disconnect the power adapter.
TIME SETTING
1. Place the unit to standby mode.
2. Hold CLOCK/MO/ST button on the remote control until the hour digit flashes.
3.Then press TUNE+ or TUNE- button on the unit or remote control to adjust the hour.
4. Press CLOCK/MO/ST button on the remote control to confirm the hour setting and the minute
digit will flash.
5. Then press TUNE+ or TUNE- button on the unit or remote control to adjust the minute.
6. Press CLOCK/MO/ST button on the remote control to confirm the minute setting.
FM RADIO
display.
- Search and store the stations
1. Hold TUNE+ or TUNE- button to search stations forward or backward. The unit will stop if a
station is found. Then press FM SCAN button, “CH XX” will flash and then use M+ button to
select the place you want the station stored to. Press FM SCAN button to confirm. Or
2. Hold FM SCAN button then release the unit will search and store the stations automatically.
- Listen to the preset stations
PressM+buttonrepeatedlytoselectthedesiredpresetstationstolistento.
NOTE:
If the received FM stations are in stereo mode, the unit will play in stereo mode automatically.If
reception is weak, press the CLOCK/MO/ST button to turn the unit to mono mode. Press again to
turn to stereo mode again.
7
MODE
Power on the unit and press button repeatedly until the FM frequency appears on the
Connect the supplied power adapter.
![](/img.php?id=1891537&img=bg9.png)

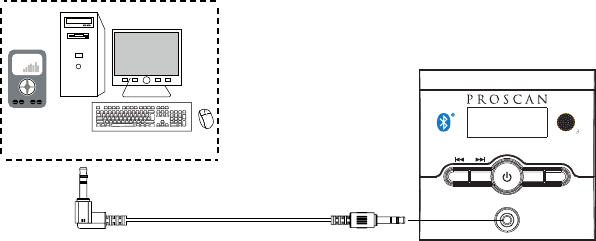

AUX IN
- AUX IN source may include:
·Personal audio players
·Personal computers or laptops
- AUX IN connection:
1. Connect a stereo 3.5mm jack cable (supplied) between the headphone or LINE/Audio output of
Set your personal audio player/computer to play.
NOTE: If there is no sound or if the volume is not loud enough, you may increase the setting on
the source.
- During playback
·Press MUTE button to turn off the sound. Press again to resume the sound.
·Press VOLUME+/- buttons to adjust the volume level.
·Press BASS+/- buttons to adjust bass level.
·Press TREBLE+/-buttons to adjust treble level.
·Press EQ button to switch between POP/JAZZ/CLASSIC/ROCK/NORMAL.
8
MODE2.Power on the unit and press button repeatedly until "AUX1" appears on the display.
POWER
RESET
Computer
MP3
Supplied audio
connection cable To AUX IN 1 Jack
Connect to the output
socket of external
audio devices (MP3,
Computer,ext.)
on the unit
TUN- T UN +
VOL- V OL +
AUX IN 1
MODE
the personal audio player and the jack on the front of the unit.AUX IN1
![](/img.php?id=1891537&img=bga.png)
·TV/DVD/VCR
1. Connect the RCA audio cable (supplied) to the audio output jack on DVD player and AUX IN
NOTE:
- During playback
·Press MUTE button to turn off the sound. Press again to resume the sound.
·Press VOLUME+/- buttons to adjust the volume level.
·Press BASS+/- buttons to adjust bass level.
·Press TREBLE+/-buttons to adjust treble level.
·Press EQ button to switch between POP/JAZZ/CLASSIC/ROCK/NORMAL.
9

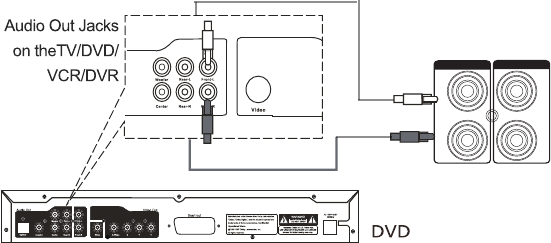

RCA AUX IN
-RCA AUX IN sources may include
-RCA AUX IN connection
2. Press MODE button repeatedly until or
appears on the display.
AUX IN1 jack in the front of the unit.
R
L
AUX 2
R
L
AUX IN2
AUX 2
White
Red
2
or jack on the rear of the unit.
BeforeAUX IN 2 connection, make sure theAUX IN cable is not inserted into the
AUX 2
"AUX1" (for connection) (forAUX "AUX 2" AUX 2IN 2
connection)
BLUETOOTH
- Paring:
2. Turn off the Bluetooth functionality of other devices that are paired with your unit.
3. Turn on Bluetooth functionality on your Bluetooth device. Typically, Bluetooth controls are
found on the device’s tools or settings menu (see your user manual).Turn on Bluetooth
connectivity and make your device “discoverable”.
4. Clean out the paring list on your Bluetooth device.
5. Choose “add a new Bluetooth device”or “setup Bluetooth device”on your device. It will start to
please enter 0000. If the pairing attempt fails or times out, please start pairing procedure again.
”
- During playback:
Make sure the Bluetooth connection between the unit and the device is activated.
·Press PLAY/PAUSE button to suspend momentarily the playing track. Press again to resume
playing.
·PressTUNE+buttontoskipforwardtothenexttrackandTUNE-buttontoskipbackwardtothe
previous track.
·Press MUTE button to turn off the sound. Press again to resume the sound.
·Press VOLUME+/- buttons to adjust the volume level.
·Press BASS+/- buttons to adjust bass level.
·Press TREBLE+/-buttons to adjust treble level.
·Press EQ button to switch between POP/JAZZ/CLASSIC/ROCK/NORMAL.
10
1.Press MODE button repeatedly until "BT" appears on the display.
search. Once “PSB322” shows on your device, select it. If your device prompts you for a pass code,
6. After your device and the “PSB322 have connected each other “Du” sound can be heard., a
SPECIFICATIONS
Power source of the remote control................................................ DC 3V, 1x CR 2025 button cell
Audio output........................................................................................................................ 10W x 2
Power consumption....................................................................................................................25W
Bluetooth working range............................................................................................................10M
0MHz
ACCESSORIES
1 x Instruction manual
1 x Remote control
1 x CR 2025 button cell (Already installed in the remote control)
1 x Stereo audio connection cable with 3.5mm stereo plug
1 x RCA audio cable
2 x Wall-mount metal brackets
4 x Screws
11
Output of the power adapter....................................................................................... .DC 16V 1.8A
1 x Power adapter
FMcoverage............................................................................................................ 88.0-108.
