Junlan Electronic SBB32170 MEDIA CENTER User Manual
Shenzhen Junlan Electronic Ltd MEDIA CENTER
User Manual
![](/img.php?id=2732869&img=bg1.png)
PLEASE READ INSTRUCTIONS CAREFULLY
AND KEEP FOR FUTURE REFERENCE
--INSTALLATION AND OPERATION MANUAL--
MODEL:WMSMCZ3
Media Center
![](/img.php?id=2732869&img=bg2.png)
This unit has a long cord that can easily be tripped on or pulled on, causing injury, Please make sure
USE UNDER SUPERVISION OF AN ADULT DUE TO LONG CORDUSE UNDER SUPERVISION OF AN ADULT DUE TO LONG CORD
The lighting flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to
the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
it is arranged so it will not drape over a tabletop, etc. Where it can be pulled on by children or tripped
over accidentally.
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
FCC NOTICE:
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not Installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications.
● Reorient or relocate the receiving
antenna. Increase the separation between
the equipment and receiver.
● Connect the equipment into an outlet
with a circuit different from that to which the
receiver is connected.
● Consult the dealer or an experienced
radio/TV technician for help.
Before using the unit, be sure to read all
operating instructions carefully. Please note
that these are general precautions and may
not pertain to your unit.
1 ) Read these instructions
All the safety and operating instructions should
be read before the product is operated.
2 ) Keep these instructions
The safety and operating instructions should
be retained for future reference.
3 ) Heed all warnings
All warnings on the product and in the
operating instructions should be adhered to.
4 ) Follow all instructions
All operating and use instructions should be
followed.
5 ) Do not use this apparatus near water
Do not use this product near water and
moisture, for example: near a bathtub,
washbowl, kitchen sink or laundry tub; in a wet
basement; or near a swimming pool.
WARNING:
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
WARNING:
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, AND ANNOYING
INTERFERENCE, USE THE RECOMMENDED
ACCESSORIES ONLY.
FCC WARNING:
To assure continued compliance, follow the
attached installation instructions and use only
shielded cables when connecting to other
devices. Modifications not authorized by the
manufacturer may void user`s authority to
operate this device. 2
However, there is no
guarantee that interference will not occur
in a particular installation. If this equipment
does cause
harmful interference to radio
or
television
reception,
which can be determined by
turning the equipment off and on,
the user is encouraged to try to correct the
interference by one or more of the following
measures:
"This equipment complies with FCC RF radiation exposure
limits set forth for an uncontrolled environment. This equipment
should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body."
![](/img.php?id=2732869&img=bg3.png)
8 ) Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus(including amplifiers) that produce
heat.
9 ) Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than other.
A grounding type plug has two blades and a
third grounding prong. The wide blade or the
third prong are provided for your safety. If the
provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
10 ) Protect the power cord from being
walked on or pinched particularly at plugs,
convenience
the apparatus.
13 ) Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus
apparatus, the apparatus has been exposed to
rain or moisture does not operate normally, or
has been dropped.
14 ) Power source
This product should be operated only from the
type of power source indicated on the marking
label.
refer to the operation instructions.
15 ) Service
Do not attempt to service this product yourself
as opening or removing covers may expose
you to dangerous voltage or other hazards.
Refer all servicing to qualified service
personnel.
6 ) Clean only with dry cloth
Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a dry cloth for cleaning.
7)Do not block any ventilation
openings. Install in accordance with the
manufacturer's instructions
Slots and openings in the cabinet and in the
back or bottom are provided for ventilation, to
ensure reliable operation of the product and
to protect it from overheating. These openings
must not be blocked or covered. The openings
should never be blocked by placing the product
on a bed, sofa, rug or other similar surface.
This product should never be placed near or
over a radiator or heat source. This product
should not be placed in a built-in installation
such as a bookcase or rack unless proper
ventilation is provided or the manufacturer's
instructions have been adhered to.
receptacles, and the point where
they exit from
has been damaged in any way, such
as power-supply cord or plug is damaged, liquid
has the been objects have fallen into or spilled
WARNING:
To reduce the risk of fire or electric shock, do
or splashing and that objects
vases shall not be placed on apparatus.
11 ) Only use attachments/accessories
specified by the manufacturer.
12 ) Unplug this apparatus during lightning
storms or when unused for long periods of
time
To protect your product from a lightning storm,
or when it is left unattended and unused for
long periods of time, unplug it from the wall
outlet and disconnect the antenna or cable
system.
lightning and power-line surges.
This will prevent damage to the product
due to
not expose this apparatus to rain or moisture.
The apparatus shall not be exposed to dripping
filled with liquids,
such as
WARNING:WARNING:WARNING:
supply
dealer or
to your home, consult your appliance
If you are not sure of the type of power
local power company. For products
intended to operate from battery power, or other
source,
3
![](/img.php?id=2732869&img=bg4.png)
Digital FM tuner w/10 presets
Bluetooth wireless technology
4 zone audio distribution
4 zone video distribution
3.5 mm aux input jack on front panel
USB input on front panel w/device charging capabilities
Digital Optical input on rear panel
2 analog stereo inputs on rear panel
LED backlit controls
Wireless remote control included
User Manual
AV Connection Cable
FM Antenna
Remote Control with Two Batteries
Wire Harness for Speakers
DC Power Extension (Red and Black) Wire
AAA
AAA
FEATURES

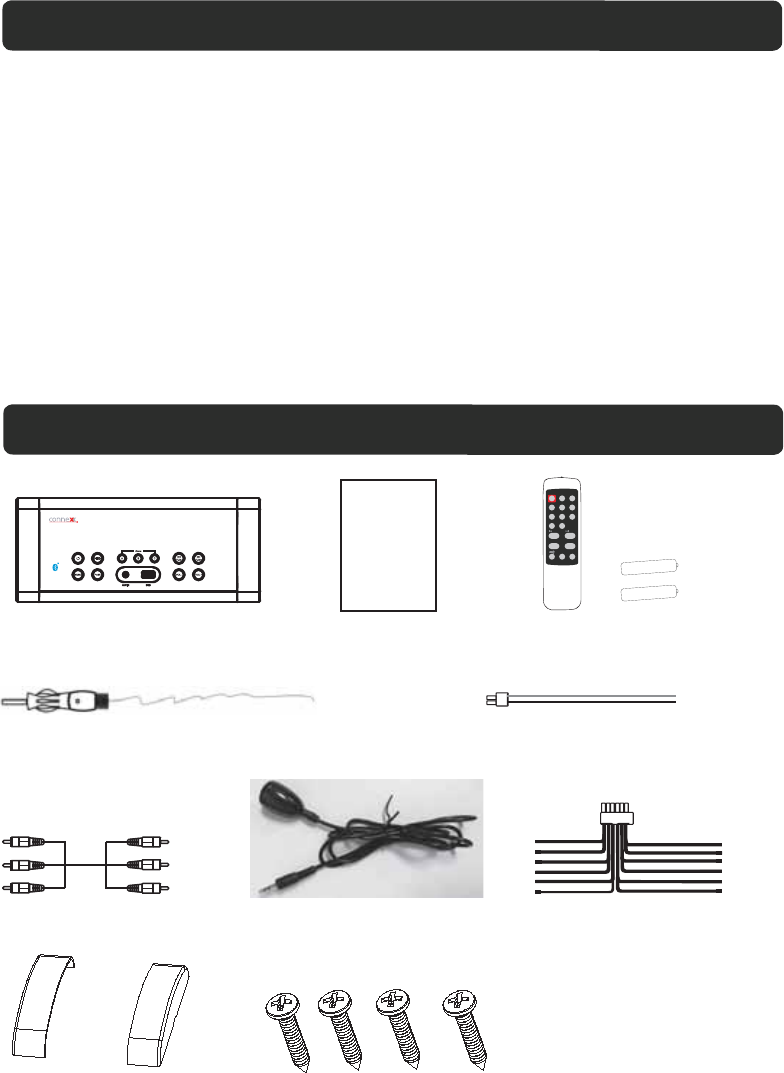

PACKING LIST
........
........
........
........
........
........
........
........
OPTICAL
BT USB
FM
TV DVD
VOL- VOL+
AUX IN
PAIR MUTE
റͬറ
റͬറ റͬറ
ZONE A
TUN- TUN+
ZONE B
ZONE C
Main Unit
External Remote Sensor
Screw Cover Screws for Installation
4
![](/img.php?id=2732869&img=bg5.png)
2. Mounting
1. Placing
254mm

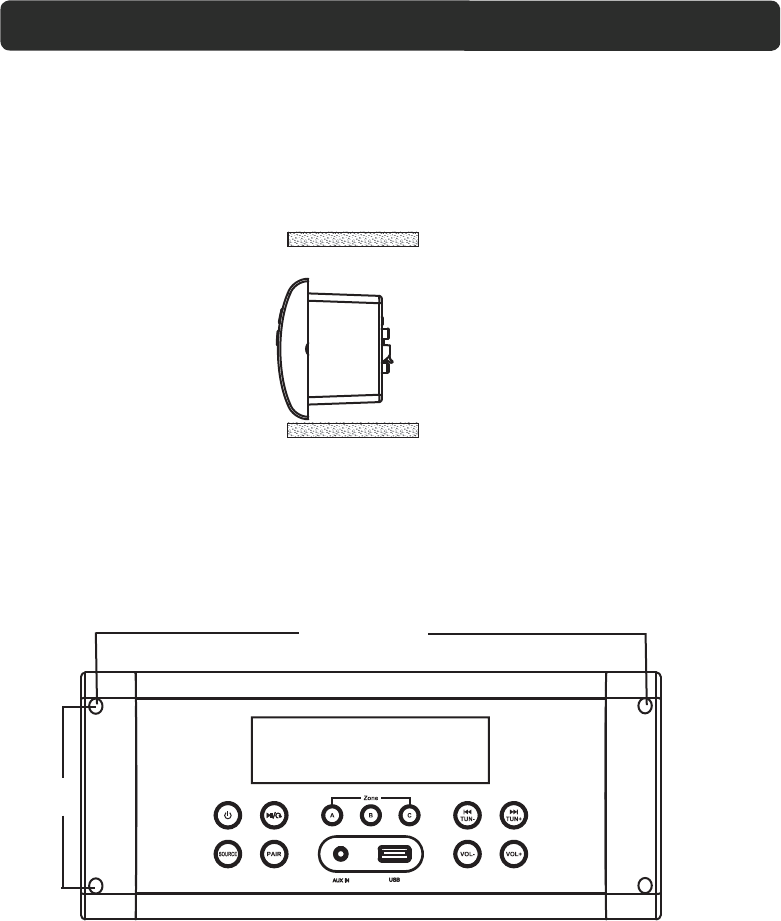

PLACING AND MOUNTING
When plaing the media center in any type of enclosed space, be sure to allowe space
around it for ventilation.
If plaing in a tight space without ventilation, heat generated from the unit could produce
a potential heat hazard.
80mm
Mounting Distance
5
![](/img.php?id=2732869&img=bg6.png)

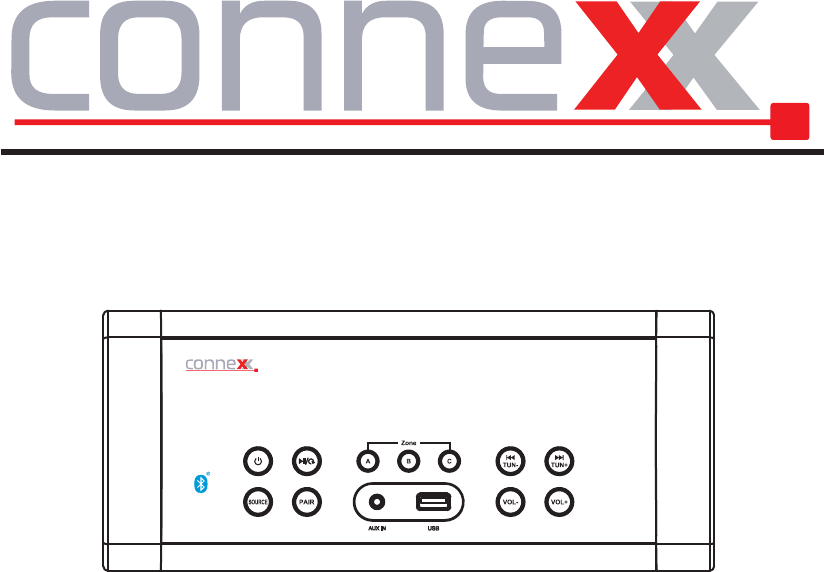

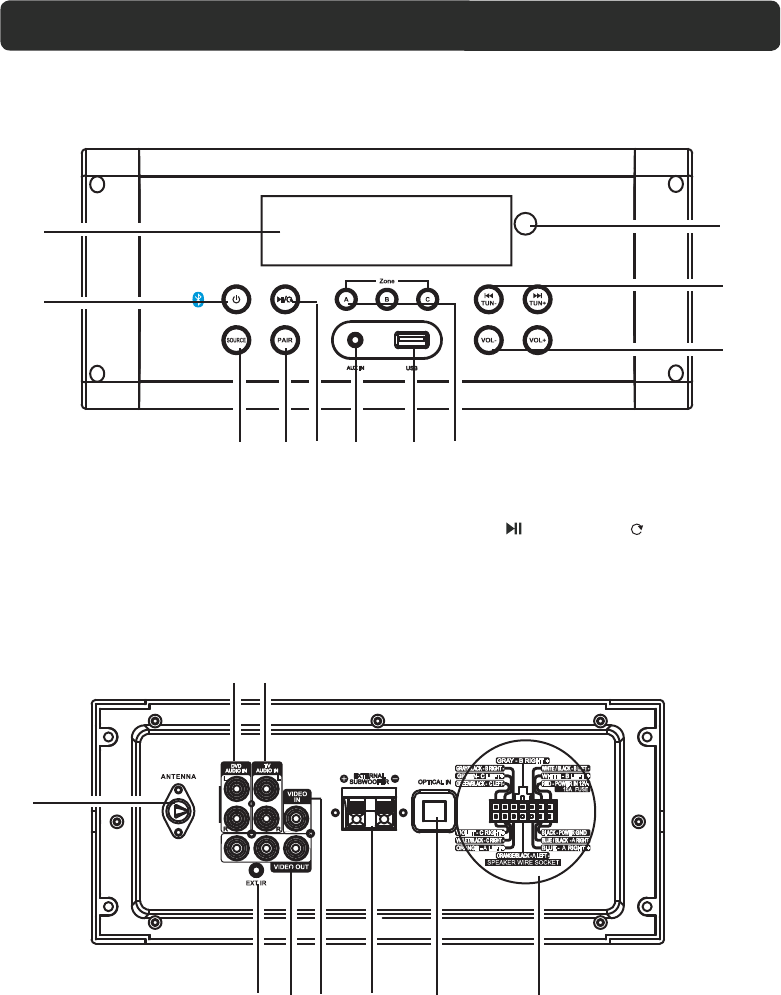

GENERAL VIEW
Front View
Rear View
1. LED Display 7. AUX IN Jack
6. USB Jack
4. Volume Down 9. PAIR Button
10. SOURCE Button
2. Remote Sensor
5. ZONE A/B/C Button
Next /Tune Up
Volume Up
1.TV Audio In Jacks
2.DVD Audio In Jacks
5.VIDEO Out Jack x 4
6.VIDEO In Jack

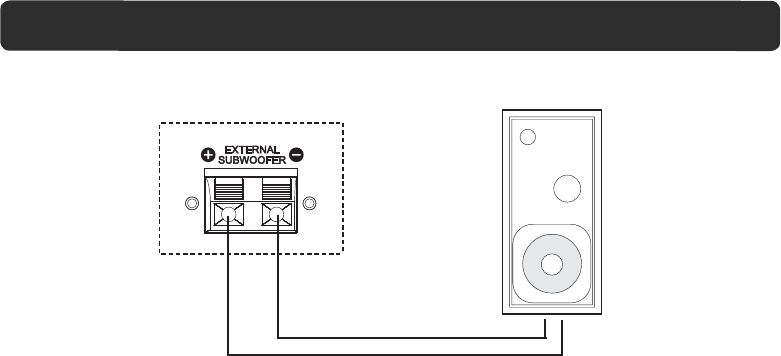

7.External Subwoofer Connector
8.Optical In Power Jack
9.Speaker/Power Wire Socket
1
3
456789
11. POWER Button
3. Previous/Tune Down 8. Play/Pause/ Preset/
Memory/Preset Play Button
2
4.EXT IR (External Remote Sensor) Jack
3.Antenna Jack
12
3
4
5
678
9
10
11
6
![](/img.php?id=2732869&img=bg7.png)

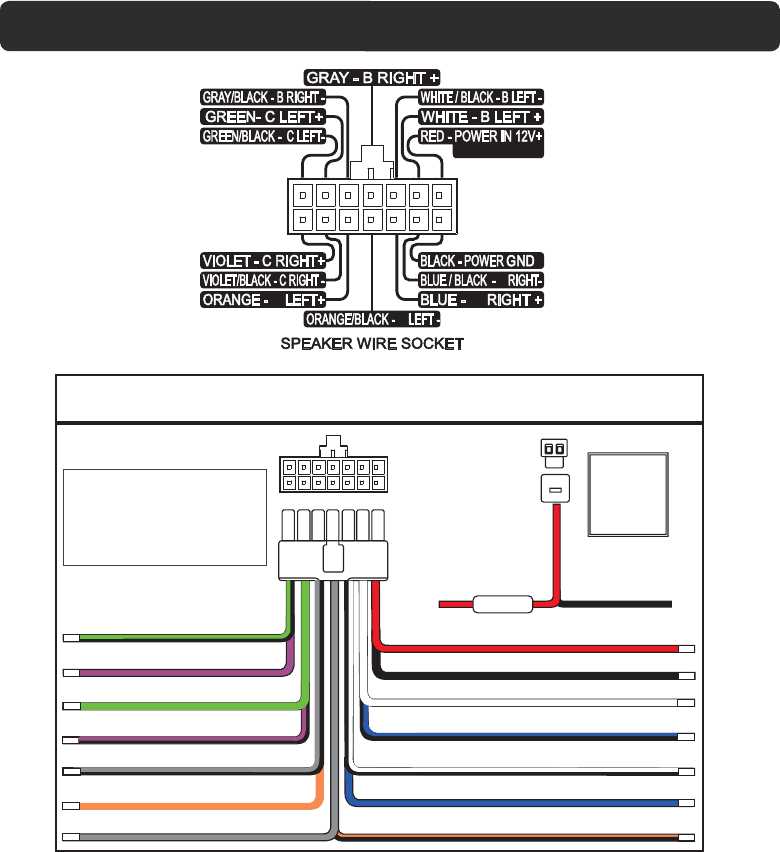

SPEAKER/POWER WIRE SOCKET DIAGRAM
10A FUSE
12V DC
Power
Extension
RED - POWER IN 12V +
10A FUSE
BLACK - POWER GND
RED - POWER IN 12V +
BLACK - POWER GND
WHITE - B LEFT +
BLUE/BLACK - A RIGHT -
10A FUSE
WHITE/BLACK - B LEFT -
BLUE - A RIGHT +
GRAY - B RIGHT + ORANGE/BLACK - A LEFT -
GRAY/BLACK - B RIGHT -
ORANGE - A LEFT +
VIOLET/BLACK - C RIGHT -
GREEN - C LEFT +
VIOLET - C RIGHT +
GREEN/BLACK - C LEFT -
SPEAKER (6X4-ohms) WIRING COLOR CODE GUIDE
CAUTION!
Connecting the speakers
incorrectly will cause distortion
and damage the power
amplifier.
A
A
A
A
7
![](/img.php?id=2732869&img=bg8.png)
8
7
6
5
4
1
2
3
1. POWER button
5. TUNE - / /TUNE+ button
6. VOL ( Volume )+/- buttons
4. TV Mode Switch button
8. OPTICAL Mode Switch button
REMOTE CONTROL
OPTICAL
BT USB
FM
TV DVD
VOL- VOL+
AUX IN
PAIR MUTE
റͬറ
റͬറ റͬറ
ZONE A
POWER
TUN- TUN+
ZONE B
ZONE C
1
2
3
9
10
11
12
2. Bluetooth Mode Switch button
3. AUX IN Mode Switch button
9. USB Mode Switch button
14. ZONE A button
15. ZONE B button
16. ZONE C button
7. ( Play/Pause )/ ( Memory/
Preset /Preset Play )button
16
15
14
13
10.
11.
FM Mode Switch button
12.
DVD Mode Switch button
13.
MUTE button
PAIR button
EXT IR (External Remote Sensor) Jack
on rear panel
If using external remote sensor, insert the plug into the EXT IR Jack as the arrowhead
shown on above picture.
8
![](/img.php?id=2732869&img=bg9.png)

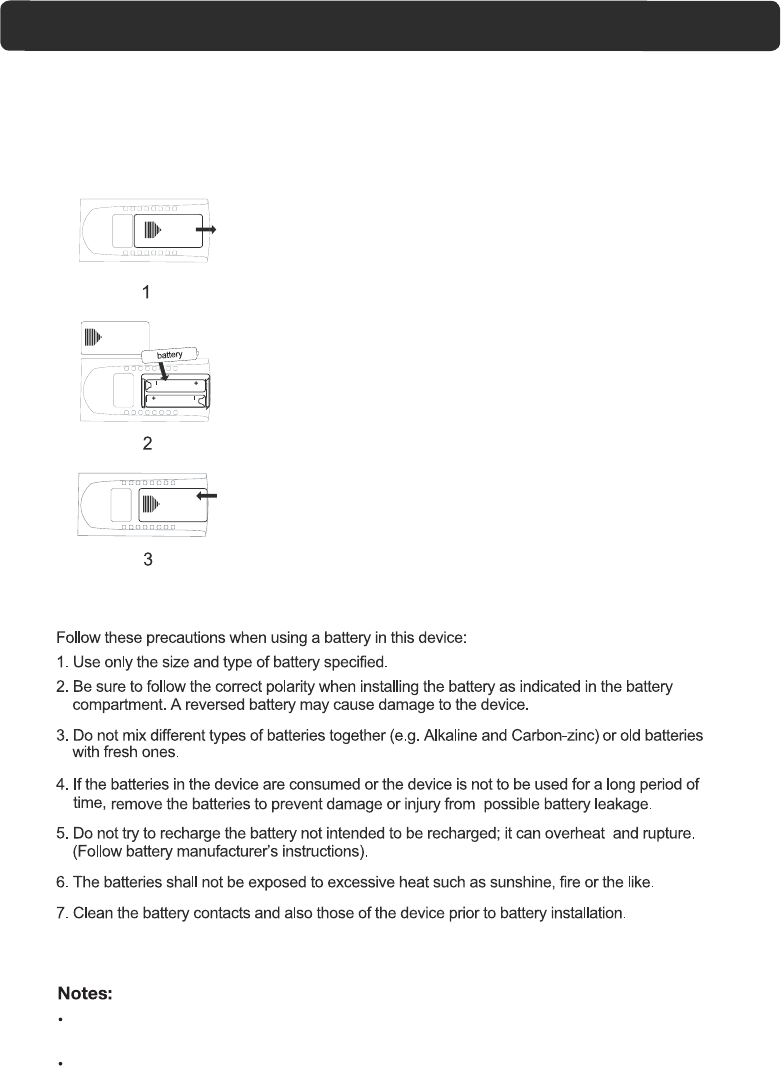

BATTERY INSTALLATION--- REMOTE CONTROL
Battery Installation
Remote Control Effective Range
control of the unit, the remote control may not operate properly.
When there is an obstacle between the unit and the remote control, the remote control may
not operate properly.
When direct sunlight, an incandescent lamp, fluorescent lamp or any other strong light
shines on the remote
Battery Precaution
1.Slide and lift the battery door (Figure 1).
2.Install 2 (two) AAA size batteries into the battery compartment as indicated
by the polarity markings (Figure 2).
3.Replace the battery door (Figure 3).
9
![](/img.php?id=2732869&img=bga.png)
3. During Playback:
~ Press the VOL (Volume)-/+ buttons to adjust volume level as desired.
GENERAL OPERATIONS
1. Press the Power button on the unit or remote control to power on the unit from standby mode.
2. Press the SOURCE button repeatedly to switch to desired mode as the following.
4. When finished listening, press the Power button to power off the unit.
5. If the unit is not used for long period of time, please disconnect power.
~ Press ZONE A, ZONE B or ZONE C button on the Remote Control or on front
panel to switch ON or OFF the corresponding ZONE A/B/C speakers.
~ Press Mute button on the Remote Control to mute the sound on all active zones.
Press again to resume.
BT TV AUX FM OPTICAL
BT TV AUX FM OPTICAL
BT TV AUX FM OPTICAL USBUSBUSBUSBUSBUSB
10
![](/img.php?id=2732869&img=bgb.png)
FM Antenna
2. Press the SOURCE button repeatedly until FM appears on the display.
3. Press and hold the /TUNE - or /TUNE + buttons and then release,
The antenna wire on the rear of the unit is for radio reception. If reception is weak, unwind and
extend the wire or relocate the wire to improve the radio reception.
LISTEN TO FM RADIO
BLUETOOTH PAIRING AND PLAYBACK
3. Turn on the external BT Device and enter BT searching mode. Start
to the user's manual of your BT Device. )
Notes:
display of the external BT Device.
Pairing code "0000" may need to be entered.
Normal operation after paired:
pairing as the screen
instructions on the external BT Player.
( For details pairing procedures, please refer
2. Press the SOURCE button repeatedly until "BT" appears on display and flash.
~
~
Pairing the unit to external BT Device as follows:
Normal operation after paired:
The unit will start to search next ( or previous ) available FM radio station then plays.
5. Press button on remote control to play the preset stored station.
location(such as Pxx.), then press button to change the storage lacation, press and
A total of 10 stations can be stored into the unit's memory.
hold the button to complete station storage.
When the external BT Device searched the unit, will appear on the
~ Press the VOL (Volume)-/+ buttons to adjust volume level as desired.
റͬറ
റͬറ
റͬറ
4. When a station searched, press and hold the button to display the desired storage
റͬറ
"WMSMCZ3"
Pairing the unit to external BT Device as follows:Pairing the unit to external BT Device as follows:
1. Power ON the unit.
Or press FM on Remote Control.
1. Power ON the unit.
Or press BT button on Remote Control.
"WMSMCZ3""WMSMCZ3"
and try to pair and connect with other external BT device.
4. After successfully paired and connected, the "BT" on display will stay lit.

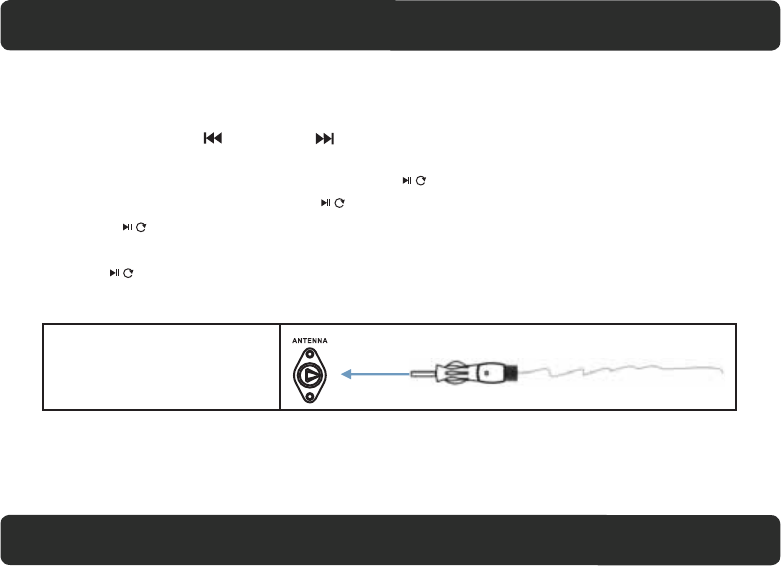

Insert the Antenna into
the ANTENNA Jack on rear
panel shown on right picture.
5.Disconnect the current pairing and connection by pressing the PAIR button on the unit or on
remote control,
11
![](/img.php?id=2732869&img=bgc.png)
ADDING OPTIONAL EXTERNAL SUBWOOFER
+
-
NOTE: Before connecting, disconnect power.
1. Connect one end of subwoofer connection cable ( not supplied ) to the "+" Jack on the rear
of the unit as the figure above.
2. Connect the other end to the "-" Jack on the rear of the unit as the figure above.
4. Play the music as usual and set the desired volume.
3. Power ON the unit.
12
![](/img.php?id=2732869&img=bgd.png)
CONNECT USING OPTICAL
3. Power ON the unit.

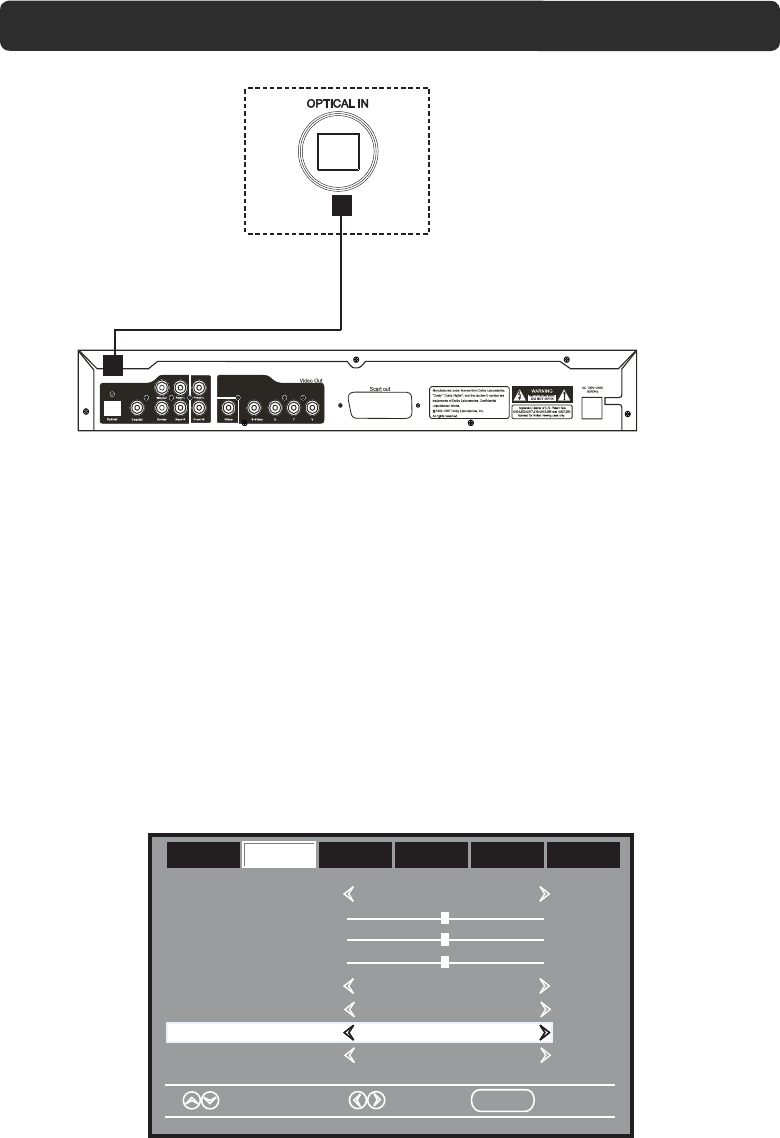

1. Connect one end of optical connection cable ( not supplied ) to the optical jack on the rear
of the unit as pictured above.
2. Connect the other end to the DVD or TV back panel.
4. Press the SOURCE button repeatedly until the "OPTICAL" appears on display.
NOTE: Before connecting, disconnect power.
DVD or TV
Optical Cable(Not Supplied)
5. Play the music as usual and set the desired volume.
Or press OPTICAL button on Remote Control.
NOTE:
If there is no audio output (only picture) when your TV or DVD player is connected
Bass
Treble
Balance
Select Move MENU Exit
Sound Mode Standard
Surround Off
AVL Off
Audio Language English
Picture Time Setup Lock Off
AudioAudio
Digital Output PCMDigital Output PCM
to the unit, please check DVD audio setting, and set the digital output to PCM format
as below example picture.
13
![](/img.php?id=2732869&img=bge.png)
DVD or TV
CONNECT TO TV/DVD
NOTE: Before connecting, disconnect power.
Yellow
White
Red
Yellow
White
Red
Yellow Yellow Yellow

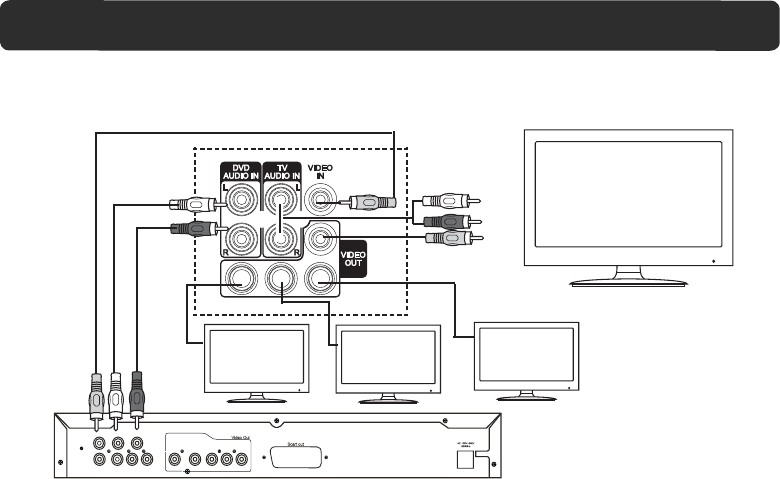

1. Connect as the figure above.(TV 2, 3, 4 are optional to connect)
5. Play the audio or video as usual and set the desired volume.
3. Press the SOURCE button repeatedly until "TV" appears on display.
TV 2
TV audio is selected and will play through the unit.
4. Press the SOURCE button repeatedly until "DVD" appears on display.
DVD audio is selected and will play through the unit.
TV 3 TV 4
MAIN TV
2. Power ON the unit.
Or press TV button on Remote Control.
Or press DVD button on Remote Control.
NOTE: Before connecting, disconnect power.
14
![](/img.php?id=2732869&img=bgf.png)
4. Press the SOURCE button repeatedly until "AUX" appears on display.

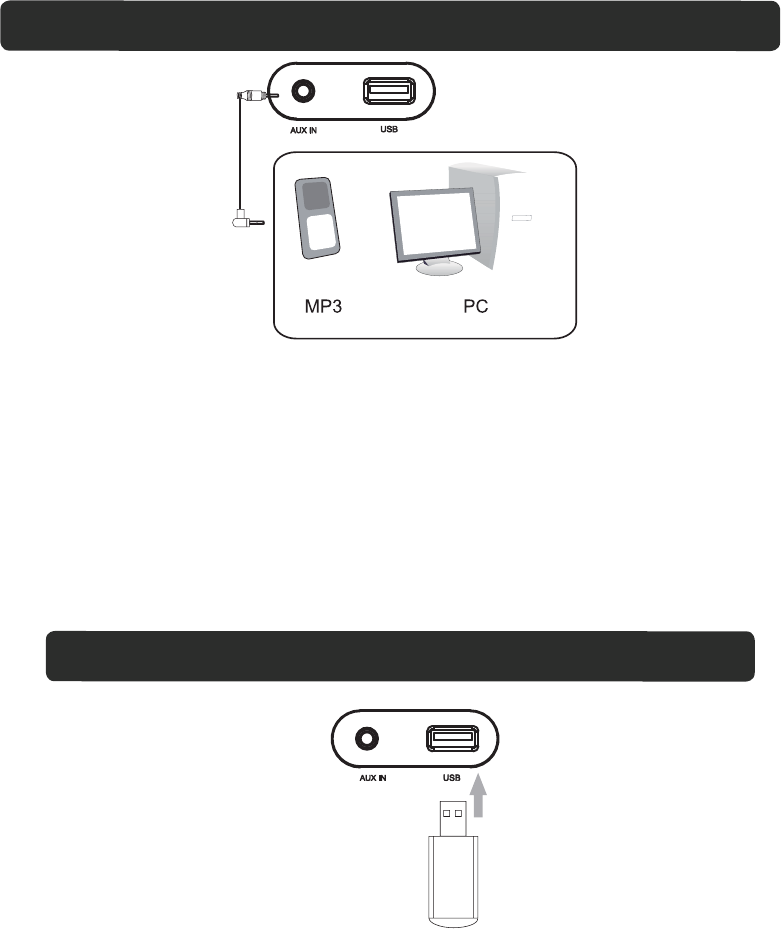

1. Connect one end of audio connection cable (not supplied) to the AUX IN jack on the front of the
2. Connect the other end to the Audio out/Line out/Phone jack on the external player ( such as
iPod, iPhone, iPad, MP3 player, Discman... etc. )
5. Play the music in the external player as usual and set the desired volume.
AUX IN : LISTEN TO EXTERNAL AUDIO DEVICES
unit as pictured above.
USB : LISTEN TO EXTERNAL AUDIO DEVICES
3. Insert the USB, then press the SOURCE button repeatedly until "USB" appears on screen.
4. Play the music in the external player as usual and set the desired volume.
1. Insert the USB as in the figure above.
NOTE:
The USB port can also be used for charging.
Or press AUX IN button on Remote Control.
3. Power ON the unit.
Or press USB button on Remote Control.
2. Power ON the unit.
NOTE:NOTE:NOTE:
USB
To the Phones/Aux Out/Line Out
Jack on the external audio device
15
![](/img.php?id=2732869&img=bg10.png)
6<03720 3266,%/(&$86( 3266,%/(628/7,21
Reduce the bass level of the connected
device
Press the SOURCE button repeatedly to
set the input source to the desired mode
No power
No sound
Sound distortion
Remote not
working
Bluetooth
reception failure
Have not paired
consumed
The batteries are
The external device is too far
from the unit
Volume level too high
Bass level of the connected
device too high
Input source incorrect
The connected device is not
in playback mode
Volume in minimum position
power cable not connected
Raise volume level by pressing the VOL
(Volume) + button
Play the music/movie in the connected
device as usual and make sure the
volume level of it is in high level
VOL (Volume ) - button
Reduce the volume level by pressing
the
Replace with new batteries
Move the external BT device closer to the
unit
Pair both units
TROUBLESHOOTING GUIDE
~Check 12V connection
~Check fuse
Check the following guide before requesting serviceCheck the following guide before requesting service
or blown fuse
16
![](/img.php?id=2732869&img=bg11.png)
z
Max Power Consumption...........................................................................................................90W
Radio Coverage ...............................................................................................FM 87.5 -108.0 MH
Bluetooth Effective Range.............................................................................................Up to 30 feet
Remote Effective Range................................................................................................Up to 15 feet
(Measured in open area. Wall and structures may affect the effective range.)
Power Supply Requirement................................................................DC 12 Volts, Negative Ground
Video In/Out Level...........................................................................1 Vp-p/Load impedance:75 ohm
Operation Voltage...........................................................................................................DC10V-14V
Overall Dimension..................................................................................813(W)x107.2(H)x83(D)mm
SPECIFICATIONS
NOTE:
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY
TO OPERATE.
NOTE:
17
![](/img.php?id=2732869&img=bg12.png)
www.riverparkinc.com
2015 RIVERPARK Inc.
V. 071015
C
