Junlan Electronic SBB61682 32 inch SOUNDBAR User Manual
Shenzhen Junlan Electronic Ltd 32 inch SOUNDBAR
User Manual
![](/img.php?id=2982038&img=bg1.png)
Please read this instruction manual carefully and keep it for future reference
32'' Bluetooth Soundbar
MODEL:PSB3200-FD-PL
![](/img.php?id=2982038&img=bg2.png)
IMPORTANT SAFETY INSTRUCTIONS
DANGEROUS VOLTAGE: The lighting flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
ATTENTION: The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
FCC STATEMENT:
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference that may
cause undesired operation. The antenna(s) used for this transmitter must be installed to
provide a separation distance of at least 8 ft. from all persons and must not be co-located
or operated in conjunction with any other antenna or transmitter.
FCC NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
CAUTION: TO REDUCE THE ELECTRIC SHOCK, DO NOT REMOVE THE
COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
2
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
To assure continued operation, follow the attached installation instructions and use only
shielded cables when connecting to other devices. Changes or modifications not
expressly approved by the party responsible for compliance could void the user's authority
to operate the equipment.
WARNING:TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT
TO RAIN OR MOISTURE.
WARNING: USE UNDER SUPERVISION OF AN ADULT DUE TO LONG CORD.This
unit has a long cord that can be easily tripped on or pulled on, causing injury. Please make
sure it is arranged so that it will not drape over a tabletop, etc., where it can be pulled on
by children or tripped over accidentally.
IMPORTANT SAFETY INSTRUCTIONS
Before using the unit, be sure to read all operating instructions carefully. Please note that
these are general precautions and may not pertain to your unit. For example, this unit may
not have the capability to be connected to an outdoor antenna.
1. Read these instructions – All the safety and operating instructions should be read
before the appliance is operated.
2. Keep these instructions – The safety and operating instructions should be kept for
future reference.
3. Heed all warnings – All warnings on the appliance and in the operating instructions
should be adhered to.
4. Follow all instructions – All operation and use instructions should be followed.
5. Do not use this apparatus near water – The appliance should not be used near water;
for example, near a bath tub, washbowl, kitchen sink, laundry tub, in a wet basement,
or near a swimming pool.
6. Clean only with dry cloth – The appliance should be cleaned only as recommended
by the manufacturer.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions. The appliance should be situated so that its location or position does not
interfere with its proper ventilation. For example, the appliance should not be
situated on a bed, sofa, rug, or similar surface that may block the ventilation
openings; or placed in a built-in installation, such as a bookcase or cabinet that may
impede the flow of air through the ventilation openings.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades and a third grounding prong. The wide or the third prong are
-- Reorient or relocate the receiving antenna.
3
![](/img.php?id=2982038&img=bg4.png)
provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments / accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury
from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of
time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
15. This appliance should not be exposed to dripping or splashing water and no object
filled with liquids such as vases should be placed on the apparatus.
16. Power Sources – The appliance should be connected to a power supply only of the
type described in the operating instructions or as marked on the appliance. Do not
overload wall outlet.
17. Battery should not be exposed to excessive heat such as sunshine, fire, etc.
18. Replace remote control battery only with the same or equivalent type.
19. Do not attempt to dismantle, open or repair this product yourself. If a problem occurs,
seek advice from your local qualified service technician or contact the distributor at
the telephone number at the back of this instruction manual.
20. Caution marking and nameplate are located on back or bottom of product.
4
![](/img.php?id=2982038&img=bg5.png)
PLACEMENT AND MOUNTING
1. Placing the device on table - Ventilation
When placing the Sound Bar on an entertainment center, bookshelf, or any type of
enclosed space, be sure to allow at least 2-3 inches of space around the Sound Bar for
ventilation. If the Sound Bar is enclosed in a tight space, without ventilation, heat
generated from the Sound Bar could produce a potential heat hazard.
5
![](/img.php?id=2982038&img=bg6.png)

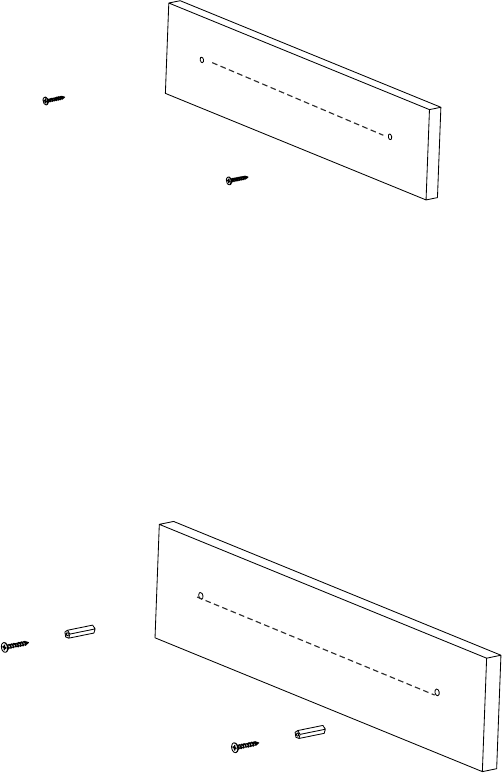

Mounting to a wall
2.1 Mountingto a wooden wall
A. Mark the position of the mounting screws on the wall using a pencil.
C. Put the sound bar onto the mounting screws. Make sure they are firm and stable.
2.2 Mountingto a brick wall
A. Mark the position of the mounting screws on the wall using a pencil.
E. Put the sound bar onto the mounting screws. Make sure they are firm and stable.
6
27.6 inches
27.6 inches
B. Drill the screws directly into the marks that you have made on the wall and
leave approx. 0.3 inches length to hook the sound bar.
screws not included
screws and plastic fixing plug are not included
B. Drill 2 holes on wall with a powerful electric drill (not included).
C. Insert the fixing plug and hammer into the holes.
D. Secure the screws into the fixing plug and leave approx. 0.3 inches length
to hook the sound bar.
![](/img.php?id=2982038&img=bg7.png)
Vol+Vol-
Standby
/Source
Play
/Pause
AUX IN L
R
DC 9V
LINE I N
LOCATION OF CONTROLS:
Front View
7
Top View
1. Indicator
2. Remote sensor
3. Speaker 3. Speaker

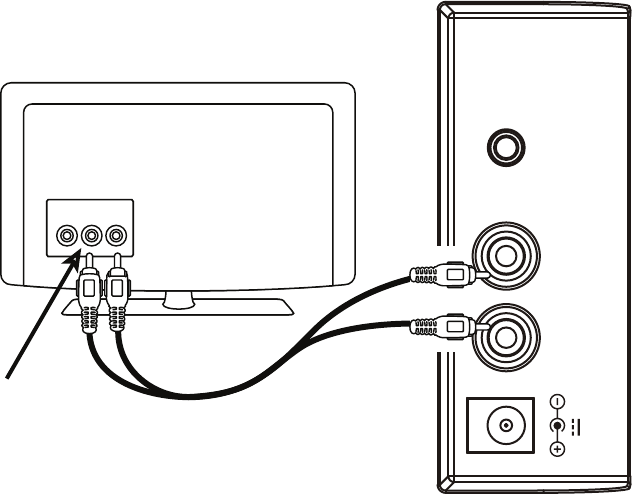

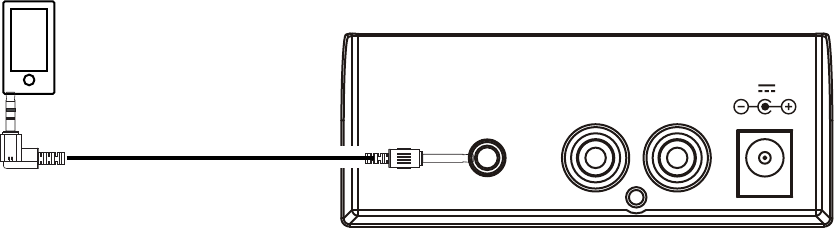

4. AUX IN jack 5. LINE IN jacks 6. DC IN jack
7. Standby/Source
button
8. Play/Pause button 9. Volume down button
10. Volume up button
AUX IN L
R
DC 9V
LINE IN
Vol+Vol-
Standby
/Source
Play
/Pause
Rear View
![](/img.php?id=2982038&img=bg8.png)
REMOTE CONTROL
8
STANDBY
1
2
3
4
5
8
6
7
STANDBY button
(Mute) button
(Previous) button
4.
5.
6.
7.
8.
(Play/pause) button
VOL - (Volume down) button
2.
1.
3. SOURCE button
(Next) button
VOL + (Volume up) button
![](/img.php?id=2982038&img=bg9.png)
FIRST TIME USE

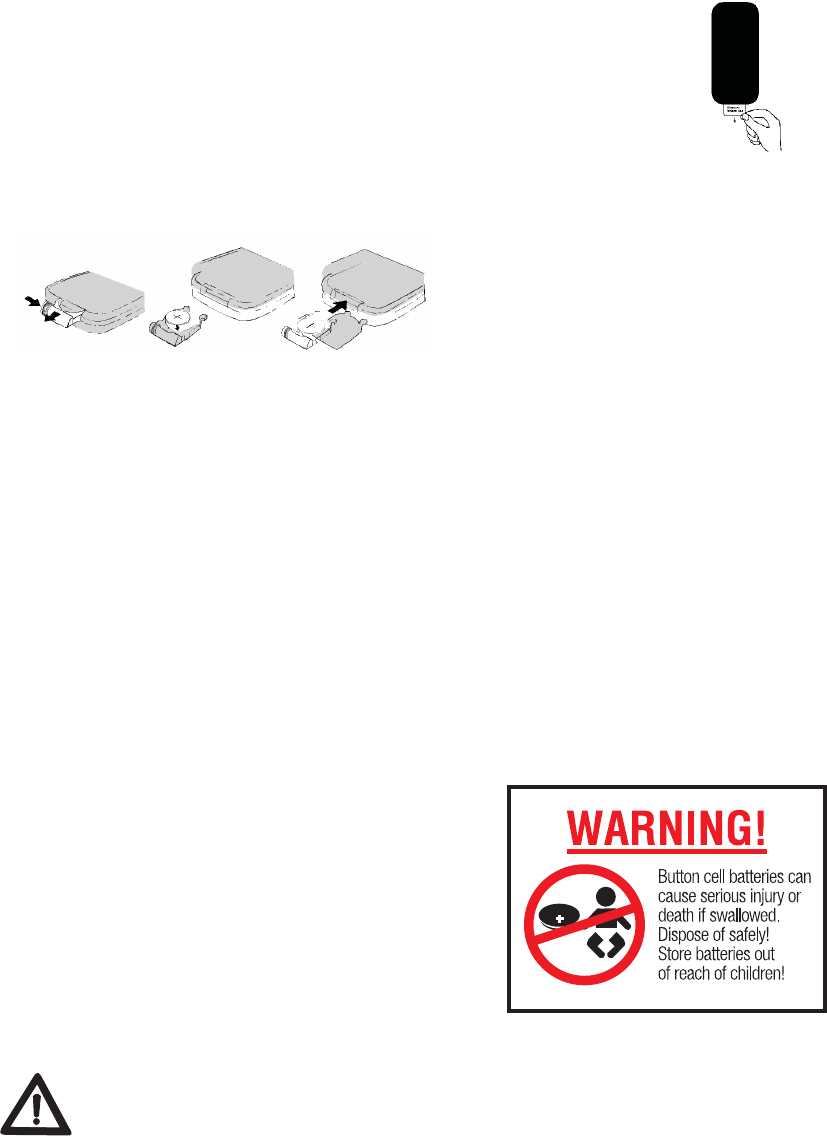

●Remove and discard the insulation tab as figure on the right.
●Replacing Batteries For Remote Control
1. Push and slide out the battery holder as figure 1 below.
2. Replace the battery with a new CR2025 button cell as the polarity
markings on the rear of the Remote Control.
3. Close the battery holder.
BATTERY PRECAUTIONS
Follow these precautions when using a battery in this device:
1. Use only the size and type of battery specified.
2. Be sure to follow the correct polarity when installing the battery as indicated
in the battery compartment, a reserved battery may cause damage to the device.
3. Do not mix different types of batteries together ( e.g: Alkaline and Carbon -zinc )
or old batteries with fresh ones.
4. If the batteries in the device are consumed or the device is not to be used for a long
period of time, remove the batteries to prevent damage or injury from possible
leakage.
5. Do not try to recharge the battery not intended to be recharged; it can overheat
and rupture. ( Follow battery manufacturer’s instructions.)
6. The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
7. Clean the battery contacts and also those of the device prior to battery installation.
8. The remote control supplied with a coin/button
cell battery. If the coin button cell battery is
swallowed, it can cause severe internal burns in
just 2 hours and can lead to death. Keep new
and used battery away from children. If the
Battery compartment does not close securely,
stop using the product and keep it away from
children. If you think batteries might have been
swallowed or placed any part of the body, seek
immediate medical attention.
CR2025
Fig.1 Fig.2 Fig.3
BATTERY INSTALLATION OF REMOTE CONTROL
Remote control operation range
●When there is an obstacle between the remote and the transmitter, the unit may not
operate.
●When direct sunlight, an incandescent lamp, fluorescent lamp or any other strong light
shines on the REMOTE SENSOR of the unit, the operation of the remote may be
unstable.
CAUTION
●Danger of explosion if the battery is incorrectly replaced.
●Replace only with the same or equivalent type.
9
![](/img.php?id=2982038&img=bga.png)
GENERAL OPERATION
1. Connect the AC/DC adapter to the unit and wall outlet. The red indicator will
~ Press the VOL ( Volume ) + or - buttons on the unit or Remote Control to
adjust volume level as desired.
~ Press the ( Mute ) button on the Remote Control to turn off the sound. Press
again to resume.
Violet..................................................................................AUX Mode
Blue............................................................................Bluetooth Mode
2. Press and hold the Standby/Source button on the unit or press the STANDBY
3. During Playback:
10
light and the unit is in standby mode.
button on remote control to turn on the unit. Press the Standby/Source button
on the unit or press the SOURCE button on remote control repeatedly to switch
to desired mode. The color of indicator will turn to :
button on remote control to put the unit in standby mode.
4. When finishing listening, press and hold the Standby/Source button on the unit
or press the STANDBY
![](/img.php?id=2982038&img=bgb.png)
BLUETOOTH PAIRING AND CONNECTION
For first time use or re-pairing, pair the unit to an external Bluetooth (BT) device
as follows:
1. Power ON the unit as previously explained.
3. Power ON the external BT Device and select Bluetooth to enter into search
( For details on pairing procedures, please refer to the user's manual of your BT
Device.)
~ Press the
11
2. Press the Standby/Source button on the unit or press the SOURCE button
~
button to pause. Press again to resume normal playing.
on remote control repeatedly until the indicator turns Blue, and a voice tone
sounds "Bluetooth Mode".
mode. when appears, click it to start pairing.
PROSCAN
After paired, the indicator will stop blinking and a voice tone sounds "Paired".
" "
4. During playing:
~ Press the or button to skip tracks.
~
~ Press the VOL - or VOL + button to adjust volume level.
Normal operation after first pairing:time
1. Power on the unit and select the Bluetooth mode as above stated.
2. Activate the Bluetooth function on external Bluetooth device.
4. Play the music as above stated.
3. Wait a few seconds until the unit automatically connect to the external
Bluetooth device.
![](/img.php?id=2982038&img=bgc.png)
An external (Auxiliary) audio source (ie.,personal CD player or MP3 player) can
be connected to this unit and heard through the speakers.
3. Power on the unit as previously explained.
Audio
Player
To Audio Out Jack
Rear view of the unit
12
1. Plug one end of the Aux In cable into the AUX IN jack on the rear of the unit.
on the Remote Control repeatedly until the color of Indicator turns to
4. Press the Standby/Source button on the unit or press the SOURCE button
Violet, and a voice tone sounds " AUX Mode".
LISTEN THROUGH AUX IN
2. Plug the otehr end of the Aux In cable into the AUX OUT or LINE OUT jack
of the external audio source.
AUX IN L
R
DC 9V
LINE IN
5. Power on the connected external player and start playing as usual.
jacks are connected with external player separately.
NOTE:
AUX MODE is default to AUX IN function when both AUX IN and LINE IN
![](/img.php?id=2982038&img=bgd.png)
An external Video/Audio player (such as TV, DVD player, VCR, etc.) can be
connected to this unit and heard through the speakers.
NOTE: Make sure to connect to AUDIO OUT. If you connect it into AUDIO IN of
external device, you will not hear the sound.
13
Rear view of the unit
1. Plug one end of RCA White and Red cable into the LINE IN jacks on the rear
of the unit.
Audio out jacks of
TV/DVD/VCR/DVR etc
LISTEN THROUGH IN
AUX IN L
R
DC 9V
LINE IN
LR
V
2. Plug the other end of RCA White and Red cable into audio out jacks of TV or
external device as the illustration shown as below.
3. Power on the unit as previously explained.
on the Remote Control repeatedly until the color of Indicator turns to
4. Press the Standby/Source button on the unit or press the SOURCE button
Violet, and a voice tone sounds " AUX Mode".
5. Power on the connected external player and start playing as usual.
please do not insert the AUX IN cable into the AUX IN jack of the unit.
NOTE:
AUX MODE is default to AUX IN function, when using LINE IN function,
LINE
![](/img.php?id=2982038&img=bge.png)
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
No power Power AC/DC Adapter
not connected
Connect the power AC/DC adapter
to the unit or wall outlet.
Standby mode.
No sound Volume in minimum position Raise volume level by pressing the
VOL (Volume) + button.
The paired/connected device is not in Play music/movie in the paired/
connected device as usual and make
sure the volume level of it is in high
level.
on the unit or SOURCE button on the
Remote Control repeatedly to set the
input source to the desired mode.
Sound distortion/rattle Volume level too high Reduce the volume level by pressing
the VOL (Volume ) - button.
Reduce the volume level of the
paired/connected device.
Remote Control not working The battery is weak Replace with new battery.
Bluetooth
reception failure
The external device is too far from the
unit
Put the external BT device close to the
unit.
Have not paired Pair the unit with the BT Device as the
procedures stated in this manual.
14
Input source incorrect Press the Standby/Source button
The unit is in standby mode
playing mode
Press and hold Standby/Source button
on the unit or press button on remote
control to turn on the unit from
![](/img.php?id=2982038&img=bgf.png)
GENERAL SPECIFICATIONS
Power Input....................................................... ...........AC 100-240V~; 50/60Hz
Bluetooth Effective Range in Open Area.........................................Up to 32 feet
Remote Effective Range..................................................................Up to 16 feet
SPECIFICATIONS AND ACCESSORIES ARE SUBJECT TO CHANGE
WITHOUT NOTICE
15
is a trademark on a registered trademark of Bluetooth
SIG Inc. All other trademarks and trade names are
those of their respective owners.
Power Output...............................................................9V 1300mA
Audio Power.............................................................................................5W x 2
(tested in open area)
1 x AC/DC Adapter
1 x Remote Control
1 x AUX IN Cable
1 x LINE IN Cable
1 x User's Manual
ACCESSORIES
![](/img.php?id=2982038&img=bg10.png)
LIMITED PRODUCT WARRANTY
This quality product is warranted to be free from manufacturer’s defects in material and workman-ship,
provided that the unit is used under the normal operating conditions intended by the manufacturer.
Should you have any problem with this product, please and it is highly recommended to visit our website at
www.curtisint.com before you take any other steps as we have additional copies of instruction manuals,
operating manuals and trouble shooting tips on our website which gives you the answer on most of the
questions you could have in operating the unit.
TERMS OF WARRANTY
C.I. Service Dept. warrants this product to be free from defects in materials and workmanship for 90 days on
parts and 90 days on labor. If you originally purchased your product more than 90 days ago, a repair fee
may apply.
Nothing within this warranty shall imply that C.I. will be responsible or liable for any damage to any items
placed in this product, whether due to any defect of the product, or its use, whether proper or improper.
EXCLUSIONS
Save as herein provided, C.I. Service Dept. (Canada) or C.I. Service Dept. (USA), there are no other
warranties, conditions, representations or guarantees, express or implied, made or intended by C.I. or its
authorized distributors and all other warranties, conditions, representations or guarantees, including any
warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or
statue is hereby expressly excluded. Save as herein provided, C.I. Service Dept. (Canada) or C.I. Service
Dept. (USA), shall not be responsible for any damages to persons or property, including the unit itself,
howsoever caused or any consequential damages arising from the malfunction of the unit and by the
purchase of the unit, the purchaser does hereby agree to indemnify and save harmless C.I. from any claim
for damages to persons or property caused by the unit.
TO OBTAIN REPAIRS UNDER THE TERMS OF THIS WARRANTY
1. The original purchaser must present a copy of the original bill of sale and the service warranty card.
2. Any alterations, abuse, misuse, battery corrosion or accidental damage voids the warranty.
3. The warranty does not cover cabinets and accessories.
4. No warranty or insurance contained or set out shall apply when damage or repair is caused by power
failure; damage in transit or when moving the unit; improper power supply; use for commercial or
industrial purposes; service calls resulting in customer education, etc.
5. The defective product should be mailed to:
Canada
U.S.A
C.I. Service Dept.
Curtis International Ltd
315 Attwell Drive
Toronto, ON
M9W 5C1
c/o Lotus International Company
6880 Commerce Blvd.
Canton MI 48187
U.S.A.
For service assistance and product information, please call: 1-800-968-9853.
If mailing the product, the freight must be prepaid and a money order for $7.00 should be included
to cover the cost of insurance and the return of the product.
6. C.I. reserves the right to repair or replace the parts which have become defective.
Model No.
Date Purchased
Serial No.
