Junlan Electronic SBB62688 26 inch Sound bar User Manual 1
Shenzhen Junlan Electronic Ltd 26 inch Sound bar 1
User Manual
![](/img.php?id=3193905&img=bg1.png)
AUX IN USB
A PAIR
B
MODEL: SB-26
--INSTALLATION AND OPERATION MANUAL--
PLEASE READ INSTRUCTIONS CAREFULLY
AND KEEP FOR FUTURE REFERENCE
![](/img.php?id=3193905&img=bg2.png)
TABLE OF CONTENTS
15
14
13
13
11
12
9
9
4
1
1
1
6
8
10
7
5
2-3
INTRODUCTION......................................................................................Page
FEATURES..............................................................................................Page
PACKING LIST........................................................................................ Page
PLACING AND MOUNTING.....................................................................Page
IMPORTANT SAFETY INSTRUCTIONS............................................... Page
GENERAL VIEW......................................................................................Page

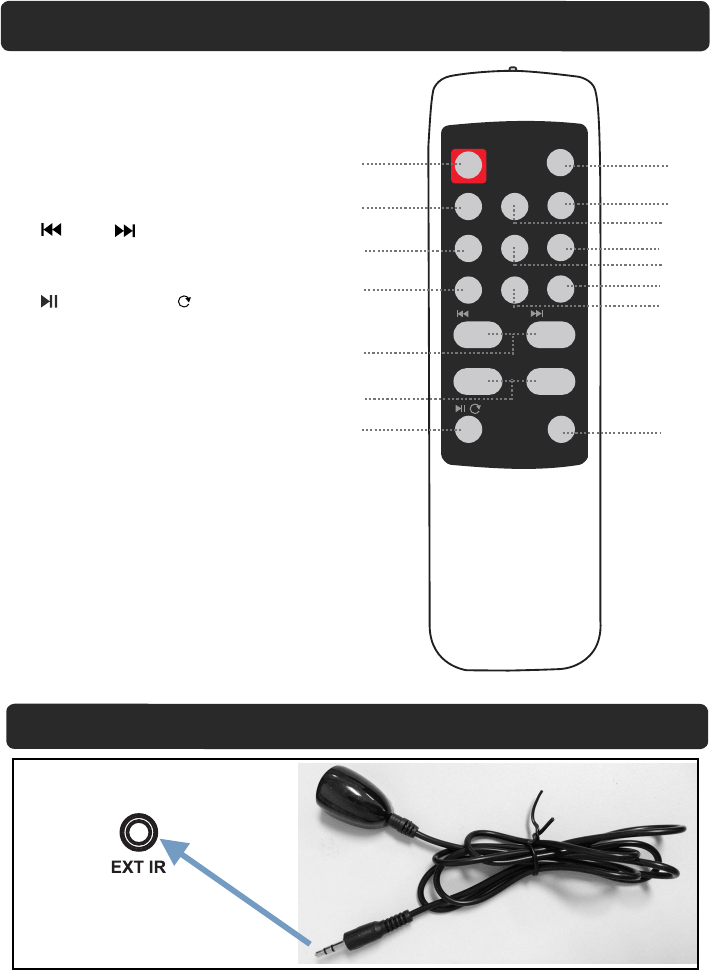

REMOTE CONTROL................................................................................Page
BATTERY INSTALLATION--REMOTE CONTROL..................................Page
GENERAL OPERATIONS........................................................................Page
LISTEN TO FM RADIO............................................................................Page
BLUETOOTH PAIRING AND PLAYBACK...............................................Page

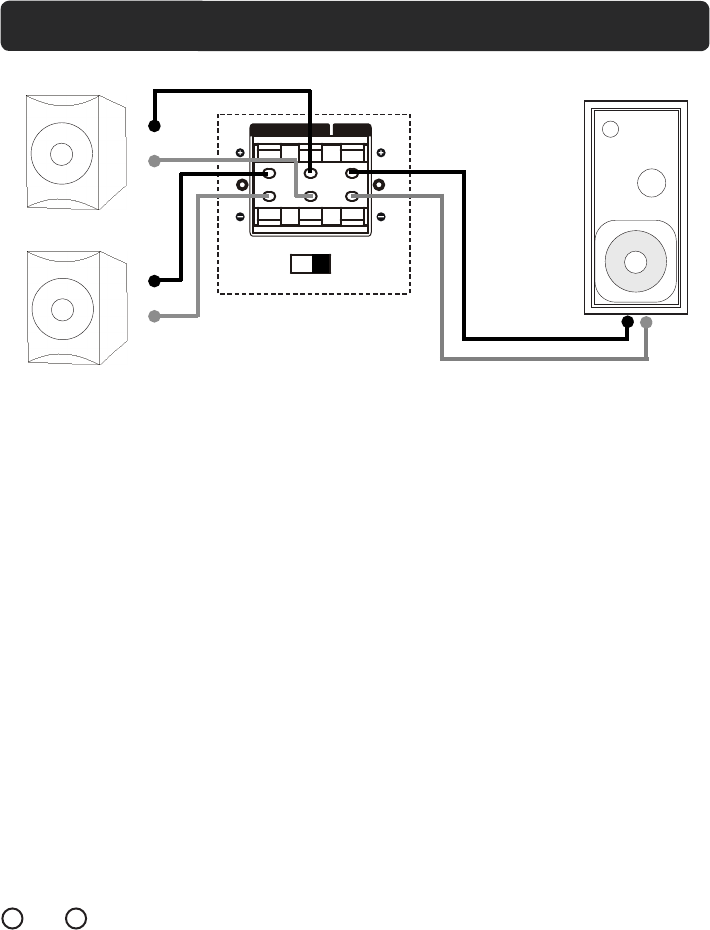

ADDING OPTIONAL SUBWOOFER AND SPEAKER.............................Page

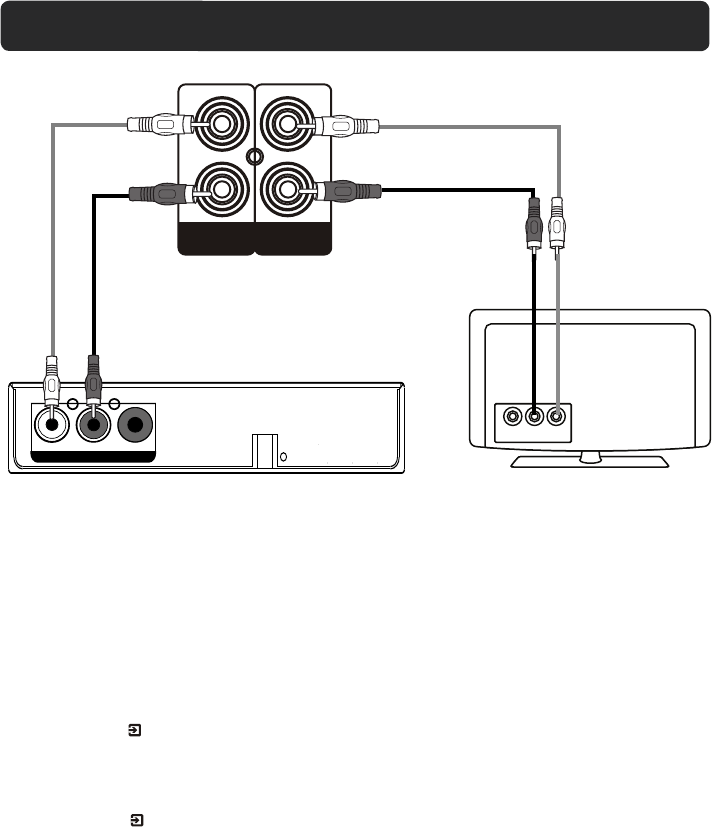

CONNECT TO TV/DVD............................................................................Page

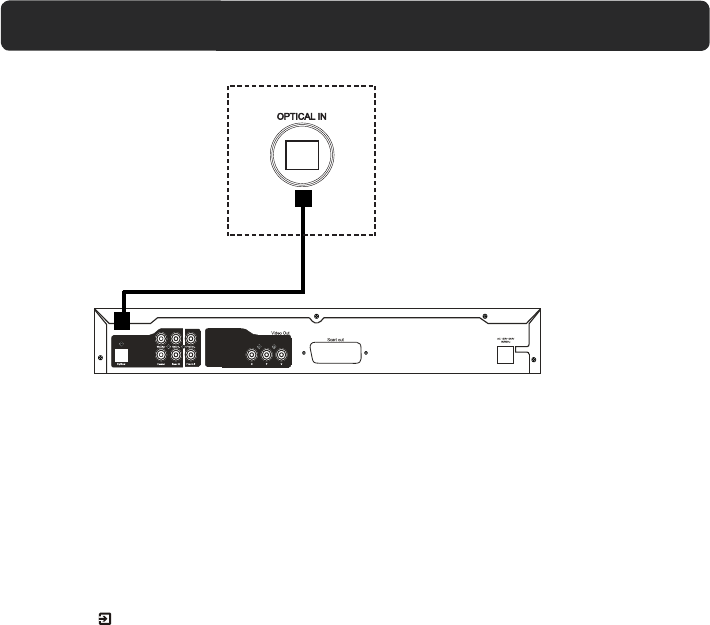

CONNECT USING OPTICAL...................................................................Page

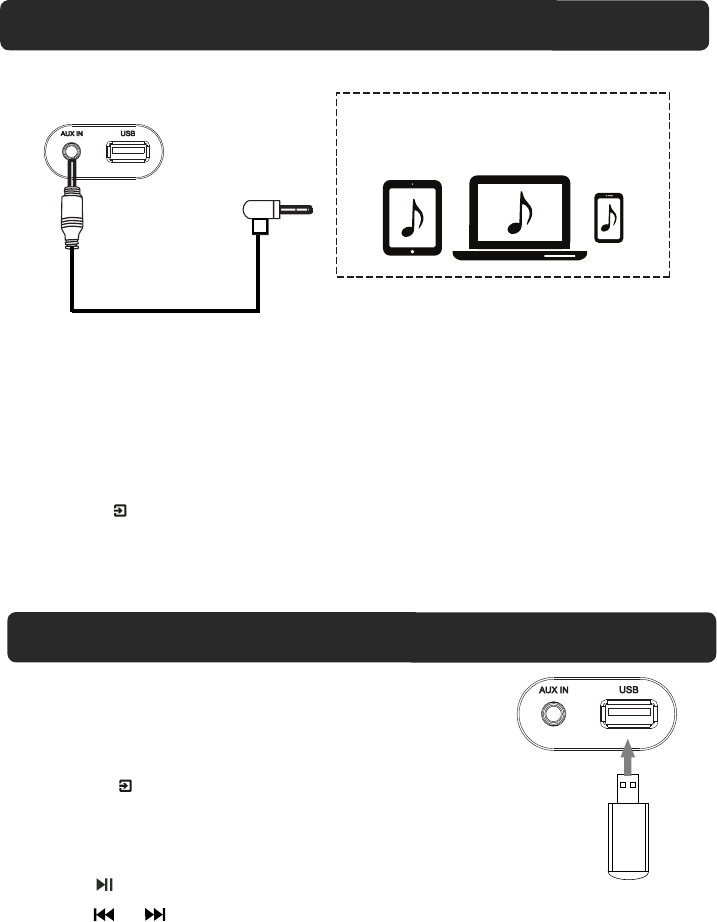

AUX IN PLAYBACK................................................................................. Page
USB PLAYBACK AND CHARGING.........................................................Page
TROUBLESHOOTING GUIDE.................................................................Page
SPECIFICATIONS....................................................................................Page
![](/img.php?id=3193905&img=bg3.png)
1
Features of the Connexx SB26 include:
Digital FM tuner 10 presets
Bluetooth wireless technology
Built-in subwoofer (optional external subwoofer can be added as an accessory)
2 zone audio distribution
3.5 mm aux input jack on front panel
USB input on front panel with device charging capabilities
Digital Optical input on rear panel
2 analog stereo inputs on rear panel
Wireless remote control included
Thank you for choosing a Connexx product. We hope you will find the Instructions
in this owner's manual clear and easy to follow. If you take a few minutes to
review, you will learn how to use all of the features of your new soundbar stereo
for maximum enjoyment.
User Manual
RCA Connection Cable
Wall Mounting Brackets
FM Antenna
Remote Control with Two Batteries
Main Unit
AAA
AAA
INTRODUCTION
FEATURES

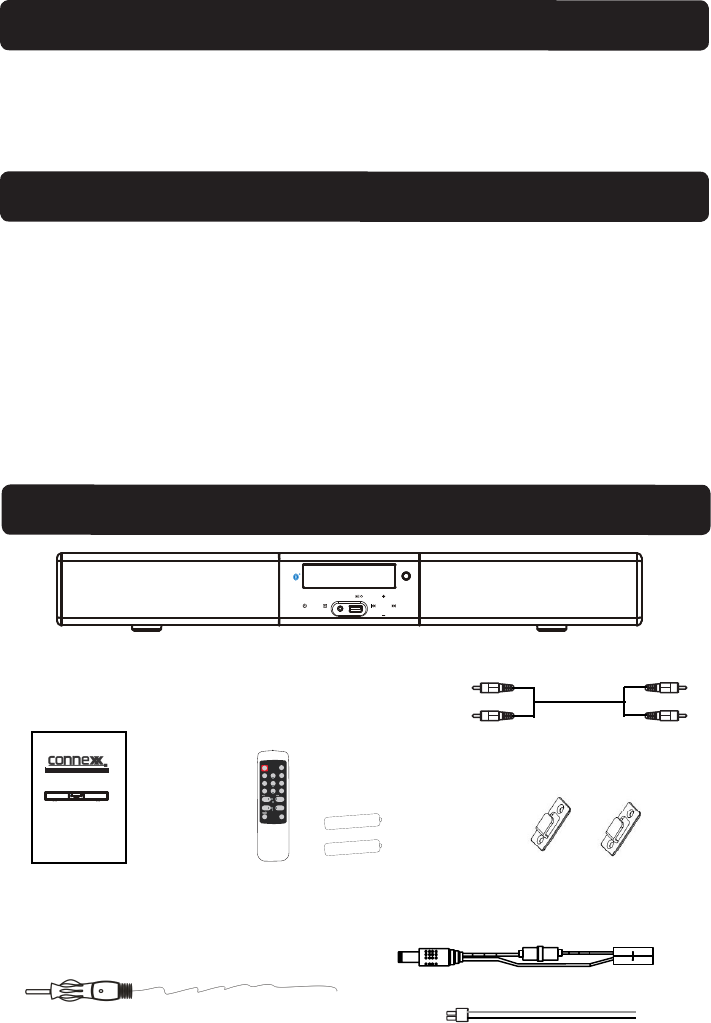

PACKING LIST
PLEAS E READ CA REFUL LY BEFOR E OPERATI NG THIS E QUIPM ENT
KEEP IT I N A SAFE PL ACE FOR F UTURE R EFERE NCE
MODEL: SB26
25.5 INCH TV/DVD SOUNDBAR
AUX IN USB
A PAIR
B
AUX IN USB
A PAIR
B
OPTICAL
BT USB
FM
TV DVD
VOL- VOL+
AUX IN
PAIR
MUTE
/
/ /
ZONE A
POWER
TUN- TUN+
ZONE B
Power Harness
FUSE -
+
DC Power Extension (Red and Black) Wire
![](/img.php?id=3193905&img=bg4.png)
This unit has a long cord that can easily be tripped on or pulled on, causing injury, Please make sure
USE UNDER SUPERVISION OF AN ADULT DUE TO LONG CORDUSE UNDER SUPERVISION OF AN ADULT DUE TO LONG CORD
The lighting flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to
the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
it is arranged so it will not drape over a tabletop, etc. Where it can be pulled on by children or tripped
over accidentally.
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
FCC NOTICE:
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not Installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications.
● Reorient or relocate the receiving
antenna. Increase the separation between
the equipment and receiver.
● Connect the equipment into an outlet
with a circuit different from that to which the
receiver is connected.
● Consult the dealer or an experienced
radio/TV technician for help.
Before using the unit, be sure to read all
operating instructions carefully. Please note
that these are general precautions and may
not pertain to your unit.
1 ) Read these instructions
All the safety and operating instructions should
be read before the product is operated.
2 ) Keep these instructions
The safety and operating instructions should
be retained for future reference.
3 ) Heed all warnings
All warnings on the product and in the
operating instructions should be adhered to.
4 ) Follow all instructions
All operating and use instructions should be
followed.
5 ) Do not use this apparatus near water
Do not use this product near water and
moisture, for example: near a bathtub,
washbowl, kitchen sink or laundry tub; in a wet
basement; or near a swimming pool.
WARNING:
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
WARNING:
TO REDUCE THE RISK OF FIRE OR
EL E CT R IC SH OCK , AN D AN N OY I NG
INTERFERENCE, USE THE RECOMMENDED
ACCESSORIES ONLY.
FCC WARNING:
To assure continued compliance, follow the
attached installation instructions and use only
shielded cables when connecting to other
devices. Modifications not authorized by the
manufacturer may void user`s authority to
operate this device.
However, there is no
guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
television
reception,
which can be determined by
turning the equipment off and on,
the user is encouraged to try to correct the
interference by one or more of the following
measures:
2
8 ) Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus(including amplifiers) that produce
heat.
9 ) Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than other.
A grounding type plug has two blades and a
third grounding prong. The wide blade or the
third prong are provided for your safety. If the
provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
10 ) Protect the power cord from being
walked on or pinched particularly at plugs,
convenience
the apparatus.
13 ) Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus
apparatus, the apparatus has been exposed to
rain or moisture does not operate normally, or
has been dropped.
14 ) Power source
This product should be operated only from the
type of power source indicated on the marking
label.
refer to the operation instructions.
15 ) Service
Do not attempt to service this product yourself
as opening or removing covers may expose
you to dangerous voltage or other hazards.
Refer all servicing to qualified service
personnel.
6 ) Clean only with dry cloth
Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a dry cloth for cleaning.
7)Do not block any ventilation
openings. Install in accordance with the
manufacturer's instructions
Slots and openings in the cabinet and in the
back or bottom are provided for ventilation, to
ensure reliable operation of the product and
to protect it from overheating. These openings
must not be blocked or covered. The openings
should never be blocked by placing the product
on a bed, sofa, rug or other similar surface.
This product should never be placed near or
over a radiator or heat source. This product
should not be placed in a built-in installation
such as a bookcase or rack unless proper
ventilation is provided or the manufacturer's
instructions have been adhered to.
receptacles, and the point where
they exit from
has been damaged in any way, such
as power-supply cord or plug is damaged, liquid
has the been objects have fallen into or spilled
WARNING:
To reduce the risk of fire or electric shock, do
or splashing and that objects
vases shall not be placed on apparatus.
11 ) Only use attachments/accessories
specied by the manufacturer.
12 ) Unplug this apparatus during lightning
storms or when unused for long periods of
time
To protect your product from a lightning storm,
or when it is left unattended and unused for
long periods of time, unplug it from the wall
outlet and disconnect the antenna or cable
system.
lightning and power-line surges.
This will prevent damage to the product
due to
not expose this apparatus to rain or moisture.
The apparatus shall not be exposed to dripping
filled with liquids,
such as
WARNING:WARNING:WARNING:
supply
dealer or
to your home, consult your appliance
If you are not sure of the type of power
local power company. For products
intended to operate from battery power, or other
source,
3
![](/img.php?id=3193905&img=bg6.png)

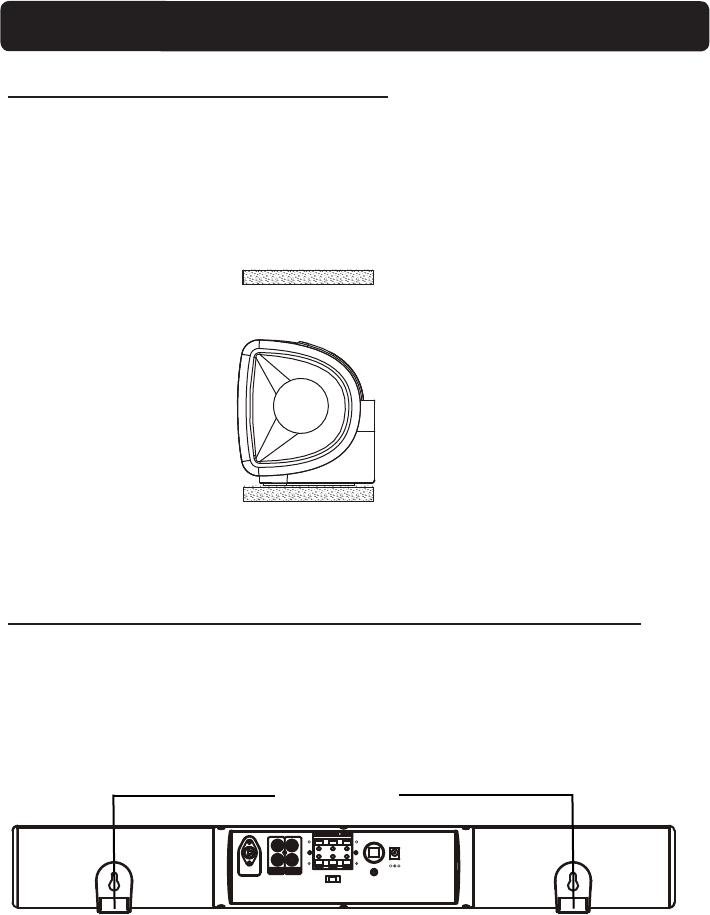

2. Mounting the Sound Bar onto a wall
We recommend having this Sound Bar professionally mounted. By using the included
wall mounting metal brackets, the Sound Bar can be mounted onto a wall.
Distance between two brackets
1. Placing on the table
When placing the Sound Bar on an entertainment center, bookshelf, or any type of
oduce a potential heat hazard.
17.6 inches
PLACING AND MOUNTING
space around the Sound Bar for ventilation.
If the Sound Bar is enclosed in a tight space, without ventilation, heat generated from
the Sound Bar could pr
enclosed space, be sure to allow
ANTE NNA
DC 12V I N
EXT IR
OPTI CAL IN
IN. EX .
DVD
AUDI O IN
TV
AUDI O IN
R R
L L
ZONE B SPEAKERS EXT UBS
R L
SUBW OOF ER
4
![](/img.php?id=3193905&img=bg7.png)

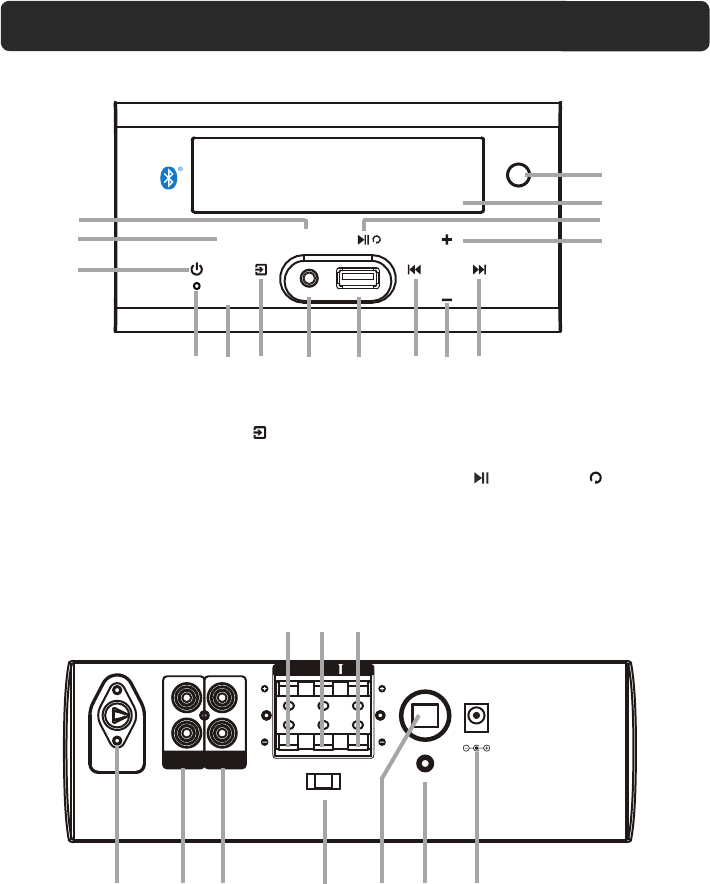

GENERAL VIEW
Front View
Rear View
14. LED Display
15. Remote Sensor
5. ZONE B Button
12. Volume Up
6.TV Audio In Jack
5. DVD Audio In Jack
7. External Subwoofer Switch
3. External Subwoofer Connector 8. Optical In Power Jack
3. POWER Button
11. PREVIOUS/TUNE Down
13. Play/Pause/ Preset/
Memory/Preset Play Button
AU X IN US B
A PAIR
B
AN TEN N A
DC 1 2V IN
EX T IR
OP TIC A L IN
IN . EX.
DV D
AU DI O I N
TV
AU DI O I N
R R
L L
ZONE B SPEAKERS EXT UBS
R L
SU BWO O FER
1
2
3
4 5 6 7 8 9 10
12
13
14
15
11
4. POWER Indicator
2. ZONE A Button
1. PAIR Button
7. AUX IN Jack
8. USB Jack
10. Volume Down
9. NEXT/TUNE Up
6. (SOURCE)Button
123
4 5 6 7 8 9 10
2. ZONE B Left Channel Connector
1. ZONE B Right Channel Connector
4. Pig Tail Antenna 9. Extended Remote Sensor
10. DC IN Jack
5
![](/img.php?id=3193905&img=bg8.png)
8
7
6
5
4
1
2
3
1. POWER button
5. TUN- / /TUN+ button
6. VOL ( Volume )+/- buttons
4. TV Mode Switch button
9. OPTICAL Mode Switch button
OPTICAL
BT USB
FM
TV DVD
VOL- VOL+
AUX IN
PAIR
MUTE
/
/ /
ZONE A
POWER
TUN- TUN+
ZONE B
1
2
3
9
10
11
12
13
14
15
2. Bluetooth Mode Switch button
3. AUX IN Mode Switch button
10. USB Mode Switch button
11. ZONE A button
13. ZONE B button
12. FM Mode Switch button
14. DVD Mode Switch button
8. MUTE button
15. PAIR button
7. ( Play/Pause )/ ( Memory/
Preset /Preset Play )button
REMOTE CONTROL
EXT IR (External Remote Sensor) Jack
on rear panel
If using the external optional remote sensor, insert the plug into the EXT IR Jack as the
arrowhead shown on above picture. This will allow the remote control to work in another
zone if desired.
Optional External Remote Sensor
6
![](/img.php?id=3193905&img=bg9.png)
BATTERY INSTALLATION--- REMOTE CONTROL
Battery Installation
Remote Control Effective Range
control of the unit, the remote control may not operate properly.
When there is an obstacle between the unit and the remote control, the remote control may
not operate properly.
When direct sunlight, an incandescent lamp, fluorescent lamp or any other strong light
shines on the remote
Battery Precaution
1.Slide and lift the battery door (Figure 1).
2.Install 2 (two) AAA size batteries into the battery compartment as indicated by the polarity
markings (Figure 2).
3.Replace the battery door (Figure 3).
7
![](/img.php?id=3193905&img=bga.png)
3. During Playback:
GENERAL OPERATIONS
Follows the order below:
2. The default mode is "BT". Touch the (mode) button repeatedly to switch to desired mode.
5. If the unit is not used for long period of time, please disconnect the power.
~ Press ZONE B button on Remote Control or touch "B" on front panel of the unit to switch ON
or OFF the corresponding ZONE B speakers.
~ Press ZONE A button on Remote Control or touch "A "on front panel of the unit to switch ON
speakers.or OFF the soundbar
~ Press MUTE button on Remote Control to mute the sound on all active zones.
Press again to resume.
BT TV AUX FM OPTICAL USB DVD
The power indicator will light up blue.
~ Press the VOL - /VOL+ button on remote control or touch +/- button on unit to adjust volume
level as desired.
1. Touch the Power button on the unit or press the button on remote control to power on
the unit from standby mode.
4. Touch the Power button on the unit or press the button on remote control to power off
the unit.
8
![](/img.php?id=3193905&img=bgb.png)
FM Antenna
2. Touch the (mode) button repeatedly until "FM" appears on the display.
3. Press and hold the /TUN - or /TUN + buttons and then release,
The antenna wire on the rear of the unit is for radio reception. If reception is weak, unwind and
extend the wire or relocate the wire to improve the radio reception.
LISTEN TO FM RADIO
BLUETOOTH PAIRING AND PLAYBACK
3. Turn on the external BT Device and enter BT searching mode. Start
to the user's manual of your BT Device. )
Notes:
display of the external BT Device, select it and make pairing.
Pairing code "0000" may need to be entered.
pairing as the screen
instructions on the external BT Player.
( For details pairing procedures, please refer
~
~
The unit will start to search next ( or previous ) available FM radio station then plays.
5. Press button on remote control or touch button to play the preset stored station.
location(such as Pxx.), then press
A total of 10 stations can be stored into the unit's memory.
the button to complete station storage.
When the external BT Device searched the unit, will appear on the
/
4. When a station searched, press and hold the button to display the desired storage
"SB26"
10
1. Power ON the unit.
Or press FM button on Remote Control.
1. Power ON the unit.
/
/ /
/TUN - or /TUN + buttons on remote control or
touch the or button to change the storage location, press button on the
/
remote control or touch
2. Touch the (mode) button repeatedly until "BT" appears and blinks on the display.
Or press BT button on Remote Control to switch to BT mode.
~ Press the VOL - /VOL+ button or touch +/- button to adjust volume level as desired.
~ Press the button or touch button to pause or play.
/ /
4. After successful pairing and connection, the "BT" will stop blinking and send a tone.
5. To disconnect the current pairing, touch and hold the PAIR button on unit or press the
PAIR button on remote control.
During playback:
First Time Pairing
NOTE:
After first time pairing, the unit can be automatically connected with the last connected device.
~ Touch the or button on unit or press the /TUN- or /TUN+ button to skip to next
or previous track.
9
![](/img.php?id=3193905&img=bgc.png)
ADDING OPTIONAL SUBWOOFER AND SPEAKER
+
-
There is a SUBWOOFER SELECTOR on the back of the unit to turn on or turn off the
external subwoofer output.
IN(Internal subwoofer)- When the switch is moved to "IN" position, there will be no audio
output from the external subwoofer.
NOTE: Before connecting, disconnect power.
1. Connect one end of subwoofer connection cable ( not supplied ) to the "+" Jack on the rear
of the unit as the figure above.
2. Connect the other end to the "-" Jack on the rear of the unit as the figure above.
3. Slide the selector to "EX" position as figure above.
6. Play the music as usual and set the desired volume.
5. Power ON the unit.
IN . E X.
ZONE B SPEAKERS EXT UBS
R L
SU B WOOFER
+
-
+
-
4. Connect the R(right channel speaker) and L(left channel speaker) as the figure above.
L
R
Subwoofer
During playback, touch A or B on the unit to switch audio between ZONE A and ZONE B.
Or press ZONE A or ZONE B button on remote control.
AB
and will appear on display if ZONE A and ZONE B are activated.
NOTE:
10
![](/img.php?id=3193905&img=bgd.png)
DVD
AUDIO IN
TV
AUDIO IN
R R
L L
NOTE: Before connecting, disconnect power.
White
Red
5. Play the audio or video as usual and set the desired volume.
3. Touch the (mode) button repeatedly until "TV" appears on display.
TV audio is selected and it will play through the unit.
4. Touch the (mode) button repeatedly until "DVD" appears on display.
DVD audio is selected and it will play through the unit.
2. Power ON the unit.
Or press TV button on Remote Control.
Or press DVD button on Remote Control.
NOTE: Before connecting, disconnect power.
CONNECT TO TV/DVD
AUDIO OUT
LR
VIDEO OUT
VIDEO
DVD L
R
Y
White
Red
1. Connect as the figure above.
11
![](/img.php?id=3193905&img=bge.png)
CONNECT USING OPTICAL
3. Power ON the unit.
1. Connect one end of optical connection cable ( not supplied ) to the optical jack on the
rear of the unit as pictured above.
2. Connect the other end to the DVD or TV back panel.
4. Touch the (mode) button repeatedly until the "OPTICAL" appears on display.
NOTE: Before connecting, disconnect power.
DVD or TV
Optical Cable(Not Supplied)
5. Play the music as usual and set the desired volume.
Or press OPTICAL button on Remote Control.
NOTE:
If there is no audio output (only picture) when your TV or DVD player is connected with the
soundbar, please check DVD or TV audio setting, and set the digital output to PCM format.
12
![](/img.php?id=3193905&img=bgf.png)
4. Touch the (mode) button on unit repeatedly until "AUX" appears on display.
1. Connect one end of audio connection cable (not supplied) to the AUX IN jack on the front
2. Connect the other end to the Audio out/Line out/Phone jack on the external player ( such
as iPod, iPhone, iPad, MP3 player, Discman... etc. )
5. Play the music in the external player as usual and set the desired volume.
AUX IN : LISTEN TO EXTERNAL AUDIO DEVICES
of the unit as pictured above.
USB : LISTEN TO EXTERNAL AUDIO DEVICES
4. Play the music in the external player as usual and set the desired volume.
1. Insert the USB as the figure on right.
~ Press button on the Remote Control to play or pause.
~ Press or button on the Remote Control to skip to next or previous track.
NOTE:
The USB port can also be used for charging.
Or press AUX IN button on Remote Control.
3. Power ON the unit.
Or press USB button on Remote Control.
2. Power ON the unit.
NOTE:NOTE:NOTE:
USB
3. Touch the (mode) button on unit repeatedly until
"USB" appears on display.
To the Phones/Aux Out/Line Out
Connect to the 3.5mm Audio Out jack
of external audio devices including Tablets,
Laptops, Smartphones, MP3 Players, etc.
13
![](/img.php?id=3193905&img=bg10.png)
6<03720 3266,%/(&$86( 3266,%/(628/7,21
Reduce the bass level of the connected
device
Touch the (mode) button repeatedly to
set the input source to the desired mode
No power
No sound
Sound distortion
Remote not
working
Bluetooth
reception failure
Have not paired
consumed
The batteries are
The external device is too far
from the unit
Volume level too high
Bass level of the connected
device too high
Input source incorrect
The connected device is not
in playback mode
Volume in minimum position
Power cable not connected
Raise volume level by touching the +
Play the music/movie in the connected
device as usual and make sure the
volume level of it is in high level
Replace with new batteries
Move the external BT device closer to the
unit
Pair both units as stated in this manual
TROUBLESHOOTING GUIDE
~Check power connection
~Check fuse
Check the following guide before requesting serviceCheck the following guide before requesting service
or blown fuse
button on unit or VOL+ button on remote
control
Reduce volume level by touching the -
button on unit or VOL- button on remote
control
14
![](/img.php?id=3193905&img=bg11.png)
z
Max Power Consumption............................................................................................................60W
Radio Coverage ................................................................................................FM 87.5 -108.0 MH
Bluetooth Effective Range.............................................................................................Up to 32 feet
(Measured in open area. Wall and structures may affect the effective range.)
Power Supply Requirement................................................................DC 12 Volts, Negative Ground
Operation Voltage............................................................................................................DC10V-14V
SPECIFICATIONS
Specifications subject to change without notice.
Unit size..........................................................................................646.9(W) X 85.6(H)X 80.7(D)mm
NOTE:
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY
TO OPERATE.
NOTE:
(1) The device may cause harmful interference. and
The device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions.
(2) This device must accept any interference received, including the interference that may
cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
FCC WARNINGS:FCC WARNINGS:
15
Remote Effective Range................................................................................................Up to 15 feet
Device and Accessories Net Weight.............................................................................1.45kg(3.2 lb)
![](/img.php?id=3193905&img=bg12.png)
www.riverparkinc.com
2016 RIVERPARK Inc.
V. 09.16
C
